IBM ^ zSeries 990 and z/OS Reference Guide

August 2004

Table of Contents

z/Architecture page 5

IBM ~ zSeries 990 page 6

z990 Family Models page 10

z990 and z900 Performance Comparison page 12

z990 I/O SubSystem page 13

z990 Channels and I/O Connectivity page 15

Fibre Channel Connectivity page 17

Open Systems Adapter-Express Features

(OSA-Express) page 21

HiperSockets page 26

Cryptography page 28

Availability page 29

Advanced Availability Functions page 31

Parallel Sysplex Cluster Technology page 32

z990 Support for Linux page 46

zSeries 990 Family Conﬁ guration Detail page 50

Physical Characteristics page 53

Coupling Facility - CF Level of Support page 54

z/OS page 56

z/VM page 79

To Learn More page 88

zSeries Overview

Technology has always accelerated the pace of change.

New technologies enable new ways of doing business,

shifting markets, changing customer expectations, and

redeﬁ ning business models. Each major enhancement to

technology presents opportunities. Companies that under-

stand and prepare for changes can gain advantage over

competitors and lead their industries.

Customers of every size, and in every industry are looking

for ways to make their businesses more resilient in the face

of change and uncertainty. They want the ability to react to

rapidly changing market conditions, manage risk, outpace

their competitors with new capabilities and deliver clear

returns on investments.

Welcome to the on demand era, the next phase of

e-business, in which companies move beyond simply

integrating their processes to actually being able to sense

and respond to ﬂ uctuating market conditions and provide

products and services to customers on demand. While the

former notion of on demand as a utility capability is a key

component, on demand companies have much broader

capabilities.

What does an on demand company look like?

• Responsive: It can sense and respond in real time to the changing needs of customers, employees, suppliers and partners

• Variable: It must be capable of employing variable cost structures to do business at high levels of productivity,

cost control, capital efﬁ ciency and ﬁ nancial predictability.

• Focused: It concentrates on its core competencies – areas where it has a differentiating advantage – and draws on the skills of strategic partners to manage needs outside of these competencies.

• Resilient: It can handle the ups and downs of the global market, and manage changes and threats with consistent availability, security and privacy – around the world, around the clock.

To support an on demand business, the IT infrastructure

must evolve to support it. At its heart the data center must

transition to reﬂ ect these needs; the data center must be

responsive to changing demands, it must be variable to

support the diverse environment, it must be ﬂ exible so that

applications can run on the optimal resources at any point

in time, and it must be resilient to support an always open

for business environment.

The on demand era plays to the strengths of the IBM

zSeries®. The IBM ^ zSeries 900

(z900) was launched in 2000 and was the ﬁ rst IBM server

"designed from the ground up for e-business." The latest

member of the family, the IBM ^ zSeries 990 (z990),

brings enriched functions that are required for the on

demand data center.

The "responsive" data center needs to have systems that

are managed to the quality of service goals of the business;

they need systems that can be upgraded transparently

to the user and they must be adaptable to the changing

requirements of the business. With the zSeries you have a

server with high levels of reliability and a balanced design

to ensure high levels of utilization and consistently high

service to the user. The capacity on demand features con-

tinue to evolve, helping to ensure that upgrading the servers

is timely and meets the needs of your business. It’s not

just the capacity of the servers that can be changed on

demand, but also the mix of workload and the allocation of

resources to reﬂ ect the evolving needs and priorities of the

business.

The variable data center needs to be able to respond to

the ever-changing demands that occur when you sup-

port multiple diverse workloads as a single entity. It must

respond to maintain the quality of service required and

the cost of utilizing the resources must reﬂ ect the chang-

environment. The zSeries Intelligent Resource Director

ing

(IRD), which combines three key zSeries technologies,

Workload Manager (WLM), Logical Partitioning and

z/OS

Parallel Sysplex

technology, helps ensure that your most

important workloads get the resources they need and con-

stantly manages the resources according to the changing

priorities of the business. With Workload License Charges

(WLC), as the resources required by different applications,

middleware and operating systems change over time,

the software costs change to reﬂ ect this. In addition, new

virtual Linux servers can be added in just minutes with

zSeries virtualization technology to respond rapidly

to huge increases in user activity.

The ﬂ exible data center must be adaptable to support

change and ease integration. This is achieved through

a combination of open and industry standards along

with the adaptability to direct resources where they are

required. The zSeries, along with other IBM servers, has

been investing in standards for years. Key is the support

™

for Linux, but let’s not forget Java

and XML and industry

standard technologies, such as FCP, Ethernet and SCSI.

Finally the on demand data center must be designed to be

resilient. The zSeries has been renowned for reliability and

availability. The zSeries platform will help protect against

both scheduled and unscheduled outages, and GDPS

enables protection from loss of complete sites.

The New zSeries from IBM – Impressive Investment -

Unprecedented Performance

IBM’s ongoing investment in zSeries technology has pro-

duced a re-invention of the zSeries server — the z990. The

z990 makes the mainframe platform more relevant to cur-

rent business success than ever before. Developed at an

investment in excess of $1 billion, the new z990 introduces

a host of new beneﬁ ts to meet today’s on demand business.

The major difference is the innovative book structure of the

z990. This new packaging of processors, memory and I/O

connections allows you to add incremental capacity to a

zSeries server as you need it. This makes the z990 a ﬂ ex-

ible and cost-effective zSeries server to date.

IBM’s investment in zSeries doesn’t stop here. To solidify

the commitment to zSeries, IBM introduces the “Mainframe

Charter” that provides a framework for future investment

and a statement of IBM’s dedication to deliver ongoing

value to zSeries customers in their transformation to on

demand business.

Tools for Managing e-business

The IBM ^ product line is backed by a compre-

hensive suite of offerings and resources that provide value

at every stage of IT implementation. These tools can help

customers test possible solutions, obtain ﬁ nancing, plan

and implement applications and middleware, manage

capacity and availability, improve performance and obtain

technical support across the entire infrastructure. The

result is an easier way to handle the complexities and

rapid growth of e-business. In addition, IBM Global Ser-

vices experts can help with business and IT consulting,

business transformation and total systems management

services, as well as customized e-business solutions.

z/Architecture

The zSeries is based on the z/Architecture™, which is

designed to reduce bottlenecks associated with the lack

of addressable memory and automatically directs resources

to priority work through Intelligent Resource Director. The

z/Architecture is a 64-bit superset of ESA/390.

z/Architecture is implemented on the z990 to allow full

64-bit real and virtual storage support. A maximum 256

GB of real storage is available on z990 servers. z990 can

deﬁ ne any LPAR as having 31-bit or 64-bit addressability.

z/Architecture has:

• 64-bit general registers.

• New 64-bit integer instructions. Most ESA/390 architecture instructions with 32-bit operands have new 64-bit and 32- to 64-bit analogs.

• 64-bit addressing is supported for both operands and instructions for both real addressing and virtual addressing.

• 64-bit address generation. z/Architecture provides 64-bit virtual addressing in an address space, and 64-bit real addressing.

• 64-bit control registers. z/Architecture control registers can specify regions, segments, or can force virtual addresses to be treated as real addresses.

• The preﬁ x area is expanded from 4K to 8K bytes.

New instructions provide quad-word storage consistency.

•

• The 64-bit I/O architecture allows CCW indirect data addressing to designate data addresses above 2 GB for both format-0 and format-1 CCWs.

• IEEE Floating Point architecture adds twelve new instructions for 64-bit integer conversion.

• The 64-bit SIE architecture allows a z/Architecture server to support both ESA/390 (31-bit) and z/Architecture (64-bit) guests. Zone Relocation is expanded to 64-bit

for LPAR and z/VM

• 64-bit operands and general registers are used for all Cryptographic instructions

• The implementation of 64-bit z/Architecture can help reduce problems associated with lack of addressable memory by making the addressing capability virtually unlimited (16 Exabytes).

z/Architecture Operating System Support

The z/Architecture is a tri-modal architecture capable of

executing in 24-bit, 31-bit, or 64-bit addressing modes.

Operating systems and middleware products have been

modiﬁ ed to exploit the new capabilities of the z/Architecture

Immediate beneﬁ t can be realized by the elimination of the

overhead of Central Storage to Expanded Storage page

movement and the relief provided for those constrained by

the 2 GB real storage limit of ESA/390. Application programs

can run unmodiﬁ ed on the zSeries family of servers.

Expanded Storage (ES) is still supported for operating sys-

tems running in ESA/390 mode (31-bit). For z/Architecture

mode (64-bit), ES is supported by z/VM. ES is not supported

by z/OS in z/Architecture mode.

Although z/OS does not support Expanded Storage when

running under the new architecture, all of the Hiperspace

™

and VIO APIs, as well as the Move Page (MVPG) instruc-

tion, continue to operate in a compatible manner. There is

no need to change products that use Hiperspaces.

Some of the exploiters of z/Architecture for z/OS include:

• DB2 Universal Database™ Server for z/OS

™

• IMS

• Virtual Storage Access Method (VSAM)

• Remote Dual Copy (XRC)

• Tape and DASD access method

IBM

zSeries 990

Operating System ESA/390 z/Arch Compati Exploita (31-bit) (64-bit) bility tion

OS/390® Version 2 Release 10 Yes Yes Yes No

z/OS Version 1 Release 2 No* Yes Yes No

z/OS Version 1 Release 3 No* Yes Yes No

z/OS Version 1 Release 4 No* Yes Yes Yes

z/OS Version 1 Release 5, 6 No Yes Included Included

Linux on S/390

Linux on zSeries No Yes Yes Yes

z/VM Version 3 Release 1 Yes Yes Yes No

z/VM Version 4 Release 3 Yes Yes Yes No

z/VM Version 4 Release 4 Yes Yes Included Yes

z/VM Version 5 Release 1 (3Q04)

VSE/ESA

z/VSE Version 3 Release 1 Yes No Yes Yes

TPF Version 4 Release 1 Yes No Yes No

(ESA mode only)

* Customers with z/OS Bimodal Migration Accommodation Offering may run in 31-bit support per the terms and conditions of the Offering. Bimodal Offering available for z/OS ONLY.

Yes No Yes Yes

No Yes Included Yes

™

Ver. 2 Release 6, 7 Yes No Yes Yes

IBM ^ zSeries is the enterprise class e-business

server optimized for the integration, transactions and data

of the next generation e-business world. In implement-

ing the z/Architecture with new technology solutions, the

zSeries models are designed to facilitate the IT business

transformation and reduce the stress of business-to-busi-

ness and business-to-customer growth pressure. The

zSeries represents an advanced generation of servers

that feature enhanced performance, support for zSeries

Parallel

Sysplex

clustering, improved hardware man-

agement controls and innovative functions to address

e-business processing.

The z990 server

technology

enhances performance by exploiting new

through many design enhancements. With a

new superscalar microprocessor and the CMOS 9S-SOI

technology, the z990 is designed to further extend and

integrate key platform characteristics such as dynamic

ﬂ exible partitioning and resource management in mixed

and unpredictable

ability, high availability

e-business applications such as WebSphere

workload environments, providing scal-

and Quality of Service to emerging

, Java and

Linux.

The z990 has 4 models available as new build systems

and as upgrades from the z900.

The four z990 models are designed with a multi-book

system structure which provides up to 32 Processor Units

(PUs) that can be characterized prior to the shipment of the

machine as either Central Processors (CPs), Integrated

Facility for Linux (IFLs), or Internal Coupling Facilities (ICFs).

The new IBM ^ zSeries Application Assist

Processor (zAAP), planned to be available on the IBM

^ zSeries 990 (z990) and zSeries 890 (z890) serv-

ers, is an attractively priced specialized processing unit

that provides strategic z/OS Java execution environment

for customers who desire the powerful integration advan-

tages and traditional Qualities of Service a of the zSeries

platform.

tures and improve operational efﬁ ciencies. For example,

use of zAAPs to strategically integrate Java Web applica-

tions with backend databases could reduce the number of

TCP/IP programming stacks, ﬁ rewalls, and physical inter-

connections (and their associated processing) that might

otherwise be required when the application servers and

their database servers are deployed on separate physical

server platforms.

When conﬁ gured with general purpose Central Processors

(CPs) within logical partitions running z/OS, zAAPs can

help you to extend the value of your existing zSeries

investments and strategically integrate and run e-business

Java workloads on the same server as your database,

helping to simplify and reduce the infrastructure required

for Web applications while helping to lower your overall

total cost of ownership.

zAAPs are designed to operate asynchronously with the

general purpose CPs to execute Java programming under

control of the IBM Java Virtual Machine (JVM). This can

help reduce the demands and capacity requirements

on general purpose CPs which may then be available

for reallocation to other zSeries workloads. The amount

of general purpose CP savings may vary based on the

amount of Java application code executed by zAAP(s).

And best of all, IBM JVM processing cycles can be

executed on the conﬁ gured zAAPs with no anticipated

modiﬁ cations to the Java application(s). Execution of the

JVM processing cycles on a zAAP is a function of the IBM

Software Developer’s Kit (SDK) for z/OS Java 2 Technology

Edition, z/OS 1.6 (or z/OS.e 1.6) and the innovative

™

Processor Resource/Systems Manager

(PR/SM™).

Notably execution of the Java applications on zAAPs,

within the same z/OS LPAR as their associated database

subsystems, can also help simplify the server infrastruc-

Essentially, zAAPs allow customers to purchase additional

processing power exclusively for z/OS Java application

execution without affecting the total MSU rating or machine

model designation. Conceptually, zAAPs are very similar to

a System Assist Processor (SAP); they cannot execute an

Initial Program Load and only assist the general purpose

CPs for the execution of Java programming. Moreover,

IBM does not impose software charges on zAAP capacity.

Additional IBM software charges will apply when additional

general purpose CP capacity is used.

Customers are encouraged to contact their speciﬁ c ISVs/

USVs directly to determine if their charges will be affected.

With the introduction of the z990, customers can expect to

see the following performance improvements:

Number of CPs Base Ratio

1 z900 2C1 1.54 - 1.61

8 z900 2C8 1.52 - 1.56

16 z900 2C16 1.51 - 1.55

32 z900 2C16 2.46 - 2.98

Note: Greater than 16 CPs requires a minimum of two operating system images

The Large System Performance Reference (LSPR) should

be referenced when considering performance on the z990.

Visit: ibm.com/servers/eserver/zseries/lspr/ for more infor-

mation on LSPR.

To support the new scalability of the z990 a new improve-

ment to the I/O Subsystem has been introduced to “break

the barrier” of 256 channels per Central Electronic Com-

plex (CEC). This provides “horizontal” growth by allowing

the deﬁ nition of up to four Logical Channel SubSystems

each capable of supporting up to 256 channels giving a

total of up to 1024 CHPIDs per CEC. The increased scal-

ability is further supported by the increase in the number

of Logical Partitions available from the current 15 LPARs to

a new 30 LPARs. There is still a 256-channel limit per oper-

ating system image.

These are some of the signiﬁ cant enhancements in the

zSeries 990 server that bring improved performance, avail-

ability and function to the platform. The following sections

highlight the functions and features of the server.

z990 Design and Technology

The z990 is designed to provide balanced system perfor-

mance. From processor storage to the system’s I/O and

network channels, end-to-end bandwidth is provided and

designed to deliver data where and when it is needed.

The z990 provides a signiﬁ cant increase in system scal-

ability and opportunity for server consolidation by pro-

viding four models, from one to four MultiChip Modules

(MCMs), delivering up to a maximum 32-way conﬁ gura-

tion. The MCMs are conﬁ gured in a book package, with

each book comprised of a MultiChip Module (MCM),

memory cards and Self-Timed Interconnects. The MCM,

which measures approximately 93 x 93 millimeters (42%

smaller than the z900), contains the processor unit (PU)

chips, the cache structure chips and the processor stor-

age controller chips. The MCM contains 101 glass ceramic

layers to provide interconnection between the chips and

the off-module environment. In total, there is approximately

0.4 kilometer of internal copper wiring on this module.

This new MCM packaging delivers an MCM 42% smaller

than the z900, with 23% more I/O connections and 133%

I/O density improvement. Each MCM provides support for

12 PUs and 32 MB level 2 cache. Each PU contains 122

million transistors and measures 14.1 mm x 18.9 mm. The

design of the MCM technology on the z990 provides the

ﬂ exibility to conﬁ gure the PUs for different uses; two of

the PUs are reserved for use as System Assist Processors

(SAPs), two are reserved as spares. The remaining inac-

tive 8 PUs on the MCM are available to be characterized

as either CPs, ICF processors for Coupling Facility appli-

cations, IFLs for Linux applications, IBM ^ zSeries

Application Assist Processor (zAAPs) for Java applications

or as optional SAPs, providing the customer with tremen-

dous ﬂ exibility in establishing the best system for running

applications. Each model of the z990 must always be

ordered with at least one CP, IFL or ICF.

The PU, which uses the latest chip technology from IBM

semiconductor laboratories, is built on CMOS 9S-SOI with

copper interconnections. The 14.1 mm x 18.9 mm chip has

a cycle time of 0.83 nanoseconds. Implemented on this

chip is the z/Architecture with its 64-bit capabilities includ-

ing instructions, 64-bit General Purpose Registers and

translation facilities.

Each book can support up to 64 GB of Memory, delivered

on two memory cards, and 12 STIs giving a total of 256 GB

of memory and 48 STIs on the D32 model. The memory is

delivered on 8 GB, 16 GB or 32 GB memory cards which

can be purchased in 8 GB increments. The minimum

memory is 16 GB. The two memory cards associated with

each book must be the same size. Each book has 3 MBAs

and each MBA supports 4 STIs.

All books are interconnected with a super-fast bi-direc-

tional redundant ring structure which allows the system to

be operated and controlled by PR/SM operating in LPAR

mode as a symmetrical, memory coherent, multiproces-

sor. PR/SM provides the ability to conﬁ gure and operate

as many as 30 Logical Partitions which may be assigned

processors, memory and I/O resources from any of the

available books. The z990 supports LPAR mode only (i.e.

basic mode is no longer supported).

The MultiChip Module is the technology cornerstone for

ﬂ exible PU deployment in the z990 models. For most

models, the ability of the MCM to have inactive PUs allows

such features as Capacity Upgrade on Demand (CUoD),

Customer Initiated Upgrades (CIU), and the ability to add

CPs, ICFs, IFLs, and zAAPs dynamically providing nondis-

ruptive upgrade of processing capability. Also, the ability

to add CPs lets a z990 with spare PU capacity become a

backup for other systems in the enterprise; expanding the

z990 system to meet an emergency outage situation. This

is called Capacity BackUp (CBU). The greater capacity of

the z990 offers customers even more ﬂ exibility for using

this feature to backup critical systems in their enterprise.

In order to support the highly scalable multi-book system

design the I/O SubSystem has been enhanced by intro-

ducing a new Logical Channel SubSystem (LCSS) which

provides the capability to install up to 1024 CHPIDs across

three I/O cages (256 per operating system image). I/O

improvements in the Parallel Sysplex Coupling Link archi-

tecture and technology support faster and more efﬁ cient

transmission between the Coupling Facility and production

™

systems. HiperSockets

provides high-speed capability to

communicate among virtual servers and Logical Partitions;

this is based on high-speed TCP/IP memory speed trans-

fers and provides value in allowing applications running

in one partition to communicate with applications running

in another without dependency on an external network.

Industry standard and openness are design objectives for

I/O in z990. The improved I/O subsystem is delivering new

horizons in I/O capability and has eliminated the 256 limit

to I/O attachments for a mainframe.

z990 Family Models

The z990 offers 4 models, the A08, B16, C24 and D32,

which can be conﬁ gured to give customers a highly scal-

able solution to meet the needs of both high transaction

processing applications and the demands of e-business.

The new model structure provides between 1-32 conﬁ gu-

rable Processor Units (PUs) which can be characterized

as either CPs, IFLs, ICFs, or zAAPs. A new easy-to-enable

ability to “turn off” CPs is available on z990 (a similar offer-

ing was available via RPQ on z900). The objective is to

allow customers to purchase capacity for future use with

minimal or no impact on software billing. An MES feature

will enable the CPs for use where the customer requires

the increased capacity. There are a wide range of upgrade

options available which are indicated in the z990 models

chart.

Unlike other zSeries server offerings, it is no longer pos-

sible to tell by the hardware model (A08, B16, C24, D32)

the number of PUs that are being used as CPs. For soft-

ware billing purposes only, there will be a “software” model

associated with the number of PUs that are characterized

as CPs. This number will be reported by the Store System

Information (STSI) instruction for software billing purposes

only. There is no afﬁ nity between the hardware model and

the number of CPs. For example, it is possible to have a

Model B16 which has 5 PUs characterized as CPs, so for

software billing purposes, the STSI instruction would report

305. The more normal conﬁ guration for a 5-way would be

an A08 with 5 PUs characterized as CPs. The STSI instruc-

tion would also report 305 for that conﬁ guration.

z990 Models

*S/W

301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332

Model

Model A08

Model B16

Model C24

* S/W Model refers to number of installed CPs. Reported by STSI instruction. Model 300 does not have any CPs. Note: For MSU values, refer to: ibm.com/servers/eserver/zseries/library/swpriceinfo/

Model D32

z990 and IBM ^ On/Off Capacity on Demand

IBM ^ On/Off Capacity on Demand (On/Off CoD)

is offered with z990 processors to provide a temporary

increase in capacity to meet customer's peak workload

requirements. The scope of On/Off Capacity on Demand

is to allow customers to temporarily turn on unassigned/

unowned PUs available within the current model for use as

CPs or IFLs. Temporary use of CFs, memory and channels

is not supported.

Before customers can order temporary capacity, they must

have a signed agreement for Customer Initiated upgrade

(CIU) facility. In addition to that agreement, they must

agree to speciﬁ c terms and conditions which govern the

use of temporary capacity.

Typically, On/Off Capacity on Demand will be ordered

through CIU, however there will be an RPQ available if no

RSF connection is present.

Although CBU and On/Off Capacity on Demand can both

reside on the server, the activation of On/Off Capacity

on Demand is mutually exclusive with Capacity BackUp

(CBU) and no physical hardware upgrade will be sup-

ported while On/Off Capacity on Demand is active.

This important new function for zSeries gives customers

greater control and ability to add capacity to meet the

requirements of an unpredictable on demand applica-

tion environment. On/Off CoD extends zSeries capacity

on demand offerings to the next level of ﬂ exibility. It is

designed to help customers match cost with capacity

utilization and manage periodic business spikes. On/Off

Capacity on Demand is designed to provide a low-risk way

to deploy pilot applications, and it is designed to enable a

customer to grow capacity rationally and proportionately

with market demand.

and up to 360 ESCON channels. Each book will support

up to 12 STIs for I/O connectivity. Seven STIs are required

to support the 28 channel slots in each I/O cage so in

order to support a fully conﬁ gured three I/O cage system

21 STIs are required. To achieve this maximum I/O con-

nectivity requires at least a B16 model which provides 24

STIs.

The following chart shows the upgrade from z900 to z990.

There are any to any upgrades from any of the z900 gen-

eral purpose models. A z900 Coupling Facility Model 100

must ﬁ rst be upgraded to a z900 general purpose model

before upgrading to a z990. There are no upgrades from

9672 G5/G6 or IBM ^ zSeries 800 (z800).

Model Upgrades

z900 z990

Customers can also take advantage of Capacity Upgrade

on Demand (CUoD), Customer Initiated Upgrade (CIU),

and Capacity BackUp (CBU) which are described later in

the document.

The z990 has also been designed to offer a high perfor-

mance and efﬁ cient I/O structure. All z990 models ship

with two frames the A-Frame and the Z-Frame; this sup-

ports the installation of up to three I/O cages. Each I/O

cage has the capability of plugging up to 28 I/O cards.

When used in conjunction with the software that supports

Logical Channel SubSystems, it is possible to have up to

420 ESCON

mum of 1024 channels across 3 I/O cages. Alternatively,

three I/O cages will support up to 120 FICON

channels in a single I/O cage and a maxi-

™

channels

100

101 - 109 A08

1C1 - 116

2C1 - 216

B16

C24

D32

z990 and z900 Performance Comparison

The performance design of the z/Architecture enables the

entire server to support a new standard of performance for

applications through expanding upon a balanced system

approach. As CMOS technology has been enhanced to

support not only additional processing power, but also

more engines, the entire server is modiﬁ ed to support the

increase in processing power. The I/O subsystem supports

a great amount of bandwidth through internal changes,

thus providing for larger and quicker data movement into

and out of the server. Support of larger amounts of data

within the server required improved management of stor-

age conﬁ gurations made available through integration of

the software operating system and hardware support of

64-bit addressing. The combined balanced system effect

allows for increases in performance across a broad spec-

trum of work. However, due to the increased ﬂ exibility in

the z990 model structure and resource management in

the system, it is expected that there will be larger perfor-

mance variability than has been previously seen by our

traditional customer set. This variability may be observed

in several ways. The range of performance ratings across

the individual LSPR workloads is likely to have a larger

spread than past processors. There will also be more

performance variation of individual LPAR partitions as the

impact of ﬂ uctuating resource requirements of other parti-

tions can be more pronounced with the increased number

of partitions and additional CPs available on the z990. The

customer impact of this increased variability will be seen

as increased deviations of workloads from single-number-

metric based factors such as MIPS, MSUs and CPU time

chargeback algorithms. It is important to realize the z990

has been optimized to run many workloads at high utiliza-

tion rates.

It is also important to notice that the LSPR workloads for

z990 have been updated to reﬂ ect more closely our cus-

tomers’ current and growth workloads. The traditional TSO

LSPR workload is replaced by a new, heavy Java tech-

nology-based online workload referred to as Trade2-EJB

(a stock trading application). The traditional CICS

/DB2®

LSPR online workload has been updated to have a Web-

frontend which then connects to CICS. This updated

workload is referred to as WEB/CICS/DB2 and is repre-

sentative of customers who Web-enable access to their

legacy applications. Continuing in the LSPR for z990 will

be the legacy online workload, IMS, and two legacy batch

workloads CB84 and CBW2. The z990 LSPR will provide

performance ratios for individual workloads as well as a

“default mixed workload” which is used to establish single-

number-metrics such as MIPS, MSUs and SRM constants.

The z990 default mixed workload will be composed of

equal amounts of ﬁ ve workloads, Trade2-EJB, WEB/CICS/

DB2, IMS, CB84 and CBW2. Additionally, the z990 LSPR

will rate all z/Architecture processors running in LPAR

mode and 64-bit mode. The existing z900 processors have

all been re-measured using the new workloads — all run-

ning in LPAR mode and 64-bit mode.

Using the new LSPR ‘default mixed workload’, and with all

processors executing in 64-bit and LPAR mode, the follow-

ing results have been estimated:

• Comparing a one-way z900 Model 2C1 to a z990 model with one CP enabled, it is estimated that the z990 model has 1.52 to 1.58 times the capacity of the 2C1.

• Comparing an 8-way z900 Model 2C8 to a z990 model with eight CPs enabled, it is estimated that the z990 model has 1.48 to 1.55 times the capacity of the 2C8.

z990 I/O SubSystem

• Comparing a 16-way z900 Model 216 to a z990 model with sixteen CPs enabled, it is estimated that the z990 model has 1.45 to 1.53 times the capacity of the 216.

• Comparing a 16-way z900 Model 216 to a z990 model with thirty-two CPs enabled, and the workload executing on the z990 executing in two 16-way LPARs, it is estimated that the z990 model has 2.4 to 2.9 times the capacity of the 216.

Model D32

Model C24

Model B16

Model A08

z900

2C2 2C3 2C4 2C5 2C6 2C7 2C8 2C9 210 211 212 213 214 215 2162C1

Turbo

1C2 1C3 1C4 1C5 1C6 1C7 1C8 1C9 110 111 112 113 114 115 1161C1

z900

Note: Expected performance improvements are based on hardware changes. Additional performance beneﬁ ts may be obtained as the z/Architecture is fully exploited.

The z990 contains an I/O subsystem infrastructure which

uses an I/O cage that provides 28 I/O slots and the abil-

ity to have one to three I/O cages delivering a total of 84

™

I/O slots. ESCON, FICON Express

and OSA-Express

features plug into the z990 I/O cage along with any ISC-

3s, STI-2 and STI-3 distribution cards, and PCICA and

PCIXCC features. All I/O features and their support cards

can be hot-plugged in the I/O cage. Installation of an I/O

cage remains a disruptive MES, so the Plan Ahead feature

remains an important consideration when ordering a z990

system. The A08 model has 12 available STIs and so has

connectivity to a maximum of 12 I/O domains, i.e. 48 I/O

slots, so if more than 48 I/O slots are required a Model B16

is required. Each model ships with one I/O cage as stan-

dard in the A-Frame (the A-Frame also contains the pro-

cessor CEC cage) any additional I/O cages are installed in

the Z-Frame. The z990 provides a 400 percent increase in

I/O bandwidth provided by the STIs.

z990 Cage Layout

3rd

I/O Cage

2nd

I/O Cage

A-FrameZ-Frame

CEC

1st

I/O Cage

z990 Logical Channel SubSystems (LCSSs) and support for

greater than 15 Logical Partitions (LP)

In order to provide the increased channel connectivity

required to support the scalability of the z990, the z990

channel I/O SubSystem delivers a breakthrough in con-

nectivity, by providing up to 4 LCSS per CEC, each of

which can support up to 256 CHPIDs with exploitation soft-

ware installed. This support is provided in such a way that

is transparent to the programs operating in the logical par-

tition. Each Logical Channel SubSystem may have from 1

to 256 CHPIDs and may in turn be conﬁ gured with 1 to 15

logical partitions. Each Logical Partition (LPAR) runs under

a single LCSS. As with previous zSeries servers, Multiple

Image Facility (MIF) channel sharing as well as all other

channel subsystem features are available to each Logical

Partition conﬁ gured to each Logical Channel SubSystem.

Physical Channel IDs (PCHIDs) SubSystem

In order to accommodate the new support for up to 1024

CHPIDs introduced with the Logical Channel SubSystem

(LCSS) a new Physical Channel ID (PCHID) is being intro-

duced. The PCHID represents the physical location of an

I/O feature in the I/O cage. CHPID numbers are no longer

pre-assigned and it is now a customer responsibility to do

this assignment via IOCP/HCD. CHPID assignment is done

by associating a CHPID number with a physical location,

the PCHID. It is important to note that although it is pos-

sible to have LCSSs, there is still a single IOCDS to deﬁ ne

the I/O subsystem. There is a new CHPID mapping tool

available to aid in the mapping of CHPIDs to PCHIDs. The

™

CHPID Mapping tool is available from Resource Link

, at

ibm.com/servers/resourcelink.

Up to 256

LCSS0 LCSS1

CHPIDs

Up tp 30 Logical Partitions

Up to 256

CHPIDs

LCSS2

Up to 256

CHPIDs

LCSS3

Up to 256

CHPIDs

IOCP - IOCDS

Partitions Partitions

LCSS0

CHPIDs CHPIDs

12 52 EF4F 12 2F EF00 02

LCSS1

HCD - HSA or IOCDS - HSA

102 103 104 110 200 201 202 2B0 2C5

Physical Channels (PCHIDs)

Note: Crypto no longer requires a CHPID

z990 Channels and I/O Connectivity

Logical Channel SubSystem (LCSS) Spanning

The concept of spanning channels provides the ability for

a channel to be conﬁ gured to multiple LCSSs and therefore

they may be transparently shared by any/all of the logical

partitions in those LCSSs. Normal Multiple Image Facility

(MIF) sharing of a channel is conﬁ ned to a single LCSS.

The z990 supports the spanning of the channels types: IC,

HiperSockets, FICON Express, OSA-Express. Note: ESCON

architecture helps prevent the spanning of ESCON channels.

IC Channel Spanning

PRD1 PRD2 PRD3 PRD4 LNX1

ICF1

LCSS0 LCSS1

CHPID 22

A z990 with all three I/O cages installed has a total of 84

I/O slots. These slots can be plugged with a mixture of fea-

tures providing the I/O connectivity, networking connectiv-

ity, coupling and cryptographic capability of the server.

Up to 1024 ESCON Channels

The high density ESCON feature has 16 ports, 15 of which

can be activated for customer use. One port is always

reserved as a spare which is activated in the event of a

failure of one of the other ports. For high availability the ini-

tial order of ESCON features will deliver two cards and the

active ports will be distributed across those cards. After

the initial install the ESCON features are installed in incre-

ments of one. ESCON channels are available in four-port

increments and are activated using IBM Licensed Internal

Code, Conﬁ guration Control (LIC CC).

Up to 120 FICON Express Channels

The z990 supports up to 120 FICON Express channels.

FICON Express is available in long wavelength (LX) and

short wavelength (SX) features. Each FICON Express fea-

ture has two independent ports which support two chan-

nels per card. The LX and SX cannot be intermixed on a

single feature. The maximum number of FICON Express

features is 60 which can be installed across three I/O

cages with a maximum of 20 features per I/O cage.

The z990 supports up to 120 FCP channels for attach-

ment to Small Computer System Interface (SCSI) disks in

a Linux environment. The same two-port FICON Express

feature card used for FICON Express channels can also

be used for Fibre Channel Protocol (FCP) channels. FCP

channels are enabled on these existing features via a

License Internal Code (LIC) with a new mode of operation

and new CHPID deﬁ nition. FCP is available in long wave-

length (LX) and short wavelength (SX) features, though

the LX and SX cannot be intermixed on a single feature.

Note, the maximum quantity of FICON Express, OSA-

Express, PCICA, and PCIXCC features in combination

cannot exceed 20 features per I/O cage and 60 features

per server.

InterSystem Channel-3 (ISC-3)

A four feature ISC-3 link is provided on the z990 family

of servers. It consists of a mother card with two daugh-

ter cards which have two links each. Each of the four is

capable of operation at 1 gigabit per second (Gbps) in

Compatibility Mode or 2 Gbps in Peer Mode up to an

unrepeated distance of 10 km (6.2 miles). The mode is

selected for each port via the CHPID type in the IOCDS.

The ports are orderable in one-port increments.

An RPQ card (8P2197) is available to allow ISC-3 dis-

tances up to 20 km. This card runs in Peer Mode at 1

Gbps and/or Compatibility Mode at 1 Gbps.

Integrated Cluster Bus-3 (ICB-3)

The ICB-3 feature is a coupling link used to provide high-

speed communication between a z990 Server and a z900

General Purpose Server or Model 100 Coupling Facility

over a short distance (less than 7 meters). The ICB-3 is

supported via an STI-3 card which resides in the I/O cage

and converts the 2.0 GBps input into two 1 GBps ICB-3s.

Integrated Cluster Bus-4 (ICB-4)

The ICB-4 feature is a coupling link used to provide high-

speed communication between a z990 and/or z890 server

over a short distance (less than 7 meters). The ICB-4 con-

sists of a link that attaches directly to a 2.0 GBps STI port

on the server and does not require connectivity to an I/O

cage.

Internal Coupling Channel (IC)

IC links emulate the coupling links between images within

a single server. IC links are deﬁ ned in the IOCP. There is no

physical channel involved. A z/OS image can connect to a

coupling facility on the same server using IC capabilities.

Integrated Cluster Bus-2 (ICB-2)

The ICB-2 feature is a coupling link used to provide high-

speed communication between a 9672 G5/G6 server and

a z990 server over a short distance (less than 7 meters).

The ICB-2 is supported via an STI-2 card which resides in

the I/O cage and converts the 2.0 GigaBytes per second

(GBps) input into two 333 MegaBytes per second (MBps)

ICB-2s. ICB-2 is not supported between z990 and other

zSeries servers. ICB-2s cannot be used to connect to a

z900 server.

Fibre Channel Connectivity

The on demand operating environment requires fast data

access, continuous data availability, and improved ﬂ ex-

ibility all with lower cost of ownership. The new increased

number of FICON Express features available on the z990

helps distinguish this new server family, further setting it

apart as enterprise class in terms of the number of simulta-

neous I/O connections available for these FICON Express

features.

FICON Express Channel Card Features

Performance

With its 2 Gigabit per second link data rate capability, the

FICON Express channel card feature (feature codes 2319,

2320) is the latest zSeries implementation for the Fibre

Channel Architecture. The FICON Express card has two

links and can achieve improved performance over the

previous generation FICON channel card. For example,

attached to a 100 MBps link (1 Gbps), a single FICON

Express feature conﬁ gured as a native FICON channel

is capable of supporting up to 7,200 I/O operations/sec

(channel is 100% utilized) and an aggregate total through-

put of 120 MBps on z990.

With 2 Gbps links, customers may expect up to 170 MBps

of total throughput. The 2 Gbps link data rates are appli-

cable to native FICON and FCP channels on zSeries only

and for full beneﬁ t, require 2 Gbps capable devices as

well. Customers can leverage this additional bandwidth

capacity to consolidate channels and reduce conﬁ guration

complexity, infrastructure costs, and the number of chan-

nels that must be managed. Please note, no additional

hardware or code is needed in order to obtain 2 Gbps

links. The functionality was incorporated in all zSeries

with March 2002 LIC. The link data rate is auto-negotiated

between server and devices.

Flexibility - Three channel types supported

The FICON Express features support three different chan-

nel types: 1) FCV Mode for FICON Bridge Channels, 2) FC

mode for Native FICON channels (including the FICON

CTC function), and 3) FCP mode for Fibre Channels (FCP

channels). Support for FCP devices means that zSeries

servers will be capable of attaching to select ﬁ bre channel

switches/directors and FCP/SCSI disks and may access

these devices from Linux on zSeries and, new with z/VM

Version 5 Release 1, installation and operation of z/VM on

a SCSI disk.

Distance

All channels deﬁ ned on FICON Express LX channel card

features at 1 Gbps link data rates support a maximum

unrepeated distance of up to 10 km (6.2 miles, or up to

20 km via RPQ, or up to 100 km with repeaters) over nine

micron single mode ﬁ ber and up to 550 meters (1,804

feet) over 50 or 62.5 micron multimode ﬁ ber through Mode

Conditioning Patch (MCP) cables. At 2 Gbps link speeds

FICON Express LX channel card features support up to

10 km (6.2 miles, or up to 12 km via RPQ, or up to 100

km with repeaters) over nine micron single mode ﬁ ber.

At 2 Gbps link speeds, Mode Conditioning Patch (MCP)

cables on 50 or 62.5 micron multimode ﬁ ber are not sup-

ported. The maximum unrepeated distances for 1 Gbps

links deﬁ ned on the FICON Express SX channel cards are

up to 500 meters (1,640 feet) and 250 meters (820 feet)

for 50 and 62.5 micron multimode ﬁ ber, respectively. The

maximum unrepeated distances for 2 Gbps links deﬁ ned

on the FICON Express SX channel cards are up to 300

meters and 120 meters for 50 and 62.5 micron multimode

ﬁ ber, respectively. The FICON Express channel cards are

designed to reduce the data droop effect that made long

distances not viable for ESCON. This distance capability is

becoming increasingly important as enterprises are moving

toward remote I/O, vaulting for disaster recovery and

™

Geographically Dispersed Parallel Sysplex

for availability.

Shared infrastructure

FICON (FC-SB-2 Fibre Channel Single-Byte Command

Code Set-2) has been adopted by INCITS (International

Committee for Information Technology Standards) as a

standard to the Fibre Channel Architecture. Using open

connectivity standards leads to shared I/O ﬁ ber cabling

and switch infrastructures, facilitated data sharing, storage

management and SAN implementation, and integration

between the mainframe and UNIX

/Intel® technologies.

Native FICON Channels

Native FICON channels and devices can help to reduce

bandwidth constraints and channel contention to enable

easier server consolidation, new application growth, large

business intelligence queries and exploitation of e-business.

Currently, the IBM TotalStorage

Enterprise Storage Server®

(ESS) Models F10, F20 and 800 have two host adapters

to support native FICON. These host adapters each have

one port per card and can either be FC 3021 for long

wavelength or FC 3032 for short wavelength on the F10/

F20, or FC 3024 for long wavelength and 3025 for short

wavelength on the 800. All three models can support up

to 16 FICON ports per ESS. The Model 800 is 2 Gb link

capable. The IBM TotalStorage Enterprise Tape Control-

3590 Model A60 provides up to two FICON interfaces

ler

which can coexist with ESCON on the same box. Enter-

prise Tape Controller 3592-J70 provides up to four FICON

interfaces, which can exist with ESCON on the same box.

The 3592-J70 is designed to provide up to 1.5 times the

throughput of the Model A60. Customers can utilize IBM’s

highest capacity, highest performance tape drive to sup-

port their new business models.

Many Fibre Channel directors provide dynamic connectiv-

ity to native FICON control units. The IBM 2032 models

001, 064 and 140 (resell of the McDATA ED-5000, and

Intrepid 6000 Series Directors) are 32-, 64- and 140-port

high availability directors. The IBM 2042 Models 001, 128

and 256 (resell of the CNT FC/9000 Directors) are 64-,

128- and 256-port high availability directors. All have fea-

tures that provide interface support to allow the unit to be

managed by System Automation for OS/390. The McDATA

Intrepid 6000 Series Directors and CNT FC/9000 Directors

support 2 Gbps link data rates as well.

The FICON Express features now support attachment to

the IBM M12 Director (2109-M12). The IBM M12 Director

supports attachment of FICON Express channels on the

z990 via native FICON (FC CHPID type) and Fibre Channel

Protocol (FCP CHPID type) supporting attachment to SCSI

disks in Linux environments.

Wave Division Multiplexor and Optical Ampliﬁ ers that sup-

port 2 Gbps FICON Express links are: Cisco Systems ONS

15530 and 15540 ESP (LX, SX) and optical ampliﬁ er (LX,

SX), Nortel Networks Optera Metro 5100, 5200 and 5300E

and optical ampliﬁ er, ADVA Fiber Service Platform (FSP)

2000 system and the IBM 2029 Fiber Saver.

The raw bandwidth and distance capabilities that native

FICON end-to-end connectivity has to offer makes them of

interest for anyone with a need for high performance, large

data transfers or enhanced multi-site solutions.

FICON Connectivity

FICON Bridge

ESCD

9032

Model 5

2032

FICON Bridge

32, 64 or 140

PORT

ESCON

ESS

F10, F20, 800

Enterprise

Tape

Controller

3590 A60

FICON CTC function

Native FICON channels support channel-to-channel (CTC)

on the z990, z890, z900 and z800. G5 and G6 servers

can connect to a zSeries FICON CTC as well. This FICON

CTC connectivity will increase bandwidth between G5, G6,

z990, z890, z900, and z800 systems.

Because the FICON CTC function is included as part of the

native FICON (FC) mode of operation on zSeries, FICON

CTC is not limited to intersystem connectivity (as is the case

with ESCON), but will also support multiple device deﬁ ni-

tions. For example, ESCON channels that are dedicated as

CTC cannot communicate with any other device, whereas

native FICON (FC) channels are not dedicated to CTC only.

Native can support both device and CTC mode deﬁ nition

concurrently, allowing for greater connectivity ﬂ exibility.

64, 128 or 256

All FICON Channels =

100MB/s

= LX ONLY

= LX or SX

2042

PORT

ESS

F10, F20, 800

Enterprise

Tape

Controller

3590 A60

FICON Support for Cascaded Directors

Native FICON (FC) channels now support cascaded

directors. This support is for a single hop conﬁ guration

only. Two-director cascading requires a single vendor

high integrity fabric. Directors must be from the same

vendor since cascaded architecture implementations can

be unique. This type of cascaded support is important

for disaster recovery and business continuity solutions

because it can help provide high availability, extended

distance connectivity, and (particularly with the implemen-

tation of 2 Gbps Inter Switch Links), has the potential for

ﬁ ber infrastructure cost savings by reducing the number of

channels for interconnecting the 2 sites.

FICON cascaded directors have the added value of high

integrity connectivity. New integrity features introduced

within the FICON Express channel and the FICON cas-

caded switch fabric to aid in the detection and reporting

of any miscabling actions occurring within the fabric can

prevent data from being delivered to the wrong end point.

FICON cascaded directors are offered in conjunction with

IBM, CNT, and McDATA directors.

FCP Channels

zSeries supports FCP channels, switches and FCP/SCSI

disks with full fabric connectivity under Linux on zSeries

and z/VM Version 4 Release 3 and later for Linux as a

guest under z/VM. Support for FCP devices means that

zSeries servers will be capable of attaching to select FCP/

SCSI devices and may access these devices from Linux

on zSeries. This expanded attachability means that enter-

prises have more choices for new storage solutions, or

may have the ability to use existing storage devices, thus

leveraging existing investments and lowering total cost of

ownership for their Linux implementation.

IBM

Two site non-cascaded director

topology. Each CEC connects to

directors in both sites.

With

Inter Switch Links (ISLs),

less fiber cabling may be needed

for cross-site connectivity

Two Site cascaded director

topology. Each CEC connects to

IBM

local directors only.

FICON Bridge Channel

Introduced ﬁ rst on the 9672 G5 processors, the FICON

Bridge (FCV) channel is still an effective way to use FICON

bandwidth with existing ESCON control units. FICON

Express LX channel cards in FCV (FICON Converted)

Mode of operation can attach to the 9032 Model 005

ESCON Director through the use of a director bridge card.

Up to 16 bridge cards are supportable on a single 9032

Model 005 with each card capable of sustaining up to

eight concurrent ESCON data transfers. 9032 Model 005

ESCON Directors can be ﬁ eld upgradeable at no charge

to support the bridge cards, and bridge cards and ESCON

cards can coexist in the same director.

For details of supported FICON and FCP attachments

access Resource Link at ibm.com/servers/resourcelink

and in the Planning section, go to z890/z990 I/O Connec-

tion information.

The support for FCP channels is for Linux on zSeries and

z/VM 4.3 and later for Linux as a guest under z/VM. Linux

may be the native operating system on the zSeries server

(note z990 runs LPAR mode only), or it can be in LPAR

mode or, operating as a guest under z/VM 4.3 or later. The

z990 now provides support for IPL of Linux guest images

from appropriate FCP attached devices.

Now, z/VM V5.1 supports SCSI FCP disks enabling the

deployment of a Linux server farm running under VM con-

ﬁ gured only with SCSI disks. With this support you can

install, IPL, and operate z/VM from SCSI disks.

The 2 Gbps capability on the FICON Express channel

cards means that 2 Gbps link speeds are available for

FCP channels as well.

Open Systems Adapter-Express Features (OSA-Express)

FCP Full fabric connectivity

FCP full fabric support means that any number of (single

vendor) FCP directors/ switches can be placed between

the server and FCP/ SCSI device, thereby allowing many

“hops” through a storage network for I/O connectivity.

This support along with 2 Gbps link capability is being

delivered together with IBM switch vendors IBM, CNT, and

McDATA. FCP full fabric connectivity enables multiple FCP

switches/ directors on a fabric to share links and there-

fore provides improved utilization of inter-site connected

resources and infrastructure. Further savings may be real-

ized in the reduction of the number of ﬁ ber optic cabling

and director ports.

When conﬁ gured as FCP CHPID type, the z990 FICON

Express features support the industry standard interface

for Storage Area Network (SAN) management tools.

FCP

Device

FCP

Device

Fibre Channel

Directors

FCP

Device

FCP

Device

FCP

Device

FCP

Device

FCP

Device

FCP

Device

FCP

Device

FCP

Device

FCP

Device

FCP

Device

With the introduction of the z990, its increased process-

ing capacity, and the availability of Logical Channel

SubSystems, the OSA-Express Adapter family of Local

Area Network (LAN) features is also expanding by offer-

ing a maximum of up to 24 features per server, versus the

maximum of up to 12 features per server on prior genera-

tions. This expands the z990 balanced solution to increase

throughput and responsiveness in an on demand operat-

ing environment. These features combined with z/OS, or

OS/390, z/VM, Linux on zSeries, TPF, and VSE/ESA can

deliver a balanced system solution to increase throughput

and decrease host interrupts to help satisfy your business

goals.

Each of the OSA-Express features offers two ports for con-

nectivity delivered in a single I/O slot, with up to a maxi-

mum of 48 ports (24 features) per z990. Each port uses

a single CHPID and can be separately conﬁ gured. For a

new z990 build, you can choose any combination of OSA-

Express features: the new OSA-Express Gigabit Ethernet

LX or SX, the new OSA-Express 1000BASE-T Ethernet or

OSA-Express Token-Ring. The prior OSA-Express Gigabit

LX and SX, the OSA-Express Fast Ethernet, and the OSA-

Express Token-Ring can be carried forward on an upgrade

from z900.

z990 OSA-Express 1000BASE-T Ethernet

The new OSA-Express 1000BASE-T Ethernet feature

replaces the current Fast Ethernet (10/100 Mbps) feature.

This new feature is capable of operating at 10,100 or 1000

Mbps (1 Gbps) using the same copper cabling infrastructure

as Fast Ethernet making transition to this higher speed Ether-

net feature a straightforward process. It is designed to sup-

port Auto-negotiation, QDIO and non-QDIO environments on

each port, allowing you to make the most of your TCP/IP and

SNA/APPN® and HPR environments at up to gigabit speeds.

OSA-Express Integrated Console Controller

The new Open Systems Adapter-Express Integrated Con-

sole Controller function (OSA-ICC), which is exclusive to

IBM and the IBM z890 and z990 servers since it is based

on the OSA-Express feature, supports the attachment of

non-SNA 3270 terminals for operator console applications.

Now, 3270 emulation for console session connections

is integrated in the zSeries and can help eliminate the

requirement for external console controllers (2074, 3174)

helping to reduce cost and complexity.

When this adapter is operating at gigabit Ethernet speed it

runs full duplex only. It also can support standard (1492 or

1500 byte) and jumbo (8992 byte) frames.

The new Checksum ofﬂ oad support on the 1000BASE-T Eth-

ernet feature when operating in QDIO mode at gigabit speed

is designed to ofﬂ oad z/OS 1.5 and Linux TCP/IP stack pro-

cessing of Checksum packet headers for TCP/IP and UDP

non-QDIO mode SNA Passthru TCP/IP Passthru HPDT MPC

10/100/1000 Mbps Ethernet (copper)

Switch/

Hub/

Router

Server

IP WAN Intranet

DLSw

Router

10/100 Mbps

Ethernet

Server

10/100 Mbps

Ethernet

DLSw Router

Remote Office

4/16 Mbps

Token-Ring

SNA DLSw TCP/IP Native SNA

IP Router

10/100/1000 Mbps

Ethernet (copper)

10/100/1000

Mbps

Ethernet

IP WAN Intranet

10/100 Mbps

Ethernet

Server

QDIO Mode - TCP/IP

IBM ^ pSeries®,

RS/6000

IBM ^ xSeries

Netfinity

Switch/

Hub/

Router

10/100 Mbps

Server

Ethernet

IP Router

Internet or

extranet

Remote Office

4/16 Mbps

Token-Ring

TCP/IP applications TN3270 browser access to SNA applications Enterprise Extender for SNA end points

The OSA-ICC uses one or both ports on an OSA-Express

1000BASE-T Ethernet feature with the appropriate

Licensed Internal Code (LIC). The OSA-ICC is enabled

using CHPID type OSC.

The OSA-ICC supports up to 120 client console sessions

either locally or remotely.

Support for this new function will be available for z/VM

Version 4 Release 4 and later, z/OS Version 1 Release3,

VSE/ESA Version 2 Release 6 onwards and TPF.

Queued Direct Input/Output (QDIO)

The OSA-Express Gigabit Ethernet, 1000BASE-T Ethernet

and Token-Ring features support QDIO (CHPID type OSD),

which is unique to IBM. QDIO was ﬁ rst introduced to the

world on the z900, in Communication Server for OS/390 2.7.

Queued Direct Input/Output (QDIO), a highly efﬁ cient data

transfer architecture, breaks the barriers associated with

the Channel Control Word (CCW) architecture increasing

data rates and reducing CPU cycle consumption. QDIO

allows an OSA-Express feature to directly communicate

with the server’s communications program through the use

of data queues in memory. QDIO helps eliminate the use

of channel program and channel control words (CCWs),

helping to reduce host interrupts and accelerate TCP/IP

packet transmission.

TCP/IP connectivity is increased with the capability to

allow up to a maximum of 160 IP stacks per OSA-Express

port and 480 devices. This support is applicable to all the

OSA-Express features available on the z990 and is pro-

vided through the Licensed Code (LIC).

Full Virtual Local Area Network (VLAN) support is available

on z990 in z/OS V1.5 Communications Server (CS) for the

OSA-Express 1000BASE-T Ethernet, Fast Ethernet and

Gigabit Ethernet features when conﬁ gured in QDIO mode.

Full VLAN is also available with z/OS V1.2 on z900 and

z800 using appropriate LIC upgrade on Fast Ethernet and

Gigabit Ethernet features. Full VLAN support in a Linux on

zSeries environment was delivered for QDIO mode in April

2002 for z800 and z900. z/VM V4.4, and later, also exploits

the VLAN technology offering one global VLAN ID for IPv4.

z/VM V5.1 provides the support for one global VLAN ID for

IPv6.

z990 OSA-Express Gigabit Ethernet

The new z990 OSA-Express Gigabit Ethernet LX and Giga-

bit Ethernet SX features replace the z900 Gigabit Ethernet

features for new build z990. The new OSA-Express GbE

features have a new connector type, LC Duplex, replacing

the current SC Duplex connectors used on the prior z900

Gigabit Ethernet features. The new Checksum ofﬂ oad sup-

port on these z990 features is designed to ofﬂ oad z/OS

V1.5 and Linux on zSeries TCP/IP stack processing of

Checksum packet headers for TCP/IP and UDP.

QDIO Mode - TCP/IP

pSeries, RS/6000

Gigabit Ethernet

Gigabit

Ethernet

Gigabit Ethernet

Switch /

Router

Server

TCP/IP applications TN3270 browser access to SNA appls. Enterprise Extender for SNA end points

(fiber or copper)

10/100 Mbps

Server

IP WAN Intranet

4/16 Mbps

Token-Ring

4/16/100 Mbps

Ethernet

IP Router

Token-Ring

Internet or

Remote Office

10/100 Mbps

Ethernet

Server

xSeries, Netfinity

Server

IP Router

extranet

NON-QDIO operational mode

The OSA-Express 1000BASE-T Ethernet, Fast Ethernet

and Token-Ring also support the non-QDIO mode of

operation (CHPID type OSE). The adapter can only be set

(via the CHPID type parameter) to one mode at a time.

The non-QDIO mode does not provide the beneﬁ ts of

QDIO. However, this support includes native SNA/APPN,

High Performance Routing, TCP/IP passthrough, and

HPDT MPC. The new OSA-Express 1000BASE-T Ethernet

provides support for TCP/IP and SNA/APPN/HPR up to 1

gigabit per second over the copper wiring infrastructure.

z990 OSA-Express Token-Ring

The same OSA-Express Token-Ring feature is supported

on z990 and z900. This Token-Ring supports a range of

speed including 4, 16 and 100 Mbps, and can operate in

both QDIO and non-QDIO modes.

Note: OSA-Express 155 ATM and OSA-2 FDDI are no

longer supported. If ATM or FDDI support are still required,

a multiprotocol switch or router with the appropriate net-

work interface for example, 1000BASE-T Ethernet, GbE LX

or GbE SX can be used to provide connectivity between

the LAN and the ATM network or FDDI LAN.

Server to User connections

A key strength of OSA-Express and associated Commu-

nications Server protocol support is the ability to accom-

modate the customer’s attachment requirements, spanning

combinations of TCP/IP and SNA applications and

devices. Customers can use TCP/IP connections from the

non-QDIO mode SNA Passthru TCP/IP Passthru HPDT MPC

Switch/

Hub/

Router

Server

4/16 Mbps

Token-Ring

Server

DSLw

Router

IP WAN Intranet

10/100 Mbps

Ethernet

4/16 Mbps

Token-Ring

Switch/

Hub/

Router

16/100 Mbps

Token-Ring

Remote Office

4/16 Mbps

Token-Ring

SNA DLSw TCP/IP Native SNA

100 Mbps

Backbone

4/16 Mbps

Token-Ring

Switch/

Hub/

Router

4/16/100 Mbps

Token-Ring

Backbone

IP WAN Intranet

10/100 Mbps

Ethernet

QDIO Mode - TCP/IP

Server

100 Mbps

Token-Ring

4/16 Mbps

Token-Ring

Server

IP Router

Internet or

extranet

Remote Office

4/16 Mbps

Token-Ring

TN3270 browser access to SNA appls. Enterprise Extender for SNA end points TCP/IP applications

remote site to either their TCP/IP or SNA applications on

zSeries and S/390 by conﬁ guring OSA-Express with QDIO

and using either direct TCP/IP access or use appropriate

SNA to IP integration technologies, such as TN3270 Server

and Enterprise Extender for access to SNA applications.

Customers who require the use of native SNA-based con-

nections from the remote site can use a TCP/IP or SNA

transport to the data center and then connect into zSeries

and S/390 using appropriate SNA support on OSA-

Express features conﬁ gured in non-QDIO mode.

LPAR Support of OSA-Express

For z990 customers or customers who use the Processor

Resource/Systems Manager (PR/SM) capabilities IBM

offers the Multiple Image Facility (MIF), allowing the shar-

ing of physical channels by any number of LPARs. Since

a port on an OSA-Express feature operates as a channel,

sharing of an OSA-Express port is done using MIF. The

LPARs are deﬁ ned in the Hardware Conﬁ guration Deﬁ ni-

tion (HCD). Depending upon the feature, and how it is

deﬁ ned, SNA/APPN/HPR and TCP/IP trafﬁ c can ﬂ ow simul-

taneously through any given port.

IPv6 Support

IPv6 requires the use of an OSA-Express adapter running

in QDIO mode and is supported only on OSA-Express

features on zSeries at driver level 3G or above. IPv6 is

supported on OSA-Express for zSeries Fast Ethernet,

1000BASE-T Ethernet and Gigabit Ethernet when running

with Linux on zSeries, z/VM V5.1, and z/OS V1.4 and later.

z/VM V4.4 provided IPv6 support for guest LANs.

more efﬁ cient technique for I/O interruptions designed to reduce path lengths and overhead in both the host operating system and in the adapter. This beneﬁ ts OSAExpress TCP/IP support in both Linux for zSeries and z/VM.

• The z990’s support of virtual machine technology has been enhanced to include a new performance assist for virtualization of adapter interruptions. This new z990 performance assist is available to V=V guests (pageable guests) that support QDIO on z/VM V4.4 and later. The deployment of adapter interruptions improves efﬁ ciency and performance by reducing z/VM Control Program overhead.

Performance enhancements for virtual servers

Two important networking technology advancements are

announced in z/VM V4.4 and Linux on z990:

HiperSockets

HiperSockets, a function unique to the zSeries, provides

a “TCP/IP network in the server” that allows high-speed

any-to-any connectivity among virtual servers (TCP/IP

images) and LPARs within a zSeries system without any

physical cabling. HiperSockets decreases network latency

and increases bandwidth between combinations of Linux,

z/OS and z/VM virtual servers. These OS images can be

ﬁ rst level (directly under an LPAR), or second level images

(virtual servers under z/VM).

With new support for up to 16 HiperSockets the z990 pro-

vides four times more HiperSockets, and up to 4,096 TCP/

IP images (stack) connections, which is also four times

more capacity than the z900. The increased HiperSockets

capacity and expanded connectivity provides additional

ﬂ exibility in designing the networking to accommodate con-

solidated and multiple partitioned systems. HiperSockets

can be divided among Logical Channel SubSystems for

separation between various LPARs, while at the same time

a single LPAR could have access to all 16 HiperSockets

the HiperSockets all are assigned to the same LCSS.

A HiperSockets channel also supports spanned chan-

nels in order to communicate between LPARs connected

to different LCSSs. HiperSockets (IQD CHPID type) can

be conﬁ gured to Channel SubSystems and transparently

shared by any or all conﬁ gured LPARs without regard to

the LCSS to

HiperSockets

which the LPAR is conﬁ gured. This means one

could be common to all 30 z990 LPARs. This

support is exclusive to z990. Different HiperSockets can be

used for security (separation of trafﬁ c, no external wire-tap-

ping, monitoring) and performance and management rea-

sons (separate sysplex trafﬁ c, Linux or non-sysplex LPAR

trafﬁ c).

z/VM

LPAR 1

MIF-1 MIF-2 MIF-F MIF-1 MIF-2 MIF-3 MIF-F

CHPID00CHPID

CHPID

PCHID

010B

010D

010C

HiperSockets CHPID 03

z/OS

LPAR

LCSS0 LCSS1

CHPID

PCHID

020A

HiperSockets CHPID 04

CHPID

SPAN

z/VM

LPAR

CHPID

PCHID

0245

0246

HiperSockets CHPID 05

Linux

LPAR

CHPID

PCHID

0248

LinuxLinux

LPAR

CHPID

PCHID

0249

HiperSockets does not use an external network, therefore,

it can free up system and network resources, reducing

attachment cost while improving availability and perfor-

mance. HiperSockets can have signiﬁ cant value in server

consolidation, for example, by connecting multiple Linux

virtual servers under z/VM to z/OS LPARs within the same

z990. Furthermore, HiperSockets can be utilized by TCP/IP

in place of XCF for sysplex connectivity between images

which exist in the same server. Thus z/OS TCP/IP uses

HiperSockets for connectivity between sysplex images in

the same server and uses XCF for connectivity between

images in different servers. Management and administration

cost reductions over existing conﬁ gurations are possible.

HiperSockets acts like any other TCP/IP network interface,

so TCP/IP features like IP Security (IPSec) in Virtual Private

Networks (VPN) and Secure Sockets Layer (SSL) can be

used to provide heightened security for ﬂ ows within the

same CHPID. HiperSockets supports multiple frame sizes,

which is conﬁ gured on a per HiperSockets CHPID basis.

This support gives the user the ﬂ exibility to optimize and

tune each HiperSockets to the predominant trafﬁ c proﬁ le,

for example to distinguish between “high bandwidth”

workloads such as FTP versus lower bandwidth interactive

workloads.

The HiperSockets function provides many possibilities

improved integration between workloads in different

bound only by the combinations of operating systems and

their respective applications. HiperSockets is intended to

provide the fastest zSeries connection between e-business

and Enterprise Resource Planning (ERP) solutions sharing

information while running on the same server. WebSphere

http and Web Application Servers or Apache http servers

can be running in a Linux image (LPAR or z/VM guest) and

will be able to use HiperSockets for very fast TCP/IP trafﬁ c

transfer to a DB2 database server running in a z/OS LPAR.

System performance is optimized because this allows you

to keep your Web and transaction application environ-

ments in close proximity to your data and helps eliminate

any exposure to network related outages, thus improving

availability.

The z/OS HiperSockets Accelerator function can improve

performance and cost efﬁ ciencies when attaching a high

number of TCP/IP images via HiperSockets to a “front end”

z/OS system for shared access to a set of OSA-Express

adapters.

HiperSockets VLAN support in a Linux environment: Virtual

Local Area Networks (VLANs), IEEE standard 802.1q, is

now being offered for HiperSockets in a Linux for zSeries

environment. VLANs can help reduce overhead by allow-

ing networks to be organized for optimum trafﬁ c ﬂ ow; the

for

LPARs,

network is organized by trafﬁ c patterns rather than physi-

cal location. This enhancement permits trafﬁ c to ﬂ ow on a

VLAN connection between applications over HiperSockets

and between applications on HiperSockets connecting to

an OSA-Express Gigabit Ethernet, 1000BASE-T Ethernet,

or Fast Ethernet feature.

HiperSockets broadcast support for IPv4 packets – Linux,

z/OS, z/VM: Internet Protocol Version 4 (IPv4) broadcast

packets are now supported over HiperSockets internal

LANs. TCP/IP applications that support IPv4 broadcast,

such as z/OS OMPROUTE when running Routing Information

Protocol Version 1 (RIPv1), can send and receive broadcast

packets over HiperSockets interfaces. This support is exclu-

sive to z990. Broadcast for IPv4 packets is supported by

Linux for zSeries. Support is planned to be available in z/OS

1.5. Support is also offered in z/VM V4.4 and later.

HiperSockets Network Concentrator

HiperSockets Network Concentrator support, exclusive to

z890 and z990 can simplify network addressing between

HiperSockets and OSA-Express. You can now integrate

HiperSockets-connected operating systems into external

networks, without requiring intervening network routing

overhead, thus helping to increase performance and sim-

plify conﬁ guration. With HiperSockets Network Concentra-

tor support, you can conﬁ gure a special purpose Linux

operating system instance, which can transparently bridge

trafﬁ c between a HiperSockets internal Local Area Network

(LAN) and an external OSA-Express network attachment,

similar to a real Layer 2 switch which bridges between dif-

ferent network segments. This support can

nal HiperSockets network address connection

were directly connected to the external network.

make the inter-

appear as if it

Cryptography

In the on demand era security will be a strong requirement.

The zSeries products will continue to address security with

announcements and deliveries of products and features.

The main focus in cryptography will continue to be very

high and scalable performance for SSL algorithms, and

secondly, to provide security-rich, symmetric performance

for ﬁ nancial and banking applications using PIN/POS type

encryption. As in the past zSeries will be designed to

deliver seamless integration of the cryptography facilities

through use of ICSF. Use of ICSF will that enable applica-

tions to work without change regardless of how and where

the cryptographic functions are implemented, and also

enable the cryptography work to be load balanced across

the hardware resources. Finally we will be focused on

required certiﬁ cations and open standards.

The existing PCI Cryptographic Accelerator (PCICA) con-

tinues to be available on the z990 – for SSL acceleration/

clear key operations. To support the increased number of

LPARs available on z990 the conﬁ guration options for the

PCICA – introduced with the z900 – will be extended to

allow sharing of a PCICA over the whole range of LPARs

with a max of 16 LPARs sharing one PCICA adapter.

In addition to the PCICA, the PCIX Cryptographic Copro-

cessor (PCIXCC) was introduced as a functional replace-

ment for the CMOS Cryptographic Coprocessor and the

PCI Cryptographic Coprocessor. The PCIXCC design

introduces a breakthrough concept which supports high

security demanding applications requiring a FIPS 140-

2 level 4 certiﬁ ed crypto module, also as an execution

environment for customer written programs and a high

performance path for Public Key / SSL operations. The

PCIXCC design supports almost all of the past Crypto-

graphic functions which were provided on the zSeries 900

via the CMOS Cryptographic Coprocessor (CCF) and the

PCI Cryptographic Coprocessor (PCICC). At the system

Software level the SSL related operations will be directed

to the PCICA adapter and the Secure Crypto operations to

the PCIXCC adapter.

The zSeries cryptography is further advanced with the

introduction of the CP Assist for Cryptographic Function

(CPACF) which is designed to deliver cryptographic sup-

port on every Central Processor (CP). With enhanced

scalability and data rates the z990 processor is designed

to provide a set of symmetric cryptographic functions,

synchronously executed, which enormously enhance the

performance of the en/decrypt function of SSL, VPN and

data storing applications which do not require FIPS 140-

2 level 4 security. The on-processor crypto functions run

at z990 processor speed, an order of magnitude faster

than the CMOS Crypto Coprocessor in the zSeries 900.

As these crypto functions are implemented in each and

every CP the afﬁ nity problem of pre-z990 systems (which

had only two CMOS Crypto Coprocessors) is virtually

eliminated. The Crypto Assist Architecture includes DES

and T-DES data en/decryption, MAC message authentica-

tion and SHA-1 secure hashing; all of these functions are

directly available to application programs (zSeries Archi-

tecture instructions) and so will help reduce programming

overhead. To conform with US Export and Import Regula-

tions of other countries a SE panel is provided for proper

enable/disable of ‘strong’ cryptographic functions.

The Trusted Key Entry (TKE) 4.1 code level workstation

is an optional feature that can provide a basic key man-

agement system and Operational Key Entry support. The

key management system allows an authorized person

Availability

a method for key identiﬁ cation, exchange, separation,

update, backup, and management. The TKE worksta-

tion and 4.0 code level are designed to provide a secure,

remote, and ﬂ exible method of providing Master Key Entry

and to remotely manage PCIX Cryptographic Coprocessors.

zSeries Security Certiﬁ cation

Cryptography

• z890/z990 PCIXCC:

– Designed for FIPS 140-2 level 4 certiﬁ cation

• Logical Partitions

– z900 and z800 servers are the ﬁ rst and only to receive

Common Criteria EAL5 certiﬁ cation

• Operating Systems Common Criteria Certiﬁ cation

– SUSE LINUX on zSeries

– SUSE SLES 8 has been certiﬁ ed for Controlled

Access Protection Proﬁ le (CAPP) EAL3+

• z/OS 1.6

– z/OS 1.6 is under evaluation for Controlled Access

Protection Proﬁ le (CAPP) EAL3+ and Labeled Security

Protection Proﬁ le (LSPP) EAL3+.

• z/VM

– z/VM has applied for Common Criteria (ISO/IEC

15408) certiﬁ cation of z/VM V5.1 with the RACF

for

z/VM optional feature against the Controlled Access

Protection Proﬁ le (CAPP) and the Labeled Security

Protection Proﬁ le (LSPP), both at the EAL3+ assur-

ance level.

z990 Capacity Upgrade on Demand (CUoD)

Capacity Upgrade on Demand allows for the nondisruptive

addition of one or more Central Processors (CPs), Inter-

nal Coupling Facilities (ICFs), Integrated Facility for Linux

(IFLs), and IBM ^ zSeries Application Assist Pro-

cessor (zAAP). Capacity Upgrade on Demand can quickly

add processors up to the maximum number of available

inactive engines. This provides customers with the capac-

ity for much needed dynamic growth in an unpredictable

e-business world. The Capacity Upgrade on Demand

functions, combined with Parallel Sysplex technology, can

enable virtually unlimited capacity upgrade capability.

The CUoD functions are:

• Nondisruptive CP, ICF, IFL, and zAAP upgrades within minutes

• Dynamic upgrade of all I/O cards in the I/O Cage

• Dynamic upgrade of spare installed memory

Plan Ahead and Concurrent Conditioning

Concurrent Conditioning conﬁ gures a system for hot

plugging of I/O based on a future speciﬁ ed target con-

ﬁ guration. Concurrent Conditioning of the zSeries I/O is

minimized by the fact that all I/O cards plugging into the

zSeries I/O cage are hot pluggable. This means that the

only I/O to be conditioned is the I/O cage itself. The ques-

tion of whether or not to concurrently condition a cage is

a very important consideration, especially with the rapid

change in the IT environment (e-business) as well as the

technology. Migration to FICON Express or additional

OSA-Express networking is exceptionally easy and non-

disruptive with the appropriate microcode load and if the

cage space is available.

The z990 supports concurrent memory upgrade. This capa-

bility will allow a processor’s memory to be increased with-

out disrupting the processor operation. To take advantage

of this capability, a customer should not plan processor

storage on the 16 or 32 GB increments. A customer with a

Model A08, for example, with 24 GB of storage will be able

to concurrently upgrade to 32 GB but will not be able to get

to the next increment of 40 GB without a disruption.

Plan Ahead for PUs is done by ordering a “more book”

model. For example, if a customer needs 5 PUs initially,

but plans to grow to need 10 PUs, he should not order an

A08, but a Model B16 with only 5 PUs initially active.

The Plan Ahead process can easily identify the customer

conﬁ guration that is required to meet future needs. The

result of concurrent conditioning is a ﬂ exible IT infrastruc-

ture that can accommodate unpredictable growth in a low

risk, nondisruptive way. Depending on the required Con-

current Conditioning, there should be minimal cost associ-

ated with dormant z990 capacity. This creates an attractive

option for businesses to quickly respond to changing

environments, bringing new applications online or growing

existing applications without disrupting users.

z990 Server Capacity BackUp (CBU)

Capacity BackUp (CBU) is offered with the z990 servers

to provide reserved emergency backup CPU capacity for

situations where customers have lost capacity in another

part of their establishment and want to recover by adding

reserved capacity on a designated z990 server. A CBU

system normally operates with a “base” CP conﬁ guration

and with a preconﬁ gured number of additional Processor

Units (PUs) reserved for activation in case of an emergency.

The z990 technology is suited for providing capacity

backup. The reserved CBU processing units are on the

same technology building block, the MCM, as the regular

CPs. Therefore, a single server can support two diverse

conﬁ gurations with the same MCM. For CBU purposes, the

Models A08, B16, C24 & D32 can scale from a 1-way to a

32-way; with the purpose of providing capacity backup.

The “base” CBU conﬁ guration must have sufﬁ cient

memory and channels to accommodate the potential

needs of the larger CBU target machine. When capacity is

needed in an emergency, the primary operation performed

is activating the emergency CBU conﬁ guration with the

reserved PUs added into the conﬁ guration as CPs.

Customers who have an active Remote Support Facility

connection can perform a CBU upgrade automatically and

within a matter of minutes, right from their CBU machine’s

Hardware Management Console (HMC). For more informa-

tion on how a CBU upgrade can be activated automati-

cally, please refer to the z990 Capacity BackUp Users'

Guide found on IBM Resource Link.

The z990 supports concurrent CBU downgrade. This func-

tion enables a Capacity BackUp server to be returned to

its normal conﬁ guration without an outage (i.e. PowerOn

Reset).

Automatic Enablement of CBU for Geographically

Dispersed Parallel Sysplex (GDPS)

The intent of GDPS support for CBU is to enable auto-

matic management of the reserved PUs provided by the

CBU feature in the event of a processor failure and/or a

site failure. Upon detection of a processor failure or site

failure, GDPS will activate CBU to dynamically add PUs to

Advanced Availability Functions

the processors in the takeover site to acquire processing

power required to restart mission-critical production work-

loads. GDPS-CBU management helps to minimize manual

customer intervention and the potential for errors, which

can help reduce the outage time for critical workloads from

hours to minutes. Similarly, GDPS-CBU management can

also automate the process of dynamically returning the

reserved CPs when the temporary period has expired.

z990 Server Customer Initiated Upgrade (CIU)

Customer Initiated Upgrade (CIU) is the capability to initi-

ate a processor and/or memory upgrade when spare PUs/

installed unused memory are available via the Web using

IBM Resource Link. Customers will be able to download

and apply the upgrade using functions on the Hardware

Management Console via the Remote Support Facility.

This unique and important function for zSeries gives the

customer greater control and ability in adding capacity to

the system to meet resource requirements for unpredict-

able e-business workloads and for applications which

are difﬁ cult to size. CIU is a low-risk, well tested-and-tried

function.

Transparent Sparing

z990 offers a 12 PU MCM with 2 PUs reserved as spares.

In the case of processor failure, these spares are used for

transparent sparing.

Enhanced Dynamic Memory Sparing

The z900 has enhanced this robust recovery design with

16 times more chips available for sparing. This will virtually

eliminate the need to replace a memory card due to DRAM

failure.

Enhanced Storage Protect Keys: z990 has enhanced the

memory storage protect key design by adding a third key

array to each memory card. The arrays are parity checked

and employ a Triple Voting strategy to assure accuracy.

This will reduce the need for memory card replacement

due to key array failure.

ESCON Port Sparing: The ESCON 16-port I/O card is

delivered with one unused port dedicated for sparing in

the event of a port failure on that card. Other unused ports

are available for nondisruptive growth of ESCON channels.

Concurrent Maintenance

• Concurrent Service for I/O Cards: All the cards which plug into the new I/O Cage are able to be added and replaced concurrent with system operation. This virtually eliminates any need to schedule outage to service or upgrade the I/O subsystem on this cage.

• Upgrade for Coupling Links: z990 has concurrent maintenance for the ISC-3 adapter card. Also, Coupling Links can be added concurrently. This eliminates a need for scheduled downtime in the demanding sysplex environment.

Parallel Sysplex Cluster Technology

• Cryptographic Cards: The PCIXCC and PCICA cards plug in the I/O cage and can be added or replaced concurrently with system operation.

• Redundant Cage Controllers: The Power and Service Control Network features redundant Cage Controllers for Logic and Power control. This design enables nondisruptive service to the controllers and virtually eliminates customer scheduled outage.

• Auto-Switchover for Service Element: The z990 has two Service Elements. In the event of failure on the Primary SE, the switchover to the backup is handled automatically. There is no need for any intervention by the customer or Service Representative.

Concurrent Capacity Backup Downgrade (CBU Undo)

This function allows the customer to downgrade the disas-

ter backup machine to its normal conﬁ guration without

requiring the PowerOn Reset (POR).

Concurrent Memory Upgrade

This function allows adding memory concurrently, up to the

maximum amount physically installed.

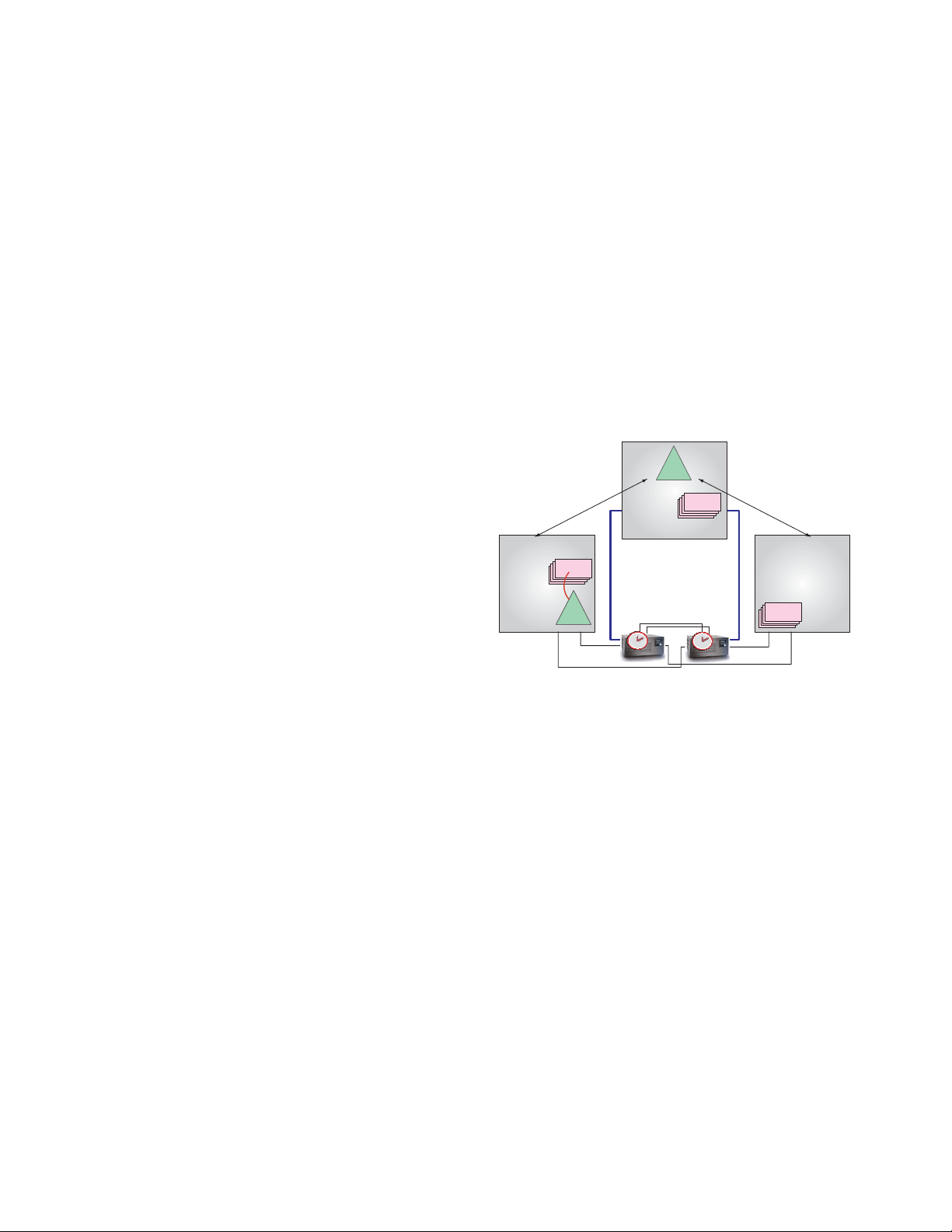

Parallel Sysplex clustering was designed to bring the

power of parallel processing to business-critical zSeries

and S/390 applications. A Parallel Sysplex cluster consists

of up to 32 z/OS and/or OS/390 images coupled to one or

more Coupling Facilities (CFs or ICFs) using high-speed

specialized links for communication. The Coupling Facili-

ties, at the heart of the Parallel Sysplex cluster, enable

high speed, read/write data sharing and resource sharing

among all the z/OS and OS/390 images in a cluster. All

images are also connected to a Sysplex Timer

to address

time synchronization.

Parallel Sysplex Resource Sharing enables multiple system

resources to be managed as a single logical resource

shared among all of the images. Some examples of

resource sharing include Automatic Tape Switching (ATS

star), GRS “star,” and Enhanced Catalog Sharing; all of

which provide simpliﬁ ed systems management, increased

performance and/or scalability. For more detail, please see

S/390 Value of Resource Sharing

white paper – GF22-5115

on the Parallel Sysplex home page at ibm.com/servers/

eserver/zseries/pso.

Although there is a signiﬁ cant value in a single footprint

and multi-footprint environment with resource sharing,

those customers looking for high availability must move

on to a database data sharing conﬁ guration. With the

Parallel Sysplex environment, combined with the Workload

Manager and CICS TS or IMS TM, incoming work can be

dynamically routed to the z/OS or the OS/390 image most

capable of handling the work. This dynamic workload

balancing, along with the capability to have read/write

access data from anywhere in the Parallel Sysplex cluster,

provides the scalability and availability that businesses

demand today. When conﬁ gured properly, a Parallel

Sysplex cluster has no single point of failure and can

provide customers with near continuous application avail-

ability over planned and unplanned outages. For detailed

information on IBM’s Parallel Sysplex technology, visit our

Parallel Sysplex home page at ibm.com/servers/eserver/

zseries/pso.

Coupling Facility Conﬁ guration Alternatives

IBM offers different options for conﬁ guring a functioning

Coupling Facility:

• Standalone Coupling Facility: z900 Model 100, z800 Model 0CF and 9672-R06 models provide a physically isolated, totally independent CF environment. There is no unique standalone coupling facility model offered with the z990. Customers can achieve the same physically isolated environment as on prior mainframe families by ordering a z990 with PUs characterized as ICFs. There are no software charges associated with such conﬁ guration. An ICF or CF partition sharing a server with any operating system images not in the sysplex acts like a logical standalone CF.

• Internal Coupling Facility (ICF): Customers considering clustering technology can get started with Parallel Sysplex technology at a lower cost by using an ICF instead of purchasing a standalone Coupling Facility. An ICF feature is a processor that can only run Coupling Facility Control Code (CFCC) in a partition. Since CF LPARs on ICFs are restricted to running only CFCC, there are no IBM software charges associated with ICFs. ICFs are ideal for Intelligent Resource Director and resource sharing environments as well as for data sharing environments where System Managed CF Structure Duplexing is exploited.

• Coupling Facility partition on a z990, z900, z800 or 9672 server using standard LPAR: A CF can be conﬁ gured to run in either a dedicated or shared CP partition. IBM software charges apply. This may be a good alternative for test conﬁ gurations that require very little CF processing resource or for providing hot-standby CF backup

using the Dynamic Coupling Facility Dispatching function.

A Coupling Facility can be conﬁ gured to take advantage of

a combination of different Parallel Sysplex capabilities:

• Dynamic CF Dispatch: Prior to the availability of the Dynamic CF Dispatch algorithm, shared CF partitions could only use the “active wait” algorithm. With active wait, a CF partition uses all of its allotted time-slice, whether it has any requests to service or not. The optional Dynamic CF Dispatch algorithm puts a CF partition to “sleep” when there are no requests to service and the longer there are no requests, the longer the partition sleeps. Although less responsive than the active wait algorithm, Dynamic CF Dispatch will conserve CP or ICF resources when a CF partition has no work to process and will make the resources available to other partitions sharing the resource. Dynamic CF Dispatch can be used for test CFs and also for creating a hot-standby partition to back up an active CF.

• Dynamic ICF Expansion: Dynamic ICF expansion provides value by providing extra CF capacity when there are unexpected peaks in the workload or in case of loss of CF capacity in the cluster.

– ICF Expansion into shared CPs. A CF partition running

with dedicated ICFs needing processing capacity

beyond what is available with the dedicated CP ICFs,

can “grow” into the shared pool of application CPs

being used to execute S/390 applications on the same

server.

– ICF Expansion into shared ICFs. A CF partition run-

ning with dedicated ICFs can “grow” into the shared

pool of ICFs in case the dedicated ICF capacity is not

sufﬁ cient. The resulting partition, an “L-shaped” LPAR,

will be composed of both shared ICF and dedicated

ICF processors, enabling more efﬁ cient utilization of

ICF resources across the various CF LPARs.

System-Managed CF Structure Duplexing

System-Managed Coupling Facility (CF) Structure Duplex-

ing provides a general purpose, hardware-assisted, easy-

to-exploit mechanism for duplexing CF structure data. This

provides a robust recovery mechanism for failures such as

loss of a single structure or CF or loss of connectivity to a

single CF, through rapid failover to the backup instance of

the duplexed structure pair.

Beneﬁ ts of System-Managed CF Structure Duplexing

include:

• Availability

Faster recovery of structures by having the data already

there in the second CF, dramatically reducing the time and processing required for structure rebuilds. SystemManaged Duplexing also provides basic recovery for many struct

data for

ures that have no simple means to recover

failed structures, failed CFs, and losses of CF

connectivity.

• Manageability and Usability

A consistent procedure for duplexing does not “set

up” structures and manage structures across multiple exploiters.

• Reliability

A common framework provides less effort on behalf

of the exploiters, resulting in more reliable subsystem code.

• Cost Beneﬁ ts

Facilitates the use of non-standalone CFs (e.g. ICFs) for

data sharing environments in addition to resource sharing environments.

• Flexibility

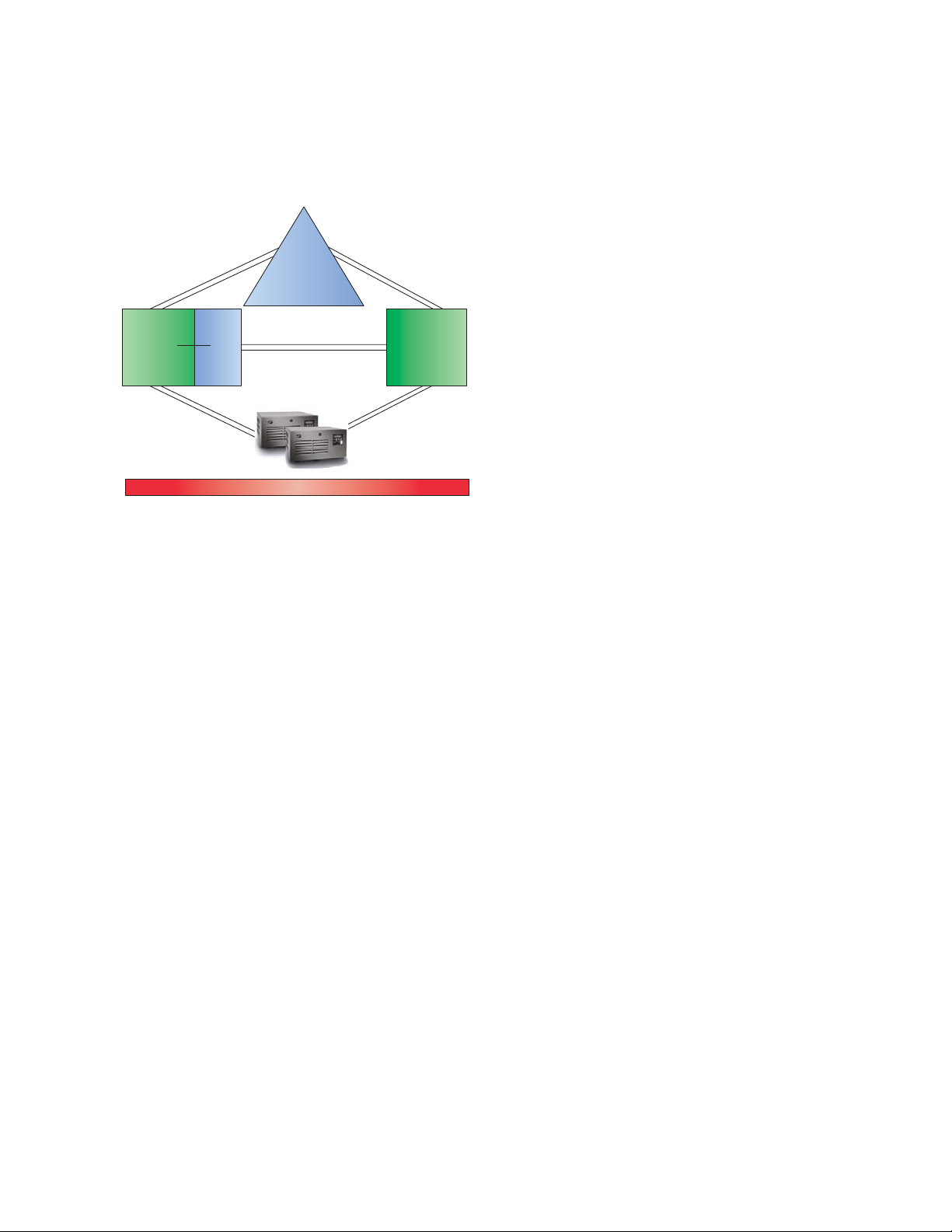

The diagram below represents creation of a duplexed

copy of the structure within a System-Managed CF Duplexing Conﬁ guration.

ICF z/OSz/OS ICF

z800/z900/z990/G5/G6

A robust failure recovery capability

Note: An example of two systems in a Parallel Sysplex with CF Duplexing

z800/z900/z990/G5/G6

Customers who are interested in testing and/or deploy-

ing System-Managed CF Structure Duplexing in their

sysplex should review GM13-0103,

Structure Duplexing

ibm.com/server/eserver/zseries/library/techpapers/

pso or

gm130103.html to understand the performance and other

considerations of using this feature.

Parallel Sysplex Coupling Connectivity

The Coupling Facilities communicate with z/OS and

OS/390 images in the Parallel Sysplex environment over

specialized high-speed links. For availability purposes, it

is recommended that there be at least two links connect-

ing each z/OS or OS/390 image to each CF in a Parallel

Sysplex cluster. As processor performance increases, it is

important to also use faster links so that link performance

does not become constrained. The performance, avail-

ability and distance requirements of a Parallel Sysplex

environment are the key factors that will identify the appro-

priate connectivity option for a given conﬁ guration.

Parallel Sysplex coupling links on the zSeries have been

enhanced with the introduction of Peer Mode. When con-

necting a zSeries server (z990/z900/z800) to a z800 Model

0CF, a z900 Model 100 or a zSeries ICF, the links can be

conﬁ gured to operate in Peer Mode. This allows for higher

data transfer rates to and from the Coupling Facilities. In

Peer Mode, the ﬁ ber-optic single mode coupling link (ISC-

3) provides 200 Gbps capacity, up to 10 km, 100 Gbps

up to 20 km, the ICB-3 link with 1 GBps peak capacity, the

ICB-4 for z990 to z990 connection at 2.0 GBps, and the

IC-3 link with 1.25 GBps capacity. Additional Peer Mode

beneﬁ ts are obtained by enabling the link to be MIFed

at ibm.com/server/eserver/zseries/

System-Managed CF

between z/OS (or OS/390) and CF LPARs. The peer link

acts simultaneously as both a CF Sender and CF Receiver

link, reducing the number of links required. Larger and

more data buffers and improved protocols also improve

long distance performance. For connectivity to 9672s,

zSeries ISC-3 CF links can be conﬁ gured to run in Com-

patibility Mode with the same characteristics as links on

the 9672 of 100 Gbps. The z900 and z990 also support

ICB-2 links for connectivity to 9672s. The ICB coupling link

speeds described above are theoretical maximums.

GDPS/PPRC Cross Site Parallel Sysplex distance Extended to

100 km

When using a Dense Wave Division Multiplexor (DWDM),

it will be possible via an RPQ to conﬁ gure GDPS/PPRC or

a multi-site Parallel Sysplex with up to 100 km between

the two sites. The immediate advantage of this extended

distance is to potentially decrease the risk that the same

disaster will effect both sites, thus providing the ability

for customers to recover their production applications at

another site. Support for the External Timer Reference

(ETR) links and the Inter System Channel (ISC-3) links

has been increased from the current capability of 50 km

to an extended capability of up to 100 km. The extended

distance support for ETR and ISC-3 links is now consis-

tent with other cross site technologies that already sup-

port 100 km, such as FICON, Peer-to-Peer Remote Copy

(PPRC), and Peer-to-Peer Virtual Tape Server (PtP VTS).

It should be noted that the maximum distance between a

pair of 9037 Sysplex Timers in an Expanded Availability

conﬁ guration remains at 40 km. Therefore, to achieve the

extended distance of 100 km between the two sites, one of

the options to be considered is locating one of the Sysplex

Timers in an intermediary site that is less than 40 km

from one of the two sites (as can be seen in the diagram

below). Other potential options can be evaluated when the

RPQ is ordered.

D W D M

1 ETR link

per CPC

up to

100 km

9037

CLO

ETR

Route A

Route B

ETR

hut with

amplifiers

1ETR link per

CPC

D W D M

ETR

Site 1 Site 2

40 km max 40 km nom

2 CLO

links

D W D

1ETR

link per

CPC

D W D M

ETR

9037

ETR

CLO

ETR

CPC CPC

Note: Midspan 9037 can also be located within 40 km of site 2 or on Route B.

All ETR and CLO links are provisioned as 1 channel per wavelength.

z990 Theoretical Maximum Coupling Link Speed

Connectivity

Options

G5/G6 ISC

z800/z900 ISC-3

z890/z990 ISC-3

G5/G6 ICB n/a

z900 ICB-2 n/a Not Supported n/a n/a

z990 ICB-2 n/a Not Supported n/a n/a

z800/z900 ICB-3 n/a n/a

z890/z990 ICB-3 n/a n/a

z890/z990 ICB-4 n/a n/a n/a

z990 ISC-3 z990 ICB-2 z990 ICB-3 z990 ICB-4

1 Gbps

Compatibility

2 Gbps

Peer Mode

2 Gbps

Peer Mode

n/a n/a n/a

333 MBps

Compatibility

n/a n/a

1 GBps

Peer Mode

1 GBps Peer Mode

Recommendation

use ICB-4s

n/a

2 GBps

Peer Mode

• ISC-3. InterSystem Channel-3 provides the connectivity required for resource or data sharing between the

pling Facility and the systems directly attached to it.

Cou-

ISC-3s are point-to-point connections that require a

unique channel deﬁ nition at each end of the channel. ISC-3 channels operating in Peer Mode provide connection between zSeries (z800/z900/z990) general purpose models and zSeries Coupling Facilities. ISC-3 channels operating in Compatibility Mode provide connection between zSeries and HiPerLink (ISC-2) channels on 9672 G5 and G6 and the 9674 R06 Models. A four port ISC-3 card structure is provided on the z990 processors. It consists of a mother card with two daughter cards which have 2 ports each. Each daughter card is capable of operation at 1 Gbps in Compatibility Mode or 2 Gbps in Peer Mode up to a distance of 10 km. From 10 to 20 km, an RPQ card which comes in 2 port increments is available which runs at 1 Gbps in both Peer and Compatibility Modes. The mode is selected for each port via CHPID type in the IOCDS. The ports are activated in one port increments.

• ISC-2. HiPerLinks. HiPerLinks, based on single-mode CF links, are available on 9672s (G3 - G6) and 9674s only. ISC-3s replace HiPerLinks on zSeries 900 and z990 models.

• ICB-2. The Integrated Cluster Bus-2 is used to provide high-speed coupling communication between a zSeries server or CF and a 9672 G5/G6 server or CF over short distances (~7 meters). For longer distances, ISC links must be used. The z990 features the STI-2 card which resides in an I/O cage and provides 2 ICB-2 ports each capable of up to 333 MBps. The ports are activated in one port increments. Up to 4 STI-2 cards, 8 ICB-2 links are available on the z990.

• ICB-3. The Integrated Cluster Bus-3 is used to provide

0 0

high-speed coupling communication between a z990 server or CF and a z800/z900 server or CF or between two z800/z900s over short distances (~7 meters). For longer distances, ISC-3 links must be used. The z990 features the STI-3 card which resides in an I/O cage and provides 2 ICB-3 ports each capable of up to 1 GBps. The ports are activated in one port increments. Up to 8 STI-3 cards, 16 ICB-3 links are available on the z990. ICB-3 links operate in “Peer Mode.”

• ICB-4. The Integrated Coupling Bus-4 is a “native” coupling connection available for connecting a z990 server or CF to another z990 server or CF over short distances. Capable of up to 2.0 GBps, the ICB-4 is the fast external coupling connection available for the z990. The ICB-4 connection consists of one link that directly attaches to an STI port on the system and does not require connectivity to a card in the I/O cage. One feature is required for each end of the link. Up to 16 ICB-4 features can be conﬁ gured on a z990 depending on model selected.

• IC. The Internal Coupling channel emulates the Coupling Links providing connectivity between images within a single server. No hardware is required, however a minimum of 2 CHPID numbers must be deﬁ ned in the IOCDS. IC links provide the fastest Parallel Sysplex connectivity

Intelligent Resource Director

Exclusive to IBM’s z/Architecture is Intelligent Resource

Director (IRD), a function that optimizes processor and

channel resource utilization across Logical Partitions

(LPARs) based on workload priorities. IRD combines the

strengths of the zSeries LPARs, Parallel Sysplex clustering,

and z/OS Workload Manager.

Intelligent Resource Director uses the concept of an

LPAR cluster, the subset of z/OS systems in a Parallel

Sysplex cluster that are running as LPARs on the same

zSeries server. On a z990, systems that are part of the

same LPAR cluster may be in different LCSSs. In a Parallel

Sysplex environment, Workload Manager directs work to

the appropriate resources based on business policy. With

IRD, resources are directed to the priority work. Together,

Parallel Sysplex technology and IRD provide ﬂ exibility and

responsiveness to on demand e-business workloads that

is unrivaled in the industry.

IRD has three major functions: LPAR CPU Management,

Dynamic Channel Path Management, and Channel Sub-

system Priority Queuing.

IRD Scope

4 x 2 GB/s STI

I/O Cage

3 IT

I T S

T S

I T

I-

X U

STI

4 x 2.0 GBps

STIs

STI-3

MUX

STI-2 MUX

I/O Cage

ICB-4 (2.0 GBps)

ICB-3 (1 GBps)

ICB-2 (333 MBps)

G5/G6

z990

z90 z80

LPAR Cluster

z/OS

Linux

OS/390

ICF

LPAR CPU Management

LPAR CPU Management allows WLM working in goal

mode to manage the processor weighting and logical

processors across an LPAR cluster. CPU resources are

automatically moved toward LPARs with the greatest need

by adjusting the partition’s weight. WLM also manages

the available processors by adjusting the number of logi-

cal CPs in each LPAR. This helps optimize the processor

speed and multiprogramming level for each workload,

helps reduce MP overhead, and helps give z/OS more

control over how CP resources are distributed to help meet

your business goals.

z/OS 1.2 enhances the LPAR CPU management capa-

bilities and will allow the dynamic assignment of CPU

resources to non-z/OS partitions outside the z/OS LPAR

cluster such as Linux or z/VM.

Dynamic Channel Path Management

In the past, and on other architectures, I/O paths are

deﬁ ned with a ﬁ xed relationship between processors and

devices. With z/OS and the zSeries, paths may be dynami-

cally assigned to control units to reﬂ ect the I/O load. For

example, in an environment where an installation normally

requires four channels to several control units, but occa-

sionally needs as many as six, system programmers must

currently deﬁ ne all six channels to each control unit that

may require them. With Dynamic Channel Path Manage-

ment (DCM), the system programmer need only deﬁ ne the

four channels to the control units, and indicate that DCM

may add an additional two. As the control unit becomes

more heavily used, DCM may assign channels from a pool

of managed channels, identiﬁ ed by the system program-

mer, to the control unit. If the work shifts to other control

units, DCM will unassign them from lesser utilized control

units and assign them to what are now the more heavily

used ones. DCM is for ESCON and FICON Bridge chan-

nels and can help reduce the number of channels required

to effectively run a workload. DCM can also help reduce

the cost of the ﬁ ber infrastructure required for connectiv-

ity between multiple data centers. On a z990 with Logical

Channel SubSystems (LCSSs), the scope of DCM man-

agement is within a Logical Channel SubSystem. Although

an LPAR cluster can span LCSSs, when DCM is used it will

only consider systems in the same LPAR cluster and the

same LCSS.

Channel Subsystem Priority Queuing

The notion of I/O Priority Queuing is not new; it has been in

place in OS/390 for many years. With IRD, this capability

is extended into the I/O channel subsystem. Now, when

higher priority workloads are running in an LPAR cluster,

their I/Os will be given higher priority and will be sent to

the attached I/O devices (normally disk but also tape and

network devices) ahead of I/O for lower priority workloads.

LPAR priorities are managed by WLM in goal mode.

Channel Subsystem Priority Queuing provides two advan-

tages. First, customers who did not share I/O connectivity

via MIF (Multiple Image Facility) out of concern that a lower

priority I/O intensive workload might preempt the I/O of

higher priority workloads, can now share the channels and

reduce costs. Second, high priority workloads may even

beneﬁ t with improved performance if there were I/O con-

tention with lower priority workloads. Initially, Channel Sub-

system Priority Queuing is implemented for Parallel OEMI

and ESCON, FICON Bridge and native FICON channels.

On a z990, the scope of Channel Subsystem I/O Priority

Queuing is a Logical Channel SubSystem.

Channel Subsystem Priority Queuing complements the

IBM Enterprise Storage Server capability to manage I/O

priority across CECs.

With IRD, the combination of z/OS and zSeries working in

synergy extends the world-class workload management

tradition of S/390 and OS/390 to ensure that the most

important work on a server meets its goals, to increase the

efﬁ ciency of existing hardware, and to reduce the amount

of intervention in a constantly changing environment.

Parallel Sysplex Professional Services

IBM provides extensive services to assist customers

with migrating their environments and applications to

beneﬁ t from Parallel Sysplex clustering. A basic set of

IBM services is designed to help address planning and

early implementation requirements. These services can

help you reduce the time and costs of planning a Parallel

Sysplex environment and moving it into production. An

advanced optional package of services is also available

and includes data sharing application enablement, project

management and business consultation through advanced

capacity planning and application stress testing. For more

information on Parallel Sysplex Professional Services, visit

IBM’s Web site at ibm.com/servers/eserver/zseries/pso/

services.html.

Geographically Dispersed Parallel Sysplex

The GDPS solution, based on Peer-to-Peer Remote Copy

(PPRC), referred to as GDPS/PPRC, is designed with the

attributes of a continuously availability solution. PPRC is a

hardware solution that is designed to synchronously mirror

data residing on a set of disk volumes, called the primary

volumes in site 1, to secondary disk volumes on a second

system in site 2. Only when the primary storage subsystem

receives “write complete” from the secondary storage sub-

system is the application I/O signaled completed. GDPS/

PPRC complements a multisite Parallel Sysplex environ-

ment by providing a single, automated solution to dynami-

cally manage disk and tape storage subsystem mirroring,

processors, and network resources to allow a business

to attain “continuous availability” and near transparent

business continuity/disaster recovery without data loss.

GDPS/PPRC provides the ability to perform a controlled

site switch for both planned and unplanned site outages,

while maintaining full data integrity across multiple storage

subsystems. GDPS/PPRC is designed to be application

independent and therefore is expected to be able to cover

the customer’s complete application environment. GDPS

supports both the synchronous Peer-to-Peer Remote Copy

(PPRC) as well as the asynchronous Extended Remote

Copy (XRC) forms of remote copy. GDPS/PPRC is a con-

tinuous availability solution and near transparent business

continuity/disaster recovery solution that is designed to

allow a customer to meet a Recovery Time Objective

(RTO) of less than an hour, a Recovery Point Objective

(RPO) of no data loss, and protects against metropolitan

area disasters (up to 40 km between sites). GDPS/XRC is

a business continuity/disaster recovery solution that allows

a customer to meet a RTO of one to two hours, an RPO of

less than a minute, and helps protect against metropolitan

as well as regional disasters, since the distance between

sites is unlimited. XRC can use either common communi-

cation links and channel extender technology or dark ﬁ ber

as the connectivity between sites.

On the other hand, the GDPS solution based on Extended

Remote Copy (XRC), referred to as GDPS/XRC, has the

attributes of a Disaster Recovery solution. XRC is a com-

bined hardware and software asynchronous remote copy

solution. The application I/O is signaled completed when

the data update to the primary storage is completed. Sub-

™

sequently, a DFSMSdfp

component called System Data

Mover (SDM), typically running in site 2, is designed to

asynchronously ofﬂ oad data from the primary storage sub-

system’s cache and updates the secondary disk volumes.

Geographically Dispersed Parallel Sysplex HyperSwap

™

The GDPS/PPRC HyperSwap function is designed to

broaden the continuous availability attributes of GDPS/

PPRC by extending the Parallel Sysplex redundancy to

disk subsystems. The HyperSwap function can mask

planned and unplanned disk and site reconﬁ gurations

by transparently switching to use the secondary PPRC

volumes. The HyperSwap function is designed to be con-

trolled by complete automation, allowing all aspects of the

site switch to be controlled via GDPS.

In GDPS/XRC, the production system(s) located in site 1

can be a single system, multiple systems sharing disk, or

a base or Parallel Sysplex cluster. GDPS/XRC is designed

to provide a single, automated solution to dynamically

manage storage subsystem mirroring (disk and tape)

to allow a business to attain “near transparent” disaster

recovery with minimal data loss. GDPS/XRC is designed to

provide the ability to perform a controlled site switch for an

unplanned site outage, maintaining data integrity across

multiple volumes and storage subsystems GDPS/XRC is

designed to be application independent and therefore is

capable of covering the customer’s complete application

environment.

GDPS requires Tivoli

NetView® for z/OS or Tivoli NetView

for OS/390, Tivoli System Automation for OS/390, and

remote copy technologies.

Note: Dark ﬁ ber refers to dedicated strands of ﬁ ber optic

cable with no electronics between the ends (source and

destination).

The HyperSwap function planned provides the ability to

transparently switch all primary PPRC disk subsystems

with the secondary PPRC disk subsystems for a planned

switch conﬁ guration. It enables disk conﬁ guration mainte-

nance and planned site maintenance without requiring any

applications to be quiesced. Large conﬁ gurations can be

supported, as HyperSwap has been designed to provide

capacity and capability to swap large numbers of disk

devices very quickly. The important ability to re-synchro-

nize incremental disk data changes, in both directions,

between primary/secondary PPRC disks is provided as

part of this function.

The unplanned HyperSwap function contains additional

function designed to transparently switch to use second-

ary PPRC disk subsystems, in the event of unplanned

outages of the primary PPRC disk subsystems or a failure

of the site containing the primary PPRC disk subsystems.

With unplanned HyperSwap function, disk subsystem

failures no longer constitute a single point of failure for

an entire sysplex. If applications are cloned and exploit-

ing data sharing across the two sites, the GDPS/PPRC

unplanned HyperSwap capability lays the foundation for

continuous availability, even in the event of a complete

site failure. In the event of a complete failure of the site

where the primary disk resides, the systems in the site with

the secondary disks can continue to remain active even

though workload running on these systems needs to be

restarted. An improvement in the Recovery Time Objective

(RTO) can be accomplished.

Geographically Dispersed Parallel Sysplex (GDPS)

enhancements

GDPS, an world-class e-business continuity solution, is a

multisite solution that is designed to provide the capabil-

ity to manage the remote copy conﬁ guration and storage

subsystems, automate Parallel Sysplex operational tasks,

and perform failure recovery from a single point of control,

thereby helping to improve application availability. GDPS

supports both the synchronous Peer-to-Peer Remote Copy

(PPRC), as well as the asynchronous Extended Remote

Copy (XRC) forms of remote copy. Depending on the form

of remote copy, the solution is referred to as GDPS/PPRC

or GDPS/XRC.

GDPS/PPRC and GDPS/XRC have been enhanced to

include new functions.

GDPS/PPRC HyperSwap function: The GDPS/PPRC

HyperSwap function is designed to broaden the continu-

ous availability attributes of GDPS/PPRC by extending the

Parallel Sysplex redundancy to disk subsystems.

Planned HyperSwap function provides the ability to:

• Transparently switch all primary PPRC disk subsystems with the secondary PPRC disk subsystems for a planned reconﬁ guration

• Perform disk conﬁ guration maintenance and planned site maintenance without requiring any applications to be quiesced.

Planned HyperSwap function became generally available

December 2002.

Unplanned HyperSwap function contains additional func-

tion to transparently switch to use secondary PPRC disk

subsystems in the event of unplanned outages of the

primary PPRC disk subsystems or a failure of the site con-

taining the primary PPRC disk subsystems. Unplanned

HyperSwap support can allow:

• Production systems to remain active during a disk subsystem failure. Disk subsystem failures will no longer constitute a single point of failure for an entire Parallel Sysplex.

• Production servers to remain active during a failure of the site containing the primary PPRC disk subsystems if applications are cloned and exploiting data sharing across the two sites. Even though the workload in the second site will need to be restarted, an improvement in the Recovery Time Objective (RTO) will be accomplished.

Unplanned HyperSwap function became generally avail-

able February 2004.

GDPS/PPRC management for open systems LUNs (Logi-

cal Unit Numbers): GDPS/PPRC technology has been

extended to manage a heterogeneous environment of

z/OS and open systems data. If installations share their

disk subsystems between the z/OS and open systems

platforms, GDPS/PPRC, running in a z/OS system, can

manage the PPRC status of devices that belong to the

other platforms and are not even deﬁ ned to the z/OS

platform. GDPS/PPRC can also provide data consistency

across both z/OS and open systems data.

GDPS/PPRC management of open systems LUNs became

generally available February 2004.

GDPS supports PPRC over FCP links: In 2003, IBM

TotalStorage Enterprise Storage Server (ESS) announced

support of PPRC over Fiber Channel for the ESS Model

800. Refer to Hardware Announcement 103-298,

(RFA38991) dated October 14, 2003. This support is

designed to provide improved throughput (compared to

ESCON), and a reduction in cross-site connectivity (two

PPRC Channel links per ESS are considered sufﬁ cient for

most customer workloads). One of the potential beneﬁ ts

of this support is the ability for customers to increase the

distance between sites while maintaining acceptable per-

formance.

GDPS/PPRC support for PPRC over Channel became gen-

erally available February 2004.

LSS within the disk subsystem. Since this constraint has

been removed with FlashCopy V2, GDPS can now allow a

FlashCopy from a source in one LSS to a target in a differ-

ent LSS within the same disk subsystem. This new ﬂ exibil-

ity can help simplify administration and capacity planning

for FlashCopy.

GDPS/PPRC support for FlashCopy V2 became generally

available February 2004.

GDPS/PPRC and Cross-site Parallel Sysplex distance

extended to up to 100 km: On October 31, 2003, IBM deliv-

ered, via a Request for Price Quote (RPQ), the capability

to conﬁ gure GDPS/PPRC or a multi-site Parallel Sysplex up

to a distance of up to 100 kilometers (62 miles) between

two sites. This extended distance can potentially decrease

the risk that the same disaster will affect both sites, thus

permitting enterprises to recover production applications

at another site. Support has been extended up to a dis-

tance of up to 100 km from the current capability of up to

50 km (31 miles) for:

• External Time Reference (ETR) links

• An ETR link on a zSeries or S/390 server provides attachment to the Sysplex Timer

• InterSystem Channel-3 (ISC-3) links operating in Peer Mode ISC-3 links, supported on all zSeries servers, connect z/OS and OS/390 systems to Coupling Facilities in a Parallel Sysplex environment.

GDPS supports FlashCopy

V2 elimination of the Logical

SubSystem (LSS) constraint: In 2003, IBM TotalStorage

Enterprise Storage Server announced support of

FlashCopy V2. (Refer to Hardware Announcement 103-

141, dated May 13, 2003.) Prior to this announcement,

both source and target volumes had to reside on the same

The extended distance support for ETR and ISC-3 links is

now consistent with other cross-site link technologies that

currently support up to 100 km between two sites (such

as FICON, Peer-to-Peer Remote Copy (PPRC), Peer-to-

Peer Virtual Tape Server (PtP VTS)). It should be noted that

the maximum ﬁ ber optic cable distance between a pair

of Sysplex Timers in an Expanded Availability conﬁ gura-

tion remains at 40 km (25 miles). Therefore, to achieve the

extended distance of up to 100 km between sites, one of

the options to be considered is locating one of the Sysplex

Timers in an intermediary site that is less than 40 km from

one of the two sites. Other potential options can be evalu-

ated when the RPQ request is submitted to IBM for review.

Coordinated near continuous availability and disaster

recovery for Linux guests: z/VM 5.1 is providing a new

HyperSwap function so that the virtual device associ-

ated with one real disk can be swapped transparently to

another. HyperSwap can be used to switch to secondary

disk storage subsystems mirrored by Peer-to-Peer Remote

Copy (PPRC).

HyperSwap can also be helpful in data migration scenar-

ios to allow applications to use new disk volumes.

GDPS plans to exploit the new z/VM HyperSwap function

to provide a coordinated near continuous availability and

disaster recovery solution for z/OS and Linux guests run-

ning under z/VM. This innovative disaster recovery solution

requires GDPS, IBM Tivoli System Automation for Linux,

Linux on zSeries, and z/VM V5.1 designed to help antici-

pate and rapidly respond to business objectives and tech-

nical requirements while maintaining unsurpassed system

availability. This solution is may be especially valuable

for customers who share data and storage subsystems

between z/OS and Linux on zSeries.

To support planned and unplanned outages, GDPS is

designed to provides the following recovery actions:

• Re-IPL in place of failing operating system images

• Site takeover/failover of a complete production site

• Coordinated planned and unplanned HyperSwap of storage subsystems transparently to the operating system images and applications using the storage

Performance enhancements for GDPS/PPRC and GDPS/XRC

conﬁ gurations

• Concurrent activation of Capacity BackUp (CBU) can now be performed in parallel across multiple servers, which may result in an improved RTO. This improvement may apply to both the GDPS/PPRC and GDPS/XRC conﬁ gurations.

• In a GDPS/XRC conﬁ guration, it is often necessary to have multiple System Data Movers (SDMs). The number of SDMs is based on many factors, such as the number of volumes being copied and the I/O rate. Functions are now capable of | being executed in parallel across multiple SDMs, thus helping to provide improved scalability for a coupled SDM conﬁ guration.

• Analysis has shown that PPRC commands issued by GDPS will generate a large number of Write to Operator messages (WTOs) that may cause WTO buffer shortages and temporarily adversely impact system performance. The Message Flooding Automation function is expected to substantially reduce the WTO message trafﬁ c and improve system performance by suppressing redundant WTOs.

Performance enhancements for GDPS/PPRC and GDPS/

XRC became generally available March 2003.

These GDPS enhancements are applicable to z800, z900,

z890, and z990. For a complete list of other supported

hardware platforms and software prerequisites, refer to

the GDPS executive summary white paper, available at:

ibm.com/server/eserver/zseries/pso

Automatic Enablement of CBU for Geographically Dispersed

Parallel Sysplex

The intent of the GDPS (CBU) is to enable automatic man-

agement of the reserved PUs provided by the CBU feature

in the event of a processor failure and/or a site failure.

Upon detection of a site failure, GDPS will dynamically

add PUs to the conﬁ guration in the takeover site to restore

processing power for mission-critical production work-

loads. GDPS-CBU management helps to minimize manual

customer intervention and the potential for errors, thereby

helping to reduce the outage time for critical workloads

from hours to minutes. Similarly, GDPS-CBU management

can also automate the process of dynamically returning

the reserved CPs when the temporary period has expired.

GDPS is discussed in a white paper available at ibm.com/

server/eserver/zseries/pso/library.html. GDPS is a service

offering of IBM Global Services. For IBM Installation Ser-

vices for GDPS, refer to the IBM Web site.

Message Time Ordering (Sysplex Timer Connectivity to Coupling

Facilities)

As processor and Coupling Facility link technologies have

improved over the years, the requirement for time synchro-

nization tolerance between systems in a Parallel Sysplex

environment has become ever more rigorous. In order

to ensure that any exchanges of timestamped informa-

tion between systems in a sysplex involving the Coupling

Facility observe the correct time ordering, time stamps are

now included in the message-transfer protocol between

the systems and the Coupling Facility. Therefore, when a

Coupling Facility is conﬁ gured as an ICF on any z990 or

z900 Models 2C1 through 216, the Coupling Facility will

require connectivity to the same 9037 Sysplex Timer that

the systems in its Parallel Sysplex cluster are using for

time synchronization. If the ICF is on the same server as a

member of its Parallel Sysplex environment, no additional

connectivity is required, since the server already has

connectivity to the Sysplex Timer. However, when an ICF

is conﬁ gured on any z990 or z900 Models 2C1 through

216 which do not host any systems in the same Parallel

Sysplex cluster, it is necessary to attach the server to the

9037 Sysplex Timer.

z900 Turbo or z890/z990 Model with ICF

and non-Parallel Sysplex LPARs

CF01

ICF

ICB-3 / ICB-4/ ISC-3

ICB-3/ ICB-4 / ISC-3

IBM ^ z900

or z890/z990

Sysplex

LPARs

z/OS

CF02

ICF

New Connection to Sysplex Timer

Non-Sysplex

LPARs

z/OS

10 9 8

IBM ^ z900

or z890/z990

Sysplex

z/OS

New Connection to Sysplex Timer

3 4

LPARs

Continuous Availability Recommended Conﬁ guration for

Parallel Sysplex

Dedicated (External)

Coupling Facility

z990

with CFs only z900 Model 100 9674, 9672 R06,

or z800 Model 0CF

Internal Coupling

ICF

ESCON/FICON Express Channels

Note: z990 will attach to 9037-001 or 9037-002. Service for 9037-001 will be discontinued at the end of 2003.

Facility

z/OSz/OS

Sysplex Timers

Components and assumptions

• Two Coupling Facilities; at least one external or else using System-Managed CF Structure Duplexing

• Two Sysplex Timers

• Two z/OS or OS/390 servers with redundant backup capacity

• Two links from each CF to each image

• Two hardware management consoles

• Two ESCON or FICON Directors with cross-connected disks

• Dual electrical power grids

• Cloned OS/390 images, latest available software levels

• Automation capabilities for recovery/restart

• Critical data on RAID and/or mirrored disks

Key attributes can include

• No single point of failure

• Fast, automatic recovery

– CF: rebuild in surviving CF

– CEC, z/OS, OS/390: restart subsystems on surviving


– TM/DBMS: restart in place

• Surviving components absorb new work

• No service loss for planned or unplanned outages

• Near unlimited, plug-and-play growth capacity

z990 Support for Linux

Linux on zSeries

Linux and zSeries are a great team. Linux has the same

appearance and application programming interfaces no

matter what platform it is running on, since it is designed to

be platform-independent. When Linux is run on a zSeries

server it can inherit the legendary qualities of service that

businesses worldwide rely on for hosting their most impor-

tant workloads. Linux is open standards-based, supporting

rapid application portability and can be adapted to suit

changing business needs. The ﬂ exibility and openness of

Linux make it very popular with developers, whose contri-

butions endow Linux with an extensive and diverse appli-

cation portfolio. zSeries servers enable massive scalability

within a single server, either horizontally or vertically. Hun-

dreds of Linux images can run simultaneously, providing

server consolidation capabilities while helping to reduce

both cost and complexity.

Of course, no matter which Linux applications are brought

to the zSeries platform, they can all beneﬁ t from high-

speed access to the applications and corporate data that

reside on zSeries.

IBM developed the code that enables Linux to run on

zSeries servers, and made it available to the Open Source

community. The term used to describe this enabling code

is “patches.”

To eliminate the need for an external 2074 Console control-

ler and associated consoles, an administrator may utilize

the Hardware Management Console (HMC) functions "Inte-

grated 3270 Console Support" for operating z/VM images,

and "Integrated ASCII Console Support" to operate Linux

images.

The support is implemented using an internal communi-

cations method —

ing system to communicate with the HMC. The software

port was made available in z/VM Version 4 Release 4.

sup

An update for Linux will be made available to IBM Linux

Distribution Partners.

Linux on zSeries supports the 64-bit architecture avail-

able on zSeries processors. This architecture eliminates

the existing main storage limitation of 2 GB. Linux on

zSeries provides full exploitation of the architecture in both

real and virtual modes. Linux on zSeries is based on the

Linux 2.4 kernel. Linux on S/390 is also able to execute on

zSeries and S/390 in 32-bit mode:

SCLP — which enables the operat-

IBM Middleware

• Connectors

– DB2 Connect

™

Version 8.1

– DB2 Connect Enterprise Edition Version 7.2

– DB2 Connect Unlimited Edition Version 7.2

– CICS Transaction Gateway Version 5.0

– IMS Connect Version 1.1 and 1.2

• WebSphere Family

– WebSphere Application Server Version 5.0

– WebSphere Application Server for Developers

Version 5.0

– WebSphere Application Server Network Deployment

Version 5.0

– WebSphere Application Server Advanced Edition 4.0

– WebSphere Application Server Advanced Single

Server Edition Version 4.0

– WebSphere Application Server Advanced Developer

Edition Version 4.0

– WebSphere Application Server Advanced Edition

Version 3.5

– WebSphere Commerce Business Edition Version 5.4

– WebSphere Host On-Demand Version 7.0 and 6.0

– WebSphere MQ Everyplace Version 2.0 and 1.2

– WebSphere MQ Version 5.3

– WebSphere Personalization Server for Multiplatforms

Version 4.0

– WebSphere Personalization Server Version 3.5

– WebSphere Portal Server for Multiplatforms Version

4.1 and 4.2

• Data Management

– DB2 Universal Database Enterprise Server Edition

Version 8.1

– DB2 Universal Developers Edition Version 8.1

– DB2 Personal Developers Edition Version 8.1

– DB2 Net.Data

Version 8.1

– DB2 Runtime Client Version 8.1

– DB2 Spatial Extender Version 8.1

™

– DB2 Intelligent Miner

Modeling Version 8.1

– DB2 Intelligent Miner Scoring Version 8.1

– DB2 Intelligent Miner Visualization Version 8.1

– DB2 Net Search Extender Version 8.1

DB2 Universal Database Enterprise Edition Version 7.2

–

DB2 Universal Database Developers Edition Version 7.2

– DB2 Intelligent Miner Scoring Version 7.1

– DB2 Net Search Extender Version 7.2

• Tivoli

–

Tivoli Access Manager for e-business Versions 3.9 and

4.1

–

Tivoli Access Manager for Operating Systems Version 4.1

– Tivoli Conﬁ guration Manager Version 4.2

– Tivoli Decision Support for OS/390 Version 1.5.1

– Tivoli Distributed Monitoring Version 4.1

– Tivoli Enterprise Console Version 3.8 and 3.7.1

– Tivoli Identity Manager Version 1.1

Tivoli Monitoring for Transaction Performance Version 5.1

–

– Tivoli Monitoring Version 5.1.1 and 5.1

– Tivoli NetView for z/OS Version 5.1

– Tivoli Remote Control Version 3.8

– Tivoli Risk Manager Version 4.1 and 3.8

– Tivoli Software Distribution Version 4.0

™

– Tivoli Storage Manager

Versions 5.1.5 and 5.1

– Tivoli Storage Manager Client Version 4.2

– Tivoli Switch Analyzer Version 1.2

– Tivoli User Admin Version 3.8

– Tivoli Workload Scheduler Version 8.1

• Informix

– Informix C-ISAM

• U2

– IBM UniData Version 5.2x

• Other IBM Software Products

– IBM Application Workload Modeler Version 1.1 and

Release 1

– IBM Developer Kit Versions 1.4 and 1.3.1

– IBM Directory Integrator Version 5.1

– IBM Directory Server Versions 5.1 and 4.1

– IBM HTTP Server Version 1.3.19.3

– IBM Object REXX Version 2.2

– IBM Screen Customizer Versions 2.0.7 and 2.0.6

Linux Distribution Partners

• SUSE LINUX

Product Information at suse.de/en/produkte/susesoft/S390/

• Turbolinux

Product Information at turbolinux.com/products/s390

• Red Hat Linux

Product Information at redhat.com/software/S390

z/VM Version 4 and Version 5

z/VM supports Linux on the mainframe. Within the VM

environment, Linux images beneﬁ t from the ability to

share hardware and software resources and use internal

high-speed communications. While beneﬁ ting from the

reliability, availability and serviceability of IBM ^

zSeries servers, both z/VM V4 and V5 offer an ideal plat-

form for consolidating Linux workloads on a single physi-

cal server which allows you to run tens to hundreds of

Linux images. z/VM V4 is priced on a per-engine basis

(one-time charge) and supports IBM Integrated Facility for

Linux (IFL) processor features for Linux based workloads,

as well as standard engines for all other zSeries and S/390

workloads. Engine-based Value Unit pricing for z/VM V5.1

is replacing the pricing model available with z/VM V4.

Engine-based Value Unit pricing is designed to provide a

lower entry point and a decreasing price curve which will

help provide improved price/performance as hardware

capacities and workload grow. Value Unit pricing helps

you to add capacity and workload with an incremental

and improved price and the ability to aggregate licenses

acquired across machines that are part of your enterprise.

Integrated Facility for Linux (IFL)

The Integrated Facility for Linux feature of the zSeries serv-

ers provides a way to add processing capacity, exclusively

for Linux workloads, with minimal effect on the model des-

ignation. Operating systems like z/OS, TPF, and VSE/ESA

will not execute on Integrated Facility for Linux engines.

Consequently, these engines will not necessarily affect

the software charges for workload running on the other

engines in the system.

OSA-Express Ethernet for Linux

Driver support is provided for the functions of the new

OSA-Express Gigabit Ethernet and 1000BASE-T Ethernet

features.

OSA-Express Enhancements for Linux

A new function, Checksum Ofﬂ oad, offered for the new

OSA-Express GbE and 1000BASE-T Ethernet features,

is available for the Linux on zSeries and z/OS environ-

ments. Checksum Ofﬂ oad provides the capability of

calculating the Transmission Control Protocol (TCP),

User Datagram Protocol (UDP), and Internet Protocol (IP)

header checksums. Checksum veriﬁ es the correctness of

ﬁ les. By moving the checksum calculations to a Gigabit

or 1000BASE-T Ethernet feature, host CPU cycles are

reduced and performance is improved. When checksum

is ofﬂ oaded, the OSA-Express feature performs the check-

sum calculations for Internet Protocol Version 4 (IPv4)

packets.

Two important networking technology advancements are

announced in z/VM 4.4 and Linux on z990:

• The high performance adapter interrupt handling ﬁ rst introduced with HiperSockets is now available for both OSA-Express in QDIO mode (CHPID=OSD) and FICON Express (CHPID=FCP). This advancement provides a more efﬁ cient technique for I/O interruptions designed to reduce path lengths and overhead in both the host operating system and in the adapter. This beneﬁ ts OSAExpress TCP/IP support in both Linux for zSeries and z/VM.

• The z990’s support of virtual machine technology has been enhanced to include a new performance assist for virtualization of adapter interruptions. This new z990 performance assist is available to V=V guests (pageable guests) that support QDIO on z/VM 4.4. The deployment of adapter interruptions improves efﬁ ciency and performance by reducing z/VM Control Program overhead when handling Linux guest virtual servers.

HiperSockets

HiperSockets can be used for communication between

Linux images and Linux or z/OS images, whether Linux is

running in an IFL LPAR, natively or under z/VM.

Virtual Local Area Networks (VLANs), IEEE standard

802.1q, is offered for HiperSockets in a Linux on zSeries

environment. VLANs can reduce overhead by allowing

networks to be organized for optimum trafﬁ c ﬂ ow; the

network is organized by trafﬁ c patterns rather than physi-

cal location. This enhancement permits trafﬁ c to ﬂ ow on

a VLAN connection both over HiperSockets and between

HiperSockets and an OSA-Express GbE, 1000BASE-T Eth-

ernet, or Fast Ethernet feature.

Internet Protocol Version 4 (IPv4) broadcast packets

are now supported over HiperSockets. TCP/IP applica-

tions that support IPv4 broadcast, such as OMPROUTE

when running Routing Information Protocol Version 1

(RIPv1), can send and receive broadcast packets over

HiperSockets interfaces. This support is exclusive to z990.

You can transparently bridge trafﬁ c between a HiperSockets

and an external OSA-Express network attachment. New

Linux Layer 2 Switch (Linux L2S) support can help simplify

network addressing between HiperSockets and OSA-

Express. You can now seamlessly integrate HiperSockets-

connected operating systems into external networks,

without requiring intervening network routing overhead,

thus increasing performance and simplifying conﬁ guration.

The currently available distributions; SUSE SLES 7, SUSE

SLES 8, Red Hat 7.1 and Red Hat 7.2 support z990

compatibility and exploitation of 30 LPARs and 2 Logical

Channel SubSystems. Support to further exploit z990 func-

tions will be delivered as an Open Source Contribution

via www.software.ibm.com/developerworks/opensource/

linux390/index.shtm. IBM is working with its distribution

partners to provide these functions in future distribution

releases.

Fibre Channel Protocol (FCP channel) Support for Linux

Support for FCP channels enables zSeries servers to

connect to select Fibre Channel Switches and FCP/SCSI

devices under Linux on zSeries. This expanded attachabil-

ity provides a larger selection of storage solutions for Linux

implementations.

zSeries 990 Family Conﬁ guration Detail

Cryptographic Support for Linux

Linux on zSeries running on standard z990, z900, and

z800 engines is capable of exploiting the hardware cryp-

tographic feature provided by the PCICA feature (PCI

Cryptographic Accelerator). This enables customers

implementing e-business applications on Linux on zSeries

to utilize this enhanced hardware security.

Linux Support

Environment

• z990, z900, z800 or S/390 single image

• zSeries or S/390 LPAR

• VM/ESA

or z/VM guest

Block devices

• VM minidisks

• ECKD

™

3380 or 3390 DASDs

• VM virtual disk in storage

Network devices

• Virtual CTC

• ESCON CTC

•

OSA-Express (Gigabit Ethernet, 1000BASE-T Ethernet, Fast Ethernet, Token-Ring) up to 24 features/48 ports on z990

• HiperSockets (up to 4,096 TCP/IP stacks on up to 16 HiperSockets on z990)

• 3172

• IUCV

• Character devices

• 3215 console

• Integrated console

Additional information is available at ibm.com/linux/ and at

ibm.com/zseries/linux/.

Maximum of 1024 CHPIDs; 3 I/O cages

(28 slots each) = 84 I/O slots.

Per System

Feature Minimum Maximum Maximum Increments/ Purchase Features I/O Slots Connections channels/ Increm. used by ports per Features Feature

ESCON, 0 16 port channels2 channels3 channels

FICON 0 Express

STI-26 0 4 N/A 2 outputs N/A ICB-2 link 0

STI-36 0 8 N/A 2 outputs N/A ICB-3 link 0

ICB-4 link 01 N/A8 16 links7 N/A

ISC-3 0

OSA- 0 245 48 2 ports 1 feature Express ports

PCICA

cards cards

PCIXCC coprocessors coprocessor

1) A minimum of one I/O feature (ESCON, FICON Express) or one Coupling Link (ICB, ISC-3) is required.

2) Maximum of 48 ESCON features/720 active channels on Model A08. Maximum of 48 FICON features/96 channels on A08.

3) Each ESCON feature has 16 channels of which 15 channels may be activated. One channel is always reserved as a spare.

4) ESCON channels are purchased in increments of four and are activated via Licensed Internal Code, Conﬁ guration Control (LIC CC). Channels are activated equally across all installed 16-port ESCON features for high availability.

5) The maximum quantity of FICON Express, OSA-Express, PCICA, and PCIXCC in combination cannot exceed 20 features per I/O cage and 60 features per server.

6) The STI distribution cards, which support ICB-2 and ICB-3, reside in the I/O cage. Each STI distribution card occupies one I/O slot.

7) The maximum number of Coupling Links combined (ICs, ICB-2s, ICB-3s, ICB-4s, and active ISC-3 links) cannot exceed 64 per server.

8) ICB-4s do not require connectivity to a card in the I/O cage. ICB-4s are not included in the maximum feature count for I/O slots.

9) A maximum of 32 ISC-3s can be deﬁ ned in Compatibility ode (operating at 1 Gbps, instead of 2 Gbps).

10) It is recommended that an initial order for ISC-3 include two links. When two links are purchased, two ISC-3 features are shipped and activated links are balanced across ISC-3 features for high availability.

11) The total number of PCICAs and PCIXCCs cannot exceed eight features per server.

12) The total number of PCICAs cannot exceed two features per I/O cage.

13) PCIXCC feature increments are 0, 2, 3, or 4.

0 6

013

692 1024 16 4

N/A 8 links7 N/A 1 link

N/A 16 links7 N/A 1 link

2, 5

120 2 1

channels2

12 48 links

5, 11, 12

12 accelerator 2 accelerator 1 feature

5, 11

4 1 1 feature

channels feature

7, 9

4 links 1 link

1 link

Processor Unit Assignments

Coupling Links

Model Min. PU* Max. PU SAP Standard Spares Standard

A08** 1 8 2 2

B16** 1 16 4 4

C24** 1 24 6 6

D32** 1 32 8 8

*PU can be characterized as CP, IFL, ICF, Optional SAPs, unassigned CPs, and/or unassigned IFLs up to a max number of PUs for the model **Customer will be required to purchase at least one CP, IFL or ICF feature for any model.

Processor Memory

z990 Model Minimum Maximum

A08 16 GB 64 GB

B16 16 GB 128 GB

C24 16 GB 192 GB

D32 16 GB 256 GB

Max two memory cards per z990 book. Memory cards 8 GB, 16 GB or 32 GB.

Channels

Model A08 B16 C24 D32

ESCON Min 0 0 0 0

**ESCON Max 720 1024 1024 1024

FICON *Min 0 0 0 0

FICON *Max 96 120 120 120

*FICON Express and FCP conﬁ gured on the same FICON Express features. Max channels total 120. **ESCON increments of 4 channels

Links IC ICB-2* ICB-3** ICB-4 ISC-3 Max Links

0-32 0-8 0-16 0-16 0-48 Total External and Internal links = 64

*requires STI-2 card **requires STI-3 card

Note: At least one I/O channel (FICON, ESCON) or one coupling link (ISC, ICB) must be present.

Cryptographic Features

PCICA

Minimum 0 0

Maximum 63 4

1. Max two PCICA features per I/O cage

2. Max eight PCICA and PCIXCC features per system

3. Two accelerator cards per PCICA feature

4. One coprocessor per PCIXCC feature

1, 2

PCIXCC2

OSA-Express Features

OSA-Express* Features

Minimum 0

Maximum 24

*Any combination of GbE LX, GbE SX, 1000BASE-T Ethernet, Token-Ring

z990 Frame and I/O Conﬁ guration Content: Planning for I/O

The following diagrams show the capability and ﬂ exibility

built into the I/O subsystem. All machines are shipped with

two frames, the A-Frame and the Z-Frame and can have

between one and three I/O cages. Each I/O cage has 28

I/O slots.

Z-Frame

3rd

I/O Cage

2nd

I/O Cage

A-Frame

CEC

1st

I/O Cage

I/O cages

Z-Frame

I/O Feature Type Features Maximum

ESCON 28 cards 420 channels

FICON Express 20 40 channels

OSA-Express 20 40 ports

PCIXCC 4 4

PCICA 2 4 cards

Maximum combined FICON Express, OSA-Express, PCICA/PCIXCC features is 20.

Z-Frame

A-Frame

CEC

I/O

Cage

Single

I/O cage

A-Frame

I/O cages

2nd

I/O Cage

CEC

1st

I/O Cage

I/O Feature Type Features Maximum

ESCON 35 cards 0 channels

FICON Express 60 120 channels

OSA-Express 24 48 ports

PCIXCC 4 4

PCICA 6 12 cards

Maximum combined FICON Express, OSA-Express, PCICA/PCIXCC features is 60.

General Information:

•

ESCON conﬁ gured in 4-port increments. Up to 28 channels in 2 cards, 60 channels in 4 cards, 88 channels in 6 cards.

•

120 in 8 cards, etc. up to a maximum 69 cards, 1024 channels.

• OSA-Express can be Gigabit Ethernet, 1000BASE-T Ethernet or Token-Ring.

• Total number of PCIXCC / PCICA is 8 per system.

• If ICB-2 or ICB-3 are required on the system, these will use up a single I/O slot for every 2 ICB-2 or ICB-3 to accommodate the STI-2 and STI-3 cards.

I/O Feature Type Features Maximum

ESCON 35 cards 512 channels

FICON Express 40 80 channels

OSA-Express 24 48 ports

PCIXCC 4 4

PCICA 4 8 cards

Maximum combined FICON Express, OSA-Express, PCICA/PCIXCC features is 40.

Physical Characteristics

Channels and channel adapters no longer supported on z990

The following channels and/or channel adapters are no

longer supported:

• Parallel channels - an ESCON converter is required; IBM 9034 or Optica 34600 FXBT

• OSA-2 adapters - use equivalent OSA-Express adapters, for FDDI use 1000BASE-T or Gigabit Ethernet with appropriate multi-protocol switch or router

• OSA-Express ATM - use 1000BASE-T or Gigabit Ethernet with appropriate multi-protocol switch or router

• 4-Port ESCON cards - will be replaced with 16-port ESCON cards during upgrade

• FICON (pre FICON Express) - will be replaced with FICON Express during upgrade

• PCICC - replaced with PCIXCC for most functions

The ﬁ rst ICB-2 or 3 required a slot. The second to the

fourth required another slot. The ﬁ fth to the sixth required

another slot. (STI - 2/3 cards each supports two ICBs)

z990 Power/Heating/Cooling

System Power Consumption (kW)

Model / Conﬁ g 1 I/O Cage 2 I/O Cage 3 I/O Cage

A08 5.3 7.8 10.3

B16 7.3 9.8 12.3

C24 9.1 11.6 13.9

D32 10.8 13.3 15.8

Note: Assumes maximum conﬁ guration of I/O Cages 60 amp cords

System Cooling (Air Flow Rate - CFM)

Model / Conﬁ g 1 I/O Cage 2 I/O Cage 3 I/O Cage

A08 1400 1800 2200

B16 1800 2200 3000

C24 2200 2600 3250

D32 2200 3000 3250

Note: Assumes chilled underﬂ oor temperature of 24OC and maximum conﬁ guration of I/O cages

Heat Output (kBTU/hr)

Model / Conﬁ g 1 I/O Cage 2 I/O Cage 3 I/O Cage

A08 18.02 26.52 35.02

B16 24.82 33.32 41.82

C24 30.94 39.44 47.26

D32 36.72 45.22 53.72

z990 Dimensions

z990

# of Frames 2 Frames IBF contained within 2 frames

Height (w/ covers) 194.1 cm / 76.4 in (40 EIA) Width (w/ covers) 157.7 cm / 62.1 in (each frame 30.2 in) Depth (w/ covers) 157.7 cm / 62.1 in

Height Reduction 178.5 cm / 70.3 in (38 EIA) Width Reduction None

Machine Area 2.49 sq. meters / 26.78 sq. feet Service Clearance 5.45 sq. meters / 58.69 sq. feet (IBF contained within the frame)

Coupling Facility — CF Level of Support

CF Level Function

13 Protocol used with ﬁ ber channel expected to be more efﬁ cient than ESCON Helps lower Total Cost of Ownership (TCO) Only 2 cross site FCP links / ESS required for most workloads Can provide better performance Able to increase distance between sites while maintaining acceptable application performance

One protocol exchange vs. 2-3 with ESCO

12 64-bit support for Coupling Facility, CF Duplexing Toleration for >15 LPAR ID on z990 Enhanced Storage Protect DB2 Performance Message Time Ordering

11 9672 G5/G6 CF Duplexing Toleration for >15 LPAR IDs on z990

10 z900 GA2 support

9 MQSeries WLM Multi-system Enclave Support Intelligent Resource Director** IC-3/ISC-3/ICB-3 Peer Mode**

8 Dynamic ICF expansion into shared ICF pool Systems-Managed Rebuild

7 Shared ICF partitions on server models DB2 Delete Name optimization

6 ICB & IC TPF support

5 DB2 cache structure duplexing DB2 castout performance improvement Dynamic ICF expansion into shared CP pool*

4 Performance optimization for IMS & VSAM RLS Dynamic CF Dispatching Internal Coupling Facility* IMS shared message queue extensions

3 IMS shared message queue base

2 DB2 performance VSAM RLS 255 Connectors/1023 structures for IMS Batch DL1 (non-BMP)

1 Dynamic Alter support CICS temporary storage queues System Logger

Notes: –

G5 base CF level code is CF Level 6 and can be upgraded to CF Level 11

–

G6 base CF level code is CF Level 8 and can be upgraded to CF Level 11 – z900 base CF level code is CF Level 9 – z800 and z990 base CF level code is CF Level 12 –

Detailed information regarding CF Levels can be found in Coupling Facility Level (CF LEVEL) Considerations at ibm.com/s390/pso/cftable.html

*G3, G4, G5 and G6 only **zSeries required

Please note that although a particular back level machine may be updated to a more current CFCC level, NOT all the functions of that CFCC level may be able to run on that hardware platform, i.e., G3/G4 can be upgraded to CF Level 8 but it cannot use dynamic ICF expansion into shared ICF pool.

shared message queues

Fiber-Optic Cabling and System Connectivity

In the world of open systems and Storage Area Networks

(SANs), the changing requirements for ﬁ ber-optic cabling

are directly related to the system hardware conﬁ guration.

As industry-standard protocols and higher data rates con-

tinue to be embraced in these environments, the ﬁ ber-

cabling options can become numerous and complex.

Today’s marketplace is evolving towards new Small Form

Factor (SFF) ﬁ ber-optic connectors, short wavelength (SX)

and long wavelength (LX) laser transceivers, and increas-

ing link speeds from one Gigabit per second (Gbps) to 10

Gbps. New industry-standard SFF ﬁ ber optic connectors

and transceivers are utilized on the zSeries ESCON and

FICON Express features, on the ISC-3 feature, and on the

zSeries ETR feature. These new features must coexist with

the current infrastructure that utilizes a different “family” of

ﬁ ber-optic connectors and transceivers.

As a result of this complex and continually changing land-

scape, IBM is providing you with multiple ﬁ ber cabling

services options to provide ﬂ exibility in meeting your ﬁ ber

cabling needs.

IBM Network Integration and Deployment Services for

zSeries ﬁ ber cabling (zSeries ﬁ ber cabling services)

enables businesses to choose the zSeries conﬁ guration

that best matches their computing environment without

having to worry about planning and implementing the

ﬁ ber optic cabling. By teaming with IBM, businesses can

receive a world-class solution for their zSeries ﬁ ber con-

nectivity requirements, including consulting and project

management, as well as the ﬁ ber-optic jumper cables and

installation to complete the zSeries integration.

optic

zSeries ﬁ ber cabling now offers three options to address

a solution for your ﬁ ber cable installation. Enterprise ﬁ ber

cabling offers two additional options to help meet your

structured (trunking) environments requirements.

zSeries ﬁ ber cabling:

• Fiber-optic jumper cabling package

will analyze your zSeries channel conﬁ guration and your

existing ﬁ ber-optic cabling to determine the appropriate ﬁ ber-optic jumper cables required, then supply, label and install the ﬁ ber-optic jumper cables and complete the installation with a detailed connection report.

• Fiber-optic jumper migration and reuse for a zSeries

upgrade will plan, organize, re-label, re-route and re-plug your existing ﬁ ber-optic jumper cables for reuse with the upgraded zSeries server

• Fiber-optic jumper cables and installation

will supply the ﬁ ber-optic jumper cables you specify,

then label and install the ﬁ ber-optic jumper cables.

Enterprise ﬁ ber cabling options:

• zSeries ﬁ ber-optic trunk cabling package

will analyze your zSeries channel conﬁ guration and your

existing ﬁ ber-optic infrastructure to determine the appropriate ﬁ ber-optic harnesses, ﬁ ber-optic trunk cables and the ﬁ ber-optic patch panel boxes required, then supply, label and install the ﬁ ber-optic components to connect your new zSeries server to your existing structured ﬁ ber cabling infrastructure.

• Enterprise ﬁ ber cabling package

will analyze your entire data center conﬁ guration and

existing ﬁ ber-optic infrastructure to determine the appropriate end-to-end enterprise solution for connectivity.

This is a customized offering that includes trunk cables, zone cabinets, patch panels and direct attach harnesses for servers, directors and storage devices.

These tailored zSeries ﬁ ber cabling options use the same

planning and implementation methodologies as IBM’s cus-

tomized enterprise ﬁ ber cabling services, only focused on

your zSeries ﬁ ber cabling needs.

Fiber Quick Connect (FQC): FQC, a zSeries conﬁ guration

option, helps reduce the cable bulk associated with the

installation of potentially 240 (z800) to 256 (z900) to 420

(z990) ESCON channels in one I/O cage. Fiber harnesses,

which are factory-installed, enable connection to IBM’s

Fiber Transport System (FTS) direct-attach ﬁ ber trunk

cables. Each trunk can have up to 72 ﬁ ber pairs. Four

trunks can displace the 240 to 256 ﬁ ber-optic cables on

the z800 or z900.

In planning for zSeries systems, refer to

S/390 Fiber Optic Links

and Open System Adapters), GA23-0367, and the Installa-

tion Manual Physical Planning (IMPP) manual. Refer to the

services section of Resource Link for further details on the

zSeries Fiber Cabling Service options and the Fiber Quick

Connect conﬁ guration option.

Access Resource Link at ibm.com/servers/resourcelink.

(ESCON, FICON, Coupling Links,

Planning for:

z/OS

While zSeries servers are supported by a number of dif-

ferent operating systems, their most advanced features

are powered by z/OS. z/OS is the foundation for the future

of zSeries, an integral part of the z/Architecture designed

and developed to quickly respond to the demanding qual-

ity of service requirements for on demand businesses.

z/OS is the ﬂ agship mainframe operating system based

on the 64-bit z/Architecture. It is designed to deliver the

highest qualities of service for enterprise transactions

and data, and extends these qualities to new applications

using the latest software technologies. It provides a highly

secure, scalable, high technology-performance base

on which to deploy Internet and Java-enabled applica-

tions, providing a comprehensive and diverse application

execution environment. z/OS takes advantage of the latest

software technologies: new object-oriented programming

models that permit the rapid design, development and

deployment of applications essential to on demand busi-

nesses. It helps protect your investment in your present

mainframe applications by providing options for modern-

izing existing applications and integrating them with new

on demand applications, all within a single image of z/OS.

It provides a solid base for new applications, supporting

™

new technologies such as Enterprise JavaBeans

HTML, and Unicode, Parallel Sysplex clustering, highly

available TCP/IP networking and dynamic workload and

resource balancing.

, XML,

Integrated system services

z/OS helps make critical data and processing functions

accessible to end users regardless of their location in the

heterogeneous on demand world. The z/OS base includes

z/OS Communications Server, which enables world class

TCP/IP and SNA networking support, including mainframe

dependability, performance, and scalability; highly secure

connectivity; support for multiple protocols; and efﬁ cient

use of networking assets.

This integrated set of system services in z/OS can help a

customer to focus on extracting the maximum business

value from the z/OS installation. The system manages the

workload, program libraries and I/O devices. Complexities

are designed to be minimized and problem determina-

tion is facilitated with the sophisticated recovery, reporting

and debug facilities of z/OS. The z/OS operating system

combines many features that change the playing ﬁ eld of IT

infrastructure design:

• Support for zSeries Application Assist Processors (zAAP), an attractively priced special processing unit that provides an economical z/OS Java language-based execution environment

• Intelligent Resource Director expands the capabilities of z/OS Workload Manager to react to changing conditions and prioritize critical business workloads.

Support for 64-bit real memory and 64-bit virtual storage.

•

• A new installation and conﬁ guration infrastructure that simpliﬁ es the installation and conﬁ guration of z/OS and related products.

• Software pricing models designed to support on demand reality

z/OS 1.6 is the ﬁ rst release of z/OS that requires the

z/Architecture. This release will only run on zSeries servers

(z890, z990, z800, z990) or equivalent servers.

z/OS.e

z/OS.e is unique for the z800 and z890 providing select

function at an exceptional price. z/OS.e is intended to help

customers exploit the fast growing world of on demand

business by making the deployment of new applications

on the z800 and z890 very attractively priced.

z/OS.e uses the same code base as z/OS with custom

parameters and invokes an operating environment that is

comparable to z/OS in service, management, reporting,

and reliability. In addition, z/OS.e invokes zSeries hard-

ware functionality just as z/OS does. No new z/OS skills

and service procedures are required for z/OS.e.

IBM

For more information on z/OS.e see the

zSeries 890 and z/OS Reference Guide

Intelligent Resource Director

Intelligent Resource Director (IRD) is a key feature of the

z/Architecture which extends the Workload Manager

to work with PR/SM on zSeries servers to dynamically

manage resources across an LPAR cluster. An LPAR

cluster is the subset of the z/OS systems that are running

as LPARs on the same CEC in the same Parallel Sysplex.

Based on business goals, WLM can adjust processor

capacity, channel paths, and I/O requests across LPARs

without human intervention.

IRD assigns resources to the application; the applica-

tion is not assigned to the resource. This capability of a

system to dynamically direct resources to respond to the

needs of individual components within the system is an

evolutionary step. It enables the system to continuously

allocate resources for different applications, and this helps

to reduce the total cost of ownership of the system. IRD is

made up of three parts that work together to help optimize

the utilization of zSeries resources:

• LPAR CPU Management

• Dynamic Channel Path Management

• Channel Subsystem Priority Queuing

The z/OS Intelligent Resource Director (IRD) Planning

Wizard helps to plan your IRD implementation by asking

questions about your enterprise setup, and produces a

worksheet that describes the issues on each of your sys-

tems that you must consider before you can implement

IRD. The z/OS IRD Planning Wizard supports z/OS 1.2 and

higher.

zSeries Application Assist Processor

The IBM ^ zSeries Application Assist Processor

(zAAP), available on the z990 and z890 servers, is an

attractively priced specialized processing unit that pro-

vides an economical Java execution environment for z/OS

for customers who desire the traditional qualities of service

and the integration advantages of the zSeries platform.

When conﬁ gured with general purpose processors within

logical partitions running z/OS, zAAPs may help increase

general purpose processor productivity and may contrib-

ute to lowering the overall cost of computing for z/OS Java

technology-based applications. zAAPs are designed to

operate asynchronously with the general processors to

execute Java programming under control of the IBM Java

Virtual Machine (JVM). This can help reduce the demands

and capacity requirements on general purpose proces-

sors, which may then be available for reallocation to other

zSeries workloads.

The IBM JVM processing cycles can be executed on the

conﬁ gured zAAPS with no anticipated modiﬁ cations to

the Java application(s). Execution of the JVM processing

cycles on a zAAP is a function of the Software Developer’s

Kit (SDK) 1.4.1 for zSeries, z/OS 1.6, and the Processor

Resource/Systems Manager (PR/SM).

z/OS Scalability

z/OS is a highly scalable operating system that can sup-

port the integration of new applications with existing

mainframe applications and data. z/OS can scale up in a

single logical partition, or scale out in a Parallel Sysplex for

higher availability. With z/OS 1.6, up to 24 processors are

supported in a single logical partition on the z990 server.

In previous releases, z/OS supported up to 16 processors.

In a Parallel Sysplex, up to 32 z/OS images can be conﬁ g-

ured in single-image cluster, with access to shared data.

64-bit Support

z/OS scale is extended with support for 64-bit real and

virtual storage on zSeries servers, while continuing to sup-

port 24-bit and 31-bit applications.

The 64-bit real support is intended to eliminate expanded

storage, helps eliminate paging and may allow you to

consolidate your current systems into fewer LPARs or to

a single native image. z/OS V1.5 delivers 64-bit shared

memory support to allow middleware to share large

amounts of 64-bit virtual storage among multiple address

spaces. This is expected to provide a signiﬁ cant capac-

ity enhancement for relieving shared virtual storage con-

straints.

Applications that can be written to 64-bit virtual storage

have signiﬁ cantly larger addressability to data. With z/OS

1.2, assembler programs can obtain virtual storage above

2 GB for storing and manipulating data. This 64-bit sup-

port is used by DB2 V8 and other middleware. z/OS 1.6

includes C/C++ support for the development of 64-bit

applications, including debug and runtime support. In

addition, the Java SDK 1.4.1 is also available with 64-bit

support.

Automation Support

z/OS Managed System Infrastructure for Operations (msys

for Operations) provides automation for single system and

sysplex operations to help simplify operations and improve

availability. msys for Operations plays an important role in

outage avoidance

msys for Operations provides functions that control and

manage both hardware and software resources making

fully automated solutions possible. The focus is on simpli-

fying complicated operator interaction, detecting failure

situations and reacting to them quickly and precisely. This

is achieved through panel driven operator dialogs and

automated recovery routines that run in the background.

Simpliﬁ ed Conﬁ guration z/OS Managed System Infrastruc-

ture for Setup (msys for setup) is the strategic solution for

product installation, conﬁ guration and function enable-

ment. msys for Setup allows usage of consistent interfaces

with wizard-like conﬁ guration dialogs. In z/OS 1.4, the

msys for Setup Framework was enhanced to provide multi-

user capability and improved multisystem support.

The msys for setup dialogs use defaults and best prac-

tices values whenever possible and derive low-level values

from answers to high-level questions. After the conﬁ gura-

tion parameters have been speciﬁ ed, msys for Setup can

automatically update the system conﬁ guration directly. The

user can see in detail what the changes will be before they

are made.

Also, with z/OS 1.5 msys for Setup can use the IBM Direc-

tory Server, OpenLDAP, on any IBM platform including

OpenLDAP on z/OS UNIX System Services. This can sim-

plify the initialization of msys for setup, and can make the

Management Directory virtually transparent to the user.

The following functions can be conﬁ gured using msys for

Setup: Parallel Sysplex clustering, TCP/IP, UNIX System

Service, Language Environment

, LDAP, RMF™, ISPF, FTP,

and DB2 UDB for z/OS V8.

System Services

z/OS Version 1 Release 6 base elements and components

Base Control Program (BCP) JES2 ESCON Director Support MICR/OCR Support Bulk Data Transfer base DFSMSdfp EREP/ MVS High Level Assembler ICKDSF ISPF TSO/E 3270 PC File Transfer Program

™

FFST

/ESA

TIOC

z/OS Version 1 Release 6 optional priced features

DFSMSdss DFSMShsm DFSMSrmm DFSMStvs Bulk Data Transfer (BDT) File to File Bulk Data Transfer SNA NJE

™

The backbone of the z/OS system is the Base Control Pro-

gram (BCP) with JES2 or JES3. These provide the essential

services that make z/OS the system of choice when work-

loads must be processed reliably, securely, with complete

data integrity and without interruption. The BCP includes the

I/O conﬁ guration program (IOCP), the Workload Manager

(WLM), systems management facilities (SMF), the z/OS

UNIX Systems Services kernel, and support for Unicode.

Sense and Respond with Workload Manager

Workload Manager (WLM) addresses the need for manag-

mixed workload distribution, load balancing and the

ing

distribution of computing resources to competing workloads.

It does this while providing fewer, simpler system externals.

Performance management goals are expressed in Service

Level Agreement terms. All this is done with a single policy

that can be used across the sysplex to provide a single con-

trol point, eliminating the need to manage each individual

image.

Dynamic balancing of JES2 batch initiators across a sysplex

has been enhanced in z/OS 1.4 to provide better utilization

of processor resources. WLM is designed to check every

10 seconds to see if re-balancing is required. WLM is more

aggressive in reducing initiators on constrained systems and

starting new ones on less utilized systems, helping to ensure

that processors are more evenly utilized.

WLM Improvements for WebSphere

z/OS 1.5 can simplify WLM control for WebSphere.

Customers now have the choice to manually deﬁ ne

WebSphere application environments for WLM or have

WebSphere deﬁ ne them as and when required.

DFSMS can automate and centralize storage manage-

ment based on the policies that your installation deﬁ nes for

availability, performance, space, and security. With these

optional features enabled, you can take full advantage of

all the functions that DFSMS offers.

Performance block reporting for enclaves and multi-period

classes are designed to provide improved workload bal-

ancing for middleware applications such as WebSphere.

WLM Enqueue Management establishes a new interface to

allow reporting of resource contention. The priority of the

task holding the enqueue can be increased to allow the

resource to be released more quickly.

Data Management with DFSMS

DFSMS comprises a suite of related data and storage

management functions for the z/OS system. DFSMSdfp is

a base element of z/OS which performs the essential data,

storage and device management functions of z/OS. One

function of DFSMSdfp is the Storage Management Subsys-

tem (SMS). SMS helps automate and centralize the man-

agement of storage based on the customer’s policies for

availability, performance, space, and security. Using SMS,

the storage administrator deﬁ nes policies that can auto-

mate the management of storage and hardware devices.

These policies describe data allocation characteristics,

performance and availability goals, backup and retention

requirements, and storage requirements for the system.

DFSMShsm can perform space management functions

along with disaster recovery functions such as Advanced

Copy Services and aggregate backup and recovery sup-

port (ABARS). DFSMSdss can provide backup, restore

and copy services. DFSMSrmm provides tape manage-

ment services. Finally, DFSMStvs can provide coordinated

updates to multiple VSAM data sets at a transaction level,

providing high availability for CICS/VSAM by allowing con-

current access by batch applications.

z/OS 1.5 can help signiﬁ cantly enhance application

backup with enhancements to DFSMShsm to utilize

volume level fast replication. The fast backup is designed

to exploit FlashCopy and the virtual concurrent copy capa-

bility of IBM TotalStorage Enterprise Storage Server and

IBM RAMAC Virtual Array (RVA) respectively. DFSMShsm

Fast Replication in z/OS 1.5 is also intended to provide a

fast, easy to use point-in-time backup and recovery solu-

tion speciﬁ cally designed for DB2 Universal Database

(UDB) for z/OS V8. It is designed to allow fast, nondisrup-

tive backups to be taken at appropriate events when there

is minimum activity at the application level or when a fast

point-in-time backup is desired.

The other elements of DFSMS – DFSMSdss, DFSMShsm,

DFSMSrmm, and DFSMStvs, complement DFSMSdfp to

provide a comprehensive approach to data and storage

management. In a system-managed storage environment,

Parallel Sysplex

zSeries Parallel Sysplex technology provides industry-

leading availability by allowing z/OS workloads to be bal-

anced across multiple servers to provide near continuous

availability. This form of clustering, known as single system

image, also provides tremendous scale. Up to 32 zSeries

servers with z/OS can appear as a single image for

data sharing applications (see previous section, Parallel

Sysplex Clustering Technology).

JES2 and JES3

JES2 and JES3 handle the submission of work and the

distribution of output for the Base Control Program. JES2

exercises independent control over its job processing

functions, whereas JES3 exercises centralized control.

CICS/VSAM enabled for 24x7 availability

DFSMS Transactional VSAM Services (DFSMStvs) allows

you to share VSAM data sets across CICS, batch, and

object-oriented applications on z/OS or distributed sys-

tems. DFSMStvs can enable concurrent shared updates

of recoverable VSAM data sets by CICS transactions, mul-

tiple batch applications, and 24-hour availability of CICS

and batch applications. DFSMStvs is built on top of VSAM

record-level sharing (RLS), which permits sharing of recov-

erable VSAM data sets at the record level.

System-Managed CF Structure Duplexing

System-Managed Coupling Facility (CF) Structure Duplex-

ing is designed to signiﬁ cantly enhance Parallel Sysplex

availability. It can provide a robust failure recovery capa-

bility via CF structure redundancy, and it can enhance

Parallel Sysplex ease of use by helping to reduce the

complexity of CF structure recovery. These beneﬁ ts can

be achieved by creating a duplicate (or duplexed) copy

of a CF structure and then maintaining the two struc-

ture instances in a synchronized state during normal CF

operation. In the event of a CF related failure (or even a

planned outage of a CF), failover to the remaining copy of

the duplexed structures can be initiated and quickly com-

pleted transparent to the CF structure user and without

manual intervention.

• In z/OS 1.2, JES2 and JES3 allow an installation to have up to 999,999 jobs managed at any single point in time. In addition, both provide the installation the ability to obtain (spinoff) their JESlog data sets prior to job completion.

• The JES2 Health monitor, in z/OS 1.4, provides improved diagnostics. Even when JES2 is not responding to commands, the JES2 monitor, running in a separate address space, will be able to provide information about JES2’s status. JES2 also provides enhanced recovery from corrupted checkpoint data to prevent multisystem outages

• In z/OS 1.4, JES3 provides additional tolerance for initialization errors and the MAINPROC refresh function which enables the dynamic addition of systems to the

sysplex

System Management Services

z/OS Version 1 Release 6 base elements

HCD SMP/E Managed System Infrastructure for Setup Managed System Infrastructure for Operations

z/OS Version 1 Release 6 optional priced features

RMF SDSF HCM

z/OS provides systems management functions and fea-

tures to manage not only host resources, but also distrib-

uted systems resources. These capabilities have a long,

successful history of usage by S/390 customers. z/OS has

enhanced many of these systems management functions

and features to provide more robust control and automa-

tion of the basic processes of z/OS.

Console Enhancements

z/OS 1.5 includes console enhancements which are

•

designed to improve system availability by enhancing the capacity and reliability of message delivery. Major changes to the message production and consumption ﬂ ow can help reduce the possibility of bottlenecks which can cause a backlog of undelivered messages. These enhancements are available with z/OS 1.4 as an optional no-charge Console Enhancements Feature. msys for Setup has been enhanced in z/OS 1.4 to allow multiple users to log on and work concurrently from different workstations. Furthermore, as part of the user enrollment process, the msys for Setup user administrator can control which msys for Setup workplace functions a user can access. The graphical user interface (msys for Setup workplace) has been redesigned and is now easier to learn and use. These valuable ease-of-use enhancements make working with msys for Setup more intuitive

RMF

RMF is IBM’s strategic product for z/OS performance mea-

surement and management. It is the base product to col-

lect performance data for z/OS and sysplex environments

to monitor systems’ performance behavior and allows

customers to optimally tune and conﬁ gure their system

according to business needs. RMF provides its beneﬁ ts

through the operation of Postprocessing and Online

Monitoring functions. They are based on a set of data

gatherers and data services which enables access to all

performance relevant data in a z/OS environment. The four

components are RMF Data Gatherer, RMF Sysplex Data

Services, Historical Data Reporting and Online Monitoring

with RMF.

Enhancements

• RMF can show the contention for Cryptographic Coprocessors, including a description of which workloads are using or are delayed in access to the cryptographic coprocessors

• Application State Recording, a new feature of z/OS 1.4 provides more granular performance reporting for middleware such as WebSphere

• In z/OS 1.5, RMF Monitor II and Monitor III performance data is now RACF protected

z/OS msys for Operations is a base element in z/OS 1.2

that incorporates automation technology into z/OS. It pro-

vides self-healing attributes for some critical system and

sysplex resources and can simplify the day-to-day opera-

tion of a single z/OS image or of a Parallel Sysplex cluster.

• msys for Operations enhancements in z/OS 1.3 include automation to handle enqueue contention and auxiliary storage shortages. msys for Operations can also interface with the Hardware Management Console (HMC) to provide hardware functions such as deactivating LPARs.

SMP/E

SMP/E provides the ability to install software products

and service either from DASD or tape, or directly from a

network source, such as the Internet. By installing directly

from a network source, SMP/E is enabling a more seamless

integration of electronic software delivery and installation.

Advanced System Automation

The unique and rich functions of IBM Tivoli System Auto-

mation for OS/390 (SA OS/390) Version 2.2 (separately

orderable) can ease z/OS management, reduce costs, and

increase application availability. SA OS/390 automates I/O,

processor, and system operations, and includes “canned”

automation for IMS, CICS, Tivoli OPC, and DB2. Its focus

is on Parallel Sysplex automation, including multi- and

single-system conﬁ gurations, and on integration with end-

to-end Tivoli enterprise solutions. With the new patented

manager/agent design, it is now possible to automate

applications distributed over a sysplex by virtually remov-

ing system boundaries for automation.

System Services beneﬁ ts can include:

z/OS Version 1 Release 6 optional priced features

Security server:

- RACF

z/OS Version 1 Release 6 optional no-charge features

z/OS Security Level 3 which includes:

- LDAP Security Level 3

- Network Authentication Service Level 3

- System SSL Security Level 3

- Open Cryptographic Services Facility Security Level 3

z/OS extends its robust mainframe security features to

address the demands of on demand enterprises. Tech-

nologies such as LDAP, Secure Sockets Layer (SSL),

Kerberos V5, Public Key Infrastructure, and exploitation of

zSeries cryptographic features are available in z/OS.

• Increased system availability

• Improved productivity of system programmers

• A more consistent approach for conﬁ guring z/OS components or products

• System setup and automation using best practices which can greatly improve availability

Security Services

z/OS Version 1 Release 6 base elements and components

Integrated Security Services

- Public Key Infrastructure Services

- DCE Security Server

- Open Cryptographic Enhanced Plug-ins

- Firewall Technologies

- LDAP Services

- Network Authentication Service

- Enterprise Identity Mapping

Cryptographic Services

- Integrated Cryptographic Service Facility (ICSF)

- System SSL

- Open Cryptographic Service Facility

include:

RACF

Resource Access Control Facility (RACF) provides the

functions of authentication and access control for z/OS

resources and data, including the ability to control access

to DB2 objects using RACF proﬁ les. Using an entity known

as the RACF user ID, RACF can identify users requesting

access to the system. The RACF user password (or valid

substitute, such as a RACF PassTicket or a digital certiﬁ -

cate) authenticates the RACF user ID.

Once a user is authenticated, RACF and the resource

managers control the interaction between that user

and the objects it tries to gain access to. These objects

include: commands, datasets, programs, tape volumes,

terminals and objects that you deﬁ ne. RACF supports ﬂ ex-

ibility in auditing access attempts and changes to security

controls. To audit security-relevant events, you can use the

RACF system management unload utility and a variety of

reporting tools.

With one command, a security administrator can update

remote RACF databases without logging on to remote sys-

tems. Throughout the enterprise, RACF commands can be

sent automatically to synchronize multiple databases. In

addition, RACF can automatically propagate RACF data-

base updates made by applications. With RACF, users can

keep passwords synchronized for speciﬁ c user IDs. When

you change one password, RACF can change passwords

for your user ID on different systems and for several user

IDs on the same system. Also, passwords can be changed

automatically for the same user ID on different systems.

This way, several RACF databases can be kept synchro-

nized with the same password information.

RACF enhancements:

• Digital Certiﬁ cates can be automatically authenticated without administrator action.

• Administrative enhancements enable deﬁ nition of proﬁ les granting partial authority. Handling of new passwords and removal of class authority are simpliﬁ ed.

• On demand applications require a way to associate more users under a RACF Group deﬁ nition, so RACF allows the creation of a new kind of Group that can contain an unlimited number of users.

• RACF now allows you to perform RACF installation class updates without an IPL, which can help improve availability

• RACF facilitates enterprise password sychronization through RACF password enveloping and notiﬁ cation of password changes using z/OS LDAP

• Improved user accountability through RACF’s enforcement of unique z/OS UNIX UIDs and GIDs

• Improved access control ﬂ exibility and granularity for z/OS UNIX ﬁ les with access control lists

• Multilevel security support

Multilevel Security

z/OS 1.5 is the ﬁ rst and only IBM operating system to pro-

vide Multilevel Security. This technology can help improve

the way government agencies and other organizations

share critical classiﬁ ed information. Combined with IBM’s

DB2 UDB for z/OS Version 8, z/OS provides multilevel

security on the zSeries mainframe to help meet the strin-

gent security requirements of government agencies and

ﬁ nancial institutions, and can help open up new hosting

opportunities. Multilevel security technology allows IT

administrators to give users access to information based

on their need to know, or clearance level. It is designed to

prevent individuals from accessing unauthorized informa-

tion and to prevent individuals from declassifying informa-

tion.

With multilevel security support in IBM’s z/OS 1.5 and DB2

V8, customers can enable a single repository of data to

be managed at the row level and accessed by individuals

based on their need to know.

SSL

Secure Socket Layer (SSL) is a public key cryptography-

based extension to TCP/IP networking which helps to

ensure private communications between parties on the

Internet. z/OS provides fast and highly secure SSL sup-

port, with increased performance when coupled with

zSeries server cryptographic capabilities.

z/OS SSL support includes the ability for applications to

create multiple SSL environments within a single process.

An application can now modify environment attributes

without terminating any SSL sessions already underway.

• IPv6 Support: This support allows System SSL to be used in an IPv6 network conﬁ guration. It also enables System SSL to support both IPv4 and IPv6 Internet protocol addresses.

• Performance is improved with CRL Caching: Today, SSL supports certiﬁ cate revocation lists (CRLs) stored in an LDAP server. Each time a certiﬁ cate needs to be validated, a request is made to the LDAP server to get the list of CRLs. CRL Caching enables applications to request that the retrieved list of CRLs be cached for a deﬁ ned length of time.

• Support for the AES Symmetric Cipher for SSL V3 and TLS Connections: System SSL supports the Advanced Encryption Standard (AES), which provides data encryption using 128-bit or 256-bit keys for SSL V3.0 and TLS V1.0 connections.

• Support for DSS (Digital Signature Standard) Certiﬁ cates: System SSL has been enhanced to support Digital Signature Standard certiﬁ cates deﬁ ned by the FIPS (Federal Information Processing Standard) 186-1 Standard.

• System SSL of RSA Private Keys Stored in ICSF: With z/OS 1.4, support is introduced that is designed to allow a certiﬁ cate’s private key to reside in ICSF thus lifting a restriction where the private key had to reside in the RACF database.

• Failover LDAP provides greater availability: You can now specify a list of Security Server-LDAP servers to be used for storing certiﬁ cate revocation lists (CRLs). When certiﬁ cate validation is being performed, this list will be used to determine which LDAP server to connect to for the CRL information.

• Simpliﬁ ed administration with the ability to export and import certiﬁ cate chains using PKCS#7 format ﬁ les.deﬁ ned length of time.

LDAP

z/OS provides industry-standard Lightweight Directory Pro-

tocol (LDAP) services supporting thousands of concurrent

clients. Client access to information in multiple directories

is supported with the LDAP protocol. The LDAP server

supports thousands of concurrent clients, increasing the

maximum number of concurrently connected clients by an

order of magnitude.

Enhancements

• Mandatory Authentication Methods (required by IETF RFC 2829) are supported in z/OS 1.4: The CRAM-MD5 and DIGEST-MD5 authentication methods have been added. The methods avoid ﬂ owing the user’s password over the connection to the server. The LDAP Server, the C/C++ APIs, and the utilities are updated with this support. Interoperability is improved for any applications that make use of these methods.

• TLS: z/OS LDAP now provides support for TLS (Transport Layer Security) as deﬁ ned in IETF RFC 2830 as an alternative to SSL support. It also provides support, via an LDAP extended operation, that allows applications to selectively activate TLS for certain LDAP operations at the application’s discretion.

• Support for IPv6 and 64-bit addressing

• Peer-to-peer replication provides failover support for server availability. If a primary master server fails, there is now a backup master to which LDAP operations can be directed.

• Large group support helps improve LDAP server performance when maintaining large access groups containing many members.

ICSF

Integrated Cryptographic Service Facility (ICSF) is a part

of z/OS which provides cryptographic functions for data

security, data integrity, personal identiﬁ cation, digital

signatures, and the management of cryptographic keys.

These functions are provided via APIs intended to deliver

the highly scalable and available security features of z/OS

and the zSeries servers. Together with cryptography fea-

tures of zSeries servers, z/OS is designed to provide high

performance SSL, which can beneﬁ t applications that use

System SSL, such as the z/OS HTTP Server and Web-

Sphere, TN3270, and CICS Transaction Gateway server.

ICSF provides support for the z990 and z890 PCIX Cryp-

tographic Coprocessor (PCIXCC), a replacement for the

PCICC and the CMOS Cryptographic Coprocessor Facility

that were found on the z900 and z800. All of the equivalent

PCICC functions offered on the PCIXCC are expected to

be implemented with higher performance. In addition,

PCIXCC implements the functions on the CMOS Crypto-

graphic Coprocessor Facility used by known applications.

PCIXCC supports secure cryptographic functions, use of

secure encrypted key values and user-deﬁ ned extensions.

PKI Services

PKI Services is a z/OS component that provides a com-

plete Certiﬁ cate Authority (CA) package for full certiﬁ cate

life cycle management. Customers can be their own Cer-

tiﬁ cate Authority, with the scale and availability provided by

z/OS. This can result in signiﬁ cant savings over third party

options.

• User request driven via customizable Web pages for browser or server certiﬁ cates

• Automatic or administrator approval process administered via same Web interface

• End user / administrator revocation process

• Certiﬁ cate validation service for z/OS applications

Firewall

• Firewall Technologies provide sysplex-wide Security Association Support: This function is designed to enable VPN (virtual private network) security associations to be dynamically reestablished on a backup processor in a sysplex when a Dynamic Virtual IP Address (DVIPA) takeover occurs. When the Dynamic Virtual IP Address give-back occurs, the security association is designed to be reestablished on the original processor in the sysplex. When used in conjunction with z/OS Communications Server’s TCP/IP DVIPA takeover/give-back capability, this function provides customers with improved availability of IPSec security associations.

Network Authentication Service

C/C++

• Network Authentication Service provides authentication, delegation and data conﬁ dentiality services which are interoperable with other industry implementations based on the MIT Kerberos V5 reference implementation. Network Authentication Service, administered with RACF commands, supports both the native Kerberos API functions as well as the GSS-API Kerberos security mechanism and does not require DCE.

• IPv6 supported by Kerberos with z/OS 1.4 for improved network security scalability.

• Kerberos in z/OS 1.4 provides an alternative database to RACF by offering support for its own registry database using the UNIX System Services NDBM (New Database Manager) support. NDBM provides full Kerberos administration support.

Application Enablement Services

z/OS Version 1 Release 6 base elements

Language Environment Run-Time Library Extensions

z/OS Version 1 Release 6 optional priced features

C/C++ without Debug Tool DFSORT GDDM®-PGF V2R1.3 GDDM-REXX V3R2 HLASM Toolkit V1R4

™

z/OS provides a solid infrastructure on which you can build

new applications, extend existing applications, and run

existing transactional and batch processes.

• Extra Performance Linkage (XPLINK) is provided in z/OS

1.2. A C or C++ application has overhead associated with each function call. The more highly functionalized a program, the more overhead. XPLINK helps cut down on the overhead associated with these function calls and can improve the performance of these applications. In order to exploit the bulk of “high-performance linkage” customers must recompile their C and C++ programs under the new XPLINK environment. The new IBM SDK for z/OS Java 2 Technology Edition V1.4 has been rewritten to take advantage of this unique z/OS function, which can result in performance improvements.

• Enhanced ASCII support provides the ability to produce code that contains ASCII string literals and character constants. This allows ASCII dependent logic to continue working on ASCII platforms, thus eliminating the need to ﬁ nd all such places in the code and converting

them to EBCDIC when porting UNIX applications to z/OS.

• Performance enhancements: A new higher optimization level, OPTIMIZE(3), provides the compiler’s highest and most aggressive level of optimization. OPTIMIZE(3) is suggested when the desire for run-time improvement outweighs the concern for minimizing compilation resources.

• DB2 preprocessor integration: The C/C++ compiler has been enhanced to integrate the functionality of the DB2 precompiler. A new SQL compiler option enables the compiler to process embedded SQL statements.

Language Environment

Language Environment is a base element of z/OS and

provides the run-time environment for programs generated

with C, C++, COBOL, FORTRAN, and PL/1.

C/C++ IBM Open Class

in Software Announcement 203-131, dated May 13, 2003,

the application development support (that is, the head-

ers, source, sidedecks, objects, and samples from the

Application Support Class and Collection Class libraries)

is withdrawn from the C/C++ IBM Open Class Library

(IOC) in z/OS 1.5. Applications that use these IOC libraries

cannot be compiled nor linked using z/OS 1.5. Run-time

support for the execution of existing applications that use

IOC libraries is provided with z/OS 1.5, but is planned to

be removed in a future release.

Library: As previously announced

• Continue to take advantage of:

– Common cross platform programming Security APIs

within Java framework

– Java Record Input/Output (JRIO) APIs to provide

record-oriented access to VSAM datasets, System

catalogs, and PDS directory

– Persistent reusable JVM technology for CICS, IMS,

and DB2

• Leverage traditional zSeries software and server beneﬁ ts: scalability, reliability, availability, performance and serviceability

z/OS 64-bit C/C++ environment: z/OS 1.6 delivers the

capability to exploit 64-bit virtual in developing and

deploying new applications that require a signiﬁ cantly

larger addressability of data. This capability is provided

with enhanced UNIX System Services, 64-bit Language

Environment (LE) run-time developed with the C/C++ com-

piler 64-bit support, and the Program Management Binder

64-bit support. The availability of this support completes

the major steps of the z/OS 64-bit virtual roadmap.

Java

SDK for z/OS, Java 2 Technology Edition, 1.4 provides a

full-function Software Development Kit (SDK) at the Java

2 technology level, compliant with the Sun SDK 1.4 APIs.

With SDK for z/OS, Java 2 Technology Edition, V1.4, cus-

tomers can:

• Test and deploy Java applications at the Java 2 SDK 1.4 API level

• Continue the “write once, run anywhere” Java paradigm at the Java 2 API level

• Take advantage of the new Java 2 function, including XML and Web services

IBM 64-bit SDK for z/OS, Java 2 Technology Edition, 1.4

(5655-I56) provides a full-function Software Development

Kit (SDK) at the Java 2 technology level, compliant with the

Sun SDK 1.4 APIs. With 64-bit SDK for z/OS, Java 2 Tech-

nology Edition 1.4, you can run Java applications that were

previously storage constrained.

The Java SDK for z/OS is available via download from the

IBM ^ zSeries Java Web site and by tape from IBM

Software Delivery and Fulﬁ llment (SDF) in SMP/E format.

For additional information about zSeries and Java prod-

ucts, go to: ibm.com/servers/eserver/zseries/software/

java/.

Unicode

z/OS provides Unicode Callable System Services – code

page and case conversions from EBCDIC to Unicode:

• DB2 V7 is the ﬁ rst exploiter

• New hardware instruction on zSeries servers has been implemented to provide superior performance

• Unicode Normalization Services allows programmers to decompose or compose characters from another code page and can apply normalization forms to have the same meaning.

REXX Functions

z/OS 1.4 extends the REXX language on z/OS when used

in a UNIX System Services zSeries REXX environment.

It includes functions for standard REXX I/O and to easily

access some common ﬁ le services and environments vari-

ables.

In case of a failure of the primary IP stack, VIPA Takeover

introduced in OS/390 2.8 can support movement to a

backup IP stack on a different server in a Parallel Sysplex

cluster. Dynamic VIPA Takeover can enhance the initial 2.8

functions, providing VIPA takeback support. This can allow

the movement of workload back from the alternate to the

primary IP stack.

Communication Services

z/OS Version 1 Release 6 base elements

z/OS Communications Server (Multiprotocol/HPR Services, TCP/IP Services, SNA/APPN Services)

OSA Support Facility

z/OS Version 1 Release 6 optional no charge features

z/OS Communications Server Security Level 3

The z/OS base includes z/OS Communication Server, which

enables: world class TCP/IP and SNA networking support,

including enterprise class dependability; performance and

scalability; highly secure connectivity; support for multiple

protocols; and efﬁ cient use of networking assets.

z/OS can provide near continuous availability for TCP/IP

applications and their users with two key features in z/OS:

Sysplex Distributor and Dynamic VIPA.

Dynamic Virtual IP Address Takeover

VIPA represents an IP address that is not tied to a speciﬁ c

hardware adapter address. The beneﬁ t can be that if an

adapter fails, the IP protocol can ﬁ nd an alternate path to

the same software, be it the TCP/IP services on a zSeries

server or an application.

With Sysplex-Wide Security Associations (SWSA) in z/OS

1.4, IPSec protected workloads are expected to now

realize all the beneﬁ ts derived from workload balancing,

such as optimal routing of new work to the target system

and server application based on QoS and WLM advice,

increased availability by routing around failed components

and increased ﬂ exibility in adding additional workload in a

nondisruptive manner.

Sysplex Distributor

Introduced in OS/390 2.10, Sysplex Distributor is a soft-

ware-only means of distributing IP workload across a

Parallel Sysplex cluster. Client connections appear to be

connected to a single IP address, yet the connections are

routed to z/OS images on servers on different zSeries 800/

900 or S/390 servers. In addition to load balancing, Sys-

plex Distributor simpliﬁ es the task of moving applications

within a Parallel Sysplex environment.

In z/OS we have taken the functions provided by the

Cisco MNLB Workload Agent and Systems Manager, and

integrated them into Enhanced Sysplex Distributor. This

can eliminate the need for separate Cisco LocalDirector

machines in the network and the need for MNLB work-

load agents to be run on the zSeries servers. It can also

improve performance, while allowing the Sysplex Distribu-

tor to decide, based on priority supplied by WLM, the

Service Policy Agent and the TCP/IP stack status, on the

application instance the packet is sent to.

z/OS supports Enterprise Identity Mapping (EIM). EIM

deﬁ nes a user’s security context that is consistent through-

out an enterprise, regardless of the User ID used and

regardless of which platform the user is accessing. RACF

commands are enhanced to allow a security administrator

to deﬁ ne EIM information for EIM applications to use. The

EIM information consists of the LDAP host name where the

EIM domain resides, the EIM domain name, and the bind

distinguished name and password an application may use

to establish a connection with the domain.

Intrusion Detection Services (IDS)

Introduced in z/OS 1.2 and enhanced in 1.5, IDS enables

the detection of attacks on the TCP/IP stack and the appli-

cation of defensive mechanisms on the z/OS server. The

focus of IDS is self-protection. IDS can be used alone or

in combination with an external network-based Intrusion

Detection System. IDS is integrated into the z/OS Commu-

nications Server stack.

• IPv6

• IPv6 (Internet Protocol version 6) is supported in z/OS and can dramatically increase network addressability in support of larger internal and multi-enterprise networks. z/OS provides compatibility with existing network addressing and mixed-mode addressing with IPv4.

HiperSockets

• HiperSockets, introduced in z/OS 1.2, provides very high-speed, low latency TCP/IP data communications across LPARs within the same zSeries server. HiperSockets acts like a TCP/IP network within the server.

• HiperSockets Accelerator provides an “accelerated routing path” which concentrates trafﬁ c between OSAExpress external network connections and HiperSockets connected LPARs. This function can improve performance, simplify conﬁ guration, and increase scalability while lowering cost by reducing the number of networking adapters and associated I/O cage slots required for large numbers of virtual servers.

Communications Services highlights:

• A single high-performance TCP/IP stack providing support for both IPv4 and IPv6 applications

• High Performance Native Sockets (HPNS) for TCP/IP applications

• Support for the latest security protocols - SSL & TLS

• Multinode Persistent Sessions for SNA applications running in a Parallel Sysplex environment

• Simple Network Time Protocol Support (SNTP) for client/ server synchronization

• New conﬁ guration support for Enterprise Extender (EE) XCA major nodes allows activation and inactivation at the GROUP level. In addition, the EE XCA major node now supports conﬁ guration updates when the major node is active. This provides ﬂ exibility and can help improve availability by allowing updates to occur without necessarily affecting existing sessions.

• Alternate route selection for SNA and Enterprise

Extender (EE): VTAM

allows alternate route selection for sessions using Enterprise Extender (EE) connection networks when connectivity fails due to temporary conditions in the underlying IP network. This can help improve availability for sessions using EE connection networks.

• Separate address space for TN3270 servers

• TCP/IP Sysplex health monitoring

Network Services beneﬁ ts can include:

•

Function for on demand Internet and intranet applications

• Multivendor, multiplatform connectivity

• Mainframe class of service over IP networks

• Dramatic improvements in TCP/IP performance include optimization of the TCP/IP stack, and inclusion of a number of performance related capabilities

z/OS UNIX

z/OS Version 1 Release 6 base elements

z/OS UNIX

z/OS UNIX is an integral element of z/OS and is a key ele-

ment of the zSeries’ open and distributed computing strat-

egy. Many middleware and application products that run

on z/OS use z/OS UNIX.

z/OS contains the UNIX application services (shell, utilities

and debugger) and the UNIX System Services (kernel and

runtime environment). The shell and utilities provide the

standard command interface familiar to interactive UNIX

users. z/OS includes all of the commands and utilities

speciﬁ ed in the X/Open Company’s Single UNIX Speciﬁ ca-

tion, also known as UNIX 95 or XPG4.2. The z/OS UNIX

Services Debugger provides a set of commands that

allow a C language program to be debugged interactively.

The command set is familiar to many UNIX users. With

Language Environment, z/OS supports industry standards

for C programming, shell and utilities, client/server appli-

cations, and the majority of the standards for thread man-

agement and the X/Open Single UNIX Speciﬁ cation. The

combination of open computing and z/OS allows the trans-

parent exchange of data, easy portability of applications,

cross-network management of data and applications, and

the exploitation of traditional zSeries system strengths in

an open environment.

Highlights

• X/Open UNIX 95 Branded

• Permanent z/OS UNIX Kernel (restart capability provided in z/OS 1.3)

• Integrated/converged z/OS UNIX Sockets

• Web application and UNIX C program performance improvements

• Improved z/OS UNIX setup

• Multiprocess/Multiuser Kernel Support

• Performance enhancements include recompiled and optimized functions within the kernel, and shell and utilities; addition of Socket Functions; use of Communication Storage Management buffer transfer instead of data movement; and optimized NFS Logical File System.

• Multiprocess/MultiUser can allow faster process creation for customers and reduced storage usage for servers.

• Semaphores without contention using the hardware Perform Locked Operation (PLO) instruction.

• Shared memory (captured storage) can reduce real storage when sharing large amounts of virtual storage.

• UNIX System Services and UNIX debugger add support for IEEE-ﬂ oating point.

• UNIX System Services provides greater security granularity for HFS and zFS ﬁ le systems with support for Access Control Lists (ACLs).

• More ﬁ le descriptors per UNIX process are provided in z/OS 1.6, which supports up to 64K per process.

• Additional support for 64-bit programming, conditional variables in shared memory, Euro symbol, and superkill support, along with enhancements to the automount daemon and Unicode.

UNIX System Services beneﬁ ts can include:

• Development and execution of UNIX applications — z/OS is a UNIX platform

• Increased application portfolio on z/OS as Independent Software Vendors can use USS to port their applications to z/OS

• Portability of applications to and from other platforms

• Use of UNIX development skills in a z/OS environment

• Consolidate multiple UNIX systems

• Scalability for high growth UNIX applications

• Parallel Sysplex support to share UNIX ﬁ le systems beneﬁ ts with Web server applications and others who access the hierarchical ﬁ le system. This support can make your data and information that reside in the HFS available to your customers at any time, no matter where the applications are running in the Parallel Sysplex environment.

z/OS UNIX supports hierarchical ﬁ le systems that use UNIX

APIs. Applications can work with data in both UNIX hierar-

chical ﬁ le systems and traditional zSeries data sets.

zSeries File System (zFS)

zFile System (zFS) is the strategic UNIX ﬁ le system for

z/OS and complements the z/OS Hierarchical File System

(HFS). zFS uses the same APIs as HFS.

zFS can provide the following beneﬁ ts over HFS:

• Improved performance

• Additional function

– Disk space can be shared between ﬁ le systems in the

same data set

– File system quota (maximum ﬁ le system size). With

zFS the ﬁ le system quota can be increased with a

simple administrative command

– Can improve failure recovery. zFS performs asynchro-

nous writes to disk and does not wait for a synch inter-

val to begin writes.

zFS or zFS-related administration, system management,

performance, conﬁ guration support, and scalability have

been further enhanced in z/OS 1.4:

Distributed Computing Services

z/OS Version 1 Release 6 base elements and components

Network File System (NFS) DCE Base Services Distributed File Service (including zFS and SMB)

• Dynamic reconﬁ guration for ﬁ le system conﬁ guration options.

• Dynamic use of secondary allocation for a zFS aggregate (data set) or ﬁ le system.

• Improvements in the UNIX System Services automount support for zFS.

• Addition of ISHELL support for zFS.

• Ability to perform I/O operations in parallel for a zFS aggregate that spans multiple DASD volumes. This is designed to provide improved performance when using multi-DASD volume aggregates.

• Support for 64-bit user virtual buffer addresses.

The Hierarchical File System (HFS) functionality has been

stabilized. HFS is expected to continue shipping as part of

the operating system and will be supported in accordance

with the terms of a customer’s applicable support agree-

ment. IBM intends to continue enhancing zFS functional-

ity, including RAS and performance capabilities, in future

z/OS releases. All requirements for UNIX ﬁ le services are

expected to be addressed in the context of zFS only.

SMB Support has been further enhanced in z/OS 1.4 by:

• Simpliﬁ ed user administration with Windows Domain ID mapping

• Performance improvements with RFS and large PDS or PDS/E ﬁ le systems

• Exploitation of zFS performance

• Network File System (NFS) acts as a ﬁ le server to workstations, personal computers, or other authorized systems in a TCP/IP network. It also provides a z/OS client. The remote data sets or ﬁ les are mounted from the mainframe (z/OS) to appear as local directories and ﬁ les on the client system. NFS also provides access to the Hierarchical File System (HFS) and zSeries File System (zFS).

Distributed File Services (DFS) Server Message Block

(SMB)

Microsoft® Windows® networking compatible ﬁ le and print

serving is available in z/OS with Native SMB File and Print

Serving for Windows Clients. SMB ﬁ le serving enables

z/OS to share HFS, zFS, Sequential ﬁ les and Record Files

Systems (RFS) such as PDS, PDS/E or VSAM data sets

with Windows workstations. SMB can automatically handle

the conversion between ASCII and EBCDIC, making full

use of USS ﬁ le tagging Access Control Lists (ACLs) sup-

port. This enhances the ability to develop applications on

Windows and deploy on z/OS. z/OS also supports printing

of SMB ﬁ les without requiring that code be installed on the

clients and without requiring unique printer setup on the

workstations.

Internet Services

z/OS Version 1 Release 6 base elements

IBM HTTP Server

z/OS Version 1 Release 6 optional no charge features

IBM HTTP Server North America Secure

TThe IBM HTTP Server offers HTTP 1.1 compliance, sup-

port for Java technology, and the ability to manage Internet

processing through the Workload Manager (WLM). Ben-

eﬁ ts can include:

• Utilization of large storage capacity

• Single point of entry and control

• Consolidation of multiple Web sites

• Exploitation of z/OS WL

Print Services

z/OS Version 1 Release 6 optional priced features

Infoprint® Server – IP PrintWay – NetSpool – z/OS Print Interface

™

Infoprint Server provides a reliable, high availability, secure

and scalable foundation for customer’s enterprise printing

infrastructure. Infoprint Server and its companion prod-

uct, Infoprint Server Transforms, include a print interface,

printer inventory, application output capture program, and

print drivers and management tools that let you manage

any print job to any printer deﬁ ned to Infoprint Server,

including electronic distribution for presentation over the

Web.

Infoprint Central

Infoprint Central is a Web-based, GUI for managing print

jobs and printers throughout the enterprise from anywhere

in the enterprise using a Web browser. Intended primar-

ily for help desk operators, it lets users query the status

of jobs and printers, see job and printer messages, stop

and start printers, move jobs from one printer to another,

cancel or hold jobs, and many other functions. Infoprint

Central can use integrated z/OS security services so that

users can be authorized to perform only certain tasks, or

to perform tasks only on designated devices.

IP PrintWay extended mode: Infoprint Central is backed

by a new architecture in the component that delivers print

or e-mail output to printers, servers or users over TCP/IP

or Internet Printing Protocol (IPP). IP PrintWay extended

mode uses the SYSOUT Application Programming Inter-

face (SAPI) to access print jobs and job information from

the JES spool. The advantage of this change can be

higher availability and throughput, more ﬂ exibility for han-

dling print-related tasks, and scalability of Infoprint Server

for very large distributed print environments.

Common message log: A new common message log helps

to improve productivity of help desk operators for print

problem diagnosis and resolution, thus helping to increase

system availability and user satisfaction. Messages can

easily be accessed from Infoprint Central for a particular

job or printer.

These capabilities give you the ﬂ exibility to deliver output

on demand, anywhere you need it:

• Legacy CICS and IMS applications that generate SNA Character String (SCS) or 3270 output formats can print to LAN-attached PCL printers, without changes to the application program.

• Output can be sent as e-mail instead of, or in addition to print.

• A consolidated printer inventory lets you deﬁ ne all printers used with Infoprint Server, and printers driven by Print Services Facility (PSF) in one place. Printers can be deﬁ ned and modiﬁ ed from a single easy-to-use interface.

• IP PrintWay provides support for printers attached to the network using TCP/IP, VTAM-controlled coax printers, and for printers and servers over the Internet using the industry-standard Internet Printing Protocol (IPP). Easyto-use ISPF menus also enable management of distributed printers.

• The Print Interface supports print submission from applications running in UNIX System Services (USS), from Windows users via native Windows SMB, from applications on other servers, and over the Internet using IPP.

• Data stream transforms let you print AFP™ applications on printers using PCL, PostScript or PDF. You can also print PCL, PostScript and PDF output on AFP printers.

• A transform from SAP to AFP and a certiﬁ ed SAP Output Management System lets you print SAP application output on your fast, reliable AFP printers, and receive print completion notiﬁ cation back at the SAP Application Server.

Beneﬁ ts of consolidating your enterprise printing onto z/OS

using Infoprint Server can include:

• Reduced total cost of ownership for distributed print operations

• Improved productivity with simpliﬁ ed print operations and management

• Investment protection and leverage for your AFP applications and printers

• Faster deployment of on demand initiatives with ﬂ exible output delivery options

Softcopy Publications Support

Library Server converts BookManager documents to HTML

for display through a Web browser.

Library Center

IBM is providing an alternative way to navigate our z/OS

library on the Internet. Beginning with z/OS 1.5, the Library

Center for z/OS provides a Microsoft Windows Explorer-like

view of the contents of the entire z/OS and Software Prod-

ucts DVD Collection. The Library Center uses the new IBM

Library Server with new advanced search functions to help

users ﬁ nd information “on demand.”

The Library Center offers easier navigation and new

advanced search features:

•

An IBM Redbooks™ bookshelf lets the user perform a BookManager search and locate a corresponding Redbook in PDF format. The search scope pull-down lets the user launch searches in other repositories such as the WebSphere Application Server for z/OS or Google.

•

The Library Center also provides a handheld mode to support both connected and disconnected handhelds

z/OS Version 1 Release 6 base elements

BookManager® READ V3 Library Server GDDM Library Center

z/OS Version 1 Release 6 optional priced features

BookManager Build

BookManager READ is used to display, search, and

manage online documents and bookshelves. BookManager

BUILD is an optional feature that allows the creation of

softcopy documents that can be used by any of the

BookManager products.

Integrated Testing

z/OS is system-integration tested using a production-like

environment. The z/OS environment includes subsystems,

such as CICS, IMS, DB2 and WebSphere. This additional

testing supplements existing functional tests, with a focus

on tasks performed by customers in the production environ-

ment, thus helping establishments move more quickly to

new functions.

Publications

For a list of the publications available for z/OS, visit the

z/OS library Web site at: ibm.com/servers/eserver/zseries/

zos/bkserv.

Installation Considerations

CustomPac is a suite of services designed to help you

efﬁ ciently install, migrate and maintain a z/OS system. It

can also help with migrating and maintaining z/OS system-

related products and/or third parties’ software vendor

products. Options include:

• RefreshPac®, which includes preventative software services

• ProductPac

• SystemPac

for custom-built products

for installation or system replacement

Highlights

z/OS 1.4 and 1.5 are supported on the following IBM servers:

• S/390 Parallel Enterprise Server™ G5/G6 (or compatible server) (ESA/390 mode)

• Multiprise

3000 Enterprise Server (or compatible

server) (ESA/390 mode)

• IBM

zSeries 800, 890, 900 and 990 servers (or

compatible servers in z/Architecture mode)

z/OS 1.6 is supported on the following IBM servers:

• IBM

zSeries 800, 890, 900 and 990 servers (or

compatible servers in z/Architecture mode)

• Customized services and products to help meet customer speciﬁ c needs

• Efﬁ cient and effective exploitation of new z/OS functions

• A solution for businesses that lack skilled system programmers

• Installation of IBM and selected third-party software vendor products in one package

For more information visit: ibm.com/ca/custompac.

ServerPac is a software package, available free of charge

with a z/OS license, that creates or replaces a z/OS,

OS/390, or z/OS.e system.

CBPDO is a no-charge software package for adding or

upgrading products or service or both on an existing z/OS

systems.

Migration/Coexistence

General coexistence, release migrations, and fallback:

z/OS continues to deliver compatibility and ﬂ exibility as

the user migrates systems in a multisystem conﬁ guration

by allowing several releases of z/OS, OS/390, and z/OS.e

to coexist. This includes Parallel Sysplex and non-Parallel

Sysplex multisystem conﬁ gurations.

Coexistence allows systems within a multisystem conﬁ gu-

ration to be upgraded to a new release level of the operat-

ing system one system at a time. This is contingent on the

fact that the release the user is migrating to can coexist

with the lowest release running in the user’s multisystem

conﬁ guration.

IBM has a consistent coexistence, migration, and fallback

policy. Migration forward as well as backward should be

made within the same releases supported by the coexis-

tence policy.

This consistent coexistence, migration and fallback policy

applies to release migrations for:

• Single system conﬁ gurations

• Individual systems within a multisystem conﬁ guration

• Cases where a simultaneous IPL is used to migrate all systems in a multisystem conﬁ guration at the same time.

For additional information on coexistence and release

migration information, refer to

z/OS Planning for Installation

(GA22-7504) at: ibm.com/servers/eserver/zseries/zos/

bkserv/ﬁ nd_books.html.

The following table describes the migration/coexistence

supported releases. The release shown in column 1 is the

highest release running in a multisystem conﬁ guration.

For additional information on z/OS planning, refer to z/OS

and z/OS.e Planning for Installation, available on the z/OS

Web site in the z/OS Library at: ibm.com/servers/eserver/

zseries/zos.

For the latest information regarding z/OS and OS/390

marketing and service withdrawal dates visit: ibm.com/

servers/eserver/zseries/zos/support/zos_eos_dates.html.

Migration, installation and customization

enhancements

For information on migration to the latest z/OS releases,

see the z/OS Migration Web page ibm.com/zseries/zos/

migration. The publications are available from this site for

helping to plan the migration to z/OS 1.6.

Migration/Coexistence Supported Releases (OS/390 & z/OS)

Release Migration/Coexistence Release

z/OS R4 z/OS R4, z/OS R3, z/OS R2, {z/OS R1, OS/390 R10} z/OS R5 z/OS R5, z/OS R4, z/OS R3, z/OS R2

z/OS R6 z/OS R6, z/OS R5, z/OS R4, z/OS R3

z/OS R72 z/OS R7, z/OS R6, z/OS R5, z/OS R4

1. OS/390 R10 and z/OS R1 treated as one coexistence level

2. z/OS R7 is planned to be available September 2005

This information is being provided to you to facilitate

release planning and to help ensure appropriate position-

ing for future software migrations.

Note: Speciﬁ c functions might only be available on the

up-level systems, or it might be necessary to up-level all

systems to enable some functions.

zSeries Bimodal Support for z/OS

IBM provides is announcing the z/OS Bimodal Migration

Accommodation Offering to assist customers in migrat-

ing from OS/390 to z/OS. This addresses many customer

requests to have a “fallback” option to 31-bit mode when

ﬁ rst migrating to z/OS in 64-bit mode on a z/Architecture

server. IBM has reconsidered the investment in 31-bit sup-

port on a zSeries server to encourage our customers to

move forward. This offering is available for 6 months for

each z/OS license (5694-A01) starting from the registration

of a z/OS license to a z/Architecture server. This offering

applies to z/OS Version 1 Release 2, 3, and 4, and will not

be provided for z/OS 1.5 or for any z/OS.e releases.

Wizards

z/OS wizards are available on the Internet to help to set

up some of the z/OS functions. These wizards are interac-

tive assistants that ask a series of questions about the

task to be performed (for example, setting up a Parallel

Sysplex environment). The wizards can simplify planning

and conﬁ guration by exploiting recommended values and

by building customized checklists. For conﬁ guration tasks,

these wizards also generate outputs like jobs, policies, or

parmlib members that can be uploaded to z/OS.

For more information about wizards visit the Web site at:

www-1.ibm.com/servers/eserver/zseries/zos/wizards/.

Order z/OS through the Internet

ShopzSeries (formerly SHOPS390) provides an easy way

to plan and order your z/OS ServerPac or CBPDO. It will

analyze your current installation, determine the correct

product migration, and present your new conﬁ guration

based on z/OS. Additional products can also be added to

your order (including determination of whether all product

requisites are satisﬁ ed).

Service in ShopzSeries reduces customers’ research time

and effort by using their uploaded SMP/E Consolidated

Software Inventory (CSI) so that all applicable service,

including reach ahead service, for the installed FMIDs in

the target zones is selected. ShopzSeries also uses the

CSI information to limit the size of the service order, only

sending applicable service that has not already been

processed by SMP/E. IBM Technical Support is available

through RETAIN for problems and Q&A.

ShopzSeries is available in the U.S. and several countries

in Europe. In countries where ShopzSeries is not available

yet, please contact your IBM representative (or Business

Partner) to handle your order via the traditional IBM order-

ing process.

IBM Service is available through ShopzSeries as an Inter-

net-based, strategic software tool available to fulﬁ ll orders

24x7 (365 days a year). Through Service in ShopzSeries,

customers can quickly and easily order and receive cor-

rective or preventive service electronically over the Internet

or by standard physical media. For preventive service,

customers can order just critical service (HIPERs and PTFs

that resolve PE PTFs), the latest recommended service

(which includes all critical service), or all available service.

z/VM

The infrastructure for e-business on demand

™

environ-

ments can be deployed with visionary technology on z/VM,

including advanced virtualization, support for open source

software, and autonomic computing enhancements. With

virtualization technology as its foundation, z/VM continues

to provide new function and technology exploitation on the

mainframe that enables you to virtualize processor, commu-

nication, memory, storage, I/O, and networking resources,

with the potential to help reduce the need to plan for, pur-

chase, and install hardware to support new workloads.

z/VM supports Linux, one of the world’s leading open

Source operating systems, on the mainframe. Within

the VM environment, Linux images can share hardware

resources and use internal high-speed communications.

While beneﬁ ting from the reliability, availability and service-

ability of zSeries servers, z/VM V4 offers an ideal platform

for consolidating select UNIX, Windows, and Linux work-

loads on a single physical zSeries server, which allows you

tens to hundreds of Linux images. z/VM V4 is priced

to run

on a per-engine basis and supports IBM Integrated Facility

for Linux (IFL) engines for Linux-based workloads, as well

as standard engines for all other zSeries and S/390 work-

loads.

z/VM V4 is the follow-on product for VM/ESA and z/VM V3.

It provides additional support and exploitation opportuni-

ties for the thousands of users who have built enterprise-

wide automation and infrastructure enhancements on the

VM platform in support of their applications, database

systems, and e-business solutions.

z/VM V5 offers new levels of price/performance, functional

capabilities, and hardware exploitation that increase the

attractiveness of deploying Linux solutions on the main-

frame. You can add capacity to existing zSeries systems

for hosting Linux on z/VM workloads by conﬁ guring their

server with IFL engines. z/VM V5 is the follow-on product

to z/VM V4.

z/VM Version 3 (V3)

z/VM offers a new technology base for customers look-

ing to use IBM Virtual Machine technology on one of the

industry’s best-of-breed server platforms, zSeries. When

z/VM is running on a zSeries server, it’s possible to run 64-

bit capable OS/390 2.10, z/OS, and Linux on zSeries as

guest systems of z/VM, in addition to ESA/390 guest oper-

ating systems such as OS/390, VSE/ESA, TPF, and Linux

on S/390. To operate z/OS as a guest of z/VM on a zSeries

server, z/VM must be operating in 64-bit mode. z/VM will

allow customers to develop and test their 64-bit Parallel

Sysplex applications in a guest environment before putting

them into production. This may help reduce the need to

invest in separate standalone conﬁ gurations.

z/VM can also reduce storage constraints by eliminat-

ing the 2 GB central storage limitation, providing plenty

of headroom for increasing e-business demands and

growing back-ofﬁ ce applications within a single machine

image. Customers experiencing real memory constraints

can experience relief by running z/VM in 64-bit mode

on a zSeries server. This constraint relief is provided for

ESA/390 guest operating systems. Support for large real

memory with z/VM may beneﬁ t customers running a large

number of Linux on zSeries and S/390 guest systems.

Additional enhancements in z/VM V3 include:

• Native FlashCopy for Enterprise Storage Server (ESS) for high-speed data copy

• Guest support enhancements for 3494 VTS and FICON attached 3590 A60 Tape Controller

Connectivity enhancements for TCP/IP Feature for z/VM:

• Improved security with the inclusion of a Secure Socket Layer (SSL) server

• Transparent data access to remote systems data with an NFS Client

• Capability and usability improvements to FTP server for Web browsers

• Reduced load on hosts with support for IP Multicasting

• Improved data transfer performance with QDIO supporting Gigabit Ethernet, Fast Ethernet, and 155 ATM (Ethernet LAN Emulation)

• Support for the DFSMS/MVS

Program Management binder and loader functionality to enhance application afﬁ nity between CMS and OS/390 or z/OS

z/VM Version 4 (V4)

With z/VM and the IBM Integrated Facility for Linux (IFL), a

low-cost, ﬂ exible environment is created to test and develop

on Linux while running Linux production applications on

IBM z990, z890, z900, z800, S/390 Parallel Enterprise

Server Generation 5 and 6, S/390 Multiprise 3000, or

equivalent servers. Support for IFL processor features by

z/VM V4 or later is designed to run Linux workloads with-

out increasing the IBM software charges for z/OS, z/OS.e,

OS/390, VM, VSE/ESA, or TPF operating systems and

applications running on standard engines of the z990, z890,

z900, z800, and S/390 servers in other logical partitions.

Engine-based pricing for z/VM V4 and its optional features

allows customers the opportunity to exploit the zSeries

and S/390 servers more cost effectively than a discrete

server implementation. With engine-based pricing, cus-

tomers pay a one-time software license charge (OTC) for

each processor engine. This can be for standard proces-

sor engines or IFL engines. Traditional operating systems

such as z/OS, z/OS.e, OS/390, TPF, VSE/ESA, z/VM V3.1,

or VM/ESA are not supported nor can they operate on IFL

engines. Only Linux workloads in an LPAR or Linux guests

of z/VM V4 or later can operate on the IFL engines.

z/VM provides the capability to account for the use of

system resources by virtual machines, including those run-

ning Linux. Accounting records are produced that track a

virtual machine’s use of processor, paging, I/O, and virtual

network resources, including virtual channel-to-channel

adapters (CTCAs), inter-user communication vehicle (IUCV)

or advanced program-to-program (APPC) connections, and

virtual (guest LAN) network interface cards (NICs).

z/VM V4.4 extends its virtualization technology in support of

Linux and other guests while providing some enhancements

that enable z/VM to be self-optimized and self-managed:

• Reducing contention for the z/VM Control Program (CP) scheduler lock may help increase the number of Linux and other guest virtual machines that can be managed concurrently.

• Enhancing the Virtual Machine Resource Manager (VMRM) to provide the infrastructure necessary to support more extensive workload and systems resource management features by providing:

– monitor data showing actual workload achievement

– an interface to dynamically change users in work-

loads, workload characteristics, and goals

– more ﬂ exibility using the VMRM conﬁ guration ﬁ le when

managing multiple users

– improvements in the reliability and performance of the

VMRM service virtual machine’s monitor data handling

– serviceability enhancements including improved mes-

sages, logﬁ le entries, and new server options

• Simulating virtual FICON CTCA devices for guest operating systems enhances previous virtual-CTCA support by adding the FICON protocol as an option for guest operating systems. Guests use virtual CTCAs to communicate among themselves within a single z/VM system image, without the need for real FICON CTCAs.

• Supporting real and virtual integrated 3270 console devices. Real support enables this device, provided by the Hardware Management Console (HMC) to be used as the system operator console. Virtual support enables testing of guest operating systems and utilities such as Stand-Alone Program Loader (SAPL) and standalone DASD Dump-Restore (DDR), that support the integrated 3270 console device.

™

• Delivering the Performance Toolkit for VM

to process Linux performance data obtained from the Resource Management Facility (RMF) Performance Monitoring (PM) client application, rmfpms. Linux performance data obtained from RMF is presented on display screens and in printed reports similar to the way VM data is viewed and presented.

With corresponding function available in Linux on zSeries

and S/390, z/VM 4.4 provides:

• The attachment of Small Computer System Interface (SCSI) devices to guest Linux images using Fibre Channel Protocol (FCP) channels on zSeries processors

• IPL from FCP-attached disks for Linux and other guest operating systems with necessary SCSI support, when z/VM is running on a z990, z890, z900, or z800 server equipped with the SCSI IPL Feature Enabler

• Enhanced page-fault handling

• Clear-key RSA functions of the IBM PCI Cryptographic Coprocessor (PCICC) or the IBM PCI Cryptographic Accelerator (PCICA) z/OS.e, OS/390, TPF, VSE/ESA, z/VM 3.1, or VM/ESA are not supported nor can they operate on IFL processor features. Only Linux workloads in an LPAR or Linux guests of z/VM V4 can operate on the IFL processor feature.

Exploiting New Technology

z/VM provides a highly ﬂ exible test and production environ-

ment for enterprises deploying the latest e-business solutions.

Enterprises that require multi-system server solutions will ﬁ nd

that z/VM helps them meet the demands of their businesses

and IT infrastructures with a broad range of support for such

operating system environments as z/OS, z/OS.e, OS/390, TPF,

VSE/ESA, CMS, and Linux on zSeries and S/390. The ability to

support multiple machine images and architectures enables

z/VM to run multiple production and test versions of zSeries

and S/390 operating systems, all on the same system. z/VM

can help simplify migration from one release to another,

facilitate the transition to newer applications, provide a test

system whenever one is needed, and consolidate several

to provide virtual access to the latest DASD and processor

architecture for systems that lack such support. New tech-

nological enhancements in z/VM 4.4 provide:

• Exploitation of the zSeries 890 and 990 server

– Extending Dynamic-I/O conﬁ guration support allows

channel paths, control units, and devices to be

dynamically added, changed, and deleted in a Logi-

cal Channel SubSystem (LCSS) environment.

– Support for extended I/O measurement facilities

provides improved capacity planning and I/O perfor-

mance measurement

– Handling I/O conﬁ guration deﬁ nition and dynamic I/O

conﬁ guration in an environment of up to 30 LPARs,

an increase from the previous limit of 15

• Support for the zSeries capability to cascade two FICON directors within a Fibre-Channel fabric. z/VM and its guests can take advantage of this enhanced and simpliﬁ ed connectivity, which is particularly useful in disasterrecovery and business-continuity situations.

• Support for the IBM TotalStorage Enterprise Storage Server (ESS) FlashCopy V2 providing increased ﬂ exibility for improved capacity management and utilization

• Support for the IBM ESS Peer-to-Peer Remote Copy Extended Distance (PPRC-XD) function, extending the distance, well beyond the 103 km supported with PPRC synchronous mode. PPRC-XD is suitable for data migration, backup, and disaster recovery procedures. PPRC Version 2 (V2) is also supported for guest operating

systems, offering an asynchronous cascading solution providing a complete, consistent, and coherent copy of data at a remote site.

• Support for IBM TotalStorage Enterprise Tape Controller 3592 Model J70 and Tape Drive 3592 Model J1A

Systems Management

Improvements in systems management, some of which

help to provide self-conﬁ guring, self-managing, and self-

optimizing facilities in z/VM V4.4 include:

• Functions that may be called by client applications to

allocate and manage resources for guests running in z/VM

virtual machines (virtual images). Use of the application programming interfaces (APIs) through an application

provided by a customer or solution provider are designed

o that such applications can allow administrators who

s lack in-depth VM knowledge to manage a large number of

virtual images, running in a single z/VM system.

• Hardware Conﬁ guration Manager (HCM) and Hardware Conﬁ guration Deﬁ nition (HCD) components to create and manage your I/O conﬁ guration. This new support provides a comprehensive, easy-to-use I/O-conﬁ guration-management environment similar to that available with the z/OS operating system.

• Performance Toolkit for VM that provides enhanced capabilities for a z/VM systems programmer, operator, or performance analyst to monitor and report performance data. The toolkit is an optional, per-engine-priced feature derived from the FCON/ESA program (5788-LGA), providing:

– full-screen mode system console operation and man-

agement of multiple z/VM systems

– post-processing of Performance Toolkit for VM history

ﬁ les and of VM monitor data captured by the MON-

WRITE utility

– viewing of performance monitor data using either Web

browsers or PC-based 3270 emulator graphics

The toolkit also provides the capability to monitor TCP/IP

for z/VM, as well as to process Linux performance data.

Application Enablement

CMS will host the new C/C++ for z/VM compiler (5654-A22).

This environment allows C/C++ programs to be compiled

and executed on CMS and creates portability between z/VM

and z/OS C/C++ programs. C/C++ source ﬁ les can be read

from a CMS minidisk, the SFS, or the Byte File System (BFS)

and output can be written to any of these ﬁ le systems. C/C++

will only execute on z/VM V4.4 and can only be licensed to

operate on standard processor engines. In order to support

the C/C++ for z/VM compiler, the C/C++, the Language

Environment has been updated to the level shipped with

z/OS V1.4 and is integrated into the base of z/VM V4.4.

Networking with z/VM

TCP/IP for z/VM delivers expanded Internet/intranet

access, improved e-business performance and extended

function. Performance of the TCP/IP stack was enhanced

by redesigning algorithms to reduce path lengths, recod-

ing procedures to optimize high-use paths, identifying

and implementing performance improvement items, and

adding virtual multiprocessing capabilities.

TCP/IP is designed to support the z/Architecture

HiperSockets function for high-speed communication

among virtual machines and logical partitions within the

same zSeries server. The HiperSockets function allows vir-

tual machines and logical partitions to communicate inter-

nally over the memory bus using the internal-queued-direct

(IQD) channel type in the z990, z890, z900, and z800. TCP/

IP broadcast support is now available for the HiperSockets

environment when utilizing Internet Protocol version 4 (IPv4)

with z/VM V4.4. Applications that use the broadcast function

can now propagate frames to all TCP/IP applications.

The z890 and z990 servers include an important perfor-

mance enhancement that virtualizes adapter interruptions

and can be used with V=V guests (pageable guests) on

z/VM V4.4. With the enhancement of the TCP/IP stack in

z/VM V4.4 to use adapter interruptions for OSA-Express,

TCP/IP for VM can beneﬁ t from this performance assist for

both HiperSockets and OSA-Express adapters.

z/VM V4.4 exploits the Virtual Local Area Network (VLAN)

technology. VLANs ease the administration of logical

groups of users so that they can communicate as if they

were on the same physical LAN. VLANs help increase

trafﬁ c ﬂ ow and may help reduce overhead to allow the

organization of networks by trafﬁ c patterns rather than by

physical location. To support VLAN, z/VM V4.4 provides:

• Enhancements to TCP/IP for z/VM to enable membership in a VLAN for QDIO and HiperSockets adapters

• Enhancements to z/VM guest-LAN simulation to allow virtual QDIO and HiperSockets adapters to participate in a VLAN

• Management and control of VLAN topology by the z/VM virtual switch

The guest LAN support provided in z/VM V4.2 simulates

the HiperSockets function for communication among

virtual machines without the need for real IQD channels,

much as VM simulates channel-to-channel adapters for

communication among virtual machines without the need

for ESCON, FICON, or other real channel-to-channel con-

nections. With the guest LAN capability, customers with

S/390 servers can gain the beneﬁ ts of HiperSockets com-

munication among the virtual machines within a VM image,

since no real IQD channels are required.

z/VM V4.4 further enhances its virtualization technology by

providing the capability to deploy virtual IP switches in the

guest LAN environment. The z/VM virtual switch replaces

the need for virtual machines acting as routers to provide

IPv4 connectivity to a physical LAN through an OSA-

Express adapter. Routers consume valuable processor

cycles and require additional copying of data being trans-

ported. The virtual-switch function alleviates this problem

and also provides centralized network conﬁ guration and

control. These controls allow the LAN administrator to

more easily grant and revoke access to the network and to

manage the conﬁ guration of VLAN segments.

TCP/IP for z/VM provides numerous self-protection func-

tions. A Secure Sockets Layer (SSL) server is available to

facilitate secure and private conversations between z/VM

servers and external clients. The upgraded SSL server in

z/VM V4.4 provides appropriate RPM format packages

for the SUSE LINUX Enterprise Server 7 (SLES 7) at the

2.4.7 kernel level, SUSE LINUX Enterprise Server 8 (SLES

8) powered by UnitedLinux at the 2.4.19 kernel level,

and Turbolinux Enterprise Server 8 (TLES 8) powered by

United Linux at the 2.4.19 kernel level. Security of the

TCP/IP stack has been improved to help prevent additional

types of Denial of Service (DoS) attacks including: Smurf,

Fraggle, Ping-o-Death, Kiss of Death (KOD), KOX, Blat,

SynFlood, Stream, and R4P3D. The overall security and

auditability of the TCP/IP for z/VM stack and the integrity of

the z/VM system have been improved by providing better

controls, monitoring, and defaults. An IMAP user authenti-

cation exit has been added that removes prior user ID and

password length restrictions and eliminates the need for

every IMAP client to have a VM user ID and password.

TCP/IP for z/VM, formerly a priced, optional feature of

VM/ESA and z/VM V3, is packaged at no additional charge

and shipped enabled for use with z/VM V4 and V5. The

former priced, optional features of TCP/IP — the Network

File System (NFS) server and TCP/IP source — are also

packaged with TCP/IP for z/VM at no additional change.

In addition to the new function provided by the Performance

Toolkit for VM, RealTime Monitor (RTM), and Performance

Reporting Facility (PRF) are still available in z/VM V4.4 to

support new and changed monitor records in z/VM. RTM

simpliﬁ es performance analysis and the installation man-

agement of VM environments. PRF uses system monitor

data to analyze system performance and to detect and

diagnose performance problems. RACF for z/VM is avail-

able as an priced, optional feature of z/VM V4 and provides

improved data security for an installation. RTM, PRF, and

the Performance Toolkit are also priced, optional features of

™

z/VM V4 as is the Directory Maintenance Facility (DirMaint

z/VM Version 5 (V5)

z/VM Version 5 Release 1 (V5.1) continues the evolution of its

premier and world-class zSeries virtualization technology with

a new version to offer traditional capabilities to manage

operating systems, including Linux, on a single mainframe

as guests of z/VM. z/VM V5.1 is designed to operate only

on zSeries servers that support the z/Architecture (64-bit)

including the z990, z890, z900, and z800 or equivalent.

zSeries

Engine-based Value Unit Pricing

z/VM V5 introduces engine-based Value Unit pricing which

replaces the per-engine pricing model that is available

with z/VM V4 as well as providing a lower entry price.

Engine-based Value Unit pricing is designed to provide a

decreasing price curve which may help provide improved

price/performance as hardware capacities and workload

grow. Value Unit pricing for z/VM V5 can provide for a

lower price per processor engine as more processor

engines are licensed with z/VM V5.1 across the enterprise.

Value Unit pricing helps you to:

• Add capacity and workload with an incremental and improved price

• Manage software costs better

• Aggregate licenses acquired across machines that are part of your enterprise.

Engine-base Value Unit pricing of z/VM V5 should not be

tied, or associated with, MSU-based Value Unit pricing.

Enhancements in z/VM V5.1 include:

Virtualization Technology and Linux Enablement

• Support for SCSI FCP disks enable the deployment of a Linux server farm on z/VM using only SCSI disks. SCSI disks can be used as such by guests through dedicated FCP subchannels, and are also supported as emulated 9336 Fixed-Block Architecture (FBA) devices for use by guests, CMS, and CP. With this support, you can install, IPL, and operate z/VM from SCSI disks.

• z/VM V5.1 includes the capability to install z/VM from a DVD both to an ESS SCSI disk emulated as an FBA device and to a 3390 DASD. Installing from a DVD can signiﬁ cantly reduce the required installation media and allows you to install to a zSeries server using only SCSI disks. This is expected to be most beneﬁ cial in a z/VM environment with Linux guests and without traditional installation devices such as IBM TotalStorage tape drives attached to the IBM zSeries server.

• Coordinated near-continuous availability and disaster

recovery for Linux guests by providing a new HyperSwap

function so that the virtual devices associated with one real disk can be swapped transparently to another. HyperSwap can be used to switch to secondary disk storage subsystems mirrored by Peer-to-Peer Remote Copy (PPRC). HyperSwap is planned to be exploited by Geographically Dispersed Parallel Sysplex (GDPS)

3.1 to provide a coordinated near-continuous availability and disaster recovery solution for distributed applications, such as WebSphere, that span z/OS images running natively and Linux guests running under z/VM.

• PCIX Cryptographic Coprocessor (PCIXCC) support provides z/OS and Linux guest support for the PCIXCC Feature available with the z990 and z890 severs. Delivery of the z/VM PCIXCC support satisﬁ es the Statement of Direction made on May 13, 2003.

The Systems Management APIs, introduced in z/VM

•

V4.4, provided a basic set of functions that may be called by applications to allocate and manage resources for guests running in z/VM virtual machines (virtual images). Although these APIs are primarily intended for managing Linux virtual images, they can be used to manage many types of z/VM virtual machine. All enhancements to the APIs in z/VM V5.1 have been implemented using Version 2 (V2) of the RPC server. In addition to usability enhancements, new functions include:

– DASD volume management for virtual images

– VMRM conﬁ guration ﬁ le management

– Query status of active images

– Query VMRM measurement data

– Removal of user ID entries in an authorization ﬁ le with

a single request

– Query all shared storage segments instead of one at a

time

• A new programming service is provided by an emulated DIAGNOSE instruction that helps enable a guest virtual machine to specify an action to be taken by CP when the guest becomes unresponsive. A time interval and action are speciﬁ ed by the guest. If the guest fails to reissue the DIAGNOSE instruction within the speciﬁ ed time interval, CP performs the action.

• A new publication, Getting Started with Linux on zSeries, describes z/VM basics and how to conﬁ gure and use z/VM functions and facilities to create and manage Linux servers running on zSeries processors. The publication

is designed to help systems personnel (system programmers, administrators, and operators) with limited knowledge of z/VM deploy Linux servers on z/VM more quickly and more easily.

Network Virtualization and Security

• The virtual IP switch, introduced in z/VM V4.4, was designed to improve connectivity to a physical LAN for hosts coupled to a guest LAN. The virtual switch has been enhanced to provide enhanced failover support for less disruptive recovery for some common network failures helping to provide business continuity as well as infrastructure reliability and availability.

• Authorization capabilities have been enhanced for z/VM guest LANs and virtual switches by using Resource Access Control Facility (RACF) or any equivalent External Security Manager (ESM) that supports this function. It is designed to provide ESM centralized control of authorizations and Virtual LAN (VLAN) assignment.

Technology Exploitation

• z/VM V5.1 supports the new z890 as well as the new enhancements to the z990 including:

– Four Logical Channel SubSystems (LCSSs) on the

z990 and two on the z890

– Transparent sharing of internal and external channel

types across LCSSs such as ICB-3, ICB-4, ISC-3,

FICON Express, and OSA-Express

– Open Systems Adapter-Express Integrated Console

Controller (OSA-ICC) function

• Up to 24 real processor engines in a single z/VM image on a z990 satisﬁ es the Statement of Direction made on May 13, 2003.

• IPv6 support for guest LANs has been enhanced to allow the z/VM TCP/IP stack to be conﬁ gured for IPv6 networks connected through OSA-Express operating in QDIO mode. The stack can be conﬁ gured to provide static routing of IPv6 packets and to send IPv6 Router Advertisements. In addition, support is being provided to help application developers to develop socket applications for IPv6 communications.

Systems Management Improvements

The Performance Toolkit for VM has been enhanced in

z/VM V5.1 to provide functional equivalence to the Perfor-

mance Reporting Facility (PRF) priced, optional feature,

thereby virtually eliminating the need for separate products

(PRF and RealTime Monitor (RTM)) to help manage your

performance more efﬁ ciently. Other new function includes:

• New high-level Linux reports based on Application Monitor records from Linux

• A new report for SCSI disks

Delivery of equivalent function to PRF in the Performance

Toolkit for VM satisﬁ es the Statement of Direction made on

May 13, 2003 to remove the RTM and PRF features in a future

release of z/VM. The RTM and PRF features have been with-

drawn from z/VM V5.1. These features are still available with

z/VM V4.4 but cannot be licensed with z/VM V5.1.

For further information see the

GM13-0137.

z/VM Reference Guide

To learn more

Visit the zSeries World Wide Web site at ibm.com/eserver/

zseries or call IBM DIRECT at 1 800 IBM-CALL in the U.S.

and Canada.

Australia 132 426

Austria 0660.5109

Belgium 02-225.33.33

Brazil 0800-111426

China (20) 8755 3828

France 0800-03-03-03

Germany 01803-313233

Hong Kong (20) 2825 6222

Hungary 165-4422

India (80) 526 9050

Indonesia (21) 252 1222

Ireland 1-850-205-205

Israel 03-6978111

Italy 167-017001

Japan 0120 300 426

Korea (02) 781 7800

Malaysia (03) 717 7890

Mexico 91-800-00316

Netherlands 020-513.5151

New Zealand 0800-801-800

Philippines (02) 819 2426

Poland (022) 878-6777

Singapore 1800 320 1975

South Africa 0800-130130

Spain 900-100400

Sweden 020-220222

Switzerland 0800 55 12 25

Taiwan 0800 016 888

Thailand (02) 273 4444

Vietnam Hanoi (04) 843 6675

Vietnam HCM (08) 829 8342

United Kingdom 0990-390390

Integrated Marketing Communications, Server Group Route 100 Somers, NY 10589 U.S.A.

References in this publication to IBM products or services do not imply that IBM intends to make them available in every country in which IBM operates. Consult your local IBM business contact for information on the products, features, and services available in your area.

IBM, IBM eServer, IBM ^, the IBM logo, the e-business logo, AFP, APPN, BookManager, CICS, DB2, DB2 Connect, DB2 Universal Database,

DFSMSdfp, DFSMSdss, DFSMShsm, DFSMSrmm, DFSMS/MVS, DFSORT, DirMaint, e-business on demand, ECKD, Enterprise Storage Server, ESCON, FICON, FICON Express, FlashCopy, FFST, GDDM, GDPS, Geographically Dispersed Parallel Sysplex, HiperSockets, Hiperspace, HyperSwap, IMS, InfoPrint, Intelligent Miner, IP PrintWay, Language Environment, MQSeries, Multiprise, MVS, Net.Data, NetView, Open Class, OS/390, Parallel Sysplex, Performance Toolkit PR/SM, Processor Resource/Systems Manager, ProductPac, pSeries, RACF, RAMAC, RefreshPac, Resource Link, RMF, RS/6000, S/390, S/390 Parallel Enterprise Server, SecureWay, Sysplex Timer, SystemPac, Tivoli, age Manager, TotalStorage, VM/ESA, VSE/ESA, VTAM, WebSphere z/Architecture, z/OS, z/VM, and zSeries are trademarks or registered trademarks of the International Business Machines Corporation in the United States and other countries.

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States or other countries.

UNIX is a registered trademark of The Open Group in the Unites States and other countries.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation In the United States, other countries, or both.

Intel is a trademark of the Intel Corporation in the United States and other countries.

Other trademarks and registered trademarks are the properties of their respective companies.

IBM hardware products are manufactured from new parts, or new and used parts. Regardless, our warranty terms apply.

Performance is in Internal Throughput Rate (ITR) ratio based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput that any user will experience will vary depending upon considerations such as the amount of multiprogramming in the user’s job stream, the I/O conﬁ guration, the storage conﬁ guration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve throughput improvements equivalent to the performance ratios stated here.

Photographs shown are engineering prototypes. Changes may be incorporated in production models.

This equipment is subject to all applicable FCC rules and will comply with them upon delivery.

Information concerning non-IBM products was obtained from the suppliers of those products. Questions concerning those products should be directed to those suppliers.

All customer examples described are presented as illustrations of how these customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics may vary by customer.

All statements regarding IBM’s future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only.

Prices subject to change without notice. Contact your IBM representative or Business Partner for the most current pricing in your geography.

GM13-0229-03

Netﬁ nity, NetSpool,

for VM,

Tivoli Stor-

, xSeries,

IBM z-OS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
