IBM TP 380, TP 385, TP 560, TP 560E, TP 760 Service Manual

...
IBM Mobile Systems
Hardware Maintenance Manual Volume 4: ThinkPad Computers
September 1997
We Want Your Comments! (Please see page 697)
S05L-1270-01
This Manual Supports:
ThinkPad 380 (2635) ThinkPad 385 (2635) ThinkPad 560 ThinkPad 560E ThinkPad 760C/CD (9546) ThinkPad 760E/ED (9546) ThinkPad 760L/LD (9546) ThinkPad 760EL/ELD (9547) ThinkPad 760XL (9546) ThinkPad 760XD ThinkPad 765D ThinkPad 765L ThinkPad 770 SelectaDock III
(2640) (2640)
(9547) (9546) (9547) (9548, 9549) (3547)
IBM Mobile Systems
Hardware Maintenance Manual Volume 4: ThinkPad Computers
September 1997
We Want Your Comments! (Please see page 697)
S05L-1270-01
IBM
Note
Before using this information and the product it supports, be sure to read the general information under “Notices” on page 702.
Second Edition (September 1997)
The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL
BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time.
This publication was developed for products and services offered in the United States of America. IBM may not offer the products, services, or features discussed in this document in other countries, and the information is subject to change without notice. Consult your local IBM representative for information on the products, services, and features available in your area.
Requests for technical information about IBM products should be made to your IBM reseller or IBM marketing representative.
Copyright International Business Machines Corporation 1997. All rights reserved.
Note to U.S. Government users–Documentation related to Restricted rights–Use, duplication, or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.
ii IBM Mobile Systems HMM
About This Manual
This manual contains service and reference information for IBM ThinkPad 380, 385, 560, 760, 765, 770, and SelectaDock III products. Use this manual along with the advanced diagnostic tests to troubleshoot problems effectively.
The manual is divided into sections as follows:
The Introduction section provides general information,
guidelines, and safety information required to service computers.
The product-specific sections include service,
reference, and product-specific parts information.
The Common Devices Checkout section provides
procedures for testing the devices that are commonly attached to ThinkPad computers.
The Miscellaneous Information section contains
information about acronyms, abbreviations, terms, and a telephone number listing.
Important
This manual is intended for trained servicers who are familiar with ThinkPad products. Use this manual along with the advanced diagnostic tests to troubleshoot problems effectively.
Before servicing an IBM mobile product, be sure to review the safety information under “Safety Notices (Multi-lingual Translations)” on page 8 and “Safety Information” on page 15.
iii
Related Publications
The following mobile product publications are available through IBM or your IBM Authorized Dealer.
Publication Part, Form Number
Mobile Systems HMM Volume 1: Laptop, Notebook, Portable, and ThinkPad Computers (Models L40, CL57, N45, N51, P70, P75, ThinkPad 300, 350, 500, 510, 710T, Expansion Unit, Dock I, Dock II)
Mobile Systems HMM Volume 2: ThinkPad Computers (Model 340, 355, 360, 370, 700, 701, 720, 750, 755)
Mobile Systems HMM Volume 3: ThinkPad Computers (Model 365, 380, 385, 560, 760, SelecataDock
ThinkPad 700 (9552) HMS 42G2016, S42G-2016 ThinkPad 700 (9552) HMR 42G2015, S42G-2015 ThinkPad 700C (9552) HMS 42G2022, S42G-2022 ThinkPad 700C (9552) HMR 42G2021, S42G-2021 ThinkPad 720/720C (9552)
HMS ThinkPad 720/720C (9552)
HMR ThinkPad 730T (2524) HMM 82G5497, S82G-5497 ThinkPad Exp. Crtg. (3550)
HMS ThinkPad Exp. Crtg. (3550)
HMR PS/2 FaxConcentrator HMS 15F2262, S15F-2262 PS/2 FaxConcentrator HMR 84F8541, S84F-8541 PS/2 Comm. Cartridge I
HMS PS/2 Comm. Cartridge I
HMR IBM High Speed Internal,
PCMCIA Data/Fax Modems
30H2356, S82G-1501-01
30H2357, S82G-1502-03
84H8099, S82G-1503-05
61G1193, S61G-1193
61G1187, S61G-1187
42G2338, S42G-2338
42G2339, S42G-2339
10G5993, S10G-5993
10G5992, S10G-5992
61G1556, S61G-1556
iv IBM Mobile Systems HMM
Related Diskettes
The following diskettes are available through IBM or your IBM Authorized Dealer.
Diskette Part, Form Number
ThinkPad 300 (2615) Advanced Diagnostics Diskette
ThinkPad 350, 350C, 425, 425C (2618) Advanced Diagnostics Diskette
ThinkPad 365 (2625) Advanced Diagnostics Diskette
ThinkPad 380, 385 (2635) Maintenance Diskette
ThinkPad 500 (2603) Advanced Diagnostics Diskette
ThinkPad 510 (2604) Advanced Diagnostics Diskette
ThinkPad 700 (9552) Reference Diskette
ThinkPad 700C (9552) Reference Diskette
ThinkPad 720/720C (9552) Reference Diskette
ThinkPad Hardware Maintenance Diskette (for all Models 355, 360, 560, 750, 755, 760)
ThinkPad Dock I (3545) 71G4140, S71G-4140 Docking Station (3550) 42G2428, S42G-2428 Data/Fax Modem 61G1556, S61G-1556 FaxConcentrator/A 84F8540, S84F-8540
33G9361, S33G-9361
A211000, GA21-1000
76H7578, S30H-2498
06J0333, S06J-0333
71G3702, S71G-3702
83G8095, S83G-8095
42G2017, S42G-2017
42G2023, S42G-2023
61G1194, S61G-1194
78H5384, S78H-5384
v
vi IBM Mobile Systems HMM
Contents
Introduction . . . . . . . . . . . . . . . . . . . 1
Mobile Computer Descriptions ........... 2
Drive and Diskette Compatibility Matrix ....... 5
Important Service Information ........... 6
Safety Notices (Multi-lingual Translations) ..... 8
Safety Information . . . . . . . . . . . . . . . . 15
Laser Compliance Statement ........... 20
ThinkPad 380, 385 (2635) ............ 23
Read This First .................. 25
Checkout Guide . . . . . . . . . . . . . . . . . 29
Symptom-to-FRU Index . . . . . . . . . . . . . . 40
Related Service Procedures ............ 52
Product Overview (380, 385) . . . . . . . . . . . 57
FRU Removals and Replacements ......... 58
Locations . . . . . . . . . . . . . . . . . . . . 101
Parts Listing 380, 385 (2635) .......... 104
Common/Option Parts List ............ 115
ThinkPad 560, 560E (2640) .......... 121
Read This First ................. 123
Checkout Guide . . . . . . . . . . . . . . . . 127
Symptom-to-FRU Index . . . . . . . . . . . . . 138
Related Service Procedures ........... 150
Product Overview (560, 560E) . . . . . . . . . 154
FRU Removals and Replacements ........ 156
Locations . . . . . . . . . . . . . . . . . . . . 183
Parts Listing 560, 560E (2640) ......... 186
Common and Option Parts List ......... 193
ThinkPad 760 (9546, 9547) . . . . . . . . . . 199
Read This First ................. 202
Checkout Guide . . . . . . . . . . . . . . . . 205
Symptom-to-FRU Index . . . . . . . . . . . . . 223
Related Service Procedures ........... 236
Product Overview (760) . . . . . . . . . . . . . 241
FRU Removals and Replacements ........ 246
LCD Removal and Replacement ......... 290
LCD Unit, 12.1 SVGA (P/N 29H9226, ASM P/N
29H9029) . . . . . . . . . . . . . . . . . . . 291
LCD Unit, 12.1 SVGA (P/N 29H9226, ASM P/N
73H6599) . . . . . . . . . . . . . . . . . . . 296
LCD Unit, 10.4 SVGA (P/N 29H9227) ...... 302
LCD Unit, 10.4 VGA (P/N 46H5355) ....... 307
LCD Unit, 11.3 DSTN (P/N 39H6232) ...... 312
LCD Unit, 12.1 XGA .............. 317
LCD Unit, 12.1 SVGA (P/N 82H8496) ...... 323
LCD Unit, 12.1 SVGA (P/N 11J8867, ASM P/N
11J8855) . . . . . . . . . . . . . . . . . . . 329
LCD Unit, 12.1 SVGA (P/N 46H5725, ASM P/N
46H5723) . . . . . . . . . . . . . . . . . . . 335
Copyright IBM Corp. 1997 vii
Locations . . . . . . . . . . . . . . . . . . . . 341
Parts Listing 760 (9546, 9547) ......... 346
LCD Parts List ................. 382
Common or Option Parts List .......... 402
ThinkPad 765D (9546), 765L (9547) ....... 409
Read This First ................. 411
Checkout Guide . . . . . . . . . . . . . . . . 415
Symptom-to-FRU Index . . . . . . . . . . . . . 432
Related Service Procedures ........... 448
Product Overview (765D, 765L) . . . . . . . . . 453
FRU Removals and Replacements ........ 454
Locations . . . . . . . . . . . . . . . . . . . . 503
Parts Listing 765D (9546), 765L (9547) ...... 506
Common and Option Parts List ......... 514
ThinkPad 770 (9548, 9549) . . . . . . . . . . 521
Read This First ................. 523
Checkout Guide . . . . . . . . . . . . . . . . 528
Power Management Features .......... 540
Symptom-to-FRU Index . . . . . . . . . . . . . 542
Undetermined Problems . . . . . . . . . . . . . 561
Related Service Procedures ........... 562
Product Overview (770) ............. 567
FRU Removals and Replacements ........ 568
Locations . . . . . . . . . . . . . . . . . . . . 607
Parts Listing 770 (9548, 9549) .......... 610
Common and Option Parts List ......... 614
SelectaDock III (3547-003) . . . . . . . . . . . 621
Read This First ................. 622
General Preparation . . . . . . . . . . . . . . . 624
Checkout Guide . . . . . . . . . . . . . . . . 625
How to Run the Diagnostics ........... 632
Symptom-to-FRU Index . . . . . . . . . . . . . 640
Undetermined Problems . . . . . . . . . . . . . 653
Product Overview (3547-003) . . . . . . . . . . 654
FRU Removals and Replacements ........ 656
Locations . . . . . . . . . . . . . . . . . . . . 673
Parts Listing SelectaDock III (3547-003) ..... 677
Common Devices Checkout .......... 681
External Diskette Drive Test ........... 682
External Display Self-Test ............ 682
External Keyboard/Auxiliary Input Device Checkout 683
Fax/Modem Checkout . . . . . . . . . . . . . . 684
Printer Checkout . . . . . . . . . . . . . . . . 686
Port Replicator Checkout ............ 687
TrackPoint Checkout . . . . . . . . . . . . . . 688
TV Tuner . . . . . . . . . . . . . . . . . . . . 689
Miscellaneous Information . . . . . . . . . . . 695
Acronyms, Abbreviations and Terms ....... 695
Send Us Your Comments! ............ 697
viii IBM Mobile Systems HMM
Do You Need Technical References? ...... 698
Problem Determination Tips ........... 699
Phone Numbers, U.S. and Canada ........ 700
Notices . . . . . . . . . . . . . . . . . . . . . 702
Contents ix
x IBM Mobile Systems HMM

Introduction

Mobile Computer Descriptions ........... 2
Drive and Diskette Compatibility Matrix ....... 5
Important Service Information ........... 6
How to Use Error Messages .......... 7
How to Read POST Error Messages ...... 7
Safety Notices (Multi-lingual Translations) ..... 8
Safety Information . . . . . . . . . . . . . . . . 15
General Safety . . . . . . . . . . . . . . . . 15
Electrical Safety . . . . . . . . . . . . . . . . 16
Safety Inspection Guide ............ 17
Handling Electrostatic Discharge-Sensitive Devices 19
Grounding Requirements . . . . . . . . . . . . 19
Laser Compliance Statement ........... 20
Copyright IBM Corp. 1997 1

Mobile Computer Descriptions

Models N51, CL57, and P70/75 and Thinkpads 700x and 720x are Micro Channel systems. All others are AT/ISA bus systems.
Model Type Processor Memory Hrd Dsk
Model L40SX 8543-044 386SX-20 2M/18M 60M Model N45 SL 2614-065 386SL-25 2M/8M 80M
Model N51 SLC 8551-025 386SLC-16 2M/10M 80M Model N51 SX 8551-033 386SX-16 2M/10M 40M Model CL57 SX 8554-045 386SX-20 2M/16M 80M Model P70 386 8573-031 80386-16 2M/8M 30M
Model P75 486 8573-161 80486-33 8M/16M 160M
ThinkPad 300 2615-065 386SL-25 4M/12M 80M
ThinkPad 340 2610 486SLC2-50/25 4M/12M 125M ThinkPad 340CSE 2610 486SLC2-50/25 4M/12M 200M ThinkPad 340CSE 2610 486SLC2-66/33 4M/12M 360M ThinkPad 345 2610 486DX4-75 4M/20M 360M ThinkPad 345CS 2610 DX4-75 4M/20M 540M ThinkPad 350 2618-AOE 486SL-25 4M/20M 85M
ThinkPad 350C 2618-NOA 486SL-25 4M/20M 125M
ThinkPad 355 2619 486SX-33 4M/16M 125M ThinkPad 355C 2619 486SX-33 4M/16M 125M
ThinkPad 355Cs 2619 486SX-33 2M/16M 170M
ThinkPad 360 2620 486SX-33 4M/16M 170M
ThinkPad 360C 2620 486SX-33 4M/16M 170M
ThinkPad 360Cs 2620 486SX-33 4M/16M 170M
ThinkPad 360Ce 2620 486DX2-50/25 4M/16M 170M
ThinkPad 360Cse 2620 486DX2-50/25 4M/16M 170M
ThinkPad 360P 2620 486SX-33 4M/16M 170M
ThinkPad 365C 2625-205 486DX4-75 8M/24M 340M
ThinkPad 365E 2625 5x86-100/33 8M/24M 540M ThinkPad 365ED 2625 5x86-100/33 8M/24M 540M ThinkPad 365X/XD 2625 Pentium-100 8M/24M 540M
ThinkPad 365X/XD 2625 Pentium-120 8M/24M 540M
ThinkPad 365X/XD 2625 Pentium-133 8M/40M 810M
ThinkPad 370C 9545 486DX4-75/25 4M/32M 340M
C Color M Megabyte P Pen
2614-067 386SL-25 2M/8M 120M
8573-061 80386-20 2M/8M 60M 8573-121 80386-20 2M/8M 120M
8573-401 80486-33 8M/16M 400M
2615-067 386SL-25 4M/12M 120M
2618-JOA 486SL-25 4M/20M 125M 2618-LOA 486SL-25 4M/20M 250M
2618-POA 486SL-25 4M/20M 250M
2619 486SX-33 4M/16M 250M
2619 486SX-33 2M/16M 250M
2620 486SX-33 4M/16M 340M
2620 486SX-33 4M/16M 340M
2620 486SX-33 4M/16M 340M
2620 486DX2-50/25 4M/16M 340M 2620 486DX2-50/25 4M/16M 540M
2620 486DX2-50/25 4M/16M 340M 2620 486DX2-50/25 4M/16M 540M
2620 486SX-33 4M/16M 340M
2625-x05 486DX4-75 8M/24M 540M
2625 Pentium-100 8M/24M 810M 2625 Pentium-100 8M/24M 1.0G
2625 Pentium-120 8M/24M 810M 2625 Pentium-120 8M/24M 1.0G
2625 Pentium-133 8M/40M 1.0G 2625 Pentium-133 8M/40M 1.3G
9545 486DX4-75/25 4M/32M 540M 9545 486DX4-75/33 4M/32M 810M
T Tablet TPF ThinkPad File
2 IBM Mobile Systems HMM
Model Type Processor Memory Hrd Dsk
ThinkPad 380 2635 Pentium-150 16M/48M 1.08G
ThinkPad 385 2635 Pentium-150 16M/48M 1.08G
ThinkPad 500 2603-081 486SLC2-50/25 4M/12M 80M
ThinkPad 560 2630 Pentium-100 8M/40M 540M
ThinkPad 560 2630 Pentium-120 8M/40M 540M
ThinkPad 560 2640 Pentium-130 8M/40M 540M
ThinkPad 560E 2640 Pentium MMX-150 8M/80M 2.1G
ThinkPad 700 9552-300 486SLC-25 4M/16M 80M
ThinkPad 700C 9552-30B 486SLC-25 4M/16M 120M ThinkPad 701C 2630 486DX2-25/50 4M/32M 360MB
ThinkPad 701Cs 2630 486DX2-25/50 4M/32M 360MB
ThinkPad 710T 2523-09Y 486SLC2-25 4M/12M TPF
ThinkPad 720 9552-307 486SLC-25/50 4M/16M 120M
ThinkPad 720C 9552-30J 486SLC-25/50 4M/16M 160M ThinkPad 730T 2524 486SLC2-25 4M/12M 0M
ThinkPad 750 9545-006 486SL-33 4M/20M 170M
ThinkPad 750C 9545-306 486SL-33 4M/20M 170M
ThinkPad 750Ce 9545 P24S-50/25 4M/20M 340M ThinkPad 750Cs 9545 486SL-33 4M/20M 170M
ThinkPad 750P 9545-40C 486SL-33 4M/20M 170M
ThinkPad 755C 9545 486DX4-50/25 4M/32M 170M
ThinkPad 755CD 9545 486DX4-100/33 8M/32M 540M
ThinkPad 755CDV 9545 486DX4-100/33 8M/32M 540M
ThinkPad 755Ce 9545 486DX4-100/33 8M/32M 340M
C Color M Megabyte P Pen
2635 Pentium-150 16M/48M 1.35G 2635 Pentium-150 16M/48M 2.10G 2635 Pentium MMX-150 16M/48M 2.10G 2635 Pentium MMX-166 16M/48M 2.10G
2635 Pentium-150 16M/48M 1.35G 2635 Pentium-150 16M/48M 2.10G 2635 Pentium MMX-166 16M/48M 2.10G
2603-171 486SLC2-50/25 4M/12M 170M
2630 Pentium-100 8M/40M 810M 2630 Pentium-100 8M/40M 1.0G
2630 Pentium-120 8M/40M 810M 2630 Pentium-120 8M/40M 1.0G
2640 Pentium-130 8M/40M 810M 2640 Pentium-130 8M/40M 1.0G
2640 Pentium MMX-166 8M/80M 2.1G 2640 Pentium-130 8M/40M 1.0G
9552-301 486SLC-25 4M/16M 120M
2630 486DX2-25/50 4M/32M 540MB 2630 486DX4-25/75 8M/32M 360MB 2630 486DX4-25/75 8M/32M 540MB
2630 486DX2-25/50 4M/32M 540MB 2630 486DX4-25/75 8M/32M 360MB 2630 486DX4-25/75 8M/32M 540MB
2523-302 486SLC2-25 4M/12M 60M 2523-303 486SLC2-25 4M/12M 60M
9552-308 486SLC-25/50 4M/16M 160M
2524 486SLC2-25 4M/12M 60M
9545-008 486SL-33 4M/20M 340M
9545-308 486SL-33 4M/20M 340M
9545 486SL-33 4M/20M 340M
9545-40E 486SL-33 4M/20M 340M
9545 486DX4-50/25 4M/32M 340M 9545 486DX4-50/25 4M/32M 540M 9545 486DX4-75/25 4M/32M 170M 9545 486DX4-75/25 4M/32M 340M 9545 486DX4-75/25 4M/32M 540M
9545 486DX4-100/33 8M/32M 810M
9545 486DX4-100/33 8M/32M 810M
9545 486DX4-100/33 8M/32M 540M 9545 486DX4-100/33 8M/32M 810M
T Tablet TPF ThinkPad File
Introduction 3
Model Type Processor Memory Hrd Dsk
ThinkPad 755Cs 9545 486DX4-50/25 8M/32M 170M
ThinkPad 755Cse 9545 486DX4-100/33 8M/32M 340M
ThinkPad 755CV 9545 486DX4-100/33 8M/32M 540M
ThinkPad 755CV 9545 486DX4-100/33 8M/32M 540M
ThinkPad 760C/CD 9546 Pentium-90 8M/40M 360M
ThinkPad 760E/ED 9546 Pentium-120 8M/80M 810M
ThinkPad 760EL/ELD9547 Pentium-100 8M/80M 810M
ThinkPad 760L/LD 9546 Pentium-90 8M/40M 810M
ThinkPad 760X 9546 Pentium-150 32M/80M 3.0G ThinkPad 760XD 9546 Pentium-166 32M/80M 3.0G ThinkPad 760XL 9547 Pentium-166 16M/80M 2.1G
ThinkPad 765D 9546 Pentium MMX-166 32M/104M 3.0G ThinkPad 765L 9547 Pentium MMX-166 32M/104M 3.0G ThinkPad 770 9548, 9549 Pentium MMX-233 32M/256M 3.2G ThinkPad 770 9548, 9549 Pentium MMX-233 32M/256M 4.0G
ThinkPad 770 9548, 9549 Pentium MMX-233 32M/256M 5.1G
C Color M Megabyte P Pen
9545 486DX4-50/25 8M/32M 340M 9545 486DX4-50/25 8M/32M 540M 9545 486DX4-75/25 8M/32M 170M 9545 486DX4-75/25 8M/32M 340M 9545 486DX4-75/25 8M/32M 540M
9545 486DX4-100/33 8M/32M 540M 9545 486DX4-100/33 8M/32M 810M
9545 486DX4-100/33 8M/32M 810M
9545 486DX4-100/33 8M/32M 810M
9546 Pentium-120 8M/40M 720M 9546 Pentium-90 8M/40M 810M 9546 Pentium-120 8M/40M 1.2G
9546 Pentium-133 8M/80M 1.0G 9546 Pentium-150 8M/80M 1.2G 9546 Pentium-166 8M/80M 1.3G 9546 Pentium-166 8M/80M 2.1G
9547 Pentium-100 8M/80M 1.0G 9547 Pentium-100 8M/80M 1.2G 9547 Pentium-120 8M/80M 810M 9547 Pentium-120 8M/80M 1.0G 9547 Pentium-120 8M/80M 1.2G 9547 Pentium-133 8M/80M 810M 9547 Pentium-133 8M/80M 1.0G 9547 Pentium-133 8M/80M 1.2G
9546 Pentium-90 8M/40M 1.1G 9546 Pentium-90 8M/40M 1.2G 9546 Pentium-120 8M/40M 810M 9546 Pentium-120 8M/40M 1.1G 9546 Pentium-120 8M/40M 1.2G
9547 Pentium-166 16M/80M 3.0G
T Tablet TPF ThinkPad File
4 IBM Mobile Systems HMM

Drive and Diskette Compatibility Matrix

The following table provides identification information for
3.5-inch drives.
Diskette Drive
3.5-Inch - 1.44MB 1.44 on the eject button
3.5-Inch - 2.88MB 2.88 on the eject button
Identifying Mark
The following table provides compatibility information for
3.5-inch diskettes and 3.5-inch diskette drives.
Diskette Capacity
1.0MB Read/Write Read/Write
2.0MB Read/Write Read/Write
4.0MB Not Compatible Read/Write
1.44MB Drive
2.88MB Drive
The following table provides identification information for
5.25-inch diskette drives.
Diskette Drive
5.25-Inch - 360KB (External) Asterisk on bezel
5.25-Inch - 1.2MB (Internal) 1.2 on the eject button
Identifying Mark
The following table provides compatibility information for
5.25-inch diskettes and 5.25-inch diskette drives.
Diskette Capacity
360KB Read/Write Read/Write
1.2MB Not Compatible Read/Write
360KB Drive
1.2MB Drive
Note: A 360KB diskette written to or formatted on a
1.2MB drive can be read reliably only on a 1.2MB drive.
Introduction 5

Important Service Information

Important
Diskette fixes are customer installable. The diskette fixes are located on the PC Company Bulletin Board Service (BBS). The direct phone line for modem connection is 919-557-0001 or tieline 255-0001.
Advise customers to contact the PC Company HelpCenter at 800-772-2227 if they need assistance in obtaining or installing any diskette fixes.
Customers in Canada should call IBM HelpPC at 800-565-3344 for assistance or down-load information. The Canadian BBS phone numbers are:
Montreal 514-938-3022 Toronto 905-316-4255 Vancouver 604-664-6464 Winnipeg 204-934-2735

FRU Replacement Strategy

Before Replacing Parts
Ensure that all diskette fixes are installed prior to replacing any FRUs listed in this manual.
Use the following strategy to prevent unnecessary FRU replacement and service expense:
If you are instructed to replace a FRU and that
does not correct the problem, reinstall the original
FRU before you continue.
Some computers have both a processor board and a
system board. If you are instructed to replace either
the processor board or the system board, and the first
board that you replaced does not correct the problem,
reinstall the original board, then replace the other
(processor or system) board.
If an adapter or device consists of more than one
FRU, an error code may be caused by any of the
FRUs. Before replacing the adapter or device,
remove the FRUs, one by one, to see if the
symptoms change. Replace only the FRU that
changed the symptoms.
Attention
A customized setup configuration (other than default settings) may exist on the computer you are servicing. Running Automatic Configuration may alter those settings. Note the current configuration settings (using the View Configuration option) and verify that the settings are in place when service is complete.
6 IBM Mobile Systems HMM
The advanced diagnostic tests are intended to test
only
IBM products. Non-IBM products or modified options can give false errors and invalid responses.
Hard Disk Drive Replacement Strategy:
Always try to run a low-level format before replacing a hard disk drive.
Attention
The drive startup sequence in the computer you are servicing might have been changed. Be extremely careful during write operations such as copying, saving, or formatting. Data or programs can be overwritten if you select an incorrect drive.

How to Use Error Messages

Use the error codes displayed on the screen to diagnose failures. If more than one error code is displayed, begin the diagnosis with the first error code. The cause of the first error code can result in false error codes being displayed. If no error code is displayed, see if the error symptom is listed in the Symptom-to-FRU Index for the computer you are servicing.

How to Read POST Error Messages

POST error messages are displayed on the screen as three, four, five, or eight digits. The error messages that can be displayed as shorter POST messages are highlighted in this index. Some digits will represent different information for SCSI errors versus non-SCSI errors.
The following example shows which digits display the shorter POST error messages and also defines the SCSI information in an eight-digit error message.
Shorter POST Messages
┌────┬────┬────┬────┐
│ │ │ │ │ ┌────┬────┬────┬────┬────┬────┬────┬────┐ │ ð│ ð│ ð│ ð│ ð│ ð│ ð│ ð│ └────┴────┴────┴────┴────┴────┴────┴────┘
│ │ │ │ │ │ │ │
Reserved ││││││Size (SCSI)
└────┴────┘ │ │ Slot Number (SCSI)
ID (SCSI)
All SCSI devices are set to a different SCSI ID. Duplicate SCSI ID settings can generate a false error message. Use the SCSI ID to determine whether the error message is coming from an internal or an external device.
Device Code │ Logical Unit Number (SCSI)
Introduction
7

Safety Notices (Multi-lingual Translations)

In this manual, safety notices appear in English with a page number reference to the appropriate multi-lingual, translated safety notice found in this section.
The following safety notices are provided in English, French, German, Italian, and Spanish languages.
Safety Notice 1
Before the computer is powered-on after FRU replacement, make sure all screws, springs, or other small parts are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes can cause electrical shorts.
Avant de remettre l'ordinateur sous tension après remplacement d'une unité en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en place et bien fixées. Pour ce faire, secouez l'unité et assurez-vous qu'aucun bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal pourraient causer un court-circuit.
Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird, muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf Klappergeräusche geprüft werden. Metallteile oder
-splitter können Kurzschlüsse erzeugen. Prima di accendere l'elaboratore dopo che é stata
effettuata la sostituzione di una FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni siano nella corretta posizione e non siano sparse all'interno dell'elaboratore. Verificare ciò scuotendo l'elaboratore e prestando attenzione ad eventuali rumori; eventuali parti o pezzetti metallici possono provocare cortocircuiti pericolosi.
Antes de encender el sistema despues de sustituir una FRU, compruebe que todos los tornillos, muelles y demás piezas pequeñas se encuentran en su sitio y no se encuentran sueltas dentro del sistema. Compruébelo agitando el sistema y escuchando los posibles ruidos que provocarían. Las piezas metálicas pueden causar cortocircuitos eléctricos.
8 IBM Mobile Systems HMM
Safety Notice 2
Some standby batteries contain a small amount of nickel and cadmium. Do not disassemble it, recharge it, throw it into fire or water, or short-circuit it. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.
Certaines batteries de secours contiennent du nickel et du cadmium. Ne les démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l'eau. Ne les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde ou celle de l'horloge temps réel, veillez à n'utiliser que les modèles cités dans la liste de pièces détachées adéquate. Une batterie ou une pile inappropriée risque de prendre feu ou d'exploser.
Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet, kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nur durch die Verkaufsstelle oder den IBM Kundendienst ausgetauscht werden. Sie darf nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Die Batterie kann schwere Verbrennungen oder Verätzungen verursachen. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Bereitschafts- oder Systembatterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.
Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell'acqua né cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la batteria dell'RTC (real time clock) o la batteria di supporto, utilizzare soltanto i tipi inseriti nell'appropriato Catalogo parti. L'impiego di una batteria non adatta potrebbe determinare l'incendio o l'esplosione della batteria stessa.
Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de piezas. La utilización de una batería no apropiada puede provocar la ignición o explosión de la misma.
Introduction 9
Safety Notice 3
The battery pack contains small amounts of nickel. Do not disassemble it, throw it into fire or water, or short-circuit it. Dispose of the battery pack as required by local ordinances or regulations. Use only the battery in the appropriate parts listing when replacing the battery pack. Use of an incorrect battery can result in ignition or explosion of the battery.
La batterie contient du nickel. Ne la démontez pas, ne l'exposez ni au feu ni à l'eau. Ne la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n'utiliser que les modèles cités dans la liste de pièces détachées adéquate. En effet, une batterie inappropriée risque de prendre feu ou d'exploser.
Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.
La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco o nell'acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la batteria, utilizzare soltanto i tipi inseriti nell'appropriato Catalogo parti. L'impiego di una batteria non adatta potrebbe determinare l'incendio o l'esplosione della batteria stessa.
Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de piezas al sustituir la batería. La utilización de una batería no apropiada puede provocar la ignición o explosión de la misma.
10 IBM Mobile Systems HMM
Safety Notice 4
The lithium battery can cause a fire, explosion, or severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.
La pile de sauvegarde contient du lithium. Elle présente des risques d'incendie, d'explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son connecteur polarisé et ne la démontez pas. Ne l'exposez pas à une temperature supérieure à 100°C, ne la faites pas brûler et n'en exposez pas le contenu à l'eau. Mettez la pile au rebut conformément à la réglementation en vigueur. Une pile inappropriée risque de prendre feu ou d'exploser.
Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung angebrachte Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.
La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100 gradi centigradi, incendiarla o gettarla in acqua. Smaltirla secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). L'impiego di una batteria non adatta potrebbe determinare l'incendio o l'esplosione della batteria stessa.
La bateria de repuesto es una bateria de litio y puede provocar incendios, explosiones o quemaduras graves. No la recargue, ni quite el conector polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como dispone la normativa local.
Introduction 11
Safety Notice 5
If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your hands, immediately wash the affected areas with water for at least 15 minutes. Seek medical care if any symptoms from the fluid are present after washing.
Si le panneau d'affichage à cristaux liquides se brise et que vous recevez dans les yeux ou sur les mains une partie du fluide, rincez-les abondamment pendant au moins quinze minutes. Consultez un médecin si des symptômes persistent après le lavage.
Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er unsachgemäß behandelt wird oder der Computer auf den Boden fällt. Wenn der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen mindestens 15 Minuten mit Wasser abgespült und bei Beschwerden anschließend ein Arzt aufgesucht werden.
Nel caso che caso l'LCD si dovesse rompere ed il liquido in esso contenuto entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti interessate con acqua corrente per almeno 15 minuti; poi consultare un medico se i sintomi dovessero permanere.
Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o sus manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos como mínimo. Obtenga atención medica si se presenta algún síntoma del fluido despues de lavarse.
12 IBM Mobile Systems HMM
Safety Notice 6
To avoid shock, do not remove the plastic cover that surrounds the lower portion of the inverter card.
Afin d'éviter tout risque de choc électrique, ne retirez pas le cache en plastique protégeant la partie inférieure de la carte d'alimentation.
Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der Spannungswandlerplatine umgibt, nicht entfernen.
Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la parte inferiore della scheda invertitore.
Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la tarjeta invertida.
Safety Notice 7
Though main batteries have low voltage, a shorted or grounded battery can produce enough current to burn combustible materials or personnel.
Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la mise à la masse d'une batterie peut produire suffisamment de courant pour brûler des matériaux combustibles ou causer des brûlures corporelles graves.
Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu entzünden oder Verletzungen bei Personen hervorzurufen.
Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in corto circuito o a massa può fornire corrente sufficiente da bruciare materiali combustibili o provocare ustioni ai tecnici di manutenzione.
Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada o con contacto a tierra puede producir la corriente suficiente como para quemar material combustible o provocar quemaduras en el personal.
Introduction 13
Safety Notice 8
Before removing any FRU, power-off the computer, unplug all power cords from electrical outlets, remove the battery pack, then disconnect any interconnecting cables.
Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension, débranchez tous les cordons d'alimentation des socles de prise de courant, retirez la batterie et déconnectez tous les cordons d'interface.
Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen, der Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU entfernt wird.
Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare i cavi di interconnessione.
Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte cualquier cable de conexión entre dispositivos.
14 IBM Mobile Systems HMM

Safety Information

The following section contains the safety information that you need to be familiar with before servicing an IBM mobile computer.

General Safety

Follow these rules to ensure general safety:
Observe good housekeeping in the area of the
machines during and after maintenance.
When lifting any heavy object:
1. Ensure you can stand safely without slipping.
2. Distribute the weight of the object equally between your feet.
3. Use a slow lifting force. Never move suddenly or twist when you attempt to lift.
4. Lift by standing or by pushing up with your leg muscles; this action removes the strain from the muscles in your back.
objects that weigh more than 16 kg (35 lb) or objects that you think are too heavy for you.
Do not perform any action that causes hazards to the
customer, or that makes the equipment unsafe.
Before you start the machine, ensure that other
service representatives and the customer's personnel are not in a hazardous position.
Place removed covers and other parts in a safe
place, away from all personnel, while you are servicing the machine.
Keep your tool case away from walk areas so that
other people will not trip over it.
Do not wear loose clothing that can be trapped in the
moving parts of a machine. Ensure that your sleeves are fastened or rolled up above your elbows. If your hair is long, fasten it.
Insert the ends of your necktie or scarf inside clothing
or fasten it with a nonconductive clip, approximately 8 centimeters (3 inches) from the end.
Do not wear jewelry, chains, metal-frame eyeglasses,
or metal fasteners for your clothing. Attention: Metal objects are good electrical
conductors.
Wear safety glasses when you are: hammering,
drilling soldering, cutting wire, attaching springs, using solvents, or working in any other conditions that might be hazardous to your eyes.
After service, reinstall all safety shields, guards,
labels, and ground wires. Replace any safety device that is worn or defective.
Reinstall all covers correctly before returning the
machine to the customer.
Do not attempt to lift any
Introduction
15

Electrical Safety

Observe the following rules when working on electrical equipment.
Important
Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents.
Many customers have, near their equipment, rubber floor mats that contain small conductive fibers to decrease electrostatic discharges. Do not use this type of mat to protect yourself from electrical shock.
Find the room emergency power-off (EPO) switch,
disconnecting switch, or electrical outlet. If an electrical accident occurs, you can then operate the switch or unplug the power cord quickly.
Do not work alone under hazardous conditions or
near equipment that has hazardous voltages.
Disconnect all power before:
– Performing a mechanical inspection – Working near power supplies – Removing or installing main units
Before you start to work on the machine, unplug the
power cord. If you cannot unplug it, ask the customer to power-off the wall box that supplies power to the machine and to lock the wall box in the off position.
If you need to work on a machine that has
electrical circuits, observe the following precautions:
– Ensure that another person, familiar with the
power-off controls, is near you. Attention: Another person must be there to
switch off the power, if necessary.
– Use only one hand when working with
powered-on electrical equipment; keep the other hand in your pocket or behind your back.
Attention: There must be a complete circuit to cause electrical shock. By observing the above rule, you may prevent a current from passing through your body.
– When using testers, set the controls correctly
and use the approved probe leads and accessories for that tester.
– Stand on suitable rubber mats (obtained locally,
if necessary) to insulate you from grounds such as metal floor strips and machine frames.
Observe the special safety precautions when you work with very high voltages; these instructions are in the safety sections of maintenance information. Use extreme care when measuring high voltages.
exposed
16 IBM Mobile Systems HMM
Regularly inspect and maintain your electrical hand
tools for safe operational condition.
Do not use worn or broken tools and testers.
Never assume
from a circuit. First, powered-off.
Always look carefully for possible hazards in your
work area. Examples of these hazards are moist floors, nongrounded power extension cables, power surges, and missing safety grounds.
Do not touch live electrical circuits with the reflective
surface of a plastic dental mirror. The surface is conductive; such touching can cause personal injury and machine damage.
Do not service the following parts
when they are removed from their normal operating places in a machine:
– Power supply units
– Pumps
– Blowers and fans
– Motor generators and similar units. (This practice ensures correct
grounding of the units.)
If an electrical accident occurs:
Use caution; do not become a victim
yourself.
– Switch off power. – Send another person to get medical aid.
that power has been disconnected
check
that it has been
with the power on

Safety Inspection Guide

The intent of this inspection guide is to assist you in identifying potentially unsafe conditions on these products. Each machine, as it was designed and built, had required safety items installed to protect users and service personnel from injury. This guide addresses only those items. However, good judgment should be used to identify potential safety hazards due to attachment of non-IBM features or options not covered by this inspection guide.
If any unsafe conditions are present, you must determine how serious the apparent hazard could be and whether you can continue without first correcting the problem.
Consider these conditions and the safety hazards they present:
Electrical hazards, especially primary power (primary
voltage on the frame can cause serious or fatal electrical shock).
Explosive hazards, such as a damaged CRT face or
bulging capacitor
Mechanical hazards, such as loose or missing
hardware
Introduction
17
The guide consists of a series of steps presented in a checklist. Begin the checks with the power off, and the power cord disconnected.
Checklist:
1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Power-off the computer. Disconnect the power cord.
3. Check the power cord for:
a. A third-wire ground connector in good condition.
Use a meter to measure third-wire ground continuity for 0.1 ohm or less between the external ground pin and frame ground.
b. The power cord should be the appropriate type
as specified in the parts listings.
c. Insulation must not be frayed or worn.
4. Remove the cover.
5. Check for any obvious non-IBM alterations. Use good judgment as to the safety of any non-IBM alterations.
6. Check inside the unit for any obvious unsafe conditions, such as metal filings, contamination, water or other liquids, or signs of fire or smoke damage.
7. Check for worn, frayed, or pinched cables.
8. Check that the power-supply cover fasteners (screws or rivets) have not been removed or tampered with.
18 IBM Mobile Systems HMM

Handling Electrostatic Discharge-Sensitive Devices

Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD). ESD damage can occur when there is a difference in charge between objects. Protect against ESD damage by equalizing the charge so that the machine, the part, the work mat, and the person handling the part are all at the same charge.
Notes
1. Use product-specific ESD procedures when they
exceed the requirements noted here.
2. Make sure that the ESD protective devices you
use have been certified (ISO 9000) as fully effective.
When handling ESD-sensitive parts:
Keep the parts in protective packages until they are
inserted into the product.
Avoid contact with other people.Wear a grounded wrist strap against your skin to
eliminate static on your body.
Prevent the part from touching your clothing. Most
clothing is insulative and retains a charge even when you are wearing a wrist strap.
Use the black side of a grounded work mat to provide
a static-free work surface. The mat is especially useful when handling ESD-sensitive devices.
Select a grounding system, such as those listed
below, to provide protection that meets the specific service requirement.
Note
The use of a grounding system is desirable but not required to protect against ESD damage.
– Attach the ESD ground clip to any frame ground,
ground braid, or green-wire ground.
– Use an ESD common ground or reference point
when working on a double-insulated or battery-operated system. You can use coax or connector-outside shells on these systems.
– Use the round ground-prong of the AC plug on
AC-operated computers.

Grounding Requirements

Electrical grounding of the computer is required for operator safety and correct system function. Proper grounding of the electrical outlet can be verified by a certified electrician.
Introduction 19

Laser Compliance Statement

Some IBM Personal Computer models are equipped from the factory with a CD-ROM drive. CD-ROM drives are also sold separately as options. The CD-ROM drive is a laser product. The CD-ROM drive is certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.
When a CD-ROM drive is installed, note the following.
CAUTION: Use of controls or adjustments or performance of
procedures other than those specified herein might result in hazardous radiation exposure.
O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles aqui especificados pode resultar em perigosa exposição à radiação.
Pour éviter tout risque d'exposition au rayon laser, respectez les consignes de réglage et d'utilisation des commandes, ainsi que les procédures décrites.
Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann gefährliche Laserstrahlung auftreten.
L'utilizzo di controlli, regolazioni o l'esecuzione di procedure diverse da quelle specificate possono provocare l'esposizione a
El uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí especificados
20 IBM Mobile Systems HMM
puede provocar la exposición a radiaciones peligrosas.
Opening the CD-ROM drive could result in exposure to hazardous laser radiation. There are no serviceable parts inside the CD-ROM drive. Do not open.
Some CD-ROM drives contain an embedded Class 3A or Class 3B laser diode. Note the following.
DANGER: Laser radiation when open. Do not stare into the
beam, do not view directly with optical instruments, and avoid direct exposure to the beam.
Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe diretamente por meio de instrumentos óticos e evite exposição direta com o feixe de luz.
Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder directement avec des instruments optiques, ou de vous exposer au rayon.
Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische Instrumente in den Laserstrahl sehen und den Strahlungsbereich meiden.
Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai eszközökkel. Kerülje a sugárnyalábbal való érintkezést !
Aprendo l'unità vengono emesse radiazioni laser. Non fissare il fascio, non guardarlo direttamente con strumenti ottici e evitare l'esposizione diretta al fascio.
Radiación láser al abrir. No mire fijamente ni examine con instrumental óptico el haz de luz. Evite la exposición directa al haz.
Introduction
21
22 IBM Mobile Systems HMM

ThinkPad 380, 385 (2635)

Read This First .................. 25
Checkout Guide . . . . . . . . . . . . . . . . . 29
Memory Checkout . . . . . . . . . . . . . . . 30
System Board Checkout ............ 31
Keyboard/Auxiliary Input Device Checkout .... 31
TrackPoint III Checkout ............ 32
Diskette Drive Test .............. 32
Status Indicator Checkout ........... 33
Power Systems Checkout ........... 33
Common Device Checkout ........... 36
Power Management Features ......... 38
Symptom-to-FRU Index . . . . . . . . . . . . . . 40
Numeric Error Codes .............. 40
Diagnostic Error Codes ............ 43
Beep Symptoms . . . . . . . . . . . . . . . . 46
No Beep Symptoms .............. 46
LCD-Related Symptoms . . . . . . . . . . . . 47
Keyboard/TrackPoint III-Related Symptoms . . . 47
Indicator-Related Symptoms . . . . . . . . . . 48
Power-Related Symptoms . . . . . . . . . . . 48
Function/Audio-Related Symptoms . . . . . . . 49
Peripheral-Device-Related Symptoms . . . . . . 49
Infrared-Related Symptoms . . . . . . . . . . . 50
Other Symptoms . . . . . . . . . . . . . . . . 50
Intermittent Problems . . . . . . . . . . . . . 50
Undetermined Problems . . . . . . . . . . . . 51
Related Service Procedures ............ 52
Status Indicators . . . . . . . . . . . . . . . . 52
How to Run the Diagnostics .......... 54
Error Log . . . . . . . . . . . . . . . . . . . 55

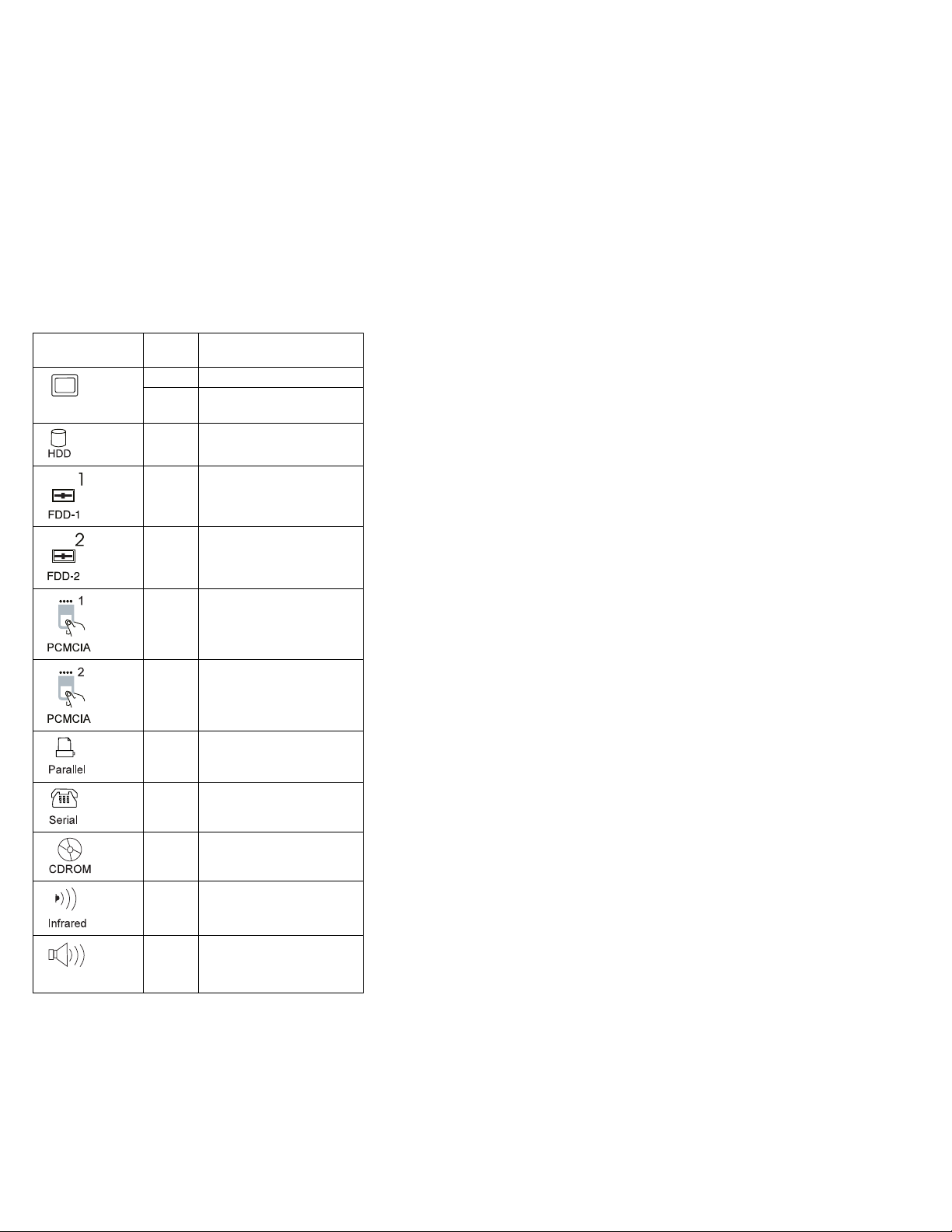

Checking the Installed Devices List ....... 55
How to Run a Low-Level Format ........ 55
PC Test Card LED ............... 56
Fn Key Combinations ............. 56
Product Overview (380, 385) . . . . . . . . . . . 57
FRU Removals and Replacements ......... 58
1010 Battery Pack . . . . . . . . . . . . . . 59
1020 DIMM Card / Backup Battery ....... 60
1030 Keyboard Unit . . . . . . . . . . . . . . 61
1040 CD-ROM/FDD Assembly . . . . . . . . . 63
1045 FDD . . . . . . . . . . . . . . . . . . 65
1046 CD-ROM . . . . . . . . . . . . . . . . 68
1050 Speaker / Microphone .......... 70
1060 Hard Disk Drive ............. 72
1070 LCD Unit . . . . . . . . . . . . . . . . 77
1080 System Board Assembly ......... 81
1090 Upper Shield Case ........... 83
1100 Sub Card . . . . . . . . . . . . . . . . 84
1110 Lower Shield Case ........... 85
1120 PCMCIA Slot . . . . . . . . . . . . . . 87
1130 Fan . . . . . . . . . . . . . . . . . . . 88
Copyright IBM Corp. 1997 23
2010 LCD Front Cover ............ 90
2020 LCD Panel . . . . . . . . . . . . . . . 92
2030 LCD Inverter Card ............ 95
2040 LCD Misc. Parts ............. 96
Hinges/Latches DSTN LCD . . . . . . . . . . 96
LCD Cable . . . . . . . . . . . . . . . . . . 99
Locations . . . . . . . . . . . . . . . . . . . . 101
Front View . . . . . . . . . . . . . . . . . 101
Rear View . . . . . . . . . . . . . . . . . . 102
Bottom View . . . . . . . . . . . . . . . . . 103
Parts Listing 380, 385 (2635) .......... 104
Models 380/380D/385/385D . . . . . . . . . 104
Models 380E/380ED/385E/385ED . . . . . . 106
Models 380/380D/385/385D . . . . . . . . . 108
Models 380E/380ED/385E/385ED . . . . . . 111
Common/Option Parts List ............ 115
24 IBM Mobile Systems HMM

Read This First

Before you go to the checkout guide, be sure to read this section.
Important Notes
Only certified trained personnel should
service the computer.
Read FRU service procedures before replacing
any FRUs.
Be extremely careful during write operations
such as copying, saving, or formatting.
Drives in the computer that you are servicing might have been rearranged or the drive startup sequence might have been altered. If you select an incorrect drive, data or programs can be written over.
Replace FRUs only for the correct model.
When you replace the FRU, make sure the model of the machine and FRU part number are correct by referring to the part list.
FRUs should not be replaced because of a
single, unreproducible failure. Single failures
can occur from a variety of reasons that have nothing to do with a hardware defect such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists. If this is suspected, clear the error log and run the test again. Do not replace any FRUs if log errors do not reappear.
Be careful not to replace a nondefective FRU.
How to Use Error Messages: Use the error
codes displayed on the screen to diagnose failures. If more than one error code is displayed, begin the diagnosis with the first error code. The cause of the first error code can result in false error codes being displayed. If no error code is displayed, see if the error symptom is listed in the “Symptom-to-FRU Index” on page 40.
Port Replicator Problems: If you suspect a
problem with the Port Replicator, see “Port Replicator Checkout” on page 36.
How to Diagnose Multiple FRUs: When the
adapter or device has more than one FRU, the error code could be caused by either FRU. Before replacing multiple FRUs, try removing or exchanging each FRU, one by one in the designated sequence, to see if the symptoms change.
ThinkPad 380, 385 (2635)
25
What to Do First: The servicer must include the
following in the parts exchange form or parts return form that is attached to the returned FRU:
1. Name and phone number of servicer
2. Date of service
3. Date when part failed
4. Date of purchase
5. Failure symptoms, error codes appearing on display, and beep symptoms
6. Procedure index and page number in which failing FRU was detected
7. Failing FRU name and part number
8. Machine type, model number, and serial number
9. Customer's name and address
Before checking problems with the computer, determine whether the damage is covered under the warranty by referring to the following:
26 IBM Mobile Systems HMM
Warranty Notes
During the warranty period, the customer may be responsible for repair costs if the computer damage was caused by misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by the customer. The following list provides some common items that are not covered under warranty and some symptoms that may indicate the system was subjected to stresses beyond normal use:
The following is not covered under warranty:
LCD panel cracked by applying excessive force
or by being dropped
Scratched (cosmetic) partsCracked or broken plastic parts, broken latches,
broken pins, or broken connectors caused by excessive force
Damage caused by liquid spilled into the systemDamage caused by improperly inserting a
PCMCIA card or installation of an incompatible card
Damage caused by foreign material in the FDDDiskette drive damage caused by pressing the
diskette drive cover or inserting diskettes with multiple labels
Damaged or bent diskette eject buttonCD-ROM drive damage caused by excessive
forces shock, or by being dropped
Fuses blown by nonsupported devicesForgotten computer password (making the
computer unusable).
If the following symptoms are present, they may indicate damage caused by nonwarranted activity:
Missing parts may be a symptom of unauthorized
service or modification.
HDD spindles can become noisy if subjected to
excessive force or by being dropped.
I9990303 errors can be caused by exposure to
strong magnetic fields.
ThinkPad 380, 385 (2635) 27
How to Disable the Power-On Password
1. Power off the computer.
2. Turn the computer upside down, loosen the DIMM cover screw .1/, remove the DIMM cover .2/, then power on the computer by applying a short across the power-on password jumper pads .3/.
Note: xxx in the following varies by model.
For models 380E and 385E: xxx = 345For other models: xxx = 315
3. Verify that the password prompt does not appear. To reactivate the password, set the password again.
Power Shutdown Switch: The power shutdown
switch resets the system regardless of the microcode status and forces the power off. Use this push button to power-off when power is not completely off or the microcode is in a hung state.
28 IBM Mobile Systems HMM

Checkout Guide

Use the following procedure as a guide for computer problems.
Note: The diagnostic tests are intended to test only IBM
products. Non-IBM products, prototype cards, or modified options can give false errors and invalid system responses.
1. Obtain the failing symptoms in as much detail as possible.
2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.
Note: To run the diagnostics, refer to “How to Run
the Diagnostics” on page 54.
3. Use the following table with the verified symptom to determine which page to go to. Search the symptoms column and find the description that best matches your symptom; then go to the page shown in the “Go to” column.
Symptoms (Verified) Go to
Power failure. (The power indicator does not go on or stay on.)
POST does not complete. No beeps or error codes are displayed.
POST beeps, but no error codes are displayed.
POST detected an error and displayed numeric error codes.
The diagnostic test detected an error and displayed an FRU code.
The configuration is not the same as the installed devices.
Other symptoms (such as LCD display problems).
Symptoms cannot be re-created. (Intermittent problems).
“Power Systems Checkout” on page 33.
“Symptom-to-FRU Index” on page 40, and then use the No Beep Symptoms table.
“Symptom-to-FRU Index” on page 40, and then use the Beep Symptoms table.
“Symptom-to-FRU Index” on page 40, and then use the
Numeric Error Codes
table. “How to Run the
Diagnostics” on page 54.
“Checking the Installed Devices List” on page 55.
“Symptom-to-FRU Index” on page 40, and then use the Other Symptoms table.
Use the customer reported symptoms and go to “Symptom-to-FRU Index” on page 40.
ThinkPad 380, 385 (2635) 29

Memory Checkout

DIMMs are available for increasing memory capacity.
DIMM Displayed Value
No DIMM installed 16000KB 8MB 24192KB 16MB 32384KB 32MB 48768KB
Memory errors might stop system operations, show error messages on the screen, or hang the system.
Use the following procedure to isolate memory problems. Note: Make sure that the DIMM is fully installed into the
connector. A loose connection can cause an error.
1. Power off the computer and remove the DIMM from its slot (if installed).
2. Press and hold the F1 key; then power on the computer. Hold the F1 key down until the Easy-Setup screen appears.
3. Select Test and press Enter.
4. Select Memory and press Enter to run the memory test on base memory. If an error appears, replace the system board.
5. Power off the computer and reinstall the DIMM; then power on the computer. Verify the memory size; then test the memory. If an error appears, replace the DIMM.
If memory problems occur intermittently, use the loop option to repeat the test. When the test detects an error, an error log is printed on the printer connected to the parallel port. See “Error Log” on page 55 for more information.
System Programs in Flash Memory:
System setup
programs and diagnostic tests are stored in flash memory.
Flash Memory Update:
A flash memory update is
required for the following conditions:
New versions of system programs.New features or options are added.
To update the flash memory, do the following:
1. Get the appropriate diskette containing the update.
2. Insert the System Program Service Diskette into drive A and power on the computer.
3. Select Update system programs from the menu.
30 IBM Mobile Systems HMM

System Board Checkout

The processing functions are performed by the system board. When a numeric code calls the system board as a FRU, use the following procedure to isolate the problem.
1. Run the system board test to verify the symptom. This test verifies the system board. If no error is detected, return to “Checkout Guide” on page 29.
2. If FRU code 10 appears, replace the system board.
3. Rerun the test to verify the fix.
If this procedure does not correct the problem, go to “Undetermined Problems” on page 51.

Keyboard/Auxiliary Input Device Checkout

Remove the external keyboard if the internal keyboard is to be tested.
If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the subcard.
If the keyboard cable connection is correct, run the keyboard test by doing the following:
1. Go to the diagnostic menu screen by selecting Test in the Easy-Setup screen.
2. Press Ctrl+A. The ThinkPad FRU Connections screen appears. (If the Ctrl+A does not work, triple-click on the icon on the right bottom corner on the basic diagnostic screen.)
3. Make sure that the keyboard connection is Connected; then press Esc to escape the screen.
4. A layout of the keyboard appears on the screen. Check that when each key is pressed, the key's position on the keyboard layout on the screen changes to a black square.
Note: When a Fn key is pressed, a black square
briefly appears.
5. Press Ctrl+Pause to end the test.
If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a nondefective FRU.
Reseat the keyboard flexible cable.Replace the keyboard assembly.Replace the subcard.Replace the system board.
The following auxiliary input devices are supported for this computer:
Numeric keypad
Mouse (PS/2 compatible)External keyboard (with keyboard/mouse cable)
ThinkPad 380, 385 (2635)
31
If any of these devices do not work, reseat the cable connector and repeat the failing operation.
If the problem does not recur, recheck the connector. If the problem is not corrected, replace the device, and
then the system board.

TrackPoint III Checkout

If the TrackPoint III does not work, check the configuration in the ThinkPad Features program. If the configuration of the TrackPoint III is disabled, select Enable to enable it.
If this does not correct the TrackPoint III problem, continue with the following:
The TrackPoint III does automatic compensations to adjust the pointer sensor. During this process, the pointer moves on the screen automatically for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the TrackPoint III pointer while the computer is powered on or while the system is running, or when readjustment is required because the temperature has exceeded its normal temperature range. This symptom does not indicate a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.
If a click button problem or pointing stick problem occurs, do the following:
1. Go to the Easy-Setup screen.
2. Select an item with the pointing stick.
3. Press either the left or right click button.
4. Verify that both buttons work correctly.
If either the pointing stick or the click button does not work, do the following actions one at a time to correct the problem. Do not replace a nondefective FRU.
Reseat the keyboard flexible cables.Replace the keyboard.Replace the subcard.Replace the system board.

Diskette Drive Test

Do the following to isolate the problem to a controller, drive, or diskette. A scratch, write enabled, nondefective 2HD diskette is required.
FDD-1 represents the built-in diskette drive. FDD-2 represents the external diskette drive attached through the port replicator.
Warning: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or can cause the drive to fail.
Do the following to select the test device:
32 IBM Mobile Systems HMM
1. Go to the advanced diagnostic mode by pressing Ctrl+A from the diagnostic menu.
2. Select FDD-1 or FDD-2 and press the spacebar. A mark appears next to the selection.
3. Press Enter.
4. Insert the blank diskette when instructed.
5. Type Y (Yes) to the question on the screen.
6. Select FDD-1 or FDD-2 and press Enter to run the diskette drive test.
7. If the controller test detects an error, FRU code 10 appears. Replace the system board.
8. If the controller test runs without errors, the drive read/write tests start automatically.
9. If the drive test detects an error, FRU code 50 for FDD-1; or 51 for FDD-2 appears. If the diskette itself is known to be good, replace the drive.

Status Indicator Checkout

If an LED problem occurs, do the following:
1. Power off the computer.
2. Power on the computer.
3. All the LEDs in the indicator panel should turn on for a moment soon after the computer is powered-on. Make sure that all LEDs turn on.
If the problems remains, replace the following cards one at a time:
Subcard System board

Power Systems Checkout

To verify the symptom of the problem, power on the computer using each of the power sources as follows.
1. Remove the battery pack.
2. Connect the AC Adapter and check that power is supplied.
3. Disconnect the AC Adapter and install the charged battery pack; then check that power is supplied by the battery pack.
If you suspect a power problem, see the appropriate power supply check listed below.
“Checking the AC Adapter” on page 34.“Checking Operational Charging” on page 34.“Checking the Battery Pack” on page 35.“Checking the Backup Battery” on page 36.
ThinkPad 380, 385 (2635)
33
Checking the AC Adapter: You are here
because the computer fails only when the AC Adapter is used.
If the power problem occurs only when the port
replicator is used, replace the replicator.
If the power-on indicator does not turn on, check the
power cord of the AC Adapter for correct continuity and installation.
If the operational charge does not work, go to
“Checking Operational Charging.”
1. Unplug the AC Adapter cable from the computer and measure the output voltage at the plug of the AC Adapter cable. See the following figure:
Pin Voltage (V dc)
1 +14.5 to +17.0 2 Ground
If the voltage is correct, do as follows:
– If the problem is not corrected, replace the
subcard.
– If the problem is not corrected, replace the
system board.
– If the problem is not corrected, go to
“Undetermined Problems” on page 51.
If the voltage is not correct, go to the next step.
2. Unplug the AC Adapter cable from the ac power outlet and wait 5 minutes or longer to allow the overvoltage protection circuit to be fully discharged and initialized.
3. Plug the AC Adapter cable into the ac power outlet.
4. Measure the output voltage of the AC Adapter.
5. If the voltage is still not correct, replace the AC Adapter.
Note: An audible noise from the AC Adapter does not
always indicate a defective adapter.
Checking Operational Charging: To check
operational charging, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.
Perform operational charging. If the battery status indicator does not turn on, remove the battery pack and leave it to return to room temperature. Reinstall the
34 IBM Mobile Systems HMM
battery pack. If the charge indicator still does not turn on, replace the battery pack.
Checking the Battery Pack
1. Power off the computer.
2. Remove the battery pack and measure the voltage between battery terminals 1 (+) and 4 (). See the following figure.
Terminal Voltage (V dc) / Signal 1 +0 to +13.5
2 N/C
3 Thermal 4 Ground ()
5 Select 6 A-Ground
Note: Signal lines not used in these steps are used
for communication between the system and the battery.
3. If the voltage is less than +11.0 V dc, the battery pack has been discharged. Recharge the battery pack.
If the voltage is still less than +11.0 V dc after recharging, replace the battery.
Note: If the voltage of the battery pack is 0 V, it is
not defective.
4. If the voltage is more than +11.0 V dc, measure the resistance between battery terminals 3 and 4. The resistance must be 4 to 30 K ohm.
If the resistance is not correct, replace the battery pack.
If the resistance is correct, replace the subcard.
ThinkPad 380, 385 (2635) 35
Checking the Backup Battery
1. Power off the computer and unplug the AC Adapter from the computer.
2. Turn the computer upside down.
3. Remove the DIMM cover and backup battery (see “1010 Battery Pack” on page 59).
4. Measure the voltage of the backup battery. See the following figure.
Note: Be careful not to measure the wrong side of
the backup battery.
Wire Voltage (V dc)
Red +2.5 to +3.7 Black Ground
If the voltage is correct, replace the system board.If the voltage is not correct, the backup battery has
been discharged. Replace the backup battery.
If the backup battery discharges quickly after
replacement, replace the system board.

Common Device Checkout

If you suspect a common device problem, see the appropriate power supply check in the following list:
“Port Replicator Checkout”“External Display Self-Test”
Port Replicator Checkout: Use the following
procedure to isolate a port replicator problem. A port replicator attaches to the system expansion connector at the rear of the computer.
1. Power off the computer.
2. Remove the failing devices from the replicator.
3. Unplug the AC adapter from the replicator, if attached.
4. Remove the port replicator from the computer.
36 IBM Mobile Systems HMM
5. Reconnect the failing device directly to the computer. (If another device is already connected to the computer, remove it first.)
6. Go to the “How to Run the Diagnostics” on page 54 and run the diagnostics.
7. If the advanced diagnostic device test does not find an error, suspect a problem with the port replicator of the system expansion bus.
8. Power off the computer and reconnect the port replicator.
9. Power on the computer and run the following advanced diagnostic tests:
Serial port test with the wrap plug installed on
the replicator
Parallel port test with the wrap plug installed on
the replicator
FDD-2 device test on the failing device with
scratch diskette
10. If diagnostic errors appear, replace the replicator or diskette drive attachment unit. If the problem remains after the replacement, replace the system board.
11. If power problems appear only when the replicator is used, replace the replicator.
External Display Self-Test: If the display problem
occurs only when using an external display, use the following instruction to correct the problem.
Note: Before you replace a display, check that the 95XX
systems support either 63XX, 85XX, or 95XX displays to see if it is connected correctly.
If the screen is rolling, replace the external display. If that does not correct the problem, replace the FRUs in the following order until the problem goes away:
1. System board
2. Bus adapter (if used)
If the screen is not rolling, run the display self-test as follows:
1. Power-off the computer and display.
2. Disconnect the display signal cable.
3. Power-on the display
4. Set the contrast to its maximum position.
5. Set the brightness control to the center detent position.
Check for the following conditions:
You should be able to vary the screen intensity by
adjusting the contrast and brightness control.
The screen should be white or light gray, with a black
margin (test margin) on the screen.
The screen is set to CRT or both by the ThinkPad
Features program.
ThinkPad 380, 385 (2635)
37
Note: The location of the test margin varies with the
type of display. The test margin might be on the top, bottom, or one or both sides.
If you do not see a test margin on the screen, replace the display. If there is a test margin on the screen, replace the system board.

Power Management Features

Three power management modes are provided by the computer to reduce power consumption and prolong battery power.
Standby Mode: When in standby mode the following
occurs:
The LCD backlight turns off.The hard disk motor stops.
Events that cause the computer to enter standby mode:
Standby requested by the Fn key. (Fn+F3)No activity under auto-standby enabled by the
ThinkPad Features program.
Events that cause the computer to exit or resume standby mode:
(Resume) Any key operation.
Suspend Mode: When in suspend mode, the
following, in addition to the three actions of standby mode, occur:
The LCD is powered-off.The hard disk is powered-off.The CPU is stopped.
Notes:
1. In the ThinkPad Features Program, the computer can be set to “Will not suspend even if LCD is closed.”
2. When the computer is powered with ac power and is used with one of the communication PC cards, the computer enters PC card and application program remain active.
3. The computer cannot enter suspend mode while a communication link is running.
Events that cause the computer to enter suspend mode:
Suspend mode is requested by the Fn key (Fn+F4).The LCD is closed.The specified time has elapsed from the last
operation with the keyboard, mouse, hard disk drive, parallel connector, or diskette drive; or the AC Adapter is plugged in. The time is specified by
Suspend Timer
in the ThinkPad Features program.
standby mode
38 IBM Mobile Systems HMM
; the
The battery condition is low. The battery power
indicator blinks orange.
Either the
set in the ThinkPad Features program.
Events that cause the computer to exit or resume suspend mode:
(Resume) The LCD is opened.(Resume) The real time clock alarm is signaled.(Resume) The ring indicator (RI) is signaled by a
serial or PCMCIA device.
(Resume) The Fn key is pressed.(Exit) Timer conditions are satisfied for entering
hibernation mode.
PS2 OFF
or
PS2 SUSpend
command is
Hibernation Mode: When in hibernation mode, the
following occurs:
The system status, RAM, VRAM, and setup data are
stored on the hard disk.
The system is powered-off.
Note: The computer cannot enter hibernation mode
when the computer is powered with ac power and a communication PC card is used.
Events that cause the computer to enter hibernation mode:
Hibernation mode is requested by the Fn key
(Fn+F12).
Timer conditions are satisfied in suspend mode.A critical low battery condition occurs.The
PS2 HIB
ThinkPad Features program.
Event that causes the computer to exit hibernation mode.
The power-on switch is operated.
When power is turned on, the hibernation history in the boot record on the hard disk is recognized and system status is restored from the hard disk to resume operation.
ernation command is set in the
ThinkPad 380, 385 (2635) 39

Symptom-to-FRU Index

The Symptom-to-FRU Index lists the symptoms and errors and the possible causes. The most likely cause is listed first.
Note: Perform the FRU replacement or actions in the sequence shown in the “FRU/Action” columns. If a FRU did not solve the problem, put the original part back in the computer. Do not replace a nondefective FRU.
This index can also be used to help you decide which FRUs to have available when servicing a computer.
Numeric error codes show the errors detected in POST or system operation. In the following error codes, X can be any number.
If no codes are available, use narrative symptoms. If the symptom is not listed, go to “Undetermined
Problems” on page 51.
Note: For IBM devices not supported by diagnostic
codes in the ThinkPad notebook computers, see the manual for that device.

Numeric Error Codes

Symptom / Error FRU / Action in Sequence 10X
101: Interrupt failure. 102: Timer failure. 103: Timer interrupt
failure.
104: Protected mode
failure.
105: Last 8042
command not accepted. 107: NMI test failure. 108: Timer bus test failure.
109: Low meg-chip
select test.
161
(Dead battery.)
163
(Time and Date was not set.)
40 IBM Mobile Systems HMM
System board
1. Go to “Checking the
Backup Battery” on page 36.
2. Backup battery
3. System board
1. Set time and date.
2. System board
Symptom / Error FRU / Action in Sequence 173
(Configuration data was lost.)
174
(Configuration error: Perform“Checking the Installed Devices List” on page 55 before changing any FRUs.)
184
(POP check sum error.)
190
(Depleted battery pack was installed when the power was on.)
191XX
(PM initialization error.)
195
(The configuration read from the hibernation area does not match the actual configuration.)
196
(Read error occurred in the hibernation area of the HDD.)
1XX System board 2XX
201: Memory data
error. 202: Memory line error 00–15. 203: Memory line error 16–23.
205: Memory test
failure on on-board memory. 221: ROM to RAM remap error.
301, 303, 304, 305, 3XX
(301: Keyboard error.)
1. Select OK in the error
screen; then set the time and date.
2. Backup battery
3. System board
1. Check Device
Configuration.
2. Hard disk drive
3. System board
Reset the POP (power-on password) in Easy-Setup.
Go to “Checking the Battery Pack” on page 35.
System board
Check if the configuration was changed.
For example, check if the DIMM is added.
1. Run the hard disk
drive test.
2. Hard disk drive
1. Go to “Memory
Checkout” on page 30.
2. DIMM
3. System board
1. Go to
“Keyboard/Auxiliary Input Device Checkout” on page 31.
2. Keyboard
3. External numeric keypad
4. External keyboard
5. Keyboard/mouse cable
6. Subcard
7. System board
ThinkPad 380, 385 (2635) 41
Symptom / Error FRU / Action in Sequence 601, 6XX
(601: Diskette drive or controller error.)
602
(Diskette read error.)
604
(Unacceptable ID was read from the diskette drive.)
11XX
1101: Serial_A test failure.
12XX
1201: Serial_B test failure.
17XX
1701: Hard disk
controller failure.
1780, 1790: Hard disk
0 error.
1781, 1791: Hard disk
1 error.
24XX
(2401: System board video error.)
808X
8081: PCMCIA
presence test failure. (PCMCIA revision number also checked.)
8082: PCMCIA register
test failure.
860X
(Pointing device error when TrackPoint III is disabled.)
8601: System bus
error–8042 mouse interface.
8602: External mouse
error.
8603: System bus
error or mouse error.
861X
(Pointing device error when TrackPoint III is enabled.)
8611: System bus
error–I/F between 8042 and IPDC.
8612: TrackPoint error.
8613: System board or TrackPoint error.
1. Go to “Diskette Drive
Test” on page 32.
2. FDD assembly
3. Diskette
4. System board
1. Go to “Diskette Drive
Test” on page 32.
2. Diskette
3. FDD assembly
1. Go to “Diskette Drive
Test” on page 32.
2. FDD assembly
3. System board
1. Serial device
2. Communication cable
3. System board
System board (Infrared)
1. Hard disk drive
2. System board
System board
1. PCMCIA slot
assembly
2. PCMCIA device
3. System board
1. External mouse
2. External keyboard
3. System board
1. Reseat the keyboard
cables.
2. Keyboard
3. External mouse
4. System board
42 IBM Mobile Systems HMM
Symptom / Error FRU / Action in Sequence I9990301
I9990302 I9990305
I9990301: Hard disk
error.
I9990302: Invalid hard
disk boot record.
I9990305: No bootable
device.
I9990303
(Bank–2 flash ROM check sum error.)
Other codes, not in this list
1. Check that the
operating system is installed in the HDD. If not, install the operating system.
2. Reseat the boot device.
3. Check the startup sequence for the correct boot device.
4. Check that the operating system has no failure and is installed correctly.
System board
Go to “Undetermined Problems” on page 51.

Diagnostic Error Codes

A detected error is shown as in the following example:
Large X on the left side of the device icon.Device ID (three digit)Error code (two digit)FRU code (four digit)
The device ID and error code are used to indicate the detail portion of the FRU that caused the error. If replacing a FRU does not correct the problem, see the device ID or error code from the previous failure. If they have changed, the cause might be because the new FRU is detective or that the FRU was incorrectly installed.
Device ID: If an error is detected by the diagnostic
tests, a three-digits device ID is displayed. The device ID indicates suspected device.
Icon DeviceIDSuspected Device
001 System board 003 Keyboard 007 Math coprocessor 086 Pointing device 002 Memory
ThinkPad 380, 385 (2635) 43
Icon DeviceIDSuspected Device
050 Display
Display
054
017 Hard disk drive
006 (Internal) diskette drive
Audio
066 External diskette drive
or FDD Connector of the port replicator
080 PCMCIA
088 External PCMCIA
009 Parallel
011 Serial
215 CD-ROM
103 IR
153 Audio
FRU Codes: If an error is detected by the diagnostic
tests, a four-digit FRU code is displayed. The FRU code indicates two suspected FRUs. No FRU is assigned to code 00. If only one FRU is suspected, the other FRU code is filled with zeros. Replace the FRU that is indicated by the two leftmost digits first; then replace the FRU that is indicated by the two rightmost digits. See the reference page before replacing the FRU. The suspected FRU name is also displayed on the screen. The following table shows the FRU code:
44 IBM Mobile Systems HMM
FRU Code FRU
10 System board 30 Reserved 32 External keyboard 33 External mouse 40 LCD unit 45 External CRT 50 1. Reseat the diskette drive (FDD-1)
51 1. Reseat the diskette drive (FDD-2)
60 1. Reseat the hard disk drive
70 PCMCIA-2 (Replicator) 72 PCMCIA slot assembly 90 CD-ROM drive
2. Diskette drive (FDD-1)
2. Diskette drive (FDD-2)
2. Hard disk drive
If the problem still remains after replacement of the FRUs, go to “Undetermined Problems” on page 51.
ThinkPad 380, 385 (2635) 45

Beep Symptoms

Symptom / Error FRU / Action in Sequence
Continuous beeps. System board One beep and a blank,
unreadable, or flashing LCD.
One beep, and the message “Unable to access boot source.”
One long and two short beeps, and a blank or unreadable LCD.
One long beep followed by four short beeps each time the power switch is operated. (System cannot power-on due to low battery voltage.)
One beep every second. (System is shutting down due to low battery voltage.)
Two short beeps with error codes.
Two short beeps with blank screen.
1. Reseat the LCD connector.
2. LCD unit
3. System board
4. Subcard
1. Boot device
2. System board
1. System board
2. LCD unit
Connect the AC Adapter or install a fully charged battery.
Connect the AC Adapter or install a fully charged battery. (Allow the system to complete shutdown before changing the battery.)
POST error. See “Numeric Error Codes” on page 40.
System board

No Beep Symptoms

Symptom / Error FRU / Action in Sequence
No beep, power-on indicator not on, and a blank LCD during POST.
No beep, power-on indicator on, and a blank LCD during POST.
No beep, power-on indicator on, and a blinking cursor only during POST.
No beep during POST but system runs correctly.
46 IBM Mobile Systems HMM
1. Go to “Power Systems Checkout” on page 33.
2. System board
3. Subcard
4. Power sources
1. System board
2. Subcard
1. System board
2. Subcard
1. Turn the volume up and check the speaker.
2. Speaker
3. System board
4. Subcard

LCD-Related Symptoms

Important
The LCD for the notebook computer contains over 921000 thin-film transistors (TFTs). A small number of missing, discolored, or lighted dots (on all the time) is characteristic of TFT LCD technology, but excessive pixel problems can cause viewing concerns. The LCD should be replaced if the number of dots satisfies the following condition:
The number of missing, discolored, or lighted
dots in any background is 21 or more.
Symptom / Error FRU / Action in Sequence
No beep, power-on indicator on, and a blank LCD during POST.
LCD backlight not
working
LCD too darkLCD brightness cannot
be adjusted (TFT)
LCD contrast cannot
be adjusted (STN)
LCD screen
unreadable
Characters missing
pels
Screen abnormal
Wrong color displayed
LCD has extra horizontal or vertical lines displayed.
1. System board
2. Subcard
1. Reseat the LCD
connectors.
2. LCD unit
3. Subcard
1. See important note
for “LCD-Related Symptoms.”
2. Reseat all LCD connectors.
3. LCD unit
4. System board
5. Subcard
LCD unit

Keyboard/TrackPoint III-Related Symptoms

Symptom / Error FRU / Action in Sequence
Keyboard (one or more keys) does not work.
TrackPoint III does not work.
ThinkPad 380, 385 (2635) 47
1. Reseat the keyboard cable on the subcard.
2. Keyboard
3. Subcard
4. System board
1. Reseat the keyboard
cable on the subcard.
2. Go to “TrackPoint III Checkout” on page 32.
3. Keyboard
4. Subcard
5. System board
Symptom / Error FRU / Action in Sequence
Pointer moves automatically or does not work correctly.
See “TrackPoint III Checkout” on page 32.

Indicator-Related Symptoms

Symptom / Error FRU / Action in Sequence
Indicator incorrectly remains off or on, but system runs correctly.
Battery power status indicator blinks from green, yellow, to orange.
1. Subcard
2. System board
1. Check that a correct
battery is installed.
2. Battery pack
3. Subcard
4. System board

Power-Related Symptoms

Symptom / Error FRU / Action in Sequence
Power shuts down during operation.
The system will not power-off. (See “Power Shutdown Switch” on page 28.)
1. Go to “Power
Systems Checkout” on page 33.
2. Battery pack
3. Remove the battery pack and let it cool for two hours.
4. Subcard
5. Power sources
1. Press the power
shutdown switch.
2. System board
48 IBM Mobile Systems HMM

Function/Audio-Related Symptoms

Symptom / Error FRU / Action in Sequence
The system does not suspend or resume when the LCD is opened or closed.
Battery Fuel-Gauge does not go higher than 90%.
Memory count (size) appears different from actual size.
System configuration does not match the installed devices.
System hangs intermittently. Go to “Intermittent
1. Go to “Suspend
Mode” on page 38, and check that the computer can enter suspend mode.
2. Boot an operating system and press Fn+F4. If the computer enters suspend mode, suspect that the application program is not working properly.
3. Subcard
4. System board
Go to “Checking the Battery Pack” on page 35 and see the note.
Go to “Memory Checkout” on page 30.
Go to “Checking the Installed Devices List” on page 55.
Problems” on page 50.

Peripheral-Device-Related Symptoms

Symptom / Error FRU / Action in Sequence
External display does not work correctly.
Printer problems. 1. Run Printer Self-test.
Serial or parallel port device problems.
ThinkPad 380, 385 (2635) 49
See “External Display Self-Test” in “Common Devices Checkout” section.
2. Parallel port device
3. Cable
4. System board
1. Device
2. Device cable
3. System board

Infrared-Related Symptoms

Symptom / Error FRU / Action in Sequence
Unable to communicate using the Infrared (IR) Port.
1. Make sure the setup
for the IR is correct.
2. Make sure there are no fluorescent lights near the computer. The computer may receive optical noise from the fluorescent light.
3. Run the advanced diagnostic test. If an error occurs and a FRU code is displayed, replace the parts shown by the FRU code.

Other Symptoms

Symptom / Error FRU / Action in Sequence
Errors occur only when Port Replicator is used.
PCMCIA slot pin is damaged.
Note: If you cannot find a symptom or error in this list and the problem remains, see “Undetermined Problems” on page 51.
See “Port Replicator Checkout” on page 36.
PCMCIA Slot Assembly

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.
When analyzing the intermittent problem, do the following:
1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRUs.
3. If any error is detected, replace the FRU shown by the FRU code. Rerun the test to verify that no more errors exist.
50 IBM Mobile Systems HMM

Undetermined Problems

You are here because the diagnostic tests did not identify which adapter or device failed, installed devices are incorrect, a short circuit is suspected, or the system is inoperative. Follow the procedures below to isolate the failing FRU (do not isolate nondefective FRUs).
Verify that all attached devices are supported by the computer.
Verify that the power supply being used at the time of the failure is operating correctly. (See “Power Systems Checkout” on page 33.)
1. Power off the computer.
2. Check the cables, wires, and connectors for short circuits and open circuits. Visually check them for damage. If any problems are found, replace the FRU.
3. Remove or disconnect all of the following devices. a. Non-IBM devices
b. Devices attached to the expansion bus
connector
c. Printer, mouse, and other external devices
d. Battery pack
e. Hard disk drive f. Diskette drive g. DIMM card h. PC Cards
4. Power on the computer.
5. Determine if the problem has changed.
6. If the problem does not occur again, reconnect the removed devices one at a time until you find the failing FRU.
7. If the problem remains, replace the following FRUs one at a time. Do not replace a non-defective FRU. Subcard System board
ThinkPad 380, 385 (2635) 51

Related Service Procedures

This section provides information about the following: “Status Indicators”
“How to Run the Diagnostics” on page 54“Error Log” on page 55“Checking the Installed Devices List” on page 55“How to Run a Low-Level Format” on page 55“PC Test Card LED” on page 56“Fn Key Combinations” on page 56“Keyboard/Auxiliary Input Device Checkout” on
page 31

Status Indicators

The system status indicators show the current computer status in different colors (green and orange).
52 IBM Mobile Systems HMM
Symbol Color Meaning
.1/Battery Green Enough battery
Orange Battery pack is
Blinking orange
.2/Device Access Orange Data is read
.3/Numeric Lock Green Numeric keypad
.4/Caps Lock Green Caps lock mode
power remains for operation.
charging. Battery pack
needs charging.
from or written to the hard disk drive, FDD, or CD-ROM drive.
on the keyboard is enabled.
is enabled.
.5/Scroll Lock Green Arrow keys can
.6/Suspend Mode Green Suspend mode
.7/Power On Green Power on
be used as screen-scroll function key.
ThinkPad 380, 385 (2635) 53

How to Run the Diagnostics

Use either the TrackPoint III or the cursor move keys to interact with the tests. Pressing the Enter key works the same as selecting the OK icon to reply OK.
Note: The following tools are required:
FDD: Parallel: Serial: PCMCIA: CDROM:
1. Press and hold the F1 key; then power on the computer. Hold the F1 key down until the Easy-Setup screen appears.
2. Select Test and press Enter.
3. Select a device and press Enter to run the test.
4. The test progress screen appears.
5. OK appears when the test ends without any errors.
6. Start the Advanced Diagnostic test as either of the following way:
7. The ThinkPad FRU Connections screen appears. This screen shows the state of the connection of all connectors.
Check the connector if the Not connected message appears on the screen.
8. Click on Exit on the screen or press Esc to exit the screen.
9. The keyboard test screen appears. Check the keyboard.
10. Click on Exit on the screen or press Ctrl+Pause to exit the screen.
11. Select a device and press Enter to start the tests. The instruction appears, and follow the instruction on
the screen.
12. Select Test All to test all devices.
13. Select Loop Test to run the tests in a repeated loop. A loop option menu appears in which a device loop or
all-device loop can be selected. Select a device and press the Spacebar to select a device. Repeat this step to select multiple devices. Press Enter to start the diagnostic loop. If no device is selected, all device tests are looped.
14. To exit the loop, keep pressing Ctrl+Pause until the test exits. A beep sounds to notify that the exit interrupt is sensed by the test program.
Erasable 2HD diskette Wrap plug (P/N 72X8546) Wrap plug (P/N 72X8546) PC Test Card (P/N 35G4703) Any CD (data CD is recommended)
Pressing Ctrl+A on the basic diagnostic menu
screen.
Triple-click the icon on the right bottom corner on
the basic diagnostic screen.
54 IBM Mobile Systems HMM

Error Log

Diagnostic errors are printed on the printer that is attached to the parallel port when the error is detected. The error is also logged in the system memory.
Do the following to display the errors:
1. End the test, if it is running.
2. Press Ctrl+A to select the advanced diagnostic mode.
3. Press Esc to exit the ThinkPad FRU Connections screen.
The keyboard test screen appears.
4. Press Ctrl+Pause to exit the keyboard test screen.
5. Press Ctrl+E.
6. The error log appears.
7. To exit the screen, select the cancel icon or press Esc.
The error log is not saved when the system is powered-off.

Checking the Installed Devices List

If a device is installed but the icon appears in a gray shade rather than a dark shade on the basic diagnostics screen, the device is defective. Reseat the device connectors. If the symptom remains, replace the device or the system board. If needed, adjust the contrast control to clearly distinguish the shades of the icon.
If a device that is not installed appears in a dark shade (for example, FDD-2 appears in a dark shade when second FDD is installed), do the following:
1. Replace the first device in the configuration, such as an FDD-1.
2. If the problem remains, replace the system board.
The Parallel, and Serial icons are always displayed in a dark shade because the icons represent subsystems of the system board and not the attachment of the devices.
The FDD-1 and PCMCIA-1 icons represent the drive in the computer. The FDD-2 and PCMCIA-2 icons represent the devices in the port replicator or that is attached through the port replicator.
NO

How to Run a Low-Level Format

Do the following to format the hard disk. Warning: Make sure the drive address to be formatted is correct. This procedure erases all information on the disk.
1. Power off the computer.
2. Insert the ThinkPad hardware maintenance diskette Ver 1.30 into diskette drive A and power on the computer.
3. Select Format the hard disk from the main menu.
4. Select the drive from the menu.
5. Follow the instructions on the screen.
ThinkPad 380, 385 (2635)
55

PC Test Card LED

The green LED on the PC test card turns on when the PCMCIA test is running. If the LED does not turn on, check that the card is installed correctly by reseating the card. If it still does not turn on after it is reseated, try using another slot for the test. If the LED still does not turn on and the test fails, replace the FRU shown by the diagnostic error code.

Fn Key Combinations

The following table shows the Fn key and function key combinations and their corresponding functions.
The Fn key works independently from the operating system. The operating system obtains the status through the system management interface to control the system.
Fn + Description F1 Reserved F2 Fuel-Gauge display on or off F3 Standby mode invocation F4 Suspend mode invocation F5 Reserved F6 Reserved F7 LCD/CRT display switching F8 Screen expansion on or off (no symbol on
the key)
F9 Reserved F10 Reserved F11 Power management mode switching
(toggles High Power, Intelligent, Economy)
F12 Hibernation invocation
56 IBM Mobile Systems HMM

Product Overview (380, 385)

The following table shows an overview of the system features.
Feature Description Processor 380/380D/385/385D
Intel Pentium 150/60 MHz,
256K L2 cache
Intel Pentium MMX 150 MHz,
256K L2 cache
380E/380ED/385E/385ED
Intel Pentium MMX 166 MHz,
256K L2 cache Bus architecture PCI bus Memory
(standard) Memory (option)
(One 144-pin DIMM slot)
CMOS RAM 242 bytes Video 12.1-inch, 64K colors, 800×600
Diskette drive 1.44MB (3-mode), 3.5-inch CD-ROM drive 8X transfer speed Hard disk drive 380/380D/385/385D
I/O port Headphone
Audio 16-bit audio
Infrared transfer 4 million bps serial communication
PC Card slots One Type-III
16MB (on system board)
8MB, 16MB, 32MB non parity DIMM (max. 48MB)
pixel DSTN color LCD
12.1-inch, 256K colors, 800×600
pixel TFT color LCD
1.08GB, 2.5-inch, IDE interface1.4GB, 2.5-inch, IDE interface2.1GB, 2.5-inch, IDE interface
380E/380ED/385E/385ED
2.1GB, 2.5-inch, IDE interface3 GB, 2.5-inch, IDE interface5 GB, 2.5-inch, IDE interface
Microphone Port replicator
Internal speaker Internal microphone Mechanical volume
Transmitter and receiver module
or two Type-II
ZV port
ThinkPad 380, 385 (2635) 57

FRU Removals and Replacements

This section contains information about removals and replacements.
Do not damage any part. Only certified and trained
personnel should service the computer.
The arrows in the “Removals and Replacements”
section show the direction of movement to remove a FRU, or to turn a screw to release the FRU. The arrows are marked in numeric order, in square callouts, to show the correct sequence of removal.
When other FRUs must be removed before removing
the failing FRU, they are listed at the top of the page.
To replace a FRU, reverse the removal procedure
and follow any notes that pertain to replacement. See “Locations” for internal cable connections and arrangement information.
When replacing a FRU, use the correct screw size as
shown in the procedures.
Safety Notice 1: Translation on page 8
Before the computer is powered-on after FRU replacement, make sure all screws, springs, or other small parts, are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes can cause electrical short circuits.
Safety Notice 3: Translation on page 10
The battery pack contains small amounts of nickel. Do not disassemble it, throw it into fire or water, or short-circuit it. Dispose of the battery pack as required by local ordinances or regulations.
Safety Notice 8: Translation on page 14
Before removing any FRU, power-off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables.
Safety Notice 4: Translation on page 11
The lithium battery can cause a fire, explosion, or severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.
58 IBM Mobile Systems HMM

1010 Battery Pack

.1/ Turn the computer upside down. Pull up the battery pack lock .2/, push it back .3/, and
then pull up the battery pack .4/.
ThinkPad 380, 385 (2635) 59

1020 DIMM Card / Backup Battery

Safety Notice 4: Translation on page 11
The lithium battery can cause a fire, explosion, or severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.
.1/ Turn the computer upside down.
.2/.3/.4/.5/.6/: DIMM
.2/.3/.7/: Backup battery
When replacing:
Make sure the plus side is on top when replacing the backup battery.
Step Size (Quantity) Torque
.2/ 4 kgcm
Note: Only loosen the screw in step .2/.
60 IBM Mobile Systems HMM

1030 Keyboard Unit

Battery Pack (1010)
Step Size (Quantity) Torque
.1/ M 2.5 x 25mm, Nylon (1) 3 kgcm .2/ (a)M 2.5 x 8mm, Nylon (3)
(b)M 2.5 x 6mm, Nylon (1)
Note: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you removed, use a new screw.
3 kgcm
.4/Turn the computer over again.
ThinkPad 380, 385 (2635) 61
Note: Pull the keyboard assembly forward a little in step
.7/.
When replacing:
When replacing the keyboard, put the name label on it.
62 IBM Mobile Systems HMM

1040 CD-ROM/FDD Assembly

Battery Pack (1010)Keyboard Unit (1030)
Note: Be careful that the computer does not fall backward
when the CD-ROM/FDD assembly is removed.
Models 380, 380D, 385, and 385D
Step Size (Quantity) Torque
.1/ M 2.5 x 6mm, Nylon (1) 4 kgcm .2/ M 2.5 x 6mm (1) 4 kgcm .4/ M 2.5 x 6mm, Special head (1) 3 kgcm .5/ M 2.5 x 8mm, Nylon (2) 3 kgcm .6/ M 2.5 x 6mm (1) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
ThinkPad 380, 385 (2635) 63
Models 380E, 380ED, 385E, and 385ED
Step Size (Quantity) Torque
.1/ M 2.5 x 6mm, Nylon (1) 4 kgcm .2/ M 2.5 x 6mm (2) (a) 3 kgcm
.4/ M 2.5 x 6mm, Special head (1) 3 kgcm .5/ M 2.5 x 8mm, Nylon (2) 3 kgcm .6/ M 2.5 x 6mm (1) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
(b) 4 kgcm
64 IBM Mobile Systems HMM

1045 FDD

Battery Pack (1010)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)
Models 380 and 380E
.1/.2/: Blank Bezel .3/.4/: FDD Bezel
.3/.4/.5/.6/: FDD
Step Size (Quantity) Torque
.1/ M 2.6 x 4mm (1) 4 kgcm .3/ M 2.6 x 4mm (1) 4 kgcm .5/ M 2.6 x 2.8mm, Red screw (3) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
ThinkPad 380, 385 (2635) 65
Models 380D, 380ED, 385D, and 385ED
.1/.2/: FDD Bezel
.1/.2/.3/.4/ .5/.6/: FDD
Step Size (Quantity) Torque
.1/ M 2.6 x 4mm (1) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
66 IBM Mobile Systems HMM
Step Size (Quantity) Torque
.4/ M 2.6 x 2.8mm, Red screw (3) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
ThinkPad 380, 385 (2635) 67

1046 CD-ROM

Battery Pack (1010)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)
8X CD-ROM (73H9933)
Step Size (Quantity) Torque
.1/ M 2 x 2.4mm, Special head (4) 1.5 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
68 IBM Mobile Systems HMM
8-20X CD-ROM (12J0115)
Step Size (Quantity) Torque
.1/ M 2 x 1.7mm, Special head (4) 1.5 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
ThinkPad 380, 385 (2635) 69

1050 Speaker / Microphone

Battery Pack (1010)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)
Models 380, 380D, 385, and 385D
.1/.2/.3/: Speaker .4/.5/.6/: Microphone
Note: To remove the microphone easily, pull up the
upper shield slightly.
Step Size (Quantity) Torque
.5/ M 2.5 x 6, Special head (2) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
70 IBM Mobile Systems HMM
Models 380E, 380ED, 385E, and 385ED
.1/.2/: Speaker .3/.4/.5/: Microphone
Note: To remove the microphone easily, pull up the
upper shield slightly.
Step Size (Quantity) Torque
.4/ M 2.5 x 6, Special head (2) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
ThinkPad 380, 385 (2635) 71

1060 Hard Disk Drive

Attention
Do not drop or apply any shock to the hard disk drive. The hard disk drive is sensitive to physical shock. Incorrect handling can cause damage and permanent loss of data on the hard disk. Before removing the hard disk drive, have the user make a backup copy of all the information on the hard disk. Never remove the hard disk drive while the system is operating or is in suspend mode.
Models 380, 380D, 385, and 385D
Battery Pack (1010)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)
Step Size (Quantity) Torque
.2/ M 2.5 x 6mm (1) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
72 IBM Mobile Systems HMM
Step Size (Quantity) Torque
.5/ M 3 x 3mm (4) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
ThinkPad 380, 385 (2635) 73
When replacing: When replacing the slim-type (12.5
mm) hard disk drive, assemble the spacer as follows:
1. Place the HDD spacer on the hard disk drive. Note: Make sure that the spacer is oriented
properly.
2. Install the HDD-spacer assembly into the bracket; then screw.
74 IBM Mobile Systems HMM
Model 380E, 380ED, 385E, and 385ED
Battery Pack (1010)Keyboard Unit (1030)
Step Size (Quantity) Torque .2/ (a) M 2.5 x 6mm, (1)
(b) M 2.5 x 6mm, Nylon (2)
.3/ M 2.5 x 6mm (3) (a) 3 kgcm
.5/ M 2.5 x 6mm (1) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
4 kgcm
(b) 4 kgcm
ThinkPad 380, 385 (2635) 75
Note: Step .9/ is for the slim-type (12.5 mm) hard disk
drive only.
Attention
The hard disk drive is sensitive to physical shock. When removing or replacing it, do not press the shaded area of the hard disk drive.
76 IBM Mobile Systems HMM

1070 LCD Unit

Battery Pack (1010)Keyboard Unit (1030)
Step Size (Quantity) Torque
.2/ M 2.5 x 6mm, Nylon (5) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
Models 380, 380D, 385, and 385D, go to the next
page.
Models 380E, 380ED, 385E, and 385ED, go to
“Models 380E, 380ED, 385E, and 385ED” on page 79.
ThinkPad 380, 385 (2635) 77
Models 380, 380D, 385, and 385D
Step Size (Quantity) Torque
.3/ M 2.5 x 6mm (1) 4 kgcm .5/ M 2.5 x 6mm, Special head (1) 3 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
Go to “All Models” on page 80.
78 IBM Mobile Systems HMM
Models 380E, 380ED, 385E, and 385ED
Step Size (Quantity) Torque
.3/ M 2.5 x 6mm (2) (a) 3 kgcm
.5/ M 2.5 x 6mm, Special head (1) 3 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
(b) 4 kgcm
Go to “All Models” on page 80.
ThinkPad 380, 385 (2635) 79
All Models
Step Size (Quantity) Torque
.8/ M 2.5 x 6mm (3) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
80 IBM Mobile Systems HMM

1080 System Board Assembly

Notes:
1. The system unit serial number must be restored when the system board is replaced. To restore the system unit serial number, select the option “Set system identification” on the maintenance diskette. The flash ROM on the system board contains the vital product data (VPD)—that is, the system unit serial number, system board system number, and other computer-unique data.
2. Do not power off the computer when restoring the VPD. The system unit serial number label is attached to the base cover.
3. Before removing and replacing the system board assembly, make sure that the PCMCIA cards are removed and the eject levers are not sticking out.
Battery Pack (1010)DIMM Cover (1020)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)LCD Unit (1070)Hard Disk Drive (1060)
ThinkPad 380, 385 (2635)
81
Note
As the PCMCIA eject buttons are sticking out, pull the buttons out slightly and fold them to the right; then push up the system board assembly from the bottom when removing the system board assembly.
Step Size (Quantity) Torque
.4/ M 2.5 x 6mm, Special head (2) 4 kgcm .5/ Special screw (1) 3 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
82 IBM Mobile Systems HMM

1090 Upper Shield Case

Battery Pack (1010)DIMM Cover (1020)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)LCD Unit (1070)Hard Disk Drive (1060)System Board Assembly (1080)
Step Size (Quantity) Torque
.1/ M 2.5 x 6mm (2) 4 kgcm .2/ M 2.5 x 6mm, Special head (1) 4 kgcm .3/ M 2.5 x 8mm (1) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
ThinkPad 380, 385 (2635) 83

1100 Sub Card

Battery Pack (1010)DIMM Cover (1020)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)LCD Unit (1070)Hard Disk Drive (1060)System Board Assembly (1080)Upper Shield Case (1090)
84 IBM Mobile Systems HMM

1110 Lower Shield Case

Battery Pack (1010)DIMM Cover (1020)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)LCD Unit (1070)Hard Disk Drive (1060)System Board Assembly (1080)Upper Shield Case (1090)
Step Size (Quantity) Torque
.2/ M 2.5 x 6mm (6) 4 kgcm .3/ Stud screw (6) 4 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
ThinkPad 380, 385 (2635) 85
Cable Routing
When replacing the air duct, refer to the following artwork.
86 IBM Mobile Systems HMM

1120 PCMCIA Slot

Battery Pack (1010)DIMM Cover (1020)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)LCD Unit (1070)Hard Disk Drive (1060)System Board Assembly (1080)Upper Shield Case (1090)Lower Shield Case (1110)
Step Size (Quantity) Torque
.1/ M 2 x 16mm (2) 2 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
ThinkPad 380, 385 (2635) 87

1130 Fan

Battery Pack (1010)DIMM Cover (1020)Keyboard Unit (1030)CD-ROM/FDD Assembly (1040)LCD Unit (1070)Hard Disk Drive (1060)System Board Assembly (1080)Upper Shied Case (1090)Sub Card (1100)
Notes:
1. Be careful not to touch the rotor and blade of the fan when assembling or disassembling.
2. Fix the fan cable on the air duct by using the cable holder when replacing.
Step Size (Quantity) Torque
.2/ M 2 x 6mm (2) 2.5 kgcm
Note: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you removed, use a new screw.
88 IBM Mobile Systems HMM
