IBM Mobile Systems
ThinkPad Computer
Hardware Maintenance Manual

January 2003

This manual supports:

ThinkPad X30, X31 (MT 2672/2673)
ThinkPad Dock (MT 2631)
ThinkPad Dock II (MT 2877)

Note

Before using this information and the product it
supports, be sure to read the general information
under “Notices” on page 170.

First Edition (January 2003)
The following paragraph does not apply to the United

Kingdom or any country where such provisions are
inconsistent with local law:

INTERNATIONAL BUSINESS MACHINES CORPORATION
PROVIDES THIS PUBLICATION “AS IS” WITHOUT ANY
WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
LIMITED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. Some states
do not allow disclaimer or express or implied warranties in
certain transactions; therefore, this statement may not
apply to you.

This publication could include technical inaccuracies or
typographical errors. Changes are periodically made to the
information herein; these changes will be incorporated in
new editions of the publication. IBM may make
improvements or changes to the products or the programs
described in this publication at any time.

It is possible that this publication may contain references
to, or information about, IBM products (machines and
programs), programming, or services that are not
announced in your country. Such references or information
must not be construed to mean that IBM intends to
announce such IBM products, programming, or services in
your country.

Requests for technical information about IBM products
should be made to your IBM authorized dealer or your IBM
marketing representative.

© Copyright International Business Machines
Corporation 2003. All rights reserved.

US Government Users Restricted Rights – Use, duplication
or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.

Contents

About this manual ...........1

Introduction .............3

Important service information .........3

Strategy for replacing FRUs ........3

How to use error messages ........4

Diskette compatibility matrix .........4

Safety notices: multilingual translations ......4

Safety information............16

General safety............16

Electrical safety ...........17

Safety inspection guide .........18

Handling devices that are sensitive to electorostatic

discharge ............19

Grounding requirements .........20

Laser compliance statement.........21

General descriptions ..........25

Read this first .............25

What to do first ...........25

Related service information .........27

Service web site ...........27

Restoring the preloaded system (for X30 series) 27

Recovering the hard disk to original contents (for

X31 series) ............30

Passwords .............32

Power management ..........35

Checkout guide ............38

Testing the computer ..........38

Detecting system information with PC-Doctor. . . 41

Power system checkout .........42

ThinkPad X30, X31 ...........45

Product overview ............47

Specifications ............47

Status indicators for X30.........50

Status indicators for X31.........53

FRU tests .............55

Fn key combinations ..........56

Symptom-to-FRU index ..........59

Numeric error codes ..........59

Error messages ...........63

Beep symptoms ...........64

No-beep symptoms ..........64

LCD-related symptoms .........65

Intermittent problems ..........66

Undetermined problems .........66

FRU replacement notices .........67

Screw notices ............67

Retaining serial numbers.........68

© Copyright IBM Corp. 2003

iii

Removing and replacing a FRU........70

1010 Battery pack...........71

1020 Hard-disk drive ..........72

1030 DIMM cover...........74

1040 DIMM ............75

1050 Backup battery ..........76

1060 Keyboard ...........77

1070 Mini PCI adapter .........81

1080 Fan assembly ..........89

1090 Communication daughter card (CDC) . . . 91

1100 Keyboard bezel ..........98

1110 PC card slot ..........101

1120 Hinge cover and LCD assembly ....104

1130 Sub card assembly ........108

1140 Speaker assembly ........109

1150 System board and base cover .....112

2010 LCD front bezel .........116

2020 Inverter card ..........117

2030 LCD panel ...........119

3010 ThinkPad Dock PCI cover ......127

3020 ThinkPad Dock top cover ......129

4010 ThinkPad Dock II PCI cover......134

4020 ThinkPad Dock II top cover ......135

Locations ..............138

Front view for X30 series ........138

Rear view for X30 series ........139

Bottom view for X30 series........140

Front view for X31 series ........141

Rear view for X31 series ........142

Bottom view for X31 series........143

Locations for UltraBase X3........144

Parts list ..............146

X30 and X31 series model matrix......146

Overall .............148

LCD FRUs ............157

Keyboard .............159

Recovery CDs ...........160

Miscellaneous parts ..........164

Optional FRUs ...........166

Common parts list ..........168

Notices ..............170

Trademarks ............170

iv ThinkPad X30, X31 (MT 2672/2673)

About this manual

This manual contains service and reference information for
IBM ThinkPad X30, X31 (MT 2672/2673), ThinkPad Dock
(MT 2631), and ThinkPad Dock II (MT 2877) products. Use
this manual along with the advanced diagnostic tests to
troubleshoot problems.

The manual is divided into sections as follows:
v The common sections provide general information,

guidelines, and safety information required in servicing
computers.

v The product-specific section includes service, reference,

and product-specific parts information.

Important

This manual is intended for trained service
personnel who are familiar with ThinkPad products.
Use this manual along with the advanced diagnostic
tests to troubleshoot problems effectively.

Before servicing an IBM ThinkPad product, be sure
to review the safety information under “Safety
notices: multilingual translations” on page 4, “Safety
information” on page 16, and “Laser compliance
statement” on page 21.

© Copyright IBM Corp. 2003 1

2 ThinkPad X30, X31 (MT 2672/2673)

Introduction

Important service information

Important

BIOS and device driver fixes are
customer-installable. The BIOS and device drivers
are posted on the IBM support site

http://www.ibm.com/pc/support

Advise customers to contact the PC Company
HelpCenter at 800-772-2227 if they need assistance
in obtaining or installing any diskette fixes.

Customers in Canada should call IBM HelpPC at
800-565-3344 for assistance or download
information.

Strategy for replacing FRUs

Before replacing parts

Make sure that all diskette fixes are installed before
replacing any FRUs listed in this manual.

Use the following strategy to prevent unnecessary expense
for replacing and servicing FRUs:

v If you are instructed to replace a FRU but the

replacement does not correct the problem, reinstall
the original FRU before you continue.

v Some computers have both a processor board and a

system board. If you are instructed to replace either the
processor board or the system board, and replacing one
of them does not correct the problem, reinstall that
board, and then replace the other one.

v If an adapter or device consists of more than one FRU,

any of the FRUs may be the cause of the error. Before
replacing the adapter or device, remove the FRUs, one
by one, to see if the symptoms change. Replace only
the FRU that changed the symptoms.

Attention: The setup configuration on the computer you
are servicing may have been customized. Running
Automatic Configuration may alter the settings. Note the
current configuration settings (using the View Configuration
option); then, when service has been completed, verify that
those settings remain in effect.

© Copyright IBM Corp. 2003

3

Important service information

Strategy for replacing a hard-disk drive

Always try to run a low-level format before replacing a
hard-disk drive.

Attention: The drive startup sequence in the computer
you are servicing may have been changed. Be extremely
careful during write operations such as copying, saving, or
formatting. If you select an incorrect drive, data or
programs can be overwritten.

How to use error messages

Use the error codes displayed on the screen to diagnose
failures. If more than one error code is displayed, begin the
diagnosis with the first error code. Whatever causes the
first error code may also cause false error codes. If no
error code is displayed, see if the error symptom is listed
in the Symptom-to-FRU Index for the computer you are
servicing.

Diskette compatibility matrix

The compatibility of each of the drives with the diskettes
for it is as follows:

Diskette
drive

3.5-inch 1.0 MB Read and write

Diskette
capacity

2.0 MB Read and write

4.0 MB Not compatible

Compatibility

Safety notices: multilingual translations

In this manual, safety notices appear in English with a
page number reference to the appropriate multilingual,
translated safety notice found in this section.

The following safety notices are provided in English,
French, German, Hebrew, Italian, and Spanish.

4 ThinkPad X30, X31 (MT 2672/2673)

Safety notices

Safety notice 1

Before the computer is powered-on after FRU
replacement, make sure all screws, springs, and other
small parts are in place and are not left loose inside
the computer. Verify this by shaking the computer and
listening for rattling sounds. Metallic parts or metal
flakes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après
remplacement d’une unité en clientèle, vérifiez que
tous les ressorts, vis et autres pièces sont bien en
place et bien fixées. Pour ce faire, secouez l’unité et
assurez-vous qu’aucun bruit suspect ne se produit. Des
pièces métalliques ou des copeaux de métal pourraient
causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer
wieder angeschlossen wird, muß sichergestellt werden,
daß keine Schrauben, Federn oder andere Kleinteile
fehlen oder im Gehäuse vergessen wurden. Der
Computer muß geschüttelt und auf Klappergeräusche
geprüft werden. Metallteile oder-splitter können
Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata
effettuata la sostituzione di una FRU, accertarsi che
tutte le viti, le molle e tutte le altri parti di piccole
dimensioni siano nella corretta posizione e non siano
sparse all’interno dell’elaboratore. Verificare ciò
scuotendo l’elaboratore e prestando attenzione ad
eventuali rumori; eventuali parti o pezzetti metallici
possono provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una
FRU, compruebe que todos los tornillos, muelles y
demás piezas pequeñas se encuentran en su sitio y no
se encuentran sueltas dentro del sistema.
Compruébelo agitando el sistema y escuchando los
posibles ruidos que provocarían. Las piezas metálicas
pueden causar cortocircuitos eléctricos.

Introduction 5

Safety notices

Safety notice 2

DANGER

Some standby batteries contain a small amount of
nickel and cadmium. Do not disassemble a standby
battery, recharge it, throw it into fire or water, or
short-circuit it. Dispose of the battery as required
by local ordinances or regulations. Use only the
battery in the appropriate parts listing. Use of an
incorrect battery can result in ignition or explosion
of the battery.

Certaines batteries de secours contiennent du
nickel et du cadmium. Ne les démontez pas, ne les
rechargez pas, ne les exposez ni au feu ni à l’eau.
Ne les mettez pas en court-circuit. Pour les mettre
au rebut, conformez-vous à la réglementation en
vigueur. Lorsque vous remplacez la pile de
sauvegarde ou celle de l’horloge temps réel, veillez
à n’utiliser que les modèles cités dans la liste de
pièces détachées adéquate. Une batterie ou une
pile inappropriée risque de prendre feu ou
d’exploser.

Die Bereitschaftsbatterie, die sich unter dem
Diskettenlaufwerk befindet, kann geringe Mengen
Nickel und Cadmium enthalten. Sie darf nur durch
die Verkaufsstelle oder den IBM Kundendienst
ausgetauscht werden. Sie darf nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer
oder Wasser ausgesetzt werden. Die Batterie kann
schwere Verbrennungen oder Verätzungen
verursachen. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Bereitschafts-oder Systembatterie nur
Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher
Batterien kann zu Entzündung oder Explosion
führen.

(continued)

6 ThinkPad X30, X31 (MT 2672/2673)

Safety notices

(continuation of safety notice 2)

Alcune batterie di riserva contengono una piccola
quantità di nichel e cadmio. Non smontarle,
ricaricarle, gettarle nel fuoco o nell’acqua né
cortocircuitarle. Smaltirle secondo la normativa in
vigore (DPR 915/82, successive disposizioni e
disposizioni locali). Quando si sostituisce la
batteria dell’RTC (real time clock) o la batteria di
supporto, utilizzare soltanto i tipi inseriti
nell’appropriato Catalogo parti. L’impiego di una
batteria non adatta potrebbe determinare l’incendio
ol’esplosione della batteria stessa.

Algunas baterías de reserva contienen una
pequeña cantidad de níquel y cadmio. No las
desmonte, ni recargue, ni las eche al fuego o al
agua ni las cortocircuite. Deséchelas tal como
dispone la normativa local. Utilice sólo baterías que
se encuentren en la lista de piezas. La utilización
de una batería no apropiada puede provocar la
ignición o explosión de la misma.

Introduction 7

Safety notices

Safety notice 3

DANGER

The battery pack contains small amounts of nickel.
Do not disassemble it, throw it into fire or water, or
short-circuit it. Dispose of the battery pack as
required by local ordinances or regulations. Use
only the battery in the appropriate parts listing
when replacing the battery pack. Use of an
incorrect battery can result in ignition or explosion
of the battery.

La batterie contient du nickel. Ne la démontez pas,
ne l’exposez ni au feu ni à l’eau. Ne la mettez pas
en court-circuit. Pour la mettre au rebut,
conformez-vous à la réglementation en vigueur.
Lorsque vous remplacez la batterie, veillez à
n’utiliser que les modèles cités dans la liste de
pièces détachées adéquate. En effet, une batterie
inappropriée risque de prendre feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie
dürfen nicht zerlegt, wiederaufgeladen,
kurzgeschlossen, oder Feuer oder Wasser
ausgesetzt werden. Bei der Entsorgung die
örtlichen Bestimmungen für Sondermüll beachten.
Beim Ersetzen der Batterie nur Batterien des Typs
verwenden, der in der Ersatzteilliste aufgeführt ist.
Der Einsatz falscher Batterien kann zu Entzündung
oder Explosion führen.

(continued)

8 ThinkPad X30, X31 (MT 2672/2673)

Safety notices

(continuation of safety notice 3)

La batteria contiene piccole quantità di nichel. Non
smontarla, gettarla nel fuoco o nell’acqua né
cortocircuitarla. Smaltirla secondo la normativa in
vigore (DPR 915/82, successive disposizioni e
disposizioni locali). Quando si sostituisce la
batteria, utilizzare soltanto i tipi inseriti
nell’appropriato Catalogo parti. L’impiego di una
batteria non adatta potrebbe determinare l’incendio
ol’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de
níquel. No las desmonte, ni recargue, ni las eche al
fuego o al agua ni las cortocircuite. Deséchelas tal
como dispone la normativa local. Utilice sólo
baterías que se encuentren en la lista de piezas al
sustituir la batería. La utilización de una bateríano
apropiada puede provocar la ignición o explosión
de la misma.

Introduction 9

Safety notices

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion,
or a severe burn. Do not recharge it, remove its
polarized connector, disassemble it, heat it above
100°C (212°F), incinerate it, or expose its cell
contents to water. Dispose of the battery as
required by local ordinances or regulations. Use
only the battery in the appropriate parts listing. Use
of an incorrect battery can result in ignition or
explosion of the battery.

La pile de sauvegarde contient du lithium. Elle
présente des risques d’incendie, d’explosion ou de
brûlures graves. Ne la rechargez pas, ne retirez pas
son connecteur polarisé et ne la démontez pas. Ne
l’exposez pas à une temperature supérieure à
100°C, ne la faites pas brûler et n’en exposez pas
le contenu à l’eau. Mettez la pile au rebut
conformément à la réglementation en vigueur. Une
pile inappropriée risque de prendre feu ou
d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie
kann sich entzünden, explodieren oder schwere
Verbrennungen hervorrufen. Batterien dieses Typs
dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt
oder verbrannt werden. Auch darf ihr Inhalt nicht
mit Wasser in Verbindung gebracht oder der zur
richtigen Polung angebrachte Verbindungsstecker
entfernt werden. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Beim
Ersetzen der Batterie nur Batterien des Typs
verwenden, der in der Ersatzteilliste aufgeführt ist.
Der Einsatz falscher Batterien kann zu Entzündung
oder Explosion führen.

(continued)

10 ThinkPad X30, X31 (MT 2672/2673)

Safety notices

(continuation of safety notice 4)

La batteria di supporto e una batteria al litio e puo
incendiarsi, esplodere o procurare gravi ustioni.
Evitare di ricaricarla, smontarne il connettore
polarizzato, smontarla, riscaldarla ad una
temperatura superiore ai 100 gradi centigradi,
incendiarla o gettarla in acqua. Smaltirla secondo
la normativa in vigore (DPR 915/82, successive
disposizioni e disposizioni locali). L’impiego di una
batteria non adatta potrebbe determinare l’incendio
ol’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y
puede provocar incendios, explosiones o
quemaduras graves. No la recargue, ni quite el
conector polarizado, ni la desmonte, ni caliente por
encima de los 100°C (212°F), ni la incinere ni
exponga el contenido de sus celdas al agua.
Deséchela tal como dispone la normativa local.

Introduction 11

Safety notices

Safety notice 5

If the LCD breaks and the fluid from inside the LCD
gets into your eyes or on your hands, immediately
wash the affected areas with water for at least 15
minutes. Seek medical care if any symptoms from the
fluid are present after washing.

Si le panneau d’affichage à cristaux liquides se brise et
que vous recevez dans les yeux ou sur les mains une
partie du fluide, rincez-les abondamment pendant au
moins quinze minutes. Consultez un médecin si des
symptômes persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält
Quecksilber. Bei der Entsorgung die örtlichen
Bestimmungen für Sondermüll beachten. Der
LCD-Bildschirm besteht aus Glas und kann zerbrechen,
wenn er unsachgemäß behandelt wird oder der
Computer auf den Boden fällt. Wenn der Bildschirm
beschädigt ist und die darin befindliche Flüssigkeit in
Kontakt mit Haut und Augen gerät, sollten die
betroffenen Stellen mindestens 15 Minuten mit Wasser
abgespült und bei Beschwerden anschließend ein Arzt
aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il
liquido in esso contenuto entrasse in contatto con gli
occhi o le mani, lavare immediatamente le parti
interessate con acqua corrente per almeno 15 minuti;
poi consultare un medico se i sintomi dovessero
permanere.

Si la LCD se rompe y el fluido de su interior entra en
contacto con sus ojos o sus manos, lave
inmediatamente las áreas afectadas con agua durante
15 minutos como mínimo. Obtenga atención medica si
se presenta algúnsíntoma del fluido despues de
lavarse.

12 ThinkPad X30, X31 (MT 2672/2673)

Safety notices

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover
that protects the lower part of the inverter card.

Afin d’éviter tout risque de choc électrique, ne
retirez pas le cache en plastique protégeant la
partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung,
die den unteren Teil der Spannungswandlerplatine
umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la
copertura in plastica che avvolge la parte inferiore
della scheda invertitore.

Para evitar descargas, no quite la cubierta de
plástico que rodea la parte baja de la tarjeta
invertida.

Introduction 13

Safety notices

Safety notice 7

DANGER

Though the main batteries have low voltage, a
shorted or grounded battery can produce enough
current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit
peu élevé, le court-circuit ou la mise à la masse
d’une batterie peut produire suffisamment de
courant pour brûler des matériaux combustibles ou
causer des brûlures corporelles graves.

Obwohl Hauptbatterien eine niedrige Spannung
haben, können sie doch bei Kurzschluß oder
Erdung genug Strom abgeben, um brennbare
Materialien zu entzünden oder Verletzungen bei
Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso
voltaggio, una batteria in corto circuito o a massa
può fornire corrente sufficiente da bruciare
materiali combustibili o provocare ustioni ai tecnici
di manutenzione.

Aunque las baterías principales tienen un voltaje
bajo, una batería cortocircuitada o con contacto a
tierra puede producir la corriente suficiente como
para quemar material combustible o provocar
quemaduras en el personal.

14 ThinkPad X30, X31 (MT 2672/2673)

Safety notices

Safety notice 8

DANGER

Before removing any FRU, power off the computer,
unplug all power cords from electrical outlets,
remove the battery pack, and then disconnect any
interconnecting cables.

Avant de retirer une unité remplaçable en clientèle,
mettez le système hors tension, débranchez tous
les cordons d’alimentation des socles de prise de
courant, retirez la batterie et déconnectez tous les
cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel
aus der Steckdose gezogen, der Akku entfernt und
alle Verbindungskabel abgenommen sein, bevor
eine FRU entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il
sistema, scollegare dalle prese elettriche tutti i cavi
di alimentazione, rimuovere la batteria e poi
scollegare i cavi di interconnessione.

Antes de quitar una FRU, apague el sistema,
desenchufe todos los cables de las tomas de
corriente eléctrica, quite la bateríay,a
continuación, desconecte cualquier cable de
conexión entre dispositivos.

Introduction 15

Safety information

Safety information

The following section presents the safety information that
you need to be familiar with before servicing an IBM
mobile computer.

General safety

Follow these rules to ensure general safety:
v Observe good housekeeping in the area of the

machines during and after maintenance.

v When lifting any heavy object:

1. Ensure you can stand safely without slipping.

2. Distribute the weight of the object equally between
your feet.

3. Use a slow lifting force. Never move suddenly or
twist when you attempt to lift.

4. Lift by standing or by pushing up with your leg
muscles; this action removes the strain from the
muscles in your back. Do not attempt to lift any

object that weighs more than 16 kg (35 lb) or objects
that you think are too heavy for you.

v Do not perform any action that causes hazards to the

customer, or that makes the equipment unsafe.

v Before you start the machine, ensure that other service

representatives and the customer’s personnel are not in
a hazardous position.

v Place removed covers and other parts in a safe place,

away from all personnel, while you are servicing the
machine.

v Keep your toolcase away from walk areas so that other

people will not trip over it.

v Do not wear loose clothing that can be trapped in the

moving parts of a machine. Make sure that your sleeves
are fastened or rolled up above your elbows. If your hair
is long, fasten it.

v Insert the ends of your necktie or scarf inside clothing or

fasten it with a nonconductive clip, approximately 8
centimeters (3 inches) from the end.

v Do not wear jewelry, chains, metal-frame eyeglasses, or

metal fasteners for your clothing.
Attention: Metal objects are good electrical

conductors.

v Wear safety glasses when you are hammering, drilling,

soldering, cutting wire, attaching springs, using solvents,
or working in any other conditions that might be
hazardous to your eyes.

16 ThinkPad X30, X31 (MT 2672/2673)

Safety information

v After service, reinstall all safety shields, guards, labels,

and ground wires. Replace any safety device that is
worn or defective.

v Reinstall all covers correctly before returning the

machine to the customer.

Electrical safety

Observe the following rules when working on electrical
equipment.

Important

Use only approved tools and test equipment. Some
hand tools have handles covered with a soft
material that does not insulate you when working
with live electrical currents.

Many customers have, near their equipment, rubber
floor mats that contain small conductive fibers to
decrease electrostatic discharges. Do not use this
type of mat to protect yourself from electrical shock.

v Find the room emergency power-off (EPO) switch,

disconnecting switch, or electrical outlet. If an electrical
accident occurs, you can then operate the switch or
unplug the power cord quickly.

v Do not work alone under hazardous conditions or near

equipment that has hazardous voltages.

v Disconnect all power before:

– Performing a mechanical inspection
– Working near power supplies
– Removing or installing main units

v Before you start to work on the machine, unplug the

power cord. If you cannot unplug it, ask the customer to
power-off the wall box that supplies power to the
machine and to lock the wall box in the off position.

v If you need to work on a machine that has exposed

electrical circuits, observe the following precautions:
– Ensure that another person, familiar with the

power-off controls, is near you.
Attention: Another person must be there to switch

off the power, if necessary.

– Use only one hand when working with powered-on

electrical equipment; keep the other hand in your
pocket or behind your back.

Attention: An electrical shock can occur only when
there is a complete circuit. By observing the above
rule, you may prevent a current from passing through
your body.

Introduction 17

Safety information

– When using testers, set the controls correctly and

use the approved probe leads and accessories for
that tester.

– Stand on suitable rubber mats (obtained locally, if

necessary) to insulate you from grounds such as
metal floor strips and machine frames.

Observe the special safety precautions when you work
with very high voltages; these instructions are in the
safety sections of maintenance information. Use
extreme care when measuring high voltages.

v Regularly inspect and maintain your electrical hand tools

for safe operational condition.

v Do not use worn or broken tools and testers.
v Never assume that power has been disconnected from

a circuit. First, check that it has been powered off.

v Always look carefully for possible hazards in your work

area. Examples of these hazards are moist floors,
nongrounded power extension cables, power surges,
and missing safety grounds.

v Do not touch live electrical circuits with the reflective

surface of a plastic dental mirror. The surface is
conductive; such touching can cause personal injury and
machine damage.

v Do not service the following parts with the power on

when they are removed from their normal operating
places in a machine:

– Power supply units
– Pumps
– Blowers and fans
– Motor generators

and similar units. (This practice ensures correct
grounding of the units.)

v If an electrical accident occurs:

– Use caution; do not become a victim yourself.
– Switch off power.
– Send another person to get medical aid.

Safety inspection guide

The purpose of this inspection guide is to assist you in
identifying potentially unsafe conditions. As each machine
was designed and built, required safety items were
installed to protect users and service personnel from injury.
This guide addresses only those items. You should use
good judgment to identify potential safety hazards due to
attachment of non-IBM features or options not covered by
this inspection guide.

18 ThinkPad X30, X31 (MT 2672/2673)

Safety information

If any unsafe conditions are present, you must determine
how serious the apparent hazard could be and whether
you can continue without first correcting the problem.

Consider these conditions and the safety hazards they
present:

v Electrical hazards, especially primary power (primary

voltage on the frame can cause serious or fatal
electrical shock)

v Explosive hazards, such as a damaged CRT face or a

bulging capacitor

v Mechanical hazards, such as loose or missing hardware
To determine whether there are any potentially unsafe

conditions, use the following checklist at the beginning of
every service task. Begin the checks with the power off,
and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or
sharp edges).

2. Power-off the computer. Disconnect the power cord.

3. Check the power cord for:
a. A third-wire ground connector in good condition.

Use a meter to measure third-wire ground
continuity for 0.1 ohm or less between the external
ground pin and frame ground.

b. The power cord should be the type specified in the

parts list.

c. Insulation must not be frayed or worn.

4. Remove the cover.

5. Check for any obvious non-IBM alterations. Use good
judgment as to the safety of any non-IBM alterations.

6. Check inside the unit for any obvious unsafe
conditions, such as metal filings, contamination, water
or other liquids, or signs of fire or smoke damage.

7. Check for worn, frayed, or pinched cables.

8. Check that the power-supply cover fasteners (screws
or rivets) have not been removed or tampered with.

Handling devices that are sensitive to electorostatic discharge

Any computer part containing transistors or integrated
circuits (ICs) should be considered sensitive to electrostatic
discharge (ESD.) ESD damage can occur when there is a
difference in charge between objects. Protect against ESD

Introduction 19

Safety information

damage by equalizing the charge so that the machine, the
part, the work mat, and the person handling the part are all
at the same charge.

Notes

1. Use product-specific ESD procedures when they
exceed the requirements noted here.

2. Make sure that the ESD protective devices you
use have been certified (ISO 9000) as fully
effective.

When handling ESD-sensitive parts:
v Keep the parts in protective packages until they are

inserted into the product.

v Avoid contact with other people.
v Wear a grounded wrist strap against your skin to

eliminate static on your body.

v Prevent the part from touching your clothing. Most

clothing is insulative and retains a charge even when
you are wearing a wrist strap.

v Use the black side of a grounded work mat to provide a

static-free work surface. The mat is especially useful
when handling ESD-sensitive devices.

v Select a grounding system, such as those listed below,

to provide protection that meets the specific service
requirement.

Note

The use of a grounding system is desirable but
not required to protect against ESD damage.

– Attach the ESD ground clip to any frame ground,

ground braid, or green-wire ground.

– Use an ESD common ground or reference point

when working on a double-insulated or
battery-operated system. You can use coax or
connector-outside shells on these systems.

– Use the round ground-prong of the AC plug on

AC-operated computers.

Grounding requirements

Electrical grounding of the computer is required for
operator safety and correct system function. Proper
grounding of the electrical outlet can be verified by a
certified electrician.

20 ThinkPad X30, X31 (MT 2672/2673)

Laser compliance statement

Laser compliance statement

Some IBM Personal Computer models are equipped from
the factory with an optical storage device such as a
CD-ROM drive or a DVD-ROM drive. They are also sold
separately as options. The drive is certified in the U.S. to
conform to the requirements of the Department of Health
and Human Services 21 Code of Federal Regulations
(DHHS 21 CFR) Subchapter J for Class 1 laser products.
Elsewhere, the drive is certified to conform to the
requirements of the International Electrotechnical
Commission (IEC) 825 and CENELEC EN 60 825 for
Class 1 laser products.

Introduction 21

Laser compliance statement

When a CD-ROM drive, DVD drive or the other laser
product is installed, note the following:

CAUTION:

Use of controls or adjustments or performance of
procedures other than those specified herein might
result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de
procedimentos diferentes daqueles aqui
especificados pode resultar em perigosa exposição
à radiação.

Pour éviter tout risque d’exposition au rayon laser,
respectez les consignes de réglage et d’utilisation
des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als
hier festgesetzt verwendet, kann gefährliche
Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di
procedure diverse da quelle specificate possono
provocare l’esposizione a.

El uso de controles o ajustes o la ejecuciónde
procedimientos distintos de los aquí especificados
puede provocar la exposición a radiaciones
peligrosas.

Opening the CD-ROM drive, DVD-ROM drive or the other
optical storage device could result in exposure to
hazardous laser radiation. There are no serviceable parts
inside those drives. Do not open.

22 ThinkPad X30, X31 (MT 2672/2673)

Laser compliance statement

Some CD-ROM drives, DVD-ROM drives, or other optical
storage devices contain an embedded Class 3A or Class
3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when
open. Do not stare into the beam, do not view
directly with optical instruments, and avoid direct
exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no
feixe de luz, não olhe diretamente por meio de
instrumentos óticos e evite exposição direta com o
feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer
le faisceau, de le regarder directement avec des
instruments optiques, ou de vous exposer au
rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt
oder über optische Instrumente in den Laserstrahl
sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár!Nenézzen bele se szabad
szemmel, se optikai eszközökkel. Kerülje a
sugárnyalábbal valóérintkezést !.

Aprendo l’unità vengono emesse radiazioni laser.
Non fissare il fascio, non guardarlo direttamente
con strumenti ottici e evitare l’esposizione diretta al
fascio.

Radiaciónláser al abrir. No mire fijamente ni
examine con instrumental óptico el haz de luz.
Evite la exposición directa al haz.

Introduction 23

Laser compliance statement

24 ThinkPad X30, X31 (MT 2672/2673)

General descriptions

This chapter includes descriptions for any ThinkPad model
that has the PC-Doctor DOS diagnostics program. Some
descriptions might not apply to your particular computer.

Read this first

Before you go to the checkout guide, be sure to read this
section.

Important notes

v Only certified trained personnel should

service the computer.

v Read the entire FRU removal and replacement

page before replacing any FRU.

v Use new nylon-coated screws when you

replace FRUs.

v Be extremely careful during such write

operations as copying, saving, or formatting.

Drives in the computer that you are servicing
sequence might have been altered. If you select
an incorrect drive, data or programs might be
overwritten.

v Replace FRUs only for the correct model.

When you replace a FRU, make sure the model
of the machine and the FRU part number are
correct by referring to the FRU parts list.

v A FRU should not be replaced because of a

single, unreproducible failure. Single failures

can occur for a variety of reasons that have
nothing to do with a hardware defect, such as
cosmic radiation, electrostatic discharge, or
software errors. Consider replacing a FRU only
when a problem recurs. If you suspect that a
FRU is defective, clear the error log and run the
test again. If the error does not recur, do not
replace the FRU.

v Be careful not to replace a nondefective FRU.

What to do first

When you do return a FRU, you must include the following
information in the parts exchange form or parts return form
that you attach to it:
__ 1. Name and phone number of servicer
__ 2. Date of service
__ 3. Date on which the machine failed

© Copyright IBM Corp. 2003

25

Read this first

__ 4. Date of purchase
__ 5. Failure symptoms, error codes appearing on the

display, and beep symptoms

__ 6. Procedure index and page number in which the

failing FRU was detected
__ 7. Failing FRU name and part number
__ 8. Machine type, model number, and serial number
__ 9. Customer’s name and address

Note for warranty:

During the warranty period, the customer may be
responsible for repair costs if the computer damage was
caused by misuse, accident, modification, unsuitable
physical or operating environment, or improper
maintenance by the customer. The following list provides
some common items that are not covered under warranty
and some symptoms that might indicate that the system
was subjected to stress beyond normal use.

Before checking problems with the computer, determine
whether the damage is covered under the warranty by
referring to the following:

The following are not covered under warranty:

v LCD panel cracked from the application of excessive

force or from being dropped

v Scratched (cosmetic) parts
v Distortion, deformation, or discoloration of the cosmetic

parts

v Cracked or broken plastic parts, broken latches, broken

pins, or broken connectors caused by excessive force

v Damage caused by liquid spilled into the system
v Damage caused by the improper insertion of a PC Card

or the installation of an incompatible card

v Damage caused by foreign material in the diskette drive
v Diskette drive damage caused by pressure on the

diskette drive cover or by the insertion of a diskette with
multiple labels

v Damaged or bent diskette eject button
v Fuses blown by attachment of a nonsupported device
v Forgotten computer password (making the computer

unusable)

v Sticky keys caused by spilling a liquid onto the keyboard

The following symptoms might indicate damage
caused by nonwarranted activities:

v Missing parts might be a symptom of unauthorized

service or modification.

v If the spindle of a hard-disk drive becomes noisy, it may

have been subjected to excessive force, or dropped.

26 ThinkPad X30, X31 (MT 2672/2673)

Related service information

Related service information

This section provides information about the following:

v “Service web site”
v “Restoring the preloaded system (for X30 series)”
v “Recovering the hard disk to original contents (for X31

series)” on page 30

v “Passwords” on page 32
v “Power management” on page 35

Service web site

When the latest maintenance diskette and the system
program service diskette become available, a notice will be
posted on http://www.ibm.com/pc/partner/infotips

Restoring the preloaded system (for X30 series)

If the data on a hard-disk drive is damaged or accidentally
erased, you can restore the software that was shipped with
the computer. This software includes the pre-installed
operating system, applications, and device drivers.

To restore the pre-installed software, you can use either
the Product Recovery program or a recovery CD.

Ordering the recovery CD

When the hard-disk drive is replaced because of a
failure, no Product Recovery program is on the new
hard disk. In this case, you must use the Product
Recovery CD for the computer. Order the recovery
CD and the hard-disk drive at the same time so that
you can recover the new hard-disk drive with the
pre-installed software when they arrive. For
information on which CD to order, see “Recovery
CDs” on page 160

The Product Recovery program is in the service partition, a
section of the hard-disk drive that is not displayed by
Windows Explorer.

Attention: All of the files on the primary hard-disk
partition (usually drive C) will be lost in the recovery
process. Be sure to back up copies of the files you have
saved on your drive C before you begin.

Creating a Recovery Repair diskette

If the operating system cannot boot normally, or if you
cannot get access to the Product Recovery program, you
can use the Recovery Repair diskette to boot the

General descriptions 27

Related service information

computer. Make a Recovery Repair diskette and save it for
future use. To make a Recovery Repair diskette, do the
following:

1. Shut down and restart the computer.

2. At the prompt, press F11. (The option to press F11

appears for only a few seconds. You must press F11
quickly.) The Product Recovery program main menu
opens.

Note: If you are prompted to select the operating

system, select one you want to recover. Then
the Product Recovery program main menu
opens.

3. Select System Utilities from the main menu. Press

Enter.

4. Select Create a Recovery Repair diskette. Press

Enter.

5. Follow the on-screen instructions.

6. When the process is completed, label the diskette

“Recovery Repair diskette” and save it for future use.

Product Recovery program

Note: The recovery process might take up to 2 hours.

To use the Product Recovery program to restore the
pre-installed software, do the following:

1. Save all files and shut down the desktop.

2. Turn off the computer.

3. Turn on the computer. If you are using Windows XP,

three messages (F1, F11, and F12) appear on the
screen for a few seconds. One of them is “Press F11
to invoke the IBM Product Recovery program”.
While the message is displayed, quickly press F11.

If you are using Windows 2000 or another operating
system, the startup screen is displayed first, and then
the message “To start the Product Recovery
program, press F11” at the top of the screen. Here
again it appears very briefly; watch for it, and press
F11 before it disappears.

Note: If this message is not displayed, you can use a

Recovery Repair diskette to get access to the
Product Recovery program. (For using a
Recovery Repair diskette, see “To use the
Recovery Repair diskette:” on page 30.)

4. From the list displayed on the screen, select the

operating system you want to recover.

5. Select the recovery options you want, and follow the

instructions on the screen.

28 ThinkPad X30, X31 (MT 2672/2673)

Related service information

6. When the Product Recovery program finishes running,
the computer will restart with the pre-installed operating
system, drivers, and software.

Using the recovery CD

To create the service partition and install the preloaded
system from the recovery CD, do the following:

To create the service partition:

1. Erase all partitions on the hard-disk drive, using FDISK
or a similar application.

2. Boot with the recovery CD (and the boot diskette if
required.)

3. Following message is displayed: “Your computer

originally included a Product Recovery program ...
Reinstall the Product Recovery program? (Y/N) [ ]”.

Note: If the hard-disk drive contains any partitions, you

do not receive this message; go to step 1.

4. Press Y key. The service partition is created and
loaded with the Product Recovery program files.

Note: If you do not want to create the service partition,

press N key, and then go to step 8.

5. At next window, press Enter to continue.
v The service partition is created. The system

automatically reboots during this process.

v The recovery process copies some files to the

service partition, and PKUNZIPs others.

v Follow the prompts. You may be prompted to

change CDs.

v When the process is complete, the system reboots.

Continue to step 6 to install preloaded system.

Install preloaded system from CD:

6. Boot with the recovery CD (and the boot diskette if
required.)

7. If the hard-disk drive is blank, the following message
is displayed: “Your computer originally included a

Product Recovery program ... Reinstall the
Product Recovery program? (Y/N) [ ]”.

v To install the service partition, go to step 4.
v To preload the hard-disk drive without installing the

service partition, press N key.

8. If you get a message asking which operating system
to install, select the proper operating system and
press Enter.

9. A message is displayed: “Full Recovery:”. Press
Enter to select.

General descriptions 29

Related service information

10. On each of the next three windows, press the Y key.

11. Follow the prompts to complete the recovery.

To use the Recovery Repair diskette:

1. Shut down and turn off the computer.

2. Insert the Recovery Repair diskette into the drive, and
then turn on the computer.

3. Follow the on-screen instructions.

Recovering the hard disk to original contents (for X31 series)

Recovering the hard disk using Access IBM Predesktop Area

Hard disk of ThinkPad computer you are servicing has a
hidden, protected area for backups. Contained within this
area is a complete backup of the hard disk as it was
shipped from the factory and a program called the Access
IBM Predesktop Area.

You can use the Access IBM Predesktop Area to restore
the contents of the hard disk to an earlier state using any
of the backup images stored in the protected area. Access
IBM Predesktop Area runs independently of the Windows
operating system. Therefore, you can start it by pressing
the blue Access IBM button when prompted during startup.

After the Access IBM Predesktop Area opens you can
perform a recovery operation, even if you are unable to
start Windows.

To recover the hard disk to its original contents, do the
following:

Note

The recovery process might take up to 2 hours.

Attention: All of the files on the primary hard-disk
partition (usually drive C) will be lost in the recovery
process. Be sure to back up copies of the files you have
saved on your drive C before you begin.

Note: You might need to use a diskette drive in the

recovery process. Use a drive that is compatible
with the ThinkPad computer you are servicing.

1. If possible, save all the files and shut down the
operating system.

2. Turn off the computer.

3. Turn on the computer. Watch the display carefully.
When the following message is displayed, press the

30 ThinkPad X30, X31 (MT 2672/2673)

Related service information

blue Access IBM button to open the Access IBM
Predesktop Area: “To interrupt normal startup, press
the blue Access IBM button.”

4. Double-click Recover to factory contents.

5. Follow the instructions on the screen.

6. When the recovery process finishes, the computer will
restart with the pre-installed operating system, drivers,
and software.

Recovering the hard disk using the recovery CD

Ordering the recovery CD

When the hard-disk drive is replaced because of a
failure, no Access IBM Predesktop Area is on the
new hard disk. In this case, you must use the
recovery CD for the computer. Order the recovery
CD and the hard-disk drive at the same time so that
you can recover the new hard-disk drive with the
pre-installed software when they arrive. For
information on which CD to order, see “Recovery
CDs” on page 160

To create the service partition and install the factory
contents from the recovery CD, do the following:

To create the service partition:

1. Erase all partitions on the hard-disk drive, using FDISK
or a similar application.

2. For the proper removal of the Hidden Protected
Area(HPA), refer to the white paper at

http://www.pc.ibm.com/qtechinfo/AIBM-TOOLS.html

3. Boot with the recovery CD (and the boot diskette if
required.)

4. Following message is displayed: “Your computer

originally included a Product Recovery program ...
Reinstall the Product Recovery program? (Y/N) [ ]”.

Note: If the hard-disk drive contains any partitions, you

do not receive this message; go to step 1.

5. Press Y key. The service partition is created and
loaded with the Product Recovery program files.

Note: If you do not want to create the service partition,

press N key, and then go to step 8.

6. At next window, press Enter to continue.
v The service partition is created. The system

automatically reboots during this process.

v The recovery process copies some files to the

service partition, and PKUNZIPs others.

General descriptions 31

Related service information

v Follow the prompts. You may be prompted to

change CDs.

v When the process is complete, the system reboots.

Continue to step 6 to install preloaded system.

Install preloaded system from CD:

7. Boot with the recovery CD (and the boot diskette if
required.)

8. If the hard-disk drive is blank, the following message
is displayed: “Your computer originally included a

Product Recovery program ... Reinstall the
Product Recovery program? (Y/N) [ ]”.

v To install the service partition, go to step 4.
v To preload the hard-disk drive without installing the

service partition, press N key.

9. If you get a message asking which operating system
to install, select the proper operating system and
press Enter.

10. A message is displayed: “Full Recovery:”. Press
Enter to select.

11. On each of the next three windows, press the Y key.

12. Follow the prompts to complete the recovery.

Passwords

As many as three passwords may be needed for any
ThinkPad computer: the power-on password (POP), the
hard-disk password (HDP), and the supervisor password
(SVP).

If any of these passwords has been set, a prompt for it
appears on the screen whenever the computer is turned
on. The computer does not start until the password is
entered.

Exception: If only an SVP is installed, the password

prompt does not appear when the operating
system is booted.

Power-on password:

A power-on password (POP) protects the system from
being powered on by an unauthorized person. The
password must be entered before an operating system can
be booted.

Hard-disk password:

There are two hard-disk passwords (HDPs):

v User HDP—for the user
v Master HDP—for the system administrator, who can use

it to get access to the hard disk even if the user has
changed the user HDP

32 ThinkPad X30, X31 (MT 2672/2673)

Related service information

Note: There are two modes for the HDP: User only and

Master + User. The Master + User mode requires

two HDPs; the system administrator enters both in
the same operation. The system administrator then
provides the user HDP to the system user.

Attention: If the user HDP has been forgotten, check
whether a master HDP has been set. If it has, it can be
used for access to the hard-disk drive. If no master HDP is
available, IBM does not provide any services to reset
either the user or the master HDP, or to recover data from
the hard-disk drive. The hard-disk drive can be replaced
for a scheduled fee.

Supervisor password:

A supervisor password (SVP) protects the system
information stored in the IBM BIOS Setup Utility. The SVP
must be entered in order to get access to the IBM BIOS
Setup Utility and make changes to system configuration
settings.

Attention: If the SVP has been forgotten and cannot be
made available to the servicer, there is no service
procedure to reset the password. The system board must
be replaced for a scheduled fee.

How to remove the power-on password

To remove a POP that you have forgotten, do the
following:

(A) If no SVP has been set:

1. Turn off the computer.

2. Remove the battery pack.
For how to remove the battery pack, see “1010 Battery

pack” on page 71.

3. Remove the backup battery.
For how to remove the backup battery, see “1050

Backup battery” on page 76.

4. Turn on the computer and wait until the POST ends.
After the POST ends, the password prompt does not

appear. The POP has been removed.

5. Reinstall the backup battery and the battery pack.

(B) If an SVP has been set and is known by the servicer:

For X30 series:

1. Turn on the computer, and press F1 when three
messages (F1, F11, and F12) appear on the screen.

2. Enter the SVP. The IBM BIOS Setup Utility menu
appears.

General descriptions 33

Related service information

3. Select Password, using the cursor keys to move down
the menu.

4. Select Power-On Password.

5. At the Enter Current Password field, enter the SVP.

6. When the Enter New Password field opens, leave it
blank and press Enter twice.

7. In the Changes have been saved window, press Enter.

8. Press F10; then, in the Setup confirmation window,
select Yes .

For X31 series:

1. Turn on the computer; then, while the “To interrupt
normal startup, press the blue Access IBM button”
message is displayed at the lower-left of the screen,
press the Access IBM button.

2. Enter the SVP. Select Start setup utility.

3. Select Security, using the cursor keys to move down
the menu.

4. Select Password.

5. Select Power-On Password.

6. At the Enter Current Password field, enter the SVP.

7. When the Enter New Password field opens, leave it
blank and press Enter twice.

8. In the Changes have been saved window, press Enter.

9. Press F10; then, in the Setup confirmation window,
select Yes .

How to remove the hard-disk password

Attention: If User only mode is selected and the user

HDP has been forgotten and cannot be made available to
the servicer, IBM does not provide any services to reset
the user HDPs or to recover data from the hard-disk drive.
The hard-disk drive can be replaced for a scheduled fee.

To remove a user HDP that has been forgotten, when the
SVP and the master HDP are known, do the following:

For X30 series:

1. Turn on the computer, and press F1 when three
messages (F1, F11, and F12) appear on the screen.

2. Enter the SVP. The IBM BIOS Setup Utility menu
appears.

3. Select Password, using the cursor keys to move down
the menu.

4. Select Hard-disk x password, where x is the letter of
the hard-disk drive. A pop-up window opens.

5. Select Master HDP.

34 ThinkPad X30, X31 (MT 2672/2673)

Related service information

6. Enter the master HDP; then leave the New Password
field blank and press Enter twice.

7. Press F10.

8. Select Yes in the Setup Configuration window.
Both user HDP and master HDP will have been

removed.

For X31 series:

1. Turn on the computer; then, while the “To interrupt
normal startup, press the blue Access IBM button”
message is displayed at the lower-left of the screen,
press the Access IBM button.

2. Enter the SVP. Select Start setup utility.

3. Select Security, using the cursor keys to move down
the menu.

4. Select Password.

5. Select Hard-disk x password, where x is the letter of
the hard-disk drive. A pop-up window opens.

6. Select Master HDP.

7. Enter the master HDP; then leave the New Password
field blank and press Enter twice.

8. Press F10.

9. Select Yes in the Setup Configuration window.
Both user HDP and master HDP will have been

removed.

Power management

To reduce power consumption, the computer has three
power management modes: screen blank, standby, and
hibernation.

Notes

v Screen blank mode is called standby mode in

Windows NT.

v Standby mode is called suspend mode in

Windows NT.

Screen blank mode

Screen blank mode has three variants, as follows:

1. If you press Fn+F3, or the time set on the “LCD off
timer” in IBM BIOS Setup Utility expires,

v The LCD backlight turns off.
v The hard-disk drive motor stops.
v The speaker is muted.

2. If you are using the ACPI operating system and you
press Fn+F3,

General descriptions 35

Related service information

v The LCD backlight turns off.
v The hard-disk drive motor stops.

3. If the time set on the “Turn off monitor” timer in the
operating system expires,
v The LCD backlight turns off.

To end screen blank mode and resume normal operation,
press any key.

Standby mode

When the computer enters standby mode, the following
events occur in addition to what occurs in screen blank
mode:

v The LCD is powered off.
v The hard-disk drive is powered off.
v The CPU stops.

To enter standby mode, press Fn+F4.
Note: You can change the action of Fn+F4, if you are

using the ACPI operating system.

In certain circumstances, the computer goes into standby
mode automatically:

v If a “suspend time” has been set on the timer, and the

user does not do any operation with the keyboard, the
TrackPoint, the hard disk, the parallel connector, or the
diskette drive within that time.

v If the battery indicator blinks orange, indicating that the

battery power is low. (Alternatively, if Hibernate when
battery becomes low has been selected in the “Power
Management Properties” window, the computer goes
into hibernation mode.)

Note for the APM operating system:

Even if you do not set the low-battery alarm, the charge
indicator notifies you when the battery is low, and then the
computer enters the power-saving mode automatically.
This default low-battery behavior is independent of the
operating system; so if you have set the low-battery alarm,
the computer may not do what you specified. It chooses
either your setting or the default setting, whichever is
appropriate.

If you are using the ACPI operating system, only the
low-battery alarm is available.

To cause the computer to return from standby mode and
resume operation, do one of the following:

v Press the Fn key.
v Open the LCD cover.

36 ThinkPad X30, X31 (MT 2672/2673)

Related service information

v Turn on the power switch.
Also, the computer automatically returns from standby
mode and resumes operation in either of the following
events:

v The ring indicator (RI) is signaled by a serial device or a

PC Card device (Windows 2000 does not support the
ring indicator (RI) resume by PC Card device.)

v The time set on the resume timer elapses. In Windows

98, the Scheduled Tasks setting takes priority over the
Resume on timer selection in the “Power Management
Properties” window.

Note: The computer does not accept any input

immediately after it enters standby mode. Wait a
few seconds before taking any action to reenter
operation mode.

Hibernation mode

Note for Windows NT

If you are using Windows NT in NTFS format, you
cannot create a hibernation file. If you want to use
hibernation mode, you will need to reinstall Windows
NT with FAT format.

In hibernation mode, the following occurs:
v The system status, RAM, VRAM, and setup data are

stored on the hard disk.

v The system is powered off.
Note: If the computer enters the hibernation mode while it

is docked to the docking station, do not undock it
from the docking station before resuming normal
operation. If you do undock it and then try to
resume normal operation, you will get an error
message, and you will have to restart the system.

To cause the computer to enter hibernation mode, do any
of the following:

v Press the Fn+F12 keys.
v If you are using the APM operating system and have set

the mode to Power switch mode [Hibernation], turn
off the power switch.

v If you are using the ACPI operating system and have

defined one of the following actions as the event that
causes the system to go into hibernation mode, perform
that action.

– Closing the lid.
– Pressing the power button.
– Pressing Fn+F4 keys.

General descriptions 37

Related service information

Also, the computer goes into hibernation mode
automatically in either of the following conditions:

v If a “hibernation time” has been set on the timer, and the

user does not do any operation with the keyboard, the
TrackPoint, the hard-disk drive, the parallel connector, or
the diskette drive within that time.

v If the timer conditions are satisfied in suspend mode.
v If you are using the APM operating system and have set

the mode to Hibernate when battery becomes low,
and the battery charge becomes critically low.

When the power is turned on, the computer returns from
hibernation mode and resumes operation. The hibernation
file in the boot record on the hard-disk drive is read, and
system status is restored from the hard-disk drive.

Checkout guide

Use the following procedures as a guide in identifying and
correcting problems with the ThinkPad computer.

Note: The diagnostic tests are intended to test only IBM

products. The use of non-IBM products, prototype
cards, or modified options can lead to false
indications of errors and invalid system responses.

1. Identify the failing symptoms in as much detail as
possible.

2. Verify the symptoms. Try to re-create the failure by
running the diagnostic test or by repeating the
operation.

Testing the computer

The ThinkPad computer has a test program called
PC-Doctor
detect errors by running the diagnostics test included in
PC-Doctor. This section is an overview of the procedure.
For details that depend on model-unique functions, refer to
“Product overview” on page 47.

For some possible configurations of the computer,
PC-Doctor might not run correctly. To avoid this problem,
you need to initialize the computer setup by use of the IBM
BIOS Setup Utility before you run PC-Doctor. On the IBM
BIOS Setup Utility screen, press F9, Enter, F10, and then
Enter.

Note: When you initialize the computer configuration,

38 ThinkPad X30, X31 (MT 2672/2673)

®

DOS (hereafter called PC-Doctor). You can

some devices are disabled, such as the serial port.
If you test one of these devices, you will need to
enable it by using PS2.EXE.

Checkout guide

PC-Doctor cannot be used to test a device that is in the
docking station, even if the computer supports the docking
station. To test a USB device, connect it to the USB
connector of the computer. To test the Ultrabay device,
install it in the Ultrabay Plus slot of the computer.

Creating the PC-Doctor diagnostics diskette

In X31 series, the PC-Doctor disk can be created by
using the Access IBM Predesktop Area.

To create the PC-Doctor disk from the Access IBM
Predesktop Area, do as follows:

1. Enter the IBM Predesktop application by
pressing the Access IBM button during POST.

2. When the Access IBM application finishes
loading, double-click the “Create Diagnostic
Diskettes” icon.

3. It will take about 15 seconds to authenticate the
digital signature, and then the ThinkPad
computer will reboot into PC-DOS.

4. A batch file will automatically start up to prompt
the user through creating the boot diskettes. The
user will be informed how many diskettes will be
needed.
a. The user will be prompted to insert each

diskette in sequence.

b. Typically, the user only needs to press the

Enter key for the proper floppy drive to
format and create the diskette.

c. Each diskette will be erased and formatted

with the PC-Doctor DOS boot image.

5. Once all the diskettes have been created, the
ThinkPad computer will reboot. The user is
asked to remove all diskettes from the drive, or
to insert the first diskette created if it is desired
to run the diagnostics.

To run the test, do as follows:
Note: In the following procedure, you can select an item

not only with the arrow keys, but also with the
TrackPoint. Instead of pressing Enter, click the left
button.

1. Insert the PC-Doctor disk into the diskette drive; then
power on the computer.

If the computer cannot be powered on, go to “Power
system checkout” on page 42, and check the power
sources.

General descriptions 39

Checkout guide

If an error code appears, go to “Symptom-to-FRU
index” on page 59.

On the first screen, select the model and press Enter.
Follow the instructions on the screen.

2. The main panel of PC-Doctor appears.

3. Select Diagnostics with the arrow keys, and press
Enter.

A pull-down menu appears. (Its exact form depends on
the model.)

The options on the test menu are as follows:

Diagnostics Interactive Tests

v Run Normal Test
v Run Quick Test
v CPU/Coprocessor
v Systemboard
v Video Adapter
v Serial Ports
v Parallel Ports
v Fixed Disks

v Keyboard
v Video
v Internal Speaker
v Mouse
v Diskette
v System Load
v CD-ROM/DVD Test

v Intel Wireless Radio
v Diskette Drives
v Other Devices
v ZIP Drive
v LS-120/240 Drive (*)
v Communication
v Wireless LAN
v Memory Test – Full
v Memory Test – Quick

Notes:

v In the Keyboard test in Interactive Tests, the Fn key

is scanned only once. Each key should be held down
for at least 2 seconds; otherwise, it cannot be sensed.

v Video Adapter test supports only the LCD display on

the ThinkPad computer. Before running PC-Doctor
DOS, detach the external Monitor.

v To test ZIP Drive or LS-120/240 Drive, each media is

needed to be inserted before start testing.

v To test Digital Signature Chip, the chip must be

enabled.

v When Legacy Floppy Drives is enabled in the IBM

BIOS Setup Utility, Diskette Drives test is activated
even if no legacy diskette drive is attached to the
ThinkPad computer.

v LS-120/240 Drive test is only for X30.

40 ThinkPad X30, X31 (MT 2672/2673)

Checkout guide

Diagnostics

Use the cursor keys and ESC to move in menus. Press ENTER to select.

InteractiveTests

Run NormalTest

Run QuickTest
CPU/Coprocessor
Systemboard
Video Adapter
Serial Ports
Parallel Ports
Fixed Disks
Diskette Drives
Other Devices
ZIP Drive
Communication
Memory Test - Full
Memory Test - Quick

PC-DOCTOR 2.0 Copyright 2001 PC-Doctor, Inc. All Rights Reserved.

Hardware Info

Utility F1=Help

Quit

4. Run the applicable function test.

5. Follow the instructions on the screen. If there is a
problem, PC-Doctor shows messages describing it.

6. To exit the test, select Quit — Exit Diag.
To cancel the test, press Esc.

Note: After executing PC-Doctor, check the system

time/date and reset them if needed.

Detecting system information with PC-Doctor

PC-Doctor can detect the following system information:

Hardware Info

v System Configuration
v Memory Contents
v Physical Disk Drives
v Logical Disk Drives
v VGA Information
v IDE Drive Info
v PCI Information
v PNPISA Info
v SMBIOS Info
v VESA LCD Info

Utility

v Run External Tests
v Surface Scan Hard Disk
v Benchmark System
v DOS Shell
v Tech Support Form
v Battery Rundown
v View Test Log
v Print Log
v Save Log
v Full Erase Hard Drive
v Quick Erase Hard Drive

General descriptions 41

Checkout guide

Power system checkout

To verify a symptom, do the following:

1. Power off the computer.

2. Remove the battery pack.

3. Connect the ac adapter.

4. Check that power is supplied when you power on the
computer.

5. Power off the computer.

6. Disconnect the ac adapter and install the charged
battery pack.

7. Check that the battery pack supplies power when you
power on the computer.

If you suspect a power problem, see the appropriate one
of the following power supply checkouts:

v “Checking the ac adapter”
v “Checking operational charging” on page 43
v “Checking the battery pack” on page 43
v “Checking the backup battery” on page 44

Checking the ac adapter

You are here because the computer fails only when the ac
adapter is used:
v If the power problem occurs only when the port

replicator is used, replace the port replicator.

v If the power-on indicator does not turn on, check the

power cord of the ac adapter for correct continuity and
installation.

v If the computer does not charge during operation, go to

″Checking operational charging.″

To check the ac adapter, do the following:

1. Unplug the ac adapter cable from the computer.

2. Measure the output voltage at the plug of the ac
adapter cable. See the following figure:

Pin Voltage (V dc)

2

1

(16-10V)

3. If the voltage is not correct, replace the ac adapter.

4. If the voltage is acceptable, do the following:

v Replace the system board.
v If the problem persists, go to “Product overview” on

page 47.

Note: Noise from the ac adapter does not always indicate

a defect.

1 +15.5 to +17.0
2 Ground

42 ThinkPad X30, X31 (MT 2672/2673)

Checkout guide

Checking operational charging

To check whether the battery charges properly during
operation, use a discharged battery pack or a battery pack
that has less than 50% of the total power remaining when
installed in the computer.

Perform operational charging. If the battery status indicator
or icon does not turn on, remove the battery pack and let it
return to room temperature. Reinstall the battery pack. If
the charge indicator or icon still does not turn on, replace
the battery pack.

If the charge indicator still does not turn on, replace the
system board. Then reinstall the battery pack. If it is still
not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter
shows that less than 95% of the total power remains;
under this condition the battery pack can charge to 100%
of its capacity. This protects the battery pack from being
overcharged or from having a shortened life.

To check the status of your battery, move your cursor to
the Power Meter icon in the icon tray of the Windows
taskbar and wait for a moment (but do not click), and the
percentage of battery power remaining is displayed. To get
detailed information about the battery, double-click the
Power Meter icon.

Note: If the battery pack becomes hot, it may not be able

to charge. Remove it from the computer and leave it
at room temperature for a while. After it cools down,
reinstall and recharge it.

To check the battery pack, do the following:

1. Power off the computer.

2. Remove the battery pack and measure the voltage
between battery terminals 1 (+) and 5 (−). See the
following figure:

Terminal Voltage (V dc)

1 + 0 to + 12.6
5 Ground (−)

5(-)

1(+)

2

3

4

3. If the voltage is less than +11.0 V dc, the battery pack
has been discharged.

General descriptions 43

Checkout guide

Note: Recharging will take at least 3 hours, even if the

indicator does not turn on.

If the voltage is still less than +11.0 V dc after
recharging, replace the battery.

4. If the voltage is more than +11.0 V dc, measure the
resistance between battery terminals 4 and 5. The
resistance must be 4 to 30 K .

If the resistance is not correct, replace the battery
pack. If the resistance is correct, replace the system
board.

Checking the backup battery

Do the following:

1. Power off the computer, and unplug the ac adapter
from it.

2. Turn the computer upside down.

3. Remove the battery pack (see “1010 Battery pack” on
page 71).

4. Remove the backup battery (see “Checking the battery
pack” on page 43).

5. Measure the voltage of the backup battery. See the
following figure.

Red (+)

Wire Voltage (V dc)

Red +2.5 to +3.2

Black (-)

v If the voltage is correct, replace the system board.
v If the voltage is not correct, replace the backup battery.
v If the backup battery discharges quickly after

replacement, replace the system board.

Black Ground

44 ThinkPad X30, X31 (MT 2672/2673)

ThinkPad X30, X31

Product overview ............47

Specifications ............47

Status indicators for X30.........50

Status indicators for X31.........53

FRU tests .............55

Fn key combinations ..........56

Symptom-to-FRU index ..........59

Numeric error codes ..........59

Error messages ...........63

Beep symptoms ...........64

No-beep symptoms ..........64

LCD-related symptoms .........65

Intermittent problems ..........66

Undetermined problems .........66

FRU replacement notices .........67

Screw notices ............67

Retaining serial numbers.........68

Restoring the serial number of the system unit 68

Retaining the UUID .........68

Removing and replacing a FRU........70

1010 Battery pack...........71

1020 Hard-disk drive ..........72

1030 DIMM cover...........74

1040 DIMM ............75

1050 Backup battery ..........76

1060 Keyboard ...........77

1070 Mini PCI adapter .........81

802.11b wireless LAN/modem combo card . . 81

802.11b wireless LAN card .......84

802.11a/b wireless LAN card ......86

1080 Fan assembly ..........89

1090 Communication daughter card (CDC) . . . 91

Modem daughter card (MDC) ......92

Bluetooth daughter card (BDC) ......94

Bluetooth/Modem daughter card (BMDC) . . . 96

1100 Keyboard bezel ..........98

1110 PC card slot ..........101

1120 Hinge cover and LCD assembly ....104

1130 Sub card assembly ........108

1140 Speaker assembly ........109

1150 System board and base cover .....112

2010 LCD front bezel .........116

2020 Inverter card ..........117

2030 LCD panel ...........119

For models with no wireless LAN antenna 119

For wireless LAN models .......122

3010 ThinkPad Dock PCI cover ......127

3020 ThinkPad Dock top cover ......129

4010 ThinkPad Dock II PCI cover......134

4020 ThinkPad Dock II top cover ......135

© Copyright IBM Corp. 2003

45

Locations ..............138

Front view for X30 series ........138

Rear view for X30 series ........139

Bottom view for X30 series........140

Front view for X31 series ........141

Rear view for X31 series ........142

Bottom view for X31 series........143

Locations for UltraBase X3........144

Front view ...........144

Bottom view ...........145

Parts list ..............146

X30 and X31 series model matrix......146

Overall .............148

LCD FRUs ............157

12.1-in. XGA TFT .........157

Keyboard .............159

Recovery CDs ...........160

For Windows 2000 (X30) .......160

For Windows XP professional (X30) ....161

For Windows XP Home Edition (X30) . . . 162

For Windows 2000 (X31) .......162

For Windows XP professional (X31) ....163

For Windows XP Home Edition (X31) . . . 164

Miscellaneous parts ..........164

Optional FRUs ...........166

Common parts list ..........168

Tools .............168

Power cords (system) ........168

Power cords (ThinkPad Dock and ThinkPad

Notices ..............170

Dock II) ...........169

Trademarks ............170

46 ThinkPad X30, X31 (MT 2672/2673)

Product overview

Product overview

This section presents the following product-unique
information:

v “Specifications”
v “Status indicators for X30” on page 50
v “FRU tests” on page 55
v “Fn key combinations” on page 56

Specifications

Feature Description

Processor X30 series

Memory (standard) X30 series

Memory (optional) X30 series

v Mobile Intel

GHz - M, L2 512 KB cache

v Mobile Intel

GHz - M, L2 512 KB cache

X31 series

v Intel

512 KB cache

v Intel

512 KB cache

v 128 MB SDRAM SO DIMM (PC133) card

× 1

v 256 MB SDRAM SO DIMM (PC133) card

× 1

X31 series

v 256 MB DDR SDRAM SO DIMM

(PC2100) card × 1

v 512 MB DDR SDRAM SO DIMM

(PC2100) card × 1

v 64 MB SDRAM SO DIMM (PC133) card
v 128 MB SDRAM SO DIMM (PC133) card
v 256 MB SDRAM SO DIMM (PC133) card
v 512 MB SDRAM SO DIMM (PC133) card

®

Pentium®III processor 1.06

®

Pentium®III processor 1.2

®

Pentium®M processor 1.3 GHz, L2

®

Pentium®M processor 1.4 GHz, L2

(continued)

X31 series

v 128 MB DDR SDRAM SO DIMM

(PC2100) card

v 256 MB DDR SDRAM SO DIMM

(PC2100) card

v 512 MB DDR SDRAM SO DIMM

(PC2100) card

(maximum of 1024 MB)

ThinkPad X30, X31 47

Product overview

Feature Description

Bus architecture v HUB link

Graphic memory X30 series

CMOS RAM v 242 bytes
Hard-disk drive v 20.0 GB, 2.5-inch, IDE interface

Display v 12.1-inch, 16M colors, XGA (1024 × 768

I/O port (system) v External monitor connector

I/O port
(UltraBase)

Internal modem v 56.6 Kbps
Audio v Internal monaural speaker

Infrared transfer v IrDA 1.1
Mini PCI adapter v IBM High Rate Wireless LAN Mini-PCI

v PCI bus
v LPC bus

MAX 32 MB DVMT (Dynamic Video Memory
Technology)

X31 series

16 MB Local Video Memory

v 40.0 GB, 2.5-inch, IDE interface

resolution) TFT color LCD

v RJ11
v RJ45
v Parallel connector
v Stereo headphone jack
v Monaural microphone jack
v Stereo line-in jack
v Universal serial bus (USB) connector × 2
v Infrared port
v Docking connector
v DC-in
v IEEE 1394 connector

v External monitor connector
v RJ11
v RJ45
v Parallel connector
v Serial connector
v Keyboard or mouse connector
v Universal serial bus (USB) connector
v DC-in

v Software control volume

Adapter with Modem II (some models)

v Cisco Aironet Wireless 802.11b Mini PCI

by IBM (some models)

v IBM High Rate Wireless LAN Mini PCI

Adapter III (some models)

v IBM Dual-Band 11a/b Wi-Fi Wireless Mini

PCI Adapter (some models)

®

v Intel

PRO/Wireless LAN 2100 3B Mini

PCI Adapter (some models)

(continued)

48 ThinkPad X30, X31 (MT 2672/2673)

Product overview

Feature Description

PC Card v One Type-II
CompactFlash

card
Ultrabay device Ultrabay Plus (supported by UltraBase X3)
Diskette drive

(external)
Communication

daughter card
(CDC)

AC adapter v 56-watt type
Battery pack

(main)
Preinstalled

operating system

v One Type-II

v 1.44 MB (3-mode), 3.5-inch diskette drive

v V.90 modem daughter card (MDC) (some

models)

v Bluetooth daughter card (BDC) (some

models)

v IBM Integrated Bluetooth with 56K

Modem (BMDC) (some models)

v 6-cell Li-Ion battery pack (4.4 AH)

Windows 2000
Windows XP Professional
Windows XP Home edition

ThinkPad X30, X31 49

Product overview

Status indicators for X30

The system status indicators show the status of the
computer, as follows:

1 32

8 2 4567

1

2

3

9

Indicator Meaning

1 Bluetooth

status

Green: The Bluetooth is operational. This

indicator is on when the Bluetooth is
on and not in suspend mode.

(continued)

50 ThinkPad X30, X31 (MT 2672/2673)

Product overview

Indicator Meaning

2 Battery

status

3 Standby

status

4 Power on

5 Scroll lock

6 Caps lock

7 Num lock Green: The numeric keypad on the keyboard

8 Drive in

use

Green: The battery is in use and has enough

power. The ac adapter has charged
the battery completely.

Blinking green:

The battery is being charged, but still
has enough power to operate. (At
regular intervals, the indicator light
turns off briefly.)

Orange: The battery is being charged, but the

battery power is still low.

Blinking orange:

The battery needs to be charged.
When the indicator starts blinking
orange, the computer beeps three
times.

Green: The computer is in standby mode.
Blinking green:

The computer is entering standby
mode or hibernation mode, or is
resuming normal operation.

Green: The computer is on and ready to use.

This indicator stays lit whenever the
computer is on and is not in standby
mode.

Green: Scroll Lock mode is enabled. The

Arrow keys can be used as
screen-scroll function keys. The
cursor cannot be moved with the
Arrow keys. Not all application
programs support this function. To
enable or disable Scroll Lock mode,
press the ScrLk key.

Green: Caps Lock mode is enabled. To

enable or disable Caps Lock mode,
press the Caps Lock key.

is enabled. To enable or disable the
keypad, press and hold the Shift key,
and press the NumLk (ScrLk) key.

Green: Data is being read from or written to

the hard-disk drive, the diskette drive,
or the drive in the Ultrabay device.
When this indicator is on, do not put
the computer into standby mode or
turn off the computer.

(continued)

Note: Do not move the system while the Green
drive in use light is on. Sudden physical shock
could cause drive errors.

ThinkPad X30, X31 51

Product overview

Indicator Meaning

9 Ethernet

status

Green: The computer connects to a LAN and

Blinking yellow:

a session with the network is
available.

Data is being transmitted.

52 ThinkPad X30, X31 (MT 2672/2673)

Product overview

Status indicators for X31

The system status indicators show the status of the
computer, as follows:

2 431

8 2567

1

3

4

Indicator Meaning

1 Bluetooth

status

2 Wireless

status

Green: The Bluetooth is operational. This

Green:

Wireless is operational and radio on state.
This indicator is on when the data is
transmitted.

(continued)

9

indicator is on when the Bluetooth is
on and not in suspend mode.

ThinkPad X30, X31 53

Product overview

Indicator Meaning

3 Battery

status

4 Standby

status

5 Power on

6 Caps lock

7 Num lock Green: The numeric keypad on the keyboard

8 Drive in

use

Green: The battery is in use and has enough

power. The ac adapter has charged
the battery completely.

Blinking green:

The battery is being charged, but still
has enough power to operate. (At
regular intervals, the indicator light
turns off briefly.)

Orange: The battery is being charged, but the

battery power is still low.

Blinking orange:

The battery needs to be charged.
When the indicator starts blinking
orange, the computer beeps three
times.

Green: The computer is in standby mode.
Blinking green:

The computer is entering standby
mode or hibernation mode, or is
resuming normal operation.

Green: The computer is on and ready to use.

This indicator stays lit whenever the
computer is on and is not in standby
mode.

Green: Caps Lock mode is enabled. To

enable or disable Caps Lock mode,
press the Caps Lock key.

is enabled. To enable or disable the
keypad, press and hold the Shift key,
and press the NumLk (ScrLk) key.

Green: Data is being read from or written to

the hard-disk drive, the diskette drive,
or the drive in the Ultrabay device.
When this indicator is on, do not put
the computer into standby mode or
turn off the computer.

Note: Do not move the system while the Green
drive in use light is on. Sudden physical shock
could cause drive errors.

9 Ethernet

status

Green: The computer connects to a LAN and

a session with the network is
available.

Blinking yellow:

Data is being transmitted.

54 ThinkPad X30, X31 (MT 2672/2673)

Product overview

FRU tests

The following table shows the test for each FRU.

FRU Applicable test

System board 1. Diagnostics --> CPU/Coprocessor

Power Diagnostics --> Other Devices --> IBM AC

LCD unit 1. Diagnostics --> Video Adapter

Modem, MDC
or BMDC

Audio 1. Interactive Tests --> Internal Speaker

Speaker Interactive Tests --> Internal Speaker
PC Card slots Diagnostics --> Systemboard --> PCMCIA,

Keyboard 1. Diagnostics --> Systemboard -->

TrackPoint or
pointing device

Hard-disk drive Diagnostics --> Fixed Disks
Diskette drive 1. Diagnostics --> Diskette Drives

CD-ROM or
DVD drive

2. Diagnostics --> Systemboard

Adapter, IBM Battery 1 (IBM Battery 2)

2. Interactive Tests --> Video

1. Make sure the modem is set up correctly.

2. Replace the modem jack and the modem
card in turn, and run the following test in
Diagnostics --> Communication:
a. Lucent Soft Modem Loopback
b. Lucent Soft Modem Dialtone

2. Diagnostics --> Other Devices --> Analog

Devices AC97 CODEC Test

PCMCIA External Loop

Keyboard

2. Interactive Tests --> Keyboard

If the TrackPoint does not work, check the
configuration in the ThinkPad Configuration
program. If the TrackPoint is disabled, select
Enable to enable it.

After you use the TrackPoint, the pointer may
drift on the screen for a short time. This drift
can occur when a slight, steady pressure is
applied to the TrackPoint pointer. This symptom
is not a hardware problem. If the pointer stops
after a short time, no service action is
necessary.

If enabling the TrackPoint does not correct the
problem, continue with the following:
v Interactive Tests --> Mouse

2. Interactive Tests --> Diskette

1. Diagnostics --> Other Devices -->

CD-ROM/DVD

2. Interactive Tests --> CD-ROM/DVD Test

(continued)

ThinkPad X30, X31 55

Product overview

FRU Applicable test

Memory 1. If two DIMMs are installed, remove one of

Fan 1. Turn on the computer and check the air

them and run Diagnostics --> Memory
Test - Quick.

2. If the problem does not recur, return the
DIMM to its place, remove the other one,
and run the test again.

3. If the test does not detect the error, run
Diagnostics --> Memory Test - Full.

turbulence at the louver near the power
switch.

2. Run Diagnostics --> Other Devices -->

IBM Fan.

Fn key combinations

The following table shows the function of each combination
of Fn with a function key.

Key
combination

Fn+F1 Reserved.
Fn+F2 Reserved.
Fn+F3 Turn off the LCD display, leaving the screen

Fn+F4 Turn standby mode on. To return to normal

Fn+F5 Note: This function is supported only in X31

Description

blank. To turn the LCD display on again, press
any key or the TrackPoint stick.

operation, press the Fn key independently,
without pressing a function key.

Notes:

1. This mode is called suspend mode in
Windows NT.

2. In Windows XP and Windows 2000, this
combination of buttons functions as a sleep
button. The user can change the setting so
that pressing it puts the computer into
hibernation mode or even shuts the
computer down.

series. X30 series does not have this function.
Enable or disable the built-in wireless
networking features ( the IEEE 802.11
standard) and the Bluetooth features. If this
combination of keys are pressed, a list of
wireless features is displayed in the Wireless
Radio Control window. The user can quickly
change the power state of each feature in the
list.
Note: This function is supported in Windows
XP, Windows 2000, and Windows 98.

(continued)

56 ThinkPad X30, X31 (MT 2672/2673)

Product overview

Key
combination

Fn+F6 Reserved.
Fn+F7 Switching a display output location

Fn+F8 Turn screen expansion on or off. (There is no

Description

Switch between the computer display and an
external monitor (CRT). If an external monitor is
attached, computer output is displayed in the
following three patterns by turns:

v CRT display
v Computer display + CRT display
v Computer display

Notes:

1. For any operating system other than
Windows XP or Windows 2000, no
addtional procedure is needed. Just press
Fn+F7.

2. This function is not supported if different
desktop images are displayed on the
computer display and the external monitor.

3. This function does not work while a DVD
movie or a video clip is playing.

4. To enable this function in Windows 2000
and Windows XP, do the following:
a. Start Windows 2000 or Windows XP,

and log on to the system.

b. Press Fn+F7 and select a

display-switching function in the Initial
setup window.

Applying a presentation scheme

Apply a presentation scheme directly, with no
need to start Presentation Director. To enable
this function, do the following:
Note: This function is supported only in
Windows 2000 and Windows XP.

1. Start Windows 2000 or Windows XP, and
log on to the system.

2. Press Fn+F7. The Initial setup window
opens.

3. Select a presentation scheme function for
the Fn+F7 key combination. The setting
window opens.

4. Select the optional setting.

symbol on the key.)
Note: This function is not supported in
Windows XP and Windows 2000.

(continued)

ThinkPad X30, X31 57

Product overview

Key
combination

Fn+F9 Note: This function is supported only in X31

Fn+F10 Reserved.
Fn+F11 Reserved.
Fn+F12 Turn hibernation mode on. To return to normal

Fn+PgUp Turn the ThinkLight on or off.

Fn+Home The LCD becomes brighter.
Fn+End The LCD becomes less bright.
Fn+Spacebar Enable the FullScreen Magnifier function.

Description

series. X30 series does not have this
function.Opens the IBM ThinkPad EasyEject
Utility screen. Buttons for the following choices
are displayed:
v Eject ThinkPad PC from Dock: This button

is displayed only if the ThinkPad computer
have been attached to a ThinkPad Dock II or
a ThinkPad Dock. You can detach the
computer from the ThinkPad Dock II or the
ThinkPad Dock.

v Eject ThinkPad PC from X3 UltraBase:

This button is displayed only if theThinkPad
computer have been attached to X3
UltraBase. You can detach the computer
from the X3 UltraBase.

v Eject ThinkPad PC from Mini Dock: This

button is displayed only if theThinkPad
computer have been attached to ThinkPad
Mini Dock and been connected one or more
USB devices to the ThinkPad Mini Dock. You
can use it to stop and remove all the USB
devices.

v Run EasyEject Actions: User can select,

stop, and remove external devices connected
to the ThinkPad computer.

v Configure EasyEject Actions: User can

open the IBM ThinkPad EasyEject Utility
main window.

v Fn+F9 Settings: User can configure the

settings for the Fn+F9 function.

Note: This function is supported only in
Windows XP and Windows 2000.

operation, press the power button for less than
four seconds.
Note: To use Fn+F12 for hibernation in
Windows XP and Windows 2000, the IBM PM
device driver must have been installed on the
computer.

Note: This function is supported only on the
ThinkPad computer that have the ThinkLight.
The on or off status of the ThinkLight is shown
on the screen for a few seconds when the user
press Fn+PgUp.

58 ThinkPad X30, X31 (MT 2672/2673)

Symptom-to-FRU index

Symptom-to-FRU index

The symptom-to-FRU index in this section lists symptoms
and errors and their possible causes. The most likely
cause is listed first, in boldface type.

Note: Do the FRU replacement or other actions in the

sequence shown in the column headed “FRU or
action, in sequence.” If replacing a FRU does not
solve the problem, put the original part back in the
computer. Do not replace a nondefective FRU.

This index can also help you determine, during regular
servicing, what FRUs are likely to need to be replaced
next.

A numeric error is displayed for each error detected in
POST or system operation. In the displays, n can be any
number.

If no numeric code is displayed, check the narrative
descriptions of symptoms. If the symptom is not described
there, go to “Intermittent problems” on page 66.

Note

For an IBM device not supported by diagnostic
codes in the ThinkPad notebook computers, see the
manual for that device.

Numeric error codes

Symptom or error FRU or action, in sequence
0175

Bad CRC1, stop POST
task—The EEPROM checksum
is not correct.

0176

System Security—The system
has been tampered with.

0177

Bad SVP data, stop POST
task—Checksum of the
supervisor password in the
EEPROM is not correct.

0182

Bad CRC2. Enter BIOS Setup
and load Setup
defaults.—Checksum of the
CRS2 setting in the EEPROM
is not correct.

System board.

1. Run IBM BIOS Setup

Utility, and then save
current setting by
pressing F10.

2. System board.

System board

1. Run IBM BIOS Setup

Utility. Press F9, and
Enter to load the default
setting. Then save current
setting by pressing F10.

2. System board.

ThinkPad X30, X31 59

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
0185

Bad startup sequence settings.
Enter BIOS Setup and load
Setup defaults.

0187

EAIA data access error—The
access to EEPROM is failed.

0188

Invalid RFID Serialization
Information Area.

0189

Invalid RFID configuration
information area—The
EEPROM checksum is not
correct.

0190

Critical low-battery error

0191

System Security—Invalid
Remote Change requested.

0192

System Security—IBM
Embedded Security hardware
tamper detected.

0199

System Security—IBM Security
password retry count exceeded.

01C8

More than one modem devices
are found. Remove one of
them. Press <Esc> to continue.

01C9

More than one Ethernet devices
are found. Remove one of
them. Press <Esc> to continue.

0200

Hard disk error—The hard disk
is not working.

021x

Keyboard error

1. Run IBM BIOS Setup

Utility. Press F9, and
Enter to load the default
setting. Then save current
setting by pressing F10.

System board.

System board.

System board.

1. Charge the battery pack.

2. Battery pack.

1. Run IBM BIOS Setup

Utility, and then save
current setting by
pressing F10.

2. System board.

System board.

1. Run IBM BIOS Setup

Utility, and then save
current setting by
pressing F10.

2. System board.

1. Remove either a Mini-PCI

Card. Otherwise, press
Esc to ignore the warning
message.

2. System board.

1. Remove the Ethernet

device that you installed;
or press Esc to ignore the
warning message.

2. System board.

1. Reseat the hard-disk
drive.

2. Load Setup Defaults in IBM
BIOS Setup Utility.

3. Hard-disk drive.

4. System board.

Run interactive tests of the
keyboard and the auxiliary
input device.

60 ThinkPad X30, X31 (MT 2672/2673)

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
0220

Monitor type error—Monitor
type does not match the one
specified in CMOS.

0230

Shadow RAM error—Shadow
RAM fails at offset nnnn.

0231

System RAM error—System
RAM fails at offset nnnn.

0232

Extended RAM
error—Extended RAM fails at
offset nnnn.

0250

System battery error—System
battery is dead.

0251

System CMOS checksum
bad—Default configuration
used.

0252

Password checksum bad—The
password is cleared.

0260

System timer error

0270

Real time clock error

0271

Date and time error—Neither
the date nor the time is set in
the computer.

0280

Previous boot
incomplete—Default
configuration used.

02B2

Incorrect drive A type

02F4

EISA CMOS not writable

02F5

DMA test failed

Load Setup Defaults in IBM
BIOS Setup Utility.

System board.

1. DIMM.

2. System board.

1. DIMM.

2. System board.

Replace the backup battery
and run IBM BIOS Setup
Utility to reset the time and
date.

Replace the backup battery
and run IBM BIOS Setup
Utility to reset the time and
date.

Reset the password by
running IBM BIOS Setup
Utility.

1. Replace the backup

battery and run IBM BIOS
Setup Utility to reset the
time and date.

2. System board.

1. Replace the backup

battery and run IBM BIOS
Setup Utility to reset the
time and date.

2. System board.

Run IBM BIOS Setup Utility to
reset the time and date.

1. Load “Setup Default” in
IBM BIOS Setup Utility.

2. DIMM.

3. System board.

1. Diskette drive.

2. External FDD cable.

3. I/O card.

1. Load Setup Defaults in
IBM BIOS Setup Utility.

2. Replace the backup battery.

3. System board.

1. DIMM.

2. System board.

ThinkPad X30, X31 61

Symptom-to-FRU index

Symptom or error FRU or action, in sequence
02F6

Software NMI failed

02F7

Fail-safe timer NMI failed

1801

Attached docking station is not
supported

1802

Unauthorized network card is
plugged in—Power off and
remove the miniPCI network
card.

1803

Unauthorized daughter card is
plugged in—Power off and
remove the daughter card.

1810

Hard disk partition layout error

1. DIMM.

2. System board.

1. DIMM.

2. System board.

Shut down the computer and
remove it from the docking
station.

1. Remove Mini PCI network

card.

2. System board.

1. Remove the daughter

card that you installed.

2. System board.

1. If the Access IBM

Predesktop Area has been
previously disabled, then
go the the IBM BIOS
Setup Utility by pressing
F1 to open the IBM BIOS
Setup Utility. Select
Security->IBM Predesktop
Area-> Access IBM
Predesktop Area. Set this
item to Disabled. Save
and exit.

2. If the Access IBM
Predesktop Area has not
been previously disabled,
press Enter to load Access
IBM Predesktop Area. Then
run RECOVER TO
FACTORY CONTENTS in
Access IBM Predesktop
Area.

3. If item 2 failed, press F3 in
welcome screen in

RECOVER TO FACTORY
CONTENTS. Run FDISK,

and then delete all
partitions. Run RECOVER

TO FACTORY CONTENTS

in Access IBM Predesktop
Area again.

4. If item 3 failed, select
CD-ROM boot in Startup in
Access IBM Predesktop
Area. Boot from Recovery
CD and perform full
recovery from it.

5. If item 4 failed, replace the
hard-disk drive.

62 ThinkPad X30, X31 (MT 2672/2673)

Symptom-to-FRU index

Error messages

Symptom or error FRU or action, in sequence

Device address conflict. 1. Load “Setup Defaults” in

Allocation error for device. 1. Load “Setup Defaults” in

Failing bits: nnnn. 1. DIMM.

Invalid system configuration
data.

I/O device IRQ conflict. 1. Load “Setup Defaults” in

Operating system not found. 1. Check that the operating

Hibernation error. 1. Restore the system

Fan error. Fan.
Thermal sensing error. System board.
Authentication of system

services failed. Press <Esc> to
resume.

IBM BIOS Setup Utility.

2. Backup battery.

3. System board.

IBM BIOS Setup Utility.

2. Backup battery.

3. System board.

2. System board.

1. DIMM.

2. System board.

IBM BIOS Setup Utility.

2. Backup battery.

3. System board.

system has no failure and is
installed correctly.

2. Enter IBM BIOS Setup

Utility and see whether
the hard-disk drive and
the diskette drive are
properly identified.

3. Reseat the hard-disk drive.

4. Reinstall the operating
system.

5. Diskette drive.

6. Hard-disk drive.

7. System board.

configuration to what it
was before the computer
entered hibernation mode.

2. If memory size has been
changed, re-create the
hibernation file.

The IBM Predesktop Area in
the HDD is broken. To use
the IBM Predesktop Area, get
a recovery CD, and recover
the IBM Predesktop area
using it.

ThinkPad X30, X31 63

Symptom-to-FRU index

Beep symptoms

Symptom or error FRU or action, in sequence

One beep and a blank,
unreadable, or flashing LCD.

One long and two short beeps,
and a blank or unreadable
LCD.

Two short beeps with error
codes.

Two short beeps and a blank
screen.

Three short beeps, pause,
three more short beeps, and
one short beep.

One short beep, pause, three
short beeps, pause, three more
short beeps, and one short
beep.

Only cursor appears. Reinstall operating system.
Four cycles of four short beeps

and a blank screen.
Five short beeps and a blank

screen.

1. Reseat the LCD
connector.

2. LCD assembly.

3. External CRT.

4. System board.

1. System board.

2. LCD assembly.

3. DIMM.

POST error. See “Numeric
error codes” on page 59.

1. System board.

2. DIMM.

1. DIMM.

2. System board

System board (IBM security
chip)

System board

No-beep symptoms

Symptom or error FRU or action, in sequence

No beep, power-on indicator
on, LCD blank, and no POST.

No beep, power-on indicator
on, and LCD blank during
POST.

The power-on password prompt
appears.

The hard-disk password prompt
appears.

The DOS full screen looks
smaller.

64 ThinkPad X30, X31 (MT 2672/2673)

1. Make sure that every
connector is connected
tightly and correctly.

2. DIMM.

3. System board.

1. Reseat DIMM.

2. System board.

A power-on password or a
supervisor password is set.
Type the password and press
Enter.

A hard-disk password is set.
Type the password and press
Enter.

Start the ThinkPad
Configuration program and set
the Screen expansion
function.

Symptom-to-FRU index

LCD-related symptoms

Important

The TFT LCD for the notebook computer contains
many thin-film transistors (TFTs). A small number of
dots that are missing, discolored, or always lighted
is characteristic of TFT LCD technology, but
excessive pixel problems can cause viewing
concerns. The LCD should be replaced if the
number of missing, discolored, or lighted dots in any
background is:
v XGA: 8 or more bright dots, 8 or more dark dots,

or a total of 9 or more bright and dark dots.

Note: A bright dot means a pixel is always on

(white or color.) A dark dot means a pixel is
always off (black color.)

Symptom or error FRU or action, in sequence

No beep, power-on indicator
on, and a blank LCD during
POST.

v LCD backlight not working.
v LCD too dark.
v LCD brightness cannot be

adjusted.

v LCD contrast cannot be

adjusted.

v LCD screen unreadable.
v Characters missing pixels.
v Screen abnormal.
v Wrong color displayed.

Horizontal or vertical lines
displayed on LCD.

System board.

1. Reseat the LCD
connectors.

2. LCD assembly.

3. System board.

1. See important note for

“LCD-related symptoms.”

2. Reseat all LCD connectors.

3. LCD assembly.

4. System board.

LCD assembly.

ThinkPad X30, X31 65

Symptom-to-FRU index

Intermittent problems

Intermittent system hang problems can be due to a variety
of causes that have nothing to do with a hardware defect,
such as cosmic radiation, electrostatic discharge, or
software errors. FRU replacement should be considered
only when a problem recurs.

When analyzing an intermittent problem, do the following:

1. Run the diagnostic test for the system board in loop
mode at least 10 times.

2. If no error is detected, do not replace any FRUs.

3. If any error is detected, replace the FRU shown by the
FRU code. Rerun the test to verify that no more errors
exist.

Undetermined problems

You are here because the diagnostic tests did not identify
which adapter or device failed, wrong devices are installed,
a short circuit is suspected, or the system is inoperative.
Follow these procedures to isolate the failing FRU (do not
isolate FRUs that have no defects).

Verify that all attached devices are supported by the
computer.

Verify that the power supply being used at the time of the
failure is operating correctly. (See “Power system
checkout” on page 42.)

1. Power off the computer.

2. Visually check each FRU for damage. Replace any
damaged FRU.

3. Remove or disconnect all of the following devices:
a. Non-IBM devices
b. Devices attached to the port replicator
c. Printer, mouse, and other external devices
d. Battery pack
e. Hard-disk drive
f. External diskette drive
g. DIMM
h. CD-ROM and diskette drive in the Ultrabay
i. PC Cards

4. Power on the computer.

5. Determine whether the problem has changed.

6. If the problem does not recur, reconnect the removed
devices one at a time until you find the failing FRU.

7. If the problem remains, replace the following FRUs one
at a time (do not replace a nondefective FRU):
a. System board
b. LCD assembly

66 ThinkPad X30, X31 (MT 2672/2673)

FRU replacement notices

FRU replacement notices

This section contains notices related to removing and
replacing parts. Read this section carefully before replacing
any FRU.

Screw notices

Loose screws can cause a reliability problem. In IBM
ThinkPad computer, this problem is addressed with special
nylon-coated screws that have the following characteristics:

v They maintain tight connections.
v They do not easily come loose, even with shock or

vibration.

v They are harder to tighten.
v They should be used only once.

Do the following when you service this machine:
v Keep the screw kit (for the P/N, see “Miscellaneous

parts” on page 164) in your tool bag.

v Always use new screws.
v Use a torque screwdriver if you have one.

Tighten screws as follows:

v Plastic to plastic

Turn an additional 90 degrees after the screw head
touches the surface of the plastic part:

90 degrees more

(Cross-section)

v Logic card to plastic

Turn an additional 180 degrees after the screw head
touches the surface of the logic card:

180 degrees more

(Cross-section)

v Torque driver

If you have a torque driver, refer to the “Torque” column
for each step.

ThinkPad X30, X31 67

FRU replacement notices

v Make sure you use the correct screw. If you have a

torque screwdriver, tighten all screws firmly to the torque
shown in the table. Never use a screw that you

removed. Use a new one. Make sure the screws are
tightened firmly.

Retaining serial numbers

This section includes the following descriptions:

v “Restoring the serial number of the system unit”
v “Retaining the UUID”

Restoring the serial number of the system unit

When the computer was manufactured, the EEPROM on
the system board was loaded with the serial numbers of
the system and all major components. These numbers
need to remain the same throughout the life of the
computer.

If you replace the system board, you must restore the
serial number of the system unit to its original value.

Before replacing the system board, save the original serial
number by doing the following:

1. Install the ThinkPad Hardware Maintenance Diskette
Version 1.69, and restart the computer.

2. From the main menu, select 1. Set System
Identification.

3. Select 2. Read S/N data from EEPROM.

The serial number for each device is displayed. Write
down the serial number of the system unit, designated as
follows:

20: System unit serial number

After you have replaced the system board, restore the
serial number by doing the following:

1. Install the ThinkPad Hardware Maintenance Diskette
Version 1.69 and restart the computer.

2. From the main menu, select 1. Set System
Identification.

3. Select 1. Add S/N data from EEPROM.
Follow the instructions on the screen.

Note: The serial number of the system unit is written on

the label attached on the bottom of the computer.

Retaining the UUID

The Universally Unique Identifier (UUID) is a 128-bit
number uniquely assigned to your computer at production

68 ThinkPad X30, X31 (MT 2672/2673)

FRU replacement notices

and stored in the EEPROM of your system board. The
algorithm that generates the number is designed to provide
unique IDs until the year A.D. 3400. No two computers in
the world have the same number.

When you replace the system board, you must set the
UUID on the new system board as follows:

1. Install the ThinkPad Hardware Maintenance Diskette
Version 1.69, and restart the computer.

2. From the main menu, select 4. Assign UUID.
A new UUID is created and written. If a valid UUID

already exists, it is not overwritten.

ThinkPad X30, X31 69

Removing and replacing a FRU

Removing and replacing a FRU

This section presents directions and drawings for use in
removing and replacing a FRU. Be sure to observe the
following general rules:

1. Do not try to service any computer unless you have
been trained and certified. An untrained person runs
the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement
notices” on page 67.

3. Begin by removing any FRUs that have to be removed
before the failing FRU. Any such FRUs are listed at the
top of the page. Remove them in the order in which
they are listed.

4. Follow the correct sequence in the steps for removing
the FRU, as indicated in the drawings by the numbers
in square callouts.

5. When turning a screw to replace a FRU, turn it in the
direction indicated by the arrow in the drawing.

6. When removing the FRU, move it in the direction
indicated by the arrow in the drawing.

7. To put the new FRU in place, reverse the removal
procedure and follow any notes that pertain to
replacement. For information about connecting and
arranging internal cables, see “Locations” on page 138.

8. When replacing a FRU, use the correct screw as
shown in the procedures.

DANGER

Before removing any FRU, power off the computer,
unplug all power cords from electrical outlets,
remove the battery pack, and then disconnect any
interconnecting cables.

Attention: Before the computer is powered on after FRU

replacement, make sure that all screws, springs, and other
small parts are in place and are not loose inside the
computer. Verify this by shaking the computer gently and
listening for rattling sounds. Metallic parts or metal flakes
can cause electrical short circuits.

Attention: The system board is sensitive to, and can be
damaged by, electrostatic discharge. Before touching it,
establish personal grounding by touching a ground point
with one hand or by using an electrostatic discharge (ESD)
strap (P/N 6405959).

70 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

1010 Battery pack

DANGER

Use only the battery specified in the parts list for
your computer. The use of an incorrect battery can
result in ignition or explosion of the battery.

2

1

ThinkPad X30, X31 71

Removing and replacing a FRU

1020 Hard-disk drive

Attention

v Do not drop or apply any shock to the

hard-disk drive. The hard-disk drive is sensitive

to physical shock. Incorrect handling can cause
damage and permanent loss of data.

v Before removing the drive, have the user make a

backup copy of all the information on the drive if
possible.

v Never remove the drive while the system is

operating or is in suspend mode.

For access, remove following FRU:
v “1010 Battery pack” on page 71

1

Note: The hard disk is attached to the cover.

Step Screw (quantity) Torque

1 M3 × 4 mm, nylon-coated (1) 0.4 Nm

(continued)

(4 kgfcm)

72 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

2

3

3

When installing: Make sure that the hard disk is

connected firmly.

ThinkPad X30, X31 73

4

Removing and replacing a FRU

1030 DIMM cover

For access, remove following FRU:
v “1010 Battery pack” on page 71

Note: Loosen the screws 1, but do not remove them.

For X30 series

1

2

1

For X31 series

2

1

74 ThinkPad X30, X31 (MT 2672/2673)

1

Removing and replacing a FRU

1040 DIMM

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 71
v “1030 DIMM cover” on page 74

1

2

When installing: With the notched end of the DIMM

toward the socket, insert the DIMM into
the socket, and then press it firmly. Pivot
the DIMM until it snaps into place. Make
sure that the card is firmly fixed in the
slot and does not move easily.

1

ThinkPad X30, X31 75

Removing and replacing a FRU

1050 Backup battery

DANGER

Use only the battery specified in the parts list for
your computer. The use of an incorrect battery can
result in ignition or explosion of the battery.

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 71
v “1020 Hard-disk drive” on page 72
v “1030 DIMM cover” on page 74

1

2

When installing: Make sure that the battery connector

4 is attached firmly.

76 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

1060 Keyboard

For access, remove following FRU:
v “1010 Battery pack” on page 71

1

1

Step Screw (quantity) Torque

1 M2 × 6 mm, nylon-coated (4) 0.245 Nm

(2.5 kgfcm)

(continued)

ThinkPad X30, X31 77

Removing and replacing a FRU

In step 4, open the keyboard slightly in the direction of
the arrow.

4

3

2

In step 5, draw the keyboard a little in the direction of
the arrow, and then detach the connector 6.

6

5

78 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

When installing: Install the keyboard, do as follows;

1. Attach the connector.

2. Make sure that the keyboard edges, shown in the
figure as (A) and (B), are under the frame.

(continued)

(A)

(B)

ThinkPad X30, X31 79

Removing and replacing a FRU

3. Press the keys indicated by arrows to latch the
keyboard firmly in place.

4. To make sure that the front side of the keyboard is
housed firmly, gently press the keys with your thumbs
and try to slide the keyboard toward you.

5. Secure the keyboard by tightening the screws from the
bottom side of the computer.

80 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

1070 Mini PCI adapter

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 71
v “1060 Keyboard” on page 77

802.11b wireless LAN/modem combo card

1

(continued)

ThinkPad X30, X31 81

Removing and replacing a FRU

2

3

2

Antenna cables 4a and 4b in the following illustration
are for the wireless LAN feature, and 5 is for the modem
feature.

Note: When unplugging the antenna jack, do not pull the

cable; it might snap. Unplug the jack by pulling a
tab with your fingers.

4a

5

82 ThinkPad X30, X31 (MT 2672/2673)

4b

Removing and replacing a FRU

When installing:

v Make sure that the connector 5 is firmly attached.
v Plug the gray antenna cable with the tab marked “MAIN”

(4a) into jack J1,orMAIN,orM, and the black
antenna cable with the tab marked “AUX” (4b) into
jack J2,orAUX,orA.

v With the notched end of the card toward the socket,

insert the card into the socket, and then press it firmly.
Pivot the card until it snaps into place. Make sure that
the card is firmly fixed in the slot and does not move
easily.

Cable routing for the 802.11b/modem combo card

When attaching the Mini PCI adapter, route the antenna
cables to go under the cable guide as in a, and place
the tabs as indicated by arrow b in this figure.

a

b

ThinkPad X30, X31 83

Removing and replacing a FRU

802.11b wireless LAN card

1

(continued)

84 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

2

3

2

Antenna cables 4a and 4b in the following illustration
are for the wireless LAN feature.

Note: When unplugging the antenna jack, do not pull the

cable; it might snap. Unplug the jack by pulling a
tab with your fingers.

4a

4b

When installing:

v Plug the gray antenna cable with the tab marked “MAIN”

(4a) into jack J1,orMAIN,orM, and the black
antenna cable with the tab marked “AUX” (4b) into
jack J2,orAUX,orA.

v With the notched end of the card toward the socket,

insert the card into the socket, and then press it firmly.
Pivot the card until it snaps into place. Make sure that
the card is firmly fixed in the slot and does not move
easily.

ThinkPad X30, X31 85

Removing and replacing a FRU

802.11a/b wireless LAN card

Note

This procedure is not applicable for the following
model. For the model, the removal procedure is
same as in “802.11b wireless LAN card” on page 84
though the model supports 802.11a/b wireless LAN
card.
v 2672-JHJ

1

2

Step Screw (quantity) Torque

1 M2 × 3 mm, T7, nylon-coated (1) 0.245 Nm

(2.5 kgfcm)

(continued)

86 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

3

4

3

Antenna cables 5a and 5b in the following illustration
are for the wireless LAN feature.

Note: When unplugging the antenna jack, do not pull the

cable; it might snap. Unplug the jack by pulling a
tab with your fingers.

5a

5b

When installing:

v Plug the gray antenna cable with the tab marked “MAIN”

(5a) into jack J1,orMAIN,orM, and the black
antenna cable with the tab marked “AUX” (5b) into
jack J2,orAUX,orA.

v With the notched end of the card toward the socket,

insert the card into the socket, and then press it firmly.
Pivot the card until it snaps into place. Make sure that
the card is firmly fixed in the slot and does not move
easily.

ThinkPad X30, X31 87

Removing and replacing a FRU

Cable routing for the 802.11b wireless LAN or

802.11a/b wireless LAN card

When attaching the Mini PCI adapter, route the antenna
cables to go under the cable guide as in a, and place
the tabs as indicated by arrow b in this figure.

a

b

88 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

1080 Fan assembly

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 71
v “1020 Hard-disk drive” on page 72
v “1060 Keyboard” on page 77

1

1

1

Step Screw (quantity) Torque

1 M2 × 9.5 mm, nylon-coated (5) 0.245 Nm

(2.5 kgfcm)

For X30 series

(continued)

3

2

ThinkPad X30, X31 89

Removing and replacing a FRU

For X31 series

3

2

When installing: Make sure that the connector 3 is

Note

Apply thermal grease on the a-part of the fan,
shown in the following figure.

firmly attached.

a

90 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

1090 Communication daughter card (CDC)

Note

In X30 series, the CDC slot on some models
accepts a Modem Daughter Card (MDC). On other
models, the slot accepts a Bluetooth Daughter Card
(BDC). In X31 series, the CDC slot on some models
accepts a Modem Daughter Card (MDC). On other
models, the slot accepts a Bluetooth/Modem
Daughter Card (BMDC).

For access, remove following FRUs, in order:

v “1010 Battery pack” on page 71
v “1020 Hard-disk drive” on page 72
v “1060 Keyboard” on page 77

1

Step Screw (quantity) Torque

1 M2 × 9.5 mm, nylon-coated (2) 0.245 Nm

(continued)

ThinkPad X30, X31 91

(2.5 kgfcm)

Removing and replacing a FRU

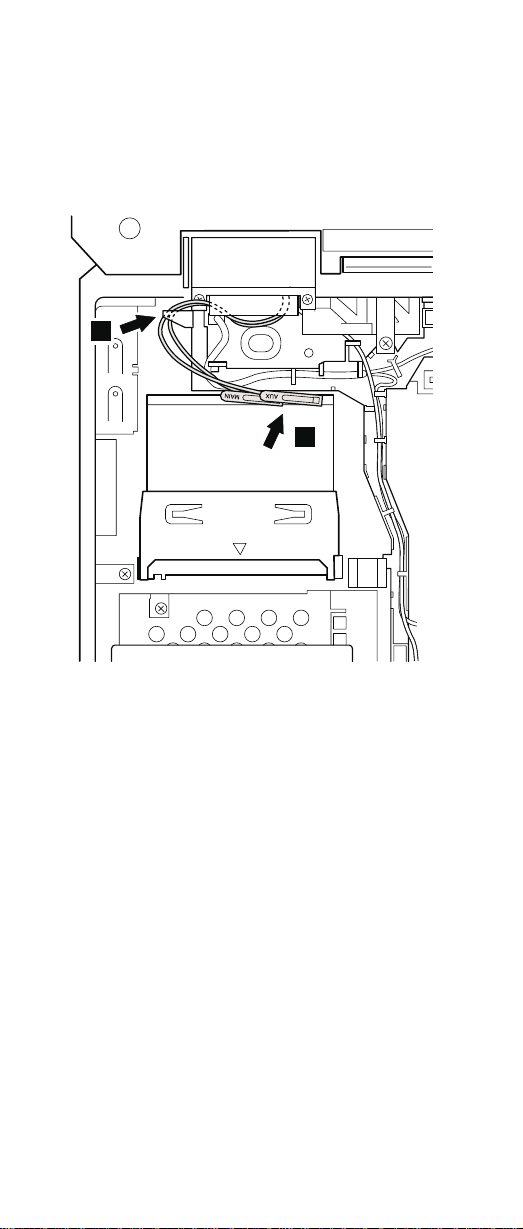

Modem daughter card (MDC)

3

2

When installing: Make sure that connectors 2 and 3

are attached firmly.

92 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

Cable routing: When attaching the MDC, route the cable

along the cable guides as indicated by the
arrows in this figure.

ThinkPad X30, X31 93

Removing and replacing a FRU

Bluetooth daughter card (BDC)

2

Note: When unplugging the Bluetooth antenna jack, do

not pull the cable; it might snap. Unplug the jack by
pulling the tab with your fingers.

3

When installing:

1. Plug the white cable with the tab marked “BT” into the
jack on the BDC.

2. Make sure that the connector 2 is attached firmly.

94 ThinkPad X30, X31 (MT 2672/2673)

Removing and replacing a FRU

Cable routing: When attaching the BDC, route the cable

along the cable guides as indicated by the
arrows in this figure.

ThinkPad X30, X31 95

Removing and replacing a FRU

Bluetooth/Modem daughter card (BMDC)

2

3

Note: When unplugging the Bluetooth antenna jack, do

not pull the cable; it might snap. Unplug the jack by
pulling the tab with your fingers.

3

When installing:

1. Plug the white cable with the tab marked “BT” into the
jack on the BMDC.

2. Make sure that the connectors 2 and 3 are
attached firmly.

96 ThinkPad X30, X31 (MT 2672/2673)
