The IBM System z10™ Enterprise Class (z10™ EC) server is

designed to meet the challenges of today’s business world

and to be the cornerstone of an evolutionary new model for

efﬁ cient IT delivery called the Dynamic Infrastructure

. This

model helps reset the economics of IT and can dramati-

cally improve operational efﬁ ciency, security, and respon-

siveness – to help keep a business competitive.

™

The z10 EC

, with its advanced combination of reliability,

availability, serviceability, security, scalability, and virtual-

ization, delivers the technology that can help deﬁ ne this

framework for the future. The z10 EC delivers improvements

to performance, capacity, and memory which can help

enterprises grow their existing business while providing a

cost-effective infrastructure for large-scale consolidation.

The October 2008 announcements extend the z10 EC

leadership with improved access to data and the network;

tighter security with longer Personal Account Numbers for

stronger protection of data; enhancements for improved

performance when connecting to the network; increased

ﬂ exibility in deﬁ ning your options to handle backup require-

ments; and enhanced time accuracy to an external time

source.

Any successful business needs to be able to deliver timely,

integrated information to business leaders, support per-

sonnel, and customers on a 24x7 basis. This means that

access to data needs to be fast, secure, and dependable.

Enhancements made to z/Architecture

and the FICON®

interface architecture with the High Performance FICON

for System z (zHPF) are optimized for online transaction

processing (OLTP) workloads. The FICON Express4 and

FICON Express2 features support the native FICON proto-

col and the zHPF protocol.

The System z10 was introduced with a new connectivity

option for LANs – Open Systems Adapter-Express3 (OSA-

Express3). The OSA-Express3 features provide improved

performance by reducing latency at the TCP/IP application.

Direct access to the memory allows packets to ﬂ ow directly

from the memory to the LAN without ﬁ rmware intervention in

the adapter.

An IT system needs to be available and protected every

The z10 EC offers availability enhancements which

day.

faster service time for CF Duplexing, updates to

include

Server Time

Protocol (STP) for enhanced time accuracy to

an External Time Source, and support for heterogeneous

platforms in an enterprise to track to the same time source.

Security enhancements to the Crypto Express2 feature

support for 13-, 14-, 15-, 16-, 17-, 18-, and 19-digit

deliver

Personal

Account Numbers for stronger protection of data.

The z10 EC has a new architectural approach for temporary

offerings that have the potential to change the thinking

about on demand capacity. The z10 EC can have one or

more ﬂ exible conﬁ guration deﬁ nitions that can be available

to solve multiple temporary situations and multiple capacity

conﬁ gurations that can be active at once. This means that

On/Off Capacity on Demand (CoD) can be active and up to

seven other offerings can be active simultaneously. Tokens

are available that can be purchased for On/Off CoD either

before or after execution.

Updates to the z10 EC are designed to help improve IT

today, outline a compelling case for the future running on

System z, and lock in the z10 EC as the cornerstone in your

Dynamic Infrastructure by delivering superior business and

IT services with agility and speed.

Just-in-time deployment of IT resources

Infrastructures must be more ﬂ exible to changing capacity

requirements and provide users with just-in-time deploy-

ment of resources. Having the 16 GB dedicated HSA on

the z10 EC means that some preplanning conﬁ guration

changes and associated outages may be avoided. IBM

Capacity Upgrade on Demand (CUoD) provides a perma-

nent increase in processing capacity that can be initiated

by the customer.

IBM On/Off Capacity on Demand (On/Off CoD) provides

temporary capacity needed for short-term spikes in capac-

ity or for testing new applications. Capacity Backup

Upgrade (CBU) can help provide reserved emergency

backup capacity for all processor conﬁ gurations.

An additional temporary capacity offering on the z10 EC is

Capacity for Planned Events (CPE), a variation on CBU. If

unallocated capacity is available in a server, it will allow the

maximum capacity available to be used for planned events

such as planned maintenance in a data center.

By having ﬂ exible and dynamic conﬁ guration deﬁ nitions,

when capacity is needed, activation of any portion of an

offering can be done (for example activation of just two

CBUs out of a deﬁ nition that has four CBUs is accept-

able). And if the deﬁ nition doesn’t have enough resources

deﬁ ned, an order can easily be processed to increase the

capacity (so if four CBUs aren’t enough it can be redeﬁ ned

to be six CBUs) as long as enough server infrastructure is

available to meet maximum needs.

With the z10 EC, it is now possible to add permanent

capacity while a temporary capacity is currently activated,

without having to return ﬁ rst to the original conﬁ guration.

The activation of On/Off CoD on z10 EC can be simpliﬁ ed

or automated by using z/OS Capacity Provisioning (avail-

able with z/OS

1.9 and above). This capability enables the

monitoring of multiple systems based on Capacity Provi-

sioning and Workload Manager (WLM) deﬁ nitions. When

the deﬁ ned conditions are met, z/OS can suggest capacity

changes for manual activation from a z/OS console, or the

system can add or remove temporary capacity automati-

cally and without operator intervention.

Specialty engines offer an attractive alternative

The z10 EC continues the long history of providing inte-

grated technologies to optimize a variety of workloads. The

use of specialty engines can help users expand the use

of the mainframe for new workloads, while helping to lower

the cost of ownership. The IBM System z

specialty engines

can run independently or complement each other. For

example, the zAAP and zIIP processors enable you to pur-

chase additional processing capacity exclusively for spe-

ciﬁ c workloads, without affecting the MSU rating of the IBM

System z model designation. This means that adding a

specialty engine will not cause increased charges for IBM

System z software running on general purpose processors

in the server.

All activations can be done without having to interact with

IBM—when it is determined that capacity is required, no

passwords or phone connections are necessary. As long

as the total z10 EC can support the maximums that are

deﬁ ned, then they can be made available.

In order of introduction:

The Internal Coupling Facility (ICF) processor was intro-

duced to help cut the cost of Coupling Facility functions

by reducing the need for an external Coupling Facility.

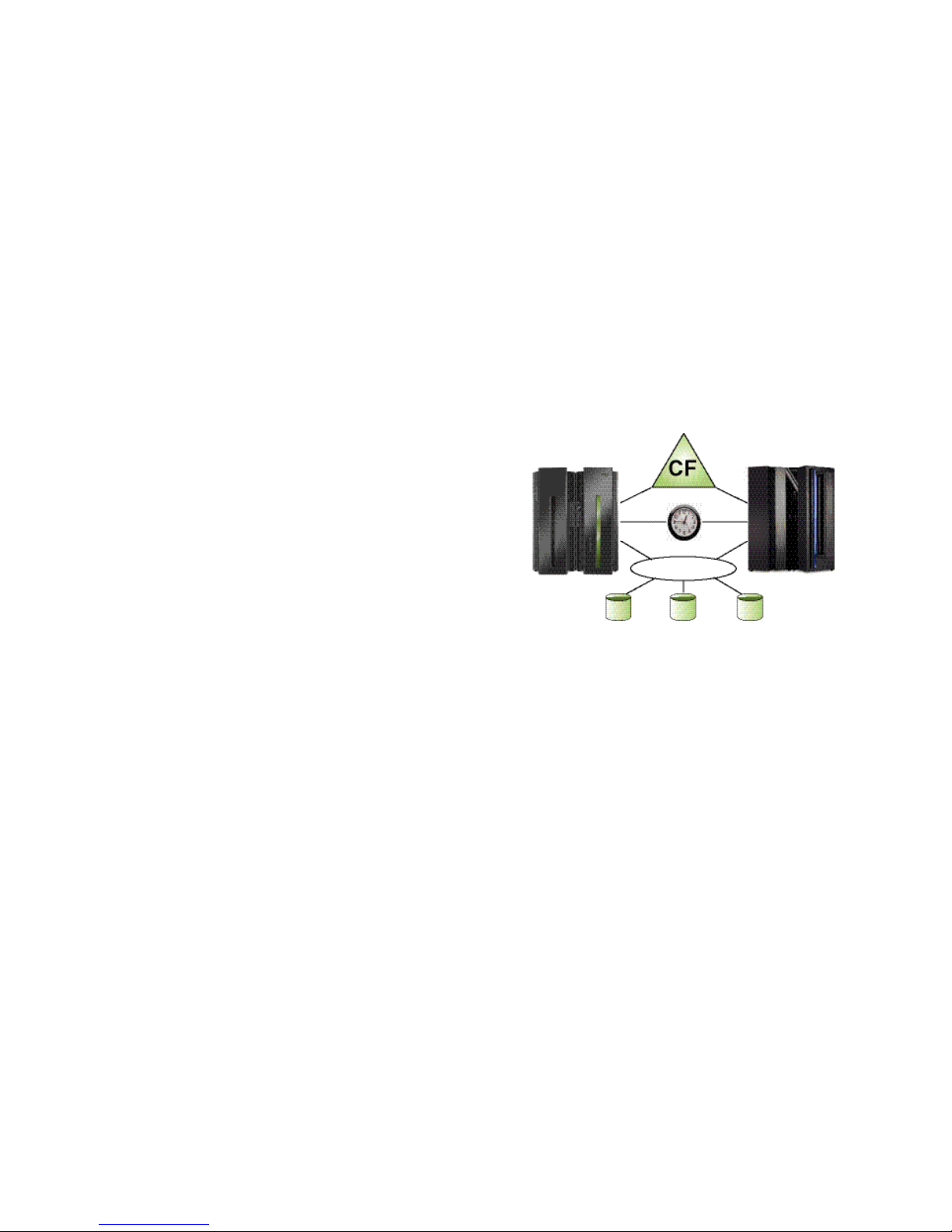

IBM System z Parallel Sysplex

technology allows for

greater scalability and availability by coupling mainframes

together. Using Parallel Sysplex clustering, System z serv-

ers are designed for up to 99.999% availability.

The Integrated Facility for Linux (IFL) processor offers sup-

port for Linux

and brings a wealth of available applications

that can be run in a real or virtual environment on the z10

™

EC. An example is the z/VSE

strategy which supports

integration between the IFL, z/VSE and Linux on System z

to help customers integrate timely production of z/VSE data

into new Linux applications, such as data warehouse envi-

ronments built upon a DB2

data server. To consolidate dis-

tributed servers onto System z, the IFL with Linux and the

System z virtualization technologies fulﬁ ll the qualiﬁ cations

for business-critical workloads as well as for infrastructure

workloads. For customers interested to use a z10 EC only

for Linux workload, the z10 EC can be conﬁ gured as a

server with IFLs only.

Available on System z since 2004, the System z10 Applica-

tion Assist Processor (zAAP) is designed to help enable

strategic integration of new application technologies

™

such as Java

technology-based Web applications and

XML-based data interchange services with core business

database environments. This helps provide a more cost-

effective, specialized z/OS application Java execution envi-

ronment. Workloads eligible for the zAAP (with z/OS V1.8)

include all Java processed via the IBM Solution Developers

Kit (SDK) and XML processed locally via z/OS XML System

Services.

System z10 Integrated Information Processor (

The

zIIP) is

designed to support select data and transaction process-

ing and network workloads and thereby make the consoli-

dation of these workloads on to the System z platform more

cost effective. Workloads eligible for the zIIP (with z/OS

V1.7 or later) include remote connectivity to DB2 to help

support these workloads: Business Intelligence (BI), Enter-

prise Relationship Management (ERP), Customer Relation-

ship Management (CRM) and Extensible Markup Language

(XML) applications. In addition to supporting remote

connectivity to DB2 (via DRDA

over TCP/IP) the zIIP also

supports DB2 long running parallel queries—a workload

integral to Business Intelligence and Data Warehousing

solutions. The zIIP (with z/OS V1.8) also supports IPSec

processing, making the zIIP an IPSec encryption engine

helpful in creating highly secure connections in an enter-

prise. In addition, zIIP (with z/OS V1.10) supports select

z/OS Global Mirror (formerly called Extended Remote

Copy, XRC) disk copy service functions. z/OS V1.10 also

™

introduces zIIP-Assisted HiperSockets

for large messages

(available on System z10 servers only).

The new capability provided with z/VM®-Mode partitions

increases ﬂ exibility and simpliﬁ es systems management by

allowing z/VM 5.4 to manage guests to operate Linux on

System z on IFLs, to operate z/VSE and z/OS on CPs,

to ofﬂ oad z/OS system software overhead, such as DB2

workloads on zIIPs, and to offer an economical Java exe-

cution environment under z/OS on zAAPs, all in the same

z/VM LPAR.

Numerical computing on the chip

Integrated on the z10 EC processor unit is a Hardware

Decimal Floating Point unit to accelerate decimal ﬂ oating

point transactions. This function is designed to markedly

improve performance for decimal ﬂ oating point operations

which offer increased precision compared to binary ﬂ oating

z/Architecture

point operations. This is expected to be particularly useful

for the calculations involved in many ﬁ nancial transactions.

Decimal calculations are often used in ﬁ nancial applica-

tions and those done using other ﬂ oating point facilities

have typically been performed by software through the

use of libraries. With a hardware decimal ﬂ oating point

unit, some of these calculations may be done directly and

accelerated.

Liberating your assets with System z

Enterprises have millions of dollars worth of mainframe

assets and core business applications that support the

heart of the business. The convergence of service oriented

architecture (SOA) and mainframe technologies can help

liberate these core business assets by making it easier

to enrich, modernize, extend and reuse them well beyond

their original scope of design. The z10 EC, along with the

inherent strengths and capabilities of a z/OS environment,

provides an excellent platform for being an enterprise hub.

Innovative System z software solutions from WebSphere

, Rational® and Lotus® strengthen the ﬂ exibility of

CICS

doing SOA.

Evolving for your business

The z10 EC is the next step in the evolution of the System

z mainframe, fulﬁ lling our promise to deliver technol-

ogy improvements in areas that the mainframe excels

in—energy efﬁ ciency, scalability, virtualization, security and

availability. The redesigned processor chip helps the z10

EC make high performance compute-intensive processing

a reality. Flexibility and control over capacity gives IT the

upper edge over planned or unforeseen demands. And

new technologies can beneﬁ t from the inherit strengths of

the mainframe. This evolving technology delivers a compel-

ling case for the future to run on System z.

The z10 EC continues the line of upward compatible main-

frame processors and retains application compatibility

since 1964. The z10 EC supports all z/Architecture-compli-

ant Operating Systems. The heart of the processor unit is

the Enterprise Quad Core z10 Processor Unit chip which

is speciﬁ cally designed and optimized for mainframe sys-

tems. New features enhance enterprise data serving per-

formance as well as CPU-intensive workloads.

The z10 EC, like its predecessors, supports 24-, 31-, and

64-bit addressing, as well as multiple arithmetic formats.

High-performance logical partitioning via Processor

™

Resource/Systems Manager

(PR/SM™) is achieved by

industry-leading virtualization support provided by z/VM.

z10 EC Architecture

Rich CISC Instruction Set Architecture (ISA)

• 894 instructions (668 implemented entirely in hardware)

• Multiple address spaces robust inter-process security

• Multiple arithmetic formats

Architectural extensions for z10 EC

• 50+ instructions added to z10 EC to improve compiled

code efﬁ ciency

• Enablement for software/hardware cache optimization

• Support for 1 MB page frames

• Full hardware support for Hardware Decimal Floating-

point Unit (HDFU)

z/Architecture operating system support

Delivering the technologies required to address today’s IT

challenges also takes much more than just a server; it

requires all of the system elements to be working together.

IBM system z10 operating systems and servers are

designed with a collaborative approach to exploit each

other’s strengths.

The z10 EC is also able to exploit numerous operating sys-

tems concurrently on a single server, these include z/OS,

z/VM, z/VSE, z/TPF, TPF and Linux for System z. These

operating systems are designed to support existing appli-

cation investments without anticipated change and help

you realize the beneﬁ ts of the z10 EC. System z10 – the

new business equation.

z/OS

August 5, 2008, IBM announced z/OS V1.10. This release

of the z/OS operating system builds on leadership capa-

bilities, enhances time-tested technologies, and leverages

deep synergies with the IBM System z10 and IBM System

Storage

™

family of products. z/OS V1.10 supports new

capabilities designed to provide:

• Storage scalability. Extended Address Volumes (EAVs)

enable you to deﬁ ne volumes as large as 223 GB to

relieve storage constraints and help you simplify storage

management by providing the ability to manage fewer,

large volumes as opposed to many small volumes.

• Application and data serving scalability. Up to 64

engines, up to 1.5 TB per server with up to 1.0 TB of

real memory per LPAR, and support for large (1 MB)

pages on the System z10 can help provide scale and

performance for your critical workloads.

• Intelligent and optimized dispatching of workloads. Hip-

erDispatch can help provide increased scalability and

performance of higher n-way z10 EC systems by improv-

ing the way workload is dispatched within the server.

• Low-cost, high-availability disk solution. The Basic

™

HyperSwap

capability (enabled by TotalStorage® Pro-

ductivity Center for Replication Basic Edition for System

z) provides a low-cost, single-site, high-availability disk

solution which allows the conﬁ guration of disk replication

services using an intuitive browser-based graphical user

interface (GUI) served from z/OS.

• Improved total cost of ownership. zIIP-Assisted

HiperSockets for Large Messages, IBM Scalable

™

Architecture for Financial Reporting

enabled for zIIP (a

service offering of IBM Global Business Services), zIIP-

Assisted z/OS Global Mirror (XRC), and additional z/OS

XML System Services exploitation of zIIP and zAAP help

make these workloads more attractive on System z.

• Improved management of temporary processor capac-

ity. A Capacity Provisioning Manager, which is avail-

able on z/OS V1.10, and available on z/OS V1.9 with

PTFs, can monitor z/OS systems on z10 EC servers.

Activation and deactivation of temporary capacity can

be suggested or performed automatically based on

™

user-deﬁ ned schedules and workload criteria. RMF

equivalent function is required to use the Capacity Provi-

sioning Manager.

• Improved network security. z/OS Communications Server

introduces new defensive ﬁ ltering capability. Defensive

ﬁ lters are evaluated ahead of conﬁ gured IP ﬁ lters, and

can be created dynamically, which can provide added

protection and minimal disruption of services in the

event of an attack.

• z/OS V1.10 also supports RSA key, ISO Format-3 PIN

block, 13-Digit through 19-Digit PANdata, secure key

AES, and SHA algorithms.

• Improved productivity. z/OS V1.10 provides improve-

ments in or new capabilities for: simplifying diagnosis

and problem determination; expanded Health Check

Services; network and security management; automatic

dump and re-IPL capability; as well as overall z/OS, I/O

conﬁ guration, sysplex, and storage operations

With z/OS 1.9, IBM delivers functionality that continues to

solidify System z leadership as the premier data server.

z/OS 1.9 offers enhancements in the areas of security, net-

working, scalability, availability, application development,

integration, and improved economics with more exploita-

tion for specialty engines. A foundational element of the

platform — the z/OS tight interaction with the System z

hardware and its high level of system integrity.

With z/OS 1.9, IBM introduces:

• A revised and expanded Statement of z/OS System

Integrity

• Large Page Support (1 MB)

• Capacity Provisioning

• Support for up to 64 engines in a single image (on z10

EC model only)

• Simpliﬁ ed and centralized policy-based networking

• Expanded IBM Health Checker

• Simpliﬁ ed RACF

Administration

• Hardware Decimal Floating Point

• Parallel Sysplex support for Inﬁ niband

Coupling Links

• NTP Support for STP

• HiperSockets Multiple Write Facility

• OSA-Express3 support

• Advancements in ease of use for both new and existing

IT professionals coming to z/OS

• Support for zIIP-Assisted IPSec, System Data Mover

(SDM) ofﬂ oad to zIIP, and support for eligible portions of

DB2 9 XML parsing workloads to be ofﬂ oaded to zAAP

processors

• Expanded options for AT-TLS and System SSL network

security

• Improved creation and management of digital certiﬁ -

cates with RACF, SAF, and z/OS PKI Services

• Additional centralized ICSF encryption key management

functions for applications

• Improved availability with Parallel Sysplex and Coupling

Facility improvement

• Enhanced application development and integration with

™

new System REXX

System Services commands

UNIX

facility, Metal C facility, and z/OS

• Enhanced Workload Manager in managing discretionary

work and zIIP and zAAP workloads

Commitment to system integrity

™

First issued in 1973, IBM’s MVS

ment and subsequent statements for OS/390

System Integrity State-

and z/OS

stand as a symbol of IBM’s conﬁ dence and commitment to

the z/OS operating system. Today, IBM reafﬁ rms its com-

mitment to z/OS system integrity.

IBM’s commitment includes designs and development

practices intended to prevent unauthorized application

programs, subsystems, and users from bypassing z/OS

security—that is, to prevent them from gaining access,

circumventing, disabling, altering, or obtaining control of

key z/OS system processes and resources unless allowed

by the installation. Speciﬁ cally, z/OS “System Integrity” is

deﬁ ned as the inability of any program not authorized by

a mechanism under the installation’s control to circumvent

or disable store or fetch protection, access a resource pro-

tected by the z/OS Security Server (RACF), or obtain con-

trol in an authorized state; that is, in supervisor state, with

a protection key less than eight (8), or Authorized Program

Facility (APF) authorized. In the event that an IBM System

Integrity problem is reported, IBM will always take action to

resolve it.

IBM’s long-term commitment to System Integrity is unique

in the industry, and forms the basis of the z/OS industry

leadership in system security. z/OS is designed to help you

protect your system, data, transactions, and applications

from accidental or malicious modiﬁ cation. This is one of

the many reasons System z remains the industry’s premier

data server for mission-critical workloads.

z/VM

z/VM V5.4 is designed to extend its System z virtualization

technology leadership by exploiting more capabilities of

System z servers including:

SSL server now operates in a CMS environment, instead of

requiring a Linux distribution, thus allowing encryption ser-

vices to be deployed more quickly and helping to simplify

installation, service, and release-to-release migration.

• Greater ﬂ exibility, with support for the new z/VM-mode

logical partitions, allowing all System z processor-types

(CPs, IFLs, zIIPs, zAAPs, and ICFs) to be deﬁ ned in the

same z/VM LPAR for use by various guest operating sys-

tems

• Capability to install Linux on System z as well as z/VM

from the HMC on a System z10 that eliminates the need

for any external network setup or a physical connection

between an LPAR and the HMC

• Enhanced physical connectivity by exploiting all OSA-

Express3 ports, helping service the network and reduc-

ing the number of required resources.

• Dynamic memory upgrade support that allows real

memory to be added to a running z/VM system. With z/VM

V5.4, memory can be added non-disruptively to individual

guests that support the dynamic memory reconﬁ guration

architecture. Systems can now be conﬁ gured to reduce

the need to re-IPL z/VM. Processors, channels, OSA

adapters, and now memory can be dynamically added to

both the z/VM system itself and to individual guests.

The operation and management of virtual machines

has been enhanced with new systems management

APIs, improvements to the algorithm for distributing a

guest’s CPU share among virtual processors, and usability

enhancements for managing a virtual network.

Security capabilities of z/VM V5.4 provide an upgraded

LDAP server at the functional level of the z/OS V1.10 IBM

Directory Server for z/OS and enhancements to the

Tivoli

RACF Security Server to create LDAP change log entries

in response to updates to RACF group and user proﬁ les,

including user passwords and password phrases. The z/VM

The z/VM hypervisor is designed to help clients extend the

business value of mainframe technology across the enter-

prise by integrating applications and data while providing

exceptional levels of availability, security, and operational

ease. z/VM virtualization technology is designed to provide

the capability for clients to run hundreds to thousands of

Linux servers in a single mainframe, together with other

System z operating systems such as z/OS, or as a large-

scale Linux-only enterprise-server solution. z/VM V5.4 can

also help to improve productivity by hosting non-Linux

workloads such as z/OS, z/VSE, and z/TPF.

August 5, 2008, IBM announced z/VM 5.4. Enhancements

in z/VM 5.4 include:

• Increased ﬂ exibility with support for new z/VM-mode

logical partitions

• Dynamic addition of memory to an active z/VM LPAR

by exploiting System z dynamic storage-reconﬁ guration

capabilities

• Enhanced physical connectivity by exploiting all OSA-

Express3 ports

• Capability to install Linux on System z from the HMC

without requiring an external network connection

• Enhancements for scalability and constraint relief

• Operation of the SSL server in a CMS environment

• Systems management enhancements for Linux and

other virtual images

For the most current information on z/VM, refer to the z/VM

Web site at http://www.vm.ibm.com.

z/VSE

z/VSE 4.1, the latest advance in the ongoing evolution of

VSE, is designed to help address needs of VSE clients

with growing core VSE workloads and/or those who wish

to exploit Linux on System z for new, Web-based business

solutions and infrastructure simpliﬁ cation.

z/VSE 4.1 is designed to support:

• z/Architecture mode only

• 64-bit real addressing and up to 8 GB of processor

storage

• System z encryption technology including CPACF, con-

ﬁ gurable Crypto Express2, and TS1120 encrypting tape

• Midrange Workload License Charge (MWLC) pricing,

including full-capacity and sub-capacity options.

IBM has previewed z/VSE 4.2. When available, z/VSE 4.2

is designed help address the needs of VSE clients with

growing core VSE workloads. z/VSE V4.2 is designed to

support:

z/TPF

z/TPF is a 64-bit operating system that allows you to move

legacy applications into an open development environ-

ment, leveraging large scale memory spaces for increased

speed, diagnostics and functionality. The open develop-

ment environment allows access to commodity skills and

enhanced access to open code libraries, both of which can

be used to lower development costs. Large memory spaces

can be used to increase both system and application efﬁ -

ciency as I/Os or memory management can be eliminated.

z/TPF is designed to support:

• 64-bit mode

• Linux development environment (GCC and HLASM for Linux)

• 32 processors/cluster

• Up to 84* engines/processor

• 40,000 modules

• Workload License Charge

• More than 255 VSE tasks to help clients grow their CICS workloads and to ease migration from CS/VSE to CICS Transaction Server for VSE/ESA

™

• Up to 32 GB of processor storage

• Sub-Capacity Reporting Tool running “natively”

• Encryption Facility for z/VSE as an optional priced feature

• IBM System Storage TS3400 Tape Library (via the TS1120 Controller)

• IBM System Storage TS7740 Virtualization Engine

Release 1.3

z/VSE V4.2 plans to continue the focus on hybrid solu-

tions exploiting z/VSE and Linux on System z, service-ori-

ented architecture (SOA), and security. It is the preferred

replacement for z/VSE V4.1, z/VSE V3, or VSE/ESA. It is

designed to protect and leverage existing VSE information

assets.

Linux on System z

The System z10 EC supports the following Linux on

System z distributions (most recent service levels):

• Novell SUSE SLES 9

• Novell SUSE SLES 10

• Red Hat RHEL 4

• Red Hat RHEL 5

z10 EC

Operating System ESA/390 z/Architecture (31-bit) (64-bit)

z/OS V1R8, 9 and 10 No Yes

z/OS V1R7

(1)(2)

with BM Lifecycle

Extension for z/OS V1.7 No Yes

Linux on System z

(2)

, Red Hat

RHEL 4, & Novell SUSE SLES 9 Yes Yes

Linux on System z

(2)

, Red Hat

RHEL 5, & Novell SUSE SLES 10 No Yes

(3)

z/VM V5R2

z/VSE V3R1

z/VSE V4R1

(3)

, 3

and 4 No* Yes

(2)(4)

(2)(5)

and 2

(5)

Yes No

No Yes

z/TPF V1R1 No Yes

TPF V4R1 (ESA mode only) Yes No

1. z/OS V1.7 support on the z10 BC™ requires the Lifecycle Extension for z/OS V1.7, 5637-A01. The Lifecycle Extension for z/OS R1.7 + zIIP Web Deliverable required for z10 to enable HiperDispatch on z10 (does not require a zIIP). z/OS V1.7 support was withdrawn September 30, 2008. The Lifecycle Extension for z/OS V1.7 (5637-A01) makes fee-based corrective service for z/OS V1.7 available through September 2009. With this Lifecycle Extension, z/OS V1.7 supports the z10 BC server. Certain functions and features of the z10 BC server require later releases of z/OS. For a complete list of software support, see the PSP buckets and the Software Requirements section of the System z10 BC announcement letter, dated October 21, 2008.

2. Compatibility Support for listed releases. Compatibility support allows OS to IPL and operate on z10 BC

3. Requires Compatibility Support which allows z/VM to IPL and operate on the z10 providing IBM System z9 Guests. *z/VM supports 31-bit and 64-bit guests

4. z/VSE V3 operates in 31-bit mode only. It does not implement z/ Architecture, and speciﬁ cally does not implement 64-bit mode capabilities. z/VSE is designed to exploit select features of IBM System z10, System z9, and IBM eServer

5. z/VSE V4 is designed to exploit 64-bit real memory addressing, but will not support 64-bit virtual memory addressing

Note: Refer to the z/OS, z/VM, z/VSE subsets of the 2098DEVICE Preventive Planning (PSP) bucket prior to installing a z10 BC

functionality for the base OS and

™

zSeries® hardware.

Everyday the IT system needs to be available to users

– customers that need access to the company Web site,

line of business personnel that need access to the system,

application development that is constantly keeping the

environment current, and the IT staff that is operating and

maintaining the environment. If applications are not consis-

tently available, the business can suffer.

The z10 EC continues our commitment to deliver improve-

ments in hardware Reliability, Availability and Serviceability

(RAS) with every new System z server. They include micro-

code driver enhancements, dynamic segment sparing for

memory as well as the ﬁ xed HSA. The z10 EC is a server

that can help keep applications up and running in the

event of planned or unplanned disruptions to the system.

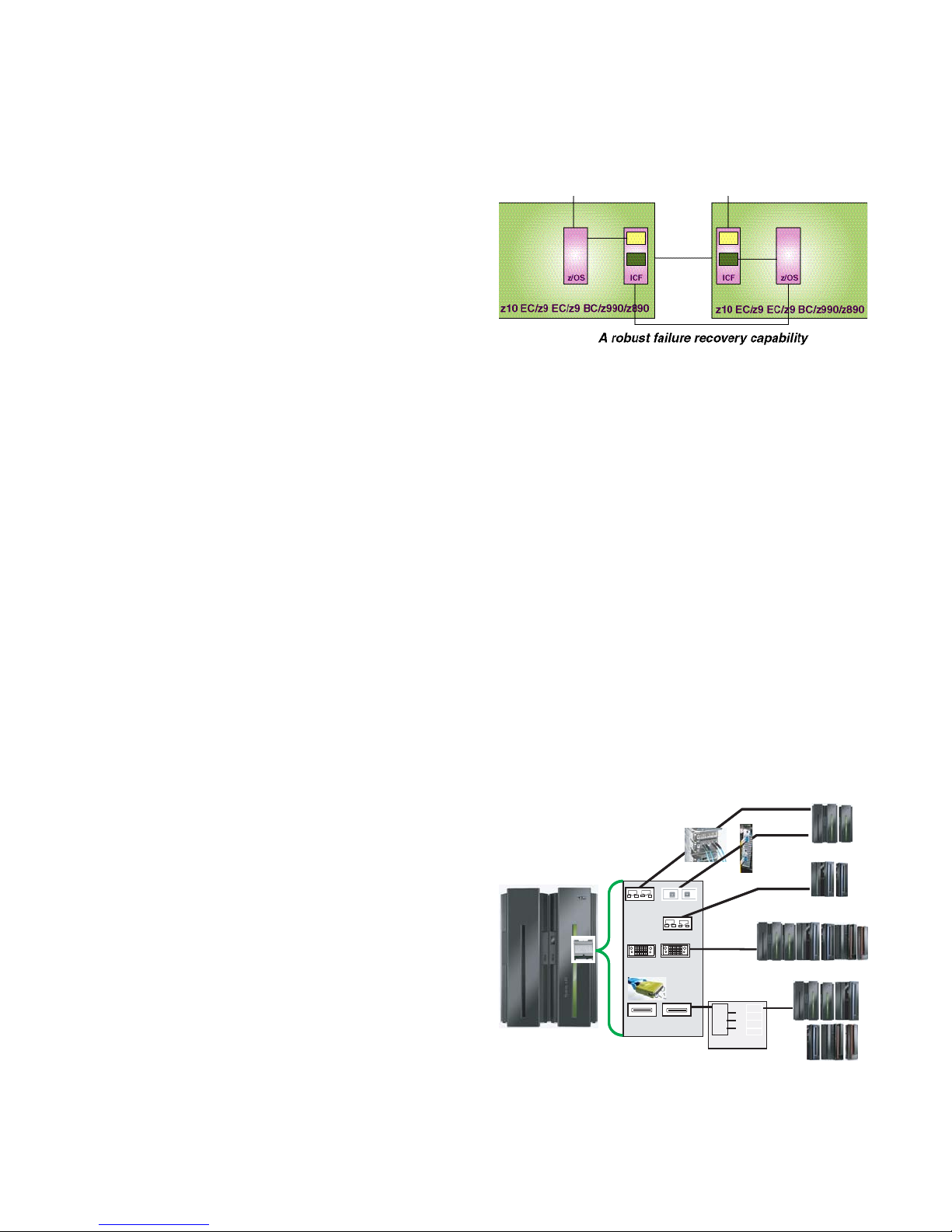

IBM System z servers stand alone against competition and

have stood the test of time with our business resiliency

solutions. Our coupling solutions with Parallel Sysplex tech-

nology allows for greater scalability and availability. The

Inﬁ niBand Coupling Links on the z10 EC provides a high

speed solution to the 10 meter limitation of ICB-4 since they

will be available in lengths up to 150 meters.

What the z10 EC provides over its predecessors are

improvements in the processor granularity offerings, more

options for specialty engines, security enhancements,

additional high availability characteristics, Concurrent

Driver Upgrade (CDU) improvements, enhanced network-

ing and on demand offerings. The z10 EC provides our

IBM customers an option for continued growth, continuity,

and upgradeability.

The IBM System z10 EC builds upon the structure

introduced on the IBM System z9 EC – scalability and

z/Architecture. The System z10 EC expands upon a key

attribute of the platform – availability – to help ensure a

resilient infrastructure designed to satisfy the demands

of your business. With the potential for increased perfor-

mance and capacity, you have an opportunity to continue

to consolidate diverse applications on a single platform.

The z10 EC is designed to provide up 1.7 times the total

system capacity than the z9 EC, and has up to triple the

available memory. The maximum number of Processor

Units (PUs) has grown from 54 to 64, and memory has

increased from 128 GB per book and 512 GB per system

to 384 GB per book and 1.5 TB per system.

The z10 EC will continue to use the Cargo cage for its I/O,

supporting up to 960 Channels on the Model E12 (64 I/O

features) and up to 1,024 (84 I/O features) on the Models

E26, E40, E56 and E64.

HiperDispatch helps provide increased scalability and per-

formance of higher n-way and multi-book z10 EC systems

by improving the way workload is dispatched across the

server. HiperDispatch accomplishes this by recognizing

the physical processor where the work was started and

then dispatching subsequent work to the same physical

processor. This intelligent dispatching helps reduce the

movement of cache and data and is designed to improve

CPU time and performance. HiperDispatch is available

only with new z10 EC PR/SM and z/OS functions.

Processor Units (cores) deﬁ ned as Internal Coupling

Facilities (ICFs), Integrated Facility for Linux (IFLs), System

z10 Application Assist Processor (zAAPs) and System

z10 Integrated Information Processor (zIIPs) are no longer

grouped together in one pool as on the z990, but are

grouped together in their own pool, where they can be

managed separately. The separation signiﬁ cantly simpli-

ﬁ es capacity planning and management for LPAR and can

have an effect on weight management since CP weights

and zAAP and zIIP weights can now be managed sepa-

rately. Capacity BackUp (CBU) features are available for

IFLs, ICFs, zAAPs and zIIPs.

For LAN connectivity, z10 EC provides a OSA-Express3

2-port 10 Gigabit Ethernet (GbE) Long Reach feature along

with the OSA-Express3 Gigabit Ethernet SX and LX with

four ports per features. The z10 EC continues to support

OSA-Express2 1000BASE-T and GbE Ethernet features,

and supports IP version 6 (IPv6) on HiperSockets. OSA-

Express2 OSN (OSA for NCP) is also available on System

z10 EC to support the Channel Data Link Control (CDLC)

protocol, providing direct access from the host operating

system images to the Communication Controller for Linux

on the z10 EC, z10 BC, z9 EC and z9 (CCL) using OSA-

Express3 or OSA-Express2 to help eliminate the require-

ment for external hardware for communications.

Additional channel and networking improvements include

support for Layer 2 and Layer 3 trafﬁ c, FCP management

facility for z/VM and Linux for System z, FCP security

improvements, and Linux support for HiperSockets IPv6.

STP enhancements include the additional support for NTP

clients and STP over Inﬁ niBand links.

Like the System z9 EC, the z10 EC offers a conﬁ gurable

Crypto Express2 feature, with PCI-X adapters that can

be individually conﬁ gured as a secure coprocessor or

an accelerator for SSL, the TKE workstation with optional

Smart Card Reader, and provides the following CP Assist

for Cryptographic Function (CPACF):

• DES, TDES, AES-128, AES-192, AES-256

• SHA-1, SHA-224, SHA-256, SHA-384, SHA-512

• Pseudo Random Number Generation (PRNG)

z10 EC is designed to deliver the industry leading Reli-

ability, Availability and Serviceability (RAS) custom-

ers expect from System z servers. RAS is designed to

reduce all sources of outages by reducing unscheduled,

scheduled and planned outages. Planned outages are

further designed to be reduced by reducing preplanning

requirements.

z10 EC preplanning improvements are designed to avoid

planned outages and include:

• Flexible Customer Initiated Upgrades

• Enhanced Driver Maintenance

– Multiple “from” sync point support

• Reduce Pre-planning to avoid Power-On-Reset

– 16 GB for HSA

– Dynamic I/O enabled by default

– Add Logical Channel Subsystems (LCSS)

– Change LCSS Subchannel Sets

– Add/delete Logical partitions

• Designed to eliminate a logical partition deactivate/

activate/IPL

– Dynamic Change to Logical Processor Deﬁ nition –

z/VM 5.3

– Dynamic Change to Logical Cryptographic Coproces-

sor Deﬁ nition – z/OS ICSF

Additionally, several service enhancements have also

been designed to avoid scheduled outages and include

concurrent ﬁ rmware ﬁ xes, concurrent driver upgrades,

concurrent parts replacement, and concurrent hardware

upgrades. Exclusive to the z10 EC is the ability to hot swap

ICB-4 and Inﬁ niBand hub cards.

Enterprises with IBM System z9 EC and IBM z990 may

upgrade to any z10 Enterprise Class model. Model

upgrades within the z10 EC are concurrent with the excep-

tion of the E64, which is disruptive. If you desire a con-

solidation platform for your mainframe and Linux capable

applications, you can add capacity and even expand you

current application workloads in a cost-effective manner. If

your traditional and new applications are growing, you may

ﬁ nd the z10 EC a good ﬁ t with its base qualities of service

and its specialty processors designed for assisting with

new workloads. Value is leveraged with improved hardware

price/performance and System z10 EC software pricing

strategies.

The z10 EC processor introduces IBM System z10

Enterprise Class with Quad Core technology, advanced

pipeline design and enhanced performance on CPU inten-

sive workloads. The z10 EC is speciﬁ cally designed and

optimized for full z/Architecture compatibility. New features

enhance enterprise data serving performance, industry

leading virtualization capabilities, energy efﬁ ciency at

system and data center levels. The z10 EC is designed

to further extend and integrate key platform characteris-

tics such as dynamic ﬂ exible partitioning and resource

management in mixed and unpredictable workload envi-

ronments, providing scalability, high availability and Quali-

ties of Service (QoS) to emerging applications such as

WebSphere, Java and Linux.

With the logical partition (LPAR) group capacity limit on

z10 EC, z10 BC, z9 EC and z9 BC, you can now specify

LPAR group capacity limits allowing you to deﬁ ne each

LPAR with its own capacity and one or more groups of

LPARs on a server. This is designed to allow z/OS to

manage the groups in such a way that the sum of the

LPARs’ CPU utilization within a group will not exceed the

group’s deﬁ ned capacity. Each LPAR in a group can still

optionally continue to deﬁ ne an individual LPAR capacity

limit.

The z10 EC has ﬁ ve models with a total of 100 capacity

settings available as new build systems and as upgrades

from the z9 EC and z990.

The ﬁ ve z10 EC models are designed with a multi-book

system structure that provides up to 64 Processor Units

(PUs) that can be characterized as either Central Proces-

sors (CPs), IFLs, ICFs, zAAPs or zIIPs.

Some of the signiﬁ cant enhancements in the z10 EC that

help bring improved performance, availability and function

to the platform have been identiﬁ ed. The following sections

highlight the functions and features of the z10 EC.

z10 EC Design and Technology

The System z10 EC is designed to provide balanced

system performance. From processor storage to the

system’s I/O and network channels, end-to-end bandwidth

is provided and designed to deliver data where and when

it is needed.

The processor subsystem is comprised of one to four

books connected via a point-to-point SMP network. The

change to a point-to-point connectivity eliminates the need

for the jumper book, as had been used on the System z9

and z990 systems. The z10 EC design provides growth

paths up to a 64 engine system where each of the 64

PUs has full access to all system resources, speciﬁ cally

memory and I/O.

Each book is comprised of a Multi-Chip Module (MCM),

memory cards and I/O fanout cards. The MCMs, which

measure approximately 96 x 96 millimeters, contain the

Processor Unit (PU) chips, the “SCD” and “SCC” chips of

z990 and z9 have been replaced by a single “SC” chip

which includes both the L2 cache and the SMP fabric

(“storage controller”) functions. There are two SC chips

on each MCM, each of which is connected to all ﬁ ve CP

chips on that MCM. The MCM contain 103 glass ceramic

layers to provide interconnection between the chips and

the off-module environment. Four models (E12, E26, E40

and E56) have 17 PUs per book, and the high capacity

z10 EC Model E64 has one 17 PU book and three 20 PU

books. Each PU measures 21.973 mm x 21.1658 mm and

has an L1 cache divided into a 64 KB cache for instruc-

tions and a 128 KB cache for data. Each PU also has an

L1.5 cache. This cache is 3 MB in size. Each L1 cache

has a Translation Look-aside Buffer (TLB) of 512 entries

associated with it. The PU, which uses a high-frequency

z/Architecture microprocessor core, is built on CMOS 11S

chip technology and has a cycle time of approximately

0.23 nanoseconds.

The design of the MCM technology on the z10 EC pro-

vides the ﬂ exibility to conﬁ gure the PUs for different uses;

there are two spares and up to 11 System Assist Proces-

sors (SAPs) standard per system. The remaining inactive

PUs on each installed MCM are available to be charac-

terized as either CPs, ICF processors for Coupling Facil-

ity applications, or IFLs for Linux applications and z/VM

hosting Linux as a guest, System z10 Application Assist

Processors (zAAPs), System z10 Integrated Information

Processors (zIIPs) or as optional SAPs and provide you

with tremendous ﬂ exibility in establishing the best system

for running applications. Each model of the z10 EC must

always be ordered with at least one CP, IFL or ICF.

Each book can support from the 16 GB minimum memory,

up to 384 GB and up to 1.5 TB per system. 16 GB of

the total memory is delivered and reserved for the ﬁ xed

Hardware Systems Area (HSA). There are up to 48 IFB

links per system at 6 GBps each.

The z10 EC supports a combination of Memory Bus

Adapter (MBA) and Host Channel Adapter (HCA) fanout

cards. New MBA fanout cards are used exclusively for

ICB-4. New ICB-4 cables are needed for z10 EC and are

only available on models E12, E26, E40 and E56. The E64

model may not have ICBs. The Inﬁ niBand Multiplexer (IFB-

MP) card replaces the Self-Timed Interconnect Multiplexer

(STI-MP) card. There are two types of HCA fanout cards:

HCA2-C is copper and is always used to connect to I/O

(IFB-MP card) and the HCA2-O which is optical and used

for customer Inﬁ niBand coupling.

Data transfers are direct between books via the level 2

cache chip in each MCM. Level 2 Cache is shared by all

PU chips on the MCM. PR/SM provides the ability to con-

ﬁ gure and operate as many as 60 Logical Partitions which

may be assigned processors, memory and I/O resources

from any of the available books.

z10 EC Model

The z10 EC has been designed to offer high performance

and efﬁ cient I/O structure. All z10 EC models ship with two

frames: an A-Frame and a Z-Frame, which together sup-

port the installation of up to three I/O cages. The z10 EC

will continue to use the Cargo cage for its I/O, supporting

up to 960 ESCON

and 256 FICON channels on the Model

E12 (64 I/O features) and up to 1,024 ESCON and 336

FICON channels (84 I/O features) on the Models E26, E40,

E56 and E64.

To increase the I/O device addressing capability, the I/O

subsystem provides support for multiple subchannels

sets (MSS), which are designed to allow improved device

connectivity for Parallel Access Volumes (PAVs). To sup-

port the highly scalable multi-book system design, the z10

EC I/O subsystem uses the Logical Channel Subsystem

(LCSS) which provides the capability to install up to 1024

CHPIDs across three I/O cages (256 per operating system

image). The Parallel Sysplex Coupling Link architecture

and technology continues to support high speed links pro-

viding efﬁ cient transmission between the Coupling Facility

and z/OS systems. HiperSockets provides high-speed

capability to communicate among virtual servers and logi-

cal partitions. HiperSockets is now improved with the IP

version 6 (IPv6) support; this is based on high-speed TCP/

IP memory speed transfers and provides value in allowing

applications running in one partition to communicate with

applications running in another without dependency on

an external network. Industry standard and openness are

design objectives for I/O in System z10 EC.

The z10 EC has ﬁ ve models offering between 1 to 64 pro-

cessor units (PUs), which can be conﬁ gured to provide

a highly scalable solution designed to meet the needs

of both high transaction processing applications and On

Demand Business. Four models (E12, E26, E40 and E56)

have 17 PUs per book, and the high capacity z10 EC

Model E64 has one 17 PU book and three 20 PU books.

The PUs can be characterized as either CPs, IFLs, ICFs,

zAAPs or zIIPs. An easy-to-enable ability to “turn off” CPs

or IFLs is available on z10 EC, allowing you to purchase

capacity for future use with minimal or no impact on

software billing. An MES feature will enable the “turned

off” CPs or IFLs for use where you require the increased

capacity. There are a wide range of upgrade options avail-

able in getting to and within the z10 EC.

The z10 EC hardware model numbers (E12, E26, E40, E56

and E64) on their own do not indicate the number of PUs

which are being used as CPs. For software billing pur-

poses only, there will be a Capacity Identiﬁ er associated

with the number of PUs that are characterized as CPs. This

number will be reported by the Store System Information

(STSI) instruction for software billing purposes only. There

is no afﬁ nity between the hardware model and the number

of CPs. For example, it is possible to have a Model E26

which has 13 PUs characterized as CPs, so for software

billing purposes, the STSI instruction would report 713.

z10 EC model upgrades

There are full upgrades within the z10 EC models and

upgrades from any z9 EC or z990 to any z10 EC. Upgrade

of z10 EC Models E12, E26, E40 and E56 to the E64 is

disruptive. When upgrading to z10 EC Model E64, unlike

the z9 EC, the ﬁ rst book is retained. There are no direct

upgrades from the z9 BC or IBM eServer zSeries 900

(z900), or previous generation IBM eServer zSeries.

z10 EC Base and Sub-capacity Offerings

IBM is increasing the number of sub-capacity engines on

the z10 EC. A total of 36 sub-capacity settings are avail-

able on any hardware model for 1-12 CPs. Models with 13

CPs or greater must be full capacity.

For the z10 EC models with 1-12 CPs, there are four

capacity settings per engine for central processors (CPs).

The entry point (Model 401) is approximately 23.69% of

a full speed CP (Model 701). All specialty engines con-

tinue to run at full speed. Sub-capacity processors have

availability of z10 EC features/functions and any-to-any

upgradeability is available within the sub-capacity matrix.

All CPs must be the same capacity setting size within one

z10 EC.

z10 EC Model Capacity Identiﬁ ers:

• 700, 401 to 412, 501 to 512, 601 to 612 and 701 to 764

• Capacity setting 700 does not have any CP engines

• Nxx, where n = the capacity setting of the engine, and

xx = the number of PU characterized as CPs in the CEC

Once xx exceeds 12, then all CP engines are full capacity

•

The z10 EC has 36 additional capacity settings at the low end

• Available on ANY H/W Model for 1 to 12 CPs. Models with 13 CPs or greater have to be full capacity

• All CPs must be the same capacity within the z10 EC

• All specialty engines run at full capacity. The one for one entitlement to purchase one zAAP or one zIIP for each CP purchased is the same for CPs of any capacity.

• Only 12 CPs can have granular capacity, other PUs must be CBU or characterized as specialty engines

z10 EC Performance

The performance design of the z/Architecture can enable

the server to support a new standard of performance for

applications through expanding upon a balanced system

approach. As CMOS technology has been enhanced to

support not only additional processing power, but also

more PUs, the entire server is modiﬁ ed to support the

increase in processing power. The I/O subsystem supports

a greater amount of bandwidth than previous generations

through internal changes, providing for larger and faster

volume of data movement into and out of the server. Sup-

port of larger amounts of data within the server required

improved management of storage conﬁ gurations, made

available through integration of the operating system and

hardware support of 64-bit addressing. The combined bal-

anced system design allows for increases in performance

across a broad spectrum of work.

Large System Performance Reference

IBM’s Large Systems Performance Reference (LSPR)

method is designed to provide comprehensive z/Archi-

tecture processor capacity ratios for different conﬁ gura-

tions of Central Processors (CPs) across a wide variety

of system control programs and workload environments.

For z10 EC, z/Architecture processor capacity identiﬁ er is

deﬁ ned with a (7XX) notation, where XX is the number of

installed CPs.

may experience will vary depending upon considerations

such as the amount of multiprogramming in the user’s job

stream, the I/O conﬁ guration, and the workload processed.

LSPR workloads have been updated to reﬂ ect more

closely your current and growth workloads. The classiﬁ ca-

tion Java Batch (CB-J) has been replaced with a new clas-

siﬁ cation for Java Batch called ODE-B. The remainder of

the LSPR workloads are the same as those used for the z9

EC LSPR. The typical LPAR conﬁ guration table is used to

establish single-number-metrics such as MIPS and MSUs.

The z10 EC LSPR will rate all z/Architecture processors

running in LPAR mode, 64-bit mode, and assumes that

HiperDispatch is enabled.

For more detailed performance information, consult the

Large Systems Performance Reference (LSPR) available

at: http://www.

ibm.com

/servers/eserver/zseries/lspr/.

CPU Measurement Facility

The CPU Measurement Facility is a hardware facility which

consists of counters and samples. The facility provides a

means to collect run-time data for software performance

tuning. The detailed architecture information for this facility

™

can be found in the System z10 Library in Resource Link

Based on using an LSPR mixed workload, the perfor-

mance of the z10 EC (2097) 701 is expected to be up to

1.62 times that of the z9 EC (2094) 701.

The LSPR contains the Internal Throughput Rate Ratios

(ITRRs) for the z10 EC and the previous-generation

zSeries processor families based upon measurements

and projections using standard IBM benchmarks in a con-

trolled environment. The actual throughput that any user

z10 EC I/O Subsystem

The z10 EC contains an I/O subsystem infrastructure

which uses an I/O cage that provides 28 I/O slots and

the ability to have one to three I/O cages delivering a

total of 84 I/O slots. ESCON, FICON Express4, FICON

Express2, FICON Express, OSA-Express3, OSA-Express2,

and Crypto Express2 features plug into the z10 EC I/O

cage along with any ISC-3s and Inﬁ niBand Multiplexer

(IFB-MP) cards. All I/O features and their support cards

can be hot-plugged in the I/O cage. Installation of an I/O

cage remains a disruptive MES, so the Plan Ahead fea-

ture remains an important consideration when ordering a

z10 EC system. Each model ships with one I/O cage as

standard in the A-Frame (the A-Frame also contains the

Central Electronic Complex [CEC] cage where the books

reside) and any additional I/O cages are installed in the

Z-Frame. Each IFB-MP has a bandwidth up to 6 GigaBytes

per second (GB/sec) for I/O domains and MBA fanout

cards provide 2.0 GB/sec for ICB-4s.

The z10 EC continues to support all of the features

announced with the System z9 EC such as:

• Logical Channel Subsystems (LCSSs) and support for

up to 60 logical partitions

• Increased number of Subchannels (63.75k)

• Multiple Subchannel Sets (MSS)

• Redundant I/O Interconnect

• Physical Channel IDs (PCHIDs)

• System Initiated CHPID Reconﬁ guration

• Logical Channel SubSystem (LCSS) Spanning

system hardware administrator access to the information

from these many sources in one place. This will make it

much easier to manage I/O conﬁ gurations, particularly

across multiple CPCs. The SIOA is a “view-only” tool. It

does not offer any options other than viewing options.

First the SIOA tool analyzes the current active IOCDS on

the SE. It extracts information about the deﬁ ned channel,

partitions, link addresses and control units. Next the SIOA

tool asks the channels for their node ID information. The

FICON channels support remote node ID information, so

that is also collected from them. The data is then formatted

and displayed on ﬁ ve screens:

1)PCHID Control Unit Screen – Shows PCHIDs, CSS.

CHPIDs and their control units

2)PCHID Partition Screen – Shows PCHIDS, CSS. CHPIDs

and what partitions they are in

3)Control Unit Screen – Shows the control units, their

PCHIDs and their link addresses in each of the CSS’s

4)Link Load Screen – Shows the Link address and the

PCHIDs that use it

5)Node ID Screen – Shows the Node ID data under the

PCHIDs

The SIOA tool allows the user to sort on various columns

and export the data to a USB ﬂ ash drive for later viewing.

System I/O Conﬁ guration Analyzer

Today the information needed to manage a system’s I/O

conﬁ guration has to be obtained from many separate

applications. The System’s I/O Conﬁ guration Analyzer

(SIOA) tool is a SE/HMC-based tool that will allow the

z10 EC Channels and I/O Connectivity

ESCON Channels

The z10 EC supports up to 1,024 ESCON channels. The

high density ESCON feature has 16 ports, 15 of which can

be activated for customer use. One port is always reserved

as a spare which is activated in the event of a failure

of one of the other ports. For high availability the initial

order of ESCON features will deliver two 16-port ESCON

features and the active ports will be distributed across

those features.

Fibre Channel Connectivity

The on demand operating environment requires fast data

access, continuous data availability, and improved ﬂ exibil-

ity, all with a lower cost of ownership. The four port FICON

Express4 and FICON Express2 features available on the

z9 EC continue to be supported on the System z10 EC.

Choose the FICON Express4 features that best meet

your business requirements.

To meet the demands of your Storage Area Network (SAN),

provide granularity, facilitate redundant paths, and satisfy

your infrastructure requirements, there are three features

from which to choose.

Feature FC # Infrastructure Ports per Feature

FICON Express4 10KM LX 3321

FICON Express4 4KM LX 3324

FICON Express4 SX 3322 Multimode ﬁ ber 4

Single mode ﬁ ber

FICON Express4 Channels

The z10 EC supports up to 336 FICON Express4 channels,

each one operating at 1, 2 or 4 Gb/sec auto-negotiated.

The FICON Express4 features are available in long wave-

length (LX) and short wavelength (SX). For customers

exploiting LX, there are two options available for unre-

peated distances of up to 4 kilometers (2.5 miles) or up

to 10 kilometers (6.2 miles). Both LX features use 9 micron

single mode ﬁ ber optic cables. The SX feature uses 50

or 62.5 micron multimode ﬁ ber optic cables. Each FICON

Express4 feature has four independent channels (ports)

and can be conﬁ gured to carry native FICON trafﬁ c or Fibre

Channel (SCSI) trafﬁ c. LX and SX cannot be intermixed on

a single feature. The receiving devices must correspond to

the appropriate LX or SX feature. The maximum number of

FICON Express4 features is 84 using three I/O cages.

FICON Express2 Channels

The z10 EC supports carrying forward up to 336 FICON

Express2 channels, each one operating at 1 or 2 Gb/sec

auto-negotiated. The FICON Express2 features are avail-

able in long wavelength (LX) using 9 micron single mode

ﬁ ber optic cables and short wavelength (SX) using 50 and

62.5 micron multimode ﬁ ber optic cables. Each FICON

Express2 feature has four independent channels (ports)

and each can be conﬁ gured to carry native FICON trafﬁ c

or Fibre Channel (SCSI) trafﬁ c. LX and SX cannot be inter-

mixed on a single feature. The maximum number of FICON

Express2 features is 84, using three I/O cages.

Choose the features that best meet your granularity, ﬁ ber

optic cabling, and unrepeated distance requirements.

FICON Express Channels

The z10 EC also supports carrying forward FICON Express

LX and SX channels from z9 EC and z990 (up to 120 chan-

nels) each channel operating at 1 or 2 Gb/sec auto-negoti-

ated. Each FICON Express feature has two independent

channels (ports).

The System z10 EC Model E12 is limited to 64 features

– any combination of FICON Express4, FICON Express2

and FICON Express LX and SX features.

The FICON Express4, FICON Express2 and FICON

Express feature conforms to the Fibre Connection (FICON)

architecture and the Fibre Channel (FC) architecture, pro-

viding connectivity between any combination of servers,

directors, switches, and devices in a Storage Area Network

(SAN). Each of the four independent channels (FICON

Express only supports two channels per feature) is capa-

ble of 1 Gigabit per second (Gb/sec), 2 Gb/sec, or 4

Gb/sec (only FICON Express4 supports 4 Gbps) depend-

ing upon the capability of the attached switch or device.

The link speed is auto-negotiated, point-to-point, and is

transparent to users and applications. Not all switches and

devices support 2 or 4 Gb/sec link data rates.

FICON Express4 and FICON Express2 Performance

Your enterprise may beneﬁ t from FICON Express4 and

FICON Express2 with:

• Increased data transfer rates (bandwidth)

• Improved performance

• Increased number of start I/Os

• Reduced backup windows

• Channel aggregation to help reduce infrastructure costs

Continued Support of Spanned Channels and Logical Partitions

The FICON Express4 and FICON Express2, FICON and

FCP (CHPID types FC and FCP) channel types, can be

deﬁ ned as a spanned channel and can be shared among

logical partitions within and across LCSSs.

Modes of Operation

There are two modes of operation supported by FICON

Express4 and FICON Express2 SX and LX. These modes

are conﬁ gured on a channel-by-channel basis – each of

the four channels can be conﬁ gured in either of two sup-

ported modes.

• Fibre Channel (CHPID type FC), which is native FICON

or FICON Channel-to-Channel (server-to-server)

• Fibre Channel Protocol (CHPID type FCP), which sup-

ports attachment to SCSI devices via Fibre Channel

switches or directors in z/VM, z/VSE, and Linux on

System z10 environments

Native FICON Channels

Native FICON channels and devices can help to reduce

bandwidth constraints and channel contention to enable

easier server consolidation, new application growth,

large business intelligence queries and exploitation of On

Demand Business.

For more information about FICON, visit the IBM Redbooks®

Web site at: http://www.redbooks.ibm.com/ search for

SG24-5444. There are also various FICON I/O Connectivity

information at: www-03.ibm.com/systems/z/connectivity/.

Concurrent Update

The FICON Express4 SX and LX features may be added

to an existing z10 EC concurrently. This concurrent update

capability allows you to continue to run workloads through

other channels while the new FICON Express4 features are

being added. This applies to CHPID types FC and FCP.

The FICON Express4, FICON Express2 and FICON

Express channels support native FICON and FICON

Channel-to-Channel (CTC) trafﬁ c for attachment to serv-

ers, disks, tapes, and printers that comply with the FICON

architecture. Native FICON is supported by all of the z10

EC operating systems. Native FICON and FICON CTC are

deﬁ ned as CHPID type FC.

Because the FICON CTC function is included as part of

the native FICON (FC) mode of operation, FICON CTC is

not limited to intersystem connectivity (as is the case with

ESCON), but will support multiple device deﬁ nitions.

FICON Support for Cascaded Directors

Native FICON (FC) channels support cascaded directors.

This support is for a single hop conﬁ guration only. Two-

director cascading requires a single vendor high integrity

fabric. Directors must be from the same vendor since cas-

caded architecture implementations can be unique. This

type of cascaded support is important for disaster recov-

ery and business continuity solutions because it can help

provide high availability, extended distance connectivity,

and (particularly with the implementation of 2 Gb/sec Inter

Switch Links) has the potential for ﬁ ber infrastructure cost

savings by reducing the number of channels for intercon-

necting the two sites.

FICON cascaded directors have the added value of high

integrity connectivity. Integrity features introduced within

the FICON Express channel and the FICON cascaded

switch fabric to aid in the detection and reporting of any

miscabling actions occurring within the fabric can prevent

data from being delivered to the wrong end point.

usage including install and IPL. Support for FCP devices

means that z10 EC servers are capable of attaching to

select FCP-attached SCSI devices and may access these

devices from Linux on z10 EC and z/VSE. This expanded

attachability means that enterprises have more choices

for new storage solutions, or may have the ability to use

existing storage devices, thus leveraging existing invest-

ments and lowering total cost of ownership for their Linux

implementations.

The same FICON features used for native FICON chan-

nels can be deﬁ ned to be used for Fibre Channel Protocol

(FCP) channels. FCP channels are deﬁ ned as CHPID type

FCP. The 4 Gb/sec capability on the FICON Express4

channel means that 4 Gb/sec link data rates are available

for FCP channels as well.

FCP – increased performance for small block sizes

The Fibre Channel Protocol (FCP) Licensed Internal

Code has been modiﬁ ed to help provide increased I/O

operations per second for small block sizes. With FICON

Express4, there may be up to 57,000 I/O operations

per second (all reads, all writes, or a mix of reads and

writes), an 80% increase compared to System z9. These

results are achieved in a laboratory environment using

one channel conﬁ gured as CHPID type FCP with no other

processing occurring and do not represent actual ﬁ eld

measurements. A signiﬁ cant increase in I/O operations per

second for small block sizes can also be expected with

FICON Express2.

FCP Channels

z10 EC supports FCP channels, switches and FCP/ SCSI

disks with full fabric connectivity under Linux on System

z and z/VM 5.2 (or later) for Linux as a guest under z/VM,

under z/VM 5.2 (or later), and under z/VSE 3.1 for system

This FCP performance improvement is transparent to

operating systems that support FCP, and applies to all

the FICON Express4 and FICON Express2 features when

conﬁ gured as CHPID type FCP, communicating with SCSI

devices.

SCSI IPL now a base function

The SCSI Initial Program Load (IPL) enablement feature,

ﬁ rst introduced on z990 in October of 2003, is no longer

required. The function is now delivered as a part of the

server Licensed Internal Code. SCSI IPL allows an IPL of

an operating system from an FCP-attached SCSI disk.

The maximum number of I/Os is designed to be improved

up to 100% for small data transfers that can exploit zHPF.

Realistic production workloads with a mix of data transfer

sizes can see up to 30 to 70% of FICON I/Os utilizing zHPF

resulting in up to a 10 to 30% savings in channel utiliza-

tion. Sequential I/Os transferring less than a single track

size (for example, 12x4k bytes/IO) may also beneﬁ t.

FCP Full fabric connectivity

FCP full fabric support means that any number of (single

vendor) FCP directors/ switches can be placed between

the server and an FCP/SCSI device, thereby allowing

many “hops” through a Storage Area Network (SAN) for

I/O connectivity. FCP full fabric connectivity enables mul-

tiple FCP switches/directors on a fabric to share links and

therefore provides improved utilization of inter-site con-

nected resources and infrastructure.

FICON and FCP for connectivity to disk, tape, and printers

High Performance FICON – improvement in performance and

RAS

Enhancements have been made to the z/Architecture

and the FICON interface architecture to deliver optimiza-

tions for online transaction processing (OLTP) workloads.

When exploited by the FICON channel, the z/OS operating

system, and the control unit, High Performance FICON for

System z (zHPF) is designed to help reduce overhead and

improve performance.

Additionally, the changes to the architectures offer end-

to-end system enhancements to improve reliability, avail-

ability, and serviceability (RAS).

The FICON Express4 and FICON Express2 features will

support both the existing FICON protocol and the zHPF

protocol concurrently in the server Licensed Internal Code.

High performance FICON is supported by z/OS for DB2,

VSAM, PDSE, and zFS applications. zHPF applies to all

FICON Express4 and FICON Express2 features (CHPID

type FC) and is exclusive to System z10. Exploitation is

required by the control unit.

IBM System Storage DS8000 Release 4.1 delivers new

capabilities to support High Performance FICON for

System z, which can improve FICON I/O throughput on a

DS8000 port by up to 100%. The DS8000 series Licensed

Machine Code (LMC) level 5.4.2xx.xx (bundle version

64.2.xx.xx), or later, is required.

Platform and name server registration in FICON channel

The FICON channel now provides the same information

to the fabric as is commonly provided by open systems,

registering with the name server in the attached FICON

directors. With this information, your storage area net-

work (SAN) can be more easily and efﬁ ciently managed,

enhancing your ability to perform problem determination

and analysis.

zHPF channel programs can be exploited by the OLTP I/O

workloads – DB2, VSAM, PDSE, and zFS – which transfer

small blocks of ﬁ xed size data (4K blocks). zHPF imple-

mentation by the IBM System Storage DS8000

sively for I/Os that transfer less than a single track of data.

™

is exclu-

Registration allows other nodes and/or SAN managers to

query the name server to determine what is connected

to the fabric, what protocols are supported (FICON, FCP)

and to gain information about the System z10 using the

attributes that are registered. The FICON channel is now

designed to perform registration with the ﬁ bre channel’s

Management Service and Directory Service.

It will register:

• Platform’s:

– Worldwide node name (node name for the platform -

same for all channels)

– Platform type (host computer)

– Platform name (includes vendor ID, product ID, and

vendor speciﬁ c data from the node descriptor)

• Channel’s:

– Worldwide port name (WWPN)

– Node port identiﬁ cation (N_PORT ID)

– FC-4 types supported (always 0x1B and additionally

0x1C if any Channel-to-Channel (CTC) control units are deﬁ ned on that channel)

– Classes of service support by the channel

Platform registration is a service deﬁ ned in the Fibre Chan-

nel - Generic Services 4 (FC-GS-4) standard (INCITS

(ANSI) T11 group).

Platform and name server registration applies to all of the

FICON Express4, FICON Express2, and FICON Express

features (CHPID type FC). This support is exclusive to

System z10 and is transparent to operating systems.

Preplanning and setup of SAN for a System z10 environment

The worldwide port name (WWPN) prediction tool is now

available to assist you with preplanning of your Storage

Area Network (SAN) environment prior to the installation of

your System z10 server.

The tool needs to know the FCP-speciﬁ c I/O device deﬁ ni-

tions in the form of a .csv ﬁ le. This ﬁ le can either be cre-

ated manually, or exported from Hardware Conﬁ guration

Deﬁ nition/Hardware Conﬁ guration Manager (HCD/HCM).

The tool will then create the WWPN assignments, which

are required to set up your SAN. The tool will also create

a binary conﬁ guration ﬁ le that can later on be imported by

your system.

The WWPN prediction tool can be downloaded from

Resource Link and is applicable to all FICON channels

deﬁ ned as CHPID type FCP (for communication with SCSI

devices). Check Preventive Service Planning (PSP) buck-

ets for required maintenance.

http://www.ibm.com/servers/resourcelink/

Extended distance FICON – improved performance at extended

distance

An enhancement to the industry standard FICON architec-

ture (FC-SB-3) helps avoid degradation of performance at

extended distances by implementing a new protocol for

“persistent” Information Unit (IU) pacing. Control units that

exploit the enhancement to the architecture can increase

the pacing count (the number of IUs allowed to be in ﬂ ight

from channel to control unit). Extended distance FICON also

allows the channel to “remember” the last pacing update for

use on subsequent operations to help avoid degradation of

performance at the start of each new operation.

This standalone tool is designed to allow you to setup

your SAN in advance, so that you can be up and running

much faster once the server is installed. The tool assigns

WWPNs to each virtual Fibre Channel Protocol (FCP)

channel/port using the same WWPN assignment algo-

rithms a system uses when assigning WWPNs for channels

utilizing N_Port Identiﬁ er Virtualization (NPIV).

Improved IU pacing can help to optimize the utilization of

the link, for example help keep a 4 Gbps link fully utilized

at 50 km, and allows channel extenders to work at any dis-

tance, with performance results similar to that experienced

when using emulation.

The requirements for channel extension equipment are

simpliﬁ ed with the increased number of commands in

ﬂ ight. This may beneﬁ t z/OS Global Mirror (Extended

Remote Copy – XRC) applications as the channel exten-

sion kit is no longer required to simulate speciﬁ c channel

commands. Simplifying the channel extension require-

ments may help reduce the total cost of ownership of end-

to-end solutions.

Extended distance FICON is transparent to operating sys-

tems and applies to all the FICON Express2 and FICON

Express4 features carrying native FICON trafﬁ c (CHPID

type FC). For exploitation, the control unit must support the

new IU pacing protocol. The channel will default to cur-

rent pacing values when operating with control units that

cannot exploit extended distance FICON.

Exploitation of extended distance FICON is supported by

IBM System Storage DS8000 series Licensed Machine Code

(LMC) level 5.3.1xx.xx (bundle version 63.1.xx.xx), or later.

To support extended distance without performance deg-

radation, the buffer credits in the FICON director must be

set appropriately. The number of buffer credits required is

dependent upon the link data rate (1 Gbps, 2 Gbps, or 4

Gbps), the maximum number of buffer credits supported

by the FICON director or control unit, as well as application

and workload characteristics. High bandwidth at extended

distances is achievable only if enough buffer credits exist

to support the link data rate.

utilization due to fewer hardware requirements, and can

reduce the complexity of physical FCP I/O connectivity.

Program Directed re-IPL

Program Directed re-IPL is designed to enable an operat-

ing system to determine how and from where it had been

loaded. Further, Program Directed re-IPL may then request

that it be reloaded again from the same load device using

the same load parameters. In this way, Program Directed

re-IPL allows a program running natively in a partition to

trigger a re-IPL. This re-IPL is supported for both SCSI

™

and ECKD

devices. z/VM 5.3 provides support for guest

exploitation.

FICON Link Incident Reporting

FICON Link Incident Reporting is designed to allow an

operating system image (without operating intervention) to

ability to capture data for link error analysis. The informa-

tion can be displayed and is saved in the system log.

Serviceability Enhancements

Requests Node Identiﬁ cation Data (RNID) is designed to

facilitate the resolution of ﬁ ber optic cabling problems. You

can now request RNID data for a device attached to a

native FICON channel.

Local Area Network (LAN) connectivity –

FICON Express enhancements for Storage Area Networks

N_Port ID Virtualization

N_Port ID Virtualization is designed to allow for sharing of

a single physical FCP channel among multiple operating

system images. Virtualization function is currently available

for ESCON and FICON channels, and is now available for

FCP channels. This function offers improved FCP channel

OSA-Express3 – the newest family of LAN adapters

The third generation of Open Systems Adapter-Express

(OSA-Express3) features have been introduced to help

reduce latency and overhead, deliver double the port den-

sity of OSA-Express2, and provide increased throughput.

Choose the OSA-Express3 features that best meet your

business requirements.

To meet the demands of your applications, provide granu-

larity, facilitate redundant paths, and satisfy your infra-

The above statements are based on OSA-Express3 perfor-

mance measurements performed in a laboratory environ-

ment on a System z10 and do not represent actual ﬁ eld

measurements. Results may vary.

structure requirements, there are ﬁ ve features from which

to choose. In the 10 GbE environment, Short Reach (SR) is

being offered for the ﬁ rst time.

Port density or granularity

The OSA-Express3 features have Peripheral Component

Interconnect Express (PCI-E) adapters. The previous table

Feature Infrastructure Ports per Feature

OSA-Express3 GbE LX

OSA-Express3 10 GbE LR

Single mode ﬁ ber

OSA-Express3 GbE SX Multimode ﬁ ber 4

OSA-Express3 10 GbE SR Multimode ﬁ ber 2

OSA-Express3 1000BASE-T Copper 4

Note that software PTFs or a new release may be required

(depending on CHPID type) to support all ports.

identiﬁ es whether the feature has two or four ports for LAN

connectivity. Select the density that best meets your busi-

ness requirements. Doubling the port density on a single

feature helps to reduce the number of I/O slots required for

high-speed connectivity to the Local Area Network.

The OSA-Express3 10 GbE features support Long Reach

(LR) using 9 micron single mode ﬁ ber optic cabling and

Short Reach (SR) using 50 or 62.5 micron multimode

ﬁ ber optic cabling. The connector is new; it is now the

small form factor, LC Duplex connector. Previously the SC

OSA-Express3 for reduced latency and improved throughput

To help reduce latency, the OSA-Express3 features now

have an Ethernet hardware data router; what was previ-

ously done in ﬁ rmware (packet construction, inspection,

Duplex connector was supported for LR. The LC Duplex

connector is common with FICON, ISC-3, and OSA-

Express2 Gigabit Ethernet LX and SX.

The OSA-Express3 features are exclusive to System z10.

and routing) is now performed in hardware. With direct

memory access, packets ﬂ ow directly from host memory

to the LAN without ﬁ rmware intervention. OSA-Express3

is also designed to help reduce the round-trip networking

time between systems. Up to a 45% reduction in latency at

the TCP/IP application layer has been measured.

There are operating system dependencies for exploitation

of two ports in OSD mode per PCI-E adapter. Whether it

is a 2-port or a 4-port feature, only one of the ports will be

visible on a PCI-E adapter if operating system exploitation

updates are not installed.

The OSA-Express3 features are also designed to improve

throughput for standard frames (1492 byte) and jumbo

frames (8992 byte) to help satisfy the bandwidth require-

ments of your applications. Up to a 4x improvement has

been measured (compared to OSA-Express2).

OSA-Express3 Ethernet features – Summary of beneﬁ ts

OSA-Express3 10 GbE LR (single mode ﬁ ber), 10 GbE SR

(multimode ﬁ ber), GbE LX (single mode ﬁ ber), GbE SX

(multimode ﬁ ber), and 1000BASE-T (copper) are designed

for use in high-speed enterprise backbones, for local

area network connectivity between campuses, to connect

server farms to System z10, and to consolidate ﬁ le servers

onto System z10. With reduced latency, improved through-

put, and up to 96 ports of LAN connectivity, (when all are

4-port features, 24 features per server), you can “do more

with less.”

The key beneﬁ ts of OSA-Express3 compared to OSA-

Express2 are:

• Reduced latency (up to 45% reduction) and increased

throughput (up to 4x) for applications

• More physical connectivity to service the network and

fewer required resources:

– Fewer CHPIDs to deﬁ ne and manage

– Reduction in the number of required I/O slots

– Possible reduction in the number of I/O drawers

– Double the port density of OSA-Express2

– A solution to the requirement for more than 48 LAN

ports (now up to 96 ports)

Medium Access Control (MAC) address.

– QDIO Layer 3 (Network or IP layer) – for IP workloads.

Packet forwarding decisions are based upon the IP address. All guests share OSA’s MAC address.

• Jumbo frames in QDIO mode (8992 byte frame size)

when operating at 1 Gbps (ﬁ ber or copper) and 10 Gbps

(ﬁ ber).

• 640 TCP/IP stacks per CHPID – for hosting more images.

• Large send for IPv4 packets – for TCP/IP trafﬁ c and CPU

efﬁ ciency, ofﬂ oading the TCP segmentation processing

from the host TCP/IP stack to the OSA-Express feature.

• Concurrent LIC update – to help minimize the disrup-

tion of network trafﬁ c during an update; when properly

conﬁ gured, designed to avoid a conﬁ guration off or on

(applies to CHPID types OSD and OSN).

• Multiple Image Facility (MIF) and spanned channels – for

sharing OSA among logical channel subsystems

The OSA-Express3 features are exclusive to System z10.

OSA-Express2 availability

OSA-Express2 Gigabit Ethernet and 1000BASE-T Ethernet

continue to be available for ordering, for a limited time, if

you are not yet in a position to migrate to the latest release

of the operating system for exploitation of two ports per

PCI-E adapter and if you are not resource-constrained.

Historical summary: Functions that continue to be sup-

ported by OSA-Express3 and OSA-Express2

• Queued Direct Input/Output (QDIO) – uses memory

queues and a signaling protocol to directly exchange

data between the OSA microprocessor and the network

software for high-speed communication.

– QDIO Layer 2 (Link layer) – for IP (IPv4, IPv6) or non-

IP (AppleTalk, DECnet, IPX, NetBIOS, or SNA) workloads. Using this mode the Open Systems Adapter (OSA) is protocol-independent and Layer-3 independent. Packet forwarding decisions are based upon the

The OSA-Express3 and OSA-Express2 Ethernet features

support the following CHPID types

CHPID OSA-Express3, Purpose/Trafﬁ c Type OSA-Express2 Features

OSC 1000BASE-T OSA-Integrated Console Controller (OSA-ICC)

Operating system console operations

OSD

GbE TCP/IP trafﬁ c when Layer 3 10 GbE Protocol-independent when Layer 2

1000BASE-T

OSE 1000BASE-T Non-QDIO, SNA/APPN

passthru (LCS)

TN3270E, non-SNA DFT, IPL to CPC and LPARs

Queued Direct Input/Output (QDIO)

/HPR and/or TCP/IP

OSN 1000BASE-T OSA for NCP

GbE Supports channel data link control (CDLC)

OSA-Express3 10 GbE

OSA-Express3 10 Gigabit Ethernet LR

The OSA-Express3 10 Gigabit Ethernet (GbE) long reach

(LR) feature has two ports. Each port resides on a PCIe

adapter and has its own channel path identiﬁ er (CHPID).

There are two PCIe adapters per feature. OSA-Express3

10 GbE LR is designed to support attachment to a 10

Gigabits per second (Gbps) Ethernet Local Area Network

(LAN) or Ethernet switch capable of 10 Gbps. OSA-

Express3 10 GbE LR supports CHPID type OSD exclu-

sively. It can be deﬁ ned as a spanned channel and can be

shared among LPARs within and across LCSSs.

OSA-Express3 10 Gigabit Ethernet SR

The OSA-Express3 10 Gigabit Ethernet (GbE) short reach

(SR) feature has two ports. Each port resides on a PCIe

adapter and has its own channel path identiﬁ er (CHPID).

There are two PCIe adapters per feature. OSA-Express3

10 GbE SR is designed to support attachment to a 10

Gigabits per second (Gbps) Ethernet Local Area Network

(LAN) or Ethernet switch capable of 10 Gbps. OSA-

Express3 10 GbE SR supports CHPID type OSD exclu-

sively. It can be deﬁ ned as a spanned channel and can be

shared among LPARs within and across LCSSs.

ports attachment to a one Gigabit per second (Gbps) Eth-

ernet Local Area Network (LAN). OSA-Express3 GbE SX

supports CHPID types OSD and OSN. It can be deﬁ ned

as a spanned channel and can be shared among LPARs

within and across LCSSs.

Four-port exploitation on OSA-Express3 GbE SX and LX

For the operating system to recognize all four ports on

an OSA-Express3 Gigabit Ethernet feature, a new release

and/or PTF is required. If software updates are not applied,

only two of the four ports will be “visible” to the operating

system.

Activating all four ports on an OSA-Express3 feature pro-

vides you with more physical connectivity to service the

network and reduces the number of required resources (I/O

slots, I/O cages, fewer CHPIDs to deﬁ ne and manage).

Four-port exploitation is supported by z/OS, z/VM, z/VSE,

z/TPF, and Linux on System z.

OSA-Express3 Gigabit Ethernet LX

The OSA-Express3 Gigabit Ethernet (GbE) long wave-

length (LX) feature has four ports. Two ports reside on a

PCIe adapter and share a channel path identiﬁ er (CHPID).

There are two PCIe adapters per feature. Each port sup-

ports attachment to a one Gigabit per second (Gbps) Eth-

ernet Local Area Network (LAN). OSA-Express3 GbE LX

supports CHPID types OSD and OSN. It can be deﬁ ned

as a spanned channel and can be shared among LPARs

within and across LCSSs.

OSA-Express3 Gigabit Ethernet SX

The OSA-Express3 Gigabit Ethernet (GbE) short wave-

length (SX) feature has four ports. Two ports reside on a

PCIe adapter and share a channel path identiﬁ er (CHPID).

There are two PCIe adapters per feature. Each port sup-

OSA-Express3 1000BASE-T Ethernet

The OSA-Express3 1000BASE-T Ethernet feature has

four ports. Two ports reside on a PCIe adapter and share

a channel path identiﬁ er (CHPID). There are two PCIe

adapters per feature. Each port supports attachment to

either a 10BASE-T (10 Mbps), 100BASE-TX (100 Mbps), or

1000BASE-T (1000 Mbps or 1 Gbps) Ethernet Local Area

Network (LAN). The feature supports auto-negotiation and

automatically adjusts to 10, 100, or 1000 Mbps, depending

upon the LAN. When the feature is set to autonegotiate,

the target device must also be set to autonegotiate. The

feature supports the following settings: 10 Mbps half or full

duplex, 100 Mbps half or full duplex, 1000 Mbps (1 Gbps)

full duplex. OSA-Express3 1000BASE-T Ethernet supports

CHPID types OSC, OSD, OSE, and OSN. It can be deﬁ ned

as a spanned channel and can be shared among LPARs

within and across LCSSs.

When conﬁ gured at 1 Gbps, the 1000BASE-T Ethernet fea-

ture operates in full duplex mode only and supports jumbo

frames when in QDIO mode (CHPID type OSD).

OSA-Express QDIO data connection isolation for the z/VM environment

Multi-tier security zones are fast becoming the network

conﬁ guration standard for new workloads. Therefore, it is

essential for workloads (servers and clients) hosted in a

virtualized environment (shared resources) to be protected

from intrusion or exposure of data and processes from

other workloads.

With Queued Direct Input/Output (QDIO) data connection

isolation you:

• Have the ability to adhere to security and HIPAA-security

guidelines and regulations for network isolation between

the operating system instances sharing physical network

connectivity

• Can establish security zone boundaries that have been

deﬁ ned by your network administrators

• Have a mechanism to isolate a QDIO data connec-

tion (on an OSA port), ensuring all internal OSA routing

between the isolated QDIO data connections and all

other sharing QDIO data connections is disabled. In this

state, only external communications to and from the iso-

lated QDIO data connection are allowed. If you choose

to deploy an external ﬁ rewall to control the access

between hosts on an isolated virtual switch and sharing

LPARs then an external ﬁ rewall needs to be conﬁ gured

and each individual host and or LPAR must have a route

added to their TCP/IP stack to forward local trafﬁ c to the

ﬁ rewall.

Virtual Switch OSA-Express QDIO connection is to be non-

isolated (default) or isolated.

QDIO data connection isolation applies to the device

statement deﬁ ned at the operating system level. While

an OSA-Express CHPID may be shared by an operating

system, the data device is not shared.

QDIO data connection isolation applies to the z/VM 5.3 and

5.4 with PTFs environment and to all of the OSA-Express3

and OSA-Express2 features (CHPID type OSD) on System

z10 and to the OSA-Express2 features on System z9.

Network Trafﬁ c Analyzer

With the large volume and complexity of today’s network

trafﬁ c, the z10 EC offers systems programmers and

network administrators the ability to more easily solve

network problems. With the introduction of the OSA-

Express Network Trafﬁ c Analyzer and QDIO Diagnostic

Synchronization on the System z and available on the z10

EC, customers will have the ability to capture trace/trap

data and forward it to z/OS 1.8 tools for easier problem

determination and resolution.

This function is designed to allow the operating system

to control the sniffer trace for the LAN and capture the

records into host memory and storage (ﬁ le systems), using

existing host operating system tools to format, edit, and

process the sniffer records.

OSA-Express Network Trafﬁ c Analyzer is exclusive to the

z10 EC, z10 BC, z9 EC and z9 BC, and is applicable to the

OSA-Express3 and OSA-Express2 features when conﬁ gured

as CHPID type OSD (QDIO), and is supported by z/OS.

Internal “routing” can be disabled on a per QDIO connec-

tion basis. This support does not affect the ability to share

an OSA-Express port. Sharing occurs as it does today, but

the ability to communicate between sharing QDIO data

connections may be restricted through the use of this sup-

port. You decide whether an operating system’s or z/VM’s

Dynamic LAN idle for z/OS

Dynamic LAN idle is designed to reduce latency and

improve network performance by dynamically adjusting

the inbound blocking algorithm. When enabled, the z/OS

TCP/IP stack is designed to adjust the inbound blocking

algorithm to best match the application requirements.

For latency sensitive applications, the blocking algo-

rithm is modiﬁ ed to be “latency sensitive.” For streaming

(throughput sensitive) applications, the blocking algorithm

is adjusted to maximize throughput. The z/OS TCP/IP stack

can dynamically detect the application requirements,

making the necessary adjustments to the blocking algo-

rithm. The monitoring of the application and the blocking

algorithm adjustments are made in real-time, dynamically

adjusting the application’s LAN performance.

System administrators can authorize the z/OS TCP/IP stack

to enable a dynamic setting, which was previously a static

setting. The z/OS TCP/IP stack is able to help determine

the best setting for the current running application, based

on system conﬁ guration, inbound workload volume, CPU

utilization, and trafﬁ c patterns.

Link aggregation for z/VM in Layer 2 mode

z/VM Virtual Switch-controlled (VSWITCH-controlled) link

aggregation (IEEE 802.3ad) allows you to dedicate an

OSA-Express2 (or OSA-Express3) port to the z/VM operat-

ing system when the port is participating in an aggregated

group when conﬁ gured in Layer 2 mode. Link aggregation

(trunking) is designed to allow you to combine multiple

physical OSA-Express3 and OSA-Express2 ports (of the

same type for example 1GbE or 10GbE) into a single logi-

cal link for increased throughput and for non-disruptive

failover in the event that a port becomes unavailable.

• Aggregated link viewed as one logical trunk and con-

taining all of the Virtual LANs (VLANs) required by the

LAN segment

• Load balance communications across several links in a

trunk to prevent a single link from being overrun

• Link aggregation between a VSWITCH and the physical

network switch

• Point-to-point connections

• Up to eight OSA-Express3 or OSA-Express2 ports in one

aggregated link

• Ability to dynamically add/remove OSA ports for “on

demand” bandwidth

• Full-duplex mode (send and receive)

• Target links for aggregation must be of the same type

(for example, Gigabit Ethernet to Gigabit Ethernet)

The Open Systems Adapter/Support Facility (OSA/SF) will

provide status information on an OSA port – its “shared” or

“exclusive use” state. OSA/SF is an integrated component

of z/VM.

Link aggregation is exclusive to System z10 and System

z9, is applicable to the OSA-Express3 and OSA-Express2

features in Layer 2 mode when conﬁ gured as CHPID type

OSD (QDIO), and is supported by z/VM 5.3 and later.

Layer 2 transport mode: When would it be used?

If you have an environment with an abundance of Linux

images in a guest LAN environment, or you need to deﬁ ne

router guests to provide the connection between these guest

LANs and the OSA-Express3 features, then using the Layer

2 transport mode may be the solution. If you have Internet-

work Packet Exchange (IPX), NetBIOS, and SNA protocols,

in addition to Internet Protocol Version 4 (IPv4) and IPv6, use

of Layer 2 could provide “protocol independence.”

The OSA-Express3 features have the capability to perform

like Layer 2 type devices, providing the capability of being

protocol- or Layer-3-independent (that is, not IP-only).

the Layer 2 interface, packet forwarding decisions

With

are based

of Network

system attached

address. This means the trafﬁ c can be IPX, NetBIOS, SNA,

IPv4, or IPv6.

An OSA-Express3 feature can ﬁ lter inbound datagrams by

Virtual Local Area Network identiﬁ cation (VLAN ID, IEEE

802.1q), and/or the Ethernet destination MAC address. Fil-

tering can reduce the amount of inbound trafﬁ c being pro-

cessed by the operating system, reducing CPU utilization.

upon Link Layer (Layer 2) information, instead

Layer (Layer 3) information. Each operating

to the Layer 2 interface uses its own MAC

Layer 2 transport mode is supported by z/VM and Linux on

System z.

OSA Layer 3 Virtual MAC for z/OS

To simplify the infrastructure and to facilitate load balanc-

ing when an LPAR is sharing the same OSA Media Access

Control (MAC) address with another LPAR, each operating

system instance can now have its own unique “logical” or

“virtual” MAC (VMAC) address. All IP addresses associ-

ated with a TCP/IP stack are accessible using their own

VMAC address, instead of sharing the MAC address of

an OSA port. This applies to Layer 3 mode and to an OSA

port shared among Logical Channel Subsystems.

This support is designed to:

Hardware data router

With OSA-Express3, much of what was previously done in

ﬁ rmware (packet construction, inspection, and routing) is

now performed in hardware. This allows packets to ﬂ ow

directly from host memory to the LAN without ﬁ rmware

intervention.

With the hardware data router, the “store and forward”

technique is no longer used, which enables true direct

memory access, a direct host memory-to-LAN ﬂ ow, return-

ing CPU cycles for application use.

This avoids a “hop” and is designed to reduce latency and

to increase throughput for standard frames (1492 byte)

and jumbo frames (8992 byte).

• Improve IP workload balancing

• Dedicate a Layer 3 VMAC to a single TCP/IP stack

• Remove the dependency on Generic Routing Encapsu-

lation (GRE) tunnels

• Improve outbound routing

• Simplify conﬁ guration setup

• Allow WebSphere Application Server content-based

routing to work with z/OS in an IPv6 network

• Allow z/OS to use a “standard” interface ID for IPv6

addresses

• Remove the need for PRIROUTER/SECROUTER function

in z/OS

OSA Layer 3 VMAC for z/OS is exclusive to System z, and

is applicable to OSA-Express3 and OSA-Express2 features

when conﬁ gured as CHPID type OSD (QDIO).

Direct Memory Access (DMA)

OSA-Express3 and the operating systems share a

common storage area for memory-to-memory communi-

cation, reducing system overhead and improving perfor-

mance. There are no read or write channel programs for

data exchange. For write processing, no I/O interrupts

have to be handled. For read processing, the number of

I/O interrupts is minimized.

IBM Communication Controller for Linux (CCL)

CCL is designed to help eliminate hardware dependen-

cies, such as 3745/3746 Communication Controllers,

ESCON channels, and Token Ring LANs, by providing a

software solution that allows the Network Control Program

(NCP) to be run in Linux on System z freeing up valuable

data center ﬂ oor space.

CCL helps preserve mission critical SNA functions, such

as SNI, and z/OS applications workloads which depend

upon these functions, allowing you to collapse SNA inside

a z10 EC while exploiting and leveraging IP.

The OSA-Express3 and OSA-Express2 GbE and

1000BASE-T Ethernet features provide support for CCL.

This support is designed to require no changes to operat-

ing systems (does require a PTF to support CHPID type

OSN) and also allows TPF to exploit CCL. Supported by

z/VM for Linux and z/TPF guest environments.

OSA-Express3 and OSA-Express2 OSN (OSA for NCP)

OSA-Express for Network Control Program (NCP), Chan-

nel path identiﬁ er (CHPID) type OSN, is now available for

use with the OSA-Express3 GbE features as well as the

OSA-Express3 1000BASE-T Ethernet features.

OSA-Express for NCP, supporting the channel data link

control (CDLC) protocol, provides connectivity between

System z operating systems and IBM Communication Con-

troller for Linux (CCL). CCL allows you to keep your busi-

ness data and applications on the mainframe operating

systems while moving NCP functions to Linux on System z.

CCL provides a foundation to help enterprises simplify

their network infrastructure while supporting traditional

Systems Network Architecture (SNA) functions such as

SNA Network Interconnect (SNI).

Communication Controller for Linux on System z is the

solution for companies that want to help improve network

availability by replacing token-ring networks and ESCON

channels with an Ethernet network and integrated LAN

adapters on System z10, OSA-Express3 or OSA-Express2

GbE or 1000BASE-T.

OSA-Express for NCP is supported in the z/OS, z/VM,

z/VSE, TPF, z/TPF, and Linux on System z environments.

OSA Integrated Console Controller

The OSA-Express Integrated Console Controller

(OSA-ICC) support is a no-charge function included in

Licensed Internal Code (LIC) on z10 EC, z10 BC, z9 EC,

z9 BC, z990, and z890 servers. It is available via the OSA-

Express3, OSA-Express2 and OSA-Express 1000BASE-

T Ethernet features, and supports Ethernet-attached

TN3270E consoles.

The OSA-ICC provides a system console function at IPL

time and operating systems support for multiple logical

partitions. Console support can be used by z/OS, z/OS.e,

z/VM, z/VSE, z/TPF, and TPF. The OSA-ICC also supports

local non-SNA DFT 3270 and 328x printer emulation for

™

TSO/E, CICS, IMS

communicates through VTAM

, or any other 3270 application that

With the OSA-Express3 and OSA-Express2 1000BASE-T

Ethernet features, the OSA-ICC is conﬁ gured on a port by

port basis, using the Channel Path Identiﬁ er (CHPID) type

OSC. Each port can support up to 120 console session

connections, can be shared among logical partitions using

Multiple Image Facility (MIF), and can be spanned across

multiple Channel Subsystems (CSSs).

Remove L2/L3 LPAR-to-LPAR Restriction

OSA port sharing between virtual switches can communi-

cate whether the transport mode is the same (Layer 2 to

Layer 2) or different (Layer 2 to Layer 3). This enhance-

ment is designed to allow seamless mixing of Layer 2 and

Layer 3 trafﬁ c, helping to reduce the total cost of network-

ing. Previously, Layer 2 and Layer 3 TCP/IP connections

through the same OSA port (CHPID) were unable to com-

municate with each other LPAR-to-LPAR using the Multiple

Image Facility (MIF).

This enhancement is designed to facilitate a migration

from Layer 3 to Layer 2 and to continue to allow LAN

administrators to conﬁ gure and manage their mainframe

network topology using the same techniques as their non-

mainframe topology.

OSA/SF Virtual MAC and VLAN id Display Capability

The Open Systems Adapter/Support Facility (OSA/SF) has

the capability to support virtual Medium Access Control

(MAC) and Virtual Local Area Network (VLAN) identiﬁ ca-

tions (IDs) associated with OSA-Express2 feature conﬁ g-

ured as a Layer 2 interface. This information will now be

displayed as a part of an OSA Address Table (OAT) entry.

This information is independent of IPv4 and IPv6 formats.

There can be multiple Layer 2 VLAN Ids associated to a

single unit address. One group MAC can be associated to

multiple unit addresses.

For additional information, view IBM Redbooks, IBM

System z Connectivity Handbook (SG24-5444) at:

www.redbooks.

ibm.com

HiperSockets

The HiperSockets function, also known as internal Queued

Direct Input/Output (iDQIO) or internal QDIO, is an inte-

grated function of the z10 EC server that provides users

with attachments to up to sixteen high-speed “virtual”

Local Area Networks (LANs) with minimal system and

network overhead. HiperSockets eliminates the need to

utilize I/O subsystem operations and the need to traverse

an external network connection to communicate between

logical partitions in the same z10 EC server.

Now, the HiperSockets internal networks on z10 EC can

support two transport modes: Layer 2 (Link Layer) as well

as the current Layer 3 (Network or IP Layer). Trafﬁ c can

be Internet Protocol (IP) version 4 or version 6 (IPv4, IPv6)

or non-IP (AppleTalk, DECnet, IPX, NetBIOS, or SNA).

HiperSockets devices are now protocol-independent and

Layer 3 independent. Each HiperSockets device has its

own Layer 2 Media Access Control (MAC) address, which

is designed to allow the use of applications that depend

on the existence of Layer 2 addresses such as DHCP

servers and ﬁ rewalls.

Layer 2 support can help facilitate server consolidation.

Complexity can be reduced, network conﬁ guration is

simpliﬁ ed and intuitive, and LAN administrators can con-

ﬁ gure and maintain the mainframe environment the same

as they do a non-mainframe environment. With support

of the new Layer 2 interface by HiperSockets, packet

forwarding decisions are now based upon Layer 2 infor-

mation, instead of Layer 3 information. The HiperSockets

device performs automatic MAC address generation and

assignment to allow uniqueness within and across logical

partitions (LPs) and servers. MAC addresses can also be

locally administered. The use of Group MAC addresses

for multicast is supported as well as broadcasts to all

other Layer 2 devices on the same HiperSockets network.

Datagrams are only delivered between HiperSockets

devices that are using the same transport mode (Layer 2

with Layer 2 and Layer 3 with Layer 3). A Layer 2 device

cannot communicate directly with a Layer 3 device in

another LPAR.

A HiperSockets device can ﬁ lter inbound datagrams by

Virtual Local Area Network identiﬁ cation (VLAN ID, IEEE

802.1q), the Ethernet destination MAC address, or both.

Filtering can help reduce the amount of inbound traf-

ﬁ c being processed by the operating system, helping to

reduce CPU utilization.

Analogous to the respective Layer 3 functions, HiperSockets

Layer 2 devices can be conﬁ gured as primary or secondary

connectors or multicast routers. This is designed to enable

the creation of high performance and high availability Link

Layer switches between the internal HiperSockets network

and an external Ethernet or to connect the HiperSockets

Layer 2 networks of different servers. The

Multiple Write Facility for z10 EC is also supported for

Layer 2 HiperSockets devices, thus allowing performance

improvements for large Layer 2 datastreams.

HiperSockets Layer 2 support is exclusive to System z10

and is supported by z/OS, Linux on System z environ-

ments, and z/VM for Linux guest exploitation.

HiperSockets Multiple Write Facility for increased performance

Though HiperSockets provides high-speed internal TCP/IP

connectivity between logical partitions within a System z

server – the problem is that HiperSockets draws excessive

CPU utilization for large outbound messages. This may

lead to increased software licensing cost – HiperSock-

ets large outbound messages are charged to a general

CPU which can incur high general purpose CPU costs.

This may also lead to some performance issues due to

synchronous application blocking – HiperSockets large

outbound messages will block a sending application while

synchronously moving data.

HiperSockets

A solution is HiperSockets Multiple Write Facility.

HiperSockets performance has been enhanced to allow

for the streaming of bulk data over a HiperSockets link

between logical partitions (LPARs). The receiving LPAR

can now process a much larger amount of data per I/O

interrupt. This enhancement is transparent to the operating

system in the receiving LPAR. HiperSockets Multiple Write

Facility, with fewer I/O interrupts, is designed to reduce

CPU utilization of the sending and receiving LPAR.

The HiperSockets Multiple Write solution moves multiple

output data buffers in one write operation.

If the function is disabled then one output data buffer

is moved in one write operation. This is also how

HiperSockets functioned in the past.

If the function is enabled then multiple output data buf-

fers are moved in one write operation. This reduces CPU

utilization related to large outbound messages. When

enabled, HiperSockets Multiple Write will be used anytime

a message spans an IQD frame requiring multiple output

data buffers (SBALs) to transfer the message. Spanning

multiple output data buffers can be affected by a number

of factors including:

• IQD frame size

• Application socket send size

• TCP send size

• MTU size

The HiperSockets Multiple Write Facility is supported in

the z/OS environment. For a complete description of the

System z10 connectivity capabilities refer to IBM System z

Connectivity Handbook, SG24-5444.

HiperSockets Enhancement for zIIP Exploitation

In z/OS V1.10, speciﬁ cally, the z/OS Communications

Server allows the HiperSockets Multiple Write Facility

processing for outbound large messages originating

from z/OS to be performed on a zIIP. The combination of

HiperSockets Multiple Write Facility and zIIP enablement

is described as “zIIP-Assisted HiperSockets for large mes-

sages.” zIIP-Assisted HiperSockets can help make highly

secure, available, virtual HiperSockets networking a more

attractive option. z/OS application workloads based on

XML, HTTP, SOAP, Java, etc., as well as traditional ﬁ le

transfer, can beneﬁ t from zIIP enablement by helping to

lower general purpose processor utilization for such TCP/

IP trafﬁ c.

Only outbound z/OS TCP/IP large messages which origi-

nate within a z/OS host are eligible for HiperSockets zIIP-

Assisted processing. Other types of network trafﬁ c such

as IP forwarding, Sysplex Distributor, inbound processing,

small messages, or other non TCP/IP network protocols

are not eligible for zIIP-Assisted HiperSockets. When the

workload is eligible, then the TCP/IP HiperSockets device

driver layer (write) processing is redirected to a zIIP,

which will unblock the sending application. zIIP-Assisted

HiperSockets for large messages is available with z/OS

V1.10 with PTF and System z10 only. This feature is unsup-

ported if z/OS is running as a guest in a z/VM environment

and is supported for large outbound messages only.

To estimate potential ofﬂ oad, use PROJECTCPU for current

and existing workloads. This is accurate and very simple,

but you have to be on z/OS 1.10 with the enabling PTFs

AND System z10 server AND you need to be performing

HiperSockets Multiple Write workload already on z/OS.

Security Cryptography

Today’s world mandates that your systems are secure and

available 24/7. The z10 EC employs some of the most

advanced security technologies in the industry—helping

you to meet rigid regulatory requirements that include

encryption solutions, access control management, and

extensive auditing features. It also provides disaster recov-

ery conﬁ gurations and is designed to deliver 99.999%

application availability to help avoid the downside of

planned downtime, equipment failure, or the complete loss

of a data center.

When you need to be more secure, more resilient —

z Can Do IT. The z10 processor chip has on board cryp-

tographic functions. Standard clear key integrated crypto-

graphic coprocessors provide high speed cryptography

for protecting data in storage. CP Assist for Cryptographic

Function (CPACF) supports DES, TDES, Secure Hash

Algorithms (SHA) for up to 512 bits, Advanced Encryption

Standard (AES) for up to 256 bits and Pseudo Random

Number Generation (PRNG). Logging has been added to

the TKE workstation to enable better problem tracking.

System z is investing in accelerators that provide improved

performance for specialized functions. The Crypto

Express2 feature for cryptography is an example. The

Crypto Express2 feature can be conﬁ gured as a secure

key coprocessor or for Secure Sockets Layer (SSL) accel-

eration. The feature includes support for 13, 14, 15, 16, 17,

18 and 19 digit Personal Account Numbers for stronger

protection of data. And the tamper-resistant cryptographic

coprocessor is certiﬁ ed at FIPS 140-2 Level 4.

In 2008, the z10 EC received Common Criteria Evalua-

tion Assurance Level 5 (EAL5) certiﬁ cation for security of

logical partitions. System z security is one of the many

reasons why the world’s top banks and retailers rely on the

IBM mainframe to help secure sensitive business transac-

tions.

z Can Do IT securely.

The z10 EC includes both standard cryptographic hard-

ware and optional cryptographic features for ﬂ exibility and

growth capability. IBM has a long history of providing hard-

ware cryptographic solutions, from the development of

Data Encryption Standard (DES) in the 1970s to delivering

integrated cryptographic hardware in a server to achieve

the US Government’s highest FIPS 140-2 Level 4 rating for

secure cryptographic hardware.

The IBM System z10 EC cryptographic functions include

the full range of cryptographic operations needed for e-

business, e-commerce, and ﬁ nancial institution applica-

tions. In addition, custom cryptographic functions can be

added to the set of functions that the z10 EC offers.

New integrated clear key encryption security features on

z10 EC include support for a higher advanced encryption

standard and more secure hashing algorithms. Performing

these functions in hardware is designed to contribute to

improved performance.

Enhancements to eliminate preplanning in the cryptogra-

phy area include the System z10 function to dynamically

add Crypto to a logical partition. Changes to image pro-

ﬁ les, to support Crypto Express2 features, are available

without an outage to the logical partition. Crypto Express2

features can also be dynamically deleted or moved.

CP Assist for Cryptographic Function (CPACF)

CPACF supports clear-key encryption. All CPACF func-

tions can be invoked by problem state instructions deﬁ ned

by an extension of System z architecture. The function is

activated using a no-charge enablement feature and offers

the following on every CPACF that is shared between two

Processor Units (PUs) and designated as CPs and/or Inte-

grated Facility for Linux (IFL):

• DES, TDES, AES-128, AES-192, AES-256

• SHA-1, SHA-224, SHA-256, SHA-384, SHA-512

• Pseudo Random Number Generation (PRNG)

Enhancements to CP Assist for Cryptographic Function (CPACF):

CPACF has been enhanced to include support of the fol-

lowing on CPs and IFLs:

• Advanced Encryption Standard (AES) for 192-bit keys

and 256-bit keys

• SHA-384 and SHA-512 bit for message digest

SHA-1, SHA-256, and SHA-512 are shipped enabled and

do not require the enablement feature.

Crypto Express2 Accelerator – for Secure Sockets Layer

(SSL) acceleration:

• Is designed to support clear-key RSA operations

• Ofﬂ oads compute-intensive RSA public-key and private-

key cryptographic operations employed in the SSL pro-

tocol Crypto Express2 features can be carried forward

on an upgrade to the System z10 EC, so users may con-

tinue to take advantage of the SSL performance and the

conﬁ guration capability.

Support for CPACF is also available using the Integrated

Cryptographic Service Facility (ICSF). ICSF is a com-

ponent of z/OS, and is designed to transparently use

the available cryptographic functions, whether CPACF

or Crypto Express2, to balance the workload and help

address the bandwidth requirements of your applications.

The enhancements to CPACF are exclusive to the System

z10 and supported by z/OS, z/VM, z/VSE, and Linux on

System z.

Conﬁ gurable Crypto Express2

The Crypto Express2 feature has two PCI-X adapters.

Each of the PCI-X adapters can be deﬁ ned as either a

Coprocessor or an Accelerator.

Crypto Express2 Coprocessor – for secure-key encrypted

transactions (default) is:

• Designed to support security-rich cryptographic func-

tions, use of secure-encrypted-key values, and User

Deﬁ ned Extensions (UDX)

• Designed to support secure and clear-key RSA opera-

tions

• The tamper-responding hardware and lower-level ﬁ rm-

ware layers are validated to U.S. Government FIPS 140-

2 standard: Security Requirements for Cryptographic

Modules at Level 4.

The conﬁ gurable Crypto Express2 feature is supported by

z/OS, z/VM, z/VSE, and Linux on System z. z/VSE offers

support for clear-key operations only. Current versions of

z/OS, z/VM, and Linux on System z offer support for both

clear-key and secure-key operations.

Additional cryptographic functions and features with Crypto Express2

Key management – Added key management for remote

loading of ATM and Point of Sale (POS) keys. The elimina-

tion of manual key entry is designed to reduce downtime

due to key entry errors, service calls, and key manage-

ment costs.

Improved key exchange – Added Improved key

exchange with non-CCA cryptographic systems.

New features added to IBM Common Cryptographic

Architecture (CCA) are designed to enhance the ability to

exchange keys between CCA systems, and systems that

do not use control vectors by allowing the CCA system

owner to deﬁ ne permitted types of key import and export

while preventing uncontrolled key exchange that can open

the system to an increased threat of attack.

These are supported by z/OS and by z/VM for guest

exploitation.

Support for ISO 16609

Support for ISO 16609 CBC Mode T-DES Message

Authentication (MAC) requirements ISO 16609 CBC Mode

T-DES MAC is accessible through ICSF function calls

made in the PCI-X Cryptographic Adapter segment 3

Common Cryptographic Architecture (CCA) code.

Secure Key AES

The Advanced Encryption Standard (AES) is a National

Institute of Standards and Technology speciﬁ cation for the

encryption of electronic data. It is expected to become the

accepted means of encrypting digital information, includ-

ing ﬁ nancial, telecommunications, and government data.

This is supported by z/OS and by z/VM for guest

exploitation.

Support for RSA keys up to 4096 bits

The RSA services in the CCA API are extended to sup-

port RSA keys with modulus lengths up to 4096 bits. The

services affected include key generation, RSA-based

key management, digital signatures, and other functions

related to these.

Refer to the ICSF Application Programmers Guide, SA22-

7522, for additional details.

Cryptographic enhancements to Crypto Express2

Dynamically add crypto to a logical partition

Today, users can preplan the addition of Crypto Express2

features to a logical partition (LP) by using the Crypto page

in the image proﬁ le to deﬁ ne the Cryptographic Candidate

List, Cryptographic Online List, and Usage and Control

Domain Indexes in advance of crypto hardware installation.

With the change to dynamically add crypto to a logical

partition, changes to image proﬁ les, to support Crypto

Express2 features, are available without outage to the

logical partition. Users can also dynamically delete or

move Crypto Express2 features. Preplanning is no longer

required.

This enhancement is supported by z/OS, z/VM for guest

exploitation, z/VSE, and Linux on System z.

AES is the symmetric algorithm of choice, instead of Data

Encryption Standard (DES) or Triple-DES, for the encryp-

tion and decryption of data. The AES encryption algorithm

will be supported with secure (encrypted) keys of 128,

192, and 256 bits. The secure key approach, similar to

what is supported today for DES and TDES, provides the

ability to keep the encryption keys protected at all times,

including the ability to import and export AES keys, using

RSA public key technology.

Support for AES encryption algorithm includes the master

key management functions required to load or generate

AES master keys, update those keys, and re-encipher key

tokens under a new master key.

Support for 13- thru 19-digit Personal Account Numbers

Credit card companies sometimes perform card security

code computations based on Personal Account Number

(PAN) data. Currently, ICSF callable services CSNBCSV

(VISA CVV Service Verify) and CSNBCSG (VISA CVV

Service Generate) are used to verify and to generate a

VISA Card Veriﬁ cation Value (CVV) or a MasterCard Card

Veriﬁ cation Code (CVC). The ICSF callable services cur-

rently support 13-, 16-, and 19-digit PAN data. To provide

additional ﬂ exibility, new keywords PAN-14, PAN-15, PAN-

17, and PAN-18 are implemented in the rule array for both

CSNBCSG and CSNBCSV to indicate that the PAN data is

comprised of 14, 15, 17, or 18 PAN digits, respectively.

Support for 13- through 19-digit PANs is exclusive to

System z10 and is offered by z/OS and z/VM for guest

exploitation.

TKE 5.3 workstation and continued support for Smart Card

Reader

The Trusted Key Entry (TKE) workstation and the TKE

5.3 level of Licensed Internal Code are optional features

on the System z10 EC. The TKE 5.3 Licensed Internal

Code (LIC) is loaded on the TKE workstation prior to ship-

ment. The TKE workstation offers security-rich local and

remote key management, providing authorized persons a

method of operational and master key entry, identiﬁ cation,

exchange, separation, and update. The TKE workstation

supports connectivity to an Ethernet Local Area Network

(LAN) operating at 10 or 100 Mbps. Up to ten TKE work-

stations can be ordered.

Enhancement with TKE 5.3 LIC

The TKE 5.3 level of LIC includes support for the AES

encryption algorithm, adds 256-bit master keys, and

includes the master key management functions required to

load or generate AES master keys to cryptographic copro-

cessors in the host.

Also included is an imbedded screen capture utility to

permit users to create and to transfer TKE master key entry

instructions to diskette or DVD. Under ‘Service Manage-

ment’ a “Manage Print Screen Files” utility will be available

to all users.

The TKE workstation and TKE 5.3 LIC are available on the

z10 EC, z10 BC, z9 EC, and z9 BC.

TKE 5.3 LIC has added the capability to store key parts

on DVD-RAMs and continues to support the ability to store

key parts on paper, or optionally on a smart card. TKE 5.3

LIC has limited the use of ﬂ oppy diskettes to read-only.

The TKE 5.3 LIC can remotely control host cryptographic

coprocessors using a password-protected authority signa-

ture key pair either in a binary ﬁ le or on a smart card.

The Smart Card Reader, attached to a TKE workstation

with the 5.3 level of LIC will support System z10 BC, z10

EC, z9 EC, and z9 BC. However, TKE workstations with 5.0,

5.1 and 5.2 LIC must be upgraded to TKE 5.3 LIC.

TKE additional smart cards

You have the capability to order Java-based blank smart

cards which offers a highly efﬁ cient cryptographic and

data management application built-in to read-only memory

for storage of keys, certiﬁ cates, passwords, applications,

and data. The TKE blank smart cards are compliant with

FIPS 140-2 Level 2. When you place an order for a quantity

of one, you are shipped 10 smart cards.

System z10 EC cryptographic migration:

Clients using a User Deﬁ ned Extension (UDX) of the

Common Cryptographic Architecture should contact their

UDX provider for an application upgrade before order-

ing a new System z10 EC machine; or before planning to

migrate or activate a UDX application to ﬁ rmware driver

level 73 and higher.

Smart Card Reader

Support for an optional Smart Card Reader attached to

the TKE 5.3 workstation allows for the use of smart cards

that contain an embedded microprocessor and associated

memory for data storage. Access to and the use of con-

ﬁ dential data on the smart cards is protected by a user-

deﬁ ned Personal Identiﬁ cation Number (PIN).

• The Crypto Express2 feature is supported on the System

z9 and can be carried forward on an upgrade to the

System z10 EC

• You may continue to use TKE workstations with 5.3

licensed internal code to control the System z10 EC

• TKE 5.0 and 5.1 workstations may be used to control z9

EC, z9 BC, z890, and z990 servers

Remote Loading of Initial ATM Keys

Typically, a new ATM has none of the ﬁ nancial institution’s

keys installed. Remote Key Loading refers to the pro-

cess of loading Data Encryption Standard (DES) keys to

Automated Teller Machines (ATMs) from a central admin-

istrative site without the need for personnel to visit each

machine to manually load DES keys. This has been done

by manually loading each of the two clear text key parts

individually and separately into ATMs. Manual entry of

keys is one of the most error-prone and labor-intensive

activities that occur during an installation, making it expen-

sive for the banks and ﬁ nancial institutions.

Improved Key Exchange With Non-CCA Cryptographic Systems

IBM Common Cryptographic Architecture (CCA) employs

Control Vectors to control usage of cryptographic keys.

Non-CCA systems use other mechanisms, or may use

keys that have no associated control information. This

enhancement provides the ability to exchange keys

between CCA systems, and systems that do not use Con-

trol Vectors. Additionally, it allows the CCA system owner

to deﬁ ne permitted types of key import and export which

can help to prevent uncontrolled key exchange that can

open the system to an increased threat of attack.

Remote Key Loading Beneﬁ ts

• Provides a mechanism to load initial ATM keys without

the need to send technical staff to ATMs

• Reduces downtime due to key entry errors

• Reduces service call and key management costs

• Improves the ability to manage ATM conversions and

upgrades

Integrated Cryptographic Service Facility (ICSF), together

with Crypto Express2, support the basic mechanisms in

Remote Key Loading. The implementation offers a secure

bridge between the highly secure Common Cryptographic

Architecture (CCA) environment and the various formats

and encryption schemes offered by the ATM vendors. The

following ICSF services are offered for Remote Key loading:

•

Trusted Block Create (CSNDTBC)

This callable service

is used to create a trusted block containing a public key

and some processing rules.

Remote Key Export (CSNDRKX)

•

This callable service

uses the trusted block to generate or export DES keys

for local use and for distribution to an ATM or other

remote device.

These enhancements are exclusive to System z10, and

System z9 and are supported by z/OS and z/VM for z/OS

guest exploitation.

Refer to Application Programmers Guide, SA22-7522, for

additional details.

On Demand Capabilities

It may sound revolutionary, but it’s really quite simple. In

the highly unpredictable world of On Demand business,

you should get what you need, when you need it. And you

should pay for only what you use. Radical? Not to IBM. It’s

the basic principle underlying IBM capacity on demand for

the IBM System z10.

Changes have been made to enhance the Capacity on

Demand (CoD) experience for System z10 EC customers:

• The number of temporary records that can be installed

on the Central Processor Complex (CPC) has increased

from four to eight.

• Resource tokens are now available for On/Off CoD.

The z10 EC also introduces a architectural approach for

temporary offerings that can change the thinking about on

demand capacity. One or more ﬂ exible conﬁ guration deﬁ ni-

tions can be used to solve multiple temporary situations and

multiple capacity conﬁ gurations can be active at once (for

example, activation of just two CBUs out of a deﬁ nition that

has four CBUs is acceptable). This means that On/Off CoD

can be active and up to seven other offerings can be active

simultaneously. Tokens can be purchased for On/Off CoD

so hardware activations can be prepaid.

All activations can be done without having to interact with

IBM—when it is determined that capacity is required,

no passwords or phone connections are necessary. As

long as the total z10 EC can support the maximums that

are deﬁ ned, then they can be made available. With the

z10 EC, it is now possible to add permanent capacity

while a temporary capacity is currently activated, without

having to return ﬁ rst to the original conﬁ guration.

Capacity on Demand – Temporary Capacity:

The set of contract documents which support the various

Capacity on Demand offerings available for z10 EC has

been completely refreshed. While customers with exist-

ing contracts for Capacity Back Up (CBU) and Customer

Initiated Upgrade (CIU) – On/Off Capacity on Demand

(On/Off CoD) may carry those contracts forward to z10 EC

machines, new CoD capability and offerings for z10 EC is

only supported by this new contract set.

The new contract set is structured in a modular, hierarchi-

cal approach. This new approach will eliminate redundant

terms between contract documents, simplifying the con-

tracts for our customers and IBM.

Just-in-time deployment of System z10 EC Capacity on

Demand (CoD) is a radical departure from previous System

z and zSeries servers. This new architecture allows:

• Up to eight temporary records to be installed on the

CPC and active at any given time

• Up to 200 temporary records to be staged on the SE

• Variability in the amount of resources that can be acti-

vated per record

• The ability to control and update records independent

of each other

• Improved query functions to monitor the state of each

record

• The ability to add capabilities to individual records con-

currently, eliminating the need for constant ordering of

new temporary records for different user scenarios

• Permanent LIC-CC upgrades to be performed while

temporary resources are active

These capabilities allow you to access and manage

processing capacity on a temporary basis, providing

increased ﬂ exibility for on demand environments. The CoD

offerings are built from a common Licensed Internal Code

– Conﬁ guration Code (LIC-CC) record structure. These

Temporary Entitlement Records (TERs) contain the infor-

mation necessary to control which type of resource can be

accessed and to what extent, how many times and for how

long, and under what condition – test or real workload.

Use of this information gives the different offerings their

personality.

Capacity Back Up (CBU): Temporary access to dormant

processing units (PUs), intended to replace capacity lost

within the enterprise due to a disaster. CP capacity or any

and all specialty engine types (zIIP, zAAP, SAP, IFL, ICF)

can be added up to what the physical hardware model

can contain for up to 10 days for a test activation or 90

days for a true disaster recovery.

On system z10 the CBU entitlement records contain an

expiration date that is established at the time of order

and is dependent upon the quantity of CBU years. You

will now have the capability to extend your CBU entitle-

ments through the purchase of additional CBU years. The

number of CBU years per instance of CBU entitlement

remains limited to ﬁ ve and fractional years are rounded up

to the near whole integer when calculating this limit. For

instance, if there are two years and eight months to the

expiration date at the time of order, the expiration date can

be extended by no more than two additional years. One

test activation is provided for each additional CBU year

added to the CBU entitlement record.

CBU Tests: The allocation of the default number of test

activations changed. Rather than a ﬁ xed default number

of ﬁ ve test activations for each CBU entitlement record,

the number of test activations per instance of the CBU

entitlement record will coincide with the number of CBU

years, the number of years assigned to the CBU record.

This equates to one test activation per year for each CBU

entitlement purchased.

These changes apply only to System z10 and to CBU

entitlements purchased through the IBM sales channel or

directly from Resource Link.

There are now terms governing System z Capacity Back

Up (CBU) which allow customers to execute production

workload on a CBU Upgrade during a CBU Test..

While all new CBU contract documents contain the new

CBU Test terms, existing CBU customers will need to exe-

cute a contract to expand their authorization for CBU Test

upgrades if they want to have the right to execute produc-

tion workload on the CBU Upgrade during a CBU Test.

Amendment for CBU Tests

The modiﬁ cation of CBU Test terms is available for existing

CBU customers via the IBM Customer Agreement Amend-

ment for IBM System z Capacity Backup Upgrade Tests (in

the US this is form number Z125-8145). This amendment

can be executed at any time, and separate from any par-

ticular order.

Capacity for Planned Event (CPE): Temporary access

to dormant PUs, intended to replace capacity lost within

the enterprise due to a planned event such as a facility

upgrade or system relocation. This offering is available

only on the System z10. CPE is similar to CBU in that it is

intended to replace lost capacity; however, it differs in its

scope and intent. Where CBU addresses disaster recovery

scenarios that can take up to three months to remedy, CPE

is intended for short-duration events lasting up to three

days, maximum. Each CPE record, once activated, gives

you access to all dormant PUs on the machine that can be

conﬁ gured in any combination of CP capacity or specialty

engine types (zIIP, zAAP, SAP, IFL, ICF).

On/Off Capacity on Demand (On/Off CoD): Temporary

access to dormant PUs, intended to augment the existing

capacity of a given system. On/Off CoD helps you contain

workload spikes that may exceed permanent capacity

such that Service Level Agreements cannot be met and

business conditions do not justify a permanent upgrade.

An On/Off CoD record allows you to temporarily add CP

capacity or any and all specialty engine types (zIIP, zAAP,

SAP, IFL, ICF) up to the following limits:

• The quantity of temporary CP capacity ordered is limited

by the quantity of purchased CP capacity (permanently

active plus unassigned).

• The quantity of temporary IFLs ordered is limited by

quantity of purchased IFLs (permanently active plus

unassigned).

• Temporary use of unassigned CP capacity or unas-

signed IFLs will not incur a hardware charge.

• The quantity of permanent zIIPs plus temporary zIIPs

can not exceed the quantity of purchased (permanent

plus unassigned) CPs plus temporary CPs and the

quantity of temporary zIIPs can not exceed the quantity

of permanent zIIPs.

• The quantity of permanent zAAPs plus temporary zAAPs

can not exceed the quantity of purchased (permanent

plus unassigned) CPs plus temporary CPs and the

quantity of temporary zAAPs can not exceed the quan-

tity of permanent zAAPs.

The quantity of temporary ICFs ordered is limited by the

•

quantity of permanent ICFs as long as the sum of perma-

nent and temporary ICFs is less than or equal to 16.

•

The quantity of temporary SAPs ordered is limited by the

quantity of permanent SAPs as long as the sum of perma-

nent and temporary SAPs is less than or equal to 32.

Although the System z10 E will allow up to eight temporary

records of any type to be installed, only one temporary On/

Off CoD record may be active at any given time. An On/Off

CoD record may be active while other temporary records

are active.

Management of temporary capacity through On/Off CoD

is further enhanced through the introduction of resource

tokens. For CP capacity, a resource token represents

an amount of processing capacity that will result in one

MSU of SW cost for one day – an MSU-day. For specialty

engines, a resource token represents activation of one

engine of that type for one day – an IFL-day, a zIIP-day or

a zAAP-day. The different resource tokens are contained

in separate pools within the On/Off CoD record. The cus-

tomer, via the Resource Link ordering process, determines

how many tokens go into each pool. Once On/Off CoD

resources are activated, tokens will be decremented from

their pools every 24 hours. The amount decremented is

based on the highest activation level for that engine type

during the previous 24 hours.

Resource tokens are intended to help customers bound

the hardware costs associated with using On/Off CoD. The

use of resource tokens is optional and they are available

on either a prepaid or post-paid basis. When prepaid, the

customer is billed for the total amount of resource tokens

contained within the On/Off CoD record. When post-paid,

the total billing against the On/Off Cod record is limited by

the total amount of resource tokens contained within the

record. Resource Link will provide the customer an order-

ing wizard to help determine how many tokens they need

to purchase for different activation scenarios. Resource

tokens within an On/Off CoD record may also be replen-

ished.

Resource Link offers an ordering wizard to help determine

how many tokens you need to purchase for different acti-

vation scenarios. Resource tokens within an On/Off CoD

record may also be replenished. For more information

on the use and ordering of resource tokens, refer to the

Capacity on Demand Users Guide, SC28-6871.

Capacity Provisioning

Hardware working with software is critical. The activation

of On/Off CoD on z10 EC can be simpliﬁ ed or automated

by using z/OS Capacity Provisioning (available with z/OS

V1.10 and z/OS V1.9). This capability enables the monitor-

ing of multiple systems based on Capacity Provisioning and

Workload Manager (WLM) deﬁ nitions. When the deﬁ ned

conditions are met, z/OS can suggest capacity changes for

manual activation from a z/OS console or the system can

add or remove temporary capacity automatically and with-

out operator intervention. z10 EC can do IT better.

z/OS Capacity provisioning allows you to set up rules

deﬁ ning the circumstances under which additional capac-

ity should be provisioned in order to fulﬁ ll a speciﬁ c busi-

ness need. The rules are based on criteria, such as: a

speciﬁ c application, the maximum additional capacity that

should be activated, time and workload conditions. This

support provides a fast response to capacity changes and

ensures sufﬁ cient processing power will be available with

the least possible delay even if workloads ﬂ uctuate.

An installed On/Off CoD record is a necessary prerequisite

for automated control of temporary capacity through z/OS

Capacity Provisioning.

See z/OS MVS Capacity Provisioning User’s Guide

(SA33-8299) for more information.

On/Off CoD Test: On/Off CoD allows for a no-charge test.

No IBM charges are assessed for the test, including IBM

charges associated with temporary hardware capacity,

IBM software, or IBM maintenance. This test can be used

to validate the processes to download, stage, install, acti-

vate, and deactivate On/Off CoD capacity non-disruptively.

Each On/Off CoD-enabled server is entitled to only one no-

charge test. This test may last up to a maximum duration

of 24 hours commencing upon the activation of any capac-

ity resources contained in the On/Off CoD record. Activa-

tion levels of capacity may change during the 24 hour test

period. The On/Off CoD test automatically terminates at

the end of the 24 hours period. In addition to validating

the On/Off CoD function within your environment, you may

choose to use this test as a training session for your per-

sonnel who are authorized to activate On/Off CoD.

SNMP API (Simple Network Management Protocol Appli-

cation Programming Interface) enhancements have also

been made for the new Capacity On Demand features.

More information can be found in the System z10 Capacity

On Demand User’s Guide, SC28-6871.

Capacity on Demand – Permanent Capacity

Customer Initiated Upgrade (CIU) facility: When your

business needs additional capacity quickly, Customer

Initiated Upgrade (CIU) is designed to deliver it. CIU is

designed to allow you to respond to sudden increased

capacity requirements by requesting a System z10 EC PU

and/or memory upgrade via the Web, using IBM Resource

Link, and downloading and applying it to your System z10

EC server using your system’s Remote Support connec-

tion. Further, with the Express option on CIU, an upgrade

may be made available for installation as fast as within a

few hours after order submission.

Permanent upgrades: Orders (MESs) of all PU types and

memory for System z10 EC servers that can be delivered

by Licensed Internal Code, Control Code (LIC-CC) are

eligible for CIU delivery. CIU upgrades may be performed

up to the maximum available processor and memory

resources on the installed server, as conﬁ gured. While

capacity upgrades to the server itself are concurrent,

your software may not be able to take advantage of the

increased capacity without performing an Initial Program-

ming Load (IPL).

System z9 System z10

Resources

CP, zIIP, zAAP, IFL, ICF CP, zIIP, zAAP, IFL, ICF, SAP

Offerings Requires access to IBM/ No password required

RETAIN® to activate to IBM/RETAIN to activate CBU, On/Off CoD CBU, On/Off CoD, CPE One offering at a time Multiple offerings active

Permanent Requires de-provisioning Concurrent with temporary upgrades

Replenishment No

of temporary capacity ﬁ rst

offerings

Yes w/ CBU & On/Off CoD

CBU Tests 5 tests per record Up to 15 tests per record

CBU Expiration No expiration Speciﬁ c term length

Capacity Provisioning No Yes Manager Support

Reliability, Availability, and Serviceability (RAS)

In today’s on demand environment, downtime is not only

unwelcome—it’s costly. If your applications aren’t consis-

tently available, your business suffers. The damage can

extend well beyond the ﬁ nancial realm into key areas of

customer loyalty, market competitiveness and regulatory

compliance. High on the list of critical business require-

ments today is the need to keep applications up and run-

ning in the event of planned or unplanned disruptions to

your systems.

While some servers are thought of offering weeks or even

months of up time, System z thinks of this in terms of

achieving years. The z10 EC continues our commitment

to deliver improvements in hardware Reliability, Availability

and Serviceability (RAS) with every new System z server.

They include microcode driver enhancements, dynamic

segment sparing for memory and ﬁ xed HSA. The z10 EC

is a server that can help keep applications up and running

in the event of planned or unplanned disruptions to the

system.

RAS Design Focus

High Availability (HA) – The attribute of a system

designed to provide service during deﬁ ned peri-

ods, at acceptable or agreed upon levels and masks

UNPLANNED OUTAGES from end users. It employs fault

tolerance, automated failure detection, recovery, bypass

reconﬁ guration, testing, problem and change manage-

ment.

Continuous Operations (CO) – The attribute of a system

designed to continuously operate and mask PLANNED

OUTAGES from end users. It employs non-disruptive hard-

ware and software changes, non-disruptive conﬁ guration

and software coexistence.

Continuous Availability (CA) – The attribute of a system

designed to deliver non-disruptive service to the end user

7 days a week, 24 HOURS A DAY (there are no planned or

unplanned outages). It includes the ability to recover from

a site disaster by switching computing to a second site.

The System z10 EC is designed to deliver industry lead-

ing reliability, availability and security our customers have

come to expect from System z servers. System z10 EC

RAS is designed to reduce all sources of outages by

reducing unscheduled, scheduled and planned outages.

Planned outages are further designed to be reduced

with the introduction of concurrent I/O drawer add and

eliminating pre-planning requirements. These features are

designed to reduce the need for a Power-on-Reset (POR)

and help eliminate the need to deactivate/activate/IPL a

logical partition.

Availability Functions

With the z10 EC, signiﬁ cant steps have been taken in the

area of server availability with a focus on reducing pre-

planning requirements. Pre-planning requirements are min-

imized by delivering and reserving 16 GB for HSA so the

maximum conﬁ guration capabilities can be exploited. And

with the introduction of the ability to seamlessly include

such events as creation of LPARs, inclusion of logical

subsystems, changing logical processor deﬁ nitions in an

LPAR, and the introduction of cryptography into an LPAR.

Features that carry forward from previous generation pro-

cessors include the ability to dynamically enable I/O, and

the dynamic swapping of processor types.

Hardware System Area (HSA)

Fixed HSA of 16 GB is provided as standard with the z10

EC. The HSA has been designed to eliminate planning for

HSA. Preplanning for HSA expansion for conﬁ gurations will

be eliminated as HCD/IOCP will, via the IOCDS process,

always reserve:

• 4 Logical Channel Subsystems (LCSS), pre-deﬁ ned

• 60 Logical Partitions (LPARs), pre-deﬁ ned

• Subchannel set 0 with 63.75k devices

• Subchannel set 1 with 64K-1 devices

• Dynamic I/O Reconﬁ guration – always enabled by

default

• Concurrent Patch - always enabled by default

• Add/Change the number of logical CP, IFL, ICF, zAAP,

zIIP, processors per partition and add SAPs to the con-

ﬁ guration

• Dynamic LPAR PU assignment optimization CPs, ICFs,

IFLs, zAAPs, zIIPs, SAPs

• Dynamically Add/Remove Crypto (no LPAR deactivation

required)

Enhanced Book Availability

With proper planning, z10 EC is designed to allow a

single book, in a multi-book server, to be non-disrup-

tively removed from the server and re-installed during an

upgrade or repair action. To minimize the effect on current

workloads and applications, you should ensure that you

have sufﬁ cient inactive physical resources on the remain-

ing books to complete a book removal.

For customers conﬁ guring for maximum availability we rec-

ommend to purchasing models with one additional book.

To ensure you have the appropriate level of memory, you

may want to consider the selection of the Flexible Memory

Option features to provide additional resources when

completing an Enhanced Book Availability action or when

considering plan ahead options for the future. Enhanced

Book Availability may also provide beneﬁ ts should you

choose not to conﬁ gure for maximum availability. In these

cases, you should have sufﬁ cient inactive resources on

the remaining books to contain critical workloads while

completing a book replacement. Contact your IBM rep-

resentative to help you determine and plan the proper

conﬁ guration to support your workloads when using non-

disruptive book maintenance.

Enhanced Book Availability is an extension of the support

for Concurrent Book Add (CBA) delivered on z990. CBA

makes it possible to concurrently upgrade a server by

integrating a second, third, or fourth book into the server

without necessarily affecting application processing. The

following scenarios prior to the availability of EBA would

require a disruptive customer outage. With EBA these

upgrade and repair procedures can be performed concur-

rently without interfering with customer operations.

Concurrent Physical Memory Upgrade

Allows one or more physical memory cards on a single

book to be added, or an existing card to be upgraded

increasing the amount of physical memory in the system.

ment of an HCA2-C fanout card or book, the z10 EC is

designed to provide access to your I/O devices through

another Inﬁ niBand Multiplexer (IFB-MP) to the affected I/O

domains. This is exclusive to System z10 EC and z9 EC.

Concurrent Physical Memory Replacement

Allows one or more defective memory cards on a single

book to be replaced concurrent with the operation of the

system.

Concurrent Defective Book Replacement

Allows the concurrent repair of a defective book when that

book is operating degraded due to errors such as multiple

defective processors.

Enhanced Book Availability is exclusive to z10 EC and

z9 EC.

Flexible Memory Option

Flexible memory was ﬁ rst introduced on the z9 EC as part

of the design changes and offerings to support enhanced

book availability. Flexible memory provides the additional

resources to maintain a constant level of memory when

replacing a book. On z10 EC, the additional resources

required for the ﬂ exible memory conﬁ gurations are

provided through the purchase of preplanned memory fea-

tures along with the purchase of your memory entitlement.

In most cases, this implementation provides a lower-cost

solution compared to z9 EC. Flexible memory conﬁ gura-

tions are available on Models E26, E40, E56, and E64 only

and range from 32 GB to 1136 GB, model dependent.

Enhanced Driver Maintenance

One of the greatest contributors to downtime during

planned outages is Licensed Internal Code (LIC) updates.

When properly conﬁ gured, z10 EC is designed to permit

select planned LIC updates.

A new query function has been added to validate LIC EDM

requirements in advance. Enhanced programmatic internal

controls have been added to help eliminate manual analy-

sis by the service team of certain exception conditions.

With the z10 EC, PR/SM code has been enhanced to allow

multiple EDM ‘From’ sync points. Automatic apply of EDM

licensed internal change requirements is now limited to EDM

and the licensed internal code changes update process.

There are several reliability, availability, and serviceability

(RAS) enhancements that have been made to the HMC/SE

based on the feedback from the System z9 Enhanced

Driver Maintenance ﬁ eld experience.

• Change to better handle intermittent customer network

issues

• EDM performance improvements

• New EDM user interface features to allow for customer

and service personnel to better plan for the EDM

• A new option to check all licensed internal code which

can be executed in advance of the EDM preload or

activate

Redundant I/O Interconnect

z10 EC with Redundant I/O Interconnect is designed to

allow you to replace a book or respond to a book failure

and retain connectivity to resources. In the event of a

failure or customer initiated action such as the replace-

Dynamic Oscillator Switchover

The z10 EC has two oscillator cards, a primary and a

backup. For most cases, should a failure occur on the pri-

mary oscillator card, the backup can detect it, switch over,

and provide the clock signal to the system transparently,

with no system outage. Previously, in the event of a failure

of the active oscillator, a system outage would occur, the

subsequent system Power On Reset (POR) would select

the backup, and the system would resume operation.

Dynamic Oscillator Switchover is exclusive to System z10

EC and System z9.

Transparent Sparing

The z10 EC offers two PUs reserved as spares per server.

In the case of processor failure, these spares are used

for transparent sparing. On z10 EC sparing happens on

a core granularity rather than chip granularity as on z990

and System z9 (for which “chip” equaled “2 cores”).

Concurrent Maintenance

Concurrent Service for I/O features: All the features that

plug into the I/O Cage are able to be added and replaced

concurrent with system operation. This virtually eliminates

any need to schedule outage for service to upgrade the

I/O subsystem on this cage.

Upgrade for Coupling Links: z10 EC has concurrent

maintenance for the ISC-3 daughter card. Also, Coupling

Links can be added concurrently. This eliminates a need

for scheduled downtime in the demanding sysplex envi-

ronment.

Cryptographic feature: The Crypto Express2 feature

plugs in the I/O cage and can be added or replaced con-

currently with system operation.

Redundant Cage Controllers: The Power and Service

Control Network features redundant Cage Controllers for

Logic and Power control. This design enables non-disrup-

tive service to the controllers and virtually eliminates cus-

tomer scheduled outage.

Auto-Switchover for Support Element (SE): The z10

EC has two Support Elements. In the event of failure on

the Primary SE, the switchover to the backup is handled

automatically. There is no need for any intervention by the

Customer or Service Representative.

Concurrent Memory Upgrade

This function allows adding memory concurrently, up to

the maximum amount physically installed. In addition,

the Enhanced Book Availability function also enables a

memory upgrade to an installed z10 EC book in a multi-

book server.

Plan Ahead Memory

Future memory upgrades can now be preplanned to be

non-disruptive. The preplanned memory feature will add

the necessary physical memory required to support target

memory sizes. The granularity of physical memory in the

System z10 design is more closely associated with the

granularity of logical, entitled memory, leaving little room

for growth. If you anticipate an increase in memory require-

ments, a “target” logical memory size can now be speci-

ﬁ ed in the conﬁ guration tool along with a “starting” logical

memory size. The conﬁ guration tool will then calculate the

physical memory required to satisfy this target memory.

Should additional physical memory be required, it will be

fulﬁ lled with the currently available preplanned memory

features.

The preplanned memory feature is offered in 16 gigabyte

(GB) increments. The quantity assigned by the conﬁ gu-

ration tool is the number of 16 GB blocks necessary to

increase the physical memory from that required for the

“starting” logical memory to the physical memory required

for the “target” logical conﬁ guration. Activation of any pre-

planned memory requires the purchase of a preplanned

Environmental Enhancements

memory activation feature. One pre-planned memory acti-

vation feature is required for each preplanned memory fea-

ture. You now have the ﬂ exibility to activate memory to any

logical size offered between the starting and target size.

Plan ahead memory is exclusive to System z10 and is

transparent to operating systems.

Service Enhancements

z10 EC service enhancements designed to avoid sched-

uled outages include:

• Concurrent ﬁ rmware ﬁ xes

• Concurrent driver upgrades

• Concurrent parts replacement

• Concurrent hardware upgrades

• DIMM FRU indicators

• Single processor core checkstop

• Single processor core sparing

• Point-to-Point SMP Fabric (not a ring)

• FCP end-to-end checking

• Hot swap of ICB-4 and Inﬁ niBand hub cards

• Redundant 100 Mb Ethernet service network with VLAN

Power and cooling discussions have entered the budget

planning of every IT environment. As energy prices have

risen and utilities have restricted the amount of power

usage, it is important to review the role of the server in bal-

ancing IT spending.

Power Monitoring

The “mainframe gas gauge” feature introduced on the

System z9 servers, provides power and thermal informa-

tion via the System Activity Display (SAD) on the Hardware

Management Console and will be available on the z10

EC giving a point in time reference of the information. The

current total power consumption in watts and BTU/hour as

well as the air input temperature will be displayed.

Power Estimation Tool

To assist in energy planning, Resource Link provides tools

to estimate server energy requirements before a new

server purchase. A user will input the machine model,

memory, and I/O conﬁ guration and the tool will output

an estimate of the system total heat load and utility input

power. A customized planning aid is also available on

Resource Link which provides physical characteristics

of the machine along with cooling recommendations,

environmental speciﬁ cations, system power rating, power

plugs/receptacles, line cord wire speciﬁ cations and the

machine conﬁ guration.

Parallel Sysplex Cluster Technology

IBM Systems Director Active Energy Manager

™

IBM Systems Director Active Energy Manager

(AEM) is a

building block which enables customers to manage actual

power consumption and resulting thermal loads IBM serv-

ers place in the data center. The z10 EC provides support

for IBM Systems Director Active Energy Manager (AEM)

for Linux on System z for a single view of actual energy

usage across multiple heterogeneous IBM platforms within

the infrastructure. AEM for Linux on System z will allow

tracking of trends for both the z10 EC as well as multiple

server platforms. With this trend analysis, a data center

administrator will have the data to help properly estimate

power inputs and more accurately plan data center con-

solidation or modiﬁ cation projects.

On System z10, the HMC will now provide support for the

Active Energy Manager (AEM) which will display power

consumption/air input temperature as well as exhaust

temperature. AEM will also provide some limited status

conﬁ guration information which might assist in explaining

changes to the power consumption. AEM is exclusive to

System z10.

Parallel Sysplex clustering is designed to bring the power

of parallel processing to business-critical System z10,

System z9, z990 or z890 applications. A Parallel Sysplex

cluster consists of up to 32 z/OS images coupled to one or

more Coupling Facilities (CFs or ICFs) using high-speed

specialized links for communication. The Coupling Facili-

ties, at the heart of the Parallel Sysplex cluster, enable

high speed, read/ write data sharing and resource sharing

among all the z/OS images in a cluster. All images are also

connected to a Sysplex Timer

or by implementing the

Server Time Protocol (STP), so that all events can be prop-

erly sequenced in time.

IBM System z servers stand alone against competition and

have stood the test of time with our business resiliency

solutions. Our coupling solutions with Parallel Sysplex

technology allow for greater scalability and availability.

Parallel Sysplex Resource Sharing enables multiple

system resources to be managed as a single logical

resource shared among all of the images. Some examples

of resource sharing include JES2 Checkpoint, GRS “star,”

and Enhanced Catalog Sharing; all of which provide sim-

pliﬁ ed systems management, increased performance and/

or scalability.

Although there is signiﬁ cant value in a single footprint and

multi-footprint environment with resource sharing, those

customers looking for high availability must move on to

a database data sharing conﬁ guration. With the Paral-

Sysplex environment, combined with the Workload

lel

Manager and CICS TS, DB2 or IMS, incoming work can

be dynamically routed to the z/OS image most capable of

handling the work. This dynamic workload balancing, along

with the capability to have read/write access data from any-

where in the Parallel Sysplex cluster, provides scalability

and availability. When conﬁ gured properly, a Parallel Sys-

plex cluster is designed with no single point of failure and

can provide customers with near continuous application

availability over planned and unplanned outages.

With the introduction of the z10 EC, we have the concept

of n-2 on the hardware as well as the software. The z10 EC

participates in a Sysplex with System z10 BC, System z9,

z990 and z890 only and currently supports z/OS 1.8 and

higher.

For detailed information on IBM’s Parallel Sysplex technol-

ogy, visit our Parallel Sysplex home page at http://www-

03.ibm.com/systems/z/pso/.

Coupling Facility Control Code (CFCC) Level 16

CFCC Level 16 is being made available on the IBM

System z10 EC.

Improved service time with Coupling Facility Duplex-

ing enhancements: Prior to Coupling Facility Control

Code (CFCC) Level 16, System-Managed Coupling

Facility (CF) Structure Duplexing required two duplexing

protocol exchanges to occur synchronously during pro-

cessing of each duplexed structure request. CFCC Level

16 allows one of these protocol exchanges to complete

asynchronously. This allows faster duplexed request ser-

vice time, with more beneﬁ ts when the Coupling Facilities

are further apart, such as in a multi-site Parallel Sysplex

environment.

List notiﬁ cation improvements: Prior to CFCC Level 16,

when a shared queue (subsidiary list) changed state from

empty to non-empty, the CF would notify ALL active con-

nectors. The ﬁ rst one to respond would process the new

message, but when the others tried to do the same, they

would ﬁ nd nothing, incurring additional overhead.

CFCC Level 16 can help improve the efﬁ ciency of coupling

communications for IMS Shared Queue and WebSphere

MQ Shared Queue environments. The Coupling Facility

notiﬁ es only one connector in a sequential fashion. If the

shared queue is processed within a ﬁ xed period of time,

the other connectors do not need to be notiﬁ ed, saving the

cost of the false scheduling. If a shared queue is not read

within the time limit, then the other connectors are notiﬁ ed

as they were prior to CFCC Level 16.

When migrating CF levels, lock, list and cache structure

sizes might need to be increased to support new function.

For example, when you upgrade from CFCC Level 15 to

Level 16 the required size of the structure might increase.

This adjustment can have an impact when the system

allocates structures or copies structures from one coupling

facility to another at different CF levels.

The coupling facility structure sizer tool can size struc-

tures for you and takes into account the amount of space

needed for the current CFCC levels.

Access the tool at: http://www.ibm.com/servers/eserver/

zseries/cfsizer/.

CFCC Level 16 is exclusive to System z10 and is sup-

ported by z/OS and z/VM for guest exploitation.

Coupling Facility Conﬁ guration Alternatives

IBM offers multiple options for conﬁ guring a functioning

Coupling Facility:

•

Standalone Coupling Facility

: The standalone CF

provides the most “robust” CF capability, as the CPC is

wholly dedicated to running the CFCC microcode — all

of the processors, links and memory are for CF use

only. A natural beneﬁ t of this characteristic is that the

standalone CF is always failure-isolated from exploiting

z/OS software and the server that z/OS is running on for

environments without System-Managed CF Structure

Duplexing. While there is no unique standalone coupling

facility model offered with the z10 EC, customers can

achieve the same physically isolated environment as on

prior mainframe families by ordering a z10 EC, z9 EC, z9

BC, and z990 with PUs characterized as Internal Cou-

pling Facilities (ICFs). There are no software charges

associated with such a conﬁ guration.

Internal Coupling Facility (ICF)

•

: Customers consider-

ing clustering technology can get started with Parallel

Sysplex technology at a lower cost by using an ICF

instead of purchasing a standalone Coupling Facility.

An ICF feature is a processor that can only run Coupling

Facility Control Code (CFCC) in a partition. Since CF

LPARs on ICFs are restricted to running only CFCC,

there are no IBM software charges associated with

ICFs. ICFs are ideal for Intelligent Resource Director and

resource sharing environments as well as for data shar-

ing environments where System-Managed CF Structure

Duplexing is exploited.

System-Managed CF Structure Duplexing

System-Managed Coupling Facility (CF) Structure Duplexing

provides a general purpose, hardware-assisted, easy-to-

exploit mechanism for duplexing CF structure data. This pro-

vides a robust recovery mechanism for failures such as loss

of a single structure or CF or loss of connectivity to a single

CF, through rapid failover to the backup instance of the

duplexed structure pair. CFCC Level 16 provides CF Duplex-

ing enhancements described previously in the section titled

“Coupling Facility Control Code (CFCC) Level 16”.

Parallel Sysplex Coupling Connectivity

The Coupling Facilities communicate with z/OS images in

the Parallel Sysplex environment over specialized high-

speed links. As processor performance increases, it is

important to also use faster links so that link performance

does not become constrained. The performance, avail-

ability and distance requirements of a Parallel Sysplex

environment are the key factors that will identify the appro-

priate connectivity option for a given conﬁ guration.

When connecting between System z10, System z9 and

z990/z890 servers the links must be conﬁ gured to operate

in Peer Mode. This allows for higher data transfer rates

to and from the Coupling Facilities. The peer link acts

simultaneously as both a CF Sender and CF Receiver link,

reducing the number of links required. Larger and more

data buffers and improved protocols may also improve

long distance performance.

12x

PSIFB

Up to 150 meters

PSIFB

Up to 10/100 Km

z10 EC

...

HCA2-O

HCA2-O LR

MBA

HCA2-C

HCA2-O

New ICB-4 cable

New ICB-4 cable ICB-4 10 meters

ICB-4 10 meters

IFB-MP

I/O Drawer

Up to 10/100 Km

Up to 150 meters

ISC-3

ISC-3 ISC-3

ISC-3

Up to 10/100

ISC-3

12x

PSIFB

z9 EC and z9 BC S07

z10 EC, z10 BC, z9 EC,

z9 BC, z990, z890

ISC-3

z10 EC, z10 BC, z9 EC,

z9 BC, z990, z890

z10 EC, z10

Introducing long reach Inﬁ niBand coupling links

Now, Inﬁ niBand can be used for Parallel Sysplex coupling

and STP communication at unrepeated distances up to

10 km (6.2 miles) and greater distances when attached to

qualiﬁ ed optical networking solutions. Inﬁ niBand coupling

links supporting extended distance is referred to as Long

Reach 1x (one pair of ﬁ ber) Inﬁ niBand.

• Long Reach 1x Inﬁ niBand coupling links support single

data rate (SDR) at 2.5 gigabits per second (Gbps) when

connected to a DWDM capable of SDR (1x IB-SDR).

• Long Reach 1x Inﬁ niBand coupling links support double

data rate (DDR) at 5 Gbps when connected to a DWDM

capable of DDR (1x IB-DDR).

The link data rate will auto-negotiate from SDR to DDR

depending upon the capability of the attached equipment.

Other advantages of Parallel Sysplex using Inﬁ niBand

(PSIFB):

• Inﬁ niBand coupling links also provide the ability to

deﬁ ne up to 16 CHPIDs on a single PSIFB port, allow-

ing physical coupling links to be shared by multiple

sysplexes. This also provides additional subchannels for

Coupling Facility communication, improving scalability,

and reducing contention in heavily utilized system con-

ﬁ gurations. It also allows for one CHPID to be directed

to one CF, and another CHPID directed to another CF on

the same target server, using the same port.

• Like other coupling links, external Inﬁ niBand coupling

links are also valid to pass time synchronization signals

for Server Time Protocol (STP). Therefore the same

coupling links can be used to exchange timekeeping

information and Coupling Facility messages in a Parallel

Sysplex environment.

• The IBM System z10 EC also takes advantage of

Inﬁ niBand as a higher-bandwidth replacement for the

Self-Timed Interconnect (STI) I/O interface features

found in prior System z servers.

The IBM System z10 EC will support up to 32 PSIFB links

as compared to 16 PSIFB links on System z9 servers. For

either z10 EC or z9, there must be less than or equal to a

total of 32 PSIFBs and ICB-4 links.

Inﬁ niBand coupling links are CHPID type CIB.

Coupling Connectivity for Parallel Sysplex

You now have ﬁ ve coupling link options for communication

in a Parallel Sysplex environment:

Internal Coupling Channels (ICs)

can be used for

internal communication between Coupling Facilities

(CFs) deﬁ ned in LPARs and z/OS images on the same

server.

Integrated Cluster Bus-4 (ICB-4)

is for short distances.

ICB-4 links use 10 meter (33 feet) copper cables, of

which 3 meters (10 feet) is used for internal routing and

strain relief. ICB-4 is used to connect z10 EC-to-z10 EC,

z10 BC, z9 EC, z9 BC, z990, and z890. Note. If connect-

ing to a z10 BC or a z9 BC with ICB-4, those servers

cannot be installed with the nonraised ﬂ oor feature. Also,

if the z10 BC is ordered with the nonraised ﬂ oor feature,

ICB-4 cannot be ordered.

12x Inﬁ niBand coupling links (12x IB-SDR or 12x

IB-DDR)

offer an alternative to ISC-3 in the data center

and facilitate coupling link consolidation. Physical links

can be shared by multiple operating system images or

Coupling Facility images on a single system. The 12x

Inﬁ niBand links support distances up to 150 meters (492

feet) using industry-standard OM3 50 micron multimode

ﬁ ber optic cables.

Long Reach 1x Inﬁ niBand coupling links (1x IB-SDR

or 1x IB-DDR)

are an alternative to ISC-3 and offer

greater distances with support for point-to-point unre-

peated distances up to 10 km (6.2 miles) using 9 micron

single mode ﬁ ber optic cables. Greater distances can

be supported with System z-qualiﬁ ed optical networking

solutions. Long Reach 1x Inﬁ niBand coupling links sup-

port the same sharing capabilities as the 12x Inﬁ niBand

version, allowing one physical link to be shared by

multiple operating system images or Coupling Facility

images on a single system.

System z now supports 12x Inﬁ niBand single data rate

(12x IB-SDR) coupling link attachment between System

z10 and System z9 general purpose (no longer limited to

standalone coupling facility)

InterSystem Channel-3 (ISC-3)

supports communica-

tion at unrepeated distances up to 10 km (6.2 miles)

using 9 micron single mode ﬁ ber optic cables and

greater distances with System z-qualiﬁ ed optical net-

working solutions. ISC-3s are supported exclusively in

peer mode (CHPID type CFP).

Note: The Inﬁ niBand link data rates do not represent the

performance of the link. The actual performance is depen-

dent upon many factors including latency through the

adapters, cable lengths, and the type of workload. Spe-

ciﬁ cally, with 12x Inﬁ niBand coupling links, while the link

data rate is higher than that of ICB, the service times of

coupling operations are greater, and the actual throughput

is less.

Refer to the Coupling Facility Conﬁ guration Options white-

paper for a more speciﬁ c explanation of when to continue

using the current ICB or ISC-3 technology versus migrat-

ing to Inﬁ niBand coupling links.

The whitepaper is available at: http://www.

ibm.com

systems/z/advantages/pso/whitepaper.html.

z10 Coupling Link Options

Type Description Use Link Distance d

ata rate

Max

PSIFB

1x IB-DDR LR (6.2 miles) 100 km repeated

PSIFB 12x IB-DDR z10 to z10 6 GBps 150 meters 12*/32* z10 to z9 3 GBps

IC Internal Coupling Communi- Speeds Channel cation

ICB-4 Copper z10, z9 2 GBps 10 meters*** 12/16 connection z990, z890 (33 ft) between OS and CF

ISC-3 Fiber z10, z9 2 Gbps 10 km 48/48 connection z990, z890 unrepeated between OS (6.2 miles) and CF 100 km repeated

• The maximum number of Coupling Links combined cannot exceed 64

per server (PSIFB, ICB-4, ISC-3). There is a maximum of 64 Coupling CHPIDs (CIB, ICP, CBP, CFP) per server.

• For each MBA fanout installed for ICB-4s, the number of possible

customer HCA fanouts is reduced by one

* Each link supports deﬁ nition of multiple CIB CHPIDs, up to 16 per

fanout

** z10 negotiates to 3 GBps (12x IB-SDR) when connected to a System

z9*

** 3 meters (10 feet) reserved for internal routing and strain relief

Note: The Inﬁ niBand link data rates of 6 GBps, 3 GBps, 2.5 Gbps, or 5 Gbps do not represent the performance of the link. The actual performance is dependent upon many factors including latency through the adapters, cable lengths, and the type of workload. With Inﬁ niBand coupling links, while the link data rate may be higher than that of ICB (12x IB-SDR or 12x IB-DDR) or ISC-3 (1x IB-SDR or 1x IB-DDR), the service times of coupling operations are greater, and the actual throughput may be less than with ICB links or ISC-3 links.

z10 to z10

5 Gbps 10 km unrepeated 12*/32*

(492 ft)***

Internal Internal N/A 32/32

z10 BC z10 z10 EC Max

64 CHPIDS

Time synchronization and time accuracy on z10 EC

If you require time synchronization across multiple servers

(for example you have a Parallel Sysplex environment) or

you require time accuracy either for one or more System

z servers or you require the same time across heteroge-

neous platforms (System z, UNIX, AIX

, etc.) you can meet

these requirements by either installing a Sysplex Timer

Model 2 (9037-002) or by implementing Server Time Proto-

col (STP).

The Sysplex Timer Model 2 is the centralized time source

that sets the Time-Of-Day (TOD) clocks in all attached

servers to maintain synchronization. The Sysplex Timer

Model 2 provides the stepping signal that helps ensure

that all TOD clocks in a multi-server environment incre-

ment in unison to permit full read or write data sharing with

integrity. The Sysplex Timer Model 2 is a key component of

an IBM Parallel Sysplex environment and a GDPS

avail-

ability solution for On Demand Business.

The z10 EC server requires the External Time Reference

(ETR) feature to attach to a Sysplex Timer. The ETR fea-

ture is standard on the z10 EC and supports attachment

at an unrepeated distance of up to three kilometers (1.86

miles) and a link data rate of 8 Megabits per second.

The distance from the Sysplex Timer to the server can be

extended to 100 km using qualiﬁ ed Dense Wavelength

Division Multiplexers (DWDMs). However, the maximum

repeated distance between Sysplex Timers is limited to

40 km.

Server Time Protocol (STP)

STP is a message-based protocol in which timekeeping

information is transmitted between servers over externally

deﬁ ned coupling links. ICB-4, ISC-3, and Inﬁ niBand cou-

pling links can be used to transport STP messages.

Server Time Protocol (STP) Enhancements

STP conﬁ guration and time information restoration

after Power on Resets (POR) or power outage:

This

enhancement delivers system management improvements

by restoring the STP conﬁ guration and time information

after Power on Resets (PORs) or power failure that affects

both servers of a two server STP-only Coordinated Timing

Network (CTN). To enable this function the customer has to

select an option that will assure than no other servers can

join the two server CTN. Previously, if both the Preferred

Time Server (PTS) and the Backup Time Server (BTS)

experienced a simultaneous power outage (site failure),

or both experienced a POR, reinitialization of time, and

special roles (PTS, BTS, and CTS) was required. With this

enhancement, you will no longer need to reinitialize the

time or reassign the roles for these events.

Preview - Improved STP System Management with

new z/OS Messaging:

This is a new function planned to

generate z/OS messages when various hardware events

that affect the External Time Sources (ETS) conﬁ gured for

an STP-only CTN occur. This may improve problem deter-

mination and correction times. Previously, the messages

were generated only on the Hardware Management Con-

sole (HMC).

The ability to generate z/OS messages will be supported

on IBM System z10 and System z9 servers with z/OS 1.11

(with enabling support rolled back to z/OS 1.9) in the

second half of 2009.

The following STP enhancements are available on System

z10 and System z9 servers.

The STP feature and the latest Machine Change Levels are

required.

Enhanced Network Time Protocol (NTP) client support:

This enhancement addresses the requirements for those

who need to provide the same accurate time across het-

erogeneous platforms in an enterprise.

The STP design has been enhanced to include support

for a Simple Network Time Protocol (SNTP) client on the

Support Element. By conﬁ guring an NTP server as the

STP External Time Source (ETS), the time of an STP-only

Coordinated Timing Network (CTN) can track to the time

provided by the NTP server, and maintain a time accuracy

of 100 milliseconds.

Note: NTP client support has been available since October

2007.

Enhanced accuracy to an External Time Source: The

time accuracy of an STP-only CTN has been improved by

adding the capability to conﬁ gure an NTP server that has

a pulse per second (PPS) output signal as the ETS device.

This type of ETS device is available worldwide from sev-

eral vendors that provide network timing solutions.

STP has been designed to track to the highly stable,

accurate PPS signal from the NTP server, and maintain

an accuracy of 10 microseconds as measured at the PPS

input of the System z server. A number of variables such

as accuracy of the NTP server to its time source (GPS,

radio signals for example), and cable used to connect the

PPS signal will determine the ultimate accuracy of STP to

Coordinated Universal Time (UTC).

In comparison, the IBM Sysplex Timer is designed to

maintain an accuracy of 100 microseconds when attached

to an ETS with a PPS output. If STP is conﬁ gured to use

a dial-out time service or an NTP server without PPS, it is

designed to provide a time accuracy of 100 milliseconds

to the ETS device.

For this enhancement, the NTP output of the NTP server

has to be connected to the Support Element (SE) LAN,

and the PPS output of the same NTP server has to be con-

nected to the PPS input provided on the External Time

Reference (ETR) feature of the System z10 or System z9

server.

Continuous availability of NTP servers used as Exter-

nal Time Source: Improved External Time Source (ETS)

availability can now be provided if you conﬁ gure different

NTP servers for the Preferred Time Server (PTS) and the

Backup Time Server (BTS). Only the PTS or the BTS can

be the Current Time Server (CTS) in an STP-only CTN.

Prior to this enhancement, only the CTS calculated the

time adjustments necessary to maintain time accuracy.

With this enhancement, if the PTS/CTS cannot access the

NTP server or the pulse per second (PPS) signal from the

NTP server, the BTS, if conﬁ gured to a different NTP server,

may be able to calculate the adjustment required and

propagate it to the PTS/CTS. The PTS/CTS in turn will per-

form the necessary time adjustment steering.

This avoids a manual reconﬁ guration of the BTS to be the

CTS, if the PTS/CTS is not able to access its ETS. In an

ETR network when the primary Sysplex Timer is not able

to access the ETS device, the secondary Sysplex Timer

takes over the role of the primary - a recovery action not

always accepted by some environments. The STP design

provides continuous availability of ETS while maintaining

the special roles of PTS and BTS assigned by the enter-

prise.

The improvement is available when the ETS is conﬁ gured

as an NTP server or an NTP server using PPS.

NTP server on Hardware Management Console (HMC):

Improved security can be obtained by providing NTP

server support on the HMC. If an NTP server (with or with-

out PPS) is conﬁ gured as the ETS device for STP, it needs

to be attached directly to the Support Element (SE) LAN.

The SE LAN is considered by many users to be a private

dedicated LAN to be kept as isolated as possible from the

intranet or Internet.

Since the HMC is normally attached to the SE LAN, pro-

viding an NTP server capability on the HMC addresses

the potential security concerns most users may have for

attaching NTP servers to the SE LAN. The HMC, using

a separate LAN connection, can access an NTP server

available either on the intranet or Internet for its time

source. Note that when using the HMC as the NTP server,

there is no pulse per second capability available. There-

fore, you should not conﬁ gure the ETS to be an NTP server

using PPS.

Enhanced STP recovery when Internal Battery Feature

is in use: Improved availability can be obtained when

power has failed for a single server (PTS/CTS), or when

there is a site power outage in a multisite conﬁ guration

where the PTS/CTS is installed (the site with the BTS is

a different site not affected by the power outage). If an

Internal Battery Feature (IBF) is installed on your System

z server, STP now has the capability of receiving notiﬁ ca-

tion that customer power has failed and that the IBF is

engaged. When STP receives this notiﬁ cation from a server

that has the role of the PTS/CTS, STP can automatically

reassign the role of the CTS to the BTS, thus automating

the recovery action and improving availability.

STP conﬁ guration and time information saved across

Power-on-Resets (POR) or power outages: This

enhancement delivers system management improvements

by saving the STP conﬁ guration across PORs and power

failures for a single server STP-only CTN. Previously, if

there was a POR of the server or the server experienced

a power outage, the time and assignment of the PTS and

CTS roles would have to be reinitialized. You will no longer

need to reinitialize the time or reassign the role of PTS/CTS

across POR or power outage events.

Note: This enhancement is also available on the z990 and

z890 servers, in addition to System z10 and System z9

servers.

Application Programming Interface (API) to automate

STP CTN reconﬁ guration: The concept of “a pair and

a spare” has been around since the original Sysplex

Couple Data Sets (CDSs). If the primary CDS becomes

unavailable, the backup CDS would take over. Many sites

have had automation routines bring a new backup CDS

online to avoid a single point of failure. This idea is being

extended to STP. With this enhancement, if the PTS fails

and the BTS takes over as CTS, an API is now available

on the HMC so you can automate the reassignment of the

PTS, BTS, and Arbiter roles. This can improve availability

by avoiding a single point of failure after the BTS has taken

over as the CTS.

Prior to this enhancement, the PTS, BTS, and Arbiter roles

had to be reassigned manually using the System (Sysplex)

Time task on the HMC. For additional details on the API,

please refer to System z Application Programming Inter-

faces, SB10-7030-11.

Additional information is available on the STP Web page:

http://www.ibm.com/systems/z/pso/stp.html.

The following Redbooks are available at the Redbooks

Web site: http://www.redbooks.ibm.com/.

• Server Time Protocol Planning Guide, SG24-7280

• Server Time Protocol Implementation Guide, SG24-7281

Internal Battery Feature Recommendation

Single data center

• CTN with 2 servers, install IBF on at least the PTS/CTS

– Also recommend IBF on BTS to provide recovery pro-

tection when BTS is the CTS

– CTN with 3 or more servers IBF not required for STP

recovery, if Arbiter conﬁ gured

Two data centers

• CTN with 2 servers (one in each data center) install IBF

on at least the PTS/CTS

– Also recommend IBF on BTS to provide recovery

protection when BTS is the CTS

• CTN with 3 or more servers, install IBF on at least the

PTS/CTS

– Also recommend IBF on BTS to provide recovery pro-

tection when BTS is the CTS

Message Time Ordering (Sysplex Timer Connectivity to Coupling

Facilities)

As processor and Coupling Facility link technologies have

improved, the requirement for time synchronization toler-

ance between systems in a Parallel Sysplex environment

has become ever more rigorous. In order to enable any

exchange of time stamped information between systems

in a sysplex involving the Coupling Facility to observe the

correct time ordering, time stamps are now included in

the message-transfer protocol between the systems and

the Coupling Facility. Therefore, when a Coupling Facility

is conﬁ gured on any System z10 or System z9, the Cou-

pling Facility will require connectivity to the same 9037

Sysplex Timer or Server Time Protocol (STP) conﬁ gured

Coordinated Timing Network (CTN) that the systems in its

Parallel Sysplex cluster are using for time synchroniza-

tion. If the ICF is on the same server as a member of its

Parallel Sysplex environment, no additional connectivity is

required, since the server already has connectivity to the

Sysplex Timer.

However, when an ICF is conﬁ gured on any z10 which

does not host any systems in the same Parallel Sysplex

cluster, it is necessary to attach the server to the 9037

Sysplex Timer or implement STP.

HMC System Support

The new functions available on the Hardware Management

Console (HMC) version 2.10.1 apply exclusively to System

z10. However, the HMC version 2.10.1 will continue to sup-

port System z9, zSeries, and S/390

G5/G6 servers.

The 2.10.1 HMC will continue to support up to two 10

Mbps or 100 Mbps Ethernet LANs. A Token Ring LAN is

not supported. The 2.10.1 HMC applications have been

updated to support HMC hardware without a diskette

drive. DVD-RAM, CD-ROM, and/or USB ﬂ ash memory

drive media will be used.

Family Machine Type Firmware Driver SE Version

z10 BC 2098 76 2.10.1

z10 EC 2097 73 2.10.0

z9 BC 2096 67 2.9.2

z9 EC 2094 67 2.9.2

z890 2086 55 1.8.2

z990 2084 55 1.8.2

z800 2066 3G 1.7.3

z900 2064 3G 1.7.3

9672 G6 9672/9674 26 1.6.2

9672 G5 9672/9674 26 1.6.2

Internet Protocol, Version 6 (IPv6)

HMC version 2.10.1 and Support Element (SE) version

2.10.1 can now communicate using IP Version 4 (IPv4),

IP Version 6 (IPv6), or both. It is no longer necessary to

assign a static IP address to an SE if it only needs to com-

municate with HMCs on the same subnet. An HMC and

SE can use IPv6 link-local addresses to communicate with

each other.

HMC/SE support is addressing the following requirements:

• The availability of addresses in the IPv4 address space

is becoming increasingly scarce

• The demand for IPv6 support is high in Asia/Paciﬁ c

countries since many companies are deploying IPv6

• The U.S. Department of Defense and other U.S. govern-

ment agencies are requiring IPv6 support for any prod-

ucts purchased after June 2008

More information on the U.S. government require-

ments can be found at: http://www.whitehouse.gov/

omb/memoranda/fy2005/m05-22.pdf and http:

//www.whitehouse.gov/omb/egov/documents/IPv6_

FAQs.pdf

HMC/SE Console Messenger

On servers prior to System z9, the remote browser capa-

bility was limited to Platform Independent Remote Console

(PIRC), with a very small subset of functionality. Full func-

tionality using Desktop-On-Call (DTOC) was limited to one

user at a time and was slow, so it was rarely used.

With System z9, full functionality to multiple users was

delivered with a fast Web browser solution. You liked this,

but requested the ability to communicate to other remote

users.

There is now a new console messenger task that offers

basic messaging capabilities to allow system operators or

administrators to coordinate their activities. The new task

may be invoked directly, or using a new option in Users

and Tasks. This capability is available for HMC and SE

local and remote users permitting interactive plain-text

communication between two users and also allowing a

user to broadcast a plain-text message to all users. This

feature is a limited messenger application and does not

interact with other messengers.

HMC z/VM Tower systems management enhancements

Building upon the previous VM systems management

support from the Hardware Management Console (HMC),

which offered management support for already deﬁ ned

virtual resources, new HMC capabilities are being made

available allowing selected virtual resources to be deﬁ ned.

In addition, further enhancements have been made for

managing deﬁ ned virtual resources.

Enhancements are designed to deliver out-of-the-box inte-

grated graphical user interface-based (GUI-based) manage-

ment of selected parts of z/VM. This is especially targeted to

deliver ease-of-use for enterprises new to System z.

This helps to avoid the purchase and installation of

additional hardware or software, which may include

complicated setup procedures. You can more seam-

lessly perform hardware and selected operating system

management using the HMC Web browser-based user

interface.

HMC DVD drive. This new function does not require an

external network connection between z/VM and the HMC,

but instead uses the existing communication path between

the HMC and the SE.

This support is intended for environments that have no

alternative, such as a LAN-based server, for serving the

DVD contents for Linux installations. The elapsed time for

installation using the HMC DVD drive can be an order of

magnitude, or more, longer than the elapsed time for LAN-

based alternatives.

Using the current support and the z/VM support, z/VM

can be installed in an LPAR and both z/VM and Linux on

System z can be installed in a virtual machine from the

HMC DVD drive without requiring an external network

setup or a connection between an LPAR and the HMC.

This addresses security concerns and additional conﬁ gura-

tion efforts using the only other previous solution of the exter-

nal network connection from the HMC to the z/VM image.

Enhanced installation support using the HMC is exclusive

to System z10 and is supported by z/VM.

Enhanced installation support for z/VM using the HMC:

HMC version 2.10.1, along with Support Element (SE) ver-

sion 2.10.1 on z10 EC, now gives you the ability to install

Linux on System z in a z/VM virtual machine using the

Implementation Services for Parallel Sysplex

IBM Implementation Services for Parallel Sysplex CICS and

WAS Enablement

IBM Implementation Services for Parallel Sysplex Middle-

ware – CICS enablement consists of ﬁ ve ﬁ xed-price and

ﬁ xed-scope selectable modules:

1)CICS application review

2) z/OS CICS infrastructure review (module 1 is a prerequi-

site for this module)

3)CICS implementation (module 2 is a prerequisite for this

module)

4)CICS application migration

5)CICS health check

IBM Implementation Services for Parallel Sysplex Mid-

dleware – WebSphere Application Server enablement

consists of three ﬁ xed-price and ﬁ xed-scope selectable

modules:

1)WebSphere Application Server network deployment

planning and design

2)WebSphere Application Server network deployment

implementation (module 1 is a prerequisite for this

module)

3)WebSphere Application Server health check

For a detailed description of this service, refer to Services

Announcement 608-041, (RFA47367) dated June 24, 2008.

This DB2 data sharing service is designed for clients who

want to:

1) Enhance the availability of data

2) Enable applications to take full utilization of all servers’

resources

3) Share application system resources to meet business

goals

4) Manage multiple systems as a single system from a

single point of control

5) Respond to unpredicted growth by quickly adding com-

puting power to match business requirements without

disruption

6) Build on the current investments in hardware, software,

applications, and skills while potentially reducing com-

puting costs

The offering consists of six selectable modules; each is

a stand-alone module that can be individually acquired.

The ﬁ rst module is an infrastructure assessment module,

followed by ﬁ ve modules which address the following DB2

data sharing disciplines:

1)DB2 data sharing planning

2)DB2 data sharing implementation

3)Adding additional data sharing members

4)DB2 data sharing testing

5)DB2 data sharing backup and recovery

Implementation Services for Parallel Sysplex DB2 Data Sharing

To assist with the assessment, planning, implementation,

testing, and backup and recovery of a System z DB2 data

sharing environment, IBM Global Technology Services

announced and made available the IBM Implementation

Services for Parallel Sysplex Middleware – DB2 data shar-

ing on February 26, 2008.

For more information on these services contact your IBM

representative or refer to: www.ibm.com/services/server.

GDPS

™

Geographically Dispersed Parallel Sysplex

designed to provide a comprehensive end-to-end con-

tinuous availability and/or disaster recovery solution for

(GDPS) is

Fiber Quick Connect for FICON LX Environments

System z servers. Now Geographically Dispersed Open

Clusters (GDOC) is designed to address this need for

open systems. GDPS 3.5 will support GDOC for coordi-

nated disaster recovery across System z and non-System

z servers if Veritas Cluster Server is already installed.

GDPS and the Basic HyperSwap (available with z/OS

V1.9) solutions help to ensure system failures are invisible

to employees, partners and customers with dynamic disk-

swapping capabilities that ensure applications and data

are available.

GDPS is a multi-site or single-site end-to-end application

availability solution that provides the capability to manage

remote copy conﬁ guration and storage subsystems

(including IBM TotalStorage), to automate Parallel Sysplex

operation tasks and perform failure recovery from a single

point of control.

GDPS helps automate recovery procedures for planned

and unplanned outages to provide near-continuous avail-

ability and disaster recovery capability.

Fiber Quick Connect (FQC), an optional feature on z10 EC,

is now being offered for all FICON LX (single mode ﬁ ber)

channels, in addition to the current support for ESCON.

FQC is designed to signiﬁ cantly reduce the amount of

time required for on-site installation and setup of ﬁ ber

optic cabling. FQC facilitates adds, moves, and changes

of ESCON and FICON LX ﬁ ber optic cables in the data

center, and may reduce ﬁ ber connection time by up to

80%.

FQC is for factory installation of IBM Facilities Cabling

Services – Fiber Transport System (FTS) ﬁ ber harnesses

for connection to channels in the I/O cage. FTS ﬁ ber har-

nesses enable connection to FTS direct-attach ﬁ ber trunk

cables from IBM Global Technology Services.

Note: FQC supports all of the ESCON channels and all of

the FICON LX channels in all of the I/O cages of the server.

For additional information on GDPS, visit:

http://www-03.ibm.com/systems/z/gdps/.

z10 EC Physical Characteristics

z10 EC Conﬁ guration Detail

z10 EC Environmentals

Features Min # Max # Max Increments

Model 1 I/O Cage 2 I/O Cage 3 I/O Cage

E12 9.70 kW 13.26 kW 13.50 kW

E26 13.77 kW 17.51 kW 21.17 kW

E40 16.92 kW 20.66 kW 24.40 kW

E56 19.55 kW 23.29 kW 27.00 kW

E64 19.55 kW 23.29 kW 27.50 kW

16-port 0 ESCON channels 1 reserved as a spare

FICON 0 Express4 channels

FICON 0 Express2** channels

FICON 0

Model 1 I/O Cage 2 I/O Cage 3 I/O Cage

Express** channels

ICB-4 0

E12 33.1 kBTU/hr 46.0 kBTU/hr 46.0 kBTU/hr

E26 47.7 kBTU/hr 61.0 kBTU/hr 73.7 kBTU/hr

E40 58.8 kBTU/hr 72.0 kBTU/hr 84.9 kBTU/hr

E56 67.9 kBTU/hr 81.2 kBTU/hr 93.8 kBTU/hr

E64 67.9 kBTU/hr 81.2 kBTU/hr 93.8 kBTU/hr

Note; Model E12 has sufﬁ cient Host Channel Adaptor capacity for 58 I/O cards only.

ISC-3 0

HCA2-O 0 LR (1x)

HCA2-O 0 (12x)

OSA- 0 24 48/96 2 or 4 2 ports/ Express3* ports 4 ports

OSA- 0 24 48 ports 1 or 2 2 ports/ Express2

z10 EC Dimensions

z10 EC z9 EC

Number of Frames

Height (with covers)

2 Frame 2 Frame

(IBF Contained w/in 2 Frames) (IBF Contained w/in 2 Frames)

201.5 cm /79.3 in 194.1 cm /76.4 in

Crypto 0 8 16 PCI-X 2 PCI-X 2 PCI-X Express2* adapters adapters adapters

1. Minimum of one I/O feature (ESCON, FICON) or Coupling Link

2. The maximum number of external Coupling Links combined

Width (with covers) 156.8 cm /61.7 in 156.8 cm /61.7 in Depth (with covers) 180.3 cm /71.0 in 157.7 cm /62.1 in

Height Reduction 180.9 cm /71.2 in 178.5 cm /70.3 in Width Reduction None None

3. ICB-4 and 12x IB-DDR are not included in the maximum feature

4. Initial order of Crypto Express2 is 4 PCI-X adapters (two fea-

Machine Area 2.83 sq. m. /30.44 sq. ft. 2.49 sq. m. /26.78 sq. ft. Service Clearance 5.57 sq. m. /60.00 sq. ft. 5.45 sq. m. /58.69 sq. ft.

(IBF Contained w/in Frame) (IBF Contained w/in Frame)

Maximum of 1024 CHPIDs; 3 I/O cages (28 slots each) = 84 I/O

* OSA-Express3 GbE and 1000BASE-T have 2 and 4 port

** Available only when carried forward on an upgrade from z890

slots. All features that require I/O slots, and ICB-4 features, are

included in the following table:

Purchase

Features Features Connections per Feature Increments

(1)

69 1024 16 channels 4 channels

(1)

84 336 4 channels 4 channels

(1)

84 336 4 channels 4 channels

(1)

60 120 2 channels 2 channels

(1)

8 16 links

(1)

12 48 links

(1)

16 32 links

(1)

16 32 links

1 port

(2) (3)

2 links 1 link

(2)

4 links 1 link

(2) (3)

2 links 2 links

(2) (3)

2 links 2 links

(4)

(PSIFB, ICB-4, ISC-3) required.

cannot exceed 64 per server. There is a maximum of 64 coupling link CHPIDs per server (ICs, ICB-4s, active ISC-3 links, and IFBs)

count for I/O slots but are included in the CHPID count.

tures). Each PCI-X adapter can be conﬁ gured as a coprocessor or an accelerator.

options

or z9 BC. Limited availability for OSA-Express2 GbE features

Processor Unit Features

Coupling Links

Model Books CPs IFLs zAAPs ICFs

Standard

uIFLs zIIPs SAP Spares

E12 1/17 0-12

0-12 0-6

0-12 3 2

0-11 0-6

E26 2/34 0-26

0-26 0-13

0-16 6 2

0-25 0-13

E40 3/51 0-40

0-40 0-20

0-16 9 2

0-39 0-20

E56 4/68 0-56

0-56 0-28

0-16 10 2

0-55 0-28

E64 4/77 0-64

0-64 0-32

0-16 11 2

0-63 0-32

Note: a minimum of one CP, IFL, or ICF must be purchased on every model. Note: One zAAP and one zIIP may be purchased for each CP purchased.

Standard memory

z10 EC Minimum Maximum

E12

E26

E40

E56

E64

Memory cards include: 8 GB, 16 GB, 32 GB, 48 GB and 64 GB. (Fixed HSA not included)

16 GB

352 GB

16 GB

752 GB

16 GB

1136 GB

16 GB

1520 GB

16 GB

1520 GB

Links PSIFB ICB-4 ISC-3 IC Max Links

0-32* 0-16* 0-48 0-32 Total External + Except E64 Internal Links = 64

* Maximum of 32 IFB + ICB-4 links on System z10 EC. ICB-4 not supported on Model E64.

Cryptographic Features

Crypto Express2 Feature*

Minimum 0

Maximum 8

* Each feature has 2 PCI-X adapters; each adapter can be conﬁ gured as a coprocessor or an accelerator.

OSA-Express3 and OSA-Express2 Features

Min Max Max Increments Purchase Feat. Feat.

Connections

per feat.

Increments

OSA-Express3 0 24 96 2 ports 2 ports

for 10 GbE

OSA-Express2 2 24 48 2 or 1 2 ports/

(10 GbE has 1)

1 port

Channels

z10 Model E12 E26 E40 E56 E64

ESCON Min

ESCON Max

0 0

0 0 0

960 1024

FICON Express4 Min FICON Express2 Min 0 0 0 0 0 FICON Express Min

FICON Express4 Max 256 336 336 336 336

FICON Express2 Max* 256 336 336 336 336

FICON Express Max* 120 120 120 120 120

Note: Minimum of one I/O feature (ESCON, FICON) or one Coupling required. *Available only when carried forward on an upgrade from z9 EC or z990.

1024 1024 1024

z10 EC Frame and I/O Conﬁ guration Content: Planning for I/O

The following diagrams show the capability and ﬂ exibility

built into the I/O subsystem. All machines are shipped with

two frames, the A-Frame and the Z-Frame, and can have

between one and three I/O cages. Each I/O cage has 28

I/O slots.

I/O Feature Type Features Maximum

ESCON 24 360 channels

FICON Express2/4 24 96 channels

FICON Express 24 48 channels

OSA-Express3 24 48/96 (2 or 4 ports)

OSA-Express2 24 48 ports

OSA-Express3 LR/SR 24 48 ports

Crypto Express2 8 16 adapters

I/O Feature Type Features Maximum

ESCON 69 1024 channels

FICON Express2/4 84 336 channels

FICON Express 60 120 channels

OSA-Express3 24 48/96 (2 or 4 ports)

OSA-Express2 24 48 ports

OSA-Express3 LR/SR 24 48 ports

Crypto Express2 8 16 adapters

General Information:

• ESCON conﬁ gured in 4-port increments. Up to a maxi-

mum 69 cards, 1024 channels.

• OSA-Express2 can be Gigabit Ethernet (GbE),

1000BASE-T Ethernet or 10 GbE.

• OSA-Express can be Gigabit Ethernet (GbE),

1000BASE-T Ethernet or Fast Ethernet.

• If ICB-3 is required on the system, it will use up a single

I/O slot for every 2 ICB-3 to accommodate the STI-3

card.

I/O Feature Type Features Maximum

ESCON 48 720 channels

FICON Express2/4 48 192 channels

FICON Express 48 96 channels

OSA-Express3 24 48/96 (2 or 4 ports)

OSA-Express2 24 48 ports

OSA-Express3 LR/SR 24 48 ports

Crypto Express2 8 16 adapters

Note: In the ﬁ rst and second I/O cage, the last domain in

the I/O cage is normally used for ISC-3 and ICB-3 links.

When the ﬁ rst 6 domains in an I/O cage are full, additional

I/O cards will be installed in the next I/O cage. When all

the ﬁ rst 6 domains in all I/O cages are full and no Coupling

link or PSC cards are required, the last domain in the I/O

cage will be used for other I/O cards making a total of 28

per cage.

Coupling Facility – CF Level of Support

CF Level Function

z10 EC z9 EC z990

z10 BC z9 BC z890

16 CF Duplexing Enhancements X

List Notiﬁ cation Improvements Structure Size increment increase from 512 MB –> 1 MB

15 Increasing the allowable tasks in the CF from 48 to 112 X X

14 CFCC Dispatcher Enhancements X X

13 DB2 Castout Performance X X

12 z990 Compatibility 64-bit CFCC X X

Addressability Message Time Ordering X X DB2 Performance SM Duplexing Support for zSeries X X

11 z990 Compatibility SM Duplexing Support for 9672 G5/G6/R06 X X

10 z900 GA2 Level X X

9 Intelligent Resource Director IC3 / ICB-3 / ISC-3 Peer Mode X X

MQSeries Shared Queues X X WLM Multi-System Enclaves X X

Note: zSeries 900/800 and prior generation servers are not supported with System z10 for Coupling Facility or Parallel Sysplex levels.

Statement of Direction

IBM intends to support optional water cooling on future

high end System z servers. This cooling technology will

tap into building chilled water that already exists within the

datacenter for computer room air conditioning systems.

External chillers or special water conditioning will not be

required. Water cooling technology for high end System z

servers will be designed to deliver improved energy efﬁ -

ciencies.

IBM intends to support the ability to operate from High

Voltage DC power on future System z servers. This will

be in addition to the wide range of AC power already

supported. A direct HV DC datacenter power design can

improve data center energy efﬁ ciency by removing the

need for an additional DC to AC inversion step.

The System z10 will be the last server to support Dynamic

ICF expansion. This is consistent with the System z9 hard-

ware announcement 107-190 dated April 18, 2007, IBM

System z9 Enterprise Class (z9 EC) and System z9 Busi-

ness Class (z9 BC) – Delivering greater value for every-

one, in which the following Statement of Direction was

made: IBM intends to remove the Dynamic ICF expansion

function from future System z servers.

The System z10 will be the last server to support connec-

tions to the Sysplex Timer (9037). Servers that require time

synchronization, such as to support a base or Parallel Sys-

plex, will require Server Time Protocol (STP). STP has been

available since January 2007 and is offered on the System

z10, System z9, and zSeries 990 and 890 servers.

ESCON channels to be phased out: It is IBM's intent for

ESCON channels to be phased out. System z10 EC and

System z10 BC will be the last servers to support greater

than 240 ESCON channels.

ICB-4 links to be phased out: Restatement of SOD) from

RFA46507) IBM intends to not offer Integrated Cluster Bus-

4 (ICB-4) links on future servers. IBM intends for System

z10 to be the last server to support ICB-4 links.

Publications

The following Redbook publications are available now:

z10 EC Technical Overview

SG24-7515

z10 EC Technical Guide SG24-7516

z10 EC Capacity on Demand SG24-7504

Getting Started with Inﬁ niBand on z10 EC and System z9 SG24-7539

The following publications are available in the Library section of

Resource Link:

z10 EC System Overview SA22-1084

z10 EC Installation Manual - Physical Planning (IMPP) GC28-6865

z10 EC PR/SM Planning Guide SB10-7153

z10 EC Installation Manual GC28-6864

z10 EC Service Guide GC28-6866

z10 EC Safety Inspection Guide GC28-6870

System Safety Notices G229-9054

Application Programming Interfaces for Java API-JAVA

Application Programming Interfaces SB10-7030

Capacity on Demand User’s Guide

SC28-6871

CHPID Mapping Tool User’s Guide

GC28-6825

Common Information Model (CIM) Management Interface SB10-7154

Physical Layer SA23-0395

ESCON and FICON CTC Reference SB10-7034

ESCON I/O Interface Physical Layer SA23-0394

FICON I/O Interface Physical Layer

SA24-7172

Hardware Management Console Operations Guide (V2.10.0) SC28-6867

IOCP User’s Guide SB10-7037

Maintenance Information for Fiber Optic Links SY27-2597

z10 EC Parts Catalog GC28-6869

Planning for Fiber Optic Links GA23-0367

SCSI IPL - Machine Loader Messages SC28-6839

Service Guide for HMCs and SEs GC28-6861

Service Guide for Trusted Key Entry Workstations GC28-6862

Standalone IOCP User’s Guide SB10-7152

Support Element Operations Guide (Version 2.10.0) SC28-6868

System z Functional Matrix ZSW01335

OSA-Express Customer’s Guide SA22-7935

OSA-ICC User’s Guide SA22-7990

Publications for System z10 Enterprise Class can be

obtained at Resource Link by accessing the following Web

site: www.ibm.com/servers/resourcelink.

Coupling Facility Channel I/O Interface

IBM Systems and Technology Group Route 100 Somers, NY 10589

U.S.A Produced in the United States of America,

04-09

References in this publication to IBM products or services do not imply that IBM intends to make them available in every country in which IBM operates. Consult your local IBM business contact for information on the products, features, and services available in your area.

IBM, IBM eServer, the IBM logo, the e-business logo, , AIX, APPN, CICS, Cool Blue, DB2, DRDA, DS8000, Dynamic Infrastructure, ECKD, ESCON, FICON, Geographically Dispersed Parallel Sysplex, GDPS, HiperSockets, HyperSwap, IMS, Lotus, MQSeries, MVS, OS/390, Parallel Sysplex, PR/SM, Processor Resource/Systems Manager, RACF, Rational, Redbooks, Resource Link, RETAIN, REXX, RMF, S/390, Scalable Architecture for Financial Reporting, Sysplex Timer, Systems Director Active Energy Manager, System Storage, System z, System z9, System z10, Tivoli, TotalStorage, VSE/ESA, VTAM, WebSphere, z9, z10, z10 BC, z10 EC, z/ Architecture, z/OS, z/VM, z/VSE, and zSeries are trademarks or registered trademarks of the International Business Machines Corporation in the Unites States and other countries.

Inﬁ niBand is a trademark and service mark of the Inﬁ niBand Trade Association.

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States or other countries.

Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both.

UNIX is a registered trademark of The Open Group in the Unites States and other countries.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation In the United States, other countries, or both.

Intel is a trademark of the Intel Corporation in the United States and other countries.

Other trademarks and registered trademarks are the properties of their respective companies.

IBM hardware products are manufactured from new parts, or new and used parts. Regardless, our warranty terms apply.

Performance is in Internal Throughput Rate (ITR) ratio based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput that any user will experience will vary depending upon considerations such as the amount of multiprogramming in the user’s job stream, the I/O conﬁ guration, the storage conﬁ guration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve throughput improvements equivalent to the performance ratios stated here.

All performance information was determined in a controlled environment. Actual results may vary. Performance information is provided “AS IS” and no warranties or guarantees are expressed or implied by IBM.

Photographs shown are of engineering prototypes. Changes may be incorporated in production models.

This equipment is subject to all applicable FCC rules and will comply with them upon delivery.

Information concerning non-IBM products was obtained from the suppliers of those products. Questions concerning those products should be directed to those suppliers.

All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics may vary by custom.

ZSO03018-USEN-02

IBM System z10 Enterprise Class Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
