IBM System x3400 M3 Types 7378 Installation And User Manual

Download

IBM System x3400 M3 Types 7378 and 7379

Installation and User's Guide



IBM System x3400 M3 Types 7378 and 7379

Installation and User's Guide



Note: Before using this information and the product it supports, read the general information in Appendix B, “Notices,” on page 123, and the IBM Safety Information, Environmental Notices and User Guide documents on the IBM Documentation CD, and the Warranty Information document that comes with the server.

Ninth Edition (February 2012)

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

Safety ............................vii

Chapter 1. The System x3400 M3 server ...............1

The IBM Documentation CD ....................2

Hardware and software requirements ................2

Using the Documentation Browser .................2

Related documentation ......................3

Notices and statements in this document................4

Features and specifications.....................6

What your server offers ......................9

Reliability, availability, and serviceability ................12

IBM Systems Director ......................13

The UpdateXpress System Pack Installer ...............14

Server controls, LEDs, and power ..................14

Front view .........................14

Rear view ..........................16

Power-supply LEDs ......................17

Server power features .....................19

Chapter 2. Installing optional devices................21

Instructions for IBM Business Partners ................21

Server components .......................22

System-board internal connectors .................23

System-board switches and jumpers ................24

System-board LEDs ......................25

System-board external connectors.................25

SAS backplane connectors ...................27

Operator information panel ...................28

Installation guidelines ......................29

System reliability guidelines ...................30

Working inside the server with the power on .............30

Handling static-sensitive devices .................31

Internal cable routing and connectors ................32

Tape drive cable connection ...................32

DVD drive cable connection ...................35

Operator information panel cable connection .............36

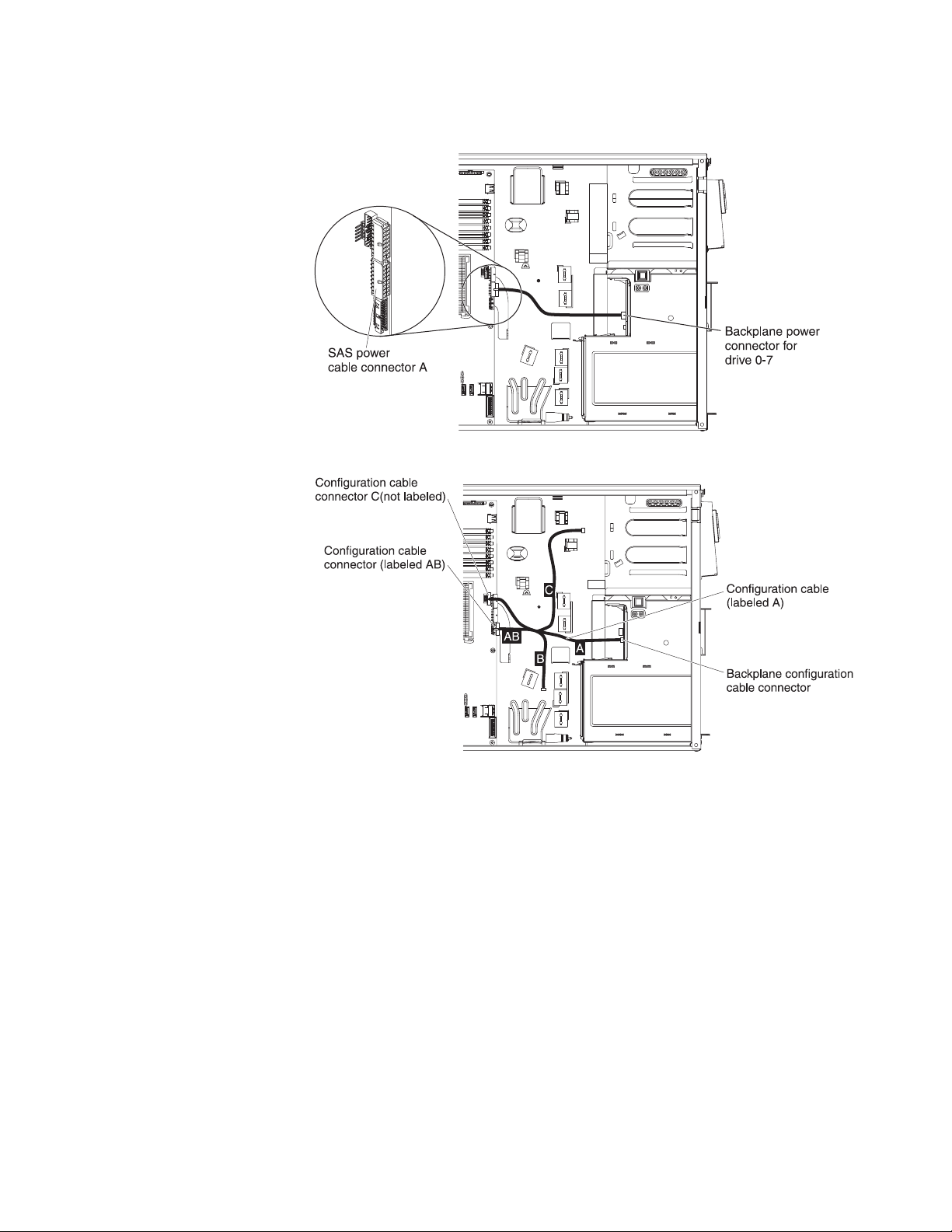

Hard disk drive cable connection .................38

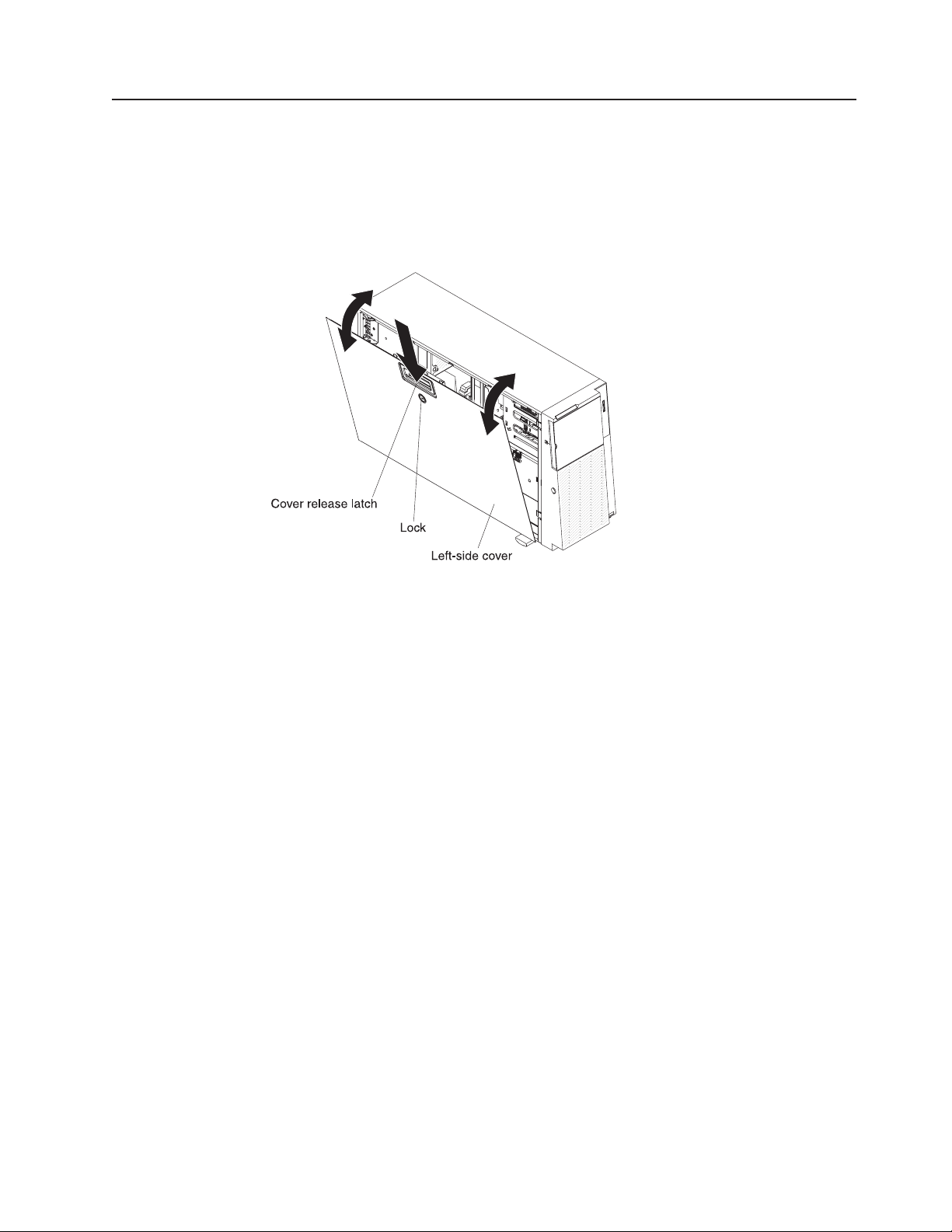

Removing the left-side cover ....................49

Opening the bezel media door ...................50

Removing the air baffle ......................52

Installing the air baffle ......................53

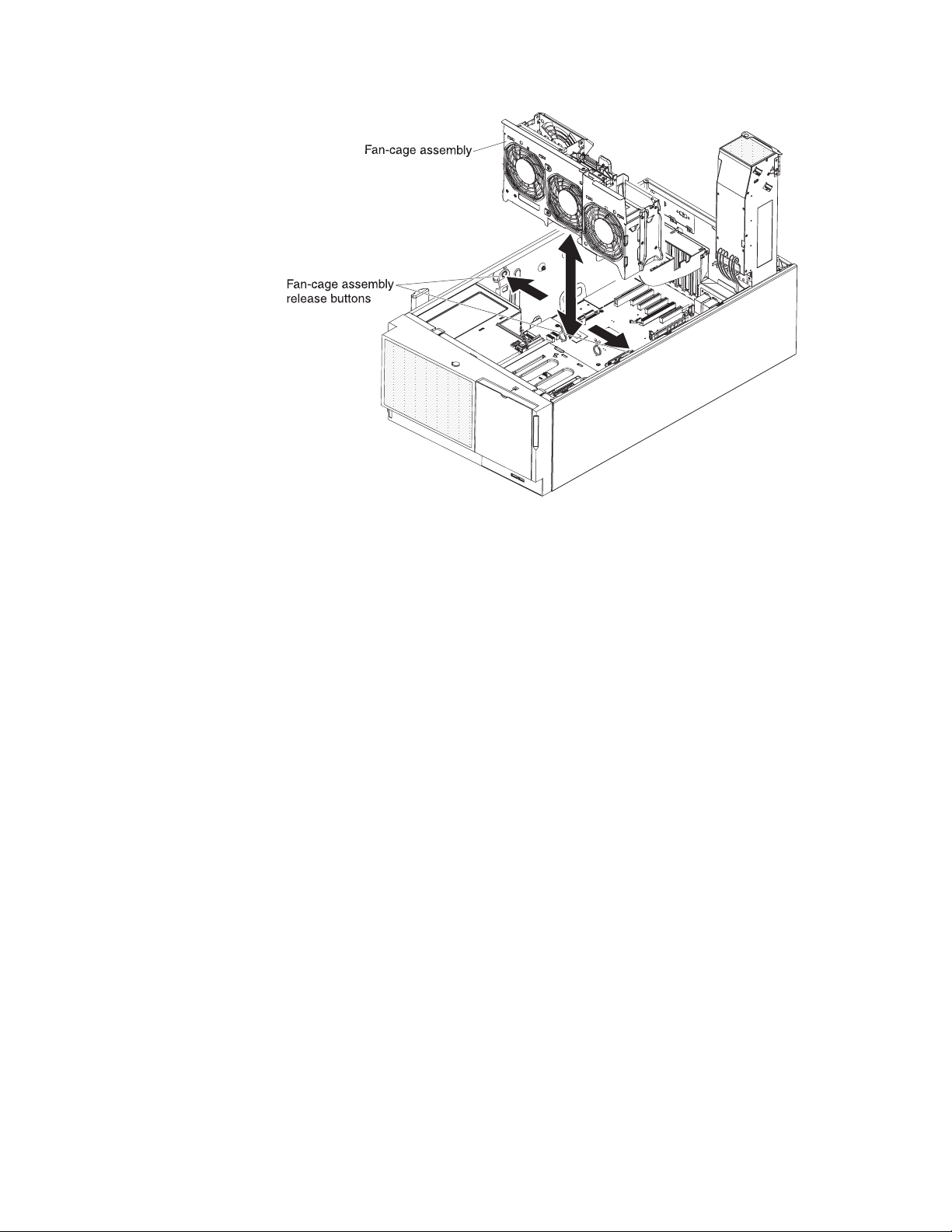

Installing the fan cage assembly ..................53

Opening the power-supply cage ..................55

Closing the power-supply cage ...................56

Installing an adapter .......................58

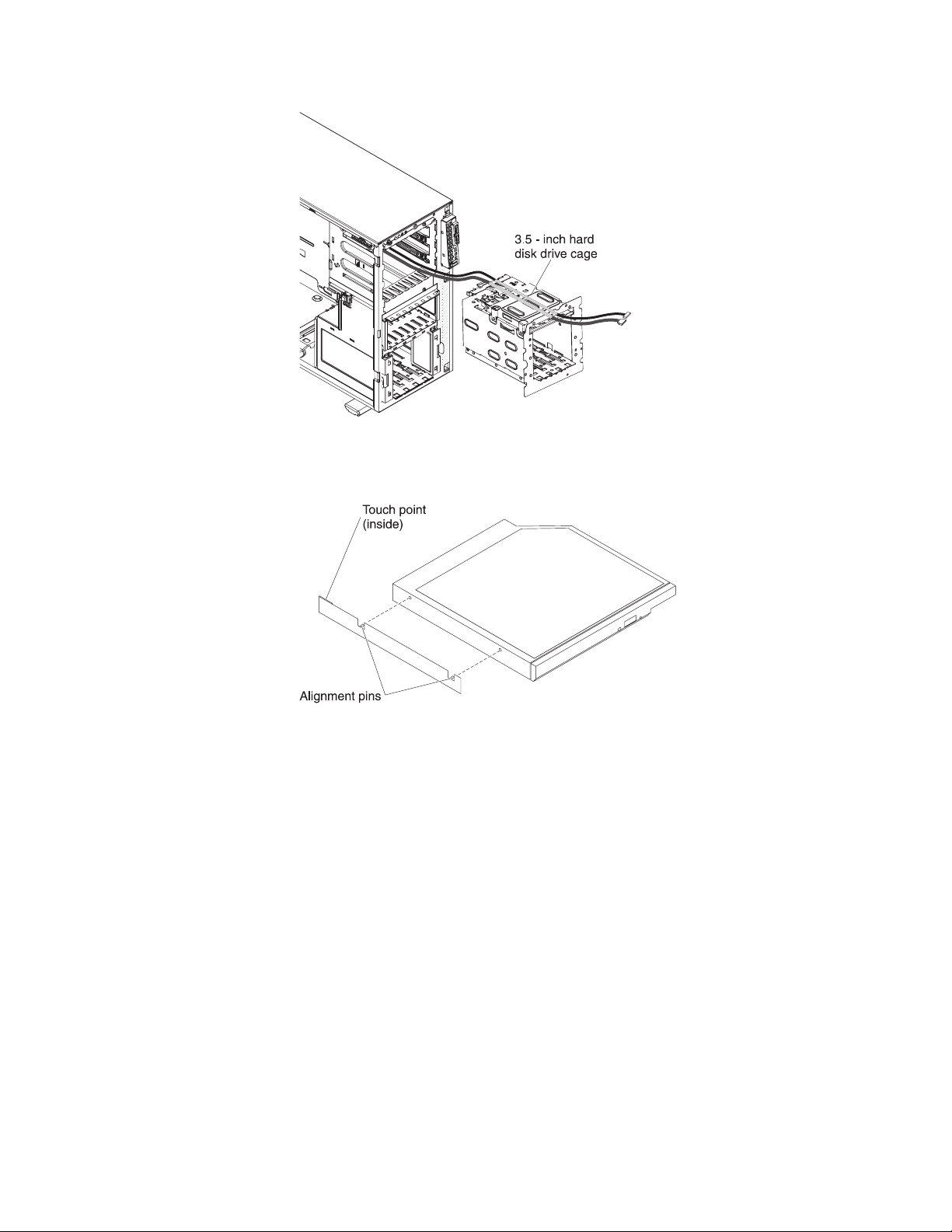

Installing a DVD drive ......................61

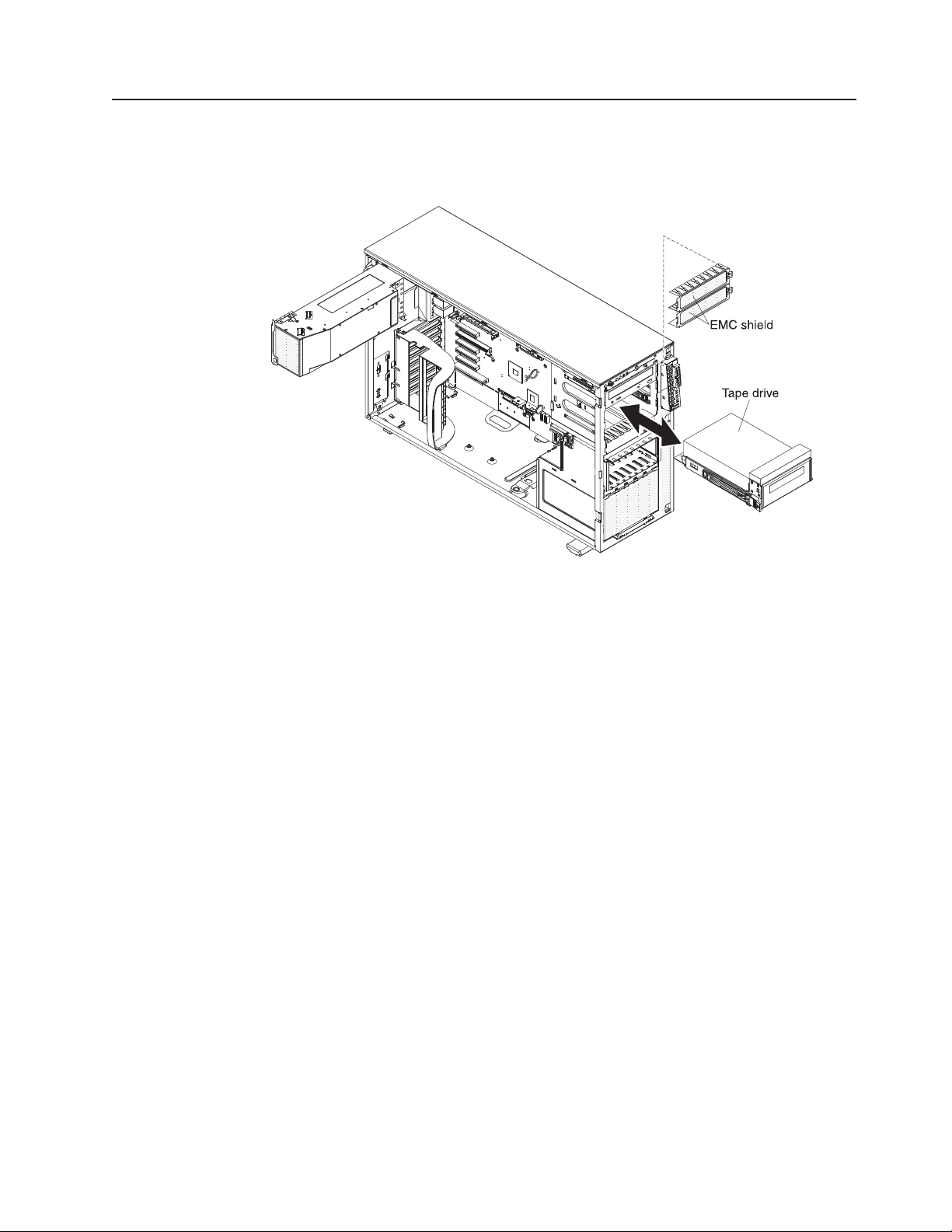

Installing a USB or SATA tape drive .................71

Installing a hot-swap hard disk drive .................75

Installing a simple-swap SATA hard disk drive .............77

Installing a memory module ....................79

Installing the virtual media key ..................82

Independent channel mode ...................84

Memory-mirroring mode ....................84

Memory sparing .......................87

Installing an optional ServeRAID adapter advanced feature key .......88

Installing a USB embedded hypervisor flash device ...........90

Installing a second microprocessor .................90

Installing a redundant power supply .................98

Completing the installation.....................98

Connecting the cables .....................99

Updating the server configuration.................100

Chapter 3. Configuring the server.................101

Using the Setup utility ......................102

Starting the Setup utility ....................103

Setup utility menu choices ...................103

Passwords .........................107

Using the Boot Selection Menu program ...............109

Starting the backup server firmware.................109

Using the ServerGuide Setup and Installation CD............109

ServerGuide features .....................110

Setup and configuration overview.................110

Typical operating-system installation................111

Installing your operating system without using ServerGuide .......111

Using the integrated management module ..............111

Using the embedded hypervisor ..................113

Using the remote presence capability and blue-screen capture .......113

Obtaining the IP address for the Web interface access .........114

Logging on to the Web interface .................114

Enabling the Broadcom Gigabit Ethernet Utility program .........115

Configuring the Gigabit Ethernet controller ..............115

Using the LSI Configuration Utility program ..............116

Starting the LSI Configuration Utility program ............116

Formatting a hard disk drive ..................117

Creating a RAID array of hard disk drives .............117

IBM Advanced Settings Utility program ................118

Updating IBM Systems Director ..................118

Appendix A. Getting help and technical assistance ..........121

Before you call ........................121

Using the documentation.....................121

Getting help and information from the World Wide Web .........121

Software service and support ...................122

Hardware service and support ...................122

IBM Taiwan product service ....................122

Appendix B. Notices ......................123

Trademarks..........................123

Important notes ........................124

Particulate contamination.....................125

Documentation format ......................125

Telecommunication regulatory statement ...............126

Electronic emission notices ....................126

Federal Communications Commission (FCC) statement ........126

Industry Canada Class A emission compliance statement ........126

Avis de conformité à la réglementation d'Industrie Canada .......126

Australia and New Zealand Class A statement ............126

European Union EMC Directive conformance statement ........127

Germany Class A statement ..................127

iv IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

VCCI Class A statement ....................128

Japan Electronics and Information Technology Industries Association (JEITA)

statement ........................128

Korean Class A warning statement ................128

Russia Electromagnetic Interference (EMI) Class A statement ......129

People's Republic of China Class A electronic emission statement ....129

Taiwan Class A compliance statement ...............129

Index ............................131

Contents v

vi IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Safety

Before installing this product, read the Safety Information.

Antes de instalar este produto, leia as Informações de Segurança.

Læs sikkerhedsforskrifterne, før du installerer dette produkt.

Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.

Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.

Avant d'installer ce produit, lisez les consignes de sécurité.

Vor der Installation dieses Produkts die Sicherheitshinweise lesen.

Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.

Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.

Antes de instalar este produto, leia as Informações sobre Segurança.

Antes de instalar este producto, lea la información de seguridad.

Läs säkerhetsinformationen innan du installerar den här produkten.

Important:

Each caution and danger statement in this document is labeled with a number. This number is used to cross reference an English-language caution or danger statement with translated versions of the caution or danger statement in the IBM Safety Information document.

For example, if a caution statement is labeled “Statement 1,” translations for that caution statement are in the Safety Information document under “Statement 1.”

Be sure to read all caution and danger statements in this document before you perform the procedures. Read any additional safety information that comes with the server or optional device before you install the device.

viii IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Statement 1:

DANGER

Electrical current from power, telephone, and communication cables is hazardous.

To avoid a shock hazard: v Do not connect or disconnect any cables or perform installation,

maintenance, or reconfiguration of this product during an electrical storm.

v Connect all power cords to a properly wired and grounded electrical

outlet.

v Connect to properly wired outlets any equipment that will be attached to

this product.

v When possible, use one hand only to connect or disconnect signal

cables.

v Never turn on any equipment when there is evidence of fire, water, or

structural damage.

v Disconnect the attached power cords, telecommunications systems,

networks, and modems before you open the device covers, unless instructed otherwise in the installation and configuration procedures.

v Connect and disconnect cables as described in the following table when

installing, moving, or opening covers on this product or attached devices.

To Connect: To Disconnect:

1. Turn everything OFF.

2. First, attach all cables to devices.

3. Attach signal cables to connectors.

4. Attach power cords to outlet.

5. Turn device ON.

1. Turn everything OFF.

2. First, remove power cords from outlet.

3. Remove signal cables from connectors.

4. Remove all cables from devices.

Safety ix

Statement 2:

CAUTION: When replacing the lithium battery, use only IBM Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.

Do not:

v Throw or immerse into water v Heat to more than 100°C (212°F) v Repair or disassemble

Dispose of the battery as required by local ordinances or regulations.

x IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Statement 3:

CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following:

v Do not remove the covers. Removing the covers of the laser product could

result in exposure to hazardous laser radiation. There are no serviceable parts inside the device.

v Use of controls or adjustments or performance of procedures other than

those specified herein might result in hazardous radiation exposure.

DANGER

Some laser products contain an embedded Class 3A or Class 3B laser diode. Note the following.

Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

Class 1 Laser Product Laser Klasse 1 Laser Klass 1 Luokan 1 Laserlaite Appareil A Laser de Classe 1

Safety xi

Statement 4:

≥ 18 kg (39.7 lb) ≥ 32 kg (70.5 lb) ≥ 55 kg (121.2 lb)

CAUTION: Use safe practices when lifting.

Statement 5:

CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

xii IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Statement 8:

CAUTION: Never remove the cover on a power supply or any part that has the following label attached.

Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact a service technician.

Statement 11:

CAUTION: The following label indicates sharp edges, corners, or joints nearby.

Statement 12:

CAUTION: The following label indicates a hot surface nearby.

Statement 13:

Safety xiii

DANGER

Overloading a branch circuit is potentially a fire hazard and a shock hazard under certain conditions. To avoid these hazards, ensure that your system electrical requirements do not exceed branch circuit protection requirements. Refer to the information that is provided with your device for electrical specifications.

Statement 15:

CAUTION: Make sure that the rack is secured properly to avoid tipping when the server unit is extended.

Statement 17:

CAUTION: The following label indicates moving parts nearby.

Statement 26:

CAUTION: Do not place any object on top of rack-mounted devices.

Attention: This product is suitable for use on an IT power distribution system

whose maximum phase to phase voltage is 240 V under any distribution fault condition.

xiv IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Chapter 1. The System x3400 M3 server

This Installation and User's Guide contains instructions for setting up your IBM System x3400 M3 Type 7378/7379 server, instructions for installing optional devices, and instructions for starting and configuring the server. For diagnostic and troubleshooting information, see the Problem Determination and Service Guide that is on the IBM Documentation CD.

The IBM server. It can be upgraded to a symmetric multiprocessing (SMP) server through a microprocessor upgrade. It is ideally suited for networking environments that require superior microprocessor performance, efficient memory management, flexibility, and large amounts of reliable data storage.

Performance, ease of use, reliability, and expansion capabilities were key considerations in the design of the server. These design features make it possible for you to customize the system hardware to meet your needs today and provide flexible expansion capabilities for the future.

The server comes with a limited warranty. For information about the terms of the warranty and getting service and assistance, see the Warranty Information document that comes with the server.

The server contains IBM Enterprise X-Architecture technologies, which help increase performance and reliability. For more information, see “What your server offers” on page 9 and “Reliability, availability, and serviceability” on page 12.

System x3400 M3 Type 7378/7379 server is a 5U1-high high performance

You can obtain up-to-date information about the server and other IBM server products at http://www.ibm.com/systems/x/. At http://www.ibm.com/support/ mysupport/, you can create a personalized support page by identifying IBM products that are of interest to you. From this personalized page, you can subscribe to weekly e-mail notifications about new technical documents, search for information and downloads, and access various administrative services.

If you participate in the IBM client reference program, you can share information about your use of technology, best practices, and innovative solutions; build a professional network; and gain visibility for your business. For more information about the IBM client reference program, see http://www.ibm.com/ibm/ clientreference/.

Some server models support up to four 3.5-inch simple-swap SATA hard disk drives, or up to four 3.5-inch hot-swap SAS or SATA hard disk drives, sixteen or eight 2.5-inch hot-swap SAS or SATA hard disk drives. The illustrations in this document might differ slightly from your model.

Note: SAS expander card does not support 3 GB RAID adapters.

If firmware and documentation updates are available, you can download them from the IBM Web site. The server might have features that are not described in the documentation that comes with the server, and the documentation might be updated occasionally to include information about those features, or technical updates might

1. Racks are measured in vertical increments of 4.45 cm (1.75 inches) each. Each increment is called a "U." A 1-U-high device is

1.75 inches tall.

be available to provide additional information that is not included in the server documentation. To check for updates, complete the following steps.

Note: Changes are made periodically to the IBM Web site. Procedures for locating firmware and documentation might vary slightly from what is described in this document.

1. Go to http://www.ibm.com/systems/support/.

2. Under Product support, click System x.

3. Under Popular links, click Software and device drivers for firmware updates, or click Publications lookup for documentation updates.

Record information about the server in the following table. You will need this information when you register the server with IBM.

Product name IBM System x3400 M3 Machine type 7378/7379 Model number _____________________________________________ Serial number _____________________________________________ Key serial number _____________________________________________ Key manufacturer _____________________________________________ Key phone number _____________________________________________

The model number and serial number are on labels on the bottom of the server and on the front, visible through the bezel, as shown in the following illustration.

Important: The server keys cannot be duplicated by a locksmith. If you lose them, order replacement keys from the key manufacturer. The telephone number of the manufacturer is on the keys.

For a list of supported optional devices for the server, see http://www.ibm.com/ servers/eserver/serverproven/compat/us/.

The IBM Documentation CD

The IBM Documentation CD contains documentation for your server in Portable Document Format (PDF) and includes the IBM Documentation Browser to help you find information quickly.

Hardware and software requirements

The IBM Documentation CD requires the following minimum hardware and software:

v Microsoft Windows XP, Windows 2000, or Red Hat Linux v 100 MHz microprocessor v 32 MB of RAM v Adobe Acrobat Reader 3.0 (or later) or xpdf, which comes with Linux operating

systems

Using the Documentation Browser

Use the Documentation Browser to browse the contents of the CD, read brief descriptions of the documents, and view documents, using Adobe Acrobat Reader

2 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

or xpdf. The Documentation Browser automatically detects the regional settings in use in your server and displays the documents in the language for that region (if available). If a document is not available in the language for that region, the English-language version is displayed.

Use one of the following procedures to start the Documentation Browser: v If Autostart is enabled, insert the CD into the CD or DVD drive. The

Documentation Browser starts automatically.

v If Autostart is disabled or is not enabled for all users, use one of the following

procedures: – If you are using a Windows operating system, insert the CD into the CD or

DVD drive and click Start --> Run.IntheOpen field, type

e:\win32.bat

where e is the drive letter of the CD or DVD drive, and click OK.

– If you are using Red Hat Linux, insert the CD into the CD or DVD drive; then,

run the following command from the /mnt/cdrom directory:

sh runlinux.sh

Select your server from the Product menu. The Available Topics list displays all the documents for your server. Some documents might be in folders. A plus sign (+) indicates each folder or document that has additional documents under it. Click the plus sign to display the additional documents.

When you select a document, a description of the document appears under Topic Description. To select more than one document, press and hold the Ctrl key while you select the documents. Click View Book to view the selected document or documents in Acrobat Reader or xpdf. If you selected more than one document, all the selected documents are opened in Acrobat Reader or xpdf.

To search all the documents, type a word or word string in the Search field and click Search. The documents in which the word or word string appears are listed in order of the most occurrences. Click a document to view it, and press Crtl+F to use the Acrobat search function, or press Alt+F to use the xpdf search function within the document.

Click Help for detailed information about using the Documentation Browser.

Notices and statements in this document

The caution and danger statements that appear in this document are also in the multilingual Safety Information document, which is on the IBM Documentation CD. Each statement is numbered for reference to the corresponding statement in the Safety Information document.

The following notices and statements are used in this document:

v Note: These notices provide important tips, guidance, or advice. v Important: These notices provide information or advice that might help you avoid

inconvenient or problem situations.

v Attention: These notices indicate potential damage to programs, devices, or

data. An attention notice is placed just before the instruction or situation in which damage might occur.

4 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

v Caution: These statements indicate situations that can be potentially hazardous

to you. A caution statement is placed just before the description of a potentially hazardous procedure step or situation.

v Danger: These statements indicate situations that can be potentially lethal or

extremely hazardous to you. A danger statement is placed just before the description of a potentially lethal or extremely hazardous procedure step or situation.

Chapter 1. The System x3400 M3 server 5

Features and specifications

The following information is a summary of the features and specifications of the server. Depending on the server model, some features might not be available, or some specifications might not apply.

Table 1. Features and specifications

Microprocessor:

v Intel Xeon up to six-core with

integrated memory controller and Quick Path Interconnect (QPI) architecture

v Designed for LGA 1366 socket v Scalable up to twelve cores v 32 KB instruction cache, 32 KB

data cache, and 4MB, 8 MB and 12MB cache that is shared among the cores

v Support for up to two

microprocessors, second microprocessor with pluggable VRM

v Support for Intel Extended Memory

64 Technology (EM64T)

Note:

v Use the Setup utility to determine

the type and speed of the microprocessors. For a list of supported microprocessors, see http://www.ibm.com/servers/ eserver/serverproven/compat/us/

v Do not install an Intel Xeon

series microprocessor and an

™

Xeon

5600 series microprocessor

in the same server.

Video controller:

v Matrox G200eV video on system

board

v Compatible with SVGA and VGA

Power supply:

v Standard: One 670 watt (100 - 240

V AC)

Note: On models with eight 3.5-inch or sixteen 2.5-inch hard disk drives, need to upgrade power supply to 920-watt.

™

5500

Memory:

v Sixteen DIMM connectors (eight

per microprocessor)

v Minimum: 1 GB

Note: If you install a ServeRAID-M1015 SAS/SATA adapter, make sure at least 2 GB of memory is installed in the server before you run DSA from a bootable CD.

v Maximum: 128 GB

– 48 GB using unbuffered

– 128 GB using registered

v Type: Registered or unbuffered

ECC double-data-rate 3 (DDR3) 800, 1066, and 1333 MHz DIMMs only

v RDIMMs sizes: 1 GB, 2 GB , 4

GB , and 8 GB single-rank or dual-rank

v UDIMMs sizes: 1 GB, 2 GB, and

4 GB single-rank or dual-rank

v Chipkill supported

Drives:

v SATA:

– DVD (standard) – DVD/CD-RW (optional) – Maximum of two devices can

v Diskette (optional): External USB

1.44 MB

v Supported hard disk drives:

– Serial Attached SCSI (SAS)

DIMMs (UDIMMs)

DIMMs (RDIMMs)

be installed

Expansion bays:

v Sixteen 2.5-inch HDD bays (three

optical DVD drive bays)

v Four 3.5-inch simple-swap SATA

drives

v Eight 3.5-inch HDD bays (one

UltraSlim DVD drive)

v Three half-high 5.25-inch bays (one

DVD drive installed)

Note:

– SAS expander card does not

support 3 GB RAID adapters.

– If the server is configured for

RAID operation using a ServeRAID adapter, you might have to reconfigure your disk arrays after you install drives. See the ServeRAID adapter documentation for additional information about RAID operation and complete instructions for using the ServeRAID adapter.

– Full-high devices such as an

optional tape drive will occupy two half-high

5.25-inch bays.

PCI and PCI-X expansion slots:

v Six PCI expansion slots on the

system board: – Four PCI Express x8 (2x8 link,

2x4 link) – One PCI Express x16 (x8 link) – One PCI 32-bit

v One or two expansion slots on the

PCI extender card: – Optional - One PCI Express x8

(x4 link) on the PCI-Express

extender card – Optional - Two PCI-X 64/133

slots on the PCI-X extender card

Hot-swap fans:

v Three (maximum)

6 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Table 1. Features and specifications (continued)

Integrated functions:

Size:

v Tower

– Height: 440 mm (17.3 in.) – Depth: 767 mm (30.2 in.) – Width: 218 mm (8.6 in.) – Weight: approximately 37.85 kg

(83.4 lb) when fully configured or 27.1 kg (59.7 lb) minimum

v Rack

–5U – Height: 218 mm (8.6 in.) – Depth: 702 mm (27.6 in.) – Width: 424 mm (16.7 in.) – Weight: approximately 36 kg

(79.3 lb) when fully configured or 25.8 kg (56.9 lb) minimum

Racks are marked in vertical increments of 4.45 cm (1.75 inches). Each increment is referred to as a unit, or “U.” A 1-U-high device is 4.45 cm (1.75 inches) tall.

v Integrated Management Module

(IMM), which provides service processor control and monitoring functions, video controller, and (when the optional virtual media key is installed) remote keyboard, video, mouse, and remote hard disk drive capabilities

v Dedicated or shared management

network connections

v Six-port Serial ATA (SATA)

controller embedded

v Serial over LAN (SOL) and serial

redirection over Telnet or Secure Shell (SSH)

v USB flash device with embedded

hypervisor software.

v Support for remote management

presence

v One systems-management RJ-45

for connection to a dedicated systems-management network. This system management connector is dedicated to the IMM functions.

v Six Universal Serial Bus (USB)

ports standard (v2.0 supporting v1.1) – Four on rear of server – Two on front of server

v One internal USB tape connector v One Broadcom dual-port

10/100/1000 Ethernet controller with Wake on LAN support

v One serial connector, shared with

the IMM

Note: In messages and documentation, the term service processor refers to the integrated management module (IMM).

ServeRAID SAS adapter:

v ServeRAID-BR10i SAS/SATA

adapter that supports RAID levels 0,

1 and 1E (standard)

v ServeRAID-BR10il SAS/SATA

adapter that supports RAID levels 0,

1 and 1E (standard)

v Upgradeable to ServeRAID-MR10i

SAS/SATA adapter, which supports

RAID levels 0, 1, 5, 6, 10

v Optional ServeRAID-MR10is

SAS/SATA adapter, which supports

RAID levels 0, 1, 5, 6, 10

v Optional ServeRAID-M1015

SAS/SATA adapter, which supports

RAID levels 0, 1 and 1E

v Optional ServeRAID-M5014

SAS/SATA adapter, which supports

RAID level 0, 1, 5, 10, 50

v Optional ServeRAID-M5015

SAS/SATA adapter, which supports

RAID level 0, 1, 5, 10, 50

Note: If the server is configured for

RAID operation using a ServeRAID

adapter, you might have to

reconfigure your disk arrays after

you install drives. See the

ServeRAID adapter documentation

for additional information about

RAID operation and complete

instructions for using the ServeRAID

adapter.

Acoustical noise emissions:

v Sound power, idle: 5.5 bel declared v Sound power, operating: 6.0 bel

declared

Chapter 1. The System x3400 M3 server 7

Table 1. Features and specifications (continued)

Environment:

v Air temperature:

– Server on: 10°C to 35°C (50.0°F

to 95.0°F); altitude: 0 to 915 m (3000 ft)

– Server on: 10°C to 32°C (50.0°F

to 90.0°F); altitude: 915 m (3000 ft) to 2134 m (7000 ft)

– Server on: 10°C to 28°C (50.0°F

to 83.0°F); altitude: 2134 m (7000 ft) to 3050 m (10000 ft)

– Server off: 5°C to 45°C (41°F to

113°F)

– Shipping: -40°C to 60°C

(-40.0°F to 140°F)

Electrical input:

v Sine-wave input (50-60 Hz)

required

v Input voltage low range:

– Minimum: 100 V AC – Maximum: 127 V AC

v Input voltage high range:

– Minimum: 200 V AC – Maximum: 240 V AC

v Approximate input

kilovolt-amperes (kVA): – Minimum: 0.60 kVA – Maximum: 1.10 kVA

Notes:

1. Power consumption and heat output vary depending on the number and type of optional features that are installed and the power-management optional features that are in use.

2. These levels were measured in controlled acoustical environments according to the procedures that are specified by the American National Standards Institute (ANSI) S12.10 and ISO 7779 and are reported in accordance with ISO 9296. Actual sound-pressure levels in a given location might exceed the average stated values because of room reflections and other nearby noise sources. The declared sound-power levels indicate an upper limit, below which a large number of computers will operate.

Heat output:

Approximate heat output: v Minimum configuration: 2013 Btu

per hour (590 watts)

v Maximum configuration: 3610 Btu

per hour (1058 watts)

Humidity: v Server on: 20% to 80%, maximum

dew point 21°C, maximum rate of change 5°C/hour

v Server off: 8% to 80%, maximum

dew point 27°C

8 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

What your server offers

The server uses the following features and technologies:

v UEFI-compliant server firmware

IBM System x including Unified Extensible Firmware Interface (UEFI) 2.1 compliance, Active Energy Manager technology, enhanced RAS capabilities, and BIOS compatibility support. UEFI replaces the basic input/output system (BIOS) and defines a standard interface between the operating system, platform firmware, and external devices. UEFI-compliant System x servers are capable of booting UEFI-compliant operating systems, BIOS-based operating systems, and BIOS-based adapters as well as UEFI-compliant adapters.

Note: The server does not support DOS.

v Integrated management module

The Integrated Management module (IMM) combines service processor functions, video controller, and (when an optional virtual media key is installed) remote presence function in a single chip. The IMM provides advanced service-processor control, monitoring, and alerting function. If an environmental condition exceeds a threshold or if a system component fails, the IMM lights LEDs to help you diagnose the problem, records the error in the event log, and alerts you to the problem. The IMM also provides a virtual presence capability for remote server management capabilities. The IMM provides remote server management through industry-standard interfaces:

– Intelligent Platform Management Interface (IPMI) version 2.0 – Simple Network Management Protocol (SNMP) version 3 – Common Information Model (CIM) – Web browser

v Remote presence capability and blue-screen capture

The remote presence feature provides the following functions: – Remotely viewing video with graphics resolutions up to 1600 x 1200 at 85 Hz,

regardless of the system state

– Remotely accessing the server, using the keyboard and mouse from a remote

client

– Mapping the CD or DVD drive, diskette drive, and USB flash drive on a

remote client, and mapping ISO and diskette image files as virtual drives that are available for use by the server

– Uploading a diskette image to the IMM memory and mapping it to the server

as a virtual drive

The blue-screen capture feature captures the video display contents before the IMM restarts the server when the IMM detects an operating-system hang condition. A system administrator can use the blue-screen capture to assist in determining the cause of the hang condition.

v IBM Dynamic System Analysis Preboot diagnostics programs

The Dynamic System Analysis (DSA) Preboot diagnostics programs are stored on the integrated flash memory. It collects and analyzes system information to aid in diagnosing server problems. The diagnostic programs collect the following information about the server:

– System configuration – Network interfaces and settings – Installed hardware

Server Firmware (server firmware) offers several features,

Chapter 1. The System x3400 M3 server 9

– Light path diagnostics status – Service processor status and configuration – Vital product data, firmware, and UEFI configuration – Hard disk drive health – RAID adapter configuration – Event logs for service processors The DSA program creates a chronologically ordered merged of the system-event

log (as the IPMI event log), the IMM event log (as the ASM event log), and the operating-system event logs. The information is collected into a file that you can send to IBM service and support. Additionally, you can view the information locally through a generated text report file. You can also copy the log to a removable media and view the log from a Web browser.

For additional information about the DSA program, see the Problem Determination and Service Guide on the IBM Documentation CD

v IBM Systems Director

IBM Systems Director is a workgroup-hardware-management tool that you can use to centrally manage System x and xSeries

servers. For more information,

see the IBM Systems Director documentation on the IBM Systems Director CD.

v IBM ServerGuide Setup and Installation CD

The ServerGuide Setup and Installation CD, which you can download from the Web, provides programs to help you set up the server and install a Windows operating system. The ServerGuide program detects installed optional hardware devices and provides the correct configuration programs and device drivers. For more information about the ServerGuide Setup and Installation CD, see “Using the ServerGuide Setup and Installation CD” on page 109.

v IBM X-Architecture

technology

IBM X-Architecture technology combines proven, innovative IBM designs to make your Intel-processor-based server powerful, scalable, and reliable. For more information, see http://www.ibm.com/servers/eserver/xseries/xarchitecture/ enterprise/index.html.

– VMware ESXi embedded hypervisor

The VMware ESXi embedded hypervisor is available on some server models. Hypervisor is virtualization software that enables multiple operating systems to run on a host system at the same time. The VMware ESXi embedded hypervisor software is provided on USB flash device that is installed in the USB connector on the system board. See “Using the embedded hypervisor” on page 113 for additional information.

– Active Memory

™

The Active Memory feature improves the reliability of memory through memory mirroring or memory sparing. Memory mirroring stores data in two pairs of DIMMs simultaneously. Memory sparing mode, one channel is a spare of the other two.

– Large system-memory capacity

The memory bus supports up to 128 GB of system memory using RDIMMs. The memory controller supports error correcting code (ECC) for up to 16 industry-standard PC3-10600R-999 (single-rank or dual-rank DIMMs), 800, 1067, and 1333 MHz, DDR3 (third-generation double-data-rate), registered, synchronous dynamic random access memory (SDRAM) dual inline memory modules (DIMMs). The memory bus also supports up to 48 GB system memory using UDIMMs.

v Integrated network support

10 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

The server comes with one integrated Broadcom 5716 series Gigabit Ethernet controller, which supports connection to a 10 Mbps, 100 Mbps, or 1000 Mbps network. For more information, see “Enabling the Broadcom Gigabit Ethernet Utility program” on page 115.

v Integrated Trusted Platform Module (TPM)

This integrated security chip performs cryptographic functions and stores private and public secure keys. It provides the hardware support for the Trusted Computing Group (TCG) specification. You can download the software to support the TCG specification, when the software is available. See http://www.ibm.com/ servers/eserver/xseries/scalable_family.html for details about the TPM implementation. You can enable TPM support through the Setup utility under the

System Security menu option. See Table 4 on page 24 for more information.

Note: The physical presence requires manual setting on the server to change

the TPM configuration. The TPM is enabled and physical presence is not asserted by default. The physical presence needs to be asserted to activate, deactivate, clear or change ownership of the TPM.

v Intelligent Platform Management Interface (IPMI) 2.0

IPMI 2.0 support providing secure remote power-on/power-off and several standard alerts for components such as fans, voltage, and temperature.

v Large data-storage capacity and hot-swap capability

The server supports up to sixteen (depending on your model) 2.5-inch or eight

3.5-inch hard disk drives in the hot-swap bays. With the hot-swap feature, you can add, remove, or replace hard disk drives without turning off the server.

Note: SAS expander card does not support 3 GB RAID adapters.

v Light path diagnostics

Light path diagnostics provides LEDs to help you diagnose problems. For more information, see the section about light path diagnostics in the Problem Determination and Service Guide on the IBM Documentation CD.

v Memory mirroring

Memory mirroring improves the availability of memory by writing information to the main memory and redundant locations in a mirrored pair of DIMMs.

v Memory sparing

2 channels operating independently, 3rd channel is spare, errors occurring in the normal system memory are tracked, when an error threshold is crossed, the data at the “failing” memory location is copied into the spare memory.

Note: Memory sparing is only available for Intel Xeon 5600 series microprocessor.

v PCI-32 adapter capabilities

The server has one slot for a PCI-32 adapter.

v PCI Express x8 adapter capabilities

The server has five slots for PCI Express x8 adapters. Three of these slots accept x8 adapters, but the adapters will operate as x4 adapters.

v PCI Express x16 adapter capabilities

The server has one slot for PCI Express x16 adapter, which will operate as an x8 adapter.

v Redundant power capabilities

The server supports up to two 920-watt hot-swap power supplies. If the server comes with only one power supply, you can install an additional power supply to

Chapter 1. The System x3400 M3 server 11

add redundant power capabilities. If the maximum load on the server is less than 920 watts and a problem occurs with one of the power supplies, the other power supply can meet the power requirements.

v ServeRAID support

The server supports ServeRAID adapters to create redundant array of independent disks (RAID) configurations.

v Symmetric multiprocessing (SMP)

The server supports up to two Intel Xeon quad-core microprocessors. If the server comes with only one microprocessor, you can install an additional microprocessor to enhance performance and provide SMP capability.

v Systems-management capabilities

The server contains an integrated management module (IMM), which enables you to manage the functions of the server locally and remotely and provides remote presence and blue-screen capture capability. The IMM also provides system monitoring and event recording.

Reliability, availability, and serviceability

Three important server design features are reliability, availability, and serviceability (RAS). The RAS features help to ensure the integrity of the data that is stored in the server, the availability of the server when you need it, and the ease with which you can diagnose and correct problems.

The server has the following RAS features: v 3-year parts, 3-year labor limited warranty (1-year warranty is available in limited

geography)

v Advanced Configuration and Power Interface (ACPI) v Advanced Desktop Management Interface (DMI) features v Automatic error retry or recovery v Automatic memory downsizing on error detection v Automatic restart on nonmaskable interrupt (NMI) v Automatic Server Restart (ASR) logic supporting a system restart when the

operating system becomes unresponsive

v Automatic server restart after a power failure, based on the Setup utility setting v Availability of microcode level v ABR (Automatic BIOS Recovery) v Built-in, menu-driven setup, system configuration, and redundant array of

independent disks (RAID) configuration

v Built-in monitoring for fan, power, temperature, and voltage v CD-based diagnostic programs v Cooling fans with speed-sensing capability v Customer support center that is available 24 hours a day, 7 days a week

v Diagnostic support of ServeRAID adapters v Error codes and messages v Error correcting code (ECC) double-data-rate (DDR) synchronous dynamic

random access memory (SDRAM) with serial presence detect (SPD)

v Error logging of POST failures

2. Service availability will vary by country. Response time varies; may exclude holidays.

12 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

v Hot-swap SAS hard disk drives v Simple-swap Serial Advanced Technology Attachment (SATA) hard disk drives v Integrated Ethernet controllers v Intelligent Platform Management Interface (IPMI) 2.0 v Key-lock support for physical security v Memory change messages posted to the system-event log v Power-on self-test (POST) v Predictive Failure Analysis (PFA) alerts v Read-only memory (ROM) checksums v Redundant Ethernet capabilities (requires an optional Ethernet adapter) with

failover support

v Standby voltage for system-management features and monitoring v System auto-configuring from the configuration menu v System-error LED on the front bezel and diagnostics LEDs on the system board v Upgradeable microcode for POST, BIOS, and read-only memory (ROM) resident

code, locally or over a LAN

v Vital product data (VPD); includes serial-number information and replacement

part numbers, stored in nonvolatile memory, for easier remote maintenance

v Wake on LAN capability

IBM Systems Director

IBM Systems Director is a platform-management foundation that streamlines the way you manage physical and virtual systems in a heterogeneous environment. By using industry standards, IBM Systems Director supports multiple operating systems and virtualization technologies in IBM and non-IBM x86 platforms.

Through a single user interface, IBM Systems Director provides consistent views for viewing managed systems, determining how these systems relate to one another, and identifying their statuses, helping to correlate technical resources with business needs. A set of common tasks that are included with IBM Systems Director provides many of the core capabilities that are required for basic management, which means instant out-of-the-box business value. These common tasks include discovery, inventory, configuration, system health, monitoring, updates, event notification, and automation for managed systems.

The IBM Systems Director Web and command-line interfaces provide a consistent interface that is focused on driving these common tasks and capabilities:

v Discovering, navigating, and visualizing systems on the network with the detailed

inventory and relationships to the other network resources

v Notifying users of problems that occur on systems and the ability to isolate the

sources of the problems

v Notifying users when systems need updates and distributing and installing

updates on a schedule

v Analyzing real-time data for systems and setting critical thresholds that notify the

administrator of emerging problems

v Configuring settings of a single system and creating a configuration plan that can

apply those setting to multiple systems

v Updating installed plug-ins to add new features and functions to the base

capabilities

Chapter 1. The System x3400 M3 server 13

v Managing the life cycles of virtual resources

For more information about IBM Systems Director, see the documentation on the IBM Systems Director DVD that comes with the server and the IBM xSeries Systems Management Web page at http://www.ibm.com/systems/management/, which presents an overview of IBM Systems Management and IBM Systems Director.

The UpdateXpress System Pack Installer

The UpdateXpress System Pack Installer detects supported and installed device drivers and firmware in the server and installs available updates. For additional information and to download the UpdateXpress System Pack Installer, go to the System x and BladeCenter Tools Center at http://publib.boulder.ibm.com/infocenter/ toolsctr/v1r0/index.jsp and click UpdateXpress System Pack Installer.

Server controls, LEDs, and power

This section describes the controls and light-emitting diodes (LEDs) and how to turn the server on and off.

Front view

The following illustration shows the controls and LEDs on the front of the server. (See “Operator information panel” on page 28 for information about the operator information panel.)

Note: The front bezel door is not shown so that the drive bays are visible.

14 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Power control button and power-on LED

Press this button to turn the server on and off manually or to wake the server from a reduced-power state. The states of the power-on LED are as follows:

Off: AC power is not present, or the power supply or the LED itself has failed.

Flashing rapidly (4 times per second): The server is turned off and is not ready to be turned on. The power-control button is disabled. This will last approximately 20 to 40 seconds.

Note: Approximately 20 seconds after the server is connected to ac power, the power-control button becomes active.

Flashing slowly (once per second): The server is turned off and is ready to be turned on. You can press the power-control button to turn on the server.

Lit: The server is turned on. Fading on and off: The server is in a reduced-power state. To wake the

server, press the power-control button or use the IMM Web interface. See “Logging on to the Web interface” on page 114 for information on logging on to the IMM Web interface.

Hard disk drive activity LED

When this LED is flashing, it indicates that a hard disk drive is in use.

System-error LED

When this amber LED is lit, it indicates that a system error has occurred. An LED on the system board might also be lit to help isolate the error.

USB connectors

Connect USB devices to these connectors.

DVD-eject button

Press this button to release a CD or DVD from the DVD drive.

DVD drive activity LED

When this LED is lit, it indicates that the DVD drive is in use.

Hot-swap hard disk drive activity LED (some models)

On some server models, each hot-swap drive has a hard disk drive activity LED. When this green LED is flashing, it indicates that the drive is in use.

When the drive is removed, this LED also is visible on the SAS/SATA backplane, next to the drive connector. The backplane is the printed circuit board behind drive bays 4 through 7 on 3.5-inch hard disk drive models and bays 4 through 11 on 2.5-inch hard disk drive models.

Hot-swap hard disk drive status LED (some models)

On some server models, each hot-swap hard disk drive has an amber status LED. If this amber status LED for a drive is lit, it indicates that the associated hard disk drive has failed.

If an optional ServeRAID adapter is installed in the server and the LED flashes slowly (one flash per second), the drive is being rebuilt. If the LED flashes rapidly (three flashes per second), the adapter is identifying the drive.

Note: For proper cooling, do not install any card in the slot next in sequence to a ServeRAID adapter with battery backup module (for

Chapter 1. The System x3400 M3 server 15

Rear view

example, if a ServeRAID adapter with battery backup module is installed in slot 2, do not install any card in slot 3).

When the drive is removed, this LED also is visible on the SAS/SATA backplane, below the hot-swap hard disk drive activity LED.

The following illustration shows the connectors and LEDs on the rear of the server.

AC power LED

DC power LED

Fault (error) LED

Serial 1

(COM 1)

Video

System management Ethernet connector

NMI button

Ethernet 1 10/100/1000

USB 1 USB 2 USB 3

USB 4

Ethernet 2 10/100/1000

Power cord connector

Ethernet transmit/receive activity LED

Ethernet link status LED

Ethernet transmit/receive activity LED

Ethernet link status LED

Power-cord connector

Connect the power cord to this connector.

AC power LED

This green LED provides status information about the power supply. During typical operation, both the AC and DC power LEDs are lit.

DC power LED

This green LED provides status information about the power supply. During typical operation, both the AC and DC power LEDs are lit.

Power-error (Fault) LED

When this amber LED is lit, it indicates that the power supply has failed.

Video connector

Connect a monitor to this connector.

Note: The maximum video resolution is 1600 x 1200 at 85 Hz.

Serial connector

Connect a 9-pin serial device to this connector.

16 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Systems-mamagement Ethernet connector

USB connectors

Ethernet connectors

Ethernet transmit/receive activity LED

Ethernet link status LED

Power-supply LEDs

The following illustration shows the locations of the 670-watt power supply LEDs.

Use this connector to manage the server, using a dedicated management network. If you use this connector, the IMM cannot be accessed directly from a production network. A dedicated management network provides additional security by physically separating the management network traffic from the production network. You can use the Setup utility to configure the server to use a dedicated systems management network or a shared network.

Connect USB devices to these connectors.

Use either of these connectors to connect the server to a network. When you use the Ethernet 1 connector, the network can be shared with the IMM through a single network cable.

This LED is on the Ethernet connector. When this LED is lit, it indicates that there is activity between the server and the network.

This LED is on the Ethernet connector. When this LED is lit, it indicates that there is an active connection on the Ethernet port.

AC power LED

DC power LED

Fault (error) LED

Power cord connector

The following table describes the problems that are indicated by various combinations of the power-supply LEDs and the power-on LED on the operator information panel and suggested actions to correct the detected problems. (See “Operator information panel” on page 28 for information about the operator information panel.)

Chapter 1. The System x3400 M3 server 17

Table 2. Power-supply LEDs

Power-supply LEDs

Description Action NotesAC DC Error

Off Off Off No AC power to

the server or a problem with the AC power source

Off Off On No AC power to

the server or a problem with the AC power source and the power supply had detected an internal problem

Off On Off Faulty power

supply

Off On On Faulty power

supply

On Off Off Power supply not

fully seated, faulty system board, or faulty power supply

On Off or

Flashing On On Off Normal operation On On On Power supply is

On Faulty power

supply

faulty but still operational

1. Check the AC power to the server.

2. Make sure that the power cord is connected to a functioning power source.

3. Turn the server off and then turn the server back on.

4. If the problem remains, replace the power supply.

1. Replace the power supply.

2. Make sure that the power cord is connected to a functioning power source.

Replace the power supply.

1. If the system board error (fault) LED is not lit, replace the power supply.

2. If the system board error (fault) LED is lit, (Trained service technician only) replace the system board.

Replace the power supply.

This is a normal condition when no AC power is present.

This happens only when a second power supply is providing power to the server.

Typically indicates that a power supply is not fully seated.

Note: On models with eight 3.5-inch or sixteen 2.5-inch hard disk drives, need to upgrade power supply to 920-watt. The following illustration shows the 920-watt power-supply LEDs on the rear of the server.

18 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Table 3. Power-supply LEDs

Power-supply LEDs

Off Off Off No AC power to the server or a problem

Off Off On No AC power to the server or a problem

Off On Off Faulty power supply Off On On Faulty power supply On Off Off Power supply not fully seated, faulty

On Off or flashing On Faulty power supply On On Off Normal operation On On On Power supply is faulty but still operational

Server power features

When the server is connected to an AC power source but is not turned on, the operating system does not run, and all core logic except for the integrated management module (IMM) is shut down; however, the server can respond to requests from the IMM, such as a remote request to turn on the server. The power-on LED flashes to indicate that the server is connected to AC power but not turned on.

DescriptionAC power DC power Power error

with the AC power source

with the AC power source and the power supply has detected an internal problem

system board, or faulty power supply

Turning on the server

Approximately 20 seconds after the server is connected to AC power, the power-control button becomes active, and one or more fans might start running to provide cooling while the server is connected to power. You can turn on the server and start the operating system by pressing the power-control button.

The server can also be turned on in any of the following ways:

Chapter 1. The System x3400 M3 server 19

v If a power failure occurs while the server is turned on, the server will restart

automatically when power is restored.

v If your operating system supports the Wake on LAN feature, the Wake on LAN

feature can turn on the server.

For 32-bit operating systems only: Some memory is reserved for various system resources and is unavailable to the operating system. The amount of memory that is reserved for system resources depends on the operating system, the configuration of the server, and the configured PCI options.

Turning off the server

When you turn off the server and leave it connected to AC power, the server can respond to requests from the IMM, such as a remote request to turn on the server. While the server remains connected to AC power, one or more fans might continue to run. To remove all power from the server, you must disconnect it from the power source.

Important: To view the error LEDs on the system board, leave the server connected to a power source.

Some operating systems require an orderly shutdown before you turn off the server. See your operating-system documentation for information about shutting down the operating system.

Statement 5:

The server can be turned off in any of the following ways: v You can turn off the server from the operating system, if your operating system

supports this feature. After an orderly shutdown of the operating system, the server will be turned off automatically.

v You can press the power-control button to start an orderly shutdown of the

operating system and turn off the server, if your operating system supports this feature.

v If the operating system stops functioning, you can press and hold the

power-control button for more than 4 seconds to turn off the server.

v The IMM can turn off the server as an automatic response to a critical system

failure.

v You can turn off the server through a request from the IMM.

20 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Chapter 2. Installing optional devices

This chapter provides detailed instructions for installing optional hardware devices in the server.

In addition to the instructions in this chapter for installing optional hardware devices, updating firmware and device drivers, and completing the installation, IBM Business Partners must also complete the steps in “Instructions for IBM Business Partners.”

Important: To help ensure that the devices that you install work correctly and do not introduce problems, observe the following precautions:

1. Make sure that the server and the installed firmware levels support the devices that you are installing. If necessary, update the UEFI and IMM2 firmware and any other firmware that is stored on the system boards. For information about where firmware is stored in the server, see Chapter 6, “Configuration information and instructions,” in the Problem Determination and Service Guide. For a list of supported optional devices for the server, see http://www.ibm.com/systems/info/ x86servers/serverproven/compat/us/.

2. Before you install optional hardware devices, make sure that the server is working correctly. Start the server and make sure that the operating system starts, if an operating system is installed, or that a 19990305 error code is displayed, indicating that an operating system was not found but the server is otherwise working correctly. If the server is not working correctly, see the Problem Determination and Service Guide for information about how to run diagnostics.

3. Follow the installation procedures in this chapter and use the correct tools. Incorrectly installed devices can cause system failures because of damaged pins in sockets or connectors, loose cabling, or loose components.

4. Use the best practices to apply current firmware and device-driver updates for the server and optional devices. To download the IBM System x Firmware Update Best Practices document, go to http://www.ibm.com/support/entry/portal/ docdisplay?brand=50000020&lndocid=MIGR-5082923. Additional hints and tips are available from the following sites:

v IBM support: http://www.ibm.com/supportportal/ v System x configuration tools: http://www.ibm.com/systems/x/hardware/

configtools.html

Instructions for IBM Business Partners

1. Before you configure a server for a customer, complete the Solution Assurance checklist at http://w3.ibm.com/support/assure/assur30i.nsf/webindex/sa294/.

2. After you have confirmed that the server starts correctly and recognizes the newly installed devices and that no error LEDs are lit, run the Dynamic System Analysis (DSA) stress tests. For information about using DSA, see the Problem Determination and Service Guide.

3. Shut down and restart the server multiple times to ensure that the server is correctly configured and functions correctly with the newly installed devices.

4. Save the DSA log as a file and send it to IBM.

5. To ship the server, repackage it in the original undamaged packing material and observe IBM procedures for shipping.

Support information for IBM Business Partners is available at http://www.ibm.com/ partnerworld/.

Server components

The following illustration shows the major components in the server.

Blue on a component indicates touch points, where you can grip the component to remove it from or install it in the server, open or close a latch, and so on.

Orange on a component or an orange label on or near a component indicates that the component can be hot-swapped, which means that if the server and operating system support hot-swap capability, you can remove or install the component while the server is running. (Orange can also indicate touch points on hot-swap components.) See the instructions for removing or installing a specific hot-swap component for any additional procedures that you might have to perform before you remove or install the component.

22 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

System-board internal connectors

The following illustrations show the internal connectors and switches on the system board.

The following illustration shows the additional PCI Express expansion slot that is available on the PCI Express extender card.

The following illustration shows two additional PCI-X expansion slots that are available on the PCI-X extender card.

Chapter 2. Installing optional devices 23

System-board switches and jumpers

The following tables show the settings of the switches and the jumpers.

Table 4. System-board jumpers

Jumper number

JP1 CMOS clear

JP6 UEFI boot

JP7 Trust

Note: If no jumper is present, the server responds as on default position.

Jumper name Jumper setting

v Pins 1 and 2: Normal operation (default). v Pins 2 and 3: Clears CMOS memory.

recovery

Platform Module (TPM)

v Pins 1 and 2: Normal operation (default). v Pins 2 and 3: Enable the UEFI recovery mode.

v Pins 1 and 2: Physical presence to the TPM. v Pins 2 and 3: No physical presence to the TPM (default).

Note: The physical presence requires manual setting on the server to change the TPM configuration. The TPM is enabled and physical presence is not asserted by default. The physical presence needs to be asserted to activate, deactivate, clear or change ownership of the TPM.

Table 5. System-board switch 6

SW 6 Switches Switch description

1 Reserved (default off) 2 Power-on password override when on (default off) 3 Reserved (default off) 4 When this switch is off, the primary IMM firmware ROM page is loaded. When this switch is on,

the secondary (backup) IMM firmware ROM page is loaded (default off).

Notes:

1. Before you change any switch settings or move any jumpers, turn off the server; then, disconnect all power cords and external cables. (Review the information in “Safety” on page vii, “Installation guidelines” on page 29, and “Handling static-sensitive devices” on page 31.)

24 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

System-board LEDs

The following illustration shows the LEDs on the system board.

System-board external connectors

The following illustration shows the external input/output connectors and the NMI button on the system board.

Chapter 2. Installing optional devices 25

26 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

SAS backplane connectors

The following illustrations show the connectors on the SAS backplanes.

Figure 1. 3.5-inch backplane connectors

Figure 2. 2.5-inch backplane connectors

Chapter 2. Installing optional devices 27

Operator information panel

The following illustration shows the LEDs on the operator information panel on the front of the server. (The power-control button is also on the operator information panel. See “Front view” on page 14 for the location of the power-control button.)

v Follow the suggested actions in the order in which they are listed in the Action column until the problem

is solved.

v See the Problem Determination and Service Guide on the IBM Documentation CD to determine which

components are customer replaceable units (CRU) and which components are field replaceable units (FRU).

v If an action step is preceded by “(Trained service technician only),” that step must be performed only by a

trained service technician.

Lit light path diagnostics LED with the system-error or information LED also lit Description

System power (green) The states of the power-on LED are as follows:

v Off: AC power is not present, or the power supply or the LED itself

has failed.

v Flashing rapidly (4 times per second): The server is turned off

and is not ready to be turned on. The power-control button is disabled. This will last approximately 20 to 40 seconds. Note: Approximately 20 seconds after the server is connected to ac power, the power-control button becomes active.

v Flashing slowly (once per second): The server is turned off and is

ready to be turned on. You can press the power-control button to turn on the server.

v Lit: The server is turned on. v Fading on and off: The server is in a reduced-power state. To

wake the server, press the power-control button or use the IMM Web interface.

Hard disk drive activity (green) When this LED is flashing rapidly, it indicates that there is activity on a

hard disk drive.

System locator (blue) Use this LED to visually locate the server among other servers. You

can use IBM Systems Director to light this LED remotely.

System information (amber) When this amber LED is lit, it indicates that information about a

suboptimal condition in the server is available in the IMM event log or in the system-event log.

System error (amber) When this LED is lit, it indicates that a system error has occurred.

28 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Installation guidelines

Before you install optional devices, read the following information: v Read the safety information that begins on page vii, “Working inside the server

with the power on” on page 30, and the guidelines in “Handling static-sensitive devices” on page 31. This information will help you work safely.

v When you install your new server, take the opportunity to download and apply

the most recent firmware updates. This step will help to ensure that any known issues are addressed and that your server is ready to function at maximum levels of performance. To download firmware updates for your server, complete the following steps:

1. Go to http://www.ibm.com/systems/support/

2. Under Product support, click System x.

3. Under Popular links, click Software and device drivers.

4. Click System x3400 M3 to display the matrix of downloadable files for the server.

For additional information about tools for updating, managing, and deploying firmware, see the System x and xSeries Tools Center at http:// publib.boulder.imm.com/infocenter/toolstr/v1r0/index.jsp.

v Before you install optional hardware, make sure that the server is working

correctly. Start the server, and make sure that the operating system starts, if an operating system is installed, or that a 19990305 error code is displayed, indicating that an operating system was not found but the server is otherwise working correctly. If the server is not working correctly, see the Problem Determination and Service Guide on the IBM Documentation CD for information about how to run diagnostics.

v Observe good housekeeping in the area where you are working. Place removed

covers and other parts in a safe place.

v If you must start the server while the cover is removed, make sure that no one is

near the server and that no tools or other objects have been left inside the server.

v Do not attempt to lift an object that you think is too heavy for you. If you have to

lift a heavy object, observe the following precautions: – Make sure that you can stand safely without slipping. – Distribute the weight of the object equally between your feet. – Use a slow lifting force. Never move suddenly or twist when you lift a heavy

object.

– To avoid straining the muscles in your back, lift by standing or by pushing up

with your leg muscles.

v Make sure that you have an adequate number of properly grounded electrical

outlets for the server, monitor, and other devices.

v Back up all important data before you make changes to disk drives. v Have a small flat-blade screwdriver available. v To view the error LEDs on the system board and internal components, leave the

server connected to power.

v You do not have to turn off the server to install or replace hot-swap power

supplies, hot-swap hard disk drives, hot-swap fans, or hot-plug Universal Serial Bus (USB) devices.

v Blue on a component indicates touch points, where you can grip the component

to remove it from or install it in the server, open or close a latch, and so on.

Chapter 2. Installing optional devices 29

v Orange on a component or an orange label on or near a component indicates

that the component can be hot-swapped, which means that if the server and operating system support hot-swap capability, you can remove or install the component while the server is running. (Orange can also indicate touch points on hot-swap components.) See the instructions for removing or installing a specific hot-swap component for any additional procedures that you might have to perform before you remove or install the component.

v When you work inside the server, you might find it easier to lay the server on its

side.

v For a list of supported optional devices for the server, see http://www.ibm.com/

servers/eserver/serverproven/compat/us/.

System reliability guidelines

To help ensure proper cooling and system reliability, make sure that the following requirements are met:

v Each of the drive bays has a drive or an electromagnetic compatibility (EMC)

shield installed in it.

v There is adequate space around the server to allow the server cooling system to

work properly. Leave approximately 50 mm (2.0 in.) of open space around the front and rear of the server. Do not place objects in front of the fans. For proper cooling and airflow, replace the left-side cover before you turn on the server. Operating the server for extended periods of time (more than 30 minutes) with the left-side cover removed might damage server components.

v You have followed the cabling instructions that come with optional adapters. v You have replaced a failed fan within 48 hours. v You have replaced a hot-swap drive within 2 minutes of removal. v You have replaced a hot-swap fan within 30 seconds of removal. v You do not remove the air duct or air baffles while the server is running.

Operating the server without the air duct or air baffles might cause the microprocessor to overheat.

v Microprocessor socket 2 always contains either a microprocessor baffle or a

microprocessor and heat sink.

Working inside the server with the power on

Attention: Static electricity that is released to internal server components when

the server is powered-on might cause the server to halt, which might result in the loss of data. To avoid this potential problem, always use an electrostatic-discharge wrist strap or other grounding system when you work inside the server with the power on.

The server supports hot-swap devices and is designed to operate safely while it is turned on and the cover is removed. Follow these guidelines when you work inside a server that is turned on:

v Avoid wearing loose-fitting clothing on your forearms. Button long-sleeved shirts

before you work inside the server; do not wear cuff links while you are working inside the server.

v Do not allow your necktie or scarf to hang inside the server. v Remove jewelry, such as bracelets, necklaces, rings, and loose-fitting wrist

watches.

v Remove items from your shirt pocket, such as pens and pencils, that might fall

into the server as you lean over it.

30 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

v Avoid dropping any metallic objects, such as paper clips, hairpins, and screws,

into the server.

Handling static-sensitive devices

Attention: Static electricity can damage the server and other electronic devices.

To avoid damage, keep static-sensitive devices in their static-protective packages until you are ready to install them.

To reduce the possibility of damage from electrostatic discharge, observe the following precautions:

v Limit your movement. Movement can cause static electricity to build up around

you.

v Wear an electrostatic-discharge wrist strap, if one is available. v Handle the device carefully, holding it by its edges or its frame. v Do not touch solder joints, pins, or exposed circuitry. v Do not leave the device where others can handle and damage it. v While the device is still in its static-protective package, touch it to an unpainted

metal part of the server for at least 2 seconds. This drains static electricity from the package and from your body.

v Remove the device from its package and install it directly into the server without

setting down the device. If it is necessary to set down the device, put it back into its static-protective package. Do not place the device on the server cover or on a metal surface.

v Take additional care when you handle devices during cold weather. Heating

reduces indoor humidity and increases static electricity.

Chapter 2. Installing optional devices 31

Internal cable routing and connectors

The server uses cables to connect SATA attached, simple-swap SATA, hot-swap SATA, hot-swap SAS and DVD drive devices to the power supply and to the system board.

Review the following information before connecting power and signal cables to internal drives:

v The drives that are preinstalled in the server come with power and signal cables

attached. If you replace any drives, remember which cable is attached to which drive.

v When you route a cable, make sure that it does not block the airflow to the rear

of the drives or over the microprocessor or DIMMs.

Tape drive cable connection

You can install either a USB or SATA tape drive in the server. The following illustration shows the internal cable routing and connectors for both the USB tape drive and the SATA tape drive. It also shows the internal power cable for the optical drives.

32 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

The following illustrations show the cabling information for installing the SATA to traditional power converter cable when you install an RDX internal USB tape drive in the server. This cable comes with the server in the plastic bag with the drive rails.

Power converter cable

Connects to optical power cable

Connects to tape drive

Chapter 2. Installing optional devices 33

Optical power cable SATA connector

Power converter cable

Tape drive

34 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

DVD drive cable connection

The following illustration shows the internal SATA and power cable routing and the connectors from the DVD drive to the system board.

Note: Do not disconnect the cable by using excessive force. Failing to remove the cable properly may damage the connectors on the system board. Any damage to the connectors may require replacing the system board.

The following illustration shows the internal power cable routing and the connectors from the UltraSlim DVD drive to the system board.

Chapter 2. Installing optional devices 35

The following illustration shows the internal SATA cable routing and the connectors from the UltraSlim DVD drive to the system board.

Operator information panel cable connection

The following illustration shows the internal cable routing and connectors from the operator information panel to the system board.

Notes:

1. To remove the operator information panel cable, slightly press the cable toward the chassis; then, pull to remove the cable from the connector on the system board. Pulling the cable out of the connector by excessive force might cause damage to the cable or connector.

2. To connect the operator information panel cable on the system board, press evenly on the cable. Pressing on one side of the cable might cause damage to the cable or connector.

3. Failing to install or remove the cable with care may damage the connectors on the system board. Any damage to the connectors may require replacing the system board.

36 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Chapter 2. Installing optional devices 37

Hard disk drive cable connection

Review the following information before connecting power and signal cables to internal drives:

1. The following illustrations show the connectors on the 2.5-inch and

3.5-inch hard disk drive backplanes.

Figure 3. Connectors on the 3.5-inch hard disk drive backplane

Figure 4. Connectors on the 2.5-inch hard disk drive backplane

38 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

2. The following illustrations show the cable connectors on ServeRAID

M1015/M5014/M5015.

Figure 5. Cable connectors on ServeRAID-M1015 adapter

Figure 6. Cable connectors on ServeRAID-M5014 adapter

Note:

v For proper cooling, do not install any card in the slot next in sequence to a

ServeRAID adapter with battery backup module (for example, if a ServeRAID adapter with battery backup module is installed in slot 2, do not install any card in slot 3).

Chapter 2. Installing optional devices 39

v If the server is configured for RAID operation using a ServeRAID adapter,

you might have to reconfigure your disk arrays after you install drives. See the ServeRAID adapter documentation for additional information about RAID operation and complete instructions for using the ServeRAID adapter.

40 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Review the following information before connecting power, configuration, and signal cables for the drives:

1. For server models with four 3.5-inch hot-swap hard disk drives.

v The following illustration shows the internal power cable routing.

v The following illustration shows the internal configuration cable routing.

v The following illustration shows the internal signal cable routing for installing a

ServeRAID adapter.

Chapter 2. Installing optional devices 41

42 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

2. For server models with eight 3.5-inch hot-swap hard disk drives.

v The following illustration shows the internal power cable routing.

v The following illustration shows the internal configuration cable routing.

v The following illustration shows the internal signal cable routing for installing a

ServeRAID adapter.

Chapter 2. Installing optional devices 43

44 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

3. For server models with eight 2.5-inch hot-swap hard disk drives.

v The following illustration shows the internal power cable routing.

v The following illustration shows the internal configuration cable routing.

v The following illustration shows the internal signal cable routing for installing a

ServeRAID adapter.

Chapter 2. Installing optional devices 45

46 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

4. For server models with sixteen 2.5-inch hot-swap hard disk drives.

v The following illustration shows the internal power cable routing.

v The following illustration shows the internal configuration cable routing.

Chapter 2. Installing optional devices 47

v The following illustration shows the internal signal cable routing for installing a

ServeRAID adapter and a ServeRAID expansion adapter.

Note: SAS expander card does not support 3 GB RAID adapters.

48 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Removing the left-side cover

Important: Before you install optional hardware, make sure that the server is

working correctly. Start the server, and make sure that the operating system starts, if an operating system is installed, or that a 19990305 error code is displayed, indicating that an operating system was not found but the server is otherwise working correctly. If the server is not working correctly, see the Problem Determination and Service Guide for diagnostic information.

To remove the cover, complete the following steps:

1. Read the safety information that begins on page vii and “Installation guidelines” on page 29.

2. If you are planning to view the error LEDs that are on the system board and components, leave the server connected to power and go directly to step 5.

3. Turn off the server and all attached devices.

4. Disconnect all external cables and power cords.

5. Using the supplied key, unlock the left-side cover.

6. Pull the cover-release latch down and rotate the top edge of the cover away from the server.

Attention: For proper cooling and airflow, replace the cover before you turn on the server. Operating the server for extended periods of time (more than 30 minutes) with the cover removed might damage server components.

7. Remove the left-side cover from the server.

Chapter 2. Installing optional devices 49

Opening the bezel media door

To open or remove the media door, complete the following steps:

1. Read the safety information that begins on page vii and “Installation guidelines” on page 29.

2. Unlock the left-side cover.

Note: You must unlock the left-side cover to open or remove the bezel. When you lock the left-side cover, it locks both the cover and the bezel.

3. Press the button on the left edge of the bezel, and rotate the left side of the bezel away from the server.

4. From inside of the top section of the bezel door, slide the blue tab up to unlock the bezel media door; then, grasp the depressed area on the left side of the media door and pull the door open.

50 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Note: To remove the media door from the bezel, push upward on the media

door hinge to remove it from the bezel.

5. When the media door is unlocked, the icon on the side of the bezel will be in the unlocked position.

Media door icon

Chapter 2. Installing optional devices 51

Removing the air baffle

To remove the air baffle, complete the following steps:

1. Read the safety information that begins on page vii and “Installation guidelines” on page 29.

2. Turn off the server and all attached devices.

3. Disconnect all external cables and power cords.

4. Remove the left-side cover (see “Removing the left-side cover” on page 49 for more information).

5. Remove the power supplies from the power-supply cage.

6. Unlatch the power-supply cage and rotate it out of the server until it locks.

7. Rotate the rear of the air baffle up 1. Find the pinch tab on the air baffle, pinch it together with your fingers 2, and lift the air baffle out of the server 3.

52 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Installing the air baffle

To install the air baffle, complete the following steps:

1. With the rear (hinged) part of the air baffle lifted up, align the positioning pins on the ends of the air baffle with the locating holes in the server chassis and fan cage assembly.

2. Slide the air baffle down into the server 1 until the positioning pins fit into the locating holes; then, press down on the air baffle until the pinch tab clicks into place.

3. Rotate the rear (hinged) part of the air baffle 2 down to the system board.

Note: Make sure that the power-supply cage cables are not caught under the air baffle.

4. Return the power-supply cage to its closed position (see “Closing the power-supply cage” on page 56).

5. Install the hot-swap power supply or power supplies (see “Installing a redundant power supply” on page 98).

6. Install and lock the left-side cover (see “Completing the installation” on page

98).

7. Reconnect the external cables and power cords; then, turn on the attached devices and turn on the server.

Installing the fan cage assembly

Attention:

v Replace a hot-swap fan within 30 seconds of removal. v To ensure proper cooling and airflow, do not operate the server for more than 30

minutes with the left-side cover removed.

To install the fan cage assembly, complete the following steps.

1. Align the fan cage assembly with the guide rails on the sides of the chassis.

Note: Make sure that both release buttons click into place.

Chapter 2. Installing optional devices 53

2. Slide the fan cage assembly into the chassis and press firmly until the fan cage is seated firmly in place.

3. Install the air baffle (see “Installing the air baffle” on page 53).

4. Rotate the power-supply cage assembly back into the server. Press the power-supply release tab and rotate the power-supply cage assembly into the chassis.

54 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Opening the power-supply cage

Opening the power-supply cage allows access to the air baffle, microprocessors, and DIMMs. To open the power-supply cage, complete the following steps:

1. Read the safety information that begins on page vii, and “Handling static-sensitive devices” on page 31.

2. Turn off the server and peripheral devices, and disconnect the power cords and all external cables.

3. Press the release latch on the power supplies and pull them out of the power-supply cage.

Hot-swap power supply

Release latch

4. Unlock and remove the left-side cover (see “Removing the left-side cover” on page 49 for more information).

5. Pull up on the power-supply cage handle to unlock the cage; then, rotate the cage out until it stops. The tab on the rear power-supply latch bracket clicks into place when the cage is completely out of the way.

6. Let the power-supply cage rest on the rear power-supply latch bracket.

Chapter 2. Installing optional devices 55

Closing the power-supply cage

To return the power-supply cage to its closed position, complete the following steps:

1. Rotate the power-supply cage slightly toward the rear side; then, push down on the release tab on the rear power-supply support bracket.

Power supply support bracket

Power supply release tab

Attention: Be sure to move the cables out of the way of the power supply cage before you start to move the cage back into the server.

2. Carefully rotate the power-supply cage into the server chassis. The locating tabs on the power-supply cage must fit over the corresponding tabs on the front latch bracket.

56 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Power-supply cage

Power-supply cage handle

Locating tabs

front latch bracket

Locating tabs

Notch

3. Rotate the power-supply cage handle down until the handle tip engages the notch in the front latch bracket; then, lower the handle until it locks in place.

Power supply cage closed

4. Install and lock the left-side cover (see “Completing the installation” on page

98).

5. Install the hot-swap power supplies.

6. Reconnect the external cables and power cords; then, turn on the attached devices and turn on the server.

Chapter 2. Installing optional devices 57

Installing an adapter

The following notes describe the types of adapters that the server supports and other information that you must consider when you install an adapter:

v Locate the documentation that comes with the adapter and follow those

instructions in addition to the instructions in this section. If you must change the switch or jumper settings on the adapter, follow the instructions that come with the adapter.

v Avoid touching the components and gold-edge connectors on the adapter. v PCI slots 1 and 6 support half-length PCI adapters only. v PCI slots 2, 3, 4, and 5 support full-height and full-length PCI adapters. v The PCI Express extender card supports a full-length adapter. v The PCI-X extender card supports two full-length adapters. v PCI slots 1 and 5 support the RAID adapters. v PCI slot 2 supports a VGA adapter. v The PCI configuration:

– Slot 1 is a PCI Express x8 slot with x8 links, PCI Express Base Specification

Revision 2.0 compliant.

– Slot 2 is a PCI Express x16 slot with x8 links, PCI Express Base Specification

Revision 2.0 compliant.

– Slots 3 and 4 are PCI Express x8 slots with x4 links, PCI Express Base

Specification Revision 2.0 compliant.

– Slot 5 is a PCI Express x8 slot with x8 links, PCI Express Base Specification

Revision 2.0 compliant. – Slot 6 is a PCI 33/32 slot, PCI 2.2 compliant. – PCI Express extender card slot 7 is a PCI Express x8 slot with x4 links, PCI

Express 1.0a compliant.

Note: The PCI Express extender card comes standard on the System x3400

M3 server. – PCI-X extender card slots 7 and 8 are PCI-X slots with 64/32 bits, 133/100/66

MHz from PXH.

v The system scans PCI slots 1 through 6 to assign system resources. The system

then starts (boots) the system devices in the following order, if you have not changed the default boot precedence: integrated Ethernet controller, ServeRAID-BR10i SAS adapter, and then PCI, PCI-X, and PCI Express slots.

Note: To change the boot precedence for PCI and PCI-X devices, start the Setup utility and select Start Options from the main menu. See the “Starting the Setup utility” on page 103 for details about using the Setup utility.

v The server uses a rotational interrupt technique to configure PCI adapters so that

you can install PCI adapters that do not support sharing of PCI interrupts.

Attention: Static electricity that is released to internal server components when the server is powered-on might cause the server to stop, which might result in the loss of data. To avoid this potential problem, always use an electrostatic-discharge wrist strap or other grounding system when working inside the server with the power on.

To install an adapter, complete the following steps:

58 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

1. Read the safety information that begins on page vii and “Installation guidelines”

on page 29.

2. Turn off the server and peripheral devices, and disconnect the power cords and

all external cables. Remove the left-side cover (see “Removing the left-side cover” on page 49 for more information).

3. See the documentation that comes with the adapter for any cabling instructions

and information about jumper or switch settings. (It might be easier for you to route cables before you install the adapter.)

4. Rotate the adapter-retention brackets to the open position.

5. Remove the expansion-slot cover.

6. If you are installing a full-length adapter, remove the blue adapter guide (if any)

from the end of the adapter. Otherwise, continue with the next step.

Adapter guide

Chapter 2. Installing optional devices 59

7. Press the adapter firmly into the expansion slot, lower the adapter-retention bracket, and make sure that the bracket is in the closed position.

Attention: Incomplete insertion might cause damage to the system board or the adapter.

8. Connect any needed cables to the adapter.

If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 98.

60 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Installing a DVD drive

1. To install a DVD drive on models with four 3.5-inch, eight 2.5-ich or

sixteen 2.5-inch hard disk drives, complete the following steps:

a. Read the safety information that begins on page vii and “Installation

guidelines” on page 29.

b. Turn off the server and peripheral devices and disconnect the power cords

and all external cables.

c. Unlock and remove the left-side cover (see “Removing the left-side cover”

on page 49).

d. Remove the fan cage assembly.

e. Open the bezel by pressing the button on the left edge of the bezel, and

rotate the left side of the bezel away from the server.

Chapter 2. Installing optional devices 61

f. Remove the EMC shield from the bay in which you want to install the drive.

Note: If you are installing a drive that contains a laser, observe the following safety precaution.

62 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Statement 3:

CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following:

v Do not remove the covers. Removing the covers of the laser product

could result in exposure to hazardous laser radiation. There are no serviceable parts inside the device.

v Use of controls or adjustments or performance of procedures other

than those specified herein might result in hazardous radiation exposure.

DANGER

Some laser products contain an embedded Class 3A or Class 3B laser diode. Note the following.

Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

Class 1 Laser Product Laser Klasse 1 Laser Klass 1 Luokan 1 Laserlaite Appareil A Laser de Classe 1

g. Touch the static-protective package that contains the DVD drive to any

unpainted metal surface on the server; then, remove the DVD drive from the package and place it on a static-protective surface.

h. Set any jumpers or switches on the drive according to the documentation

that comes with the drive.

Note: You might find it easier to install the new drive from the front and then attach the cables.

i. Remove the blue optical drive rails from the inside of the drive bay in which

you want to install the drive. Align the holes on the blue optical drive rails with the pins on the side of the drive and snap the optical drive rails onto the drive.

Chapter 2. Installing optional devices 63

j. If you are installing a 5.25-in drive in bay 2, push the drive into the bay until

it locks into place. If you are installing a 3.5-in drive in bay 2, attach the

5.25-in conversion kit and push the drive into the drive bay.

k. Connect power and signal cables to the drive and the connectors on the

system board. (See “System-board internal connectors” on page 23 and “Internal cable routing and connectors” on page 32 for more information.)

l. Route the signal cable through the plastic slot on the bottom of the chassis

underneath the fan cage assembly so that it does not block the airflow.

m. Reinstall the fan cage assembly.

n. Reinstall the air baffle (see “Installing the air baffle” on page 53). o. Rotate the power-supply cage assembly back into the server. Press the

power-supply cage release tab and rotate the power-supply cage assembly into the chassis.

64 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

p. If you have another drive to install or remove, do so now. q. Replace the left-side cover and bezel; then, lock the left-side cover and

bezel.

r. Reconnect the external cables and power cords.

2. To install the UltraSlim DVD drive on models with eight 3.5-inch, complete

the following steps:

v Locate the documentation that comes with the drive and follow those

instructions in addition to the instructions in this chapter.

v Make sure that you have all the cables and other equipment that are

specified in the documentation that comes with the drive. v The server supports one ultra-slim SATA optical drive. a. If you are replacing a drive, make sure that:

v You have all the cables and other equipment that are specified in the

documentation that comes with the new drive.

v You have checked the instructions that come with the new drive to

determine whether you must set any switches or jumpers in the drive.

v You have removed the blue optical drive rails from the side of the old

drive and have them available for installation on the new drive.

Note: If you are installing a drive that contains a laser, observe the following safety precaution.

Statement 3:

CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following:

v Do not remove the covers. Removing the covers of the laser product

could result in exposure to hazardous laser radiation. There are no serviceable parts inside the device.

v Use of controls or adjustments or performance of procedures other

than those specified herein might result in hazardous radiation exposure.

Chapter 2. Installing optional devices 65

DANGER

Some laser products contain an embedded Class 3A or Class 3B

laser diode. Note the following.

Laser radiation when open. Do not stare into the beam, do not view

directly with optical instruments, and avoid direct exposure to the

beam.

Class 1 Laser Product Laser Klasse 1 Laser Klass 1 Luokan 1 Laserlaite Appareil A Laser de Classe 1

b. Touch the static-protective package that contains the UltraSlim DVD drive to

any unpainted metal surface on the server; then, remove the UltraSlim DVD drive from the package.

c. Read the safety information that begins on page vii and “Installation

guidelines” on page 29.

d. Turn off the server and peripheral devices, and disconnect the power cords

and all external cables.

e. Unlock and remove the left-side cover (see “Removing the left-side cover”

on page 49).

f. Remove the fan cage assembly.

g. Open the bezel by pressing the button on the left edge of the bezel, and

rotate the left side of the bezel away from the server.

66 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

h. Rotate the power-supply cage assembly out of the chassis. Lift up the

power-supply cage handle and pull the power-supply cage assembly all the way up until the retainer latch locks the cage in place on the chassis.

i. Disconnect the power and signal cables of the DVD drive from the system

board.

j. Pull the power and signal cables of the UltraSlim DVD drive through the slim

slot on top of the 3.5-inch hard disk drive cage.

Chapter 2. Installing optional devices 67

k. Connect the power and signal cables to the UltraSlim DVD drive. (See

“Internal cable routing and connectors” on page 32 for more information.)

l. Attach the drive retention clip to the side of the new drive.

m. Slide the UltraSlim DVD drive into the slim slot on top of the 3.5-inch disk

drive cage until the drive clicks into place.

Note: Pull the power and signal cables of the UltraSlim DVD drive into the slim slot on top of the cage first. Make sure the cables are not stuck when you slide the UltraSlim DVD drive into the cage.

n. Slide the 3.5-inch disk drive cage into the upper opening of the server along

the lower edge of the opening.

Note: Pull the power and signal cables of the UltraSlim DVD drive into the upper opening of the server first. Make sure the cables are not stuck when you slide the disk drive cage into the server.

68 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

o. Secure the 3.5-inch disk drive cage with the screws. p. Reconnect the power and signal cables of the UltraSlim DVD drive to the

system board. (See “Internal cable routing and connectors” on page 32 for

more information.) q. Reinstall the air baffle. r. Reinstall the fan cage assembly.

s. Rotate the power-supply cage assembly back into the server. Press the

power-supply cage release tab and rotate the power-supply cage assembly

into the chassis. t. Close the bezel. u. Install and lock the left-side cover.

Chapter 2. Installing optional devices 69

v. Reconnect the external cables and power cords; then, turn on the attached

devices and turn on the server.

If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 98.

70 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Installing a USB or SATA tape drive

The server supports USB and SATA tape drives. When you install a tape drive, be sure to connect the internal tape cable to the correct connector on the system board.

To install a tape drive, complete the following steps:

1. Read the safety information that begins on page vii and “Installation guidelines” on page 29.

2. Turn off the server and peripheral devices, and disconnect the power cords and all external cables.

3. Unlock and remove the left-side cover (see “Removing the left-side cover” on page 49 for more information).

4. Open the bezel by pressing the button on the left edge of the bezel, and rotate the left side of the bezel away from the server.

Chapter 2. Installing optional devices 71

5. Remove the EMC shields from the drive bays.

6. Find the blue drive rails in the server bay and install one on each side of the tape drive.

7. Slide the tape drive into the server.

8. Close the bezel.

9. Remove the power supplies from the rear of the server.

10. Carefully lay the server down on its side.

11. Open the power-supply cage (see “Opening the power-supply cage” on page 55 for more information).

12. Remove the air baffle (see “Removing the air baffle” on page 52 for more

information).

13. Remove the fan cage assembly.

72 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

14. If the tape drive came with screws, secure the drive to the server chassis, using the supplied screws.

15. Connect one end of the tape drive cable to the USB or SATA connector on the system board, depending upon the type of tape drive that you are installing; then, route the cable through the cable holders on the inside of the server and connect the opposite end of the cable to the back of the tape drive (see “Internal cable routing and connectors” on page 32 for more information.)

Note: If you are installing an RDX internal USB tape drive, use the SATA-to-traditional power converter cable to serve as a bridge between the optical power cable and the power connector on the RDX tape drive.

16. Connect the power cable to the tape drive and to the connector on the system board (see “Internal cable routing and connectors” on page 32 for more information.)

17. Reinstall the fan cage assembly.

Chapter 2. Installing optional devices 73

18. Reinstall the air baffle (see “Installing the air baffle” on page 53.)

19. Reinstall or close the power-supply cage (see “Closing the power-supply cage” on page 56 for more information).

20. Reinstall the power supplies.

21. Replace the left-side cover; then, lock the left-side cover and bezel.

22. Reconnect the external cables and power cords.

If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 98.

74 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Installing a hot-swap hard disk drive

The following notes describe the types of hard disk drives that the server supports and other information that you must consider when you install a hard disk drive:

v The server supports up to sixteen 2.5-inch, SAS/SATA hot-swap hard disk drives

or up to eight 3.5-inch, SAS/SATA hot-swap hard disk drives in the standard hot-swap bays depending on your model.

Note: SAS expander card does not support 3 GB RAID adapters.

v The hot-swap drives are arranged horizontally in the standard hard disk drive

cage.

v On models with 2.5-inch hard disk drives, the drive numbers are 0 through 7

(right to left). 8 through 15 (right to left). 16 through 23 (right to left). When you install hard disk drives, start with drive 0.

v On models with four 3.5-inch hard disk drives, the drive numbers are 0 through 3

(left to right). On models with eight 3.5-inch hard disk drives, hard disk drive cage for 4 through 7 (left to right) is added.

v For a list of supported optional devices for the server, see http://www.ibm.com/

servers/eserver/serverproven/compat/us/ .

v Inspect the drive tray for signs of damage. v Make sure that the drive is correctly installed in the tray. v See the documentation for the ServeRAID adapter for instructions for installing a

hard disk drive.

Note: For proper cooling, do not install any card in the slot next in sequence to a ServeRAID adapter with battery backup module (for example, if a ServeRAID adapter with battery backup module is installed in slot 2, do not install any card in slot 3).

v All hot-swap drives in the server must have the same throughput speed rating;

using drives with different speed ratings might cause all drives to operate at the speed of the slowest drive.

v To minimize the possibility of damage to the hard disk drives when you are

installing them in a rack configuration, install the server in the rack before you install the hard disk drives.

v You do not have to turn off the server to install hot-swap drives in the hot-swap

drive bays. However, you must turn off the server when you perform any steps that involve installing or removing cables.

v The drive ID of each hot-swap hard disk drive is printed on the hard disk drive

cage.

Chapter 2. Installing optional devices 75

To install a hot-swap hard disk drive, complete the following steps:

1. Read the safety information that begins on page vii and “Installation guidelines”

on page 29.

2. Remove the filler panel from one of the empty hot-swap bays.

3. Make sure that the drive handle is open; then, slide the hard disk drive into the

hot-swap bay.

4. Push the drive handle in until it latches.

Notes:

1. When you turn on the server, check the hard disk drive status LEDs to verify

that the hard disk drive is operating correctly. If the amber hard disk drive status LED is lit continuously, that drive is faulty

and must be replaced. If the green hard disk drive activity LED is flashing, the drive is being accessed.

2. If the server is configured for RAID operation through an optional ServeRAID

adapter, you might have to reconfigure your disk arrays after you install hard disk drives. See the ServeRAID documentation on the IBM ServeRAID Support CD for additional information about RAID operation and complete instructions for using ServeRAID Manager.

If you have other devices to install or remove, do so now. Otherwise, go to “Completing the installation” on page 98.

76 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Installing a simple-swap SATA hard disk drive

Some server models come with four 3.5-inch simple-swap SATA hard disk drives that are accessible from the front of the server. You must turn off the server before installing simple-swap drives in the server. Before you install a simple-swap SATA hard disk drive, read the following information:

v You can only install four simple-swap SATA hard disk drives in the server. v The sequence for installing the hard disk drives is to install the drives starting

from the left bay (bay 4) and go the right bay (bay 7) in that order.

To install a simple-swap hard disk drive, complete the following steps:

1. Read the safety information that begins on page vii and “Installation guidelines” on page 29.

2. Turn off the server and peripheral devices and disconnect all external cables and power cords.

3. Unlock the left-side cover.

Note: You must unlock the left-side cover to open or remove the bezel. When you lock the left-side cover, it locks both the cover and the bezel.

4. Open the bezel.

5. Remove the filler panel from the drive bay in which you want to install the drive.

6. Grasp the tab on the drive bay EMC shield and rotate it to the open position.

Chapter 2. Installing optional devices 77

7. Touch the static-protective package that contains the drive to any unpainted metal surface on the server; then, remove the drive from the package and place it on a static-protective surface.

8. Align the drive assembly with the guide rails in the bay (the connector end of the drive goes in first).

9. Press the drive assembly loops toward each other; then, carefully slide the drive assembly into the drive bay until it stops and release the loops.

Note: Do not release the loops on the drive assembly until it is completely seated.

10. See the Problem Determination and Service Guide for cabling information, if needed.

11. Close the drive bay EMC shield.

12. Close the bezel.

If you have other options to install or remove, do so now.

The simple-swap-drive backplate controls the IDs for the internal simple-swap drive bays. The following table lists the IDs for the hard disk drives and backplate that are connected to simple-swap models.

78 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Installing a memory module

Attention: Do not mix UDIMMs and RDIMMs in the same server.

The following notes describe the types of dual inline memory modules (DIMMs) that your server supports and other information that you must consider when you install DIMMs.

v The server supports industry-standard double-data-rate 3 (DDR3), 800, 1066, or

1333 MHz, PC3-10600R-999 (single- or dual-rank), registered, synchronous dynamic random-access memory (SDRAM) dual inline memory modules (DIMMs) with error correcting code (ECC). See http://www.ibm.com/servers/eserver/ serverproven/compat/us/ for a list of supported memory modules for the server.

v At least one DIMM must be installed for the server to operate, but three DIMMs

per microprocessor improves server performance.

v When two microprocessors are installed in the server, distribute the DIMMs

between the two microprocessors to improve server performance.

v The server supports a maximum of 16 single- or dual-rank DIMMs. v The maximum number of single-, dual-rank, ECC supported UDIMM the server

supports is 12.

v The memory controller has three registered DIMM channels per microprocessor

(channels 0, 1, and 2). Channels 0 and 1 support three DIMMS, and channel 2 supports two DIMMs.

v Install DIMMs starting with the connector farthest from the microprocessor within

each channel.

v The server supports 1 GB, 2 GB, 4 GB, and 8 GB DIMMs, with a minimum of 1

GB and a maximum of 128 GB of system memory.

For 32-bit operating systems only: Some memory is reserved for various system resources and is unavailable to the operating system. The amount of

Chapter 2. Installing optional devices 79

memory that is reserved for system resources depends on the operating system, the configuration of the server, and the configured PCI devices.

Note: If you install a ServeRAID-M1015 SAS/SATA adapter, make sure at least 2 GB of memory is installed in the server before you run DSA from a bootable CD.

v The maximum operating speed of the server is determined by the slowest DIMM

in the server.

v The server can operate in three modes: sparing, mirroring and independent

channel modes.

Note: Memory sparing is only available for Intel Xeon 5600 series microprocessor.

In two-DIMM-per-channel configuration, a server with an Intel Xeon X5600 series microprocessor automatically operates with a maximum memory speed of up to 1333 MHz when one of the following conditions is met:

v Two 1.5 V single-rank or dual-rank RDIMMs are installed in the same channel. In

the Setup utility, Memory speed is set to Max performance mode

v Two 1.35 V single-rank or dual-ranl RDIMMs are installed in the same channel.

In the Setup utility, Memory speed is set to Max performance and LV-DIMM power is set to Enhance performance mode. The 1.35 V RDIMMs will function at 1.5 V

The following notes describe the types of DIMMs that the server supports and other information that you must consider when you install DIMMs.

v When you install or remove DIMMs, the server configuration information

changes. When you restart the server, the system displays a message that indicates that the memory configuration has changed.

v The server supports only industry-standard double-data-rate 3 (DDR3), 800,

1066, or 1333 MHz, PC3-10600R-999, registered or unbuffered, synchronous dynamic random-access memory (SDRAM) dual inline memory modules (DIMMs) with error correcting code (ECC). See http://www.ibm.com/servers/eserver/ serverproven/compat/us/ for a list of supported memory modules for the server.

– The specifications of a DDR3 DIMM are on a label on the DIMM, in the

following format. ggg eRxff-PC3-wwwwwm-aa-bb-cc where:

ggg is the total capacity of the DIMM (for example, 1GB, 2GB, or 4GB) e is the number of ranks

1 = single-rank 2 = dual-rank 4 = quad-rank

ff is the device organization (bit width)

4 = x4 organization (4 DQ lines per SDRAM) 8 = x8 organization 16 = x16 organization

wwwww is the DIMM bandwidth, in MBps

6400 = 6.40 GBps (PC3-800 SDRAMs, 8-byte primary data bus) 8500 = 8.53 GBps (PC3-1066 SDRAMs, 8-byte primary data bus) 10600 = 10.66 GBps (PC3-1333 SDRAMs, 8-byte primary data bus)

80 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

12800 = 12.80 GBps PC3-1600 SDRAMs, 8-byte primary data bus)

m is the DIMM type

E = Unbuffered DIMM (UDIMM) with ECC (x72-bit module data bus) R = Registered DIMM (RDIMM) U = Unbuffered DIMM with no ECC (x64-bit primary data bus)

aa is the CAS latency, in clocks at maximum operating frequency bb is the JEDEC SPD Revision Encoding and Additions level cc is the reference design file for the design of the DIMM d is the revision number of the reference design of the DIMM

Note: To determine the type of a DIMM, see the label on the DIMM. The information on the label is in the format xxxxx nRxxx PC3-xxxxx-xx-xx-xxx. The numeral in the sixth numerical position indicates whether the DIMM is single-rank (n=1), dual-rank (n=2), or quad-rank (n=4).

v The following rules apply to DDR3 DIMM speed as it relates to the number of

DIMMs in a channel: – When you install 1 DIMM per channel, the memory runs at 1333 MHz – When you install 2 DIMMs per channel, the memory runs at 1066 MHz – When you install 3 DIMMs per channel, the memory runs at 800 MHz – All channels in a server run at the fastest common frequency – Do not install registered and unbuffered DIMMs in the same server

v The maximum memory speed is determined by the combination of the

microprocessor, DIMM speed, and the number of DIMMs installed in each channel.

v In two-DIMM-per-channel configuration, a server with an Intel Xeon X5600 series

microprocessor automatically operates with a maximum memory speed of up to 1333 MHz when one of the following conditions is met:

– Two 1.5 V single-rank or dual-rank RDIMMs are installed in the same channel.

In the Setup utility, Memory speed is set to Max performance mode

– Two 1.35 V single-rank or dual-ranl RDIMMs are installed in the same

channel. In the Setup utility, Memory speed is set to Max performance and LV-DIMM power is set to Enhance performance mode. The 1.35 V RDIMMs will function at 1.5 V

Note: The server does not support quad-rank RDIMM. The server supports a maximum of 16 single-rank or dual-rank RDIMMs. The server supports up to 12 single-rank or dual-rank UDIMMs.

v The server supports three single-rank or dual-rank DIMMs per channel on

channel 0 and 1, two single-rank or dual-rank DIMMs on channel 2. The following table shows an example of the maximum amount of memory that you can install using ranked DIMMs:

Table 6. Maximum memory installation using ranked DIMMs

Number of DIMMs DIMM type DIMM size Total memory

12 Single-rank UDIMMs 2 GB 24 GB 12 Dual-rank UDIMMs 4 GB 48 GB 16 Single-rank RDIMMs 2 GB 32 GB 16 Dual-rank RDIMMs 2 GB 32 GB

Chapter 2. Installing optional devices 81

Table 6. Maximum memory installation using ranked DIMMs (continued)

Number of DIMMs DIMM type DIMM size Total memory

16 Dual-rank RDIMMs 4 GB 64 GB 16 Dual-rank RDIMMs 8 GB 128 GB

v The RDIMM options that are available for the server are 1 GB, 2 GB, 4 GB, and

8 GB. The server supports a minimum of 1 GB and a maximum of 128 GB of system memory using RDIMMs.

v The UDIMM options that are available for the server are 1 GB, 2 GB and 4 GB.

The server supports a minimum of 1 GB and a maximum of 48 GB of system memory using UDIMMs.

Note: The amount of usable memory is reduced depending on the system configuration. A certain amount of memory must be reserved for system resources. To view the total amount of installed memory and the amount of configured memory, run the Setup utility. For additional information, see Chapter 3, “Configuring the server,” on page 101.

v When you install one quad-rank RDIMM in a channel, install it in the DIMM

connector furthest away from the microprocessor.

v Do not install one quad-rank RDIMM in one channel and three RDIMMs in

another channel.

v Do not install 1.5V DIMMs and 1.35V DIMMs in the same server.

Installing the virtual media key

To install a virtual media key, complete the following steps:

1. Align the alignment bracket on the rear of the key with the retention tab on the

system board; then, slide the key down into the virtual media key connector on the system board until it is firmly seated in place.

82 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide

Alignment bracket

Virtual media key (rear)

Virtual media key (front)

Retention tab

Virtual media key connector

2. Reinstall any adapters that you removed.

3. Close the rear adapter-retention bracket.

4. Install and lock the left-side cover (see “Completing the installation” on page

98).

5. Lock the left-side cover.

6. Reconnect the external cables and power cords; then, turn on the attached devices and turn on the server.

Chapter 2. Installing optional devices 83

Independent channel mode

The server requires at least one installed DIMM. The server comes with a minimum of two 1 GB DIMMs, installed in connectors 3 and 6. Connector 3 (in channel 0) and connector 6 (in channel 1) are the farthest connectors from microprocessor 1 in those channels. When you install additional DIMMs, install them in the order shown in Table 7, to maintain server performance.

Note:

v Memory sparing is only available for Intel Xeon 5600 series microprocessor. v If you have configured the server to use memory mirroring or sparing, do not use

the order shown in this table; use the installation order that is shown in Table 9 on page 85.

v If you install a ServeRAID-M1015 SAS/SATA adapter, make sure at least 2 GB of

memory is installed in the server before you run DSA from a bootable CD.

Table 7. DIMM installation sequence for independent channel mode

Installed microprocessors DIMM connector population sequence

Microprocessor 1 3, 6, 8, 2, 5, 7, 1, 4 Microprocessor 1 and Microprocessor 2 3, 11, 6, 14, 8, 16, 2, 10, 5, 13, 7, 15, 1, 9,

Memory-mirroring mode

Memory-mirroring mode replicates and stores data on two pairs of DIMMs within two channels simultaneously. If a failure occurs, the memory controller switches from the primary pair of memory DIMMs to the backup pair of DIMMs. You must enable memory mirroring through the Setup utility. For details about enabling memory mirroring, see “Using the Setup utility” on page 102. When you use the memory-mirroring feature, consider the following information:

v When you use memory mirroring, you must install a pair of DIMMs at a time.

One DIMM must be in channel 0, and the mirroring DIMM must be in the same connector in channel 1. The two DIMMs in each pair must be identical in size, type, rank (single or dual), and organization. They do not have to be identical in speed. The channels run at the speed of the slowest DIMM in any of the channels. See Table 9 on page 85 for the DIMM connectors that are in each pair.

v Channel 2, DIMM connectors 7, 8, 15, and 16 are not used in memory-mirroring

mode.

v The maximum amount of available memory is reduced to half of the amount of

installed memory when memory mirroring is enabled. For example, if you install 64 GB of memory, only 32 GB of addressable memory is available when you use memory mirroring.

4, 12

The following illustration shows the memory channel interface layout with the DIMM installation sequence for memory-mirroring mode. The numbers within the boxes indicate the DIMM population sequence in pairs within the channels, and the numbers next to the boxes indicate the DIMM connectors within the channels. For example, the following illustration shows that the first pair of DIMMs (indicated by 1s inside the boxes) should be installed in DIMM connector 3 on channel 0 and DIMM connector 6 on channel 1. DIMM connectors 7, 8, 15, and 16 on channel 2 are not used in memory-mirroring mode.

84 IBM System x3400 M3 Types 7378 and 7379: Installation and User's Guide
