An affordable single-socket, quad-core server with high performance

and data protection for small, medium, and large businesses

Product Guide

October 2010

IBM System x3200 M3

Product Overview

CONTENTS

Product Overview

Selling Features

Key Features

Key Options

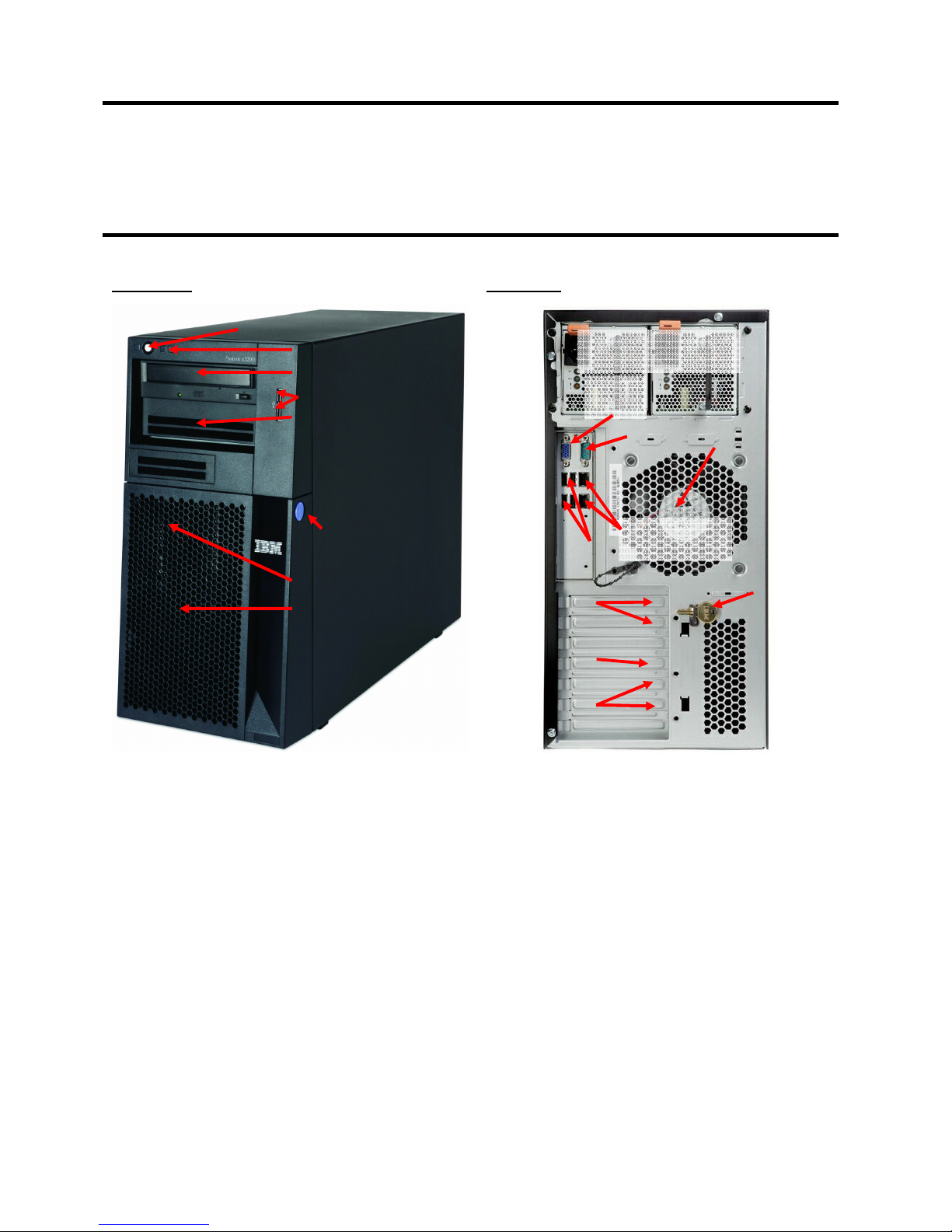

x3200 M3 Images 1

x3200 M3 Specifications 1

The Bottom Line 1

Server Comparison Chart 1

For More Information 1

Legal Information 1

Using RDIMMS.

GB equals 1,000,000,000 bytes and TB equals 1,000,000,000,000 bytes when referring to hard disk drive capacity. Accessible

capacity may be less.

A second high-efficiency redundant 430W power supply is available for the x3200 M3. (Model dependant or via CTO.)

Value-priced performance, capacity and availability

Suggested uses: Small and medium businesses, distributed large enterprises, retail, banking, and insurance companies seeking scalability, top performance, and enterpriseclass availability features at an entry-level price.

The single-socket IBM® System x3200 M3, incorporating IBM X-Architecture® features, is an affordable, single-socket tower server that offers more performance, configuration flexibility and availability features than many other servers in its class. From network infrastructure to distributed applications to front-end workloads, the x3200 M3 is designed to meet a wide range of business needs and help you adapt to changing business requirements.

It supports, at the high end, the latest quad-core Intel® Xeon® 3400 Series processors, designed with speedy 1333MHz memory access (FSB) and 8MB of L3 cache, to help provide the computing power you need to match your business needs and growth. For power-constrained environments, a low-voltage, dual-core Xeon processor is also available, with 4MB of cache. If cost is your primary concern, the x3200 M3 offers a model using the affordable dual-core Celeron processor with 2MB of L3 cache. In between, there are models that use the dual-core Pentium processor with 3MB of L3 cache, as well as a dual-core Core i3 processor with 4MB of L3 cache. All models are designed with an integrated memory controller for greatly improved memory performance (up to 1333MHz access, depending on the processor), 64-bit extensions (EM64T), and multithreading, to provide the computing power you need to match your business needs and growth. In addition, the x3200 M3 uses industry-standard 1066/1333MHz DDR3 ECC (Error Checking and Correcting) memory—for high performance and reliability.

All models offer impressive scalability, including up to 32GB1 of memory and up to four 3.5- inch hot-swap enterprise-class Serial ATA II (SATA II) hard disk drives with a total capacity of up to 8TB2, or up to four 3.5-inch simple-swap enterprise-class SATA II hard disk drives with a total capacity of up to 8TB, or eight 2.5-inch hot-swap SAS drives with an internal storage capacity of up to 4.8TB.

For additional performance and high availability, the x3200 M3 offers integrated hardware RAID-0/1 support standard in the hot-swap SAS/SATA models (optional for simple-swap SATA models), and optional RAID-10/5/6. T o meet your backup requirements, the x3200 M3 supports a choice of half-high tape drives, an optical drive, or an IBM RDX Removable

Hard Disk Storage System. The server ships as a tower unit; an optional rack conversion kit turns the x3200 M3 hot-swap models into a 5U rack-mounted server to save precious

data center floor space.

Standard in the x3200 M3 is the Integrated Management Module (IMM) that enables the user to manage and control the server easily—both locally and, using the optional Virtual Media Key, remotely. The IMM offers a high level of manageability that is designed to keep costs down and the system up—even when network usage increases. These advanced features help maximize network availability by increasing uptime, as do hot-swap and

simple-swap SATA HDDs; hot-swap/redundant SAS HDDs, redundant ultra-efficient power supplies; integrated RAID; redundant power3; IPMI 2.0 support, including highly secure remote power control and Serial over LAN; as well as text-console redirect over LAN.

Another improvement with the new generation of X-Architecture is the replacement of legacy BIOS with next-generation United Extensible Firmware Interface (UEFI). UEFI provides a more intuitive user interface and understandable event logs and better management.

With the inclusion of unique IBM service and support features such as the IMM, IBM

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance

Manageability

and data protection for small, medium, and large businesses

Systems Director, IBM Systems Director Active Energy Manager™, and IBM ServerGuide™, the x3200 M3 is designed for superior uptime.

For a balance of high-performance processing, high availability and vast internal storage at a budget price, the x3200 M3 is the ideal system.

Selling Features

Price/Performance

The x3200 M3 offers numerous features to boost performance and reduce product and operating costs:

• Models with a quad-core Xeon processor, high-end 1333MHz memory access, and 8MB

of L3 cache, offer peak performance, capable of tackling the toughest jobs.

• Models containing a high-performance dual-core Core i3 processor, with high-end 1333MHz memory access and 4MB of L3 cache, offer superior performance at an

aggressive price.

• Models containing a dual-core Celeron or Pentium processor with speedy 1066MHz memory access, for those on a budget.

• Ultra-fast 1333MHz or 1066MHz DDR3 ECC memory offers high speed and high availability.

• High-speed PCIe adapter slots offers investment protection by supporting high- performance adapters, such as Ethernet, Fibre Channel and InfiniBand cards, none of which will run in older legacy PCI slots.

• Integrated hardware RAID-0/1 support (standard in hot-swap models; optional in simple- swap models) doesn’t consume a valuable adapter slot. RAID-0 offers improved disk performance via data striping and RAID-1 off ers disk mirroring for high availability.

• Gen 2 HDD cage support for up to four hot-swap 3.5-inch SAS or SATA hard disk drives or up to eight hot-swap 2.5-inch SAS HDDs (CTO/special bid), offers highperformance and large capacity with high availability. The SAS/SATA controller provides full-duplex (2 x 300MBps) data transfers for SAS drives. For lower cost with high capacity, other models support up to four simple-swap SATA drives.

• The two integrated single-port Gigabit Ethernet controllers with IPMI 2.0 support provide high-speed network communications.

• A high degree of device integration, including SAS/SATA, RAID-0/1/1E, Gigabit Ethernet, IMM systems management, and video controllers, lowers costs and frees up valuable adapter slots.

Flexibility

The x3200 M3 has the ability to grow with your application requirements, thanks to:

• A choice of one quad-core Xeon processor with 2.4 to 3.06GHz clock rate, 8MB of L3 cache, and up to 1333MHz memory access, or a dual-core Celeron, Pentium or Core i3 processor with a 2.26 to 3.20GHz clock rate, 2MB to 4MB of L3 c ache, and 1066MHz or 1333MHz memory access.

• A choice of 73W dual-core or 95W quad-core processors.

• Up to 32GB of high-speed DDR3 system memory.

• Five available adapter slots: two PCIe x8, two PCIe x4 (one PCIe slot is reserved for a

ServeRAID controller) and two legacy PCI (32-bit, 33MHz) slots in all models.

• The seven USB 2.0 ports (two front, four rear, one internal) are up to 40X faster4 than older USB 1.1 ports. This provides speedy access to external HDDs (non-arrayed), optical drives, tape drives, and other USB devices. The internal port can be used for an optional tape drive, disk cartridge backup device or USB key with embedded hypervisor.

• Up to four internal 3.5-inch simple-swap SATA or hot-swap SAS or SATA HDDs or eight 2.5-inch hot-swap SAS HDDs (by special bid only), can be installed. This provides

tremendous internal storage capability, along with full data backup.

• Alternatively, iSCSI or Fibre Channel-attached storage can be attached using IBM System Storage® servers.

Powerful systems management features simplify local and remote management of the x3200 M3:

• The x3200 M3 includes an Integrated M anagement Module (IMM) to monitor server availability, perform Predictive Failure Analysis, etc., and trigger IBM Systems Director alerts. The IMM performs the functions of both the mini Baseboard Management

Data transfer rates may be less than the maximum possible.

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

Controller (mBMC) of earlier systems and the Remote Supervisor Adapter II and is upgradeable to remote presence/cKVM.

• An optional Virtual Media Key provides additional systems management capabilities, including virtual floppy and optical drive support; graphical console redirection over LAN; and remote redirection of PCI video, keyboard and mouse (cKVM). And it does all this without consuming a valuable adapter slot.

• Integrated industry-standard Unified Extensible Firmware Interface (UEFI) next- generation BIOS. New capabilities include:

– Human readable event logs; no more beep codes

– Complete setup s olution by allowing adapter configuration function to be moved into

UEFI

– Complete out-of-band coverage by Advance Settings Utility to simplify remote setup

• Integrated IPMI 2.0 support alerts IBM Systems Director to anomalous environmental factors, such as voltage and thermal conditions. It also supports highly secure remote power control using data encryption.

• Text Console Redirection support allows the administrator to remotely view x3200 M3 text messages over Serial or LAN.

• The completely redesigned IBM Systems Director is included for proactive systems management. IBM Systems Director comes with a portfolio of tools, including IBM Systems Director Active Energy Manager, Service and Support Manager, and others. In addition, IBM Systems Director offers extended systems management tools for additional server management and increased availability. When a problem is encountered, IBM Systems Director can issue administrator alerts via e-mail, pager, and other methods.

• IBM Systems Director Active Energy M anager, an IBM-exclusive, is designed to take advantage of new system power management features, by providing actual realtime energy monitoring and reporting features. The optional (CTO/special bid) 431W hot-swap power supply is AEM-supported.

• The x3200 M3 optionally supports remote presence/concurrent KVM (cKVM) and concurrent media (cMedia) access by multiple administrators at once, via the IMM. This

feature requires an upgrade, via the Virtual Media Key.

• Trusted Platform Module (TPM) 1.2 support.

For terms and conditions or copies of the IBM Statement of Limited Warranty, call 800-772-2227 in the U.S. In Canada call 800-

426-2255. Telephone support may be subject to additional charges. For warranties including onsite labor, a technician is sent after IBM attempts to resolve the problem remotely. International warranty service is available in any country in which this product is sold.

Availability and Serviceability

The x3200 M3 provides many features to simplify serviceability and increase system uptime:

• Toolless cover removal provides easy access to upgrades and serviceable parts. Similarly, the Virtual Media Key and the ServeRAID-BR10il controller can be installed and replaced without tools. This means less time (and therefore less money) spent servicing the x3200 M3. Similarly, hot-swap/redundant HDDs, fan modules and power supplies, as well as online mirrored memory, mean greater system uptime while these components are being serviced.

• A lighted LED beside each DIMM slot indicates a working DIMM. When a DIMM fails, the LED goes out. This.quickly leads the technician to the failed DIMM and simplifies servicing, speeds up problem resolution and helps increase server availability.

• Integrated RAID-1/1E disk mirroring standard in hot-swap models enable the server to keep operating in the event of a failure to any one drive. (RAID-1E, an IBM exclusive, supports mirroring of an odd number of drives.)

• IPMI 2.0 supports highly secure remote system power control using data encryption. This allows an administrator to restart a server without having to visit it in person, saving travel time and getting the server back up and running quickly and securely. It also adds new features to those provided by IPMI 2.0, including VLAN support, Serial over LAN, enhanced authentication and encryption algorithms (RMCP+, AES) and a firmware firewall.

• The three-year (parts and labor) limited onsite warranty5 offered on selected models (Machine Type 7328) offers peace of mind and greater investment protection than a oneyear warranty does.

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance

High

Performance, Low

Latency

DDR3 ECC Memory

and data protection for small, medium, and large businesses

Key Features

Multicore Intel Processors

The x3200 M3 supports one of the latest Intel Xeon 3400 Series processors, allowing you to choose the most appropriate processor for your business needs. The x3200 M3 offers a choice of processor clock rates, memory access speeds and power draws:

• 95W quad-core Xeon processor models X3430, X3440, X3450, X3460, X3470*, or X3480* running at 2.4, 2.53, 2,66, 2.8, 2.93, or 3.06GHz (respectively), with efficient

power draw (23.75W per core), a 1333MHz FSB, 8MB of L3 processor cache, and Turbo Boost Technology

• 30W dual- core low voltage Xeon processor model L3406* running at 2.26Ghz with low power draw (15W per core), a 1066MHz FSB, plus 2MB of L3 processor cache

• 73W dual-core Core i3 processor models 530, 540*, or 550* running at 2.93, 3.06, or

3.20GHz (respectively), with reduced power draw (36.5W per core), a 1333MHz FSB, plus 4MB of L3 processor cache

• 73W dual-core Pentium processor model G6950* running at 2.8GHz, with reduced power draw (36.5W per core), a 1066MHz FSB, plus 3MB of L3 processor cache

• 73W dual-core Celeron processor model G1101 running at 2.26GHz, with reduced power draw (36.5W per core), a 1066MHz FSB, plus 2MB of L3 processor cache

* Processor available via Configure-to-Order (CTO) process.

The dual-core processors contain two complete processor cores; quad-core processors, similarly, contain four cores. The processors also contain one shared cache. The shared cache is dynamically allocated between cores as needed. The cores appear to software as physical processors. The two-core processors offer considerably higher performance than a same-speed Xeon processor with a single core. Likewise, four-core processors offer considerably higher performance than a same-speed Xeon processor with two cores.

Note: Because of the integrated memory controller the former front-side bus (FSB) no longer exists.

Turbo Boost Technology increases performance by translating the temperature, power and current head room into higher frequency. It will dynamically increase by 133MHz for short and regular intervals until the upper limit is met or the maximum possible upside for the number of active cores is reached. The maximum frequency is dependent on the number of active cores. The amount of time the processor spends in the Turbo Boost Technology state depends on the workload and operating environment, providing the performance you need, when and where you need it.

In processors implementing Intel Hyper-Threading Technology, each core has two threads capable of running an independent process. Thus, a 6-core processor can run 12 threads concurrently.

Intel Extended Memory 64 Technology (EM64T) 64-bit extensions allow the Xeon processor to use large memory addressing when running with a 64-bit operating system. This in turn lets individual software processes directly access more than 4GB of RAM, which was the limit of 32-bit addressing. This can result in much higher performance for certain kinds of programs, such as database management and CAD. Additional registers and instructions (SSE3) can further boost performance for applications written to use them. Contact your software providers to determine their software support for EM64T.

Intelligent Power Capability powers individual processor elements on and off as needed, to reduce power draw.

Execute Disable Bit functionality can help prevent certain classes of malicious buffer overflow attacks when combined with a supporting operating system.

Please see the Legal Information section for important notices and information.

The x3200 M3 ships with either one or two DIMMs installed and supports up to 32GB of Registered DIMM (RDIMM) memory in 6 DIMM sockets, or up to 16GB of Unbuffered DIMM (UDIMM) memory in 4 sockets. It uses PC3-10600 or PC3-8500R-777 double data rate III (DDR3) memory (operating at 800, 1066, or 1333MHz. depending on the processor type and memory configuration) f or faster access, and provides ECC memory protection.

The x3200 M3 supports either 1, 2, or 4 UDIMMs, or 1, 2, 4 or 6 RDIMMs. Valid configurations include:

• UDIMMs in Slot 1 only, or Slots 1 and 4, or Slots 1, 2, 4, and 5. (16GB maximum)

• RDIMMs in Slot 1 only, or Slots 1 and 4, or Slots 1, 2, 4, and 5, or all 6 slots. (32GB

maximum)

UDIMMs are available in kits consisting of one 1GB DIMM or two 1GB, 2GB, or 4GB

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

DIMMs. RDIMMs are available in kits consisting of one 1GB DIMM or two 1GB, 2GB, 4GB, or 8GB DIMMs. Mixing UDIMMs and RDIMMs in the same server is not supported. Mixing ECC and non-ECC UDIMMs is supported; however the result will be all DIMMs operating in non-ECC mode.

The x3200 M3 supports both single- and dual-rank UDIMMs. Single-, dual-, and quad- rank RDIMMs are supported. Up to 6 single- or dual-rank RDIMMs, or up to 4 quad-rank RDIMMs can be used. Maximum capacities include:

• 4 single-rank UDIMM s (4 x 2GB = 8GB)

• 4 dual-rank UDIMMs (4 x 4GB = 16GB)

• 6 single-rank RDIMM s (6 x 2GB = 12GB)

• 6 dual-rank RDIMMs (6 x 4GB = 24GB)

• 4 quad-rank RDIMMs (4 x 8GB = 32GB)

Integrated Virtualization

All models of the x3200 M3 support an optional USB 2.0 Flash Key installed preloaded with VMware vSphere Hypervisor (formerly ESXi). Rather than management through a Service

Console based on a Linux operating system, vSphere Hypervisor relies on aggregate management tools, including VirtualCenter, the Remote Command Line interface and the introduction of CIM for standards-based and agentless hardware monitoring.

vSphere Hypervisor includes all the performance, scalability and compatibility features of a hypervisor installed on disk, including full VM FS support across FC SAN, iSCSI SAN, and NAS, and 4-way VSMP. Because it runs from flash memory, it’s extremely fast and ideal for diskless configurations. It also offers enhanced security, because it runs without an operating system-based console and is updated/patched much like firmware.

Gigabit Ethernet Controller

The x3200 M3 includes two integrated single-port Intel 82574L Gigabit Ethernet controllers for up to 10X higher maximum throughput than a 10/100 Ethernet controller. The controller provides fully integrated Media Access Control (MAC) and Physical-Layer (PHY) capabilities that can be configured for either 1000Mb/s or 10/100 Mb/s modes of operation. The first port supports the IMM systems management functions.

The controller also supports Wake on LAN® and PXE (Preboot Execution Environment) flash interface. Optional PCI adapters offering failover and load balancing between adapters are available for added throughput and increased system availability.

Hot-Swap/Redundant Components

System availability is maximized through the use of hot-swap and redundant components, including:

• Hot-swap/redundant or simple-swap hard disk drives (with RAID-1/1E protection standard)

• Hot-swap, redundant power supplies (model-specific or via CTO)

Please see the Legal Information section for important notices and information.

Large HDD Storage Capacity

The x3200 M3 offers a choice of disk storage, supporting up to four 3.5-inch simple-swap or hot-swap Serial ATA II (SATA II) drives, or four 3.5-inch hot-swap high-performance Serial-Attach SCSI (SAS) drives, or up to eight 2.5-inch hot-swap SAS drives (via CTO).

3.5-inch Hot-Swap SAS

• 15,000 RPMs — 300, 450, or 600GB (2.4TB maximum capacity)

• 7,200 RPMs — 1 or 2TB (8TB)

3.5-inch Hot-Swap SATA

• 10,000 RPMs — 250, 500 or 750GB (3TB)

• 7,200 RPMs — 1 or 2TB (8.0TB)

3.5-inch Simple-Swap SATA

• 10,000 RPMs — 250, 500GB (2TB)

• 7,200 RPMs — 2TB (8.0TB)

2.5-inch Hot-Swap SAS (3Gbps or 6Gbps)

• 15,000 RPMs — 73.4 or 146.8GB (1.17TB)

• 10,000 RPMs — 146.8, 300, or 600GB (4.8TB)

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

• 7,200 RPMs — 160 or 500GB (4TB)

Notes: Enterprise-class 500GB or higher SATA drives offer increased reliability compared to lower-capacity SATA drives. Simple-swap SATA drives are not hot-swappable (the system must first be powered off); however, no tools or jumpers are required for installation and removal, allowing for faster, simpler servicing than fixed drives. Hot-swap SAS drives use the Converged Tray for interchangeability with other IBM System x® systems.

If you need more storage space, terabyte capacities are possible with external direct-attach, NAS, and SAN solutions.

Drive Bays

Some x3200 M3 models (3.5-inch HDD models) contain 7 drive bays, while others (2.5-inch HDD models for CTO, via special bid) provide 11 drive bays. All models offer two 5.25-inch bays, one 3.5-inch floppy drive bay, and either four 3.5-inch HDD bays or eight 2.5-inch HDD bays (via CTO). Some models support up to four hot-swap SAS/SATA or simple- swap SATA drives; other models support up to four simple-swap SATA drives.

An optical drive with a SATA interface ships standard in one 5.25-inch bay. The other 5.25inch bay supports one of several backup options: a half-high tape drive, a DVD-ROM drive, or an RDX Removable Hard Disk Storage System. An internal USB port is provided standard for use with a tape drive or USB key with embedded hypervisor. An external USB floppy drive may be used, if needed.

Hot-swap and simple-swap drives may be inserted or removed through the front of the server. Hot-swap drives do not require powering off the system. Simple-swap SATA drives do require powering off the system first; however, no tools or jumpers are required for installation and removal, allowing for faster, simpler servicing than fixed drives.

For still more storage, a direct-attach, iSCSI, or SAN external expansion option can be added, using an optional controller.

Disk/Tape Controllers

Hot-swap x3200 M3 models include an integrated x4 PCIe ServeRAID-BR10il V2 SAS/SATA Controller that offers hardware RAID-0/1/1E support in a dedicated x8 PCIe

slot. The controller supports up to four 3.5-inch or eight 2.5-inch internal SAS LVD (lowvoltage differential) hot-swap drives, and provides data transfer speeds of up to 6Gbps6 in each direction (full-duplex) for SAS drives. The serial design of the SAS bus allows maximum performance to be maintained as additional drives are added. This controller also supports up to four Serial ATA (SATA) drives at 6Gbps half-duplex.

Simple-swap models include a SATA controller, integrated into the Intel chipset. The controller, supports up to four internal simple-swap LVD SATA II drives at 6Gbps (half- duplex) throughput. A dedicated SATA port is available for use with an internal tape drive. Optional ServeRAID adapters offer additional capabilities and performance.

The 6Gbps (x8 PCIe) ServeRAID-M1015 SAS/SATA controller supports RAID-0/1/10 (no cache) for up to 16 drives. The ServeRAID M 1000 Series Advance Feature Key adds RAID-5 and SED support.

The 6Gbps (x8 PCIe) ServeRAID-M5014 SAS/SATA controller offers enhanced performance with 256MB of cache memory, and supports RAID-0/1/10/5/50 for up to 16 drives.

The 6Gbps (x8 PCIe) ServeRAID-M5015 SAS/SATA controller offers enhanced performance with 512MB of cache memory and battery backup, and supports RAID- 0/1/10/5/50 for up to 16 drives.

The ServeRAID M5000 Series Advance Feature Key adds RAID-6/60 with SED support to the M5014 and M5015. The ServeRAID M5000 Series Battery Key adds battery backup support to the M5014.

The 6Gbps ServeRAID-M5025 is similar to the ServeRAID-M5015, but adds support for up to 9 external System Storage EXP3000 expansion units).

All models provide a dedicated internal USB port for a USB key with embedded hypervisor.

Data transfer rates depend on many factors and are often less than the maximum possible.

Please see the Legal Information section for important notices and information.

Internal Backup

The x3200 M3 supports several internal SAS/SATA- or USB-attached half-high backup options. Supported technologies include:

• IBM 36/72GB DDS-5 (SATA)

• IBM DDS-6 (USB)

An affordable single-socket, quad-core server with high performance

Extensive System Support Features

and data protection for small, medium, and large businesses

• IBM RDX Removable Hard Disk Storage System (USB)—external version also available

• IBM HH 400/800GB LTO-3 (SAS)

High-Performance Adapter Slots

The x3200 M3 offers six total adapter slots. Three PCIe (PCI Express) Gen 2 fulllength/full-height adapter slots are provided for general use. PCI Express Gen 2 is the next generation of high-performance, low-latency, serial I/O bus. Two slots are x8 (“by 8”) Gen 2 slots; that is, x8 physical and x8 electrical (8GBps) slots, capable of supporting x1/x4/x8 adapters at their native speeds. Another slot is a x4/x1 PCIe Gen 2 (1GBps) slot, capable of accepting x1 or x4 adapters7. Two other slots are full-length/full-height legacy 33MHz PCI slots.

In addition, a fourth PCIe slot, x8 PCIe Gen 2, is dedicated for use with an IBM ServeRAID controller.

The RAID daughtercard plugs into a dedicated slot on the planar. This, coupled with the fact that the SAS/SATA, Gigabit Ethernet, systems management and video controllers are integrated onto the system board, means that all PCI/PCIe adapter slots are all available, which provides a wide degree of latitude in expansion options.

Ultra-Efficient Cooling

Strategically located fans, combined with efficient airflow paths, provide highly effective system cooling for the x3200 M3, known as Calibrated Vectored Cooling. The server includes three system fans, plus a fan in the power supply.

The fans automatically adjust speeds in response to changing thermal requirements, from minimum RPMs to maximum, depending on the zone, redundancy, and internal temperatures. When the temperature inside the server increases, the fans speed up to maintain the proper ambient temperature. W hen the temperature returns to a normal operating level, the fans return to their default speed.

Why not simply run the f ans at 100% capacity all the time? For several good reasons: to reduce the ambient noise, reduce the wear-and-tear on the fans, and reduce the server power draw. The reduction in ambient noise and power draw may be relatively minor for a single server, but put dozens or hundreds in a data center and it can make a big difference!

In addition, the server uses hexagonal ventilation holes in the chassis. Hexagonal holes can be grouped more densely than round holes, providing greater airflow through the system cover.

This cooling scheme is important because newer, more powerful, processors generate a significant amount of heat, and heat must be controlled for the system to function properly.

Other Features

• Second 430W power supply — Provides redundant power. (Model-dependant or via CTO.)

• Seven USB 2.0 ports — Provides flexibility to add high-speed external devices. The USB 2.0 specification supports up to 480Mbps transfer rates. (Note: Not all USB 2.0 devices are capable of achieving this rate.) Two ports are provided on the front of the

The slot accepts x1 or x4 adapters; however the slot provides x1 throughput only.

Please see the Legal Information section for important notices and information.

server, four are on the back, and one is internal to support a hypervisor USB key or a USB-interface tape drive.

• Tower-to-Rack Conversion Kit — This option allows hot-swap x3200 M3 models to be installed in a rack.

• Toolless chassis — The cover can be opened without tools, and many components can be installed or removed and replaced without tools, including the optical drive, simpleswap and hot-swap HDDs, PCI and PCIe adapters, as well as the integrated RAID controller. This can save a servicer significant time.

The IBM services and technical support portf olio provides world-class, consistent, highquality service and support. The x3200 M3 server offers a number of tools and services designed to make ownership a positive experience. From the start, IBM programs make it easier for customers to plan for, configure and purchase System x or xSeries servers, get them running and keep them running long-term. These features include IBM ServerProven®, the IBM Standalone Solutions Configuration Tool, IBM System x and BladeCenter Power Configurator, IBM ServerGuide, IBM Systems Director Service and Support Manager,

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

Product Customization Services and extensive technical support offerings.

The IBM ServerProven program provides the confidence that specific options and operating systems have been tested on the server and are officially supported to work together. It is updated frequently to ensure that the latest compatibility information is always at your customers’ fingertips.

The IBM Standalone Solutions Configuration Tool (SSCT) is a downloadable tool that simplifies the often complex chore of configuring a full rack of servers (including blade servers) and confirming that you have all the cables, power distribution units, KVM (keyboard, video and mouse) switch boxes and other components you need, as well as the proper airflow clearances, electrical circuits and other environmental conditions.

IBM System x and BladeCenter Power Configurator helps IT managers plan for data center power needs, by providing the following information for specific configurations of System x and BladeCenter systems: power input (watts), PDU sizing (amps), heat output (BTUs), airflow requirements through chassis (CFM), VA rating, leakage current (mA), and peak inrush current (amps).

IBM ServerGuide (installed from CD) simplifies the process of installing and configuring System x and xSeries servers. ServerGuide goes beyond mere hardware configuration by assisting with the automated installation of the Microsoft® Windows® Server® 2003 and 2008 operating systems, device drivers and other system components, with minimal user intervention. (Drivers are also included for support of Novell NetWare, Red Hat Linux and SUSE LINUX.) This focus on deployment helps customers reduce both their total cost of ownership and the complexity that administrators and technical personnel face.

IBM Systems Director Service and Support Manager (previously called IBM Electronic Service Agent) is an innovative “call home” feature that allows System x and BladeCenter servers to automatically report hardware problems to IBM support, which can even dispatch onsite service if necessary to those customers entitled to onsite support under the terms of their warranty or an IBM Maintenance Agreement. Service and Support Manager resides on a server and provides electronic support and problem management capabilities through a highly secure electronic dialogue between your systems and IBM. It monitors networked servers for hardware errors and it can perform hardware and software inventories and report inventory changes to IBM. All information sent to IBM is stored in a highly secure database and used for improved problem determination.

Additional services include hardware warranty upgrades and factory-installed Product Customization Services (PCS), such as asset tagging, hardware integration, software imaging and operating systems personalization.

IBM offers extensive technical support by phone and via the Web. Support options include links to forums/newsgroups, problem submission, online shopping support, service offerings, device drivers for all IBM product lines, software downloads and even upcoming technical seminar worldwide schedules and registration. Also available are remote installation, configuration and usage support for System x and xSeries hardware and software, as well as onsite custom services to give customers the level of expertise they require.

IBM Maintenance and Technical Support solutions can help you get the most out of your IT investment by reducing support costs, increasing availability and simplifying management with integrated support for your multiproduct, multivendor hardware and software environment. For more information on hardware maintenance, software support, s olution support and managed support, visit http://ibm.com/services/maintenance.

Please see the Legal Information section for important notices and information.

Advanced Systems Management Capabilities

The x3200 M3 has a high level of systems management capabilities that are well-suited to remote locations as well as to stand-alone environments. Features include UEFI, IMM , IBM ToolsCenter, IBM Systems Director Active Energy Manager, Automatic Server Restart, Wake on LAN support, PXE support, text console redirect, Predictive Failure Analysis, and IBM Systems Director.

The IMM provides industry-standard Intelligent Platform Management Interface (IPMI)

2.0-compliant systems management. It provides a number of important system functions,

including:

• Monitoring of system and battery voltage, system temperature, fans, power supplies, processor and DIMM status

• Fan speed control

• Product ID and Family ID detection

• Highly secure remote power on/off

• System reset control

• NMI/SMI detection and generation

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

• System diagnostic LED control (power, HDD, activity, alerts, heartbeat)

• IPMI over LAN

• Serial Over LAN

• Proxy server support

• LAN messaging and alerting

• Predictive Failure Analysis for system fans

• Web-based out-of-band control

• SSL (Secure Socket Layer) and LDAP (Lightweight Directory Access Protocol) support

• Text console redirection over LAN

• VLAN support

• Enhanced authentication and encryption algorithms (RMCP+, AES)

• Latest OS failure screen capture

• Local update of IMM firmware

• Firmware firewall

• Support for IPMI v2.0 compliant management software (e.g., xCAT)

• Other optional IPMI commands

The IMM alerts IBM Systems Director to anomalous environmental factors, such as voltage and thermal conditions—even if the server has failed.

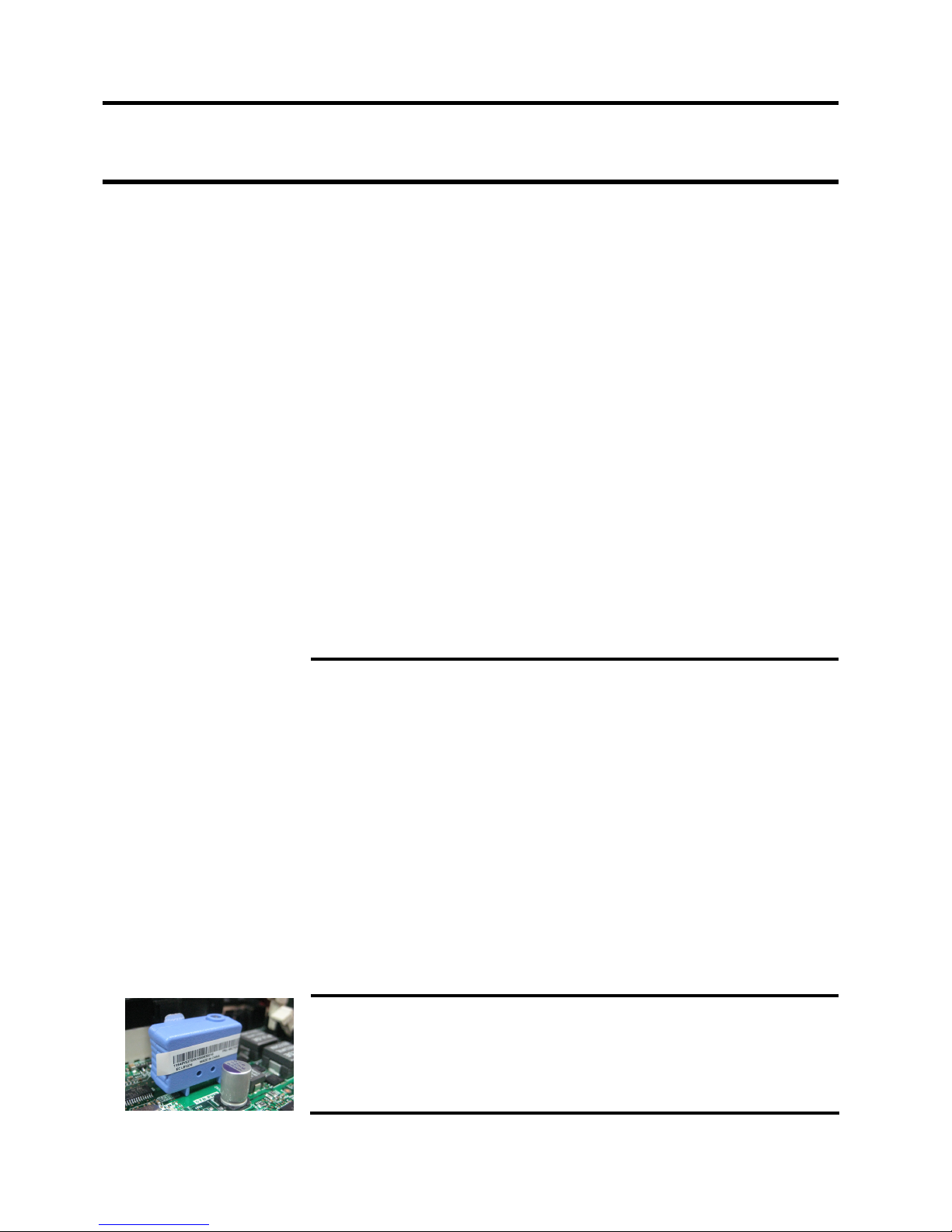

The x3200 M3 also supports an optional IBM Virtual Media Key for additional systems management capabilities, including:

• Graphical console redirection over LAN

• Remote virtual floppy and CD-ROM

• High-speed remote redirection of PCI video, keyboard and mouse

IBM ToolsCenter consolidates 42 needed tools for managing servers individually into an integrated suite of 8 tools. They are organized by function: deployment, updates, configuration and diagnostics. Tools are now simpler to access and use with a single webpage for access, a common look and feel and a common command line interface for the scripting tools. The ToolsCenter Bootable Media Creator offers significantly more functionality than past tools with the ability to add more tools to the bootable image and to automatically download the bootable environment if needed. Bootable Media Creator allows you to create bootable CDs, DVD, and USB keys for updates customized to your systems.

IBM developed IBM Systems Director Active Energy Manager to put control of system power-saving features at the fingertips of administrators. Active Energy Manager is designed to take advantage of new features, such as monitoring power usage and balancing the performance of the system according to available power input. It provides the ability to plan and predict power consumption based on your hardware configuration. It also helps enable you to reduce the infrastructure required for redundancy, by using fewer servers on smaller power feeds and potentially lowering your overall data center support costs. It does this by inventorying all components, then adding up the total power draw and tracking the usage. It also includes power management features to help administrators manage or reduce power usage.

Automatic Server Restart (ASR) helps reduce downtime by restarting the server automatically in the event of a system lockup. ASR technology is a combination of hardware circuitry tied into the server’s system reset function and a device driver. As long as the server continues running, the ASR watchdog timer will keep being reset, but if the operating system crashes or the hardware freezes somehow the ASR software will be unable to reset the hardware timer. If the timer is not reset within five minutes, it automatically triggers the ASR hardware, which immediately restarts the server (and logs an ASR event with IBM Systems Director). These features are designed so that no more than five minutes can pass before the server is restarted.

Wake on LAN permits the server to be remotely powered on if it has been shut off. Once powered up, the server can be controlled across the network, using the Preboot Execution Environment (PXE).

Like Wake on LAN, PXE is system firmware. It enables software such as the optional IBM Remote Deployment Manager to take control of a system before the BIOS, operating system or applications are loaded (using W ake on LAN/PXE) and lets an administrator perform many low-level tasks remotely that would otherwise require a visit to each system. These tasks may include such things as formatting a hard disk drive, updating system firmware, or deploying a Windows or Linux operating system.

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

Text Console Redirection support allows the administrator to remotely view x3200 M3 text messages over serial or LAN. An optional upgrade to the Virtual Media Key adds graphical console redirection.

Predictive Failure Analysis (PFA) is designed to allow the system to detect impending failure of supported components (memory, voltage regulator module (VRD), fans, and hotswap HDDs) before actual failure, and alert the administrator through IBM Systems Director. This gives you the ability to replace the failing component before it fails, resulting in increased uptime.

IBM Systems Director software for advanced workgroup management is included with the x3200 M3. IBM Systems Director comes with a portfolio of tools, including IBM Systems

Director Active Energy Manager, Service and Support Manager, and others. System Availability (a no-charge download) and Capacity Manager (sold separately) are available as

add-ons for additional server management and increased availability. IBM Systems Director provides a single unif orm graphical interface for all of these systems management functions. IBM Systems Director enables you to customize thresholds and monitor system components (for things like temperature, voltage regulation, etc.) to help maximize uptime.

Key Options

IBM options for System x servers let you take your servers to a higher level

You rely on System x options to supply a complete solution for your business needs. Options help you create an optimized server system to meet your data protection, storage and availability needs. Every IBM option is designed and tested for peak performance and flexibility, helping to maximize your return on investment. The combination of System x servers and options lets you keep your fingers on the pulse of your business.

Memory — Memory is a significant factor in systems application performance. Adding more memory to a System x server is one of the most effective ways to increase application performance. For best performance in a server with a dual-core processor, there should be twice as much memory available as for a single-core processor. A quad-core processor should have twice as much memory as a dual-core processor.

Hard Disk Drives — IBM hard disk drives help customers improve the transaction and cost performance of their System x servers. The choice of hard disk drives can be a critical aspect of maximizing the I/O throughput of the system. SAS hard disk drives (3.5-inch) are available for the x3200 M3 with capacities of 2TB at 7,200 RPMs and 600GB at 15,000 RPMs. Enterprise-class SATA hard disk drives are available with capacities of 2TB (3.5inch) at 7,200 RPMs and up to 750GB at 10,000 RPMs. In addition, 2.5-inch SAS drives with capacities of 500GB at 7,200 RPMs, up to 600GB at 10,000 RPMs, and 146.8GB at

15,000 RPMs are supported in some models.

IBM ServeRAID Controllers — System x servers using ServeRAID technology allow

companies to build a reliable foundation for business-critical computing. IBM ServeRAID technology allows an array consisting of multiple physical hard disk drives to be treated as one logical drive. ServeRAID technology also allows data to be stored redundantly, across multiple hard disk drives— enhancing both the integrity and the availability of the data. SAS and SATA ServeRAID controllers offer enhanced performance due to onboard processors and cache. Because IBM ServeRAID controllers can help significantly improve data transfer rates, this technology is extremely effective when implementing demanding, transactionoriented applications. By employing the advanced fault tolerance of IBM ServeRAID technology, companies can effectively implement networked business systems that require large amounts of storage space for data and applications that must be available for their businesses to continue operating.

The ServeRAID-BR10il V2 SAS/SATA Controller offers RAID-0/1/1E support, with up to 3Gbps per SAS port. The ServeRAID-M1015, x8 PCIe and 6Gbps, offers RAID-0/1/10; optionally RAID-5 with SED support. The ServeRAID-M5014, x8 PCIe and 6Gbps, provides 256MB cache and RAID-0/1/10/5/50; optionally RAID-6/60 with SED, and battery backup). The ServeRAID-M5015, x8 PCIe and 6Gbps, has 512MB cache and RAID-0/1/10/5/50; optionally RAID-6/60 with SED, and battery backup. The ServeRAID-M5025 (x8 PCIe, provides 512MB cache, battery backup, RAID-0/1/10/5/50 (optionally RAID-6/60 with SED), and supports up to 9 external System Storage EXP3000 expansion units). The ServeRAID M1000 Advance Feature Key adds RAID-5 and SED support to the ServeRAID-M1015. Similarly, the ServeRAID M5000 Series Advance Feature Key adds RAID-6/60 with SED support to the M5014 and M5015. The ServeRAID M5000 Series Battery Key adds battery

backup support to the M5014.

External Storage — The IBM System Storage EXP700 and EXP810 expansion units, as

well as the DS3000, DS4000, and DS5000 series storage subsystems, comprise a powerful and broad shared storage family with integrated management software designed to meet midrange and enterprise needs.

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance

Status LEDs

Power Button

USB Ports

Opt

ical/Tape/RDX

HDD Bays

Hexagonal

Cover Release

4 USB

2 Gb Ethernet

System

PCI

PCIe

Serial

Video

PCIe x4

System Cover

Hexagonal

Hot-swap/Redundant

and data protection for small, medium, and large businesses

Power Supply — A second high-efficiency redundant 430W power supply is available for the x3200 M3. (Model-dependant or via CTO).

Virtual Media Key — The x3200 M3 includes a plethora of systems management features built-in; however, sometimes additional management capability is needed. In those situations, the Virtual Media Key not only off ers powerful new features, it does so without taking up a valuable adapter slot, instead using a dedicated connector on the motherboard.

x3200 M3 Images

Front View Rear View

Optical Drive

Drive Bay

Button

Ventilation

Power Supplies

Port

Fan

Ports

Key

Slots

Slot

Ventilation Holes

Slots

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance

Hot-swap/Redundant

System

Fan and

Processor

Chipset

Optical/Tape/RDX

Dedicated Slot

Adapter

and data protection for small, medium, and large businesses

Interior View

Optical Drive

Power Supplies

Drive Bays

6 DIMM Slots

Fan

HDD Bays

PCIe Slots

and

Air Dam

Heatsink

IMM

(hidden)

for ServeRAID Controller

SATA Controller

PCI Slots

Retaining Bracket

x3200 M3 Specifications

Machine type

Form factor Tower (hot-swap models convertible to 5U rack)

2.4GHz X3430 (C1x/C2x),

Processor type

Maximum processor power draw

# of processors standard / maximum

Internal L3 cache

Chipset Intel 3420

2.53GHz X3440 (42x),

2.67GHz X3450 (54x),

2.8GHz X3460 (62x),

2.93GHz X3470 (CTO),

3.06GHz X3480 (CTO)

95W—C1x/C2x, 42x, 54x,

62x, X3470/X3480 (via

8MB (1 unified

8MB)—C1x/C2x,

42x, 54x, 62x,

X3470/X3480 (via

7327-22x, 32x, 42x, 54x, 62x, A2x, B2x, C1x, C2x (1 yr. warranty) 7328-22x, 32x, 42x, 54x, 62x, A2x, B2x, C1x, C2x (3 yr. warranty)

Quad-core Xeon

(X3400 Series)

CTO)

CTO

4MB—32x, B2x,

Core i3-530/550 (via

CTO), Xeon L3406

(via CTO)

Dual-core Xeon

(L3400 Series)

2.26GHz L3406 (CTO)

Dual-core Pentium

(G6900 Series)

2.8GHz G6950 (A2x)

73W—22x, 32x,,A2x, B2x,

Core i3-550 (via CTO)

1 / 1

3MB—A2x 2MB—22x

2.26GHz G1101 (22x)

3.06GHz 540 (B2x),

3.20GHz 550 (CTO)

30W—L3406 (via CTO)

Dual-core Celeron

(G1100 Series)

Dual-core Core i3

(500 Series)

2.93GHz 530 (32x),

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

x3200 M3 Specifications

Standard / maximum memory8

Memory types supported

Memory access speed 1333MHz (42x, 54x, 62x, C1x, C2x, B2x) 1066MHz (A2x)

DIMM capacities supported

# of DIMMs standard 2 RDIMMs (42x, 54x, 62x, C1x/C2x) 1 UDIMMs (A2x, B2x)

# of DIMM sockets total / available

# of DIMMs supported

Online spare memory supported No

Memory mirroring supported No

# of drive bays total / available 11 / 10 (2.5-inch models) 7 / 6 (3.5-inch models)

# of HDD drive bays total / available

# of 5.25" bays total / available 2 / 1 (optical drive installed)

Maximum HDD capacity standard

HDD capacities supported

# of HDDs standard None

Disk drive technology

Integrated disk controller

# of disk drives supported per

port

2GB (2 x 1GB) / 32GB RDIMM, 16GB

UDIMM (42x, 54x, 62x, C1x/C2x, CTO)

Unbuffered PC3-8500R-777 (1066MHz) DDR3 ECC (non-Chipkill);

Registered PC3-10600 (1333MHz) DDR3 ECC (non-Chipkill)

1GB, 2GB, 4GB UDIMMs;

1GB, 2GB, 4GB, 8GB RDIMMs

6 / 4 RDIMMs or 4 / 2 UDIMMs (42x, 54x,

1, 2, or 4 UDIMMs or 1, 2, 4, or 6 RDIMMs

8TB (4 x 2TB) 3.5-

inch hot-swap

SATA II

250, 500, 750GB—10K

1 or 2TB—7.2K RPMs

3.5-inch hot-swap

SAS/SATA (42x, 54x, 62x,

Four-port ServeRAID-BR10il SAS/SATA—

62x, C1x/C2x)

(42x, 54x, 62x, C1x/C2x)

8 / 8 2.5-inch (CTO)

8TB (4 x 2TB) 3.5-

inch simple-swap

3.5-inch SATA

RPMs;

C2x)

hot-swap models

SATA II

3.5-inch SAS

146.8, 300, 450, 600GB—

1 or 2TB—7.2K RPMs

3.5-inch simple-swap

SATA (A2x, B2x, C1x)

15K RPMs;

1GB (1 x 1GB) / 16GB UDIMM (22x, 32x,

4 / 3 UDIMMs (22x, 32x, A2x, B2x

1, 2, or 4 UDIMMs (22x, 32x, A2x, B2x)

4 / 4 3.5-inch (22x, 32x, 42x, 54x, 62x, B2x,

8TB (4 x 2TB) 3.5-inch

hot-swap SAS

Four-port SATA (via chipset)—simple-swap

A2x, B2x, CTO)

C1x/C2x, CTO)

4.8GB (8 x

600GB) 2.5-inch

hot-swap SAS

2.5-inch SAS

73.4, 146.8GB—15K RPMs;

146.8, 300, 600GB—10K

RPMs;

500GB—7.2K RPMs

2.5-inch hot-swap SAS

(CTO)

models

Integrated RAID controller ServeRAID-BR10il (0MB cache)---hot-swap models only—RAID 0/1/1E

Optional RAID controllers supported

Internal backup drives supported 1 half-high 5.25-inch tape drive, CD-RW , or RDX Removable Hard Disk Storage System

# of optical drives standard 1 SATA DVD-ROM (in dedicated 5.25" bay)

Optical drives optional Multiburner

# of diskette drives standard None (USB-attach)

# of adapter slots total / available 6 / 5

Maximum memory and disk capacity may require the replacement of standard components with the largest supported component

available.

Please see the Legal Information section for important notices and information.

ServeRAID-MR10i

ServeRAID-MR10is Vault ServeRAID-M1015 SAS/SATA Controller ServeRAID-M5014 SAS/SATA Controller ServeRAID-M5015 SAS/SATA Controller ServeRAID-M5025 SAS/SATA Controller

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

x3200 M3 Specifications

# of PCI-E x8/x8 Gen 2 slots (8GBps)

# of PCI-E x4/x4 Gen 2 slots (4GBps)

# of PCI-E x4/x1 slots (1GBps) 1 full-height/full-length

# of PCI-X/66 slots (500MBps) None

# of legacy 33MHz legacy PCI slots

# of video ports 1

Video controller Matrox G200eV graphic controller integrated in IMM

Video memory 16MB DDR2 standard (shared with IMM)

Maximum video resolution at 32bit color

Gigabit Ethernet controller 2 single-port Intel 82574L

# of Gigabit Ethernet ports 2 (rear)—1 shared for systems management

# of RS485 ports None

# of serial ports 1 (rear)

# of parallel ports None

# of PS/2 mouse ports None (USB-attach)

1 full-height/full-length (dedicated to ServeRAID controller)

1024x768 resolution (analog), with a color depth of 32 bits at 85Hz;

1440x90 resolution (digital), with a color depth of 32 bits at 60Hz

2 full-height/full-length

# of PS/2 keyboard ports None (USB-attach)

# of USB 2.0 ports

Integrated systems management controller

Optional systems management adapter

Light path diagnostics support None (lighted LEDs next to DIMM sockets go out if DIMM fails)

Predictive Failure Analysis support

Hot-swap/redundant power supported

# of power supplies standard / maximum

Power supply size

# of fans/blowers standard / maximum

Hot-swap/redundant fans supported

Heat emitted: minimum / maximum per hour

Maximum altitude 7,000 ft; 2,133 m

Operating temperature range

6 external ports (2 front, 4 rear), plus 1 internal connector for hypervisor USB key or tape

Virtual Media Key for remote presence upgrade

Memory, voltage regulator module (VRD), HS HDDs, and fans

Yes / Yes (54x or via CTO) No / No (all other models)

2 / 2 (54x or via CTO) 1 / 1 (all other models)

430W universal, autoswitching (54x or via

CTO)

3 / 3 (plus one fan per power supply)

188 BTUs per hour (55 watts) / 1784 BTUs per hour (523 watts)

50 – 95º F; 10 – 35º C (up to 3,000 ft / 914.4 m);

50 – 90º F; 10 – 32º C (3,000 ft to 7,000 ft / 914.4m to 2,133m)

drive

Yes (IMM)

401W universal, autoswitching (all other

models)

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

x3200 M3 Specifications

Operating humidity range 8-80%

17.25” (438.2mm) H

Dimensions (HWD) / weight

Operating systems supported

Length of limited warranty

30.4” (772mm) D (with redundant power)

Microsoft Windows Server 2008 (Standard/Web/Enterprise Editions) 32/64-bit, Windows

(Standard/Web/Enterprise Editions) 32/64-bit, RHEL 4/5 32/64-bit with and without Xen, Red

8.5” (215.9mm) W

21.25” (539.8mm) D

Small Business Server 2008 (SE/PE) 64-bit, Microsoft Windows Server 2003 & R2

Hat 5 Workstation 64-bit, SLES 10/11 32/64-bit with and without Xen, VMware 4/4i

3 years (parts and labor)9 —

Machine Type 7328

43 (minimum) – 47 lb (maximum)

19.6 – 21.4 kg

1 year (parts and labor) — Machine Types

7327

The Bottom Line

The x3200 M3 is an extremely powerful entry system, incorporating leading-edge industrystandard features and adding IBM-unique innovations:

Price/Performance

• High-throughput processors — A choice of 2.4 to 3.06GHz quad-core Xeon or 2.26 to

3.2GHz dual-core Celeron, Pentium, or Core i3 processors; or low-voltage 2.26GHz dualcore Xeon processors

• Low-energy-draw dual-core Xeon processor, to help save you money on energy usage

• Large cache — 2MB, 3MB, 4MB (dual-core), or 8MB (quad-core) of L3 processor cache

(processor-dependent)

• High-performance memory access — 1066MHz or 1333MHz (model-specific)

• High-performance disk technology — Integrated SAS/SATA controller and slotless

hardware-based RAID controller (standard in hot-swap models; optional in simple-swap models)

• High-performance external expansion — Seven 480Mbps USB 2.0 ports (two front, four

rear, one internal)

• High-performance communications — Integrated dual-port Gigabit Ethernet controller

• Fast I/O — Five PCIe Gen 2 adapter slots

Flexibility

• Large memory capacity — Up to 32GB of RDIMM ECC memory or up to 16GB of UDIMM ECC memory

• High-capacity disk storage — Up to 8TB of internal 3.5-inch hot-swap SATA II storage or 8TB of 3.5-inch simple-swap SATA storage, or 8TB of 3.5-inch hot-swap SAS storage, or up to 4.8TB of 2.5-inch hot-swap SAS storage

• Support for an optional half-high tape, optical drive, or RDX Removable Hard Disk Storage System drive (in addition to the HDDs)

• Hardware-based RAID-0/1/1E support standard in hot-swap models, optional in simple-swap models; RAID 10/5/50/6/60 support optional in all models; full hardware disk encryption support available in all models

• Six available adapter slots:

 One x8/x810 PCIe Gen 2 slot (8GBps)

 One x8/411 PCIe Gen 2 slot (4GBps)

 One x4/x412 PCIe Gen 2 slots (4GBps)—reserved for ServeRAID controller

 One x4/x113 PCIe Gen 2 slots (1GBps)

 Two 33MHz legacy PCI slots

For terms and conditions or copies of the IBM Statement of Limited Warranty, call 800-772-2227 in the U.S. In Canada call 800-

426-2255. IBM makes no representation or warranty regarding third-party products or services including those designated as ServerProven or ClusterProven. Telephone support may be subject to additional charges. For warranties including onsite labor, a technician is sent after IBM attempts to resolve the problem remotely. International warranty service is available in any country in which this product is sold.

The x8/x8 slot can accept x1, x4, or x8 adapters running at x1, x4, or x8 throughput, respectively.

The x8/x4 slot can accept x1, x4, or x8 adapters running at x1, x4, or x4 throughput, respectively.

The x4/x4 slot can accept x1 or x4 adapters running at x1 or x4 throughput, respectively.

The x4/x1 slot can accept x1 or x4 adapters running at x1 throughput.

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance

x3250 M3x3550 M3x3620 M3x3630 M3x3650

x3690

x3755 M3x3850 X5x3950















































and data protection for small, medium, and large businesses

Manageability, Serviceability and Availability

• IBM Systems Director systems management software, including:

 IBM Systems Director Active Energy Manager

 IBM Service and Support Manager

• Integrated Management Module (IMM):

 IPMI 2.0 compliance, including highly secure remote power control

 Text console redirection systems management standard

• Support for highly available hardware-based RAID-1/1E arrays standard, without consuming an adapter slot

• Hot-swap SAS, hot-swap SATA, or simple-swap SATA hard disk drives, for quick and simple installation and replacement of drives

• Ultra-efficient cooling

• Second hot-swap/redundant power supply (model-dependant or via CTO)

• PFA support for memory, voltage regulator module (VRD), hot-swap HDDs, and fans

• Optional tower-to-rack conversion kit

Server Comparison Chart

The following table shows the suggested uses for the respective IBM System x tower servers, including comparisons of the uses for which each server is best suited:

Rack-Optimized ServersRequirements

Nice to Have

Can do without

Theme Key Workloads

Cluster / HPC

Modeling & Simulation

HPC

High Performance DB

Business Intelligence

Web 2.0 /

Web 3D

Business

Applications

Infrastructure

Applications

Content

Communities

Commerce

Collaboration ERP/SCM

CRM

Hosted Client

Point of Sale

Branch Office

Virtualization

Business Continuity

Database

Email/Collaboration

Security

Web Serving

File & Print

Floating Point

Performance

Throughput

Scalability

3 1 1 2 2 1 3 3 3 3

2 1 1 1 3 1 3 2 3 3

2 2 1 1 1 3 2 2 3 3

2 1 1 1 2 1 2 2 1 3

3 1 1 1 2 1 3 3 1 2

2 2 2 2 2 1 3 3 2 2

1 2 2 2 1 1 2 3 2 2

2 1 1 1 2 1 1 2 1 2

2 3 2 3 2 1 2 3 2 2

1 2 1 1 1 2 1 1 1 2

2 2 2 2 2 2 2 2 1 3

1 3 2 1 2 2 1 1 2 2

3 3 3 2 1 3 1 1 1 1

2 3 3 3 2 2 1 1 2 1

1 2 2 2 1 2 1 1 2 3

2 3 3 3 1 2 2 1 2 2

2 2 1 2 1 2 1 2 2 3

2 3 2 1 2 2 1 1 2 2

2 2 2 2 2 1 1 1 1 3

3 2 2 2 3 1 2 1 3 3

2 3 2 3 1 2 2 1 3 3

I/O and Storage

Performance

Memory

Integer

High Availability

Management

Systems

Density

Security

Deployment

Distributed

Important

Best

Better

Good

Please see the Legal Information section for important notices and information.

An affordable single-socket, quad-core server with high performance and data protection for small, medium, and large businesses

For More Information

IBM System x Servers http://ibm.com/systems/x IBM Systems Director Service and Support Manager http://ibm.com/support/electronic IBM System x and BladeCenter Power Configurator http://ibm.com/systems/bladecenter/powerconfig IBM Standalone Solutions Configuration Tool http://ibm.com/servers/eserver/xseries/library/configtools.html IBM ServerProven Program http://ibm.com/servers/eserver/serverproven/compat/us IBM Technical Support http://ibm.com/server/support Other Technical Support Resources http://ibm.com/servers/eserver/techsupport.html IBM Configuration and Options Guide http://ibm.com/servers/eserver/xseries/cog

Legal Information

IBM Systems and Technology Group Dept. U2SA 3039 Cornwallis Road Research Triangle Park, NC 27709

Warranty Information: For a copy of applicable product warranties, write to: W arranty Information, P.O. Box 12195, RTP, NC 27709, Attn: Dept. JDJA/B203. IBM makes no representation or warranty regarding third-party products or services including those designated as ServerProven or ClusterProven®. Telephone support may be subject to additional charges. For onsite labor, IBM will attempt to diagnose and resolve the problem remotely before sending a technician.

IBM, the IBM logo, ibm.com, Active Energy Manager, Active Memory, Calibrated Vectored Cooling, ServerGuide, ServerProven, ServeRAID, System Storage, System x, Wake on LAN, and X-Architecture are trademarks of IBM Corporation in the United States, other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this information with a trademark symbol (® or ™), these symbols indicate U.S. registered or common law trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available at

http://ibm.com/legal/copytrade.shtml.

Linux is a registered trademark of Linus Torvalds.

Microsoft, Windows, W indows Server, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation.

Other company, product and service names may be trademarks or service marks of others.

IBM reserves the right to change specifications or other product information without notice. References in this publication to IBM products or services do not imply that IBM intends to make them available in all countries in which IBM

operates. IBM PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED W ARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions; therefore, this statement may not apply to you. This publication may contain links to third party sites that are not under the control of or maintained by IBM. Access to any such third party site is at the user's own risk and IBM is not responsible for the accuracy or reliability of any information, data, opinions, advice or statements made on these sites. IBM provides these links merely as a convenience and the inclusion of such links does not imply an endorsement.

Information in this presentation concerning non-IBM products was obtained from the suppliers of these products, published announcement material or other publicly available sources. IBM has not tested these products and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products.

MB, GB and TB = 1,000,000, 1,000,000,000 and 1,000,000,000,000 bytes, respectively, when referring to storage capacity. Accessible capacity is less; up to 3GB is used in service partition. Actual storage capacity will vary based upon many factors and may be less than stated.

Performance is in Internal Throughput Rate (ITR) ratio based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput that any user will experience will depend on considerations such as the amount of multiprogramming in the user’s job stream, the I/O configuration, the storage configuration and the workload processed. Therefore, no assurance can be given that an individual user will achieve throughput improvements equivalent to the performance ratios stated here.

Maximum internal hard disk and memory capacities may require the replacement of any standard hard drives and/or memory and the population of all hard disk bays and memory slots with the largest currently supported drives available. When referring to variable speed CD-ROMs, CD-Rs, CD-RWs and DVDs, actual playback speed will vary and is often less than the maximum possible.

XSO03082-USEN-02

Please see the Legal Information section for important notices and information.

IBM System x3200 M3 Product Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
