IBM System Storage DCS, System Storage DCS3700, System Storage DCS3860 Installation And Migration Manual

Download

IBM System Storage DCS Series with Gen2 controllers

Hard Disk Drive and Storage Enclosure Installation and Migration Guide

IBM

GA32-0962-07

Note

Before using this information and the product it supports, be sure to read the general information in “Notices and statements in this document” on page x and “Notices” on page 61.

This edition applies to version 11 modification 20 of the IBM DS Storage Manager, and to all subsequent releases and modifications until otherwise indicated in new editions.

This edition replaces GA32-0962-06.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

Figures ............... v

Tables ............... vii

Introduction............. ix

Supported IBM System Storage DCS Series with

Gen2 controllers ............. ix

Receiving product updates and support notifications ix DS Storage Subsystem installation and support

guides ................ ix

Notices and statements in this document ..... x

Chapter 1. Prerequisites to adding capacity and hard disk drive migration . 1

Preparing the storage subsystem........ 1

Preparing to export and import drives...... 3

Determining the supported number of drives and

drive loop pairs ............. 4

Verifying controller, NVSRAM, and ESM firmware

compatibility .............. 4

Storage subsystem profile ......... 5

Physical View pane ........... 6

Upgrading ESM and controller firmware ..... 6

Drive migration limitations ......... 7

Verifying hard disk drive model compatibility ... 8 Viewing the product ID and model of a hard disk

drive ................. 9

Bringing storage subsystems and drive loops into

optimal state .............. 11

Intermixing storage enclosures ........ 11

Chapter 2. Adding or migrating hard

disk drives ............. 13

Considerations ............. 13

Handling static-sensitive devices ....... 14

Adding new hard disk drives ........ 14

Migrating hard disk drives ......... 15

Step 1: Preliminary activities........ 16

Step 2: Verifying drive migration enable settings 17

Step 3: Placing drives offline........ 17

Step 4: Removing drives ......... 18

Step 5: Inserting drives ......... 19

Migrating arrays within the same storage subsystem 21

Chapter 3. Adding or migrating storage

enclosures ............. 25

Considerations ............. 25

Step 1: Preliminary activities......... 26

Adding new storage enclosures with new hard

disk drives ............. 27

Migrating storage enclosures with hard disk

drives that have defined logical drive

configurations ............ 27

Step 2: Preparing and backing up the drives ... 28

Step 3: Shutting down and moving the storage

enclosures ............... 29

Step 4: Verifying the drive migration enable settings 30 Step 5: Installing and setting storage enclosure IDs 30 Step 6: Cabling, turning on, and verifying storage

enclosure operation ............ 31

Cabling the new enclosures ........ 31

Connecting storage enclosures at the end

(bottom) of a drive loop ......... 31

Connecting storage enclosures at the end (bottom) of a SAS drive cable loop scheme in a DCS3700 and DCS3860 storage subsystems with

Gen2 controllers configuration ....... 32

Returning the drive/loop channel to optimal

state ................ 33

Storage subsystem SAS drive channel/loop schemes for enclosures in a DCS3700

configuration ............. 33

Storage subsystem SAS drive channel/loop schemes for enclosures in a DCS3860 with Gen2

controllers configuration ......... 35

Cabling multiple enclosures ........ 36

Step 7: Inserting drives and cabling additional

storage enclosures ............ 38

Step 8: Inserting hard disk drives and placing

logical drives online ........... 38

Chapter 4. Upgrading a storage

subsystem controller ........ 41

Upgrade considerations .......... 41

Host attachment and premium feature

entitlements ............. 41

Storage firmware migration ........ 42

Alternative procedure to upgrade a storage

subsystem controller enclosure ....... 42

Supported upgrades .......... 43

Configuration behavior after an upgrade and

storage subsystem replacement ....... 44

Storage subsystem behavior when turning on the

power with no drives attached ....... 46

Performing an upgrade .......... 46

Redeploying the original storage subsystem ... 53

Redeployment limitations......... 53

Configuration behavior in a redeployed storage

subsystem .............. 54

Appendix. Getting information, help,

and service ............. 57

Before you call ............. 57

Using the documentation .......... 57

Finding Storage Manager software, controller

firmware, and readme files ......... 57

Getting help and information from the World Wide

Web ................. 58

Software service and support ........ 59

Hardware service and support ........ 59

Taiwan Contact Information ......... 59

Fire suppression systems .......... 59

Notices .............. 61

Trademarks .............. 63

Important notes ............. 64

Particulate contamination.......... 65

Documentation format........... 65

Electronic emission notices ......... 66

Federal Communications Commission Statement 66

Industry Canada Compliance Statement .... 66

Australia and New Zealand Class A Statement 66

European Union Electromagnetic Compatibility

Directive .............. 66

Taiwan Class A Statement ........ 67

Germany Electromagnetic Compatibility Directive 67 People's Republic of China Class A Statement .. 68 Japan Voluntary Control Council for Interference

Class A Statement ........... 68

Japan Electronics and Information Technology

Industries Association Statement ...... 69

Korean Communications Commission Class A

Statement .............. 69

Index ............... 71

iv IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Figures

1. Subsystem Management Logical/Physical

View of exported drives ........ 18

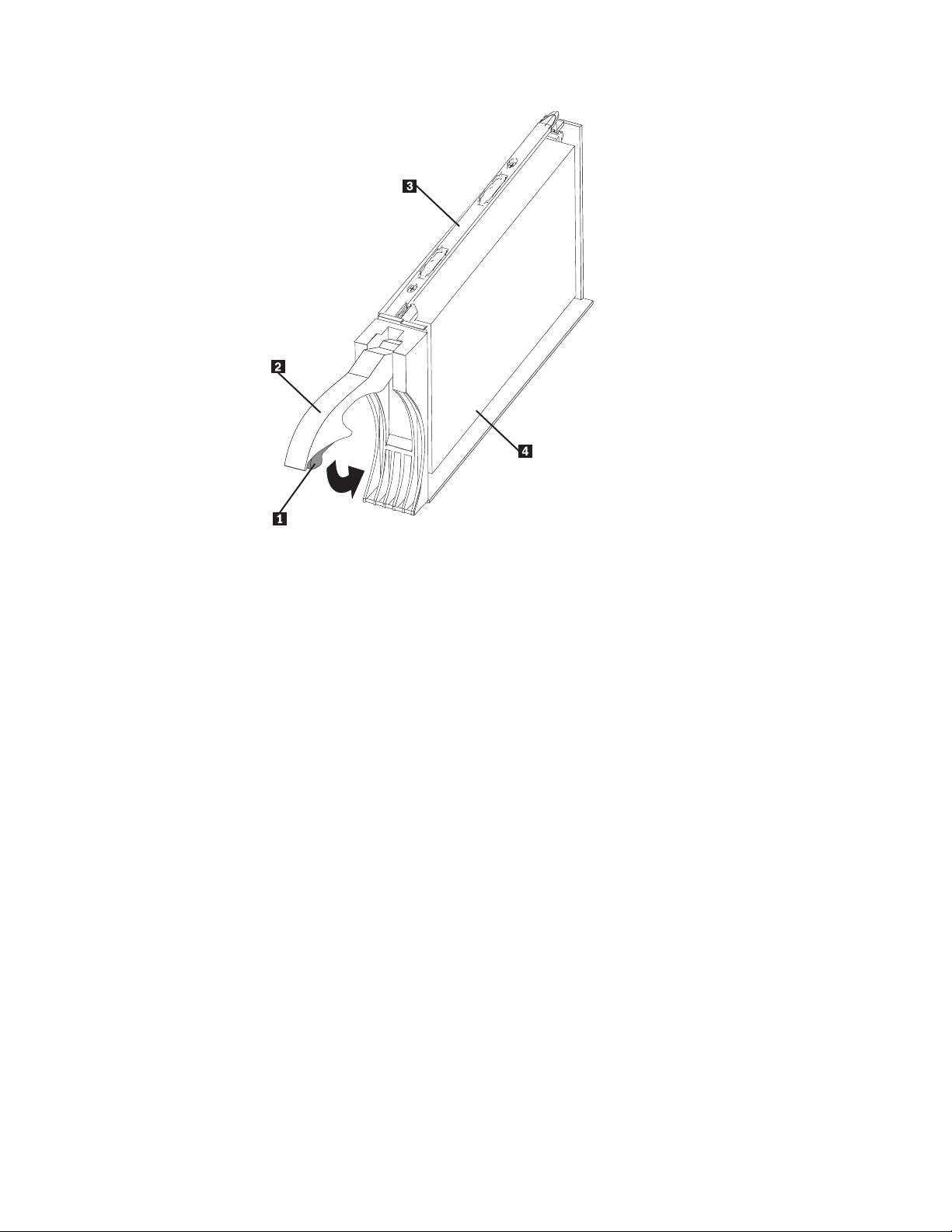

2. Drive CRU assembly ......... 19

3. Best practice for reordering a defined array by using empty bays in one storage enclosure .. 21

4. Best practice for reordering a defined array by using empty bays in two storage enclosures.. 21

5. Reordering multiple defined arrays across previously used bays in two storage enclosures 22

6. Subsystem Management Logical/Physical

View of missing logical drives ...... 22

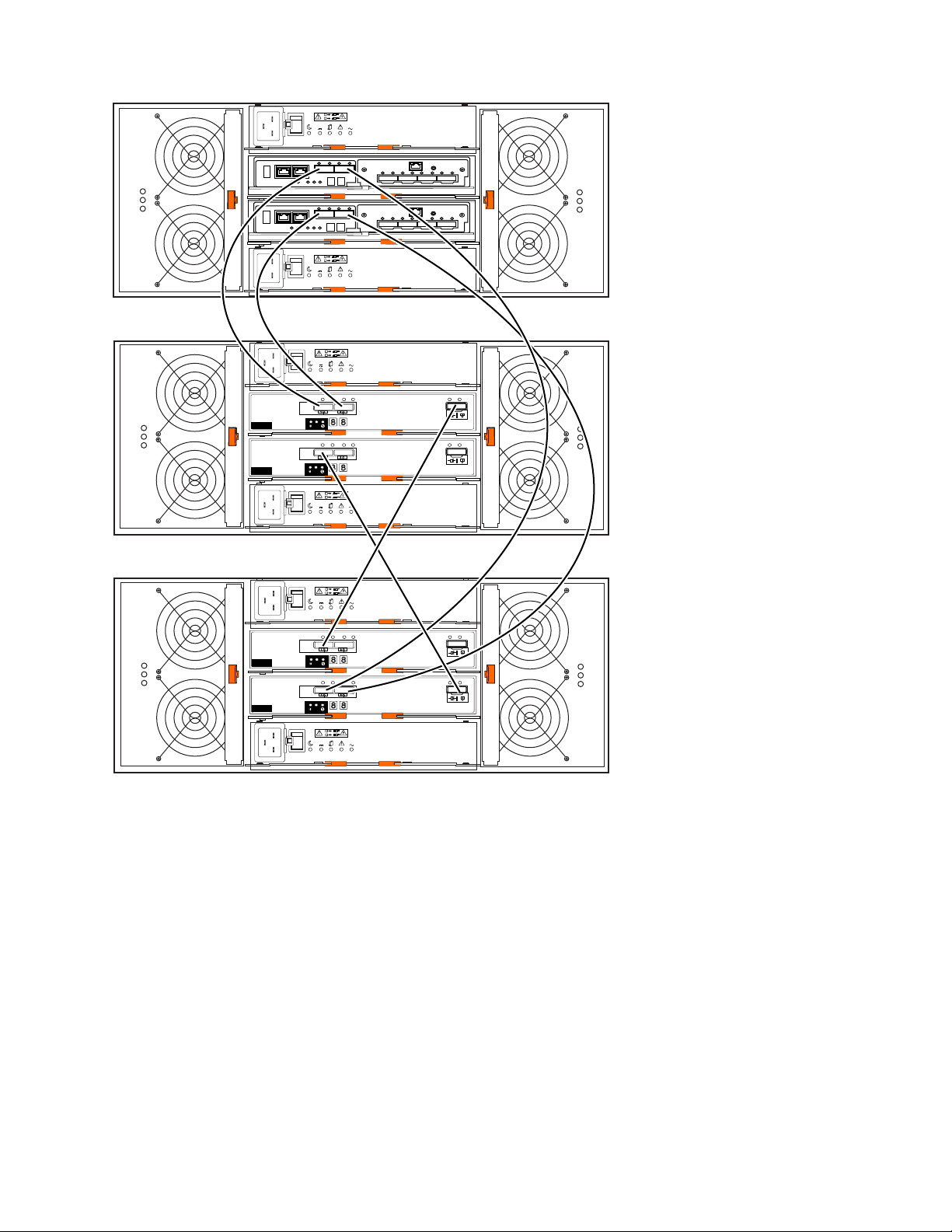

7. Connecting the first EXP3800/DCS3700

expansion enclosure.......... 35

8. Adding enclosures .......... 37

9. Firmware compatibility flowchart for a storage

subsystem upgrade .......... 49

vi IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Tables

1. Supported drives and drive loop pairs in

storage subsystems .......... 4

2. Machine types, supported controller firmware, and supported Storage Manager software ... 5

3. Compatible storage enclosure ESM firmware level by machine type and model number... 5

4. Drive migration limitations based on controller

firmware levels............ 8

5. Snapshot of profile information identifying the product ID of the drive in bay 12 of enclosure

ID 1 ............... 10

6. Storage enclosure compatibility with storage subsystems by model for DCS Series storage

subsystems............. 12

7. DCS3700 and EXP3800 expansion enclosures supported by controller firmware levels ... 12

8. Connecting storage enclosures at the end (bottom) of a SAS drive cable loop scheme in a DCS3700 and DCS3860 storage subsystems

with Gen2 controllers configuration .... 33

9. Supported replacement storage subsystems 43

10. Snapshot of profile information that identifies the storage subsystem worldwide identifier

(ID) ............... 45

11. Limits for particulates and gases ..... 65

viii IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Introduction

This document describes how to add new SAS hard disk drives or a new IBM System Storage®storage enclosures that contain new SAS hard disk drives to an existing IBM storage subsystem configuration. This document also describes how to migrate hard disk drives or IBM System Storage storage enclosures that contain hard disk drives from one storage subsystem to another.

This document also describes how to replace the storage subsystem with a new storage subsystem of the same or different model. In this case, all the hard disk drives and storage enclosures in the original configuration become part of the new configuration.

Before you begin, familiarize yourself with the information in Chapter 1, “Prerequisites to adding capacity and hard disk drive migration,” on page 1. Your familiarity with the information described in this document is critical to preventing loss of data availability, and in some cases, loss of data.

Supported IBM System Storage DCS Series with Gen2 controllers

IBM System Storage DCS Series include the following storage models:

v IBM System DCS3700 Storage Subsystem with Gen2 Controllers v IBM System DCS3860 Storage Subsystem with Gen2 Controllers

Receiving product updates and support notifications

Be sure to download the latest levels of the following packages at the time of initial installation and when product updates become available:

v DS Storage Manager host software v Controller firmware v Environmental service modules (ESM) firmware v Hard disk drive firmware

Important: Keep your system up-to-date with the latest firmware and other product updates by subscribing to receive support notifications.

For more information about how to register for support notifications, see http://www.ibm.com/systems/support/ and click My notifications.

DS Storage Subsystem installation and support guides

This document frequently refers to the IBM System Storage DS Storage Manager Version 11.2 Installation and Host Support Guide for the storage subsystems.

To access the documentation related to your storage subsystem, operating system, and DS Storage Manager version from the IBM Support Portal, complete the following steps:

1. Go to http://www.ibm.com/support/entry/portal.

2. Under Choose your products, click Browse for a product or Search for a

product.

3. Under Choose your task, click Documentation.

4. Under See your results, click View your page.

5. In the Product documentation box, click the link for the publication that you

want to access.

Notices and statements in this document

The caution and danger statements in this document are also in the multilingual Safety Information document, which is on the IBM Support Software DVD. Each statement is numbered for reference to the corresponding statement in your language in the Safety Information document.

The following notices and statements are used in this document:

v Note: These notices provide important tips, guidance, or advice. v Important: These notices provide information or advice that might help you

avoid inconvenient or problem situations.

v Attention: These notices indicate potential damage to programs, devices, or data.

An attention notice is placed just before the instruction or situation in which damage might occur.

v Caution: These statements indicate situations that can be potentially hazardous

to you. A caution statement is placed just before the description of a potentially hazardous procedure step or situation.

v Danger: These statements indicate situations that can be potentially lethal or

hazardous to you. A danger statement is placed just before the description of a potentially lethal or hazardous procedure step or situation.

Before installing this product, read the following danger and caution notices.

Statement 1

x IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

DANGER

Electrical current from power, telephone, and communication cables is hazardous.

To avoid a shock hazard: v Do not connect or disconnect any cables or perform installation,

maintenance, or reconfiguration of this product during an electrical storm.

v Connect all power cords to a properly wired and grounded electrical outlet. v Connect to properly wired outlets any equipment that will be attached to

this product.

v When possible, use one hand only to connect or disconnect signal cables. v Never turn on any equipment when there is evidence of fire, water, or

structural damage.

v Disconnect the attached power cords, telecommunications systems,

networks, and modems before you open the device covers, unless instructed otherwise in the installation and configuration procedures.

v Connect and disconnect cables as described in the following table when

installing, moving, or opening covers on this product or attached devices.

To Connect: To Disconnect:

1. Turn everything OFF.

2. First, attach all cables to devices.

3. Attach signal cables to connectors.

4. Attach power cords to outlet.

5. Turn device ON.

1. Turn everything OFF.

2. First, remove power cords from outlet.

3. Remove signal cables from connectors.

4. Remove all cables from devices.

Statement 3

CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following:

v Do not remove the covers. Removing the covers of the laser product could

result in exposure to hazardous laser radiation. There are no serviceable parts inside the device.

v Use of controls or adjustments or performance of procedures other than those

specified herein might result in hazardous radiation exposure.

Introduction xi

DANGER

Some laser products contain an embedded Class 3A or Class 3B laser diode. Note the following.

Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

Statement 4

≥ 18 kg (39.7 lb) ≥ 32 kg (70.5 lb) ≥ 55 kg (121.2 lb)

CAUTION: Use safe practices when lifting.

Statement 5

CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

Statement 8

xii IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

CAUTION: Never remove the cover on a power supply or any part that has the following label attached.

Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact a service technician.

Statement 29

CAUTION: This equipment is designed to permit the connection of the earthed conductor of the dc supply circuit to the earthing conductor at the equipment.

This equipment is designed to permit the connection of the earthed conductor of the dc supply circuit to the earthing conductor at the equipment. If this connection is made, all of the following conditions must be met:

v This equipment shall be connected directly to the dc supply system earthing

electrode conductor or to a bonding jumper from an earthing terminal bar or bus to which the dc supply system earthing electrode conductor is connected.

v This equipment shall be in the same immediate area (such as, adjacent

cabinets) as any other equipment that has a connection between the earthed conductor of the same dc supply circuit and the earthing conductor, and also the point of earthing of the dc system. The dc system shall not be earthed elsewhere.

v The dc supply source shall be located within the same premises as this

equipment.

v Switching or disconnecting devices shall not be in the earthed circuit

conductor between the dc source and the point of connection of the earthing electrode conductor.

Statement 30

Introduction xiii

CAUTION: To reduce the risk of electric shock or energy hazards:

v This equipment must be installed by trained service personnel in a

restricted-access location, as defined by the NEC and IEC 60950-1, First Edition, The Standard for Safety of Information Technology Equipment.

v Connect the equipment to a reliably grounded safety extra low voltage (SELV)

source. An SELV source is a secondary circuit that is designed so that normal and single fault conditions do not cause the voltages to exceed a safe level (60 V direct current).

v The branch circuit overcurrent protection must be rated 20 A. v Use 12 American Wire Gauge (AWG) or 2.5 mm2 copper conductor only, not

exceeding 4.5 meters in length.

v Incorporate a readily available approved and rated disconnect device in the

field wiring.

CAUTION: This unit has more than one power source. To remove all power from the unit, all DC MAINS must be disconnected.

Cable Warning

WARNING: Handling the cord on this product or cords associated with accessories sold with this product will expose you to lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

xiv IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Chapter 1. Prerequisites to adding capacity and hard disk drive migration

The following notes describe general information that you must consider when you perform the procedures in this document.

v Check the controller firmware readme files, the documentation that comes with

your hardware, and this guide for the following information: – The latest information about storage subsystem and storage enclosure

compatibility

– The latest information and rules about storage enclosure cabling to the

storage subsystem drive port

– Any requirements of the installed microcode and firmware to support the

storage subsystem and storage enclosure

v To prevent damage to the storage subsystem or to the storage enclosure

backplane, ensure that the hard disk drives are compatible with your storage subsystem before you install them. Refer to the storage subsystem announcement letter for information about compatible devices.

v For more information about the procedures in this document, contact your IBM

marketing representative or authorized reseller.

Preparing the storage subsystem

To prepare the target and source storage subsystems to add storage capacity or migrate hard disk drives, complete the following steps. Unless it is specified otherwise, perform the following steps on the target subsystem for adding new hard disk drive capacity and on both the target and source storage subsystems for migrating hard disk drives with data.

Attention: Failure to complete the following steps before you add storage capacity or migrate hard disk drives might result in loss of data availability or loss of data.

1. Complete a full backup of all data on the storage subsystem.

2. Ensure that the backup was successful.

3. Verify the hardware compatibility and requirements by reviewing the

information in “Determining the supported number of drives and drive loop pairs” on page 4 and the storage subsystem announcement letters. If addition of storage enclosures is required, review “Intermixing storage enclosures” on page 11 and the cabling information in the Installation, User's, and Maintenance Guide for any special cabling requirements.

4. If you want to perform a drive migration between storage subsystems, verify

that the drives can be migrated to the new storage subsystem.

Note: Currently, drives with disk pools cannot be migrated from one subsystem to another. The data in the disk pool must be backed up to a tape or to drives that are part of traditional arrays. Then, the data is restored to newly created disk pools in another storage subsystem. For more information, see the “Drive migration limitations” on page 7 section.

5. Ensure that the storage subsystem has the latest controller firmware,

nonvolatile storage random access memory (NVSRAM), and ESM firmware. Also, ensure that the installed controller firmware in the storage subsystem

supports the drives and storage enclosures. See “Verifying controller, NVSRAM, and ESM firmware compatibility” on page 4.

6. Ensure that the hard disk drive firmware is the latest level. Upgrading drive

firmware is a nonconcurrent operation. Schedule a maintenance window during which you can stop input and output to the storage subsystem for drive firmware updates.

Note: 3 Gbps SAS drives in a 6-Gbps SAS enclosure or 6-Gbps SAS drive in a 3-Gbps SAS enclosure is not supported.

7. Verify that the storage subsystem is in Optimal state and does not stop in the

middle of long running tasks such as modifications to the dynamic logical drive expansion (DVE) or Array RAID levels. See the Recovery Guru function in the Storage Subsystem Management window for instructions on bringing the storage subsystem into Optimal state. Also, see “Bringing storage subsystems and drive loops into optimal state” on page 11.

8. Resolve any critical errors reported in the Storage Subsystem MEL.

9. Save and store the storage subsystem profile and configuration script along

with the collect all support data bundle. Attention: To prevent loss of data, do not store storage subsystem profiles or

collect all support data information in the same location as the logical drives defined on your storage subsystem.

10. Obtain and activate any required premium features.

11. Ensure that the hard disk drives are compatible. See “Verifying hard disk

drive model compatibility” on page 8. Also, see the information for your drives in the announcement letter.

12. If you are adding capacity, see Chapter 2, “Adding or migrating hard disk

drives,” on page 13 or Chapter 3, “Adding or migrating storage enclosures,” on page 25, depending on the task you are performing.

13. (For the source storage subsystem only) Stop all programs, services, and

processes in the host servers that access the logical drives defined in the migrated hard disk drives.

14. (For the source storage subsystem only) Ensure that no programs, services, or

processes are running in the background that might write data to the logical drives. For example, Microsoft MSCS service periodically writes to the Quorum disk.

15. (For the source storage subsystem only) Unmount the file systems to flush

I/O from the server cache to disk.

Note:

a. In a Microsoft Windows environment, remove the drive letter or the

mount points of the mapped LUNs instead of unmounting the file systems.

b. See your operating-system documentation for detailed information about

the unmount procedure.

16. Back up the changes that you made during this procedure.

17. If the migrated drives are FDE drives and were configured as part of secured

array, save the storage subsystem security (lock) key to unlock the drives after installing them in a new storage subsystem. Without this key, the controllers cannot unlock the drives to perform input and output processes. For details about the security key, see the IBM System Storage DS Storage Manager Version

11.2 Installation and Host Support Guide.

2 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

If the migrated drives from the storage subsystem operate in external license key management mode, ensure that the new storage subsystem also operates in external license key management mode and uses the same external key server.

18. See the applicable chapter to complete the task that you plan to perform.

v Chapter 2, “Adding or migrating hard disk drives,” on page 13. v Chapter 3, “Adding or migrating storage enclosures,” on page 25. v Chapter 4, “Upgrading a storage subsystem controller,” on page 41.

Preparing to export and import drives

Complete the following steps on the source storage subsystem to prepare to export drives:

1. Save the storage subsystem configuration so that a copy of the array

configuration is available, if the export fails.

2. Stop all I/O and unmount or disconnect the file system.

3. Back up the array data.

4. Use the Locate Array function in the Storage Subsystem Manager window to

identify the physical disks that are associated with the array. Then, label each drive with source and target storage subsystem names, array name, and total number of drives in the array. After the drives are exported or offline, you might not be able to use the array locate function to locate the drives that are part of an array, depending on the version of installed controller firmware.

5. Ensure that you have enough blank drive canisters or new drives to cover the

drive bays from which the drives are removed to maintain airflow in the storage enclosure.

6. If the source storage subsystem contains secured full data encryption (FDE)

arrays, save a copy of the security key in the target storage subsystem.

Verify the following on the target (destination) storage subsystem to prepare to export drives:

v You have enough drive bays for the drives. v The storage subsystem supports the drives. You cannot exceed the maximum

number of drives that the storage subsystem supports.

v The storage subsystem supports the RAID level that you are importing. You

cannot exceed the maximum number of logical drives that the storage subsystem supports.

v The target storage subsystem supports RAID level 6, if you are importing RAID

level 6.

v The controllers in the storage subsystem have the latest version of controller

firmware.

v The latest DS Storage Manager software is installed. v You have purchased and enabled any premium feature keys. v If the source storage subsystem operates in external key management mode, the

target storage subsystem also operates in external key management mode and is managed by the same external key manager. That way, you do not have to supply the security key to unlock the secured FDE drives when importing them. Otherwise, save the security key in the source storage subsystem.

Chapter 1. Prerequisites to adding capacity and hard disk drive migration 3

Determining the supported number of drives and drive loop pairs

Use the information in this section to determine the hardware requirements before you migrate storage subsystems or add hard disk drives. Table 1 provides a list of the supported number of drives and drive loop pairs for each storage subsystem by machine type and model number. It also specifies storage enclosure license requirements.

Table 1. Supported drives and drive loop pairs in storage subsystems

Maximum drive

Machine

Storage subsystem

DCS3700 with Gen2 Controllers

DCS3860 with Gen2 Controllers

Notes:

1. The DCS3700 expansion enclosure is the only supported drive expansion enclosure for

the DCS3700 with Gen2 controllers storage subsystem.

2. The EXP3800 and DCS3700 expansion enclosures are the only supported drive expansion

enclosure for the DCS3860 storage subsystem.

type

1818 90C 180 1 None

1813 96C 360 0 None

Model number

Maximum drives

loop/channel pairs

Storage enclosure license requirement

Verifying controller, NVSRAM, and ESM firmware compatibility

Use the information in this section to verify controller, NVSRAM, and ESM firmware compatibility before you migrate storage subsystems or add hard disk drives. For firmware compatibility between the migrating and original hardware, the controller firmware and NVSRAM of the target migration storage subsystem must be at the levels that are indicated in Table 2 on page 5.

You can use the DS Storage Manager Client software and the controller firmware to upgrade the ESM firmware while the storage subsystem receives I/O from the host server, if you select only one storage enclosure to download the ESM firmware at a time in the Select Drive Enclosure To Download ESM Firmware Window.

Note:

1. See the most recent readme file that is included with the storage subsystem

controller firmware package. To access the most recent readme file, see “Finding Storage Manager software, controller firmware, and readme files” on page 57.

2. See the readme file for any I/O operation requirements. Some controller

firmware upgrade scenarios might require that you first quiesce host I/O operations.

3. See the readme file to ensure that the firmware is compatible with the

controller firmware in the storage subsystem that you are upgrading.

4. Although you can upgrade the storage subsystem and ESM firmware while it

processes I/O from the host server, schedule upgrades to occur during time periods of low I/O between the storage subsystems and host servers.

Table 2 on page 5 lists the supported machine types, model numbers, and the latest version of released Storage Manager software and controller firmware levels for

4 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

each machine type. Review the announcement letter for your drives and the readme file of the ESM and hard disk drive firmware package for any controller firmware and ESM firmware requirements.

Table 2. Machine types, supported controller firmware, and supported Storage Manager software

Storage subsystem Machine

type

DCS3700 with Gen2 Controllers 1818 90C 8.20.xx.xx 11.20.xx.xx DCS3860 with Gen2 Controllers 1813 96C 8.20.xx.xx 11.20.xx.xx

Model Supported

controller firmware

level

Supported Storage Manager software version

Important:

1. For the latest NVSRAM versions, see http://www.ibm.com/systems/support/

storage/disk/.

2. To verify software version levels or to identify possible interim updates to

firmware and NVSRAM file versions that are described in Table 2, go to http://www.ibm.com/systems/support/storage/disk/.

Before you update the controller firmware and NVSRAM to the version that is indicated in Table 3, see the readme file included in the controller firmware code package for information about upgrades or stepping-stone controller firmware upgrades that you must perform first.

Table 3 lists storage enclosure models by name, machine type, model number, and current ESM firmware level.

Table 3. Compatible storage enclosure ESM firmware level by machine type and model number

Storage subsystem and storage enclosure product name/model

DCS3700 expansion enclosure 1818 80E 039C or later DCS3860 EXP3800 1813 80E 039C or later

Storage subsystem profile

When the Storage Subsystem Profile window opens, click the All tab and scroll through the Profile For Storage Subsystem section to locate the following information.

Note: The Profile For Storage Subsystem section contains all the profile information for the entire subsystem. Therefore, it might be necessary to scroll through a large amount of information to locate the firmware level numbers.

Storage Subsystem

v NVSRAM version v Controller firmware (or appware, bootware, or both) version

See the following example of profile information.

Machine type

Model number ESM firmware level

Chapter 1. Prerequisites to adding capacity and hard disk drive migration 5

Controller in Enclosure 0, Slot A Status: Online Current configuration Firmware version: 06.10.07.00 Appware version: 06.10.07.00 Bootware version: 06.10.07.00 NVSRAM version: 1722F600R910V05

Drives

v Firmware level

ESM

v ESM card firmware level

Physical View pane

Select a procedure to view the firmware level from the Physical View pane of the Storage Subsystem Management window.

To obtain the controller firmware level:

Right-click the Controller icon in the Physical View pane of the Storage Subsystem Management window and select Properties. The Controller Enclosure properties window opens, and the properties for that controller are shown.

You must perform this step for each individual controller.

To obtain the ESM firmware and drive enclosure component firmware levels:

1. In the Physical View pane of the Storage Subsystem Management

window, click the Drive Enclosure Component icon (the icon farthest to the right). The Drive Enclosure Component Information window opens.

2. Click the ESM icon in the left pane. The ESM information is shown in

the right pane of the Drive Enclosure Component Information window.

3. Locate the firmware level of each ESM in the drive enclosure.

You must perform this step for each storage enclosure.

Upgrading ESM and controller firmware

Use the information in this section to upgrade the ESM and controller firmware in the source and target storage subsystems before you start the migration procedure.

To upgrade ESM and controller firmware, complete the following steps:

1. Upgrade the DS Storage Manager software to the latest version. For more

information, see the applicable IBM System Storage DS Storage Manager Installation and Support Guide. To access the latest document, go to http://www.ibm.com/systems/support/storage/disk/.

Note: To maintain compatibility, update the multi-path software on the host server to the level that is supported by or released with the controller firmware that you intend to download. For details about software compatibility, see http://www.ibm.com/systems/support/storage/config/ssic/index.jsp.

2. Upgrade the storage enclosure ESM firmware. You can use DS Storage Manager

and controller firmware to update the ESM firmware while the storage subsystem is processing I/O from the host server if the ESM firmware download is performed to only one storage enclosure at a time. If you select

6 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

multiple entries in the ESM firmware download window for ESM firmware download, you must quiesce I/O operations from the host servers before you start the ESM firmware download process.

Note: Even though the storage subsystem supports controller and ESM firmware upgrade while the storage subsystem processes I/O from the host server, schedule controller and ESM firmware upgrades to occur during time periods of low I/O between the storage subsystems and host servers.

3. Upgrade the controller firmware and NVSRAM. See Table 2 on page 5 and step

1 on page 6.

Note: See the readme file in the DS Storage Manager controller firmware package that is associated with the applicable host operating system environment for a support statement about the concurrent controller firmware download .

Attention: Before you upgrade the controller firmware, see the readme file that comes with the firmware for any special prerequisite tasks, ESM firmware, and stepping-stone controller firmware that must be installed before the controller can be upgraded. Failure to do so might result in loss of data availability. There are certain minimum controller firmware level requirements that are associated with various storage enclosures. See “Intermixing storage enclosures” on page 11, “Intermixing storage enclosures” on page 11, and “Intermixing storage enclosures” on page 11 for related information.

Drive migration limitations

In general, drives with existing data and logical drives configuration can be migrated between storage subsystems that have the same level of controller firmware installed or from a source storage subsystem that has an older version of controller firmware installed than the one installed in the destination storage subsystem. However, it is a best practice to limit the drive migration between storage subsystems of the same level of controller firmware. The reason is that different versions of controller firmware might implement different metadata (DACstore) data structures to store the logical drive information. These metadata (DACstore) data structures are not interchangeable. If a newer version of controller firmware changes the metadata structure, all of the controller firmware versions older than this controller firmware cannot decode the metadata structure to obtain the logical drive information in the migrated drives and recreate them in the destination storage subsystem. But, this newer version of controller firmware normally includes the code to decode the previous metadata structure that it changes to allow the migration of the drives in the storage subsystem with older version of controller firmware. For more information about drive migration limitations based on controller firmware levels, see Table 4 on page 8.

Only the logical drive and array definitions along with their data can be migrated between storage subsystems. The Host-to-LUN mappings and the configuration definition and data of the copy services premium features like FlashCopy, VolumeCopy and Remote Mirroring must be removed prior to drive migration. Depending on the version of the installed controller firmware, the LUN mappings and the copy service configuration information can be saved in script file so that they can be recreated in the destination storage subsystem. If the drives with data cannot be migrated to the destination storage subsystem, one has to backup the data in those drives to a different medium like tape and then restores the data into the destination storage subsystem.

Chapter 1. Prerequisites to adding capacity and hard disk drive migration 7

Table 4. Drive migration limitations based on controller firmware levels

Source storage subsystem controller firmware level

7.8x.xx.xx or later 8.2x.xx.xx Drives can be

7.7x.xx.xx 7.8x.xx.xx or later Drives can be

7.8x.xx.xx or later 7.8x.xx.xx Drives can be

7.8x.xx.xx or later 7.7x.xx.xx or earlier Drives cannot be

Destination storage subsystem controller firmware level Action Notes

migrated.

migrated into the destination storage subsystem when it is powered up and optimal.

migrated.

Drives with disk pool configuration cannot be migrated between storage subsystems.

1. Drives with disk

pool configuration cannot be migrated between storage subsystems.

2. DS3500 and

DCS3700 storage subsystems with controller firmware version

7.86 or later support T10PI. If an array has been configured and T10PI enabled, it cannot be migrated to a storage subsystem with controller firmware version

7.84 or earlier.

Verifying hard disk drive model compatibility

Use the information in this section to verify hard disk drive compatibility before you start the migration procedure or to add hard disk drives.

v Do not use the drive product identifier as the only source to determine drive

compatibility for a subsystem. Drives that have the same product identifier might require a different mounting tray or interposer in a storage subsystem. Instead, use the drive option part number or drive CRU part number to check for drive compatibility in a storage subsystem.

v Ensure that the drives can operate at the interface speed of the drive

loop/channel. If not, the drives are in Bypassed mode or are not identified by the controllers. In a few instances, inserting a drive with the wrong drive interface speed causes problems in the drive loops which could result in loss of data access.

8 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

v Some storage subsystem and expansion enclosures can support different drive

interface speeds. Ensure that these storage subsystem and expansion enclosure speed switches are set to the correct values to support the drive interface speeds. Intermixing storage subsystems and expansion enclosures that support different drive interface speeds is not supported. The drive loop/channel must be set to support the lowest drive interface speed.

v Do not install a DS3000, a DS4000, or a DS5000 storage subsystem drive in a

DCS Series storage subsystem.

v T10PI capable drives require controller firmware version 10.77.xx.xx and later. v The DCS3700 storage expansion enclosure is supported with both the IBM

System DCS3700 and DCS3860 Storage Subsystems with Gen2 Controllers.

v The EXP3800 storage expansion enclosure is supported with the DCS3860

storage subsystem with Gen2 Controllers only.

v For information about supported drive capacity and interface and drive speeds,

contact your IBM marketing representative or authorized reseller, go to http://www.ibm.com/systems/support/storage/disk/, or see the latest Storage Subsystem announcement.

Viewing the product ID and model of a hard disk drive

Use the information in this section to view the product ID and model of a hard disk drive by using the storage server profile before you start the migration procedure or to add hard disk drives. You can determine the product ID and model of a hard disk drive from the storage server profile through the menu option in the Subsystem Management window. To get the profile, in the Subsystem Management window, click Storage Subsystem ->View Profile When the Storage Subsystem Profile window is shown, click the Drives tab and scroll down to view the product ID and model of a hard disk drive.

See Table 5 on page 10 for a sample profile that indicates the product ID of the drive in bay 12 of enclosure ID 1 as ST3146756FC F. The Speed and Current Data Rate fields show that this drive is a 15 krpm drive and is operating at 4-Gbps Fibre Channel date rate. In addition, the drive is security capable and in a secure state that allows input and output processing to the drive from the controller.

Chapter 1. Prerequisites to adding capacity and hard disk drive migration 9

Table 5. Snapshot of profile information identifying the product ID of the drive in bay 12 of enclosure ID 1

HOT SPARE COVERAGE:

The following arrays are not protected: 0 Total hot spare drives: 0

Standby: 0 In use: 0

DETAILS Drive at Enclosure 1, Slot 12

Status: Optimal

Mode: Assigned Raw capacity: 136.732 GB Usable capacity: 136.232 GB World-wide identifier: 20:00:00:1d:38:1d:1d:d0:00:00:00:00:00:00:00:00 Associated array: 0 Port Channel ID 0 1 11/0xD4 1 5 11/0xD4 Security Capable: Yes Secure: Yes Read/write accessible: Yes Security key identifier: 27000000600A0B80004777A40000717049A6B239

Speed: 15,015 RPM Current data rate: 4 Gbps Product ID: ST3146756FC F Firmware version: E097 Serial number: 3QN07PR700009912TLHK Vendor: IBM-SSG Date of manufacture: October 16, 2008

Drive at Enclosure 1, Slot 13

Status: Optimal

Mode: Assigned Raw capacity: 136.732 GB Usable capacity: 136.232 GB World-wide identifier: 20:00:00:1d:38:1d:1e:7b:00:00:00:00:00:00:00:00 Associated array: 0

Port Channel ID 0 5 12/0xD3 1 1 12/0xD3 Security Capable: Yes Secure: Yes Read/write accessible: Yes Security key identifier: 27000000600A0B80004777A40000717049A6B239 Speed: 15,015 RPM Current data rate: 4 Gbps Product ID: ST3146756FC F

10 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Bringing storage subsystems and drive loops into optimal state

You can add or migrate storage enclosures only while the storage subsystem is turned on and in optimal state. To bring storage subsystems and drive loops into optimal state, complete the following steps:

1. Bring the storage subsystem to Optimal state before you reconfigure it with

new hardware.

2. Use the DS Storage Manager Client program to display the status of the storage

subsystem and to correct any problems that might cause the storage subsystem to enter Needs Attention state.

3. Verify that all indicator lights on the storage subsystem are in Optimal state.

4. Use the Read_Link_Status function of the DS Storage Manager Client program

and the storage subsystem MEL to verify that all components in the drive loop are in Optimal state. (Optimal state indicates that there are no drive loop component errors in the event log and no errors in the Read_Link_Status window.) Use the drive channel diagnostics to determine whether the drive loop/channel is in Optimal state. For more information about the RLS and drive channel diagnostics if they are supported by the installed version of your controller firmware, see the Subsystem Management window online help of the DS Storage Manager Client program.

5. If the arrays are in degraded state because of a failed drive, correct the problem

before migration.

Note: If necessary, contact IBM support for assistance with event log interpretation.

Before you add drives or storage enclosures, verify that the storage subsystem is not performing any of the following tasks:

v Dynamic logical drive capacity expansion

– Dynamic logical drive expansion (DVE) – Dynamic capacity expansion (DCE)

v Logical drive segment size modification v Array RAID-level modification v User-initiated array redundancy checking (click Array > Check Redundancy in

the Storage Subsystem Management window)

v Remote mirror logical drive synchronization v FlashCopy®or VolumeCopy logical drive creation v Logical drive reconstruction or copyback (logical drive sparing)

Intermixing storage enclosures

This section describes general information about intermixing storage enclosures in a storage subsystem. Use the information in this section to plan a storage subsystem migration or to add hard disk drives.

For the DCS3700 with Gen2 Controllers, IBM supports the DCS3700 storage expansion enclosure. For the DCS3860 storage subsystem, IBM supports both the EXP3800 and DCS3700 storage expansion enclosures.

When you increase the capacity of your storage subsystem in either of these ways, you might choose to add external drive enclosures of the same model and type or of different types. IBM does not support the combination of every external drive

Chapter 1. Prerequisites to adding capacity and hard disk drive migration 11

enclosure type and model in every storage subsystem configuration. In addition, not all controller firmware levels support all available storage enclosures or storage subsystems.

In general, if a storage subsystem supports multiple storage enclosures with different model numbers and machine types, you can connect the storage enclosures to the storage subsystem on the same redundant drive loop/channel by using the cabling rules that are described in the storage subsystem documentation. As a best practice, group the storage enclosures by model and machine type when you connect cables in the same redundant drive loop/channels. However, because of storage enclosure architecture differences, there might be certain restrictions when you connect some combinations of storage enclosures in the same drive loop/channel.

Table 6. Storage enclosure compatibility with storage subsystems by model for DCS Series storage subsystems

Storage subsystem DCS3700 Expansion Enclosure EXP3800

DCS3700 with Gen2 Controllers DCS3860 with Gen2 Controllers U U

Table 7. DCS3700 and EXP3800 expansion enclosures supported by controller firmware levels

Firmware level DCS3700 Expansion

07.84.xx.xx Yes No

07.86.xx.xx or later Yes Yes

EXP3800

Enclosure

Important: To avoid unpredictable results, do not change the speed of a drive loop

while the storage subsystem is turned on. Also, the storage enclosures must be power cycled for the new speed setting to be recognized correctly.

To change the speed of a drive loop, complete the following steps:

1. Prepare applications for storage subsystem shutdown.

2. Shut down the storage subsystem.

3. Shut down the storage enclosures.

4. Change the storage enclosure speed settings.

5. Turn on the power to the storage enclosures.

6. Turn on the power to the storage subsystem.

7. Restore storage subsystem host application operations.

Note: For more information about turning on a storage subsystem and turning it off, see the documentation that comes with your storage subsystem. For more information, see http://www.ibm.com/systems/support/storage/disk/.

12 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Chapter 2. Adding or migrating hard disk drives

To add hard disk drives to the storage subsystem configuration or place the drives (that made up a RAID array) in different drive bays, see the following sections:

v To add new hard disk drives to an existing storage subsystem, see “Adding new

hard disk drives” on page 14.

Note: Any hard disk drive might contain configuration data. Unless you intend to migrate drives from another storage subsystem (retaining its configuration data), always use this procedure to add hard disk drives to an existing storage subsystem configuration.

v To add new unassigned drives in different drive bays, see “Adding new hard

disk drives” on page 14.

v To migrate drives from one storage subsystem configuration to another, see

“Migrating hard disk drives” on page 15.

v To rearrange the drives (that made up a RAID array) in different drive bays in

the same storage subsystem, see “Migrating arrays within the same storage subsystem” on page 21.

Before you begin, review Chapter 1, “Prerequisites to adding capacity and hard disk drive migration,” on page 1.

Considerations

The following notes describe information that you must consider when you add a hard disk drive to a controller or a storage enclosure:

v Observe proper electrostatic discharge (ESD) procedures when you handle

electronic equipment. For more information, see “Handling static-sensitive devices” on page 14.

v Never alter the physical configuration of a storage subsystem while the power is

turned off unless you are instructed to do so as part of a configuration procedure. Specifically, never attach storage components to, or remove storage components from, a configured storage subsystem while the power is turned off.

v Updated readme files contain important configuration and procedural

information that supersede information in this document. Always check the readme file before you perform any procedure or activity described in this document. To access the most recent readme file, see “Finding Storage Manager software, controller firmware, and readme files” on page 57.

v Before you migrate hard disk drives, complete the following steps to establish

drive model compatibility:

1. Check the drive CRU form factor options.

2. If the form factors are not the same, there are no replacement parts such as

bezels and drive trays. For more information, see the announcement letter, the Installation, User's, and Maintenance Guide for your storage subsystem, and your IBM marketing representative or authorized reseller.

3. If the form factors are the same, check to determine whether the drive is

supported by the storage subsystem.

4. Ensure that the drive can operate at the storage subsystem drive

loop/channel Fibre Channel or SAS speed. For more information, see the

documentation for your storage subsystem, the storage subsystem profile, the announcement letters at the IBM website, or contact your IBM marketing representative or authorized reseller.

v You can migrate drives from systems that have controller firmware level 6.xx or

earlier to storage subsystems that have controller firmware level 7.xx or later, or DS Storage Manager software version 10.xx or later. (For information about the type of logical drives that can be migrated, see item “Verifying controller, NVSRAM, and ESM firmware compatibility” on page 4.) However, you cannot migrate drives from systems with controller firmware version 7.xx or later to systems with controller firmware level 6.xx or earlier.

Ensure that the controller firmware level of both the source and target storage subsystems. Upgrade both the source and target storage subsystems to the same controller firmware if possible.

Handling static-sensitive devices

Attention: Static electricity can damage electronic devices and your system. To avoid damage, keep static-sensitive devices in their static-protective packages until you are ready to install them.

To reduce the possibility of electrostatic discharge (ESD), observe the following precautions:

v Limit your movement. Movement can cause static electricity to build up around

you.

v Handle the device carefully, holding it by its edges or its frame. v Do not touch solder joints, pins, or exposed printed circuitry. v Do not leave the device where others can handle and damage it. v While the device is still in its static-protective package, touch it to an unpainted

metal part of the system unit for at least 2 seconds. This drains static electricity from the package and from your body.

v Remove the device from its package and install it directly into the system unit

without setting down the device. If it is necessary to set down the device, put it back into its static-protective package. Do not place the device on the system unit cover or on a metal surface. Take additional care when you handle devices during cold weather. Heating reduces indoor humidity and increases static electricity.

Adding new hard disk drives

This section describes the procedure to add new hard disk drives to empty drive bays either in storage subsystems or storage enclosures. If you plan to add a used drive, ensure that there is no configuration data on the drive that you need to preserve. A used drive is a drive that is removed from an existing storage subsystem. It might be configured as part of the RAID array. Add drives to a storage subsystem only while the power is turned on and the storage subsystem is in Optimal state. For more information, see “Bringing storage subsystems and drive loops into optimal state” on page 11.

Important:

v Do not perform this procedure if you are migrating drives from another DCS

storage subsystem. This procedure deletes the logical drive configuration in the

14 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

migrated hard disk drives. Instead, see the instructions in “Migrating storage enclosures with hard disk drives that have defined logical drive configurations” on page 27.

v Perform the prerequisites that are described in Chapter 1, “Prerequisites to

adding capacity and hard disk drive migration,” on page 1 before you perform the activities that are described in this chapter.

To add new drives to the storage subsystem, complete the following steps:

1. Insert drives (one at a time) into the empty drive bays.

2. Wait (up to 5 minutes) until each drive fully spins up and appears in the IBM

DS Storage Subsystem Management window before you insert the next drive.

3. If the drives were shown with configuration, select the Drive icon in the

Physical view and then select the Storage Subsystem Management window menu function Advanced -> Recovery -> Initialize -> Drive to erase the configuration data in the drive.

4. If the new drive is an FDE drive and you do not have the storage subsystem

security key to unlock it, use the secure erase function to reprovision the drive before you use it.

Migrating hard disk drives

When you migrate hard disk drives from multiple storage subsystems to a single storage subsystem, move all of the hard disk drives from each storage subsystem as an independent set. Ensure that all hard disk drives are transferred before you move another set. If you do not transfer hard disk drives as sets, the newly relocated arrays/logical drives that are defined by using these drives might not appear in the Storage Subsystem Management window.

The procedure for migrating hard disk drives that contain configuration data that you want to preserve is in the following sections:

v “Step 1: Preliminary activities” on page 16 v “Step 2: Verifying drive migration enable settings” on page 17 v “Step 4: Removing drives” on page 18

Important: Do not use the procedure in this section if you are unsure of the quality of the data on the hard disk drives. Importing incorrect configuration data could cause a storage subsystem failure. Ensure that the storage subsystem has the recommended controller firmware version provided on the IBM Support website. If possible, clear the metadata by installing the drive in an expansion enclosure that is directly connected to the host; then, either format the drive or write zeros pattern to the last 1 GB of drive data.

Drives with disk pools cannot be migrated from one subsystem to another. The data in the disk pool must be backed up to a tape or to drives that are part of traditional arrays. Then, the data is restored to newly created disk pools in another storage subsystem.

IBM DS Storage Manager 10.xx or later with controller firmware level 07.xx.xx.xx or later supports import migration of RAID arrays that contain logical drives with data when the following prerequisites and limitations are observed:

v RAID arrays are created by an IBM storage subsystem that uses controller

firmware level 06.xx.xx.xx or later.

Chapter 2. Adding or migrating hard disk drives 15

v Hard disk drives in a RAID array must be supported in the target storage

enclosure. Read the Installation, User's, and Maintenance Guide for the target storage enclosure to determine compatibility.

v The target migration storage subsystem must be up and running optimally with

controller firmware 07.xx.xx or later and must be greater than or equal to the firmware version of the original subsystem.

Note: For more information, see the “Drive migration limitations” on page 7 section.

Step 1: Preliminary activities

This section describes the procedure to migrate drives from a functioning storage subsystem configuration to another storage subsystem configuration, if the drives contain configuration data that you want to preserve. Add such drives to a storage subsystem only while the power is turned on and the storage subsystem is in Optimal state. See “Bringing storage subsystems and drive loops into optimal state” on page 11 for additional information about assessing the state of a storage subsystem.

To complete the preliminary activities, complete the following steps:

1. Perform the procedure in Chapter 1, “Prerequisites to adding capacity and

hard disk drive migration,” on page 1.

2. Stop all programs, services, or processes in the host servers that access the

logical drives that are defined in the migrated hard disk drives. Ensure that no programs, services, or processes are running in the background that write data to the logical drives. (For example, the Microsoft MSCS service periodically writes to the Quorum disk.)

3. Unmount the file systems to flush I/O from the server cache to disks.

Note:

a. In a Microsoft Windows environment, remove the drive letter or the

mount points of the mapped LUNs instead of unmounting the file systems.

b. See the documentation for your operating system for detailed information

about the unmount procedure.

4. Back up the logical drives.

5. Ensure that the storage subsystem controller and NVSRAM of both the source

and destination systems are at or above the levels described in Table 2 on page 5.

6. Ensure that the names of the logical drives that are associated with hard disk

drives on both the source and destination systems are unique.

Note: Periods are not supported as part of label names.

7. If you have not already, save and store the profile and configuration script

along with the collect all support data bundle of the storage subsystem from which the drives are migrated.

8. Remove all storage partition mappings to logical drives in arrays that are to

be moved.

9. Delete any FlashCopy images of the logical drives that are defined on the

drives that you plan to migrate.

10. Remove any remote mirror relationships that use the logical drives that are

defined on the drives that you plan to migrate.

16 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

11. Ensure that the arrays and logical drives are in Optimal state before you start

the migration process. For more information, see “Bringing storage subsystems and drive loops into optimal state” on page 11 section.

Note: An array must be in Optimal state before it can be moved. All failed drives must be replaced and rebuilt into the array before it can be exported.

12. If you migrate storage enclosures from lower speed Fibre Channel

environment to a higher speed Fibre Channel environments, verify that the Fibre Channel hard disk drives that you plan to migrate are each capable operation and that you installed the latest firmware.

13. Save the storage subsystem profile of the target migration storage subsystem

in a location other than the logical drives that you plan to migrate.

14. If the migrated drives are FDE drives and were configured as part of secured

array, save the storage subsystem security (lock) key to unlock the drives after you install them in a new storage subsystem. Without this key, the controllers cannot unlock the drives to perform input and output processes. For details about the security key, see the IBM System Storage DS Storage Manager Version

11.2 Installation and Host Support Guide.

15. If the migrated drives are from storage subsystems that operate in external

license key management mode, ensure that the new storage subsystem also operates in external license key management mode and uses the same external key server. Otherwise, save the storage subsystem security (lock) key to unlock the drives.

Step 2: Verifying drive migration enable settings

Note: There is no need to verify drive migration enable settings in storage subsystems or storage enclosures with controller firmware level 7.xx or later and Storage Manager software version 10.xx or later.

Step 3: Placing drives offline

Place the arrays that are defined on the hard disk drives that you plan to migrate in Offline state. Use the Export Array feature as described in this section.

The Export Array function is available on storage subsystems or storage enclosures with controller firmware level 7.xx or later and Storage Manager software version

10.xx or later.

To export the drives, complete the following steps:

1. In the Storage Subsystem Management window, right-click the name of the

array that you want to migrate.

2. Select Advanced -> Export from the pull-down menu.

3. Read and complete each of the tasks listed in the Export Array window. Select

the check box next to each task after you complete it.

Note:

a. Selecting the check box beside each task does not automatically cause the

task to be completed. You must complete each task. Selecting the check box helps you track the tasks that you complete and enables the Export button on the Export Array window.

4. After you complete all tasks and select the check box beside each task, click

Export.

5. In the Export Array dialog window, type yes and click OK.

Chapter 2. Adding or migrating hard disk drives 17

After a successful export, the array appears in Exported - ready to import state when you hover the mouse pointer over the Array icon, and the drives appear in Offline state. See Figure 1.

Figure 1. Subsystem Management Logical/Physical View of exported drives

6. Click Close to close the Export Array window.

Step 4: Removing drives

See the Installation, User’s and Maintenance Guide before you perform this procedure to ensure that it applies to your storage subsystem.

To remove the hard disk drives, complete the following steps.

Note: Remove the drives one at a time from the storage enclosure.

1. While the power to the storage subsystem is still turned on, press the inside of

the bottom of the tray handle to release the blue latch.

2. Lift the closed latch to its open position. (The latch is at a 90° angle to the front

of the drive when it is open.)

Note: Your hard disk drives might have a different latching mechanism than the one shown in Figure 2 on page 19. See the documentation that comes with your storage enclosure for details.

3. Using the handle, slowly pull the drive 1.27 cm (0.5 in.) out of the drive bay.

Note: For DCS3700 with Gen2 Controllers slowly pull the drive forward until it hits the drawer cross brace.

4. Wait at least 30 seconds to allow the hard disk drive to spin down before you

remove it from the drive bay.

5. Place the hard disk drive into an ESD bag or container before you move it to

the new DS4000 storage subsystem.

18 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Figure 2. Drive CRU assembly

Legend: 1 Blue latch 2 Drive CRU handle 3 Tray 4 Fibre Channel hard disk drive

Attention: Orient drives horizontally and place them in applicable ESD bags or

containers before relocation. In transit, use moving equipment that prevents shock to the drives. Never stack drives.

Step 5: Inserting drives

Note:

1. When you migrate hard disk drives from multiple storage subsystems to a

single storage subsystem, move all of the hard disk drives from each storage subsystem as an independent set. Ensure that all hard disk drives are transferred before you move another set. If you do not transfer hard disk drives as sets, the newly relocated arrays/logical drives that are defined by using these drives might not appear in the Storage Subsystem Management window.

2. Ensure that the drives are compatible with the storage enclosure. For example,

insert a 2-GB drive into a storage enclosure that supports 2-GB drives.

3. The Import Array function is available on storage subsystems or storage

enclosures with controller firmware level 7.xx or later and Storage Manager software version 10.xx or later.

Important: Insert migrated drives one at a time while the storage subsystem is turned on and is optimal state to prevent any drive migration problems.

To insert the drives in the target migration storage subsystem, complete the following steps:

Chapter 2. Adding or migrating hard disk drives 19

1. While the destination storage subsystem is turned on, insert the migrating

drives into an empty drive bay one at a time. Wait (up to 5 minutes) until the inserted drive is fully spun up and displayed in the Storage Subsystem Management window before you insert the next drive. Arrays appear in Contingent state (with an arrow icon) until all of the drives in the array are inserted. The array appears in Exported - ready to import state.

2. If the migrated drives are FDE drives and were configured as part of secured

array, use the saved security key to unlock the drives. Without this security key, the controllers cannot unlock the drives to retrieve the array configuration data and data on the drives. Therefore, you cannot import any array/logical drive configuration from the drives or access data in the drives.

3. Complete the following steps to migrate all of the drives, import the array: a. Right-click on the name of the array that you want to import in the Storage

Subsystem Management window.

b. Select Advanced -> Import from the pull-down menu. c. In the confirmation window, click OK. d. Click Import. e. In the Import Array window, type yes and click OK.

After a successful import, the message Array was imported successfully is displayed in the dialog box.

f. Click Close.

4. If any of the following conditions occur, contact IBM support for assistance:

v The Empty Drive Bay icon ( ) is displayed for the drive bay into which

you inserted the migrating drive.

v The Failed Unconfigured Drive icon ( ) or the Failed Configured Drive

icon ( ) is displayed for the drive bay into which you inserted the migrating drive.

v Array configuration data on the drives that you added is incomplete. v You cannot import the array.

Attention:

Do not initialize a hard disk drive that you want to keep (by right-clicking its icon and selecting Initialize from the menu) if it contains configuration or user data. Initializing any drives in a defined array causes all hard disk drives that are known to make up that array to return to the Unconfigured Capacity storage pool, deleting their array definitions from the DS4000 storage subsystem configuration. The user data on such drives is lost. When the arrays are online, they are ready to for you to configure and map to host servers. You might also then re-create FlashCopy images of the logical drives.

5. Use the DS Storage Manager program to view the storage partitioning definitions and make any necessary corrections.

Note: The source storage subsystem might indicate that the logical drives are missing. To remove the missing logical drives, right-click each entry and select

Delete from the menu.

20 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Migrating arrays within the same storage subsystem

1 2 3 4 5 6

Before After

Empty slot

Drive associated with array

1 2 3 1 2

Before After

Empty slot

Drive associated with array

Important

1. Ensure that your controller firmware is at or above the level shown in Table 2

on page 5. Do not rearrange more than one array at a time.

2. Unmount the file systems to flush I/O from the server cache to disks.

Note:

a. In a Microsoft Windows environment, remove the drive letter or the mount

points of the mapped LUNs instead of unmounting the file systems.

b. See the documentation for your operating system for detailed information

about the unmount procedure.

3. Export Array and Import Array functions are available on storage subsystems

or storage enclosures with controller firmware level 7.xx or later and Storage Manager software version 10.xx or later.

Note: Because disk pool does not support exporting and importing functions, this functionality is not applicable to drives in disk pools.

Using the configuration data on existing drives, you can redistribute the drives that make up a RAID array across a storage subsystem to which you might be adding storage enclosures. Figure 3 illustrates a storage array that is distributed across three drives on a single storage device before and after reordering. When you redistribute each drive to a different position in the same storage enclosure, which is a best practice, the array is automatically redistributed.

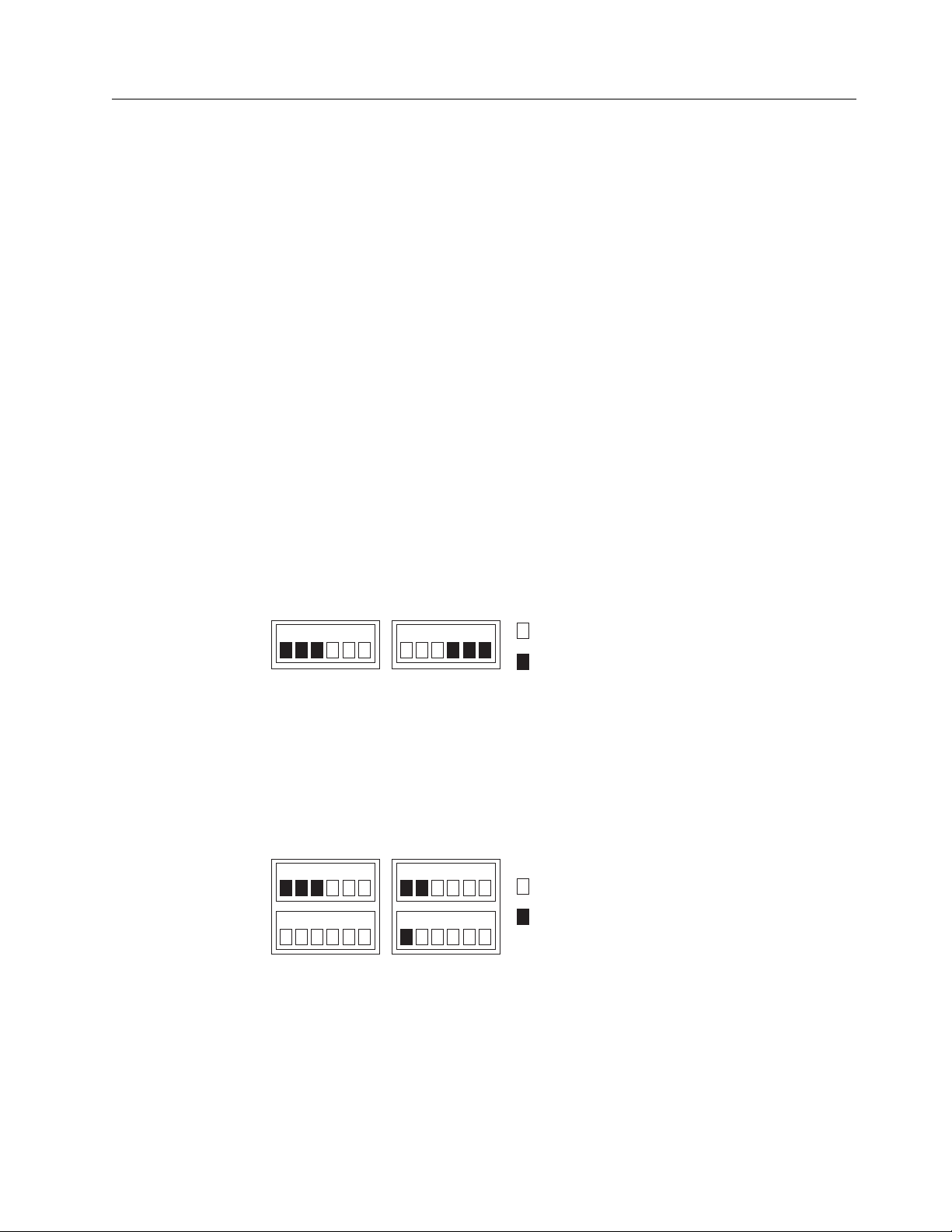

Figure 3. Best practice for reordering a defined array by using empty bays in one storage enclosure

Figure 4 illustrates a storage array that is distributed across three drives on a single storage device before reordering across two storage devices. When the drives are redistributed across an additional storage enclosure in the storage subsystem, which is a best practice, the array is automatically redistributed.

Figure 4. Best practice for reordering a defined array by using empty bays in two storage enclosures

Figure 5 on page 22 illustrates two arrays that are distributed across five drives and two storage enclosures before and after reordering the same drives across other drive bays in the same two storage enclosures.

Note:

Chapter 2. Adding or migrating hard disk drives 21

v Using the Export function is equivalent to placing the array in Offline state. See

1 2 3 1 2 A

3 B

A B

Before After

Empty slot

Drive associated with array

“Step 3: Placing drives offline” on page 17 for details on exporting an array.

v When you install the first drive in its new location within the storage subsystem,

the Array icon appears with an arrow but does not change to Online state automatically. You must use the Import function to place the array in Online state.

Figure 5. Reordering multiple defined arrays across previously used bays in two storage enclosures

To reorder drives that make up arrays across different drive bays in the same storage subsystem configuration, complete the following steps:

1. Start the DS Storage Manager Client program and open the Storage Subsystem

Management window (for the storage subsystem whose drives you are reordering).

2. Mark the drives in the arrays.

3. Export the arrays that you plan to move.

4. Unlatch the drives. Wait at least 2 minutes for each drive to spin down.

5. Remove the drives from the bays.

Note: Figure 6 shows the array status as missing an array in subsystem because the array was not exported before the drives that made up the array were removed from the storage subsystem. Ensure that all of the drives that made up the arrays are removed from their

Figure 6. Subsystem Management Logical/Physical View of missing logical drives

bays.

22 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

7. Reinsert all of the drives that made up a single array into the empty bays of

the storage enclosure. Do not insert the drives into empty bays that are part of another array definition whose drives are still inserted in the storage enclosures. Data on the drives that you insert is replaced with the reconstructed data from the previously installed RAID array.

8. The system does not bring the array online automatically. You must use the

Import function to import the array configuration and place the array online.

9. Repeat steps 7 and 8 for each of the arrays that were removed from the

storage enclosure.

10. Use the DS Storage Manager Client program to save a storage subsystem

profile and collect the all support data bundle. This information is necessary to restore a storage subsystem configuration in the event of a catastrophic failure. Migration from one storage subsystem configuration to another requires that you save both storage subsystem configuration profiles and collect all support data bundles. For more information, see the DS Storage Manager Client program Subsystem Management window online help, or go to http://www.ibm.com/systems/support/storage/disk/ to access the latest applicable IBM System Storage DS Storage Manager Version 11.2 Installation and Host Support Guide.

Important: To avoid loss of data if a RAID array failure occurs, do not store storage subsystem profiles and collect all support data bundles in the same location as the logical drives.

Note: Do not reinsert drives from multiple arrays in random order into the storage enclosures.

Chapter 2. Adding or migrating hard disk drives 23

24 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Chapter 3. Adding or migrating storage enclosures

This chapter describes the procedure to add storage enclosures in a storage subsystem. It also describes the procedure to migrate storage enclosures from an existing storage subsystem to another working optimal storage subsystem. If the destination storage subsystem is a working configuration, follow the procedure in this chapter to move one or all of the storage enclosures from another storage subsystem configuration into it. The storage subsystem is in Working state when the storage subsystem controllers successfully start with at least two drives in the drive channel.

Note: To migrate the drives in the integrated drive-controller enclosure to another storage subsystem configuration without an integrated drive-controller enclosure, you must purchase a storage enclosure for these drives.

Important: Observe proper ESD procedures when you handle electronic equipment. For more information, see “Handling static-sensitive devices” on page

14.

Attention:

Make additions to the storage subsystem only while the power is turned on and the storage subsystem is in Optimal state. For more information, see “Bringing storage subsystems and drive loops into optimal state” on page 11. You can complete this process while the storage subsystem is receiving I/O from the host server; however, because the drive loops are interrupted momentarily during the addition process, schedule the addition to occur during periods of low I/O between the storage subsystems and host servers.

Considerations

The following notes describe information that you must consider when you add a hard disk drive to a controller or a storage enclosure:

v Updated readme files contain important configuration and procedural

information that supersede information in this document. Always check the readme file before you perform any procedure or activity that is described in this document. To access the most recent readme file, see “Finding Storage Manager software, controller firmware, and readme files” on page 57.

v Never alter the physical configuration of a storage subsystem while it is turned

off unless you are instructed to do so as part of a storage subsystem configuration procedure. Specifically, never attach storage components to or remove storage components from a configured storage subsystem while it is turned off.

v Every storage subsystem model has unique storage enclosure cabling rules. See

the Installation, User’s and Maintenance Guide for your storage subsystem for information about the storage enclosure cabling rules. You must follow the cabling rules to maintain proper storage subsystem operation.

v When you migrate hard disk drives from multiple storage subsystems to a single

storage subsystem, move all of the hard disk drives from each storage subsystem as an independent set. Before you move the next set of hard disk drives, ensure that all the hard disk drives from the previous set are transferred. If you do not transfer hard disk drives as sets, the newly relocated arrays/logical drives might not appear in the Storage Subsystem Management window.

v Before you migrate hard disk drives, perform the following steps to establish

drive model compatibility:

1. Check the drive CRU form factor options.

2. If the form factors are the same, check to determine whether the subsystem

supports the drive. If the form factors are not the same, there are no replacement parts such as bezels and drive trays. For more information, see the announcement letter and the Installation, Users, and Maintenance Guide for your storage subsystem, and your IBM marketing representative or authorized reseller.

3. Ensure that the drive can operate at the storage subsystem drive

loop/channel Fibre Channel or SAS speed. For more information, see “Verifying hard disk drive model compatibility” on page 8.

v Not all combinations of the supported storage enclosures are supported as

storage enclosures intermixed behind storage subsystems.

v Check for drive compatibility in a storage subsystem configuration before you

insert a drive in an empty drive slot.

v Always connect the storage subsystem controller drive channel port to either the

top or bottom EXP3800 or DCS3700 storage expansion enclosure ESM drive port.

v Ensure that the enclosure IDs of each storage enclosure in a redundant drive

loop/channel pair behind a storage subsystem have unique values in the single digit (x1) position.

The following procedure combines the steps to add storage enclosures that contain new drives to a storage subsystem configuration with the steps to migrate storage enclosures. There are indicators in the steps that are specific to either adding or migrating enclosure tasks. If you are migrating storage enclosures, do not perform the steps that are indicated as being only for adding storage enclosures: performing steps for adding storage enclosures might cause the deletion of the logical drive configuration in the migrated hard disk drives.

Step 1: Preliminary activities

Before you add or migrate storage enclosures, complete the following steps:

1. Ensure that the power to the storage subsystem is turned on and the storage subsystem is in Optimal state.

If this is a migrating enclosure task, also ensure that the subsystem in which the enclosures are to be migrated is turned on and is in Optimal state. For more information, see the Recovery guru for DCS3700 or DCS3860 with Gen2 controllers storage subsystems, or “Bringing storage subsystems and drive loops into optimal state” on page 11. You can perform this procedure while the storage subsystem is processing I/O from or to the host server; however, because the drive loops are interrupted momentarily during the addition process, schedule any additions to occur during time periods of low I/O between the storage subsystem and host servers.

Review the readme file and the IBM System Storage DS Storage Manager Version

11.2 Installation and Host Support Guide that is associated with the operating-system environment of the host servers that connect to the storage subsystem for any additional restrictions or required preparation tasks that are specific to your operating-system environment. To access the latest IBM System Storage DS Storage Manager Version 11.2 Installation and Host Support Guide, go to http://www.ibm.com/systems/support/storage/disk/.

2. Perform a collect all support data bundles and save the storage subsystem configuration.

26 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

3. Ensure that the storage subsystem supports the storage enclosures that you are

trying to add or migrate.

4. In the drive enclosure migration situation, verify the controller firmware level

of both the source and target storage subsystems. Upgrade both source and target storage subsystems to the same controller firmware if possible.

5. If the storage enclosure that is to be migrated is not the same type as the

existing storage enclosures (some or all), see “Intermixing storage enclosures” on page 11 for intermix information.

6. If you are adding new enclosures with new drives, proceed with the steps in

“Adding new storage enclosures with new hard disk drives”; otherwise, proceed to the steps in “Migrating storage enclosures with hard disk drives that have defined logical drive configurations.”

Adding new storage enclosures with new hard disk drives

To add new storage enclosures with new hard disk drives, complete the following steps:

1. Set the enclosure ID of the additional storage enclosures with Fibre Channel

drive ports that have a mechanical enclosure ID switch. Each enclosure in the storage subsystem configuration must have a unique

enclosure ID. In addition, the IDs of enclosures (including the storage subsystem with internal drive bays) that are connected together in the same redundant drive loop/channel pair must each have a unique rightmost digit.

For example, 01, 02, 03, 04 or 11, 12, 13, 14 are the correct IDs of the enclosures, including the subsystems with internal drives that are connected together in a drive loop/channel, whereas 01, 11, 21, 31 or 11, 11, 22, 33 are not the correct IDs of the enclosures that are connected together in a drive loop/channel pair (including the subsystems with internal drives) because the rightmost digits in the enclosure IDs are not unique (01, 11, 21, 31) or the enclosure IDs are not unique (11, 11, 22, 33).

The DCS3700 and EXP3800 storage enclosures have a display mechanism to show the enclosure ID. The enclosure ID is automatically set by the controller firmware. You can change the enclosure ID using the IBM DS Storage Manager client.

For more information, see the documentation that comes with your storage enclosure.

If the storage subsystem to which the storage enclosure attaches is a DCS3700 or DCS3860 storage subsystem with Gen2 controllers, the enclosure IDs of additional storage enclosures must be unique to the storage subsystem. The enclosure IDs are normally set to 00 at the factory.

2. Proceed to “Step 6: Cabling, turning on, and verifying storage enclosure

operation” on page 31. Do not perform Activities 3–5.

Migrating storage enclosures with hard disk drives that have defined logical drive configurations

Before you begin, review the “Drive migration limitations” on page 7 section. Drives with disk pools cannot be migrated from one subsystem to another. The data in the disk pool must be backed up to a tape or to drives that are part of traditional arrays. Then, the data is restored to newly created disk pools in another storage subsystem.

To migrate storage enclosures with hard disk drives that have defined logical drive configurations, complete the following steps.

Chapter 3. Adding or migrating storage enclosures 27

1. Ensure that controller firmware and NVSRAM in both the target migration

storage subsystem and the storage subsystem that contains the enclosures that are to be migrated are at the levels in Table 2 on page 5.

2. Ensure that the firmware of the ESMs in the storage enclosures that you plan

to migrate are at the levels in Table 3 on page 5.

3. Ensure that the firmware of the ESMs in the storage enclosures that are

attached to the target migration storage subsystem is at the levels in Table 3 on page 5.

4. Data on drives migrate with those drives when the drives are installed on

another storage subsystem. For a successful migration, perform steps 5, 6, 7 and 8 that follow.

5. Delete the storage partitioning mappings of the logical drives.

6. Ensure that all of the IDs of the storage enclosures in the redundant drive

loop/channel have unique single digit (x1) values.

7. In addition to array configuration information, any storage partitioning

configuration data on drives migrate with those drives when they are installed on another storage subsystem. For this reason, take the following precautions to facilitate the migration process and prevent problems in storage partitioning configuration data migration:

a. If a storage partitioning premium feature is enabled on both the original

and destination storage subsystems, ensure that the defined host ports, hosts, and host group names are unique to each storage subsystem that is involved in the migration.

b. If you must use identical names on both storage subsystems, make the

names unique before you perform the drive migration. If necessary, customize the storage partitioning information about the storage subsystem to which you migrated the drives after you complete the migration.

8. Delete any FlashCopy images of logical drives that are defined in the hard

disk drives.

9. Remove any remote mirror relationships that involve the logical drives that

are defined on the drives that you plan to migrate.

10. Proceed to “Step 2: Preparing and backing up the drives.”

Step 2: Preparing and backing up the drives

To prepare and back up the drives, complete the following steps.

Note: The following procedure is for migrating enclosures with drives that have defined arrays/logical drives only. Do not perform this procedure if you are adding enclosures with new drives or drives that contain unneeded data.

1. If the arrays and logical drives that are involved are not in Optimal state, perform the steps that are necessary to bring these arrays and logical drives to Optimal state before you attempt migration. Use the Recovery Guru function in the Storage Subsystem Management window of the DS Storage Manager Client program. For more information, “Bringing storage subsystems and drive loops into optimal state” on page 11.

2. If the drive enclosures that you plan to migrate are not in Optimal state, perform the steps that are necessary to bring them to Optimal state before you attempt migration. Use the Recovery Guru function in the Storage Subsystem Management window of the DS Storage Manager Client program. For more information, see “Bringing storage subsystems and drive loops into optimal state” on page 11.

28 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

3. Perform a backup of the logical drives that are defined in the storage

enclosures.

4. Monitor the storage subsystem event log for any errors in the drive loop or its

components for several days before you migrate storage enclosures.

5. Stop all programs, services, or processes in the host servers that access the

logical drives that are defined in the migrated hard disk drives. ensure that there are not any running background programs, services, or processes that write data to the logical drives. (For example, Microsoft MSCS service periodically writes to the “Quorum” disk.)

6. Unmount the file systems to flush I/O from the server cache to disks.

Note:

a. In a Microsoft Windows environment, remove the drive letter or the mount

points of the mapped LUNs instead of unmounting the file systems.

b. See the documentation for your operating system for detailed information

about the unmount procedure.

7. Save the storage subsystem profile and storage subsystem configuration, and

collect all support data bundles of the target storage subsystem in a location other than the logical drives that you plan to migrate.

8. Place the arrays that are defined in the storage enclosures that you plan to

migrate in Offline state. Use the Export Array feature. See “Step 3: Placing drives offline” on page 17 for details.

9. If the migrated drives are FDE drives and were configured as part of a secured

array, save the security key to unlock the drives after you install them in a new storage subsystem. Without this key, the controllers cannot unlock the drives to perform read and write operations.

Step 3: Shutting down and moving the storage enclosures

To shut down and move the storage enclosure, complete the following steps.

1. Because removing a storage enclosure from a storage subsystem disrupts the

drive loops, shut down the storage subsystem while you remove the storage enclosures for migration to another storage subsystem. If you cannot shut down the storage subsystem, reconfigure only one drive loop, making sure that the drive loop that you modify is connected correctly and in Optimal state before you attempt to reconfigure the other drive loop. For more information, see “Bringing storage subsystems and drive loops into optimal state” on page

11. Take this precaution to prevent the arrays from being inadvertently failed by

the storage subsystem controllers because two or more drives in the arrays cannot be reached through either drive loop in the redundant drive loop pair.

Complete the following steps to verify that the drive loops are in Optimal state: a. Physically trace the actual cable connections to ensure that connections are

properly modified and that the cable connectors are firmly inserted into the SFPs.

b. Ensure that the following LEDs are not lit or flashing in the modified drive

loop:

v ESM fault v Port bypass

Chapter 3. Adding or migrating storage enclosures 29

v ID conflict

c. Ensure that the controller drive loop LED remains lit. If the controller drive

loop LED is turned off, there are problems in the drive loop, and the loop initialization primitives (LIPs) are generated by the storage subsystem controller.

d. In the DS Storage Manager Client Subsystem Management window, verify

that there are no Loss of ESM path redundancy errors in the storage enclosures that are not migrated.

Do not modify the second drive loop in the redundant drive loop pair until you are sure that the first modified drive loop is operating in Optimal state.

2. Turn off the power to the storage enclosures and move them to the storage subsystem to which you plan to migrate them.

Attention: A storage enclosure with 60 drives weighs up to 101 kg (223 lb). If necessary, remove the drives and other storage enclosure components to reduce the weight of the unit for easier handling. Mark each drive before you remove it so that you can return it to the same drive bay when you reassemble the components. The DCS3700 and EXP3800 storage enclosures might require a lift tool and a relocation kit to move the storage enclosures from one location to another. For more information, see the storage enclosure documentation.

Step 4: Verifying the drive migration enable settings

Attention: There is no need to verify drive migration enable settings in storage enclosures with controller firmware level 7.xx or later and Storage Manager software version 10.xx or later.

Step 5: Installing and setting storage enclosure IDs

To install and set storage enclosure IDs, complete the following steps:

1. When the storage enclosures and drives are at the location of the storage subsystem to which you are migrating them, install them into the rack. If the drives were removed during transit, return them to the bays from which they were removed, unlatched and no less than 1.27 cm (0.5 in.) away from their full insertion points in the drive bays. If the drives were not removed, unlatch and pull them out no less than 1.27 cm (0.5 in.) away from their full insertion points in the drive bays.

2. Ensure that the enclosure ID of each enclosure in a storage subsystem configuration is unique. For more information, see “Adding new storage enclosures with new hard disk drives” on page 27.

Important: If the storage subsystem to which the storage enclosure attaches is a DCS3700 or DCS3860 storage subsystem with Gen2 controllers, the IDs of additional storage enclosures must be unique to the storage subsystem. The enclosure IDs of these storage subsystems is normally set to 00 at the factory.

Note: Before you migrate hard disk drives, be sure to determine the compatibility of drive model capacity, interface type, and speed. For specific information about your drive options in the most current environment, see “Verifying hard disk drive model compatibility” on page 8.

30 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Step 6: Cabling, turning on, and verifying storage enclosure operation

This procedure is for both adding and migrating storage enclosures. The following notes describe information that you must consider when you connect the storage enclosure:

v Connect the new storage enclosure first to any unused drive ports, especially if

you are adding storage enclosures of a different type to the configuration.

v If there are not any unused drive ports, connect the new storage enclosure to the

existing drive loop that can accommodate additional storage enclosures.

v Add only one storage enclosure at a time to a drive loop, if you intend to attach

multiple storage enclosures.

v See the documentation that comes with your storage subsystem to attach the

storage enclosures to the storage subsystem.

Attention: Do not power on a storage subsystem with new drives installed in the new storage enclosures. Either remove the drives completely or pull out the drives about one-half inch from the storage enclosure before powering on the storage subsystem. Otherwise, the controllers might not boot up.

Cabling the new enclosures

To complete the addition of storage enclosures, cable the storage enclosures to the end of the storage enclosure drive loop to which you are migrating them. Add only one enclosure at a time to a drive loop, if you intend to attach multiple storage enclosures.

Connect the storage enclosure to any unused drive ports when you add storage enclosures to an existing configuration, especially if you are adding enclosures of a different type to the configuration. See the documentation that comes with your storage subsystem to attach the storage enclosures to the storage subsystem.

You might find that connection to the end (at the bottom) directly attached to controller B is best practice because if the existing configuration is not planned for cabling-in storage enclosures at the top or the middle of the drive loop, cluttered drive loop cabling might hinder troubleshooting or cause cabling errors. Only typical expansion enclosure additions are shown in the procedure and graphics in these sections. However, the instructions can be adapted for all expansion enclosure addition scenarios. For the appropriate cabling scenario and to adapt the instructions to add an expansion enclosure to an existing drive loop in a storage subsystem configuration, see the storage subsystem Installation, User's and Maintenance Guide.

Connecting storage enclosures at the end (bottom) of a drive loop

Connecting a new storage enclosure to the end of the drive loop is the best practice to avoid cluttered drive loop cabling that might hinder troubleshooting or cause cabling errors.

To connect a storage enclosure at the end (bottom) of a drive loop, complete the following steps:

1. Extend one of the drive loops (that is, drive loop/channel that is connected to

controller A) in a storage subsystem redundant drive loop/channel pair by

Chapter 3. Adding or migrating storage enclosures 31

connecting the ESM port of the top ESM in the last storage enclosure on the existing drive loop/channel A to the ESM port of the top ESM in the new storage enclosure.

2. Ensure that there are not any drives fully inserted in the drive bays; then, turn on the power to the added storage enclosure.

3. Wait a few seconds. Check the drive port LEDs to ensure that the link to the new storage enclosure is up and optimal and that there are no link problems in the modified drive loop A. Ensure that the SAS link service (SAS port) LEDs are not lit or intermittently lit. Using the DS Storage Manager Client Subsystem Management window, verify that the storage enclosure is added and displayed in the Logical/Physical view of the window. To return the drive loop/channel to optimal state, see “Returning the drive/loop channel to optimal state” on page 33.

4. In the drive loop/channel that is connected to controller B, move the connection from controller B drive port to the ESM port in the bottom ESM of the last storage enclosure in the existing drive loop/channel B to the ESM port of the bottom ESM in the new storage enclosure. Controller B drive port is now connected to the ESM port of the new storage enclosure.

5. Wait a few seconds. Check the drive port LEDs to ensure that the link to the new storage enclosure is up and optimal and that there are no link problems in the modified drive loop B. Ensure that the SAS link service (SAS port) LEDs are not lit or intermittently lit. Using the DS Storage Manager Client Subsystem Management window, verify that the storage enclosure is added and displayed in the Logical/Physical view of the window. To return the drive loop/channel to optimal state, see “Returning the drive/loop channel to optimal state” on page 33. The existing storage enclosures are shown with Drive enclosure lost redundancy path errors until you establish the cabling connection described in the next step.

6. In drive loop B, cable the ESM port in the bottom ESM of the new storage enclosure to the ESM port in the bottom ESM of the last storage enclosure in drive loop B.

7. Wait a few seconds. Check the drive port LEDs to ensure that the link to the new storage enclosure is up and optimal and that there are no link problems in the modified drive loop B. Ensure that the SAS link service (SAS port) LEDs are not lit or intermittently lit. Using the DS Storage Manager Client Subsystem Management window, verify that the storage enclosure is added and displayed in the Logical/Physical view of the window. To return the drive loop/channel to optimal state, see “Returning the drive/loop channel to optimal state” on page 33. The existing storage enclosures are shown with Drive enclosure lost redundancy path errors until you establish the cabling connection described in the earlier step.

8. The DS Storage Manager Client Subsystem Management window displays a new storage enclosure with no drives in the configuration.

Connecting storage enclosures at the end (bottom) of a SAS drive cable loop scheme in a DCS3700 and DCS3860 storage subsystems with Gen2 controllers configuration

For DCS3700 and DCS3860 storage subsystem with Gen2 controllers configurations with an initial drive loop/channel cabling scheme, Table 8 on page 33 shows how you cable the ports. A port enclosed by () indicates that you remove the connection as part of the step.

32 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Table 8. Connecting storage enclosures at the end (bottom) of a SAS drive cable loop scheme in a DCS3700 and DCS3860 storage subsystems with Gen2 controllers configuration

Step Storage subsystem Drive expansion 2 Drive expansion 3

1 on page 31

4 on page 32

6 on page 32

ControllerAControllerBtop ESM bottom

ESM

OUT IN

Drive port x

(IN) IN

IN OUT

top ESM bottom

Returning the drive/loop channel to optimal state

To return the drive loop/channel to optimal state, complete the following steps:

1. Reseat the cable.

2. Use a new cable.

3. Check the new storage enclosure compatibility with the existing storage

enclosures.

4. Check for any special cabling requirements.

5. Perform any additional suggestions as indicated by the Recovery Guru function

in the Storage Subsystem Management window.

6. If necessary, contact your IBM marketing representative or authorized reseller

for assistance.

7. If the problem remains, contact IBM support for assistance.

ESM

Storage subsystem SAS drive channel/loop schemes for enclosures in a DCS3700 configuration

The DCS3700 storage subsystem with Gen2 controllers supports up to two DCS3700 storage enclosures per physical expansion port, so multiple DCS3700 storage enclosures can be connected by chaining them together.

The following illustration shows the supported cabling configuration to connect a DCS3700 storage subsystem with Gen2 controllers to the storage enclosures, and between the storage enclosures with SAS drive channels.

Chapter 3. Adding or migrating storage enclosures 33

To connect the DCS3700 storage system with Gen2 controllers RAID controllers A and B to multiple DCS3700 expansion enclosures, complete the following steps:

1. Connect the DCS3700 expansion enclosure to controller A: a. Connect one end of a SAS cable to the drive expansion port on controller A. b. Connect the other end of the SAS cable to one of the In (↑) SAS connectors

on the ESM in SBB slot A in the DCS3700 expansion enclosure.

2. Connect the SAS cable of the DCS3700 expansion enclosure to the next DCS3700 expansion enclosure in the chain:

a. Connect one end of a SAS cable to the Out (↓) SAS connector on the ESM in

SBB slot A of the DCS3700 expansion enclosure that you connected.

b. Connect the other end of the SAS cable to one of the In (↑) SAS connectors

on the ESM in SBB slot A in the next DCS3700 expansion enclosure in the chain.

34 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

3. Connect the last DCS3700 expansion enclosure in the chain to controller B:

ACDC

Lnk Lnk

ACDC

ID/Diag

Lnk Lnk Lnk Lnk

! !

ESM

Lnk Lnk

ID/Diag

Lnk Lnk Lnk Lnk

! !

ESM

dcsi0050

a. Connect one end of a SAS cable to the drive expansion port on controller B. b. Connect the other end of the SAS cable to one of the In (↑) SAS connectors

on the ESM in SBB slot B in the last DCS3700 expansion enclosures of the chain that you created.

4. In reverse order (last in chain to first in chain), connect the ESM in SBB slot B

to the DCS3700 first expansion enclosure in the chain: a. Connect one end of a SAS cable to the Out (↓) SAS connector on the right

ESM of the DCS3700 expansion enclosure that you just connected.

For detailed information about cabling the DCS3700 storage enclosures to the DCS3700 configuration, see the IBM System Storage DCS3700 Storage Subsystem with Gen2 Controllers Installation, User's, and Maintenance Guide..

Storage subsystem SAS drive channel/loop schemes for enclosures in a DCS3860 with Gen2 controllers configuration

The DCS3860 storage system with Gen2 controllers supports up to five EXP3800/DCS3700 expansion enclosures with two physical expansion ports. Multiple EXP3800/DCS3700 expansion enclosures can be connected by chaining them together.

The following illustration shows the supported cabling configuration to connect a DCS3860 storage subsystem with Gen2 controllers to the storage enclosures and between the storage enclosures with SAS drive channels.

Figure 7. Connecting the first EXP3800/DCS3700 expansion enclosure

Complete the following steps to connect the first EXP3800/DCS3700 expansion enclosure to the DCS3860 storage system with Gen2 controllers .

Chapter 3. Adding or migrating storage enclosures 35

1. Connect one end of a SAS cable to the drive expansion port 1 on controller A and the other end to the In (↑) SAS connector 1 on the ESM located in slot A of the EXP3800/DCS3700 expansion enclosure.

2. Connect one end of a SAS cable to the drive expansion port 1 on controller A and the other end to the In (↑) SAS connector 1 on the ESM located in slot A of the EXP3800/DCS3700 expansion enclosure.

3. Connect one end of a SAS cable to the drive expansion port 1 on controller B and the other end to the In (↑) SAS connector 2 on the ESM located in slot A.

4. Connect one end of a SAS cable to the drive expansion port 2 on controller B and the other end to the In (↑) SAS connector 2 on the ESM located in slot B.

5. Wait until the status of the storage system is Optimal.

6. Add drives to the storage enclosure one at a time. Add drive only after the

IBM DS Storage Manager recognizes the drive you added earlier. Wait at least 30 seconds for the IBM DS Storage Manager to recognize a newly added drive.

Cabling multiple enclosures

The following illustration shows the supported cabling configuration to connect a DCS3860 storage subsystem with Gen2 controllers to multiple storage enclosures and between the storage enclosures with SAS drive channels.

36 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Lnk Lnk

ACDC

ID/Diag

Lnk Lnk Lnk Lnk

! !

ESM

Lnk Lnk

ID/Diag

Lnk Lnk Lnk Lnk

! !

ESM

ACDC

Lnk Lnk

ACDC

ID/Diag

Lnk Lnk Lnk Lnk

! !

ESM

Lnk Lnk

ID/Diag

Lnk Lnk Lnk Lnk

! !

ESM

dcsi0052

Figure 8. Adding enclosures

1. Ensure that the status of the DCS3860 with Gen2 Controllers storage system is

2. Use the expansion enclosure Rack Installation Instructions document to install

3. Connect the power cables to the new expansion enclosure and power it on.

4. Connect one end of a SAS cable to the Out (↓) SAS connector on the ESM

5. Connect the other end to the In (↑) SAS connector 1 on the ESM located in slot

6. Remove the cable from the In (↑) SAS connector 1 on the ESM located in slot B

Optimal.

the new expansion enclosure in the rack.

located in slot A of the earlier/last EXP3800/DCS3700 expansion enclosure in the configuration.

A of the EXP3800/DCS3700 expansion enclosure you want to add.

of the earlier/last EXP3800/DCS3700 expansion enclosure and connect it to the In (↑) SAS connector 1 on the ESM located in slot B of the EXP3800/DCS3700 expansion enclosure you want to add.

Chapter 3. Adding or migrating storage enclosures 37

7. Remove the cable from the In (↑) SAS connector 2 on the ESM located in slot B of the earlier/last EXP3800/DCS3700 expansion enclosure and connect it to the In (↑) SAS connector 2 on the ESM located in slot B of the EXP3800/DCS3700 expansion enclosure you want to add.

8. Connect one end of a SAS cable to the In (↑) SAS connector 1 on the ESM located in slot B of the earlier/last EXP3800/DCS3700 expansion enclosure and connect the other end of the SAS cable to the Out (↓) SAS connector on the ESM located in slot B of the EXP3800/DCS3700 expansion enclosure you want to add.

9. Repeat steps 2 on page 37 through 8 to add more EXP3800/DCS3700 expansion enclosures. You can add up to five expansion enclosures.

Step 7: Inserting drives and cabling additional storage enclosures

Note: Complete the following procedure only if you are adding enclosures with new drives. Otherwise, go to “Step 8: Inserting hard disk drives and placing logical drives online.”

To insert drives and connect additional storage enclosures, complete the following steps:

1. Insert the applicable drives into empty drive bays in the new enclosure one at a time. Wait (up to 5 minutes) until the inserted drive fully spins up and is identified in the Storage Subsystem Management window; then, insert the next hard disk drive.

2. To connect additional storage enclosures to a drive loop pair, repeat the steps of the applicable procedure in Step 6. Do not proceed to add additional storage enclosures if you are still having problems with the modified drive loop and the newly inserted drives. This step completes the procedure to add enclosures with new drives.

Attention: Plan carefully before you add enclosures to the middle or the top of the drive loop. Cabling errors might cause loss of data availability, or loss of data.

Step 8: Inserting hard disk drives and placing logical drives online

Note: To ensure that the arrays are on the Storage Subsystem Management window, move all of the hard disk drives as independent sets when you migrate hard disk drives from multiple storage subsystems to a single storage subsystem. Ensure that each set successfully transfers before you move another set of drives.

To migrate enclosures with drives that contain logical drive configuration data, complete the following steps:

1. For each additional enclosure that you intend to migrate to the drive loop pair, perform the procedure in “Step 5: Installing and setting storage enclosure IDs” on page 30 and “Step 6: Cabling, turning on, and verifying storage enclosure operation” on page 31.

Attention: Plan carefully before you add enclosures to the middle or the top of the drive loop. Cabling errors might cause loss of data availability, or loss of data.

2. Insert the drives into the empty drive bays in the new enclosure, one at a time. Wait (up to 5 minutes) until each drive pair fully spins up and is identified in the Storage Subsystem Management window; then, insert the next hard disk drive pair.

38 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

3. The array and logical drive information is shown on the Logical/Physical view

of the Storage Subsystem Management window. The arrays appear in Contingent state (with an arrow icon) until all of the drives in the array are inserted. The array appears in Exported - ready to import state.

4. If the migrated drives are FDE drives and were configured as part of a secured

array, use the saved security key from the storage subsystems that these drives are migrated from to unlock the drives. Without this security key, the controllers cannot unlock the drives to retrieve the array configuration data and data on the drives.

5. Complete the following steps: a. Click the name of the array that you want to import in the Storage

Subsystem Management window.

b. Click Advanced -> Maintenance -> Import Array. c. In the confirmation window, click OK. d. Click Import. e. In the Import Array window, type yes and click OK. f. Click Close.

6. If any of the following conditions remain, contact IBM support for assistance.

v The Empty Drive Bay icon ( ) is displayed for the drive bay into which

you inserted the migrating drive.

v The Failed Unconfigured Drive icon ( ) or the Failed Configured Drive

icon ( ) is displayed for the drive bay into which you inserted the migrating drive.

v Array configuration data on the drives that you added is incomplete.

Attention: Do not initialize a hard disk drive that you want to keep (by right-clicking its icon and selecting Initialize from the pull-down menu) if it contains configuration or user data. Initializing any of the drives in a defined array causes all hard disk drives in an array to return to the Unconfigured Capacity storage pool, deleting their array definitions from the configuration. The user data on such drives is lost.

Result: When the arrays are online, they are ready for you to configure and map to host servers. You might also then re-create FlashCopy images and remote mirror relationships.

7. Use the DS Storage Manager program to view the storage partitioning definitions and make any necessary corrections.

8. The storage subsystem that the drives are migrated from displays the logical drives that are defined in these drives as missing LUNs. To remove these missing LUN entries, right-click each entry and select Delete from the menu.

You completed the procedure for migrating enclosures.

Chapter 3. Adding or migrating storage enclosures 39

40 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Chapter 4. Upgrading a storage subsystem controller

This chapter describes the procedure to replace the storage subsystem controller in a working configuration with a new storage subsystem controller of the same or different model. All the hard disk drives and storage enclosures in the original configuration are part of the new configuration. Use the procedures in this chapter only if no drives are attached to the new storage subsystem. This procedure is also referred to as controller head-swapping. If the new storage subsystem is part of a working configuration where the storage subsystem controllers are booted with at least two drives, see Chapter 3, “Adding or migrating storage enclosures,” on page 25 to migrate the drives and storage enclosures instead.

IBM support is available for controller upgrade assistance, but you must contact your IBM marketing representative or authorized reseller as first-line support. For more information, see “Getting information, help, and service,” on page 57.

Only the replacement of the controller in a single working storage subsystem configuration with another controller is supported. To consolidate the storage enclosures behind multiple controllers in multiple working storage subsystem configurations, perform the applicable controller swap procedure that is described in this chapter to upgrade one working storage subsystem configuration. Then, see Chapter 3, “Adding or migrating storage enclosures,” on page 25 for instructions for migrating the storage enclosures in the other storage subsystems into the new controller storage subsystem configuration.

A readme file is available with the latest information and instructions for each storage subsystem. To access the most recent readme file, see “Finding Storage Manager software, controller firmware, and readme files” on page 57.

Upgrade considerations

Consider the following information before you upgrade a storage subsystem.

Host attachment and premium feature entitlements

The following notes describe information about host attachment and premium feature entitlements that you must consider before you upgrade a storage subsystem.

v To enable premium features in a new or replacement configuration that were

enabled in an original configuration, you must purchase the applicable entitlements for the new or replacement storage subsystem, if that premium feature is not standard in the new or replacement storage subsystem. In addition, IBM assigns host attachment kits only to specific storage subsystems. You must also purchase the applicable host attachment kits for new or replacement storage subsystems.

v After the upgrade, premium features that were previously enabled in the

original storage subsystem along with the enable-by-default premium features in the new storage subsystem are automatically placed in Out of Compliance state. You must generate new premium feature SAFE keys to re-enable premium features.

Follow the instructions in the Premium Features Activation instructions that come with the Premium Feature kits to generate the premium feature keys. Also, to generate new premium feature keys, go to http://www-912.ibm.com/ PremiumFeatures/.

Storage firmware migration

The following notes describe information about controller firmware migration that you must consider before you upgrade a storage subsystem:

v You can migrate the drives and storage enclosures in a storage subsystem to a

new controller only if the firmware in the controllers of the storage subsystem and the new controller have the same major release version.

v To perform a migration from an original storage subsystem controller with

firmware version 7.xx or later to a new storage subsystem controller with firmware version 7.xx or later , the controller firmware version in the original controller must be the same as or earlier than the controller firmware version in the new controller. As an exception, if either the original or the new DS3500 or DCS3700 with Gen2 Controllers has controller firmware version 7.8x.xx.xx or later installed, the original and the new DS3500 or DCS3700 with Gen2 Controllers must be upgraded to the same version as that of the 7.8x.xx.xx or later controller firmware, before the head-swap. Two extra new drives might need to be purchased to bring up the new storage subsystem for controller firmware upgrading. Otherwise, the controller firmware in the new controller is placed in the Controller Lock Down state.

Complete the following steps, if the 7.xx or later firmware version in the new storage subsystem is earlier than the 7.xx or later firmware version in the original controller:

1. Purchase two additional hard disk drives.

2. Build a configuration with the new hard disk drives and the new DS3500 or

DCS3700 with Gen2 Controllers subsystem enclosure. You might also need to add a drive expansion enclosure if there are not any available drive slots in the new DS3500 or DCS3700 with Gen2 Controllers storage subsystem enclosure.

3. Use the storage enclosure or drive migration procedures that are listed in this

document to add existing enclosures or hard disk drives to the new storage subsystem configuration.

4. After successful migration, remove the storage enclosure with which you

started the new storage subsystem, if necessary.

Note: For more information, see the “Drive migration limitations” on page 7 section.

Alternative procedure to upgrade a storage subsystem controller enclosure

There is an alternative method to upgrade a storage subsystem controller enclosure. To bring the new storage subsystem controller into an optimal state, you must obtain a minimum of two new drives and a storage expansion enclosure (if the storage subsystem controller did not have any available drive slots). Then you must migrate the drives and drive expansion enclosure from the original storage subsystem to the new storage subsystem.

To upgrade the storage subsystem controller by using this alternative method, complete the following steps:

1. Plan the upgrade. For more information, refer to step 1 on page 46.

42 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

2. Purchase two new drives and a drive expansion enclosure (if there are not any available drive slots in the new storage subsystem).

3. Prepare the new storage subsystem for the upgrade: a. Unpack the new storage subsystem, and install it in a rack. b. If required, unpack and connect the storage enclosure to the new storage

subsystem. Install the two new drives in the drive slots.

c. Power on the drive expansion enclosure (if installed) and the storage

subsystem.

d. Connect the new storage subsystem to the systems management network.

Use the default IP addresses of the controllers, and record the version of the controller firmware on the new storage subsystem.

The default TCP/IP address of controller A Ethernet port 1 is

192.168.128.101. The default TCP/IP address of controller A Ethernet port 2 is 192.168.129.101. The default TCP/IP address of controller B Ethernet port 1 is 192.168.128.102. The default TCP/IP address of controller B Ethernet port 2 is 192.168.129.102.

4. Prepare the original storage subsystem for the upgrade. For more information, refer to step 3 on page 47.

5. Update the controller firmware in the new storage subsystem with the latest online version. To determine the appropriate version of firmware to be installed in the new storage subsystem, refer to Figure 9 on page 49.

a. Perform steps 4c-4g (see 4 on page 48) and 5a or 5b and 5c (see 5 on page

50) to upgrade the controller firmware and to switch from the original to the new storage subsystem.

6. Migrate the drive and drive expansion enclosures to the new storage subsystem configuration. For more information, refer to “Migrating storage enclosures with hard disk drives that have defined logical drive configurations” on page

27.

7. Prepare the new storage subsystem for use. For more information, refer to step 6 on page 51.

Supported upgrades

The following table describes the supported storage subsystem upgrades. You can submit a request for price quote (RPQ) to your IBM marketing representative or authorized reseller for upgrading scenarios of the storage subsystem that are not described in this table.

Table 9. Supported replacement storage subsystems

Storage subsystem model Supported replacement storage subsystem models

DCS3700 DCS3700, DCS3700 with Performance Module controllers, DCS3700 with Gen2

Controllers.

DCS3700 with Performance Module controllers

DCS3700 with Gen2 Controllers

DCS3860 DCS3860, DCS3860 with Gen2 controllers DCS3860 with Gen2

controllers

DCS3700, DCS3700 with Performance Module controllers, DCS3700 with Gen2 Controllers.

DCS3860 with Gen2 controllers

Chapter 4. Upgrading a storage subsystem controller 43

Configuration behavior after an upgrade and storage subsystem replacement

The following notes describe the identifier and premium feature behavior after an upgrade and storage subsystem replacement:

v Worldwide name (WWN):

The worldwide names that the original storage subsystem uses before the upgrade are not returned when the upgrade is complete. Instead, the new storage subsystem is identified by WWNs that are based on a new embedded unique identifier.

See your application documentation, device-driver user guide, or related documentation for detailed instructions for updating the WWN of the storage subsystem in the application or device driver. Additionally, to review the readme file and the related IBM System Storage DS Storage Manager Installation and Support Guide for information about any preparation tasks or operating-system-specific restrictions, go to http://www.ibm.com/systems/ support/storage/disk/.

v Controller IP addresses:

When the storage subsystem controllers are assigned static IP addresses, the IP addresses are stored in the controller NVSRAM and in the DACstore on the hard disk drives. If the replacement storage subsystem controllers are assigned the same IP addresses as the original storage subsystem controllers, the two devices have duplicate IP address in the Ethernet network, if the original storage subsystem controller is deployed. Best practice is to assign new unique IP addresses to replacement storage subsystem controllers.

v Storage array identifier (SAI or SA identifier):

The storage array identifier, or SA identifier, is the identifier that the DS Storage Manager host software (SMclient) uses to uniquely identify managed storage subsystems. The new storage subsystem continues to use the SA identifier of the original DS4000 storage subsystem. This ID is displayed in the storage subsystem profile as the storage subsystem worldwide identifier (ID). See Table 10 on page 45.

44 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Table 10. Snapshot of profile information that identifies the storage subsystem worldwide identifier (ID)

PROFILE FOR STORAGE SUBSYSTEM: DS5K (2/26/09 6:16:43 PM)

SUMMARY------------------------------

Number of controllers: 2

High performance tier controllers: Enabled

RAID 6: Enabled

... ... ...

Number of drives: 2 Mixed drive types: Enabled Current drive type(s): Fibre/Full Disk Encryption(FDE) (2) Total hot spare drives: 0

Standby: 0 In use: 0

Drive Security: Enabled Security key identifier: 27000000600A0B80004777A40000717049A6B239

... ... ... ...

Current configuration

Firmware version: 07.50.04.00 NVSRAM version: N1818D53R1050V07 EMW version: 10.50.G5.09 AMW version: 10.50.G5.09

Pending configuration Staged firmware download supported: Yes

Firmware version: None NVSRAM version: None Transferred on: None

Controller enclosure audible alarm: Disabled

NVSRAM configured for batteries: Yes

Start cache flushing at (in percentage): 80 Stop cache flushing at (in percentage): 80 Cache block size (in KB): 8

Media scan frequency (in days): 30

Failover alert delay (in minutes): 5

Feature enable identifier: 39313435332039313535362049A6AFD8

Feature pack: DS5300 Feature pack submodel ID: 93

Storage subsystem world-wide identifier (ID): 600A0B80004776C20000000049A6BD08

v SAFE premium feature identifier (SAFE ID) and premium feature enable status:

Chapter 4. Upgrading a storage subsystem controller 45

The new storage subsystem retains the SAFE ID of the original storage subsystem. It also retains all of the features that were previously enabled on the original storage subsystem. However, the features are set to Out of Compliance state. As a result, the system sends alert notices and establishes a Needs Attention condition. Also, any features that are marked in the NVSRAM for automatic enablement in the new controller are enabled, although their feature states are also set to Out of Compliance state. You must re-enable the premium features with the premium feature SAFE key files. Also, to generate new SAFE keys, go to https://www-912.ibm.com/PremiumFeatures/jsp/keyPrereq.jsp.

Because IBM assigns premium feature entitlements only to specific storage subsystems, you must purchase the applicable entitlements for the new storage subsystem to enable all of the premium features that were previously enabled on the original storage subsystem. This SAFE ID is shown in the storage subsystem profile as a feature enable identifier. See Table 10 on page 45.

Storage subsystem behavior when turning on the power with no drives attached

The storage subsystem controllers use the metadata (DACstor) that is stored on the hard disk drives to synchronize. When the controllers are started with no hard disk drives attached, they are in a split brain condition. The storage subsystem is shown on the Enterprise Management window as a single entity. However, the controller firmware cannot be upgraded when the controller boots with no hard disk drives. To upgrade the controller, obtain two new hard disk drives to bring the storage subsystems into Optimal state with hard disk drives attached (you do not need to upgrade the controller firmware in all cases).

Performing an upgrade

To upgrade a storage subsystem in a configuration, complete the following steps.

Note:

1. Ensure that the data in the existing configuration is backed up in a secure place

before you start the upgrade procedure.

2. For more information about performing an upgrade, see “Upgrade

considerations” on page 41.

1. Planning the upgrade.

To plan the upgrade, complete the following steps: a. See “Supported upgrades” on page 43 to determine whether the new

storage subsystem controller is a supported replacement for the original storage subsystem controller. However, you must submit a request for price quote (RPQ) if the new storage subsystem controller model is not a supported replacement.

b. Purchase the premium feature entitlements that are enabled in the original

storage subsystem for the new storage subsystem, if that premium feature is not standard in the new storage subsystem.

c. Purchase the host attachment entitlement kits for the new storage

subsystem.

d. Purchase additional storage enclosures, if the original storage subsystem

integrates the drives and controllers and the new storage subsystem model contains the controllers only.

e. Lay out the storage enclosure cabling to the new storage subsystem, if the

cabling is different from that of the original storage subsystem. See the

46 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Installation, User's and Maintenance Guide for your storage subsystem for information about the storage enclosure cabling rules.

f. Purchase any additional hardware that is required to cable the existing

storage enclosures to the new storage subsystem by using the storage enclosure cabling layout as a guide.

g. Ensure that the original subsystem is in Optimal state. For more

information, see “Bringing storage subsystems and drive loops into optimal state” on page 11 and the Recovery Guru in the DS Storage Manager Subsystem Management window.

h. Perform a full backup of the original storage subsystem and schedule it for

downtime.

i. Retrieve the proofs of purchase for both the original and new storage

subsystems and for any additional premium feature entitlements on the new and original storage subsystems.

j. If there are any switch zoning definitions or applications that rely on the

storage subsystem worldwide names, plan to update them to use the new storage subsystem worldwide names after the migration to the new storage subsystem is complete.

2. Preparing the new storage subsystem.

To prepare the new storage subsystem for the upgrade, complete the following steps:

a. Unpack the new storage subsystem and install it in a rack. Do not connect it

to the storage enclosures that are attached to the original storage subsystem.

b. Connect the new storage subsystem to the systems-management network by

using the default IP addresses of the controllers, and record the version of the controller firmware on the new storage subsystem.

The default TCP/IP address of controller A Ethernet port 1 is

192.168.128.101 and the default TCP/IP address of controller A Ethernet port 2 is 192.168.129.101. The default TCP/IP address of controller B Ethernet port 1 is 192.168.128.102 and the default TCP/IP address of controller B Ethernet port 2 is 192.168.129.102.

3. Preparing the original storage subsystem.

To prepare the original storage subsystem for the upgrade, complete the following steps:

a. If any long-running tasks are processing in the original storage subsystem,

ensure that they complete processing. Examples of long-running tasks are: v Dynamic logical drive capacity expansion

– Dynamic logical drive expansion (DVE) – Dynamic capacity expansion (DCE)

v Logical drive segment size modification v Array RAID-level modification v User-initiated array redundancy checking (on the Storage Subsystem

Management window, click Array -> Check Redundancy)

v Remote mirror logical drive synchronization FlashCopy image or

VolumeCopy image logical drive creation

v Logical drive reconstruction or copyback

b. Save the storage subsystem profile in a safe location and not on the logical

drives that are mapped from the original storage subsystem.

c. Record the version of the controller firmware that is on the storage

subsystem.

Chapter 4. Upgrading a storage subsystem controller 47

d. Collect all support data of the original storage subsystem. e. In the host servers, stop all programs, services, and processes that access the

logical drives that are defined in the migrated hard disk drives. Also, ensure that no programs, services, or processes that write data to the logical drives are running in the background.

f. Unmount the file systems to flush I/O from the server cache to disks.

Note:

1) If you are using a Windows operating system, remove the drive letter or

the mount points of the drive-to-LUN map definitions, instead of unmounting the file systems.

2) See your operating-system documentation for information about the file

system unmount procedure.

g. If the original subsystem contains FDE drives that were configured as part

of a secured array, save the storage subsystem security (lock) key to unlock the drives. Without this key, the controllers cannot unlock the security-enabled FDE drives. Save the key in a safe location and not on the logical drives that are mapped from the original storage subsystem. Use the Validate Security key menu function in the storage manager subsystem to validate the saved security key file and associated pass-phrase. The storage subsystem security (lock) key must be saved with both local or external FDE key management policies.

h. Perform an incremental backup of the data that was changed since the full

backup that you performed in step 1h on page 47.

i. Ensure that the environmental service modules (ESMs) and hard disk drives

in the original storage subsystem are updated to the latest firmware version. To download the latest firmware version, go to http://www.ibm.com/ systems/support/storage/disk/.

4. Upgrading the controller firmware.

To upgrade the controller firmware, complete the following steps: a. Use the following flowcharts to determine the firmware version that is

required in the new storage subsystem. To download the latest firmware level, go to http://www.ibm.com/systems/support/storage/disk/.

Note: The controller firmware is normally listed as either xx.yy.zz.aa or xxyyzzaa, where xx.yy or xxyy is the controller firmware version used for

compatibility checking. If the first x is 0, it might not be identified. For example, 08.20.09.00 is the same as 08.20.09.00. The firmware version that is used for compatibility checking in this example is 8.20.

48 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Yes

Finish

dg1dr004

Yes

Start

Is the version of

controller firmware

in the subsystemoriginal

less than or equal to

the version of

controller firmware

in new

subsystem?

Upgrade the controller

firmware in the new

subsystem to the same or

later version than the

controller firmware in the

throughoriginal subsystem

the Storage Manager

Client GUI after first

configuring it with

two new drives.

Upgrade both the and theoriginal

new DS3500, DCS3700, DCS3860,

DCS3700 with Gen2 controllers, DCS3860 with Gen2 controllers,

or the DCS3700 Performance Module

Controllers subsystem to the

same version of the 8.2x controller

firmware before the head-wap.

You might need toNote:

purchase two extra drives

to upgrade the new

storage subsystem.

8.2x

the version of the controller firmware on the

or theoriginal new

DS3500, DCS3700, DCS3860,

DCS3700 with Gen2 controllers,

DCS3860 with Gen2 controllers

or the DCS3700 Performance

Module Controllers

subsystem?

Figure 9. Firmware compatibility flowchart for a storage subsystem upgrade

b. If you configured the new storage subsystem with at least two new drives

to get the storage subsystem into Optimal state for updating the controller firmware, perform one of the following tasks:

v Leave the new storage subsystem configuration as is. Perform steps 4c-4g,

5a or 5b, and 5c-5e to prepare the original subsystem configuration for drive and drive enclosure migration and to turn off power of the original storage subsystem. Use the procedure in Chapter 3, “Adding or migrating storage enclosures,” on page 25 to migrate the drives and storage enclosures in the original storage subsystem into the new storage subsystem configuration. After you migrate all of the drives and storage

Chapter 4. Upgrading a storage subsystem controller 49

expansion enclosures to the new storage subsystem configuration, perform the appropriate steps in step 6 on page 51 to prepare the new storage subsystem for use.

v Turn off the power to the new storage subsystem controller and remove

the two drives (along with the additional storage enclosure, if attached). Continue with step 4c to replace the controller in the original storage subsystem with the new controller.

c. Save the full configuration of the original storage subsystem into an SMcli

script file. Be sure to select the check boxes for storage subsystem settings, logical drive configurations, logical drive-to-LUN map definitions, and topology before you proceed with the configuration save. Ensure that the location that you are saving to is not any of the logical drives that are mapped from the original storage subsystem.

d. Delete any FlashCopy images of the logical drives. e. Delete any VolumeCopy logical drive pairs. f. Delete any remote mirror relationships. g. Delete any hosttoLUN mapping definitions in the original storage

subsystem.

5. Switching from the original to the new storage subsystem.

To switch from the original to the new storage subsystem, complete the following steps:

a. Perform one of the following tasks to export arrays, depending on the

availability of hot-spare drives and unconfigured drives in the storage subsystem:

v If hot-spare drives or unconfigured hard disk drives are installed in the

original storage subsystem, export all of the defined arrays.

v If no hot-spare drives or unconfigured hard disk drives are installed in

the original storage subsystem, keep one array on the original storage subsystem and export all the other arrays. One array must be in Optimal state for the storage subsystem to be up and running.

Note: An error occurs if you try to export the last defined array in a storage subsystem configuration and no hot-spare drives or unconfigured drives are installed.

To export an array by using the Storage Subsystem Management window, right-click the name of the array and click Advanced -> Maintenance -> Export Array, and follow the instructions in the pop-up window. You can also use the Start Array array name Export command in the IBM Storage Manager Client script window. The DS3000 storage subsystem supports these array functions though the SMcli interface. See the Storage Manager online help for the SMcli command syntax.

b. Turn off the power to the original controller first; then, turn off the power to

the storage enclosures. This is the best practice power-off sequence. See the documentation that comes with the storage subsystem for details on the power-off sequence.

Note: The storage subsystem controller must be powered off before the storage enclosure.

c. Label all the cables that are connected to the original storage subsystem

enclosure.

d. Wait until the LEDs on the storage subsystem chassis are off; then,

disconnect all cables from the storage subsystem chassis.

50 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

e. Remove the original storage subsystem enclosure from the rack. f. Install the new storage subsystem enclosure in the rack, if you did not do so

in step 2a on page 47.

Note: See the documentation that comes with the storage subsystem for rack installation instructions.

g. If the original storage subsystem is an integrated drive and controller model

and the new storage subsystem model contains the controllers only, install any additional storage enclosures in the new storage subsystem and move the drives from the original storage subsystem to the storage enclosure.

Note: If there are enough empty drive bays in the existing storage enclosures, you can move the drives in the original integrated drive-controller enclosure to the empty drive bays.

h. Insert the SFPs into the new storage subsystem drive loop/channel port

bays, and cable the storage enclosures to the new storage subsystem, using the cabling layout that you defined in step 1e on page 46.

Note: The IBM service technician who performs the upgrade does not recable the storage enclosures to meet the storage subsystem cabling requirement or run new host connections. This is the responsibility of the customer. The IBM service technician makes only host and drive channel connections to the storage subsystem.

i. Insert the SFPs into the new storage subsystem host port bays, and cable the

host interface ports and the storage subsystem management ports of the new storage subsystem enclosure.

j. Ensure that all of the storage enclosures are set to the same speed for each

drive channel/loop.

6. Preparing the new storage subsystem for use.

To prepare the new storage subsystem for use, complete the following steps: a. If the controller TCP/IP addresses are assigned by using DHCP, update the

DHCP records with the new controller Ethernet port MAC addresses.

Note: The controllers first check for a DHCP server during the boot process. If the controllers do not detect a DHCP server, they use either the static IP address (if defined) or the default IP addresses. For more information about changing the controller IP addresses, see the IBM System Storage DS Storage Manager Installation and Support Guide. For updated documentation, go to http://www.ibm.com/systems/support/storage/disk/.

b. If necessary, turn off the power to the storage enclosures. Do not turn off

the power to the new storage subsystem controller. Check the storage enclosure LEDs to ensure that the storage enclosures are connected properly.

c. Turn off the power to the new storage subsystem controller.

Note: If the TCP/IP addresses of the Ethernet management ports are statically defined for the original storage subsystem controllers, the TCP/IP addresses are used for the same Ethernet management ports in the new controllers. However, if all of the drives in the original storage subsystem are secured FDE drives, the controllers are not able to read the configuration data in the hard disk drives until they are unlocked. The statically defined TCP/IP addresses that are stored in the hard disk drives are not available until they are unlocked.

Chapter 4. Upgrading a storage subsystem controller 51

d. Connect the new storage subsystem to the IBM DS Storage Manager Client

either through the out-of-band method by using the applicable TCP/IP addresses of the controller Ethernet management ports, or through the in-band method through Fibre Channel connections.

Note: The new storage subsystem identifies itself as the machine type that it replaced until you download the applicable NVSRAM firmware for the new storage subsystem.

e. If there are FDE drives that were configured as part of a secured array, use

the security key backup file to unlock the secured (locked) FDE drives.

Note: If all of the drives in the original storage subsystem are security enabled FDE drives (FDE drives that were defined as part of secured arrays), both controllers are booted to No Drives Found state. This is because the controllers cannot unlock the drives without the applicable security key. When the security enabled FDE drives are unlocked, both controllers are rebooted so that the controllers can read the configuration data that is stored in the drives.

If all the FDE drives are from storage subsystems that operate in external license key management mode, use the security key file you saved (see step 3g on page 48) to unlock the secured FDE drives.

f. Ensure that the new storage subsystem configuration is in Optimal state and

that all of the drives are identified. Use the Recovery Guru in the DS Storage Manager Client Subsystem Management window to resolve any Needs Attention conditions.

g. Update the controller firmware of the new storage subsystem to the latest

available version, if required.

h. Download the applicable NVSRAM firmware for the new storage

subsystem.

i. Ensure that all of the arrays are online and in Optimal state. j. If there are any ghost hard disk drives or hard disk drives that are indicated

as incompatible, or if any of the following conditions persist, contact IBM support for assistance:

v The Empty Drive Bay icon ( ) is displayed for the drive bay into which

you inserted the migrating drive.

v The Failed Unconfigured Drive icon ( ) or the Failed Configured

Drive icon ( ) is displayed for the drive bay into which you inserted

the migrating drive.

v Array configuration data on the drives that you added is incomplete. v You cannot import the array.

k. Use the Enable Identifier storage subsystem premium feature to generate

and apply premium feature keys to remove Out of Compliance errors on enabled premium features from the original storage subsystem. See the instructions that come with the Enable Identifier premium feature for information about generating the premium feature keys.

l. Extract the applicable SMCli commands in the configuration script file that

you saved in step 4c on page 50 to re-create the FlashCopy images, VolumeCopy images, remote mirror relationships, and host-to-LUNs map definitions, as required.

52 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

m. Ensure that each enclosure ID in each drive loop/channel contains a

unique first-position digit (x1). In addition, if the storage enclosures are recabled behind the new storage subsystem controller, modify the second-position digit (x10) so that it is the same in all IDs for all the storage enclosures in a drive channel/loop.

If you are using the external key management method to manage the key for the FDE drives, convert the key management method from local to external management. For more information, see the IBM System Storage DS

Storage Manager Version 11.2 Installation and Host Support Guide

n. Update the switch zoning definitions and any applications that rely on the

storage subsystem worldwide names to use the new storage subsystem worldwide names.

7. Redeploying the original storage subsystem controller.

You can redeploy the original storage subsystem if it is used in a configuration in which all of the installed hard disk drives are new. For more information, see “Redeploying the original storage subsystem.”

Redeploying the original storage subsystem

The following notes describe information that you must consider before you redeploy the original storage subsystem.

Redeployment limitations

Controller replacement of a partial set of the storage enclosures, hard disk drives, or both that were part of a working configuration is not supported. In addition, you can redeploy the original storage subsystem controller only if new hard disk drives are used in the redeployed subsystem. This is a requirement regardless of whether the original storage subsystem is redeployed in the same Ethernet network.

A hard disk drive is new if it is not used in any storage subsystem configuration. A hard disk drive that is inserted in a hard disk drive bay of an operational configuration, even if it is not configured as part of any array, is a used hard disk drive. When you redeploy by using new hard disk drives, a new storage array identifier (SA ID or storage subsystem worldwide name) is generated, which allows the management of the redeployed original and the new storage subsystem in the same Ethernet network.

In rare circumstances, the newly generated storage array identifier of the redeployed original storage subsystem is the same as the storage array identifier that was adopted in the new storage subsystem from the migrated hard disk drives. When this happens, the DS Storage Manager Client program cannot manage the redeployed original and new storage subsystem. Also, DS Storage Manager Client program version 10.50 or later identifies both of these subsystems as one managed entry in the Enterprise Management window. To verify this condition, complete the following steps:

1. Exit from the DS Storage Manager Client program.

2. Turn off the power to either the redeployed original or the new storage

subsystem.

3. Restart the DS Storage Manager Client program and retrieve the storage

subsystem worldwide name from the storage subsystem profile. See Table 10 on page 45.

Chapter 4. Upgrading a storage subsystem controller 53

4. Repeat steps 1 on page 53 through 3 on page 53 with the other storage

subsystem turned on only to determine the storage subsystem worldwide name.

5. If the storage subsystem worldwide names are the same for both the

redeployed original storage subsystem and the new storage subsystem, contact IBM support for help.

Configuration behavior in a redeployed storage subsystem

The following notes describe the identifier and premium feature behavior in a redeployed storage subsystem.

Important: IBM support is available to assist if you plan to redeploy a replaced storage subsystem. For more information, see “Getting information, help, and service,” on page 57.

v Worldwide name (WWN):

The worldwide names that the original storage subsystem uses are retained on the redeployed system. So, the association between any hosts and the storage subsystem is lost.

v Storage array identifier or SA identifier:

Attention: IBM does not support migrating a subset of hard disk drives in an existing configuration to a new configuration with a new storage subsystem while the remaining hard disk drives are installed in an existing storage subsystem configuration.

If both the new and redeployed storage subsystem have the same SA identifier, serious problems result when you start the DS Storage Manager SMclient program. The storage subsystem that the DS Storage Manager SMclient program arbitrarily selects is manageable, and the other storage subsystem is unmanageable. Contact IBM resellers or IBM support if the new and redeployed storage subsystems have the same SA identifier.

v SAFE premium feature identifier (SAFE ID):

The original storage subsystem generates a new SAFE ID when it is redeployed, enabling none of the premium features from the original system. This new SAFE ID prevents the system from using any premium feature key files that were previously acquired and re-enabling any premium features. In cases in which the original storage subsystem contained preinstalled NVSRAM codes to enable certain premium features, NVSRAM codes are cleared from the storage subsystem when the storage subsystem is redeployed and turned on for the first time. Therefore, premium features that were enabled as standard features do not reactivate on the redeployed system. The system retains full data availability, but you must generate new premium feature keys to re-enable premium features. Ensure to have the necessary proof of purchase. To regenerate the new premium feature keys, ensure that you have the machine type, model, and serial number that you previously used to generate the premium feature on the original storage subsystem. Then, go to http://www-912.ibm.com/PremiumFeatures/, select the option to reactivate the premium feature, and follow the instructions on the website. Do not select the 'activating premium features' option to regenerate premium feature keys for the original subsystems. You can also generate new premium feature keys by contacting your IBM representatives or resellers.

v Controller IP addresses:

54 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

the same IP addresses as the original storage subsystem controllers, the two devices have duplicate IP address in the Ethernet network because the original controller uses the static IP addresses from the NVSRAM when it is redeployed. Best practice is to assign new unique IP addresses to replacement storage subsystem controllers.

Chapter 4. Upgrading a storage subsystem controller 55

56 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Appendix. Getting information, help, and service

If you need help, service, or technical assistance or want more information about IBM products, you will find a wide variety of sources available from IBM to assist you. This section contains information about where to go for additional information about IBM and IBM products, what to do if you experience a problem with your system, and whom to call for service, if it is necessary.

Before you call

Before you call, ensure that you take these steps to try to solve the problem yourself:

v Check all cables to ensure that they are connected. v Check the power switches to ensure that the system and any optional devices

are turned on.

v Use the troubleshooting information in your system documentation, and use the

diagnostic tools that come with your system. Information about diagnostic tools is in the Problem Determination and Service Guide for your storage subsystem.

v See “Getting help and information from the World Wide Web” on page 58 to

access the IBM support websites you can use to check for technical information, hints, tips, and new device drivers.

You can solve many problems without outside assistance by following the troubleshooting procedures that IBM provides in the DS Storage Manager online help or in the documents that are provided with your system and software. The information that comes with your system also describes the diagnostic tests that you can perform. Most subsystems, operating systems, and programs come with information that contains troubleshooting procedures and explanations of error messages and error codes. If you suspect a software problem, see the information for the operating system or program.

Using the documentation

Information about your IBM system and preinstalled software, if any, is available in the documents that come with your system. This includes printed books, online documents, readme files, and help files. See the troubleshooting information in your system documentation for instructions for using the diagnostic programs. The troubleshooting information or diagnostic programs might contain indications that you will need additional or updated device drivers, or other software.

Finding Storage Manager software, controller firmware, and readme files

DS Storage Manager software and controller firmware are available on the product DVD and can also be downloaded from the Web.

Important: Before you install DS Storage Manager software, consult the readme file. Updated readme files contain the latest device driver versions, firmware levels, limitations, and other information not found in this document.

1. Go to https://www-947.ibm.com/support/entry/portal/hardware/

system_storage/disk_systems.

2. Click the link for your storage subsystem.

3. In the Downloads page, click the Download tab, and then click Storage

Manager, firmware, HBA, tools, support, and pubs (including readme files). The Downloads page for the subsystem opens.

4. For Storage Manager software, click the Storage Mgr tab.

5. For the readme file, in the “Current version and readme files” column on the

Storage Mgr page, click the readme file link for your host operating system. For controller firmware, click the Firmware tab.

Getting help and information from the World Wide Web

On the World Wide Web, the IBM support websites have up-to-date information about storage subsystems and DS Storage Manager software, including documentation and the most recent software, firmware, and NVSRAM downloads.

IBM System Storage Disk Storage Systems

Go to http://www.ibm.com/systems/support/storage/disk/ for links to software and firmware downloads, readme files, and support pages for all IBM System Storage disk storage systems.

IBM System Storage Interoperation Center (SSIC)

Go to http://www.ibm.com/systems/support/storage/config/ssic/ index.jsp for technical support information, including the latest firmware levels.

IBM System Storage Productivity Center

For the latest documentation that supports the IBM System Storage Productivity Center, a new system that is designed to provide a central management console for IBM System Storage DS4000®, DS5000™, DS8000®, and SAN Volume Controller, go to http://publib.boulder.ibm.com/ infocenter/tivihelp/v4r1/index.jsp.

IBM System Storage

Go to http://www.ibm.com/systems/support/storage/disk/ for the latest support information for host operating systems, HBAs, clustering, storage area networks (SANs), DS Storage Manager software and controller firmware.

Storage Area Network (SAN) Support

For information about using SAN switches, including links to SAN user guides and other documents, go to http://www.ibm.com/systems/ support/storage/san.

Fix Central

Go to http://www.ibm.com/eserver/support/fixes for fixes and updates for software, hardware, and host operating systems.

IBM System Storage products

Go to http://www.storage.ibm.com for information about all IBM System Storage products.

IBM Publications Center

For IBM publications, go to http://www.ibm.com/shop/publications/ order/.

58 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Software service and support

f2 c007 90

Through the IBM Support Line, you can get telephone assistance with usage, configuration, and software problems, for a fee. For information about which products are supported by Support Line in your country or region, go to http://www.ibm.com/services/sl/products.

For more information about Support Line and other IBM services, see http://www.ibm.com/services/, or see http://www.ibm.com/planetwide/ for support telephone numbers. In the U.S. and Canada, call 1-800-IBM-SERV (1-800-426-7378).

Hardware service and support

You can receive hardware service through your IBM reseller or IBM Services. To locate a reseller authorized by IBM to provide warranty service, go to http://www.ibm.com/partnerworld/ and click Find Business Partners on the right side of the page. For IBM support telephone numbers, see http://www.ibm.com/planetwide/. In the US and Canada, call 1-800-IBM-SERV (1-800-426-7378).

In the US and Canada, hardware service and support is available 24 hours a day, 7 days a week. In the U.K., these services are available Monday through Friday, from 9 a.m. to 6 p.m.

Taiwan Contact Information

This topic contains the product service contact information for Taiwan.

IBM Taiwan Product Service Contact Information: IBM Taiwan Corporation 3F, No 7, Song Ren Rd., Taipei Taiwan Tel: 0800-016-888

Fire suppression systems

A fire suppression system is the responsibility of the customer. The customer's own insurance underwriter, local fire marshal, or a local building inspector, or all, should be consulted in selecting a fire suppression system that provides the correct level of coverage and protection. IBM designs and manufactures equipment to internal and external standards that require certain environments for reliable operation. Because IBM does not test any equipment for compatibility with fire suppression systems, IBM does not make compatibility claims of any kind nor does IBM provide recommendations on fire suppression systems.

Appendix. Getting information, help, and service 59

60 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Notices

This information was developed for products and services offered in the U.S.A.

IBM may not offer the products, services, or features discussed in this document in other countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any non-IBM product, program, or service.

IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not grant you any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing IBM Corporation North Castle Drive Armonk, NY 10504-1785 U.S.A.

For license inquiries regarding double-byte character set (DBCS) information, contact the IBM Intellectual Property Department in your country or send inquiries, in writing, to:

Intellectual Property Licensing Legal and Intellectual Property Law IBM Japan Ltd. 1623-14, Shimotsuruma, Yamato-shi Kanagawa 242-8502 Japan

The following paragraph does not apply to the United Kingdom or any other country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

Any references in this information to non-IBM websites are provided for convenience only and do not in any manner serve as an endorsement of those websites. The materials at those websites are not part of the materials for this IBM product and use of those websites is at your own risk.

IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.

Licensees of this program who wish to have information about it for the purpose of enabling: (i) the exchange of information between independently created programs and other programs (including this one) and (ii) the mutual use of the information which has been exchanged, should contact:

IBM Corporation Almaden Research 650 Harry Road Bldg 80, D3-304, Department 277 San Jose, CA 95120-6099 U.S.A.

Such information may be available, subject to appropriate terms and conditions, including in some cases, payment of a fee.

The licensed program described in this document and all licensed material available for it are provided by IBM under terms of the IBM Customer Agreement, IBM International Program License Agreement or any equivalent agreement between us.

Any performance data contained herein was determined in a controlled environment. Therefore, the results obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.

Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products.

All statements regarding IBM's future direction or intent are subject to change or withdrawal without notice, and represent goals and objectives only.

All IBM prices shown are IBM's suggested retail prices, are current and are subject to change without notice. Dealer prices may vary.

This information is for planning purposes only. The information herein is subject to change before the products described become available.

This information contains examples of data and reports used in daily business operations. To illustrate them as completely as possible, the examples include the names of individuals, companies, brands, and products. All of these names are fictitious and any similarity to the names and addresses used by an actual business enterprise is entirely coincidental.

62 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Trademarks

This information contains sample application programs in source language, which illustrate programming techniques on various operating platforms. You may copy, modify, and distribute these sample programs in any form without payment to IBM, for the purposes of developing, using, marketing or distributing application programs conforming to the application programming interface for the operating platform for which the sample programs are written. These examples have not been thoroughly tested under all conditions. IBM, therefore, cannot guarantee or imply reliability, serviceability, or function of these programs. The sample programs are provided "AS IS", without warranty of any kind. IBM shall not be liable for any damages arising out of your use of the sample programs.

Each copy or any portion of these sample programs or any derivative work, must include a copyright notice as follows:

If you are viewing this information softcopy, the photographs and color illustrations may not appear.

IBM, the IBM logo, and ibm.com®are trademarks or registered trademarks of International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the web at Copyright and trademark information at www.ibm.com/legal/copytrade.shtml.

Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries.

IT Infrastructure Library is a registered trademark of the Central Computer and Telecommunications Agency which is now part of the Office of Government Commerce.

Intel, Intel logo, Intel Inside, Intel Inside logo, Intel Centrino, Intel Centrino logo, Celeron, Intel Xeon, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both.

Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the United States, other countries, or both.

ITIL is a registered trademark, and a registered community trademark of The Minister for the Cabinet Office, and is registered in the U.S. Patent and Trademark Office.

UNIX is a registered trademark of The Open Group in the United States and other countries.

Notices 63

Important notes

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle and/or its affiliates.

Cell Broadband Engine is a trademark of Sony Computer Entertainment, Inc. in the United States, other countries, or both and is used under license therefrom.

Linear Tape-Open, LTO, the LTO Logo, Ultrium, and the Ultrium logo are trademarks of HP, IBM Corp. and Quantum in the U.S. and other countries.

Processor speed indicates the internal clock speed of the microprocessor; other factors also affect application performance.

CD or DVD drive speed is the variable read rate. Actual speeds vary and are often less than the possible maximum.

When referring to processor storage, real and virtual storage, or channel volume, KB stands for 1024 bytes, MB stands for 1 048 576 bytes, and GB stands for 1 073 741 824 bytes.

When referring to hard disk drive capacity or communications volume, MB stands for 1 000 000 bytes, and GB stands for 1 000 000 000 bytes. Total user-accessible capacity can vary depending on operating environments.

Maximum internal hard disk drive capacities assume the replacement of any standard hard disk drives and population of all hard disk drive bays with the largest currently supported drives that are available from IBM.

Maximum memory might require replacement of the standard memory with an optional memory module.

IBM makes no representation or warranties regarding non-IBM products and services that are ServerProven, including but not limited to the implied warranties of merchantability and fitness for a particular purpose. These products are offered and warranted solely by third parties.

IBM makes no representations or warranties with respect to non-IBM products. Support (if any) for the non-IBM products is provided by the third party, not IBM.

Some software might differ from its retail version (if available) and might not include user manuals or all program functionality.

64 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Particulate contamination

Attention: Airborne particulates (including metal flakes or particles) and reactive gases acting alone or in combination with other environmental factors such as humidity or temperature might pose a risk to the storage enclosure that is described in this document. Risks that are posed by the presence of excessive particulate levels or concentrations of harmful gases include damage that might cause the storage enclosure to malfunction or cease functioning altogether. This specification sets forth limits for particulates and gases that are intended to avoid such damage. The limits must not be viewed or used as definitive limits, because numerous other factors, such as temperature or moisture content of the air, can influence the impact of particulates or environmental corrosives and gaseous contaminant transfer. In the absence of specific limits that are set forth in this document, you must implement practices that maintain particulate and gas levels that are consistent with the protection of human health and safety. If IBM determines that the levels of particulates or gases in your environment have caused damage to the storage enclosure, IBM may condition provision of repair or replacement of storage enclosure or parts on implementation of appropriate remedial measures to mitigate such environmental contamination. Implementation of such remedial measures is a customer responsibility.

Table 11. Limits for particulates and gases

Contaminant Limits

Particulate v The room air must be continuously filtered with 40% atmospheric

Gaseous v Copper: Class G1 as per ANSI/ISA 71.04-1985

ASHRAE 52.2-2008 - Method of Testing General Ventilation Air-Cleaning Devices for Removal Efficiency by Particle Size. Atlanta: American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc.

The deliquescent relative humidity of particulate contamination is the relative humidity at which the dust absorbs enough water to become wet and promote ionic conduction.

ANSI/ISA-71.04-1985. Environmental conditions for process measurement and control systems: Airborne contaminants. Instrument Society of America, Research Triangle Park, North Carolina, U.S.A.

dust spot efficiency (MERV 9) according to ASHRAE Standard 52.21.

v Air that enters a data center must be filtered to 99.97% efficiency or

greater, using high-efficiency particulate air (HEPA) filters that meet MIL-STD-282.

v The deliquescent relative humidity of the particulate contamination

must be more than 60%2.

v The room must be free of conductive contamination such as zinc

whiskers.

v Silver: Corrosion rate of less than 300 Å in 30 days

Documentation format

The publications for this product are in Adobe Portable Document Format (PDF) and should be compliant with accessibility standards. If you experience difficulties when you use the PDF files and want to request a Web-based format or accessible PDF document for a publication, direct your mail to the following address:

Information Development IBM Corporation 205/A015 3039 E. Cornwallis Road P.O. Box 12195

Notices 65

Research Triangle Park, North Carolina 27709-2195 U.S.A.

In the request, be sure to include the publication part number and title.

When you send information to IBM, you grant IBM a nonexclusive right to use or distribute the information in any way it believes appropriate without incurring any obligation to you.

Electronic emission notices

Federal Communications Commission Statement

This explains the Federal Communications Commission's (FCC’s) statement.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, might cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors, or by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device might not cause harmful interference, and (2) this device must accept any interference received, including interference that might cause undesired operation.

Industry Canada Compliance Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conform à la norme NMB-003 du Canada.

Australia and New Zealand Class A Statement

Attention: This is a Class A product. In a domestic environment this product might cause radio interference in which case the user might be required to take adequate measures.

European Union Electromagnetic Compatibility Directive

This product is in conformity with the protection requirements of European Union (EU) Council Directive 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility. IBM cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non-IBM option cards.

66 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Attention: This is an EN 55022 Class A product. In a domestic environment this product might cause radio interference in which case the user might be required to take adequate measures.

Responsible Manufacturer:

International Business Machines Corp. New Orchard Road Armonk, New York 10504 914-499-1900

European community contact:

IBM Deutschland GmbH Technical Regulations, Department M372 IBM-Allee 1, 71139 Ehningen, Germany Tele: +49 7032 15-2941 Email: lugi@de.ibm.com

Taiwan Class A Statement

Germany Electromagnetic Compatibility Directive

Deutschsprachiger EU Hinweis: Hinweis für Geräte der Klasse A EU-Richtlinie zur Elektromagnetischen Verträglichkeit

Dieses Produkt entspricht den Schutzanforderungen der EU-Richtlinie 2004/108/EG zur Angleichung der Rechtsvorschriften über die elektromagnetische Verträglichkeit in den EU-Mitgliedsstaaten und hält die Grenzwerte der EN 55022 Klasse A ein.

Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur von der IBM empfohlene Kabel angeschlossen werden. IBM übernimmt keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das Produkt ohne Zustimmung der IBM verändert bzw. wenn Erweiterungskomponenten von Fremdherstellern ohne Empfehlung der IBM gesteckt/eingebaut werden.

EN 55022 Klasse A Geräte müssen mit folgendem Warnhinweis versehen werden:

“Warnung: Dieses ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funk-Störungen verursachen; in diesem Fall kann vom Betreiber verlangt werden, angemessene Mabnahmen zu ergreifen und dafür aufzukommen.”

Notices 67

Deutschland: Einhaltung des Gesetzes über die elektromagnetische Verträglichkeit von Geräten

Dieses Produkt entspricht dem “Gesetz über die elektromagnetische Verträglichkeit von Geräten (EMVG).” Dies ist die Umsetzung der EU-Richtlinie 2004/108/EG in der Bundesrepublik Deutschland.

Zulassungsbescheinigung laut dem Deutschen Gesetz über die elektromagnetische Verträglichkeit von Geräten (EMVG) (bzw. der EMC EG Richtlinie 2004/108/EG) für Geräte der Klasse A

Dieses Gerät ist berechtigt, in übereinstimmung mit dem Deutschen EMVG das EG-Konformitätszeichen - CE - zu führen.

Verantwortlich für die Einhaltung der EMV Vorschriften ist der Hersteller:

International Business Machines Corp. New Orchard Road Armonk,New York 10504 Tel: 914-499-1900

Der verantwortliche Ansprechpartner des Herstellers in der EU ist:

IBM Deutschland GmbH Technical Regulations, Abteilung M372 IBM-Allee 1, 71139 Ehningen, Germany Tele: +49 7032 15-2941 Email: lugi@de.ibm.com

Generelle Informationen:

Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022 Klasse A.

People's Republic of China Class A Statement

Japan Voluntary Control Council for Interference Class A Statement

This explains the Japan Voluntary Control Council for Interference (VCCI) statement.

68 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Japan Electronics and Information Technology Industries

jjieta1

jjieta2

Association Statement

This explains the Japan Electronics and Information Technology Industries Association (JEITA) statement for less than or equal to 20 A per phase.

This explains the JEITA statement for greater than 20 A per phase.

Korean Communications Commission Class A Statement

This explains the Korean Communications Commission (KCC) statement.

Notices 69

70 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

Index A

accessible documentation 65 add

new hard disk drives 13 storage enclosures 25

used hard disk drives 14 adding hard drives, considerations 25 additional storage enclosures

cabling 38

inserting drives 38 AppWare 4 array

cannot bring online 19

configuration data for drives

incomplete 19 arrays, migrating 21 attention 19, 26, 29 attention notices x

backup

logical drives 16, 28

storage subsystem data 1 BootWare 4 bottom of drive loop, connect storage

enclosures 31

cable

trace connections 29 cabling, storage enclosure 31 cannot bring array online 19 catastrophic failure 21 caution statements x change Fibre Channel speed settings 12 Class A electronic emission notice 66 configuration behavior, redeployed

storage subsystem 54 configuration data 15 considerations, upgrade 41 contamination, particulate and

gaseous 65 controller

drive loop LED 29 firmware level 2

by machine type 4 by model number 4 by NVSRAM version 4 current 4

firmware, verify level 1, 4, 16

controller firmware 4

upgrading 6

customize storage partitioning

information 16

danger statements x DCS ix documentation

websites 58 documentation format 65 documentation, using 57 drive ID and model, determining 9 drive loop

optimal state 11

speed change procedure 12 drive migration

prerequisites 1

settings

re-enable 14

drive migration enable settings

verifying 30 drive migration limitations 7 drive migration settings, verifying 17 drive/loop channel 33 drives

CRU assembly 18

do not appear marked as Failed 19

do not display 19

will not spin up 13 drives, removing 18 DS Storage Manager

publications ix DS Storage Manager publications ix DS3000 ix DS4000 ix DS4000 Storage Subsystem

firmware 4

NVSRAM 4

profile 1 DS4000 support

Web site 4 DS4300

enclosure IDs 27

Storage Subsystem firmware and

NVSRAM 4

Turbo Storage Subsystem firmware

and NVSRAM 4

DS4400 Storage Subsystem firmware and

NVSRAM 4

DS4500 Storage Subsystem firmware and

NVSRAM 4 DS5000 ix DS5000 Storage Subsystem

firmware 4 NVSRAM 4

DS5000 support

Web site 4

electronic emission Class A notice 66 electrostatic discharge (ESD) bags 19 electrostatic discharge (ESD)

procedure 13

electrostatic discharge procedure 14 Empty Drive icon 19 end of drive loop, connect storage

enclosures 31

errors

loss of ESM path redundancy 29 ESD procedures 14 ESM Fault LED 29 ESM firmware

EXP500 4

EXP700 4

upgrade during I/O 4

upgrading 6

version, current 4 event logs, interpreting 11 EXP500

ESM firmware 4

ID switch location 27, 30 EXP700

ESM firmware 4

ID switch location 27, 30 export drives 3 exporting drives 17

Failed icons 19 FAStT200

enclosure IDs 27

HA Storage Server firmware and

NVSRAM 4

Storage Subsystem firmware and

NVSRAM 4

FAStT500 RAID controller firmware and

NVSRAM 4 FCC Class A notice 66 Fibre Channel

insert drives 13, 14, 19, 27, 38

trace cable connections 29 fire suppression 59 firmware

compatibility 4

controller 4

controller and NVSRAM levels 16

controller, NVSRAM, and ESM

levels 1 current 4 ESM, version by storage enclosure 4 updates 4

firmware and NVSRAM

DS4300

Storage Subsystem 4

Turbo Storage Subsystem 4 DS4400 Storage Subsystem 4 DS4500 Storage Subsystem 4 FAStT200

HA Storage Subsystem 4

Storage Subsystem 4 FAStT500 RAID controller 4

FlashCopy

delete 16

FlashCopy (continued)

re-create 19

gaseous contamination 65 GBIC 29 gigabit interface converter 29

handling static-sensitive devices 14 hard disk drive model 8 hard disk drives

add new 13, 14 add storage enclosures containing 25 add used 14 ID/Model Number 13 migrate 15 prerequisites 1 removal 18

will not spin up 13 hard disk drives, adding 13 hard disk drives, migrating 13 hard drives

inserting 38 hardware service and support 59 help

center 11

online 21

prevent data loss 21 Host attachment 41 host group names, unique 16 host names, unique 16 host ports, unique 16

IBM 11 icon

Empty Drive 19

Failed 19

Subsystem Management window 19 ID

conflict LED 29

switch location 27 ID/model number, hard disk drive 13 identify

1 Gbps FC drives 13

firmware updates 4 impact of new storage subsystem

on identification 44

on premium features 44 import array 19 import drives 3 important notices x insert drives 38 insert Fibre Channel drives 19 intermixing storage enclosures 11

LED

controller drive loop 29

ID conflict 29

LED (continued)

port bypass 29 limitations, redeployment 53 logical drive

backup 16, 28

flashcopies, delete 16

verify name 16 Loop Initialization Primitive (LIP) 29 loss of ESM path redundancy error 29

machine type 1722

Model 60U 4

Model 60X 4

Model 6LU 4

Model 6LX 4 machine type 1740

Model 1RU 5

Model 1RX 5 machine type 1742

Model 1RU 4

Model 1RX 4

Model 90U 4

Model 90X 4 machine type 1818

Model 51A, 53A 4 machine type 3542

Model 1RU 4

Model 1RX 4

Model 2RU 4

Model 2RX 4 machine type 3552

Model 1RU 4

Model 1RX 4 machine type 3560

Model 1RU 5

Model 1RX 5 maximum

allowable drive loop pairs 4

allowable drives 4 menu option

Initialize 19

Place → Offline 16, 28

Place → Online 19 migrate hard disk drives 15 migrated drives

bezels for 26 migrating arrays 21 migration, storage firmware 42 model and product ID, determining 9 model number

DS4000 EXP500

1RU 5 1RX 5

DS4000 EXP700

1RU 5 1RX 5

DS4000 EXP710

710 5

DS4100

100 4

DS4300

60U 4 60X 4

DS4300 Single Controller

6LU 4

model number (continued)

DS4300 Single Controller (continued)

6LX 4

DS4300 Turbo

60U 4 60X 4

DS4400

1RU 4 1RX 4

DS4500

90U 4 90X 4

DS4800

80x 4 82x 4 84x 4 88x 4

DS5000

51A 4 53A 4

FAStT200

1RU 4 1RX 4 2RU 4 2RX 4

FAStT500

1RU 4 1RX 4

My Support ix

new enclosures, cabling 31 new storage subsystem impact 44 notes x notes, important 64 notices 61

electronic emission 66

FCC, Class A 66 notices and statements x NVSRAM

DS4000 Storage Subsystem 4

verify level 1, 4

version, by controller firmware

level 4

NVSRAM and controller firmware

DS4300

Storage Subsystem 4

Turbo Storage Subsystem 4 DS4400 Storage Subsystem 4 DS4500 Storage Subsystem 4 FAStT200

HA Storage Subsystem 4

Storage Subsystem 4 FAStT500 RAID controller 4

offline state 19, 28 online help 21 online state 19 optimal state 16, 19, 26, 28, 29 orientation

hard disk drives 19

72 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

particulate contamination 65 Physical View pane 6 place drive online 38 port bypass LED 29 premium feature

impact of new storage subsystem

on 44 premium feature entitlements 41 prerequisites

adding capacity 1 drive migration 1

prevent

shock 19, 29

procedure

add new hard disk drives 13 add storage enclosures 25 electrostatic discharge (ESD) 13 migrate hard disk drives 15 save a module profile report 21

save a storage subsystem profile 21 product ID and model, determining 9 profile

DS4000 Storage Subsystem 21

DS5000 Storage Subsystem 21 purchase

entitlements 4

re-enable

drive migration settings 14 Read_Link_Status

function 11 readme 57 readme file 26 redeploying 53 redistributing data 21 remote mirror

logical drive synchronization 21

relationships

remove 16

remove

drives 16, 29

hard disk drives 18

remote mirror relationships 16

storage components 13, 15, 25

storage enclosure 29 reordering data 21 restore a storage subsystem

configuration 21

SAS drive channel/loop schemes

DCS3700 33 SATA

insert drives 19 Saving a module profile report and state

capture information to help prevent

data loss 21 schedule upgrades 26 service 57 service, software 59 set storage enclosure ID 30

settings

drive migration

re-enable 14

Fibre Channel speed 12 SFP 29 shutdown

storage enclosure 12

storage server 12 small form-factor pluggable 29 speed settings

drive loop 12 state

Needs Attention 11

offline 16, 19, 28

online 19

optimal 11, 14, 16, 19, 26, 28, 29 statements and notices x static-sensitive devices, handling 14 storage

DS4000 Storage Subsystem profile 1,

DS5000 Storage Subsystem profile 21 storage enclosure operation,

verifying 31 storage enclosure speed setting 30 storage enclosure weight 29 storage enclosures

ESM firmware level 4

ID setting 27, 30 storage enclosures, intermixing 11 storage enclosures, migrating 27 Storage Manager

installation and support guide 21, 26 Storage Manager software

where to obtain 57 storage partitioning definitions, view 19 storage server

configuration migration 21

controller firmware level 4

physical configuration, alter 13, 15,

25 status 11 upgrade NVSRAM version 4

storage subsystem

identification 44 optimal state 11 preparing 1 restore configuration 21

storage subsystem behavior 46 storage subsystem profile

restore 21 save 1, 21 storage 1, 21

striping data 21 Subsystem Management window

icon 19 support notifications ix support, software 59 supported replacements 43 switches

ID 27

synchronization

remote mirror logical drive 21

technical assistance 57 trace cable connections 29 trademarks 63 troubleshooting 57 turning off

storage enclosure 12

turning on

storage enclosure 12 storage server 12

turning on, storage enclosure 31

United States electronic emission Class A

notice 66 United States FCC Class A notice 66 unmount file systems 16, 28 updates (product updates) ix upgrade 46

schedule 4, 26 storage subsystem

in configuration 41

upgrade controller enclosure, alternative

procedure 42 used hard disk drives 14

verifying

drive migration enable settings 30 verifying storage enclosure operation 31 View profile 5

Web site

DS4000 documentation ix

DS4000 support 4

DS5000 support 4 websites

list 58 weight of drive storage enclosure 29 window

Client Subsystem Management 21,

29 Read_Link_Status 11 Storage Subsystem Management 16,

19, 28, 38

Index 73

74 IBM System Storage DCS Series with Gen2 controllers Hard Disk Drive and Storage Enclosure Installation and Migration

Guide

IBM®

Printed in USA

GA32-0962-07

IBM System Storage DCS, System Storage DCS3700, System Storage DCS3860 Installation And Migration Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Figures

Tables

Introduction

Supported IBM System Storage DCS Series with Gen2 controllers

Receiving product updates and support notifications

DS Storage Subsystem installation and support guides

Notices and statements in this document

Chapter 1. Prerequisites to adding capacity and hard disk drive migration

Preparing the storage subsystem

Preparing to export and import drives

Determining the supported number of drives and drive loop pairs

Verifying controller, NVSRAM, and ESM firmware compatibility

Storage subsystem profile

Physical View pane

Upgrading ESM and controller firmware

Drive migration limitations

Verifying hard disk drive model compatibility

Viewing the product ID and model of a hard disk drive

Bringing storage subsystems and drive loops into optimal state

Intermixing storage enclosures

Chapter 2. Adding or migrating hard disk drives

Considerations

Handling static-sensitive devices

Adding new hard disk drives

Migrating hard disk drives

Step 1: Preliminary activities
