IBM Slicestor 2448 Appliance Operation Manual

Download

IBM Cloud Object Storage System

Version 3.13.1

™

Slicestor 2448 Appliance Manual

3409-S01/3401-S01/3403-S01

IBM

Note

Before using this information and the product it supports, read the following information:

v The general information in Notices v The information in Safety and environmental notices v The information in the IBM Environmental Notices and User Guide (provided on a DVD)

This edition applies to IBM Cloud Object Storage System Slicestor 2448 and is valid until replaced by new editions.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

Contents

Figures ............... v

Tables ............... vii

Document information ........ ix

Safety and environmental notices ... xi

Safety notices .............. xi

Environmental notices .......... xiv

Declared noise emissions ......... xv

Support information ........ xvii

Chapter 1. Appliance safety precautions 1

Physical ................ 1

Electrical................ 1

Electronic components ........... 2

Chapter 2. Specifications and

requirements ............ 3

Appliance specifications .......... 3

Requirements .............. 3

Chapter 3. Install the appliance into a

rack ................ 5

Prepare for installation ........... 5

Application installation ........... 6

Chapter 4. Appliance physical interface 11

Front control panel ............ 11

Rear panel............... 12

Chapter 5. Field replaceable or upgrade

units................ 15

Replacement parts ............ 15

System diagram ............. 15

Replace internal components ........ 15

Battery removal and installation ....... 20

Notices .............. 23

Trademarks .............. 25

Homologation statement .......... 25

iv IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Figures

1. Rear of appliance with card slot highlighted 3

2. Remove handles from handle carriers .... 7

3. Disconnecting the chassis slide assembly ... 8

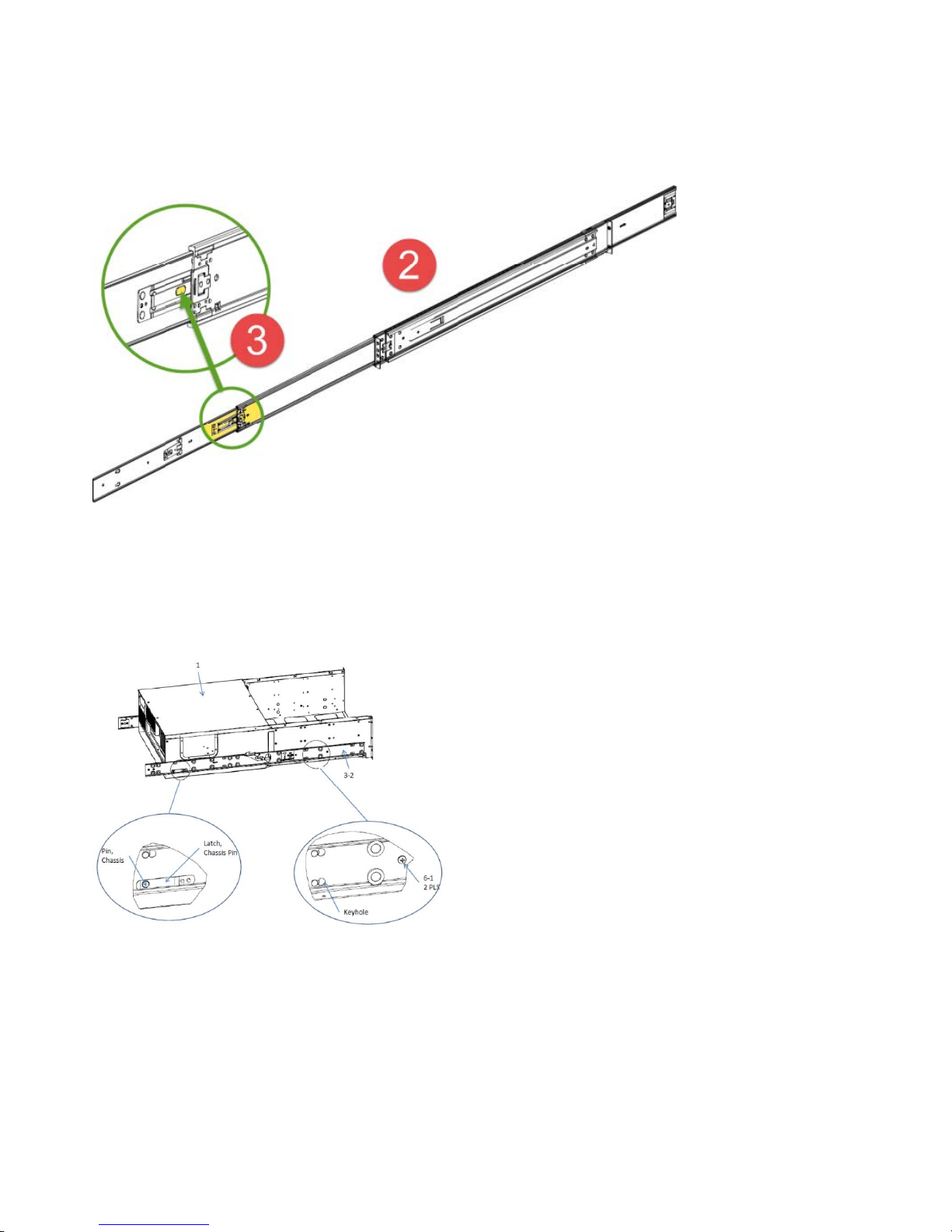

4. Install the chassis slide rails to the appliance 8

5. Attach the rack rails to the rack ...... 9

6. Unlock the rails ........... 10

7. Rear of appliance .......... 10

8. Front panel buttons and LEDs for the

appliance ............. 11

9. Rear panel I/O ports for the appliance 12

10. System diagram ........... 15

11. Removing a fan ........... 16

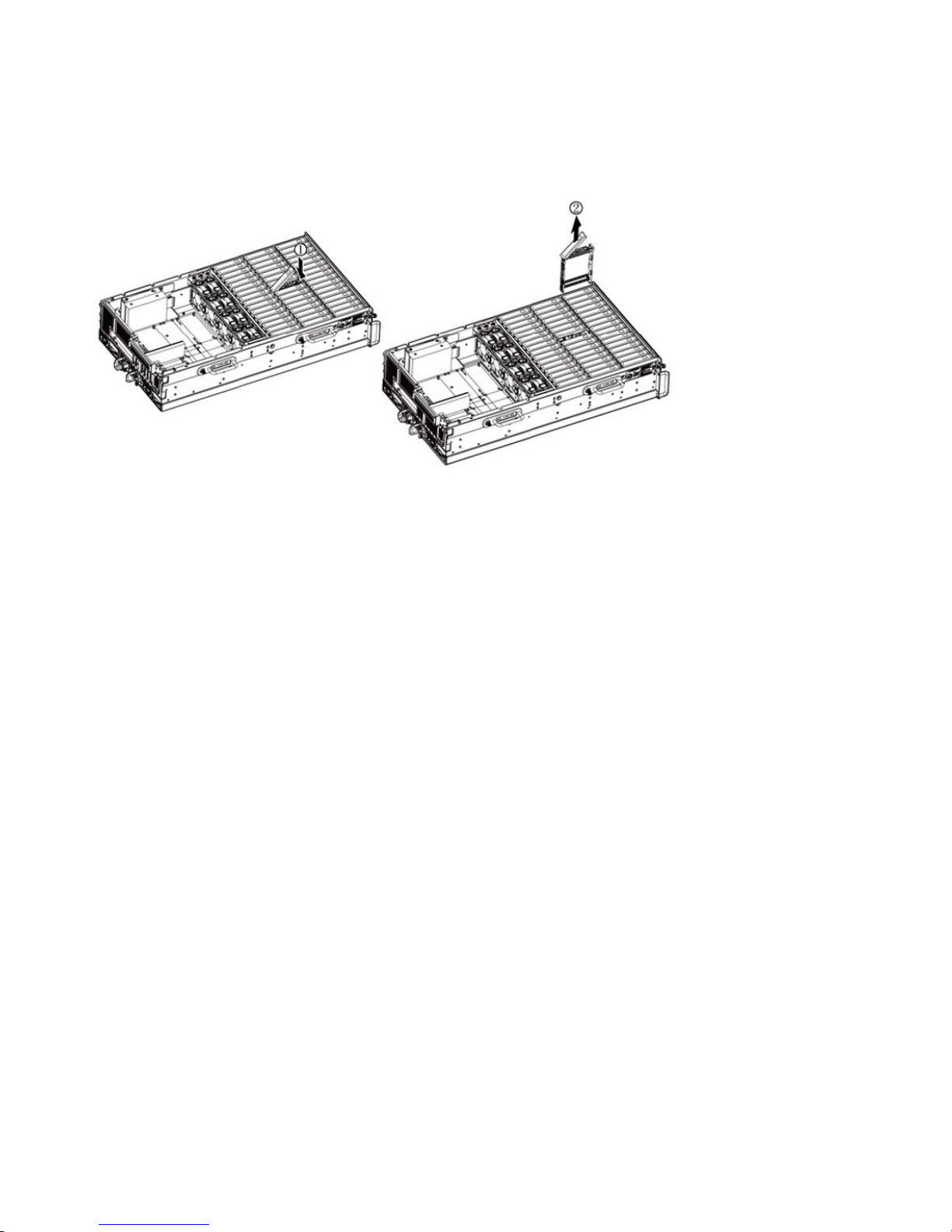

12. Removing a boot drive......... 17

13. Removing a drive tray ......... 18

14. Power supply LEDs .......... 19

15. Removing the PSU .......... 20

16. Remove the battery .......... 21

17. Install the battery .......... 21

vi IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Tables

1. Declared noise emissions in accordance with ISO 9296

2. Space and power requirements for the

appliance.............. 3

3. Operating and non-operating temperatures and

humidity for the appliance ........ 4

(1,2,3)

............ xv

4. Cabling requirements for the appliance.... 4

5. Appliance location considerations ..... 5

6. HDD activity LEDs .......... 11

7. Power supply LED meanings ...... 19

viii IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Document information

Intended purpose and audience

This manual contains the instructions for installing and maintaining this appliance. The audience for this guide consists of those individuals responsible for installing IBM Cloud Object Storage System appliances.

Note:

v The equipment and device described for installation herein are sophisticated and relatively complex to

install. The party or parties installing the equipment must be familiar with installations of computer hardware and disk drives prior to attempting this installation. Only personnel proficient in working with computer hardware and disk drives should attempt to install this appliance.

v After all appliances have been installed in the rack, refer to the Appliance Configuration Guide to

configure the appliance settings required prior to setting up the system.

v After these appliances are configured, refer to the System Manager Administration Guide for information

about how to configure, operate, and maintain your system.

v Both the Appliance Configuration Guide and the System Manager Administration Guide assume that all

necessary appliances for the system are installed in the rack.

™

x IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Safety and environmental notices

Review the safety notices, environmental notices, and electronic emission notices for IBM®Cloud Object Storage System before you install and use the product.

Suitability for telecommunication environment - This product is not intended to connect directly or indirectly by any means whatsoever to interfaces of public telecommunications networks.

Examples of a caution and a danger notice. Numbers in parentheses refer to message numbers in the IBM Safety Notices publication G229-9054, which is included with your product.

CAUTION: A caution notice indicates the presence of a hazard that has the potential of causing moderate or minor personal injury. (C001)

DANGER

A danger notice indicates the presence of a hazard that has the potential of causing death or serious personal injury. (D002)

Safety notices

Safety notices for this product.

Familiarize yourself with the IBM Safety Notices publication G229-9054, which is included with your product.

xii IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Safety and environmental notices xiii

Environmental notices

This information contains all of the environmental notices for IBM Systems products in English and other languages.

The IBM Systems Environmental Notices (http://ibm.co/1fBgWFI) information includes statements on limitations, product information, product recycling and disposal, battery information, flat panel display, refrigeration and water-cooling systems, external power supplies, and safety data sheets.

xiv IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Declared noise emissions

Table 1. Declared noise emissions in accordance with ISO 9296

Declared A-Weighted

(1,2,3)

Declared A-Weighted

Product description

Sound Power Level,

(B)

WAd

Sound Pressure Level,

(dB)

pAm

Operating Idling Operating Idling

Model S01 & S02

7.7

(4)

7.7

(4)

62 62

@ 25 deg. C room ambient Model S01 & S02

8.3

(4)

8.3

(4)

68 68

@ 35 deg. C room ambient Model S01 & S02

7.5 7.5 57 57

@ 25 deg. C room ambient

Acoustical Doors Feature codes

FC EC07 = back FC EC08 = front Model S01 & S02

7.7

(4)

7.7

(4)

62 62

@ 35 deg. C room ambient

Acoustical Doors Feature codes

FC EC07 = back FC EC08 = front Notes:

1. Declared level L

is the upper-limit A-weighted sound power level; Declared level L

WAd

is the mean

pAm

A-weighted sound pressure level measured at the 1-meter bystander positions.

2. All measurements made in conformance with ISO 7779 and declared in conformance with ISO 9296.

3. B, dB, abbreviations for bels and decibels, respectively. 1 B = 10 dB.

Note: Government regulations (such as those prescribed by OSHA or European Community Directives) may govern noise level exposure in the workplace and may apply to you and your server installation. This IBM system is available with an optional acoustical door feature that can help reduce the noise emitted from this system. The actual sound pressure levels in your installation depend upon a variety of factors, including the number of racks in the installation; the size, materials, and configuration of the room where you designate the racks to be installed; the noise levels from other equipment; the room ambient temperature, and employees' location in relation to the equipment. Further, compliance with such government regulations also depends upon a variety of additional factors, including the duration of employees' exposure and whether employees wear hearing protection. IBM recommends that you consult with qualified experts in this field to determine whether you are in compliance with the applicable regulations.

Safety and environmental notices xv

xvi IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Support information

For more information on the product or help with troubleshooting, contact IBM Support at IBMCloudStorageSupport@us.ibm.com or visit the Directory of worldwide contacts.

xviii IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Chapter 1. Appliance safety precautions

Observe physical, electrical, and electronic component safety precautions.

Physical

Ensure that your equipment rack is placed in a dust-free, well-ventilated area close to an uninterruptible power supply (UPS). Leave enough room behind and around the rack for services and sufficient airflow.

v Keep the area around the appliance clean and free of clutter. v Place the appliance top cover and any appliance components that were removed away from the

appliance or on a table so that they do not accidentally get damaged.

v While you are working on the appliance, do not wear loose clothing such as neckties and unbuttoned

shirt sleeves. They can retain a charge even if you are wearing a wrist strap, or could be pulled into a fan.

v After you access the inside of the appliance, close the appliance and secure it to the rack unit with the

retention screws after you ensure that all connections are made.

v Close the rack’s front door and all panels and components on the appliances when not servicing to

maintain proper cooling.

Electrical

Basic electrical safety precautions must be followed to protect yourself and the appliance:

v Do not work alone with high-voltage components. v Be aware of the locations of the power switch on the appliance and the room’s emergency power-off

switch, disconnection switch, or electrical outlet. If an electrical accident occurs, quickly remove power from the system.

DANGER

A danger of explosion exists if the Onboard battery is installed upside down, which reverses its polarities. This battery must be replaced only with the same or an equivalent type that is recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.

Electronic components

Electrostatic discharge (ESD) is generated by two objects with different electrical charges when they come into contact with each other. An ESD neutralizes this difference, which can damage electronic components and printed circuit boards (PCBs). In general, the following measures are sufficient to neutralize this difference before contact is made to protect equipment from ESD:

v Use a grounded wrist strap that is designed to prevent ESDs. v Keep all components in their antistatic containers until ready for installation. v Touch a grounded metal object before you remove any board from its antistatic container. v Remove any jewelry or metal objects from your body. They are excellent metal conductors that can

create short circuits and harm you if they come into contact with printed circuit boards or areas where power is present.

2 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Chapter 2. Specifications and requirements

Appliance specifications

v Single Intel Xeon E5-2637v3 processor v 8 x 16 GB PC4-17000 2133 MHz ECC Registered RAM modules v 2 OS Intel SSDSC2BB120G4 drives v Onboard IPMI v 2 Onboard 1 Gbps network ports. v 1 Onboard 1 Gbps dedicated IPMI network port. v Four dual-rotor 80 mm internal fans v 2 hot-swappable 1100 W PSUs in 1+1 configuration

Extra Networking Options

The appliance can support other networking cards to provide extra Ethernet ports. These ports are shown in the highlighted card slots on the rear of the appliance in the following figure.

Figure 1. Rear of appliance with card slot highlighted

Requirements

Physical space and power

The appliance uses 200 - 240 V power.

Table 2. Space and power requirements for the appliance

Rack

Model

S2448 4 17.3 6.9 32 160 43.8 17.6 81.5 73 850 W

Units W (in) H (in) D (in)

Weight (lbs) W (cm) H (cm) D (cm)

Weight (kg)

Power (W)

max

Environmental conditions

Table 3. Operating and non-operating temperatures and humidity for the appliance

Humidity

Environment Temperature (°C) Temperature (°F)

Operating 10–35 50–95 8–90% Non-operating -40–70 -40–158 5–95%

(non-condensing)

Cabling

Table 4. Cabling requirements for the appliance

Cable Type and Usage

Power cords Use only the power cords that are supplied with the appliance. Do not use another type

of cord. Do not use extension cords. If extra power cords are needed, contact IBM Support.

1000BASE-T Copper Cables

Optical Fiber Cables Use IBM authorized enhanced small form-factor pluggable (QSFP and SFP+) transceivers

Direct Attach Copper Cables

Use high-quality Category 5e or 5 (CAT5e, CAT5) copper cables.

only. Optical fiber cable specifications depend on the SFP+ module used. Any SFP+ passive or active direct attach copper cable compliant with the SFF-8431 v4.1

and SFF-8472 v10.4 specifications is supported.

4 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Chapter 3. Install the appliance into a rack

Many racks are on the market, which means that the assembly procedure might differ slightly. This rail fits a rack between 28.5" and 35.5" deep.

Prepare for installation

Assemble tools

A #2 Phillips screwdriver and a cage nut tool are needed to install and secure the rails to the appliance.

Wear a set of leather work gloves when racking the appliance. They help to get a grip on the appliance and avoid injury from any metal edges.

CAUTION: Do not use of any sort of hammer to secure the rails on the appliance. A hammer might damage the drives within the chassis and possibly void the warranty.

Choose a setup location

Decide on a suitable location for the rack unit that holds your appliance.

Table 5. Appliance location considerations

Factor Comments

Restricted access location Install this appliance in a physically secure, limited access location only, such as a

service closet or data center. Clean environment Situate it in a clean, well-ventilated, dust-free area. Ambient operating temperature If installed in a closed or multi-unit rack assembly, the ambient operating

temperature of the rack environment might be greater than the ambient

temperature of the room. Install the equipment in an environment compatible with

the maximum rated ambient temperature (TMRA) for the appliance. Sufficient airflow Mount the equipment into a rack so that the amount of airflow that is needed for

safe operation is not compromised. Leave enough clearance in front of the rack to

open the front door completely (36 inches). Leave about 36 inches of clearance

behind the rack for sufficient airflow and ease in servicing. Mechanical loading Mount the equipment into a rack so that a hazardous condition does not arise due

to uneven mechanical loading. Install heavier items into the bottom of the

equipment rack to keep the rack stable. Mount equipment in a rack evenly to

prevent a later hazard. Circuit overloading Consideration should be given to the connection of the equipment to the power

supply circuitry and the effect that any possible overloading of circuits might have

on overcurrent protection and power supply wiring. Appropriate consideration of

equipment nameplate ratings should be used when addressing this concern.

Note: The maximum current draw is printed on a label on the appliance power

supplies. The system can draw more than 15 Amps at startup (inrush current). Reliable ground A reliable ground must be maintained always. To ensure grounding, the rack itself

must be grounded. Particular attention should be given to power supply

connections other than the direct connections to the branch circuit, such as the use

of power distribution units.

Table 5. Appliance location considerations (continued)

Factor Comments

Power supply Use a regulating uninterruptible power supply (UPS) to protect the appliance from

power surges and voltage spikes, and to keep your system operating in a power failure.

Heat, electricity, and EMI Avoid areas where heat, electrical noise, and electromagnetic fields are generated.

Prepare the rack

1. Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full

weight of the rack resting on them.

v In single rack installations, attach stabilizers to the rack. v In multiple rack installations, couple the racks together.

2. Check that the rack is stable before extending an appliance from the rack.

3. Extend only one appliance at a time. Extending two or more simultaneously can destabilize the rack.

4. Determine the placement of each appliance in the rack before you install the rails.

5. Install the heaviest appliances (usually the Slicestor®appliances) on the bottom of the rack first, and

then work upward.

Unpack and inspect the box and its contents

1. Inspect outside of box for damage.

2. Note if the box was damaged in any way.

3. Open the top of the box and inspect for damage.

4. Remove all of the components from the packaging and inspect for damage.

5. Arrange for assistance when lifting or installing the appliance in a rack. Use a forklift or lift table to

prevent possible injury.

CAUTION: To prevent personal injury and equipment damage, have someone assist you during the equipment installation. If necessary, reduce the weight of the enclosure by removing the hard disk drives and power supply units during installation.

When using the lifting straps, keep them even and at the same level always. Otherwise, the system can slide to one side, and possibly out of the straps completely. Make sure that the rubberized sides of the lifting straps are against the chassis metal.

6. If the appliance itself shows damage, file a damage claim with the carrier who delivered it.

In addition to the appliance, the box includes:

v Rail kits v Cables v Documentation Package

Application installation

Attention: Allow the enclosure assembly to acclimate to room temperature before installation. Store the drives at room temperature for at least 2 hours before use.

Identify the sections of the rack rails

Several rail assemblies are provided: v Left and right slide assemblies

6 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

v Left and right cabinet section assemblies v Left and right chassis section assemblies

Install the handles on the server

You must install two handles on each side of the server before lifting it.

CAUTION: Make sure that you have adequate support to lift the system. Releasing it before it is fixed in the rack might cause personal injury or damage the equipment.

To install the handles on the server, do the following steps.

1. Take out the handle carriers on the rear side by releasing the thumb screws, as shown in the

following figure.

Figure 2. Remove handles from handle carriers

2. Remove all four handles from the two carriers.

3. Install side handles on both sides of server and make sure that they are securely tightened before

lifting the server.

CAUTION: Before lifting or transporting the server, make sure the four side handles (two on each side) are securely screwed into the server. Failure to do so can result in severe personal injury and server damage.

When you are ready to install the server in the rack, you must use a lifting device. Alternatively, use four individuals, each lifting the server by the side handles to place the server in position and begin inserting it into the rack rails.

After the server is partially inserted into the rack rails, you must remove the server side handles to fully insert the server into the rack. Then, you can place the handles back in the drive carriers and replace the carriers into the back of the server.

See "Unlock the rails to insert or remove the chassis" for more details on how to install the server into the rack rails.

Chapter 3. Install the appliance into a rack 7

Disconnect chassis section slide assembly

Refer to the following figure to open the chassis section slide assembly.

Figure 3. Disconnecting the chassis slide assembly

Install the chassis slide rails to the appliance

1. With the heads of the locating pins protruding through the set of keyhole openings in the chassis

section assembly, pull the slide toward the front of the chassis until the screw holes line up, as shown in the following figure.

Figure 4. Install the chassis slide rails to the appliance

2. Attach the slide by inserting two M4 screws through the holes in the slide and securing them to the

chassis.

3. Repeat these steps for the other side of the chassis.

Attach the rack slide rails to the rack

1. Define the "U" spacing and attach the slide, as shown in the following figure.

8 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Figure 5. Attach the rack rails to the rack

2. Attach the front mounting bracket to the rack rail.

3. Attach the rear mounting bracket to the rack rail.

Unlock the rails to insert or remove the chassis

1. With a suitable lift or with four people, align the chassis with the extended rails.

2. Continue to close until the side rails lock.

3. After the server is partially inserted into the rack rails, remove the server-side handles.

4. Place the handles back in the drive carriers and replace the carriers into the back of the server.

5. Move the lever to the unlock position to close or remove the chassis, as shown in the following figure.

Chapter 3. Install the appliance into a rack 9

Figure 6. Unlock the rails

Cable the appliance

1. On the rear panel, connect the C13 end of the power cables to the C14 inlets in the PSUs. The power

supply power connectors are in the center at the bottom of the rear panel, as shown in the following figure.

Figure 7. Rear of appliance

2. The Ethernet connections are located just to the left of the center of the appliance and are next to each

other. Connect a standard Ethernet cable to the left Ethernet port.

3. Press the power button that is on the bottom center of the appliance front panel.

4. To ensure that the power is on, verify that the power and network link lights are lit and listen for

running fans.

10 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Chapter 4. Appliance physical interface

The physical interface for the appliance consists of buttons and LEDs on the front panel and ports and LEDs on the back panel.

Front control panel

The power status and the hard disk drive and network activity of the appliance can be read from its front control panel, as shown in the following figure.

Figure 8. Front panel buttons and LEDs for the appliance

Front panel buttons and LEDs

The front control panel provides the following buttons (preceded by the callout numbers from the previous figure).

1. USB Ports

4. Reset button

Reboots the system. A needle, pin, or other small device is needed to activate this button and reset the system.

6. Power button

Powers on or powers off the system. Turning off system power with this button removes the main power but keeps standby power that is supplied to the system. Therefore, you must unplug the system before servicing.

8. Unit Identification (UID) button

When depressed, illuminates the UID LED on the front panel as well as the system board UID LED, which is visible at the rear of the system. Use these LEDs to locate the server within a rack. Press again to turn off the LEDs.

The front panel also provides the following LEDs (preceded by the callout numbers from the previous figure):

2. HDD activity LEDs (48 LEDs total)

Indicate the following possible statuses:

Table 6. HDD activity LEDs

Status Green Red

Offline or idle Off Off Active Flash Off Fail Off On

Table 6. HDD activity LEDs (continued)

Status Green Red

Locate Off 4-Hz flash Rebuild Flash 1-Hz flash

3. Fan failure LEDs

Shows red if the fan has an error or is missing (each indicator represents one system fan). If any fan experiences an error or is missing, all system fans are run at full speed as a way to compensate for the error or the missing fan. If a fan error occurs, replace the fan immediately to avoid the risk of a system high temperature condition.

Attention: There are eight fans, and four fan assemblies. Each fan assembly consists of a pair of fans, in a dual rotor configuration. The fan pairs are 1-5, 2-6, 3-7, and 4-8. So if fan 1 fails (the fan led marked “1” is lit), the fan assembly 1-5, which consists of a single dual motor fan, must be replaced. See "Replace the Fans" for details.

5. Power LED

Shows green when power is on, unlit when power is off.

7. Global failure indicator

Lights when a PSU fault or fan error or high temperature condition or any combination is encountered.

Top Loading Drive Carrier LEDs

A single LED on the top extractor handle of each drive indicates drive activity when flashing green.

Rear panel

The rear panel contains I/O ports, network interface ports, power supplies, and two hard disk drive carriers.

I/O ports

The I/O ports are color-coded per the PC 99 specification. The locations of the various I/O ports are shown in the following figure.

Figure 9. Rear panel I/O ports for the appliance

12 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Rear Loading Boot Drive Carrier LEDs

At the bottom of the boot drive carrier, the left LED shows Power, and is Blue when power is on; the right LED shows Activity, and flashes green when there is activity.

10 GbE NIC Card LEDs

Each SFP connector on the four-port NIC card has two LEDs. The Upper LED indicates link speed (Blue = 10G link, Yellow = 1G link), and the bottom LED indicates Link/Activity (Link = green, Activity = flashing green).

Onboard 1 GbE NIC LEDs

Each of the two RJ45 1 GbE connectors on the back panel has two built-in LEDs. The left LED indicates Link/Activity (Link = green, Activity = flashing green), and the right LED indicates Link Speed (Amber = 1 Gb/s, Green = 100 Mb/s, and Off = 10 Mb/s).

Chapter 4. Appliance physical interface 13

14 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Chapter 5. Field replaceable or upgrade units

A number of components can be replaced or upgraded in the field.

Replacement parts

Contact IBM Support for replacement parts for this appliance.

The following customer serviceable parts are available:

v Power Supply Module v Chassis Fan v Operating System Drive v Rail Kit

The following customer installable upgrade units are available:

v Data drives v Optical modules (SFP+ / QSFP)

See the Field Replaceable Units Reference Guide for a complete list of available data drives.

System diagram

The following figures show the appliance schematics.

Figure 10. System diagram

Note: There are four chassis fan units, each with two rotors and two motors. If a fan fails, you must replace the entire unit.

Replace internal components

Replace fans

After determining which fan failed, follow these steps to remove and replace the fan assembly:

1. Log in to the device as localadmin.

2. At the command prompt, type poweroff.

3. After the appliance is powered off, remove the power cord and network cables from the back of the

chassis.

4. Insert finger and thumb into fan assembly holder slots and pull fan assembly out of fan cage.

Figure 11. Removing a fan

5. Insert another fan assembly for replacement.

6. Keep your fingers away from fan blades.

Replace a 2.5 in. rear loading OS drive

1. Log in to the device as localadmin.

2. At the command prompt, type poweroff.

3. After the appliance is powered off, remove the power cord and network cables from the back of the

chassis.

4. Locate the failed drive in Rear Drive-Bay 0, and pinch together the two tabs to open the drive

release handle.

5. Pull upward on the release handle to slide the drive tray out of the drive bay, as shown in the

following figure.

16 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Figure 12. Removing a boot drive

6. Replace the drive.

7. Insert the new drive tray into the drive bay until it is fully inserted and clicks into place.

8. Plug in the power cable and network cables.

9. Power on the appliance.

10. For drives with no OS installed, see Install an operating system on a drive.

Install an operating system on a drive

Note: To install an operating system (OS) on a drive, you need a USB flash drive, a computer that is running a Linux OS, a VGA-capable monitor, and a USB keyboard.

CAUTION: The following procedure destroys any existing data on the USB flash drive.

1. Download the installation ISOs from IBM.

2. Insert the USB flash drive into the computer.

3. Determine the name of this drive.

#lsblk

4. Determine that the drive is not mounted.

#mount

5. Copy the ClevOS ISO to the USB flash drive.

#dd if=/{path}/{ClevOS}.iso of=/dev/{drivename} bs=1M

6. When copying is done, remove the USB flash drive from the computer.

7. Power down the device on which you want to install the OS.

v If the device is in an unresponsive state, it can be powered down by PDU or by removing the

power cables.

v If the device is still responding, do the following steps.

a. Log in to the device as localadmin. b. At the command prompt, type poweroff/

8. Attach the USB keyboard and VGA monitor to the device.

9. Insert the USB flash drive in the remaining USB port.

10. Restart the machine while pressing F11 to enter the boot menu.

11. In the boot menu, select USB Key and press Enter. The device loads the operating system, and the

installer appears.

12. In the installer, choose OS only install. When installation completes, the device reboots.

13. After the device reboots, remove the USB flash drive.

Chapter 5. Field replaceable or upgrade units 17

Replace a data drive

1. Remove the top front cover and locate the drive by location label or failure LED.

2. Press the release tab and pull out the drive tray, as shown in the following figure.

Figure 13. Removing a drive tray

3. Replace the drive in the tray with a new drive.

4. Insert the new drive tray into the chassis until it is fully inserted and clicks into place.

Add a data drive upgrade kit

Note: Upgrade drives must match the model of drive that is already populated in other slots.

1. Log in to the device as localadmin.

2. At the command prompt, type poweroff.

3. Remove the top front cover.

4. Add upgrade drives in full rows starting from the rear of the chassis.

Note: Do not leave open slots in rows as it affects the cooling capabilities of the appliance.

5. Insert the new drives into the chassis until they are fully inserted and click into place.

6. Press down on the latch of each drive until they lock in place.

7. Replace the top cover.

8. Restart the system.

Replace a power supply unit

This server implements two 1100 W AC-DC switching power supplies. Each power supply can operate as a single supply or in an N+1 parallel operation with active load sharing in an N+1 redundant configuration.

If either of the two power supply modules fail, the other module takes the full load and allow the system to continue operation without interruption. However, the global failure indicator on the front panel remains lit until the failed module is replaced.

Each power supply module has three LEDs to indicate power supply status. They are marked with the following abbreviations:

v AC (top LED) v DC (middle LED)

18 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

v ! (bottom LED)

The following figure shows the LEDs.

Figure 14. Power supply LEDs

The LEDs are driven by internal circuitry and illuminate in an N+1 configuration even without input power. See the following table for the power supply LED meanings.

Table 7. Power supply LED meanings

Power supply condition Power supply LEDs

No AC power to all PSUs Off No AC power to this PSU AC LED 1 Hz flashing green AC present/only standby output on/ CR-State AC LED green Power supply DC output ON and OK AC and DC LED green Power supply failure FAIL LED amber Power supply warning 1 Hz flashing amber

Follow these steps to replace a failed power supply.

1. Unplug the power cord.

CAUTION: After you remove the power cord, wait for at least 15 seconds before you attempt to remove the power supply unit for maintenance or repair to avoid accidental shock or personal injury due to any residual power supply electrical charge.

2. Actuate the green power supply lever to release the power supply.

3. Slide the power supply out of the chassis, as shown in the following figure.

Chapter 5. Field replaceable or upgrade units 19

Figure 15. Removing the PSU

4. Insert the new power supply fully into the chassis until the green lever snaps into place.

5. Insert the power cord.

6. Verify that all power supply indicators are normal.

Install an SFP+ / QSFP optical module

1. Log in to the device as localadmin.

2. At the command prompt, type poweroff.

3. Remove the SFP+ / QSFP module from the packaging.

4. Remove the black plastic protective cap from the optical side of the module.

5. Insert the module into the network card until it clicks into place.

6. Insert the fiber optic cable into the SFP+ / QSFP module.

7. Restart system and configure the network interface. For more information, see the Appliance

Configuration Guide.

Battery removal and installation

Battery removal

To remove the Onboard battery, follow these steps:

1. Power off your system and unplug your power cable.

2. Locate the Onboard battery, as shown in the figure.

3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it. When

unlocked, the battery pops out from the holder.

4. Remove the battery, as shown in the following figure.

20 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Figure 16. Remove the battery

CAUTION: Handle used batteries carefully. Do not damage the battery in any way; a damaged battery can release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Refer to the IBM Systems Environmental Notices for battery disposal guidelines.

Battery installation

To install an onboard battery, follow these steps:

1. Identify the battery’s polarity. The positive (+) side must be facing up.

2. Insert the battery into the battery holder. Push it down until you hear a click to ensure that the

battery is securely locked, as shown in the following figure.

Figure 17. Install the battery

CAUTION: Be sure to replace the battery with the same type only.

Chapter 5. Field replaceable or upgrade units 21

22 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Notices

This information was developed for products and services offered in the US. This material might be available from IBM in other languages. However, you may be required to own a copy of the product or product version in that language in order to access it.

IBM may not offer the products, services, or features discussed in this document in other countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any non-IBM product, program, or service.

IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not grant you any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing IBM Corporation North Castle Drive Armonk, NY 10504-1785 U.S.A.

For license inquiries regarding double-byte character set (DBCS) information, contact the IBM Intellectual Property Department in your country or send inquiries, in writing, to:

Intellectual Property Licensing Legal and Intellectual Property Law IBM Japan, Ltd. 19-21, Nihonbashi-Hakozakicho, Chuo-ku Tokyo 103-8510, Japan

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

Any references in this information to non-IBM websites are provided for convenience only and do not in any manner serve as an endorsement of those websites. The materials at those websites are not part of the materials for this IBM product and use of those websites is at your own risk.

IBM may use or distribute any of the information you provide in any way it believes appropriate without incurring any obligation to you.

Licensees of this program who wish to have information about it for the purpose of enabling: (i) the exchange of information between independently created programs and other programs (including this one) and (ii) the mutual use of the information which has been exchanged, should contact:

IBM Director of Licensing IBM Corporation North Castle Drive, MD-NC119 Armonk, NY 10504-1785 US

Such information may be available, subject to appropriate terms and conditions, including in some cases, payment of a fee.

The licensed program described in this document and all licensed material available for it are provided by IBM under terms of the IBM Customer Agreement, IBM International Program License Agreement or any equivalent agreement between us.

The performance data discussed herein is presented as derived under specific operating conditions. Actual results may vary.

Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products.

Statements regarding IBM's future direction or intent are subject to change or withdrawal without notice, and represent goals and objectives only.

All IBM prices shown are IBM's suggested retail prices, are current and are subject to change without notice. Dealer prices may vary.

This information is for planning purposes only. The information herein is subject to change before the products described become available.

This information contains examples of data and reports used in daily business operations. To illustrate them as completely as possible, the examples include the names of individuals, companies, brands, and products. All of these names are fictitious and any similarity to the names and addresses used by an actual business enterprise is entirely coincidental.

This information contains sample application programs in source language, which illustrate programming techniques on various operating platforms. You may copy, modify, and distribute these sample programs in any form without payment to IBM, for the purposes of developing, using, marketing or distributing application programs conforming to the application programming interface for the operating platform for which the sample programs are written. These examples have not been thoroughly tested under all conditions. IBM, therefore, cannot guarantee or imply reliability, serviceability, or function of these programs. The sample programs are provided "AS IS", without warranty of any kind. IBM shall not be liable for any damages arising out of your use of the sample programs.

If you are viewing this information softcopy, the photographs and color illustrations may not appear.

24 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

Trademarks

IBM, the IBM logo, and ibm.com®are trademarks or registered trademarks of International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the web at Copyright and trademark information at www.ibm.com/legal/copytrade.shtml.

Accesser®, Cleversafe®, ClevOS™, Dispersed Storage®, dsNet®, IBM Cloud Object Storage Accesser®, IBM Cloud Object Storage Dedicated™, IBM Cloud Object Storage Insight™, IBM Cloud Object Storage Manager™, IBM Cloud Object Storage Slicestor®, IBM Cloud Object Storage Standard™, IBM Cloud Object Storage System™, IBM Cloud Object Storage Vault™, SecureSlice™, and Slicestor®are trademarks or registered trademarks of Cleversafe, an IBM Company and/or International Business Machines Corp.

Other product and service names might be trademarks of IBM or other companies.

Homologation statement

This product may not be certified in your country for connection by any means whatsoever to interfaces of public telecommunications networks. Further certification may be required by law prior to making any such connection. Contact an IBM representative or reseller for any questions.

Notices 25

26 IBM Cloud Object Storage System

™

: Slicestor 2448 Appliance Manual 3409-S01/3401-S01/3403-S01

IBM®

Printed in USA

IBM Slicestor 2448 Appliance Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
