ThinkPad Service and Troubleshooting Guide
R30 Series
򔻐򗗠򙳰
®
ThinkPad Service and Troubleshooting Guide
R30 Series
Note
Before using this information and the product it supports, be sure to read the general information under Appendix A, “Important safety instructions” on page 47, Appendix B, “Warranty Information” on page 51, Appendix C, “Notices” on page 65, and Appendix D, “Wireless Regulatory Information” on page 75.
DANGER

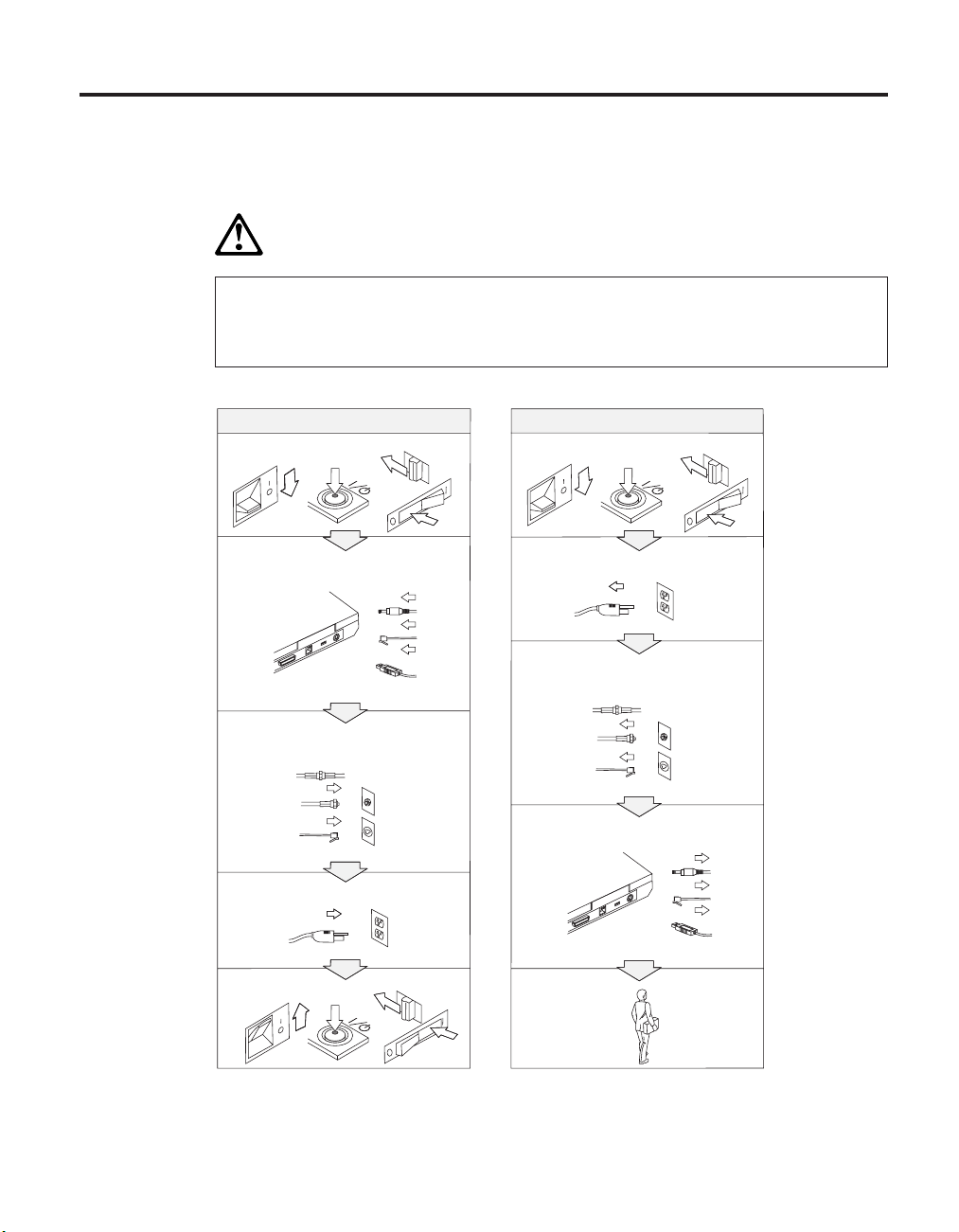

v To avoid electric shock hazard, connect and disconnect cables appropriately when installing, moving or opening
the covers of this product or attached devices. Use the power cord with a properly grounded outlet.
v Do not leave the base of your computer in contact with your lap or any part of your body for an extended
period when the computer is functioning or when the battery is charging. Your computer dissipates some heat during normal operation. This heat is a function of the level of system activity and battery charge level. Extended contact with your body, even through clothing, could cause discomfort or, eventually, a skin burn.
v To reduce the risk of electric shock, do not use your computer in or near water.
v To avoid electric shock, do not use your computer with the telephone cable connection during an electrical
storm. Do not connect the cable to or disconnect it from the telephone outlet on the wall during an electrical storm.
v Store packing materials safely out of the reach of children to prevent the risk of suffocation from plastic bags.
v The battery pack contains a small amount of harmful substances. There is danger of an explosion if the battery
pack is incorrectly replaced, exposed to fire or water, short-circuited or disassembled. Keep the battery pack away from children and do not put it in trash that is disposed of in landfills.
v To reduce the risk of fire, use only No. 26 AWG or thicker telephone cable.
v The fluorescent lamp in the LCD contains mercury. Do not put it in trash that is disposed of in landfills. Rough
handling or dropping the computer can cause the LCD to break and the internal fluid to get into your eyes or on your hands. Immediately wash the affected areas with water. If symptoms persist, seek medical care.
v Do not disassemble the optical storage drive unit, as this might result in hazardous radiation exposure.
v Avoid direct eye exposure with the laser beam contained in some drives.
First Edition (November 2001)
The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law:
INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION AS ISWITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.
IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
© Copyright International Business Machines Corporation 2001. All rights reserved.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

Important Notice for Users

The FCC RF Safety Requirement

v When you use a Bluetooth option or wireless PCMCIA card in your
ThinkPad R31 computer, please make sure of the following:
1. Visit the IBM site at www.ibm.com/pc/qtechinfo/MIGR-39377.html and confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature.
2. When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off.
3. Users are requrested to follow the RF Safety instructions on wireless option devices that are included in the RF option devices users manual.
See Appendix D, Wireless Regulatory Informationon page 75 for more details.
© Copyright IBM Corp. 2001 iii
iv ThinkPad
®
R30 Series Service and Troubleshooting Guide

Finding information with Access ThinkPad

4
5
1
2
3
Learn about the many features of your ThinkPad computer. ThinkPad Features provides a visual display of your computer and components.
Once you are familiar with the hardware features of your system use the Tools and Tips category to get the most out of those features like Wireless Networking, Maximizing your battery life, etc... Click Access Help to open a comprehensive help system offering information such as how to change or upgrade the memory in your computer.
Visit these IBM Web sites to join an interactive community of ThinkPad users, download new backgrounds, purchase accessories, or get online support.
Keyword Search provides a quick way to search information in Access Help.
You can view information about your system such as model number in System Details and change the look of your application through Personalize.
© Copyright IBM Corp. 2001 v
Whenever you have a question about your computer, or wish to view IBM
®
Web sites, simply press the ThinkPad button to open Access ThinkPad.
Click one of the Internet buttons to join an interactive ThinkPad Web community, or to directly access information about accessories and software updates, small business offerings, and help and support.
Access ThinkPad includes a comprehensive, on-board help and information center for your computer and includes information such as installing additional memory. It travels with you, eliminating the need to carry reference manuals.
Find information about your ThinkPad computer and its features by using the Quick Search or clicking one of the topics shown. This opens another window, where you can view hundreds of help topics by browsing the table of contents, using the index, or performing a search.
View help topics to learn how to:
v Install additional memory v Use your computer hardware features v Connect to the internet or a local network v Set up a projector for your presentation v Use passwords and other security features v Install, remove and recover software v Upgrade your system v Extend the life of your battery v Troubleshoot problems v Contact IBM for service and support v Perform many other tasks
vi ThinkPad
®
R30 Series Service and Troubleshooting Guide
Some of the topics in your help system contain brief video clips that show you how to perform certain tasks, such as installing additional memory, replacing your battery, or inserting a PC Card. Use the controls shown to play, pause, and rewind the video clip.
Finding information with Access ThinkPad vii
viii ThinkPad
®
R30 Series Service and Troubleshooting Guide

Contents

Important Notice for Users.......iii
The FCC RF Safety Requirement .....iii
Finding information with Access ThinkPad v
Chapter 1. Overview of your new ThinkPad
computer.............1
Your ThinkPad at a glance .......2
Features..............3
Specifications ............5
Caring for your ThinkPad computer ....7
Chapter 2. Solving computer problems . . 11
Diagnosing problems .........12
Troubleshooting...........13
Errorcodesormessages.......13
Errors without codes or messages ....17
Apasswordproblem........19
A power switch problem.......19
Keyboard problems ........19
TrackPoint problems ........21
Infraredportproblems.......22
Standby or hibernation problems ....23
Computerscreenproblems......25
Anexternalmonitorproblem.....27
A television problem ........27
Batteryproblems.........27
Harddiskdriveproblems......28
CD-ROM, DVD-ROM, CD-RW,
DVD/CD-RW drive problems .....28
Softwareproblems.........30
Otherproblems..........31
Starting BIOS Setup Utility .......32
Recover pre-installed software ......33
Installing a new operating system and device
drivers..............34
Backing up your system ........35
Backing up your registry.......35
Backingupdata..........36
Replacingtheharddiskdrive......37

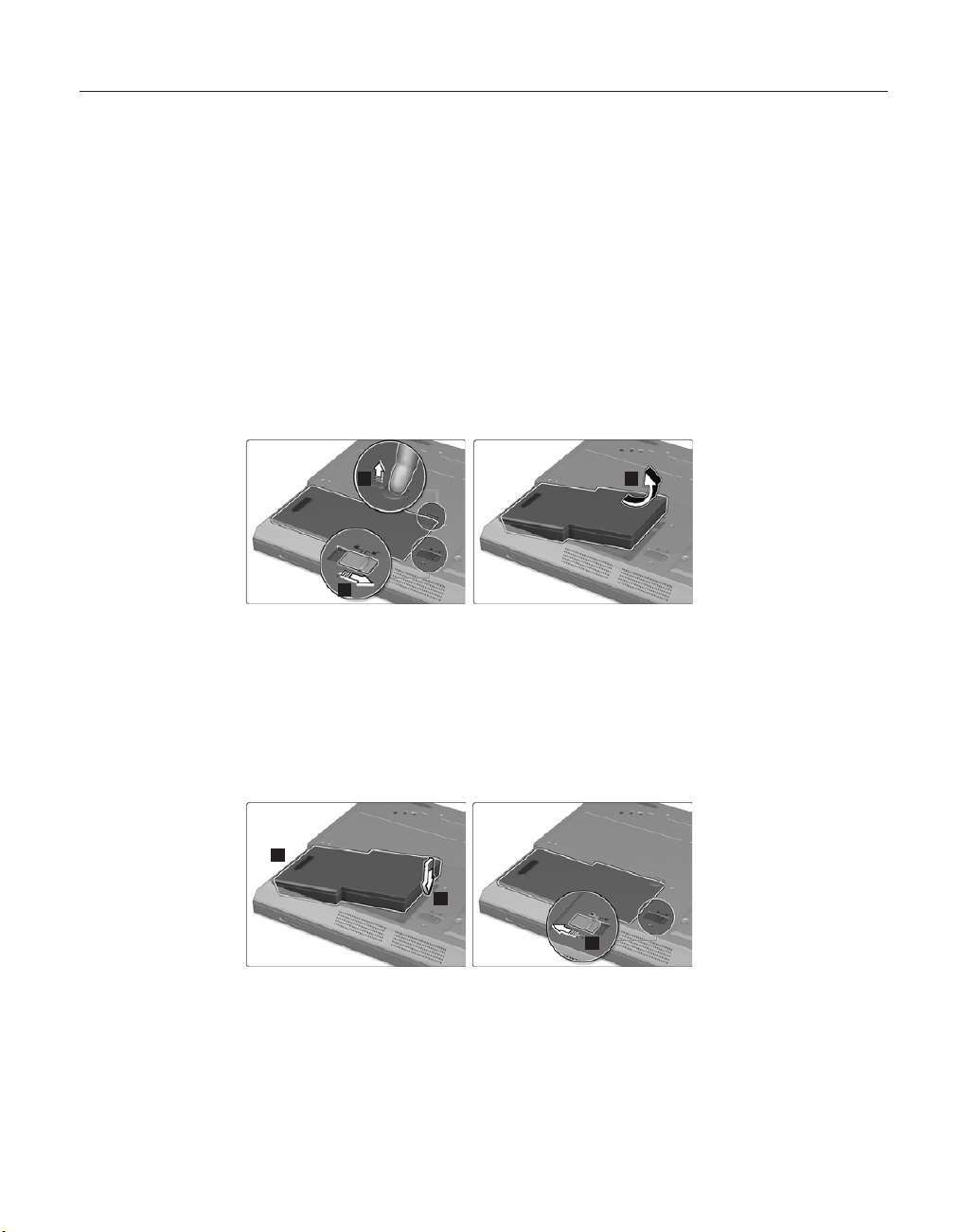

Replacing the battery .........39
Chapter 3. Getting help and service from
IBM...............41
Getting help and service ........42
Getting help on the Web ........42
Getting help by fax .........43
Calling IBM ............43
Getting help around the world......45
Appendix A. Important safety instructions 47
Modem safety information .......49
Lasercompliancestatement.......49
Appendix B. Warranty Information ....51
Warranty Period ..........51
Warranty service and support ......51
Before you call for service ......52
Calling for service .........52
IBM Statement of Limited Warranty
Z125-4753-06 8/2000 .........53
Part1-GeneralTerms.......53
Part 2 - Country-unique Terms.....56
Appendix C. Notices.........65
Processing date data .........65
References to the Web site addresses ....66
Electronic emission notices .......66
Federal Communications Commission
(FCC) Statement .........66
Industry Canada Class B Emission
Compliance Statement .......67
Avis de conformité à la réglementation
d’Industrie Canada.........67
European Community Directive
Conformance Statement .......67
Telecommunication notices .......67
Federal Communications Commission
(FCC) and Telephone Company
Requirements (Part 68 of the FCC Rules) .67
Fax Branding ..........68
Industry Canada requirements ......69
Notice .............69
Caution ............69
Avis..............69
Avertissement ..........70
Notice for Australia .........70
Notice for New Zealand ........71
Notice for European Union countries....73
© Copyright IBM Corp. 2001 ix
Wireless Interoperability ........74
Usage environment and your Health....74
Appendix D. Wireless Regulatory
Information............75
USA - Federal Communications Commission
(FCC) ..............75
The FCC RF Safety Requirement ....75
Interference Statement .......76
Canada – Industry Canada (IC) ....76

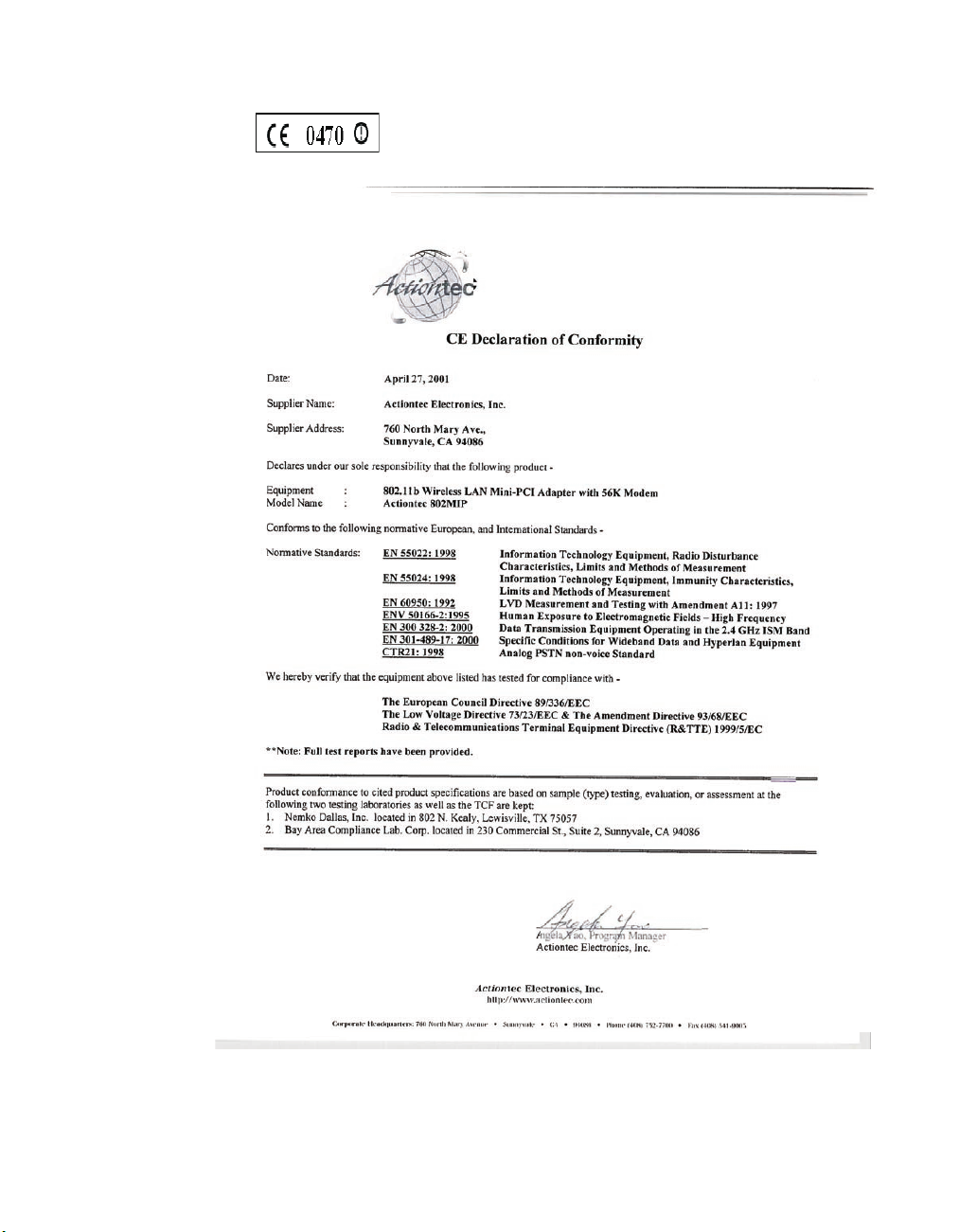

Europe – CE Declaration of Conformity. . 76
Singapore ............79
Trademarks ............79
Index ..............81
x ThinkPad
®
R30 Series Service and Troubleshooting Guide

Chapter 1. Overview of your new ThinkPad computer

Your ThinkPad at a glance .......2
Features..............3
Specifications ............5
Caring for your ThinkPad computer ....7
© Copyright IBM Corp. 2001 1

Your ThinkPad at a glance

Your ThinkPad at a glance
Front view
System-status indicators
TrackPoint
Rear view
Computer display
Ultrabay Plus
Power jack
Monitor connector
Modem connector
Ethernet connector
2
ThinkPad®R30 Series Service and Troubleshooting Guide
USB connector

Features

Processor
®
v Intel
Mobile Pentium®III processor with Intel®SpeedStep™technology or
®
Mobile Celeron™processor with on-die Level 2 cache
Intel
Memory
v Two slots (for base memory and memory upgrades) v Base: 128 MB v Maximum: 1 GB
Note: The system allocates a portion of base memory for video.
Storage device
v 2.5-inch hard disk drive: Up to 40 GB, depending on the model
Display
The color display uses TFT technology:
v Size: 13.3 or 14.1 inch, depending on the model v Resolution:
LCD: 1024-by-768External monitor: Up to 1600-by-1200
v Brightness control (Fn key function)
Features
Keyboard
v 87-key, 88-key, or 92-key v TrackPoint
®
v Fn key function v ThinkPad button v Volume control buttons v ThinkLight
Chapter 1. Overview of your new ThinkPad computer 3
Features
External diskette drive — available on selected models
To get the best performance from your diskette drives, use high-quality diskettes (such as IBM diskettes) that meet or exceed the following standards:
v 1-MB, 3.5-inch, unformatted diskette:
ANSI (American National Standards Institute) X3.137ISO (International Standards Organization) 8860ECMA (European Computer Manufacturers Association) 100
v 2-MB, 3.5-inch, unformatted diskette:
ANSI X3.171ISO 9529ECMA 125
External interface
v Parallel connector (IEEE 1284A) v External-monitor connector v PC Card slot (one Type I, Type II, or Type III PC Card) v Headphone jack v Microphone jack v Video-out connector (S-video) v Universal Serial Bus (USB) connectors (two) v Infrared port v RJ11 telephone connector v RJ45 Ethernet connector v 802.11b wireless LAN antenna (on some models) v IEEE 1394 connector (on some models)
v Ultrabay
Plus
v Expansion connector
4
ThinkPad®R30 Series Service and Troubleshooting Guide

Specifications

Specifications
Size
v 13.3 or 14.1 inch display model:
Width: 313 mm (12.3 in.)Depth: 254 mm (10 in.)Height: 36 mm (1.42 in.)
Environment
v Maximum altitude without pressurization: 3048 m (10,000 ft) v Temperature
– At altitudes up to 2438 m (8000 ft)
- Operating with no diskette: 5° to 35°C (41° to 95°F)
- Operating with a diskette: 10° to 35°C (50° to 95°F)
- Not operating: 5° to 43°C (41° to 110°F)
– At altitudes above 2438 m (8000 ft)
- Maximum operating temperature, 31.3°C (88° F)
Note: When you charge the battery pack, its temperature must be at least
10°C (50°F).
v Relative humidity:
Operating with no diskette in the drive: 8% to 95%Operating with a diskette in the drive: 8% to 80%
Heat output
v Approximately 65 Kcal per hour
Chapter 1. Overview of your new ThinkPad computer 5
Specifications
Electrical (ac adapter)
v 72 W v Sin-wave input at 50 to 60 Hz v Input rating of the ac adapter: 100-240 V ac, 50 to 60 Hz
Battery
v Lithium Ion
Nominal voltage: 10.8 V dcCapacity: 4.0 AH
v Nickel Metal Hydride
Nominal voltage: 9.6 V dcCapacity: 4.5 AH
6
ThinkPad®R30 Series Service and Troubleshooting Guide

Caring for your ThinkPad computer

Though your computer is designed to function reliably in normal work environments, you need to use common sense when handling it. By following these important tips, you will get the most use and enjoyment out of your computer.
Important tips:
Be careful about where and how you work
v Do not leave the base of your computer in contact with your lap or any
part of your body for an extended period when the computer is functioning or when the battery is charging. Your computer dissipates some heat during normal operation. This heat is a function of the level of system activity and battery charge level. Extended contact with your body, even through clothing, could cause discomfort or, eventually, a skin burn.
v Place liquids away from your computer to avoid spills, and keep your
computer away from water (to avoid the danger of electrical shock).
v Store packing materials safely out of the reach of children to prevent the
risk of suffocation from plastic bags.
v Keep your computer away from magnets, activated cellular phones,
electrical appliances, or speakers (within 13cm/5 in).
v Avoid subjecting your computer to extreme temperatures (below 5°C/41°F
or above 35°C/95°F).
Caring for your ThinkPad computer
Be gentle with your computer
v Avoid placing any objects (including paper) between the display and the
keyboard or under the keyboard.
v Do not drop, bump, scratch, twist, hit, vibrate, push or place heavy objects
on your computer, display, or external devices.
v Your computer display is designed to be opened and used at about 90
degrees. Do not open the display beyond 180 degrees, as this might damage the computer hinge.
Carry your computer properly
v Before moving your computer, be sure to remove any media, turn off
attached devices, and disconnect cords and cables.
v Be sure your computer is in standby or hibernation mode, or turned off,
before moving it. This will prevent damage to the hard disk drive and data loss.
v When picking up your open computer, hold it by the bottom. Do not pick
up or hold your computer by the display.
Chapter 1. Overview of your new ThinkPad computer 7
Caring for your ThinkPad computer
v Use a quality carrying case that provides adequate cushion and protection.
Do not pack your computer in a tightly packed suitcase or bag.
Handle storage media and drives properly
v If your computer comes with a diskette drive, avoid inserting diskettes at
an angle and attaching multiple or loose diskette labels, as these can lodge in the drive.
v Do not touch the surface of a CD or DVD, or the lens on the CD or DVD
tray.
v Wait until you hear the CD or DVD click into the center pivot of the CD or
DVD drive before closing the CD or DVD tray.
v If your computer comes with a CD-RW or DVD/CD-RW drive, make sure
your computer is protected from vibration when writing CDs. Vibration may result in errors or damaged CDs. Even typing on the computer will cause vibration.
v Do not get fingerprints, dust, or smudges on the recording/reading side of
the CD-R or CD-RW disc. Do not use it for recording even if you cleaned it with disc cleaning liquid and cloth. The disc can be used for reading if you clean it.
v When installing your hard disk, CD or DVD drive, or installing an external
diskette drive, follow the instructions shipped with your hardware, and apply pressure only where needed on the device. See Access ThinkPad, your on-board help system, for information on replacing your hard disk drive (open Access ThinkPad by pressing the ThinkPad button).
Take care in setting passwords
v Remember your passwords. If you forget your power-on password, you
have to take your computer to an IBM reseller or marketing representative to have the password canceled.
Attention: If you forget your hard disk password, IBM will not reset your password or recover data from the hard disk. You must take your computer to an IBM reseller or an IBM marketing representative to have the hard disk drive replaced. Proof of purchase is required, and a fee will be charged for parts and service.
Attention: You might want to note your password and keep it in a safe place. If you forget your supervisor password, IBM will not reset your password. You must take your computer to an IBM reseller or IBM marketing representative to have the system board replaced. Proof of purchase is required, and a fee will be charged for parts and service.
Other important tips
v Your computer modem may use only an analog telephone network, or
public-switched telephone network (PSTN). Do not connect the modem to a
8
ThinkPad®R30 Series Service and Troubleshooting Guide
Caring for your ThinkPad computer
PBX (private branch exchange) or any other digital telephone extension line because this could damage your modem. Analog phone lines are often used in homes, while digital phone lines are often used in hotels or office buildings. If you are not sure which kind of phone line you are using, contact your telephone company.
v Your computer might have both an Ethernet connector and a modem
connector. If so, be sure to connect your communication cable to the correct one, so your connector is not damaged. See Access ThinkPad, your on-board help system, for information on the location of these connectors (press the ThinkPad button to open Access ThinkPad).
v Register your ThinkPad products with IBM (refer to the Web page:
www.pc.ibm.com/register). This can help authorities return your computer to you if it is lost or stolen. Registering your computer also enables IBM to notify you about possible technical information and upgrades.
v Only an authorized IBM ThinkPad repair technician should disassemble
and repair your computer.
v Do not modify or tape the latches to keep the display open or closed. v Take care not to turn your computer over while the ac adapter is plugged
in. This could break the adapter plug.
v Turn off your computer if you are replacing a device in a device bay. v If you exchange drives in your computer, reinstall the plastic bezel faces (if
supplied).
v Store your external and removable hard disk, diskette, CD and DVD drives
in the appropriate containers or packaging when they are not being used.
Cleaning your computer
Occasionally clean your computer as follows: v Use a soft cloth moistened with nonalkaline detergent to wipe the exterior
of the computer.
v Avoid spraying cleaner directly on the display or the keyboard. v Gently wipe the display with a dry, soft cloth.
Chapter 1. Overview of your new ThinkPad computer 9
Caring for your ThinkPad computer
10
ThinkPad®R30 Series Service and Troubleshooting Guide

Chapter 2. Solving computer problems

Diagnosing problems .........12
Troubleshooting...........13
Errorcodesormessages.......13
Errors without codes or messages ....17
Apasswordproblem........19
A power switch problem.......19
Keyboard problems ........19
TrackPoint problems ........21
Infraredportproblems.......22
Standby or hibernation problems ....23
Computerscreenproblems......25
Anexternalmonitorproblem.....27
A television problem ........27
Batteryproblems.........27
Harddiskdriveproblems......28
CD-ROM, DVD-ROM, CD-RW,
DVD/CD-RW drive problems .....28
Softwareproblems.........30
Otherproblems..........31
Starting BIOS Setup Utility .......32
Recover pre-installed software ......33
Installing a new operating system and device
drivers..............34
Backing up your system ........35
Backing up your registry.......35
Backingupdata..........36
Replacingtheharddiskdrive......37
Replacing the battery .........39
© Copyright IBM Corp. 2001 11
Solving computer problems

Diagnosing problems

If you have a problem with your computer, you can test it by using PC-Doctor
1. Click Start.
2. Move the cursor to Programs and then to PC-Doctor for Windows.
3. Click PC-Doctor for Windows.
4. Choose either the Quick Test or the Standard Test.
Running the Quick Test set can take 10 minutes or longer. Make sure you have time to run the entire test; do not interrupt the test while it is running.
The Quick Test set runs many tests of critical hardware components, but it does not run all of the diagnostic test in PC-Doctor for Windows. If PC-Doctor for Windows reports that all of the tests in the Quick Test set have been run and that it has found no problems, consider running additional tests.
If you are preparing to contact IBM for support, be sure to print the test log so that you can rapidly provide information to the help technician.
®
Attention
for Windows®. To run PC-Doctor for Windows, do as follows:
12
ThinkPad®R30 Series Service and Troubleshooting Guide

Troubleshooting

If you do not find your problem here, refer to Access ThinkPad, your on-board help system. Open Access ThinkPad by pressing the ThinkPad button. The following section only describes problems that might prevent you from accessing this help system.

Error codes or messages

Note:
Message: 0175: Bad CRC1, stop POST task
Solution: The EEPROM checksum is not correct (block #6). Have the
computer serviced.
Message: 0187: EAIA data access error
Solution: The access to EEPROM is failed. Have the computer serviced.
Solving computer problems
1. In the descriptions below, x can represent any character.
2. The version of PC-Doctor referred to here is PC-Doctor for
Windows.
Message: 0188: Invalid RFID serialization information area or bad CRC2.
Solution: The EEPROM checksum is not correct (block # 0 and 1, or block #
6). The system board should be replaced, and the box serial number needs to be reinstalled. Have the computer serviced.
Message: 0189: Invalid RFID configuration information area
Solution: The EEPROM checksum is not correct (block # 4 and 5). The system
board should be replace, and the UUID needs to be reinstalled. Have the computer serviced.
Message: 0190: Critical low-battery error
Solution: The computer turned off, because the battery is low. Connect the ac
adapter to the computer and charge the battery, or replace the battery with a fully charged one.
Message: 0193: RF antenna has been removed
Solution: The RFID antenna that you installed has been removed. Enter the
supervisor password to return your computer to the normal operation.
Chapter 2. Solving computer problems 13
Solving computer problems
Message: 0194: The computer is carried through the security gate
Solution: The computer has been carried through the security portal gate.
Enter the supervisor password to return your computer to the normal operation.
Message: 0200: Hard disk error
Solution: The hard disk is not working. Make sure the hard disk drive is
attached firmly. Run the BIOS Setup Utility; then make sure the hard disk drive is not disabled in the Startup menu.
Message: 021x: Keyboard error
Solution: Make sure that there are no objects placed on the keyboard, or if
you have one, the external keyboard. Turn off the computer, and turn off all attached devices. Turn on the computer first; then turn on the attached devices.
If you still see the same error code, do the following: v If an external keyboard is connected, do the following:
– Turn off the computer and disconnect the external keyboard; then turn
on the computer. Make sure that the built-in keyboard operates correctly. If it was, have the external keyboard serviced.
– Make sure that the external keyboard is connected to the correct
connector.
v Test the computer by using PC-Doctor.
– If the computer stops during the test, have the computer serviced.
Message: 0230: Shadow RAM error
Solution: The shadow RAM failed. Test your computers memory with
PC-Doctor. If you added a memory module just before turning the computer on, reinstall it. Then test the memory with PC-Doctor.
Message: 0231: System RAM error
Solution: The system RAM failed. Test your computers memory with
PC-Doctor. If you added a memory module just before turning the computer on, reinstall it. Then test the memory with PC-Doctor.
Message: 0232: Extended RAM error
14
ThinkPad®R30 Series Service and Troubleshooting Guide
Solving computer problems
Solution: The extended RAM failed. Test your computers memory with PC-Doctor. If you have increased memory just before turning the computer on, reinstall it. Then test the memory with PC-Doctor.
Message: 0250: System battery error
Solution: The backup battery, which is used to preserve the configuration
information, such as the date and time, while the computer is tuned off, is depleted. Replace the battery and run BIOS Setup Utility to verify the configuration. If you still have a problem, have the computer serviced.
Message: 0251: System CMOS checksum bad
Solution: The system CMOS might have been corrupted by an application
program. The computer uses the default settings. Run BIOS Setup Utility to reconfigure the settings. If you still see the same error code, have the computer serviced.
Message: 0260: System timer error
Solution: Have the computer serviced.
Message: 0280: Previous boot incomplete
Solution: Your computer was previously unable to complete the boot process.
Turn the computer off; then turn it on to start the BIOS Setup Utility. Verify the configuration and then restart the computer either by choosing the Exit Saving Changes option under the Restart item or by pressing F10.
If you still see the same error code, have the computer serviced.
Message: 02D0: System cache error
Solution: The cache is disabled. Have the computer serviced.
Message: 02F4: EISA CMOS not writable
Solution: Have the computer serviced.
Message: 02F5: DMA test failed
Solution: Have the computer serviced.
Message: 02F6: Software NMI failed
Chapter 2. Solving computer problems 15
Solving computer problems
Solution: Have the computer serviced.
Message: 02F7: Fail-safe timer NMI failed
Solution: Have the computer serviced.
Message: The power-on or supervisor password prompt
Solution: If the power-on password prompt appears when you turn on your
computer, a power-on password is set. If the supervisor password prompt appears when you press F1 to access the IBM BIOS Setup Utility, the supervisor password is set. Type the correct password and press Enter to use the computer (see the onboard help, Access ThinkPad). If you still have a problem, have the computer serviced.
Attention: You might want to note your password and keep it in a safe place. If you forget your supervisor password, IBM will not reset your password. You must take your computer to an IBM reseller or IBM marketing representative to have the system board replaced. Proof of purchase is required, and a fee will be charged for parts and service.
Message: The hard disk password prompt
Solution: If the hard disk password prompt appears, a hard disk password is
set.
Type the correct password and press Enter to use the computer (see the onboard help, Access ThinkPad).
Attention: If you forget your hard disk password, IBM will not reset your password or recover data from the hard disk. You must take your computer to an IBM reseller or an IBM marketing representative to have the hard disk drive replaced. Proof of purchase is required, and a fee will be charged for parts and service.
If you still have a problem, have the computer serviced.
16
ThinkPad®R30 Series Service and Troubleshooting Guide
Message: Hibernation error
Solution: The system configuration changed between the time your computer
entered hibernation mode and the time it left this mode, and your computer cannot resume normal operation.
v Restore the system configuration to what it was before your computer
entered hibernation mode.
v If the memory size has been changed, re-create the hibernation file.
Message: Operating system not found.
Solution: Verify the following:
v The hard disk drive is correctly installed. v A startable diskette is in the diskette drive
If you still see the same error message, check the boot sequence using BIOS Setup Utility.
Message: Fan error
Solution: Cooling fan has failed. Have the computer serviced.

Errors without codes or messages

Problem: When I turn on the machine, nothing appears on the screen and the machine does not beep while starting up.
Solving computer problems
Note: If you are not sure whether you heard any beeps, turn off the
computer; then turn it on again and listen. If you are using an external monitor, refer to External monitor problems.
Solution: If a power-on password is set, press any key to display the power-on password prompt, and then type the correct password and press Enter.
If the power-on password prompt does not appear, the brightness control might be set to minimum brightness. Adjust the brightness level by pressing Fn+Home.
If the screen still remains blank, make sure that:
v The battery is installed correctly. v The ac adapter is connected to the computer and the power cord is plugged
into a working electrical outlet.
v The computer power is on. (Turn on the power switch again for
confirmation.)
Chapter 2. Solving computer problems 17
Solving computer problems
If these items are properly set, and the screen remains blank, have the computer serviced.
Problem: When I turn on the machine, nothing appears on the screen, but I hear two or more beeps or a continuous beep while starting up.
Solution: If you are using Ethernet:
v Make sure that the Ethernet cable is connected firmly. v Contact your network administrator.
If the screen is still blank, and beeps are not stopped, have the computer serviced.
Problem: When I turn on the machine, only a white cursor appears on a blank screen.
Solution: First, reboot your system by pressing Ctrl+Alt+Del. If that does not work, hold down the power switch for more than 4 seconds. If this does not resolve the problem, you may need to reinstall your operating system.
Problem: My screen goes blank while the computer is on.
Solution: Your screen saver or power management may be enabled. Move the
TrackPoint or press a key to exit the screen saver, or press the power switch to resume from standby or hibernation.
Problem: The computer cannot boot-up.
The message Insert system diskette and press Enter key to rebootappears.
Solution: Have in hand a bootable diskette, such as the Windows startup diskette, and do as follows:
1. Turn off the computer.
2. Connect the external diskette drive.
3. Insert the bootable diskette into the diskette drive.
The Windows startup diskette can help diagnose the problem. If the problem remains, have the computer serviced.
Problem: The DOS full-screen looks smaller.
18
ThinkPad®R30 Series Service and Troubleshooting Guide
Solution: When you use a DOS application that supports only the 640x480 resolution (VGA mode), the screen image might look slightly distorted or smaller than the display size. This is to maintain compatibility with other DOS applications and is not a defect.
To expand the screen image to the same size as the actual screen, start the ThinkPad Configuration program and click LCD; then select the Screen Expansion function. (The image might look slightly distorted.) See the on-board help, Access ThinkPad for more details.
Problem: The Windows startup screen does not fill the screen.
Solution: When you enable the Screen Expansion function in the ThinkPad
Configuration program, the Windows startup screen expands but does not fill the entire screen. This is not a defect. (The image might look slightly distorted.) See the on-board help, Access ThinkPad for more details.

A password problem

Problem: I forgot my password.
Solution: If you forget your power-on password, you have to take your
computer to an IBM reseller or marketing representative to have the password canceled.
Solving computer problems
Attention: If you forget your hard disk password, IBM will not reset your password or recover data from the hard disk. You must take your computer to an IBM reseller or an IBM marketing representative to have the hard disk drive replaced. Proof of purchase is required, and a fee will be charged for parts and service.
Attention: You might want to note your password and keep it in a safe place. If you forget your supervisor password, IBM will not reset your password. You must take your computer to an IBM reseller or IBM marketing representative to have the system board replaced. Proof of purchase is required, and a fee will be charged for parts and service.

A power switch problem

Problem: The system does not respond, and you cannot turn off the computer.
Solution: Turn off the computer by pressing and holding the power switch for
4 seconds or more. If the system is still not reset, remove the ac adapter and the battery.

Keyboard problems

Problem: All or some keys on the keyboard do not work.
Chapter 2. Solving computer problems 19
Solving computer problems
Solution: If the problem occurred immediately after the computer returned from standby mode, enter the power-on password if one has been set.
If an external keyboard is connected, the numeric keypad on your computer does not work. Use the numeric keypad on the external keyboard.
If an external numeric keypad or a mouse is connected:
1. Turn off the computer.
2. Remove the external numeric keypad or the mouse.
3. Turn on the computer and try using the keyboard again.
If the keyboard problem is resolved, carefully reconnect the external numeric keypad, external keyboard, or mouse, making sure that you have seated the connectors properly.
If keys on the keyboard still do not work, have the computer serviced.
Problem: A number appears when you type a letter.
Solution: The numeric lock function is on. To disable it, press and hold Shift; then press NumLk.
Problem: All or some keys on the external numeric keypad do not work.
Solution: Make sure that the external numeric keypad is correctly connected
to the computer via a port replicator.
Problem: All or some keys on the external keyboard do not work.
Solution: To use an external keyboard, you need to attach it to the computer
via a port replicator or through the keyboard/mouse cable. Make sure that: v The keyboard cable is correctly connected to the computer (if the keyboard
is connected to the computer via a port replicator).
v The keyboard/mouse cable is correctly connected to the computer via a
port replicator.
v The keyboard cable is connected to the correct side of the keyboard/mouse
cable.
If these connections are correct, disconnect the keyboard/mouse cable from the port replicator and make sure that the keyboard operates properly. If the built-in keyboard works, there is a problem with either the cable or with the keyboard. Try using a different keyboard/mouse cable or external keyboard.
Problem: The internal numeric keypad does not work.
20
ThinkPad®R30 Series Service and Troubleshooting Guide
Solution: If you connect an external numeric keypad or an external keyboard with a numeric keypad, the internal numeric keypad is disabled. Use the external numeric keypad instead.

TrackPoint problems

Problem: The cursor drifts when the computer is turned on or after it resumes normal operation.
Solution: The cursor might drift when you are not using the TrackPoint during normal operation. This is a normal characteristic of the TrackPoint and is not a defect. Drift might last for several seconds under the following conditions:
v When the computer is turned on. v When the computer resumes normal operation. v When the TrackPoint is pressed for a long time. v When the temperature changes.
Problem: The mouse or pointing device does not work.
Solution: Make sure that the pointing-device is enabled in the Device
Manager.
Solving computer problems
Make sure that the mouse or pointing-device cable is securely connected to the computer via a port replicator.
Try using the TrackPoint. If the TrackPoint works, the error might be due to the mouse.
Note: For more information, see the manual supplied with the mouse.
Problem: The mouse buttons do not work.
Solution: Change the mouse driver to Standard PS/2 Port Mouse, and then
reinstall IBM PS/2 TrackPoint. Drivers are provided in the C:\IBMTOOLS\DRIVERS directory on your hard disk drive. If your hard disk drive does not contain device drivers, refer to the ThinkPad Service & Support Web site. To access this Web site, open Access ThinkPad by pressing the ThinkPad button, then click the Service & Support image on the right of the screen.
Problem: The scrolling or magnifying glass function does not work.
Solution: Check the mouse driver in the Device Manager window, and make
sure that the IBM PS/2 TrackPoint driver is installed.
Chapter 2. Solving computer problems 21
Solving computer problems
Problem: The cursor does not move after the computer awakens from one of the power management modes.
Solution: Make sure you followed the instructions in the on-board help, Access ThinkPad correctly if you reinstalled Windows with the Advanced Power Management (APM) option.

Infrared port problems

Problem: Your computer cannot communicate with other devices through the infrared port.
Solution: Make sure that:
v The communication speeds are the same. v The infrared ports are clean. v No objects are between the computer and the communicating device. v The distance and angle between your computer and the device are within
the specified ranges.
v You are not operating under direct sunlight. v The infrared port is directly facing the other communication port. v The communication application running on your computer is compatible
with that running on the other computer. Refer to the application manuals for more information.
Problem: Incorrect data is sent between your computer and a communicating device.
Solution: Make sure that: v The distance and angle between your computer and the device are within
the ranges.
v The communication speeds are the same. v There are no other devices that radiate infrared rays, such as
remote-controlled devices or wireless headphones, near your computer or the communicating device.
v You are not operating under direct sunlight. v No fluorescent lamps are near your computer or the communicating device.
Problem: You cannot use DMA channels for both the parallel connector and the infrared port.
Solution: If you enable ECP and choose DMA3 (the default value) for the parallel connector in the ThinkPad Configuration program, you might be asked whether you want to disable DMA for the infrared port. To use DMA channels for both the parallel and infrared ports, do the following:
22
ThinkPad®R30 Series Service and Troubleshooting Guide
1. Click OK to disable DMA for the infrared port.
2. Close a parallel port panel.
3. Click the Infrared device button to open the infrared panel.
4. Choose DMA0 or DMA1 for the infrared port on the panel.
5. If you see the panel asked whether you want to disable DMA for an audio
device, click OK.

Standby or hibernation problems

Problem: The computer enters standby mode automatically.
Solution: If the processor reaches a temperature that is too high, the computer
will automatically enter standby mode to allow the computer to cool and to protect the processor and other internal components.
Problem: The computer enters standby mode immediately after POST (the standby indicator turns on).
Solution: Make sure that:
v The battery is charged. v The operating temperature is within the acceptable range. Refer to
Specificationsin this Guide.
Solving computer problems
If these items are correct, have the computer serviced.
Problem: The critical low-battery error appears, and the computer immediately turns off.
Solution: The battery power is getting low. Connect the ac adapter to the computer, or replace the battery with a fully charged one.
Problem: The computer display remains blank after you take action to return from a sleep mode.
Solution: Check if an external monitor was disconnected while the computer was in standby mode. Do not disconnect the external monitor while the
computer is in standby mode or hibernation mode. If no external monitor is attached when the computer resumes, the computer display remains blank and output is not displayed. This restriction does not depend on the resolution value.
Problem: The computer does not return from standby mode, or the standby
indicator stays on and the computer does not work.
Solution: The computer automatically enters standby or hibernation mode when the battery is depleted. Do one of the following:
Chapter 2. Solving computer problems 23
Solving computer problems
v Replace the battery with a fully charged one and then press Fn. v Connect the ac adapter to the computer; then press Fn.
Problem: Your computer does not enter standby or hibernation mode.
Solution: Check if any option has been selected to disable your computer
from entering standby or hibernation mode.
Problem: The computer does not enter standby mode as set by the timer under Windows 98 or Windows NT.
For Windows 98:
The generic CD or DVD driver for Windows 98 accesses the internal CD or DVD drive every 3 seconds to see if a CD or DVD inserted in the CD or DVD drive. This prevents your computer from entering standby mode even after a timeout. To prevent this from occurring, do the following:
1. Click Start.
2. Move the cursor to Settings and Control Panel.
3. Click Control Panel, and then double-click System.
4. Click the Device Manager tab.
5. Click the + mark of CD-ROM.
6. Double-click the name of the CD or DVD drive.
7. Click the Setting tab.
8. Clear the Auto insert notification check box.
Windows 98 no longer detects the CD or DVD insertion automatically.
For Windows NT:
If you enable the CD-ROM AutoRun feature, the timer cannot trigger the computer to enter standby mode. To enable the timer in this situation, edit the configuration information in the registry as follows:
HKEY_LOCAL_MACHINE\SYSTEM\ CurrentControlSet\Services\Cdrom\ Autorun: 0x1 > Autorun: 0
24
ThinkPad®R30 Series Service and Troubleshooting Guide

Computer screen problems

Problem: The screen is blank.
Solution: Press Fn+Home to make the screen brighter. If the problem persists,
do the Solutionin the problem below.
Problem: The screen is unreadable or distorted.
Solution: Make sure that:
v The display device driver is installed correctly. v The display resolution and color depth are correctly set. v The monitor type is correct.
To check these settings, do as follows:
For Windows XP:
1. Click Start Control Panel.
2. Click Appearance and Themes in the Pick a category section.
3. Click Display in the Pick a Control Panel icon section.
4. Click the Settings tab.
5. Check whether the color depth and resolution are correctly set.
6. Click Advanced.
7. Click the Adapter tab.
8. Make sure Trident Video Accelerator CyberBlade-Ai1is shown in the
adapter information window.
9. Click the Monitor tab.
10. Make sure the information is correct.
Solving computer problems
For Windows 2000, Windows 98, or Windows Me:
1. Open the Display Properties window, by double-clicking the Display icon in the Control Panel.
2. Click the Settings tab.
3. Check whether the color depth and resolution are correctly set.
4. Click Advanced....
5. Click the Adapter tab.
6. Make sure Trident Video Accelerator CyberBlade-Ai1 AGPis shown in
the adapter information window.
7. Click the Monitor tab.
8. Make sure the information is correct.
Chapter 2. Solving computer problems 25
Solving computer problems
For Windows NT:
1. Open the Display Properties window, by double-clicking the Display icon in the Control Panel.
2. Double-click the Display icon in the Control Panel.
3. Click the Settings tab.
4. Check whether the color depth and resolution are correctly set.
5. Click Display Type....
6. Make sure Trident Video Accelerator 3D Adapteris shown in the adapter
type section.
Problem: Incorrect characters appear on the screen.
Solution: Did you install the operating system or application program
correctly? If they are installed and configured correctly, have the computer serviced.
Problem: The screen stays on even after you turn off your computer.
Solution: Press and hold the power switch for 4 seconds or over to turn off
your computer; then turn it on again.
Problem: Missing, discolored, or bright dots appear on the screen every time you turn on your computer.
Solution: This is an intrinsic characteristic of the TFT technology. Your computers display contains multiple thin-film transistors (TFTs). A small number of missing, discolored, or bright dots on the screen might exist all the time.
Problem: ″Unable to create overlay windowmessage appears when you start DVD playback, -or- you may get poor playback or none at all while running video playback, DVD playback or game applications.
Solution: Do either of the following: v If you are using the computer display and external monitor simultaneously
with 32–bit color mode, change the color depth to 16–bit mode.
v If you are using a desktop size of 1280x1024 or larger, reduce the desktop
size and the color depth.
Problem: You see the poor quality screen in DVD playback.
26
ThinkPad®R30 Series Service and Troubleshooting Guide
Solution: When you playback DVD by WinDVD on dual display mode, you might need to lower the display resolution and/or the color depth to improve the screen quality or use single display (either the LCD or the external monitor only) mode.
Problem: The image cannot be expanded to fill the entire screen.
Solution: When the display is set to 640x480 or 800x600 in the dual or
extended display mode, screen expansion is not supported.
When the color is set to 32–bit and the display is set to 640x480 or 800x600, screen expansion is not supported. Set the color to less than 32 bits.

An external monitor problem

Problem: Display switching (Fn+F7) is not supported in a command prompt full-screen session.
Solution: To use display switching (Fn+F7), go back to the Windows Desktop by pressing Alt+Enter or exit the command prompt full-screen session.

A television problem

Problem: ″Create overlay failed. Please lower your resolution color depth and try again.message is displayed.
Solving computer problems
Solution: When you attach TV as the extended monitor and play an MPEG file (DVD) using WinDVD, this message may be displayed. Please lower the display resolution and/or color depth and try again.

Battery problems

Problem: The battery cannot be fully charged by the power-off method in the standard charge time for your computer.
Solution: The battery might be over-discharged. Do the following:
1. Turn off the computer.
2. Make sure that the over-discharged battery is in the computer.
3. Connect the ac adapter to the computer and let it charge.
If the optional Quick Charger is available, use it to charge the over-discharged battery.
If the battery cannot be fully charged in 24 hours, use a new battery.
Problem: Your computer shuts down before the battery status indicator shows empty, -or- Your computer operates after the battery status indicator shows empty.
Chapter 2. Solving computer problems 27
Solving computer problems
Solution: Discharge and recharge the battery.
Problem: The operating time for a fully charged battery is short.
Solution: Discharge and recharge the battery. If your batterys operating time
is still short, use a new battery.
Problem: The computer does not operate with a fully charged battery.
Solution: The surge protector in the battery might be active. Turn off the
computer for one minute to reset the protector; then turn on the computer again.
Problem: The battery cannot be charged.
Solution: You cannot charge the battery when it is too hot. If the battery feels
hot, remove it from the computer and allow it to cool to room temperature. After it cools, reinstall it and recharge the battery. If it still cannot be charged, have it serviced.

Hard disk drive problems

Problem: The hard disk drive makes a rattling noise intermittently.
Solution: The rattling noise might be heard when:
v The hard disk drive starts accessing the data or it stops. v You carry the hard disk drive. v You carry your computer.
This is a normal characteristic of a hard disk drive and is not a defect.
Problem: The hard disk drive does not work.
Solution: Use PC-Doctor to test the hard disk drive. If there are problems,
have the hard disk drive serviced.

CD-ROM, DVD-ROM, CD-RW, DVD/CD-RW drive problems

Problem: The CD or DVD does not work.
Solution: Make sure that:
v The computer power is turned on and a CD or DVD is properly loaded on
the center pivot of the CD or DVD drive. (You should hear a click.)
v The CD or DVD tray is firmly closed. v The device drivers are correctly installed.
28
ThinkPad®R30 Series Service and Troubleshooting Guide
Solving computer problems
Problem: You hear a noise from the CD or DVD drive when the disc is spinning.
Solution: The CD or DVD drive cover might be bent. Have the computer serviced.
Problem: The CD or DVD tray does not open even if you press the CD or DVD drive eject button.
Solution: Insert a pin into the CD or DVD emergency eject hole and eject the CD or DVD tray.
Problem: The CD or DVD cannot be read.
Solution: Make sure that:
v The CD or DVD is not dirty. If it is, clean it with a CD or DVD cleaner kit. v The CD or DVD is not defective. If it is, try another CD or DVD. v The CD or DVD is placed in the tray with the label side up. v The CD or DVD format conforms with one of the following:
Music CDCD-ROM or CD-ROM XAMultisession photo CDVideo CDCD-R or CD-RWDVD-ROM (DVD-video)
Note: You can only playback DVD movies if your computer has a
DVD-ROM or DVD/CD-RW drive and the DVD movie playback software is installed.
Problem: The DVD movie does not play.
Solution: The region code of the DVD movie you inserted into the DVD-ROM
or DVD/CD-RW drive must match the region code you set for the DVD Player software. You can set the region code a maximum of 5 times. If you have not reached the limit, a prompt appears and you change it to the region code of the inserted DVD movie. If not, you will only be able to play DVD movies of the last region you set.
Problem: The control buttons on the DVD movie playback software do not work.
Chapter 2. Solving computer problems 29
Solving computer problems
Solution: The DVD movie playback software is reading the DVD. Wait for a few seconds before trying the buttons again.
Problem: A CD cannot be written.
Solution: Make sure the CD you placed in the CD-RW or DVD/CD-RW drive
is either a CD-R or CD-RW. If you are writing to a CD-R, make sure it is blank.
Note: You can write CDs if your computer has a CD-RW or DVD/CD-RW
drive and a CD recording software is installed.
Problem: A written CD has errors.
Solution: Make sure your computer is protected from vibration when writing
to a CD. Even typing on the computer will cause vibration that may result in errors in the written CD or even a damaged and unreadable CD.
Note: You can write CDs if your computer has a CD-RW or DVD/CD-RW
drive and a CD recording software is installed.

Software problems

Problem: An application does not run correctly.
Solution: Make sure that the problem is not being caused by the application
by checking the following: v Your computer has the minimum required memory to run the application.
Refer to the manuals supplied with the application.
v The application is designed to operate with your operating system. v Other applications run correctly on your computer. v The necessary device drivers are installed. v The application works when it is run on some other computer.
If an error message appears when you are using the application program, refer to the manuals supplied with the application.
If the application still does not run correctly, contact your place of purchase or a service representative for help.
Problem: The Windows Safe Mode screen appears.
Solution: Your computer may not have shut down properly the last time. In
Safe Mode, shut down and restart your computer.
30
ThinkPad®R30 Series Service and Troubleshooting Guide
If you still have a problem, contact your place of purchase or the service representative for help.

Other problems

Problem: The computer locks or does not accept any input.
Solution: Your computer might lock when it enters standby mode during a
communication operation. Disable the standby timer when you are working on the network.
To turn off the computer, press and hold the power switch for 4 seconds or more.
Problem: The computer does not turn off with the power switch.
Solution: If the standby indicator is on and you are working under battery
power, replace the battery with a fully charged one or change your power source to ac power.
If you still have a problem, press and hold the power switch for 4 seconds or more; this forces the computer to turn off.
Problem: The computer does not start from a device you want, such as a diskette drive.
Solving computer problems
Solution: Refer to the Startup menu of the IBM BIOS Setup Utility. Make sure that the startup sequence in the IBM BIOS Setup Utility is set so that the computer starts from the device you want.
Chapter 2. Solving computer problems 31
Solving computer problems

Starting BIOS Setup Utility

Your computer provides a program, called IBM BIOS Setup Utility, that enables you to select various setup parameters. The panels in this utility are as follows:
v Config: Set the configuration of your computer. v Date/Time: Set the date and time. v Password: Set a password. v Startup: Set the startup device. v Restart: Restart the system.
Note: You can set some of these parameters more easily by using the
ThinkPad Configuration Program. For more information on this program, refer to the on-board help.
To start IBM BIOS Setup Utility, do as follows:
1. To protect yourself against accidental loss of data, refer to Backing up your registryin Access ThinkPad. Open Access ThinkPad by pressing the ThinkPad button. Backing up your registry will save your computers current configuration.
2. Remove any diskette from the diskette drive, and remove any CD or DVD from the CD or DVD drive; then turn off the computer.
3. Turn on the computer; then, while the Press F1 for IBM BIOS Setup Utility message is displayed at the lower-left of the screen, press F1.
If you have set a supervisor password, the IBM BIOS Setup Utilitymenu appears after you enter the password. You can start the utility by pressing Enter instead of entering the supervisor password; then, however, you cannot change the parameters that are protected by the supervisor password. For more information, refer to the on-board help provided with your computer.
4. Using the cursor keys, move to an item you want to change. When the item you want is highlighted, press Enter. A submenu is displayed.
5. Change the items you want to change. To change the value of an item, use the F5 or F6 key. If the item has a submenu, you can display it by pressing Enter.
6. Press F3 or Esc to exit from the submenu. If you are in a nested submenu, press Esc repeatedly until you reach the
IBM BIOS Setup Utility menu.
7. Select Restart; then press Enter. Change the option you want; then press Enter. Your computer restarts.
Notes:
1. The Restart submenu offers you such options as loading the default settings or discarding the changes.
2. If you need to restore the settings to their original state as of the time of purchase, press the F9 key to load the default settings.
32
ThinkPad®R30 Series Service and Troubleshooting Guide

Recover pre-installed software

If the data on your hard disk drive is damaged or accidentally erased, you can restore the software that was shipped with your computer. This software includes your pre-installed operating system, applications, and device drivers.
To restore your pre-installed software, you can use the Product Recovery program.
The Product Recovery program is in a section of your hard disk drive that is not displayed by Windows Explorer.
Note: The recovery process might take up to 2 hours.
Attention
All of the files on the C:\ drive will be lost in the recovery process. Be sure to back up copies of the files you have saved on your C:\ drive before you begin.
Note: You might need to use a CD, DVD, or a diskette drive in the recovery
process. Use a drive that is compatible with your computer.
Solving computer problems
To use the Product Recovery program to restore your pre-installed software, do the following:
1. Save all your files and shut down your desktop.
2. Turn off your computer.
3. Turn on your computer. Quickly press F11 when this message is displayed
on the screen: To start the Product Recovery program, press F11.This message is displayed for only a few seconds.
Note: If this message is not displayed, you can use a Recovery Repair
diskette to get access to the Product Recovery program.
4. From the list displayed on the screen, select the operating system you want to recover.
5. Select the recovery options you want, and follow the instructions on the screen.
6. Restart the system. Your computer will restart with the pre-installed operating system, drivers, and software.
Chapter 2. Solving computer problems 33
Solving computer problems
To create a Recovery Repair diskette
When the operating system cannot boot normally, you can use the Recovery Repair diskette to boot your computer. Make a Recovery Repair diskette and save it for future use. To make a Recovery Repair diskette:
1. Shut down and restart your computer.
2. Attach the external diskette drive to the computer.
3. At the prompt, press F11. (The option to press F11 appears for only a few
seconds. You must press F11 quickly.) The Product Recovery program main menu appears.
4. Select System Utilities from the main menu. Press Enter.
5. Select Create a Recovery Repair diskette. Press Enter.
6. Follow the on-screen instructions.
7. When the process is completed, label your diskette as the Recovery Repair
diskette and save it for future use.
To use the Recovery Repair diskette:
1. Shut down and turn off your computer.
2. Attach the external diskette drive to the computer.
3. Insert the Recovery Repair diskette into the drive; then turn on the
computer.
4. Follow the on-screen instructions.

Installing a new operating system and device drivers

If you install a new operating system on your computer, you need to install the ThinkPad®device drivers for it at the same time.
The device drivers are provided in the C:\IBMTOOLS\DRIVERS directory on your hard disk drive. The software applications are provided in the C:\IBMTOOLS\APPS directory on your hard disk drive. Operating system updates are provided in the C:\IBMTOOLS\OSFIXES directory on your hard disk drive. These directories also contain text files explaining how to install the drivers.
Note: If you cannot find the device drivers you need on your hard disk drive,
or if you want to receive updates and the latest information about them, refer to the ThinkPad Service & Support Web site. To access this Web site, open Access ThinkPad by pressing the ThinkPad button; then click the Service & Support image on the right of the screen.
For instructions on how to install a new operating system, see the on-board help, Access ThinkPad.
34
ThinkPad®R30 Series Service and Troubleshooting Guide

Backing up your system

Backing up your registry

When you add software applications or devices to your computer, the installation process may change your registry and configuration.
If your computer does not work properly after you add applications or devices, you need to restore the previous registry.
Before you make changes, backup the configuration. If something goes wrong, you can restore the system registry and configuration files.
You can use ConfigSafe (for Windows 98 and Windows 2000) or System Restore (for Windows XP and Windows Millenium Edition) to save the configuration before you make changes. Then if something goes wrong, use ConfigSafe or System Restore to restore the system registry and configuration files.
For Windows XP:
To capture a snapshot of your system configuration, or to restore your configuration to an earlier snapshot using Windows XP:
1. Click Start Control Panel.
2. Click Performance and Maintenance in the Pick a category section.
3. Click System Restore in the Pick a task... section.
4. Follow the on-screen instructions.
Solving computer problems
If you need to restore a configuration snapshot, open ConfigSafe and follow the on-screen instructions.
For Windows 2000 or Windows 98:
To capture a snapshot of your system configuration with ConfigSafe:
1. Click Start Programs ConfigSafe ConfigSafe.
2. Double-click ConfigSafe. The window opens.
3. Click the camera icon.
4. Type a name for the snapshot. For example, before installing a word
processor, you might type, Before installing a word processor.
5. Click OK.
6. After a few moments, the main ConfigSafe window will return. The
snapshot is complete.
If you need to restore a configuration snapshot, open ConfigSafe and follow the on-screen instructions.
Chapter 2. Solving computer problems 35
Solving computer problems
For Windows Me:
To capture a snapshot of your system configuration, or to restore your configuration to an earlier snapshot using Windows Me, click Start Programs Accessories System Tools System Restore and follow the on-screen instructions.

Backing up data

Hard disks are reliable data storage devices. However, you should protect yourself against accidental data loss or the unlikely event of a hard disk malfunction by backing up your important files regularly.
For Windows XP:
To back up data, start the backup application as follows:
1. Click Start Control Panel.
2. Click Performance and Maintenance in the Pick a category section.
3. Click Back up my data in the Pick a task... section.
4. Follow the on-screen instructions.
For Windows 2000 or Windows 98:
To back up data, start the backup application as follows:
1. Click Start.
2. Move the cursor to Programs, Accessories, System Tools, and Backup.
3. Click Backup.
Make sure that the Create a new backup job button is marked in the Microsoft Backup window.
4. Click OK. The Backup Wizard will guide you through backing up some or all of the files on your hard disk.
For Windows Me:
To back up data using Windows Me, copy your files to a diskette drive or another storage device on a regular basis.
36
ThinkPad®R30 Series Service and Troubleshooting Guide

Replacing the hard disk drive

You can increase the storage capacity of your computer by replacing the hard disk drive with one of greater capacity. You can purchase a new hard disk drive from your IBM reseller or IBM marketing representative.
Note: Replace the hard disk drive only if you upgrade it or have it repaired.
The connectors and bay of the hard disk drive were not designed for frequent changes, or drive swapping.
Attention
Handling a hard disk drive
v Do not drop the drive or subject it to physical shocks. Put the drive on
a material, such as soft cloth, that absorbs the physical shock.
v Do not apply pressure to the cover of the drive. v Do not touch the connector.
The drive is very sensitive. Incorrect handling can cause damage and permanent loss of data on the hard disk. Before removing the hard disk drive, make a backup copy of all the information on the hard disk drive, and then turn the computer off. Never remove the drive while the system is operating, in standby mode, or in hibernation mode.
Replacing the hard disk drive
To replace the hard disk drive, do the following:
1. Turn off the computer; then disconnect the ac adapter and all cables from the computer.
2. Close the computer display, and turn the computer over.
3. Remove the battery.
4. Remove the screw that secures the hard disk drive.
Chapter 2. Solving computer problems 37
Replacing the hard disk drive
5. Remove the hard disk drive by pulling the cover away from the computer.
6. Detach the cover from the hard disk drive.
7. Attach the cover to a new hard disk drive.
8. Insert the hard disk drive and its cover into the hard disk drive bay; then
secure it with the screw.
9. Reinstall the battery.
10. Turn the computer over. Connect the ac adapter and cables to the
computer.
38
ThinkPad®R30 Series Service and Troubleshooting Guide

Replacing the battery

To replace the battery, do as follows:
1. Turn off the computer, or enter hibernation mode. Then disconnect the ac adapter and all cables from the computer.
Note: If you are using a PC Card, the computer may not be able to enter
2. Close the computer display, and turn the computer over.
3. Remove the battery. a. Slide and hold the battery latch in the unlock position 1. b. Insert your finger in the notch and lift up the battery 2. c. Pull up and remove the battery 3.
Replacing the battery
hibernation mode. If this happens, turn off the computer.
2
1
3
4. Reinstall the battery. a. Insert the end of the battery (with the rubber feet) into the battery
compartment 1.
b. Let down the other end of the battery securely into the battery
compartment 2.
c. Slide the battery latch to the lock position 3.
1
2
3
5. Turn the computer over again. Connect the ac adapter and the cables to
the computer.
Chapter 2. Solving computer problems 39
Replacing the battery
40
ThinkPad®R30 Series Service and Troubleshooting Guide

Chapter 3. Getting help and service from IBM

Getting help and service ........42
Getting help on the Web ........42
Getting help by fax .........43
Calling IBM ............43
Getting help around the world......45
© Copyright IBM Corp. 2001 41

Getting help and service

Getting help and service
If you need help, service, technical assistance, or just want more information about IBM products, you will find a wide variety of sources available from IBM to assist you. This section contains information about where to go for additional information about IBM and IBM products, what to do if you experience a problem with your computer, and whom to call for service should it be necessary.
Information about your IBM computer and preinstalled software, if any, is available in the documentation that comes with your computer. That documentation includes printed books, online books, README files, and help files. In addition, information about IBM products is available on the World Wide Web and through the IBM Automated Fax System.
For technical assistance with the installation of, or questions related to, Service Packs for your preinstalled Microsoft Microsoft Product Support Services Web site at support.microsoft.com/directory/, or you can contact the IBM HelpCenter Some fees might apply.

Getting help on the Web

On the World Wide Web, the IBM Web site has up-to-date information about IBM Personal Computer products and support. The address for the IBM Personal Computing home page is www.ibm.com/pc
IBM provides an extensive Web site dedicated to mobile computing and to ThinkPad computers at www.ibm.com/pc/support
Research this Web site to learn how to solve problems, find new ways to use your computer, and learn about options that can make working with your ThinkPad computer even easier.
If you select Profile from the support page, you can create a customized support page that is specific to your hardware, complete with Frequently Asked Questions, Parts Information, Technical Hints and Tips, and Downloadable Files. In addition, you can choose to receive e-mail notifications whenever new information becomes available about your registered products.
®
Windows product, refer to the
®
.
You also can order publications through the IBM Publications Ordering System at
www.elink.ibmlink.ibm.com/public/applications/publications/cgibin/pbi.cgi
42
ThinkPad®R30 Series Service and Troubleshooting Guide

Getting help by fax

If you have a touch-tone telephone and access to a fax machine, in the U.S. and Canada you can receive by fax marketing and technical information on many topics, including hardware, operating systems, and local area networks (LANs).
You can call the IBM Automated Fax System 24 hours a day, 7 days a week. Follow the recorded instructions, and the requested information will be sent to your fax machine. In the U.S. and Canada, to access the IBM Automated Fax System, call 1-800-426-3395.

Calling IBM

If you have tried to correct the problem yourself and still need help, during the warranty period, you can get help and information by telephone through the IBM PC HelpCenter. The following services are available during the warranty period:
v Problem determination - Trained personnel are available to assist you with
determining if you have a hardware problem and deciding what action is necessary to fix the problem.
v IBM hardware repair - If the problem is determined to be caused by IBM
hardware under warranty, trained service personnel are available to provide the applicable level of service.
v Engineering change management - Occasionally, there might be changes
that are required after a product has been sold. IBM or your reseller, if authorized by IBM, will make selected Engineering Changes (ECs) available that apply to your hardware.
Getting help and service
The following items are not covered: v Replacement or use of non-IBM parts or nonwarranted IBM parts
Note: All warranted parts contain a 7-character identification in the format
IBM FRU XXXXXXX
v Identification of software problem sources v Configuration of BIOS as part of an installation or upgrade v Changes, modifications, or upgrades to device drivers v Installation and maintenance of network operating systems (NOS) v Installation and maintenance of application programs
Refer to your IBM hardware warranty for a full explanation of IBM warranty terms. Be sure to retain your proof of purchase to obtain warranty service.
Chapter 3. Getting help and service from IBM 43
Getting help and service
If possible, be near your computer when you make your call in case the technical assistance representative needs to help you resolve a computer problem. Please ensure that you have downloaded the most current drivers and system updates, run diagnostics, and recorded information before you call. When calling for technical assistance, please have the following information available:
v Machine Type and Model v Serial numbers of your computer, monitor, and other components, or your
proof of purchase
v Description of the problem v Exact wording of any error messages v Hardware and software configuration information for your system
Telephone numbers
Before you call, use Access ThinkPad to find information about your computer. Access ThinkPad includes a comprehensive, on-board help and information center for your computer and includes information such as installing additional memory. It travels with you, eliminating the need to carry reference manuals. Press the ThinkPad button to open Access ThinkPad.
Note: Telephone numbers are subject to change without notice. For the latest
list of IBM HelpCenter telephone numbers and hours of operation, visit the Support Web site at
www.ibm.com/pc/support.
Country or region Language Telephone Number
Argentina Spanish 0800–666–0011 Australia English 1300-130-426 Austria German 01-24592-5901 Bolivia Spanish 0800–0189 Belgium Dutch
French Brazil Portuguese 55-11–3889–8986 Canada English/ French 1-800-565-3344
Chile Spanish 800-224-488 China Mandarin 800-810-1818 China (Hong Kong S.A.R.) Cantonese/ English/
Putonghua
02-210–9820
02-210–9800
416-383-3344
2825-7799
44
ThinkPad®R30 Series Service and Troubleshooting Guide
Getting help and service
Country or region Language Telephone Number
Colombia Spanish 980-912-3021 Denmark Danish 45 20 82 00 Ecuador Spanish 1-800-426911 (option #4) Finland Finnish 09-22 931 840 France French 0238557450
Germany
Ireland English 01-815 9200 Italy Italian 02-7031-6101 Japan Japanese Luxembourg French 298-977 5063 Mexico Spanish 001-866-434-2080 Netherlands Dutch 020-514 5770 New Zealand English 0800-446-149 Norway Norwegian 66 81 11 00 Peru Spanish 0-800-50-866 Portugal Portuguese 21-791 51 47 Russia Russian 095-940-2000 Spain Spanish 91-662 49 16 Sweden Swedish 08-477 4420 Switzerland German/ French/ Italian 0583-33-09-00 Taiwan Mandarin 886-2-2725-9799 United Kingdom English 01475-555 055 United States English 1-800-772-2227 Uruguay Spanish 000-411-005-6649 Venezuela Spanish 0-800-100-2011
German
07032-1549 201

Getting help around the world

If you travel with your computer or relocate it to a country where your ThinkPad machine type is sold and serviced by IBM or by IBM resellers who are authorized to perform warranty service, International Warranty Service is available for your computer.
Service methods and procedures vary by country, and some services might not be available in all countries. International Warranty Service is delivered
Chapter 3. Getting help and service from IBM 45
Getting help and service
through the method of service (such as depot, carry-in, or on-site service) that is provided in the servicing country. Service centers in certain countries might not be able to service all models of a particular machine type. In some countries, fees and restrictions might apply at the time of service.
To determine whether your computer is eligible for International Warranty Service and to view a list of the countries where service is available, go to http://www.ibm.com/pc/support/, and click Warranty Lookup. Eligible IBM computers are identified by their four-digit machine types. For more information about International Warranty Service, see Service Announcement 601-034 at http://www.ibm.com/. Click Support & downloads, click
Announcement letters, and click Announcements search.IntheSearch by letter number only field, type 601-034 , and click Search.
46
ThinkPad®R30 Series Service and Troubleshooting Guide

Appendix A. Important safety instructions

DANGER
Electric current from power, telephone, and communication cables is hazardous. To avoid shock hazard, connect and disconnect cables as shown below when installing, moving, or opening the covers of this product or attached devices. The 3-pin power cord must be used with a properly grounded outlet.
To Connect
Turn everything OFF.
First, attach all cables to devices.
Attach the signal cables to receptacles.
Attach the power cord to an outlet.
To Disconnect
Turn everything OFF.
First, remove the power cord from the outlet.
Remove signal cables from receptacles.
Remove all cables from devices.
Turn the device ON.
© Copyright IBM Corp. 2001 47
DANGER
Reduce the risk of fire and electric shock by always following basic safety precautions, including the following:
v Do not use your computer in or near water.
v During electrical storms:
Do not use your computer with the telephone cable connection.Do not connect the cable to or disconnect it from the telephone outlet on the
wall.
DANGER
If the rechargeable battery pack is incorrectly replaced, there is danger of an explosion. The battery pack contains a small amount of harmful substances. To avoid possible injury:
v Replace only with a battery of the type recommended by IBM, or an equivalent.
v Keep the battery pack away from fire.
v Do not expose it to water or rain.
v Do not attempt to disassemble it.
v Do not short-circuit it.
v Keep it away from children.
48 ThinkPad
Do not put the battery pack in trash that is disposed of in landfills. When disposing of the battery, comply with local ordinances or regulations and your companys safety standards.
DANGER
If the backup battery is incorrectly replaced, there is danger of explosion.
The lithium battery contains lithium and can explode if it is not properly handled or disposed of.
Replace only with a battery of the same type.
To avoid possible injury or death, do not: (1) throw or immerse the battery into water, (2) allow it to heat to more than 100 °C (212 °F), or (3) attempt to repair or disassemble it. Dispose of it as required by local ordinances or regulations and your companys safety standards.
®
R30 Series Service and Troubleshooting Guide
CAUTION:
The fluorescent lamp in the liquid crystal display (LCD) contains mercury. Do not put it in trash that is disposed of in landfills. Dispose of it as required by local ordinances or regulations.
The LCD is made of glass, and rough handling or dropping the computer can cause the LCD to break. If the LCD breaks and the internal fluid gets into your eyes or on your hands, immediately wash the affected areas with water for at least 15 minutes; if any symptoms are present after washing, get medical care.
CAUTION:
To reduce the risk of fire, use only No. 26 AWG or larger (thicker) telephone cable.

Modem safety information

To reduce the risk of fire, electrical shock, or injury when using telephone equipment, always follow basic safety precautions, such as:
Never install telephone wiring during a lightning storm.
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
Use caution when installing or modifying telephone lines.
Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.

Laser compliance statement

The CD-ROM, CD-RW, DVD-ROM, or DVD/CD-RW drive, which can be installed in the IBM ThinkPad computer is a laser product. The drives classification label (shown below) is on the surface of the drive.
CLASS 1 LASER PRODUCT LASER KLASSE 1
Appendix A. Important safety instructions 49
LUOKAN 1 LASERLAITE APPAREIL ALASER DE CLASSE 1 KLASS 1 LASER APPARAT
The drive is certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class I laser products.
In other countries, the drive is certified to conform to the requirements of EN60825.
DANGER
Do not open the CD-ROM, CD-RW, DVD-ROM, or DVD/CD-RW drive unit; no user adjustments or serviceable parts are inside.
Use of controls, adjustments, or the performance of procedures other than those specified might result in hazardous radiation exposure.
Class 1 laser products are not considered hazardous. The design of the laser system and the CD-ROM, CD-RW, DVD-ROM, or DVD/CD-RW drive ensures that there is no exposure to laser radiation above a Class 1 level during normal operation, user maintenance, or servicing.
50 ThinkPad
Some drives contain an embedded Class 3A laser diode. Note this warning:
DANGER
Emits visible and invisible laser radiation when open. Avoid direct eye exposure. Do not stare into the beam or view it directly with optical instruments.
Save these instructions.
®
R30 Series Service and Troubleshooting Guide

Appendix B. Warranty Information

This appendix contains warranty information for your ThinkPad computer, warranty period, warranty service and support, and the IBM Statement of Limited Warranty.

Warranty Period

Contact your place of purchase for warranty service information. Some IBM Machines are eligible for on-site warranty service depending on the country or region where service is performed or the machine type.
Machine type 2656
Country or region Warranty period
All Parts - 1 year, labor - 1 year
Machine type 2657
Country or region Warranty period
All Parts - 3 years, labor - 3 years
Battery pack - 1 year
Battery pack - 1 year
Machine type 2676
Country or region Warranty period
All Parts - 3 years, labor - 3 years with onsite
support
Battery pack - 1 year

Warranty service and support

With the original purchase of an IBM ThinkPad computer, you have access to extensive support. During the IBM Machine warranty period, you may call IBM or your reseller for problem-determination assistance under the terms of the IBM Statement of Limited Warranty.
© Copyright IBM Corp. 2001 51
The following services are available during the warranty period: v Problem determination – Trained personnel are available to assist you with
determining if you have a hardware problem and deciding what action is necessary to fix the problem.
v IBM hardware repair – If the problem is determined to be caused by IBM
hardware under warranty, trained service personnel are available to provide the applicable level of service, either on-site or at an IBM service center as determined by IBM.
v Engineering Change management – Occasionally, there might be changes
that are required after a product has been shipped from IBM. In those instances, IBM will make Engineering Changes (ECs) available that apply to your hardware.
The following items are not covered under warranty service. v Replacement or use of non-IBM parts. All IBM parts contain a 7-character
identification in the format IBM FRU XXXXXXX.
v Identification of non-IBM software problem sources. v Installation of customer replaceable units (CRUs). v Installation and configuration of machine code or licensed internal code
that is designated as customer installable.
If you do not register your ThinkPad computer with IBM, you might be required to present proof of purchase to obtain warranty service.

Before you call for service

Calling for service

52 ThinkPad
You can solve many problems without outside assistance by following the troubleshooting procedures that IBM provides in the online help or in the publications that are provided with your ThinkPad computer and software.
Most computers, operating systems, and application programs come with information that contains troubleshooting procedures and explanations of error messages and error codes. The information that comes with your ThinkPad computer also describes the diagnostic tests that you can perform.
If you suspect a software problem, refer to the information for the operating system or application program.
Please have the following information ready:
v Machine type, model, and serial number v Description of the problem v Exact wording of any error messages v Hardware and software configuration information
®
R30 Series Service and Troubleshooting Guide
To find the telephone number for the HelpCenter™nearest you, see 44 in Chapter 3, Getting help and service from IBMon page 41.

IBM Statement of Limited Warranty Z125-4753-06 8/2000

Part1-General Terms

This Statement of Limited Warranty includes Part 1 - General Terms and Part 2 - Country-unique Terms. The terms of Part 2 replace or modify those of Part
1. The warranties provided by IBM in this Statement of Limited Warranty apply only to Machines you purchase for your use, and not for resale, from IBM or your reseller. The term Machinemeans an IBM machine, its features, conversions, upgrades, elements, or accessories, or any combination of them. The term Machinedoes not include any software programs, whether pre-loaded with the Machine, installed subsequently or otherwise. Unless IBM specifies otherwise, the following warranties apply only in the country where you acquire the Machine. Nothing in this Statement of Limited Warranty affects any statutory rights of consumers that cannot be waived or limited by contract. If you have any questions, contact IBM or your reseller.
The IBM Warranty for Machines
IBM warrants that each Machine 1) is free from defects in materials and workmanship and 2) conforms to IBMs Official Published Specifications (Specifications). The warranty period for a Machine is a specified, fixed period commencing on its Date of Installation. The date on your sales receipt is the Date of Installation unless IBM or your reseller informs you otherwise.
If a Machine does not function as warranted during the warranty period, and IBM or your reseller are unable to either 1) make it do so or 2) replace it with one that is at least functionally equivalent, you may return it to your place of purchase and your money will be refunded.
Extent of Warranty
The warranty does not cover the repair or exchange of a Machine resulting from misuse, accident, modification, unsuitable physical or operating environment, improper maintenance by you, or failure caused by a product for which IBM is not responsible. The warranty is voided by removal or alteration of Machine or parts identification labels.
THESE WARRANTIES ARE YOUR EXCLUSIVE WARRANTIES AND REPLACE ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THESE WARRANTIES GIVE YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
Appendix B. Warranty Information 53
LIMITATION OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES APPLY AFTER THAT PERIOD.
Items Not Covered by Warranty
IBM does not warrant uninterrupted or error-free operation of a Machine.
Any technical or other support provided for a Machine under warranty, such as assistance via telephone with how-toquestions and those regarding Machine set-up and installation, will be provided WITHOUT WARRANTIES OF ANY KIND.
Warranty Service
To obtain warranty service for a Machine, contact IBM or your reseller. If you do not register your Machine with IBM, you may be required to present proof of purchase.
During the warranty period, IBM or your reseller, if approved by IBM to provide warranty service, provides without charge certain types of repair and exchange service to keep Machines in, or restore them to, conformance with their Specifications. IBM or your reseller will inform you of the available types of service for a Machine based on its country of installation. At its discretion, IBM or your reseller will 1) either repair or exchange the failing Machine and 2) provide the service either at your location or a service center. IBM or your reseller will also manage and install selected engineering changes that apply to the Machine.
54 ThinkPad
Some parts of IBM Machines are designated as Customer Replaceable Units (called CRUs), e.g., keyboards, memory, or hard disk drives. IBM ships CRUs to you for replacement by you. You must return all defective CRUs to IBM within 30 days of your receipt of the replacement CRU. You are responsible for downloading designated Machine Code and Licensed Internal Code updates from an IBM Internet Web site or from other electronic media, and following the instructions that IBM provides.
When warranty service involves the exchange of a Machine or part, the item IBM or your reseller replaces becomes its property and the replacement becomes yours. You represent that all removed items are genuine and unaltered. The replacement may not be new, but will be in good working order and at least functionally equivalent to the item replaced. The replacement assumes the warranty service status of the replaced item. Many features, conversions, or upgrades involve the removal of parts and their return to IBM. A part that replaces a removed part will assume the warranty service status of the removed part.
®
R30 Series Service and Troubleshooting Guide
Before IBM or your reseller exchanges a Machine or part, you agree to remove all features, parts, options, alterations, and attachments not under warranty service.
You also agree to
1. ensure that the Machine is free of any legal obligations or restrictions that prevent its exchange;
2. obtain authorization from the owner to have IBM or your reseller service a Machine that you do not own; and
3. where applicable, before service is provided: a. follow the problem determination, problem analysis, and service
request procedures that IBM or your reseller provides;
b. secure all programs, data, and funds contained in a Machine; c. provide IBM or your reseller with sufficient, free, and safe access to
your facilities to permit them to fulfill their obligations; and
d. inform IBM or your reseller of changes in a Machines location.
IBM is responsible for loss of, or damage to, your Machine while it is 1) in IBMs possession or 2) in transit in those cases where IBM is responsible for the transportation charges.
Neither IBM nor your reseller is responsible for any of your confidential, proprietary or personal information contained in a Machine which you return to IBM or your reseller for any reason. You should remove all such information from the Machine prior to its return.
Limitation of Liability
Circumstances may arise where, because of a default on IBMs part or other liability, you are entitled to recover damages from IBM. In each such instance, regardless of the basis on which you are entitled to claim damages from IBM (including fundamental breach, negligence, misrepresentation, or other contract or tort claim), except for any liability that cannot be waived or limited by applicable laws, IBM is liable for no more than
1. damages for bodily injury (including death) and damage to real property and tangible personal property; and
2. the amount of any other actual direct damages, up to the charges (if recurring, 12 monthscharges apply) for the Machine that is subject of the claim. For purposes of this item, the term Machineincludes Machine Code and Licensed Internal Code.
This limit also applies to IBMs suppliers and your reseller. It is the maximum for which IBM, its suppliers, and your reseller are collectively responsible.
Appendix B. Warranty Information 55
UNDER NO CIRCUMSTANCES IS IBM LIABLE FOR ANY OF THE FOLLOWING: 1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES (OTHER THAN THOSE UNDER THE FIRST ITEM LISTED ABOVE); 2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR
3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES, LOST PROFITS OR LOST SAVINGS, EVEN IF IBM, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Governing Law
Both you and IBM consent to the application of the laws of the country in which you acquired the Machine to govern, interpret, and enforce all of your and IBMs rights, duties, and obligations arising from, or relating in any manner to, the subject matter of this Agreement, without regard to conflict of law principles.

Part2-Country-unique Terms

AMERICAS
BRAZIL
Governing Law: The following is added after the first sentence:
Any litigation arising from this Agreement will be settled exclusively by the court of Rio de Janeiro.
56 ThinkPad
NORTH AMERICA
Warranty Service: The following is added to this Section:
To obtain warranty service from IBM in Canada or the United States, call 1-800-IBM-SERV (426-7378).
CANADA
Governing Law: The following replaces laws of the country in which you acquired
the Machinein the first sentence:
laws in the Province of Ontario.
UNITED STATES
Governing Law: The following replaces laws of the country in which you acquired
the Machinein the first sentence:
laws of the State of New York.
®
R30 Series Service and Troubleshooting Guide
ASIA PACIFIC
AUSTRALIA
The IBM Warranty for Machines: The following paragraph is added to this
Section:
The warranties specified in this Section are in addition to any rights you may have under the Trade Practices Act 1974 or other similar legislation and are only limited to the extent permitted by the applicable legislation.
Limitation of Liability: The following is added to this Section:
Where IBM is in breach of a condition or warranty implied by the Trade Practices Act 1974 or other similar legislation, IBMs liability is limited to the repair or replacement of the goods or the supply of equivalent goods. Where that condition or warranty relates to right to sell, quiet possession or clear title, or the goods are of a kind ordinarily acquired for personal, domestic or household use or consumption, then none of the limitations in this paragraph apply.
Governing Law: The following replaces laws of the country in which you acquired the Machinein the first sentence:
laws of the State or Territory.
CAMBODIA, LAOS, AND VIETNAM
Governing Law: The following replaces laws of the country in which you acquired
the Machinein the first sentence:
laws of the State of New York.
The following is added to this Section:
Disputes and differences arising out of or in connection with this Agreement shall be finally settled by arbitration which shall be held in Singapore in accordance with the rules of the International Chamber of Commerce (ICC). The arbitrator or arbitrators designated in conformity with those rules shall have the power to rule on their own competence and on the validity of the Agreement to submit to arbitration. The arbitration award shall be final and binding for the parties without appeal and the arbitral award shall be in writing and set forth the findings of fact and the conclusions of law.
All proceedings shall be conducted, including all documents presented in such proceedings, in the English language. The number of arbitrators shall be three, with each side to the dispute being entitled to appoint one arbitrator.
The two arbitrators appointed by the parties shall appoint a third arbitrator before proceeding upon the reference. The third arbitrator shall act as
Appendix B. Warranty Information 57
chairman of the proceedings. Vacancies in the post of chairman shall be filled by the president of the ICC. Other vacancies shall be filled by the respective nominating party. Proceedings shall continue from the stage they were at when the vacancy occurred.
If one of the parties refuses or otherwise fails to appoint an arbitrator within 30 days of the date the other party appoints its, the first appointed arbitrator shall be the sole arbitrator, provided that the arbitrator was validly and properly appointed.
The English language version of this Agreement prevails over any other language version.
HONG KONG AND MACAU
Governing Law: The following replaces laws of the country in which you acquired
the Machinein the first sentence:
laws of Hong Kong Special Administrative Region.
INDIA
Limitation of Liability: The following replaces items 1 and 2 of this Section:
1. liability for bodily injury (including death) or damage to real property and tangible personal property will be limited to that caused by IBMs negligence;
2. as to any other actual damage arising in any situation involving nonperformance by IBM pursuant to, or in any way related to the subject of this Statement of Limited Warranty, IBMs liability will be limited to the charge paid by you for the individual Machine that is the subject of the claim.
58 ThinkPad
JAPAN
Governing Law: The following sentence is added to this Section:
Any doubts concerning this Agreement will be initially resolved between us in good faith and in accordance with the principle of mutual trust.
NEW ZEALAND
The IBM Warranty for Machines: The following paragraph is added to this
Section:
The warranties specified in this Section are in addition to any rights you may have under the Consumer Guarantees Act 1993 or other legislation which cannot be excluded or limited. The Consumer Guarantees Act 1993 will not
®
R30 Series Service and Troubleshooting Guide
apply in respect of any goods which IBM provides, if you require the goods for the purposes of a business as defined in that Act.
Limitation of Liability: The following is added to this Section:
Where Machines are not acquired for the purposes of a business as defined in the Consumer Guarantees Act 1993, the limitations in this Section are subject to the limitations in that Act.
PEOPLES REPUBLIC OF CHINA (PRC)
Governing Law: The following replaces this Section:
Both you and IBM consent to the application of the laws of the State of New York (except when local law requires otherwise) to govern, interpret, and enforce all your and IBMs rights, duties, and obligations arising from, or relating in any manner to, the subject matter of this Agreement, without regard to conflict of law principles.
Any disputes arising from or in connection with this Agreement will first be resolved by friendly negotiations, failing which either of us has the right to submit the dispute to the China International Economic and Trade Arbitration Commission in Beijing, the PRC, for arbitration in accordance with its arbitration rules in force at the time. The arbitration tribunal will consist of three arbitrators. The language to be used therein will be English and Chinese. An arbitral award will be final and binding on all the parties, and will be enforceable under the Convention on the Recognition and Enforcement of Foreign Arbitral Awards (1958).
The arbitration fee will be borne by the losing party unless otherwise determined by the arbitral award.
During the course of arbitration, this Agreement will continue to be performed except for the part which the parties are disputing and which is undergoing arbitration.
EUROPE, MIDDLE EAST, AFRICA (EMEA)
THE FOLLOWING TERMS APPLY TO ALL EMEA COUNTRIES:
The terms of this Statement of Limited Warranty apply to Machines purchased from IBM or an IBM reseller.
Warranty Service:
If you purchase an IBM Machine in Austria, Belgium, Denmark, Estonia, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland or
Appendix B. Warranty Information 59
United Kingdom, you may obtain warranty service for that Machine in any of those countries from either (1) an IBM reseller approved to perform warranty service or (2) from IBM. If you purchase an IBM Personal Computer Machine in Albania, Armenia, Belarus, Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Georgia, Hungary, Kazakhstan, Kirghizia, Federal Republic of Yugoslavia, Former Yugoslav Republic of Macedonia (FYROM), Moldova, Poland, Romania, Russia, Slovak Republic, Slovenia, or Ukraine, you may obtain warranty service for that Machine in any of those countries from either (1) an IBM reseller approved to perform warranty service or (2) from IBM.
If you purchase an IBM Machine in a Middle Eastern or African country, you may obtain warranty service for that Machine from the IBM entity within the country of purchase, if that IBM entity provides warranty service in that country, or from an IBM reseller, approved by IBM to perform warranty service on that Machine in that country. Warranty service in Africa is available within 50 kilometers of an IBM authorized service provider. You are responsible for transportation costs for Machines located outside 50 kilometers of an IBM authorized service provider.
Governing Law:
The applicable laws that govern, interpret and enforce rights, duties, and obligations of each of us arising from, or relating in any manner to, the subject matter of this Statement, without regard to conflict of laws principles, as well as Country-unique terms and competent court for this Statement are those of the country in which the warranty service is being provided, except that in 1) Albania, Bosnia-Herzegovina, Bulgaria, Croatia, Hungary, Former Yugoslav Republic of Macedonia, Romania, Slovakia, Slovenia, Armenia, Azerbaijan, Belarus, Georgia, Kazakhstan, Kyrgyzstan, Moldova, Russia, Tajikistan, Turkmenistan, Ukraine, and Uzbekistan, the laws of Austria apply;
2) Estonia, Latvia, and Lithuania, the laws of Finland apply; 3) Algeria, Benin,
Burkina Faso, Cameroon, Cape Verde, Central African Republic, Chad, Congo, Djibouti, Democratic Republic of Congo, Equatorial Guinea, France, Gabon, Gambia, Guinea, Guinea-Bissau, Ivory Coast, Lebanon, Mali, Mauritania, Morocco, Niger, Senegal, Togo, and Tunisia, this Agreement will be construed and the legal relations between the parties will be determined in accordance with the French laws and all disputes arising out of this Agreement or related to its violation or execution, including summary proceedings, will be settled exclusively by the Commercial Court of Paris; 4) Angola, Bahrain, Botswana, Burundi, Egypt, Eritrea, Ethiopia, Ghana, Jordan, Kenya, Kuwait, Liberia, Malawi, Malta, Mozambique, Nigeria, Oman, Pakistan, Qatar, Rwanda, Sao Tome, Saudi Arabia, Sierra Leone, Somalia, Tanzania, Uganda, United Arab Emirates, United Kingdom, West Bank/Gaza, Yemen, Zambia, and Zimbabwe, this Agreement will be governed by English Law and disputes relating to it will be submitted to the exclusive jurisdiction of the English courts; and 5) in Greece, Israel, Italy, Portugal, and Spain any legal claim arising out of this
60 ThinkPad
®
R30 Series Service and Troubleshooting Guide
Statement will be brought before, and finally settled by, the competent court of Athens, Tel Aviv, Milan, Lisbon, and Madrid, respectively.
THE FOLLOWING TERMS APPLY TO THE COUNTRY SPECIFIED:
AUSTRIA AND GERMANY
The IBM Warranty for Machines: The following replaces the first sentence of the
first paragraph of this Section:
The warranty for an IBM Machine covers the functionality of the Machine for its normal use and the Machines conformity to its Specifications.
The following paragraphs are added to this Section:
The minimum warranty period for Machines is six months. In case IBM or your reseller is unable to repair an IBM Machine, you can alternatively ask for a partial refund as far as justified by the reduced value of the unrepaired Machine or ask for a cancellation of the respective agreement for such Machine and get your money refunded.
Extent of Warranty: The second paragraph does not apply.
Warranty Service: The following is added to this Section:
During the warranty period, transportation for delivery of the failing Machine to IBM will be at IBMs expense.
Limitation of Liability: The following paragraph is added to this Section:
The limitations and exclusions specified in the Statement of Limited Warranty will not apply to damages caused by IBM with fraud or gross negligence and for express warranty.
The following sentence is added to the end of item 2:
IBMs liability under this item is limited to the violation of essential contractual terms in cases of ordinary negligence.
EGYPT
Limitation of Liability: The following replaces item 2 in this Section:
as to any other actual direct damages, IBMs liability will be limited to the total amount you paid for the Machine that is the subject of the claim. For purposes of this item, the term Machineincludes Machine Code and Licensed Internal Code.
Applicability of suppliers and resellers (unchanged).
FRANCE
Appendix B. Warranty Information 61
Limitation of Liability: The following replaces the second sentence of the first paragraph of this Section:
In such instances, regardless of the basis on which you are entitled to claim damages from IBM, IBM is liable for no more than: (items 1 and 2 unchanged).
IRELAND
Extent of Warranty: The following is added to this Section:
Except as expressly provided in these terms and conditions, all statutory conditions, including all warranties implied, but without prejudice to the generality of the foregoing all warranties implied by the Sale of Goods Act 1893 or the Sale of Goods and Supply of Services Act 1980 are hereby excluded.
Limitation of Liability: The following replaces items one and two of the first paragraph of this Section:
1. death or personal injury or physical damage to your real property solely caused by IBMs negligence; and
2. the amount of any other actual direct damages, up to 125 percent of the charges (if recurring, the 12 monthscharges apply) for the Machine that is the subject of the claim or which otherwise gives rise to the claim.
Applicability of suppliers and resellers (unchanged).
62 ThinkPad
The following paragraph is added at the end of this Section:
IBMs entire liability and your sole remedy, whether in contract or in tort, in respect of any default shall be limited to damages.
ITALY
Limitation of Liability: The following replaces the second sentence in the first
paragraph:
In each such instance unless otherwise provided by mandatory law, IBM is liable for no more than:
1. (unchanged)
2. as to any other actual damage arising in all situations involving
nonperformance by IBM pursuant to, or in any way related to the subject matter of this Statement of Warranty, IBMs liability, will be limited to the total amount you paid for the Machine that is the subject of the claim.
Applicability of suppliers and resellers (unchanged).
The following replaces the third paragraph of this Section:
Unless otherwise provided by mandatory law, IBM and your reseller are not liable for any of the following: (items 1 and 2 unchanged) 3) indirect damages, even if IBM or your reseller is informed of their possibility.
®
R30 Series Service and Troubleshooting Guide
SOUTH AFRICA, NAMIBIA, BOTSWANA, LESOTHO AND SWAZILAND
Limitation of Liability: The following is added to this Section:
IBMs entire liability to you for actual damages arising in all situations involving nonperformance by IBM in respect of the subject matter of this Statement of Warranty will be limited to the charge paid by you for the individual Machine that is the subject of your claim from IBM.
UNITED KINGDOM
Limitation of Liability: The following replaces items 1 and 2 of the first paragraph of this Section:
1. death or personal injury or physical damage to your real property solely caused by IBMs negligence;
2. the amount of any other actual direct damages or loss, up to 125 percent of the charges (if recurring, the 12 monthscharges apply) for the Machine that is the subject of the claim or which otherwise gives rise to the claim;
The following item is added to this paragraph:
3. breach of IBMs obligations implied by Section 12 of the Sale of Goods Act
1979 or Section 2 of the Supply of Goods and Services Act 1982.
Applicability of suppliers and resellers (unchanged).
The following is added to the end of this Section:
IBMs entire liability and your sole remedy, whether in contract or in tort, in respect of any default shall be limited to damages.
Appendix B. Warranty Information 63
64 ThinkPad
®
R30 Series Service and Troubleshooting Guide

Appendix C. Notices

This publication was developed for products and services offered in the U.S.A.
IBM may not offer the products, services, or features discussed in this document in other countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead. However, it is the users responsibility to evaluate and verify the operation of any non-IBM product, program, or service.
IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:
IBM Director of Licensing IBM Corporation North Castle Drive Armonk, NY 10504-1785 U.S.A.

Processing date data

This IBM hardware product and IBM software products that might be packaged with it have been designed, when used in accordance with their associated documentation, to process date data correctly within and between the 20th and 21st centuries, provided all other products (for example, software, hardware, and firmware) used with these products properly exchange accurate date data with them.
IBM cannot take responsibility for the date data processing capabilities of non-IBM products, even if those products are preinstalled or otherwise distributed by IBM. You should contact the vendors responsible for those products directly to determine the capabilities of their products and update them if needed. This IBM hardware product cannot prevent errors that might occur if software, upgrades, or peripheral devices you use or exchange data with do not process date data correctly.
The foregoing is a Year 2000 Readiness Disclosure.
© Copyright IBM Corp. 2001 65

References to the Web site addresses

Any references in this publication to non-IBM Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this IBM product, and use of those Web sites is at your own risk.

Electronic emission notices

Federal Communications Commission (FCC) Statement

ThinkPad R31, machine types 2656, 2657, and 2676
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
v Reorient or relocate the receiving antenna. v Increase the separation between the equipment and receiver. v Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
v Consult an IBM authorized dealer or service representative for help.
66 ThinkPad
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and connectors are available from IBM authorized dealers. IBM is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment. Unauthorized changes or modifications could void the users authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Responsible Party:
®
R30 Series Service and Troubleshooting Guide
International Business Machines Corporation New Orchard Road Armonk, NY 10504 Telephone 1-919-543-2193

Industry Canada Class B Emission Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe B est conform à la norme NMB-003 du Canada.

European Community Directive Conformance Statement

This product is in conformity with the protection requirements of EU Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electro-magnetic compatibility. IBM cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non-IBM option cards.
A declaration of Conformity with the requirements of the Directive has been signed by IBM United Kingdom Limited, PO BOX 30 Spango Valley Greenock Scotland PA160AH.
This product satisfies the Class B limits of EN 55022.

Telecommunication notices

Federal Communications Commission (FCC) and Telephone Company Requirements (Part 68 of the FCC Rules)

1. The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent, and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual.
In order to program this information into your computer, you should be sure to follow the installation instructions for your fax software package.
Appendix C. Notices 67
2. The built-in modem is built into the ThinkPad computer. It complies with Part 68 of the FCC Rules. A label is affixed to the bottom of the computer that contains, among other things, the FCC registration number, USOC, and Ringer Equivalency Number (REN) for this equipment. If these numbers are requested, look at the label and provide this information to your telephone company.
3. The REN is useful to determine the quantity of devices you may connect to your telephone line and still have those devices ring when your number is called. In most, but not all, areas, the sum of the RENs of all devices should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN (REN:0.7), you should call your local telephone company to determine the maximum REN for your calling area.
4. If the built-in modem causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice isnt practical, you will be notified as soon as possible. You will be advised of your right to file a complaint with the FCC.
5. Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper operation of your equipment. If they do, you will be given advance notice so as to give you an opportunity to maintain uninterrupted service.
6. If you experience trouble with this built-in modem, contact your IBM Authorized Seller, or the IBM Corporation, 500 Columbus Avenue, Thornwood, NY 10594, 1-800-772-2227, for repair/warranty information. The telephone company may ask you to disconnect this equipment from the network until the problem has been corrected, or until you are sure the equipment is not malfunctioning.
7. No customer repairs are possible to the modem. If you experience trouble with this equipment, contact your Authorized Seller or the IBM Corporation for information.
8. The modem may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs. Contact your state public utility commission or corporation commission for information.
9. When ordering network interface (NI) service from the Local Exchange Carrier, specify service arrangement USOC RJ11C.

Fax Branding

68 ThinkPad
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top of or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone
®
R30 Series Service and Troubleshooting Guide
number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be a 900 number or any other number for which charges exceed local or long-distance transmission charges.)

Industry Canada requirements

Notice

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications networks protective, operational, and safety requirements. The Department does not guarantee the equipment will operate to the users satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of communication. In some cases, the companys inside wiring associated with a single line individual service may be extended by means of a certified connector assembly (telephone extension cord). The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs of alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Caution

Avis

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.
The Ringer Equivalent Number (REN:0.3) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Number of all the devices does not exceed 5.
L’étiquette du ministère de lIndustrie Canada identifie le matériel homologué. Cette étiquette certifie que le matériel est conforme à certaines normes de
Appendix C. Notices 69
protection, dexploitation et de sécurité des réseaux de télécommunications. Le Ministère nassure toutefois pas que le matériel fonctionnera à la satisfaction de lutilisateur.
Avant dinstaller ce matériel, lutilisateur doit sassurer quil est permis de le raccorder aux installations de lentreprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptéede raccordement. Dans certains cas, les fils intérieurs de lentreprise utilisés pour un service individuel à ligne unique peuvent être prolongés au moyen dun dispositif homologué de raccordement (cordon prolongateur téléphonique interne). Labonné ne doit pas oublier quil est possible que la conformité aux conditions énoncées ci-dessus nempechent pas la dégradation du service dans certaines situations. Actuellement, les entreprises de télécommunication ne permettent pas que lon raccorde leur matériel à des jacks dabonné, sauf dans les cas précis prévus par les tarifs paticuliers de ces entreprises.
Les réparations de matériel homologué doivent être effectuées par un centre dentretien canadien autorisé désigné par le fournisseur. La compagnie de télécommunications peut demander à lutilisateur de débrancher un appareil à la suite de réparations ou de modifications effectuées par lutilisateur ou à cause de mauvais fonctionnement.
Pour sa propre protection, lutilisateur doit sassurer que tous les fils de mise à la terre de la source d’énergie électrique, des lignes téléphoniques et des canalisations deau métalliques, sil y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales.

Avertissement

Lutilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir recours à un service dinspection des installations électriques, ou à électricien, selon le cas.
Lindice de charge (IC) assignéàchaque dispositif terminal indique (REN:0.3), pour éviter toute surcharge, le pourcentage de la charge totale qui peut être raccordée à un circuit téléphonique bouclé utilisé par ce dispositif. La terminaison du circuit bouclé peut être constituéeden’importe quelle combinaison de dispositifs, pourvu que la somme des indices de charge de lensemble des dispositifs ne dépasse pas 5.

Notice for Australia

The following notice applies when using the telephony functions:
WARNING: FOR SAFETY REASONS, ONLY CONNECT EQUIPMENT WITH A TELECOMMUNICATIONS COMPLIANCE LABEL. THIS INCLUDES CUSTOMER EQUIPMENT PREVIOUSLY LABELLED PERMITTED OR CERTIFIED.
70 ThinkPad
®
R30 Series Service and Troubleshooting Guide

Notice for New Zealand

For the modem with approval number PTC 211/01/081
v The grant of a Telepermit for any item of terminal equipment indicates only
that Telecom has accepted that the item complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecoms network services.
v Functional tests
This equipment is not capable, under all operating conditions, of correct operation at the higher speeds for which it is designed. Telecom will accept no responsibility should difficulties arise in such circumstances.
v Fail safe requirements
Under power failure conditions this appliance may not operate. Please ensure that a separate telephone, not dependent on local power, is available.
v Automatic re-attempts to the same number
Some parameters required for compliance with Telecoms Telepermit requirements are dependent on the equipment (PC) associated with this device. The associated equipment shall be set to operate within the following limits for compliance with Telecoms Specifications:
– There shall be no more than 10 call attempts to the same number within
any 30 minute period for any single manual call initiation, and,
– The equipment shall go on-hook for a period of not less than 30 seconds
between the end of one attempt and the beginning of the next attempt.
v For automatic calls to different numbers
Some parameters required for compliance with Telecoms Teleprint requirements are dependent on the equipment (PC) associated with this device. In order to operate within the limits for compliance with Telecoms specifications, the associated equipment shall be set to ensure that automatic calls to different numbers are spaced such that there is not less than 5 seconds between the end of one call attempt and the beginning of another.
v For automatic call set-up
This equipment shall not be set up to make automatic calls to Telecoms 111 Emergency Service.
v Call answering
Some parameters required for compliance with Telecoms Teleprint requirements are dependent on the equipment (PC) associated with this device. In order to operate within the limits of compliance with Telecoms
Appendix C. Notices 71
specifications, the associated equipment shall be set to ensure that calls are answered between 3 and 3à seconds of receipt of ringing.
v For correct operation, the total of the RNs of all devices connected to a
single line at any time should not exceed 5.
For the modem with approval number PTC 211/01/050
The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecoms network services.
This equipment is not capable, under all operating conditions, of correct operation at the higher speeds for which it is designed. Telecom will accept no responsibility should difficulties arise in such circumstances.
If a charge for local calls is unacceptable, the Dialbutton should not be used for local calls. Only the seven digits of your local number should be dialled from your modem. Do not dial the area code digit or 0prefix.
This equipment should not be used under any circumstances that may constitute a nuisance to other Telecom customers.
72 ThinkPad
Some parameters required for compliance with Telecoms Telepermit requirements are dependent on the equipment (PC) associated with this device. The associated equipment shall be set to operate within the following limits for compliance with Telecoms specifications:
v Automatic re-attempts to the same number
There shall be no more than 10 call attempts to the same number within any 30 minute period for any single manual call initiation, and The equipment shall go on-hook for a period of not less than 30 seconds between the end of one attempt and the beginning of the next call attempt.
v Automatic calls to different numbers
Automatic calls to different numbers shall be spaced such that there is no less than 5 seconds between the end of one call attempt and the beginning of another.
v Call answering
The associated equipment shall be set to ensure that calls are answered between 3 and 30 seconds of receipt of ringing.
®
R30 Series Service and Troubleshooting Guide

Notice for European Union countries

Hereby Ambit declares that this J07M058modem is in conformity with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Appendix C. Notices 73

Wireless Interoperability

IBM ThinkPad 802.11b Wireless LAN Adapter (P/N 26P8092) (hereafter called Wireless LAN Adapter) is designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS) radio technology and is compliant to:
v The IEEE 802.11 Standard on Wireless LANs (Revision B), as defined and
approved by the Institute of Electrical and Electronics Engineers.
v The Wireless Fidelity (WiFi) certification as defined by the WECA (Wirless
Ethernet Compatibility Alliance).

Usage environment and your Health

The Wireless LAN Adapter emits radio frequency electromagnetic energy like other radio devices. However, the level of energy emitted is far less than the electromagnetic energy emitted by wireless devices like, for example, mobile phones.
Because the Wireless LAN Adapter operates within the guidelines found in radio frequency safety standards and recommendations. IBM believes it is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and the result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of the Wireless LAN Adapter may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may, for example, include:
v Using the Wireless LAN Adapter on board airplanes, or v In any other environment where the risk of interference to other devices or
services is perceived or identified as harmful.
74 ThinkPad
If you are uncertain of the policy that applies to the use of wireless devices in a specific organization (e.g. airport), you are encouraged to ask for authorization to use the Wireless LAN Adapter prior to turning on the ThinkPad R31 computer.
®
R30 Series Service and Troubleshooting Guide

Appendix D. Wireless Regulatory Information

The ThinkPad R31 computer must be installed and used in strict accordance with the instructions as described hereafter. This product complies with the following radio frequency and safety standards.

USA - Federal Communications Commission (FCC)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference
that may cause undesired operation.

The FCC RF Safety Requirement

The radiated output power of the Wireless LAN Adapter is far below the FCC radio frequency exposure limits. Nevertheless, the ThinkPad R31 computer shall be used in such a manner that the potential for human contact during normal operation is minimized as follows:
v CAUTION: To comply with FCC RF exposure compliance requirements, a
separation distance of at least 20 cm (8 inches) must be maintained between the antenna of this device and all persons.
Transmitter antenna
position
20cm
v Please make sure of the following when you use a Bluetooth option or
wireless PCMCIA card in your ThinkPad R31 computer:
1. Visit the IBM site at www.ibm.com/pc/qtechinfo/MIGR-39377.html and confirm the updated list of RF option devices that have been approved to cooperate with the integrated wireless feature.
© Copyright IBM Corp. 2001 75
2. When you use any other RF option device that is not listed on the IBM site, all other wireless features including the integrated transmitter in your ThinkPad computer are required to be turned off.
3. Users are requrested to follow the RF Safety instructions on wireless option devices that are included in the RF option devices users manual.

Interference Statement

An improper installation or unauthorized use may cause harmful interference to radio communications. Also, any tampering of the internal antenna will void the FCC certification and your warranty. Refer to Electronic emission noticeson page 66 for more details.

Canada – Industry Canada (IC)

Low Power License-Exempt Radiocommunication Devices (RSS-210)
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Permis d’émission à faible puissance - Cas des appareils de communications radio (CNR-210)
Le fonctionnement de ce type dappareil est soumis aux deux conditions suivantes : (1) Cet appareil peut perturber les communications radio, et (2) cet appareil doit supporter toute perturbation, y compris les perturbations qui pourraient provoquer un dysfonctionnement.

Europe – CE Declaration of Conformity

76 ThinkPad
v Hereby Actiontec Electronics, Inc. declares that the RLAN device integrated
in this product is in conformity with the essential requirements and other relevant provisions of Directive 1999/5/EC.
IBM cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product.
v Actiontec Electronics, Inc. déclare par la présente que le dispositif RLAN
intégréàce produit est en conformité avec les prescriptions essentielles et autres dispositions appropriées de la Directive 1999/5/EC.
IBM décline toute responsabilité en cas de non-respect de cette directive résultant dune modification non recommandée du produit.
v Actiontec Electronics, Inc. erklärt hiermit, dass die in diesem Produkt
integrierte drahtlose RLAN-Einheit die Voraussetzungen sowie alle wichtigen Anforderungen der Richtlinie 1999/5/EC erfüllt.
IBM übernimmt keine Verantwortung für Fehler, die sich aus einer nicht empfohlenen, unsachgemäΒen Modifizierung an diesem Produkt zur Erfüllung der Sicherheitsanforderungen ergeben.
®
R30 Series Service and Troubleshooting Guide
Appendix D. Wireless Regulatory Information 77
- Belgie B Gebruik buiten gebouw alleen op kanalen 10 (2462 MHz) en 11 (2467 MHz). Voor privé-gebruik buiten gebouw over publieke grond over afstand kleiner dan 300m geen registratie bij BIPT/IBPT nodig; voor gebruik over afstand groter dan 300m is wel registratie bij BIPT/IBPT nodig. Voor publiek gebruik buiten gebouwen is licentie van BIPT/IBPT verplicht. Voor registratie of licentie kunt u contact opnemen met BIPT.
- Belgium B For outdoor usage only channel 10 (2462 MHz) and 11 (2467 MHz) is allowed. For private usage outside buildings across public grounds over less than 300m no special registration with IBPT/BIPT is required. Registration to IBPT/BIPT is required for private usage outside buildings across public grounds over more than 300m. An IBPT/BIPT licence is required for public usage outside building. For registration and license please contact IBPT/BIPT.
- Belgique B Lutilisation en extérieur est autorisé sur le canal 10 (2462 MHz) et 11 (2467 MHz). Dans le cas dune utilisation privée, à l’extérieur dun bâtiment, au-dessus dun espace public, aucun enregistrement nest nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprèsdel’IBPT est requise. Pour une utilisation publique à l’extérieur de bâtiments, une licence de lIBPT est requise. Pour les enregistrements et licences, veuillez contacter lIBPT.
- France F: A lintérieur des bâtiments, utilisation sans contrainte géographique avec puisaance maximale de 100 mW dans la bande 2446.5–2483.5 MHz.
78 ThinkPad
Al’extérieur des batiments, utilisation non autorisée. Vous pouvez contacter lAutorité de Régulation des Télécommunications (http://www.art-telecom.fr) pour tout aute cas particulier.
- France F: Indoor, no geographical restriction with a maximum power of 100 mW within the band of 2446.5–2483.5 MHz.
Outdoor, the band is not opened.
Please contact ART for any other specific case.
- Deutschland D: Anmeldung im Outdoor-Bereich notwending, aber nicht genehmigungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.
- Germany D: License required for outdoor installations.
®
R30 Series Service and Troubleshooting Guide

Singapore

Trademarks

- Italia I: È necessaria la concessione ministeriale anche per luso interno. Verificare con i rivenditori la procedura da seguire. Luso per installazione in esterni non è permessa.
- Italy I: License required for indoor use. Use with outdoor installations not allowed
- the Netherlands NL License required for outdoor installations.
- Nederland NL Licentie verplicht voor gebruik met buitenantennes.
This equipment is for use only within the confined area of a building. The equipment is restricted to operating within the 2445–2483.5 MHz band.
The following terms are trademarks of the IBM Corporation in the United States or other countries or both:
IBM PS/2 Alert on LAN ThinkPad HelpCenter TrackPoint
Microsoft, and Windows are trademarks of Microsoft Corporation in the United States and/or other countries.
Intel and Pentium are trademarks of Intel Corporation in the United States and/or other countries. (For a complete list of Intel trademarks, see www.intel.com/tradmarx.htm)
Other company, product, or service names may be the trademarks or service marks of others.
Appendix D. Wireless Regulatory Information 79
80 ThinkPad
®
R30 Series Service and Troubleshooting Guide

Index

A
Access Help v Access ThinkPad v
B
battery
problems 27 replacing 39
BIOS Setup 32
C
carrying the computer 7 CD-ROM
problems 28
CD-RW
problems 28 cleaning the computer 9 computer display problems 25 configuration
setup 32
D
data backup 36 DVD-ROM
problems 28 DVD/CD-RW
problems 28
E
electronic help v error codes 13 error messages 13 errors without codes 17 errors without messages 17
O
on-board help v
P
password problem 19 PC-Doctor for Windows 12 power switch problem 19 problems, troubleshooting 13
R
recovering software 33
S
safety instruction 47 snapshots of system files 35 software
problems 30 standby problems 23 storage device, replacing 37
T
telephone, help by 43 testing with PC-Doctor 12 TrackPoint problems 21
W
Web, help by 42
F
fax, help by 43
H
hard disk
problems 28 replacing 37
hibernation problems 23
I
IBM help v infrared port problems 22
K
keyboard problems 19
© Copyright IBM Corp. 2001
81
82 ThinkPad
®
R30 Series Service and Troubleshooting Guide
򔻐򗗠򙳰
Part Number: 46P6607
(1P) P/N: 46P6607
Loading...
