IBM PROJECTOR E400 User Manual

IBM E400 PROJECTO R
User’ s Guid e

IBM E400 PROJECTO R
User’ s Guid e

©
US
Note: Before using this information and the product it supports, read the information in
Appendix D, “Service and Support,” on page D-1 and Appendix E, “IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002,” on page E-1
Second Edition (February 2004)
Copyright International Business Machines Corporation 2004. All rights reserved.
Government Users Restricted Rights Use, duplication or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.
CD
©
Contents
Safety information . . . . . . . . . .v
General safety information . . . . . . vii
Service . . . . . . . . . . . . . . . . vii
Power cords and power adapters . . . . . . . vii
Extension cords and related devices . . . . . . viii
Plugs and outlets . . . . . . . . . . . . viii
Batteries . . . . . . . . . . . . . . . viii
Heat and product ventilation . . . . . . . .ix
and DVD drive safety . . . . . . . . . .ix
Registering your option . . . . . . . .xi
Preface . . . . . . . . . . . . . . xiii
Chapter 1. Introduction . . . . . . . 1-1
Chapter 2. Setting up the projector . . 2-1
Starting and shutting down the projector . . . . 2-1
Adjusting the projector height . . . . . . . . 2-2
Positioning the projector . . . . . . . . . . 2-2
Adjusting the zoom, focus and keystone . . . . 2-3
Adjusting the volume . . . . . . . . . . . 2-4
Chapter 3. Connecting devices to the
projector . . . . . . . . . . . . . 3-1
Connecting devices . . . . . . . . . . . 3-1
Navigating the OSD . . . . . . . . . . . 5-1
Setting the OSD language . . . . . . . . 5-1
Quality menu . . . . . . . . . . . . 5-1
Properties menu . . . . . . . . . . . 5-4
Options menu . . . . . . . . . . . . 5-5
Setup menu . . . . . . . . . . . . . 5-6
Information menu . . . . . . . . . . . 5-8
Appendix A. Maintenance . . . . . . A-1
Cleaning the lens . . . . . . . . . . . . A-1
Replacing the projection lamp . . . . . . . . A-1
Resetting the lamp timer . . . . . . . . . A-3
Using the security slot . . . . . . . . . . A-3
Appendix B. Troubleshooting . . . . B-1
Projector LEDs . . . . . . . . . . . . . B-2
Appendix C. Specifications . . . . . C-1
Appendix D. Service and Support . . . D-1
Online technical support . . . . . . . . . D-1
Telephone technical support . . . . . . . . D-1
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002 . . . E-1
Part 2 - Country-unique Terms . . . . . . . E-4
Part 3 - Warranty Information . . . . . . . E-15
Chapter 4. Using the projector features 4-1
Using the remote control . . . . . . . . . . 4-1
Inserting the remote control batteries . . . . . 4-2
Operating range . . . . . . . . . . . . 4-3
Projector and remote control buttons . . . . . . 4-3
Chapter 5. On-Screen Display menu
controls . . . . . . . . . . . . . . 5-1
Appendix F. Notices . . . . . . . . . F-1
Trademarks . . . . . . . . . . . . . . F-2
Electronic emission notices . . . . . . . . . F-2
Federal Communications Commission (FCC)
statement . . . . . . . . . . . . . . . F-2
Copyright IBM Corp. 2004
iii
iv
IBM E400 PROJECTOR: User’s Guide
©
Safety information
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.
Antes de instalar este produto, leia as Informações sobre Segurança.
Antes de instalar este producto lea la información de seguridad.
Copyright IBM Corp. 2004
v
vi
Läs säkerhetsinformationen innan du installerar den här produkten.
IBM E400 PROJECTOR: User’s Guide
Do
as
Do
on
Do
of
©
General safety information
Always observe the following precautions to reduce the risk of injury and property damage.
Service
not attempt to service a product yourself unless instructed to do so by the IBM Support Center. Use only an IBM authorized service provider who is approved to repair your particular product.
Note: Some parts can be upgraded or replaced by the customer. These parts are
referred to as Customer Replaceable Units, or CRUs. IBM expressly identifies CRUs
such, and provides documentation with instructions when it is appropriate for customers to replace those parts. You must closely follow all instructions when performing such replacements. Always make sure that the power is turned off and that the product is unplugged from any power source before you attempt the replacement. If you have any questions or concerns, contact the IBM Support Center.
Power cords and power adapters
Use only the power cords and power adapters supplied by the product manufacturer.
Never wrap a power cord around the power adapter or other object. Doing so can stress the cord in ways that can cause the cord to fray, crack or crimp. This can present a safety hazard.
Always route power cords so that they will not be walked on, tripped over, or pinched by objects.
Protect the cord and power adapters from liquids. For instance, do not leave your cord or power adapter near sinks, tubs, toilets, or on floors that are cleaned with liquid cleansers. Liquids can cause a short circuit, particularly if the cord or power adapter has been stressed by misuse. Liquids can also cause gradual corrosion of the power cord terminals and/or the connector terminals on the adapter which can eventually result in overheating.
Always connect power cords and signal cables in the correct order and ensure that all power cord connectors are securely and completely plugged into receptacles.
not use any power adapter that shows corrosion at the ac input pins and/or
shows signs of overheating (such as deformed plastic) at the ac input or anywhere
the power adapter.
not use any power cords where the electrical contacts on either end show signs
corrosion or overheating or where the power cord appears to have been
damaged in any way.
Copyright IBM Corp. 2004
vii
If a
Do
to
by
Be
in a
Extension cords and related devices
Ensure that extension cords, surge protectors, uninterruptible power supplies, and power strips that you use are rated to handle the electrical requirements of the product. Never overload these devices. If power strips are used, the load should not exceed the power strip input rating. Consult an electrician for more information if you have questions about power loads, power requirements, and input ratings.
Plugs and outlets
receptacle (power outlet) that you intend to use with your computer equipment appears to be damaged or corroded, do not use the outlet until it is replaced by a qualified electrician.
not bend or modify the plug. If the plug is damaged, contact the manufacturer
obtain a replacement.
Batteries
Some products are equipped with a three-pronged plug. This plug fits only into a grounded electrical outlet. This is a safety feature. Do not defeat this safety feature
trying to insert it into a non-grounded outlet. If you cannot insert the plug into the outlet, contact an electrician for an approved outlet adapter or to replace the outlet with one that enables this safety feature. Never overload an electrical outlet. The overall system load should not exceed 80 percent of the branch circuit rating. Consult an electrician for more information if you have questions about power loads and branch circuit ratings.
sure that the power outlet you are using is properly wired, easily accessible, and located close to the equipment. Do not fully extend power cords in a way that will stress the cords.
Connect and disconnect the equipment from the electrical outlet carefully
All IBM personal computers contain a non-rechargeable coin cell battery to provide power to the system clock. In addition many mobile products such as Thinkpad notebook PCs utilize a rechargeable battery pack to provide system power when in portable mode. Batteries supplied by IBM for use with your product have been tested for compatibility and should only be replaced with IBM approved parts.
Never attempt to open or service any battery. Do not crush, puncture, or incinerate batteries or short circuit the metal contacts. Do not expose the battery to water or other liquids. Only recharge the battery pack strictly according to instructions included in the product documentation.
Battery abuse or mishandling can cause the battery to overheat, which can cause gasses or flame to “vent” from the battery pack or coin cell. If your battery is damaged, or if you notice any discharge from your battery or the buildup of foreign materials on the battery leads, stop using the battery and obtain a replacement from the battery manufacturer.
Batteries can degrade when they are left unused for long periods of time. For some rechargeable batteries (particularly Lithium Ion batteries), leaving a battery unused
discharged state could increase the risk of a battery short circuit, which could
viii
IBM E400 PROJECTOR: User’s Guide
v Do
a
v Do
in
v
CD
v
v
v
v Do
v
shorten the life of the battery and can also pose a safety hazard. Do not let rechargeable Lithium-Ion batteries completely discharge or store these batteries in a discharged state.
Heat and product ventilation
Computers generate heat when turned on and when batteries are charging. Notebook PCs can generate a significant amount of heat due to their compact size. Always follow these basic precautions:
not leave the base of your computer in contact with your lap or any part of your body for an extended period when the computer is functioning or when the battery is charging. Your computer produces some heat during normal operation. Extended contact with the body could cause discomfort or, potentially,
skin burn.
not operate your computer or charge the battery near flammable materials or
explosive environments.
Ventilation slots, fans and/or heat sinks are provided with the product for safety, comfort, and reliable operation. These features might inadvertently become blocked by placing the product on a bed, sofa, carpet, or other flexible surface. Never block, cover or disable these features.
CD and DVD drive safety
and DVD drives spin discs at a high speed. If a CD or DVD is cracked or otherwise physically damaged, it is possible for the disc to break apart or even shatter when the CD drive is in use. To protect against possible injury due to this situation, and to reduce the risk of damage to your machine, do the following:
Always store CD/DVD discs in their original packaging Always store CD/DVD discs out of direct sunlight and away from direct heat
sources Remove CD/DVD discs from the computer when not in use
not bend or flex CD/DVD discs, or force them into the computer or their
packaging Check CD/DVD discs for cracks before each use. Do not use cracked or
damaged discs
General safety information
ix
x
IBM E400 PROJECTOR: User’s Guide
©
Registering your option
Thank you for purchasing this IBM
®
product. Please take a few moments to register your product and provide us with information that will help IBM to better serve you in the future. Your feedback is valuable to us in developing products and services that are important to you, as well as in developing better ways to communicate with you. Register your option on the IBM Web site at
http://www.ibm.com/pc/register/
IBM will send you information and updates on your registered product unless you indicate on the Web site questionnaire that you do not want to receive further information.
Copyright IBM Corp. 2004
xi
xii
IBM E400 PROJECTOR: User’s Guide
In
©
Preface
The IBM
®
E400 projector can be used for both business presentations and home
entertainment and is easy to connect, use, and maintain.
addition to this User’s Guide, your option package contains the following:
1 Projector with lamp housing and lens cap included 2 Remote control 3 Two AAA batteries 4 USB cable 5 S-video cable 6 Video cable (DVI-DB15) to VGA 7 Audio cable (Mini Jack-to-RCA) 8 Power cord 9 Composite video cable 10 User’s Guide (and installation) CD 11 Multi-language Quick Start guide 12 Carrying case
Copyright IBM Corp. 2004
xiii
v
v Do
v
v Be
If any of the items listed above are missing or damaged, contact your place of purchase.
Note: Be sure to retain your proof of purchase; it will be required to receive
warranty service.
For information on optional accessories for your projector, please go to http://www.ibm.com.
Attention:
Avoid using the projector in dusty environments.
not obstruct the vent openings of the projector.
Leave the power cable plugged in (for 2-5 minutes) until the projector returns to room temperature before placing the projector inside the soft case. Placing the projector into the case too soon after switching off the power could cause the projector to overheat and will shorten lamp life.
sure to attach the lens cap and place the projector into the soft case to avoid
damaging the lens.
xiv
IBM E400 PROJECTOR: User’s Guide
©
Chapter 1. Introduction
The figures below show the features of the projector.
Figure 1-1. Front right view of projector
1 Lens/focus 2 IR receiver 3 Connectors 4 Power cord connector 5 Leveling foot 6 Elevator foot 7 Elevator foot adjuster button
Copyright IBM Corp. 2004
1-1
Figure 1-2. Top view of projector
1 Zoom 2 Focus 3 Power 4 System status LEDs 5 Control buttons 6 Source button 7 Menu button 8 Auto button 9 Speaker
1-2
IBM E400 PROJECTOR: User’s Guide
1 Power (LED)
2 Ready (LED)
3 Keystone/Up cursor
4 Volume/ Right cursor
5 Enter button
6 Keystone/ Down cursor
7 Volume/ Left cursor
Figure 1-3. Top view of the control buttons and LEDs on the projector
Figure 1-4. Connectors
1 Audio-in 2 RS-232 3 DVI-I 4 AC socket 5 Composite video 6 S-video 7 USB 8 Security slot
Chapter 1. Introduction
1-3
Figure 1-5. Bottom view of the projector
1 Projection lamp cover 2 Elevator foot 3 Leveling foot 4 Ceiling support holes
1-4
IBM E400 PROJECTOR: User’s Guide
1.
2.
3.
4.
5.
to
6. If
to
7. To
©
Chapter 2. Setting up the projector
This chapter provides information on starting and shutting down the projector, adjusting the projector height and level, adjusting the zoom, focus, and keystone, and adjusting the volume.
Attention: Before moving the projector, be sure to power down the projector
normally and disconnect the projector from the main power source.
Starting and shutting down the projector
Please follow the steps below to start the projector and to shut down the projector.
Connect the power cord to the projector as shown below. Connect the other end to a wall outlet. The Power LED and Lamp-ready LED turn on.
Remove the lens cover. Connect to an input device. Turn on the connected devices. Ensure that the Lamp-ready LED is on a steady amber, then press the Power
button to turn on the projector. The projector splash screen displays and connected devices are detected. If the
connected device is an IBM ThinkPad, press Fn + F7 on the computer keyboard
switch the display output to the projector. Check the user’s manual of non-IBM PCs to determine the appropriate Fn hot keys to change display output.
Attention: Do not look directly into the projection lens when the lamp is
turned on. The bright light may harm your eyes.
more than one input devices is connected, press the Source button repeatedly
switch among devices.
turn off the projector, press the Power button. The projector prepares for
shutdown, and a ″Wait a moment please... message appears.
Copyright IBM Corp. 2004
2-1
To
1. To
2. To
3. To
To
v
8.
When the ″Power off?/Press Power again message appears, press the Power button. The projector turns off.
Leave the power cable plugged in for at least 2-5 minutes until the projector
Note:
returns to room temperature before placing the projector inside the soft case. Placing the projector into the case too soon after switching off the power could cause the projector to over heat.
Attention: Before moving the projector, be sure to power down the projector
normally and disconnect the projector from the main power source.
Adjusting the projector height
adjust the projector height, complete the following procedure:
raise the height of the projector, lift the projector as shown in 1 and press the elevator-foot buttons as shown in 2. The elevator foot drops down as shown in 3.
lower the height of the projector, press the elevator-foot button as shown in
2 and push down on the top of the projector.
make adjustments to the level, rotate the leveling foot as shown in 4.
Positioning the projector
determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Following are some general guidelines:
Position the projector on a flat surface at a right angle to the screen. The projector must be at least 1.5 m (4.9 ft) from the projection screen.
2-2
IBM E400 PROJECTOR: User’s Guide
(6
v
of
To
1.
v
Position the projector within 2.7 m (9 ft) of your power source and within 1.8 m
ft) of your video device (unless you purchase extension cables). To ensure adequate cable access, do not place the projector within .15 m (6 in.) of a wall or other object.
Position the projector the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.
Figure 2-1.
Table 2-1.
Diagonal screen size
(m/in.)
1 1.10/43.3
2 1.47/57.8
3 1.76/69.3
4 2.06/81.1
5 2.35/92.5
6 2.65/104.3
7 2.94/115.7
8 3.23/127.2
Image Width
(m/ft)
.88/2.88
1.17/3.83
1.4/4.59
1.64/5.38
1.87/6.13
2.11/6.92
2.34/7.67
2.57/8.43
Adjusting the zoom, focus and keystone
adjust the image, follow these steps.
Use the Image-focus control on the projector to sharpen the projected image as shown in 1.
Image height
(m/ft)
.66/2.16 .88/2.88
1.1/3.6
1.23/4.03
1.41/4.62
1.58/5.18
1.76/5.77
1.94/6.36
Distance from center
lens to bottom of
(m/ft)
1.5/4.92 2/6.56
2.4/7.87
2.8/9.18
3.2/10.5
3.6/11.81 4/13.12
4.4/14.4
Chapter 2. Setting up the projector
2-3
3.
To
1.
2.
3.
4.
2.
Use the Image-zoom control on the projector to resize the projected image and screen size as shown in 2.
Use the Keystone buttons (shown below) to correct image-trapezoid effect.
The keystone control appears on the display.
Adjusting the volume
adjust the volume, follow the steps below.
Press the Volume +/- buttons on the projector or the remote control. The volume control appears on the OSD.
Use the Volume +/- buttons to adjust the level. The volume buttons on the projector and remote control are shown below.
Press the Mute button (on the remote control only) to turn off the volume. See
3 in the figure above.
Press the Volume +/- buttons on the projector or the remote control to turn off the mute.
2-4
IBM E400 PROJECTOR: User’s Guide
©
Chapter 3. Connecting devices to the projector
This chapter provides information on connecting devices to the E400 projector.
Connecting devices
Computers and video devices can be connected to the projector at the same time. Check the user’s manual of the connecting device to confirm that it has the appropriate output connector.
1 Audio-in 2 RS-232 3 DVI-I 4 Composite video 5 S-video 6 USB
Copyright IBM Corp. 2004
3-1
3-2
IBM E400 PROJECTOR: User’s Guide
To
©
Chapter 4. Using the projector features
This chapter provides information on using the remote control, audio, keypad buttons, and other projector features.
Using the remote control
The remote uses two provided AAA batteries. They are easily installed by sliding the cover off the back of the remote, aligning the + and - ends of the batteries, sliding them into place, and then replacing the cover.
CAUTION:
reduce the risk of injury to the eyes, do not look directly into the remote control laser light and do not point the laser light into anyone’s eyes. The remote control is equipped with a Class II laser that emits radiation.

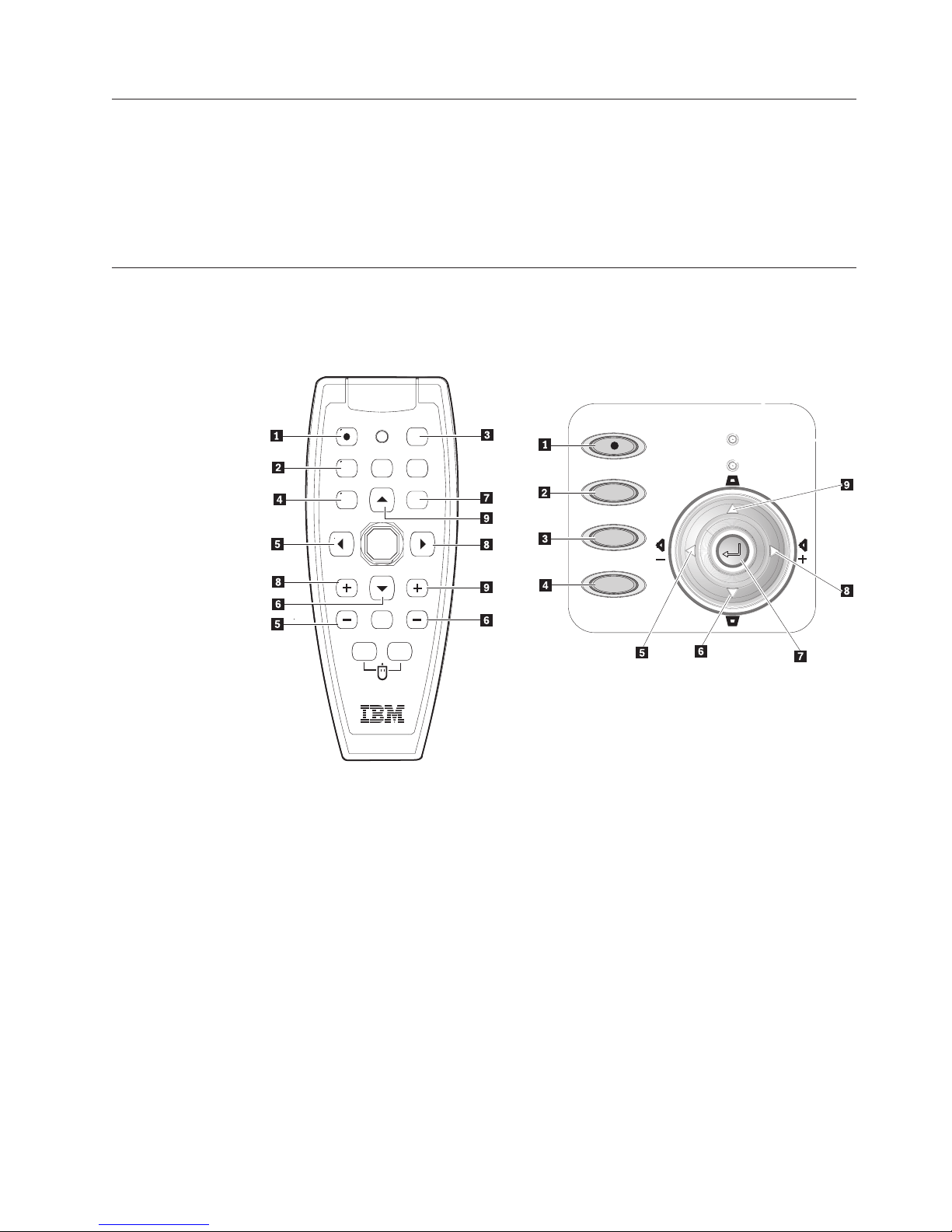

The figure below provides an illustration of the remote.
1 Laser
2 IR transmitter
3 Status LED
4 Auto
5 Blank
6 Enter
7 Up cursor
8 Right cursor
9 Cursor pad
10 Keystone top
11 Keystone bottom
12 Mute
13 Right mouse
14 Left mouse
15 Volume down
16 Down cursor
17 Volume up
18 Left cursor
19 Menu
20 Freeze
21 Source
22 Power
Copyright IBM Corp. 2004
4-1
1.
2.
3.
v
v
v

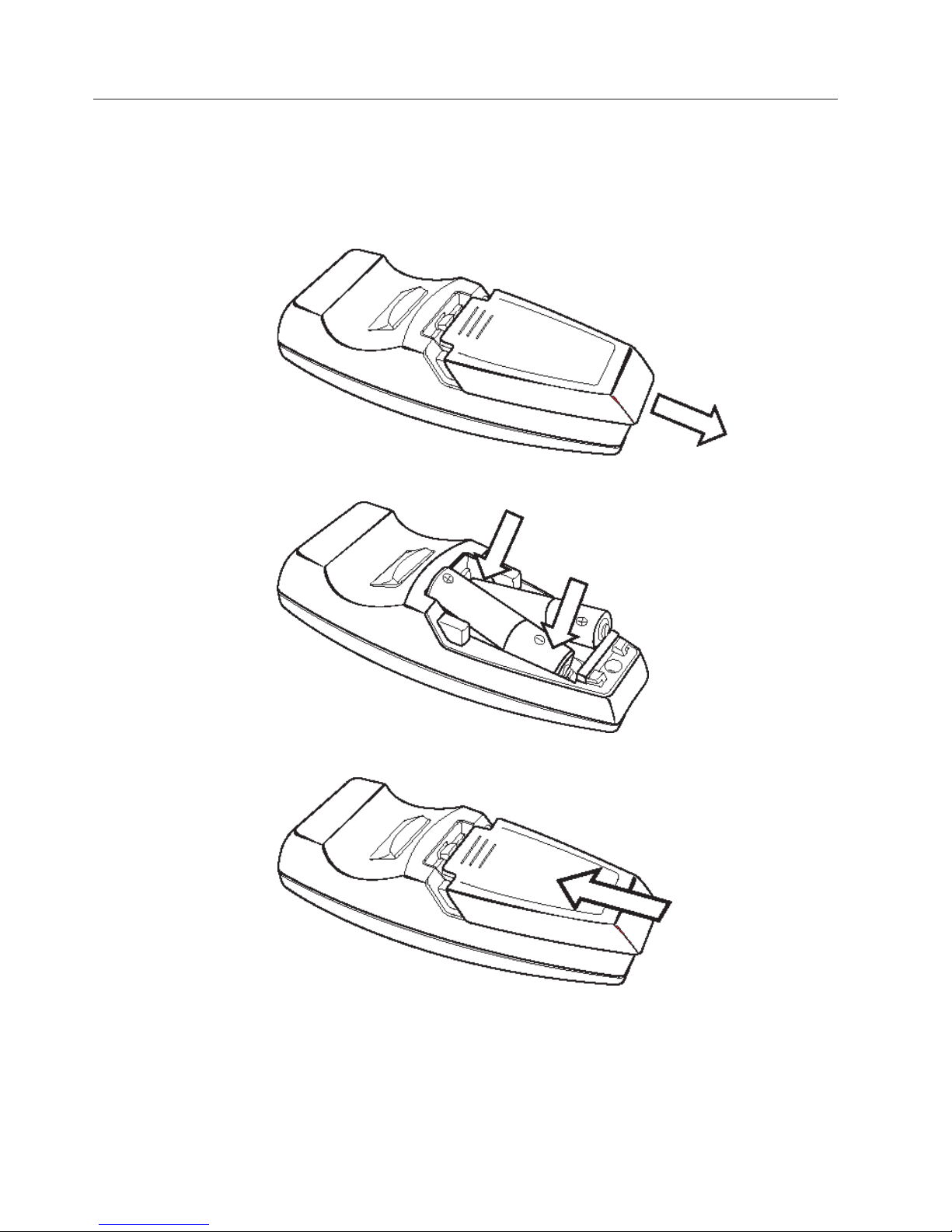

Inserting the remote control batteries
When using the remote control for the first time, install the batteries that were supplied. Follow the steps below for inserting new batteries into your remote control.
Remove the battery compartment cover by sliding the cover in the direction of the arrow, as shown.
Insert the supplied batteries taking note of the polarity (+/-), as shown.
Replace the cover, as shown.
Note:
Only use AAA alkaline batteries. Dispose of used batteries according to local government ordinance
regulations. Remove the batteries when not using the remote for prolonged periods.
4-2
IBM E400 PROJECTOR: User’s Guide
Operating range
The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector, the remote will function well within a radius of about 10 m (33 ft) and 30° above or below the projector level. If the projector does not respond to the remote control, move a little closer.
Note: You can also point the remote at the projected image.
Projector and remote control buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control. The figure below shows the corresponding buttons on the remote control and on the projector.
1 Power 2 Source 3 Auto 4 Menu 5 Volume down/Left button 6 Keystone bottom/Down button 7 Enter 8 Volume up/Right button 9 Keystone top/Up button
Chapter 4. Using the projector features
4-3
4-4
IBM E400 PROJECTOR: User’s Guide
1.
2.
3.
4.
5.
1.
©
Chapter 5. On-Screen Display menu controls
This projector has an On-Screen Display that lets you make image adjustments and change various settings.
Note: You must have a display on the screen in order to access the OSD.
Navigating the OSD
You can use the remote control or the buttons on the top of the projector to navigate and make changes to the OSD. The following sections show the menu options in the OSD.
Setting the OSD language
You may want to reference the OSD on your projector while reading this section. Set the OSD language to your preference before continuing by following the steps below.
Press the Menu button. The Quality menu appears. Press the cursor left/right button until Language is highlighted.
Press the cursor up/down button until the language you want is highlighted. Press theEnter button to select the language. Press the Menu button twice to close the OSD.
Quality menu
Follow the steps below to access the Quality menu.
Press the Menu button to open the OSD menu.
Copyright IBM Corp. 2004
5-1
3.
50
50
3
is
50
2.
Press the cursor left/right button to move to the Quality menu.
Press the cursor up/down button to move up and down in the Quality menu.
The following table shows the options that you will see in the Quality menu and the default.
Item
Brightness
Contrast
Sharpness
Color Temperature
Color Saturation
Description
Press the cursor left/right button to adjust the brightness.
Range: 0 to 100 Press the cursor left/right
button to adjust the contrast.
Range: 0 to 100 Press the cursor left/right
button to adjust the display sharpness.
Range: 1 to 5 Press the cursor left/right
button to adjust the color temperature.
Range: Cool/Normal/Warm Press the cursor left/right
button to adjust the video saturation.
Default
Normal
5-2
IBM E400 PROJECTOR: User’s Guide
Color Saturation is only active when the input source
Video/SVideo/YPbPr
Range: 0 to 100
50
PC
PC
Item
Color Tint
Gamma
Color Space
Description
Press the cursor left/right button to adjust the video tint/hue.
Color tint is only active when the input source is Video/S-video/YPbPr
Range: 0 to 100 Press the cursor left/right
button to adjust the gamma correction of the display.
Input Gamma Brightness
MAC
Video
Chart
B&W
2.2
1.8
2.4
2.2
2.4
High
High
Low
Low
High
Press the cursor left/right button to adjust the color space.
Default
Auto
Cancel
Range: Auto, RGB, YpbPr YCbCr
Resets all Quality item setting to default value
N/A
Chapter 5. On-Screen Display menu controls
5-3
1.
2.
3.
50
or
50
0
Properties menu
Follow the steps below to access the Properties menu.
Press the Menu button to open the OSD menu. Press the cursor left/right button to move into the Properties menu.
Press the cursor up/down button to move up and down within the Properties menu.
The following table show the options that you will see in the Properties menu and the default.
Item
Horizontal Position
Vertical Position
Keystone
Aspect Ratio
Cancel
Description
Press the cursor left/right button to move the image left or right.
Range: 0 to 100 Press the cursor left/right
button to move the image up
down.
Range: 0 to 100 Press the cursor left/right
button to correct distortion of the projected image.
Range: -50 to 50 Press the cursor left/right
button to toggle between the 4:3 standard format and 16:.9 High Definition TV (HDTV) format.
Resets Keystone and Aspect Ratio to default values.
Default
4:3
N/A
5-4
IBM E400 PROJECTOR: User’s Guide
To
1.
2.
3.
On
4
Options menu
access the Options menu, follow the steps below.
Press the Menu button to open the OSD menu. Press the cursor left/right button to move to the Options menu.
Press the cursor up/down button to move up and down in the Options menu.
The following table shows the options that you will see in the Options menu and the default.
Item
Blank Screen
Auto Source
Auto Power Off
Volume
Description
Press the cursor left/right button to select a background color for blank screen.
Range: Black, Red, Green, Blue, White
Press the cursor left/right button to enable or disable automatic source detection.
Range: On/Off Press the cursor left/right
button to enable or disable automatic shut-down of lamp after 10 minutes of inactivity.
Range: On/Off Press the cursor left/right
button to adjust the audio volume level.
Default
Blue
Off
Range: 0 to 8
Chapter 5. On-Screen Display menu controls
5-5
on
15
1.
2.
3.
Item
Menu Position
Menu Display
Translucent Menu
Cancel
Setup menu
Follow the steps below to access the Setup menu.
Press the Menu button to open the OSD menu. Press the cursor left/right button to move to the Setup menu.
Description
Press the cursor left/right button to position the OSD
screen.
Range: Left, Right, Center, Down, Up
Press the cursor left/right button to determine timeout delay of OSD.
Range: 10 to 20 seconds Press the cursor left/right
button to set menu screen translucency.
Range: On/Off Resets all Options screen
items to default values.
Default
Center
Off
N/A
Press the cursor up/down button to move up and down in the Setup menu.
The following table shows the options that you will see in the Setup menu and the default.
5-6
IBM E400 PROJECTOR: User’s Guide
On
v
v
v
v
Item
Video Type
Video Automatic Grain Control (AGC)
Projection
Frequency
Description
Press the cursor left/right button to select the video standard.
Video Type is only active when the input source is Video or S-video
Range: Auto, NTSC, PAL, SECAM
Press the cursor left/right button to enable or disable automatic grain control for video source.
Video AGC is only active when the input source is Video or S-video
Range: On/Off Press the cursor left/right
button to choose from four projection methods:
Desktop mount, front of screen
Desktop mount, rear of screen
Ceiling mount, front of screen
Ceiling mount, rear of screen
Press the cursor left/right button to adjust the A/D sampling clock.
Default
Auto
Desktop mount, front of screen
Auto detected
Tracking
Cancel
Frequency is only active when the input source is Analog RGB.
Range: 0 to 100 Press the cursor left/right
button to adjust the A/D sampling number.
Tracking is only active when the input source is Analog RGB.
Range: 0 to 100 Resets Video Type, Video
AGC, and Projection to default values.
Chapter 5. On-Screen Display menu controls
Auto detected
N/A
5-7
1.
2.
3.
v
v
Information menu
Follow the steps below to access the Information menu.
Press the Menu button to open the OSD menu. Press the cursor left/right button to move to the Information menu.
Press the cursor up/down button to move up and down in the Information menu.
The following table shows the options that you will see in the Information menu and a brief description.
Item
Video Information
Active Source Software Version Lamp Hours Lamp Mode
Lamp Hour Reset
Description
Displays the resolution and refresh rate of the connected video device.
Information about active source Information about software revisions. Number of hours the lamp has been in use Press the cursor left/right button to select
Lamp mode:
Normal Eco
After replacing the lamp, this item should be reset.
5-8
IBM E400 PROJECTOR: User’s Guide
To
1.
2.
To
1.
2.
©
Appendix A. Maintenance
This chapter provides information on projector maintenance.
Cleaning the lens
clean the lens, complete the following procedure:
Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
Note: Avoid using an excessive amount of cleaner, and do not apply the
cleaner directly to the lens. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.
Lightly wipe the cleaning cloth over the lens in a circular motion. If you do not intend to use the projector immediately, replace the lens cap.
Replacing the projection lamp
Use only a replacement lamp with the same type and rating as the original lamp. Contact your IBM representative for information or go to www.ibm.com/pc.
Note: Turn off the projector, unplug the power cord, and allow the projector to
cool for at least 1 hour before attempting to replace the lamp.
replace the projector lamp, complete the following procedure:
Loosen the screw on the lamp compartment cover as shown. Remove the lamp compartment cover as shown.
Copyright IBM Corp. 2004
A-1
4.
5.
6.
3.
Remove the two screws from the lamp module as shown. Lift the module handle up as shown.
Pull firmly on the module handle to remove the lamp module as shown.
Reverse steps 1 to 5 to install the new lamp module.
A-2
IBM E400 PROJECTOR: User’s Guide
1.
2.
3.
4.
5.
is
Attention: This product contains a Metal Arc Lamp, which contains Mercury.
Dispose of it as required by local ordinances and regulations.
The USA restricts or prohibits the disposal of some or all lamps containing mercury in the municipal waste stream. Please visit www.lamprecycle.org for more information on specific state disposal requirements and recycling facilities.
For users in Connecticut, please call Northeast Lamp Recycling toll-free at 1-888-657-5267 to place an order for the delivery of a kit that includes a box for the lamp, tape, and a return shipping label.
Resetting the lamp timer
After replacing the lamp, you should reset the lamp timer to zero. Please follow these steps:
Press the Menu button to open the main menu. Press the left/right cursor button to move to the Information menu. Press the up/down cursor button to move down to Lamp Hour Reset. Press the Enter button. A message screen appears. Press the cursor buttons in this order: down, up, left, right. The Information
menu appears again showing the Lamp Hours reset to zero.
Attention: Lamp Life is a measure of brightness degradation only, and is not a
specification for the time it takes a lamp to fail and cease light output. Lamp Life
defined as the time it takes for more than 50% of a lamp sample population to have brightness decrease by approximately 50% of the rated lumens for the specified lamp. For example, if the defined life of your lamp is 2000 hours of run time, your lamp will have decreased its brightness by 50% to approximately 550 lumens.
Using the security slot
The projector has a security slot. Refer to the information that comes with the lock for instructions on how to use it.
Appendix A. Maintenance
A-3
A-4
IBM E400 PROJECTOR: User’s Guide
No
v
v
v
v
v
10 m
v
v
v
v
v To
v
v
v
v If
v
v
©
Appendix B. Troubleshooting
The following table provides troubleshooting information for the projector. In some cases, more than one possible solution is provided. Try the solutions in the order they are presented. When the problem is solved, you can skip the additional solutions.
Table B-1. Troubleshooting
Problem
image appears on the screen.
The image is blurred.
The image is wider at the top or bottom (trapezoid effect).
The image is reversed or upside down.
The image is streaked.
The image is flat with no contrast.
The color of the projected image does not match the source image.
There is no light from the projector.
Solution
Verify the settings on your notebook or desktop PC Turn off all equipment and power up again in the
correct order.
Adjust the Focus on the projector. Press the Auto button on the remote control or
projector. Ensure the projector-to-screen distance is within the
(33 ft) specified range.
Check that the projector lens is clean.
Position the projector so it is as perpendicular to the screen as possible.
Use the Keystone button on the remote control or projector to correct the problem.
Check the Projection setting on the Setup menu of the OSD.
Set the Frequency and Tracking settings on the Setup menu of the OSD to the default settings.
ensure the problem is not caused by a connected
PC’s video card, connect to another computer.
Adjust the Contrast setting on the main menu of the OSD.
Adjust the Color Temp. and Gamma settings on the ColorMgr menu of the OSD.
Check that the power cable is securely connected. Ensure the power source is good by testing with
another electrical device. Restart the projector in the correct order and check
that the Power LED is green.
you have replaced the lamp recently, try resetting
the lamp connections. Replace the lamp module. Put the old lamp back in the projector and have the
projector serviced.
Copyright IBM Corp. 2004
B-1
v
v
v
v
on
v
v
v
v
v
v
v
v
v
v
v
v
v
v
1
2
3
3
4
5
Table B-1. Troubleshooting (continued)
Problem
The lamp goes off.
Solution
Power surges can cause the lamp to turn off. Press the Power button twice to turn off the projector. When the Lamp Ready LED is on, press the Power button.
Replace the lamp module. Put the old lamp back in the projector and have the
projector serviced.
The projector does not respond to the remote control.
Direct the remote control towards the remote sensors
the projector.
Ensure the path between the remote and sensor is not blocked.
Turn off any fluorescent lights in the room. Check the battery polarity. Replace the batteries. Turn off other Infrared-enabled devices in the
vicinity. Have the remote control serviced.
There is no sound
Adjust the volume on the remote control. Adjust the volume of the audio source. Check the audio cable connection. Test the source audio output with other speakers. Have the projector serviced.
The sound is distorted.
Check the audio cable connection. Test the source audio output with other speakers. Have the projector serviced.
Projector LEDs
B-2
IBM E400 PROJECTOR: User’s Guide
The LED on top of the projector indicates the state of the projector and can help you troubleshoot. There are two-second pauses between the blinking cycles. For more details on LED projector errors, contact your IBM representative.
Table B-2. Lamp-ready LED error messages
Lamp-ready LED number of flashes Explanation
Flashing
Table B-3. Power LED error messages
Power LED number of flashes
Lamp not ready- do not press the power button. Lamp fan2 error Blower fan1 error Ballast fan1 error
Explanation
System overheating System interface error Lamp error
6
7
8
Table B-3. Power LED error messages (continued)
Power LED number of flashes
Explanation
Fan error. Refer to Lamp-ready LED to determine which fan.
Lamp cover open DLP driver error.
Appendix B. Troubleshooting
B-3
B-4
IBM E400 PROJECTOR: User’s Guide
to
5% to
5% to
UL
©
Appendix C. Specifications
Following are specifications for the IBM E400 projector.
Temperature
35° C (41° to 95° F) at sea level
(operating)
-10° to 60° C(14° to 140° F)
(non-operating) Altitude (operating)
Altitude (non-operating) Humidity (operating)
Humidity (non-operating) Dimensions (W x D x H) Weight Optics (focus range) Lamp type
3,048 m (0 to 10,000 ft)
12,192 m (0 to 40,000 ft)
90% relative humidity, non-condensing
95% relative humidity, non-condensing
280 x 205 x 97 mm (11.02 x 8.07 x 3.82in.)
2.09 kg (4.61 lbs) unpacked
1.5 to 7 m (4.9 to 23 ft)
VIP 200W Input power requirements 100-240Vac 50-60Hz 2.8A Ceiling mount
tested/listed ceiling mount with minimum capacity of
15.5 kg (34 lbs)
Copyright IBM Corp. 2004
C-1
C-2
IBM E400 PROJECTOR: User’s Guide
To
v
v
v
v
v
v
v
to
on
©
Appendix D. Service and Support
The following information describes the technical support that is available for your product, during the warranty period or throughout the life of the product. Refer to your IBM Statement of Limited Warranty for a full explanation of IBM warranty terms.
Online technical support
Online technical support is available during the life of your product through the Personal Computing Support Web site at www.ibm.com/pc/support.
During the warranty period, assistance for replacement or exchange of defective components is available. In addition, if your IBM option is installed in an IBM computer, you might be entitled to service at your location. Your technical support representative can help you determine the best alternative.
Telephone technical support
Installation and configuration support through the IBM Support Center will be withdrawn or made available for a fee, at IBM’s discretion, 90 days after the option has been withdrawn from marketing. Additional support offerings, including step-by-step installation assistance, are available for a nominal fee.
assist the technical support representative, have available as much of the
following information as possible:
Option name Option number Proof of purchase Computer manufacturer, model, serial number (if IBM), and manual Exact wording of the error message (if any) Description of the problem Hardware and software configuration information for your system
possible, be at your computer. Your technical support representative might want
If
walk you through the problem during the call.
For the support telephone number and support hours by country, refer to the following table. If the number for your country or region is not listed, contact your IBM reseller or IBM marketing representative. Response time may vary depending
the number and nature of the calls received.
Phone numbers are subject to change without notice. For the latest phone number list, go to www.ibm.com/pc/support and click Support Phone List.
Country or Region Telephone Number Country or Region Telephone Number
Argentina Australia Austria
Copyright IBM Corp. 2004
0800-666-0011 1300-130-426 01-24592-5901
Malaysia Mexico Netherlands
03-7727-7800 001-866-434-2080 020-514-5770
D-1
66 81 11 00
45 20 82 00
02 38 55 74 50
Country or Region Telephone Number Country or Region Telephone Number
Belgium
Dutch 02-210-9820
New Zealand
0800-446-149
French 02-210-9800 Bolivia Brazil Canada
0800-0189
55-11-3889-8986
1-800-565-3344
Norway Peru Philippines
0-800-50-866 632-995-2225
Toronto 416-383-3344 Chile China (PRC) China (Hong Kong
800-224-488
800-810-1818
852-2825-7799
Portugal Russia Singapore
21-791 51 47 095-940-2000 1800-840-9911
S.A.R.) Columbia Denmark Ecuador
980-912-3021
1-800-426911 (option
Spain Sweden Switzerland
91-662 49 16 08-477 4420 058-333-09-00
#4) Finland France Germany Indonesia Ireland Italy Japan
09-459 69 60
07032-1549 201
021-523-8535
01-815-9202
02-7031-6101
Consumer customers
Taiwan Thailand Turkey United Kingdom United States Uruguay Venezuela
886-2-2725-9799 66-2-273-4000 00-800-446-32-041 0-1475-555 055 1-800-426-7378 000-411-005-6649 0-800-100-2011
0120-887-870
Luxembourg
Business customers
0120-887-874
298-977 5063
Vietnam
848-8295-160
D-2
IBM E400 PROJECTOR: User’s Guide
NO
v
v
v
©
Appendix E. IBM Statement of Limited Warranty ­Z125-4753-07 - 11/2002
Part 1 - General Terms
This Statement of Limited Warranty includes Part 1 - General Terms, Part 2 ­Country-unique Terms, and Part 3 - Warranty Information. The terms of Part 2 replace or modify those of Part 1. The warranties provided by IBM in this Statement of Limited Warranty apply only to Machines you purchase for your use, and not for resale. The term Machine means an IBM machine, its features, conversions, upgrades, elements, or accessories, or any combination of them. The term ″Machine″ does not include any software programs, whether pre-loaded with the Machine, installed subsequently or otherwise.
Nothing in this Statement of Limited Warranty affects any statutory rights of consumers that cannot be waived or limited by contract.
What this Warranty Covers
IBM warrants that each Machine 1) is free from defects in materials and workmanship and 2) conforms to IBM’s Official Published Specifications (Specifications) which are available on request. The warranty period for the Machine starts on the original Date of Installation and is specified in Part 3 ­Warranty Information. The date on your invoice or sales receipt is the Date of Installation unless IBM or your reseller informs you otherwise. Many features, conversions, or upgrades involve the removal of parts and their return to IBM. A part that replaces a removed part will assume the warranty service status of the removed part. Unless IBM specifies otherwise, these warranties apply only in the country or region in which you purchased the Machine.
THESE WARRANTIES ARE YOUR EXCLUSIVE WARRANTIES AND REPLACE ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE WARRANTY PERIOD.
WARRANTIES APPLY AFTER THAT PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
What this Warranty Does not Cover
This warranty does not cover the following:
any software programs, whether pre-loaded or shipped with the Machine, or
installed subsequently;
failure resulting from misuse (including but not limited to use of any Machine capacity or capability, other than that authorized by IBM in writing), accident, modification, unsuitable physical or operating environment, or improper maintenance by you;
failure caused by a product for which IBM is not responsible; and
Copyright IBM Corp. 2004
E-1
or
If
If
If
it to
to
v
any non-IBM products, including those that IBM may procure and provide with
integrate into an IBM Machine at your request.
warranty is voided by removal or alteration of identification labels on the
The Machine or its parts.
IBM does not warrant uninterrupted or error-free operation of a Machine.
Any technical or other support provided for a Machine under warranty, such as assistance via telephone with ″how-to″ questions and those regarding Machine set-up and installation, is provided WITHOUT WARRANTIES OF ANY KIND.
How to Obtain Warranty Service
the Machine does not function as warranted during the warranty period, contact IBM or your reseller to obtain warranty service. If you do not register the Machine with IBM, you may be required to present proof of purchase as evidence of your entitlement to warranty service.
What IBM Will Do to Correct Problems
When you call for service, you must follow the problem determination and resolution procedures that IBM specifies. A technician will attempt to make an initial diagnosis of your problem and help you resolve it over the telephone.
The type of warranty service applicable to your Machine is specified in Part 3 ­Warranty Information.
You are responsible for downloading and installing designated Machine Code (microcode, basic input/output system code (called ″BIOS″), utility programs, device drivers, and diagnostics delivered with an IBM Machine) and other software updates from an IBM Internet Web site or from other electronic media, and following the instructions that IBM provides.
your problem can be resolved with a Customer Replaceable Unit (CRU) (e.g., keyboard, mouse, speaker, memory, hard disk drive and other easily replaceable parts), IBM will ship these parts to you for replacement by you.
the Machine does not function as warranted during the warranty period and your problem cannot be resolved over the telephone, through your application of Machine Code or software updates, or with a CRU, IBM or your reseller, if approved by IBM to provide warranty service, will either, at its discretion, 1) repair
make it function as warranted, or 2) replace it with one that is at least
functionally equivalent. If IBM is unable to do either, you may return the Machine
your place of purchase and your money will be refunded.
IBM or your reseller will also manage and install selected engineering changes that apply to the Machine.
Exchange of a Machine or Part
When the warranty service involves the exchange of a Machine or part, the item IBM or your reseller replaces becomes its property and the replacement becomes yours. You represent that all removed items are genuine and unaltered. The replacement may not be new, but will be in good working order and at least
E-2
IBM E400 PROJECTOR: User’s Guide
1.
2.
3.
a.
b.
c.
d.
of
1.
2.
12
functionally equivalent to the item replaced. The replacement assumes the warranty service status of the replaced item.
Your Additional Responsibilities
Before IBM or your reseller exchanges a Machine or part, you agree to remove all features, parts, options, alterations, and attachments not under warranty service.
You also agree to:
ensure that the Machine is free of any legal obligations or restrictions that prevent its exchange;
obtain authorization from the owner to have IBM or your reseller service a
Machine that you do not own; and
where applicable, before service is provided:
follow the service request procedures that IBM or your reseller provides; backup or secure all programs, data, and funds contained in the Machine;
IBM or your reseller with sufficient, free, and safe access to your facilities to permit IBM to fulfill its obligations; and
inform IBM or your reseller of changes in the Machine’s location.
(a) ensure all information about identified or identifiable individuals (Personal
4.
Data) is deleted from the Machine (to the extent technically possible), (b) allow IBM, your reseller or an IBM supplier to process on your behalf any remaining Personal Data as IBM or your reseller considers necessary to fulfill its obligations under this Statement of Limited Warranty (which may include shipping the Machine for such processing to other IBM service locations around the world), and (c) ensure that such processing complies with any laws applicable to such Personal Data.
Limitation
Liability
IBM is responsible for loss of, or damage to, your Machine only while it is 1) in IBM’s possession or 2) in transit in those cases where IBM is responsible for the transportation charges.
Neither IBM nor your reseller are responsible for any of your confidential, proprietary or personal information contained in a Machine which you return to IBM for any reason. You should remove all such information from the Machine prior to its return.
Circumstances may arise where, because of a default on IBM’s part or other liability, you are entitled to recover damages from IBM. In each such instance, regardless of the basis on which you are entitled to claim damages from IBM (including fundamental breach, negligence, misrepresentation, or other contract or tort claim), except for any liability that cannot be waived or limited by applicable laws, IBM is liable for no more than
damages for bodily injury (including death) and damage to real property and tangible personal property; and
the amount of any other actual direct damages, up to the charges (if recurring,
months’ charges apply) for the Machine that is subject of the claim. For purposes of this item, the term ″Machine″ includes Machine Code and Licensed Internal Code (LIC).
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002
E-3
TO
This limit also applies to IBM’s suppliers and your reseller. It is the maximum for which IBM, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS IBM, ITS SUPPLIERS OR RESELLERS LIABLE FOR ANY OF THE FOLLOWING EVEN IF INFORMED OF THEIR POSSIBILITY: 1) THIRD PARTY CLAIMS AGAINST YOU FOR DAMAGES (OTHER THAN THOSE UNDER THE FIRST ITEM LISTED ABOVE); 2) LOSS OF, OR DAMAGE TO, DATA; 3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES; OR 4) LOST PROFITS, BUSINESS REVENUE, GOODWILL OR ANTICIPATED SAVINGS. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
YOU. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
Governing Law
Both you and IBM consent to the application of the laws of the country in which you acquired the Machine to govern, interpret, and enforce all of your and IBM’s rights, duties, and obligations arising from, or relating in any manner to, the subject matter of this Statement of Limited Warranty, without regard to conflict of law principles.
THESE WARRANTIES GIVE YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VA R Y FROM STATE TO STATE OR JURISDICTION TO JURISDICTION.
Jurisdiction
All of our rights, duties, and obligations are subject to the courts of the country in which you acquired the Machine.
Part 2 - Country-unique Terms
AMERICAS
ARGENTINA
Governing Law: The following is added after the first sentence:
Any litigation arising from this Statement of Limited Warranty will be settled exclusively by the Ordinary Commercial Court of the city of Buenos Aires.
BRAZIL
Governing Law: The following is added after the first sentence:
litigation arising from this Statement of Limited Warranty will be settled
Any exclusively by the court of Rio de Janeiro, RJ.
Peru
Limitation of Liability: The following is added at the end of this section:
E-4
IBM E400 PROJECTOR: User’s Guide
To
1.
to
or
of a
In accordance with Article 1328 of the Peruvian Civil Code the limitations and exclusions specified in this section will not apply to damages caused by IBM’s willful misconduct (dolo) or gross negligence (culpa inexcusable).
NORTH AMERICA
How to Obtain Warranty Service: The following is added to this Section:
obtain warranty service from IBM in Canada or the United States, call
1-800-IBM-SERV (426-7378).
CANADA
Limitation of Liability: The following replaces item 1 of this section:
damages for bodily injury (including death) or physical harm to real property and tangible personal property caused by IBM’s negligence; and
Governing
Law: The following replaces “laws of the country in which you acquired the
Machine” in the first sentence:
laws in the Province of Ontario.
UNITED STATES
Governing Law: The following replaces “laws of the country in which you acquired the
Machine” in the first sentence:
laws of the State of New York.
ASIA PACIFIC
AUSTRALIA
What this Warranty Covers: The following paragraph is added to this Section:
The warranties specified in this Section are in addition to any rights you may have under the Trade Practices Act 1974 or other similar legislation and are only limited
the extent permitted by the applicable legislation.
Limitation of Liability: The following is added to this Section:
Where IBM is in breach of a condition or warranty implied by the Trade Practices Act 1974 or other similar legislation, IBM’s liability is limited to the repair or replacement of the goods or the supply of equivalent goods. Where that condition
warranty relates to right to sell, quiet possession or clear title, or the goods are
kind ordinarily acquired for personal, domestic or household use or
consumption, then none of the limitations in this paragraph apply.
Governing Law: The following replaces “laws of the country in which you acquired the
Machine” in the first sentence:
laws of the State or Territory.
CAMBODIA, LAOS, AND VIETNAM
Governing Law: The following replaces “laws of the country in which you acquired the
Machine” in the first sentence:
laws of the State of New York, United States of America.
CAMBODIA, INDONESIA, LAOS, AND VIETNAM
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002
E-5
If
1.
2. as to
Arbitration: The following is added under this heading: Disputes arising out of or in connection with this Statement of Limited Warranty shall be finally settled by arbitration which shall be held in Singapore in accordance with the Arbitration Rules of Singapore International Arbitration Center (SIAC Rules) then in effect. The arbitration award shall be final and binding for the parties without appeal and shall be in writing and set forth the findings of fact and the conclusions of law.
The number of arbitrators shall be three, with each side to the dispute being entitled to appoint one arbitrator. The two arbitrators appointed by the parties shall appoint a third arbitrator who shall act as chairman of the proceedings. Vacancies in the post of chairman shall be filled by the president of the SIAC. Other vacancies shall be filled by the respective nominating party. Proceedings shall continue from the stage they were at when the vacancy occurred.
one of the parties refuses or otherwise fails to appoint an arbitrator within 30 days of the date the other party appoints its, the first appointed arbitrator shall be the sole arbitrator, provided that the arbitrator was validly and properly appointed.
All proceedings shall be conducted, including all documents presented in such proceedings, in the English language. The English language version of this Statement of Limited Warranty prevails over any other language version.
HONG KONG S.A.R. OF CHINA AND MACAU S.A.R. OF CHINA
Governing Law: The following replaces “laws of the country in which you acquired the
Machine” in the first sentence:
laws of Hong Kong Special Administrative Region of China.
INDIA
Limitation of Liability: The following replaces items 1 and 2 of this Section:
liability for bodily injury (including death) or damage to real property and tangible personal property will be limited to that caused by IBM’s negligence; and
any other actual damage arising in any situation involving nonperformance by IBM pursuant to, or in any way related to the subject of this Statement of Limited Warranty,, the charge paid by you for the individual Machine that is the subject of the claim. For purposes of this item, the term ″Machine″ includes Machine Code and Licensed Internal Code (″LIC″).
Arbitration:
The following is added under this heading:
Disputes arising out of or in connection with this Statement of Limited Warranty shall be finally settled by arbitration which shall be held in Bangalore, India in accordance with the laws of India then in effect. The arbitration award shall be final and binding for the parties without appeal and shall be in writing and set forth the findings of fact and the conclusions of law.
The number of arbitrators shall be three, with each side to the dispute being entitled to appoint one arbitrator. The two arbitrators appointed by the parties shall appoint a third arbitrator who shall act as chairman of the proceedings. Vacancies in the post of chairman shall be filled by the president of the Bar Council of India. Other vacancies shall be filled by the respective nominating party. Proceedings shall continue from the stage they were at when the vacancy occurred.
E-6
IBM E400 PROJECTOR: User’s Guide
of
If one of the parties refuses or otherwise fails to appoint an arbitrator within 30 days of the date the other party appoints its, the first appointed arbitrator shall be the sole arbitrator, provided that the arbitrator was validly and properly appointed.
All proceedings shall be conducted, including all documents presented in such proceedings, in the English language. The English language version of this Statement of Limited Warranty prevails over any other language version.
JAPAN
Governing Law: The following sentence is added to this section:
doubts concerning this Statement of Limited Warranty will be initially
Any resolved between us in good faith and in accordance with the principle of mutual trust.
MALAYSIA
Limitation of Liability: The word SPECIAL in item 3 of the fifth paragraph is deleted.
NEW ZEALAND
What this Warranty Covers: The following paragraph is added to this section:
The warranties specified in this section are in addition to any rights you may have under the Consumer Guarantees Act 1993 or other legislation which cannot be excluded or limited. The Consumer Guarantees Act 1993 will not apply in respect
any goods which IBM provides, if you require the goods for the purposes of a
business as defined in that Act.
Limitation of Liability: The following is added to this section:
Where
Machines are not acquired for the purposes of a business as defined in the Consumer Guarantees Act 1993, the limitations in this section are subject to the limitations in that Act.
PEOPLE’S REPUBLIC OF CHINA (PRC)
Governing Law: The following replaces laws of the country in which you acquired
the Machine in the first sentence:
laws of the State of New York, United States of America (except when local law requires otherwise).
PHILIPPINES
Limitation of Liability: Item 3 in the fifth paragraph is replaced by the following:
SPECIAL (INCLUDING NOMINAL AND EXEMPLARY DAMAGES), MORAL, INCIDENTAL, OR INDIRECT DAMAGES FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES; OR
Arbitration: The following is added under this heading
Disputes arising out of or in connection with this Statement of Limited Warranty shall be finally settled by arbitration which shall be held in Metro Manila, Philippines in accordance with the laws of the Philippines then in effect. The
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002
E-7
If
If
arbitration award shall be final and binding for the parties without appeal and shall be in writing and set forth the findings of fact and the conclusions of law.
The number of arbitrators shall be three, with each side to the dispute being entitled to appoint one arbitrator. The two arbitrators appointed by the parties shall appoint a third arbitrator who shall act as chairman of the proceedings. Vacancies in the post of chairman shall be filled by the president of the Philippine Dispute Resolution Center, Inc. Other vacancies shall be filled by the respective nominating party. Proceedings shall continue from the stage they were at when the vacancy occurred.
one of the parties refuses or otherwise fails to appoint an arbitrator within 30 days of the date the other party appoints its, the first appointed arbitrator shall be the sole arbitrator, provided that the arbitrator was validly and properly appointed.
All proceedings shall be conducted, including all documents presented in such proceedings, in the English language. The English language version of this Statement of Limited Warranty prevails over any other language version.
SINGAPORE
Limitation of Liability: The words ″SPECIAL″ and ″ECONOMIC″ in item 3 in the
fifth paragraph are deleted.
EUROPE, MIDDLE EAST, AFRICA (EMEA)
THE FOLLOWING TERMS APPLY TO ALL EMEA COUNTRIES:
The terms of this Statement of Limited Warranty apply to Machines purchased from IBM or an IBM reseller.
How to Obtain Warranty Service: If you purchase a Machine in Austria, Belgium,
Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Portugal, Spain, San Marino, Sweden, Switzerland, United Kingdom or Vatican State, you may obtain warranty service for that Machine in any of those countries from either (1) an IBM reseller approved to perform warranty service or (2) from IBM, provided the Machine has been announced and made available by IBM in the country in which you wish to obtain service. If you purchased a Personal Computer Machine in Albania, Armenia, Belarus, Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Georgia, Hungary, Kazakhstan, Kyrgyzstan, Federal Republic of Yugoslavia, Former Yugoslav Republic of Macedonia (FYROM), Moldova, Poland, Romania, Russia, Slovak Republic, Slovenia, or Ukraine, you may obtain warranty service for that Machine in any of those countries from either (1) an IBM reseller approved to perform warranty service or (2) from IBM.
you purchase a Machine in a Middle Eastern or African country, you may obtain warranty service for that Machine from the IBM entity within the country of purchase, if that IBM entity provides warranty service in that country, or from an IBM reseller, approved by IBM to perform warranty service on that Machine in that country. Warranty service in Africa is available within 50 kilometers of an IBM approved service provider. You are responsible for transportation costs for Machines located outside 50 kilometers of an IBM approved service provider.
E-8
IBM E400 PROJECTOR: User’s Guide
1)
1) In
of
of
Add the following paragraph in Western Europe (Austria, Belgium, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, Netherlands, Norway, Portugal, Spain, San Marino, Sweden, Switzerland, United Kingdom, Vatican State):
The warranty for Machines acquired in Western Europe shall be valid and applicable in all Western Europe countries provided the Machines have been announced and made available in such countries.
Governing Law:
The phrase the laws of the country in which you acquired the Machine is replaced by:
the laws of Austria″ in Albania, Armenia, Azerbaijan, Belarus,
Bosnia-Herzegovina, Bulgaria, Croatia, Georgia, Hungary, Kazakhstan, Kyrgyzstan, FYR Macedonia, Moldova, Poland, Romania, Russia, Slovakia, Slovenia, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, and FR Yugoslavia; 2)
the laws of France″ in Algeria, Benin, Burkina Faso, Cameroon, Cape Verde,
Central African Republic, Chad, Comoros, Congo Republic, Djibouti, Democratic Republic of Congo, Equatorial Guinea, French Guiana, French Polynesia, Gabon, Gambia, Guinea, Guinea-Bissau, Ivory Coast, Lebanon, Madagascar, Mali, Mauritania, Mauritius, Mayotte, Morocco, New Caledonia, Niger, Reunion, Senegal, Seychelles, Togo, Tunisia, Vanuatu, and Wallis & Futuna; 3) the laws of
Finland in Estonia, Latvia, and Lithuania; 4) ″the laws of England in Angola,
Bahrain, Botswana, Burundi, Egypt, Eritrea, Ethiopia, Ghana, Jordan, Kenya, Kuwait, Liberia, Malawi, Malta, Mozambique, Nigeria, Oman, Pakistan, Qatar, Rwanda, Sao Tome, Saudi Arabia, Sierra Leone, Somalia, Tanzania, Uganda, United Arab Emirates, the United Kingdom, West Bank/Gaza, Yemen, Zambia, and Zimbabwe; and 5) the laws of South Africa in South Africa, Namibia, Lesotho and Swaziland.
Jurisdiction: The following exceptions are added to this section:
Austria the choice of jurisdiction for all disputes arising out of this Statement
Limited Warranty and relating thereto, including its existence, will be the
competent court of law in Vienna, Austria (Inner-City); 2) in Angola, Bahrain,
Botswana, Burundi, Egypt, Eritrea, Ethiopia, Ghana, Jordan, Kenya, Kuwait, Liberia, Malawi, Malta, Mozambique, Nigeria, Oman, Pakistan, Qatar, Rwanda, Sao Tome, Saudi Arabia, Sierra Leone, Somalia, Tanzania, Uganda, United Arab Emirates, West Bank/Gaza, Yemen, Zambia, and Zimbabwe all disputes arising
out of this Statement of Limited Warranty or related to its execution, including summary proceedings, will be submitted to the exclusive jurisdiction of the English courts; 3) in Belgium and Luxembourg, all disputes arising out of this Statement
Limited Warranty or related to its interpretation or its execution, the law, and the courts of the capital city, of the country of your registered office and/or commercial site location only are competent; 4) in France, Algeria, Benin, Burkina
Faso, Cameroon, Cape Verde, Central African Republic, Chad, Comoros, Congo Republic, Djibouti, Democratic Republic of Congo, Equatorial Guinea, French Guiana, French Polynesia, Gabon, Gambia, Guinea, Guinea-Bissau, Ivory Coast, Lebanon, Madagascar, Mali, Mauritania, Mauritius, Mayotte, Morocco, New Caledonia, Niger, Reunion, Senegal, Seychelles, Togo, Tunisia, Vanuatu, and Wallis & Futuna all disputes arising out of this Statement of Limited Warranty or
related to its violation or execution, including summary proceedings, will be settled exclusively by the Commercial Court of Paris; 5) in Russia, all disputes arising out of or in relation to the interpretation, the violation, the termination, the
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002
E-9
of us
In
In
To
PO
nullity of the execution of this Statement of Limited Warranty shall be settled by Arbitration Court of Moscow; 6) in South Africa, Namibia, Lesotho and Swaziland, both of us agree to submit all disputes relating to this Statement of Limited Warranty to the jurisdiction of the High Court in Johannesburg; 7) in
Turkey all disputes arising out of or in connection with this Statement of Limited
Warranty shall be resolved by the Istanbul Central (Sultanahmet) Courts and Execution Directorates of Istanbul, the Republic of Turkey; 8) in each of the following specified countries, any legal claim arising out of this Statement of Limited Warranty will be brought before, and settled exclusively by, the competent court of a) Athens for Greece, b) Tel Aviv-Jaffa for Israel, c) Milan for Italy, d) Lisbon for Portugal, and e) Madrid for Spain; and 9) in the United Kingdom, both
agree to submit all disputes relating to this Statement of Limited Warranty to
the jurisdiction of the English courts.
Arbitration: The following is added under this heading:
Albania, Armenia, Azerbaijan, Belarus, Bosnia-Herzegovina, Bulgaria, Croatia, Georgia, Hungary, Kazakhstan, Kyrgyzstan, FYR Macedonia, Moldova, Poland, Romania, Russia, Slovakia, Slovenia, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, and FR Yugoslavia all disputes arising out of this Statement of
Limited Warranty or related to its violation, termination or nullity will be finally settled under the Rules of Arbitration and Conciliation of the International Arbitral Center of the Federal Economic Chamber in Vienna (Vienna Rules) by three arbitrators appointed in accordance with these rules. The arbitration will be held in Vienna, Austria, and the official language of the proceedings will be English. The decision of the arbitrators will be final and binding upon both parties. Therefore, pursuant to paragraph 598 (2) of the Austrian Code of Civil Procedure, the parties expressly waive the application of paragraph 595 (1) figure 7 of the Code. IBM may, however, institute proceedings in a competent court in the country of installation.
Estonia, Latvia and Lithuania all disputes arising in connection with this
Statement of Limited Warranty will be finally settled in arbitration that will be held in Helsinki, Finland in accordance with the arbitration laws of Finland then in effect. Each party will appoint one arbitrator. The arbitrators will then jointly appoint the chairman. If arbitrators cannot agree on the chairman, then the Central Chamber of Commerce in Helsinki will appoint the chairman.
EUROPEAN UNION (EU)
THE FOLLOWING TERMS APPLY TO ALL EU COUNTRIES:
Consumers have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties provided in this Statement of Limited Warranty.
How to Obtain Warranty Service: The following is added to this section:
obtain warranty service from IBM in EU countries, see the telephone listing in
Part 3 - Warranty Information.
You may contact IBM at the following address:
IBM Warranty & Service Quality Dept.
Box 30
E-10
IBM E400 PROJECTOR: User’s Guide
1.
of
2.
OR 4)
1.
2.
Spango Valley
Greenock
Scotland PA 16 OAH
AUSTRIA, DENMARK, FINLAND, GREECE, ITALY, NETHERLANDS, PORTUGAL, SPAIN, SWEDEN AND SWITZERLAND
Limitation of Liability: The following replaces the terms of this section in its entirety:
Except as otherwise provided by mandatory law:
IBM’s liability for any damages and losses that may arise as a consequence of the fulfillment of its obligations under or in connection with this Statement of Limited Warranty or due to any other cause related to this Statement of Limited Warranty is limited to the compensation of only those damages and losses proved and actually arising as an immediate and direct consequence of the non-fulfillment of such obligations (if IBM is at fault) or of such cause, for a maximum amount equal to the charges you paid for the Machine. For purposes
this item, the term ″Machine″ includes Machine Code and Licensed Internal
Code (LIC). The above limitation shall not apply to damages for bodily injuries (including
death) and damages to real property and tangible personal property for which IBM is legally liable.
UNDER NO CIRCUMSTANCES IS IBM, ITS SUPPLIERS OR RESELLERS LIABLE FOR ANY OF THE FOLLOWING, EVEN IF INFORMED OF THEIR POSSIBILITY: 1) LOSS OF, OR DAMAGE TO, DATA; 2) INCIDENTAL OR INDIRECT DAMAGES, OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES; 3) LOST PROFITS, EVEN IF THEY ARISE AS AN IMMEDIATE CONSEQUENCE OF THE EVENT THAT GENERATED THE DAMAGES;
LOSS OF BUSINESS, REVENUE, GOODWILL, OR ANTICIPATED
SAVINGS.
FRANCE AND BELGIUM
Limitation of Liability: The following replaces the terms of this section in its entirety:
Except as otherwise provided by mandatory law:
IBM’s liability for any damages and losses that may arise as a consequence of the fulfillment of its obligations under or in connection with this Statement of Limited Warranty is limited to the compensation of only those damages and losses proved and actually arising as an immediate and direct consequence of the non-fulfillment of such obligations (if IBM is at fault), for a maximum amount equal to the charges you paid for the Machine that has caused the damages. For purposes of this item, the term ″Machine″ includes Machine Code and Licensed Internal Code (LIC).
The above limitation shall not apply to damages for bodily injuries (including death) and damages to real property and tangible personal property for which IBM is legally liable.
UNDER NO CIRCUMSTANCES IS IBM, ITS SUPPLIERS OR RESELLERS LIABLE FOR ANY OF THE FOLLOWING, EVEN IF INFORMED OF THEIR POSSIBILITY: 1) LOSS OF, OR DAMAGE TO, DATA; 2) INCIDENTAL OR INDIRECT DAMAGES, OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES; 3) LOST PROFITS, EVEN IF THEY ARISE AS AN IMMEDIATE
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002
E-11
OR 4)
an
as to
of
CONSEQUENCE OF THE EVENT THAT GENERATED THE DAMAGES;
LOSS OF BUSINESS, REVENUE, GOODWILL, OR ANTICIPATED
SAVINGS.
THE FOLLOWING TERMS APPLY TO THE COUNTRY SPECIFIED:
AUSTRIA
What this Warranty Covers: The following replaces the first sentence of the first
paragraph of this section:
The warranty for an IBM Machine covers the functionality of the Machine for its normal use and the Machine’s conformity to its Specifications.
The following paragraphs are added to this Section:
The minimum warranty period for Machines is 12 months from the date of delivery.. The limitation period for consumers in action for breach of warranty is the statutory period as a minimum. In case IBM or your reseller is unable to repair
IBM Machine, you can alternatively ask for a partial refund as far as justified by the reduced value of the unrepaired Machine or ask for a cancellation of the respective agreement for such Machine and get your money refunded.
The second paragraph does not apply.
What IBM Will Do to Correct Problems: The following is added to this section:
During the warranty period, transportation for delivery of the failing Machine to IBM will be at IBM’s expense.
Limitation of Liability: The following paragraph is added to this section:
The limitations and exclusions specified in the Statement of Limited Warranty will not apply to damages caused by IBM with fraud or gross negligence and for express warranty.
The following sentence is added to the end of item 2:
IBM’s liability under this item is limited to the violation of essential contractual terms in cases of ordinary negligence.
EGYPT
Limitation of Liability: The following replaces item 2 in this section:
any other actual direct damages, IBM’s liability will be limited to the total amount you paid for the Machine that is the subject of the claim. For purposes of this item, the term “Machine” includes Machine Code and Licensed Internal Code (LIC).
Applicability of suppliers and resellers (unchanged).
FRANCE
Limitation of Liability: The following replaces the second sentence of the first paragraph
this section:
such instances, regardless of the basis on which you are entitled to claim
In damages from IBM, IBM is liable for no more than: (items 1 and 2 unchanged).
E-12
IBM E400 PROJECTOR: User’s Guide
as
of
GERMANY
What this Warranty Covers: The following replaces the first sentence of the first
paragraph of this section:
The warranty for an IBM Machine covers the functionality of the Machine for its normal use and the Machine’s conformity to its Specifications.
The following paragraphs are added to this section:
The minimum warranty period for Machines is twelve months. In case IBM or your reseller is unable to repair an IBM Machine, you can alternatively ask for a partial refund as far as justified by the reduced value of the unrepaired Machine or ask for a cancellation of the respective agreement for such Machine and get your money refunded.
The second paragraph does not apply.
What IBM Will Do to Correct Problems: The following is added to this section:
During the warranty period, transportation for delivery of the failing Machine to IBM will be at IBM’s expense.
Limitation of Liability: The following paragraph is added to this section:
The limitations and exclusions specified in the Statement of Limited Warranty will not apply to damages caused by IBM with fraud or gross negligence and for express warranty.
The following sentence is added to the end of item 2:
IBM’s liability under this item is limited to the violation of essential contractual terms in cases of ordinary negligence.
HUNGARY
Limitation of Liability: The following is added at the end of this section:
The limitation and exclusion specified herein shall not apply to liability for a breach of contract damaging life, physical well-being, or health that has been caused intentionally, by gross negligence, or by a criminal act.
The parties accept the limitations of liability as valid provisions and state that the Section 314.(2) of the Hungarian Civil Code applies as the acquisition price as well
other advantages arising out of the present Statement of Limited Warranty
balance this limitation of liability.
IRELAND
What this Warranty Covers: The following is added to this section:
Except as expressly provided in these terms and conditions, all statutory conditions, including all warranties implied, but without prejudice to the generality
the foregoing all warranties implied by the Sale of Goods Act 1893 or the Sale of
Goods and Supply of Services Act 1980 are hereby excluded.
Limitation of Liability: The following replaces the terms of this section in its entirety:
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002
E-13
1.
2.
3.
if
1.
2.
3.
is
For the purposes of this section, a ″Default″ means any act, statement, omission, or negligence on the part of IBM in connection with, or in relation to, the subject matter of this Statement of Limited Warranty in respect of which IBM is legally liable to you, whether in contract or tort. A number of Defaults which together result in, or contribute to, substantially the same loss or damage will be treated as one Default occurring on the date of occurrence of the last such Default.
Circumstances may arise where, because of a Default, you are entitled to recover damages from IBM.
This section sets out the extent of IBM’s liability and your sole remedy.
IBM will accept unlimited liability for death or personal injury caused by the negligence of IBM.
Subject always to the Items for Which IBM is Not Liable below, IBM will accept unlimited liability for physical damage to your tangible property resulting from the negligence of IBM.
Except as provided in items 1 and 2 above, IBM’s entire liability for actual damages for any one Default will not in any event exceed the greater of 1) EUR 125,000, or 2) 125% of the amount you paid for the Machine directly relating to the Default.
for Which IBM is Not Liable
Items
Save with respect to any liability referred to in item 1 above, under no circumstances is IBM, its suppliers or resellers liable for any of the following, even
IBM or they were informed of the possibility of such losses:
loss of, or damage to, data; special, indirect, or consequential loss; or loss of profits, business, revenue, goodwill, or anticipated savings.
SLOVAKIA
Limitation of Liability: The following is added to the end of the last paragraph:
The limitations apply to the extent they are not prohibited under §§ 373-386 of the Slovak Commercial Code.
SOUTH AFRICA, NAMIBIA, BOTSWANA, LESOTHO AND SWAZILAND
Limitation of Liability: The following is added to this section:
IBM’s entire liability to you for actual damages arising in all situations involving nonperformance by IBM in respect of the subject matter of this Statement of Warranty will be limited to the charge paid by you for the individual Machine that
the subject of your claim from IBM.
UNITED KINGDOM
Limitation of Liability: The following replaces the terms of this section in its entirety:
For the purposes of this section, a ″Default″ means any act, statement, omission, or negligence on the part of IBM in connection with, or in relation to, the subject matter of this Statement of Limited Warranty in respect of which IBM is legally
E-14
IBM E400 PROJECTOR: User’s Guide
1.
a.
b.
is
3.
1.
2.
3.
3
1, 4
liable to you, whether in contract or tort. A number of Defaults which together result in, or contribute to, substantially the same loss or damage will be treated as one Default.
Circumstances may arise where, because of a Default, you are entitled to recover damages from IBM.
This section sets out the extent of IBM’s liability and your sole remedy.
IBM will accept unlimited liability for:
death or personal injury caused by the negligence of IBM; and any breach of its obligations implied by Section 12 of the Sale of Goods Act
1979 or Section 2 of the Supply of Goods and Services Act 1982, or any statutory modification or re-enactment of either such Section.
IBM will accept unlimited liability, subject always to the Items for Which IBM
2.
Not Liable below, for physical damage to your tangible property resulting
from the negligence of IBM. IBM’s entire liability for actual damages for any one Default will not in any
event, except as provided in items 1 and 2 above, exceed the greater of 1) Pounds Sterling 75,000, or 2) 125% of the total purchase price payable or the charges for the Machine directly relating to the Default.
limits also apply to IBM’s suppliers and resellers. They state the maximum
These for which IBM and such suppliers and resellers are collectively responsible.
Items for Which IBM is Not Liable
Save with respect to any liability referred to in item 1 above, under no circumstances is IBM or any of its suppliers or resellers liable for any of the following, even if IBM or they were informed of the possibility of such losses:
loss of, or damage to, data: special, indirect, or consequential loss; or loss of profits, business, revenue, goodwill, or anticipated savings.
Part 3 - Warranty Information
This Part 3 provides information regarding the warranty applicable to your Machine, including the warranty period and type of warranty service IBM provides.
Warranty Period
The warranty period may vary by country or region and is specified in the table below. NOTE: ″Region″ means either Hong Kong or Macau Special Administrative Region of China.
E400 PROJECTOR
Country or Region of Purchase
Worldwide
Warranty Period
Type of Warranty Service
years
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002
E-15
3
1, 4 A
A
If
1.
2.
3.
4.
E400 PROJECTOR LAMP
Country or Region of Purchase
Worldwide
Warranty Period
months
Type of Warranty Service
warranty period of 3 years on parts and 3 years on labor means that IBM provides warranty service without charge for parts and labor during the 3 year warranty period.
warranty period of 3 months on parts and 3 months on labor means that IBM provides warranty service without charge for parts and labor during the 3 month warranty period.
Types of Warranty Service
required, IBM provides repair or exchange service depending on the type of warranty service specified for your Machine in the above table and as described below. Warranty service may be provided by your reseller if approved by IBM to perform warranty service. Scheduling of service will depend upon the time of your call and is subject to parts availability. Service levels are response time objectives and are not guaranteed. The specified level of warranty service may not be available in all worldwide locations, additional charges may apply outside IBM’s normal service area, contact your local IBM representative or your reseller for country and location specific information.
Customer Replaceable Unit (CRU) Service
IBM will ship CRU parts to you for your replacement. If IBM instructs you to return the replaced CRU, you are responsible for returning it to IBM in accordance with IBM’s instructions. If you do not return the defective CRU, if IBM so instructs, within 30 days of your receipt of the replacement CRU, IBM may charge you for the replacement.
On-site Service
IBM or your reseller will either repair or exchange the failing Machine at your location and verify its operation. You must provide suitable working area to allow disassembly and reassembly of the IBM Machine. The area must be clean, well lit and suitable for the purpose. For some Machines, certain repairs may require
sending the Machine to an IBM service center.
Courier or Depot Service
1
You will disconnect the failing Machine for collection arranged by IBM. IBM will provide you with a shipping container for you to return your Machine to a designated service center. A courier will pick up your Machine and deliver it to the designated service center. Following its repair or exchange, IBM will arrange the return delivery of the Machine to your location. You are responsible for its installation and verification.
Customer Carry-In or Mail-In Service
1. This type of service is called ThinkPad EasyServ or EasyServ in some countries.
E-16
IBM E400 PROJECTOR: User’s Guide
To
66 81 11 00
45 20 82 00
02 38 55 74 50
You will deliver or mail as IBM specifies (prepaid unless IBM specifies otherwise) the failing Machine suitably packaged to a location IBM designates. After IBM has repaired or exchanged the Machine, IBM will make it available for your collection or, for Mail-in Service, IBM will return it to you at IBM’s expense, unless IBM specifies otherwise. You are responsible for the subsequent installation and verification of the Machine.
The IBM Machine Warranty worldwide web site at http://www.ibm.com/servers/support/machine_warranties/ provides a worldwide overview of IBM’s Limited Warranty for Machines, a Glossary of IBM definitions, Frequently Asked Questions (FAQs) and Support by Product (Machine) with links to Product Support pages. The IBM Statement of Limited Warranty is
also available on this site in 29 languages.
obtain warranty service contact IBM or your IBM reseller. In Canada or the United States, call 1-800-IBM-SERV (426-7378). For other countries, see the telephone numbers below.
Phone numbers are subject to change without notice. For the latest phone number list, go to www.ibm.com/pc/support and click Support Phone List.
Country or Region Telephone Number Country or Region Telephone Number
Argentina Australia Austria Belgium
0800-666-0011 1300-130-426 01-24592-5901 Dutch 02-210-9820
Malaysia Mexico Netherlands New Zealand
03-7727-7800 001-866-434-2080 020-514-5770 0800-446-149
French 02-210-9800 Bolivia Brazil Canada
0800-0189
55-11-3889-8986
1-800-565-3344
Norway Peru Philippines
0-800-50-866 632-995-2225
Toronto 416-383-3344 Chile China (PRC) China (Hong Kong
800-224-488
800-810-1818
852-2825-7799
Portugal Russia Singapore
21-791 51 47 095-940-2000 1800-840-9911
S.A.R.) Columbia Denmark Ecuador
980-912-3021
1-800-426911 (option
Spain Sweden Switzerland
91-662 49 16 08-477 4420 058-333-09-00
#4) Finland France Germany Indonesia Ireland Italy
09-459 69 60
07032-1549 201
021-523-8535
01-815-9202
02-7031-6101
Taiwan Thailand Turkey United Kingdom United States Uruguay
886-2-2725-9799 66-2-273-4000 00-800-446-32-041 0-1475-555 055 1-800-426-7378 000-411-005-6649
Appendix E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002
E-17
Country or Region Telephone Number Country or Region Telephone Number
Japan
Consumer customers
Venezuela
0-800-100-2011
0120-887-870
Business customers 0120-887-874
Luxembourg
298-977 5063
Vietnam
848-8295-160
E-18
IBM E400 PROJECTOR: User’s Guide
be
or
to
as an
of
in
©
Appendix F. Notices
IBM may not offer the products, services, or features discussed in this document in all countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may
used instead. However, it is the user’s responsibility to evaluate and verify the
operation of any non-IBM product, program, or service.
IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:
IBM Director of Licensing IBM Corporation North Castle Drive Armonk, NY 10504-1785 U.S.A.
INTERNATIONAL
BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.
The products described in this document are not intended for use in implantation
other life support applications where malfunction may result in injury or death persons. The information contained in this document does not affect or change
IBM product specifications or warranties. Nothing in this document shall operate
express or implied license or indemnity under the intellectual property rights IBM or third parties. All information contained in this document was obtained specific environments and is presented as an illustration. The result obtained in
other operating environments may vary.
IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
Any references in this publication to non-IBM Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this IBM product, and use of those Web sites is at your own risk.
Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may
Copyright IBM Corp. 2004
F-1
v
v
v
v
or
Trademarks
vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.
The following terms are trademarks of International Business Machines Corporation in the United States, other countries, or both:
IBM IBM logo ThinkPad
Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of others.
Electronic emission notices
IBM E400 PROJECTOR
Federal Communications Commission (FCC) statement
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected. Consult an IBM authorized dealer or service representative for help.
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and connectors are available from IBM authorized dealers. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes
modifications could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Responsible party:
F-2
IBM E400 PROJECTOR: User’s Guide
B. EN
Um
International Business Machines Corporation New Orchard Road Armonk, NY 10504 Telephone: 1-919-543-2193
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
Industry Canada Class B emission compliance statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformite a la reglementation d’Industrie Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Deutsche EMV-Direktive (electromagnetische Verträglichkeit)
Zulassungbescheinigunglaut dem Deutschen Gesetz über die elektromagnetische Verträglichkeit von Geräten (EMVG) vom 30. August 1995 (bzw. der EMC EG Richtlinie 89/336):
Dieses Gerät ist berechtigt in Übereinstimmungmit dem Deutschen EMVG das EG-Konformitätszeichen - CE - zu führen. Verantwortlich für die Konformitätserklärung nach Paragraph 5 des EMVG ist die:
IBM Deutschland Informationssysteme GmbH, 70548 Stuttgart.
Informationen in Hinsicht EMVG Paragraph 3 Abs. (2) 2:
Das Gerät erfüllt die Schutzanforderungen nach EN 55024:1998 und EN 55022:1998 Klasse
55022 Hinweis:
“Wird dieses Gerät in einer industriellen Umgebung betrieben (wie in EN 55022:B festgetlegt), dann kann es dabei eventuell gestört werden. In solch einem FA11 ist der Abstand bzw. die Abschirmungzu der industriellen Störquelle zu vergröβern.”
Anmerkung:
die Einhaltung des EMVG sicherzustellen sind die Geräte, wie in den IBM
Handbüchern angegeben, zu installieren und zu betreiben.
European Union - emission directive
This product is in conformity with the protection requirements of EU Council Directive 89/336/ECC on the approximation of the laws of the Member States relating to electromagnetic compatibility.
Appendix F. Notices
F-3
Ce
du
Ce
di
Le
IBM can not accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non-IBM option cards.
This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022. The limits for Class B equipment were derived for typical residential environments to provide reasonable protection against interference with licensed communication devices.
Union Européenne - Directive Conformité électromagnétique
produit est conforme aux exigences de protection de la Directive 89/336/EEC Conseil de l’UE sur le rapprochement des lois des États membres en matière de
compatibilité électromagnétique.
IBM ne peut accepter aucune responsabilité pour le manquement aux exigences de protection résultant d’une modification non recommandée du produit, y compris l’installation de cartes autres que les cartes IBM.
produit a été testé et il satisfait les conditions de l’équipement informatique de Classe B en vertu de Standard européen EN 55022. Les conditions pour l’équipement de Classe B ont été définies en fonction d’un contexte résidentiel ordinaire afin de fournir une protection raisonnable contre l’interférence d’appareils de communication autorisés.
Unione Europea - Directiva EMC (Conformidad électromagnética)
Este producto satisface los requisitos de protección del Consejo de la UE, Directiva 89/336/CEE en lo que a la legislatura de los Estados Miembros sobre compatibilidad electromagnética se refiere.
IBM no puede aceptar responsabilidad alguna si este producto deja de satisfacer dichos requisitos de protección como resultado de una modificación no recomendada del producto, incluyendo el ajuste de tarjetas de opción que no sean IBM.
Este producto ha sido probado y satisface los límites para Equipos Informáticos Clase B de conformidad con el Estándar Europeo EN 55022. Los límites para los equipos de Clase B se han establecido para entornos residenciales típicos a fin de proporcionar una protección razonable contra las interferencias con dispositivos de comunicación licenciados.
Union Europea - Normativa EMC
Questo prodotto è conforme alle normative di protezione ai sensi della Direttiva del Consiglio dell’Unione Europea 89/336/CEE sull’armonizzazione legislativa degli stati membri in materia di compatibilità elettromagnetica.
IBM non accetta responsabilità alcuna per la mancata conformità alle normative di protezione dovuta a modifiche non consigliate al prodotto, compresa l’installazione
schede e componenti di marca diversa da IBM.
prove effettuate sul presente prodotto hanno accertato che esso rientra nei limiti stabiliti per le le apparecchiature di informatica Classe B ai sensi del Norma Europea EN 55022. I limiti delle apparecchiature della Classe B sono stati stabiliti
F-4
IBM E400 PROJECTOR: User’s Guide
al fine di fornire ragionevole protezione da interferenze mediante dispositivi di comunicazione in concessione in ambienti residenziali tipici.
Japanese statement of compliance for products less than or equal to 20 A per phase
Appendix F. Notices
F-5
F-6
IBM E400 PROJECTOR: User’s Guide

Part Number: 73P2776
Printed in USA
(1P) P/N: 73P2776
Loading...
