Installing and configuring POWER8 processor-based systems and system features

Use this information to install and configure POWER8®processor-based systems and to install customer-installable hardware features. This information also provides removal and replacement procedures for customer-replaceable hardware features, such as memory modules or fans.

Note: See the International Information Bulletin for Customers - Installation of IBM Machines (Publication number: SC27-6601-00) that is available from the IBM Publications Center (http://www-05.ibm.com/e-business/linkweb/publications/servlet/pbi.wss). This bulletin provides a list of the key IBM system installation activities and a list of activities that might be billable.

Installing the IBM Power System S821LC (8001-12C) system

Learn how to install, cable, and set up your 8001-12C system.

Prerequisites for installing the rack-mounted 8001-22C system

Use the information to understand the prerequisites that are required for installing the system.

About this task

You might need to read the following documents before you install the server: v The latest version of this document is maintained online, see Installing the IBM Power System

8001-22C (http://www.ibm.com/support/knowledgecenter/POWER8/p8eip/

p8eip_installsys_kickoff.htm).

v To plan your server installation, see Planning for the system (http://www.ibm.com/support/

knowledgecenter/POWER8/p8had/p8had_8xx_kickoff.htm).

Procedure

1. Ensure that you have the following items before starting your installation:

v Phillips screwdriver v Flat-head screwdriver v Box cutter v Electrostatic discharge (ESD) wrist strap v Rack with two Electronic Industries Association (EIA) units (2U) of space

Note: If you do not have a rack that is installed, install the rack. For instructions, see Racks and rack features (http://www.ibm.com/support/knowledgecenter/POWER8/p8hbf/p8hbf_8xx_kickoff.htm).

2. If you have already installed a shelf into your rack and plan on installing the system onto the shelf,

an additional 1U of space above the system is required.

Completing inventory for your system

Use this information to complete inventory for your system.

Procedure

1. Verify that you received all the boxes you ordered.

2. Unpack the server components as needed.

3. Complete a parts inventory before you install each server component by following these steps:

a. Locate the inventory list for your server. b. Ensure that you received all the parts that you ordered.

Note: Your order information is included with your product. You can also obtain order information from your marketing representative or the IBM Business Partner.

If you have incorrect, missing, or damaged parts, consult any of the following resources:

v Your IBM reseller. v IBM Rochester manufacturing automated information line at 1-800-300-8751 (United States only). v The Directory of worldwide contacts website http://www.ibm.com/planetwide. Select your

location to view the service and support contact information.

Determining and marking the location in the rack for the 8001-12C system

You might need to determine where to install the system unit into the rack.

Procedure

1. Read the Rack safety notices (http://www.ibm.com/support/knowledgecenter/POWER8/p8hbf/

racksafety.htm).

2. Determine where to place the system unit in the rack. As you plan for installing the system unit in a

rack, consider the following information:

v Organize larger and heavier units into the lower part of the rack. v Plan to install units into the lower part of the rack first. v Record the Electronic Industries Alliance (EIA) locations in your plan.

3. If necessary, remove the filler panels to allow access to the inside of the rack enclosure where you

plan to place the unit, as shown in Figure 1 on page 3.

2 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Figure 1. Removing the filler panels

4. Determine to place the system in the rack. Record the EIA location.

5. Facing the front of the rack and working from the right side, use tape, a marker, or pencil to mark

the lower hole of each EIA unit.

6. Repeat step 5 for the corresponding holes located on the left side of the rack.

7. Go to the rear of the rack.

8. On the right side, find the EIA unit that corresponds to the bottom EIA unit marked on the front of

the rack.

9. Mark the bottom EIA unit.

10. Mark the corresponding holes on the left side of the rack.

Attaching the rails to the system chassis and to the rack

You must install the rails onto the chassis and into the rack. Use this procedure to perform this task.

Installing and configuring the system 3

About this task

Attention: To avoid rail failure and potential danger to yourself and to the unit, ensure that you have the correct rails and fittings for your rack. If your rack has square support flange holes or screw-thread support flange holes, ensure that the rails and fittings match the support flange holes that are used on your rack. Do not install mismatched hardware by using washers or spacers. If you do not have the correct rails and fittings for your rack, contact your IBM reseller.

Note: The system requires 1 EIA rack unit (1U) of space.

Ensure that you have the parts you need to install the rails. The following parts are included with the rail kit:

v Slide rail screws, used to attach the two parts of each slide rail v Slide rail rack screws, used to secure the rails to the rack v Rails v 10-32 x 0.25” screws, used to attach the rails to system chassis

Procedure

1. Remove the rail pieces from the packaging and put them on a work surface.

2. Connect the two parts of each rack slide rail. To connect the two parts of the rack slide rail, perform

the following tasks: a. Identify the two pieces of the left rack slide rail. Align the short and long pieces (C). Ensure that

the rack rail pins are pointing in the same direction (A) and (D).

b. The shorter piece of the rack slide rail has a metal pin. Insert the pin into the hole in the longer

piece of the rack slide rail (B). Slide the shorter piece of the rack rail into the longer piece of the rack rail.

c. Align the holes in the two pieces of the rack slide rails. Using a Philips-head screwdriver, attach

the two parts by loosely screwing two rail screws through the holes in the rack slide rail.

Note: Do not tighten the rack slide rail screws.

d. Repeat these steps for the right slide rail.

3. Attach the chassis rails to the system chassis. To attach the chassis rails to the system chassis, perform

the following tasks:

4 Power Systems: Installing the IBM Power System S821LC (8001-12C)

a. On the left side of the system, align the metal tabs on the left side of the system chassis with the

square holes on the left chassis slide rail. Slide the chassis slide rail toward the front of the rack until the chassis slide rail clicks into place.

b. Attach the system chassis slide rail to the system chassis by screwing in the two screws that were

supplied in the rail kit.

c. Repeat these steps for the right system chassis slide rail.

4. Install the rack slide rails into the rack. a. Move to the front of the rack. b. Select the left rack slide rail, and locate the EIA unit that you previously marked. Each slide rail is

also marked Back, to designate the rear of the rack. Ensure that you are holding the front end of the rack slide rail.

c. Extend the rail from the front of the rack to the back of the rack and align the rack slide rail pins

with the holes in the rack flange that you previously marked.

d. Push the rack rail pins into the rear rack flange until the rear rack rail latch clicks into place. e. Pull the front of the rack rail toward the front of the rack rail flange. Align the slide rail pins with

the holes in the rail flange and pull them until the rail latch clicks into place.

f. Using a screwdriver, Tighten the rail screws that you installed in step 2. g. Repeat these steps for the right slide rail.

5. Secure the rails to the rack. a. Move to the rear of the rack. b. Slide each washer onto to each of the longer screws that is included with the rail kit. c. Screw a screw and washer through the middle hole of each rail on each side of the rear of the

rack.

Installing the system into the rack and connecting and routing power cables

After you install the system onto the rails in the rack, connect and route power cables.

About this task

CAUTION:

The weight of this part or unit is between 18 and 32 kg (39.7 and 70.5 lb). It takes two persons to safely lift this part or unit. (C009)

Procedure

1. Remove the protective plastic film from the top of the system chassis.

2. Move to the front of the rack.

3. Using two people, one on each side of the system, lift the system and align the system chassis rails

on each side of the chassis with the rack rails.

4. With each person supporting the weight of the system on each side, gently push the system into the

rack until you hear each rail click into place.

or

Installing and configuring the system 5

5. Before releasing your hold on the system, ensure that the rails are engaged by sliding the system

forward into service lock position. Check that the rails are properly seated. If the rails are not fully engaged, the system could drop.

6. Release the rail safety latches and push the system fully into the rack. The safety latches work in

opposite directions; the latch on one side moves up while the latch on the other side moves down.

Figure 2. Placing the system into the operating position

7. Secure the system to the rack by screwing a screw through the handles on each side of the system

chassis.

8. Plug the power cords into the power supplies.

6 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Figure 3. Plugging the power cords into the power supplies

9. Attach all cables to the rear of the server.

Figure 4. Rear ports

Table 1. Input and output ports

Identifier Description

1 USB 2.0 used for keyboard and mouse.

Certain USB drives might be too wide to fit properly into the USB ports on the rear of the system. Test the fit your USB drive before proceeding.

2 Ethernet Intelligent Platform Management Interface

(IPMI) 3 Serial IPMI 4 Video Graphics Array (VGA) used for monitor. Only the

1024 x 768 at 60 Hz VGA setting is supported. Only up

to a 3-meter cable is supported. Text based capability is

only supported at this time.

10. Plug the system power cords and the power cords for any other attached devices into the alternating

current (AC) power source.

11. Continue with “Completing server setup” on page 8.

Installing and configuring the system 7

Completing server setup

Learn how to complete server setup.

Procedure

1. Connect your server to a VGA terminal and keyboard or a console. Only the 1024x768 at 60 Hz VGA

setting is supported. Only up to a 3 meter cable is supported.

2. Go to Getting fixes(http://www.ibm.com/support/knowledgecenter/POWER8/p8ei8/

p8ei8_fixes_kickoff.htm) and update the system firmware with the most recent level of firmware.

3. You can receive important technical information and updates for specific IBM Support tools and

resources by subscribing to receive updates. To subscribe to receive updates, complete the following steps:

a. Go to the IBM Support Portal. b. Log in by using your IBM ID and password and click Sign in. c. Click Support notifications. d. Click Browse for a product. e. Select Power > Firmware, find your machine type and model and click Subscribe. f. Exit the Browse for a product screen. g. Click Delivery preferences to set email preferences and click Submit. h. Click Edit to select the types of documentation updates that you want to receive and click Submit.

4. You can install the Linux operating system on bare metal systems, or on non-virtualized systems. For

these systems, the operating system runs directly on the Open Power Abstraction Layer (OPAL) firmware. For more information about installing the Linux operating system on bare metal systems, see Installing Linux on bare metal systems(http://www.ibm.com/support/knowledgecenter/ linuxonibm/liabw/liabwkickoff.htm).

Installing drives in the 8001-12C system

Learn how to install storage drives in the IBM Power®System S821LC (8001-12C) system.

About this task

You can install the following types of drives in the system:

v SATA drives connected to the SATA controller ports on the system backplane v SAS drives connected to a SAS RAID adapter v NVMe drives connected to an NVMe adapter v 3.5-inch drives v 2.5-inch drives by using an adapter

Drive installation details for the 8001-12C system

Find information about the drive installation options for the IBM Power System S821LC (8001-12C) system.

SATA Drives

The 8001-12C system can support four SATA drives directly connected to the SATA ports and controller on the system backplane. The SATA drives can be installed into the front drive bay locations. SATA drive cables connect the disk drive backplane to the SATA sockets on the system backplane.

Use SATA cables to connect the SATA ports on the system backplane to the SATA ports on the disk drive backplane.

8 Power Systems: Installing the IBM Power System S821LC (8001-12C)

You can plug SATA drive on module (DOM) drives directly into the system backplane. Up to two SATA DOM drives can be installed. Use the two orange SATA connectors.

SAS Drives

With system feature codes EKB1 or EKB2, and by using SATA/SAS RAID adapters, the 8001-12C system can support up to four SATA/SAS drives. Adapter feature codes EKAA and EKAB each support up to eight SAS drives, but the system is physically limited to four.

Use SAS cables to connect the SAS ports on the PCIe adapter cards to the SAS ports on the disk drive backplane.

If you are installing a RAID adapter, see the adapter documentation for information on configuring the drives.

As an example, consider this configuration:

v Feature code EKAA supporting four front-mounted SATA/SAS drives. v Two SATA DOMs plugged into the system backplane.

NVMe Enabled System and Drives

When the system has one or more NVMe adapters, feature code EKAE, the system supports NVMe drives. To support up to two NVMe drives, you need a feature code EKAE PCIe adapter. To support up to four NVMe drives, you need two EKAE PCIe adapters. Figure 5 shows the adapter positions. The first EKAE PCIe adapter needs to go in position 2 (UIO Slot1); the second needs to go in position 3 (PLX Slot1).

Figure 5. 8001-12C PCIe adapter positions

The first two NVMe drives need to be plugged into drive locations 1 and 2 as shown in Figure 6. The second two NVMe drives need to be plugged into drive locations 3 and 4.

NVMe drives are only supported on host operating systems; NVMe drives are not supported by guest operating systems. On systems with RHEL 7.3 or later, or Ubuntu 16.04 or later, NVMe drives can be used as bootable drives. Port 1 of the internal NVMe host bus adapter must be plugged into NVMe port 1 on the disk drive backplane.

Figure 6. NVMe drive locations

As an example, consider this configuration:

v Four NVMe front-mounted drives with two EKAE PCIe adapters. v Two SATA DOMs plugged into the system backplane.

Installing and configuring the system 9

Installing a front drive in the 8001-12C system

Follow these steps to install a front drive in the IBM Power System S821LC (8001-12C) system.

Before you begin

You can install SATA and SAS front drives with the system powered on and running.

When installing NVMe drives, the system needs to be powered down; for instructions, see “Stopping the 8001-12C, 8001-22C, 8005-12N, or 8005-22N system” on page 90.

Procedure

1. Attach the electrostatic discharge (ESD) wrist strap.

Attention:

v Attach an electrostatic discharge (ESD) wrist strap to the front ESD jack, to the rear ESD jack, or to

an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware.

v When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is

used for static control. It does not increase or decrease your risk of receiving electric shock when using or working on electrical equipment.

v If you do not have an ESD wrist strap, just prior to removing the product from ESD packaging

and installing or replacing hardware, touch an unpainted metal surface of the system for a minimum of 5 seconds.

2. Unlock the drive bay handle (B) by pushing in the handle release (A) as shown in Figure 7. The

handle (B) snaps out towards you. If the handle does not snap out all the way, the drive does not slide out of the system.

Figure 7. Removing a drive

3. If you are installing more than one drive, remove those drive trays.

10 Power Systems: Installing the IBM Power System S821LC (8001-12C)

4. For 3.5-inch drives, remove the plastic filler from the carrier. For 2.5-inch drives in a 3.5-inch

opening, there is a 2.5-inch tool-less drive carrier.

5. Install a drive into the tray. Orient the drive such that the connectors are pointing to the rear of the

drive. v A 3.5-inch drive fills the tray, as shown in Figure 8. Fasten the drive to the sides of the tray with

four screws (two screws on each side).

Figure 8. Mounting the 3.5-inch drive in the tray

v A 2.5-inch drive slides into the rear of the tool-less drive carrier.

a. Turn the tray upside down as shown in Figure 9 on page 12. b. Open the retention spring (B) as shown in Figure 10 on page 12. c. Place the 2.5-inch drive (A) into the tray, aligning the pins with the screw holes in the drive. d. When the pins are aligned, close the retention spring, allowing the pins to secure the drive in

the tray.

e. Turn the tray right side up.

Installing and configuring the system 11

Figure 9. Turning the 2.5-inch tray upside-down

Figure 10. Mounting the 2.5-inch drive in the tray

6. Support the drive by the bottom as you position the drive, and insert it into the drive slot.

Important: Ensure that the drive is fully seated and is all the way into the system.

7. Lock the drive bay handle (A) by pushing in the handle release as shown in Figure 11 on page 13.

12 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Figure 11. Disk drive lock detail

8. If you installed an NVMe drive, power the system back on. For instructions, see “Starting the

8001-12C, 8001-22C, 8005-12N, or 8005-22N system” on page 88.

9. Configure the installed drive for your environment.

After you insert the new drive, you need to rescan for the device.

Ubuntu Linux operating system

To run the rescan-scsi-bus command in the Ubuntu Linux operating system, log in to the system as the root user, and run the following command:

rescan-scsi-bus

The rescan-scsi-bus tool is available in the scsitools package; install the package by using the following command:

sudo apt-get install scsitools

Red Hat Enterprise Linux (RHEL) version 7.2

To run the rescan command in the REHL version 7.2 operating system, log in to the system as the root user, and run the command:

rescan-scsi-bus.sh -a

The rescan-scsi-bus tool is available in the sg3_utils package; install the package by using the following command:

yum install sg3_utils

You can also want to refer to: Adding a Storage Device or Path (https://access.redhat.com/ documentation/en-US/Red_Hat_Enterprise_Linux/7/html/Storage_Administration_Guide/ logical-unit-add-remove.html).

10. Load or restore data from your backup media.

Installing and configuring the system 13

Installing a drive on module in the 8001-12C system

Learn how to install a drive on module (DOM) in the IBM Power System S821LC (8001-12C) system.

Before you begin

Power off the system and place it in the service position. For instructions, see “Preparing the 8001-12C or 8005-12N system to remove and replace internal parts” on page 85.

About this task

You can plug SATA drive on module (DOM) drives directly into the system backplane. Up to two SATA DOM drives can be installed. Use the two orange SATA connectors.

Procedure

1. Attach the electrostatic discharge (ESD) wrist strap.

Attention:

v Attach an electrostatic discharge (ESD) wrist strap to the front ESD jack, to the rear ESD jack, or to

an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware.

v When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is

used for static control. It does not increase or decrease your risk of receiving electric shock when using or working on electrical equipment.

v If you do not have an ESD wrist strap, just prior to removing the product from ESD packaging and

installing or replacing hardware, touch an unpainted metal surface of the system for a minimum of 5 seconds.

2. Install the DOM into the system backplane, in positions (A), as shown in Figure 12 on page 15.

Depending on the DOM model, you may also have to plug in a small power cord for the DOM. Ensure you plug the connectors in properly.

14 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Figure 12. Installing a DOM

3. Prepare the system for operation. For instructions, see “Preparing the 8001-12C or 8005-12N system

for operation after you remove and replace internal parts” on page 87.

4. Configure the installed drive for your environment.

After you insert the new drive, you need to rescan for the device.

Ubuntu Linux operating system

To run the rescan-scsi-bus command in the Ubuntu Linux operating system, log in to the system as the root user, and run the following command:

rescan-scsi-bus

The rescan-scsi-bus tool is available in the scsitools package; install the package by using the following command:

sudo apt-get install scsitools

Red Hat Enterprise Linux (RHEL) version 7.2

To run the rescan command in the REHL version 7.2 operating system, log in to the system as the root user, and run the command:

rescan-scsi-bus.sh -a

The rescan-scsi-bus tool is available in the sg3_utils package; install the package by using the following command:

yum install sg3_utils

You can also want to refer to: Adding a Storage Device or Path (https://access.redhat.com/ documentation/en-US/Red_Hat_Enterprise_Linux/7/html/Storage_Administration_Guide/ logical-unit-add-remove.html).

5. Load or restore data from your backup media.

Installing and configuring the system 15

Installing a graphics processing unit in the 8001-12C system

Follow these steps to install a graphics processing unit in the IBM Power System S821LC (8001-12C) system.

Before you begin

Power off the system and place it in the service position. For instructions, see “Preparing the 8001-12C or 8005-12N system to remove and replace internal parts” on page 85.

Procedure

1. Attach the electrostatic discharge (ESD) wrist strap.

Attention:

v Attach an electrostatic discharge (ESD) wrist strap to the front ESD jack, to the rear ESD jack, or to

an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware.

v When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is

used for static control. It does not increase or decrease your risk of receiving electric shock when using or working on electrical equipment.

v If you do not have an ESD wrist strap, just prior to removing the product from ESD packaging and

installing or replacing hardware, touch an unpainted metal surface of the system for a minimum of 5 seconds.

2. The GPU can share the PCIe riser card with other PCIe adapters. Label and remove any cables and

plugs that extend out of the adapters.

3. Remove the PCIe riser as shown in Figure 13. a. Retract the retaining pins (A) so that the arrows on the tabs point to the system. b. Lift the PCIe riser from the system.

Figure 13. Removing the PCIe riser

16 Power Systems: Installing the IBM Power System S821LC (8001-12C)

4. Place the PCIe adapter riser on an ESD surface, with the riser up.

5. Plug the GPU (A) into the PCIe adapter riser (B) as shown in Figure 14. Secure the GPU tailstock with

one or two screws as needed.

Figure 14. Inserting the GPU into the riser

6. Place the PCIe adapter riser and the cards it contains into the system backplane as shown in Figure 15

on page 18.

a. Ensure that the PCIe holder release pins (B) are retracted, so the arrows point into the system. b. Use the alignment pins (A) and slots to help you properly insert the riser cards and replace the

cover

c. Reset the retaining pins to secure the PCIe cage.

Installing and configuring the system 17

Figure 15. Replacing the PCIe riser

7. Using your labels, replace any cables and plugs that you removed from the adapters.

8. Plug the GPU power cable into the system backplane as shown in Figure 16. Ensure that the cable

latch clip snaps into place on the connector.

Figure 16. Plugging the GPU power cable into the system backplane

18 Power Systems: Installing the IBM Power System S821LC (8001-12C)

What to do next

Prepare the system for operation. For instructions, see “Preparing the 8001-12C or 8005-12N system for operation after you remove and replace internal parts” on page 87.

Installing memory in the 8001-12C system

Learn how to install memory in the IBM Power System S821LC (8001-12C) system.

Placement rules for memory in the 8001-12C or 8001-22C system

Learn about the configurations and rules that apply to adding memory to the IBM Power System S821LC (8001-12C) or the IBM Power System S822LC for Big Data (8001-22C) system.

Table 2 lists the supported memory DIMM feature codes and Table 3 shows the allowable memory capacity points for the 8001-12C or 8001-22C system.

v Mixing of memory feature codes is not allowed. v Mixing of memory from different manufacturers is not allowed. v You must add four memory DIMMs at a time. v The memory DIMMs need to be added in a sequence. Use Table 4 and Figure 17 on page 20 to

determine the memory placement.

Table 2. Memory DIMM feature codes

Supported feature codes (FC) Size

EMM0 4 GB Memory DDR4 ISRDIMM EMM1 8 GB Memory DDR4 ISRDIMM EMM2 16 GB Memory DDR4 ISRDIMM EMM3 32 GB Memory DDR4 ISRDIMM

Table 3. Memory configuration as a function of the number of DIMMs. You read this table by selecting the individual DIMM size row in the leftmost column, then move to the right and select the columns for the memory capacity. The value that is listed is the quantity of the memory feature code that can be ordered, which corresponds to the DIMM size in the leftmost column.

DIMM Size DIMMs DIMMs DIMMs DIMMs DIMMs DIMMs DIMMs DIMMs DIMMs DIMMs

Total Memory 16 GB 32 GB 48 GB 64 GB 96 GB 128 GB 192 GB 256 GB 384 GB 512 GB

4 GB 4

(default) 8 GB 4 8 12 16 16 GB 4 8 12 16 32 GB 4 8 12 16

Table 4. Memory plugging sequence

Slot Location DIMM Quantity Plugging Sequence

P1M1 A and B, P1M2 A and B 4 1 P2M1 A and B, P2M2 A and B 4 2 P1M1 C and D, P1M2 C and D 4 3 P2M1 C and D, P2M2 C and D 4 4

8 12 16

Installing and configuring the system 19

Figure 17. Memory slot locations and plugging sequence

Installing memory in the 8001-12C system

Learn how to install memory in the IBM Power System S821LC (8001-12C) system.

Before you begin

Power off the system and place it in the service position. For instructions, see “Preparing the 8001-12C or 8005-12N system to remove and replace internal parts” on page 85.

Procedure

1. Attach the electrostatic discharge (ESD) wrist strap.

Attention:

v Attach an electrostatic discharge (ESD) wrist strap to the front ESD jack, to the rear ESD jack, or to

an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware.

v When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is

used for static control. It does not increase or decrease your risk of receiving electric shock when using or working on electrical equipment.

v If you do not have an ESD wrist strap, just prior to removing the product from ESD packaging and

installing or replacing hardware, touch an unpainted metal surface of the system for a minimum of 5 seconds.

2. Determine the slot in which you want to install the memory. See “Placement rules for memory in the

8001-12C or 8001-22C system” on page 19 to understand the plugging rules and to ensure that you plug the memory into the system in the correct sequence.

3. Depending on the memory location, you might need to remove the system processor air baffles.

Carefully unsnap and lift the processor air baffle from the system.

20 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Figure 18. Removing the processor air baffle

4. Push the DIMM locking tabs away from the socket.

5. Insert the memory DIMM. a. Grasp the memory DIMM along its edges and align it with the slot on the system backplane.

Attention: Memory is keyed to prevent it from being installed incorrectly. Note the location of the key tab within the memory connector before you attempt to install it.

b. Press firmly on each side of the memory DIMM until the locking tab locks in place with an

audible click.

Installing and configuring the system 21

Figure 19. Inserting the memory DIMM

6. If you removed the system processor air baffle, replace it. Insert the edge of the baffle into the fan

support. Then, carefully press the baffle down into place.

Figure 20. Installing the processor air baffle

22 Power Systems: Installing the IBM Power System S821LC (8001-12C)

What to do next

Prepare the system for operation. For instructions, see “Preparing the 8001-12C or 8005-12N system for operation after you remove and replace internal parts” on page 87.

Installing a PCIe adapter in the 8001-12C system

Learn how to install Peripheral Component Interconnect Express (PCIe) adapters in the IBM Power System S821LC (8001-12C) system.

About this task

You can install full-length, half-length or short (low-profile) PCIe adapters in the system. If you need to change the tail-stock of the PCIe adapter from one size to another, so that the adapter fits properly in the socket, see Removing and replacing the tailstock on a PCIe adapter.

The features listed in Table 5 are electromagnetic compatibility (EMC) Class B features. See the Class B Notices in the Hardware Notices section.

Table 5. Electromagnetic compatibility (EMC) Class B features

Feature Description

EKAA Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 Internal Ports (1 GB Cache)

PCIe3.0 x8 LP with cables (Adapter FRU number: AOC-K-9361-8IS-IB001 and AOC-K-9361-8IB-IB001)

EKAJ NVIDIA Tesla K80 24 GB GPU Accelerator (Adapter FRU number: AOC-KIT-NVK80-

IB001)

EKA3 Intel 82575EB dual-port Gigabit Ethernet Controller PCIe x4.0 LP (Adapter FRU

number: AOC-SG-I2)

EKAT Alpha-data CAPI Adapter: ADM-PCIe KU3 (Adapter FRU Number: ADM-PCIE-KU3)

PCIe adapter placement rules and slot priorities for the 8001-12C or 8005-12N system

Find information about the placement rules and slot priorities for the Peripheral Component Interconnect Express (PCIe) adapters that are supported for the IBM Power System S821LC (8001-12C) or the IBM CS821 (8005-12N).

PCIe slot descriptions

The 8001-12C and 8005-12N systems provide PCIe generation 3 slots. Full-length, half-length, or short (low-profile) adapters can be installed. Figure 21 on page 24 shows the rear view of the system with the PCIe adapter slots. Table 6 on page 24 lists the PCIe adapter slot locations and details for the 8001-12C or 8005-12N system.

Important: The only two adapters that are currently supported on the 8005-12N are FC EKFH and AOC-S3008L-L8e-P.

Installing and configuring the system 23

Figure 21. Rear view of an 8001-12C or 8005-12N system with PCIe slots indicated

Table 6. PCIe slot locations and descriptions for the 8001-12C or 8005-12N system

Coherent Accelerator

PCI host bridge

Slot Description

1 (UIO Network) 4-ports 10 networking

card, x8

2 (UIO Slot1) PCIe3 x16 Processor Module 1,

3 (PLX Slot1) PCIe3 x8 Processor Module 1,

4 (WIO Slot1) PCIe3 x16 Processor Module 2,

5 (WIO Slot2) PCIe3 x16 Processor Module 2,

(PHB) Adapter size

Processor Module 1, PHB0

PHB0

PHB1

Riser No

Half-height, half-length, internal

Half-height, half-length

Full-height, full-length

Processor Interface (CAPI)

Yes

No

Yes

PCIe adapter placement rules

Use this information to select slots for installing PCIe adapters in the 8001-12C or 8005-12N system. Table 7 provides information about the adapters, the slot priorities in the system they are supported on, and the maximum number of adapters that can be installed in the supported system. You can click the link that appears in the feature code column for more technical information specific to the PCIe adapter.

Table 7. PCIe adapters supported in the 8001-12C or 8005-12N system

8001-12C (slot

Feature code Description

EKA0 PCIe3 x4 Intel x550 10GBase-T

Converged Network Adapter with Dual RJ45 Ports (Adapter FRU number: AOC-STGS-I2T)

v PCIe2.1 x8 v Short, low-profile v Direct Cache Access (DCA)

to avoid cache misses

v TCP/UDP Segmentation

Offload

v OS support: Linux

operating systems

priority)

3, 4, 5 NA 3

8005-12N (slot priority)

Maximum number of adapters supported

24 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Table 7. PCIe adapters supported in the 8001-12C or 8005-12N system (continued)

Feature code Description

EKA1 Cavium (Qlogic) BCM57840

8001-12C (slot priority)

3, 4, 5 NA 3

8005-12N (slot priority)

4-port SFP+ 10 Gb Ethernet Adapter PCIe3.0 x8 LP (Adapter FRU number: AOC-STG-B4S)

v PCIe3 x8 v Short, low-profile v TCP Offload Engine (TOE) v VMDq and PC-SIG SR-IOV

for Virtualized Environments

v OS support: Linux

operating systems

EKA2 Intel 82599ES Ethernet

3, 4, 5 NA 3 Converged Network Adapter x520-DA2 Dual-port 10G/1G SFP+ PCIe2.0 x8 LP (Adapter FRU number: AOC-STGN-I2S)

v PCIe2 x8 v Short, low-profile v Dual and single SFP+

Connectors

v Load Balancing on Multiple

CPUs

v OS support: Linux

operating systems

EKA3 Intel 82575EB dual-port

3, 4, 5 NA 3 Gigabit Ethernet Controller PCIe x4.0 LP (Adapter FRU number: AOC-SG-I2)

v PCIe2 x4 v Short, low-profile v Intel I/O Acceleration

Technology

v Low-latency interrupts v OS support: Linux

operating systems

Maximum number of adapters supported

Installing and configuring the system 25

Table 7. PCIe adapters supported in the 8001-12C or 8005-12N system (continued)

Feature code Description

EKAA Broadcom (LSI) MegaRAID

9361-8i SAS3 Controller with 8 Internal Ports (1 GB Cache) PCIe3.0 x8 LP with cables (Adapter FRU number: AOC-K-9361-8IS-IB001 and AOC-K-9361-8IB-IB001)

v PCIe3 x8 v Short, low-profile v Supports 1.5, 3.0, 6.0 and 12

Gb/s SAS and SATA data transfer rates

v Supports RAID 0, 1, 5, 6, 10,

50, 60

v OS support: Linux

operating systems

EKAB SMC AOC-K-S3008L-L8i 12

Gbps SAS3/RAID 0,1 and 10 PCIe3.0 x8 LP with cables (Adapter FRU number: AOC-K-S3008L-L8iS-IB001 and AOC-K-S3008L-L8iB-IB001)

v PCIe3 x8 v Short, low-profile v Supports 3.0, 6.0 and 12

Gb/s SAS and SATA data transfer rates

v Supports MegaRAID

Storage Manager Software

v OS support: Linux

operating systems

EKAD Broadcom (LSI) 9300-8E SAS3

HBA PCIe3.0 x8 LP Adapter (Adapter FRU number: AOC-SAS3-9300-8E)

v PCIe3 x8 v Short, low-profile v Supports 122 devices (HBA

only)

v Port independent

auto-negotiation

v OS support: Linux

operating systems

8001-12C (slot priority)

2, 3 NA 1

2, 3, 4, 5 NA 1

4, 5 NA 3

8005-12N (slot priority)

Maximum number of adapters supported

26 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Table 7. PCIe adapters supported in the 8001-12C or 8005-12N system (continued)

Feature code Description

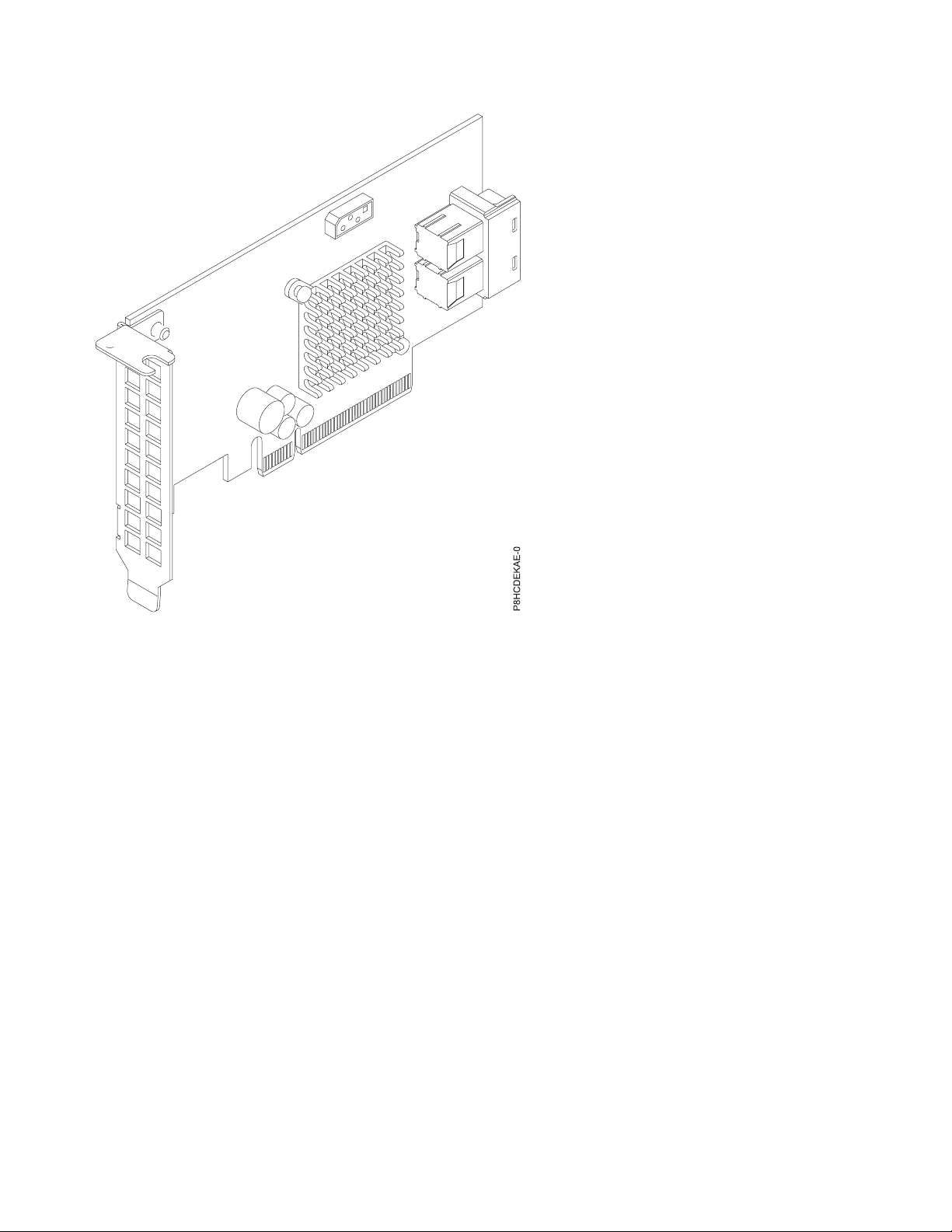

EKAE PCIe3 x8 Dual-port Internal

8001-12C (slot

priority)

2, 3, 4, 5 NA 2

8005-12N (slot priority)

NVMe Host Bus Adapter (Adapter FRU number: AOC-K-SLG3-2E4S-IB001 and AOC-K-SLG3-2E4B-IB001)

v PCIe3 x8 v Short, low-profile v Supports two physical

NVMe Devices

v Four internal lanes per port

with 3.2 GB/s per port

v OS support: Linux

operating systems

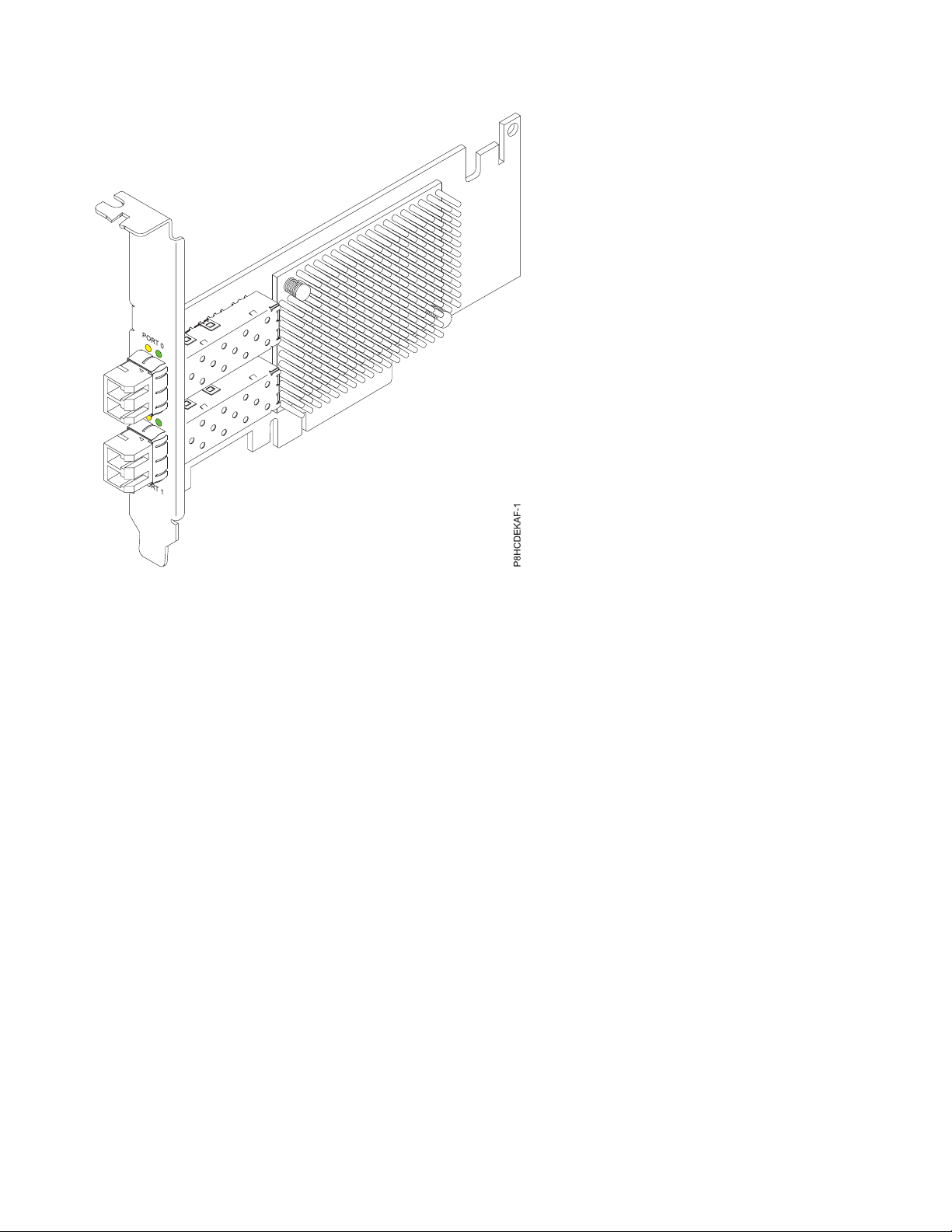

EKAF Emulex LPE16002B-M6-O

3, 4, 5 NA 3 Dual-port 16 Gb Fibre Channel Card PCIe3.0 x8 LP (Adapter FRU number: AOC-LPE16002B-M6-Of)

v PCIe3 x8 v Short, low-profile v Auto-negotiation v LDAP support v OS support: Linux

operating systems

EKAG PCIe3 x8 Quad-port Internal

3, 4, 5 NA 3 Host Bus Adapter (Adapter FRU number: AOC-K-SLG3-4E2PS)

v PCIe3 x8 v Short, low-profile v Supports four physical

NVMe Devices

v OS support: Linux

operating systems

Maximum number of adapters supported

Installing and configuring the system 27

Table 7. PCIe adapters supported in the 8001-12C or 8005-12N system (continued)

Feature code Description

EKAH Broadcom (LSI) MegaRAID

9361-8i SAS3 Controller with 8 internal ports (2 GB Cache) PCIe3.0 x8 with cables(Adapter FRU number: AOC-K-9361-8I2S-IB001 and AOC-K-9361-8I2B-IB001)

v PCIe3 x8 v Short, low-profile v Supports 1.5, 3.0, 6.0 and 12

Gb/s SAS and SATA data transfer rates

v Supports RAID 0, 1, 5, 6, 10,

50, 60

v OS support: Linux

operating systems

EKAJ NVIDIA Tesla K80 24 GB GPU

Accelerator (Adapter FRU number: AOC-KIT-NVK80IB001)

v PCIe3 x16 v Double-wide, with

full-height tailstock

v Dynamic parallelism v Hyper-Q and system

monitoring

v OS support: Linux

operating systems

EKAL Mellanox MCX456A-ECAT

ConnectX-4 VPI EDR IB 100 Gb/s and 100 GbE Dual-port QSFP28 PCIe3.0 x16 LP (Adapter FRU number: AOC-MCX456A-ECAT-IB001)

v PCIe3 x16 v Short, with full-height

tailstock

v Virtual Protocol

Interconnect (VPI)

v OS support: Linux

operating systems

8001-12C (slot priority)

2, 3 NA 1

4-5 NA 1

4, 5 NA 2

8005-12N (slot priority)

Maximum number of adapters supported

28 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Table 7. PCIe adapters supported in the 8001-12C or 8005-12N system (continued)

Feature code Description

EKAM Mellanox MCX415A-CCAT

8001-12C (slot

priority)

4, 5 NA 2

8005-12N (slot priority)

ConnectX-4 EN 100 GbE Single-port QSFP28 PCIe3.0 x16 LP (Adapter FRU number: AOC-MCX415A-CCAT-IB001)

v PCIe3 x16 v Short, with full-height

tailstock

v POWER8®CAPI support v OS support: Linux

operating systems

EKAP Qlogic QLE2562 Dual-port 8

3, 4, 5 NA 3 Gb Fibre Channel Adapter PCIe x8 LP (Adapter FRU number: AOC-QLE2562)

v PCIe2 x8 v Short, low-profile v Auto-negotiation v StarPower technology v OS support: Linux

operating systems

EKAQ Qlogic QLE2692OP Dual-port

3, 4, 5 NA 3 16 Gb Fibre Channel Adapter PCIe3 x8 LP (Adapter FRU number: AOC-QLE2692OPIB001)

v PCIe2 x8 v Short, low-profile v Auto-negotiation v StarPower technology v OS support: Linux

operating systems

EKAT Alpha-data CAPI Adapter:

4 NA 1 ADM-PCIe KU3 (Adapter FRU Number: ADM-PCIE-KU3)

v PCIe3 x16 v Short, low-profile v 1 GB of BPI x16

configuration flash

v Dual QSFP cages for

high-speed optical communication including 10 and 40-Gigabit Ethernet

v OS support: Linux

operating systems

Maximum number of adapters supported

Installing and configuring the system 29

Table 7. PCIe adapters supported in the 8001-12C or 8005-12N system (continued)

Feature code Description

EKAU Mellanox MCX4121A-ACAT

ConnectX-4 Lx EN 25GbE dual-port SFP28 PCIe3.0 x8 LP (Adapter FRU number: AOC-MCX4121A-ACAT-IB001)

v PCIe3 x8 v Short, with full-height

tailstock

v POWER8®CAPI support v End-to-end QoS and

congestion control

v OS support: Linux

operating systems

EKAZ NVIDIA Tesla P100 16GB

PCIe3.0 x16 Dual-slot FHFL with cables (Adapter FRU number: AOC-KIT-NVTP100IB001)

v PCIe3 x16 v Double-wide, with

full-height tailstock

v Pascal Architecture v NVLink v Kepler GPU Architecture v OS support: Linux

operating systems

EKFH Intel XL710 Ethernet

Converged Network Adapter Quad-port 10G/1G SFP+ PCIe3.0 x8 LP (Adapter FRU number: AOC-STG-I4S)

v Quad SFP+ Connectors v Small Packet Performance v Network Virtualization

Offloads including VXLAN and NVGRE

EKN2 PCIe3 1.6 TB NVMe Flash

Adapter (Adapter FRU number: HDS-AVMHUSPR3216AHP301)

v PCIe3 x4 v Short, low-profile v 1.6 TB of low latency flash

memory

v OS support: Linux

operating systems

8001-12C (slot priority)

3, 4, 5 NA 3

4-5 NA 1

3, 4, 5 4 1

2, 3, 4, 5 NA 4

8005-12N (slot priority)

Maximum number of adapters supported

30 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Table 7. PCIe adapters supported in the 8001-12C or 8005-12N system (continued)

Maximum number

Feature code Description

AOC-S3008L-L8e-P 12 Gb/s Eight-Port SAS

Internal HBA Adapter (Adapter FRU number: AOC-S3008L-L8e-P)

v PCIe3 x8 v Short, low-profile v OS support: Linux

operating systems

8001-12C (slot

priority)

NA 2 1

8005-12N (slot priority)

of adapters supported

PCIe adapter information by feature type for the 8001-12C or 8005-12N

Find information about the Peripheral Component Interconnect Express (PCIe) adapters that are supported for the IBM Power System S821LC (8001-12C) or the IBM CS821 (8005-12N).

The table shows the available adapters by feature code (FC), description, adapter FRU number, and provides a link to more details for each adapter.

Important:

v This document does not replace the latest sales and marketing publications and tools that document

supported features.

v If you are installing a new feature, ensure that you have the software and utilities that are required to

support the new feature and determine whether you must install any adapter firmware updates. The latest version of adapter firmware and utilities can be downloaded from Fix Central(http:// www.ibm.com/support/fixcentral/).

v For more information regarding PCIe adapter identification and I/O firmware levels for each adapter,

see the IBM Power 8001-12C and 8001-22C I/O Firmware (https://www.ibm.com/developerworks/ community/wikis/home?lang=en_us#!/wiki/W51a7ffcf4dfd_4b40_9d82_446ebc23c550/page/IBM %20Power%208001-12C%20and%208001-22C%20IO%20Firmware) topic on the Linux on POWER community wiki.

v The only two adapters that are currently supported on the 8005-12N are FC EKFH and

AOC-S3008L-L8e-P.

®

Table 8. PCIe adapters supported in the 8001-12C or 8005-12N system

Feature code Description

EKA0 PCIe3 x4 Intel x550 10GBase-T Converged Network Adapter with Dual RJ45 Ports (Adapter

FRU number: AOC-STGS-I2T)

EKA1 Cavium (Qlogic) BCM57840 4-port SFP+ 10 Gb Ethernet Adapter PCIe3.0 x8 LP (Adapter FRU

number: AOC-STG-B4S)

EKA2 Intel 82599ES Ethernet Converged Network Adapter x520-DA2 Dual-port 10G/1G SFP+ PCIe2.0

x8 LP (Adapter FRU number: AOC-STGN-I2S)

EKA3 Intel 82575EB dual-port Gigabit Ethernet Controller PCIe x4.0 LP (Adapter FRU number:

AOC-SG-I2)

EKAA Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 Internal Ports (1 GB Cache) PCIe3.0

x8 LP with cables (Adapter FRU number: AOC-K-9361-8IS-IB001)

EKAB SMC AOC-K-S3008L-L8i 12 Gbps SAS3/RAID 0,1 and 10 PCIe3.0 x8 LP with cables (Adapter

FRU number: AOC-K-S3008L-L8iS-IB001)

EKAD Broadcom (LSI) 9300-8E SAS3 HBA PCIe3.0 x8 LP Adapter (Adapter FRU number:

AOC-SAS3-9300-8E)

Installing and configuring the system 31

Table 8. PCIe adapters supported in the 8001-12C or 8005-12N system (continued)

Feature code Description

EKAE PCIe3 x8 Dual-port Internal NVMe Host Bus Adapter (Adapter FRU number:

AOC-K-SLG3-2E4S-IB001)

EKAF Emulex LPE16002B-M6-O Dual-port 16 Gb Fibre Channel Card PCIe3.0 x8 LP (Adapter FRU

number: AOC-LPE16002B-M6-Of)

EKAG SMC quad-port NVMe Host Bus Adapter (PEX9733) PCIe3.0 x8 LP with cables (Adapter FRU

number: AOC-K-SLG3-4E2PS)

EKAH SMC AOC-K-S3008L-L8i 12 Gbps SAS3/RAID 0,1 and 10 PCIe3.0 x8 LP with cables (Adapter

FRU number: AOC-K-9361-8I2S-IB001) EKAJ NVIDIA Tesla K80 24 GB GPU Accelerator (Adapter FRU number: AOC-KIT-NVK80-IB001) EKAL Mellanox MCX456A-ECAT ConnectX-4 VPI EDR IB 100 Gb/s and 100 GbE Dual-port QSFP28

PCIe3.0 x16 LP (Adapter FRU number: AOC-MCX456A-ECAT-IB001) EKAM Mellanox MCX415A-CCAT ConnectX-4 EN 100 GbE Single-port QSFP28 PCIe3.0 x16 LP

(Adapter FRU number: AOC-MCX415A-CCAT-IB001) EKAP Qlogic QLE2562 Dual-port 8 Gb Fibre Channel Adapter PCIe x8 LP (Adapter FRU number:

AOC-QLE2562) EKAQ Qlogic QLE2692OP Dual-port 16 Gb Fibre Channel Adapter PCIe3 x8 LP (Adapter FRU number:

AOC-QLE2692OP-IB001) EKAT Alpha-data CAPI Adapter: ADM-PCIe KU3 (Adapter FRU Number: ADM-PCIE-KU3) EKAU Mellanox MCX4121A-ACAT ConnectX-4 Lx EN 25GbE dual-port SFP28 PCIe3.0 x8 LP (Adapter

FRU number: AOC-MCX4121A-ACAT-IB001) EKAZ NVIDIA Tesla P100 16GB PCIe3.0 x16 Dual-slot FHFL with cables (Adapter FRU number:

AOC-KIT-NVTP100-IB001)

1

EKFH

EKN2 PCIe3 1.6 TB NVMe Flash Adapter (Adapter FRU number: HDS-AVM-HUSPR3216AHP301) AOC-S3008L-L8e-

2

P

1

This adapter is supported on the 8001-12C and 8005-12N.

2

This adapter is only supported on the 8005-12N.

Intel XL710 Ethernet Converged Network Adapter Quad-port 10G/1G SFP+ PCIe3.0 x8 LP

(Adapter FRU number: AOC-STG-I4S)

Note: This adapter must go in WIO Slot1 in the 8005-12N system.

12 Gb/s Eight-Port SAS Internal HBA Adapter (Adapter FRU number: AOC-S3008L-L8e-P)

Note: This adapter must go in UIO Slot1 in the 8005-12N system.

12 Gb/s Eight-Port SAS Internal HBA Adapter (Adapter FRU number: AOC-S3008L-L8e-P)

Learn about the specifications and operating system requirements for the 12 Gb/s Eight-Port SAS Internal HBA Adapter .

Overview

The 12 Gb/s Eight-Port SAS Internal HBA Adapter is a PCI Express Gen-3 (PCIe3) x8 adapter. The adapter can be used in either an x8 or x16 PCIe slot in the system. The adapter expands virtualization beyond the server level to the network level and combines with hardware optimizations and offloads. It features 8 internal SAS connectors for high-performance storage connectivity. The adapter uses a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum performance and a PCI Express host interface for increased bandwidth. The 12 Gb/s Eight-Port SAS Internal HBA Adapter supports 122 devices as a HBA in IT mode.

32 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Figure 22. 12 Gb/s Eight-Port SAS Internal HBA Adapter

Specifications

Item Description Adapter FRU number

AOC-S3008L-L8e-P (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8 processor-based systems

Voltage

3.3 V, 12 V

Form factor

Short, low-profile

Attributes provided

Supports 3.0, 6.0 and 12 Gb/s SAS and SATA data transfer rates Port-independent auto-negotiation Supports SSP, SMP, STP and SATA protocols Automatically negotiates PCIe (1.x, 2.x and 3.x) link widths

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for operating system and partition requirements, see one of the following links:

Installing and configuring the system 33

v The latest version of enabling libraries and utilities may be downloaded from Fix Central.

(http://www.ibm.com/support/fixcentral/)

v IBM Prerequisite website (www-912.ibm.com/e_dir/eServerPrereq.nsf) v IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/

ssic/interoperability.wss)

v The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website. (http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html)

v For support details, see the Linux Alert website. (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html)

PCIe3 x4 Intel x550 10GBase-T Converged Network Adapter with Dual RJ45 Ports (FC EKA0)

Learn about the specifications and operating system requirements for feature code (FC) EKA0 adapters.

Overview

The PCIe3 x4 Intel x550 10GBase-T Converged Network Adapter with Dual RJ45 Ports is a PCI Express (PCIe) generation 2.1 (Gen2) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter has an auto-negotiation feature between 1 GbE and 10 GbE that offers compatibility with earlier versions for a smooth transition to 10 GbE.

Figure 23. PCIe3 x4 Intel x550 10GBase-T Converged Network Adapter with Dual RJ45 Ports

Specifications

Item Description

34 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Adapter FRU number

AOC-STGS-I2T (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe2.1 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Direct Cache Access (DCA) to avoid cache misses TCP/UDP Segmentation Offload Support for Virtual Machine Device Queues (VMDq and Next-generation VMDq) Preboot eXecuation Environment (PXE) support

Cables

RJ-45 Category-6 up to 55 M

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems: v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Cavium (Qlogic) BCM57840 4-port SFP+ 10 Gb Ethernet Adapter PCIe3.0 x8 LP (FC EKA1)

Learn about the specifications and operating system requirements for feature code (FC) EKA1 adapters.

Installing and configuring the system 35

Overview

The Cavium (Qlogic) BCM57840 4-port SFP+ 10 Gb Ethernet Adapter PCIe3.0 x8 LP is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter offers a broad selection of networking features including TCP offload, support for PXE boot and virtualized environments (VMDq and PC-SIG SRIOV), and Energy Efficient Ethernet (IEEE

802.3az).

Figure 24. Cavium (Qlogic) BCM57840 4-port SFP+ 10 Gb Ethernet Adapter PCIe3.0 x8 LP

Specifications

Item Description Adapter FRU number

AOC-STG-B4S (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

36 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Attributes provided

External PHY support TCP Offload Engine (TOE) IPv6 acceleration SR-IOV with up to 64 Virtual Functions (VFs) for Guest Operating Systems (GOS) per port

Cables

LC-LC fiber-optic cables (with required optional transceivers)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems: v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Intel 82599ES Ethernet Converged Network Adapter x520-DA2 Dual-port 10G/1G SFP+ PCIe2.0 x8 LP (FC EKA2)

Learn about the specifications and operating system requirements for feature code (FC) EKA2 adapters.

Overview

The Intel 82599ES Ethernet Converged Network Adapter x520-DA2 Dual-port 10G/1G SFP+ PCIe2.0 x8 LP is a PCI Express (PCIe) generation 2 (Gen2) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter offers a broad selection of features including iSCSI remote boot support, load balancing on multiple CPUs, and Fibre Channel over Ethernet (FCoE) support.

Installing and configuring the system 37

Figure 25. Intel 82599ES Ethernet Converged Network Adapter x520-DA2 Dual-port 10G/1G SFP+ PCIe2.0 x8 LP

Specifications

Item Description Adapter FRU number

AOC-STGN-I2S (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe2 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Note: For more transceiver and cable options, visit the Supermicro Store.(https://store.supermicro.com) Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

3.3V, 12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Preboot eXecution Environment (PXE) support Direct Cache Access (DCA) to avoid cache misses IPv6 offloading VMDq, Next-generation VMDq (64 queues per port) and PC-SIG SR-IOV implementation

Transceivers and cables

FC EKC0: 3 M 10 Gb SFP+ SR Cable Fiber Active Optical Cable (AOC) FC EKC1: 3 M 10 Gb SFP+ Copper Passive

38 Power Systems: Installing the IBM Power System S821LC (8001-12C)

FC EKC2: 10/1 Gb SFP+ SR Optical Transceiver

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems: v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Intel 82575EB dual-port Gigabit Ethernet Controller PCIe x4.0 LP (FC EKA3)

Learn about the specifications and operating system requirements for feature code (FC) EKA3 adapters.

Overview

The Intel 82575EB dual-port Gigabit Ethernet Controller PCIe x4.0 LP is a PCI Express (PCIe) generation 2 (Gen2) x4 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter offers a high-performing PCIe 10/100/1000 Ethernet connection. It also improves flexibility and performance in a virtualized environment in multi-core systems by lowering interrupt overhead and providing sorted multiple data queue paths.

Installing and configuring the system 39

Figure 26. Intel 82575EB dual-port Gigabit Ethernet Controller PCIe x4.0 LP

Specifications

Item Description Adapter FRU number

AOC-SG-I2 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe2 x4

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Preboot eXecution Environment (PXE) support Intel I/O Acceleration Technology (I/O AT) Direct Cache Access (DCA) Low-latency interrupts

Cables

Supported cable length is more than 100 meters

40 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems: v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 Internal Ports (1 GB Cache) PCIe3.0 x8 LP with cables (FC EKAA and EKEA)

Learn about the specifications and operating system requirements for feature code (FC) EKAA and EKEA adapters.

Overview

FC EKAA and EKEA are both the same adapter with different feature codes. FC EKAE is only supported on 8001-12C and does not include cables. FC EKEA, alternatively, is only supported on 8001-22C and includes cables.

The Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 Internal Ports (1 GB Cache) PCIe3.0 x8 LP with cables is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter features 8 internal SAS connectors for high-performance storage connectivity. This Redundant Array of Independent Disks (RAID) adapter is built on the LSI Logic SAS IC and MegaRAID technology. It also supports high capacity storage applications using high-performance RAID architecture, including hardware RAID 5 and 6.

Important: The Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 Internal Ports (1 GB Cache) PCIe3.0 x8 LP with cables must be configured with a RAID partition or JBOD (Just a Bunch of Disks) mode.

Installing and configuring the system 41

Figure 27. Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 Internal Ports (1 GB Cache) PCIe3.0 x8 LP with cables

Specifications

Item Description Adapter FRU number

FC EKAA: AOC-K-9361-8IS-IB001 (Designed to comply with RoHS requirement) FC EKEA: AOC-K-9361-8IB-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Port independent auto-negotiation Automatically negotiates PCIe link widths Supports 1.5, 3.0, 6.0 and 12 Gb/s SAS and SATA data transfer rates

42 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Advanced array configuration and management utilities

Cables

Attach any necessary cables to the add-on card.

Set JBOD mode on the adapter

Before you set up the adapter in JBOD mode, download the LSI Storage Command Line Tool (storcli64) RAID utility from Fix Central.

To set up the adapter in JBOD mode, complete the following steps:

1. Boot the system to the Petitboot main menu.

2. Copy the storcli64 RAID utility to Petitboot by using mount from the shell:

-t nfs -n -o nolock <LCB IP>:<path to storcli64> /mnt

3. Set the adapter up in JBOD mode.

4. Show the controller summary:

storcli64 /c0 show

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems: v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

SMC AOC-K-S3008L-L8i 12 Gbps SAS3/RAID 0,1 and 10 PCIe3.0 x8 LP with cables (FC EKAB and EKEB)

Learn about the specifications and operating system requirements for feature code (FC) EKAB and EKEB adapters.

Overview

FC EKAB and EKEB are both the same adapter with different feature codes. FC EKAB is only supported on 8001-12C and does not include cables. FC EKEB, alternatively, is only supported on 8001-22C and includes cables.

The SMC AOC-K-S3008L-L8i 12 Gbps SAS3/RAID 0,1 and 10 PCIe3.0 x8 LP with cables is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be placed in either a x8 or x16 PCIe slot in the system. The 12 Gb/s 8-Port SAS Internal RAID Adapter features 8 internal SAS connectors for high-performance storage connectivity.

Installing and configuring the system 43

Figure 28. SMC AOC-K-S3008L-L8i 12 Gbps SAS3/RAID 0,1 and 10 PCIe3.0 x8 LP with cables

Specifications

Item Description Adapter FRU number

FC EKAB: AOC-K-S3008L-L8iS-IB001 (Designed to comply with RoHS requirement) FC EKEB: AOC-K-S3008L-L8iB-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Port independent auto-negotiation Supports MegaRAID Storage Manager software Supports 3.0, 6.0 and 12 Gb/s SAS and SATA data transfer rates Supports SSP, SMP, STP and SATA protocols

Cables

Attach any necessary cables to the add-on card

44 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Broadcom (LSI) 9300-8E SAS3 HBA PCIe3.0 x8 LP Adapter (FC EKAD and EKED)

Learn about the specifications and operating system requirements for feature code (FC) EKAD and EKED adapters.

Overview

The Broadcom (LSI) 9300-8E SAS3 HBA PCIe3.0 x8 LP Adapter is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter has two external mini-SAS high-density (HD) x4 connectors for high-performance storage connectivity.

Installing and configuring the system 45

Figure 29. Broadcom (LSI) 9300-8E SAS3 HBA PCIe3.0 x8 LP Adapter

Specifications

Item Description Adapter FRU number

AOC-SAS3-9300-8E (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

3.3V, 12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Port independent auto-negotiation Supports 122 devices (HBA only) Power management support Supports 3.0 Gb/s, 6.0 Gb/s and 12 Gb/s SAS and SATA data transfer rates

46 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Cables

Attach any necessary cables to the add-on card.

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems: v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

PCIe3 x8 Dual-port Internal NVMe Host Bus Adapter (FC EKAE and EKEE)

Learn about the specifications and operating system requirements for feature code (FC) EKAE and EKEE adapters.

Overview

FC EKAE and EKEE are both the same adapter with different feature codes. FC EKAE is only supported on 8001-12C and does not include cables. FC EKEE, alternatively, is only supported on 8001-22C and includes cables.

The PCIe3 x8 Dual-port Internal NVMe Host Bus Adapter is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter features two internal NVMe connectors (SFF 8643) for high-performance storage connectivity. This HBA card is built on the PLX PE8718 PCIe switch IC technology and proven NVMe technology.

Installing and configuring the system 47

Figure 30. PCIe3 x8 Dual-port Internal NVMe Host Bus Adapter

Specifications

Item Description Adapter FRU number

FC EKAE: AOC-K-SLG3-2E4S-IB001 (Designed to comply with RoHS requirement) FC EKEE: AOC-K-SLG3-2E4B-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems

Voltage

3.3 V, 12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Four internal lanes per port and 32 Gb/s per port (PCIe3 speed) Supports two physical NVMe devices

48 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Pure host bus adapter (HBA)

Cables

Attach any necessary cables to the add-on card.

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Emulex LPE16002B-M6-O Dual-port 16 Gb Fibre Channel Card PCIe3.0 x8 LP (FC EKAF)

Learn about the specifications and operating system requirements for feature code (FC) EKAF adapters.

Overview

The Emulex LPE16002B-M6-O Dual-port 16 Gb Fibre Channel Card PCIe3.0 x8 LP is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter features auto-negotiation, LDAP support and has a data transfer rate of 14.025 Gb/s.

Installing and configuring the system 49

Figure 31. Emulex LPE16002B-M6-O Dual-port 16 Gb Fibre Channel Card PCIe3.0 x8 LP

Specifications

Item Description Adapter FRU number

AOC-LPE16002B-M6-Of (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

3.3 V, 12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Auto-negotiation LDAP support Data transfer rate of 14.025 Gb/s

Cables

Attach any necessary cables to the add-on card.

50 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.3, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

SMC quad-port NVMe Host Bus Adapter (PEX9733) PCIe3.0 x8 LP with cables (FC EKAG and EKEG)

Learn about the specifications and operating system requirements for feature code (FC) EKAG and EKEG adapters.

Overview

FC EKAG and EKEG are both the same adapter with different feature codes. FC EKAG is supported only on the 8001-12C and does not include cables. FC EKEG, alternatively, is supported only on the 8001-22C and includes cables.

The SMC quad-port NVMe Host Bus Adapter (PEX9733) PCIe3.0 x8 LP with cables is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter features four internal NVMe connectors for high-performance storage connectivity. This host bus adapter (HBA) card is built on the PLX PE8718 PCIe switch IC technology and proven NVMe technology.

Installing and configuring the system 51

Figure 32. SMC quad-port NVMe Host Bus Adapter (PEX9733) PCIe3.0 x8 LP with cables

Specifications

Item Description Adapter FRU number

FC EKAG: AOC-K-SLG3-4E2PS (Designed to comply with RoHS requirement) FC EKEG: AOC-K-SLG3-4E2PB-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

3.3 V, 12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Supports four physical NVMe devices

52 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Pure host bus adapter (HBA) Supports 3.0 Gb/s, 6.0 Gb/s, and 12 Gb/s SAS and SATA data transfer rates

Cables

Attach any necessary cables to the add-on card.

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.3, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 internal ports (2 GB Cache) PCIe3.0 x8 with cables (FC EKAH and EKEH)

Learn about the specifications and operating system requirements for feature code (FC) EKAH and EKEH adapters.

Overview

FC EKAH and EKEH are both the same adapter with different feature codes. FC EKAH is only supported on 8001-12C and does not include cables. FC EKEH, alternatively, is only supported on 8001-22C and includes cables.

The Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 internal ports (2 GB Cache) PCIe3.0 x8 with cables is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. TThe adapter features 8 internal SAS connectors for high-performance storage connectivity. This Redundant Array of Independent Disks (RAID) adapter is built on the LSI Logic SAS IC and MegaRAID technology. It also supports high capacity storage applications using high-performance RAID architecture, including hardware RAID 5 and 6.

Important: RAID mode is the adapter default and needs to be configured by the customer before drives are shown to the OS for install. The adapter can be set up in JBOD (Just a Bunch of Disks) mode.

Installing and configuring the system 53

Figure 33. Broadcom (LSI) MegaRAID 9361-8i SAS3 Controller with 8 internal ports (2 GB Cache) PCIe3.0 x8 with cables

Specifications

Item Description Adapter FRU number

FC EKAH: AOC-K-9361-8I2S-IB001 (Designed to comply with RoHS requirement) FC EKEH: AOC-K-9361-8I2B-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8 processor-based systems v 8001-12C and 8001-22C

Voltage

3.3 V, 12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Port independent auto-negotiation

54 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Automatically negotiates PCIe link widths Supports 1.5, 3.0, 6.0 and 12 Gb/s SAS and SATA data transfer rates Advanced array configuration and management utilities

Cables

Attach any necessary cables to the add-on card.

SAS-3 Integrated RAID Configuration Utility (SAS3IRCU) User Guide

Before you set up the adapter in JBOD mode, you must have the SAS-3 Integrated RAID Configuration Utility (SAS3IRCU) installed. For more information about SAS3IRCU, see the SAS-3 Integrated RAID Configuration Utility (SAS3IRCU) User Guide.

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

NVIDIA Tesla K80 24 GB GPU Accelerator (FC EKAJ)

Learn about the specifications and operating system requirements for the feature code (FC) EKAJ adapter.

Overview

The NVIDIA Tesla K80 24 GB GPU Accelerator is a PCI Express (PCIe) generation 3 (Gen3) x16 adapter. The adapter has a double-wide, full-height form-factor and takes up two x16 PCIe slots in the system. The NVIDIA Tesla K80 24GB GPU Accelerator is designed for demanding computational tasks, combining 24 GB of memory with fast memory bandwidth and compute performance for single and double precision workloads. It is equipped with the latest NVIDIA GPU Boost technology and monitors GPU usage to maximize throughput and outperform CPUs by up to 10x.

Installing and configuring the system 55

Figure 34. NVIDIA Tesla K80 24 GB GPU Accelerator

Specifications

Item Description Adapter FRU number

AOC-KIT-NVK80-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x16

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8 processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Double-wide, full-height

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes

Dynamic Parallelism Error Correcting Codes (ECC) Memory Kepler GPU Architecture Hyper-Q

Cables

Attach any necessary cables to the add-on card

56 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Mellanox MCX456A-ECAT ConnectX-4 VPI EDR IB 100 Gb/s and 100 GbE Dual-port QSFP28 PCIe3.0 x16 LP (FC EKAL)

Learn about the specifications and operating system requirements for feature code (FC) EKAL adapters.

Overview

The Mellanox MCX456A-ECAT ConnectX-4 VPI EDR IB 100 Gb/s and 100 GbE Dual-port QSFP28 PCIe3.0 x16 LP is a PCI Express (PCIe) generation 3 (Gen3) x16 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter supports EDR 100 Gb/s InfiniBand and 100 Gb/s Ethernet connectivity. It also provides flexible solutions for high-performance, Web 2.0, cloud, data analytics, database, and storage platforms.

Installing and configuring the system 57

Figure 35. Mellanox MCX456A-ECAT ConnectX-4 VPI EDR IB 100 Gb/s and 100 GbE Dual-port QSFP28 PCIe3.0 x16 LP

Specifications

Item Description Adapter FRU number

AOC-MCX456A-ECAT-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x16

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, with full-height tailstock

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

EDR 100 Gb/s InfiniBand or 100 Gb/s Ethernet per port Supports 2 physical NVMe Devices

58 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Single and dual-port options available Hardware-based I/O virtualization

Cables

Mellanox LinkX 10, 25, 40, 50 and 100Gb/s Direct Attach Copper cables (DACs), Copper Splitter cables, Active Optical Cables (AOCs) and Transceivers. For information regarding Mellanox LinkX cables and Transceivers, see LinkX™InfiniBand Direct Attach Copper Cables(http:// www.mellanox.com/products/interconnect/infiniband-copper-cables.php)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems: v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Mellanox MCX415A-CCAT ConnectX-4 EN 100 GbE Single-port QSFP28 PCIe3.0 x16 LP (FC EKAM)

Learn about the specifications and operating system requirements for feature code (FC) EKAM adapters.

Overview

The Mellanox MCX415A-CCAT ConnectX-4 EN 100 GbE Single-port QSFP28 PCIe3.0 x16 LP is a PCI Express (PCIe) generation 3 (Gen3) x16 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter supports 100 Gb/s Ethernet per port and provides flexible solutions for high-performance, Web 2.0, cloud, data analytics, database, and storage platforms.

Installing and configuring the system 59

Figure 36. Mellanox MCX415A-CCAT ConnectX-4 EN 100 GbE Single-port QSFP28 PCIe3.0 x16 LP

Specifications

Item Description Adapter FRU number

AOC-MCX415A-CCAT-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x16

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, with full-height tailstock

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

100 Gb/s Ethernet per port Supports two physical NVMe devices Single and dual-port options available

60 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Hardware-based I/O virtualization

Cables

Mellanox LinkX 10, 25, 40, 50 and 100 Gb/s Direct Attach Copper cables (DACs), Copper Splitter cables, Active Optical Cables (AOCs), and Transceivers. For information regarding Mellanox LinkX cables and Transceivers, see LinkX™InfiniBand Direct Attach Copper Cables(http:// www.mellanox.com/products/interconnect/infiniband-copper-cables.php)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Qlogic QLE2562 Dual-port 8 Gb Fibre Channel Adapter PCIe x8 LP (FC EKAP)

Learn about the specifications and operating system requirements for feature code (FC) EKAP adapters.

Overview

The Qlogic QLE2562 Dual-port 8 Gb Fibre Channel Adapter PCIe x8 LP is a PCI Express (PCIe) generation 2 (Gen2) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter offers dual-channel performance, auto-negotiation and StarPower technology.

Installing and configuring the system 61

Figure 37. Qlogic QLE2562 Dual-port 8 Gb Fibre Channel Adapter PCIe x8 LP

Specifications

Item Description Adapter FRU number

AOC-QLE2562 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe2 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

StarPower technology Auto-negotiation Quality of Service (QoS)

62 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Cables

Attach any necessary cables to the add-on card.

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Qlogic QLE2692OP Dual-port 16 Gb Fibre Channel Adapter PCIe3 x8 LP (FC EKAQ)

Learn about the specifications and operating system requirements for feature code (FC) EKAQ adapters.

Overview

The Qlogic QLE2692OP Dual-port 16 Gb Fibre Channel Adapter PCIe3 x8 LP is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter provides advanced storage networking features capable of supporting demanding virtualized and private cloud environments. The Standard Low-profile QLogic 16 Gb Fibre Channel Card can also deliver up to 1.3 million IOPS (Input/Output Operations per Second) fuel high performance in all-flash arrays (AFAs) and high-density virtualized environments.

Installing and configuring the system 63

Figure 38. Qlogic QLE2692OP Dual-port 16 Gb Fibre Channel Adapter PCIe3 x8 LP

Specifications

Item Description Adapter FRU number

AOC-QLE2692OP-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Up to 1.3 million IOPS fuel high performance in AFAs and high density virtualized environments Enhanced reliability, diagnostics, and accelerated deployment powered by QLogic StarFusion

technology

64 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Port isolation design offers deterministic and scalable performance on each port

Cables

Attach any necessary cables to the add-on card.

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Alpha-data CAPI Adapter: ADM-PCIe KU3 (FC EKAT)

Learn about the specifications and operating system requirements for feature code (FC) EKAT adapters.

Overview

The Alpha-data CAPI Adapter: ADM-PCIe KU3 is a PCI Express (PCIe) generation 3 (Gen3) x16 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter features two independent channels of DDR3 memory capable of 1600 mega transfers per second (MT/s), SATA connections, and high-speed I/O through dual quad small form-factor pluggable (QSFP) ports. It supports up to 40G Ethernet or 4x10G Ethernet links and offers voltage, temperature, current control and monitoring.

Installing and configuring the system 65

Figure 39. Alpha-data CAPI Adapter: ADM-PCIe KU3

Specifications

Item Description Adapter FRU number

ADM-PCIE-KU3 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x16

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Dual QSFP cages for high-speed optical communication including 10 and 40 Gigabit Ethernet Dual SATA Interfaces 1 GB of BPI x16 configuration flash

66 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Cables

Attach any necessary cables to the add-on card.

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

References

Please note that the Alpha-data CAPI Adapter: ADM-PCIe KU3 (FC EKAT) is hardware only. The adapter development toolkit and services are available on the Alpha-Data®website. For more information, consult the following references:

v IBM®CAPI information:

– POWER8®Coherent Accelerator Processor Interface (CAPI) (http://www.ibm.biz/powercapi)

v Alpha-Data®CAPI PCIe adapter information:

– Coherent Accelerator Processor Interface (CAPI) for POWER8®(http://www.alpha-data.com/dcp/

capi.php)

– ADM-PCIE-KU3 Summary and Features (http://www.alpha-data.com/dcp/

products.php?product=adm-pcie-ku3)

Mellanox MCX4121A-ACAT ConnectX-4 Lx EN 25GbE dual-port SFP28 PCIe3.0 x8 LP (FC EKAU)

Learn about the specifications and operating system requirements for feature code (FC) EKAU adapters.

Overview

The Mellanox MCX4121A-ACAT ConnectX-4 Lx EN 25GbE dual-port SFP28 PCIe3.0 x8 LP is a PCI Express (PCIe) generation 3 (Gen3) x8 adapter. The adapter can be used in either a x8 or x16 PCIe slot in the system. The adapter provides a combination of 1, 10, 25, 40, and 50 GbE bandwidth, sub-microsecond latency and a 75 million packets per second message rate. It includes native hardware support for remote direct memory access (RDMA) over converged Ethernet (RoCE), Ethernet stateless offload engines, overlay networks, and GPU Direct®Technology.

Installing and configuring the system 67

Figure 40. Mellanox MCX4121A-ACAT ConnectX-4 Lx EN 25GbE dual-port SFP28 PCIe3.0 x8 LP

Specifications

Item Description Adapter FRU number

AOC-MCX4121A-ACAT-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, with full-height tailstock

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

Low latency RDMA over Converged Ethernet Connectivity to up-to 4 independent hosts Hardware-based I/O virtualization

68 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Cables

Mellanox LinkX 10 Gb/s, 25 Gb/s, 40 Gb/s, 50 Gb/s and 100 Gb/s Direct Attach Copper cables (DACs), Copper Splitter cables, Active Optical Cables (AOCs) and Transceivers. For information regarding Mellanox LinkX cables and Transceivers, see LinkX™InfiniBand Direct Attach Copper Cables. (http://www.mellanox.com/products/interconnect/infiniband-copper-cables.php)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme. (https://ibm.biz/BdrgTZ)

v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of Mellanox OFED can be downloaded from Mellanox. (http://

www.mellanox.com)

NVIDIA Tesla P100 16GB PCIe3.0 x16 Dual-slot FHFL with cables (FC EKAZ)

Learn about the specifications and operating system requirements for the feature code (FC) EKAZ adapter.

Overview

The NVIDIA Tesla P100 16GB PCIe3.0 x16 Dual-slot FHFL with cables is a PCI Express (PCIe) generation 3 (Gen3) x16 adapter. The adapter has a double-wide, full-height form-factor and takes up two x16 PCIe slots in the system. The NVIDIA Tesla P100 16 GB GPU Accelerator can deliver up to 18.7 teraflops (TFLOPS) of half-precision and is capable of 720 GB/s of memory bandwidth. The accelerator is ideal for high-performance-computing (HPC) and hyperscale workloads.

Installing and configuring the system 69

Figure 41. NVIDIA Tesla P100 16GB PCIe3.0 x16 Dual-slot FHFL with cables

Specifications

Item Description Adapter FRU number

AOC-KIT-NVTP100-IB001 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x16

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

3.3 V, 12 V

Form factor

Double-wide, full-height

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes

Pascal Architecture NVLink Kepler GPU Architecture Page Migration Engine

Cables

Attach any necessary cables to the add-on card

70 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.3, little-endian, for Power, or later – Ubuntu 16.04.1, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Intel XL710 Ethernet Converged Network Adapter Quad-port 10G/1G SFP+ PCIe3.0 x8 LP (FC EKFH)

Learn about the specifications and operating system requirements for the feature code (FC) EKFH adapter.

Overview

The Intel XL710 Ethernet Converged Network Adapter Quad-port 10G/1G SFP+ PCIe3.0 x8 LP is a PCI Express (PCIe) x8 adapter. The adapter can be used in either an x4, x8 or x16 PCIe slot in the system. The adapter expands virtualization beyond the server level to the network level and combines with hardware optimizations and offloads. It provides unmatched features for virtualization, flexibility for LAN and SAN networks, and reliable performance.

Installing and configuring the system 71

Figure 42. Intel XL710 Ethernet Converged Network Adapter Quad-port 10G/1G SFP+ PCIe3.0 x8 LP

Specifications

Item Description Adapter FRU number

AOC-STG-I4S (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe x8

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8 processor-based systems

Voltage

3.3 V, 12 V

Form factor

Short, low-profile

Attributes provided

Quad SFP+ Connectors Small Packet Performance Network Virtualization Offloads including VXLAN and NVGRE Unified networking providing a single with support

Transceivers and cables

Supported cable length is more than 100 M

72 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for operating system and partition requirements, see one of the following links:

v The latest version of enabling libraries and utilities may be downloaded from Fix Central.

(http://www.ibm.com/support/fixcentral/)

v IBM Prerequisite website (www-912.ibm.com/e_dir/eServerPrereq.nsf) v IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/

ssic/interoperability.wss)

v The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website. (http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html)

v For support details, see the Linux Alert website. (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html)

PCIe3 1.6 TB NVMe Flash Adapter (FC EKN2)

Learn about the specifications and operating system requirements for feature code (FC) EKN2 adapters.

Overview

See FC EKN3 for an adapter with more capacity.

The PCIe3 1.6 TB NVMe Flash Adapter is a PCI Express (PCIe) generation 3 (Gen3) x4 adapter. The adapter can be used in either a x8 or x16 PCIe (Gen3) slot in the system and uses Non-Volatile Memory Express (NVMe). NVMe is a high performance software interface that can read/write flash memory. Compared to a SAS or SATA SSD, the NVMe Flash adapter provides more read/write input/output operations per second (IOPS) and larger throughput (GB/sec). The NVMe Flash Adapter is read intensive and is not designed for high write intensive workloads. At about 8,760 to 17,000 TB of writes to the adapter, it will be at its maximum projected write capability. The nature of the workload has a great impact on the maximum write capacity. If a high percentage of more sequentially oriented writes is used instead of random writes, the maximum write capacity will be closer to the larger value in the range. In the case of a high percentage of random writes, the maximum will be closer to the smaller value in the range. Writes past the adapter's maximum write capacity will continue to work for some period of time, but much more slowly. A Predictive Failure Analysis message will indicate that it is time to replace the adapter if enabled by the system administrator. After the warranty period, if the maximum write capability is achieved, the adapter's replacement is not covered under IBM maintenance. This adapter has protection against single Flash channel failures. To prevent the entire adapter from failing, software RAID should be used. For high value applications where the content in the adapter must be protected, additional NVMe Flash adapters with OS mirroring or software Redundant Array of Independent Disks (RAID) are recommended. This adapter is not supported in the PCIe Gen3 I/O drawer.

Important: Before removing a NVMe Flash adapter, ensure that all data on the adapter or the array that contains the adapter is backed up. Restore the data after the adapter is replaced.

Installing and configuring the system 73

Figure 43. PCIe3 1.6 TB NVMe Flash Adapter

Important: The micro USB connector visible through the adapter tailstock has no function and cannot be used. Do not insert a cable of any kind into this port.

Specifications

Item Description Adapter FRU number

HDS-AVM-HUSPR3216AHP301 (Designed to comply with RoHS requirement)

I/O bus architecture

PCIe3 x4

Slot requirement

For details about slot priorities and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/p8eab/ p8eab_mtm_pciplacement.htm) and select the system you are working on.

Supported Systems

POWER8®processor-based systems v 8001-12C and 8001-22C

Voltage

12 V

Form factor

Short, low-profile

Maximum number

For details about the maximum number of adapters that are supported, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER8/ p8eab/p8eab_mtm_pciplacement.htm) and select the system you are working on.

Attributes provided

1.6 TB of low latency flash memory Non-Volatile write buffer

74 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Hot plug capable

NVMe Flash adapter maximum write capability

Determine whether the NVMe Flash adapter maximum write capability is depleted by completing the following steps:

1. Type the following command at the Linux command line and press Enter: nvme smart-log

/dev/nvmeX, where nvmeX is the resource name of the NVMe Flash adapter.

2. If the critical_warning field is 1 (bit 0 is set) and the percentage_used field is 90% or greater, replace

the NVMe Flash adapter.

Note: The replacement of depleted NVMe Flash adapters is covered during the system warranty period. After the warranty period has expired, the cost that is incurred for the replacement of depleted NVMe Flash adapters is not covered under maintenance contracts, and is the responsibility of the customer.

Service tools for Linux on Power servers

To obtain the utility to update firmware, format storage, and complete other service tasks, complete the following steps:

1. Go to Service and productivity tools and follow the instructions to download service tools.

2. Install the NVMe management command line interface (CLI).

v For Red Hat Enterprise Linux (RHEL), type yum install nvme-cli. v For SUSE Linux Enterprise Server (SLES), type zypper install nvme-cli.

3. For more information about using the NVMe CLI, see the README file.

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and that you determine whether any prerequisites must be met for this feature and attaching devices. To check for the prerequisites, see IBM Prerequisite website (www-912.ibm.com/e_dir/ eServerPrereq.nsf).

The adapter is supported on the following versions of the operating systems:

Important: For a list of known Linux OS issues that may affect this adapter, see the IBM Power LC readme (https://ibm.biz/BdrgTZ).

v Linux

– Red Hat Enterprise Linux 7.2, little-endian, for Power, or later – Ubuntu 16.04.1, or later – Ubuntu 14.04.5, or later – For support details, see the Linux Alert website (www14.software.ibm.com/webapp/set2/sas/f/

lopdiags/info/LinuxAlerts.html).

– The latest version of the device driver or iprutils can be downloaded from the IBM Service and

Productivity Tools website(http://www14.software.ibm.com/webapp/set2/sas/f/lopdiags/ home.html).

– The latest version of enabling libraries and utilities may be downloaded from Fix

Central(http://www.ibm.com/support/fixcentral/).

Installing a PCIe adapter in the 8001-12C system

Complete the steps in this procedure to install a PCIe adapter in the IBM Power System S821LC (8001-12C) system.

Installing and configuring the system 75

Before you begin

Power off the system and place it in the service position. For instructions, see “Preparing the 8001-12C or 8005-12N system to remove and replace internal parts” on page 85.

About this task

See “PCIe adapter placement rules and slot priorities for the 8001-12C or 8005-12N system” on page 23 for information and capabilities of the PCIe slots.

Attention: For safety and airflow purposes, if you remove parts from the system, you must ensure that:

v PCIe tail-stock fillers are present v System processor airflow baffles are present.

Procedure

1. Attach the electrostatic discharge (ESD) wrist strap.

Attention:

v Attach an electrostatic discharge (ESD) wrist strap to the front ESD jack, to the rear ESD jack, or to

an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware.

v When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is

used for static control. It does not increase or decrease your risk of receiving electric shock when using or working on electrical equipment.

v If you do not have an ESD wrist strap, just prior to removing the product from ESD packaging and

installing or replacing hardware, touch an unpainted metal surface of the system for a minimum of 5 seconds.

2. An adapter can share a PCIe riser card with other adapters. Label and remove any cables and plugs

that extend out of the adapters. See Figure 44.

Figure 44. 8001-12C PCIe adapter positions

Position Step 2 (UIO Slot1) 3 3, 4, 5 (PLX Slot1, WIO Slot1, WIO Slot2) 4

3. If you are working with a PCIe adapter in position 2, do the following: a. Remove the standard tailstock from the adapter. b. If you are inserting a storage drive adapter, connect the signal cables to the adapter before

inserting the adapter. See “Drive installation details for the 8001-12C system” on page 8 for cabling information.

c. If needed, install a support bracket for the PCIe adapter to the system backplane. Also install a

special support tailstock to the PCIe adapter.

d. Insert the adapter into the PCIe riser. e. If you installed the support bracket for the PCIe adapter, fasten the special support tailstock to

that bracket.

4. If the PCIe adapter to install is in positions 3, 4, or 5, you must remove the PCIe cage and riser.

76 Power Systems: Installing the IBM Power System S821LC (8001-12C)

a. If the riser contains a GPU, remove the power cable (A) from the system backplane as shown in

Figure 45. Using your thumb, press the release latch on the connector to remove the cable.

Figure 45. Unplugging the GPU power cable

b. Remove the PCIe riser as shown in Figure 46 on page 78.

1) Retract the retaining pins (A) so that the arrows on the tabs point to the system.

2) Lift the PCIe riser from the system.

Installing and configuring the system 77

Figure 46. Removing the PCIe riser

c. Place the PCIe riser upside down on an ESD surface. d. Remove the screw and the tail-stock filler for that position. e. If you are inserting a storage drive adapter, connect the signal cables to the adapter before

inserting the adapter. See “Drive installation details for the 8001-12C system” on page 8 for cabling information.

NVMe drives are only supported on host operating systems; NVMe drives are not supported by guest operating systems. On systems with RHEL 7.3 or later, or Ubuntu 16.04 or later, NVMe drives can be used as bootable drives. Port 1 of the internal NVMe host bus adapter must be plugged into NVMe port 1 on the disk drive backplane.

f. Insert the adapter (A) into the riser (B) as shown in Figure 47, aligning it properly and inserting it

fully into the slot. Secure the adapter tail-stock with 1 or 2 screws as needed.

Figure 47. Inserting an adapter into position 3 of the riser

78 Power Systems: Installing the IBM Power System S821LC (8001-12C)

Figure 48. Inserting an adapter into position 4 or 5 of the riser

g. Place the PCIe adapter riser and the cards it contains into the system backplane as shown in

Figure 49.

1) Ensure that the PCIe holder release pins (B) are retracted, so the arrows point into the system.

2) Use the alignment pins (A) and slots to help you properly insert the riser cards and replace the

cover

3) Reset the retaining pins to secure the PCIe cage.

Figure 49. Replacing the PCIe riser

h. If the riser contains a GPU, replace the power cable (A) into the system backplane.

Installing and configuring the system 79

Figure 50. Plugging the GPU power cable

What to do next

Prepare the system for operation. For instructions, see “Preparing the 8001-12C or 8005-12N system for operation after you remove and replace internal parts” on page 87.

Common procedures for servicing or installing features in the 8001-12C or 8005-12N

Learn about the common procedures related to installing, removing, and replacing features in the IBM Power System S821LC (8001-12C) system.

Before you begin

Observe these precautions when you are installing, removing, or replacing features and parts.

About this task

These precautions are intended to create a safe environment to service your system and do not provide steps for servicing your system. The installation, removal, and replacement procedures provide the step-by-step processes that are required to service your system.

DANGER: When working on or around the system, observe the following precautions:

Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: v If IBM supplied the power cord(s), connect power to this unit only with the IBM provided power cord.

Do not use the IBM provided power cord for any other product.

v Do not open or service any power supply assembly. v Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this

product during an electrical storm.

80 Power Systems: Installing the IBM Power System S821LC (8001-12C)
