PCM-9575
EBX VIA Eden/Ezra SBC with
CPU,LCD, Ethernet, Audio, PCI
and PC/104-Plus
Users Manual
i
Copyright
This document is copyrighted, © 2002. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of
the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer
assumes no responsibility for its use, nor for any infringements upon the
rights of third parties that may result from such use.
Acknowledgements
Award is a trademark of Award Software International, Inc.
VIA is a trademark of VIA Technologies, Inc.
IBM, PC/AT, PS/2 and VGA are trademarks of International Business
Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
ESS is a trademark of ESS Technology, Inc.
UMC is a trademark of United Microelectronics Corporation.
SMI is a trademark of Silicon Motion, Inc.
Creative is a trademark of Creative Technology LTD.
All other product names or trademarks are properties of their respective
owners.
This manual is for the PCM-9575.
1st Edition, Printed in Taiwan May, 2002
PCM-9575 User’s Manual ii
Packing List
Before you begin installing your card, please make sure that the following
materials have been shipped:
• 1 PCM-9575 all-in-one single board computer
• 1 CD disk for utility and drivers
• 1 startup manual
• 1 Power cable (p/n: 1703080101)
• 1 Mini Jumper*10 PCS Package (p/n: 9689000002)
If any of these items are missing or damaged, contact your distributor or
sales representative immediately.
Model No. List Description
PCM-9575F-J0A1 W/ Eden-400 CPU and heat sink
PCM-9575F-Q0A1 W/ Ezra-800 CPU and heat sink W/ FAN
PCM-9575F-M0A1 W/ Eden-667 CPU and heat sink
iii
PCM-9575 User’s Manual iv
Table of Contents
Contents
Chapter 1 General Information ........................................1
1.1 Introduction ....................................................................... 2
1.2 Features ............................................................................. 3
1.3 Specifications .................................................................... 4
1.3.1 Standard EBX SBC Functions .................................................. 4
1.3.2 VGA/LCD Interface .................................................................. 4
1.3.3 LVDS: Supports 2 Channel (2 x 18 bit) LVDS interface.......... 5
1.3.4 Audio function........................................................................... 5
1.3.5 TV-out (optional) ...................................................................... 5
1.3.6 PCI bus Ethernet interface......................................................... 5
1.3.7 Mechanical and Environmental................................................. 5
1.4 Board layout: dimensions.................................................. 6
Figure 1.1: Board layout: dimensions ................................... 6
Chapter 2 Installation ........................................................7
2.1 Jumpers.............................................................................. 8
Table 2.1: Jumpers .............................................................. 8
2.2 Connectors......................................................................... 8
Table 2.2: Connectors ......................................................... 8
2.3 Locating jumpers............................................................. 10
Figure 2.1: Jumper locations ............................................... 10
2.4 Locating Connectors ....................................................... 11
Figure 2.2: Connectors (component side) ........................... 11
2.5 Setting Jumpers ............................................................... 12
2.6 Clear CMOS (JP4) .......................................................... 13
Table 2.3: CMOS clear (JP4)............................................ 13
2.7 Installing DIMMs............................................................ 14
2.8 IDE, CDROM hard drive connector (CN14, CN16)....... 14
2.8.1 Connecting the hard drive ....................................................... 14
2.9 Solid State Disk............................................................... 15
2.9.1 CompactFlash (CN26)............................................................. 15
2.10 Floppy drive connector (CN18) ...................................... 15
2.10.1Connecting the floppy drive .................................................... 15
2.11 Parallel port connector (CN15) ....................................... 16
2.12 Keyboard and PS/2 mouse connector (CN25) ................ 16
2.13 Power & HDD LED, Reset Switch (CN13, CN22) ........ 16
2.13.1Power & HDD LED (CN13) ................................................... 17
2.13.2Reset switch (CN22) ............................................................... 17
2.14 Power connectors (CN27, CN5, FAN1).......................... 17
2.14.1Peripheral power connector, -5 V, -12 V (CN27) ................. 17
v
2.14.2Main power connector, +5 V, +12 V (CN5) .......................... 17
2.14.3CPU Fan power supply connector (FAN1)............................. 17
2.15 ATX power control connector (CN3, CN23).................. 17
2.15.1ATX feature (CN3), soft power switch conn (CN23) ............. 17
Figure 2.3: Wiring for ATX soft power switch function .... 18
2.16 IR connector (CN24)....................................................... 18
2.17 Audio interfaces (CN4, CN2).......................................... 18
2.17.1Audio connector (CN4) ...........................................................19
2.17.2CD audio input connector (CN2) ............................................ 19
2.18 COM port connector (CN19) .......................................... 19
2.18.1COM2 RS-232/422/485 setting (JP6) ..................................... 19
2.19 VGA/LCD/LVDS interface connections ........................ 20
2.19.1CRT display connector (CN8)................................................. 20
2.19.2Flat panel display connector (CN11)....................................... 20
2.19.3Extension flat panel connector (CN10)................................... 20
2.19.4LVDS LCD panel connector (CN9)........................................ 20
2.19.5Panel type selection (S1) ......................................................... 20
Table 2.4: S1 Panel Type select........................................ 21
2.20 TV-out interface (optional) (CN1).................................. 21
2.21 Ethernet configuration..................................................... 22
2.21.1100Base-T connector (CN12) ................................................. 22
2.21.2Network boot........................................................................... 22
2.21.3LAN controller power select (JP2).......................................... 22
Table 2.5: LAN controller power select (JP2).................. 22
2.22 Watchdog timer configuration ........................................ 22
2.22.1Watchdog timer action (JP5)................................................... 23
Table 2.6: Watchdog timer action (JP5)........................... 23
2.23 USB connectors (CN20, CN28)...................................... 23
Chapter 3 Software Configuration .................................25
3.1 Introduction ..................................................................... 26
3.2 Connections to Three Standard LCDs............................. 27
3.2.1 Connections (640 x 480 TFT color LCD) ..............................27
Table 3.1: Connections to Toshiba LTM10C209A .......... 27
3.2.2 Connections (1024 x 768 TFT color LCD) ............................. 28
Table 3.2: Connections to Toshiba LTM15C151A .......... 28
3.2.3 Connections (800 x 600 TFT color LCD) ..............................29
Table 3.3: Connections to Toshiba LTM12C275A .......... 29
3.3 Ethernet software configuration...................................... 30
vi
Table of Contents
Chapter 4 Award BIOS Setup.........................................33
4.1 System test and initialization........................................... 34
4.1.1 System configuration verification ........................................... 34
4.2 Award BIOS setup .......................................................... 35
4.2.1 Entering setup.........................................................................35
Figure 4.1: BIOS setup program initial screen.................... 35
4.2.2 Standard CMOS Features setup .............................................. 36
Figure 4.2: CMOS Features setup ....................................... 36
4.2.3 Advanced BIOS Features setup............................................... 37

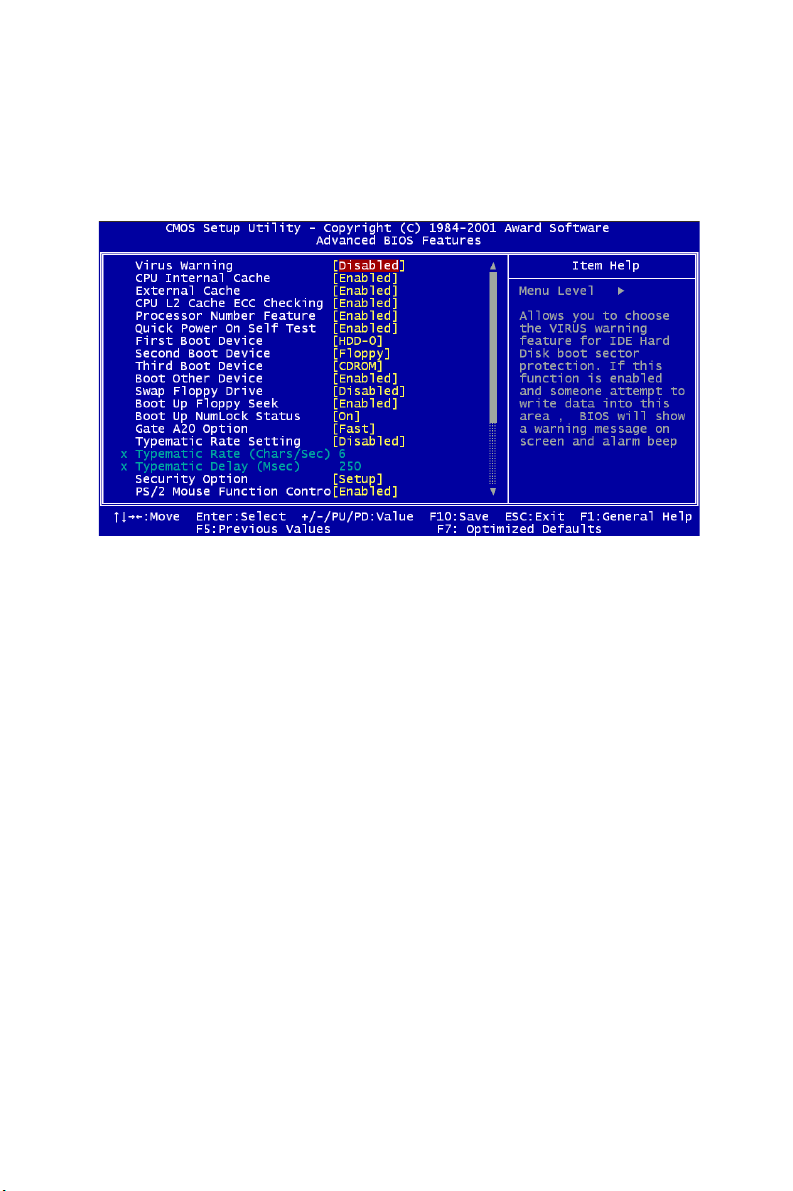

Figure 4.3: Advanced BIOS Features setup........................ 37
4.2.4 Advanced Chipset Features setup............................................ 38
Figure 4.4: Advanced Chipset Features setup..................... 38
4.2.5 Integrated Peripherals.............................................................. 39
Figure 4.5: Integrated Peripherals ....................................... 39
4.2.6 Power Management Setup....................................................... 39
Figure 4.6: Power Management Setup ................................39
4.2.7 PnP/PCI Configurations ..........................................................40
Figure 4.7: PnP/PCI Configurations ................................... 40
4.2.8 PC Health Status...................................................................... 40
Figure 4.8: PC Health Status...............................................40
4.2.9 Frequency/Voltage Control ..................................................... 41
Figure 4.9: Frequency/Voltage Control .............................. 41
4.2.10Load Optimized Defaults ........................................................ 42
Figure 4.10:Load BIOS defaults screen ..............................42
4.2.11Set Password............................................................................ 42
4.2.12Save & Exit Setup ................................................................... 43
4.2.13Exit Without Saving................................................................44
Chapter 5 PCI SVGA Setup ............................................45
5.1 Introduction ..................................................................... 46
5.1.1 Chipset..................................................................................... 46
5.1.2 Display memory ...................................................................... 46
5.1.3 Display types ........................................................................... 46
5.1.4 Dual/Simultaneous Display..................................................... 47
Figure 5.1: Selecting Display Settings................................47
5.2 Installation of the SVGA Driver ..................................... 48
5.2.1 Installation for Windows 95....................................................48
5.2.2 Installation for Windows 98/Me.............................................. 52
5.2.3 Installation for Windows NT................................................... 57
5.2.4 Installation for Windows 2000................................................62
5.2.5 Installation for Windows XP................................................... 67
5.3 Further Information......................................................... 73
vii
Chapter 6 Audio Setup.....................................................75
6.1 Introduction ..................................................................... 76
6.2 DOS utilities.................................................................... 76
6.2.1 VIA Sound Blaster Pro compatible set up program ................ 76
6.2.2 VIA Sound Blaster Installation ............................................... 77
6.3 Driver installation............................................................ 77
6.3.1 Before you begin ..................................................................... 77
6.3.2 Windows 95/98 drivers ...........................................................78
6.3.3 Windows NT drivers ...............................................................85
6.3.4 Windows 2000 Drivers............................................................ 88
Chapter 7 PCI Bus Ethernet Interface...........................93
7.1 Introduction ..................................................................... 94
7.2 Installation of Ethernet driver ......................................... 94
7.2.1 Installation for MS-DOS and Windows 3.1 ............................94
7.2.2 Installation for Windows 98....................................................95
7.2.3 Installation for Windows 2000................................................98
7.2.4 Installation for Windows NT................................................. 103
7.3 Further information ....................................................... 109
Appendix A Programming the Watchdog Timer ...........111
A.1 Supported Input Timing Modes .................................... 112
Appendix B Installing PC/104-Plus Modules..................115
B.1 Installing PC/104-Plus Modules.................................... 116
Figure B.1: PC/104+ module mounting diagram............... 117
Figure B.2: PC/104+ module dimensions (mm) (±0.1) ..... 118
Appendix C Pin Assignments ...........................................119
C.1 CPU Fan Power Connector (FAN 1)............................. 120
C.2 Ethernet 10/100Base-T Connector (CN12)................... 120
C.3 Audio Connector (CN4)................................................ 121
C.4 Audio In Connector (CN2)............................................ 121
C.5 Main Power Connector (CN5) ...................................... 122
C.6 Keyboard and PS/2 Mouse Connector (CN25)............. 123
C.7 Floppy Disk Drive Connector (CN18).......................... 124
C.8 PC/104 plus Connectors (CN17)................................... 125
C.9 IDE Hard Drive Connector (CN14, CN16) .................. 127
C.10 Parallel Port Connector (CN15) .................................... 128
C.11 Power & HDD LED Connector(CN13) ........................ 129
C.12 Reset Button Connector (CN22) ................................... 129
C.13 USB Connector (CN20, CN28)..................................... 130
C.14 LCD Inverter Backlight Connector (CN6).................... 130
C.15 IR Connector (CN24).................................................... 131
C.16 CRT Display Connector (CN8)..................................... 131
viii
Table of Contents
C.17 TV (video) Out Connector (CN1)................................. 132
C.18 Flat Panel Connector (CN11) ....................................... 133
C.19 Extended Flat Panel Display Connector (CN10) .......... 134
C.20 LCD Signal Mapping .................................................... 135
C.21 LVDS Connector (CN9)................................................ 136
C.22 Peripheral Power Connector (CN27) ............................ 136
C.23 COM Port Connector (CN19) ....................................... 137
C.24 CompactFlash Card Connector (CN26)........................ 138
C.25 ATX Power Feature Connector (CN3).......................... 139
Appendix D System Assignments .....................................141
D.1 System I/O Ports............................................................ 142
D.2 1st MB memory map..................................................... 143
D.3 DMA channel assignments............................................ 143
D.4 Interrupt assignments .................................................... 144
Appendix E Optional Extras for the PCM-9575 ............145
E.1 PCM-10586-5A00 cable kit for PCM-9575.................. 146
E.2 Optional LCD cables 10.4" TFT LCD panel (CN14) ... 147
E.3 Optional USB cable (CN20) ......................................... 147
E.4 ATX Power Control Cable (CN3)................................. 147
E.5 Optional PC/104+ to PCI Module................................. 147
E.6 Optional 24 bit LCD cable adaptor ............................... 147
Appendix F Mechanical Drawings...................................149
F.1 Mechanical Drawings.................................................... 150
Figure F.1: PCM-9575 Mechanical Drawing ................... 150
Figure F.2: PCM-9575 Mech Drawing (component side). 151
Figure F.3: PCM-9575 Mech Drawing (solder side)......... 152
ix
x
1
CHAPTER
General Information
This chapter gives background
information on the PCM-9575.
Sections include:
• Introduction
• Features
• Specifications
• Board layout and dimensions
1 Chapter 1 General Information
Chapter 1 Introduction
1.1 Introduction
The PCM-9575 is a VIA low-power Eden/Ezra processor single board
computer (SBC) with audio controller, a 4X AGP SVGA controller, a PCI
10/100Base-T Ethernet interface, one PCI slot, and one PC/104-Plus
expansion connector. The PCM-9575’s design is based on the EBX form
factor that provides support for PC/104 and PC/104-Plus module expansion. The EBX form factor also provides a convenient connector layout
for easy assembly, more efficient cable connections and better overall
embedded system integration. When using an Intel® Pentium® III processor, the PCM-9575 achieves outstanding performance that surpasses
most SBCs in its class. This compact (only 5.75“ x 8”) unit offers all the
functions of a single board industrial computer, but still fits in the space
of a 5.25“ floppy drive.
On-board features include, four serial ports (three RS-232, one RS-232/
422/485), one multi-mode parallel (ECP/EPP/SPP) port, two USB (Universal Serial Bus) ports, a floppy drive controller, and a keyboard/PS/2
mouse interface. The built-in high-speed PCI IDE controller supports
both PIO and UDMA/100 bus master modes. Up to four IDE devices can
be connected, including large hard disks, CD-ROM drives, and tape
backup drives.
The PCM-9575 features power management to minimize power consumption. It complies with the “Green Function” standard and supports
Doze, Standby and Suspend modes. In addition, the board‘s watchdog
timer can automatically reset the system or generate an interrupt if the
system stops due to a program bug or EMI.
Highly integrated multimedia SBC
The PCM-9575 is a highly integrated multimedia SBC that combines
audio, video, and network functions on a single computer board the size
of a 5.25" floppy drive. It provides 16-bit half-duplex, 8-bit full-duplex,
integrated 3D audio, and up to 1024 x 768 resolution @ 16.8 M colors
with 8/16/32MB system memory. Major on-board devices adopt PCI
technology, to achieve outstanding computing performance when used
with Intel® Pentium® processors. The PCM-9575 also supports TV-out
that supports NTSC/PAL format for multimedia applications.
PCM-9575 User’s Manual 2
1.2 Features
• Embedded VIA low-power Eden/Ezra processor
• EBX form factor which supports both PC/104-Plus and PCI slot
• Supports one 36 bit TFT LCD panel, with up to 1024 x 768 resolu-
tion
• Supports 2 channel LVDS interface
• 100/10Base-T Ethernet interface, IEEE 802.3U compatible
• Supports wake-on-Lan with ATX power supply
• TV-out function supports NTSC and PAL formats
• 4 serial ports (three RS-232 and one RS-232/422/485)
• USB interface complies with USB Rev. 1.10
• 62-level Watchdog timer by system reset or IRQ
• 2 IDE channels for HDD and CD-ROM
1.3 Specifications
1.3.1 Standard EBX SBC Functions
• CPU: OnboardVIA Ezra 800MHz (PCM-9575F-Q0A1) or
VIA Eden 400 MHz (PCM-9575F-J0A1) or
VIA Eden 667Mhz processor (PCM-9575F-M0A1)
• BIOS: Award 256 KB Flash memory
• System memory: One DIMM socket accepts 64 MB up to 512 MB
SDRAM
• System Chipset: VIA PL133 chipset , VT8606T (TwisterT ) &
VT82C686B
• Cache memory: 128KB L1 and 64 KB L2 cache memory on the pro-
cessor
3 Chapter 1 General Information
• Enhanced IDE interface: Two channels supports up to four EIDE
devices. BIOS auto-detect, PIO Mode 3 or Mode 4, UDMA 33
transfer. Primary IDE support up to UDMA 66/100 mode
• FDD interface: Supports up to two FDDs
• Serial ports: Four serial RS-232 ports, COM1, 3, 4: RS-232, COM2:
RS-232/422/485
• Parallel port: One parallel port, supports SPP/EPP/ECP mode
• Infrared port: Shared with COM2. Transfer rates up to 115Kbps
• Keyboard/mouse connector: Supports standard PC/AT keyboard and a
PS/2 mouse
• Power management: Supports power saving modes including Normal/
Standby/Suspend modes. APM 1.2 compliant
• Watchdog timer: 62 level timer intervals
• USB: Two universal serial bus ports (4 USB port option)
• Expansion: One PCI slot and PC/104 plus connector for ISA and PCI
control board
• Solid State Disk
Supports one 50-pin socket for CFC type I/II
Supports M-Systems DOC
®
2000
1.3.2 VGA/LCD Interface
•
Chipset:
•
Frame buffer:
• Interface: 4X AGP VGA/LCD interface, Support for 9, 12, 15, 18, 24,
• Display mode: CRT Modes: 1280 x 1024@32bpp (60Hz), 1024 x 768
1.3.3 LVDS: Supports 2 Channel (2 x 18 bit) LVDS interface
•
Chipset:
VIA Twister chip with integrated Savage4 2D/3D/Video Accelerator
Supports 8/16/32 MB frame buffer with system memory
36 bit TFT and optional 16- or 24-bit DSTN panel
@ 32bpp (85 Hz); LCD/Simultaneous Modes: 1280 x 1024 @16bpp
(60 Hz), 1024 x 768 @16bpp (60Hz)
VIA VT8606T (TwisterT)
1.3.4 Audio function
• Chipset: VIA 82C686 South Bridge
• Audio controller: AC97 Ver. 2.0 compliant interface, Multistream
Direct sound and Direct Sound 3D acceleration
• Stereo sound: 8-bit full-duplex
• Audio interface: Microphone in, Line in, CD audio in; Line out,
Speaker L, Speaker R
• Power: Accepts +12 V source for improved audio quality
1.3.5 TV-out (optional)
• Chipset: VIA VT 1621
Supports NTSC, NTSC=EIA (Japan) and PAL TV formats
PCM-9575 User’s Manual 4
Provides Composite video and S-video outputs via RCA (composite)
connector and S-video connector
Supports 640 x 480 and 800 x 600 input resolutions
Supports Windows© 95/98/NT and Windows XP drivers
Over-scan, under-scan and position adjustable
Auto-detection of TV presence met Interface
1.3.6 PCI bus Ethernet interface
• Chipset: REALTEK RTL8139 (Option Intel 82559) Ethernet controller
• Ethernet interface: IEEE 802.3U compatible 100/10Base-T interface.
Includes software drivers and boot ROM
•
Wake-on-LAN:
Supports wake-on-LAN function with ATX power control
1.3.7 Mechanical and Environmental
• Dimensions (L x W): EBX form factor, 203 x 146 mm (8" x 5.75")
• Power supply voltage:
• Power requirements:
Max:
4.5A @ +5V, 0.55A @ +12V (within 5ms after power on) (rev A101,
A102)
4.5A @ +5V (rev A103 or higher)
Typical:
3.3 A @ +5V, 0.08A @ +12V (with 256 MB DRAM, Ezra 800 MHz
CPU)(rev A101, A102)
2.78A @ +5V, 0.08A @ +12V (with 256 MB DRAM, Eden 400 MHz
CPU)(rev A101, A102)
3.4 A @+5V (with 256MB DRAM, Ezra 800 MHz CPU) (rev A103 or
higher)
2.88A @+5V (with 256MB DRAM, Eden 400 MHz CPU) (rev A103 or
higher)
• Operating temperature: 0 ~ 60°C (32 ~ 140°F)
• Operating humidity: 0% ~ 90% Relative Humidity, Noncondensing
• Weight: 0.64 kg (weight of total package)
+5 V ±5%, +12V ±5% (PCM-9575 rev A101, A102)
+5 V ±5% (PCM-9575 rev A103)
5 Chapter 1 General Information
1.4 Board layout: dimensions
Figure 1.1: Board layout: dimensions
PCM-9575 User’s Manual 6
2
CHAPTER
Installation
This chapter explains the setup procedures
of PCM-9575 hardware, including instructions on setting jumpers and connecting
peripherals, switches and indicators. Be
sure to read all safety precautions before
you begin the installation procedure.
7 Chapter 2 Installation
Chapter 2 Installation
2.1 Jumpers
The PCM-9575 has a number of jumpers that allow you to configure your
system to suit your application. The table below lists the functions of the
various jumpers.
Table 2.1: Jumpers
Label Function
JP1
JP2 LAN controller power select (Rev A101only)
JP3 DOC2000 address select
JP4 CMOS clear
JP5 Watchdog timer action
JP6 COM2 RS232/422/485 setting
S1 Panel type select
PCI VIO select
2.2 Connectors
On-board connectors link the PCM-9575 to external devices such as hard
disk drives, a keyboard, or floppy drives. The table below lists the function of each of the board’s connectors.
Table 2.2: Connectors
Label Function
CN1 TV-out connector
CN2 Audio CD in connector
CN3 ATX feature connector
CN4 Audio connector
CN5 EBX Main Power connector
CN6 Backlight control connector
PCM-9575 User’s Manual 8
Table 2.2: Connectors
CN8 CRT display connector
CN9 LVDS connector
CN10 Ext. flat panel connector
CN11 Flat panel connector
CN12 Ethernet connector
CN13 Power & HDD LED connector
CN14 IDE hard drive connector (secondary)
CN15 Parallel port connector
CN16 IDE hard drive connector (primary)
CN17 PC/104 plus (ISA + PCI) expansion
CN18 Floppy drive connector
CN19 COM port connector
CN20 USB channel 1, 2 connector
CN21 N/A
CN22 reset button connector
CN23 ATX power on/off switch connector
CN24 IR connector
CN25 Keyboard and PS/2 mouse connector
CN26 CFC connector
CN27 Peripheral power connector
CN28 USB channel 3, 4 connector (optional)
Fan1 CPU fan power connector
9 Chapter 2 Installation
2.3 Locating jumpers
Figure 2.1: Jumper locations
PCM-9575 User’s Manual 10
2.4 Locating Connectors
Figure 2.2: Connectors (component side)
11 Chapter 2 Installation
2.5 Setting Jumpers
You may configure your card to match the needs of your application by
setting jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To “close” a
jumper, you connect the pins with the clip. To “open” a jumper, you
remove the clip. Sometimes a jumper will have three pins, labeled 1, 2
and 3. In this case you would connect either pins 1 and 2, or 2 and 3.
open closed closed 2-3
The jumper settings are schematically depicted in this manual as follows:.
open closed closed 2-3
A pair of needle-nose pliers may be helpful when working with jumpers.
If you have any doubts about the best hardware configuration for your
application, contact your local distributor or sales representative before
you make any changes.
Generally, you simply need a standard cable to make most connections.
PCM-9575 User’s Manual 12
2.6 Clear CMOS (JP4)
Warning! To avoid damaging the computer, always turn
off the power supply before setting “Clear
CMOS.” Before turning on the power supply,
set the jumper back to “3.0 V Battery On.”
This jumper is used to erase CMOS data and reset system BIOS information.
The procedure for clearing CMOS is:
1. Turn off the system.
2. Short pin 2 and pin 3.
3. Return jumper to pins 1 and 2.
4. Turn on the system. The BIOS is now reset to its default setting
Table 2.3: CMOS clear (JP4)
*3.0 V Battery on Clear CMOS
* default setting
13 Chapter 2 Installation
2.7 Installing DIMMs
The procedure for installing DIMMs is described below. Please follow
these steps carefully. The number of pins are different on either side of
the breaks, so the module can only fit in one way. DIMM modules have
different pin contacts on each side, and therefore have a higher pin density.
1. Make sure that the two handles of the DIMM socket are in the
“open” position. i.e. The handles remain leaning outward.
2. Slowly slide the DIMM module along the plastic guides on both
ends of the socket.
3. Press the DIMM module right down into the socket, until you hear
a click. This is when the two handles have automatically locked the
memory module into the correct position of the socket.
To remove the memory module, just push both handles outward, and the
module will be ejected from the socket.
2.8 IDE, CDROM hard drive connector (CN14, CN16)
The PCM-9575 provides 2 IDE channels which you can attach up to four
Enhanced Integrated Device Electronics hard disk drives or CDROM to
the PCM-9575’s internal controller. The PCM-9575's IDE controller uses
a PCI interface. This advanced IDE controller supports faster data transfer, PID mode 3, mode 4 and UDMA/100. The secondary channel supports UDMA/33 only.
2.8.1 Connecting the hard drive
Connecting drives is done in a daisy-chain fashion. It requires one of two
cables (not included in this package), depending on the drive size. 1.8"
and 2.5" drives need a 1 x 44-pin to 2 x 44-pin flat-cable connector. 3.5"
drives use a 1 x 44-pin to 2 x 40-pin connector.
Wire number 1 on the cable is red or blue, and the other wires are gray.
1. Connect one end of the cable to CN14 or CN16. Make sure that the
red (or blue) wire corresponds to pin 1 on the connector, which is
labeled on the board (on the right side).
2. Plug the other end of the cable into the Enhanced IDE hard drive,
with pin 1 on the cable corresponding to pin 1 on the hard drive.
PCM-9575 User’s Manual 14
(See your hard drive’s documentation for the location of the connector.)
If desired, connect a second drive as described above.
Unlike floppy drives, IDE hard drives can connect to either end of the
cable. If you install two drives, you will need to set one as the master and
one as the slave by using jumpers on the drives. If you install only one
drive, set it as the master.
2.9 Solid State Disk
The PCM-9575 provides a CompactFlash™ card socket and DiskOnChip
socket for Solid state disk solutions.
2.9.1 CompactFlash (CN26)
The CompactFlash card shares a secondary IDE channel which can be
enabled/disabled via the BIOS settings.
2.10 Floppy drive connector (CN18)
You can attach up to two floppy drives to the PCM-9575’s on-board controller. You can use any combination of 5.25” (360 KB and 1.2 MB) and/
or 3.5” (720 KB, 1.44 MB, and 2.88 MB) drives.
A 34-pin daisy-chain drive connector cable is required for a dual-drive
system. On one end of the cable is a 34-pin flat-cable connector. On the
other end are two sets of floppy disk drive connectors. Each set consists
of a 34-pin flat-cable connector (usually used for 3.5” drives) and a
printed-circuit board connector (usually used for 5.25” drives).
2.10.1 Connecting the floppy drive
1. Plug the 34-pin flat-cable connector into CN18. Make sure that the
red wire corresponds to pin one on the connector.
2. Attach the appropriate connector on the other end of the cable to
the floppy drive(s). You can use only one connector in the set. The
set on the end (after the twist in the cable) connects to the A: drive.
The set in the middle connects to the B: drive.
3. If you are connecting a 5.25” floppy drive, line up the slot in the
printed circuit board with the blocked-off part of the cable connector.
15 Chapter 2 Installation
If you are connecting a 3.5” floppy drive, you may have trouble determining which pin is number one. Look for a number printed on the circuit
board indicating pin number one. In addition, the connector on the floppy
drive may have a slot. When the slot is up, pin number one should be on
the right. Check the documentation that came with the drive for more
information.
If you desire, connect the B: drive to the connectors in the middle of the
cable as described above.
In case you need to make your own cable, you can find the pin assignments for the board’s connector in Appendix C.
2.11 Parallel port connector (CN15)
Normally, the parallel port is used to connect the card to a printer. The
PCM-9575 includes a multi-mode (ECP/EPP/SPP) parallel port accessed
via CN15 and a 26-pin flat-cable connector. You will need an adapter
cable if you use a traditional DB-25 connector. The adapter cable has a
26-pin connector on one end, and a DB-25 connector on the other.
The parallel port is designated as LPT1, and can be disabled or changed to
LPT2 or LPT3 in the system BIOS setup.
The parallel port interrupt channel is designated to be IRQ7.
You can select ECP/EPP DMA channel via BIOS setup.
2.12 Keyboard and PS/2 mouse connector (CN25)
The PCM-9575 board provides a keyboard connector that supports both a
keyboard and a PS/2 style mouse. In most cases, especially in embedded
applications, a keyboard is not used. If the keyboard is not present, the
standard PC/AT BIOS will report an error or fail during power-on selftest (POST) after a reset. The PCM-9575’s BIOS standard setup menu
allows you to select “All, But Keyboard” under the “Halt On” selection.
This allows no-keyboard operation in embedded system applications,
without the system halting under POST.
2.13 Power & HDD LED, Reset Button Connector (CN13, CN22)
Next, you may want to install external switches to monitor and control the
PCM-9575. These features are optional: install them only if you need
PCM-9575 User’s Manual 16
them. The front panel connector (CN13) is an 8-pin male, dual in-line
header. It provides connections for a speaker, hard disk access indicator,
watchdog output, and an input switch for resetting the card.
2.13.1 Power & HDD LED (CN13)
The HDD LED indicator for hard disk access is an active low signal (24
mA sink rate). Power supply activity LED indicator.
2.13.2 Reset switch (CN22)
If you install a reset switch, it should be an open single pole switch.
Momentarily pressing the switch will activate a reset. The switch should
be rated for 10 mA, 5 V.
2.14 Power connectors (CN27, CN5, FAN1)
2.14.1 Peripheral power connector, -5 V, -12 V (CN27)
Supplies secondary power to devices that require -5 V and -12 V.
2.14.2 Main power connector, +5 V, +12 V (CN5)
Supplies main power to the PCM-9575 (+5 V), and to devices that require
+12 V.
2.14.3 CPU Fan power supply connector (FAN1)
Provides power supply to CPU cooling fan. Only present when +5 V and
+12 V power is supplied to the board.
2.15 ATX power control connector (CN3, CN23)
2.15.1 ATX feature connector (CN3) and soft power
switch connector (CN23)
The PCM-9575 can support an advanced soft power switch function, if an
ATX power supply is used. To enable the soft power switch function:
1. Get the specially designed ATX-to-EBX power cable
(PCM-9575 optional item, part no. 1703200100)
2. Connect the 3-pin plug of the cable to CN3 (ATX feature connector).
3. Connect the power on/off button to CN23. (A momentary type of
button should be used.)
17 Chapter 2 Installation
Important Make sure that the ATX power supply can take
at least a 10 mA load on the 5 V standby lead
(5VSB). If not, you may have difficulty powering on your system.
to CN3 ATX
features connector
ATX
power supply
to main power
connector CN5
20-pin
female connector
Figure 2.3: Wiring for ATX soft power switch function
2.16 IR connector (CN24)
This connector supports the optional wireless infrared transmitting and
receiving module. This module mounts on the system case. You must
configure the setting through BIOS setup.
2.17 Audio interfaces (CN4, CN2)
The PCM-9575 is equipped with a high-quality audio interface, which
provides 16-bit CD-quality recording and playback as well as OPL3 compatible FM music. It is supported by all major operating systems.
PCM-9575 User’s Manual 18
2.17.1 Audio connector (CN4)
The PCM-9575 provides all major audio signals on a 16-pin flat-cable
connector, CN4. These audio signals include Microphone in (mono), Line
in (stereo), Line out (stereo), and Speaker out (stereo). If you use traditional telephone jack connectors for these audio signals, you will need an
adapter cable.
2.17.2 CD audio input connector (CN2)
Any CD-ROM drive can provide analog audio signal output when used as
a music CD player. The CN2 on PCM-9575 is a connector to input CD
audio signals into the audio controller. The audio cable of your CD-ROM
drive will be used to connect to CN2.
2.18 COM port connector (CN19)
The PCM-9575 provides four serial ports (COM1, 3, 4: RS-232; COM2:
RS-232/422/485) in one COM port connector. The COM port connector
is a 40-pin, dual-inline, male header. It provides connections for serial
devices (a mouse, etc.) or a communication network. You can find the pin
assignments for the COM port connector in Appendix C.
2.18.1 COM2 RS-232/422/485 setting (JP6)
COM2 can be configured to operate in RS-232, RS-422, or RS-485 mode.
This is done via JP6
JP6: COM2 RS-232/422/485 select
PINS RS-232* RS-422 RS-485
1-2 Open Open Closed
3-4 Open Closed Open
5-6 Closed Open Open
7-9 Closed Open Open
8-10 Closed Open Open
9-11 Open Closed Closed
10-12 Open Closed Closed
13-15 Closed Open Open
14-16 Closed Open Open
15-17 Open Closed Closed
16-18 Open Closed Closed
19 Chapter 2 Installation
2.19 VGA/LCD/LVDS interface connections
The PCM-9575’s PCI SVGA interface can drive conventional CRT displays and is capable of driving a wide range of flat panel displays, including passive LCD and active LCD displays. The board has three
connectors to support these displays: one for standard CRT VGA monitors, one for flat panel displays, and one for LVDS type LCD panels.
2.19.1 CRT display connector (CN8)
CN8 is a 16-pin, dual-inline header used for conventional CRT displays.
A simple one-to-one adapter can be used to match CN8 to a standard 15pin D-SUB connector commonly used for VGA.
Pin assignments for CRT display connector CN8 are detailed in Appendix
C.
2.19.2 Flat panel display connector (CN11)
CN11 consists of a 40-pin connector which can support a 24-bit LCD
panel. It is Hirose’s product no. DF13A-40DP-1.25 V
The PCM-9575 provides a bias control signal on CN11 that can be used
to control the LCD bias voltage. It is recommended that the LCD bias
voltage not be applied to the panel until the logic supply voltage (+5 V or
+3.3 V) and panel video signals are stable. Under normal operation, the
control signal (ENAVEE) is active high. When the PCM-9575’s power is
applied, the control signal is low until just after the relevant flat panel signals are present. CN11 can connect up to 24 bit TFT LCD.
2.19.3 Extension flat panel connector (CN10)
CN10 consists of a 20-pin connector which is Hirose’s product no.
DF13A-20DP-1.25V. The PCM-9575 supports a 36-bit LCD panel which
must be connected to both the CN11 (40-pin) and the CN10 (20-pin). The
pin assignments for both CN11and the CN10 can be found in Appendix C
2.19.4 LVDS LCD panel connector (CN9)
The PCM-9575 uses the VIA Twister chip that supports 2 channel (2 x
18 bit) LVDS LCD panel displays. Users can connect to either an 18-bit
or 36-bit LVDS LCD with CN9.
2.19.5 Panel type selection (S1)
PCM-9575 User’s Manual 20
S1 is an 8 segment DIP switch for DSTN/TFT panel type and resolution
functions.
Table 2.4: S1 Panel Type select
SW
1-1SW1-2SW1-3SW1-4 Panel Type & Resolution
ON ON ON ON TFT 640x480** 18bit (H. V. Freq)
ON ON ON OFF TFT 648x480 18bit (Synthetic)
ON ON OFF ON TFT 648x480** N/A
ON ON OFF OFF TFT 648x480** LVDS
ON OFF ON ON DSTN 648x480** 18bit
ON OFF ON OFF TFT 800x600** 18bit (H. V. Freq)
ON OFF OFF ON TFT 800x600* 18bit (Synthetic)
ON OFF OFF OFF TFT 800x600 LVDS
OFF ON ON ON TFT 800x600** N/A
OFF ON ON OFF DSTN 800x600** 18bit
OFF ON OFF ON TFT 1024x768** 36bit (H. V. Freq)
OFF ON OFF OFF TFT 1024x768 36bit (Synthetic)
OFF OFF ON ON TFT 1024x768** LVDS
OFF OFF ON OFF TFT 1024x768** N/A
OFF OFF OFF ON DSTN 1024x768** 18bit
OFF OFF OFF OFF DSTN 1024x768** 24bit
* Default setting
** will support in the future
2.20 TV-out interface (optional) (CN1)
The PCM-9575 board provides optional TV-out via CN1. This consists of
a 5-pin wafer box header. Output supports composite video and S-video
connectors via an optional cable kit (p/n: 1103050306). TV-out generators use both NTSC and PAL formats.
To set up your video interface:
1. Run the appropriate installation program located on the utility disk.
That’s all there is to it.
21 Chapter 2 Installation
2.21 Ethernet configuration
The PCM-9575 is equipped with a high performance 32-bit PCI-bus
Ethernet interface which is fully compliant with IEEE 802.3U 10/
100Mbps CSMA/CD standards. It is supported by all major network
operating systems.
The medium type can be configured via the RSET8139.EXE program
included on the utility disk. (See Chapter 3 for detailed information.)
2.21.1 100Base-T connector (CN12)
10/100Base-T connects to the PCM-9575 via an adapter cable to a 10-pin
polarized header (CN12).
2.21.2 Network boot
The Network Boot feature can be utilized by incorporating the Boot
ROM image files for the appropriate network operating system. The Boot
ROM BIOS files are included in the system BIOS, which is on the utility
CD disc.
2.21.3 LAN controller power select (JP2)
Table 2.5: LAN controller power select (JP2)
3.3 V* Standby 3.3V
* default setting
Note: PCM-9575 supports Wake-on-LAN. For Wake-on LAN, J6 has to
be set to the Standby 3.3 V position
2.22 Watchdog timer configuration
An on-board watchdog timer reduces the chance of disruptions which
EMP (electro-magnetic pulse) interference can cause. This is an invaluable protective device for standalone or unmanned applications. Setup
PCM-9575 User’s Manual 22
involves one jumper and running the control software (refer to Appendix
A).
2.22.1 Watchdog timer action (JP5)
When the watchdog timer activates (CPU processing has come to a halt),
it can reset the system or generate an interrupt on IRQ11. This can be set
via setting JP5 as shown below:
Table 2.6: Watchdog timer action (JP5)
*System reset IRQ 11
* default setting
2.23 USB connectors (CN20, CN28)
The PCM-9575 board provides up to four USB (Universal Serial Bus)
ports, with USB3 and USB4 optional. This gives complete Plug and Play,
and hot attach/detach for up to 127 external devices. The USB interfaces
comply with USB specification Rev. 1.1, and are fuse protected.
The USB interface is accessed through two 5 x 2-pin flat-cable connectors, CN20 (USB1, 2); and CN28 (USB3, 4). You will need an adapter
cable if you use a standard USB connector. The adapter cable has a 5 x 2pin connector on one end and a USB connector on the other.
The USB interfaces can be disabled in the system BIOS setup.
23 Chapter 2 Installation
PCM-9575 User’s Manual 24
3
CHAPTER
Software Configuration
This chapter details the software configuration information. It shows you how to configure the card to match your application
requirements. The AWARD System BIOS is
covered in Chapter 4.
Sections include:
• Introduction
• Connections for standard LCDs
• Ethernet interface configuration.
25 Chapter 3 Software Configuration
Chapter 3 Software Configuration
3.1 Introduction
The PCM-9575 system BIOS and custom drivers are located
in a 256 Kbyte, Flash ROM device, designated U18. A single
Flash chip holds the system BIOS, VGA BIOS and network
Boot ROM image. The display can be configured via CMOS
settings. This method minimizes the number of chips and difficulty of configuration. To set different types of LCD panels, please choose “panel type” from the “integrated
peripherals” menu in CMOS setup.
PCM-9575 User’s Manual 26
3.2 Connections to Three Standard LCDs
The following tables illustrate typical LCD connection pinouts for the
PCM-9575.
3.2.1 Connections to Toshiba LTM10C209A
(640 x 480 TFT color LCD)
Table 3.1: Connections to Toshiba LTM10C209A
LTM10C209A PCM-9575 CN11
Pin Name Pin Name
1 GND 3 GND
2 CLK 35 SHFCLK
3GND 34GND
4R0 27P18
5R1 28P19
6R2 29P20
7GND 33GND
8R3 30P21
9R4 31P22
10 R5 32 P23
11 GND 34 GND
12 G0 19 P10
13 G1 20 P11
14 G2 21 P12
15 GND 8 GND
16 G3 22 P13
17 G4 23 P14
18 G5 24 P15
19 GND 8 GND
20 ENAB 37 M/DE
21 GND 4 GND
22 B0 11 P2
23 B1 12 P3
24 B2 13 P4
25 GND 4 GND
26 B3 14 P5
27 B4 15 P6
27 Chapter 3 Software Configuration
Table 3.1: Connections to Toshiba LTM10C209A
28 B5 16 P7
29 GND 3 GND
30 VDD 1 +5 V
31 VDD 2 +5 V
3.2.2 Connections to Toshiba LTM15C151A
Table 3.2: Connections to Toshiba
LTM15C151A
LTM15C151A
PCM-9575 CN11
(1024 x 768 TFT color LCD)
Pin Name Pin Name
CN1-1 GND CN 11-33 GND
CN1-2 NCLK CN 11-35 LDSCLK1
CN1-3 NC
CN1-4 NC
CN1-5 GND CN 11-3 GND
CN1-6 OR0 CN 11-9 PD0
CN1-7 OR1 CN 11-11 PD2
CN1-8 OR2 CN 11-13 PD4
CN1-9 OR3 CN 11-15 PD6
CN1-10 OR4 CN 11-17 PD8
CN1-11 OR5 CN 11-19 PD10
CN1-12 GND CN 11-3 GND
CN1-13 OG0 CN 11-21 PD12
CN1-14 OG1 CN 11-23 PD14
CN1-15 OG2 CN 11-25 PD16
CN1-16 OG3 CN 11-27 PD18
CN1-17 OG4 CN 11-29 PD20
CN1-18 OG5 CN 11-31 PD22
CN1-19 GND CN 10-1 GND
CN1-20 OB0 CN 10-3 PD24
CN1-21 OB1 CN 10-5 PD26
CN1-22 OB2 CN 10-7 PD28
CN1-23 OB3 CN 10-9 PD30
CN1-24 OB4 CN 10-11 PD32
PCM-9575 User’s Manual 28
Table 3.2: Connections to Toshiba
CN1-25 OB5 CN 10-13 PD34
CN1-26 ENAB CN 11-37 M/DE
CN1-27 GND CN 11-34 GND
CN1-28 VDD CN 11-1 +5V
CN1-29 VDD CN 11-2 +5V
CN1-30 GND CN 11-8 GND
LTM15C151A
3.2.3 Connections to Toshiba LTM12C275A
(800 x 600 TFT color LCD)
Table 3.3: Connections to Toshiba LTM12C275A
LTM12C275A PCM-9575 CN11
Pin Name Pin Name
1 GND 3 GND
2 NCLK 35 SHFCLK
3NC -NC
4NC -NC
5 GND 4 GND
6R0 27P18
7R1 28P19
8R2 29P20
9R3 30P21
10 R4 31 P22
11 R5 32 P23
12 GND 8 GND
13 G0 19 P10
14 G1 20 P11
15 G2 21 P12
16 G3 22 P13
17 G4 23 P14
18 G5 24 P15
19 GND 33 GND
20 B0 11 P2
21 B1 12 P3
22 B2 13 P4
29 Chapter 3 Software Configuration
Table 3.3: Connections to Toshiba LTM12C275A
23 B3 14 P5
24 B4 15 P6
25 B5 16 P7
26 ENAB 37 M/DE
27 GND 34 GND
28 VCC 5 +5 V
29 VCC 6 +5 V
30 GND 39 GND
3.3 Ethernet software configuration
The PCM-9575’s on-board Ethernet interface supports all major network
operating systems. To configure the medium type, to view the current
configuration, or to run diagnostics, do the following:
1. Power the PCM-9575 on. Make sure that the RSET8139.EXE file
is located in the working drive.
2. At the prompt, type RSET8139.EXE and press <Enter>. The Ethernet configuration program will then be displayed.
3. This simple screen shows all the available options for the Ethernet
interface. Just highlight the option you wish to change by using the
Up and Down keys. To change a selected item, press <Enter>, and
a screen will appear with the available options. Highlight your
option and press <Enter>. Each highlighted option has a helpful
message guide displayed at the bottom of the screen for additional
information.
4. After you have made your selections and are sure this is the configuration you want, press ESC. A prompt will appear asking if you
want to save the configuration. Press Y if you want to save.
The Ethernet Setup Menu also offers three very useful diagnostic functions. These are:
1. Run EEPROM Test.
2. Run Diagnostics on Board.
3. Run Diagnostics on Network.
Each option has its own display screen that shows the format and result of
any diagnostic tests undertaken.
PCM-9575 User’s Manual 30
Note For Ethernet installation, please see Chapter 7
31 Chapter 3 Software Configuration
PCM-9575 User’s Manual 32
Chapter 4 Ducks that Need Love!
4
CHAPTER
Award BIOS Setup
This chapter describes how to set BIOS
configuration data.
33 Chapter 4 Award BIOS Setup
Chapter 4 Award BIOS Setup
4.1 System test and initialization
These routines test and initialize board hardware. If the routines encounter an error during the tests, you will either hear a few short beeps or see
an error message on the screen. There are two kinds of errors: fatal and
non-fatal. The system can usually continue the boot up sequence with
non-fatal errors. Non-fatal error messages usually appear on the screen
along with the following instructions:
press <F1> to RESUME
Write down the message and press the F1 key to continue the bootup
sequence.
4.1.1 System configuration verification
These routines check the current system configuration against the values
stored in the board’s CMOS memory. If they do not match, the program
outputs an error message. You will then need to run the BIOS setup program to set the configuration information in memory.
There are three situations in which you will need to change the CMOS
settings:
1. You are starting your system for the first time
2. You have changed the hardware attached to your system
3. The CMOS memory has lost power and the configuration information has been erased.
The PCM-9575 Series' CMOS memory has an integral lithium battery
backup. The battery backup should last ten years in normal service, but
when it finally runs down, you will need to replace the complete unit.
PCM-9575 User’s Manual 34
4.2 Award BIOS setup
Award’s BIOS ROM has a built-in Setup program that allows users to
modify the basic system configuration. This type of information is stored
in battery-backed CMOS RAM so that it retains the Setup information
when the power is turned off.
4.2.1 Entering setup
Power on the computer and press <Del> immediately. This will allow you
to enter Setup.
Figure 4.1: BIOS setup program initial screen
35 Chapter 4 Award BIOS Setup
4.2.2 Standard CMOS Features setup
When you choose the Standard CMOS Features option from the Initial
Setup Screen menu, the screen shown below is displayed. This standard
Setup Menu allows users to configure system components such as date,
time, hard disk drive, floppy drive and display. Once a field is highlighted, on-line help information is displayed in the left bottom of the
Menu screen.
Figure 4.2: CMOS Features setup
PCM-9575 User’s Manual 36
4.2.3 Advanced BIOS Features setup
By choosing the Advanced BIOS Features Setup option from the Initial
Setup Screen menu, the screen below is displayed. This sample screen
contains the manufacturer’s default values for the PCM-9575 Series.
Figure 4.3: Advanced BIOS Features setup
37 Chapter 4 Award BIOS Setup
4.2.4 Advanced Chipset Features setup
By choosing the Advanced Chipset Features option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCM-9575 Series.
Figure 4.4: Advanced Chipset Features setup
PCM-9575 User’s Manual 38
4.2.5 Integrated Peripherals
Choosing the Integrated Peripherals option from the Initial Setup Screen
menu should produce the screen below. Here we see the manufacturer’s
default values for the PCM-9575 Series.
Figure 4.5: Integrated Peripherals
4.2.6 Power Management Setup
By choosing the Power Management Setup option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCM-9575 Series.
Figure 4.6: Power Management Setup
39 Chapter 4 Award BIOS Setup
4.2.7 PnP/PCI Configurations
By choosing the PnP/PCI Configurations option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCM-9575 Series.
Figure 4.7: PnP/PCI Configurations
4.2.8 PC Health Status
The PC Health Status option displays information such as CPU and motherboard temperatures, fan speeds, and core voltage.
Figure 4.8: PC Health Status
PCM-9575 User’s Manual 40
4.2.9 Frequency/Voltage Control
By choosing the Frequency/Voltage Control option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCM-9575
Figure 4.9: Frequency/Voltage Control
Caution Incorrect settings in Frequency/Voltage Control
may damage the system CPU, video adapter,
or other hardware.
41 Chapter 4 Award BIOS Setup
4.2.10 Load Optimized Defaults
Load Optimized Defaults loads the default system values directly from
ROM. If the stored record created by the Setup program should ever
become corrupted (and therefore unusable), these defaults will load automatically when you turn the PCM-9575 Series system on.
Figure 4.10: Load BIOS defaults screen
4.2.11 Set Password
Note To enable this feature, you should first go to the
Advanced BIOS Features menu, choose the
Security Option, and select either Setup or
System, depending on which aspect you want
password protected. Setup requires a password only to enter Setup. System requires the
password either to enter Setup or to boot the
system.
A password may be at most 8 characters long.
To Establish Password
1. Choose the Set Password option from the CMOS Setup Utility
main menu and press <Enter>.
2. When you see “Enter Password,” enter the desired password and
press <Enter>.
PCM-9575 User’s Manual 42
3. At the “Confirm Password” prompt, retype the desired password,
then press <Enter>.
4. Select Save to CMOS and EXIT, type <Y>, then <Enter>.
To Change Password
1. Choose the Set Password option from the CMOS Setup Utility
main menu and press <Enter>.
2. When you see “Enter Password,” enter the existing password and
press <Enter>.
3. You will see “Confirm Password.” Type it again, and press
<Enter>.
4. Select Set Password again, and at the “Enter Password” prompt,
enter the new password and press <Enter>.
5. At the “Confirm Password” prompt, retype the new password, and
press <Enter>.
6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.
To Disable Password
1. Choose the Set Password option from the CMOS Setup Utility
main menu and press <Enter>.
2. When you see “Enter Password,” enter the existing password and
press <Enter>.
3. You will see “Confirm Password.” Type it again, and press
<Enter>.
4. Select Set Password again, and at the “Enter Password” prompt,
don’t enter anything; just press <Enter>.
5. At the “Confirm Password” prompt, again don’t type in anything;
just press <Enter>.
6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.
4.2.12 Save & Exit Setup
If you select this option and press <Y> then <Enter>, the values entered
in the setup utilities will be recorded in the chipset’s CMOS memory. The
microprocessor will check this every time you turn your system on and
use the settings to configure the system. This record is required for the
system to operate.
43 Chapter 4 Award BIOS Setup
4.2.13 Exit Without Saving
Selecting this option and pressing <Enter> lets you exit the Setup program without recording any new values or changing old ones.
PCM-9575 User’s Manual 44
PCI SVGA Setup
• Introduction
• Installation of SVGA drivers
-for Windows 95/98/Me
-for Windows NT/2000/XP
• Further information
5
CHAPTER
45 Chapter 5 PCI SVGA Setup
Chapter 5 PCI SVGA Setup
5.1 Introduction
The PCM-9575 has an onboard AGP flat panel/VGA interface. The specifications and features are described as follows:
5.1.1 Chipset
The PCM-9575 uses a VIA Twister 8606T chipset from VIA Technology
Inc. for its AGP/SVGA controller. It supports many popular LCD, and
LVDS LCD displays and conventional analog CRT monitors. The
VIA8606T VGA BIOS supports color TFT and DSTN LCD flat panel
displays. In addition, it also supports interlaced and non-interlaced analog
monitors (color and monochrome VGA) in high-resolution modes while
maintaining complete IBM VGA compatibility. Digital monitors
(i.e. MDA, CGA, and EGA) are NOT supported. Multiple frequency
(multisync) monitors are handled as if they were analog monitors.
5.1.2 Display memory
The Twister chip can support 8/16/32MB frame buffer shared with system memory; the VGA controller can drive CRT displays or color panel
displays with resolutions up to 1280 x 1024 at 16 M colors.
5.1.3 Display types
CRT and panel displays can be used simultaneously. The PCM-9575 can
be set in one of three configurations: on a CRT, on a flat panel display, or
on both simultaneously. The system is initially set to simultaneous display mode. If you want to enable the CRT display only or the flat panel
display only, please contact VIA Technology Inc., or our sales representative for detailed information.
PCM-9575 User’s Manual 46
5.1.4 Dual/Simultaneous Display
The PCM-9575 uses a VIA Twister VT8606T LCD controller that is
capable of providing simultaneous dual view display of the same content
on a flat panel and CRT.
To set up dual view (simultaneus mode) under Windows 9x, Windows
ME, Windows NT/2000/XP, follow these steps:
Step 1. Open the Control panel, and select “Display”, “Settings”.
Step 2. Select " CRT+LCD " or " CRT+TV " for dual view
Step 3. Click “OK”.
Figure 5.1: Selecting Display Settings
47 Chapter 5 PCI SVGA Setup
5.2 Installation of the SVGA Driver
Complete the following steps to install the SVGA driver. Follow the procedures in the flow chart that apply to the operating system that you are
using within your PCM-9575.
Notes: 1. The windows illustrations in this chapter are
intended as examples only. Please follow the
listed steps, and pay attention to the instructions which appear on your screen.
2. For convenience, the CD-ROM drive is designated as "D" throughout this chapter.
5.2.1 Installation for Windows 95
Step 1. Select "Start", "Settings", "Control Panel", "Display", "Settings”,
and "Advanced Properties".
PCM-9575 User’s Manual 48
Step 2. Choose the "Adapter" tab, then press the "Change..." button.
Step 3. Press the "Have Disk" button.
49 Chapter 5 PCI SVGA Setup
Step 4. Type in the path:
D:\Biscuit\9575\VGA\Win9x_Me
Step 5. Select the highlighted item, and click the "OK" button.
PCM-9575 User’s Manual 50
Step 6. "S3 GraphicsTwister" appears under the adapter tab. Click the
"Apply" button, then the "OK" button.
Step 7. Press “Yes” to reboot.
51 Chapter 5 PCI SVGA Setup
5.2.2 Installation for Windows 98/Me
Step 1. Select "Start", "Settings", "Control Panel", "Display", and "Set-
tings," then press the "Advanced..." button.
PCM-9575 User’s Manual 52
Step 2. Select “Adapter,” then “Change.”
53 Chapter 5 PCI SVGA Setup
Step 3. Press “Next,” then “Display a list....”
Step 4. Press the “Have disk...” button.
PCM-9575 User’s Manual 54
Step 5. Insert the CD into the CD-ROM drive. Type in the path
D:\Biscuit\9575\VGA\Win9x_Me
Then press “OK”
Step 6. Select the highlighted item, then click “OK.”
55 Chapter 5 PCI SVGA Setup
Step 7. "S3 Graphics Twister"appears under the adapter tab. Click the
"Apply" button.
Step 8. Press “Yes” to reboot.
PCM-9575 User’s Manual 56
5.2.3 Installation for Windows NT
Note: Service Pack X (X = 3, 4, 5, 6,...) must be
installed first, before you install the Windows
NT VGA driver.
Step 1. Select "Start", "Settings", "Control Panel" and double click the
"Display" icon.
57 Chapter 5 PCI SVGA Setup
Step 2. Choose the "Settings" tab, and press the "Display Type" button.
PCM-9575 User’s Manual 58
Step 3. Press the "Change..." button.
59 Chapter 5 PCI SVGA Setup
Step 4. Click the "Have Disk..." button.
Step 5. Type the path:
D:\Biscuit\VGA\WinNT
Press the "OK" button.
PCM-9575 User’s Manual 60
Step 6. Select the highlighted item, and click the "OK" button.
Step 7. Press "Yes" to proceed.
Step 8. Press "OK" to reboot.
61 Chapter 5 PCI SVGA Setup
5.2.4 Installation for Windows 2000
Step 1. Select "System", "Settings", "Control Panel" and double click the
"system" icon.
PCM-9575 User’s Manual 62
Step 2. Choose the "Video Controller (VGA Compatible)” button.
63 Chapter 5 PCI SVGA Setup
Step 3. Choose the "Drive" button, press “Update Driver...” button.
PCM-9575 User’s Manual 64
Step 4. Choose "Display a list of..." , then press “Next” button.
Step 5. Choose “Display adapters”, press “Next” button.
65 Chapter 5 PCI SVGA Setup
Step 6. Click the “Have Disk” button.
Step 7. Type the path D:\Biscuit\9575\VGA\Win2000 press the “OK”
button.
PCM-9575 User’s Manual 66
Step 8. Press “Finish" to reboot.
5.2.5 Installation for Windows XP
Step 1. Select "System", "Settings", "Control Panel" and double click the
"system" icon.
67 Chapter 5 PCI SVGA Setup
Step 2. Choose “Hardware” and “Device Manager”, press “OK” button.
PCM-9575 User’s Manual 68
Step 3. Choose “Video Controller (VGA Compatible), press “OK” but-
ton.
69 Chapter 5 PCI SVGA Setup
Step 4. Choose "Driver”, “Update Driver”, press “OK” button.
Step 5. Choose “Install from a list.....” , press “Next”.
PCM-9575 User’s Manual 70
Step 6. Choose “Don’t search. I will....”, press “Next” button.
Step 7. Choose “Display adapters”, press “Next” button.
71 Chapter 5 PCI SVGA Setup
Step 8. Type the path D:\Biscuit\9575\VGA\WinXP then press “OK”
button.
Step 9. Choose “S3 Graphics Twister + S3 Hotkey” then press “Next”
button.
PCM-9575 User’s Manual 72
Step 10. Press “Finish" to reboot.
5.3 Further Information
For further information about the AGP/VGA installation in your PCM9575, including driver updates, troubleshooting guides and FAQ lists,
visit the following web resources:
VIA website: www.via.com.tw
73 Chapter 5 PCI SVGA Setup
PCM-9575 User’s Manual 74
6
CHAPTER
Audio Setup
The PCM-9575 is equipped with an audio
interface that records and plays back
CD-quality audio. This chapter provides
instructions for installing the software drivers
included on the audio driver diskettes.
75 Chapter 6 Audio Setup
Chapter 6 Audio Setup
6.1 Introduction
The PCM-9575's on-board audio interface provides high-quality stereo
sound and FM music synthesis (ESFM) by using the VIA VT82C686
audio controller from VIA. The audio interface can record, compress, and
play back voice, sound, and music with built-in mixer control.
The PCM-9575 on board audio interface also supports the Plug and Play
(PnP) standard and provides PnP configuration for the audio, FM, and
MPU-104 logical devices. It is compatible with Sound Blaster™; Sound
Blaster Pro™ version 3.01, voice and music functions. The ESFM synthesizer is register compatible with the OPL3 and has extended capabilities.
6.2 DOS utilities
6.2.1 VIA Sound Blaster Pro compatible set up program
Please "Enable" the Sound Blaster setting in the BIOS before playing
Sound Blaster compatible DOS games. To enable the settings in the
BIOS:
INTEGRATED PERIPHERALS -> Onboard Legacy Audio
-> Sound Blaster (Disable -> Enable)
Chipset Feature Setup ->On Chip Sound (Disable-> Enable)
The Sound Blaster Pro compatible sound chip is integrated into the VIA
PCI audio device in order to have Sound Blaster compatible DOS games
running on the system.
If you want to play Sound Blaster compatible DOS games under the real
mode MS-DOS or the "Restart in MS-DOS" from Win9x, then you
should run this setup program to enable OPL3 MIDI music. Otherwise,
the sound effects will be heard, but not the music. If you want to play legacy games in a Windows DOS Box, then you don't need to install this
program.
PCM-9575 User’s Manual 76
6.2.2 VIA Sound Blaster Installation
Follow these steps to enable the Sound Blaster Pro compatible functions.
Step 1. Enable the Sound Blaster first on the BIOS setting of the
"Onboard Legacy Audio" and "On-Chip Sound".
Step 2. Run the "Install.exe".
A:> INSTALL
Step 3. The program will copy the relative files into the directory which
you assign. Next, the program will insert the following new line
into the AUTOEXEC.BAT and copy the original
AUTOEXEC.BAT to AUTOEXEC.VIA.
C: \VIAUDIO\VIAUDIO.COM
Step 4. Reboot the system when the installation is complete.
Step 5. Uninstall by deleting the new line from the AUTOEXEC.BAT.
6.3 Driver installation
6.3.1 Before you begin
Please read the instructions in this chapter carefully before you attempt
installation. The audio drivers for the PCM-9575 board are located on the
audio driver CD. Run the supplied SETUP program to install the drivers;
don’t copy the files manually.
Note: The files on the software installation diskette
are compressed. Do not attempt to install the
drivers by copying the files manually. You must
use the supplied SETUP program to install the
drivers.
77 Chapter 6 Audio Setup
6.3.2 Windows 95/98 drivers
Step 1. Click "Start" and select "Settings". Click "Control Panel" and
double-click "Add New Hardware".
Step 2. In the Add New Hardware Wizard window, click "Next".
PCM-9575 User’s Manual 78
Step 3. In the following Add New Hardware Wizard window, click
"Next" for Windows to search for Plug and Play devices.
Step 4. In the following Add New Hardware Wizard window, select "No,
the device isn't in the list."and click "Next".
79 Chapter 6 Audio Setup
Step 5. In the following Add New Hardware Wizard window, select "No,
I want to select..." and click "Next".
Step 6. In the following Add New Hardware Wizard window, select
"Sound, video and game controllers" and click "Next".
PCM-9575 User’s Manual 80
Step 7. In the following Add New Hardware Wizard window, click
"Have Disk...".
Step 8. In the Install From Disk window, click "Browse".
81 Chapter 6 Audio Setup
Step 9. In the Open window, select
"D:\Biscuit\9575\Audio\98se_Me_2k_xp\WIN95_98.
Step 10. In the Install From Disk window, click" OK".
PCM-9575 User’s Manual 82
Step 11. In the Select Device window, select "VIA PCI Audio Controller
(WDM)" and click "OK".
Step 12. In the Add New Hardware Wizard window, click "Next".
83 Chapter 6 Audio Setup
Step 13. The Copying Files... window will appear.
Step 14. In the Add New Hardware Wizard window, click "Finish". Then
reboot the system.
PCM-9575 User’s Manual 84
6.3.3 Windows NT drivers
Step 1. Click "Start" and select "Settings". Click "Control Panel" and
double-click "Multimedia".
Step 2. In the Multimedia Properties window, select the "Devices" tab.
Then select the "Audio Devices" item, and click "Add...".
85 Chapter 6 Audio Setup
Step 3. In the Add window, select the "Unlisted..." item and click "OK".
Step 4. When the Install Driver window appears, insert the utility disc
into the CD-ROM drive. Type: D:\Biscuit\9575\Audio\WinNT\
Then click "OK".
PCM-9575 User’s Manual 86
Step 5. In the Add Unlisted or Updated Driver window, select the "VIA
PCI Audio controller" item. Then click "OK".
Step 6. In the System Setting Change window, click "Restart Now".
87 Chapter 6 Audio Setup
6.3.4 Windows 2000 Drivers
Step 1. Select “System”, “Setting”, “Control Panel” and double click
“system” icon.
Step 2. Choose “Multimedia Audio Controller” button.
PCM-9575 User’s Manual 88
Step 3. Choose “Driver button, press “Update Driver” button.
Step 4. Choose “Sound, video and game controllers”, press “Next”
89 Chapter 6 Audio Setup
Step 5. Click the “Have Disk...” button
Step 6. Type the path D:\Biscuit\9575\Audio\98se_Me_2k_xp\Win2000
press the “ok” button.
Step 7. Click “Have Disk” button
PCM-9575 User’s Manual 90
