IBM PC 365 User Manual

Download

Using Your Personal Computer

PC 365 with Pentium Pro Processor

Using Your Personal Computer

PC 365 with Pentium Pro Processor

IBM

Note

Before using this information and the product it supports, be sure to read the general information under Appendix B, “Product Warranties, License Information, and Notices” on page 111.

Third Edition (February 1997)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES

THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time.

This publication was produced in the United States of America. IBM may not offer the products, services, or features discussed in this document in other countries, and the information is subject to change without notice. Consult your local IBM representative for information on the products, services, and features available in your area.

Requests for technical information about IBM products should be made to your IBM reseller or IBM marketing representative.

Note to U.S. Government Users — Documentation related to restricted rights — Use, duplication or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Contents

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Laser Compliance Statement ............................... viii

Lithium Battery Notice ................................... ix

About This Book ...................................... xi

Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Chapter 1. Your IBM Personal Computer ....................... 1

What Your IBM Personal Computer Offers ....................... 2

Support for Pentium Pro Microprocessors ...................... 2

ISA Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PCI Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Expansion with Adapters ................................ 2

High-Capacity Hard Disk Drives ........................... 3

CD-ROM Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

PD/CD-ROM Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ECP/EPP Parallel Port ................................. 4

Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Universal Serial Bus Port ................................ 4

Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Wake on LAN ...................................... 5

IBM-Preinstalled Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating System Support ............................... 6

Ease-of-Use Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Ergonomic Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Advanced Power Management ............................ 7

Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Service and Support ................................... 7

Expandability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

External Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Features at a Glance ..................................... 12

System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Chapter 2. Arranging Your Workspace ........................ 17

Comfort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Glare and Lighting ..................................... 18

Air Circulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Electrical Outlets and Cable Lengths ........................... 18

 Copyright IBM Corp. 1997 iii

Chapter 3. Operating Your Personal Computer ................... 19

Using Controls and Status Indicators .......................... 19

Starting Your Personal Computer ............................ 20

Using a Mouse ........................................ 20

Shutting Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Configuring Your Computer ................................ 22

Starting the Configuration/Setup Utility Program ................. 23

Viewing and Changing Settings in the Configuration/Setup Utility Program . 24

Exiting from the Configuration/Setup Utility Program .............. 25

Viewing the System Summary .............................. 27

Setting the Date and Time ................................. 27

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Power-On Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Administrator Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Erasing Lost or Forgotten Passwords ......................... 33

Advanced Power Management .............................. 34

Automatic Hardware Power Management Features ................ 34

Automatic Power-On Features ............................. 36

Changing Keyboard Speed ................................. 37

Installing Video Device Drivers .............................. 37

Changing Monitor Settings ................................ 38

Updating System Programs ................................ 39

Diskettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Identifying Diskettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Handling and Storing Diskettes ............................ 41

Labeling Diskettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Inserting and Removing Diskettes ........................... 42

Write Protecting Diskettes ............................... 43

Formatting Diskettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Copying Diskettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Using a CD-ROM Drive .................................. 45

Handling a CD ...................................... 45

Loading a CD ....................................... 46

Using a PD/CD-ROM Drive ................................ 47

Handling and Storing PD/CD Drive Media ..................... 48

Loading and Ejecting PD/CD Drive Media ..................... 49

Formatting PD Cartridges ............................... 53

Using Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Locking the Cover and Sliding Door ......................... 55

Locking the Keyboard .................................. 55

Chapter 4. Taking Care of Your Computer ...................... 57

Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

iv Using Your Personal Computer

Cleaning Your Computer ................................. 57

Computer and Keyboard ................................ 57

Monitor Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Replacing the Battery .................................... 58

Moving Your Computer .................................. 59

Chapter 5. Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Using Diagnostic Tools ................................... 61

Power-On Self-Test (POST) ............................... 61

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

POST Message Charts .................................. 67

Troubleshooting Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Diagnostic Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Installing Files from Option Diskettes .......................... 97

Managing TSR Programs .................................. 97

Chapter 6. Getting Help, Service, and Information ................. 99

Using the HelpWare Support Family .......................... 99

Using Electronic Support Services ........................... 99

Getting Information by Fax .............................. 100

Getting Help Online .................................. 101

Getting Help by Telephone .............................. 101

Getting Help Around the World .......................... 102

Purchasing Additional HelpWare Services ...................... 102

Enhanced PC Support Line .............................. 103

900-Number Operating System and Hardware Support Line ......... 103

Network and Server Support Line ......................... 103

Ordering Support Line Services ........................... 104

Warranty and Repair Services ............................ 104

Ordering Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Appendix A. Computer Records . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Serial Numbers and Keys ................................ 107

Device Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Appendix B. Product Warranties, License Information, and Notices ..... 111

Hardware Limited Warranty .............................. 111

Appendix C. License Information . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Program Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Additional Terms and Conditions ........................... 115

Program Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Contents v

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

U.S. Government Users Restricted Rights ....................... 116

Other Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Other Additional Terms and Conditions ....................... 116

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Electronic Emission Notices ............................. 120

Telecommunication Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Power Cord Notice ................................... 124

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

vi Using Your Personal Computer

Safety Information

DANGER:

Electrical current from power, telephone, and communication cables is hazardous. To avoid shock hazard, connect and disconnect cables as shown below when installing, moving or opening the covers of this product or attached devices. The power cord must be used with a properly grounded outlet.

To Connect

Turn everything OFF.

To Disconnect

Turn everything OFF.

First, attach all cables to devices.

Attach signal cables to receptacles.

Attach power cord to outlet.

Turn device ON.

In the U.K., by law, the telephone cable must be connected after the power cord.

First, remove power cord from

outlet.

Remove signal cables from receptacles.

Remove all cables from devices.

In the U.K., by law, the power cord must be disconnected after the telephone line cable.

 Copyright IBM Corp. 1997 vii

Laser Compliance Statement

Some IBM Personal Computer models are equipped from the factory with a CD-ROM drive. CD-ROM drives are also sold separately as options. The CD-ROM drive is a laser product. The CD-ROM drive is certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.

When a CD-ROM drive is installed, note the following.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure.

Opening the CD-ROM drive could result in exposure to hazardous laser radiation. There are no serviceable parts inside the CD-ROM drive. Do not open.

Some CD-ROM drives contain an embedded Class 3A or Class 3B laser diode. Note the following.

DANGER

Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

viii Using Your Personal Computer

Lithium Battery Notice

CAUTION: Danger of explosion if battery is incorrectly replaced.

When replacing the battery, use only IBM Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.

Do not:

 Throw or immerse into water  Heat to more than 100°C (212°F)  Repair or disassemble

Dispose of the battery as required by local ordinances or regulations.

ATTENTION Danger d'explosion en cas de remplacement incorrect de la batterie.

Remplacer uniquement par une batterie IBM de type 33F8354 ou d'un type équivalent recommandé par le fabricant. La batterie contient du lithium et peut exploser en cas de mauvaise utilisation, de mauvaise manipulation ou de mise au rebut inappropriée.

Ne pas :

 Lancer ou plonger dans l'eau  Chauffer à plus de 100°C (212°F)  Réparer ou désassembler

Mettre au rebut les batteries usagées conformément aux règlements locaux.

Safety Information ix

x Using Your Personal Computer

About This Book

This book will help you become familiar with your IBM Personal Computer and its many features. It describes how to configure, operate, and maintain your PC. In the unlikely event you experience problems, you will also find helpful troubleshooting information, as well as instructions for obtaining service in this book.

The book is organized as follows:

 Chapter 1, "Your IBM Personal Computer," contains an overview of the features

of your PC.

 Chapter 2, "Arranging Your Workspace," contains information about setting up

your work area to optimize use of your computer. Safety considerations are also discussed.

 Chapter 3, "Operating Your Computer," contains instructions for using your PC,

including configuration, startup, and shutdown procedures. Instructions for using the Configuration/Setup Utility program are included in this chapter.

 Chapter 4, "Taking Care of Your Computer," contains information about the

proper handling and care of your PC.

 Chapter 5, "Solving Problems," contains information that will help you identify

and correct problems that might arise as you use your computer.

 Chapter 6, "Getting Help, Service, and Information," contains a description of

the wide variety of resources available from IBM to assist you in the use of your PC. This chapter also describes how to obtain additional information about IBM products.

 Appendix A, "Computer Records," contains forms for recording information

about your PC, which can be helpful if you decide to install any additional options, or if you ever need to have your PC serviced.

 Appendix B, "Product Warranties, License Information, and Notices," contains a

copy of the warranty and license agreement for your computer, as well as legal notices and trademark information.

 Copyright IBM Corp. 1997 xi

Related Publications

The following publications, together with this book, contain information about your computer.

 Setting Up Your Personal Computer

This publication contains instructions to help you set up your computer.

 Installing Options in Your Personal Computer

This publication contains instructions for adding memory, adapters, drives, and other options to your computer.

 Understanding Your Personal Computer

This online publication (provided only with computers that have IBM-preinstalled software) includes general information about using personal computers and in-depth information about the specific features of your PC. To purchase a printed copy of this publication, refer to “Ordering Publications” on page 105.

 About Your Software

This publication (provided only with computers that have IBM-preinstalled software) contains information about the preinstalled software package.

 S3 Trio64V+ SVGA Device Driver Installation Instructions

This publication contains instructions for installing device drivers for the S3 Trio64V+ SVGA graphics adapter installed in some PC models.

 Matrox MGA Millennium Graphics Adapter Software Installation Guide

This publication contains instructions for installing device drivers for the Matrox MGA Millennium graphics adapter installed in some PC models. The publication also includes technical data and troubleshooting information for related video problems.

 Adaptec SCSI Documentation

This documentation, which is provided with computers that have an IBM-preinstalled SCSI adapter, includes information on configuring the adapter and instructions for installing and configuring SCSI devices.

 Your Ready-to-Configure CD

This publication contains information about the Ready-to-Configure CD that comes with your computer. The publication also contains instructions for starting the CD.

The following publications contain more information about your computer.

 Hardware Maintenance Manual

This separately purchased publication contains information for trained service technicians. To obtain a copy, refer to “Ordering Publications” on page 105.

xii Using Your Personal Computer

 Technical Information Manual

This separately purchased publication contains information for individuals who want to know more about the technical aspects of their computer. To obtain a copy, refer to “Ordering Publications” on page 105.

About This Book xiii

xiv Using Your Personal Computer

Chapter 1. Your IBM Personal Computer

Thank you for selecting an IBM Personal Computer. Your PC incorporates many of the latest advances in personal computer technology and is easy to expand and upgrade as your needs change.

 Copyright IBM Corp. 1997 1

What Your IBM Personal Computer Offers

This section describes many of the features of your computer.

Support for Pentium Pro Microprocessors

At the core of your PC is an Intel Pentium Pro microprocessor. With its advanced performance features, this microprocessor supplies the speed and power you need to take advantage of even the most complex programs.

Your computer supports dual microprocessors, which means that you can upgrade processor performance by adding a second microprocessor to the system board. When you add a second microprocessor, the internal and external speeds of the second microprocessor must be equivalent to those of the primary microprocessor.

ISA Bus

Your PC has an ISA (industry standard architecture) bus, which is one of the most widely used and successful I/O (input/output) buses available. The ISA bus is popular because so many adapters and devices have been designed and marketed for it.

PCI Bus

Your computer also has a PCI (peripheral component interconnect) bus. PCI is one of the advanced I/O bus standards recently developed by the computer industry to keep up with performance improvements of processor buses and advanced peripheral devices. The PCI bus adds to the capability of the ISA bus, speeding up the exchange of information among the microprocessor and peripheral devices within your computer system. This improves the overall performance of your computer, including the monitor and the hard disk drives.

Expansion with Adapters

Your computer has an ISA/PCI riser card for installing optional adapters. By installing adapters, you can expand the capabilities of your PC and take advantage of a variety of peripheral devices and applications. Examples of adapters that can be added to your computer include graphics, SCSI (small computer system interface), and LAN (local area network) adapters.

2 Using Your Personal Computer

High-Capacity Hard Disk Drives

Some PC models have a hard disk drive with an EIDE (enhanced integrated drive electronics) bus master interface to transmit data to and from the hard disk drive. The EIDE interface specification, which is an extension of the original IDE interface specification, refers to a hard disk drive with the controller built into the drive (as opposed to a hard disk drive with a separate controller). The single-unit drive and controller plugs into one of two EIDE connectors located on the system board of your computer. You can connect an additional hard disk drive to the ribbon cable already attached to the system board. You can also purchase another cable and connect two more hard disk drives or other IDE or EIDE devices to the second connector on the system board. Your computer will accommodate up to four IDE or EIDE devices. Both EIDE connectors are attached through a PCI-based controller.

Some PC models have a hard disk drive with a type of interface referred to as SCSI (small computer system interface). These computers have a SCSI adapter installed in one of the expansion slots. The SCSI adapter has one external 68-pin, 16-bit connector; one internal 50-pin, 8-bit internal connector; and one internal 68-pin, 16-bit connector. With this adapter, you can connect up to 15 peripheral devices to your PC. (However, the number of internal SCSI devices you can install is limited by the number of available drive bays in your computer.)

SCSI can be faster than EIDE, particularly when used with a multitasking operating system, such as OS/2 or Microsoft Windows NT. With SCSI, instructions can be sent concurrently to every drive in the system, and the drives can then execute these instructions simultaneously. This is not possible with EIDE. Also, with SCSI, it is possible to add more peripheral devices to your PC than with EIDE. SCSI is well suited for high-performance computers, or for computers in which expandability is important. However, EIDE is desirable for many computer users because it is more economical than SCSI, it has high-performance capabilities, and it is easier to connect devices. Also, when used in a stand-alone computer with a single-tasking operating system, such as DOS or Windows, EIDE can sometimes be faster than SCSI.

CD-ROM Drive

A CD-ROM drive is installed in some PC models. CD-ROM (compact disc read-only memory) technology offers quick access to enormous amounts of information. A compact disc can store more than 650 MB of data, such as the large files needed for audio, still and full-motion video, and still and animated graphics. A CD-ROM drive can play back or read from a CD, but it cannot write information on it.

Chapter 1. Your IBM Personal Computer 3

PD/CD-ROM Drive

A PD/CD-ROM drive is preinstalled in some PC models. This dual-function IDE drive can be used as a standard CD-ROM reader or as a mechanism for day-to-day backup and storage of data. Using removable, rewritable optical disks called PD cartridges, you can save, store, and read files just as you would with a hard disk drive. PD cartridges, which store 650 MB of data, are particularly useful for performing system backups and for saving space-consuming data, such as graphic and multimedia files.

ECP/EPP Parallel Port

Your PC has one 25-pin parallel port. The parallel port is most often used to communicate with a parallel printer, but it can also be used with other parallel devices.

The parallel port can operate in several different modes. The default mode for your computer is SPP (standard parallel port). However, your computer also supports the ECP/EPP (extended capabilities port/enhanced parallel port) mode. ECP/EPP has two advantages over SPP. When your computer is in ECP/EPP mode, you can print documents faster than when the computer is in SPP mode, and you can attach devices other than printers, such as communication and storage devices, to the parallel port. You can set modes of operation for the parallel port using the Configuration/Setup Utility program.

Serial Port

Your computer has one standard 9-pin, 16550-UART serial port that can be used to communicate with devices such as modems, plotters, and printers.

Universal Serial Bus Port

The Universal Serial Bus (USB) interface is based on a new, emerging technology being developed to add more diversity and capabilities to personal computers. IBM has provided one 4-pin USB connector on your computer as a standard feature so you can be ready to take advantage of new USB devices as they become available.

Using this new technology, you will be able to plug many different types of optional, USB-compatible devices into the USB port on your computer. Because USB incorporates Plug and Play technology, you can install and remove devices without turning off your computer. Once installed, the devices configure automatically. In addition, an option called a hub enables you to plug in more than one device at a time. A hub converts a single USB connector into multiple ports

4 Using Your Personal Computer

where USB devices can be attached. Note that your computer does not support a keyboard or mouse attached to the USB port.

Watch the USB web site at www.teleport.com/ ˜USB for further developments.

Infrared Port

With infrared technology, wireless communication is possible between infrared-enabled devices. Your PC has one infrared port to which you can connect an optional infrared-transceiver module. The software required for infrared communication is available on the Ready-to-Configure CD that comes with your computer. (If you have Windows 95, you also need to install an infrared device driver, which can be downloaded from the Microsoft Windows 95 Updates World Wide Web site.) The infrared port, transceiver module, and software enable your computer to transfer data to and from other infrared-capable devices, such as portable computers and printers.

Video

Your computer has a preinstalled graphics adapter. Some models feature an S3 Trio64V+ graphics adapter while others have a Matrox MGA Millennium graphics adapter. Each of these adapters provide a monitor connector. The Matrox MGA Millennium graphics adapter also has a multimedia upgrade connector (video feature connector). By attaching an optional Media/XL kit to this connector, you can capture video from an external source, such as a VCR. Media/XL kits can be purchased from Matrox Electronic Systems, Ltd.

Wake on LAN

If your computer has a properly configured token-ring or Ethernet LAN adapter that is Wake on LAN-enabled and you have remote network management software, you can use the IBM-developed Wake on LAN feature. For this feature to function correctly, you must enable the Wake on LAN setting in the Configuration/Setup Utility program of your computer.

If the PCs in your network are all Wake on LAN-enabled, you can use the Wake on LAN function to turn on any or all of the networked PCs so that your remote network management software can perform the tasks it has been programmed to do. For instance, when Wake on LAN is used with IBM's remote network management software, TME 10 NetFinity Version 4, you can perform functions such as asset tracking and software and device driver updates on remote PCs after hours and on weekends. Wake on LAN and NetFinity work together to turn on the networked computers and make the appropriate updates. This saves time and

Chapter 1. Your IBM Personal Computer 5

increases productivity because users are not interrupted during normal working hours and LAN traffic is kept to a minimum.

IBM-Preinstalled Software

IBM-preinstalled software is provided with some PC models. This software, installed by IBM during manufacture of the computer, includes an operating system, device drivers to support built-in features, and other support programs. Detailed information about this software is included in About Your Software, which is included with the preinstallation package.

Operating System Support

Your computer is designed to use a variety of operating systems in order to meet your particular needs. See page 14 for a list of operating systems that you can use with your PC.

Ease-of-Use Features

Your computer has many features that make it easy to work with, including Plug and Play technology and easy-to-use diagnostic programs.

Support for Plug and Play technology is built into the system board of your PC. This feature makes adding options easier. When you add an adapter that is Plug and Play-compatible, the adapter is configured automatically. In most cases, no switches or jumpers have to be set on the adapter.

If you have a problem with your PC, IBM provides an easy-to-use diagnostic program (QAPlus/PRO) that you can run to help determine if a hardware component is causing the problem. QAPlus/PRO and other operating system-specific diagnostic programs are included on the Ready-to-Configure CD that comes with your computer. (Create the QAPlus/PRO diskette as soon as possible, so that you will be ready to diagnose a problem if one should occur.)

Ergonomic Features

Your PC has ergonomic features which make it more comfortable to use. The power switch and indicator lights are located on the front panel for easy access and visibility. Also, you can easily change monitor settings to reduce or eliminate flicker and jitter, and you can adjust the angle of the keyboard to make typing more comfortable.

6 Using Your Personal Computer

Advanced Power Management

Energy conservation is an important concern. Your computer has Advanced Power Management (APM) features that allow you to set different levels of energy conservation for specific components of your computer. You can view and change APM settings using the Configuration/Setup Utility program.

Security Features

Your PC has security features that protect both hardware and software. For example, you can set power-on and administrator passwords to deter unauthorized persons from gaining access to your software. A cover lock helps prevent others from tampering with the hardware components inside your computer, and a lockable sliding door restricts access to the removable-media bays. Also, you can select a secure startup sequence so that only certain drives are available for use, and you can prevent the diskette drive from writing to diskettes.

Service and Support

You can obtain assistance for using your computer, as well as service, from a number of sources. Help is available by phone, fax, and modem. For detailed information, see Chapter 6, “Getting Help, Service, and Information” on page 99.

Expandability

You can easily expand the capabilities of your computer by adding memory, drives, adapters, or an additional microprocessor.

Drive Bays: Your computer has five drive bays. Several of these bays are

unoccupied and can be used for installing additional devices such as hard disk, diskette, CD-ROM, and PD/CD-ROM drives. The particular drive bays that are occupied vary by computer model.

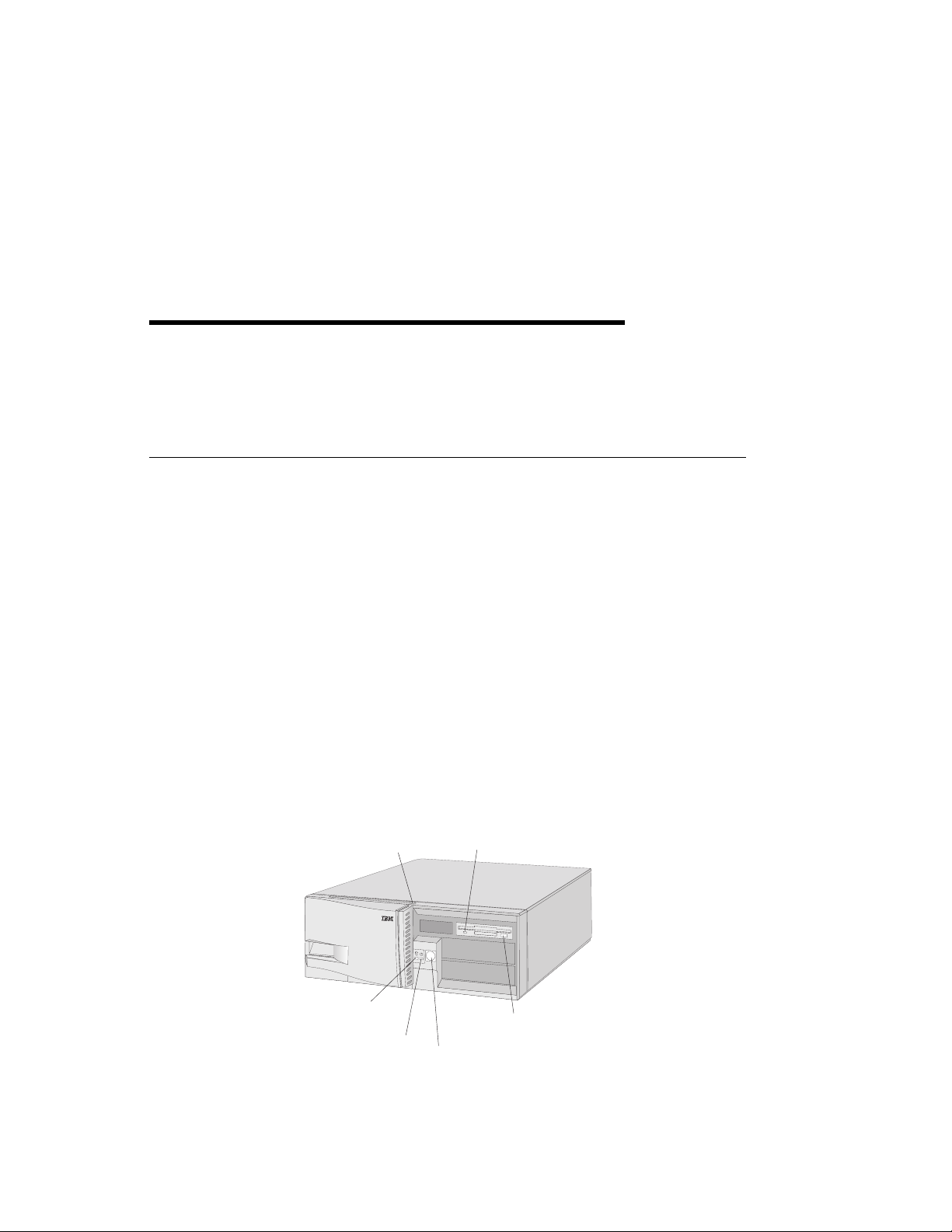

The following illustration shows the occupied and unoccupied drive bays in PC models with a preinstalled EIDE hard disk drive.

Chapter 1. Your IBM Personal Computer 7

3.5-Inch EIDE Hard Disk Drive

3.5-Inch Diskette Drive

3.5-Inch Internal Bay for Optional Drive

5.25-Inch CD-ROM or PD/CD-ROM Drive (Standard in Some Models)

5.25-Inch Bay for Optional Drive

8 Using Your Personal Computer

In PC models with a preinstalled SCSI hard disk drive, occupied and unoccupied drive bays are as follows:

3.5-Inch Internal Bay for Optional Drive

5.25-Inch CD-ROM or PD/CD-ROM Drive (Standard in Some Models)

3.5-Inch Diskette Drive

3.5-Inch SCSI Hard Disk Drive

Expansion Slots: Your computer has five expansion slots. Several of these slots

may be occupied, depending upon the model of your PC. Unoccupied slots can be used for installing adapters. The following illustration shows the locations of the expansion slots.

Expansion Slots

Chapter 1. Your IBM Personal Computer 9

External Connectors

The location of the external connectors for I/O devices varies by PC model. The following illustrations show the location of the external I/O connectors.

Monitor

Serial

USB

Parallel

Infrared

Keyboard

Mouse

Note: The model shown has an S3 Trio64V+ graphics adapter.

10 Using Your Personal Computer

SCSI

Monitor

Video Feature

Mouse

Serial

USB

Parallel

Keyboard

Infrared

Note: The model shown has a Matrox MGA Millennium graphics adapter and an

Adaptec SCSI adapter installed. The SCSI adapter has one external 16-bit connector to which you can attach SCSI devices. It also has two internal connectors (one 8-bit and one 16-bit).

Chapter 1. Your IBM Personal Computer 11

Features at a Glance

The following information covers a variety of PC 365 models. Some of the features listed apply to specific models only. For a listing of features for your specific PC 365 model, refer to the System Summary screen in the Configuration/Setup Utility program. For instructions on gaining access to the Configuration/Setup Utility program and the System Summary screen, refer to “Viewing the System Summary” on page 27.

Microprocessor

 Intel Pentium Pro

Memory

 Maximum addressable: 512 MB

 Installed: EDO (extended data output) nonparity or ECC (error correcting code)

60 ns DIMMs

 Supported: EDO nonparity or error correcting code, 50 or 60 ns DIMMs  Four 168-pin DIMM sockets, 3.3 V dc  Flash memory for system programs

Level 2 Cache

 256 KB (embedded)

Diskette Drives

 Standard: One 3.5-inch, 1.44 MB  Maximum: Three  Options:

– 5.25-inch, 1.2 MB drive – 3.5-inch, 1.44 MB drive

Internal Hard Disk Drives

 Standard: One EIDE or one SCSI

 Enhanced PCI IDE bus master or SCSI interface

 Maximum IDE or EIDE devices: Four total

 Maximum SCSI devices: 15 total (seven 8-bit internal and eight 16-bit internal

devices); however, the number of internal devices that can be installed is limited by the number of available drive bays in your computer.

CD-ROM Drive

 One IDE CD-ROM drive (standard in some models)

12 Using Your Personal Computer

PD/CD-ROM Drive

 One IDE, dual-function, rewritable PD/CD-ROM drive (standard in some

models)

Input/Output Features

 One 25-pin, ECP/EPP parallel port  One 9-pin, 16550 UART serial port  One 4-pin, USB port  One infrared port

 Mouse port

 Keyboard port (Windows 95-compatible)  One 15-pin, monitor port located on S3 Trio64V+ adapter (standard in some

models)

 One 15-pin, monitor port and one 26-pin, multimedia upgrade port (video

feature port) located on Matrox MGA Millennium adapter (standard in some models)

Video

 S3 Trio64V+ adapter with 2 MB DRAM (standard in some models)  Matrox MGA Millennium adapter with 4 MB WRAM

(standard in some

models)

Expansion

 Five drive bays  Five expansion slots total

– Two ISA and three shared PCI/ISA (standard in some models) – Two PCI and three shared PCI/ISA (standard in some models)

 PCI/ISA Plug and Play adapter support  Support for up to 15 SCSI devices (seven 8-bit internal and eight 16-bit internal

or external devices, or fifteen 16-bit internal and external SCSI devices).

 Dual-processor support

Power

 200 W, 115/230 V ac, 50/60 Hz  Built-in overload and surge protection  Advanced Power Management

WRAM (window random-access memory) is a type of DRAM (dynamic random-access memory) that is located on a video adapter and that is used for storing data to be processed by the video adapter.

Chapter 1. Your IBM Personal Computer

Security

 Power-on and administrator passwords  Lockable cover

 Startup sequence control

 Startup without diskette drive, keyboard, or mouse

 Unattended start mode

 Diskette and hard disk I/O control

 Serial and parallel port I/O control

 Software-readable hardware IDs

System Management

 Wake on LAN

 Wake up on ring

 Wake up on alarm

Operating Systems (Compatible)

 IBM OS/2 Version 2.11

 IBM PC DOS Versions 6.3 and 7.0

 Microsoft Windows Version 3.11

 Microsoft Windows for Workgroups Version 3.11

 Microsoft DOS Version 6.22

 Novell NetWare Versions 3.12 and 4.10

 IBM OS/2 SMP Version 2.11 (dual processing)

 Novell NetWare SMP Version 4.10 (dual processing)

Operating Systems (Supported)

 IBM OS/2 Warp

 IBM OS/2 Warp Connect Version 3.0

 Microsoft Windows 95

 Microsoft Windows NT Versions 3.51 and 4.0 workstation (dual processing)

The operating systems listed here have been designated by IBM to be certified for use with your computer. However, it is possible that certification testing might not have been completed for some of these systems at the time this publication went to press. Also, additional operating systems might be certified for use with your computer following publication of this booklet. Corrections and additions to the list here are available in IBM's online compatibility report, which can be found on the World Wide Web (http://www.pc.ibm.com/cdt/index.html).

14 Using Your Personal Computer

IBM-Preinstalled Software

Preinstalled in some PC models are an operating system, device drivers to support built-in features, and other support programs. See About Your Software for a detailed description of the preinstallation package.

System Specifications

Size

 Depth: 455 mm (17.9 in.)  Height: 160 mm (6.3 in.)  Width: 420 mm (16.5 in.)

Weight

 Minimum configuration as shipped: 12.7 kg (28 lb)  Maximum configuration: 14.1 kg (31 lb)

Environment

 Air temperature:

– System on: 10° to 35°C (50° to 90°F) – System off: 10° to 43°C (50° to 110°F)

 Humidity:

– System on: 8% to 80% – System off: 8% to 80%

 Maximum altitude: 2134 m (7000 ft)

Heat Output

 Approximate heat output in British thermal units (Btu) per hour:

– Minimum configuration: 120 Btu (35 watts) – Maximum configuration: 700 Btu (204 watts)

Chapter 1. Your IBM Personal Computer 15

Electrical Input

 Sine-wave input (50 to 60 Hz) is required  Input voltage:

– Low range:

- Minimum: 90 V ac

- Maximum: 137 V ac

- Voltage switch setting: 115 or 115 V

– High range:

- Minimum: 180 V ac

- Maximum: 265 V ac

- Voltage switch setting: 230 or 230 V

– Input kilovolt-amperes (kVA) (approximately):

- Minimum configuration as shipped: 0.08 kVA

- Maximum configuration: 0.52 kVA

Power consumption and heat output vary depending on the number and type of optional features installed and the power-management optional features in use.

Airflow

Approximately 0.56 cubic meters per minute (20 cubic feet per minute)

Acoustical Noise-Emission Values

 Average sound-pressure levels:

– At operator position:

- 38 dBA idle

- 43 dBA operating

– At bystander position–1 meter (3.3 ft):

- 33 dBA idle

- 37 dBA operating

 Declared (upper limit) sound power levels:

– 4.9 bels idle – 5.3 bels operating

These levels were measured in controlled acoustical environments according to procedures specified by the American National Standards Institute (ANSI) S12.10 and ISO 7779, and are reported in accordance with ISO 9296.

Actual sound-pressure levels in your location might exceed the average values stated because of room reflections and other nearby noise sources. The declared sound power levels indicate an upper limit, below which a large number of computers will operate.

16 Using Your Personal Computer

Chapter 2. Arranging Your Workspace

To get the most from your computer, arrange both the equipment you use and your work area to suit your needs and the kind of work you do. Your comfort is of foremost importance, but light sources, air circulation, and the location of electrical outlets also can affect the way you arrange your workspace.

Comfort

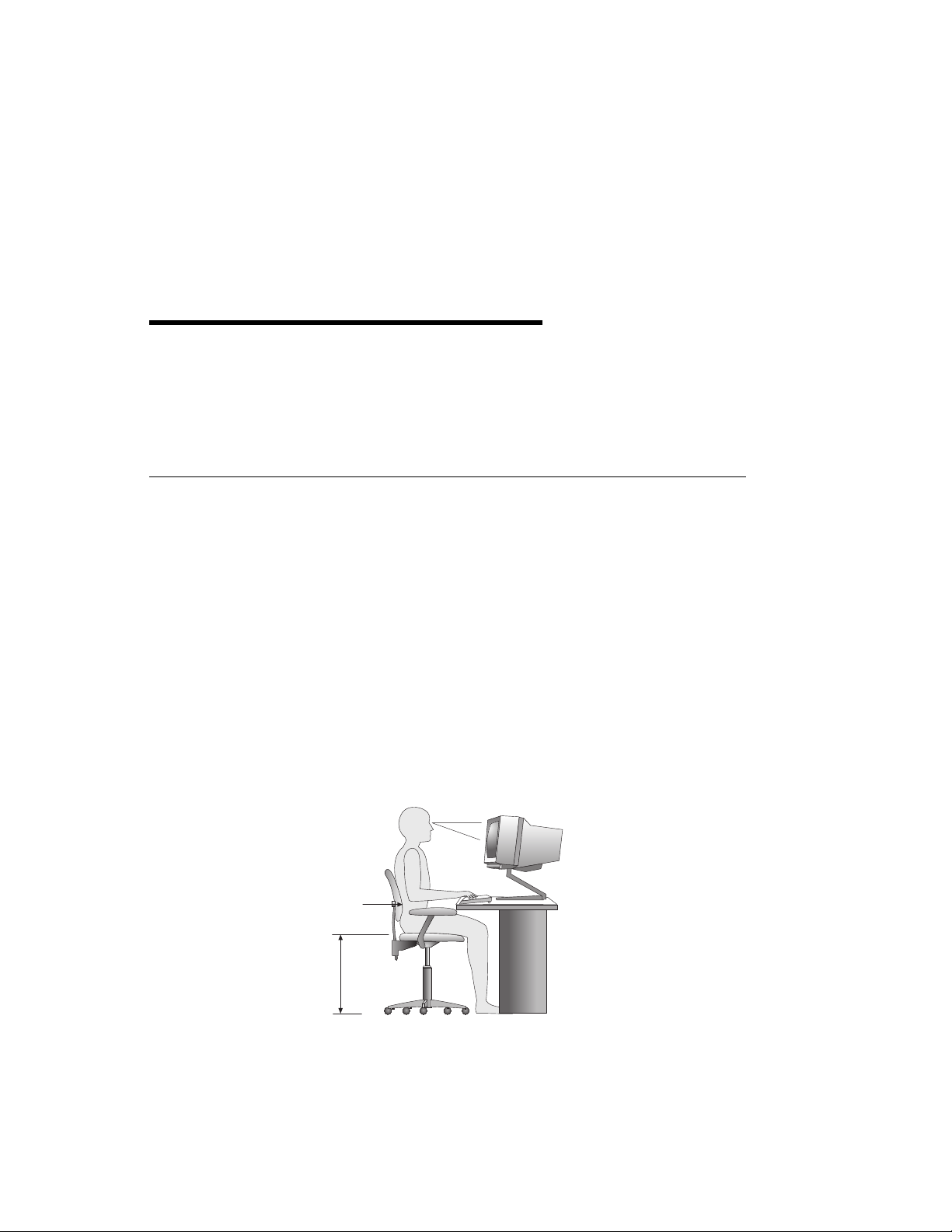

Although no single working position is ideal for everyone, here are a few guidelines to help you find a position that suits you best.

Sitting in the same position for a long time causes fatigue. A good chair can make a big difference. The backrest and seat should adjust independently and provide good support. The seat should have a curved front to relieve pressure on the thighs. Adjust the seat so that your thighs are parallel to the floor and your feet are either flat on the floor or on a footrest.

When using the keyboard, keep your forearms parallel to the floor and your wrists in a neutral, comfortable position. Try to keep a light touch on the keyboard and your hands and fingers relaxed. You can change the angle of the keyboard for maximum comfort by adjusting the position of the keyboard feet.

Viewing Distance

Lower Back Support

Seat Height

Adjust the monitor so the top of the screen is at, or slightly below, eye level. Place the monitor at a comfortable viewing distance, usually 51 to 61 cm (20 to 24 in.), and position it so you can view it without having to twist your body.

 Copyright IBM Corp. 1997 17

Glare and Lighting

Position the monitor to minimize glare and reflections from overhead lights, windows, and other light sources. Place the monitor at right angles to windows and other light sources, when possible. Reduce overhead lighting, if necessary, by turning off lights or using lower wattage bulbs. If you install the monitor near a window, use curtains or blinds to block the sunlight. You might have to adjust the Brightness and Contrast controls on the monitor as the room lighting changes throughout the day.

Where it is impossible to avoid reflections or to adjust the lighting, an antiglare filter placed over the screen might be helpful. However, these filters might affect the clarity of the image on the screen; try them only after you have exhausted other methods of reducing glare.

Dust buildup compounds problems associated with glare. Remember to clean your monitor screen periodically using a soft cloth moistened with a nonabrasive liquid glass cleaner.

Air Circulation

Your computer and monitor produce heat. The computer has a fan that pulls in fresh air and forces out hot air. The monitor lets hot air escape through vents. Blocking the air vents can cause overheating, which might result in a malfunction or damage. Place the computer and monitor so that nothing blocks the air vents; usually, 51 mm (2 in.) of air space is sufficient. Also, make sure the vented air is not blowing on someone else.

Electrical Outlets and Cable Lengths

The location of electrical outlets and the length of power cords and cables that connect to the monitor, printer, and other devices might determine the final placement of your computer.

When arranging your workspace:

 Avoid the use of extension cords. When possible, plug the computer power

cord directly into an electrical outlet.

 Keep power cords and cables neatly routed away from walkways and other

areas where they might get kicked accidentally.

For more information about power cords, see “Power Cord Notice” on page 124.

18 Using Your Personal Computer

Chapter 3. Operating Your Personal Computer

This chapter provides information to help you in the day-to-day use of your computer. Information about the Configuration/Setup Utility program is also included in this chapter.

Using Controls and Status Indicators

The following operating controls and status indicators are located on the front of your computer:

Diskette-Drive Light: When this light is on, it indicates that the diskette drive heads

are being positioned or that your computer is reading from or writing to a diskette.

Diskette Eject Button: Push this button to release a diskette from the drive. Power Switch: Press this switch to turn your computer on or off. Do not turn off

your computer if the in-use light for the hard disk drive or diskette drive is on.

Power-On Light: This status indicator lights when you turn on your computer. Hard-Disk Drive Light: When this light is on, it indicates that the hard disk drive

heads are being positioned or that your computer is reading from or writing to the hard disk.

Cover-and-Door Lock: The cover-and-door lock secures the cover and sliding door

on your computer to deter tampering with or theft of the internal components.

Cover/Door Lock

Hard Disk Drive Light

Power-On Light

 Copyright IBM Corp. 1997 19

Diskette Drive Light

Power Switch

Diskette Eject Button

Starting Your Personal Computer

1. Turn on all external devices, and then turn on your computer. Numbers showing the amount of memory being tested appear in the top-left

corner of the screen until the total amount of memory in the system is reached. Your computer is running the power-on self-test (POST). Options for running a fast POST or accessing the Configuration/Setup Utility program appear in the lower-left corner of the screen.

If POST finishes without detecting a problem, you hear one beep, and the first screen of your operating system or application program appears (if you have not set a power-on password). If you have set a power-on password, complete step 2.

2. If you have set a power-on password, a prompt appears on the screen. If you have set both power-on and administrator passwords, you can type either password at the password prompt. (Refer to “Passwords” on page 28 for instructions on setting and using passwords.) Type your password at the prompt and press Enter. The first screen of your operating system or application program appears.

Note: If POST detects a problem when you start your computer, you hear multiple

beeps or no beep. In most cases, an error code appears in the top-left corner of the screen, and in some cases a description of the error is displayed beside the code. (Note that the screen will sometimes display multiple error codes and descriptions.) Write down all error code numbers and descriptions. For information on what caused an error message to appear and what action to take, refer to “Solving POST Error Message Problems” on page 64 and “POST Message Charts” on page 67.

If you hear no beep during POST, refer to “Troubleshooting Charts” on page 86. You might need to have your computer serviced.

Using a Mouse

A mouse is a device that you use to point to and select objects on the monitor screen. It connects to your computer by a cable. Some mouse devices are designed for the round mouse connector on the back of your PC; other mouse devices are designed for the D-shaped serial connector. You can use either type of mouse, if the correct software (device driver) is installed.

With a mouse, you can move the pointer on the monitor screen. If you have never used a mouse before, it might feel a bit awkward at first. However, with a little practice, the mouse movements will seem natural.

20 Using Your Personal Computer

Place the mouse beside the keyboard on a flat surface or mouse pad. (A mouse pad is a flat, smooth, foam-rubber pad available at most computer stores.) The mouse has a ball on the bottom, so working on a flat, smooth surface is important. You can use your right or left hand to control the mouse.

Notice that the mouse has two buttons on the top (some mice have more buttons). Rest your hand comfortably on the mouse with your index finger on the left button (if you are using your right hand). Some programs and operating systems provide an option to set up the mouse for left-hand use. When a mouse is set up for left-hand use, the button functions are reversed.

Use the left button to select and open objects with the mouse. Some programs also use the right button. The use of the right mouse button varies.

To use the mouse, slide it from side to side and forward and backward on a flat surface. The pointer on the monitor screen moves as you move the mouse. When you see an item that you want to select on the screen, you simply move the pointer to that item (this is called pointing). Then you press and release the left button on the mouse (this is called clicking).

To learn how to use the mouse with the software in your computer, see the documentation accompanying the software.

Some programs support only one mouse button, others support two, and some support three. Despite the differences, some terms are fairly standard throughout the industry.

Point Move the mouse so the pointer is on the object you want. Click Press and release the mouse button once. Double-click Rapidly press and release the mouse button twice. Drag Point to an object, press the mouse button, and hold it down as you

move the mouse to relocate the object.

Drop After dragging an object to a new location, release the mouse button.

Shutting Down

When you are ready to turn off your computer, follow the shutdown procedure for your operating system to prevent the loss of unsaved data or damage to your software programs. See your operating system documentation for instructions.

Chapter 3. Operating Your Personal Computer 21

Configuring Your Computer

The Configuration/Setup Utility program enables you to view and change the configuration and setup of your computer. The program is stored in the EEPROM (electrically erasable programmable read-only memory) of your PC.

You can use the Configuration/Setup Utility program to view and change the configuration and setup of your computer, regardless of which operating system you are using. However, the settings you select in your operating system might override any similar settings in the Configuration/Setup Utility program.

The following is a brief description of the categories that appear in the main menu of the Configuration/Setup Utility program.

 System Summary provides information about the current options and features

in your computer. Included in the system summary is information about the microprocessor, memory, video controller, and diskette and hard disk drives.

 Product Data contains information about the machine type and model, flash

EEPROM revision level, system-board identifier, system serial number, and BIOS date.

 Devices and I/O Ports allows you to view and change settings for devices and

I/O ports, including video, IDE drive, serial port, and parallel port settings.

 Date and Time allows you to view and change the date and time of the internal

clock in your computer.

 System Security allows you to control access to the hard disk and diskette

drives. You can also set, change, and delete power-on and administrator passwords.

 Start Options allows you to view and change settings for device startup

sequence, keyboard speed, virus detection, various power-on options, and other features of your computer.

 Advanced Setup allows you to view and change settings for advanced

hardware features, including ROM shadowing and microprocessor, memory, and PCI control. The settings in Advanced Setup must be configured correctly. If they are not, your computer might malfunction.

 ISA Legacy Resources allows you to indicate which system resources (DMA,

interrupt, memory, and I/O port) are used by ISA legacy adapters.

 Advanced Power Management allows you to view and change settings that

affect the energy-saving features of your computer, including the automatic power-on feature.

22 Using Your Personal Computer

Important

In most cases, when you add or remove hardware from your computer, the BIOS (basic input/output system) detects the changes and then updates the configuration automatically. Although the computer changes the configuration settings automatically, you must save these changes in the Configuration/Setup Utility program for the new configuration to take effect. If you do not save the new settings, your operating system will not start. To save the configuration after adding or removing hardware, complete the following steps.

1. When you turn on the computer, an error message indicating that a configuration change has occurred appears approximately 30 seconds after the memory count numbers stop cycling in the top-left corner of the screen. When the configuration error message disappears, the POST Startup Errors screen appears, and you are prompted to Continue or Exit Setup. Select Continue. (If you select Exit Setup, you will get another error message.)

2. The Configuration/Setup Utility program menu appears with a right arrowhead (5) next to the menu category in which the configuration change has occurred. Select this menu item if you want to view the new configuration settings, and then press Esc to return to the Configuration/Setup Utility program menu.

3. Select Save Settings from the Configuration/Setup Utility program menu.

4. Press Esc to exit the Configuration/Setup Utility program, and follow the instructions on the screen.

Starting the Configuration/Setup Utility Program

To start the Configuration/Setup Utility program:

1. Turn on your computer. If your PC is already on when you start this procedure, you must shut down the operating system, turn off the computer, wait a few seconds until all in-use lights go off, and restart the computer. (Do not use Ctrl+Alt+Del to restart the computer.)

2. When the Configuration/Setup Utility prompt appears in the lower left corner of the screen during startup, press F1. (The Configuration/Setup Utility program prompt appears on the screen for only a few seconds. You must press F1 quickly.)

3. If you have not set an administrator password, the Configuration/Setup Utility program menu appears on the screen. If you have set an administrator password, the Configuration/Setup Utility program menu will not appear until you type your administrator password at the password prompt and press Enter.

Chapter 3. Operating Your Personal Computer 23

If you have set both an administrator and a power-on password, you can type either of the passwords at the password prompt. However, if you think you might need to change any settings in the Configuration/Setup Utility program, you must type your administrator password at the password prompt. If you type your power-on password, you will be able to view limited information in the Configuration/Setup Utility program, but you will not be able to change any settings.

The menu you see on your computer might look slightly different from the menu shown here, but it will operate the same way.

Configuration/Setup Utility

Select Option:

 System Summary  Product Data  Devices and I/O Ports  Date and Time  System Security  Start Options  Advanced Setup  ISA Legacy Resources  Advanced Power Management

Save Settings Restore Settings

Load Default Settings

Exit Setup

Viewing and Changing Settings in the Configuration/Setup Utility Program

The Configuration/Setup Utility program menu lists items that identify system configuration topics. If a bullet () appears beside a menu item, then an additional menu is available. If a right arrowhead (5) appears beside a menu item, then a change to that item has been made or the Configuration/Setup Utility program detected an error and attempted to correct it. Also, an additional menu might follow a menu item with a 5 beside it. If an asterisk (*) appears next to a menu item, it indicates a system resource conflict. Resolve this conflict before exiting from the Configuration/Setup Utility program so that your computer will function properly. For information and instructions on resolving system resource conflicts, refer to Installing Options in Your Personal Computer and the documentation that comes with the hardware you want to install.

24 Using Your Personal Computer

When working with the Configuration/Setup Utility program menu, you must use the keyboard. Refer to the following table for the keys used to accomplish various tasks.

Keys Function

↑ ↓ Use these arrow keys to move between menu items until the item you

want is highlighted.

← → Use these arrow keys to display and toggle between choices for a menu

item.

Enter Press this key to select a highlighted menu item. Esc Press this key to exit from a menu after viewing or making changes to

the settings in the menu.

+ Use this key in some menus to increase the numerical value of a setting.

− Use this key (the minus or hyphen key) in some menus to decrease the

numerical value of a setting.

0–9 Use these number keys in some menus to change the numerical value of

a setting.

F1 Press this key for help on a selected menu item. F9 Press this key if you changed and saved the setting of a selected menu

item and you want to restore the setting that was active before you made the change.

F10 Press this key to return the setting of a selected menu item to a default

value.

Note: Active keys are displayed at the bottom of each screen; not all of the above

keys are active with every menu.

In the Configuration/Setup Utility program menus, the configuration information you can change is enclosed in brackets like these []. You cannot change information that is not surrounded by brackets.

Exiting from the Configuration/Setup Utility Program

When you finish viewing or changing settings in the Configuration/Setup Utility program, follow these steps to exit from the program:

1. Press Esc to return to the Configuration/Setup Utility program menu. (Depending on where you are in the program, you might have to press Esc several times to get back to the Configuration/Setup Utility program menu.)

Chapter 3. Operating Your Personal Computer 25

2. Before you exit from the Configuration/Setup Utility program menu, select Save Settings if you want to save all settings as they currently appear. If you do not complete this step, your settings will not be saved.

3. From the Configuration/Setup Utility program menu, press Esc, and follow the instructions on the screen.

26 Using Your Personal Computer

Viewing the System Summary

You can use the Configuration/Setup Utility program to view a summary of the options and features in your computer. To view the system summary:

1. Start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility Program” on page 23).

2. Select System Summary from the Configuration/Setup Utility program menu. The System Summary screen appears.

Depending on your PC model and configuration, your screen might appear slightly different from the one shown here.

System Summary

Processor Pentium Pro Processor Speed 200 MHz Dual Processor Not Installed Math Coprocessor Internal System Memory 640 KB Extended Memory 31 MB Video Controller S3 Incorporated, Trio64V+ Cache Size 256 KB Cache State Enabled Shadow RAM 384 KB System ROM F000h - FFFFh Memory Type Non-parity Diskette Drive A: 1.44 MB, 3.5" Diskette Drive B: Not Installed Hard Disk Drive 0 1624 MB Hard Disk Drive 1 Not Installed CD-ROM Drive 2 Installed Hard Disk Drive 3 Not Installed Mouse Installed

Setting the Date and Time

Your computer has an internal clock that maintains the date and time. A battery keeps the clock active when you turn off the computer.

To set the date and time:

1. Start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility Program” on page 23).

Chapter 3. Operating Your Personal Computer 27

2. Select Date and Time from the Configuration/Setup Utility program menu.

3. Type the date and time in the appropriate fields.

4. Press Esc to return to the Configuration/Setup Utility program menu.

5. Before you exit from the program, select Save Settings from the Configuration/Setup Utility program menu and press Enter.

6. To exit from the Configuration/Setup Utility program, press Esc and follow the instructions on the screen.

Your operating system might also have a function for setting the date and time. Refer to your operating system documentation for more information.

Passwords

Two types of password protection are available to help you secure your computer and the information you store in it. The power-on password feature deters unauthorized persons from gaining access to the information stored in your computer. The administrator password feature helps prevent unauthorized persons from accessing the Configuration/Setup Utility program and changing the setup of your computer. If you are responsible for maintaining the settings of several computers, you might want to set an administrator password.

Other password security features might be available through your operating system or network.

Power-On Password

You do not need a power-on password to use your PC, but setting this type of password deters unauthorized persons from using your computer. When a power-on password is set, you must type the password at the password prompt that appears as the computer starts.

When you set the power-on password, you can choose one of three password prompt modes:

On In password prompt On mode, you are prompted for the power-on

password when you turn on the computer. Until the correct password is entered, the computer will not run the CONFIG.SYS or AUTOEXEC.BAT instructions, the operating system will not start, and the keyboard will remain locked. If you have a mouse connected to the mouse port, it also will remain locked. If you have a mouse connected to a serial port, it will be activated when the computer is started, regardless of whether a password is set.

28 Using Your Personal Computer

Off In password prompt Off mode (also referred to as Unattended Start

mode), you are not prompted to enter your power-on password when you turn on the computer. The computer will run the CONFIG.SYS and AUTOEXEC.BAT instructions and start the operating system. However, if you have a mouse connected to the mouse port, refer to the following text box.

Important Information for Mouse Users

This information applies only to those who have a mouse connected to the mouse port; a serial mouse is not affected by the password prompt Off mode.

The password prompt Off mode prevents the computer from detecting that a mouse is attached. Because the mouse device driver will not be loaded automatically through the CONFIG.SYS or AUTOEXEC.BAT files in this mode, an error message that the mouse port is disabled will appear and the computer will halt. To enable the operating system to load without displaying the error message, read the information below that applies to your operating system.

If you are using OS/2, do one of the following before enabling password prompt Off mode:

 Set the CONFIG.SYS file so the operating system does not stop on

a device-driver error. To do this, put the command "PAUSEONERROR=NO" near the top of the CONFIG.SYS file.

 Remove the mouse driver statement from the CONFIG.SYS file.

If you are using Windows 95, do the following:

 When the computer is started and the mouse port disabled error

message appears, enter either your power-on or administrator password to enable the keyboard. Then use the keyboard to put a checkmark in the "Do not display this message in the future" checkbox.

Once the operating system starts in password prompt Off mode, the keyboard will remain locked. If you have a mouse connected to the mouse port, it also will remain locked.

Although you are not prompted to type a password in this mode, you can type either your power-on or administrator password anytime after POST has completed, even after the operating system has loaded. If you type a password, the keyboard will unlock, but the mouse connected to the mouse port will remain disabled.

Chapter 3. Operating Your Personal Computer 29

Password prompt Off mode is useful for network servers and other computers that operate unattended. If a power failure occurs, the computer will automatically restart and resume operating in this mode when power is restored, without operator intervention.

Dual In the password prompt Dual mode, the startup behavior of the

computer depends on whether the computer is started from the computer power switch or by an unattended method, such as a modem or timer.

If you start the computer by using the power switch, the computer operates the same as it does in password prompt On mode. Refer to page 28 for further information.

If the computer is started by an unattended method, such as remotely over a LAN, the computer operates the same as it does in password prompt Off mode. Refer to page 29 for further information.

If both a power-on and administrator password are set, you can type either of the passwords at the password prompt that appears as you start your computer. However, if you want to change any settings in the Configuration/Setup Utility program, you must type your administrator password at the password prompt that appears when you try to access the Configuration/Setup Utility program. If you type your power-on password at this prompt, you will be able to view limited information in the Configuration/Setup Utility program, but you will not be able to change any settings.

The password does not appear on the screen as you type it. If you type the wrong password, you receive a screen message telling you so. If you type the wrong password three times, you must turn off the computer and start again. When you type the correct password, the keyboard and mouse will unlock, and the computer will begin normal operation.

Setting and Changing a Power-On Password: Use the Configuration/Setup

Utility program to set or change a power-on password. You can use any combination of up to seven characters (A–Z, a–z, and 0–9) for this password.

Attention: Keep a record of your power-on password in a secure place. When a power-on password has been set, you cannot activate the keyboard and mouse without first using the password. If you lose or forget your password, you cannot change or delete it without removing the computer cover and moving a jumper on the system board. Refer to “Erasing Lost or Forgotten Passwords” on page 33 for further information.

To set or change a power-on password:

30 Using Your Personal Computer

1. Start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility Program” on page 23).

2. Select System Security from the Configuration/Setup Utility program menu.

3. Select Power-On Password.

4. Type your password and press Down Arrow (↓).

5. Type your password again.

6. At Password Prompt, select On, Off, or Dual. Press Left Arrow (←) or Right Arrow (→) to toggle between selections.

7. Select Set or Change Power-On Password, and follow the instructions on the screen.

8. The System Security menu appears. Press Esc to return to the Configuration/Setup Utility program menu.

9. Before you exit from the program, select Save Settings from the Configuration/Setup Utility program menu.

10. To exit from the Configuration/Setup Utility program, press Esc and follow the

instructions on the screen.

Deleting a Power-On Password: Use the Configuration/Setup Utility program

to delete a power-on password.

To delete a power-on password:

1. Start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility Program” on page 23).

2. Select System Security from the Configuration/Setup Utility program menu.

3. Select Power-On Password.

4. Select Delete Power-On Password and follow the instructions on the screen.

5. The System Security screen appears. Press Esc to return to the Configuration/Setup Utility program menu.

6. Before you exit from the program, select Save Settings from the Configuration/Setup Utility program menu.

7. To exit from the Configuration/Setup Utility program, press Esc and follow the instructions on the screen.

Chapter 3. Operating Your Personal Computer 31

Administrator Password

Setting an administrator password deters unauthorized persons from changing settings in the Configuration/Setup Utility program. When an administrator password is set, you can change settings in the Configuration/Setup Utility program only after typing the administrator password at the password prompt that appears when you try to access the Configuration/Setup Utility program.

If you are responsible for maintaining the settings of several computers, you might want to set an administrator password.

When you set an administrator password, a password prompt appears each time you try to access the Configuration/Setup Utility program. The password does not appear on the screen as you type it. If you type the wrong password, you receive a screen message telling you so. If you type the wrong password three times, you must turn off the computer and start again. When you type the correct password, the Configuration/Setup Utility program menu appears.

Setting and Changing an Administrator Password: Use the

Configuration/Setup Utility program to set or change an administrator password. You can use any combination of up to seven characters (A–Z, a–z, and 0–9) for the password.

Attention: Keep a record of your administrator password in a secure place. When an administrator password has been set, you cannot access the Configuration/Setup Utility program without first using the administrator password. If you lose or forget your password, you cannot change or delete it without removing the computer cover and moving a jumper on the system board. Refer to “Erasing Lost or Forgotten Passwords” on page 33 for further information.

To set or change an administrator password:

1. Start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility Program” on page 23).

2. Select System Security from the Configuration/Setup Utility program menu.

32 Using Your Personal Computer

3. Select Administrator Password.

4. Type your password and press Down Arrow (↓).

5. Type your password again.

6. At Power-On Password Changeable by User, select Yes or No. Press Left Arrow (←) or Right Arrow (→) to toggle between selections. (If you select Yes, the user will be able to change the power-on password if an administrator password is set. If you select No, the user will not be able to change the power-on password if an administrator password is set.)

7. Select Set or Change Administrator Password and follow the instructions on the screen.

8. The Administrator Password menu appears. Press Esc twice to return to the Configuration/Setup Utility program menu.

9. Before you exit from the Configuration/Setup Utility program, select Save Settings from the Configuration/Setup Utility program menu.

10. To exit from the Configuration/Setup Utility program, press Esc and follow the

instructions on the screen.

Deleting an Administrator Password: Use the Configuration/Setup Utility

program to delete an administrator password.

To delete an administrator password:

1. Start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility Program” on page 23).

2. Select System Security from the Configuration/Setup Utility program menu.

3. Select Administrator Password.

4. Select Delete Administrator Password and follow the instructions on the screen.

5. The System Security screen appears. Press Esc to return to the Configuration/Setup Utility program menu.

6. Before you exit from the program, select Save Settings from the Configuration/Setup Utility program menu.

7. To exit from the Configuration/Setup Utility program, press Esc and follow the instructions on the screen.

Erasing Lost or Forgotten Passwords

To erase a lost or forgotten power-on or administrator password, you must remove the computer cover and move the CMOS Clear jumper (also referred to as the

Chapter 3. Operating Your Personal Computer 33

password jumper) on the system board. See Installing Options in Your Personal Computer for instructions on removing the computer cover and moving jumpers.

Refer to the system board label inside the computer cover for the location of the CMOS Clear (password) jumper.

Attention: If you move the CMOS Clear jumper, you will lose all setup data stored in the computer, and you will need to reconfigure the computer. Use the Configuration/Setup Utility program to reconfigure the computer and to set a new password.

Advanced Power Management

Your computer comes with built-in energy-saving capabilities. You can view and change energy-saving settings using the Advanced Power Management menu in the Configuration/Setup Utility program. This section describes the Advanced Power Management features in your computer and provides instructions for using these features.

Attention: If a device, such as a monitor, does not have power-management capabilities, it can be damaged when exposed to a reduced-power state. Before you make energy-saving selections for your monitor, check the documentation that comes with your monitor to see if it supports Display Power Management Signaling (DPMS).

Automatic Hardware Power Management Features

With Automatic Hardware Power Management, you can have the computer, microprocessor, and monitor (if the monitor supports DPMS) go into reduced-power states if they are inactive for a certain length of time.

There are three levels of power management. For each level, you can specify the amount of time that the computer must be inactive before the power management options you select begin to take effect. For Level 1, you can select 5 minutes to 4 hours; for Level 2, you can select 10 minutes to 5 hours; and for Level 3, you can select 15 minutes to 6 hours. At each level, you can define the amount of energy savings by specifying values for the following options.

 System Power: With this option, you can select On if you want the computer

to remain on, or Off if you want the computer to shut down.

 Processor Speed: With this option, you can set your microprocessor to run at

1, 10, 25, or 50 percent of its internal clock speed, or you can disable the microprocessor entirely. Any computer activity returns the microprocessor to full speed.

34 Using Your Personal Computer

 Display: With this option, you can disable the monitor entirely, or select one of

the following reduced-power states:

– Standby: In this mode, the screen is blanked, but the screen image is

restored immediately when any activity is detected.

– Suspend: In this mode, the monitor uses less power than in Standby mode.

The screen is blanked, but the screen image is restored within a few seconds after any activity is detected.

– Off: In this mode, the monitor power is turned off. To restore power to

the monitor, you must press the monitor power switch. On some monitors, you might have to press the power switch twice.

 Hard Disk Drive: With this option, you can enable the hard disk drive to “spin

down” (shut down the drive motor) after about 20 minutes of inactivity on the drive. When you attempt to read from or write to the hard disk, full power is returned to the drive within a few seconds. This feature can be activated in PC models with EIDE hard disk drives, but not in models with SCSI hard disk drives. (In models with SCSI hard disk drives, the feature is set to Enabled by default, but it is not operational.)

Setting Automatic Power-On Features: To set Automatic Hardware Power

Management features, complete the following steps.

1. Start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility Program” on page 23).

2. Select Advanced Power Management from the Configuration/Setup Utility program menu.

3. Be sure APM BIOS Mode is set to Enabled. If it is not, press Left Arrow (←) or Right Arrow (→) to change the setting.

4. Select Automatic Hardware Power Management.

5. Set Automatic Hardware Power Management to Enabled.

6. Select values for the three levels of power management (system power, processor speed, and display), as necessary.

7. Set Hard Disk to Enabled or Disabled.

8. Press Esc twice to return to the Configuration/Setup Utility program menu.

9. Before you exit from the program, select Save Settings from the Configuration/Setup Utility program menu.

10. To exit from the Configuration/Setup Utility program, press Esc and follow the

instructions on the screen.

Chapter 3. Operating Your Personal Computer 35

Automatic Power-On Features

The Automatic Power-On features within the Advanced Power Management menu allow you to enable and disable features that turn your computer on automatically.

 Serial Port Ring Detect: If your computer has an external modem connected to

the serial port and you want the computer to turn on automatically when a ring is detected on the modem, set this feature to Enabled.

 Modem Ring Detect: If your computer has an internal modem and you want

the computer to turn on automatically when a ring is detected on the modem, set this feature to Enabled.

 Wake Up on Alarm: With this feature, you can specify a date and time at

which the computer will be turned on automatically. This can be either a single event or a daily event.

 Wake on LAN: If your PC has a properly configured token-ring or Ethernet

LAN adapter card that is Wake on LAN-enabled and you have remote network management software, you can use the IBM-developed Wake on LAN feature. When you set Wake on LAN to Enabled, your computer will turn on when it receives a specific signal from another computer on your local area network (LAN). For further information, see “Wake on LAN” on page 5.

Setting Automatic Power-On Features: To set Automatic Power-On features,

complete the following steps.

1. Start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility Program” on page 23).

2. Select Advanced Power Management from the Configuration/Setup Utility program menu.

3. Select Automatic Power On.

4. Select the menu item for which you want to view or change settings. Use Left Arrow (←) or Right Arrow (→) to toggle between selections.

5. Press Esc twice to return to the Configuration/Setup Utility program menu.

6. Before you exit from the program, select Save Settings from the Configuration/Setup Utility program menu.

7. To exit from the Configuration/Setup Utility program, press Esc and follow the instructions on the screen.

36 Using Your Personal Computer

Changing Keyboard Speed

You can change the speed at which the keyboard responds when you hold down a key. The normal typematic rate is 10 characters per second, but you can use the Configuration/Setup Utility program to increase this rate to up to 30 characters per second.

To change the keyboard speed:

1. Start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility Program” on page 23).

2. Select Start Options from the Configuration/Setup Utility program menu.

3. Set Keyboard Speed to Normal or Fast. Use Left Arrow (←) or Right Arrow (→) to toggle between selections.

4. Press Esc to return to the Configuration/Setup Utility program menu.

5. Before you exit from the program, select Save Settings from the Configuration/Setup Utility program menu.

6. To exit from the Configuration/Setup Utility program, press Esc and follow the instructions on the screen.

Installing Video Device Drivers

To take full advantage of the S3 Trio64V+ or Matrox MGA Millennium graphics adapter in your computer, some operating systems and application programs require custom software, known as video device drivers. These device drivers provide support for greater speed, higher resolution, more available colors, and flicker-free images.

The S3 Trio64V+ and Matrox MGA Millennium video device drivers are provided on the Ready-to-Configure CD that comes with your computer. Instructions for installing the device drivers are provided in the S3 Trio64V+ SVGA Device Driver

Installation Instructions or Matrox MGA Millennium Graphics Adapter Software Installation Guide that comes with your PC. If your computer has IBM-preinstalled

software, video device drivers have already been installed on the hard disk in your computer. However, the device driver installation instructions will be helpful if you ever need to reinstall the device drivers; if you want to change video resolution, color depth, or monitor settings; or if you need information on obtaining and installing updated device drivers.

Chapter 3. Operating Your Personal Computer 37

Changing Monitor Settings

Your computer has an S3 Trio64V+ or a Matrox MGA Millennium SVGA (super video graphics array) controller. SVGA is a video standard for displaying text and graphic images on a monitor screen. Like other video standards, SVGA supports a variety of video modes. Video modes are different combinations of resolution, refresh rate, and color defined by a video standard for displaying text or graphics. (For further information on video modes, refer to Understanding Your Personal Computer.)

SVGA provides higher-resolution graphics, faster refresh rates, and more colors than previous video standards, such as video graphics array (VGA). At the same time, SVGA supports all standard VGA modes.

To get the best possible image on your screen and to reduce or eliminate flicker, you might need to reset the resolution and refresh rate of your monitor. You can view and change monitor settings through your operating system, using the instructions provided in the S3 Trio64V+ SVGA Device Driver Installation Instructions or Matrox MGA Millennium Graphics Adapter Software Installation Guide that comes with your computer. Refer to your operating system documentation for further information on monitor settings.

Attention

1. Before you change any monitor settings, be sure to review the information that comes with your monitor. Using a resolution or refresh rate that is not supported by your monitor might cause the screen to become unreadable and damage the monitor. The information that comes with your monitor usually includes the resolutions and refresh rates that the monitor supports. If you need additional information, contact the manufacturer of the monitor.

2. If your PC has a preinstalled S3 Trio64V+ graphics adapter, do not run the adapter at a resolution of 1600 x 1200, because this resolution is not supported by your computer.

To minimize screen flicker and jitter, set your monitor for the highest noninterlaced refresh rate that the monitor supports. If your monitor complies with the VESA Display Data Channel (DDC) standard, it is probably already set to the highest refresh rate that the monitor and video controller can support. If you are not sure if your monitor is DDC-compliant, refer to the documentation provided with the monitor.

38 Using Your Personal Computer

Updating System Programs

System programs are the basic layer of software built into every IBM PC. They include the power-on self-test (POST), the basic input/output system (BIOS) code, and the Configuration/Setup Utility program. POST is a set of tests and procedures that is performed every time you turn on your PC. The BIOS is a layer of software that translates instructions from other layers of software into electrical signals that the computer hardware can understand. The Configuration/Setup Utility program enables you to view and change the configuration and setup of your computer.

In the past, the system programs were contained in a read-only memory (ROM) module on the system board. If you wanted to update POST routines, BIOS instructions, and the Configuration/Setup Utility program, you had to disassemble the computer and replace modules, or you had to replace the system board. Now, a module called electrically erasable programmable read-only memory (EEPROM, also referred to as flash memory) has replaced the ROM module on the system board. You can easily update POST information, the BIOS code, and the Configuration/Setup Utility program from an update diskette.

As part of the continuing work to improve quality, IBM might make changes and enhancements to the system programs. When updates are released, they will be available via download files on the World Wide Web (http://www.pc.ibm.com) or through the PC Company Bulletin Board Service (see “Using Electronic Support Services” on page 99). Instructions for using the system programs updates will be available in a README file included in the download files.

Chapter 3. Operating Your Personal Computer 39

Diskettes

You can use 3.5-inch diskettes in the diskette drive of your computer. If you want to use 5.25-inch diskettes, you must install a 5.25-inch diskette drive. (Refer to Installing Options in Your Personal Computer for instructions on installing optional diskette drives.)

The information that follows will help you identify and use 3.5-inch diskettes.

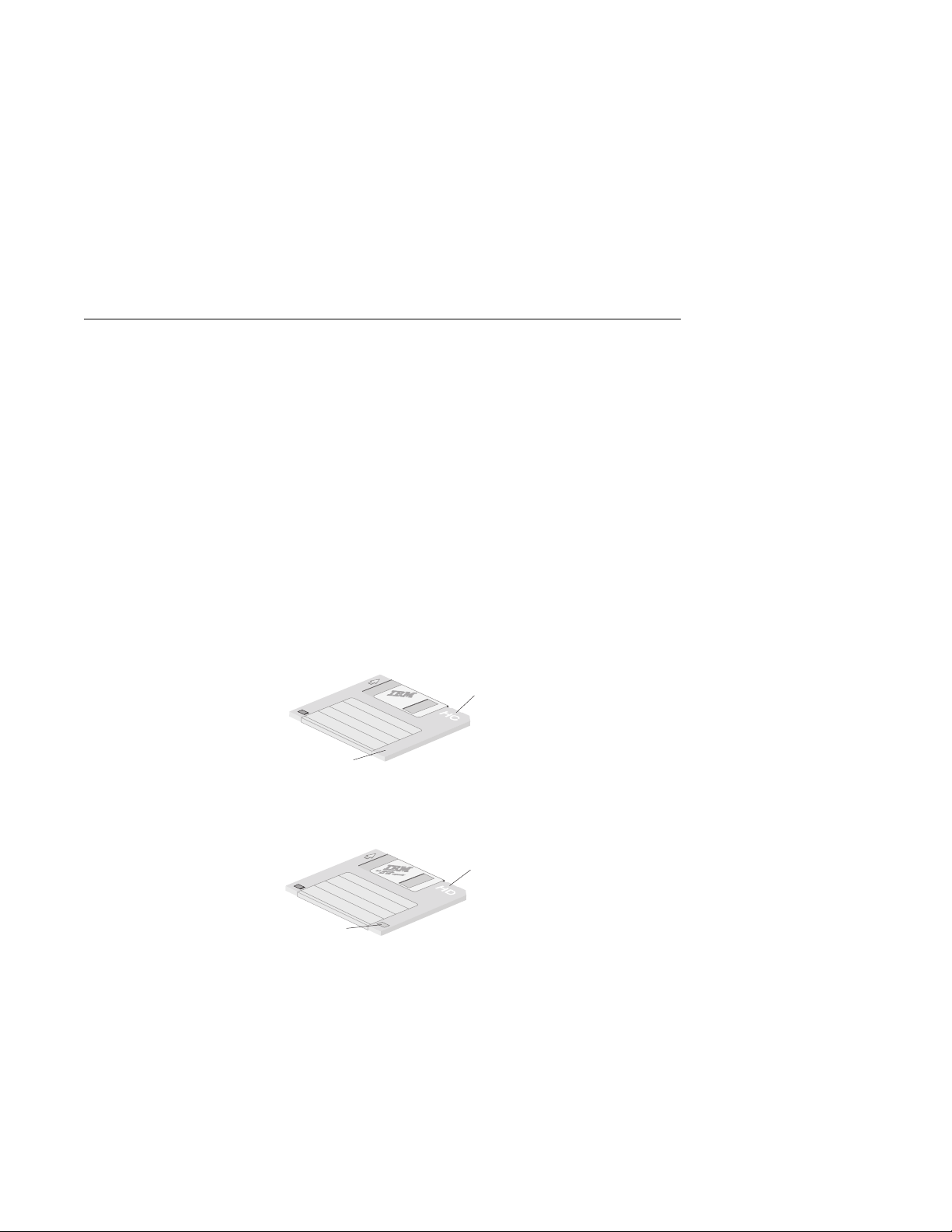

Identifying Diskettes

The labeling on 3.5-inch diskettes is not consistent among manufacturers. Some diskettes are labeled with the letters DD or HD to identify the diskette type; other diskettes might not be labeled. However, the appearance of the lower-right corner of a 3.5-inch diskette always can be used to identify the diskette type, as shown in the following illustrations.

3.5 Diskette

2.0 MB capacity

No Window

1 MB Double Density (DD)

Window

2 MB High Density (HD)

40 Using Your Personal Computer

Handling and Storing Diskettes

Inside the protective diskette case is a flexible disk with a magnetic-sensitive coating. This disk can be damaged by heat, dust, a magnetic field, or even a fingerprint. Use the following guidelines when handling and storing diskettes.

 Data is stored on the magnetic surface of the diskette. On 3.5-inch diskettes,

this surface is protected by a plastic cover. If the cover is damaged, do not use the diskette. A damaged diskette might damage the diskette drive.

 A protective slide on the top of a 3.5-inch diskette covers part of the magnetic

surface. The diskette drive moves this slide to read data from or write data to the diskette. Do not move this slide, because fingerprints and dust can cause loss of data.

Top

Protective Slide

3.5 Diskette

2.0 MB capacity

Diskette Label

 Never touch the magnetic disk itself.  Keep diskettes away from magnets or devices that create a strong magnetic

field, such as electric motors and generators. Diskettes are sensitive to magnets found in television sets, telephones, stereo speakers, and other such items. A magnetic field can erase the data on your diskettes. Do not set diskettes on the monitor or use magnets to attach notes to your computer.

 Do not store diskettes at high temperatures, low temperatures, or in direct

sunlight. Temperatures ranging from 4° to 53°C (39° to 127°F) are acceptable for

3.5-inch diskettes. Keep diskettes away from heat. The plastic outer covering might warp, damaging the diskette.

Chapter 3. Operating Your Personal Computer 41

Labeling Diskettes

Before using a diskette, label it so that you can identify the data stored on it. Labels usually come in the package with the diskettes. Diskette labels can become a problem if you do not apply them correctly. Loose edges or an excessive buildup of labels can prevent the diskette from being inserted or ejected.

To prevent this problem, take the following precautions:

 Remove an old label before you apply a new one.  Apply labels carefully to ensure that all edges are secure.  Apply labels only to the front of diskettes. Do not place a label where it

interferes with the protective slide or covers an opening in the protective diskette case.

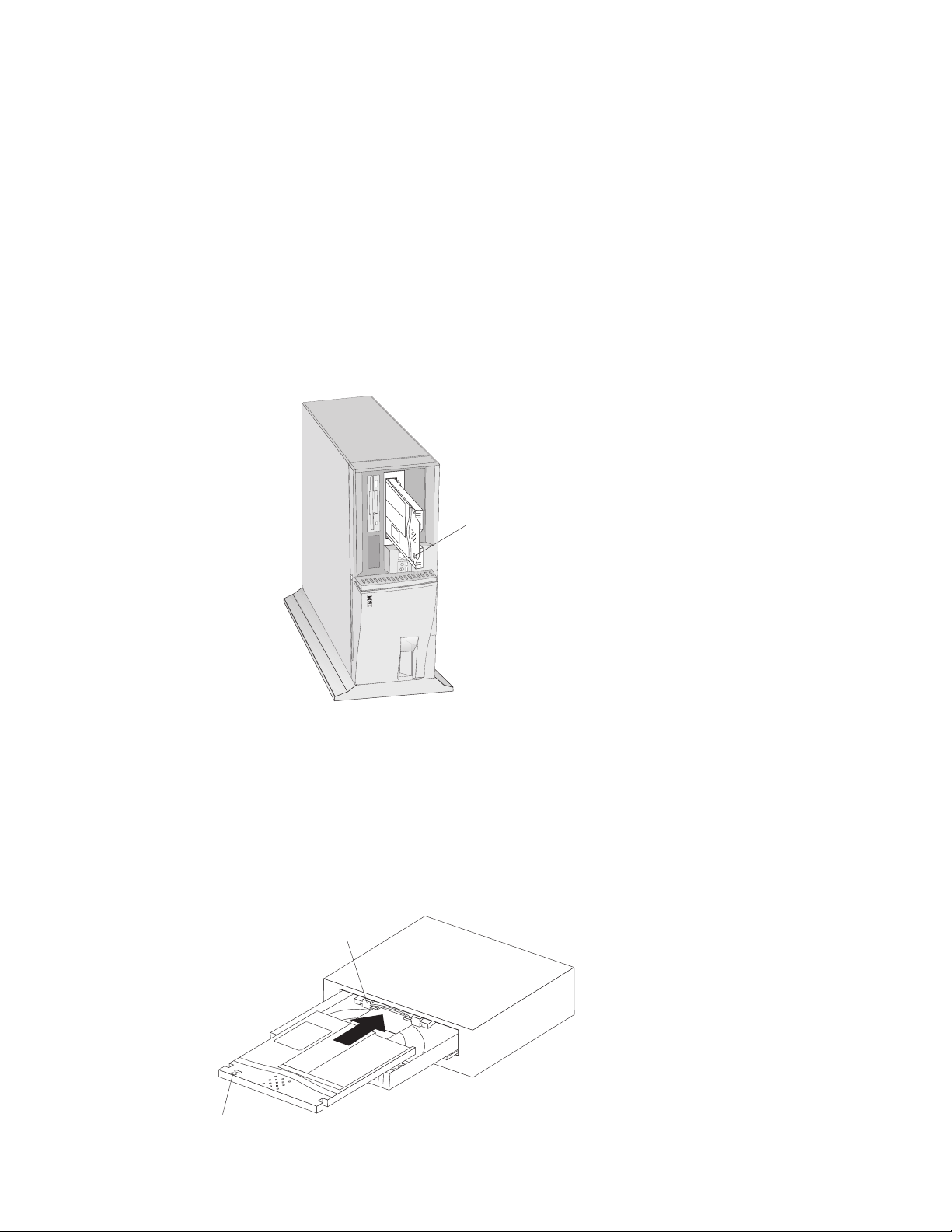

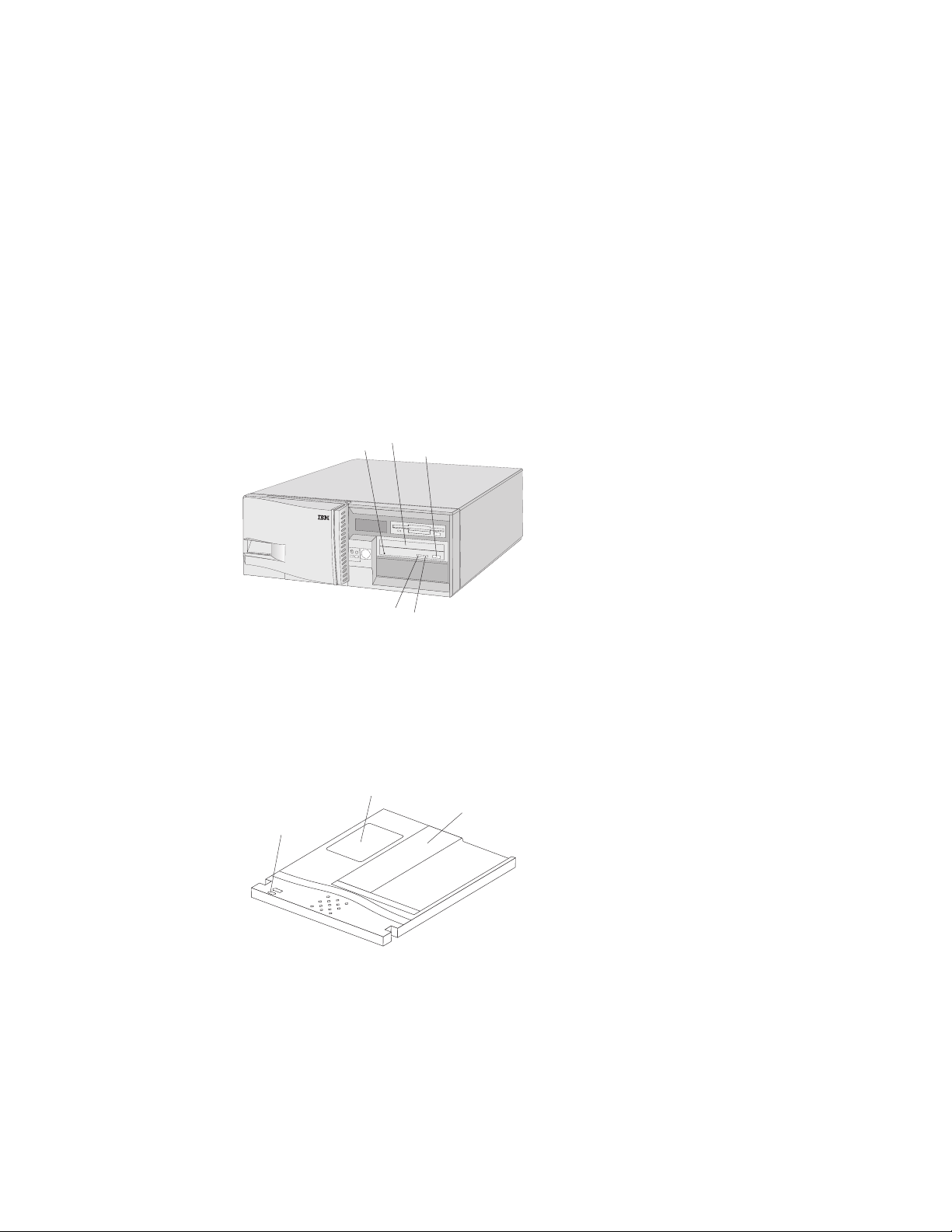

Inserting and Removing Diskettes

To insert a 3.5-inch diskette, hold the diskette with the label facing up and insert the end with the protective slide first. Push the diskette into the diskette drive until the diskette clicks into place.

To remove the diskette, press the eject button and slide the diskette out of the drive. Do not remove the diskette while the in-use light is on.

Diskette-Drive In-Use Light

Diskette Eject Button

42 Using Your Personal Computer

Write Protecting Diskettes

It is possible to accidentally format a diskette or unintentionally write data to it. Important information can be written over or lost. For this reason, it is a good idea to write protect important diskettes. You can read data from a write-protected diskette, but you cannot erase or change the data.

Most 3.5-inch diskettes have a write-protect switch that can be used to prevent data from being written to or erased from the diskette. If a 3.5-inch diskette does not have a write-protect switch, it is permanently write protected.

The write-protect switch is located on the back of 3.5-inch diskettes.

Write-Protect

Switch

 To allow writing to the diskette, slide the switch so the write-protect window is

covered.

 To prevent writing to the diskette, slide the switch so the write-protect window

is open.

Formatting Diskettes

You can buy diskettes either formatted or unformatted. Formatted diskettes are ready to use; unformatted diskettes must be formatted by your operating system before you can use them. The format operation checks a diskette for defects and prepares it for storing data. If data is already stored on the diskette, the format operation writes over it, and the data is lost.

Chapter 3. Operating Your Personal Computer 43

The operating system FORMAT command specifies how to format a specific type of diskette.

Attention: Always format diskettes to their correct capacity. Failing to do so might cause unreliable results. Differences such as magnetic coatings, the thickness of the diskette material, and the recording technique used all affect the formatting operation. Refer to your operating-system documentation for detailed information on formatting diskettes.

The following table shows diskette types, their formatted capacities, and the drive type that can be used with each diskette.

3.5-Inch Diskette Type Formatted Capacity

1 MB (MF2DD) 720 KB 1.44 MB 2 MB (MF2HD) 1.44 MB 1.44 MB

Drive Type

Notes:

1. MF2DD = Mini-floppy, two-sided, double density

2. MF2HD = Mini-floppy, two-sided, high density

3. If you are using DOS, use FORMAT A: /F:720 to format a 1 MB diskette in a

1.44 MB drive.

Copying Diskettes

If you are using DOS, you can copy one or more files to or from a diskette using the COPY command. Groups of files can be copied faster using the XCOPY command. Both COPY and XCOPY can copy files to different types of diskettes. For duplicating a diskette, use the DISKCOPY command. DISKCOPY requires that both the source diskette (the diskette you copy from) and the target diskette (the diskette you copy to) be the same type.

Refer to your operating-system documentation for more information on copying diskettes.

44 Using Your Personal Computer

Using a CD-ROM Drive

Some PC models have a preinstalled CD-ROM drive. CD-ROM (compact disc read-only memory) technology offers quick access to enormous amounts of information. A compact disc can store more than 650 MB of data, such as the large files needed for audio, still and full-motion video, and still and animated graphics. A CD-ROM drive can play back or read from a CD, but it cannot write information to it. CD-ROM drives use industry-standard, 12 cm (4.75-inch) CDs.

Follow these guidelines when using a CD-ROM drive:

 Do not place the drive where there is:

– High temperature – High humidity – Excessive dust

– Excessive vibration or sudden shock – An inclined surface

– Direct sunlight

 Do not insert any object other than a CD into the drive.  Before moving the computer, remove the CD from the drive.

The following is an illustration of the front bezel of the CD-ROM drive preinstalled in some PC models.

Emergency Eject Hole

Indicator Light

Tray

Eject/Load Button

Handling a CD

When handling a CD, follow these guidelines:

 Hold the CD by its edges. Do not touch the surface.  To remove dust or fingerprints, wipe the CD from the center to the outside.

Wiping the CD in a circular direction might cause loss of data.

 Do not write or stick paper on the CD.  Do not scratch or mark the CD.

Chapter 3. Operating Your Personal Computer 45

 Do not place or store the CD in direct sunlight.  Do not use benzene, thinners, or other cleaners to clean the CD.  Do not drop or bend the CD.

Loading a CD

To load a CD into the CD-ROM drive:

1. Press the Eject/Load button. The tray slides out of the drive. (Do not manually force the tray open.)

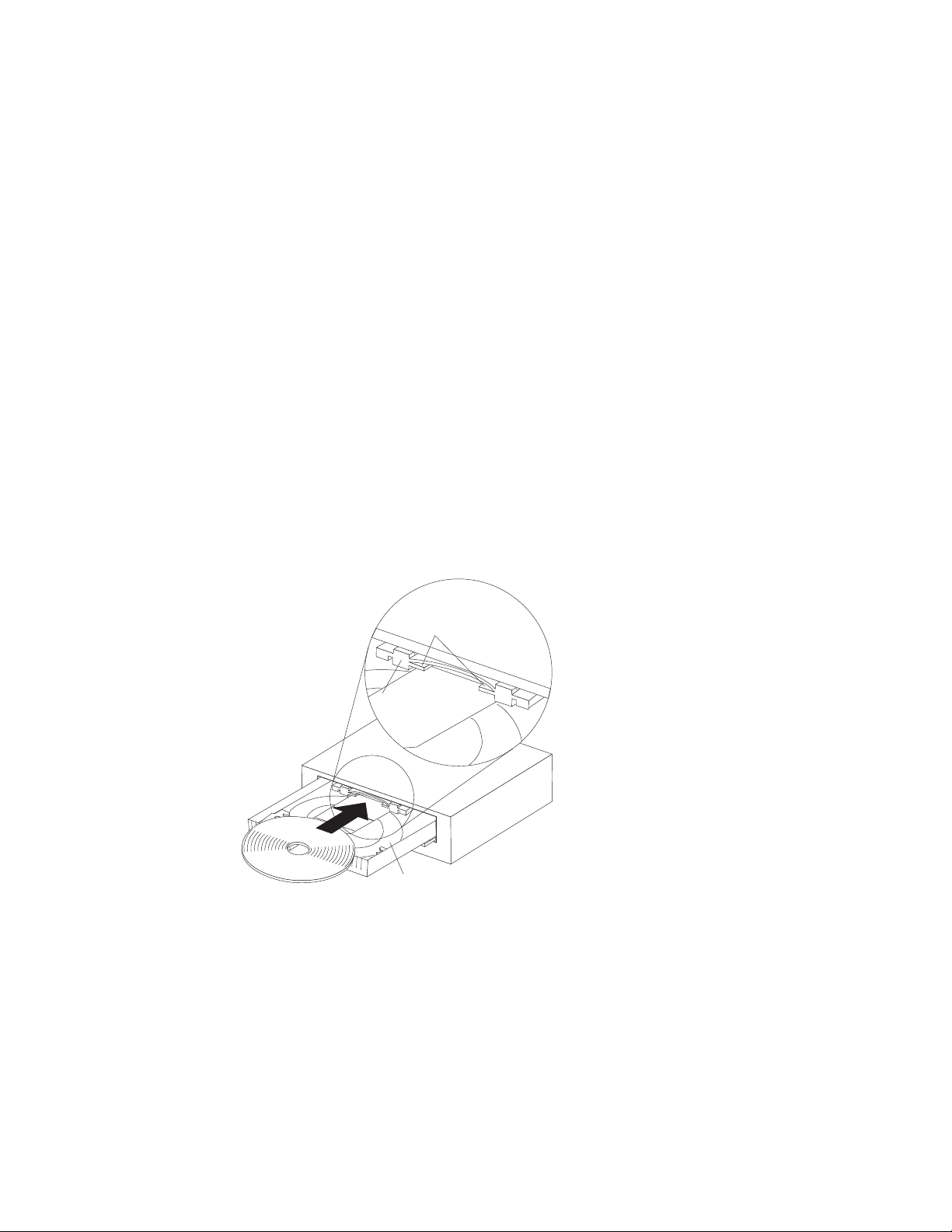

2. Place the CD in the tray with the label facing up. If you have placed your computer in a vertical position using an optional floor stand,

extend the retainers closest to the bottom of the tray. This prevents the CD from slipping out of the tray when the CD-ROM drive is operating.

CD-ROM Retainers

3. Close the tray by pressing the Eject/Load button, or by gently pushing the tray forward. When the tray is closed, the indicator light on the front of the drive will activate to indicate that the drive is in use.

4. To eject the CD, press the Eject/Load button. When the tray slides out, carefully remove the CD. (If the clips on the tray are extended, retract the clips before removing the CD.)

When placing the computer in a vertical position, it is important to use a floor stand to prevent damage to the computer from overheating. Refer to Installing Options in Your Personal Computer for information on purchasing and installing a floor stand.

46 Using Your Personal Computer

5. Close the tray by pressing the Eject/Load button, or by gently pushing the tray forward.

Note: If the tray does not slide out of the drive when you press the Eject/Load

button, insert the pointed end of a large paper clip into the emergency eject hole located above and to the left of the CD-ROM indicator light.

If you have installed a CD-ROM drive yourself and need additional information about the drive, refer to the documentation that comes with the CD-ROM drive.

Using a PD/CD-ROM Drive

Some PC models come with a PD/CD-ROM drive preinstalled. This dual-function, IDE drive can be used as a CD-ROM reader and as a mechanism for day-to-day back up and storage of data. It is particularly useful for performing system backups and for saving space-consuming data, such as graphic and multimedia files.

A single loading tray in the PD/CD-ROM drive accepts either standard CDs or PD cartridges. PD cartridges, which are the data storage medium used with a PD/CD-ROM drive, are removable, rewritable optical disks. Using a properly formatted PD cartridge, you can save, store, and read files just as you would with a hard disk drive. (Refer to “Formatting PD Cartridges” on page 53 for information on formatting PD cartridges.) PD cartridges can only be used with a PD/CD-ROM drive. A CD-ROM drive will not read data on a PD cartridge. Note also that, although a PD/CD-ROM drive can read data from a CD, it cannot write data to a CD.

One 650 MB, PD cartridge is provided with PC models that have a preinstalled PD/CD-ROM drive. Additional cartridges may be purchased from IBM by calling 1-888-IBM-MEDIA in the U.S. In other countries, contact your place of purchase or your IBM marketing representative for information.

Follow these guidelines when using a PD/CD-ROM drive:

 Do not place the drive where there is:

– High temperature – High humidity – Excessive dust

– Excessive vibration or sudden shock – An inclined surface

– Direct sunlight

Chapter 3. Operating Your Personal Computer 47

 Do not insert anything other than a CD or a PD cartridge into the drive.  Before moving the computer, remove the CD or the PD cartridge from the drive.

The following is an illustration of the front bezel of the PD/CD-ROM drive preinstalled in some PC models.

Emergency Eject Hole

PD/CD Indicator Light

Tray

Eject/Load Button

Busy Indicator Light

Handling and Storing PD/CD Drive Media

For information on handling and storing CDs, refer to “Handling a CD” on page 45.

A PD cartridge is a removable, rewritable, optical disk.

Space for Affixing Label

Write-Protect Switch

Shutter

Follow these guidelines for handling and storing PD cartridges:

 Do not move the shutter and touch the magnetic disk inside the protective case.  Do not store or place the PD cartridge in direct sunlight, high humidity, or high

temperatures.

 Do not store or place the PD cartridge in a dirty or dusty location.  Do not stack items on top of the PD cartridge.  Apply labels carefully to ensure that all edges are secure. Do not reuse labels.  Do not drop or try to bend the PD cartridge.

48 Using Your Personal Computer

Loading and Ejecting PD/CD Drive Media

The following sections provide instructions for loading and ejecting a CD and a PD cartridge from the PD/CD-ROM drive. Read these instructions carefully to prevent damage to your PD/CD-ROM drive and media.

Loading and Ejecting a CD: To load a CD into the PD/CD-ROM drive,

complete the following steps.

1. Press the Eject/Load button. The tray slides out of the drive. (Do not manually force the tray open.)

2. If your computer is placed in a vertical position using an optional floor stand, complete this step prior to inserting a CD. If your computer is not placed in a vertical position, skip to step 3.

a. To prevent the CD from slipping off the tray, extend clips 2 and 3 on the

tray before placing the CD in the tray. To do this, place your finger under one of the clips and gently push up until the clip pops up. Repeat this procedure for the clip located on the other side of the tray.

Spring Mechanism

Clip 1

Clip 2

Clip 3

b. Extend clip 1 on the tray before placing the CD in the tray. To do this, hold

the spring mechanism at the back of the tray in place with one hand. With

Chapter 3. Operating Your Personal Computer

the other hand, rotate the clip (located on top of the spring mechanism) in a counterclockwise direction as far as it will go.

c. Place the CD in the tray with the label facing up. To do this, place the CD

under clip 1 and push the spring mechanism into the computer. While holding the CD, slowly release the spring mechanism, making sure the CD moves under clips 2 and 3.

3. If your computer is not in a vertical position, place the CD in the tray with the label facing up.

Attention: Make sure the CD is securely seated in the recessed circular groove of the tray. Also, make sure it rests on top of the ledges located on the spring mechanism, as shown in the illustration below. Failure to seat the CD correctly can result in damage to the CD.

Ledges on Spring Mechanism

Spring Mechanism

Recessed Circular Groove

4. Close the tray by pressing the Eject/Load button, or by gently pushing the tray in. When the tray is closed, the PD/CD indicator light on the front of the drive will activate to indicate what type of media you have inserted. The light will be green if you have inserted a CD.

5. To eject the CD, do the following:

a. Press the Eject/Load button. b. If your computer is placed in a vertical position, skip to step 5c. If your

computer is not placed in a vertical position, carefully lift the CD out of the tray, and then close the tray.

c. If your computer is in a vertical position, leave the clips in the extended

position when the tray slides out. Grasp the CD (by putting one finger into

50 Using Your Personal Computer

the center hole of the CD and placing another finger on the outer edge of the CD) and push the spring mechanism back into the computer until clips 2 and 3 are cleared, as shown in the following illustration. Then carefully lift out the CD and close the tray. (There is no need to retract the clips if you continue to operate your computer in a vertical position. Leaving the clips extended will prolong the life of the clips.)

Clip 1

Clip 2

Clip 3

Spring Mechanism

Note: If the tray does not slide out of the drive when you press the Eject/Load

button, insert the pointed end of a large paper clip into the emergency eject hole located to the left of the PD/CD indicator light.

Loading and Ejecting a PD Cartridge: To load a PD cartridge into the

PD/CD-ROM drive, complete the following steps.

1. Press the Eject/Load button. The tray slides out of the drive. (Do not manually force the tray open.)

2. If your computer is placed in a vertical position using an optional floor stand, complete this step. If your computer is not placed in a vertical position, skip to step 3.

a. If you use CDs and PD cartridges in the PD/CD-ROM drive, leave the clips

in the extended position at all times, as described in “Loading and Ejecting a CD” on page 49. (The clips must be extended to prevent CDs from slipping off the tray. Leaving the clips extended will prolong the life of the clips.

Chapter 3. Operating Your Personal Computer 51

A PD cartridge can be loaded in the same manner described in steps 1 and 2 with the clips in the extended position.) The following is an illustration of a properly loaded PD cartridge in a vertically placed computer.

Write-Protect Switch

b. If you use only PD cartridges in the PD/CD-ROM drive, there is no need to

extend the clips on the tray to prevent a PD cartridge from slipping off the tray. The spring mechanism will hold the cartridge in place.

3. If your computer is not in a vertical position, place the PD cartridge in the tray with the label facing up and the write-protect switch in the bottom corner of the tray, as shown in the following illustration. To do this, push the spring mechanism into the computer with the PD cartridge. When the spring mechanism moves into the computer, the PD cartridge will snap into place.

Spring Mechanism

Write-Protect Switch

52 Using Your Personal Computer

5. To eject the PD cartridge, do the following:

a. Press the Eject/Load button. b. When the tray slides out, carefully remove the PD cartridge. To do this,

grasp the cartridge and carefully lift it out of the tray.

6. Close the tray.

Note: If the tray does not slide out of the drive when you press the Eject/Load

button, insert the pointed end of a large paper clip into the emergency eject hole located to the left of the PD/CD indicator light.

Formatting PD Cartridges

You can buy PD cartridges either formatted or unformatted. Formatted PD cartridges are ready to use, provided that they have been formatted with a format supported by your operating system. Unformatted PD cartridges must be formatted with a format supported by your operating system before you can use them. The following table defines which format types are supported by several popular operating systems. Note that FDISK-FAT is the preferred format type. It can be used with most operating systems using the device drivers and utility programs that are provided with your computer.

DOS/Windows

Format OS/2

NTFS — — R/W/F — FDISK-FAT R/W/1 R/W/2 R/W/F R/W/3, 5 SFD (DOS/Windows) R/W/F R/W/4 — R/W/5

3.1

Windows

Windows 95

R = Reads W = Writes F = Formats — = Not Supported 1 = Formats FDISK-FAT with OS/2 format utility (PDFORMAT.EXE). 2 = Formats FDISK-FAT with DOS/Windows 3.1 format utility (PDFDISK.EXE). 3 = Formats FDISK-FAT with Windows 95 format utility (PDTOOLS.EXE). 4 = Formats SFD with DOS/Windows 3.1 format utility (PDFORM). 5 = If disk is unformatted or already formatted as SFD, system formats as SFD. If disk has been previously formatted as FAT, system reformats as FAT.

Chapter 3. Operating Your Personal Computer 53

Instructions for formatting an unformatted PD cartridge and for formatting a previously formatted PD cartridge to FDISK-FAT format are provided for each operating system in the README2.TXT file on the Ready-to-Configure CD that comes with your computer. If your computer has IBM-preinstalled software, the README2.TXT file for Windows NT is also installed on the hard disk. Do not format a PD cartridge at the prompt that appears on the computer screen after you insert a PD cartridge. To ensure proper formatting, you must follow the instructions in the README2.TXT file.

For Windows NT Users Only

If you insert a PD cartridge into the PD/CD-ROM drive in your computer and get a message stating that The drive cannot find the sector requested, this means that the PD cartridge you are using has been previously formatted with the SFD format. Because Windows NT does not support SFD, you must reformat the PD cartridge to FDISK-FAT format, following the instructions in the README2.TXT file.

54 Using Your Personal Computer

Using Locks

To deter unauthorized use of your computer, you can lock the cover, sliding door, and keyboard.

Locking the Cover and Sliding Door

You can use the cover lock and keys to secure the outside cover and the sliding door on the front panel. You can lock both the sliding door and the computer cover, the cover only, or neither. If the sliding door is closed when you lock the cover, the sliding door is locked. If the sliding door is open when you lock the cover, the sliding door is not locked.

If you lock the cover without locking the sliding door, and then you want to lock the door also, do the following:

1. Unlock the cover.

2. Close the sliding door.

3. Lock the cover again, thus locking the sliding door also.

Two identical keys are provided with your computer. Locksmiths are not authorized to duplicate these keys. You must order replacement keys from the key manufacturer. The key serial number and the address of the manufacturer are on a tag attached to the keys. You might want to record this information in the space provided in Appendix A, “Computer Records” on page 107. Store the tag in a safe place.

Locking the Keyboard

You can disable the keyboard so that others are unable to use it. If a power-on password is set, the keyboard is locked when you turn on the computer. You must type the correct password before the keyboard will unlock. You can enable the power-on password feature with the Configuration/Setup Utility program. See “Setting and Changing a Power-On Password” on page 30.

Some operating systems have a keyboard and mouse lock-up feature. Check the documentation that comes with your operating system for more information.

Chapter 3. Operating Your Personal Computer 55

56 Using Your Personal Computer

Chapter 4. Taking Care of Your Computer

This chapter provides guidelines for the proper handling and care of your computer.

Basics

Here are some basic points about keeping your computer functioning properly:

 Keep your computer in a clean, dry environment. Make sure it rests on a flat,

sturdy surface.

 Do not place items on top of the monitor or cover any of the vents in the

monitor or computer. These vents provide air flow to keep your computer from overheating.

 Keep food and drinks away from all parts of your computer. Food particles

and spills will make the keyboard and mouse sticky and unusable.

 Do not get the power switches or other controls wet. Moisture can damage

these parts and cause an electrical hazard.

 Always disconnect a power cord by grasping the plug, not the cord.

Cleaning Your Computer

It is a good practice to clean your computer periodically to protect the surfaces and ensure trouble-free operation.

CAUTION: Be sure to turn off the computer and monitor power switches before cleaning the computer and monitor screen.

Computer and Keyboard

Use only mild cleaning solutions and a damp cloth to clean the painted surfaces of the computer.

Monitor Screen

Do not use abrasive cleaners when cleaning the surface of the monitor screen. The screen surface is easily scratched, so avoid touching it with pens, pencil points, and erasers.

To clean the screen surface, wipe it gently with a soft, dry cloth, or blow on the screen to remove grit and other loose particles. Then use a soft cloth moistened with a nonabrasive liquid glass cleaner.

Mouse

If the pointer on the screen does not move smoothly with the mouse, you might need to clean the mouse.

1. Turn off the computer.

2. Disconnect the mouse cable from the computer.

3. Turn the mouse upside down. Unlock the retainer on the bottom of the mouse by moving it in the direction indicated by the arrow on the retainer.

4. Turn the mouse right-side up, and the retainer and ball will drop out.

5. Wash the ball in warm, soapy water, and dry it well.

6. Using a damp cloth, wipe the outside of the mouse and the retainer. Be sure to wipe the rollers inside the mouse.

7. Insert the ball and retainer. Lock the retainer by moving it in the opposite direction of the arrow.

8. Reconnect the mouse cable to the computer.

Replacing the Battery

Your computer has a special type of memory that maintains the date, time, and the settings for built-in features, such as serial- and parallel-port assignments (configuration). A battery keeps this information active when you turn off the computer.

58 Using Your Personal Computer

The battery requires no charging or maintenance throughout its life; however, no battery lasts forever. If the battery fails, the date, time, and configuration information (including passwords) are lost. An error message is displayed when you turn on the computer.

Refer to “Lithium Battery Notice” on page ix of this publication and Installing Options in Your Personal Computer for information about replacing the battery.

If you replace the original lithium battery with a heavy-metal battery or a battery with heavy-metal components, be aware of the following environmental consideration: batteries and accumulators that contain heavy metals must not be disposed of with normal domestic waste. They will be taken back free of charge by the manufacturer, distributor, or representative to be recycled or disposed of in a proper manner. For further information on battery disposal, call IBM at 1-800-IBM-4333 (1-800-426-4333) in the U.S. For information outside of the U.S., contact your IBM reseller or marketing representative.

Moving Your Computer

Normal shipping and handling can cause loss of data from a hard disk. If your computer has a hard disk drive, take the following precautions:

1. Back up all files and data from the hard disk. Operating systems can vary in the way they perform backup procedures. Some

operating systems save only data files, while others make copies of application program files and data files. Refer to your operating system documentation for information about software backup.

2. Remove all media (diskettes, compact discs, tapes, and so on) from the drives.

3. Turn off the computer and all attached devices. Your hard disk drive automatically parks the read/write heads in a nondata area. This process prevents damage to the hard disk.

4. Unplug the power cords from electrical outlets.

5. Note where you have attached your cables to the rear of the computer; then remove them.

CAUTION: Do not risk injury by moving or lifting the computer by yourself. Ask another person to help you.

6. If you saved the original shipping cartons and packing materials, use them to pack the units. If you are using different cartons, cushion the units to avoid any damage.

Chapter 4. Taking Care of Your Computer 59

60 Using Your Personal Computer

Chapter 5. Solving Problems

This chapter presents an overview of diagnostic tools available to you. You can use these tools to identify and correct problems that might come up as you use your computer. This chapter also contains information about option diskettes and terminate-and-stay-resident (TSR) programs.

Using Diagnostic Tools

Computer problems can be caused by hardware, software, or user error (for example, pressing the wrong key). Using the diagnostic aids discussed in this chapter, you might be able to solve such problems yourself or gather helpful information you can pass on to a service technician.

You can check the hardware by following the procedures in this chapter. You can also use the diagnostic programs provided with your computer (see “Diagnostic Programs” on page 96 for a description of these programs).

If the hardware checks out OK, and you have not made a user error, you might have a software problem. If you suspect that you have a software problem and your computer came with IBM-preinstalled software, refer to About Your Software and the operating system documentation that comes with your computer. If you have installed software applications yourself, consult the documentation that comes with the software.

The following tools are available to diagnose hardware-related problems:

 Power-on self-test (POST)

 Error messages

 POST message charts  Troubleshooting charts  Diagnostic programs

Descriptions of these tools follow.

Power-On Self-Test (POST)

Each time you turn on your computer, it performs a series of tests that check the operation of the base computer. This series of tests is called the power-on self-test (POST).

Note

If your computer does not start when you press the power switch, do the following:

 Make sure all cables are securely connected to the correct locations.  Check to see if the voltage-selection switch is set to the correct position.  Make sure the computer cover is installed properly (pushed all the way on).

If this does not correct the problem, have the computer serviced.

POST does the following:

 Checks basic system-board operations  Checks the memory operation  Compares the current system configuration with that established by the

Configuration/Setup Utility program

 Starts the video operation  Verifies that the diskette drives are working  Verifies that the hard disk drive and the CD-ROM or PD/CD-ROM drive (if

installed) are working

As POST starts, numbers showing the amount of memory being tested appear in the top-left corner of the screen until the total amount of memory in the system is reached. Options for running a fast POST or accessing the Configuration/Setup Utility program appear in the lower-left corner of the screen.

Note: The amount of available memory shown might be somewhat less than

expected because of basic input/output system (BIOS) shadowing in random access memory (RAM).

If POST finishes without detecting any problems, you will hear one beep and the first screen of your operating system or application program appears (if you have not set a power-on password). If you have set a power-on password, a password prompt appears. You must enter your password before the first screen of your operating system or application program will appear. (For further information on using passwords, refer to “Passwords” on page 28.)

If POST detects a problem, you will hear multiple beeps or no beep. In most cases, an error code appears in the top left corner of the screen, and in some cases a description of the error is displayed beside the code. (Note that the screen will sometimes display multiple error codes and descriptions.) For more information about what caused an error message to appear and what action to take, refer to

62 Using Your Personal Computer

“Solving POST Error Message Problems” on page 64 and “POST Message Charts” on page 67.

If you hear no beep at all during POST, refer to “Troubleshooting Charts” on page 86. You might need to have your computer serviced.

Error Messages

Error messages that appear on the screen might be text, numeric, or both. There are several types of error messages:

 POST error messages

Messages that appear when POST finds problems with the hardware during startup or when a change in the hardware configuration is found. POST error messages are 3-, 4-, 5-, 8-, or 12-character alphanumeric messages and include brief explanations (except I999XXXX errors).

For more information about what caused an error message to appear and what action to take, refer to “Solving POST Error Message Problems” on page 64 and “POST Message Charts” on page 67.

 SCSI error messages

Messages that appear if a problem or conflict is detected by the SCSI host adapter which is preinstalled in some PC models. If your PC has a preinstalled SCSI adapter, refer to the SCSI documentation that comes with your computer for information about these messages.

 Software-generated error messages

Messages that appear if a problem or conflict is detected by the application program, the operating system, or both. Error messages for operating-system and other software problems are generally text messages, but they also can be numeric messages. For information about these software error messages, refer to the information that comes with the operating system or application program, or both.

 Diagnostic error messages

Messages that appear if a hardware problem is detected by a diagnostic test program. The messages present text information that can be used to identify a failing part.

Chapter 5. Solving Problems 63

Solving POST Error Message Problems: If you receive an error message

during the power-on-self-test (POST), completing the steps outlined in this section might enable you to resolve the problem.

Note

If you have just added, removed, or changed the location of a device and you receive an error message, follow the procedure described in the Important text box on page 22. If the procedure on page 22 does not eliminate the error message, then proceed with the following instructions.

1. Write down all error code numbers and descriptions that appear on the screen as you start your computer. (Note that a single problem can cause several error messages to appear. When you correct the cause of the first error message, the other error messages probably will not appear on the screen the next time you turn on your computer.)

2. If you have set a power-on password, a password prompt appears. (You must wait approximately one minute after the memory count numbers stop cycling in the top-left corner of the screen for the password prompt to appear.) If you have set both power-on and administrator passwords, you can type either of the passwords at the password prompt. However, if you think you might need to change any settings in the Configuration/Setup Utility program, you must type your administrator password at the password prompt. If you type your power-on password, you will be able to view error codes and error code descriptions displayed on the POST Startup Errors screen, and you will also be able to view limited information in the Configuration/Setup Utility program. However, you will not be able to change any settings.

3. In the case of most errors, the Configuration/Setup Utility program starts automatically so that you can attempt to identify and correct the problem. When the Configuration/Setup Utility program starts, a screen labeled POST Startup Errors appears. (Note that the POST Startup Errors screen does not appear immediately. You must wait approximately one minute.) If the POST Startup Errors screen does not appear, proceed to step 6.

4. At the POST Startup Errors screen, select Continue if you want to access the Configuration/Setup Utility program menu. Select Exit Setup if you want to exit the Configuration/Setup Utility program. (See the Important text box in step 5 for information on exiting the Configuration/Setup Utility program without making any changes to current settings.) To select an item, press Up Arrow (↑) or Down Arrow (↓) to highlight the item, and then press Enter.

5. If you selected Continue in step 4, the Configuration/Setup Utility program menu appears on the screen. You will see a pointer next to any menu items

64 Using Your Personal Computer

that are malfunctioning or that have been changed since the last time you turned on your computer. If you did not knowingly make a change to a flagged menu item, there is likely a malfunction in that item. If you made a change, continue here. If you did not make a change, go to step 5e.

To use the Configuration/Setup Utility program, do the following:

a. Select the menu item that is flagged (or that you wish to view) by pressing

Up Arrow (↑) or Down Arrow (↓), and then press Enter.

b. A new menu specific to the item that you selected appears. Press Left

Arrow (←) or Right Arrow (→) to toggle between choices for a menu item. (Note that each menu item has a Help screen. To view the Help screen, select the menu item, and then press F1.)

c. When you have finished viewing and changing settings, press Esc to return

to the Configuration/Setup Utility program menu.

d. Before you exit from the program, select Save Settings. When you exit

from the Configuration/Setup Utility program menu (see step 5e), your operating system will start automatically (unless there is an unresolved problem with the IDE hard disk drive).

Important

If you did not change any settings in the Configuration/Setup Utility program, note the following:

 You will get an error message if you exit from the

Configuration/Setup Utility program without selecting Save Settings. Your operating system will not start, but the computer will automatically restart. When the computer restarts, you will get a POST error message, and then the Configuration/Setup Utility program will again start automatically.

 You will not get an error message if you select Save Settings, and

then exit the Configuration/Setup Utility program. Your system will save all settings as they currently appear in the Configuration/Setup Utility program and your operating system will start (unless there is an unresolved problem with an IDE device).

e. To exit from the Configuration/Setup Utility program, press Esc and follow

the instructions on the screen.

Chapter 5. Solving Problems 65

6. For more information about what caused an error message to appear and what action to take, refer to the following chart.

Problem Go to:

POST error code or message appears. “POST Message Charts” on page 67.

After more than one beep, application program or operating system appears.

Blank screen, unreadable screen, or other unusual response occurs.

“Diagnostic Programs” on page 96.

“Troubleshooting Charts” on page 86.

If you are unable to resolve a problem and need assistance, refer to Chapter 6, “Getting Help, Service, and Information” on page 99.

66 Using Your Personal Computer

POST Message Charts

The computer might display more than one error message. Often, the first error to occur causes subsequent errors. When using the POST message charts in this section, always begin by following the suggested action for the first error message that appears on your computer screen. Note that, in these charts, “X” can be any alphanumeric character.

Important

If you find it necessary to remove the computer cover, first read "Removing the Cover" in Installing Options in Your Personal Computer for important safety information and instructions.

POST Message Description

101 102

110 A memory parity failure occurred during testing of the system

114 An adapter read-only memory (ROM) error occurred.

121 A hardware error occurred.

A failure occurred during testing of the system board and microprocessor.

Action: Have the computer serviced.

board. Action: Run the diagnostic programs to verify that a problem

exists in a DIMM. (See “Diagnostic Programs” on page 96 for information about diagnostic programs provided with your computer.)

Refer to Installing Options in Your Personal Computer if you need to reconfigure the system memory to aid in identifying the defective DIMM.

If you cannot identify the defective DIMM in this way, have the computer serviced.

Action: Remove all adapters that are not required for system startup and reinstall them one at a time, retesting after each is reinstalled. When an adapter fails, replace it.

If the problem cannot be isolated and corrected, have the computer serviced.

Action: Have the computer serviced.

Chapter 5. Solving Problems 67

POST Message Description

161 The battery on the system board is dead.

CAUTION: Danger of explosion if lithium battery is incorrectly replaced.

Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries as required by local ordinances or regulations. (See “Lithium Battery Notice” on page ix and “Replacing the Battery” on page 58 for important information on battery use, disposal, and replacement.)

Action: The computer can be used until you replace the battery.

However, you will have to run the Configuration/Setup Utility program to set the time and date each time the computer is turned on until a new battery is installed. (For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.)

68 Using Your Personal Computer

POST Message Description

162 A change in device configuration occurred. This message is

displayed under one or more of the following conditions:

 A new device has been installed.  A device has been moved to a different location or cable

connection.

 A device has been removed or disconnected from a cable.  A device is failing and is no longer recognized by the

computer as being installed.

 An external device is not turned on.  Processor update code has not been installed or cannot be

found.

 An invalid checksum is detected in CMOS memory

(nonvolatile RAM).

Action:

1. Verify that all external devices are turned on. External devices must be turned on before the computer is turned on.

2. Verify that all devices are properly installed and securely connected.

3. If you added, removed, or changed the location of a device, you must save the new configuration in the Configuration/Setup Utility program. Refer to the Important text box on page 22 for further information and instructions on saving the configuration.

4. If you added or changed a microprocessor, you must update system programs. Refer to “Updating System Programs” on page 39 for instructions.

5. If you did not add, remove, or change the location of a device, a device is probably failing. Running the diagnostic programs might isolate the failing device. (See “Diagnostic Programs” on page 96 for information about diagnostic programs provided with your computer.)

If the problem cannot be isolated and corrected, have the computer serviced.

Chapter 5. Solving Problems 69

POST Message Description

163 The clock is not working correctly.

Action: Set the correct date and time. If the date and time are set correctly and saved and the 163 error message reappears, replace the battery.

If this does not correct the problem, have the computer serviced. Note: The computer can be used until it is serviced, but any

application programs that use the date and time will be affected.

164 A change in the memory configuration occurred. This error can be

caused by adding, removing, or incorrectly installing memory. Note: The computer can be used with decreased memory capacity

until the error is corrected.

Action:

1. If you added memory, see Installing Options in Your Personal Computer to verify that the new memory is correct for your

computer and that it is installed correctly.

2. If you added or removed memory, you must save the new configuration in the Configuration/Setup Utility program. Refer to the Important text box on page 22 for further information and instructions on saving the configuration.

3. Running the diagnostic programs might isolate the location of the problem DIMM and provide additional information. (See “Diagnostic Programs” on page 96 for information about diagnostic programs provided with your computer.)

If the problem cannot be isolated and corrected, have the computer serviced.

70 Using Your Personal Computer

POST Message Description

20X A failure occurred during testing of the memory. This error can be

caused by incorrectly installed memory, a failing DIMM, or a system-board failure.

Action:

1. If you have added memory, see Installing Options in Your Personal Computer and “Configuring Your Computer” on

page 22 of this booklet to verify that the new memory is correct for your computer, and that it is installed and configured correctly.

2. Run the diagnostic programs to verify the problem. (See “Diagnostic Programs” on page 96 for information about diagnostic programs provided with your computer.)

If the problem cannot be isolated and corrected, have the computer serviced.

301 303

A failure occurred during testing of the keyboard and keyboard controller. These error messages also might be accompanied by continuous beeping.

Action:

Ensure that:

1. Nothing is resting on the keyboard and pressing a key.

2. No key is stuck.

3. The keyboard cable is securely attached to the keyboard connector on the computer. (For the location of the keyboard connector, refer to “External Connectors” on page 10.)

Note: If you have just connected a new mouse or other pointing

device, turn the computer off and disconnect that device. Wait at least 5 seconds, and then turn the computer on. If the error message goes away, replace the device. If the error message remains, have the keyboard and cable or the computer serviced.

Chapter 5. Solving Problems 71

POST Message Description

601 A failure occurred during testing of the diskette drive and

diskette-drive controller. This error can be caused by a loose or incorrectly connected cable, a failing drive, or a failing system board.

Note: The computer can be used, but one or more diskette drives

might not work.

Action: Verify that all diskette drive cables are properly installed and securely connected.

Running the diagnostic programs might isolate the diskette drive that failed, but you must have your computer serviced. (See “Diagnostic Programs” on page 96 for information about diagnostic programs provided with your computer.)

602 The computer is not able to start the diskette in the drive. The

diskette might be damaged or formatted incorrectly. Action: Try another startable diskette that is formatted correctly

and is in good condition. (For information and instructions on formatting diskettes, refer to “Formatting Diskettes” on page 43 and your operating system documentation.)

If this does not correct the problem, have the computer serviced.

604 A failure occurred during the testing of a diskette drive.

Action:

1. Verify that the Configuration/Setup Utility program correctly reflects the type of diskette drive you have installed. (For instructions on using the Configuration/Setup Utility program, refer to “Configuring Your Computer” on page 22.)

2. Run the diagnostic programs. (See “Diagnostic Programs” on page 96 for information about diagnostic programs provided with your computer.)

3. If the diagnostic programs detect a failure, replace the diskette drive.

If the problem cannot be isolated and corrected, have the computer serviced.

72 Using Your Personal Computer

POST Message Description

662 A diskette drive configuration error occurred.

Action:

1. Verify that the Configuration/Setup Utility program correctly reflects the number of diskette drives you have installed. (For instructions on using the Configuration/Setup Utility program, refer to “Configuring Your Computer” on page 22.)

2. If you installed or removed a diskette drive, you must save the new configuration in the Configuration/Setup Utility program. Refer to the Important text box on page 22 for further information and instructions on saving the configuration.

If this does not correct the problem, have the computer serviced.

178X A failure occurred during testing of the hard disk drive or a

primary or secondary IDE device.

Action:

1. Run the diagnostic programs. (See “Diagnostic Programs” on page 96 for information about diagnostic programs provided with your computer.)

2. If the diagnostic programs detect a failure, replace the defective hard disk drive or primary or secondary IDE or EIDE device.

If the problem cannot be isolated and corrected, have the computer serviced.

1762 A hard disk configuration error occurred.

Action:

1. Verify that the Configuration/Setup Utility program correctly reflects the number of hard disk drives you have installed. (For instructions on using the Configuration/Setup Utility program, refer to “Configuring Your Computer” on page 22.)

2. If you added or removed a hard disk drive, you must save the new configuration in the Configuration/Setup Utility program. Refer to the Important text box on page 22 for further information and instructions on saving the configuration.

If the problem cannot be isolated and corrected, have the computer serviced.

Chapter 5. Solving Problems 73

POST Message Description

1800 A PCI adapter has requested a hardware interrupt that is not

available.

Action:

1. Make sure that all ISA legacy adapters are set correctly in the Configuration/Setup Utility program. If the hardware interrupt settings are not correct, change and save the settings. Setting the resources used by ISA legacy adapters to Not available enables the Plug and Play function to configure around the legacy adapters.

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required interrupt resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

3. If all hardware interrupts are being used by ISA legacy adapters, you might need to remove an ISA legacy adapter to make an interrupt available to the PCI adapter you want to install. For instructions on removing adapters, see Installing Options in Your Personal Computer.

Note: If you remove an ISA legacy adapter, set the hardware

interrupt used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make an interrupt available to the PCI adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

74 Using Your Personal Computer

POST Message Description

1801 A PCI adapter has requested memory resources that are not

available.

Action:

1. Make sure that all ISA legacy adapters are set correctly in the Configuration/Setup Utility program. If the memory resource settings are not correct, change and save the settings. Setting the resources used by ISA legacy adapters to Not available enables the Plug and Play function to configure around the legacy adapters.

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required memory resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

3. If all memory resources are being used by ISA legacy adapters, you might need to remove an ISA legacy adapter to make memory available to the PCI adapter you want to install. For instructions on removing adapters, see Installing Options in Your Personal Computer.

Note: If you remove an ISA legacy adapter, set the memory

resources used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make memory available to the PCI adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

Chapter 5. Solving Problems 75

POST Message Description

1802 A PCI adapter has requested an I/O address that is not available,

or the PCI adapter might be defective.

Action:

1. Make sure that all ISA legacy adapters are set correctly in the Configuration/Setup Utility program. If the I/O address settings are not correct, change and save the settings. Setting the resources used by ISA legacy adapters to Not available enables the Plug and Play function to configure around the legacy adapters.

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required I/O resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

3. If all I/O addresses are being used by ISA legacy adapters, you might need to remove an ISA legacy adapter to make an I/O address available to the PCI adapter you want to install. For instructions on removing adapters, see Installing Options in Your Personal Computer.

Note: If you remove an ISA legacy adapter, set the I/O

address used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make an I/O address available to the PCI adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

76 Using Your Personal Computer

POST Message Description

1803 A PCI adapter has requested a memory address that is not

available, or the PCI adapter might be defective.

Action:

1. Make sure that all ISA legacy adapters are set correctly in the Configuration/Setup Utility program. If the memory address settings are not correct, change and save the settings. Setting the resources used by ISA legacy adapters to Not available enables the Plug and Play function to configure around the legacy adapters.

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required memory resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

3. If all memory addresses are being used by ISA legacy adapters, you might need to remove an ISA legacy adapter to make a memory address available to the PCI adapter you want to install. For instructions on removing adapters, see Installing Options in Your Personal Computer.

Note: If you remove an ISA legacy adapter, set the memory

address used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make a memory address available to the PCI adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

Chapter 5. Solving Problems 77

POST Message Description

1804 A PCI adapter has requested a memory address that is not

available.

Action:

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required memory resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

Note: If you remove an ISA legacy adapter, set the memory

address used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make a memory address available to the PCI adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

1805 A PCI adapter read-only memory (ROM) error occurred.

Action: Remove all of the PCI adapters that are not required for system startup and reinstall them one at a time, retesting after each is reinstalled. When an adapter fails, replace it.

If the problem cannot be isolated and corrected, have the computer serviced.

78 Using Your Personal Computer

POST Message Description

1850 A Plug and Play adapter has requested a hardware interrupt that

is not available.

Action:

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

3. If all hardware interrupts are being used by ISA legacy adapters, you might need to remove an ISA legacy adapter to make an interrupt available to the Plug and Play adapter you want to install. For instructions on removing adapters, see Installing Options in Your Personal Computer.

Note: If you remove an ISA legacy adapter, set the hardware

interrupt used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make an interrupt available to the Plug and Play adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

Chapter 5. Solving Problems 79

POST Message Description

1851 A Plug and Play adapter has requested memory resources that are

not available.

Action:

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required memory resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

3. If all memory resources are being used by ISA legacy adapters, you might need to remove an ISA legacy adapter to make memory available to the Plug and Play adapter you want to install. For instructions on removing adapters, see Installing Options in Your Personal Computer.

Note: If you remove an ISA legacy adapter, set the memory

resources used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make memory available to the Plug and Play adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

80 Using Your Personal Computer

POST Message Description

1852 A Plug and Play adapter has requested an I/O address that is not

available, or the Plug and Play adapter might be defective.

Action:

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required I/O resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

3. If all I/O addresses are being used by ISA legacy adapters, you might need to remove an ISA legacy adapter to make an I/O address available to the Plug and Play adapter you want to install. For instructions on removing adapters, see Installing Options in Your Personal Computer.

Note: If you remove an ISA legacy adapter, set the I/O

address used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make an I/O address available to the Plug and Play adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

Chapter 5. Solving Problems 81

POST Message Description

1853 A Plug and Play adapter has requested a memory address that is

not available, or the Plug and Play adapter might be defective.

Action:

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required memory resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

3. If all memory addresses are being used by ISA legacy adapters, you might need to remove an ISA legacy adapter to make a memory address available to the Plug and Play adapter you want to install. For instructions on removing adapters, see Installing Options in Your Personal Computer.

Note: If you remove an ISA legacy adapter, set the memory

address used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make a memory address available to the Plug and Play adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

82 Using Your Personal Computer

POST Message Description

1854 A Plug and Play adapter has requested a memory address that is

not available.

Action:

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required memory resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

Note: If you remove an ISA legacy adapter, set the memory

address used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make a memory address available to the Plug and Play adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

1855 A Plug and Play adapter read-only memory (ROM) error occurred.

Action: Remove all of the Plug and Play adapters that are not required for system startup and reinstall them one at a time, retesting after each is reinstalled. When an adapter fails, replace it.

If the problem cannot be isolated and corrected, have the computer serviced.

Chapter 5. Solving Problems 83

POST Message Description

1856 A Plug and Play adapter has requested a DMA address that is not

available.

Action:

1. Make sure that all ISA legacy adapters are set correctly in the Configuration/Setup Utility program. If the DMA address settings are not correct, change and save the settings. Setting the resources used by ISA legacy adapters to Not available enables the Plug and Play function to configure around the legacy adapters.

For background information on PCI, ISA, Plug and Play, and legacy (non-Plug and Play) adapters, refer to Installing Options in Your Personal Computer. For information about required DMA resource settings for ISA legacy adapters, refer to the documentation that comes with these adapters. For instructions on using the Configuration/Setup Utility program, see “Configuring Your Computer” on page 22.

2. Make sure that switches on all ISA legacy adapters are set correctly. For information about switch settings, refer to the documentation that comes with the ISA legacy adapters.

3. If all DMA addresses are being used by ISA legacy adapters, you might need to remove an ISA legacy adapter to make a DMA address available to the Plug and Play adapter you want to install. For instructions on removing adapters, see Installing Options in Your Personal Computer.

Note: If you remove an ISA legacy adapter, set the DMA

address used by the removed adapter to Available before installing another adapter.

4. If you have other PCI or Plug and Play adapters installed, you might need to remove one of these adapters to make a DMA address available to the Plug and Play adapter you want to install.

If the problem cannot be isolated and corrected, have the computer serviced.

84 Using Your Personal Computer
