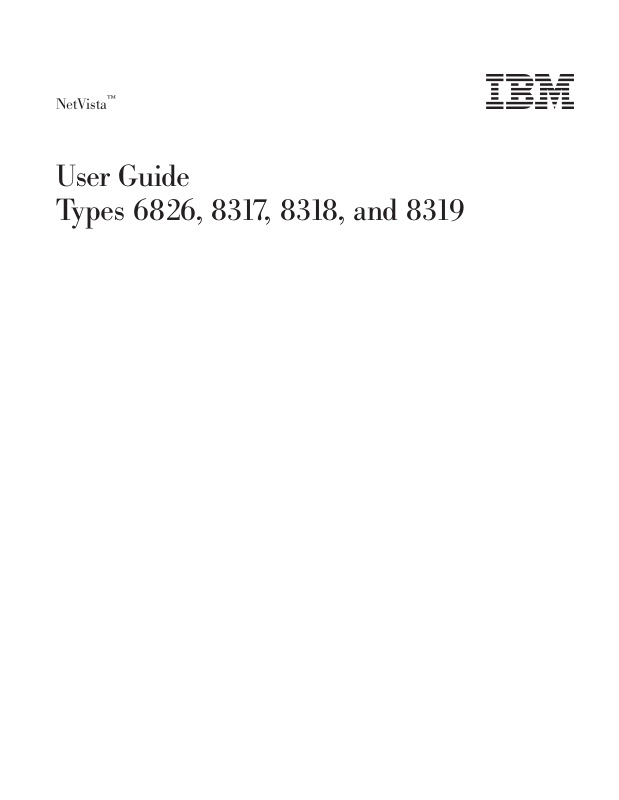

NetVista

™

User Guide Types 6826, 8317, 8318, and 8319



NetVista

™

User Guide Types 6826, 8317, 8318, and 8319



Note

Before using this information and the product it supports, be sure to read the “Safety Information” on page v and Appendix C, “Notices” on page 35.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

Safety Information ..........v

Lithium battery notice ...........vi

Modem safety information .........vi

Lasercompliancestatement.........vii

Overview ..............ix

Informationresources...........ix

Chapter 1. Installing options ......1

Features................1

Availableoptions.............4

Specifications ..............5

Supported operating positions ........6

Toolsrequired..............6

Handling static-sensitive devices........6

Installing external options ..........7

Locating controls and connectors on the front of

your computer.............7

Locating connectors on the rear of your computer 8

Obtainingdevicedrivers.........8

Removingthecover............9

Locating components ...........10

Accessing system board components and drives . . 11

Identifying parts on the system board .....12

Installing memory ............13

Installing PCI adapters ..........14

Installing a drive in the disk drive tray .....15

Replacingtheharddiskdrive.......16

Connecting an IDE CD drive .......16

Connecting a diskette drive ........16

Installing a cable lock ...........17

Changing the battery ...........17

Erasing a lost or forgotten password (clearing

CMOS)................18

Replacing the cover and connecting the cables. . . 19

Chapter 2. Using the IBM Setup Utility 21

Starting the IBM Setup Utility program .....21

Viewing and changing settings ........21

Exiting from the IBM Setup Utility program . . . 22

Usingpasswords............22

Userpassword............22

Administrator password .........22

Setting, changing, and deleting a password. . . 22

Using Security Profile by Device .......23

Selecting a startup device..........23

Selecting a temporary startup device .....23

Changing the startup device sequence ....23

Appendix A. Updating POST/BIOS . . . 25

POST/BIOS ..............25

Updating (flashing) BIOS from a diskette . . . 25

Updating (flashing) BIOS from your operating

system ...............25

Recovering from a POST/BIOS update failure . . . 26

Appendix B. Manual modem

commands .............27

Basic AT commands ...........27

Extended AT commands ..........29

MNP/V.42/V.42bis/V.44 commands ......30

Fax Class 1 commands ..........31

Fax Class 2 commands ..........31

Voice commands.............32

Appendix C. Notices .........35

Trademarks..............35

Index ...............37

iv User Guide

Safety Information

DANGER

Electrical current from power, telephone, and communication cables is hazardous.

To avoid a shock hazard: v Do not connect or disconnect any cables or perform installation, maintenance,

or reconfiguration of this product during an electrical storm.

v Connect all power cords to a properly wired and grounded electrical outlet. v Connect to properly wired outlets any equipment that will be attached to this

product.

v When possible, use one hand only to connect or disconnect signal cables. v Never turn on any equipment when there is evidence of fire, water, or

structural damage.

v Disconnect the attached power cords, telecommunications systems, networks,

and modems before you open the device covers, unless instructed otherwise in the installation and configuration procedures.

v Connect and disconnect cables as described in the following table when

installing, moving, or opening covers on this product or attached devices.

To connect:

1. Turn everything OFF.

2. First, attach all cables to devices.

3. Attach signal cables to connectors.

4. Attach power cords to outlet.

5. Turn device ON.

To disconnect:

1. Turn everything OFF.

2. First, remove power cords from outlet.

3. Remove signal cables from connectors.

4. Remove all cables from devices.

DANGER

Le courant électrique provenant de l’alimentation, du téléphone et des câbles de transmission peut présenter un danger.

Pour éviter tout risque de choc électrique : v Ne manipulez aucun câble et n’effectuez aucune opération d’installation,

d’entretien ou de reconfiguration de ce produit au cours d’un orage.

v Branchez tous les cordons d’alimentation sur un socle de prise de courant

correctement câblé et mis à la terre.

v Branchez sur des socles de prise de courant correctement câblés tout

équipement connecté à ce produit.

v Lorsque cela est possible, n’utilisez qu’une seule main pour connecter ou

déconnecter les câbles d’interface.;

v Ne mettez jamais un équipement sous tension en cas d’incendie ou

d’inondation, ou en présence de dommages matériels.

v Avant de retirer les carters de l’unité, mettez celle-ci hors tension et

déconnectez ses cordons d’alimentation, ainsi que les câbles qui la relient aux

réseaux, aux systèmes de té lécommunication et aux modems (sauf instruction contraire mentionnée dans les procédures d’installation et de configuration).

v Lorsque vous installez, que vous déplacez, ou que vous manipulez le présent

produit ou des périphériques qui lui sont raccordés, reportez-vous aux instructions ci-dessous pour connecter et déconnecter les différents cordons.

Connexion:

1. Mettez les unités hors tension.

2. Commencez par brancher tous les

cordons sur les unités.

3. Branchez les câbles d’interface sur des connecteurs.

4. Branchez les cordons d’alimentation sur des prises.

5. Mettez les unités sous tension.

Lithium battery notice

CAUTION: Danger of explosion if battery is incorrectly replaced.

When replacing the battery, use only IBM Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.

Do not:

v Throw or immerse into water v Heat to more than 100°C (212°F) v Repair or disassemble

Déconnexion:

1. Mettez les unités hors tension.

2. Débranchez les cordons d’alimentation

des prises.

3. Débranchez les câbles d’interface des connecteurs.

4. Débranchez tous les câbles des unités.

Dispose of the battery as required by local ordinances or regulations.

ATTENTION

Danger d’explosion en cas de remplacement incorrect de la batterie.

Remplacer uniquement par une batterie IBM de type ou d’un type équivalent recommandé par le fabricant. La batterie contient du lithium et peut exploser en cas de mauvaise utilisation, de mauvaise manipulation ou de mise au rebut inappropriée.

Ne pas :

v Lancer ou plonger dans l’eau v Chauffer à plus de 100°C (212°F) v Réparer ou désassembler

Mettre au rebut les batteries usagées conformément aux règlements locaux.

Modem safety information

To reduce the risk of fire, electrical shock, or injury when using telephone equipment, always follow basic safety precautions, such as:

v Never install telephone wiring during a lightning storm.

vi User Guide

v Never install telephone jacks in wet locations unless the jack is specifically

designed for wet locations.

v Never touch uninsulated telephone wires or terminals unless the telephone line

has been disconnected at the network interface.

v Use caution when installing or modifying telephone lines. v Avoid using a telephone (other than a cordless type) during an electrical storm.

There may be a remote risk of electric shock from lightning.

v Do not use the telephone to report a gas leak in the vicinity of the leak.

Consignes de sécurité relatives au modem

Lors de l’utilisation de votre matériel téléphonique, il est important de respecter les consignes ci-après afin de réduire les risques d’incendie, d’électrocution et d’autres blessures :

v N’installez jamais de cordons téléphoniques durant un orage. v Les prises téléphoniques ne doivent pas être installées dans des endroits

humides, excepté si le modèle a été conçu à cet effet.

v Ne touchez jamais un cordon téléphonique ou un terminal non isolé avant que

la ligne ait été déconnectée du réseau téléphonique.

v Soyez toujours prudent lorsque vous procédez à l’installation ou à la

modification de lignes téléphoniques.

v Si vous devez téléphoner pendant un orage, pour éviter tout risque de choc

électrique, utilisez toujours un téléphone sans fil.

v En cas de fuite de gaz, n’utilisez jamais un téléphone situé à proximité de la

fuite.

Laser compliance statement

Some IBM Personal Computer models are equipped from the factory with a CD-ROM drive or a DVD-ROM drive. CD-ROM drives and DVD-ROM drives are also sold separately as options. CD-ROM drives and DVD-ROM drives are laser products. These drives are certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, these drives are certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.

When a CD-ROM drive or a DVD-ROM drive is installed, note the following handling instructions.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure.

Removing the covers of the CD-ROM drive or DVD-ROM drive could result in exposure to hazardous laser radiation. There are no serviceable parts inside the CD-ROM drive or DVD-ROM drive. Do not remove the drive covers.

Some CD-ROM drives and DVD-ROM drives contain an embedded Class 3A or Class 3B laser diode. Note the following statement.

Safety Information vii

DANGER

Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

DANGER:

Certains modèles d’ordinateurs personnels sont équipés d’origine d’une unité de CD-ROM ou de DVD-ROM. Mais ces unités sont également vendues séparément en tant qu’options. L’unité de CD-ROM/DVD-ROM est un appareil à laser. Aux État-Unis, l’unité de CD-ROM/DVD-ROM est certifiée conforme aux normes indiquées dans le sous-chapitre J du DHHS 21 CFR relatif aux produits à laser de classe 1. Dans les autres pays, elle est certifiée être un produit à laser de classe 1 conforme aux normes CEI 825 et CENELEC EN 60 825.

Lorsqu’une unité de CD-ROM/DVD-ROM est installée, tenez compte des remarques suivantes:

ATTENTION: Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de réglage et d’utilisation des commandes, ainsi que les procédures décrites.

L’ouverture de l’unité de CD-ROM/DVD-ROM peut entraîner un risque d’exposition au rayon laser. Pour toute intervention, faites appel à du personnel qualifié.

Certaines unités de CD-ROM/DVD-ROM peuvent contenir une diode à laser de classe 3A ou 3B. Tenez compte de la consigne qui suit:

DANGER

Rayonnement laser lorsque le carter est ouvert. Évitez toute exposition directe des yeux au rayon laser. Évitez de regarder fixement le faisceau ou de l’observer à l’aide d’instruments optiques.

viii User Guide

Overview

Thank you for selecting an IBM®computer. Your computer incorporates many of the latest advances in computer technology and can be upgraded as your needs change.

Instructions for installing external and internal options are included in this publication. When adding an option, use these instructions along with the instructions that come along with the option.

Information resources

The Quick Reference that comes with your computer provides information for setting up your computer, starting the operating system, troubleshooting, hints and tips, and notices.

Access IBM provides a link to more information about your computer. Click Start → Access IBM.

If you have Internet access, the most up-to-date manuals for your computer are available from the World Wide Web. To access this information, point your browser to

http://www.ibm.com/pc/support

Type your machine type and model number in the Quick Path field, and click Go.

x User Guide

Chapter 1. Installing options

Features

This chapter provides an introduction to the features and options that are available for your computer. You can expand the capabilities of your computer by adding memory and PCI adapters. When installing an option, use these instructions along with the instructions that come with the option.

Important

Before you install or remove any option, read “Safety Information” on page v. These precautions and guidelines will help you work safely.

This section provides an overview of the computer features and preinstalled software.

Microprocessor

v Intel v Intel Pentium

Celeron™with 128 KB of internal L2 cache memory (some models)

4 with 512 KB of internal L2 cache memory and Intel NetBurst

™

micro-architecture (some models)

Memory

Support for two dual inline memory modules (DIMMs)

Internal drives

v 3.5-inch, 1.44 MB diskette drive (some models) v Hard disk drive v EIDE CD-ROM, DVD, or CD-RW optical drive (some models)

Video subsystem

An integrated graphics controller for a Video Graphics Array (VGA) monitor

Audio subsystem

Integrated Soundmax with SPX

v Microphone and headphone connectors on the front panel v Line in, line out, and microphone connectors on the rear panel

Connectivity

v 10/100 Mbps integrated Intel Ethernet controller that supports the Wake on

v 10/1000 Mbps integrated Intel Ethernet controller that supports the Wake on

LAN

feature (some models)

v PCI modem (some models)

System management features

v Remote Program Load (RPL) and Dynamic Host Configuration Protocol (DHCP) v Wake on LAN v Wake on Ring (in the IBM Setup Utility program, this feature is called Serial Port

Ring Detect for an external modem and Modem Ring Detect for an internal PCI modem)

v Remote Administration v Automatic power-on startup v System Management (SM) BIOS and SM software v Ability to store POST hardware test results

2 User Guide

Input/output features

v 25-pin, Extended Capabilities Port (ECP)/Extended Parallel Port (EPP) v Two 9-pin serial connectors v Six 4-pin, USB connectors (four on front panel and two on rear panel)

v PS/2

mouse connector

v PS/2 keyboard connector v Ethernet connector v VGA Monitor connector v Three audio connectors (line in, line out, and microphone) on rear panel v Two audio connectors (microphone and headphone) on front panel

Expansion

v Two 32-bit peripheral component interconnect (PCI) adapter slots v Two DIMM sockets

Power

v 200 W power supply with manual voltage selection switch v Automatic 50/60 Hz input frequency switching

v Advanced Power Management support v Advanced Configuration and Power Interface (ACPI) support

Security features

v User and administrator passwords v Support for the addition of a cable (Kennsington) lock v Padlock loop for securing the cover v Startup sequence control v Startup without diskette drive, keyboard, or mouse v Unattended start mode v Diskette and hard disk I/O control v Serial and parallel port I/O control v Security profile by device

IBM preinstalled software

Your computer comes with preinstalled software. An operating system, device drivers to support built-in features, and other support programs are included.

Operating systems (preinstalled) (varies by model)

Note: Not all countries or regions will have these operating systems.

v Microsoft

Windows®XP Home

v Microsoft Windows XP Professional v Microsoft Windows 2000

Chapter 1. Installing options 3

Available options

The following are some available options:

v External options

v Internal options

For the latest information about available options, see the following World Wide Web pages:

v http://www.ibm.com/pc/us/options/ v http://www.ibm.com/pc/support/

You can also obtain information by calling the following telephone numbers:

v Within the United States, call 1-800-IBM-2YOU (1-800-426-2968), your IBM

v Within Canada, call 1-800-565-3344 or 1-800-IBM-4YOU. v Outside the United States and Canada, contact your IBM reseller or IBM

– Parallel port devices, such as printers and external drives – Serial port devices, such as external modems and digital cameras – Audio devices, such as external speakers for the sound system – USB devices, such as printers, joysticks, and scanners – Security device, such as a cable lock – Monitors

– System memory, called dual inline memory modules (DIMMs) – Peripheral component interconnect (PCI) adapters – CD-ROM, DVD, or CD-RW drive, hard disk drive, diskette drive, and other

removable media drives

reseller, or IBM marketing representative.

marketing representative.

4 User Guide

+ 36 hidden pages

IBM NETVISTA 8318, NETVISTA 8319, NETVISTA 8317, NETVISTA 6826 User Manual 2

Contents

Safety Information

Lithium battery notice

Modem safety information

Laser compliance statement

Overview

Information resources

Chapter 1. Installing options

Features

Available options
