IBM N7800, N7600, N7900, N7700 Hardware And Service Manual

Download

IBM Sys te m Sto rage



N7000 Series Hardware and Service Guide

Co vering the N7600, N7800, N7700, and N7900 systems

GC26-7953-13

IBM Sys te m Sto rage



N7000 Series Hardware and Service Guide

Co vering the N7600, N7800, N7700, and N7900 systems

GC26-7953-13

Note:

Before using this information and the product it supports, be sure to read the general information in “Notices” on page 143.

The following paragraph does not apply to any country (or region) where such provisions are inconsistent with local law.

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states (or regions) do not allow disclaimer of express or implied warranties in certain transactions; therefore, this statement may not apply to you.

Order publications through your IBM representative or the IBM branch office serving your locality.

Safety notices

This section contains information about:

v “Safety notices and labels”

v “Laser safety” on page vi

v “Rack safety” on page vii

v “Fire suppression systems” on page ix

For information about environmental notices, see the IBM and User Guide.

Safety notices and labels

When using this product, observe the danger, caution, and attention notices contained in this guide. The notices are accompanied by symbols that represent the severity of the safety condition.

The following sections define each type of safety notice and provide examples.

The following notices and statements are used in IBM documents. They are listed below in order of increasing severity of potential hazards. Follow the links for more detailed descriptions and examples of the danger, caution, and attention notices in the sections that follow.

v Note: These notices provide important tips, guidance, or advice.

v “Attention notices” on page v: These notices indicate potential damage to

programs, devices, or data.

v “Caution notices” on page v: These statements indicate situations that can be

potentially hazardous to you.

v “Danger notices”: These statements indicate situations that can be potentially

lethal or extremely hazardous to you. Safety labels are also attached directly to products to warn of these situations.

v In addition to these notices, “Labels” on page v may be attached to the product

to warn of potential hazards.

Environmental Notices

Danger notices

About this task

A danger notice calls attention to a situation that is potentially lethal or extremely hazardous to people. A lightning bolt symbol accompanies a danger notice to represent a dangerous electrical condition. A sample danger notice follows.

DANGER

An electrical outlet that is not correctly wired could place hazardous voltage on metal parts of the system or the devices that attach to the system. It is the responsibility of the customer to ensure that the outlet is correctly wired and grounded to prevent an electrical shock. (D004)

iii

A comprehensive danger notice provides instructions on how to avoid shock hazards when servicing equipment. Unless instructed otherwise, follow the procedures in the following danger notice.

DANGER

When working on or around the system, observe the following precautions:

Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard:

v Connect power to this unit only with the IBM provided power

cord. Do not use the IBM provided power cord for any other product.

v Do not open or service any power supply assembly.

v Do not connect or disconnect any cables or perform installation,

maintenance, or reconfiguration of this product during an electrical storm.

v The product might be equipped with multiple power cords. To

remove all hazardous voltages, disconnect all power cords.

v Connect all power cords to a properly wired and grounded

electrical outlet. Ensure outlet supplies proper voltage and phase rotation according to the system rating plate.

v Connect any equipment that will be attached to this product to

properly wired outlets.

v When possible, use one hand only to connect or disconnect

signal cables.

v Never turn on any equipment when there is evidence of fire,

water, or structural damage.

v Disconnect the attached power cords, telecommunications

systems, networks, and modems before you open the device covers, unless instructed otherwise in the installation and configuration procedures.

v Connect and disconnect cables as described below when

installing, moving, or opening covers on this product or attached devices.

To Disconnect:

1. Turn off everything (unless instructed otherwise).

2. Remove power cords from the outlet.

3. Remove signal cables from connectors.

4. Remove all cables from devices.

To Connect:

1. Turn off everything (unless instructed otherwise).

2. Attach all cables to devices.

3. Attach signal cables to the connectors.

4. Attach power cords to the outlets.

5. Turn on the devices.

(D005)

iv IBM System Storage: N7000 Series Hardware and Service Guide

Labels

As an added precaution, safety labels are often installed directly on products or product components to warn of potential hazards.

The actual product safety labels may differ from these sample safety labels:

(L001)

(L003)

Caution notices

A caution notice calls attention to a situation that is potentially hazardous to people because of some existing condition. A caution notice can be accompanied by different symbols, as in the examples below:

DANGER

Hazardous voltage, current, or energy levels are present inside any component that has this label attached. Do not open any cover or barrier that contains this label.

DANGER

Multiple power cords. The product might be equipped with multiple power cords. To remove all hazardous voltages, disconnect all power cords.

If the symbol is... It means....

Attention notices

An attention notice indicates the possibility of damage to a program, device, or system, or to data. An exclamation point symbol may accompany an attention notice, but is not required. A sample attention notice follows:

A hazardous electrical condition with less severity than electrical danger.

A generally hazardous condition not represented by other safety symbols.

A hazardous condition due to the use of a laser in the product. Laser symbols are always accompanied by the classification of the laser as defined by the U. S. Department of Health and Human Services (for example, Class I, Class II, and so forth).

Attention: Do not bend a fibre cable to a radius less than 5 cm (2 in.); you can damage the cable. Tie wraps are not recommended for optical cables because they can be easily overtightened, causing damage to the cable.

Safety notices v

Laser safety

Note: When using an NVRAM5 or NVRAM6 active/active or high availability copper-fiber converter, the storage system must be installed in a restricted access location.

CAUTION: This product contains a Class 1M laser. Do not view directly with optical instruments. (C028)

This equipment contains Class 1 laser products, and complies with FDA radiation Performance Standards, 21 CFR Subchapter J and the international laser safety standard IEC 825-2.

CAUTION: Data processing environments can contain equipment transmitting on system links with laser modules that operate at greater than Class 1 power levels. For this reason, never look into the end of an optical fiber cable or open receptacle. (C027)

Attention: In the United States, use only SFP or GBIC optical transceivers that

comply with the FDA radiation performance standards, 21 CFR Subchapter J. Internationally, use only SFP or GBIC optical transceivers that comply with IEC standard 825–1. Optical products that do not comply with these standards may produce light that is hazardous to the eyes.

Usage restrictions

The optical ports of the modules must be terminated with an optical connector or with a dust plug.

vi IBM System Storage: N7000 Series Hardware and Service Guide

Rack safety

Rack installation

About this task

DANGER

Observe the following precautions when working on or around your IT rack system:

v Heavy equipment - personal injury or equipment damage might

result if mishandled.

v Always lower the leveling pads on the rack cabinet.

v Always install stabilizer brackets on the rack cabinet.

v To avoid hazardous conditions due to uneven mechanical

loading, always install the heaviest devices in the bottom of the rack cabinet. Always install servers and optional devices starting from the bottom of the rack cabinet.

v Rack-mounted devices are not to be used as shelves or work

spaces. Do not place objects on top of rack-mounted devices.

(R001 part 1 of 2)

v Each rack cabinet might have more than one power cord. Be

sure to disconnect all power cords in the rack cabinet when directed to disconnect power during servicing.

v Connect all devices installed in a rack cabinet to power devices

installed in the same rack cabinet. Do not plug a power cord from a device installed in one rack cabinet into a power device installed in a different rack cabinet.

v An electrical outlet that is not correctly wired could place

hazardous voltage on the metal parts of the system or the devices that attach to the system. It is the responsibility of the customer to ensure that the outlet is correctly wired and grounded to prevent an electrical shock.

Safety notices vii

CAUTION:

v Do not install a unit in a rack where the internal rack ambient temperatures

will exceed the manufacturer's recommended ambient temperature for all your rack-mounted devices.

v Do not install a unit in a rack where the air flow is compromised. Ensure that

air flow is not blocked or reduced on any side, front, or back of a unit used for air flow through the unit.

v Consideration should be given to the connection of the equipment to the

supply circuit so that overloading of the circuits does not compromise the supply wiring or overcurrent protection. To provide the correct power connection to a rack, refer to the rating labels located on the equipment in the rack to determine the total power requirement of the supply circuit.

v (For sliding drawers.) Do not pull out or install any drawer or feature if the rack

stabilizer brackets are not attached to the rack. Do not pull out more than one drawer at a time. The rack might become unstable if you pull out more than one drawer at a time.

v (For fixed drawers) This drawer is a fixed drawer and should not be moved for

servicing unless specified by manufacturer. Attempting to move the drawer partially or completely out of the rack may cause the rack to become unstable or cause the drawer to fall out of the rack.

(R001 part 2 of 2)

viii IBM System Storage: N7000 Series Hardware and Service Guide

Rack relocation (19" rack)

About this task

CAUTION: Removing components from the upper positions in the rack cabinet improves rack stability during relocation. Follow these general guidelines whenever you relocate a populated rack cabinet within a room or building:

v Reduce the weight of the rack cabinet by removing equipment starting at the

top of the rack cabinet. When possible, restore the rack cabinet to the configuration of the rack cabinet as you received it. If this configuration is not known, you must do the following:

– Remove all devices in the 32U position and above.

– Ensure that the heaviest devices are installed in the bottom of the rack

cabinet.

– Ensure that there are no empty U-levels between devices installed in the

rack cabinet below the 32U level.

– If the rack cabinet you are relocating is part of a suite of rack cabinets,

detach the rack cabinet from the suite.

– Inspect the route that you plan to take when moving the rack to eliminate

potential hazards.

– Verify that the route that you choose can support the weight of the loaded

rack cabinet. Refer to the documentation that came with your rack cabinet for the weight of a loaded rack cabinet.

– Verify that all door openings are at least 760 x 2030 mm (30 x 80 in.).

– Ensure that all devices, shelves, drawers, doors, and cables are secure.

– Ensure that the four leveling pads are raised to their highest position.

– Ensure that there is no stabilizer bracket installed on the rack cabinet

during movement.

– Do not use a ramp inclined at more than ten degrees.

– Once the rack cabinet is in the new location, do the following:

- Lower the four leveling pads.

- Install stabilizer brackets on the rack cabinet.

- If you removed any devices from the rack cabinet, repopulate the rack cabinet from the lowest position to the highest position.

– If a long distance relocation is required, restore the rack cabinet to the

configuration of the rack cabinet as you received it. Pack the rack cabinet in the original packaging material, or equivalent. Also, lower the leveling pads to raise the casters off of the pallet and bolt the rack cabinet to the pallet.

(R002)

Fire suppression systems

A fire suppression system is the responsibility of the customer. The customer's own insurance underwriter, local fire marshal, or a local building inspector, or both, should be consulted in selecting a fire suppression system that provides the correct level of coverage and protection. IBM designs and manufactures equipment to internal and external standards that require certain environments for reliable operation. Because IBM does not test any equipment for compatibility with fire suppression systems, IBM does not make compatibility claims of any kind nor does IBM provide recommendations on fire suppression systems.

Safety notices ix

x IBM System Storage: N7000 Series Hardware and Service Guide

Safety notices .................................iii

Safety notices and labels ...............................iii

Danger notices .................................iii

Labels ....................................v

Caution notices .................................v

Attention notices .................................v

Laser safety ...................................vi

Usage restrictions ................................vi

Rack safety ...................................vii

Rack installation ................................vii

Rack relocation (19" rack) ..............................ix

Fire suppression systems ...............................ix

Figures ...................................xv

Tables ...................................xvii

About this document .............................xix

Who should read this document ............................xix

Related documents.................................xix

Supported features .................................xx

Websites ....................................xx

Getting information, help, and service ..........................xx

Before you call .................................xxi

Using the documentation .............................xxi

Hardware service and support ............................xxi

Firmware updates ................................xxi

Terminology and conventions used in this document .....................xxii

Active/active and high-availability terms ........................xxii

Storage terms .................................xxii

Command conventions ..............................xxiii

Formatting conventions..............................xxiii

Keyboard conventions ..............................xxiv

How to send your comments .............................xxiv

Chapter 1. Preparing for the installation ......................1

Required manuals, tools, and equipment ..........................1

Handling static-sensitive devices.............................1

Planning and organizing the installation ..........................2

Telecommunication regulatory statement .........................2

Hardware specifications ..............................2

Checking shipment package contents ..........................5

Rules for installing the N7000 series system in a rack .....................6

Guide to the installation process ............................7

Chapter 2. Connecting an N7000 series system ...................9

Handling fiber-optic cables ..............................9

Connecting your N7000 series system to an IP network .....................9

Connecting your N7000 series system to a power source ....................10

Connecting your N7000 series system to storage .......................10

Connecting a filer to storage expansion units .......................10

Connecting a gateway to external storage ........................14

Connecting your N7000 series system to a third-party device ...................14

Rules for connecting the third-party devices .......................14

Connecting your N7000 series system to an ASCII terminal console ................15

Chapter 3. Configuring an N7000 series system ..................17

Configuring the N7000 series system ...........................17

Configuring the Fibre Channel port ...........................17

N7000 series system active/active or high availability configurations ...............18

Configuring for initiator mode ............................18

Configuring and using the RLM ............................19

Chapter 4. Monitoring your system .......................21

Monitoring the front operation panel ...........................21

Location of LEDs ................................21

Interpreting the front panel LEDs ...........................22

Monitoring the rear panel LEDs ............................22

Location of LEDs ................................22

Fibre Channel port LEDs ..............................23

Ethernet port LEDs ................................23

NVRAM6 adapter LEDs ...............................23

Interpreting the NVRAM6 adapter LEDs ........................24

NVRAM6 copper-fiber converter LEDs ..........................24

Interpreting the copper-fiber converter LEDs .......................25

Monitoring the power supply .............................25

Location of LEDs ................................25

Interpreting power supply LEDs ...........................26

Monitoring the fans ................................26

Chapter 5. Replacing N7000 series system devices ................29

Replacing a CompactFlash card in N7000 series systems running Data ONTAP 7.x ...........31

Verifying system requirements ............................32

Replacing a CompactFlash card in a single-controller system running Data ONTAP 7.x .........32

Replacing a CompactFlash card in an active/active configuration running Data ONTAP 7.x .......35

Replacing the CompactFlash card in an N7000 series system running Data ONTAP 8.0 ..........40

Replacing a CompactFlash card in a system running in 7-Mode .................40

Replacing a fan module in an N7000 series system ......................56

Removing a fan module ..............................56

Installing a fan module ..............................57

Completing the replacement process ..........................58

Installing or replacing the RLM in an N7000 series system....................58

Shutting down the node ..............................58

Removing the RLM................................60

Installing the RLM ................................60

Setting up a new RLM...............................61

Testing an RLM .................................62

Running diagnostics on the RLM ...........................63

Completing the replacement process ..........................63

Replacing a power supply on an N7000 series system .....................64

Removing a power supply .............................64

Installing a power supply .............................65

Completing the replacement process ..........................65

Replacing the Real-Time Clock (RTC) battery in an N7000 series system ...............65

Shutting down the node ..............................66

Opening the system ...............................67

Removing an RTC battery .............................69

Installing an RTC battery ..............................69

Reinstalling the motherboard tray and booting the system...................69

Running diagnostics on the RTC battery.........................70

Resetting the date and time on the system ........................70

Completing the replacement process ..........................71

Replacing a DIMM in an N7000 series system ........................72

Shutting down the node ..............................72

xii IBM System Storage: N7000 Series Hardware and Service Guide

Opening the system ...............................73

Removing the DIMMs ...............................75

Installing the DIMMs ...............................76

Reinstalling the motherboard tray and booting the system...................76

Running diagnostics on the DIMM ..........................77

Completing the replacement process ..........................77

Replacing PCI cards and risers in an N7000 series system ....................77

Shutting down the node ..............................78

Opening the system ...............................79

Removing a PCI card ...............................81

Installing a PCI card ...............................81

Reinstalling the motherboard tray and booting the system...................82

Running diagnostics on a PCI card ..........................82

Completing the replacement process ..........................83

Replacing the motherboard tray in an N7000 series system ...................83

Shutting down the node ..............................83

Saving the Fibre Channel configuration for HA pairs in SAN configurations.............85

Removing the motherboard tray and components .....................85

Installing the components and the new motherboard tray ...................90

Verifying time after replacing the motherboard tray in an HA pair ................91

Installing the firmware after replacing the motherboard tray ..................91

Running diagnostics on the motherboard tray and resetting the partner-sysid ............92

Restoring the Fibre Channel configuration for HA pairs in SAN configurations ............93

Completing the replacement process ..........................93

Replacing an NVRAM adapter in an N7000 series system (Data ONTAP 8.1.x and earlier) .........94

Replacing an NVRAM adapter in a system operating in 7-Mode.................94

Replacing an NVRAM adapter in an N7000 series system (Data ONTAP 8.2) .............104

Replacing a NVRAM adapter in 7-Mode environments ...................104

Replacing an NVRAM adapter in clustered Data ONTAP...................115

Replacing the LED/LCD/CompactFlash module in an N7000 series system .............127

Shutting down the node ..............................127

Removing the module ..............................129

Installing the module...............................129

Completing the replacement process..........................130

Installing the Cable Management Tray on an N7000 series system .................130

Replacing the Fibre Channel tray in an N7000 series system ...................131

Shutting down the node ..............................131

Removing the Fibre Channel tray...........................133

Installing the Fibre Channel tray ...........................134

Running diagnostics on the Fibre Channel tray ......................134

Completing the replacement process..........................135

Appendix A. Recommended power line sizes...................137

Recommended AC power line sizes ...........................137

Appendix B. FRU/CRU and power cord list for N series products ..........139

FRU/CRU list for N series products ...........................139

Power cord list for N series products ..........................139

Notices ...................................143

Trademarks ...................................144

Important notes .................................145

Electronic emission notices ..............................145

Federal Communications Commission Statement .....................145

Industry Canada Compliance Statement ........................146

Australia and New Zealand Class A Statement ......................146

European Union Electromagnetic Compatibility Directive...................146

Germany Electromagnetic Compatibility Directive .....................147

People's Republic of China Class A Statement ......................148

Taiwan Class A Statement .............................148

Contents xiii

Taiwan Contact Information ............................148

Japan Voluntary Control Council for Interference Class A Statement ...............148

Japan Electronics and Information Technology Industries Association Statement ...........148

Korean Communications Commission Class A Statement ...................149

Russia Electromagnetic Interference Class A Statement ...................149

Power cords ...................................149

Index ....................................151

xiv

IBM System Storage: N7000 Series Hardware and Service Guide

Figures

1. N7000 series system rear ports ...........................10

2. Cabling a single storage system controller .......................12

3. Cabling an active/active or high availability pair .....................13

4. N7000 series system rear ports ...........................18

5. Front panel subassembly LED locations ........................21

6. Onboard port LED locations ............................23

7. NVRAM6 LED locations .............................24

8. NVRAM6 copper-fiber converter LED locations .....................25

9. Power supply (PSU) LED locations..........................26

10. Fan LED locations ...............................26

11. N7000 series system components - Front ........................30

12. N7000 series system components - Rear ........................30

13. N7000 series system components - Rear (exploded view) ..................31

14. N7000 series system fans .............................57

15. Removing the fan module.............................57

16. Removing the RLM carrier ............................60

17. Removing the power supply ............................64

18. Removing the cable management tray.........................68

19. Removing the motherboard tray ..........................68

20. Removing the RTC battery ............................69

21. Removing the cable management tray.........................74

22. Removing the motherboard tray ..........................74

23. DIMM layout .................................75

24. Removing the DIMMs ..............................76

25. Removing the cable management tray.........................80

26. Removing the motherboard tray ..........................80

27. Removing the PCI adapters ............................81

28. Removing the cable management tray.........................86

29. Removing the Fibre Channel tray ..........................86

30. Removing the motherboard tray ..........................87

31. Removing the PCI adapters ............................88

32. DIMM layout .................................89

33. Removing the DIMMs ..............................89

34. Removing the LED/LCD/CompactFlash module ....................129

35. Installing the cable management tray ........................130

36. Removing the cable management tray ........................133

37. Removing the Fibre Channel tray ..........................133

xvi IBM System Storage: N7000 Series Hardware and Service Guide

Tables

1. N7000 series system physical characteristics .......................3

2. N7000 series system clearance dimensions........................3

3. N7000 series system environmental requirements .....................3

4. N7600 and N7700 electrical requirements ........................4

5. N7600 and N7700 electrical requirements with four Performance Acceleration Modules or Flash Cache

modules ...................................4

6. N7800 and N7900 electrical requirements ........................4

7. N7800 and N7900 electrical requirements with five Performance Acceleration Modules or Flash Cache

modules ...................................4

8. Installation process procedures ...........................7

9. Manuals for configuring and using the RLM ......................19

10. N7000 series system front panel LED descriptions.....................22

11. Onboard port LEDs ...............................23

12. NVRAM6 LED descriptions ............................24

13. NVRAM6 copper-fiber converter LED descriptions ....................25

14. Power supply LED descriptions ...........................26

15. Fan LED descriptions ..............................26

16. 110V, single phase recommended conductor sizes ....................137

17. 220V, single phase recommended conductor sizes ....................137

18. American Wire Gage to Harmonized Cordage equivalents .................137

xvii

xviii IBM System Storage: N7000 Series Hardware and Service Guide

About this document

This guide describes how to install, connect, manage, and service the following N7000 series models:

v IBM System Storage

v IBM System Storage N7900 (model numbers 2867-A11 and 2867-A21)

Information in this guide is also applicable to the following N7000 series models:

v IBM System Storage N7600 (model numbers 2866-A10 and 2866-A20)

v IBM System Storage N7800 (model numbers 2867-A10 and 2867-A20)

Note: Throughout this document, these models are referred to generically as

N7000 series systems unless information applies only to a specific model, in which case the specific machine name is used.

For the latest version of this document and all IBM System Storage N series documentation, go to the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

Compliance ID 2866-NAS covers MT/models 2866-A11 and 2866-A21. Compliance ID 2867-NAS covers MT/models 2867-A11 and 2867-A21.

Note: This guide applies to systems, including systems with gateway functionality, running Data ONTAP 7.x and Data ONTAP 8.x 7-Mode. In the Data ONTAP 8.x 7-Mode product name, the term 7-Mode signifies that the 8.x release has the same features and functionality found in the prior Data ONTAP 7.1, 7.2, and 7.3 release families.

N7700 (model numbers 2866-A11 and 2866-A21)

Who should read this document

This guide is for qualified system administrators and service personnel who are familiar with IBM storage systems. It addresses setup, operation, and servicing of the 2866/2867 model A11/A21. This document is intended to provide information to customers, operators, administrators, installers, and service personnel.

Supported features

IBM System Storage N series storage systems are driven by NetApp Data ONTAP software. Some features described in the product software documentation are neither offered nor supported by IBM. Please contact your local IBM representative or reseller for further details.

Information about supported features can also be found on the N series support website, which is accessed and navigated as described in “Websites.”

Websites

IBM maintains pages on the World Wide Web where you can get the latest technical information and download device drivers and updates. The following web pages provide N series information:

v A listing of currently available N series products and features can be found at

the following web page:

www.ibm.com/storage/nas/

v The IBM System Storage N series support website requires users to register in

order to obtain access to N series support content on the web. To understand how the N series support web content is organized and navigated, and to access the N series support website, refer to the following publicly accessible web page:

www.ibm.com/storage/support/nseries/

This web page also provides links to AutoSupport information as well as other important N series product resources.

v IBM System Storage N series products attach to a variety of servers and

operating systems. To determine the latest supported attachments, go to the IBM N series interoperability matrix at the following web page:

www.ibm.com/systems/storage/network/interophome.html

v For the latest N series hardware product documentation, including planning,

installation and setup, and hardware monitoring, service and diagnostics, see the IBM N series Information Center at the following web page:

http://publib.boulder.ibm.com/infocenter/nasinfo/nseries/index.jsp

Getting information, help, and service

If you need help, service, or technical assistance or just want more information about IBM products, you will find a wide variety of sources available from IBM to assist you. This section contains information about where to go for additional information about IBM and IBM products, what to do if you experience a problem with your IBM N series product, and whom to call for service, if it is necessary.

xx IBM System Storage: N7000 Series Hardware and Service Guide

The following applies in Taiwan:

IBM Taiwan Product Service Contact Info: IBM Taiwan Corporation 3F, No 7, Song Ren Rd., Taipei Taiwan Tel: 0800-016-888

Before you call

Before you call, make sure you have taken these steps to try to solve the problem yourself:

v Check all cables to make sure they are connected.

v Check the power switches to make sure the system is turned on.

v Use the troubleshooting information in your system documentation and use the

diagnostic tools that come with your system.

v Refer to the IBM support website for information on known problems and

limitations.

Using the documentation

The latest versions of N series software documentation, including Data ONTAP and other software products, are available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

Current N series hardware product documentation is shipped with your hardware product in printed documents or as PDF files on a documentation CD. For the latest N series hardware product documentation PDFs, go to the IBM N series support website.

Hardware documentation, including planning, installation and setup, and hardware monitoring, service, and diagnostics, is also provided in an IBM N series Information Center at the following web page:

http://publib.boulder.ibm.com/infocenter/nasinfo/nseries/index.jsp

Hardware service and support

You can receive hardware service through IBM Integrated Technology Services. Visit the following web page for support telephone numbers:

www.ibm.com/planetwide/

Firmware updates

IBM N series product firmware is embedded in Data ONTAP. As with all devices, it is recommended that you run the latest level of firmware. Any firmware updates are posted to the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

Note: If you do not see new firmware updates on the IBM N series support website, you are running the latest level of firmware.

About this document xxi

Verify that the latest level of firmware is installed on your machine before contacting IBM for technical support.

Terminology and conventions used in this document

This guide uses the following terminology, command conventions, format conventions and keyboard conventions.

In this document, the term gateway describes IBM N series storage systems that have been ordered with gateway functionality. Gateways support various types of storage, and they are used with third-party disk storage systems. In this case, disk storage for customer data and the RAID controller functionality is provided by the back-end disk storage system. A gateway might also be used with disk storage expansion units specifically designed for the IBM N series models.

The term filer describes IBM N series storage systems that either contain internal disk storage or attach to disk storage expansion units specifically designed for the IBM N series storage systems. Filer storage systems do not support using third-party disk storage systems.

The terms system or storage system refer to either a gateway by itself or a filer, either by itself or with additional disk drives.

Active/active and high-availability terms

active/active configuration

In the Data ONTAP 7.2 and 7.3 release families, refers to a pair of storage systems (sometimes called nodes) configured to serve data for each other if one of the two systems stops functioning. Also sometimes referred to as active/active pairs.

cluster

In the Data ONTAP 7.1 release family, refers to a pair of storage systems (sometimes called nodes) configured to serve data for each other if one of the two systems stops functioning. In Data ONTAP 8.x 7-Mode, a cluster is a group of connected nodes (storage systems) that share a global namespace and that you can manage as a single virtual server or multiple virtual servers, providing performance, reliability, and scalability benefits.

HA (high availability)

In Data ONTAP 8.x 7-Mode, the recovery capability provided by a pair of nodes (storage systems), called an HA pair, that are configured to serve data for each other if one of the two nodes stops functioning.

HA pair

In Data ONTAP 8.x, a pair of nodes (storage systems) configured to serve data for each other if one of the two nodes stops functioning.

Storage terms

ACP Alternate Control Path (ACP) is a protocol that enables Data ONTAP to

manage and control the storage expansion unit storage subsystem using a separate network from the data path, so management communication is not dependent on the data path being intact and available.

AT-FCX

The controller module of the EXN1000 serial advanced technology attachment (SATA) storage expansion unit.

xxii IBM System Storage: N7000 Series Hardware and Service Guide

Disk Any hard disk drive

Disk shelf or shelf

Any storage expansion unit containing hard disk drives.

ESH The controller module of Fibre Channel disk storage expansion units.

IOM The Input/Output module of SAS disk storage expansion units.

Loop or Fibre-Channel Arbitrated Loop

One or more daisy-chained Fibre Channel storage expansion units connected to an N series storage system.

Motherboard tray

The system controller module that executes the software on an N7000 series system. The motherboard tray is at the rear of the N7000 series system.

Node The system controller module that executes the software on an N series

system. There is one node in the single-controller models; there are two nodes in active/active or high availability models.

Stack or SAS stack

A stack of one or more SAS storage expansion units using IOM modules connected to the storage system. The maximum number of storage expansion units in a stack of storage expansion units and the number of storage expansion unit stacks in a configuration are dependent on the type of storage system.

Command conventions

You can enter commands on the system console or from any client that can obtain access to the storage system using a Telnet session. In examples that illustrate commands executed on a UNIX workstation, the command syntax and output might differ, depending on your version of UNIX.

Formatting conventions

The following table lists different character formats used in this guide to set off special information.

Formatting convention Type of information

Italic type

Monospaced font

v Words or characters that require special

attention.

v Placeholders for information you must

supply. For example, if the guide requires you to enter the fctest adaptername command, you enter the characters fctest followed by the actual name of the adapter.

v Book titles in cross-references.

v Command and daemon names.

v Information displayed on the system

console or other computer monitors.

v The contents of files.

About this document xxiii

Formatting convention Type of information

Bold monospaced font Words or characters you type. What you

Keyboard conventions

This guide uses capitalization and some abbreviations to refer to the keys on the keyboard. The keys on your keyboard might not be labeled exactly as they are in this guide.

What is in this guide... What it means...

hyphen (-) Used to separate individual keys. For

Enter Used to refer to the key that generates a

type Used to mean pressing one or more keys on

enter Used to mean pressing one or more keys

type is always shown in lowercase letters, unless your program is case-sensitive and uppercase letters are necessary for it to work properly.

example, Ctrl-D means holding down the Ctrl key while pressing the D key.

carriage return, although the key is named Return on some keyboards.

the keyboard.

and then pressing the Enter key.

How to send your comments

Your feedback is important in helping us provide the most accurate and high-quality information. If you have comments or suggestions for improving this document, send us your comments by e-mail to starpubs@us.ibm.com.

Be sure to include the following information:

v Exact publication title

v Publication form number (for example, GC26-1234-02)

v Page, table, or illustration numbers

v A detailed description of any information that should be changed

xxiv IBM System Storage: N7000 Series Hardware and Service Guide

Chapter 1. Preparing for the installation

This chapter provides an overview of the entire IBM System Storage N7000 series system installation process, hardware specifications, and the appropriate documentation references for the procedures. Refer to the Installation and Setup Instructions that came with your system for further information about installing your equipment.

This chapter discusses the following topics:

v “Required manuals, tools, and equipment”

v “Handling static-sensitive devices”

v “Planning and organizing the installation” on page 2

Required manuals, tools, and equipment

You need the following manuals in addition to this manual. Data ONTAP publications are available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

v Installation and Setup Instructions that shipped with your system (and storage

expansion unit, if applicable)

v Data ONTAP Software Setup Guide for your version of Data ONTAP

v Data ONTAP Active/Active Configuration Guide or Data ONTAP High Availability

Configuration Guide for your version of Data ONTAP, if applicable

You need to supply the following tools and equipment:

v Ethernet LAN cables

v Fibre Channel (FC) cables

v Console (for example, a PC or notebook) with a serial port

v #2 Phillips screwdriver and slotted screwdriver

v Grounding leash and ESD strap

v 7-mm nut driver (required if removing or installing storage expansion units)

Handling static-sensitive devices

About this task

Attention: The N7000 series system uses electronic components that are sensitive to static electricity. Static discharge from your clothing or other fixtures around you can damage these components. Put on an antistatic ESD strap and grounding leash to free yourself of static electricity before touching any electronic components.

Attention: Static electricity can damage electronic devices and your system. To avoid damage, keep static-sensitive devices in their static-protective packages until you are ready to install them.

To reduce the possibility of electrostatic discharge (ESD), observe the following precautions:

v Limit your movement. Movement can cause static electricity to build up around

you.

v Handle the device carefully, holding it by its edges or its frame.

v Do not touch solder joints, pins, or exposed printed circuitry.

v Do not leave the device where others can handle and possibly damage the

device.

v While the device is still in its static-protective package, touch it to an unpainted

metal part of the system unit for at least two seconds. This drains static electricity from the package and from your body.

v Remove the device from its package and install it directly into your system unit

without setting it down. If it is necessary to set the device down, place it in its static-protective package. Do not place the device on your system unit cover or on a metal table. Take additional care when handling devices during cold weather because heating reduces indoor humidity and increases static electricity.

Planning and organizing the installation

This section identifies the shipment contents and the rules and regulations you need to observe for the proper installation of your N7000 series system. It also provides an overview of the entire system installation process and the appropriate documentation references for the procedures.

For detailed information, see the following topics:

v “Telecommunication regulatory statement”

v “Hardware specifications”

v “Checking shipment package contents” on page 5

v “Rules for installing the N7000 series system in a rack” on page 6

v “Guide to the installation process” on page 7

Telecommunication regulatory statement

This product may not be certified in your country for connection by any means whatsoever to interfaces of public telecommunications networks. Further certification may be required by law prior to making any such connection. Contact an IBM representative or reseller for any questions.

Hardware specifications

The following tables list the characteristics and requirements for your hardware.

32-55 kg (70.5-121.2 lbs)

svc00168

DANGER

The weight of this part or unit is between 32 and 55 kg (70.5 and 121.2 lb.). It takes three persons to safely lift this part or unit. (C010)

2 IBM System Storage: N7000 Series Hardware and Service Guide

Attention: Remove the power supplies and fan units from the chassis before

attempting to lift the system.

Table 1. N7000 series system physical characteristics

Weight 2866-A10, 2866-A11, 2867-A10,

2867-A11

2866-A20, 2866-A21, 2867-A20, 2867-A21

Rack units

Height 2866-A10, 2866-A11, 2867-A10,

Width 446 mm (17.6 in)

Depth 695 mm (27.4 in) without cable

Table 2. N7000 series system clearance dimensions

Front-cooling All versions 15.2 cm (6 in.)

Front-maintenance All versions 63.5 cm (25 in.)

Rear-cooling All versions 30.5 cm (12 in.)

Rear-maintenance All versions 102 cm (40 in.)

2866-A10, 2866-A11, 2867-A10, 2867-A11

2866-A21, 2867-A21 12U

2867-A11

2866-A21, 2867-A21 526 mm (20.8 in)

54.8 kg (121 lb.)

109.6 kg (242 lb.)

263 mm (10.4 in)

management tray 782 mm (30.8 in) with cable management tray

Table 3. N7000 series system environmental requirements

Operating temperature maximum range

Operating temperature recommended range

Nonoperating temperature range

Relative humidity 10 to 90% noncondensing

Recommended operating temperature relative humidity range

Maximum wet bulb temperature

Maximum altitude 2133 m (7,000 ft.)

Acoustic level 49 dBA @ 23° C5 bels @ 23° C

50° F to 104° F(10° C to 40° C)

68° F to 77° F(20° C to 25° C)

-40° F to 149° F(-40° C to 65° C)

40 to 55%

28° C (82° F)

In the following tables, worst-case indicates a system running with one PSU and high fan speed. Typical indicates a system running two PSUs on two circuits.

Chapter 1. Preparing for the installation 3

Table 4. N7600 and N7700 electrical requirements

100 to 120V 200 to 240V

Typical single

Input voltage

Input current measured, A

Input power measured,W968 279/557 934 217/541

Worst-case

9.75 2.87/5.74 4.87 1.57/3.14

PSU/system Worst-case

Typical single PSU/system

Thermal dissipation, BTU/hr

Input power frequency,Hz50 to 60

Table 5. N7600 and N7700 electrical requirements with four Performance Acceleration Modules or Flash Cache modules

Input voltage

Input current measured, A

Input power measured,W1009 293/585 969 289/578

Thermal dissipation, BTU/hr

Input power frequency,Hz50 to 60

Table 6. N7800 and N7900 electrical requirements

Input voltage

Input current measured, A

Input power measured,W1162 352/704 1115 231/693

3301 949/1898 3185 923/1845

100 to 120V 200 to 240V

Worst-case, single PSU

10.15 3.03/6.05 5.06 1.65/3.29

3440 998/1996 3305 985/1969

100 to 120V 200 to 240V

Worst-case

11.68 3.63/7.25 5.76 1.96/3.91

Typical single PSU/system

Typical single PSU/system Worst-case

Worst-case, single PSU

Typical single PSU/system

Thermal dissipation, BTU/hr

Input power frequency,Hz50 to 60

Table 7. N7800 and N7900 electrical requirements with five Performance Acceleration Modules or Flash Cache modules

Input voltage

Input current measured, A

3961 1201/2401 3804 1182/2363

100 to 120V 200 to 240V

Worst-case, single PSU

12.11 3.85/7.70 5.97 2.07/4.14

4 IBM System Storage: N7000 Series Hardware and Service Guide

Typical single PSU/system

Worst-case, single PSU

Typical single PSU/system

Table 7. N7800 and N7900 electrical requirements with five Performance Acceleration Modules or Flash Cache modules (continued)

100 to 120V 200 to 240V

Worst-case,

Input voltage

Input power measured,W1203 376/752 1158 368/736

single PSU

Typical single PSU/system

Worst-case, single PSU

Typical single PSU/system

Thermal dissipation, BTU/hr

Input power frequency,Hz50 to 60

4104 1283/2566 3950 1255/2509

Checking shipment package contents

About this task

Make sure that your shipment package includes the following items.

v N7700 single-controller system (2866-A11)

– 1 N7700 single-controller system (2866-A11) containing the power supplies

and any options you ordered

– 1 console adapter cable, RJ-45 to DB-9

– 1 cable management tray

– 1 ESD wrist strap

– 1 serial null modem cable

– 1 set of IBM publications

– 2 power cords

– 8 SFPs (SFPs might be installed in the N7000 series system as shipped.)

There will also be envelopes with the software EULA and license keys.

A rail kit for mounting the N7700 in a standard 19–inch rack may also be present.

v N7700 dual-controller system (2866-A21)

– 1 N7700 dual-controller system (2866-A21) containing the power supplies and

any options you ordered

– 2 console adapter cables, RJ-45 to DB-9

– 2 cable management trays

– 2 ESD wrist straps

– 1 serial null modem cable

– 1 set of IBM publications

– 4 power cords

– 16 SFPs (SFPs might be installed in the N7000 series system as shipped.)

There will also be envelopes with the software EULA and license keys.

A rail kit for mounting the N7700 in a standard 19–inch rack may also be present.

v N7900 single-controller system (2867-A11)

– 1 N7900 single-controller system (2867-A11) containing the power supplies

and any options you ordered

– 1 console adapter cable, RJ-45 to DB-9

– 1 cable management tray

Chapter 1. Preparing for the installation 5

– 1 ESD wrist strap

– 1 serial null modem cable

– 1 set of IBM publications

– 2 power cords

– 8 SFPs (SFPs might be installed in the N7000 series system as shipped.)

There will also be envelopes with the software EULA and license keys.

A rail kit for mounting the N7000 series system in a standard 19–inch rack may also be present.

v N7900 dual-controller system (2867-A21)

– 1 N7900 dual-controller system (2867-A21) containing the power supplies and

any options you ordered

– 2 console adapter cable, RJ-45 to DB-9

– 2 cable management trays

– 2 ESD wrist straps

– 1 serial null modem cable

– 1 set of IBM publications

– 4 power cords

– 16 SFPs (SFPs might be installed in the N7000 series system as shipped.)

There will also be envelopes with the software EULA and license keys.

A rail kit for mounting the N7000 series system in a standard 19–inch rack may also be present.

Rules for installing the N7000 series system in a rack

You need to observe the following rules and restrictions when installing an N7000 series system in a standard 19-inch (48.26 cm) equipment rack with mounting rails:

32-55 kg (70.5-121.2 lbs)

DANGER

The weight of this part or unit is between 32 and 55 kg (70.5 and 121.2 lb.). It takes three persons to safely lift this part or unit. (C010)

Attention: Remove the power supplies and fan units from the chassis before

attempting to lift the system.

v You must work with two other people.

DANGER

The N7000 series system unit is extremely heavy. To avoid injuring yourself or damaging the unit, you must work with at least two other people when you install the unit in the rack. Remove the power supplies and fan units from the chassis before attempting to lift the unit.

svc00168

v Install the N7000 series system at the lowest point in the rack cabinet.

6 IBM System Storage: N7000 Series Hardware and Service Guide

DANGER

To avoid hazardous conditions due to uneven mechanical loading, always install the heaviest devices in the bottom of the rack cabinet. Always install servers and optional devices starting from the bottom of the rack cabinet. (R001 part 1 of 2)

For additional rack safety notices, refer to “Rack safety” on page vii.

v When installing storage expansion units in a rack, do not exceed the maximum

storage limit for your N7000 series system.

v Make sure that the ID on the back panel of each storage expansion unit matches

the ID specified on its label.

v Always install the storage expansion units fully loaded. Do not remove disk

drives to reduce the weight.

Guide to the installation process

The following table provides a guide to the N7000 series system installation process.

Attention: Before you begin your installation, print and complete a configuration worksheet for your storage system to gather the information that the software setup process requires. The configuration worksheet is provided in the Data ONTAP Software Setup Guide for your version of Data ONTAP. This guide, as well as other Data ONTAP documentation, is available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

If you are configuring a storage system as part of a high-availability (or active/active) configuration, some information types must be unique for each storage system mode in the configuration, and some information types must be identical on both storage system nodes. If you have a high-availability (or active/active) configuration, IBM recommends that you print and complete two copies of the configuration worksheet, one for each system node.

Refer to the Installation and Setup Instructions that came with your system and storage expansion unit for complete installation details.

Note: The initial installation of an N7000 series system is performed by IBM.

Table 8. Installation process procedures

Is the procedure

Stage Procedure

1 Print and complete

a configuration worksheet for each system node of your storage system to gather the information that the software setup process requires.

required?

Yes Customer Customer The configuration worksheet is

Procedure is performed by...

For instructions, see...Filer Gateway

provided in the Data ONTAP Software Setup Guide for your

version of Data ONTAP,

Chapter 1. Preparing for the installation 7

Table 8. Installation process procedures (continued)

Stage Procedure

2 IBM Service will

install the N7000 series system in a freestanding rack, if required.

3 Connect the N7000

series system to the customer-provided IP (Internet Protocol) network.

4 Filer: Connect the

N7000 filer system to storage expansion units.

Gateway: Connect the N7000 gateway system to the back-end storage.

5 Connect the N7000

series system to a power source.

6 Configure the

system.

7 Connect the N7000

series system to a third-party device.

Is the procedure required?

Yes IBM IBM The Installation and Setup

Yes IBM Customer “Connecting your N7000 series

Yes IBM n/a “Connecting a filer to storage

Yes n/a Customer The Data ONTAP Gateway

Yes IBM Customer “Connecting your N7000 series

Yes IBM Customer The Data ONTAP Software Setup

No Customer Customer “Connecting your N7000 series

Procedure is performed by...

For instructions, see...Filer Gateway

Instructions that came with your system

system to an IP network” on page 9, or the Installation and Setup Instructions that came with your system

expansion units” on page 10, or the

Installation and Setup Instructions

that came with your system

Implementation Guide for your back-end storage and version of Data ONTAP

system to a power source” on page 10, or the Installation and Setup Instructions that came with your system

Guide for your version of Data ONTAP, or the Installation and Setup Instructions that came with your system

system to storage” on page 10

8 IBM System Storage: N7000 Series Hardware and Service Guide

Chapter 2. Connecting an N7000 series system

This chapter describes how to connect an N7000 series system in the following topics:

v “Handling fiber-optic cables”

v “Connecting your N7000 series system to an IP network”

v “Connecting your N7000 series system to a power source” on page 10

v “Connecting your N7000 series system to storage” on page 10

v “Connecting your N7000 series system to a third-party device” on page 14

v “Connecting your N7000 series system to an ASCII terminal console” on page 15

Handling fiber-optic cables

Before you use fiber-optic cables, read the following precautions.

Attention: To avoid damage to the fiber-optic cables, follow these guidelines:

v Do not route the cable along a folding cable-management arm.

v When attaching to a device on slide rails, leave enough slack in the cable so that

it does not bend to a radius of less than 38 mm (1.5 in.) when extended or become pinched when retracted.

v Route the cable away from places where it can be snagged by other devices in

the rack cabinet.

v Do not overtighten the cable straps or bend the cables to a radius of less than 38

mm (1.5 in.).

v Do not put excess weight on the cable at the connection point. Be sure that the

cable is well supported.

Connecting your N7000 series system to an IP network

Each node of your N7000 series system connects to an IP network. If you have an active/active or high availability system, both nodes need to connect to the network. For information that describes how to connect your N7000 series system, refer to the Installation and Setup Instructions that came with your system.

The N7000 series system has six onboard Ethernet ports, labeled e0a thru e0f, as shown in Figure 1 on page 10. Additional Network Interface Cards (NICs) can be plugged into the PCI slots to provide additional Ethernet ports. For more information about the adapter cards supported by your N7000 series system, see the appropriate "Optional adapter cards" appendix in the IBM System Storage N series Introduction and Planning Guide. This guide, as well as other N series documentation, is available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

The integrated Ethernet RJ-45 twisted-pair connectors are compatible with the IEEE

802.3 Ethernet network 10/100/1000 BASE-TX link. When connecting to the Ethernet port, connect a twisted-pair (CAT-5 or better) cable to the RJ-45 Ethernet port located on the back of the system drawer.

If you are connecting to a copper NIC, use RJ-45 CAT-5 or better copper cables.

If you are connecting to a fiber NIC, use (50- or 62.5-micron) fiber-optic cables with LC connectors.

e0e

e0f

RLM

e0a e0b e0c e0d

0a 0b 0c 0d 0e 0f 0g 0h

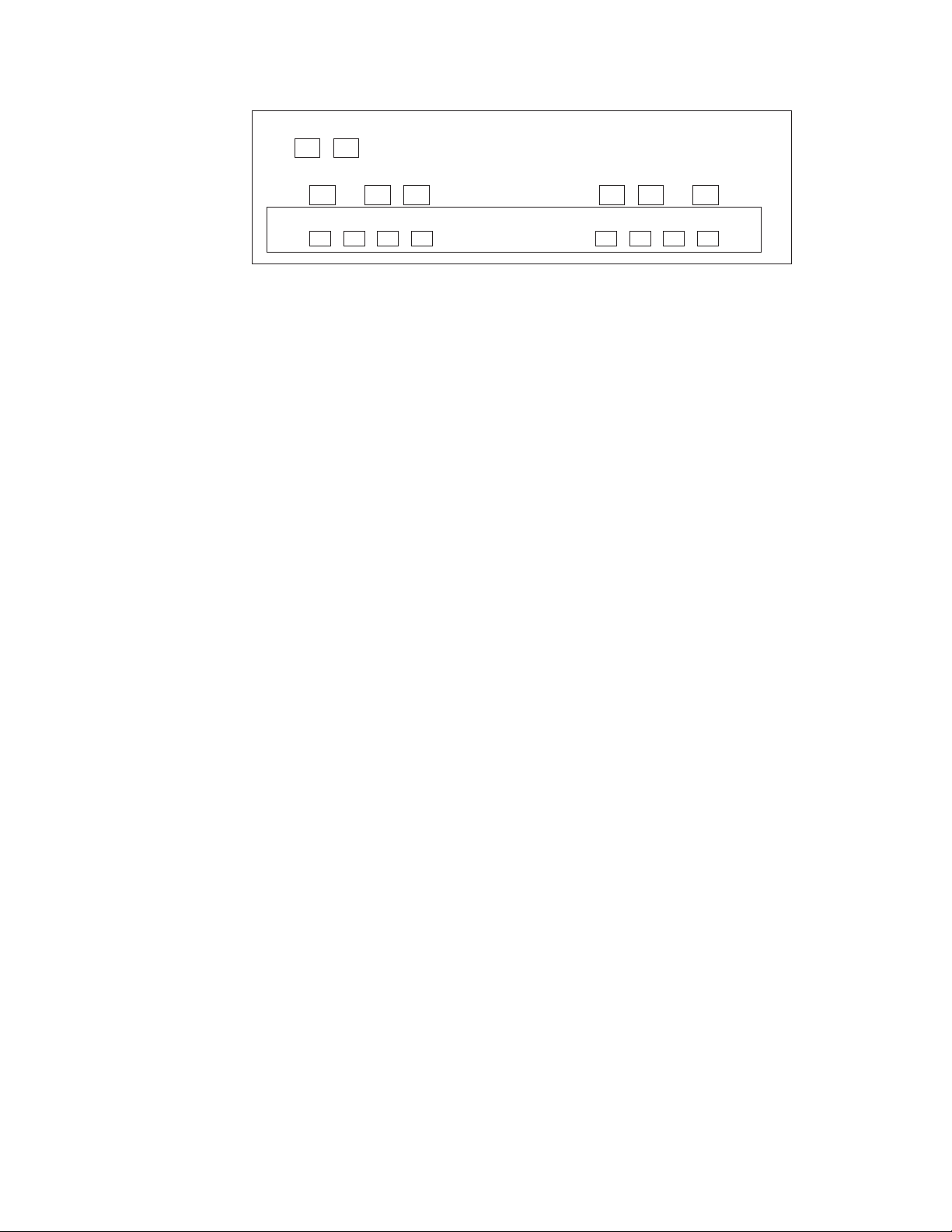

Figure 1. N7000 series system rear ports

For information about monitoring the Ethernet port LEDs, see “Ethernet port LEDs” on page 23.

Connecting your N7000 series system to a power source

The N7000 series systems are shipped with redundant power supplies, referred to as PSU1 and PSU2. Each power supply has its own AC power cord. You should have separate circuit breakers for each power supply to ensure power redundancy.

For information on connecting your N7000 series system to a power source, see the Installation and Setup Instructions that came with your system.

Connecting your N7000 series system to storage

The N7000 series system has eight onboard Fibre Channel ports, labeled 0a thru 0h, as shown in Figure 1. Additional HBAs can be plugged into the PCI slots to provide additional Fibre Channel ports. Attach the (50- or 62.5-micron) fiber-optic cables with LC connectors to the Fibre Channel ports. For more information about the adapter cards supported by your N7000 series system, see the appropriate "Optional adapter cards" appendix in the IBM System Storage N series Introduction and Planning Guide. This guide, as well as other N series documentation, is available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

I0I0

n70hw008

Note: SFPs must be firmly seated in the FC ports before making connections.

Connecting a filer to storage expansion units

You must connect at least one storage expansion unit to your N7000 series filer. Fiber-optic cables must be used for the connection from the filer to the first storage expansion unit.

10 IBM System Storage: N7000 Series Hardware and Service Guide

Attention: Make sure that all storage expansion unit 1Gb/2Gb(/4Gb) switches

are set to the 2Gb or 4Gb, if supported, position. If necessary, refer to the documents that came with the storage expansion unit for information about checking and changing the switch setting.

For information that describes how to connect your N7000 series filer to storage expansion units using the onboard Fibre Channel ports, see the Installation and Setup Instructions that came with your system.

Attention: If you are using optional adapter cards instead of the onboard Fibre Channel ports to connect your filer to storage expansion units, see the cabling instructions described in “Cabling your system using a Fibre Channel expansion adapter.”

Attention: Dual-path Fibre Channel cabling is supported for the N7000 series filers. Dual-path cabling is designed to improve reliability, availability and serviceability of the storage expansion units attached to the storage controller by creating two redundant paths from each storage controller to each loop of the storage expansion units. For more information about using dual-path cabling, see the Installation and Setup Instructions that came with your system.

Cabling your system using a Fibre Channel expansion adapter

This section describes how to cable your filer storage system using a dual-port optical Fibre Channel expansion adapter for storage expansion unit (disk shelf) storage.

Attention: If you are connecting to a stack or stacks of SAS storage expansion units, such as the EXN3000 or EXN3500, refer to the cabling instructions provided in the IBM System Storage Universal SAS and ACP Cabling Guide.

This section describes the following tasks:

v “Cabling a single storage system controller”

v “Cabling an active/active or high availability pair” on page 12

For more information about the adapter cards supported by your N7000 series system, see the appropriate "Optional adapter cards" appendix in the IBM System Storage N series Introduction and Planning Guide. This guide, as well as Data ONTAP documentation, is available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

Important: If you are not using the onboard ports for storage, then you must set your onboard ports to Target mode, as described in the Data ONTAP Block Access Management Guide for your version of Data ONTAP.

Note: The illustrations in the following sections show storage system connections to EXN2000 or EXN4000 storage expansion units. In EXN1000 storage expansion units, the positions of the In and Out ports are reversed from those of the EXN2000 and EXN4000.

Cabling a single storage system controller: About this task

Chapter 2. Connecting an N7000 series system 11

EXN unit 3 Loop 1

EXN unit 2 Loop 1

EXN unit 1 Loop 1

N7000 series filer 1

Out In

123456789

OutIn

Out In

OutIn

Out In

OutIn

n70hw022

Figure 2. Cabling a single storage system controller

1. Cable Path A as described in the following substeps:

a. Connect one end of the storage expansion unit cable to Port a of the Fibre

Channel expansion adapter, and then connect the other end of the cable to the In port of ESH2/ESH4 or AT-FCX A on storage expansion unit 1.

b. Connect the Out port of ESH2/ESH4 or AT-FCX A to the In port of

ESH2/ESH4 or AT-FCX A on storage expansion unit 2.

c. Repeat substep 1b for the remaining storage expansion units in the loop.

2. Cable Path B as described in the following substeps:

a. Connect one end of the storage expansion unit cable to Port b of the Fibre

Channel expansion adapter, and then connect the other end of the cable to the In port of ESH2/ESH4 or AT-FCX B on storage expansion unit 1.

b. Connect the Out port of ESH2/ESH4 or AT-FCX B to the In port of

ESH2/ESH4 or AT-FCX B on storage expansion unit 2.

c. Repeat substep 2b for the remaining storage expansion units in the loop.

3. Repeat Steps 1 and 2 for any remaining expansion adapters.

Cabling an active/active or high availability pair: About this task

12 IBM System Storage: N7000 Series Hardware and Service Guide

EXN unit 2 (Filer 1, Loop 1)

EXN unit 1 (Filer 1, Loop 1)

N7000 series filer 1

N7000 series filer 2

Out In

123456789

Out

OutIn

Out In

EXN unit 1 (Filer 2, Loop 1)

Figure 3. Cabling an active/active or high availability pair

1. Cable the dual-port expansion adapter Port a, to the storage expansion unit 1

Channel A ESH2/ESH4 or AT-FCX Input port.

2. Cable the storage expansion unit 1 Channel A ESH2/ESH4 or AT-FCX Output

port to the storage expansion unit 2 Channel A ESH2/ESH4 or AT-FCX Input port.

3. Repeat Step 2, connecting output to input, for the remaining storage expansion

units in the loop.

Chapter 2. Connecting an N7000 series system 13

OutIn

Out In

n70hw021

OutIn

Do not plug any cables in the ESH2/ESH4 or AT-FCX Output port of the last unit. The storage expansion units are self-terminating.

Note: The AT-FCX and ESH2/ESH4 modules are self-terminating. The ESH2/ESH4 does not have a terminate switch.

4. Repeat Step 1 on page 13 through Step 3 on page 13 for the partner node.

5. Cable the dual-port expansion adapter Port b, of the local node, to the partner

storage expansion unit 1 Channel B ESH2/ESH4 or AT-FCX Input port.

6. Cable the local storage expansion unit 1 Channel B ESH2/ESH4 or AT-FCX

Output port to the local storage expansion unit 2 Channel B ESH2/ESH4 or AT-FCX Input port.

7. Repeat Step 6, connecting Channel B output to input, for any remaining storage

expansion units in the disk pool.

8. Repeat Step 5 through Step 7 for the partner node.

Connecting a gateway to external storage

You must use fiber-optic cables to connect a gateway to external storage on a Fibre Channel SAN.

See the Gateway Interoperability Matrix at the following web page for supported third-party storage for your N7000 series system.

www.ibm.com/systems/storage/network/interophome.html

Refer to the documentation for your external storage for additional information.

Connecting your N7000 series system to a third-party device

You can connect third-party devices to your N7000 series system through an optical Fibre Channel interface using any Fibre Channel port on the back of the chassis.

The N7000 series systems only support third-party devices with an optical Fibre Channel interface. For supported devices for your system, see the Interoperability Matrix on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

Refer to the documentation that comes with the third-party device for connection information.

Rules for connecting the third-party devices

Observe the following rules for connecting the third-party devices:

v Use a fiber-optic cable that is:

– Appropriate to the Fibre Channel connection on your system

– Of an approved length for the third-party device

Note: See the documentation for the third-party device.

v An unsupported tape backup device might cause the system to halt. To verify

support for your third-party device, check the Interoperability Matrix on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

14 IBM System Storage: N7000 Series Hardware and Service Guide

v For additional information about Fibre Channel cables, see the IBM N series

support website.

Connecting your N7000 series system to an ASCII terminal console

The ASCII terminal console enables you to monitor the boot process, helps you configure your N7000 series system after it boots, and enables you to perform system administration.

For information about ASCII terminal console wiring, DB-9 to RJ-45 console adapter pin connections, and connecting your system to an ASCII terminal console, see the IBM System Storage N series Introduction and Planning Guide. This guide, as well as other N series documentation, is available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

Chapter 2. Connecting an N7000 series system 15

16 IBM System Storage: N7000 Series Hardware and Service Guide

Chapter 3. Configuring an N7000 series system

This chapter describes how to configure an N7000 series system in the following topics:

v “Configuring the N7000 series system”

v “Configuring the Fibre Channel port”

v “Configuring and using the RLM” on page 19

Configuring the N7000 series system

Refer to the completed configuration worksheet for your storage system. The configuration worksheet is provided in the Data ONTAP Software Setup Guide for your version of Data ONTAP. This guide, as well as other Data ONTAP documentation, is available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

For information regarding how to boot your system for the first time, refer to the Installation and Setup Instructions that came with your system.

For N7000 series systems, initial startup and configuration tasks must be performed by IBM.

Note: For additional information about gateway systems, see the documentation listed in the "Bibliography" appendix of the IBM System Storage N series Introduction and Planning Guide. This guide, as well as other N series documentation, is available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

Configuring the Fibre Channel port

The N7000 series system motherboard tray provides eight independent Fibre Channel ports, identified as 0a, 0b, 0c, 0d, 0e, 0f, 0g, and 0h in Figure 4 on page 18. SFPs must be firmly seated in all ports before connecting cables.

e0e

e0f

RLM

e0a e0b e0c e0d

I0I0

0a 0b 0c 0d 0e 0f 0g 0h

Figure 4. N7000 series system rear ports

The Fibre Channel ports can operate in target or initiator mode. Fibre Channel ports do not support mixed initiator/target mode. The default mode for the ports is initiator mode. You do not need to configure the ports to use them in initiator mode.

The Fibre Channel ports should be used in initiator mode to communicate with tape backup devices, such as in a TapeSAN backup configuration.

Fibre Channel ports on HBAs cannot be configured in target mode. They can only be used in initiator mode.

N7000 series system active/active or high availability configurations

N7000 series system active/active or high availability configurations must be cabled to switches that support public loop topology. To connect an N7000 series system to a fabric topology that includes switches that only support point-to-point topology, such as McDATA Director class switches, you must connect the active/active or high availability configuration to an edge switch and use this switch as a bridge to the fabric. For information about specific switch models supported and fabric configuration guidelines, see the IBM System Storage N series Fibre Channel and iSCSI Configuration Guide for your version of Data ONTAP on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

n70hw008

Configuring for initiator mode

About this task

To configure the N7000 series system back to initiator mode, complete the following steps.

Procedure

1. Set the specified onboard ports to operate in initiator mode by entering the

following command:

fcadmin config -t initiator adapter

where adapter is the port number. You can specify more than one port.

Example: The following example sets onboard ports 0c and 0d to initiator mode.

fcadmin config -t initiator 0c 0d

2. Reboot the system by entering the following command:

reboot

18 IBM System Storage: N7000 Series Hardware and Service Guide

3. Verify that the Fibre Channel ports are online and configured in the correct

state for your configuration by entering the following command:

fcadmin config

Example: The following output example shows four ports configured as Fibre Channel targets and four ports configured as initiators.

N7000a> fcadmin config

Local

Adapter Type State Status

--------------------------------------------------0a target CONFIGURED online 0b target CONFIGURED online 0c initiator CONFIGURED online 0d initiator CONFIGURED online 0e target CONFIGURED online 0f target CONFIGURED online 0g initiator CONFIGURED online 0h initiator CONFIGURED online

Results

For information on converting the onboard ports to target mode and configuring your SAN, see the Data ONTAP Block Access Management Guide for your version of Data ONTAP.

Configuring and using the RLM

The following table provides a list of documents for configuring and using the RLM. These documents are available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

Table 9. Manuals for configuring and using the RLM

Manual Title Information Needed

Installation and Setup Instructions that came with your system

IBM System Storage N series Diagnostics Guide Lists and describes the diagnostic tests for a

IBM System Storage N series Data System Administration Guide for your version of Data

ONTAP

IBM System Storage N Series Platform Monitoring Guide

Describes the system cabling.

new or existing RLM.

Describes RLM configuration and use. Includes instructions about updating RLM firmware.

Lists RLM error messages and gives corrective action for the error.

Chapter 3. Configuring an N7000 series system 19

20 IBM System Storage: N7000 Series Hardware and Service Guide

Chapter 4. Monitoring your system

This chapter identifies the location of the various LEDs on your N7000 series system and explains how to interpret LEDs for basic monitoring.

This chapter discusses the following topics:

v “Monitoring the front operation panel”

v “Monitoring the rear panel LEDs” on page 22

v “NVRAM6 adapter LEDs” on page 23

v “NVRAM6 copper-fiber converter LEDs” on page 24

v “Monitoring the power supply” on page 25

v “Monitoring the fans” on page 26

For information about error messages, troubleshooting, and monitoring the LEDs for your N7000 series system and optional adapter cards, see the IBM System Storage N series Platform Monitoring Guide.

For diagnostic information about your system, see the IBM System Storage N series Diagnostics Guide.

Monitoring the front operation panel

The front operation panel has three LEDs, which indicate whether your system is active and functioning normally or whether there are problems with the hardware. You can also identify any hardware failure associated with the front operation panel of the N7000 series system from the error messages displayed on your system console.

Location of LEDs

Figure 5 shows the locations of the LEDs on the front panel of the N7000 series system.

Figure 5. Front panel subassembly LED locations

n70hw023

Power LED

Status LED

Activity LED

Note: See “Interpreting the front panel LEDs” for an explanation of what the LEDs

mean.

Interpreting the front panel LEDs

Use the following table to interpret the front panel LEDs on an N7000 series system.

Table 10. N7000 series system front panel LED descriptions

LED label Status indicator Description

Activity Green The system is operating and

Flashing The system is actively

Off No activity is detected.

Status Green The system is operating

Amber The system halted or a fault

Power Green The system is receiving

Off The system is not receiving

is active.

processing data.

normally.

occurred. The fault is displayed in the LCD. Note: This LED remains lit during boot, while the operating system loads.

power.

Monitoring the rear panel LEDs

The LEDs on the rear of the system are used to monitor the onboard ports.

For information about monitoring the LEDs for your optional Fibre Channel HBAs, GbE adapter cards, or TCP Offload Engine (TOE) network interface cards (NICs), refer to the IBM System Storage N series Platform Monitoring Guide.

Location of LEDs

Figure 6 on page 23 shows the location of the following onboard port LEDs:

v “Fibre Channel port LEDs” on page 23

v “Ethernet port LEDs” on page 23

22 IBM System Storage: N7000 Series Hardware and Service Guide

GbE LEDs

n70hw025

RLM LEDs

Fibre Channel port LEDs

Figure 6. Onboard port LED locations

Table 11. Onboard port LEDs

Port type LED type Status indicator Description

Fibre Channel

GbE and RLM

LNK (Green)

ACT (Amber)

Off No link with the Fibre Channel is established.

On/flashing A link is established and communication is

On A valid network connection is established.

Off There is no network connection.

On There is data activity.

Off There is no network activity present.

Fibre Channel port LEDs

Your N7000 series system has onboard Fibre Channel ports on the back of the chassis. The LEDs are on each side of the onboard Fibre Channel port on the back of your system, as shown in Figure 6.

Your system can also use Fibre Channel Host Bus Adapters (HBA). You can configure HBA ports to function in one of two modes: Initiator and Target.

happening.

For information about monitoring the LEDs for your optional Fibre Channel HBAs, refer to the IBM System Storage N series Platform Monitoring Guide.

Ethernet port LEDs

Your N7000 series system has onboard Ethernet ports on the back of the chassis. The LEDs are on the corners above each onboard Ethernet port on the back of your system, as shown in Figure 6.

For information about monitoring the LEDs for your optional GbE adapter cards, see the IBM System Storage N series Platform Monitoring Guide.

NVRAM6 adapter LEDs

The NVRAM6 adapter is also the interconnect adapter when your system is in an active/active or high availability configuration. The NVRAM6 adapter is supported in all N7000 series system active/active or high availability configurations except MetroCluster.

Chapter 4. Monitoring your system 23

Figure 7 shows the LED locations for your NVRAM6 adapter. There are two sets of LEDs by each port that operate when you use NVRAM6 as an active/active or high availability interconnect adapter. There is also an internal red LED that you can see through the faceplate.

L01 PH1

L02 PH2

n50hw019

Figure 7. NVRAM6 LED locations

Interpreting the NVRAM6 adapter LEDs

Use the following table to interpret the LEDs for an NVRAM6 adapter.

Table 12. NVRAM6 LED descriptions

LED type Indicator Status Description

Internal Red Flashing There is valid data in the NVRAM6.

PH1 Green On The physical connection is working.

Off No physical connection.

LO1 Yellow On The logical connection is working.

Off No logical connection.

NVRAM6 copper-fiber converter LEDs

The NVRAM6 copper-fiber converter enables you to use fiber cabling to cable your systems in an active/active or high availability configuration.

Attention: This might occur if your system did not shut down properly, as in the case of a power failure or panic. The data is replayed when the system boots up again.

Figure 8 on page 25 shows the LED locations for your NVRAM6 copper-fiber converter.

24 IBM System Storage: N7000 Series Hardware and Service Guide

LED

n50hw012

Copper-fiber converter

Figure 8. NVRAM6 copper-fiber converter LED locations

Interpreting the copper-fiber converter LEDs

Use the following table to interpret the LEDs for an NVRAM6 copper-fiber converter.

Table 13. NVRAM6 copper-fiber converter LED descriptions

Indicator Status Description

Green On Normal operation.

Green/Amber On Power is present but link is down.

Green Flickering or off Power is present but link is down.

Monitoring the power supply

The N7000 series system power supply has two LEDs. The LEDs indicate whether the power supply is functioning normally or whether there are problems with the hardware. You can also identify any hardware failure associated with the power supplies from the error messages displayed on your system console.

A normal functioning power supply shows a green LED. A power supply fault turns the LED to amber.

Location of LEDs

Each power supply is encased in a device carrier and housed at the rear of your N7000 series system. Figure 9 on page 26 shows the location of the power supply LEDs.

Chapter 4. Monitoring your system 25

PSU LEDs

Figure 9. Power supply (PSU) LED locations

Interpreting power supply LEDs

Use the following table to interpret the LEDs on your system power supplies.

Table 14. Power supply LED descriptions

Amber (AC IN)

On On The AC power source is good and is powering the system.

On Off There is AC power present, but the power supply is not

On Flashing There is AC power present, but the power supply is not enabled.

Off Off There is no power to this power supply.

Green (PWR) Description

operational.

Power supply

n70hw017

Monitoring the fans

To monitor the fans, check the console error messages and look at the Status LED on each fan module. .

Fan LEDs

Figure 10. Fan LED locations

Table 15. Fan LED descriptions

LED description Description

Orange flashing

Fan

n70hw018

The fan failed.

26 IBM System Storage: N7000 Series Hardware and Service Guide

Table 15. Fan LED descriptions (continued)

LED description Description

Off There is no power to the system or the fan is operational.

Chapter 4. Monitoring your system 27

28 IBM System Storage: N7000 Series Hardware and Service Guide

Chapter 5. Replacing N7000 series system devices

This chapter describes how to replace parts in your N7000 series system, the motherboard tray, and other devices.

Note: With the exception of the CompactFlash card procedures, all the procedures in this chapter apply to systems running either Data ONTAP 7.x or Data ONTAP 8 7-Mode, unless otherwise noted. If you are replacing a CompactFlash card, be sure to refer to the appropriate instructions for your version of Data ONTAP.

This chapter discusses the following topics:

v “Replacing a CompactFlash card in N7000 series systems running Data ONTAP

7.x” on page 31

v “Replacing the CompactFlash card in an N7000 series system running Data

ONTAP 8.0” on page 40

v “Replacing a fan module in an N7000 series system” on page 56

v “Installing or replacing the RLM in an N7000 series system” on page 58

v “Replacing a power supply on an N7000 series system” on page 64

v “Replacing the Real-Time Clock (RTC) battery in an N7000 series system” on

page 65

v “Replacing a DIMM in an N7000 series system” on page 72

v “Replacing PCI cards and risers in an N7000 series system” on page 77

v “Replacing the motherboard tray in an N7000 series system” on page 83

v “Replacing an NVRAM adapter in an N7000 series system (Data ONTAP 8.1.x

and earlier)” on page 94

v “Replacing an NVRAM adapter in an N7000 series system (Data ONTAP 8.2)”

on page 104

v “Replacing the LED/LCD/CompactFlash module in an N7000 series system” on

page 127

v “Installing the Cable Management Tray on an N7000 series system” on page 130

v “Replacing the Fibre Channel tray in an N7000 series system” on page 131

Figure 11 on page 30 shows the locations of components at the front of your N7000 series system.

LED/LCD/

5 Fans

RLM

CompactFlash Module

CompactFlash card

n70hw002

Figure 11. N7000 series system components - Front

Figure 12 shows the locations of components at the rear of your N7000 series system.

2 Power Supplies

123456789

6 Onboard GbE Ports

RLM Port

8 Onboard Fibre Channel Ports

Expansion Adapter Slots

Console Port

n70hw003

Figure 12. N7000 series system components - Rear

Figure 13 on page 31 shows an exploded view of the components of your N7000 series system.

30 IBM System Storage: N7000 Series Hardware and Service Guide

PCI expansion adapters

DIMMs

2 power supplies

DIMMs

6 motherboad tray thumscrews

Fibre Channel tray

Cam handle

Figure 13. N7000 series system components - Rear (exploded view)

RTC battery

2 retaining latches

Replacing a CompactFlash card in N7000 series systems running Data ONTAP 7.x

Note: This section contains procedures for two different Data ONTAP 7.x configurations. You must use the correct procedure for your configuration:

v If you have a single-controller configuration, see “Replacing a CompactFlash

card in a single-controller system running Data ONTAP 7.x” on page 32.

v If you have an active/active or high availability configuration, see “Replacing a

CompactFlash card in an active/active configuration running Data ONTAP 7. x” on page 35.

n70hw004

You might also need the following documentation to perform the identified procedures. Data ONTAP documents are available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

v IBM System Storage N series Data ONTAP Upgrade Guide, as applicable

v IBM System Storage N series Data ONTAP Commands: Manual Page Reference,if

applicable

v IBM System Storage N series Data ONTAP System Administration Guide,if

applicable

These procedures are written with the assumption that you have access to at least one of the following:

v A system on your network that you can use to netboot your system.

v A PC with a card reader/writer and with access to the IBM N series support

website.

Chapter 5. Replacing N7000 series system devices 31

If your system does not meet these criteria, contact IBM technical support.

Verifying system requirements

Software release information and downloads, including Data ONTAP software, firmware, and diagnostics upgrades, are available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

Replacing a CompactFlash card in a single-controller system running Data ONTAP 7.x

The CompactFlash card stores a primary and secondary set of system files on it (also called the boot image) that the system uses when it boots. To replace the CompactFlash card, you must complete a specific sequence of procedures.

Notes:

1. You can use this procedure only with systems in a single-controller

configuration running Data ONTAP 7.x.

2. In a single-controller system, the CompactFlash card is not a hot-swappable

component.

If your system is in an active/active configuration running Data ONTAP 7.x, use the procedure in “Replacing a CompactFlash card in an active/active configuration running Data ONTAP 7.x” on page 35.

This section describes how to perform the following tasks:

v “Removing the CompactFlash card”

v “Installing the CompactFlash card” on page 33

v “Placing a boot image on the CompactFlash card” on page 33

v “Updating the CompactFlash card” on page 34

v “Completing the replacement process” on page 35

Removing the CompactFlash card

1. Retrieve and save the system environment variables, if possible, by completing

the following substeps:

a. Bring the system down to the LOADER prompt.

v If the system is running, shut it down to the LOADER prompt by

rebooting it and pressing Ctrl-C when prompted by the system, and then go to substep b.

v If the system is at the LOADER prompt, go to substep b.

b. Display the system environment variables by entering the following

command from the LOADER prompt on the console: printenv

c. Copy the environment variable values. You need these variable values for

the replacement CompactFlash card.

Attention: You do not need to retrieve the Fibre Channel port settings on a single-controller system. Fibre Channel port settings are stored in the boot environment and also on disk in the system root volume. When the system is rebooted, Fibre Channel settings will be restored from the saved settings.

2. Perform a clean system shutdown by entering the following command from the

system console: halt

Attention: You must perform a clean shutdown to replace components inside your system.

32 IBM System Storage: N7000 Series Hardware and Service Guide

3. Ground yourself to the system chassis using the grounding leash, turn off the

power to the system, unplug the power cords from the power source, and then remove the power cords.

4. Remove the bezel by carefully prying it off the front of the system chassis.

5. Flip the ejector lever on the LCD display module up, push the lever to eject the

CompactFlash card, remove it and set it aside.

Installing the CompactFlash card

Attention: If you are copying the system files to the CompactFlash card using a PC or laptop with a card writer, you must copy the system files to the CompactFlash card prior to installing it in the controller module. See “Transferring a boot image using a PC or laptop” on page 34 for information.

1. With the bezel removed from the front of the system, seat the CompactFlash

card by pushing it firmly into the CompactFlash reader. The CompactFlash card should be squarely seated and should not move when you wiggle it. Reseat the CompactFlash card, if necessary.

2. Flip the ejector lever on the CompactFlash module so that it is laying flat.

3. Reseat the bezel on the front of the system chassis.

4. Recable the power supplies, as needed.

If your replacement CompactFlash card is a blank, formatted card, go to “Placing a boot image on the CompactFlash card.”

If your replacement CompactFlash card has a software image already installed, go to “Updating the CompactFlash card” on page 34.

Placing a boot image on the CompactFlash card

You might receive a blank, formatted CompactFlash card. Before you use it, you must transfer a boot image to it. You can transfer the boot image to the CompactFlash card in one of two ways:

v “Transferring a bootable kernel image using netboot”

v “Transferring a boot image using a PC or laptop” on page 34

Transferring a bootable kernel image using netboot

1. Place a boot image on the server you use for netbooting. You can copy the boot

image from the boot directory at /etc/boot/netapp-x86-64, or download it from the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

2. Turn on your system and press Ctrl-C to stop the boot process at the LOADER

prompt.

3. Configure your network connection, if needed.

If you have DHCP running on your network, enter the following command:

ifconfig e0a -auto

If you do not have DHCP running, configure the connection by entering the following command:

ifconfig e0a -addr=filer_addr -mask=netmask -gw=gateway -dns=dns_addr

-domain=dns_domain

where:

v filer_addr is the IP address of the system. v netmask is the network mask of the system. v gateway is the gateway for the system.

Chapter 5. Replacing N7000 series system devices 33

v dns_addr is the IP address of a name server on your network. v dns_domain is the DNS domain name.

4. Enter the following command at the LOADER> prompt:

netboot URL

where URL is the location of the remote boot image. It can be either an HTTP or a TFTP network path.

5. Go to “Updating the CompactFlash card.”

Transferring a boot image using a PC or laptop

1. Copy the bootable kernel image to your system. Copy the boot image from the

boot directory at /etc/boot/netapp-x86-64, or download it from the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx. On the IBM N series support website, the Data ONTAP Matrix provides a current list and history of Data ONTAP releases available by release family and supported storage systems.

Contact technical support if you cannot get a boot image from these sources.

2. Insert the CompactFlash card into the CompactFlash card reader. The

CompactFlash card is pre-formatted. Do not format the CompactFlash card.

3. Create a folder called x86_64 in the root partition of the CompactFlash card, and then create a subfolder called KERNEL in the x86_64 folder.

4. Move the bootable kernel image into the KERNEL folder in Windows Explorer. The bootable kernel image is called netapp_<rlse>-x86-64 (where <rlse> is the Data ONTAP release).

5. Rename the netapp_<rlse>-x86-64 image to Primary.KRN.

6. Install the CompactFlash card with the kernel image into the system.

7. Go to “Updating the CompactFlash card.”

Updating the CompactFlash card

1. Turn on power to the system and boot it, if necessary.

2. Download the boot image to the CompactFlash card by entering the following

command:

download

Note: If download fails with the following error message, you must run setup to reinstall the proper files on the system that allow you to execute download on the CompactFlash card:

Failed to open download script file /etc/boot/x86-64/kernel_1024.cmds: No such file [download.requestDoneError:error]: Operator requested download failed

3. Check the version of the image by entering the following command:

version -b

Make sure that the BIOS and Diagnostic images are the same as the old system or are upgraded. If they are not, then install the version you by following the installation instructions on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

4. Display the default environment variables by completing the following steps:

a. Bring the system down to the LOADER prompt.

v If the system is running, shut it down to the LOADER prompt by

rebooting it and pressing Ctrl-C when prompted by the system, and then go to substep b.

34 IBM System Storage: N7000 Series Hardware and Service Guide

v If the system is at the LOADER prompt, go to substep b.

b. Display the system environment variables by entering the following

command from the LOADER prompt on the console: printenv

5. Compare the default environment variables with the list you made in

“Removing the CompactFlash card” on page 32.

v If the variable values are the same, go to Step 6.

v If the variable values are different or need modification, complete the

following substeps:

a. Set the values of the individual variables by entering the following

command for each changed variable: setenv variable_name

variable_value

b. Verify the values of the variables by entering the following command

from the LOADER prompt: printenv

6. Boot Data ONTAP after you have modified all variables by entering the

following command: boot_ontap

7. Go to “Completing the replacement process.”

Completing the replacement process

Return the failed part to IBM. Contact IBM Service and Support at 1-800-IBM-SERV (1-800-426-7378) for more information on the return procedure.

Replacing a CompactFlash card in an active/active configuration running Data ONTAP 7.x

Note: You can use this procedure only with systems in an active/active configuration that are running Data ONTAP 7.x. If your system is a single-controller system, use the procedure in “Replacing a CompactFlash card in a single-controller system running Data ONTAP 7.x” on page 32.

This section describes how to perform the following tasks:

v “Removing the CompactFlash card”

v “Installing and placing system files on the CompactFlash card” on page 36

v “Restoring environment variables on the CompactFlash card” on page 39

v “Restoring onboard Fibre Channel port configuration on the CompactFlash card”

on page 39

v “Completing the replacement process”

Removing the CompactFlash card

This section describes the following tasks:

v “Shutting down the target node”

v “Retrieving the environment and Fibre Channel port configuration variables” on

page 36

Shutting down the target node

1. Check the status of the target node by entering the following command at the

system console of either node: cf status

2. Take one of the following actions, based on the results of the cf status

command:

Chapter 5. Replacing N7000 series system devices 35

v If clustering is enabled and neither node is in takeover mode, go to Step 3.

v If clustering is enabled and the partner node took over the target node, enter

the cf giveback command from the partner node's console and then go to Step 3.

v If clustering is enabled and the target node took over the partner node,

correct the problem, run the cf giveback command, and go back to Step 1.

3. Take over the target node by completing the following subprocedure:

a. Enter the following command from the partner node's console: cf takeover

b. Stop the target node from rebooting by pressing Ctrl-C when you see the

following message: Starting AUTOBOOT press Ctrl-C to abort

c. Go to “Retrieving the environment and Fibre Channel port configuration

variables.”

Retrieving the environment and Fibre Channel port configuration variables

1. Display the system environment variables by entering the following command from the LOADER prompt on the target console: printenv

2. Copy the environment variable values. You need these variable values for the replacement CompactFlash card.

3. Enter the following command from the partner console: partner fcadmin config

4. Copy the Fibre Channel port configuration variable values. You need these variable values for the replacement CompactFlash card.

5. Turn off the power to the power supplies and unplug them from the power source.

6. While grounded, remove the bezel and set it aside.

7. Remove the CompactFlash card from the target node by removing the bezel,

flipping the ejector lever up on the LCD display module and pushing it to eject the CompactFlash card. Remove the CompactFlash card from the module and set it aside.

8. Go to “Installing and placing system files on the CompactFlash card.”

Installing and placing system files on the CompactFlash card

You might receive a blank, formatted CompactFlash card. Before you use it, you must transfer a boot image to it. You can transfer the boot image to the CompactFlash card in one of two ways:

v “Placing system files on the CompactFlash card using Netboot”

v “Placing system files on the CompactFlash card using a PC and card

reader/writer” on page 38

Placing system files on the CompactFlash card using Netboot

1. Install the new CompactFlash card in the LCD display module. Make sure

that you seat it squarely in the socket and that the card is firmly seated.

2. Flip the ejector level down on the LCD module so that it is lying flat, and

then reinstall the bezel.

3. Place a boot image on the server you use for netbooting. You can copy the

boot image from the boot directory at /etc/boot/netapp-x86-64, or download it from the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx.

4. Plug the target node power supplies into the power source and turn them on.

36 IBM System Storage: N7000 Series Hardware and Service Guide

5. Stop the target node from rebooting by pressing Ctrl-C to stop the boot

process at the LOADER prompt when you see the following message:

Starting AUTOBOOT press Ctrl-C to abort

6. Configure your network connection.

If you have DHCP running on your network, enter the following command:

ifconfig e0a -auto

If you do not have DHCP running, configure the connection by entering the following command:

ifconfig e0a -addr=filer_addr -mask=netmask -gw=gateway -dns=dns_addr

-domain=dns_domain

where:

v filer_addr is the IP address of the system. v netmask is the network mask of the system. v gateway is the gateway for the system. v dns_addr is the IP address of a name server on your network. v dns_domain is the DNS domain name.

7. Netboot your system by entering the following command at the LOADER

prompt:

netboot URL

where URL is the location of the remote boot image. It can be either an HTTP or a TFTP network path.

8. Ignore all prompts during reboot until Waiting for Giveback appears.

9. Enter the following command from the partner node console: cf giveback

10. Select 1 from the Special Boot Menu to boot the node normally.

Note: You may need to press Enter to display the Special Boot Menu.

11. Determine what version of Data ONTAP the system is running by entering the

following command on the target node console: version

12. Start clustering by entering the following command from the partner node

console: cf giveback

13. Download the system files to the CompactFlash card by entering the following

command from the prompt: download

v If the download is successful, the following message is displayed on the

console: Operator requested download completed.

v If the download fails, the following message is displayed on the console:

Failed to open download script file /etc/boot/x86-64/kernel_1024.cmds:

No such file [download.requestDoneError:error]: Operator requested download failed.

Complete the following substeps to correct this error:

a. Run the software install command by entering the following command:

software install url -f where url is the location of the setup.exe command.

Attention: Use the following URL syntax if you need to specify a username, password, host, or port to access files on the HTTP server using Basic Access Authentication (RFC2617): http://

username:password@host:port/path

b. Download the system files to the CompactFlash card by entering the

following command from the prompt, but do not reboot the system when prompted to do so: download

Chapter 5. Replacing N7000 series system devices 37

14. Go to “Restoring environment variables on the CompactFlash card” on page

Placing system files on the CompactFlash card using a PC and card reader/writer

1. Copy the bootable kernel image (the appropriate rlse_setup.exe file, where

<rlse> is the Data ONTAP release) to your system. Copy the boot image from the boot directory at /etc/boot/netapp-x86-64, or download it from the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx. On the IBM N series support website, the Data ONTAP Matrix provides a current list and history of Data ONTAP releases available by release family and supported storage systems.

Contact technical support if you cannot get a boot image from these sources.

Make sure that you download the file designed for administering for a PC and that it is the correct release of Data ONTAP for your system.

2. Insert the CompactFlash card into the CompactFlash card reader. The

CompactFlash card is pre-formatted. Do not format the CompactFlash card.

3. Extract the contents of the rlse_setup.exe file to a temporary folder on your

PC.

4. Create a folder called x86_64 in the root partition of the CompactFlash card, and then create a subfolder called KERNEL in the x86_64 folder.

5. Move the bootable kernel image into the KERNEL folder in Windows Explorer. The bootable kernel image is called netapp_<rlse>-x86-64. It is located on your PC in the boot folder in the files you extracted from rlse_setup.exe.

6. Rename the netapp_<rlse>-x86-64 image to Primary.KRN.

7. While grounded, install the CompactFlash card with the kernel image in the

controller LCD module. Make sure it is firmly seated in the LCD module.

8. Flip the ejector level down on the LCD module so that it is lying flat, and then reinstall the bezel.

9. Enter the following command from the partner node's console: cf giveback

-f

10. Plug the target node power supplies into the power source and turn them on.

11. Press Ctrl-C during reboot at the message: Press Ctrl-C for the Special

Boot Menu

12. Select 1 from the Special Boot Menu to boot the node normally.

13. Check the status of the cluster by entering the following command: cf status

14. Download the system files to the CompactFlash card by entering the following

command from the prompt: download

v If the download is successful, the following message is displayed on the

console: Operator requested download completed.

v If the download fails, the following message is displayed on the console:

Failed to open download script file /etc/boot/x86-64/kernel_1024.cmds:

No such file [download.requestDoneError:error]: Operator requested download failed.

Complete the following substeps to correct this error:

a. Run the software install command by entering the following command:

software install url -f where url is the location of the setup.exe command.

38 IBM System Storage: N7000 Series Hardware and Service Guide

Attention: Use the following URL syntax if you need to specify a

username, password, host, or port to access files on the HTTP server using Basic Access Authentication (RFC2617): http://

username:password@host:port/path

b. Download the system files to the CompactFlash card by entering the

following command from the prompt, but do not reboot the system when prompted to do so: download

15. Go to “Restoring environment variables on the CompactFlash card.”

Restoring environment variables on the CompactFlash card

1. Check the version of the image by entering the following command:

version -b

2. Display the default environment variables by completing the following steps:

a. Bring the system down to the LOADER prompt.

v If the system is running, shut it down to the LOADER prompt by

rebooting it and pressing Ctrl-C when prompted by the system, and then go to substep b.

v If the system is at the LOADER prompt, go to substep b.

b. Display the system environment variables by entering the following

command from the LOADER prompt on the console: printenv

3. Compare the default environment variables with the list you made in

“Removing the CompactFlash card” on page 35.

v If the variable values are the same, go to “Restoring onboard Fibre Channel

port configuration on the CompactFlash card.”

v If the variable values are different or need modification, complete the

following substeps:

a. Set the values of the individual variables by entering the following

command for each changed variable: setenv variable_name

variable_value

b. Verify the values of the variables by entering the following command

from the LOADER prompt: printenv

4. Boot Data ONTAP after you have modified all variables by entering the

following command: boot_ontap

5. Go to “Restoring onboard Fibre Channel port configuration on the

CompactFlash card.”

Restoring onboard Fibre Channel port configuration on the CompactFlash card

1. Verify the target node Fibre Channel configuration by entering the following

command from the partner node console: fcadmin config

2. Compare the default Fibre Channel variables with the list you made before you

removed the CompactFlash card.

v If the variable values are the same, go to “Completing the replacement

process” on page 35.

v If the variable values are different, complete the following substeps:

a. Reboot the target node and press Ctrl-C when Press Ctrl-C for special

boot menu appears, and then again when Press Ctrl-C for Maintenance menu to release disks appears on the screen.

b. Enter y when prompted for confirmation by the system.

c. Enter one of the following commands for variables you want to change:

Chapter 5. Replacing N7000 series system devices 39

– To program target ports: fcadmin config -t target adapter_name – To program initiator ports: fcadmin config -t initiator adapter_name – To unconfigure ports: fcadmin config -t unconfigure adapter_name

d. Halt the target node by entering the following command: halt

e. Verify the values of the variables by entering the following command

from the LOADER prompt: printenv

3. Boot Data ONTAP after you have modified all variables by entering the

following command: boot_ontap

4. Go to “Completing the replacement process” on page 35.

Completing the replacement process

Return the failed part to IBM. Contact IBM Service and Support at 1-800-IBM-SERV (1-800-426-7378) for more information on the return procedure.

Replacing the CompactFlash card in an N7000 series system running Data ONTAP 8.0

The CompactFlash card stores a primary and secondary set of system files (also called the boot image) that the system uses when it boots. The steps you follow to replace a CompactFlash card differ, depending on whether your system is running Data ONTAP 8.x in 7-Mode.

Before you begin

Before extracting the compressed system files during the CompactFlash card installation process, you must make sure that the utility you use is set to suppress any automatic CR/LF conversions in the extracted files.

If you experience any problems during netboot, you can verify the integrity of the files extracted from the package by comparing the md5sum values stored in the MD5SUMS file.

About this task

v You must replace the failed component with a replacement FRU component you

received from your provider.

v You must use the correct procedure for your version of Data ONTAP 8.x.

v These procedures refer to HA pairs, which in releases prior to Data ONTAP 8.0

were called active/active configurations and in Data ONTAP GX were called SFO pairs.

v 7-Mode refers to a system running Data ONTAP in 7-Mode.

Replacing a CompactFlash card in a system running in 7-Mode

Replacing a CompactFlash card in 7-Mode involves shutting down the system, removing the old CompactFlash card, and transferring the system files to the new CompactFlash card.

About this task

This procedure is for systems running in 7-Mode.

40 IBM System Storage: N7000 Series Hardware and Service Guide

Shutting down a node

When replacing the boot device in a system running in 7-Mode, you must shut down the node. Depending on your system's configuration, you might also need to turn off the power supplies.

Procedure

1. Shut down the system or node:

If the system is in... Then...

A stand-alone configuration and is running

A stand-alone configuration and is not running

An HA pair

1. Enter the following command at the

console:

halt -t 0

2. Go to the next step.

Go to the next step.

1. Check the status of the target node by

entering the following command from the partner node's console:

cf status

2. Take one of the following actions,

depending on the result of the cf status command:

v If the target node is not running or has

been taken over by the partner node, go to the next step.

v If the target node took over the

partner node, give back the partner node using the cf giveback command from the target node, initiate the takeover from the partner node using the cf takeover command, and then go to the next step.

v If the target node has not been taken

over by the partner node and is running, enter the following command from the partner node, and then go to the next step:

cf takeover

2. If applicable, turn off the power supplies and unplug both power cords from

the power source.

Removing the CompactFlash card from the controller module

You must remove the old or failed CompactFlash card from the target controller module in your system prior to installing the new or replacement CompactFlash card.

Procedure

1. If you are not already grounded, properly ground yourself.

2. Remove the bezel, if necessary, and locate the CompactFlash slot in the LCD

module.

Chapter 5. Replacing N7000 series system devices 41

3. Flip the ejector lever on the LCD display module, push the lever to eject the

boot device from the LCD display module, and then remove the CompactFlash card from the LCD display module.

4. Set the CompactFlash card aside.

5. Determine which method you will use to transfer the system files to the

replacement CompactFlash card; using a PC or laptop with a card reader/writer, or using netboot.

Installing the CompactFlash card device

After you remove the old CompactFlash card, you must transfer system files and restore configuration information to your replacement CompactFlash card using one of several methods.

Before you begin

Note: For systems running in 7-Mode, IBM recommends using the nondisruptive procedure for HA configurations running Data ONTAP 8.0.1 and later.

Installing the CompactFlash card using a PC or laptop with a card reader/writer:

You can transfer the system files to your replacement CompactFlash card using a PC or laptop with a CompactFlash card reader/writer prior to installing the replacement CompactFlash card into your controller.

Before you begin

For copying system files to the CompactFlash card, you must have the following:

v The blank replacement CompactFlash card you received from your provider

v A PC or laptop with a CompactFlash reader/writer that is running Windows XP

or later and that has a .zip program, such as WinZip, installed

v Access to the IBM N series support website at http://www.ibm.com/storage/

support/nseries/

This enables you to download the necessary system files for your platform and version of Data ONTAP running on it.

Transferring the system files to a CompactFlash card in a 7-Mode configuration using a PC or laptop:

You can transfer the system files to the replacement CompactFlash card in a 7-Mode system using a PC or laptop that has a CompactFlash card reader/writer.

Procedure

1. Download the *.tgz system image file from the IBM N series support website to a temporary folder on your PC.

The file you download is named <release_name>_q_image.tgz.

2. Insert the blank CompactFlash card into the CompactFlash card reader/writer and then access the CompactFlash card using Windows Explorer.

Note: The CompactFlash card is preformatted. If you reformat the card, it should be in FAT-16 format only.

3. Create a folder in the root partition of the CompactFlash card, naming it x86_64.

42 IBM System Storage: N7000 Series Hardware and Service Guide

4. Create a freebsd/ subfolder, and then create image1/ and image2/ subdirectories inside freebsd/. The directory structure should resemble the following:

x86_64/

freebsd/

image1/ image2/

5. Navigate to the folder containing the *.tgz file on the PC and click the *.tgz file.

6. Extract the files to the following locations on the CompactFlash card:

v freebsd/image1 v freebsd/image2

7. Return to the open zip-file window that displays the contents of the *.tgz file that you want to install.

8. Uncompress and untar, if necessary, the contents of the file named diags.tgz to the root directory on the CompactFlash card.

This creates the directory structure for the diagnostics utilities and firmware.

9. Verify the directory structure on the CompactFlash card. The directory structure should resemble the following:

x86_64/

freebsd/

image1/

image2/ diag/ firmware/

common/

firmware/

10. If the node or controller is in an HA pair and the partner took over the node,

copy the backup system configuration file, varfs.tgz, from the target node's root volume.

Note: If the node or controller is a stand-alone system or in an HA pair where the node was not taken over by the partner, skip this step and go to the next step.

Chapter 5. Replacing N7000 series system devices 43

To copy the backup system configuration file using... Complete the following substeps...

An NFS client

1. Determine the taken-over node's name by entering

the following command from the partner's console:

partner hostnamenode_name

2. Export the node's root volume from the partner by

entering the following command:

partner exportfs -p sec=sys,rw,anon=0,nosuid /vol/vol0

3. Go to the NFS client and create a directory for the

taken-over node on the NFS client by entering the following command:

mkdir /mnt/node_name

4. Mount the exported volume by entering the

following command on the NFS client:

mount node_name:/vol/vol0 /mnt/node_name

5. Verify the contents of the newly mounted volume by

entering the following command on the NFS client:

ls -al /mnt/node_name/etc/varfs.tgz

-r-xr-xr-x 1 root root 76229 2009-06-02 15:34 /mnt/node_name/etc/varfs.tgz

6. Copy the varfs.tgz file to a directory on the NFS

client that you can access with the PC by entering the following command on the NFS client console:

cp /mnt/node_name/etc/varfs.tgz /u/target_directory/varfs.tgz

7. Go to the PC and copy the varfs.tgz file to the

freebsd/ directory.

The directory structure should appear as follows:

x86_64/

freebsd/

image1/ image2/

varfs.tgz diag/ firmware/

common/

firmware/

8. Go to the next step.

44 IBM System Storage: N7000 Series Hardware and Service Guide

To copy the backup system configuration file using... Complete the following substeps...

A CIFS client

1. Open Windows Explorer and enter the path to the

partner controller by entering the following command in the navigation pane:

\\partner_node_name\c$

2. Open the /etc folder.

3. Copy the varfs.tgz file and paste it into target

directory.

4. Go to the PC and copy the varfs.tgz file to the

freebsd/ directory.

The directory structure should appear as follows:

x86_64/

freebsd/

image1/ image2/

varfs.tgz diag/ firmware/

common/

firmware/

5. Go to the next step.

11. Close the .zip program.

12. Right-click the drive letter that is mapped to the CompactFlash card, select

Eject to remove the CompactFlash card from the PC or laptop, and then remove the CompactFlash card from the CompactFlash card reader/writer.

Installing the CompactFlash card into the 7-Mode controller:

After the system files are transferred to the replacement CompactFlash card, you must install it into the controller.

Procedure

1. If you are not already grounded, properly ground yourself.

2. Remove the bezel, if necessary, and locate the CompactFlash card slot in the

LCD module.

3. Align the CompactFlash card with the CompactFlash card socket or connector,

and then firmly push the CompactFlash card into the socket or connector. The CompactFlash card socket is keyed. If you feel resistance while pushing the card into the socket, check the orientation of the card.

4. Check the CompactFlash card to make sure that it is seated squarely and

completely in the socket or connector. If necessary, remove the CompactFlash card and reseat it into the socket.

5. Replace the bezel.

6. Reinstall the cable management tray and recable the system, as needed. When

recabling, remember to reinstall the media converters (SFPs) if you are using fiber cables.

7. Push the motherboard tray all the way into the system, firmly push the cam

handle to finish seating it, push the cam handle to the closed position, and then tighten the thumbscrews.

8. Reconnect the power cables to the power supplies and to the power sources,

and then turn on the power.

Chapter 5. Replacing N7000 series system devices 45

Rebooting the controller running 7-Mode:

After copying the system files to the new CompactFlash card and installing it back into the controller, you must reboot the system.

Procedure

1. Reboot the node, if necessary.

If... Then...

AUTOBOOT is set on the node The node begins the reboot process.

AUTOBOOT is not set or the node doesn't begin

to reboot

2. The next step depends on your system configuration:

If your system is... Then...

In an HA pair and the partner has taken over the node

In a stand-alone configuration or in an HA pair and you did not copy the varfs.tgz to the boot device

The node reboots normally and enters a state of awaiting giveback. Give back the node by entering the following command from the partner's console:

cf giveback

After mounting the root volume, the backup configuration data is restored to the CompactFlash boot device and the controller automatically reboots. In HA pairs, you need to perform a giveback when the node finishes rebooting.

Complete the following substeps when the following menu is displayed:

1. Select the Update flash from backup config. from the displayed menu.

2. Enter y when you see the following message:

Enter the following command from the prompt:

boot_ontap

This will replace all flash-based configuration with the last backup to disks. Are you sure you want to continue?: y

When you select this option, the system attempts to mount the root volume where the backup configuration data is located.

Note: The login prompt is not displayed on the console until after the controller reboots.

Installing the CompactFlash card and transferring system files nondisruptively using netboot in systems running Data ONTAP 8.0.x or 8.1:

You can transfer the system files and restore configuration information to your HA pair nondisruptively by using netboot and the partner node.

Before you begin

v You must have the blank replacement CompactFlash card that you received from

your provider.

v You must have a network interface to the HA pair partner node.

v You must have a separate IP address to use to netboot the target node.

46 IBM System Storage: N7000 Series Hardware and Service Guide

About this task

The following procedure is written with the assumption that the target node has been taken over by the partner node and that the target node has booted to the boot environment prompt after the takeover has been completed.

Attention: You can only use this nondisruptive procedure in an HA pair that is running Data ONTAP 8.0.x or 8.1.You must use the disruptive procedure if your system is running Data ONTAP 8.0.

Procedure

1. Download and extract the file used for performing the netboot of your system:

a. Download the appropriate netboot.tgz file for your platform from the

IBM N series support website to a web-accessible directory.

b. Change to the web-accessible directory. c. Extract the contents of the netboot.tgz file to the target directory by

entering the following command:

tar -zxvf netboot.tgz

Your directory listing should contain the following directory:

netboot/

2. Download the image.tgz file from the IBM N series support website to the

web-accessible directory. Your directory listing should contain the following file and directory:

image.tgz netboot/

3. If you are not already grounded, properly ground yourself.

4. Remove the bezel, if necessary, and locate the CompactFlash card slot in the

LCD module.

5. Align the CompactFlash card with the CompactFlash card socket or connector,

6. Check the CompactFlash card to make sure that it is seated squarely and

completely in the socket or connector. If necessary, remove the CompactFlash card and reseat it into the socket.

7. Replace the bezel.

8. Reinstall the cable management tray and recable the system, as needed. When

recabling, remember to reinstall the media converters (SFPs) if you are using fiber cables.

9. Push the motherboard tray all the way into the system, firmly push the cam

handle to finish seating it, push the cam handle to the closed position, and then tighten the thumbscrews.

10. Reconnect the power cables to the power supplies and to the power sources,

and then turn on the power.

11. Set up the TFTP server on the partner node by entering the following

commands on the partner node console:

partner options tftpd.enable off partner options tftpd.rootdir /etc partner options tftpd.enable on

12. Depending on your network configuration, enter one of the following

commands at the LOADER:

Chapter 5. Replacing N7000 series system devices 47

If you... Then...

Have DHCP enabled Enter the following command:

ifconfig e0a -auto

Do not have DHCP enabled Enter the following command:

ifconfig e0a -addr=filer_addr

-mask=netmask -gw=gateway -dns=dns_addr

-domain=dns_domain

filer_addr is the IP address of the storage system.

netmask is the network mask of the storage system.

gateway is the gateway for the storage system.

dns_addr is the IP address of a name server on your network.

dns_domain is the Domain Name System (DNS) domain name. If you use this optional parameter, you do not need a fully qualified domain name in the netboot server URL; you need only the server’s host name. Note: To netboot the node when your system is running in 7-Mode, use an IP address that is not the management IP address for the target. Note: Other parameters might be necessary for your interface. For details, use the help ifconfig command at the LOADER prompt.

13. At the boot environment prompt, enter the following command:

netboot http://path_to_web-accessible_directory/netboot/kernel

14. Select the Install new software first option from the displayed menu. This

menu option downloads and installs the new Data ONTAP image to the CompactFlash card. If you are prompted to continue the procedure, enter y when prompted.

15. Enter y when you see the following prompt:

This procedure is not supported for Non-Disruptive Upgrade on an HA pair. Do you want to continue? [y|no] y

16. Enter the path to the image.tgz file when you see the following prompt:

What is the URL for the package? http://path_to_web-accessible_directory/image.tgz

17. Restore the backup configuration on the target node by entering y and then entering the IP address of the server containing the varfs.tgz file when you see the following screen:

48 IBM System Storage: N7000 Series Hardware and Service Guide

**************************************************************** * Restore Backup Configuration * * This procedure only applies to storage controllers that * * are configured as an HA pair. * ** * Choose Yes to restore the "varfs" backup configuration * * from the TFTP server. Refer to the Boot Device Replacement * * guide for more details. * * Choose No to skip the backup and recovery and return to the * * boot menu. * ****************************************************************

Do you want to restore the backup configuration now? {y|n} y

Enter the IP address of the server: target_node.management_IP.address Checking network link... success. Checking route to host "target_node.management_IP.address"... success. Attempting to reach "target_node.management_IP.address"... success. Checking CompactFlash card file system... success. Mounting CompactFlash card to /tmp/mnt... success. Checking CompactFlash card mount point... success. Restoring backup configuration... Received 82481 bytes in 0.1 seconds

Backup Configuration from $BACKUP_DATE successfully restored

Installing the CompactFlash card and transferring system files nondisruptively using netboot in systems running Data ONTAP 8.1.1 and later:

You can transfer the system files and restore configuration information to your HA pair nondisruptively by using netboot and the partner node.

Before you begin

v You must have the blank replacement CompactFlash card that you received from

your provider.

v You must have a network interface to the HA pair partner node.

v You must have a separate IP address to use to netboot the target node.

About this task

Attention: You can only use this nondisruptive procedure in an HA pair that is running Data ONTAP 8.1.1 and later.

Procedure

1. Download and extract the file used for performing the netboot of your system:

a. Download the appropriate netboot.tgz file for your platform from the

IBM N series support website to a web-accessible directory.

b. Change to the web-accessible directory. c. Extract the contents of the netboot.tgz file to the target directory by

entering the following command:

tar -zxvf netboot.tgz

Your directory listing should contain the following directory:

netboot/

Chapter 5. Replacing N7000 series system devices 49

2. Download the image.tgz file from the IBM N series support website to the

web-accessible directory. Your directory listing should contain the following file and directory:

image.tgz netboot/

3. If you are not already grounded, properly ground yourself.

4. Remove the bezel, if necessary, and locate the CompactFlash card slot in the

LCD module.

5. Align the CompactFlash card with the CompactFlash card socket or connector,

6. Check the CompactFlash card to make sure that it is seated squarely and

completely in the socket or connector. If necessary, remove the CompactFlash card and reseat it into the socket.

7. Replace the bezel.

8. Reinstall the cable management tray and recable the system, as needed. When

recabling, remember to reinstall the media converters (SFPs) if you are using fiber cables.

9. Push the motherboard tray all the way into the system, firmly push the cam

handle to finish seating it, push the cam handle to the closed position, and then tighten the thumbscrews.

10. Reconnect the power cables to the power supplies and to the power sources, and then turn on the power.

11. Depending on your network configuration, enter one of the following

commands at the LOADER:

If you... Then...

Have DHCP enabled Enter the following command:

ifconfig e0a -auto

50 IBM System Storage: N7000 Series Hardware and Service Guide

If you... Then...

Do not have DHCP enabled Enter the following command:

ifconfig e0a -addr=filer_addr

-mask=netmask -gw=gateway -dns=dns_addr

-domain=dns_domain

filer_addr is the IP address of the storage system.

netmask is the network mask of the storage system.

gateway is the gateway for the storage system.

dns_addr is the IP address of a name server on your network.

12. At the boot environment prompt, enter the following command:

netboot http://path_to_web-accessible_directory/netboot/kernel

13. Select the Install new software first option from the displayed menu. This

menu option downloads and installs the new Data ONTAP image to the CompactFlash card. If you are prompted to continue the procedure, enter y when prompted.

14. Enter y when you see the following prompt:

This procedure is not supported for Non-Disruptive Upgrade on an HA pair. Do you want to continue? [y|no] y

15. Enter the path to the image.tgz file when you see the following prompt:

What is the URL for the package? http://path_to_web-accessible_directory/image.tgz

16. Restore the backup configuration on the target node by entering y and then

entering the IP address of the server containing the varfs.tgz file when you see the following screen:

Chapter 5. Replacing N7000 series system devices 51

**************************************************************** * Restore Backup Configuration * * This procedure only applies to storage controllers that * * are configured as an HA pair. * ** * Choose Yes to restore the "varfs" backup configuration * * from the SSH server. Refer to the Boot Device Replacement * * guide for more details. * * Choose No to skip the backup and recovery and return to the * * boot menu. * ****************************************************************

Do you want to restore the backup configuration now? {y|n} y

Start the restore_backup procedure on this node’s HA partner.

The restore configuration has been copied from the HA partner to this node, would you like to use this restored copy now? {y|n}

17. Copy the varfs.tgz file from the HA partner node to the target node by entering the following command from the partner node console:

restore_backup target_node.netboot_IP.address

Use the same IP address that was assigned to the target node and used for the netboot command.

18. Finish the restore backup on the target node by entering y when you see the following screen:

The restore configuration has been copied

from the HA partner to this node, would you like to use this restored copy now? {y|n} y

CF device: /dev/ad0 found... Checking /dev/ad0s1 file system... success. Mounting /dev/ad0s1 to /cfcard... success. Checking /cfcard/x86/freebsd mount point... success. Restoring backup configuration...

19. Reboot the target node by entering the following command on the target node console:

boot_ontap

20. After the target node has rebooted and is displaying the Waiting for giveback message, complete the procedure by entering the following

command on the partner node's console:

cf giveback

Installing the CompactFlash card and transferring system files disruptively using netboot:

You can transfer the system files and restore configuration information to your system by using netboot to copy the system files to the replacement CompactFlash card.

Before you begin

v You must have the blank replacement CompactFlash card you received from

your provider.

v You must have access to an HTTP server.

52 IBM System Storage: N7000 Series Hardware and Service Guide

v You must have access to the IBM N series support website at

http://www.ibm.com/storage/support/nseries/ .

This enables you to download the necessary system files for your platform and version of Data ONTAP running on it.

About this task

You can use this disruptive procedure in a system that is running Data ONTAP 8.x.

Attention: This procedure is disruptive, even when using it with a system in an HA configuration , because an immediate giveback and re-takeover occur during the procedure. If possible, you should use the nondisruptive procedure for HA configurations running Data ONTAP 8.0.1 and later operating in 7-Mode.

Procedure

1. Download and extract the file used for performing the netboot of your system:

a. Download the appropriate netboot.tgz file for your platform from the

IBM N series support website to a web-accessible directory.

b. Change to the web-accessible directory. c. Extract the contents of the netboot.tgz file to the target directory by

entering the following command:

tar -zxvf netboot.tgz

Your directory listing should contain the following directory:

netboot/

2. Download the image.tgz file from the IBM N series support website to the

web-accessible directory. Your directory listing should contain the following file and directory:

image.tgz netboot/

3. If you are not already grounded, properly ground yourself.

4. Remove the bezel, if necessary, and locate the CompactFlash card slot in the

LCD module.

5. Align the CompactFlash card with the CompactFlash card socket or connector,

6. Check the CompactFlash card to make sure that it is seated squarely and

completely in the socket or connector. If necessary, remove the CompactFlash card and reseat it into the socket.

7. Replace the bezel.

8. Reinstall the cable management tray and recable the system, as needed. When

recabling, remember to reinstall the media converters (SFPs) if you are using fiber cables.

9. Push the motherboard tray all the way into the system, firmly push the cam

handle to finish seating it, push the cam handle to the closed position, and then tighten the thumbscrews.

10. Reconnect the power cables to the power supplies and to the power sources,

and then turn on the power.

11. Depending on your network configuration, enter one of the following

commands at the LOADER:

Chapter 5. Replacing N7000 series system devices 53

If you... Then...

Have DHCP enabled Enter the following command:

ifconfig e0a -auto

Do not have DHCP enabled Enter the following command:

ifconfig e0a -addr=filer_addr

-mask=netmask -gw=gateway -dns=dns_addr

-domain=dns_domain

filer_addr is the IP address of the storage system.

netmask is the network mask of the storage system.

gateway is the gateway for the storage system.

dns_addr is the IP address of a name server on your network.

12. At the LOADER prompt, enter the following command:

netboot http://path_to_the_web-accessible_directory/netboot/kernel

The system begins to boot, but stops at the Boot menu.

13. Select the Install new software first option from the displayed menu. This menu option downloads and installs the new Data ONTAP image to the CompactFlash card. If you are prompted to continue the procedure, enter y when prompted.

14. The next step depends on which version of Data ONTAP is installed on your system:

If your system is running... Then...

Data ONTAP 8.0 Reboot the node by entering y when you see the following prompt:

The node must be rebooted to start using the newly installed software. Do you want to reboot now? [y/n} y

The controller module reboots, but stops at the Boot menu because the CompactFlash card was reformatted and the configuration data needs to be restored.

54 IBM System Storage: N7000 Series Hardware and Service Guide

If your system is running... Then...

Data ONTAP 8.0.1 and later Complete the following substeps:

1. Enter n to skip the backup recovery when you see the following prompt:

************************************************************** * Restore Backup Configuration * * This procedure only applies to storage controllers that * * are configured as an HA pair. * ** * Choose Yes to restore the ’varfs’ backup configuration * * from a TFTP server. Refer to the Boot Device Replacement * * guide for more details. * * Choose No to skip the back up recovery and return to the * * boot menu. * **************************************************************

Do you want to restore the backup configuration now? {y|n} n

Note: If your system is running Data ONTAP 8.1.1 and later, the prompt says SSH server.

2. Reboot the node by entering y when you see the following prompt:

The node must be rebooted to start using the newly installed software. Do you want to reboot now? {y/n} y

The controller module reboots, but stops at the boot environment prompt.

3. Boot Data ONTAP by entering the following command at the boot

environment prompt:

boot_ontap

The controller module reboots, but stops at the Boot menu because the CompactFlash card was reformatted and the configuration data needs to be restored.

15. Select the Update flash from backup config option from the displayed menu.

16. Enter y when you see the following prompt:

This will replace all flash-based configuration with the last backup to disk. Are you sure you want to continue?: y

The system automatically reboots when the update flash (syncflash) process is complete.

17. Your next step depends on your system configuration.

If your system is... Description

A stand-alone configuration You can begin using your system after the

node reboots to complete restoring the backup configuration.

Chapter 5. Replacing N7000 series system devices 55

If your system is... Description

An HA pair Complete the following substeps after the

target node is displaying the Waiting for Giveback message:

1. Enter the following command from the

partner node:

cf giveback

The target node takes back its storage, completes booting up, and then reboots and is again taken over by the partner node.

2. Enter the following command from the

partner node:

cf giveback

The target node takes back its storage and completes booting up with the restored configuration.

Completing the replacement process

Return the failed part to IBM. Contact IBM Service and Support at 1-800-IBM-SERV (1-800-426-7378) for more information on the return procedure.

Replacing a fan module in an N7000 series system

To replace a fan module, you must perform the following tasks in order.

About this task

The fan module is hot-swappable and can be replaced without interrupting service.

Removing a fan module

You can remove a fan module without powering down the system.

About this task

Attention: You must replace the fan module within two minutes of removing it from the chassis. System airflow is disrupted and the controller module shuts down after two minutes to avoid overheating. In high-availability configurations, a takeover occurs.

Procedure

1. If you are not already grounded, properly ground yourself.

2. Remove the bezel (if necessary).

3. Locate the fan module that needs replacing. You can identify it by the blinking

LED on the fan module FRU, or through messages on the LCD or console.

56 IBM System Storage: N7000 Series Hardware and Service Guide

Figure 14. N7000 series system fans

One of five system fan modules

4. Loosen the thumbscrew on the fan module cam handle.

5. Press the release tab on the side of the target fan module, and then pull the

cam handle toward you to remove the fan module from the chassis.

Attention: Always support the bottom of the module with your free hand so that it does not suddenly drop free from the chassis and injure you.

Figure 15. Removing the fan module

6. Set the fan module aside.

Installing a fan module

To replace the fan module, you must perform the following steps in order.

Procedure

1. If you are not already grounded, properly ground yourself.

2. Remove the bezel, if necessary.

3. Insert the replacement fan module into the chassis by aligning it with the

opening and sliding it into the chassis.

Thumbscrew

Release tab

Chapter 5. Replacing N7000 series system devices 57

Attention: The fan modules are keyed and can only be installed one way. If the fan module does not fit properly, flip the module 180 degrees and reinstall it.

4. Finish seating the fan by pushing firmly on the edges of the fan housing. When

properly seated, the locking tab engages the handle.

5. Tighten the thumbscrew on the cam handle.

6. Reinstall the bezel.

7. Run diagnostics on the replacement fan module during the next scheduled

system downtime. See the IBM System Storage N series Diagnostics Guide for more information.

Completing the replacement process

Return the failed part to IBM. Contact IBM Service and Support at 1-800-IBM-SERV (1-800-426-7378) for more information on the return procedure.

Installing or replacing the RLM in an N7000 series system

To install or replace a Remote LAN Module (RLM) in the system, you must perform the following tasks in order.

About this task

v You can use this procedure with all versions of Data ONTAP supported by your

system.

v This procedure refers to HA pairs, which in releases prior to Data ONTAP 8.0

were called active/active configurations.

v All other components in the system must be functioning properly; if not, contact

technical support.

Shutting down the node

You shut down a node using different procedures, depending on whether it is a stand-alone system or part of an HA pair.

Shutting down a node in an HA pair

To shut down the node you must determine the status of the node and, if necessary, take over the node so that the partner continues to serve data from the node's storage.

Procedure

1. Check the status of the target node (the node you want to perform maintenance

on) by entering the following command at the system console of either node:

For... Issue the command...

7-Mode cf status

Cluster-Mode storage failover show

2. Take one of the following actions, depending on the result of the storage

failover show or cf status command:

If... Then...

Neither node is in takeover mode Go to the next step in this procedure.

58 IBM System Storage: N7000 Series Hardware and Service Guide

If... Then...

The partner node took over the target node The target node is in a state where you can

shut it down; go to the next step in this procedure.

The target node took over the partner node

1. Correct the problem that caused the

takeover.

2. Run the storage failover giveback or cf giveback command from the target

node console.

3. Go back to the beginning of this procedure.

3. Take over the target node by entering the following command from the partner

node's console:

For... Issue the command...

7-Mode cf takeover

Cluster-Mode storage failover takeover -bynode node

4. If you are not already grounded, properly ground yourself.

5. Turn off the power supplies and disconnect the power on the target node.

If your system uses... Then...

AC power Unplug the power cords from the power

source, and then remove the power cords.

DC power Remove the power at the DC source, and

then remove the DC wires, if necessary.

Shutting down the node in a stand-alone system

For a node that is not configured with a high-availability (HA) partner, you must perform a clean shutdown (ensuring that all data has been written to disk) and disconnect the power supplies.

Procedure

1. Enter the following command from the system console:

If your system is configured in... Then issue this command...

7-Mode halt

Cluster-Mode halt local

After you issue the command, wait until the system stops at the LOADER prompt.

Attention: You must perform a clean system shutdown before replacing system components to avoid losing unwritten data in the NVRAM. The NVRAM adapter has a red LED that blinks if there is unwritten data in the NVRAM. If this LED is flashing red after you enter the halt local command, reboot your system and try halting it again.

2. If you are not already grounded, properly ground yourself.

3. Turn off the power supplies and unplug both power cords from the power

source:

Chapter 5. Replacing N7000 series system devices 59

If your system uses... Then...

AC power Unplug the power cords from the power

DC power Remove the power at the DC source, and

Removing the RLM

To remove the RLM from the system, you must perform a specific sequence of steps.

Procedure

1. Remove the bezel and locate the RLM directly under the CompactFlash carrier

on the LCD module on the front of the chassis.

2. Loosen the thumbscrew on the left side of the RLM carrier, and then swing the

retaining arm to the right.

source, and then remove the power cords.

then remove the DC wires, if necessary.

Figure 16. Removing the RLM carrier

3. Slide the RLM out of the carrier and set it aside.

Thumbscrew

Retaining bar

Installing the RLM

You must complete a specific set of steps to install the RLM in the system.

Procedure

1. Align the replacement RLM with the carrier, gently slide it into the system

making sure that it is seated completely, and then swing the locking arm to the left and tighten the thumbscrew.

2. Reinstall the bezel.

60 IBM System Storage: N7000 Series Hardware and Service Guide

3. Reconnect the system to the power source, if applicable, and then turn on the

system to boot it.

4. Check the status and firmware level of the RLM by entering the following

command at the system prompt: rlm status

5. Check the current RLM firmware level posted on the IBM N series support

website, which is accessed and navigated as described in “Websites” on page xx. Refer to the list of current RLM firmware versions in the System, RLM, SP, and Disk Shelf Firmware Matrix.

If your RLM firmware version is... Then...

Earlier that the latest RLM firmware version posted in the System, RLM, SP, and Disk Shelf Firmware Matrix on the IBM N series support website

The latest RLM firmware version posted in the System, RLM, SP, and Disk Shelf Firmware Matrix on the IBM N series support website

Download and install the latest version of firmware from the IBM N series support website, following the posted installation instructions for that level of firmware.

Go to the next step.

6. Plug one end of an RJ-45 cable into the RLM port, and then plug the other end

into a 10/100 Ethernet network port. The network for the RLM should be a 10/100 Ethernet network, or a network that can autonegotiate settings to a 10/100 Ethernet network.

7. Check the link LED on the RLM port to ensure that it is green and that the link

is active.

Setting up a new RLM

When installing an RLM in the system for the first time (rather than replacing an existing RLM), you must run the rlm setup command and respond to its prompts to configure the RLM.

Before you begin

The RLM requires AutoSupport to be activated and configured. If AutoSupport is not set up and configured, do so at this time. See the Data ONTAP System Administration Guide for more information.

Procedure

1. Enter the following command from the system console to begin the RLM setup

script: rlm setup

Note: Your screen output might be different from this example, depending on which version of Data ONTAP is running on your system.

Chapter 5. Replacing N7000 series system devices 61

mysystem-1> rlm setup

The Remote LAN Module (RLM) provides remote management capabilities including console redirection, logging and power control.

It also extends AutoSupport by sending additional system event alerts. Your AutoSupport settings are used for sending these alerts via email over the RLM LAN interface.

Would you like to configure the RLM LAN interface [y]: y

Would you like to enable DHCP on the RLM LAN interface [y]: n

Please enter the IP address for the RLM []: 10.10.123.45

Please enter the netmask for the RLM []: 255.255.224.0

Please enter the IP address for the RLM gateway []: 10.10.123.1

mysystem-1>

2. Check the status and settings of the RLM by entering the following command

from the system console: rlm status

mysystem-1> rlm status Remote LAN Manager

Part Number: 110-00030 Revision: 32 Serial Number: 2P6256 Firmware Version: 2.0 Fri May 30 16:27:58 PST 2008 Mgmt MAC Address: 00:A0:98:01:9A:F8 Using DHCP no IP Address: 172.22.136.61 Netmask: 255.255.224.0 Gateway: 172.22.128.1

3. Check the current RLM firmware level posted on the IBM N series support

website, which is accessed and navigated as described in “Websites” on page xx. Refer to the list of current RLM firmware versions in the System, RLM, SP, and Disk Shelf Firmware Matrix.

If your RLM firmware version is... Then...

Earlier than the latest RLM firmware version posted in the System, RLM, SP, and Disk Shelf Firmware Matrix on the IBM N series support website

The latest RLM firmware version posted in the System, RLM, SP, and Disk Shelf Firmware Matrix on the IBM N series support website

4. Test the RLM AutoSupport functions by sending a test e-mail to AutoSupport

with the following command from the system console: rlm test autosupport

Testing an RLM

You must connect the RLM and then use the RLM's command-line interface to test its features.

About this task

Download and install the latest version of firmware from the site, following the posted installation instructions for that level of firmware.

Go to the next step.

You must log in to the RLM over its network interface by using a secure shell client application, such as SSH, OpenSSH, or PuTTY. Insecure connection protocol applications, such as Telnet, are not available. See the Data ONTAP System

62 IBM System Storage: N7000 Series Hardware and Service Guide

Administration Guide for more information about secure shell client applications.

Procedure

1. Log into the RLM console from a remote host acting as a system console by

entering the following command from the administration host prompt: ssh

user_name@RLM_IP_address

Note: Root login is not allowed for the RLM. If you need to log in with root credentials, use naroot for root login.

admin-host> ssh admin@10.10.123.45

admin@172.22.136.85’s password:*********

RLM admin-host>

2. Check the RLM status by entering the following command from the RLM

console: rlm status

3. Exit the RLM console by entering the following command: exit

4. Connect to the system console using the serial connection or through telnet.

5. Test the RLM AutoSupport functions by sending a test e-mail to AutoSupport

with the following command from the system console: rlm test autosupport

Running diagnostics on the RLM

You should run diagnostics on the RLM to confirm its operation.

Procedure

1. Reboot the system and interrupt the boot process.

2. Enter the following at the prompt: boot_diags

3. Select the RLM tests from the main menu, and then run all diagnostics.

4. Correct any errors.

5. Exit diagnostics by entering the following command: exit

6. Return the system to normal operation:

If your system is... Then issue this command...

In an HA pair

Stand-alone Enter the following command at the prompt

1. Run the cf giveback command (if in a

2. On the console of the target controller

to boot the system: boot_ontap

Completing the replacement process

Return the failed part to IBM. Contact IBM Service and Support at 1-800-IBM-SERV (1-800-426-7378) for more information on the return procedure.

7-Mode system) or the storage failover giveback command (if in a Cluster-Mode system) from the partner node console.

module, select option 1 from the displayed menu to boot Data ONTAP:

Normal Boot (option 1)

Chapter 5. Replacing N7000 series system devices 63

Replacing a power supply on an N7000 series system

To replace a power supply in the system, you must perform a number of tasks in order.

About this task

v All other components in the system must be functioning properly; if not, contact

technical support.

v The power supplies are redundant, and are hot-swappable and interchangeable.

v To prevent system downtime, replace only one power supply at a time.

Important: You can configure the system with either a 110V AC power supply or a 220V AC power supply. For proper system operation, do not mix 110V and 220V AC power supplies in your system.

Removing a power supply

To remove a power supply, you must follow the steps to identify the one you want to remove, disconnect the power cord, and remove the power supply from the chassis.

About this task

Attention: You must replace the power supply within two minutes of removing it from the chassis. System airflow is disrupted and the controller module shuts down after two minutes to avoid overheating.

Procedure

1. Identify the power supply you want to replace, based on console error

messages or through the LEDs on the power supplies.

2. If you are not already grounded, properly ground yourself.

3. Turn off the target power supply and remove the power cord by completing

the following substeps, using the illustration for reference:

Figure 17. Removing the power supply

64 IBM System Storage: N7000 Series Hardware and Service Guide

Cable retention clip

a. Pinch the tab on the locking mechanism of the cable retainer clip, and then

open the retainer clip.

b. Slide the retainer clip off the cable.

c. Unplug the power cord from the power supply and the power source.

4. Loosen the two thumbscrews on the power supply and then lower the cam

handle and slide the power supply out of the chassis. Make sure that you support the power supply with your free hand.

Installing a power supply

To install a power supply, you must follow these steps to place the power supply in the chassis, secure it, and reconnect the power cord.

About this task

Important: You can configure the system with either a 110V AC power supply or a 220V AC power supply. For proper system operation, do not mix 110V and 220V AC power supplies in your system.

Procedure

1. Make sure that the on/off switch of the new power supply is in the Off

position.

2. If you are not already grounded, properly ground yourself.

3. Align the edges of the power supply with the opening in the system chassis

and gently push the power supply into the chassis until the cam handle begins to rise.

4. Push on the edges of the power supply to seat it all the way into the chassis,

and then push the cam handle to the closed position.

5. Tighten the two thumbscrews on the power supply.

6. Reconnect the power cord and secure it to the power supply using the cable

retaining clip.

7. Reconnect the power supply to the power source, and then turn it on. The

power supply should run with no fault LEDs lit.

8. Run diagnostics on the power supply at next reboot. See the Diagnostics Guide

for more information.

Thumbscrews

Completing the replacement process

Return the failed part to IBM. Contact IBM Service and Support at 1-800-IBM-SERV (1-800-426-7378) for more information on the return procedure.

Replacing the Real-Time Clock (RTC) battery in an N7000 series system

To replace the RTC battery in the motherboard tray, you must perform the following tasks in order.

Chapter 5. Replacing N7000 series system devices 65

About this task

v You can use this procedure with all versions of Data ONTAP supported by your

system.

v This procedure refers to HA pairs, which in releases prior to Data ONTAP 8.0

were called active/active configurations.

v All other components in the system must be functioning properly; if not, contact

technical support.

Shutting down the node

You shut down a node using different procedures, depending on whether it is a stand-alone system or part of an HA pair.

Shutting down a node in an HA pair

To shut down the node you must determine the status of the node and, if necessary, take over the node so that the partner continues to serve data from the node's storage.

Procedure

1. Check the status of the target node (the node you want to perform maintenance

on) by entering the following command at the system console of either node:

For... Issue the command...

7-Mode cf status

Cluster-Mode storage failover show

2. Take one of the following actions, depending on the result of the storage failover show or cf status command:

If... Then...

Neither node is in takeover mode Go to the next step in this procedure.

The partner node took over the target node The target node is in a state where you can

shut it down; go to the next step in this procedure.

The target node took over the partner node

1. Correct the problem that caused the

takeover.

2. Run the storage failover giveback or cf giveback command from the target

node console.

3. Go back to the beginning of this procedure.

3. Take over the target node by entering the following command from the partner

node's console:

For... Issue the command...

7-Mode cf takeover

Cluster-Mode storage failover takeover -bynode node

4. If you are not already grounded, properly ground yourself.

5. Turn off the power supplies and disconnect the power on the target node.

66 IBM System Storage: N7000 Series Hardware and Service Guide

If your system uses... Then...

AC power Unplug the power cords from the power

source, and then remove the power cords.

DC power Remove the power at the DC source, and

then remove the DC wires, if necessary.

Shutting down the node in a stand-alone system

For a node that is not configured with a high-availability (HA) partner, you must perform a clean shutdown (ensuring that all data has been written to disk) and disconnect the power supplies.

Procedure

1. Enter the following command from the system console:

If your system is configured in... Then issue this command...

7-Mode halt

Cluster-Mode halt local

After you issue the command, wait until the system stops at the LOADER prompt.

2. If you are not already grounded, properly ground yourself.

3. Turn off the power supplies and unplug both power cords from the power

source:

If your system uses... Then...

AC power Unplug the power cords from the power

DC power Remove the power at the DC source, and

Opening the system

To access components inside the motherboard tray, you must open the system.

Procedure

1. If you are not already grounded, properly ground yourself.

2. Unplug the system cables and SFPs from the motherboard tray, as needed, and

keep track of where the cables were connected. Leave the cables in the cable clips of the cable management tray so that when you reinstall the cable management tray, the cables are already aligned.

3. Grasp the cable management tray by the side, gently push on the sides of the

tray to unhook it, and then pull the tray off the back of the motherboard tray and set it aside.

source, and then remove the power cords.

then remove the DC wires, if necessary.

Chapter 5. Replacing N7000 series system devices 67

Figure 18. Removing the cable management tray

Cable management tray

4. Loosen the six thumbscrews that secure the motherboard tray to the chassis.

5. Pull the cam handle downward and slide the motherboard tray out of the

system until it catches.

Attention: You do not have to remove the motherboard (as described in the following step) to replace components on the motherboard tray. However, your system must be on a stable surface where the chassis and motherboard tray are supported so that your system cannot tip when you pull the motherboard tray away from the chassis.

Figure 19. Removing the motherboard tray

6. If you want to remove the motherboard tray, complete the following substeps:

68 IBM System Storage: N7000 Series Hardware and Service Guide

Motherboard tray

a. Press the locking tabs on the sides of the motherboard tray, and then gently

pull it out about an inch.

b. Grasp the handles on the sides of the motherboard tray, slide it out of the

chassis, and set it on a stable, antistatic surface.

Removing an RTC battery

You must use this procedure to remove the RTC battery from the motherboard.

Procedure

1. Locate the RTC battery on the right, rear of the motherboard tray (closest to

you, when the tray is open).

Figure 20. Removing the RTC battery

2. Push the retaining clip latch holding the battery in place, and lift the battery

out of the socket.

Retaining clip latch

Installing an RTC battery

You must use this procedure to install a Real-Time Clock (RTC) battery.

Procedure

1. If you are not already grounded, properly ground yourself.

2. Remove the replacement battery from the antistatic shipping bag.

3. Align the poles of the battery with the posts inside the battery housing. The

Positive pole is on the right of the battery socket.

Note: The battery does not fit in the battery socket if the battery is facing the wrong direction.

4. Gently push the battery into the socket, until the retaining clip engages the

battery.

Reinstalling the motherboard tray and booting the system

After you replace a component within the motherboard tray, you must reinstall the motherboard tray in the system chassis.

Chapter 5. Replacing N7000 series system devices 69

Procedure

1. Align the end of the motherboard tray with the opening in the chassis, if

necessary, and then gently push the motherboard tray into the system.

The cam handle begins to engage when the motherboard tray is properly seated all the way inside the system.

2. Firmly push the cam handle to finish seating the motherboard tray in the

system.

3. Tighten the thumbscrews on the cam handle and chassis frame.

4. Reinstall the cable management tray and recable the system, as needed.

When recabling, remember to reinstall the media converters (SFPs) if you are using fiber cables.

5. Reconnect the power cables to the power supplies and to the power sources,

and then turn on the power.

6. Reboot the system and press Ctrl-C to stop the boot process.

7. Enter the following command at the boot loader prompt: boot_diags

Running diagnostics on the RTC battery

After installing the RTC battery you should run diagnostics.

Procedure

1. From the diagnostics menu, select and complete the appropriate tests. See the

IBM System Storage N series Diagnostics Guide for information about specific diagnostics tests you can perform.

2. Exit diagnostics by entering the following command: exit

3. Return the system to normal operation:

If your system is in... Then issue this command...

An HA pair Run the cf giveback command (in 7-Mode)

or the storage failover giveback command (in Cluster-Mode) from the partner node console.

A stand-alone configuration Enter the following command at the prompt

to boot the system: boot_ontap

Resetting the date and time on the system

After you reconnect the battery and reboot Data ONTAP, you must reset the date and time on the system.

Procedure

1. Display the current date on the node or nodes by entering the following

command:

If you have a... Then issue this command...

7-Mode system date

Note: If your system is in an HA pair, make

sure that you display the date and time on the partner node and set the target node to those values.

70 IBM System Storage: N7000 Series Hardware and Service Guide

If you have a... Then issue this command...

Cluster-Mode system system date show

Note: Make sure that you display the date

and time on the other nodes in the cluster and set the target node to those values.

2. Set the date by entering the following command:

If you have a... Then issue this command...

7-Mode system date [-u] [[[CC]yy]mmddhhmm>[.<ss>]]

-u sets the date and time to Greenwich Mean Time instead of the local time.

CC is the first two digits of the current year.

yy is the second two digits of the current

year.

mm is the current month. If the month is omitted, the default is the current month.

dd is the current day. If the day is omitted, the default is the current day.

hh is the current hour, using a 24-hour clock.

mm is the current minute.

ss is the current second. If the seconds are

omitted, the default is 0.

Cluster-Mode system system date modify -node node_name -date

date_and_time

node_name is the target node.

date_and_time is the date and time setting

for the node, in the format MM/DD/YYYY HH:MM:SS.

Note: See the Data ONTAP Cluster-Mode System Administration Guide or Cluster-Mode Administration Reference for more information. This document, and

other Data ONTAP documentation, is available on the IBM N series support website, which is accessed and navigated as described in “Websites” on page xx. The following command sets the date and time to 22 May 2009 at 9:25 a.m on a 7-Mode system: date 200905220925 The following command sets the date and time to 22 May 2009 at 9:25 a.m on a Cluster-Mode system: system date modify

-node system1 -date "05/22/2009 09:25:00"

Completing the replacement process

Return the failed part to IBM. Contact IBM Service and Support at 1-800-IBM-SERV (1-800-426-7378) for more information on the return procedure.

Disposing of batteries

Dispose of batteries according to local regulations regarding battery recycling or disposal. For more information, see the IBM Environmental Notices and User Guide.

Chapter 5. Replacing N7000 series system devices 71

Replacing a DIMM in an N7000 series system

To replace a DIMM in the system, you must perform a specific sequence of tasks.

About this task

v You can use this procedure with all versions of Data ONTAP supported by your

system.

v This procedure refers to HA pairs, which in releases prior to Data ONTAP 8.0

were called active/active configurations.

v All other components in the system must be functioning properly; if not, contact

technical support.

Shutting down the node

You shut down a node using different procedures, depending on whether it is a stand-alone system or part of an HA pair.

Shutting down a node in an HA pair

To shut down the node you must determine the status of the node and, if necessary, take over the node so that the partner continues to serve data from the node's storage.

Procedure

1. Check the status of the target node (the node you want to perform maintenance

on) by entering the following command at the system console of either node:

For... Issue the command...

7-Mode cf status

Cluster-Mode storage failover show

2. Take one of the following actions, depending on the result of the storage failover show or cf status command:

If... Then...

Neither node is in takeover mode Go to the next step in this procedure.

The partner node took over the target node The target node is in a state where you can

shut it down; go to the next step in this procedure.

The target node took over the partner node

1. Correct the problem that caused the

takeover.

2. Run the storage failover giveback or cf giveback command from the target

node console.

3. Go back to the beginning of this procedure.

3. Take over the target node by entering the following command from the partner

node's console:

For... Issue the command...

7-Mode cf takeover

Cluster-Mode storage failover takeover -bynode node

72 IBM System Storage: N7000 Series Hardware and Service Guide

4. If you are not already grounded, properly ground yourself.

5. Turn off the power supplies and disconnect the power on the target node.

If your system uses... Then...

AC power Unplug the power cords from the power

source, and then remove the power cords.

DC power Remove the power at the DC source, and

then remove the DC wires, if necessary.

Shutting down the node in a stand-alone system

For a node that is not configured with a high-availability (HA) partner, you must perform a clean shutdown (ensuring that all data has been written to disk) and disconnect the power supplies.

Procedure

1. Enter the following command from the system console:

If your system is configured in... Then issue this command...

7-Mode halt

Cluster-Mode halt local

After you issue the command, wait until the system stops at the LOADER prompt.

2. If you are not already grounded, properly ground yourself.

3. Turn off the power supplies and unplug both power cords from the power

source:

If your system uses... Then...

AC power Unplug the power cords from the power

DC power Remove the power at the DC source, and

Opening the system

To access components inside the motherboard tray, you must open the system.

Procedure

1. If you are not already grounded, properly ground yourself.

2. Unplug the system cables and SFPs from the motherboard tray, as needed, and

keep track of where the cables were connected. Leave the cables in the cable clips of the cable management tray so that when you reinstall the cable management tray, the cables are already aligned.

3. Grasp the cable management tray by the side, gently push on the sides of the

tray to unhook it, and then pull the tray off the back of the motherboard tray and set it aside.

source, and then remove the power cords.

then remove the DC wires, if necessary.

Chapter 5. Replacing N7000 series system devices 73

Figure 21. Removing the cable management tray

Cable management tray

4. Loosen the six thumbscrews that secure the motherboard tray to the chassis.

5. Pull the cam handle downward and slide the motherboard tray out of the

system until it catches.

Figure 22. Removing the motherboard tray

6. If you want to remove the motherboard tray, complete the following substeps:

74 IBM System Storage: N7000 Series Hardware and Service Guide

Motherboard tray

IBM N7800, N7600, N7900, N7700 Hardware And Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety notices

Safety notices and labels

Danger notices

Labels

Caution notices

Attention notices

Laser safety

Usage restrictions
