IBM Mobile Systems ThinkPad Hardware Maintenance Manual

Computer

April 2004

This manual supports:

ThinkPad T40/T40p, T41/T41p, T42/T42p

(MT 2373/2374/ / )2375 2376/2378/2379

ThinkPad Dock II (MT 2877)

It is

Note

Before using this information and the product it supports, be sure to read the general information under “Notices” on page 258.

First Edition (April 2004)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law:

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT ANY WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE LIMITED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states

not allow disclaimer or express or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements or changes to the products or the programs described in this publication at any time.

possible that this publication may contain references to, or information about, IBM products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that IBM intends to announce such IBM products, programming, or services in your country.

Requests for technical information about IBM products should be made to your IBM authorized dealer or your IBM marketing representative.

Government Users Restricted Rights – Use, duplication

disclosure restricted by GSA ADP Schedule Contract

with IBM Corp.

About this manual . . . . . . . . . . .1

Introduction . . . . . . . . . . . . .3

Important service information . . . . . . . . .3

Strategy for replacing FRUs . . . . . . . .3

How to use error messages . . . . . . . .4

Diskette compatibility matrix . . . . . . . . .4

Safety notices: multilingual translations . . . . . .4

Safety information . . . . . . . . . . . .16

General safety . . . . . . . . . . . .16

Electrical safety . . . . . . . . . . .17

Safety inspection guide . . . . . . . . .19

Handling devices that are sensitive to electrostatic

discharge . . . . . . . . . . . .20

Grounding requirements . . . . . . . . .21

Laser compliance statement . . . . . . . . .22

General descriptions . . . . . . . . . .25

Read this first . . . . . . . . . . . . .25

What to do first . . . . . . . . . . .25

Related service information . . . . . . . . .27

Service web site . . . . . . . . . . .27

Restoring the pre-installed system . . . . . .27

Passwords . . . . . . . . . . . . .28

Power management . . . . . . . . . .32

Checkout guide . . . . . . . . . . . .35

Testing the computer . . . . . . . . . .35

Detecting system information with PC-Doctor . . .38

Power system checkout . . . . . . . . .39

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

Product overview . . . . . . . . . . . .45

Specifications . . . . . . . . . . . .45

Status indicators . . . . . . . . . . .50

FRU tests . . . . . . . . . . . . .53

key combinations . . . . . . . . . .54

Symptom-to-FRU index . . . . . . . . . .58

Numeric error codes . . . . . . . . . .58

Error messages . . . . . . . . . . .63

Beep symptoms . . . . . . . . . . .64

No-beep symptoms . . . . . . . . . .64

LCD-related symptoms . . . . . . . . .65

Intermittent problems . . . . . . . . . .66

Undetermined problems . . . . . . . . .66

FRU replacement notices . . . . . . . . .67

Screw notices . . . . . . . . . . . .67

Retaining serial numbers . . . . . . . . .68

Removing and replacing a FRU . . . . . . . .71

1010 Battery pack for 14.1-in. LCD models . . .72

1020 Battery pack for 15.0-in. LCD models . . .74

iii

iv MT

1030 Ultrabay Slim device . . . . . . . .75

1040 Hard disk drive . . . . . . . . . .76

1050 DIMM (optional) . . . . . . . . .78

1060 Keyboard . . . . . . . . . . .80

1070 DIMM (standard) . . . . . . . . .84

1080 Modem daughter card (MDC/MDC-2) . . .85 1090 Bluetooth/Modem daughter card

(BMDC/BMDC-2) . . . . . . . . . .87

1100 Palm rest for 14.1-in. LCD models . . . .89

1110 Keyboard bezel for 15.0-in. LCD models . .91

1120 Mini PCI adapter . . . . . . . . .97

1130 Fan assembly . . . . . . . . . . 100

1140 Backup battery for 14.1-in. LCD models 1150 Backup battery for 15.0-in. LCD models

105

107

1160 Speaker assembly . . . . . . . . 109

1170 Keyboard bezel for 14.1-in. LCD models

111

1180 PC Card slot assembly for 14.1-in. LCD

models . . . . . . . . . . . . .113

1190 PC Card slot assembly for 15.0-in. LCD

models . . . . . . . . . . . . .115

1200 LCD assembly for 14.1-in. LCD models 1210 LCD assembly for 15.0-in. LCD models

117

122

1220 CPU . . . . . . . . . . . . 127

1230 Ultrabay Slim guide rail assembly for 14.1-in.

LCD models . . . . . . . . . . . 128

1240 Ultrabay Slim guide rail assembly for 15.0-in.

LCD models . . . . . . . . . . . 130

1250 VGA and Ultrabay Slim device eject button

cable . . . . . . . . . . . . . 133

1260 System board and base cover for 14.1-in.

LCD models . . . . . . . . . . . 135

1270 System board, interposer card, and base

cover for 15.0-in. LCD models . . . . . . 144

2010 LCD front bezel for 14.1-in. LCD models 2020 LCD front bezel for 15.0-in. LCD models

152

154 2030 Inverter card for 14.1-in. LCD models . . . 156 2040 Inverter card for 15.0-in. LCD models . . . 158 2050 Wireless antenna assemblies, LCD panel,

LCD cable assembly, hinges, and LCD cover for

14.1-in. LCD models . . . . . . . . . 160

2060 Wireless antenna assemblies, LCD panel,

LCD cable assembly, hinges, and LCD cover for

15.0-in. LCD models . . . . . . . . . 175

3010 ThinkPad Dock II PCI cover . . . . . . 182

3020 ThinkPad Dock II top cover . . . . . . 183

Locations . . . . . . . . . . . . . . 186

Front view . . . . . . . . . . . . 186

Rear view . . . . . . . . . . . . . 188

Bottom view . . . . . . . . . . . . 189

Parts list . . . . . . . . . . . . . . 190

T40/T40p, T41/T41p, T42/T42p series model

matrix . . . . . . . . . . . . . 190

Overall . . . . . . . . . . . . . 209

2373/2374/2375/2376/2378/2379

14.1-in. LCD FRUs . . . . . . . . . . 233

15.0-in. LCD FRUs . . . . . . . . . . 241

Keyboard . . . . . . . . . . . . . 245

Recovery CDs . . . . . . . . . . . 247

Miscellaneous parts . . . . . . . . . . 251

adapters . . . . . . . . . . . . 254

Optional FRUs . . . . . . . . . . . 255

Common parts list . . . . . . . . . . 256

Notices . . . . . . . . . . . . . . 258

Trademarks . . . . . . . . . . . . 258

Contents

2373/2374/2375/2376/2378/2379

About this manual

This manual contains service and reference information for IBM ThinkPad T40/T40p, T41/T41p, T42/T42p series (MT2373, 2374, 2375, 2376, 2378, and 2379), and ThinkPad Dock II (MT2877) products. Use this manual along with the advanced diagnostic tests to troubleshoot problems.

The manual is divided into sections as follows:

The common sections provide general information, guidelines, and safety information required in servicing computers.

The product-specific section includes service, reference, and product-specific parts information.

Important

This manual is intended for trained service personnel who are familiar with ThinkPad products. Use this manual along with the advanced diagnostic tests to troubleshoot problems effectively.

Before servicing an IBM ThinkPad product, be sure

review the safety information under “Safety notices: multilingual translations” on page 4, “Safety information” on page 16, and “Laser compliance statement” on page 22.

2373/2374/2375/2376/2378/2379

v If

v If an

Introduction

Important service information

Important

BIOS and device driver fixes are customer-installable. The BIOS and device drivers are posted on the IBM support site

http://www.ibm.com/pc/support

Advise customers to contact the IBM Support Center at 800-426-7378 (800-IBM-Serv) if they need assistance in obtaining or installing any diskette fixes.

Customers in Canada should call IBM Support Center at 800-565-3344 for assistance or download information.

Strategy for replacing FRUs

Before replacing parts

Make sure that all diskette fixes are installed before replacing any FRUs listed in this manual.

Use the following strategy to prevent unnecessary expense for replacing and servicing FRUs:

you are instructed to replace a FRU but the replacement does not correct the problem, reinstall the original FRU before you continue.

Some computers have both a processor board and a system board. If you are instructed to replace either the processor board or the system board, and replacing one

them does not correct the problem, reinstall that

board, and then replace the other one.

adapter or a device consists of more than one FRU, any of the FRUs may be the cause of the error. Before replacing the adapter or device, remove the FRUs, one by one, to see if the symptoms change. Replace only the FRU that changed the symptoms.

Attention: The setup configuration on the computer you

are servicing may have been customized. Running Automatic Configuration may alter the settings. Note the current configuration settings (using the View Configuration option); then, when service has been completed, verify that those settings remain in effect.

4 MT

Important service information

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive.

Attention: The drive startup sequence in the computer

you are servicing may have been changed. Be extremely careful during write operations such as copying, saving, or formatting. If you select an incorrect drive, data or programs can be overwritten.

How to use error messages

Use the error codes displayed on the screen to diagnose failures. If more than one error code is displayed, begin the diagnosis with the first error code. Whatever causes the first error code may also cause false error codes. If no error code is displayed, see whether the error symptom is listed in the Symptom-to-FRU Index for the computer you are servicing.

Diskette compatibility matrix

The compatibility of each of the drives with the diskettes for it is as follows:

Diskette

drive

3.5-inch

Diskette capacity

1.0 MB

2.0 MB

4.0 MB

Compatibility

Read and write

Not compatible

Safety notices: multilingual translations

this manual, safety notices appear in English with a page number reference to the appropriate multilingual, translated safety notice found in this section.

The following safety notices are provided in English, French, German, Hebrew, Italian, and Spanish.

2373/2374/2375/2376/2378/2379

Safety notices

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all screws, springs, and other small parts are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après remplacement d’une unité en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en place et bien fixées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird, muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf Klappergeräusche geprüft werden. Metallteile oder-splitter können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di una FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni siano nella corretta posizione e non siano sparse all’interno dell’elaboratore. Verificare ciò scuotendo l’elaboratore e prestando attenzione ad eventuali rumori; eventuali parti o pezzetti metallici possono provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que todos los tornillos, muelles y demás piezas pequeñas se encuentran en su sitio y no

encuentran sueltas dentro del sistema. Compruébelo agitando el sistema y escuchando los posibles ruidos que provocarían. Las piezas metálicas pueden causar cortocircuitos eléctricos.

Introduction

6 MT

Safety notices

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do not disassemble a standby battery, recharge it, throw it into fire or water, or short-circuit it. Dispose of the battery as required

local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion

the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau.

les mettez pas en court-circuit. Pour les mettre

rebut, conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde ou celle de l’horloge temps réel, veillez

n’utiliser que les modèles cités dans la liste de pièces détachées adéquate. Une batterie ou une pile inappropriée risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet, kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nur durch die Verkaufsstelle oder den IBM Kundendienst ausgetauscht werden. Sie darf nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Die Batterie kann schwere Verbrennungen oder Verätzungen verursachen. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Bereitschafts-oder Systembatterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

(continued)

2373/2374/2375/2376/2378/2379

Safety notices

(continuation of safety notice 2)

Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la batteria dell’RTC (real time clock) o la batteria di supporto, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una batteria non adatta potrebbe determinare l’incendio

l’esplosione della batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo baterías que

encuentren en la lista de piezas. La utilización

una batería no apropiada puede provocar la

ignición o explosión de la misma.

Introduction

8 MT

Safety notices

Safety notice 3

DANGER

The battery pack contains small amounts of nickel.

not disassemble it, throw it into fire or water, or short-circuit it. Dispose of the battery pack as required by local ordinances or regulations. Use only the battery in the appropriate parts listing when replacing the battery pack. Use of an incorrect battery can result in ignition or explosion

the battery.

batterie contient du nickel. Ne la démontez pas, l’exposez ni au feu ni à l’eau. Ne la mettez pas

court-circuit. Pour la mettre au rebut, conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n’utiliser que les modèles cités dans la liste de pièces détachées adéquate. En effet, une batterie inappropriée risque de prendre feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

(continued)

2373/2374/2375/2376/2378/2379

de la

Safety notices

(continuation of safety notice 3)

batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la batteria, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una batteria non adatta potrebbe determinare l’incendio

l’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de piezas al sustituir la batería. La utilización de una batería no apropiada puede provocar la ignición o explosión

misma.

Introduction

or a

of an

10 MT

Safety notices

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion,

severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use

incorrect battery can result in ignition or

explosion of the battery.

pile de sauvegarde contient du lithium. Elle présente des risques d’incendie, d’explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son connecteur polarisé et ne la démontez pas. Ne l’exposez pas à une temperature supérieure à 100°C, ne la faites pas brûler et n’en exposez pas

contenu à l’eau. Mettez la pile au rebut conformément à la réglementation en vigueur. Une pile inappropriée risque de prendre feu ou d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung angebrachte Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

(continued)

2373/2374/2375/2376/2378/2379

Safety notices

(continuation of safety notice 4)

batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100 gradi centigradi, incendiarla o gettarla in acqua. Smaltirla secondo

normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). L’impiego di una batteria non adatta potrebbe determinare l’incendio

l’esplosione della batteria stessa.

batería de repuesto es una batería de litio y puede provocar incendios, explosiones o quemaduras graves. No la recargue, ni quite el conector polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como dispone la normativa local.

Introduction

Si le

Si la

12 MT

Safety notices

Safety notice 5

the LCD breaks and the fluid from inside the LCD gets into your eyes or on your hands, immediately wash the affected areas with water for at least 15 minutes. Seek medical care if any symptoms from the fluid are present after washing.

panneau d’affichage à cristaux liquides se brise et que vous recevez dans les yeux ou sur les mains une partie du fluide, rincez-les abondamment pendant au moins quinze minutes. Consultez un médecin si des symptômes persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er unsachgemäß behandelt wird oder der Computer auf den Boden fällt. Wenn der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen mindestens 15 Minuten mit Wasser abgespült und bei Beschwerden anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti interessate con acqua corrente per almeno 15 minuti; poi consultare un medico se i sintomi dovessero permanere.

LCD se rompe y el fluido de su interior entra en contacto con sus ojos o sus manos, lave inmediatamente las áreas afectadas con agua durante

minutos como mínimo. Obtenga atención medica si presenta algún síntoma del fluido despues de

lavarse.

2373/2374/2375/2376/2378/2379

Safety notices

Safety notice 6

DANGER

avoid shock, do not remove the plastic cover

that protects the lower part of the inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique protégeant la partie inférieure de la carte d’alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Tei l der Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la tarjeta invertida.

Introduction

14 MT

Safety notices

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery can produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la mise à la masse d’une batterie peut produire suffisamment de courant pour brûler des matériaux combustibles ou causer des brûlures corporelles graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in corto circuito o a massa può fornire corrente sufficiente da bruciare materiali combustibili o provocare ustioni ai tecnici

manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada o con contacto a tierra puede producir la corriente suficiente como para quemar material combustible o provocar quemaduras en el personal.

2373/2374/2375/2376/2378/2379

Safety notices

Safety notice 8

DANGER

Before removing any FRU, power off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension, débranchez tous les cordons d’alimentation des socles de prise de courant, retirez la batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen, der Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese elettriche tutti i cavi

alimentazione, rimuovere la batteria e poi

scollegare i cavi di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte cualquier cable de conexión entre dispositivos.

Introduction

v Do

16 MT

Safety information

The following section presents safety information with which you need to be familiar before you service an IBM mobile computer.

General safety

Follow these rules to ensure general safety:

Observe good housekeeping in the area of the machines during and after maintenance.

When lifting any heavy object:

Make sure that you can stand safely without slipping.

Distribute the weight of the object equally between your feet.

Use a slow lifting force. Never move suddenly or twist when you attempt to lift.

Lift by standing or by pushing up with your leg muscles; this action removes the strain from the muscles in your back. Do not attempt to lift any

object that weighs more than 16 kg (35 lb) or that you think is too heavy for you.

not perform any action that causes hazards to the

customer, or that makes the equipment unsafe.

Before you start the machine, make sure that other service representatives and the customer’s personnel are not in a hazardous position.

Place removed covers and other parts in a safe place, away from all personnel, while you are servicing the machine.

Keep your toolcase away from walk areas so that other people will not trip over it.

not wear loose clothing that can be trapped in the moving parts of a machine. Make sure that your sleeves are fastened or rolled up above your elbows. If your hair

long, fasten it.

Insert the ends of your necktie or scarf inside clothing or fasten it with a nonconductive clip, about 8 centimeters

inches) from the end.

not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your clothing.

Attention: Metal objects are good electrical

conductors.

Wear safety glasses when you are hammering, drilling, soldering, cutting wire, attaching springs, using solvents,

working in any other conditions that might be

hazardous to your eyes.

2373/2374/2375/2376/2378/2379

v Do

–

v If

Safety information

After service, reinstall all safety shields, guards, labels, and ground wires. Replace any safety device that is worn or defective.

Reinstall all covers correctly before returning the machine to the customer.

Fan louvers on the machine help to prevent overheating

internal components. Do not obstruct fan louvers or

cover them with labels or stickers.

WARNING

Handling the cord on this product or cords associated with accessories sold with this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects

other reproductive harm. Wash hands after

handling.

Electrical safety

Observe the following rules when working on electrical equipment.

Important

Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents.

Many customers have, near their equipment, rubber floor mats that contain small conductive fibers to decrease electrostatic discharges. Do not use this type of mat to protect yourself from electrical shock.

Find the room emergency power-off (EPO) switch, disconnecting switch, or electrical outlet. If an electrical accident occurs, you can then operate the switch or unplug the power cord quickly.

not work alone under hazardous conditions or near

equipment that has hazardous voltages.

Disconnect all power before:

Performing a mechanical inspection Working near power supplies Removing or installing main units

Before you start to work on the machine, unplug the

power cord. If you cannot unplug it, ask the customer to power-off the wall box that supplies power to the machine, and to lock the wall box in the off position.

you need to work on a machine that has exposed

electrical circuits, observe the following precautions:

Introduction

–

v Do

–

v If an

–

18 MT

Safety information

–

Ensure that another person, familiar with the power-off controls, is near you.

Attention: Another person must be there to switch

off the power, if necessary. Use only one hand when working with powered-on electrical equipment; keep the other hand in your pocket or behind your back.

Attention: An electrical shock can occur only when

there is a complete circuit. By observing the above rule, you may prevent a current from passing through your body. When using testers, set the controls correctly and use the approved probe leads and accessories for that tester. Stand on suitable rubber mats (obtained locally, if necessary) to insulate you from grounds such as metal floor strips and machine frames.

Observe

the special safety precautions when you work with very high voltages; Instructions for these precautions are in the safety sections of maintenance information. Use extreme care when measuring high voltages.

Regularly inspect and maintain your electrical hand tools for safe operational condition.

not use worn or broken tools and testers.

Never assume that power has been disconnected from

circuit. First, check that it has been powered off.

Always look carefully for possible hazards in your work area. Examples of these hazards are moist floors, nongrounded power extension cables, power surges, and missing safety grounds.

not touch live electrical circuits with the reflective surface of a plastic dental mirror. The surface is conductive; such touching can cause personal injury and machine damage.

not service the following parts with the power on when they are removed from their normal operating places in a machine:

Power supply units Pumps Blowers and fans Motor generators

similar units. (This practice ensures correct

and grounding of the units.)

electrical accident occurs: Use caution; do not become a victim yourself. Switch off power. Send another person to get medical aid.

2373/2374/2375/2376/2378/2379

a. A

Safety information

Safety inspection guide

The purpose of this inspection guide is to assist you in identifying potentially unsafe conditions. As each machine was designed and built, required safety items were installed to protect users and service personnel from injury. This guide addresses only those items. You should use good judgment to identify potential safety hazards due to attachment of non-IBM features or options not covered by this inspection guide.

any unsafe conditions are present, you must determine how serious the apparent hazard could be and whether you can continue without first correcting the problem.

Consider these conditions and the safety hazards they present:

Electrical hazards, especially primary power (primary voltage on the frame can cause serious or fatal electrical shock)

Explosive hazards, such as a damaged CRT face or a bulging capacitor

Mechanical hazards, such as loose or missing hardware

determine whether there are any potentially unsafe

To conditions, use the following checklist at the beginning of every service task. Begin the checks with the power off, and the power cord disconnected.

Checklist:

Check exterior covers for damage (loose, broken, or sharp edges).

Power off the computer. Disconnect the power cord.

Check the power cord for:

third-wire ground connector in good condition. Use a meter to measure third-wire ground continuity for 0.1 ohm or less between the external ground pin and the frame ground.

The power cord should be the type specified in the parts list.

Insulation must not be frayed or worn.

Remove the cover.

Check for any obvious non-IBM alterations. Use good judgment as to the safety of any non-IBM alterations.

Check inside the unit for any obvious unsafe conditions, such as metal filings, contamination, water

other liquids, or signs of fire or smoke damage.

Check for worn, frayed, or pinched cables.

Introduction

–

20 MT

Safety information

Check that the power-supply cover fasteners (screws

rivets) have not been removed or tampered with.

Handling devices that are sensitive to electrostatic discharge

Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD.) ESD damage can occur when there is a difference in charge between objects. Protect against ESD damage by equalizing the charge so that the machine, the part, the work mat, and the person handling the part are all

the same charge.

Notes

Use product-specific ESD procedures when they exceed the requirements noted here. Make sure that the ESD protective devices you use have been certified (ISO 9000) as fully effective.

When handling ESD-sensitive parts:

Keep the parts in protective packages until they are inserted into the product.

Avoid contact with other people.

Wear a grounded wrist strap against your skin to eliminate static on your body.

Prevent the part from touching your clothing. Most clothing is insulative and retains a charge even when you are wearing a wrist strap.

Use the black side of a grounded work mat to provide a static-free work surface. The mat is especially useful when handling ESD-sensitive devices.

Select a grounding system, such as those listed below,

provide protection that meets the specific service

requirement.

Note

The use of a grounding system to guard against ESD damage is desirable but not necessary.

–

Attach the ESD ground clip to any frame ground, ground braid, or green-wire ground.

When working on a double-insulated or battery-operated system, use an ESD common ground or reference point. You can use coax or connector-outside shells on these systems.

2373/2374/2375/2376/2378/2379

Safety information

–

Use the round ground prong of the ac plug on ac-operated computers.

Grounding requirements

Electrical grounding of the computer is required for operator safety and correct system function. Proper grounding of the electrical outlet can be verified by a certified electrician.

Introduction

22 MT

Laser compliance statement

Some IBM Personal Computer models are equipped from the factory with an optical storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are also sold separately as options. If one of these drives is installed, it is certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.

2373/2374/2375/2376/2378/2379

Laser compliance statement

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note the following:

CAUTION:

Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure.

uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles aqui especificados pode resultar em perigosa exposição

radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes de réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann gefährliche Laserstrahlung auftreten.

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da quelle specificate possono provocare l’esposizione a.

uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí especificados puede provocar la exposición a radiaciones peligrosas.

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage device could result in exposure to hazardous laser radiation. There are no serviceable parts inside those drives. Do not open.

Introduction

24 MT

Laser compliance statement

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe diretamente por meio de instrumentos óticos e evite exposição direta com o feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer

faisceau, de le regarder directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische Instrumente in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai eszközökkel. Kerülje a sugárnyalábbal való érintkezést !.

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental óptico el haz de luz. Evite la exposición directa al haz.

2373/2374/2375/2376/2378/2379

v Be

v A

v Be

__ 1.

General descriptions

The desciptions in this chapter apply to any ThinkPad model that has the PC-Doctor

DOS diagnostics program. Some descriptions might not apply to your particular computer.

Read this first

Before you go to the checkout guide, be sure to read this section.

Important notes

Only certified trained personnel should service the computer.

Before replacing any FRU, read the entire page on removing and replacing FRUs.

When you replace FRUs, use new nylon-coated screws.

extremely careful during such write

operations as copying, saving, or formatting.

Drives in the computer that you are servicing sequence might have been altered. If you select

incorrect drive, data or programs might be

overwritten.

Replace an FRU only with another FRU of the correct model. When you replace a FRU, make

sure that the model of the machine and the FRU part number are correct by referring to the FRU parts list.

FRU should not be replaced because of a

single, unreproducible failure. Single failures

can occur for a variety of reasons that have nothing to do with a hardware defect, such as cosmic radiation, electrostatic discharge, or software errors. Consider replacing a FRU only when a problem recurs. If you suspect that a FRU is defective, clear the error log and run the test again. If the error does not recur, do not replace the FRU.

careful not to replace a nondefective FRU.

What to do first

When you do return a FRU, you must include the following information in the parts exchange form or parts return form that you attach to it:

Name and phone number of servicer

__ 3.

__ 4.

__ 5.

__ 6.

__ 7.

__ 8.

__ 9.

v If

26 MT

Read this first

__ 2.

Date of service Date on which the machine failed Date of purchase Failure symptoms, error codes appearing on the display, and beep symptoms Procedure index and page number in which the failing FRU was detected Failing FRU name and part number Machine type, model number, and serial number Customer’s name and address

Note for warranty:

During the warranty period, the customer may be responsible for repair costs if the computer damage was caused by misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by the customer. Following is a list of some common items that are not covered under warranty and some symptoms that might indicate that the system was subjected to stress beyond normal use.

Before checking problems with the computer, determine whether the damage is covered under the warranty by referring to the following list:

The following are not covered under warranty:

LCD panel cracked from the application of excessive force or from being dropped Scratched (cosmetic) parts Distortion, deformation, or discoloration of the cosmetic parts Plastic parts, latches, pins, or connectors that have been cracked or broken by excessive force Damage caused by liquid spilled into the system Damage caused by the improper insertion of a PC Card

the installation of an incompatible card Diskette drive damage caused by pressure on the diskette drive cover, foreign material in the drive, or the insertion of a diskette with multiple labels Damaged or bent diskette eject button Fuses blown by attachment of a nonsupported device Forgotten computer password (making the computer unusable) Sticky keys caused by spilling a liquid onto the keyboard

The following symptoms might indicate damage caused by nonwarranted activities:

Missing parts might be a symptom of unauthorized service or modification.

the spindle of a hard disk drive becomes noisy, it may

have been subjected to excessive force, or dropped.

2373/2374/2375/2376/2378/2379

4. At

Related service information

This section provides information about the following:

“Service web site” “Restoring the pre-installed system” “Passwords” on page 28 “Power management” on page 32

Service web site

When the latest maintenance diskette and the system program service diskette become available, a notice will be posted on http://www.ibm.com/pc/partner/infotips

Restoring the pre-installed system

When the hard disk drive is replaced because of a failure,

Product Recovery program is on the new hard disk. In this case, you must use the recovery CD for the computer. Order the recovery CD and the hard disk drive at the same time so that you can recover the new hard disk drive with the pre-installed software when they arrive. For information

which CD to order, see “Recovery CDs” on page 247.

Recovery to Factory Contents by using Product Recovery CDs

create the service partition and install the factory

contents from the recovery CD, do the following:

Note

The recovery process might take up to 2 hours.

Insert the recovery CD into the CD or DVD drive, then restart the computer.

Following message is displayed: “Your computer

originally included a Product Recovery program ... Reinstall the Product Recovery program? (Y/N) [ ]”.

Press Y key. The service partition is created and loaded with the Product Recovery program files.

next window, press Enter to continue.

The service partition is created. The system automatically reboots during this process.

The recovery process copies some files to the service partition, and PKUNZIPs others.

Follow the prompts. You may be prompted to change CDs.

When the process is complete, the system reboots.

General descriptions

6. A

7. On

it to

28 MT

Related service information

you get a message asking which operating system to install, select the proper operating system and press Enter.

message is displayed: “Full Recovery:”. Press Enter

select.

each of the next three windows, press the Y key.

Follow the prompts to complete the recovery.

Passwords

many as three passwords may be needed for any ThinkPad computer: the power-on password (POP), the hard-disk password (HDP), and the supervisor password (SVP).

any of these passwords has been set, a prompt for it appears on the screen whenever the computer is turned on. The computer does not start until the password is entered.

Exception: If only an SVP is installed, the password

prompt does not appear when the operating system is booted.

Power-on password:

A power-on password (POP) protects the system from being powered on by an unauthorized person. The password must be entered before an operating system can

booted.

Hard-disk password:

There are two hard-disk passwords (HDPs):

User HDP—for the user

Master HDP—for the system administrator, who can use

get access to the hard disk even if the user has

changed the user HDP

There are two modes for the HDP: User only and

Note:

Master + User. The Master + User mode requires

two HDPs; the system administrator enters both in the same operation. The system administrator then provides the user HDP to the system user.

Attention: If the user HDP has been forgotten, check

whether a master HDP has been set. If it has, it can be used for access to the hard disk drive. If no master HDP is available, IBM does not provide any services to reset either the user or the master HDP, or to recover data from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

Supervisor password:

A supervisor password (SVP) protects the system

2373/2374/2375/2376/2378/2379

6. At

8. In

Related service information

information stored in the IBM BIOS Setup Utility. The user must enter the SVP in order to get access to the IBM BIOS Setup Utility and change the system configuration.

Attention: If the SVP has been forgotten and cannot be

made available to the servicer, there is no service procedure to reset the password. The system board must

replaced for a scheduled fee.

How to remove the power-on password

remove a POP that you have forgotten, do the

following:

(A) If no SVP has been set:

Turn off the computer.

Remove the battery pack.

For how to remove the battery pack, see “1010 Battery pack for 14.1-in. LCD models” on page 72.

Remove the backup battery.

For how to remove the backup battery, see “1140 Backup battery for 14.1-in. LCD models” on page 105.

Turn on the computer and wait until the POST ends.

After the POST ends, the password prompt does not appear. The POP has been removed.

Reinstall the backup battery and the battery pack.

(B) If an SVP has been set and is known by the servicer:

For T40/T40p, T41/T41p:

Turn on the computer and watch the lower left of the screen for a message saying, “To interrupt normal startup, press the blue Access IBM button.” When that message appears, press the Access IBM button.

Enter the SVP. Double-click Start setup utility.

Select Security, using the cursor keys to move down the menu.

Select Password.

Select Power-On Password.

the Enter Current Password field, enter the SVP.

When the Enter New Password field opens, leave it blank and press Enter twice.

the Changes have been saved window, press Enter.

Press F10; then, in the Setup confirmation window, select Yes.

T42/T42p:

For

Turn on the computer; then, while the “To interrupt normal startup, press the blue Access IBM button”

General descriptions

8. In

30 MT

Related service information

message is displayed at the lower-left of the screen, press the Access IBM button. IBM Rescue and Recovery screen opens.

For models supporting the Passphrase function, press

while POP icon is appearing on the screen; then

enter the POP. For the other models, enter the POP.

Note: To check whether the ThinkPad computer

supports the Passphrase function, enter IBM BIOS Setup Utility and go to Security --> Password. If Using Passphrase item is displayed in the menu, this function is available

the ThinkPad computer.

Click Access BIOS. The system Restart Required window is displayed.

Click Yes. The computer restarts, and the IBM BIOS Setup Utility screen opens.

Select Security, using the cursor directional keys to move down the menu.

Select Password.

Select Power-On Password.

Type the current SVP in the Enter Current Password field. then leave the Enter New Password field blank, and press Enter twice.

the Changes have been saved window, press Enter.

Press F10; then, in the Setup confirmation window, select Yes .

How to remove the hard-disk password

Attention: If User only mode is selected and the user

HDP has been forgotten and cannot be made available to the servicer, IBM does not provide any services to reset the user HDPs or to recover data from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

remove a user HDP that has been forgotten, when the

SVP and the master HDP are known, do the following:

For T40/T40p, T41/T41p series:

For the ThinkPad T40 and T40p series, enter the master HDP. For the ThinkPad T41 and T41 series, press F1 while HDP icon is appearing on the screen; then enter the master HDP.

Select Start setup utility. Enter the SVP.

2373/2374/2375/2376/2378/2379

Related service information

Select Security, using the cursor keys to move down the menu.

Select Password.

Select Hard-disk x password, where x is the letter of the hard disk drive. A pop-up window opens.

Select Master HDP.

Enter the master HDP; then leave the New Password field blank and press Enter twice.

Press F10.

10.

Select Yes in the Setup Configuration window.

Both user HDP and master HDP will have been removed.

T42/T42p series:

For

Turn on the computer; then, while the “To interrupt normal startup, press the blue Access IBM button” message is displayed at the lower-left of the screen, press the Access IBM button. IBM Rescue and Recovery screen opens.

For models supporting the Passphrase function, press

while HDP icon is appearing on the screen; then enter the master HDP. For the other models, enter the master HDP.

Note: To check whether the ThinkPad computer

supports the Passphrase function, enter IBM BIOS Setup Utility and go to Security --> Password. If Using Passphrase item is displayed in the menu, this function is available

the ThinkPad computer.

Click Access BIOS. The system Restart Required window is displayed.

Click Yes. The computer restarts, and the IBM BIOS Setup Utility screen opens.

Select Security, using the cursor directional keys to move down the menu.

Select Password.

Select Hard-disk x password, where x is the letter of the hard disk drive. A pop-up window opens.

Select Master HDP.

Type the current master HDP in the Enter Current

Password field. then leave the Enter New Password

field blank, and press Enter twice.

Press F10.

10.

Select Yes in the Setup Configuration window.

Both user HDP and master HDP will have been removed.

General descriptions

1. If

v If a

v If

32 MT

Related service information

Power management

reduce power consumption, the computer has three power management modes: screen blank, standby, and hibernation.

Screen blank mode

Screen blank mode has three variants, as follows:

you press Fn+F3, or if the time set on the “LCD off

timer” in IBM BIOS Setup Utility expires,

The LCD backlight turns off. The hard disk drive motor stops. The speaker is muted.

you are using the ACPI operating system and you

press Fn+F3,

The LCD backlight turns off. The hard disk drive motor stops.

the time set on the “Turn off monitor” timer in the

operating system expires,

The LCD backlight turns off.

end screen blank mode and resume normal operation, press any key.

Standby mode

When the computer enters standby mode, the following events occur in addition to what occurs in screen blank mode:

The LCD is powered off. The hard disk drive is powered off. The CPU stops.

enter standby mode, press Fn+F4.

Note: If you are using the ACPI operating system, you can

change the action of Fn+F4.s

certain circumstances, the computer goes into standby

mode automatically:

“suspend time” has been set on the timer, and the user does not do any operation with the keyboard, the TrackPoint, the hard disk, the parallel connector, or the diskette drive within that time.

the battery indicator blinks orange, indicating that the

battery power is low. (Alternatively, if Hibernate when battery becomes low has been selected in the “Power Management Properties” window, the computer goes into hibernation mode.)

Note for the APM operating system:

you do not set the low-battery alarm, the charge

Even indicator notifies you when the battery is low, and then the

2373/2374/2375/2376/2378/2379

Related service information

computer enters the power-saving mode automatically. This default low-battery behavior is independent of the operating system; so if you have set the low-battery alarm, the computer may not do what you specified. It chooses either your setting or the default setting, whichever is appropriate.

you are using the ACPI operating system, only the

low-battery alarm is available.

cause the computer to return from standby mode and

resume operation, do one of the following:

Press the Fn key.

Open the LCD cover.

Turn on the power switch. Also, in either of the following events, the computer automatically returns from standby mode and resumes operation:

The ring indicator (RI) is signaled by a serial device or a

Card device.

The time set on the resume timer elapses.

Note: The computer does not accept any input

immediately after it enters standby mode. Wait a few seconds before taking any action to reenter operation mode.

Hibernation mode

Note for OS/2

you are using OS/2 in the default format, HPFS, you cannot create a hibernation file. If you want to use hibernation mode, you will need to reinstall OS/2 with FAT format.

hibernation mode, the following occurs:

The system status, RAM, VRAM, and setup data are stored on the hard disk.

The system is powered off.

Note:

the computer enters the hibernation mode while it

docked to the docking station, do not undock it

before resuming normal operation. If you do undock

and then try to resume normal operation, you will get an error message, and you will have to restart the system.

cause the computer to enter hibernation mode, do any

the following:

Press the Fn+F12 keys.

General descriptions

v If

–

If a

v If

34 MT

Related service information

you are using the APM operating system and have set the mode to Power switch mode [Hibernation], turn off the power switch.

you are using the ACPI operating system and have defined one of the following actions as the event that causes the system to go into hibernation mode, perform that action.

Closing the lid. Pressing the power button. Pressing Fn+F4 keys.

the computer goes into hibernation mode

Also, automatically in either of the following conditions:

“hibernation time” has been set on the timer, and if

the user does not do any operation with the keyboard, the TrackPoint, the hard disk drive, the parallel connector, or the diskette drive within that time.

the timer conditions are satisfied in suspend mode.

you are using the APM operating system and have set the mode to Hibernate when battery becomes low, and the battery charge becomes critically low.

When the power is turned on, the computer returns from hibernation mode and resumes operation. The hibernation file in the boot record on the hard disk drive is read, and system status is restored from the hard disk drive.

2373/2374/2375/2376/2378/2379

Checkout guide

Use the following procedures as a guide in identifying and correcting problems with the ThinkPad computer.

Note: The diagnostic tests are intended to test only IBM

products. The use of non-IBM products, prototype cards, or modified options can lead to false indications of errors and invalid system responses.

Identify the failing symptoms in as much detail as possible.

Verify the symptoms. Try to re-create the failure by running the diagnostic test or by repeating the operation.

Testing the computer

The ThinkPad computer has a test program called PC-Doctor detect errors by running the diagnostics test included in PC-Doctor. This section is an overview of the procedure. For details that depend on model-unique functions, refer to “Product overview” on page 45.

For some possible configurations of the computer, PC-Doctor might not run correctly. To avoid this problem, you need to initialize the computer setup by use of the IBM BIOS Setup Utility before you run PC-Doctor. On the IBM BIOS Setup Utility screen, press F9, Enter, F10, and then Enter.

DOS (hereafter called PC-Doctor.) You can

Note: When you initialize the computer configuration,

some devices are disabled, such as the serial port.

you test one of these devices, you will need to

enable it by using PS2.EXE.

PC-Doctor cannot be used to test a device that is in the docking station, even if the computer supports the docking station. To test a USB device, connect it to the USB connector of the computer.

Creating the PC-Doctor diagnostics diskette

create the PC-Doctor disk from the Access IBM

Predesktop Area, do as follows:

Enter the IBM Predesktop application by pressing the Access IBM button during POST.

When the Access IBM application finishes loading, double-click the “Create Diagnostic Diskettes” icon.

Authenticating the digital signature takes about 15 seconds; then the ThinkPad computer will reboot into PC-DOS.

General descriptions

If an

36 MT

Checkout guide

batch file automatically starts up to prompt you through the process of creating diskettes. You are notified of how many diskettes you will need.

You are prompted to insert each diskette in sequence. Typically, all you need to do is to press the Enter key for the floppy drive; the system then formats

and creates the diskette. Each diskette is erased and formatted with the PC-Doctor DOS boot image.

Once all the diskettes have been created, the ThinkPad computer will reboot. The user is asked to remove all diskettes from the drive, or to insert the first diskette created if it is desired to run the diagnostics.

run the test, do as follows:

Note: In the following procedure, you can select an item

not only with the arrow keys, but also with the TrackPoint pointer. Instead of pressing Enter, click the left button.

Insert the PC-Doctor disk into the diskette drive; then power on the computer.

the computer cannot be powered on, go to “Power system checkout” on page 39, and check the power sources.

error code appears, go to “Symptom-to-FRU

index” on page 58.

the first screen, select the model and press Enter.

Follow the instructions on the screen.

The main panel of PC-Doctor appears.

Select Diagnostics with the arrow keys, and press Enter.

pull-down menu appears. (Its exact form depends on

the model.)

PC-Doctor menu does not mean the formal

Note:

support device list. Some unsupported device names may appear in the PC-Doctor menu.

2373/2374/2375/2376/2378/2379

v In

v To

Checkout guide

Diagnostics

Run NormalTest Run QuickTest CPU/Coprocessor Systemboard Video Adapter Serial Ports Parallel Ports Fixed Disks Diskette Drives Other Devices Communication

Wireless LAN Memory Test- Full Memory Test- Quick

Interactive Tests Hardware Info Utility Quit F1=Help

Use thecursor keys andESC to movein menus. Press ENTER toselect.

The options on the test menu are as follows:

Diagnostics

Run Normal Test Run Quick Test CPU/Coprocessor Systemboard Video Adapter Serial Ports Parallel Ports Fixed Disks

Interactive Tests

Keyboard Video Internal Speaker Mouse Diskette System Load CD-ROM/DVD Test

Intel Wireless Radio Diskette Drives Other Devices Communication Wireless LAN Memory Test – Full Memory Test – Quick

Notes:

the Keyboard test in Interactive Tests, the Fn key

should be held down for at least 2 seconds; otherwise,

cannot be sensed.

Video Adapter test supports only the LCD display on

the ThinkPad computer. If you have an external monitor attached to your computer, detach it before running PC-Doctor DOS.

test Digital Signature Chip, the chip must be

enabled.

When Legacy Floppy Drives is enabled in the IBM BIOS Setup Utility, the Diskette Drives test is activated even if no legacy diskette drive is attached to the ThinkPad computer.

Run the applicable function test.

Follow the instructions on the screen. If there is a problem, PC-Doctor shows messages describing it.

General descriptions

38 MT

Checkout guide

exit the test, select Quit — Exit Diag.

cancel the test, press Esc.

After running PC-Doctor, check the time and date

Note:

the system and reset them if they are incorrect.

Detecting system information with PC-Doctor

PC-Doctor can detect the following system information:

Hardware Info

System Configuration Memory Contents Physical Disk Drives Logical Disk Drives VGA Information IDE Drive Info PCI Information PNPISA Info SMBIOS Info VESA LCD Info

Utility

Run External Tests Surface Scan Hard Disk Benchmark System DOS Shell Tech Support Form Battery Rundown View Test Log Print Log Save Log Full Erase Hard Drive Quick Erase Hard Drive

2373/2374/2375/2376/2378/2379

v If

3. If

4. If

v If

Checkout guide

Power system checkout

verify a symptom, do the following:

Turn off the computer. Remove the battery pack. Connect the ac adapter. Check that power is supplied when you turn on the computer. Turn off the computer. Disconnect the ac adapter and install the charged battery pack. Check that the battery pack supplies power when you turn on the computer.

If you suspect a power problem, see the appropriate one

the following power supply checkouts:

“Checking the ac adapter” “Checking operational charging” on page 40 “Checking the battery pack” on page 40 “Checking the backup battery” on page 41

Checking the ac adapter

You are here because the computer fails only when the ac adapter is used.

the power problem occurs only when the port

replicator is used, replace the port replicator.

the power-on indicator does not turn on, check the power cord of the ac adapter for correct continuity and installation.

the computer does not charge during operation, go to ″Checking operational charging.″

check the ac adapter, do the following:

Unplug the ac adapter cable from the computer. Measure the output voltage at the plug of the ac adapter cable. See the following figure:

Pin Voltage (V dc)

+15.5 to +17.0

Ground

(16-10V)

the voltage is not correct, replace the ac adapter. the voltage is acceptable, do the following:

Replace the system board.

the problem persists, go to “Product overview” on

page 45.

Noise from the ac adapter does not always indicate

Note:

defect.

General descriptions

1 + 0 to +

3. If

40 MT

Checkout guide

Checking operational charging

check whether the battery charges properly during operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

Perform operational charging. If the battery status indicator

icon does not turn on, remove the battery pack and let it return to room temperature. Reinstall the battery pack. If the charge indicator or icon still does not turn on, replace the battery pack.

the charge indicator still does not turn on, replace the system board. Then reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95% of the total power remains; under this condition the battery pack can charge to 100%

its capacity. This protects the battery pack from being

overcharged or from having a shortened life.

check your battery, move your cursor to the Power Meter icon in the icon tray of the Windows taskbar and wait for a moment (but do not click), and the percentage of battery power remaining is displayed. To get detailed information about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able

charge. Remove it from the computer and leave it room temperature for a while. After it cools down,

reinstall and recharge it.

check the battery pack, do the following:

Power off the computer. Remove the battery pack and measure the voltage between battery terminals 1 (+) and 5 (−). See the following figure:

Terminal Voltage (V dc)

1(+)

12.6

Ground (−)

5(-)

the voltage is less than +11.0 V dc, the battery pack

has been discharged.

2373/2374/2375/2376/2378/2379

4. If

v If

Checkout guide

Note: Recharging will take at least 3 hours, even if the

indicator does not turn on.

the voltage is still less than +11.0 V dc after

recharging, replace the battery.

the voltage is more than +11.0 V dc, measure the resistance between battery terminals 4 and 5. The resistance must be 4 to 30 K .

the resistance is not correct, replace the battery pack. If the resistance is correct, replace the system board.

Checking the backup battery

the following:

Power off the computer, and unplug the ac adapter from it.

Turn the computer upside down.

Remove the battery pack (see “1010 Battery pack for

14.1-in. LCD models” on page 72).

Remove the backup battery (see “Checking the battery pack” on page 40).

Measure the voltage of the backup battery. See the following figure.

Red (+)

Wire Voltage (V dc)

Red +2.5 to +3.2

Black (-)

the voltage is correct, replace the system board.

the voltage is not correct, replace the backup battery.

the backup battery discharges quickly after

replacement, replace the system board.

Black Ground

General descriptions

42 MT

Checkout guide

2373/2374/2375/2376/2378/2379

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

Product overview . . . . . . . . . . . .45

Specifications . . . . . . . . . . . .45

Status indicators . . . . . . . . . . .50

FRU tests . . . . . . . . . . . . .53

key combinations . . . . . . . . . .54

Symptom-to-FRU index . . . . . . . . . .58

Numeric error codes . . . . . . . . . .58

Error messages . . . . . . . . . . .63

Beep symptoms . . . . . . . . . . .64

No-beep symptoms . . . . . . . . . .64

LCD-related symptoms . . . . . . . . .65

Intermittent problems . . . . . . . . . .66

Undetermined problems . . . . . . . . .66

FRU replacement notices . . . . . . . . .67

Screw notices . . . . . . . . . . . .67

Retaining serial numbers . . . . . . . . .68

Restoring the serial number of the system unit 68

Retaining the UUID . . . . . . . . .69

Reading or writing the ECA information . . .69

Removing and replacing a FRU . . . . . . . .71

1010 Battery pack for 14.1-in. LCD models . . .72 1020 Battery pack for 15.0-in. LCD models . . .74

1030 Ultrabay Slim device . . . . . . . .75

1040 Hard disk drive . . . . . . . . . .76

1050 DIMM (optional) . . . . . . . . .78

1060 Keyboard . . . . . . . . . . .80

1070 DIMM (standard) . . . . . . . . .84

1080 Modem daughter card (MDC/MDC-2) . . .85 1090 Bluetooth/Modem daughter card

(BMDC/BMDC-2) . . . . . . . . . .87

1100 Palm rest for 14.1-in. LCD models . . . .89

1110 Keyboard bezel for 15.0-in. LCD models . .91

1120 Mini PCI adapter . . . . . . . . .97

1130 Fan assembly . . . . . . . . . . 100

1140 Backup battery for 14.1-in. LCD models 1150 Backup battery for 15.0-in. LCD models

1160 Speaker assembly . . . . . . . . 109

1170 Keyboard bezel for 14.1-in. LCD models 1180 PC Card slot assembly for 14.1-in. LCD

models . . . . . . . . . . . . .113

1190 PC Card slot assembly for 15.0-in. LCD

models . . . . . . . . . . . . .115

1200 LCD assembly for 14.1-in. LCD models 1210 LCD assembly for 15.0-in. LCD models

1220 CPU . . . . . . . . . . . . 127

1230 Ultrabay Slim guide rail assembly for 14.1-in.

LCD models . . . . . . . . . . . 128

1240 Ultrabay Slim guide rail assembly for 15.0-in.

LCD models . . . . . . . . . . . 130

105 107

111

117

122

44 MT

1250 VGA and Ultrabay Slim device eject button

cable . . . . . . . . . . . . . 133

1260 System board and base cover for 14.1-in.

LCD models . . . . . . . . . . . 135

1270 System board, interposer card, and base

cover for 15.0-in. LCD models . . . . . . 144

2010 LCD front bezel for 14.1-in. LCD models 2020 LCD front bezel for 15.0-in. LCD models

152

154 2030 Inverter card for 14.1-in. LCD models . . . 156 2040 Inverter card for 15.0-in. LCD models . . . 158 2050 Wireless antenna assemblies, LCD panel,

LCD cable assembly, hinges, and LCD cover for

14.1-in. LCD models . . . . . . . . . 160

2060 Wireless antenna assemblies, LCD panel,

LCD cable assembly, hinges, and LCD cover for

15.0-in. LCD models . . . . . . . . . 175

3010 ThinkPad Dock II PCI cover . . . . . . 182

3020 ThinkPad Dock II top cover . . . . . . 183

Locations . . . . . . . . . . . . . . 186

Front view . . . . . . . . . . . . 186

Rear view . . . . . . . . . . . . . 188

Bottom view . . . . . . . . . . . . 189

Parts list . . . . . . . . . . . . . . 190

T40/T40p, T41/T41p, T42/T42p series model

matrix . . . . . . . . . . . . . 190

Overall . . . . . . . . . . . . . 209

14.1-in. LCD FRUs . . . . . . . . . . 233

14.1-in. XGA TFT . . . . . . . . . 234

14.1-in. SXGA+ TFT . . . . . . . . 238

15.0-in. LCD FRUs . . . . . . . . . . 241

15.0-in. XGA TFT . . . . . . . . . 242

15.0-in. SXGA+ IPS TFT . . . . . . . 243

15.0-in. UXGA IPS TFT . . . . . . . . 244

Keyboard . . . . . . . . . . . . . 245

Recovery CDs . . . . . . . . . . . 247

Windows XP Professional (for T40/T40p series) 247 Windows XP Professional (for T41/T41p series) 248 Windows XP Professional (for T42/T42p series) 249

Windows 2000 (for T40/T40p series) . . . . 250

Windows 2000 (for T41 series) . . . . . 250

Miscellaneous parts . . . . . . . . . . 251

adapters . . . . . . . . . . . . 254

Optional FRUs . . . . . . . . . . . 255

Common parts list . . . . . . . . . . 256

Tools . . . . . . . . . . . . . 256

Power cords (system) . . . . . . . . 256

Power cords (ThinkPad Dock and ThinkPad

Dock II) . . . . . . . . . . . 257

Notices . . . . . . . . . . . . . . 258

Trademarks . . . . . . . . . . . . 258

2373/2374/2375/2376/2378/2379

Product overview

This section presents the following product-unique information:

“Specifications” “Status indicators” on page 50 “FRU tests” on page 53 “Fn key combinations” on page 54

Specifications

The following table lists the specifications of the ThinkPad T40/ T40p, T41/T41p, T42/T42p series:

Feature

Processor

Bus architecture

Description T40/T40p series:

Intel 1-MB L2 cache

Intel

Pentium

processor 1.3 GHz,

processor 1.5 GHz,

processor 1.6 GHz,

1-MB L2 cache

T41/T41p

series:

Intel

Pentium

1-MB L2 cache

Intel

Pentium

1-MB L2 cache

Intel

Pentium

processor 1.4 GHz,

processor 1.6 GHz,

processor 1.7 GHz,

1-MB L2 cache

T42/T42p

series:

Intel

Pentium

1-MB L2 cache

Intel

Pentium

cache

Intel

Pentium

cache

Intel

Pentium

processor 1.5 GHz,

processor 735, 2-MB

processor 745, 2-MB

processor 755, 2-MB

cache

T40/T40p series:

400 MHz PSB (Processor System Bus) 266 MHz DDR SDRAM (PC2100) HUB link PCI bus LPC bus

T41/T41p,

T42/T42 series:

400 MHz PSB 333 MHz DDR SDRAM (PC2700) HUB link PCI bus LPC bus

(continued)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

v 1

46 MT

Product overview

Feature

Graphic memory chip

Description T40/T40p series:

16-MB DDR SDRAM (ATI M6-16) 32-MB DDR SDRAM (ATI M7-32) 32-MB DDR SDRAM (ATI M9-32) 64-MB DDR SDRAM (ATI M9 GL-64)

T41/T41p

series:

32-MB DDR SDRAM (ATI M7-32) 32-MB DDR SDRAM (ATI M9-32) 128-MB DDR SDRAM (ATI M10 GL-128)

T42/T42p

series:

32-MB DDR SDRAM (ATI M7-32) 64-MB DDR SDRAM (ATI M10-64) 128-MB DDR SDRAM (ATI M10 GL-128)

Display

14.1-inch, 16M colors, XGA (1024 × 768 resolution) TFT color LCD

14.1-inch, 16M colors, SXGA+ (1400 × 1050 resolution) TFT color LCD

15.0-inch, 16M colors, XGA (1024 × 768 resolution) TFT color LCD

15.0-inch, 16M colors, SXGA+ (1400 × 1050 resolution) IPS (in-plane switching) TFT color LCD

15.0-inch, 16M colors, UXGA (1600 × 1200 resolution) IPS TFT color LCD

Standard memory T40/T40p series:

256-MB DDR SDRAM SO-DIMM (PC2100) card × 1 512-MB DDR SDRAM SO-DIMM (PC2100) card × 1

GB-DDR SDRAM SO-DIMM (PC2100)

card × 1

T41/T41p,

T42/T42p series:

256-MB DDR SDRAM SO-DIMM (PC2700) card × 1 512-MB DDR SDRAM SO-DIMM (PC2700) card × 1 1-GB DDR SDRAM SO-DIMM (PC2700) card × 1

(continued)

2373/2374/2375/2376/2378/2379

Product overview

Feature

Optional memory T40/T40p series:

Description

128-MB DDR SDRAM SO-DIMM (PC2100) card 256-MB DDR SDRAM SO-DIMM (PC2100) card 512-MB DDR SDRAM SO-DIMM (PC2100) 1-GB DDR SDRAM SO-DIMM (PC2100)

T41/T41p,

T42/T42p series:

128-MB DDR SDRAM SO-DIMM (PC2700) card × 1 256-MB DDR SDRAM SO-DIMM (PC2700) card × 1 512-MB DDR SDRAM SO-DIMM (PC2700) card × 1 1-GB DDR SDRAM SO-DIMM (PC2700) card × 1 (maximum of 2048 MB)

CMOS RAM

Hard disk drive

242 bytes

T40/T40p series:

20.0 GB, 4200 rpm, 2.5-inch, IDE interface (supported by CTO)

30.0 GB, 4200 rpm, 2.5-inch, IDE interface

40.0 GB, 5400 rpm, 2.5-inch, IDE interface

60.0 GB, 7200 rpm, 2.5-inch, IDE interface

80.0 GB, 4200 rpm, 2.5-inch, IDE interface (option in T41 series)

T41/T41p

series:

30.0 GB, 4200 rpm, 2.5-inch, IDE interface

40.0 GB, 5400 rpm, 2.5-inch, IDE interface

60.0 GB, 7200 rpm, 2.5-inch, IDE interface

80.0 GB, 4200 rpm, 2.5-inch, IDE interface (option)

T42/T42p

series:

30.0 GB, 4200 rpm, 2.5-inch, IDE interface

40.0 GB, 5400 rpm, 2.5-inch, IDE interface

60.0 GB, 7200 rpm, 2.5-inch, IDE interface

80.0 GB, 5400 rpm, 2.5-inch, IDE interface

(continued)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

48 MT

Product overview

Feature

Ultrabay Slim device (standard)

Description T40/T40p, T41/T41p series:

DVD drive, 9.5 mm high DVD/CD-RW combo drive, 9.5 mm high

T42/T42p

series:

DVD drive, 9.5 mm high DVD/CD-RW combo drive, 9.5 mm high DVD-RAM/RW drive, 9.5 mm high

I/O port

External monitor connector Stereo headphone jack Monaural microphone jack Infrared port Parallel connector Docking connector RJ11 connector RJ45 connector TV-out connector (S-Video) Universal serial bus (USB) connector ×

(compatible with USB 1.1 and 2.0)

Internal modem

Audio

56.6 Kbps

Built-in stereo speakers Software control volume

Infrared transfer

Mini PCI adapter T40/T40p series:

IrDA 1.1

IBM Dual-Band 11a/b Wi-Fi Wireless Mini PCI Adapter Cisco Aironet Wireless 802.11b

Intel

PRO/Wireless LAN 2100 3B Mini

PCI Adapter

T41/T41p

series:

Cisco Aironet Wireless 802.11b

Intel

PRO/Wireless LAN 2100 3B Mini PCI Adapter IBM 11a/b/g Wireless LAN Mini PCI Adapter

T42/T42p

series:

Cisco Aironet Wireless 802.11b

Intel

PRO/Wireless LAN 2100 3B Mini PCI Adapter IBM 11a/b/g Wireless LAN Mini PCI Adapter

Intel

PRO Wireless 2200BG Mini-PCI Adapter IBM 11b/g Wireless LAN Mini PCI Adapter

Card

One Type-III Two Type-II

(continued)

2373/2374/2375/2376/2378/2379

Product overview

Feature

Ethernet (on the system board)

Communication daughter card (CDC)

Touch pad

ThinkLight

Battery

adapter

Preinstalled operating system

Description T40/T40p, T41/T41p series:

10/100Base Ethernet Gigabit Ethernet

T42/T42p

series:

Gigabit Ethernet

T40/T40p, T41/T41p series:

V.90 modem daughter card (MDC) IBM Integrated Bluetooth with 56K Modem (BMDC)

T42/T42p

series:

IBM Integrated 56K Modem (MDC-2) IBM Integrated Bluetooth III with 56K Modem (BMDC-2)

UltraNav

Yes

Li-ion battery (6 cells) Li-ion battery (9 cells) Ultrabay Slim Li Polymer battery (option)

72-watt type

T40/T40p, T41/T41p series:

Windows XP Professional Windows 2000

T42/T42p

series:

Windows XP Professional

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

50 MT

Product overview

Status indicators

The system status indicators show the status of the computer, as follows:

2373/2374/2375/2376/2378/2379

2223242526272829

Product overview

Indicator

1 Ultrabay

Slim status

Meaning Green:

use.

Blinking green:

Turn off:

attached or detached.

Note:

Ultrabay Slim status indicator does not blink while an Ultrabay Slim device is being detached. Instead, a message box pops up when the process is completed; then the indicator turns off.

2 Standby

status

Green:

The computer is in standby mode.

Blinking green:

The computer is entering standby mode or hibernation mode, or is resuming normal operation.

3 Battery

status

Green:

The battery is in use and has enough power. The ac adapter has charged the battery completely.

Blinking green:

The battery is being charged, but still has enough power to operate. (At regular intervals, the indicator light turns off briefly.)

Orange:

The battery is being charged, but the battery power is still low.

Blinking orange:

The battery needs to be charged. When the indicator starts blinking orange, the computer beeps three times.

4 Power on Green:

The computer is on and ready to use. This indicator stays lit whenever the computer is

Ultrabay Slim device is installed and in

Ultrabay Slim device is in the process

being detached.

Ultrabay Slim device is ready to be

you are using Windows 2000, the

and is not in standby mode.

(continued)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

52 MT

Product overview

Indicator

5 Drive in

use

Meaning Green:

Data is being read from or written to the hard disk drive, the diskette drive, or the drive in the Ultrabay Slim device. When this indicator is on, do not put the computer into standby mode or turn off the computer.

Note:

green drive-in-use light is on. Sudden physical shock could cause drive errors.

6 Caps lock Green:

Caps Lock mode is enabled. To enable or disable Caps Lock mode, press the Caps Lock key.

7 Num lock Green:

The numeric keypad on the keyboard is enabled. To enable or disable the keypad, press and hold the Shift key, and press the NumLk (ScrLk) key.

8 Bluetooth

status

9 Wireless

status

Green:

Bluetooth wireless is operational. This

indicator is on when Bluetooth wireless is

Green:

The wireless feature (the IEEE 802.11 standard) is on, and the radio link is ready for use.

Blinking green:

Data is being transmitted.

not move the system while the

and not in suspend mode.

2373/2374/2375/2376/2378/2379

3. If

Product overview

FRU tests

The following table shows the test for each FRU.

FRU

System board 1.

Applicable test

Diagnostics --> CPU/Coprocessor Diagnostics --> Systemboard

the docking station or the port replicator

attached to the ThinkPad computer, undock it. Place the computer on a horizontal surface, and run Diagnostics -->

Other Devices --> IBM HDD Active Protection Test. Note: Do not apply any physical shock to

the computer while the test is running.

Power

LCD unit

Diagnostics --> Other Devices --> IBM AC Adapter, IBM Battery 1 (IBM Battery 2)

Diagnostics --> Video Adapter Interactive Tests --> Video

Modem daughter card (MDC or BMDC)

Make sure the modem is set up correctly. Replace the modem jack and the modem card in turn, and run the following tests in Diagnostics --> Communication:

Lucent Soft Modem Loopback Lucent Soft Modem Dialtone Conexant Smart Modem Interrupt Conexant Smart Modem Dialtone

Audio

Interactive Tests --> Internal Speaker Diagnostics --> Other Devices --> Analog Devices AC97 CODEC Test

Speaker

Card slots 1.

Interactive Tests --> Internal Speaker

Diagnostics --> Systemboard --> PCMCIA

Insert a PC Card Wrap Plug into every PC Card slot, and run Diagnostics -->

Systemboard --> PCMCIA External Loop

Keyboard

Diagnostics --> Systemboard --> Keyboard Interactive Tests --> Keyboard

Hard disk drive Diagnostics --> Fixed Disks

Diskette drive 1.

Diagnostics --> Diskette Drives Interactive Tests --> Diskette

DVD drive or DVD/CD-RW combo drive

Diagnostics --> Other Devices --> CD-ROM/DVD Interactive Tests --> CD-ROM/DVD Test

(continued)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

1. If

2. If

3. If

of Fn

54 MT

Product overview

FRU

Memory

Fan

TrackPoint or pointing device

Touch Pad

Applicable test

two DIMMs are installed, remove one of

them and run Diagnostics --> Memory Test—Quick.

the problem does not recur, return the DIMM to its place, remove the other one, and run the test again.

the test does not detect the error, run Diagnostics --> Memory Test—Full.

Turn on the computer and check the air turbulence at the louver near the PC Card slot. Run Diagnostics --> Other Devices --> IBM Fan.

the TrackPoint does not work, check the configuration as specified in the ThinkPad Configuration program. If the TrackPoint is disabled, select Automatic to enable it.

After you use the TrackPoint, the pointer may drift on the screen for a short time. This drift can occur when a slight, steady pressure is applied to the TrackPoint pointer. This symptom

not a hardware problem. If the pointer stops after a short time, no service action is necessary.

enabling the TrackPoint does not correct the

problem, continue with the following:

Interactive Tests --> Mouse

the Touch Pad does not work, check the configuration as specified in the ThinkPad Configuration program. If the Touch Pad is disabled, select Automatic to enable it. If enabling the Touch Pad does not correct the problem, continue with the following:

Interactive Tests --> Mouse

key combinations

The following table shows the function of each combination

with a function key.

Key combination

Fn+F1

Fn+F2

Fn+F3

(continued)

Description

Reserved.

Turn off the computer display, leaving the screen blank. To turn the computer display on again, press any key or press the TrackPoint pointing stick.

2373/2374/2375/2376/2378/2379

2. In

Product overview

Key combination

Fn+F4

Fn+F5

Fn+F6

Fn+F7

Description

Put the computer in standby mode. To return to normal operation, press the Fn key only, without pressing a function key.

Notes:

This mode is called suspend mode in Windows NT.

Windows 2000 and Windows XP, this combination of keys functions as a sleep button. The setting can be changed so that pressing it puts the computer into hibernation mode or even shuts the computer down.

Control the power source of the built-in

Bluetooth wireless device. This combination of

the keys functions as a toggle switch of the power state.

Note: In Windows 98, Windows 2000, or

Windows XP, this combination of keys enables

disables the built-in wireless networking

features (the IEEE 802.11 standard) and the

Bluetooth wireless features. To use this

function, the following drivers must be installed.

IBM ThinkPad Power Management driver OnScreen Display utility Wireless device drivers

Reserved.

Switch a display output location

External monitor (CRT display) Computer display and external monitor (LCD

CRT display)

Computer display (LCD)

For any operating system other than

Note:

Windows 2000 or Windows XP, no additional procedure is needed; just press Fn+F7.

Notes:

This function does not work when different desktop images are displayed on the computer display and the external monitor (the Extend desktop function). This function does not work while a DVD movie or a video clip is playing. For Windows 2000 or Windows XP, a hotkey application might take over the switching function.

(continued)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

56 MT

Product overview

Key combination

Fn+F8

Fn+F9

Description

Note: This function is not supported in

Windows 2000 and Windows XP.

the image displayed on the computer is smaller than the physical display, switch the computer screen size between expanded mode and normal mode.

Open the IBM ThinkPad EasyEject Utility screen. Buttons for the following choices are displayed:

Eject ThinkPad PC from Dock: This button

displayed only if the ThinkPad computer has been attached to a ThinkPad Dock II. The computer can be detached from the ThinkPad Dock II. Eject ThinkPad PC from Mini Dock: This button is displayed only if the ThinkPad computer has been docked in a ThinkPad Mini Dock and one or more USB devices have been connected to the ThinkPad Mini Dock. You can stop and remove all the USB devices safely by clicking the button.

Note: If a diskette drive is connected to the

external-diskette-drive connector of the ThinkPad Mini Dock, you cannot connect a USB diskette drive. Run EasyEject Actions: This button is used

select, stop, or remove external devices connected to the ThinkPad computer. Configure EasyEject Actions: Opens the IBM ThinkPad EasyEject Utility main window. Fn+F9 Settings: Configures the settings for the Fn+F9 function.

Fn+F10

Fn+F11

(continued)

You

can use this utility to stop and remove all ejectable devices connected to the ThinkPad computer, the ThinkPad Mini Dock, or the ThinkPad Port Replicator II. You cannot use it

detach the computer from the ThinkPad Mini

Dock or the ThinkPad Port Replicator II.

Note: This function is supported only in

Windows 2000 and Windows XP.

Reserved.

2373/2374/2375/2376/2378/2379

Product overview

Key combination

Fn+F12

Fn+PgUp

Fn+Home

Fn+End

Description

Put the computer into hibernation mode. To return to normal operation, press the power button for less than four seconds.

Note: To use Fn+F12 for hibernation in

Windows 2000 or Windows XP, you must have the IBM PM device driver installed on the computer.

Turn the ThinkLight on or off.

Note: This function is supported only on the

ThinkPad computers that have the ThinkLight. The on or off status of the ThinkLight is shown

the screen for a few seconds when you

press Fn+PgUp.

The computer display becomes brighter.

The computer display becomes dimmer.

Fn+Spacebar Enable the FullScreen Magnifier function.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

If no

58 MT

Symptom-to-FRU index

The symptom-to-FRU index in this section lists symptoms and errors and their possible causes. The most likely cause is listed first, in boldface type.

Note: Do the FRU replacement or other actions in the

sequence shown in the column headed “FRU or action, in sequence.” If replacing a FRU does not solve the problem, put the original part back in the computer. Do not replace a nondefective FRU.

This index can also help you determine, during regular servicing, what FRUs are likely to need to be replaced next.

numeric error is displayed for each error detected in POST or system operation. In the displays, n can be any number.

numeric code is displayed, check the narrative descriptions of symptoms. If the symptom is not described there, go to “Intermittent problems” on page 66.

Note

For an IBM device not supported by diagnostic codes in the ThinkPad notebook computers, see the manual for that device.

Numeric error codes

Symptom or error 0175

CRC1, stop POST

Bad task—The EEPROM checksum

not correct.

0176

Security—The system

System has been tampered with.

0177

SVP data, stop POST

Bad task—The checksum of the supervisor password in the EEPROM is not correct.

2373/2374/2375/2376/2378/2379

FRU or action, in sequence System board.

Run IBM BIOS Setup Utility, and save the current setting by pressing F10.

System board.

System board

Symptom-to-FRU index

Symptom or error 0182

CRC2. Enter BIOS Setup

Bad and load Setup defaults.—The checksum of the CRS2 setting

the EEPROM is not correct.

0185

Bad

startup sequence settings. Enter BIOS Setup and load Setup defaults.

0187

data access error—The

EAIA access to EEPROM is failed.

0188

RFID Serialization

Invalid Information Area.

0189

RFID configuration

Invalid information area—The EEPROM checksum is not correct.

0190

Critical

low-battery error

0191

System

Security—Invalid

Remote Change requested.

0192

System

Security—IBM Embedded Security hardware tamper detected.

0199

System

Security—IBM Security password retry count exceeded.

01C8

more modem devices

Two are found. Remove all but one

them. Press <Esc> to

continue.

01C9

than one Ethernet devices

More are found. Remove one of them. Press <Esc> to continue.

FRU or action, in sequence

Run IBM BIOS Setup Utility. Press F9, and Enter to load the default setting. Then save the current setting by pressing F10.

System board.

Run IBM BIOS Setup Utility. Press F9, and Enter to load the default setting. Then save the current setting by pressing F10.

System board.

Charge the battery pack.

Battery pack.

Run IBM BIOS Setup Utility, and then save current setting by pressing F10.

System board.

Run IBM BIOS Setup Utility, and then save the current setting by pressing F10.

System board.

Remove either a Mini-PCI Card or a modem daughter card. Otherwise, press Esc to ignore the warning message.

System board.

Remove the Ethernet device that you installed;

press Esc to ignore the

warning message.

System board.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

60 MT

Symptom-to-FRU index

Symptom or error 0200

disk error—The hard disk

Hard

not working.

021x

Keyboard

0220

Monitor type does not match the one specified in CMOS.

0230

Shadow RAM fails at offset nnnn.

0231

System RAM fails at offset nnnn.

0232

Extended Extended RAM fails at offset nnnn.

0250

System battery is dead.

0251

System bad— Default configuration used.

0252

Password password is cleared.

0260

System

0270

Real-time

0271

Date the date nor the time is set in the computer.

0280

Previous Default configuration used.

error.

type error—Monitor

RAM error—Shadow

RAM error—System

RAM error—

battery error—System

CMOS checksum

checksum bad—The

timer error.

clock error.

and time error—Neither

boot incomplete—

FRU or action, in sequence

Reseat the hard disk drive.

Load Setup Defaults in IBM BIOS Setup Utility. Hard disk drive. System board.

Run interactive tests of the keyboard and the auxiliary input device.

Load Setup Defaults in IBM BIOS Setup Utility.

System board.

DIMM.

System board.

DIMM. System board.

Replace the backup battery and run IBM BIOS Setup Utility to reset the time and date.

Reset the password by running IBM BIOS Setup Utility.

Replace the backup battery and run IBM BIOS Setup Utility to reset the time and date.

System board.

Replace the backup battery and run IBM BIOS Setup Utility to reset the time and date.

System board.

Run IBM BIOS Setup Utility to reset the time and date.

Load “Setup Default” in IBM BIOS Setup Utility.

DIMM. System board.

2373/2374/2375/2376/2378/2379

Symptom-to-FRU index

Symptom or error 02F4

CMOS not writable.

EISA

02F5

test failed.

DMA

02F6

Software

NMI failed

02F7

Fail-safe

timer NMI failed

1802

Unauthorized plugged in—Turn off and remove the miniPCI network card.

1803

Unauthorized plugged in—Turn off and remove the daughter card.

network card is

daughter card is

FRU or action, in sequence

Load Setup Defaults in IBM BIOS Setup Utility.

Replace the backup battery. System board.

DIMM. System board.

Remove Mini PCI network card.

System board.

Remove the daughter card that you installed.

System board.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

1. If

go to

2. If

3. If

4. If

5. If

62 MT

Symptom-to-FRU index

Symptom or error 1810

disk partition layout error.

Hard

2000

IBM

Hard Drive Active Protection sensor diagnostics failed. Press

<Esc> to continue. <F1> to enter SETUP

Press

FRU or action, in sequence

the Access IBM Predesktop Area has been previously disabled, then

the IBM BIOS Setup Utility by pressing F1 to open the IBM BIOS Setup Utility. Select Security --> IBM Predesktop Area --> Access IBM Predesktop Area. Set this item to Disabled. Save and exit.

the Access IBM Predesktop Area has not been previously disabled, press Enter to load Access IBM Predesktop Area. Then run RECOVER TO

FACTORY CONTENTS in

Access IBM Predesktop Area.

item 2 failed, press F3 in the Welcome screen in

RECOVER TO FACTORY CONTENTS. Run FDISK,

and then delete all partitions. Run RECOVER

FACTORY CONTENTS

Access IBM Predesktop

Area again.

item 3 failed, select CD-ROM boot in Startup in Access IBM Predesktop Area. Boot from the Recovery CD and perform full recovery from it.

item 4 failed, replace the hard disk drive.

Undock docking station or port replicator if it is attached to the ThinkPad computer, and place the computer on a horizontal surface. Do not apply any physical shock to the computer. Run Diagnostics --> Other

Devices --> IBM HDD Active Protection Test.

2373/2374/2375/2376/2378/2379

2. If

Error messages

Symptom-to-FRU index

Symptom or error

Device address conflict.

Allocation error for device.

Failing bits: nnnn.

Invalid system configuration data.

I/O device IRQ conflict.

Operating system not found. 1.

Hibernation error.

Fan error.

Thermal sensing error.

Authentication of system services failed. Press <Esc> to resume.

FRU or action, in sequence

Load “Setup Defaults” in IBM BIOS Setup Utility.

Backup battery. System board.

Load “Setup Defaults” in IBM BIOS Setup Utility.

Backup battery. System board.

DIMM. System board.

Load “Setup Defaults” in IBM BIOS Setup Utility.

Backup battery. System board.

Check that the operating system has no failure and is installed correctly.

Enter IBM BIOS Setup Utility and see whether the hard disk drive and the diskette drive are properly identified.

Reseat the hard disk drive. Reinstall the operating system. Diskette drive. Hard disk drive. System board.

Restore the system configuration to what it was before the computer entered hibernation mode.

memory size has been changed, re-create the hibernation file.

Fan. System board. The IBM Predesktop Area in

the HDD is corrupted. Restore it from a recovery CD.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

64 MT

Symptom-to-FRU index

Beep symptoms

Symptom or error

One beep and a blank, unreadable, or flashing LCD.

One long and two short beeps, and a blank or unreadable LCD.

Two short beeps with error codes.

Two short beeps and a blank screen.

Three short beeps, pause, three more short beeps, and one short beep.

One short beep, pause, three short beeps, pause, three more short beeps, and one short beep.

Only the cursor appears.

Four cycles of four short beeps and a blank screen.

Five short beeps and a blank screen.

No-beep symptoms

FRU or action, in sequence

Reseat the LCD connector.

LCD assembly. External CRT. System board.

System board. LCD assembly. DIMM.

POST error. See “Numeric error codes” on page 58.

System board.

DIMM. DIMM.

System board

Reinstall the operating system.

System board (IBM security

chip)

System board

Symptom or error

beep, power-on indicator

on, LCD blank, and no POST.

beep, power-on indicator on, and LCD blank during POST.

The power-on password prompt appears.

The hard-disk password prompt appears.

The DOS full screen looks smaller than it should.

2373/2374/2375/2376/2378/2379

FRU or action, in sequence

Make sure that every connector is connected tightly and correctly.

DIMM. System board.

Reseat DIMM. System board.

power-on password or a supervisor password is set. Type the password and press Enter.

hard-disk password is set. Type the password and press Enter.

Start the ThinkPad Configuration program and set the Screen expansion function.

or a

Symptom-to-FRU index

LCD-related symptoms

Important

The TFT LCD for the notebook computer contains many thin-film transistors (TFTs). The presence of a small number of dots that are missing, discolored, or always lighted is characteristic of TFT LCD technology, but excessive pixel problems can cause viewing concerns. The LCD should be replaced if the number of missing, discolored, or lighted dots in any background is:

XGA: 8 or more bright dots, 8 or more dark dots,

total of 9 or more bright and dark dots.

SXGA+: 11 or more bright dots, 13 or more dark

dots, or a total of 16 or more bright and dark dots.

UXGA: 11 or more bright dots, 16 or more dark

dots, or a total of 16 or more bright and dark dots.

Note:

bright dot means a pixel is always on (white or color.) A dark dot means a pixel is always off (black color.)

Symptom or error

beep, power-on indicator on, and a blank LCD during POST.

LCD backlight not working. LCD too dark. LCD brightness cannot be adjusted. LCD contrast cannot be adjusted.

LCD screen unreadable. Characters missing pixels. Screen abnormal. Wrong color displayed.

Horizontal or vertical lines displayed on LCD.

FRU or action, in sequence System board.

Reseat the LCD connectors.

LCD assembly. System board.

See important note for “LCD-related symptoms.”

Reseat all LCD connectors. LCD assembly. System board.

LCD assembly.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

2. If no

3. If

i. PC

6. If

7. If

at a

66 MT

Symptom-to-FRU index

Intermittent problems

Intermittent system hang problems can be due to a variety

causes that have nothing to do with a hardware defect, such as cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a problem recurs.

When analyzing an intermittent problem, do the following:

Run the diagnostic test for the system board in loop mode at least 10 times.

error is detected, do not replace any FRUs.

any error is detected, replace the FRU shown by the FRU code. Rerun the test to verify that no more errors exist.

Undetermined problems

the diagnostic tests did not identify the adapter or device that has failed, if wrong devices are installed, or if the system simply is not operating, follow these procedures to isolate the failing FRU (do not isolate FRUs that have no defects).

Verify that all attached devices are supported by the computer.

Verify that the power supply being used at the time of the failure is operating correctly. (See “Power system checkout” on page 39.)

Turn off the computer. Visually check each FRU for damage. Replace any damaged FRU. Remove or disconnect all of the following devices:

Non-IBM devices Devices attached to the port replicator

Printer, mouse, and other external devices

Battery pack Hard disk drive

External diskette drive

DIMM CD-ROM and diskette drive in the Ultrabay

Cards

Turn on the computer. Determine whether the problem has been solved.

the problem does not recur, reconnect the removed

devices one at a time until you find the failing FRU.

the problem remains, replace the following FRUs one

time (do not replace a nondefective FRU): System board LCD assembly

2373/2374/2375/2376/2378/2379

FRU replacement notices

This section contains notices related to removing and replacing parts. Read this section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the IBM ThinkPad computer, this problem is addressed with special nylon-coated screws that have the following characteristics:

They maintain tight connections. They do not easily come loose, even with shock or vibration. They are harder to tighten. Each one should be used only once.

the following when you service this machine:

Keep the screw kit (for the P/N, see “Miscellaneous parts” on page 251) in your tool bag. Always use new screws. Use a torque screwdriver if you have one.

screws as follows:

Tighten

Plastic to plastic

Turn an additional 90 degrees after the screw head touches the surface of the plastic part:

90 degrees more

(Cross-section)

Logic card to plastic

Turn an additional 180 degrees after the screw head touches the surface of the logic card:

180 degrees more

(Cross-section)

Torque driver

you have a torque driver, refer to the “Torque” column

for each step.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

68 MT

FRU replacement notices

Make sure that you use the correct screw. If you have a torque screwdriver, tighten all screws firmly to the torque shown in the table. Never use a screw that you

removed. Use a new one. Make sure that all of the screws are tightened firmly.

Retaining serial numbers

This section includes the following descriptions:

“Restoring the serial number of the system unit” “Retaining the UUID” on page 69 “Reading or writing the ECA information” on page 69

Restoring the serial number of the system unit

When the computer was manufactured, the EEPROM on the system board was loaded with the serial numbers of the system and all major components. These numbers need to remain the same throughout the life of the computer.

you replace the system board, you must restore the

serial number of the system unit to its original value.

Before replacing the system board, save the original serial number by doing the following:

Install the ThinkPad Hardware Maintenance Diskette Version 1.71 or later, and restart the computer.

From the main menu, select 1. Set System Identification.

Select 2. Read S/N data from EEPROM.

The serial number of each device in your computer is displayed; the serial number of the system unit is listed as follows:

20: Serial number

Write down that number.

Note: The serial number of the system unit is also written

the label attached to the bottom of the computer.

After you have replaced the system board, restore the serial number by doing the following:

Install the ThinkPad Hardware Maintenance Diskette Version 1.71 or later and restart the computer.

From the main menu, select 1. Set System Identification.

Select 1. Add S/N data from EEPROM.

Follow the instructions on the screen.

2373/2374/2375/2376/2378/2379

to a

3. To

4. To

FRU replacement notices

Retaining the UUID

The Universally Unique Identifier (UUID) is a 128-bit number uniquely assigned to your computer at production and stored in the EEPROM of your system board. The algorithm that generates the number is designed to provide unique IDs until the year A.D. 3400. No two computers in the world have the same number.

When you replace the system board, you must set the UUID on the new system board as follows:

Install the ThinkPad Hardware Maintenance Diskette Version 1.71 or later, and restart the computer.

From the main menu, select 4. Assign UUID.

new UUID is created and written. If a valid UUID

already exists, it is not overwritten.

Reading or writing the ECA information

Information on Engineering Change Announcements (ECA) are stored in the EEPROM of the system board. The electronic storage of this information simplifies the procedure to check if the ECA has been previously applied

machine. The machine does not need to be

disassembled to check for the ECA application.

check what ECAs have been previously applied to the machine, use the ECA Information Read/Write function on the ThinkPad Hardware Maintenance Diskette Version 1.71

later.

Insert the ThinkPad Hardware Maintenance Diskette Version 1.71 or later, and restart the computer.

From the main menu, select 6. Set ECA Information.

read ECA information, select 2. Read ECA/rework

number from EEPROM and follow the instruction.

read box build date, select 5. Read box build date

from EEPROM, and follow the instruction on the screen.

After an ECA has been applied to the machine, the EEPROM must be updated to reflect the ECA's application. Use the ThinkPad Hardware Maintenance Diskette Version 1.71 or later to update the EEPROM.

Note: Only the ECA number is stored in the EEPROM.

The machine type of the ECA is assumed be the same as the machine type of the machine that had the ECA applied to it.

Insert the ThinkPad Hardware Maintenance Diskette Version 1.71 or later, and restart the computer.

From the main menu, select 6. Set ECA Information.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

4. To

70 MT

FRU replacement notices

write ECA information, select 1. Write ECA/rework

number from EEPROM, and follow the instruction.

write box build date, select 4. Write box build date

from EEPROM, and follow the instruction on the screen.

the system board is being replaced, try to read the ECA information from the old system board and transfer the information to the new system. If the system board is inoperable, this will not be possible.

2373/2374/2375/2376/2378/2379

1. Do

7. To

Removing and replacing a FRU

This section presents directions and drawings for use in removing and replacing a FRU. Be sure to observe the following general rules:

not try to service any computer unless you have been trained and certified. An untrained person runs the risk of damaging parts.

Before replacing any FRU, review “FRU replacement notices” on page 67.

Begin by removing any FRUs that have to be removed before the failing FRU. Any such FRUs are listed at the top of the page. Remove them in the order in which they are listed.

Follow the correct sequence in the steps for removing the FRU, as given in the drawings by the numbers in square callouts.

When turning a screw to replace a FRU, turn it in the direction as given by the arrow in the drawing.

When removing the FRU, move it in the direction as given by the arrow in the drawing.

put the new FRU in place, reverse the removal procedure and follow any notes that pertain to replacement. For information about connecting and arranging internal cables, see “Locations” on page 186.

When replacing a FRU, use the correct screw as shown in the procedures.

DANGER

Before

removing any FRU, turn off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables.

Attention: After replacing a FRU, do not turn on the

computer until you have made sure that all screws, springs, and other small parts are in place and none are loose inside the computer. Verify this by shaking the computer gently and listening for rattling sounds. Metallic parts or metal flakes can cause electrical short circuits.

Attention: The system board is sensitive to, and can be

damaged by, electrostatic discharge. Before touching it, establish personal grounding by touching a ground point with one hand or by using an electrostatic discharge (ESD) strap (P/N 6405959).

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

72 MT

Removing and replacing a FRU

1010 Battery pack for 14.1-in. LCD models

DANGER

Use only the battery specified in the parts list for your computer. Any other battery could ignite or explode.

(continued)

2373/2374/2375/2376/2378/2379

Removing and replacing a FRU

Holding the battery release lever in the unlocked position 2, remove the battery pack 3.

When installing: Install the battery pack along the slide

rails on the left and right sides of the battery-pack slot. Then make sure that both battery latches, a and b, are locked, as in the following figure.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

74 MT

Removing and replacing a FRU

1020 Battery pack for 15.0-in. LCD models

DANGER

Use only the battery specified in the parts list for your computer. Any other battery could ignite or explode.

Holding the battery release lever in the unlocked position 1, remove the battery pack 2.

2373/2374/2375/2376/2378/2379

Removing and replacing a FRU

1030 Ultrabay Slim device

Note

Ultrabay Slim does not accept any of the following devices:

Ultrabay Plus devices Ultrabay 2000 devices

For devices compatible with the Ultrabay Slim bay, see “Optional FRUs” on page 255.

Note: When you release the switch in step 1, the lever

pops out. In step 2, pull the lever a little to release the device from the bay.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

v Do

76 MT

Removing and replacing a FRU

1040 Hard disk drive

Attention

not drop the hard disk drive or apply any

physical shock to it. The hard disk drive is

sensitive to physical shock. Improper handling can cause damage and permanent loss of data.

Before removing the drive, have the user make a backup copy of all the information on it if possible.

Never remove the drive while the system is operating or is in suspend mode.

For access, remove this FRU:

“1010 Battery pack for 14.1-in. LCD models” on page 72 “1020 Battery pack for 15.0-in. LCD models” on page 74

Note: The hard disk is attached to the cover.

Step Screw (quantity)

1 HDD screw (1) or security screw (1)

Note: Use a 2.5-mm Allen wrench to remove the security screw.

(continued)

2373/2374/2375/2376/2378/2379

Removing and replacing a FRU

When installing: Make sure that the hard-disk connector

attached firmly.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

78 MT

Removing and replacing a FRU

1050 DIMM (optional)

For access, remove this FRU:

“1010 Battery pack for 14.1-in. LCD models” on page 72 “1020 Battery pack for 15.0-in. LCD models” on page 74

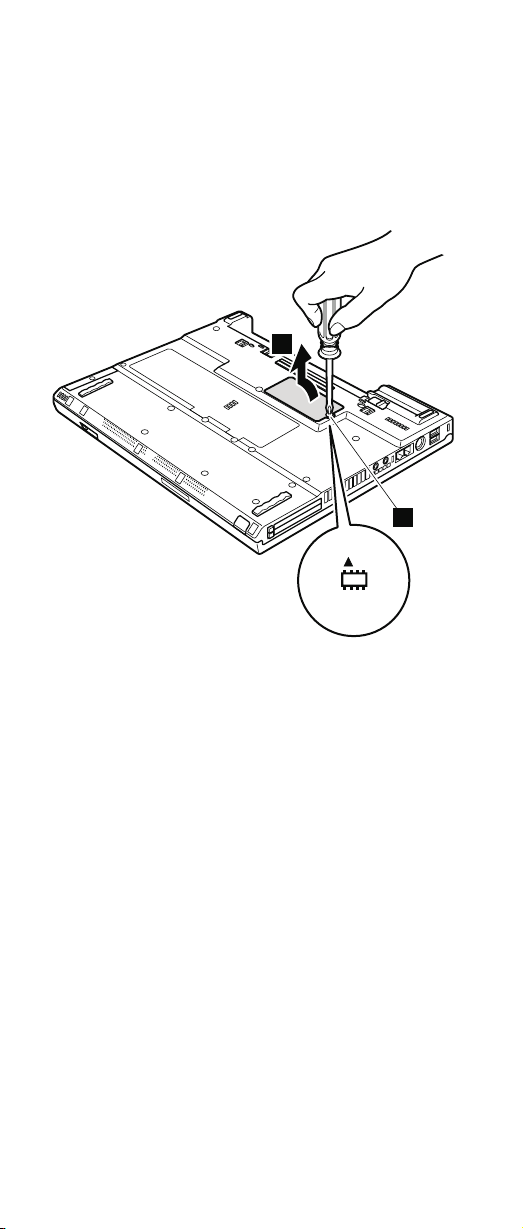

Loosen the screw 1, but do not remove it.

Note:

(continued)

2373/2374/2375/2376/2378/2379

Removing and replacing a FRU

When installing: Insert the notched end of the DIMM into

the socket. Press the DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly fixed in the slot and does not move easily.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

3 M2 × 10

M2 × 10

80 MT

Removing and replacing a FRU

1060 Keyboard

For access, remove this FRU:

“1010 Battery pack for 14.1-in. LCD models” on page 72 “1020 Battery pack for 15.0-in. LCD models” on page 74

Note: Screw 1a is only for the models with 14.1-in. LCD.

Other models do not have this screw.

Step Icon Screw (quantity)

1

1a

mm, flat-head,

nylon-coated (3)

mm, flat-head,

nylon-coated (1)

Color Torque

Black 0.245 Nm

(2.5

kgfcm)

(continued)

2373/2374/2375/2376/2378/2379

Removing and replacing a FRU

Press the part indicated by the arrow 2 in the direction of the arrow. This releases the latches of the keyboard from the frame, so that the front side of the keyboard pops out.

Pull the keyboard a little in the direction of the arrow 3, and then detach the connector 4.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

82 MT

Removing and replacing a FRU

When installing:

Attach the connector 1.

Make sure that the keyboard edges, marked a in the figure, are under the frame.

(continued)

2373/2374/2375/2376/2378/2379

Removing and replacing a FRU

make sure that the front side of the keyboard is housed firmly, gently press the keys with your fingers and try to slide the keyboard towards you.

Make sure that all the projections on the front side of the keyboard b are firmly attached under the frame.

Secure the keyboard from the underside of the computer, using the new screws provided with the keyboard.

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

84 MT

Removing and replacing a FRU

1070 DIMM (standard)

For access, remove these FRUs in order:

“1010 Battery pack for 14.1-in. LCD models” on page 72 “1020 Battery pack for 15.0-in. LCD models” on page 74 “1060 Keyboard” on page 80

When installing: Insert the notched end of the DIMM into

the socket. Press the DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly fixed in the slot and does not move easily.

2373/2374/2375/2376/2378/2379

Removing and replacing a FRU

1080 Modem daughter card (MDC/MDC-2)

For access, remove these FRUs in order:

“1010 Battery pack for 14.1-in. LCD models” on page 72 “1020 Battery pack for 15.0-in. LCD models” on page 74 “1060 Keyboard” on page 80

Step Screw (quantity)

1 M2 × 10 mm, flat-head,

nylon-coated (2)

Color Torque

Black 0.245 Nm

(2.5

step 2, remove the card by pulling the tab with your

fingers in the direction of the arrow.

kgfcm)

(continued)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

86 MT

Removing and replacing a FRU

Turn the card over 3, and detach the modem connector 4.

When installing: Make sure that connector 4 and the

connector on the underside of the card are firmly attached.

2373/2374/2375/2376/2378/2379

Removing and replacing a FRU

1090 Bluetooth/Modem daughter card (BMDC/BMDC-2)

For access, remove these FRUs in order:

“1010 Battery pack for 14.1-in. LCD models” on page 72 “1020 Battery pack for 15.0-in. LCD models” on page 74 “1060 Keyboard” on page 80

Step Screw (quantity)

1 M2 × 10 mm, flat-head,

nylon-coated (2)

Color Torque

Black 0.245 Nm

(2.5

step 2, remove the card by pulling the tab with your

fingers in the direction of the arrow.

kgfcm)

(continued)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

88 MT

Removing and replacing a FRU

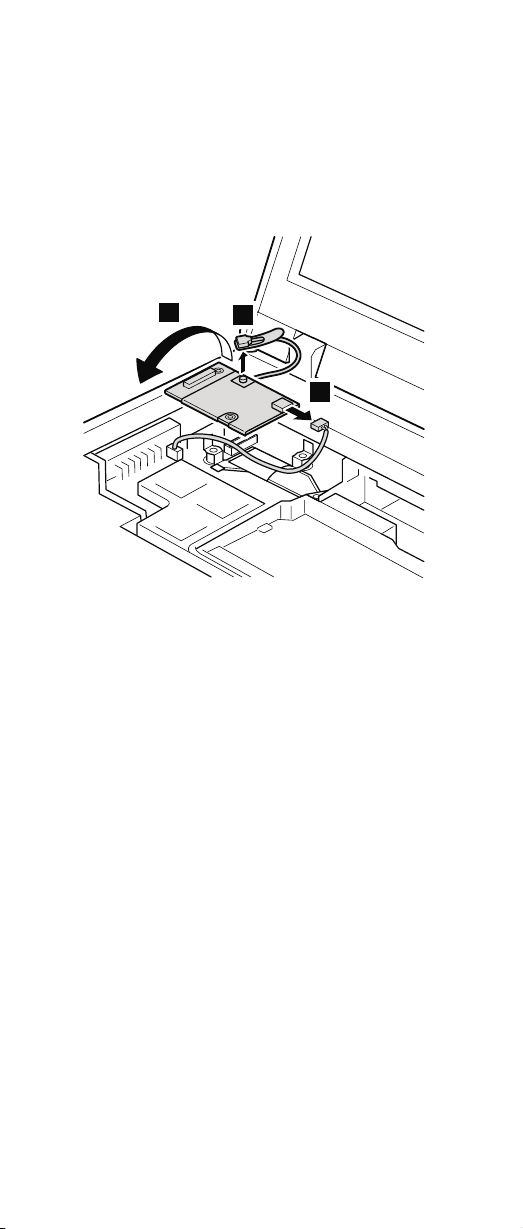

Turn the card over 3, and detach the modem connector

4 and the Bluetooth wireless antenna jack, which has a

tab marked ″BT″ 5.

Note: When unplugging the Bluetooth wireless antenna

jack, do not pull the cable; it might snap. Unplug the jack by pulling the tab with your fingers.

When installing: Make sure that connector 4, the jack

5, and the connector on the underside

the card are firmly attached.

2373/2374/2375/2376/2378/2379

1 M2 × 4

2 M2 × 5

4 — M2 × 14

4 —

Removing and replacing a FRU

1100 Palm rest for 14.1-in. LCD models

For access, remove these FRUs in order:

“1010 Battery pack for 14.1-in. LCD models” on page 72 “1040 Hard disk drive” on page 76 “1060 Keyboard” on page 80

Note: For some models, this FRU is secured by using a

tamper resistant torx head screw (TR7).

Step Icon Screw

1

2

Screw (quantity) Color Torque

cap

mm, small-head, nylon-coated (4)

mm, bind-head, nylon-coated (1)

Black 0.245 Nm

(2.5

Silver 0.245 Nm

(2.5

3 Models with a 802.11a/b wireless LAN Mini PCI adapter

mm, TR7,

nylon-coated (2)

Black 0.204 Nm

(2.0

Models with other type of Mini PCI adapter

3a

mm, bind-head, nylon-coated (2)

Special screw (1) Black 0.245 Nm

Black 0.204 Nm

(2.0

(2.5

(continued)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

kgfcm)

90 MT

Removing and replacing a FRU

For a model with a touch pad, detach the touch pad connector by pulling the tab with your fingers in the direction of arrow 4. Then remove the palm rest in the direction of arrow 5. For other models, skip step 4.

When installing: On a model with a touch pad, make

sure that connector 4 is firmly attached.

Note for LG-IBM models (Korea) in T40/T40p series:

New palm rest FRU is shipped with the LG-IBM logo plate. When you replace the palm rest, you need to stick the LG-IBM logo plate as shown in this figure.

15 mm

2373/2374/2375/2376/2378/2379

1 M2 × 5

Removing and replacing a FRU

1110 Keyboard bezel for 15.0-in. LCD models

For access, remove these FRUs in order:

“1020 Battery pack for 15.0-in. LCD models” on page 74 “1040 Hard disk drive” on page 76 “1060 Keyboard” on page 80

Step Icon Screw (quantity)

1

mm, flat-head,

nylon-coated (6)

(continued)

Color Torque

Black 0.245 Nm

(2.5

kgfcm)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

2 M2 × 14

92 MT

Removing and replacing a FRU

Step Icon Screw (quantity)

2

mm, bind-head,

nylon-coated (6)

Color Torque

Black 0.245 Nm

(2.5

kgfcm)

2373/2374/2375/2376/2378/2379

Removing and replacing a FRU

When installing:

Place the keyboard bezel so that the three latches are fixed in place 1.

While inserting the three latches, align the top-left corner of the keyboard bezel as in figure a.

(continued)

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

94 MT

Removing and replacing a FRU

Press the left edges 2 and the front edges 3 of the keyboard bezel until the latches are snapped.

Attach the touch pad connector 4.

(continued)

2373/2374/2375/2376/2378/2379

IBM MT2375, MT2376, MT2374, MT2379, T40 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

About this manual

Introduction

Important service information

Strategy for replacing FRUs

Strategy for replacing a hard disk drive

How to use error messages

Diskette compatibility matrix

Safety notices: multilingual translations

Safety information

General safety

Electrical safety

Safety inspection guide

Handling devices that are sensitive to electrostatic discharge

Grounding requirements

Laser compliance statement

General descriptions

Read this first

What to do first

Related service information

Service web site

Restoring the pre-installed system

Recovery to Factory Contents by using Product Recovery CDs

Passwords

How to remove the power-on password

How to remove the hard-disk password

Power management

Screen blank mode

Standby mode

Hibernation mode

Checkout guide

Testing the computer

Creating the PC-Doctor diagnostics diskette

Detecting system information with PC-Doctor

Hardware Info

Utility

Power system checkout

Checking the ac adapter

Checking operational charging

Checking the battery pack

Checking the backup battery

ThinkPad T40/T40p, T41/T41p, T42/T42p Series

Product overview

Specifications

Status indicators

FRU tests

Symptom-to-FRU index

Numeric error codes

Error messages

Beep symptoms

No-beep symptoms

LCD-related symptoms

Intermittent problems

Undetermined problems

FRU replacement notices

Screw notices

Retaining serial numbers

Restoring the serial number of the system unit

Retaining the UUID

Reading or writing the ECA information

Removing and replacing a FRU

1010 Battery pack for 14.1-in. LCD models

1020 Battery pack for 15.0-in. LCD models

1030 Ultrabay Slim device

1040 Hard disk drive

1050 DIMM (optional)

1060 Keyboard

1070 DIMM (standard)

1080 Modem daughter card (MDC/MDC-2)

1090 Bluetooth/Modem daughter card (BMDC/BMDC-2)

1100 Palm rest for 14.1-in. LCD models

1110 Keyboard bezel for 15.0-in. LCD models
