IBM M400 PROJECTOR: User’s Guide

Safety information

Before installing this product, read the Safety Information.

Antes de instalar este produto, leia as Informações de Segurança.

Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.

Læs sikkerhedsforskrifterne, før du installerer dette produkt.

Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.

Avant d’installer ce produit, lisez les consignes de sécurité.

Vor der Installation dieses Produkts die Sicherheitshinweise lesen.

Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.

Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.

Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.

Antes de instalar este produto, leia as Informações sobre Segurança.

Antes de instalar este producto lea la información de seguridad.

Läs säkerhetsinformationen innan du installerar den här produkten.

IBM M400 PROJECTOR: User’s Guide

General safety guidelines

Always observe the following precautions to reduce the risk of injury and property damage.

Service

not attempt to service a product yourself unless instructed to do so by the IBM Support Center. Use only an IBM authorized service provider who is approved to repair your particular product.

Note: Some parts can be upgraded or replaced by the customer. These parts are

referred to as Customer Replaceable Units, or CRUs. IBM expressly identifies CRUs

such, and provides documentation with instructions when it is appropriate for customers to replace those parts. You must closely follow all instructions when performing such replacements. Always make sure that the power is turned off and that the product is unplugged from any power source before you attempt the replacement. If you have any questions or concerns, contact the IBM Support Center.

Power cords and power adapters

Use only the power cords and power adapters supplied by the product manufacturer.

Never wrap a power cord around the power adapter or other object. Doing so can stress the cord in ways that can cause the cord to fray, crack or crimp. This can present a safety hazard.

Always route power cords so that they will not be walked on, tripped over, or pinched by objects.

Protect the cord and power adapters from liquids. For instance, do not leave your cord or power adapter near sinks, tubs, toilets, or on floors that are cleaned with liquid cleansers. Liquids can cause a short circuit, particularly if the cord or power adapter has been stressed by misuse. Liquids can also cause gradual corrosion of the power cord terminals and/or the connector terminals on the adapter which can eventually result in overheating.

Always connect power cords and signal cables in the correct order and ensure that all power cord connectors are securely and completely plugged into receptacles.

not use any power adapter that shows corrosion at the ac input pins and/or

shows signs of overheating (such as deformed plastic) at the ac input or anywhere

the power adapter.

not use any power cords where the electrical contacts on either end show signs

corrosion or overheating or where the power cord appears to have been

damaged in any way.

vii

If a

in a

Extension cords and related devices

Ensure that extension cords, surge protectors, uninterruptible power supplies, and power strips that you use are rated to handle the electrical requirements of the product. Never overload these devices. If power strips are used, the load should not exceed the power strip input rating. Consult an electrician for more information if you have questions about power loads, power requirements, and input ratings.

Plugs and outlets

receptacle (power outlet) that you intend to use with your computer equipment appears to be damaged or corroded, do not use the outlet until it is replaced by a qualified electrician.

not bend or modify the plug. If the plug is damaged, contact the manufacturer

obtain a replacement.

Batteries

Some products are equipped with a three-pronged plug. This plug fits only into a grounded electrical outlet. This is a safety feature. Do not defeat this safety feature

trying to insert it into a non-grounded outlet. If you cannot insert the plug into the outlet, contact an electrician for an approved outlet adapter or to replace the outlet with one that enables this safety feature. Never overload an electrical outlet. The overall system load should not exceed 80 percent of the branch circuit rating. Consult an electrician for more information if you have questions about power loads and branch circuit ratings.

sure that the power outlet you are using is properly wired, easily accessible, and located close to the equipment. Do not fully extend power cords in a way that will stress the cords.

Connect and disconnect the equipment from the electrical outlet carefully

All IBM personal computers contain a non-rechargeable coin cell battery to provide power to the system clock. In addition many mobile products such as Thinkpad notebook PCs utilize a rechargeable battery pack to provide system power when in portable mode. Batteries supplied by IBM for use with your product have been tested for compatibility and should only be replaced with IBM approved parts.

Never attempt to open or service any battery. Do not crush, puncture, or incinerate batteries or short circuit the metal contacts. Do not expose the battery to water or other liquids. Only recharge the battery pack strictly according to instructions included in the product documentation.

viii

IBM M400 PROJECTOR: User’s Guide

Battery abuse or mishandling can cause the battery to overheat, which can cause gasses or flame to “vent” from the battery pack or coin cell. If your battery is damaged, or if you notice any discharge from your battery or the buildup of foreign materials on the battery leads, stop using the battery and obtain a replacement from the battery manufacturer.

Batteries can degrade when they are left unused for long periods of time. For some rechargeable batteries (particularly Lithium Ion batteries), leaving a battery unused

discharged state could increase the risk of a battery short circuit, which could

v Do

shorten the life of the battery and can also pose a safety hazard. Do not let rechargeable Lithium-Ion batteries completely discharge or store these batteries in a discharged state.

Heat and product ventilation

Computers generate heat when turned on and when batteries are charging. Notebook PCs can generate a significant amount of heat due to their compact size. Always follow these basic precautions:

not leave the base of your computer in contact with your lap or any part of your body for an extended period when the computer is functioning or when the battery is charging. Your computer produces some heat during normal operation. Extended contact with the body could cause discomfort or, potentially,

skin burn.

not operate your computer or charge the battery near flammable materials or

explosive environments.

Ventilation slots, fans and/or heat sinks are provided with the product for safety, comfort, and reliable operation. These features might inadvertently become blocked by placing the product on a bed, sofa, carpet, or other flexible surface. Never block, cover or disable these features.

CD and DVD drive safety

and DVD drives spin discs at a high speed. If a CD or DVD is cracked or otherwise physically damaged, it is possible for the disc to break apart or even shatter when the CD drive is in use. To protect against possible injury due to this situation, and to reduce the risk of damage to your machine, do the following:

Always store CD/DVD discs in their original packaging Always store CD/DVD discs out of direct sunlight and away from direct heat

sources Remove CD/DVD discs from the computer when not in use

not bend or flex CD/DVD discs, or force them into the computer or their

packaging Check CD/DVD discs for cracks before each use. Do not use cracked or

damaged discs

General safety guidelines

IBM M400 PROJECTOR: User’s Guide

Registering your option

Thank you for purchasing this IBM

product. Please take a few moments to register your product and provide us with information that will help IBM to better serve you in the future. Your feedback is valuable to us in developing products and services that are important to you, as well as in developing better ways to communicate with you. Register your option on the IBM Web site at

http://www.ibm.com/pc/register/

IBM will send you information and updates on your registered product unless you indicate on the Web site questionnaire that you do not want to receive further information.

xii

IBM M400 PROJECTOR: User’s Guide

Capítulo 1. Descrição do Produto

projetor IBM M400 pode ser utilizado para apresentações de negócios e entretenimento em casa e é fácil de conectar, utilizar e manter. Alguns recursos principais desse projetor são:

Extremamente eficaz, leve e portátil com 1,1 kg (2,4 lb).

Imagens nítidas e limpas com uma alta proporção de contraste de 1800:1.

Ótima reprodução de imagens de alta qualidade de DVD.

Tecnologia digital que corrige a distorção da imagem vertical das figuras do

projetor.

Lista de Verificação da Embalagem

Além do guia do usuário, o pacote de opcionais contém o seguinte:

1-1

Figura 1-1. Acessórios Padrão

1 Projetor com capa de lente 2Cabo de S-video

3 Cabo de alimentação

4 Cabo de computador (DVI-DB15)

5 CD do Guia do Usuário (e instalação)

1-2

IBM M400 PROJECTOR: User’s Guide

6 Guia de Inicialização Rápida para Vários Idiomas

7 Estojo de transporte

8 Cabo USB

9 Cabo de vídeo (Minitomada - RCA)

10 Cabo de áudio (Minitomada - RCA)

11 Baterias

12 Controle remoto

algum dos itens relacionados anteriormente estiver faltando ou estiver

danificado, entre em contato com o local de compra.

Nota: Certifique-se de guardar o comprovante de compra; ele será solicitado para

recebimento do serviço de garantia.

Para obter informações sobre acessórios opcionais para o projetor, vá para http://www.ibm.com.

Importante:

Evite utilizar o projetor em ambientes sujos

Deixe o cabo de alimentação conectado (durante 2 a 5 minutos) até que o

projetor retorne à temperatura ambiente antes de colocá-lo no estojo. A colocação

projetor no estojo logo após desligar a energia poderá fazer com que o

projetor superaqueça e encurte a vida da lâmpada.

Para evitar danos na lente, certifique-se de colocar a capa da lente e de colocar o

projetor no estojo com a lente virada para cima.

Capítulo 1. Descrição do Produto

1-3

Recursos do Projetos

figuras a seguir mostram ângulos e recursos diferentes do projetor.

Figura 1-2. Ângulo Frontal do Projetor

1 Keypad

2 Receptor de controle remoto (IR) 3Alto-falante

4 Zoom

5 Base de elevação/base de nivelamento

6 Capa da lente 7Anel de foco

1-4

IBM M400 PROJECTOR: User’s Guide

Figura 1-3. Ângulo Traseiro do Projetor

1 Base de elevação/base de nivelamento

2 Conectores

3 Receptor de controle remoto (IR)

Figura 1-4. Keypad no Projetor

1 LED de energia

2 Botão Source/Para a esquerda

3 Botão Menu

4 Botão Auto/Para a direita

5 Botão Quick Menu/Para baixo 6Botão Power

7 LED de Status

Capítulo 1. Descrição do Produto

1-5

Figura 1-5. Conectores na Parte Traseira do Projetor

1 Slot de segurança

2 Slot USB

3 Áudio

4 Minitomada de vídeo

5 DVI-I

6 Soquete AC

Figura 1-6. Visualização Inferior do Projetor

1 Ajustadores frontais

2 Ajustador traseiro

3 Tampa da lâmpada de projeção

1-6

IBM M400 PROJECTOR: User’s Guide

Capítulo 2. Instalando o Projetor

Este capítulo fornece informações sobre o posicionamento do projetor, a conexão de uma origem de computador, a utilização do projetor com o Microsoft Windows e a exibição e o ajuste da imagem de origem do computador.

Iniciando e Desligando o Projetor

Siga estas etapas para iniciar e desligar o projetor.

Atenção: Antes de mover o projetor, certifique-se de desligar o projetor normalmente e desconectá-lo da

fonte de alimentação principal.

Conecte o cabo de alimentação ao projetor conforme mostrado na Figura 2-1. Conecte a outra extremidade a uma tomada de parede. O LED de Energia acende.

Figura 2-1. Conectando o Cabo de Alimentação

Remova a tampa da lente. Conecte dispositivos de entrada. Ligue os dispositivos conectados. Assegure-se de que o LED de Energia esteja na cor âmbar estável (não

piscando) e, em seguida, pressione o botão Power para ligar o projetor. A tela inicial do projetor é exibida e os dispositivos conectados são detectados.

Atenção: Não olhe diretamente nas lentes de projeção quando a lâmpada

estiver acesa. A luz brilhante pode prejudicar seus olhos. Utilize o cabo de dispositivo adequado para conectá-lo a um dispositivo de

vídeo. Para desligar o projetor, pressione o botão Power. O projetor prepara-se para o

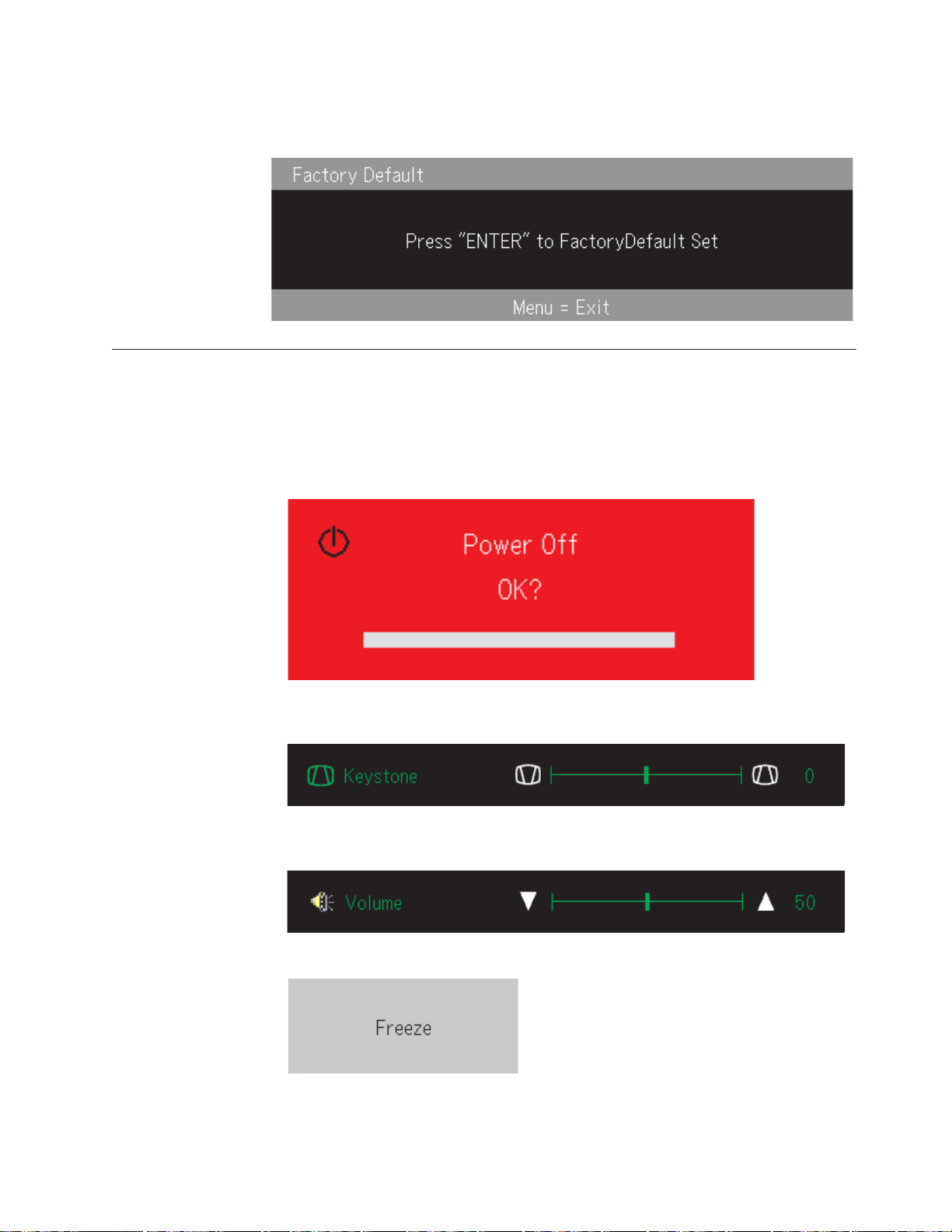

desligamento e uma mensagem ″Power off″ aparece, conforme mostrado abaixo. O projetor é desligado automaticamente dentro de 5 segundos.

Nota: Essa operação pode ser cancelada pressionando-se um botão diferente de

Power. Pressionar o botão Power novamente desligará a energia.

2-1

Nota: Deixe o cabo de alimentação conectado por pelo menos 2 a 5 minutos até

que o projetor retorne à temperatura ambiente antes de colocá-lo no estojo. A colocação do projetor no estojo logo após desligar a energia poderá fazer com que o projetor superaqueça.

Atenção:

fontedealimentação

Antesdemoveroprojetor,

principal.

Posicionando o Projetor

Para determinar onde posicionar o projetor, considere o tamanho e a forma da tela,

localização das tomadas de força e a distância entre o projetor e o restante do

equipamento. A seguir estão algumas pautas gerais:

Posicione o projetor sobre uma superfície plana em ângulo reto à tela. O projetor deve estar pelo menos a 1,5 m (4,9 pés) da tela de projeção.

Posicione o projetor a uma distância de 2,7 m (9 pés) da fonte de alimentação e 1,8 m (6 pés) do dispositivo de vídeo (a menos que compre cabos de extensão). Para assegurar acesso adequado aos cabos, não coloque o projetor a uma distância de 0,15 m (6 pol.) de uma parede ou outro objeto.

Posicione o projetor na distância desejada da tela. A distância da lente do projetor à tela, a definição do zoom e o formato do vídeo determinam o tamanho da imagem projetada.

certifique-sededesligaroprojetor

normalmenteedesconectá-lo

Figura 2-2.

2-2

IBM M400 PROJECTOR: User’s Guide

Tabela 2-1.

Distância do centro da lente para a parte

Intervalo de

Tamanho da tela diagonal

Largura da Imagem

Altura da imagem

inferior da

imagem operação da lente de zoom

(m/pés)

1- a 1,20/- a 3,94

21,54 a 1,85/5,05 a 6,07

32,33 a 2,80/7,64 a 9,19

43,12 a 3,75/10.24 a 12,30

53,91 a 4,70/12,83 a 15,42

64,70 a 5,64/15,42 a 18,50

75,89 a 7,07/19,32 a 23,20

87,04 a 8,45/23,10 a 27,72

97,85 a 9,44/25,79 a 30,97

(m/pol.)

0,66/26

1,02/40

1,52/60

2,03/80

2,54/100

3,05/120

3,81/150

4,57/180

5,08/200

(m/pés)

0,53/1,74

0,81/2,66

1,22/4

1,63/5,35

2,03/6,66

2,44/8

3,05/10

3,55/12

4,05/13,32

(m/pés)

0,40/1,31

0,61/2

0,91/2,99

1,22/4

1,52/4,99

1,83/6

2,29/7,51

2,74/8,99

3,05/10

(m/pés)

0,07/0,23

0,11/0,36

0,16/0,52

0,21/0,69

0,26/0,85

0,31/1,02

0,39/1,28

0,47/1,54

0,52/1,71

Ajustando o Nível e a Altura do Projetor

Para ajustar o nível e a altura do projetor, complete o seguinte procedimento:

Para elevar a altura do projetor, levante-o e pressione os botões de ajuste de altura. A base de elevação desce.

Para fazer pequenos ajustes na altura, gire a base de elevação. Para diminuir o nível do projetor, pressione o botão de ajuste de altura e

pressione para baixo a parte superior do projetor.

Capítulo 2. Instalando o Projetor

2-3

v A

Nota:

Ajustando a Imagem

Para ajustar o zoom, o foco e a distorção da imagem, complete as seguintes etapas:

Gire os anéis sobre o projetor para ajustar o zoom e o foco, conforme mostrado abaixo.

Utilize os botões Keystone (apenas no controle remoto) para corrigir o efeito de imagem trapézio (parte superior maior que a inferior). Os botões Keystone no controle remoto são mostrados abaixo.

mesa ou o suporte do projetor deve estar nivelado e firme. Posicione o projetor para que fique perpendicular à tela. Certifique-se de que os cabos não estejam em um local onde possam

causar batidas sobre o projetor.

2-4

IBM M400 PROJECTOR: User’s Guide

O controle de distorção de imagem aparece no OSD, conforme mostrado.

Para ajustar a distorção da imagem no projetor, pressione Quick Menu e selecione o submenu keystone; em seguida, utilize os botões para a esquerda/para a direita para ajustar a distorção da imagem.

Resolução da Imagem

resolução XGA da imagem projetada é 1024 x 768 (XGA). O projetor é compatível com resoluções de tela de até 1280 x 1024 (SXGA). Se a resolução de tela do computador for maior que 1280 x 1024 (SXGA), reconfigure-a para uma resolução mais baixa antes de conectar o projetor.

Nota: A imagem expande automaticamente imagens de 640 x 480 (VGA) e 800 x

600 (SVGA) para 1024 x 768 (XGA).

Ajustando o Volume

Para ajustar o volume, siga estas etapas:

Pressione os botões Volume +/- (mostrados a seguir) no projetor ou no controle remoto. O controle de volume aparece no OSD.

Utilize os botões Volume +/- para ajustar o nível. Os botões de volume no controle remoto são mostrados a seguir.

Pressione o botão Mute (apenas no controle remoto) para desligar o volume. Pressione o botão Mute novamente para desligar o mute. A seguir é mostrado o OSD quando o Mute é ativado.

Capítulo 2. Instalando o Projetor

2-5

2-6

IBM M400 PROJECTOR: User’s Guide

Capítulo 3. Conectando Dispositivos ao Projetor

Este capítulo fornece informações sobre a conexão de dispositivos ao projetor M400.

Conectando dispositivos

Computadores e dispositivos de vídeo podem ser conectados ao projetor ao mesmo tempo. Verifique o manual do usuário do dispositivo de conexão para confirmar se ele tem o conector de saída adequado.

1 Slot USB 2 Áudio 3 Minitomada de vídeo 4 DVI-I

3-1

3-2

IBM M400 PROJECTOR: User’s Guide

Capítulo 4. Utilizando os Recursos do Projetor

Este capítulo fornece informações sobre a utilização do controle remoto, do áudio, dos botões do keypad e de outros recursos do projetor.

Utilizando o Controle Remoto

controle remoto utiliza duas baterias AAA fornecidas. Elas são facilmente instaladas deslizando-se a tampa para fora na parte traseira do controle remoto, alinhando-se as extremidades + e - das baterias e deslizando-as para o local e, em seguida, recolocando-se a tampa.

CUIDADO: Para reduzir o risco de danos aos olhos, não olhe diretamente para a luz laser do controle remoto e não aponte a luz laser para os olhos de qualquer outra pessoa.

controle remoto é equipado com um laser Classe II que emite radiação.

figura a seguir fornece uma ilustração do controle remoto.

1 Laser

4-1

2 Transmissor IR

3 LED de Status

4 Auto

5 Blank

6 Enter

7 Cursor para cima

8 Cursor para a direita

9 Apoio do cursor

10 Distorção da imagem

para cima

11 Distorção da imagem

para baixo

12 Mute

13 Mouse para a direita

14 Mouse para a esquerda

15 Abaixar volume

16 Subir volume

17 Cursor para baixo

18 Cursor para a esquerda

19 Menu

20 Freeze

21 Source

22 Power

Inserindo as Baterias do Controle Remoto

utilizar o controle remoto pela primeira vez, instale as baterias que foram

fornecidas. Siga estas etapas para inserir novas baterias no controle remoto.

Remova a tampa do compartimento de bateria deslizando-a na direção da seta, conforme mostrado.

4-2

IBM M400 PROJECTOR: User’s Guide

de 7 m

Insira as baterias fornecidas anotando a polaridade (+/-), conforme mostrado.

Recoloque a tampa, conforme mostrado.

Nota:

Utilize apenas baterias alcalinas AAA. Descarte as baterias usadas de acordo com as leis e os regulamentos

governamentais locais. Remova as baterias quando não estiver utilizando o controle remoto por

períodos prolongados.

Intervalo de Operação

Esse controle remoto utiliza transmissão por infravermelho para controlar o projetor. Não é necessário apontar o controle remoto diretamente para o projetor. Desde que você não esteja segurando o controle remoto em direção às laterais ou à parte traseira do projetor, o controle remoto funcionará dentro de um raio máximo

(22 pés) e 30° acima ou abaixo do nível do projetor. Se o projetor não

responder ao controle remoto, aproxime-o um pouco.

Nota: Você também pode apontar o controle remoto para a imagem projetada.

Botões do Projetor e do Controle Remoto

projetor pode ser operado utilizando-se o controle remoto ou os botões na parte superior do projetor. Todas as operações podem ser executadas com o controle remoto. A figura a seguir mostra os botões correspondentes no controle remoto e

Capítulo 4. Utilizando os Recursos do Projetor

4-3

no projetor para operação no menu OSD.

1 Menu 2 Botão Source/Para a esquerda 3 Botão Quick menu/Para baixo 4 Botão Auto/Para a direita 5 Botão Para cima 6 Botão Auto/Enter

4-4

IBM M400 PROJECTOR: User’s Guide

0 ©

Capítulo 5. Controles de Menu do On-Screen Display

Esse projetor tem um OSD (On-Screen Display) que permite fazer ajustes de imagem e alterações em várias definições.

Nota: Você deve ter uma exibição na tela para acessar o OSD.

Navegando no OSD

Você pode utilizar o controle remoto ou os botões na parte superior do projetor para navegar e fazer alterações no OSD. As seguintes seções mostram os menus no OSD.

Menu de imagem

menu Image pode ser localizado através do menu principal. Para acessar o menu Image, siga estas etapas:

Pressione o botão Menu para abrir o menu principal. Pressione o botão do cursor para a esquerda/para a direita para mover-se para

menu Image.

Pressione o botão do cursor para baixo para mover-se para baixo no menu Image. O menu Image é mostrado a seguir.

seguinte tabela mostra as opções que você verá no menu Image e o padrão.

Item

Brightness

Descrição

Pressione o botão do cursor para

esquerda/para a direita para

ajustar o brilho.

Intervalo: -50 a 50

Padrão

5-1

0 V

Item

Contrast

Picture Adjustment

Fine Picture

Position

Descrição

Pressione o botão do cursor para

esquerda/para a direita para

ajustar o contraste.

Intervalo: -50 a 50 Pressione o botão do cursor para

esquerda/para a direita para

ajustar o número de amostragem

A/D.

Intervalo: -50 a 50 Pressione o botão do cursor para

esquerda/para a direita para

ajustar o relógio de amostragem

A/D.

Intervalo: -50 a 50 Pressione o botão do cursor para

esquerda/para a direita para

mover a imagem para a esquerda

direita.

Intervalo: -50 a 50 Pressione o botão do cursor para

esquerda/para a direita para mover a imagem para cima ou para baixo.

Padrão

Autodetectado

Cor

Tint

Sharpness

Cancel

Menu Color

Para acessar o menu Color, siga estas etapas:

Pressione o botão Menu para abrir o menu principal.

Intervalo: -50 a 50 Pressione o botão do cursor para

esquerda/para a direita para ajustar a saturação do vídeo.

Intervalo: -50 a 50 Pressione o botão do cursor para

esquerda/para a direita para ajustar a matiz do vídeo.

Intervalo: -50 a 50 Pressione o botão do cursor para

esquerda/para a direita para ajustar a nitidez do vídeo.

Intervalo: -50 a 50 Pressione o botão Enter para

reconfigurar Brightness, Contrast, Picture Adjust, H Position, V Position, Color, Tint e Sharpness para os valores padrão.

5-2

IBM M400 PROJECTOR: User’s Guide

Pressione o botão do cursor para a esquerda/para a direita para mover-se para

menu Color.

Pressione o botão do cursor para cima/para baixo para mover-se dentro do menu Color. O menu Color é mostrado a seguir.

seguinte tabela mostra as opções que você verá no menu Color e o padrão.

Item

Quick Color Adj.

Gamma

Color Temperature

White

Descrição

Pressione o botão do cursor para

esquerda/para a direita para selecionar um Ajuste de Cor diferente.

Intervalo: Padrão/Cor/Personalizado

Pressione o botão do cursor para

esquerda/para a direita para selecionar uma Correção Gama diferente.

Intervalo: Normal/Natural/Real Pressione o botão do cursor para

esquerda/para a direita para selecionar uma temperatura de cor diferente.

Intervalo: Baixo/Médio/Normal/Alto

Pressione o botão do cursor para

esquerda/para a direita para selecionar um segmento branco diferente.

Padrão

Personalizado

Normal

RGB: Alto

Vídeo: Baixo

White Balance

Intervalo: Baixo/Médio/Alto Altere o Menu White Balance

Capítulo 5. Controles de Menu do On-Screen Display

N/A

5-3

Item

Color Space

Cancel

Menu View

Para acessar o menu View, siga estas etapas:

Pressione o botão Menu para abrir o menu principal. Pressione o botão do cursor para a esquerda/para a direita para mover-se para

Pressione o botão do cursor para cima/para baixo para mover-se para cima e para baixo no menu View. O menu View é mostrado a seguir.

menu View.

Descrição

Pressione o botão do cursor para

esquerda/para a direita para selecionar um espaço de cor diferente.

Intervalo: BT.709/SMPTE240 Reconfigure Quick Color Adj.,

Gamma, Color Temp., White e Color Space para o valor padrão.

Padrão

BT.709

N/A

5-4

IBM M400 PROJECTOR: User’s Guide

seguinte tabela mostra as opções que você verá no menu View e o padrão.

Item

Aspect

Descrição

Pressione o botão do cursor para

esquerda/para a direita para selecionar uma proporção de aspecto diferente.

Intervalo RGB: Automático/Direto/Traseiro

Intervalo de Vídeo: Automático/Amplo/Zoom

Padrão

Automático

Item

Filter

Vertical Flip

Horizontal Flip

Keystone

Keystone Save

Descrição

Pressione o botão do cursor para

esquerda/para a direita para selecionar um filtro de escala diferente.

Intervalo: 1 a 5 Pressione o botão do cursor para

esquerda/para a direita para selecionar uma inversão vertical diferente.

Intervalo: Desativado/Ativado Pressione o botão do cursor para

esquerda/para a direita para selecionar uma inversão horizontal diferente.

Intervalo: Desativado/Ativado Pressione o botão do cursor para

esquerda/para a direita para ajustar a distorção de imagem do vídeo.

Intervalo: -50 a 50 Pressione o botão do cursor para

esquerda/para a direita para selecionar o salvamento da distorção de imagem.

Padrão

Desativado

Ativado

Digital Zoom Panning

Cancel

Menu Setup

Para acessar o menu Setup, siga estas etapas:

Pressione o botão Menu para abrir o menu principal. Pressione o cursor para a esquerda/para a direita para mover-se para o menu

Setup.

Intervalo: Desativado/Ativado Digital Zoom Use os botões ↑,→,↓,← da bandeja

para ampliar a imagem Digitalmente.

Reconfigure Aspect, Filter, Vertical Flip, Horizontal Flip, Keystone e Keystone Save para

valores padrão.

N/A N/A

N/A

Capítulo 5. Controles de Menu do On-Screen Display

5-5

Pressione o botão do cursor para cima/para baixo para mover-se para cima e para baixo no menu Setup. O menu Setup é mostrado a seguir.

seguinte tabela mostra as opções que você verá no menu Setup e o padrão.

Item

Auto Source

Auto Power Off

Menu Position

Input Format

Descrição

Pressione o botão do cursor para

esquerda/para a direita para selecionar. Isso procurará automaticamente todas as portas

entrada.

Intervalo: Ativado/Desativado Pressione o botão do cursor para

esquerda/para a direita para selecionar. Isso desligará automaticamente a lâmpada quando não houver nenhum sinal para o projetor durante 5 minutos.

Intervalo: Ativado/Desativado Pressione o botão do cursor para

esquerda/para a direita para selecionar locais de OSD diferentes.

Intervalo: Para a Esquerda/Para Cima/Centro/Para a Direita/Para Baixo

Altere o menu Input Format.

Padrão

Ativado

Desativado

Centro

Automático

5-6

IBM M400 PROJECTOR: User’s Guide

Item

Presentation Timer

Cancel

Menu Option

Para acessar o menu Option, siga estas etapas:

Pressione o botão Menu para abrir o menu principal. Pressione o botão do cursor para a esquerda/para a direita para mover-se para

menu Option.

Pressione o botão do cursor para cima/para baixo para mover-se para cima e para baixo dentro do menu Option. O menu Option é mostrado a seguir.

Descrição

Pressione o botão do cursor para

esquerda/para a direita para selecionar o tempo para o cronômetro da apresentação.

Intervalo: Desativado/10 min/20 min/30 min/40 min/50 min/60 min

Reconfigure Auto Source, Auto Power off, Menu Position e Presentation Timer para os valores padrão.

Padrão

Desativado

N/A

Capítulo 5. Controles de Menu do On-Screen Display

5-7

A seguinte tabela mostra as opções que você verá no menu Option e o padrão.

Item

Language

Screen

Background

Startup Screen

Descrição

Altere o Idioma

Intervalo: Inglês/Alemão/Francês/Italiano

Espanhol/Sueco/Coreano

/Chinês Simplificado

Chinês Tradicional/Japonês Pressione o botão do cursor para

esquerda/para a direita para

selecionar o menu On-screen.

Intervalo: Ativado/Desativado Pressione o botão do cursor para

esquerda/para a direita para selecionar a cor de segundo plano.

Intervalo: Azul/Preto Pressione o botão do cursor para

esquerda/para a direita para selecionar a tela de inicialização.

Padrão

Inglês

Ativado

Azul

Logotipo

Cancel

Menu Information

Para acessar o menu Information, siga estas etapas:

Pressione o botão Menu para abrir o menu principal. Pressione o botão do cursor para a esquerda/para a direita para mover-se para

menu Info.

Intervalo: Logotipo/Em Branco Predefina On Screen, Background

Startup Screen para os valores padrão.

N/A

5-8

IBM M400 PROJECTOR: User’s Guide

Pressione o botão do cursor para cima/para baixo para mover-se para cima e para baixo no menu Info. O menu Info é mostrado a seguir.

Submenus

White Balance

seguinte tabela mostra as opções que você verá no menu Info.

Item

Factory Default

Lamp Timer Reset Resolution Frequency Lamp Timer

Version

Descrição

Altere o menu de mensagens do padrão de fábrica.

Reconfigure o cronômetro da lâmpada. Mostra o formato H/V da Resolução. Mostra informações H/V da Freqüência. Mostra informações sobre horas utilizadas

lâmpada.

Mostra informações sobre versão do Firmware.

Esta seção descreve os diferentes submenus em detalhes.

White Balance é um menu para fins de calibragem. Siga estas etapas para utilizar o menu White Balance.

Capítulo 5. Controles de Menu do On-Screen Display

5-9

3. Em

5. A

Comece localizando uma origem de padrão de preto no computador.

Pressione Enter para executar o ajuste de preto.

seguida, localize uma origem de padrão de branco no computador.

Pressione Enter para executar o ajuste de branco.

tela mostrará ″White Balance Complete″ se o processo de ajuste for concluído

com êxito.

5-10

IBM M400 PROJECTOR: User’s Guide

Input format

imagem a seguir mostra o menu Input format.

seguinte tabela mostra as opções que você verá no menu Input format e o

padrão.

Item

Modo PC de Input Format

Descrição

Pressione o botão para

Padrão

Automático cima/para baixo para selecionar Input format.

Intervalo: Automático/RGB/Digital/ Componente

Modo Video/S-Video de Input Format

Pressione o botão do cursor para cima/para baixo para selecionar

Automático

Input format.

Intervalo: Automático/NTSC/PAL/SECAM/

NTSC4.43/PAL M/PAL N/PAL

padrão para Input format é Automático. Você verá a seguinte imagem quando o

projetor estiver procurando a origem do vídeo de entrada.

Capítulo 5. Controles de Menu do On-Screen Display

5-11

Language

imagem a seguir mostra o menu Language. O idioma padrão é o inglês.

Zoom

Pressione o botão do cursor para cima/para baixo para zoom Digital.

Panning

Use os botões ↑,→,↓,← da bandeja para ampliar a imagem Digitalmente.

Reconfiguração de Lamp Timer

Pressione o botão Enter para reconfigurar Lamp Timer.

5-12

IBM M400 PROJECTOR: User’s Guide

Factory default

Pressione o botão Enter para restaurar definições padrão.

Teclas de Acesso Rápido

Esta seção mostra as Teclas de Acesso Rápido e descreve suas funções.

Power off: Pressione a tecla Power para desligar o projetor. Aguarde 5 segundos para o projetor desligar automaticamente ou pressione a tecla Power novamente para desligá-lo imediatamente. A imagem exibida quando o projetor está desligando é mostrada a seguir.

Keystone: Pressione o botão do cursor +/- para Keystone (no controle remoto) para ajustar a distorção de imagem do vídeo. O intervalo é -50 a 50.

Volume: Pressione o botão do cursor +/- para Volume (no controle remoto) para ajustar o volume. O intervalo é 0 a 100.

Freeze: Utilize a tecla freeze para congelar ou descongelar a imagem.

Capítulo 5. Controles de Menu do On-Screen Display

5-13

Menu Quick

Esta seção é um guia de referência rápida para os seguintes itens de menu.

Brightness: Pressione o botão do cursor para a esquerda/para a direita para ajustar o brilho do vídeo. O intervalo é -50 a 50.

Contrast: Pressione o botão do cursor para a esquerda/para a direita para ajustar o contraste do vídeo. O intervalo é -50 a 50.

Volume: Pressione o botão do cursor para a esquerda/para a direita para ajustar

volume. O intervalo é 0 a 100.

Keystone: Pressione o botão do cursor para a esquerda/para a direita para ajustar a distorção de imagem do vídeo. O intervalo é -50 a 50.

5-14

IBM M400 PROJECTOR: User’s Guide

Apêndice A. Manutenção

Este capítulo fornece informações sobre a manutenção do projetor.

Limpando a Lente

Para limpar a lente, complete o seguinte procedimento:

Aplique um limpador de lente de câmera não abrasivo em um pano macio e seco.

Nota: Evite usar uma quantidade excessiva de limpador e não aplique-o

diretamente nas lentes.Limpadores abrasivos, solventes ou outros produtos químicos adstringentes podem riscar a lente.

Passe o pano de limpeza levemente sobre a lente em um movimento circular.Se você não pretende utilizar o projetor imediatamente, recoloque a tampa das lentes.

Substituindo a Lâmpada do Projetor

lâmpada do projetor deve ser substituída apenas por uma peça de substituição certificada pela IBM, que você poderá pedir de seu parceiro de negócios ou ir para www.ibm.com/pc.

Para substituir a lâmpada do projetor, complete o seguinte procedimento:

Desligue o projetor, desconecte o cabo de alimentação e permita que o projetor esfrie por pelo menos 1 hora.

Utilize uma chave de fenda Phillips para remover o parafuso da tampa do compartimento da lâmpada conforme mostrado em 2.

Remova a tampa do compartimento da lâmpada conforme mostrado em 3.

Remova os dois parafusos do módulo da lâmpada conforme mostrado em 4.

A-1

Levante a alça do módulo conforme mostrado em 5.

Puxe firmemente a alça do módulo para remover o módulo da lâmpada conforme mostrado em 6.

Inverta as etapas 1 a 5 para instalar o novo módulo da lâmpada.

Atenção: Este produto contém uma Lâmpada de Arco de Metal, que contém

Mercúrio. Descarte-a de acordo com as leis e os regulamentos locais.

EUA restringem ou proíbem o descarte de algumas ou todas as lâmpadas que contêm mercúrio no lixo municipal. Visite www.lamprecycle.org para obter informações adicionais sobre requisitos específicos de descarte por estado e instalações de reciclagem.

Para usuários em Connecticut, ligue gratuitamente para Northeast Lamp Recycling

número 1-888-657-5267 para fazer um pedido da entrega de um kit que inclui

uma caixa para a lâmpada, uma fita e uma etiqueta de remessa de devolução.

Reconfigurando a Lâmpada

Depois de substituir a lâmpada, reconfigure o contador de hora da lâmpada para zero. Siga estas etapas.

Pressione o botão Menu para abrir o menu principal.

A-2

IBM M400 PROJECTOR: User’s Guide

Pressione o botão do cursor para a esquerda/para a direita para mover-se para

menu Info.

Pressione o botão do cursor para cima/para baixo para mover-se para baixo em Lamp Timer.

Pressione o botão Enter. A tela mostrará ″Press″ENTER″ to Lamp Timer Reset″. Pressione o botão Enter novamente para reconfigurar as horas de lâmpada.

Utilizando o Slot de Segurança

projetor tem um slot de segurança, conforme mostrado. Consulte as informações

fornecidas com a trava para obter instruções sobre como utilizá-la.

Apêndice A. Manutenção

A-3

A-4

IBM M400 PROJECTOR: User’s Guide

v Se a

Apêndice B. Resolução de Problemas

seguinte tabela fornece informações sobre detecção de problemas do projetor. Em alguns casos, mais de uma solução possível é fornecida. Tente as soluções na ordem em que são apresentadas. Quando o problema for resolvido, você poderá ignorar as soluções adicionais.

Tabela B-1. Detecção de problemas

Problema

Não aparece nenhuma imagem na tela.

imagem está borrada

imagem é maior na parte superior ou inferior (efeito trapézio).

imagem está invertida ou de cabeça para baixo.

imagem está riscada.

imagem está plana sem contraste

cor da imagem projetada não corresponde à imagem de origem

Solução

Certifique-se de que o computador e o projetor estejam ligados.

tela Blank for mostrada, pressione o botão

Blank no controle remoto.

Verifique as definições no PC notebook ou desktop. Desligue todos os equipamentos e ligue-os

novamente na ordem correta. Consulte “Iniciando e Desligando o Projetor” na página 2-1.

Ajuste o Foco no projetor. Consulte “Ajustando a Imagem” na página 2-4.

Pressione o botão Auto no controle remoto ou no projetor.

Assegure-se de que a distância do projetor para a tela esteja dentro do intervalo especificado.

Posicione o projetor para que fique o máximo perpendicular à tela.

Utilize o botão Keystone no controle remoto ou no projetor para corrigir o problema. Consulte “Ajustando a Imagem” na página 2-4.

Verifique a definição Projection no menu Setup do OSD. Consulte “Menu View” na página 5-4

Ajuste as definições Frequency and Tracking no menu Setup do OSD para as definições padrão. Consulte “Navegando no OSD” na página 5-1.

Para se assegurar de que o problema não seja causado por uma placa de vídeo do PC conectada, conecte a outro computador.

Ajuste a definição Contrast no menu Main do OSD. Consulte “Navegando no OSD” na página 5-1.

Ajuste as definições Color Temp. e Gamma no menu ColorMgr do OSD. Consulte “Menu Color” na página 5-2.

B-1

v Se

Tabela B-1. Detecção de problemas (continuação)

Problema

Não há luz do projetor

Solução

Verifique se o cabo de alimentação está firmemente conectado.

Assegure-se de que a fonte de alimentação esteja boa testando-a com outro dispositivo elétrico.

Reinicie o projetor na ordem correta e verifique se o LED de energia está verde.

tiver substituído a lâmpada recentemente, tente

reconfigurar as conexões da lâmpada. Certifique-se

que a tampa da lâmpada esteja nivelada com o

estojo do projetor quando fechada. Recoloque o módulo da lâmpada. Consulte

“Substituindo a Lâmpada do Projetor” na página A-1.

Coloque a lâmpada antiga de volta no projetor e leve-o à assistência técnica.

lâmpada apaga.

Oscilações de energia podem fazer com que a lâmpada desligue. Pressione o botão Power duas vezes para desligar o projetor. Quando o LED Lamp Ready acender, pressione o botão Power.

Substitua por um novo módulo de lâmpada. Consulte “Substituindo a Lâmpada do Projetor” na página A-1.

Coloque a lâmpada antiga de volta no projetor e leve-o à assistência técnica.

projetor não responde ao

controle remoto.

Direcione o controle remoto aos sensores remotos frontal e traseiro no projetor.

Assegure-se de que o caminho entre o controle remoto e o sensor não esteja obstruído.

Desligue todas as luzes fluorescentes na sala. Verifique a polaridade da bateria. Substitua as baterias. Desligue outros dispositivos ativados por

infravermelho que estão ao redor. Leve o controle remoto à assistência técnica.

Não há som.

Ajuste o volume no controle remoto. Consulte “Ajustando o Volume” na página 2-5. Ajuste o volume na origem de áudio. Verifique a conexão dos cabos de áudio. Teste a saída de áudio de origem com outros

alto-falantes. Leve o projetor à assistência técnica.

som está distorcido.

Verifique a conexão dos cabos de áudio. Teste a saída de áudio de origem com outros

alto-falantes. Leve o projetor à assistência técnica.

B-2

IBM M400 PROJECTOR: User’s Guide

v O

LEDs do Projetor

ajudar a detectar problemas.

Tabela B-2. Comportamento dos LEDs do Projetor e Erros do Projetor

Comportamento do LED

Aceso vermelho

Quando a energia está ligada (Aceso verde)

Aceso vermelho

Piscando âmbar durante 60 segundos,

Piscando vermelho (aceso por 1 segundo/apagado por 1 segundo)

Aceso vermelho Piscando vermelho (aceso por 0,5

segundo/apagado por 0,5 segundo)

Aceso vermelho

Piscando vermelho (aceso por 0,5 segundo/apagado por 0,5 segundo)

Aceso âmbar

Piscando vermelho (aceso por 1 segundo/apagado por 1 segundo)

Quando a lâmpada queima durante o uso

Piscando âmbar durante 90 segundos,

LEDs na parte superior do projetor indicam o estado do projetor e podem

Explicação

hora de substituir a lâmpada. Substitua-a por

novo cartucho de lâmpada. Consulte “Substituindo a Lâmpada do Projetor” na página A-1 para obter informações adicionais.

Espera (Aceso âmbar)

lâmpada atingiu o final de sua vida útil. A

energia não será mais ligada.

seguida aceso âmbar

projetor pode ser utilizado por 100 horas após a lâmpada atingir o final de sua vida útil. Substitua-a por um novo cartucho de lâmpada. Consulte “Substituindo a Lâmpada do Projetor” na página A-1.

tampa da lâmpada está aberta.

tampa da lâmpada não foi montada

adequadamente. Monte-a adequadamente.

temperatura está muito alta.

protetor de temperatura foi ativado. Se a temperatura ambiente estiver alta, mova o projetor para um local frio. Se a temperatura interna do projetor estiver alta, verifique os slots

ventilação do ventilador de resfriamento e

limpe-os se estiverem entupidos. Quando o protetor de temperatura é ativado, a

energia desliga e, em alguns casos, não volta imediatamente. Nesse caso, aguarde 90 segundos, em seguida tente novamente.

ventilador parou.

Desconecte o cabo de alimentação e entre em contato com uma loja que vende o IBM M400 PROJECTOR para obter reparos.

lâmpada não acenderá.

Aguarde pelo menos 90 segundos, em seguida ligue a energia novamente. Se o problema persistir, desconecte o cabo de alimentação e entre em contato com uma loja que vende o IBM M400 PROJECTOR para obter reparos.

Quando a lâmpada não acende no início

Aceso âmbar

Nota: Se os LEDs do projetor piscarem de uma forma que não foi listada acima,

desconecte o cabo de alimentação e entre em contato seu revendedor.

Apêndice B. Resolução de Problemas

B-3

5. Se o

Protetor Térmico

Quando a temperatura dentro do projetor fica muito alta, o indicador do LED pisca vermelho (0,5 segundo aceso/0,5 segundo apagado), o indicador Em Espera fica um vermelho estável e ao mesmo tempo o protetor de temperatura opera e desliga a energia do projetor. Se isso acontecer, siga estas etapas:

Desligue a energia e desconecte o plugue de alimentação da tomada de parede. Verifique a temperatura ambiente. Se o projetor estiver sendo utilizado em um

local com uma temperatura ambiente alta, coloque-o em um local mais frio. Verifique as aberturas de ventilação para se certificar de que estejam livres.

Limpe as aberturas de ventilação se estiverem obstruídas. Aguarde pelo menos 1 hora até que a temperatura do projetor caia, em seguida

conecte-o novamente.

mesmo problema continuar, entre em contato com o revendedor.

B-4

IBM M400 PROJECTOR: User’s Guide

5° a

Apêndice C. Especificações

seguir há especificações para o projetor IBM M400.

Temperatura

(não-operacional) Altitude (operacional)

Altitude (não-operacional) Umidade (operacional)

Umidade (não-operacional) Dimensões Peso Óptica (intervalo de foco) Tipo de lâmpada Requisitos de energia de

entrada

35° C (41° a 95° F) no nível do mar

-10° a 60° C (14° a 140° F)

3.048 m (0 a 10.000 pés)

12.192 m (0 a 40.000 pés) Umidade relativa de 5% a 90%, sem condensação

Umidade relativa de 5% a 95%, sem condensação 183 x 163 x 48 mm (7,2 x 6,4 x 1,9 pol.) 1,1 kg (2,4 lb) sem a embalagem 1,2 - 9,4 m (4 a 31 pés) Lâmpada de 114 W 100-240 V 1,8 A 50/60 Hz

C-1

C-2

IBM M400 PROJECTOR: User’s Guide

Apêndice D. Service and Support

The following information describes the technical support that is available for your product, during the warranty period or throughout the life of the product. Refer to your IBM Statement of Limited Warranty for a full explanation of IBM warranty terms.

Online technical support

Online technical support is available during the life of your product through the Personal Computing Support Web site at www.ibm.com/pc/support.

During the warranty period, assistance for replacement or exchange of defective components is available. In addition, if your IBM option is installed in an IBM computer, you might be entitled to service at your location. Your technical support representative can help you determine the best alternative.

Telephone technical support

Installation and configuration support through the IBM Support Center will be withdrawn or made available for a fee, at IBM’s discretion, 90 days after the option has been withdrawn from marketing. Additional support offerings, including step-by-step installation assistance, are available for a nominal fee.

assist the technical support representative, have available as much of the

following information as possible:

Option name Option number Proof of purchase Computer manufacturer, model, serial number (if IBM), and manual Exact wording of the error message (if any) Description of the problem Hardware and software configuration information for your system

possible, be at your computer. Your technical support representative might want

walk you through the problem during the call.

For the support telephone number and support hours by country, refer to the following table. If the number for your country or region is not listed, contact your IBM reseller or IBM marketing representative. Response time may vary depending

the number and nature of the calls received.

Phone numbers are subject to change without notice. For the latest phone number list, go to www.ibm.com/pc/support and click Support Phone List.

Country or Region Telephone Number Country or Region Telephone Number

Argentina Australia Austria

0800-666-0011 1300-130-426 01-24592-5901

Malaysia Mexico Netherlands

03-7727-7800 001-866-434-2080 020-514-5770

D-1

66 81 11 00

45 20 82 00

02 38 55 74 50

Country or Region Telephone Number Country or Region Telephone Number

Belgium

Dutch 02-210-9820

New Zealand

0800-446-149

French 02-210-9800 Bolivia Brazil Canada

0800-0189

55-11-3889-8986

1-800-565-3344

Norway Peru Philippines

0-800-50-866 632-995-2225

Toronto 416-383-3344 Chile China (PRC) China (Hong Kong

800-224-488

800-810-1818

852-2825-7799

Portugal Russia Singapore

21-791 51 47 095-940-2000 1800-840-9911

S.A.R.) Columbia Denmark Ecuador

980-912-3021

1-800-426911 (option

Spain Sweden Switzerland

91-662 49 16 08-477 4420 058-333-09-00

#4) Finland France Germany Indonesia Ireland Italy Japan

09-459 69 60

07032-1549 201

021-523-8535

01-815-9202

02-7031-6101

Consumer customers

Taiwan Thailand Turkey United Kingdom United States Uruguay Venezuela

886-2-2725-9799 66-2-273-4000 00-800-446-32-041 0-1475-555 055 1-800-426-7378 000-411-005-6649 0-800-100-2011

0120-887-870

Luxembourg

Business customers

0120-887-874

298-977 5063

Vietnam

848-8295-160

D-2

IBM M400 PROJECTOR: User’s Guide

Apêndice E. IBM Statement of Limited Warranty Z125-4753-07 - 11/2002

Part 1 - General Terms

This Statement of Limited Warranty includes Part 1 - General Terms, Part 2 Country-unique Terms, and Part 3 - Warranty Information. The terms of Part 2 replace or modify those of Part 1. The warranties provided by IBM in this Statement of Limited Warranty apply only to Machines you purchase for your use, and not for resale. The term ″Machine″ means an IBM machine, its features, conversions, upgrades, elements, or accessories, or any combination of them. The term ″Machine″ does not include any software programs, whether pre-loaded with the Machine, installed subsequently or otherwise.

Nothing in this Statement of Limited Warranty affects any statutory rights of consumers that cannot be waived or limited by contract.

What this Warranty Covers

IBM warrants that each Machine 1) is free from defects in materials and workmanship and 2) conforms to IBM’s Official Published Specifications (″Specifications″) which are available on request. The warranty period for the Machine starts on the original Date of Installation and is specified in Part 3 Warranty Information. The date on your invoice or sales receipt is the Date of Installation unless IBM or your reseller informs you otherwise. Many features, conversions, or upgrades involve the removal of parts and their return to IBM. A part that replaces a removed part will assume the warranty service status of the removed part. Unless IBM specifies otherwise, these warranties apply only in the country or region in which you purchased the Machine.

THESE WARRANTIES ARE YOUR EXCLUSIVE WARRANTIES AND REPLACE ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE WARRANTY PERIOD.

WARRANTIES APPLY AFTER THAT PERIOD. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

What this Warranty Does not Cover

This warranty does not cover the following:

any software programs, whether pre-loaded or shipped with the Machine, or

installed subsequently;

failure resulting from misuse (including but not limited to use of any Machine capacity or capability, other than that authorized by IBM in writing), accident, modification, unsuitable physical or operating environment, or improper maintenance by you;

failure caused by a product for which IBM is not responsible; and

E-1

it to

any non-IBM products, including those that IBM may procure and provide with

integrate into an IBM Machine at your request.

warranty is voided by removal or alteration of identification labels on the

The Machine or its parts.

IBM does not warrant uninterrupted or error-free operation of a Machine.

Any technical or other support provided for a Machine under warranty, such as assistance via telephone with ″how-to″ questions and those regarding Machine set-up and installation, is provided WITHOUT WARRANTIES OF ANY KIND.

How to Obtain Warranty Service

the Machine does not function as warranted during the warranty period, contact IBM or your reseller to obtain warranty service. If you do not register the Machine with IBM, you may be required to present proof of purchase as evidence of your entitlement to warranty service.

What IBM Will Do to Correct Problems

When you call for service, you must follow the problem determination and resolution procedures that IBM specifies. A technician will attempt to make an initial diagnosis of your problem and help you resolve it over the telephone.

The type of warranty service applicable to your Machine is specified in Part 3 Warranty Information.

You are responsible for downloading and installing designated Machine Code (microcode, basic input/output system code (called ″BIOS″), utility programs, device drivers, and diagnostics delivered with an IBM Machine) and other software updates from an IBM Internet Web site or from other electronic media, and following the instructions that IBM provides.

your problem can be resolved with a Customer Replaceable Unit (″CRU″) (e.g., keyboard, mouse, speaker, memory, hard disk drive and other easily replaceable parts), IBM will ship these parts to you for replacement by you.

the Machine does not function as warranted during the warranty period and your problem cannot be resolved over the telephone, through your application of Machine Code or software updates, or with a CRU, IBM or your reseller, if approved by IBM to provide warranty service, will either, at its discretion, 1) repair

make it function as warranted, or 2) replace it with one that is at least

functionally equivalent. If IBM is unable to do either, you may return the Machine

your place of purchase and your money will be refunded.

E-2

IBM M400 PROJECTOR: User’s Guide

IBM or your reseller will also manage and install selected engineering changes that apply to the Machine.

Exchange of a Machine or Part

When the warranty service involves the exchange of a Machine or part, the item IBM or your reseller replaces becomes its property and the replacement becomes yours. You represent that all removed items are genuine and unaltered. The replacement may not be new, but will be in good working order and at least

functionally equivalent to the item replaced. The replacement assumes the warranty service status of the replaced item.

Your Additional Responsibilities

Before IBM or your reseller exchanges a Machine or part, you agree to remove all features, parts, options, alterations, and attachments not under warranty service.

You also agree to:

ensure that the Machine is free of any legal obligations or restrictions that prevent its exchange;

obtain authorization from the owner to have IBM or your reseller service a

Machine that you do not own; and

where applicable, before service is provided:

follow the service request procedures that IBM or your reseller provides; backup or secure all programs, data, and funds contained in the Machine;

IBM or your reseller with sufficient, free, and safe access to your facilities to permit IBM to fulfill its obligations; and

inform IBM or your reseller of changes in the Machine’s location.

(a) ensure all information about identified or identifiable individuals (Personal

Data) is deleted from the Machine (to the extent technically possible), (b) allow IBM, your reseller or an IBM supplier to process on your behalf any remaining Personal Data as IBM or your reseller considers necessary to fulfill its obligations under this Statement of Limited Warranty (which may include shipping the Machine for such processing to other IBM service locations around the world), and (c) ensure that such processing complies with any laws applicable to such Personal Data.

Limitation

Liability

IBM is responsible for loss of, or damage to, your Machine only while it is 1) in IBM’s possession or 2) in transit in those cases where IBM is responsible for the transportation charges.

Neither IBM nor your reseller are responsible for any of your confidential, proprietary or personal information contained in a Machine which you return to IBM for any reason. You should remove all such information from the Machine prior to its return.

Circumstances may arise where, because of a default on IBM’s part or other liability, you are entitled to recover damages from IBM. In each such instance, regardless of the basis on which you are entitled to claim damages from IBM (including fundamental breach, negligence, misrepresentation, or other contract or tort claim), except for any liability that cannot be waived or limited by applicable laws, IBM is liable for no more than

damages for bodily injury (including death) and damage to real property and tangible personal property; and

the amount of any other actual direct damages, up to the charges (if recurring,

months’ charges apply) for the Machine that is subject of the claim. For purposes of this item, the term ″Machine″ includes Machine Code and Licensed Internal Code (″LIC″).

Apêndice E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002

E-3

This limit also applies to IBM’s suppliers and your reseller. It is the maximum for which IBM, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS IBM, ITS SUPPLIERS OR RESELLERS LIABLE FOR ANY OF THE FOLLOWING EVEN IF INFORMED OF THEIR POSSIBILITY: 1) THIRD PARTY CLAIMS AGAINST YOU FOR DAMAGES (OTHER THAN THOSE UNDER THE FIRST ITEM LISTED ABOVE); 2) LOSS OF, OR DAMAGE TO, DATA; 3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES; OR 4) LOST PROFITS, BUSINESS REVENUE, GOODWILL OR ANTICIPATED SAVINGS. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY

YOU. SOME STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

Governing Law

Both you and IBM consent to the application of the laws of the country in which you acquired the Machine to govern, interpret, and enforce all of your and IBM’s rights, duties, and obligations arising from, or relating in any manner to, the subject matter of this Statement of Limited Warranty, without regard to conflict of law principles.

THESE WARRANTIES GIVE YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VA R Y FROM STATE TO STATE OR JURISDICTION TO JURISDICTION.

Jurisdiction

All of our rights, duties, and obligations are subject to the courts of the country in which you acquired the Machine.

Part 2 - Country-unique Terms

AMERICAS

ARGENTINA

Governing Law: The following is added after the first sentence:

Any litigation arising from this Statement of Limited Warranty will be settled exclusively by the Ordinary Commercial Court of the city of Buenos Aires.

E-4

IBM M400 PROJECTOR: User’s Guide

BRAZIL

Governing Law: The following is added after the first sentence:

litigation arising from this Statement of Limited Warranty will be settled

Any exclusively by the court of Rio de Janeiro, RJ.

Peru

Limitation of Liability: The following is added at the end of this section:

of a

In accordance with Article 1328 of the Peruvian Civil Code the limitations and exclusions specified in this section will not apply to damages caused by IBM’s willful misconduct (″dolo″) or gross negligence (″culpa inexcusable″).

NORTH AMERICA

How to Obtain Warranty Service: The following is added to this Section:

obtain warranty service from IBM in Canada or the United States, call

1-800-IBM-SERV (426-7378).

CANADA

Limitation of Liability: The following replaces item 1 of this section:

damages for bodily injury (including death) or physical harm to real property and tangible personal property caused by IBM’s negligence; and

Governing

Law: The following replaces “laws of the country in which you acquired the

Machine” in the first sentence:

laws in the Province of Ontario.

UNITED STATES

Governing Law: The following replaces “laws of the country in which you acquired the

Machine” in the first sentence:

laws of the State of New York.

ASIA PACIFIC

AUSTRALIA

What this Warranty Covers: The following paragraph is added to this Section:

The warranties specified in this Section are in addition to any rights you may have under the Trade Practices Act 1974 or other similar legislation and are only limited

the extent permitted by the applicable legislation.

Limitation of Liability: The following is added to this Section:

Where IBM is in breach of a condition or warranty implied by the Trade Practices Act 1974 or other similar legislation, IBM’s liability is limited to the repair or replacement of the goods or the supply of equivalent goods. Where that condition

warranty relates to right to sell, quiet possession or clear title, or the goods are

kind ordinarily acquired for personal, domestic or household use or

consumption, then none of the limitations in this paragraph apply.

Governing Law: The following replaces “laws of the country in which you acquired the

Machine” in the first sentence:

laws of the State or Territory.

CAMBODIA, LAOS, AND VIETNAM

Governing Law: The following replaces “laws of the country in which you acquired the

Machine” in the first sentence:

laws of the State of New York, United States of America.

CAMBODIA, INDONESIA, LAOS, AND VIETNAM

Apêndice E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002

E-5

2. as to

Arbitration: The following is added under this heading: Disputes arising out of or in connection with this Statement of Limited Warranty shall be finally settled by arbitration which shall be held in Singapore in accordance with the Arbitration Rules of Singapore International Arbitration Center (″SIAC Rules″) then in effect. The arbitration award shall be final and binding for the parties without appeal and shall be in writing and set forth the findings of fact and the conclusions of law.

The number of arbitrators shall be three, with each side to the dispute being entitled to appoint one arbitrator. The two arbitrators appointed by the parties shall appoint a third arbitrator who shall act as chairman of the proceedings. Vacancies in the post of chairman shall be filled by the president of the SIAC. Other vacancies shall be filled by the respective nominating party. Proceedings shall continue from the stage they were at when the vacancy occurred.

one of the parties refuses or otherwise fails to appoint an arbitrator within 30 days of the date the other party appoints its, the first appointed arbitrator shall be the sole arbitrator, provided that the arbitrator was validly and properly appointed.

All proceedings shall be conducted, including all documents presented in such proceedings, in the English language. The English language version of this Statement of Limited Warranty prevails over any other language version.

HONG KONG S.A.R. OF CHINA AND MACAU S.A.R. OF CHINA

Governing Law: The following replaces “laws of the country in which you acquired the

Machine” in the first sentence:

laws of Hong Kong Special Administrative Region of China.

INDIA

Limitation of Liability: The following replaces items 1 and 2 of this Section:

liability for bodily injury (including death) or damage to real property and tangible personal property will be limited to that caused by IBM’s negligence; and

any other actual damage arising in any situation involving nonperformance by IBM pursuant to, or in any way related to the subject of this Statement of Limited Warranty, the charge paid by you for the individual Machine that is the subject of the claim. For purposes of this item, the term ″Machine″ includes Machine Code and Licensed Internal Code (″LIC″).

Arbitration:

The following is added under this heading :

Disputes arising out of or in connection with this Statement of Limited Warranty shall be finally settled by arbitration which shall be held in Bangalore, India in accordance with the laws of India then in effect. The arbitration award shall be final and binding for the parties without appeal and shall be in writing and set forth the findings of fact and the conclusions of law.

E-6

IBM M400 PROJECTOR: User’s Guide

The number of arbitrators shall be three, with each side to the dispute being entitled to appoint one arbitrator. The two arbitrators appointed by the parties shall appoint a third arbitrator who shall act as chairman of the proceedings. Vacancies in the post of chairman shall be filled by the president of the Bar Council of India. Other vacancies shall be filled by the respective nominating party. Proceedings shall continue from the stage they were at when the vacancy occurred.

If one of the parties refuses or otherwise fails to appoint an arbitrator within 30 days of the date the other party appoints its, the first appointed arbitrator shall be the sole arbitrator, provided that the arbitrator was validly and properly appointed.

JAPAN

Governing Law: The following sentence is added to this section:

doubts concerning this Statement of Limited Warranty will be initially

Any resolved between us in good faith and in accordance with the principle of mutual trust.

MALAYSIA

Limitation of Liability: The word ″SPECIAL″ in item 3 of the fifth paragraph is deleted.

NEW ZEALAND

What this Warranty Covers: The following paragraph is added to this section:

The warranties specified in this section are in addition to any rights you may have under the Consumer Guarantees Act 1993 or other legislation which cannot be excluded or limited. The Consumer Guarantees Act 1993 will not apply in respect

any goods which IBM provides, if you require the goods for the purposes of a

business as defined in that Act.

Limitation of Liability: The following is added to this section:

Where

Machines are not acquired for the purposes of a business as defined in the Consumer Guarantees Act 1993, the limitations in this section are subject to the limitations in that Act.

PEOPLE’S REPUBLIC OF CHINA (PRC)

Governing Law: The following replaces ″laws of the country in which you acquired

the Machine″ in the first sentence:

laws of the State of New York, United States of America (except when local law requires otherwise).

PHILIPPINES

Limitation of Liability: Item 3 in the fifth paragraph is replaced by the following:

SPECIAL (INCLUDING NOMINAL AND EXEMPLARY DAMAGES), MORAL, INCIDENTAL, OR INDIRECT DAMAGES FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES; OR

Arbitration: The following is added under this heading

Disputes arising out of or in connection with this Statement of Limited Warranty shall be finally settled by arbitration which shall be held in Metro Manila, Philippines in accordance with the laws of the Philippines then in effect. The

Apêndice E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002

E-7

arbitration award shall be final and binding for the parties without appeal and shall be in writing and set forth the findings of fact and the conclusions of law.

The number of arbitrators shall be three, with each side to the dispute being entitled to appoint one arbitrator. The two arbitrators appointed by the parties shall appoint a third arbitrator who shall act as chairman of the proceedings. Vacancies in the post of chairman shall be filled by the president of the Philippine Dispute Resolution Center, Inc. Other vacancies shall be filled by the respective nominating party. Proceedings shall continue from the stage they were at when the vacancy occurred.

SINGAPORE

Limitation of Liability: The words ″SPECIAL″ and ″ECONOMIC″ in item 3 in the

fifth paragraph are deleted.

EUROPE, MIDDLE EAST, AFRICA (EMEA)

THE FOLLOWING TERMS APPLY TO ALL EMEA COUNTRIES:

The terms of this Statement of Limited Warranty apply to Machines purchased from IBM or an IBM reseller.

How to Obtain Warranty Service: If you purchase a Machine in Austria, Belgium,

Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Portugal, Spain, San Marino, Sweden, Switzerland, United Kingdom or Vatican State, you may obtain warranty service for that Machine in any of those countries from either (1) an IBM reseller approved to perform warranty service or (2) from IBM, provided the Machine has been announced and made available by IBM in the country in which you wish to obtain service. If you purchased a Personal Computer Machine in Albania, Armenia, Belarus, Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Georgia, Hungary, Kazakhstan, Kyrgyzstan, Federal Republic of Yugoslavia, Former Yugoslav Republic of Macedonia (FYROM), Moldova, Poland, Romania, Russia, Slovak Republic, Slovenia, or Ukraine, you may obtain warranty service for that Machine in any of those countries from either (1) an IBM reseller approved to perform warranty service or (2) from IBM.

E-8

IBM M400 PROJECTOR: User’s Guide

you purchase a Machine in a Middle Eastern or African country, you may obtain warranty service for that Machine from the IBM entity within the country of purchase, if that IBM entity provides warranty service in that country, or from an IBM reseller, approved by IBM to perform warranty service on that Machine in that country. Warranty service in Africa is available within 50 kilometers of an IBM approved service provider. You are responsible for transportation costs for Machines located outside 50 kilometers of an IBM approved service provider.

1) In

Add the following paragraph in Western Europe (Austria, Belgium, Cyprus, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, Netherlands, Norway, Portugal, Spain, San Marino, Sweden, Switzerland, United Kingdom, Vatican State):

The warranty for Machines acquired in Western Europe shall be valid and applicable in all Western Europe countries provided the Machines have been announced and made available in such countries.

Governing Law:

The phrase ″the laws of the country in which you acquired the Machine″ is replaced by:

″the laws of Austria″ in Albania, Armenia, Azerbaijan, Belarus,

Bosnia-Herzegovina, Bulgaria, Croatia, Georgia, Hungary, Kazakhstan, Kyrgyzstan, FYR Macedonia, Moldova, Poland, Romania, Russia, Slovakia, Slovenia, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, and FR Yugoslavia; 2)

″the laws of France″ in Algeria, Benin, Burkina Faso, Cameroon, Cape Verde,

Central African Republic, Chad, Comoros, Congo Republic, Djibouti, Democratic Republic of Congo, Equatorial Guinea, French Guiana, French Polynesia, Gabon, Gambia, Guinea, Guinea-Bissau, Ivory Coast, Lebanon, Madagascar, Mali, Mauritania, Mauritius, Mayotte, Morocco, New Caledonia, Niger, Reunion, Senegal, Seychelles, Togo, Tunisia, Vanuatu, and Wallis & Futuna; 3) ″the laws of

Finland″ in Estonia, Latvia, and Lithuania; 4) ″the laws of England″ in Angola,

Bahrain, Botswana, Burundi, Egypt, Eritrea, Ethiopia, Ghana, Jordan, Kenya, Kuwait, Liberia, Malawi, Malta, Mozambique, Nigeria, Oman, Pakistan, Qatar, Rwanda, Sao Tome, Saudi Arabia, Sierra Leone, Somalia, Tanzania, Uganda, United Arab Emirates, the United Kingdom, West Bank/Gaza, Yemen, Zambia, and Zimbabwe; and 5) ″the laws of South Africa″ in South Africa, Namibia, Lesotho and Swaziland.

Jurisdiction: The following exceptions are added to this section:

Austria the choice of jurisdiction for all disputes arising out of this Statement

Limited Warranty and relating thereto, including its existence, will be the

competent court of law in Vienna, Austria (Inner-City); 2) in Angola, Bahrain,

Botswana, Burundi, Egypt, Eritrea, Ethiopia, Ghana, Jordan, Kenya, Kuwait, Liberia, Malawi, Malta, Mozambique, Nigeria, Oman, Pakistan, Qatar, Rwanda, Sao Tome, Saudi Arabia, Sierra Leone, Somalia, Tanzania, Uganda, United Arab Emirates, West Bank/Gaza, Yemen, Zambia, and Zimbabwe all disputes arising

out of this Statement of Limited Warranty or related to its execution, including summary proceedings, will be submitted to the exclusive jurisdiction of the English courts; 3) in Belgium and Luxembourg, all disputes arising out of this Statement

Limited Warranty or related to its interpretation or its execution, the law, and the courts of the capital city, of the country of your registered office and/or commercial site location only are competent; 4) in France, Algeria, Benin, Burkina

Faso, Cameroon, Cape Verde, Central African Republic, Chad, Comoros, Congo Republic, Djibouti, Democratic Republic of Congo, Equatorial Guinea, French Guiana, French Polynesia, Gabon, Gambia, Guinea, Guinea-Bissau, Ivory Coast, Lebanon, Madagascar, Mali, Mauritania, Mauritius, Mayotte, Morocco, New Caledonia, Niger, Reunion, Senegal, Seychelles, Togo, Tunisia, Vanuatu, and Wallis & Futuna all disputes arising out of this Statement of Limited Warranty or

related to its violation or execution, including summary proceedings, will be settled exclusively by the Commercial Court of Paris; 5) in Russia, all disputes arising out of or in relation to the interpretation, the violation, the termination, the

Apêndice E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002

E-9

of us

nullity of the execution of this Statement of Limited Warranty shall be settled by Arbitration Court of Moscow; 6) in South Africa, Namibia, Lesotho and Swaziland, both of us agree to submit all disputes relating to this Statement of Limited Warranty to the jurisdiction of the High Court in Johannesburg; 7) in

Turkey all disputes arising out of or in connection with this Statement of Limited

Warranty shall be resolved by the Istanbul Central (Sultanahmet) Courts and Execution Directorates of Istanbul, the Republic of Turkey; 8) in each of the following specified countries, any legal claim arising out of this Statement of Limited Warranty will be brought before, and settled exclusively by, the competent court of a) Athens for Greece, b) Tel Aviv-Jaffa for Israel, c) Milan for Italy, d) Lisbon for Portugal, and e) Madrid for Spain; and 9) in the United Kingdom, both

agree to submit all disputes relating to this Statement of Limited Warranty to

the jurisdiction of the English courts.

Arbitration: The following is added under this heading:

Albania, Armenia, Azerbaijan, Belarus, Bosnia-Herzegovina, Bulgaria, Croatia, Georgia, Hungary, Kazakhstan, Kyrgyzstan, FYR Macedonia, Moldova, Poland, Romania, Russia, Slovakia, Slovenia, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, and FR Yugoslavia all disputes arising out of this Statement of

Limited Warranty or related to its violation, termination or nullity will be finally settled under the Rules of Arbitration and Conciliation of the International Arbitral Center of the Federal Economic Chamber in Vienna (Vienna Rules) by three arbitrators appointed in accordance with these rules. The arbitration will be held in Vienna, Austria, and the official language of the proceedings will be English. The decision of the arbitrators will be final and binding upon both parties. Therefore, pursuant to paragraph 598 (2) of the Austrian Code of Civil Procedure, the parties expressly waive the application of paragraph 595 (1) figure 7 of the Code. IBM may, however, institute proceedings in a competent court in the country of installation.

Estonia, Latvia and Lithuania all disputes arising in connection with this

Statement of Limited Warranty will be finally settled in arbitration that will be held in Helsinki, Finland in accordance with the arbitration laws of Finland then in effect. Each party will appoint one arbitrator. The arbitrators will then jointly appoint the chairman. If arbitrators cannot agree on the chairman, then the Central Chamber of Commerce in Helsinki will appoint the chairman.

EUROPEAN UNION (EU)

THE FOLLOWING TERMS APPLY TO ALL EU COUNTRIES:

Consumers have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties provided in this Statement of Limited Warranty.

How to Obtain Warranty Service: The following is added to this section:

obtain warranty service from IBM in EU countries, see the telephone listing in

Part 3 - Warranty Information.

You may contact IBM at the following address:

IBM Warranty & Service Quality Dept.

Box 30

E-10

IBM M400 PROJECTOR: User’s Guide

OR 4)

Spango Valley

Greenock

Scotland PA 16 OAH

AUSTRIA, DENMARK, FINLAND, GREECE, ITALY, NETHERLANDS, PORTUGAL, SPAIN, SWEDEN AND SWITZERLAND

Limitation of Liability: The following replaces the terms of this section in its entirety:

Except as otherwise provided by mandatory law:

IBM’s liability for any damages and losses that may arise as a consequence of the fulfillment of its obligations under or in connection with this Statement of Limited Warranty or due to any other cause related to this Statement of Limited Warranty is limited to the compensation of only those damages and losses proved and actually arising as an immediate and direct consequence of the non-fulfillment of such obligations (if IBM is at fault) or of such cause, for a maximum amount equal to the charges you paid for the Machine. For purposes

this item, the term ″Machine″ includes Machine Code and Licensed Internal

Code (″LIC″). The above limitation shall not apply to damages for bodily injuries (including

death) and damages to real property and tangible personal property for which IBM is legally liable.

UNDER NO CIRCUMSTANCES IS IBM, ITS SUPPLIERS OR RESELLERS LIABLE FOR ANY OF THE FOLLOWING, EVEN IF INFORMED OF THEIR POSSIBILITY: 1) LOSS OF, OR DAMAGE TO, DATA; 2) INCIDENTAL OR INDIRECT DAMAGES, OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES; 3) LOST PROFITS, EVEN IF THEY ARISE AS AN IMMEDIATE CONSEQUENCE OF THE EVENT THAT GENERATED THE DAMAGES;

LOSS OF BUSINESS, REVENUE, GOODWILL, OR ANTICIPATED

SAVINGS.

FRANCE AND BELGIUM

Limitation of Liability: The following replaces ther terms of this section in its entirety:

Except as otherwise provided by mandatory law:

IBM’s liability for any damages and losses that may arise as a consequence of the fulfillment of its obligations under or in connection with this Statement of Limited Warranty is limited to the compensation of only those damages and losses proved and actually arising as an immediate and direct consequence of the non-fulfillment of such obligations (if IBM is at fault), for a maximum amount equal to the charges you paid for the Machine that has caused the damages. For purposes of this item, the term ″Machine″ includes Machine Code and Licensed Internal Code (″LIC″).

The above limitation shall not apply to damages for bodily injuries (including death) and damages to real property and tangible personal property for which IBM is legally liable.

Apêndice E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002

E-11

OR 4)

as to

CONSEQUENCE OF THE EVENT THAT GENERATED THE DAMAGES;

LOSS OF BUSINESS, REVENUE, GOODWILL, OR ANTICIPATED

SAVINGS.

THE FOLLOWING TERMS APPLY TO THE COUNTRY SPECIFIED:

AUSTRIA

What this Warranty Covers: The following replaces the first sentence of the first

paragraph of this section:

The warranty for an IBM Machine covers the functionality of the Machine for its normal use and the Machine’s conformity to its Specifications.

The following paragraphs are added to this Section:

The minimum warranty period for Machines is 12 months from the date of delivery. . The limitation period for consumers in action for breach of warranty is the statutory period as a minimum. In case IBM or your reseller is unable to repair

IBM Machine, you can alternatively ask for a partial refund as far as justified by the reduced value of the unrepaired Machine or ask for a cancellation of the respective agreement for such Machine and get your money refunded.

The second paragraph does not apply.

What IBM Will Do to Correct Problems: The following is added to this section:

During the warranty period, transportation for delivery of the failing Machine to IBM will be at IBM’s expense.

Limitation of Liability: The following paragraph is added to this section:

The limitations and exclusions specified in the Statement of Limited Warranty will not apply to damages caused by IBM with fraud or gross negligence and for express warranty.

The following sentence is added to the end of item 2:

IBM’s liability under this item is limited to the violation of essential contractual terms in cases of ordinary negligence.

EGYPT

Limitation of Liability: The following replaces item 2 in this section:

any other actual direct damages, IBM’s liability will be limited to the total amount you paid for the Machine that is the subject of the claim. For purposes of this item, the term “Machine” includes Machine Code and Licensed Internal Code (LIC).

E-12

Applicability of suppliers and resellers (unchanged).

FRANCE

Limitation of Liability: The following replaces the second sentence of the first paragraph

this section:

such instances, regardless of the basis on which you are entitled to claim

In damages from IBM, IBM is liable for no more than: (items 1 and 2 unchanged).

IBM M400 PROJECTOR: User’s Guide

GERMANY

What this Warranty Covers: The following replaces the first sentence of the first

paragraph of this section:

The warranty for an IBM Machine covers the functionality of the Machine for its normal use and the Machine’s conformity to its Specifications.

The following paragraphs are added to this section:

The minimum warranty period for Machines is twelve months. In case IBM or your reseller is unable to repair an IBM Machine, you can alternatively ask for a partial refund as far as justified by the reduced value of the unrepaired Machine or ask for a cancellation of the respective agreement for such Machine and get your money refunded.

The second paragraph does not apply.

What IBM Will Do to Correct Problems: The following is added to this section:

During the warranty period, transportation for delivery of the failing Machine to IBM will be at IBM’s expense.

Limitation of Liability: The following paragraph is added to this section:

The limitations and exclusions specified in the Statement of Limited Warranty will not apply to damages caused by IBM with fraud or gross negligence and for express warranty.

The following sentence is added to the end of item 2:

IBM’s liability under this item is limited to the violation of essential contractual terms in cases of ordinary negligence.

HUNGARY

Limitation of Liability: The following is added at the end of this section:

The limitation and exclusion specified herein shall not apply to liability for a breach of contract damaging life, physical well-being, or health that has been caused intentionally, by gross negligence, or by a criminal act.

The parties accept the limitations of liability as valid provisions and state that the Section 314.(2) of the Hungarian Civil Code applies as the acquisition price as well

other advantages arising out of the present Statement of Limited Warranty

balance this limitation of liability.

IRELAND

What this Warranty Covers: The following is added to this section:

Except as expressly provided in these terms and conditions, all statutory conditions, including all warranties implied, but without prejudice to the generality

the foregoing all warranties implied by the Sale of Goods Act 1893 or the Sale of

Goods and Supply of Services Act 1980 are hereby excluded.

Limitation of Liability: The following replaces the terms of this section in its entirety:

Apêndice E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002

E-13

For the purposes of this section, a ″Default″ means any act, statement, omission, or negligence on the part of IBM in connection with, or in relation to, the subject matter of this Statement of Limited Warranty in respect of which IBM is legally liable to you, whether in contract or tort. A number of Defaults which together result in, or contribute to, substantially the same loss or damage will be treated as one Default occurring on the date of occurrence of the last such Default.

Circumstances may arise where, because of a Default, you are entitled to recover damages from IBM.

This section sets out the extent of IBM’s liability and your sole remedy.

IBM will accept unlimited liability for death or personal injury caused by the negligence of IBM.

Subject always to the Items for Which IBM is Not Liable below, IBM will accept unlimited liability for physical damage to your tangible property resulting from the negligence of IBM.

Except as provided in items 1 and 2 above, IBM’s entire liability for actual damages for any one Default will not in any event exceed the greater of 1) EUR 125,000, or 2) 125% of the amount you paid for the Machine directly relating to the Default.

for Which IBM is Not Liable

Items

Save with respect to any liability referred to in item 1 above, under no circumstances is IBM, its suppliers or resellers liable for any of the following, even

IBM or they were informed of the possibility of such losses:

loss of, or damage to, data; special, indirect, or consequential loss; or loss of profits, business, revenue, goodwill, or anticipated savings.

SLOVAKIA

Limitation of Liability: The following is added to the end of the last paragraph:

The limitations apply to the extent they are not prohibited under §§ 373-386 of the Slovak Commercial Code.

SOUTH AFRICA, NAMIBIA, BOTSWANA, LESOTHO AND SWAZILAND

Limitation of Liability: The following is added to this section:

IBM’s entire liability to you for actual damages arising in all situations involving nonperformance by IBM in respect of the subject matter of this Statement of Warranty will be limited to the charge paid by you for the individual Machine that

the subject of your claim from IBM.

E-14

UNITED KINGDOM

Limitation of Liability: The following replaces the terms of this section in its entirety:

IBM M400 PROJECTOR: User’s Guide

1, 4

liable to you, whether in contract or tort. A number of Defaults which together result in, or contribute to, substantially the same loss or damage will be treated as one Default.

Circumstances may arise where, because of a Default, you are entitled to recover damages from IBM.

This section sets out the extent of IBM’s liability and your sole remedy.

IBM will accept unlimited liability for:

death or personal injury caused by the negligence of IBM; and any breach of its obligations implied by Section 12 of the Sale of Goods Act

1979 or Section 2 of the Supply of Goods and Services Act 1982, or any statutory modification or re-enactment of either such Section.

IBM will accept unlimited liability, subject always to the Items for Which IBM

Not Liable below, for physical damage to your tangible property resulting

from the negligence of IBM. IBM’s entire liability for actual damages for any one Default will not in any

event, except as provided in items 1 and 2 above, exceed the greater of 1) Pounds Sterling 75,000, or 2) 125% of the total purchase price payable or the charges for the Machine directly relating to the Default.

limits also apply to IBM’s suppliers and resellers. They state the maximum

These for which IBM and such suppliers and resellers are collectively responsible.

Items for Which IBM is Not Liable

Save with respect to any liability referred to in item 1 above, under no circumstances is IBM or any of its suppliers or resellers liable for any of the following, even if IBM or they were informed of the possibility of such losses:

loss of, or damage to, data: special, indirect, or consequential loss; or loss of profits, business, revenue, goodwill, or anticipated savings.

Part 3 - Warranty Information

This Part 3 provides information regarding the warranty applicable to your Machine, including the warranty period and type of warranty service IBM provides.

Warranty Period

The warranty period may vary by country or region and is specified in the table below. NOTE: ″Region″ means either Hong Kong or Macau Special Administrative Region of China.

M400 PROJECTOR

Country or Region of Purchase

Worldwide

Apêndice E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002

Warranty Period

years

Type of Warranty Service

E-15

1, 4 A

M400 PROJECTOR LAMP

Country or Region of Purchase

Worldwide

Warranty Period

months

Type of Warranty Service

warranty period of 3 years on parts and 3 years on labor means that IBM provides warranty service without charge for parts and labor during the 3 year warranty period.

warranty period of 3 months on parts and 3 months on labor means that IBM provides warranty service without charge for parts and labor during the 3 month warranty period.

Types of Warranty Service

required, IBM provides repair or exchange service depending on the type of warranty service specified for your Machine in the above table and as described below. Warranty service may be provided by your reseller if approved by IBM to perform warranty service. Scheduling of service will depend upon the time of your call and is subject to parts availability. Service levels are response time objectives and are not guaranteed. The specified level of warranty service may not be available in all worldwide locations, additional charges may apply outside IBM’s normal service area, contact your local IBM representative or your reseller for country and location specific information.

Customer Replaceable Unit (″CRU″) Service

IBM will ship CRU parts to you for your replacement. If IBM instructs you to return the replaced CRU, you are responsible for returning it to IBM in accordance with IBM’s instructions. If you do not return the defective CRU, if IBM so instructs, within 30 days of your receipt of the replacement CRU, IBM may charge you for the replacement.

On-site Service

IBM or your reseller will either repair or exchange the failing Machine at your location and verify its operation. You must provide suitable working area to allow disassembly and reassembly of the IBM Machine. The area must be clean, well lit and suitable for the purpose. For some Machines, certain repairs may require

sending the Machine to an IBM service center.

Courier or Depot Service

You will disconnect the failing Machine for collection arranged by IBM. IBM will provide you with a shipping container for you to return your Machine to a designated service center. A courier will pick up your Machine and deliver it to the designated service center. Following its repair or exchange, IBM will arrange the return delivery of the Machine to your location. You are responsible for its installation and verification.

Customer Carry-In or Mail-In Service

1. This type of service is called ThinkPad EasyServ or EasyServ in some countries.

E-16

IBM M400 PROJECTOR: User’s Guide

66 81 11 00

45 20 82 00

02 38 55 74 50

You will deliver or mail as IBM specifies (prepaid unless IBM specifies otherwise) the failing Machine suitably packaged to a location IBM designates. After IBM has repaired or exchanged the Machine, IBM will make it available for your collection or, for Mail-in Service, IBM will return it to you at IBM’s expense, unless IBM specifies otherwise. You are responsible for the subsequent installation and verification of the Machine.

The IBM Machine Warranty worldwide web site at http://www.ibm.com/servers/support/machine_warranties/ provides a worldwide overview of IBM’s Limited Warranty for Machines, a Glossary of IBM definitions, Frequently Asked Questions (FAQs) and Support by Product (Machine) with links to Product Support pages. The IBM Statement of Limited Warranty is

also available on this site in 29 languages.

obtain warranty service contact IBM or your IBM reseller. In Canada or the United States, call 1-800-IBM-SERV (426-7378). For other countries, see the telephone numbers below.

Phone numbers are subject to change without notice. For the latest phone number list, go to www.ibm.com/pc/support and click Support Phone List.

Country or Region Telephone Number Country or Region Telephone Number

Argentina Australia Austria Belgium

0800-666-0011 1300-130-426 01-24592-5901 Dutch 02-210-9820

Malaysia Mexico Netherlands New Zealand

03-7727-7800 001-866-434-2080 020-514-5770 0800-446-149

French 02-210-9800 Bolivia Brazil Canada

0800-0189

55-11-3889-8986

1-800-565-3344

Norway Peru Philippines

0-800-50-866 632-995-2225

Toronto 416-383-3344 Chile China (PRC) China (Hong Kong

800-224-488

800-810-1818

852-2825-7799

Portugal Russia Singapore

21-791 51 47 095-940-2000 1800-840-9911

S.A.R.) Columbia Denmark Ecuador

980-912-3021

1-800-426911 (option

Spain Sweden Switzerland

91-662 49 16 08-477 4420 058-333-09-00

#4) Finland France Germany Indonesia Ireland Italy

09-459 69 60

07032-1549 201

021-523-8535

01-815-9202

02-7031-6101

Taiwan Thailand Turkey United Kingdom United States Uruguay

886-2-2725-9799 66-2-273-4000 00-800-446-32-041 0-1475-555 055 1-800-426-7378 000-411-005-6649

Apêndice E. IBM Statement of Limited Warranty - Z125-4753-07 - 11/2002

E-17

Country or Region Telephone Number Country or Region Telephone Number

Japan

Consumer customers

Venezuela

0-800-100-2011

0120-887-870

Business customers 0120-887-874

Luxembourg

298-977 5063

Vietnam

848-8295-160

E-18

IBM M400 PROJECTOR: User’s Guide

as an

Apêndice F. Notices

IBM may not offer the products, services, or features discussed in this document in all countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may

used instead. However, it is the user’s responsibility to evaluate and verify the

operation of any non-IBM product, program, or service.

IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing IBM Corporation North Castle Drive Armonk, NY 10504-1785 U.S.A.

INTERNATIONAL

BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

The products described in this document are not intended for use in implantation

other life support applications where malfunction may result in injury or death persons. The information contained in this document does not affect or change

IBM product specifications or warranties. Nothing in this document shall operate

express or implied license or indemnity under the intellectual property rights IBM or third parties. All information contained in this document was obtained specific environments and is presented as an illustration. The result obtained in

other operating environments may vary.

IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.

Any references in this publication to non-IBM Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this IBM product, and use of those Web sites is at your own risk.

Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may

F-1

Trademarks

vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.

The following terms are trademarks of International Business Machines Corporation in the United States, other countries, or both:

IBM IBM logo ThinkPad

Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.

Other company, product, or service names may be trademarks or service marks of others.

Electronic emission notices

IBM M400 PROJECTOR

Federal Communications Commission (FCC) statement

Note: This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. Unauthorized changes

modifications could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Industry Canada Class A emission compliance statement

This Class A digital apparatus complies with Canadian ICES-003.

Avis de conformite a la reglementation d’Industrie Canada

Cet appareil numérique de la classe A est conform à la norme NMB-003 du Canada.

F-2

IBM M400 PROJECTOR: User’s Guide

Deutsche EMV-Direktive (electromagnetische Verträglichkeit)

Dieses Gerät ist berechtigt in Übereinstimmung mit dem deutschen EMVG vom

9.Nov.92 das EG-Konformitätszeichen zu führen.

Der Aussteller der Konformitätserklärung ist die IBM UK, Greenock.

Dieses Gerät erfüllt die Bedingungen der EN 55022 Klasse A. Für diese Klasse von Geräten gilt folgende Bestimmung nach dem EMVG:

Geräte dürfen an Orten, für die sie nicht ausreichend entstört sind, nur mit besonderer Genehmigung des Bundesminesters für Post und Telekommunikation oder des Bundesamtes für Post und Telekommunikation betrieben werden. Die Genehmigung wird erteilt, wenn keine elektromagnetischen Störungen zu erwarten sind.

(Auszug aus dem EMVG vom 9.Nov.92, Para.3. Abs.4)

Hinweis: Dieses Genehmigungsverfahren ist von der Deutschen Bundespost noch nicht

veröffentlicht worden.

Europen Union - EMC directive

This product is in conformity with the protection requirements of EU Council Directive 89/336/ECC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

IBM cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non-IBM option cards.

This product has been tested and found to comply with the limits for Class A Information Technology Equipment according to CISPR 22/European Standard EN

55022. The limits for Class A equipment were derived for commercial and industrial environments to provide reasonable protection against interference with licensed communication equipment.

Warning: This is a Class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate measures.

Union Européenne - Directive Conformité électromagnétique

produit est conforme aux exigences de protection de la Directive 89/336/EEC

Conseil de l’UE sur le rapprochement des lois des États membres en matière de

compatibilité électromagnétique.

IBM ne peut accepter aucune responsabilité pour le manquement aux exigences de protection résultant d’une modification non recommandée du produit, y compris l’installation de cartes autres que les cartes IBM.

produit a été testé et il satisfait les conditions de l’équipement informatique de Classe A en vertu de CISPR22/Standard européen EN 55022. Les conditions pour l’équipement de Classe A ont été définies en fonction d’un contexte d’utilisation commercial et industriel afin de fournir une protection raisonnable contre l’interférence d’appareils de communication autorisés.

Apêndice F. Notices

F-3

Avertissement : Ceci est un produit de Classe A. Dans un contexte résidentiel, ce produit

peut causer une interférence radio exigeant que l’utilisateur prenne des mesures adéquates.

Union Europea - Normativa EMC

Questo prodotto è conforme alle normative di protezione ai sensi della Direttiva del Consiglio dell’Unione Europea 89/336/CEE sull’armonizzazione legislativa degli stati membri in materia di compatibilità elettromagnetica.

IBM non accetta responsabilità alcuna per la mancata conformità alle normative di protezione dovuta a modifiche non consigliate al prodotto, compresa l’installazione

schede e componenti di marca diversa da IBM.

prove effettuate sul presente prodotto hanno accertato che esso rientra nei limiti stabiliti per le le apparecchiature di informatica Classe A ai sensi del CISPR 22/Norma Europea EN 55022. I limiti delle apparecchiature della Classe A sono stati stabiliti al fine di fornire ragionevole protezione da interferenze mediante dispositivi di comunicazione in concessione in ambienti commerciali ed industriali.

Avvertimento: Questso è un prodotto appartenente alla Classe A. In ambiente domestico,

tale prodotto può essere causa di interferenze radio, nel qual caso l’utente deve prendere misure adeguate.

Unione Europea - Directiva EMC (Conformidad électromagnética)

Este producto satisface los requisitos de protección del Consejo de la UE, Directiva 89/336/CEE en lo que a la legislatura de los Estados Miembros sobre compatibilidad electromagnética se refiere.

IBM no puede aceptar responsabilidad alguna si este producto deja de satisfacer dichos requisitos de protección como resultado de una modificación no recomendada del producto, incluyendo el ajuste de tarjetas de opción que no sean IBM.

Este producto ha sido probado y satisface los límites para Equipos Informáticos Clase A de conformidad con el Estándar CISPR22 y el Estándar Europeo EN 55022. Los límites para los equipos de Clase A se han establecido para entornos comerciales e industriales a fin de proporcionar una protección razonable contra las interferencias con dispositivos de comunicación licenciados.

Advertencia: Este es un producto de Clase A. En un entorno doméstico este producto

podría causar radiointerferencias en cuyo caso el usuario deberá tomar las medidas adecuadas.

F-4

IBM M400 PROJECTOR: User’s Guide

Appendix F. Notices

F-5

F-6

IBM M400 PROJECTOR: User’s Guide

򔻐򗗠򙳰

Número da Peça: 22P9382

Impresso em Brazil

(1P) P/N: 22P9382

IBM M400 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual

Índice

Safety information

General safety guidelines

Service

Power cords and power adapters

Extension cords and related devices

Plugs and outlets

Batteries

Heat and product ventilation

CD and DVD drive safety

Registering your option

Capítulo 1. Descrição do Produto

Lista de Verificação da Embalagem

Recursos do Projetos

Capítulo 2. Instalando o Projetor

Iniciando e Desligando o Projetor

Posicionando o Projetor

Ajustando o Nível e a Altura do Projetor

Ajustando a Imagem

Resolução da Imagem

Ajustando o Volume

Capítulo 3. Conectando Dispositivos ao Projetor

Conectando dispositivos

Capítulo 4. Utilizando os Recursos do Projetor

Utilizando o Controle Remoto

Inserindo as Baterias do Controle Remoto

Intervalo de Operação

Botões do Projetor e do Controle Remoto

Capítulo 5. Controles de Menu do On-Screen Display

Navegando no OSD

Menu de imagem

Menu Color

Menu View

Menu Setup

Menu Option

Menu Information

Submenus

White Balance

Input format

Language

Zoom

Panning

Reconfiguração de Lamp Timer

Factory default

Teclas de Acesso Rápido

Menu Quick

Apêndice A. Manutenção

Limpando a Lente

Substituindo a Lâmpada do Projetor

Reconfigurando a Lâmpada

Utilizando o Slot de Segurança

Apêndice B. Resolução de Problemas

LEDs do Projetor

Protetor Térmico

Apêndice C. Especificações

Apêndice D. Service and Support

Online technical support

Telephone technical support

Part 2 - Country-unique Terms

Part 3 - Warranty Information

Apêndice F. Notices

Trademarks

Electronic emission notices

Federal Communications Commission (FCC) statement
