MODEL LPCI-COM-8SM
LPCI-COM-4SM
LPCI-COM232-8
LPCI-COM232-4
USER MANUAL
FILE: MLPCI-COM-8SM.B1f
2
Manual LPCI-COM-8SM
Notice
The information in this document is provided for reference only. ACCES does not assume any liability
arising out of the application or use of the information or products described herein. This document may
contain or reference information and products protected by copyrights or patents and does not convey
any license under the patent rights of ACCES, nor the rights of others.
IBM PC, PC/XT, and PC/AT are registered trademarks of the International Business Machines
Corporation.
Printed in USA. Copyright 2004, 2005 by ACCES I/O Products Inc, 10623 Roselle Street, San Diego, CA
92121. All rights reserved.
WARNING!!
ALWAYS CONNECT AND DISCONNECT YOUR FIELD CABLING WITH
THE COMPUTER POWER OFF. ALWAYS TURN COMPUTER POWER
OFF BEFORE INSTALLING A CARD. CONNECTING AND
DISCONNECTING CABLES, OR INSTALLING CARDS INTO A SYSTEM
WITH THE COMPUTER OR FIELD POWER ON MAY CAUSE DAMAGE
TO THE I/O CARD AND WILL VOID ALL WARRANTIES, IMPLIED OR
EXPRESSED.
3
Manual LPCI-COM-8SM
Warranty
Prior to shipment, ACCES equipment is thoroughly inspected and tested to applicable specifications.
However, should equipment failure occur, ACCES assures its customers that prompt service and support
will be available. All equipment originally manufactured by ACCES which is found to be defective will be
repaired or replaced subject to the following considerations.
Terms and Conditions
If a unit is suspected of failure, contact ACCES' Customer Service department. Be prepared to give the
unit model number, serial number, and a description of the failure symptom(s). We may suggest some
simple tests to confirm the failure. We will assign a Return Material Authorization (RMA) number which
must appear on the outer label of the return package. All units/components should be properly packed for
handling and returned with freight prepaid to the ACCES designated Service Center, and will be returned
to the customer's/user's site freight prepaid and invoiced.
Coverage
First Three Years: Returned unit/part will be repaired and/or replaced at ACCES option with no charge for
labor or parts not excluded by warranty. Warranty commences with equipment shipment.
Following Years: Throughout your equipment's lifetime, ACCES stands ready to provide on-site or in-plant
service at reasonable rates similar to those of other manufacturers in the industry.
Equipment Not Manufactured by ACCES
Equipment provided but not manufactured by ACCES is warranted and will be repaired according to the
terms and conditions of the respective equipment manufacturer's warranty.
General
Under this Warranty, liability of ACCES is limited to replacing, repairing or issuing credit (at ACCES
discretion) for any products which are proved to be defective during the warranty period. In no case is
ACCES liable for consequential or special damage arriving from use or misuse of our product. The
customer is responsible for all charges caused by modifications or additions to ACCES equipment not
approved in writing by ACCES or, if in ACCES opinion the equipment has been subjected to abnormal
use. "Abnormal use" for purposes of this warranty is defined as any use to which the equipment is
exposed other than that use specified or intended as evidenced by purchase or sales representation.
Other than the above, no other warranty, expressed or implied, shall apply to any and all such equipment
furnished or sold by ACCES.
4
Manual LPCI-COM-8SM
Table of Contents
Chapter 1: Introduction................................................................................................. 6
Specifications ............................................................................................................ 8
Figure 1-1: Block Diagram (Only one serial channel shown) .................................. 9
Chapter 2: Installation................................................................................................. 10
Chapter 3: Option Selection....................................................................................... 12
Figure 3-1: Simplified Termination Schematic....................................................... 12
Figure 3-2: Option Selection Map.......................................................................... 14
Chapter 4: Address Selection .................................................................................... 16
Chapter 5: Programming............................................................................................ 17
Table 5-1: Baud Rate Divisor Values..................................................................... 18
Chapter 6: Connector Pin Assignments.................................................................... 19
Appendix A: Application Considerations.................................................................. 20
Table A-1: Connections Between Two RS422 Devices......................................... 20
Figure A-1: Typical RS485 Two-Wire Multidrop Network...................................... 22
Appendix B: HVDCI D-Connector Pinout Reference................................................ 23
Table B-1: HVDCI D-Connector Pin Assignments................................................. 23
5
Manual LPCI-COM-8SM
Chapter 1: Introduction
This serial interface card was designed for effective multipoint transmission in any one of three modes on
each channel. These modes are RS232, RS422 and RS485 (EIA485) protocol.
The RS485 mode may be run in three manners. It may be run as a standard RTS controlled channel, an
“Auto RTS (referred to by some as Auto RS485)” mode or as a “4 wire RS485 mode channel.
The card is 6.60 inches long and may be installed in 3.3 or 5-volt PCI-bus slots of IBM PC or compatible
computers. The card features eight independent, asynchronous serial ports, type 16788 buffered UARTs.
This series of cards are available in 4-port and RS-232 only versions.
RS422 Balanced Mode Operation
The card supports RS422 communications and uses differential balanced drivers for long range and
noise immunity. The card also has the capability to add load resistors to terminate the communications
lines. RS422 communications requires that a transmitter supply a bias voltage to ensure a known "zero"
state. Also, receiver inputs at each end of the network should be terminated to eliminate "ringing". The
card supports biasing by default and supports termination by jumpers on the card. If your application
requires the transmitter to be un-biased, please contact the factory.
RS485 Balanced Mode Operation
The card supports RS485 communications and uses differential balanced drivers for long range and
noise immunity. RS485 operation involves switchable transceivers and the ability to support multiple
devices on a single "party line". The RS485 specification defines a maximum of 32 devices on a single
line. The number of devices served on a single line can be expanded by use of "repeaters".
The card also has the capability to add load resistors to terminate the communications lines. RS485
communications requires that one transmitter supply a bias voltage to ensure a known "zero" state when
all transmitters are off. Also, receiver inputs at each end of the network should be terminated to eliminate
"ringing". The card supports biasing by default and supports termination by jumpers on the card. If your
application requires the transmitter to be un-biased, please contact the factory.
COM Port Compatibility
Eight Type 16550 compatible UARTs incorporated within a single octal UART are used as Asynchronous
Communication Elements (ACE). These include 64-byte transmit & receive buffers to protect against lost
data in multitasking operating systems, while maintaining 100 percent compatibility with the original IBM
serial port. The system assigns the address(es).
A crystal oscillator is located on the card. This oscillator permits precise selection of baud rate up to
115,200 or, by changing a jumper, up to 921,600 with the standard crystal oscillator.
The driver/receiver used, the SP841 in non-RS232 modes, is capable of driving extremely long
communication lines at high baud rates. It can drive up to +60 mA on balanced lines and receive inputs
as low as 200 mV differential signal superimposed on common mode noise of +12 V or -7 V. In case of
communication conflict, the driver/receivers feature thermal shutdown.
The driver/receiver used in RS232 mode is the SP211.
6
Manual LPCI-COM-8SM
Communication Mode
The card supports Half-Duplex communications with a 2-wire cable connection. Half-Duplex allows traffic
to travel in both directions, but only one way at a time. RS485 communications commonly use the HalfDuplex mode since they share only a single pair of wires.
Baud Rate Ranges
The card has capability for two baud rate ranges and you can select which you wish to use for all ports on
the card. One range is up to 115,200 baud and the other is up to 921,600 baud.
Note
Refer to Table 5-1, Baud Rate Divisor Values in chapter 5 of the manual.
Auto-RTS Transceiver Control
In RS485 communications, the driver must be enabled and disabled as needed, allowing all cards to
share a two wire cable. The card controls the driver automatically. With automatic control, the driver is
enabled when data is ready to be transmitted.
With this card, the driver remains enabled for an adjustable period. It may be disabled at the completion
of the transmission of the character (default), or can be set to wait up to one additional character's
transmission time after data transfer is complete and then disabled.
The receiver is, therefore, normally enabled, then disabled during RS485 transmissions, and then reenabled after transmission is completed (adjustable from zero to plus one character transmission time).
The card automatically adjusts it's timing to the baud rate of the data. (NOTE: Thanks to the automatic
control feature, the card is ideal for use in Windows applications)
7
Manual LPCI-COM-8SM
Specifications
Communications Interface
• I/O Connection: 68 Pin HVDCI SCSI style -Connector
• Serial Ports: Eight cable terminated shielded male D-sub 9-pin
connectors with standard IBM AT connectors compatible
with RS485 specifications
• Character length: 5, 6, 7, or 8 bits.
• Parity: Even, odd or none.
• Stop Interval: 1, 1.5, or 2 bits.
• Serial Data Rates: Up to 115,200 baud, Asynchronous, A faster range of
rates, up to 921,600, is achieved by jumper selection on
the card. Type 16788 buffered UART.
• Address: Continuously mappable within 0000 to FFFF (hex) range
of PCI bus addresses.
• Receiver Input Sensitivity: +200 mV, differential input.
• Common Mode Rejection: +12V to -7V
• Transmitter Output Drive Capability: 60 mA, with thermal shutdown.
Environmental
• Operating Temperature Range: 0 °C. to +60 °C.
• Storage temperature Range: -50 °C. to +120 °C.
• Humidity: 5% to 95%, non-condensing.
• Power Required: +5VDC at 125 mA typical total power consumption.
• Size: 6.6 inches long (167.6 mm) by 2.2 inches high (55.8 mm).
Note
The 16750 compatible UART uses 64-byte first-in-first-out buffers which are programmed through
commands sent to the FIFO control register.
8
Manual LPCI-COM-8SM
PCI BUS
WITH
AUTO-RT S
CIRCUITRY
Figure 1-1: Block Diagram (Only one serial channel shown)
VHDCI 68 PIN CONNECTOR
9
Manual LPCI-COM-8SM
Chapter 2: Installation
A printed Quick-Start Guide (QSG) is packed with the card for your convenience. If you’ve already
performed the steps from the QSG, you may find this chapter to be redundant and may skip forward to
begin developing your application.
The software provided with this card is on CD and must be installed onto your hard disk prior to use. To
do this, perform the following steps as appropriate for your operating system.
Configure Card Options via Jumper Selection
Before installing the card into your computer, carefully read Chapter 3: Option Selection of this manual,
then configure the card according to your requirements and protocol (RS-232, RS-422, RS-485, 4-wire
485, etc.). Our Windows based setup program can be used in conjunction with Chapter 3 to assist in
configuring jumpers on the card, as well as provide additional descriptions for usage of the various card
options (such as termination, bias, baud rate range, RS-232, RS-422, RS-485, etc.).
CD Software Installation
The following instructions assume the CD-ROM drive is drive “D”. Please substitute the appropriate drive
letter for your system as necessary.
DOS
1. Place the CD into your CD-ROM drive.
2. Type B- to change the active drive to the CD-ROM drive.
3. Type GLQR?JJ- to run the install program.
4. Follow the on-screen prompts to install the software for this board.
WINDOWS
1. Place the CD into your CD-ROM drive.
2. The system should automatically run the install program. If the install program does not run
promptly, click START | RUN and type BGLQR?JJ, click OK or press -.
3. Follow the on-screen prompts to install the software for this board.
LINUX
1. Please refer to linux.htm on the CD-ROM for information on installing under linux.
Note: COM boards can be installed in virtually any operating system. We do support installation in earlier
versions of Windows, and are very likely to support future versions as well.
Caution! * ESD A single static discharge can damage your card and cause premature
failure! Please follow all reasonable precautions to prevent a static
discharge such as grounding yourself by touching any grounded
surface prior to touching the card.
10
Manual LPCI-COM-8SM
Hardware Installation
1. Make sure to set switches and jumpers from either the Option Selection section of this manual or
from the suggestions of SETUP.EXE.
2. Do not install card into the computer until the software has been fully installed.
3. Turn OFF computer power AND unplug AC power from the system.
4. Remove the computer cover.
5. Carefully install the card in an available 5V or 3.3V PCI expansion slot (you may need to remove
a backplate first).
6. Inspect for proper fit of the card and tighten screws. Make sure that the card mounting bracket is
properly screwed into place and that there is a positive chassis ground.
7. Install an I/O cable onto the card’s bracket mounted connector.
8. Replace the computer cover and turn ON the computer. Enter the CMOS setup program of your
system and verify that the PCI plug-and-play option is set appropriately for your system. Systems
running Windows 95/98/2000/XP/2003 (or any other PNP-compliant operating system) should set
the CMOS option to OS. Systems running under DOS, Windows NT, Windows 3.1, or any other
non-PNP-compliant operating system should set the PNP CMOS option to BIOS or Motherboard.
Save the option and continue booting the system.
9. Most computers should auto-detect the card (depending on the operating system) and
automatically finish installing the drivers.
10. Run PCIfind.exe to complete installing the card into the registry (for Windows only) and to
determine the assigned resources.
11. Run one of the provided sample programs that was copied to the newly created card directory
(from the CD) to test and validate your installation.
The base address assigned by BIOS or the operating system can change each time new hardware is
installed into or removed from the computer. Please recheck PCIFind or Device Manager if the hardware
configuration is changed. Software you write can automatically determine the base address of the card
using a variety of methods depending on the operating system. In DOS, the PCI\SOURCE directory
shows the BIOS calls used to determine the address and IRQ assigned to installed PCI devices. In
Windows, the Windows sample programs demonstrate querying the registry entries (created by PCIFind
and NTIOPCI.SYS during boot-up) to determine this same information.
11
Manual LPCI-COM-8SM
Chapter 3: Option Selection
+
To help you locate the jumpers described in this section, refer to the Option Selection Map at the end of
this section. Operation of the serial communications section is determined by jumper installation as
described in the following paragraphs.
For the convenience of the user, instructions for the placement of the jumpers is also silk screened on the
back of the card.
Terminations
A transmission line should be terminated at the receiving end in its characteristic impedance. Installing a
jumper at the locations labeled LDxO applies a 120Ω load across the transmit/receive input/output for
RS485 operation.
Jumpers having to do with the termination of each channel are located near the output connector. They
are labeled by channel. The load jumper is labeled “LD”. The other two jumpers are used to connect the
transmit and receive lines for the two wire RS485 mode.
Tx+/Rx
LD
120
0.01 F
μ
Tx-/Rx-
Figure 3-1: Simplified Termination Schematic
In RS485 operations where there are multiple terminals, only the RS485 ports at each end of the network
should have terminating impedance as described above. To so terminate the COM A port, place a jumper
at the location labeled Ch A -LD. To terminate the COM B, COM C, COM D, COM E, COM F and COM H
ports, place jumpers at locations labeled Ch B - LD, Ch C - LD, Ch D - LD, Ch E - LD, Ch F - LD, Ch G LD and Ch H - LD respectively.
Also, for RS485 operation, there must be a bias on the TRX+ and TRX- lines. If the card is not to provide
that bias, contact the factory technical support.
12
Manual LPCI-COM-8SM
Data Cable Wiring
RS-485 SignalPin Connection
Ain/out+ 2
Ain/out- 3
100 Ω to Ground 5
Baud Rate Ranges
The jumper labeled CLK X8 provides a means to select baud rates in a higher range. When a jumper is
not placed on the out the CLK X8 position, the baud rate range is up to 115,200 baud. When it is in the
CLK X8 position, the baud rate range is up to 921,600 baud.
Interrupts
Please note that, in WindowsNT, changes must be made to the system registry to support IRQ sharing.
The following is excerpted from "Controlling Multiport Serial I/O Cards" provided by Microsoft in the
MSDN library, documentid:mk:@ivt:nt40res/D15/S55FC.HTM, also available in the WindowsNT Resource
Kit.
The Microsoft serial driver can be used to control many dumb multiport serial cards. Dumb indicates that
the control includes no on-board processor. Each port of a multiport card has a separate subkey under
the HKLM\CurrentControlSet\Services\Serial subkey in the registry. In each of these subkeys, you must
add values for DosDevices, Interrupt, InterruptStatus, PortAddress, and PortIndex because these are
not detected by the Hardware Recognizer. (For descriptions and ranges for these values, see
Regentry.hlp, the Registry help file on the WindowsNT Workstation Resource Kit CD.)
For example, if you have an eight-port card configured to use address 0xFC00 with an interrupt of 05, the
values in the Registry are:
Serial2 subkey:
PortAddress = REG_DWORD 0xFC00
Interrupt = REG_DWORD 5
DosDevices = REG_SZ COM3
InterruptStatus = REG_DWORD 0xFC40
PortIndex = REG_DWORD 1
Indexed = REG_DWORD 0
Serial3 subkey:
PortAddress = REG_DWORD 0xFC08
Interrupt = REG_DWORD 5
DosDevices = REG_SZ COM4
InterruptStatus = REG_DWORD 0xFC40
PortIndex = REG_DWORD 2
Indexed = REG_DWORD 0
Serial4 subkey:
PortAddress = REG_DWORD 0xFC10
Interrupt = REG_DWORD 5
DosDevices = REG_SZ COM5
InterruptStatus = REG_DWORD 0xFC40
PortIndex = REG_DWORD 3
Indexed = REG_DWORD 0
Serial5 subkey:
PortAddress = REG_DWORD 0xFC18
Interrupt = REG_DWORD 5
DosDevices = REG_SZ COM6
InterruptStatus = REG_DWORD 0xFC40
PortIndex = REG_DWORD 4
Indexed = REG_DWORD 0
Serial6 subkey:
PortAddress = REG_DWORD 0xFC20
Interrupt = REG_DWORD 5
DosDevices = REG_SZ COM7
InterruptStatus = REG_DWORD 0xFC40
PortIndex = REG_DWORD 5
Indexed = REG_DWORD 0
Serial7 subkey:
PortAddress = REG_DWORD 0xFC28
Interrupt = REG_DWORD 5
DosDevices = REG_SZ COM8
InterruptStatus = REG_DWORD 0xFC40
PortIndex = REG_DWORD 6
Indexed = REG_DWORD 0
Serial8 subkey:
PortAddress = REG_DWORD 0xFC30
Interrupt = REG_DWORD 5
DosDevices = REG_SZ COM9
InterruptStatus = REG_DWORD 0xFC40
PortIndex = REG_DWORD 7
Indexed = REG_DWORD 0
Serial9 subkey:
PortAddress = REG_DWORD 0xFC38
Interrupt = REG_DWORD 5
DosDevices = REG_SZ COM10
InterruptStatus = REG_DWORD 0xFC40
PortIndex = REG_DWORD 8
Indexed = REG_DWORD 0
13
Manual LPCI-COM-8SM
6.60"
H
G
F
PORT
E
CONFIG
D
C
B
A

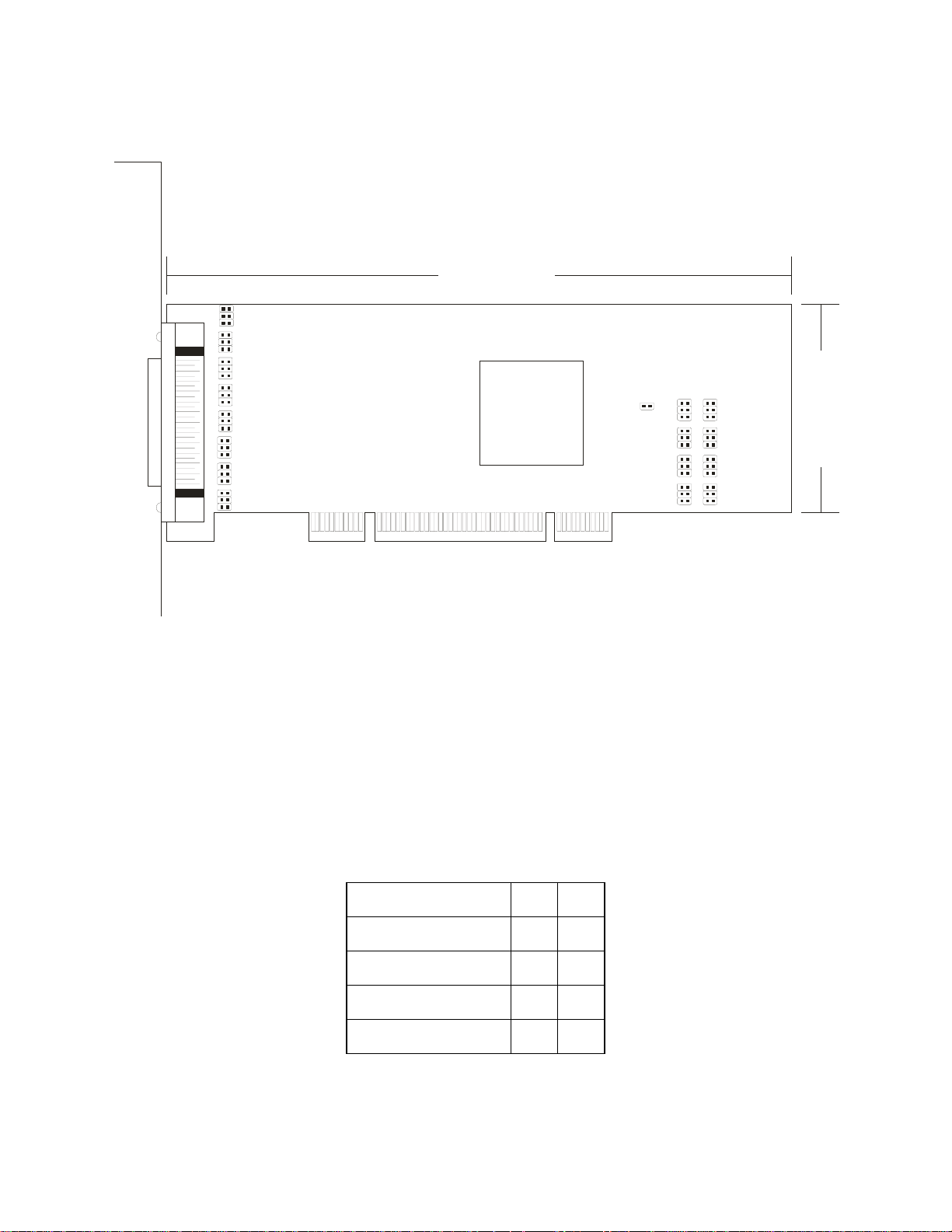

Figure 3-2: Option Selection Map
The card has 8 separate channels which can be individually configured. Each channel can be used in:
1) RS485 (2 wire mode) - This mode may use “Auto RTS”
2) RS422
3) RS232
4) RS485 (4 wire mode)
The jumpers on the card must be properly placed in order to have the card function properly.
In order to select the basic mode for a channel, the M1 and M2 jumpers be properly placed. (These
jumpers are located at the end of the card away from the cable connector).
Mode M1 M2
BAUD x8
PORT
CONFIG
H
G
F
E
D
C
B
A
2.20"
RS485 (2 Wire Mode) IN OUT
RS485 (4 Wire Mode) OUT IN
RS422 IN IN
RS232 OUT OUT
14
Manual LPCI-COM-8SM
Other jumpers:
1) RS 485 (2 wire mode) - Two jumpers must be installed for each channel in this mode in order to
connect the output and input lines. These jumpers are located near the cable connector and are labeled
with the channel letter and “485.”
2) RS 485 (2 wire mode)
This jumper is located at the end of the card away from the cable connector, adjacent to the “M” jumpers
and are labeled with the channel letter and “A8".
3) RS 485 or RS 422 Loads - One jumper must be installed for each channel which requires a load. This
jumper is located at the cable connector end of the card and is labeled with the channel letter and “LD.”
Notes:
1) Any unneeded jumpers that are installed can cause the card to function incorrectly.
2) If the “Auto RTS” jumpers are changed, the card should be rebooted or reset. This is required because
the status of the jumpers is read when the card is reset and is used to program the Auto RTS function into
the appropriate channel(s) of the UART. If the state of this jumper is changed, the UART will not be
properly programmed until the jumper has been reread. To do this, the card must be reset.
using “Auto RTS” - One jumper must be installed for each channel in this mode.
15
Manual LPCI-COM-8SM
Chapter 4: Address Selection
The card uses one address space. COM A, COM B, COM C, COM D, COM E, COM F, COM G and COM
H each occupy eight consecutive register locations. The interrupt register which indicates which port or
ports caused the interrupt is located at base address + 64.
PCI architecture is Plug-and-Play. This means that the BIOS or Operating System determines the
resources assigned to PCI cards rather than you selecting those resources with switches or jumpers. As a
result, you cannot set or change the card's base address. You can only determine what the system has
assigned.
To determine the base address that has been assigned, run the PCIFind.EXE utility program provided.
This utility will display a list of all of the cards detected on the PCI bus, the addresses assigned to each
function on each of the cards, and the respective IRQs (if any) allotted.
Alternatively, some operating systems (Windows 95/98/2000/XP) can be queried to determine which
resources were assigned. In these operating systems, you can use the Device Manager utility from the
System Applet of the control panel. The card is installed in the Data Acquisition class of the Device
Manager list. Selecting the card, clicking Properties, and then selecting the Resources Tab will display a
list of the resources allocated to the card.
The PCI bus supports 64K of I/O space. Your card's addresses may be located anywhere in the 0000 to
FFFF hex range.
PCIFind uses the Vendor ID and Device ID to search for your card, then reads the base address and
IRQ.
If you want to determine the base address and IRQ yourself, use the following information.
The Vendor ID for the card is 494F. (ASCII for "IO")
The Device ID for the card is 10E8h.
16
Manual LPCI-COM-8SM
Chapter 5: Programming
Sample Programs
There are sample programs provided with the card in C, Pascal, QuickBASIC, and several Windows
languages. DOS samples are located in the DOS directory and Windows samples are located in the
WIN32 directory.
Windows Programming
The card installs into Windows as COM ports. Thus the Windows standard API functions can be used. In
particular:
►
►SetupComm(), SetCommTimeouts(), GetCommState(), and SetCommState() to set and
►ReadFile() and WriteFile() for accessing a port.
See the documentation for your chosen language for details.
Under DOS, the process is identical to programming any 16550- or 16750-compatible UART.
CreateFile() and CloseHandle() for opening and closing a port.
change a port’s settings.
17
Manual LPCI-COM-8SM
Address Map
The core of the UART function is supplied by the EXAR XR16L788 chip.
This chip is 16550 and 16750 compatible, but has extra features that require communicating with an
additional 8 registers per channel. For instance, it is necessary to set the “Auto RTS” function. (EXAR
refers to this function as “Auto RS485" in their literature). The required writing to the UART is done
automatically when the card is rebooted.
In order to utilize standard software that communicates only with the first 8 registers of each channel,
addresses are remapped on the card.
The 8 UARTS occupy the first 64 addresses.
The interrupt status register is located at base + 40h.
Baud Rates
On the card, the UART clock frequency is 1.8432 MHz. Below is a table of popular divisor frequencies.
Baud Rate Divisor x1 Divisor x8 Max Diff. Cable Length*
921600 - 1 250 ft
460800 - 2 550 ft
230400 - 4 1400 ft
153600 - 6 2500 ft
115200 1 8 3000 ft
57600 2 16 4000 ft
38400 3 24 4000 ft
28800 4 32 4000 ft
19200 6 48 4000 ft
14400 8 64 4000 ft
9600 12 96 – Most Common 4000 ft
4800 24 192 4000 ft
2400 48 384 4000 ft
1200 96 768 4000 ft
*These are theoretical maximums based on typical conditions and good quality cables, based on the EIA
485 and EIA 422 standard for balanced differential drivers.
Table 5-1: Baud Rate Divisor Values
18
Manual LPCI-COM-8SM
Chapter 6: Connector Pin Assignments
Input/Output Connections
The card’s Serial Communications card uses eight individual 9-pin connectors, provided via a spider
cable from a 68-pin HVDCI D-connector.
To ensure that there is minimum susceptibility to EMI and minimum radiation, it is important that the card
mounting bracket be properly screwed into place and that there be a positive chassis ground. Also,
proper EMI cabling techniques (cable connect to chassis ground at the aperture, shielded twisted-pair
wiring, etc) be used for the input/output wiring.
DB-9 Male Pin for each of Ch A-G RS-2 32 Signals
(Industry Standard)
Ch x - 1 DCD RX-/TXCh x - 2 RX TX+/RX+
Ch x - 3 TX TX-/RXCh x - 4 DTR
Ch x - 5 Gnd Gnd Gnd
Ch x - 6 DSR
Ch x - 7 RTS
Ch x - 8 CTS
Ch x - 9 RI RX+/TX+
1
RS485 (2 wire) requires the installation of jumpers on the card to properly connect these pins. When
Table 6-1: Connector Pin Assignments
using the spider cable, the appropriate DB 9 connectors will have pin 1 connected to pin 3 and pin 2 is
connected to pin 9.
RS-485 Signals
(2 Wire)
1
1
1
1
RS-422 Signals
(Also 4wire RS485)
RX-
TX+
TX-
RX+
19
Manual LPCI-COM-8SM
Appendix A: Application Considerations
Introduction
Working with RS422 and RS485 devices is not much different from working with standard RS232 serial
devices and these two standards overcome deficiencies in the RS232 standard. First, the cable length
between two RS232 devices must be short; less than 50 feet at 9600 baud. Second, many RS232 errors
are the result of noise induced on the cables. The RS422 standard permits cable lengths up to 5000 feet
and, because it operates in the differential mode, it is more immune to induced noise.
Connections between two RS422 devices (with CTS ignored) should be as follows:
Device #1 Device #2
Signal Pin No. Signal Pin No.
Gnd 5 Gnd 5
TX
TX
RX
RX
+
-
+
-
2 RX
3 RX
9 TX
1 TX
+
-
+
-
9
1
2
3
Table A-1: Connections Between Two RS422 Devices
A third deficiency of RS232 is that more than two devices cannot share the same cable. This is also true
for RS422 but RS485 offers all the benefits of RS422 plus allows up to 32 devices to share the same
twisted pairs. An exception to the foregoing is that multiple RS422 devices can share a single cable if only
one will talk and the others will all receive.
Balanced Differential Signals
The reason that RS422 and RS485 devices can drive longer lines with more noise immunity than RS232
devices is that a balanced differential drive method is used. In a balanced differential system, the voltage
produced by the driver appears across a pair of wires. A balanced line driver will produce a differential
voltage from +2 to +6 volts across its output terminals. A balanced line driver can also have an input
"enable" signal that connects the driver to its output terminals. If the "enable signal is OFF, the driver is
disconnected from the transmission line. This disconnected or disabled condition is usually referred to as
the "tristate" condition and represents a high impedance. RS485 drivers must have this control capability.
RS422 drivers may have this control but it is not always required.
A balanced differential line receiver senses the voltage state of the transmission line across the two signal
input lines. If the differential input voltage is greater than +200 mV, the receiver will provide a specific
logic state on its output. If the differential voltage input is less than -200 mV, the receiver will provide the
opposite logic state on its output. A maximum operating voltage range is from +6V to -6V allows for
voltage attenuation that can occur on long transmission cables.
A maximum common mode voltage rating of +7V provides good noise immunity from voltages induced on
the twisted pair lines. The signal ground line connection is necessary in order to keep the common mode
voltage within that range. The circuit may operate without the ground connection but may not be reliable.
20
Manual LPCI-COM-8SM
Parameter Conditions Min. Max.
Driver Output Voltage (unloaded) 4V 6V
-4V -6V
Driver Output Voltage (loaded) LD and LDGND 2V
jumpers in -2V
Driver Output Resistance 50Ω
Driver Output Short-Circuit Current +150 mA
Driver Output Rise Time 10% unit interval
Receiver Sensitivity +200 mV
Receiver Common Mode Voltage Range +7V
Receiver Input Resistance 4KΩ
Table A-2: RS422 Specification Summary
To prevent signal reflections in the cable and to improve noise rejection in both the RS422 and RS485
mode, the receiver end of the cable should be terminated with a resistance equal to the characteristic
impedance of the cable. (An exception to this is the case where the line is driven by an RS422 driver that
is never "tristated" or disconnected from the line. In this case, the driver provides a low internal
impedance that terminates the line at that end.)
Note
You do not have to add a terminator resistor to your cables when you use the card. Termination resistors
for the RX+ and RX- lines are provided on the card and are placed in the circuit when you install the Ch X
- LD jumpers. (See the Option Selection section of this manual.)
21
Manual LPCI-COM-8SM
RS485 Data Transmission
The RS485 Standard allows a balanced transmission line to be shared in a party-line mode. As many as
32 driver/receiver pairs can share a two-wire party line network. Many characteristics of the drivers and
receivers are the same as in the RS422 Standard. One difference is that the common mode voltage limit
is extended and is +12V to -7V. Since any driver can be disconnected (or tristated) from the line, it must
withstand this common mode voltage range while in the tristate condition.
The following illustration shows a typical multidrop or party line network. Note that the transmission line is
terminated on both ends of the line but not at drop points in the middle of the line.
Figure A-1: Typical RS485 Two-Wire Multidrop Network
RS485 Four-Wire Multidrop Network
An RS485 network can also be connected in a four-wire mode. In a four-wire network it's necessary that
one node be a master node and all others be slaves. The network is connected so that the master
communicates to all slaves and all slaves communicate only with the master. This has advantages in
equipment that uses mixed protocol communications. Since the slave nodes never listen to another
slave's response to the master, a slave node cannot reply incorrectly.
22
Manual LPCI-COM-8SM
Appendix B: HVDCI D-Connector Pinout Reference
Connections will normally be made to the 9-pin connectors through the breakout cable. In case you wish
to connect directly to the 68-pin connector, the pins translate as follows.
DB-9
Pin
1 37 41 45 49 53 57 61 65
2 1 5 9 13 17 21 25 29
3 2 6 10 14 18 22 26 30
4 3 7 11 15 19 23 27 31
5 33
6 38 42 46 50 54 58 62 66
7 35 39 43 47 51 55 59 63
8 36 40 44 48 52 56 60 64
9 4 8 12 16 20 24 28 32
Pins 34 and 68 on the 68-pin HVDCI D-Connector provide +5Volts DC Fused, but are not available on
any of the DB-9 connectors.
1
Pin 33 on the 68-Pin connector is Ground, common to Pin 5 on each of the DB-9 connectors associated
with COM Channels A, B, C, and D.
2
Pin 67 on the 68-Pin connector is Ground, common to Pin 5 on each of the DB-9 connectors associated
with COM Channels A, B, C, and D.
Ch A
pins on
68-pin
1
Ch B
Pins on
68-Pin
1
33
Ch C
Pins on
68-Pin
1
33
Ch D
Pins on
68-Pin
1
33
Ch E
Pins on
68-Pin
2
67
Table B-1: HVDCI D-Connector Pin Assignments
Ch F
Pins on
68-Pin
2
67
Ch G
Pins on
68-Pin
2
67
Ch H Pins
on 68-Pin
2
67
23
Manual LPCI-COM-8SM
Customer Comments
If you experience any problems with this manual or just want to give us some feedback, please email us
at: manuals@accesio.com. Please detail any errors you find and include your mailing address so that
we can send you any manual updates.
10623 Roselle Street, San Diego CA 92121
Tel. (858)550-9559 FAX (858)550-7322
www.accesio.com
24
Manual LPCI-COM-8SM
Loading...
