✽ Projection lens is optional.

MULTIMEDIA PROJECTOR

MODEL LC-UXT3

OWNER'S INSTRUCTION MANUAL

www.touchboards.com 205 Westwood Ave.Long Branch, NJ 07740 1-866-942-6273 Sales@touchboards.com

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales dealer where you purchased the projector or the service center.

TO THE OWNER

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector

cabinet for allowing air circulation and cooling the projector. Minimum distance should be taken. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

● Remote Control Unit, supplied to this projector, emits the laser beam as the laser pointer function from Laser Light Window while pressing LASER button (for 1 minute / LASER POINTER INDICATOR lights red to indicate laser emission). Do not look into Laser Light Window or shine the laser beam on yourself or other people. Eye damage may result.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

SIDE and TOP

REAR

20cm

50cm 50cm

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

COMPLIANCES

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

Federal Communication Commission Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

CAUTION!

This is a Class A equipment. This equipment can cause interference in residential areas; in this case, the operator can be asked to take adequate countermeasures.

GROUND

TABLE OF CONTENTS

FEATURES AND DESIGN 6

BEFORE OPERATION 16

COMPUTER MODE 26

VIDEO MODE 35

SETTING 40

APPENDIX 43

PREPARATION 7

NAME OF EACH PART OF PROJECTOR 7 SETTING-UP PROJECTOR 8

CONNECTING AC POWER CORD 8 LENS INSTALLATION 9 POSITIONING PROJECTOR 9 LENS SHIFT ADJUSTMENT 9 PICTURE LEVEL AND TILT ADJUSTMENT 10 MOVING PROJECTOR 10

CONNECTING PROJECTOR 11

TERMINALS OF PROJECTOR 11 CONNECTING TO COMPUTER 14 CONNECTING TO VIDEO EQUIPMENT 15

TOP CONTROLS AND INDICATORS 16 OPERATION OF REMOTE CONTROL 18

LASER POINTER FUNCTION 18 REMOTE CONTROL BATTERIES INSTALLATION 19

OPERATING ON-SCREEN MENU 20

HOW TO OPERATE ON-SCREEN MENU 20 FLOW OF ON-SCREEN MENU OPERATION 20 MENU BAR 21

SELECTING INPUT SOURCE 26 SELECTING COMPUTER SYSTEM 26

COMPATIBLE COMPUTER SPECIFICATIONS 28

PC ADJUSTMENT 29

AUTO PC ADJUSTMENT 29 MANUAL PC ADJUSTMENT 30

PICTURE IMAGE ADJUSTMENT 32

IMAGE LEVEL SELECT 32 IMAGE LEVEL ADJUSTMENT 33

PICTURE SCREEN ADJUSTMENT 34

SELECTING INPUT SOURCE 35 SELECTING VIDEO SYSTEM 36 PICTURE IMAGE ADJUSTMENT 37

IMAGE LEVEL SELECT 37 IMAGE LEVEL ADJUSTMENT 38

PICTURE SCREEN ADJUSTMENT 39

SETTING MENU 40

OPERATING WIRELESS MOUSE 43 MAINTENANCE 43

WARNING TEMP. INDICATOR 43 AIR FILTER CARE AND CLEANING 44 CLEANING PROJECTION LENS 44 LAMP MANAGEMENT 45 LAMP REPLACEMENT 46

TROUBLESHOOTING 48 TECHNICAL SPECIFICATIONS 50

BASIC OPERATION 22

TURNING ON / OFF PROJECTOR 22 ADJUSTING SCREEN 23

ZOOM ADJUSTMENT 23 FOCUS ADJUSTMENT 23 LENS SHIFT ADJUSTMENT 23 KEYSTONE ADJUSTMENT 23 PICTURE FREEZE FUNCTION 24 NO SHOW FUNCTION 24 P-TIMER FUNCTION 24

SOUND ADJUSTMENT 25

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its

respective corporation.

FEATURES AND DESIGN

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆ Compatibility

This projector widely accepts various video and computer input signals including;

● Computers

IBM-compatible or Macintosh computer up to 1600 x 1200 resolution.

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PALN color system can be connected.

● Component Video

Component video signal, such as a DVD player, output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i, 1080i-50 or 1080i60, can be connected.

● S-Video

S-Video signal, such as a S-VHS VCR output signal, can be connected.

◆ High Resolution Image

◆ Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

◆ Keystone Correction

Positioning height of a projector may result in distorted image being displayed in a trapezoid shape. Keystone Correction solves this problem by digitally altering projection to produce undistorted images.

◆ Multilanguage Menu Display

Operation menu is displayed in; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Chinese, Korean or Japanese.

◆ One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and best adjustment is automatically set by Auto PC Adjustment. No complicated setup is necessary and projection is always precise.

◆ Digital Zoom (for Computer)

Digital Zoom function adjusts image size to approx. 1/4 ~ 49 times of original image size, allowing you to focus on crucial information at a presentation.

◆ Power Management

Power Management function is provided to reduce power consumption while a projector is not in use. This Power Management function operates to turn Projection Lamp off when a projector detects signal interruption and any button is not pressed over 5 minutes. Projection Lamp is automatically turned on again when a projector detects signal or any operation button is pressed. This projector is shipped with this function ON.

◆ Wireless Mouse

Remote Control Unit supplied with this projector has Wireless Mouse function for a connected computer. This function enables you to operate both projector and computer with Remote Control Unit only.

◆ Digital Visual Interface

This projector is equipped with DVI 29-pin terminal for connecting DVI output from a computer.

◆ Laser Pointer Function

Remote Control Unit supplied with this projector includes Laser Pointer function. This function helps you to make a smart presentation on a projected screen.

◆ Progressive Scan Function

This function converts interlace video signals into progressive scan signals and provide fine picture quality.

◆ Motor-driven Lens Shift

Projection lens can be moved up, down left and right with motor-driven lens shift function. This function makes it easy to provide projected image where you want. Zoom and focus can be also adjusted with motor-driven operation.

◆ Multi Versatile Platform

This projector applies various input/output terminals and 4 terminal slots for expansion to tune to diversity of signals from computers and video equipment.

4-built-in Terminal Slots enable you to arrange any combinations of input sources just by changing Terminal Boards. For Terminal Boards, contact sales dealer where you purchased a projector.

◆ Selectable Terminal Slots

◆ Network board (Optional)

Network board is an optional product to control and set up a projector via the network cable. By accessing to the connected projector using the web browser on your computer. It can be controlled and set up the projector remotely. Contact the sales dealer where you purchased this projector for optional parts.

This projector provides 1600 x 1200 dots resolution for computer input and 1100 horizontal TV lines. This projector cannot display image of over 1600 x 1200 dots. When resolution of your computer is more than 1600 x 1200, reset a computer output for lower resolution.

PREPARATION

NAME OF EACH PART OF PROJECTOR

BOTTOM OF CABINET

BACK OF CABINET

HOT AIR EXHAUSTED !

Air blown from exhaust vent is hot. When using or installing a projector, following precautions should be taken.

● Do not put a flammable object near this vent.

● Keep rear grills at least 3’ (1m) away from

any object, especially heat-sensitive object.

● Do not touch this area, especially screws and metallic parts. This area will become hot while a projector is used.

This projector detects internal temperature and automatically controls operating power of Cooling Fans.

FRONT OF CABINET

LAMP COVER

ADJUSTABLE FEET

This projector is equipped with cooling fans for protection from overheating. Pay attention to following to ensure proper ventilation and avoid a possible risk of fire and malfunction.

● Do not cover vent slots.

● Keep bottom clear of any objects.

Obstructions may block cooling air.

AIR INTAKE VENTS

PROJECTION LENS

SPEAKERS

INFRARED

REMOTE RECEIVER

LENS CAP

POWER CORD

CONNECTOR

EXHAUST VENT

MAIN ON / OFF

SWITCH

INFRARED

REMOTE RECEIVER

CARRYING HANDLE

LEVEL AND TILT ADJUST HANDLE

AIR FILTER

ADJUSTABLE FEET

Do not turn on a projector with lens cap attached. High temperature from light beam may damage lens cap and result in fire hazard.

CAUTION

PREPARATION

SETTING-UP PROJECTOR

This projector uses nominal input voltages of 120 V or 200-240 V AC. This projector automatically selects correct input voltage. It is designed to work with singlephase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure of type of power supply being in use. Connect a projector with peripheral equipment before turning a projector on. (Refer to pages 12 ~ 15 for connection.)

CONNECTING AC POWER CORD

Connect AC Power Cord (supplied) to a projector. AC outlet must be near this equipment and must be easily accessible.

To POWER CORD CONNECTOR on a projector.

Projector side

AC Outlet side

Ground

CAUTION

AC Power Cord must meet requirement of country where you use a projector. Confirm AC plug type with chart below and proper AC power cord must be used. If supplied AC Power Cord does not match AC outlet, contact your sales dealer.

To AC Outlet.

(120 V AC)

For Continental Europe

For U.S.A. and Canada

To AC Outlet.

(200 - 240 V AC)

PREPARATION

POSITIONING PROJECTOR

Before setting up a projector, install Projection Lens on a Projector.

1. Before installation, check where a projector is used and prepare suitable lens. For specifications of Projection Lens, refer to manual separately attached or contact sales dealer where you purchased a projector.

2. For installation, refer to installation manual supplied to a Projector.

LENS INSTALLATION

When moving or setting up a projector, be sure to replace a Lens Cap to protect a surface. And be careful not to hold or subject a lens to strong forces. It may damage lens, cabinet, or mechanical parts.

Projection lens can be moved up, down, left and right with motor-driven lens shift function. This function makes it easy to provide projected image where you want.

LENS SHIFT ADJUSTMENT

MOVED UP OR DOWN

MOVED LEFT OR RIGHT

Use LENS SHIFT button and POINT UP/DOWN button to move image up or down. (Refer to page 23.)

Use LENS SHIFT button and POINT LEFT/RIGHT button to move image left or right. (Refer to page 23.)

This projector is designed to project on a flat projection surface.

ROOM LIGHT

Brightness in room has a great influence on picture quality. It is recommended to limit ambient lighting in order to provide best image.

This projector is equipped with cooling fan to protect it from overheating. Pay attention to following to ensure proper ventilation and avoid a possible risk of fire and malfunction.

● Do not cover vents with papers or other materials.

● Keep rear grill at least 3 feet (1 m) away from any

object.

● Make sure that there are no objects under a projector. An object under a projector may prevent a projector from taking cooling air through bottom vent.

VENTILATION

AIR INTAKE VENT (BOTTOM SIDE)

EXHAUST VENT (REAR SIDE)

SCREEN

PREPARATION

PICTURE LEVEL AND TILT ADJUSTMENT

Picture tilt and projection angle can be adjusted with handles on both sides of a projector. Projection angle can be adjusted to 5.7 degrees upper way.

MOVING PROJECTOR

CAUTION IN CARRYING OR TRANSPORTING A PROJECTOR

● Do not drop or bump a projector, otherwise damages or malfunctions may result.

● When carrying a projector, use a suitable carrying case.

● Do not transport a projector by using a courier or transport service in an unsuitable transport case. This

may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer and best case should be applied.

For safety, be sure to hold Carrying Handles on both sides by 2 or more people when moving a projector. Moving it unproperly may result in damage of cabinet or person's injury. Replace lens cap and retract feet to prevent damage to lens and cabinet.

Pull up lock buttons on each side of carrying handles release locks.

CARRYING HANDLE

LOCK BUTTONS

Pull carrying handles out fully until it's locked (with a click). Move a projector by holding two handles by 2 or more people.

To retract carrying handles, pull up lock buttons release lock of handles and press handles fully in until it's locked.

LEVEL AND TILT ADJUST HANDLE

ADJUSTABLE FEET

Height of front feet can be adjusted by turning handles.

KNOB

Press knob on handle. Handle pop out.

Turn handles (right and left) until picture is projected on proper position. Adjust height of rear adjustable feet by rotating them until projector properly stabled on table.

Press knob and retract handle.

REAR ADJUSTABLE FEET. (Refer to P7).

Pull up lock buttons to release lock.

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

This projector applies various input/output terminals and 4 terminal slots for expansion to tune to diversity of signals from computers and video equipment. 4-built-in Terminal Slots enable you to arrange desired combinations of input sources just by changing Terminal Boards. For Terminal Boards, contact sales dealer where you purchased a projector.

ANALOG RGB

R/Pr G/Y B/Pb H/HV V

CONTROL PORT

DVI

INPUT 1

R/C JACK

USB

RESET

(MONO)

CONTROL PORT

AUDIO

CONTROL PORT

S-VIDEO

VIDEO/Y

INPUT 2INPUT 3

INPUT 4

AUDIO

SERIAL PORT IN

SERIAL PORT OUT

AUDIO OUT

INPUT/OUTPUT TERMINALS

Screws

Guide

Socket

Plug

Figure shows HDB 15-PIN terminal.

DVI Terminal

5 BNC Terminal

AV Terminal

HDB 15-PIN Terminal

4 TERMINAL SLOTS (Factory set)

Pull out terminal by holding handle.

Remove 2 Screws on terminal.

REPLACEMENT OF TERMINAL

Tighten screws to secure terminal.

Replace terminal. Insert terminal along Guide to fit Plug into Socket.

NOTES ON ORDERING OR USING OPTIONAL INTERFACE BOARD

When ordering or using Optional Interface Board (Terminal Board), contact your sales dealer. When contacting the sales dealer, tell the Optional Control Number (Op.cont.No.) in the menu that is located under Language Select Menu. (See page 40.)

NOTE; When replacement of terminal board, MAIN

ON/OFF switch should be OFF position.

CONNECTING PROJECTOR

When controlling computer with Remote Control of this projector, connect mouse port of your personal computer to these connectors. (Refer to P14.)

Connect S-VIDEO output from video equipment to this jack. (Refer to P15.)

Connect audio output from computer or video equipment to these jacks. (Refer to P14, 15.)

CONTROL PORT CONNECTORS

AUDIO INPUT JACKS

5 BNC INPUT JACKS

S-VIDEO INPUT JACK

Connect component video output (Cr, Y, Cb or Pr, Y, Pb) from video equipment to R/Pr, G/Y and B/Pb jacks or connect computer output [5 BNC Type (Red, Green, Blue, Horiz. Sync and Vert. Sync.)] from computer to R/Pr, G/Y, B/Pb, H/HV and V jacks. (Refer to P14,

15)

Connect computer output (Digital/Analog DVI-I type) to this terminal. (Refer to P14.)

DVI INPUT TERMINAL

INPUT/OUTPUT TERMINALS AND JACKS

Connect computer output (Analog HDB 15-pin type) to this terminal. (Refer to P14.)

HDB 15-PIN INPUT TERMINAL

AV INPUT (VIDEO/Y, C) JACKS

Connect composite video output from video equipment to VIDEO/Y jack or connect Separate Y/C video outputs to VIDEO/Y and C jacks. (Refer to P15.)

INPUT 2

INPUT 1 INPUT 1, 2, 3, 4

INPUT 1, 2, 4

INPUT 3

INPUT 4

INPUT 3

SERIAL PORT IN

SERIAL PORT OUT

R/C JACK

AUDIO OUT

USB

RESET

R/Pr G/Y B/Pb H/HV V

VIDEO/Y

ANALOG RGB

AUDIO

DVI

S-VIDEO

AUDIO

CONTROL PORT

(MONO)

CONTROL PORT

INPUT 1

INPUT 2INPUT 3

(MONO)

INPUT 4

CONNECTING PROJECTOR

Connect an external audio amplifier to these jacks. (Refer to P14, 15.)

AUDIO OUTPUT JACKS

This projector uses a micro processor to control unit, and occasionally, micro processor may be locked and need to be reset. This can be done by pressing RESET button with a pen, which will shut down and restart a unit. Do not press RESET button excessively.

RESET BUTTON

When using Wired / Wireless Remote Control Unit as Wired Remote Control, Connect Wired Remote Control Unit to this jack with Remote Control Cable (supplied). (Refer to page 19.)

R/C JACK

USB PORT (Series B)

SERIAL PORT

OUT TERMINAL

SERIAL PORT

IN TERMINAL

This port is used to control a projector with computer. It is also used to control computer with Remote Control of this projector. (Refer to P41-43.) Connect USB port of computer to this port.

If you control a projector by computer, you must connect a cable (not provided) from your computer to this terminal.

This terminal outputs signal from SERIAL PORT IN. More than two projectors can be controlled with one computer by connecting SERIAL PORT IN. of another projector to this terminal.

R/C JACK

SERIAL PORT IN

SERIAL PORT OUT

USB

AUDIO OUT

RESET

DVI

R/Pr G/Y B/Pb H/HV V

VIDEO/Y

ANALOG RGB

S-VIDEO

AUDIO

CONTROL PORT

(MONO)

CONTROL PORT

INPUT 1

CONTROL PORT

INPUT 2INPUT 3

(MONO)

INPUT 4

CONNECTING PROJECTOR

CONNECTING TO COMPUTER

IBM-compatible computers or Macintosh computers (VGA / SVGA / XGA / SXGA/UXGA)

VGA Cable

Monitor Output

Desktop type Laptop type

Control Cable for Serial Port

Audio Cable

(stereo)

✽

Serial port

PS/2 port

Audio Output

Audio Input

AUDIO OUT

Use one of these Control Cables corresponding with terminal of your computer.

MAC/VGA Adapter

Set slide switches following chart below.

ADB port

Cables used for connection (✽ = Cables are not supplied with this projector.)

• VGA Cable (HDB 15 pin)

•

Control Cable for PS/2 port, Serial port, or ADB port

• MAC/VGA Adapter, DVI/VGA Adapter

• DVI Cable

• BNC Cable (BNC x 5)

✽

• Audio Cables (RCA x 2) ✽

Control Cable

for PS/2 Port

Control Cable

for ADB Port

Audio Cable

(stereo)

✽

NOTE :

When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. Turn a projector and peripheral equipment on before computer is switched on.

Terminals of

a Projector

Audio Amplifier

Audio Speaker

(stereo)

External Audio Equipment

Monitor Output

DVI Cable

BNC Cable

✽

Monitor Output

Set switches as shown in table below depending on RESOLUTION MODE that you want to use before your turn on a projector and computer

13"MODE (640 x 480)

16"MODE (832 x 624)

19"MODE (1024 x768)

21"MODE (1152 x 870)

OFF

OFF OFF OFF OFF

OFF OFFOFF

OFF OFF OFF

ON ON ON

OFF

OFF OFF

ON ON

1 2 3 4 5 6

MODE

SWITCHES

Switches of MAC/VGA Adapter

MAC/VGA ADAPTER

DVI/VGA Adapter

Terminal Terminal

Terminal

SERIAL PORT IN

SERIAL PORT OUT

R/C JACK

USB

AUDIO OUT

RESET

(MONO)

R/Pr G/Y B/Pb H/HV V

VIDEO/Y

ANALOG RGB

DVI

S-VIDEO

AUDIO

CONTROL PORT

(MONO)

AUDIO

CONTROL PORT

(MONO)

AUDIO

(MONO)

AUDIO

CONTROL PORT

(MONO)

INPUT 1

INPUT 2INPUT 3INPUT 4

OFF

DIP

2 3 4 5 6

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

Video Source (example)

Video Cassette Recorder

Video Disc Player

Video

Cable ✽

S-VIDEO

Cable ✽

Audio Amplifier

Audio Speaker (stereo)

Audio Cable

(Stereo) ✽

S-VIDEO Output

Audio Input

Cables used for connection

• Video Cable (BNC x 1, BNC x 2 or BNC x 3) ✽

• S-VIDEO Cable ✽

• Audio Cable (RCA x 2) ✽

(✽ = Cables are not supplied with this projector.)

NOTE :

When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. Turn a projector and peripheral equipment on before computer is switched on.

Audio Output

Pb/Cb

Pr/Cr

External Audio Equipment

AV AUDIO IN

S-VIDEO

Pr/Cr-Y-Pb/Cb

VIDEO

AUDIO OUT

Component video output equipment.

(such as DVD player or

high-definition TV source.)

Composite

Video Output

Component Video Output

Audio Cable

(Stereo) ✽

Video

Cable ✽

Video

Cable ✽

Separate Y/C

Video Output

Y-C

Terminals of

a Projector

SERIAL PORT IN

SERIAL PORT OUT

R/C JACK

USB

AUDIO OUT

(MONO)

RESET

R/Pr G/Y B/Pb H/HV V

VIDEO/Y

ANALOG RGB

DVI

S-VIDEO

AUDIO

CONTROL PORT

(MONO)

AUDIO

CONTROL PORT

(MONO)

AUDIO

(MONO)

AUDIO

CONTROL PORT

(MONO)

INPUT 1

INPUT 2INPUT 3INPUT 4

IMAGE BUTTON

Used to select image level. (P32, 37)

BEFORE OPERATION

AUTO PC ADJUST


SELECT

VOLUME

ZOOM FOCUS

LENS SHIFT

ON-OFF

INPUT 1/2

INPUT 3/4

SIDE CONTROLS AND INDICATORS

Used to adjust zoom. (P23)

INPUT 3/4 BUTTON

POWER ON–OFF BUTTON

FOCUS BUTTONS

VOLUME BUTTONS

Used to select input source either INPUT 3 or INPUT 4. (P26)

Used to adjust focus. (P23)

Used to adjust volume. (P25)

Used to select an item or adjust value in MENU. It is also used to pan image in DIGITAL ZOOM mode. (P34) Used to adjust Lens Shift. (P23)

Used to execute item selected. It is also used to expand image in DIGITAL ZOOM mode. (P34)

Used to turn a projector on or off. (P22)

ZOOM BUTTONS

Used to select LENS SHIFT function. (P23)

SELECT BUTTON

POINT LEFT/RIGHT/UP/DOWN BUTTONS

LENS SHIFT BUTTONS

SIDE CONTROLS

MENU BUTTONS

Used to open or close MENU operation. (P20, 21)

INPUT 1/2 BUTTON

Used to select input source either INPUT 1 or INPUT 2. (P26)

SIDE CONTROLS

REAR INDICATORS

FRONT INDICATORS

AUTO PC ADJ. BUTTON

Use to operate AUTO PC Adjustment function. (P29)

BEFORE OPERATION

READY

LAMP

REPLACE

WARNING

TEMP.

READY INDICATOR

LAMP INDICATOR

LAMP REPLACE INDICATOR

This indicator lights green when a projector is ready to be turned on. And it flashes green in Power Management mode. (P41)

This indicator is dim when a projector is turned on. And bright when a projector is in stand-by mode.

INDICATORS

WARNING TEMP. INDICATOR

This indicator flashes red when internal projector temperature is too high. (P43)

WARNING

TEMP.

READY

LAMP

REPLACE

LAMP

FRONT INDICATORS

REAR INDICATORS

This LAMP REPLACE indicator lights yellow when any of Projection Lamps is nearing its end, and flashes when any of them becomes out. Check which lamp needs to be replaced on Lamp Status Display.

(P45-47)

BEFORE OPERATION

OPERATION OF REMOTE CONTROL

ALL-OFF SWITCH

Left Side

When using Remote Control Unit, turn this switch to “ON.” And turn it to “ALL OFF” when it is not used.

This Remote Control Unit emits a laser beam as laser pointer function from Laser Light Window. When LASER button is pressed, laser light goes on. And when LASER button is being pressed for more than 1 minute or LASER button is released, light goes off. LASER POINTER INDICATOR lights RED while laser beam is emitted from Laser Light Window. Laser emitted is a class

II laser; therefore, do not look into Laser Light Window or shine laser beam on yourself or other

people. Three marks bellow are caution labels for laser beam. CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result

hazardous radiation exposure.

Laser Light Window

These caution labels are put on remote control.

LASER POINTER FUNCTION

Used to select input source either INPUT 1 or INPUT 2. (P26)

Used to execute item selected, or to expand or compress image in DIGITAL ZOOM +/– mode. (P34) It is also used as a PC mouse in Wireless Mouse Operation. (P43)

POWER ON-OFF BUTTON

Used to turn projector on or off. (P22)

MENU BUTTON

Used to select MENU operation. (P20, 21)

INPUT 1/2 BUTTON

LASER BUTTON

Used to operate Laser Pointer Function. Laser beam is emitted while pressing this button within 1 minute. When using this Laser Pointer for more than 1 minute, release LASER button and press it again.

Used to move a pointer on ON-SCREEN MENU, adjust each item, or pan image in DIGITAL ZOOM +/– mode. (P34) It is also used as a PC mouse in Wireless Mouse Operation. (P43)

✽ When pressing center of this

button, it works as SELECT button.

POINT BUTTON

Used as a PC mouse in Wireless Mouse Operation. (P43)

RIGHT CLICK BUTTON

Used to operate P-TIMER function. (P24)

Lights red while laser beam is emitted from Laser Light Window.

LASER POINTER INDICATOR

P-TIMER BUTTON

LASER POINTER INDICATOR

SELECT BUTTON

INPUT 3/4 BUTTON

Used to select input source either INPUT 3 or INPUT 4. (P26)

ALL OFF

ZOOM

LOCK

MUTE

NO SHOW

AUTO PC ADJ.

FOCUS

D.ZOOM

LASER

KEYSTONE

P-TIMER

ON-OFF

VOLUME

INPUT 1/2

INPUT 3/4

LENS SHIFT

FREEZE


To insure safe operation, please observe following precautions :

● Use (2) AA, UM3 or R06 type alkaline batteries.

● Replace two batteries at same time.

● Do not use a new battery with an used battery.

● Avoid contact with water or liquid.

● Do not expose Remote Control Unit to moisture, or heat.

● Do not drop Remote Control Unit.

● If a battery has leaked on Remote Control Unit, carefully wipe case clean and install new batteries.

● Danger of explosion if battery is incorrectly replaced.

● Dispose of used batteries according to the batteries manufacturers instructions and local rules.

Press lid downward and slide it.

Remove battery compartment lid.

Slide batteries into compartment.

Replace compartment lid.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.

Remote Control Batteries Installation

Operating Range

Point Remote Control Unit toward projector (Receiver Window) whenever pressing any button. Maximum operating range for Remote Control Unit is about 16.4’ (5m) and 60° in front and rear of a projector.

16.4’ (5 m)

60°

16.4’ (5 m)

Used to adjust zoom. (P23)

MUTE BUTTON

Used to mute sound.(P25)

ZOOM BUTTON

FOCUS BUTTON

Used to adjust focus. (P23)

NO SHOW BUTTON

Used to turn picture into black image. (P24)

AUTO PC ADJ. BUTTON

Use to operate AUTO PC Adjustment function. (P29)

VOLUME BUTTON

Used to adjust volume. (P25)

D.ZOOM BUTTON

Used to select DIGITAL ZOOM +/– mode and resize image. (P34)

KEYSTONE BUTTON

Used to correct keystone distortion. (P23, 40)

FREEZE BUTTON

Used to freeze picture. (P24)

IMAGE BUTTON

Used to select image level. (P32, 37)

60°

LENS SHIFT BUTTON

Used to select LENS SHIFT function. (P23)

WIRED REMOTE JACK

When using as Wired Remote Control, connect Remote Control Cable to this jack. Battery installation is required when using as Wired Remote Control.

BEFORE OPERATION

ZOOM

LOCK

MUTE

NO SHOW

AUTO PC ADJ.

FOCUS

D.ZOOM

LASER

LENS SHIFT

KEYSTONE

P-TIMER

ON-OFF

VOLUME

INPUT 1/2

INPUT 3/4

FREEZE


BEFORE OPERATION

HOW TO OPERATE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU OPERATION

Display ON-SCREEN MENU

Press MENU button to display ON-SCREEN MENU (MENU BAR). A red frame is POINTER.

Move POINTER (red frame) to MENU ICON that you want to select by pressing POINT RIGHT / LEFT buttons.

Adjust ITEM DATA by pressing POINT RIGHT / LEFT buttons. Refer to following pages for details of respective adjustments.

Press POINT DOWN button and move POINTER (red frame or red arrow) to ITEM that you want to adjust, and then press SELECT button to show ITEM DATA.

Select Menu to be adjusted

Control or adjust item through ON-SCREEN MENU

You can control and adjust this projector through ON-SCREEN MENU. Refer to following pages to operate each adjustment on ON-SCREEN MENU.

2 MOVING POINTER

3 SELECT ITEM

Move pointer (✽ see below) or adjust value of item by pressing POINT button(s) on Side Control or on Remote Control Unit.

Select item or set selected function by pressing SELECT button.

OPERATING ON-SCREEN MENU

✽ Pointer is a icon on ON-SCREEN MENU to select item. See fig-

ures on section "FLOW OF ON-SCREEN MENU OPERATION" below.

Used to select item.

SELECT BUTTON

Used to move Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

SIDE CONTROL

1 DISPLAY MENU

Press MENU button to display ON-SCREEN MENU.

Used to select item.

SELECT BUTTON

Used to move Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTON

WIRELESS REMOTE CONTROL

MENU BAR

POINTER (red frame)

MENU ICON

ITEM DATA Press POINT LEFT/RIGHT buttons to adjust value or set function.

SELECT

BUTTON

POINTER (red frame) Press POINT DOWN button to move POINTER.

ITEM

SELECT

UTO PC ADJUST

LENS SHIFT


BEFORE OPERATION

MENU BAR

PC SYSTEM MENU

Used to select computer system. (Refer to P27, 28)

IMAGE ADJUST MENU

Used to adjust computer image. [Contrast/Brightness /Color Temp. /White Balance (R/G/B) /Sharpness/Gamma /Noise Reduction /Progressive] (Refer to P33)

SETTING MENU

Used to change settings of projector or reset Lamp Replace Counter. (Refer to P40-42)

SOUND MENU

Used to adjust sound

[

volume,

Bass or Treble

], to select Built-in SP On-Off and Sound Mute. (Refer to P25)

IMAGE SELECT MENU

Used to select image level among Standard, Real and Image 1 ~ 4. (Refer to P32)

FOR PC SOURCE

Press MENU BUTTON while connecting to PC input source.

AV SYSTEM MENU

Used to select system of selected video source. (Refer to P36)

IMAGE ADJUST MENU

Used to adjust picture image.

[Contrast/Brightness/Color /Tint/Color Temp. /White balance (R/G/B) /Sharpness/Gamma /Noise Reduction/Progressive]

(Refer to P38, 39)

FOR VIDEO SOURCE

Press MENU BUTTON while connecting to VIDEO input source.

Same function as Menu for PC source.

INPUT MENU

Used to select input source (Input 1, Input 2, Input 3 or Input 4). Refer to P35

PC ADJUST MENU

Used to adjust parameters to match with input signal format. (Refer to P29-31)

IMAGE SELECT MENU

Used to select image level among Standard, Cinema and Image 1 ~ 4. (Refer to P37)

SCREEN MENU

Used to set size of image to Normal or Wide. (Refer to P39)

GUIDE WINDOW

Shows selected item of ONSCREEN MENU.

Same function as Menu for PC source.

INPUT MENU

Used to select input source (Input 1, Input 2, Input 3 or Input 4). Refer to P26

SCREEN MENU

Used to adjust size of image. [Normal / True / Wide / Digital zoom +/–] (Refer to P34)

BASIC OPERATION

TURNING ON PROJECTOR

TURNING OFF PROJECTOR

TURNING ON / OFF PROJECTOR

Power off?

Message disappears after 4 seconds.

Connect a projector's AC Power Cord into a wall outlet and turn MAIN ON / OFF SWITCH to ON. LAMP indicator lights RED, and READY indicator lights GREEN.

Press POWER ON-OFF button on Side Control or on Remote Control Unit to ON. LAMP indicator dims, and Cooling Fans start to operate. Preparation Display appears on a screen and countdown starts. Signal from source appears after 30 seconds. Current Input position and Lamp status are also displayed on screen for 5 seconds. (Refer to "LAMP MANAGEMENT" on page 45.)

Press POWER ON-OFF button on Side Control or on Remote Control Unit, and a message "Power off?" appears on a screen.

TO MAINTAIN LIFE OF LAMP, ONCE YOU TURN PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.

Complete peripheral connections (with Computer, VCR, etc.) before turning on projector. (Refer to "CONNECTING TO PROJECTOR" on Pages 12~15 for connecting that equipment.)

Preparation Display disappears after 30 seconds.

When Power Management function is ON, projector detects signal interruption and turns off Projection Lamp automatically. Refer to “Power Management” on pages 40 and 41.

Press POWER ON-OFF button again to turn off projector. LAMP indicator lights red and READY indicator turns off. After approximate 90 seconds, READY indicator will light green again and projector may be turned on by pressing POWER ON-OFF button.

Cooling fans will operate for approximate 2 minutes after projector is turned off. To power down completely, turn MAIN ON/OFF SWITCH to OFF and disconnect AC Power Cord.

LAMP STATUS

INPUT 1

2 4

When WARNING TEMP. indicator flashes red, projector is automatically turned off. Wait at least 5 minutes, conform READY indicator will light green and projector may be turned on by pressing POWER ON-OFF button.

When both WARNING TEMP. and READY indicators to flash, a projector cannot be turned on by pressing POWER ON-OFF button. In this case, follow procedures below:

1. Turn MAIN ON / OFF SWITCH to OFF.

2. Turn a projector on again. (Refer to steps 2-3 of TURNING ON PROJECTOR on this page.)

When WARNING TEMP. indicator continues to flash, follow procedures below:

1. Turn MAIN ON / OFF SWITCH to OFF and disconnect AC Power Cord from an AC outlet.

2. Check Air Filters for dust accumulation.

3. Clean Air Filters. (See "AIR FILTER CARE AND CLEANING" section on page 44.)

4. Turn a projector on again. (Refer to steps 2-3 of TURNING ON PROJECTOR on this page.)

If WARNING TEMP. indicator should still continue to flash, contact sales dealer where you purchased this projector or service center.

KEYSTONE ADJUSTMENT

Press KEYSTONE ▲/▼ button on Remote Control Unit or select Keystone on SETTING menu (Refer to page 40.) to display a Keystone dialog box.

Correct keystone distortion by pressing KEYSTONE ▲/▼ button or POINT UP/DOWN button(s). Press KEYSTONE ▲ button or POINT UP button to reduce upper part of image, and press KEYSTONE ▼ button or POINT DOWN button to reduce lower part.

Reduce upper width with KEY STONE ▲ button or POINT UP button.

Reduce lower width with KEY STONE ▼ button or POINT DOWN button.

If a projected picture has keystone distortion, correct image with KEYSTONE adjustment.

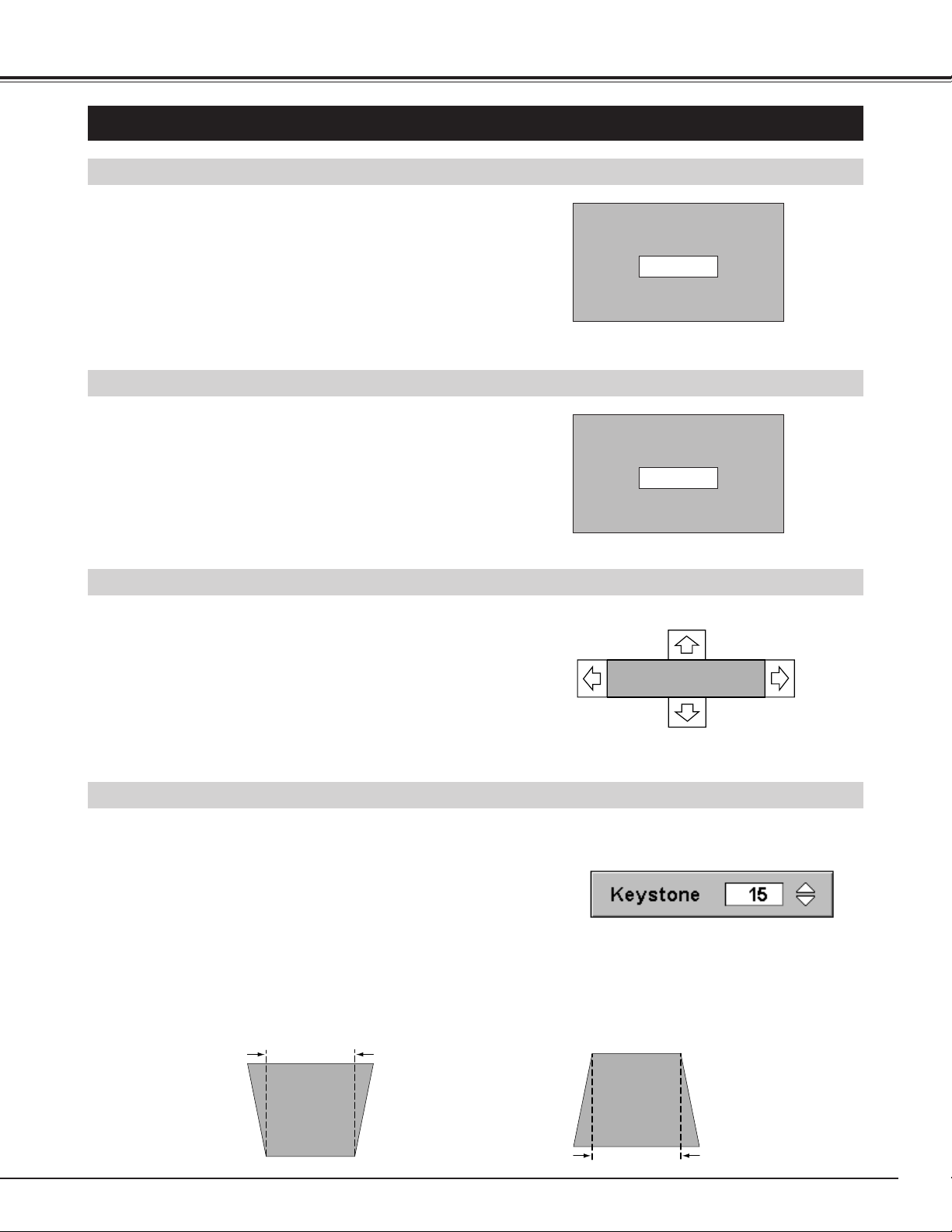

ADJUSTING SCREEN

Message disappears after 4 seconds.

Zoom

Focus

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

Press ZOOM ▲/▼ button on Side Control or on Remote Control Unit to display a message “Zoom”.

Press ZOOM ▲ button to make image larger, and press ZOOM ▼ button to make image smaller.

Press FOCUS ▲/▼ button on Side Control or on Remote Control Unit to display a message “Focus”.

Adjust focus of image by pressing FOCUS ▲/▼ button(s) .

LENS SHIFT ADJUSTMENT

BASIC OPERATION

Message disappears after 4 seconds.



Lens shift



Press the LENS SHIFT button on Side Control or on the Remote Control Unit to display a message “Lens shift”.

Press POINT UP button to move image up, press POINT DOWN button to move image down, press POINT LEFT to move image left and press POINT RIGHT to move image right.

BASIC OPERATION

Press FREEZE button on Remote Control Unit to freeze picture on-screen. To cancel FREEZE function, press FREEZE button again or press any other button except POINT / SELECT / RIGHT CLICK / LASER button.

PICTURE FREEZE FUNCTION

Press NO SHOW button on Remote Control Unit to black out a image. To restore to normal image, press NO SHOW button again or press any other button except POINT / SELECT / RIGHT CLICK / LASER button.

NO SHOW FUNCTION

Message disappears after 4 seconds.

No show

Press P-TIMER button on Remote Control unit. Timer display “00 : 00” appears on a screen and timer starts to count time (00 : 00 ~ 59 : 59). To stop timer, press P-TIMER button. And then, press P-TIMER button again to cancel P-TIMER function.

P-TIMER FUNCTION

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to SOUND Menu icon.

Volume

Press VOLUME (+/–) button(s) on Side Control or on Remote Control Unit to adjust volume. Volume dialog box appears on screen for a few seconds. (+) button to increase volume, and (–) button for decreasing.

Mute

Press MUTE button on Remote Control Unit to cut off sound. To restore sound to its previous level, press MUTE button again or press Volume (+/–) button(s).

To increase volume, press POINT RIGHT button, and press POINT LEFT button for decreasing.

Press POINT LEFT/RIGHT button(s) to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press POINT LEFT/RIGHT button(s) again.

Press POINT DOWN button to move a red frame pointer to item that you want to select, and then press SELECT button.

Indicates roughly level of volume.

Close SOUND Menu.

SOUND ADJUSTMENT

DIRECT OPERATION

MENU OPERATION

Volume

Mute

Indicates roughly level of volume.

Press MUTE button to set Mute function On or Off.

Display disappears after 4 seconds.

SOUND MENU

SOUND Menu icon

Treble

To adjust Treble sound, press POINT RIGHT button or POINT LEFT button.

Bass

To adjust Bass sound, press POINT RIGHT button or POINT LEFT button.

Built-in SP.

Closes SOUND MENU.

Quit

Press POINT LEFT/RIGHT buttons to adjust value.

BASIC OPERATION

Press POINT LEFT/RIGHT button(s) to switch built-in speaker on and off.

COMPUTER INPUT

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

Press POINT DOWN button and a red-arrow icon will appear. Move arrow to "RGB", and then press SELECT button.

When connecting to computer output use 5 BNC INPUT JACKS on projector, select a type of input source in SOURCE SELECT Menu.

WHEN SELECT INPUT 2 (5 BNC INPUT JACKS )

SELECTING COMPUTER SYSTEM

WHEN SELECT INPUT 1 (DVI INPUT TERMINAL )

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

Press POINT DOWN button to move a red arrow pointer to Input 1 and then press SELECT button. Source Select Menu will appear.

Input 1

INPUT MENU

Move a pointer to either Digital or Analog and then press SELECT button.

Digital

Analog

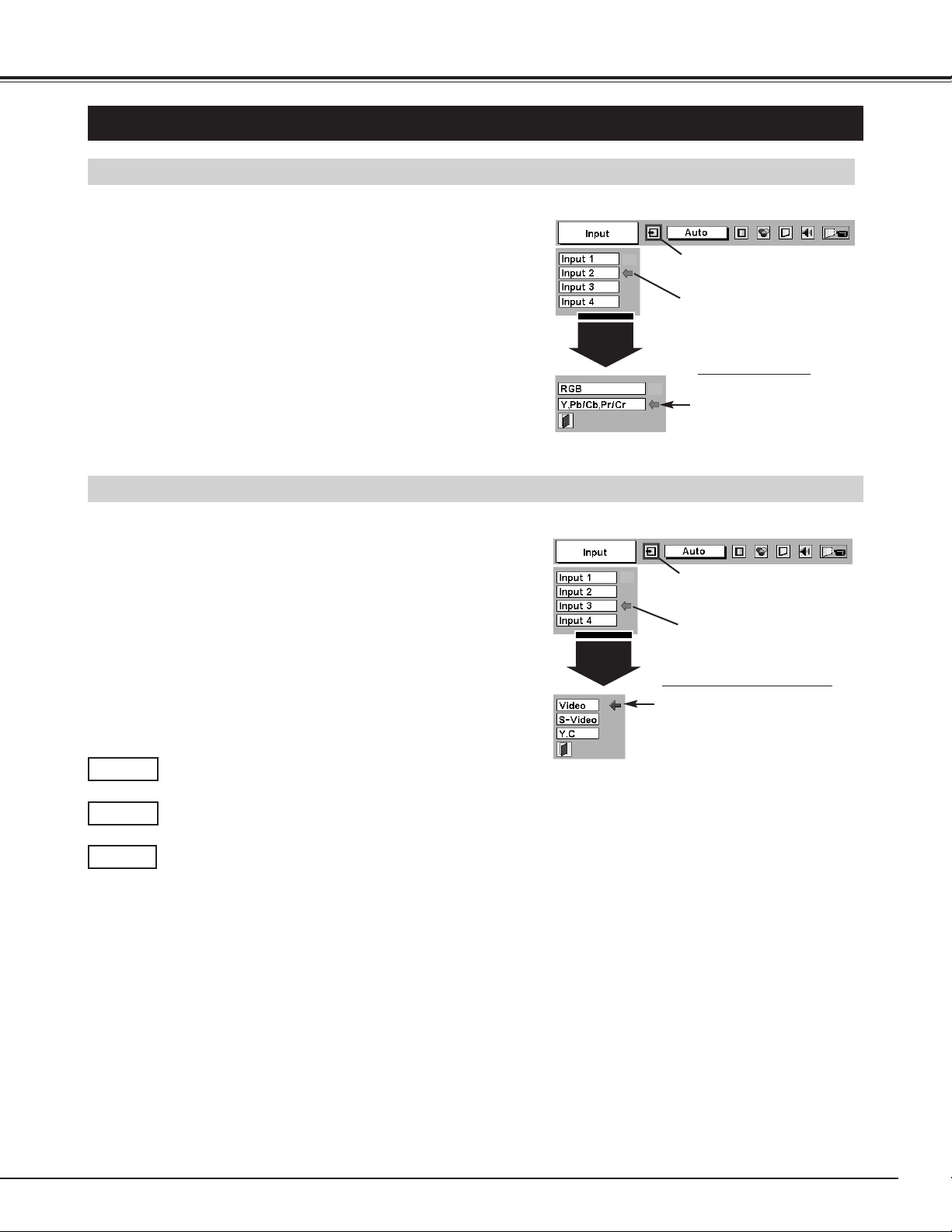

SELECTING INPUT SOURCE

MENU OPERATION

DIRECT OPERATION

Select INPUT source by pressing INPUT 1/2 and INPUT 3/4 buttons on Side Control or on Remote Control Unit.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to select Input and press SELECT button.

Another dialog box INPUT SELECT

Menu will appear.

Press POINT DOWN button and a red-arrow icon will appear. Move arrow to INPUT source that you want to select, and then press SELECT button.

INPUT 1/2 button

INPUT 1

INPUT 2

Move a pointer to Digital or Analog and press SELECT button.

Move a pointer (red arrow) to Input 1 and press SELECT button.

INPUT Menu icon

Source Select Menu

Input 2

INPUT MENU

Move a pointer to RGB and press SELECT button.

INPUT Menu icon

Move a pointer (red arrow) to Input 2 and press SELECT button.

Source Select Menu

INPUT 3/4 button

INPUT 3

INPUT 4

When digital signal is connected on DVI terminal, select Digital.

When analog signal is connected on DVI terminal, select Analog.

INPUT Menu icon

Press POINT DOWN button to move a red arrow pointer to Input 2 and then press SELECT button. Source Select Menu will appear.

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA, SXGA or UXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on page 28). When selecting Computer, this projector automatically tunes to incoming signal and projects proper image without any special setting. (Some computers need setting manually.)

Note : Projector may display one of following messages.

When projector cannot recognize connected signal as PC system provided in this projector, Auto PC Adjustment function operates to adjust projector and message “Auto” is displayed on SYSTEM Menu icon. (Refer to P29.) When image is not provided properly, manual adjustment is required. (Refer to P30 and 31.)

There is no signal input from computer. Make sure connection of computer and a projector is set correctly. (Refer to TROUBLESHOOTING on page 48.)

Auto

––––

PC SYSTEM Menu icon Displays system being selected.

PC SYSTEM MENU

SELECT COMPUTER SYSTEM MANUALLY

PC SYSTEM Menu icon Displays system being selected.

Systems on this dialog box can be selected.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to PC SYSTEM Menu icon.

Press POINT DOWN button to move a red arrow pointer to system that you want to set, and then press

SELECT button.

PC SYSTEM MENU

Custom Mode (1~5) set in PC ADJUST Menu. (P30, 31)

This projector automatically selects PC system among those provided in this projector and PC system can be also selected manually.

D-VGA, D-SVGA, D-XGA, D-SXGA 1, D-SXGA 2, D-SXGA 3 or D-UXGA

AUTOMATIC MULTI-SCAN SYSTEM

COMPUTER INPUT

When digital computer signal is received on DVI terminal, above message is displayed on PC SYSTEM Menu icon.

COMPUTER INPUT

–––––––– (Interlace)

1024 x 768

(Interlace)

COMPATIBLE COMPUTER SPECIFICATIONS

Basically this projector can accept a signal from all computers with V, H-Frequency mentioned below and less than 230 MHz of Dot Clock.

NOTE : Specifications are subject to change without notice.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

VGA 1

640 x 480 31.47 59.88 VGA 2 720 x 400 31.47 70.09 VGA 3 640 x 400 31.47 70.09 VGA 4 640 x 480 37.86 74.38 VGA 5 640 x 480 37.86 72.81 VGA 6 640 x 480 37.50 75.00

MAC LC13

640 x 480 34.97 66.60

MAC 13 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

MAC 19 1024 x 768 60.24 75.08 MAC 21

1152 x 870

68.68 75.06

UXGA 3 1600 x 1200 87.50 70.00 UXGA 4 1600 x 1200 93.750 75.00

SVGA 1 800 x 600 35.156 56.25 SVGA 2 800 x 600 37.88 60.32 SVGA 3 800 x 600 46.875 75.00 SVGA 4 800 x 600 53.674 85.06 SVGA 5 800 x 600 48.08 72.19 SVGA 6 800 x 600 37.90 61.03 SVGA 7 800 x 600 34.50 55.38 SVGA 8 800 x 600 38.00 60.51 SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 11

1024 x 768

XGA 13 1024 x 768 XGA 14 1024 x 768

61.00 75.70

XGA15 1024 x 768

46.90 58.20

XGA 8 1024 x 768

47.00 58.30

XGA 9

1024 x 768

(Interlace)

58.03 72.0

SXGA 1 1152 x 864 SXGA 2 1280 x 1024

63.48 79.35

SXGA 3

1280 x 1024

36.00 43.59

SXGA 4

1280 x 1024

64.20 70.40

SXGA 5 1280 x 1024

62.50 58.60

SXGA 6 1280 x 1024

63.90 60.00

SXGA 7

1280 x 1024

63.34 59.98

SXGA 8 1280 x 1024

63.74 60.01

SXGA 11

1152 x 900

71.69 67.19

SXGA 12

1152 x 900

81.13 76.107

SXGA 13

1280 x 1024

(Interlace)

63.98 60.02

SXGA 14

1280 x 1024

(Interlace)

61.20 65.20

71.40 75.60

50.00 43.00

720p

––––––––

(Progressive)

50.00 47.00

45.00 60.00

XGA 1 1024 x 768 XGA 2 1024 x 768 XGA 3 1024 x 768 XGA 4 1024 x 768

48.36 60.00

68.677 84.997

XGA 6 1024 x 768

60.023 75.03

XGA 7 1024 x 768

56.47 70.07

48.50 60.02

44.00 54.58

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

79.976 75.025

60.00 60.00

SXGA 15 1280 x 1024 SXGA 16 1280 x 1024 SXGA 17 1152 x 900 SXGA 18

1280 x 1024

(Interlace)

63.37 60.01

76.97 72.00

61.85 66.00

46.43 43.35

SXGA 19

1280 x 1024 63.79 60.18

XGA 5 1024 x 768 60.31 74.92

VGA 7 640 x 480 43.269 85.00

RGB

––––––––

(Interlace)

15.625 25

RGB

––––––––

(Interlace)

15.734 30

1080i60

–––––––– (Interlace)

33.75 30.00

1035i

––––––––

(Interlace)

33.75 30.00

SVGA 10 800 x 600 32.70 51.09

SXGA 20

1280 x 1024 91.146 85.024

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-VGA

640 x 480 31.469 59.940

D-SVGA 800 x 600 37.879 60.317

D-XGA 1024 x 768 48.363 60.004

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-SXGA 2

1280 x 1024

D-SXGA 3

1280 x 1024

D-UXGA

1600 x 1200

60.276 58.069

31.65 29.8

75.00 60.00

When a input signal is digital from DVI terminal, refer to chart below.

480p

––––––––

(Progressive)

31.47 59.88

XGA 10

1024 x 768 62.04 77.07

1080i50

31.25 25.00

SXGA 21

1400 x 1050 63.93 60.00

MAC

1280 x 960 75.00 75.08

UXGA 1

1600 x 1200 75.00 60.00

UXGA 2

1600 x 1200 81.25 65.00

XGA 12

35.522 43.48

1280 x 1024 63.981 60.020

D-SXGA 1

575p

––––––––

(Progressive)

31.25 50

MAC

1280 x 1024 80.00 75.08

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots and Picture Position to conform to your computer. Auto PC Adjustment function can be operated as follows.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to PC ADJUST Menu icon.

Press POINT DOWN button to move a red frame pointer to AUTO PC Adj. icon and then press SELECT button twice. This Auto PC Adjustment can be also executed by pressing AUTO PC ADJ. button on Side Control or on Remote Control Unit.

Move a red frame pointer to AUTO PC Adj. icon and press SELECT button.

PC ADJUST MENU

Auto PC Adj.

PC ADJUST Menu icon

Store adjustment parameters. Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, setting can be done just by selecting Mode in PC SYSTEM Menu (P26). Refer to step 3 of MANUAL PC ADJUSTMENT section (P30).

COMPUTER INPUT

NOTE

● Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When image is not provided properly through this function, manual adjustments are required. (Refer to page 30, 31.)

● Auto PC Adjustment function cannot be operated in Digital Signal input on DVI terminal and “RGB”, “480p”, “575p”, “720p (HDTV)”, “1035i (HDTV)”, “1080i50 (HDTV)” or “1080i60 (HDTV)” is selected on PC SYSTEM Menu (P27).

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from standard ones and may not be tuned by Multi-Scan system of this projector. If this happens, projector cannot reproduce a proper image and image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. This projector has a Manual PC Adjustment to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables you to recall setting for a specific computer whenever you use it.

Note : This PC ADJUST Menu cannot be operated in Digital Signal input on DVI terminal is selected on PC SYSTEM MENU

(P27).

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to PC ADJUST Menu icon.

Press POINT DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button. Adjustment dialog box will appear. Press POINT LEFT/RIGHT button to adjust value.

Move a red frame icon to item and press SELECT button.

PC ADJUST MENU

PC ADJUST Menu icon

Adjusts an image as necessary to eliminate flicker from display. Press POINT LEFT/RIGHT button to adjust value.(From 0 to 31.)

Fine sync

Number of total dots in one horizontal period. Press POINT LEFT/RIGHT button(s) and adjust number to match your PC image.

Total dots

Adjusts horizontal picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Horizontal

Adjusts vertical picture position. Press POINT LEFT/RIGHT button(s) to adjust position.

Vertical

Press SELECT button to show information of computer selected.

Current mode

Adjusts clamp position. When a image has a dark bar(s), try this adjustment.

Clamp

Press SELECT button at this icon to adjust “Clamp,” “Display area (H/V)” or set “Full screen.”

Press POINT LEFT/RIGHT button to adjust value.

Shows status (Stored / Free) of selected Mode.

Selected Mode

Press SELECT button at Current mode icon to show information of computer connected.

Current mode

Selects area displayed with this projector. Select resolution at Display area dialog box.

Display area

Adjustment of horizontal area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Display area H

Adjustment of vertical area displayed with this projector. Press POINT LEFT/RIGHT button(s) to decrease/increase value and then press SELECT button.

Display area V

Press POINT LEFT/RIGHT button(s) to switch Full screen function to “On” or “Off.” Set “On” to resize image with 4 x 3 aspect ratio to fit a screen.

Full screen

Reset

Store

Closes PC ADJUST MENU.

Quit

Other icons operates as follows.

To store adjustment parameters, move a red frame pointer to Store icon and then press SELECT button. Move a red arrow pointer to any of Mode 1 to 5 that you want to store and then press SELECT button.

Reset all adjust parameters on adjustment dialog box to previous figure.

Mode free

Vacant Mode Shows values of “Total dots,”

“Horizontal,” “Vertical,” “Display

area H,” and “Display area V.”

Store icon

Mode free icon

Close this dialog box.

To store adjustment data.

To clear adjustment data.

To clear adjustment parameters previously set, move a red frame pointer to Mode free icon and then SELECT button. Move a red arrow pointer to Mode that you want to clear and then press SELECT button.

Press POINT LEFT /RIGHT button(s) to adjust value and then press SELECT button.

Press SELECT button at Display area icon and Display area dialog box appears.

This Mode has parameters being stored.

COMPUTER INPUT

Display area

NOTE : Fine sync, Display area, Display area H, Display area V and

Full screen cannot be adjusted when “RGB”, “480p”, “575p”,

“720p (HDTV)”, “1035i (HDTV)”, “1080i50 (HDTV)” or “1080i60 (HDTV)” is selected on PC SYSTEM Menu (P27).

COMPUTER INPUT

PICTURE IMAGE ADJUSTMENT

IMAGE LEVEL SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to IMAGE SELECT Menu icon.

Press POINT DOWN button to move a red frame pointer to level that you want to set and then press SELECT button.

Move a red frame icon to level and press SELECT button.

Level being selected.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level with improved halftone for graphics.

Real

User preset picture adjustment in IMAGE ADJUST Menu (P33).

IMAGE 1~4

IMAGE SELECT Menu icon

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Side Control or on Remote Control Unit.

IMAGE button

Standard

Real

Image 1

Image 2

Image 3

Image 4

Normal picture level preset on this projector.

Picture level with improved halftone for graphics.

User preset picture adjustment in IMAGE ADJUST Menu (P33).

Standard

Real

IMAGE 1~4

COMPUTER INPUT

Press POINT LEFT/RIGHT buttons to adjust value.

Reset all adjustment to previous figure.

Reset

Store

Closes IMAGE MENU.

Quit

Other icons operates as follows.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE ADJUST Menu icon.

Press POINT DOWN button to move a red frame pointer to item that you want to adjust and then press SELECT button. Level of each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT button(s).

Move a red frame pointer to item to be selected and then press SELECT button.

IMAGE ADJUST MENU

IMAGE LEVEL ADJUSTMENT

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

Gamma

To store manually preset image, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to Image 1 to 4 where you want to set and then press SELECT button.

Image Level Menu Move a red frame pointer to any of Image 1 to 4 where you want to set and then press SELECT button.

Store icon Press SELECT button at this icon to store adjustment.

IMAGE ADJUST Menu icon

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Selected Image level

Press POINT LEFT button to soften image, and POINT RIGHT button to sharpen image. (From 0 to 15.)

Sharpness

Progressive

Press POINT LEFT/RIGHT button(s) to change progressive scan mode. Dialog box display is changed to “Off” and progressive scan mode to off. Press POINT LEFT/RIGHT button(s) again, progressive scan mode to on.

NOTE :

Color temp.

Press either POINT LEFT button or POINT RIGHT button to Color temp. level that you want to select. (XLow, Low, Mid or High)

Press POINT LEFT/RIGHT button(s) to change noise reduction mode. Dialog box display is changed to “On” to reduce noise (rough parts) of image. Press POINT LEFT/RIGHT button(s) again, to change noise reduction mode to off.

Noise reduction

● Noise reduction can be operated when “RGB”, “480p”, “575p”, “720p (HDTV)”, “1035i (HDTV)”, “1080i50 (HDTV)” or “ 1080i60 (HDTV)” is

selected on PC SYSTEM MENU (P27) only.

● Progressive can be operated when “RGB”, “1035i (HDTV)”, “1080i50 (HDTV)” or “1080i60

(HDTV)” is selected on PC SYSTEM MENU (P27) only.

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon.

When Digital zoom + is selected, ON-SCREEN MENU disappears and message “D. Zoom +” is displayed. Press SELECT button to expand image size. And press POINT UP/DOWN/LEFT/RIGHT button(s) to pan image. Panning function can work only when image is larger than panel resolution. A projected image can be also expanded by pressing D.ZOOM ▲ button on Remote Control Unit.

To cancel Digital Zoom +/– mode, press any button except D.ZOOM ▲/▼, SELECT, POINT and AUTO PC ADJ. buttons.

Move a red frame to function and press SELECT button.

Press POINT DOWN button and move a red frame pointer to function that you want to select and then press SELECT button.

Wide

Digital zoom +

NOTE

● Picture screen adjustment cannot be operated when “720p (HDTV)”, “1035i (HDTV)”, “1080i50 (HDTV)” or “1080i60 (HDTV)” is selected on PC SYSTEM Menu (P27).

● True and Digital zoom +/– cannot be operated when “RGB”, “480p” or “575p” is selected on PC SYSTEM Menu (P27).

● This projector cannot display any resolution higher than 1600 X 1200. If your computer’s screen resolution is higher than 1600 X 1200, reset resolution to lower before connecting projector.

● Input image data in other than UXGA (1600 x

1200) is modified to fit original resolution size (1600 x 1200) in initial mode.

● Panning function may not operate properly if computer system prepared on PC ADJUST Menu is used.

Provides image to fit original resolution size (1600 x 1200).

Normal

True

SCREEN MENU

SCREEN Menu icon

When Digital zoom – is selected, ON-SCREEN MENU disappears and message “D. Zoom –” is displayed. Press SELECT button to compress image size. A projected image can be also compressed by pressing D.ZOOM

▼

button on Remote Control Unit.

Digital Zoom –

Provides image in its original resolution.

Provides image to fit wide video aspect ratio (16 : 9) by expanding image width uniformly. This function can be used for providing a squeezed video signal at 16 : 9.

COMPUTER INPUT

SELECTING INPUT SOURCE

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

Press POINT DOWN button to move a red arrow pointer to Input 3 and then press SELECT button. Source Select Menu will appear.

Move a pointer to source and press SELECT button.

Source Select Menu (VIDEO)

Move a pointer to source that you want to select and then press SELECT button.

When video input signal is connected to VIDEO jack, select Video.

Video

When video input signal is connected to S-VIDEO jack, select S-Video.

S-Video

When video input signal is connected to VIDEO/Y, C jacks, select Y, C.

Y, C

When connecting to video equipment, select a type of Video source in SOURCE SELECT (VIDEO) Menu.

WHEN SELECT INPUT 3 (AV TERMINAL )

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to INPUT Menu icon.

Press POINT DOWN button and a red-arrow icon will appear. Move arrow to "Y, Pb/Cb, Pr/Cr" and then press SELECT button.

WHEN SELECT INPUT 2 (5 BNC TERMINAL )

Input 2

INPUT MENU

Move a pointer to Y, Pb/Cb, Pr/Cr and press SELECT button.

INPUT Menu icon

Move a pointer (red arrow) to Input 2 and press SELECT button.

Source Select Menu

Input 3

INPUT MENU

INPUT Menu icon

Move a pointer (red arrow) to Input 3 and press SELECT button.

VIDEO INPUT

Press POINT DOWN button to move a red arrow pointer to Input 2 and then press SELECT button. Source Select Menu will appear.

When connecting to video equipment, select a type of Video source in SOURCE SELECT (VIDEO) Menu.

VIDEO INPUT

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM MENU (COMPONENT VIDEO)

SELECTING VIDEO SYSTEM

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to AV SYSTEM Menu icon.

Press POINT DOWN button to move a red arrow pointer to system that you want to select and then press SELECT button.

If projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Move pointer to system and press SELECT button.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

Projector automatically detects incoming Video signal, and adjusts itself to optimize its performance. When Video System is 1035i, 1080i50 or 1080i60, select system manually first.

If projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i , 1080i50 or 1080i60.

Auto

COMPONENT VIDEO SIGNAL FORMAT

VIDEO JACK OR S-VIDEO JACK

Y, Pb/Cb, Pr/Cr JACKS

Projector automatically detects incoming Video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select system manually first.

Auto

AV SYSTEM Menu icon This box indicates system being selected.

Move pointer to system and press SELECT button.

AV SYSTEM Menu icon This box indicates system being selected.

Auto

1080i60

1080i50

720p

575p

480p

575i

480i

1035i

PICTURE IMAGE ADJUSTMENT

IMAGE LEVEL SELECT (MENU)

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to IMAGE SELECT Menu icon.

Press POINT DOWN button to move a red frame pointer to level that you want to set and then press SELECT button.

Move a red frame pointer to level and press SELECT button.

Level being selected.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level adjusted for picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P39).

IMAGE 1~4

IMAGE SELECT Menu icon

IMAGE LEVEL SELECT (DIRECT)

Select image level among Standard, Cinema, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Side Control or on Remote Control Unit.

Normal picture level preset on this projector.

Standard

Picture level adjusted for picture with fine tone.

Cinema

User preset picture adjustment in IMAGE ADJUST Menu (P39).

IMAGE 1~4

IMAGE button

Standard

Cinema

Image 1

Image 2

Image 3

Image 4

VIDEO INPUT

Press POINT LEFT/RIGHT buttons to adjust value.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to IMAGE ADJUST Menu icon.

Move a red frame pointer to item to be selected and then press SELECT button.

IMAGE ADJUST MENU

IMAGE LEVEL ADJUSTMENT

Press POINT LEFT button to decrease contrast, and POINT RIGHT button to increase contrast. (From 0 to 63.)

Press POINT LEFT button to adjust image darker, and POINT RIGHT button to adjust brighter. (From 0 to 63.)

Contrast

Brightness

Press either POINT LEFT button or POINT RIGHT button to obtain better balance of contrast. (From 0 to 15.)

Gamma

Press SELECT button at this icon to display other items.

IMAGE ADJUST Menu icon

Press POINT LEFT/RIGHT buttons to adjust value.

Press POINT LEFT button to lighten color, and POINT RIGHT button to deeper color. (From 0 to 63.)

Press POINT LEFT button or POINT RIGHT button to obtain proper color. (From 0 to 63.)

Color

Tint

Press POINT LEFT button to soften image, and POINT RIGHT button to sharpen image. (From 0 to 15.)

Sharpness

Press POINT LEFT button to lighten red tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Red)

Press POINT LEFT button to lighten green tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Green)

Press POINT LEFT button to lighten blue tone and POINT RIGHT button to deeper tone. (From 0 to 63.)

White balance (Blue)

Press SELECT button at this icon to store value.

Press SELECT button at this icon to display previous items.

Noise reduction

Progressive scan

NOTE :

Tint cannot be adjusted when video system is PAL, SECAM, PAL-M or PAL-N.

Progressive cannot be operated when “480p”, “575p” or “720p” is selected on AV SYSTEM MENU (P36).

Color temp.

Press either POINT LEFT button or POINT RIGHT button to Color temp. level that you want to select. (XLow, Low, Mid or High)

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display desirable image size.

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SCREEN Menu icon.

Press POINT DOWN button and move a red frame pointer to function that you want to select and then press SELECT button.

NOTE : SCREEN Menu cannot be operated when

“720p”, “1035i”, “1080i50” or “1080i60” is selected on AV SYSTEM Menu (P36).

Move a red frame to function and press SELECT button.

SCREEN MENU

SCREEN Menu icon

Provides image at a wide screen ratio of 16 : 9.

Wide

Provides image at a normal video aspect ratio of 4 : 3.

Normal

To store adjustment data, move a red frame pointer to Store icon and press SELECT button. Image Level Menu will appear. Move a red frame pointer to Image Level 1 to 4 and then press SELECT button.

Image Level Menu Move a red frame pointer to image icon to be set and then press SELECT button.

Store icon

Reset all adjustment to previous figure.

Reset

Store

Closes IMAGE MENU.

Quit

Other icons operates as follows.

VIDEO INPUT

SETTING

Ceiling

When this function is “On,” picture is top/bottom and left/right reversed. This function is used to project image from a ceiling mounted projector.

Rear

When this function is “On,” picture is left/right reversed. This function is used to project image to a rear projection screen.

Ceiling function

Rear function

Keystone

When image is distorted vertically, select Keystone. ON-SCREEN MENU disappears and Keystone dialog box is displayed. Correct keystone distortion by pressing POINT UP/DOWN button(s). Refer to KEYSTONE ADJUSTMENT on page 23.

SETTING MENU

Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red-frame pointer to SETTING icon.

Language

Language used in ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Chinese, Korean and Japanese.

Display

This function decides whether to display On-Screen Displays.

On ··· shows all On-Screen Displays. Off ···· sets On-Screen Displays disappeared except;

● ON-SCREEN MENU

● “Power off?” message

Set a red frame pointer to item and press SELECT button.

Press POINT DOWN button to move a red-frame pointer to item that you want to set and then press

SELECT button. Setting

dialog box appears.

Blue back

When this function is “On,” this projector will produce a blue image instead of video noise on screen when any input source is unplugged or turned off.

Logo

When this function is “On,” projector displays our logo when starting up.

When pressing SELECT button at Language, Language Menu appears.

Move a pointer to item and then press POINT LEFT/RIGHT button(s).

SETTING MENU

SETTING Menu icon

Optional Control Number

Refer to page 11.

SETTING

This function turns Projection Lamp off when this projector detects signal interruption and is not used for a certain period in order to reduce power consumption and maintain Lamp-life. (This projector is shipped with this function ON.)

Power Management function operates to turn Projection Lamp off when input signal is interrupted and any button is not pressed over 5 minutes. This function operates as follows;

1. When any input signal is interrupted, “No signal” and counting down display appears (for 5 minutes).

2. After counting down for 5 minutes, projector lamp and READY indicator are turned off.

3. When READY indicator flashing, Projection Lamp can be turned on again (Power Management mode). In this Power Management mode, Projection Lamp is automatically turned on when input signal connected or projector is operated with any button on Side Control or on Remote Control Unit again.

Power management

On start

When this function is “On,” projector is automatically turned on just by switching MAIN ON/OFF SWITCH on.

Note ; Be sure to turn projector off properly (refer to section

“TURNING OFF PROJECTOR” on P22). If projector is turned off in wrong steps, On Start function does not operate properly.

Time left until Lamp off.

Press SELECT button at this icon to display other items.

Remote control

This projector has two different remote control codes; factory-set normal code (Code 1) and secondary code (Code 2). This switching function prevents remote control operation mixture (jam) when operating several projectors or video equipment together. When operating projector in “Code 2,” both projector and Remote Control Unit must be switched to “Code 2.”

To change code of Projector;

Set Remote control in SETTING MENU to “Code 2.”

To change code of Remote Control Unit;

Press both MENU and IMAGE buttons on Remote Control Unit together for over 10 seconds. After changing code, make sure Remote Control operates properly.

To return to normal code (Code 1), operate both projector and Remote Control in ways above again. NOTE : When batteries of Remote Control Unit are replaced or ALL-OFF switch is turned to “ALL-OFF,” remote transmit

code automatically returns to normal code (Code 1).

Lamp Mode

NOTE : After changing Lamp Mode, it cannot be switched again for 90 seconds.

This Projector is equipped with 4 Projection Lamps and a number of using lamps can be switched to 4 lamps or 2 lamps. Using 2 lamps maintain life of Projection Lamps.

To change over Lamp Mode

1. Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to select SETTING and press SELECT button. Setting dialog box appears.

2. Press POINT DOWN button to move a red frame pointer to “Lamp mode”. Set "4 lamps mode" or "2 lamps mode" by pressing POINT LEFT/RIGHT button(s). When Lamp Mode is set from "4 lamps mode" to "2 lamps mode" image becomes little darker. When Lamp Mode is set from "2 lamps mode" to "4 lamps mode" image become brighter gradually.

Press SELECT button at this icon to display previous items.

On start

Move a pointer to item and then press POINT LEFT/RIGHT button(s).

SETTING

Lamp counter reset

Move pointer to Lamp counter reset and then press SELECT button. Move arrow to

replaced lamp number (Lamp 1, Lamp 2, Lamp 3 or Lamp 4) and then press

SELECT button.

USB

Projector mode

Select " " when controlling a projector with computer.

NOTE: Before you control a projector by computer, install USB driver

(optionally sold parts) and set up computer following instruction in USB driver package. Contact your authorized dealer.

This Projector is equipped with USB port for interactive operation between a projector and computer. Set mode following steps below.

Wireless Mouse mode

Select " " when controlling a computer with Remote Control of this projector.

Be sure to reset Lamp Counter when Lamp Assembly is replaced. When Lamp Replace Counter is reset, LAMP REPLACE indicator stops lighting.

Turn projector on, press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button(s) to move a red frame pointer to SETTING Menu icon.

Press POINT DOWN button to move a red frame pointer to “Lamp counter reset” and then press

SELECT button.

Do not reset Lamp Replace Counter except after Projection lamp is replaced.

Another confirmation dialog box appears and select [Yes] to reset Lamp Replace Counter.

Move arrow to replaced lamp number (Lamp 1, Lamp 2, Lamp 3 or Lamp 4) and then press

SELECT button. Message "Lamp replace counter Reset?" is displayed. Move pointer to [Yes] and then press SELECT button.

NOTE: Be sure to reset correct lamp number otherwise LAMP

REPLACE indicator continues lighting.

Message "Lamp replace counter Reset?" is displayed. Move pointer to [Yes] and then press SELECT button.

Closes SETTING MENU.

Quit

Move a pointer to item and then press POINT LEFT/RIGHT button(s).

USB

Press SELECT button at this icon to display previous items.

2 4

APPENDIX

OPERATING WIRELESS MOUSE

INSTALLATION

Wireless Remote Control Unit is not only able to operate this projector but also usable as a wireless mouse for most Personal Computers. POINT buttons and two CLICK buttons are used for wireless mouse operation. This Wireless Mouse function is available only when PC mouse pointer is displayed on a projected screen. When ONSCREEN MENU or any message / dialog box is displayed on screen instead of PC mouse pointer, this Wireless Mouse function cannot be used.

Connect mouse port (or USB port) of your computer to Control Port (or USB connector) of this projector with Control Cable (or USB cable). (Refer to page 13, 14 for connection.)

Turn a projector on first, and then turn on your computer. When computer is switched on first, Wireless Mouse may not work properly.

To use Wireless Remote Control Unit as Wireless Mouse for a Personal Computer, installation of mouse driver (not supplied) is required. Make sure that mouse driver is properly installed in your computer. And make sure that mouse port (or USB port) of a Personal Computer is activated.

OPERATING WIRELESS MOUSE

When controlling a PC mouse pointer, operate Wireless Mouse with POINT button, SELECT button, and RIGHT CLICK button on Wireless Remote Control Unit.

Used to move PC mouse pointer. Pointer is moved corresponding with direction you are pressing.

POINT button

This button has same function as left button in a PC mouse.

SELECT (LEFT CLICK) button

This button has same function as right button in a PC mouse. This button is not available for controlling this projector.

RIGHT CLICK button

Note : When your computer has no mouse

port, connect Serial Port of your computer to Control Port of a projector with Control Cable for Serial Port (not supplied).

POINT button (Move pointer)

SELECT button (left button of mouse)

RIGHT CLICK button (right button of mouse)

MAINTENANCE

WARNING TEMP. INDICATOR

Ventilation Slots of a projector may be blocked. In such an event, reposition a projector so that Ventilation Slots are not obstructed.

Air Filter may be clogged with dust particles. Clean Air Filter by following section AIR FILTER CARE AND CLEANING on next page.

If WARNING TEMP. Indicator remains on after performing above checks, Cooling Fans or Internal Circuits may be malfunctioning. Contact service personnel from an authorized dealer or a service station.

WARNING TEMP. Indicator flashes red and projector is automatically turned off when an internal temperature of a projector exceeds normal temperature. Wait at least 5 minutes before turning on projector again. When WARNING TEMP. Indicator continues to flash, check items listed below.

APPENDIX

CLEANING PROJECTION LENS

Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents or other harsh chemicals might scratch lens.

When a projector is not in use, replace lens cap.

Lightly wipe cleaning cloth over lens.

Follow these steps to clean projection lens:

AIR FILTER CARE AND CLEANING

Turn power off, and disconnect AC power cord from AC outlet.

Air Filter prevents dust from accumulating on surface of Projection Lens and Projection Mirror. Should Air Filter become clogged with dust particles, it will reduce Cooling Fans' effectiveness and may result in internal heat build up and adversely affect life of a projector. Clean Air Filter following steps below:

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating a projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on liquid crystal panel, lens, or optical elements inside it. This condition may degrade quality of projected image. When above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

Pull out air filter from a projector.

Pulling up center frame of air filter top, separate air filter top and sheet from air filter base.

Clean each parts with brush or wash out dust and particles. Be sure to dry them out.

Assemble sheet and air filter and replace air filter to a projector.

AIR FILTER

AIR FILTER TOP

AIR FILTER BASE

SHEET

CAUTION

Do not operate a projector with Air Filter removed. Dust may accumulate on LCD Panel and Mirror degrading picture quality. Do not put small parts into Air Intake Vents. It may result in malfunction of a projector.

APPENDIX

LAMP MANAGEMENT

This Projector is equipped with 4 Projection Lamps to ensure brighter image and those lamps are controlled by Lamp Management Function. Lamp Management Function detects status of all lamps and shows status on screen or on LAMP REPLACE indicator. This function also automatically controls Lamp Mode when any of lamps is out for end of life or malfunctions.

Projection Lamp lights normally.

Lamp Replace Indicator

This LAMP REPLACE indicator lights yellow when any of Projection Lamps is nearing its end, and flashes when any of them becomes out. Check number of lamp on Lamp Status Display and replace lamp.

Yellow Lamp

Dim Lamp

X Mark on Lamp

Red Lamp

LAMP REPLACE INDICATOR

Projection Lamp is turned off.

Projection Lamp is nearing its end. When image becomes darker or color becomes unnatural, replace lamp. (LAMP REPLACE indicator lights yellow.)

(LAMP REPLACE indicator flashes yellow.) Projection lamp is defective or fails to be turned on. Restart a projector on, and make sure lamp is on. If this mark still appears, replace lamp corresponding with number marked X.

LAMP STATUS DISPLAY

Lamp Mode Changeover

Lamp Management Function automatically changes combination of lighting lamp (Lamp Mode) by detecting status of lamp. When any of 4 lamps becomes out, Lamp Mode is changed over from 4 lamps to 2 lamps. And when any of 2 lamps are out, a projector operates with 1 lamp. Lamp Mode can be switched to 4 lamps or 2 lamps manually. Refer to SETTING section on page 40, 41

2 4

4 LAMP MODE

2 LAMP MODE (Example)

1 LAMP MODE (Example)

Lamp Status Displa

Lamp Status Display appears on screen when power switch is on or changed input position (input 1, input 2, Input 3 or input 4). This shows status of each lamp as; ON, OFF, NEAR END, or OUT. Refer to following for each status.

LAMP STATUS

INPUT 1

2 4

NOTE

It takes approximately 3 minutes until the projector stabilizes its lamp condition. Accordingly, the lamp status display which is shown just after the count-down display can be different from the actual status. To confirm the proper status, (press INPUT button or select Lamp Mode in the setting menu) over 3 minutes after turning on the projector.

APPENDIX

Check number of lamp to be replaced on Lamp Status Display.

Remove two screws on Lamp Cover and press button to open Lamp Cover. (See right figure.)

Loosen two screws and pull out Lamp Assembly to be replaced by grasping handle.

Turn off a projector and disconnect AC Power Cord. Allow a projector to cool down for at least 45 minutes.

Replace Lamp Assembly with a new one and tighten two screws. Make sure Lamp is set properly

Follow these steps to replace lamp assembly.

Replace Lamp Cover and tighten two screws.

Connect AC Power Cord to a projector and turn a projector on.

Reset Lamp Replacement Counter. (Refer to section "Lamp Counter Reset" on page 42.)

NOTE : Do not reset LAMP REPLACEMENT COUNTER when

lamp is not replaced.

BUTTON

SCREWS

LAMP COVER

SCREWS

Make sure which number of lamp needs to be replaced on Lamp Status Display. Figure shows case of replacing LAMP 2.

LAMP 1

LAMP 2

LAMP 3

LAMP 4

CAUTION : DO NOT OPERATE A PROJECTOR WHILE ANY OF LAMPS IS REMOVED. IT MAY RESULT IN MALFUNCTIONS, FIRE HAZARD, OR OTHER ACCIDENTS.

NOTES ON LAMP REPLACEMENT

To maintain quality of picture (better balance of color and brightness in entire screen), we recommend replacing all 4 lamps at a time.

LAMP REPLACEMENT

When the life of the Projection Lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the projection lamp with a new one promptly.

For continued safety, replace with a lamp assembly of the same type. Do not drop a lamp assembly or touch a glass bulb! The glass can shatter and may cause injury.

Allow a projector to cool, for at least 45 minutes before you open Lamp Cover. The inside of a projector can become very hot.

REAR INDICATORS

CAUTION

FRONT INDICATORS

LAMP REPLACE INDICATOR

LAMP

READY

WARNING

TEMP.

LAMP

REPLACE

LAMP

READY

WARNING

TEMP.

LAMP

REPLACE

APPENDIX

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no

guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE INDICATOR

lights up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. ( Follow carefully the instructions in the LAMP REPLACEMENT section of this manual. ) Continuous use of the lamp with the LAMP REPLACE INDICATOR lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

LAMP HANDLING PRECAUTIONS

ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the following information to the dealer.

● Model No. of your projector : LC-UXT3

● Replacement Lamp Type No. : POA-LMP49

(Service Parts No. 610 300 0862)

● Check audio cable connection from audio input source.

● Adjust audio source.

● Press VOLUME (+) button.

● Press MUTE button.

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check matters below once again.

1. Make sure you have connected a projector to your computer or video equipment as described in section "CONNECTING PROJECTOR" on pages 12 ~ 15.

2. Check cable connection. Verify that all computer, video and power cord are properly connected.

3. Verify that all power is switched on.

4. If a projector still does not produce an image, re-start your computer.

5. If an image still does not appear, unplug a projector from your computer and check your computer monitor's display.Problem may be with your graphics controller rather than with a projector. (When you reconnect a projector, be sure to turn a computer and monitor off before you power up a projector. Power equipment back on in order of : Projector and computer.)

6. If problem still exists, check following chart.

No power.

● Plug a projector into your AC outlet.

● Turn MAIN ON/OFF switch to ON.

● Press POWER ON/OFF switch to ON.

● Make sure READY Indicator lights.

● Wait 90 seconds after a projector is turned OFF when turning a projector back on.

NOTE : After pressing Power ON-OFF button to OFF, make sure a projector works as

follows:

1. LAMP indicator lights red and READY indicator turns off.

2. After 90 seconds, READY indicator lights green again and a projector may be turned on by pressing Power ON-OFF button.

● Check WARNING TEMP. and READY indicator. If both WARNING TEMP. and READY indicator flashes, a projector cannot be turned on. (See "TURNING ON/OFF PROJECTOR" section on page 22.)

● Check Projection Lamp. (Refer to page 46.)

Image is out of focus.

● Adjust focus of a projector.

● Check Projection Lens to see if it needs cleaning.

NOTE : Moving a projector from a cool temperature location to a warm temperature location

may result in moisture condensation on Projection Lens. In such an event, leave a projector OFF and wait until condensation disappears.

Picture is Left/Right reversed.

● Check Ceiling / Rear feature. (See “SETTING” section on page 40.)

Problem: Try these Solutions

Picture is Top/Bottom reversed.

● Check Ceiling feature. (See “SETTING” section on page 40.)

Some displays are not seen during Operation.

● Check Display feature.(See “SETTING” section on page 40.)

No image.

● Check connection between your computer or video equipment and a projector.

● When turning a projector on, it takes about 30 seconds to display an image.

● Check system that you select is corresponding with your computer or video equipment.

● Make sure temperature is not out of Operating Temperature (5°C ~ 35°C).

No sound.

APPENDIX

● Check cable connection between a projector and your computer.

● Check mouse setting on your computer.

● Turn a projector on before turning on a computer.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community (EC).

Remote Control Unit does not work.

● Check batteries.

● Check ALL-OFF switch on Remote Control Unit is set to “ON.”.

● Make sure nothing is between Infrared Remote Receiver and Remote Control Unit.

● Make sure you are not too far from a projector when using Remote Control Unit.

Maximum operating range is 16.4’ (5m).

● Check transmitted signal mode from Remote Control Unit. (See “SETTING” section on page 40.)

Problem: Try these Solution

Wireless Mouse function does not work.

APPENDIX

Owner’s Manual AC Power Cord Wireless/Wired Remote Control Transmitter and Batteries Remote Control Cable VGA Cable and DVI Cable MAC/VGA Adapter and DVI/VGA Adapter 3 Types Control Cable (For PS/2, Serial and ADB port) 6 Types Light-Block Sheet (For option lens) 2 Type Lens Attachment (For option lens) Protective Dust Cover

Accessories

TECHNICAL SPECIFICATIONS

1.8" TFT Active Matrix type, 3 panels

Multi-media Projector

81.7 lbs (37 kg)

22.9" x 10" x 30.9" (581 mm x 252 mm x 783 mm)

1600 x 1200 dots

5,760,000 (1600 x 1200 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N

Up, Down, Left and Right

1100 TV lines

INT. SP. Stereo (R and L), 3 watt RMS (T.H.D. 10%)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Projector Type

Net Weight

Dimensions

(W x H x D)

Panel Resolution Number of Pixels Color System

Scanning Frequency Horizontal Resolution

Built-in Speakers

Operating Temperature Storage Temperature

LCD Panel System

250 watt type x 4

Projection Lamp

0˚ to 5.7˚

Feet Adjustment

Power Source : AA, UM3 or R06 Type x 2 Operating Range : 16.4’ (5m) / ±30˚ Dimensions : 2.2” x 1.3” x 7.6” (55mm x 34mm x 192mm) Net Weight : 0.36 lbs (165 g) (including batteries) Laser Pointer : Class II Laser

(Max. Output : 1mW / Wave length : 650±20nm)

Remote Control Transmitter

480i, 480p, 575i, 575p, 720p, 1035i, 1080i-50 and 1080i-60

High Definition TV Signal

AC 120 V (12 A Max. Ampere), 50 / 60 Hz

(The U.S.A and Canada)

AC 200 ~ 240 V (7.5 A Max. Ampere), 50 / 60 Hz

(Continental Europe)

Voltage and Power Consumption

H-sync. 15 ~ 120 KHz, V-sync. 50 ~ 120 Hz

Motorized Lens Shift

DVI-I Terminal (Digital/Analog), RCA Type (Audio R and L) and DIN 8-pin (Control port)

Input 1 Jacks

BNC Type x 5 (R/Pr, G/Y, B/Pb, H/HV and V), RCA Type (Audio R and L) and DIN 8-pin (Control port)

Input 2 Jacks

BNC Type x 2 (VIDEO/Y, C), RCA Type (Audio R and L) and DIN 4-pin (S-Video)

Input 3 Jacks

Serial port in (DB 9), Serial port out (DB 9), USB port, Audio Monitor out (RCA Type R and L) and Wired Remote Jack

Other Jacks

HDB 15-pin Terminal (Analog), RCA Type (Audio R and L) and DIN 8-pin (Control port)

Input 4 Jacks

APPENDIX

● Specifications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. At least 99.99% of the pixels are effective,

however a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

CONFIGURATIONS OF TERMINALS

HDB 15-PIN TERMINAL (ANALOG)

Connect display output terminal of computer to this terminal with VGA Cable (supplied).

● When connecting Macintosh computer, use MAC/VGA Adapter (supplied).

● When connecting Analog signal from DVI terminal of computer to this terminal, use DVI/VGA Adapter (supplied).

Red Input

Ground (Horiz.sync.)

Green Input

Sense 2

Blue Input

Ground (Red) Ground (Green) Ground (Blue)

6 7 8

+5V Power

Horiz. sync.

Ground (Vert.sync.)

DDC Data

Sense 0

Vert. sync. DDC Clock

14 15

Pin Configuration

Terminal : Mini DIN 8-PIN

Connect control port (PS/2, Serial or ADB port) on your computer to this terminal with Control Cable (supplied).

Pin Configuration

CONTROL PORT CONNECTOR

-----

CLK

DATA

GND

-----

GND

-----

R X D

-----

GND

RTS

T X D

GND GND

-----

ADB

-----

GND

-----

GND

PS/2 Serial

ADB 1 2 3 4 5 6 7 8

DVI-I TERMINAL (DIGITAL/ANALOG)

This terminal accepts only Digital (TMDS) or Analog (RGB) output signal. Connect display output terminal of computer to this terminal with DVI cable (supplied).

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock DDC Data Analog Vert. sync

6 7 8

Pin Configuration

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power Ground (for +5V) Hot Plug Detect

14 15 16

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield T.M.D.S. Clock+ T.M.D.S. Clock–

22 23 24

Analog Red Input

Analog Ground (R/G/B)

Analog Green Input

Analog Horiz. sync

Analog Blue Input

APPENDIX

9 678

8 7 6

APPENDIX

----RxD TxD

-----

Ground

-----

1 2 3 4 5 6 7 8

Vcc

- Data + Data

Ground

1 2 3 4

9 -----

Connect serial port output terminal of computer to this terminal with Serial Cable (not supplied).

Pin Configuration

SERIAL PORT IN/OUT TERMINAL

USB PORT TERMINAL

Pin Configuration

Connect USB port output terminal of computer or peripheral equipment to this terminal with USB port Cable (not supplied).

12345

6789

APPENDIX

Part No. 610 300 9490 (1AA6P1P3481-- MT8B)

Printed in Japan

A-key to better communications

U.S.A.

EIKI International, Inc. 30251 Esperanza Rancho Santa Margarita CA 92688-2132 U.S.A. Tel : 800-242-3454 (949)-457-0200 Fax : 800-457-3454 (949)-457-7878 E-Mail : usa@eiki.com

Canada

Deutschland & Österreich

EIKI Deutschland GmbH Am Frauwald 12 65510 Idstein Deutschland Tel : 06126-9371-0 Fax : 06126-9371-14 E-Mail : info@eiki.de

Eastern Europe

EIKI CZECH spol. s.r.o. Umelecká 15 170 00 Praha 7 Czech Republic Tel : +42 02 20570024

+42 02 20571413 Fax : +42 02 20571411 E-Mail : easterneurope@eiki.de

Japan & Worldwide

EIKI Industrial Company Limited. 4-12 Banzai-Cho, Kita-Ku, Osaka, 530-0028 Japan Tel : +81-6-6311-9479 Fax : +81-6-6311-8486 E-Mail : japan@eiki.com

WorldWide Website http://www.eiki.com

EIKI CANADA - Eiki International, Inc. P.O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Tel : 800-563-3454 (705)-527-4084 Fax : 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.com

IBM LC-UXT3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
