To the signal (PC
or CHROMA)
To the
monitor
Firmware Upgrade
To PC
Parallel
+12V DC Input
Unzip the compressed files attached to a folder， and then proceed the following
procedure.
1. Double click “GProbe5.0.0.15” to install “GProbe V5.0”.
①
② ③
④ ⑤
⑥ ⑦
2. ISP Procedure
1) Execute “GProbe 5”, press the icon marked in red to do connection setting. Be sure that the power cable of
the monitor is not connected now.
2) Set as the picture shows, and then press the “Parallel” marked in blue to do the Parallel setting.
Select Parallel
Default value:
DDC2Bi3
3) Set the Parallel setting as the picture shows.
Default value:
0x378
Default value:
60000
Default value:
Standard Speed LPT1

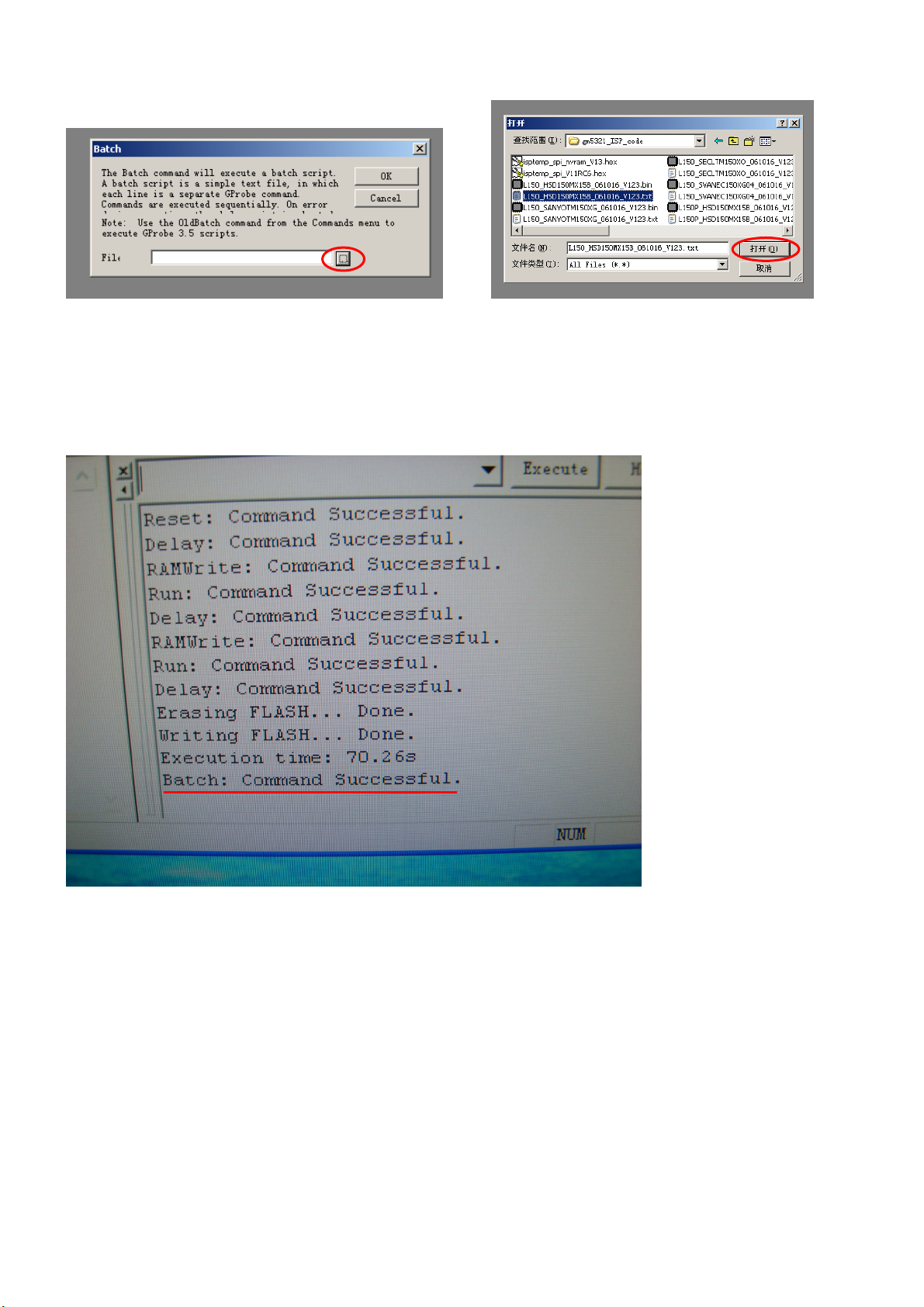

4) Select the “Batch” item in the “Commends” list.
5) Select the corresponding F/W (txt file) for this monitor.
6) Press the “open” button, and plug the power cable in the monitor. Then the ISP will proceed
automatically. When the message of “Batch: Command Successful” showed below appears, the
ISP programs well. The execution time is about seventy seconds. Pull out the power cable from
the monitor and re-plug it, the whole procedure is well done.
Attention:
1. When you are programming ISP, do not cut the AC power otherwise monitor will break off
abnormally.
2. Batch file’s directory MUST NOT include any space.
3. After the ISP, please enter the factory mode once again to check if the version is V1.23.
