IBM 6500, Infoprint 6500-v05, Infoprint 6500-v5P, Infoprint 6500-v10, Infoprint 6500-v1P User Manual

...
Infoprint 6500 Line Matrix Printers
User’s Manual

Cabinet
and Pedestal Models
S544-5957-00
Infoprint 6500 Line Matrix Printers
User’s Manual

Cabinet
and Pedestal Models
S544-5957-00
Note!
First Edition (June 2005)
Requests for IBM publications should be made to your IBM representative or to the IBM branch office serving your locality. If you request publications from the address given below, your order will be delayed because publications are not stocked there. Many of the IBM Printing Systems Division publications are available from the web page listed below.
Internet
Visit our home page at: http://www.ibm.com/printers
A Reader’s Comments form is provided at the back of this publication. If the form has been removed, you can send comments by fax to 1-800-524-1519 (USA only) or 1-303-924-6873; by E-mail to printpub@us.ibm.com; or by mail to:
Printing Systems Division
IBM Department H7FE Building 004M Information Development PO Box 1900 Boulder CO 80301-9191 USA
may use or distribute whatever information you supply in any way it believes appropriate without incurring
IBM any obligation to you.
© Copyright International Business Machines Corporation 2005. All rights reserved.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
Safety Notices
<1> Before powering on the printer ensure the printer is plugged into an
appropriate power source. Refer to Chapter 2 of the Setup Guide for information on the proper source.
<2> Switch off the printer power and unplug the printer power cord before
cleaning the printer.
<3> Do not connect or disconnect any communication port, teleport, attachment
connector, or power cord during an electrical storm.
<4> Power off the printer and disconnect the power cord before connecting or
disconnecting any communication port, teleport, or attachment cable connector.
CAUTION: This product is equipped with a 3-wire power cord and plug for the user’s safety. Use this power cord in conjunction with a properly grounded electrical outlet to avoid electrical shock.
© Copyright IBM Corp. 2005 iii
iv Infoprint 6500 User’s Manual
Contents
Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
About This User’s Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Notes And Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Conventions In This User’s Manual . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Chapter 1. Printer Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .1
The IBM Infoprint 6500 Printer Family . . . . . . . . . . . . . . . . . . . . . . . . . . .1
How To Identify The Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Standard Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Protocols and Emulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Graphics Enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Taking Care of Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Chapter 2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation, Attachment, And Configuration Overview . . . . . . . . . . . . . . . . . . . . .11
Before Yo u Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Select a Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Printer Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

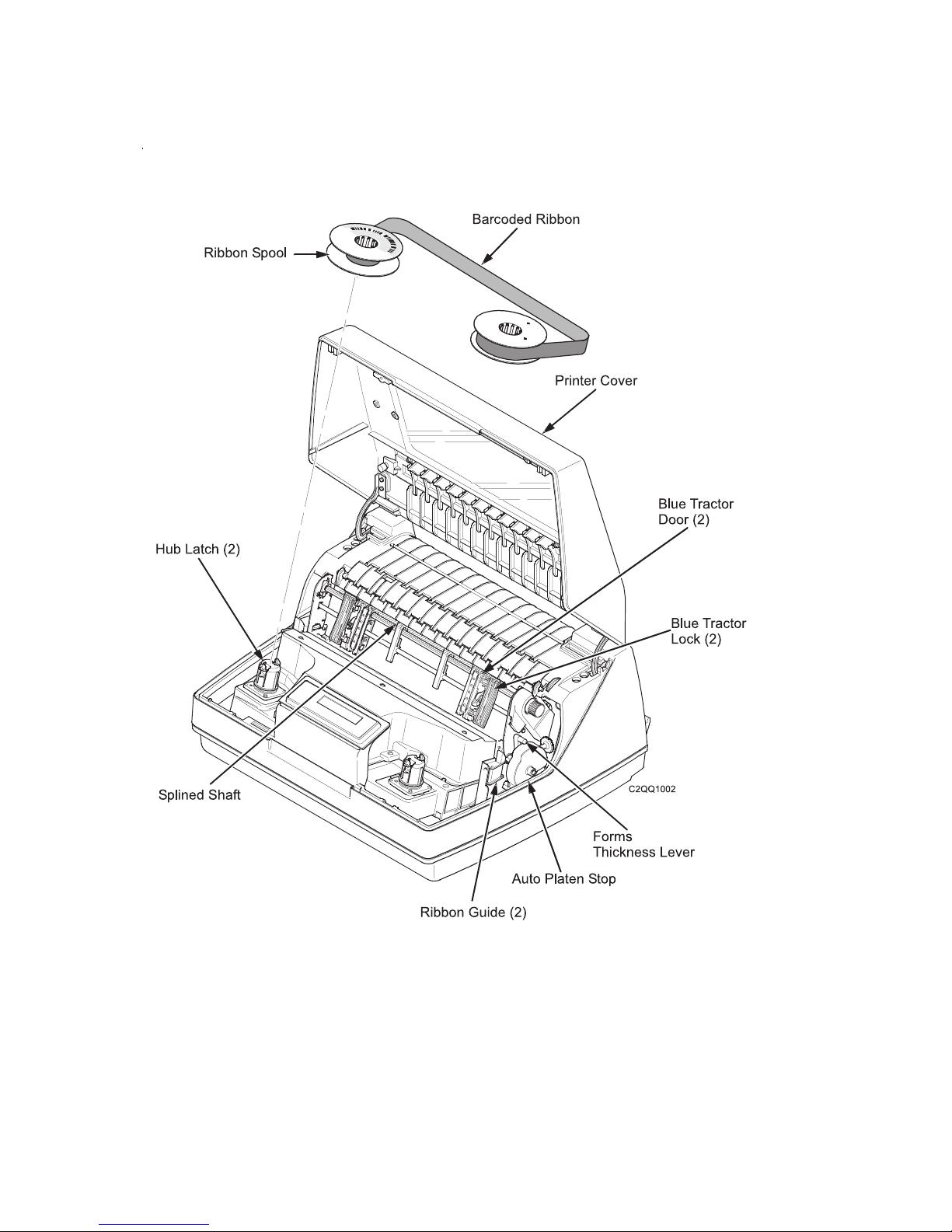

Printer Component Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Chapter 3. Configuring the Printer . . . . . . . . . . . . . . . . . . . . . . . .19
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
The Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Active Versus Saved Configurations . . . . . . . . . . . . . . . . . . . . . . . . . .20
The Configuration Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Using the Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Program Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Unlocking The Program Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Locking The Program Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Entering Program Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Printing the Current Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Factory Default Configuration Values . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Changing Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Saving Your Configuration in a Custom Set . . . . . . . . . . . . . . . . . . . . . . . . .40
Loading Custom Sets or Factory Default Values . . . . . . . . . . . . . . . . . . . . . . .43
Changing the Power On Configuration . . . . . . . . . . . . . . . . . . . . . . . . . .45
Reprogramming the Security Key . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
How To Reprogram The Security Key . . . . . . . . . . . . . . . . . . . . . . . . .48
Chapter 4. The Configuration Menus . . . . . . . . . . . . . . . . . . . . . . .49
Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

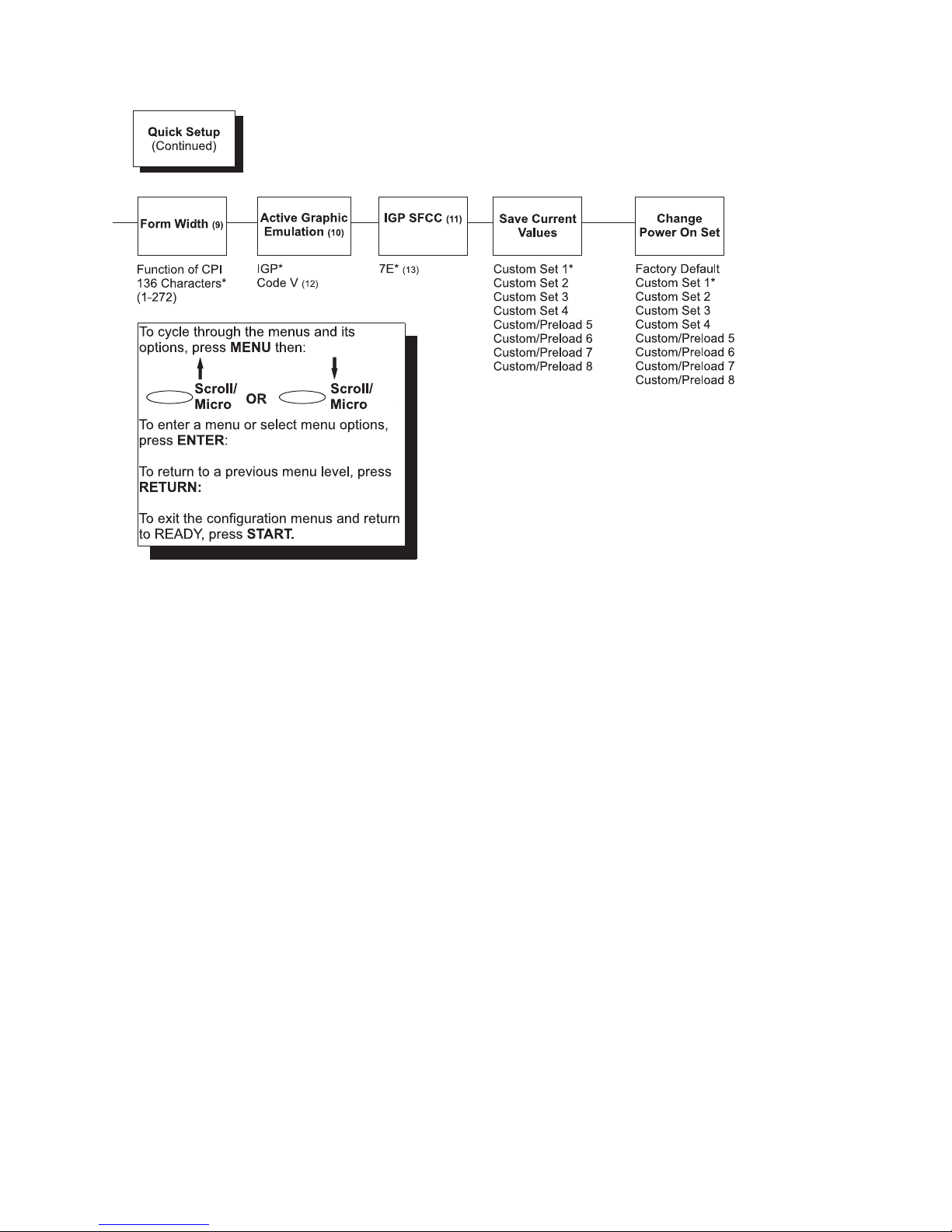

Quick Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Printer Control Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Interface Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Display Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Print Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Hex Print Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Power On State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
© Copyright IBM Corp. 2005 v
Paper Jam Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Forms Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Set Platen at BOF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Shuttle Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Energy Saver Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
OCR Font Density . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Eject/Restore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
PTR Setup Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Power Stacker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Auto Elevator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Printer Management Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
To p Exit Tear Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Ribbon End Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Ribbon Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Configuration Management Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Recall Custom Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Save Current Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Delete Custom Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Change Power On Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Protect Custom Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Print Custom Set Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Config Key Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Name Custom Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Reset Custom Set Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Twinax Interface Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Print Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Print Character Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Active Print Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Twinax Printer Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Printer Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
World Trade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Cancel Buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Early Print Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Hex Transparent Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Undefined Char Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Undefined Char Sub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Load Alt Char Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
LAC Approximation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Print Text Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Override Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Format Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Maximum Printable Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Hex Print Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
C/T Hotport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Coax Interface Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Print Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Print Character Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Active Print Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
PA 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
PA 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Buffer Reprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Early Print Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
SCS Buffer Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Cancel Buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Hex Transparent Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Mono/Dual Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Undefined Char Sub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Print Text Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Image Buffer Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Intervention Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
vi Infoprint 6500 User’s Manual
Compatibility Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Translate Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Override Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Format Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
C/T Hotport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Maximum Printable Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Hex Print Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Compatibility Options Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
5250 Interface Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Print Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Print Character Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Active Print Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Hex Transparent Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Undefined Char Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Undefined Char Sub . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Print Text Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Override Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Format Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Maximum Printable Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
C/T Hotport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
3270 Interface Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
Print Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Print Character Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Active Print Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Early Print Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Hex Transparent Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Mono/Dual Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Undefined Char Substitution . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Print Text Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Intervention Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Override Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Format Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
C/T Hotport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Maximum Printable Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Compatibility Options Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Network Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Adapter Address Submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Adapter Parameters Submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Ethernet Address Submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Ethernet Parameters Submenu . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Wireless Address Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Wireless Parameters Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
SSID Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Reset SSID Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Operation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Minimum Transfer Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Antenna Diversity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Preamble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Transmit Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
International Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Authentication Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Default WEP Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
WEP Key Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
WEP Key Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
WEP Key BYTE1 through BYTE 13 . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Reset WEP Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Wireless Kerberos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Kerberos Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Contents vii
Kerberos Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Reset Kerberos Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
KDC Port Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Clock Skew . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Ticket Lifetime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Renew Lifetime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Wireless LEAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Authentication Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
LEAP Username . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Reset LEAP User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
LEAP Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Reset LEAP Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Parallel Interface Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Interface Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
PC Parallel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Dataproducts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
IEEE 1284 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Parallel Hotport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
PC Parallel Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Dataproducts Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
IEEE 1284 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Buffer Size in Kbytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Auto Trickle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Trickle Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Serial Interface Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Interface Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Data Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Baud Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Data Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Stop Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Parity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Data Terminal Ready . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Request to Send . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Buffer Size in Kbytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Poll Character . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
One Char Enquiry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Serial Hotport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Framing Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Emulation Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Active Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
ASCII Printer Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Printer Emulation Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Print Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
IPDS Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
IPDS Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
IPDS Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
ANSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
CPI/LPI Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Font Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Page Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
IGP Feature (PGL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
IGP Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
IGP Emulation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Code V Feature (VGL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Code V Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Code V Emulation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Printer Emul Config Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Proprinter III XL Emulation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 178
viii Infoprint 6500 User’s Manual
Epson Emulation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
P-Series Emulation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
P-Series XQ Emulation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Serial Matrix Emulation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Print Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Operator Print Tests Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Printer Demonstration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Print Error Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Print Ribbon Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Ripple Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
All E’s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
All H’s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
All E’s + FF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Underlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Adapter Test Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Ethernet Test Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Clear Error Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Printer Information Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Installed Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Power On Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Printing Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Print Strokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
11 Inch Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Chapter 5. Printer Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
RS-232 and RS-422 Serial Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
RS-422 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
RS-232 Serial Interface Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
RS-232 and RS-422 Serial Interface Protocols . . . . . . . . . . . . . . . . . . . . . . . 208
RS-232 and RS-422 Serial Interface Error Handling . . . . . . . . . . . . . . . . . . . . . 208
RS-232 and RS-422 Serial Interface Configuration . . . . . . . . . . . . . . . . . . . . . 209
PC Parallel Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
PC Parallel Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . .211
PC Parallel Interface Configuration . . . . . . . . . . . . . . . . . . . . . . . . . .211
Dataproducts Parallel Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Dataproducts Parallel Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . 213
Dataproducts Parallel Interface Configuration . . . . . . . . . . . . . . . . . . . . . . 213
IEEE 1284 Parallel Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
The Negotiation Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Terminating Resistor Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Chapter 6. Routine Service and Diagnostics . . . . . . . . . . . . . . . . . . . 221
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Cleaning Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Interior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Printer Self–Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Running the Printer Self-Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Hex Code Printout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Fault Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Fault Correction Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Appendix A. Printer Specifications . . . . . . . . . . . . . . . . . . . . . . . 249
Ribbon Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Ordering Ribbons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
6500-vxx Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Contents ix
Paper Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Printer Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Cabinet Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Pedestal Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Environmental Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Relative Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Acoustic Noise Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Printing Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Appendix B. A Quick Look at Line Matrix Printing . . . . . . . . . . . . . . . . . 261
Character Formation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Printing Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Appendix C. Host Attachment . . . . . . . . . . . . . . . . . . . . . . . . . 265
Host Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Compatibility and Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Appendix D. Attaching Host Systems to a Coax/Twinax Printer . . . . . . . . . . . 271
Attaching Printer to an iSeries or zSeries Host System . . . . . . . . . . . . . . . . . . . . . 271
Attaching Printer to an iSeries Host System . . . . . . . . . . . . . . . . . . . . . . . . 271
Attaching Printer to an iSeries with Twinax Interface . . . . . . . . . . . . . . . . . . . . 271
Changing Your iSeries Printer Configuration . . . . . . . . . . . . . . . . . . . . . . . 272
Attaching Printer to Remote Control Unit with Twinax Interface . . . . . . . . . . . . . . . . 274
Attaching Printer to zSeries Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Types of Installation covered for MVS/JES2 . . . . . . . . . . . . . . . . . . . . . . . 275
6500-LU1-SCS-Local SNA 3174 Control Unit . . . . . . . . . . . . . . . . . . . . . . . 275
6500-LU1-SCS-Remote SNA 3174 Control Unit . . . . . . . . . . . . . . . . . . . . . . 277
6500-LU3-DSE-Local SNA 3174 Control Unit . . . . . . . . . . . . . . . . . . . . . . . 279
6500-LU3-DSE-Remote SNA 3174 Control Unit . . . . . . . . . . . . . . . . . . . . . . 280
6500-LU0-DSC-Local Non-SNA 3174 Control Unit . . . . . . . . . . . . . . . . . . . . . 282
Attaching Printer to VM Host System . . . . . . . . . . . . . . . . . . . . . . . . . . 283
SNA Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Non-SNA Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Physical and Logical Unit Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Physical Unit (PU) types and examples . . . . . . . . . . . . . . . . . . . . . . . . . 284
Summary of LU Types and Representative IBM Products . . . . . . . . . . . . . . . . . . . 285
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Product Recycling and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Communication Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Product Registration Information . . . . . . . . . . . . . . . . . . . . . . . . 315
x Infoprint 6500 User’s Manual
Introduction
About This User’s Manual
This User’s Manual is designed so that you can quickly install and configure your IBM 6500-v printer.
Notes And Notices
For your safety and to protect valuable equipment, it is very important that you read and comply with all information noted in the following section:
DANGER:
<#> The word Danger next to the lightning slash indicates the presence of a
hazard that could cause death or serious personal injury. Danger and Caution notices are numbered to help you find the translated versions in the IBM Infoprint 6500 Line Matrix Printer: Safety Information.
!
CAUTION:
<#> The word Caution next to the exclamation point (!) indicates the presence of a
hazard that could cause moderate or minor personal injury.
CAUTION:
<#> The word Caution next to this symbol indicates a part or assembly that is hot
enough to burn you.
ATTENTION: The word Attention indicates the possibility of damage to a
program, device, system, or data.
IMPORTANT:
The word Important indicates information vital to proper operation
of the printer.
A note gives you helpful information and tips about printer operation and
Note:
maintenance.
Conventions In This User’s Manual
Key names, indicator names, and messages that appear on the operator panel display are capitalized as they actually appear on the printer. Key names are shown in bold.
Example:
Quotation marks (“ ”) indicate messages on the Liquid Crystal Display (LCD).
© Copyright IBM Corp. 2005 xi
Press the CLEAR key, then press the ON LINE key.
Example: Press the ON LINE key. “OFFLINE” appears on the LCD.
Related Documents
v Infoprint 6500 Line Matrix Printers: Maintenance Information ManualExplains
how to maintain and repair the line matrix printer at the field service level of maintenance.
v Coax/Twinax Programmer’s Reference ManualCovers the host control codes and
character sets for the Coax and Twinax emulations.
v ASCII Programmer’s Reference ManualCovers the host control codes for the
LinePrinter Plus emulation.
v IGP Programmer’s Reference ManualProvides information used with the optional
IGP emulation enhancement feature.
v Code V Programmer’s Reference ManualProvides information used with the
optional Code V emulation enhancement feature.
v ANSI Programmer’s Reference ManualProvides host control codes and character
sets for the ANSI emulation.
v IPDS
Intelligent Printer Data Stream (IPDS) features, commands, and diagnostics.
v Ethernet Interface User’s ManualInformation about network protocols,
configuration, and operation.
v Infoprint 6500 Line Matrix Printers: Safety InformationThis manual contains
English and translated versions of the IBM 6500 Printer Safety Notices. Warning, Caution, and Danger notices are included.
v Infoprint 6500 Line Matrix Printers: Quick Start Guide - Explains how to unpack
and set up the printer.
Emulation Programmer’s Reference ManualProvides an overview of
xii Infoprint 6500 User’s Manual
Chapter 1. Printer Overview
This chapter provides a general overview of your printer and the conventions used within this manual.
The IBM Infoprint 6500 Printer Family
The IBM Infoprint 6500 series consist of 500, 1000, 1500, and 2000 lines per minute (lpm) models and are packaged in various configurations. All of the models offer software versatility and the latest refinements in line matrix printing technology. The print mechanisms are housed in sound-insulated cabinets which make the printer family among the quietest printers in the world. Additionally, your printer has a flexible architecture that allows you to add new features and emulations as they become available.
ASCII is the standard emulation. ASCII includes the Epson P-Series, P-Series XQ, Serial Matrix and Proprinter Coax/Twinax, IPDS enhancement emulations are available as optional upgrades. No matter what emulation is installed, your printer is easy to use. The message display and lights on the control panel communicate with you directly and clearly. You can select every function on your printer at the control panel, or you can send commands from the host computer.
, ANSI
®
and the IGP®/PGL
®
®
III XL emulations.
®
and IGP/VGL graphics
FX-1050, Printronix
®
The printer combines the use of Flash, RAM, and nonvolatile RAM for program execution. The Flash is used for all program, font, and emulation storage. New fonts, emulations, or program updates can be downloaded to Flash memory via the parallel or serial interface, or through the Ethernet interface. The RAM is used for buffers, print image storage, and execution variables. The nonvolatile RAM stores configuration, statistics, and internal parameters.
© Copyright IBM Corp. 2005 1
Table 1. Infoprint 6500 Printer Family
Model Number Print Speed Enclosure Hammer Bank
6500-v05 500 LPM* Floor Cabinet 28 Hammers
6500-v5P 500 LPM Pedestal,
28 Hammers
Quick Access
6500-v10 1000 LPM Floor Cabinet,
Power
Stacker optional
6500-v1P 1000 LPM Pedestal,
60 Hammers
60 Hammers
Quick Access
6500-v15 1500 LPM Floor Cabinet,
102 Hammers
Power Stacker optional
6500-v20 2000 LPM Floor Cabinet,
156 Hammers
Power Stacker optional
* Lines Per Minute
How To Identify The Printer
The model number of the printer indicates the printer family, rated maximum print speed, and type of enclosure. (See Figure 1.)
Figure 1. Printer Model Number Interpretation
2 Infoprint 6500 User’s Manual
Standard Capabilities
The 6500-v printer family has the following general characteristics:
v A broad range of print speeds in both cabinet and pedestal models v Support of similar features across the entire product line to allow maximum
flexibility in matching the printer to the requirements
v Energy Star compliant
®
following sections summarize the standard capabilities of the IBM
The printers.
Host Computer Interfaces
v RS 232 Serial v RS 422 Serial v PC Parallel v Dataproducts Parallel v Ethernet Interface v IEEE 1284
Coax/Twinax features are available with this printer: v IBM Coax/Twinax
6500-v
Printer Emulations
Each emulation provides a different set of configuration menus, control codes, and character sets. The following printer emulations (or protocols) are standard, and selectable at the operator panel:
v Proprinter III XL Emulation v Epson FX Emulation v P-Series Printer Emulation v P-Series XQ Variant Printer Emulation v Serial Matrix Printer Emulation
Proprinter
emulations are industry standard printer emulations.
III XL and Epson FX Emulations: The Proprinter III XL and Epson FX
Chapter 1. Printer Overview 3
P-Series Printer Emulation: This code system was developed especially for line matrix printers. As line matrix printers became more sophisticated, this code system kept pace by adding codes that fully utilized line matrix printer capabilities.
IMPORTANT: This emulation appears as “P-Series” on the operator panel.
P-Series XQ Variant Printer Emulation
This code system was devised for a series of printers manufactured between 1974 and 1991, that are no longer available.
IMPORTANT: This emulation appears as “P-Series XQ” on the operator panel.
Serial Matrix Printer Emulation
This printer emulation is very similar to the code systems used by an IBM Graphics Printer, but incorporates several systems into one emulation. This emulation enables a line matrix printer to print files coded for a serial matrix printer, and is sometimes referred to as the Serial Matrix collection.
IMPORTANT: This emulation appears as “Serial Matrix” on the operator panel.
Serial matrix refers to the way printer characters are formed. A moving
Note:
printhead uses pins to form whole characters one at a time and one after the other. The pins print dots according to programmed matrix patterns. Data is sent to the printer through either a serial or parallel interface, but the printhead must receive the data serially to form each character.
An IBM line matrix printer also forms characters with dots in matrix patterns, but it feeds print data in parallel to many hammers mounted on a rapidly oscillating shuttle. The hammers fire simultaneously to print entire lines at a time.
4 Infoprint 6500 User’s Manual
Output Control
The printers have the following output control features: v Six modes for printing text:
– Near-Letter Quality (NLQ) – Near-Letter Quality San Serif – Data Processing (DP) – Draft – Optical Character Recognition Font A (OCR A) – Optical Character Recognition Font B (OCR B)
A and OCR B support 120 and 180 PEL, with 120 PEL the default value.
OCR
v Selectable forms length and width v Character attribute specification:
– Selectable pitch: normal, expanded, and compressed – Emphasized (shadow) printing – Automatic underlining and overscoring – Superscript and subscript printing – Double high and wide printing
v Resident multinational character sets
Graphics and Vertical Formatting
Several graphics and vertical formatting features are available: v Three built-in graphics generators:
– IBM Proprinter III XL bit-image graphics – Epson FX dot graphics mode – P-Series Plot
Programmable electronic vertical formatting provides rapid vertical paper
v
movement to specified lines for printing repetitive and continuous forms. You can use the following methods:
– Vertical tabbing in Serial Matrix, Proprinter III XL, and Epson FX emulation
modes
– Electronic Vertical Format Unit (EVFU) in P-Series emulation mode
Chapter 1. Printer Overview 5
Built-in Diagnostic Tools
The following diagnostic tools are provided with the printer:
v Comprehensive diagnostic self-tests permanently stored in the printer v Configuration printout v Data stream hex code printout
Optional Features
The following features can be ordered and installed on this printer. If you ordered a feature at the time of purchase, the feature may already be installed on your printer. Refer to the documentation shipped with the feature for more details.
For detailed information about these features or for information on ordering a feature, contact your IBM sales representative.
v IBM Coax/Twinax Attachment:
Enables you to attach this printer to IBM host systems, such as an iSeries or zSeries Host System. This feature also helps you to replace IBM Coax/Twinax printers such as the IBM 3262 Models 3 and 13, IBM 4234 Models 1, 2, and 9, and IBM 5224 Models 1 and 2. This feature can be used with the Intelligent Printer Data Stream
v IBM Intelligent Printer Data Stream:
Provides the ability to create forms, overlays, and graphics. IPDS also provides compatibility when replacing printers such as the IBM 4234 Models 12 and 11. This feature also supports many versions of the Print Services Facility (PSF). This feature requires the IBM Coax/Twinax attachment or Ethernet card attachment.
v Code V:
This is an implementation of the Intelligent Graphics Processor architecture and is used commonly to create graphics for optical character recognition and bar codes. This feature is also designed for those applications which use the Quality Micro Systems, Inc. graphics language, which is often referred to as the QMS Code V Magnum emulation and those applications that use the Code V Graphics Language. The Code V Graphics Language is often referred to as VGL.
(IPDS) feature which is described below.
6 Infoprint 6500 User’s Manual
v IGP:
This is an implementation of Intelligent Graphics Processor architecture and is used commonly to create graphics for optical character recognition and bar codes. This feature is also designed for those applications which use the Graphics Language, which is often referred to as PGL.
This feature can coexist with the IBM Intelligent Printer Data Stream feature, and/or with either coax/twinax feature or can be used on the ASCII models.
v TN5250/TN3270 Emulations:
The TN5250/TN3270 feature enables your printer to communicate with an IBM host through a Network Interface Card (NIC) using the 5250/3270 datastream. This feature allows you to use an application generated for the Twinax/Coax emulation to be printed through the NIC.
Users who are converting from Twinax to TN5250 may see some differences. Please refer to “Compatibility and Limitations” on page 266 for details.
v ANSI Emulation:
The ANSI option allows you to print files coded for the ANSI (American National Standards Institute) printer control language.
v Network Print Server:
Enables you to attach your printer to Local Area Networks using token-ring or Ethernet protocols. The Network Print Server functions as a workstation server on your network, enabling your users to submit print jobs to your printer.
The Network Print Server provides multiple network protocol support that allows you to submit print jobs from Novell Netware, IBM LAN Server, IBM AIX*, and other TCP/IP networks.
v Dataproducts Adapter:
Supplies a 50 pin AMP Amplimite HDH-20 data cable connector. This feature is necessary if you are using the Dataproducts parallel protocol.
v Ethernet Interface:
Enables you to attach your printer to Local Area Networks using Ethernet protocols. The Ethernet Interface functions as a workstation server on your network, enabling your users to submit print jobs to your printer.
v Power Paper Stacker:
Mechanically directs the paper from the printer to the paper stacking area. This feature provides consistent paper handling with fewer paper jam errors.
v Input Paper Shelf:
Pedestal model only. Provides a shelf to hold a box of paper or forms. This is a convenient feature if you need to move the printer often.
Chapter 1. Printer Overview 7
v Pull Out Tray:
Cabinet model only. A tent tray to hold printed papers or forms that you can pull out for accessibility.
v Wireless:
An embedded wireless Ethernet Interface card that allows you to attach printers on a local area network (LAN) rather than attaching them directly to a host system.
Protocols and Emulations
A protocol is a set of rules governing the exchange of information between the printer and its host computer. These rules consist of codes that manipulate and print data and allow for machine-to-machine communication. A printer and its host computer must use the same protocol. As used in this manual, protocol and emulation mean the same thing.
Most impact printers are single ASCII character codes to print text, numbers, and punctuation marks. Some characters, both singularly and in groups are defined as control codes. Control codes instruct the printer to perform specific functions, such as underlining text, print subscripts, setting page margins, etc. The main difference between most printer protocols is in the characters used to create control codes and the ways in which these characters are formatted.
When the printer executes the character and control codes of a particular printer protocol, it is “emulating” that printer. If the printer uses the Proprinter III XL protocol, for example, it is emulating an IBM Proprinter III XL printer. If the printer is using the Epson FX printer protocol, for example, we can also say it is in Epson FX emulation mode.
There are additional emulations that are provided as optional features, such the Code V and IGP emulations. For additional information, refer to “Code V Feature (VGL)” on page 167 and “IGP Feature (PGL)” on page 161.
Graphics Enhancements
The PGL and Code V emulations allow you to create and store forms, generate logos, bar codes, expanded characters, and create other graphics. Alphanumeric and bar code data are added as the form is printed.
These emulations are available as factory-installed or field-installed options. For more information, contact your authorized service representative.
Taking Care of Your Printer
Your printer will produce high print quality jobs if it is well taken care of. Periodic cleaning, handling the printer properly, and using the correct printer supplies such as paper and ink transport media ensures optimum performance. Chapter 6, “Routine Service and Diagnostics” explains how to clean the printer, and printer supplies are listed in Appendix A, “Printer Specifications,” on page 249.
8 Infoprint 6500 User’s Manual
Whenever it is necessary to service the printer, remember this important maintenance concept.
v Incorrect closure of the forms thickness lever can lead to smearing, degraded
print quality, paper jams, and damage to the platen and shuttle assembly. Never close the forms thickness lever too tightly.
Chapter 1. Printer Overview 9
10 Infoprint 6500 User’s Manual
Chapter 2. Installation
Installation, Attachment, And Configuration Overview
Note!
Before using this information and the product it supports, read the information and Communication Statements in “Notices” on page 293.
DANGER
<4> Do not connect or disconnect any communication port, teleport, attachment
connector, or power cord during an electrical storm.
<5> Power off the printer and disconnect the power cord before connecting or
disconnecting communication port, teleport, or attachment cable connector.
The following is an overview of the steps you need to complete to successfully install, attach, and configure your printer:
1. Unpack the printer from the shipping package. Follow the instructions provided on the shipping package.
2. Set up the printer, which includes; removing shipping materials, installing the ink transport assembly, ink transport media, ink cartridge, and loading paper. Follow the instructions in IBM Infoprint 6500 Line Matrix Printers: Quick Start Guide.
3. Perform an initial print test by printing the current configuration page as described on page 24.
4. Review the information contained in the README.1ST file on the Configuration Utility section on the User’s CD.
Note: The Configuration Utility section contains a README.1ST file that
© Copyright IBM Corp. 2005 11
®
describes the contents of the CD, AIX
print drivers, and configuration information for replacing existing IBM printers. In addition, there might be another file, called README.TXT that contains information that was added after the printer documentation was printed.
5. Attach the printer to the host system and configure the host system to work with the printer.
a. For ASCII attachments, follow the instructions in the 6500 ASCII
Programmer’s Reference Manual.
b. For Coax/Twinax attachments, follow the instructions in the6500
Coax/Twinax Programmer’s Reference Manual.
c. If you have ordered the Network Print Server feature, follow the
instructions in either the Network Print Server Ethernet Administrator’s Guide, or the Network Print Server Token-Ring Administrator’s Guide.
d. If you have ordered the Ethernet Interface, follow the instructions in the
Ethernet Interface User’s Manual.
If you are attaching this printer to an AIX host system, refer to the
Note:
Configuration Utility section on the User’s CD.
6. If you have not already ordered a communications cable, see page 257.
7. Configure the printer to work with host systems and to match your emulation,
such as IBM Proprinter III XL. Follow the instructions provided in Chapter 3, “Configuring the Printer,” on page 19 and review the information provided in Appendix C, “Host Attachment,” on page 265
Note: If you are replacing another printer with this printer, make sure you
review the information on the Configuration Utility diskette. The Configuration Utility diskette contains information that will help you configure this printer to match the configuration of the printer you are replacing.
8. Install and/or configure optional features by following instructions provided in the appropriate feature manual. For a brief description of the following optional features, refer to: “IPDS Feature” on page 145, “Code V Feature (VGL)” on page 167, and “IGP Feature (PGL)” on page 161.
For more detailed information about any optional feature, refer to the
Note:
manual that was shipped with the feature. If you want to order a manual to learn more about these features, see the “Related Documents” on page xii.
12 Infoprint 6500 User’s Manual
Before You Begin
Read this chapter carefully before installing and operating the printer. The printer is easy to install. However, for your safety and to protect valuable equipment, perform all the procedures in this chapter in the order presented.
IMPORTANT: Make sure you have a way to move the printer and shipping
pallet. You will need a jack.
Make sure you have adequate room to maneuver the shipping pallet and printer to the location where you plan to install the printer.
<1> Tw o people are required to unload the printer from the shipping pallet.
Power Requirements
The printer must be connected to a power outlet that supplies 88 to 135 Volts AC or 178 to 271 Volts AC at 50 to 60 Hz. The printer automatically senses and adjusts itself to conform to the correct voltage range.
Primary circuit protection is provided by the power switch, which is also a circuit breaker. Consult an electrician if printer operation affects local electrical lines. See “Electrical Characteristics” on page 254 for additional power specifications.
IMPORTANT: Printer power should be supplied from a separate AC circuit
CAUTION
The shipping weight of the cabinet model is 129.3 kilograms (285 pounds) or 139 kilograms (306 pounds) if the Power Paper Stacker is installed. The shipping weight of the pedestal model printer is 72.6 kilograms (160 pounds.)
protected at 10 amperes for 100 - 120 volts or 5 amperes for 200 ­240 volts at 50 or 60 Hertz.
Chapter 2. Installation 13
Select a Site
Select a printer site that meets all of the following requirements: v Cabinet models: Permits complete opening of the printer cover and both doors
of the floor cabinet. Allows at least three feet of clearance behind the printer. (This permits air to circulate freely around the printer and provides access to the paper stacking area.)
v Pedestal models: Permits complete opening of the printer cover and good access
to the paper areas at the front and rear of the printer.
v Has a standard power outlet that supplies 88-135 Volts AC or 178-270 Volts AC
power, at 47 to 63 Hz. The printer automatically senses and adjusts itself to conform to the correct voltage range.
v Is relatively dust-free. v Has a temperature range of 10 C to 40 C (50 F to 104 F) and a relative humidity
from 15% to 90% non-condensing.
v Is located within the maximum allowable cable length to the host computer. This
distance depends on the type of interface you plan to use, as shown in Table 2.
Table 2. Maximum Interface Connection Cable Length
Interface Type Maximum Cable Length
PC Parallel 5 meters (15 feet)
IEEE 1284 Parallel 10 meters (32 feet)
Dataproducts Parallel 12 meters (40 feet)
Serial RS 232 15 meters (50 feet)
Serial RS 422 1220 meters (4000 feet)
Twinax (shielded cable) 1500 meters (4920 feet)
Twisted Pair / Type 3 300 meters (492 feet)
Dataproducts Long Line 150 meters (492 feet)
Coax 1500 meters (4920 feet)
Twisted Pair / Type 3 300 meters (985 feet)
Ethernet 10/100Base-T 100 meters (328 feet)
14 Infoprint 6500 User’s Manual
Printer Dimensions
27.0 in
(68.84 cm)
83.0 in
(210.8 cm)
29.0 in
(73.7 cm)
27.0 in
(68.6 cm)
27.0 in
(68.6 cm)
57.5 in
(146.1 cm)
41.0 in
(104 cm)
C2qu0001
Figure 2. Exploded View of Cabinet Model Printer Dimensions
42.5 in
27.0 in
(107.8 cm)
(68.84 cm)
83.0 in
(210.8 cm)
32.5 in
(82.6 cm)
27.0 in
(68.6 cm)
27.0 in
(68.6 cm)
32.0 in
(81.3 cm)
Figure 3. Exploded View of Cabinet Model with Power Paper Stacker Printer Dimensions
59.0 in
(149.9 cm)
C2qu0002
Chapter 2. Installation 15
Figure 4. Exploded View of Pedestal Model Printer Dimensions
16 Infoprint 6500 User’s Manual
Printer Component Locations
Familiarize yourself with the names and locations of the printer components, shown in Figure 5 and Figure 6 before continuing with the rest of the installation procedures.
Figure 5. 6500-v Printer Component Locations with the Ribbon Spools Exploded Above
Chapter 2. Installation 17
Figure 6. Pedestal Model Printer Component Locations with Open Access Cover and Ribbon Spools Exploded Above
18 Infoprint 6500 User’s Manual
Chapter 3. Configuring the Printer
Overview
IMPORTANT: Configuration directly affects printer operation. Do not try to
change the configuration of your printer until you are thoroughly familiar with the procedures in this chapter.
To print data, the printer must respond correctly to signals and commands received from the host computer. Configuration is the process of matching the printer operating characteristics to those of the host computer and to specific tasks, such as printing labels, or printing on different sizes of paper. The characteristics that define the printer response to signals and commands received from the host computer are called configuration parameters.
Yo u can configure the printer by pressing operator panel keys or by sending control codes from the host computer. This chapter explains how to use the operator panel to change individual parameters and save them as a custom configuration.
Your programmers reference manuals provide information about control codes.
The Configurations
A configuration consists of a group of parameters, such as line spacing and forms length. Your printer contains the following configurations:
v Four preloaded configurations that have been customized for printer setup. v The factory default configuration. It can be loaded, but it cannot be altered. A
list of all the parameters and their values begins on page 26.
v Four configurations that you can customize for unique print job requirements.
The process of creating customized configurations is explained on page 38.
© Copyright IBM Corp. 2005 19
Active Versus Saved Configurations
When you change a parameter value, it is active as long as the printer is on or until it is changed again. This is true whether you use the operator panel or send a control code from the host. Parameter values defined by control codes override the active operator panel parameters when the printer is using any of the parallel or serial interfaces. For example, if you set the line spacing to 6 lpi with the operator panel, and application software later changes this to 8 lpi with a control code, the control code setting overrides the operator panel setting.
Using the operator panel, you can save the parameters as a customized configuration that is stored in nonvolatile random access memory (NVRAM). A saved configuration is not lost when you power off the printer.
Note: Saved configurations are also referred to as “custom sets”.
There are no control codes that allow you to save a parameter in NVRAM. However, you can save a configuration defined partially by control codes and store it in NVRAM using the operator panel. Yo u can also save configuration values using PTR_SETUP (see page 61.)
The Configuration Main Menu
Figure 7 on page 21 shows an overview of the printer configuration menus. The pages that follow describe how to enter program mode, print the current configuration, change configuration parameters, and save and load custom sets.
For specific configuration menu options and their descriptions, refer to Chapter 4, “The Configuration Menus,” on page 49.
Note: The menus that are displayed from the operator panel are determined by
the installed features.
Each feature is shipped with a document that describes the feature in detail. For more information about these documents, see the “Related Documents” section on page xii.
20 Infoprint 6500 User’s Manual
Figure 7. Configuration Main Menu
Notes:
1. The Twinax and Coax interface menus only appear in the menus if the IBM Coax/Twinax feature is installed.
2. The Early Print Complete option appears in the Twinax menu only if the IPDS feature is installed.
3. IPDS, Code V Emulation, and IGP Emulation options appear in the menus only if these features are installed.
4. Ethernet information only appears when the Ethernet feature is installed.
5. Ether the Ethernet Interface menu or the Parallel Interface menu will display.
They cannot display at the same time.
6. If installed.
7. Not if 4234-12 is running IPDS code.
8. Only if Autoswitching is enabled.
9. Only if Coax Emulation is enabled.
10. The 5250 and 3270 Interface menu only appear in the menus if the
TN5250/3270 feature is installed.
11. Only if ANSI is installed.
Chapter 3. Configuring the Printer 21
Figure 8. Configuration Main Menu (cont)
22 Infoprint 6500 User’s Manual
Using the Operator Panel
Figure 9. The Operator Panel
The operator panel is shown above. During the configuration process, you will use the SCROLL/MICRO , SCROLL/MICRO , ENTER, and RETURN keys on the operator panel to access configuration settings and diagnostic tests via the configuration menus. As you access menus and options, menu names and option values appear on the operator panel message display (sometimes referred to as LCD, or Liquid Crystal Display).
Program Mode
Unlocking The Program Mode
This chapter provides numerous examples of how to use the operator panel keys and indicator message display to configure the printer.
The printer is in Program mode whenever the configuration menus and option values are displayed on the operator panel message display. Program mode is either locked or unlocked. In order to select new configuration values, you must unlock Program mode. In order to prevent accidental changing of the configuration settings, you may lock Program mode.
To use the operator panel to change the configuration settings, Program mode must be unlocked. When Program mode is unlocked, pressing the Enter key selects configuration values as the active values, that is, places them into printer DRAM. An asterisk (*) after a displayed setting shows it is entered into memory.
Press the Return + Enter keys at the same time to unlock Program mode. The following message will appear briefly:
OPERATOR MENU UNLOCKED
Chapter 3. Configuring the Printer 23
Locking The Program Mode
When Program mode is locked, you cannot use the operator panel to change the configuration settings. However, you can still select the configuration menus and view the current configuration settings.
Press the Return + Enter keys at the same time to lock Program mode. The following message will appear briefly:
OPERATOR MENU LOCKED
Entering Program Mode
To place the printer in Program mode, press the MENU key.
Printing the Current Configuration
Step Key LCD Result Notes
1. Make sure the printer is on
2. Press
3.
4.
5.
STOP
CONFIG
START
START
NOT READY The printer must be in NOT READY
mode to print the configuration.
PRESS START TO PRINT PRESS STOP TO EXIT
Yo u are prompted to press the Start key before the configuration prints.
NOT READY Indicates that the configuration has
printed. Date and store the printout in a safe place. Yo u may also want to label the printout (for example, “Configuration for 2-up Labels”).
READY The printer is READY for normal
operation.
24 Infoprint 6500 User’s Manual
The second method for printing the current configuration, as well as several other configurations, is to use the Print Custom Set Values menu option, shown on the following page.
The Print Custom Set Values selection on the Configuration Management menu allows you to print any or all of the configurations shown above. The default setting, “Current Custom Set”, will print the same information as pressing the Printer Configuration key. The Current Custom Set is the Power On configuration until you begin modifying the printer configuration.
Custom sets 1 through 4 do not exist until you save configuration parameters to them. You must define and save a custom set before you can print it.
Custom/Preload Sets 5 through 8 contain configuration sets that assist with the installation and configuration of this printer.
The other options will only be useful once you have modified and saved the printer configuration parameter settings.
The Power On Custom Set is defined by the “Change Power On Set” option.
Custom Sets 1 through 8 are defined by the “Save Current Values” option.
These options are described in detail under the Configuration Management Menu description starting on page 64.
Chapter 3. Configuring the Printer 25
Factory Default Configuration Values
The factory default values are permanently stored as a configuration. They cannot be modified or erased. The parameters which display depend on which interface and emulation is installed.
Below is a representative factory default configuration. Your factory default configuration will depend on the features installed in your printer.
POWER ON CURRENT CONFIGURATION - FACTORY CONFIGURATION IBM Printer Configuration File Part Number XXXXXXX Date XX-XXX-XXXX Reference Number XXXXXX DC
EC BOOT/CMX SHUTTLE TYPE FLASH DRAM SECURITY PA L CONFIGURATION CODE
V2.04D XX-XXX-XX #XXXXXXV
2.01B XX-XXX-XX #XXXXXX V1.05E XX-XXX-XX #XXXXXX 1500 8 MB 8 MB XXXXXX-XXX FC06FF
QUICK SETUP
Interface Selection Twinax Printer Emulation Ethernet Address Wireless E-Net Adapter E-Net ASCII Printer Emulation P-Series SFCC Characters Per Inch Lines Per Inch Forms Width
Form Width In Characters
Form Length
Form Length In Lines Print Quality Margins Form Length Form Width Active Graphic Emulation IGP SFCC Save Current Values Change Power On Set
Autoswitching 4234-2 IP Address IP Address IP Address Proprinter III XL Emul 1
10.0 Characters Per In
6.0 Lines Per In
132 Characters Forms
66 Lines DP Quality Left Margin Funct. of Lines 136 Characters IGP 7E Custom Set 1 Custom Set 1
26 Infoprint 6500 User’s Manual
PRINTER CONTROL
Interface Selection Display Language Print Direction Hex Print Mode Power On State Paper Jam Detection Forms Speed Set Platen at BOF Shuttle Timeout Energy Saver Timer OCR Font Density Eject/Restore PTR Setup Option
Setup Parse Setup SFCC
File System
Overwrite Files View File List Delete Files Optimize&Reboot
Print File List Power Stacker Auto Elevator Printer Management Port To p Exit Tear Distance Ribbon End Point Ribbon Action
Parallel English Bidirectional Disable Ready Enable Normal Speed Disable 5 Seconds 15 Seconds 120 Dots Per Inch Standard
Disable 21h
Enable
Enable Enable Debug Ethernet
4.50 Inches Normal Stop Ribbon End
Chapter 3. Configuring the Printer 27
CONFIGURATION MANAGEMENT Recall Custom Set
Save Current Values Delete Custom Set Change Power On Set Protect Custom Set Print Custom Set Values Name Custom Sets Reset Custom Set Names
Factory Default Custom Set 1 Custom Set 1 Factory Default Disable Current Custom Set Custom Set 1 Custom Set 1
TWINAX INTERFACE Print Language
Standard Print Language
Alternate Print Language Print Character Table Active Print Language Twinax Printer Emulation Printer Address World Trade Cancel Buffers Early Print Complete Hex Transparent Control
Lead-In Characters
User Defined Codes
Alternate Set 80-9F Undefined Char Report Undefined Char Sub Load Alt Char Option LAC Approximation Print Text Direction Override Host Format Control Maximum Printable Width Hex Print Mode C/T Hotport
Port Type
Timeout
Report Status
0037 English (USA/CAN) English US
Standard Print Language 4234-2 Address 1 Standard Character Set Enable Disable
Set 1 <%> Start Code 1 Printable Enable 60 Enable On Control By Host Disable Disable
13.2 Inches Disable
Twinax 15 Sec Disable
28 Infoprint 6500 User’s Manual
COAX INTERFACE Print Language
Standard Language
Alternate Language Print Character Table Active Print Language PA 1 PA 2 Buffer Reprint Early Print Complete SCS Buffer Control Cancel Buffer Hex Transparent Control
Lead-In Characters
User Defined Codes
Alternate Set 80-9F Mono/Dual Case Undefined Char Subs Print Text Direction Intervention Required Compatibility Options
Compatibility Options 1
Compatibility Options 2
Compatibility Options 3
Compatibility Options 4
Compatibility Options 5
Compatibility Options 6
Compatibility Options 7
Compatibility Options 8
Compatibility Options 9
Compatibility Options 10 Translate Table Override Host Format Control C/T Hotport
Port Type
Timeout
Report Status Maximum Printable Width Hex Print Mode
0037 English (USA/CAN) English US
Standard Print Language Disable Disable Disable Disable Don’t Wait Enable
Set 1 <%> Start Code 1 Printable Dual Case 60 Control By Host Not Sent to Host
On On Off On Off Off Off Off On Off Default Disable Disable
Twinax 15 Sec. Disable
13.2 Inches Disable
Chapter 3. Configuring the Printer 29
5250 INTERFACE Print Language
Standard Language
Alternate Language Print Character Table Active Print Language Hex Transparent Control
Lead-In Characters
User Defined Codes
Alternate Set 80-9F Undefined Char Report Undefined Char Subs Print Text Direction Override Host Format Control Maximum Printable Width C/T Hotport
Port Type
Timeout
Report Status
0037 English (USA/CAN) English US
Standard Print Language
Set 1 <%> Start Code 1 Printable Enable 60 Left To Right Disable Disable
13.2 Inches
Twinax 15 Sec. Disable
3270 INTERFACE Print Language
Standard Language
Alternate Language Print Character Table Active Print Language Early Print Complete Hex Transparent Control
Lead-In Characters
User Defined Codes
Alternate Set 80-9F Mono/Dual Case Undefined Char Subs Print Text Direction Intervention Required Compatibility Options
Compatibility Options 1
Compatibility Options 2
Compatibility Options 3
Compatibility Options 4
Compatibility Options 5
Compatibility Options 6
Compatibility Options 7
Compatibility Options 8
Compatibility Options 9
Compatibility Options 10 Override Host
0037 English (USA/CAN) English US
Standard Print Language Disable
Set 1 <%> Start Code 1 Printable Dual Case 60 Left To Right Not Sent to Host
On On Off On Off Off Off Off On Off Disable
30 Infoprint 6500 User’s Manual
Format Control C/T Hotport
Maximum Printable Width NETWORK SETUP Adapter Address
IP Address Subnet Mask Gateway Address MAC Address DHCP
Adapter Parameters
Buffer Size in Kbytes NetBIOS Protocol ASCII Data Port Number IPDS Data Port Number Keep-Alive Timer Ethernet Speed Job Control Ethernet Hotport Timout
Ethernet Address
IP Address Subnet Mask Gateway Address MAC Address DHCP
Ethernet Parameters
Buffer Size in Kbytes NetBIOS Protocol ASCII Data Port Number IPDS Data Port Number Keep-Alive Timer Ethernet Speed Job Control Ethernet Hotport Timeout
Wireless Address
IP Address Subnet Mask Gateway Address Mac Address DHCP
Disable
Twinax 15 Sec. Disable
13.2 Inches
16 Enable 9100 5001 3 Minutes Auto Select Standard 10 Sec.
16 Enable 9100 5001 3 Minutes Auto Select Standard 10 Sec
Disable
Chapter 3. Configuring the Printer 31
Wireless Parameters
Signal Strength
SSID Name
Reset SSID Name
Operation Mode
Minimum Transfer Rate
Channel
Antenna Diversity
Preamble
Power Management
Transmit Power
International Mode
Default WEP Key
WEP Key 1
Key Format Key Width Byte 1: - Byte5 Byte 1: - Byte13
WEP Key 2
Key Format Key Width Byte 1: - Byte5 Byte 1: - Byte13
WEP Key 3
Key Format Key Width Byte 1: - Byte5 Byte 1: - Byte13
WEP Key 4
Key Format Key Width Byte 1: - Byte5 Byte 1: - Byte13
Reset WEP Keys Wireless LEAP
Authentication Method
LEAP Username
Reset LEAP Username
LEAP Password
Reset LEAP Password
0% SSID Name (01-15)
Ad Hoc Auto-negotiable Default Diverse Default 0 ms
100% Disable 0
Hexadecimal 128 Bits
Hexadecimal 128 Bits
Hexadecimal 128 Bits
Hexadecimal 128 Bits
Open LEAP Username (01 - 15)
LEAP Password (01 - 15)
32 Infoprint 6500 User’s Manual
PARALLEL INTERFACE Interface Type
PC Parallel
Data Bit 8 Data Polarity Strobe Polarity Response Polarity Busy on Strobe Latch Data On Prime Signal TOF Action at Prime Signal Buffer Size in Kilobytes Auto Trickle Trickle Time
Dataproducts
Data Bit 8 PI Ignored Data Polarity Data Request Polarity Strobe Polarity Buffer Size in Kbytes Auto Trickle Trickle Time
IEEE 1284
Buffer Size in Kbytes Auto Trickle Trickle Time
Parallel Hotport
Trickle Time Timeout Report Status
IEEE 1284
Enable Standard Standard Standard Enable Leading Edge Enable Form Feed at Reset 16 Disable 1/4 Sec.
Enable Enable Standard Standard Standard 16 Disable 1/4 Sec.
16 Disable 1/4 Sec.
1/4 Sec. 10 Sec. Disable
SERIAL INTERFACE Interface Type
Data Protocol Baud Rate Data Bits Stop Bits Parity Data Terminal Ready Request to Send Buffer Size in Kbytes Poll Character One Char Enquiry Serial Hotport
Trickle Time Timeout Report Status
Framing Errors
RS 232 XON / XOFF 9600 Baud 8 1 None Ready/Buffer Not Full True 16 X'00' Hex Disable
¼ Sec. 10 Sec. Disable Enable
Chapter 3. Configuring the Printer 33
EMULATION CONFIGURATION Active Graphic Emulation
IPDS
Print Language
Standard Print
Language
Undefined Character Subst Maximum Printable Width Override Host Graphics Quality Bar Code Quality Image Quality IPDS Emulation Mode Postnet Barcode Width UPC/EAN Barcode HRI Enhanced Barcode Mode Compressed Font
ANSI Emulation
CPI/LPI Select
Select CPI
Select LPI
Font Attributes
Typeface
Prop. Spacing
Bold Print
Slashed Zero
Page Format
Margins
Right Margin
To p Margin
Bottom Margin
Form Length
Function of Lines
Form Width
Function of CPI
Define CR Code Auto LF Define LF Code Character Set Printer Select ESC c Sequence Reset Command Received CR Received DEL Private Mode Pos. on BC/OVRSZ BC Check Digit
ANSI Printer Emulation
0037 English (USA/Can) 60°
13.2 Inches Disable Medium High Low 4234 Standard On Disable Disable
10.0 CPI
6.0 LPI
Data Processing Disable Disable Disable
0 Columns 0 Columns 0 Lines 0 Lines
66 Lines
136 Characters CR = CR Disable LF = CR + LF Latin 1 8859-1 On = DC1/OFF = DC3 Enable Disable Observe Observe Set 2* Set to top By Host
34 Infoprint 6500 User’s Manual
Barcode Darkmode PUM Default Truncate PI Slew ETX/ACK
IGP Emulation
Define CR Code Define LF Code Auto LF Select SFCC PI Slew Range CR Edit Select Font Select Set Slash 0 Lines Per Inch Mono/Dual Case Skip Command Prefix Power on IGP Ext Execute Copy UPC Descenders Compressed CPI Ignore Character
Ignore Mode
Select Character IGP100 Compatibility Expanded Font Optimized Ratio
ASCII Printer Emulation Printer Emul Config
Proprinter III XL Emulation
Print Language
Alternate Character Set
Define CR Code
Auto LF
Define LF Code
FF Valid at TOF
20 CPI Condensed Epson Emulation
Character Sets
Epson Print Language
Define CR Code
Auto LF
Define LF Code
Printer Select
20 CPI Condensed
Enable Decipoints Truncate at TOF Disable
CR=CR LF=LF Disable 7E 16 Disable 0 Disable Disable 6 Lines Per Inch Dual Case Enable Enable Disable Enable Disable
Disable 0 None Block Disable P-Series Emulation
0437 PC Character Set PC Character Set 1 CR=CR Enable LF=LF Enable Enable
Epson Set ASCII (USA) CR=CR Enable LF=LF Disable Enable
Chapter 3. Configuring the Printer 35
P-Series Emulation
Character Sets Print Language Control Code 06 Control Code 08 Define CR Code Auto LF Overstrike Define LF Code P-Series SFCC EVFU Select Alternate Set 80 - 9F
P-Series XQ Emulation
Control Code 06 Define CR Code Auto LF Define LF Code Compressed Print Elong/Alt. Font High Speed Print Mode EVFU Select Upper Case Select Slew Relative
Serial Matrix Emulation
Character Sets Print Language Control Code 06 Define CR Code Auto LF Overstrike Define LF Code Printer Select Alternate 80 - 9F
Print Format
Characters Per Inch Lines Per Inch Forms Width
Forms Width in Inches Forms Width in MM Forms Width in Characters
Forms Length
Forms Length in Inches Forms Length in MM
Forms Length in lines Print Quality Print Character Table
Print Attributes
Proportional Spacing
Italic Print
Slashed Zero
Text Position
UTF-8 Margins
Left Margin
Right Margin
Bottom Margin Perforation Skip Reset Command
IBM PC IBM PC
8.0 LPI Elongated CR=CR Disable Enable LF=CR+LF 1 Enable Printable
8.0 LPI CR=CR Disable LF=CR+LF Char 01 SQH Elng=BS Font=SO Char 02 STX Enable Disable 1 to 16 Lines
IBM PC IBM PC
8.0 LPI CR=CR Enable Enable LF=LF Disable Printable
10.0 Characters Per Inch
6.0 Lines Per Inch
13.6 inches
345.5 MM 132 Characters
11.0 inches
279.4 MM 66 lines DP Quality
Disable Disable Disable Bottom of Line Disable
0 Characters 0 Characters 0 Lines Disable Load Factory
36 Infoprint 6500 User’s Manual
OPERATOR PRINT TESTS Printer Demonstration Print Error Log Ripple Print All E’s All H’s All E’s + FF Underlines Adapter Test Page Ethernet Test Page Clear Error Log
PRINTER INFORMATION Installed Memory Power On Time: Printing Time: Print Strokes 11 Inch Pages
8MB XXX.X Hours XX Hours XXXXXX XXXX
Chapter 3. Configuring the Printer 37
Changing Parameters
The following procedure shows you how to change a configuration setting. Changing the Print Direction from the factory default setting BIDIRECTIONAL to the setting UNIDIRECTIONAL is provided as an example. Print Direction is one of the Printer Control menu options. The procedure is similar for other configuration changes. Use these basic guidelines to navigate the configuration menus and change other parameters.
Note: Press Start at any time to exit the configuration menu.
Step Key LCD Results Notes
1. Determine which parameters you want to change and what the new values will be. In this example, the value for the PRINT DIRECTION parameter will be changed from “BIDIRECTIONAL” to “UNIDIRECTIONAL”.
2. Press
STOP
NOT READY Places the printer in NOT
READY mode before entering the operator menus.
3.
OPERATOR MENU UNLOCKED
Unlocks the Operator Menu, which allows you to make configuration changes.
4.
MENU
OPERATOR MENU PRINTER CONTROL
Displays the first Configuration Main Menu option, PRINTER CONTROL.
5.
ENTER
6.
PRINTER CONTROL INTERFACE SELECTION
PRINTER CONTROL PRINT DIRECTION
Moves into the PRINTER CONTROL menu.
Moves to the PRINT DIRECTION parameter.
7.
38 Infoprint 6500 User’s Manual
UNTIL
ENTER
PRINT DIRECTION BIDIRECTIONAL*
Move into the PRINT DIRECTION menu. The asterisk (*) shows that this is the active value.
Step Key LCD Results Notes
8.
PRINT DIRECTION UNIDIRECTIONAL
Moves to the next available option, the UNIDIRECTIONAL option.
9.
ENTER
PRINT DIRECTION UNIDIRECTIONAL*
Selects the displayed value. An asterisk (*) appears indicating that this choice is now the active value.
10. Continue this pattern to make all of the changes, using the information in this chapter.
11. To save changes so that they will remain when the printer is reset or powered back
on, see “Saving Your Configuration in a Custom Set” on page 40. If you want to use these values without saving, continue to the next step.
12.
13.
14.
STOP
STOP
NOT READY Returns the printer to the NOT
READY mode.
OPERATOR MENU LOCKED
Locks Program mode and the Operator Menu.
READY Places the printer in READY
mode, prepared for normal operation.
Chapter 3. Configuring the Printer 39
Saving Your Configuration in a Custom Set
Once you have changed all of the necessary parameters, it is recommended you save them as a configuration that can be stored and loaded later for future use. Yo u can save your configurations to meet different print job requirements.
The saved configurations (called custom sets) are stored in NVRAM—they will not be lost if you power off the printer.
Later, you can load one of the configurations for a specific print job. This eliminates the need to change settings, such as CPI and LPI, for each new job. See page 43 for details on loading configurations.
Yo u may want to print records of your configurations (see page 24) and store them in a safe place, such as inside the printer cabinet.
40 Infoprint 6500 User’s Manual
If you do not save your configuration before you power off the printer, all of the new parameter values that have not been saved to NVRAM will be erased. When you power the printer on again, the power-on configuration will load. If no configuration has been designated as the power-on configuration, the factory configuration will load.
Note: To avoid overwriting an existing custom set, the Protect Custom Sets
parameter must be set to ENABLE. See page 66 for details.
Step Key LCD Results Notes
1. Press
STOP
NOT READY Places the printer in NOT READY mode.
2.
OPERATOR MENU UNLOCKED Unlocks the Operator Menu, which
allows you to make configuration changes.
3.
MENU
4.
OPERATOR MENU PRINTER CONTROL
OPERATOR MENU CONFIGURATION
Displays the first Configuration Main Menu option, PRINTER CONTROL.
Moves to the Configuration Management menu option.
MANAGEMENT
UNTIL
5.
ENTER
6.
CONFIGURATION MANAGEMENT RECALL CUSTOM SET
CONFIGURATION MANAGEMENT SAVE
Selects the CONFIGURATION MANAGEMENT menu. The RECALL CUSTOM SET option appears.
Moves to the SAVE CURRENT VALUES option.
CURRENT VALUES
UNTIL
7.
ENTER
SAVE CURRENT VALUES 1* Selects the SAVE CURRENT VALUES
menu.
8.
UNTIL
9.
10.
ENTER
STOP
SAVE CURRENT VALUES 2 Scrolls through the list of custom sets 1 -
8.
SAVING CONFIGURATION Selects the SAVE CURRENT VALUES
option. The message “SAVING CONFIGURATION” appears briefly.
NOT READY Returns the printer to the NOT READY
mode.
Chapter 3. Configuring the Printer 41
Step Key LCD Results Notes
11.
12.
STOP
OPERATOR MENU LOCKED Locks Program mode and the Operator
Menu.
READY Places the printer in READY mode,
prepared for normal operation.
13. It is recommended you print your current configuration, as described on page 24.
42 Infoprint 6500 User’s Manual
Loading Custom Sets or Factory Default Values
Yo u can load any of the custom set configurations or the factory default configuration. Factory default parameters are shown starting on page 26. The loaded configuration remains active as long as the printer is on. The following procedure shows how to load factory defaults to the printer.
If you power off the printer, the power-on configuration will load the next time the printer is powered on. Selecting the power-on configuration is explained on page
45.
Chapter 3. Configuring the Printer 43
Step Key LCD Results Notes
1. Press
STOP
NOT READY Places the printer in NOT READY mode.
2.
OPERATOR MENU UNLOCKED Unlocks the Operator Menu, which
allows you to make configuration changes.
3.
MENU
4.
OPERATOR MENU PRINTER CONTROL
OPERATOR MENU CONFIGURATION
Displays the first Configuration Main Menu option, PRINTER CONTROL.
Moves to the Configuration Management menu option.
MANAGEMENT
UNTIL
5.
6.
ENTER
ENTER
CONFIGURATION MANAGEMENT RECALL CUSTOM SET
RECALL CUSTOM SET FACTORY DEFAULT
Selects the CONFIGURATION MANAGEMENT menu. The RECALL CUSTOM SET option appears.
Moves forward to the FACTORY DEFAULT parameter for the RECALL CUSTOM SET option.
7.
ENTER
LOADING SAVED CONFIGURATION
Loads the set of Factory Default values. The message “LOADING SAVED CONFIGURATION” appears briefly.
8.
STOP
9.
STOP
10.
44 Infoprint 6500 User’s Manual
NOT READY Returns the printer to the NOT READY
mode.
OPERATOR MENU LOCKED Locks Program mode and the Operator
Menu.
READY Places the printer in READY mode,
prepared for normal operation.
Changing the Power On Configuration
When you power on the printer for the first time, it loads the factory default configuration. If you power the printer off and then back on, the printer will load the designated power-on configuration (which is set to Factory Default by default). It will not load the last saved configuration.
The Change Power On Set option allows you to select a custom set of configuration values as the power-on configuration. The example on the following page shows how to select Custom Set 1 as the power-on configuration.
Note: Be sure you define and save a custom set before attempting to use it as the
Power On Custom Set. Otherwise, the current Power On Custom Set remains selected and the following operator panel message is displayed:
042 CUSTOM SET DOES NOT EXIST SAVE FIRST
example, if you attempt to change the Power On Custom Set from
For Custom Set 1 to Custom Set 4, and if Custom Set 4 does not exist, Custom Set 1 remains the Power On Custom Set.
Chapter 3. Configuring the Printer 45
Step Key LCD Results Notes
1. Press
STOP
NOT READY Places the printer in NOT READY mode.
2.
OPERATOR MENU UNLOCKED Unlocks the Operator Menu, which
allows you to make configuration changes.
3.
MENU
4.
OPERATOR MENU PRINTER CONTROL
OPERATOR MENU CONFIGURATION
Displays the first Configuration Main Menu option, PRINTER CONTROL.
Moves to the Configuration Management menu option.
MANAGEMENT
UNTIL
5.
ENTER
6.
CONFIGURATION MANAGEMENT RECALL CUSTOM SET
CONFIGURATION MANAGEMENT CHANGE
Selects the CONFIGURATION MANAGEMENT menu. The RECALL CUSTOM SET option appears.
Moves to the CHANGE POWER SET ON parameter.
POWER ON SET
7.
8.
9.
10.
11.
12.
ENTER
ENTER
STOP
STOP
CHANGE POWER ON SET FACTORY DEFAULT
CHANGE POWER ON SET CUSTOM SET 1
CHANGE POWER ON SET CUSTOM SET 1*
Displays the first POWER ON SET option, FACTORY DEFAULT.
Displays CUSTOM SET 1 as the POWER ON SET option value.
An asterisk (*) appears after the change is complete.
NOT READY Returns the printer to the NOT READY
mode.
OPERATOR MENU LOCKED Locks Program mode and the Operator
Menu.
READY Places the printer in READY mode,
prepared for normal operation.
46 Infoprint 6500 User’s Manual
Reprogramming the Security Key
The security key on the PSA3 controller board can be reprogrammed with a Software Program Exchange (SPX) module.
The SPX is an intelligent module that plugs into the debug port on the back of printers equipped with the PSA3 “Hurricane” controller board. The SPX is used only once; it automatically overwrites itself after successfully reprogramming a security key. This allows the end user or a service technician to enable features such as new emulations without having to remove covers and install a new security key on the controller board.
The SPX is used at power-up only and is not left in the printer during normal operation. Because it is a single-use disposable item the user is not required to return it to the vendor or manufacturer.
Chapter 3. Configuring the Printer 47
How To Reprogram The Security Key
1. Power off the printer.
2. On cabinet models, open the rear door. On pedestal models, refer to Figure 10
to locate the debug port at the rear of the printer.
3. Insert the SPX into the debug port as shown.
Figure 10. Inserting the SPX into the Debug Port
4. Power on the printer. The printer will begin its boot-up sequence.
5. When the printer detects a valid SPX, the control panel displays:
“NEW SPX DETECTED
ENTER”
PRESS
If an error message displays, find the message in Fault Messages and
Note:
follow the troubleshooting instructions.
6. Press the ENTER key to activate the reprogramming sequence. The display will read: “PROGRAMMING.
7. When the security key is reprogrammed, the display will read: “REMOVE
USED SPX
THEN PRESS ENTER”.
8. Remove the SPX from the debug port at the rear of the printer.
9. Press the ENTER key. The printer will reboot itself and you may resume
normal printing.
10. Yo u may need to download the emulation again.
11. Yo u may need to set additional menu parameters for any new features that
have been added or enabled. (Refer to Chapter 4.)
PLEASE WAIT”.
48 Infoprint 6500 User’s Manual
Chapter 4. The Configuration Menus
Configuration Overview
This chapter describes the configuration menus. The Configuration Main Menu options and all of the submenu options are illustrated in menu diagrams and described in detail. For procedures showing how to enter Program mode, save, recall, and print configurations, refer to Chapter 3, “Configuring the Printer,” on page 19.
Figure 11 on page 50 shows an overview of the configuration menus.
The menus that are displayed from the operator panel are determined by the installed features. For example, if you ordered the IPDS feature, then the IPDS menu would appear on the operator panel. If the IPDS feature is not installed, then the IPDS menu will not appear on the operator panel.
Each feature is shipped with a document that describes the feature in detail. For more information about these documents, see “Related Documents” on page xii
configuration menu diagram on page 50 shows the structure of the
The configuration menus and the parameter options available in each menu. The diagrams list the menus and options in the order they appear when you use the operator panel to configure the printer. Factory default configuration values are indicated by an asterisk (*).
Pressing the operator panel keys (Enter, Return, Scroll/Micro, and Scroll/Micro) allows you to move through the menus and select various choices for the options, as follows:
v The Enter key allows you to move down to a lower level in the menu structure,
and to select an option value as the active value.
v The Return key moves you back up the menu structure. v The Scroll/Micro key moves forward through the options at a particular menu
level.
v The Scroll/Micro key moves backward through the options at a particular
menu level.
keys are summarized in a legend box at the lower right corner of each
These configuration menu diagram.
© Copyright IBM Corp. 2005 49
Main Menu
Figure 11. 6500–v Series Main Menu Configuration
Notes:
1. The Twinax and Coax interface menus only appear in the menus if the IBM Coax/Twinax feature is installed.
2. The Early Print Complete option appears in the Twinax menu only if the IPDS feature is installed.
3. IPDS, Code V Emulation, and IGP Emulation options appear in the menus only if these features are installed. Menus are shown in Appendix D, “Attaching Host Systems to a Coax/Twinax Printer,” on page 271.
4. Ethernet information only appears when the Ethernet feature is installed.
5. Ether the Ethernet Interface menu or the Parallel Interface menu will display.
They cannot display at the same time.
6. If installed.
7. Not if 4234-12 is running IPDS code.
8. Only if Autoswitching is enabled.
9. Only if Coax Emulation is enabled.
10. The 5250 and 3270 Interface menu only appear in the menus if the
TN5250/3270 feature is installed.
11. Only if ANSI is selected.
50 Infoprint 6500 User’s Manual
Figure 12. 6500–v Series Main Menu Configuration (cont.)
Chapter 4. The Configuration Menus 51
Quick Setup Menu
52 Infoprint 6500 User’s Manual
The purpose of the Quick Setup menu is to have the items that are most frequently changed or entered during the installation of the printer in one location. This is not a “quick access” menu, in that the items found here will generally only be needed during the initial setup rather than on an ongoing basis. Only those items where input is needed to enable printing from a host system and establish rudimentary printing parameters are included. All other menu selections not part of this section can be left in their default state to achieve successful printing.
Most items displayed for selection in the Quick Setup menu dynamically change depending on which Host Interface options are installed and selected or which active emulation is selected. Only items that are routinely selected, modified or confirmed during initial setup will be displayed (not full menus). In most cases, the default settings provided throughout should be sufficient to initiate successful printing and only need to be confirmed.
Chapter 4. The Configuration Menus 53
Changes made in the Quick Setup menu will have global impact. For example, host interface settings made will carry forward and reflect in the Host Interface menu as well. Similarly, changes made to any other parameter will be universally applied (changing the default values) in all emulations or locations where these settings are applicable.
An Active Emulation menu has been added. Depending on the emulations installed or selected, a series of additional menus will appear dynamically, depending on which emulation was chosen. The choice of emulations offered depends on what emulations are included in the printer’s software and have been enabled by the Security Key.
As the active emulation is selected from either the Quick Setup Menu or from the original Active Emulation menu location, the corresponding bottom menus for the remaining emulations will be hidden. Only the menu tree for the selected active emulation will be displayed.
If IPDS is installed, it will become the default emulation. There is no IPDS specific menu items placed in the Quick Setup menu selections. However, the user can define the ASCII settings as defined. If IPDS is not installed, then ASCII Printer will be made the default selection. If ANSI is installed, then the menu will provide the user with the choice between ANSI or ASCII Printer. If either TN3270 or TN5250 are installed, this emulation becomes the default, with all default values accepted.
54 Infoprint 6500 User’s Manual
Printer Control Menu
Chapter 4. The Configuration Menus 55
56 Infoprint 6500 User’s Manual
Interface Selection
Interface selection enables or disables physical interfaces for attachment switching. If an interface is disabled, it is set offline and any data received will be ignored.
When coax or twinax is selected, a POR status is sent to the host. Selecting Autoswitching provides automatic interface switching among parallel, serial, and either coax or twinax communication. Only one interface can be enabled at a time. Configuration of the Auto Switching Hotport is done from the corresponding interface menu, as shown in the following sections.
Note: When used with serial, parallel, and coax or twinax non-IPDS emulations,
Autoswitching does NOT save the state of each emulation during interface switching. In this case, it is the responsibility of the host application program to initialize the emulation to the desired state as the beginning of each job. It is also the responsibility of the host application program to correctly position the forms at “top of form” and the end of each job. When used with coax or twinax IPDS, Autoswitching does save the state of the IPDS emulation during interface switching and will also correctly position the forms at “top of form” at the end of each IPDS job.
Display Language
This parameter selects the language in which the operator panel messages will display.
Print Direction
The PRINT DIRECTION feature affects both print quality and printing speed. By setting this feature, you can configure the printer to print in both directions of the shuttle sweep (Bidirectional), or to print in only one direction (Unidirectional).
Yo u might want to use Unidirectional when printing bar codes, high quality text and graphics, or other printing that requires precise vertical alignment.
Although enabling this feature reduces print speed, it enhances the vertical alignment of dots and produces cleaner, sharper bar codes and text.
v Bidirectional (the default) prints all data in both directions of the shuttle sweep.
This choice produces higher printing speed.
v Unidirectional prints all data in only one direction of the shuttle sweep. This
choice produces higher print quality.
Chapter 4. The Configuration Menus 57
Hex Print Mode
A hex code printout (or hex dump) translates all incoming data to hexadecimal equivalents. A hex dump lists each ASCII data character received from the host computer, together with its corresponding two-digit hexadecimal code. Hex dumps can be used to troubleshoot some types of printer data reception problems.
v Disable (the default)
v Enable
to page 227 to obtain a hex code printout.
Refer
Note: Printing in Hex Mode may alter print attributes set at the operator panel or
by the host computer. These attributes may need to be reset after exiting Hex Print Mode. The mode is not available when printing IPDS.
Power On State
This parameter allows you to configure the printer to power on in the READY or NOT READY mode.
v Ready (the default)
v Not Ready
Paper Jam Detection
This parameter determines whether or not paper jam detection is active.
v Enable (the default). Detects paper jams. v Disables. Disables paper jam checking to prevent false errors.
Attention: When paper jam detection is disabled, the printer does not monitor paper motion. If a paper jam occurs, the printer ignores the condition and continues to print, possibly causing severe damage to the printer.
Forms Speed
FORMS SPEED affects the speed at which paper moves into the stacking area of the printer.
v Normal Speed (the default) will slew and stack paper, such as single-sheet data
processing paper, at maximum speed.
v Slow Speed will slew and stack at a slower pace. This ensures that forms, such
as multiple-sheet (that is, invoice), will stack more neatly.
58 Infoprint 6500 User’s Manual
Set Platen at BOF
Some special forms have perforation areas that are thicker than the rest of the form. Enable this parameter when you are using this type of form. This parameter, when open is selected, allows the platen to open and close when perforations thicker than the rest of a form move across the platen.
To retain print quality with this type of form, set the position of the first and last print lines to avoid printing where paper thickness occurs (before and after the perforation). See Forms Length on page 195.
v Disable (the default)
v Open
When enabling this parameter, you must set the forms length to match the
Note:
physical distance between perforations.
Shuttle Timeout
The SHUTTLE TIMEOUT parameter determines the amount of time the shuttle will continue running after printing stops. This allows the shuttle to continue moving during the time between print jobs when the print jobs arrive at frequent intervals. Time is saved if the shuttle is still moving when a print job arrives at the printer, since the printer does not have to wait for the shuttle to reach its operating speed.
v 5 Seconds (the default)
v 1 - 60 Seconds
Energy Saver Timer
This parameter helps to reduce power consumption when the printer is not in use in order to reduce air pollution caused by power generation. Use of this feature can cut energy use by more than 50 percent.
ENERGY SAVER TIMER determines the amount of time that expires before the printer reduces power after printing stops. The energy saver mode can select an energy saver activation time from instant to 60 minutes. The selections are:
v 15 Minutes (the default)
v 1 - 60 Minutes
v 240 Mins
v Instant
v 5 - 30 Seconds
If the printer enters energy saver mode while NOT READY, the printer will
Note:
not print any jobs until made READY by pressing the Start key.
Chapter 4. The Configuration Menus 59
OCR Font Density
OCR FONT DENSITY determines the print quality for OCR A and OCR B character sets. The following options are available:
v 120 Dots Per Inch (the default). Vertical is 144; horizontal is 120. v 180 Dots Per Inch Vertical is 144; horizontal is 180.
The higher the resolution selected, the slower the print speed. When
Note:
selecting a resolution, try to balance the resolution quality your application requires with how fast you want the print job to print.
Eject/Restore
The EJECT/RESTORE parameter controls how the printer behaves when the user presses the Eject/Restore key. The following options are available:
v Standard (the default) v To p Exit Tear (pedestal models only)
STANDARD mode is selected, the Eject/Restore key operates as follows:
When v Pressing Eject/Restore causes the paper to advance a preset distance of 22
inches.
v Pressing Ready or pressing Eject/Restore a second time causes the paper to
return to its original position.
If you are using this function to tear off forms, you might want to press
Note:
Form Feed before using the Eject/Restore function. This will avoid
unloading the paper as it is restored to its original position.
When TOP EXIT TEAR mode is selected, the Eject/Restore key operates as follows: v Pressing Eject/Restore causes the paper to advance the bottom of the last
printed form to the tear position, ready for the operator to tear off the printed forms.
v Pressing Eject/Restore a second time causes the paper to move into position
such that the top of the first possible form available for printing is positioned ready for printing. (The direction and amount of paper movement will depend on the length of the forms; one or more blank forms will be skipped.)
Note: The TOP EXIT TEAR setting is meaningful only on pedestal model printers.
TOP EXIT TEAR cannot be selected on cabinet model printers.
Forms length must be set correctly for the TOP EXIT TEAR mode to function properly.
60 Infoprint 6500 User’s Manual
PTR Setup Option
This option selects the Special Function Control Code (SFCC) for the PTR_SETUP command and functions. The selections for this process are given below.
Setup Parse
This selection is used to enable or disable the PTR Setup Option.
v Disable (the default)
v Enable
v Ignore
Setup SFCC
Sets the legal hex values from X'01' through X'FF'. These represent the ASCII code (in hexadecimal) of the character used as the SFCC.
v X'21'h (the default). Corresponds to the “1” character.
v X'1' — X'FF'
File System
Provides the means for listing, viewing, and manipulating files in flash memory. The following selections are available.
v Overwrite. This selection controls whether the files in flash memory can be
overwritten. With the default selection of Enable, files are overwritten. If the selection is disabled, the files can not be overwritten.
v View Files. This selection provides a list of files in flash memory. Pressing the
Scrollkey allows you to view the file size.
v Delete Files. This selection provides a list of files in flash memory. Pressing the
Enter key will delete the displayed file from flash memory.
v Flash Avail. This selection provides a list of available files in flash memory. v Optimize & Reboot. Pressing the Enter key with this selection displayed will
reclaim flash memory space and reboot the printer.
IMPORTANT:
Do not turn the printer off until it has completed the reboot and
is either Ready or Not Ready.
v Print File List. Pressing the Enter key with this selection displayed will cause
the printer to print a summary of files stored in flash memory. Statistics on file system usage are also printed.
Chapter 4. The Configuration Menus 61
Power Stacker
This parameter determines whether or not the power paper stacker is enabled, which is the default, or disabled. This parameter is not presented if the power paper stacker is not installed.
v Enable (the default)
v Disable
Auto Elevator
This parameter exists only on printers with the power paper stacker installed. The power stacker has a sensor which detects paper movement and raises the stacker as the printed paper stack grows. If the printer has been printing for three minutes continually and the sensor has not detected any growth in the paper stack, the stacker raises itself ¼ inch automatically.
v Enable (default). The automatic elevator on the power stacker operates normally. v Disable. The stacker does not raise automatically every three minutes and is
entirely dependent on the sensor. Disable is used with extremely high-quality print jobs that take a long time to print.
Printer Management Port
Printer Management Port is the port used to connect the printer to the IBM Printer Management Unit (PMU). This menu option is a printer management tool that runs on Host Computers. The options include:
v Debug Ethernet (default)
v Debug Adapter
v Disable
v Serial
Top Exit Tear Distance
The eject distance for the EJECT/RESTORE type TOP EXIT TEAR.
v 7.46 Inches (default)
v 4.50 - 10.50 Inches
62 Infoprint 6500 User’s Manual
Ribbon End Point
v Normal (the default). The character life expectancy of the detected 6500 ribbon
type installed with an end point print contrast density of 0.5 for black inked ribbons, or a similar representative value for colored or specialty ribbons.
v Lighter −1 The setting that allows the user to run a print contrast density of .44
for black inked ribbons, or a similar representative value for colored or specialty ribbons
v Lighter −2 The setting that allows the user to run a print contrast density of .38. v Lighter −3 The setting that allows the user to run a print contrast density of .32. v Lighter −4 The setting that allows the user to run a print contrast density of .26. v Lighter −5 The minimum setting that allows the user to run a print contrast
density of .2.
v Darker +3 The maximum setting that allows the user to run a print contrast
density of 0.8.
v Darker +2 The setting that allows the user to run a print contrast density of 0.7. v Darker +1 The setting that allows the user to run a print contrast density of 0.6.
Ribbon Action
v Stop Ribbon End (the default). Stops ribbon action when ribbon life reaches 0%. v Ignore Ribbon End When selected, the ribbon life display remains on the
control panel, and the printer continues to monitor ink consumption.
Chapter 4. The Configuration Menus 63
Configuration Management Menu
The CONFIG. CONTROL menu allows you to control your printer’s configurations according to the specifications necessary for your print jobs.
64 Infoprint 6500 User’s Manual
Recall Custom Set
The printer can store 8 custom sets in NVRAM. This parameter allows you to select and load a specific custom set.
v Factory Default (the default). The factory-preset custom set; its parameters
cannot be changed. It is always available for loading.
Custom/Preloaded
Sets 5-8 contain configuration sets that assist with the
installation and configuration of this printer. These sets are preloaded at the factory. If these sets are not used, you can delete them and create new custom sets.
Following is a brief description of Custom/Preloaded Sets 5-8: v Custom/Preloaded Set 5 is used when configuring this printer to function like a
Printronix printer. This custom set contains ASCII emulations used by Printronix compatible printers along with initial defaults (Overstrike, Auto LF, and so forth). The initial ASCII default emulation is P-Series which may need to be altered for P-Series XQ or Serial Matrix in some applications. This operation is defined only in CT or CT/IPDS builds. For more information, refer to the Configuration Utility Diskette shipped with this printer, or the 6500–v ASCII Programmer’s Reference Manual.
v Custom/Preloaded Set 6 contains the default settings for an ASCII printer using
a set of Epson and Proprinter default values. This could be useful when the printer has the Coax/Twinax feature, but is sometimes run as an ASCII printer. This option is defined only in IGP, CD, and CT/IPDS builds. Refer to the 6500 Coax/Twinax Programmer‘s Reference Manual for more information.
v Custom/Preloaded Set 7 contains default settings for a Twinax printer without
IPDS. This could be useful when the printer contains the IPDS feature, but must occasionally be used as a non-IPDS printer. This option is defined only in CT/IPDS builds. Refer to the 6500 IPDS Programmer’s Reference Manual or the 6500 Coax/Twinax Programmer’s Reference Manual for more information.
v Custom/Preloaded Set 8 sets up the printer for an external CT Interpreter box.
This option is defined only for Non-CT IGP and ASCII builds.
Chapter 4. The Configuration Menus 65
Save Current Values
This option allows you to save your custom sets to meet different print job requirements. This eliminates the need to change the parameter settings for each new job.
The custom sets are stored in NVRAM—they will not be lost if you power off the printer.
Factory default is a factory-preset custom set; it cannot be changed or saved.
IMPORTANT: A new custom set will overwrite an existing custom set if the
PROTECT CUSTOM SETS parameter is disabled (for example, a new Custom Set 4 will overwrite an existing Custom Set 4). See the “Protect Custom Sets” in this section.
Delete Custom Set
Yo u can delete one or all of your customized or preloaded custom sets. Factory default is a factory-preset custom set and cannot be changed or deleted.
Change Power On Set
Yo u can specify which of the custom sets will be the power-on custom set. The printer will power on with the factory set values or with one of the customized configurations.
Protect Custom Sets
The PROTECT CUSTOM SETS option specifies whether or not a new custom set can overwrite an existing custom set when you activate the SAVE CURRENT VALUES parameter.
v Disable (the default). Turns protection off, allowing you to overwrite existing
custom sets.
v Enable. Turns protection on, preventing you from overwriting existing custom
sets. If you attempt to save to an existing set, the following operator panel message appears:
043 CUSTOM SET ALREADY EXISTS DELETE FIRST
Yo u must delete the existing set before trying to save the new custom set.
Print Custom Set Values
This option is used to print a listing of various stored printer custom sets. It is recommended that you store the printout of the custom sets in a safe place for quick referral.
66 Infoprint 6500 User’s Manual
Config Key Default
This option configures the config key to print either the Quick Setup menu or the full config.
v Quick Setup Config (the default). Prints the Quick Setup configuration. v Complete Config. Prints the full configuration.
Name Custom Sets
Yo u may specify a 39-character name which can be used to refer to a custom set. The name you enter for a custom set will be used in the Recall Custom Set, Save Current Values, Delete Custom Set, Change Power On Set, Protect Custom Sets, Print Custom Set Values, and Name Custom Sets menus. The name can only be cleared by using the Reset Custom Set Names menu.
Press the Scroll/Micro or Scroll/Micro keys to cycle through the values available for that character at the cursor location. Press the Scroll/Micro key to move to the next character to be modified. Press the Scroll/Micro key to go back to a character you have already modified. Continue until you have entered the name you want to give to this custom set, then press ENTER to save. The name you entered will now represent this custom set on the printers front panel. To exit this menu without saving, press any key other than the ENTER key. The custom set name will revert to the last saved value.
Reset Custom Set Names
Yo u can reset specific custom set names back to the default value of the configuration number.
Chapter 4. The Configuration Menus 67
Twinax Interface Menu
68 Infoprint 6500 User’s Manual
Chapter 4. The Configuration Menus 69
Print Language
PRINT LANGUAGE specifies the set of print languages used by the printer. Refer to the previous page for print language menus.
v Standard Print Language (the default) v Alternate Print Language. Provides code pages compatible with 6408/6412
Model CT0 printers. Use this option with the 5225 printer emulation.
Specifying
a print quality of OCR A or OCR B will change the print language to
OCR A or OCR B.
When OCR A or OCR B is selected as the default print language, OCR A and OCR B are the only available values for this print quality. If a different print quality value is desired, the print language must be changed first.
Print Character Table
PRINT CHARACTER TABLE prints out a table of the twinax interface current character set.
Character sets are shown in the 6500 Coax/Twinax Programmer’s Reference Manual.
Active Print Language
ACTIVE PRINT LANGUAGE specifies which print language set will be the active set.
v Standard Print Language (the default)
v Alt Print Language
Twinax Printer Emulation
This parameter defines the printer emulation, as follows:
v 4234-12 (the default)
v 5225
v 4234-2
4234-12 selection is only present if the IPDS feature is installed. The 4234-12
The selection is the default if the IPDS feature is installed, otherwise, the 4234-2 is the default.
After the emulation has been changed, a POR status is sent to the host.
Printer Address
PRINTER ADDRESS allows you to set the device address from 0 through 6. The host directs data and commands on the twinax line to a specific device based on its unique device address.
After the address has been changed, a POR status is sent to the host.
70 Infoprint 6500 User’s Manual
World Trade
The 5225 emulation has a multinational character set that serves as a base for 14 world trade character set assortments. They are shown in the 6500 Coax/Twinax Programmer’s Reference Manual.
Yo u can configure the printer to use the Standard Character Set so the printer contains the IBM World Trade character set, such as the Austria/Germany character set. Or, you can select Extended Character Set and use the multinational character set as a base with the selected world trade character set overlaid.
v Standard Character Set (the default)
v Extended Character Set
Cancel Buffers
CANCEL BUFFERS has the following options: v Enable (the default). Cancels all buffers when a job is put on hold from the host
or the Cancel key is pressed.
v Disable. Clears the twinax internal buffer, not the print engine buffers, when a
job is put on hold from the host or the Cancel key is pressed.
Early Print Complete
Early Print Complete allows the printer to send Print Complete status to the host before the printer is actually done printing all data. Early Print Complete is only available if the IPDS feature is installed.
v Disable (the default). Means the printer will suppress the Early Print Complete
response until all printing is complete.
v Enable. Means the printer will send an acknowledgement to the host when it is
able to accept more data.
When an Early Print Complete is enabled and an error occurs, the data in
Note:
the printer will remain in the buffer (regardless of the setting of the Cancel Buffer option). It is recommended that local procedures be followed to recover from the error.
Do not select Early Print Complete while a print job is in progress. If this is done you will need to restart the printer.
Chapter 4. The Configuration Menus 71
Hex Transparent Control
This option allows you to enable (the default) or disable additional features that are not available in standard IBM emulations. To access these features, send lead-in character text commands in the data stream. Yo u can also use ASCII codes X'80' through X'9F' as control codes if configured to do so.
Lead-In Characters
The Lead-In Character commands must have a start and end code. Set 1 is the factory default. Three sets (each containing a start and end code) are available:
v Set 1: start code = <% (default)
code = >
end
v Set 2: start code = ¬¬
code = $
end
v Set 3: start code = _%
end code = _
v User Defined
User Defined Codes
v Start Code 2: X'5F' (the default)
v Start Code 1: X'5F'
v Stop code: X'5B'
The codes can be set to X'40' - X'FF' range
Alternate Set 80 - 9F
This selection determines if ASCII codes X'80' through X'9F' will be used as control codes or printed as standard printable characters.
v Printable (the default). Prints the alternate set as standard characters v Control Code. Selects the alternate set to be used as printer control codes.
72 Infoprint 6500 User’s Manual
Undefined Char Report
UNDEFINED CHARACTER REPORTING allows overriding of the host setting of the SGEA (Set Graphic Error Action) command. For more information about the SGEA command, refer to the 6500 Coax/Twinax Programmer’s Reference Manual.
v Enable (the default). The host setting for the SGEA and is used by the printer. If
the SGEA command is requested to stop on graphic errors, the printer will stop when a graphic error is detected.
v Disable. Ignores the SGEA command from the host. The printer does not stop
when an error is detected; instead, it substitutes the character selected in the “UNDEFINED CHARACTER SUBSTITUTION” menu entry.
Undefined Char Sub
UNDEFINED CHARACTER SUBSTITUTION specifies the replacement character to print in place of any unprintable character that is received from the host. The character becomes the printer default when:
v The printer is powered off and then powered on. v An SGEA command specifies to use the operator panel default. v The “UNDEFINED CHARACTER REPORTING” option is disabled.
character code point can be set to the following values:
The
v X'60' (the default)
v X'40' — X'FE' (HEX)
Load Alt Char Option
The LOAD ALTERNATE CHARACTER (LAC) OPTION allows the host system to load alternate character images into the printer. This may be used for designing graphics, bar codes, and charts, or for printing in foreign languages.
v Enable (the default). Prints the LAC character as defined. v Disable. Ignores the LAC definition from the host and prints from the currently
selected character set.
LAC Approximation
A process that reorganizes columns of dots so that clean, readable printing is possible.
v On (the default). Converts the emulated character cells to standard cells for the
6500-v20 model.
v Off. Converts character cells byte by byte and not by LAC approximation.
Chapter 4. The Configuration Menus 73
Print Text Direction
PRINT TEXT DIRECTION specifies the direction in which characters are printed on the page. This allows the printer to print languages that are printed right to left instead of left to right.
v Control By Host (the default)
v Left To Right
v Right To Left
Override Host
OVERRIDE HOST determines whether the printer executes certain commands sent by the host, or continues to use the current printer settings. The following host commands are ignored when OVERRIDE HOST is enabled: line length, forms length, lines per inch (LPI), characters per inch (CPI), print quality, and text orientation (that is, left to right). When OVERRIDE HOST is enabled, these settings retain their operator panel settings.
Note: Host margin and tab settings will be used whether or not OVERRIDE HOST
is enabled.
v Disable (the default). Allows certain host commands (line length, forms length,
LPI, CPI, print quality, and text orientation) to override operator panel settings. Note that the information appearing on the message display may not match the data stream setting. No values will change upon initial selection of the disable option.
v Enable. Permits operator panel settings to override host data stream commands.
Format Control
FORMAT CONTROL enables the printer to reflect the same spacing as 6408/6412 Model CT0 printers after absolute and relative move commands are executed. The following options are available:
v Disable (the default). Does not reflect distance, generated by the Code V feature,
IGP feature, and Hex Transparent control code sequence, in the new position (after absolute and relative move commands are executed).
v Enable. reflects 6408/6412 Model CT0 distance, generated by the Code V
feature, IGP feature, and Hex Transparent control code sequence, in the new position (after absolute and relative move commands are executed).
74 Infoprint 6500 User’s Manual
Maximum Printable Width
MAXIMUM PRINTABLE WIDTH sets the maximum width of the printer when using a CT
v 13.2 Inches (the default)
v 13.6 Inches
Note:
®
host interface.
The twinax interface menu and coax interface menu option for maximum
printable width use the same internal variable. Setting this option in either menu will make it the current setting for the printer, independent of the interface used.
Although the LP+ emulation maintains width in characters, the maximum printable width in characters is controlled by the same internal variable that is set by the twinax interface menu and coax interface menu option for maximum printable width option.
Hex Print Mode
When enabled, the HEX PRINT MODE parameter prints the EBCDIC data and control codes received from the host as hex values.
v Disable (the default)
v Enable
to page 227 to obtain a hex code printout.
Refer
Note: Printing in Hex Mode may alter print attributes set by the host computer. A
C/T Hotport
Gives the printer the ability to handle multiple data streams simultaneously. It allows the printer to serve hosts attached to the serial, parallel, and either coax or twinax ports as if they were the only interface connected.
Port Type
Selects the type of port to be used. The Disable selection disables the port from the hotport process. The available selections are:
v Twinax (the default)
v Coax
v Disable
Changing the Port Type in this menu option also changes the Port Type
Note:
power cycle may be required after changing HEX PRINT MODE from enable to disable.
setting in the Coax Interface Menu.
Chapter 4. The Configuration Menus 75
Timeout
This is the value used by the printer to time out from the current port and check the other ports for data to print. When the printer has not received data from the host after the specified period of time, it needs to Timeout to service the other ports. The available selection are:
v 15 Seconds (the default)
v 10 to 180 Seconds.
Report Status
v Disable (the default). A fault on the printer is reported only if it occurs on the
active port.
v Enable. The faults are reported even if the fault is not on the current active port.
76 Infoprint 6500 User’s Manual
Coax Interface Menu
Chapter 4. The Configuration Menus 77
78 Infoprint 6500 User’s Manual
Print Language
PRINT LANGUAGE specifies the set of print languages used by the printer. Refer to the previous page for print language menus.
v Standard Print Language (the default) v Alternate Print Language. Provides code pages compatible with 6408/6412
Model CT0 printers. Use this option with the 3287 printer emulation.
Specifying
a print quality of OCR A or OCR B will change the print language to
OCR A or OCR B.
When OCR A or OCR B is selected as the default print language, OCR A and OCR B are the only available values for this parameter. If a different print quality value is desired, the print language must be changed first.
Print Character Table
PRINT CHARACTER TABLE prints out a table of the coax interface current character set.
All coax character sets are shown in the 6500 Coax/Twinax Programmer’s Reference Manual.
Active Print Language
ACTIVE PRINT LANGUAGE specifies which print language set will be the active set.
v Standard Print Language (the default)
v Alternate Print Language
PA1
PA 1 is only valid when the printer is in the NOT READY state and the coax System Network Architecture Character Set (SCS) data stream is active. This function displays the “PA1 ENABLED” message when the Enter key is pressed and sends a special operator request to the host when the printer is made READY.
v Disable (the default)
v Enable
to the 6500 Coax/Twinax Programmer’s Reference Manual for more information
Refer about SCS.
Note: Selecting the PA1 menu item again (“PA1 DISABLED” appears on the
operator panel) or selecting the PA 2 menu item will reset the pending PA 1 function.
Chapter 4. The Configuration Menus 79
PA2
PA 2 is only valid when the printer is in the NOT READY state and the coax SCS data stream is active. This function displays the “PA2 ENABLED” message when the Enter key is pressed and sends a special operator request to the host when the printer is made READY.
v Disable (the default)
v Enable
Selecting the PA2 menu item again (“PA2 DISABLED” appears on the
Note:
operator panel) or selecting the PA 1 menu item will reset the pending PA 2 function.
Buffer Reprint
This option is only valid when the printer is in the NOT READY state and the Coax SCS data stream is active. The printer displays the “ENABLED” message when the Enter key is pressed, and sends an Intervention Required Status to the host when the printer goes to READY state.
v Disable (the default)
v Enable
Selecting the Buffer Reprint menu item again (“DISABLED” appears on the
Note:
operator panel) will reset the Buffer Reprint function.
Early Print Complete
Early Print Complete capability allows the printer to send Print Complete status to the host before the printer is actually done printing all data.
v Disable (the default). The printer will suppress the Early Print Complete
response until all printing is complete.
v Enable. The printer will send an acknowledgement to the host when it is able to
accept more data.
When an Early Print Complete is enabled and an error occurs, the data in
Note:
the printer will remain in the buffer (regardless of the setting of the Cancel Buffer option). It is recommended that local procedures be followed to recover from the error.
Do not select Early Print Complete while a print job is in progress. If this is done you will need to restart the printer.
80 Infoprint 6500 User’s Manual
SCS Buffer Control
This option is used in Coax LU1/SCS mode only. v Don’t Wait (the default). The printer does not wait for the job to be printed
before sending the print completion to the host.
v Wait Until Done. The printer waits for the job to print before sending the print
completion to the host.
option speeds up the LU1 job printing for short jobs. If you select “Don’t
This Wait”, there is a risk that you may not be able to recover the print job when the printer has fault.
Cancel Buffers
CANCEL BUFFERS has the following options: v Enable (the default). Cancels all buffers when a job is put on hold from the host
or when the Cancel key is pressed.
v Disable. Clears the coax internal buffer, not the print engine buffers, when a job
is put on hold from the host or when the Cancel key is pressed.
Hex Transparent Control
Yo u can enable additional features that are not available in standard IBM emulations. To access these features, send lead-in character text commands in the data stream. You can also use ASCII codes X'80' through X'9F' as control codes if configured to do so.
Lead-In Characters
The Lead-In Character commands must have a start and end code. Set 1 is the factory default. Three sets (each containing a start and end code) are available:
v Set 1: start code = <%
code = >
end
v Set 2: start code = ¬¬
code = $
end
v Set 3: start code = _%
end code = _
v User Defined
User Defined Codes
v Start Code 2: X'5F'* (the default) v Start Code 1: X'5F' v Stop code: X'5B'
The codes can be set to X'40' - X'FF' range
Chapter 4. The Configuration Menus 81
Alternate Set 80 - 9F
This selection determines if ASCII codes X'80' through X'9F' will be used as control codes or printed as standard printable characters.
v Printable (the default). Prints the alternate set as standard characters v Control Code. Selects the alternate set to be used as printer control codes.
Mono/Dual Case
MONO/DUAL CASE specifies the font as MONO Case or DUAL Case (the default). It is available only in non-SCS mode. The host will be notified of the change when the printer is made READY. If the character set is one of the following “right to left” sets, MONO CASE prints the same as DUAL CASE: Katakana, Hebrew, Hebrew Old, and Farsi.
v Dual Case (the default)
v Mono Case
SCS (System Network Architecture Character String) Mode is controlled by the host computer. Refer to the 6500 Coax/Twinax Programmer’s Reference Manual for more information about non–SCS mode.
Undefined Char Sub
UNDEFINED CHARACTER SUBSTITUTION specifies the replacement character to print in place of any unprintable character that is received from the host. The character code point can have the following value:
v X'60' Hex (the default)
v X'40' — X'FE' Hex
Print Text Direction
PRINT TEXT DIRECTION specifies the direction in which characters are printed on the page. This allows the printer to print languages which are printed right to left instead of left to right.
v Control By Host (the default)
v Left To Right
v Right To Left
“CONTROL BY HOST” option allows printers configured as a 4234 to use the
The “ SET TEXT ORIENTATION” command from the host.
When a RIGHT TO LEFT language is selected, the host will be notified of print direction changes when the printer is made READY.
82 Infoprint 6500 User’s Manual
Image Buffer Size
IMAGE BUFFER SIZE (screen buffer size) allows you to select the following image buffer sizes:
v 4K (the default)
v 2K
POR status is sent to the host when the printer is made READY.
A
Intervention Required
Select from the following:
v Not Send To Host (the default) v Send To Host. The printer sends a signal to the host computer when any of the
following occur: – Printer faults occur. – Hold mode timeout occurs.
not selected, the printer will only send the signal on printer faults that cause
If data loss (paper jam, ribbon stall, online platen open, and so forth).
Compatibility Options
See page 86.
Translate Table
This parameter defines which translate table to use for printing. The following options are available:
v Default (the default). Translates data by using the default table of the current
character set.
v Downloaded Translates data from EBCDIC to internal code by using the
downloaded translate table.
Override Host
OVERRIDE HOST determines whether the printer executes certain commands sent by the host, or continues to use the current settings. The following host commands are ignored when OVERRIDE HOST is enabled: line length, forms length, lines per inch (LPI), characters per inch (CPI), print quality, and text orientation (that is, left to right). When OVERRIDE HOST is enabled, these settings retain their operator panel settings.
v Disable (the default). Allows certain host commands (line length, forms length,
LPI, CPI, print quality, and text orientation) to override operator panel settings. Note that the information appearing on the message display may not match the data stream setting. No values will change upon initial selection of the disable option.
v Enable. Permits operator panel settings to override host data stream commands.
Chapter 4. The Configuration Menus 83
Format Control
FORMAT CONTROL enables the printer to reflect the same spacing as 6408/6412 Model CT0 printers after absolute and relative move commands are executed. The following options are available:
v Disable (the default). Does not reflect distance, generated by the Code V feature,
IGP feature, and Hex Transparent control code sequence, in the new position (after absolute and relative move commands are executed).
v Enable. Reflects 6408/6412 Model CT0 distance, generated by the Code V
feature, IGP feature, and Hex Transparent control code sequence, in the new position (after absolute and relative move commands are executed).
C/T Hotport
Gives the printer the ability to handle multiple data streams simultaneously. It allows the printer to serve hosts attached to the serial, parallel, and either coax or twinax points as if they were the only interface connected.
Port Type
Selects the type of port to be used. The Disable selection disables the port from the hotport process. The available selections are:
v Twinax (the default)
v Coax
v Disable
Changing the Port Type in this menu option also changes the Port Type
Note:
setting in the Twinax Interface Menu.
Timeout
This is the value used by the printer to time out from the current port and check the other ports for data to print. When the printer has not received data from the host after the specified period of time. It needs to Timeout to service the other ports. The available selections are:
v 15 Seconds (the default) v 10 to 180 Seconds.
Report Status
v Disable (the default). A fault on the printer is reported on if it occurs on the
active port.
v Enable. The faults are reported even if the fault is not on the current active port.
84 Infoprint 6500 User’s Manual
Maximum Printable Width
MAXIMUM PRINTABLE WIDTH sets the maximum width of the printer when using a CT host interface.
v 13.2 Inches (the default)
v 13.6 Inches
The twinax interface menu and coax interface menu option for maximum
Note:
printable width use the same internal variable. Setting this option in either menu will make it the current setting for the printer, independent of the interface used.
Although the LP+ emulation maintains width in characters, the maximum printable width in characters is controlled by the same internal variable that is set by the twinax interface menu and coax interface menu option for maximum printable width option.
Hex Print Mode
When enabled, the HEX PRINT MODE parameter prints the EBCDIC data and control codes received from the host as hex values. Refer to page 227 to obtain a hex code printout. Disable is the default condition.
v Disable (the default)
v Enable
Printing in Hex Mode may alter print attributes set by the host computer. A
Note:
power cycle may be required after changing HEX PRINT MODE from enable to disable.
Chapter 4. The Configuration Menus 85
Compatibility Options Menu
The Compatibility Options menu allows you to select special printer functions in the non-SCS mode, based on the capabilities of the printer emulated.
Compatibility Option 1: Carriage Return at MPP+1
MPP is Maximum Print Position, which is also known as line length. OPTION 1 controls a carriage return at the end of a print line and at MPP+1.
v ON (the default) Produces a carriage return to the first print position of the next
line.
v OFF. Produces a carriage return to the first print position of the current line.
86 Infoprint 6500 User’s Manual
