Chapter 1. IBM Flex System EN4132 2-port 10Gb
Ethernet adapter
The IBM Flex System EN4132 2-port 10Gb Ethernet adapter provides the highest
performing and most flexible interconnect solution for servers used in Enterprise
Data Centers, High-Performance Computing, and Embedded environments.
This User's Guide contains setup and installation instructions for the IBM Flex
System EN4132 2-port 10Gb Ethernet adapter and general information about the
adapter, including how to install drivers and how to get help.
For information about the types of compatible devices available for IBM products,
contact your IBM marketing representative or authorized reseller. For a list of
supported optional devices, see
http://www.ibm.com/servers/eserver/serverproven/compat/us/.
The warranty document for this product comes with the network device, and it
contains information about the terms of the warranty.
For the most up-to-date product documentation for all of your IBM Flex System
products, go to the IBM Flex System Information Center at
http://publib.boulder.ibm.com/infocenter/flexsys/information/index.jsp.
Related documentation
This User's Guide contains setup and installation instructions for the IBM Flex
System adapter and general information about the adapter and how to get help.
The most recent version of this User's Guide and all other related documents are
at
http://publib.boulder.ibm.com/infocenter/flexsys/information/index.jsp.
In addition to this User's Guide, the following related documentation is available
for your adapter:
• IBM Flex System Installation and Service Guide
The Installation and Service Guide that comes with the IBM compute node contains
the instructions for installing the adapter in the compute node.
• Mellanox OFED for Linux User Manual
• This document is available at www.mellanox.com, and it provides information about
the Mellanox OFED software. Mellanox OFED is a single Virtual Protocol Interconnect
(VPI) software stack that is based on the OpenFabrics (OFED) Linux stack.
• MLNX_VPI for Windows User Manual
This README document is available at www.mellanox.com, and it provides informa-
tion about the Mellanox WinOF VPI driver Rev 2.1.3 package, which is distributed for
Windows Server 2008 (x86 and x64), Windows Server R2 (x64), and Windows 7 (x86
and x64).
• MLNX_VPI for Windows Installation Guide
This document is available at www.mellanox.com, and it provides information about
installing and testing MLNX_VPI for Windows on a single host machine that has an
IBM IB6132 FDR InfiniBand adapter installed.
© Copyright IBM Corp. 2012
1
IBM Flex System Notices for Network Devices CD that comes with the adapter
Notices for Network Device
contains the following documentation in portable document format (PDF):
• IBM Flex Sys
This multilingual document contains basic troubleshooting infor
ment parts list for the switches, adapters,
mentation that comes with your IBM chassis,
contain more detailed troubleshooting information.
M Safety Information
• IB
This multilingual document contains the translat
that appear in the IBM documentation.
• IBM Envir
This multilingual document contains the w
information for your product.
• IBM License
This multilingual document contains the IBM license information for the machine
code for y
• IBM W
This multilingual document is provided on the
the IBM warranty information for your product.
tem Network Devices Basic Troubleshooting Information
mation and a replace-
and pass-thru modules. The product docu-
compute node, or network device might
ed versions of the safety messages
onmental Notices and User's Guide
orld wide environmental and recycling
Agreement for Machine Code
our product.
arranty Information
CD and in printed format. It contains
For the most up-to-date documentation for all of th
go to the IBM Flex System Information Center at
infocenter/flexsys/information/index.jsp.
Notices and statements in this document
e IBM Flex System products,
http://publib.boulder.ibm.com/
2
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Features and specifications
The IBM Flex System EN4132 2-port 10Gb Ethernet adapter has the following features and specifications:
• PCI Express 3.0 (1.1 and 2.0 compatible) through an x8 e
• 10 Gb/s Ethernet
• CPU off-load of transport operations
• CORE-Direct® application off-load
• GPUDirect application off-load
• RDMA over Converged Ethernet (RoCE)
• End-to-end QoS and congestion control
• Hardware-based I/O virtualization
• TCP/UDP/IP stateless off-load
• Ethernet encapsulation (EoIB)
• RoHS-6 compliant
Table 1 - IBM Flex System
Physical
Protocol Support
dge connector up to 8GT/s
EN4132 2-port 10Gb Ethernet adapter specifications table
Size: 3.3in. x 3.8 in. (84.89mm x 96.7 mm)
Ethernet: 10GBASE-CX4, 10GBASE-R, and 1000BASE-R
Data Rate: 1/10Gb/s – Ethernet
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible)
Regulatory
EMC: Refer to the following link:
www.mellanox.com/related-docs/user_manuals/
Regulatory_and_Compliance_Guide.pdf
Safety: IEC/EN 60950-1:2006
ETSI EN 300 019-2-2
IEC 60068-2- 64, 29, 32
RoHS: RoHS-R6
IBM Flex System EN4132 2-port 10Gb Ethernet adapter
3
Finding the MAC and serial number on the adapter
Each adapter has a label on the print side that shows the adapter serial number
and the MAC for the Ethernet protocol.
Figure 1:
Figure 2:
Board Label 1
Board Label 2
4
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Chapter 2. Installing the IBM Flex System adapter
This chapter provides information and instructions for installing the adapter. See
the documentation that came with the IBM Flex System compute node for the
instructions needed to install the adapter in the node; then, return to this User's
Guide for the information and instructions needed to complete the installation.
Installation of this adapter should only
or engineer. Read and follow all safety precautions specified in this document.
Use the documentation supplied with the IBM Flex System chassis to remove and
place the compute node from the chassis.
re
1. Remove the cover from the compute node
a. With the compute node sitting on the work table slide the release button,
located on the
down as well. This action releases the cover of the compute node.
b. Lift the cover from the compute node.
right-side of the compute node, forward while pressing it

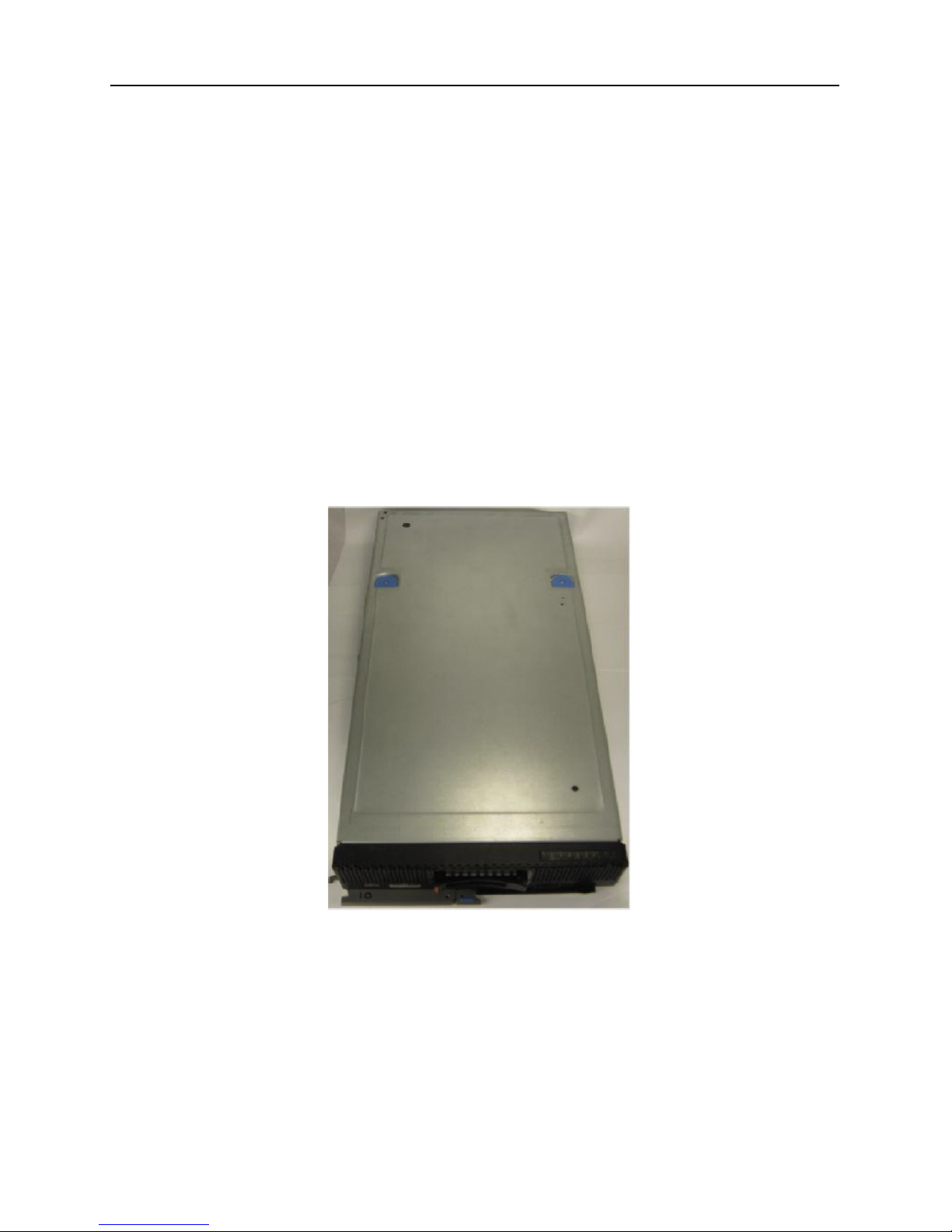

Figure 3: Lift Off Cover
be done by a properly qualified technician
2. The adapter can be placed in either of the two available slots.
Installing the IBM Flex System adapter
5
Figure 4: Compute Node
B
Switch Bay
3-4
A
Switch Bay
1-2
3. Line up the adapter so that the pins of the adapter are over the sockets in the
compute node.
Figure 5:
4. Plug the adapter into the socket print-side up.
IBM Flex System Adapter
© Copyright IBM Corp. 2012
6
Figure 6: Plug the Adapter
5. Close the retaining clips.
Figure 7: Retaining Clip
s
6. Replace the compute node cover.
Installing the IBM Flex System adapter
7
Installing device drivers and verification
The following provides brief device driver installation instructions. For more on
device driver installation instructions, refer to the following operating systemspecific documentation:
www.mellanox.com => Products => Software/Drivers => InfiniBand and VPI SW/
Drivers => Linux SW/Drivers => MLNX_OFED
AIX Version 7.1 with the 7100-01 Technology Level Service Pack 3
• AIX device driver software - this adapter device driver is included in the following
AIX releases or later levels. Refer to the installation instructions for the specific AIX
release to install or update driver software.
www.mellanox.com => Products => Software/Drivers => InfiniBand and VPI SW/
Drivers => Windows SW/Drivers => MLNX_WinOF VPI
www.mellanox.com => Products => Software/Drivers => InfiniBand and VPI SW/
Drivers => VMware Drivers
Linux drivers
For Linux, download and install the latest OpenFabrics Enterprise Distribution
(OFED) software package available via the Mellanox web site at:
http://www.mel-
lanox.com => Products => Software/Drivers => InfiniBand & VPI Software/Drivers
=> Mellanox OFED => Download. Follow the installation instructions included in
the download package (also available from the download page). To ensure that
communication has been established follow the instructions below.
Get the device location
Get the device location on the PCI bus by running lspci and locating lines with the
string “Mellanox Technologies”:
> lspci |grep -i Mellanox
07:00.0 Network controller: Mellanox Technologies MT27500 Family [ConnectX-3]
Check the OFED version
To get the version of the running Mellanox OFED/BXOFED, run the following
command:
> # ofed_info |head -1
MLNX_OFED_LINUX-1.5.3-2.1.0 (OFED-1.5.3-2.1.0)
Load the Ethernet Driver
By default, the Mellanox OFED stack loads mlx4_en. Run ‘lsmod’ to verify that
the module is listed.
8
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
> Host# lsmod |grep mlx4_en
mlx4_en 96382 0
mlx4_core 1184104 2 mlx4_en
If you don’t see the mlx4_en driver, run: ’ modprobe mlx4_en’
Another option is to use the command below to see which modules are active.
Example:
Edit ”/etc/infiniband/openib.conf” which modules needs to load
from a service.
Load MLX4_EN module
MLX4_EN_LOAD=yes
The “Usage: openibd {start|stop|restart|status}” command to modify this file and
thereby control the drivers.
Check the network interface name:
run: ifconfig -a
> ifconfig –a
eth0 Link encap:Ethernet HWaddr 5C:F3:FC:5F:40:EA
inet addr:10.7.5.170 Bcast:10.7.7.255 Mask:255.255.252.0
inet6 addr: fe80::5ef3:fcff:fe5f:40ea/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:20009 errors:0 dropped:0 overruns:0 frame:0
TX packets:4492 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:7005902 (6.6 MiB) TX bytes:399581 (390.2 KiB)
run: ethtool <interface>
> Host# ethtool eth0
Settings for eth0:
Supported ports: [ TP ]
Supported link modes: 1000baseT/Full
10000baseT/Full
Supports auto-negotiation: Yes
Advertised link modes: 1000baseT/Full
10000baseT/Full
Advertised auto-negotiation: N
Speed: 1000Mb/s
Installing the IBM Flex System adapter
9
Duplex: Full
Port: Twisted Pair
PHYAD: 0
Transceiver: internal
Auto-negotiation: on
Supports Wake-on: g
Wake-on: d
Link detected: yes
Ethernet Driver Usage and Configuration
To check driver and device information run:
> ethtool -i eth<x>
Example:
> ethtool -i eth0
driver:mlx4_en (MT_1020110019_CX-3)
version: 1.5.6.33 (Oct 2011)
firmware-version:2.10.0000
bus-info: 0000:07:00.0
Windows drivers
For Windows, download and install the latest Mellanox WinOF VPI for Windows
software package available via the Mellanox web site at:
nox.com => Products => Software/Drivers => InfiniBand & VPI Software/Drivers
=> Mellanox WinOF VPI => Download. Follow the installation instructions
included in the download package (also available from the download page). To
ensure that communication has been established follow the instructions below.
Get the device location on the PCI bus by performing the following steps:
1. Open Device Manager on the server. Click start=> Run, and then enter
"devmgmt.msc"
2. Expand System Devices and locate the adapter
3. Right click and select Properties to display the adapter properties window
4. Click the Details tab and select Device Instance ld (Windows 2003) or Hardware Ids (Windows 2008/R2) from the Property pull-down menu
http://www.mella-
10
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Figure 8: PCI Device (Example)
5. In the Value display box, check the fiel
ds VEN and DEV (fields are separated
by ‘&’). In the display example above, notice the sub-string
“PCI\VEN_15B3&DEV_1003”: VEN is equal to 0x15B3 – this is the Vendor ID
of Mellanox Technologies; and DEV is equal to 1003 – this is a valid Mellanox
Technologies PCI Device ID.
Verify MLX driver
1. Start the “Device Manager” (open a command line window and enter:
vmgmt.msc)
de
2. Open “Network Adapters”
3. Right click the relevant adapter and
select Properties
4. Click the Driver tab (example)
Installing the IBM Flex System adapter
11
To display a summary of network adapter software- and hardware-related information such as driver version, firmware v
ersion, bus interface, adapter identity,
and network port link information, perform the following steps:
1. Display the Device Manager
2. Right-click the relevant adapter and left-click Properties
3. Select the Information tab from the Properties sheet (example)
12
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Obtain the Ethernet address
1. Display the “Device Manager”
2. Right-click the relevant adapter and left-click Properties
3. Select the Details tab from the Properties sheet
4. Select Address from the Property pull-down
menu (example)
Installing the IBM Flex System adapter
13
Driver and device information
To check driver and device information click on the
General tab (example)
VMware driver
For VMware download and install the latest Mellanox WinOF VPI for Windows
software package available via the Mellanox web site at:
nox.com
=> InfiniBand OFED Driver for VMware® ESX Server => Download. Follow the
installation instructions included in the download package (also available from
the download page).
=> Products => Software/Drivers => InfiniBand & VPI Software/Drivers
RDMA over Converged Ethernet
ConnectX®-3 connected to an Ethernet fabric provides all of the basic NIC functionality plus RDMA over Converged Ethernet (RoCE).
Data Center Bridging (DCB) to enable efficient and low cost implementations of
RDMA over Ethernet, supporting the entire breadth of RDMA and low latency
features. This includes reliable connected service, datagram service, RDMA and
send/receive semantics, atomic operations, user level multicast, user level I/O
access, kernel bypass, and zero copy. This capability is enabled when using the
Mellanox OFED or WinOF VPI drivers.
http://www.mella-
RoCE utilizes advances in
14
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
ConnectX®-3 EN with RoCE based network management is the same as that for
any Ethernet and DCB-based network management, eliminating the need for IT
managers to learn new technologies.
Hardware and Software Requirements
Software:
• Mellanox OFED or WinOF VPI
Hardware:
• IBM Flex System adapter
Installing the IBM Flex System adapter
15
16
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Chapter 3. Solving problems
unit
unit
unit
If you cannot locate and correct a problem by using the information in this section,
see Appendix A, “Getting help and technical assistance,” on page 19.
Parts listing
Table 2 - Part CRU Number
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter 90Y3469
Part
CRU number
(Tier 1)
Solving problems
17
18
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Appendix A. Getting help and technical assistance
Before you call
© Copyright IBM Corp. 2012
19
Using the documentation
Getting help and information from the World Wide Web
Software service and support
20
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Hardware service and support
IBM Taiwan product service
21
22
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Appendix B. Notices
© Copyright IBM Corp. 2012
23
Trademarks
IBM, the IBM logo, and ibm.com are trademarks of International
Business Machines Corp., registered in many jurisdictions worldwide.
Other product and service names might be trademarks of IBM or other
companies. A current list of IBM trademarks is available on the web at
"Copyright and trademark information"
at http://www.ibm.com/legal/copytrade.shtml
Adobe and PostScript are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
Cell Broadband Engine is a trademark of Sony Computer Entertainment, Inc., in the
United States, other countries, or both and is used under license
therefrom.
Intel, Intel Xeon, Itanium, and Pentium are trademarks
or registered trademarks of Intel Corporation or its subsidiaries
in the United States and other countries.
Java and all Java-based trademarks and logos are trademarks or registered
trademarks of Oracle and/or its affiliates.
Linux is a registered trademark of Linus
Torvalds in the United States, other countries, or both.
Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in
the United States, other countries, or both.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Mellanox®, ConnectX®, CORE-Direct® and Virtual Protocol Interconnect® are registered
trademarks of Mellanox Technologies, Ltd.
24
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Important notes
This product is not intended to be connected directly or indirectly by any means
whatsoever to interfaces of public telecommunications networks, nor is it intended
to be used in a public services network.
Document format
25
Electronic emission notices
26
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
27
28
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
This is electromagnetic wave compatibility equipment
for business (Type A). Sellers and users need to pay
attention to it. This is for any areas other than home.
29
30
IBM Flex System EN4132 2-port 10Gb Ethernet Adapter User’s Guide
Printed in USA
(1P) P/N: 88Y7933
Loading...
