Note: Before using this information and the product it supports, read the information
under Appendix C, ″Product warranties and notices″ on page C-1 .

IBM Flatpanel Speakers

First Edition (March 2001)

© Copyright International Business Machines Corporation 2001. All rights reserved.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by
GSA ADP Schedule Contract with IBM Corp.

Contents

About this book .....................v

Registering your option ..................v

Safety: read first ....................vii

Part 1: Installation and user’s guide .............1-1

Product Description ...................1-1

Beforeyoubegin...................1-2

Mounting your flatpanel speakers ..............1-3

Mounting the speakers on your desk ............1-3

Mounting the speakers on IBM monitors with accessory clips ....1-4

Mounting the speakers on monitors without accessory clips .....1-5

Connecting the flatpanel speakers to your computer ........1-6

Appendix A. Troubleshooting ...............A-1

Appendix B. Help and service information ...........B-1

WarrantyinformationontheWorldWideWeb..........B-1

Online technical support..................B-1

Telephone technical support ................B-1

Appendix C. Product warranty and notices ..........C-1

IBM Statement of Limited Warranty ..............C-1

Part1-GeneralTerms.................C-1

Part 2 - Country-unique Terms ..............C-4

Trademarks .....................C-12

© Copyright IBM Corp. 2001 iii

iv IBM Flatpanel Speakers: User ’s Guide

About this book

This manual contains instructions for installing, configuring, and
troubleshooting the IBM

®

Flatpanel Speakers User’s Guide. The manual is

divided into two parts:

Part 1: Installation and user’s guide

This guide contains abbreviated installation instructions.

This guide also contains the product description and expanded installation
instructions in the following languages:

v English
v French
v Spanish
v Italian
v Brazilian Portuguese
v Traditional Chinese
v Japanese

Part 2: Appendixes

The appendixes contain device driver special configuration settings, help and
service information. It also contains the product warranties and notices.

Note: The illustrations in this manual might be slightly different from your

hardware.

Registering your option

Thank you for purchasing OPTIONS by IBM. Please take a few moments to
register your product and provide us with information that will help IBM to
better serve you in the future. Your feedback is valuable to us in developing
products and services that are important to you, as well as in developing better
ways to communicate with you. Register your option on the IBM Web site at

http://www.ibm.com/pc/register

IBM will send you information and updates on your registered product unless
you indicate on the Web site questionnaire that you do not want to receive
further information.

© Copyright IBM Corp. 2001 v

vi IBM Flatpanel Speakers: User ’s Guide

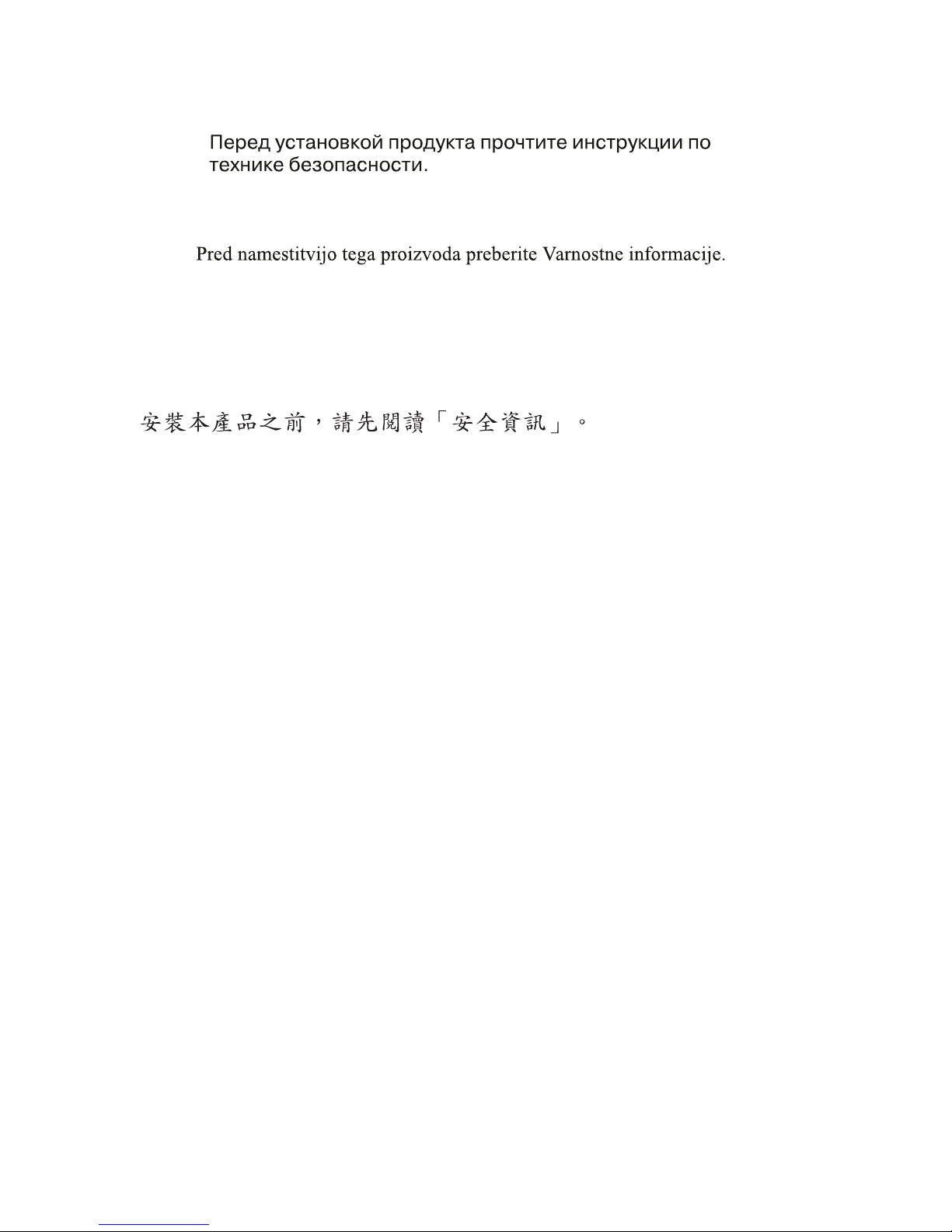

Safety: read first

Before installing this product, read the Safety Information.

Antes de instalar este produto, leia as Informações de Segurança.

Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.

Læs sikkerhedsforskrifterne, før du installerer dette produkt.

Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety
Information.

Avant d’installer ce produit, lisez les consignes de sécurité.

Vor der Installation dieses Produkts die Sicherheitshinweise lesen.

Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.

Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.

Les sikkerhetsinformasjonen (Safety Information) før du installerer dette
produktet.

© Copyright IBM Corp. 2001 vii

Antes de instalar este produto, leia as Informações sobre Segurança.

red inštaláciou tohto zariadenia si pečítaje Bezpečnostné predpisy.

Antes de instalar este producto lea la información de seguridad.

Lässäkerhetsinformationen innan du installerar den här produkten.

viii IBM Flatpanel Speakers: User ’s Guide

Part 1: Installation and user’s guide

This guide contains instructions on how to install and use the IBM Flatpanel
Speakers.

Product Description

The flatpanel speakers will easily stand on your desktop using the integrated
desk stands. You can also attach them to the side of some IBM monitors with
the included accessory mounting bar. The speakers can also be used with IBM
monitors that do not have the accessory bar mounting feature by utilizing the
adhesive clip pads. The accessory bar comes in two parts and is adjustable to
fit a wide range of monitor sizes. The speaker also has two headphone jacks
for private listening.

© Copyright IBM Corp. 2001 1-1

Before you begin

In addition to the User’s Guide and Safety Information manual, the option
package includes the following:

Table 1-1.

1Two black flat panel
speakers

5Two attached elbow end
clips

9One power cord

2Four rubber plugs 6Four accessory T-Clips 10One 1.82 m (6 ft) stereo

mini-plug cable for audio
input

3Two accessory bar clips 7Four accessory clip pads

with adhesive

11One 1.82 m (6 ft) stereo
mini-plug cable for
connection to left speaker

4Two accessory bars 8One 12 V dc power adapter

If any of these items are not in this option package contact the place of
purchase.

1-2 IBM Flatpanel Speakers: User ’s Guide

Mounting your flatpanel speakers

There are three ways to mount your flatpanel speakers:

1. If you are mounting your speakers on your desk, go to “Mounting the

speakers on your desk”.

2. If you are mounting your speakers on IBM monitors with accessory clips,

go to “Mounting the speakers on IBM monitors with accessory clips” on
page 1-4.

3. If you are mounting your speakers on monitors without accessory clips, go

to “Mounting the speakers on monitors without accessory clips” on
page 1-5.

Mounting the speakers on your desk

Follow these instructions to mount your flatpanel speaker on your desk using
the attached stands.

Note: Do not remove the rubber plugs.

1. Determine where you want to place the speakers.

2. Unfold the base of the stands from the bottom rear of the speakers so that

the speakers stand upright, as shown in the following illustration.

3. Continue with the set up as described in “Connecting the flatpanel

speakers to your computer” on page 1-6.

Part 1: Installation and user’s guide 1-3
