ERserver

򔻐򗗠򙳰

xSeries 305 Type 8673

Hardware Maintenance Manual and Troubleshooting Guide

ER s e r v e r

򔻐򗗠򙳰

xSeries 305 Type 8673

Hardware Maintenance Manual and Troubleshooting Guide

Note

Before using this information and the product it supports, read Appendix C, “Notices” on page 121.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

About this manual

This manual contains diagnostic information, a Symptom-to-FRU index, service information, error codes, error messages, and configuration information for the IBM Eserver xSeries™305.

Important: The field replaceable unit (FRU) procedures are intended for trained

servicers who are familiar with IBM xSeries products. See the parts listing in “Server” on page 80 to determine if the component being replaced is a customer replaceable unit (CRU) or a field replaceable unit (FRU).

The latest version of this publication is available from the IBM Web site. Go to http://www.ibm.com/ and click Support & downloads. In the Technical support keyword search field, type 8673 and click Go. A list of publications for your server is displayed.

Important safety information

Be sure to read all caution and danger statements in this book before performing any of the instructions. See “Safety information” on page 87.

Leia todas as instruções de cuidado e perigo antes de executar qualquer operação.

Online support

Prenez connaissance de toutes les consignes de type Attention et Danger avant de procéder aux opérations décrites par les instructions.

Lesen Sie alle Sicherheitshinweise, bevor Sie eine Anweisung ausführen.

Accertarsi di leggere tutti gli avvisi di attenzione e di pericolo prima di effettuare qualsiasi operazione.

Lea atentamente todas las declaraciones de precaución y peligro ante de llevar a cabo cualquier operación.

You can download the most current diagnostic, BIOS flash, and device driver files from http://www.ibm.com/pc/support on the World Wide Web.

iv xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Contents

About this manual .......................iii

Important safety information ....................iii

Online support .........................iv

Chapter 1. General information...................1

Related publications .......................1

Notices and statements in this book .................2

Features and specifications .....................3

Server Controls, LEDs and power ..................4

Front view ..........................4

Rear view ..........................5

Server power features......................6

Chapter 2. Configuring your server .................9

Using the Configuration/Setup Utility program ..............9

Starting the Configuration/Setup Utility program ............9

Passwords .........................10

Using the ServerGuide Setup and Installation CD ............11

ServerGuide features .....................11

Setup and configuration overview .................12

System Partition .......................13

Typical operating-system installation ................13

Setting up or updating multiple servers ...............13

Installing your operating system without ServerGuide ..........14

Using the SCSISelect Utility program .................14

Starting the SCSISelect Utility program ...............14

SCSISelect Utility menu choices .................14

Configuring the Gigabit Ethernet controller ...............15

High-performance Ethernet options ................15

Chapter 3. Diagnostics .....................17

General checkout ........................17

Checkout procedure ......................18

Diagnostic tools overview .....................19

POST ............................19

POST beep codes ......................20

Error logs ..........................20

ServerGuide error symptoms ....................20

Small computer system interface messages ..............21

Diagnostic programs and error messages ...............21

Text messages ........................22

Starting the diagnostic programs .................22

Diagnostic error message tables .................24

Recovering the BIOS code ....................24

Updating the UUID .......................26

Updating the DMI/SMBIOS data ..................26

Power checkout ........................26

Troubleshooting the Ethernet controller ................27

Network connection problems ..................27

Ethernet controller troubleshooting chart ..............27

Ethernet controller messages ..................28

Chapter 4. Customer replaceable units ...............29

Installation guidelines ......................29

System reliability guidelines ...................29

Handling static-sensitive devices .................29

Major components of the xSeries 305 Type 8673 ............30

System-board illustrations .....................31

System-board and riser-card option connectors ............31

System-board internal cable connectors...............32

System-board external port connectors ...............32

System-board switches and jumpers ................33

System-board LEDs ......................33

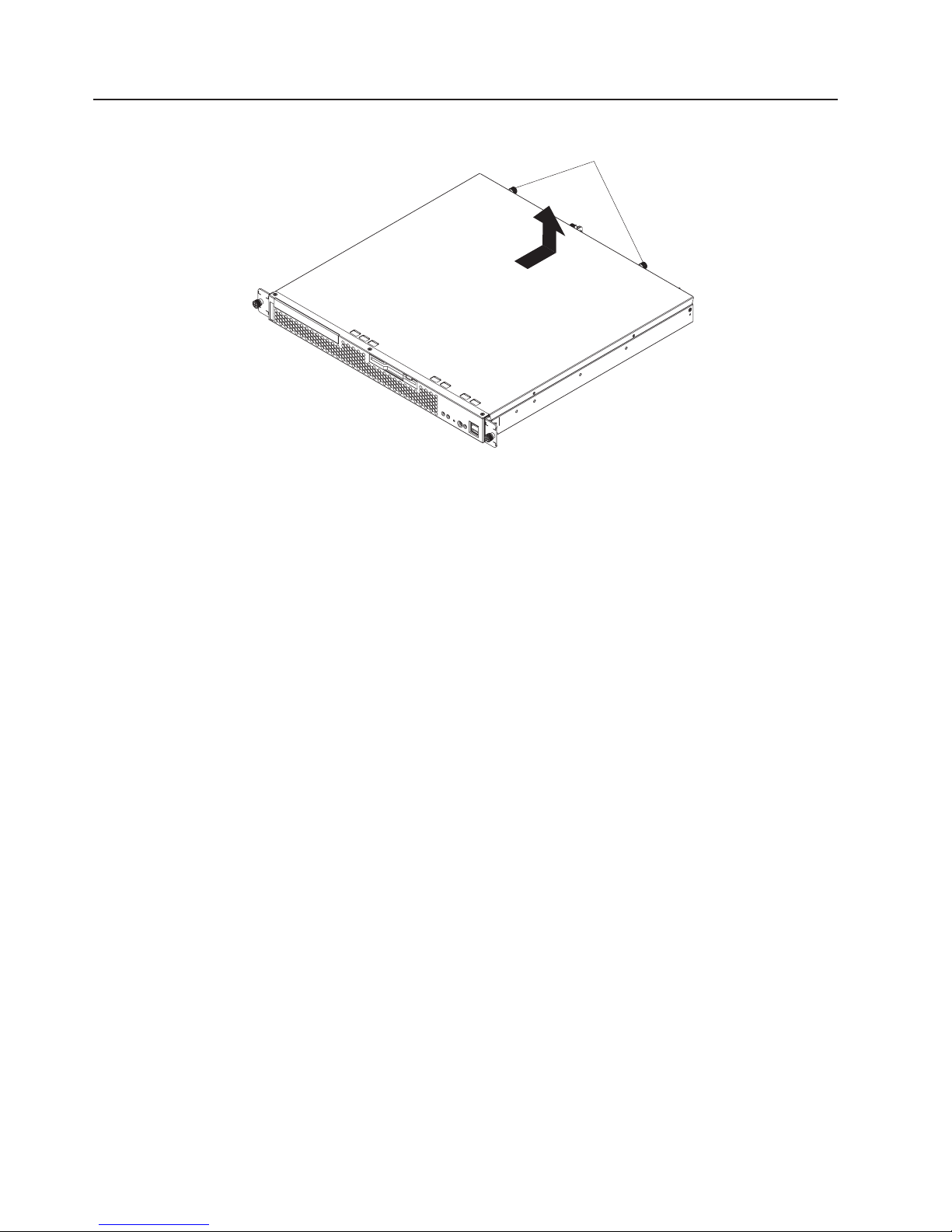

Removing the cover .......................34

Removing the front bezel .....................35

Working with adapters ......................35

Adapter considerations .....................36

Installing an adapter ......................38

Hard disk drives ........................40

Installing or replacing a hard disk drive ...............40

Installing DIMMs ........................41

Completing the installation.....................42

Installing the cover ......................42

Updating your server configuration.................43

Replacing the battery ......................43

Input/output ports and connectors ..................45

Serial port...........................45

Viewing or changing the serial-port assignments ...........45

Serial-port connector ......................46

Universal Serial Bus ports .....................46

USB cables and hubs .....................46

USB-port connectors ......................46

Keyboard connector .......................46

Video connector ........................47

Auxiliary-device (pointing device) connector ..............47

Gigabit Ethernet port .......................47

Configuring the Gigabit Ethernet controller ..............47

High-performance Ethernet modes.................48

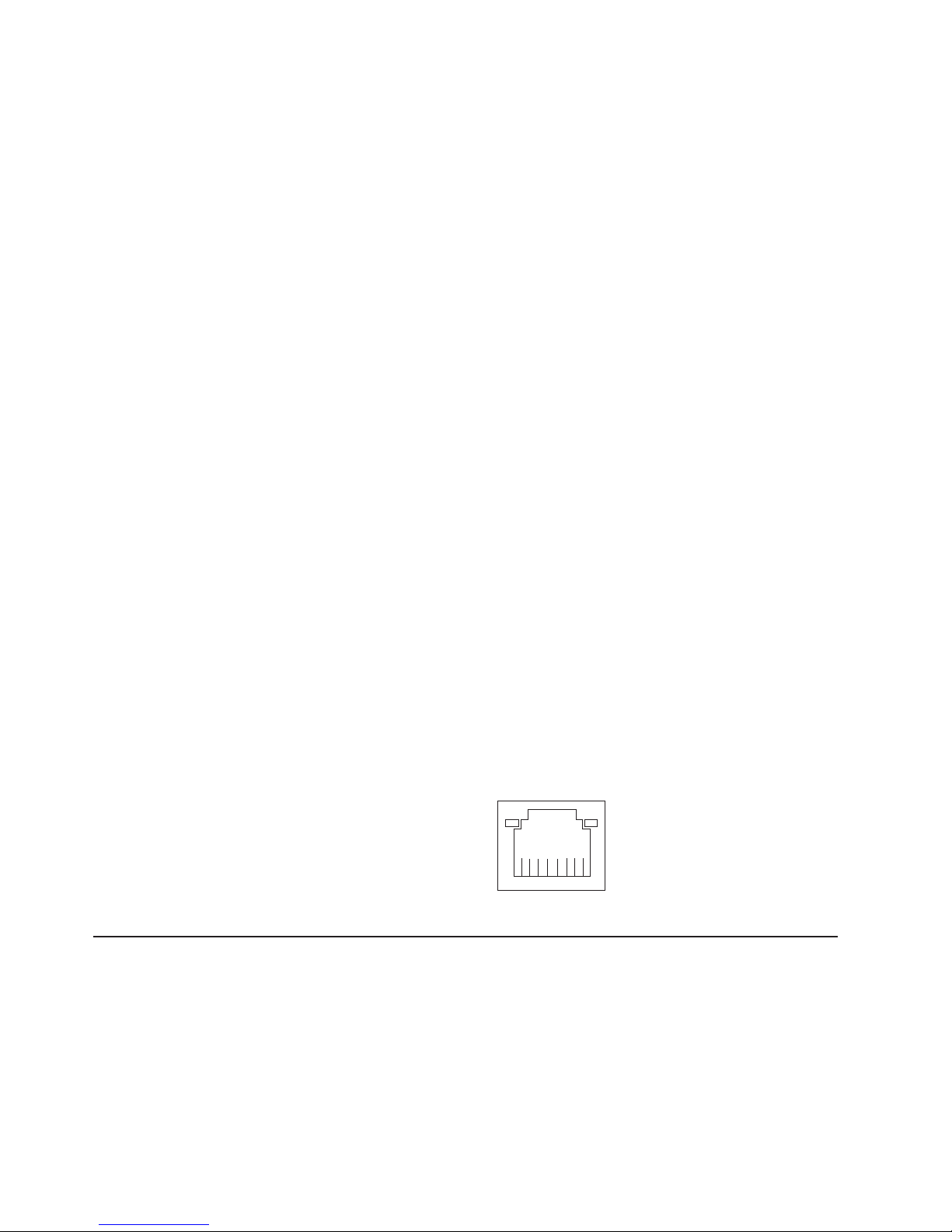

Ethernet port connector .....................48

Cabling the server........................48

Chapter 5. Removing and installing FRUs (service only) ........51

Removing the cover .......................51

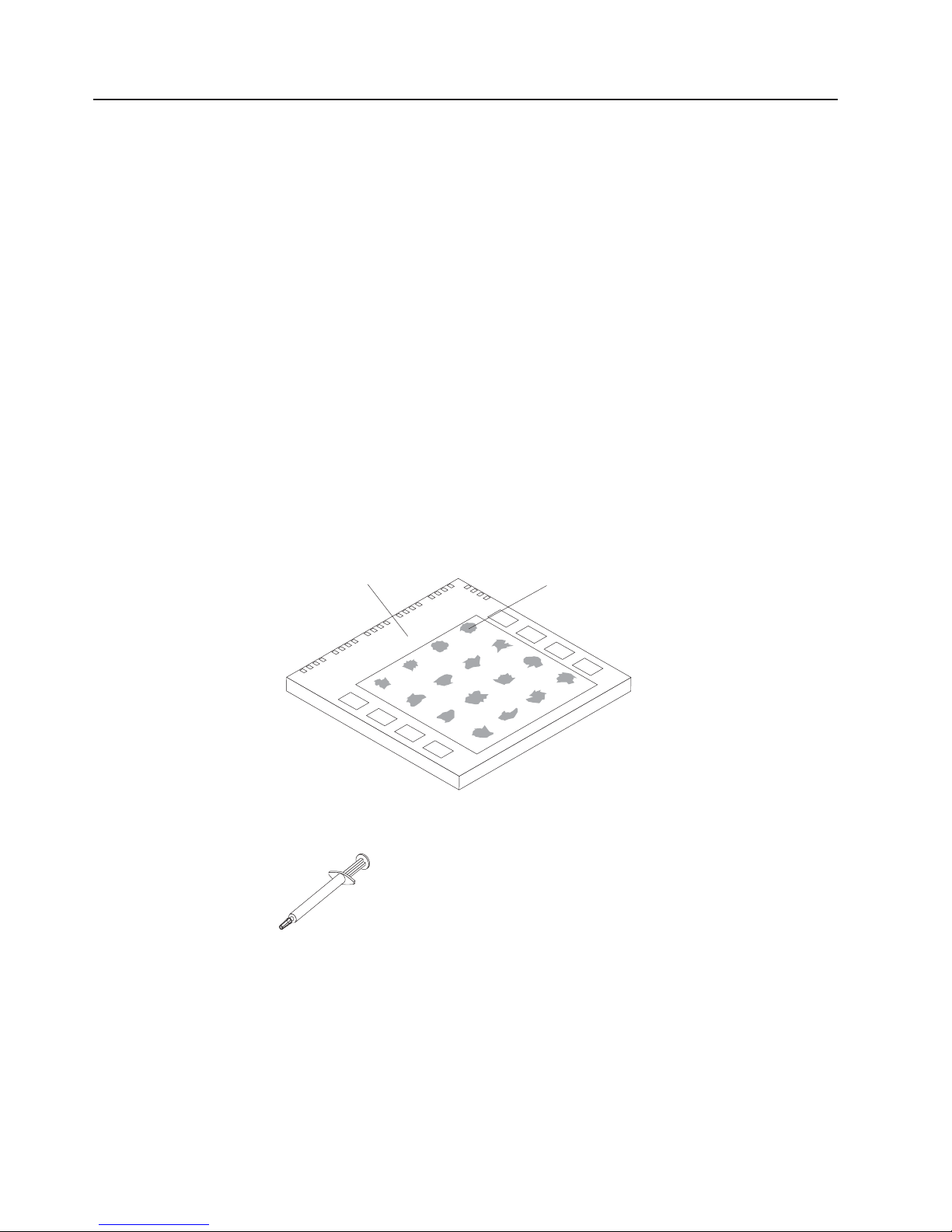

Thermal grease.........................52

Removing and replacing a microprocessor ...............53

Removing and replacing the retention module .............54

Removing and replacing the system board...............55

Removing and replacing the switch/LED/USB card ............56

Removing and replacing a power supply ...............57

Removing the front bezel .....................58

Removing and replacing the PCI riser card ..............59

Removing and replacing the fans ..................60

Removing and replacing the blower .................61

Removing and replacing the air baffle ................62

Chapter 6. Symptom-to-FRU index .................63

Beep symptoms ........................63

No beep symptoms .......................65

Diagnostic error codes ......................65

vi xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Error symptoms ........................68

POST error codes ........................69

POST (ISPR) error procedures ...................73

ServeRAID error codes ......................75

Undetermined problems .....................77

Chapter 7. Parts listing xSeries 305 Type 8673 ............79

Server ............................80

Keyboard CRUs ........................81

Power cords ..........................82

Appendix A. Getting help and technical assistance ..........85

Before you call .........................85

Using the documentation .....................85

Getting help and information from the World Wide Web ..........85

Software service and support ...................86

Hardware service and support ...................86

Appendix B. Related service information ..............87

Safety information ........................87

General safety ........................87

Electrical safety........................88

Safety inspection guide .....................89

Handling electrostatic discharge-sensitive devices ...........90

Grounding requirements ....................91

Safety notices (multilingual translations)...............91

Appendix C. Notices ......................121

Trademarks..........................121

Important notes ........................122

Electronic emission notices ....................123

Federal Communications Commission (FCC) statement ........123

Industry Canada Class A emission compliance statement ........123

Australia and New Zealand Class A statement ............123

United Kingdom telecommunications safety requirement ........123

European Union EMC Directive conformance statement ........124

Taiwanese Class A warning statement ...............124

Japanese Voluntary Control Council for Interference (VCCI) statement 124

Contents vii

viii xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Chapter 1. General information

The IBM Eserver xSeries 305 Type 8673 server, which features IBM X-Architecture networking environments that require superior microprocessor performance, efficient memory management, flexibility, and large amounts of reliable data storage.

Performance, reliability, and expansion capabilities were key considerations in the design of your server. These design features make it possible for you to customize the system hardware to meet your needs today, while providing flexible expansion capabilities for the future.

If you have access to the Internet, you can obtain up-to-date information about your server and other IBM server products at http://www.ibm.com/eserver/xseries/ on the World Wide Web.

Related publications

This Hardware Maintenance Manual and Troubleshooting Guide is provided in PDF on the IBM xSeries Documentation CD. It contains information to help you solve the problem yourself or to provide helpful information to a service technician.

In addition to this Hardware Maintenance Manual and Troubleshooting Guide, the following xSeries 345 Type 8670 documentation is provided with your server:

v Installation Guide

This printed publication contains setup and installation instructions.

v Rack Installation Instructions

This printed publication contains the instructions to install your server in a rack.

v Safety Book

This multilingual publication is provided in Portable Document Format (PDF) on

the IBM xSeries Documentation CD. It contains translated versions of the caution

and danger statements that appear in the documentation for your server. Each

caution and danger statement has an assigned number, which you can use to

locate the corresponding statement in your native language.

v User’s Guide

This publication is provided in PDF on the IBM xSeries Documentation CD. It

contains general information about your server, including information about

features, how to configure your server, how to use the ServerGuide

Installation CD, and how to get help.

™

technology, is a high-performance server. It is ideally suited for

™

Setup and

v Option Installation Guide

This publication is provided in PDF on the IBM xSeries Documentation CD. It contains instructions to install, remove, and connect optional devices supported by your server.

Depending on your server model, additional publications might be included on the IBM xSeries Documentation CD.

Notices and statements in this book

The caution and danger statements used in this book also appear in the multilingual Safety Information book provided on the IBM xSeries Documentation CD. Each caution and danger statement is numbered for easy reference to the corresponding statements in the safety book.

The following types of notices and statements are used in this book:

v Note: These notices provide important tips, guidance, or advice. v Important: These notices provide information or advice that might help you avoid

inconvenient or problem situations.

v Attention: These notices indicate possible damage to programs, devices, or

data. An attention notice is placed just before the instruction or situation in which damage could occur.

v Caution: These statements indicate situations that can be potentially hazardous

to you. A caution statement is placed just before the description of a potentially hazardous procedure step or situation.

v Danger: These statements indicate situations that can be potentially lethal or

extremely hazardous to you. A danger statement is placed just before the description of a potentially lethal or extremely hazardous procedure step or situation.

2 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Features and specifications

The following table provides a summary of the features and specifications of your xSeries 305 Type 8673 server. Depending on your server model, some features and specifications might not apply.

Racks are marked in vertical increments of 1.75 inches. Each increment is referred to as a unit, or “U.” A 1-U-high device is 1.75 inches tall.

Table 1. Features and specifications

Microprocessor:

Memory:

v Minimum: 256 MB v Maximum: 4 GB v Type: PC2100 266 MHz, ECC

SDRAM, registered DIMMs only

v Slots: Four dual inline v Supports 256 MB, 512 MB, and

1GBDIMMs

Drives:

v Diskette: 1.44 MB v CD-ROM: IDE v Supports up to two slim-high hard

disk drives

Expansion bays:

Expansion slots:

v Two 66/100/133 MHz/64-bit PCI-X

slots on the system board (one half-length full-height, one low profile)

Video controller:

v ATI Rage XL video on system

board

v Compatible with SVGA and VGA v 8 MB SDRAM video memory

Power supply:

Size:

v Height: 43 mm (1.75 inches, 1 U) v Depth: 424 mm (16.54 inches) v Width: 430 mm (16.69 inches) v Maximum weight: 12.7 kg (28 lb)

depending on your configuration

Integrated functions:

v 1000Base-T, 100Base-T,

10Base-T (dual) Ethernet controllers on the system board with Wake on LAN

v Serial port v Two USB ports v Keyboard port v Mouse port v Dual-channel bus mastering IDE

controller

Hard disk controller:

v Dual-channel bus mastering IDE

controller

v Ultra160 SCSI adapter is installed

in one of the expansion slots (SCSI models)

Acoustical noise emissions:

v Sound power, idling: 6.5 bel

maximum

v Sound power, operating: 6.5 bel

maximum

Environment:

v Air temperature:

– Server on: 10° to 35°C (50.0°

– Server off: -40° to 60°C

v Humidity:

– Server on: 8% to 80% – Server off: 8% to 80%

support

to 95.0°F); altitude: 0 to 914 m (2998.7 ft)

(-104° to 140°F); maximum altitude: 2133 m (6998.0 ft)

Heat output:

Approximate heat output in British thermal units (Btu) per hour: v Minimum configuration: 297 Btu (87

watts)

v Maximum configuration: 512 Btu

(150 watts)

Electrical input:

v Sine-wave input (47-63 Hz) required v Input voltage low range:

– Minimum: 100 V ac – Maximum: 127 V ac

v Input voltage high range:

– Minimum: 200 V ac – Maximum: 240 V ac

v Input kilovolt-amperes (kVA),

approximately: – Minimum: 0.0870 kVA – Maximum: 0.150 kVA

Notes:

1. Power consumption and heat output vary depending on the number and type of optional features installed and the power-management optional features in use.

2. These levels were measured in controlled acoustical environments according to the procedures specified by the American National Standards Institute (ANSI) S12.10 and ISO 7779 and are reported in accordance with ISO 9296. Actual sound-pressure levels in a given location might exceed the average values stated because of room reflections and other nearby noise sources. The declared sound-power levels indicate an upper limit, below which a large number of computers will operate.

Chapter 1. General information 3

Server Controls, LEDs and power

This section describes the controls and light-emitting diodes (LEDs) and how to turn the server on and off.

Front view

The following illustration shows the controls and LEDs on the front of the server.

Power-control button

USB 2 connector

USB 1 connector

Reset button

Power-on LED (green)

CD-eject button

CD-ROM drive activity LED (green)

Diskette drive activity LED (green)

Diskette-eject button

System-error LED (amber)

Hard disk drive activity LED (green)

CD-eject button: Press this button to release a CD from the CD-ROM drive.

CD-ROM drive activity LED: When this LED is lit, it indicates that the CD-ROM

drive is in use.

Diskette drive activity LED: When this LED is lit, it indicates that the diskette drive is in use.

Diskette-eject button: Press this button to release a diskette from the diskette drive.

Power-control button: Press this button to turn the server on and off manually.

USB 2 Connector: Connect a USB device to this connector.

USB 1 Connector: Connect a USB device to this connector.

Power-on LED: When this LED is lit, it indicates that the server is turned on.

Reset button: Press this button to reset the server and run the power-on self-test

(POST). You might have to use a pen or the end of a straightened paper clip to press the button.

Hard disk drive activity LED: When this LED is flashing, it indicates that the associated hard disk drive is in use.

System-error LED: When this LED is lit, it indicates that a system error has occurred.

4 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Rear view

The following illustration shows the LEDs on the rear of the server.

Ethernet 2 link LED (green)

Ethernet 2 activity LED (green)

Ethernet 1 activity LED (green)

Ethernet 1 link LED (green)

Ethernet 2 link LED (green): When this green LED is lit, it indicates that the speed of the Ethernet LAN is 1000BASE-T. When this green LED is off, it indicates that the speed of the Ethernet LAN is 10/100BASE-T.

Ethernet 2 activity LED (green): When this green LED is flashing, it indicates that there is an active link connection between Ethernet port 2 and the network.

Ethernet 1 link LED (green): When this green LED is lit, it indicates that the speed of the Ethernet LAN is 1000BASE-T. When this green LED is off, it indicates that the speed of the Ethernet LAN is 10/100BASE-T.

Ethernet 1 activity LED (green): When this green LED is flashing, it indicates that there is an active link connection between Ethernet port 1 and the network.

Chapter 1. General information 5

Server power features

This section contains information about how to turn your server on and off.

Turning on the server

Statement 13:

DANGER

Overloading a branch circuit is potentially a fire hazard and a shock hazard under certain conditions. To avoid these hazards, ensure that your system electrical requirements do not exceed branch circuit protection requirements. Refer to the information that is provided with your device for electrical specifications.

After you connect the server to an ac power source, the server can be turned on in any of the following ways:

v You can press the power-control button on the front. v If the server is turned on and a power failure occurs, the server will start

automatically when power is restored. (You can set the default in the Configuration/Setup Utility program. Go to Power Management →Automatic Power on →Previous State.)

Complete the following steps to manually turn on the server:

1. Review the information in “Important safety information” on page iii.

2. Turn on all external devices, such as the monitor.

3. Plug the server power cord into the power source.

4. Press the power-control button on the front of the server.

Note: While the server is turning on, the power-on LED on the front of the

server is lit.

Turning off the server

Complete the following steps to manually turn off the server:

1. Review the information in “Important safety information” on page iii

2. See your operating system documentation for the proper procedure to shut down the operating system.

When you turn off the server, observe the following precaution.

3. Press the power-control button on the front of the server.

Statement 5:

6 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

2 1

Chapter 1. General information 7

8 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Chapter 2. Configuring your server

The following configuration programs and capabilities come with your server:

v Configuration/Setup Utility program

This is part of the basic input/output system (BIOS) in your server. Use it to configure serial port assignments, change interrupt request (IRQ) settings, change the startup-device sequence, set the date and time, and set passwords.

v IBM ServerGuide Setup and Installation CD

This provides software-setup tools and installation tools that are designed for your server. Use this CD during the installation of your server to configure basic hardware features and to simplify the installation of your operating system. For information about using this CD, see “Using the ServerGuide Setup and Installation CD” on page 11.

v SCSISelect Utility program (some models)

Use this to configure devices that are attached to the SCSI adapter. Use it to change default settings, resolve configuration conflicts, and perform low-level formats on SCSI hard disk drives. For information about using this utility program, see “Using the ServerGuide Setup and Installation CD” on page 11.

v Gigabit Ethernet controller configuration

Your server comes with two integrated Gigabit Ethernet controllers. These controllers provide an interface for connecting to a 10-Mbps, 100-Mbps, or 1000-Mbps network and provides full-duplex (FDX) capability, which enables simultaneous transmission and reception of data on the Ethernet local area network (LAN).

v IBM Director

IBM Director is a workgroup-hardware-management tool that you can use to centrally manage xSeries servers; IBM NetVista computers; and non-IBM Intel-microprocessor-based systems. IBM Director automates tasks such as inventory-taking, monitoring of environmental sensors (such as temperature, voltage and fans), alerting, and system-health information. For more information about IBM Director, see the IBM Director CD that comes with your server.

™

, IntelliStation®, and ThinkPad

Using the Configuration/Setup Utility program

Use the Configuration/Setup Utility program to:

v View configuration information v View and change assignments for devices and I/O ports v Set the date and time v Set and change passwords and Remote Control Security settings v Set the startup characteristics of the server and the order of startup devices v Set and change settings for advanced hardware features v View and clear error logs

Starting the Configuration/Setup Utility program

Complete the following steps to start the Configuration/Setup Utility program:

1. Turn on the server.

2. When the prompt Press F1 for Configuration/Setup appears, press F1. If you have set both a power-on password and an administrator password, you must

Passwords

type the administrator password to access the full Configuration/Setup Utility menu. If you do not type the administrator password, a limited Configuration/Setup Utility menu is available.

3. Select settings to view or change.

From the System Security choice, you can set, change, and delete a power-on password. The System Security choice is on the full Configuration/Setup menu only.

If you set a power-on password, you must type the power-on password to complete the system startup, and you have access to the full Configuration/Setup Utility menu.

If you set a power-on password for a user and an administrator password for a system administrator, you can type either password to complete the system startup. A system administrator who types the administrator password has access to the full Configuration/Setup Utility menu; the system administrator can give the user authority to set, change, and delete the power-on password. A user who types the power-on password has access to only the limited Configuration/Setup Utility menu; the user can set, change, and delete the power-on password, if the system administrator has given the user that authority.

Power-on password

If a power-on password is set, when you turn on the server, the system startup will not be completed until you type the power-on password. You can use any combination of up to seven characters (A–Z, a–z, and 0–9) for the password.

When a power-on password is set, you can enable the Unattended Start mode, in which the keyboard and mouse remain locked but the operating system can start. You can unlock the keyboard and mouse by typing the power-on password.

If you forget the power-on password, you can regain access to the server in any of the following ways:

v If an administrator password is set, type the administrator password at the

password prompt. Start the Configuration/Setup Utility program and reset the power-on password.

v Remove the server battery and then reinstall it. See the Option Installation Guide

for instructions for removing the battery.

Administrator password

If an administrator password is set, you must type the administrator password for access to the full Configuration/Setup Utility menu. You can use any combination of up to seven characters (A–Z, a–z, and 0–9) for the password. The Administrator password choice is on the Configuration/Setup Utility menu only if an optional IBM Remote Supervisor Adapter is installed.

Attention: If you set an administrator password and then forget it, there is no way to change, override, or remove it. You must replace the system board.

10 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Using the ServerGuide Setup and Installation CD

The ServerGuide Setup and Installation CD includes an easy-to-use setup and installation program that is designed for your IBM server. The ServerGuide program detects the server model and hardware options that are installed and uses that information during setup to configure the hardware. The ServerGuide program simplifies operating-system installations by providing updated device drivers and, in some cases, installing them automatically.

To purchase the latest ServerGuide Setup and Installation CD, see the “ServerGuideUpdates” flyer that comes with your server library, or go to the ServerGuide fulfillment Web site at http://www.ibm.com/pc/coupon/.

The ServerGuide program has the following features to make setup easier:

v An easy-to-use interface with online help v Diskette-free setup, and configuration programs that are based on detected

hardware

v ServeRAID Manager program, which configures your ServeRAID adapter or

integrated SCSI controller with RAID capabilities if installed

v A system BIOS update program, which updates the BIOS code directly from the

v Device drivers that are provided for your server model and detected hardware v Operating-system partition size and file-system type that are selectable during

setup

ServerGuide features

Features and functions can vary slightly with different versions of the ServerGuide program. To learn more about the version that you have, start the ServerGuide Setup and Installation CD and view the online overview. Not all features are supported on all server models.

The ServerGuide program requires a supported IBM server with an enabled startable (bootable) CD-ROM drive. In addition to the ServerGuide Setup and Installation CD, you must have your operating-system CD to install your operating system.

The ServerGuide program has the following features:

v Sets system date and time. v If installed, detects the SCSI RAID adapter, controller, or integrated SCSI

controller with RAID capabilities and runs the SCSI RAID configuration program.

v Updates the licensed internal code (firmware) level without diskettes. v Checks the system BIOS code and microcode (firmware) levels of supported

options to determine whether a later level is available from the CD. You can perform updates without using diskettes.

v Creates a System Partition on the default drive. You can run server-specific utility

programs after setup.

v Detects installed hardware options and provides updated device drivers for most

adapters and devices.

v Creates a setup-replication diskette for replicating setup selections for other

servers of the same model.

v Provides diskette-free installation for supported operating systems. v Provides a replicated installation path for multiple installations of supported

operating systems.

Chapter 2. Configuring your server 11

v Includes an online README file with links to tips for your hardware and

operating-system installation.

Setup and configuration overview

When you use the ServerGuide Setup and Installation CD, you do not need setup diskettes. You can use the CD to configure any supported IBM server model. The ServerGuide program checks your system BIOS, service processors, and other system hardware to determine if system updates are available. The setup program provides a list of tasks that are required to set up your server model. On a server with a ServeRAID adapter or integrated SCSI controller with RAID capabilities, you can run the SCSI RAID configuration program to create logical drives.

Note: Features and functions can vary slightly with different versions of the

ServerGuide program.

When you start the ServerGuide Setup and Installation CD, the program performs the following tasks:

v The ServerGuide program prompts you for your language, country, and keyboard

layout. (This information is stored and later passed to the operating-system installation program.)

v The ServerGuide program displays choices for running the configuration

programs. For example: – The Express Configuration method runs the required programs for your

server, based on the hardware that is detected.

– The Custom Configuration method displays all programs that are available for

your server, and you decide which programs to run.

– The Replicated Configuration method provides the option of duplicating your

setup selections to other servers that are the same model.

v If you select the Custom Configuration method, the following features are

optional. If you select the Express Configuration method, some or all of these features are run, depending on the hardware that is detected:

– The Set Date and Time feature is provided so that you do not have to use the

Configuration/Setup Utility program to access these settings.

– The Clear Hard Disks feature is provided so you can delete all partitions on all

hard disk drives.

– The ServerGuide program checks the server BIOS code and microcode

(firmware) levels for supported options and then checks the CD for a newer level. The CD content might be newer than the BIOS code and firmware level. The ServerGuide program can perform a flash update of the BIOS code and supported microcode (firmware) options without using diskettes.

– The SCSI RAID configuration program starts, leading you through the entire

configuration process.

– The ServerGuide program creates a System Partition on the default drive.

v The ServerGuide program displays a confirmation summary, so that you will

know when you have completed all the required tasks. Then, you are ready to install your operating system.

Notes:

1. Plug and Play adapters are configured automatically. Non-Plug and Play adapters or non-IBM adapters might require switch settings, additional device drivers, and installation after the operating system is installed. See the documentation that comes with the adapter.

12 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

2. Diagnostics for your server come in BIOS code or on a separate diagnostics CD.

System Partition

The ServerGuide program creates a 50 MB System Partition on the default drive. The System Partition contains server-specific utility programs such as service-processor disk operating system (DOS) utilities, system diagnostics, flash BIOS updates, and other programs. Programs in the System Partition vary by server model, and not all server models run utility programs from the System Partition. To determine which ones do, start the ServerGuide Setup and Installation CD and view the online overview.

After setup is complete, you can access programs in the System Partition by restarting the server and pressing Alt+F1 when the prompt is displayed. The System Partition menu displays the programs that are available on your server model.

Typical operating-system installation

You can use the ServerGuide program to shorten your installation time. The ServerGuide program provides the device drivers that are required for your hardware and for the operating system that you are installing. This section describes a typical ServerGuide operating-system installation.

Note: Features and functions can vary slightly with different versions of the

ServerGuide program.

1. After you have completed the setup process, the operating-system installation program starts. (You will need your operating-system CD to complete the installation.)

2. The ServerGuide program stores information about the server model, service processor, hard disk drive controllers, and network adapters. Then, the program checks the CD for newer device drivers. This information is stored and then passed to the operating-system installation program.

3. With some operating-system installations, you can create an operating-system replication diskette for setting up additional servers. This diskette contains the Internet protocol (IP) address, server name, and other selections.

4. The ServerGuide program presents operating-system partition options that are based on your operating-system selection and the installed hard disk drives.

5. If you are installing the operating system from diskettes, the ServerGuide program lists the diskettes that you must create and the optional device-driver diskettes (for installed adapters or controllers) that you might want to create.

6. The ServerGuide program prompts you to insert your operating-system CD and restart the server. At this point, the installation program for the operating system takes control to complete the installation.

Setting up or updating multiple servers

You can use the ServerGuide program to create diskettes that help you set up or update multiple servers. You can modify information on the diskettes as you use them to set up or update other servers.

Note: Availability and function can vary by server model and by the hardware that

is installed.

Chapter 2. Configuring your server 13

You can create a setup-replication diskette, which contains your hardware configuration selections. Use this diskette to replicate selections to other servers that are of the same model.

You can create an operating-system replication diskette, which contains information that you need to complete multiple installations. Not all operating systems support operating-system replication diskettes.

Installing your operating system without ServerGuide

If you have already configured the server hardware and you decide not to use the ServerGuide program to install your operating system, complete the following steps to download the latest operating-system installation instructions from the IBM Support Web page:

1. Go to http://www.ibm.com/pc/support/.

2. Under Browse, click Servers.

3. From the Family drop-down list, select your server model.

4. If operating-system installation instructions are available for your server model,

OS installation is in the list in the upper-left corner of the Web page. Click OS installation and select the instructions for your operating system.

Using the SCSISelect Utility program

Use the SCSISelect Utility program to:

v View the default SCSI IDs v Locate and correct configuration conflicts v Perform a low-level format on a SCSI hard disk

Starting the SCSISelect Utility program

Complete the following steps to start the SCSISelect Utility program:

1. Turn on the server.

2. When the prompt <<< Press <CTRL><A> for SCSISelect Utility! >>> appears, press Ctrl+A. If you have set an administrator password, you are prompted to type the password.

3. When the prompt Would you like to configure the SCSISelect controller or run the SCSI Disk Utilities? appears, make your selection and press Enter.

4. Use the arrow keys to select a choice from the menu.

5. Follow the instructions on the screen to change the settings of the selected items, and press Enter.

SCSISelect Utility menu choices

The following choices are on the SCSISelect Utility menu:

v Configuration

Select this choice to view or change SCSI controller settings. To reset the controller to its default settings, press F6 and follow the instructions on the screen.

You can view and change the following controller settings: – SCSI Controller ID

Select this choice to view the SCSI controller ID, which is typically 7.

– SCSI Controller Parity

This choice is set to Enabled and cannot be changed.

14 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

– SCSI Controller Termination

This choice is set to Enabled and cannot be changed.

v Additional Configuration

Select this choice to view or change the setting for advanced configuration options. These options include support for large hard disk drives and support for drives with Ultra SCSI speeds.

– Boot Device Options

Select this choice to configure startable-device parameters. You must know the SCSI ID of the device that you want to configure.

– SCSI Device Configuration

Select this choice to configure SCSI-device parameters. You must know the SCSI ID of the device that you want to configure.

The sync transfer rate is the transfer rate for Ultra SCSI devices. For Ultra3 SCSI LVD devices, the maximum rate is 160 MBps; for Ultra2 SCSI devices, 80 MBps; for Fast SCSI devices, 20 MBps.

v BIOS Information

– Interrupt (IRQ) Channel

Select this choice to view the Change Interrupt Request settings.

– I/O Port Address

Select this choice to view the Input/Output ports.

v SCSI Disk Utilities

Select this choice to view the SCSI ID that is assigned to a device or to format a SCSI device. Select a device from the list and read the instructions on the screen carefully before making a selection.

If you press Ctrl+A before a selected drive is ready, an Unexpected SCSI Command Failure screen might appear. Restart the server and watch the SCSISelect messages as each drive spins up. When the selected drive is ready, press Ctrl+A.

Configuring the Gigabit Ethernet controller

Your server comes with two integrated Gigabit Ethernet controllers. The controllers provide an interface for connecting to a 10-Mbps, 100-Mbps, or 1-Gbps local area network (LAN) and provides full-duplex (FDX) capability, which enables simultaneous transmission and reception of data on the network.

When you connect the server to a network, the Ethernet controllers detect the data-transfer rate (10 Mbps, 100 Mbps, or 1 Gbps) of the network and automatically operates at that rate. If the Ethernet ports that your server is connected to auto-negotiation, the controllers automatically operate in standard Ethernet (10BASE-T), Fast Ethernet (100BASE-TX/1000BASE-T), half duplex (HDX), or full duplex (FDX) mode. The controllers supports 1 GB speeds.

High-performance Ethernet options

The Ethernet controllers support teaming options, virtual LANs, and priority packets, which improve performance, security, and throughput. These options are supported by the integrated Ethernet controller and by adapters such as the IBM 10/100/1000 Ethernet Adapter and the IBM 10/100/1000 EtherJet PCI family of adapters.

Teaming options

The Ethernet controller supports teaming options. A team consists of two or more integrated Ethernet controllers, two or more Ethernet adapters, or a combination of

Chapter 2. Configuring your server 15

Ethernet controllers and adapters. Teaming options improve throughput and fault tolerance on a server running Microsoft Windows 2000, Windows NT 4.0, Linux, or Novell NetWare 4.1x or later. The controller supports the following teaming options:

v Adapter fault tolerance (AFT) provides automatic redundancy for Ethernet

controllers. It supports from two to four controllers per team. You can configure one of the integrated Ethernet controllers or adapters as the primary controller. If the primary connection fails, the secondary controller takes over. When the primary connection is restored, network traffic returns to the primary controller.

v Adaptive load balancing (ALB) balances data transmission among two to four

controllers. ALB includes AFT. You can use ALB with any 100BASETX/1000BASE-T switch.

v Cisco Fast EtherChannel (FEC) improves transmission and reception

throughput among two to four controllers. FEC includes AFT. You can use FEC only with a switch that has FEC capability.

16 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Chapter 3. Diagnostics

This section provides basic troubleshooting information to help you resolve some common problems that might occur with your server.

If you cannot locate and correct the problem using the information in this section, see Appendix A, “Getting help and technical assistance” on page 85 for more information.

General checkout

The server diagnostic programs are stored on the IBM Enhanced Diagnostics CD. These programs provide the primary methods of testing the major components of the server.

If you cannot determine whether a problem is caused by the hardware or by the software, you can run the diagnostic programs to confirm that the hardware is working properly.

When you run the diagnostic programs, a single problem might cause several error messages. When this occurs, work to correct the cause of the first error message. After the cause of the first error message is corrected, the other error messages might not occur the next time you run the test.

A failed system might be part of a shared hard disk drive cluster (two or more systems sharing one or more external storage devices). Before you run diagnostics, verify that the failing system is not part of a shared hard disk drive cluster.

A system might be part of a cluster if:

v The system is identified as part of a cluster. v One or more external storage units are attached to the system and at least one

of the attached storage units is also attached to another system or unidentifiable source.

v One or more systems are located near the failing system.

If the failing system is suspected to be part of a shared hard disk drive cluster, you can run all diagnostic tests except the diagnostic tests that test the storage unit (hard disk drive residing in the storage unit) or the storage adapter attached to the storage unit.

Notes:

1. For systems that are part of a shared hard disk drive cluster, run one test at a time in looped mode. Do not run all tests in looped mode, because this could enable the hard disk drive diagnostic tests.

2. If multiple error codes are displayed, diagnose the first error code that is displayed.

3. If the computer stops with a POST error, go to “POST error codes” on page 69.

4. If the computer stops and no error is displayed, go to “Undetermined problems”

on page 77.

5. For power supply problems, see “Power checkout” on page 26.

6. For safety information, see “Safety information” on page 87.

7. For intermittent problems, check the error log.

Checkout procedure

Follow the steps in this procedure to identify system problems.

001 IS THE SYSTEM PART OF A CLUSTER?

002 IF THE SYSTEM IS NOT PART OF A CLUSTER:

003 DID YOU RECEIVE BOTH OF THE CORRECT RESPONSES?

YES. Schedule maintenance for the system. Shut down all systems related to the cluster. Run the storage test.

NO. Go to step 002.

1. Turn off the server and all external devices.

2. Check all cables and power cords.

3. Set all display controls to the middle position.

4. Turn on all external devices.

5. Turn on the server.

6. Record any POST error messages that are displayed on the screen. If an error is displayed, look up the first error in the “POST error codes” on page 69.

7. Check the System Error log. If an error was recorded by the system, see Chapter 6, “Symptom-to-FRU index” on page 63.

8. Start the diagnostic programs.

9. Check for the following responses:

v One beep. v Readable instructions or the main menu.

NO. Find the failure symptom in Chapter 6, “Symptom-to-FRU index” on page 63.

YES. Run the diagnostic programs. If necessary, see “Diagnostic programs and error messages” on page 21.

If you receive an error, see Chapter 6, “Symptom-to-FRU index” on page 63.

If the diagnostic programs were completed successfully and you still suspect a problem, see “Undetermined problems” on page 77.

18 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Diagnostic tools overview

The following tools are available to help you identify and resolve hardware-related problems:

v POST beep codes and error messages

The power-on self-test (POST) generates beep codes and messages to indicate successful test completion or the detection of a problem. See “POST” for more information.

v Error log

The POST error log contains the three most recent error codes and messages that the system has generated during POST. The System Error Log contains all the error messages that were issued during POST.

To view the contents of the error logs, start the Configuration/Setup Utility program; then, select Error Logs from the main menu. See “Viewing the System Error log” on page 24 for more information.

v ServerGuide error symptoms

ServerGuide error symptoms are explained at “ServerGuide error symptoms” on page 20.

v Diagnostic programs and error messages

The server diagnostic programs are stored on the IBM Enhanced Diagnostics CD. These programs are the primary method of testing the major components of

your server. See “Diagnostic programs and error messages” on page 21 for more information.

v Error symptom charts

These charts list problem symptoms, along with suggested steps to correct the problems. See the “Error symptoms” on page 68 for more information.

v Customized support page

You can create a customized support page that is specific to your hardware, complete with Frequently Asked Questions, Parts Information, Technical Hints and Tips, and Downloadable files. In addition, you can choose to receive electronic mail (e-mail) notifications whenever new information becomes available about your registered products.

After you register and profile your xSeries products, you can diagnose problems using the IBM Online Assistant, and you can participate in the IBM discussion forum. For more detailed information about registering and creating a customized profile for your IBM products, go to the following addresses on the Web: – http://www.ibm.com/pc/register – http://www.ibm.com/pc/support

POST

When you turn on the server, it performs a series of tests to check the operation of server components and some of the options installed in the server. This series of tests is called the power-on self-test, or POST.

Notes:

1. If you have a power-on password or administrator password set, you must type the password and press Enter, when prompted, before POST will continue.

2. A single problem might cause several error messages. When this occurs, work to correct the cause of the first error message. After you correct the cause of the first error message, the other error messages usually will not occur the next time you run the test.

Chapter 3. Diagnostics 19

POST beep codes

POST generates beep codes to indicate successful completion or the detection of a problem.

v One short beep indicates the successful completion of POST. v More than one beep indicates that POST detected a problem. For more

If POST detects a problem (more than one beep sounds), an error message appears on your screen. See “Beep symptoms” on page 63 and “POST error codes”

on page 69 for more information.

Error logs

A POST error log is available when an optional service processor adapter has been installed in the server.

The POST error log contains the three most recent error codes and messages that the system generated during POST. The System Error log contains all messages issued during POST and all system status messages from the service processor.

You can view the contents of the System Error log from the Configuration/Setup Utility program or from the diagnostic programs.

Viewing error logs from the Configuration/Setup Utility program

Start the Configuration/Setup Utility program; then, select Error Logs from the main menu. See Chapter 2, “Configuring your server” on page 9 for more information.

information, see “Beep symptoms” on page 63.

Viewing error logs from diagnostic programs

Start the diagnostic programs; select Hardware Info from the top of the diagnostic programs screen; select System Error Log from the list that appears; then, follow the instructions on the screen. See “Starting the diagnostic programs” on page 22 for more information.

ServerGuide error symptoms

Look for the symptom in the left column of the chart. Probable solutions to the problem are in the right column.

Table 2. ServerGuide Setup and Installation CD

Symptom Suggested action

The ServerGuide Setup and Installation CD will

not start.

The SCSI RAID program cannot view all installed drives, or the NOS cannot be installed.

The Operating System Installation program continuously loops.

v Ensure that the server is supported and has a startable (bootable)

CD-ROM drive.

v If the startup (boot) sequence settings have been altered, ensure

that the CD-ROM drive is first in the startup sequence.

v If more than one CD-ROM drive is installed, ensure that only one

drive is set as the primary drive. Start the CD from the primary drive.

v Ensure that there are no duplicate SCSI IDs or IRQ assignments. v Ensure that the hard disk drive is connected properly.

Make more space available on the hard disk.

20 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Table 2. ServerGuide Setup and Installation CD (continued)

Symptom Suggested action

The ServerGuide program will not start your NOS CD.

The NOS cannot be installed; the option is not available.

Ensure that the NOS CD you have is supported by the ServerGuide program. See the ServerGuide Setup and Installation CD label for a list of supported NOS versions.

Ensure that the NOS is supported on your server. If the NOS is supported, either there is no logical drive defined (SCSI RAID systems) or the ServerGuide System Partition is not present. Run the ServerGuide program, and ensure that setup is complete.

Small computer system interface messages

If you receive a SCSI error message, see “Diagnostic error codes” on page 65.

Note: If your server does not have a hard disk drive, ignore any message that

indicates that the BIOS is not installed.

Diagnostic programs and error messages

The server diagnostic programs are stored on the IBM Enhanced Diagnostics CD. These programs are the primary method of testing the major components of your server.

Diagnostic error messages indicate that a problem exists; they are not intended to be used to identify a failing part. Troubleshooting and servicing of complex problems that are indicated by error messages should be performed by trained service personnel.

Sometimes the first error to occur causes additional errors. In this case, the server displays more than one error message. Always follow the suggested action instructions for the first error message that appears.

The following sections contain the error codes that might appear in the detailed test log and summary log when the diagnostic programs are run.

The error code format is as follows:

fff-ttt-iii-date-cc-text message

where: fff is the three-digit function code that indicates the function being

tested when the error occurred. For example, function code 089 is for the microprocessor.

ttt is the three-digit failure code that indicates the exact test failure that

was encountered. (These codes are for trained service personnel; see “Diagnostic error codes” on page 65).

iii is the three-digit device ID. (These codes are for trained service

personnel; see “Diagnostic error codes” on page 65).

date is the date that the diagnostic test was run and the error recorded. cc is the check value that is used to verify the validity of the

text message is the diagnostic message that indicates the reason for the problem.

information.

Chapter 3. Diagnostics 21

Text messages

The diagnostic text message format is as follows:

Function Name: Result (test specific string)

where:

Function Name

is the name of the function being tested when the error occurred. This corresponds to the function code (fff) shown in the error code format in the previous section.

Result can be one of the following:

Passed This result occurs when the diagnostic test is

completed without any errors.

Failed This result occurs when the diagnostic test

discovers an error.

User Aborted This result occurs when you stop the diagnostic test

before it is complete.

Not Applicable

This result occurs when you specify a diagnostic test for a device that is not present.

Aborted This result occurs when the test could not proceed,

for example, because of the system configuration.

Warning This result occurs when a possible problem is

test specific string

is additional information that you can use to analyze the problem.

Starting the diagnostic programs

The IBM Enhanced Diagnostics programs will isolate your server hardware from software that you have installed on your hard disk drive. The programs run independently of the operating system, and must be run either from the CD or diskette. This method of testing is generally used when other methods are not accessible or have not been successful in isolating a problem suspected to be hardware related.

An IBM Enhanced Diagnostics CD comes with the server. You can also download the latest image of the diagnostics from the World Wide Web at http://www.ibm.com/pc/support.

Note: When using diagnostics with a USB Keyboard and Mouse attached, go into

Setup and enable USB emulation.

1. Press F1 Config/Setup

2. Select Devices and I/O Ports

3. Select USB Setup

4. Make sure USB Keyboard and Mouse are enabled.

reported during the diagnostic test, such as when a device driver is not found.

Using the diagnostics CD

To start the IBM Enhanced Diagnostics using the CD, do the following:

1. Turn off your server and any peripheral devices.

22 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

2. Turn on all attached devices; then, turn your server on.

3. When you see Press F1 For Configuration/Setup, press the F1 key.

4. When the Configuration/Setup Utility menu appears, select Start Options.

5. From the Start Options menu, select Startup Sequence.

6. Note the device selected as the First Startup Device. Later, you must restore this setting.

7. Select CD-ROM as the First Startup Device.

8. Press Esc two times to return to the Configuration/Setup Utility menu.

9. Place the IBM Enhanced Diagnostics CD in the CD-ROM drive.

10. Select Save & Exit Setup and follow the prompts. The diagnostics will load.

Follow the instructions on the screen to run the diagnostics.

Important: When you finish running the diagnostics and utilities, remove the

CD from the CD-ROM drive and turn off the server. You must restore the First Startup Device to the original setting. Use steps 2 through 8 of this procedure to do this.

Downloading the diagnostics program

Do the following to download the latest image of the IBM Enhanced Diagnostics from the World Wide Web and create a startable Enhanced Diagnostics diskette:

1. Go to the following World Wide Web site: http://www.ibm.com/pc/support/

2. Download the diagnostics file for your server to a hard disk drive directory (not to a diskette).

3. Go to a DOS prompt and change to the directory where the file was downloaded.

4. Insert a blank high-density diskette in diskette drive A.

5. Type in the following, and then press Enter: filename a: where filename is the name of the file you downloaded from the Web.

The downloaded file is self-extracting and will be copied to the diskette. When the copy completes, you have a startable IBM Enhanced Diagnostics diskette.

Using the diagnostic diskette

Do the following to start the IBM Enhanced Diagnostics using the diagnostics diskette, do the following:

1. Turn off your server and any peripheral devices.

2. Insert the IBM Enhanced Diagnostics diskette into the diskette drive.

3. Turn on all attached devices; then, turn on the server.

4. Follow the instructions on the screen.

5. Place the IBM Enhanced Diagnostics CD in the CD-ROM drive. The diagnostics will load. Follow the instructions on the screen to run the diagnostics.

When the tests have completed, you can view the Test Log by selecting Utility from the top of the screen.

If the hardware checks out OK but the problem persists during normal server operations, a software error might be the cause. If you suspect a software problem, refer to the information that comes with the software package.

Viewing the test log

The test log records data about system failures and other pertinent information. The test log will not contain any information until after the diagnostic program has run.

Chapter 3. Diagnostics 23

Note: If you already are running the diagnostic programs, begin with step 4

1. Insert the IBM Enhanced Diagnostics CD.

2. Turn on the system and watch the screen. If the system is on, shut down your operating system and restart the system.

3. If a power-on password is set, the system prompts you for it. Type in the appropriate password; then, press Enter.

4. Run the appropriate diagnostics program and when the Diagnostic Programs screen appears, select Utility.

5. Select View Test Log from the list that appears; then, follow the instructions on the screen.

6. You can save the test log to a file on a diskette or to your hard disk drive.

Note: The system maintains the test-log data while the system is powered on.

When you turn off the power to the server, the test log is cleared.

Viewing the System Error log

With the optional service processor adapter, you can also view the System Error log from the diagnostic programs. See the instructions in “Viewing error logs from diagnostic programs” on page 20.

Diagnostic error message tables

For descriptions of the error messages that might appear when you run the diagnostic programs, see “Diagnostic error codes” on page 65.

Notes:

1. Depending on your server configuration, some of the error messages might not appear when you run the diagnostic programs.

2. If diagnostic error messages appear that are not listed in the tables, make sure that your server has the latest levels of BIOS, Advanced System Management Processor, ServeRAID

Recovering the BIOS code

If the BIOS code has become damaged, such as from a power failure during a flash update, you can recover the BIOS code using the boot block jumper and a BIOS flash diskette.

Note: You can obtain a BIOS flash diskette from one of the following sources:

v Use the ServerGuide Setup and Installation CD to make a BIOS flash

diskette.

v Download a BIOS flash diskette from the World Wide Web. Go to

http://www.ibm.com/pc/support, click IBM Server Support, and make the selections for your server.

v Contact your IBM service representative.

The flash memory of your server contains a protected area that cannot be overwritten. The recovery boot block is a section of code in this protected area that enables the server to start up and to read a flash diskette. The flash utility recovers the system BIOS code from the BIOS recovery files on the diskette.

™

, and diagnostics microcode installed.

24 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

The following illustration shows the location of the Flash boot block recovery jumper on the system board.

Boot block

System fan 3 (HFAN3)

recovery jumper

(JP4)

ASR (JP3)

CMOS (JP2)

System fan 4 (HFAN4)

System fan 1 (SYSFAN1)

System fan 2 (SYSFAN2)

Note: The Automatic Server Restart (ASR) jumper (JP3) causes the server to

restart automatically if it stops (for example, if the operating system stops running). The default position of the jumper (ASR enabled) is pins 2 and 3.

Complete the following steps to recover the BIOS code:

1. Turn off the server and disconnect all power cords and external cables; then, remove the server cover (see “Removing the cover” on page 34).

2. Locate the Flash boot block recovery jumper block (JP4) on the system board.

3. Move the jumper from pins 1 and 2 to pins 2 and 3 to enable the BIOS recovery mode.

4. Insert the BIOS flash diskette into the diskette drive.

5. Reinstall the server cover; then, reconnect all power cords.

6. Restart the server. The system begins the power-on self test (POST).

7. Select 1 - Update POST/BIOS from the menu that contains various flash update options.

8. When prompted as to whether you want to save the current code to a diskette, press N.

9. When prompted to choose a language, select a language (from 0 to 7) and press Enter to accept your choice.

10. Do not restart your server at this time.

11. Remove the BIOS flash diskette from the diskette drive.

12. Turn off the server and disconnect all power cords and external cables; then, remove the server cover.

13. Remove the jumper from the Flash boot block recovery jumper block, or move it to pins 1 and 2 to return to normal startup mode.

14. Reconnect all external cables and power cords and turn on the peripheral devices; then, reinstall the server cover.

Chapter 3. Diagnostics 25

15. Restart the server. The system should start up normally.

Updating the UUID

The Universal Unique Identifier (UUID) must be updated when the system board is replaced. Complete the following steps to update the UUID:

1. Copy the UUID utility (″uuid.exe″) from the BIOS flash diskette to a DOS bootable diskette.

2. Insert the diskette created in step 1 into the server.

3. Restart the server from the diskette.

4. At the ″A:″ prompt, type UUID /wr; then, press Enter. The utility will generate a random identifier.

5. Restart the server.

Updating the DMI/SMBIOS data

The Desktop Management Interface (DMI) must be updated when the system board is replaced. Complete the following steps to update the DMI:

1. Copy the DMI/SMBIOS utility (″extrmdmi.exe″) from the BIOS flash diskette to a DOS bootable diskette.

2. Insert the diskette created in step 1 into the server.

3. Restart the server from the diskette.

4. At the ″A:″ prompt, type extrmdmi.exe; then, press Enter.

5. To change the machine type and model number, type

mtm XXXXYYY

Power checkout

where XXXX is the model type and YYY is the model number; then, press Enter.

6. To change the serial number, type

sn ZZZZZZZ

where ZZZZZZZ is the serial number; then, press Enter.

7. To change the asset tag, type

asset AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

where AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA is the asset tag number; then, press

Enter.

8. Restart the server.

Power problems can be difficult to solve. For example, a short circuit can exist anywhere on any of the power distribution buses. Usually a short circuit will cause the power subsystem to shut down because of an overcurrent condition.

A general procedure for troubleshooting power problems is as follows:

1. Turn off the server and disconnect all ac power cords.

2. Check for loose cables in the power subsystem. Also check for short circuits, for example, if there is a loose screw causing a short circuit on a circuit board.

3. Remove adapters and disconnect the cables and power connectors to all internal and external devices until the server is at the minimum configuration required to start the server (see “Minimum operating requirements” on page 77).

26 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

4. Reconnect all ac power cords and turn on the server. If the server starts up successfully, replace adapters and devices one at a time until the problem is isolated. If the server does not start up from the minimal configuration, replace FRUs of minimal configuration one at a time until the problem is isolated.

To use this method, it is important to know the minimum configuration required for a system to start (see page 77).

Troubleshooting the Ethernet controller

This section provides troubleshooting information for problems that might occur with the 10/100/1000 Mbps Ethernet controller.

Network connection problems

If the Ethernet controller cannot connect to the network, check the following conditions: v Make sure that the cable is installed correctly.

The network cable must be securely attached at all connections. If the cable is attached but the problem remains, try a different cable.

If you set the Ethernet controller to operate at either 100 Mbps or 1000 Mbps, you must use Category 5 or higher cabling.

v Determine whether the hub supports auto-negotiation. If it does not, try

configuring the integrated Ethernet controller manually to match the speed and duplex mode of the hub.

v Check the Ethernet controller LEDs on the operator information panel and on the

rear of the server. These LEDs indicate whether a problem exists with the connector, cable, or hub.

– The Ethernet transmit/receive activity LED, on the operator information panel,

is lit when the Ethernet controller sends or receives data over the Ethernet Network. If the Ethernet transmit/receive activity LED is off, make sure that the hub and network are operating and that the correct device drivers are installed.

– The Ethernet link status LED, on the rear of the server, is lit when the

Ethernet controller receives a LINK pulse from the hub. If the LED is off, there might be a defective connector or cable or a problem with the hub.

v Make sure that you are using the correct device drivers which are supplied with

your server.

v Check for operating-system-specific causes for the problem. v Make sure that the device drivers on the client and server are using the same

protocol.

v Test the Ethernet controller.

The way the Ethernet controller is tested depends on which operating system you are using (see the Ethernet controller device driver README files).

Ethernet controller troubleshooting chart

Use the following troubleshooting chart to find solutions to 10/100/1000 Mbps Ethernet controller problems that have definite symptoms.

Chapter 3. Diagnostics 27

Table 3. Ethernet troubleshooting chart

Ethernet controller problem

The server stops running when loading device drivers.

Ethernet link status LED does not work.

The Ethernet transmit/receive activity LED does not work.

Data is incorrect or sporadic.

The Ethernet controller stopped working when another adapter was added to the server.

The Ethernet controller stopped working without apparent cause.

FRU/actions

The PCI BIOS interrupt settings are incorrect.

Check the following: v Determine if the interrupt (IRQ) setting assigned to the Ethernet controller is also

assigned to another device in the Configuration/Setup Utility program. Although interrupt sharing is allowed for PCI devices, some devices do not function well

when they share an interrupt with a dissimilar PCI device. Try changing the IRQ assigned to the Ethernet controller or the other device. For example, for NetWare Versions 3 and 4, it is recommended that disk controllers not share interrupts with LAN controllers.

v Make sure that you are using the most recent device driver available from the World

Wide Web.

v Reseat or replace the adapter. Check the following:

v Make sure that the hub is turned on. v Check all connections at the Ethernet controller and the hub. v Use another port on the hub. v If the hub does not support auto-negotiation, manually configure the Ethernet controller

to match the hub.

v If you manually configured the Duplex mode, make sure that you also manually

configure the speed.

v Reseat or replace the adapter. Check the following:

v Make sure that you have loaded the network device drivers. v The network might be idle. Try sending data from this server.

Check the following: v Make sure that you are using Category 5 or higher cabling when operating the server at

100 Mbps or at 1000 Mbps.

v Make sure that the cables do not run close to noise-inducing sources like fluorescent

lights.

Check the following:

v Make sure that the cable is connected to the Ethernet controller. v Make sure that your PCI system BIOS code is current. v Reseat the adapter. v Determine if the interrupt (IRQ) setting assigned to the Ethernet adapter is also assigned

to another device in the system. Use the Configuration/Setup Utility program to determine if this is the case.

Although interrupt sharing is allowed for PCI devices, some devices do not function well when they share an interrupt with a dissimilar PCI device. Try changing the IRQ assigned to the Ethernet adapter or the other device.

v Reseat or replace the adapter. Check the following:

v Try a different connector on the hub. v Reinstall the device drivers. See your operating-system documentation and the

ServerGuide information.

v Reseat or replace the adapter.

Ethernet controller messages

The integrated Ethernet controller might display messages from certain device drivers. The latest information available concerning these messages will be made available at the IBM Support Web site at http://www.ibm.com/pc/support.

28 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Chapter 4. Customer replaceable units

This chapter provides instructions for adding options to your server. Some option-removal instructions are provided in case you need to remove one option to install another.

Installation guidelines

Before you begin installing options in your server, read the following information: v Read “Handling static-sensitive devices”and “Safety information” on

page 87.“Handling static-sensitive devices”. This information will help you work safely with your server and options.

v Make sure that you have an adequate number of properly grounded electrical

outlets for your server, monitor, and other devices that you will connect to the server.

v Back up all important data before you make changes to disk drives. v Have a small Phillips screwdriver available. v For a list of supported options for your server, go to

http://www.ibm.com/pc/compat/ on the World Wide Web.

System reliability guidelines

To help ensure proper system cooling and system reliability, make sure that:

v Each of the drive bays has a drive or a filler panel. v Space is available around the server to allow the server cooling system to work

properly. Refer to the documentation that comes with the rack.

v You have followed the cabling instructions that come with optional adapters. v You have replaced a failed fan as soon as possible.

Handling static-sensitive devices

Attention: Static electricity can damage electronic devices, including your server.

To avoid damage, keep static-sensitive devices in their static-protective packages until you are ready to install them.

To reduce the possibility of damage from electrostatic discharge, observe the following precautions:

v Limit your movement. Movement can cause static electricity to build up around

you.

v Handle the device carefully, holding it by its edges or its frame. v Do not touch solder joints, pins, or exposed circuitry. v Do not leave the device where others can handle and damage it. v While the device is still in its static-protective package, touch it to an unpainted

metal part of the server for at least 2 seconds. This drains static electricity from the package and from your body.

v Remove the device from its package and install it directly into the server without

setting down the device. If it is necessary to set down the device, place it back into its static-protective package. Do not place the device on your server cover or on a metal surface.

v Take additional care when handling devices during cold weather. Heating reduces

indoor humidity and increases static electricity.

Major components of the xSeries 305 Type 8673

The following illustration shows the locations of major components in your server.

Note: The illustrations in this document might differ slightly from your hardware.

Captive screws

Air baffle

Adapter-support bracket

Heat sink

Microprocessor

DIMM

Heat sink retaining clips

System board

CD-ROM drive

Diskette drive

Hard disk drive (some models)

SCSI

adapter

(some models)

Fans

Power supply

30 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

System-board illustrations

This section provides illustrations of the system-board and the riser-card option connectors, internal cables, external ports, switches, jumpers, and LEDs.

System-board and riser-card option connectors

The following illustration shows the location of the system-board connectors for user-installable options.

Battery (BT1)

PCI-X Riser card

DIMM 1 (DIMM1)

DIMM 2 (DIMM2)

DIMM 3 (DIMM3)

DIMM 4 (DIMM4)

Microprocessor (CPU1)

PCI-X slot 2 (PCI2)

Note: Depending on the server model, the server might come with a SCSI adapter

installed in PCI-X slot 2.

The following illustration shows the location of the PCI-X slot 1 connector on the riser card, which is attached to the adapter-support bracket.

PCI-X slot 1 (PCI1) 64-bit, 3.3 V, 66/100/133 MHz

Chapter 4. Customer replaceable units 31

System-board internal cable connectors

The following illustration identifies the internal connectors on the system board.

Hard disk drive power (JP5)

System fan 1 (SYSFAN1)

Primary IDE (CN3)

System fan 2 (SYSFAN2)

System-board external port connectors

The following illustration shows the location of the input/output external port connectors on the system board.

System fan 3 (HFAN3)

Secondary IDE (CN2)

System fan 4 (HFAN4)

Remote Supervisor Adapter

Operator information panel

USB (CN6) Diskette

drive signal (CN7) Power (12 V)

Note: The USB 1 and USB 2 ports are on the front of the server. For the location

of the ports, see “Input/output ports and connectors” on page 45.

Serial (CN19)

Ethernet 2 (CN17)

Ethernet 1 (CN18)

Video (CN20)

Mouse (JK2)

Keyboard (JK1)

32 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

System-board switches and jumpers

The following illustration identifies the switches and jumpers on the system board.

recovery jumper

System fan 3 (HFAN3)

Boot block

(JP4)

ASR (JP3)

CMOS (JP2)

System fan 4 (HFAN4)

System fan 1 (SYSFAN1)

Notes:

1. The Automatic Server Restart (ASR) jumper (JP3) causes the server to restart automatically if it stops (for example, if the operating system stops running). The default position of the jumper (ASR enabled) is pins 2 and 3.

2. Jumper JP1 is not used.

System-board LEDs

The following illustration shows the location of the LEDs on the system board.

System fan 2 (SYSFAN2)

Power (LED6)

System error (LED5)

Chapter 4. Customer replaceable units 33

Removing the cover

Complete the following steps to remove the server cover.

Note:

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Loosen the two captive screws on the rear of the server.

4. Slide the cover back, then up and off the server.

Attention: For proper cooling and airflow, replace the cover before turning on the server. Operating the server for extended periods of time (over 30 minutes) with the cover removed might damage server components.

Captive screws

v Read “Safety information” on page 87. v Read “Handling static-sensitive devices” on page 29.

34 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Removing the front bezel

Front bezel

Complete the following steps to remove the front bezel.

Note:

v Read “Safety information” on page 87. v Read “Handling static-sensitive devices” on page 29.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Remove the three screws from the top of the bezel.

4. Pull the bezel away from the server front.

5. Store the bezel in a safe place.

To replace the front bezel, reverse the previous steps.

Working with adapters

This section provides information about the expansion slots on the system board, and the peripheral component interconnect-extended (PCI-X) adapters. Your server comes with two peripheral component interconnect-extended (PCI-X) adapter slots. PCI-X slot 1 is located on the riser card that is attached to the adapter-support bracket. PCI-X slot 2 is located on the system board. You must first remove the adapter-support bracket to access the PCI-X slot 1 connector.

The following illustrations show the location of the PCI-X expansion slots on the system board and the riser card.

Chapter 4. Customer replaceable units 35

Note: The illustrations in this document might differ slightly from your hardware.

PCI-X slot 2 (PCI2) 64-bit, 3.3 V, 66/100/133 MHz

PCI-X slot 1 (PCI1) 64-bit, 3.3 V, 66/100/133 MHz

Note: When you install two 133 MHz controllers in the server, the maximum bus

speed is 100 MHz.

Adapter considerations

Before you install adapters, review the following: v Locate the documentation that comes with the adapter and follow those

instructions in addition to the instructions in this chapter.

v If you need to change the switch settings or jumper settings on your adapter,

follow the instructions that come with the adapter.

v There are two 64-bit, 66/100/133 MHz PCI-X slots. v You can install one 64-bit one-half length full height adapter in expansion slot 1.

You can install one low profile adapter in expansion slot 2.

v Your server supports 3.3 V or universal adapters. v Your server uses a rotational interrupt technique to configure PCI-X adapters.

You can use this technique to install PCI-X adapters that currently do not support sharing of PCI-X interrupts.

v The system scans PCI-X slots to assign system resources. By default the system

starts (boots) the CD-ROM and diskette drives first. Then, the system scans PCI-X slot 2, PCI-X slot 1, and the integrated Ethernet.

36 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

v If the server is a SCSI model server, the server will have a SCSI adapter

installed in PCI-X slot 2.

Note: You can use the Configuration/Setup Utility program to change the boot

precedence for your server. Select Start Options from the Configuration/Setup Utility program main menu.

Chapter 4. Customer replaceable units 37

Installing an adapter

Complete the following steps to install an adapter:

Attention: When you handle static-sensitive devices, take precautions to avoid damage from static electricity. For details on handling these devices, see “Handling static-sensitive devices” on page 29.

1. Review “Safety information” on page 87, and the “Installation guidelines” on page 29.

2. Turn off the server and peripheral devices.

3. Disconnect the power cord; then, disconnect all external cables from the server.

4. Remove the server cover. See “Removing the cover” on page 34. Attention: Before you install the adapter, route the adapter cables.

5. Determine which PCI-X expansion slot you will use for the adapter.

Note: Check the instructions that come with the adapter for any requirements,

6. Loosen the adapter slot captive screw. a. If you are installing the adapter in PCI-X slot 1, loosen the captive screw

restrictions, or cabling instructions. It might be easier for you to route cables before you install the adapter.

that is near the video connector.

Captive screw (slot 2)

Adapter-support bracket

Captive screw (slot 1)

Expansion-slot cover

b. If you are installing the adapter in PCI-X slot 2, loosen the captive screw

that is near the power cord connector.

7. Remove the expansion-slot cover. Attention: PCI expansion-slot cover must be installed on all vacant slots.

This maintains the electronic emissions characteristics of the server and ensures proper cooling of server components.

v If you are installing the adapter in PCI-X slot 1, lift the adapter-support

bracket from the server; then, remove the expansion-slot cover from the bracket.

v If you are installing the adapter in PCI-X slot 2, lift the captive-screw

bracket; then, remove the expansion-slot cover.

8. Touch the static-protective package containing the adapter to any unpainted metal surface on the server. Then, remove the adapter from the static-protective package. Avoid touching the components and gold-edge connectors on the adapter.

38 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

9. Place the adapter, component-side up, on a flat, static-protective surface and set any jumpers or switches as described by the adapter manufacturer, if necessary.

Attention: When you install an adapter in the server, be sure that it is completely and correctly seated in the PCI expansion slot before you turn on the server. Incomplete insertion might cause damage to the system board or the adapter.

PCI-X slot 1 connector

Riser card

PCI-X slot 2 connector

Adapter

Adapter-support bracket

Adapter

PCI-X riser card connector

10. To install the adapter, carefully grasp the adapter by its top edge or upper corners, and align it with the PCI-X expansion slot; then, press the adapter firmly into the expansion slot.

Note: When you install the adapter in PCI-X slot 2, you must slide the adapter

underneath the system fan to properly align the adapter with the expansion-slot connector. Do not remove the system fan from the server.

11. If you installed an adapter in PCI-X slot 2, continue with the next step. If you

removed the adapter-support bracket, reinstall it now. Make sure the riser card is fully seated into the riser card connector on the system board.

12. Tighten the captive screw on the rear of the server.

13. Connect required cables to the adapter.

14. If you have other options to install, do so now; otherwise, go to “Completing the installation” on page 42.

Chapter 4. Customer replaceable units 39

Hard disk drives

The server comes with one integrated drive electronics (IDE) CD-ROM drive, one

1.44 MB diskette drive, and a hard disk drive (IDE or SCSI, depending on the server model).

Installing or replacing a hard disk drive

Complete the following steps to install or replace a hard disk drive:

1. Inspect the new drive for any signs of damage.

2. Read “Safety information” on page 87 and the “Installation guidelines” on page

29.

3. Check the instructions that come with the drive for more information about installing your drive.

Notes:

a. If you are installing an IDE hard disk drive, you must set the drive to primary

(master) or secondary (subordinate), depending on the configuration of your server. See the documentation that comes with the drive for instructions.

b. If you are installing a SCSI hard disk drive, refer to the documentation that

comes with your drive before installing it.

4. Turn off the server and peripheral devices. Disconnect the power cord; then, disconnect all external cables.

5. Remove the server cover. See “Removing the cover” on page 34.

6. Loosen the captive screw on the side of the drive cage.

Note: The illustrations in this document might differ slightly from your hardware.

Hard disk drive

Captive screws

Drive cage

Tabs

Drive bay 1

Drive bay 2

7. Slide the drive cage away from the front of the server until the tabs on the chassis are in the unlocked position. Then, lift the drive cage out of the server.

40 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

8. Install the new hard disk drive:

9. If you have other options to install, do so now; otherwise, go to “Completing the

Installing DIMMs

Adding memory to your server is an easy way to make programs run faster. You can increase the amount of memory in your server by installing options that are called DIMMs. Your server uses a noninterleaved memory configuration.

Memory considerations:

v Your server comes with a DIMM installed on the system board in DIMM

v Your xSeries 305 server supports 256 MB, 512 MB, and 1 GB DIMMS. Your

v The installing or removing of DIMMs changes the configuration information in the

v The illustrations in this document might differ slightly from your hardware.

a. Slide the hard disk drive into the bay in the drive cage. b. Secure the drive to the drive cage using the screws that came with the

option. c. Slide the drive cage back into the server and tighten the captive screw. d. Connect the signal cable and power cable to the rear of the drive. Ensure

that the cables do not obstruct the fan behind the drive bay.

installation” on page 42.

connector 4. When installing additional memory modules, install the second memory module in DIMM connector 3, the third in DIMM connector 2 and the fourth in DIMM connector 1. The DIMMs can be different sizes.

server supports a maximum of 4 GB of system memory. See the ServerProven

list at http://www.ibm.com/pc/compat for a list of memory modules for use with your server.

server. Therefore, you must change and save the new configuration information by using the Configuration/Setup Utility program. When you restart the server, the system displays a message indicating that the memory configuration has changed. Start the Configuration/Setup Utility program and select Save Settings. See the User’s Guide on the IBM Documentation CD for more information about using the Configuration/Setup Utility program.

Complete the following steps to install a DIMM:

1. Read “Safety information” on page 87 and the “Installation guidelines” on page

29.

2. Turn off the server and peripheral devices. Disconnect the power cord; then, all external cables. Remove the cover see “Removing the cover” on page 34 for details).

3. Touch the static-protective package containing the DIMM to any unpainted metal surface on the server. Then, remove the DIMM from the package.

4. Install the DIMM: a. Open the retaining clip on each end of the DIMM connector. Turn the DIMM

so that the pins align correctly with the connector

Note: The illustrations in this document might differ slightly from your

hardware.

Chapter 4. Customer replaceable units 41

DIMM 3

DIMM 4

Attention: To avoid breaking the retaining clips or damaging the DIMM connectors, open, and close the clips gently.

b. Insert the DIMM into the connector by aligning the DIMM edges with the

slots at each end of the DIMM connector. Firmly press the DIMM straight down into the connector by applying pressure on both ends of the DIMM simultaneously. Be sure that the retaining clips snap into the locked position when the DIMM is firmly seated in the connector.

c. If a gap exists between the DIMM and the retaining clips, the DIMM has not

been properly installed. In this case, open the retaining clips and remove the DIMM; then, reinsert the DIMM.

5. If you have other options to install, do so now; otherwise, go to Completing the Installation.

Completing the installation

To complete your installation, you must reinstall the server cover, connect all the cables, for certain options, run the Configuration/Setup Utility program. Follow the instructions in this section.

Attention: To maintain proper cooling and airflow, install the server cover before turning on the server. Operating the server for extended periods of time (over 30 minutes) with the server cover removed might damage server components.

Installing the cover

Complete the following steps to install the server cover:

1. Install the cover by placing it into position and sliding it forward.

42 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Attention: Before sliding the cover forward, make sure that the cover will engage the ledge at the front of the server properly.

Captive screws

2. Tighten the captive screws to secure the cover as shown.

3. Install the server in the rack. See the Rack installation instructions included with your server documentation for instructions.

4. Connect the power cord and all external cables to the server, and then plug the power cord into a properly grounded electrical outlet.

Note: Your server has one keyboard connector on the back of the server. Use this

connector to connect the server to a keyboard or optional console switch. You can also connect a USB keyboard to the server using one of the USB ports. After installing a USB keyboard, you might need to use the Configuration/Setup utility program to enable keyboardless operation and prevent the POST error message 301 from being displayed during startup. For detailed information about this option and how to connect it to your server, refer to the documentation that comes with the option.

Updating your server configuration

When you start your server for the first time after you add or remove an internal option or an external SCSI device, you might see a message telling you that the configuration has changed. The Configuration/Setup Utility program automatically saves the new configuration information. See the User’s Guide on the IBM xSeries Documentation CD for information about the Configuration/Setup Utility program.

Some options have device drivers that you need to install. See the documentation that comes with your option for information about installing any required device drivers.

If your server has a RAID adapter installed and you have installed or removed a hard disk drive, see the documentation that comes with your RAID adapter for information about reconfiguring your disk arrays.

Replacing the battery

When replacing the battery, you must replace it with a lithium battery of the same type from the same manufacturer. To avoid possible danger, read and follow the safety statement below.

Chapter 4. Customer replaceable units 43

To order replacement batteries, call 1-800-772-2227 within the United States, and 1-800-465-7999 or 1-800-465-6666 within Canada. Outside the U.S. and Canada, call your IBM reseller or IBM marketing representative.

Note: After you replace the battery, you must reconfigure your system and reset

the system date and time.

Statement 2:

CAUTION: When replacing the lithium battery, use only IBM Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.

Do not:

v Throw or immerse into water v Heat to more than 100°C (212°F) v Repair or disassemble

Dispose of the battery as required by local ordinances or regulations.

Complete the following steps to replace the battery.

1. Read “Safety information” on page 87, and follow any special handling and installation instructions supplied with the replacement battery.

2. Turn off the server and peripheral devices. Disconnect the power cord and then, all external cables.

3. Remove the cover. See “Removing the cover” on page 34.

4. Remove the battery: a. Press the battery release tab to release the battery from the socket. b. Lift the battery out of the socket.

5. Insert the new battery: a. Tilt the battery so that you can insert it into the socket. b. Press down on the battery after you insert it into the socket.

44 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

6. Reinstall the server cover, see “Installing the cover” on page 42.

7. Reconnect the external cables and power cords; then, turn on the peripheral devices and the server.

8. Start the Configuration/Setup Utility program and set configuration parameters.

v Set the system date and time and the power-on password. v Reconfigure your server.

Input/output ports and connectors

Your server has the following I/O connectors on the front and rear of the server:

v Serial connector v Universal Serial Bus (USB) connectors v Keyboard connector v Video connector v Auxiliary-device (pointing device) connector v Ethernet connectors

USB 2

USB 1

Serial port

Your server has one standard serial port. Some application programs require specific ports, and some modems function properly only at certain serial port addresses. Use the Configuration/Setup Utility program to change the port address assignments and prevent conflicts.

Viewing or changing the serial-port assignments

Complete the following steps to view or change the serial-port assignments:

1. Restart the server and watch the monitor screen.

2. When the message Press F1 for Configuration/Setup appears, press F1.

3. From the main menu, select Devices and I/O Ports; then, press Enter.

Keyboard

Video

Mouse

Serial

Ethernet 2

Ethernet 1

Chapter 4. Customer replaceable units 45

Note: The Devices and I/O Ports choice appears only on the full configuration

4. Select the serial port; then, use the arrow keys to advance through the settings available.

5. Select Save Settings; then, select Exit Setup to exit from the Configuration/Setup Utility main menu.

Serial-port connector

Your server has one serial-port connector located on the rear of the server.

The following illustration shows the pin-number assignments for the 9-pin, male D-shell serial-port connector on the rear of your server. These pin-number assignments conform to the industry standard.

menu. If you set two levels of passwords, you must enter the administrator password to access the full configuration menu.

Universal Serial Bus ports

Your server has two Universal Serial Bus (USB) ports, which configure automatically. USB is an emerging serial interface standard for telephony and multimedia devices. It uses Plug and Play technology to determine the type of device attached to the connector.

USB cables and hubs

You need a 4-pin cable to connect devices to USB 1 or USB 2. If you plan to attach more than two USB devices, you must use a hub to connect the devices. The hub provides multiple connectors for attaching additional external USB devices.

USB technology provides up to 12 megabits-per-second (Mbps) speed with a maximum of 127 external devices and a maximum signal distance of five meters (16 ft). per segment.

USB-port connectors

Each USB port has an external connector on the rear of the server for attaching USB- compatible devices.

The following illustration shows the pin-number assignments for the USB-port connectors on the rear of your server.

Keyboard connector

There is one keyboard connector on the rear of the server.

Note: If you attach a standard keyboard to the keyboard connector, the USB ports,

and devices will be disabled during the power-on self-test (POST).

46 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

The following illustration shows the pin-number assignments for the keyboard connector on the end of the cable.

6 4

Video connector

The following illustration shows the pin-number assignments for the 15-pin analog video connector on the rear of the server.

Auxiliary-device (pointing device) connector

There is one auxiliary-device connector that supports a mouse or other pointing device located on the rear of the server just under the keyboard connector.

The following illustration shows the pin-number assignments for the auxiliary-device connector on the end of the cable.

6 4

5 3

1115

5 3

Gigabit Ethernet port

Your server comes with two integrated Gigabit Ethernet controllers. These controllers provide an interface for connecting to 10-Mbps, 100-Mbps, or 1000-Mbps networks and provide full-duplex (FDX) capability, which enables simultaneous transmission and reception of data on the Ethernet local area network (LAN).

To access the Ethernet port, connect a Category 3, 4, or 5 unshielded twisted-pair (UTP) cable to the RJ-45 connector on the rear of your server.

Note: The 100BASE-TX/1000BASE-T Fast Ethernet standard requires that the

cabling in the network be Category 5 or higher.

The Ethernet (RJ-45) connector has two LEDs. The Ethernet link LED is on the right. When this green LED is on, there is an active connection on the Ethernet port. The Ethernet activity LED is on the left. When this green LED is on, there is activity between the server and the network. These LEDs have the same functions as the Ethernet link LED and the Ethernet activity LED on the rear of the server (see the User’s Guide on the IBM xSeries Documentation CD for information about the Configuration/Setup Utility program).

Configuring the Gigabit Ethernet controller

The Ethernet controllers are integrated on the system board. These controllers provide an interface for connecting to 10-Mbps, 100-Mbps, or 1000-Mbps networks

Chapter 4. Customer replaceable units 47

and provides full duplex (FDX) capability, which enables simultaneous transmission and reception of data on the Ethernet local area network (LAN). You do not need to set any jumpers or configure the controllers for your operating system before you use the Ethernet controllers. However, you must install a device driver to enable your operating system to address the Ethernet controllers. The device drivers are provided on the ServerGuide Setup and Installation CD.

When you connect your server to the network, the Ethernet controller automatically detects the data-transfer rate (10 Mbps, 100 Mbps, or 1000 Mbps) on the network and then sets the controllers to operate at the appropriate rate. In addition, if the Ethernet ports that your server is connected to support auto-negotiation, the Gigabit Ethernet controllers will set the appropriate duplex state. That is, the Ethernet controllers will adjust to the network data rate, whether the data rate is standard Ethernet (10BASE-T), Fast Ethernet (100BASE-TX/1000BASE-T), half duplex (HDX), or full duplex (FDX). The controllers supports half-duplex (HDX) and full-duplex (FDX) modes at both speeds.

For information on configuring your Ethernet controller, see the Broadcom NetXtreme Gigabit Ethernet Software CD that comes with your server. For updated information about configuring your Ethernet controllers, go to the IBM Support Web site at http://www.ibm.com/pc/support and navigate to the area for your specific server type. From this area you can download documentation, the most current device drivers for your server, and software that supports advanced networking functions. After downloading, run the downloaded program launch.exe.

High-performance Ethernet modes

Your Ethernet controllers support optional modes, such as teaming, priority packets, load balancing, fault tolerance, and virtual LANs, which provide higher performance, security, and throughput for your server. These modes apply to the integrated Ethernet controller and to the controllers on supported Ethernet adapters.

Ethernet port connector

The following illustration shows the pin-number assignments for the RJ-45 port. These assignments apply to the 10BASE-T, 100BASE-TX, and 1000BASE-T devices.

Activity LED

Cabling the server

Notes:

1. You must turn off the server before connecting any cables to or disconnecting any cables from the server.

2. See the documentation that comes with your options for additional cabling instructions. It might be easier for you to route cables before you install certain options.

(green)

Link LED (green)

48 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

3. Cable identifiers are printed on the cables that come with your server and options. Use these identifiers to connect the cables to the correct connectors. For example, the hard disk drive cables are labeled “HDD option.”

Chapter 4. Customer replaceable units 49

50 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Chapter 5. Removing and installing FRUs (service only)

The following information describes how to remove and replace field replacable units (FRUs).

Important: These procedures are intended only for trained customer service

representatives who are familiar with IBM xSeries products. See the parts listing in “Server” on page 80 to determine whether the component being replaced is a customer replaceable unit (CRU or a FRU. Field replaceable units must be replaced by qualified service personnel only.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

Removing the cover

Captive screws

Complete the following steps to remove the server cover.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Loosen the two captive screws on the rear of the server.

4. Slide the cover back, then up and off the server. Attention: For proper cooling and airflow, replace the cover before turning on

the server. Operating the server for extended periods of time (over 30 minutes) with the cover removed might damage server components.

Thermal grease

This section contains information about removing and replacing the thermal grease between the heat sink and the microprocessor. The thermal grease must be replaced anytime the heat sink has been removed from the top of the microprocessor and is going to be reused, or when debris is found in the grease.

Note:

v Read “Installation guidelines” on page 29. v Read the safety notices at “Safety information” on page 87. v Read “Handling static-sensitive devices” on page 29.

Complete the following steps to replace damaged or contaminated thermal grease on the microprocessor and heat sink:

1. Place the heat sink on a clean work surface.

2. Remove the cleaning pad from its package and unfold it completely.

3. Use the cleaning pad to wipe the thermal grease from the bottom of the heat sink.

Note: Be sure that all of the thermal grease is removed.

4. Use a clean area of the cleaning pad to wipe the thermal grease from the microprocessor; then, dispose of the cleaning pad after all of the thermal grease is removed.

Microprocessor

0.01 mL of thermal grease

5. Use the thermal grease syringe to place 16 uniformly spaced dots of 0.01ML each on the top of the microprocessor.

Note: 0.01ML is one tick mark on the syringe. If the grease is properly applied,

6. Install the heat sink onto the microprocessor as described in “Removing and replacing a microprocessor” on page 53.

52 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

approximately half (0.22ML) of the grease will remain in the syringe.

Removing and replacing a microprocessor

Microprocessor

Complete the following steps to remove a microprocessor.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Remove the server cover.

4. Grasp the air baffle; then, lift the air baffle from the server.

5. Remove the heat sink: a. Loosen the screw on each of the two leaf springs on the retention module.

Microprocessorrelease lever

Note: Loosening one screw fully before loosening the other screw will help

to break the thermal bond that adheres the heat sink to the

microprocessor. b. Pivot the leaf spring enclosure outward. c. Gently twist the heat sink until you break the thermal bond, and pull the heat

sink away from the retention module and the microprocessor.

6. Open the release lever of the microprocessor socket.

7. Pull the microprocessor out of the socket.

To install a microprocessor, reverse the previous steps.

Chapter 5. Removing and installing FRUs (service only) 53

Removing and replacing the retention module

Retention module

Complete the following steps to remove the retention module.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Remove the server cover.

4. Grasp the air baffle; then, lift the air baffle from the server.

5. Remove the heat sink: a. Loosen the screw on each of the two leaf springs on the retention module.

Note: Loosening one screw fully before loosening the other screw will help

to break the thermal bond that adheres the heat sink to the

microprocessor. b. Pivot the leaf spring enclosure outward. c. Gently twist the heat sink until you break the thermal bond and pull the heat

sink away from the retention module and the microprocessor.

6. Loosen the four screws on the corners of the retention module and lift the retention module away from the system board.

To install a retention module, reverse the previous steps.

54 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Removing and replacing the system board

Important: When replacing the system board, you must:

v Either update the firmware to the latest level, or restore the pre-existing firmware

that the customer provides on a diskette or CD.

v Update the UUID (see “Updating the UUID” on page 26). v Update the DMI/SMBIOS (see “Updating the DMI/SMBIOS data” on page 26).

System board (5 screws)

Retention module (4 screws)

Complete the following steps to remove the system board.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

Chapter 5. Removing and installing FRUs (service only) 55

3. Remove the server cover.

4. Remove the air baffle.

5. Remove all adapters and place them on a static-protective surface for reinstallation (see “Installing an adapter” on page 38).

6. Remove all DIMMs and place them on a static-protective surface for reinstallation (see “Installing DIMMs” on page 41).

7. Disconnect all cables from the system board.

8. Remove the microprocessor and the retention module; and, place them on a static-protective surface for reinstallation (see “Removing and replacing a microprocessor” on page 53 and “Removing and replacing the retention module” on page 54).

9. Remove the screws that secure the system board to the chassis, and put the screws in a safe place.

10. Pull the system board carefully out of the chassis.

Complete the following steps to install a system board:

1. Align the system board with the chassis and replace the screws that you removed in step 9 above.

2. Replace all components, including the retention module and microprocessor, in the reverse order from which they were removed.

3. Replace the cover. See ″Installing the cover″.

4. Connect the external cables and power cords; then, turn on the peripheral devices and the server.

Removing and replacing the switch/LED/USB card

USB card

Complete the following steps to remove the Switch/LED/USB card.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Remove the server cover.

56 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

4. Remove the cables that surround the power supply and the switch/LED/USB card.

5. Remove the power supply (see “Removing and replacing a power supply” on page 57).

6. Loosen the two screws on the switch/LED/USB card and remove the card.

To install the Switch/LED/USB card, reverse the previous steps.

Removing and replacing a power supply

Power-supply

Tabs

Complete the following steps to remove the power supply.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Remove the server cover.

4. Remove the cables near the power supply.

5. Remove the screws that secure the power supply to the chassis.

6. Lift the power supply away from the chassis.

7. Remove the screws that attach the power-supply connector to the back of the server; then, pull the connector out of the chassis.

To install the power supply, reverse the previous steps.

Chapter 5. Removing and installing FRUs (service only) 57

Removing the front bezel

Front bezel

Complete the following steps to remove the front bezel.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Remove the three screws from the top of the bezel.

4. Pull the bezel away from the server front.

5. Store the bezel in a safe place.

To replace the front bezel, reverse the previous steps.

58 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Removing and replacing the PCI riser card

Complete the following steps to remove the PCI riser card.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Remove the server cover.

4. Loosen the captive screw located adjacent to PCI-X slot 1on the rear of the server.

5. Remove the expansion-slot cover.

6. Turn the expansion-slot cover until the PCI riser card is facing you.

7. Remove the two screws from the PCI riser card.

8. Gently pull the PCI riser card away from the expansion-slot cover.

Riser card

To install a PCI riser card, reverse the previous steps.

Chapter 5. Removing and installing FRUs (service only) 59

Removing and replacing the fans

Fan 1

Fan 2

Fan cage

Fan 3

Complete the following steps to remove the fan assembly.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Remove the server cover.

4. Disconnect the fan cables from the system board.

5. Lift fan 1 and fan 2 out of the fan cage and away from the server.

6. Remove the two screws that secure fan 3 to the back of the server, and lift the fan away from the server.

Complete the following steps to install the fans.

1. Orient the fans so that the airflow arrow on the side of each fan is facing or pointing toward the rear of the server

Note: Proper airflow is from the front of the server to the rear.

2. Push fan 1 and fan 2 into the fan cage.

3. Secure fan 3 to the back of the server with two screws.

4. Replace the cover. See ″Installing the cover″.

5. Connect the external cables and power cords; then, turn on the peripheral devices and the server.

60 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Removing and replacing the blower

Blower module

Complete the following steps to remove the blower.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, all disconnect external cables from the server.

3. Remove the cover.

4. Disconnect the blower cable from the system board.

5. Remove the two screws that attach the blower to the back of the server.

6. Gently pull the blower out and away from the server.

To install the blower, reverse the previous steps.

Chapter 5. Removing and installing FRUs (service only) 61

Removing and replacing the air baffle

Complete the following steps to remove the air baffle.

Note:

v Read “Handling static-sensitive devices” on page 29. v Read “Safety information” on page 87.

1. Turn off the server and peripheral devices.

2. Disconnect the power cord; then, disconnect all external cables from the server.

3. Remove the server cover.

4. Grasp the air baffle on each side and squeeze gently; then, pull the baffle up and away from the back of the chassis.

5. When the baffle is free of the back of the chassis, lift it out of the server.

Air baffle

To install the air baffle, reverse the previous steps.

62 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Chapter 6. Symptom-to-FRU index

This index supports xSeries 305 servers.

Notes:

1. Check the configuration before you replace a FRU. Configuration problems can cause false errors and symptoms.

2. For IBM devices not supported by this index, refer to the manual for that device.

3. Always start with “General checkout” on page 17.

The symptom-to-FRU index lists symptoms, errors, and the possible causes. The most likely cause is listed first. Use this symptom-to-FRU index to help you decide which FRUs to have available when servicing the computer.

The first column of the two-column tables in this index lists error codes or messages, and the second column lists one or more suggested actions or FRUs to replace. Take the action (or replace the FRU) suggested first in the list of the second column, then try the server again to see if the problem has been corrected.

Note: Try reseating a suspected component or reconnecting a cable before

replacing the component.

The POST BIOS code displays POST error codes and messages on the screen.

Beep symptoms

Beep symptoms are short tones or a series of short tones separated by pauses (intervals without sound). See the following examples.

Note: One beep after successfully completing POST indicates the system is

functioning properly.

Beeps Description 1-2-3

4 Four continuous beeps

Beep/symptom FRU/action 1-1-2 (processor

1-1-3 (CMOS write/read test failed)

1-1-4 (BIOS EEPREOM checksum failed)

1-2-1 (Programmable interval timer failed)

v One beep v A pause (or break) v Two beeps v A pause (or break) v Three Beeps

1. Optional microprocessor (if installed)

2. Microprocessor

1. Battery

2. System board

v System board

Beep/symptom FRU/action 1-2-2 (DMA initialization

failed) 1-2-3 (DMA page

1-2-4 (RAM refresh verification failed)

1-3-1 (First 64K RAM test failed)

1-3-2 (First 64K RAM parity test failed)

2-1-1 (Secondary DMA register failed)

2-1-2 (Primary DMA register failed)

2-1-3 (Primary interrupt mask register failed)

2-1-4 (Secondary interrupt mask register failed)

2-2-2 (Keyboard controller failed)

2-2-3 (CMOS power failure and checksum checks failed)

2-2-4 (CMOS configuration information validation failed)

2-3-1 (Screen initialization failed)

2-3-2 (Screen memory failed)

2-3-3 (Screen retrace failed)

2-3-4 (Search for video ROM failed

2-4-1 (Video failed)

3-1-1 (Timer Tick

Interrupt failed) 3-1-2 (Interval timer

channel 2 failed) 3-1-3 (RAM test failed

above address OFFFFH)

v System board

1. DIMM

2. System board

1. DIMM

2. Memory adapter

1. DIMM

2. System board

v System board

1. Keyboard

2. System board

1. Battery

2. System board

1. Battery

2. System board

1. Jumper on J18

2. System board

v System board

1. DIMM

2. System board

64 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Beep/symptom FRU/action 3-1-4 (Time of day clock

failed)

3-2-1 (Serial port failed)

3-2-2 (Parallel port

failed) 3-2-4 (Failed comparing

CMOS memory size against actual)

3-3-1 (Memory size mismatch occurred)

3-3-2 (Critical SMBUS error occurred (I2C bus error)

3-3-3 (No optional memory in the system)

1. Battery

2. System board

v System board

1. DIMM

2. System board

3. Battery

1. DIMM

2. System board

3. Battery

1. Disconnect server power, wait 30 seconds and retry.

2. System board.

3. Microprocessor/PCI riser card.

4. DIMMs.

5. Hard disk drive backplane.

6. Hard disk drive power cable.

1. Install or reseat the memory modules.

2. DIMMs.

3. System board.

No beep symptoms

No Beep Symptom FRU/Action No beep and no video.

(System attention LED is off)

No beep and no video.

(System attention LED is on)

No ac power

No beep and no video

v System board

v See ″Information panel system error LED″.

1. Check the power cord.

2. Power supply.

v See “Undetermined problems” on page 77.

Diagnostic error codes

Note: In the following error codes, if XXX is 000, 195,or197,do not replace a

FRU. The description for these error codes are:

000 The test passed. 195 The Esc key was pressed to abort the test. 197 This is a warning error and may not indicate a hardware failure.

For all error codes, replace/follow the FRU/Action indicated.

Chapter 6. Symptom-to-FRU index 65

Error Code/Symptom FRU/Action 001-XXX-000 (Failed core

tests) 001-XXX-001 (Failed core

tests) 001-250-000 (Failed System

Board ECC) 001-250-001 (Failed System

Board ECC) 005-XXX-000 (Failed Video

test)

011-XXX-000 (Failed COM1 Serial Port test)

011-XXX-001 (Failed COM2 Serial Port test)

014-XXX-000 (Failed Parallel Port test)

015-XXX-001 (USB interface not found, board damaged)

015-XXX-015 (Failed USB External Loopback test)

015-XXX-198 (USB device connected during USB test)

020-XXX-000 (Failed PCI Interface test)

030-XXX-000 (Failed Internal SCSI interface test)

030-XXX-00N (Failed SCSI test on PCI slot N. Check system error log before replacing a FRU.)

035-XXX-099

035-XXX-S99 (Failed RAID

test on PCI slot S. S = number of failing PCI slot. Check System Error Log before replacing a FRU.)

035-XXX-SNN (Check System Error Log before replacing a FRU. S = number of failing PCI slot; NN = SCSI ID of failing hard disk drive.)

v System board

1. Video adapter (if installed)

2. System board

v System board

1. Make sure parallel port is not disabled.

2. Re-run USB External Loopback test.

3. System board.

1. Remove USB devices from USB1 and USB2.

2. Re-run test.

3. System board.

v System board

v Adapter in slot N

1. No adapters were found.

2. If adapter is installed re-check connection.

1. Adapter

2. Hard disk drive backplane

3. Cable

v Hard disk drive with SCSI ID NN on RAID adapter in PCI slot S

66 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Error Code/Symptom FRU/Action 035-253-S99 (RAID adapter

initialization failure)

1. ServeRAID Adapter in slot S is not configured properly. Obtain the basic and

extended configuration status and refer to the ServeRAID Hardware Maintenance Manual for more information.

2. Cable.

3. Adapter.

075-XXX-000 (Failed Power Supply test)

089-XXX-001 (Failed Microprocessor test)

180-XXX-003 (Failed System Board LED test)

201-XXX-0NN (Failed Memory test NN = DIMM location)

201-XXX-999 (Multiple DIMM failure, see error text.)

202-XXX-001 (Failed System Cache test)

206-XXX-000 (Failed Diskette Drive test)

v Power supply

v Microprocessor

v Mouse

1. DIMM location = NN

2. Memory card

v See error text for failing DIMMs.

v Microprocessor 1

1. Cable

2. Diskette drive

3. System board

215-XXX-000 (Failed IDE CD-ROM test)

1. Rerun the test using a different CD-ROM.

2. CD-ROM drive cables.

3. CD-ROM drive.

4. System board.

217-198-XXX (Could not establish drive parameters)

1. Check cable and termination

2. Hard disk drive backplane

3. Hard disk drive

217-XXX-000 (Failed BIOS Fixed Disk test)

v Hard disk drive 1

Note: If RAID is configured,

the fixed disk number refers to the RAID logical array.

217-XXX-001 (Failed BIOS Fixed Disk test)

v Hard disk drive 2

Note: If RAID is configured,

the fixed disk number refers to the RAID logical array.

217-XXX-002 (Failed BIOS Fixed Disk test)

v Hard disk drive 3

Note: If RAID is configured,

the fixed disk number refers to the RAID logical array.

301-XXX-000 (Failed Keyboard test)

302-XXX-000 (Mouse failed)

305-XXX-000 (Video monitor

failure)

v Keyboard

v Mouse

1. Video monitor

2. Video adapter

Chapter 6. Symptom-to-FRU index 67

Error Code/Symptom FRU/Action 405-XXX-000 (Failed Ethernet

test on controller on the System Board)

405-XXX-00N (Failed Ethernet test on adapter in PCI slot N)

415-XXX-000 (Failed Modem test)

1. Verify that Ethernet is not disabled in BIOS.

2. System board.

1. Adapter in PCI slot N

2. System board

1. Cable

2. Modem

3. System board

Error symptoms

General FRU/Action CD-ROM test failed.

CMOS RAM test failed.

Diskette Drive test failed.

ECC Controller Logic.

Ethernet test failed.

External Cache test failed.

Fixed-disk drive test failed.

Integrated SP test failed.

Keyboard Controller test failed.

Microprocessor test failed.

Memory test failed.

Parallel port test failed.

PCI test failed.

RAM Refresh test failed.

SCSI controller test failed.

Serial port test failed.

Serve RAID test failed.

System management test failed.

System timer test failed.

1. CD-ROM drive/hard disk drive assembly

2. System board

v System board

1. Diskette drive

2. Diskette drive cable

3. System board

v System board

v Microprocessor

1. Hard disk drive

2. Fixed-disk drive cable

v System board

v Microprocessor

1. Memory

2. System board

v System board

v RAID controller adapter

1. System management adapter, if installed

2. System board

v System board

68 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

General FRU/Action Tape Drive test failed.

USB Interface test failed.

USB Port test failed.

Video test failed.

Setup Action Setup and Installation CD

won’t start.

ServeRAID program cannot view all installed drives - or

- cannot install NOS. The Operating System

Installation program continuously loops.

ServerGuide won’t start your NOS CD.

Can’t install NOS - option is grayed out.

v Tape drive

v System board

v Be sure the server is supported; all eServers with a startable (bootable) CD-ROM

drive are supported.

v If the startup (boot) sequence settings have been altered, be sure the CD-ROM is

first in the boot sequence.

v If more than one CD-ROM drive is installed, be sure that only one drive is set as

the primary drive. Start the CD from the primary drive.

v Be sure there are no duplicate SCSI IDs or IRQ assignments. v Be sure that the hard disk drive is connected properly.

Free up more space on the hard disk.

Be sure the NOS CD you have is supported by ServerGuide. See the Setup and Installation CD label for a list of NOS versions supported.

Either there is no logical drive defined (ServeRAID systems) or the ServerGuide system partition is not present. Run the setup and configuration program.

TechConnect CD Action Can’t start TechConnect

CD. Can’t view publications

from TechConnect CD, or text is unreadable.

System Updates and Applications CD

Get ″time out″ or ″Unknown host″ errors

Be sure you’re starting the CD on a system with Microsoft Windows installed.

Be sure you have the Adobe reader installed (available from the TechConnect CD).

Action

Be sure you have access to the Internet through FTP directly.

POST error codes

In the following error codes, X can be any number or letter.

Note: See “Server” on page 80 to determine which components should be replaced by a field service technician. Error code/symptom FRU/action 062 (Three consecutive boot failures using

the default configuration.)

1. Run the Configuration/Setup Utility program.

2. Battery.

3. System board.

4. Microprocessor.

Chapter 6. Symptom-to-FRU index 69

Note: See “Server” on page 80 to determine which components should be replaced by a field service technician. Error code/symptom FRU/action 101, 102, 106 (System and processor

error)

114 (Adapter read-only memory error)

151 (Real time clock error)

161 (Real time clock battery error)

162 (Device configuration error) Note: Be sure to load the default settings

and any additional desired settings; then, save the configuration.

163 (Real-time clock error)

164 (Memory configuration changed.)

175 (Hardware error)

176 (Computer cover or cable cover was

removed without a key being used)

177, 178 (Security hardware error)

184 (Power-on password corrupted)

185 (Drive startup sequence information

corrupted)

186 (Security hardware control logic failed)

187 (VPD serial number not set.)

188 (Bad EEPROM CRC #2)

189 (Three attempts made to enter the

system with invalid passwords) 201 (Memory test error.) If the server does

not have the latest level of BIOS installed, update the BIOS to the latest level and run the diagnostic program again.

v System board

1. Run diagnostics.

2. Failing adapter.

1. Run diagnostics.

2. Battery.

3. System board.

1. Run the Configuration/Setup Utility program.

2. Battery.

3. System board.

1. Run the Configuration/Setup Utility program.

2. Battery.

3. Failing device.

4. System board.

1. Run the Configuration/Setup Utility program.

2. Battery.

3. System board.

1. Run the Configuration/Setup Utility program.

2. DIMM.

3. System board.

v System board

1. Run the Configuration/Setup Utility program.

2. System board.

1. Run the Configuration/Setup Utility program.

2. System board.

1. Run the Configuration/Setup Utility program.

2. System board.

1. Run the Configuration/Setup Utility program.

2. System board.

1. Run the Configuration/Setup Utility program.

2. System board.

1. Set serial number in the Configuration/Setup Utility program.

2. System board.

1. Run the Configuration/Setup Utility program.

2. System board.

1. Run the Configuration/Setup Utility program.

1. DIMM

2. System board

70 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Note: See “Server” on page 80 to determine which components should be replaced by a field service technician. Error code/symptom FRU/action 262 (DRAM parity configuration error)

1. Run the Configuration/Setup Utility program.

2. Battery.

3. System board.

289 (DIMM has been disabled by user or the system)

1. Run the Configuration/Setup Utility program, if the DIMM was

disabled by the user.

2. Disabled DIMM, if not disabled by user.

3. System board.

301 (Keyboard or keyboard controller error)

303 (Keyboard controller error)

602 (Invalid diskette boot record)

1. Keyboard

2. System board

v System board

1. Diskette

2. Diskette drive

3. Cable

4. System board

604 (Diskette drive error)

1. Run the Configuration/Setup Utility program and diagnostics.

2. Diskette drive.

3. Drive cable.

4. System board.

662 (Diskette drive configuration error)

1. Run the Configuration/Setup Utility program.

2. Diskette drive.

3. Drive cable.

4. System board.

962 (Parallel port configuration error)

1. Run the Configuration/Setup Utility program.

2. System board.

11XX (Serial port configuration error)

1. Run the Configuration/Setup Utility program.

2. System board.

1301(LED panel cable disconnected)

1. LED cable assembly.

2. System board.

1600 (The service processor is not functioning) Complete the following steps before replacing a FRU:

1. Jumper on J28

2. System board

1. Ensure that a jumper is not installed on J28.

2. Remove the ac power to the server, wait 20 seconds; then, reconnect the ac power. Wait 30 seconds; then, turn on the server.

1601 (Service processor failed to respond at the start of POST)

1. Reset the service processor.

2. Flash the service processor.

3. System board.

Chapter 6. Symptom-to-FRU index 71

Note: See “Server” on page 80 to determine which components should be replaced by a field service technician. Error code/symptom FRU/action 1762 (Hard disk configuration error - IDE

only)

178X (Hard drive error - IDE only)

1800 (No more hardware interrupt

available for PCI adapter)

1801 (No more ROM space available for PCI adapter)

1962 (Drive does not contain a valid boot sector)

2400 (Video controller test failure)

2462 (Video memory configuration error)

5962 (IDE CD-ROM drive configuration

error)

8603 (Pointing-device error)

00012000 (Machine check architecture

error)

00019501 (Microprocessor not functioning)

00019701 (Microprocessor failed BIST.)

00180100 (No room for PCI option ROM)

00180200 (No more I/O space available

for PCI adapter)

1. Hard disk drive.

2. Hard disk cables.

3. Run the Configuration/Setup Utility program.

4. System board.

1. Hard disk drive cables

2. Hard disk drive

3. System board

1. Run the Configuration/Setup Utility program.

2. Remove adapter.

1. Run the Configuration/Setup Utility program.

2. Remove adapter.

3. Disable adapter BIOS and Run the Configuration/Setup Utility program.

1. Verify that a startable operating system is installed.

2. Run the drive diagnostics.

3. Hard disk drive.

4. Hard disk drive backplane.

5. Cable.

6. System board.

v System board

1. Run the Configuration/Setup Utility program.

2. CD-ROM drive.

3. CD-ROM power cable.

4. IDE cable.

5. System board.

6. Battery.

1. Pointing device

2. System board

1. Microprocessor

2. System board

1. Microprocessor

2. System board

1. Microprocessor

2. System board

1. Run the Configuration/Setup Utility program.

2. Adapter.

3. System board.

1. Run the Configuration/Setup Utility program.

2. Failing adapter.

3. System board.

72 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Note: See “Server” on page 80 to determine which components should be replaced by a field service technician. Error code/symptom FRU/action 00180300 (No more memory above 1MB

for PCI adapter)

00180400 (No more memory below 1MB for PCI adapter)

00180500 (PCI option ROM checksum error)

00180600 (PCI device BIST failure)

00180700 (PCI device not responding)

00180800 (Unsupported PCI device

installed)

00181000 (General PCI error)

01295085 (ECC checking hardware test

error)

I9990301 (Fixed boot sector error)

I9990305 (Fixed boot sector error, no

operating system installed) I9990650 (AC power has been restored)

1. Run the Configuration/Setup Utility program.

2. Failing adapter.

3. System board.

1. Run the Configuration/Setup Utility program.

2. Failing adapter.

3. System board.

1. Failing PCI adapter

2. System board

1. Run the Configuration/Setup Utility program.

2. Adapter.

3. System board.

1. System board

2. PCI adapter

1. PCI adapter

2. System board

1. PCI adapter

2. System board

1. System board

2. Microprocessor

1. Hard disk drive cable

2. Hard disk drive backplane

3. System board

v Install an operating system.

1. Check power connections.

2. AC power cord.

POST (ISPR) error procedures

Use the ISPR error procedures to help you solve ServeRAID problems. A complete list of error codes is listed at “ServeRAID error codes” on page 75.

Note: Where the ISPR Error Procedures refer to a Hard disk drive backplane, see

the chapter of this publication that concerns service replaceable units.

EF10 (Default ISPR)

1. No ISPR error present.

9ZXX thru BZXX (SCSI bus error caused either by cables, termination, defective drives, etc.)

1. Isolate between SCSI subsystem and controller by disconnecting all hard disk drive cables from suspect card, and reboot.

Chapter 6. Symptom-to-FRU index 73

CAUTION: Do not press F5. Doing so changes the server’s configuration.

If an ISPR error is still present, perform the following actions until the error is no longer present:

a. Reseat the controller b. Replace the controller

Notes:

a. SCSI channel cable details, if any, appear elsewhere in this publication. b. The adapter/controller detects a configuration change. Do not choose Save

Changes. Instead, press F10 to bypass any options to this effect.

2. If ISPR error is EF10 after disconnecting cables:

a. Identify which channel is causing the error by the second digit (Z) of the

original ISPR code as indicated in the following table:

Note: ServeRAID-4H controllers have 4 channels; ServeRAID-4L and -4Lx

controllers have only one channel; and ServeRAID-4M and -4Mx controllers have 2 channels. ServeRAID-5i controllers have no channels. The ServeRAID-5i uses the channel connectors of the server’s onboard integrated SCSI controller.

Table 4. SCSI identifier

SCSI Channel Code (z) Descriptions

1 Channel 1 2 Channel 2 3 Channel 1 & 2 4 Channel 3 5 Channel 1 & 3 6 Channel 2 & 3 7 Channel 1, 2, & 3 8 Channel 4

9 Channel 1 & 4 A Channel 2 & 4 B Channel 1, 2, & 4 C Channel 3 & 4 D Channel 1, 3, & 4 E Channel 2, 3, & 4

F Channel 1, 2, 3, & 4

b. Confirm that the channel(s) identified from the error in step 2a is (are) the

cause of the error by verifying that the error presents itself only when the offending channel is reconnected.

c. Check termination of identified channel.

Note: SCSI channel termination details, if any, appear elsewhere in this

d. Check for proper backplane jumper configuration.

74 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

publication.

Note: SCSI channel jumper details, if any, appear elsewhere in this

publication.

e. Check for proper cabling configuration in systems that use hard disk drive

status cables. Reconnect all cables removed in step 1 on page 73.

f. Disconnect one drive at a time attached to the channel identified in step 2a

on page 74; then, reboot to determine which drive is causing the error. g. Replace hard disk drive cable. h. Replace hard disk drive backplane.

FFFF or other code not listed

1. Place download jumpers on the controller and try to flash the firmware code to the card.

2. Isolate between SCSI subsystem and controller by disconnecting all hard disk drive cables attached to the suspect card, and reboot.

CAUTION: Do not press F5. Doing so will change the server’s configuration.

If ISPR code is EF10 after disconnecting cables, follow the steps below until the error is eliminated:

a. Identify which channel is causing the error by reconnecting cables one at a

time and rebooting until the error returns.

b. Check termination of identified channel in step 2a.

Note: SCSI channel termination details, if any, appear elsewhere in this

publication.

c. Disconnect one drive at a time attached to channel identified in step 2a and

reboot each time to determine which drive is causing the problem. d. Replace hard disk drive cable attached to channel identified in step 2a. e. Replace backplane attached to channel identified in step 2a.

3. If original ISPR code is still present after disconnecting all hard disk drive cables and rebooting, perform the following actions until the error is no longer present:

v Reseat the controller v Replace the controller

ServeRAID error codes

In the following error codes, x can be any number or letter.

Note: See “Server” on page 80 to determine which components should be replaced by a field service technician. Error code/symptom FRU/action

1xxx (Microcode checksum error)

2xxx (Code DRAM error)

3000-31XX (Code DRAM error)

3200 (Code DRAM error)

v ServeRAID controller

1. Install download jumpers, flash latest level BIOS and firmware for controller. Remove jumpers.

2. ServeRAID controller.

1. Install download jumpers, flash latest level BIOS and firmware for controller. Remove jumpers.

2. ServeRAID controller.

1. Install download jumpers, flash latest level BIOS code and firmware for controller. Remove jumpers.

2. ServeRAID controller.

Chapter 6. Symptom-to-FRU index 75

Note: See “Server” on page 80 to determine which components should be replaced by a field service technician. Error code/symptom FRU/action

3300 (ServeRAID-5i only)

3E20 (ServeRAID-5i only)

3E2x

4xxx thru 5xxx (Code DRAM error)

6xxx (Cache DRAM error) (ServeRAID-4H only)

7xxx thru 8xxx (Host/local PCI bus interface error)

9003

9xxx thru BZxx (SCSI bus error caused by cables, termination, defective drives, etc.). Z refers to the specific channel or channels that cause the error.

EFFE (Firmware code corrupt or download jumpers are in place)

1. Install ServeRAID-5i controller in an extended PCI option slot. See the documentation that came with the server for more information.

1. Remove the ServeRAID-5i controller from its slot and install it in the proper PCI option slot.

2. Verify that the ServeRAID-5i controller is supported in this server.

3. ServeRAID-5i controller.

4. System board.

1. Reseat the ServeRAID controller.

2. Flash latest level of BIOS code and firmware for controller.

3. ServeRAID-5i controller.

4. Integrated RAID controller on server).

1. Install download jumpers, flash latest level BIOS code and firmware for controller; then, remove jumpers.

2. ServeRAID controller.

1. Reseat daughter card.

2. Install download jumpers, flash latest level BIOS code and firmware for controller; then, remove jumpers.

3. ServeRAID controller.

1. Flash latest level of BIOS code and firmware for controller.

2. If ServeRAID-4x controller, replace controller.

3. If ServeRAID-5i controller, integrated RAID controller on the server.

1. Flash latest level of BIOS code and firmware for controller.

2. Confirm that this controller is a supported option for this system.

3. ServeRAID controller.

4. Integrated RAID controller on the server).

1. Follow indications at “POST (ISPR) error procedures”

on page 73. Follow those instructions before

continuing with the next steps listed in this index.

2. Hard disk drive cable.

3. Hard disk drive backplane.

4. Hard disk drive.

5. ServeRAID controller.

1. Flash latest level BIOS and firmware for controller; then,remove jumpers.

2. ServeRAID controller.

76 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Note: See “Server” on page 80 to determine which components should be replaced by a field service technician. Error code/symptom FRU/action

FFFF or other code not listed

1. Follow indications at “POST (ISPR) error procedures” on page 73.

2. Hard disk drive cable.

3. Hard disk drive backplane.

4. Hard disk drive.

5. ServeRAID controller.

Undetermined problems

You are here because the diagnostic tests did not identify the failure, the Devices List is incorrect, or the system is inoperative.

Note: A corrupt CMOS can cause undetermined problems.

If power problems are suspected:

1. Turn off the computer.

2. Be sure the system is cabled correctly.

3. Remove or disconnect the following (one at a time) until you find the failure (power-on the computer and reconfigure each time).

v Any external devices v Modem, printer, mouse, or non-IBM devices v Each adapter v Drives v Memory modules (minimum requirement = one 128 MB DIMM)

Note: Minimum operating requirements are:

a. 1 Power Supply b. System board c. 1 Microprocessor d. 1 Terminator card in Slot 2 e. 1 Memory module (minimum of 1 DIMM in slot labeled DIMM 1)

4. Power-on the computer. If the problem remains, suspect the following FRUs in the order listed:

v Power supply v System board

Notes:

1. If the problem goes away when you remove an adapter from the system, and replacing that adapter does not correct the problem, suspect the system board, then the power supply.

2. If you suspect a networking problem and all the system tests pass, suspect a network cabling problem external to the system.

Chapter 6. Symptom-to-FRU index 77

78 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Chapter 7. Parts listing xSeries 305 Type 8673

This parts listing supports the xSeries 305 Type 8673.

Server

Note: Field replaceable units (FRUs) must be serviced only by qualified field

service technicians. Customer replaceable units (CRUs) can be replaced by the customer.

Index Server (xSeries 305, Type 8673) Models 11x, 12x, 13x, 21x, 22x,

23x, 92x)

1 Air baffle (all models) 49P2767 CRU 2 PCI riser card (all models) 49P2745 FRU 3 Blower (all models) 49P2759 FRU 4 System board (all models) 32P1399 FRU 5 Chassis (all models) 49P2740 FRU 6 Power supply, 200 watt (all models) 49P2742 FRU 7 LED USB card (all models) 49P2755 FRU 8 Front bezel assembly (all models) 49P2761 CRU

9 Fan assembly, 40 mm (all models) 49P2757 CRU 10 Memory, 256 PC 2100 ECC (all models) 09N4306 CRU 11 Microprocessor, 2.0 GHz (models 11x, 12x, 13x) 49P2723 FRU 11 Microprocessor, 2.2 GHz (models 21x, 22x, 23x) 49P2727 FRU 11 Microprocessor, 1.8 GHz (model 92x)) 49P2803 FRU 12 Heat sink, microprocessor 49P2725 FRU

4 post rails (all models) 49P2747 FRU Alcohol wipe kit (all models) 59P4739 FRU Battery, 3.0 volt lithium 33F8354 FRU Cable management arm 01R0890 CRU Cable, diskette drive (all models) 49P2736 CRU Cable, IDE 1-drop (all models) 49P2732 CRU Cable, IDE 2-drop (all models) 49P2774 CRU Cable, SCSI signal (all models) 49P2734 CRU Cable, USB front assembly (all models) 49P2753 FRU Cable, switch LED (all models) 49P2782 FRU Cable, hard disk drive and CD-ROM (all models) 49P2751 CRU CD-ROM adapter (all models) 49P2738 CRU CD-ROM drive, 24X, primary (all models) 06P5263 CRU CD-ROM drive, 24X, alternate (all models) 33P3231 CRU Diskette drive, 12.7 black (all models) 36L8645 CRU Hard disk drive, 18.2 GB SCSI (models 13x, 23x) 06P5365 CRU Hard disk drive, 40. GB IDE (models 12x, 22x, 92x) 19K1568 CRU Jumper, 2.0 m (all models) 36L8886 FRU

FRU No. CRU/FRU

80 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Index Server (xSeries 305, Type 8673) Models 11x, 12x, 13x, 21x, 22x,

23x, 92x)

Miscellaneous parts kit (all models)

v Bezel, blank (1) v Bezel, diskette drive blank (1) v Bezel, PCI blank (2) v Heat sink (1) v Screw, M 3x4 flat (4) v Screw, M 3x5 pan (10) v Screw, M 3.5x6 (4) v Screw, M 3.5 steel (6) v Screw, M 3x5 slotted (2) v Screw, M 4x10 flat (2) v Screw, M 4x5 pan (4) v Spring, CD (2) v Spring, diskette drive (2)

Power cord; see “Power cords” on page 82. (all models) CRU SCSI adapter (models 13x, 23x) 06P2215 CRU System service label (all models) 49P2769 FRU Thermal grease kit (all models) 59P4740 FRU

FRU No. CRU/FRU

49P2771 FRU

Keyboard CRUs

Keyboard CRU No.

US English 37L2551 French Canadian 37L2552 LA Spanish 37L2553 Arabic 37L2555 Belgium/French 37L2556 Belgium/UK 37L2557 Bulgarian 37L2558 Czech 37L2559 Danish 37L2560 Dutch 37L2561 French 37L2562 German 37L2563 Greek 37L2564 Hebrew 37L2565 Hungarian 37L2566 Korean 02K0901 Iceland 37L2567 Italy 37L2568 Norwegian 37L2569 Polish 37L2570 Portuguese 37L2571 Romanian 37L2572 Russian 37L2573 Serbian/Cyrillic 37L2574 Slavic 37L2575 Spanish 37L2576 Swedish/Finnish 37L2577 Swiss, French/German 37L2578

Chapter 7. Parts listing xSeries 305 Type 8673 81

Keyboard CRU No.

Turkish 37L2579 Turkish 37L2580 UK English 37L2581 Yugosl/Lat 37L2582 US English-EMEA 37L2583 Chinese/US 37L2585 Thailand 37L2587 French Canadian 37L0913

Power cords

For your safety, IBM provides a power cord with a grounded attachment plug to use with this IBM product. To avoid electrical shock, always use the power cord and plug with a properly grounded outlet.

IBM power cords used in the United States and Canada are listed by Underwriter’s Laboratories (UL) and certified by the Canadian Standards Association (CSA).

For units intended to be operated at 115 volts: Use a UL-listed and CSA-certified cord set consisting of a minimum 18 AWG, Type SVT or SJT, three-conductor cord, a maximum of 15 feet in length and a parallel blade, grounding-type attachment plug rated 15 amperes, 125 volts.

For units intended to be operated at 230 volts (U.S. use): Use a UL-listed and CSA-certified cord set consisting of a minimum 18 AWG, Type SVT or SJT, three-conductor cord, a maximum of 15 feet in length and a tandem blade, grounding-type attachment plug rated 15 amperes, 250 volts.

For units intended to be operated at 230 volts (outside the U.S.): Use a cord set with a grounding-type attachment plug. The cord set should have the appropriate safety approvals for the country in which the equipment will be installed.

IBM power cords for a specific country or region are usually available only in that country or region.

IBM power cord part number

13F9940 Argentina, Australia, China (PRC), New Zealand, Papua New

13F9979 Afghanistan, Algeria, Andorra, Angola, Austria, Belgium, Benin,

13F9997 Denmark 14F0015 Bangladesh, Burma, Pakistan, South Africa, Sri Lanka

Used in these countries and regions

Guinea, Paraguay, Uruguay, Western Samoa

Bulgaria, Burkina Faso, Burundi, Cameroon, Central African Rep., Chad, China (Macau S.A.R.), Czech Republic, Egypt, Finland, France, French Guiana, Germany, Greece, Guinea, Hungary, Iceland, Indonesia, Iran, Ivory Coast, Jordan, Lebanon, Luxembourg, Malagasy, Mali, Martinique, Mauritania, Mauritius, Monaco, Morocco, Mozambique, Netherlands, New Caledonia, Niger, Norway, Poland, Portugal, Romania, Senegal, Slovakia, Spain, Sudan, Sweden, Syria, Togo, Tunisia, Turkey, former USSR, Vietnam, former Yugoslavia, Zaire, Zimbabwe

82 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

IBM power cord part

Used in these countries and regions

number

14F0033 Antigua, Bahrain, Brunei, Channel Islands, China (Hong Kong

S.A.R.), Cyprus, Dubai, Fiji, Ghana, India, Iraq, Ireland, Kenya, Kuwait, Malawi, Malaysia, Malta, Nepal, Nigeria, Polynesia, Qatar, Sierra Leone, Singapore, Tanzania, Uganda, United Kingdom,

Yemen, Zambia 14F0051 Liechtenstein, Switzerland 14F0069 Chile, Ethiopia, Italy, Libya, Somalia 14F0087 Israel 1838574 Thailand 6952300 Bahamas, Barbados, Bermuda, Bolivia, Brazil, Canada, Cayman

Islands, Colombia, Costa Rica, Dominican Republic, Ecuador, El

Salvador, Guatemala, Guyana, Haiti, Honduras, Jamaica, Japan,

Korea (South), Liberia, Mexico, Netherlands Antilles, Nicaragua,

Panama, Peru, Philippines, Saudi Arabia, Suriname, Taiwan,

Trinidad (West Indies), United States of America, Venezuela

Chapter 7. Parts listing xSeries 305 Type 8673 83

84 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Appendix A. Getting help and technical assistance

If you need help, service, or technical assistance or just want more information about IBM products, you will find a wide variety of sources available from IBM to assist you. This appendix contains information about where to go for additional information about IBM and IBM products, what to do if you experience a problem with your xSeries or IntelliStation necessary.

Before you call

Before you call, make sure that you have taken these steps to try to solve the problem yourself:

v Check all cables to make sure that they are connected. v Check the power switches to make sure that the system is turned on. v Use the troubleshooting information in your system documentation, and use the

diagnostic tools that come with your system.

v Go to the IBM Support Web site at http://www.ibm.com/pc/support/ to check for

technical information, hints, tips, and new device drivers.

v Use an IBM discussion forum on the IBM Web site to ask questions.

You can solve many problems without outside assistance by following the troubleshooting procedures that IBM provides in the online help or in the publications that are provided with your system and software. The information that comes with your system also describes the diagnostic tests that you can perform. Most xSeries and IntelliStation systems, operating systems, and programs come with information that contains troubleshooting procedures and explanations of error messages and error codes. If you suspect a software problem, see the information for the operating system or program.

system, and whom to call for service, if it is

Using the documentation

Information about your IBM xSeries or IntelliStation system and preinstalled software, if any, is available in the documentation that comes with your system. That documentation includes printed books, online books, README files, and help files. See the troubleshooting information in your system documentation for instructions for using the diagnostic programs. The troubleshooting information or the diagnostic programs might tell you that you need additional or updated device drivers or other software. IBM maintains pages on the World Wide Web where you can get the latest technical information and download device drivers and updates. To access these pages, go to http://www.ibm.com/pc/support/ and follow the instructions. Also, you can order publications through the IBM Publications Ordering System at www.elink.ibmlink.ibm.com/public/applications/publications/cgibin/pbi.cgi.

Getting help and information from the World Wide Web

On the World Wide Web, the IBM Web site has up-to-date information about IBM xSeries and IntelliStation products, services, and support. The address for IBM xSeries information is http://www.ibm.com/eserver/xseries/. The address for IBM IntelliStation information is http://www.ibm.com/pc/intellistation/.

You can find service information for your IBM products, including supported options, at http://www.ibm.com/pc/support/. If you click Profile from the support page, you

can create a customized support page. The support page has many sources of information and ways for you to solve problems, including:

v Diagnosing problems, using the IBM Online Assistant v Downloading the latest device drivers and updates for your products v Viewing Frequently Asked Questions (FAQ) v Viewing hints and tips to help you solve problems v Participating in IBM discussion forums v Setting up e-mail notification of technical updates about your products

Software service and support

Through IBM Support Line, you can get telephone assistance, for a fee, with usage, configuration, and software problems with xSeries servers, IntelliStation workstations, and appliances. For information about which products are supported by Support Line in your country or region, go to http://www.ibm.com/services/sl/products/.

For more information about Support Line and other IBM services, go to http://www.ibm.com/services/, or go to http://www.ibm.com/planetwide/ for support telephone numbers.

Hardware service and support

You can receive hardware service through IBM Integrated Technology Services or through your IBM reseller, if your reseller is authorized by IBM to provide warranty service. Go to http://www.ibm.com/planetwide/ for support telephone numbers.

In the U.S. and Canada, hardware service and support is available 24 hours a day, 7 days a week. In the U.K., these services are available Monday through Friday, from 9 a.m. to 6 p.m.

86 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

Appendix B. Related service information

Note: The service procedures are designed to help you isolate problems. They are

written with the assumption that you have model-specific training on all computers, or that are familiar with the computers, functions, terminology, and service information provided in this manual.

Safety information

The following section contains the safety information that you need to be familiar with before servicing an IBM computer.

General safety

Follow these rules to ensure general safety: v Observe good housekeeping in the area of the machines during and after

maintenance.

v When lifting any heavy object:

1. Ensure you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt to lift.

4. Lift by standing or by pushing up with your leg muscles; this action removes the strain from the muscles in your back. Do not attempt to lift any objects

that weigh more than 16 kg (35 lb) or objects that you think are too heavy for you.

v Do not perform any action that causes hazards to the customer, or that makes

the equipment unsafe.

v Before you start the machine, ensure that other service representatives and the

customer’s personnel are not in a hazardous position.

v Place removed covers and other parts in a safe place, away from all personnel,

while you are servicing the machine.

v Keep your tool case away from walk areas so that other people will not trip over

it.

v Do not wear loose clothing that can be trapped in the moving parts of a machine.

Ensure that your sleeves are fastened or rolled up above your elbows. If your hair is long, fasten it.

v Insert the ends of your necktie or scarf inside clothing or fasten it with a

nonconductive clip, approximately 8 centimeters (3 inches) from the end.

v Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your

clothing. Remember: Metal objects are good electrical conductors.

v Wear safety glasses when you are: hammering, drilling soldering, cutting wire,

attaching springs, using solvents, or working in any other conditions that might be hazardous to your eyes.

v After service, reinstall all safety shields, guards, labels, and ground wires.

Replace any safety device that is worn or defective.

v Reinstall all covers correctly before returning the machine to the customer.

Electrical safety

CAUTION: Electrical current from power, telephone, and communication cables can be hazardous. To avoid personal injury or equipment damage, disconnect the attached power cords, telecommunication systems, networks, and modems before you open the server covers, unless instructed otherwise in the installation and configuration procedures.

Observe the following rules when working on electrical equipment.

Important: Use only approved tools and test equipment. Some hand tools have

handles covered with a soft material that does not insulate you when working with live electrical currents.

Many customers have, near their equipment, rubber floor mats that contain small conductive fibers to decrease electrostatic discharges. Do not use this type of mat to protect yourself from electrical shock.

v Find the room emergency power-off (EPO) switch, disconnecting switch, or

electrical outlet. If an electrical accident occurs, you can then operate the switch or unplug the power cord quickly.

v Do not work alone under hazardous conditions or near equipment that has

hazardous voltages.

v Disconnect all power before:

– Performing a mechanical inspection – Working near power supplies – Removing or installing main units

v Before you start to work on the machine, unplug the power cord. If you cannot

unplug it, ask the customer to power-off the wall box that supplies power to the machine and to lock the wall box in the off position.

v If you need to work on a machine that has exposed electrical circuits, observe

the following precautions: – Ensure that another person, familiar with the power-off controls, is near you.

Remember: Another person must be there to switch off the power, if necessary.

– Use only one hand when working with powered-on electrical equipment; keep

the other hand in your pocket or behind your back. Remember: There must be a complete circuit to cause electrical shock. By

observing the above rule, you may prevent a current from passing through your body.

– When using testers, set the controls correctly and use the approved probe

leads and accessories for that tester.

– Stand on suitable rubber mats (obtained locally, if necessary) to insulate you

from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages; these instructions are in the safety sections of maintenance information. Use extreme care when measuring high voltages.

88 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

v Regularly inspect and maintain your electrical hand tools for safe operational

condition.

v Do not use worn or broken tools and testers. v Never assume that power has been disconnected from a circuit. First, check that

it has been powered-off.

v Always look carefully for possible hazards in your work area. Examples of these

hazards are moist floors, nongrounded power extension cables, power surges, and missing safety grounds.

v Do not touch live electrical circuits with the reflective surface of a plastic dental

mirror. The surface is conductive; such touching can cause personal injury and machine damage.

v Do not service the following parts with the power on when they are removed from

their normal operating places in a machine: – Power supply units – Pumps – Blowers and fans – Motor generators

and similar units. (This practice ensures correct grounding of the units.)

v If an electrical accident occurs:

– Use caution; do not become a victim yourself. – Switch off power. – Send another person to get medical aid.

Safety inspection guide

The intent of this inspection guide is to assist you in identifying potentially unsafe conditions on these products. Each machine, as it was designed and built, had required safety items installed to protect users and service personnel from injury. This guide addresses only those items. However, good judgment should be used to identify potential safety hazards due to attachment of non-IBM features or options not covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the apparent hazard could be and whether you can continue without first correcting the problem.

Consider these conditions and the safety hazards they present: v Electrical hazards, especially primary power (primary voltage on the frame can

cause serious or fatal electrical shock).

v Explosive hazards, such as a damaged CRT face or bulging capacitor v Mechanical hazards, such as loose or missing hardware

The guide consists of a series of steps presented in a checklist. Begin the checks with the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Turn off the computer. Disconnect the power cord.

3. Check the power cord for:

Appendix B. Related service information 89

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external ground pin and frame ground.

b. The power cord should be the appropriate type as specified in the parts

listings.

c. Insulation must not be frayed or worn.

4. Remove the cover.

5. Check for any obvious non-IBM alterations. Use good judgment as to the safety of any non-IBM alterations.

6. Check inside the unit for any obvious unsafe conditions, such as metal filings, contamination, water or other liquids, or signs of fire or smoke damage.

7. Check for worn, frayed, or pinched cables.

8. Check that the power-supply cover fasteners (screws or rivets) have not been removed or tampered with.

Handling electrostatic discharge-sensitive devices

Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD). ESD damage can occur when there is a difference in charge between objects. Protect against ESD damage by equalizing the charge so that the server, the part, the work mat, and the person handling the part are all at the same charge.

Notes:

1. Use product-specific ESD procedures when they exceed the requirements noted here.

2. Make sure that the ESD-protective devices you use have been certified (ISO

9000) as fully effective.

When handling ESD-sensitive parts:

v Keep the parts in protective packages until they are inserted into the product. v Avoid contact with other people. v Wear a grounded wrist strap against your skin to eliminate static on your body. v Prevent the part from touching your clothing. Most clothing is insulative and

retains a charge even when you are wearing a wrist strap.

v Use the black side of a grounded work mat to provide a static-free work surface.

The mat is especially useful when handling ESD-sensitive devices.

v Select a grounding system, such as those in the following list, to provide

protection that meets the specific service requirement.

Note: The use of a grounding system is desirable but not required to protect

against ESD damage.

– Attach the ESD ground clip to any frame ground, ground braid, or green-wire

ground.

– Use an ESD common ground or reference point when working on a

double-insulated or battery-operated system. You can use coax or connector-outside shells on these systems.

– Use the round ground-prong of the ac plug on ac-operated computers.

90 xSeries 305 Type 8673: Hardware Maintenance Manual and Troubleshooting Guide

IBM 867372X, eServer xSeries 305 Type 8673 Maintenance And Troubleshooting Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
