Hard ware Mainte n ance Man u al

Type 8668



Page 2

Page 3

Hard ware Mainte n ance Man u al

Type 8668



Page 4

Note: Before using this information and the product it supports, be sure to read the general information under “Before you begin”

on page 41.

First Edition (June 2001)

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION ″AS IS″ WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time.

This publication was developed for products and services offered in the United States of America. IBM may not offer the products, services, or features discussed in this document in other countries, and the information is subject to change without notice. Consult your local IBM representative for information on the products, services, and features available in your area.

Requests for technical information about IBM products should be made to your IBM reseller or IBM marketing representative.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

Page 5

Contents

About this manual ..........v

Important safety information .........v

Online Support .............vi

IBM Online Addresses ..........vi

General checkout ..........1

General information .........3

Features and specifications..........3

Reliability, availability, and serviceability features . . 5

Servercontrolsandindicators ........6

Starting the server ...........7

Turning off the server ..........9

Operator information panel .........10

Diagnostics.............11

Diagnostic tools overview .........11

Post................12

Small computer system interface messages (some

models)................14

Diagnostic programs and error messages ....14

Textmessages ............15

Starting the diagnostic programs ......16

Viewing the test log ..........17

Recovering BIOS code ...........18

Identifying problems using status LEDs .....19

Power-Supply LEDs ...........19

Replacing the battery ...........20

Configuring your server .......23

UsingtheServerGuideCD.........23

Using the Configuration/Setup Utility program . . 24

Starting the Configuration/Setup Utility program 24

Choices available from the Configuration/Setup

mainmenu.............24

Usingpasswords ...........28

Using the SCSISelect utility program ......29

Starting the SCSISelect utility program ....30

Choices available from the SCSISelect menu . . 30

Using the PXE Boot Agent Utility program . . . 31

Installing options ..........33

Exploded view of the xSeries 232 server .....33

System board option connectors .......34

System board external port connectors .....36

System board switches and jumpers ......37

System Board LED Locations ........38

Integrated System Management Processor LED . . 39

Light Path Diagnostic Panel ........39

Remindbutton.............41

Beforeyoubegin ............41

System reliability considerations .......41

Working inside a server with power on .....42

Handling static-sensitive devices .......42

Removing the cover, door, and bezel ......43

Removing the left-side cover (tower model) . . . 43

Removingthecover(rackmodel)......44

Removing the server door (tower model) . . . 47

RemovingtheBezel(rackortower).....48

Working with Adapters .........48

Adapter considerations .........49

Installing an adapter ..........50

Installing internal drives .........52

Installing an xSeries 3-Pack Ultra160 Hot-Swap

Expansion Kit ............59

Installing memory modules ........60

Installing a microprocessor ........62

Installing or removing a power supply ....65

Installing redundant power supply .....70

Removing the existing power supply .....71

Installing the power backplane .......76

Replacing a fan assembly ..........78

Installing the cover ............79

Installing the cover (tower) ........79

Installing the bezel and front door......80

Installing the cover (rack).........81

Installing the bezel ...........82

Connecting external options .........83

Input/output connector locations .......83

Input/output ports ............84

Videoport..............84

System management port .........84

Integrated System Management ports.....84

Universal Serial Bus ports ........85

Ethernetports............86

Keyboard port ............89

Auxiliary-device (pointing device) port ....90

Serial ports .............90

Ultra160 SCSI ports...........91

Cablingtheserver............95

FRU information (service only) ....97

RemovingtheLEDcard..........97

Removing the power reset card........98

Removingtherearcablebracket.......98

Removing the PCI adapter card support assembly 99

Removing the DASD backplane assembly ....100

Removing the power supply backplane.....101

Removing the system board ........101

Symptom-to-FRU index .......103

BeepSymptoms............103

NoBeepsymptoms...........105

Diagnostic Panel LED ..........105

Diagnostic error codes ..........107

Errorsymptoms ............111

Power supply LED errors .........112

POST error codes ............113

SCSI error codes ............118

Page 6

Temperatureerrormessages........119

Fanerrormessages...........119

Powererrormessages ..........119

System shutdown ............120

Power related system shutdown ......120

Temperature related system shutdown ....121

DASD checkout ............121

Host Built-In Self Test (BIST) ........121

Busfaultmessages...........121

Undetermined Problems..........122

Parts listing xSeries 232 (Models 11x, 21x, 22x,13G, 23G, 1Rx, 2Rx, 2Sx) . . 125

Keyboards ..............127

Powercords..............128

Related service information .....129

Safety information............129

General safety ............129

Electrical safety............130

Safety inspection guide .........132

Handling electrostatic discharge-sensitive

devices ..............133

Grounding requirements ........134

Safety notices (multi-lingual translations) . . . 134

Send us your comments! .........169

Problem determination tips.........169

Notices ...............170

Trademarks..............170

iv Hardware Maintenance Manual: Type 8668

Page 7

About this manual

This manual contains diagnostic information, a Symptom-to-FRU index, service information, error codes, error messages, and configuration information for the

IBM

Important: This manual is intended for trained servicers who are familiar with

Important safety information

Be sure to read all caution and danger statements in this book before performing any of the instructions. See “Safety information” on page 129.

Leia todas as instruções de cuidado e perigo antes de executar qualquer operação.

xSeries 232.

IBM PC Server products.

Prenez connaissance de toutes les consignes de type Attention et

Danger avant de procéder aux opérations décrites par les instructions.

Page 8

Lesen Sie alle Sicherheitshinweise, bevor Sie eine Anweisung ausführen.

Accertarsi di leggere tutti gli avvisi di attenzione e di pericolo prima di effettuare qualsiasi operazione.

Lea atentamente todas las declaraciones de precaución y peligro ante de llevar a cabo cualquier operación.

Online Support

IBM Online Addresses

Use the World Wide Web (WWW) to download Diagnostic, BIOS Flash, and Device Driver files.

File download address is:

http://www.ibm.com/pc/files.html

The HMM manuals online address is:

http://www.us.pc.ibm.com/cdt/hmm.html

The IBM PC Company Support Page is:

http://www.ibm.com/pc/support

The IBM PC Company Home Page is:

http://www.ibm.com/pc

vi Hardware Maintenance Manual: Type 8668

Page 9

General checkout

The server diagnostic programs are stored in upgradable read-only memory (ROM) on the system board. These programs are the primary method of testing the major components of the server: the system board, Ethernet controller, video controller, RAM, keyboard, mouse (pointing device), diskette drive, serial ports, hard drives, and parallel port. You can also use them to test some external devices. See, “Diagnostic tools overview” on page 11.

Also, if you cannot determine whether a problem is caused by the hardware or by the software, you can run the diagnostic programs to confirm that the hardware is working properly.

When you run the diagnostic programs, a single problem might cause several error messages. When this occurs, work to correct the cause of the first error message. After the cause of the first error message is corrected, the other error messages might not occur the next time you run the test.

A failed system might be part of a shared DASD cluster (two or more systems sharing the same external storage device(s). Prior to running diagnostics, verify that the failing system is not part of a shared DASD cluster.

A system might be part of a cluster if:

v The customer identifies the system as part of a cluster. v One or more external storage units are attached to the system and at least one of

the attached storage units is additionally attached to another system or unidentifiable source.

v One or more systems are located near the failing system.

If the failing system is suspected to be part of a shared DASD cluster, all diagnostic tests can be run except diagnostic tests which test the storage unit (DASD residing in the storage unit) or the storage adapter attached to the storage unit.

Notes:

1. For systems that are part of a shared DASD cluster, run one test at a time in looped mode. Do not run all tests in looped mode, as this could enable the DASD diagnostic tests.

2. If multiple error codes are displayed, diagnose the first error code displayed.

3. If the computer hangs with a POST error, go to “System Error logs” on page 14.

4. If the computer hangs and no error is displayed, “Diagnostic programs and

error messages” on page 14.

5. Power supply problems, “Power supply LED errors” on page 112.

6. For intermittent problems, check the error log; “Undetermined Problems” on

page 122.

1. IS THE SYSTEM PART OF A CLUSTER?

YES. Schedule maintenance with the customer. Shut down all systems related to

the cluster. Run storage test. NO. Go to step 2.

2. THE SYSTEM IS NOT PART OF A CLUSTER

v Power-off the computer and all external devices.

Page 10

v Check all cables and power cords. v Set all display controls to the middle position. v Power-on all external devices. v Power-on the computer. v Record any POST error messages displayed on the screen. If an error is

displayed, look up the first error in the “System Error logs” on page 14.

v Check the information LED panel System Error LED; if on, see “Operator

information panel” on page 10.

v Check the System Error Log. If an error was recorded by the system, see

“System Error logs” on page 14.

v Start the Diagnostic Programs. See “Starting the diagnostic programs” on

page 16.

v Check for the following responses:

a. One beep. b. Readable instructions or the Main Menu.

3. DID YOU RECEIVE BOTH OF THE CORRECT RESPONSES?

YES. Run the Diagnostic Programs. If necessary, refer to “Starting the diagnostic programs” on page 16.

NO. Find the failure symptom in “Symptom-to-FRU index” on page 103.

2 Hardware Maintenance Manual: Type 8668

Page 11

General information

Your IBM

(SMP) server. It is ideally suited for networking environments that require superior microprocessor performance, efficient memory management, flexibility, and large amounts of reliable data storage.

Your xSeries 232 comes with a three-year limited warranty and IBM PC Server 90-Day Start Up Support. If you have access to the World Wide Web, you can obtain up-to-date information about your xSeries 232 model and other IBM server products at the following World Wide Web address:

http://www.ibm.com/eserver/xseries/

Your server serial number and model number are located on labels on the rear of the server and on the front below the bezel.

Note: The information label containing the serial number, machine type, model

number, and agency marks for your server is located as follows:

Tower model On the bottom of the server Rack model On the side of the server

Features and specifications

The following table provides a summary of the features and specifications for your xSeries 232 server.

xSeries 232 is a high-performance, symmetric multiprocessing

Microprocessor:

v Intel

Pentium®III microprocessor

v 256 or 512 KB Level-2 cache v Supports up to two microprocessors

Memory:

v Maximum: 4 GB v Type: ECC, SDRAM, PC133, registered DIMMs v Two-way interleaved v Slots: four (Two-way interleaved)

Drives standard:

v Diskette: 1.44 MB v CD-ROM: 48X IDE

Expansion bays:

v Hot-swap: six slim high v Non-hot-swap: Three 5.25-inch (one used by CD-ROM drive) v 3 pack option available

PCI expansion slots:

v One 33 MHz/32-bit v Two 33 MHz/64-bit v Two 66 MHz/64-bit

Page 12

Power supplies:

v Some models has One 385-watt non-redundant unit v Some models with Two 250-watt redundant hot swap unit

Video:

v S3 Savage 4 VideoController (integrated on system board) v Compatible with SVGA and VGA v 8 MB video memory

Acoustical noise emissions:

v Sound power, idling: 6.2 bel maximum v Sound power, operating: 6.2 bel maximum v Sound pressure, operating: 47 dBA maximum, bystander positions

Size (rack model 5U)

v Height: 217 mm (8.5 in.) v Depth: 688 mm (27.1 in.) v Width: 440 mm (17.3 in.) v Weight: approximately 35.4 Kg (78 lb) when fully configured

Size (Tower Model)

v Height: 440 mm (17.3 in.) v Depth: 700 mm (27.5 in.) v Width: 217 mm (8.5 in.) v Weight: approximately 37.64 Kg (83 lb) when fully configured

Integrated Functions

v Ultra160 SCSI controller v One 10BASE-T, 100BASE-TX, 100BASE-FX, Intel Ethernet controller with Alert on

LAN

™

support, and Wake on LAN®support

v Two serial ports v Two Universal Serial Bus (USB) ports v Keyboard port v Mouse port v Video port v Integrated System Management Processor

– Two ISM RJ-45 connectors – One System Management Serial C port

Environment:

v Air temperature:

– Server on: 10° to 35° C (50.0° to 95.0° F). Altitude: 0 to 914 m (2998.7 ft) – Server on: 10° to 32° C (50.0° to 89.6° F). Altitude: 914 m (2998.7 ft) to 2133 m

(6998.0 ft)

– Server off: 10° to 43° C (50.0° to 109.4° F). Maximum altitude: 2133 m (6998.0

ft)

v Humidity:

– Server on: 8% to 80% – Server off: 8% to 80%

Heat output: Approximate heat output in British Thermal Units (BTU) per hour:

v Minimum configuration: 683 BTU (200 watts) v Maximum configuration: 1877 BTU (550 watts)

Electrical input:

v Sine-wave input (50-60 Hz) required v Input voltage low range:

– Minimum: 100 V ac

4 Hardware Maintenance Manual: Type 8668

Page 13

– Maximum: 127 V ac

v Input voltage high range:

– Minimum: 200 V ac – Maximum: 240 V ac

v Input kilovolt-amperes (kVA) approximately:

– Minimum: 0.08 kVA – Maximum: 0.55 kVA

Reliability, availability, and serviceability features

Three of the most important features in server design are reliability, availability, and serviceability (RAS). These factors help to ensure the integrity of the data stored on your server; that your server is available when you want to use it; and that should a failure occur, you can easily diagnose and repair the failure with minimal inconvenience.

The following is an abbreviated list of the RAS features that your server supports. v Menu-driven setup, system configuration, RAID configuration, and diagnostic

programs

v Power-on self-test (POST) v Predictive failure alerts v System auto-configuring from configuraion menu v Remote system problem-determination support v Power and temperature monitoring v Fault-resilient startup v Hot-swap hard drive bays v Error codes and messages v System error logging v Automatic restart after a power failure v Parity checking on the SCSI and PCI buses v Error checking and correcting (ECC) memory v Redundant hot-swap power supply option v Redundant Ethernet capabilities (with optional adapter) v Vital Product Data (VPD) on processor complex, system board, power backplane,

SCSI backplane, and each power supply.

v Operator information panel v Diagnostics LEDs on the system board v Remote Connect v Integrated System Management Processor v Upgradable BIOS, diagnostics, and Integrated System Management Processor

Code

General information 5

Page 14

Server controls

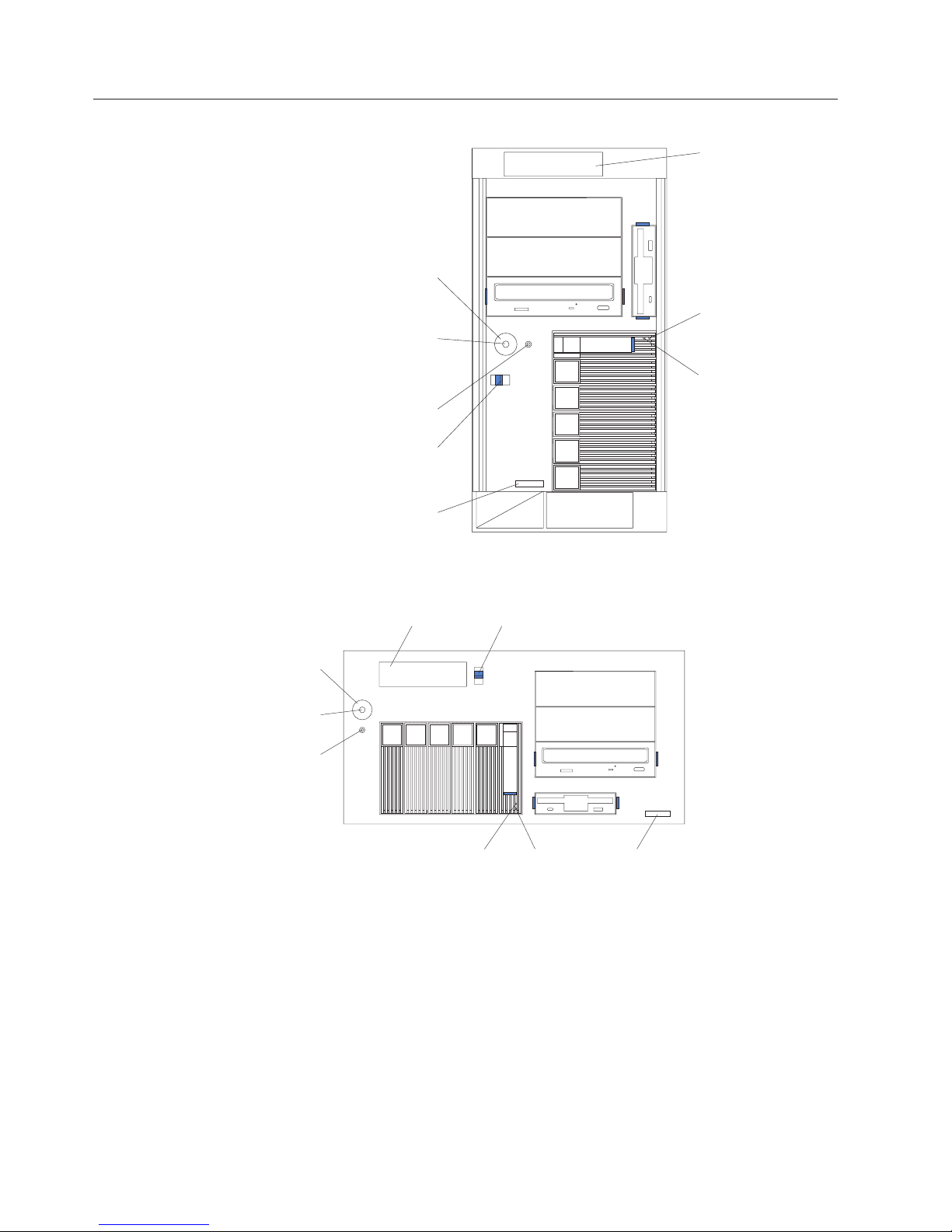

Server controls and indicators

Power control

button shield

(if installed)

control

release

(tower shown)

number

Powe r

button

Reset

button

Cover

latch

Serial

Operator information panel

Hard disk drive activity light (green)

Hard disk drive status light (amber)

(rack shown)

Operator information panel

Power control

button shield

(if installed)

Power control

button

Reset button

Hard disk drive status light (amber)

Cover release latch

Hard disk drive activity light (green)

Serial number

Power-control button: Press this button to manually turn the server on or off.

Power-control button shield: You can install this circular disk over the

power-control button to prevent accidental manual power-off. This disk is provided with your server.

Reset button: Press this button to reset the server and run the power-on self-test (POST). You might need to use a pen or the end of a straightend paper clip to press the button.

Operator information panel: The lights on this panel give status information for your server. See “Operator information panel” on page 10.

Hardware Maintenance Manual: Type 8668

Page 15

Server controls

Cover release latch: Slide this lever to release the cover.

Serial number: This number uniquely identifies your server.

Hard disk drive status light: Each of the hot-swap drives has a hard disk drive

status light. When this amber light is on continuously, the drive has failed.

Note: This LED does not function unless drive is connected to ServeRAID adapter.

Hard disk drive activity light: Each of the hot-swap drives has a hard disk drive

light. When this green light is flashing, the controller is accessing the drive.

If a ServeRAID adapter is installed and this light flashes slowly (one flash per second), the drive is being rebuilt. When the light flashes rapidly (three flashes per second), the controller is identifying the drive.

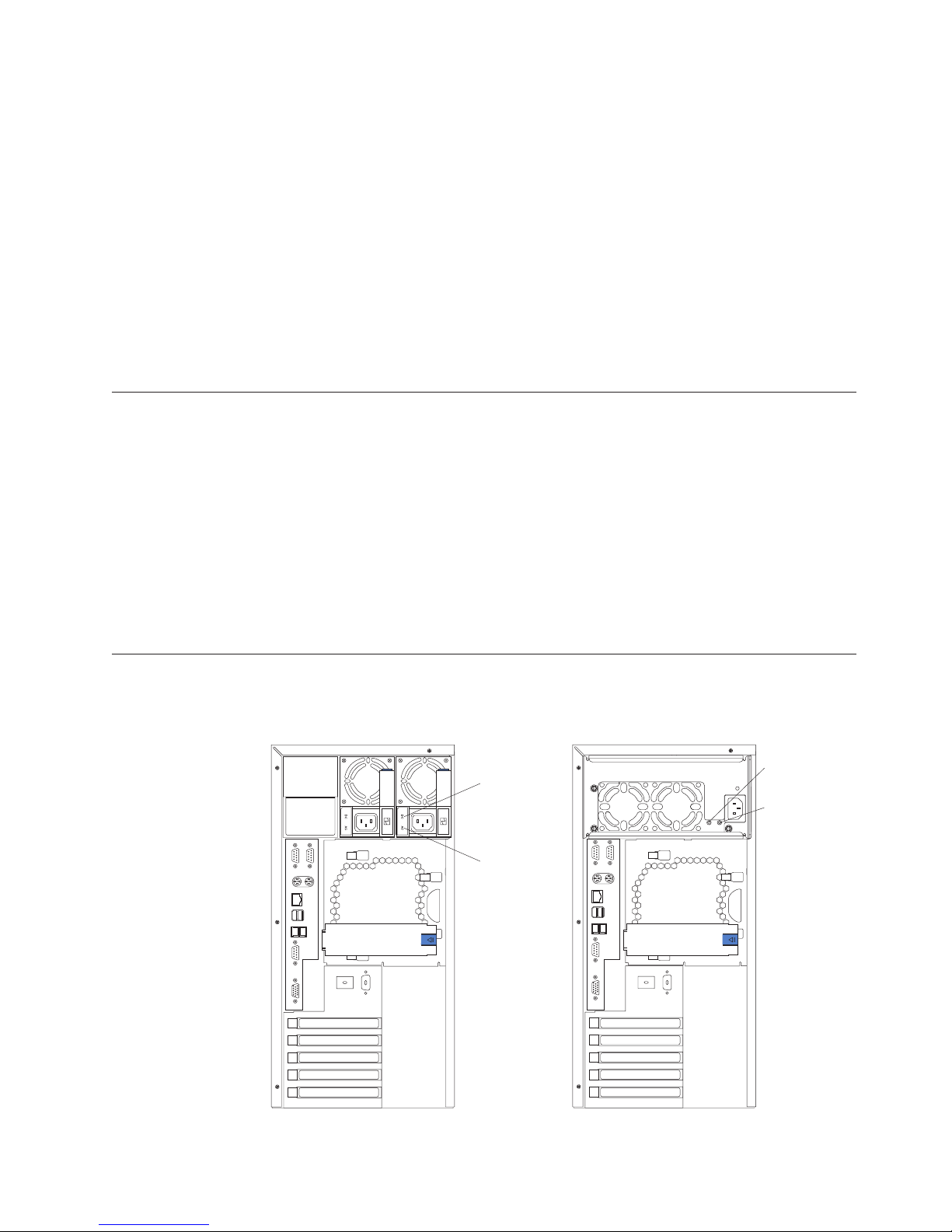

Rear view (tower shown)

DC power LED (green)

AC power LED (green)

GOODACGOOD

DC power LED (green)

AC power LED (green)

AC power light: This green light provides status information about the power supply. During typical operation, both the ac and dc power lights are on.

DC power light: This green light provides status information about the power supply. During typical operation, both the ac and dc Power lights are on.

Starting the server

Use the following procedure to start your server.

1. Turn on all external devices, such as the monitor.

2. Press the power control button on the front of the server. The power control

light comes on and the power-on self-test (POST) begins.

v You can press the power-control button on the front of the server to start the

server.

v If the server is activated and a power failure occurs, and unattended- start mode

is enabled in the Configuration/Setup utility program, the server will start automatically when power is restored.

General information 7

Page 16

Server controls

v Pressing the Reset button resets the server and runs the power -on self-test.

Note: The server can also be powered on by the Integrated System Management

Processor.

Hardware Maintenance Manual: Type 8668

Page 17

Turning off the server

Turning off the server refers to the act of disconnecting the server from the power source.

You can turn off the server in any of the following ways:

Statement 5

CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

Server controls

v You can press the power-control button on the front of the server. This starts an

orderly shutdown of the operating system, if this feature is supported by your operating system.

Note: After turning off the server, wait at least five seconds before you press the

power-control button to turn on the server again.

v You might need to press and hold the power-control button for more than 4

seconds to cause an immediate shutdown of the server and to force the power off. You can use this feature if the operating system stops functioning.

v If the system was turned on by the Wake on LAN feature, it can be turned off

by either a software routine on by the fail-safe power-down counter.

v The Integrated System Management Processor can turn off the server. v You can disconnect the server power cords from the electrical outlets to shut off

all power to the server.

Note: After disconnecting the power cords, wait approximately 15 seconds for

your system to stop running. Watch for the power-on light to stop blinking.

General information 9

Page 18

Operator information panel

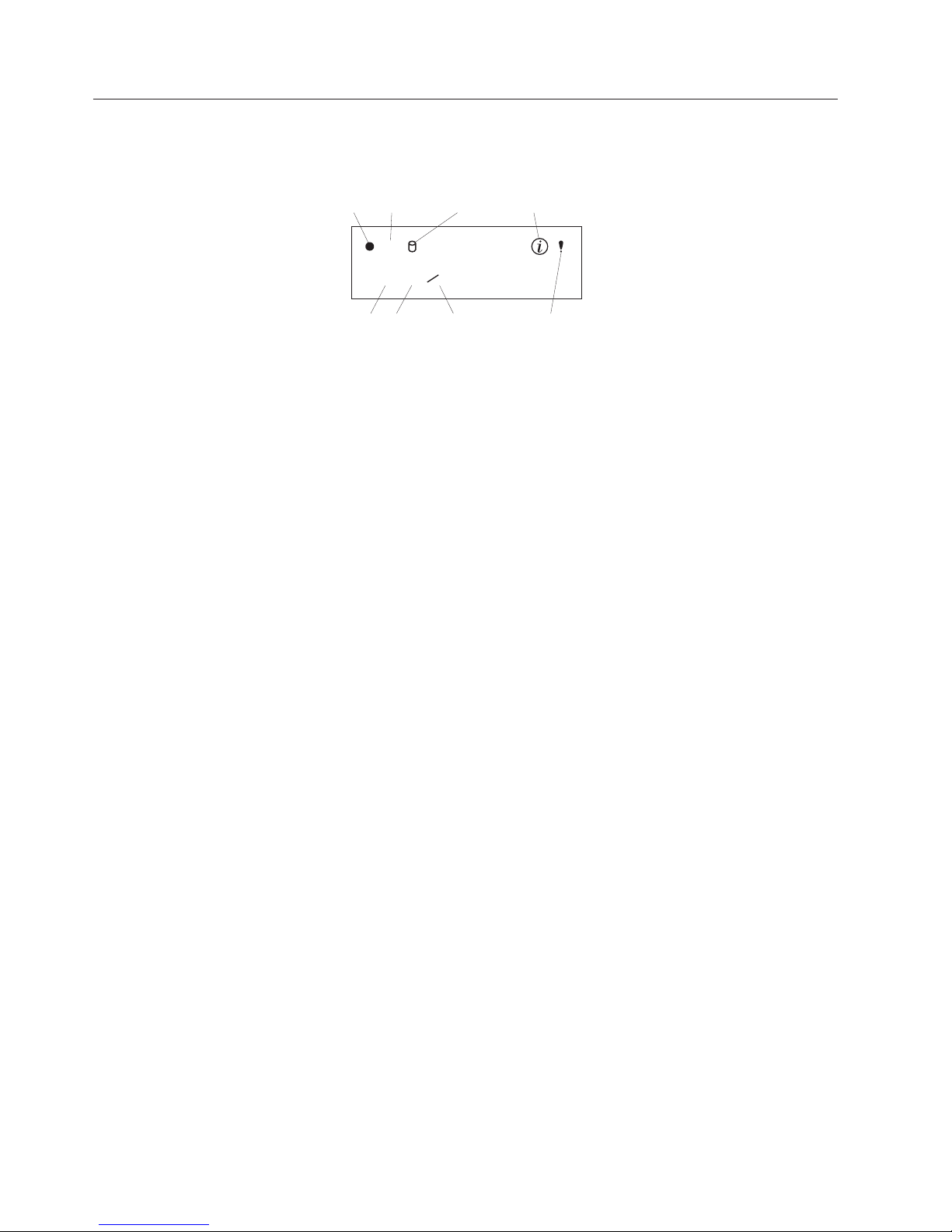

The following illustration shows the location of the lights on the operator information panel on the front of the server (see “Server controls and indicators”

Power-on light

POST complete light

LINK

100

SCSI hard disk drive in-use light

Information light

on page 6).

Ethernet speed light

Ethernet link status light

Ethernet transmit/ receive activity light

System error light

Power-on light: This green LED lights when system power is present in the server. When this light flashes, the server is in standby mode (the system power supply is turned off and current is present). If this light is not on, the power cord is not connected, the power supply has failed, or this LED has failed.

POST complete light: This green LED lights when the server completes the power-on self-test (POST) without any errors.

SCSI hard disk drive in-use light: This green LED lights when there is activity on a hard disk drive.

Information light: This amber LED lights when the information log contains information about certain conditions in your server that might affect performance. For example, the light will be on if your server has multiple power supplies and does not have redundant power. An LED on the diagnostic panel on the system board will also be on.

System error light: This amber LED lights when a system error occurs. An LED on the diagnostic panel on the system board may also be on to further isolate the error. See “Identifying problems using status LEDs” on page 19.

Ethernet speed light: This green LED lights when the Ethernet LAN speed is 100 Mbps during typical operation, when the system is powered off the LED remains green.

Ethernet link status light: This green LED lights when there is an active connection on the Ethernet port during typical operation, when the system is powered off the LED remains green.

Ethernet transmit/receive activity light: This green LED lights when there is transmit or receive activity to or from the server.

Hardware Maintenance Manual: Type 8668

Page 19

Diagnostics

This section provides basic troubleshooting information to help you resolve some common problems that might occur with your server.

If you cannot locate and correct the problem using the information in this section, refer to “Diagnostic tools overview” for more information.

Diagnostic tools overview

The following tools are available to help you identify and resolve hardware-related problems:

v POST beep codes, error messages, and error logs

The power-on self-test (POST) generates beep codes and messages to indicate successful test completion or the detection of a problem. See “POST beep code descriptions” on page 13 for more information.

v Light Path Diagnostics

Your server has light-emitting diodes (LEDs) to help you identify problems with server components. These LEDs are part of the Light Path Diagnostics feature that is built into your server. By following the path of lights, you can quickly identify the type of system error.

v Diagnostic programs and error messages

The server diagnostic programs are stored in upgradable read-only memory (ROM) on the system board. These programs are the primary method of testing the major components of your server. See “Diagnostic programs and error messages” on page 14 for more information.

v Customized support page

You can create a customized support page that is specific to your hardware, complete with Frequently Asked Questions, Parts Information, Technical Hints and Tips, and Downloadable files. In addition, you can choose to receive electronic mail (e-mail) notifications whenever new information becomes available about your registered products.

After you register and profile your xSeries products, you can diagnose problems using the IBM Online Assistant and you can participate in the IBM discussion forum. For more detailed information about registering and creating a customized profile for your IBM products, visit the following addresses on the Web:

– http://www.ibm.com/pc/register – http://www.ibm.com/pc/support

Page 20

Server Support

Server working

properly?

Check all cables for loose connections and verify that all optional devices you installed are on the ServerProven list. You can view the ServerProven list at:

http://www.ibm.com/pc/compat

Problem

solved?

Use the troubleshooting information provided with your server to determine the cause of the problem and the action to take.

Problem

solved?

Ye s

After you register and profile, you will be able to:

• Diagnose problems using the IBM Online Assistant

• Participate in the IBM discussion forum

• Receive e-mail notifications of technical updates related to your profiled products

http://www.ibm.com/pc/register http://www.ibm.com/pc/support

You can view the HelpCenter phone numbers in the Support Phone List at:

http://www.ibm.com/pc/support

Post

Flash the latest levels of BIOS, service processor, diagnostics, and RAID code. You can download this code at:

http://www.ibm.com/pc/support

Ye s

Problem solved?

Phone an

IBM HelpCenter

When you turn on the server, it performs a series of tests to check the operation of server components and some of the options installed in the server. This series of tests is called the power-on self-test, or POST.

If POST finishes without detecting any problems, a single beep sounds, the first screen of your operating system or application program appears, and the System POST Complete (OK) light is illuminated on the operator information panel.

If POST detects a problem, more than one beep sounds and an error message appears on your screen. See “POST beep code descriptions” on page 13 and “System Error logs” on page 14 for more information.

Notes:

1. If you have a power-on password or administrator password set, you must type the password and press Enter, when prompted, before POST will continue.

2. A single problem might cause several error messages. When this occurs, work to correct the cause of the first error message. After you correct the cause of the first error message, the other error messages usually will not occur the next time you run the test.

12 Hardware Maintenance Manual: Type 8668

Page 21

POST beep code descriptions

Beep codes are sounded in a series of long and short beeps.

The possible types of beep codes that your server might emit include the following:

No beeps

If no beep occurs after your server completes POST (that is, after the system POST complete (OK) light on the operator information panel is illuminated), call for service.

Continuous beep

Your startup (boot) microprocessor has failed, or your system board or speaker subsystem might contain a failing component. If the system continues through POST with no errors, call for service. If no video appears, the startup processor has failed; replace the startup processor.

One short beep

One beep indicates that your server successfully completed POST. POST detected no configuration or functional errors. One beep also occurs after your server completes POST if you type an incorrect power-on password.

Two short beeps

POST encountered an error. The Configuration/Setup Utility program will display additional information; follow the instructions that appear on the screen. See “System Error logs” on page 14 for descriptions of the text messages that might appear.

Three short beeps

A system memory error has occurred. This combination occurs only if the video basic input/output system (BIOS) cannot display the error message. Replace the failing memory module.

Repeating short beeps

The system board might contain a failing component, your keyboard might be defective, or a key on the keyboard might be stuck. Ensure that:

v Nothing is resting on the keyboard and pressing a key. v No key is stuck. v The keyboard cable is connected correctly to the keyboard and to the

correct connector on the server.

Running the diagnostic tests can isolate the server component that failed, but you must have your system serviced. If the error message remains, call for service.

Note: If you just connected a new mouse or other pointing device, turn off

the server and disconnect that device. Wait at least 5 seconds; then, turn on the server. If the error message goes away, replace the device.

One long and one short beep

POST encountered an error on a video adapter. If you are using the integrated video controller, call for service. If you are using an optional video adapter, replace the failing video adapter.

One long and two short beeps

A video I/O adapter ROM is not readable, or the video subsystem is defective. If you hear this beep combination twice, both the system board and an optional video adapter have failed the test. This beep combination might also indicate that the system board contains a failing component.

Diagnostics 13

Page 22

One long and three short beeps

The system-board video subsystem has not detected a monitor connection to the server. Ensure that the monitor is connected to the server. If the problem persists, replace the monitor.

Two long and two short beeps

POST does not support the optional video adapter. This beep combination occurs when you install a video adapter that is incompatible with your server. Replace the optional video adapter with one that the server supports, or use the integrated video controller.

System Error logs

To view the contents of the error logs, start the Configuration/Setup Utility program; then, select Error Logs from the main menu.

The POST error log contains the three most recent error codes and messages that the system generated during POST. The System Event/Error Log contains all error messages issued during POST and all system status messages from the IBM remote supervisor adapter, if installed.

Small computer system interface messages (some models)

If you receive a SCSI error message while using the SCSISelect Utility. Use the following list to determine the possible cause of the error and what action to take.

Note: If your system does not have a hard disk drive, ignore any message that

indicates that the BIOS code is not installed.

v A failing SCSI device (adapter or drive) v An improper SCSI configuration v Duplicate SCSI IDs in the same SCSI chain v An improperly installed SCSI terminator v A defective SCSI terminator v An improperly installed cable v A defective cable

One or more of the following might be causing the problem.

Action:

Verify that: v The external SCSI devices are turned on. External SCSI devices must be turned

on before the server.

v The cables for all external SCSI devices are connected correctly. v The last device in each SCSI chain is terminated properly. v The SCSI devices are configured correctly.

If the above items are correct, run the diagnostic programs to obtain additional information about the failing device.

Diagnostic programs and error messages

The server diagnostic programs are stored in upgradable read-only memory (ROM) on the system board. These programs are the primary method of testing the major components of your server.

14 Hardware Maintenance Manual: Type 8668

Page 23

Diagnostic programs and error messages

Diagnostic error messages indicate that a problem exists; they are not intended to be used to identify a failing part. Troubleshooting and servicing of complex problems that are indicated by error messages should be performed by trained service personnel.

Sometimes the first error to occur causes additional errors. In this case, the server displays more than one error message. Always follow the suggested action instructions for the first error message that appears.

The following sections contain the error codes that might appear in the detailed test log and summary log when running the diagnostic programs.

The error code format is as follows:

fff-ttt-iii-date-cc-text message

where: fff is the three-digit function code that indicates the function being tested

when the error occurred. For example, function code 089 is for the microprocessor.

ttt is the three-digit failure code that indicates the exact test failure that was

encountered.

iii is the three-digit device ID. date is the date that the diagnostic test was run and the error recorded. cc is the check value that is used to verify the validity of the information. text message

is the diagnostic message that indicates the reason for the problem.

Text messages

The diagnostic text message format is as follows:

Function Name: Result (test specific string)

where:

Function Name

is the name of the function being tested when the error occurred. This corresponds to the function code (fff) given in the previous list.

Result can be one of the following:

Passed

Failed This result occurs when the diagnostic test discovers an error. User Aborted

This result occurs when the diagnostic test completes without any errors.

This result occurs when you stop the diagnostic test before it is complete.

Not Applicable

This result occurs when you specify a diagnostic test for a device that is not present.

Aborted

This result occurs when the test could not proceed because of the system configuration.

Diagnostics 15

Page 24

Diagnostic programs and error messages

Warning

This result occurs when a possible problem is reported during the diagnostic test, such as when a device that is to be tested is not installed.

Test Specific String

This is additional information that you can use to analyze the problem.

Starting the diagnostic programs

You can press F1 while running the diagnostic programs to obtain Help information. You also can press F1 from within a help screen to obtain online documentation from which you can select different categories. To exit Help and return to where you left off, press Esc.

To start the diagnostic programs:

1. Turn on the server and watch the screen.

Note: To run the diagnostic programs, you must start the server with the

highest level password that is set. That is, if an administrator password is set, you must enter the administrator password, not the power-on password, to run the diagnostic programs.

2. When the message F2 for Diagnostics appears, press F2.

3. Type the appropriate password; then, press Enter.

4. Select either Extended or Basic from the top of the screen.

5. When the Diagnostic Programs screen appears, select the test you want to run

from the list that appears; then, follow the instructions on the screen.

Notes:

a. If the server stops during testing and you cannot continue, restart the server

and try running the diagnostic programs again.

b. The keyboard and mouse (pointing device) tests assume that a keyboard

and mouse are attached to the server.

c. If you run the diagnostic programs with no mouse attached to your server,

you will not be able to navigate between test categories using the Next Cat and Prev Cat buttons. All other functions provided by mouse-selectable buttons are also available using the function keys.

d. You can test the USB keyboard by using the regular keyboard test. The

regular mouse test can test a USB mouse. Also, you can run the USB hub test only if there are no USB devices attached.

e. You can view server configuration information (such as system

configuration, memory contents, interrupt request (IRQ) use, direct memory access (DMA) use, device drivers, and so on) by selecting Hardware Info from the top of the screen.

When the tests have completed, you can view the Test Log by selecting Utility from the top of the screen.

If the tests do not detect a hardware problem but the problem persists during typical server operations, a software error might be the cause. If you suspect a software problem, refer to the information that comes with the software package.

Hardware Maintenance Manual: Type 8668

Page 25

Viewing the test log

The test log will not contain any information until after the diagnostic program has run.

Note: If you already are running the diagnostic programs, begin with step 3

To view the test log:

1. Turn on the server and watch the screen. If the server is on, shut down your operating system and restart the server.

2. When the message F2 for Diagnostics appears, press F2. If a power-on password or administrator password is set, the server prompts

you for it. Type the appropriate password; then, press Enter.

3. When the Diagnostic Programs screen appears, select Utility from the top of the screen.

4. Select View Test Log from the list that appears; then, follow the instructions on the screen.

The system maintains the test-log data while the server is powered on. When you turn off the power to the server, the test log is cleared.

Diagnostic programs and error messages

Diagnostics 17

Page 26

Recovering BIOS

Recovering BIOS code

If the BIOS code has become damaged, such as from a power failure during a flash update, you can recover the BIOS using the recovery boot block and a BIOS flash diskette.

Note: You can obtain a BIOS flash diskette from one of the following sources:

v Use the ServerGuide program to make a BIOS flash diskette. v Download a BIOS flash diskette from the World Wide Web. Go to

http://www.ibm.com/pc/support, select IBM Server Support, and make the selections for your server.

v Contact your IBM service representative.

The flash memory of your server contains a protected area that cannot be overwritten. The recovery boot block is a section of code in this protected area that enables the server to start up and to read a flash diskette. The flash utility recovers the system BIOS code from the BIOS recovery files on the diskette.

To recover the BIOS:

Note: Default to pins 1 and 2 and is highlighted.

1. Turn off the server and peripheral devices and disconnect all external cables and power cords; then, remove the cover.

2. Locate the boot block jumper block (J16) on the system board.

3. Move jumper to pins 2 and 3 to enable BIOS back-up page.

4. Insert the BIOS flash diskette into the diskette drive.

5. Restart the server.

6. The system begins the power-on self-test (POST). Select 1 - Update

POST/BIOS from the menu that contains various flash (update) options.

Hardware Maintenance Manual: Type 8668

System board switch block (SW1)

Flash boot block recovery jumper (J16)

Page 27

7. When you are asked if you would like to move the current POST/BIOS image

to the backup ROM location, type N. Attention: Typing Y will copy the corrupted BIOS into the secondary page.

8. When you are asked if you would like to save the current code to a diskette,

select N.

9. You will be asked to choose which language you wish to use. Select your

language (0-7) and press Enter to accept your choice. You will be prompted to remove the diskette and press Enter to restart the system. Remove the flash diskette from the diskette drive.

Attention: Do not press Enter to reboot the system at this time.

10. power-off the server.

11. Move jumper J16 back to pins 1 and 2 to return to normal startup mode.

12. Restart the server. The system should start up normally.

Identifying problems using status LEDs

If the System Error light in the operator information panel on the front of the server is on, one or more LEDs inside the server may be on. Use the Light Path Diagnostics feature to identify the type of error that occurred. See “Diagnostic tools overview” on page 11.

Recovering BIOS

You can use the Light Path Diagnostics feature built into your server to quickly identify the type of system error that occurred. Your server is designed so that any LEDs that are illuminated remain illuminated when the server shuts down as long as the ac power source is good and the power supplies can supply +5 V dc current to the server. This feature helps you isolate the problem if an error causes the server to shut down. See “Diagnostic tools overview” on page 11.

Power-Supply LEDs

The ac and dc power LEDs on the power supply provide status information about the power supply.

DC power LED (green)

AC power LED (green)

GOODACGOOD

DC power LED (green)

AC power LED (green)

Diagnostics 19

Page 28

Replacing the battery

IBM has designed this product with your safety in mind. The lithium battery must be handled correctly to avoid possible danger. If you replace the battery, you must adhere to the following instructions.

Note: In the U.S., call 1-800-IBM-4333 for information about battery disposal.

If you replace the original lithium battery with a heavy-metal battery or a battery with heavy-metal components, be aware of the following environmental consideration. Batteries and accumulators that contain heavy metals must not be disposed of with normal domestic waste. They will be taken back free of charge by the manufacturer, distributor, or representative, to be recycled or disposed of in a proper manner.

To order replacement batteries, call 1-800-772-2227 within the United States, and 1-800-465-7999 or 1-800-465-6666 within Canada. Outside the U.S. and Canada, call your IBM reseller or IBM marketing representative.

Note: After you replace the battery, you must reconfigure your server and reset

the system date and time.

Statement 2

CAUTION: When replacing the lithium battery, use only IBM Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.

Do not:

v Throw or immerse into water. v Heat to more than 100 C (212 F) v Repair or disassemble

Dispose of the battery as required by local ordinances or regulations.

To replace the battery:

1. Read, “Safety information” on page 129 and follow any special handling and installation instructions supplied with the replacement battery.

2. Turn off the server and peripheral devices and disconnect all external cables and power cords.

3. Remove the battery:

4. a. Use one finger to slightly slide the battery out from its socket. The spring

mechanism will push the battery out toward you as you slide it from the socket.

b. Use one finger to lift the battery clip over the battery.

Hardware Maintenance Manual: Type 8668

Page 29

Replacing the battery

c. Use your thumb and index finger to pull the battery from under the battery

clip.

d. Ensure that the battery clip is touching the base of the battery socket by

pressing gently on the clip.

Diagnostics 21

Page 30

Replacing the battery

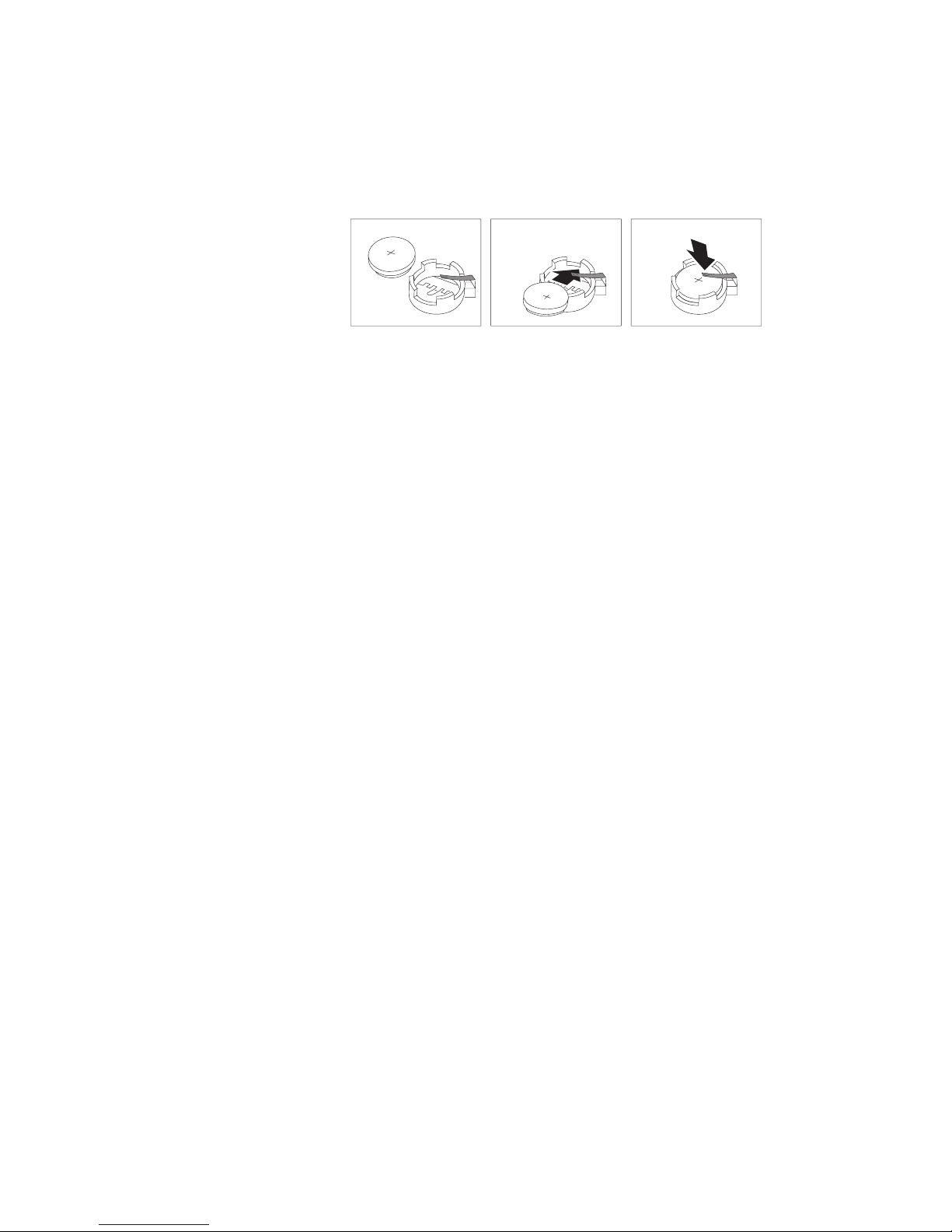

5. Insert the new battery:

6. Reinstall the server cover and connect the cables.

7. Turn on the server.

8. Start the Configuration/Setup Utility program and set configuration

a. Tilt the battery so that you can insert it into the socket, under the battery

clip.

b. As you slide it under the battery clip, press the battery down into the

socket.

parameters.

v Set the system date and time. v Set the power-on password. v Reconfigure your server.

Hardware Maintenance Manual: Type 8668

Page 31

Configuring your server

The following configuration programs are provided with your server:

v Configuration/Setup Utility

This program is part of the basic input/output system (BIOS) that comes with your server. You can use this program to configure serial port assignments, change interrupt request (IRQ) settings, change the drive startup sequence, set the date and time, and set passwords. See “Starting the Configuration/Setup Utility program” on page 24 for more information.

v SCSISelect Utility

With the built-in SCSISelect Utility program, you can configure the devices attached to the integrated SCSI controller. See “Starting the SCSISelect utility program” on page 30 for more information.

v PXE Boot Agent Utility

The Preboot eXecution Environment (PXE) Boot Agent Utility program is part of the BIOS code that comes with your server. You can use this program to change network startup (boot) protocols and startup (boot) order, to select operating system wake up support, and to set menu wait times. See “Operator information panel” on page 10 for more information.

v ServerGuide CDs

The ServerGuide CDs include software setup and installation tools specifically designed for IBM xSeries servers. You can use these CDs during the initial installation of your server to configure the server hardware and simplify your network operating system installation. The ServerGuide CDs also contain a collection of application programs, which you can install after your server is up and running. See“Using the ServerGuide CD” for more detailed information.

v ServeRAID programs

The ServeRAID programs come with the optional ServeRAID adapters and with server models that have a ServeRAID adapter preinstalled. If your server has a ServeRAID adapter installed, you must use the ServeRAID configuration program to define and configure your disk-array subsystem before you install your operating system. Refer to the ServeRAID documentation provided on the xSeries Documentation CD for more information.

Attention: Refer to the User’s Reference on the xSeries Documentation CD for detailed instructions for using the configuration programs and ServerGuide CDs.

Using the ServerGuide CD

If there is a newer version of ServerGuide available, you can purchase an update package.

The ServerGuide CDs include easy-to-use server software setup and installation tools, specifically designed for IBM xSeries servers. The ServerGuide xSeries Setup and Installation program detects the server model and hardware options installed and uses the information during setup to configure hardware. You can simplify Network operating system (NOS) installations because ServerGuide provides updated device drivers, and in some cases, installs them automatically.

Page 32

Using the Configuration/Setup Utility program

This section provides the instructions needed to start the Configuration/Setup Utility program and descriptions of the menu choices available.

Starting the Configuration/Setup Utility program

To start the Configuration/Setup Utility program:

1. Turn on the server and watch the monitor screen.

2. When the message Press F1 for Configuration/Setup appears, press F1.

Note: If you have set both levels of passwords (user and administrator), you

must type the administrator password to access the full Configuration/Setup menu.

3. Follow the instructions that appear on the screen.

Choices available from the Configuration/Setup main menu

From the Configuration/Setup Utility main menu, you can select settings that you want to change. The Configuration/Setup Utility main menu is similar to the following:

IBM Server Setup - © Copyright IBM Corporation 2001

Configuration/Setup Utility

System Summary

System Information

· Product Data

Devices and I/O Ports

Date and Time

System Security

Start Options

Advanced Setup

Error Logs

Save Settings Restore Settings Load Default Settings

Exit Setup

Notes:

1. You can press F1 to display Help information for a selected menu item.

2. The choices on some menus might differ slightly, depending on the BIOS

version in your server.

Descriptions of the choices available from the main menu are as follows:

v System Summary

Select this choice to display configuration information. This includes the type and speed of the microprocessors and the amount of memory installed.

Changes that you make to configuration settings appear on this summary screen. You cannot edit the fields.

This choice appears on both the full and limited Configuration/Setup Utility menus.

v System Information

Hardware Maintenance Manual: Type 8668

<F1> Help < > < > Move <Esc> Exit <Enter> Select

¯

Page 33

Using the Configuration/Setup Utility program

Select this choice to display information about your server. Changes that you make on other menus might appear on this summary screen. You cannot edit any fields. The System Information choice appears only on the full Configuration/Setup Utility main menu.

Configuring your server 25

Page 34

Using the Configuration/Setup Utility program

– System Card Data

Select this choice to view vital product data (VPD) for some server components.

v Product Data v Devices and I/O Ports

Select this choice to view or change the assignments for devices and input/output ports. This choice appears only on the full Configuration/Setup Utility main menu.

v Date and Time

Select this choice to set the system date and time when the server is started. This choice appears only on the full Configuration/Setup Utility main menu.

The system time is in a 24-hour format: hour:minute:second.

v System Security

Select this choice to set passwords or a system owner’s name. This choice appears only on the full Configuration/Setup Utility main menu.

You can implement two levels of password protection:

– Power-on Password

Select this choice to set or change a power-on password. See “Using passwords” on page 28 for more information.

– Remote Control Security Settings

Use this option to set the password for remote access to the server. You can set the number of failed logins before the server cuts off access.

v Start Options

Select this choice to view or change the start options. This choice appears only on the full Configuration/Setup Utility main menu. Start options take effect when you start your server.

You can select keyboard operating characteristics, such as the keyboard speed. You also can specify whether the keyboard number lock starts on or off. You also can enable the server to run without a diskette drive, monitor, or keyboard.

Start-Up Sequence Option

The server uses a startup sequence to determine the device from which the operating system loads. For example, you can define a startup sequence that checks for a startable diskette in the diskette drive, then checks the hard disk drive in bay 1, and then checks a network adapter. Wake on LAN

If you have the appropriate Wake on LAN software installed and enabled in the server, the server uses the alternative startup sequence instead of the primary startup sequence. The default for Wake on LAN is Disabled.

You can select the order in which the devices are started at the boot priority option. The default setting is PCI Slots, which allocates memory in the following order.

– Integrated Video Controller – PXE Boot Agent Utility – PCI Slot 1 – PCI Slot 2 – PCI Slot 3 – PCI Slot 4 – PCI Slot 5 – Integrated SCSI Controller

Hardware Maintenance Manual: Type 8668

Page 35

Using the Configuration/Setup Utility program

If you select the onboard SCSI setting, the server allocates memory in the following order:

v Integrated Video Controller v PXE Boot Agent Utility v Integrated SCSI Controller v PCI Slot 1 v PCI Slot 2 v PCI Slot 3 v PCI Slot 4 v PCI Slot 5 v Advanced Setup

Select this choice to change values for advanced hardware features, such as cache control, and PCI configuration. This choice appears only on the full Configuration/Setup Utility main menu.

A warning message appears above the choices on this menu to alert you that the system might malfunction if these options are configured incorrectly. Follow the instructions on the screen carefully.

– Core Chipset Control

Select this choice to modify settings that control features of the core chip set on the system board.

Attention: Do not make changes here unless directed to do so by an IBM authorized service representative.

– System Partition Visibility

Select this choice to choose whether the System Partition is visible or hidden.

– Memory Settings

Select this choice to manually disable or enable a bank of memory. If a memory error is detected during POST or memory configuration, the

server can automatically disable the failing memory bank and continue operating with reduced memory capacity. If this occurs, you must manually enable the memory bank after the problem is corrected. Select Memory Settings from the Advanced Setup menu, use the arrow keys to highlight the bank that you want to enable; then, use the arrow keys to select Enable.

– CPU Options

Select this choice to set the system cache type for all microprocessors.

– PCI BUS Control

Select this choice to view and identify system resources used by PCI devices. PCI devices automatically communicate with the server configuration information. This usually results in automatic configuration of a PCI device.

Attention: You must use the menu selections to save custom settings for the PCI Slot/Device Information choice. The save, restore and load default settings choices on the main menu of the Configuration/Setup Utility do not save the PCI Slot/Device Information settings.

After making changes, select:

- PCI MLT to save the changes and return to the Advanced Setup menu.

- PCI Interrupt Routing to ignore the changes, restore the previous settings,

and return to the Advanced Setup menu.

Select this choice to view system information, such as the machine type and model, the server serial number, and the revision level or issue date of the BIOS code stored in the flash electrically erasable programmable ROM

Configuring your server 27

Page 36

Using the Configuration/Setup Utility program

(EEPROM).When the server is powered on, a limited amount of memory is allocated for PCI devices during POST. If the memory resources are exhausted during POST, you will receive a 00180100 POST error message

Changing the boot priority can change the sequence of memory resource allocation, resulting in the 00180100 POST error message.

You can enable a virus-detection test that checks for changes in the master boot record at startup. You also can choose to run POST in the enhanced mode or the quick mode.

v Error Logs

Select this choice to view or clear error logs. – Select POST Error Log to view the three most recent error codes and

messages that the system generated during POST. You can also select Clear

error logs to clear the contents of this log.

Note: This error log contains messages from Advance System Management

Adapter System Error Log.

v Save Settings

Select this choice to save your customized settings.

v Restore Settings

Select this choice to delete your changes and restore the previous settings.

v Load Default Settings

Select this choice to cancel your changes and restore the factory settings.

v Exit Setup

If you have made any changes, the program will prompt you to save the changes or exit without saving the changes.

Using passwords

The System Security choice appears only on the full Configuration/Setup Utility menu. After you select this choice, you can implement the protection level for the power-on password.

Power-on password

After you set a power-on password, you can enable the unattended-start mode. This locks the keyboard and mouse, but allows the system to start the operating system. The keyboard and mouse remain locked until you enter the correct password.

You can use any combination of up to seven characters (A–Z, a–z, and 0–9) for your power-on password. Keep a record of your password in a secure place. If you forget the power-on password, you can regain access to the server through one of the following methods:

v Change the position of the password override switch as described in “Setting the

password override switch”.

v Remove the battery and then install the battery.

Setting the password override switch: The following illustration shows the location of the password override switch, switch 6 of switch block 1, on the system

Hardware Maintenance Manual: Type 8668

Page 37

Using the Configuration/Setup Utility program

board.

SW1

1 2 3 4 5 6 7 8

Password override switch (switch 6 of switch block 1)

To set the password override switch:

1. Review the information in “Safety information” on page 129.

2. Turn off the server and peripheral devices and disconnect all external cables

and power cords; then, remove the cover. See “Removing the cover (rack model)” on page 44.

3. Change the setting of the password override switch (switch 6 on switch block 1 on the system board by toggling to the opposite position) from OFF to ON or from ON to OFF.

4. Install the server cover and connect all external cables and power cords (see “Installing the cover (tower)” on page 79).

5. Turn on the server.

Note: You can now start the Configuration/Setup Utility program and set a

power-on password.

Remote-control security settings

Select this choice to set a remote-control password, which provides access to all choices on the Configuration/Setup Utility main menu. You can set, display the current system-management adapter, or setup lockout threshold to be changed by the user.

Using the SCSISelect utility program

SCSISelect is a built-in, menu-driven configuration utility program that you can use to:

v View the default SCSI IDs v Locate and correct configuration conflicts v Perform a low-level format on a SCSI hard disk

Configuring your server 29

Page 38

Using the SCSISelect utility program

The following sections provide the instructions needed to start the SCSISelect Utility and descriptions of the menu choices available.

Note: If your server has a RAID adapter installed, use the configuration method

supplied with the RAID adapter to view or change SCSI settings for devices attached to the adapter.

Starting the SCSISelect utility program

To start the SCSISelect utility program:

1. Turn on the server.

2. When the <<< Press <CTRL><A> for SCSISelect

appears, press Ctrl+A.

3. When prompted, select either channel A or channel B.

4. Use the arrow keys to select a choice from the menu.

v Press Esc to return to the previous menu. v Press the F5 key to switch between color and monochrome modes (if your

monitor permits).

5. Follow the instructions on the screen to change the settings of the selected items; then, press Enter.

Choices available from the SCSISelect menu

The following choices appear on the SCSISelect Utility menu:

v Configure/View Host Adapter Settings

Select this choice to view or change the SCSI controller settings. To reset the SCSI controller to its default values, press F6; then, follow the instructions that appear on the screen.

You can view or change the following controller settings:

– Host Adapter SCSI ID

Select this choice to view the SCSI controller ID, normally 7.

– SCSI Parity Checking

Select this choice to view the assigned value of Enabled.

– Host Adapter SCSI Termination

Select this choice to view the assigned value of Enabled.

– Boot Device Options

Select this choice to configure startable device parameters. Before you can make updates, you must know the ID of the device whose parameters you want to configure.

– SCSI Device Configuration

Select this choice to configure SCSI device parameters. Before you can make updates, you must know the ID of the device whose parameters you want to configure.

™

Utility! >>> prompt

Note: The Maximum Sync Transfer Rate represents the transfer rate for Ultra

– Advanced Configuration Options

Hardware Maintenance Manual: Type 8668

SCSI devices:

- The transfer rate for Ultra3 SCSI LVD devices is 160.0 MBps.

- The transfer rate for Ultra2 SCSI LVD devices is 80.0 MBps.

- The transfer rate for Fast SCSI devices is 20.0 MBps.

Page 39

Using the SCSISelect utility program

Select this choice to view or change the settings for advanced configuration options.

v SCSI Disk Utilities

Select this choice to view the SCSI IDs that are assigned to each device or to format a SCSI device.

To use the utility program, select a drive from the list. Read the screens carefully before making a selection.

Note: If you press Ctrl+A before the selected drives are ready, an Unexpected

SCSI Command Failure screen might appear. Restart the server and watch the SCSISelect messages as each drive spins up. After the drive that you want to view or format spins up, press Ctrl+A.

Using the PXE Boot Agent Utility program

The Preboot eXecution Environment (PXE) Boot Agent is a built-in, menu driven configuration utility program that you can use to:

v Change Network startup (boot) protocols v Change network startup (boot) order v Set menu wait times v Select operating system wake-up support

Note: Changing the network startup protocols and startup order, and selecting the

operating-system wake support are not supported on this product.

Starting the PXE Boot Agent Utility program

The following sections provide the instructions needed to start the PXE Boot Agent Utility and descriptions of the available menu choices.

To start the PXE Boot Agent Utility program, do the following:

1. Turn on the server.

2. When the <Initializing Intel (R) Boot Agent version X.X.XX PXE 2.0 Build XXX

(Wfm 2.0) prompt appears, immediately press Ctrl+S.

Note: By default, you will have two seconds after the prompt appears on the

screen to press Ctrl+S.

3. Use the arrow keys or press Enter to select a choice from the menu:

v Press Esc to return to the previous menu. v Press the F4 key to exit.

4. Follow the instructions on the screen to change the settings of the selected items; then, press Enter.

Choices available from the PXE Boot Agent Menu

The following choices appear on the PXE Boot Agent Utility Menu: v Network Boot Protocol

PXE is the default value for this menu item.

Note: Do not change this value. There are no other network boot protocols

v Boot Order

Select this choice to change the order in which boot devices are queried. – Try local drives first, then network (default)

supported.

Configuring your server 31

Page 40

Using the SCSISelect utility program

– Try network only – Try local drives only – Try network first, then local drives

Note: This option is not supported on this product. To change the boot order,

use the Configuration/Setup Utility program. See, “Using the Configuration/Setup Utility program” on page 24 for more information.

v Show setup prompt

Select this choice to either display the PXE setup prompt or disable it. The default setting is Disabled.

When this choice is enabled. Press Ctrl+S to enter the setup menu appears on the screen under the initializing prompt.

v Setup time wait menu

Select this choice to set the amount of time (in seconds) that the system will pause during initialization for a Ctrl+S input.

– 2 seconds (default) – 3 seconds – 5 seconds – 8 seconds

v Legacy OS Wake up support

Select this choice to allow or disallow a non-Windows operating system to use adapter remote wake-up capability.

v Disabled (default) v Enabled

Notes:

1. Use the default setting for Advanced Configuration and Power Interface (ACPI) aware operating systems, such as Windows 2000 and Windows NT.

2. If your server is running a non-ACPI operating system, you must set this selection to enable to use the Wake on LAN support.

3. When using a non-ACPI operating system, do not send a wake-up packet to the server while it is turned on. If a wake-up packet has been sent while the server is on and you are unable to turn the server off, see “Turning off the server” on page 9. information.

Hardware Maintenance Manual: Type 8668

Page 41

Installing options

This chapter provides instructions to add options to your server. Some option-removal instructions are provided, in case you need to remove one option to install another

Exploded view of the xSeries 232 server

The following illustration shows the locations of major components in your server.

Note: The illustrations in this document might differ slightly from your hardware.

The orange color on components and labels in your server identifies hot-swap components. You can install or remove hot-swap components while the system is running, provided that your system is configured to support this function. For complete information about installing or removing a hot-swap component, see the detailed procedures in this chapter. The blue color on components and labels indicates touch points where a component can be gripped, a latch moved, and so on.

Microprocessor

Terminator card

Adapter

retention

bracket

Adapter

support

bracket

Memory module

Power supply

Fan

Fan (blower)

The illustrations in the following sections show the components on the system board.

Page 42

System board option connectors

The following illustration identifies system-board connectors for user-installable options.

Note: The illustrations in this document might differ slightly from your hardware.

Microprocessor 1 (U68)

Microprocessor 2 (U69)

PCI Slot 1 32-bit (J44)

PCI Slot 2 64-bit (J41)

PCI Slot 3 64-bit (J42) Battery (BH1)

PCI Slot 4 64-bit (J29)

PCI Slot 5 64-bit (J30)

VRM 1 connector (J37)

DIMM 4 (J4)

DIMM 3 (J3)

DIMM 2 (J2)

DIMM 1 (J1)

VRM 2 connector (J38)

34 Hardware Maintenance Manual: Type 8668

Page 43

The following illustration identifies system-board connectors for internal cables.

Note: The illustrations in this document might differ slightly from your hardware.

Fan 3 (J55)

Main power connector (J19)

System management connector (J54)

Power backplane signal connector (J43)

Fan 1 (Unused) (J28)

Operator information panel (J39)

DASD (J9)

Fan 2 (J27)

IDE (J40)

Diskette (J7)

SCSI A connector (J24)

SCSI B connector (J25)

Installing options 35

Page 44

System board external port connectors

The following illustration identifies system-board connectors for external devices.

Note: The illustrations in this document might differ slightly from your hardware.

Serial ports (J20)

Mouse/keyboard ports (J8)

Ethernet port (J6)

USB ports (J5)

ISM ports (J50)

System Management port (J52)

Video port (J36)

36 Hardware Maintenance Manual: Type 8668

Page 45

System board switches and jumpers

The following illustration identifies the switches and jumpers on the system board.

Note: The illustrations in this document might differ slightly from your hardware.

System board Switch block (SW1)

SW1

1 2 3 4 5 6 7 8

Flash boot block recovery jumper (J16)

System board jumper blocks

Any jumper blocks on the system board that are not shown in the illustration are reserved. For typical operation of the system, no jumpers should be installed on any of the jumper blocks. See “Recovering BIOS code” on page 18 for information about the boot block jumper.

Installing options 37

Page 46

The switch block contains microswitches 1 through 8. As pictured in this illustration, switch 8 is at the top of the switch block, and switch 1 is at the bottom. The Off position for each switch is the side nearer the processor socket.

System board switch block

Table 1. Switches 1-8

Switch

number

1-4 Reserved.

5 Clock frequency selection. The default setting is Off.

6 Bypass power-on password. The default setting is Off.

7 Reserved. The default setting is Off. 8 Power-on override. The default setting is Off (disabled).

Switch description

When On, the host bus speed is 100 MHz. When Off, the host bus speed is 133 MHz. The switch should always be set to Off to optimize the system performance. Setting switch 5 to On greatly reduces system performance.

When toggled to the opposite position, POST will ignore the power-on password setting, if one is set.

When On, overrides the power-on switch and forces power-on mode. The system will always start without the use of the power-on switch. Note: When power-on switch is set to the On position you can not power down from the front panel.

System Board LED Locations

The following illustration identifies LEDs on the system board. You might need to refer to this figure when solving problems with the server.

Note: The illustrations in this document might differ slightly from your hardware.

Note: The power-on LED is lit when system power is present in the server.

38 Hardware Maintenance Manual: Type 8668

Page 47

VRM 1 error LED (CR19)

Microprocessor 1 error LED (CR13)

Fan sink 1 LED

(CR78)

Microprocessor 2 error LED (CR20)

Fan sink 2 LED

(CR79)

VRM 2 error LED (CR18)

DIMM 4 error LED (CR15)

DIMM 3 error LED (CR14)

DIMM 2 error LED (CR17)

DIMM 1 error LED (CR16)

Light path diagnostics panel

Remind button

Integrated System Management Processor LED

The xSeries 232 server has a Integrated System Management Processor on the system board. This green LED flashes, indicating that the system temperature, fan speeds, voltage ranges, power supplies, and power backplane are being monitored. If an error occurs in any of these areas, the Integrated System Management Processor turns on the respective error LED on the Light Path Diagnostics panel. If the ISM LED remains on or off, an error has occurred.

Light Path Diagnostic Panel

The Light Path Diagnostics LEDs are described in the following table. For more information, refer to “Diagnostic programs and error messages” on page 14.

MEM

CPU PCI A PCI B PCI C

VRM

DASD

PS1 PS2 PS3

NON

OVER

NMI

TEMP

FAN

REMIND

Integrated system management processor LED

Installing options 39

Page 48

Table 2. Diagnostics panel LEDs

Diagnostic panel LED

PS1 Power supply 1 failure or removed. PS2 Power supply 2 failure or removed (only active with more than one power

PS3 Power supply 3 failure or removed (only active with third power supplies

NON-RED Power supply unit are no longer redundant. Power supply configuration

OVERSPEC The system load has exceeded the power capabilities of the 385-watt power

NMI Non-maskable interrupt occurred. TEMP System temperature exceeded maximum limit Other LEDs will be on to

FAN A fan failed or is operating slowly, or removed. This LED is turned on

MEM A Memory failure occured. This LED is turned on by the hardware when

CPU A CPU failure occured. This LED is turned on by the hardware when

PCI A Error occurred on PCI channel A or system board. It will be turned on by

PCI B Error occurred on PCI channel B or system board. It will be turned on by

PCI C Error occurred on PCI channel C or system board. It will be turned on by

VRM A VRM failure occured. This LED is turned on by the hardware when

DASD Hot-swap SCSI planar board or HD failure, or removed on either standard

Description

supply in the optional hot-swap power backplane).

in the optional hot-swap power backplane).

dependent. See table 6A for details.

supply unit. See table 6A for details.

identify the area of over temperature (such as CPUx, CPU, DASD LEDs)

when any of the following LightPath LED’s mounted directly on the fan assemblies is turned on by the Integrated System Management Processor:

1. Fan 1 Failure LED or removed 2. Fan 2 Failure LED or removed 3. CPU1 Fan-sink Failure LED 4. CPU2 Fan-sink Failure LED 5. Fan 3 Failure LED (Not used on Sapphire system)

any of the following Lightpath LED’s located near the memory (DIMM) is turned on by the INTEGRATED SYSTEM MANAGEMENT PROCESSOR.

1. CR16 Memory DIMM #1 failure LED 2. CR17 Memory DIMM #2 failure LED 3. CR14 Memory DIMM #3 failure LED 4. CR15 Memory DIMM #4 failure LED

either of the two LightPath LED’s located near the appropriate CPU socket is turned on by the INTEGRATED SYSTEM MANAGEMENT PROCESSOR: 1. CPU #1 failure LED 2. CPU #2 failure LED 3. CPUx Thermal_trip active or CPU over temperature (TEMP/CPUx/System error LEDs will be on also in case 3.)

the INTEGRATED SYSTEM MANAGEMENT PROCESSOR based on the information provided by SMI_BIOS when it detects a low level pulse on PCI_SERR_N or PCI_PERR_N.

either of the two LightPath LED’s located near the appropriate VRM is turned on by the INTEGRATED SYSTEM MANAGEMENT PROCESSOR.

or optional expansion hot-swap bay DASD backplane over temperature (in this case TEMP/System error LEDs will be on also.

40 Hardware Maintenance Manual: Type 8668

Page 49

Remind button

You can use the Remind button to place the front panel system-error light into the remind mode. By pressing the button, you acknowledge the failure but indicate that you will not take immediate action. If a new failure occurs, the system-error light will turn on solid again.

In the Remind mode the system-error light blinks every 2 seconds. The system-error light remains in Remind mode until one of the following situations occurs:

v All known problems are resolved v The system is restarted v A new problem occurs

You can use the Remind button to delay server maintenance until a later time. Also, resetting the system-error light enables the LED to react to another error. If the LED is still blinking from the first error, it will mask additional errors.

Before you begin

Before you begin to install options in your server, read the following information.

v Become familiar with the safety and handling guidelines specified under

v You do not need to turn off the server to install or replace hot-swap power

v The orange color on components and labels in your server indicates hot-swap

v The blue color on components and labels identifies touch points where a

v Make sure that you have an adequate number of properly grounded electrical

v Back up all important data before you make changes to disk drives. v Have a small, flat-blade screwdriver available. v For a list of supported options for your server, refer to

“Handling static-sensitive devices” on page 42, and read the safety statements on “Safety information” on page 129. These guidelines will help you work safely

while working with your server or options.

supplies, or hot-swap drives.

components. You can install or remove hot-swap components while the system is running, provided that your system is configured to support this function. For complete details about installing or removing a hot-swap component, see the information provided in this chapter.

component can be gripped, a latch moved, and so on.

outlets for your server, monitor, and any other options that you intend to install.

http://www.ibm.com/pc/us/compat on the World Wide Web.

System reliability considerations

To help ensure proper cooling and system reliability, make sure:

v Each of the drive bays has either a drive or a filler panel installed. v Each of the power supply bays has either a power supply or a filler panel

installed.

v The cover is in place during typical operations, or is removed for no longer than

30 minutes while the server is operating.

Note: The front door (tower model) can be removed permanently without

affecting system reliability.

Installing options 41

Page 50

v There is space around the server to enable the server cooling system to work

properly. – On a tower model, leave approximately 127 mm (5 inches) of space around

the front and rear of the server.

– On a rack model, refer to the documentation that comes with the rack.

v A removed hot-swap drive is replaced within two minutes of removal. v Cables for optional adapters are routed according to the instructions provided

with the adapters.

v A failed fan must be replaced immediately.

Working inside a server with power on

Your server is designed to operate safely while turned on with the cover removed, such as when you set the password-override switch. Follow these guidelines when you work inside a server that is turned on:

v Avoid loose-fitting clothing on your forearms. Button long-sleeved shirts before

working inside the server; do not wear cuff links while you are working inside the server.

v Do not allow your necktie or scarf to hang inside the server. v Remove jewelry, such as bracelets, rings, necklaces, and loose-fitting wrist

watches.

v Remove items from your shirt pocket (such as pens or pencils) that could fall

into the server as you lean over it.

v Take care to avoid dropping any metallic objects, such as paper clips, hair pins,

or screws, into the server.

Handling static-sensitive devices

Attention: Static electricity can damage electronic devices and your system. To avoid damage, keep static-sensitive devices in their static-protective packages until you are ready to install them.

To reduce the possibility of electrostatic discharge, observe the following precautions:

v Limit your movement. Movement can cause static electricity to build up around

you.

v Handle the device carefully, holding it by its edges or its frame. v Do not touch solder joints, pins, or exposed printed circuitry. v Do not leave the device where others can handle and possibly damage the

device.

v While the device is still in its anti-static package, touch it to an unpainted metal

part of the system unit for at least two seconds. (This drains static electricity from the package and from your body.)

v Remove the device from its package and install it directly into your system unit

without setting it down. If it is necessary to set the device down, place it in its static-protective package. (If your device is an adapter, place it component side up.) Do not place the device on your system unit cover or on a metal table.

v Take additional care when handling devices during cold weather; heating

reduces indoor humidity and increases static electricity.

42 Hardware Maintenance Manual: Type 8668

Page 51

Removing the cover, door, and bezel

The following sections describe how to remove the cover, the door (for tower models), and the bezel.

Removing the left-side cover (tower model)

Notes:

1. To remove or install a hot-swap hard disk drive or hot-swap power supply, it is not necessary to remove the cover.

2. The illustrations in this document might differ slightly from your hardware.

Left-side cover

Cover release lever

To remove the left-side cover of the tower model:

1. Review the information in “Before you begin” on page 41.

2. If you are planning to install or remove any part other than a hot-swap hard

disk drive or hot-swap power supply, turn off the server and all attached devices and disconnect all external cables and power cords.

3. Slide the cover-release lever on the front of the server to release the cover; then, slide the cover toward the rear of the server approximately 25 mm (1 inch). Move the top edge of the cover out from the server; then, lift the cover off the server. Set the cover aside.

Attention: For proper cooling and airflow, replace the cover before turning on the server. Operating the server for extended periods of time (over 30 minutes) with the cover removed might damage server components.

Installing options 43

Page 52

Removing the cover (rack model)

Notes:

1. To remove or install a hot-swap hard disk drive or hot-swap power supply, it is not necessary to remove the cover.

2. The illustrations in this document might differ slightly from your hardware.

Top cover

Right-side latch

Cover release lever

Left-side latch

To remove the server top cover:

1. Review the information in “Before you begin” on page 41.

2. If you are planning to install or remove any part other than a hot-swap hard

disk drive or hot-swap power supply, turn off the server and all attached devices and disconnect all external cables and power cords.

Statement 1:

Hardware Maintenance Manual: Type 8668

Page 53

Removing the cover (rack model)

DANGER

Electrical current from power, telephone, and communication cables is hazardous. To avoid a shock hazard:

v Do not connect or disconnect any cables or perform installation,

maintenance, or reconfiguration of this product during an electrical storm.

v Connect all power cords to a properly wired and grounded electrical

outlet.

v Connect to properly wired outlets any equipment that will be attached

to this product.

v When possible, use one hand only to connect or disconnect signal

cables.

v Never turn on any equipment when there is evidence of fire, water, or

structural damage.

v Disconnect the attached power cords, telecommunications systems,

networks, and modems before you open the device covers, unless instructed otherwise in the installation and configuration procedures.

v Connect and disconnect cables as described in the following table when

installing, moving, or opening covers on this product or attached devices.

To connect:

a. Turn everything OFF. b. First, attach all cables to devices. c. Attach signal cables to connectors. d. Attach power cords to outlet. e. Turn device ON.

v Statement 5

CAUTION:

The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

To disconnect:

a. Turn everything OFF. b. First, remove power cords from outlet. c. Remove signal cables from connectors. d. Remove all cables from devices.

3. Release the left and right side latches and pull the server out of the rack enclosure until both slide rails lock.

Installing options 45

Page 54

Removing the cover (rack model)

Note: When the server is in the locked position, you can reach the cables on

the back of the server.

4. Move the cover-release lever down while sliding the top cover toward the rear of the server approximately 25 mm (1 inch). Lift the cover off the server and set the cover aside.

This chapter provides instructions to add options to your server. Some option-removal instructions are provided, in case you need to remove one option to install another.

Hardware Maintenance Manual: Type 8668

Page 55

Removing the server door (tower model)

Note: The illustrations in this document might differ slightly from your hardware.

Bezel-release lever

To remove the server door:

1. Unlock and open the server door.

2. Locate the flange on the top edge of the door.

3. Press down on the flange while pressing out on the door; then, lift the server

door up and off the hinge. Set the door aside in a safe place.

Door

Flange

Installing options 47

Page 56

Removing the server door (tower model)

Removing the Bezel (rack or tower)

Note: The illustrations in this document might differ slightly from your hardware.

Bezel-release lever

To remove the bezel:

1. Move the blue bezel-release lever following the curve of the lever opening.

2. Lift the bezel tabs out of the slots and pull the bezel away from the server

front. Store the bezel in a safe place.

Working with Adapters

You can install up to five peripheral component interconnect (PCI) adapters in the expansion connectors, called slots, on the system board.

Your server comes with an integrated video controller, which is a component on the system board. When you install a video adapter, the server BIOS code automatically disables the integrated video controller.

The following illustration shows the location of the PCI expansion slots on the system board.

Bezel

Hardware Maintenance Manual: Type 8668

Page 57

Removing the server door (tower model)

Note: The illustrations in this document might differ slightly from your hardware.

PCI Slot 1 32-bit 33 MHz (J44)

PCI Slot 2 64-bit 33 MHz (J41)

PCI Slot 3 64-bit 33 MHZ (J42)

PCI Slot 4 64-bit 66 MHz (J29)

PCI Slot 5 64-bit 66 MHz (J30)

Adapter considerations

Before you install adapters, review the following: v Locate the documentation that comes with the adapter and follow those

instructions in addition to the instructions given in this chapter. If you need to change the switch or jumper settings on your adapter, follow the instructions that come with the adapter.

v You can install full-length adapters in all expansion slots. v You can install a 32-bit adapter or device in any of the PCI slots. v Your server supports 5.0 V and universal PCI adapters in PCI slots 1, 2, and 3; it

supports 3.3 V and universal adapters in PCI slots 4 and 5.

Note: Some full-length adapters with attached daughterboards might interfere

with SCSI channel B if installed in slot 1. Install these cards in slots 2, 3, 4, or 5.

v You might require additional power supplies if adapters are added that have

electrical current requirements that exceed the installed power-supply capabilities.

v Your server uses a rotational interrupt technique to configure PCI adapters.

Therefore, you can install a variety of PCI adapters that currently do not support sharing of PCI interrupts.

v The optional IBM Remote Supervisor Adapter must be installed in PCI slot 1

only. The ribbon cable that ships with the adapter is required to connect the adapter to the system board. The external power adapter that ships with the adapter is not required with this server.

v PCI slot 1 is on PCI bus A, PCI slots 2 and 3 are on PCI bus B, and PCI slots 4

and 5 are on PCI bus C.

Note: PCI bus A is often referred to as bus 0; PCI bus B is often referred to as

bus 1; and PCI bus C is often referred to as bus 2.

Installing options 49

Page 58

Removing the server door (tower model)

v The system scans PCI slot 1, the system board Ethernet, PCI slots 2-5, and then

the system board SCSI, channels A and the system board SCSI channel B, if you have not changed the boot precedence from the default.

You can use the Configuration/Setup Utility program to change the boot precedence for your server. Select Start Options from the Configuration/Setup Utility program main menu.

Installing an adapter

Note: The illustrations in this document might differ slightly from your hardware.

Adapterretention bracket

Expansionslot cover

Adapter

Adapter support bracket retaining clip

Adaptersupport bracket

To install an adapter:

1. Review the information in “Before you begin” on page 41, in “Important safety information” on page v, and “Handling static-sensitive devices” on page 42.

2. Turn off the server and peripheral devices and disconnect all external cables and power cords; then, remove the cover. See “Removing the left-side cover (tower model)” on page 43 for details.

3. Determine which expansion slot you will use for the adapter.

Note: Check the instructions that come with the adapter for any requirements

or restrictions.

4. Remove the expansion-slot cover: a. Press the arrow on the adapter retention bracket release tab and remove

the bracket.

b. Slide the expansion-slot cover out of the server. Store it in a safe place for

future use.

Attention: Expansion-slot covers must be installed in all vacant slots. This maintains the electronic emissions characteristics of the system and ensures proper cooling of system components.

5. Refer to the documentation that comes with your adapter for any cabling instructions. It might be easier for you to route any cables before you install the adapter.

6. Remove the adapter from the static-protective package.

Hardware Maintenance Manual: Type 8668

Page 59

Removing the server door (tower model)

Attention: Avoid touching the components and gold-edge connectors on the adapter.

7. Place the adapter, component-side up, on a flat, static-protective surface.

8. Set any jumpers or switches as described by the adapter manufacturer.

9. Install the adapter: a. If necessary, remove the adapter support bracket retaining clip. b. Carefully grasp the adapter by its top edge or upper corners, and align it

with the expansion slot on the system board.

c. Press the adapter firmly into the expansion slot.

Attention: When you install an adapter in the server, be sure that it is completely and correctly seated in the system-board connector before you apply power. Incomplete insertion might cause damage to the system board or the adapter.

d. Replace the retaining clip on the adapter support bracket, if you removed

it.

e. Align the bottom tabs of the adapter retention bracket with the holes at the

top of the expansion slots, and press the adapter retention bracket toward the back of the server until it clicks into the locked position.

10. Connect any needed cables to the adapter.

Attention: Route cables so that the flow of air from the fans is not blocked. In addition, route any cables plugged into the PCI adapter under adjacent adapters so they are not pinched between the top of the adapter and the top cover.

The following illustration shows the rerouting of the SCSI cable if you install a ServeRAID adapter (remove the cable from SCSI connector A (J24) on the system board and connect it to the ServeRAID adapter).

Note: The illustrations in this document might differ slightly from your

hardware.

SCSI connector A

SCSI adapter

New connector location

SCSI cable

11. If you have other options to install or remove, do so now; otherwise, go to

“Installing the cover” on page 79.

Installing options 51

Page 60

Installing internal drives

Different types of drives enable your system to read multiple types of media and store more data. Several types of drives are available, such as:

v Diskette (already installed) v Hard disk v CD-ROM (already installed) v Tape, including DLT

Internal drive bays

Internal drives are installed in bays. The bays of the xSeries 232 are in the front of the server, as shown in the following illustrations.

Note: The illustrations in this document might differ slightly from your hardware.

Tower model

Non-hot-swap

bay A

bay B

bay C

Non-hot-swap bay D

SCSI ID 5 Hard disk activity light

Hard disk status light

Hot-swap bays

SCSI ID 4

SCSI ID 3

SCSI ID 2

SCSI ID 1

SCSI ID 0

Note: The SCSI IDs for the slim-high and hot-swap drives are on a label on the

bezel, immediately adjacent to the hot-swap drive bays.

Rack model

Hardware Maintenance Manual: Type 8668

Page 61

Installing internal drives

SCSI ID 0

SCSI ID 1

SCSI ID 3

SCSI ID 2

Hot-swap bays

SCSI ID 4

SCSI ID 5

Non-hot-swap bay A

Non-hot-swap bay B

Non-hot-swap bay C

Non-hot-swap bay D

Hard disk

activity light Hard disk status light

Hot-swap drives

Your server contains hardware that enables you to continue to operate your system while a hard disk drive is removed or installed. These drives are known as hot-swap drives.

Each hot-swap drive that you plan to install must have a hot-swap-drive tray attached. Hot-swap-drive trays come with the hot-swap drives.

v Your server supports six slim (1-inch) line, SCSI LVD, 3.5-inch hot-swap hard

disk drives in the hot-swap bays.

v The hot-swap bays connect to a SCSI backplane. This backplane is the printed

circuit board behind the bay.

v The backplane controls the SCSI IDs for the hot swap drives.

Non-hot-swap drives

Diskette drives, tape drives, and CD-ROM drives are non-hot-swap drives. To remove or install a non-hot swap drive, you must turn off the server first. Non-hot-swap drives are installed in bays A, B, C, and D only.

v Your server comes with a preinstalled 3.5-inch, 1.44 MB diskette drive in bay D

and a preinstalled IDE CD-ROM drive in bay C.

v The xSeries 232 server supports only one diskette drive. v The diskette drive uses 1 MB and 2 MB diskettes. For optimum use, format

1 MB diskettes to 720 KB, and format 2 MB diskettes to 1.44 MB.

v Bays A and B come without a device installed. These bays are for 5.25-inch,

half-high, removable-media drives, such as tape backup drives. You can combine bays A and B into a single full-high bay.

v If you are installing a SCSI device with a 50-pin connector in one of the empty

non-hot-swap bays (bays A–B), you need a 68-pin to 50-pin converter. To order the converter, contact your IBM reseller or IBM marketing representative.

Note: The server electromagnetic interference (EMI) integrity and cooling are both

protected by having bays A and B covered or occupied. When you install a drive, save the filler panel from the bay, in case you later remove the drive and do not replace it with another.

Installing options 53

Page 62

Installing internal drives

Preinstallation steps (all bays)

Before you install drives in your server, verify that you have all the cables and any other equipment specified in the documentation that comes with the internal drive. You might also need to perform certain preinstallation activities. Some of the steps are required only during the initial installation of an option.

1. Read “Important safety information” on page v, “Handling static-sensitive devices” on page 42, and the documentation that comes with your drive.

2. Choose the bay in which you want to install the drive.

3. Check the instructions that come with the drive to see if you need to set any

switches or jumpers on the drive.

4. To install the drive, go to “Installing a hot-swap drive” on page 55 or to “Installing a non-hot-swap drive” on page 57, as appropriate.

Hardware Maintenance Manual: Type 8668

Page 63

Installing hot-swap drives

Installing a hot-swap drive

Note: The illustrations in this document might differ slightly from your hardware.

Filler panel

Hard disk drive

Drive tray

Drive tray handle (in open position)

To install a drive in a hot-swap drive bay:

Attention:

v To maintain proper system cooling, do not operate the server for more than two

minutes without either a drive or a filler panel installed for each bay.

v When you handle static-sensitive devices, take precautions to avoid damage

from static electricity. For details on handling these devices, review “Handling static-sensitive devices” on page 42.

1. Remove the filler panel from one of the empty hot-swap bays by inserting your finger into the depression at the left side of the filler panel and pulling it away from the server.

2. Install the hard disk drive in the hot-swap bay: a. Ensure the tray handle is open (that is, perpendicular to the drive). b. Align the rails on the drive assembly with the guide rails in the drive bay. c. Gently push the drive assembly into the bay until the drive connects to the

backplane.

d. Push the tray handle toward the closed position until it locks the drive in

place.

3. Check the hard disk drive status indicators to verify that the hard disk drives are operating properly (see “Server controls and indicators” on page 6 for the location of the status indicators).

v If the amber light is on continuously, the drive has failed. v If you have a RAID adapter installed:

– When the amber light flashes slowly (one flash per second), the drive is

being rebuilt.

– When the amber light flashes rapidly (three flashes per second), the

controller is identifying the drive.

Note: If your server has a RAID adapter installed, refer to the information

provided with the RAID adapter for information about adding a drive.

Installing options 55

Page 64

Installing hot-swap drives

Replacing a drive in a hot-swap bay

You do not have to turn off the server to remove or install the hot-swap drives.

Attention:

1. Before you remove a hot-swap hard disk drive that is not defective, back up all important data.

2. To avoid damage to a hard disk drive, do not remove the drive from the hot-swap bay until it has had time to spin down (approximately 30 seconds). Handle the drive carefully.

3. Before you replace a hot-swap drive, make sure it is defective. If you partially or completely remove a good drive instead of a defective one, your server might lose data.

This situation is especially relevant if your server has a RAID adapter installed and you assigned RAID level 1 or 5 to the logical drives in your disk array. The RAID adapter can rebuild the data that you need, provided that certain conditions are met. Refer to the information provided with the RAID adapter for further details.

Refer to the following illustration of the tower model while you perform the steps in this procedure.

Note: The illustrations in this document might differ slightly from your hardware.

Filler panel

Hard disk drive

Drive tray

Drive tray handle (in open position)

To replace a drive in a hot-swap bay:

1. Before you begin, do the following:

v Read the documentation that comes with your drive. v If your server has a RAID adapter installed, review the information provided

with the RAID adapter for information about replacing a drive.

2. If your server is a tower model, unlock and open the server door. Attention: To maintain proper system cooling, do not operate the server for

more than two minutes without either a drive or a filler panel installed for each bay.

3. Locate the defective drive (look for an amber Hard Disk Status light on the front of the drive).

4. Remove the defective hard disk drive. Move the handle on the drive to the open position (perpendicular to the drive), and pull the hot-swap drive assembly from the bay.

5. Install the hard disk drive in the hot-swap bay: a. Ensure the tray handle is open (that is, perpendicular to the drive).

Hardware Maintenance Manual: Type 8668

Page 65

Installing hot-swap drives

b. Align the rails on the drive assembly with the guide rails in the drive bay. c. Gently push the drive assembly into the bay until the drive connects to the

backplane.

d. Push the tray handle toward the closed position until it locks the drive in

place.

6. Check the hard disk drive status indicators to verify that the hard disk drive is installed properly (see “Server controls and indicators” on page 6 for the location of the status indicators).

v When the amber light is on continuously, the drive has failed. v If you have a RAID adapter installed:

– When the amber light flashes slowly (one flash per second), the drive is

being rebuilt.

– When the amber light flashes rapidly (three flashes per second), the

controller is identifying the drive.

7. If your server is a tower model, close and lock the server door.

Installing a non-hot-swap drive

Notes:

1. The server electromagnetic interference (EMI) integrity and cooling are both protected by having the non-hot-swap bays covered or occupied. When you install a drive, save the filler panel from the bay, in case you later remove the drive and do not replace it with another.

2. The illustrations in this document might differ slightly from your hardware.

Blue slide rails

Filler panel

Non-hot-swap bay

Non-hot-swap drive

Slide rails

To install a non-hot-swap drive (5.25-inch, removable media) in one of the non-hot-swap bays:

1. Read the information in “Preinstallation steps (all bays)” on page 54.

2. Turn off the server and peripheral devices and then remove the cover and the

bezel (see “Removing the left-side cover (tower model)” on page 43 for details).

3. Remove the filler panel from the bay opening by pulling the filler panel away from the server. You do not need the filler panel when you have a drive installed in the bay.

Installing options 57

Page 66

Installing non-hot-swap drives

4. If the drive that you are installing is a laser product, observe the following safety precaution:

Statement 3

CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following:

v Do not remove the covers. Removing the covers of the laser product could result

in exposure to hazardous laser radiation. There are no serviceable parts inside the device.

v Use of controls or adjustments or performance of procedures other than those

specified herein might result in hazardous radiation exposure.

DANGER Some laser products contain an embedded Class 3A or Class 3B laser diode. Note the following. Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

5. Touch the static-protective package containing the drive to any unpainted metal surface on the server; then, remove the drive from the package and place it on a static-protective surface.

6. Set any jumpers or switches on the drive according to the documentation that comes with the drive.

7. Install rails on the drive. v If you are installing a standard-size drive:

a. Pull the blue slide rails off the back of the filler panel. b. Clip the rails onto the sides of the drive.

v If you are installing a digital linear tape (DLT) backup drive, use the metal

slide rails and screws that come in the box that contains the server documentation.

8. Align the rails on the drive with the guide rails in the drive bay.

9. Push the drive into the bay until it clicks into place.

10. If the drive is an IDE device:

v Make sure the drive is not a hard disk drive. v Plug a connector on the IDE cable into the back of the drive. v Make sure the other end of the IDE cable is plugged into the IDE connector

on the system board.

v Go to step 12 on page 59.

Hardware Maintenance Manual: Type 8668

Page 67

Installing non-hot-swap drives

11. If the drive is a SCSI device: a. Make sure the drive is not a hard disk drive. b. Connect one of the connectors on the SCSI cable to the back of the drive. c. Connect the other end of the SCSI cable to the SCSI channel B connector

on the system board, or to an optional SCSI adapter, as appropriate. See “SCSI connector pin-number assignments” on page 93 for the location of the SCSI connectors. See also “Ultra160 SCSI ports” on page 91 for information about SCSI connections and devices.

12. Connect a power cable to the back of the drive. Power cables for non-hot-swap drives come installed in your server. The connectors are keyed and can be inserted only one way.

13. If you are installing another non-hot-swap drive, do so at this time. Otherwise, continue with the next step.

14. If you have other options to install or remove, do so now; otherwise, replace the cover (see “Installing the cover” on page 79 for details).

Installing an xSeries 3-Pack Ultra160 Hot-Swap Expansion Kit

You can install an xSeries 3-Pack Ultra160 Hot-Swap Expansion Kit in your server to support three additional hot-swap hard disk drives.

Note: The illustrations in this document might differ slightly from your hardware.

Filler panels

Hot-swap expansion option

To install an xSeries 3-Pack Ultra160 Hot-Swap Expansion Kit:

1. Review the information in “Before you begin” on page 41, in “Important safety

information” on page v, and “Handling static-sensitive devices” on page 42.

2. Turn off the server and peripheral devices and disconnect all external cables

and power cords; then, remove the cover and bezel. (See “Removing the left-side cover (tower model)” on page 43.)

3. Release the sidelights to remove the filler panels from the bays above the

CD-ROM drive.

4. Refer to the documentation provided with the option to assemble the hot-swap

expansion option.

5. Slide the hot-swap expansion option into the bays, and attach it to the server

with the screws provided in the kit.

Installing options 59

Page 68

Installing a hot-swap expansion kit

6. Refer to the documentation provided with the option to complete the installation of the option. (See “SCSI connector pin-number assignments” on page 93 for locations of the cable connectors on the system board.)

7. If you have other options to install or remove, do so now; otherwise, go to “Installing the bezel and front door” on page 80.

Installing memory modules

Adding memory to your server is an easy way to make programs run faster. You can increase the amount of memory in your server by installing options called memory-module kits. Each kit contains one industry-standard, dual inline memory module (DIMM). Your server supports a two-way interleaved memory configuration. You must install matched pairs of memory kits. The set in slots 1 and 4 do not need to be the same size as the set in slots 2 and 3.

Notes:

1. Your server comes with two dual inline memory modules (DIMM) installed in DIMM connectors 1 and 4. Install additional DIMMs as instructed in the documentation that comes with your option.

2. Your xSeries 232 server supports 128 MB, 256 MB, 512 MB, and 1 GB DIMMs. You must install the DIMMs in pairs of the same size. Place pair 1 in slots 1 and 4 and pair 2 in slots 2 and 3. Refer to the ServerProven Wide Web at http://www.ibm.com/pc/compat for information about memory modules for use with your server.

3. Installing or removing DIMMs changes the configuration information in the server. Therefore, after installing or removing a DIMM, you must save the new configuration information in the Configuration/Setup Utility program. When you restart the server, the system displays a message indicating that the memory configuration has changed. Start the Configuration/Setup Utility program and select Save Settings.

list on the World

Hardware Maintenance Manual: Type 8668

Page 69

Installing memory-modules

Note: The illustrations in this document might differ slightly from your hardware.

DIMM 1

DIMM 2

DIMM connector 4 (J4)

DIMM connector 3 (J3)

DIMM connector 2 (J2)

DIMM connector 1 (J1)

To install a DIMM:

1. Review the information listed in “Before you begin” on page 41 and review the “Handling static-sensitive devices” on page 42. Also review the documention

that comes with your option.

2. Turn off the server and peripheral devices and disconnect all external cables and power cords; then, remove the cover. (See the “Installing the bezel and front door” on page 80.)

3. Touch the static-protective package containing the DIMM to any unpainted metal surface on the server. Then, remove the DIMM from the package. You must install memory in matched pairs: the first pair must be in slots 1 and 4, and the second pair must be in slots 2 and 3.

Attention: To avoid breaking the retaining clips or damaging the DIMM connectors, handle the clips gently.

4. Install the DIMM:

Installing options 61

Page 70

Installing memory-modules

a. Turn the DIMM so that the pins and keys align correctly with the connector.

DIMM 3

DIMM 2

DIMM 4

DIMM 1

b. Insert the DIMM into the connector by pressing on one edge of the DIMM

and then on the other edge of the DIMM. Be sure to press straight into the connector. Be sure that the retaining clips snap into the closed position.

c. Make sure the retaining clips are in the closed position. If a gap exists

between the DIMM and the retaining clips, the DIMM has not been properly installed. In this case, open the retaining clips and remove the DIMM; then, reinsert the DIMM.

d. Repeat steps 4a through 4c for the second DIMM; then continue with step 5.

5. If you have other options to install or remove, do so now; otherwise, go to the

“Installing the bezel and front door” on page 80.

Installing a microprocessor

Your server comes with one microprocessor installed on the system board. If you install an additional microprocessor, your server can operate as a symmetric multiprocessing (SMP) server. With SMP, certain operating systems and application programs can distribute the processing load between the microprocessors. This enhances performance for database and point-of-sale applications, integrated manufacturing solutions, and other applications.

Notes:

1. Before you install a new microprocessor, review the documentation that comes with the microprocessor, so that you can determine whether you need to update the server basic input/output system (BIOS) code. The latest level of BIOS code for your server is available through the World Wide Web. Refer to “Online Support” on page vi for the appropriate World Wide Web addresses.

Hardware Maintenance Manual: Type 8668

Page 71

Installing a microprocessor

2. Obtain an SMP-capable operating system (optional). For a list of supported operating systems, see http://www.ibm.com/pc/us/compat/ on the World Wide Web.

Your server comes with one microprocessor installed in the microprocessor connector (U68) that is closest to the power supply. This is the startup (boot) microprocessor. A microprocessor installed in connector U69 is microprocessor

2. If more than one microprocessor is installed, the microprocessor installed in microprocessor connector U69 is the startup processor, and the microprocessor installed in U68 is the application processor.

Attention: To avoid damage and ensure proper server operation when you install a new or additional microprocessor, use microprocessors that have the same cache size and type, and the same clock speed. See the ServerProven list at http://www.ibm.com/pc/compat for a list of microprocessors for use with your server.

Installing options 63

Page 72

Installing a microprocessor

Note: The illustrations in this document might differ slightly from your hardware.

Terminator card

VRM 2

To install an additional microprocessor:

1. Review the safety precautions in Statement 1 and Statement 5 in “Important safety information” on page v and “Handling static-sensitive devices” on page 42.

2. Turn off the server and peripheral devices and disconnect all external cables and power cords; then remove the cover (see “Removing the left-side cover (tower model)” on page 43 for details).

3. Remove the terminator card from the microprocessor connector. Store the terminator card in a safe place in the static-protective package that your new microprocessor comes in; you will need to install it again, if you ever remove the microprocessor and do not replace it.

4. Install the microprocessor: a. Touch the static-protective package containing the new microprocessor to

b. Line up the microprocessor pins over the microprocessor connector and

c. Press down and latch the release lever.

Fan sink (Remove themal tape liner on installation)

Microprocessor 2

Microprocessor 1 location

VRM 1

Microprocessor release lever

any unpainted metal surface on the server; then, remove the microprocessor from the package.

carefully press the microprocessor into the connector.

Note: To remove a microprocessor, pull upward on the microprocessor release

5. Install the voltage regulator module (VRM) included in the microprocessor kit. Attention: When installing or replacing a VRM, use only a VRM specified

for use with the xSeries 232 server. Use of other VRMs might cause your server to overheat.

a. Center the VRM over the VRM connector. Make sure that the VRM is

oriented and aligned correctly.

Note: The VRM is keyed to be installed only one way.

b. Press the VRM into the connector.

Hardware Maintenance Manual: Type 8668

lever and then lift the microprocessor off of the connector.

Page 73

Installing a microprocessor

Note: If you remove the microprocessor later, remember to install the

terminator card in the appropriate microprocessor connector and to remove the VRM.

6. Remove the thermal tape liner from the underside of the fan sink and discard.

7. Set the fan sink into place.

Fan sink (Remove thermal tape liner on installation)

Microprocessor release lever

Ensure correct alignment of fan sink, mounting clip, and mounting socket

Make sure the fan sink guide fits between the processor and the processor socket.

8. Press down and latch the spring retention clip on the back of the fan sink (the side facing the back of the server).

9. Press down and latch the spring retention clip on the front of the fan sink (the side facing the front of the server).

10. Plug the fan sink into the fan sink connector on the system board (J46). Make sure the cable is not in a position to interfere with the fan sink operation.

11. If you have other options to install or remove, do so now; otherwise, go to “Installing the bezel and front door” on page 80.

Installing or removing a power supply

Your server comes with one 385-watt power supply or two 250-watt power supplies. The 385-watt power-supply configuration can be upgraded with an optional backplane that will enable you to install up to a maximum of three

Fan sink guide

Spring retention clip

Installing options 65

Page 74

Installing or removing a power supply

250-watt power supplies. This enables redundancy and will make the power supplies hot-swappable. Each power supply has two status indicators; see the following illustration for information about the status indicators and power-supply bay locations.

Note: The illustrations in this document might differ slightly from your hardware.

Power supply bay 3

Power supply

Filler panel

bay 2

Power supply bay 1

Power supply

DC power LED (green)

AC power LED (green)

GOODACGOOD

DC power LED (green)

AC power LED (green)

Two 250-watt configuration 385-watt configuration

Note: The following description refers to the 250-watt configuration figure. Filler panels

To maintain proper airflow, keep filler panels in place on empty power-supply bays as shown.

Power supply bay 1

Your server comes with this power supply installed in this bay. LED PS1 on the system board diagnostics panel refers to this power supply. See “System Board LED Locations” on page 38 for more information about the diagnostics panel.

Power supply bay 2

Your server comes with this power supply installed in this bay. LED PS2 on the system board diagnostics panel refers to this power supply.

Power supply bay 3

If you install an optional power supply in this bay, LED PS3 on the system board diagnostics panel refers to this power supply. See “System Board LED Locations” on page 38 for more information about the diagnostics panel.

Hardware Maintenance Manual: Type 8668

Page 75

Installing or removing a power supply

AC power LED

This light provides status information about the power supply. During typical operation, the ac power LED is on.

DC power LED

This light provides status information about the power supply. During typical operation, the dc power LED is on. See “Power supply LED errors”

on page 112 for more information.

Note: If the 385-watt power supply LED is flashing, the system overloads

and the power supply will shut down.

Statement 8

CAUTION: Never remove the cover on a power supply or any part that has the following label attached.

Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact a service technician.

Adding a hot-swap power supply

When the hot-swap power supply backplane is installed you can replace the 385-watt power-supply with an optional backplane. This backplane supports up to three power supplies, which enables redundancy and will make the power supplies hot-swappable. After you install a power supply, verify that the power-supply status indicators (ac power light and dc power light) are lit, indicating that the power supply is operating properly.

Notes:

1. You do not need to turn off the power to the server to install hot-swap power

supplies.

2. The illustrations in this document might differ slightly from your hardware.

Installing options 67

Page 76

Adding a power supply

Filler panel

Power supply

Power supply handle (in open position)

To install a hot-swap power supply:

1. Remove the filler panel from the empty power supply bay by inserting your

Power supply backplane option

Cable-restraint bracket

finger into the depression on the filler panel and pulling it away from the server. Save the filler panel in case you remove the power supply at a later time.

Note: During typical operation, each power-supply bay must have either a

power supply or filler panel installed for proper cooling.

2. Install the power supply in the bay: a. Place the handle on the power supply in the open position (that is,

perpendicular to the power supply) and slide the power supply into the chassis.

b. Gently close the handle to seat the power supply in the bay.

3. Plug the power cord for the added power supply into the power cord

connector.

4. Route the power cord through the cable-restraint bracket.

5. Plug the power cord into a properly grounded electrical outlet.

6. Verify that the dc power light and ac power light on the power supply are lit,

indicating that the power supply is operating correctly.

7. If you have other options to install or remove, do so now.

Removing a hot-swap power supply

If you have a hot-swap power-supply backplane and have installed power supplies, you normally have power redundancy and hot-swappability. However, if the load on your server requires the capacity of all installed power supplies, you do not have redundancy or hot-swappability and must turn off the server before removing any of your power supplies.

Attention: If you do not have power redundancy, and you remove a power supply while the system is running, your system will immediately stop working.

Hardware Maintenance Manual: Type 8668

Page 77

Removing a power supply

To remove a power supply:

1. Check the NON LED (CR24) on the diagnostics panel on the system board. a. If the NON (nonredundant) LED is lit, you do not have redundancy. Turn

off the server and peripheral devices; then, continue with step 2.

Note: The Information light on the operator information panel on the front

of the server also will be on. See “Operator information panel” on page 10 for the location and contents of the operator information panel.

b. If you have more than one power supply installed and the NON LED is not

lit, you have redundancy and do not need to turn off the server. Continue with step 2.

Note: The illustrations in this document might differ slightly from your

hardware.

2. Unplug the power cord from the power supply.

CAUTION: Be careful when you remove the power supply; the power supply might be too hot to handle comfortably.

Statement 12

CAUTION: The following label indicates a hot surface nearby.

3. Remove the power supply.

Diagnostics panel

Installing options 69

Page 78

Removing a power supply

4. Install a replacement power supply.

5. Plug the power cord for the power supply into the power cord connector. Then,

plug other end of the cord into a properly grounded outlet.

6. Verify that the ac power light and dc power light are lit, indicating that the power supply is operating correctly.

7. If you turned the server off in step 1a on page 69, turn on the server and peripheral devices.

Installing redundant power supply

You can build a fault-tolerant power system by upgrading to a power-sharing backplane. The power-sharing backplane replaces the standard power backplane and allows you to use up to three 250-watt hot-swap power supplies for power sharing. You can maintain a redundant configuration with two power supplies, which allows the system to continue operation even if one power supply fails. Implementing a third power supply ensures redundancy even if one power supply fails. The backplane will alert you when redundancy is lost with the two or three power supplies configuration.

Hardware Maintenance Manual: Type 8668

Page 79

Removing the existing power supply

Use the following steps to remove the existing 385-watt power supply from your server:

1. Turn off power to the server and disconnect the power plug from the server power supply.

Removing a power supply

Installing options 71

Page 80
