Setup

Hardware Requirements

This monitor requires a computer with a suitable on-board sub-system or Video Adapter card that can support XGA 1024 × 768, SVGA 800 x 600, or VGA 640 x 480 at 60 Hz.

Handling Instructions

Do not support the monitor within the screen area. The Liquid Crystal Display is glass and can be damaged by rough handling or excessive pressure.

1. Lift the monitor by placing your hands where indicated below.

2. Before using your monitor for the first time, remove the clear protective film from the front of the screen.

Workplace Preparation

This section gives advice

on what you should consider before you set up your monitor.

Height

The monitor should be positioned so that the top of the screen is slightly below your eye level when you sit at your workstation.

Orientation

Choose a position that gives the least reflection from lights and windows, usually at a right angle to any windows. The monitor should be positioned directly in front of you so that you do not have to twist your body to use it. Tilt the monitor to a comfortable viewing angle.

U65C`tfuvq/cbdlvq/gn Qbhf 3 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Adjusting the Monitor Position

Viewing Angle

You can tilt the screen backward and forward as shown below.

Working Practices

This section gives

advice on how you can work comfortably and reduce fatigue.

Rest

Take regular breaks. Vary your posture, stand up and stretch occasionally as prolonged use of computer workstations can be tiring.

Back

You should sit back in your chair and use the backrest.

Hands

Adjust the seat height so that your forearms are approximately horizontal and your wrists are straight when using the keyboard. Your upper arms should be relaxed with your elbows near your body.

Use a light touch on the keyboard, keeping your hands and fingers relaxed. Allow a space in front of the keyboard to rest your wrists when not typing. Consider using a wristpad.

U65C`tfuvq/cbdlvq/gn Qbhf 4 Xfeoftebz- Kvmz 23- 3111 5;1: QN

Eyesight

Working with monitors, in common with any prolonged close work, can be visually demanding. Look away from the screen periodically and have your eyesight checked regularly.

Screen settings

Set the screen brightness and contrast to a comfortable level. You may have to adjust this as the lighting changes during the day. Many application programs let you select color combinations which can help you to view in comfort. See the

User controls

section on page 14 for more information.

U65C`tfuvq/cbdlvq/gn Qbhf 5 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Connecting your Monitor

Analog cable:

Be sure to read the ‘Safety Information’ at the front of

this User Guide before carrying out this procedure.

1. Turn off your PC and all attached devices.

2. Connect the signal cable to the video port on the back of your computer. This port might be directly attached to your computer (figure A), or it might be part of a video adapter card (figure B). The video port on your computer or video adapter card may be colored blue to match the blue connector on your monitor’s video cable.

The AC adapter and signal

cable are connected to your monitor. If you wish to change these or to fit a different stand, see Further Help on page 25.

3. Connect the power cord to the power adapter first, then insert the plug into a properly grounded electrical outlet.

Digital cable:

Be sure to read the ‘Safety Information’ at the front of

this User Guide before carrying out this procedure.

1. Turn off your PC and all attached devices.

2. Connect the signal cable to the video port on the back of your computer. This port might be directly attached to your computer (figure A), or it might be part of a video adapter card (figure B). The video port on your computer or video adapter card may be colored white to match the white connector on your monitor’s video cable.

U65C`tfuvq/cbdlvq/gn Qbhf 6 Xfeoftebz- Kvmz 23- 3111 5;1: QN

Configuring your Monitor

Setup Diskette for Windows95 or Windows 98

This section must be completed before continuing with the

Windows 95 or Windows 98

Auto Setup on Page 11.

To use the Plug and Play feature in Windows 95 or Windows 98, files should be loaded from the

IBM Flat Panel Monitor Installation diskette

1. Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow the system to boot into Windows 95 or Windows 98. If your computer’s plug and play code warns you that your system hardware has changed, this means that it has detected your new monitor for the first time. Proceed to step 7.

4. Open the

ISPLAY PROPERTIES

window by clicking on

TART

ETTINGS

ONTROL PANEL

and then double clicking on the

ISPLAY

icon.

On LCD monitors,

unlike CRTs, a faster refresh rate does not improve display quality. IBM recommends using 1024 x 768 at a refresh rate of 60Hz.

5. Select the

ETTINGS

tab.

• In case of Windows 95:

6. -1. Select the Change Display Type button.

2. Select the Change Monitor Type button.

• In case of Windows 98:

6. -1. Select the ADVANCED BUTTON.

2. Select the MONITOR tab.

3. Open the UPGRADE DEVICE WIZARD windows by clicking on Change button and then select the NEXT button. If the UPGRADE DEVICE WIZARD is open go step 6-3. if not continue to step 4.

4. Select the “Display a list of the known drivers for this device so that I can choose a specific driver” and then select the NEXT button.

7. Insert the Setup diskette into drive A: and select the

AVE DISK

button.

8. Select

9. Choose

IBM T54H

monitor and select OK. The files will be copied from

the diskette to your hard drive.

10. Close all open windows and remove the diskette. 1 1. Reboot the system.

The system will automatically select the maximum refresh rate and corresponding Color Matching Prof iles.

U65C`tfuvq/cbdlvq/gn Qbhf 7 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

The AC adapter and signal

cable are connected to your monitor. If you wish to change these or to fit a different stand, see Further Help on page 25.

Switching on your Monitor

1. Switch on the power source and your computer.

2. Switch on your monitor by pushing and releasing the power switch marked . To switch off your monitor, push and release the power switch again.

3. Turn on the monitor and then the computer.

4. Run

UTO SETUP

by following the instructions in the

Configuring your

Monitor

section on page 6.

Setup Diskette for Windows 2000

This section must be completed before continuing with the

Windows 2000

confguring

for your monitor on page 11.

To use the Plug and Play feature in Windows 2000, files should be loaded from the

IBM Flat Panel Monitor Installation diskette

1. Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow the system to boot into Windows 2000.

4. Open the

ISPLAY PROPERTIES

window by clicking on

TART

ETTINGS

ONTROL PANEL

and then double clicking on the

ISPLAY

icon.

5. Select the

ETTINGS

tab.

6. Select the

DVANCED

button.

On LCD monitors, unlike

CRTs, a faster refresh rate does not improve display quality. IBM recommends using 1024 x 768 at a refresh rate of 60Hz.

7. Select the

ONITOR

tab.

8. Select the

ROPERTIFS

button.

9. Select the Driver

tab.

10. Open theUpgrade Device Driver Wizard window by clicking on UPDATE DRIVER and then select the NEXT button.

1 1. select the “Display a list of the known dirvers for this device so that lcan

choose a specifc driver” and then sefect the NEXT button.

12. Inset the Setup diskette into drive A: and select the HAVE DISK button.

13. select OK.

U65C`tfuvq/cbdlvq/gn Qbhf 8 Xfeoftebz- Kvmz 23- 3111 5;1: QN

14. Choose

IBM T54A

monitor and select OK. The files will be copied from

the diskette to your hard drive.

15. Close all open windows and remove the diskette.

16. Reboot the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Prof iles.

U65C`tfuvq/cbdlvq/gn Qbhf 9 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Auto Setup

Before carrying out this

section, it is very important that The Setup Diskette for Windows 95 or Windows 98/Windows 2000/ Windows NT has been run. (see page 6)

The Setup Utility included on the setup diskette is for displaying do patterns. They do not replace or modify the display dirver.

The Auto Setup instructions require the monitor to be warmed up for 15 minutes. This is not required for normal operation.

By pressing the

and

keys simultaneously allows direct access to the auto set-up controls.

When you first use your monitor you must perform Auto Setup. This procedure sets up your monitor to process the video signals from your computer without image discoloration or smearing. After you perform Auto Setup, the settings are stored and used each time you turn on the monitor.

In order to optimise the displayed image a set-up utility is provided on the IBM Monitor Installation Diskette. Operation of the utility is dependent on the operating system on your PC. For correct operation locate the operating system on your PC from the table below and follow the appropriate instructions. You may choose to run

UTO SETUP

for each operating system that you use. This means that if you sometimes use your monitor while running any version of Windows and sometimes also use it from within DOS (not a DOS window), you must run

UTO SETUP

for both Windows and DOS.

You may run versions of

UTO SETUP

in any order.

If your PC does not run

with the setup diskettes shipped with the monitor, refer to Manual Setup on page 12

Before you begin

UTO SETUP

for your PC:

1. Make a backup copy of the setup diskettes supplied with the monitor.

2. Make sure the PC’s video mode is set in the range of the supported screen resolution shown in the table on page 18.

The

UTO SETUP

process

only applies to the current screen mode. When a new mode is selected, repeat this section to reset the monitor

You should perform

UTO SETUP

for each screen mode you use.

Operating System Corresponding Auto Setup procedure

DOS

Auto Setup for DOS

on page 9

Windows 3.1

Auto Setup for Windows 3.1, Windows 95,

Windows 98, Windows 2000 or Windows

on page 11

Windows 95 Windows 98 Window 2000 Window NT

U65C`tfuvq/cbdlvq/gn Qbhf : Xfeoftebz- Kvmz 23- 3111 5;1: QN

Auto Setup for DOS

If the monitor is in standby

mode (STANDBY ON), it may automatically turn off while you are waiting for it to warm up. If this happens, switch off the monitor and switch it on again after a few seconds.

1. Turn on the monitor first; then the PC. If the messag e CHECK SIGNAL CABLE is displayed, or if nothing is

displayed check:

• that the video interface cable is connected properly.

• the correct video adapter card is installed.

• the correct supported display mode is selected for your PC.

If you are using

PC-DOS/V

change to U.S. mode by typing ‘CHEV US’ and pressing ENTER at the command prompt.

2. Wait approximately 15 minutes, until the monitor warms up.

3. Insert the diskette labelled ‘IBM Flat Panel Monitor Installation Diskette into the diskette drive.

4. Display the command prompt screen of the DOS full-screen display.

5. At the command prompt, type

‘A:’

and press ENTER.

6. Type

‘TESTPATD’

and press ENTER.

7. Select from the screen the number for the color or text mode you want to setup.

8. Select from the screen the number for the video mode you want to setup.

You may repeat this process for as many of the color and video modes as you need.

The size and diversity of the dot pattern varies with

the screen resolution.

9. When the dot pattern appears, press the OSD Enter button at the bottom of the monitor to display the initial OSD menu.

If the screen flickers,

repeat the setup several times until the flicker is minimised, or adjust it manually by following Manual Setup on page 13.

10. Use an Arrow button ( or ) to select the IMAGE LOCK icon then press the OSD Enter button to access the function.

11. Using an Arrow button ( or ), select

AUTOMATIC

and press the

OSD Enter button . This activates the

UTO SETUP

procedure, which

will optimize the display settings with the provided dot-patterns. The screen will off and on several times and you may notice small changes to the test pattern.

12. When finished, the OSD main menu returns. Press the Exit button to exit from the OSD.

13. Press the ESCAPE key to exit the test pattern program.

14. Type

‘Exit’

at the command prompt to return to Windows.

If you use other operating systems, perform the appropriate

UTO SETUP

for

those systems, also: see

Auto Setup for Windows 3.1, Windows 95, Windows 98, Wind ows NT or Windows 2000 on page 11.

You must use DOS when you run DOS Auto Setup.

U65C`tfuvq/cbdlvq/gn Qbhf 21 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Auto Setup for Windows 3.1, Windows 95, Windows 98, Windows NT or Windows 2000

If the monitor is in standby

mode (STANDBY ON), it may automatically turn off while you are waiting for it to warm up.

1. Turn on the monitor first; then the PC. If the messag e CHECK SIGNAL CABLE is displayed, or if nothing is

displayed check:

• that the video interface cable is connected properly.

• the correct video adapter card is installed.

• the correct supported display mode is selected for your PC.

2. Wait approximately 15 minutes, until the monitor warms up.

3. Drag the icon bar and tool bar, if they are displayed, to the bottom of the screen.

4. Insert the diskette labelled ‘IBM Flat Panel Monitor Installation Disk’ into the diskette drive.

The size and diversity of the dot pattern varies with

the screen resolution.

5. Check the operating system installed on your PC and follow the instructions from the table below.

6. When the test pattern appears, press the OSD Enter button at the bottom of the monitor to display the initial OSD menu.

Position the mouse pointer at the bottom center of the

screen. This allows

UTO

ETUP

to run properly

7. Use an Arrow button ( or ) to select the

IMAGE LOCK

icon

and press the OSD Enter button to access the function.

8. Using an Arrow button ( or ), select

AUTOMATIC

and press the

OSD Enter button . This activates the

UTO SETUP

procedure, which

will optimize the display settings with the provided test pattern. The screen will dim, blink on and off several times, and you may notice small changes to the test pattern.

To abort the

UTO SETUP

function, press the

key.

Operating

System

Step1 Step2 Step3 Step4

Windows 3.1

Open

ROGRAM

ANGER

Select

ILE

Select

Type

‘A:\TESTPAT’

and press

ENTER

Windows NT 3.5

Windows 95

Select S

TART

Select R

Windows 98 Windows 2000 Windows NT 4.0

U65C`tfuvq/cbdlvq/gn Qbhf 22 Xfeoftebz- Kvmz 23- 3111 5;1: QN

9. When finished, the OSD main menu returns. Press the Exit button once to exit from the OSD.

10. Press the

key to return to Windows.

You have completed the monitor setup for Windows. If you use other operating systems, perform the appropriate

UTO SETUP

for those systems, also: see

Auto Setup for DOS

on page 10.

U65C`tfuvq/cbdlvq/gn Qbhf 23 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Manual Setup

Normally, you can complete the setup procedure using

UTO SETUP

, however,

if your screen image is still distorted after you perform

UTO SETUP

or the

setup diskette does not run on your system, perform

ANUAL SETUP

If the monitor is in standby

mode (STANDBY ON), it might automatically turn off while you are waiting for it to warm up.

1. Have your monitor turned on for about 15 minutes, until the monitor warms up.

2. Display the image you most frequently use on the screen.

3. Press the OSD Enter button at the bottom of the monitor to display the initial OSD menu.

4. Use an Arrow button ( or ) to select the IMAGE LOCK icon and press the OSD Enter button to access the function.

5. Using an Arrow button ( or ), select

MANUAL

, press and then

press once to select

COARSE

. Left and right arrow adjustment

indicators become illuminated (see page 17

6. Use the Arrow buttons to manually adjust to correct (as much as possible) for noise in the video signal then press to save the changes.

7. Use an Arrow button to select

FINE

and press the button.

8. Use the Arrow buttons again to tune the image to your liking.

9. When finished, press the Exit button four times to exit from the OSD.

You have completed the monitor setup.

The size and diversity of the dot pattern varies with the screen resolution.

U65C`tfuvq/cbdlvq/gn Qbhf 24 Xfeoftebz- Kvmz 23- 3111 5;1: QN

Adjusting Your LCD Monitor

User controls

User control features

Operation

The image is already

optimized for many display modes, however the user controls can be used to adjust the image to your liking.

• Press any of the OSD control buttons to display the main OSD menu.

• Use the Arrow buttons to move among the icons. Select an icon and press OSD Enter to access that function. If there is a sub-menu, you can move between options using the Arrow buttons, then press OSD Enter to select that function. Use the Arrow buttons to make adjustments.

Icon Control Description

Exit

Displays the OSD main menu Exits from menus and sub-menus Exits the OSD

Left Arrow

Displays the OSD main menu Moves the cursor to highlight icons and other options

Right Arrow

Displays the OSD main menu Moves the cursor to highlight icons and other options

OSD Enter

Displays the OSD main menu Enters menus and sub-menu s and selects the highlighted option

Power Switch Switches the monitor on and off

U65C`tfuvq/cbdlvq/gn Qbhf 25 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

The settings are saved

after adjustment and when exiting the OSD and will be effective thereafter.

• Press the Exit button to move backwards through the sub-menus and exit from the OSD.

Note: After making adjustments, the Power indicator LED will briefly

turn amber to indicate that the new value has been saved.

OSD Lock / Unlock

This feature allows you to secure the current control settings, while allowing the user to adjust Brightness and Contrast, so that they cannot be inadvertently changed. Y ou can unlock the OSD controls at any time by using the same procedure.

Push and hold the OSD Enter button for 10 seconds to Lock or to Unlock. When locked, a “LOCKED” message will be displayed.

U65C`tfuvq/cbdlvq/gn Qbhf 26 Xfeoftebz- Kvmz 23- 3111 5;1: QN

On-screen display (OSD) controls

The settings adjustable with the user controls are viewed through the OnScreen Display (OSD). Press any of the OSD buttons to activate the OSD.

Analog part:

The LCD monitor needs

time to become thermally stable the first time you turn it on each day. Thus, to achieve more accurate adjustments for parameters, allow the LCD monitor to warm up (be On) for at least 15 minutes before making any screen adjustments.

Initial appearance of OSD

OSD functions

The settings adjustable with the user controls are viewed

OSD Icon Description Sub-menu(s)

Controls and Adjustments

BRIGHTNESS

Adjusts brightness

CONTRAST

Adjusts contrast

IMAGE LOCK

The image lock function is used to adjust the level of noise in the video signal which causes horizontal lines or areas on the screen where the image appears to be unstable and jitters or shimmers. This can be done automatically or manually.

Automatic

Automatic adjustment

U65C`tfuvq/cbdlvq/gn Qbhf 27 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

IMAGE LOCK

(continued)

Manual -

•Fine

• Coarse

Use the Arrow buttons to

adjust away the

interference. If

satisfactory results are

not obtained usin

the

Fine adjustment, use the

Coarse adjustment and

then use Fine a

ain.

This function may

chan

e the width of the

display ima

e. Use the

H-Position function on

the Ima

e Position

menu to center the

display ima

e on the

screen.


POSITION

Moves the screen left and ri

ht or up

and down.

H-Position

V-Position

COLOR

Select the Color Mode you find most

comfortable and then fine tune the

colors usin

the User Color Mode

menu, if necessary.

Color Mode Mode 1

(Cool White)

Mode 2

(Normal White)

Mode 3 (Warm White)

User Mode -

• Red

Increases or decreases

redness

• Green

Increases or decreases

reenness

• Blue Increases or decreases

blueness

OSD Icon Description Sub-menu(s)

Controls and

Adjustments

U65C`tfuvq/cbdlvq/gn Qbhf 28 Xfeoftebz- Kvmz 23- 3111 5;1: QN

through the On-Screen Display (OSD). Press any of the OSD buttons to activate the OSD.

RESET

Resets the Brightness, Contrast,Color, Image position, fine and coarse setting.

Color & Geometry

- Does not make the

adjustment

YES

- Resets the

colorand geometry.

INFORMATION

Shows information about the addressability and the horizontal and vertical frequencies of the images received from the computer or video board.

LANGUAGE

The language chosen affects only the language of the OSD. It has no effect on any software running on the computer.

Select one of the five languages to use for the OSD.

OSD MENU

POSITION

Changes the position of the OSD on the screen.

H-Position

V-Position

Input Selection

Analog and Digital selection.

Analog Select &

enter

Digital Select &

enter

OSD Icon Description Sub-menu(s)

Controls and Adjustments

U65C`tfuvq/cbdlvq/gn Qbhf 29 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

The LCD monitor needs

time to become thermally

stable the first time you turn it on

each day. Thus, to achieve more

accurate adjustments for

parameters, allow the LCD

monitor to warm up (be On) for

at least 15 minutes before

making any screen adjustments.

Digital part:

Initial appearance of OSD

OSD functions

OSD Icon Description Sub-menu(s)

Controls and

Adjustments

BRIGHTNESS

Adjusts bri

htness

IMAGE LOCK

The ima

e lock function is used to

adjust the level of noise in the video

nal which causes horizontal lines or

areas on the screen where the ima

appears to be unstable and jitters or

shimmers. This can be done

automatically.

Automatic

Automatic adjustment


POSITION

Moves the screen left and ri

ht or up

and down.

H-Position

V-Position

U65C`tfuvq/cbdlvq/gn Qbhf 2: Xfeoftebz- Kvmz 23- 3111 5;1: QN

RESET

Resets the Bri

htness and image

position settin

Yes/No NO

- Does not make the

adjustment

YES

- Reset

INFORMATION

Shows information about the addressability and the horizontal and vertical frequencies of the ima

es received from the computer or video board.

LANGUAGE

The lan

guag

e chosen affects only the

lan

guag

e of the OSD. It has no effect

on any software runnin

on the

computer.

Select one of the five lan

guag

es to use for the

OSD.

OSD MENU

POSITION

Chan

es the position of the OSD on

the screen.

H-Position

V-Position

Input Selection

Analo

and Digital selection.

Analog

Digital

select &

enter

selectg &

enter

OSD Icon Description Sub-menu(s)

Controls and Adjustments

U65C`tfuvq/cbdlvq/gn Qbhf 31 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Further Information

Display modes

The display mode the monitor uses is controlled by the computer. Therefore, you should refer to your computer documentation for details on how to change display modes.

The image size, position and shape may change when the display mode changes. This is normal and the image can be readjusted using

UTO SETUP

and the monitor controls. Unlike CRT monitors, which require a high refresh rate to minimize flicker,

TFT technology is inherently flicker-free. If possible, configure your computer for 1024 × 768 addressability at 60Hz vertical refresh rate.

For the display modes listed below, the screen image has been optimized during manufacture.

Factory Set Display Modes

† Recommended

‘Note: VESA timings are as detail ed in the VESA “Disp lay Moni tor T iming Specifi cation ”. V e rsion 1. 0, Revision 0.8, dated 09/17/98.’

Addressability Refresh Rate Horizontal Frequency

640 × 480 60 Hz 31.5 kHz 640 × 480 72 Hz 37.9 kHz 640 × 480 75 Hz 37.5 kHz 720 × 400 70 Hz 31.5 kHz 800 × 600 75 Hz 46.9 kHz 800 × 600 72 Hz 48.1 kHz 800 × 600 60 Hz 37.9 kHz 800 × 600 56 Hz 35.2 kHz 832 × 624 75 Hz 49.7 kHz

1024 × 768† 60 Hz 48.4 kHz

1024 × 768 70 Hz 56.5 kHz 1024 × 768 75 Hz 60.0 kHz

640 × 480 67 Hz 35.0 kHz

For image problems, you

may want to run AUTO Setup again before consulting to this section. In most cases, AUTO SETUP can fix the problems. See Auto Setup on page 10 and 11 for details.

U65C`tfuvq/cbdlvq/gn Qbhf 32 Xfeoftebz- Kvmz 23- 3111 5;1: QN

Power Management

If your computer has

previously been used with a CRT monitor and is currently configured to a display mode outside the range that the Flat Panel monitor can display, you may need to re-attach the CRT monitor temporarily until you have re-configured the computer, preferably to 1024 x 768 at 60Hz.

To benefit from power management, the monitor must be used in conjunction with a computer that implements the Video Electronics Standards Association (VESA) Display Power Management Signalling (DPMS) Standard.

The power management feature is invoked when the computer recognizes that you have not used your mouse or keyboard for a user-definable period. There are several states as described in the table below.

As an

NERGY STAR

Partner, IBM has determined that this product meets the

NERGY STAR

guidelines for energy efficiency.

IBM recommends that you switch off your monitor at the end of each working day, or whenever you expect to leave it unused for long periods during the day.

‡ There may be a slight delay before the picture reappears.

Product Disposal

The fluorescent lamp in the liquid crystal display contains mercury. Dispose of it as required by local ordinances and regulations.

State

Power

Indicator

Screen

Restoring Operation

Compliance

On Steady green Normal

DPMS Standby

Steady amber Blank

Press a key or

move the mouse.

NERGY STAR

and NUTEK

DPMS Suspend

Flashing

amber

(0.5 sec.

interval)

Blank

Press a key or

move the mouse. ‡

NERGY STAR

and NUTEK

DPMS Off

Flashing

amber (1 sec.

interval)

Blank

Press a key or

move the mouse. ‡

NERGY STAR

and NUTEK

U65C`tfuvq/cbdlvq/gn Qbhf 33 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

T roubleshooting

If you have a problem setting up or using your monitor, you may be able to solve it yourself. Before calling your retailer or IBM, try the suggested actions that are appropriate to your problem.

Problem

Possible

Cause

Suggested Action Reference

Screen is blank and power indicator is off

No power to monitor



Ensure that the electrical outlet and the monitor are both switched on.



Check that the power cord is firmly plugged into the electrical outlet and the

power supply unit.



If the power cord plug has a removable fuse,

replace it.



Try another power cord.



Try another electrical outlet.

Connecting your Monitor

section on page 5

Screen is blank and power indicator is steady green

Brightness and Contrast may be too low



Adjust brightness and contrast.

User controls

section on page 14

Screen is blank and power indicator is steady amber

The monitor is in the Power Management Standby state



Press any key on the keyboard or move the mouse to restore

operation.



Check the Power Management software on

your computer

Power Management

section on page 22

Power consumption

figures are for the monitor and the power supply combined.

U65C`tfuvq/cbdlvq/gn Qbhf 34 Xfeoftebz- Kvmz 23- 3111 5;1: QN

Screen is blank and power indicator is Flashing green every 0.5 second

The monitor is not receiving a video signal



Check that the signal

cable is firmly c onnected t o the computer.



Check that no pins are

bent in the signal cable connector.

Connecting your Monitor

section on page 5

Display mode of the computer is outside the range of the monitor



Reconfigure the computer to use a supported display mode.

Further Information

section on page 21

Screen is blank and power indicator is flashing amber every 0.5 or 1 second

The monitor is in the Power Management Suspend or Off state



Press any key on the keyboard or move the mouse to restore

operation.



Check the Power Management software on

your computer.

Power Management

section on page 23

Image appears to be smeared

There are noises in the video signal



Run Auto Setup.



If auto setup is not successful, select IMAGE LOCK menu in the OSD.

Then select MANUAL to adjust FINE/COARSE settings. .

User controls

section on page 14

Image appears to be discolored

The Color setting may be incorrect



Adjust the Color settings.

User controls

section on page 14

A few dots are missing, discolored , or inappropriately lighted.



The LCD contains over 2,300,000 thin-

film transistors (TFTs). A small number of missing, discolored, or lighted dots may be present on the screen, w hich is an intrinsic characteristic of the TFT LCD technology and is not an LCD defect.

Problem

Possible

Cause

Suggested Action Reference

U65C`tfuvq/cbdlvq/gn Qbhf 35 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Further Help

If you are unable to correct the problem yourself, you may seek further help as follows:

Call the IBM HELPCENTER.

In the US call 1-800-772-2227 In Canada call 1-800-565-3344

In other countries contact your dealer, retailer, or other IBM authorized Servicer.

If possible, stay by your

computer. Your Technical Support Representative may wish to go through the problem with you during the call.

Before calling, please have available as much of the following information as possible:

1. Model and serial number from the label on your monitor.

2. Purchase receipt.

3. Description of problem.

4. Computer type and model.

5. System configuration (hardware fitted, etc.).

6. System BIOS version number.

7. Operating System and version number.

8. Display driver version number.

9. Video Adapter Type.

More help, late-breaking

news and details of the latest accessories for these products may be found on the worldwide web at:

http://www.pc.ibm.com/us/ accessories

Information about the Video Electronics Standards Association can be found on the worldwide web at:

http://www.vesa.org

Removing the stand and cables

Alternative stands for your IBM Flat Panel Monitor may be available from specialist suppliers.

This product is equipped with mounting facilities that conform to the VESA Flat Panel Monitor Physical Mounting Interface Standard (FPMPMI).

This product is shipped with the analog signal cable and the power cord attached to the monitor. If you want to use other cables for reasons such as having the monitor wall-mounted, follow the instructions below:

1. Disconnect the power cord from the wall outlet.

U65C`tfuvq/cbdlvq/gn Qbhf 36 Xfeoftebz- Kvmz 23- 3111 5;1: QN

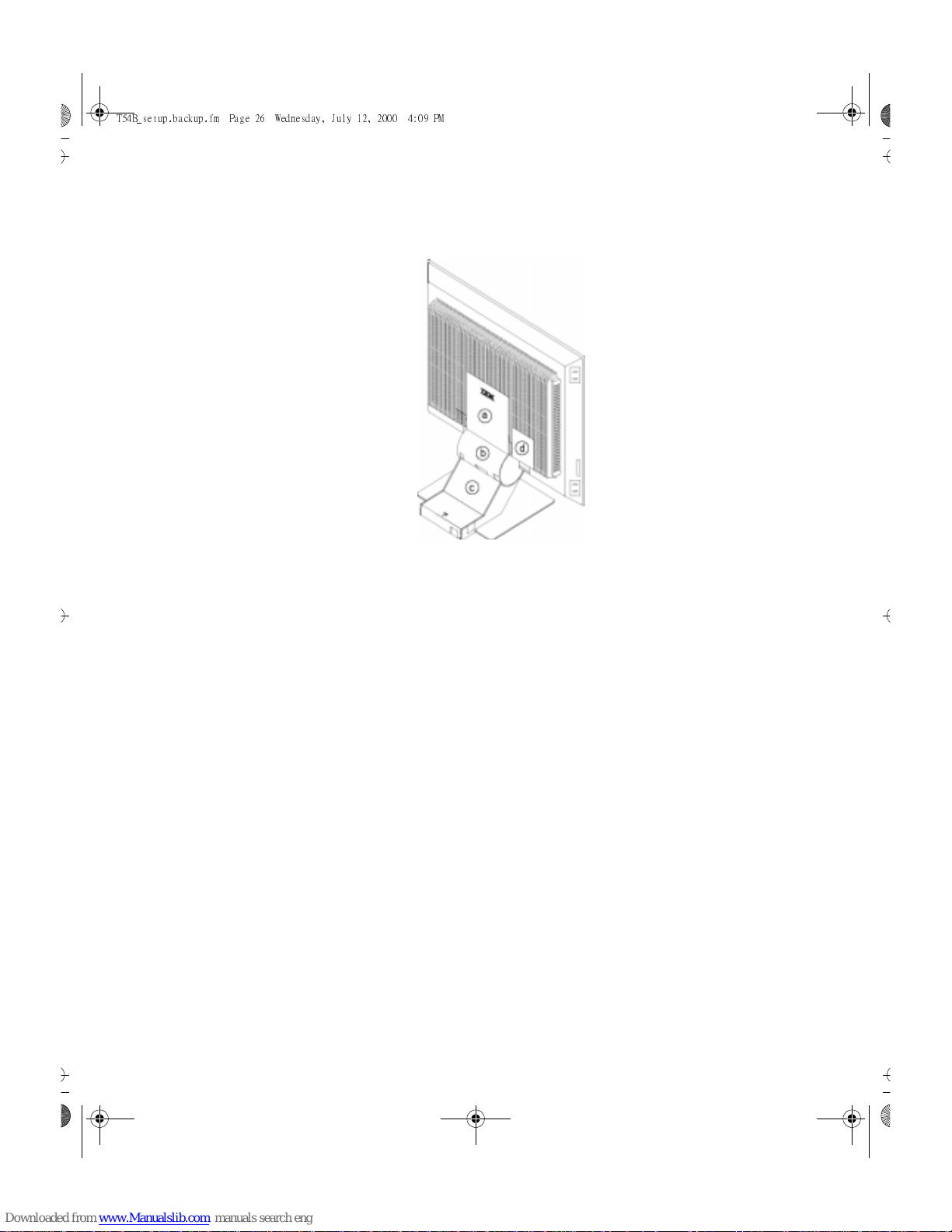

2. Carefully insert the head of a flathead (–) screwdriver into the slot visible along either side of the cable cover (a) and pry it off.

3. Squeeze the sides of the hinge cover (b) and pull it off.

4. Carefully lift the DVI connector cover (d) .

5. Carefully lift the stand cover (c) along the top and then slide it backwards and off the stand.

6. Remove the signal cable and the power cord from the monitor by disconnecting the corresponding adapters. Carefully cut the plastic tie to free the power cord and remove the screw holding the power cord clamp.

7. Lay the monitor facedown on a cushion and remove the six screws holding the hinge mechanism on the monitor. Lift off the hinge and base assembly.

8. If you are installing an arm or wall-mounting device, follow the directions included with the device. If you are just changing your cables, continue with Step 9.

9. Connect the signal cable and the power cord, then refit the power cord clamp in its original screwpost.

10. Slide the stand cover back on the stand.

1 1. Put the hinge cover back on, making sure that the straight side is at the

top.

12. Insert the three tabs at the top of the cable cover into the slots in the back of the monitor and push the cover into place.

U65C`tfuvq/cbdlvq/gn Qbhf 37 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

To obtain the correct cables and/or to get further instructions on installing them, call the IBM HELPCENTER at the above numbers or contact yo ur dealer, retailer, or other IBM authorized Servicer.

Setting up & connecting your DVI-D cable

1. Refer to

“Removing the stand & cables section”

on step 1-6 of

page 26/27.

2. Connect the DVI-D cable to DVI-D connector.

3. Route the cable as shown in the diagram.

U65C`tfuvq/cbdlvq/gn Qbhf 38 Xfeoftebz- Kvmz 23- 3111 5;1: QN

Specifications

This color monitor (Type-model 9511-Axx) uses a 15-inch TFT LCD

Dimensions Width:

Depth: Height:

401 mm 204 mm 380 mm

Weight Unpackaged:

packaged:

11.8 lb. (5.35 Kg)

16.1 lb (7.39 Kg)

Tilt Forward Tilt:

Backward tilt:

– 4°

+ 40°

Image Viewable Image Size:

Maximum Height: Maximum Width: Pixel Pitch:

15.1” (383.5 mm)

230.4 mm

307.2 mm

0.30 mm (H) × 0.30 mm (V)

Power Input Supply Voltage:

Max Supply Current:

90 - 260 Vac 60/50 ± 3 Hz

1.8 A at 120 Vac

Power Consumption Normal Operation:

DPMS Stand-by: DPMS Suspend: DPMS off:

< 30 W < 3 W < 3 W < 3 W

Video Input Input Signal:

Horiz. Addressability: Vert. Addressability: Clock Frequency:

Analog Direct Drive 75 ohm 0.7 V DVI digital driver 1024 pixels (max) 768 lines (max)

80 MHz Communications VESA DDC: 2 B Supported Display

Modes

VESA Standard 12 modes Macintosh 1 mode

See page 18

Environment Temperature:

Operating: Storage: Shipping:

Humidity:

Operating: Storage: Shipping:

10 to 35° C

- 20 to 60° C

10 to 80%

5 to 95%

U65C`tfuvq/cbdlvq/gn Qbhf 39 Xfeoftebz- Kvmz 23- 3111 5;1: QN

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

:DUUDQW\ 6WDWHPHQWV

Your Installation Diskette includes translation of IBM’s Statement of Warranty in following languages:

Worldwide Statement of Warranty

(Except Turkiye, U.S., Puerto Rico and Canada):

Arabic

Z1255697.ara.html

Brazilian portuguese

Z1255697.bra.html

Bulgarian

Z1255697.bul.html

Chinese

Z1255697.chi.html

Croatian

Z1255697.cro.html

Czech

Z1255697.cze.html

Danish

Z1255697.dan.html

Dutch

Z1255697.dut.html

English

Z1255697.eng.html

Finnish

Z1255697.fin.html

French

Z1255697.fre.html

German

Z1255697.ger.html

Greek

Z1255697.gre.html

Hebrew

Z1255697.heb.html

Hungarian

Z1255697.hun.html

Italian

Z1255697.ita.html

Japanese

Z1255697.jap.html

Korean

Z1255697.kor.html

Norwegian

Z1255697.nor.html

Polish

Z1255697.pol.html

Portuguese

Z1255697.por.html

Russian

Z1255697.rus.html

lovakian

Z1255697.sla.html

Slovenian

Z1255697.sle.html

U65C`tfuvq/cbdlvq/gn Qbhf 3: Xfeoftebz- Kvmz 23- 3111 5;1: QN

Spanish

Z1255697.spa.html

Swedish

Z1255697.swe.html

Taiwanese

Z1255697.tai.html

Turkiye Statement of Warranty:

Turkish

Z1255698.tur.html

English

Z1255698.eng.html

United States, Puerto Rico and Candad a Statement of Lim ited Warranty:

English

Z1254753.eng.html

French Canadian

Z1254753.fca.html

U65C`tfuvq/cbdlvq/gn Qbhf 41 Xfeoftebz- Kvmz 23- 3111 5;1: QN

IBM T54H, 9511HG2, T54A, 9511-Axx User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
