IBM 9493-aw1-ag1 Schematic

COLOR MONITOR

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS
IN THIS MANUAL.

MODEL: 9493-AW1

(6bit)

9493-AG1

(6bit)

6Bit Module

Issue Date: APRIL 2000

CONTENTS

SPECIFICATIONS

- 2 -

1. LCD CHARACTERISTICS

Type : Color Active Matrix TFT LCD
Size : 15.1inch (38.35cm)
Pixel Pitch : 0.3mm x 0.3mm
Pixel Format : 1024 x 768 pixels (XGA)

RGB Stripe Arrangement
Color Depth : 6-bit, 262,144 colors
Active Video Area : 307.2mm x 230.4mm
Surface Treatment : Anti-Glare, Hard Coating (3H)
Backlight Unit : Two-CCFL (Cold Cathode

Fluorescent Lamp)

2. OPTICAL CHARACTERISTICS

2-1. Viewing Angle by Contrast Ratio

≥

10
Left : 60° typ., 55° min.
Right : 60° typ., 55° min.
Top : 45° typ., 40°min.
Bottom : 45° typ., 40° min.

2-2. Luminance : 200 cd/m

2

typ.

2-3. Angle at Half Luminance

Left : 50° min.
Right : 50° min.
Top : 45° min.
Bottom : 30° min.

2-4. Contrast Ratio : 200° typ.

3. SIGNAL (Refer to the Timing Chart)

3-1. Sync Signal

1) Type : Composite
: Separate TTL
: Sync-On-Green (SOG)

2) Input Voltage Level: Low=0~0.8V, High=2.1~5.5V

3) Sync Polarity : Positive or Negative

3-2. Video Input Signal

1) Type : R, G, B Analog

2) Voltage Level : 0~0.714 V

a) Color 0, 0 : 0 Vp-p
b) Color 7, 0 : 0.467 Vp-p
c) Color 15, 0 : 0.714 Vp-p

3) Input Impedance : 75 Ω

3-3. Operating Frequency

Horizontal : 31 ~ 70 kHz
Vertical : 56 ~ 85 Hz

4. POWER SUPPLY

4-1. Power Adaptor

Input : AC 90~264V, 50/60Hz 1.2A
Output : DC 24V 1.5A

4-2. Power Consumption

5. ENVIRONMENT

5-1. Operating Temperature: 10°C~35°C (50°F~95°F)

(Ambient)

5-2. Relative Humidity : 10%~80%

(Non-condensing)

5-3. Altitude : 0~10,000ft (3,657m)

6. DIMENSIONS (with TILT/SWIVEL)

Width : 401.3 mm (15.80'')
Depth : 250 mm (9.84'')
Height :

Max

– 463.5 mm (18.25'')

Min– 338.5 mm (13.33'')

7. WEIGHT (with TILT/SWIVEL)

Net. Weight : 7.1 kg (15.66 lbs)
Gross Weight : 9.1 kg (20.07 lbs)

SPECIFICATIONS ................................................... 2

PRECAUTIONS ....................................................... 3

TIMING CHART ....................................................... 4

OPERATING INSTRUCTIONS ................................ 5

WIRING DIAGRAM ................................................. 7

DISASSEMBLY ....................................................... 8

BLOCK DIAGRAM ................................................. 10

DESCRIPTION OF BLOCK DIAGRAM.................. 12

ADJUSTMENT ...................................................... 13

TROUBLESHOOTING GUIDE .............................. 14

PRINTED CIRCUIT BOARD................................... 18

EXPLODED VIEW...................................................20

REPLACEMENT PARTS LIST ...............................22

PIN CONFIGURATION............................................29

SCHEMATIC DIAGRAM......................................... 34

PACKING AND ACCESSORIES.............................41

MODE

POWER ON (NORMAL)

STAND-BY

SUSPEND

OFF

POWER OFF

H/V SYNC

ON/ON
OFF/ON
ON/OFF

OFF/OFF

-

POWER CONSUMPTION

less than 30 W

less than 3 W
less than 3 W

less than 3 W
less than 3 W

LED COLOR

GREEN

AMBER
FLASHING AMBER
FLASHING AMBER

OFF

VIDEO

ACTIVE

OFF
OFF
OFF

-

-

+

- 3 -

WARNING FOR THE SAFETY-RELATED COMPONENT.

• There are some special components used in LCD
monitor that are important for safety. These parts are
marked on the schematic diagram and the
replacement parts list. It is essential that these critical
parts should be replaced with the manufacturer’s
specified parts to prevent electric shock, fire or other
hazard.

• Do not modify original design without obtaining written
permission from IBM Inc. or you will void the original
parts and labor guarantee.

TAKE CARE DURING HANDLING THE LCD MODULE
WITH BACKLIGHT UNIT.

• Must mount the module using mounting holes arranged
in four corners.

• Do not press on the panel, edge of the frame strongly
or electric shock as this will result in damage to the
screen.

• Do not scratch or press on the panel with any sharp
objects, such as pencil or pen as this may result in
damage to the panel.

• Protect the module from the ESD as it may damage the
electronic circuit (C-MOS).

• Make certain that treatment person’s body are
grounded through wrist band.

• Do not leave the module in high temperature and in
areas of high humidity for a long time.

• The module not be exposed to the direct sunlight.

• Avoid contact with water as it may a short circuit within

the module.

• If the surface of panel become dirty, please wipe it off
with a softmaterial. (Cleaning with a dirty or rough cloth
may damage the panel.)

WARNING

BE CAREFUL ELECTRIC SHOCK !

• If you want to replace with the new backlight (CCFL) or
inverter circuit, must disconnect the AC adapter
because high voltage appears at inverter circuit about
650Vrms.

• Handle with care wires or connectors of the inverter
circuit. If the wires are pressed cause short and may
burn or take fire.

PRECAUTION

CAUTION

Please use only a plastic screwdriver to protect yourself
from shock hazard during service operation.

CAUTION

• There is two backlight, must distinguish between
the top (upper) and the bottom (lower), and be
careful of treatment it.

• MTBF (Mean Time Between Failure) of a backlight
is about 25,000 hours.

Top (Upper) Backlight Ass’y

(P/N: 6913TZZ001D)

Bottom (Lower) Backlight Ass’y

(P/N: 6913TZZ001E)

IF BRIGHTNESS OF THE LCD MODULE DARKEN,
REPLACE THE BACKLIGHT ONE OR ALL.

TIMING CHART

- 4 -

VIDEO

SYNC

B

D

C

F

E

A

H / V

H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)
H (Pixels)
V (Lines)

Sync

Polarity

+

–
–

+

–
–
–
–
–
–
–
–

+
+
+
+
+
+
+
+
+
+

–
–
–
–
–
–

+
+
+
+

Dot

Clock

25.175

28.322

25.175

30.24

31.5

36.0

36.0

40.0

50.0

49.5

56.25

57.2832

65

75

78.75

95.50

Frequency

31.468 KHz

70.0 Hz

31.468 KHz

70.0 Hz

31.469 KHz

60.0 Hz

35.00 KHz

66.67 Hz

37.50 KHz

75.0 Hz

43.27 KHz

85.0 Hz

35.156 KHz

56.25 Hz

37.879 KHz

60.3 Hz

48.077 KHz

72.188 Hz

46.875 KHz

75.0 Hz

53.670 KHz

85.06 Hz

49.725 KHz

74.55 Hz

48.363 KHz

60.0 Hz

56.476 KHz

70.0 Hz

60.023 KHz

75.0 Hz

68.670 KHz

85.0 Hz

Resolution

640 x 350

720 x 400

(TEXT)

640 x 480

640 x 480

640 x 480

640 x 480

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

832 x 624

(MAC)

1024 x 768

1024 x 768

1024 x 768

1024 x 768

Total

Period

( E )

800
449
900
449
800
525
864
525
840
500
832
509

1024

625

1056

628

1040

666

1056

625

1048

631

1152

667

1344

806

1328

806

1312

800

1376

808

Video

Active

Time ( A )

640
350
720
400
640
480
940
480
640
480
640
480
800
600
800
600
800
600
800
600
800
600
832
624

1024

768

1024

768

1204

768

1024

768

Blanking

Time

( B )

160

99

180

49

160

45

224

45

200

20

192

29

224

25

256

28

240

66

256

25

248

31

320

43

320

38

304

38

288

32

352

40

Sync

Duration

( D )

96

2

108

2

96

2

64

3

64

3

56

3

72

2

128

4

120

6

80

3

64

3

64

3

136

6

136

6

96

3

96

3

Back

Porch

( F )

48
60
55
34
48
33
96
39

120

16
80
25

128

22
88
23
64
23

160

21

152

27

224

39

160

29

144

29

176

28

208

36

Front

Porch

( C )

16
37
17
13
16
10
64

3

16

1

56

1

24

1

40

1
56
37
16

1
32

1
32

1
24

3
24

3
16

1
48

1

MODE

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

OPERATING INSTRUCTIONS

- 5 -

FRONT VIEW REAR VIEW

Front Control Panel

1. Power Indicator

This indicator lights up green when the monitor
operates normally; In DPMS (Energy Saving) mode,

-stand-by, suspend, or power off mode - its color
changes to orange.

2. Power ON/OFF Button

Switches the monitors on and off.

3. ENTER Button

1) Displays main OSD menu.

2) Enters highlighted menus and submenus.

3) Selects highlighted option.

4. Arrow Key

Moves the cursor to highlight icons or make adjustments.

1) Brings up Contrast control OSD.

2) Left and Right arrows pressed together bring up auto
setup.

5. Exit Button

1) Exits from menus, sub menus.

2) Exits from OSD.

3

2

1

4

5

Front Control Panel

Adapter

Signal Connector

On-Screen-Display (OSD) Control

The settings adjustable with the user controls are viewed through the On -Screen Display (OSD). Press the enter button

[ ] to display the main OSD menu.

Initial appearance of OSD

- 6 -

MAIN MENU

BRIGHTNESS

BRIGHTNESS

75

Main Manu;

Sub Manu;

Image Set-Up: The IMAGE SET-UP function

is used to adjust the level of noise in the video
signal which causes horizontal lines or areas
on the screen where the image appears to be
unstable and jitters or shimmers. This can be
done automatically or manually.

If manual is selected, the user will go to the
manual adjustment screen.

Color: Select the Color Mode you find most
comfortable and then fine tune the colors using
the User Color Mode menu, if necessary.

Brightness: To adjust the screen brightness level.

Contrast: To adjust the image contrast level.

Icon Description

Listed below are icons, icon names.

OSD Position:

Changes the position of the

OSD on the screen.

Reset: Reset should return all available
functions (apart from language which should not
change unless adjusted via the LANGUAGE
menu) fo their factory presets.

Icon Description

H-Position: Moves the screen left and right.

V-Position: Moves the screen left and right.

Image Size: This function displays the image in

its original size or enlarged size so as to fit in
the full screen of the LCD panel.

Language: The language chosen affects only
the language of the OSD.
Select one of the five language to use for the
OSD. It has no effect on any software running
on the computer.

OSD Time: To select OSD display duration
time. (5 - 60 seconds)

Information: The model name, serial number,
year of manuracture and current display mode
should be included in the Information screen.
To inform users of the current mode the
monitor is using, and also shows the preset
and user modes stored in the monitor. The
current display mode be shown at the base
of the preset mode and user mode displays.
Use the left and rigth buttons to see the preset
modes and user modes screens.

WIRING DIAGRAM

- 7 -

CN1

CN2

P1

J5

CN3

J2

J3

J1

J4

J10

- 8 -

DISASSEMBLY

(a)

Cable Cover

Rear Cover

(a)

(a)

(a)

1. TILT/SWIVEL REMOVAL

(1) Remove the Cable Cover.
(2) Remove four screws (a).
(3) Remove the Tilt/Swivel.
(4) Remove the Rear Cover.

2. BACK COVER REMOVAL

(1) Remove four Screw Covers (a).
(2) Remove four screws (b).
(3) Remove the Back Cover Ass’y.

(b)

(a)

J4

J2

(c)

(c)

(c)

(c)

Main Frame

Power PCB Ass’y

Main PCB Ass’y

Control PCB Ass’y

3. MAIN, CONTROL & POWER PCB ASSEMBLY REMOVAL

(1) Remove nine screws (a).
(2) Disconnect J4 and J10.
(3) Remove the Metal Rear.
(4) Disconnect J2.
(5) Remove seven screws (b).
(6) Remove the Power PCB Ass’y.
(7) Remove four screws (c).
(8) Remove the Main PCB Ass’y.
(10) Remove the Control PCB Ass’y.

(b)

(a)

(b)

(a)

(b)

(a)

(b)

(a)

- 9 -

(a)

(a)

4. CABINET ASSEMBLY, METAL REAR
& INVERTER PCB ASSEMBLY REMOVAL

(1) Remove six screws (a).
(2) Remove the Cabinet Ass’y.
(3) Remove four screws (b).
(4) Remove the Metal Rear.
(5) Disconnect CN2 and CN3.
(6) Remove the Inverter PCB Ass’y.

5. BACKLIGHT REMOVAL

(1) Remove two screws (a).
(2) Remove the Backlight from the LCD Module.

(a)

(a)

(a)

(a)

(a)

(a)

Metal Rear

Inverter PCB Ass’y

CN3

LCD Module Ass’y

CN2

(b)

(b)

(b)

(b)

Cabinet Ass’y

BLOCK DIAGRAM

- 10 -

POWER CORD

D VI-A to 15-pin D-SUB Signal Cable

POWER

SUPPLY

CONTROL PCB

INVERTER PCB

MAIN LOGIC

PCB

LCD MODULE

P

O

W

E

R

P

C

B

System Block Diagram

- 11 -

Digital

Video

Pre Amp +

ADC +PLL

(AD9884)

R

G

B

Power Connector

REG

I2C

Control

OSD

EEPROM

(24LC16B)

Link Connector

Control

Signal

DVI-

Analog

Cable

8 BIT

8 BIT

8 BIT

+24V +24V

3.3 VD

3.3 VA

H/V Sync POL/DET

+5V

+3.3V

MEMORY

2M Byte X 3

ADDR

DATA

10

16

/RD

/WR

24

SOG-Out

I2C

+5VST

I2C

REG

+5V ST

+3.3V

Digital

Video Processor

(MX88L281)

System Controller

(MC68HC05BD32)

DDC

EEPROM

(24C02)

Sync Process

(M52347FP)

Switching

(MC14066)

V-sync2

H-sync2

H-sync3

H-sync

V-sync

V-sync3

Clamp

5VST

OSD

Generation

(LSC3862DW

)

REG

+5V

H-sync

H-sync

I2C

G

H-sync

Detect

BLOCK DIAGRAM

DESCRIPTION OF BLOCK DIAGRAM

- 12 -

1. Video Amp & PLL & A/D Converter Circuit

AD9884(U5) is one chip IC which it supports three function block of Video Amp, PLL and A/D converter.
Video signal (0.7Vp.p) clamped through C63, 64, 65 inputs to U5’s R, G, and B pins. The signal level is 0.7Vac added
4Vdc. This signal is processed as a proper 8 bit digital signal for input of MX88L281 (U1) by U5’s amplifying, phase
locking, and A/D converting operation.
U5 generates clock and horizontal sync for MX88L281 (U1) with MC14066B(U11)’s output horizontal sync signal.
Sync Process (U14)’s clamp output makes U5 keep video signal’s voltage from zero to AC signal’s minimum level
constantly regardless of various input video signals.

2. Macronix Circuit (Scaler chip)

The MX88L281 (U1) gets the video signal converted analog to digital from U18, and carries out four function of image
processing that interpolates input signal less than 1024x768 resolution to that of 1024x768 resolution, displays one to
one image without interpolation, mixes OSD(On Screen Display) signal by interfacing with OSD IC (U2), and controls
three memories(U6, 7, 8) as frame converter.
U1 outputs signals of HSYNC-OUT, VSYNC-OUT, DEN, CLKA-ODD, and each 8 bit R, G, B to transmitter IC (U16).

3. Memory Circuit

2M byte SDRAM(U6, 7 , 8) is used as a frame converter for supporting up to 85 Hz frame rate and controlled by
MX88L281(U1).
The control signals are CKA, CLK, UDOM, LDOM, /WE, /CAS, /RAS, /CS, /BA.

4. Panel-Link Circuit

Panel link transmitter (U16) delivers digital signal to the receiver inside LCD module by method of abstraction.
The abstracted signals are pairs of TX0+-, TX1+-, TX2+-, TXC+- of which voltage swing is 0.5V each.
Its swing is similar to LVDS (Low Voltage Differential Signal).
Transmitter (U16) gets signals of HSYNC-OUT, VSYNC-OUT, DEN, CLKA-ODD from U4, and outputs LVDS
through TX pin. When PD pin’s input is low, transmitter goes to power down mode.

5. System Controller (Microprocessor) Circuit

1) Microprocessor (U4) distinguishes polarity and frequency by calculating horizontal and vertical sync input from
signal source.

2) Microprocessor (U4) carries out power control by sending power-down trigger signal to each IC.
U1, U5, and U16 has PD(Power-down) pin which operates at active-low each.

3) Microprocessor (U4) communicates with EEPROM (U10), AD9884 (U5), MX88L281 (U1), and OSD IC (U2)
through SCL and SDA or 8 bit bus line. It makes all devices with communication channel operated properly.

4) Microprocessor (U4) let User adjust screen by each OSD function.

6. DC/ DC Converter

This circuit supplies DC power for each device needing DC voltage of 3.3VD, 3.3VD1, 3.3VA, PVD_ADC, 5VA and
5VSTD.
LM2674(U13)and LM2596(U15) , the DC/DC controller IC converts input 24Vdc into each voltage to be needed with
peripheral circuit composed of Choke Coil (L8, 9), condensing components (ZD5, ZD6) and Regulators

(U22, 19, 20,2 3, 24).
5VSTD is supplied for Microprocessor through regulators (U22).
MODPWR for LCD module power are supplied by switching FET(U12) and regulator(U16), controlled by
Microprocessor’s triggering signal (M-PWR ON).

ADJUSTMENT

- 13 -

220

IBM
Compatible PC

PARALLEL PORT

Power inlet (required)

Power LED

ST Switch

Power Select Switch
(110V/220V)

Control Line

Not used

RS232C

PARALLEL

V-SYNC

POWER

ST

VGS

MONITOR

E

E

V-Sync On/Off Switch
(Switch must be ON.)

F

F

A

A

B

B

C

C

15

10

5

5

69

1

1

1

14

13

25

6

5V

5V

5V

4.7K

4.7K

4.7K

74LS06

74LS06

OFF ON

OFF

ON

11

Figure 1. Cable Connection

All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several minor adjustment may be required.
Adjustment should be following procedure and after
warming up for a minimum of 10 minutes.
Alignment appliances and tools.

- IBM Compatible PC

- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)

- E(E)PROM with each mode data saved.

- Alignment Adapter and Software.

1. Adjustment for Factory Preset Mode

1) Run alignment program for 9493_6bit on the IBM
compatible PC.

2) Select EEPROM all clear command and Enter.

3) Display cross hatch pattern at Mode 1.

4) Select COMMAND PRESET START command.

5) Select FOS DEFAULT command and Enter.

6) Press "Y" key, it will automatically save all FOS data
to EEPROM.

2. Adjustment for White Balance

1) Display color 0,0 pattern at Mode 13.

2) Set External Bright to MAX position and Contrast to
MAX Position.

3) Select PRESET START

→ BIAS CAL command

and Enter.

4) No attempt to manually adjust, BIAS data is auto­matically adjusted and saved to the EEPROM.

5) Display color 15,0 pattern at Mode 13.

6) Select DRIVE CAL command and Enter.

7) Preset 1, Preset 2 and Preset 3 are automatically
adjusted and saved to the EEPROM.

8) Select PRESET EXIT command and Enter.

3. DDC Data Write Procedure

1) Use this procedure only when there is some
probelm on EDID data.

2) Select EEPROM → EDID Write command and
Enter.

3) This will write the EDID data to EEPROM.

TROUBLESHOOTING GUIDE

- 14 -

1. NO POWER

CHECK U13, U22, L8,

C47, C144 (ARE C2, C4

SHORTED?)

CHECK

U4 PIN5 VOLTAGE

(5V) ?

NO

NO POWER

(POWER INDICATOR OFF)

CHECK ADAPTER,

AND FIND OUT

A SHORT POINT

AS OPENING

EACH POWER LINE

CHECK J1’S

VOLTAGE

(24V) ?

NO

CHECK U15, L9

CHECK

U19, U20, U23, U24

Voltage (3.3V) ?

NO

YES

YES

YES

CHECK KEY CONTROL

CONNECTOR ROUTINE

- 15 -

2. NO RASTER (OSD IS NOT DISPLAYED) – INVERTER

CHECK MICOM INV

ON/OFF PORT.

J2 PIN5

5V?

NO

NO RASTER

(OSD IS NOT DISPLAYED)

1. CHECK ADAPTER

2. CHECK U12

J4 PIN10

24V?

NO

1.CONFIRM BRIGHTNESS
OSD CONTRL STATE.

2.CHECK MICOM DIM-ADJ
PORT

J2 PIN1

5V?

NO

REPLACE

INVERTER ASS’Y

CHECK

PULSE AS

CONTACTING SCOPE

PROBE TO CAUTION LABEL.

(CONTACT PROBE TO

CAUTION LABEL.

CAN YOU SEE PULSE

AT YOUR

SCOPE?

NO

REPLACE CCFL LAMP

IN THE LCD MODULE

YES

YES

YES

YES

- 16 -

1. CHECK PIN59, 60
SOLDERING CONDITION

2. CHECK X1

3. TROUBLE IN U1

U1

POWER PINS

3.3V?

NO

CHECK U24

U1 PIN60, 61

OSCILLATE AS 14.3M?

NO

YES

YES

CHECK SOLDERING
STATE OF U16

IS APPEAR

LOW VOLTAGE SIGNAL

AT J2 ?

NO

CHECK U12

TROUBLE IN CABLE

OR LCD MODULE

J2 PIN4

5V?

NO

YES

YES

3. NO RASTER (OSD IS NOT DISPLAYED) – MX88L281

NO RASTER

(OSD IS NOT DISPLAYED)

- 17 -

CHECK U19, U20,

U23, +3.3V

U5

POWER PIN

3.3V?

NO

1. CHECK PC

2. CHECK SIGNAL CABLE
& D-SUB CONNECTOR
LINE

CHECK

R,G,B INPUT?

U5 PIN 7, 15, 22

NO

CHECK IIC LINE

CHECK

IIC PULSE ?

U5 PIN 29, 30

NO

CHECK H-SYNC LINE

(D-SUB→U11→U18

PIN40)

CHECK

CKREF(H-SYNC) INPUT?

U5 PIN40

NO

CHECK CKREF INPUT

CHECK

COAST INPUT?

U5 PIN41?

NO

YES

YES

YES

YES

YES

YES

NO RASTER

(OSD IS DISPLAYED)

4. NO RASTER (OSD IS DISPLAYED) – AD9884

CHECK SIGNAL LINE

FROM U14 PIN17

TO U5 PIN28

CHECK

CLAMP INPUT(H-SYNC)?

U5 PIN28

NO

CHECK SIGNAL LINE

FROM U5 PIN115

TO U1 PIN254

(1024x768/85Hz : 95MHz)

CHECK

CLOCK INPUT

(25MHz-95MHz SINEWAVE)?

U5 PIN115

NO

YES

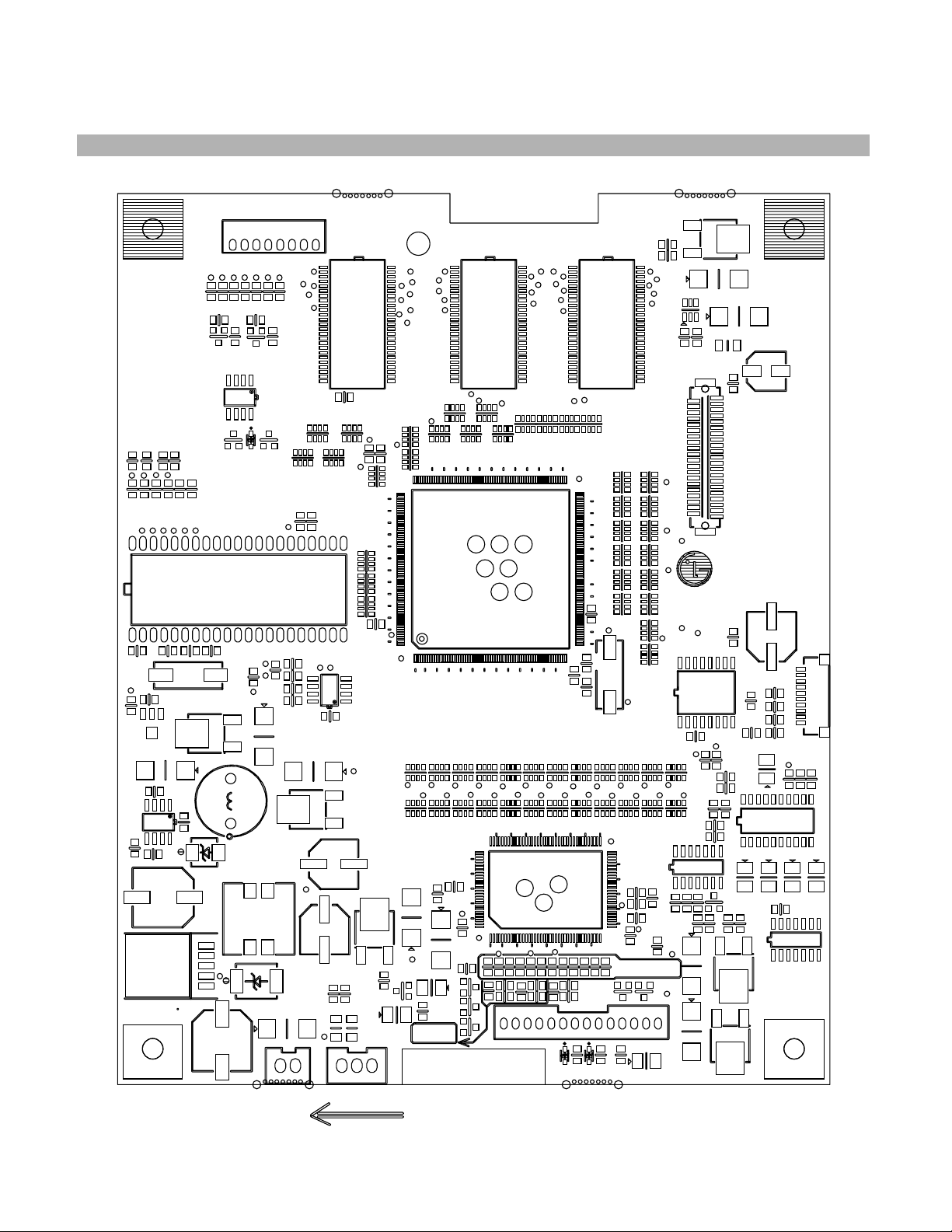

PRINTED CIRCUIT BOARD

- 18 -

R
100

R
106

J4

C19
6

C1
93

U11

C
236

C35

C188

C
41

C
40

L27

C195

L26

C

211
C
210

C95

U20

L10

C187

C36

J2

LI571F VER 2.2

P/N:6870T225A11

2000.03.17

C
26

C
38

R2
1

C37

R
10
3

U14

C
190

Q3

R78

R
99

C
39

C
50

C
49

U19

U16

C99

C89

C
62

U
12

R8
1

CA1

CA2

CA3

CA4

CA5

CA6

U
2

CA17

R
20

C27

R101

R
102

C197

BA36

R108

R109

U
17

R
110

R
111

R
89

R
88

C
90

C
91

C
88

C2
23

BA2

B
A18

CA11

CA18

BA30

BA33

R
76

C73
C74

60

50

R6
9

R72

C6
0

C
87

C
86

C
84

C
82

C
80

C
78

C6
5

C
64

C
63

D5

L19

U8

BA7

BA
19

BA
20

B
A21

120

110

BA
22

B
A
23

100

90

BA
24

C
20

70

C
15

C
13

X1

CA12CA15

BA27BA35

70

30

R64

C
235

L24

D4

R
66

R
65

ZD
1

BA8

BA9

140

130

R
16

6050

CA16CA9

BA29RA32

90

80

20

ZD
2

U6

BA12

BA11

BA10

160 150

40

30

CA10CA13

BA26BA34

U5

100

10

5

1

J3

BA14

BA13

BA15

170

2010

CA14

CA7

BA28

BA31

C67

C
96

L3

120

110

C
72

125

R60

D1

R63

C
234

L6

D3

D2

B
A16

BA17

U1

1

CA8

BA25

C1

C66

D6

R
59

R62

C
233

L5

J1

SOLDERING DIRECTION

U7

BA3

C
101

C
181

BA1

210

200

BA37

BA
38

230

220

BA
39

R1

255

U3

C
2

U23

R
58

L7

C5

C184

BA5

BA4BA6

R
132

R
130

R37

C33

C
3

C127

L1

L12

L13

L14

R47

R
83

Q1

U
10

D9

R27

R
31

R26

R36

C144

C48

U24

C
201

ZD6

C61

J11

J10

L15

L16

L17

R
84

Q2

D8

ZD3

C31

U22

R
117

L8

L9

L18

R48

R
57

R
28

R
128

R
127

R
35

R80

X2

R138

C
227

ZD5

U15

C135

R
51

R
52

R
34

R
33

R
32

U
4

C
30

C103

R30

C
32

C
47

U9

R
139

R71

U
13

C
126

1. MAIN BOARD (Component Side)

- 19 -

2. MAIN BOARD (Solder Side)

L23

C57

C58

R107

R104

R98

C194

C59

R94

C131

R122

R22

C21

R97

R70

R24

R79

C129

C134

C25

R25

C24

C224

R54

R23

C54

C52

C51

C53

R121

C124

C123

C125

R15

R14

R12

R13

R2

R67

C83

C94

C93

C122

R75

C128

C23

L2

C22

C17

R74

R73

C85

C92

C117

C120

C114

C116

C121

C16

C19

C14

C18

C81

C79

R18

R19

C11

C70

C77

C76

R141

C111

C115

C112

C98

C97

C102

R8

R7

C9

R17

R10

R11

R9

R6

C12

C68

C75

C69

C71

C109

C108

C105

C104

C107

C106

C8

C4

R5

C6

C7

C10

C230

C229

C182

C180

C100

R4

R3

C231

L4

C113

C183

R38

R126

C232

C199

C200

R50

C56

C42

R135

R133

R125

R77

R29

L11

R49

C55

R39

R40

R55

R53

R56

R42

C140

C142

C132

C46

C45

C44

C43

C34

R43

R44

R45

R46

R61

R41

C29

C28

R124

- 20 -

1

3

2

4

6

7

8

9

10

11

13

14

12

5

EXPLODED VIEW

- 21 -

EXPLODED VIEW PARTS LIST

Ref. No.

1

2

3

4
5
6
7
8
9

10

11

12

13

14

Part No.

3550TKK100A
3550TKK100B
3550TKK099A
3550TKK099B
3809TKL009G
3809TKL009H
4951TKS048B
6871TST143A

6871TMT164A

4951TKK029B
6633TZA003A
4810TKK120A
6304TLT151H
3091TKL013A
3091TKL013C
6871TST140A
3550TKK101A

3550TKK101B
3043TKK050D
3043TKK050E

Description

REAR COVER, STEALTH BLACK
REAR COVER, PEARL WHITE
SCREW COVER, STEALTH BLACK
SCREW COVER, PEARL WHITE
BACK COVER ASS'Y, STEALTH BLACK
BACK COVER ASS'Y, PEARL WHITE
METAL, MAIN FRAME ASS’Y
POWER PCB ASS'Y
MAIN PCB ASS'Y
METAL, REAR ASS’Y
INVERTER ASS'Y
BRACKET, INVERTER SUPPORTER
LCD MODULE
CABINET ASS'Y, STEALTH BLACK
CABINET ASS'Y, PEARL WHITE
CONTROL PCB ASS'Y
CABLE COVER, STEALTH BLACK
CABLE COVER, PEARL WHITE
TILT SWIVEL ASS'Y, STEALTH BLACK
TILT SWIVEL ASS'Y, PEARL WHITE

Q'ty

1

4

1

1
1
1
1
1
1
1

1

1

1

1

Material

REPLACEMENT PARTS LIST

CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS,

READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL.

* NOTE : S SAFETY Mark

AL ALTERNATIVE PARTS

MODEL: 9493-AW1 DATE: 2000. 4. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK

C1 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
C2 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C3 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C4 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C5 0CH7106F621 CAPACITOR, CHIP[TANTALUM], 10UF 16V M 3528MM TP(-)
C6 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C7 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C8 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C9 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C10 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C11 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C12 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C13 0CH6150K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 15PF 50V J NP0 2012 R/TP
C14 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C15 0CH6150K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 15PF 50V J NP0 2012 R/TP
C16 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C17 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C18 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C19 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C20 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C21 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C22 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C23 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C24 0CH6220K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 22PF 50V J NP0 2012 R/TP
C25 0CH6330K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 33PF 50V J NP0 2012 R/TP
C26 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C27 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C28 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C29 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C30 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C31 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C32 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C33 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C34 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C36 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C37 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C38 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C39 0CH6101K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 100PF 50V J NP0 2012 R/TP
C40 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C41 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C42 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C43 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C44 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C45 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C46 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C47 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
C48 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
C49 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
C50 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
C51 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C52 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C53 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C54 0CH6102K406 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 1000PF 50V J SL 2012 R/TP
C55 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C56 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP

- 22 -

MAIN BOARD

CAPACITORs

MODEL: 9493-AW1 DATE: 2000. 4. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK

C57 0CH6221K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 220PF 50V J NP0 2012 R/TP
C58 0CH6221K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 220PF 50V J NP0 2012 R/TP
C59 0CH3683K946 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 68000PF 50V Z F 2012 R/TP
C60 0CH6101K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 100PF 50V J NP0 2012 R/TP
C61 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
C62 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
C63 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C64 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C65 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C66 0CH7475F621 CAPACITOR, CHIP[TANTALUM], 4.7UF 16V M 3528 TP(-)
C67 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
C68 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C69 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C70 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C71 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C72 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C73 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C74 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C75 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C76 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C77 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C78 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C79 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C80 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C81 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C82 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C83 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C84 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C85 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C86 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C87 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C88 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C89 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C90 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C91 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C92 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C93 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C94 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C95 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C96 0CH6220K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 22PF 50V J NP0 2012 R/TP
C97 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C98 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C99 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C100 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C101 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C102 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C103 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C104 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C105 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C106 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C107 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C108 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C109 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C111 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C112 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C113 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C114 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C115 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C116 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C117 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C120 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C121 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C122 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C123 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C124 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C125 0CH6330K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 33PF 50V J NP0 2012 R/TP

- 23 -

MODEL: 9493-AW1 DATE: 2000. 4. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK

C126 0CH8107J611 CAPACITOR, CHIP[AL. ELECTROLYTIC], 100UF 35V M 85STD(CYL) R/TP
C127 0CH8107J611 CAPACITOR, CHIP[AL. ELECTROLYTIC], 100UF 35V M 85STD(CYL) R/TP
C128 0CH6330K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 33PF 50V J NP0 2012 R/TP
C129 0CH6102K406 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 1000PF 50V J SL 2012 R/TP
C131 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C132 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C134 0CH6102K406 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 1000PF 50V J SL 2012 R/TP
C135 0CH8107J611 CAPACITOR, CHIP[AL. ELECTROLYTIC], 100UF 35V M 85STD(CYL) R/TP
C140 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C142 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C144 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
C180 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C181 0CH6100K116 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 10PF 50V D NP0 2012 R/TP
C182 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C183 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C184 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C187 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C188 0CH8107J611 CAPACITOR, CHIP[AL. ELECTROLYTIC], 100UF 35V M 85STD(CYL) R/TP
C190 0CH7475F621 CAPACITOR, CHIP[TANTALUM], 4.7UF 16V M 3528 TP(-)
C193 0CH7475F621 CAPACITOR, CHIP[TANTALUM], 4.7UF 16V M 3528 TP(-)
C194 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C195 0CH7106F621 CAPACITOR, CHIP[TANTALUM], 10UF 16V M 3528MM TP(-)
C196 0CH6101K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 100PF 50V J NP0 2012 R/TP
C197 0CH6101K416 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 100PF 50V J NP0 2012 R/TP
C199 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C200 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C201 0CH8107J611 CAPACITOR, CHIP[AL. ELECTROLYTIC], 100UF 35V M 85STD(CYL) R/TP
C210 0CH7475F621 CAPACITOR, CHIP[TANTALUM], 4.7UF 16V M 3528 TP(-)
C211 0CH7475F621 CAPACITOR, CHIP[TANTALUM], 4.7UF 16V M 3528 TP(-)
C223 0CH7106F621 CAPACITOR, CHIP[TANTALUM], 10UF 16V M 3528MM TP(-)
C224 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C227 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C229 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C230 0CH3103K516 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 10000PF 50V K B 2012 R/TP
C231 0CH3104K566 CAPACITOR, CHIP[CERAMIC LD-LESS HD], 0.1UF 50V K X 2012 R/TP
C232 0CH6102K406 CAPACITOR, CHIP[CERAMIC LD-LESS TC], 1000PF 50V J SL 2012 R/TP
C236 0CH7476F661 CAPACITOR, CHIP[TANTALUM], 47UF 16V M 7343 TP(-)
CA1 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA2 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA3 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA4 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA5 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA6 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA7 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA8 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA9 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA10 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA11 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA12 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA13 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA14 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA15 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA16 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA17 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK
CA18 0CHZTTA001A CAPACITOR, CHIP, 10F 50V F 3216 4ARRAY REEL TDK

D1 0DS226009AA DIODE, SWITCHING, KDS226 TP KEC SOT-23 80V 300MA 2A 4NS 0.5UA
D2 0DS226009AA DIODE, SWITCHING, KDS226 TP KEC SOT-23 80V 300MA 2A 4NS 0.5UA
D3 0DS226009AA DIODE, SWITCHING, KDS226 TP KEC SOT-23 80V 300MA 2A 4NS 0.5UA
D4 0DS226009AA DIODE, SWITCHING, KDS226 TP KEC SOT-23 80V 300MA 2A 4NS 0.5UA
D5 0DS226009AA DIODE, SWITCHING, KDS226 TP KEC SOT-23 80V 300MA 2A 4NS 0.5UA
D6 0DS181009AA DIODE, SWITCHING, KDS181 TP KEC SOT-23 80V 300MA 2A 4NS 0.5UA
D8 0DS301109AA DIODE, SWITCHING, MMBD301LT1 TP MOTOROLA SOT23 30V 13NA 200NA
D9 0DS301109AA DIODE, SWITCHING, MMBD301LT1 TP MOTOROLA SOT23 30V 13NA 200NA

- 24 -

DIODEs

MODEL: 9493-AW1 DATE: 2000. 4. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK

ZD1 0DZ560009DA DIODE, ZENER, UDZ S 5.6B TP ROHM-K SOD323 200MW 5.6V 5MA .PF
ZD2 0DZ560009DA DIODE, ZENER, UDZ S 5.6B TP ROHM-K SOD323 200MW 5.6V 5MA .PF
ZD3 0DZ560009DA DIODE, ZENER, UDZ S 5.6B TP ROHM-K SOD323 200MW 5.6V 5MA .PF
ZD5 0DR190309AA DIODE, RECTIFIER, MBRS190T3 TP MOTOROLA 403A-03 90V 1A 50A 10NS
ZD6 0DR340009AA DIODE, RECTIFIER, MBRS340 TP FAIRCHILD NON 40V 3A 80A .SEC 2MA

U1 0IMR882810B IC, MACRONIX, MX88L281FC 256PQFP BK XGA LCD INTEGRATION CHIP
U2 0IMO386200A IC, MOTOROLA, LSC3862DW 16PIN,SOIC TP OSD IC(LMOSD2) IBM FONT
U3 0IMP240800A IC, MICRO CHIP TECHNOLOGY, 24LC08BT/SN 8P SOIC TP EEPROM
U4 0IZZTSZ077A IC[HYBRID ], OTP 42PIN BK L1571F
U5 0IAD988400A IC, ANALOG DEVICE, AD9884 100P MQFP BK A/D CONVERTER
U6 0ICX636165A IC, ETRON, EM636165TS-8 1MEGA X 16 SDRAM 125MHZ
U7 0ICX636165A IC, ETRON, EM636165TS-8 1MEGA X 16 SDRAM 125MHZ
U8 0ICX636165A IC, ETRON, EM636165TS-8 1MEGA X 16 SDRAM 125MHZ
U9 0IKE704200J IC, KEC, KIA7042AF SOT-89 TP 4.2V VOLTAGE DETECTOR
U10 0IMP240200A IC, MICRO CHIP TECHNOLOGY, 24LC02BT/SN 3.3K/ TP EEPROM
U11 0IMO140662A IC, MOTOROLA, MC14066BDR2 14P,SOIC TP BILATERAL SWITCH
U12 0TF632509AA FET, FDC6325L TP FAIRCHILD 8V 2.4A SMT6
U13 0INS267450A IC, NATIONAL SEMICONDUCTOR, LM2674M-5.0 8SOP TP 0.5A 5V S/DOWN
U14 0IMI523470A IC, MITSUBISHI, M52347FP 20P, SOP TP SYNC SIGNAL PROCESSOR
U15 0INS259650A IC, NATIONAL SEMICONDUCTOR, LM2596-5V 5LEAD,TO263(S) TP 3A 5V S/D
U16 0IRH033200A IC, ROH, BA033FP-E2 MOLD-3 TP REGULATOR
U17 0IMO741420B IC, MOTOROLA, MC74HCT14ADR2 14P,SOIC TP LEVEL CONVERTER
U19 0IRH033200A IC, ROHM, BA033FP-E2 MOLD-3 TP REGULATOR
U20 0IRH033200A IC, ROHM, BA033FP-E2 MOLD-3 TP REGULATOR
U22 0ISS780500H IC, SAMSUNG ELECTRONICS, KA78M05-R 3P,D-PAK TP 5V 0.5A REGULATO
U23 0IRH033200A IC, ROHM, BA033FP-E2 MOLD-3 TP REGULATOR
U24 0IRH033200A IC, ROHM, BA033FP-E2 MOLD-3 TP REGULATOR

L1 6210TCE001G CORE (CIRC), BEAD, HH-1M3216-501 CERATEC 3216MM R/TP
L2 6210TCE001E CORE (CIRC), BEAD, HB-1M2012-800JT CERATEC 2012MM R/TP
L3 6210TCE001P CORE (CIRC), BEAD, HB-1S2012-121JT CERATECH 2012MM R/TP
L4 6210TCE001G CORE (CIRC), BEAD, HH-1M3216-501 CERATEC 3216MM R/TP
L5 6210TCE001E CORE (CIRC), BEAD, HB-1M2012-800JT CERATEC 2012MM R/TP
L6 6210TCE001E CORE (CIRC), BEAD, HB-1M2012-800JT CERATEC 2012MM R/TP
L7 6210TCE001G CORE (CIRC), BEAD, HH-1M3216-501 CERATEC 3216MM R/TP
L8 6140TBZ016B COIL, CHOKE, DR10*7(YL-9N) 220UH 0.32MM 75T LI571D
L9 6140TBZ007A COIL, CHOKE, DR10*7(K-30) 100UH 0.4MM 34.5T SMD CHOKE(LCD)
L10 6210TCE001G CORE (CIRC), BEAD, HH-1M3216-501 CERATEC 3216MM R/TP
L11 6210TCE001P CORE (CIRC), BEAD, HB-1S2012-121JT CERATECH 2012MM R/TP
L12 6210TCT002B CORE (CIRC), BEAD, ACB2012M-300-T TDK , CHIP BEAD,LCD
L13 6210TCT002B CORE (CIRC), BEAD, ACB2012M-300-T TDK , CHIP BEAD,LCD
L14 6210TCT002B CORE (CIRC), BEAD, ACB2012M-300-T TDK , CHIP BEAD,LCD
L15 6210TCT002B CORE (CIRC), BEAD, ACB2012M-300-T TDK , CHIP BEAD,LCD
L16 6210TCT002B CORE (CIRC), BEAD, ACB2012M-300-T TDK , CHIP BEAD,LCD
L17 6210TCT002B CORE (CIRC), BEAD, ACB2012M-300-T TDK , CHIP BEAD,LCD
L18 6210TCT002B CORE (CIRC), BEAD, ACB2012M-300-T TDK , CHIP BEAD,LCD
L19 6210TCE001P CORE (CIRC), BEAD, HB-1S2012-121JT CERATECH 2012MM R/TP
L23 6210TCE001P CORE (CIRC), BEAD, HB-1S2012-121JT CERATECH 2012MM R/TP
L24 6210TCE001E CORE (CIRC), BEAD, HB-1M2012-800JT CERATEC 2012MM R/TP
L26 6210TCT002B CORE (CIRC), BEAD, ACB2012M-300-T TDK , CHIP BEAD,LCD
L27 6210TCT002B CORE (CIRC), BEAD, ACB2012M-300-T TDK , CHIP BEAD,LCD
BA1 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA2 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA3 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA4 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA5 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA6 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA7 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA8 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA9 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA10 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP

- 25 -

ICs

COILs & COREs

MODEL: 9493-AW1 DATE: 2000. 4. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK

BA11 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA12 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA13 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA14 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA15 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA16 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA17 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA18 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA19 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA20 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA21 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA22 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA23 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA24 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA25 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA26 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA27 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA28 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA29 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA30 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA31 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA32 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA33 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA34 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA35 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA36 6210TCE002B CORE (CIRC), BEAD, HB-4M3216-121JT CERATECH 3216MM R/TP
BA37 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA38 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP
BA39 6210TCE002C CORE (CIRC), BEAD, HB-4M3216-201JT CERATECH 3216MM R/TP

Q1 0TR162309CA TRANSISTOR, KSC1623 TP SAMSUNG SOT23 NPN EPI. SILICON TR
Q2 0TR162309CA TRANSISTOR, KSC1623 TP SAMSUNG SOT23 NPN EPI. SILICON TR
Q3 0TR162309CA TRANSISTOR, KSC1623 TP SAMSUNG SOT23 NPN EPI. SILICON TR

R1 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R2 0RH2201D622 RESISTOR, CHIP, 2.2K 1/10W P-TYPE TAPPING
R3 0RH0222D622 RESISTOR, CHIP, 22 1/10W 5 D.R/TP
R4 0RH0222D622 RESISTOR, CHIP, 22 1/10W 5 D.R/TP
R5 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R6 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R7 0RH0472D622 RESISTOR, CHIP, 47 1/10W 5 D.R/TP
R8 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R9 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R11 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R12 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R13 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R14 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R15 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R16 0RH1004D622 RESISTOR, CHIP, 1.0M 1/10W 5 D.R/TP
R17 0RH0222D622 RESISTOR, CHIP, 22 1/10W 5 D.R/TP
R18 0RH0222D622 RESISTOR, CHIP, 22 1/10W 5 D.R/TP
R19 0RH0222D622 RESISTOR, CHIP, 22 1/10W 5 D.R/TP
R20 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R21 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R22 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R23 0RH2201D622 RESISTOR, CHIP, 2.2K 1/10W P-TYPE TAPPING
R24 0RH2201D622 RESISTOR, CHIP, 2.2K 1/10W P-TYPE TAPPING
R25 0RH0472D622 RESISTOR, CHIP, 47 1/10W 5 D.R/TP
R26 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R27 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R28 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R29 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP

- 26 -

TRANSISTORs

RESISTORs

MODEL: 9493-AW1 DATE: 2000. 4. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK

R30 0RH3302D622 RESISTOR, CHIP, 33K 1/10W 5 D.R/TP
R31 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R32 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R33 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R34 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R35 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R36 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R37 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R38 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R39 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R40 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R41 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R42 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R43 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R44 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R45 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R46 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R47 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R48 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R49 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R50 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R51 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R52 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R53 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R54 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R55 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R56 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R57 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R58 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R59 0RH3302D622 RESISTOR, CHIP, 33K 1/10W 5 D.R/TP
R60 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R61 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R62 0RH0752D622 RESISTOR, CHIP, 75 1/10W 5 D.R/TP
R63 0RH0752D622 RESISTOR, CHIP, 75 1/10W 5 D.R/TP
R64 0RH0752D622 RESISTOR, CHIP, 75 1/10W 5 D.R/TP
R65 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R66 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R67 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R69 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R70 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R71 0RH2702D622 RESISTOR, CHIP, 27K 1/10W 5 D.R/TP
R72 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R73 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R74 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R75 0RH0332D622 RESISTOR, CHIP, 33 1/10W 5 D.R/TP
R76 0RH1501D622 RESISTOR, CHIP, 1.5K 1/10W 5 D.R/TP
R77 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R78 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R79 0RH2202D622 RESISTOR, CHIP, 22K 1/10W 5 D.R/TP
R80 0RH1004D622 RESISTOR, CHIP, 1.0M 1/10W 5 D.R/TP
R81 0RH1500D622 RESISTOR, CHIP, 150 1/10W 5 D.R/TP
R88 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R89 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R94 0RH5602D622 RESISTOR, CHIP, 56K 1/10W 5 D.R/TP
R97 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R98 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R99 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R100 0RH4302D622 RESISTOR, CHIP, 43K 1/10W 5 D.R/TP
R101 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R102 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R103 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R104 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R106 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R107 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R108 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R109 0RH2201D622 RESISTOR, CHIP, 2.2K 1/10W P-TYPE TAPPING

- 27 -

MODEL: 9493-AW1 DATE: 2000. 4. 15.

*S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION REMARK

R110 0RH4702D622 RESISTOR, CHIP, 47K 1/10W 5 D.R/TP
R111 0RH2702D622 RESISTOR, CHIP, 27K 1/10W 5 D.R/TP
R117 0RH6800D622 RESISTOR, CHIP, 680 OHM 1 / 10 W 5% D R/TP
R121 0RH4700D622 RESISTOR, CHIP, 470 1/10W 5 D.R/TP
R122 0RH1002D622 RESISTOR, CHIP, 10K 1/10W 5 D.R/TP
R124 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R125 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R126 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R127 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R128 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R130 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R132 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R133 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R135 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP
R138 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R139 0RH4701D622 RESISTOR, CHIP, 4.7K 1/10W 5 D.R/TP
R141 0RH1000D622 RESISTOR, CHIP, 100 1/10W 5 D.R/TP

X1 6202TST001A CRYSTAL, SX-1 SUNNY ,SMS, 14.31818MHZ ,30PPM, 18PF, TP
X2 6202TST001E CRYSTAL, SX-1 SUNNY CHIP 24MHZ 30PPM 20PF BK

J5 6612TBH001A JACK,DIN, TCS7547-01-401 HOSIDEN R/A 4P LI571D
LED1 0DL571300AA LED, “SPR571MVW3 TP ROHM GREEN/RED “”10,10MCD”””
SW1 140-058E SWITCH, TACT, SKHV10910B LGEC NON 12V 20A HORIZENTAL 160G
SW2 140-058E SWITCH, TACT, SKHV10910B LGEC NON 12V 20A HORIZENTAL 160G
SW3 140-058E SWITCH, TACT, SKHV10910B LGEC NON 12V 20A HORIZENTAL 160G
SW4 140-058E SWITCH, TACT, SKHV10910B LGEC NON 12V 20A HORIZENTAL 160G
SW5 140-058E SWITCH, TACT, SKHV10910B LGEC NON 12V 20A HORIZENTAL 160G

LCD 6304TLT151H LCD(LIQUID CRYSTAL DISPLAY), “LGE TFT LCD LM151X2-F2MN 15.1”
INVETER 6633TZA003A INVERTER ASSY, “SAMSUNG LG1501 FOR 15.1”” LCD MNT(LG501)”
ADAPTER 6634TBZ009A ADAPTER,AC-DC, PSCV360107A SAMSUNG 100-240V 24V 1.5A FOR IBM
S/CABLE 6866TDV001A SIGNAL CABLE, UL 2990-9C DT 3000MM PEARL WH LI571D(DVIA-VGA) DM
S/CABLE 6866TDV001B SIGNAL CABLE, UL 2990-9C DT 3000MM STEALTH BLACK (DVIA-VGA)

- 28 -

OTHERs

CONTROL BOARD

MISCELLANEOUS

PIN CONFIGURATION

- 29 -

AD9884A 100MSPS/140MSPS Analog Flat Panel Interface

Functional Block Diagram

Pin Configurations

- 30 -

LM2674 Simple Switcher® Power Converter High Efficiency 500mA Step-Down Voltage Regulator

FEEDBACK

3.3V, R2 =4.32k
5V, R2 = 7.83k

12V, R2 = 22.3k

ADJ,R2 = 0Ω

R1 is OPEN

4

7

V

IN

Gain

Compensation

Bias

Generator

1.21V

Referance

Bias 1.21V

3.2V

0.6V

V

RAMP

R2

R1

= 2.5k

260kHz

Oscillator

Freq. Shift

Reset

GM 2

GM 1

10k

15k

2k

20mH*

–

–

–

+

+

+

+

1.21V

10nF

PWM
Comparator

GND

Control

Logic

Driver

Enable

Enable

500mA

Switch

6

V

SWITCH

C

BOOTSTRAP

8

1

Thermal

Shutdown

R

SENSE

Current

Limit

5 ON/OFF

5V

7V

5V Internal

Regulator

Start

UP

Pin Configuration

Block Diagram

Top View

- 31 -

M52347 SYNC SIGNAL PROCESSOR

20

17

18

19

1

4

3

2

16

5

15

6

12

9

11

10

7
8

14

13

M52347SP/FP

CLAMP TIMING
Y. POL.

H. POL.
CLAMP

+

OUT

V

CC

HD+ OUT
VD

+

OUT
V S/S OUT
V S/S IN

HD

-

OUT

COMP/H IN

H. STATE

COMP/H DET

V. STATE

CLAMP SW

GREEN IN

V TIME GATE SW

GND

V DET

V IN

1 2

3 4 5

6

7

8

9

10

20 19

18

17

16

15

14 13 12

11

COMP/H

IN

H. STATE COMP/H

DET

V. STATE

CLAMP

SW

GREEN

IN

V TIME GATA

SW

VD

+

OUT

V S/S

OUT

GND V DETV IN

H. POL.

CLAMP

+

OUT VCC

HD

-

OUT

HD

+

OUT

V S/S

IN

CLAMP

GET

EDGE

SW

CLAMP
TIMING Y. POL.

H

DET

V. SYNC

SEP

V. TIME

GATE

LOGIC

H

SHAPE

V

SHAPEVDET

SYNC

SEP

LOGIC

Pin Configuration

Block Diagram

- 32 -

LM2596

Simple Switcher® Power Converter 150kHz 3A Step-Down Voltage Regulator

BLOCK DIAGRAM

Side View Top View

- 33 -

PARTSTYPE

PARTSTYPE

KDS181

12

3

BA033FP

KA78M05R
KA78M12R

1. INPUT

2. GND

3. OUTPUT

1. CATHODE 1

2. CATHODE 2

3. ANODE

1

3

2

1. Vcc

2. GND

3. OUT

1

3

2

1

3

2

KDS226

12

3

1. CATHODE 1

2. ANODE 2

3. ANODE 1 / CATHODE 2

1

3

2

KSC1623

1. BASE

2. EMITTER

3. COLLECTOR

2

3

1

0CH7106F621

10uF/16V

0CH7227F661

220uF/6.3V

0CH7476F661

47uF/10V

_

+

Regulator

Schottky Diode

Diode

Diode

Transistor

Tantalum Capacitor

MBRS130T3
MBRS190T3

1

2

1

2

SCHEMATIC DIAGRAM

- 34 -

1. AD9884 (PRE-AMP/PLL/ADC)

- 35 -

2. VIDEO PROCESS

- 36 -

3. OUTPUT CONNECTOR

- 37 -

4. MEMORY

- 38 -

5. MICOM

- 39 -

6. POWER GEN.

- 40 -

7. CONNECTOR & JACKS
