ERserver



IBM xSeries 350 Type 8682

Hardware Maintenance Manual

ER s e r v e r



IBM xSeries 350 Type 8682

Hardware Maintenance Manual

: Note: Before using this information and the product it supports, be sure to read the general information

under “Notices” on page 160

Sixth Edition (September 2003)

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION ″AS IS″ WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time.

This publication was developed for products and services offered in the United States of America. IBM may not offer the products, services, or features discussed in this document in other countries, and the information is subject to change without notice. Consult your local IBM representative for information on the products, services, and features available in your area.

Requests for technical information about IBM products should be made to your IBM reseller or IBM marketing representative.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

About this manual

This manual contains diagnostic information, a Symptom-to-FRU index, service information, error codes, error messages, and configuration information for the IBM

Eserver

Important: This manual is intended for trained servicers who are familiar with IBM

™

xSeries™350 Type 8682 server.

xSeries products. Before servicing an IBM product, be sure to review “Safety information” on page 127.

Important safety information

Be sure to read all caution and danger statements in this book before performing any of the instructions.

Leia todas as instruções de cuidado e perigo antes de executar qualquer operação.

Prenez connaissance de toutes les consignes de type Attention et Danger avant de procéder aux opérations décrites par les instructions. Lesen Sie alle Sicherheitshinweise, bevor Sie eine Anweisung ausführen.

Online support

Accertarsi di leggere tutti gli avvisi di attenzione e di pericolo prima di effettuare qualsiasi operazione.

Lea atentamente todas las declaraciones de precaución y peligro ante de llevar a cabo cualquier operación.

WARNING: Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash

hands after handling.

ADVERTENCIA: El contacto con el cable de este producto o con cables de accesorios que se venden junto con este producto, pueden exponerle al plomo, un elemento químico que en el estado de California de los Estados Unidos está considerado como un causante de cancer y de defectos congénitos, además de otros riesgos reproductivos. Lávese las manos después de usar el producto.

You can download the most current diagnostic, BIOS flash, and device driver files from http://www.ibm.com/pc/support.

iv IBM xSeries 350 Type 8682: Hardware Maintenance Manual

About this manual .......................iii

Important safety information ....................iii

Online support .........................iii

General checkout ........................1

Checkout procedure .......................2

General information .......................3

Features and specifications.....................3

Server features .........................5

Reliability, availability, and serviceability ................6

Start the server .........................8

Controls and indicators ......................9

Information LED panel ......................9

Diagnostics ..........................11

Diagnostic tools overview .....................11

POST ............................11

POST beep codes ......................12

POST error messages .....................12

Event/error logs .......................12

Small computer system interface messages ..............12

ServerGuide error symptoms....................12

Diagnostic programs and error messages ...............13

Text messages ........................14

Starting the diagnostic programs .................14

Viewing the test log ......................15

Diagnostic error message tables .................15

Light path diagnostics ......................16

Power supply LEDs ......................16

Diagnostic panel LEDs ....................18

Light Path Diagnostics ....................19

Power checkout ........................20

Recovering BIOS ........................20

Replacing the battery ......................21

Temperature checkout ......................23

Diagnosing errors ........................23

Troubleshooting the Ethernet controller ...............23

Network connection problems .................23

Ethernet controller troubleshooting chart .............24

Ethernet controller messages ..................25

Novell NetWare or IntraNetWare server ODI driver messages......25

Network driver interface specification 2.01 (OS/2) driver messages....28

NDIS 4.0 (Windows NT) driver messages .............29

UNIX messages ......................30

Configuring the server .....................33

Using the Configuration/Setup Utility program .............33

Starting the Configuration/Setup Utility program ............33

Choices available from the Configuration/Setup main menu .......34

Using passwords .......................37

Power-on password .....................38

Administrator password....................38

Using the SCSISelect utility program .................39

Starting the SCSISelect utility program ...............39

Choices available from the SCSISelect menu.............40

Installing options .......................41

Expanded view of the xSeries 350..................41

Component locations......................42

System board component locations ...............42

System board LED locations ..................46

Diagnostic panel LEDs ....................47

Memory board component locations ...............48

Advanced System Management Interconnect board component locations 49

Before you begin ........................50

System reliability considerations .................50

Working inside the server with the power on .............50

Handling static-sensitive devices .................51

Removing the server top cover and bezel ...............53

Working with adapters ......................54

Installing a hot-plug adapter ...................55

Cabling example for the ServeRAID adapter .............56

Installing internal drives......................59

Internal drive bays ......................59

Hard disk drive component locations ...............60

Installing a hot-swap hard disk drive ................62

Installing memory-module kits ..................63

Installing a microprocessor kit ...................66

Changing jumper positions ...................69

Three-pin jumper blocks ...................69

Installing a hot-swap power supply .................70

Installing a 3-Pack Ultra160 Hot-Swap Expansion Kit ...........71

Replacing a hot-swap fan .....................73

Completing the installation.....................74

Installing the server top cover and bezel ..............74

Updating the server configuration .................75

Connecting external options ....................75

Input/output ports ........................76

Parallel port .........................76

Viewing or changing the parallel-port assignments ..........76

Parallel port connector ....................77

Video port..........................77

Keyboard port ........................78

Auxiliary-device (pointing device) port ...............79

Ultra160 SCSI ports ......................79

SCSI cabling requirements ..................80

Setting SCSI IDs ......................80

SCSI connector pin-number assignments .............80

Serial ports .........................81

Viewing or changing the serial-port assignments ..........82

Serial-port connectors ....................82

Universal Serial Bus ports ....................82

USB cables and hubs ....................82

USB-port connectors.....................83

Ethernet port.........................83

Configuring the Ethernet controller................83

Failover for redundant Ethernet .................83

Ethernet port connector....................86

vi IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Advanced System Management ports ...............87

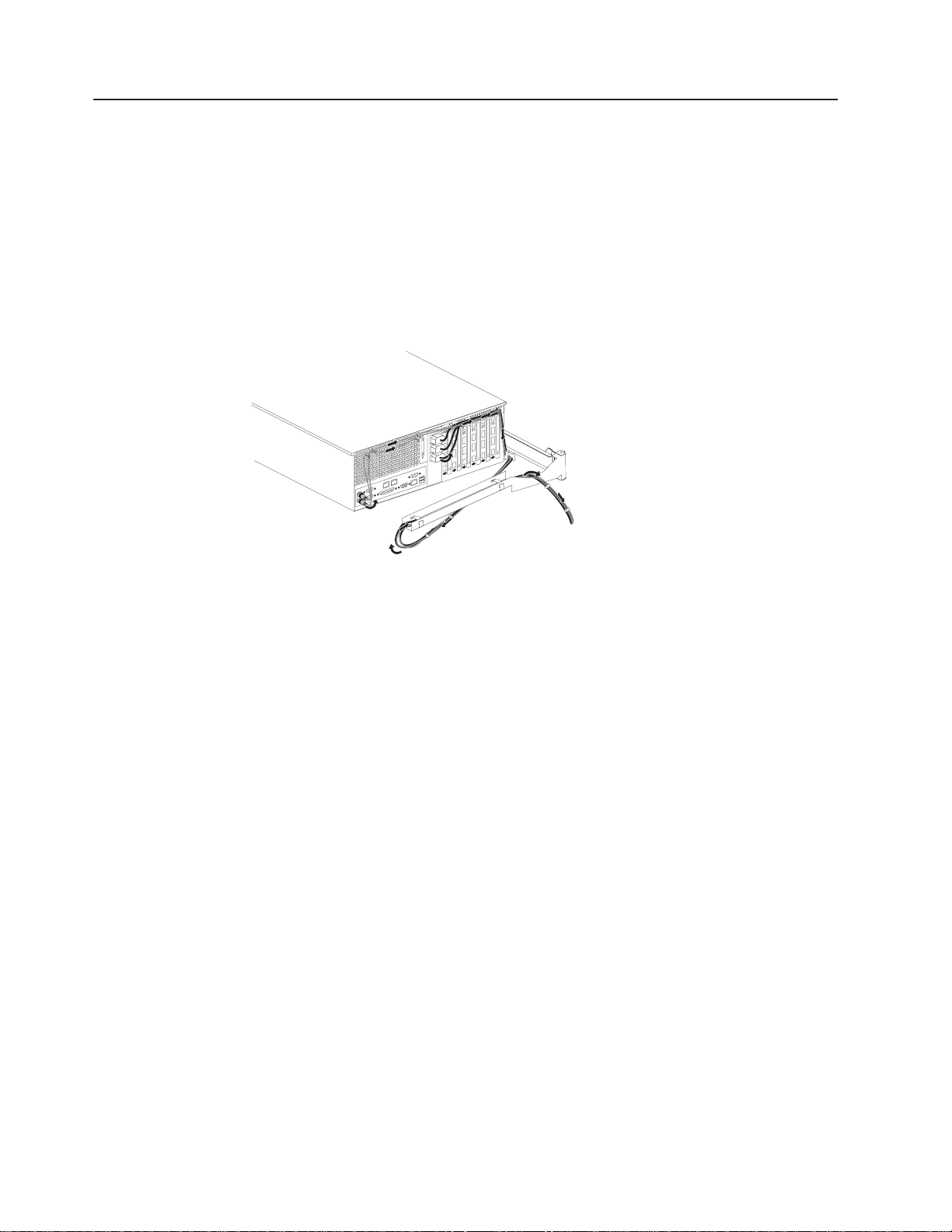

Cabling the server........................88

FRU information (service only) ..................89

LED switch card ........................89

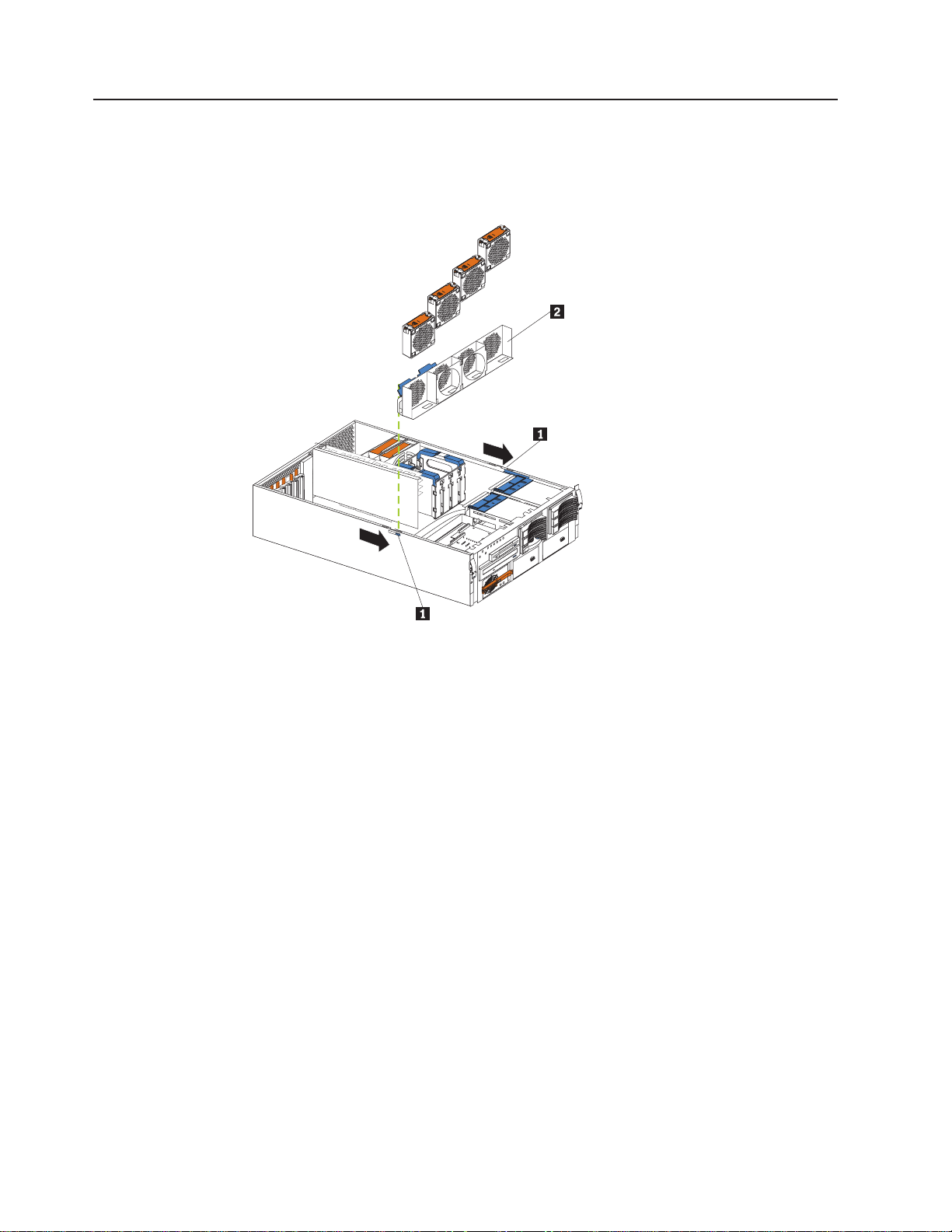

Four-fan housing ........................90

Dual fan mount assembly with cable .................91

Service processor card assembly ..................92

PCI switch card.........................93

Power backplane assembly ....................94

System board assembly with backerplate ...............95

Symptom-to-FRU index .....................97

Beep symptoms ........................97

No beep symptoms.......................100

Diagnostic panel error LEDs ...................101

Diagnostic error codes .....................103

Error symptoms ........................108

Power supply LED errors.....................110

POST error codes .......................110

ServeRAID ..........................116

I2C bus fault messages .....................117

SCSI error codes .......................118

Temperature error messages ...................118

Fan error messages ......................119

Power error messages......................119

System shutdown .......................120

Voltage related system shutdown.................120

Temperature related system shutdown...............121

DASD checkout ........................121

CPU checkout.........................121

Undetermined problems .....................122

Parts listing, Type 8682.....................123

System ...........................123

Keyboards ..........................125

Power cords .........................125

Related service information ...................127

Safety information .......................127

General safety .......................127

Electrical safety .......................128

Safety inspection guide ....................129

Handling electrostatic discharge-sensitive devices ..........130

Grounding requirements ....................130

Safety notices (multi-lingual translations) ..............131

Problem determination tips ....................160

Notices ...........................160

Trademarks..........................161

Contents vii

viii IBM xSeries 350 Type 8682: Hardware Maintenance Manual

General checkout

The server diagnostic programs are stored in upgradable read-only memory (ROM) on the system board. These programs are the primary method of testing the major components of the server: The system board, Ethernet controller, video controller, RAM, keyboard, mouse (pointing device), diskette drive, serial ports, hard drives, and parallel port. You can also use them to test some external devices. See “Diagnostic programs and error messages” on page 13

Also, if you cannot determine whether a problem is caused by the hardware or by the software, you can run the diagnostic programs to confirm that the hardware is working properly.

When you run the diagnostic programs, a single problem might cause several error messages. When this occurs, work to correct the cause of the first error message. After the cause of the first error message is corrected, the other error messages might not occur the next time you run the test.

A failed system might be part of a shared DASD cluster (two or more systems sharing the same external storage device(s)). Prior to running diagnostics, verify that the failing system is not part of a shared DASD cluster.

A system might be part of a cluster if:

v The customer identifies the system as part of a cluster. v One or more external storage units are attached to the system and at least one

of the attached storage units is additionally attached to another system or

unidentifiable source. v One or more systems are located near the failing system.

If the failing system is suspected to be part of a shared DASD cluster, all diagnostic tests can be run except diagnostic tests which test the storage unit (DASD residing in the storage unit) or the storage adapter attached to the storage unit.

Notes:

1. For systems that are part of a shared DASD cluster, run one test at a time in

looped mode. Do not run all tests in looped mode, as this could enable the DASD diagnostic tests.

2. If multiple error codes are displayed, diagnose the first error code displayed.

3. If the computer hangs with a POST error, go to the “Symptom-to-FRU index” on

page 97

4. If the computer hangs and no error is displayed, go to “Undetermined problems”

on page 122

5. Power supply problems, see “Symptom-to-FRU index” on page 97

6. Safety information, see “Safety information” on page 127

7. For intermittent problems, check the error log; see “POST error messages” on

page 12

Checkout procedure

1. IS THE SYSTEM PART OF A CLUSTER? YES. Schedule maintenance with the customer. Shut down all systems related to

the cluster. Run storage test. NO. Go to step 2.

2. IF THE SYSTEM IS NOT PART OF A CLUSTER:

v Power-off the computer and all external devices. v Check all cables and power cords. v Set all display controls to the middle position. v Power-on all external devices. v Power-on the computer. v Record any POST error messages displayed on the screen. If an error is

v Check the information LED panel System Error LED; if on, see “Diagnostic v Check the System Error Log. If an error was recorded by the system, see v Start the Diagnostic Programs. See “Diagnostic programs and error v Check for the following responses:

3. DID YOU RECEIVE BOTH OF THE CORRECT RESPONSES? NO. Find the failure symptom in “Symptom-to-FRU index” on page 97 YES. Run the Diagnostic Programs. If necessary, refer to “Diagnostic programs and

error messages” on page 13

displayed, look up the first error in the “POST error codes” on page 110 panel error LEDs” on page 101 “Symptom-to-FRU index” on page 97 messages” on page 13 a. One beep.

b. Readable instructions or the Main Menu.

If you receive an error, go to “Symptom-to-FRU index” on page 97 If the diagnostics completed successfully and you still suspect a problem, see

“Undetermined problems” on page 122

2 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

General information

The IBM xSeries 350 server is a high-performance server with the capability of microprocessor upgrade to a symmetric multiprocessing (SMP) server. It is ideally suited for networking environments that require superior microprocessor performance, efficient memory management, flexibility, and large amounts of reliable data storage.

Performance, ease of use, reliability, and expansion capabilities were key considerations during the design of the server. These design features make it possible for you to customize the system hardware to meet your needs today, while providing flexible expansion capabilities for the future.

The xSeries 350 server comes with a three-year limited warranty and 90-Day IBM Start Up Support. If you have access to the World Wide Web, you can obtain up-to-date information about the server model and other IBM server products at the following World Wide Web address: http://www.ibm.com/eserver/xseries/

Features and specifications

The following provides a summary of the features and specifications for the xSeries 350 server.

v Microprocessor:

– Intel Pentium III Xeon

– 32 KB of level-1 cache

– 1 MB or 2 MB Level-2 cache depending upon model

– 100 MHz front-side bus (FSB)

– Supports up to four microprocessors

v Memory:

– Maximum: 16GB

– Type: ECC, SDRAM, Registered DIMMs

– 16 slots, 4-way interleaved

v Drives standard:

– Diskette: 1.44 MB

– CD-ROM: 40X IDE

v Expansion bays:

Hot-swap drives: Three standard slim-high, three optional slim-high

v Active PCI expansion slots:

– One 33 MHz/32-bit

– Three 66 MHz/64-bit

– Two 33 MHz/64-bit

v Hot-swap power supplies:

270 W (115-230 V ac)

– Minimum: One

– Maximum: Three

v Redundant cooling:

– Six hot-swap fans

v Video:

– S3 video controller

– Compatible with SVGA and VGA

– 8 MB video memory

v Size (4 U)

– Height: 178 mm (7 in.) (4 U) – Depth: 711.2 mm (28 in.) – Width: 482.6 mm (19 in.) – Weight: 34.9 kg (77 lb.) to 50.4 kg (111 lb.) depending upon configuration

v Integrated functions:

– Advanced System Management processor with Light Path Diagnostics – Dual channel Ultra160 SCSI controller (one internal and one external channel)

(non-RAID) – One 10BASE-T/100BASE-TX AMD Ethernet controller – Two serial ports – One parallel port – Two universal serial bus ports – Keyboard port – Mouse port – Video port

v Acoustical noise emissions:

– Sound power, idling: 6.3 bel maximum – Sound power, operating: 6.3 bel maximum – Sound pressure, operating: 48 dBa maximum

v Environment:

– Air temperature:

- Server on: 10° to 35°C (50° to 95°F). Altitude: 0 to 914 m (3000 ft.)

- Server on: 10° to 32°C (50° to 89.6°F). Altitude: 914 m (3000 ft.) to 2133 m (7000 ft.)

- Server off: 10° to 43°C (50° to 110°F). Maximum altitude: 2133 m (7000 ft.)

– Humidity:

- Server on: 8% to 80%

- Server off: 8% to 80%

v Heat output:

Approximate heat output in British Thermal Units (BTU) per hour – Minimum configuration:461 BTU (0.14 kilowatts per hour) – Maximum configuration: 1796 BTU (0.53 kilowatts per hour)

v Electrical input:

– Sine-wave input (50-60 Hz) required – Input voltage low range:

- Minimum: 90 V ac

- Maximum: 137 V ac

– Input voltage high range:

- Minimum: 180 V ac

- Maximum: 265 V ac

– Input kilovolt-amperes (kVA) approximately:

- Minimum: 0.08 kVA

- Maximum: 0.52 kVA

4 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Server features

The unique design of the server takes advantage of advancements in symmetric multiprocessing (SMP), data storage, and memory management. The server combines:

v Impressive performance using an innovative approach to SMP

The server supports up to four Pentium III Xeon processors. The server comes with at least one processor installed; you can install additional processors to enhance performance and provide SMP capability.

v Large data-storage and hot-swap capabilities

All models of the server support up to three standard and three optional 26 mm (1-inch) slim-high 3.5-inch hot-swap hard disk drives in the hot-swap bays. This hot-swap feature enables you to remove and replace hard disk drives without turning off the server.

v Active PCI (hot-plug) adapter capabilities

The server has six hot-plug slots for PCI adapters. With operating system support, you can replace failing hot-plug PCI adapters without turning off the server. If the hot-add feature is supported by the operating system and the PCI adapter, you can also add PCI adapters in these slots without turning off the server.

v Redundant cooling and power capabilities

The redundant cooling and hot-swap capabilities of the fans in the server enable continued operation if one of the fans fails. You can also replace a failing fan without turning off the server.

The server comes standard with one 270-watt power supply. Install three 270-watt power supplies to ensure redundancy and hot-swap capability for a typical configuration. (See “Installing a hot-swap power supply” on page 70 for instructions.)

v 100 MHz front-side bus (FSB)

The FSB is the processor external bus. This bus is the interface between the processors and the system board. The FSB is also known as the processor/host bus.

v Large system memory

The memory bus in the server supports up to 16 GB of system memory. The memory controller provides error correcting code (ECC) support for up to 16 industry-standard, 3.3 V, 168-pin, 8-byte, PCI, PC100 registered, dual inline memory modules (DIMMs). The memory controller also provides Chipkill

™

memory protection. Chipkill memory protection is a technology that protects the system from a single chip failure on a DIMM.

v System-management capabilities

The server comes with an Advanced System Management Processor on the system board. This processor enables you to manage the functions of the server locally and remotely. The Advanced System Management Processor also provides system monitoring, event recording, and dial-out alert capability.

Note: The Advanced System Management Processor is sometimes referred to

as the service processor.

v Integrated network environment support

The server comes with an Ethernet controller on the system board. This Ethernet controller has an interface for connecting to 10-Mbps or 100-Mbps networks. The server automatically selects between 10BASE-T and 100BASE-TX. The controller

General information 5

provides full-duplex (FDX) capability, which enables simultaneous transmission and reception of data on the Ethernet local area network (LAN).

v Redundant network-interface card (NIC)

The addition of an optional, redundant network-interface card (NIC) provides a failover capability to a redundant Ethernet connection. If a problem occurs with the primary Ethernet connection, all Ethernet traffic associated with this primary connection is automatically switched to the redundant NIC. This switching occurs without data loss and without user intervention.

™

v IBM ServerGuide

CDs

The ServerGuide CDs included with xSeries servers provide programs to help you set up the server and install the network operating system (NOS). The ServerGuide program detects the hardware options installed, and provides the correct configuration program and device drivers. In addition, the ServerGuide CDs include a variety of application programs such as IBM Update Connector

™

to help keep the server basic input/output system (BIOS) and microcode updated.

Note: The latest level of BIOS for the server is also available through the World

Wide Web. Refer to “Recovering BIOS” on page 20 for the appropriate World Wide Web addresses and bulletin-board telephone numbers.

The server is designed to be cost-effective, powerful, and flexible. It uses peripheral component interconnect (PCI) bus architecture to provide compatibility with a wide range of existing hardware devices and software applications.

As always, the IBM server meets stringent worldwide certifications for power, electromagnetic compatibility (EMC), and safety. See “Related service information”

on page 127 for additional information.

Reliability, availability, and serviceability

Three of the most important features in server design are reliability, availability, and serviceability (RAS). These factors help to ensure the integrity of the data stored on the server; that the server is available when you want to use it; and that should a failure occur, you can easily diagnose and repair the failure with minimal inconvenience.

The following is an abbreviated list of the RAS features that the server supports.

v Cooling fans with speed-sensing capability (hot-swap) v Error correcting code (ECC) FSBs v ECC L2 cache v ECC memory v Fast power-on self-test (POST) v 45°C (113°F) normal operating temperature for hard disk drives v Parity checking on the small computer system interface (SCSI) bus and PCI

buses

v Power Managed - Advanced Configuration and Power Interface (ACPI) level v System management monitoring via Intra-Integrated Circuit (I2C) bus v Ambient temperature monitoring v Automatic error retry/recovery v Automatic restart after a power failure v Built-in temperature/fan/voltages monitoring v Chipkill memory protection v Fault-resistant startup v Hot-swap drive bays

6 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

v Hot-swap hard disk drives v Active PCI (hot-plug) adapter slots v Information and diagnostic LED panels v Menu-driven setup, system configuration, SCSISelect configuration, and

diagnostic programs

v Memory scrubbing and Predictive Failure Analysis

(PFA) (background and real

time)

v Microcode and diagnostic levels available v NIC failover support v Power and temperature monitoring v Power-supply redundancy monitoring v Predictive Failure Analysis (PFA) alerts v Redundant Ethernet capabilities (with optional adapter) v Redundant hot-swap cooling v Redundant and hot-swap power supplies v Remote Connect v Remote system problem-determination support v System auto-configuring from a configuration menu v Upgradable POST, BIOS, diagnostics, and Advanced System Management

Processor microcode

v Wake on LAN v Windows NT

capability

failover support

v Alert on LAN™capability v Backup BIOS switching by jumper v Error codes and messages v Integrated service processor subsystem provides control for remote system

management

v Processor serial number access v Standard cables present detection v System error logging (POST and Advanced System Management Processor) v Vital Product Data (VPD) on microprocessors, system board, power supplies,

hot-swap-drive backplane, and power backplane

General information 7

Start the server

Use the following procedure to start the server.

1. Turn on all external devices, such as the monitor. Note: After you plug the power cord into an outlet, wait 20 seconds before

pressing the power control button. During this time, the system-management processor is initializing and the power control button does not respond.

2. Press the power control button on the front of the server. The power-on light comes on and the power-on self-test (POST) begins.

v If the server is turned on and a power failure occurs, the server will start

automatically when power is restored.

v The server can also be turned on by the Advanced System Management

Processor.

When you turn off the server, observe the following precaution:

Statement 5

CAUTION: The power control button on the device and the power switch on the power supply do not turn off the electrical current supplied to the device. The device also might have more than one power cord. To remove all electrical current from the device, ensure that all power cords are disconnected from the power source.

2 1

The server can be turned off as follows: v You can turn off the server by pressing the power-control button on the front of

the server. Note: After turning off the server, wait at least five seconds before pressing the

power-control button to turn on the server again.

v You can disconnect the server power cords from the electrical outlets to shut off

all power to the server. Note: Wait about 15 seconds after disconnecting the power cords for the system

to stop running. Watch for the system-power light on the information LED panel to stop blinking.

The following section describes the controls and indicators on the server.

8 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Controls and indicators

1 Power-control button: Press this button to manually turn on or off the

server.

2 Reset button: Press this button to reset the server and run the power-on

self-test (POST).

3 Hard-disk drive activity light: Each hot-swap drive has a hard–disk drive

activity light. When this green light is flashing, the drive is being accessed.

4 Hard-disk drive status light: Each hot-swap drive has a hard-disk drive

status light. With a ServeRAID continuously, it means that the drive has failed.

Information LED panel

The information panel on the front of the server contains status lights. The following illustration shows the server information panel.

POWER RESET

1 System power: When this green light is on, system power is present in the

server. When this light flashes, the server is in standby mode (the system power supply is turned off and ac current is present). When this light is off, either a power supply, AC power, or a light has failed. The power light is located above and between the power-control button and the reset button.

Attention: If this light is off, it does not mean there is no electrical current

™

installation, if this amber light is on

LINK

SCSI ACT LINK OK

100 MB

100 MB TX/RX INFO SYS ERROR

present in the server. The light might be burned out. To remove all electrical current from the server, you must unplug the server power cords from the electrical outlets.

2 Hard disk drive activity light: This green light is on when there is activity

on a hard disk drive.

3 Ethernet-link status light: When this green light is on, there is an active

connection on the Ethernet port. The Ethernet transmit/receive activity light is also located on the Ethernet (RJ-45) connector on the rear of the server.

4 Information light: When this amber light is on, the server power supplies

General information 9

are nonredundant or some other noncritical event has occurred. Check the diagnostic LED panel for more information (see “Diagnostic panel LEDs” on page 18).

5 System error light: This amber light is on when a system error occurs. A

light on the diagnostics LED panel will also be on to further isolate the error. (For more information, see “Diagnostic panel LEDs” on page 18)

5 Ethernet transmit/receive activity light: When this green light is on, there

is activity between the server and the network. The Ethernet transmit/receive activity light is also located on the Ethernet (RJ-45) connector on the rear of the server.

7 Ethernet speed 100 Mbps: When this green light is on, the Ethernet speed

is 100 Mbps. When the light is off, the Ethernet speed is 10 Mbps.

10 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Diagnostics

This section provides basic troubleshooting information to help you resolve some common problems that might occur with the server.

If you cannot locate and correct the problem using the information in this section, refer to “Symptom-to-FRU index” on page 97 for more information.

Diagnostic tools overview

The following tools are available to help you identify and resolve hardware-related problems:

v POST beep codes, error messages, and error logs

The power-on self-test (POST) generates beep codes and messages to indicate successful test completion or the detection of a problem. See “POST” for more information.

v Diagnostic programs and error messages

v Light Path Diagnostics

The server has light-emitting diodes (LEDs) to help you identify problems with server components. These LEDs are part of the light-path diagnostics that are built into the server. By following the path of lights, you can quickly identify the type of system error that occurred. See “Light path diagnostics” on page 16 for more information.

v Error symptoms

These charts list problem symptoms, along with suggested steps to correct the problems. See “Diagnosing errors” on page 23 for more information.

POST

When you turn on the server, it performs a series of tests to check the operation of server components and some of the options installed in the server. This series of tests is called the power-on self-test or POST.

If POST finishes without detecting any problems, a single beep sounds, the first screen of the operating system or application program appears.

If POST detects a problem, more than one beep sounds and an error message appears on the screen. See “POST beep codes” on page 12 and “POST error messages” on page 12 for more information.

Notes:

1. If you have a power-on password or administrator password set, you must type the password and press Enter, when prompted, before POST will continue.

2. A single problem might cause several error messages. When this occurs, work to correct the cause of the first error message. After you correct the cause of the first error message, the other error messages usually will not occur the next time you run the test.

POST beep codes

POST generates beep codes to indicate successful completion or the detection of a problem.

v One beep indicates the successful completion of POST. v More than one beep indicates that POST detected a problem. For more

information, see “Beep symptoms” on page 97

POST error messages

POST error messages occur during startup when POST finds a problem with the hardware or detects a change in the hardware configuration. For a list of POST errors, see “POST error codes” on page 110

Event/error logs

The POST error log contains the three most recent error codes and messages that the system generated during POST. The System Event/Error Log contains all error messages issued during POST and all system status messages from the Advanced System Management Processor.

To view the contents of the error logs, start the Configuration/Setup Utility program (see “Starting the Configuration/Setup Utility program” on page 33); then, select

Event/Error Logs from the main menu.

Small computer system interface messages

If you receive a SCSI error message, see “SCSI error codes” on page 118 Note: If the server does not have a hard disk drive, ignore any message that

indicates that the BIOS is not installed.

You will get these messages only when running the SCSI Select Utility.

ServerGuide error symptoms

Look for symptoms in the left column of the following chart. Probable solutions appear in the right column.

Setup Action

Setup and Installation CD won’t start. v Be sure the system is a supported eServer with a startable

(bootable) CD-ROM drive.

v If the startup (boot) sequence settings have been altered, be sure

the CD-ROM is first in the boot sequence.

v If more than one CD-ROM drive is installed, be sure that only one

drive is set as the primary drive. Start the CD from the primary drive.

ServeRAID program cannot view all installed drives – or – cannot install NOS.

The Operating System Installation program continuously loops.

ServerGuide won’t start your NOS CD. Be sure the NOS CD you have is supported by ServerGuide. See the

Can’t install NOS – option is grayed out. Either there is no logical drive defined (ServeRAID systems) or the

v Be sure there are no duplicate SCSI IDs or IRQ assignments. v Be sure that the hard disk drive is connected properly.

Free up more space on the hard disk.

Setup and Installation CD label for a list of NOS versions supported.

ServerGuide system partition is not present. Run the setup and configuration program.

12 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

TechConnect CD Action

Can’t start TechConnect

Can’t view publications from TechConnect CD, or text is unreadable.

Diskette Factory CD Action

Get “time out” or “Unknown host” errors Be sure you have access to the Internet through FTP directly.

CD. Be sure you’re starting the CD on a system with Microsoft

Windows®installed. Be sure you have the Adobe reader installed (available from the

TechConnect CD).

Diagnostic programs and error messages

The server diagnostic programs are stored in upgradable read-only memory (ROM) on the system board. These programs are the primary method of testing the major components of the server.

Diagnostic error messages indicate that a problem exists; they are not intended to be used to identify a failing part. Troubleshooting and servicing of complex problems that are indicated by error messages should be performed by trained service personnel.

Sometimes the first error to occur causes additional errors. In this case, the server displays more than one error message. Always follow the suggested action instructions for the first error message that appears.

The following sections contain the error codes that might appear in the detailed test log and summary log when running the diagnostic programs.

The error code format is as follows:

fff-ttt-iii-date-cc-text message

where: fff is the three-digit function code that indicates the function being

tested when the error occurred. For example, function code 089 is for the microprocessor.

ttt is the three-digit failure code that indicates the exact test failure that

was encountered.

iii is the three-digit device ID. date is the date that the diagnostic test was run and the error recorded. cc is the check digit that is used to verify the validity of the information. text message is the diagnostic message that indicates the reason for the problem.

Diagnostics 13

Text messages

The diagnostic text message format is as follows:

Function Name: Result (test specific string)

where:

Function Name

is the name of the function being tested when the error occurred. This corresponds to the function code (fff) given in the previous list.

Result

can be one of the following:

Passed

This result occurs when the diagnostic test completes without any errors.

Failed This result occurs when the diagnostic test discovers an error. User Aborted

This result occurs when you stop the diagnostic test before it is complete.

Not Applicable

This result occurs when you specify a diagnostic test for a device that is not present.

Aborted

This result occurs when the test could not proceed because of the system configuration.

Warning

This result occurs when a possible problem is reported during the diagnostic test, such as when a device that is to be tested is not installed.

Test Specific String

This is additional information that you can use to analyze the problem.

Starting the diagnostic programs

You can press F1 while running the diagnostic programs to obtain Help information. You also can press F1 from within a help screen to obtain online documentation from which you can select different categories. To exit Help and return to where you left off, press Esc.

To start the diagnostic programs:

1. Turn on the server and watch the screen. Note: To run the diagnostic programs, you must start the server with the

highest level password that is set. That is, if an administrator password is set, you must enter the administrator password, not the power-on password, to run the diagnostic programs.

2. When the message F2 for Diagnostics appears, press F2.

3. Type in the appropriate password; then, press Enter.

4. Select either Extended or Basic from the top of the screen.

5. When the Diagnostic Programs screen appears, select the test you want to run from the list that appears; then, follow the instructions on the screen.

14 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Notes:

a. If the server stops during testing and you cannot continue, restart the server

and try running the diagnostic programs again.

b. The keyboard and mouse (pointing device) tests assume that a keyboard

and mouse are attached to the server.

c. If you run the diagnostic programs with no mouse attached to the server,

you will not be able to navigate between test categories using the Next Cat and Prev Cat buttons. All other functions provided by mouse-selectable buttons are also available using the function keys.

d. You can run the USB interface test and the USB external loopback test only

if there are no USB devices attached.

e. You can view server configuration information (such as system configuration,

memory contents, interrupt request (IRQ) use, direct memory access (DMA) use, device drivers, and so on) by selecting Hardware Info from the top of the screen.

When the tests have completed, you can view the Test Log by selecting Utility from the top of the screen.

If the hardware checks out OK but the problem persists during normal server operations, a software error might be the cause. If you suspect a software problem, refer to the information that comes with the software package.

Viewing the test log

The test log will not contain any information until after the diagnostic program has run.

Note: If you already are running the diagnostic programs, begin with step 3 To view the test log:

1. Turn on the server and watch the screen. If the server is on, shut down the operating system and restart the server.

2. When the message F2 for Diagnostics appears, press F2. If a power-on password or administrator password is set, the server prompts

you for it. Type in the appropriate password; then, press Enter.

3. When the Diagnostic Programs screen appears, select Utility from the top of the screen.

4. Select View Test Log from the list that appears; then, follow the instructions on the screen.

The system maintains the test-log data while the server is powered on. When you turn off the power to the server, the test log is cleared.

Diagnostic error message tables

For descriptions of the error messages that might appear when you run the diagnostic programs, see “Diagnostic error codes” on page 103 If diagnostic error messages appear that are not listed in those tables, make sure that the server has the latest levels of BIOS, Advanced System Management Processor, ServeRAID, and diagnostics microcode installed.

Diagnostics 15

Light path diagnostics

The server has LEDs to help you identify problems with some server components. These LEDs are part of the light path diagnostics built into the server. By following the path you can quickly identify the type of system error that occurred.

Status LEDs are located on the following components:

v Information panel v Hard disk drive trays v Power supply v Diagnostic panel v System board

Power supply LEDs

The ac and dc power LEDs on the power supply provide status information about the power supply. See “Installing a hot-swap power supply” on page 70 for the location of these LEDs.

1 Filler panel 2 AC power light 3 DC power light 4 Power supply handle 5 Power supply

16 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

The following table describes the ac and dc power LEDs.

AC power LED DC power LED Description and action

On On The power supply is on and operating correctly. On Off There is a dc power problem.

Possible causes:

1. The server is not turned on (the power LED is blinking on the front of the server). Action: Press the power-control button to start the server.

2. The power supply has failed. Action: Replace the power supply.

Off Off There is an ac power problem.

Possible causes:

1. There is no ac power to the power supply. Actions: Verify that:

v The electrical cord is properly connected to the server. v The electrical outlet functions properly.

2. The power supply has failed. Action: Replace the power supply.

Diagnostics 17

Diagnostic panel LEDs

The following illustration shows the LEDs on the diagnostics panel inside the server. See Table 1 on page 19 for information on identifying problems using these LEDs.

DASD

NMI SP Bus Event Log Non Red Over Spec Temp

PCI Bus

Power

Supply

CPU Memory

A B C D

1 2 3 4

Fan

1 System board connector 2 Diskette drive connector

The meanings of these LEDs are as follows:

CPU Microprocessor fault Memory Memory fault PCI Bus A (PCIA) PCI bus A fault PCI Bus B (PCIB) PCI bus B fault PCI Bus C (PCIC) PCI bus C fault PCI Bus D (PCID) Not implemented at this time Power supply 1 Power supply number 1 failure Power supply 2 Power supply number 2 failure Power supply 3 Power supply number 3 failure FAN Fan failure DASD Hard disk drive fault NMI Nonmaskable interrupt SP Bus Service processor failure Event Log Not implemented at this time. NON RED Nonredundant power mode OVER SPEC Over specification TEMP System temperature failure

18 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Notes:

1. The server does not support replaceable voltage regulator modules (VRMs).

2. The server supports a maximum of three PCI buses.

3. The server supports a maximum of three power supplies.

Light Path Diagnostics

You can use the light path diagnostics built into the server to quickly identify the type of system error that occurred. The server is designed so that LEDs remain illuminated when the server shuts down, as long as the power supplies are operating properly. This feature helps you to isolate the problem if an error causes the server to shut down.

If the system error LED (on the information LED panel) is not lit and no diagnostics panel LEDs are lit, it means that the light path diagnostics have not detected a system error.

If the system error LED (on the information LED panel) is lit, it means that a system error was detected. Check to see which of the LEDs on the diagnostics panel inside the server are lit and refer to the following table:

Table 1. Light Path Diagnostics

LED on Cause None

CPU One of the microprocessors has failed. (See “Diagnostic panel error LEDs” on page 101) Memory A memory error occurred. (See “Diagnostic panel error LEDs” on page 101) PCIA An error occurred on PCI bus A. An adapter in PCI slot 1, or the system board, caused the error.

PCIB An error occurred on PCI bus B. An adapter in PCI slot 2, 3, or 4, or the system board, caused the

PCIC An error occurred on PCI bus C. An adapter in PCI slot 5 or 6, or the system board, caused the

PCID Not implemented at this time. PS1 The first power supply has failed. (See “Diagnostic panel error LEDs” on page 101) PS2 The second power supply has failed. (See “Diagnostic panel error LEDs” on page 101) PS3 The third power supply has failed. (See “Diagnostic panel error LEDs” on page 101) Fan One of the fan assemblies has failed or is operating too slowly.

DASD A hot-swap hard disk drive has failed on SCSI channel B (see “Diagnostic panel error LEDs” on

NMI A nonmaskable interrupt occurred. (The PCIA, PCIB, PCIC, or Memory LED will probably also be

SP The service processor has failed. (See “Diagnostic panel error LEDs” on page 101) Event Log Not implemented at this time. Non Red System is operating in non-redundant power mode. (See “Diagnostic panel error LEDs” on

1. The system error log is 75% or more full or a PFA alert was logged. (See “Diagnostic panel error LEDs” on page 101)

2. Bad, missing, or mis-installed processor terminator.

(See “Diagnostic panel error LEDs” on page 101)

error. (See “Diagnostic panel error LEDs” on page 101)

Note: A failing fan can also cause the TEMP and/or DASD LEDs to be on; see “Diagnostic panel error LEDs” on page 101.

page 101).

on; see “Diagnostic panel error LEDs” on page 101.) Note: The NMI LED can only be reset by completely removing power from system.

page 101)

Diagnostics 19

Table 1. Light Path Diagnostics (continued)

LED on Cause Over Spec The server is drawing more power than the power supplies are rated for. (See “Diagnostic panel

error LEDs” on page 101)

Temp The system temperature has exceeded the maximum rating. (See “Diagnostic panel error LEDs” on

page 101)

Power checkout

Power problems can be difficult to troubleshoot. For instance, a short circuit can exist anywhere on any of the power distribution busses. Usually a short circuit will cause the power subsystem to shut down because of an overcurrent condition.

A general procedure for troubleshooting power problems is as follows:

1. Power off the system and disconnect the AC cord(s).

2. Check for loose cables in the power subsystem. Also check for short circuits, for instance if there is a loose screw causing a short circuit on a circuit board.

3. Remove adapters and disconnect the cables and power connectors to all internal and external devices until system is at minimum configuration required for power on (see ″Minimum operating requirements″ on page 122).

4. Reconnect the AC cord and power on the system. If the system powers up successfully, replace adapters and devices one at a time until the problem is isolated. If system does not power up from minimal configuration, replace FRUs of minimal configuration one at a time until the problem is isolated.

To use this method it is important to know the minimum configuration required for a system to power up (see page 122). For specific problems, see “Power error messages” on page 119

Recovering BIOS

If the BIOS code in the server has become corrupted, such as from a power failure during a flash update, you can recover the BIOS using the recovery boot block and a BIOS flash diskette.

Note: You can obtain a BIOS flash diskette from one of the following sources:

The flash memory of the server consists of a primary page and a backup page. The J14 jumper controls which page is used to start the server. If the BIOS in the primary page is corrupted, you can use the backup page to start the server; then boot the BIOS Flash Diskette to restore the BIOS to the primary page.

To recover the BIOS:

v Use the ServerGuide program to make a BIOS flash diskette. v Download a BIOS flash diskette from the World Wide Web. Go to

http://www.pc.ibm.com/support/, select IBM Server Support, and make the selections for the server.

1. Turn off the server and peripheral devices and disconnect all external cables and power cords; then, remove the cover.

2. Locate jumper J14 on the processor board (see “System board jumpers” on page 44).

3. Move J14 to pins 1 and 2 to enable secondary boot block page.

20 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

4. Insert the BIOS flash diskette into the diskette drive.

5. Restart the server.

6. The system begins the power-on self-test (POST). Select 1 – Update POST/BIOS from the menu that contains various flash (update) options.

7. When you are asked if you would like to move the current POST/BIOS image to the backup ROM location, type N.

Attention: Typing Y will copy the corrupted BIOS into the secondary page.

8. When you are asked if you would like to save the current code to a diskette, select N.

9. You will be asked to choose which language you wish to use. Select your language (0-7) and press Enter to accept your choice. You will be prompted to remove the diskette and press Enter to restart the system. Remove the flash diskette from the diskette drive.

Attention: Do not press Enter to reboot the system at this time.

10. Power-off the server.

11. Move jumper J14 back to pins 2 and 3 to return to normal startup mode.

12. Restart the server. The system should start up normally.

Replacing the battery

The following notes describe information that you must consider when replacing the battery in the server.

v When replacing the battery, you must replace it with a lithium battery of the same

type from the same manufacturer.

v To order replacement batteries, call 1-800-772-2227 within the United States, and

1-800-465-7999 or 1-800-465-6666 within Canada. Outside the U.S. and Canada, call your IBM reseller or IBM marketing representative.

v After you replace the battery, you must reconfigure the system and reset the

system date and time.

v To avoid possible danger, read and follow the following safety statement.

Statement 2

CAUTION: When replacing the lithium battery, use only IBM Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.

Do not:

v Throw or immerse into water v Heat to more than 100°C (212°F) v Repair or disassemble

Dispose of the battery as required by local ordinances or regulations.

Complete the following steps to replace the battery:

1. Read the information in “Before you begin” on page 50

Diagnostics 21

2. Follow any special handling and installation instructions supplied with the battery.

3. Turn off the server and all attached devices and disconnect all external cables and power cords (see “Safety information” on page 127); then remove the top cover.

4. Locate the battery on the system board (see “System board component locations” on page 42).

5. Remove adapters as necessary so you can access the battery. (See “Working with adapters” on page 54)

6. Lift and remove the plastic dividers by pressing the latches on the top ends of the dividers toward the dividers and lifting the dividers from the server.

7. Remove the battery: a. Use one finger to lift the battery clip over the battery. b. Use one finger to slightly slide the battery toward the rear of the server.

The spring mechanism behind the battery will push it out toward you as you slide it forward.

c. Use your thumb and index finger to pull the battery from under the battery

clip.

d. Ensure that the battery clip is touching the base of the battery socket by

pressing gently on the clip.

8. Insert the new battery: a. Tilt the battery so that you can insert it into the front of the socket, under

the battery clip.

b. As you slide it under the battery clip, press the battery down into the

socket.

9. Reinstall any adapters that you removed.

10. Insert the plastic dividers into the divider guides.

11. Reinstall the top cover. Note: You must wait approximately 20 seconds after you plug the power cord

of the server into an electrical outlet before the power control button becomes active.

12. Start the Configuration/Setup Utility program and set configuration parameters

as needed. Refer to “Using the Configuration/Setup Utility program” on page 33

22 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Temperature checkout

Proper cooling of the system is important for proper operation and system reliability. For a typical eServer, you should make sure:

v Each of the drive bays has either a drive or a filler panel installed v Each of the power supply bays has either a power supply or a filler panel

installed

v The top cover is in place during normal operation v There is at least 50 mm (2 inches) of ventilated space at the sides of the server

and 100 mm (4 inches) at the rear of the server

v The top cover is removed for no longer than 30 minutes while the server is

operating

v The processor housing cover covering the processor and memory area is

removed for no longer that ten minutes while the server is operating

v A removed hot-swap drive is replaced within two minutes of removal v Cables for optional adapters are routed according to the instructions provided

with the adapters (ensure that cables are not restricting air flow)

v The fans are operating correctly and the air flow is good v A failed fan is replaced within 48 hours

In addition, ensure that the environmental specifications for the system are met. See “Features and specifications” on page 3

Note: The speed of the fans will increase if:

v One fan fails. v Ambient temperature gets too high.

For more information on specific temperature error messages, see “Temperature error messages” on page 118

Diagnosing errors

To find solutions to problems that have definite symptoms, see “Error symptoms” on page 108

If you cannot find the problem there, go to “Starting the diagnostic programs” on page 14 to test the server.

If you have just added new software or a new option and the server is not working, do the following before using the error symptoms table:

v Remove the software or device that you just added. v Run the diagnostic tests to determine if the server is running correctly. v Reinstall the new software or new device.

Troubleshooting the Ethernet controller

This section provides troubleshooting information for problems that might occur with the 10/100 Mbps Ethernet controller.

Network connection problems

If the Ethernet controller cannot connect to the network, check the following: v Make sure that the cable is installed correctly.

Diagnostics 23

The network cable must be securely attached at all connections. If the cable is attached but the problem persists, try a different cable.

If you set the Ethernet controller to operate at 100 Mbps, you must use Category 5 cabling.

If you directly connect two workstations (without a hub), or if you are not using a hub with X ports, use a crossover cable.

Note: To determine whether a hub has an X port, check the port label. If the

label contains an X, the hub has an X port.

v Determine if the hub supports auto-negotiation. If not, try configuring the

integrated Ethernet controller manually to match the speed and duplex mode of the hub.

v Check the Ethernet controller lights on the operator information panel.

These lights indicate whether a problem exists with the connector, cable, or hub. – The Ethernet Link Status light illuminates when the Ethernet controller

receives a LINK pulse from the hub. If the light is off, there might be a defective connector or cable, or a problem with the hub.

– The Ethernet Transmit/Receive Activity light illuminates when the Ethernet

controller sends or receives data over the Ethernet Network. If the Ethernet Transmit/Receive Activity light is off, make sure that the hub and network are operating and that the correct device drivers are loaded.

– The Ethernet Speed 100 Mbps light illuminates when the Ethernet controller

LAN speed is 100 Mbps.

v Make sure that you are using the correct device drivers, supplied with the server. v Check for operating system-specific causes for the problem. v Make sure that the device drivers on the client and server are using the same

protocol.

v Test the Ethernet controller.

How you test the Ethernet controller depends on which operating system you are using (see the Ethernet controller device driver README file).

Ethernet controller troubleshooting chart

You can use the following troubleshooting chart to find solutions to 10/100 Mbps Ethernet controller problems that have definite symptoms.

Table 2. Ethernet troubleshooting chart

Ethernet controller problem Suggested Action

The server stops running when loading device drivers.

The PCI BIOS interrupt settings are incorrect. Check the following:

v Determine if the interrupt (IRQ) setting assigned to the Ethernet controller is also

assigned to another device in the Configuration/Setup Utility program. Although interrupt sharing is allowed for PCI devices, some devices do not function

well when they share an interrupt with a dissimilar PCI device. Try changing the IRQ assigned to the Ethernet controller or the other device. For example, for NetWare Versions 3 and 4 it is recommended that disk controllers not share interrupts with LAN controllers.

v Make sure that you are using the most recent device driver available from the

World Wide Web.

v Run the network diagnostic program.

24 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Table 2. Ethernet troubleshooting chart (continued)

Ethernet controller problem Suggested Action

Ethernet Link Status light does not light.

The Ethernet Transmit/ Receive Activity light does not light.

Data is incorrect or sporadic. Check the following:

The Ethernet controller stopped working when another adapter was added to the server.

The Ethernet controller stopped working without apparent cause.

Check the following:

v Make sure that the hub is turned on. v Check all connections at the Ethernet controller and the hub. v Check the cable. A crossover cable is required unless the hub has an X

designation.

v Use another port on the hub. v If the hub does not support auto-negotiation, manually configure the Ethernet

controller to match the hub.

v If you manually configured the duplex mode, make sure that you also manually

configure the speed.

v Run diagnostics on the LEDs. Check the following:

Note: The Ethernet Transmit/Receive Activity LED illuminates only when data is sent to or by this Ethernet controller.

v Make sure that you have loaded the network device drivers. v The network might be idle. Try sending data from this workstation. v Run diagnostics on the LEDs. v The function of this LED can be changed by device driver load parameters. If

necessary, remove any LED parameter settings when you load the device drivers.

v Make sure that you are using Category 5 cabling when operating the server at 100

Mbps.

v Make sure that the cables do not run close to noise-inducing sources like

fluorescent lights.

Check the following:

v Make sure that the cable is connected to the Ethernet controller. v Make sure that the PCI system BIOS is current. v Reseat the adapter. v Determine if the interrupt (IRQ) setting assigned to the Ethernet adapter is also

assigned to another device in the Configuration/Setup Utility program. Although interrupt sharing is allowed for PCI devices, some devices do not function

well when they share an interrupt with a dissimilar PCI device. Try changing the IRQ assigned to the Ethernet adapter or the other device.

Check the following:

v Run diagnostics for the Ethernet controller. v Try a different connector on the hub. v Reinstall the device drivers. Refer to the operating-system documentation and to

the ServerGuide information.

Ethernet controller messages

The integrated Ethernet controller might display messages from the following device drivers:

v Novell NetWare or IntraNetWare Server ODI v NDIS Adapter for level 2.01 (OS/2 v NDIS Adapter for level 4.0 Microsoft Windows NT v SCO UNIX

Novell NetWare or IntraNetWare server ODI driver messages

This section provides explanations of the error messages for the Novell NetWare or IntraNetWare server ODI driver, and suggested actions to resolve each problem.

LLI

)

Diagnostics 25

Table 3. Novell NetWare or IntraNetWare ODI driver messages for the Ethernet controller

PCNTNW-NW-026 The MSM is unable to parse a required custom keyword.

Explanation: The user entered an incorrect parameter keyword. Action: Reload the driver using the correct keyword.

PCNTNW-NW-054 The adapter did not respond to the initialization command.

Explanation: The adapter did not respond when the driver tried to initialize it. Action: Verify that the Ethernet controller is enabled. If the Ethernet controller is

enabled, go to “Starting the diagnostic programs” on page 14 to run the diagnostic programs.

PCNTNW-NW-058 The adapter did not respond to the initialization command.

Explanation: The interrupt request (IRQ) setting might not be valid or the EEPROM

information might be incorrect. Action: Make sure the IRQ settings are correct in the Configuration/Setup Utility program. for information on setting the interrupt requests. If the IRQ settings are correct, go to “Starting the diagnostic programs” on page 14 to run the diagnostic programs.

PCNTNW-NW-066 The cable might be disconnected from the adapter.

Explanation: The cable might be disconnected from the server Ethernet port. Action: Verify that a cable is connected to the Ethernet port.

PCNTNW-NW-071 The matching virtual adapter could not be found.

Explanation: You tried to load another instance of the driver with a different I/O

address. This new adapter could not be found. Action: Verify that you installed an IBM 10/100 Fault Tolerant Adapter and make sure that the adapter is seated correctly. If the adapter is seated correctly, go to “Starting the diagnostic programs” on page 14 to run the diagnostic programs.

PCNTNW-NW-072 A resource tag is unavailable.

Explanation: The driver tried to allocate some resources that were not available. Action: Add more memory, or free some memory resources in the server. Then,

restart the server.

PCNTNW-NW-073 Unable to allocate memory

Explanation: The driver failed to allocate the memory needed for normal operation. Action: Add more memory, or free some memory resources in the server. Then,

restart the server.

PCNTNW-NW-074 The hardware interrupt cannot be set.

Explanation: An attempt was made to initialize a given hardware interrupt. The

attempt was not successful. Action: Verify that the Ethernet controller is enabled. If the Ethernet controller is enabled, go to “Starting the diagnostic programs” on page 14 to run the diagnostic programs. If you have an Ethernet adapter installed, make sure that the adapter does not share an IRQ with any other device.

PCNTNW-NW-075 The Multiple Link Interface Driver (MLID) cannot be registered with the Link

Support Layer (LSL). Explanation: An error occurred while the driver was trying to register with the LSL.

Action: Check the version of the NetWare or IntraNetWare Operating System. Make

sure that this driver is correct for the version of NetWare or IntraNetWare that you are using. Restart the server.

26 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Table 3. Novell NetWare or IntraNetWare ODI driver messages for the Ethernet controller (continued)

PCNTNW-NW-079 The Multiple Link Interface Driver (MLID) did not initialize MSMTx Free Count.

Explanation: The MSMTx Free Count is not initialized correctly. Action: Restart the server. If the problem persists, go to “Starting the diagnostic

programs” on page 14 to run the diagnostic programs.

PCNTNW-NW-086 The driver parameter block is too small.

Explanation: The driver parameter block is too small. Action: Restart the server. If the problem persists, go to “Starting the diagnostic

programs” on page 14 to run the diagnostic programs.

PCNTNW-NW-087 The media parameter block is too small.

Explanation: The driver media parameter block is too small. Action: Restart the server. If the problem persists, go to “Starting the diagnostic

programs” on page 14 to run the diagnostic programs.

PCNTNW-NW-091 The hardware configuration conflicts.

Explanation: You tried to load a new frame type for the existing controller. The

hardware assumptions made in doing so are incorrect. This error can also occur if you try to specify a mode (such as, redundancy) that conflicts with another specified mode.

Action: Make sure that the hardware configuration matches the software settings.

PCNTNW-NW-126 The group bit in the node address override was cleared.

Explanation: The IEEE address has a group bit that indicates that an address

belongs to a group of stations. This bit is used only as a destination address; it cannot be used as a source address. You tried to enter a source address with this bit set. The driver cleared the group bit of the source address.

Action: None necessary, message is for information only.

PCNTNW-NW-127 The local bit in the node address override was set.

Explanation: The local bit in the IEEE address format indicates that the addresses

are being managed locally. If you use the node address override capabilities of this driver to enter a new address, the local bit must be set. You entered an address without the local bit set. The driver has set the local bit.

Action: None necessary, message is for information only.

PCNTNW-NW-164 The device was not found.

Explanation: The driver cannot find an Ethernet controller in the server. Action: Verify that the Ethernet controller is enabled. If the Ethernet controller is

enabled, go to “Starting the diagnostic programs” on page 14 to run the diagnostic programs.

PCNTNW-NW-165 The device was not found at IOADDRESS.

Explanation: The Ethernet controller cannot be found at the I/O address specified. Action: The Ethernet controller does not require a parameter for the I/O address.

Remove the I/O address parameter.

PCNTNW-NW-167 PCI scan specified, device not found.

Explanation: The driver cannot locate the Ethernet controller on the PCI bus. Action: Verify that the Ethernet controller is enabled. If the problem persists, go to

“Starting the diagnostic programs” on page 14 to run the diagnostic programs.

PCNTNW-NW-180 The DMA parameter is not necessary for PCI device.

Explanation: The Ethernet controller does not require a DMA setting. Action: None necessary, message is for information only.

Diagnostics 27

Network driver interface specification 2.01 (OS/2) driver messages

This section provides explanations of the error messages for the NDIS 2.01 (OS/2) drivers, and suggested actions to resolve each problem.

Table 4. NDIS 2.01 (OS/2) driver messages for the Ethernet controller

PCNTND-1 Unable to open the Protocol Manager.

Explanation: The NDIS stack is not configured correctly. Action: Check and correct the configuration.

PCNTND-6 Out of memory while allocating buffers.

Explanation: The driver could not allocate the requested buffers. Action: Check the system configuration. Edit the PROTOCOL.INI file to reduce the

number of Txbuffers and Rxbuffers specified for the driver.

PCNTND-7 A Protocol Manager device error occurred.

Explanation: The NDIS stack is not configured correctly. Action: Check and correct the configuration.

PCNTND-8 Bad status for the Protocol Manager.

Explanation: The NDIS stack is not configured correctly in the PROTOCOL.INI file. Action: Check and correct the configuration.

PCNTND-9 Cannot find the PROTOCOL.INI entry.

Explanation: The NDIS stack is not configured correctly in the PROTOCOL.INI file. Action: Check and correct the configuration.

PCNTND-10 The Protocol Manager Input Output Control (IOCTL) failed.

Explanation: The NDIS stack is not configured correctly in the PROTOCOL.INI file. Action: Check and correct the configuration.

PCNTND-11 Protocol Manager registration failed.

Explanation: The NDIS stack is not configured correctly. Action: Check and correct the configuration.

PCNTND-15 Device not found.

Explanation: The driver cannot find an Ethernet controller in the server. Action: Verify that the Ethernet controller is enabled. If the Ethernet controller is

enabled, go to “Starting the diagnostic programs” on page 14 to run the diagnostic programs.

PCNTND-16 PCI scan specified, device not found.

Explanation: The driver cannot locate the Ethernet controller on the PCI bus. Action: Verify that the Ethernet controller is enabled. If the Ethernet controller is

enabled, go to “Starting the diagnostic programs” on page 14 to run the diagnostic programs.

PCNTND-21 The adapter failed the checksum test.

Explanation: The driver cannot find an Ethernet controller. Action: Verify that the Ethernet controller is enabled. If the Ethernet controller is

enabled, go to “Starting the diagnostic programs” on page 14 to run the diagnostic programs.

28 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Table 4. NDIS 2.01 (OS/2) driver messages for the Ethernet controller (continued)

PCNTND-23 WARNING: PCNET IRQ found = xx

Explanation: The interrupt request (IRQ) setting (xx) in the PROTOCOL.INI file

does not match the hardware IRQ setting. Action: Remove the IRQ setting from the PROTOCOL.INI file or change the IRQ setting in the PROTOCOL.INI file to match the IRQ setting shown in the PCI Slot/Device Information selection of the Advanced Setup menu in the Configuration/Setup Utility program.

PCNTND-24 WARNING: PCNET IRQ does not match PROTOCOL.INI.

Explanation: The interrupt request (IRQ) setting in the PROTOCOL.INI file does not

match the hardware IRQ setting. Action: Remove the IRQ setting from the PROTOCOL.INI file or change the IRQ setting in the PROTOCOL.INI file to match the IRQ setting shown in the PCI Slot/Device Information selection of the Advanced Setup menu in the Configuration/Setup Utility program.

PCNTND-25 PCI scan specified, PCI bus not found!

Explanation: The driver cannot locate the PCI bus. Action: Run the diagnostic programs.

PCNTND-29 WARNING: DMA number is not necessary for PCI device.

Explanation: The Ethernet controller does not require a DMA setting. Action: Remove the DMA setting in the PROTOCOL.INI file.

PCNTND-33 PCNET device with specified IOBASE is already in use.

Explanation: The specified I/O address number is already in use by another

Ethernet controller or device.

Action: Remove the I/O address setting in the PROTOCOL.INI file.

NDIS 4.0 (Windows NT) driver messages

This section contains the error messages for the NDIS 4.0 drivers. The explanation and recommended action are included with each message.

Table 5. NDIS (Windows NT) driver messages for the Ethernet controller

™

PermaNet

PermaNet Server: Problem Occurs on the Primary Adapter. Switching over to the Secondary

PermaNet Server: Switching back to Primary Adapter.

Server: No Secondary Adapter Found. Grouping Mode is disabled.

Explanation: The failover option requires an adapter that is compatible with the

device driver of the Ethernet controller on the system board. No such adapter was found.

Action: Make sure the correct adapter is installed.

Adapter. Explanation: The system detected a problem with the primary Ethernet connection

and has transferred all network traffic to the secondary Ethernet controller. Action: identify the cause of the failure on the primary Ethernet connection. Restoring the operational state of the primary connection will cause the network traffic to automatically transfer to the primary Ethernet controller.

Explanation: The primary Ethernet connection is now operating correctly. Network traffic will automatically transfer to the primary Ethernet controller. Action: None needed, message is for information only.

Diagnostics 29

UNIX messages

This section provides descriptions of the Ethernet error messages for the SCO UNIX LLI driver, and suggested actions to resolve each problem.

Table 6. UNIX LLI driver messages for the Ethernet controller

pnt0-2 PCI search specified, PCI device not found!

Explanation: The driver cannot locate the Ethernet controller on the PCI bus. Action:

v Run the NETCONFIG program to search for another Ethernet controller v Verify that the Ethernet controller is enabled. If the Ethernet controller is enabled, run the

diagnostic programs.

pnt0-6 Cannot allocate memory for the adapter during an interrupt. Please check the Streams

parameters. Explanation: On a SunSoft Solaris system, this message indicates that the system is out of

Streams memory blocks. Action: Use the CRASH utility to increase the number of Streams memory blocks. Modify the interrupt request (IRQ) settings in the Configuration/Setup Utility program, or run the NETCONFIG program to match the hardware settings.

pnt0-7 Cannot allocate memory for the adapter during reset. Please check the Streams

parameters. Explanation: The system is out of Streams memory blocks.

Action: Use the CRASH utility to increase the number of Streams memory blocks.

pnt0-11 Device not found!

Explanation: The driver cannot find an Ethernet controller. Action: Verify that the Ethernet controller is enabled. If the Ethernet controller is enabled, run

the diagnostic programs.

pnt0-12 Device failed checksum test!

Explanation: The driver cannot find an Ethernet controller. Action: Verify that the Ethernet controller is enabled. If the Ethernet controller is enabled, run

the diagnostic programs.

pnt0-13 add_intr_handler failed! Interrupts already enabled.

Explanation: The interrupt request (IRQ) that was specified, or the IRQ that was found,

conflicts with other devices in the server.

Action: Modify the hardware settings.

pnt0-14 Cannot locate hardware.

Explanation: The SunSoft Solaris driver cannot find any Ethernet controller. Action: Verify that the Ethernet controller is enabled. If the Ethernet controller is enabled, run

the diagnostic programs.

pnt0-15 No more devices to open.

Explanation: The SunSoft Solaris driver cannot find any more Ethernet controllers. Action:

Verify that additional IBM 10/100 Fault Tolerant Adapters are present or replace the Ethernet adapter that fails to respond. If the problem persists, run the diagnostic programs.

pnt0-17 Device fault...Reset initiated!

Explanation: The SunSoft Solaris driver has been reset due to a device fault. Action: Verify that additional IBM 10/100 Fault Tolerant Adapters are present or replace the

Ethernet adapter that fails to respond. If the problem persists, run the diagnostic programs.

30 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Table 6. UNIX LLI driver messages for the Ethernet controller (continued)

pnt0-19 IRQ found for PCnet hardware does not match space.c (or pnt.conf)!

Explanation: This is a warning message referring to the interrupt request (IRQ) that the

SunSoft Solaris driver found in the system. Action: Ignore this message if you are sure that this is what you want to do. Otherwise, run the NETCONFIG program to match the hardware settings

pnt0-20 add_intr_handler failed! Unknown interrupt type.

Explanation: The interrupt request (IRQ) that was specified, or the IRQ that was found, conflicts with other devices in the server. Action:

v Modify the hardware settings. v Run the NETCONFIG program to search for another Ethernet controller.

pnt0-21 add_intr_handler failed! Out of range interrupt number.

Explanation: The interrupt request (IRQ) that was specified, or the IRQ that was found, conflicts with other devices in the server. Action:

v Modify the hardware settings. v Run the NETCONFIG program to search for another Ethernet controller.

pnt0-22 add_intr_handler failed! Out of range IPL.

Explanation: The interrupt request (IRQ) that was specified, or the IRQ that was found,

conflicts with other devices in the server. Action: Modify the hardware settings. Run the NETCONFIG program to search for another Ethernet controller.

pnt0-23 add_intr_handler failed! Vector already occupied.

Explanation: The interrupt request (IRQ) that was specified, or the IRQ that was found,

conflicts with other devices in the server.

Action: Modify the hardware settings.

pnt0-24 add_intr_handler failed! Vector already shared at different IPL.

Explanation: The interrupt request (IRQ) that was specified, or the IRQ that was found, conflicts with other devices in the server. Action:

v Modify the hardware settings. v Run the NETCONFIG program to search for another Ethernet controller.

pnt0-26 The DMA number is not necessary for PCI device.

Explanation: The IBM 10/100 Fault Tolerant Adapter does not require a DMA setting. Action: Edit the SPACE.C file to delete the DMA parameter.

pnt0-29 The IRQ number is already in use.

Explanation: The specified I/O address is already in use. Action: Run the NETCONFIG program to modify the hardware settings.

pnt0-31 I/O address is not necessary for the PCI device.

Explanation: The I/O address specified is not required. Action: Remove the assigned I/O address specified for the Ethernet controller.

Diagnostics 31

32 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Configuring the server

In addition to the ServerGuide CDs, you can use the following configuration programs to customize your server hardware:

v Configuration/Setup Utility

The Configuration/Setup Utility program is part of the basic input/output system (BIOS) code that comes with the server. You can use this program to configure serial and parallel port assignments, change interrupt request (IRQ) settings, change the drive startup sequence, set the date and time, and set passwords. See “Using the Configuration/Setup Utility program” for more information.

v SCSISelect Utility

With the built-in SCSISelect Utility program, you can configure the devices attached to the integrated SCSI controller. Use this program to change default values, resolve configuration conflicts, and perform a low-level format on a SCSI hard disk drive. See “Using the SCSISelect utility program” on page 39 for more information.

v ServeRAID programs

The ServeRAID programs come with the optional ServeRAID adapters and with server models that have a ServeRAID adapter preinstalled. If a ServeRAID adapter has been installed in the server, you must use the ServeRAID configuration program to define and configure the disk-array subsystem before you install the operating system.

v ServerGuide CDs

The ServerGuide CDs include software setup and installation tools specifically designed for xSeries servers. You can use these CDs during the initial installation of the server to configure the server hardware and simplify the network operating system installation. The ServerGuide CDs also contain a collection of application programs, which you can install after the server is up and running.

Using the Configuration/Setup Utility program

This section provides the instructions needed to start the Configuration/Setup Utility program and descriptions of the menu choices available.

Starting the Configuration/Setup Utility program

To start the Configuration/Setup Utility program:

1. Turn on the server and watch the monitor screen.

2. When the message Press F1 for Configuration/Setup appears, press F1. Note: If you have set both levels of passwords (user and administrator), you

must enter the administrator password to access the full Configuration/Setup menu.

3. Follow the instructions that appear on the screen.

Choices available from the Configuration/Setup main menu

From the Configuration/Setup Utility main menu, you can select settings that you want to change. The Configuration/Setup Utility main menu is similar to the following:

IBM Server Setup - © Copyright IBM Corporation 2001

Configuration/Setup Utility

System Summary

System Information

Devices and I/O Ports

Date and Time

System Security

Start Options

Advanced Setup

Error Logs Save Settings

Restore Settings Load Default Settings

Exit Setup

<F1> Help < > < > Move <Esc> Exit <Enter> Select

¯

Notes:

1. You can press F1 to display Help information for a selected menu item.

2. The choices on some menus might differ slightly, depending on the BIOS version in the server.

Descriptions of the choices available from the main menu are as follows:

v System Summary

Select this choice to display configuration information. This includes the type and speed of the microprocessors and the amount of memory installed.

Changes that you make to configuration settings appear on this summary screen. You cannot edit the fields.

This choice appears on both the full and limited Configuration/Setup Utility menus.

v System Information

Select this choice to display information about the server. Changes that you make on other menus might appear on this summary screen. You cannot edit any fields. The System Information choice appears only on the full Configuration/Setup Utility main menu.

– Product Data

Select this choice to view system information, such as the machine type and model, the server serial number, and the revision level or issue date of the BIOS stored in the flash electronically erasable programmable ROM (EEPROM).

– System Card Data

Select this choice to view vital product data (VPD) for some server components.

v Devices and I/O Ports

Select this choice to view or change the assignments for devices and input/output ports. This choice appears only on the full Configuration/Setup Utility main menu.

34 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

This choice also allows you to enable or disable the integrated SCSI, video, and Ethernet controllers.

– The default setting is Enable for all the controllers. If you select Disable, the

system will not configure the disabled device and the operating system will not see the device. (This is equivalent to unplugging the device.)

– If the on-board SCSI controller is disabled and no other controller and mass

storage device are installed, operating system startup cannot occur.

– If the video controller is disabled and no video adapter is installed, the server

will have no video capability.

v Select System Service Processor Settings to view the interrupt-request setting

(IRQ) used by the Advanced System Management Processor (system service processor). You can then use the arrow keys to select a new IRQ setting for the Advanced System Management Processor from the list of available choices.

v Date and Time

Select this choice to set the system date and time and to change the system time sent to the Advanced System Management Processor (service processor) when the server is started. This choice appears only on the full Configuration/Setup Utility main menu.

The system time is in a 24-hour format: hour:minute:second. You can set a time delta to be added or subtracted from the system time that is

sent to the service processor (Advanced System Management Processor) each time the server is started. Use the number keys to enter the hours and minutes and + or − to add or subtract from the system time. If you want the system clock time to be the same as the Advanced System Management Processor clock time, leave the value set at its default of 0.

v System Security

Select this choice to set passwords or a system owner’s name. This choice appears only on the full Configuration/Setup Utility main menu.

You can implement two levels of password protection: – Power-on Password

Select this choice to set or change a power-on password. See “Using passwords” on page 37 for more information.

– Administrator Password

Select this choice to set or change an administrator password.

Attention:

If an administrator password is set and then forgotten, it cannot be overridden or removed. You must replace the system board.

The administrator password provides access to all choices on the Configuration/Setup Utility main menu. You can set, change, or delete both the administrator and power-on passwords, and allow a power-on password to be changed by the user.

See“Using passwords” on page 37 for more information.

v Start Options

Select this choice to view or change the start options. This choice appears only on the full Configuration/Setup Utility main menu. Start options take effect when you start your server.

You can select keyboard operating characteristics, such as the keyboard speed. You also can specify whether the keyboard number lock starts on or off. You also can enable the server to run without a diskette drive, monitor, or keyboard.

Configuring the server 35

The server uses a startup sequence to determine the device from which the operating system loads. For example, you can define a startup sequence that checks for a startable diskette in the diskette drive, then checks the hard disk drive in bay 1, and then checks a network adapter.

If the Boot Fail Count choice is enabled, you can restore the BIOS system defaults after three consecutive boot failures. If this choice is disabled, the BIOS system defaults can only be loaded from the Configuration/Setup Utility main menu.

You can enable a virus-detection test that checks for changes in the master boot record at startup.

v Advanced Setup

Select this choice to change values for advanced hardware features, such as cache control, and PCI configuration. This choice appears only on the full Configuration/Setup Utility main menu.

A warning message appears above the choices on this menu to alert you that the system might malfunction if these options are configured incorrectly. Follow the instructions on the screen carefully.

– Processor Serial Number Access

Select this choice to identify if the microprocessor serial number in the microprocessor is readable.

– System Partition Visibility

Select this choice to identify if the System Partition is visible. To make System Partition visible, set this value to Visible. To make System Partition invisible, set this value to Hidden.

– Core Chipset Control

Select this choice to modify settings that control features of the core chip set on the system board.

Attention: Do not make changes here unless directed to do so by an IBM authorized service representative.

– PCI Slot/Device Information

Select this choice to view and identify system resources used by PCI devices. PCI devices automatically communicate with the server configuration information. This usually results in automatic configuration of a PCI device.

Attention: You must use the menu selections to save custom settings for the PCI Slot/Device Information choice. The save, restore and load default settings choices on the main menu of the Configuration/Setup Utility do not save the PCI Slot/Device Information settings.

After making changes, select:

- Save and exit the PCI Utility to save the changes and return to the Advanced Setup choice.

- Exit the PCI Utility without saving changes to ignore the changes, restore the previous settings, and return to the Advanced Setup choice.

PCI Device Control allows you to enable or disable the PCI slots from this menu.

- The default setting is Enable for all the PCI slots. If you select Disable, the system will not configure the disabled device and the operating system will not see the device. (This is equivalent to unplugging the device.)

– Cache Control

36 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Select this choice to enable or disable the microprocessor cache. In addition, you can define the microprocessor cache type as write-back (WB) or write-through (WT). Selecting write-back mode will provide the maximum system performance.

– Memory Settings

Select this choice to manually enable a bank of memory. If a memory error is detected during POST or memory configuration, the

server can automatically disable the failing memory bank and continue operating with reduced memory capacity. If this occurs, you must manually enable the memory bank after the problem is corrected. Select Memory Settings from the Advanced Setup menu, use the arrow keys to highlight the bank that you want to enable; then, use the arrow keys to select Enable.

– Hot Swap PCI Slot Power Control

Select this choice to manually force power on to any of the six Active PCI (hot-plug) slots. This is used for PCI adapters that do not have the presence detect pins that the system hot-plug controller uses to turn power on to a slot.

v System Service Processor Settings

Select this choice to view the interrupt-request setting (IRQ) used by the Advanced System Management Processor (system service processor). You can then use the arrow keys to select a new IRQ setting for the Advanced System Management Processor from the list of available choices.

v Event Logs

Select this choice to view or clear error logs. – Select POST Error Log to view the three most recent error codes and

messages that the system generated during POST. Select Clear error logs from the POST Error Log menu to clear the error log.

– Select System Event/Error Log to view the system event/error log. The

system event/error log contains all the system error and warning messages that the system has generated. You can use the arrow keys to move between pages in the system event/error log.

Select Clear error logs from the System Event/Error Log menu to clear the error or event log.

v Save Settings

Select this choice to save the customized settings.

v Restore Settings

Select this choice to delete the changes and restore the previous settings.

v Load Default Settings

Select this choice to cancel the changes and restore the factory settings.

v Exit Setup

If you have made any changes, the program will prompt you to save the changes or exit without saving the changes.

Using passwords

The System Security choice appears only on the full Configuration/Setup Utility menu. After you select this choice, you can implement two levels of protection: power-on password and administrator password.

Configuring the server 37

Power-on password

After you set a power-on password, you can enable the unattended-start mode. This locks the keyboard and mouse, but allows the server to start the operating system. The keyboard and mouse remain locked until you enter the correct password.

You can use any combination of up to seven characters (A–Z, a–z, and 0–9) for the power-on password. Keep a record of the password in a secure place. If you forget the power-on password, you can regain access to the server by removing the battery and then installing the battery, or by overriding or bypassing the power-on password; see “Setting the password override jumper”

Setting the password override jumper: When a power-on password is set, POST does not complete until you enter the password. If you forget the power-on password, you can regain access to the server through either of the following methods:

v Enter the administrator password at the power-on prompt, if an administrator

password has been set. (See “Administrator password” for details.) Start the Configuration/Setup Utility program and change the power-on password. See “Power-on password”

v Change the position of the jumper on J15 to bypass the power-on password

check. You can then start the Configuration/Setup Utility program and change the power-on password. See “System board component locations” on page 42 for the location of J15.

Notes:

1. Turn off the server, and disconnect all power cords before moving any jumpers.

2. Jumpers J19 and J3 are located on the same jumper block as jumper J15 on the system board. These jumpers are set to Disabled. Do not change the settings on these jumpers.

Attention: If you change the settings on these jumpers, the server will fail.

Table 7. Jumper J15 on the system board

Jumper name Description

J15 Power-on password override Changing the position of this jumper bypasses the power-on

password check if the jumper has been moved since the server was last powered on. You do not need to move the jumper back to the default position after the password is overridden. The default position is a jumper on pins 1 and 2.

Changing the position of this jumper does not affect the administrator password check if an administrator password is set.

For more information on jumper locations, see “Changing jumper positions” on page 69

Administrator password

Select this choice to set an administrator password. The administrator password provides access to all choices on the Configuration/Setup Utility main menu. You can set, change, or delete both the administrator and power-on passwords, and allow a power-on password to be changed by the user.

Attention: If an administrator password is set and then forgotten, it cannot be overridden or removed. You must replace the system board.

38 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

The following table provides a summary of the password features.

Table 8. Power-on and administrator password features

Type of password Results

Power-on password v Enter the password to complete the system startup.

v All choices are available on the Configuration/Setup Utility main

menu.

Administrator password v No password is required to start the system.

v Enter the password to access the Configuration/Setup Utility

program.

v All choices are available on the Configuration/Setup Utility main

menu.

Administrator and power-on password

v You can enter either password to complete the system startup. v The administrator password provides access to all choices on

the Configuration/Setup Utility main menu. You can set, change, or delete both the administrator and power-on passwords, and allow a power-on password to be changed by the user.

v The power-on password provides access to a limited set of

choices on the Configuration/Setup Utility main menu. This limited access might include changing or deleting the power-on password.

Using the SCSISelect utility program

SCSISelect is a built-in, menu-driven configuration utility program that you can use to:

v View the default SCSI IDs v Locate and correct configuration conflicts v Perform a low-level format on a SCSI hard disk

The following sections provide the instructions needed to start the SCSISelect Utility and descriptions of the menu choices available.

Note: If the server has a RAID adapter installed, use the configuration method

supplied with the RAID adapter to view or change SCSI settings for attached devices.

Starting the SCSISelect utility program

To start the SCSISelect utility program:

1. Turn on the server.

2. When the <<< Press <CTRL><A> for SCSISelect Utility! >>> prompt appears, press Ctrl+A.

Note: If an administrator password has been set, a prompt appears asking you

to enter the password to start the SCSISelect Utility program.

3. When prompted, select either channel A (internal) or channel B (external).

4. Use the arrow keys to select a choice from the menu.

v Press Esc to return to the previous menu. v Press the F5 key to switch between color and monochrome modes (if the

monitor permits).

Configuring the server 39

5. Follow the instructions on the screen to change the settings of the selected items; then, press Enter.

Choices available from the SCSISelect menu

The following choices appear on the SCSISelect Utility menu:

v Configure/View Host Adapter Settings

Select this choice to view or change the SCSI controller settings. To reset the SCSI controller to its default values, press F6; then, follow the instructions that appear on the screen.

You can view or change the following controller settings: – Host Adapter SCSI ID

Select this choice to view the SCSI controller ID, normally 7.

– SCSI Parity Checking

Select this choice to view the assigned value of Enabled.

– Host Adapter SCSI Termination

Select this choice to view the assigned value of Enabled.

– Boot Device Options

Select this choice to configure startable device parameters. Before you can make updates, you must know the ID of the device whose parameters you want to configure.

– SCSI Device Configuration

Select this choice to configure SCSI device parameters. Before you can make updates, you must know the ID of the device whose parameters you want to configure.

Note: The Maximum Sync Transfer Rate represents the transfer rate for Ultra

SCSI devices.

- The transfer rate for Ultra3 SCSI LVD devices is 160.0

- The transfer rate for Ultra2 SCSI LVD devices is 80.0

- The transfer rate for Fast SCSI devices is 20.0

– Advanced Configuration Options

Select this choice to view or change the settings for advanced configuration options.

v SCSI Disk Utilities

Select this choice to view the SCSI IDs that are assigned to each device or to format a SCSI device.

To use the utility program, select a drive from the list. Read the screens carefully before making a selection.

Note: If you press Ctrl+A before the selected drives are ready, an Unexpected

SCSI Command Failure screen might appear. Restart the server and watch the SCSISelect messages as each drive spins up. After the drive that you want to view or format spins up, press Ctrl+A.

40 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Installing options

This chapter provides instructions to help you add options to the server.

Expanded view of the xSeries 350

Dual inline memory module (DIMM)

Memory board

Advanced system management interconnect board

Terminator card

Microprocessor

Hot-swap fans

System board

Hot-swap fans

Diagnostics panel

Hot-swap drive

tray assembly

Filler panel for hot-swap

drive tray

Filler panel for power supply bay

Power supply

Component locations

This section provides illustrations of the system board, Diagnostic LED panel, memory board, and Advanced System Management Interconnect board component locations.

System board component locations

The following illustrations detail certain locations on the system board. Note: The illustrations in this document might differ slightly from your hardware.

System board connectors: The following illustration shows the location of connectors on the system board.

PCI hot-plug switch card (J1)

PCI slot 6 64-bit 33 MHz (J55)

PCI slot 5 64-bit 33 MHz (J54)

PCI slot 4 64-bit 66 MHz (J53)

PCI slot 3 64-bit 66 MHz (J52)

PCI slot 2 64-bit 66 MHz (J51)

PCI slot 1 32-bit 33 MHz (J50)

Battery

Memory board (J40)

Microprocessor slot 4 (J37)

Microprocessor slot 3 (J36)

Microprocessor slot 2 (J35)

Microprocessor slot 1 (J34)

42 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

System board cable connectors: The following illustration shows the location of the cable connectors on the system board.

120 MM fan (J49)

Advanced System Management (J69, J68, J67)

External SCSI (J39)

processor

Internal SCSI (J38)

Main power (J71)

120 MM fan (J30)

IDE (J21)

Power signal (J16)

Diagnostic panel (J18)

I/O external port connectors: The following illustration shows the location of the input/output external port connectors on the system board.

Keyboard (bottom) Mouse (top) (J64)

Serial A (bottom) Serial B (top) (J60)

Ethernet (J79)

USB 1 USB 2 (J61)

Parallel (J63)

Video (J62)

Installing options 43

System board jumpers: The following illustration shows the location of the flash ROM page swap jumper (J14) and power-on password override jumper (J15) on the system board. Jumper J14 is located at the top of the jumper block, and jumper J15 is located immediately below jumper J14.

Reserved (J3)

Reserved (J17)

Power-on password override jumper (J15)

Flash ROM page swap jumper (J14)

Notes:

1. Turn off the server; then, disconnect all power cords and external cables. before moving any jumpers.

2. Jumpers J19 and J3 are located on the same jumper block as jumpers J14 and J15 on the system board. These jumpers are set to Disabled. Do not change the settings on these jumpers.

Attention: If you change the settings on these jumpers, the server will fail.

3. See “Changing jumper positions” on page 69 for additional information on setting jumpers.

Table 9. Jumpers J14 and J15 on the system board

Jumper name Description

J14 Flash ROM page swap

J15 Power-on password override

Table 10. Jumper setback table

J13 J27 J28 J29 Bus Ratio Core Frequency

H L L H 7:1 700 HLHL 8:1 800

The default position is a jumper installed on pins 2 and 3. See “Recovering BIOS” on page 20 for additional information.

Changing the position of this jumper bypasses the power-on password check if the jumper has been moved since the server was last powered on. You do not need to move the jumper back to the default position after the password is overridden. The default position is a jumper on pins 2 and 3.

Changing the position of this jumper does not affect the administrator password check if an administrator password is set.

See “Power-on password” on page 38 for additional information on the power-on password.

44 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

The following illustration shows the location of the microprocessor speed (core-frequency-selection) jumper block on the system board. The jumpers on this block are in the following order, from top to bottom: J13, J27, J28, and J29. See “Installing a microprocessor kit” on page 66 for the jumper speed settings.

Note: Any system-board jumper blocks that are not shown in the illustrations in this

book are reserved.

Microprocessor speed jumpers

J13 J27

J28 J29

Installing options 45

System board LED locations

The following illustration shows the location of the lights on the system board. Note: The illustrations in this document might differ slightly from your hardware.

Microprocessor 1 error light

Microprocessor or terminator card present lights

Microprocessor 2 error light

Microprocessor 3 error light

Post OK light

Microprocessor 4 error light

PCI slot attention lights

PCI slot power-on light

46 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Diagnostic panel LEDs

The following illustration shows the location of the LEDs on the diagnostic panel. The diagnostic panel LEDs are visible through a special cutout area located to the left of the cover-release latch on the top cover. However, to determine the exact location of the error condition in the server, you might need to remove the top cover to view the location of the error LED on the diagnostic panel.

Note: The diagnostic panel is also called the LED card.

System board connector

Diskette drive connector

DASD

NMI SP Bus Event Log Non Red Over Spec Temp

PCI Bus

Power

Supply

CPU Memory

A B C D

1 2 3 4

Fan

The meanings of these LEDs are as follows:

CPU Microprocessor fault Memory Memory fault PCI Bus A (PCIA) PCI bus A fault PCI Bus B (PCIB) PCI bus B fault PCI Bus C (PCIC) PCI bus C fault PCI Bus D (PCID) Not implemented at this time. Power supply 1 Power supply number 1 failure Power supply 2 Power supply number 2 failure Power supply 3 Power supply number 3 failure FAN Fan failure DASD Hard disk drive fault NMI Nonmaskable interrupt SP Bus Service processor failure Event Log Not implemented at this time. NON RED Nonredundant power mode OVER SPEC Over specification TEMP System temperature failure

Notes:

1. The server does not support replaceable voltage regulator modules (VRMs).

2. The server supports a maximum of three PCI buses.

3. The server supports a maximum of three power supplies.

4. See “Light Path Diagnostics” on page 19 for a detailed description of these LEDs.

Installing options 47

Memory board component locations

The following illustration shows the location of the dual inline memory module (DIMM) connectors and error LEDs on the memory board.

Notes:

1. The illustrations in this document might differ slightly from your hardware.

2. Some of the DIMM error LEDs are not visible in this illustration. The memory board contains 16 error LEDs; that is, one error LED for each DIMM connector.

Memory slot 1

Memory slot 9

Memory slot 5

Error LEDs

Memory slot 13

48 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Advanced System Management Interconnect board component locations

The following illustration shows the connectors and lights for the Advanced System Management Interconnect board.

Notes:

1. The illustrations in this document might differ slightly from your hardware.

2. The Advanced System Management Interconnect board is also called the service processor card.

Serial port Adv anced System M anagem ent

Interconnect connectors

System board connectorService processor

error

Power LED

Installing options 49

Before you begin

Before you begin to install options in the server, read the following information: v Become familiar with the safety and handling guidelines provided in “Safety

information” on page 127 and “Handling electrostatic discharge-sensitive devices”

on page 130 These guidelines will help you work safely while working with the

server or options.

v You do not need to turn off the server to install or replace hot-swap power

supplies, hot-swap drives, hot-swap fans, Active PCI (hot-plug) adapters, or hot-plug USB devices.

v The orange color on components and labels in the server identifies hot-swap or

hot-plug components. This means that you can install or remove the component while the system is running, provided that the system is configured to support this function.

v The blue color on components and labels identifies touch points where you can

grip a component, move a latch, and so on.

v Make sure that you have an adequate number of properly grounded electrical

outlets for the server, monitor, and any other options that you intend to install.

v Back up all important data before you make changes to disk drives. v For a list of supported options for the eServer xSeries 350, refer to

http://www.ibm.com/pc/us/compat on the World Wide Web.

System reliability considerations

To help ensure proper cooling and system reliability, make sure that:

v Each of the drive bays has either a drive or a filler panel installed. v Each of the power supply bays has either a power supply or a filler panel

installed.

v There is at least 50 mm (2 inches) of ventilated space at the sides of the server

and 100 mm (4 inches) at the rear of the server.

v The top cover is in place during normal operation. v The top cover is removed for no longer than 30 minutes while the server is

operating.

v The processor housing cover over the processor and memory area is removed

for no longer than 10 minutes while the server is operating.

v A removed hot-swap drive is replaced within 10 minutes of removal. v Cables for optional adapters are routed according to the instructions provided

with the adapters.

v A failed fan is replaced within 48 hours.

Working inside the server with the power on

The server supports hot-add, hot-plug and hot-swap devices and is designed to operate safely while turned on with the cover removed. Follow these guidelines when you work inside a server that is turned on:

v Avoid loose-fitting clothing on your forearms. Button long-sleeved shirts before

working inside the server; do not wear cuff links while you are working inside the server.

v Do not allow your necktie to hang inside the server. v Remove jewelry, such as bracelets, necklaces, rings, and loose-fitting wrist

watches.

50 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

v Remove items from your shirt pocket (such as pens or pencils) that could fall into

the server as you lean over it.

v Avoid dropping any metallic objects, such as paper clips, hair pins, or screws,

into the server.

Handling static-sensitive devices

Static electricity, though harmless to you, can seriously damage server components or options.

Note: When you are adding an internal option, do not open the static-protective

package containing the option until you are instructed to do so.

When you handle options and other server components, take these precautions to avoid damage from static electricity:

v Limit your movement. Movement can cause static electricity to build up around

you.

v Always handle components carefully. Handle adapters, the memory board, and

memory modules (DIMMs) by the edges. Never touch any exposed circuitry.

v Prevent others from touching components. v When you are installing a new option, touch the static-protective package

containing the option to a metal expansion-slot screw or other unpainted metal surface on the server for at least two seconds. (This reduces static electricity from the package and from your body.)

v When possible, remove the option and install it directly into the server without

setting the option down. When this is not possible, place the static-protective package that the option comes in on a smooth, level surface and place the option on it.

v Do not place the option on the server’s covers or any metal surface.

Statement 1

DANGER

Electrical current from power, telephone and communication cables is hazardous.

To avoid a shock hazard: v Do not connect or disconnect any cables or perform installation, maintenance, or

reconfiguration of this product during an electrical storm.

v Connect all power cords to a properly wired and grounded electrical outlet. v Connect to properly wired outlets any equipment that will be attached to this

product.

v When possible, use one hand only to connect or disconnect signal cables. v Never turn on any equipment when there is evidence of fire, water, or structural

damage.

v Disconnect the attached power cords, telecommunications systems, networks, and

modems before you open the device covers, unless instructed otherwise in the installation and configuration procedures.

v Connect and disconnect cables as described in the following table when installing,

moving, or opening covers on this product or attached devices.

Installing options 51

To Connect To Disconnect

1. Turn everything OFF.

2. First, attach all cables to devices.

3. Attach signal cables to connectors.

4. Attach power cords to outlet.

5. Turn device ON.

Statement 4

≥18 kg (39.7 lb) ≥32 kg (70.5 lb) ≥55 kg (121.2 lb)

CAUTION: Use safe practices when lifting.

1. Turn everything OFF.

2. First, remove power cords from outlet.

3. Remove signal cables from connectors.

4. Remove all cables from devices.

Statement 5

2 1

52 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Removing the server top cover and bezel

Review the information in “Before you begin” on page 50 The following illustration shows how to remove the top cover and bezel from the

server. Note: The illustrations in this document might differ slightly from your hardware.

Top cover

Cover release latch

Release latch

Bezel

To remove the server top cover:

1. Lift the plastic cover-release latch near the edge of the top cover.

2. Slide the top cover slightly toward the rear of the server; the cover will stop after about 25 mm (1 inch). Lift the cover off the server and set the cover aside.

Attention: For proper cooling and airflow, replace the top cover before turning on the server. Operating the server for extended periods of time (over 30 minutes) with the top cover removed might damage server components.

To remove the bezel:

1. Release the two tabs at the top edge of the bezel and pull the top of the bezel slightly away from the server.

2. Pull the bezel up to release the two tabs at the bottom edge of the bezel. Store the bezel in a safe place.

Installing options 53

Working with adapters

The following illustration shows the location of the Active™PCI adapter expansion slots on the system board.

Notes:

1. The illustrations in this document might differ slightly from your hardware.

2. Active PCI slots are also called hot-plug PCI slots.

PCI slot 1 32-bit 33 MHz (J50)

PCI hot-plug switch card (J1)

PCI slot 6 64-bit 33 MHz (J55)

PCI slot 5 64-bit 33 MHz (J54)

PCI slot 4 64-bit 66 MHz (J53)

PCI slot 3 64-bit 66 MHz (J52)

PCI slot 2 64-bit 66 MHz (J51)

PCI slot power-on light

PCI slot attention lights

PCI bus configuration

v Hot-plug, 32-bit PCI slot 1 (on PCI bus A, 5V, 33 MHz) v Hot-plug, 64-bit PCI slots 2 through 4 (on PCI bus B, 3.3V, 66 MHz) v Hot-plug, 64-bit PCI slots 5 through 6 (on PCI bus C, 5V, 33 MHz) v Power-on lights for Active PCI slots v Internal Attention lights for Active PCI slots v External Attention lights for Active PCI slots

This section gives the procedure for installing a hot-plug PCI adapter. If your operating system supports hot-plug PCI adapters, you can replace a failing hot-plug PCI adapter with a new adapter of the same type without turning off power to the server. If your operating system and adapter also support the hot-add feature, you can install a new adapter without turning off the power to the server.

Before you begin: v Review the information in “Before you begin” on page 50 and “Working inside the

server with the power on” on page 50

v Read the documentation that comes with your adapter for any special

requirements or restrictions.

v Read the documentation that comes with your operating system.

54 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Attention: Do not remove a hot-plug PCI adapter before performing the

operating-system-defined procedure for disabling the Active PCI (hot-plug) slot that contains the adapter. Failure to do so might cause your system to lock up. Refer to your operating-system documentation.

Installing a hot-plug adapter

The following illustration shows how to install a hot-plug PCI adapter. Note: The illustrations in this document might differ slightly from your hardware.

Expansion-slot cover

Adapter retention latch

Tab

Power-on light

Plastic dividers

Adapter

Adapter retention

cover

To install a hot-plug PCI adapter: Attention: When you handle Electrostatic Discharge-Sensitive devices (ESD),

take precautions to avoid damage from static electricity. For details on handling these devices, refer to the following Web site and search for ESD: http://www.ibm.com

1. Remove the top cover (see “Removing the server top cover and bezel” on page 53).

2. Determine which expansion slot you will use for the adapter. Note: All six PCI slots support hot-plug PCI adapters.

3. Disable the selected PCI slot from your operating system. (Refer to the documentation that comes with your operating system for information about disabling a hot-plug PCI slot.) Disabling the PCI slot turns off the power-on light for that PCI slot.

Attention: Make sure that the power-on light for the hot-plug PCI slot is off before you continue with the next step.

4. Remove the expansion-slot cover: a. Rotate the adapter retention latch counterclockwise. b. Lift the tab on the top of the expansion-slot cover; then, remove the

expansion-slot cover from the server. Store it in a safe place for future use.

Installing options 55

c. Press on the rear of the adapter retention assembly and lift the adapter

retention cover. Attention: Expansion-slot covers must be installed on all empty slots.

This maintains the electromagnetic emissions characteristics of the system and ensures proper cooling of system components.

5. Refer to the documentation that comes with your adapter for any cabling instructions. It might be easier for you to route any cables before you install the adapter.

6. Remove the adapter from the static-protective package. Attention: Avoid touching the components and gold-edge connectors on the

adapter.

7. Place the adapter, component-side up, on a flat, static-protective surface.

8. Install the adapter: a. Carefully grasp the adapter by its top edge or upper corners, and align it

with the expansion slot on the system board.

b. Press the adapter firmly into the expansion slot.

Attention: When you install an adapter in the server, be sure that it is completely and correctly seated in the system-board connector. Incomplete insertion might cause damage to the system board or the adapter.

c. Lower the tab over the top corner of the adapter. Rotate the adapter

retention latch clockwise until it snaps into place.

9. Connect any needed cables to the adapter.

10. Enable the PCI slot from your operating system. (Refer to the documentation that comes with your operating system for information about enabling a hot-plug PCI slot.) Make sure that the power-on light for the hot-plug PCI slot comes on.

11. If you have other options to install or remove, do so now; otherwise, go to

“Installing the server top cover and bezel” on page 74

Cabling example for the ServeRAID adapter

You can install an optional IBM ServeRAID®adapter in the server to control the internal hot-swap hard-disk drives; that is, to enable you to configure the internal hot-swap hard disk drives into disk arrays. To do this, you must turn off the server, disconnect the internal SCSI cable from the integrated SCSI controller on the system board, and connect the cable to a ServeRAID adapter. Refer to the ServeRAID adapter option documentation for complete instructions on installing a ServeRAID adapter in the server. Refer to the Using IBM ServeRAID book on the Documentation CD for information on ServeRAID adapters and controllers.

The following procedure describes the cable routing that is necessary when you install a ServeRAID adapter. The following illustrations show the cabling for internal hot-swap hard disk drives. You can also cable a ServeRAID adapter to external hard disk drives.

Notes:

1. The illustrations in this document might differ slightly from your hardware.

2. Refer to the documentation that comes with your adapter for any cabling

instructions.

3. Cable identifiers are printed on the cables that come with the server and

options. Use these identifiers to connect the cables to the correct connectors. For example, the hard disk drive cables are labeled HDD.

56 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

To cable the ServeRAID adapter:

1. Turn off the server.

2. Remove all adapters from the Active PCI adapter slots.

3. Remove the plastic dividers between the PCI adapter slots.

4. Press the fan assembly release latches on both sides of the fan assembly; then, remove the fan assembly from the server.

Plastic dividers

ServeRAID adapter

Fan assembly release latch

5. Disconnect the internal SCSI cable from the SCSI connector (J38) on the system board. (See “System board cable connectors” on page 43).

6. Carefully thread the disconnected end of the internal SCSI cable out of the chassis, pulling the cable out of the opening in the chassis.

7. Reinstall the fan assembly in the server.

8. Replace the plastic dividers between the PCI adapter slots.

9. Reinstall the adapters in the PCI adapter slots.

10. The following illustration shows how to route the SCSI cable to the ServeRAID adapter.

Installing options 57

Attention: When you route the SCSI cable, observe the following:

v Do not block the ventilated space in front of the fan assembly. v Do not place the SCSI cable fold on top of the fan assembly. v Do not route the SCSI cable over the memory board assembly.

ServeRAID adapter

DASD

CPU Memory

NMI

PCI

SP Bus

A B C D

Bus

1 2 3 4

Event Log Non Red Over Spec

Fan

Temp

Power

Supply

11. Install the ServeRAID adapter in the desired PCI slot. See “Installing a hot-plug adapter” on page 55 for adapter installation instructions. Refer to the ServeRAID adapter option documentation for additional information on installing a ServeRAID adapter in the server and connecting the SCSI cable to a ServeRAID adapter.

12. Connect the SCSI cable to an internal channel connector on the ServeRAID

adapter. Note: Refer to the Using IBM ServeRAID book on the Documentation CD for

information on ServeRAID adapters and controllers.

58 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Installing internal drives

If you add different types of drives, the system can read multiple types of media and store more data. Several types of drives are available, such as:

v Diskette v Hard disk v CD-ROM v DVD-ROM v Tape

Note: The server supports external tape drives; however, the server does not

support internal tape drives.

The server contains hardware that enables you to replace a failed hard disk drive without turning off the server. Therefore, you have the advantage of continuing to operate the system while a hard disk drive is removed or installed. These drives are known as hot-swap drives.

Each hot-swap drive bay has two indicator lights on the front of the server (see “Start the server” on page 8). If the amber hard-disk status light for a drive is lit continuously, that individual drive is faulty and requires replacement. When the hard-disk status light indicates a drive fault, you can replace a hot-swap drive without turning off the server.

Each hot-swap drive that you plan to install must be mounted in a hot-swap-drive tray. The drive must have a single connector attachment (SCA) connector. Hot-swap-drive trays come with hot-swap drives.

Internal drive bays

Internal drives are installed in bays. The server supports up to a maximum of six 1-inch (26 mm) slim high, 3.5 inch, hot-swap hard disk drives when the media bay option is installed.

v The server comes with one integrated drive electronics (IDE) CD-ROM drive and

one 3.5-inch, 1.44 MB diskette drive.

v The CD-ROM drive bay (bottom left front) supports 5.25-inch, half-high,

removable-media drives. However, you cannot install additional removable-media drives in the server.

CD-ROM drive

Diskette drive

Standard hard disk drives

3.5-inch diskette drive CD-ROM drive 3 hot-swap hard disk drives

Hot-swap bays (up to six)

Optional hard disk drives

Installing options 59

v The server supports three standard and three optional 1-inch (26 mm) slim-high,

3.5-inch, hot-swap hard disk drives in the hot-swap bays. The standard hot-swap bays are bays 1 through 3 (from bottom to top). The optional hot-swap bays are bays 4 through 6 (from bottom to top). Bays 1 through 3 are located in the standard hard disk drive cage, to the left of bays 4 through 6 in the optional hard disk drive cage.

Note: The server does not support half-high hot-swap drives or internal tape

drives.

v The hot-swap bays connect to a hot-swap drive backplane. The backplane is a

printed circuit board behind the bays.

Hard disk drive component locations

The following illustration shows the hot-swap-drive backplane component locations, as viewed from the front of the server.

Note: The illustrations in this document might differ slightly from your hardware.

Hard disk drive activity light (green)

Hard disk drive status light (amber)

SCSI hot-swap hard disk drive connector

Note: The hard-disk drive activity light and hard-disk drive status light on the

backplane match the hard-disk drive activity light and hard-disk drive status light on the front of the server (see “Start the server” on page 8).

60 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

The following illustration shows the rear connectors on the hot-swap-drive backplane before the repeater card is installed, as viewed from the rear of the server.

SCSI cable connector

SCSI power cable connector

I C cable connector

Note: To install an additional hot-swap drive backplane on the back of the server,

see “Installing a 3-Pack Ultra160 Hot-Swap Expansion Kit” on page 71

Installing options 61

Installing a hot-swap hard disk drive

The following illustration shows how to install a hot-swap hard disk drive. Note: You do not have to turn off the server to install hot-swap drives in these

bays.

To install a drive in a hot-swap bay:

1. Review “Before you begin” on page 50

2. Unlock and open the server front door.

Drive tray assembly

Filler panel

Drive tray handle (in open position)

Attention: To maintain proper system cooling, do not operate the server for

more than 10 minutes without either a drive or a filler panel installed for each bay.

3. Remove the filler panel from one of the empty hot-swap bays by inserting your

finger into the depression at the left side of the filler panel and pulling it away from the server.

4. Install the hard disk drive in the hot-swap bay:

a. Ensure that the tray handle is open (that is, perpendicular to the drive). b. Align the drive assembly so that it engages the guide rails in the bay. c. Gently push the drive assembly into the bay until the drive stops. d. Push the tray handle to the closed (locked) position. e. Check the hard disk drive status indicator to verify that the hard disk drive is

operating properly. If the amber hard-disk status light for a drive is lit continuously, that

individual drive is faulty and needs to be replaced. If the green hard-disk activity light is flashing, the drive is being accessed.

Note: If the server has a ServeRAID controller or adapter installed, you might

need to reconfigure the disk arrays after installing hard disk drives. Refer to Using IBM ServeRAID on the Documentation CD or the Hardware Maintenance Manual pertaining to the specific RAID adapter for information.

62 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Installing memory-module kits

The illustrations in this document might differ slightly from your hardware. Adding memory to the server is an easy way to make programs run faster. You can

increase the amount of memory in the server by installing memory-module options. You must install a bank of four matched dual-inline memory modules (DIMMs).

Notes:

1. The DIMM options available for the server are 128 MB, 256 MB, 512 MB, and 1 GB. The server supports a minimum of 512 MB (4 x 128MB) and a maximum of 16 GB (16 x 1GB) of system memory.

2. When 4 GB of memory is installed in the server, the amount of usable memory will be reduced depending on the system configuration. A certain amount of memory must be reserved below 4 GB for system resources. A second reduction in the usable memory is made when 16 GB of memory is installed.

3. The server comes with a minimum of 512 MB (4x128) memory installed in bank

1. When you install additional DIMMs, be sure to follow the DIMM population sequence in Table 11..

4. All the DIMMs installed in a bank must be the same size, speed, type, and technology. You can mix compatible DIMMs from various manufacturers.

5. All the banks do not have to contain DIMMs of the same size, speed, type, and technology. You can mix compatible DIMMs from various manufacturers.

6. The memory board contains 16 DIMM connectors and utilizes 4-way memory interleaving. See Table 11

The 4-way memory interleave technology in the server requires that you install DIMMs in all four connectors in each populated bank.

7. Install only 3.3 V, 168-pin, 8-byte, 100 MHz, PCI, PC100-322-622R, registered synchronous dynamic random-access memory (SDRAM) with error correcting code (ECC), DIMMs. Only 100 MHz, 72-bit, registered, synchronous, x4 SDRAM configuration DIMM memory is supported for the 128 MB, 256 MB, 512 MB, and 1 GB DIMMs.

8. Installing or removing DIMMs changes the configuration information in the server. Therefore, after installing or removing a bank of DIMMs, you must save the new configuration information using the Configuration/Setup Utility program. When you restart the server, the system displays a message indicating that the memory configuration has changed. Start the Configuration/Setup Utility program and select Save Settings. See “Configuring the server” on page 33 for more information.

Install the DIMMs in the order provided in Table 11

Table 11. DIMM installation order

Bank of 4 DIMMs Install DIMMs in these connectors:

Bank 1 (shipped as standard) J1, J5, J9, J13 Bank 2 J2, J6, J10, J14 Bank 3 J3, J7, J11, J15 Bank 4 J4, J8, J12, J16

The following illustration shows how to install memory on the memory board.

Installing options 63

Note: The illustrations in this document might differ slightly from your hardware.

Memory slot 1

Memory slot 9

Memory slot 5

Error LEDs

Memory slot 13

Before you begin:

v Review “Before you begin” on page 50 v Read the documentation that comes with your option.

To install a DIMM: Attention: When you handle Electrostatic Discharge-Sensitive devices (ESD),

take precautions to avoid damage from static electricity. For details on handling these devices, refer to the following Web site and search for ESD: http://www.ibm.com

1. Turn off the server and disconnect all power cords and external cables; then, remove the top cover (see “Removing the server top cover and bezel” on page 53).

2. Remove the memory board assembly: a. Lift up on the memory board assembly and remove it from the server.

Memory board

64 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

b. Place the memory board assembly on a static-protective surface, such as

the static-protective package in which an option comes.

3. Locate the DIMM connectors on the memory board. Determine the DIMM connectors into which you will install the DIMMs. (See the notes at the beginning of this procedure.)

4. Touch the static-protective package that contains the DIMM option to any unpainted metal surface on the server. Then, remove the DIMM from the package.

Note: To avoid breaking the retaining clips or damaging the DIMM connectors,

handle the clips gently.

5. To install the DIMMs, repeat the following steps for each DIMM that you install: a. Turn the DIMM so that the DIMM keys align correctly with the connector. b. Insert the DIMM by pressing the DIMM straight into the connector. Be sure

that the retaining clips snap into the closed positions.

c. Make sure that the retaining clips are in the closed position. If a gap exists

between the DIMM and the retaining clips, the DIMM has not been properly installed. In this case, open the retaining clips and remove the DIMM; then, reinsert the DIMM.

6. Install the memory board assembly: a. Hold the memory board assembly, and align it into the card guides and over

the memory board connector. Attention: When you insert the memory board assembly into the

connector, press on the flat metal projection on the board.

b. Insert the memory board assembly into the connector.

7. If you have other options to install or remove, do so now; otherwise, go to “Installing the server top cover and bezel” on page 74

Installing options 65

Installing a microprocessor kit

The server comes with one microprocessor installed on the system board. The server supports up to four microprocessors. If you install at least one additional microprocessor, the server can operate as a symmetric multiprocessing (SMP) server. With SMP, certain operating systems and application programs can distribute the processing load among the microprocessors.

Before you begin:

v Review the information in “Before you begin” on page 50 v Thoroughly review the documentation that comes with the microprocessor, so

that you can determine whether you need to update the server basic input/output system (BIOS). The latest level of BIOS for the server is available through the World Wide Web and the IBM Bulletin Board System (BBS). Go to http://www.pc.ibm.com/support/, select IBM Servers, and make the selections for the server.

v Obtain an SMP-capable operating system (optional). For a list of supported

operating systems, see http://www.ibm.com/pc/us/compat/ on the World Wide Web.

Attention: To avoid damage and ensure proper server operation when you install a new or an additional microprocessor, use microprocessors that have the same cache size and type, and the same clock speed. Microprocessor internal and external clock frequencies must be identical.

Notes:

1. To order additional microprocessor options, contact your IBM reseller or IBM marketing representative.

2. The server comes standard with one microprocessor installed in microprocessor connector J34 (slot 1) on the system board, and a terminator card in microprocessor slot 4. The microprocessor in slot 1 is the startup (boot) microprocessor. The microprocessor installed in microprocessor connector J35 is microprocessor 2 (slot 2); the microprocessor installed in microprocessor connector J36 is microprocessor 3 (slot 3); and the microprocessor installed in microprocessor connector J37 is microprocessor 4 (slot 4). If more than one microprocessor is installed, the highest numbered microprocessor is the microprocessor from which the server will start. The lower numbered microprocessors are used as application microprocessors.

3. If you replace the microprocessors in the server with microprocessors of a different speed, be sure to set the microprocessor-core-frequency-selection jumper block correctly, as described in this section. For a list of supported microprocessor speeds, see http://www.ibm.com on the World Wide Web.

4. The server does not support replaceable voltage regulator modules (VRMs).

If you need to install additional microprocessors, install them in the following order:

v Slot 1 (first slot, connector J34) v Slot 2 (second slot, connector J35) v Slot 3 (third slot, connector J36) v Slot 4 (fourth slot, connector J37)

Attention: The server comes with a terminator card installed in microprocessor slot 4. To ensure proper server operation, the terminator card must remain installed in microprocessor slot 4 until you have installed microprocessors in slots 1 through 3.

66 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

The following illustration is a simplified layout of the microprocessor connector locations and other microprocessor-related components on the system board.

Note: The illustrations in this document might differ slightly from your hardware.

Microprocessor slot 1 (J34)

Microprocessor slot 2 (J35)

Microprocessor slot 3 (J36)

Microprocessor slot 4 (J37)

Memory board (J40)

PCI slot 2 64-bit 66 MHz (J51)

PCI slot 3 64-bit 66 MHz (J52)

PCI slot 4 64-bit 66 MHz (J53)

PCI slot 5 64-bit 33 MHz (J54)

PCI slot 6 64-bit 33 MHz (J55)

PCI hot-plug switch card

Battery

PCI slot 1 32-bit 33 MHz (J50)

(J1)

Note: For additional illustrations of the system-board components, see “System

board component locations” on page 42

The following illustration shows how to install a microprocessor on the system board.

Note: The illustrations in this document might differ slightly from your hardware.

Terminator card

Latch

Microprocessor

Latch

Installing options 67

To install an additional microprocessor: Attention: When you handle Electrostatic Discharge-Sensitive devices (ESD),

take precautions to avoid damage from static electricity. For details on handling these devices, refer to the following Web site and search for ESD: http://www.ibm.com

Note: If you are replacing a failed microprocessor, verify that you have selected the

correct microprocessor for replacement. To do this, check the Diagnostic panel that is located under the top cover to see which LED is on.

1. Turn off the server and disconnect all power cords and external cables; then, remove the top cover (see “Removing the server top cover and bezel” on page 53).

2. Determine the slot where the microprocessor is to be installed.

3. If you have installed microprocessors in slots 1 through 3 and you are now installing a microprocessor in slot 4, remove the terminator card from the microprocessor connector. Store the terminator card in a safe place in the static-protective package that your new microprocessor comes in; you will need to install it again if you ever remove the microprocessor.

4. Install the microprocessor: a. Touch the static-protective package containing the new microprocessor to

any unpainted metal surface on the server; then, remove the microprocessor from the package.

b. Hold the microprocessor by the open latches, and center the microprocessor

over the microprocessor connector. Attention: Make sure that the microprocessor is oriented and aligned

correctly before you try to close the latches.

c. Carefully close the latches to seat the microprocessor in the connector.

5. If you replace the microprocessors in the server with microprocessors of a different speed, set the microprocessor-core-frequency-selection jumper block as described in Table 12 To ensure that the server maintains the correct microprocessor bus-to-core ratio, you must set the following microprocessor speed (core-frequency-selection) jumpers: J13, J27, J28, and J29. The jumpers on this block are in the following order, from top to bottom: J13, J27, J28, and J29. For locations of these jumpers, see “System board jumpers” on page 44

Note: See “Changing jumper positions” on page 69 for additional information on

setting jumpers.

Table 12. Microprocessor-core-frequency-selection jumper block settings

J13 J27 J28 J29 Bus Ratio

H L L H 7:1 700/100 H L H L 8:1 800/100

6. If you have other options to install or remove, do so now; otherwise, go to “Installing the server top cover and bezel” on page 74

68 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Core Frequency (MHz)

Changing jumper positions

Jumpers located on the system board help you to customize the way the server operates.

The server system board contains two-pin and three-pin jumper blocks. In some cases, groups of jumpers might combine to define a function.

Three-pin jumper blocks

With the three-pin jumper blocks, each jumper covers two of the three pins on a pin block. You can position the jumper to fit over the center pin and either of the other two pins.

The following illustration identifies pins 1, 2, and 3 on a three-pin jumper block.

To change a jumper position for a three-pin jumper block:

1. Turn off the server; then, disconnect all power cords and external cables.

2. Remove the server cover (see “Removing the server top cover and bezel” on page 53).

3. Lift the jumper straight off the pin block.

4. Align the holes in the bottom of the jumper with the center pin and the pin that was not covered previously.

5. Slide the jumper fully onto these pins.

6. Reinstall the server cover and connect the cables (see “Installing the server top cover and bezel” on page 74).

Installing options 69

Installing a hot-swap power supply

The following illustration shows how to install a hot-swap power supply. Note: The illustrations in this document might differ slightly from your hardware.

Filler panel

AC power light

DC power light

Power supply handlePower supply

To install an additional power supply:

1. Remove the filler panel.

2. Place the handle on the power supply in the open position.

3. Slide the power supply into the chassis and close the handle.

4. Plug the power cord into the power supply; then, into a properly grounded electrical outlet.

5. Verify that the DC Power light and the AC Power light on the power supply are lit, indicating that the power supply is operating properly.

Statement 8

CAUTION: Never remove the cover on a power supply or any part that has the following label attached.

Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact a service technician.

70 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

CAUTION: If you install a strain-relief bracket option over the end of the power cord that is connected to the device, you must connect the other end of the power cord to an easily accessible power source.

Installing a 3-Pack Ultra160 Hot-Swap Expansion Kit

You can install an optional 3-Pack Ultra160 Hot-Swap Expansion Kit in the server to connect three additional hot-swap hard disk drives to the server. This kit contains a hot-swap hard disk drive backplane that you install adjacent to the standard hot-swap hard disk drive backplane. The server supports a maximum of two hot-swap drive backplanes.

Notes:

1. In addition to the optional hot-swap drive backplane, the 3-Pack Ultra160 Hot-Swap Expansion Kit comes with a hard disk drive cage. Do not install the hard disk drive cage on the server, as the hard disk drive cage is not compatible with the xSeries 350 server. The 3-Pack Ultra160 Hot-Swap Expansion Kit can be installed in various types of Eservers; the hard disk drive cage is used with other types of servers.

2. Cable identifiers are printed on the cables that come with the server and options. Use these identifiers to connect the cables to the correct connectors. For example, the hard disk drive cables are labelled HDD.

3. For information on cabling options and using the 3-Pack Ultra160 Hot-Swap Expansion option, refer to the documentation that comes with the option kit.

4. For additional information on cabling, see “Cabling example for the ServeRAID adapter” on page 56 and “Cabling the server” on page 88

5. The hot-swap drive backplane components are shown at “Installing a hot-swap hard disk drive” on page 62

Note: The hard-disk drive activity light and hard-disk drive status light on the

backplane match the hard-disk drive activity light and hard-disk drive status light on the front of the server (see “Start the server” on page 8).

The rear connectors on the hot-swap-drive backplane (before repeater card is installed) can be seen at “Installing a hot-swap hard disk drive” on page 62

Installing options 71

The following illustration shows the rear connectors on the SCSI repeater card after the repeater card is installed, as viewed from the rear of the server.

SCSI power cable connector

SCSI repeater card cable connector

IC cable connector

SCSI cable connector

The following illustration shows how to install a 3-Pack Ultra160 Hot-Swap Expansion Kit.

Expansion backplane

To install a 3-Pack Ultra160 Hot-Swap Expansion Kit: Attention: When you handle Electrostatic Discharge-Sensitive devices (ESD),

take precautions to avoid damage from static electricity. For details on handling these devices, refer to the following Web site and search for ESD: http://www.ibm.com

1. Review the information in “Before you begin” on page 50 and in “Safety information” on page 127

2. Turn off the server and peripheral devices and disconnect all power cords and external cables; then, remove the top cover (see “Removing the server top cover and bezel” on page 53).

3. Refer to the documentation that comes with the option to assemble the hot-swap expansion option.

4. Align the hot-swap expansion option with the empty slot at the rear of the optional hard disk drive cage, adjacent to the standard hot-swap hard disk drive backplane.

5. Slide the hot-swap expansion option down into the guides on the slot at the rear of the optional hard disk drive cage, and secure it to the server with the blue slide latch located on top of the optional hard disk drive cage.

6. Refer to the documentation that comes with the option to complete the installation of the option.

7. Install additional internal hot-swap hard disk drives in the optional hard disk drive cage (see “Installing a hot-swap hard disk drive” on page 62), and connect the drives to the optional hot-swap backplane. You can connect a maximum of three hot-swap hard disk drives to the optional hot-swap backplane.

72 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Note: If you connected these optional hot-swap hard disk drives to the optional

hot-swap backplane, then the optional hot-swap backplane sets the SCSI IDs for the optional hot-swap backplane and the hot-swap hard disk drives. See “Setting SCSI IDs” on page 80 for additional information.

8. If you have other options to install or remove, do so now; otherwise, go to “Installing the server top cover and bezel” on page 74

Replacing a hot-swap fan

The server comes with six hot-swap fans. You do not need to turn off the power to the server to replace a hot-swap fan assembly.

Attention: To help ensure proper cooling, replace a fan that has failed within 48

hours.

Note: The speed of the fans will increase if:

v One fan fails. v Ambient temperature gets too high.

The following illustration shows how to replace hot-swap fans. Note: The illustrations in this document might differ slightly from your hardware.

Hot-swap fans

To replace a hot-swap fan assembly:

1. Remove the top cover (see “Removing the server top cover and bezel” on page 53).

Attention: To ensure proper system cooling, do not remove the top cover for

more than 30 minutes during this procedure.

2. Lift the fan release handle and lift the fan out of the server.

3. Slide the replacement fan into the server and press the handle down.

4. Replace the top cover (see “Installing the server top cover and bezel” on page 74).

Installing options 73

Completing the installation

To complete the installation, you must reinstall the top cover, reinstall the bezel, reconnect all cables that you disconnected, and, for certain options, run the Configuration/Setup Utility program. Follow the instructions in this section.

Attention: For correct cooling and airflow, install the top cover before turning on

the server. Operating the server for extended periods of time (over 30 minutes) with the top cover removed might damage server components.

To complete the installation, you must reinstall the top cover, reinstall the media-bay bezel, reconnect all the cables that you disconnected earlier and, for certain options, run the Configuration/Setup Utility program. Follow the instructions in this section.

Attention: For correct cooling and airflow, install the top cover before turning on

the server. Operating the server for extended periods of time (over 30 minutes) with the top cover removed might damage server components.

Note: If you have just plugged the power cords of the server into an electrical

outlet, you will have to wait approximately 20 seconds before pressing the power-control button.

Installing the server top cover and bezel

The following illustration shows how install the server top cover. Note: The illustrations in this document might differ slightly from your hardware.

Top cover

Release latch

Cover release latch

Release latch

Bezel

To install the server top cover:

1. Before installing the cover, check that all cables, adapters, and other components are installed and seated correctly and that you have not left loose tools or parts inside the server.

2. Place the cover-release latch in the open (up) position.

3. Insert the bottom tabs of the top cover in the matching slots in the server chassis.

4. Close the cover-release latch to pull the top cover forward and lock the top cover in place.

5. If you disconnected any cables from the back of the server, reconnect the cables; then, plug the power cords into properly grounded electrical outlets.

74 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Note: If necessary, refer to “Input/output ports” on page 76 for connector

locations.

To install the bezel:

1. Insert the two tabs on the bottom of the bezel into the matching holes on the server chassis.

2. Push the top of the bezel toward the server until the two tabs at the top of the bezel snap into place.

Updating the server configuration

When you start the server for the first time after you add or remove an internal option or an external SCSI device, you might see a message telling you that the configuration has changed. The Configuration/Setup Utility program automatically starts so that you can save the new configuration information. See “Configuring the server” on page 33

Some options have device drivers that you need to install. Refer to the documentation that comes with your option for information about installing any required device drivers.

The server comes with at least one microprocessor installed on the system board. If you have installed one or more additional microprocessors, the server can now operate as an SMP server. Therefore, you might need to upgrade your operating system to support SMP.

If the server has a ServeRAID adapter installed and you have installed or removed a hard disk drive, refer to the documentation that comes with your ServeRAID adapter for information about reconfiguring your disk arrays.

Connecting external options

Before you begin:

v Review “Before you begin” on page 50 v Read the documentation that comes with your options.

You can attach external options to the input/output (I/O) connectors on the rear of the server. (See “Input/output ports” on page 76 for more information.)

To attach an external device:

1. Turn off the server and all attached devices.

2. Follow the instructions that come with the option to prepare it for installation and to connect it to the server.

Note: If you are attaching an external SCSI device, see “Ultra160 SCSI ports” on

page 79 for information about SCSI cabling and SCSI IDs.

Installing options 75

Input/output ports

This section provides information about the input/output (I/O) ports on the rear of the server. These ports include the following:

v One parallel port v One video port v One keyboard port v One auxiliary-device port (pointing device) port v Two Ultra160 SCSI ports v Two serial ports v Two Universal Serial bus (USB) ports v One Ethernet port v Three communication ports dedicated to the Advanced System Management

The following illustration shows the I/O port connectors on the rear of the server. Note: The illustrations in this document might differ slightly from your hardware.

Advanced System Management Interconnect port A

processor

Advanced System Management Interconnect port B

Video

Management port C

Parallel port

Mouse

Keyboard

Serial A

Serial B

Ethernet

Para lle l

USB 1 USB 2

The server has one parallel port. This port supports three standard Institute of Electrical and Electronics Engineers (IEEE) 1284 modes of operation: Standard Parallel Port (SPP), Enhanced Parallel Port (EPP), and Extended Capability Port (ECP).

Viewing or changing the parallel-port assignments

You can use the built-in Configuration/Setup Utility program to configure the parallel port as bidirectional; that is, so that data can be both read from and written to a device. In bidirectional mode, the server supports the ECP and EPP modes.

To view or change the parallel-port assignment:

1. Restart the server and watch the monitor screen.

2. When the message Press F1 for Configuration/Setup appears, press F1. Note: The Devices and I/O Ports choice appears only on the full configuration

menu. If you set two levels of passwords, you must enter the administrator password to access the full configuration menu.

3. From the main menu, select Devices and I/O Ports; then, press Enter.

76 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

4. Select the parallel port; then, use the arrow keys to advance through the settings available.

Note: When you configure the parallel port as bidirectional, use an IEEE

1284-compliant cable. The maximum length of the cable must not exceed 3 meters (9.8 feet).

5. Select Save Settings; then, select Exit Setup to exit from the Configuration/Setup Utility main menu.

Parallel port connector

The following table shows the pin-number assignments for the 25-pin, female D-shell parallel-port connector on the rear of the server.

Table 13. Parallel-port connector pin-number assignments

Pin I/O SPP/ECP Signal EPP Signal

1 O -STROBE -WRITE 2 I/O Data 0 Data 0 3 I/O Data 1 Data 1 4 I/O Data 2 Data 2 5 I/O Data 3 Data 3 6 I/O Data 4 Data 4 7 I/O Data 5 Data 5 8 I/O Data 6 Data 6 9 I/O Data 7 Data 7

10 I -ACK -ACK

11 I BUSY -WAIT

12 I PE (paper end) PE (paper end) 13 I SLCT (select) SLCT (select) 14 O -AUTO FD (feed) -AUTO FD 15 I -ERROR -ERROR 16 O -INIT -INIT 17 O -SLCT IN -SLCT IN 18 — Ground Ground 19 — Ground Ground 20 — Ground Ground 21 — Ground Ground 22 — Ground Ground 23 — Ground Ground 24 — Ground Ground 25 — Ground Ground

Video port

The server comes with an integrated super video graphics array (SVGA) video controller. This controller is not removable, but you can disable it by installing a PCI video adapter.

Installing options 77

Note: If you install a PCI video adapter, the server BIOS will automatically disable

the integrated video controller.

The following table shows the pin-number assignments for the 15-pin analog video connector on the rear of the server.

1115

Table 14. Video-port connector pin-number assignments

Pin Signal

1 Red 2 Green or monochrome 3 Blue 4 Monitor ID bit 2 5 Ground 6 Ground 7 Ground 8 Ground

9 +5Vdc 10 Ground 11 Monitor ID bit 0 12 DDC SDA 13 Horizontal synchronization (Hsynch) 14 Vertical synchronization (Vsynch) 15 DDC SCL

Keyboard port

There is one keyboard connector on the rear of the server. Note: If you attach a standard (non-USB) keyboard to the keyboard connector, the

USB ports and devices will be disabled during the power-on self-test (POST).

The following table shows the pin-number assignments for the keyboard connector on the rear of the server.

6 4

5 3

78 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Table 15. Keyboard connector pin-number assignments

Pin I/O Signal

1 I/O Data 2 N/A Reserved 3 N/A Ground 4 N/A +5 V dc 5 I/O Keyboard clock 6 N/A Reserved

Auxiliary-device (pointing device) port

The system board has one auxiliary-device port that supports a mouse or other pointing device.

The following table shows the pin-number assignments for the auxiliary-device connector on the rear of the server.

6 4

Table 16. Auxiliary-device connector pin-number assignments

Ultra160 SCSI ports

The server has an integrated dual-channel Ultra160 small computer system interface (SCSI) controller. This controller supports two independent Ultra 160/m SCSI channels: one internal and one external. Each of these channels supports up to 15 SCSI devices. In addition, this controller uses:

v Double-transition clocking to achieve high transfer rates v Domain name validation to negotiate compatible data transfer speeds with each

device

v Cyclic-redundancy checking (CRC), instead of the usual parity checking, to

significantly improve data reliability

v An active terminator on the system board for SCSI bus termination

5 3

Pin Signal

1 Data 2 Not connected 3 Ground 4 +5Vdc 5 Clock 6 Not connected

The server comes with two SCSI cables. One cable connects the internal SCSI channel connector to the standard hot-swap-drive backplane. The other cable is not connected to the server when the server is shipped and must be installed in the server. If you want to use the external LVD SCSI channel connector to connect external SCSI devices to the server, remove the knockout on the rear of the server and install the LVD SCSI cable that comes with the server.

Installing options 79

Note: If you install a PCI RAID adapter to configure and manage the internal

hot-swap drives, you must move the SCSI cable from the system-board SCSI connector to an internal channel connector on the RAID adapter. See “Cabling example for the ServeRAID adapter” on page 56 for additional information.

SCSI cabling requirements

If you plan to attach external SCSI devices, you must order additional SCSI cables. To select and order the correct cables for use with external devices, contact your IBM reseller or IBM marketing representative.

For information about the maximum length of SCSI cable between the terminated ends of the cable, refer to the ANSI SCSI standards. Adhering to these standards will help ensure that the server operates properly.

Setting SCSI IDs

Each SCSI device connected to a SCSI controller must have a unique SCSI ID. This ID enables the SCSI controller to identify the device and ensure that different devices on the same SCSI channel do not attempt to transfer data simultaneously. SCSI devices that are connected to different SCSI channels can have duplicate SCSI IDs. The following table lists the SCSI IDs for devices that are connected to one channel. Note that the hot-swap hard disk drive bay numbers are from bottom to top.

Table 17. SCSI IDs for hot-swap hard disk drives and backplanes

Standard Optional

Drive bay 1: SCSI ID 0 Drive bay 4: SCSI ID 12 Drive bay 2: SCSI ID 1 Drive bay 5: SCSI ID 13 Drive bay 3: SCSI ID 2 Drive bay 6: SCSI ID 14 Backplane: SCSI ID 8 Backplane: SCSI ID 9

The hot-swap-drive backplane controls the SCSI IDs for the internal hot-swap drive bays. However, when you attach a SCSI device to the external SCSI connector, you must set a unique ID for the device. Refer to the information that is provided with the device for instructions to set its SCSI ID.

SCSI connector pin-number assignments

The following table shows the pin-number assignments for the 68-pin SCSI connectors.

80 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Table 18. 68-pin SCSI connector pin-number assignments

Pin Signal Pin Signal

1 +Data 12 35 -Data 12 2 +Data 13 36 -Data 13 3 +Data 14 37 -Data 14 4 +Data 15 38 -Data 15 5 +Data P1 39 -Data P1 6 +Data 0 40 -Data 0 7 +Data1 41 -Data 1 8 +Data 2 42 -Data 2 9 +Data 3 43 -Data 3

10 +Data 4 44 -Data 4

11 +Data 5 45 -Data 5 12 +Data 6 46 -Data 6 13 +Data 7 47 -Data 7 14 +Data P 48 -Data P 15 Ground 49 Ground 16 DIFFSENS 50 Ground 17 Term power 51 Term power 18 Term power 52 Term power 19 Reserved 53 Reserved 20 Ground 54 Ground 21 +Attention 55 -Attention 22 Ground 56 Ground 23 +Busy 57 -Busy 24 +Acknowledge 58 -Acknowledge 25 +Reset 59 -Reset 26 +Message 60 -Message 27 +Select 61 -Select 28 +Control/Data 62 -Control/Data 29 +Request 63 -Request 30 +Input/Output 64 -Input/Output 31 +Data 8 65 -Data 8 32 +Data 9 66 -Data9 33 +Data 10 67 -Data 10 34 +Data 11 68 -Data 11

Serial ports

The server has two standard serial ports: Serial port A and Serial port B. The operating system can use and share both serial ports; however, the integrated Advanced System Management processor can use and share only Serial port A.

Some application programs require specific ports, and some modems function properly only at certain communication port addresses. You might need to use the Configuration/Setup Utility program to change communication port address assignments to prevent or resolve address conflicts.

Installing options 81

Viewing or changing the serial-port assignments

To view or change the serial-port assignments:

1. Restart the server and watch the monitor screen.

2. When the message Press F1 for Configuration/Setup appears, press F1.

3. From the main menu, select Devices and I/O Ports; then, press Enter. Note: The Devices and I/O Ports choice appears only on the full configuration

menu. If you set two levels of passwords, you must enter the administrator password to access the full configuration menu.

4. Select the serial port; then, use the arrow keys to advance through the settings available.

5. Select Save Settings; then, select Exit Setup to exit from the Configuration/Setup Utility main menu.

Serial-port connectors

The following table shows the pin-number assignments for the 9-pin, male D-shell serial-port connectors on the rear of the server. These pin-number assignments conform to the industry standard.

Table 19. Serial-port connectors pin-number assignments

Pin Signal Pin Signal

1 Data carrier detect 6 Data set ready 2 Receive data 7 Request to send 3 Transmit data 8 Clear to send 4 Data terminal ready 9 Ring indicator 5 Signal ground

Universal Serial Bus ports

The server has two Universal Serial Bus (USB) ports, which configure automatically. USB is an emerging serial interface standard for telephony and multimedia devices. It uses Plug and Play technology to determine the type of device attached to the connector.

Notes:

1. If you attach a standard (non-USB) keyboard to the keyboard connector, the USB ports and devices will be disabled during the power-on self-test (POST).

2. If you install a USB keyboard that has a mouse port, the USB keyboard emulates a mouse and you will not be able to disable the mouse settings in the Configuration/Setup Utility program.

USB cables and hubs

You need a 4-pin cable to connect devices to USB 1 or USB 2. If you plan to attach more than two USB devices, you must use a hub to connect the devices. The hub provides multiple connectors for attaching additional external USB devices.

USB technology provides up to 12 megabits-per-second (Mbps) speed with a maximum of 127 external devices and a maximum signal distance of five meters (16 ft.) per segment.

82 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Ethernet port

USB-port connectors

Each USB port has an external connector on the rear of the server for attaching USB compatible devices.

The following table shows the pin-number assignments for the USB-port connectors on the rear of the server.

Table 20. USB-port connector pin-number assignments

Pin Signal

1 VCC 2 -Data 3 +Data 4 Ground

The server comes with an integrated Ethernet controller. This controller provides an interface for connecting to 10-Mbps or 100-Mbps networks and provides full-duplex (FDX) capability, which enables simultaneous transmission and reception of data on the Ethernet local area network (LAN).

To access the Ethernet port, connect a Category 3, 4 or 5 unshielded twisted-pair (UTP) cable to the RJ-45 connector on the rear of the server.

Note: The 100BASE-TX Fast Ethernet standard requires that the cabling in the

network be Category 5 or higher.

The Ethernet (RJ-45) connector has two lights. The Ethernet link-status light is on the left. When this green light is on, there is an active connection on the Ethernet port. The Ethernet transmit/receive activity light on the right. When this amber light is on, there is activity between the server and the network. These lights have the same functions as the Ethernet link-status light and the Ethernet transmit/receive activity light on the information panel (see “Information LED panel” on page 9).

Configuring the Ethernet controller

When you connect the server to the network, the Ethernet controller automatically detects the data-transfer rate (10 Mbps or 100 Mbps) on the network and then sets the controller to operate at the appropriate rate. That is, the Ethernet controller will adjust to the network data rate, whether the data rate is standard Ethernet (10BASE-T), Fast Ethernet (100BASE-TX), half duplex (HDX), or full duplex (FDX). The controller supports half-duplex (HDX) and full-duplex (FDX) modes at both speeds.

The Ethernet controller is a PCI Plug and Play device. You do not need to set any jumpers or configure the controller for your operating system before you use the Ethernet controller. However, you must install a device driver to enable your operating system to address the Ethernet controller. The device drivers are provided on the ServerGuide CDs.

Failover for redundant Ethernet

The IBM 10/100 Fault Tolerant Adapter is an optional redundant network interface card (NIC adapter) that you can install in the server. If you install this NIC adapter and connect it to the same logical LAN segment as the primary Ethernet controller, you can configure the server to support a failover function. You can configure either the integrated Ethernet controller or the NIC adapter as the primary Ethernet controller. In failover mode, if the primary Ethernet controller detects a link failure,

Installing options 83

all Ethernet traffic associated with it is switched to the redundant (secondary) controller. If the appropriate device drivers are installed, this switching occurs without any user intervention. When the primary link is restored to an operational state, the Ethernet traffic switches back to the primary Ethernet controller. The switch back to the primary Ethernet controller can be automatic or manually controlled, depending on the setup and operating system.

Note that only one controller in the redundant pair is active at any given time. For example, if the primary Ethernet controller is active, then the secondary Ethernet controller cannot be used for any other network operation.

Note: Your operating system determines the maximum number of IBM 10/100 Fault

Tolerant Adapters that you can install in the server. See the documentation that comes with the adapter for more information.

Considerations when combining failover and hot-plug functions: If your operating system supports hot-plug PCI adapters and the optional redundant NIC adapter is installed in a hot-plug PCI slot, you can replace the NIC adapter without powering off the server — even if it is the primary Ethernet controller. Disconnecting the Ethernet cable from the primary Ethernet controller will cause the Ethernet traffic to switch automatically to the secondary Ethernet controller. This can be very useful if a faulty adapter causes a network problem, or if you want to upgrade the primary adapter hardware.

Note: If you hot-replace the primary adapter while the Ethernet traffic is being

handled by the secondary Ethernet controller, the traffic does not automatically switch back to the primary adapter when the primary adapter comes back online. See “Configuring for failover”..

Configuring for failover: The failover feature currently is supported by Windows NT Server and IntraNetWare. The setup required for each operating system follows.

Windows NT Server:

IBM offers hot-plug support for Windows NT Server Version 4.0. Failover can work in conjunction with hot-plug support or independently. If you are not using hot-plug support, go to “Windows NT Server failover setup” on page 85

Windows NT Server hot-plug setup:

IBM Hot Plug PCI for Windows NT Server 4.0 package is available for download from the IBM Web site at:

http://www.pc.ibm.com/support

Enter the brand type of Server, click on Downloadable files and look for Hot Plug. The IBM Hot Plug PCI for Windows NT Server 4.0 package uses the Intel Desktop Management Interface (DMI) to control hot-plug support for the Ethernet controllers. The Ethernet controller in your computer is DMI compliant. Download and install the following software in the order listed:

1. IBM PCI Hotplug for Windows NT 4.0 Failover DMI Agent

2. IBM PCI Hotplug for Windows NT 4.0 Solution

3. IBM 10/100 Fault Tolerant Adapter device drivers

Note: The order of installation is important. You must install the IBM Hot Plug for

Windows NT Server 4.0 package before you install the IBM 10/100 Fault Tolerant Adapter driver. If you install the adapter device driver before the PCI

84 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Hot Plug Solution package, the adapter device driver will not recognize the hot-plug code. This happens because the adapter device driver only checks the NT registry for the Hot Plug package during installation. If the PCI Hot Plug Solution package is added after the adapter device driver is installed, the adapter must be removed and added again in order for it to detect the PCI Hot-Plug Solution code.

To install the IBM PCI Hotplug for Windows NT 4.0 Failover DMI Agent:

1. Download the IBM PCI Hotplug for Windows NT 4.0 Failover DMI Agent file from the xSeries Support web page and extract the files onto a diskette.

2. Insert the diskette into the diskette drive.

3. From the Start menu, select the Run option.

4. Type A:\SETUP.EXE in the Open box.

5. Click Ok. The setup wizard opens.

6. Follow the instructions that are given by the setup wizard until the program is installed.

7. Restart the server.

To install the IBM PCI Hotplug for Windows NT 4.0 Solution package:

1. Download the IBM PCI Hotplug for Windows NT 4.0 Solution file from the xSeries Support web page and extract the files onto a diskette.

2. Log on to Windows NT Server as a user in the Administrator group.

3. Insert the diskette into the diskette drive.

4. From the Start menu, select the Run option.

5. Type A:\SETUP.EXE in the Open box.

6. Click OK. The Setup wizard opens.

7. Follow the instructions given by the setup wizard until the program is installed.

Windows NT Server failover setup:

To install the IBM 10/100 Fault Tolerant Adapter device drivers:

1. Add the redundant NIC adapter according to the instructions that are provided with the adapter.

2. Use the ServerGuide CDs to install the AMD PCNet Ethernet Family adapter device driver.

3. Do not select the Grouping box at this point; you must first restart the machine.

4. From the Windows NT Server desktop, select Control Panel, then select the Network icon, then select the Adapters tab.

5. Highlight one of the adapters that will be in the redundant pair and then click the Properties... button.

6. Check the Grouping box. This will show the possible combinations for redundant pairs.

7. Select the adapter pair you want and then select OK. Note that the integrated Ethernet controller is located at PCI C.

Two options are available for recovering from a failover condition. The options are determined by the Enable for DMI / Hot Swap Support checkbox. If the IBM Hot Plug PCI for Windows NT Server 4.0 package is installed, this checkbox will appear at the bottom of the Adapter Properties panel. If you do not have the IBM Hot Plug PCI for Windows NT Server 4.0 package installed on the server, you will not see the Enable for DMI / Hot Swap Support checkbox.

Installing options 85

If the Enable for DMI / Hot Swap Support checkbox is not checked or is not present, traffic will automatically switch back to the primary adapter when the primary link status is restored. In this mode, the adapter cannot be hot-swapped. Users with the IBM Hot Plug PCI for Windows NT Server 4.0 package installed should check the Enable for DMI / Hot Swap Support checkbox.

If the Enable for DMI / Hot Swap Support checkbox is checked, traffic will remain on the secondary adapter until the user directs it to return to the primary adapter. This can be done after the hot-swap replacement of the primary adapter or by using the DMI interface.

8. Select Close to exit from the Network setup. When you restart the server, the failover function will be in effect.

If a failover occurs, a message is written to the NT Event Viewer log. In addition, if the Enable for DMI / Hot Swap Support checkbox is checked, a DMI alert will also be generated.

IntraNetWare:

The IBM PCI Hot Plug System Bus Driver Diskette for Novell Netware V4.41, V4.42, and V5.0 is available for download from the IBM Web site at:

http://www.pc.ibm.com/support

The failover function is now enabled. If a failover occurs:

v The operating system console generates a message. v The custom counters for the device driver contain variables that define the state

of the failover function and the location of the redundant pair. You can use the NetWare Monitor to view the custom counters.

Note: If the primary adapter was hot-replaced while the Ethernet traffic was being

handled by the secondary Ethernet controller, the traffic does not automatically switch back to the primary adapter when the primary adapter comes back online. In this case, issue the command:

LOAD d:\path\PCNTNW SCAN

where d and path are the drive and path where the driver is located. This command causes the device driver to locate the primary adapter and switch the Ethernet traffic to it.

Ethernet port connector

The following table shows the pin-number assignments for the RJ-45 connector. These assignments apply to both 10BASE-T and 100BASE-TX devices.

86 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

Table 21. Ethernet RJ-45 connector pin-number assignments.

Pin Signal Pin Signal

1 Transmit data+ 5 Not connected 2 Transmit data- 6 Receive data 3 Receive data+ 7 Not connected 4 Not connected 8 Not connected

Advanced System Management ports

The server has three communication ports dedicated to the Advanced System Management processor. One port uses a standard D-shell serial-port connector, connector C. The other two ports, which are used for the ASM Interconnect function, use a dual RJ-45 connector.

You can attach a dedicated modem to the D-shell system-management connector on the rear of the server to communicate with the integrated Advanced System Management processor.

The ASM Interconnect function uses the RJ-45 system-management connectors. This function enables you to connect the Advanced System Management processors of several rack-mounted servers so that they can communicate with each other in half-duplex mode.

The following illustration shows the connectors and lights for the Advanced System Management Interconnect board.

Note: The illustrations in this document might differ slightly from your hardware.

Serial port Adv anced System M anagem ent

Interconnect connectors

error

System board connectorService processor

Power LED

Installing options 87

Cabling the server

The following illustration shows the cabling for a typical server configuration.

Notes:

1. The illustrations in this document might differ slightly from your hardware.

2. Refer to the documentation that comes with your options for additional cabling

3. Cable identifiers are printed on the cables that come with the server and

instructions. It might be easier for you to route any cables before you install certain options.

options. Use these identifiers to connect the cables to the correct connectors. For example, the hard disk drive cables are labeled HDD.

88 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

FRU information (service only)

Field Replacement Units (FRUs) should be replaced by qualified service personnel only.

LED switch card

Before you begin:

v Read “Safety information” on page 127 v Review the information in “Before you begin” on page 50

8 8

1 Holding screws 2 LED switch card

To remove the LED switch card, do the following:

1. Power-off the server, if it is on.

2. Unplug the server.

3. Remove the top cover (see “Removing the server top cover and bezel” on page 53).

4. Disconnect the switch card cables.

5. Remove the 4 holding screws.

6. Lift the switch card out of the server.

Four-fan housing

Before you begin:

v Read “Safety information” on page 127 v Review the information in “Before you begin” on page 50

1 Release latches 2 Fan housing

To remove the four-fan housing, do the following:

1. Power-off the server, if it is on.

2. Unplug the server.

3. Remove the top cover (see “Removing the server top cover and bezel” on page 53).

4. Remove the four fan assemblies.

5. Remove all adapters from the Active PCI adapter slots.

6. Remove the plastic dividers between the PCI adapter slots.

7. Press the fan assembly release latches on both sides of the fan assembly; then, remove the fan assembly from the server.

90 IBM xSeries 350 Type 8682: Hardware Maintenance Manual

IBM 8682 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About this manual

Important safety information

Online support

Contents

General checkout

Checkout procedure

General information

Features and specifications

Server features

Reliability, availability, and serviceability

Start the server

Controls and indicators

Information LED panel

Diagnostics

Diagnostic tools overview

POST

POST beep codes

POST error messages

Event/error logs

Small computer system interface messages

ServerGuide error symptoms

Diagnostic programs and error messages

Text messages

Starting the diagnostic programs

Viewing the test log

Diagnostic error message tables

Light path diagnostics

Power supply LEDs

Diagnostic panel LEDs

Light Path Diagnostics

Power checkout

Recovering BIOS

Replacing the battery

Temperature checkout

Diagnosing errors

Troubleshooting the Ethernet controller

Network connection problems

Ethernet controller troubleshooting chart

Ethernet controller messages

Novell NetWare or IntraNetWare server ODI driver messages

Network driver interface specification 2.01 (OS/2) driver messages

NDIS 4.0 (Windows NT) driver messages

UNIX messages

Configuring the server

Using the Configuration/Setup Utility program

Starting the Configuration/Setup Utility program

Choices available from the Configuration/Setup main menu

Using passwords

Power-on password

Administrator password

Using the SCSISelect utility program

Starting the SCSISelect utility program

Choices available from the SCSISelect menu

Installing options

Expanded view of the xSeries 350

Component locations

System board component locations

System board LED locations

Diagnostic panel LEDs

Memory board component locations

Advanced System Management Interconnect board component locations

Before you begin

System reliability considerations

Working inside the server with the power on

Handling static-sensitive devices

Removing the server top cover and bezel

Working with adapters

Installing a hot-plug adapter

Cabling example for the ServeRAID adapter

Installing internal drives

Internal drive bays

Hard disk drive component locations

Installing a hot-swap hard disk drive

Installing memory-module kits

Installing a microprocessor kit

Changing jumper positions
