IBM 6558-03N, 6558-43S, 6558-03S, 6558-43N Service Manual

6558-03N/03S/43N/43S

SERVICE MANUAL

S. Hemisphere Model

6558-03N/43N

US Model

Canadian Model

AEP Model

Japan Model

6558-03S/43S

SPECIFICATIONS

Picture tube 0.25 – 0.27 mm aperture grille pitch

21 inches measured diagonally 90-degree deflection

Viewable image size Approx. 403.8 × 302.2 mm (w/h)

(16 × 12 inches)

19.8” viewing image

Resolution Horizontal: Max. 1600 dots

Vertical: Max. 1200 lines

Standard image area Approx. 388 × 291 mm (w/h)

MODEL

6558-03N 6558-03S SH 6558-43N 6558-43S SH

BODY COLOR DEST.

WHITE TYPE

BLACK TYPE

3

(15

/8 × 11

or

Approx. 364 × 291 mm (w/h)

3

(14

/8 × 11

1

/2 inches)

1

/2 inches)

SPEC.

U/C, AEP, J

N3

Deflection frequency Horizontal: 30 to 107 kHz

Vertical: 50 to 160 Hz

256 < Total Line < 2048

AC input voltage/current

100 to 240 V, 50 – 60 Hz, 2.0 – 1.0 A

Power consumption Max. 160 W

Dimensions 498 × 513 × 500 mm (w/h/d)

Mass Approx. 31 kg (68 lb 5 oz)

Design and specifications are subject to change without notice.

5

(19

/8 × 20 1/4 × 19

CHASSIS

3

/4 inches)

COLOR MONITOR

6558-03N/03S/43N/43S

SAFETY CHECK-OUT

(US Model only)

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors.

3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.

4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.

7. Check the B+ and HV to see if they are specified values. Make sure your instruments are accurate; be suspicious of your HV meter if sets always have low HV.

8. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC Leakage. Check leakage as described below.

To Exposed Metal Parts on Set

0.15 µF

1.5 k

Ω

AC Voltmeter (0.75 V)

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments.

2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate lowvoltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOMs that are suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A)

WARNING!! NEVER TURN ON THE POWER IN A CONDITION IN WHICH THE DEGAUSS COIL HAS BEEN REMOVED.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK

¡ ON THE SCHEMATIC DIAGRAMS, EXPLODED

VIEWS AND IN THE PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE CRITICAL FOR SAFE OPERATION ARE IDENTIFIED IN THIS MANUAL. FOLLOW THESE PROCEDURES WHENEVER CRITICAL COMPONENTS ARE REPLACED OR IMPROPER OPERATION IS SUSPECTED.

Earth Ground

Fig. A. Using an AC voltmeter to check AC leakage.

AVERTISSEMENT!! NE JAMAIS METTRE SOUS TENSION QUAND LA BOBINE DE DEMAGNETISATION EST ENLEVÉE.

ATTENTION AUX COMPOSANTS RELATIFS À LA

SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET UNE MARQUE

¡ SONT CRITIQUES POUR LA SÉCURITÉ.

NE LES REMPLACER QUE PAR UNE PIÈCE PORTANT LE NUMÉRO SPECIFIÉ. LES RÉGLAGES DE CIRCUIT DONT L’IMPORTANCE EST CRITIQUE POUR LA SÉCURITÉ DU FONCTIONNEMENT SONT IDENTIFIÉS DANS LE PRÉSENT MANUEL. SUIVRE CES PROCÉDURES LORS DE CHAQUE REMPLACEMENT DE COMPOSANTS CRITIQUES, OU LORSQU’UN MAUVAIS FONCTIONNE-MENT EST SUSPECTÉ.

POWER SAVING FUNCTION

6558-03N/03S/43N/43S

This monitor meets the power-saving guidelines set by VESA and Energy Star, as well as the more stringent NUTEK . If the monitor is connected to a computer or video graphics board that is VESA DPMS (Display Power Management Signaling) compliant, the monitor will automatically reduce power consumption in three stages as shown below. You can set the delay time before the monitor enters the power saving mode using the OSD. Set the time according to “Setting the power saving delay time” on page 13.

Power consumption mode

Normal operation

1

Standby (1st mode)

2

Suspend (2nd mode)

3

Active-off (3rd mode)

4

Power-off

5

Screen

active

blank

—

Horizontal sync signal

present

absent

present

absent

—

Note

If no video signal is input to the monitor, the “NO INPUT SIGNAL” message (page 16) appears. After the delay time has passed, the power saving function automatically puts the monitor into the active-off mode and the u indicator lights up orange. Once the horizontal and vertical sync signals are detected, the monitor automatically resumes its normal operation mode.

Vertical sync signal

present

absent

—

Power consumption

≤ 160 W ≤ 100 W

≤ 15 W

< 5 W

0 W

Recovery time

—

Approx. 3 sec.

Approx. 10 sec.

—

u indicator

Green

Green and orange alternate

Orange

Off

DIAGNOSIS

Failre

+B failure

Orange → Off (0.5 sec) (0.5 sec)

Horizontal / Vertical Deflection failure, Thermal protector

ABL protector

Orange → Off (1.5 sec) (0.5 sec)

Orange → Off (0.5 sec) (1.5 sec)

HV failure

Orange → Off → Orange → Off (0.25 sec) (0.5 sec) (0.25 sec) (1.25 sec)

Aging / Self Test

Orange → Off → Green → Off (0.5 sec) (0.5 sec) (0.5 sec) (0.5 sec)

Aging Mode (Video Aging) : During Power Save, press “MENU” key for longer than 2 second. Self Test (OSD Color Bar) : During Power Save, press “CONTRAST” + (/) key for longer than 2 second. Reliability Check Mode : During Power Save, press “CONTRAST” – (?) key for longer than 2 second.

Power LED

TIMING SPECIFICATION

MODE TEST MODE MODE AT MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6 MODE 7 MODE 8 PRODUCTION RESOLUTION 656 X 496 640 X 480 800 X 600 1024 X 768 1280 X 1024 1280 X 1024 1600 X 1200 1600 X 1200 CLOCK 25.175 MHZ 36.000 MHZ 56.250 MHZ 94.500 MHZ 135.000 MHZ 157.500 MHZ 202.500 MHZ 229.500 MHZ — HORIZONTAL — H-FREQ 31.469 kHz 43.269 kHz 53.674 kHz 68.677 kHz 79.976 kHz 91.146 kHz 93.750 kHz 106.250 kHz

usec usec usec usec usec usec usec usec H. TOTAL 31.778 23.111 18.631 14.561 12.504 10.971 10.667 9.412 H. BLK 5.720 5.333 4.409 3.725 3.022 2.844 2.765 2.440 H. FP 0.318 1.556 0.569 0.508 0.119 0.406 0.316 0.279 H. SYNC 3.813 1.556 1.138 1.016 1.067 1.016 0.948 0.837 H. BP 1.589 2.222 2.702 2.201 1.837 1.422 1.501 1.325 H. ACTIV 26.058 17.778 14.222 10.836 9.481 8.127 7.901 6.972 — VERTICAL — V. FREQ(HZ) 59.940 Hz 85.008 Hz 85.061 Hz 84.997 Hz 75.025 Hz 85.024 Hz 75.000 Hz 85.000 Hz

lines lines lines lines lines lines lines lines V. TOTAL 525 509 631 808 1066 1072 1250 1250 V. BLK 29 29 31 40 42 48 50 50 V. FP 21111111 V. SYNC 2 3 333333 V. BP 25 25 27 36 38 44 46 46 V. ACTIV 496 480 600 768 1024 1024 1200 1200 — SYNC — INT(G) NO NO NO NO NO NO NO NO EXT(H/V)/POLARITY

YES N/N YES N/N YES P/P YES P/P YES P/P YES P/P YES P/P YES P/P

EXT(CS) /POLARITY

NO NO NO NO NO NO NO NO

INT/NON INT NON INT NON INT NON INT NON INT NON INT NON INT NON INT NON INT

97.12.10 VER.

TABLE OF CONTENTS

Section Title Page

1. GENERAL ................................................................. 1-1

2. DISASSEMBLY

2-1. Cabinet Removal ............................................... 2-1

2-2. D Board Removal .............................................. 2-1

2-3. G Board Removal .............................................. 2-2

2-4. A Board Removal .............................................. 2-2

2-5. L Board Removal .............................................. 2-3

2-6. I/O TERMINAL Board Removal ...................... 2-3

2-7. Service Position.................................................. 2-4

2-8. H and J Boards Removal ................................... 2-4

2-9. Picture Tube Removal ....................................... 2-5

3. SAFETY RELATED ADJUSTMENT............. 3-1

4. ADJUSTMENTS ..................................................... 4-1

5. DIAGRAMS

5-1. Block Diagrams .................................................. 5-1

5-2. Frame Shcematic Diagram ................................. 5-7

5-3. Circuit Boards Location ..................................... 5-9

5-4. Schematic Diagrams and Printed Wiring

Boards ................................................................. 5-9

(1) Schematic Diagram of D Board ........................ 5-13

(2) Schematic Diagrams of G, GA, H, J and

L Boards ............................................................ 5-17

(3) Schematic Diagram of A Board ........................ 5-24

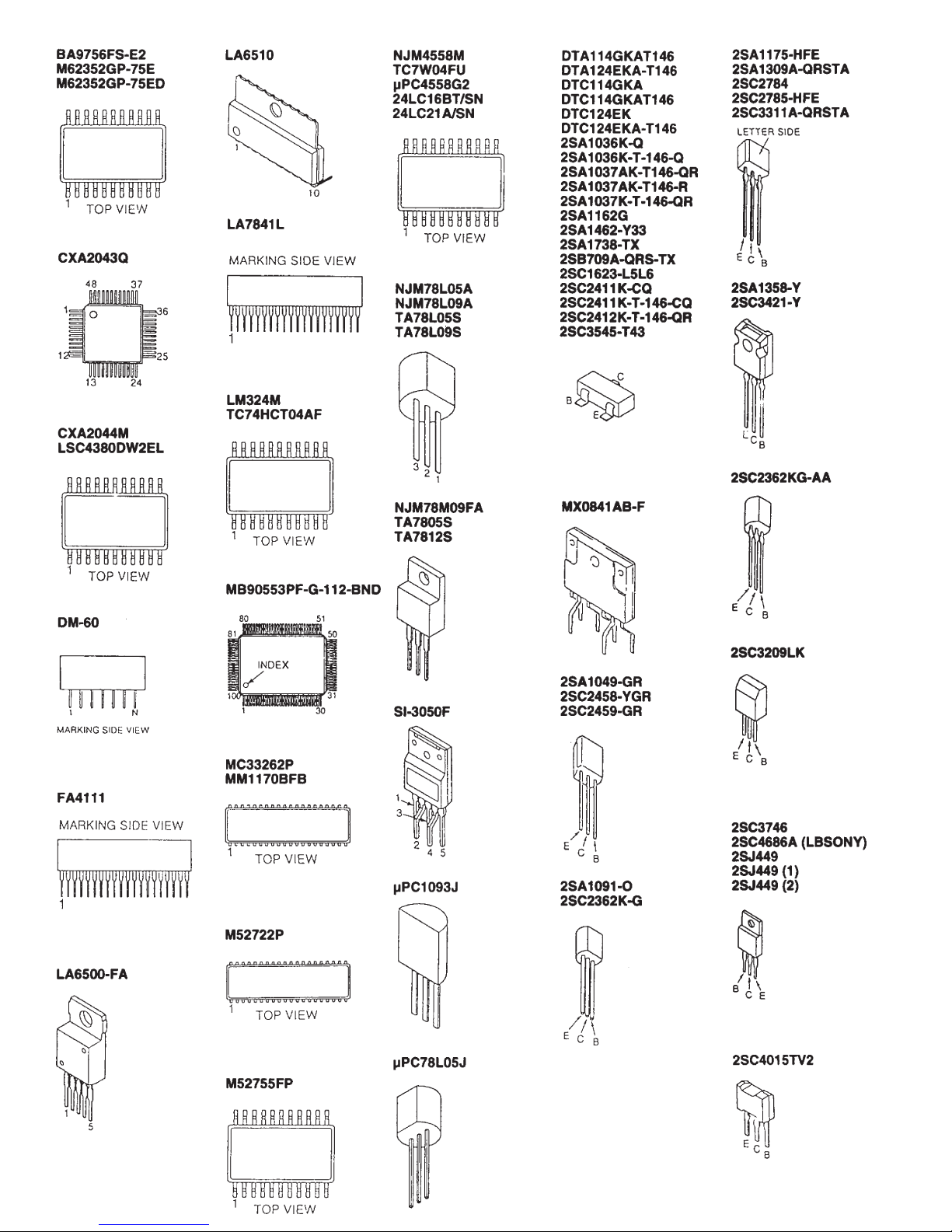

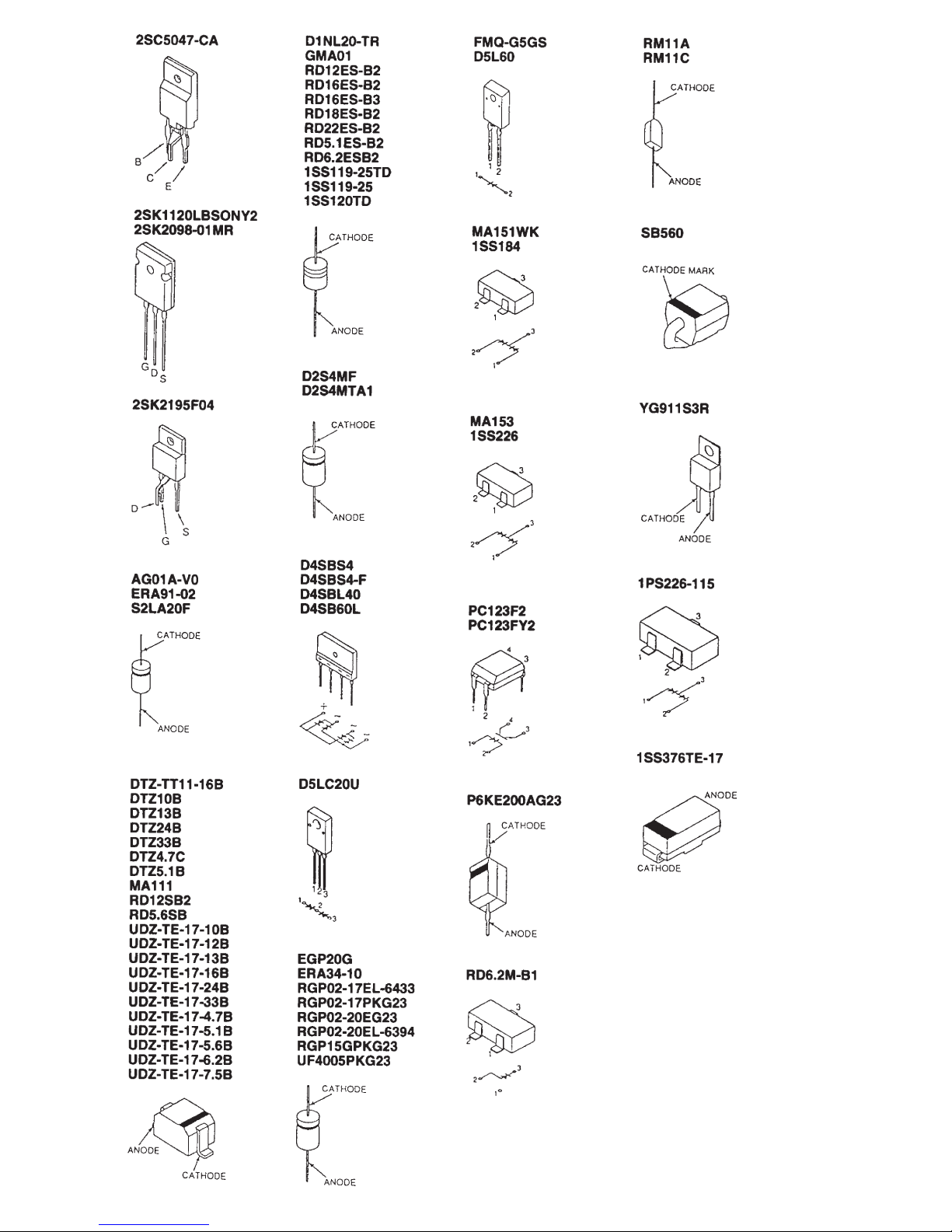

5-5. Semiconductors ................................................. 5-29

6. EXPLODED VIEWS

6-1. Chassis ............................................................... 6-1

6-2. Picture Tube ...................................................... 6-2

6-3. Packing Materials .............................................. 6-3

7. ELECTRICAL PARTS LIST ............................ 7-1

SECTION 1

GENERAL

The operating instructions mentioned here are partial abstracts from the Operating Instruction Manual. The page numbers of the Operating Instruction Manual remain as in the manual.

Getting Started

Warning on power connection

• Use an appropriate power cord for your local power supply.

Examples of plug types

• Before disconnecting the power cord, wait at least 30 seconds after turning off the power to allow the static electricity on the CRT display surface to discharge.

• After the power has been turned on, the CRT is demagnetized (degaussed) for about 3 seconds. This generates a strong magnetic field around the metal frame, which may affect the data stored on magnetic tapes and disks near the bezel. Place magnetic recording equipment, tapes and disks away from this monitor.

The outlet should be installed near the equipment and be easily accessible.

Precautions

Installation

• Prevent internal heat build-up by allowing adequate air circulation. Do not place the monitor on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes.

• Do not install the monitor near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.

• Do not place the monitor near equipment which generates magnetism, such as a transformer or high voltage power lines.

Maintenance

• Clean the cabinet, panel and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzine.

• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.

Transportation

When you transport this monitor for repair or shipment, use the original carton and packing materials.

Use of the Tilt-Swivel

With the tilt-swivel, this monitor can be adjusted to the desired angle within 180° horizontally and 20° vertically. To turn the monitor vertically and horizontally, hold it at the bottom with both hands as illustrated below.

for 100 to 120 V AC

for 200 to 240 V AC

Getting started

90°

15°

5°

for 240 V AC only

Getting Started

F

EN

ES

C

Identifying Parts and Controls

See the pages in parentheses for further details.

Front

1 ? (reset) button (page 14)

Resets the adjustments to the factory settings.

2 (auto sizing and centering) button

(page 5)

Automatically adjusts the size and centering of the images.

3 ¨ (brightness) (./>) buttons (pages 5 –

14)

Adjust the picture brightness.

Function as the (./>) buttons when adjusting other items.

4 (menu) button (pages 5 – 14)

Displays the MENU OSD.

5 > (contrast) (?//) buttons (pages 5 – 14,

18)

Adjust the contrast.

Function as the (?//) buttons when adjusting other items.

6 u (power) switch and indicator (pages 15,

18)

Turns the monitor on or off. The indicator lights up in green when the monitor is turned on, and lights up in orange when the monitor is in power saving mode.

Pin No. 1 2

3 4 5 6 7

Pin No. 8 9 10 11 12

13 14 15

Rear

7 AC IN connector

Provides AC power to the monitor.

8 Video input 1 connector (HD15)

Inputs RGB video signals (0.700 Vp-p, positive) and SYNC signals.

* Display Data Channel (DDC) Standard of VESA

Signal Red Green

(Composite Sync on Green)

Blue ID (Ground) DDC Ground* Red Ground Green Ground

Signal Blue Ground DDC + 5V* Ground ID (Ground) Bi-Directional

Data (SDA)* H. Sync V. Sync Data Clock(SCL)*

5 4 3 2

1

678910

1112131415

(continued)



(

13W3

)

(

HD15

)

Getting Started

to a power outlet

to AC IN

Power cord

Setup

This monitor works with platforms running at horizontal frequencies between 30 and 107 kHz.

Step 1: Connect the monitor to the

computer

With the computer switched off, connect the video signal cable to the video output of the computer.

Note

Do not short the pins of the video signal cable.

Step 2: Connect the power cord

With the monitor switched off, connect one end of the proper power cord for your local supply to the monitor and the other end to a power outlet.

Step 3: Turn on the monitor and computer

to a computer with an HD15 video output

to a computer with a 13W3 video output

9 Video input 2 connector (13W3 cable)

Inputs RGB video signal (0.700 Vp-p, positive).

* Pins serve a dual purpose as combined sync input and as H.sync

input if V.Sync is present on pin no. 9.

** Display Data Channel (DDC) Standard by VESA

Note

If you use a computer or video board of high output level (about 1.0 Vp-p), you may not be able to obtain the optimum display. In such case, try decreasing the picture contrast, or use a computer or video board with a lower output level.

Pin No. A1

A2

A3

1 2

3

Signal Ground C.Sync* –– Bi-Directional

Data (SDA)**

DDC + 5V** V.Sync

Ground

Signal Red Video &

Ground Green Video &

Ground Blue Video &

Ground –– Data Clock

(SCL)**

––



( 13W3

)

( HD15

)



( 13W3

)

( HD15

)

Pin No. 4 5 6 7

8 9

10

A1

A2 A3

1 2 3 4 5

6 7 8

9 10

Getting Started

F

EN

ES

C

Automatically Adjusting the Size and Centering of the Picture

By pressing the button, the size and centering of the picture are automatically adjusted to fit the screen.

1

Turn on the monitor and computer.

2

Press the

button.

The picture is adjusted to fit the center of the screen.

Notes

• This function is intended for use with a computer running graphic user interface software that provides a full-screen picture. It may not work properly if the background color is dark or if the input picture does not fill the screen to the edges.

• The screen may go blank for a few seconds while performing the auto-sizing function. This is not a malfunction.

• Although the signals for picture aspect ratio 5:4 (resolution: 1280 × 1024) do not fill the screen to the edges, the picture is accurately displayed.

Selecting the On-screen Display Language

If you need to change the OSD language, see “Using the LANG (Language) On-screen Display” on page 14. The default setting is English.

Selecting the Input Signal

This monitor has two signal input connectors (HD15 and 13W3) and can be connected to two computers simultaneously. Select the input signal you want to view as follows.

1

Turn on the monitor and both computers.

2

Press the

button.

The MENU OSD appears.

3

Press the ¨./> and >?// buttons to select “ OPTION,” and press the

button again.

The OPTION OSD appears.

4

Press the ¨./> buttons to select “

(INPUT).”

MENU

EXIT

CENTER

SIZE

GEOM

COLOR

LANG

ZOOM

SCREEN

OPTION

OK

MENU

ON

MANUAL DEGAUSS

UNLOCK

1 MIN

OPTION

ZZ...

1

ZZ...

INPUT

1 MIN

OPTION

UNLOCK

2

(continued)

6

Getting Started

Horizontal Frequency*

Vertical Frequency*

Before adjusting

• Connect the monitor and the computer, and turn them on.

• Select “

LANG” in the MENU OSD, then select

“ENGLISH” (see page 14).

Adjusting the Picture Brightness and Contrast

Once the setting is adjusted, it will be stored in memory for all input signals received.

1

Press the ¨ (brightness) ./> or > (contrast) ?// buttons.

The BRIGHTNESS/CONTRAST OSD appears.

2

For brightness adjustment

Press the ¨./> buttons.

> . . . for more brightness

. . . . for less brightness

For contrast adjustment

Press the >?// buttons.

/ . . . for more contrast ? . . . for less contrast

The OSD automatically disappears after about 3 seconds.

To reset, press the ? (reset) button while the OSD is on. The brightness and contrast are both reset to the factory settings.

* The horizontal and vertical frequencies for the received input

signal appear in the BRIGHTNESS/CONTRAST OSD.

Customizing Your Monitor

BRIGHTNESS/CONTRAST

26 26

80.0kHz/ 75Hz

5

Press the >?// buttons to select “1” or “2.”

When “1” is selected

The signal from the computer connected to the HD15 connector is input to the monitor.

When “2” is selected

The signal from the computer connected to the 13W3 connector is input to the monitor.

The OPTION OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

For more information on using the OSD, see “Introducing the On-screen Display System” on page 7.

When you connect computers to both connectors

If you restart the computer you want to view, or that computer is in power saving mode, the monitor may automatically select the other connector‘s signal. This is because the monitor switches from the interrupted signal to the constant signal. If this happens, manually select the desired signal.

7

Getting Started

F

EN

ES

C

Customizing Your Monitor

Using the CENTER On-screen Display

The CENTER settings allow you to adjust the centering of the picture. Once the setting is adjusted, it will be stored in memory for the current input signal.

1

Press the

button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ CENTER,” and press the

button again.

The CENTER OSD appears.

3

For horizontal adjustment

Press the >?// buttons.

/ . . . to move the picture right ? . . . to move the picture left

For vertical adjustment

Press the ¨./> buttons.

> . . . to move the picture up

. . . . to move the picture down

The OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

To reset, press the ? (reset) button while the OSD is on. The horizontal and vertical centerings are both reset to the factory settings.

CENTER

26

73

Introducing the On-screen Display System

Most adjustments are made using the MENU OSD.

MENU OSD

Press the

button to display the MENU OSD.

This MENU OSD contains links to the other OSDs described below.

1 COLOR

Displays the COLOR OSD for adjusting the color temperature.

2

CENTER

Displays the CENTER OSD for adjusting the centering of the picture.

3

SCREEN

Displays the SCREEN OSD for adjusting the vertical and horizontal convergence, etc.

4

ZOOM

Displays the ZOOM OSD for enlarging and reducing the picture.

5

OPTION

Displays the OPTION OSD for adjusting the OSD position and degaussing the screen, etc.

6 SIZE

Displays the SIZE OSD for adjusting the picture size.

7 LANG

Displays the LANGUAGE OSD for selecting the language.

8 GEOM

Displays the GEOMETRY OSD for adjusting the picture rotation and pincushion, etc.

9 EXIT

Closes the MENU OSD.

MENU

EXIT

CENTER

SIZE

GEOM

COLOR

LANG

ZOOM

SCREEN

OPTION

OK

MENU

Customizing Your Monitor

Using the GEOM (Geometry) Onscreen Display

The GEOM (geometry) settings allow you to adjust the shape and orientation of the picture. Once the rotation is adjusted, it will be stored in memory for all input signals received. All other adjustments will be stored in memory for the current input signal.

1

Press the button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ GEOM,” and press the

button again.

The GEOMETRY OSD appears.

3

Press the ¨./> buttons to select the item you want to adjust.

Select

ROTATION

PINCUSHION

PIN BALANCE

KEYSTONE

KEY BALANCE

To

adjust the picture rotation

adjust the picture sides

adjust the picture side balance

adjust the picture width

adjust the picture shape balance

ROTATION

GEOMETRY

26

Using the SIZE On-screen Display

The SIZE settings allow you to adjust the size of the picture. Once the setting is adjusted, it will be stored in memory for the current input signal.

1

Press the

button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ SIZE,” and press the button again.

The SIZE OSD appears.

3

For horizontal adjustment

Press the >?// buttons.

/ . . . to increase picture width ? . . . to decrease picture width

For vertical adjustment

Press the ¨./> buttons.

> . . . to increase picture height

. . . . to decrease picture height

The OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

To reset, press the ? (reset) button while the OSD is on. The horizontal and vertical sizes are both reset to the factory settings.

SIZE

26

73

Getting Started

F

EN

ES

C

Customizing Your Monitor

4

Press the >?// buttons to adjust the settings.

The OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

For

ROTATION

PINCUSHION

PIN BALANCE

KEYSTONE

KEY BALANCE

Press

/ . . . to rotate the picture clockwise

? . . . to rotate the picture counterclockwise

/ . . . to expand the picture sides

? . . . to contract the picture sides

/ . . . to move the picture sides to the right

? . . . to move the picture sides to the left

/ . . . to increase the picture width at the

top

? . . . to decrease the picture width at the

top

/ . . . to move the top of the picture to

the right

? . . . to move the top of the picture to

the left

Using the ZOOM On-screen Display

The ZOOM settings allow you to enlarge or reduce the picture. Once the setting is adjusted, it will be stored in memory for the current input signal.

1

Press the button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ ZOOM,” and press the

button again.

The ZOOM OSD appears.

3

Press the >?//buttons to adjust the picture zoom.

/ . . . to enlarge the picture ? . . . to reduce the picture

The OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

To reset, press the ? (reset) button while the OSD is on.

Note

The picture zoom adjustment will stop as soon as either the horizontal or vertical size reaches its maximum or minimum value.

ZOOM

73V

26H

10

Customizing Your Monitor

Using the SCREEN On-screen Display

You can adjust convergence settings to eliminate red or blue shadows that may appear around objects on the screen. Adjust the CANCEL MOIRE function to eliminate wavy or elliptical patterns that may appear on the screen. Adjust the LANDING function to correct color imbalances at the four corners of the screen due to influence from the earth’s magnetism. Once CANCEL MOIRE is adjusted, it will be stored in memory for the current input signal. All other adjustments will be stored in memory for all input signals received.

1

Press the button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ SCREEN,” and press the

button again.

The SCREEN OSD appears.

3

Press the ¨./> buttons to select the item you want to adjust.

Select

H CONVERGENCE

V CONVERGENCE

TOP

V CONVER TOP

BOT

V CONVER BOTTOM

To

adjust the horizontal convergence

adjust the vertical convergence

adjust the screen’s upper vertical convergence

adjust the screen’s lower vertical convergence

SCREEN

TOP BOT

H CONVERGENCE

26

ADJ

COLOR

6500K 9300K

G BI AS

50

B BI AS

50

R GAIN

50

G GAIN

50

B GAIN

50

R BI AS 76

1

Using the COLOR On-screen Display

You can change the monitor’s color temperature. For example, you can adjust or change the colors of a picture on the screen to match the actual colors of the printed picture. Once the setting is adjusted, it will be stored in memory for all input signals received.

1

Press the

button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ COLOR,” and press the

button again.

The COLOR OSD appears.

3

Press the >?// buttons to select the color temperature.

There are three color temperature modes in the OSD. The preset adjustments are: 5000K, 6500K, 9300K

4

Fine tuning the color temperature

Press the ¨./> buttons to select an item and adjust by pressing the >?// buttons.

Select R (red), G (green), or B (blue) BIAS to adjust the black level of each color’s signal.

Select R (red), G (green), or B (blue) GAIN to adjust the white level of each color’s signal.

The “5000K,” “6500K” or “9300K” disappears and the new color settings are memorized for each of the three color modes. The color temperature modes change as follows: 5000Kn 1, 6500Kn 2, 9300Kn 3

The OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

To reset, press the ? (reset) button while the OSD is on. The selected item is reset to the factory settings.

COLOR

R BI AS

5000K 6500K

50

G BI AS

50

B BI AS

50

R GAIN

50

G GAIN

50

B GAIN

50

9300K

11

Getting Started

F

EN

ES

C

Customizing Your Monitor

* Moire is a type of natural interference which produces soft or

wavy lines on your screen. It may appear due to interference between the regulated pattern of the picture from the input signal and the phosphor pitch pattern of the CRT.

Example of moire:

4

Press the >?// buttons to adjust the settings.

Note

The picture may become fuzzy when CANCEL MOIRE is set to “ON.”

The OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

To reset, press the ? (reset) button while the OSD is on. The selected item is reset to the factory setting.

ON

OFF

ON

OFF

50

For

BOT

V CONVER BOTTOM

LANDING

ADJ

LANDING ADJUST

CANCEL MOIRE

ADJ

MOIRE ADJUST

Press

/ . . . to shift red shadows up and blue

shadows down

? . . . to shift red shadows down and

blue shadows up

/ or ? . . . to select the corner of the

screen you want to adjust : top left : top right : bottom left : bottom right

/ or ? . . . to reduce any irregularities in

the color to a minimum

/ . . . to turn CANCEL MOIRE “ON”

? . . . to turn CANCEL MOIRE “OFF”

/ or ? . . . to adjust the screen until the

moire is at a minimum

Select

LANDING

ADJ

LANDING ADJUST

CANCEL MOIRE *

ADJ

MOIRE ADJUST

To

select one of the four corners that needs color correction due to influence from the earth’s magnetism

correct the color at one of the four corners of the screen

turn the moire cancellation function “ON” or “OFF.” CANCEL MOIRE must be “ON” for “

ADJ (MOIRE

ADJUST)” to appear on the screen.

adjust the degree of moire cancellation

For

H CONVERGENCE

V CONVERGENCE

TOP

V CONVER TOP

Press

/ . . . to shift red shadows to the right

and blue shadows to the left

? . . . to shift red shadows to the left

and blue shadows to the right

/ . . . to shift red shadows up and blue

shadows down

? . . . to shift red shadows down and

blue shadows up

/ . . . to shift red shadows up and blue

shadows down

? . . . to shift red shadows down and

blue shadows up

50

Customizing Your Monitor

Using the OPTION On-screen Display

The OPTION OSD allows you to manually degauss the screen and adjust settings such as the OSD position and power saving delay time. It also allows you to lock the controls.

Degaussing the screen

The monitor screen is automatically degaussed (demagnetized) when the power is turned on. You can also manually degauss the monitor.

1

Press the

button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ OPTION,” and press the

button again.

The OPTION OSD appears.

3

Press the ¨./> buttons to select “

(MANUAL

DEGAUSS).”

4

Press the > / button.

The screen is degaussed for about 3 seconds.

Changing the on-screen display position

You can change the OSD position (for example, when you want to adjust the picture behind the OSD).

1

Press the button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ OPTION,” and press the

button again.

The OPTION OSD appears.

3

Press the ¨./> buttons to select “

(OSD H

POSITION)” or “

(OSD V POSITION).”

Select “

(OSD H POSITION)” to adjust the horizontal

position.

Select “

(OSD V POSITION)” to adjust the vertical

position.

4

Press the >?// buttons to move the OSD to the desired position.

ON

MANUAL DEGAUSS

UNLOCK

1 MIN

OPTION

ZZ...

ON

MANUAL DEGAUSS

UNLOCK

1 MIN

OPTION

ZZ...

OSD H POSITION

UNLOCK

1 MIN

OPTION

ZZ...

OSD V POSITION

UNLOCK

OPTION

1

Getting Started

F

EN

ES

C

Customizing Your Monitor

Locking the controls

The control lock function disables all of the buttons on the front panel except the u (power) switch and

button.

1

Press the button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ OPTION,” and press the button again.

The OPTION OSD appears.

3

Press the ¨./> buttons to select “

(CONTROL

LOCK).”

4

Press the >?// buttons to select “LOCK.”

The OPTION OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

Once you select “LOCK,” you cannot select any items except “EXIT” and “ OPTION” in the MENU OSD. If you press any button other than the u (power) switch and

button, the

mark appears on the screen.

Setting the power saving delay time

You can set the delay time before the monitor enters the power saving mode. See page 15 for more information on this monitor’s power saving capabilities.

1

Press the

button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ OPTION,” and press the

button again.

The OPTION OSD appears.

3

Press the ¨./> buttons to select “

ZZ...

(PWR SAVE

DELAY).”

4

Press the >?// buttons to select the desired time.

When PWR SAVE DELAY is set to “OFF,” the monitor does not go into power saving mode.

The OPTION OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

ON

MANUAL DEGAUSS

UNLOCK

1 MIN

OPTION

ZZ...

ON

MANUAL DEGAUSS

UNLOCK

1 MIN

OPTION

ZZ...

PWR SAVE DELAY

OPTION

5 SEC 60 MIN

1 MIN OFF

1

ZZ...

CONTROL LOCK

OPTION

UNLOCK LOCK

1

14

Customizing Your Monitor

Using the LANG (Language) Onscreen Display

English, French, German, Spanish and Japanese versions of the OSDs are available.

1

Press the

button.

The MENU OSD appears.

2

Press the ¨./> and >?// buttons to select “ LANG,” and press the

button again.

The LANGUAGE OSD appears.

3

Press the ¨./> buttons to select the desired language.

ENGLISH: English, FRANÇAIS: French, DEUTSCH: German, ESPAÑOL: Spanish, or

: Japanese.

The OSD automatically disappears after about 30 seconds. To close the OSD, press the

button again.

To reset to English, press the ? (reset) button while the OSD is on.

Resetting the Adjustments

Resetting an adjustment item

1

Press the

, ¨./> and >?//buttons to select

the OSD containing the item you want to reset.

2

Press the ¨./> buttons to select the item you want to reset.

3

Press the ? (reset) button.

Resetting all of the adjustment data for the current input signal

When there is no OSD displayed, press the ? (reset) button.

All of the adjustments data for the current input signal is reset to the factory settings. Note that adjustment data not affected by changes in input signal (OSD language, OSD position, input signal selection, power saving delay time and the control lock function) is not reset to the factory settings.

Resetting all of the adjustment data for all input signals

Press and hold the ? (reset) button for more than two seconds.

All of the adjustment data, including the brightness and contrast, is reset to the factory settings.

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL

LANGUAGE

15

Getting Started

F

EN

ES

C

Technical Features

Power Saving Function

This monitor meets the power-saving guidelines set by VESA and Energy Star, as well as the more stringent NUTEK . If the monitor is connected to a computer or video graphics board that is VESA DPMS (Display Power Management Signaling) compliant, the monitor will automatically reduce power consumption in three stages as shown below.

1 2

3

4 5

Recovery time

—

Approx. 3 sec.

Approx. 10 sec. —

u indicator

Green Green and orange

alternate

Green and orange alternate

Orange Off

Power consumption

≤ 160 W ≤ 100 W

≤ 15 W

< 5 W

0 W

Power consumption mode

Normal operation Standby (1st mode)

Suspend (2nd mode)

Active-off (3rd mode) Power-off

Screen

active blank

blank

blank —

Horizontal sync signal

present absent

present

absent —

Vertical sync signal

present present

absent

absent —

You can set the delay time before the monitor enters the power saving mode using the OSD. Set the time according to “Setting the power saving delay time” on page 13.

Note

If no video signal is input to the monitor, the “NO INPUT SIGNAL” message (page 16) appears. After the delay time has passed, the power saving function automatically puts the monitor into the active-off mode and the u indicator lights up orange. Once the horizontal and vertical sync signals are detected, the monitor automatically resumes its normal operation mode.

Damper Wires

When viewing a white background, very thin horizontal lines may be visible on the screen as shown below. These lines are the shadows of the damper wires and are characteristic of CRTs that use aperture grilles. The wires are attached to the aperture grille on the inside of the Trinitron tube and prevent the vibration of the aperture grille.

Damper wires

Plug & Play

This monitor complies with the DDC1, DDC2B, DDC2AB and DDC2B+ Display Data Channel (DDC) standards of VESA. When a DDC1 host system is connected, the monitor synchronizes with the V. CLK in accordance with the VESA standards and outputs the EDID (Extended Display Identification Data) to the data line. When a DDC2B, DDC2AB or DDC2B+ host system is connected, the monitor automatically switches to the appropriate standard.

DDC is a trademark of the Video Electronics Standard Association.

Technical Features

Preset Modes

No.

1

2

3

4

5

6

7

8

Resolution (dots × lines)

640 × 480 640 × 480 800 × 600 1024 × 768 1280 × 1024 1280 × 1024 1600 × 1200 1600 × 1200

Horizontal Frequency

31.5 kHz

43.3 kHz

53.7 kHz

68.7 kHz

80.0 kHz

91.1 kHz

93.8 kHz

106.3 kHz

Vertical Frequency

60 Hz

85 Hz

75 Hz

85 Hz

75 Hz

85 Hz

Graphics Mode

VGA

VESA

Additional Information

Warning Messages

If there is something wrong with the input signal, one of the following messages appears.

Additional Information

1 The input signal condition

“OUT OF SCAN RANGE” indicates that the input signal is not supported by the monitor’s specifications.

“NO INPUT SIGNAL” indicates that no signal is input, or the input signal from the selected input connector is not received.

2 The selected input connector

Indicates which input connector is receiving the wrong signal. If there is something wrong with the signal from both input connectors, “1” (HD15) and “2” (13W3) are displayed alternately.

To solve these problems, see “Troubleshooting” below.

Troubleshooting

This section may help you isolate the cause of a problem and as a result, eliminate the need to contact technical support.

Symptom Check these items

No picture

If the u indicator is not lit

If the “NO INPUT SIGNAL” message appears on the screen, or if the u indicator is either orange or alternating between green and orange

If the “OUT OF SCAN RANGE” message appears on the screen

If no message is displayed and the u indicator is green or flashing orange

Picture is scrambled

• Check that the power cord is properly connected.

• Check that the u (power) switch is in the “on” position.

• The screen is blank when the monitor is in power saving mode. Try pressing any key on the computer keyboard.

• Check that your computer power switch is in the “on” position.

• Check that the input select setting is correct.

• Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets.

• Ensure that no pins are bent or pushed in the HD15 or 13W3 video input connector.

• Check that the video board is completely seated in the proper bus slot.

• Check that the video frequency range is within that specified for the monitor. (Horizontal: 30 – 107 kHz, Vertical: 50 – 160 Hz) Refer to your computer‘s instruction manual to adjust the video frequency range.

• If you are using a video signal cable adapter, check that it is correct.

• See “Self-diagnosis Function” (page 18).

• Check your graphics board manual for the proper monitor setting.

• Check this manual and confirm that the graphics mode and the frequency you are trying to operate at is supported. Even if the frequency is within the proper range, some video boards may have a sync pulse that is too narrow for the monitor to sync correctly.

INFORMATION

OUT OF SCAN RANGE INPUT : 1

Getting Started

F

EN

D

ES

I

Additional Information

Symptom Check these items

You cannot adjust the monitor with the buttons on the front panel

White does not look white

Screen image is not centered or sized properly

Edges of the image are curved

White lines show red or blue shadows at edges

Picture is fuzzy

Picture bounces or has wavy oscillations

Picture is flickering

Picture appears to be ghosting

Wavy or elliptical (moire) pattern is visible

Two fine horizontal lines (wires) are visible

Hum is heard right after the power is turned on

• If the control lock function is set to on, set it to off using the OPTION OSD (page 13).

• Adjust the color temperature (page 10).

• Press the

button (page 5).

• Adjust the size or centering (pages 7 – 8).

• Some video modes do not fill the screen to the edges. This problem tends to occur with certain video boards.

• Adjust the geometry (pages 8 – 9).

• Adjust the convergence (pages 10 – 11).

• Adjust the contrast and brightness (page 6).

• Degauss the monitor (page 12). If you place equipment which generates a magnetic field, such as a loudspeaker, near the monitor, or you change the direction of the monitor, color may lose uniformity. The degauss function demagnetizes the metal frame of the CRT to obtain a neutral field for uniform color reproduction. If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result.

• If red or blue shadows appear along the edges of images, adjust the convergence (pages 10 – 11).

• If the moire is cancelled, the picture may become fuzzy. Decrease the moire cancellation effect (pages 10 – 11).

• Isolate and eliminate any potential sources of electric or magnetic fields. Common causes for this symptom are electric fans, fluorescent lighting or laser printers.

• If you have another monitor close to this monitor, increase the distance between them to reduce the interference.

• Try plugging the monitor into a different AC outlet, preferably on a different circuit.

• Try the monitor on a different computer in a different room.

• Set the refresh rate on the computer to obtain the best possible picture by referring to the computer’s manual.

• Eliminate the use of video cable extensions and/or video switch boxes if this symptom occurs. Excessive cable length or a weak connection can produce this symptom.

• Cancel the moire (pages 10 – 11). The moire may be modified depending on the connected computer.

• Due to the relationship between resolution, monitor dot pitch and the pitch of some image patterns, certain screen backgrounds sometimes show moire. Change your desktop pattern.

• These wires stabilize the vertically striped aperture grille (page 15). This aperture grille allows more light to pass through to the screen giving the Trinitron CRT more color and brightness.

• When the power is turned on, the auto-degauss cycle is activated. While the auto-degauss cycle is activated (3 seconds), a hum may be heard. The same hum is heard when the monitor is manually degaussed. This is not a malfunction.

Additional Information

Self-diagnosis Function

This monitor is equipped with a self-diagnosis function. If there is a problem with your monitor or computer(s), the screen will go blank and the u indicator will either light up green or flash orange.

If the

uu

u indicator is green

1

Remove any plugs from the video input 1 and 2 connectors, or turn off the connected computer(s).

2

Press and hold the >/ button for 2 seconds.

If all four color bars appear (white, red, green, blue), the monitor is working properly. Reconnect the video input cables and check the condition of your computer(s).

If the color bars do not appear, there is a potential monitor failure. Inform your service representative of the monitor’s condition.

If the

uu

u indicator is flashing orange

Press the

uu

u button to turn the monitor off and on.

u indicator

Specifications

Picture tube 0.25 – 0.27 mm aperture grille pitch

21 inches measured diagonally 90-degree deflection

Viewable image size Approx. 403.8 × 302.2 mm (w/h)

(16 × 12 inches)

19.8” viewing image

Resolution Horizontal: Max. 1600 dots

Vertical: Max. 1200 lines

Standard image area Approx. 388 × 291 mm (w/h)

(15

3

/

8

× 11

1

/2 inches)

or Approx. 364 × 291 mm (w/h) (14

3

/

8

× 11

1

/2 inches)

Deflection frequency Horizontal: 30 to 107 kHz

Vertical: 50 to 160 Hz 256 < Total Line < 2048

AC input voltage/current

100 to 240 V, 50 – 60 Hz, 2.0 – 1.0 A

Power consumption Max. 160 W Dimensions 498 × 513 × 500 mm (w/h/d)

(19

5

/

8

× 20

1

/

4

× 19

3

/4 inches)

Mass Approx. 31 kg (68 lb 5 oz)

Design and specifications are subject to change without notice.

2-1. CABINET REMOVAL

5

Four screws (+ BVTT 4 x 8)

6

Top cover

3

Four screws

1

Two screw covers

Two claws

7

Four screws (+ BVTT 4 x 8)

(+ BVTP 4 x 16)

4

Cabinet

2

Two screw covers

2-2. D BOARD REMOVAL

4 5

Screw (+ P 3.5 x 20)

6

D board

8

Video shield

Two screws (+ BVTP 3 x 10)

1

Screw (+ BVTT 4 x 8)

2

Two screws (+ BVTT 4 x 8)

B

Three hooks

3

Open the D block in the direction of the arrow . and remove of the arrow .

A

B

2-3. G BOARD REMOVAL

1

Screw (+ BVTT 4 x 8)

2

Two screws (+ BVTT 4 x 8)

B

A

4

Two screws (+BVTP 3 x 10)

5

G shield

7

G board

3

Open the G block in the direction of the arrow . and remove of the arrow .

B

2-4. A BOARD REMOVAL

A

Three hooks

6

Two printed circuit board holders

A borad Three screws

12

(+BVTT 4 x 8)

2-5. L BOARD REMOVAL

CN5002

1

Four printed circuit board holders

CN5001 CN5004 CN5003

2

L board

2-6. I/O TERMINAL BOARD ASSY REMOVAL

1

Three screws (+ BVTT 3 x 8)

CN511

CN401 CN402

2

I/O terminal board assy

2-7. SERVICE POSITION

CAUTION : SHORT

If the claw is hooked, opening and closing the board is impossible. Do not try to do it by force.

D,G boards

G board (Refer to 2-3.)

Rear shield

If the claw is hooked, opening and closing the board is impossible. Do not try to do it by force.

D board (Refer to 2-2.)

A board (Refer to 2-4.)

2-8. H AND J BOARDS REMOVAL

5

Power cap

CN801

CN891

Claw

4

H board

1

Four screws (Tapping screw 5)

6

Claw

7

J board

3

Three screws (+ BVWHTP 3 x 12)

2

Bezel

2-9. PICTURE TUBE REMOVAL

4

Three connectors

6P (DY)

10P (DY)

5

Anode cap

1

GND (DY)

Open the D block (Refer 2-2.)

8

Neck assy

6

Four screws (+ BVTT 4 x 8)

3

A board

2

Open the G block (Refer 2-3.)

9

Deflection yoke

7

Picture tube

• REMOVAL OF ANODE-CAP

NOTE: Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon painted on the CRT, after

removing the anode.

• REMOVING PROCEDURES

c

b

a

Anode Button

1 Turn up one side of the rubber cap in

the direction indicated by the arrow a.

2 Using a thumb pull up the rubber cap

firmly in the direction indicated by the arrow b.

3 When one side of the rubber cap is

separated from the anode button, the anode-cap can be removed by turning up the rubber cap and pulling up it in the direction of the arrow c.

• HOW TO HANDLE AN ANODE-CAP

1 Don’t hurt the surface of anode-caps with shartp shaped

material!

2 Don’t press the rubber hardly not to hurt inside of anode-caps!

A material fitting called as shatter-hook terminal is built in the rubber.

3 Don’t turn the foot of rubber over hardly!

The shatter-hook terminal will stick out or hurt the rubber.

2-5

6558-03N/03S/43N/43S

When replacing or repairing the shown below table, the following operational checks must be performed as a safety precaution against X-rays emissions from the unit.

a) HV Regulator Circuit Check

1) Confirm that the voltage of the pin 2 of CN901 on D board is within the voltage range shown below. Standard: 9.00 ± 0.065 VDC

b) HV Protector Circuit Check

1) Confirm that the HV protector circuit works and TV Raster disappears when apply the voltage as shown below between pin 3 of CN901 on D board and GND using an external DC power supply. Check Condition: Less than 34.10 VDC

c) Beam Current Protector Circuit Check-1

1) Measure HV voltage and record that value.

2) Shorted between pin 1 and pin 4 of CN901 on D board.

3) Connect to the Constant Current Jig (A) between pin 1 of CN901 on D board and GND, confirm that the Beam Current Protector Circuit works and HV go down more than 1.25 kV from the value of (1). Check Condition: 1.50 mA

d) Beam Current Protector Circuit Check-2

1) Connect to the Constant Current Jig (B) between pin 1 of CN901 on D board and GND, confirm that the Beam Current Protector Circuit works and TV Raster disappears. Check Condition: 1.59 mA

e) Voltage of 3rd winding of FBT

1) Confirm that the voltage of pin 3 of CN901 on D board is within the voltage range shown below. Standard: more than 28.0 VDC

Check Condition

Input voltage : 100 ~ 240 VAC Input signal : White Cross Hatch at 107 kHz Beam control : BRT and CONT → Minimum B+ voltage : 195 ~ 205 VDC

SECTION 3

SAFETY RELATED ADJUSTMENT

Part Replaced (])

D Board IC901, T902

• Mounted D board

D Board Q660, Q661, D916,

D935, C924, R665, R667, R940, R980, T902

• Mounted D board

G Board PH680, Q680, Q683,

D680, R680, R685, R686, R687, R688, R689

• Mounted G board

D Board IC901, D904, D907,

D908, R011, R908, R909, R921, R925, R926, R929, R930, T902

• Mounted D board

HV Regulator Circuit Check

HV Protector Circuit Check

Beam Current Protector Circuit Check

SECTION 4

ADJUSTMENTS

6558-03N/03S/43N/43S

Note: Hand degauss

This model has an automatic earth magnetism correction function by using an earth magnetism sensor and a LCC coil. When using a hand degauss while monitor (LCC coil) is being operated, it sometimes gets magnetized, and the system may not work properly as a result.

• Landing Rough Adjustment

1. Enter the full white signal. (or the full black dots signal).

2. Adjust the contrast to the maximum.

3. Make the screen monogreen. Note: Off the outputs from R ch and B ch of SG.

4. Reverse the DY, and adjust coarsely the purity magnet so that a green raster positions in the center of screen.

5. Adjust the tilt of DY, and fix lightly with a clamp.

Note: “TILT” shall be set at 0.

• Landing Fine Adjustment

1. Put the set inside the Helmholtz coil. (“LCC SW” = “12”)

2. Input the single green signal and set the CONT control to MAX.

Note: After the W/B adjustment with 9300K, measure an aver-

age of ΣIk when a full white signal is entered in the CONT MAX/BRT CENT status. Then make adjustment so that the specified screen can be attained after aging for 2 hours with Ik equivalent to 30% of the average value.

3. Demagnetize the metal part of the chassis with the hand degausser and coil degausser, and the CRT surface with the hand degausser. Input AC 230V to AC IN, turn on and off the power to perform auto degaussing. (Perform auto degaussing by setting “MON CON REG2”=152. Return to the original value after use.) Demagnetize the CRT surface with the hand degausser again.

Note: (1) Hand degauss

tion. This model has an automatic earth magnetism correction function by using an earth magnetism sensor and a LCC coil. When using a hand degauss while monitor (LCC coil) is being operated, it sometimes gets magnetized, and the system may not work properly as a result.

(2) Adjust in a non-magnetic field. BV=45uT. (3) If adjusting in a magnetic fields, add the shift from the non-

magnetic field in your estimation.

4. Attach the wobbling coil to the designated part of the CRT neck.

5. Attach the sensor of the landing adjustment unit on the CRT surface.

must be used on stand-by or power-off condi-

must be used on stand-by or power-off condition.

6. Adjust the DY position and purity, and the DY tilt, and landing of the center and 4 corners with the landing checker. After adjustment, set “LCC SW” to “13”.

• Write terrestrial magnetism sensor reading VX and VY to

“LCC VX” and LCC VY” respectively. Adjust the landing by moving “LCC NS”, “LCC LT”, “LCC LB”, “LCC RT” and “LCC RB”. However, the register adjustment must be limited within the following range. “LCC NS” 128 ± 15 “LCC LT”, “LCC LB”, “LCC RT”, “LCC RB”

128 ± 40

Save the service data.

<Specifications> Adjust so that the green is within the specification given right. 4 corner adjust target : within ± 1

The red and blue must be within the specification given right with respect to the green.

A difference between red and blue must be within the specification given right.

* Adjustment and measurement should be made at the points

one inch inside the fluorescent screen.

7. For the up/down swing, swing the DY and insert a wedge so that the up and down pins are equal at the top and bottom. Adjust the DY TLV VR so that the horizontal trapezoid is equal at the left and right. Insert the wedge firmly so that the DY does not shake.

8. Check the landing of each corner, and if it does not satisfy the specification, adjust the landing of four corners using “LCC LT“, “LCC LB”, “LCC RT” and “LCC RB”. However, the register adjustment must be limited within the following range.

“LCC NS” 128 ± 15 “LCC LT”, “LCC LB”, “LCC RT”, “LCC RB”

After adjustment, save the service data.

9. Remove the sensor and wobbling coil.

10. Switch the signal to R.G.B., and check that each color is pure.

11. Check that the DY is not tilting.

0 ± 3 0 ± 7.5 0 ± 3 0 ± 5 0 ± 5 0 ± 5 0 ± 3 0 ± 7.5 0 ± 3

± 6 ± 6 ± 6 ± 6 ± 4 ± 6 ± 6 ± 6 ± 6

10 10 10 10 7 10 10 10 10

(µm)

128 ± 40

Connect the communication cable of the computer to the connector located on the D board on the monitor. Run the service software and then follow the instruction.

IBM AT Computer

as a Jig

1-690-391-21

1

D-sub (9 Pin [female])

*The parts above ( ) are necessary for DAS adjustment.

mini Din (8Pin)

1

A-1500-819-A

2

Interface Unit

3

• Convergence Rough Adjustment

(1) Receive an image of the white crosshatch signals (white

lines on black).

(2) Place the protrusions of the 6-fold poles magnet attached to

the CRT neck upon each other. (Fig. 1)

(3) Make rough adjustment of the H and V direction conver-

gence by using 4-fold poles magnet.

(4) Make a rough adjustment of the V direction convergence by

using “V. STAT”.

TLV YCH

Protrusions

Fig. 1

XBV XCV APH

YBH

3-702-691-01

3

Connector Attachment

To BUS CONNECTOR

4 Pin

4 Pin 4 Pin

• Convergence Specification

C

Phospher edge

B

A

H

V

MODE

>

fH

60 kHz

<

fH

60 kHz

Zone A Zone B Zone C Zone A Zone B Zone C Zone

• White Balance Adjustment Specification

(1) 9300K

x = 0.281 ± 0.005 y = 0.311 ± 0.005

(All White)

(2) 6500K

x = 0.313 ± 0.005 y = 0.329 ± 0.005

(All White)

N. Hemisphere

0.24 mm

0.32 mm

0.24 mm

0.32 mm

0.36 mm

S. Hemisphere

0.24 mm

0.28 mm

0.32 mm

0.28 mm

0.36 mm

0.40 mm

*

Fig. 3

H. AMP

RR

B

R B

B

60°

Fig. 2

* Set so that the protruding parts of

the 2 magnet rings agree with each other.

XBV XCV

R

B

H. TILT (TLH) YBHYCH

R

BBR

R B

• Vertical and Horizontal Position and Size

Specification

A

b

a

B

a

a 3.5 mm

MODE

B

1-4, 7, 8 5, 6

A

388 mm

B

291 mm

364 mm 291 mm

b 3.5 mm

R

• Focus adjustment

Adjust the focus volume 1 and 2 (HDK 1 and 2) for the optimum focus.

FBT

HDK1 (V) HDK2 (H)

1 2 3 4 5 6 7 8 9 10

3 4 1 2

H STAT(+) H STAT(-) V STAT(+) V STAT(-)

CN5004

CN5003

ROTATION

H STAT

V STAT

H STAT(+) H STAT(-) V STAT(+) V STAT(-)

5 6 3 4 1 2

ROTATION(+) ROTATION(-)

1 2 3 4 5 6 7

J

I

H

CN402

CN401

CN403

CN407

R IN 2 G IN 2 B IN 2

INPUT SW

GREEN

CLP C.BLK VIDEO

LOWB DET

R IN 1 G IN 1 B IN 1

ASC_SW

OSD_SEL

MOSI

CLK

DAC_SEL

HFBP VRET

1 3 6

1 3 5

6 4 1 3 8 2

IC401

R_IN2 G_IN2 B_IN2

R_IN1 G_IN1 B_IN1

SW

G.SYNC

R_OUT

G_OUT

B_OUT

MOSI CLK

HFLB SS

VFLB

MOSI CLK

HFBP OSD_SEL

7 5 2

16 13 11

19

25

27

30

35

5 6 7 8 22

IC404

OSD

R G B

FBKG

17

12

3

23 14

9 1

26 28

27 26 25 24

R_IN

G_IN

B_IN

R_OSD G_OSD B_OSD OSD_BLK

CLP BLK

IC402

R_DRV G_DRV B_DRV

MAIN CONT

OSD CONT

R_OUT

G_OUT

B_OUT

37

42

51

18 13

4 27 25 52

DAC_SEL CLK MOSI

R_IN G_IN B_IN

R_OUT G_OUT B_OUT

1

CN1 KR KG KB HEATER(+)

5 3

7

KR KG KB

HEATER(+)

CN2

HEATER(+)

+15V STBY 8V

CN405

CN406

Q404

A

(VIDEO AMP,RGB OUT)

BRT

Q101

Q201

Q301

IC403

RGB OUT

IC410

D/A CONVERTER

R_DRV G_DRV B_DRV BRT CONT OSDCONT LD CLK MOSI

R_CUTOFF

G_CUTOFF

B_CUTOFF

6 7 8 9 12 13 15 16 17

3

4

5

IC409(1/4)

IC409(2/4)

IC409(3/4)

5 3 1 7

V901

PICTURE TUBE

FV1 FV2 HV

TO FBT

G2

B

M

9 1 3 5 6

1

1KV

IC406

12V REG

IC408

5V REG

OI

+200V +80V

+200V

+80V

G.SYNC

Q401-Q403

VIDEO OUT

Q405

LOWB DET

Q407

IC409(4/4)

Q406,Q410

R_CUTOFF

G_CUTOFF

B_CUTOFF

Q105,106

Q205,Q206

Q305,Q306

SW

Q408,409

+12V

+5V

VRET

RGB SWITCH RGB PRE-AMP

11 7 1

13 5 3

19

G2 G2 CONTROL

BUFFER

Q202

B-SS9067<NH.>-B/D-P1

LCC-LT(-)

LCC-RT(+)

LCC-LB(+)

LCC-LT(+)

LCC-LB(-)

LCC-RT(-) LCC-RB(+) LCC-RB(-) LCC-NS(+) LCC-NS(-)

LCC-LT

LCC-LB

LCC-RT

LCC-RB

LCC-NS

5-4

5-5 5-6

-+V.S2

+15V

IC701

CURRENT AMP

9

13

11

1

8

12

10

2

IC013

DMP CLK DMP DO DMP DI DMP ID

39 38 46 7 45 9 11 10 12 6 41 43 42 44

33

IC007

CLP OUT CBLK OUT SONG VIDEO INPUT_SEL CLK DO DI ID FBPIN HS/CS1 VS1 HS/CS2 VS2

TILT

HTIM

VIDEO OUT

VS OUT HS OUT

VDF

HCENT

H SHAPE BAL

V SHAPE

VDC

V CONV

MOIRE

H SHAPE

H SIZE

2 8 48 47 28 32 29 19 26 27 34

30 31

DMP CLK DMP DO DMP DI DMP ID

9 16

10 60 65 21 22 24 17 53 79

20 19

721

6

3

5

IC009

12 13

45

44

EEP SDA EEP SCL

IC004

EEP ROM

5625

26

V CLK

SDA

SCL

V CLK

SDA

SCL

IC012

ROM

IC002

ROM

47 30 31

32 33

7

5

6

5

6

CPU

IC001

P70/IRQ0 DDC_SDA_1 DDC_SCL_1

DDC_SDA_2 DDC_SCL_2

KEY_DET

EEP_SDA EEP_SCL

LED0 LED1

P66/AN6

ASC SW OSD_SEL

DAC SEL HFBP VRET DMP_CLK DMP_DO DMP_DI DMP_ID

INPUT SEL

66

59

29

28

41

63,64

4 9 10 7 28 14

3

2

4 5

AFC1 SDA SCL HSYNC

PWM RFE

DF OUT

HVD OUT

HD OUT

FBP

PMW OUT

IC010

SYNC PROCESS

17

24 25

19 23

6 5

72

3

1

IC505

H DRIVE Q504-Q506

PIN DRIVE Q501-Q503

PROT DET

DGC

HTR SW

POWER SW

VY

40 46 74

99 98

96

Q661

LLC_LT LLC_RT LLC_LB LLC_RB LLC_NS

69 70 71 72 73

CK

RESET

8 3

IC005 WDT

CN520 VX VY H CONV V CONV

85 86 87 88 89 90 82

83

X001

HV_PROT

V CONV

V SHAPE

VDC

VRET

1 2 3 4

DGC POWER HTR_SW STBY 8V

CN504

IO

IC006

5V REG

STBY5V

PS504

D

RY501

S0 S1 S2 S3 S4

S5

T501

HDT

H OUT

Q508

PS501

T502 HOC

Q003

H DF OUT

V DF OUT

Q707,Q708

4 2 3 1

HV ADJ

IK DET

X RAY DET

1ST IK PROT

CN901

IC901

HV CONTROL

1197

HV DRIVE

Q901,Q904,Q905

Q701,Q703-Q706

HV OUT Q909

T901

HRC

HV REG SW

Q908

PS901

Q902

12

15 8

HV_PROT

ABL_DET

HV_DET

T902

FBT

HV

FV1

FV2

TO PICTURE TUBE

5

4

3

IC702 V OUT

21

H CENT CONTROL

Q511

H CENT H SHAPBAL

2

1

-VIN

+VIN

VEE

OUT

VCC

4

5

3

IC502

H CENT OUT

H SIZEEFB

3

2

1

9

11

7

5

4

+200V +200V +80V

-15V +15V HCENT H HCENT N HCENT L

CN502

1KV

CN507

I

O

I

O

IC008

IC003

9V REG

+200V

+80V

-15V +15V

9V-1

9V-2

PS503 PS502

10

9

6

5

3

2

V.DY C V.DY H H.DY C

CN508

9

8

7

6

5

CN512

DPU

K

VX

H CONV

+200V

Q005

43

77 78

38 93

WDT

RESET

ABL DET

HV DET

S0 S1 S2 S3 S4 S5

+B DET

HPLL IIC SDA IIC SCL

HS VS

ASC

T503 HST

T504 HCC

+200V

T701 DFT

+200V

1

M

A

V.DY

H.DY

H.DY C H.DY H H.DY H

L

PIN AMP

Q517

PIN OUT

Q507

S CAP

CHANGE Q522-Q525 Q527,Q528

RELAY DRIVE Q509

IC703

Q660

ABL_DET

LOWB_DET

RXD TXD

39

769

8

OUT2

VRET

ABL_DET

57

L503 HLC

351

2

5

2

Q510

H PHASE

52

2

5

25

ERR IN HD IN

ERR REF VREG9

PWM OUT

BTC IN

1

2

6

5

HV

14 15

18 17

FV1

FV2

16

11

7

4MHz

XTALO

XTALI

100

HV_DET

14 15

LED2 LED3

5V REG

Q006

9V-2

P65/AN5

II

Q007

Q004

27

AFC2

SOFT START

SW Q001

+5V SOFT START18

START PROT

Q911

HSTX

52

B-SS9052<NH.>-B/D-P2

LCC_RB LCC_RT LCC_LB LCC_LT LCC_LB

4 1

1 3

6.3A

THP601

F601

T601

RY602

CN604

CN603

AC L AC N

DGC DGC

RELAY DRIVE Q690

RELAY DRIVE

TH601

D610

RY601

10

8 7 3 4 6 9 5

10 8 7 3 4 6 9 5

CN7501 CN610

LPV

AC SENCE

L SENCE

DRIVE

I SENCE

OPV VCC

LPV AC SENCE L SENCE DRIVE I SENCE

OPV VCC

VCC SW

Q615

DGC

PROTECTOR

Q7501-Q7504

3 5 7 4 1

8

DRIVE I SENCE V SENCE

AC SENCE L SENCE

VCC

IC7501 SENSOR

GA

(POWER SENSOR)

BOOST

CONV OUT

Q610

REG SW

Q641,Q642

Q640

41

7

5

4

+200V

+80V

+200V

CN671

T640

D670

D672

T641

Q683

POWER SW

Q680-Q682

1 3 5 6 9

+200V +80V +15V STBY 8V HEATER(+)

CN672

9

+15V

-15V

11 1 3 2

H CENT H H CENT L H CENT N

IO

IC660

REG SW

T660

PH660

IC691

IC690 HEATER

REG

HEATER

SW

Q691

523

4

1 2

CN690

CN673

USB 6.5V USB 6.5V

POWER SW HEATER SW DGC SW

PH680

PS674

PS673

G

(POWER SUPPLY)

C

D

B

A

1 2

LED 0 LED 1

LED DRIVE

STBY+5V

(USER CONTROL)

F

4 2 3 1

AC INLET

Q660

(B TO B) (B TO B)

GND GND

121

2

V SENCEV SENCE

STBY 8V

231

4

D663

C611

CONV OUT

C647

D691

1

2

4

3

8

6

5

124

3

PIT

4

3

2

1

5

6 7 8

9

10 11

12

D673

D674

D682

D677

SOFT START

124

3

761

2

3 4

5

PRT

PS670

PS671

R675

R674

IC630

+200V SHUNT REG

D678

D611

1128

9

L610

G

1

3

AC L IN

AC L OUT

AC L IN

AC L OUT

1

3

CN891

S891

POWER

J

(POWER SW)

H

KEY_DET TEMP_DRI

8

5

TH801

Q801,802

G R

POWER

B-SS9057<AEP>-B/D-P3

S818,S820

D820

CN801

S802-S806,

CN605

5-7 5-8 5-9

5-4. SCHEMATIC DIAGRAMS AND PRINTED

WIRING BOARDS

Note: The components identified by shading and mark

! are critical for safety. Replace only with part number specified.

Note: Les composants identifiés per un tramé et une

marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

5-3. CIRCUIT BOARDS LOCATION

HV Regulator Circuit Check

HV Protector Circuit Check

Beam Current Protector Circuit Check

Part replaced ( ] )

D Board IC901, T902

• Mounted D board

D Board Q660, Q661, D916, D935,

C924, R665, R667, R940, R980, T902

• Mounted D board

G Board PH680, Q680, Q683, D680,

R680, R685, R686, R687, R688, R689

• Mounted G board

D Board IC901, D904, D907, D908,

R011, R908, R909, R921, R925, R926, R929, R930, T902

• Mounted D board

• All voltages are in V.

• Readings are taken with a 10 M digital multimeter.

• Readings are taken with a color-bar signal input.

• Voltage variations may be noted due to normal production tolerances.

•

*

: Can not be measured.

• Circled numbers are waveform references.

•

s : B + bus.

• S : B – bus.

G

D

S

2

3

4

5

6

7

8

9

0

!¡

!™

!¢

!§

–

1

G

D

S

G

S

D

G

D

Ver.1.5

Transistor (FET)

Transistor

Discrete semiconductot

(Chip semiconductors that are not actually used are included.)

Diode

Source

Anode

(NC)

Cathode

Anode

Cathode

Common

Cathode

Common

Cathode

Common

Cathode

Anode

Base

Emitter

Collector

Base

Emitter

Collector

Drain

Gate

Drain

Device Printed symbol Terminal name

Circuit

Terminal name of semiconductors in silk screen printed circuit ( )

Anode

Anode Cathode

Anode Anode

Cathode

!£

Transistor (FET)

!∞

Emitter Collector Base

Transistor

Source

Gate

Drain

Cathode

Anode Anode

Cathode Anode Anode

*

Note:

• All capacitors are in µF unless otherwise noted. (pF: µµF) Capacitors without voltage indication are all 50 V.

• Indication of resistance, which does not have one for rating electrical power, is as follows.

Pitch: 5 mm Rating electrical power 1/4 W (CHIP : 1/10 W)

• All resistors are in ohms.

•

f : nonflammable resistor.

• Ï : fusible resistor.

•

¢ : internal component.

•

p : panel designation, and adjustment for repair.

• All variable and adjustable resistors have characteristic curve B, unless otherwise noted.

•

e : earth-ground.

• E : earth-chassis.

• The components identified by

[ in this basic schematic diagram

have been carefully factory-selected for each set in order to satisfy regulations regarding X-ray radiation. Should replacement be required, replace only with the value originally used.

• When replacing components identified by

], make the

necessary adjustments indicated. (See page 3-1)

• When replacing the part in below table, be sure to perform the related adjustment.

1 2 3

123

1 2 3 4 5

1 2 3 4 5 6 7 8

9 10 11

123

4

1234567

1 2 3 4 5 6 7 8

9 10 11

1

2

1 2 3 4 5 6 7 8 9

10

123456789

1 2 3 4 5 6 7

1 2 3 4 5 6

1 2 3 4 5 6 7 8

123456789

12345

6

12345

6

123456789

1 2 3 4 5 6 7 8 9

10

1

2

3

4

5

6

1 2 3 4 5 6 7 8

1

1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6 7 8 9

10

H

KB

KG

KR

G1

G2

GM

G4

RCV

HV

123

4

123456789

1 2 3 4 5

123456789

10

11

1234567

8

12345

123456789

1 2 3 4 5 6 7

1 2

123

4

123456789

10

11

1

2

CN891

CN604

CN603

CN673

CN672

CN671

CN505

CN503

CN504

CN511 CN506

CN502

CN507

CN5001

CN402

CN401

CN403

CN407

CN405

CN406

CN5003

CN5002

CN509

CN801

CN508

CN5004

CN512CN520 CN901 CN501

CN601

CN605

CN610

CN7501

CN1 CN2

3P WHT :VH

4P WHT :VH

5P WHT

:S-MICRO

9P

WHT

:S-MICRO

11P WHT

:S-MICRO

4P

WHT

7P WHT

:S-MICRO

5P WHT

:S-MICRO

11P WHT

:S-MICRO

8P

WHT

:S-MICRO

11P WHT

:S-MICRO

2P WHT :VH

9P

WHT

:S-MICRO

7P

WHT-L

:S-MICRO

6P

WHT-L

:S-MICRO

8P

WHT-L

:S-MICRO

7P

WHT-L

:S-MICRO

9P

WHT-L

:S-MICRO

2P WHT :VH

10P WHT

:S-MICRO

6P WHT

:S-MICRO

2P WHT

:S-MICRO

11P WHT

:S-MICRO L

10P :VH

4P WHT

:S-MICRO

9P

WHT

:S-MICRO

6P

WHT

:S-MICRO

5P

WHT-L

:S-MICRO

9P YEL

:S-MICRO

3P

10P

B-TO-B

10P

B-TO-B

8P 8P

12

3

4

5

6

7

8

9

10

1112131415

FV1

FV2

A

FBT

CONNECTOR PANEL

TO ECS

DGC AC INLET

HV

AC L OUT

NC

AC L IN

POWER SW

JG

D

C BLOCK

FV1

FV2

G2 GND

(CRT SHIELD)

L

AC L OUT

NC

AC L IN

NC

AC L

AC N

DGCNCNC

DGC

GND

POWER SW

DGUS SW

HEATER SW

STBY+8V

GND

+15V

HEATER+

+80V

STBY+8V

NC

GND

-15V

+15V

H CENT H H CENT N H CENT L

+80V

NC

+200V +200V

LED0

LED1

STBY+5V

D GND

C.SYNC_1

V.SYNC_1

C.SYNC_2

V.SYNC_2

GND

RXD

TXD

CLP

C.BLK

GREEN

GND

INPUT_SW

GND

VIDEO

HFLB

VRET

STBY+5V

KEY_DET

DGC

POWER

STBY 8V

GND

HTR_SW

DDC_SDA_2

HOST+5V_2

DDC_SCL_2

DDC_SDA_1

HOST+5V_1

DDC_SCL_1

ASC_SW

MOSI

CLK

DAC_SEL

OSD_SEL

CONT VR

BRT VR

IK DET

HV ADJ

X RAY DET

HCENT H HCENT N HCENT L

+80V

GND

+15V

GND

-15V

GND

1ST IK PROT

NC

+200V +200V

H.DY H

H.DY C H.DY C

NC

V.DY H

V.DY C

GND

1KV

NC

+15V

GND

-15V

GND

LCC_RB

LCC_RT

LCC_LB

LCC_LT

LCC_NS

GND

H CONV

V CONV

VX

VY

LCC-LT(+) LCC-LT(-) LCC-LB(+) LCC-LB(-) LCC-RT(+) LCC-RT(-) LCC-RB(+) LCC-RB(-) LCC-NS(+) LCC-NS(-)

LCC-RB

LCC-RT

LCC-LB

LCC-LT

LCC-NS

+15V

GND

-15V

GND

KB

GND

KG

GND

KR

GND

HEATER +

GND

R IN 2 R GND 2 G IN 2 G GND 2

B IN 2 B GND 2

NC

R IN 1 R GND 1 G IN 1 G GND 1 B IN 1 B GND 1

CLP

C.BLK

GREEN

GND

INPUT SW

GND

VIDEO

HFBP VRET

OSD_SEL

CLK

DAC_SEL

MOSI

ASC_SW

+80V

GND

+15V

1KV

GND

STBY+8V

NC

LED0

LED1

KEY_DET

D GND

STBY+5V

GND

H CONV

V CONV

VX

VY

GND

D GND

ANV_DRI

GND

NC

FASTEN

ROTATION+ ROTATION-

D GND

V STAT+

V STAT-

H STAT+ H STAT-

ROTATION+ ROTATION-

NC

HEATER+

NC

+200V

H

LED2

LED3

TEMP_DRI

GND

KB GND KG GND KR GND

HEATER +

GND

LOWB_DET

CONV(+)

CONV(-)

CONV(+)

CONV(-)

GND

DRIVE

I SENCE

VCC

V SENCE

AC SENCE

OVP LVP

GND

L SENCE

GND

DRIVE

I SENCE

VCC

V SENCE

AC SENCE

OVP LVP

GND

L SENCE

GA

(POWER SENSOR)

DSUB HD 15

13W3 CONNECTOR

VIDEO AMP, RGB OUT

(POWER SUPPLY)

(POWER SW)

B-SS9067<NH.>-KESSENZU

DEFLECTION

µ-COM,

V.STAT,H.STAT,

MAGNETIC SENSOR

LCC

GEO,

(USER CONTROL)

D

A

G

H

J

GA

L

5-10

5-11 5-12

• D BOARD SEMICONDUCTOR LOCATION

Component

()

Side

Q660 D–2 2 Q661 D–2 2 Q701 D–1 D–4 – Q703 C–1 C–4 – Q704 C–1 C–4 – Q705 C–1 C–4 – Q706 D–1 D–4 – Q707 D–3 2 Q708 C–1 C–3 – Q901 C–2 1 Q902 A–3 2 Q904 C–2 1 Q905 C–3 2 Q908 D–2 D–3 – Q909 C–2 C–3 – Q911 D–3 2

DIODE

*

D004 E–2 7 D007 E–2 3 D008 E–2 3 D009 E–2 3 D010 E–2 3 D012 E–2 7 D013 E–2 7 D014 E–2 7 D015 E–2 7 D016 E–2 7 D019 E–1 6 D020 E–4 7 D025 D–4 3 D026 E–2 6 D027 E–2 6 D028 E–2 6 D029 E–2 6 D032 D–2 3 D033 E–2 3 D034 E–2 8 D035 D–3 8 D050 E–1 3 D501 B–4 3 D502 B–4 B–1 – D503 D–4 3 D504 D–4 D–1 – D505 C–3 C–1 – D506 B–3 B–2 – D507 B–3 B–2 – D508 B–3 B–2 – D509 D–4 D–1 – D510 C–3 C–2 –

Component

()

Side

Conductor

()

Side

Component

()

Side

Conductor

()

Side

Component

()

Side

Conductor

()

Side

D

µ-COM, DEFLECTION

— D BOARD (Component Side) —

1234

A

B

C

D

E

*

:Refer to Terminal name of semiconductors in silk screen printed circuit (see page 5-9)

IC

IC001 E–2 IC002 E–3 IC003 D–2 D–3 IC004 E–2 IC005 D–3 IC006 E–1 E–4 IC007 D–3 IC008 D–1 D–3 IC009 D–2 IC010 E–4 IC011 E–1 E–4 IC012 E–2 IC013 E–3 IC502 A–4 A–1 IC505 D–3 IC701 D–1 D–4 IC702 E–4 E–1 IC703 E–3 IC901 A–2

TRANSISTOR

*

Q001 D–4 2 Q003 D–1 1 Q004 D–4 2 Q005 E–1 1 Q006 D–3 1 Q007 D–4 2 Q501 A–3 1 Q502 B–3 1 Q503 A–3 1 Q504 D–4 1 Q505 D–4 1 Q506 D–4 D–1 – Q507 A–4 A–1 – Q508 C–4 C–1 – Q509 D–3 1 Q510 C–3 1 Q511 A–3 A–2 – Q512 D–2 2 Q517 D–4 1 Q522 D–2 D–3 – Q523 D–2 D–2 – Q524 D–3 D–2 – Q525 D–3 D–2 – Q526 D–3 D–2 – Q527 C–3 C–2 – Q528 C–3 C–2 –

Conductor

()

Side

NOTE:

The circuit indicated as left contains high voltage of over 600 Vp-p. Care must be paid to prevent an electric shock in inspection or repairing.

D511 B–3 B–2 – D512 C–4 C–1 – D513 E–1 3 D514 A–4 A–1 – D516 D–2 3 D517 D–2 3 D518 A–3 3 D519 B–4 B–1 – D521 B–3 3 D530 B–3 B–2 – D531 B–3 B–2 – D660 D–2 3 D701 D–4 3 D704 D–5 3 D705 D–1 3 D706 E–4 3 D709 E–4 E–1 – D713 C–1 C–4 – D714 C–1 C–4 – D715 C–1 C–4 – D718 D–4 3 D720 C–2 C–3 – D721 D–1 D–4 – D901 C–3 3 D902 A–2 3 D903 A–2 A–2 – D904 A–2 3 D905 A–2 3 D906 A–2 3 D907 A–2 3 D908 A–2 3 D909 C–2 3 D910 B–2 B–3 – D911 C–3 3 D913 A–3 3 D915 A–2 A–2 – D916 B–2 B–3 – D917 A–2 A–3 – D919 A–2 A–2 – D921 E–3 3 D922 A–2 3 D923 A–2 3 D924 E–2 3 D935 B–2 3 D1501 D–3 3 D1502 D–2 3 D1503 D–2 3

CRYSTAL

X001 D–3 D–2

5-13 5-14

5-15

5-16

Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V]

• D BOARD VOLTAGE LIST

11 0 12 11.2 15 0 16 8.4 19 9.2

Q003 B 5.1

C0 E 5.7

Q005 B 2.5

C0 E 3.1

Q501 B 11.2

C 13.8 E 10.8

Q502 B 0.2

C 11.2

Q503 B 11.2

E 10.9

Q504 B 2.5

C 12.0 E 2.5

Q505 B 2.5

E 2.4

Q506 B –14.0

C –0.2 E –14.0

Q507 G 197.4

D 41.8

Q508 B –1.4

C 41.0

Q509 B 0

C 14.1

Q510 B 4.5

E 3.9

Q511 B 3.2

C 33.5 E 2.6

Q517 B 4.6

E 5.1

Q522 G 0

D 15.2

Q523 G 4.7

D0

Q524 G 4.7

D0

Q525 G 4.7

D0

Q527 G 4.7

D0

Q528 G 4.7

D0

Q660 B 4.2

C0 E 4.2

Q661 B 0

C 4.2

Q701 B 5.7

C 36.0 E 5.1

Q703 B 37.9

E 37.4

Q704 B 37.4

E 37.0

Q705 B 36.0

E 36.6

Q706 B 36.6

E 37.0

Q707 B –0.6

C –5.0 E0

Q708 B 0.6

C 477.0

Q901 B 0.1

C 9.9

Q902 B 9.0

C0 E 9.0

Q904 B 8.6

C 13.0 E 8.4

Q905 B 8.6

E 8.4

Q908 G 196.6

D 40.1

Q909 G 8.4

D 40.4

• D BOARD IC701 LA6510

CURRENT

CONTROLLED

CIRCUIT

CURRENT

CONTROLLED

CIRCUIT

VEE-VIN1 -VIN2

+VIN1

VOUT1

VSENCE1

+VIN2

VOUT2

VSENCE2

6

10

VCC

4

2

1

3 5 7

8

9

IC002 5 1.1

6 4.2 70

IC004 5 4.8

6 4.8

IC005 1 0.4

30 7 1.5 8 4.8

IC009 1 –0.1

2 4.7 3 4.5 5 0.3 6 0.3 7 4.5

IC010 1 4.0

3 3.0 4 2.8 5 2.3 6 2.6 7 0.6 9 4.8 10 4.8 12 5.4 14 4.5 15 4.5 16 5.4 17 1.0 18 0 19 5.1 20 3.7 23 0.8 24 2.5 25 –0.1 26 4.0 27 4.0 28 4.4

IC012 5 0.6

6 3.9 7 4.1

IC013 1 0

2 4.9 8 0.6 9 3.6 10 4.9 11 0 13 5.7

IC014 1 3.5

3 3.5 5 2.7 90 10 0.1 12 4.9 13 4.9 14 3.2 15 3.9

IC015 1 0.5

2 4.2 3 0.5 4 0.5 50 60 80 90 13 0

IC502 1 41.4

2 41.4 3 33.7 4 42.3 5 48.3

IC505 1 4.5

20 30 50 60 7 –10.0

IC701 1 14.2

2 14.2 30 4 3.6 6 3.0 7 3.0 8 –0.7 9 –0.7

IC702 2 0.4

3 13.5 4 1.2 5 1.2 7 –13.0

IC703 1 1.2

2 1.6 3 1.6 5 2.8 6 2.8 7 2.8

IC901 1 9.3

2 5.6 4 5.0 6 1.1 7 0.9 8 9.3 10 0

1

2

3

4

5

6

7

STBY+5V

+9V

-15V

+9V

+15V

+9V

STBY+8V

+5V

+9V

+5V

-15V

+15V

+9V

-15V

+9V

+15V

1000V

+15V

+200V

+15V

+80V

+9V

HV

1

2

4

6

5

7

14

15

13

16

FV2

17

18

FV1

9

8

11

12

3

10

IO

G

1234567

1 2 3 4

5678

1 2 3 4

1 2 3 4 5

678910

12345

1 2

1 5

2 3

4

2

4

5

6

8

10

1

245

6

10

1

9

1 8

4 5

3

2

1 2 3 4

5678

S

IO

G

1 2 3 4

5678

1 2 3 4

5678

123456789

10

11

1 2 3 4 5 6 7

IO

G

12345

6

1 2 3 4 5 6 7 8 9 10

IO

G

1 2 3 4

5678

1234

5 6 7 8

1 2 3 4

5678

1 2 3 4 5 6 7 8 9 10 11 12

13

14

15

16

17

18

19

20

21

22

23

24

252627282930313233343536

37 38 39 40 41 42 43 44 45 46 47 48

1 2

5 6

8

10 9

S

1234567891011121314

15 16 17 18 19 20 21 22 23 24 25 26 27 28

1 2 3 4 5

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

515253545556575859606162636465666768697071727374757677787980

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

100

2 3 4 5

7

9

10

11

12

1 2 3 4 5 6 7 8

9 10 11

12345

1 2 3 4 5 6 7 8

123456789

1 2 3 4 5 6 7

891011121314

1

2

1 2 3 4 5 6 7 8 9

SSSSSS

12345678910

11 12 13 14 15 16 17 18 19 20

S

1

R665

R667

R076

R077 R078

R040

C013

R031

R001 R012

R034

R036

C066

C059

R056

R058

C074

R059

C069

R063 R064

C092

C072

C093

C513

R546

R550

R520

R519

R517

R518

C514

C516

C540

C551

R522

R521

D506

D507

C559

R525

C523

C519

C522

C520

R528

R527R526

R577

L501 FB501

FB502

R566

L507

R501

R502

R505

C501 C503

D504

C507

C506

R508

C508

R509

R513

C510

C509

C561

C544

R511

R571

R532

R531

C529

C530 C532

C533

C534

R540

RY501

R542

L504

C531

R572

R574

R575

R576

R535 R536

R537

R538

R539

L505

L502

R529

C545

C547

R591

R923

FB901

R902

R904

R901

R922

R903

R924

C908

R981

R937

L902

D917

R916

C909 R915

C924

C923

C925

C906

D919

D509

R980

R934

R920

C945

R533

R534

R573

R530

C040

C067

R905

R906

R907

R918

C927

C666

C911

C914

C002

R090

PS502 PS503

D013 D014 D015 D016

R018 R017

C081

R917

C019

R072

R073

C016

R047

C026

R051

C039

R041

R043

R042

Q507

R900

C905

D916

R940

T902

R003

R075

D004

R038

R013

R053

R054

R565

R561

C701

C702

C705

C709

C711

C712

C713

C714

C715

C729

C735

D709

D713

D714

D715

D720

D721

L701

L702

PS701

R701

R702

R704

R705

R706

R707

R708

R709

R710

R715

R720

R722

R724

R725

R726

R727

R731

R732

R734

R737

R738

R739

R751

SG701

SG702

PS501

PS901

R578

R023

R730

R742

X001

C011

R096

R580R581

R582

R584

R585

C555

C556

SG901

R733

R921

R506

R510

C913

C902

C046

R045

C029

C717

R564

C512

C515

C667

C076

C926

L901

C034

C535

C706

C915

C928

C930

R006

R060

R071

C055

C054

R074

D508

R524

C746

R070

R776

R752

R748 R749

R784

C750

R750

R759

D718

R061

R594

R595

R728

R729

D909

R084 R085

R005

C061

R050

R1001

C052

C056

C050

C060

R057

C051

R545

R549

R547

R551

R081

R930

R929

R914

C903

R743

R083

C080C079

R721

R723

C707

C710

C065

D704

D901

D904

D050

R088

R089

D502

C063

R741

C070C020

R1011

C511

C541

C542

C505

R596

T503

R032

R046

R556

R048

D902

C910

R919

C068

R067

R069

C087

R068

R933

R1012

L503

D910

C098

C1003

R586 R587

R588

R589

C549 C550

R101

C095

C094

C023

R009

R910

R927

C931

D913

D915

T501

T504

T701

C525

C526

C922

D519

C035

D503

D511

D518

D705

C1501

R1504

R1503

R1502

R1501

D1503

C1502

C517

C563

R911

R925R926

D020

R590

TH501

R555

C014 C015

T502

C912

R908

R909

D903

R912

C919C921

D906

D905

D921

C025

C082

T901

CN502CN901

CN511

CN501

CN505

CN504

CN520 CN512 CN509

CN507

CN508

CN503

CN506

D1501

D1502

R008

R026

R027

R011

C010

L006

R1007

R1006

R1005

R1004

R1003

R1028

R002

R1013

R020

L004

R039

D026

D027 D028 D029

R007

C044

R052

R1017

C562

R562

IC005

C009

C017

D010

D009

R092 R094

IC009

C012C078

IC004

C008

IC001

D701

IC701

C502

D706

IC703

IC702

D512

Q508

Q517

Q510

C537

IC502

Q501

Q503

Q504

Q506

Q502

R504

Q512

Q523

Q524

Q522

Q511

Q908

Q901

Q905

D911

Q909

D907

D908

Q902

R913

Q509

L002L001

Q708

Q707

Q706

Q705

Q701

Q703

Q704

PS504

L003

IC006

D660

Q660

Q661

L008

IC008

IC003

C057

C042

L007

C038

C036

D513

IC010

IC505

C084

R037

C031

C030

C027

C028

Q003

IC013

IC007

D501

R503

R507

C043

D505

Q001

R004

D924

R1513

R044

C920

R554

C022

C041

R1015

C045

C047

C048

C049

Q005

R1016

C099

R663

R664

R669

IC011

R779

C747

R778

C751

R548

R516

R515

R583

C539

R541

C538

C504

Q505

R514

R512

C553

R553

R552

Q525Q526Q528

Q527

R544

D510

C536

C907

C901

C929C917

C904

R755

R754

R753

R756

R558

R066

R065

JR003R1020 R1021

R082

C096

JR004

C1005

R928

C001

C097 C075 C005 C004 C007

JR001

JR002

R035 R049

R097

R080

R1026

R1025

D008

D032

C1006

C1007

D033

D007

R033

R030

R079

R1022

R1024R1023

C018

D030

IC012 IC002

R1027

D035

R028

C024

C006

C086

R024

R010

Q006

D034

C1004

R029

D012

R1014

R719

R777

D019

R703

C518

D514

C557

R557

C554

C524

Q904

C916

D935

L903

IC901

C085

C021

R543

C032

R563

R579

C037

D517

TH502

C564

C527

D516

C528

D521

C077

Q007

Q004

R055

C003

D923

D922

CN550

C1009

C1008

C1503

R1514

R568

R567

D520

D530

C521

R523

C058

C062

Q911

R941

D025

R1009

HCC

FBT

FMQG5GS

HOC

0.001

B:CHIP

22p CH:CHIP

47

1000

25V :HT

1000 25V :HT

0.001 B:CHIP

47

0.01 B:CHIP

0.001 B:CHIP

0.022 :PT

1

0.01

B:CHIP

120p

CH:CHIP

10

4.7

0.1 25V

B:CHIP

0.047 25V B:CHIP

1.0

0.047 25V B:CHIP

4.7

0.047 25V B:CHIP

0.01

B:CHIP

10

0.01 B:CHIP

0.1 :PT

22

0.01

B:CHIP

47p

CH:CHIP

10

0.01

B:CHIP

0.01

B:CHIP

1

1000p B:CHIP

0.047 25V B:CHIP

47 47

0.01

B:CHIP

0.1 25V

B:CHIP

0.01

B:CHIP

10

0.01 B:CHIP

0.01

B:CHIP

47 0.22

:MPS

100p

CH:CHIP

0.22 :MPS

0.47 :MPS

0.022 B:CHIP

470 25V

0.0047 :PT

33 250V :HR

220 25V :HT

0.0047 B:CHIP

0.01

B:CHIP

220 25V :HT

0.1 :PT

4700p 2kV

B

100p

2kV

B

0.0015 630V

:PP

100p 2kV

:B

0.01 :PT

0.1

250V

:PP

0.22 250V :PP

2.2 250V

:HR:HT

0.01

B:CHIP

0.01 B:CHIP

0.01

B:CHIP

0.01

B:CHIP

0.01

B:CHIP

0.01 B:CHIP

0.001 200V :PT

47p

CH:CHIP

47p

CH:CHIP

0.0047 :PT

47

0.01 B:CHIP

0.01

B:CHIP

0.001 B:CHIP

0.022 B:CHIP

0.001

B:CHIP

470p

2kV :B

0.47 :MPS

1000p

2kV

0.01 B:CHIP

47

0.1 :PT

1000 25V

0.01 B:CHIP

0.1 :PT

0.0068 B:CHIP

220 35V :HT

0.22 100V :PT

1000 25V

47

47 100V

22 100V

470p 2kV

B

0.1 :PT

0.001 B:CHIP

10

0.047 25V

B:CHIP

220p

CH:CHIP

220 16V

0.1 100V :PT

0.22 :MPS

0.0033 200V :PT

0.01

B:CHIP

1000p

CH:CHIP

1000p CH:CHIP

0.1 25V

B:CHIP

1000p

CH:CHIP

0.01

B:CHIP

0.33 200V

:PT

0.1

100V

:PT

0.022 :PT

0.22 100V

:PT

2.2

0.01 B:CHIP

0.01

B:CHIP

0.01 B:CHIP

47

0.01

B:CHIP

0.01

B:CHIP

2200

10V

MA153MA153MA153MA153 MA153

MA153

MA111

YG911S3R

MA111

SB560

1SS119

RD5.1ESB2

1SS119

MA111

RGP15G

1SS119

UDZ-5.1B

RGP02-17

MA111

UDZ-13B

YG911S3R

UDZ-12B

RD5.1ESB2

1SS120TD

RD16ES

1SS119

MA111

1.1UH

100µH

1mH

:HLC

4.7mH

100µ

5.6µH

100µH

15µH

1.6A

2.0A 2.0A

1.0A

1.6A

2SJ449(2)

100 :CHIP

1k :CHIP

10k :CHIP

1k :CHIP

100

:CHIP

100 :CHIP

10k :RN-CP

1k :CHIP

100 :CHIP

10k

:CHIP

10k

:RN-CP

100 :CHIP 100 :CHIP

4.7k :CHIP

1k :CHIP

4.7k

:CHIP

47k :CHIP

4.7k

:CHIP

10k

:CHIP

10k

:RN-CP

10k :CHIP

1k

:CHIP

100 :CHIP

15k

:RN-CP

10k

:RN-CP

10k

:RN-CP

6.8k :RN-CP

15k

:RN-CP

3.3k

:RN-CP

4.7k :CHIP

1k :CHIP

4.7k

100 :CHIP 100 :CHIP

100

:CHIP

100 :CHIP

47

:CHIP

10k :RN-CP

1k :CHIP

1k :RN-CP

0 :CHIP

10k :RN-CP

1k :CHIP 1k :CHIP

10k :RN-CP

2.2k :CHIP

100 :CHIP 100 :CHIP

2.2k :CHIP

0 :CHIP

1k :CHIP

4.7k

:CHIP

2.2k :CHIP

470 :CHIP

22

:FPRD

100

:CHIP

2.2k :CHIP

4.7k :CHIP

2.2 10W :RN

33 1W :RS

4.7k :CHIP

100k

:CHIP

2.2 3W :RS

2.2 3W

:RS

470

:FPRD

27 1W :RS

1k 1W

:RS

18k :RN-CP

100 1/2W :RN

100

1/2W

:RN

56 1/2W

:FPRD

47k

1k

:CHIP1k:CHIP

1k

:CHIP

1k

:CHIP

1k

:CHIP

10k

:CHIP

100 1W :RS

22k

:RN-CP

0.47 1/2W :FPRD

3.3k :RN-CP

10k

:RN-CP

0.47 1/2W :FPRD

2.2k :RN-CP

4.7k

:CHIP

9.1k

:RN-CP

22k

:RN-CP

82k

:RN-CP

6.8k :RN-CP

39

1/2W

:FPRD

0.22 3W :RS

100k

:CHIP

100k

:CHIP

100k :CHIP

2.2k :CHIP

100 :CHIP

10k :CHIP

10k

:CHIP

22k

:CHIP

22k

:CHIP

1k

:CHIP1k:CHIP

100k :CHIP

10k :RN-CP

10k

:RN-CP

47k

22k

:RN-CP

1k

:CHIP

470 :CHIP

1.5 :FPRD

2.2k

:CHIP

1.5 :FPRD

2.2

68k :CHIP

2.2k

10k

:CHIP

56 3W :RS

10k

:CHIP

15k

:CHIP

1 1/2W :FPRD

4.7k

:RN-CP

47k

:RN-CP

3.3k

:RN-CP

1.8 1/2W :RN

1.8

1/2W

:RN

10k

:RN-CP

1 1/2W :FPRD

1.0 :FPRD

220 1W :RS

1k 1/2W :SURGE

10k

:CHIP

10k :CHIP

1k 1/2W :SURGE

15 2W

:RS

0.47 :FPRD

470

:FPRD

12k

1.5k

1k

:CHIP

22k

:RN-CP

100

:CHIP

2.2k :CHIP

4.7k :CHIP

27k

:CHIP

120k

:RN-CP

1k

:CHIP

5.6k :CHIP

6.8 3W :RS

2.2k :CHIP

4.7k :CHIP

10k

:CHIP

2.2k :CHIP

100

:CHIP

4.7k :CHIP

100

:CHIP

56k

:CHIP

39k

:CHIP

10k :CHIP

1k

:CHIP

470k 1/2W

:SURGE

47k

10k

10k :CHIP

100k

:CHIP

100

:CHIP

47

:FPRD

5.1k

:RN-CP

470

:CHIP

10k

:CHIP

22

:FPRD

1.2k :RN-CP

1.2k

:RN-CP

10k

:CHIP

220

:CHIP 220 :CHIP

22k

:RN-CP

4.7k

:RN-CP

68

10W

10

:FPRD

1k

:CHIP

100

:CHIP

10k :CHIP

1k

:CHIP

2.2k :CHIP

10k :CHIP

1.5M :CHIP

100k :CHIP

HDT

:HST

DFT

4MHz

0.0047 :PT

100V

1SS119

0.01 B:CHIP

47p

CH:CHIP

MA111

680k

:RN-CP

MA111

1

10

:HRC

11P WHT

:S-MICRO

5P WHT

:S-MICRO

11P WHT

9P YEL

4P WHT

5P WHT

6P WHT

:S-MICRO

9P WHT

:S-MICRO

2P

WHT

:S-MICRO

2P WHT :VH

10P :VH

7P WHT

8P WHT

UDZ-TE-17-5.1B

MA111

47k :CHIP

10k :CHIP

100k :CHIP

22p

CH:CHIP

100µH

1k :CHIP

1k

:CHIP

100µH

1k :CHIP

MA153

MA153 MA153 MA153

100 :CHIP

47

10k :CHIP

4.7k :CHIP

0.01 B:CHIP

47

:FPRD

MM1170BFB

WDT

0.1 25V

B:CHIP

0.1 25V

B:CHIP

UDZ-TE-17-5.1B

2.2k :CHIP

2.2k

:CHIP

TC7W04FU(TE12R)

INV

0.1 25V

B:CHIP

0.1 25V

B:CHIP

24LC16BT/SN

EEP ROM

0.1 25V

B:CHIP

MB90553

CPU

UDZ-TE-17-5.6B

LA6510 CURRENT AMP

220p

CH:CHIP

UDZ-TE-17-5.1B

NJM4558M-TE2 BUFFER/AMP

LA7841L

V DY OUT

ERA34-10

2SC5047CA

H OUT

2SA1037K PIN AMP

2SC2412K

H CENT

1.2 250V :PP

LA6500-FA H CENT OUT

2SC2412K

PIN DRIVE

2SA1036K PIN DRIVE

2SC2412K H DRIVE

2SC3746 H DRIVE

2SC1623

PIN DRIVE

2.2k :CHIP

2SC2412K

TH DET

2SK2098

S-CAP CHANGE

2SK2098

S-CAP CHANGE

2SK2098

S-CAP CHANGE

2SC3209LK

H CENT

2SJ449(1) HV REG SW

2SC1623

AMP

2SA1036K HV DRIVE

UDZ-16B

2SK1120

HV OUT

UDZ-TE-17-12B

2SA1037K

SW

4.7k 1/2W :SURGE

DTC114GKA

RELAY DRIVE

100µH100µH

2SC4686A V DF OUT

2SA1037K V DF OUT

2SA1358 H DF OUT

2SA1049-GR

H DF OUT

2SC2362K H DF OUT

2SC2459-GR H DF OUT

2SC3421 H DF OUT

2.0A

100µH

TA7805S 5V REG

UDZ-TE-17-24B

DTA114GKA

SW

DTC114GKA

PROT DET

100µH

NJM78M09FA

9V REG

NJM78L09A-T3

9V REG

47

100µH

0.1 25V B:CHIP

0.1 25V

B:CHIP

MA111

CXA2044M

SYNC PROCESS

NJM4558M-TE2 PIN FB AMP

0.1 25V B:CHIP

3.3k :CHIP

0.01

B:CHIP

0.1 25V

B:CHIP

0.1 25V

B:CHIP

2200p CH:CHIP

2SA1037K

BUFFER

TC74HCT04AF(EL)

INV

CXA2043Q

DEFLECTION

PROCESS

UDZ-TE-17-13B PIN OUT

470

:CHIP

4.7k :CHIP

47

ERA34-10

DTA124EKA SOFT START

SW

1k :CHIP

UDZ-TE-17-5.1B

1k

82k

:CHIP

1000p

10k :RN-CP

100 16V

1

0

680p

CH:CHIP

220

0.0022 CH:CHIP

680p

CH:CHIP

2SA1037K

BUFFER

1k

:CHIP

0.1 25V

B:CHIP

360k

:RN

39k :RN

6.8k :RN-CP

µPC78L05J

1k

:CHIP

0.01 B:CHIP

4.7k :RN-CP

0.01 B:CHIP

8.2k

220

10k

:RN-CP

12k

:RN-CP

4.7 250V :HR:HT

68 1/2W :FPRD

0.24 400V :PP

0.01 250V :PT

2SA1036K

H DRIVE

1

1/2W

:FUSE

100

:CHIP

4.7

1.5k

:CHIP

2.2k

:CHIP

2SK2098

S-CAP CHANGE

2SK2098

S-CAP CHANGE

2SK2098

S-CAP CHANGE

2SK2098

S-CAP CHANGE

68

1/2W

ERA91-02

100 25V

33

400V

:HR

220 25V

100 25V

220 25V

0.01 250V

:PT

680k 1/2W

:SURGE

680k 1/2W

:SURGE

10M 1W

270k 1/2W

22k

:RN-CP

100 :CHIP

0

:CHIP1k:CHIP1k:CHIP

1k

:CHIP

0.01

B:CHIP

0

:CHIP

0.01

B:CHIP

4.7k :RN

0.01

B:CHIP

0.01

B:CHIP

0.01 B:CHIP

0.01

B:CHIP

0.01

B:CHIP

0 :CHIP

1k :CHIP1k:CHIP

2.2k

:CHIP

47

:CHIP

4.7 :FPRD

UDZ-TE-17-5.1B

0.01 B:CHIP

0.01

B:CHIP

UDZ-TE-17-5.1B

47 :CHIP

0 :CHIP

0

:CHIP0:CHIP

0.1 25V

B:CHIP

MA111

24LC21A ROM 24LC21A ROM

4.7k :CHIP

MA151WK-TX

4.7k :CHIP

0.01 B:CHIP

1

10

47k

:CHIP

22k :CHIP

2SC2412K 5V REG MA151WK-TX

0.01

B:CHIP

47k :CHIP

MA153

1k

:CHIP

1.5

:FPRD

18k

:RN-CP

MA153

33k

:CHIP

4700p

1.8kV :PP

RD6.2ESB2

0.033 B:CHIP

220k :RN-CP

0.022 25V

B:CHIP

0.056 250V :PP

2SC2411K HV DRIVE

2200p

1.2kV :PP

UDZ-TE-17-5.1B

100µH

BA9756FS-E2 HV CONTROL

0.1 25V B:PT

0.015 25V

B:CHIP

360 :CHIP

0.0068 B:CHIP

3k

:RN-CP

7.5k

:RN-CP

220 16V

UDZ-TE-17-6.2B

4.7

0.39 250V

:PP

UDZ-TE-17-6.2B

0.82 250V :PP

MA111

0.1 25V

2SC2412K

2SA1037K

47k

0.0068 B:CHIP

MA111

1P

1

0.01

220p

1k

:CHIP

1.5k

:CHIP

100

:CHIP

ERA34-10TP1

22p 500V :CH

2.2k

:FPRD

220 16V

0.1 :PT

DTC114GKA

10k :CHIP

UDZ-TE-17-5.1B

100k :CHIP

STBY 5V

STBY5V

DIGITAL GND

80V

-15V

15V

1000V

5V

9V-2

9V-1

+15V

-15V

15V

9V-1

200V

12

3

5 4

DGC

MOIRE

HTIM

HSOUT

SDA_D

SCL_D

INPUT_SEL_A

LED1

DMP_ID

LC_SDA_1

LED0

SCL_D

TXD

HPLL

ASC

+B_DET≠≠≠≠≠≠≠≠≠≠≠

TXD

VRET

S0 S1 S2 S3 S4 S5

HV_DET≠≠≠≠≠≠≠≠≠≠≠

ROTATION

HCENT

HSHAPEBAL

VDF

VDC

VSHAPE

ABL_DET

HVD

PINDRV

HD

S0

HV_PROT

ABL_DET

HV_DET≠≠≠≠≠≠≠≠≠≠≠

ROTATION

VSHAPE

VRET

HBLK

HSHAPEBAL

HCENT

S5

VDF

HDF

LED0

HFBP1

DMP_DO

MOIRE

DMP_ID DMP_DO DMP_DI

ASC

HFBP2

DMP_CLK

HTIM

OSD_SEL≠≠≠≠≠≠≠≠≠≠≠≠≠

DO_A

CLK_A

CS1 VS1 CS2 VS2

LED1

RXD

CLP

CBLK

S_ON_G

VIDEO

DAC_SEL

DGC

HTR_SW

POWER_SW

+B_DET≠≠≠≠≠≠≠≠≠≠≠

PROT_DET≠≠≠≠≠≠≠≠≠≠≠≠≠≠≠

PIN_FB

DAC_SEL

SDA_D

KEY_DET

HPLL

LC_SCL_1

HTRIG

INPUT_SEL_D

INPUT_SEL_A

PHASE_SW

PROT_DET≠≠≠≠≠≠≠≠≠≠≠≠≠≠≠

POWER_SW HTR_SW

HSIZEFB

PIN_FB

ASC_SW

HV_PROT HSIZEFB

HBLK

HD

HVD

HDF

PINDRV

HBLK2

INPUT_SEL_D S_ON_G HTRIG

HSOUT

VSOUT

CBLK CLP

HBLK2

CLK_A

DO_A

OSD_SEL≠≠≠≠≠≠≠≠≠≠≠≠≠

ASC_SW

KEY_DET

VCLK1

LCC_NS

LCC_RB

LCC_LB

LCC_RT

LCC_LT

RXD

DMP_DI

DMP_CLK

LCC_RB LCC_RT LCC_LB LCC_LT LCC_NS

BRT

CONT

BRT

V CONV

HFBP2

VS2

VS1

CS2

CS1

VIDEO

S1

S2

S3

S4

ANV_DRI

TH_DET

H_CONV

VY

VX

VY

VX

VSOUT

V CONV

ANV_DRI

TH_DET

LOWB_DET≠≠≠≠≠≠≠≠≠≠≠≠≠≠≠

HOST+5V_1

HOST+5V_2

LC_SCL_1

HOST+5V_1

HOST+5V_2

HOST+5V_1

VCLK1

CONT BRT

LC_SDA_1

HFBP1

VDC

A0A1A2

VSS

VCC

TEST

RESET

VS

RCT

VCC

TC

NC

CK

GND

LED0 LED1

GND

RXD TXD

CLP

C.BLK GREEN

GND

VIDEO

HFLB VRET

SLOPE

VCC1

IREF

AFC1

HFREQ

HSYNC

STBY+5

SDA

SCL

GND3

VCC2

HSAW

PWMREF

HPHASE

AFC2

DUTYDET

FBP

HDOUT

HVDOUT

GND1

GND2

VDFIN

DFOUT

SOFTSTR

PWMOUT

PWMFIL

PWMNF

IREF1

VCC1

VSPDM

VSHPR

VSHPC

VSHAPE

VSHPLVL

PEAKDET

VCC2

PWMOUT

TESTMODE

GND2

GND3

HTIM

FIK32

IREF2

VCC3

VIDEO

VIDEOOUT

CLKDIDO

ID

BKGPOUT

CLPW

MOIRE

TILT

HCENT

HSIZE

HSHAPE

HSHPBAL

VDF

VCONV

VDC

GND1

GNDP

CBLKOUT

CLPOUT

VCCP

HS/CS1

HS/CS2

VS1

VS2

INPUT_SEL

SONG

HSOUT

VSOUT

FBPIN

V.S1

OUT1-+

VEE +

-

OUT2

V.S2

VCC

+VIN

VEE

VCC

OUT

-VIN

H.DY H

H.DY C H.DY C

NC

V.DY H

V.DY C

GND

S

G

D

FV1

FV2

IK DET

HV ADJ

X RAY DET

DGC

POWER

GND

HCENT H

HCENT N

HCENT L

+80V

GND

+15V

GND

-15V

P31/RDX

VSS

P33/WRHX

P34/HRQ

P35/HAKX

P36/RDY

P37/CLK

P41/SOT0

P44/SOT1

VCC

MD1

MD0

VSS

AVSS

AVCC

RSTX

HSTX

MD2

VSS

X0

X1

VCC

P00/AD00

P01/AD01

P02/AD02

P03/AD03

P04/AD04

P05/AD05

P06/AD06

P07/AD07

P10/AD08

P11/AD09

P12/AD10

P13/AD11

P14/AD12

P15/AD13

P16/AD14

P17/AD15

VSS

LED0

LED1

DMP-ID

VCC

VSS

HPLL

KEY_DET

ABL_DET

AVSS

AVR-

AVR+

AVCC

INPUT_SEL

WDT

RESET

VSS

XTAL0

XTAL1

VCC

S0

S1

S2

S3

S4

S5

PHASE_SW

POWER

HEATER_SW

DGC

MD1

MD0

PROT_DET

HV_DET

NCNCNC

Vcc

SDA

SCL

Vclk

Vss

EEP_SCL

EEP_SDA

RXD

TXD

DMP_DO

1KV

GND

1ST IK PROT

NC

PIN_GAIN_SW

PA4/CKOT

PA3

PA2

PA1

PA0

P97/PPG5

P96/PPG4

P95/PPG3

P94/PPG2

P93/PPG1

P92/PPG0

P91/OUT1

P90/OUT0

P87/IN3

P86/IN2

P85/IN1

P84/IN0

P83/TOT1

P82/TOT0

P81/TIN1

P80/TIN0

P77/IRQ7

P76/IRQ6

P75/IRQ5

P74/IRQ4

P73/IRQ3

P72/IRQ2

LCC_NS

LCC_LB

LCC_RT

ASC

VRET

VS

HFBP

HSTX

MD2

P71/IRQ1

P70/IRQ0

P67/AN7

P66/AN6

P65/AN5

P64/AN4

P63/AN3

P62/AN2

P61/AN1

P60/AN0

AVRL

AVRH

P55/SCL2

P54/SDA2

P53/SCL1

P20/A16

P21/A17

P22/A18

P23/A19

P24/A20

P25/A21

P26/A22

P27/A23

P30/ALE

P32/WRLX

P46/ADTG

P47CP50/SDA0

P51/SCL0

P52/SDA1

C

HS

NC

MOSI

CLK

LCC_LT

LCC_RB

EEP_SDA

EEP_SCL

IIC_SDA

IIC_SCL

DDC_SDA_1

DDC_SCL_2

DDC_SCL_1

DDC_SDA_2

DAC_SEL

OSD_SEL

ASC_SW

P45/SIN1

P43/SCK1

P42/SIN0

P40/SCK0

DMP_DI

DMP_CLK

+15V

GND

-15V

GND

LCC_RB

LCC_RT

LCC_LB

LCC_LT

LCC_NS

GND

H CONV

V CONV

VX

VY

+200V

GND

NC

H_CONV

VX

VY

ROTATION+

ROTATION-

VCC4

D

µ-COM, DEFLECTION

TO G BOARD

CN671

V.DY

H.DY

TO A BOARD CN406

5

6

ROTATION+ ROTATION-

TO L BOARD

CN5002

TO A BOARD SK401

HV

TO PICTURE TUBE

TO L BOARD

CN5001

LED2

LED3

DDC5V_DET_1

DDC5V_DET_2

NCNCNC

Vcc

SDA

SCL

Vclk

Vss

GND

START PROT

B-SS9067<NH.>-D..

• D BOARD WAVEFORMS

5.0 Vp-p (4MHz)

1

4.3 Vp-p (H)

2

2.0 Vp-p (H)3600 Vp-p (H)

4

120 Vp-p (H)550.0 Vp-p (V)62.0 Vp-p (V)

7

5-17 5-18

5-19

5-20

• GA BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC7501 1 2.6

2 2.5 3 1.7 4 0.2 50 7 8.6

Q7501 B 14.0

C0 E 14.0

Q7502 B 0.7

C 0.1

Q7503 B 0

C 14.0

Q7504 B 13.4

Schematic diagrams

GG

G

(ga)(ga)

(ga)

HH

H

JLJL

JL

boards l

• G BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

IC630 3 2.5

4 11.6

IC660 IN 6.1

OUT 410.0

IC690 2 5.0

3 6.7 4 5.3

PH660 1 4.5

2 3.3 3 6.1 4 16.7

PH680 1 1.3

2 0.1 30 4 0.1

Q610 G 8.7

D 102.4 S 0.2

Q615 B 13.6

C 14.2 E 14.3

Q640 B1 –2.0

C1 199.2 B2 196.8 C2 408.0 E2 199.2

Q641 B 1.1

C –2.0 E 2.0

Q642 B –1.8

C –2.0

Q660 B 0.9

C 0.3

Q680 B 0.8

C0

Q681 B 0.3

C 11.7

Q682 B 11.7

E 11.7

Q683 B 7.5

C 8.3

Q690 B 0

C 15.0

Q691 B 8.6

C 5.3 E 6.7

• L BOARD IC5101, 5301, 5401 LA6510

• L BOARD VOLTAGE LIST

Ref. Pin No. Voltage [V]

GS5001 5 2.8

6 2.8

IC5101 1 1.0

2 1.0 3 1.2 4 1.2 6 1.2 7 1.2 8 –0.2 9 –0.2

IC5201 1 1.2

2 1.2 4 1.1

IC5301 1 –0.2

2 –0.2 3 1.2 4 1.2 6 1.2 7 1.2 8 0.4 9 0.4

IC5401 1 0.6

2 0.6 3 3.4 4 3.4 6 1.8 7 1.8 8 0.4 9 0.4

CURRENT

CONTROLLED

CIRCUIT

CURRENT

CONTROLLED

CIRCUIT

VEE-VIN1 -VIN2

+VIN1

VOUT1

VSENCE1

+VIN2

VOUT2

VSENCE2

6

10

VCC

4

2

1

3 5 7

8

9

1 2 3 4 5 6 7 8 9

10

D7502

R7509

R7510

R7511

Q7503

Q7502

CN7501

R7507

R7512

1SS119

10k :CHIP

10k

:CHIP

SW

2SC2412K

SW

2SC2412K

SW

10P

B-TO-B

47k :CHIP

47k

:CHIP

GND

DRIVE

GND

I SENSE

VCC

V SENCE

AC SENSE

OVP

L SENCE

LVP

TO G BOARD CN610

B-SS9017<U/C>-GA.

+15V

STBY+8V

+15V

+80V

+200V

+15V

-15V

12345

1 8

523

4

6

12345

3

2

415

6

7

8

9

10

11

12

8 9

1 2 3 4 5 6 7 8 9 10 11

1

234

5

IO

G

1

2

3

4

6

7

5

124

3

1 2 3 4 5 6 7 8 9

1

2

3

124

3

12345678910

R652

R673

C675

C676

PS670

PS671

PS673

PS674

D611

CN673

FB610

FB611

C690

C691

C680

C674

C678

C673

C683

C616

C677

C679

C682

R631

R640

R641

R642

R643

R649

R650

R674

R675

D677

D678

L670

L671

L672

L673

L691

VDR640

C661

FB612

C640

C641

C644

C681

R633

R627

C684

C693

R626

R647

CN672

CN671

R629

D671

PH680

R628

D682 D683

C685

R625

C671

C672

C647

C642

C643

C646

C645

R619

R620

R621

C611

T641

D662

R664

C697

PH660

R611

D612

R646

R671

R672

R680

R681

R682

R683

R685R688

R689

R693

D684

R668

D617

D640

D680D681

T660

Q690

R694

IC660

D660

Q615

Q642

Q641

R655R644

R645

T640

IC630

C670

D670

D672

D674

D673

Q682 Q681

Q683

Q680

D693

R696

R699

R691

R698

R697

Q691

IC690

IC691

R632

R635

R610

R669

C695

R666

R665

R687 R686

R695

R676

Q640

R648

R651

C692

R667

R661

D661

C660

D691

D666

RM11A

AG01AV0

330 450V

220 250V

RD22ESB2

47 25V

470p 500V :HR

470p 500V

:HR

0.33 :MPS

470p 500V

:HR

0.15 :MPS

0.027 630V

:PP

100 10V

3.3 250V

330 100V

4.7 100V

2200 25V

47 25V

2200 25V

47 25V

2200 10V

4.7

2200p

500V

0.01 :PT

47

25V

47 25V

0.1 :PT

0.1 :MPS

11P WHT

:S-MICRO

9P WHT

:S-MICRO

5P WHT

:S-MICRO

D5L60

MA111

D1NL20-TR

1SS119

MA111MA111

D1NL20 1SS119

0.45UH

22µH

PC123FY2

2.0A

0.33 3W

:RS

470k

:RN

470k

:RN

330k

:RN

4.7

10k

270k :RN

330k :RN

47k :RN

100

330k

:RN

0.1 1/2W :RF

100k 1W :RS

22k

10k :CHIP

100k

1W

:RS

100k

1W :RS

2.2

1/2W

:RF

22

47

470k

:CHIP

1k

:CHIP

470

:FPRD

0.47 :FPRD

1

1/2W

:FPRD

10k

:CHIP

1k

:CHIP

4.7k :CHIP

100

:CHIP

10k :CHIP

10k

:CHIP

10k :CHIP

68

4.7k :CHIP

PRT

SRT

2SC3311A

RELAY DRIVE

10k

:CHIP

TOP223Y REG SW

P6KE200AG23

2SA1037AK VCC SW

2SC3311A

REG SW

2SA1309A

REG SW

10k

:CHIP

220k :CHIP

22k :CHIP

PIT

DM-60

+200V REG

0.01 :PT

D4SBL40 +200V REG

D4SBS4

+15V REG

D2S4MTA1 REG(-)

D2S4MTA1 REG(+)

2SA1309A POWER SW

2SC2458 POWER SW

2SA1309A PROTECT

2SC2412K

PROTECT

MA111

180

:RN-CHIP

22k :CHIP

10k

:CHIP

10k

:CHIP

820

:RN-CHIP

2SA1037AK HEATER SW

SI-3050F

HEATER REG

µPC1093J-T

REG

10k

:CHIP

10k

:CHIP

0.33 3W :RS

2.2k

330p 500V

6.8k :RN

220 :CHIP

1k

:CHIP1k:CHIP

0.47

:FPRD

470

MX0841AB-F

REG OUT START-UP

2.2 1W :RS

1200

10V

3.3k :RN

3.3

:FPRD

UF4005PKG23

120 25V

D5LC20U

UDZ-TE-17-6.2B

15V

GND

-15V

+15V

HEATER+

H CENT H H CENT N H CENT L

+80V

GND

POWER SW

DGUS SW

HEATER SW

STBY+8V

NC

+200V +200V

+200V

NC

TO D BOARD

CN504

(POWER SUPPLY)

G

TO D BOARD CN502

TO A BOARD CN405

B-SS3414<U/C>-G..

STBY+5V

1 2 3 4 5 6 7 8 9 10 11

G

R

R819

TH801

CN801

R818

R810

R809 R808 R807 R806 R805 R804 R803 R802 R801

C805

C811

R814

S806 S805 S804 S803 S802

Q801

S818S820

Q802

D820

R815

R827 R826

11P

:S-MICRO L

3.3k :RN

330 :RN

470 :RN

680 :RN1k:RN1k:RN

2.2k :RN

3.3k :RN

10k :RN

100k

47

16V

47 16V

10k

2SC3311A LED DRIVE

SPR-325MVW

10k

150 180

LED0 LED1

KEY_DET

D GND

STBY+5V

BRT- CONT+

POWER

RESET CONT-BRT+INPUT

GND

ASC MENU

TEMP_DRI

GND

LED2 LED3

H

(USER CONTROL)

TO PICTURE TUBE

SHIELD

TO D BOARD

CN501

B-SS9057<AEP>-H..

+15V

-15V

1 2 3 4 5

678910

1 2 3 4 5 6 7 8 9

10

1 2 3 4 5

678910

1 2 3 4 5 6 7 8 9

1 2 3 4 5

678910

1 2 3 4 5 6

2 3 4 5 6 7

891011121314

1 2 3 4 5

1 2 3 4

C5305

R5310 R5312

D5301

D5303

C5310

R5320

C5307

C5311

R5101

R5102

C5111

R5116

R5112

R5120

D5103

D5101

C5110

C5204

R5202

R5201

R5203

R5205

R5207

R5316

C5202

C5201

C5405

R5412

C5410

R5420

D5401

R5001

C5003

C5005

R5006

R5311

R5317

R5108

R5117

R5411

R5408

R5417

R5414

R5421

R5314

R5321

R5114

R5121

R5204

R5501

R5503

R5422

R5410

R5406

R5416

R5419C5408

R5407

R5423

R5007

R5015

R5003

R5008 R5009

C5008

D5002

R5409

R5415

R5401

R5013

R5012

C5004

R5206

R5315

R5322

R5115

R5122

R5313

R5319

R5113

R5119

GS5001

CN5001

CN5002

CN5004

CN5003

C5107

C5105

R5110

R5011

R5302

R5301

C5009

IC5201

D5201

C5203

C5206

C5401

C5406

C5404

R5413

C5407

IC5401

C5409

D5403

C5301

C5306

R5309 C5304

IC5301

C5309

R5308

C5308

C5303

C5101

C5106

R5111

R5109

C5104

IC5101

C5103C5108

C5109

R5402

C5403

R5504

R5505

R5208

C5205

C5501

D5501

R5502

R5506

C5002

R5010

R5005

C5412

GEOMAGNETIC

SENSOR

100 16V

47 25V

47

25V

0.1 :PT

47 25V

47

25V

0.1 :PT

47 25V

0.1 :PT

47

25V

0.1 :PT

47 25V

330p

B:CHIP

47 25V

MA151WK

MA153

1.5 :FPRD

0

:CHIP

10k

:CHIP

1k :CHIP

0

:CHIP0:CHIP

0

:CHIP

0 :CHIP

1k

:CHIP

1.5 :FPRD

1.5

:FPRD

4.7 :CHIP

1.5

:FPRD

10k :CHIP

100k :FPRD

22 2W :RS

10k

:CHIP

4.7 :CHIP

10k :CHIP

1.5

:FPRD

100k

:FPRD

22 2W :RS

1.5

:FPRD

1.5 :FPRD

100k

:FPRD

10k :CHIP

22 1W :RS

10k

:CHIP

10k :CHIP

4.7

:CHIP

1.5

:FPRD

10k :CHIP

100k

:FPRD

22 2W :RS

10k :CHIP

4.7

:CHIP

10k

:CHIP

1.5 :FPRD

100k :FPRD

22 2W

:RS

1.5

:FPRD

39k :CHIP

18k :CHIP

4.7

:CHIP

4.7

:CHIP

47k

:CHIP

4.7

:CHIP

1.5

:FPRD

100k

:FPRD

100 2W :RS

15k

:CHIP

4.7

:CHIP

47k :CHIP

1.5

:FPRD

100k :FPRD

68 2W

:RS

220k :CHIP

2.2k :CHIP

62k

:RN-CP

9P WHT

:S-MICRO

6P WHT

:S-MICRO

4P WHT

:S-MICRO

10P WHT

:S-MICRO

0.1 :PT

47

25V

10k

:CHIP

10k :CHIP

1.5 :FPRD

0.1 25V

B:CHIP

LA6500

AMP

MA153

0.1 25V B:CHIP

0.1 25V

B:CHIP

0.1 25V B:CHIP

0.1 25V

B:CHIP

100k

:CHIP

0.1 :PT

LA6510

AMP

0.1 25V B:CHIP

MA153

0.1 25V

B:CHIP

0.1 25V B:CHIP

4.7 :CHIP

0.1 25V

B:CHIP

LA6510

AMP

0.1 25V

B:CHIP

4.7 :CHIP

0.1 25V B:CHIP

0.1 25V

B:CHIP

0.1 25V B:CHIP

4.7 :CHIP

4.7

:CHIP

0.1 25V B:CHIP

LA6510

AMP

0.1 25V

B:CHIP

0.1 25V

B:CHIP

0.1 25V

B:CHIP

1.5

:FPRD

0.01

B:CHIP

68k :RN-CP

5.6k :CHIP

6.2k :RN-CP

0.22 16V

B:CHIP

220 10V

UDZ-4.7B

18k

:RN-CP

6.2k

:RN-CP

22

0

:CHIP

39k :CHIP

0.1 25V B:CHIP

V.S1

OUT1

-

+

VCC

V.S2

-

+

VO

VEE

OUT2

VT(+)

VT(-)

VEE

VCC

LCC-LT(+) LCC-LT(-) LCC-LB(+) LCC-LB(-) LCC-RT(+) LCC-RT(-) LCC-RB(+) LCC-RB(-) LCC-NS(+) LCC-NS(-)

V.S1

OUT1

-

+

VCC

V.S2

-

+VEE

OUT2

+15V GND

-15V

GND LCC-RB LCC-RT LCC-LB LCC-LT LCC-NS

H CONV V CONV

VX VY

GND

V.S1

OUT1

-

+

VCC

V.S2

-

+VEE

OUT2

TO D BOARD

CN512

GND

TO D BOARD

CN520

V STAT(+) V STAT(-) H STAT(+) H STAT(-)

NTC COILS

1 2 3 4

V STAT(+) V STAT(-) H STAT(+) H STAT(-)

LCC COILS

V.STAT,H.STAT,LCC GEO MAGNETIC SENSOR

L

B-SS9017<U/C>-L..

1 2 3

CN891

S891

3P WHT :VH

AC L OUT

NC

AC L IN

J

(POWER SW)

POWER

TO G BOARD

CN605

B-SS3414<U/C>-J..

5-21 5-22 5-23

Schematic diagram

AA

A board l

G

POWER SUPPLYHUSER CONTROL

(ga)

POWER SENSOR

L

V.STAT, H.STAT, LLC, GEO MAGNETIC SENSOR

— L BOARD (Conductor Side) — — L BOARD (Component Side) —

— GA BOARD —

GA BOARD Terminal name of semiconductors in silk screen printed circuit (*)

Ref.

Q7501–Q7504

*

1

*

:Refer to Terminal name of

semiconductors in silk screen printed circuit (see page 5-9)

G BOARD Terminal name of semiconductors in silk screen printed circuit (*)

Ref. Q615, Q680, Q691 D614, D617, D640,

D680, D681, D693

*

1

3

*

:Refer to Terminal name of

semiconductors in silk screen printed circuit (see page 5-9)

L BOARD Terminal name of semiconductors in silk screen printed circuit (*)

Ref. D5501 D5101, D5103,

D5201, D5301, D5303, D5401, D5403

D5002

*

3

6

8

*

:Refer to Terminal name of

semiconductors in silk screen printed circuit (see page 5-9)

HGFEDCBA

+5V

+5V +12V

+200V

+80V

+200V

1243 56

89

7

1 2 3 4 5 6

123456789101112131415161718

19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

1 2 3 4 5 6 7

1 2 3 4 5 6 7 8 9 10 11 12 13 14

1 2 3 4 5 6 7 8 9

1234567891011121314

15 16 17 18 19 20 21 22 23 24 25 26 27 28

1 2 3 4 5 6 7 8

H

KB

KG

KR

G1

G2

GM

G4

RCV

HV

IO

G

1 2

1234567891011121314151617181920212223242526

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

IO

G

12345678910

11 12 13 14 15 16 17 18 19 20

1 2 3 4 5 6 7

5

10

9

8

7

6

4

3

1

11

13

G1

H1

H2

KR

KG

KB

G2

GND

FC

FV

F

GND

R407

R409

R410

R411

C405

C407

C408

R110

R418

SG402

SG101SG201

R427

C429

C451 C452

R129

R229

R329

R131

R231

C461

C463

R464

C115

C215

C460

C471

FB101

FB201

FB301

R458

D105

D107

D206

D207

R333

R233

R133

R470

R367

R267

R167

R137

R130

R230

R237

R330

R337

R235

C108

C208

C308

C484

C221

CN406

R430

R425

R424

R422

C315

CN401

R478

R479

R428

D408

C454

C434

PS401

R120

R121

R220

R221

R320

R321

C127

C217

C317

R420

R442

R466

CN405

R213

R216

R113

R116

R331

R325

R326

R225

R226

R125

R126

C438

C436

C440

C455

C442

C444

C466 C467

R228

C487

C412

C230

C478

R339

R443

R444

R473

R475

D204

D104

R310

R316

R313

R108

R208

R308

R435

R436

L401

C311

C211

R419

C212

C482

C483

R408

SG301

C120

R124

R224

R324

C220

C320

CN403

R426

CN407

C431

R114

R115

R214

R215

R314

R315

R327

R132

R232

R332

C416

C485

C419

C479

C457

C301

C201

C101

C205

C305

C306

R406

CN402

R456

R457

C435

R451

C222

C322

SK401

R140

R240

R340

R109

R209

R309

R122

R123

R222

R223

D409

C447

C450

C409

R431

R429

R441

R432

R433

R446

R438

C448

Q403

Q402

Q401

R412

R434

C404

R439

D102

D202

C403

R328 C319

C321

C330

R139

C130

R335

C122

R210

C453R417

R421

R477

C121

R128

D402

D303

C111

D401

R413

C112

R127

R227

Q301

R202

R141

R204R241

C310R323

R322

R341 R302

R304

IC403

C210

C489

D306

D307

C415

CN2CN1

R463C481

R452 R453

R454

R462

D407

C421

D405 D406

IC406

IC408

C465

C468

C464

C469

R480

Q306

R336

R334

R234 R236

Q101

Q201

Q410

Q406

IC409(4/4)

C424

Q408

Q409

C420

IC409(3/4)

Q106

IC409(2/4)

C486

R471R134

R136

Q206

D106

R459

C402

C307

R103

R303

R203

C103 C104

C203 C204

C303 C304

C110

R102R104

IC409(1/4)

Q205

Q305

Q105

IC410

R101

R201

R301

D302

C401

C105

C410

C446

C459

C417

R461

L101

R117

R217

R416

Q404

D403

R423

Q405

IC404

D203

D103

R415

C106

R239

C206

Q202

R243

C107

C207

R317

R318

R218

C491

R118

C488

R135

C312

C458

D305 D304

D404

D205

C109

C209

FB403

FB405

FB406

C102

C202

C302

D101

D201

D301

C443

C445

D410

SG401

L402

IC402IC401

R105

R205

R305

R106

R206

R306

R311

L301

R112

R319

R211

L201

R212

R219

R119

R312

C309

R111R440

C414

0.01 B:CHIP

2.2

0.22 250V

2.2 200V

0.01 B:CHIP

0.01

B:CHIP

2.2

4700p B:CHIP

0.1 25V

B:CHIP

0.22 250V

0.01

B:CHIP

2.2 200V

0.01

B:CHIP

0.1 25V

B:CHIP

0.01

B:CHIP

0.01 B:CHIP

0.01

B:CHIP

0.01 B:CHIP

2.2

4700p B:CHIP

0.22 250V

0.01

B:CHIP

2.2 200V

0.1 25V

B:CHIP

10p CH:CHIP

10

0.01

B:CHIP

0.01 B:CHIP

47 25V

1000p

500V

10p

CH:CHIP

0.01 B:CHIP

0.001 500V

:B

0.01

B:CHIP

47p

CH:CHIP

47p

CH:CHIP

47p

CH:CHIP

47p

CH:CHIP

47p

CH:CHIP

10 0.01

B:CHIP

100 25V

47p

CH:CHIP

0.01

B:CHIP

1000p 500V

B

0.01 B:CHIP

10 0.01

B:CHIP

1000p 500V

B

4700p

2kV

F

470p

:CHIP

0.1

:CHIP

0.1

:CHIP

1000p

500V

B

10

250V

10

6P

WHT-L

:S-MICRO

7P

WHT-L

:S-MICRO

8P

WHT-L

:S-MICRO

9P

WHT-L

:S-MICRO

2P WHT :VH

7P

WHT-L

:S-MICRO

1SS376

MA111

0

:CHIP

0

:CHIP

0

:CHIP

100µH

1A

120k

:CHIP

270k

:CHIP

0

:CHIP

22

:CHIP

270

:CHIP

270

:CHIP

47

:CHIP

100k :CHIP

120

:CHIP

120

:CHIP

22 1/2W :SURGE

56k

:RN-CP

100k :CHIP

1M :RN-CP

100k :CHIP

2.2k

:CHIP

270

:CHIP

1k

:CHIP

100k :CHIP

2.2M

:CHIP

1M :CHIP

120k

:CHIP

270k

:CHIP

22

:CHIP

270

:CHIP

270

:CHIP

47

:CHIP

100k :CHIP

120

:CHIP

120

:CHIP

22 1/2W :SURGE

56k

:RN-CP

100k :CHIP

1M

:CHIP

1M :RN-CP

100k :CHIP

2.2k

:CHIP

270

:CHIP

1k

:CHIP

330

:CHIP

100k :CHIP

2.2M

:CHIP

1M :CHIP

120k :CHIP

270k

:CHIP

0

:CHIP

22

:CHIP

270

:CHIP

270

:CHIP

47

:CHIP

100k :CHIP

22 1/2W :SURGE

56k

:RN-CP

100k :CHIP

270

:CHIP

1M :RN-CP

100k :CHIP

2.2k

:CHIP

270 :CHIP

1k

:CHIP

100k :CHIP

10k

:CHIP

2.2M

:CHIP

1M :CHIP

1k :CHIP

47k :CHIP

100k

:CHIP

1k

:CHIP

1k

:CHIP

4.7k :CHIP

220k 1/2W

33k

:RN-CP

47k

:RN-CP

100

:CHIP

100

:CHIP

47

:CHIP

100

:CHIP

100

:CHIP

1k

:CHIP

100

:CHIP

1M

:CHIP

5.6k

:CHIP

2.2k

:RN-CP

470

:CHIP

2.2k :CHIP

100 :CHIP

47k

:CHIP

10M

1W

:RN

2.2M 1W

:RN

2.2k :CHIP

10k

:RN-CP

4.7k :CHIP

10k

:CHIP

10k

:CHIP

1

:FPRD

1

:FPRD

MA111

0.1 25V B:CHIP

22p

CH:CHIP

22p

CH:CHIP

100

:CHIP

100

:CHIP

100

:CHIP

100

:CHIP

100

:CHIP

100 :CHIP

1.5k :CHIP

0.1 25V

B:CHIP

2SB709A

G SYNC

2SC2412

G SYNC

2SB709A

G SYNC

1.5k

:CHIP

4.7k :CHIP

10

1.5k

:CHIP

1PS226-115

47

25V

1M

:CHIP4725V

0.01 B:CHIP

10k

:CHIP

0.01 B:CHIP

330

:CHIP

0.1 25V

B:CHIP

0

:CHIP

0.01

B:CHIP

47k

:CHIP

180k

:CHIP

22k

:CHIP

0.01 B:CHIP

1M

:CHIP

UDZ-TE-17-5.1B

MA111

4700p

B:CHIP

MA111

4.7k :CHIP

0.1 25V

B:CHIP

270

:CHIP

270

:CHIP

2SA1738 BUFFER

100 :CHIP

100

:CHIP

1000p

CH:CHIP

120

:CHIP

120

:CHIP

100

:CHIP

100

:CHIP

100

:CHIP

FA4111

RGB OUT

1000p CH:CHIP

0.1 25V

B:CHIP

1SS376

47

100V

8P8P

120k

:CHIP

0.01

B:CHIP

4.7k

:CHIP

10k :CHIP

47k :CHIP

MA111

10

MA111 MA111

TA7812S 12V REG

TA78L05S

5VREG

10

1

:FPRD

2SA10910

BUFFER

100k :CHIP

100k :CHIP 100k :CHIP

2SA1738

BUFFER

2SA1738

BUFFER

2SC4686A

G2 CONT

DTA124EKA

G2 CONT

LM324M-FL63

G2 CONT

0.1 25V

B:CHIP

DTA124EKA

SW

2SC2412K

SW

47

LM324M-FL63

R CUT OFF

AMP

2SA1091O

BUFFER

LM324M-FL63

G CUT OFF

AMP

0.01

B:CHIP

6.8k :CHIP

100k :CHIP 100k :CHIP

2SA1091O

BUFFER

1SS376

10M 1W :RN

47 25V

0.1 25V

B:CHIP

75

:RN

75

:RN

75

:RN

0.01 B:CHIP 47 25V

1000p

CH:CHIP

100

:CHIP

100

:CHIP

LM324M-FL63

B CUT OFF

AMP

2SC4015

R CUT OFF

CONT

2SC4015

B CUT OFF

AMP

2SC4015

R CUT OFF

CONT

M62352GP-75ED D/A CONVERTER

82

:RN

82

:RN

82

:RN

1PS226-115

10

0.01

B:CHIP

0.01 B:CHIP

0.1 25V

B:CHIP

22

100V

10000p

2kV F

100k

0.15µH :ALI

3.9k

:CHIP

3.9k

:CHIP

1k

:CHIP

DTC124EKA

ASC SW

MA111

47k

:CHIP

2SB709A BUFFER

LSC4380DW2EL

OSD

MA111

4.7k

:CHIP

0.01

B:CHIP

10k

:CHIP

0.01

B:CHIP

2SC3545

BUFFER

560

:CHIP

0.1 25V

B:CHIP

0.1 25V

B:CHIP

3.9k

:CHIP

2.2k :CHIP

0.01

B:CHIP

2.2k :CHIP

47 25V

330

:CHIP

0.1 25V

B:CHIP

10

50V

1SS376 1SS376

1SS376

27p

CH:CHIP

27p CH:CHIP

0UH

47 25V

1PS226-115

47p

CH:CHIP

0.001 B:CHIP

MA111

22µH

M52722P RGB PRE-AMPM52755FP RGB SWITCH

47

:CHIP

47

:CHIP

47

:CHIP

47

:CHIP

47

:CHIP

47

:CHIP

2.2k :CHIP

0.15µH :ALI

39

:RN-CP

22

:CHIP

2.2k :CHIP

0.15µH :ALI

56 :RN-CP

22

:CHIP

22

:CHIP

68

:RN-CP

22p

CH:CHIP

2.2k :CHIP

47k

:CHIP

5p

CH:CHIP

STBY+5V

R

G

B

R

G

B

+12V

1KV

G2

+80V

B_CUTOFF

G_CUTOFF

R_CUTOFFR_CUTOFF G_CUTOFF B_CUTOFF R_DRV G_DRV B_DRV BRT

G2

OSD_CONT CONT

+200V

12V

5V

12V

15V

5V

3

2

1

11

4

5

6

7

10

9

8

12

13

14

R IN 2 R GND 2 G IN 2 G GND 2

B IN 2 B GND 2

R IN 1 R GND 1 G IN 1 G GND 1 B IN 1 B GND 1

CLP

C.BLK GREEN

GND

VIDEO

VSSA

VCO

RP

VDDA

SS

HFLB

VSS

R

G

B

INT

VDD

FBKG

KB

GND

KG

GND

KR

GND

HEATER +

+80V

GND

+15V

1KV N.C.

FOCUS1

FOCUS2

(G2)

(GND) (GND)

+12V

BLOCKC

OSDBLK

NC

MAIN CONT

CLP

OSD CONT

OSDB_DRV

NC

OSDG_DRV

NC

BLK

BRT

OSDR_DRV

B_VCC1

B_IN2

G_VCC1

NC

G_IN2

R_VCC1

R_IN2

H_IN2

V_IN2

GND

B_IN1

GND

G_IN1

NC

GND

R_IN1

H_IN1

V_IN1

B_VCC2

B_OUT

GND

NC

G_VCC2

G_OUT

GND

R_VCC2

R_OUT

GND

G.SYNC

VCC

NC

HS.OUT

VS.OUT

GND

SW

B_VCC1

B_IN

B_DRV

NC

B_OSD

B_GND1

G_VCC1

G_IN

G_DRV

G_OSD

G_GND1

R_VCC1

R_IN

R_DRV

R_OSD

R_GND1

NC

B_OUT

B_VCC2

B_HOLD

NC

B_GND2

G_OUT

G_VCC2

G_HOLD

G_GND2

R_OUT

R_VCC2

R_HOLD

R_GND2

NC

HFBP VRET

NC

GND

VFLB

HEATER+

+5V

NC

B_IN

B_E.P

B_OUT

GND

G_OUT

G_E.P.

G_IN

VBB

GND

VBB

R_IN

R_E.P.

R_OUT

VCC

STBY+8V

NC

OSD_SEL

CLK

DAC_SEL

MOSI

CLK

MOSI

Vss

VDD

GND

MOSI

CLK

LD

MISO

Vcc

NC

AO10 AO11

AO12

AO3

AO4

AO5

AO6

AO7

AO8

AO9

AO2

AO1

KB GND KG GND KR GND

HEATER +

GND

PWM0 PWM1

INPUT SW

ASC_SW

+200V

LOWB_DET

A

(VIDEO AMP,RGB OUT)

CN506

TO D BARD

CN503

TO D BOARD T902(FBT)

CN672

TO G BOARD

TO D BOARD CN507

TO D BOARD

FBT

TO D BOARD T902(FBT)

V901


TUBE

54321 109876 15 14 13 12 11

PANELCONNECTOR

A1A2A3

12345

678910

13W3

HD15

B-SS9067<NH.>-A..

Ref. Pin No. Voltage [V]

• A BOARD VOLTAGE LIST

IC402 1 1.1

3 2.8 4 3.7 9 1.1 12 2.8 13 3.8 14 1.1 17 2.8 18 3.9 23 1.1 25 3.3 26 0.7 27 2.4 28 1.2 35 4.4 37 2.7 40 4.4 42 2.7 49 4.4 51 2.7 52 2.1

IC403 1 3.4

2 2.8 3 53.6 5 52.7 6 2.9 7 3.4 8 9.8 10 9.8 11 3.5 12 2.9 13 52.3

Q101 B 2.8

E 3.5

Q105 B 7.3

C 112.6

Ref. Pin No. Voltage [V]

E 6.8

Q106 B 112.6

E 113.3

Q201 B 2.7

E 3.5

Q205 B 7.4

C 109.9

E 6.8

Q206 B 109.9

E 110.4

Q301 B 2.7

E 3.4

Q305 B 7.4

C 113.1

E 6.8

Q306 B 113.1

E 113.7

Q401 B 3.6

C 0.7

E 4.3

Q406 B 7.9

E 9.0

Q410 B 9.7

C 484.0

E 9.1

SK401 KR 87.0

KG 87.0 KB 87.0 G2 474.0 H2 6.5

5-24 5-25

5-26

37.0 Vp-p (H)

35.0 Vp-p (H)

37.0 Vp-p (H)

6

7

8

9

• A BOARD IC402 M52722P

Component

()

Side

Conductor

()

Side

5-27 5-28

— A BOARD (Component Side) —

123

A

B

C

D

A

VIDEO AMP RGB OUT

• A BOARD SEMICONDUCTOR LOCATION

Component

()

Side

Conductor

()

Side

*

: Refer to Terminal name of

semiconductors in silk screen printed circuit (see page 5-9)

Component

()

Side

Conductor

()

Side

IC

IC401 A–1 IC402 B–3 B–1 IC403 B–3 B–1 IC404 A–2 IC406 A–1 A–3 IC408 A–1 A–3 IC409 C–1 IC410 A–2

TRANSISTOR

*

Q101 B–3 1 Q105 D–3 D–1 – Q106 D–3 D–1 – Q201 B–3 1 Q202 A–3 1 Q205 C–3 C–1 – Q206 C–3 C–1 – Q301 B–3 1 Q305 C–3 C–1 – Q306 C–3 C–1 – Q401 A–2 1 Q402 A–1 2 Q403 A–2 2 Q404 B–2 2 Q405 B–2 2 Q406 D–1 1 Q407 D–1 2 Q408 D–3 1 Q409 D–3 1 Q410 D–1 D–3 –

DIODE

*

D101 A–1 7 D102 A–1 7 D103 B–3 3 D104 C–1 3 D105 C–3 3 D106 B–3 3 D107 B–3 3 D201 A–1 7 D202 A–1 7 D203 B–3 3 D204 C–1 3 D205 C–3 3 D206 B–3 3 D207 B–3 3 D301 A–2 7 D302 A–1 7 D303 B–3 3 D304 C–1 3 D305 C–2 3 D306 B–2 3 D307 B–3 3 D401 B–2 3 D402 B–3 3 D404 C–3 3 D405 D–3 3 D406 D–3 3 D407 D–1 3 D408 D–1 3 D409 D–1 3 D410 B–2 3

NOTE:

The circuit indicated as left contains high voltage of over 600 Vp-p. Care must be paid to prevent an electric shock in inspection or repairing.

5-4. SEMICONDUCTORS

EXPLODED VIEWS

• Items with no part number and no description are not stocked because they are seldom required for routine service.

• The construction parts of an assembled part are indicated with a collation number in the remark column.

6-1. CHASSIS

4 7-685-647-79 +BVTP 3X10 p 7-685-663-71 +BVTP 4X16 ® 7-685-872-09 +BVTT 3X8 ¢ 7-685-881-09 +BVTT 4X8

17

16

18

• Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

14

15

29

13

6

The components identified by shading and mark ¡ are critical for safety. Replace only with part number specified.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

26

¡ sont critiques pour la

28

27

24

11

12

10

9

23

25

8

20

22

7

17

18

5

2

4

21

19

3

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

1 X-4035-342-1 BEZEL ASSY [03N/03S] 2.3 1 X-4035-486-1 BEZEL ASSY [43N/43S] 2.3 2 4-063-129-01 BUTTON, POWER 3 3-653-339-01 SPRING, COMPRESSION 4 * 8-933-283-00 H BOARD, COMPLETE

5 4-029-432-01 SCREW (3×12), (+) BVWHTP 6 4-365-808-01 SCREW (5), TAPPING 7 1-694-381-11 TREMINAL BOARD ASSY, I/O 8 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER) 9 ! 1-251-382-12 INLET, AC 3P (WITH NOISE FILTE)

10 4-052-345-01 SCREW, (3×8) (+K), TAPPING 11 *4-063-091-01 SHEET, CONNECTOR 12 *8-933-306-00 A BOARD, COMPLETE 13 *8-933-307-00 D BOARD, COMPLETE 14 ! X-4035-170-1 TRANSFOMER ASSY, FLYBACK

15 4-062-115-01 SCREW +P 3.5×20 TYPE2 16 *4-060-359-01 HOLDER, PRINTED CIRCUIT BOARD 17 *3-701-903-11 HOLDER, PRINTED CIRCUIT BOARD 18 *4-382-848-01 HOLDER, PRINTED CIRCUIT BOARD 19 *3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD

20 *8-933-277-00 G BOARD, COMPLETE 21

21 *8-933-269-00 GA BOARD, COMPLETE

1

(NX-4142//J1D4)

22 *4-061-494-01 SHEET, INSULATE 23 X-4035-382-1 CABINET ASSY [03N/03S] 23 X-4035-488-1 CABINET ASSY [43N/43S]

24 4-063-133-01 COVER (RIGHT UPPER), SCREW 24 4-063-133-11 COVER (RIGHT UPPER), SCREW 25 4-063-135-01 COVER (RIGHT LOWER), SCREW 25 4-063-135-11 COVER (RIGHT LOWER), SCREW 26 4-063-134-01 COVER (LEFT UPPER), SCREW

26 4-063-134-11 COVER (LEFT UPPER), SCREW 27 4-063-136-01 COVER (LEFT LOWER), SCREW 27 4-063-136-11 COVER (LEFT LOWER), SCREW 28 *4-064-137-01 LABEL, INFORMATION [03N]

28 *4-064-137-11 LABEL, INFORMATION [03S] 28 *4-064-137-21 LABEL, INFORMATION [43N]

28 *4-064-137-31 LABEL, INFORMATION [43S] 29 4-063-711-01 SUPPORT, HV CABLE

[03N/03S] [43N/43S]

[03N/03S]

[43N/43S]

[03N/03S]

[43N/43S] [03N/03S]

[43N/43S]

6-2. PICTURE TUBE

p 7-685-663-71 +BVTP 4X16 ¢ 7-685-881-09 +BVTT 4X8

7-685-883-01 +BVTT 4X12

π

60

72 73

74

75

54

53

71

55

57

56

58

57

59

65

66

64

69

61

67

62

63

52

51

68

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

51 ! 8-738-796-81 51 ! 8-738-799-81 52 ! 8-738-796-00 PICTURE TUBE (21SRG)

52 ! 8-738-796-05 PICTURE TUBE (21SRG) 52 ! 8-738-799-05 PICTURE TUBE (21SRG) [03S/43S 53 ! 8-451-493-31 DEFLECTION YOKE (Y21SRL-M3)

54 4-050-492-01 SPACER, DY 55 *4-047-316-01 SPRING, TENSION 56 ! 1-416-437-11 COIL, DEMAGNETIC 57 ! 1-416-140-21 COIL, LANDING CORRECTION

58 ! 1-416-438-21 COIL, LANDING CORRECTION 59 4-062-670-03 SPACER, PICTURE TUBE 60 *8-933-263-00 L BOARD, COMPLETE 61 *4-321-929-00 HOLDER, PRINTED CIRCUIT BOARD 62 *3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD

ITC ASSY (21SRG-R2) [03N/43N] 52-54, 71 ITC ASSY (21SRG-RS2) [03S/43S]52-54, 71

[

03N/43N Japan model

[

03N/43N U/C, AEP model

]

63 *4-061-603-31 COVER, BOTTOM [03N/03S]

63 *4-061-603-51 COVER, BOTTOM [43N/43S]

64 *8-933-279-00 J BOARD, COMPLETE

]

65 *4-394-972-21 CAP, POWER 66 X-4035-384-1 STAND ASSY [03N/03S] 67-70

]

66 X-4035-590-2 STAND ASSY [43N/43S] 67-70

67 4-061-396-01 STOPPER (A) 68 4-047-474-01 FOOT, RUBBER 69 4-060-339-01 RING, TILT SWIVEL 70 4-062-381-01 STOPPER (B)

71 ! 1-452-932-11 NECK ASSEMBLY, PICTURE TUBE 72 4-308-870-00 CLIP, LEAD WIRE 73 1-452-032-00 MAGNET, DISK:10mmφ 74 1-452-094-00 MAGNET, ROTATABLE DISK:15mmφ 75 4-059-493-01 PERMALLOY (90), CONV.CORRECT

70

6558-03N/03S/43N/43S

A

Les composants identifiés per un tramé

SECTION 7

et une marque

ELECTRICAL PARTS LIST

sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

NOTE:

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

The components identified by shading and mark ¡ are critical for safety. Replace only with part number specified.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

When indicating parts by reference number, please include the board name.

REF.NO. PART NO. DESCRIPTION REMARK

*8-933-306-00 A BOARD, COMPLETE

C101 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C102 1-104-664-11 ELECT 47MF 20% 25V C103 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C104 1-104-664-11 ELECT 47MF 20% 25V C105 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C106 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C107 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C108 1-107-903-11 ELECT 2.2MF 20% 50V C109 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C110 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V

C111 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V C112 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C115 1-104-514-11 FILM 0.22MF 10% 250V C120 1-107-949-11 ELECT 2.2MF 20% 200V C121 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C122 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C127 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C130 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C201 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C202 1-104-664-11 ELECT 47MF 20% 25V

C203 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C204 1-104-664-11 ELECT 47MF 20% 25V C205 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C206 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C207 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C208 1-107-903-11 ELECT 2.2MF 20% 50V C209 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C210 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V C211 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V C212 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C215 1-104-514-11 FILM 0.22MF 10% 250V C217 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C220 1-107-949-11 ELECT 2.2MF 20% 200V C221 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C222 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

¡

sont critiques pour la

****************************

4-382-854-11 SCREW (M3X10), P, SW (+) (IC403)

• All variable and adjustable resistors have characteristic curve B, unless otherwise noted.

RESISTORS

• All resistors are in ohms

• F : nonflammable

REF.NO. PART NO. DESCRIPTION REMARK

C230 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C301 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C302 1-104-664-11 ELECT 47MF 20% 25V C303 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C304 1-104-664-11 ELECT 47MF 20% 25V

C305 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C306 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C307 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C308 1-107-903-11 ELECT 2.2MF 20% 50V C309 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C310 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V C311 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V C312 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C315 1-104-514-11 FILM 0.22MF 10% 250V C317 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C319 1-107-888-11 ELECT 47MF 20% 25V C320 1-107-949-11 ELECT 2.2MF 20% 200V C321 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C322 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C330 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C401 1-126-964-11 ELECT 10MF 20% 50V C402 1-104-664-11 ELECT 47MF 20% 25V C403 1-104-664-11 ELECT 47MF 20% 25V C404 1-126-964-11 ELECT 10MF 20% 50V C405 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V

C407 1-126-964-11 ELECT 10MF 20% 50V C408 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C409 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C410 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C412 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C414 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C415 1-128-562-11 ELECT 47MF 20% 100V C416 1-104-664-11 ELECT 47MF 20% 25V C417 1-115-349-51 CERAMIC 0.01MF 2KV C419 1-162-318-11 CERAMIC 0.001MF 10% 500V

C420 1-126-967-11 ELECT 47MF 20% 50V C421 1-126-964-11 ELECT 10MF 20% 50V C424 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C429 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C431 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C434 1-162-318-11 CERAMIC 0.001MF 10% 500V

• Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• CAPACITORS MF : µF

• COILS UH : µH

7-1

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

6558-03N/03S/43N/43S

A

C435 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C436 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C438 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C440 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C442 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C443 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C444 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C445 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C446 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C447 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C448 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C450 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C451 1-126-964-11 ELECT 10MF 20% 50V C452 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C453 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C454 1-104-665-11 ELECT 100MF 20% 25V C455 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C457 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C458 1-126-964-11 ELECT 10MF 20% 50V

C459 1-107-930-91 ELECT 22MF 20% 100V C460 1-162-318-11 CERAMIC 0.001MF 10% 500V C461 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C463 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C464 1-107-906-11 ELECT 10MF 20% 50V

C465 1-107-906-11 ELECT 10MF 20% 50V C466 1-126-964-11 ELECT 10MF 20% 50V C467 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C468 1-126-964-11 ELECT 10MF 20% 50V C469 1-126-964-11 ELECT 10MF 20% 50V

D102 8-719-062-51 DIODE 1PS226-115 D103 8-719-404-49 DIODE MA111 D104 8-719-052-12 DIODE 1SS376TE-17 D105 8-719-052-12 DIODE 1SS376TE-17

D106 8-719-052-12 DIODE 1SS376TE-17 D107 8-719-052-12 DIODE 1SS376TE-17 D201 8-719-062-51 DIODE 1PS226-115 D202 8-719-062-51 DIODE 1PS226-115 D203 8-719-404-49 DIODE MA111

D204 8-719-052-12 DIODE 1SS376TE-17 D205 8-719-052-12 DIODE 1SS376TE-17 D206 8-719-052-12 DIODE 1SS376TE-17 D207 8-719-052-12 DIODE 1SS376TE-17 D301 8-719-062-51 DIODE 1PS226-115

D302 8-719-062-51 DIODE 1PS226-115 D303 8-719-404-49 DIODE MA111 D304 8-719-052-12 DIODE 1SS376TE-17 D305 8-719-052-12 DIODE 1SS376TE-17 D306 8-719-052-12 DIODE 1SS376TE-17

D307 8-719-052-12 DIODE 1SS376TE-17 D401 8-719-404-49 DIODE MA111 D402 8-719-976-99 ZENER DIODE DTZ5.1B D403 8-719-404-49 DIODE MA111 D404 8-719-052-12 DIODE 1SS376TE-17

D405 8-719-404-49 DIODE MA111 D406 8-719-404-49 DIODE MA111 D407 8-719-404-49 DIODE MA111 D408 8-719-404-49 DIODE MA111 D409 8-719-404-49 DIODE MA111

C471 1-162-318-11 CERAMIC 0.001MF 10% 500V C478 1-115-350-51 CERAMIC 0.0047MF 2KV C479 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C481 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C482 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V

C483 1-115-339-11 CERAMIC CHIP 0.1MF 10% 50V C484 1-162-318-11 CERAMIC 0.001MF 10% 500V C485 1-107-652-11 ELECT 10MF 20% 250V C486 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C487 1-126-964-11 ELECT 10MF 20% 50V

C488 1-104-664-11 ELECT 47MF 20% 25V C489 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C491 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

CN401*1-564-521-11 PLUG, CONNECTOR 6P CN402*1-564-522-11 PLUG, CONNECTOR 7P CN403 1-564-523-11 PLUG, CONNECTOR 8P CN405 1-564-524-11 PLUG, CONNECTOR 9P CN406*1-766-179-11 PIN, CONNECTOR (PC BOARD) 2P

CN407*1-564-522-11 PLUG, CONNECTOR 7P

<DIODE>

D101 8-719-062-51 DIODE 1PS226-115

D410 8-719-404-49 DIODE MA111

FB101 1-216-295-91 SHORT 0 FB201 1-216-295-91 SHORT 0 FB301 1-216-295-91 SHORT 0 FB403 1-412-911-31 FERRITE 0UH FB405 1-412-911-31 FERRITE 0UH

FB406 1-412-911-31 FERRITE 0UH

<IC>

IC401 8-759-522-86 IC M52755FP-TP IC402 8-759-468-63 IC M52722P IC403 8-749-013-74 IC FA4111 IC404 8-759-492-78 IC LSC4380DW2EL IC406 8-759-231-58 IC TA7812S

IC408 8-759-239-14 IC TA78L05S IC409 8-759-502-82 IC LM324M IC410 8-759-635-27 IC M62352GP-75E

<COIL>

L101 1-412-478-11 INDUCTOR 0.15UH L201 1-412-478-11 INDUCTOR 0.15UH

7-2

6558-03N/03S/43N/43S

A

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

L301 1-412-478-11 INDUCTOR 0.15UH L401 1-408-421-00 INDUCTOR 100UH L402 1-412-529-11 INDUCTOR 22UH

PS401!1-533-590-31 LINK, IC (1A/90V AC, 60V DC)

Q101 8-729-112-65 TRANSISTOR 2SA1462-Y33 Q105 8-729-041-66 TRANSISTOR 2SC4015TV2 Q106 8-729-200-17 TRANSISTOR 2SA1091-O Q201 8-729-112-65 TRANSISTOR 2SA1462-Y33 Q202 8-729-107-31 TRANSISTOR 2SC3545-T43

Q205 8-729-041-66 TRANSISTOR 2SC4015TV2 Q206 8-729-200-17 TRANSISTOR 2SA1091-O Q301 8-729-112-65 TRANSISTOR 2SA1462-Y33 Q305 8-729-041-66 TRANSISTOR 2SC4015TV2 Q306 8-729-200-17 TRANSISTOR 2SA1091-O

Q401 8-729-216-22 TRANSISTOR 2SA1162-G Q402 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q403 8-729-216-22 TRANSISTOR 2SA1162-G Q404 8-729-901-00 TRANSISTOR DTC124EK Q405 8-729-216-22 TRANSISTOR 2SA1162-G

Q406 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q408 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q409 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q410 8-729-020-07 TRANSISTOR 2SC4686A(LBSONY)

R126 1-216-097-91 RES,CHIP 100K 5% 1/10W R127 1-216-035-00 RES,CHIP 270 5% 1/10W

R128 1-216-121-91 RES,CHIP 1M 5% 1/10W R129 1-218-776-11 METAL CHIP 1M 0.50%1/10W R130 1-216-097-91 RES,CHIP 100K 5% 1/10W R131 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R132 1-216-035-00 RES,CHIP 270 5% 1/10W R133 1-216-049-91 RES,CHIP 1K 5% 1/10W R134 1-216-097-91 RES,CHIP 100K 5% 1/10W R135 1-216-037-00 RES,CHIP 330 5% 1/10W R136 1-216-097-91 RES,CHIP 100K 5% 1/10W

R137 1-216-097-91 RES,CHIP 100K 5% 1/10W R139 1-216-073-00 RES,CHIP 10K 5% 1/10W R140 1-216-129-00 RES,CHIP 2.2M 5% 1/10W R141 1-216-025-91 RES,CHIP 100 5% 1/10W R144 1-216-295-91 SHORT 0

R167 1-216-121-91 RES,CHIP 1M 5% 1/10W R201 1-215-395-00 METAL 82 1% 1/4W R202 1-216-025-91 RES,CHIP 100 5% 1/10W R203 1-215-395-00 METAL 82 1% 1/4W R204 1-216-025-91 RES,CHIP 100 5% 1/10W

R205 1-216-017-91 RES,CHIP 47 5% 1/10W R206 1-216-017-91 RES,CHIP 47 5% 1/10W R208 1-216-099-00 RES,CHIP 120K 5% 1/10W R209 1-216-107-00 RES,CHIP 270K 5% 1/10W R210 1-216-295-91 SHORT 0

R211 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R212 1-216-621-11 METAL CHIP 56 0.50%1/10W R213 1-216-009-00 RES,CHIP 22 5% 1/10W R214 1-216-035-00 RES,CHIP 270 5% 1/10W R215 1-216-035-00 RES,CHIP 270 5% 1/10W

R101 1-215-395-00 METAL 82 1% 1/4W R102 1-216-025-91 RES,CHIP 100 5% 1/10W R103 1-215-395-00 METAL 82 1% 1/4W R104 1-216-025-91 RES,CHIP 100 5% 1/10W R105 1-216-017-91 RES,CHIP 47 5% 1/10W

R106 1-216-017-91 RES,CHIP 47 5% 1/10W R108 1-216-099-00 RES,CHIP 120K 5% 1/10W R109 1-216-107-00 RES,CHIP 270K 5% 1/10W R110 1-216-295-91 SHORT 0 R111 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R112 1-216-617-11 METAL CHIP 39 0.50%1/10W R113 1-216-009-00 RES,CHIP 22 5% 1/10W R114 1-216-035-00 RES,CHIP 270 5% 1/10W R115 1-216-035-00 RES,CHIP 270 5% 1/10W R116 1-216-017-91 RES,CHIP 47 5% 1/10W

R117 1-216-063-91 RES,CHIP 3.9K 5% 1/10W R118 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R119 1-216-009-00 RES,CHIP 22 5% 1/10W R120 1-216-097-91 RES,CHIP 100K 5% 1/10W R121 1-216-097-91 RES,CHIP 100K 5% 1/10W

R122 1-216-027-00 RES,CHIP 120 5% 1/10W R123 1-216-027-00 RES,CHIP 120 5% 1/10W R124 1-219-497-11 CARBON 22 5% 1/2W R125 1-216-693-11 METAL CHIP 56K 0.50%1/10W

R216 1-216-017-91 RES,CHIP 47 5% 1/10W R217 1-216-063-91 RES,CHIP 3.9K 5% 1/10W R218 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R219 1-216-009-00 RES,CHIP 22 5% 1/10W R220 1-216-097-91 RES,CHIP 100K 5% 1/10W

R221 1-216-097-91 RES,CHIP 100K 5% 1/10W R222 1-216-027-00 RES,CHIP 120 5% 1/10W R223 1-216-027-00 RES,CHIP 120 5% 1/10W R224 1-219-497-11 CARBON 22 5% 1/2W R225 1-216-693-11 METAL CHIP 56K 0.50%1/10W

R226 1-216-097-91 RES,CHIP 100K 5% 1/10W R227 1-216-035-00 RES,CHIP 270 5% 1/10W R228 1-216-121-91 RES,CHIP 1M 5% 1/10W R229 1-218-776-11 METAL CHIP 1M 0.50%1/10W R230 1-216-097-91 RES,CHIP 100K 5% 1/10W

R231 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R232 1-216-035-00 RES,CHIP 270 5% 1/10W R233 1-216-049-91 RES,CHIP 1K 5% 1/10W R234 1-216-097-91 RES,CHIP 100K 5% 1/10W R235 1-216-037-00 RES,CHIP 330 5% 1/10W

R236 1-216-097-91 RES,CHIP 100K 5% 1/10W R237 1-216-097-91 RES,CHIP 100K 5% 1/10W R239 1-216-073-00 RES,CHIP 10K 5% 1/10W R240 1-216-129-00 RES,CHIP 2.2M 5% 1/10W

7-3

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

6558-03N/03S/43N/43S

A

R241 1-216-025-91 RES,CHIP 100 5% 1/10W R243 1-216-043-91 RES,CHIP 560 5% 1/10W

R244 1-216-295-91 SHORT 0 R267 1-216-121-91 RES,CHIP 1M 5% 1/10W R301 1-215-395-00 METAL 82 1% 1/4W R302 1-216-025-91 RES,CHIP 100 5% 1/10W

R303 1-215-395-00 METAL 82 1% 1/4W R304 1-216-025-91 RES,CHIP 100 5% 1/10W R305 1-216-017-91 RES,CHIP 47 5% 1/10W R306 1-216-017-91 RES,CHIP 47 5% 1/10W R308 1-216-099-00 RES,CHIP 120K 5% 1/10W

R309 1-216-107-00 RES,CHIP 270K 5% 1/10W R310 1-216-295-91 SHORT 0 R311 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R312 1-216-623-11 METAL CHIP 68 0.50%1/10W R313 1-216-009-00 RES,CHIP 22 5% 1/10W

R314 1-216-035-00 RES,CHIP 270 5% 1/10W R315 1-216-035-00 RES,CHIP 270 5% 1/10W R316 1-216-017-91 RES,CHIP 47 5% 1/10W R317 1-216-063-91 RES,CHIP 3.9K 5% 1/10W R318 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R319 1-216-009-00 RES,CHIP 22 5% 1/10W R320 1-216-097-91 RES,CHIP 100K 5% 1/10W R321 1-216-097-91 RES,CHIP 100K 5% 1/10W R322 1-216-027-00 RES,CHIP 120 5% 1/10W R323 1-216-027-00 RES,CHIP 120 5% 1/10W

R417 1-216-089-91 RES,CHIP 47K 5% 1/10W R418 1-260-127-11 CARBON 220K 5% 1/2W

R419 1-216-687-11 METAL CHIP 33K 0.50%1/10W R420 1-216-691-11 METAL CHIP 47K 0.50%1/10W R421 1-216-103-00 RES,CHIP 180K 5% 1/10W R422 1-216-025-91 RES,CHIP 100 5% 1/10W

R423 1-216-089-91 RES,CHIP 47K 5% 1/10W R424 1-216-025-91 RES,CHIP 100 5% 1/10W R425 1-216-017-91 RES,CHIP 47 5% 1/10W R426 1-216-025-91 RES,CHIP 100 5% 1/10W R427 1-216-025-91 RES,CHIP 100 5% 1/10W

R428 1-216-049-91 RES,CHIP 1K 5% 1/10W R429 1-216-025-91 RES,CHIP 100 5% 1/10W R430 1-216-025-91 RES,CHIP 100 5% 1/10W R431 1-216-025-91 RES,CHIP 100 5% 1/10W R432 1-216-025-91 RES,CHIP 100 5% 1/10W

R433 1-216-025-91 RES,CHIP 100 5% 1/10W R434 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R435 1-216-121-91 RES,CHIP 1M 5% 1/10W R436 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R438 1-216-053-00 RES,CHIP 1.5K 5% 1/10W

R439 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R440 1-216-079-00 RES,CHIP 18K 5% 1/10W R441 1-216-025-91 RES,CHIP 100 5% 1/10W R442 1-216-659-11 METAL CHIP 2.2K 0.50%1/10W R443 1-216-041-00 RES,CHIP 470 5% 1/10W

R324 1-219-497-11 CARBON 22 5% 1/2W R325 1-216-693-11 METAL CHIP 56K 0.50%1/10W R326 1-216-097-91 RES,CHIP 100K 5% 1/10W R327 1-216-035-00 RES,CHIP 270 5% 1/10W R328 1-216-121-91 RES,CHIP 1M 5% 1/10W

R329 1-218-776-11 METAL CHIP 1M 0.50%1/10W R330 1-216-097-91 RES,CHIP 100K 5% 1/10W R331 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R332 1-216-035-00 RES,CHIP 270 5% 1/10W R333 1-216-049-91 RES,CHIP 1K 5% 1/10W

R334 1-216-097-91 RES,CHIP 100K 5% 1/10W R335 1-216-037-00 RES,CHIP 330 5% 1/10W R336 1-216-097-91 RES,CHIP 100K 5% 1/10W R337 1-216-097-91 RES,CHIP 100K 5% 1/10W R339 1-216-073-00 RES,CHIP 10K 5% 1/10W

R340 1-216-129-00 RES,CHIP 2.2M 5% 1/10W R341 1-216-025-91 RES,CHIP 100 5% 1/10W R344 1-216-295-91 SHORT 0 R367 1-216-121-91 RES,CHIP 1M 5% 1/10W R406 1-216-049-91 RES,CHIP 1K 5% 1/10W

R407 1-216-089-91 RES,CHIP 47K 5% 1/10W R408 1-216-097-91 RES,CHIP 100K 5% 1/10W R409 1-216-049-91 RES,CHIP 1K 5% 1/10W R410 1-216-049-91 RES,CHIP 1K 5% 1/10W R411 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R412 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R413 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R415 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R416 1-216-049-91 RES,CHIP 1K 5% 1/10W

R444 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R446 1-216-025-91 RES,CHIP 100 5% 1/10W R451 1-216-025-91 RES,CHIP 100 5% 1/10W R452 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R453 1-216-073-00 RES,CHIP 10K 5% 1/10W

R454 1-216-073-00 RES,CHIP 10K 5% 1/10W R456 1-216-089-91 RES,CHIP 47K 5% 1/10W R457 1-219-720-11 METAL 10M 5% 1W R458 1-211-885-21 METAL 2.2M 5% 1W R459 1-219-720-11 METAL 10M 5% 1W

R461 1-249-441-11 CARBON 100K 5% 1/4W R462 1-216-089-91 RES,CHIP 47K 5% 1/10W R463 1-216-099-00 RES,CHIP 120K 5% 1/10W R464 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R466 1-216-675-11 METAL CHIP 10K 0.50%1/10W

R470 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R471 1-216-069-00 RES,CHIP 6.8K 5% 1/10W R473 1-216-073-00 RES,CHIP 10K 5% 1/10W R475 1-216-073-00 RES,CHIP 10K 5% 1/10W R477 1-216-081-00 RES,CHIP 22K 5% 1/10W

R478 1-249-381-11 CARBON 1 5% 1/4W F R479 1-249-381-11 CARBON 1 5% 1/4W F R480 1-249-381-11 CARBON 1 5% 1/4W F

SG101 1-517-499-21 GAP, SPARK SG201 1-517-499-21 GAP, SPARK SG301 1-517-499-21 GAP, SPARK

7-4

6558-03N/03S/43N/43S

A(ga)G

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

SG401 1-519-526-11 LAMP, NEON SG402 1-519-422-11 GAP, SPARK

SK401!1-251-640-11 SOCKET, PICTURE TUBE

********************************************************************************

*8-933-269-00 GA BOARD, COMPLETE

******************************

C7501 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C7502 1-136-169-00 FILM 0.22MF 5% 50V C7503 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C7504 1-136-165-00 FILM 0.1MF 5% 50V C7505 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C7506 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

CN7501*1-774-512-11CONNECTOR, BPARD TO BOARD 10P

R7512 1-216-089-91 RES,CHIP 47K 5% 1/10W R7513 1-216-093-00 RES,CHIP 68K 5% 1/10W

********************************************************************************

*8-933-277-00 G BOARD, COMPLETE

****************************

4-382-854-01 SCREW (M3X8), P, SW (+) (IC660) 4-382-854-11 SCREW (M3X10), P, SW (+)

(Q610, Q640, D610, D611, D672)

*7-322-065-72 RUBBER, RTV (SE-9168) (130G)

(C671, C682, VDR640)

C601! 1-113-900-51 CERAMIC 470PF 10% 250V C602! 1-113-900-51 CERAMIC 470PF 10% 250V C603! 1-107-533-51 FILM 1MF 20% 250V C604! 1-107-533-51 FILM 1MF 20% 250V C605! 1-113-926-91 CERAMIC 0.0047MF 250V

C606! 1-113-926-91 CERAMIC 0.0047MF 250V C607 1-113-900-11 CERAMIC 470PF 10% 250V C610 1-137-479-11 FILM 1MF 10% 400V C611 1-117-849-11 ELECT 330MF 20% 450V C612 1-126-959-11 ELECT 0.47MF 20% 50V

<DIODE>

D7501 8-719-110-57 DIODE RD22ESB2 D7502 8-719-911-19 DIODE 1SS119-25

<IC>

IC7501 8-759-482-62 IC MC33262P

Q7501 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q7502 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q7503 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q7504 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R

R7501 1-216-025-91 RES,CHIP 100 5% 1/10W R7502 1-216-073-00 RES,CHIP 10K 5% 1/10W R7503 1-216-041-00 RES,CHIP 470 5% 1/10W R7504 1-216-675-11 METAL CHIP 10K 0.50%1/10W R7505 1-216-673-11 METAL CHIP 8.2K 0.50%1/10W

R7506 1-216-073-00 RES,CHIP 10K 5% 1/10W R7507 1-216-089-91 RES,CHIP 47K 5% 1/10W R7508 1-216-073-00 RES,CHIP 10K 5% 1/10W R7509 1-216-073-00 RES,CHIP 10K 5% 1/10W R7510 1-216-073-00 RES,CHIP 10K 5% 1/10W

R7511 1-216-073-00 RES,CHIP 10K 5% 1/10W

C616 1-107-888-11 ELECT 47MF 20% 25V C640 1-165-127-11 CERAMIC 470PF 10% 500V C641 1-165-127-11 CERAMIC 470PF 10% 500V C642 1-136-171-00 FILM 0.33MF 5% 50V C643 1-136-171-00 FILM 0.33MF 5% 50V

C644 1-165-127-11 CERAMIC 470PF 10% 500V C645 1-136-167-00 FILM 0.15MF 5% 50V C646 1-136-167-00 FILM 0.15MF 5% 50V C647 1-129-719-00 FILM 0.027MF 5% 630V C660 1-111-057-11 ELECT 120MF 20% 25V

C661 1-128-526-11 ELECT 100MF 20% 16V C662 1-137-399-11 FILM 0.1MF 5% 50V C663 1-126-965-11 ELECT 22MF 20% 50V C670 1-137-370-11 FILM 0.01MF 5% 50V C671 1-107-966-51 ELECT 220MF 20% 250V

C672 1-107-959-11 ELECT 3.3MF 20% 250V C673 1-107-935-11 ELECT 330MF 20% 100V C674 1-107-928-11 ELECT 4.7MF 20% 100V C675 1-107-890-11 ELECT 2200MF 20% 25V C676 1-107-888-11 ELECT 47MF 20% 25V

C677 1-107-890-11 ELECT 2200MF 20% 25V C678 1-107-888-11 ELECT 47MF 20% 25V C679 1-126-927-11 ELECT 2200MF 20% 10V C680 1-126-927-11 ELECT 2200MF 20% 10V C681 1-107-905-11 ELECT 4.7MF 20% 50V

C682 1-126-963-11 ELECT 4.7MF 20% 50V C683 1-164-646-11 CERAMIC 2200PF 10% 500V C684 1-137-370-11 FILM 0.01MF 5% 50V C685 1-107-909-11 ELECT 47MF 20% 50V C690 1-107-888-11 ELECT 47MF 20% 25V

7-5

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

6558-03N/03S/43N/43S

G

C691 1-107-888-11 ELECT 47MF 20% 25V C692 1-111-016-11 ELECT 0.0012F 20% 10V C693 1-137-399-11 FILM 0.1MF 5% 50V C695 1-164-644-11 CERAMIC 330PF 10% 500V C697 1-136-165-00 FILM 0.1MF 5% 50V

CN603*1-580-689-11 PIN, CONNECTOR (PC BOARD) 4P CN604 1-691-960-11 PIN, CONNECTOR (PC BOARD) 3P CN605 1-691-960-11 PIN, CONNECTOR (PC BOARD) 3P CN610*1-774-511-11 CONNECTOR, BOARD TO BOARD 10P CN671*1-564-514-11 PLUG, CONNECTOR 11P

CN672*1-564-512-11 PLUG, CONNECTOR 9P CN673*1-564-508-11 PLUG, CONNECTOR 5P

<DIODE>

D610! 8-719-510-53 DIODE D4SB60L D611 8-719-029-04 DIODE D5L60 D612 8-719-304-63 DIODE RM11C D613 8-719-110-49 DIODE RD18ESB2 D614 8-719-977-28 DIODE DTZ10B

D617 8-719-404-49 DIODE MA111 D640 8-719-404-49 DIODE MA111 D660 8-719-059-23 DIODE P6KE200AG23 D661 8-719-979-64 DIODE UF4005PKG23 D662 8-719-058-91 DIODE AG01A-V0

<IC>

IC630 8-749-013-03 IC DM-60 IC660 8-759-470-64 IC TOP223Y-BB IC690 8-749-011-42 IC SI-3050F IC691 8-759-140-85 IC UPC1093J

<COIL>

L610 1-416-409-11 INDUCTOR 0UH L611 1-411-674-11 INDUCTOR 0UH L670 1-412-529-11 INDUCTOR 22UH L671 1-412-529-11 INDUCTOR 22UH L672 1-412-529-11 INDUCTOR 22UH

L673 1-412-529-11 INDUCTOR 22UH L691 1-412-529-11 INDUCTOR 22UH

PH660 8-749-010-64 PHOTO COUPLER PC123F2 PH680 8-749-010-64 PHOTO COUPLER PC123F2

PS670!1-533-593-31 LINK, IC (2A/90V AV, 60V DC) PS671!1-533-593-31 LINK, IC (2A/90V AV, 60V DC) PS673!1-533-593-31 LINK, IC (2A/90V AV, 60V DC) PS674!1-533-593-31 LINK, IC (2A/90V AV, 60V DC)

D663 8-719-110-31 DIODE RD12ESB2 D666 8-719-105-99 DIODE RD6.2M-B1 D670 8-719-064-49 DIODE D4SBL40 D671 8-719-510-64 DIODE S2LA20F D672 8-719-052-91 DIODE D4SBS4-F

D673 8-719-022-97 DIODE D2S4MF D674 8-719-022-97 DIODE D2S4MF D677 8-719-911-19 DIODE 1SS119-25 D678 8-719-911-19 DIODE 1SS119-25 D680 8-719-404-49 DIODE MA111

D681 8-719-404-49 DIODE MA111 D682 8-719-510-64 DIODE S2LA20F D683 8-719-911-19 DIODE 1SS119-25 D684 8-719-110-57 DIODE RD22ESB2 D691 8-719-510-37 DIODE D5LC20U

D692 8-719-911-19 DIODE 1SS119-25 D693 8-719-404-49 DIODE MA111

<FUSE>

F601! 1-576-233-11 FUSE (H.B.C.) (6.3A/250V)

1-533-223-11 HOLDER, FUSE ;F601

FB610 1-410-396-41 FERRITE 0.45UH FB611 1-410-396-41 FERRITE 0.45UH FB612 1-410-396-41 FERRITE 0.45UH

Q610 8-729-041-65 TRANSISTOR 2SK2195F04 Q615 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q640 8-729-041-12 TRANSISTOR MX0841AB-F Q641 8-729-119-76 TRANSISTOR 2SA1175-HFE Q642 8-729-119-78 TRANSISTOR 2SC2785-HFE

Q660 8-729-119-78 TRANSISTOR 2SC2785-HFE Q680 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q681 8-729-230-45 TRANSISTOR 2SC2458-YGR Q682 8-729-119-76 TRANSISTOR 2SA1175-HFE Q683 8-729-119-76 TRANSISTOR 2SA1175-HFE

Q690 8-729-119-78 TRANSISTOR 2SC2785-HFE Q691 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R

R601! 1-220-825-91 CARBON 330K 5% 1/2W R604 1-260-089-11 CARBON 150 5% 1/2W R610 1-216-383-11 METAL OXIDE 0.33 5% 3W F R611 1-216-383-11 METAL OXIDE 0.33 5% 3W F R612 1-215-477-00 METAL 220K 1% 1/4W

R613 1-215-477-00 METAL 220K 1% 1/4W R614 1-215-473-00 METAL 150K 1% 1/4W R615 1-215-473-00 METAL 150K 1% 1/4W R616 1-215-473-00 METAL 150K 1% 1/4W R617 1-215-481-00 METAL 330K 1% 1/4W

R618 1-215-477-00 METAL 220K 1% 1/4W

7-6

6558-03N/03S/43N/43S

GD

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

R619 1-215-485-00 METAL 470K 1% 1/4W R620 1-215-485-00 METAL 470K 1% 1/4W R621 1-215-481-00 METAL 330K 1% 1/4W R622 1-216-049-91 RES,CHIP 1K 5% 1/10W

R623 1-216-651-11 METAL CHIP 1K 0.50%1/10W R624 1-216-671-11 METAL CHIP 6.8K 0.50%1/10W R625 1-249-389-11 CARBON 4.7 5% 1/4W R626 1-249-429-11 CARBON 10K 5% 1/4W R627 1-215-479-00 METAL 270K 1% 1/4W

R628 1-215-481-00 METAL 330K 1% 1/4W R629 1-215-461-00 METAL 47K 1% 1/4W R631 1-247-807-31 CARBON 100 5% 1/4W R632 1-216-073-00 RES,CHIP 10K 5% 1/10W R633 1-215-481-00 METAL 330K 1% 1/4W

R635 1-216-073-00 RES,CHIP 10K 5% 1/10W R640 1-202-933-61 FUSIBLE 0.1 10% 1/2W F R641 1-218-642-11 METAL OXIDE 100K 5% 1W F R642 1-218-642-11 METAL OXIDE 100K 5% 1W F R643 1-247-863-91 CARBON 22K 5% 1/4W

R644 1-216-105-91 RES,CHIP 220K 5% 1/10W R645 1-216-081-00 RES,CHIP 22K 5% 1/10W R646 1-216-073-00 RES,CHIP 10K 5% 1/10W R647 1-249-441-11 CARBON 100K 5% 1/4W R648 1-216-353-00 METAL OXIDE 2.2 5% 1W F

R649 1-218-642-11 METAL OXIDE 100K 5% 1W F R650 1-218-642-11 METAL OXIDE 100K 5% 1W F R651 1-216-353-00 METAL OXIDE 2.2 5% 1W F R652 1-212-942-00 FUSIBLE 2.2 5% 1/2W F R655 1-216-073-00 RES,CHIP 10K 5% 1/10W

R661 1-249-387-11 CARBON 3.3 5% 1/4W F R662 1-216-073-00 RES,CHIP 10K 5% 1/10W R663 1-216-073-00 RES,CHIP 10K 5% 1/10W R664 1-247-791-91 CARBON 22 5% 1/4W R665 1-216-033-00 RES,CHIP 220 5% 1/10W

R666 1-215-441-00 METAL 6.8K 1% 1/4W R667 1-215-433-00 METAL 3.3K 1% 1/4W R668 1-249-401-11 CARBON 47 5% 1/4W R669 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R671 1-216-113-00 RES,CHIP 470K 5% 1/10W

R672 1-216-049-91 RES,CHIP 1K 5% 1/10W R673 1-249-413-11 CARBON 470 5% 1/4W F R674 1-249-377-11 CARBON 0.47 5% 1/4W F R675 1-260-292-11 CARBON 1 5% 1/2W R676 1-249-413-11 CARBON 470 5% 1/4W

R680 1-216-073-00 RES,CHIP 10K 5% 1/10W R681 1-216-049-91 RES,CHIP 1K 5% 1/10W R682 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R683 1-216-025-91 RES,CHIP 100 5% 1/10W R685 1-216-073-00 RES,CHIP 10K 5% 1/10W

R693 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R694 1-216-073-00 RES,CHIP 10K 5% 1/10W R695 1-249-443-11 CARBON 0.47 5% 1/4W F R696 1-216-633-11 METAL CHIP 180 0.50%1/10W

R697 1-216-649-11 METAL CHIP 820 0.50%1/10W R698 1-216-073-00 RES,CHIP 10K 5% 1/10W R699 1-216-081-00 RES,CHIP 22K 5% 1/10W

<RELAY>

RY601!1-515-669-21 RELAY RY602!1-755-031-11 RELAY

T601! 1-429-180-11 TRANSFORMER, LINE FILTER T640 1-431-538-11 TRANSFORMER, CONVERTER (PIT) T641 1-429-992-11 TRANSFORMER, CONVERTER (PRT) T660 1-431-565-11 TRANSFORMER, CONVERTER (SRT)

TH601 !1-809-260-11 THERMISTOR, POWER THP601!1-809-827-11 THERMISTOR, POSITIVE

VDR601!1-801-268-51VARISTOR TNR14V471K660 VDR602!1-810-622-21VARISTOR VDR640 1-810-974-21VARISTOR TNR10V431K660

********************************************************************************

*8-933-307-00 D BOARD, COMPLETE

****************************

4-040-989-01 SPRING (A), TR RETAINER (IC702, R511) 4-040-992-01 SPRING (AA), TR RETAINER

(IC502, Q507)

4-040-994-01 SPRING (BB), TR RETAINER

(Q508, D519) 4-047-285-01 SHEET, INSULATING (Q909) 4-060-719-02 SHEET, INSULATE (IC502)

4-060-720-01 SHEET, INSULATE (Q508) 4-060-844-01 SHEET, INSULATING (IC702) 4-382-854-01 SCREW (M3X8), P, SW (+) (R937) 4-382-854-11 SCREW (M3X10), P, SW (+)

(IC702, Q704, Q706, Q908, Q909, R937) 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

(IC502, Q507, Q508, D519, R511)

R686 1-216-049-91 RES,CHIP 1K 5% 1/10W R687 1-216-049-91 RES,CHIP 1K 5% 1/10W R688 1-216-073-00 RES,CHIP 10K 5% 1/10W R689 1-216-073-00 RES,CHIP 10K 5% 1/10W R691 1-216-073-00 RES,CHIP 10K 5% 1/10W

R692 1-260-085-11 CARBON 68 5% 1/2W

C001 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C002 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C003 1-163-019-00 CERAMIC CHIP 0.0068MF 10% 50V C004 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C005 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

7-7

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

6558-03N/03S/43N/43S

D

C006 1-126-960-11 ELECT 1MF 20% 50V C007 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C008 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C009 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C010 1-163-237-11 CERAMIC CHIP 27PF 5% 50V

C011 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C012 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C013 1-126-967-11 ELECT 47MF 20% 50V C014 1-107-914-11 ELECT 1000MF 20% 25V C015 1-107-914-11 ELECT 1000MF 20% 25V

C016 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C017 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C018 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C019 1-126-967-11 ELECT 47MF 20% 50V C020 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C021 1-163-023-00 CERAMIC CHIP 0.015MF 10% 50V C022 1-126-933-11 ELECT 100MF 20% 16V C023 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C024 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C025 1-126-960-11 ELECT 1MF 20% 50V

C026 1-137-372-11 FILM 0.022MF 5% 50V C027 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C028 1-164-695-11 CERAMIC CHIP 0.0022MF 5% 50V C029 1-126-960-11 ELECT 1MF 20% 50V C030 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C031 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C032 1-163-019-00 CERAMIC CHIP 0.0068MF 10% 50V C034 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C035 1-163-253-11 CERAMIC CHIP 120PF 5% 50V C036 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C037 1-126-934-11 ELECT 220MF 20% 16V C038 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C039 1-126-964-11 ELECT 10MF 20% 50V C040 1-126-963-11 ELECT 4.7MF 20% 50V C041 1-126-960-11 ELECT 1MF 20% 50V

C042 1-126-967-11 ELECT 47MF 20% 50V C043 1-126-967-11 ELECT 47MF 20% 50V C044 1-126-967-11 ELECT 47MF 20% 50V C045 1-163-137-00 CERAMIC CHIP 680PF 5% 50V C046 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C047 1-126-934-11 ELECT 220MF 20% 16V C048 1-164-695-11 CERAMIC CHIP 0.0022MF 5% 50V C049 1-163-137-00 CERAMIC CHIP 680PF 5% 50V C050 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V C051 1-126-960-11 ELECT 1MF 20% 50V

C052 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V C054 1-126-963-11 ELECT 4.7MF 20% 50V C055 1-126-963-11 ELECT 4.7MF 20% 50V C056 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V C057 1-107-909-11 ELECT 47MF 20% 50V

C058 1-126-934-11 ELECT 220MF 20% 16V C059 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C060 1-126-964-11 ELECT 10MF 20% 50V C061 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C063 1-137-399-11 FILM 0.1MF 5% 50V

C065 1-126-965-11 ELECT 22MF 20% 50V

C066 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C067 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C068 1-126-964-11 ELECT 10MF 20% 50V C069 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C070 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C072 1-126-960-11 ELECT 1MF 20% 50V C073 1-163-222-11 CERAMIC CHIP 5PF 0.25PF 50V C074 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C075 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C076 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V C077 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C078 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C079 1-126-967-11 ELECT 47MF 20% 50V C080 1-126-967-11 ELECT 47MF 20% 50V

C081 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C082 1-126-964-11 ELECT 10MF 20% 50V C083 1-137-399-11 FILM 0.1MF 5% 50V C084 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C085 1-137-399-11 FILM 0.1MF 5% 50V

C086 1-126-964-11 ELECT 10MF 20% 50V C087 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C090 1-109-982-11 CERAMIC CHIP 1MF 10% 10V C092 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C093 1-126-964-11 ELECT 10MF 20% 50V

C094 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C095 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C096 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C097 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C098 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C099 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C501 1-107-909-11 ELECT 47MF 20% 50V C502 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C503 1-136-169-00 FILM 0.22MF 5% 50V C504 1-137-605-11 FILM 0.01MF 10% 250V

C505 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C506 1-136-169-00 FILM 0.22MF 5% 50V C507 1-136-173-00 FILM 0.47MF 5% 50V C508 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V C509 1-126-941-11 ELECT 470MF 20% 25V

C510 1-137-368-11 FILM 0.0047MF 5% 50V C511 1-117-398-11 ELECT 33MF 20% 250V C512 1-107-889-11 ELECT 220MF 20% 25V C513 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V C514 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C515 1-107-889-11 ELECT 220MF 20% 25V C516 1-137-399-11 FILM 0.1MF 5% 50V C517 1-104-574-11 CERAMIC 0.0047MF 10% 2KV C518 1-117-959-11 FILM 4700PF 3% 1.8KV C519 1-107-444-11 CERAMIC 100PF 5% 2KV

C520 1-136-553-11 FILM 0.0015MF 5% 630V C521 1-107-597-11 CERAMIC 22PF 5% 500V C522 1-107-444-11 CERAMIC 100PF 5% 2KV C523 1-137-370-11 FILM 0.01MF 5% 50V C524 1-113-694-11 FILM 0.056MF 5% 250V

C525 1-107-846-11 FILM 0.1MF 5% 250V C526 1-115-514-11 FILM 0.22MF 5% 250V

7-8

6558-03N/03S/43N/43S

D

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

C527 1-115-517-11 FILM 0.39MF 5% 250V C528 1-115-521-11 FILM 0.82MF 5% 250V C529 1-107-683-11 ELECT 2.2MF 0 250V

C530 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C531 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C532 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C533 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C534 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C535 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C536 1-128-526-11 ELECT 100MF 20% 25V C537 1-115-523-21 FILM 1.2MF 5% 250V C538 1-117-958-11 FILM 0.24MF 5% 400V C539 1-107-960-11 ELECT 4.7MF 20% 250V

C540 1-106-343-00 MYLAR 0.001MF 10% 200V C541 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C542 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C544 1-137-368-11 FILM 0.0047MF 5% 50V C545 1-126-967-11 ELECT 47MF 20% 50V

C547 1-126-967-11 ELECT 47MF 20% 50V C549 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C550 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C551 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C553 1-126-963-11 ELECT 4.7MF 20% 50V

C554 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V C555 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V C556 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C557 1-115-185-11 CERAMIC CHIP 0.033MF 10% 50V C559 1-162-134-11 CERAMIC 470PF 10% 2KV

C903 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C904 1-137-605-11 FILM 0.01MF 10% 250V C905 1-104-653-11 ELECT 220MF 20% 16V

C906 1-106-220-00 MYLAR 0.1MF 10% 100V C907 1-119-748-11 ELECT 33MF 20% 400V C908 1-136-169-00 FILM 0.22MF 5% 50V C909 1-106-355-12 MYLAR 0.0033MF 10% 200V C910 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C911 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V C912 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V C913 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C914 1-163-275-11 CERAMIC CHIP 0.001MF 5% 50V C915 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C916 1-136-064-00 FILM 2200PF 3% 1.2KV C917 1-107-889-11 ELECT 220MF 20% 25V C919 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C920 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C921 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C922 1-117-665-11 FILM 0.33MF 5% 200V C923 1-106-359-00 MYLAR 0.0047MF 10% 100V C924 1-106-220-00 MYLAR 0.1MF 10% 100V C925 1-137-372-11 FILM 0.022MF 5% 50V C926 1-106-228-00 MYLAR 0.22MF 10% 100V

C927 1-107-903-11 ELECT 2.2MF 20% 50V C928 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C929 1-128-526-11 ELECT 100MF 20% 25V C930 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C931 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C561 1-136-173-00 FILM 0.47MF 5% 50V C562 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C563 1-117-214-11 CERAMIC 0.001MF 10% 2KV C564 1-126-963-11 ELECT 4.7MF 20% 50V C666 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C667 1-126-967-11 ELECT 47MF 20% 50V C701 1-126-967-11 ELECT 47MF 20% 50V C702 1-137-399-11 FILM 0.1MF 5% 50V C705 1-126-942-61 ELECT 1000MF 20% 25V C706 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C707 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C709 1-137-399-11 FILM 0.1MF 5% 50V C710 1-163-019-00 CERAMIC CHIP 0.0068MF 10% 50V C711 1-107-894-11 ELECT 220MF 20% 35V C712 1-106-228-00 MYLAR 0.22MF 10% 100V

C713 1-126-942-61 ELECT 1000MF 20% 25V C714 1-126-967-11 ELECT 47MF 20% 50V C715 1-107-932-11 ELECT 47MF 20% 100V C717 1-107-930-91 ELECT 22MF 20% 100V C729 1-162-134-11 CERAMIC 470PF 10% 2KV

C735 1-137-399-11 FILM 0.1MF 5% 50V C746 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C747 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C750 1-126-964-11 ELECT 10MF 20% 50V C751 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C901 1-107-889-11 ELECT 220MF 20% 25V C902 1-163-809-11 CERAMIC CHIP 0.047MF 10% 25V

C945 1-107-909-11 ELECT 47MF 20% 50V C1003 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C1004 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C1005 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C1006 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C1007 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C1008 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C1009 1-126-960-11 ELECT 1MF 20% 50V C1501 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C1502 1-117-722-11 ELECT 2200MF 20% 10V

C1503 1-163-001-11 CERAMIC CHIP 220PF 10% 50V

CN501*1-564-512-11 PLUG, CONNECTOR 9P CN502*1-564-514-11 PLUG, CONNECTOR 11P CN503*1-564-510-11 PLUG, CONNECTOR 7P CN504*1-564-508-11 PLUG, CONNECTOR 5P CN505*1-508-879-11 BASE POST

CN506*1-564-511-11 PLUG, CONNECTOR 8P CN507 1-764-101-11 PIN, CONNECTOR (PC BOARD) 2P CN508*1-778-955-11 PIN, CONNECTOR (PC BOARD) 10P CN509 1-564-505-11 PLUG, CONNECTOR 2P CN511*1-564-514-11 PLUG, CONNECTOR 11P

CN512*1-564-512-11 PLUG, CONNECTOR 9P CN520*1-564-509-11 PLUG, CONNECTOR 6P CN901*1-564-520-11 PLUG, CONNECTOR 5P

7-9

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

6558-03N/03S/43N/43S

D

<DIODE>

D004 8-719-800-76 DIODE 1SS226 D007 8-719-976-99 ZENER DIODE DTZ5.1B D008 8-719-976-99 ZENER DIODE DTZ5.1B D009 8-719-976-99 ZENER DIODE DTZ5.1B D010 8-719-976-99 ZENER DIODE DTZ5.1B

D012 8-719-800-76 DIODE 1SS226 D013 8-719-800-76 DIODE 1SS226 D014 8-719-800-76 DIODE 1SS226 D015 8-719-800-76 DIODE 1SS226 D016 8-719-800-76 DIODE 1SS226

D019 8-719-800-76 DIODE 1SS226 D020 8-719-800-76 DIODE 1SS226 D025 8-719-976-99 ZENER DIODE DTZ5.1B D026 8-719-800-76 DIODE 1SS226 D027 8-719-800-76 DIODE 1SS226

D028 8-719-800-76 DIODE 1SS226 D029 8-719-800-76 DIODE 1SS226 D032 8-719-976-99 ZENER DIODE DTZ5.1B D033 8-719-976-99 ZENER DIODE DTZ5.1B D034 8-719-801-78 DIODE 1SS184

D035 8-719-801-78 DIODE 1SS184 D050 8-719-404-49 DIODE MA111 D501 8-719-977-40 ZENER DIODE DTZ13B D502 8-719-063-89 DIODE YG911S3R D503 8-719-404-49 DIODE MA111

D721 8-719-028-72 DIODE RGP02-17EL-6433 D901 8-719-404-49 DIODE MA111

D902 8-719-404-49 DIODE MA111 D903 8-719-911-19 DIODE 1SS119-25 D904 8-719-404-49 DIODE MA111 D905 8-719-404-49 DIODE MA111

D906 8-719-404-49 DIODE MA111 D907 8-719-158-49 ZENER DIODE RD12SB2 D908 8-719-158-49 ZENER DIODE RD12SB2 D909 8-719-977-40 ZENER DIODE DTZ13B D910 8-719-063-89 DIODE YG911S3R

D911 8-719-978-69 ZENER DIODE DTZ-TT11-16B D913 8-719-158-49 ZENER DIODE RD12SB2 D915 8-719-109-85 ZENER DIODE RD5.1ESB2 D916 8-719-939-79 DIODE GMA01-BT D917 8-719-110-46 ZENER DIODE RD16ESB3

D919 8-719-911-19 DIODE 1SS119-25 D921 8-719-404-49 DIODE MA111 D922 8-719-404-49 DIODE MA111 D923 8-719-404-49 DIODE MA111 D924 8-719-976-99 ZENER DIODE DTZ5.1B

D935 8-719-977-81 ZENER DIODE DTZ33B D1501 8-719-976-99 ZENER DIODE DTZ5.1B D1502 8-719-404-49 DIODE MA111 D1503 8-719-404-49 DIODE MA111

D504 8-719-984-73 DIODE SB560 D505 8-719-018-82 DIODE RGP02-20EL-6394 D506 8-719-911-19 DIODE 1SS119-25 D507 8-719-911-19 DIODE 1SS119-25 D508 8-719-109-85 ZENER DIODE RD5.1ESB2

D509 8-719-911-19 DIODE 1SS119-25 D510 8-719-951-30 DIODE ERA91-02 D511 8-719-911-19 DIODE 1SS119-25 D512 8-719-018-82 DIODE RGP02-20EL-6394 D513 8-719-404-49 DIODE MA111

D514 8-719-109-93 ZENER DIODE RD6.2ESB2 D516 8-719-105-99 ZENER DIODE RD6.2M-B1 D517 8-719-105-99 ZENER DIODE RD6.2M-B1 D518 8-719-404-49 DIODE MA111 D519 8-719-066-36 DIODE FMQ-G5GS

D521 8-719-404-49 DIODE MA111 D530 8-719-018-82 DIODE RGP02-20EL-6394 D531 8-719-018-82 DIODE RGP02-20EL-6394 D660 8-719-977-69 ZENER DIODE DTZ24B D701 8-719-158-15 ZENER DIODE RD5.6SB

D704 8-719-404-49 DIODE MA111 D705 8-719-404-49 DIODE MA111 D706 8-719-976-99 ZENER DIODE DTZ5.1B D709 8-719-979-85 DIODE EGP20G D713 8-719-911-19 DIODE 1SS119-25

D714 8-719-911-19 DIODE 1SS119-25 D715 8-719-911-19 DIODE 1SS119-25 D718 8-719-976-99 ZENER DIODE DTZ5.1B D720 8-719-028-72 DIODE RGP02-17EL-6433

FB501 1-410-397-21 FERRITE 1.1UH FB502 1-410-397-21 FERRITE 1.1UH FB901 1-410-397-21 FERRITE 1.1UH FB10251-414-232-11 INDUCTOR CHIP 0UH FB10261-414-232-11 INDUCTOR CHIP 0UH

<IC>

IC001 8-759-531-24 IC MB90553PF-G-120-BND IC002 8-759-442-20 IC 24LC21A/SN IC003 8-759-168-20 IC TA78L09S IC004 8-759-454-79 IC 24LC16BT/SN IC005 8-759-162-80 IC MM1170BFB

IC006 8-759-231-53 IC TA7805S IC007 8-752-078-46 IC CXA2043Q IC008 8-759-701-59 IC NJM78M09FA IC009 8-759-082-57 IC TC7W04FU IC010 8-752-083-83 IC CXA2044M-T6

IC011 8-759-708-05 IC NJM78L05A IC012 8-759-442-20 IC 24LC21A/SN IC013 8-759-233-66 IC TC74HCT04AF IC502 8-759-803-42 IC LA6500-FA IC505 8-759-100-96 IC UPC4558G2

IC701 8-759-822-38 IC LA6510 IC702 8-759-444-82 IC LA7841L IC703 8-759-100-96 IC UPC4558G2 IC901 8-759-467-70 IC BA9756FS-E2

7-10

6558-03N/03S/43N/43S

D

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

JR001 1-216-295-91 SHORT 0 JR002 1-216-295-91 SHORT 0 JR003 1-216-295-91 SHORT 0 JR004 1-216-295-91 SHORT 0

<COIL>

L001 1-406-665-11 INDUCTOR 0UH L002 1-406-665-11 INDUCTOR 0UH L003 1-412-537-31 INDUCTOR 100UH L004 1-412-537-31 INDUCTOR 100UH L006 1-410-482-31 INDUCTOR 100UH

L007 1-412-537-31 INDUCTOR 100UH L008 1-412-537-31 INDUCTOR 100UH L501 1-412-537-31 INDUCTOR 100UH L502 1-406-671-11 INDUCTOR 0UH L503 1-416-455-11 COIL, HORIZONTAL LINEARITY

L504 1-416-456-11 COIL, HORIZONTAL LINEARITY L505 1-406-675-11 INDUCTOR 0UH L507 1-406-675-11 INDUCTOR 0UH L701 1-412-537-31 INDUCTOR 100UH L702 1-412-522-31 INDUCTOR 5.6UH

L901 1-412-537-31 INDUCTOR 100UH L902 1-406-660-41 INDUCTOR 0UH L903 1-412-537-31 INDUCTOR 100UH

Q512 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q517 8-729-216-22 TRANSISTOR 2SA1162-G Q522 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119

Q523 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119 Q524 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119 Q525 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119 Q526 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119 Q527 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119

Q528 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119 Q660 8-729-033-26 TRANSISTOR DTA114GKAT146 Q661 8-729-033-25 TRANSISTOR DTC114GKA Q701 8-729-800-32 TRANSISTOR 2SC2362K-G Q703 8-729-178-43 TRANSISTOR 2SC2784-E

Q704 8-729-207-82 TRANSISTOR 2SC3421-Y Q705 8-729-204-91 TRANSISTOR 2SA1049-GR Q706 8-729-207-89 TRANSISTOR 2SA1358-Y Q707 8-729-216-22 TRANSISTOR 2SA1162-G Q708 8-729-020-07 TRANSISTOR 2SC4686A(LBSONY)

Q901 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q902 8-729-216-22 TRANSISTOR 2SA1162-G Q904 8-729-901-87 TRANSISTOR 2SC2411K-CQ Q905 8-729-901-97 TRANSISTOR 2SA1036K-Q Q908 8-729-035-54 TRANSISTOR 2SJ449

Q909 8-729-033-91 TRANSISTOR 2SK1120LBSONY2 Q911 8-729-033-25 TRANSISTOR DTC114GKA

PS501!1-533-592-31 LINK, IC (1.6A/90V AC, 60V DC) PS502!1-532-984-91 LINK, IC (2A/90V) PS503!1-532-984-91 LINK, IC (2A/90V) PS504!1-532-984-91 LINK, IC (2A/90V) PS701!1-533-590-31 LINK, IC (1A/90V AC, 60V DC)

PS901!1-533-592-31 LINK, IC (1.6A/90V AC, 60V DC)

Q001 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q003 8-729-216-22 TRANSISTOR 2SA1162-G Q004 8-729-216-22 TRANSISTOR 2SA1162-G Q005 8-729-216-22 TRANSISTOR 2SA1162-G Q006 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q007 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q501 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q502 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q503 8-729-901-97 TRANSISTOR 2SA1036K-Q Q504 8-729-120-28 TRANSISTOR 2SC1623-L5L6

Q505 8-729-901-97 TRANSISTOR 2SA1036K-Q Q506 8-729-820-73 TRANSISTOR 2SC3746 Q507 8-729-035-54 TRANSISTOR 2SJ449 Q508 8-729-031-87 TRANSISTOR 2SC5047-CA Q509 8-729-033-25 TRANSISTOR DTC114GKA

R001 1-216-025-91 RES,CHIP 100 5% 1/10W R002 1-216-049-91 RES,CHIP 1K 5% 1/10W R003 1-216-049-91 RES,CHIP 1K 5% 1/10W R004 1-216-049-91 RES,CHIP 1K 5% 1/10W R005 1-216-073-00 RES,CHIP 10K 5% 1/10W

R006 1-216-049-91 RES,CHIP 1K 5% 1/10W R007 1-216-025-91 RES,CHIP 100 5% 1/10W R008 1-216-089-91 RES,CHIP 47K 5% 1/10W R009 1-216-025-91 RES,CHIP 100 5% 1/10W R010 1-216-081-00 RES,CHIP 22K 5% 1/10W

R011 1-216-097-91 RES,CHIP 100K 5% 1/10W R012 1-216-025-91 RES,CHIP 100 5% 1/10W R013 1-216-675-11 METAL CHIP 10K 0.50%1/10W R017 1-216-049-91 RES,CHIP 1K 5% 1/10W R018 1-216-049-91 RES,CHIP 1K 5% 1/10W

R020 1-216-049-91 RES,CHIP 1K 5% 1/10W R023 1-216-025-91 RES,CHIP 100 5% 1/10W R024 1-216-089-91 RES,CHIP 47K 5% 1/10W R025 1-216-295-91 SHORT 0 R026 1-216-073-00 RES,CHIP 10K 5% 1/10W

R027 1-216-073-00 RES,CHIP 10K 5% 1/10W R028 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R029 1-216-089-91 RES,CHIP 47K 5% 1/10W R030 1-216-017-91 RES,CHIP 47 5% 1/10W R031 1-216-073-00 RES,CHIP 10K 5% 1/10W

Q510 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q511 8-729-140-50 TRANSISTOR 2SC3209LK

R032 1-216-675-11 METAL CHIP 10K 0.50%1/10W R033 1-216-017-91 RES,CHIP 47 5% 1/10W

7-11

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

6558-03N/03S/43N/43S

D

R034 1-216-025-91 RES,CHIP 100 5% 1/10W R035 1-216-049-91 RES,CHIP 1K 5% 1/10W R036 1-216-025-91 RES,CHIP 100 5% 1/10W

R037 1-216-686-11 METAL CHIP 30K 0.50%1/10W R038 1-216-685-11 METAL CHIP 27K 0.50%1/10W R039 1-216-049-91 RES,CHIP 1K 5% 1/10W R040 1-216-049-91 RES,CHIP 1K 5% 1/10W R041 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R042 1-216-089-91 RES,CHIP 47K 5% 1/10W R043 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R044 1-216-095-00 RES,CHIP 82K 5% 1/10W R045 1-216-073-00 RES,CHIP 10K 5% 1/10W R046 1-216-675-11 METAL CHIP 10K 0.50%1/10W

R047 1-216-073-00 RES,CHIP 10K 5% 1/10W R048 1-216-049-91 RES,CHIP 1K 5% 1/10W R049 1-216-049-91 RES,CHIP 1K 5% 1/10W R050 1-216-025-91 RES,CHIP 100 5% 1/10W R051 1-216-679-11 METAL CHIP 15K 0.50%1/10W

R052 1-216-073-00 RES,CHIP 10K 5% 1/10W R053 1-216-675-11 METAL CHIP 10K 0.50%1/10W R054 1-216-675-11 METAL CHIP 10K 0.50%1/10W R055 1-216-089-91 RES,CHIP 47K 5% 1/10W R056 1-216-671-11 METAL CHIP 6.8K 0.50%1/10W

R057 1-216-679-11 METAL CHIP 15K 0.50%1/10W R058 1-216-663-11 METAL CHIP 3.3K 0.50%1/10W R059 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R060 1-216-025-91 RES,CHIP 100 5% 1/10W R061 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

R063 1-216-025-91 RES,CHIP 100 5% 1/10W R064 1-216-025-91 RES,CHIP 100 5% 1/10W R065 1-216-025-91 RES,CHIP 100 5% 1/10W R066 1-216-025-91 RES,CHIP 100 5% 1/10W R067 1-216-025-91 RES,CHIP 100 5% 1/10W

R068 1-216-025-91 RES,CHIP 100 5% 1/10W R069 1-216-017-91 RES,CHIP 47 5% 1/10W R070 1-216-675-11 METAL CHIP 10K 0.50%1/10W R071 1-216-049-91 RES,CHIP 1K 5% 1/10W R072 1-216-651-11 METAL CHIP 1K 0.50%1/10W

R073 1-216-295-91 SHORT 0 R074 1-216-675-11 METAL CHIP 10K 0.50%1/10W R075 1-216-049-91 RES,CHIP 1K 5% 1/10W R076 1-216-049-91 RES,CHIP 1K 5% 1/10W R077 1-216-049-91 RES,CHIP 1K 5% 1/10W

R078 1-216-049-91 RES,CHIP 1K 5% 1/10W R079 1-216-017-91 RES,CHIP 47 5% 1/10W R080 1-216-017-91 RES,CHIP 47 5% 1/10W R081 1-216-675-11 METAL CHIP 10K 0.50%1/10W R082 1-216-049-91 RES,CHIP 1K 5% 1/10W

R083 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R084 1-216-025-91 RES,CHIP 100 5% 1/10W R085 1-216-025-91 RES,CHIP 100 5% 1/10W R086 1-216-049-91 RES,CHIP 1K 5% 1/10W R088 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R089 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R090 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R092 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R094 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R096 1-216-671-11 METAL CHIP 6.8K 0.50%1/10W

R097 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R101 1-216-049-91 RES,CHIP 1K 5% 1/10W R501 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R502 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R503 1-216-041-00 RES,CHIP 470 5% 1/10W

R504 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R505 1-216-041-00 RES,CHIP 470 5% 1/10W R506 1-249-397-11 CARBON 22 5% 1/4W F R507 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R508 1-216-025-91 RES,CHIP 100 5% 1/10W

R509 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R510 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R511 1-219-726-11 METAL 2.2 5% 10W R512 1-216-627-11 METAL CHIP 100 0.50%1/10W R513 1-215-860-11 METAL OXIDE 33 5% 1W F

R514 1-211-796-11 FUSIBLE 1 5% 1/2W F R515 1-216-675-11 METAL CHIP 10K 0.50%1/10W R516 1-247-815-91 CARBON 220 5% 1/4W R517 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R518 1-216-097-91 RES,CHIP 100K 5% 1/10W

R519 1-216-393-00 METAL OXIDE 2.2 5% 3W F R520 1-216-393-00 METAL OXIDE 2.2 5% 3W F R521 1-249-413-11 CARBON 470 5% 1/4W F R522 1-216-423-11 METAL OXIDE 27 5% 1W F R523 1-249-421-11 CARBON 2.2K 5% 1/4W F

R524 1-215-869-11 METAL OXIDE 1K 5% 1W F R525 1-216-681-11 METAL CHIP 18K 0.50%1/10W R526 1-214-840-00 METAL 100 1% 1/2W R527 1-214-840-00 METAL 100 1% 1/2W R528 1-214-840-00 METAL 100 1% 1/2W

R529 1-260-313-51 CARBON 56 5% 1/2W R530 1-249-437-11 CARBON 47K 5% 1/4W R531 1-249-437-11 CARBON 47K 5% 1/4W R532 1-249-437-11 CARBON 47K 5% 1/4W R533 1-249-437-11 CARBON 47K 5% 1/4W

R534 1-249-437-11 CARBON 47K 5% 1/4W R535 1-216-049-91 RES,CHIP 1K 5% 1/10W R536 1-216-049-91 RES,CHIP 1K 5% 1/10W R537 1-216-049-91 RES,CHIP 1K 5% 1/10W R538 1-216-049-91 RES,CHIP 1K 5% 1/10W

R539 1-216-049-91 RES,CHIP 1K 5% 1/10W R540 1-216-073-00 RES,CHIP 10K 5% 1/10W R541 1-260-314-11 CARBON 68 5% 1/2W R542 1-215-863-11 METAL OXIDE 100 5% 1W F R543 1-216-640-11 METAL CHIP 360 0.50%1/10W

R544 1-260-085-11 CARBON 68 5% 1/2W R545 1-216-683-11 METAL CHIP 22K 0.50%1/10W R546 1-260-288-11 CARBON 0.47 5% 1/2W R547 1-216-663-11 METAL CHIP 3.3K 0.50%1/10W R548 1-215-443-00 METAL 8.2K 1% 1/4W

R549 1-216-675-11 METAL CHIP 10K 0.50%1/10W R550 1-260-288-11 CARBON 0.47 5% 1/2W R551 1-216-659-11 METAL CHIP 2.2K 0.50%1/10W R552 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

7-12

6558-03N/03S/43N/43S

D

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

R553 1-216-655-11 METAL CHIP 1.5K 0.50%1/10W R554 1-216-675-11 METAL CHIP 10K 0.50%1/10W

R555 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R556 1-216-674-11 METAL CHIP 9.1K 0.50%1/10W R557 1-218-760-11 METAL CHIP 220K 0.50%1/10W R558 1-216-683-11 METAL CHIP 22K 0.50%1/10W

R561 1-216-683-11 METAL CHIP 22K 0.50%1/10W R562 1-249-401-11 CARBON 47 5% 1/4W F R563 1-216-662-11 METAL CHIP 3K 0.50%1/10W R564 1-216-697-91 METAL CHIP 82K 0.50%1/10W R565 1-216-671-11 METAL CHIP 6.8K 0.50%1/10W

R566 1-260-311-11 CARBON 39 5% 1/2W R567 1-216-627-11 METAL CHIP 100 0.50%1/10W R568 1-216-655-11 METAL CHIP 1.5K 0.50%1/10W R571 1-216-381-11 METAL OXIDE 0.22 5% 3W F R572 1-216-097-91 RES,CHIP 100K 5% 1/10W

R573 1-216-097-91 RES,CHIP 100K 5% 1/10W R574 1-216-097-91 RES,CHIP 100K 5% 1/10W R575 1-216-097-91 RES,CHIP 100K 5% 1/10W R576 1-216-097-91 RES,CHIP 100K 5% 1/10W R577 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R578 1-216-025-91 RES,CHIP 100 5% 1/10W R579 1-216-672-11 METAL CHIP 7.5K 0.50%1/10W R580 1-216-073-00 RES,CHIP 10K 5% 1/10W R581 1-216-073-00 RES,CHIP 10K 5% 1/10W R582 1-216-073-00 RES,CHIP 10K 5% 1/10W

R583 1-216-677-11 METAL CHIP 12K 0.50%1/10W R584 1-216-081-00 RES,CHIP 22K 5% 1/10W R585 1-216-081-00 RES,CHIP 22K 5% 1/10W R586 1-216-049-91 RES,CHIP 1K 5% 1/10W R587 1-216-049-91 RES,CHIP 1K 5% 1/10W

R588 1-216-097-91 RES,CHIP 100K 5% 1/10W R589 1-216-097-91 RES,CHIP 100K 5% 1/10W R590 1-216-675-11 METAL CHIP 10K 0.50%1/10W R591 1-216-675-11 METAL CHIP 10K 0.50%1/10W R594 1-249-437-11 CARBON 47K 5% 1/4W

R595 1-249-437-11 CARBON 47K 5% 1/4W R596 1-216-683-11 METAL CHIP 22K 0.50%1/10W R663 1-215-482-00 METAL 360K 1% 1/4W R664 1-215-459-00 METAL 39K 1% 1/4W R665 1-216-049-91 RES,CHIP 1K 5% 1/10W

R667 1-216-041-00 RES,CHIP 470 5% 1/10W R669 1-216-671-11 METAL CHIP 6.8K 0.50%1/10W R701 1-249-383-11 CARBON 1.5 5% 1/4W F R702 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R703 1-216-085-00 RES,CHIP 33K 5% 1/10W

R704 1-249-383-11 CARBON 1.5 5% 1/4W F R705 1-249-385-11 CARBON 2.2 5% 1/4W R706 1-216-093-00 RES,CHIP 68K 5% 1/10W R707 1-249-421-11 CARBON 2.2K 5% 1/4W R708 1-216-073-00 RES,CHIP 10K 5% 1/10W

R709 1-216-473-11 METAL OXIDE 56 5% 3W F R710 1-216-073-00 RES,CHIP 10K 5% 1/10W R715 1-216-077-00 RES,CHIP 15K 5% 1/10W R719 1-249-383-11 CARBON 1.5 5% 1/4W F R720 1-260-292-11 CARBON 1 5% 1/2W

R721 1-216-667-11 METAL CHIP 4.7K 0.50%1/10W R722 1-216-691-11 METAL CHIP 47K 0.50%1/10W R723 1-216-663-11 METAL CHIP 3.3K 0.50%1/10W R724 1-214-798-21 METAL 1.8 1% 1/2W R725 1-214-798-21 METAL 1.8 1% 1/2W

R726 1-216-675-11 METAL CHIP 10K 0.50%1/10W R727 1-260-292-11 CARBON 1 5% 1/2W R728 1-249-381-11 CARBON 1 5% 1/4W F R729 1-215-865-11 METAL OXIDE 220 5% 1W F R730 1-219-746-11 CARBON 1K 5% 1/2W

R731 1-216-073-00 RES,CHIP 10K 5% 1/10W R732 1-216-073-00 RES,CHIP 10K 5% 1/10W R733 1-219-746-11 CARBON 1K 5% 1/2W R734 1-215-881-11 METAL OXIDE 15 5% 2W F R737 1-249-377-11 CARBON 0.47 5% 1/4W F

R738 1-249-377-11 CARBON 0.47 5% 1/4W F R739 1-249-413-11 CARBON 470 5% 1/4W F R741 1-249-430-11 CARBON 12K 5% 1/4W R742 1-249-419-11 CARBON 1.5K 5% 1/4W R743 1-216-049-91 RES,CHIP 1K 5% 1/10W

R748 1-216-683-11 METAL CHIP 22K 0.50%1/10W R749 1-216-049-91 RES,CHIP 1K 5% 1/10W R750 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R751 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R752 1-216-083-00 RES,CHIP 27K 5% 1/10W

R753 1-219-720-11 METAL 10M 5% 1W R754 1-219-754-11 CARBON 680K 5% 1/2W R755 1-219-754-11 CARBON 680K 5% 1/2W R756 1-220-824-11 CARBON 270K 5% 1/2W R759 1-218-754-11 METAL CHIP 120K 0.50%1/10W

R776 1-216-049-91 RES,CHIP 1K 5% 1/10W R777 1-216-681-11 METAL CHIP 18K 0.50%1/10W R778 1-216-667-11 METAL CHIP 4.7K 0.50%1/10W R779 1-216-049-91 RES,CHIP 1K 5% 1/10W R784 1-216-081-00 RES,CHIP 22K 5% 1/10W

R900 1-216-399-00 METAL OXIDE 6.8 5% 3W F R901 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R902 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R903 1-216-073-00 RES,CHIP 10K 5% 1/10W R904 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R905 1-216-025-91 RES,CHIP 100 5% 1/10W R906 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R907 1-216-025-91 RES,CHIP 100 5% 1/10W R908 1-216-091-00 RES,CHIP 56K 5% 1/10W R909 1-216-689-11 RES,CHIP 39K 5% 1/10W

R910 1-216-073-00 RES,CHIP 10K 5% 1/10W R911 1-216-049-91 RES,CHIP 1K 5% 1/10W R912 1-218-772-11 METAL CHIP 680K 0.50%1/10W R913 1-219-748-11 CARBON 4.7K 5% 1/2W R914 1-219-510-11 CARBON 470K 5% 1/2W

R915 1-249-437-11 CARBON 47K 5% 1/4W R916 1-249-429-11 CARBON 10K 5% 1/4W R917 1-216-073-00 RES,CHIP 10K 5% 1/10W R918 1-216-097-91 RES,CHIP 100K 5% 1/10W R919 1-216-025-91 RES,CHIP 100 5% 1/10W

R920 1-249-401-11 CARBON 47 5% 1/4W F

7-13

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

6558-03N/03S/43N/43S

DH

R921 1-216-668-11 METAL CHIP 5.1K 0.50%1/10W R922 1-216-041-00 RES,CHIP 470 5% 1/10W R923 1-216-675-11 METAL CHIP 10K 0.50%1/10W R924 1-249-397-11 CARBON 22 5% 1/4W F

R925 1-216-653-11 METAL CHIP 1.2K 0.50%1/10W R926 1-216-653-11 METAL CHIP 1.2K 0.50%1/10W R927 1-216-073-00 RES,CHIP 10K 5% 1/10W R928 1-216-667-11 METAL CHIP 4.7K 0.50%1/10W R929 1-216-033-00 RES,CHIP 220 5% 1/10W

R930 1-216-033-00 RES,CHIP 220 5% 1/10W R933 1-216-683-11 METAL CHIP 22K 0.50%1/10W R934 1-216-667-11 METAL CHIP 4.7K 0.50%1/10W R937 1-219-727-11 METAL 68 5% 10W R940 1-249-393-11 CARBON 10 5% 1/4W F

R941 1-216-073-00 RES,CHIP 10K 5% 1/10W R980 1-216-049-91 RES,CHIP 1K 5% 1/10W R981 1-216-025-91 RES,CHIP 100 5% 1/10W R1001 1-216-073-00 RES,CHIP 10K 5% 1/10W R1003 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1004 1-216-049-91 RES,CHIP 1K 5% 1/10W R1005 1-216-049-91 RES,CHIP 1K 5% 1/10W R1006 1-216-049-91 RES,CHIP 1K 5% 1/10W R1007 1-216-049-91 RES,CHIP 1K 5% 1/10W R1009 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1011 1-216-073-00 RES,CHIP 10K 5% 1/10W R1012 1-216-049-91 RES,CHIP 1K 5% 1/10W R1013 1-216-049-91 RES,CHIP 1K 5% 1/10W R1014 1-216-049-91 RES,CHIP 1K 5% 1/10W R1015 1-216-295-91 SHORT 0

R1016 1-216-049-91 RES,CHIP 1K 5% 1/10W R1017 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R1020 1-216-049-91 RES,CHIP 1K 5% 1/10W R1021 1-216-049-91 RES,CHIP 1K 5% 1/10W R1022 1-216-295-91 SHORT 0

R1023 1-216-295-91 SHORT 0 R1024 1-216-295-91 SHORT 0 R1025 1-249-389-11 CARBON 4.7 5% 1/4W F R1026 1-249-389-11 CARBON 4.7 5% 1/4W F R1027 1-216-065-00 RES,CHIP 4.7K 5% 1/10W

SG901 1-517-499-21 GAP, SPARK

T501 1-429-303-21 TRANSFORMER, FERRITE (HDT) T502 1-416-401-11 INDUCTOR 0UH T503 1-431-413-11 TRANSFORMER, FERRITE (HST) T504 1-416-257-11 INDUCTOR 0UH T701 1-431-414-11 TRANSFORMER, FERRITE (DFT)

T901 1-416-402-11 INDUCTOR 0UH T902! X-4035-170-1 TRANSFORMER ASSY, FLYBACK

(NX-4142//J1D4)

TH501 1-807-796-11 THERMISTOR TH502 1-807-796-11 THERMISTOR

X001 1-567-781-61 VIBRATOR, CRYSTAL

**********************************************************************************

*8-933-283-00 H BOARD, COMPLETE

****************************

C805 1-124-589-11 ELECT 47MF 20% 16V C811 1-124-589-11 ELECT 47MF 20% 16V

CN801*1-564-526-11 PLUG, CONNECTOR 11P

<DIODE>

R1028 1-216-049-91 RES,CHIP 1K 5% 1/10W R1501 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R1502 1-216-073-00 RES,CHIP 10K 5% 1/10W R1503 1-216-125-00 RES,CHIP 1.5M 5% 1/10W R1504 1-216-097-91 RES,CHIP 100K 5% 1/10W

R1513 1-216-049-91 RES,CHIP 1K 5% 1/10W R1514 1-216-049-91 RES,CHIP 1K 5% 1/10W

<RELAY>

RY501 1-755-137-11 RELAY

SG701 1-519-422-11 GAP, SPARK SG702 1-519-422-11 GAP, SPARK

D820 8-719-064-11 DIODE SPR-325MVW

Q801 8-729-119-78 TRANSISTOR 2SC2785-HFE Q802 8-729-119-78 TRANSISTOR 2SC2785-HFE

R801 1-215-433-00 METAL 3.3K 1% 1/4W R802 1-215-409-00 METAL 330 1% 1/4W R803 1-215-409-00 METAL 330 1% 1/4W R804 1-215-413-00 METAL 470 1% 1/4W R805 1-215-413-00 METAL 470 1% 1/4W

R806 1-215-417-00 METAL 680 1% 1/4W R807 1-215-421-00 METAL 1K 1% 1/4W

7-14

6558-03N/03S/43N/43S

HJL

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

The components identified by shading and mark Replace only with part number specified.

¡

are critical for safety.

R808 1-215-421-00 METAL 1K 1% 1/4W R809 1-215-429-00 METAL 2.2K 1% 1/4W R810 1-215-433-00 METAL 3.3K 1% 1/4W

R814 1-249-429-11 CARBON 10K 5% 1/4W R815 1-249-429-11 CARBON 10K 5% 1/4W R818 1-215-445-00 METAL 10K 1% 1/4W R819 1-249-441-11 CARBON 100K 5% 1/4W R826 1-249-408-11 CARBON 180 5% 1/4W

R827 1-249-407-11 CARBON 150 5% 1/4W

S802 1-692-431-21 SWITCH, TACTILE (CONT+) S803 1-692-431-21 SWITCH, TACTILE (CONT-) S804 1-692-431-21 SWITCH, TACTILE (MENU) S805 1-692-431-21 SWITCH, TACTILE (BRT+) S806 1-692-431-21 SWITCH, TACTILE (BRT-)

S818 1-692-431-21 SWITCH, TACTILE (ASC) S820 1-692-431-21 SWITCH, TACTILE (RESET)

TH801 1-807-796-11 THERMISTOR

********************************************************************************

*8-933-279-00 J BOARD, COMPLETE

***************************

CN891*1-691-961-11 PIN, CONNECTOR (PC BOARD) 2P

C5105 1-104-664-11 ELECT 47MF 20% 25V C5106 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C5107 1-137-399-11 FILM 0.1MF 5% 50V C5108 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5109 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5110 1-104-664-11 ELECT 47MF 20% 25V

C5111 1-137-399-11 FILM 0.1MF 5% 50V C5201 1-104-664-11 ELECT 47MF 20% 25V C5202 1-104-664-11 ELECT 47MF 20% 25V C5203 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5204 1-137-399-11 FILM 0.1MF 5% 50V

C5205 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V C5206 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5301 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5303 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5304 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C5305 1-104-664-11 ELECT 47MF 20% 25V C5306 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5307 1-137-399-11 FILM 0.1MF 5% 50V C5308 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5309 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C5310 1-104-664-11 ELECT 47MF 20% 25V C5311 1-137-399-11 FILM 0.1MF 5% 50V C5401 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5403 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C5404 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C5405 1-104-664-11 ELECT 47MF 20% 25V C5406 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5407 1-137-399-11 FILM 0.1MF 5% 50V C5408 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C5409 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C5410 1-104-664-11 ELECT 47MF 20% 25V C5412 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5501 1-126-923-11 ELECT 220MF 20% 10V

S891! 1-571-433-31 SWITCH, PUSH (AC POWER)

********************************************************************************

*8-933-263-00 L BOARD, COMPLETE

****************************

C5002 1-126-964-11 ELECT 10MF 20% 50V C5003 1-126-933-11 ELECT 100MF 20% 16V C5004 1-104-664-11 ELECT 47MF 20% 25V C5005 1-104-664-11 ELECT 47MF 20% 25V C5008 1-104-664-11 ELECT 47MF 20% 25V

C5009 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5101 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5103 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C5104 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

CN5001*1-564-512-11PLUG, CONNECTOR 9P CN5002*1-564-509-11PLUG, CONNECTOR 6P CN5003 1-564-513-11PLUG, CONNECTOR 10P CN5004*1-564-507-11PLUG, CONNECTOR 4P

<DIODE>

D5002 8-719-801-78 DIODE 1SS184 D5101 8-719-800-76 DIODE 1SS226 D5103 8-719-800-76 DIODE 1SS226 D5201 8-719-800-76 DIODE 1SS226 D5301 8-719-800-76 DIODE 1SS226

D5303 8-719-800-76 DIODE 1SS226 D5401 8-719-800-76 DIODE 1SS226 D5403 8-719-800-76 DIODE 1SS226 D5501 8-719-976-96 ZENER DIODE DTZ4.7C

7-15

The components identified by shading and mark Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

¡

are critical for safety.

Les composants identifiés per un tramé et une marque sécurité. Ne les remplacer que par une piéce portant le numéro spécifié.

¡

sont critiques pour la

6558-03N/03S/43N/43S

L

GS5001*1-475-351-11SENSOR UNIT, MAGNETIC

<IC>

IC5101 8-759-822-38 IC LA6510 IC5201 8-759-803-42 IC LA6500-FA IC5301 8-759-822-38 IC LA6510 IC5401 8-759-822-38 IC LA6510

R5001 1-249-383-11 CARBON 1.5 5% 1/4W F R5003 1-216-295-91 SHORT 0 R5005 1-216-689-11 RES,CHIP 39K 5% 1/10W R5006 1-216-073-00 RES,CHIP 10K 5% 1/10W R5007 1-216-049-91 RES,CHIP 1K 5% 1/10W

R5008 1-216-295-91 SHORT 0 R5009 1-216-295-91 SHORT 0 R5010 1-216-295-91 SHORT 0 R5011 1-216-073-00 RES,CHIP 10K 5% 1/10W R5012 1-216-295-91 SHORT 0

R5013 1-216-295-91 SHORT 0 R5015 1-216-049-91 RES,CHIP 1K 5% 1/10W R5101 1-249-383-11 CARBON 1.5 5% 1/4W F R5102 1-249-383-11 CARBON 1.5 5% 1/4W F R5108 1-216-308-00 RES,CHIP 4.7 5% 1/10W

R5206 1-215-859-00 METAL OXIDE 22 5% 1W F R5207 1-216-073-00 RES,CHIP 10K 5% 1/10W

R5208 1-216-670-11 METAL CHIP 6.2K 0.50%1/10W R5301 1-249-383-11 CARBON 1.5 5% 1/4W F R5302 1-249-383-11 CARBON 1.5 5% 1/4W F R5308 1-216-308-00 RES,CHIP 4.7 5% 1/10W R5309 1-216-308-00 RES,CHIP 4.7 5% 1/10W

R5310 1-216-073-00 RES,CHIP 10K 5% 1/10W R5311 1-216-308-00 RES,CHIP 4.7 5% 1/10W R5312 1-249-383-11 CARBON 1.5 5% 1/4W F R5313 1-216-073-00 RES,CHIP 10K 5% 1/10W R5314 1-249-441-11 CARBON 100K 5% 1/4W F

R5315 1-215-882-00 METAL OXIDE 22 5% 2W F R5316 1-216-073-00 RES,CHIP 10K 5% 1/10W R5317 1-216-308-00 RES,CHIP 4.7 5% 1/10W R5319 1-216-073-00 RES,CHIP 10K 5% 1/10W R5320 1-249-383-11 CARBON 1.5 5% 1/4W F

R5321 1-249-441-11 CARBON 100K 5% 1/4W F R5322 1-215-882-00 METAL OXIDE 22 5% 2W F R5401 1-249-383-11 CARBON 1.5 5% 1/4W F R5402 1-249-383-11 CARBON 1.5 5% 1/4W F R5406 1-216-689-11 RES,CHIP 39K 5% 1/10W

R5407 1-216-079-00 RES,CHIP 18K 5% 1/10W R5408 1-216-308-00 RES,CHIP 4.7 5% 1/10W R5409 1-216-308-00 RES,CHIP 4.7 5% 1/10W R5410 1-216-089-91 RES,CHIP 47K 5% 1/10W R5411 1-216-308-00 RES,CHIP 4.7 5% 1/10W

R5109 1-216-308-00 RES,CHIP 4.7 5% 1/10W R5110 1-216-073-00 RES,CHIP 10K 5% 1/10W R5111 1-216-308-00 RES,CHIP 4.7 5% 1/10W R5112 1-249-383-11 CARBON 1.5 5% 1/4W F R5113 1-216-073-00 RES,CHIP 10K 5% 1/10W

R5114 1-249-441-11 CARBON 100K 5% 1/4W F R5115 1-215-882-00 METAL OXIDE 22 5% 2W F R5116 1-216-073-00 RES,CHIP 10K 5% 1/10W R5117 1-216-308-00 RES,CHIP 4.7 5% 1/10W R5119 1-216-073-00 RES,CHIP 10K 5% 1/10W

R5120 1-249-383-11 CARBON 1.5 5% 1/4W F R5121 1-249-441-11 CARBON 100K 5% 1/4W F R5122 1-215-882-00 METAL OXIDE 22 5% 2W F R5201 1-249-383-11 CARBON 1.5 5% 1/4W F R5202 1-249-383-11 CARBON 1.5 5% 1/4W F

R5203 1-249-383-11 CARBON 1.5 5% 1/4W F R5204 1-249-441-11 CARBON 100K 5% 1/4W F R5205 1-216-073-00 RES,CHIP 10K 5% 1/10W

R5412 1-249-383-11 CARBON 1.5 5% 1/4W F R5413 1-216-097-91 RES,CHIP 100K 5% 1/10W R5414 1-249-441-11 CARBON 100K 5% 1/4W F R5415 1-215-886-11 METAL OXIDE 100 5% 2W F R5416 1-216-077-00 RES,CHIP 15K 5% 1/10W

R5417 1-216-308-00 RES,CHIP 4.7 5% 1/10W R5419 1-216-089-91 RES,CHIP 47K 5% 1/10W R5420 1-249-383-11 CARBON 1.5 5% 1/4W F R5421 1-249-441-11 CARBON 100K 5% 1/4W F R5422 1-215-885-00 METAL OXIDE 68 5% 2W F

R5423 1-216-105-91 RES,CHIP 220K 5% 1/10W R5501 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R5502 1-216-681-11 METAL CHIP 18K 0.50%1/10W R5503 1-216-681-11 METAL CHIP 18K 0.50%1/10W R5504 1-216-093-00 RES,CHIP 68K 5% 1/10W

R5505 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R5506 1-216-670-11 METAL CHIP 6.2K 0.50%1/10W

7-16

6558-03N/03S/43N/43S

SERVICE MANUAL

COLOR MONITOR

CORRECTION-1

File this correction with the service manual.

SUBJECT :CORRECTION OF DIFFERENT COLOR PARTS

MISSING FROM PARTS LIST.

q: Indicates corrected portion

SECTION 6 EXPLODED VIEWS (See page 6-2 and 6-3)

Incorrect

6558-03N/43N

US Model

Canadian Model

AEP Model

Japan Model

6558-03S/43S

S. Hemisphere Model

Correct

REF.NO.PART NO. DESCRIPTION REMARK REF.NO.PART NO. DESCRIPTION REMARK

63 *4-061-603-31COVER, BOTTOM

66 X-4035-384-1STAND ASSY

107 1-783-247-11CABLE ASSY

63 *4-061-603-31COVER, BOTTOM (03N/03S) 63 *4-061-603-51COVER, BOTTOM (43N/43S)

66 X-4035-384-1STAND ASSY (03N/03S) 66 X-4035-590-2STAND ASSY (43N/43S)

107 1-783-247-11CABLE ASSY (03N/03S) 107 1-783-250-11CABLE ASSY (43N/43S)

w

9-978-610-91

English

98CL05035-1

Printed in Japan

 1998.3

IBM 6558-03N, 6558-43S, 6558-03S, 6558-43N Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
