6517-6LN

E74M Color Monitor

User Guide

ENGLISH

First Edition (April / 2002)

This publication could contain technical inaccuracies or typographical errors. Changes are made periodically to the information herein; these changes will be made in later editions. IBM may make improvements and/or changes in the product(s) and/or program(s) at any time.

It is possible that this publication may contain reference to, or information about, IBM products (machines and programs), programming, or services that are not announced in your country.

Requests for copies of this publication and for technical information about IBM products should be made to your IBM Authorized Dealer or IBM Retailer.

No part of this publication may be reproduced or distributed in any form or by any means without prior permission in writing from the International Business Machines Corporation.

Note to U.S. Government Users -- Documentation related to restricted rights -- Use, duplication or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Notices

References in this publication to IBM products, programs, or services do not imply that IBM intends to make these available in all countries in which IBM operates. Any reference to an IBM product, program or service is not intended to state or imply that only IBM’s product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any of IBM’s intellectual property rights or other legally protectable rights may be used instead of the IBM product, program, or service. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly designated by IBM, are the user’s responsibility.

IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not give you any license to these patents.

Trademarks

The following terms, used in this publication, are trademarks or service marks of the IBM Corporation in the United States, other countries, or both:

HelpCenter

IBM

ENERGY STAR is a U.S. Govt. registered trademark. Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United States, other countries, or both. Other company, product, and service names may be trademarks or service marks of others.

Note : For important information, refer to the Monitor Safety and Warranty manual that comes with this monitor.

Precautions.......................................................................................A2

Workplace Preparation .................................................................A2

Working Practices.........................................................................A2

Monitor Driver Installation............................................................A4

Driver installation for Windows 95 or Windows 98 ......................A4

Driver installation for Windows 2000 or Windows Me .................A5

Driver installation for Windows XP ...............................................A6

Control Panel Function...................................................................A7

Front Panel Controls......................................................................A7

On Screen Display (OSD) Control Adjustment........................A8

On Screen Display (OSD) Selection and Adjustment...............A9

Troubleshooting.....................................................................A14

Specifications ........................................................................A16

Using the Audio Functions.....................................................A18

Side Jacks....................................................................................A18

Rear Panel Jacks..........................................................................A18

Microphone Operation ...............................................................A18

LINE OUT...................................................................................A18

Front Panel Controls....................................................................A19

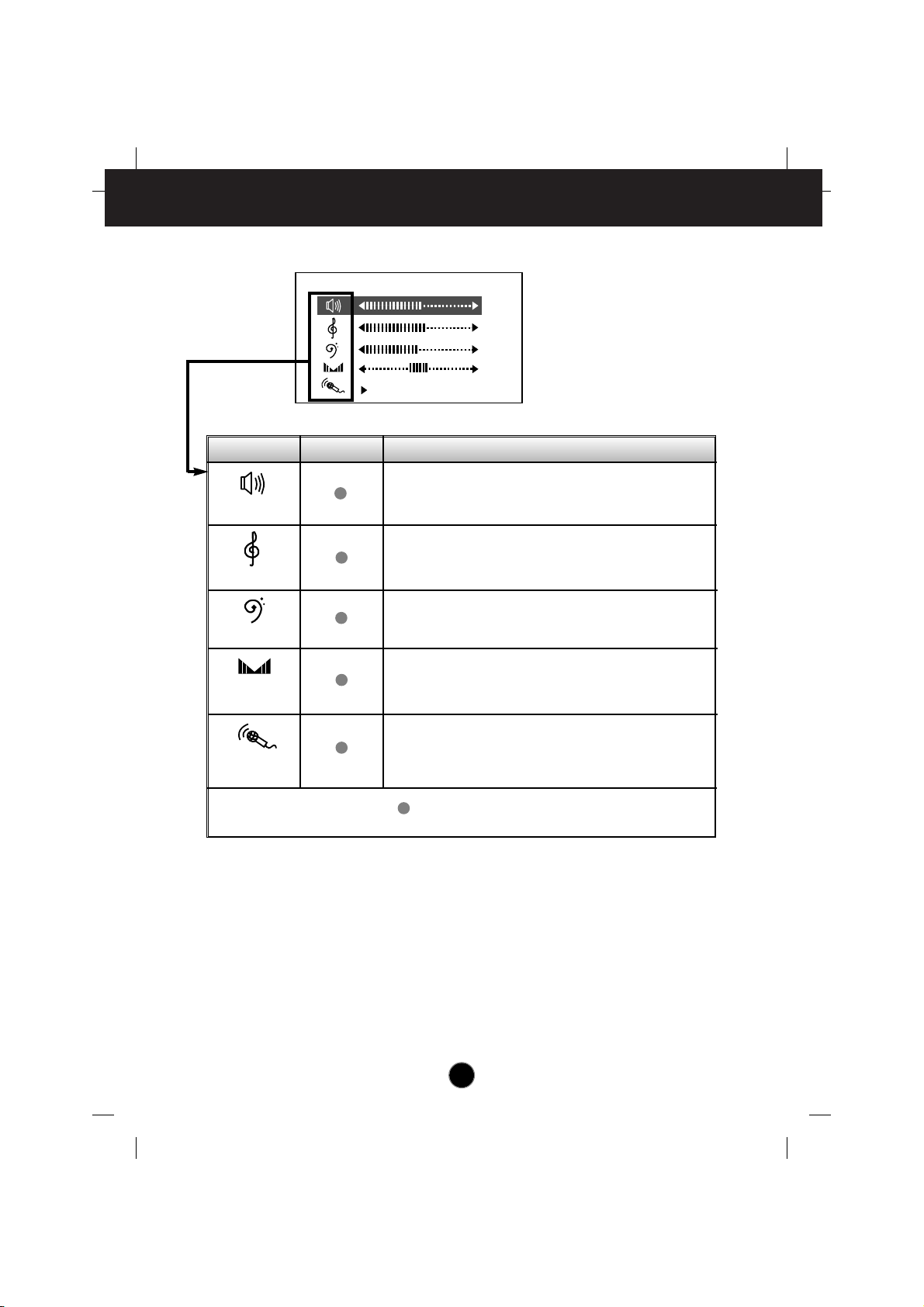

On Screen Display (OSD) Selection and Adjustment.............A20

Audio Specifications ..............................................................A21

Audio Specifications ...................................................................A21

Service Information.....................................................................A21

Workplace Preparation

Positioning the Monitor

Choose a suitable place to position the monitor where it is not near fluorescent desk lighting or any equipment that produces magnetic fields that could cause interference. Ensure that the furniture or equipment can support the weight of the monitor. Allow at least 50mm (2 in.) ventilation space around the monitor.

Height

Position the monitor so that the top of the screen is slightly below your eye level when you sit at your workstation.

Orientation

- Choose a position that gives the least reflection from lights and windows, usually at a right angle to any windows.

- Position the monitor directly in front of you so that you do not have to twist your body.

- Tilt the monitor to a comfortable viewing angle.

Working Practices

Rest

Take regular breaks. Vary your posture, and stand up and stretch occasionally as prolonged use of computer workstations can be tiring.

Back

Sit back in the chair and use the back rest.

Hands

Use a light touch on the keyboard, keeping your hands and fingers relaxed. Allow a space in front of the keyboard to rest your wrists when not typing. Consider using a wristpad.

Eyesight

Working with monitors, in common with any prolonged close work, can be visually demanding. Look away from the screen periodically and have your eyesight checked regularly.

Precautions

Screen settings

Set the screen brightness and contrast to a comfortable level. You may have to adjust this as the lighting changes during the day. Many application programs let you select color combinations which can help you to view in comfort.

Power Cord

For safe operation, use the power cord supplied with the unit.

Notes

Do not install the monitor in a location near heat sources such as

radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.

Save the original shipping carton and packing materials, as they will

come in handy if you ever have to ship your monitor.

To keep the monitor looking new, periodically clean it with a soft cloth.

Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

Driver installation for Windows 95 or Windows 98

To use the Plug and Play feature in

Microsoft

Windows®95 or

Windows 98, files should be loaded from the IBM Monitor CD.

Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow the system to

boot into Windows 95 or Windows 98. Your computer’s Plug and Play code may warn you that your system

hardware has changed. This means that it has detected your new monitor for the first time.

4. Open the DISPLAY PROPERTIES window by clicking START, SETTINGS,

CONTROL PANEL and then double - clicking on the DISPLAY icon.

5. Click the SETTINGS tab.

• In case of Windows 95 :

6 - 1.Click the CHANGE DISPLAY TYPE button.

2.Click the CHANGE MONITOR TYPE button.

• In case of Windows 98 :

6 - 1.Click the ADVANCED button.

2.Click the MONITOR tab.

3.Open the UPGRADE DEVICE DRIVER WIZARD window by clicking on

CHANGE button and then select the NEXT button.

4.Click the “Display a list of the known drivers for this device so that

I can choose a specific driver” and then select the NEXT button.

7. Insert the IBM Monitor CD into the CD drive: and click the HAVE DISK

button.

8. Click OK.

9. Ensure that the CD drive letter is selected.

10.Choose IBM E74M monitor and Click OK. The files will be copied

from the CD to your hard disk drive.

11. Close all open windows and remove the CD.

12.Restart the system.

The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Monitor Driver Installation

Driver installation for Windows 2000 or Windows Me

To use the Plug and Play feature in

Microsoft Windows 2000 or Microsoft Windows Millennium Edition(Me) files should be loaded from the IBM Monitor CD.

Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow the system to

boot into Windows 2000 or Windows Me.

4. Open the DISPLAY PROPERTIES window by clicking START, SETTINGS,

CONTROL PANEL and then double - clicking on the DISPLAY icon.

5. Click the SETTINGS tab.

6. Click the ADVANCED button.

7. Click the MONITOR tab.

8. Click the PROPERTIES button.

9. Click the DRIVER tab.

10.Open the UPGRADE DEVICE DRIVER WIZARD window by clicking on UPDATE

DRIVER and then Click the NEXT button.

11. Select the “Display a list of the known drivers for this device so that I

can choose a specific driver” and then Click the NEXT button.

12.Insert the IBM Monitor CD into the CD drive: and click the HAVE DISK

button.

13.Click OK.

14.Ensure that the CD drive letter is selected.

15.Choose IBM E74M monitor and Click OK. The files will be copied
