Setting up the monitor

Product Description

The IBM ThinkVision L191p Monitor works with a computer with a suitable
on-board sub-system or Video Adapter card that can support SXGA 1280 x
1024, XGA 1024 x 768, SVGA 800 x 600, or VGA 640 x 480 at 60 Hz.

In addition to your monitor, your option package includes the followings:

• User's Guide and Installation Files CD

• Monitor Warranty and Safety manual

• IBM ThinkVision L191p Monitor Setup Guide

• Power Cord

• IBM ThinkVision L191 p Monitor

• Analog Interface Cable - Attached to Monitor

• Digital Interface Cable - Detached from Monitor

Handling Instructions

Do not support the monitor
within the screen area. The
Liquid Crystal Display is
glass and can be damaged
by rough handling or
excessive pressure.

1. Remove the shipping clip for cable as shown below.

4

2. Lift the monitor by placing your hands where indicated below.

3. Before using your monitor for the first time, remove the clear protective
film from the front of the screen.

Workplace Preparation

This section gives advice on
what you should consider

before you set up your monitor.

Height

Position the monitor so that the top of the screen is slightly below your eye
level when you sit at your workstation.

Orientation

Choose a position that gives the least reflection from lights and windows,
usually at a right angle to any windows. Position the monitor directly in front of
you so that you do not have to twist your body to use it. Tilt the monitor to a
comfortable viewing angle.

5

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Adjusting the Monitor Position

Viewing Angle

You can tilt the screen backward and forward, swivel left or right as well as lift
up and down as shown below.

Working Practices

This section gives

advice on how you can
work comfortably and reduce
fatigue.

Rest

Take regular breaks. Vary your posture, stand up and stretch occasionally as
prolonged use of computer workstations can be tiring.

Back

Sit back in your chair and use the backrest.

Hands

Adjust the seat height so that your forearms are approximately horizontal and
your wrists are straight when using the keyboard. Your upper arms should be
relaxed with your elbows near your body.

Use a light touch on the keyboard, keeping your hands and fingers relaxed.
Allow a space in front of the keyboard to rest your wrists when not typing.
Consider using a wristpad.

6

Eyesight

Working with monitors, in common with any prolonged close work, can be
visually demanding. Look away from the screen periodically and have your
eyesight checked regularly.

Screen settings

Set the screen brightness and contrast to a comfortable level. You may have
to adjust this as the lighting changes during the day. Many application
programs let you select color combinations which can help you to view in
comfort. See the User controls section on page 19 for more information.

Caring for your Monitor

Be sure to turn off the power before you perform any maintenance on the
monitor. Clean your monitor as follows:

• Gently wipe the device covers and the screen with a soft cloth.

• Remove finger marks and grease with a damp cloth and mild detergent;
do not use solvents or abrasives

• Never use flammable cleaning material to clean your IBM monitor or any
other electrical apparatus.

• Connect the power cord to the power port on the back of your monitor if
the power cord supplied is not attached to the monitor. Then insert the
plug into a properly grounded electrical outlet.

7

Connecting your Monitor for Analog

Be sure to read the ‘Safety
Information’ at the front of

this User Guide before
carrying out this procedure.

1. Turn off your computer and all attached devices.

2. Connect the signal cable to the video port on the back of your computer.

This port might be directly attached to your computer (figure A), or it
might be part of a video adapter card (figure B). The video port on your
computer or video adapter card might be blue to match the blue
connector on your monitor’s video cable.

3. Connect the power cord to the power port on the back of your monitor if

the power cord supplied is not attached to the monitor. Then insert the
plug into a properly grounded electrical outlet.

ENGLISH

8

Connecting your Monitor for Digital

1. Turn off your computer and all attached devices.

2. Tilt monitor all the way forward.

3. Connect the DVI connector at the end of the DVI-D signal cable

(shipped with your Monitor) to the DVI port located on the back of the
Monitor. See picture below.

Connecting DVI Cable

DVI
Cable

a

9

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

4. Connect the DVI connector at the other end of the signal cable to the

DVI port located on the back of the graphics adapter. See picture below.

5. Connect the power cord to the power port on the back of your monitor if

the power cord supplied is not attached to the monitor. Then insert the
plug into a properly grounded electrical outlet.

6. Use the cable holder (a) to neatly organize the video and power cables.

7. Switch on the power source and your computer. To turn on the monitor,

push and release the power switch . To switch it off, push and release
the power switch again.

Switching on your Monitor

1. Switch on the power source and your computer.

2. Switch on your monitor by pushing and releasing the power switch

marked .
(To switch off your monitor, push and release the power switch again).

3. To update or install device drivers, follow the instructions in the Device

Driver Installation section found on page 10.

4. To optimize the displayed image, run Auto Image Setup by following the

instructions in the Auto Image Setup section found on page14.

DVI

Signal Cable

graphics adapter

10

Device Driver Installation

Use the User's Guide and Installation Files CD that comes with your monitor
to install the appropriate device driver for your operating system.

Installing the Windows XP device driver

To manually install or update the device driver for the Microsoft® Windows

®

XP operating system, perform the following steps:

1. Insert the User’s Guide and Installation Files CD into the computer CD-

ROM drive.

2. Click Start

 Control Panel  Appearance & Themes and then click

the Display icon.

3. In the Display Properties window, click the Settings tab, and then click

Advanced.

4. Click the Monitor tab, and then click Properties

 Driver tab  Update

Driver.

5. When the Hardware Update Wizard window opens, select “Install the

software automatically,” click Next> and then Finish to complete the
installation.

6. Close the Display Properties window.

7. Remove the User’s Guide and Installation Files CD from the computer

CD-ROM drive.

Installing the Windows Me device driver

To manually install or update the device driver for the Microsoft® Windows®
Millennium Edition operating system, perform the following steps:

1. Click Start

 Settings  Control Panel and then double-click Display.

2. In the Display Properties window, click the Settings tab, and then click

Advanced.

3. Click the Monitor tab, and then click Change

 Specify the location of

the driver

 Next.

4. When the Update Device Driver Wizard window opens, select "Display

a list of all the drivers in a specific location, so you can select the driver
you want," and click Next>.

5. Insert the the User’s Guide and Installation Files CD into the computer

CD-ROM drive, then click Have Disk.

6. Type d:\ (change the drive letter to match your CD-ROM drive if it is not

drive D) in the Copy manufacturer's files from: box, then click OK.

11

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

7. Click Next>, Next>, and then Finish to complete the installation.

8. Close the Display Properties window.

9. Remove the User’s Guide and Installation Files CD from the computer

CD-ROM drive.

Installing the Windows 2000 device driver

To manually install or update the device driver for the Microsoft® Windows®
2000 Professional operating system, perform the following steps:

1. Click Start

 Settings  Control Panel and then double-click Display.

2. In the Display Properties window, click the Settings tab, and then click

Advanced.

3. Click the Monitor tab, and then click Properties

 Driver  Update

Driver.

4. When the Update Device Driver Wizard window opens, select "Search

for a suitable driver for my device," and click Next>.

5. Insert the User’s Guide and Installation Files CD into the computer CD-

ROM drive, type d:\ (change the drive letter to match your CD-ROM
drive if it is not drive D) in the Copy manufacturer's files from: box,
click Next> and then Finish to complete the installation.

6. Close the Display Properties window.

7. Remove the User’s Guide and Installation Files CD from the computer

CD-ROM drive.

Installing the Windows 98 device driver

Windows 98 automatically detects the new monitor and displays the Add New
Hardware Wizard window if the device driver is not already installed.

1. Insert the Device Driver and User’s Guide CD into the computer CD-

ROM drive, and click Next> twice when the Add New Hardware Wizard
window opens.

2. Click the CD-ROM drive box to install the device drivers from the CD

and then click Next>.

3. Confirm that the device driver was found on the CD, and click Next>

twice to install the device driver.

4. Click Finish to close the Add New Hardware Wizard window.

To manually install or update the device driver for the Microsoft

®

Windows®

98 operating system, perform the following steps:

12

1. Click Start  Settings  Control Panel and then double-click Display.

2. In the Display Properties window, click the Settings tab, and then click

Advanced.

3. Click the Monitor tab, and then click Change.

4. When the Update Device Driver Wizard window opens, follow the steps

in the previous paragraph.

5. Remove the User’s Guide and Installation Files CD from the computer

CD-ROM drive.

Installing the Windows 95 device driver

Right-click the My Computer icon on the computer desktop and then select

Properties

 System to view the version number listed in the System

window. Perform the steps below for the appropriate version.

If you have Windows 95 Version 4.00.950A, use the following steps to
manually install or update the device driver:

1. Click Start

 Settings  Control Panel and then double-click Display.

2. In the Display Properties window, click the Settings tab and then click

Change Display Type.

3. In the Change Display Type window, click Change and then click Have

Disk.

4. Insert the User’s Guide and Installation Files CD into the computer CD-

ROM drive, type d:\ (change the drive letter to match your CD-ROM
drive if it is not drive D) in the Copy manufacturer's files from: box,
and click OK.

5. In the Select Device window, click the appropriate monitor model and

then click OK.

6. In the Change Display Type window, click Close.

7. In the Display Properties window, click OK.

8. Remove the User’s Guide and Installation Files CD from the computer

CD-ROM drive.

If you have Windows 95 Version 4.00.950B, use the following steps to
manually install or update the device driver:

1. Click Start

 Settings  Control Panel and then double-click Display.

2. In the Display Properties window, click the Settings tab and then click

Advanced Properties.

3. In the Advanced Display Properties window, click the Monitor tab and

then click Change.

13

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

4. In the Select Device window, click Have Disk.

5. Insert the User’s Guide and Installation Files CD into the computer CD-

ROM drive, type d:\ (change the drive letter to match your CD-ROM
drive if it is not drive D) in the Copy manufacturer's files from: box,
and click OK.

6. In the Select Device window, click the appropriate monitor model and

then click OK.

7. In the Advanced Display Properties window, click Close.

8. In the Display Properties window, click OK.

9. Remove the User’s Guide and Installation Files CD from the computer

CD-ROM drive.

14

Auto Image Setup (Analog Only)

Auto Image Setup

The Setup Utility
included on the setup
diskette is for displaying dot
patterns. They do not replace or
modify the display driver.

The Auto Image Setup
instructions require the monitor to
be warmed up for 15 minutes.
This is not required for normal
operation.

When you first use your monitor you must perform Auto Image Setup. This
procedure sets up your monitor to process the video signals from your
computer without image discoloration or smearing. After you perform Auto
Image Setup, the settings are stored and used each time you turn on the
monitor.

To optimise the displayed image a set-up utility is provided on the CD.
Operation of the utility is dependent on the operating system on your
computer. For correct operation locate the operating system on your
computer from the table below and follow the appropriate instructions. You
can choose to run

AUTO IMAGE SETUP for each operating system that you use.

This means that if you sometimes use your monitor while running any version
of Windows and sometimes also use it from within DOS (not a DOS window),
you must run

AUTO IMAGE SETUP for both Windows and DOS. You can run

versions of

AUTO IMAGE SETUP in any order.

Before you begin

AUTO IMAGE SETUP for your computer:

1. Make sure the computer’s video mode is set in the range of the

supported screen resolution shown in the Table on page 26.

The

AUTO IMAGE SETUP

process only applies to the
current screen mode. When a new
mode is selected, repeat this
section to reset the monitor

You should perform AUTO IMAGE SETUP for each screen mode you use.

Operating System Corresponding Auto Image Setup procedure

DOS

Auto Image Setup for DOS on page 15

Windows 3.1, Windows 95,
Windows 98, Windows 2000,

Microsoft Windows NT®,
Windows Me or Windows XP

Auto Image Setup for Windows 3.1, Windows

95, Windows 98, Windows NT, Windows 2000,

Windows Me or Windows XP

15

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Auto Image Setup for DOS

To optimize the displayed image automatically in DOS, do the following:

If the monitor is in standby

mode (STANDBY ON), it
may automatically turn off while
you are waiting for it to warm up. If
this happens, switch off the
monitor and switch it on again
after a few seconds.

1. Turn on the monitor first; then turn on the computer.

If the message CHECK SIGNAL CABLE is displayed, or if nothing is
displayed, check:

• that the video interface cable is connected properly.

• the correct video adapter card is installed.

• the correct supported display mode is selected for your computer.

If you are using PC-DOS/V,

change to U.S. mode by
typing

‘CHEV US’

and pressing

ENTER at the command prompt.

2. Wait approximately 15 minutes, until the monitor warms up.

3. Insert the User’s Guide and Installation Files CD into the computer CD-
ROM drive.

4. Display the command prompt screen of the DOS full-screen display.

5. Type d:\ (change the drive letter to match your CD-ROM drive if it is not
drive D).

6. Type TESTPATD and press ENTER.

7. Select from the screen the number for the color or text mode you want to
set up.

8. Select from the screen the number for the video mode you want to set
up. You can repeat this process for as many of the color and video
modes as you need.

The size and diversity of the
dot pattern varies with the

screen resolution.

9. When the dot pattern appears, press the OSD Enter button at the
bottom of the monitor to display the initial OSD menu.

10. Use an Arrow button ( or ) to select the Image Setup icon
then press the OSD Enter button to access the function.

11. Using an Arrow button ( or ), select

AUTOMATIC and press the

OSD Enter button . This activates the

AUTO IMAGE SETUP procedure,

which will optimize the display settings with the provided dot-patterns.
The screen will flash off several times and you might notice small

changes to the test pattern.

12. When finished, the OSD main menu returns. Press the Exit button
to exit from the OSD.

13. Press the ESCAPE key to exit the test pattern program.

14. Type Exit at the command prompt to return to Windows.

If you use other operating systems, perform the appropriate Auto Image
Setup for those systems using instructions given in “Auto Image Setup for

Windows 3.1, Windows95, Windows 98, Windows NT, Windows Me or
Windows XP on page 16”

16

Auto Image Setup for Windows 3.1, Windows 95, Windows 98,
Windows NT, Windows 2000, Windows Me or Windows XP

To optimize the displayed image automatically in Windows 3.1 , Windows 95,
Windows 98, Windows NT, Windows 2000, Windows Me, or Windows XP, do
the following:

If the monitor is in standby

mode (STANDBY ON), it
may automatically turn off while
you are waiting for it to warm up.

1. Turn on the monitor first; then the computer.

If the message CHECK SIGNAL CABLE is displayed, or if nothing is
displayed, check:

• that the video interface cable is connected properly.

• the correct video adapter card is installed.

• the correct supported display mode is selected for your computer.

2. Wait approximately 15 minutes, until the monitor warms up.

3. Drag the icon bar and tool bar, if they are displayed, to the bottom of the
screen.

4. Insert the User’s Guide and Installation Files CD into the computer CD­ROM drive.

The size and diversity of the
dot pattern varies with the

screen resolution.

5. Check the operating system installed on your computer and follow the
instructions from the table below.

Operating system

installation steps

6. When the test pattern appears, press the OSD Enter button at the
bottom of the monitor to display the initial OSD menu.

Position the mouse pointer
at the bottom center of the

screen. This allows

AUTO IMAGE

S

ETUP

to run properly

7. Use an Arrow button ( or ) to select the Image Setup icon
and press the OSD Enter button to access the function.

8. Using an Arrow button ( or ), select

AUTOMATIC and press the

OSD Enter button . This activates the

AUTO IMAGE SETUP procedure,

which will optimize the display settings with the provided test pattern.

Operating

System

Step1 Step2 Step3 Step4

Windows 3.1

Open

PROGRAM
MANAGER

Select

FILE

Select

RUN

Type

D:\TESTPAT

(change the

drive letter to

match your CD-

ROM drive if it

is not drive D)

and press

ENTER

Windows NT 3.5

Windows 95,
Windows 98,
Windows 2000,
Windows NT,
Windows Me or
Windows XP

Select

START

Select RUN

17

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

T
s

operating system, go to Auto Image Setup for DOS on page 15.

The screen will dim, blink on and off several times, and you might notice
small changes to the test pattern.

To abort the

AUTO IMAGE SETUP function, press the ESC key.

9. When finished, the OSD main menu returns. Press the Exit button
once to exit from the OSD.

10. Press the

ESC key to return to Windows.

You have completed the monitor setup for Windows. If you are using the DOS
operating system, go to .

18

Manual Image Setup

Normally, you can complete the setup procedure using AUTO IMAGE SETUP;
however, if your screen image is still distorted after you perform

AUTO IMAGE

S

ETUP or the Installation CD does not run on your system, perform MANUAL

I

MAGE SETUP.

If the monitor is in standby

mode (STANDBY ON), it
might automatically turn off while
you are waiting for it to warm up.

1. Have your monitor turned on for about 15 minutes, until the monitor
warms up.

2. Display the image you most frequently use on the screen.

3. Press the OSD Enter button at the bottom of the monitor to display
the initial OSD menu.

4. Use an Arrow button ( or ) to select the Image Setup icon
and press the OSD Enter button to access the function.

5. Using an Arrow button ( or ), select

MANUAL, press and then

press again to access the Clock function

(see page 22) .

6. Use the Arrow buttons ( or ) to manually adjust the image (as
much as possible).

7. Next press the button to select Phase.

8. Use the Arrow buttons ( or ), again to tune the image to your
liking. To save, press the button two times.

9. When finished, press the Exit button to exit from the OSD.

You have completed the monitor manual image setup procedure.

19

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Adjusting Your LCD Monitor

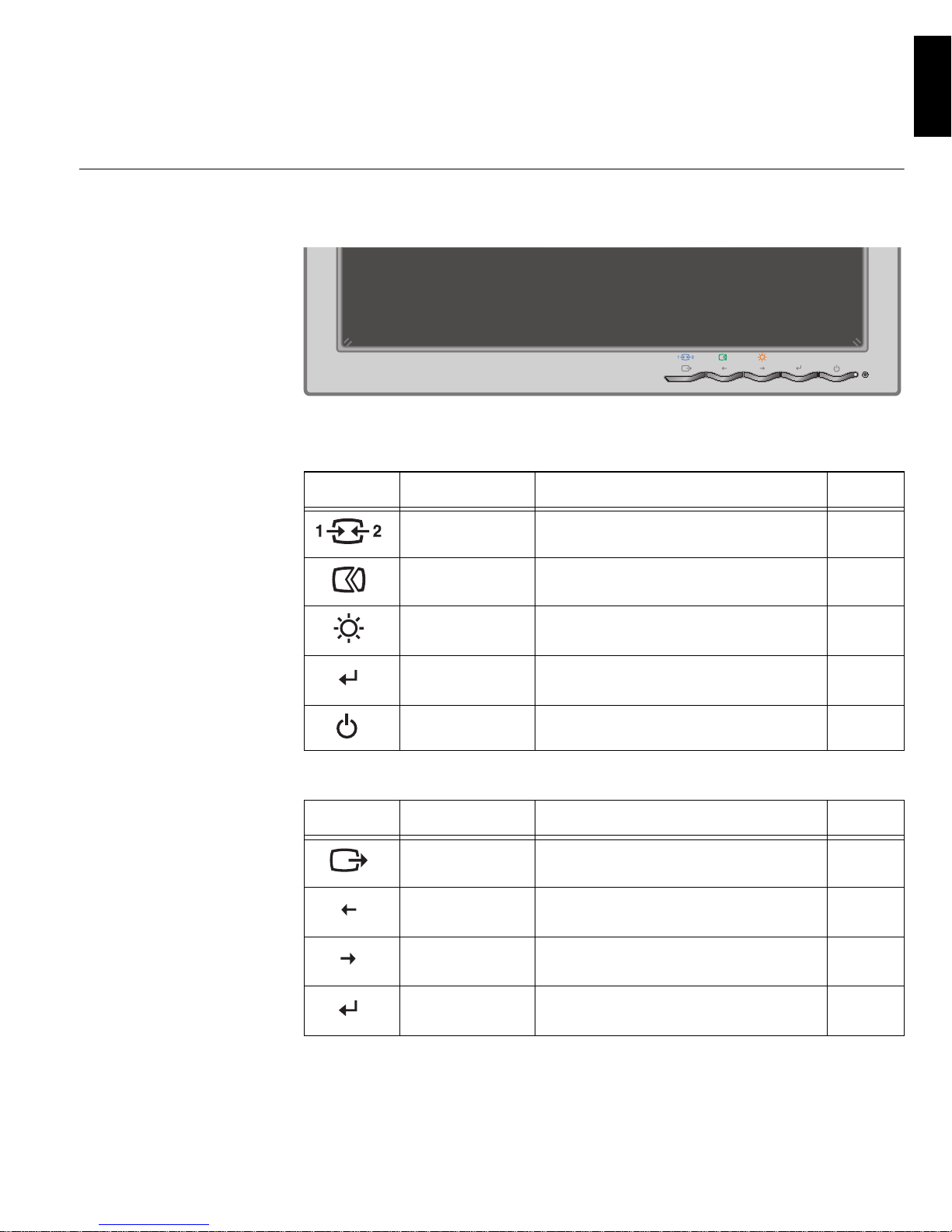

User controls

User control features

• Direct access controls

• Main OSD menu controls

Icon Control Description OSD

Input Change Switches the video input source. Inactive

Image Setup Activates automatic image adjustment. Inactive

Brightness

Directly accesses to Brightness on the
OSD main menu.

Active

OSD Enter Displays the OSD main menu. Active

Power Switch Switches the monitor on and off. -

Icon Control Description OSD

Exit

Exits from menus and sub-menus
Exits the OSD.

Active

Left Arrow

Moves the cursor to highlight icons
and other options.

Active

Right Arrow

Moves the cursor to highlight icons
and other options.

Active

OSD Enter

Enters menus and sub-menus and
selects the highlighted option.

Active

20

Operation

The image is already

optimized for many display
modes; however the user controls
can be used to adjust the image to
your liking.

• Press the OSD Enter button to display the main OSD menu.

• Use the Arrow buttons to move among the icons. Select an icon and press
OSD Enter to access that function. If there is a sub-menu, you can move
between options using the Arrow buttons, then press OSD Enter to select
that function. Use the Arrow buttons to make adjustments. Press the
button to save.

The settings are saved after

adjustment and when
exiting the OSD and will be
effective thereafter.

• Press the Exit button to move backwards through the sub-menus and exit
from the OSD.

OSD Lock / Unlock

This feature allows you to secure the current control settings, while allowing
the user to adjust Brightness and Contrast, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time by using
the same procedure.

Push and hold the OSD Enter button for 10 seconds to Lock or to Unlock.
When locked, a “LOCKED” message will be displayed.

21

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

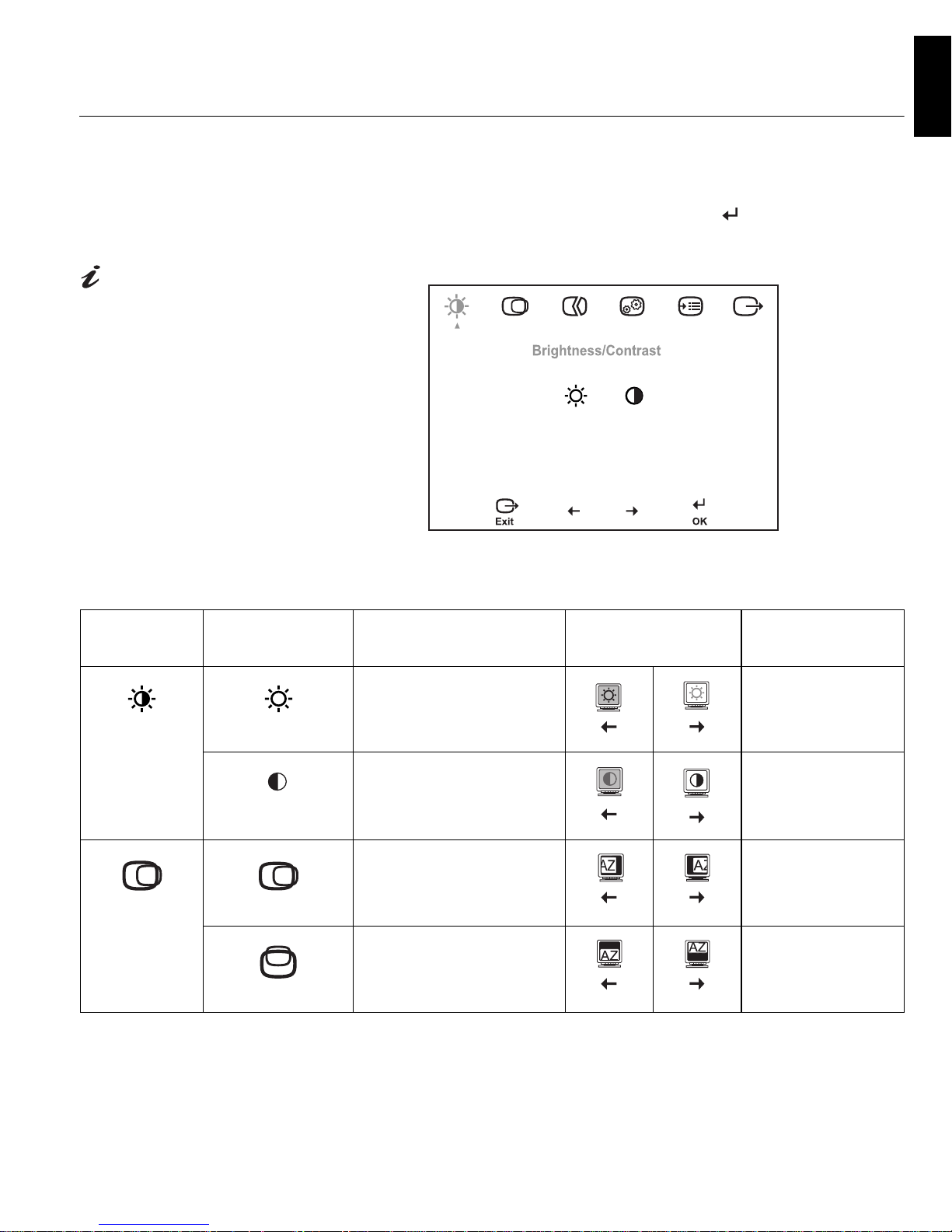

On-screen display (OSD) controls

The settings adjustable with the user controls are viewed through the On­Screen Display (OSD). Press the OSD Enter button ( ) to activate the
OSD.

The LCD monitor needs

time to become thermally
stable the first time you turn it on
each day. Thus, to achieve more
accurate adjustments for
parameters, allow the LCD
monitor to warm up (be On) for at
least 15 minutes before making
any screen adjustments.

Initial appearance of OSD

OSD functions

OSD Icon on

Main Menu

Submenu Description

Controls and

Adjustments (Analog)

Controls and

Adjustments (Digital)

Brightness/

Contrast

Brightness

Adjusts brightness.

Same as Analog

Contrast

Adjusts contrast.

Controls Locked

Image Position Horizontal Position

Moves the screen left or right.

Controls Locked

Vertical Position

Moves the screen up or down.

Controls Locked

22

Image Setup Automatic

Activates automatic image adjustment.

Controls Locked

Manual

•Clock

• Phase

Use the

or button to adjust away the interference.

If satisfactory results are not obtained using the Phase
adjustment, use the Clock adjustment and then use Phase
again.


Properties

Color

Adjusts intensity of red, green and blue.

Same as Analog

1. Mode 1
(Preset Mode)

• 6500K

• 7200K

• 9300K

6500K adjusts the screen more red.
7200K adjusts the screen to the default color settings.
9300K adjusts the screen more blue.

2. Mode 2
(Custom)

•Red

• Green

•Blue

Increases or decreases 'red'.
Increases or decreases 'green'.
Increases or decreases 'blue'.

Sharpness

1. Mode 1

adjusts the image softer.

2. Default

returns the image sharpness to the default settings.

3. Mode 2

adjust the image sharper.

Input video signal

This monitor can accept video
signals through two different
connectors.
Most desktop computers use a
D-SUB connector. Select
digital among OSD Controls
when you use DVI connector.

1 - selects D-SUB

(Analog)

2 -selects DVI-Digital

Same as Analog

OSD Icon on

Main Menu

Submenu Description

Controls and

Adjustments (Analog)

Controls and

Adjustments (Digital)

Same as Analog

23

Options

Information

Shows resolution, refresh rate, and product details.
Note: This screen does not allow any changes to the
settings.

Same as Analog

Language

The language chosen affects
only the language of the OSD.
It has no effect on any
software running on the
computer.

Select one of the 5
languages (English,
French, Italian, German
and Spanish) to use for
the OSD.

ENGLISH

24

Options

(Continued)

Menu Position

Adjusts menu location on the screen.

Same as Analog

1. Default

Returns the menu position to the default settings.

2. Custom

• Horizontal (H) Changes the horizontal

position of OSD.

• Vertical (V) Changes the vertical position
of OSD.

Reset

Resets monitor to the original settings.

•Cancel

• Reset

Does not make the adjustment.
Resets the settings.

Accessibility

Changes button repeat rate
and menu time out setting.

• Button repeat

rate

Selects

or button

repeating rate.

Off - increases by 1
each time the button is
pressed.
Default - increases
continuously while the
button is pressed.
Slow - increases by 1
every 2 seconds while
the button is pressed.

•Menu time out

Sets the length of time the
OSD will remain active after
the last time a button is
pressed.

Use the

or

button to select time
from 5 to 60 seconds.

OSD Icon on

Main Menu

Submenu Description

Controls and

Adjustments (Analog)

Controls and

Adjustments (Digital)

25

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Further Information

Display modes

The display mode the monitor uses is controlled by the computer. Therefore,
refer to your computer documentation for details on how to change display
modes.

The image size, position and shape might change when the display mode
changes. This is normal and the image can be readjusted using

AUTO IMAGE

S

ETUP and the monitor controls.

Unlike CRT monitors, which require a high refresh rate to minimize flicker,
TFT technology is inherently flicker-free. If possible, configure your computer
for 1280 × 1024 addressability at 60Hz vertical refresh rate.

For the display modes listed on the next page, the screen image has been
optimized during manufacture.

26

For image problems, you

may want to run AUTO
Setup again before consulting to
this section. In most cases, AUTO
SETUP can fix the problems. See

Auto Image Setup for DOS

on

page 15 for details.

Factory Set Display Modes

† Recommended

‘Note: VESA timings are as detailed in the VESA “Display Monitor Timing
Specification”. Version 1.0, Revision 0.8, dated 09/17/98.’

Addressability Refresh Rate

Horizontal

Frequency

Analog Digital

640 × 350 70 Hz 31.5 kHz Yes Yes

640 × 480 60 Hz 31.5 kHz Yes Yes

640 × 480 72 Hz 37.8 kHz Yes Yes

640 × 480 75 Hz 37.5 kHz Yes Yes

720 × 400 70 Hz 31.4 kHz Yes Yes

800 × 600 60 Hz 37.8 kHz Yes Yes

800 × 600 72 Hz 48.0 kHz Yes Yes

800 × 600 75 Hz 46.8 kHz Yes Yes

1024 × 768 60 Hz 48.4 kHz Yes Yes

1024 × 768 70 Hz 56.5 kHz Yes Yes

1024 x 768 75 Hz 60.0 kHz Yes Yes

1280 x 1024

† 60 Hz 48.4 kHz Yes Yes

1280 x 1024 75 Hz 80.0 kHz Yes Yes

640 × 480 66 Hz(MAC) 35.0 kHz Yes Yes

832 X 624 75 Hz(MAC) 49.7 kHz Yes Yes

1024 × 768 75 Hz(MAC) 60.2 kHz Yes Yes

1152 x 864 75 Hz 67.5 kHz Yes Yes

1152 x 870 75 Hz 68.7 kHz Yes Yes

1152 x 900 66 Hz(SUN) 61.8 kHz Yes Yes

1280 x 1024 72 Hz(HP) 78.1 kHz Yes Yes

1280 x 1024 76 Hz(SUN) 81.1 kHz Yes Yes

27

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Power Management

If your computer has

previously been used
with a CRT monitor and is
currently configured to a
display mode outside the
range that the Flat Panel
monitor can display, you
may need to re-attach the
CRT monitor temporarily
until you have re-configured
the computer, preferably to
1280 x 1024 at 60Hz.

To benefit from power management, the monitor must be used in conjunction
with a computer that implements the Video Electronics Standards Association
(VESA) Display Power Management Signaling (DPMS) Standard.

The power management feature is invoked when the computer recognizes
that you have not used your mouse or keyboard for a user-definable period.
There are several states as described in the table below.

As an

ENERGY STAR

®

Partner, IBM has determined that this product meets the

ENERGY STAR

®

guidelines for energy efficiency.

For optimal performance, switch off your monitor at the end of each working
day, or whenever you expect to leave it unused for long periods during the
day.

* There may be a slight delay before the picture reappears.

Product Disposal

The fluorescent lamp in the liquid crystal display contains a small amount of
mercury. Dispose of it as required by local ordinances and regulations.

State

Power

Indicator

Screen

Restoring
Operation

Compliance

On Blinking green Normal

Active off Blinking green Blank

Press a key or

move the mouse. *

E

NERGY STAR

®

28

Troubleshooting

If you have a problem setting up or using your monitor, you might be able to
solve it yourself. Before calling your retailer or IBM, try the suggested actions
that are appropriate to your problem.

Problem

Possible

Cause

Suggested Action Reference

Computer does
not boot after
the graphics
adapter is
installed

There is
another
graphics
adapter in the
computer

 Remove the other

graphics adapter plugged
into one of the expansion
slot.

 If the card is built-in to

the motherboard, check
your system manual for
instructions on how to
disable the built-in adapter.

Connecting
your Monitor
for Analog

section on
page 7

The screen
image is
garbled or
unusable
(rolling screen
images,
overlapping
screen images
or a blank
screen)

The display
driver is trying
to use a
setting your
monitor does
not support

 Select the correct

monitor again.

Connecting
your Monitor
for Analog

section on
page 7

Screen is blank
and power
indicator is off

No power to
monitor

 Ensure that the

electrical outlet and the
monitor are both switched
on.

 Check that the power

cord is firmly plugged into
the electrical outlet and the
power supply unit.

 If the power cord plug

has a removable fuse,
replace it.

 Try another power

cord.

 Try another electrical

outlet.

Connecting
your Monitor
for Analog

section on
page 7

29

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Screen is blank
and power
indicator is
steady green

Brightness
and Contrast
may be too
low

 Adjust brightness and

contrast.

User
controls

section on
page User
controls19

Screen is blank
and power
indicator is
steady amber

The monitor is
in the Power
Management
Standby state

 Press any key on the

keyboard or move the
mouse to restore
operation.

 Check the Power

Management software on
your computer

Power
Management

section on
page Power
Management2
7

The monitor is
not receiving
a video signal

 Check that the signal

cable is firmly connected to
the computer.

 Check that no pins are

bent in the signal cable
connector.

Connecting
your Monitor
for Analog

section on
page 7

The monitor is
in the Power
Management
Suspend or
Off state

 Press any key on the

keyboard or move the
mouse to restore
operation.

 Check the Power

Management software on
your computer.

Power
Management

section on
page Power
Management2
7

Screen is blank
and power
indicator is
Flashing green
every 0.5
second

Display mode
of the
computer is
outside the
range of the
monitor

 Reconfigure the

computer to use a
supported display mode.

Further
Information

section on
page Further
Information25

Image appears
to be smeared

There are
noises in the
video signal

 Select Image Setup

menu in the OSD. Then
select MANUAL to adjust
Phase/Clock settings.

User
controls

section on
page User
controls19

Image appears
to be
discolored

The Color
setting may
be incorrect

 Adjust the Color

settings.

User
controls

section on
page User
controls19

Problem

Possible

Cause

Suggested Action Reference

30

A few dots are
missing,
discolored, or
inappropriately
lighted.

 The LCD contains over 3,900,000 thin-

film transistors (TFTs). A small number of
missing, discolored, or lighted dots may be
present on the screen, which is an intrinsic
characteristic of the TFT LCD technology
and is not an LCD defect.

Problem

Possible

Cause

Suggested Action Reference

31

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Further Help

If you are unable to correct the problem yourself, you may seek further help
as follows:

Call the IBM HelpCenter

®

.

In the US call 1-800-IBM-SERV (800-426-7378)

In Canada (Toronto Only) call 416-383-3344

In Canada (all others) call 1-800-565-3344

If possible, stay by your

computer. Your Technical
Support Representative may wish
to go through the problem with
you during the call.

In other countries contact your dealer, retailer, or other IBM authorized
Servicer.

Before calling, please have available as much of the following information as
possible:

More help, late-breaking

news and details of the latest
accessories for these products
may be found on the worldwide
web at:

http://www.pc.ibm.com/us/
accessories

1. Model and serial number from the label on your monitor.

2. Purchase receipt.

3. Description of problem.

4. Computer type and model.

5. System configuration (hardware fitted, etc.).

6. System BIOS version number.

7. Operating System and version number.

8. Display driver version number.

9. Video Adapter Type.

32

Specifications

This color monitor (Type-model 9419-Hx7) uses a 19-inch TFT LCD

Dimensions A. Lower Position

Height :
Depth :
Width :

B. Higher Position
Height :
Depth :
Width :

Weight Unpackaged:

Packaged:

Tilt / Swivel / Lift Tilt:

Swivel:
Lift :

– 0° / + 30°
– 135° / + 135°

Image Viewable Image Size:

Maximum Height:
Maximum Width:
Pixel Pitch:

481.9.7 mm (19.0 in.)

376.32 mm (14.8 in.)

301.06 mm (11.9 in.)

0.294 mm (.012 in.) (H)
× 0.294 mm (.012 in.) (V)

Power Input Supply Voltage:

Max Supply Current:

90 - 260 V ac, 60/50 ± 3 Hz

1.5 A at 120 V ac

Power
Consumption

Normal Operation:
DPMS Stand-by:
DPMS Suspend:
DPMS off:

< 40 W
< 2 W for Analog, < 3 W for Digital
< 2 W for Analog, < 3 W for Digital
< 2 W for Analog, < 3 W for Digital

Video
Input(Analog)

Input Signal:
Horiz. Addressability:
Vert. Addressability:
Clock Frequency:

Analog Direct Drive, 75 ohm 0.7 V
1280 pixels (max)
1024 lines (max)
135 MHz

Video
Input(Digital)

Interface:
Input Signal:
Horiz. Addressability:
Vert. Addressability:
Clock Frequency:

DVI
VESA TMDS (Panel Link

TM)

1280 pixels (max)
1024 lines (max)
135 MHz

Communications VESA DDC: 2 B

Supported Display
Modes

VESA Standard modes between
Horiz. Frequency:
Vert. Frequency:

IBM, VESA, HP, Sun, Mac
31 kHz - 81 kHz (Digital & Analog)
55 Hz - 76 Hz

App 9.5 kg (20.94 lb)

App 7.0 kg (15.48 lb)

361.9 mm (14.25 in.)

237.05 mm (9.33 in.)

408.0 mm (16.06 in.)

451.9 mm (17.79 in)

237.05 mm (9.33 in)

408.0 mm (16.06 in)

90 mm (3.54 in) (stroke)

33

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Environment Temperature:

Operating:
Storage:
Shipping:

Humidity:

Operating:
Storage:
Shipping:

10 to 35° C (50 to 95° F)

- 20 to 60° C (-4 to 140° F)

- 20 to 60° C (-4 to 140° F)

10 to 80%
5 to 95%
5 to 95%

34

Service Information

The following parts are for use by IBM service, or IBM authorized dealers, to support
the customer warranty. Parts are for service use only.

Model Type 9419

73P3890 9419-HB7,HK7 Monitor - Business Black
73P3891 9419-HG7 Monitor - Ash Grey
73P3893 9419-HB7, HG7, HK7 Stand - Business Black
73P3895 9419-HB7, HG7, HK7 Video Cable - Black
73P3897 9419-HB7, HG7, HK7 User's Guide CD
73P3899 9419-HB7, HG7, HK7 Setup Guide

35

DEUTSCH

ENGLISHFRANÇAISESPAÑOLITALIANOJAPANESECOMPL & WARR

Notices and Trademarks

This section contains information on notices and trademarks.

Notices

IBM may not offer the products, services, or features discussed in this document in all
countries. Consult your local IBM representative for information on the products and services
currently available in your area. Any reference to an IBM product, program, or service is not
intended to state or imply that only that IBM product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe any IBM intellectual
property right may be used instead. However, it is the user’s responsibility to evaluate and
verify the operation of any non-IBM product, program, or service.

IBM may have patents or pending patent applications covering subject matter described in this
document. The furnishing of this document does not give you any license to these patents. You
can send license inquiries, in writing, to:

IBM Director of Licensing

IBM Corporation

North Castle Drive

Armonk, NY 10504-1785

U.S.A.

The following paragraph does not apply to the United Kingdom or any country where
such provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES

CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied
warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are
periodically made to the information herein; these changes will be incorporated in new editions
of the publication. IBM may make improvements and/or changes in the product(s) and/or the
program(s) described in this publication at any time without notice.

IBM may use or distribute any of the information you supply in any way it believes appropriate
without incurring any obligation to you.

Any references in this publication to non-IBM Web sites are provided for convenience only and
do not in any manner serve as an endorsement of those Web sites. The materials at those
Web sites are not part of the materials for this IBM product, and use of those Web sites is at
your own risk.

36

Trademarks

The following terms, used in this publication, are trademarks or service marks
of the IBM Corporation in the United States, other countries, or both:

HelpCenter IBM

E

NERGY STAR

®

is a U.S. Govt. registered trademark.

Microsoft

®

Windows®, and Windows NT are trademarks of Microsoft

Corporation in the United States, other countries, or both.

Other company, product, and service names may be trademarks or service
marks of others.

© Copyright International Business Machines Corporation 2004. All
rights reserved.
