Part 1. Using the ThinkPad 600 UltraslimBay HDD Adapter

The ThinkPad 600 UltraslimBay HDD Adapter (hereafter called HDD
Adapter) supports the ThinkPad 600 series computer. You can

upgrade the capacity of your computer by installing a secondary hard
disk drive.

To install the hard disk drive (hereafter called HDD) into your
computer, you must first assemble the HDD with the HDD Adapter.
Then you insert the HDD Adapter into the UltraslimBay.

If you are using one of the following ThinkPad 600 computer models,
you need to update the system program:

IBM Product Name Machine Type

ThinkPad 600 2645-21x, 31x, 35x, 41x, or 51x

x can be any number.

Check the serial number label to determine the machine type of your
computer.

A diskette (for diskette installation) is supplied to update the program.
Before using the HDD Adapter for the first time, be sure to have the
system program diskette on hand.

This book explains how to insert the HDD Adapter into the computer
and how to update the system program.

Copyright IBM Corp. 1998 1-1

Putting the HDD into the HDD Adapter

2 Install the HDD with the label facing upward as shown 2 .

This section describes how to put the HDD into the HDD Adapter.

Note: Replace a hard disk drive only if you are upgrading it or having it

repaired. You should not replace it often.

1 Open the HDD Adapter stopper 1 .

1

stopper

2

Note: Make sure not to leave the strap under the HDD.

1-2

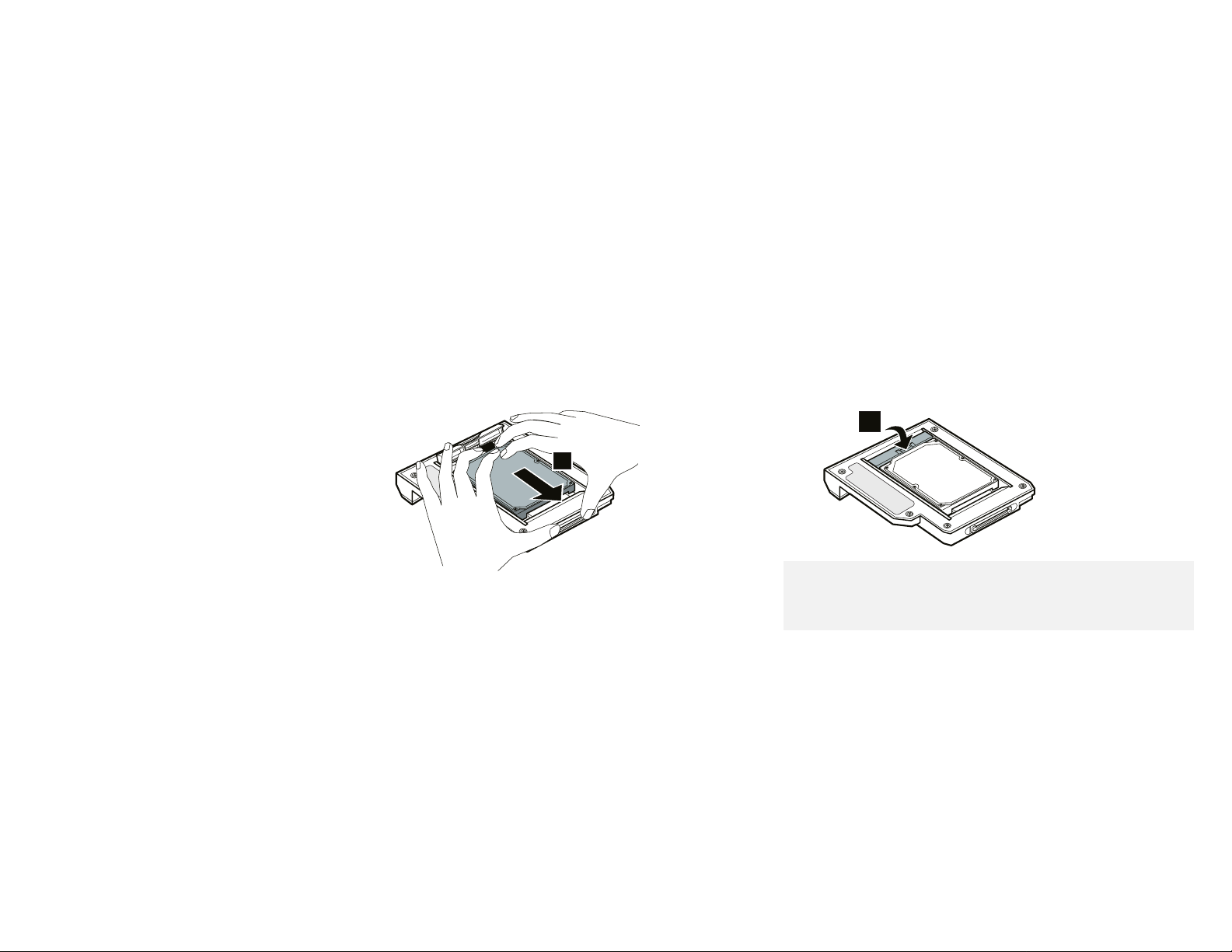

3 Connect the HDD to the HDD Adapter connecter 3 .

3

4 Close the HDD Adapter stopper 4 .

4

Notes:

1. Make sure that the HDD is installed tightly in the HDD Adapter.

2. Do not push the cover too hard; otherwise, the HDD or HDD Adapter
might become damaged.

Part 1. Using the ThinkPad 600 UltraslimBay HDD Adapter 1-3

Inserting the HDD Adapter into the UltraslimBay

This section describes how to insert the HDD Adapter into the
UltraslimBay of your ThinkPad computer.

1 Power off the computer, and remove the AC Adapter and

cables; then turn the computer upside down.

2 Push the UltraslimBay device lock to the unlock position 1 ,

and remove the device currently in the UltraslimBay 2 .

3 Insert the HDD Adapter into the UltraslimBay 2 .

2

1-4

If you want to secure your HDD Adapter, do as follows; otherwise, go
to step 4.

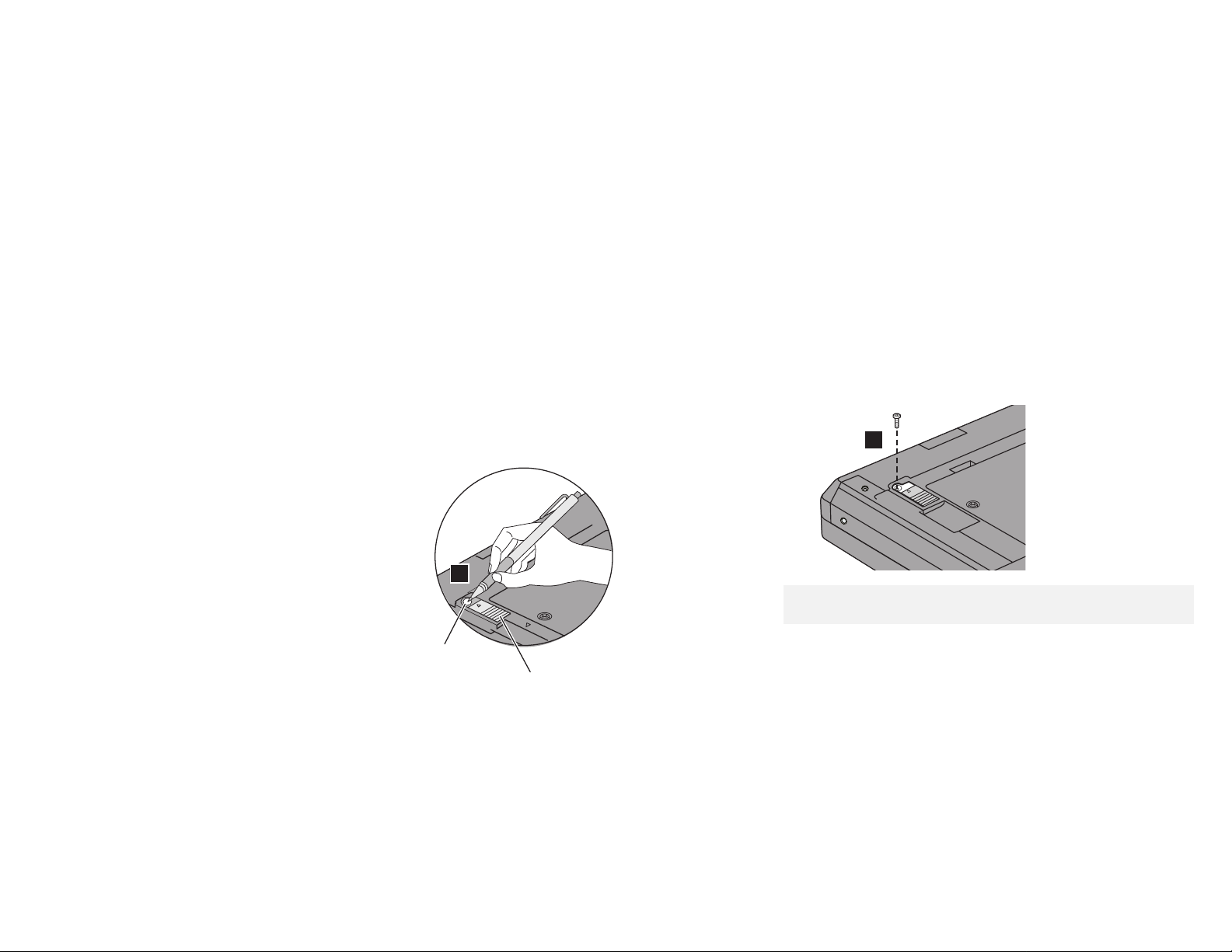

a. Prick the security screw cap with the tip of a ball-point pen 1 ,

and then use the hole to remove the cap.

1

b. Install a hex-head screw into the screw hole 3 .

3

Note: To tighten the security screw (or to remove it), use a 2.5-mm Allen

wrench.

Security screw cap

UltraslimBay device lock

4 Turn the computer right side up. Connect the AC Adapter and

cables; then power on the computer.

Part 1. Using the ThinkPad 600 UltraslimBay HDD Adapter 1-5

Updating the System Program

If you are using one of the following ThinkPad 600 computer models,
you need to update the system program:

ThinkPad 600 2645-21x, 31x, 35x, 41x, or 51x

x can be any number.

Update the system program as follows:

1 Verify the following:

Your computer is powered off.
Your computer is undocked.
The battery in your computer is fully charged.
Your computer is connected to the AC Adapter.

2 Insert the system program diskette into the diskette drive.
3 Power on the computer. Information is displayed indicating

whether your system program version is the latest.

4 If your system program version is the latest, quit the program.

If your system program version is not the latest, follow the
instructions on the screen to update it.

Note: Do not power off the computer before the system program is updated.

1-6
