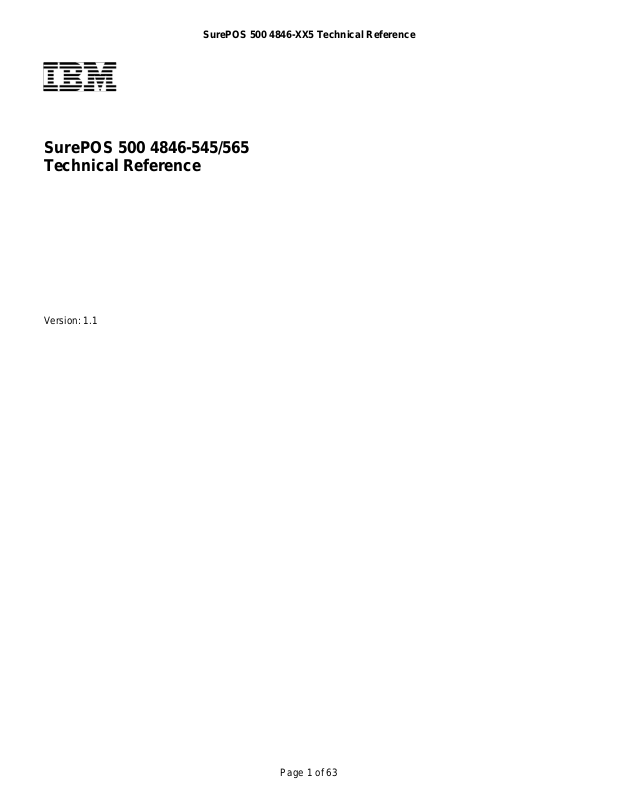

SurePOS 500 4846-XX5 Technical Reference

SurePOS 500 4846-545/565 Technical Reference

Version: 1.1

Page 1 of 63

SurePOS 500 4846-XX5 Technical Reference

Change History

Version Date Change Description

1.0 2/16/07 Initial Release

Page 2 of 63

SurePOS 500 4846-XX5 Technical Reference

Table of Contents

1.0 Introduction....................................................................................................................................................5

1.1 Highlights.......................................................................................................................................................5

1.2 Models...........................................................................................................................................................5

1.3 Specifications ................................................................................................................................................5

1.4 Related Publications......................................................................................................................................6

2.0 Product Structure..........................................................................................................................................8

2.1 Factory Select Feature..................................................................................................................................8

2.2 Key optional features.....................................................................................................................................8

2.3 Ship Group ....................................................................................................................................................8

2.4 Supported Devices........................................................................................................................................9

2.5 Operating System/POS Driver Support.........................................................................................................9

2.6 System management.....................................................................................................................................9

2.6.1 System management programs............................................................................................................9

2.6.2 Remote management.........................................................................................................................10

2.7 System Diagnostics.....................................................................................................................................10

2.7.1 Supported memory keys.....................................................................................................................10

2.8 Physical Characteristics ..............................................................................................................................10

2.8.1 Dimensions and weights.....................................................................................................................10

2.8.1.1 System .......................................................................................................................................10

2.8.1.2 Weights of features....................................................................................................................11

2.8.1.3 Dimensions with Trays...............................................................................................................11

2.8.2 Controls...............................................................................................................................................12

2.8.3 Visual Indicators..................................................................................................................................12

2.8.4 Connector/Controls Identifier..............................................................................................................13

2.9 Product Description.....................................................................................................................................15

2.9.1 Block Diagram.....................................................................................................................................15

2.10 Logic ............................................................................................................................................................16

2.11 Component specifications ...........................................................................................................................17

2.11.1 4GB Modular Flash Drive ...................................................................................................................17

2.11.2 Hard Disk Drive...................................................................................................................................17

2.11.3 LCD.....................................................................................................................................................18

2.11.4 Magnetic Stripe Reader......................................................................................................................18

2.11.5 Integrated and Distributed 2x20..........................................................................................................18

2.11.6 All Points Addressable (APA) Display ................................................................................................19

2.11.7 Built-in speakers (XX5 models only)...................................................................................................20

3.0 BIOS and software description..................................................................................................................21

3.1 Setup ...........................................................................................................................................................21

3.2 Functional Standards...................................................................................................................................21

3.3 Standard BIOS Features.............................................................................................................................21

3.4 BIOS Interrupts............................................................................................................................................22

3.5 Fixed BIOS Entry Points..............................................................................................................................23

3.6 BDA Memory Addresses.............................................................................................................................24

3.7 EBDA Memory Addresses...........................................................................................................................26

3.8 Memory Map................................................................................................................................................26

3.9 COM Port Setup..........................................................................................................................................27

3.10 Video Modes................................................................................................................................................27

3.10.1 Display mode and operating system restrictions................................................................................30

3.11 Power Management ....................................................................................................................................31

3.11.1 APM....................................................................................................................................................31

3.11.2 ACPI....................................................................................................................................................32

3.12 System Information Data.............................................................................................................................33

3.12.1 SMBIOS..............................................................................................................................................33

3.12.2 Cumulative Structure List....................................................................................................................33

3.13 Vital Product Data........................................................................................................................................34

3.13.1 VPD Layout in SMBIOS......................................................................................................................34

3.13.2 SMBIOS Type 11 Structure Layout ....................................................................................................34

4.0 Reliability and Serviceability......................................................................................................................34

Page 3 of 63

SurePOS 500 4846-XX5 Technical Reference

4.1 Usage ........................................................................................................... Error! Bookmark not defined.

5.0 Environmental Specifications....................................................................................................................35

5.1 Temperature/Humidity Limits.......................................................................................................................35

5.2 Altitude Limits..............................................................................................................................................35

5.3 Power...........................................................................................................................................................35

5.4 Acoustics .....................................................................................................................................................35

5.5 Standards Compliance................................................................................................................................35

5.5.1 Product Certifications..........................................................................................................................35

5.5.2 Ergonomics and accessibility..............................................................................................................36

6.0 External Ports ..............................................................................................................................................37

6.1 Port Listing...................................................................................................................................................37

6.2 Port Power Ratings......................................................................................................................................37

6.3 Connector Pinouts.......................................................................................................................................38

6.3.1 Customer Display Connector..............................................................................................................38

6.3.2 MSR connector...................................................................................................................................38

6.3.3 USB Plus Power (2x)..........................................................................................................................39

6.3.4 USB port connector (7x).....................................................................................................................39

6.3.5 Keyboard, Mouse connector (2x)........................................................................................................39

6.3.6 Microphone connector........................................................................................................................40

6.3.7 Headphone Connector........................................................................................................................40

6.4 Serial Connector (x3)...................................................................................................................................40

6.4.1 Ethernet connector..............................................................................................................................41

6.4.2 External video connector ....................................................................................................................41

6.4.3 Cash Drawer (x2)................................................................................................................................42

6.4.4 Internal Customer Display ..................................................................................................................42

Page 4 of 63

SurePOS 500 4846-XX5 Technical Reference

1.0 Introduction

1.1 Highlights

The SurePOS 500 system units with integrated touch screens will help you easily create the right solutio n for your business.

The SurePOS 500 Series models offer:

• An Intel Celeron D 326 (2.53 GHz) processor

• 512MB of DDR2 memory standard, upgradeable to 1 GB, 1.5GB, or 2GB.

• 8 to 128 MB UMA video memory

• A 80 GB SATA II HDD or greater

• 15" (12.1" and 17” optional) Infrared (IR) touch

• Enhanced wireless integration kit providing coverage and flexibility to meet most country-specific wireless

requirements by utilizing USB technology (USB wireless Dongle not included). Th e Performance multimedia models also offer the capability to add wireless support via PC card slot

• Enhanced systems management

• Port enhancements, including powered 12V and 24V USB 2.0 ports, standard

• A wide range of optional features including receipt printers, displays, and trays to keep the counter neat.

1.2 Models

Model Base/Admin Model WEPOS

545 Base No No No Depot 565 Base No No Yes Depot E45 Base Yes No No Depot E65 Base Yes No Yes Depot 54Z Admin of 545 No No No IOR 24x7 56Z Admin of 565 No No Yes IOR 24x7 E4Z Admin of E45 Yes No No IOR 24x7 E6Z Admin of E65 Yes No Yes IOR 24x7 P45 Admin of 545 No Yes No IOR 24x7 P65 Admin of 565 No Yes Yes IOR 24x7

Bundled Printer

Audio/PC Card function

Warranty

1.3 Specifications

4846 Model 545 4846 Model 565

Processor 2.53Ghz Intel 326 Celeron D FSB Speed 533/800 Mhz Celeron/Pentium4 Chipset Intel 915GV / ICH6 BIOS Award Main Memory 512MB – 1GB DDR2 DIMM, 2 slots, (2 GB max)

Video Secondary Video Adapter ATI Radeon 7000

LCD

Integrated 2D/3D Intel graphics controller

(simultaneous support only for CRT output)

One of the following:

800x600 12.1-in TFT (2 bulb)

1024x768 15-in TFT (2 bulb)

Page 5 of 63

SurePOS 500 4846-XX5 Technical Reference

1280x1024 17-in TFT (4 bulb)

Touch IBM enhanced ELO Infra-red Audio None

Mass Storage LAN 10BaseT/100BaseTx Ethernet

Expansion N/A Type II PC-Card Slot

7 Standard USB (3 display tablet, 4 tower rear)

1 12V Powered USB 2.0 (rear)

I/O Ports and Connectors

1 Powered RS232 (External Customer Display)

Headphone/Microphone – on 565 Model

I/O Devices

Indicators

Controls

OS PC DOS 2000, Windows (2000, XP, WEPOS) Ruggedization Power Supply 155 W Continuous Duty / 225W Maximum Internal Switching Supply Mounting

Security

80GB SATA II

4GB Modular Flash Drive

Mouse, Keyboard (rear)

1 24V Powered USB (rear)

2 Cash Drawer

3 Unpowered RS232

RJ45 Ethernet LAN

External CRT

External Floppy (USB)

MSR (3-Track/JUCC)

Integrated 2x20

Distributed 2x20

Distributed APA

Power

HDD activity

Power

LCD Brightness

Volume (with speaker kit)

Spill resistant (NEMA/IEC)

Retail Hardened (ESD)

Free Standing

Integration Trays

Power On Password

Bolt down/Tray Mounting

AC97 compliant codec;

Amplified stereo speakers

1.4 Related Publications

SurePOS 500 Series Planning, Installation, and Operation Guide for Models 545 and 565, GA27-4365

This guide provides information necessary to install and set up the IBM SurePOS® 500 Series Models 545 and

565. This document is intended for the person who will install, set up, and manage the 4846-xx5 systems

IBM SurePOS 500 Series Hardware Service Guide for Models 545 and 565, SY27-0417

This document provides information on repairing and maintaining the system unit device, including parts listings, troubleshooting, and removal and replacement procedures.

IBM SurePOS 500 Series Operating System Installation Guide for Models 545 and 565, GA30-4132

This guide provides step-by-step information on installing the operating software for the product.

IBM Point of Sale Options and I/O Devices Service Guide, GC30-9737

This guide describes the problem-determination and repair proced ures for cash drawers, displays, keyboards, and options that are attached to IBM(R) SurePOS(TM) systems.

To access these publications:

• Go to www.ibm.com/solutions/retail/store/ Page 6 of 63

SurePOS 500 4846-XX5 Technical Reference

• Select Support, then select Publications.

1.5 Comparison with predecessor products

Feature 4846-XX5 4840-XX3/XX4 4851-514

Processor

Processor, max clock speed

North Bridge/GMCH

South Bridge/ICH ICH6 ICH4 VT8237R System Memory 2.0GB Max. 2.0GB Max. 2.0GB Max. System Memory

Technology Integrated Video

Controller

Video Memory

Multi Monitor Touch Screen

Technology Keyboard ports Rear PS/2 KB Parallel Port None One None 10/100Mbit

Ethernet

USB Specification

Flash Storage Powered USB

Ports Standard USB

Ports Operating System

Pentium 4/Celeron (Prescott)

Celeron D 326 (2.53GHZ ) upgradable to Prescott 551 (3.4Ghz)

Intel 82915GV (Lakeport)

DDR2 533Mhz maximum Intel Graphics Media

Accelerator 900 integrated into chipset

Up to 128 MB,shared with system memory

True multi monitor with dual video adapter

IBM enhanced ELO IR ELO IR (Carroll Touch)

ICH6 integrated MAC, External Intel 82562GT PHY

All Ports Low, Full, and High Speed

Internal M-Systems USB flash card, mb mount

One 12v and One 24v Power Ports

7 Standard (9 total ports) 6 Standard ports (8 total ports) 4 Standard (5 total ports) Supported: Windows

2000, XP, WEPOS, DOS

Pentium 4/Celeron (Northwood) Via C3

Celeron 2.0GHz upgradable to

2.8Ghz Intel 82845GV (Brookdale)

GMCH

Double Data Rate (DDR) SDRAM, 266Mhz *

Intel Extreme Graphics, 2D/3D 128b BLT/256b Fill engine

Up to 64MB UMA with Windows Driver, 8MB DOS legacy mode

True multi monitor w/ Cedar adapter

Side and Rear (exclusive) PS/2 KB

ICH4 integrated MAC, External Intel 82562ET PHY

Tower - Low, Full, High Speed (480Mb/s) Ports Tablet – Low, Full Speed

Compact Flash card and adapter, replaces HDD

One 12v and One 24v Powered Ports

Supported: Win 2000, Win XP, DOS, IBM IRES (XX3 only)

1.2Ghz

CLE266

DDR 266Mhz *

S3 Graphics, 2D/3D 128b engine

Up to 32MB UMA

No 2nd display option ELO 5 Wire-Resistive

(Accutouch) Rear PS/2 KB

VT8237 integrated MAC, Via External PHY

All Ports Low, Full, and High Speed

RPQ required

One 24V Power Port

Supported: Windows 2000, XP, WEPOS, DOS

Page 7 of 63

SurePOS 500 4846-XX5 Technical Reference

2.0 Product Structure

For detailed product offering information:

• Go to www-306.ibm.com/common/ssi/OIX.wss

• Select HW and SW desc (sales ma nual)

• Enter 4846-545 as keyword

2.1 Factory Select Feature

Feature Description

Memory 512 MB, 1 GB, 2 GB DDR2 533MHz (2 x 1GB) LCD Size 12-inch, 15-inch, 17-inch Dual Video Dual Video adapter card Modular Flash Drive 4GB Modular Flash Drive

2.2 Key optional features

Feature Comments

Integrated 2x20 Customer Display New P/N to 4846 Distributed 2x20 Customer Display Common with 4840 Distributed APA Customer Display Common with 4840 3-Track MSR New P/N to 4846 JUCC MSR New P/N to 4846 Counter Integration Tray (SST) New P/N – new fillers added Standard CD Integration Tray (4610/kybd) New P/N – new fillers added Compact CD Integration Tray (keyboard only) Not offered Cash Drawer (standard, compact) Existing P/N Compact A/N POS Keyboard Existing P/N Serial Cable, RJ45 to DB9, 0.7m Existing P/N Serial Cable, RJ45 to DB9, 2.0m Existing P/N 4610-TF6/7 Power Cable, 0.7m Existing P/N 4610-TF6/7 Power Cable, 2.0m Existing P/N

2.3 Ship Group

The following items are included with the unit:

• Cat 5 Ethernet Cable (4.3m), P/N 41A3 531

• Serial Cable, RJ45 to DB9 (0.7m), P/N 40N5341

The following items are picked packed per order at fulfillment center:

• Warranty Sheet

• Regulatory and Safety Message s Booklet (GA27-4004)

• Hazardous Substance Table (China)

Page 8 of 63

SurePOS 500 4846-XX5 Technical Reference

• Power cord selected by country code

2.4 Supported Devices

The following industry standard devices have been tested for use subject to restrictions defined in the Operating System support section. Other industry devices may be supported using standard interfaces; however, no testing has been done to insure functionality in all aspects.

Device Comments

4610 Printers (RS232 or USB interfaces)

4820 Surepoint Display (RS232 or USB interface) Compact Retail A/N Keyboard Keyboard MSR not supported if system MSR installed PC Cards

All models. RS232 models can powered via USB Plus power port using 4810 Power cable (feature code 3912 or 3913)

All Models. Touch models provide dual touch in addition to dual display.

Refer to IBM RSS Knowledgebase for latest listing of tested devices

2.5 Operating System/POS Driver Support

SurePOS 500 Models 545 and 565 supported operating systems

Support for Point of Sale application drivers

Operating system

PC DOS 2000 Hardware direct interface only Windows 2000, XP

Windows Embedded Point of Service (WEPOS) Power management via ACPI Notes:

• Only DOS full screen mode supported due to touch screen alignment requirements.

• Windows DB CS versions supported.

Linux Via RPQ only IBM Retail Environment for SUSE

Linux

Note:

The standby and hibernation modes are not supported with WEPOS.

(MSRs, customer displays, cash drawers, tone)

IBM UPOS Drivers for Windows, Version

1.9.2 or later. (Includes JavaPOS drivers for Windows and OPOS drivers.)

Ask IBM sales representative regarding availability

Application Driver Notes

Driver updates are required from previous SurePOS 500 models. MSR and Scanner in Wedge mode is not supported.

2.6 System management

This section describes the types of system management available with the SurePOS 500.

2.6.1 System management programs

The SurePOS 500 Series supports the following system and power management programs:

Desktop Management Interface

The SurePOS 500 Series supports System Management BIOS (SMBIOS) v2.4, supporting a DMI-compliant agent such as Tivoli BIOS level, processor type, speed, manufacturer, system-board information, and detailed memory information.

(R)

. This allows access to low-level information. Examples of information that can be accessed are the

Page 9 of 63

SurePOS 500 4846-XX5 Technical Reference

RDM (Remote Deployment Manager) and IBM Director.

RDM can install an OS and update BIOS remotely and probe machines for low-level information. IBM Director can remotely configure applications and operating systems, transfer files, and inventory workstations on a network.

APM

APM consists of several layers of software that allow the operating system, applications, and BIOS to work together to reduce power consumption. APM is supported on DOS and Linux platforms.

Advanced Configuration and Power Interface

Advanced Configuration and Power Interface (ACPI) V1.0 defines a hardware and software interface and tables by which the operating system can alter the characteristics of the hardwa re-specific devices. ACPI is supported on Windows 2000 and Windows XP.

Power up on LAN

This feature enables the system to power on when it receives a specific frame over the local area network (LAN) through the 10/100-Mbps Ethernet feature. You can enable power up (wake) on LAN by enabling Wake on LAN in the CMOS Setup Utility program.

Power up (wake) on daily alarm

This feature enables the system to turn on at the same time every day. You can enable power up (wake) on daily alarm by enabling Wake on Alarm in the CMOS Setup Utility program.

RMA

IBM Remote Management Agent is a component of IBM Store Integration Framework that simplifies the delivery of new consumer-facing devices in stores to support the delivery of superior service. For more informatio n, see the Retail Store Solutions web site.

2.6.2 Remote management

The SurePOS 500 Models 545 and 565 supports remote system management o v er the network. The following functions are supported:

• Selectable startup sequence

• Update POST/BIOS from the network

• Ethernet

• Power up (wake) o n LAN

2.7 System Diagnostics

Diagnostics for the SurePOS 500 Models 545 and 565 are available on the IBM Diagnostics for POS Systems and Peripherals package. This package installs to a memory key.

2.7.1 Supported memory keys

The following memory keys are supported by the SurePOS 500 Models 545 and 565:

• IBM USB 2.0 (1 GB), FRU: 41D9746 Go to www.ibm.com

• PNY USB 2.0 (1 GB), PNY P-FD01GU20-RF Go to http://www2.pny.com for details on this USB key.

for details on this USB key

2.8 Physical Characteristics

2.8.1 Dimensions and weights

2.8.1.1 System

4846 Weight Height: Height Depth: Depth: Width

Page 10 of 63

SurePOS 500 4846-XX5 Technical Reference

Tower and 12-in. tablet

Tower and 15-in. tablet

Tower and 17-in. tablet

11.3 kg (25 lbs)

12.2 kg (27 lbs)

14.51 kg (32 lbs)

Tablet at 15 degrees

357.9 mm (14.0 in.)

381.8 mm (15.0 in.)

404.5 mm (15.93 in.)

maximum Tablet at 15

degrees

374.1 mm (14.7 in.)

393.6 mm (15.5 in.)

414.6 mm (16.32 in.)

316.8 mm (12.5 in.)

324.4 mm (12.8 in.)

335.2 mm (13.2 in.)

Tablet at 60 degrees

385.8 mm (15.2 in.)

405.8 mm (15.9 in.)

423.9 mm (16.7 in.)

307.9 mm (12.12 in.)

369 mm (14.5 in.)

402.3 mm (15.83 in.)

2.8.1.2 Weights of features

Component Weight

Integrated 2x20 display 0.2 kg (0.38 lbs) Distributed 2x20 display 0.5 kg (1.2 lbs) Distributed APA display 0.7 kg (1.6 lbs) MSR (three-track or JUCC) 0.16 kg (0.41 lbs)

2.8.1.3 Dimensions with Trays

Product with 12 in. tablet and the following: Counter top tray 382.4 mm (15.1 in.) 478.6 mm (18.8 in.) Cash drawer tray 493.5 mm (19.4 in.) 480.9 mm (18.9 in.) Retail tray 527.4 mm (20.8 in.) 489.2 mm (19.2 in.) Product with 15 in. tablet and the following: Counter top tray 406.2 mm (15.9 in. ) 509.2 mm (20.0 in.) Cash drawer tray 517.3 mm (20.4 in.) 511.4 mm (20.1 in) Retail tray 551.1 mm (21.7 in.) 519.7 mm (20.5 in.) Product with 17 in. tablet and the following: Counter top try 428.9 mm (16.9 in.) 525.9 mm (20.7 in.) Cash drawer 540 mm (21.3 in.) 528.1 mm (20.8 in.) Retail tray 573.8 mm (22.6 in.) 536.4 mm (21.1 in.)

Measurement A (see figure below)

Measurement B (see figure below)

Page 11 of 63

SurePOS 500 4846-XX5 Technical Reference

2.8.2 Controls

Function Actuation Location Operation

Power Toggles state between OFF and ON Brightness up Increases brightness by 1 step Brightness down

Momentary contact button

Under LCD chin

Decreases brightness by 1 step

2.8.3 Visual Indicators

Function Color Location State

Off - System Off

Power Green Front bezel

HDD Yellow Front bezel

Wired LAN Green Tailgate (RJ45 connector)

Blinking - Standby/during POST On – Operational

Off - No activity Blinking - HDD activity

Left LED States – Off - 10 Mb mode – On - 100 Mb mode Right LED States – Off - No link – On - Good Link – Blinking - Network activity

Page 12 of 63

SurePOS 500 4846-XX5 Technical Reference

2.8.4 Connector/Controls Identifier

Identifier Function

A MSR B, C USB 2.0 D Tablet attachment E Touch Ring F USB 2.0 G/H Brightness up/down buttons

Page 13 of 63

SurePOS 500 4846-XX5 Technical Reference

I Power control J RS232 K External Display / RS232 L Analog Video M Keyboard N Mouse O/P Cash Drawer Q Ethernet R 24V USB 2.0 Plus Power S 12V USB 2.0 Plus Power T USB 2.0 (4x)

Page 14 of 63

SurePOS 500 4846-XX5 Technical Reference

2.9 Product Description

2.9.1 Block Diagram

Page 15 of 63

SurePOS 500 4846-XX5 Technical Reference

2.10 Logic

Processor: Intel Celeron D 326 2.53Ghz

• LGA775 Socket

• 16K Level 1 cache / 256KB Level 2 cache

• 533Mhz Front Side Bus

• Streaming SIMD Extensions 3

• Execute Disable Bit

• Hyperthreading is not supported by Celeron

• Support Extended Memory 64 Technology (EM64T)

To inquire about P4 support, contact an IBM sales representative North Bridge: Intel 82915GV

• Processor Interface

− 533Mhz front side bus (800Mhz capable)

• System Memory

− Supports up to 2GB DDR2 533Mhz DRAM (PC2-4200 DDR2): 512 GB, 512GB, 1GB DIMM’s supported

− One or two 64-bit wide DDR2 SDRAM data channels

− Bandwidth up to 8.5 GB/s in dual-channel interleaved mode

− Non-ECC memory only

• Intel GMA 900 2D/3D

− 133 Mhz Core

− Direct 9x Support

− Dynamic Memory Video Technology V3.0 using up to 128MB video memory

• 2.0 GB/s Link to South Bridge

• Digital Display Support

− SDVO output

− 200Mhz dot clock

− Scaling using Chrontel 7308 LVDS scaler

• Analog Displ ay Support

− 400Mhz Integrated 24-bit RAMDAC

− Up to 2047x1536@85Hz refresh

Note:

Dual channel mode requires two matching size DIMM’s installed. When a si ngle DIMM is installed or two dissimilar size DIMM’s are installed, the memory operates in single channel mode.

South Bridge: Intel ICH6

• PCI Bus support, Rev 2.3, 33 Mhz

• Serial ATA II support, 150 Mbps

• Support for up to 8 USB 2.0/USB 1.1 ports

− Support for wake up from sleeping states

− Supports legacy keyboard/mouse software

• Power Management Support

− ACPI 2.0 compliant

− APM-based legacy power management

• Integrated LAN co ntroller

− Wake on LAN with Magic Packet

− 10/100 Mb/s Ethernet

• Support for AC-’97 2.3 audio codec

• SMBus 2.0/I²C support

I/O Subsystem: SMSC SC3106 Super I/O Controller

• RS232 support

• Keyboard/Mouse support

• Power Control

• Temperature monitoring and fan control

Audio Subsystem: Realtek ALC202 codec (X6X models only)

Page 16 of 63

SurePOS 500 4846-XX5 Technical Reference

• AC ’97 compliant audio

• Supports 44.1K/48K/96K/192KHz DAC Independent Sample Rate

• All ADCs Support 48K/192 K Hz Independent Sample Rate

• 1W + 1W amplifier

PC Card Support (TI PCI140A) (X6X models only)

• Support for 1 Type II 5V/3.3V PC Card or 3.3V CardBus Cards

• Hot insertion/removal support

• Register-compatible with the Intel⎢ 82365SL-DF and 82365SL ExCA controllers

Secondary Video Adapter - ATI Radeon 7000 graphics processor

• 2D/3D capability, supports 3D resolutions (32-bit color) up to 2048x1536

• 32MB DDR onboard memory

• Better 3D performance (than base video)

• PCI 2.2 compliant : PCI-33

Touch

• ELO-based Infra-redesign

• RS232 interface to touch, mouse emulation

• Flashable firmware via USB

Touch Specifications

Attribute Specification

Technology Modified ELO Infra-red Calibration Not required Input Method Finger, stylus (8mm diameter min.) Controller Resolution 1024x1024 Accuracy (std dev) 0.080-in.

Accuracy (max err) Drift None

Glass Finish Anti-glare Transmissiveness 92% Travel N/A Touch Activation Force None

0.047-in. (96%)

0.222-in (4%)

2.11 Component specifications

2.11.1 4GB Modular Flash Drive

Characteristic Specification

Interface USB 2.0 Data Reliability < 1 non-recoverable error in 1014 bits read Performance 20Mbps read / 10Mps write

2.11.2 Hard Disk Drive

Characteristics Specification

Form Factor 3.5-in Formatted Capacity (GB) 80GB or greater Interface SATA II, up to 3.0Gb/s Rotational Speed 7200 rpm

Page 17 of 63

SurePOS 500 4846-XX5 Technical Reference

Access Time – Read (inc. overhead) 13 ms typ Access Time – Write (inc. overhead) 15 ms typ

2.11.3 LCD

12-inch TFT 15-inch TFT 17-inch TFT

Interface Single Channel LVDS Single Channel LVDS Dual Channel LVDS Minimum Brightness (cd/m2)

(without front glass) Number of CCFL bulbs 2 2 4 Active Area (mm) 246.0H x 184.5 V 304.128H x 228.096 V 337.92H × 270.34 V Resolution (pixels) 800 x 600 1024 x 768 1280 x 1024 Color 24 bit 24 bit 24 bit Contrast Ratio (typ) 300:1 500:1 500:1 Minimum Backlight Life

(half brightness)

450 230 300

30,000 hrs 30,000 hrs 40,000 hrs

2.11.4 Magnetic Stripe Reader

Characteristic Specification

• ISO 7811 Tracks 1,2,3 capability

• Enable/Disable Carriage Return

• Enable/Disable Sentinels

• Programmable Sentinels

Features

Card Support

Coercivity of Magnetic Stripe 300 to 4000 Oe Read Direction Bi-directional Swipe Speed 5 to 60 inches per second Maximum Jitter 12% Error Rate Less than 0.5% Electrical Interface Serial Rated Life 500,000 swipes

• Individually selectable Tracks

• Flashable firmware

For details on configuring the MSR, go to the www.ibm.com/solutions/retail/store/support and search for knowledge base entry number R1001036

• Standard

• Mini-cards

• Foil laminated cards

2.11.5 Integrated and Distributed 2x20

Integrated 2x20 Distributed 2x20

Technology Vacuum Fluorescent Format 2 rows, 20 characters Brightness (w/o lens) 300 cd/m2 300 cd/m2 Display Color (w/o

lens) Adjustment n/a Multi-position detent Character Box 5 x 7 5 x 7 Character Height (mm) 7.74 x 4.15 9.5 x 4.45

Green

Page 18 of 63

SurePOS 500 4846-XX5 Technical Reference

Emulations Logic Controls Emulation or IBM Multi-Mode

Code Page 437 (US/Euro) Code Page 897 (Katakana) Code Page 858 (Int'l) Code Page 852 (Central Europe)

Code Page 855 (Cyrillic) Character Sets (IBM Multi-mode)

User Defined Characters

Electrical Interface TTL Serial RS232 Power 5V 12V Power Consumption

(all pixels energized) Attachment Cable Pigtail 3.8 m (12 ft)

Code Page 857 (Turkey)

Code Page 862 (Israel)

Code Page 863 (Can Fr)

Code Page 864 (Arabic)

Code Page 865 (Nordic)

Code Page 808 (Cyrillic Russian)

Code Page 869 (Greece)

Logic Controls Mode: 1

IBM Mode: 8

6W 7.2 W

2.11.6 All Points Addressable (APA) Display

An external all points addressable customer display is supported. This is intended to meet DBCS language requirements. It attaches to the 15-Pin Powered serial port which provides power and signaling.

Attribute Specification

Technology Vacuum Fluorescent Brightness 300 cd/m2 Format (dot) 160 x 40 Active Area (mm) 132.55 x 32.95 Dot Size (mm) 0.58 (W) x 0.58 (H) Dot Pitch (mm) 0.83 (W) x 0.83 (H)

Display Color

Modes Built in Font Code Pages for Character Mode

5x7 A/N (4 and 5 line mode) 8x16 A/N English (2 line mode) 8x16 A/N Katakana (2 line mode) 16x16 Kanji (2 line mode) 16x16 Hanguel (2 line mode) 16x16 Simplified Chinese (2 line mode) 16x16 Traditional Chinese (2 line mode)

Character Box Height (mm) 5x7 8x16 16x16

Electrical Interface RS232 with 12 V power Power Consumption Adjustment Multi-position

Attachment Cable 3.8m

Green (peak wavelength 505 nm)

All Points Addressable (160x40) Character Mode

Futaba Standard IBM Code Page 437 modified Futaba Standard JIS X 208-1990 KS C 5601-1992 GB-2321-80 BIG5

3.90 (H) x 5.56 (W)

6.39 (H) x 13.03 (W)

13.03 (H) x 13.03 (W)

6W (typ)

8.4 (max)

Page 19 of 63

SurePOS 500 4846-XX5 Technical Reference

2.11.7 Built-in speakers (X6X models only)

Attribute Specification

Drivers 2 element, 1 way, sealed design Type 7 x 4 (28 mm x 40 mm x 15 mm deep) Impedance 12 ohm impedance Magnetic Shielding Yes Frequency Response 160Hz - 11 kHz (+/- 3 dB) Output

(rms EIAJ 10% THD 1kHz) Loudness 82 dB +/- 3 dB (1 Watt/ch @ 1 m) S/N Ratio 65 dB (IEC A weighted, ref 1 W) Volume Adjustment Knob Easily accessible on front of speaker unit Channel Separation 40 dB Total Harmonic Distortion 10% Input Voltage 10.8V V DC +/- 10% Input Sensitivity 1 V (1 W, 1kHz) Input Impedance 12 ohm (1 kHz) Power Consumption 4 W at maximum volume setting Input Terminal Molex 70555-0038 (power + signal)

1W + 1 W

Page 20 of 63

SurePOS 500 4846-XX5 Technical Reference

3.0 BIOS and software description

This section provides an overview of BIOS, SETUP, and system software.

3.1 Setup

The POST CMOS Setup Utility program provides menus for querying and configuration the system. The menus can be navigated using touch OR a keyboard attached to a USB or PS/2 port.

The CMOS Setup Configuration Utility has optional password protection. The password can be entered through on screen keypad or keyboard, and can only be numerical. If the password is forgotten, it can be cleared using the CMOS Clear Jumper located on the main card.

3.2 Functional Standards

• BIOS Boot Specification, v1.01, January 11, 1996

• Plug and Play BIOS Specification, v1.0A, May 5, 1994

• Plug and Play BIOS MODIFICATION P aper for Plug and Play BIOS Specification, v1.0A, October 4, 1994

• ATAPI Removable Media Device BIOS Specification, v1.0, January 30, 1997

• PCI Local Bus Specificatio n, Revision 2.1, June 1, 1995

• PCI BIOS Specification, Revision 2.3, March 29, 2002

• El Torito Bootable CD-ROM Format Specification, v1.0, Janua ry 25, 1995

• Preboot Execution Environment (PXE) Specification, Version 2.1.

• Advanced Power M anagement Specification, v1.2

• Advanced Configuratio n and Power Interface Specification, Revision 1.0b, February 2, 1999

• DMI Specifications, v2.0

• SMBIOS Specification, v2.4

• Simple Boot Flag Specification, Version 2.1

• PC 2001 System De sign Guide

• Wired for Management Baseline 2.0 Review Request 77 Remote Lockout API

3.3 Standard BIOS Features

BIOS supports the following features:

• Display checkpoints during POST on top-right corner

• WfM Remote Lockout

• Power-On Se lf Test (POST)

• Warm Boot support

• Memory Auto-detection

• Hard Disk Auto-detection

• Fast A20 Interface

• Advanced Storage Featu res

− SATA support

− 48-bit LBA (Logical Block Addressing) support with Int 13h extensions for drives >528MB

− UDMA (Ultra DMA)

− Storage Auto-detection

− Self Monitoring Analysis and Reporting Technology (S.M.A.R.T.) Support

• USB Legacy Support

− USB 2.0 support

− USB Keyboard/mouse for non-USB enabled OS’s

− USB Keyboard support in Setup

• Simple Boot Flag support

• APM 1.2 Support

• ACPI 1.0b Support

Page 21 of 63

SurePOS 500 4846-XX5 Technical Reference

• Thermal management

3.4 BIOS Interrupts

This section lists the supported interrupt in DOS. Refer to the IBM Personal System/2 and Personal Computer BIOS Interface Technical Reference for additional information.

• Int 02h – NMI

• Int 05h - Print Scree n

• Memory Location 50:00h.

This is a byte memory location. A value of 00h indicates that the print screen successfully completed or was not invoked. A value of 01h indicates that a print screen is in progress and subsequent print screens are ignored. A value of FFh indicates that the print screen terminated due to an error.

• Int 08h - System Timer This interrupt modifies memory locations 40:6Ch, 40:70h, 40:40h, and 40:3Fh. It also invokes interrupt 1Ch.

• Memory Location 40:6Ch This dword is incremented every Int 08h tick or 18.2 times per second. The memory location is reset to 00000000h when a 24-hour duration has elapsed.

• Memory Location 40:70h This byte has a value of 00h until a 24 hour duration has elapsed. It is then set to 01h. The byte must be manually reset back to 00h.

• Memory Location 40:40h This byte is decremented every interrupt 08h tick or 18.2 times per second. If the timer goes to 00h, the floppy motor is turned off and resets the floppy flags in memory location 40:3Fh.

• Int 09h – Keyboard Called on every make or break keystroke. The 32-byte buffer starting at 40:1Eh is updated at the address pointed by the keyboard buffer tail pointer. The keyboard buffer tail pointer at memory location 40:1Ch is incremented by 2 unless it extends past the keyboard buffer, in which case it wraps. When a key is read, the keyboard buffer head pointer at memory location 40:1Ah is incremented by 2 unless it extends pass the keyboard buffe r, in which case it wraps. Special keys such as CTRL, ALT, or Shift update the status at memory location 40:17h, 40:18h and 40:96h. A CTRL-ALT-DELETE key sequence sets the reset flag at memory location 40:72h to 1234h and jumps to the reset vector.

Pressing the Pause key causes the interrupt handler to loop until a valid ASCII keystroke occurs. Pressing the Print Screen key causes an Interrupt 05h to be issued. A CTRL-BREAK sequence causes Interrupt 1Bh to be issued. Pressing the SysReq key causes Interrupt 15h Function 85h (System Request Key Pressed) to be issued. Any make keystroke causes Interrupt 15h Function 91h, Subfunction 02h (Interrupt complete from Keyboard) to be

issued. After any scan code is read from I/O port 60h and Int 15h, Function 4Fh (Keyboard Intercept) is issued. An EOI is

issued upon returning from the Keyboard Intercept.

• Memory Location 40:1Eh This location is the start of a 32-byte keyboard buffer.

• Memory Location 40:1Ah This word points to the next character in the keyboard buffer.

• Memory Location 40:1Ch This word points to the last character in the keyboard buffer. If the value equals the value in memory location 40:1Ah, the keyboard buffer is empty. If the value is two bytes from the contents of memory location 40:1Ah, the keyboard buffer is full.

• Memory Location 40:17h This byte contains the keyboard status byte.

• Memory Location 40:18h This byte contains the extended keyboard status byte.

Page 22 of 63

SurePOS 500 4846-XX5 Technical Reference

• Memory Location 40:96h This word contains the extended keyboard status.

• Memory Location 40:72h This word contains the soft reset flag.

• Int 10h – Video This interrupt is supported by the video ROM. Int 11h - Equipment Determination

Returns the data at memory location 40:10h.

• Memory Location 40:10h This word contains the equipment list.

• Int 12h - Base Memory Size Returns the value at memory location 40:13h.

• Memory Location 40:13h This word contains the amount of memory up to 640 KB. This count will often be less than 640 KB due to NIC ROM bootloaders.

• Int 13h - HDD and Floppy Diskette Serv ices

• Int 14h - Serial Communication Services

• Int 15h - System Services

Sub functions are those defined by the IBM Personal System/2 and Personal Computer BIOS Interface Technical Reference manual. Additional sub function support is OEM dependent.

• Int 16h - Keyboard Services

• Int 1Ah - System-Timer Services, PCI BIOS

• Int 1Bh – CTRL+Break Handler

• Int 1Ch - Periodic Tim er Interrupt

• Int 1Dh - Video Parameter Table

Set by the video BIOS

• Int 1Eh - Floppy Diskette Drive Parameters Points to an 11-byte data structure

• Int 1Fh - Video Graphics Characters Set by the video BIOS

• Int 23h - CTRL+C, CTRL+Break Handler

• Int 41h - HDD C: Drive Parameters

Points to a 16-byte data structure for drive C:

• Int 46h - HDD D: Drive Parameters Points to a 16-byte data structure for drive D:

3.5 Fixed BIOS Entry Points

The fixed entry points in F000:xxxx must be supported for traditional reasons. The table below lists the fixed BIOS entry points.

Location Description

F000:E05Bh POST Entry Point F000:E2C3h NMI Entry Point F000:E6F2h Int 19h Entry Point F000:E6F5h Configuration Data Table F000:E729h Baud Rate Generator Table F000:E739h Int 14h Entry Point F000:E82Eh Int 16h Entry Point F000:E987h Int 09h Entry Point F000:EC59h Int 13h Floppy Entry Point F000:EF57h Int 0Eh Entry Point F000:EFC7h Floppy Disk Controller Parameter Table F000:EFD2h Compatibility for printer Int 17h

Page 23 of 63

SurePOS 500 4846-XX5 Technical Reference

F000:F065h Compatibility for Video interrupt F000:F0A4h MDA and CGA Video Parameter Table Int 1Dh F000:F841h Int 12h Entry Point F000:F84Dh Int 11h Entry Point F000:F859h Int 15h Entry Point F000:FA6Eh Low 128 character of graphic video font F000:FE6Eh Int 1Ah Entry Point F000:FEA5h Int 08h Entry Point F000:FF53h Dummy Interrupt Handler F000:FF54h Int 05h Print Screen Entry Point F000:FFF0h Power-On Entry Point F000:FFF5h 8 character ROM Date in ASCII “MM/DD/YY” F000:FFFEh System Model (FCh) (outdated – use SMBIOS)

3.6 BDA Memory Addresses

The BIOS Data Area (BDA) starts at 40:0 and should be populated as follows.

Start Location

00h 2 COM1 base address 14h motherboard UART1 I/O address 02h 2 COM2 base address 14h motherboard UART2 I/O address 04h 2 COM3 base address 14h motherboard UART5 I/O address 06h 2 COM4 base address 14h motherboard UART4 I/O address 08h 2 LPT1 base address 17h Should be 0000h 0Ah 2 LPT2 base address 17h Should be 0000h 0Ch 2 LPT3 base address 17h Should be 0000h 0Eh 2 EBDA segment 10h 2 Installed hardware 11h 12h 1 Reserved 13h 2 Base memory size 12h 15h 2 Reserved 17h 1 Keyboard control 1 16h 18h 1 Keyboard control 2 16h 19h 1 Work area for ALT key 16h 1Ah 2 Keyboard-buffer Head 16h 1Ch 2 Keyboard-buffer Tail 16h 1Eh 32 Keyboard Buffer 16h 3Eh 1 Floppy recalibrate status 13h 3Fh 1 Floppy motor status 13h 40h 1 Floppy motor timeout 13h 41h 1 Floppy operation status 13h 42h 7 Floppy controller status 13h 49h 30 Video info 10h 67h 4 POST callback address

6Bh 1

Length in bytes

Description

Last Unexpected interrupt

Interrupt Using It

Comments

Page 24 of 63

SurePOS 500 4846-XX5 Technical Reference

6Ch 4 Timer Counter 1Ah 70h 1 Timer Overflow 1Ah 71h 1 Break key state 16h 72h 2 Reset Flag 74h 1 HDD operation status 13h

75h 1

Number of HDDs attached

13h

76h 2 Reserved 13h 78h 1 LPT1 time-out 14h 79h 1 LPT2 time-out 14h 7Ah 1 LPT3 time-out 14h 7Bh 1 Reserved 7Ch 1 COM1 time-out 7Dh 1 COM2 time-out 7Eh 1 COM3 time-out 7Fh 1 COM4 time-out 80h 2 Keyboard buffer start ptr 16h 82h 2 Keyboard buffer end ptr 16h 84h 7 Video info 10h 89h 2 Reserved 8Bh 1 Floppy media control 13h 8Ch 1 HDD Controller status 13h

8Dh 1

HDD Controller error status

13h

8Eh 1 HDD Interrupt control 13h 8Fh 1 Reserved 90h 1 Floppy 0 media status 13h 91h 1 Floppy 1 media status 13h 92h 1 Floppy 2 media status 13h 93h 1 Floppy 3 media status 13h 94h 1 Drive 0 current cylinder 13h 95h 1 Drive 1 current cylinder 13h

96h 1

Keyboard mode state & flags

16h

97h 1 Keyboard LED flags 16h 98h 2 User Wait flag offset 15h 9Ah 2 User wait flag segment 15h

9Ch 2

9Eh 2

Low word of user wait count

High word of user wait count

15h

A0h 1 Wait active flag 15h A1h 7 Reserved A8h 4 Video info 10h ACh 54h Reserved 100h 1 Print Screen status 05h

Page 25 of 63

SurePOS 500 4846-XX5 Technical Reference

3.7 EBDA Memory Addresses

The Extended BIOS Data Area (EBDA) starts at the segment pointed to by the contents of 40:0Eh.

Start Location Length in bytes Description Comments

00h 1 Length of EBDA in KB 01h 32 Reserved 17h 1 Number of POST errors not required 18h 5 POST error log not required 22h 4 Mouse Driver Ptr Int 74h 26h 1 Mouse flag byte 1 Int 74h 27h 1 Mouse flag byte 2 Int 74h 28h 8 Mouse data Int 74h 30h 3d0h Reserved Reserved

3.8 Memory Map

This section documents the default memory map. Note that add-in cards or changing CMOS Setup items may alter the memory map, particularly below 1 MB.

Memory Map with USB Legacy Support enabled (default)

Physical Address Range (Dec)

0-639 KB 00000-9FC00 512 KB

639 KB 9FC00-9FFFF 1 KB 640-767 KB A0000-BFFFF 128 KB Legacy Video Buffer

768-831 KB C0000-CFFFF 64 KB Video BIOS ROM (shadowed ) 832-863 KB D0000-D7FFF 32 KB USB Legacy Support 864-867 KB D8000-D8FFF 4 KB Network ROM boot loader 868-895 KB D9000-DFFFF 28 KB Free for EMM386 896 KB-959KB E0000-EFFFF 64 KB Free for EMM386 960KB – 1MB F00000-FFFFFF 64KB System ROM BIOS 1- 16 MB 100000-FFFFFF 15 MB PCI/ISA Space 16 MB – 4095.5

4095.5 MB - 4096 MB

Memory Map with USB Legacy support disabled:

Physical Address Range (Dec)

0-639 KB 00000-9FC00 512 KB

639 KB 9FC00-9FFFF 1 KB 640-767 KB A0000-BFFFF 128 KB Legacy Video Buffer

Physical Address Range (Hex)

1000000-FFF7FFFF

FFF80000-FFFFFFF 512 KB System ROM BIOS (ISA Bus)

Physical Address Range (Hex)

Size Description

Conventional DOS memory (size may decrease if booted via LAN)

EBDA (Extended BIOS Data) moveable by Himem, memory managers

4079.5 MB

Size Description

OS, PCI adapter memory decode, etc.

Conventional DOS memory (size may decrease if booted via LAN)

EBDA (Extended BIOS Data) moveable by Himem, memory managers

Page 26 of 63

SurePOS 500 4846-XX5 Technical Reference

768-831 KB C0000-CFFFF 64 KB Video BIOS ROM (shadowed) 832-835 KB D0000-D0FFF 4 K Network ROM boot loader 836-895 KB D0FFF-EFFFF 124 KB Free for EMM386 896 – 959KB E0000-EFFFF 64KB Free for EMM386 960 KB - 1MB F0000-FFFFF 64 KB System ROM BIOS 1- 16 MB 100000-FFFFFF 15 MB PCI/ISA Space 16 MB – 4095.5

4095.5 MB 4096 MB

1000000-FFF7FFFF 4079.5 MB OS, PCI adapter memory decode, etc.

FFF80000-FFFFFFF 512 KB System ROM BIOS (ISA Bus)

3.9 COM Port Setup

Physical UART

UART1 COM1

UART2 COM2

UART3 COM3

Tailgate Port Name

Function

Available to user

Distributed VFD connection

Connector Type

RJ45

DB15 F

Location Notes

Rear Tailgate

Integrated

UART4 Dist-VFD

VFD

Custom Tower Top

connection

8051 1 Internal Internal

UART5 n/a

MSR connection

RJ45 Tablet Side BDA COM3 3E8/5

UART6 n/a Touch Internal Internal

Default I/O and IRQ

BDA COM1 3F8/4

BDA COM2 2F8/3

COM6 2E0/11 BDA COM4

Only one of integrated or distributed VFD may be enabled at the same time. CMOS Setup allows

2E8/6

selection. Communications with 8051

for EEPROM, cash drawer, and LCD control.

COM5 Resources hardcoded to

2D8/7

2F0h/IRQ 7

3.10 Video Modes

Supported VGA Video Display Modes

Dot

Video Mode

Information for communicating with the 8051 can be found in the Bryce I/O Subsystem Microcontroller Firmware

Pixel Resolution

Color Depth (bpp)

Mode Type

Display Adapter

Font Size

Character Resolution

Cloc k (MHz )

Horiz. Freq. (KHz)

Vert Freq(Hz)

Specification.

Page 27 of 63

Video Memory (KBytes)

SurePOS 500 4846-XX5 Technical Reference

320 x 200

00h

01h

02h

03h

04h 320 x 200 4 Graph All 8 x 8 40 x 25 25 31.5 70 256

05h

320 x 350

360 x 400

320 x 200

320 x 350

360 x 400

640 x 200

640 x 350

720 x 400

640 x 200

640 x 350

720 x 400

320 x 200

320 x 200 320 x 200 4 VGA 8 x 8 40 x 25 25 31.5 70 256

(gray) (4 bpp)

16 (gray) (4 bpp)

16 (4 bpp)

16 (gray) (4 bpp)

16 (4 bpp)

4 (gray)

Text CGA 8 x 8 40 x 25 25 31.5 70 256

EGA 8 x 14 40 x 25 25 31.5 70 256

VGA 9 x 16 40 x 25 28 31.5 70 256

Text CGA 8 x 8 40 x 25 25 31.5 70 256

EGA 8 x 14 40 x 25 25 31.5 70 256

VGA 9 x 16 40 x 25 28 31.5 70 256

Text CGA 8 x 8 80 x 25 25 31.5 70 256

EGA 8 x 14 80 x 25 25 31.5 70 256

VGA 9 x 16 80 x 25 28 31.5 70 256

Text CGA 8 x 8 80 x 25 25 31.5 70 256

EGA 8 x 14 80 x 25 25 31.5 70 256

VGA 9 x 16 80 x 25 28 31.5 70 256

Graph CGA 8 x 8 40 x 25 25 31.5 70 256

EGA 8 x 8 40 x 25 25 31.5 70 256

06h 640 x 200 2 Graph All 8 x 8 80 x 25 25 31.5 70 256

720 x 350 Mono Text MDA 9 x 14 80 x 25 28 31.5 70 256

07h

08h-0Ch Reserved - - 0Dh 320 x 200

0Eh 640 x 200 0Fh 640 x 350 Mono Graph E/VGA 8 x 14 80 x 25 25 31.5 70 256 10h 640 x 350

11h 640 x 480

12h 640 x 480

13h 320 x 200

720 x 350 Mono EGA 9 x 14 80 x 25 28 31.5 70 256 720 x 400 Mono VGA 9 x 16 80 x 25 28 31.5 70 256

16 (4 bpp)

2 (4 bpp)

16 (4 bpp)

256 (8 bpp)

Graph E/VGA 8 x 8 40 x 25 25 31.5 70 256

Graph E/VGA 8 x 8 80 x 25 25 31.5 70 256

Graph E/VGA 8 x 14 80 x 25 25 31.5 70 256

Graph VGA 8 x 16 80 x 30 25 31.5 60 256

Graph VGA 8 x 8 40 x 25 25 31.5 70 256

Page 28 of 63

SurePOS 500 4846-XX5 Technical Reference

VESA Modes Supported by Video BIOS

Video Mode

101h

103h

105h

107h

111h

114h

117h

11Ah

Pixel Resolution

640 x 480

800 x 600

1024 x 768

1024 x 768 1280 x

1024 1280 x

1024 640 x 480

640 x 480

800 x 600

1024 x 768

1024 x 768 1280 x

1024

Colors (bpp) Mode Type Display Adapter

256 (8 bpp)

64K (16 bpp)

Graph VGA 60 0.5

Graph VGA 75 0.5

Graph VGA 85 0.5

Graph SVGA 60 1

Graph SVGA 75 1

Graph SVGA 85 1

Graph XVGA 60 1

Graph XVGA 75 1

Graph XVGA 85 1

Graph SXGA 60 2

Graph SXGA 75 2

Graph SXGA 85 2

Graph VGA 60 1

Graph VGA 75 1

Graph VGA 85 1

Graph SVGA 60 2

Graph SVGA 75 2

Graph SVGA 85 2

Graph XVGA 60 2

Graph XVGA 75 2

Graph XVGA 85 2

Graph SXGA 60 4

Vertical Frequency (Hz)

Video Memory (MB)

Page 29 of 63

SurePOS 500 4846-XX5 Technical Reference

112

115

118

1280 x 1024

640 x 480

800 x 600

1024 x 768

64K (16 bpp)

16M (32 bpp)

Graph SXGA 75 4

Graph SXGA 85 4

Graph VGA 60 2

Graph VGA 75 2

Graph VGA 85 2

Graph SVGA 60 4

Graph SVGA 75 4

Graph SVGA 85 4

Graph XVGA 60 4

Graph XVGA 75 4

Graph XVGA 85 4

3.10.1 Display mode and operating system restrictions

The operating system, the display size, and any attached CRTs can affect the display resolution. The following definitions describe the terms and various display configurations:

Display Configuration Definition

Single A type of display configuration that supports only one display device. Twin

Clone Dual Independent Head

(DIH)

The onboard LCD supports the following modes when using the indicated operating system:

• DOS: Single

• Windows 2000 and Windows XP: Clone (default), twin

• WEPOS: Clone (default), twin

The onboard LCD and one extra attached LCD:

• DOS: Single; the onboard LCD is primary

• Windows 2000 and Windows XP: Clone (default), twin, DIH

• WEPOS: Clone (default), twin, DIH

A type of display configuration that supports two display devices, each of which has the same content, resolution, and timings. Also referred to as Simultaneous mode.

A type of display configuration that drives two display devices, each displaying the same content, but can have different resolutions and (independent) timings.

A type of display configuration that supports two displays with different content on each display device. Also referred to as an Extended Desktop.

Operating system with display combinations and restrictions

Display DOS Windows Onboard LCD only

Image Single1 Single Restrictions None

Page 30 of 63

SurePOS 500 4846-XX5 Technical Reference

Image Single Dual-same

Onboard LCD + external display

Onboard LCD + Add-in video card

General Restrictions

1. Dual -same: same data on both displays; simultaneous mode

2. Dual -independent; different/independent data on both displays; extended desktop

Supported video resolutions in Windows operating system

LCD size Available video resolutions for onboard LCD 12 in. 640 x 480, 720 x 480, 800 x 600

15 in.

17 in.

Restrictions

Image Single, on board LCD Dual-independent2

Restrictions None

640 x 480, 720 x 480, 800 x 600, 960 x 540, 1024 x 768

640 x 480, 720 x 480, 800 x 600, 960 x 540, 1024 x 768, 1152 x 864, 1280 x 720, 1280 x 768, 1280 x 960, 1280 x 1024

External display not supported

Touch on primary display only

Media clips show on onboard LCD only; External display must be the same resolution as onboard LCD

Onboard LCD becomes secondary display when installing Windows

None

3.11 Power Management

3.11.1 APM

Function Supported From State Comments

Global Standby Yes

Wake on LAN Yes Standby,Off

Wake on Alarm Yes Standby,Off

Wake on Ring Yes Standby/Off

Power off Yes power button, APM call Power button default = Instant Off

Wake on Touch Yes Standby

power button, inactivity timer

Default=disable, configurable in Setup

Serial D only Default=disable, configurable in

Setup

Default=enable, configurable in Setup

CPU Idle calls from OS Yes On

Page 31 of 63

OS must have APM engaged/connected (i.e. DOS

SurePOS 500 4846-XX5 Technical Reference

power.exe loaded)

Wake from PS/2 keyboard/mouse

Wake from USB keyboard/mouse

Standby Timer Yes On

Hard Disk Standby Yes On

Video Standby Yes On

Clock Throttling Yes On

Wake on Presence Sensor No no presence sensor

PCMCIA ring No

Global Suspend (Save to disk or RAM) State

Power on by keyboard No

Yes Standby Always enabled

Default=disabled, configurable in Setup

Battery support No

3.11.2 ACPI

Function Supported From State Comments

Global Standby Yes power button, inactivity timer Wake on LAN Yes S1/S5 Wake on Alarm Yes S1/S5 Power off Yes All Wake on Touch Yes S1 Wake on Ring Yes S1/S5 Serial D only

Wake from PS/2 keyboard/mouse

Wake from USB keyboard/mouse

Clock Throttling Yes S0 Wake on Presence

Sensor PCMCIA ring No Global Suspend

(Save to disk or RAM) State

Yes S1

No no presence sensor

Provide support, enabled/disabled through Device Manager

Page 32 of 63

SurePOS 500 4846-XX5 Technical Reference

Power on by keyboard No Battery support No

3.12 System Information Data

3.12.1 SMBIOS

System Management BIOS (SMBIOS) is a standard interface to provide information configured by the manufacturer about the PC hardware. BIOS complies with the minimum specifications in the SMBIOS v2.4 specification Appendix Section 4.

Note: According to the SMBIOS spec (section 2.1: Table Convention), SMBIOS provides static information only, gathered each POST or before booting. SMBIOS cannot provide run-time, dynamic information to software.

3.12.2 Cumulative Structure List

• BIOS Information (Type 0)

− Vendor

− BIOS Version

− BIOS Characteristics Extension Byte 1

• BIOS Characteristics Extension Byte 2

• System Information (Type 1)

− Manufacturer = “IBM CORPORATION”

− Product Name

− Version

− Serial number

− Wake up Type

• Base Board (or Module) Information (Type 2)

• System Enclosure (Type 3)

• Processor information (Type 4)

• Cache Information (Type 7)

• On Board Devices Information (Type 10)

• Physical Memory Array (Type 16)

• Memory Device (Type 17)

• Built-in Pointing Device (Type 21)

− For built-in Touch Screen

• Hardware security (Type 24)

− Power-on Password Status

− Administrator Password Status

• Voltage Probe (Type 26)

− One structure for each voltage probe

• Cooling Device (Type 27)

− One structure for each of CPU, chassis, and power supply fan

• Temperature Probe (Type 28)

− One structure for each of CPU and motherboard (ambient)

• System boot information (Type 32)

− Boot status

• Management Device (Type 34)

• Management Device Component (Type 35)

− One for each type26-28 management device, except power supply fan

− Each type35 "Threshold Handle" points to respective type 36

• Management Device Threshold Data (Type 36)

− One for each type 35 device

− Each type35 "Threshold Handle" points to respective type 36

• System Power Supply (Type 39)

Page 33 of 63

SurePOS 500 4846-XX5 Technical Reference

3.13 Vital Product Data

Vital Product Data (VPD) is the IBM-specific information about a system. The data includes values such as machine type, model, serial number, BIOS/Flash revision, system board unique ID, etc. VPD is accessed through SMBIOS, as defined in the SMBIOS specification.

3.13.1 VPD Layout in SMBIOS

This section describes the traditional VPD. Refer to the SMBIOS specification for methods of accessing these fields.

Data field SMBIOS record Type and Field Data type Field length

BIOS level

Type 0 “BIOS Version” Example: X6KT100

Machine type/model

Type 1 “Product name” and “Version” Example: 4846545

The machine type/model does not have dashes or spaces in SMBIOS

System serial number

Type 1 “Serial Number”

Product Family Type 1 “Family”, Type 11

Type 1 “UUID”, offset 0Ah

LAN MAC Address

Usage: The LAN MAC address can be parsed from the Type 01 “UUID” field, offset 10 (0Ah). For example, if the UUID is 40 3E 4C 58 76 7B DA 11 A4 29 00 14 5E 14 00 15, the MAC address is 00 14 5E 14 00 15.

ASCII string

hex 6

3.13.2 SMBIOS Type 11 Structure Layout

The format of the SMBIOS Type 11 Structure for OEM strings is as follows:

Offset Name Length Value Description

00h Type 1 byte 0Bh OEM strings structure indicator 01h Length 1 byte 05h Length of structure 02h Handle 2 bytes varies 04h Count 1 byte varies Number of strings in this structure

05h

Product Family String

11 bytes

ASCII string

“SurePOS 500”

3.13.3 VPD using Int 15h

;Get pointer to VPD block mov ax, 0d207h int 15h

;ES:DI now points to the following structure: vpdDataStruc STRUC header DW 55aah vpdSignature DB 'VPD' vpdLength DB 48 reserved DB 7 dup(20h) buildID DB 9 dup(20h) boxSerial DB 7 dup(20h) uniqueID DB 11 dup(20H) machineType DB 7 dup(20h) vpdChecksum DB ? vpdDataStruc ENDS

Page 34 of 63

SurePOS 500 4846-XX5 Technical Reference

4.0 Environmental Specifications

4.1 Temperature/Humidity Limits

Condition Temp Limits (Dry Bulb) Relative Humidity Max. Wet Bulb Temp

Operating / Standby 5 to 40° 8 to 80 % 27°C Storage (packaged) 0 to 60°C 5 to 80 % 29°C Shipment (packaged) -40 to 60°C 5 to 100 % 29°C

4.2 Altitude Limits

The product is designed to operate up to 3050 meters (10,000 feet).

4.3 Power

Off (attached to mains) 4W

Power Consumption (system)

Input Voltage kVA 0.3

AC Input Connector/Cable IEC 320 C14, unshielded right angle type Leakage current 3.5 mA maximum Inrush < 30 A (peak, first cycle)

Suspend Not supported Standby 80W On (idle) 120W On (max) 170W 100 - 127, 200 - 240 VAC (nominal), 50 or 60 Hz (+/- 3 Hz)

Sinusoidal, trapezoidal, or square wave inputs

4.4 Acoustics

Measurement Operator -Idle

LwAu (bels) 5.0 All measurements made in accordance with ISO 7779 and reported in conformance with ISO 9296.

4.5 Standards Compliance

4.5.1 Product Certifications

Category Standard

• IEC 60950-1 1

• UL 60950-1 1

• CAN/CSA C22.2 No. 609 50-1 3

• CCC (China)

External Safety

Electrostatic Discharge (ESD) EN 55024:1998 (EN 61000-4-2:1995)

• IRAM (Argentina)

• PSE (Japan)

• GOST (Russia)

• BSMI (Taiwan)

Page 35 of 63

Edition with all national deviations

Edition

SurePOS 500 4846-XX5 Technical Reference

Susceptibility Air: Level 3 (8KV)

Contact: Level 2 (4KV) Performance Criterion: B

FCC Part 15 Class A Canada EMI Class A (ICES-003) CISPR 22 Radiated Class A, Conducted Class B (EN55022): 1998

Electromagnetic Interference (EMI)

Radiated Electromagnetic Susceptibility (RES)

Electrical Fast Transient/Power Line Transient (EFT/PLT)

Near Field Phenomena MPRII Power Line Disturbance/Ring

Lightning Surge Susceptibility

Immunity to conducted disturbances

Power Frequency Magnetic Field Immunity

Power Line Harmonics (Power Correction Factor)

VCCI Class A Taiwan EMI CNS-13438 Class A Korea EMI MIC Notice No. 1996-78 Class A New Zealand EMI Class A Australia EMI Class A

EN 50024: 1998 (EN61000-4-3) Criteria A EN 50024: 1998 (EN61000-4-4) Criteria B

EN50024: 1998 (EN 61000-4-11)

EN50024: 1998 (EN61000-4-5, Criteria B)

EN55024:1998 EN61000-4-6 Criteria A

EN55024:1998 EN61000-4-8 Criteria A

EN 61000-3-2

4.5.2 Ergonomics and accessibility

Category Standard

Flat Panel ISO/FDIS 13406-2, Flat Panel Standards Accessibility Section 508 of U.S. Rehabilitation Act

Page 36 of 63

SurePOS 500 4846-XX5 Technical Reference

5.0 External Ports

5.1 Port Listing

Port Electrical Interface Connector Type Location

Keyboard, Mouse IBM PS/2 PS/2 mini-DIN Tower Rear Headphone Audio Output Microphone Audio Input 3.5 mm mini plug Tower Side

External Speaker Audio Output + power Custom Not accessible MSR Integrated Customer

Display Distributed Customer

Display (Serial D) Serial A RS232 RJ45 Rear Tailgate Serial B RS232 RJ45 Rear Tailgate Serial F RS232 RJ45 Rear Tailgate Cash Drawer A IBM 24v CD Interface 4-pin AMP SDL Rear Tailgate Cash Drawer B IBM 24v CD Interface 4-pin AMP SDL Rear Tailgate USB 1 USB 2.0 USB Type A Rear Tailgate USB 2 USB 2.0 USB Type A Rear Tailgate USB 3 USB 2.0 USB Type A Rear Tailgate USB 4 USB 2.0 USB Type A Rear Tailgate USB 5 USB 2.0 USB Type A Tablet USB 6 USB 2.0 USB Type A Tablet USB 7 USB 2.0 USB Type A Tablet Chin – near brightness buttons USB 12V USB 2.0 + 12V USB Plus Power Rear Tailgate USB 24V USB 2.0 + 24V USB Plus Power Rear Tailgate External Video Analog CRT VGA (DB15F) Rear Tailgate

RS232/Keyboard Wedge

RS232, +5V Custom Tower Top RS232, +5V, +12v

power

3.5 mm stereo mini plug

RJ45 Tablet side

DB15F Rear Tailgate

Tower Side

5.2 Port Power Ratings

• Each port has a maximum continuous rating. There is also a total maximum rating from a combination of all ports.

• Total 12V current available for all external loads is 5A max. Total 5V current available for all external loads is 5A

max.

• Only one cash drawer may be activated at any instan ce in time.

• Hot plugging of powered USB devices, especially printers, is not supported. Some powered USB devices create

surge currents that may cause the system power supply to initiate over-current shut down.

Port # / name Voltage Spec. Tolerance Maximum current

Distributed VFD/Serial D USB (7x) 5V +5,-7% 0.5 A

5V +5, -7% 0.95A 12V +5, -7% 0.65A

5V +5%,-7% 0.5 A USB Plus Power 12V +5%, -10% 1.5 A

Page 37 of 63

SurePOS 500 4846-XX5 Technical Reference

24V +10%, -1% 3.0 A continuous, 5.0 A peak Kybd and Mouse

(combined) Cash Drawer (3A/3B) 24V 1A

5V +5, -7% 2.26A

5.3 Connector Pinouts

5.3.1 Customer Display Connector

Pin Connector Pin Connector

1 CD (carrier

detect)

2 RXD (receive

data)

3 TXD (transmit

data)

4 DTR (data

terminal ready)

5 Ground 13 RTS (request to send) 6 Ground 14 CTS (clear to send) 7 +5 V dc Main 15 RI (ring indicate) 8 +12 V dc

9 +12 V dc 10 +5 V dc Main 11 Dist_VFD present 12 DSR (data set ready)

5.3.2 MSR connector

Pin Connector

1 +5 V dc Main 2 Serial Data In (TTL Level) 3 Serial Data Out (TTL Level) 4 Ground 5 MSR Present (low indicated MSR is present) 6 MSR Mode (low indicated keyboard wedge, high indicated RS-232) 7 Keyboare Enable (low enables keyboard data to the system 8 Keyboard Data (to system shipset) 9 Keyboard Clock (to system chipset) 10 Ground

Page 38 of 63

SurePOS 500 4846-XX5 Technical Reference

5.3.3 USB Plus Power (2x)

Pin Signal

Shell Shield 1 VBus 5V 2 D3 D+ 4 Ground 5 Ground 6 Vplus (12V or 24V) 7 Vplus (12 or 24V) 8 Ground

5.3.4 USB port connector (7x)

Pin Connector

1 5V VBus 2 -Data 3 +Data 4 Ground

5.3.5 Keyboard, Mouse connector (2x)

Pin Signal I/O

Page 39 of 63

SurePOS 500 4846-XX5 Technical Reference

1 Keyboard Data I/O 2 Mouse Data I/O 3 Ground 4 +5 V Main 5 Keyboard Clock I/O 6 Mouse Clock

5.3.6 Microphone connector

This connector is only present on X6X models

Pin Signal

Tip Signal Ring +5 V Base Ground

5.3.7 Headphone Connector

This connector is only present on X6X models

Pin Signal

Tip Left channel audio Ring Right channel audio Base Ground

5.4 Serial Connector (x3)

Pin Signal I/O

1 Carrier detect I 2 Receive data I 3 Transmit data O 4 Data terminal ready O 5 Signal ground 6 Data set ready I 7 Request to send O 8 Clear to send I

Page 40 of 63

SurePOS 500 4846-XX5 Technical Reference

5.4.1 Ethernet connector

Pin Signal I/O

1 TxD+ O 2 TxD- O 3 RxD+ I 4 Ground 5 Ground 6 RxD- I 7 Ground 8 Ground

5.4.2 External video connector

Pin Connector

1 Red 2 Green 3 Blue 4 Monitor ID2 - not used 5 Ground 6 Red ground 7 Green ground 8 Blue ground 9 no connector 10 Gound 11 No connector 12 MON ID1 13 Horizontal sync 14 Vertical Sync 15 MON ID3

Page 41 of 63

SurePOS 500 4846-XX5 Technical Reference

5.4.3 Cash Drawer (x2)

Pin Connector

1 Ground 2 Sense 3 Open 4 24V

5.4.4 Internal Customer Display

Pin Connector

1 +5V Main 2 Transmit Data 3 Int VFD Present 4 Ground

5.4.5 RJ45 to RS232 Cable

Signal Pin number, RJ45 End Pin number, RS232 end

DSR/RI 1 6 CD 2 1 DTR 3 4 GND 4 5 RXD 5 2 TXD 6 3 CTS 7 8 RTS 8 7

Page 42 of 63

SurePOS 500 4846-XX5 Technical Reference

6.0 CMOS Setup Utility

Standard CMOS Features

See section x

Advanced BIOS Features

See section x

Integrated Peripherals

See section x

Power Management Setup

See section x

PnP/PCI Configurations

See section x

PC Health Status

See section x

Load Defaults

Loads default values for all configurable items in CMOS Setup.

Set Password

Sets the numeric password used for the “Security Option” item using a keyboard or on-screen numpad. See section x. Select <Enter> at the “Enter Password:” prompt to clear the password.

Save & Exit Setup

Select “Yes” to saves any changes made in the CMOS Setup Utility and restarts the system. Select “No” to return to the CMOS Setup utility.

Exit Without Saving

Select “Yes” to restart the system without saving any changes made in the CMOS Setup utility. Select “No” to return to the CMOS Setup utility.

Page 43 of 63

SurePOS 500 4846-XX5 Technical Reference

6.1 Standard CMOS Features

Date

Sets the Date using a keyboard or on-screen numpad.

Time

Sets the Time using a keyboard or on-screen numpad.

Fixed Disk Drive

Select <Enter> to view the sub-menu.

BIOS Version

Shows the current BIOS revision.

BIOS Date

Shows the BIOS revision date.

LAN MAC Address

Shows the onboard NIC MAC Address.

Machine Type-Model

Shows the Machine Type and Model.

Machine Serial Number

Shows the machine Serial Number.

Base Memory

Shows the base memory amount up to 640 Kilobytes (KB).

Extended Memory

Shows the amount of memory above 1 MB in KB.

Total Memory

Shows the total memory amount in KB. This amount does not include the shared video memory.

Page 44 of 63

6.2 Fixed Disk Drive

SurePOS 500 4846-XX5 Technical Reference

Shows the Hard Disk Drive Size and parameters. Changing settings on this menu is not recommended.

6.3 Advanced BIOS Features

CPU Feature

Select <Enter> to view the sub-menu. See section

Hard Disk Boot Priority

Shows the Hard Disk devices that will be booted if “Hard Disk” is selected as one of the First through Fourth Boot Devices.

Select <Enter> to view the sub-menu and set the priority.

CD-ROM Boot Priority

Page 45 of 63

SurePOS 500 4846-XX5 Technical Reference

Shows the CD-ROM devices that will be booted if “CDROM” is selected as one of the First through Fourth Boot Devices.

Select <Enter> to view the sub-menu and set the priority.

Quick Power On Self Test

If enabled, allows the system to skip certain tests while booting. This will decrease the time needed to boot the system.

Default: Enabled

Options:

• Disabled

• Enabled

6.3.1 First Boot Device

The system will attempt to boot from the specified device category before trying other boot devices. Default: USB-FDD (USB Floppy Drive)

Options:

• Hard Disk

• CDROM

• USB-FDD

• Network

• Disabled

Second Boot Device

The system will attempt to boot from the specified device category after trying the first boot device. Default: Hard Disk (see Hard Disk Boot Priority)

Options:

• Hard Disk

• CDROM

• USB-FDD

• Network

Page 46 of 63

SurePOS 500 4846-XX5 Technical Reference

• Disabled

Third Boot Device

The system will attempt to boot from the specified device category after trying the second boot device. Default: CDROM (See CD-ROM Boot Priority)

Options:

• Hard Disk

• CDROM

• USB-FDD

• Network

• Disabled

Fourth Boot Device

The system will attempt to boot from the specified device category after trying the third boot device. Default: Network

Options:

• Hard Disk

• CDROM

• USB-FDD

• Network

• Disabled

Boot Other Device

If enabled, the system will try all booting all device categories if the first through fourth boot devices fail. Default: Disabled

Options:

• Disabled

• Enabled

Alternate Boot Sequence

Specifies whether a Magic Packet(TM) powering on the system, pressing <F12> during the POST, or both, will cause the normal boot sequence to be skipped and a Network-only boot to be attempted. If “Boot Other Device” is enabled, other boot devices are tried if the Network boot fails.

Default: Both

Options:

• Disabled

• Magic Packet

• <F12> Key

• Both

Tap 3 Times for F11 key

Enters an F11 key scan code if the onboard touchscreen is tapped three times at the prompt. Enables support for Rescue and Recovery Software.

Default: Disabled

Options:

• Disabled

• Enabled

Setup Touch Silent Mode

Page 47 of 63

SurePOS 500 4846-XX5 Technical Reference

Prevents messages prompting the user to touch the screen to enter CMOS Setup, unless an error occurs. Default: Disabled

Options:

• Disabled

• Enabled

No Setup Touch Entry

If enabled, prevents entering CMOS Setup using the touch screen. A keyboard can still be used to enter CMOS Setup.

Default: Disabled

Options:

• Disabled

• Enabled

Boot Up NumLock Status

Selects the power-on state for the keyboard NumLock. Select “Off” when using a keyboard in DOS that shares the numpad keys with letter keys.

Default: On

Options:

• Off

• On

Security Option

Select whether the password is required every time the system boots or only when entering CMOS Setup. Select “Setup” to require a password before entering the CMOS Setup Utility. Select “System” to require a password

before entering CMOS setup or before booting from one of the selected boot devices. Use the “Set Password” option on the main menu to set the password. If the password is blank, this option has no

affect. Default: Setup

Options:

• Setup

• System

APIC Mode

This item is for information only and cannot be configured. It shows whether the Advanced Programmable Interrupt Controller is enabled. Some operating systems will utilize the APIC.

HDD S.M.A.R.T. Capability

Select "Enabled" to allow detecting and reporting of some hard disk errors during the POST (Power On Self Test). The BIOS does not detect errors; it only shows errors detected and reported by the hard disk.

Default: Enabled

Options:

• Disabled

• Enabled

Page 48 of 63

SurePOS 500 4846-XX5 Technical Reference

6.3.2 Hard Disk Boot Priority

Selects the boot priority for attached fixed disk and USB mass storage devices. Hard Disk devices include USB Memory Keys, Hard Disk drives, and the Modular Flash Drive.

Select an item and use <PageUp> and <PageDown> to adjust the boot priority. Only the first item in the list is booted as a Hard Disk device. The device must be installed in the system in order to appear in the list.

6.4 CPU Feature

Thermal Management

Shows the built-in CPU thermal management method being used.

Page 49 of 63

SurePOS 500 4846-XX5 Technical Reference

This item is for information only and cannot be configured.

Limit CPUID MaxVal

"Enabled" sets Limit CPUID MaxVal to 3. Select "Enabled" for Windows NT 4; "Disabled" for Windows XP. Default: Disabled

Options:

• Disabled

• Enabled

Execute Disable Bit

When disabled, forces the XD feature flag in the CPU to always return 0. See the following article for more information: http://technet2.microsoft.com/WindowsServer/en/Library/b0de1052-4101-44c3-a2944da1bd1ef2271033.mspx?mfr=true

Default: Enabled

Options:

• Enabled

• Disabled

6.5 Integrated Peripherals

On-Chip Serial ATA

Select "SATA Only" for Windows NT 4 or "Enhanced Mode" for other Operating Systems. When “SATA Only” is selected, the IDE controller is configured for Legacy IDE mode. When "Enhanced Mod e" is

selected, the IDE controller is configured as Native IDE mode capable. Default: Enhanced Mode

Options:

• Disabled

• Enhanced Mode

Page 50 of 63

SurePOS 500 4846-XX5 Technical Reference

• SATA Only

Onboard Device

Select <Enter> to view the sub-menu.

Serial Port A I/O

Selects the I/O address used for Serial Port A. Using the default value is recommended. If modified, ensure the selected I/O address does not conflict with other ports as values cannot be shared.

Default: 3F8h

Options:

• Disabled

• 2E0h

• 2E8h

• 2F8h

• 2D8h

• 3E8h

• 3F8h

Serial Port A IRQ

Selects the IRQ used for Serial Port A. Using the default value is recommended. If modified, ensure the selected IRQ does not conflict with other ports as values cannot be shared.

Default: 4

Options:

• 3

• 4

• 5

• 6

• 7

• 11

Serial Port B I/O

Selects the I/O address used for Serial Port B. Using the default value is recommended. If modified, ensure the selected I/O address does not conflict with other ports as values cannot be shared.

Default: 2F8h

Options:

• Disabled

• 2E0h

• 2E8h

• 2F8h

• 2D8h

• 3E8h

• 3F8h

Serial Port B IRQ

Selects the IRQ used for Serial Port B. Using the default value is recommended. If modified, ensure the selected IRQ does not conflict with other ports as values cannot be shared.

Default: 3

Options:

• 3

• 4

• 5

Page 51 of 63

SurePOS 500 4846-XX5 Technical Reference

• 6

• 7

• 11

MSR Communication Mode

This option should be set to the same mode as the switch on the MSR. Default: RS-232

Options:

• Keyboard Wedge

• RS-232

MSR I/O

Selects the I/O address used for the MSR if “MSR Communication Mode” is set to “RS-232”. If the MSR is configured for Keyboard Wedge mode, this item may be set to Disabled.

Using the default value is recommended. If modified, ensure the selected address does not conflict with other ports as values cannot be shared.

Default: 3E8h

Options:

• Disabled

• 2E0h

• 2E8h

• 2F8h

• 2D8h

• 3E8h

• 3F8h

MSR IRQ

Selects the IRQ used for the MSR if “MSR Communication Mode” is set to “RS-232”. If the MSR is configured for Keyboard Wedge mode, the selected IRQ is not used by the MSR but is not available for other use.

Using the default value is recommended. If modified, ensure the selected IRQ does not conflict with other ports as values cannot be shared. This item cannot be disabled.

Default: 5

Options:

• 3

• 4

• 5

• 6

• 7

• 11

Serial Port D I/O

Selects the I/O address used for Serial Port D. Using the default value is recommended. If modified, ensure the selected I/O address does not conflict with other ports as values cannot be shared.

Default: 2E8h

Options:

• Disabled

• 2E0h

• 2E8h

• 2F8h

Page 52 of 63

SurePOS 500 4846-XX5 Technical Reference

• 2D8h

• 3E8h

• 3F8h

Serial Port D IRQ

Selects the IRQ used for Serial Port D. Using the default value is recommended. If modified, ensure the selected IRQ does not conflict with other ports as values cannot be shared.

Default: 6

Options:

• 3

• 4

• 5

• 6

• 7

• 11

Serial Port D Function

This option controls the Serial Port D operation. The IBM Character Display (both integrated and distributed) and the IBM cash drawers share serial Port D. If you do

not use either type of these types of I/O devices, then serial port D is available as a fourth standard serial port. Port D is a 15-pin D-shell connector that includes power as well as the serial port signals. The system communicates with the displays in a unidirectional mode. The cash drawer operates in bi-directional mode. The cash drawer must be disabled when Serial D is used as a bi-directional COM port.

If you have at least one IBM cash drawer attached, you must specify the Cash Drawer setting as Enabled. The Disabled setting allows you to connect an OEM device to the Serial D port when a cash drawer is not present. If you use an IBM cash drawer, you can only attach an IBM character display (integrated or distributed) to the system.

Default: VFD/CD Enabled

Options:

• VFD/CD Enabled

• VFD/RS-232 Enabled

• Cash Drawe r Enabled

Page 53 of 63

SurePOS 500 4846-XX5 Technical Reference

Touch Screen I/O

Shows the I/O address used by the touchscreen controller. This item is for information only and cannot be configured.

Touch Screen IRQ

Shows the IRQ used by the touchscreen controller. This item is for information only and cannot be config ured.

Serial Port C I/O

Selects the I/O address used for Serial Port C. Using the default value is recommended. If modified, ensure the selected I/O address does not conflict with other ports as values cannot be shared.

Default: 2E0h

Options:

• Disabled

• 2E0h

• 2E8h

• 2F8h

• 2D8h

• 3E8h

• 3F8h

Serial Port C IRQ

Selects the IRQ used for Serial Port C. Using the default value is recommended. If modified, ensure the selected IRQ does not conflict with other ports as values cannot be shared.

Default: 11

Options:

• 3

• 4

• 5

• 6

• 7

• 11

Page 54 of 63

6.6 On Board Device

SurePOS 500 4846-XX5 Technical Reference

USB Controller

Enables or disables the onboard USB controller. USB devices will not function if the controller is disabled. An additional 32 KB of UMB space can be made available

for DOS by disabling the USB Controller. Default: Enabled

Options:

• Enabled

• Disabled

USB 2.0 Controller

Enables or disables the EHCI USB 2.0 controller. If disabled, the USB ports will operate as 1.X ports only. Default: Enabled

Options:

• Enabled

• Disabled

USB Keyboard Support

Enables or disables USB keyboard support in non-USB aware environments such as DOS. If ‘Auto’ is selected, BIOS will enable USB keyboard support if a USB keyboard is detected the POST or disable support if a USB keyboard is not detected.

Default: Auto

Options:

• Disabled

• Enabled

• Auto

USB Mouse Support

Enables or disables USB mouse support in non-USB aware environments such as DOS. A mouse driver is still required if support is enabled.

Page 55 of 63

SurePOS 500 4846-XX5 Technical Reference

Default: Disabled

Options

• Disabled

• Enabled

Audio Support

Enables or disables the onboard AC’97 audio controller. These should be set to disabled on all 545 models. Default: AC97 Audio only

Options:

• AC97 Audio only

• All Disabled

PC-Beep from Speaker

Enables or disables PC beeps from the integrated speakers, if present. PC beeps are alway s enabled from the motherboard beeper.

Default: Enabled

Options:

• Disabled

• Enabled

Typematic Rate Setting

If disabled, keystrokes repeat at a rate determined by the keyboard controller. If enabled, “Typematic Rate” and “Typematic Delay” can be selected.

Default: Disabled

Options:

• Disabled

• Enabled

Typematic Rate (Chars/Sec)

Sets the chars/sec rate at which a character repeats when you hold down a key. Default: 6

Options:

• 6

• 8

• 10

• 12

• 15

• 20

• 24

• 30

Typematic Delay (Msec)

Sets the delay before key strokes begin to repeat when a key is depressed. Default: 250

Options:

• 250

• 500

• 750

Page 56 of 63

SurePOS 500 4846-XX5 Technical Reference

• 1000

PCMCIA

Enables or disables PCMCIA support if your system has the PCMCIA controller option. Default: Enabled

Options:

• Enabled

• Disabled

6.7 Power Management Setup

Power Management

Selects the power management profile used for Advanced Power Management (APM) environments su ch as DOS. “Min Saving” and “Max Saving” are pre-defined profiles for the Suspend Mode and HDD Power Down timeout value s.

“User Define” allows selection of the Suspend Mode and HDD Power Down timeouts. This item does not apply to ACPI environments such as Windows. Default: User Define

Options:

• User Define

• Min Saving

• Max Saving

Suspend Mode

Selects the timeout for entering the suspend state in APM environments. After the selected amount of inactivity time, the system will enter the APM suspend state.

The power LED blinks when the system in suspended. Pressing the power button will resume the system from Suspend.

This option is only available if “Power Management” is set to “User Define”.

Page 57 of 63

SurePOS 500 4846-XX5 Technical Reference

This item does not apply to ACPI environments such as Windows. Default: Disabled Options: Disabled

• 1 Min

• 2 Min

• 4 Min

• 8 Min

• 12 Min

• 20 Min

• 30 Min

• 40 Min

• 1 Hour

HDD Power Down

Selects the timeout for powering down the hard disk in APM environments. After the selected amount of inactivity time, the hard disk will spin down. Hard disk activity will cause the hard disk to spin back up.

This option is only available if “Power Management” is set to “User Define”. This item does not apply to ACPI environments such as Windows. Default: Disabled

Options:

• Disabled

• 1 Min

• 2 Min

• 3 Min

• 4 Min

• 5 Min

• 6 Min

• 7 Min

• 8 Min

• 9 Min

• 10 Min

• 11 Min

• 12 Min

• 13 Min

• 14 Min

• 15 Min

Power Button Mode

Selects the power button behavior for non-ACPI environments such as DOS. Default: Instant-Off

Options:

• Instant-Off

• Suspend/Disabled

State After Power Failure

Specifies the power state of the system after power is lost and then restored. Default: Last State

Page 58 of 63

SurePOS 500 4846-XX5 Technical Reference

Options:

• Last State

• Turn On

• Stay Off

Wake on LAN

If enabled, allows a Magic Packet(TM) sent to the onboard LAN adapter to wake the system from a suspend or off state.

Default: Enabled

Options:

• Disabled

• Enabled

Wake on Touch

If enabled, allows a touch on the onboard LCD to wake the system from a suspend state. Default: Enabled

Options:

• Disabled

• Enabled

Wake on Ring

If enabled, allows a modem attached to Serial Port D to wake the system via Ring Indicate. Ports A-C can be jumpered to tie DSR (pin1) to Ring Indicate if required.

Default: Disabled

Options:

• Disabled

• Enabled

Wake on Alarm

If enabled, the allows the system to wake up at the specified time and date. Default: Disabled

Options:

• Disabled

• Enabled

Date (of Month) Alarm

If “Wake on Alarm” is enabled, sets the Alarm date using a keyboard or on-screen numpad. Setting the date to zero specifies that all days are alarm days.

This item is not available if “Wake on Alarm” is disabled.

Time (hh:mm:ss) Alarm

If “Wake on Alarm” is enabled, sets the Alarm time using a keyboard or on-screen numpad. This item is not available if “Wake on Alarm” is disabled.

Page 59 of 63

SurePOS 500 4846-XX5 Technical Reference

6.8 PnP/PCI Configurations

PNP OS Installed

Selects whether the BIOS or the operating system configures certain onboard devices. Select “No” for Windows NT or “Yes” for all other operating systems.

Default: Yes

Options:

• No

• Yes

Reset Configuration Data

This item is for diagnostic purposes only. Select Enabled to reset the Extended System Configuration Data (ESCD) if the operating system cannot boot. The option automatically returns to Disabled on the next boot.

Default: Disabled

Options:

• Disabled

• Enabled

Resources Controlled By

BIOS can automatically configure the boot and Plug and Play compatible devices. Select “Auto (ESCD)” to have BIOS automatically assign the IRQ resources to PCI devices. Select “Manual” to select which IRQs are not available for PCI device use.

Changing this item is not recommended. Default: Auto(ESCD)

Options:

• Auto(ESCD)

• Manual

IRQ Resources

Select <Enter> to view the sub-menu.

Page 60 of 63

SurePOS 500 4846-XX5 Technical Reference

When the selected IRQ is set to “Reserved”, PCI devices will not use that IRQ. This item is only available when “Resources Controlled By” is set to “Auto (ESCD)”. Default: PCI Device

Options:

• PCI Device

• Reserved

PCI/VGA Palette Snoop

This item is for diagnostic purposes only.

Maximum Payload Size

Shows the maximum TLP payload size for PCI Express devices in bytes. This item is for information only and cannot be configured.

6.9 PC Health Status

Primary BIOS Status

Shows the status of the primary (boot) flash ROM. If the primary BIOS becomes corrupted due to power loss during a BIOS update, the status may show “Bad” indicating that the BIOS update should be re-applied.

This item is for information only and cannot be configured.

Current CPU Temperature

Shows the current CPU temperature. This item is for information only and cannot be configured.

Current System Temp

Shows the ambient temperature inside the system chassis. This item is for information only and cannot be configured.

VCC, 5 VTR, 5 V, 12 V

Page 61 of 63

SurePOS 500 4846-XX5 Technical Reference

Shows the current voltages for the associated voltage sensors. This item is for information only and cannot be configured.

CPU Fan Speed

Shows the current CPU fan speed in RPMs. This item is for information only and cannot be configured.

6.9.1 Thermal Profile

Thermal Profile

Selects the thermal management profile best suited to your environment. "Quiet" allows less fan noise by first reducing CPU performance to lower temperature. "Performance" allows more fan noise by first increasing fan speed to lower temperature. "Default" balances between the two.

Default: Default

Options:

• Default

• Quiet

• Performance

Page 62 of 63

SurePOS 500 4846-XX5 Technical Reference

END OF DOCUMENT

Page 63 of 63

IBM 500 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
