Installation and user’s guide
This guide contains the product description, hardware and software installation
instructions, and product use.
Product description
The IBM 40/80 GB (GB equals approximately 1 000 000 000 bytes) HH DLTVS
Tape Drive is a fast/wide Ultra2 (low voltage differential) SCSI tape drive for
backing up and restoring data and archiving files. These files can include
multimedia, imaging, transaction processing, large databases, and other
storage-intensive applications. Each tape cartridge can store up to 40 GB of
data (uncompressed), or up to 80 GB of data (compressed), assuming a 2:1
compression ratio.
In addition to this guide on CD, the option package contains:
v IBM 40/80 GB HH DLTVS Tape Drive
v Mounting screws
v Data cartridge
v Backup application CDs (trial versions)
v Cleaning cartridge
v Device drivers (on User’s Guide CD)
v Quick Installation Guide
Contact your place of purchase if an item is missing or damaged. Be sure to
retain your proof of purchase and packing material. They might be required to
receive warranty service.
Software description
The IBM 40/80 GB HH DLTVS Tape Drive includes trial-version backup
application CDs. These CDs contain popular backup and restore applications
for Microsoft
®
Windows NT®, Novell NetWare, and other operating systems.
You can install the application you choose for your computer system by
following the installation instructions that come with the CD you select.
However, these trial versions of the software expire after 30 days.
You can use the trial period to determine the best application for your specific
computer configuration. For information on purchasing a permanent
installation copy of the desired tape drive backup application, go to the IBM
tape drive Web site at
http://www.pc.ibm.com/ww/eserver/xseries/tape
© Copyright IBM Corp. 2001 1-1
and follow the software links. The CDs also contain backup applications that
are used with other products but are not applicable to the 40/80 GB HH
DLTVS Tape Drive. Supported tape drive configurations can be found on the
IBM Server Compatibility Web page at
http://www.ibm.com/pc/compat
Installation requirements
To install this drive, you must have the following:
v A dedicated low voltage differential (Ultra2) or a Ultra160 SCSI host adaptor
v Documentation for your computer, SCSI bus adapter, or external enclosure
v An Ultra2 LVD active terminator
v Phillips and flat blade screwdrivers for the mounting screws, and for
opening your computer
v Flat-nose pliers (optional) to install and remove jumpers
v An available 5.25-inch half high drive bay
v Supported operating system, Windows NT, Windows 2000, Netware, or
Linux
v Supported backup software, Veritas Backup Exec or CA ArcServeIT
Installing the drive
This section contains information on installing the tape drive in IBM servers
and in other computers.
Installing the drive in IBM servers
The IBM 40/80 GB HH DLTVS Tape Drive can be installed in IBM xSeries 200,
220, 230, 240, 340 as well as IBM Netfinity
®
4500R, 5100 and 5600. It can also be
installed externally via a 3551001 to IBM xSeries 230, 240, 300, 330, 340 as well
as IBM Netfinity 4500R, 5100, and 5600. Refer to the documentation that comes
with the server for instructions on installing the tape drive.
General installation instructions
Follow these steps to install the tape drive.
Step 1. Selecting a SCSI ID
Each device on a SCSI bus must have a unique SCSI ID. Select a SCSI ID from
0 to 6 for the tape drive. The SCSI ID must be supported by your SCSI adapter.
Refer to your SCSI adapter documentation for the range and relative priority of
the IDs supported. The tape drive is shipped with the SCSI ID preset to 3.
1-2 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Follow these guidelines to select a SCSI ID:
v Assign the tape drive to one of the higher priority IDs available (0–6).
v Assign the lower priority ID numbers (8-15) to those devices that are most
often used or are faster than other devices in the chain.
v Do not assign an ID of 7, because this is usually used as the SCSI adapter
ID.
Depending on your computer, there are several ways to view your current
SCSI ID settings:
v For many IBM computers, press F1 during the startup after the memory
check completes. Other adapters show SCSI settings when you press Ctrl A.
Check the documentation that comes with your computer or SCSI adapter
for information on how to view configuration information.
v Use SCSI adapter utility programs, if available.
v Inspect the installed SCSI devices to see how the jumpers that determine the
IDs are set.
Step 2. Preparing for installation
To prepare for installation:
1. Unpack the tape drive and store the packaging. You will need the
packaging if you return the drive for service.
2. If you are installing the drive in an external storage enclosure, turn off the
enclosure.
3. Turn off all attached devices.
4. Turn off the computer.
5. Disconnect all cables from the computer and all attached devices; then open
the computer. For specific information on opening your computer, refer to
the documentation that comes with your computer.
Attention: Tape drives are sensitive to static electricity discharge. The drive is
wrapped in a static-protective package to prevent damage.
6. Before opening the static-protective package containing the tape drive,
touch the bag to an unpainted metal surface on the computer for at least
two seconds. Remove the drive from the static-protective package. If you
must put the drive down, place the drive on the static-protective package.
Do not touch any of the exposed components of the tape drive. Instead,
handle it carefully by the edges.
Installation and user’s guide 1-3
Step 3. Setting the SCSI ID
Refer to the following diagram when setting the SCSI ID.
168-pin high density SCSI connector 2Power connector 3SCSI ID jumpers
Note:
1. When setting the SCSI ID, use the jumpers that come with the tape drive.
2. If your enclosure uses a remote SCSI ID switch, remove the jumpers from the
jumper pins on the tape drive and connect the remote switch.
1. Find the jumper pin setting that corresponds to the SCSI ID number you
choose; then place jumper pins on the SCSI ID blocks as shown. You can
use a pair of flat-nose pliers to place the jumpers on the jumper pins.
1SCSI ID 2Jumper blocks
1-4 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
2. If this device is the last device on the SCSI bus, terminate the SCSI bus by
adding the appropriate (LVD or SE) terminator to the last connector on the
SCSI cable.
1Terminator 2SCSI ribbon cable
Note: The SCSI cable in your server may already have a terminator at the end
of the cable. Do not add another terminator to an already terminated
cable, or you may experience problems.
Step 4. Mounting the drive

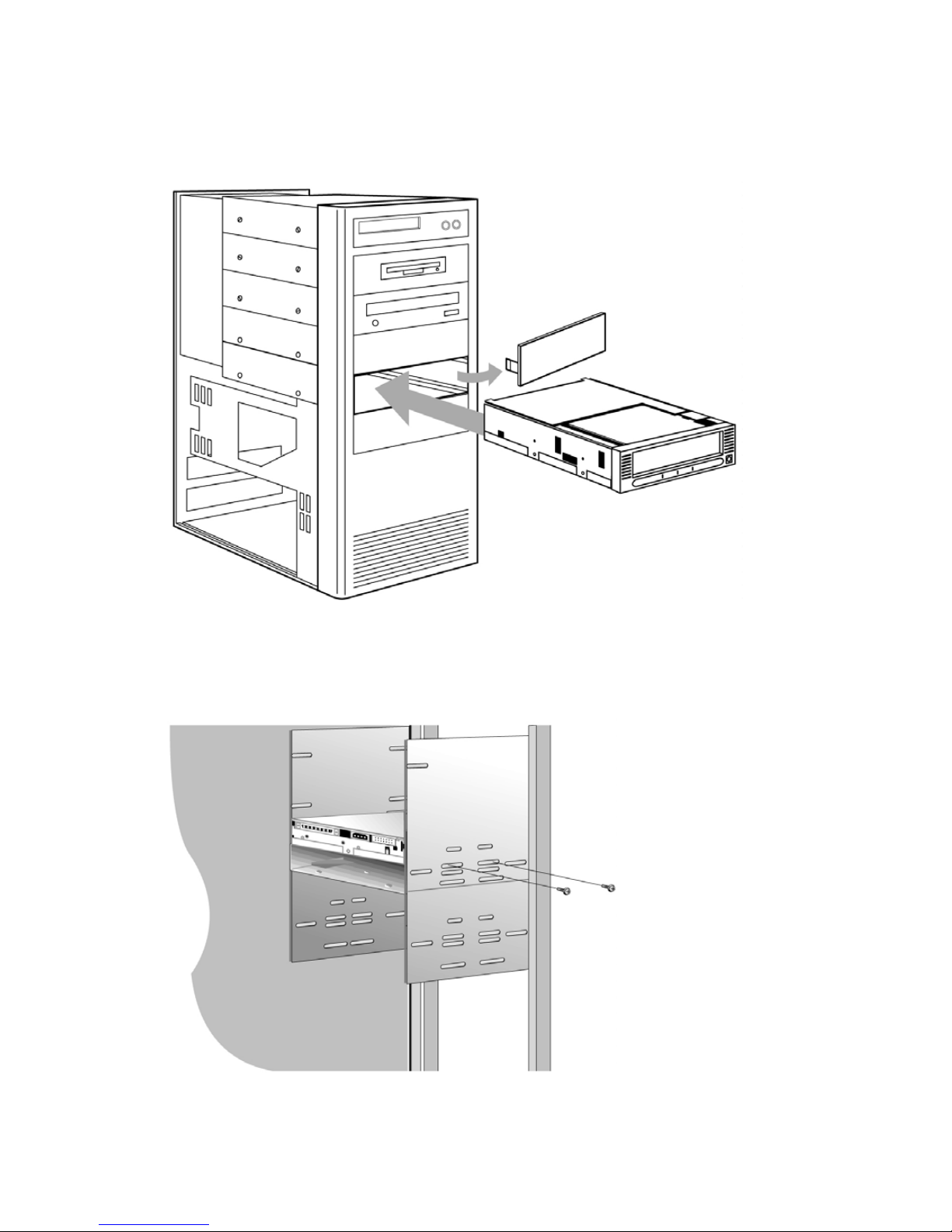

Mount the tape drive; then attach the SCSI and power cables to it. If there is
insufficient working space to attach the connectors after mounting the drive,
attach the cables first. To mount the drive, follow these steps:
Installation and user’s guide 1-5
1. Locate an available 5.25-inch bay or space in your computer to mount the
tape drive. Remove the cover plate from the bay selected. Install the drive
horizontally or vertically, depending on the bay.
2. Attach mounting hardware to the drive (if applicable).
3. Align the drive-bay screw holes with the threaded holes in the drive
housing. When you mount the tape drive, follow these guidelines:
v Ensure that no objects such as screw heads, cables, or adjacent devices
are pressing against the frame.
1-6 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
v Ensure that nothing blocks the ventilation slots on the bottom and rear of
the tape drive.
Attention: Use only the screws that come with the tape drive. Other
screws might be too long and might damage the drive.
4. Insert a screw through each of the drive-bay holes into the threaded holes
in the drive and tighten the screws with a screwdriver.
Step 5. Attaching cables
To attach the SCSI and power cables to the tape drive:
1. Locate the SCSI cable on your computer (a 68-pin ribbon cable with one
end connected to the SCSI adapter) and find the next available connector
that is farthest from the adapter. Use all empty bus connectors beginning
with the one farthest from the adapter to ensure better signal quality.
1SCSI cable (shown with terminator
installed)
2Power cable
Note: The SCSI adapter might be part of the computer system board or might be
an adapter installed in an expansion slot.
Installation and user’s guide 1-7
2. Connect the power cable connector to the four-pin connector on the tape
drive as shown in the illustration.
Attention: Do not force the power cable into the tape drive power connector. If
the power cable is upside down and you force the connection, you might damage
the drive.
If all the power cables are in use, purchase a dc Y-splitter cable, which is
available at most electronics stores. Split a cable to make a connection
available for the tape drive.
Step 6. Completing the installation
Check your work before closing the computer.
1. Be sure that the power and SCSI connectors are securely attached. Be sure
that the cables are neatly routed.
2. Replace the computer cover and secure it in place.
3. Reconnect the cables and then reconnect the power cords.
Step 7. Turning on the device
Turn on all the attached devices; then turn on your computer. The tape drive
performs a power-on self-test (POST) within 15 seconds, and then performs a
drive reset.
Step 8. Updating the configuration
For most computers, the configuration-setup utility program automatically
recognizes the new tape drive. However, you might have to provide
information about your system changes after you restart your computer.
Ensure that the appropriate advanced SCSI programming interface (ASPI)
device drivers are installed to support the tape drive. Device drivers are
usually provided with the SCSI adapter.
If your computer does not recognize the tape drive after startup or if you
receive startup errors, run the configuration-setup utility program as described
in the documentation that comes with your computer. If all the indicators on
either side of the tape drive blink in unison, there is a problem with the tape
drive. Press the Unload button on the right side of the drive front panel to
eject any tape that might be inserted and to reset the drive. If the problem
persists, turn off the computer; then turn it back on. If the problem continues,
see “Troubleshooting” on page 2-3 for further steps.
Step 9. Installing backup and restore software
1-8 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
To use the drive, you must install an appropriate backup and restore
application for your computer operating system. If you are using software not
included in the option package, follow the directions that come with your
software. If you are using the trial software that comes with the option, insert a
trial application CD into the CD-ROM drive and follow the on-screen
installation and operating instructions.
If you are using the hardware installation support that your operating system
provides, and the operating system requests a device driver, insert the User’s
Guide CD and look in the ‘‘device driver’’ folder.
Step 10. Using Windows NT, Windows 2000 native tape utility
If you are trying to use this drive with the native tape utility of Windows NT
or Windows 2000, please refer to the instructions under the device folder of the
User’s Guide CD.
Installation and user’s guide 1-9
Using the drive
This illustration shows the front panel of the 40/80 GB DLTVS Tape Drive
installed in an external enclosure.
1External power LED 2Drive error LED 3Ready LED
4Clean/media LED 5Cartridge door 6Unload button
Front Panel LEDs
The following table describes the LED (light emitting diode) indicators on the
drive front panel.
Indicator State Operating condition
Drive Error Blinking
Off
There is an unrecoverable
hard drive error or a POST
error. Refer to the
Troubleshooting section in
Chapter 2.
No drive errors.
Ready (Green) On
Off
Blinking (constant period &
duty cycle)
Blinking (dual period &
duty cycle).
Power to the drive.
No power to the drive.
Tape is in motion.
Reserved for future use.
1-10 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Indicator State Operating condition
Clean/Media Blinking
Off
A read/write error has
occurred that may not
require service. Try cleaning
the drive. LED goes out
after completing a cleaning
cycle with a DLTVS
cleaning cartridge or after
loading a supported tape
into the drive. Cycling the
power on the drive will
also turn off the LED.
Cleaning is not required.
All three LEDs On
Blinking
POST is starting.
Firmware upgrade in
progress.
Installation and user’s guide 1-11
Loading tape cartridges
To load a tape cartridge, refer to the following diagram, and perform the
following steps:
1. Make sure that the tape drive is turned on.
2. Make sure that the write-protection switch on the tape cartridge is properly
set.
3. Grasp the tape cartridge so that the write-protect switch faces you.
4. Slide the tape cartridge into the tape load compartment.
Note: If the tape cartridge is already in the unload position (partially
ejected) and you want to reload it, remove the cartridge and then
load it again. If the tape cartridge is already loaded and you have
turned the power off, then turn the power back on. The tape
cartridge will reload.
5. The drive pulls in the cartridge and flashes the green LED while loading.
Once loaded, the green LED stops flashing.
Unloading tape cartridges
To unload a tape cartridge, perform the following steps.
1. Make sure that the 40/80 GB HH DLTVS Tape Drive is turned on.
2. Press the Unload button. The drive rewinds the tape and places the tape
cartridge in the unload position. The status light flashes green while the
tape rewinds, and then turns off when the cartridge is ejected from the
1-12 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
drive.
3. After the tape cartridge ejects, grasp the cartridge and remove it.
Emergency unload
If a cartridge fails to eject using the normal unload procedure, press and hold
the Eject button for 5 seconds. This instructs the drive to perform an
emergency unload.
Setting write protection on the cartridge
The front of the cartridge has a write-protect switch to prevent accidental
erasure. Slide the write-protect switch to the left to enable write protection or
slide the switch to the right to enable writing.
1Write-protect indicator 2Write enabled 3Write protected
Installation and user’s guide 1-13
Packing the drive for shipping
Attention: To avoid damaging the tape drive, use the original shipping materials
when you ship it. Your proof of purchase might be required to receive warranty service.
If you are returning the tape drive for service, remove and keep all cartridges, cables,
and terminators.
If you are shipping the tape drive to another location or returning it for repair,
pack the tape drive in its original shipping container and packing materials.
1-14 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Maintenance and troubleshooting
This chapter contains information on maintaining and troubleshooting the
40/80 GB HH DLTVS Tape Drive.
Maintenance
You need to perform regular maintenance on your 40/80 GB HH DLTVS Tape
Drive. This section explains how to care for the tape cartridges and how to
clean the drive head.
Caring for tape cartridges
The following points are guidelines for storing and using the cartridges:
v Do not open the tape access door of the cartridge or touch the tape itself.
v Keep your cartridges away from sources of electromagnetic fields, such as
telephones, dictation equipment, mechanical or printing calculators, motors,
and bulk erasers. Do not place the cartridges on the computer monitor or on
the base unit of the computer.
v Keep cartridges away from direct sunlight and heat sources, such as
radiators or warm air ducts.
v Keep cartridges free of moisture. Do not wet or submerge cartridges in any
liquid.
v Do not expose cartridges to temperature extremes.
Cleaning cartridges
You must use DLT cleaning cartridges with this tape drive, as other cleaning
cartridges will not load and run. A cleaning cartridge is supplied with each
tape drive and should only be used when the ‘Use Cleaning Cartridge’ amber
LED is flashing or once a week, whichever occurs first. Insert the cleaning
cartridge and the drive carries out its cleaning cycle and ejects the cartridge on
completion (which can take up to 5 minutes). During the cleaning cycle the
amber ‘Use Cleaning Cartridge’ LED remains lit and the green ‘Ready‘ LED
flashes.
Each cleaning cartridge can be used up to 20 times. If the cleaning cartridge is
ejected immediately with the ‘Tape Error‘ LED on, it has expired. New cleaning
cartridges are available from your supplier, and can be ordered by following
the insert-card instructions that come with the cleaning cartridge.
Tape handling
This section describes how to properly handle your tape cartridges to reduce
wear on the 40/80 GB HH DLTVS Tape Drive.
© Copyright IBM Corp. 2001 2-1
Tape handling and storage
Most tapes are supplied in sealed cartridges. Tapes are provided this way so
that the tape will remain in a clean environment. Opening the cartridge
enables dirt and airborne particles to enter and contaminate the cartridge.
The cartridge must only be opened by the tape drive and not by an operator.
The tape is also held under proper tension inside the cartridge. If the cartridge
is dropped, this tension is relaxed. Inserting a dropped cartridge into a tape
drive can often cause a misload that results in a jam. The jam ruins the tape
and can cause physical damage if the cartridge is not removed properly.
When you store tapes, place them in their protective containers and store them
on their ends. Store the tapes in a clean, dry area at normal room temperature
and away from magnetic fields.
Environmental issues
The operating environment might adversely affect tape drive operation. The
tape drive is designed to operate in a clean environment.
When tape is installed in a tape drive, the clearance between the heads and the
tape is measured in microns. Even particles of smoke are larger than the space
available between the tape and the heads. Other environmental factors that
adversely affect tape drive operation are dirt, dust, fibers, and airborne
particles. Ensure that you operate in a clean environment.
Tape drive cleaning
Even if the operating environment is clean, dirt might build up on the heads of
any tape drive. Every time tape motion occurs, some of the media surface
comes off on the heads. Over time, this material builds up, causing the tape
head clearance to increase. The increased tape head clearance produces reading
and writing errors. Most tape drives today have a built-in cleaning indicator to
notify you when the tape needs cleaning.
Do not use any non-DLT cleaning cartridges with these tape drives. You can
use cleaning cartridges only for a limited number of times. A cleaning cartridge
is expired after it has been used for the maximum number of times as
indicated.
When a cleaning cartridge is expired, you must replace it. Never reuse an
expired cleaning cartridge. If you continue to use an expired cleaning cartridge,
it reintroduces dirt to the tape drive and you might not clean the drive. To
make sure that you know when your cleaning cartridge expires, make a
notation on the cleaning cartridge each time you clean the tape drive.
2-2 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Troubleshooting
The first step in problem solving is establishing if the problem lies with the
cartridge, the drive, the host computer and its connections, the backup
software or with the way the system is being operated. If none of the following
advice helps you solve the problem, contact your supplier.
The computer does not restart after installation
Possible reason Recommended action
You have connected the tape drive to an
existing SCSI bus that has other devices
connected to it and the SCSI address of
your drive is identical to the address used
by another device.
Make sure that each device on the SCSI
bus has a unique ID.
For best results, connect the tape drive to a
dedicated host bus adapter. Do not
connect the drive to a disk RAID
controller.
You have installed an additional SCSI host
bus adapter and its resources are
conflicting with an existing adapter.
Remove the new host bus adapter and
check the server documentation.
You have disconnected the power or SCSI
cable from the computer start disk during
the drive installation process.
Check that the cables to all devices are
firmly connected.
The computer starts but does not recognize the tape drive
Possible reason Recommended action
The power or SCSI cable is not connected
properly.
Check that the cables to the tape drive are
firmly connected. Ensure that the SCSI
cable is LVD-compliant and that it does
not have any bent pins. Replace if
necessary.
The SCSI bus is not terminated correctly. Check that the SCSI bus is actively
terminated. (Refer to the documentation
for your SCSI controller and any other
SCSI devices you have).
The SCSI ID address of the tape drive is
not unique.
Make sure that each device connected to
the SCSI controller has a unique SCSI ID.
Remember that 7 is normally reserved for
the host bus adapter.
Maintenance and troubleshooting 2-3
The application does not recognize the tape drive
Possible reason Recommended action
The application does not support the tape
drive.
Refer to your manufacturer’sWorldWide
Web site for details of backup applications
that support the Ultrium tape drive. Load
any service packs as necessary.
Some applications require drivers to be
loaded.
Check that the correct SCSI and tape drive
device drivers are installed. Refer to the
instructions in the device driver folder of
the User’s Guide CD.
The drive does not work
Possible reason Recommended action
If the drive does not turn on, the power
cable might not be connected to the drive
correctly.
Make sure that the power cable is firmly
connected. Try another power cable. If the
power supply is present and all LEDs
remain off, try the reset button to power
cycle the drive. If this fails, call for
assistance.
If the self-test fails, there might be a
hardware or firmware failure.
If there is a cartridge in the drive, remove
it. Turn off the drive and turn it on again.
If the self-test still fails, call for assistance.
Post-installation troubleshooting
Remember that the system recognizes devices during start-up. If you swap or
connect a product when your system is running, you will need to restart the
system. Restarting the system resets devices and often resolves problems.
Restart the computer every time you add a driver or install firmware.
Use the following table to interpret the LED sequences and the appropriate
action to take.
Symptom Action
Drive fails to execute power-on self-test.
LEDs remain off.
Check if power is being supplied to the
drive.
Try another power connector.
If the power supply is present and all
LEDs remain off, call for service.
The Use Cleaning Tape LED is flashing. The drive requires cleaning. Load the
cleaning cartridge.
2-4 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Symptom Action
The cleaning cartridge is ejected
immediately after loading and the Tape
Error LED is flashing.
Make sure that you are using a cleaning
cartridge that has been used fewer than 20
times.
The Drive Error LED is flashing. The drive mechanism has detected an
error. Power cycle or reset the drive.
If the condition clears, load a new tape. If
the Drive Error LED remains on, call for
service.
Fault diagnosis
If an error occurs with the tape drive, follow these steps to eliminate possible
causes.
Note: After each step, retry the backup operation. If the backup still fails, go on to the
next step.
v Clean the tape drive.
v Replace the data cartridge.
v Go to the IBM support Web site at http://www.ibm.com/pc/support and
look for hints or tips on the 24P2398 HH DLTVS tape drive.
Maintenance and troubleshooting 2-5
2-6 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Appendix A. Product specifications
This appendix includes the product specifications and requirements.
Physical specifications
Height (with bezel) 43.82 mm (1.625 in)
Width (with bezel) 148 mm (5.8 in)
Length (with bezel) 221 mm (8.7 in)
Weight 1.3 Kg. (2.9 lb)
Input voltages
Standard +5 V dc and +12
Vdc±5%
Maximum sustained
data-transfer rates
Uncompressed data 6 MB per second
Operating environment
Tape path temperature range +10°C to +40°C
(+50°F to +104°F)
Relative humidity 20% to 80%, noncondensing
Wet bulb 25°C(77°F) maximum
Altitude -152 m to +12 192 m
(-500 to +40 000 ft)
Temperature gradient 11°C (51.8°F) per hour
Humidity gradient 10% per hour
© Copyright IBM Corp. 2001 A-1
A-2 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Appendix B. Help and service information
This section contains information on how to obtain online and telephone
technical support.
Online technical support
Online technical support is available during the life of your product. Online
assistance can be obtained through the Personal Computing Support Web site
and the IBM Automated Fax System.
Online technical support
IBM Personal Computing Support Web site http://www.ibm.com/pc/support
IBM Automated Fax System 1-800-426-3395 (U.S. and Canada)
During the warranty period, assistance for replacement or exchange of
defective components is available. In addition, if your IBM option is installed
in an IBM computer, you might be entitled to service at your location. Your
technical support representative can help you determine the best alternative.
Telephone technical support
Installation and configuration support through the HelpCenter®will be
withdrawn or made available for a fee, at IBM’s discretion, 90 days after the
option has been withdrawn from marketing. Additional support offerings,
including step-by-step installation assistance, are available for a nominal fee.
To assist the technical support representative, have available as much of the
following information as possible:
v Option name
v Option number
v Proof of purchase
v Computer manufacturer, model, serial number (if IBM), and manual
v Exact wording of the error message (if any)
v Description of the problem
v Hardware and software configuration information for your system
If possible, be at your computer. Your technical support representative might
want to walk you through the problem during the call.
© Copyright IBM Corp. 2001 B-1
For the support telephone number and support hours by country, refer to the
following table. If the number is not provided, contact your IBM reseller or
IBM marketing representative. Response time may vary depending on the
number and nature of the calls received.
Support 24 hours a day, 7 days a week
Canada (Toronto only) 416-383-3344
Canada (all other) 1-800-565-3344
U.S.A. and Puerto Rico 1-800-772-2227
All other countries Go to http://www.ibm.com/pc/support/,
and click Support Phone List.
B-2 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Appendix C. Product warranty and notices
This section contains the warranty period for your product and the IBM
Statement of Limited Warranty.
Machine - 40/80 GB HH DLTVS Internal Tape Drive
Warranty period* - Three Years
* Contact your place of purchase for warranty service information. Some IBM Machines are
eligible for on-site warranty service depending on the country where service is performed.
IBM Statement of Limited Warranty
Part 1 - General Terms
This Statement of Limited Warranty includes Part 1 - General Terms and Part 2
- Country-unique Terms. The terms of Part 2 replace or modify those of Part 1.
The warranties provided by IBM in this Statement of Limited Warranty apply
only to Machines you purchase for your use, and not for resale, from IBM or
your reseller. The term “Machine” means an IBM machine, its features,
conversions, upgrades, elements, or accessories, or any combination of them.
The term “Machine” does not include any software programs, whether
pre-loaded with the Machine, installed subsequently or otherwise. Unless IBM
specifies otherwise, the following warranties apply only in the country where
you acquire the Machine. Nothing in this Statement of Limited Warranty
affects any statutory rights of consumers that cannot be waived or limited by
contract. If you have any questions, contact IBM or your reseller.
The IBM Warranty for Machines
IBM warrants that each Machine 1) is free from defects in materials and
workmanship and 2) conforms to IBM’s Official Published Specifications
(“Specifications”). The warranty period for a Machine is a specified, fixed
period commencing on its Date of Installation. The date on your sales receipt is
the Date of Installation unless IBM or your reseller informs you otherwise.
If a Machine does not function as warranted during the warranty period, and
IBM or your reseller are unable to either 1) make it do so or 2) replace it with
one that is at least functionally equivalent, you may return it to your place of
purchase and your money will be refunded.
Extent of Warranty
© Copyright IBM Corp. 2001 C-1
The warranty does not cover the repair or exchange of a Machine resulting
from misuse, accident, modification, unsuitable physical or operating
environment, improper maintenance by you, or failure caused by a product for
which IBM is not responsible. The warranty is voided by removal or alteration
of Machine or parts identification labels.
THESE WARRANTIES ARE YOUR EXCLUSIVE WARRANTIES AND
REPLACE ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THESE WARRANTIES GIVE YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM JURISDICTION TO JURISDICTION. SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION
OR LIMITATION MAY NOT APPLY TO YOU. IN THAT EVENT, SUCH
WARRANTIES ARE LIMITED IN DURATION TO THE WARRANTY
PERIOD. NO WARRANTIES APPLY AFTER THAT PERIOD.
Items Not Covered by Warranty
IBM does not warrant uninterrupted or error-free operation of a Machine.
Any technical or other support provided for a Machine under warranty, such
as assistance via telephone with “how-to” questions and those regarding
Machine set-up and installation, will be provided WITHOUT WARRANTIES
OF ANY KIND.
Warranty Service
To obtain warranty service for a Machine, contact IBM or your reseller. If you
do not register your Machine with IBM, you may be required to present proof
of purchase.
During the warranty period, IBM or your reseller, if approved by IBM to
provide warranty service, provides without charge certain types of repair and
exchange service to keep Machines in, or restore them to, conformance with
their Specifications. IBM or your reseller will inform you of the available types
of service for a Machine based on its country of installation. At its discretion,
IBM or your reseller will 1) either repair or exchange the failing Machine and
2) provide the service either at your location or a service center. IBM or your
reseller will also manage and install selected engineering changes that apply to
the Machine.
Some parts of IBM Machines are designated as Customer Replaceable Units
(called “CRUs”), e.g., keyboards, memory, or hard disk drives. IBM ships CRUs
C-2 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
to you for replacement by you. You must return all defective CRUs to IBM
within 30 days of your receipt of the replacement CRU. You are responsible for
downloading designated Machine Code and Licensed Internal Code updates
from an IBM Internet Web site or from other electronic media, and following
the instructions that IBM provides.
When warranty service involves the exchange of a Machine or part, the item
IBM or your reseller replaces becomes its property and the replacement
becomes yours. You represent that all removed items are genuine and
unaltered. The replacement may not be new, but will be in good working order
and at least functionally equivalent to the item replaced. The replacement
assumes the warranty service status of the replaced item. Many features,
conversions, or upgrades involve the removal of parts and their return to IBM.
A part that replaces a removed part will assume the warranty service status of
the removed part.
Before IBM or your reseller exchanges a Machine or part, you agree to remove
all features, parts, options, alterations, and attachments not under warranty
service.
You also agree to
1. ensure that the Machine is free of any legal obligations or restrictions that
prevent its exchange;
2. obtain authorization from the owner to have IBM or your reseller service a
Machine that you do not own; and
3. where applicable, before service is provided:
a. follow the problem determination, problem analysis, and service request
procedures that IBM or your reseller provides;
b. secure all programs, data, and funds contained in a Machine;
c. provide IBM or your reseller with sufficient, free, and safe access to
your facilities to permit them to fulfill their obligations; and
d. inform IBM or your reseller of changes in a Machine’s location.
IBM is responsible for loss of, or damage to, your Machine while it is 1) in
IBM’s possession or 2) in transit in those cases where IBM is responsible for
the transportation charges.
Neither IBM nor your reseller is responsible for any of your confidential,
proprietary or personal information contained in a Machine which you return
to IBM or your reseller for any reason. You should remove all such information
from the Machine prior to its return.
Limitation of Liability
Circumstances may arise where, because of a default on IBM’spartorother
liability, you are entitled to recover damages from IBM. In each such instance,
Appendix C. Product warranty and notices C-3
regardless of the basis on which you are entitled to claim damages from IBM
(including fundamental breach, negligence, misrepresentation, or other contract
or tort claim), except for any liability that cannot be waived or limited by
applicable laws, IBM is liable for no more than
1. damages for bodily injury (including death) and damage to real property
and tangible personal property; and
2. the amount of any other actual direct damages, up to the charges (if
recurring, 12 months’ charges apply) for the Machine that is subject of the
claim. For purposes of this item, the term “Machine” includes Machine
Code and Licensed Internal Code.
This limit also applies to IBM’s suppliers and your reseller. It is the
maximum for which IBM, its suppliers, and your reseller are collectively
responsible.
UNDER NO CIRCUMSTANCES IS IBM LIABLE FOR ANY OF THE
FOLLOWING: 1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES
(OTHER THAN THOSE UNDER THE FIRST ITEM LISTED ABOVE); 2)
LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR 3) SPECIAL,
INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC
CONSEQUENTIAL DAMAGES, LOST PROFITS OR LOST SAVINGS,
EVEN IF IBM, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF
THEIR POSSIBILITY. SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
Governing Law
Both you and IBM consent to the application of the laws of the country in
which you acquired the Machine to govern, interpret, and enforce all of your
and IBM’s rights, duties, and obligations arising from, or relating in any
manner to, the subject matter of this Agreement, without regard to conflict of
law principles.
Part 2 - Country-unique Terms
AMERICAS
BRAZIL
Governing Law: The following is added after the first sentence:
Any litigation arising from this Agreement will be settled exclusively by the
court of Rio de Janeiro.
NORTH AMERICA
C-4 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Warranty Service: The following is added to this Section:
To obtain warranty service from IBM in Canada or the United States, call
1-800-IBM-SERV (426-7378).
CANADA
Governing Law: The following replaces “laws of the country in which you acquired
the Machine” in the first sentence:
laws in the Province of Ontario.
UNITED STATES
Governing Law: The following replaces “laws of the country in which you acquired
the Machine” in the first sentence:
laws of the State of New York.
ASIA PACIFIC
AUSTRALIA
The IBM Warranty for Machines: The following paragraph is added to this Section:
The warranties specified in this Section are in addition to any rights you may
have under the Trade Practices Act 1974 or other similar legislation and are
only limited to the extent permitted by the applicable legislation.
Limitation of Liability: The following is added to this Section:
Where IBM is in breach of a condition or warranty implied by the Trade
Practices Act 1974 or other similar legislation, IBM’s liability is limited to the
repair or replacement of the goods or the supply of equivalent goods. Where
that condition or warranty relates to right to sell, quiet possession or clear title,
or the goods are of a kind ordinarily acquired for personal, domestic or
household use or consumption, then none of the limitations in this paragraph
apply.
Governing Law: The following replaces “laws of the country in which you acquired
the Machine” in the first sentence:
laws of the State or Territory.
CAMBODIA, LAOS, AND VIETNAM
Governing Law: The following replaces “laws of the country in which you acquired
the Machine” in the first sentence:
laws of the State of New York.
The following is added to this Section:
Disputes and differences arising out of or in connection with this Agreement
Appendix C. Product warranty and notices C-5
shall be finally settled by arbitration which shall be held in Singapore in
accordance with the rules of the International Chamber of Commerce (ICC).
The arbitrator or arbitrators designated in conformity with those rules shall
have the power to rule on their own competence and on the validity of the
Agreement to submit to arbitration. The arbitration award shall be final and
binding for the parties without appeal and the arbitral award shall be in
writing and set forth the findings of fact and the conclusions of law.
All proceedings shall be conducted, including all documents presented in such
proceedings, in the English language. The number of arbitrators shall be three,
with each side to the dispute being entitled to appoint one arbitrator.
The two arbitrators appointed by the parties shall appoint a third arbitrator
before proceeding upon the reference. The third arbitrator shall act as chairman
of the proceedings. Vacancies in the post of chairman shall be filled by the
president of the ICC. Other vacancies shall be filled by the respective
nominating party. Proceedings shall continue from the stage they were at when
the vacancy occurred.
If one of the parties refuses or otherwise fails to appoint an arbitrator within 30
days of the date the other party appoints its, the first appointed arbitrator shall
be the sole arbitrator, provided that the arbitrator was validly and properly
appointed.
The English language version of this Agreement prevails over any other
language version.
HONG KONG AND MACAU
Governing Law: The following replaces “laws of the country in which you acquired
the Machine” in the first sentence:
laws of Hong Kong Special Administrative Region.
INDIA
Limitation of Liability: The following replaces items 1 and 2 of this Section:
1. liability for bodily injury (including death) or damage to real property and
tangible personal property will be limited to that caused by IBM’s
negligence;
2. as to any other actual damage arising in any situation involving
nonperformance by IBM pursuant to, or in any way related to the subject
of this Statement of Limited Warranty, IBM’s liability will be limited to the
charge paid by you for the individual Machine that is the subject of the
claim.
JAPAN
C-6 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Governing Law: The following sentence is added to this Section:
Any doubts concerning this Agreement will be initially resolved between us in
good faith and in accordance with the principle of mutual trust.
NEW ZEALAND
The IBM Warranty for Machines: The following paragraph is added to this Section:
The warranties specified in this Section are in addition to any rights you may
have under the Consumer Guarantees Act 1993 or other legislation which
cannot be excluded or limited. The Consumer Guarantees Act 1993 will not
apply in respect of any goods which IBM provides, if you require the goods
for the purposes of a business as defined in that Act.
Limitation of Liability: The following is added to this Section:
Where Machines are not acquired for the purposes of a business as defined in
the Consumer Guarantees Act 1993, the limitations in this Section are subject to
the limitations in that Act.
PEOPLE’S REPUBLIC OF CHINA (PRC)
Governing Law: The following replaces this Section:
Both you and IBM consent to the application of the laws of the State of New
York (except when local law requires otherwise) to govern, interpret, and
enforce all your and IBM’s rights, duties, and obligations arising from, or
relating in any manner to, the subject matter of this Agreement, without regard
to conflict of law principles.
Any disputes arising from or in connection with this Agreement will first be
resolved by friendly negotiations, failing which either of us has the right to
submit the dispute to the China International Economic and Trade Arbitration
Commission in Beijing, the PRC, for arbitration in accordance with its
arbitration rules in force at the time. The arbitration tribunal will consist of
three arbitrators. The language to be used therein will be English and Chinese.
An arbitral award will be final and binding on all the parties, and will be
enforceable under the Convention on the Recognition and Enforcement of
Foreign Arbitral Awards (1958).
The arbitration fee will be borne by the losing party unless otherwise
determined by the arbitral award.
During the course of arbitration, this Agreement will continue to be performed
except for the part which the parties are disputing and which is undergoing
arbitration.
EUROPE, MIDDLE EAST, AFRICA (EMEA)
Appendix C. Product warranty and notices C-7
THE FOLLOWING TERMS APPLY TO ALL EMEA COUNTRIES:
The terms of this Statement of Limited Warranty apply to Machines purchased
from IBM or an IBM reseller.
Warranty Service:
If you purchase an IBM Machine in Austria, Belgium, Denmark, Estonia,
Finland, France, Germany, Greece, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland or
United Kingdom, you may obtain warranty service for that Machine in any of
those countries from either (1) an IBM reseller approved to perform warranty
service or (2) from IBM. If you purchase an IBM Personal Computer Machine
in Albania, Armenia, Belarus, Bosnia and Herzegovina, Bulgaria, Croatia,
Czech Republic, Georgia, Hungary, Kazakhstan, Kirghizia, Federal Republic of
Yugoslavia, Former Yugoslav Republic of Macedonia (FYROM), Moldova,
Poland, Romania, Russia, Slovak Republic, Slovenia, or Ukraine, you may
obtain warranty service for that Machine in any of those countries from either
(1) an IBM reseller approved to perform warranty service or (2) from IBM.
If you purchase an IBM Machine in a Middle Eastern or African country, you
may obtain warranty service for that Machine from the IBM entity within the
country of purchase, if that IBM entity provides warranty service in that
country, or from an IBM reseller, approved by IBM to perform warranty service
on that Machine in that country. Warranty service in Africa is available within
50 kilometers of an IBM authorized service provider. You are responsible for
transportation costs for Machines located outside 50 kilometers of an IBM
authorized service provider.
Governing Law:
The applicable laws that govern, interpret and enforce rights, duties, and
obligations of each of us arising from, or relating in any manner to, the subject
matter of this Statement, without regard to conflict of laws principles, as well
as Country-unique terms and competent court for this Statement are those of
the country in which the warranty service is being provided, except that in 1)
Albania, Bosnia-Herzegovina, Bulgaria, Croatia, Hungary, Former Yugoslav
Republic of Macedonia, Romania, Slovakia, Slovenia, Armenia, Azerbaijan,
Belarus, Georgia, Kazakhstan, Kyrgyzstan, Moldova, Russia, Tajikistan,
Turkmenistan, Ukraine, and Uzbekistan, the laws of Austria apply; 2) Estonia,
Latvia, and Lithuania, the laws of Finland apply; 3) Algeria, Benin, Burkina
Faso, Cameroon, Cape Verde, Central African Republic, Chad, Congo, Djibouti,
Democratic Republic of Congo, Equatorial Guinea, France, Gabon, Gambia,
Guinea, Guinea-Bissau, Ivory Coast, Lebanon, Mali, Mauritania, Morocco,
Niger, Senegal, Togo, and Tunisia, this Agreement will be construed and the
legal relations between the parties will be determined in accordance with the
French laws and all disputes arising out of this Agreement or related to its
C-8 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
violation or execution, including summary proceedings, will be settled
exclusively by the Commercial Court of Paris; 4) Angola, Bahrain, Botswana,
Burundi, Egypt, Eritrea, Ethiopia, Ghana, Jordan, Kenya, Kuwait, Liberia,
Malawi, Malta, Mozambique, Nigeria, Oman, Pakistan, Qatar, Rwanda, Sao
Tome, Saudi Arabia, Sierra Leone, Somalia, Tanzania, Uganda, United Arab
Emirates, United Kingdom, West Bank/Gaza, Yemen, Zambia, and Zimbabwe,
this Agreement will be governed by English Law and disputes relating to it
will be submitted to the exclusive jurisdiction of the English courts; and 5) in
Greece, Israel, Italy, Portugal, and Spain any legal claim arising out of this
Statement will be brought before, and finally settled by, the competent court of
Athens, Tel Aviv, Milan, Lisbon, and Madrid, respectively.
THE FOLLOWING TERMS APPLY TO THE COUNTRY SPECIFIED:
AUSTRIA AND GERMANY
The IBM Warranty for Machines: The following replaces the first sentence of the
first paragraph of this Section:
The warranty for an IBM Machine covers the functionality of the Machine for
its normal use and the Machine’s conformity to its Specifications.
The following paragraphs are added to this Section:
The minimum warranty period for Machines is six months. In case IBM or
your reseller is unable to repair an IBM Machine, you can alternatively ask for
a partial refund as far as justified by the reduced value of the unrepaired
Machine or ask for a cancellation of the respective agreement for such Machine
and get your money refunded.
Extent of Warranty: The second paragraph does not apply.
Warranty Service: The following is added to this Section:
During the warranty period, transportation for delivery of the failing Machine
to IBM will be at IBM’s expense.
Limitation of Liability: The following paragraph is added to this Section:
The limitations and exclusions specified in the Statement of Limited Warranty
will not apply to damages caused by IBM with fraud or gross negligence and
for express warranty.
The following sentence is added to the end of item 2:
IBM’s liability under this item is limited to the violation of essential contractual
terms in cases of ordinary negligence.
EGYPT
Appendix C. Product warranty and notices C-9
Limitation of Liability: The following replaces item 2 in this Section:
as to any other actual direct damages, IBM’s liability will be limited to the total
amount you paid for the Machine that is the subject of the claim. For purposes
of this item, the term “Machine” includes Machine Code and Licensed Internal
Code.
Applicability of suppliers and resellers (unchanged).
FRANCE
Limitation of Liability: The following replaces the second sentence of the first
paragraph of this Section:
In such instances, regardless of the basis on which you are entitled to claim
damages from IBM, IBM is liable for no more than: (items 1 and 2 unchanged).
IRELAND
Extent of Warranty: The following is added to this Section:
Except as expressly provided in these terms and conditions, all statutory
conditions, including all warranties implied, but without prejudice to the
generality of the foregoing all warranties implied by the Sale of Goods Act
1893 or the Sale of Goods and Supply of Services Act 1980 are hereby
excluded.
Limitation of Liability: The following replaces items one and two of the first
paragraph of this Section:
1. death or personal injury or physical damage to your real property solely
caused by IBM’s negligence; and
2. the amount of any other actual direct damages, up to 125 percent of the
charges (if recurring, the 12 months’ charges apply) for the Machine that is the
subject of the claim or which otherwise gives rise to the claim.
Applicability of suppliers and resellers (unchanged).
The following paragraph is added at the end of this Section:
IBM’s entire liability and your sole remedy, whether in contract or in tort, in
respect of any default shall be limited to damages.
ITALY
Limitation of Liability: The following replaces the second sentence in the first
paragraph:
In each such instance unless otherwise provided by mandatory law, IBM is
liable for no more than:
1. (unchanged)
2. as to any other actual damage arising in all situations involving
C-10 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
nonperformance by IBM pursuant to, or in any way related to the subject
matter of this Statement of Warranty, IBM’s liability, will be limited to the total
amount you paid for the Machine that is the subject of the claim.
Applicability of suppliers and resellers (unchanged).
The following replaces the third paragraph of this Section:
Unless otherwise provided by mandatory law, IBM and your reseller are not
liable for any of the following: (items 1 and 2 unchanged) 3) indirect damages,
even if IBM or your reseller is informed of their possibility.
SOUTH AFRICA, NAMIBIA, BOTSWANA, LESOTHO AND SWAZILAND
Limitation of Liability: The following is added to this Section:
IBM’s entire liability to you for actual damages arising in all situations
involving nonperformance by IBM in respect of the subject matter of this
Statement of Warranty will be limited to the charge paid by you for the
individual Machine that is the subject of your claim from IBM.
UNITED KINGDOM
Limitation of Liability: The following replaces items 1 and 2 of the first paragraph
of this Section:
1. death or personal injury or physical damage to your real property solely
caused by IBM’s negligence;
2. the amount of any other actual direct damages or loss, up to 125 percent of
the charges (if recurring, the 12 months’ charges apply) for the Machine
that is the subject of the claim or which otherwise gives rise to the claim;
The following item is added to this paragraph:
3. breach of IBM’s obligations implied by Section 12 of the Sale of Goods Act
1979 or Section 2 of the Supply of Goods and Services Act 1982.
Applicability of suppliers and resellers (unchanged).
The following is added to the end of this Section:
IBM’s entire liability and your sole remedy, whether in contract or in tort, in
respect of any default shall be limited to damages.
Notices
This publication was developed for products and services offered in the U.SA.
IBM may not offer the products, services, or features discussed in this
document in other countries. Consult your local IBM representative for
information on the products and services currently available in your area. Any
reference to an IBM product, program, or service is not intended to state or
imply that only that IBM product, program, or service may be used. Any
Appendix C. Product warranty and notices C-11
functionally equivalent product, program, or service that does not infringe any
IBM intellectual property right may be used instead. However, it is the user’s
responsibility to evaluate and verify the operation of any non-IBM product,
program, or service.
IBM may have patents or pending patent applications covering subject matter
described in this document. The furnishing of this document does not give you
any license to these patents. You can send license inquiries, in writing, to:
IBM Director of Licensing
IBM Corporation
North Castle Drive
Armonk, NY 10504-1785
U.S.A.
The following paragraph does not apply to the United Kingdom or any
country where such provisions are inconsistent with local law:
INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS
PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of
express or implied warranties in certain transactions, therefore, this statement
may not apply to you.
This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. IBM may make improvements
and/or changes in the product(s) and/or the program(s) described in this
publication at any time without notice.
IBM may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.
Any references in this publication to non-IBM Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those
Web sites. The materials at those Web sites are not part of the materials for this
IBM product, and use of those Web sites is at your own risk.
Processing date data
This IBM hardware product and IBM software products that might be
packaged with it have been designed, when used in accordance with their
associated documentation, to process date data correctly within and between
the 20th and 21st centuries, provided all other products (for example, software,
hardware, and firmware) used with these products properly exchange accurate
date data with them.
C-12 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
IBM cannot take responsibility for the date data processing capabilities of
non-IBM products, even if those products are preinstalled or otherwise
distributed by IBM. You should contact the vendors responsible for those
products directly to determine the capabilities of their products and update
them if needed. This IBM hardware product cannot prevent errors that might
occur if software, upgrades, or peripheral devices you use or exchange data
with do not process date data correctly.
The foregoing is a Year 2000 Readiness Disclosure.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments
may vary significantly. Some measurements may have been made on
development-level systems and there is no guarantee that these measurements
will be the same on generally available systems. Furthermore, some
measurements may have been estimated through extrapolation. Actual results
may vary. Users of this document should verify the applicable data for their
specific environment.
Trademarks
The following terms are trademarks of the IBM Corporation in the United
States, other countries, or both:
IBM
HelpCenter
Netfinity
Microsoft and Windows are trademarks of Microsoft Corporation in the United
States, other countries, or both.
Other company, product, and service names may be trademarks or service
marks of others.
Electronic emission notices
40/80 GB HH DLTVS Internal Tape Drive
Federal Communications Commission (FCC) statement
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
Appendix C. Product warranty and notices C-13
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
v Reorient or relocate the receiving antenna.
v Increase the separation between the equipment and receiver.
v Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
v Consult an IBM authorized dealer or service representative for help.
Properly shielded and grounded cables and connectors must be used in order
to meet FCC emission limits. Proper cables and connectors are available from
IBM authorized dealers. IBM is not responsible for any radio or television
interference caused by using other than recommended cables and connectors or
by unauthorized changes or modifications to this equipment. Unauthorized
changes or modifications could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Responsible party:
International Business Machines Corporation
New Orchard Road
Armonk, NY 10504
Telephone: 1-919-543-2193
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
Industry Canada Class B emission compliance statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformite a la reglementation d’Industrie Canada
Cet appareil numérique de classe B est conforme à la norme NMB-003 du
Canada.
Deutsche EMV-Direktive (electromagnetische Verträglichkeit)
C-14 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Dieses Gerät ist berechtigt in Übereinstimmung mit dem deutschen EMVG
vom 9.Nov.92 das EG-Konformitätszeichen zu führen.
Der Aussteller der Konformitätserklärung ist die IBM UK, Greenock.
Dieses Gerät erfüllt die Bedingungen der EN 55022 Klasse B.
European Union - emission directive
This product is in conformity with the protection requirements of EU Council
Directive 89/366/ECC on the approximation of the laws of the Member States
relating to electromagnetic compatibility.
IBM can not accept responsibility for any failure to satisfy the protection
requirements resulting from a non-recommended modification of the product,
including the fitting of non-IBM option cards.
This product has been tested and found to comply with the limits for Class B
Information Technology Equipment according to CISPR 22/European Standard
EN 55022. The limits for Class B equipment were derived for typical residential
environments to provide reasonable protection against interference with
licensed communication devices.
Union Européenne - Directive Conformitéélectromagnétique
Ce produit est conforme aux exigences de protection de la Directive
89/336/EEC du Conseil de l’UE sur le rapprochement des lois des États
membres en matière de compatibilitéélectromagnétique.
IBM ne peut accepter aucune responsabilité pour le manquement aux exigences
de protection résultant d’une modification non recommandéeduproduit,y
compris l’installation de cartes autres que les cartes IBM.
Ce produit a été testé et il satisfait les conditions de l’équipement informatique
de Classe B en vertu de CISPR22/Standard européen EN 55022. Les conditions
pour l’équipement de Classe B ont été définies en fonction d’un contexte
résidentiel ordinaire afin de fournir une protection raisonnable contre
l’interférence d’appareils de communication autorisés.
Unione Europea - Directiva EMC (Conformidad électromagnética)
Este producto satisface los requisitos de protección del Consejo de la UE,
Directiva 89/336/CEE en lo que a la legislatura de los Estados Miembros sobre
compatibilidad electromagnética se refiere.
Appendix C. Product warranty and notices C-15
IBM no puede aceptar responsabilidad alguna si este producto deja de
satisfacer dichos requisitos de protección como resultado de una modificación
no recomendada del producto, incluyendo el ajuste de tarjetas de opción que
no sean IBM.
Este producto ha sido probado y satisface los límites para Equipos Informáticos
Clase B de conformidad con el Estándar CISPR22 y el Estándar Europeo EN
55022. Los límites para los equipos de Clase B se han establecido para entornos
residenciales típicos a fin de proporcionar una protección razonable contra las
interferencias con dispositivos de comunicación licenciados.
Union Europea - Normativa EMC
Questo prodotto è conforme alle normative di protezione ai sensi della
Direttiva del Consiglio dell’Unione Europea 89/336/CEE sull’armonizzazione
legislativa degli stati membri in materia di compatibilità elettromagnetica.
IBM non accetta responsabilità alcuna per la mancata conformità alle
normative di protezione dovuta a modifiche non consigliate al prodotto,
compresa l’installazione di schede e componenti di marca diversa da IBM.
Le prove effettuate sul presente prodotto hanno accertato che esso rientra nei
limiti stabiliti per le le apparecchiature di informatica Classe B ai sensi del
CISPR 22/Norma Europea EN 55022. I limiti delle apparecchiature della Classe
B sono stati stabiliti al fine di fornire ragionevole protezione da interferenze
mediante dispositivi di comunicazione in concessione in ambienti residenziali
tipici.
Japanese statement of compliance for products less than or equal to 20 A per
phase
C-16 40/80 GB HH DLTVS Internal Tape Drive: User’s Guide
Appendix C. Product warranty and notices C-17
Part Number: 24P2429
Printed in the United States of America
on recycled paper containing 10%
recovered post-consumer fiber.
(1P) P/N: 24P2429
Loading...
