IBM 28L2234 User Manual

2X/4X/24X CD-ReWritable Internal IDE Option Kit

OP T ION S

Note: If you are using this product in the United States, Canada, or Puerto Rico, be sure to read the information under Appendix F, “Product warranty and notices” on page 3-31 before using this information and the product it supports.

For all other countries, the warranty terms and conditions applicable in the country of purchase are available from IBM or your reseller.

First Edition (January 1999)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL

BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time.

This publication was developed for products and services offered in the United States of America. IBM may not offer the products, services, or features discussed in this document in other countries, and the information is subject to change without notice. Consult your local IBM representative for information on the products, services, and features available in your area.

Requests for technical information about IBM products should be made to your IBM reseller or IBM marketing representative.

Note to U.S. Government Users — Documentation related to restricted rights — Use, duplication or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Contents

Safety: Read first . . . . . . . . . . . . . . . . . . . . . . . v

Product registration . . . . . . . . . . . . . . . . . . . . . . vi

About this book ........................ vi

Part 1: Quick installation guide ................................................. 1-1

Part 2: User’s guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Before you begin ....................... 2-1

Protecting the drive after installation ............ 2-1

Using CD-R and CD-RW discs ................ 2-1

Using the drive controls and connectors ........... 2-2

Front view of the drive .................... 2-2

Rear view of the drive ..................... 2-2

Using the drive to record files on CDs ............ 2-3

Using CD handling precautions ............... 2-4

Caring for a CD ........................ 2-4

Loading a CD ......................... 2-5

Manually ejecting a CD .................... 2-6

Playing an audio CD ...................... 2-6

Using a data CD ........................ 2-8

Part 3: Appendixes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

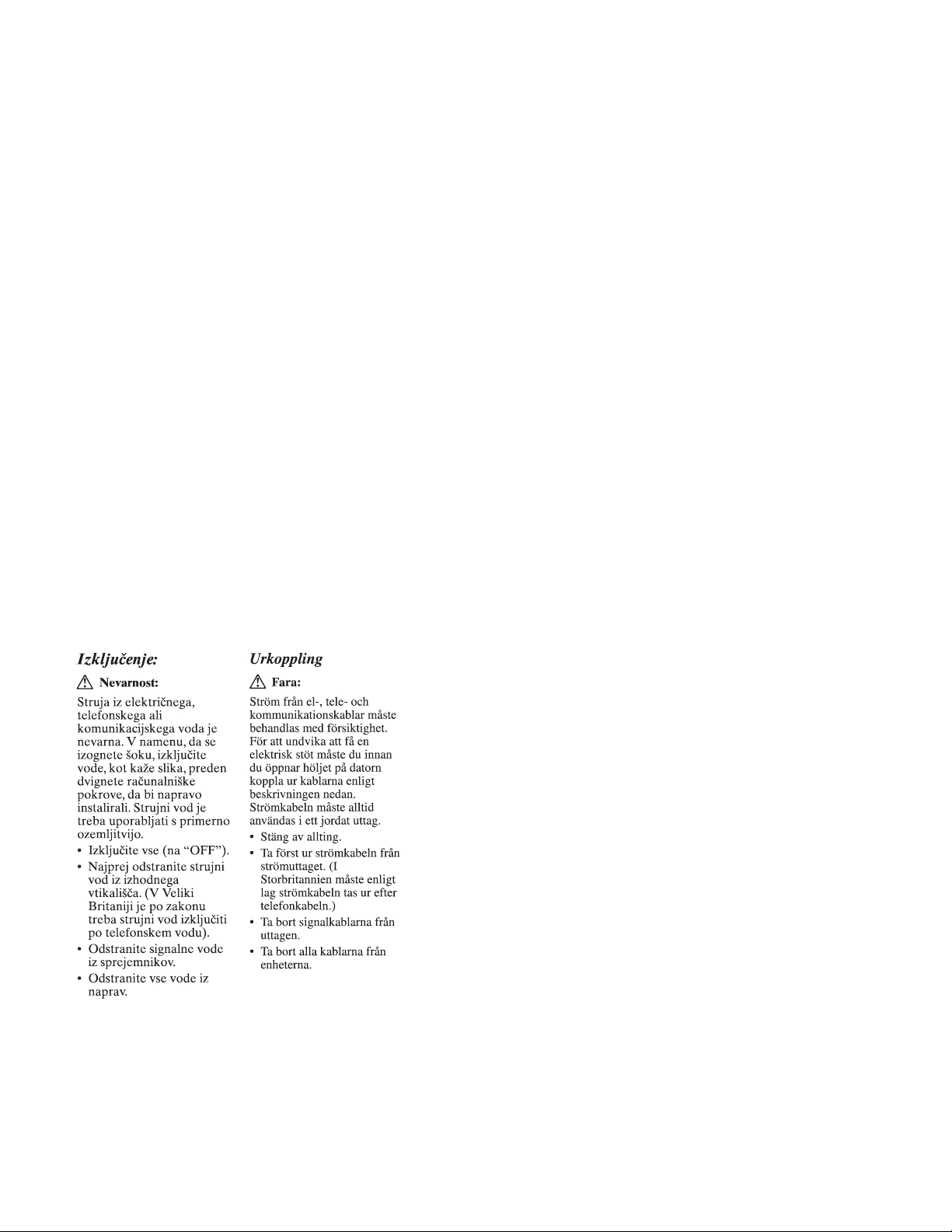

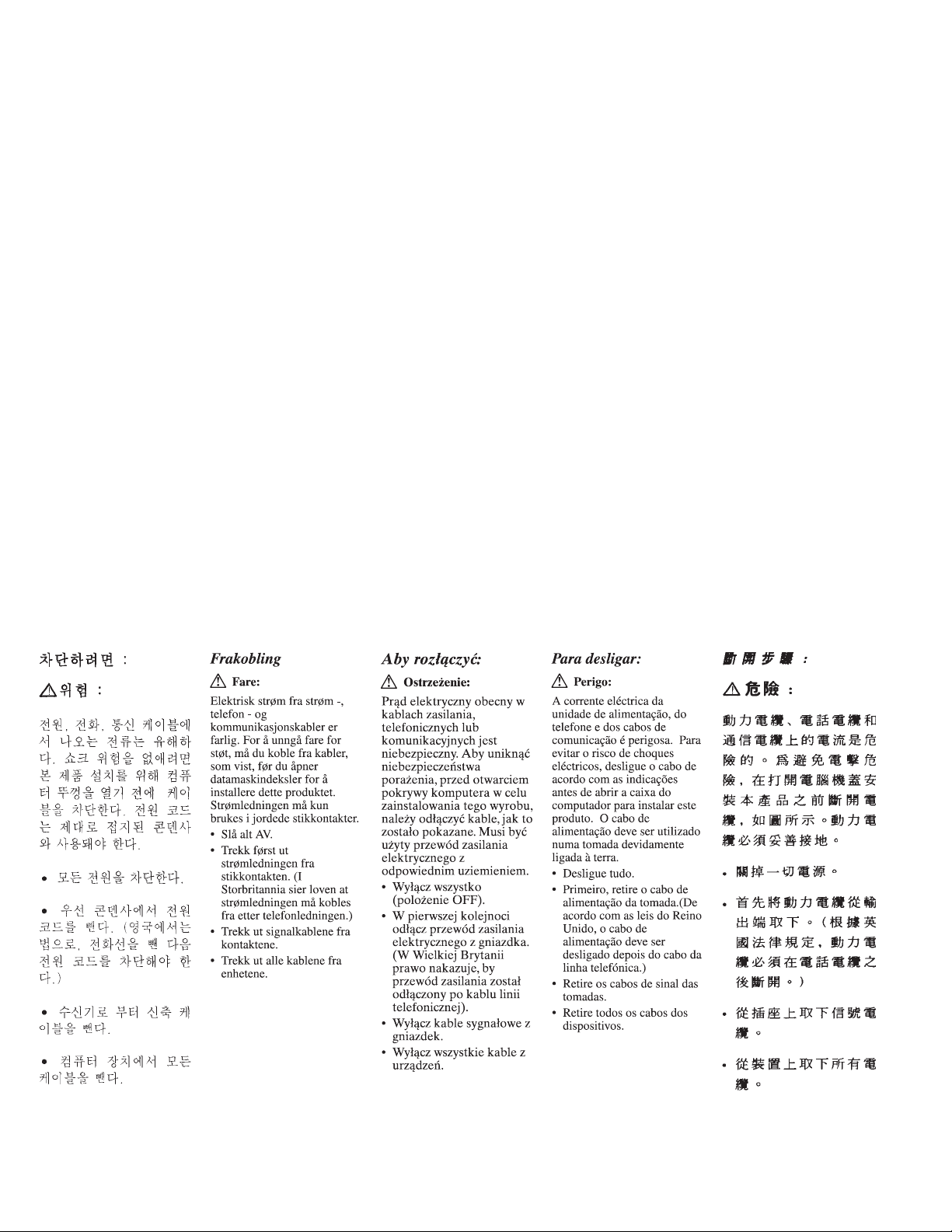

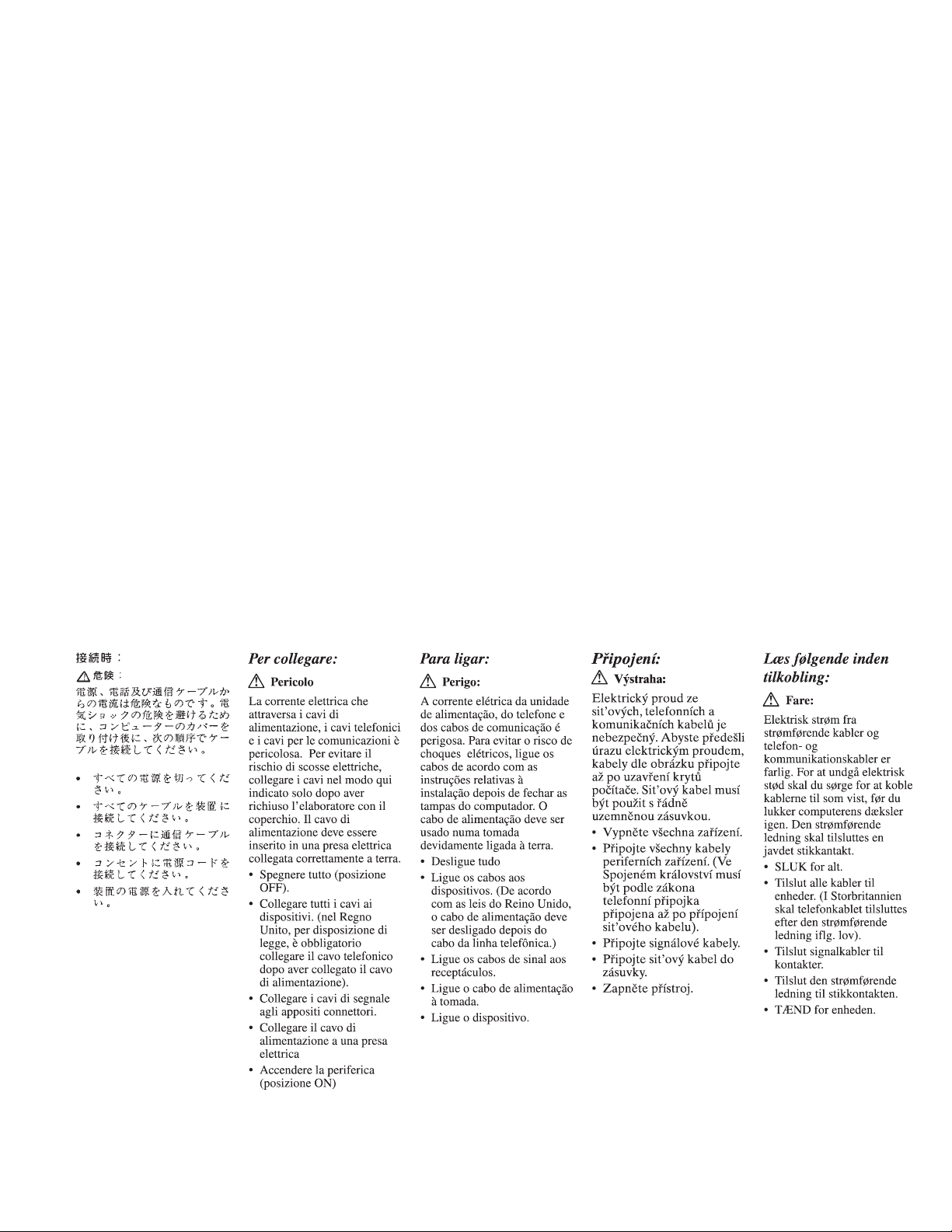

Appendix A. Safety Information . . . . . . . . . . . . . . 3-1

Appendix B. Product specifications . . . . . . . . . . . . 3-11

Appendix C. Customizing device driver configuration

settings . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Appendix D. Problem solving . . . . . . . . . . . . . . . 3-20

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . 3-27

Additional help . . . . . . . . . . . . . . . . . . . . . . . 3-28

Appendix E. Help and service information ........ 3-28

Step 1: Problem solving . . . . . . . . . . . . . . . . . . . 3-29

Step 2: Preparing for the call ................ 3-29

Step 3: Placing the call to IBM ............... 3-29

Step 4: Placing the call to computer and BIOS manufacturers 3-30

Appendix F. Product warranty and notices ........ 3-31

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . 3-34

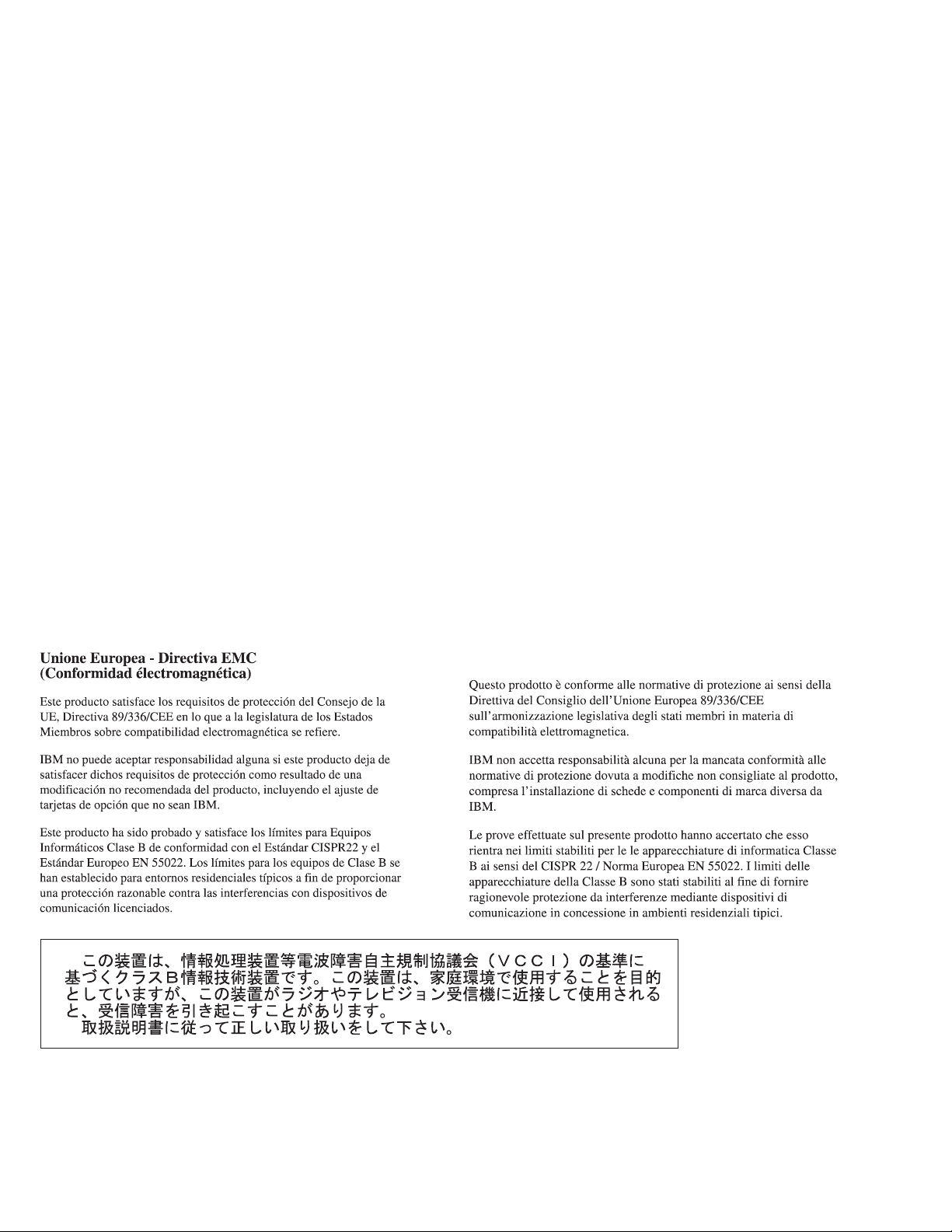

Electronic emission notices ................. 3-34

iv IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit

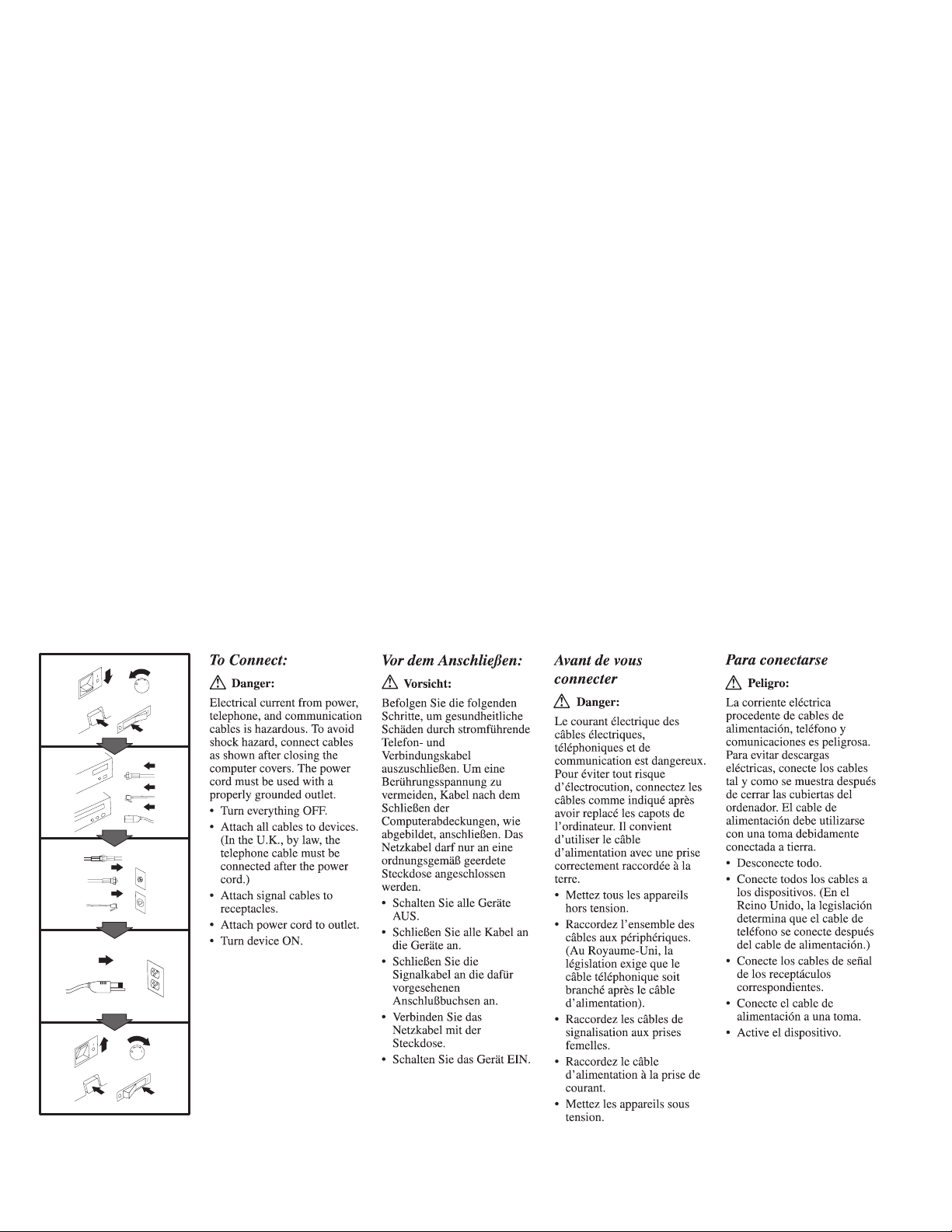

Safety: Read first

Product registration

About this book

Thank you for purchasing OPTIONS by IBM. Please take a few moments to register your product and provide us with information that will help IBM to better serve you in the future. Your feedback is valuable to us in developing products and services that are important to you, as well as in developing better ways to communicate with you. Register your option on the IBM Web site at:

http://www.pc.ibm.com/register IBM will send you information and updates on your registered product

unless you indicate on the Web site questionnaire that you do not want to receive further information.

This manual contains information on the IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit. It is divided into the following parts:

Part 1: Quick installation guide

This section contains product and software descriptions, installation requirements, and abbreviated installation instructions.

Part 2: User’s guide

This section contains device handling precautions, detailed operating instructions, and CD handling instructions.

Part 3: Appendixes

This section contains safety, product specifications, device driver configuration settings, service, warranty and notice information.

Note: The illustrations in this manual might be slightly different from your hardware.

vi IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit

Part 1: Quick installation guide

This guide contains installation instructions in an abbreviated form. If you are knowledgeable about IDE products and experienced in installing options, use these instructions to quickly install your CD-ReWritable drive. For detailed operating instructions, go to “Part 2: User’s guide” on page 2-1. For problem-solving information, go to Appendix D, “Problem solving” on page 3-20.

Product description

The IBM 2X/4X/24X CD-ReWritable Drive can write and read CD-ReWritable (CD-RW) and CD-Recordable (CD-R) discs, and can read mass-produced stamped CDs. As a result, the drive is compatible with Multi-Read (MR) CD-ROM and DVD-ROM drives that can read CD-RW discs and other media types, and with older non-MR CD-ROM drives that can read only CD-R and CD-ROM discs.

The drive writes to CD-RW and CD-R discs at different speeds. The drive can write to a CD-RW disc at up to two times the standard CD-ROM speed, recording data at up to 300 KB rate, the drive can record approximately 650 MB2 of information on a CD-RW disc in about 36 minutes. The drive can write to a CD-R disc

KB equals approximately 1024 bytes when referring to data transfer speeds.

MB equals approximately 1000 000 bytes when referring to storage capacity.

per second. At this

at up to four times the standard CD-ROM speed, recording data at up to 600 KB per second. At this rate, the drive can record approximately 650 MB of information on a CD-R disc in about 18 minutes. The drive can also read data at up to 24 times the standard CD-ROM speed, or 3600 KB per second. Note: To use the drive’s CD-recording function, you must install the

Easy CD Creator/DirectCD software (included) for Microsoft Windows 98, Windows 95, or Windows NT 4.0. For more information on the Easy CD Creator/DirectCD software, see “Software description” on page 1-2.

The IBM 2X/4X/24X CD-ReWritable Drive can be installed only in a computer that uses the integrated drive electronics (IDE) or the enhanced IDE architecture.

In addition to this book, the option kit includes:

CD-ReWritable drive

Two audio cables Four mounting screws (M3 x 5 mm, slotted)

IDE cable

Two faceplates for use with certain systems

1-1

Blank CD-RW disc Blank CD-R disc

Easy CD Creator/DirectCD software package IBM 2X/4X/24X CD-ReWritable Drive Option Diskette Laser Safety Guide for CD-ROMs

Contact your place of purchase if an item is missing or damaged. Be sure to retain your proof of purchase. It might be required to receive warranty service. See Appendix E, “Help and service information” on page 3-28 for technical support information.

Software description

The Easy CD Creator/DirectCD software CD contains programs that work with Windows 98, Windows 95, and Windows NT 4.0 or later. You can use the programs with your CD-ReWritable drive to create audio and data CDs, to copy CDs, and to make jewel case inserts or CD labels.

The IBM 2X/4X/24X CD-ReWritable Drive Option Diskette contains device drivers for Windows 98, Windows 95, Windows NT 4.0, Windows 3.x, OS/2, and DOS that enable you to access the drive as a CD-ROM drive in DOS mode. The diskette also includes an audio CD-player program for DOS and a diagnostic program.

Note: The software included in this option kit does not enable the

drive’s CD-recording capabilities with DOS, Windows 3.x, or OS/2 operating systems.

Installation requirements

To install the CD-ReWritable drive you must have:

Documentation

You will need the documentation that comes with your computer, operating system, or IDE bus adapter if the adapter is separate from the computer.

Required hardware

You must have the following hardware.

IBM computer or compatible computer with an Intel Pentium processor and 16 MB memory)

3.5-inch, 1.44 MB or 2.88 MB diskette drive

IDE bus adapter

Your computer must have an IDE port on the system board or on an IDE bus adapter. If the interface cable connectors in your computer have 40 pins, your computer uses the IDE architecture. If

RAM (random-access

When referring to memory storage capacity, MB means approximately 1000 000 bytes; total user-accessible capacity may vary depending on operating environment.

1-2 IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit

you are not sure about your IDE bus adapter, see the documentation that comes with your computer.

IDE cables and connectors

The IDE cables connect the IDE port on the system board, or on an IDE adapter, to your IDE storage devices. IDE storage devices are hard disk drives, CD-ROM drives, and tape drives.

If your computer has one IDE port, you can attach a maximum of two devices, as shown in the following illustration.

If your computer has two IDE ports (one IDE cable on each port), you can attach up to four devices (two devices on each cable).

If your IDE cables have only one connector, you can replace one of the cables with the two-connector IDE cable that comes with this option package.

need to change the configuration of that device. For more information, refer to the documentation that comes with the device. You cannot install some devices, such as a high speed tape drive, on the same port as a CD-ReWritable drive.

Power connector

You will need an unused power connector on a cable coming from the computer power supply in order to provide power to the drive. If all power cables are in use, purchase a dc Y-connector (available at many electronic stores) and split a connection to provide power for more devices.

CD-ReWritable drive mounting

You can install the CD-ReWritable drive in a vertical or horizontal

5.25-inch mounting bay. You might need both a flat-blade and a Phillips-head screwdriver for the installation.

If you are attaching the CD-ReWritable drive to the same port as another device, such as a hard disk drive or tape drive, you might

Part 1: Quick installation guide 1-3

Installing the drive

The instructions in this section are general guidelines that apply to most computers. For specific information on installing a drive in your computer, see the documentation that comes with your computer.

Step 1. Opening the computer

1. Turn off the computer and all attached devices.

2. Unplug from the electrical outlets all cables for your computer and attached devices.

3. Before handling the drive, ground yourself by touching an unpainted surface on the computer. Ground yourself again after leaving and returning to your work area.

4. Always handle the drive by its edges. Do not touch any exposed printed circuitry, components, or connector pins.

5. While installing the drive, avoid all unnecessary handling. Rough handling can damage the components inside the drive housing.

6. If you must put the drive down, place the antistatic bag on a flat padded surface, such as a magazine, and place the drive on the bag.

It is now safe to open your computer.

For specific information about opening your computer, see the documentation that comes with your computer.

Step 2. Unpacking the drive

Follow these steps when you unpack the drive.

1. Do not open the antistatic bag until you are ready to install the drive. Static electricity can damage the drive and other computer components.

2. Touch your hand and the inner conductive surface of the antistatic bag containing the drive to an unpainted metal surface on the computer for two seconds. This drains static electricity from the bag and your body.

1-4 IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit

Step 3. Setting the configuration jumpers

You can configure your drive as Master 1 , Slave 2 , or Cable Select 3 , as shown.

Use the following guidelines to determine the correct configuration for your CD-RW drive.

Step 4. Mounting the drive in the bay

Configure the CD-ReWritable drive as a Master if it will be the only device connected to an IDE cable. (This is the preset configuration.)

Configure the CD-ReWritable drive as a Slave if it will be the second device on an IDE cable. Be sure to configure the other device as a Master. In some cases, a hard disk drive might require a Master with Slave Present jumper setting when another device on the same cable is configured as a Slave. For further information on setting configuration jumpers on other devices, refer to the documentation that comes with your computer system or with the device.

Some non-IBM computers use special ATA cables with two wires reversed in the device connectors so that the drives can be configured by the cable instead of by jumper position. Use the Cable Select position only for systems equipped with these special cables. See the documentation that came with your computer to determine if your ATA adapter requires that you place the jumpers in the Cable Select position.

If you place the jumpers in the Cable Select position, the IDE cable automatically assigns the Master and Slave settings based on the position of the drive on the cable. You must use the Cable Select setting for this cabling system whether the CD-ReWritable drive is the only device or the second device connected to the cable. The drive closest to the IDE controller is automatically the Master drive. Any other devices on the IDE cable must also be set to Cable Select.

Attention: Be sure to use the M3 x 5 mm mounting screws that come with the option package. You might damage the drive if you use mounting screws that are too long.

You can mount the CD-ReWritable drive horizontally or vertically in the computer. If you mount the drive vertically, you must secure any CDs you place into the drive before closing the drive tray, or the drive will not be able to read from the CD properly. For further instructions on securing your CDs in a vertically mounted drive, go to page 2-5.

1. Slide the drive into the bay. Your computer might require unique installation procedures for storage devices. Refer to the documentation that comes with your computer for further instructions on installing storage devices.

2. Align the drive-bay screw holes with the threaded holes in the drive housing or mounting bracket.

3. Loosely hand thread the screws in the screw holes to check the alignment of the screws with the screw holes. Usually two screws are used on each side. If the screws are correctly aligned with the screw holes, tighten them to secure the drive. Do not

overtighten.

Part 1: Quick installation guide 1-5

Step 5. Attaching the cables to the drive

The diagram below shows where to connect cables to the drive.

Connect the drive to an available 40-pin connector on the IDE interface cable, as shown 2 . Align the cable so that the color-coded edge is closest to the power-cable connector 3 . The interface cable can have up to three connectors. For the best signal quality when you are connecting only one device to the IDE cable, attach the connector on one end of the cable to the IDE port and the connector on the other end of the cable to the device. Do not use the middle connector. Use the IDE cable provided with this option if there is no cable attached to the computer IDE port, or if there is only one device connector on the computer IDE cable.

If you are connecting two devices to the IDE cable, attach the connector on one end of the cable and the remaining cable connectors to the Master and Slave devices. Many computers have two cables for attaching up to four ATA devices. For best performance, attach fast

devices (hard disk drives) to the cable connected to the primary IDE port, and the CD-ReWritable drive or other slower devices (CD-ROM drives, tape drives, removable media) to the cable connected to the secondary IDE port.

Attach a four-pin power-cable connector 3 to the device dc-power connector, as shown.

If you have a sound adapter, connect one of the included audio cables

1 to the device audio-out connector. Use the audio cable that has a connector that fits your sound adapter. Keep the other cable in case you use a different sound adapter in the future.

Be sure that the cables will not be pinched or crowded by the computer cover and that all other cable and power connections are secure.

Step 6. Completing the hardware installation

To complete the installation of the drive:

1. Verify that the drive is securely mounted and the connectors are firmly attached.

2. Verify that the cables do not interfere with the computer cover and do not block the power-supply fan blades or air-flow paths.

3. Reinstall the computer cover.

4. Reconnect all devices. Make sure that the keyboard, mouse, and monitor cables are firmly attached.

5. Reconnect all ac power cords and turn on the computer.

1-6 IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit

Step 7. Attaching the faceplates

This option kit includes two faceplates which conform to the curved design of some computers. If your computer has a curved design, you can attach one of the included faceplates so that the front of the CD-ReWritable drive matches the exterior cabinet. Select the faceplate that best fits your computer, and attach the faceplate after you have mounted the CD-ReWritable drive in the appropriate bay.

Step 8. Updating your computer configuration

When you restart your computer, the configuration-setup information screen might appear because you changed the hardware in your computer. Some computers require you to make configuration choices the first time you restart after installing a new device. If the screen does not display, see your computer documentation for information about how to access it. For most IBM computers, you can see the configuration information during computer startup by pressing F1 when the configuration graphic displays in the upper right corner of your screen. When you have finished reviewing the configuration information, save the changes and exit.

Note: Some older computers with one IDE port might not display the CD-ReWritable drive information when you review the configuration-setup information. However, you can still use the CD-ReWritable drive.

Step 9. Installing the Easy CD Creator/DirectCD software

Note: Be sure to see the README file for the latest information

about the Easy CD Creator/DirectCD software.

The Easy CD Creator/DirectCD disc contains the following programs:

Easy CD Creator DirectCD UDF Reader

To fully utilize the capabilities of your CD-ReWritable drive, you will need to install both the Easy CD Creator and DirectCD programs. If you also have a Multi-Read CD-ROM or DVD-ROM drive in your computer, you might need to install the UDF Reader program to read certain CD-R or CD-RW discs in these drives.

To install the Easy CD Creator/DirectCD software for Windows 98, Windows 95 or Windows NT 4.0 or later:

1. Insert the Easy CD Creator/DirectCD CD into your CD-ReWritable drive.

2. If the Adaptec Easy CD Creator Installation window opens, go to step 7 below.

3. Click Start.

4. Select Settings.

5. Click Control Panel.

6. Double-click Add/Remove Programs.

Part 1: Quick installation guide 1-7

7. Follow the on-screen instructions to complete the installation. Repeat as necessary to install each of the Easy CD Creator, DirectCD, and UDF Reader components.

8. Restart Windows.

Step 10. Using CD-R and CD-RW discs

The CD-ReWritable drive can write to both CD-R and CD-RW discs. CD-R discs cannot be erased, but can be used with standard CD-ROM drives and CD players. You can use CD-R discs to record audio tracks, store data, archive files, and copy files from another CD.

CD-RW discs can be erased and re-written, but can be used only with newer Multi-Read and CD-RW compatible CD-ROM and DVD-ROM drives. You can use CD-RW discs to back up, store and update files, or to copy files from another CD. Note: CD-R discs are playable on audio CD players. CD-RW discs

are not playable on most audio CD players.

Step 11. Using the Easy CD Creator/DirectCD programs

To use the Easy CD Creator/DirectCD software, insert a blank or partially-recorded CD-R or CD-RW disc (this option kit includes a blank CD-R disc and a blank CD-RW disc) into your CD-RW drive

and follow the displayed menu instructions to select the type of CD you would like to create. If the menu does not display, use the following procedure to start Easy CD Creator or DirectCD:

1. Click Start.

2. Select Programs.

3. Select Adaptec Easy CD Creator or Adaptec Direct CD.

4. Click Easy CD Creator or Adaptec DirectCD.

The Easy CD Creator or DirectCD Wizard window will open.

Formatting CDs

You must format a blank CD-RW disc before you can copy files to it.

To format a CD

1. Use one of the following methods to begin writing data to your CD:

The DirectCD Wizard Welcome screen displays.

with the DirectCD program:

Insert a blank disc (included) in the drive. After a few

seconds a window opens prompting you to “Please select the type of CD you wish to create.” Select: (Click to create a data CD that will be accessible through a drive letter...).

Double-click the CD icon on the Windows taskbar. Follow the on-screen instructions in the DirectCD Wizard window to prepare the CD so you can write data directly to it.

Some CDs, such as multisession CDs, do not require formatting. For more information, see the online manual.

1-8 IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit

2. Click Next twice. The Format Disc window opens.

Creating data or audio CDs

Attention: Formatting completes in about an hour. The

DirectCD program configures the disc to receive data, verifies the integrity of the disc surface, and writes DirectCD file system structures to the disc. Note: You can do other tasks on your computer while the disc is

being formatted.

3. Click Next to continue. The Name Your Disc window opens.

4. Type the title of your disc in the Name Your Disc window.

Note: The disc name can be up to 11 characters.

5. Click Finish in order to start disc formatting.

The DirectCD Disc Ready window opens when disc formatting completes.

6. Click OK. You can now write information to the disc.

Note: If you have a problem formatting a CD-RW disc, go to

Appendix D, “Problem solving” on page 3-20.

If you want to read a DirectCD-formatted disc in another computer that has a Multi-Read drive, you might have to install a UDF Reader program in the other computer.

To create data or audio CDs:

1. Select Programs, Adaptec Easy CD Creator.

2. Click Easy CD Creator.

3. Click Data or Audio in the Easy CD Creator Wizard window.

The Easy CD Creator window will display the list of data files or audio tracks that are being added to the CD.

4. Follow the on-screen instructions.

For information on advanced features such as making a multisession CD, or creating a CD using the File menu instead of the Wizard, go to the online manual by clicking Help Topics in the Help menu.

Making a jewel case insert

You can use Easy CD Creator to create a jewel case insert or CD cover. When you create a data or audio CD, the Easy CD Creator program creates a jewel case insert using the information in your CD layout, such as CD title, artist name, and song list.

To print a jewel case insert or disc label:

1. Click the Jewel Case Layout tab.

2. Make preferred changes in the displayed jewel case layout.

3. From the File menu, click Print.

4. Click OK. For more information on changing the information in the Jewel Case

Layout window, go to the online manual by clicking Help Topics in the Help menu.

Part 1: Quick installation guide 1-9

Backing up a CD

7. Make changes, if needed, in the Advanced tab settings.

8. Select the Test and Copy options.

Attention: CD Copier, the utility program on the software CD, can help you copy material for which you own the copyright or have obtained permission to copy from the copyright owner. If you do not own the copyright or do not have permission to copy from the copyright owner, you might be violating copyright law and might be subject to payment of damages or other remedies. For more information on copyright law, consult your legal advisor.

To back up a CD using your CD-ReWritable drive:

1. Click Start.

2. Select Programs.

3. Select Adaptec Easy CD Creator.

4. Click CD Copier Deluxe.

The CD Copier window will open.

5. From the Source menu, select one of the following:

Your CD-RW drive letter if the source CD will be loaded

from this drive

Image File if you want to make a copy of a CD from a disc

image.

6. Select the Source and Destination drives for this copying procedure. Be sure that there is a blank CD-R or CD-RW disc in the CD-ReWritable drive.

For more information on the last two steps, click Help Topics in the Help menu to go to the online manual.

9. Select the desired number of copies.

10. Click Copy to start copying your CD.

11. Follow the on-screen instructions, and, when prompted, insert in the Source drive the CD you would like to copy.

Attention: See the online manual if you have a CD-ROM drive in addition to a CD-ReWritable drive and would like to copy directly from a CD-ROM drive.

Step 12. Installing the Option Diskette software

Note: Be sure to see the READ.ME file for the latest

information about the Option Diskette software.

The IBM 2X/4X/24X CD-ReWritable Drive Option Diskette contains device drivers for Windows 98, Windows 95, Windows 3.x, OS/2, DOS, and Windows NT 4.0 that allow you to access the drive as a CD-ROM drive in DOS mode.

1-10 IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit

To install the IBM 2X/4X/24X CD-ReWritable Drive Option Diskette device drivers for Windows 98, Windows 95, Windows 3.x, OS/2 or DOS:

1. Insert the IBM 2X/4X/24X CD-ReWritable Drive Option Diskette into the diskette drive.

2. Type A:CDSETUP in a command line and press Enter.

3. Click Setup.

4. Follow the on-screen instructions to install the software.

5. Click Exit after software installation completes.

6. Restart your computer so the new settings take effect.

Windows NT 4.0 will automatically detect the presence of the drive. No additional steps are required to activate the device drivers.

Some IBM Windows NT pre-loads contain a piixide device driver. This device driver replaces the Windows NT native atapi device driver, and provides DMA support. The drive will not work if both the atapi and piixide device drivers are enabled at the same time. If both device drivers are enabled at the same time, go into the Control Panel and set the Startup parameter of one of the drivers to Disabled.

For optional information about configuring the IBM 2X/4X/24X CD-ReWritable Drive Option Diskette device drivers for Windows 3.x, DOS, OS/2, Windows 98, and Windows 95, go to Appendix C, “Customizing device driver configuration settings” on page 3-13.

Part 1: Quick installation guide 1-11

1-12 IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit

Part 2: User’s guide

Before you begin

This guide contains information on using your drive with CDs after installation. If you have not already installed your CD-ReWritable drive, go to “Installing the drive” on page 1-4.

Protecting the drive after installation

To protect your CD-ReWritable drive during operation, observe the following precautions:

Remove any CD from the drive before moving the drive. Do not insert foreign objects into the drive. Do not stack objects on the drive. Do not remove the drive cover or attempt to service the drive. Do not operate the drive under any of the following conditions:

– High temperature, high humidity, or direct sunlight – Excessive vibration, sudden shock, or inclined surface – Excessive dust

Using CD-R and CD-RW discs

are not playable on most audio CD players.

Using the drive controls and connectors

The following diagrams show the location and functions of the drive controls and connectors. For a detailed description of the CD-ReWritable drive, go to “Product description” on page 1-1.

Front view of the drive

1 Headphone jack

This jack provides audio output to the headphones.

2 Volume control

This dial controls the headphone volume.

3 Busy indicator

This light comes on when the drive reads from, writes to, or plays a CD.

4 CD tray

This tray is where you load and unload a CD.

5 Manual-eject hole

This hole provides access to the eject mechanism to remove a CD from the drive.

6 Eject/Load button

This button opens and closes the CD tray when you push it.

Rear view of the drive

1 Reserved

2 Audio-out connector

This port connects the analog audio signals to a sound adapter.

3 Configuration pins

These pins are used to set the drive configuration.

4 IDE connector

This port connects the CD-ReWritable drive to the IDE cable.

5 DC-power connector

This port connects the dc-power cord to the CD-ReWritable drive.

2-2 IBM 2X/4X/24X CD-ReWritable Internal IDE Option Kit

+ 46 hidden pages
