IBM Cloud Object Storage System

Version 3.13.4

™

Slicestor®2584 Appliance Manual

3409-S03/3401-S03/3403-S03

IBM

Note

Before using this information and the product it supports, read the following information:

v The general information in Notices v The information in Safety and environmental notices v The information in the IBM Environmental Notices and User Guide (provided on a DVD)

This edition applies to IBM Cloud Object Storage System™Slicestor®2584 and is valid until replaced by new editions.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

Figures ............... v

Tables ............... vii

Safety and environmental notices ... ix

Safety notices .............. ix

Environmental notices ........... xii

Declared noise emissions ........ xiii

Support information ......... xv

Chapter 1. Appliance safety precautions 1

Introduction .............. 1

Damage ................ 1

Handling ............... 1

Operation ............... 3

Electrical safety ............. 5

Rack system safety precautions ........ 6

Electrostatic discharge (ESD) precautions ..... 7

Regional safety ............. 7

Chapter 2. System overview ...... 9

Chassis ................ 9

The enclosure core product ......... 9

Components .............. 10

Power supply unit (2200 kW PSU)....... 14

Power supply unit (2800 kW PSU)....... 15

Cooling module ............. 16

Compute modules ............ 18

Chapter 3. Installation ........ 21

Preparation .............. 21

Installation .............. 22

Power cord connection .......... 24

Grounding checks ............ 24

Data security .............. 25

Chapter 4. Operation ......... 27

Before you begin ............ 27

Power on ............... 27

Ops panel LEDs ............. 28

Unit identification number ......... 29

Power down .............. 30

Lock the drawers ............ 30

Chapter 5. Troubleshooting ...... 31

Initial start-up problems .......... 31

LEDs ............... 31

Thermal sensors ............. 37

Troubleshooting ............. 37

Hardware faults ............. 39

Chapter 6. Module replacement .... 41

Overview ............... 41

General procedures ............ 41

Replace a disk drive in carrier (DDIC) ..... 43

Replace a cooling module ......... 45

Replace a power supply unit (PSU) ...... 46

Replace a compute module ......... 47

Battery removal ............. 50

Appendix A. Technical specifications 51

Dimensions .............. 51

Components (fully populated) ........ 51

Thermal ............... 51

Temperature and humidity ......... 51

Cooling modules ............ 52

AP-TL-1 and AP-LS-1 compute modules..... 52

Power supply unit (2200 kW PSU)....... 53

Power supply unit (2800 kW PSU)....... 53

Supported drives ............ 54

Shock and vibration tolerance ........ 54

Appendix B. Standards and regulations 55

EMC qualification ............ 55

Acoustics ............... 56

AC power cords ............. 56

SMM Phase .............. 56

Appendix C. Post Codes ....... 57

SEC Phase............... 57

DXE Phase .............. 57

BDS Phase............... 58

SMM Phase .............. 59

Notices .............. 61

Trademarks .............. 63

Homologation statement .......... 63

iv Slicestor

2584 Appliance Manual

Figures

1. Lifting hazard ............ 2

2. Chassis label (FCC compliance) ...... 3

3. Module bay caution label ........ 4

4. Hot surface warning label ........ 4

5. PSU warning label .......... 5

6. Drawer caution label .......... 5

7. Enclosure front view .......... 9

8. AP-TL-1 module locations........ 10

9. AP-LS-1 module locations ........ 10

10. Drawer LEDs (left side only)....... 12

11. A disk drive in carrier (DDIC) ...... 12

12. Enclosure operator’s panel ....... 14

13. 2200 W PSU ............ 15

14. PSU LEDs ............. 15

15. 2800 W PSU ............ 16

16. PSU LEDs ............. 16

17. Cooling module ........... 17

18. Cooling module LEDs ......... 18

19. AP-TL-1 module ........... 18

20. AP-LS-1 module ........... 19

21. Unpacking the system ......... 22

22. Mounting the system into a rack (left rail only) 23

23. Rear enclosure mounting ........ 24

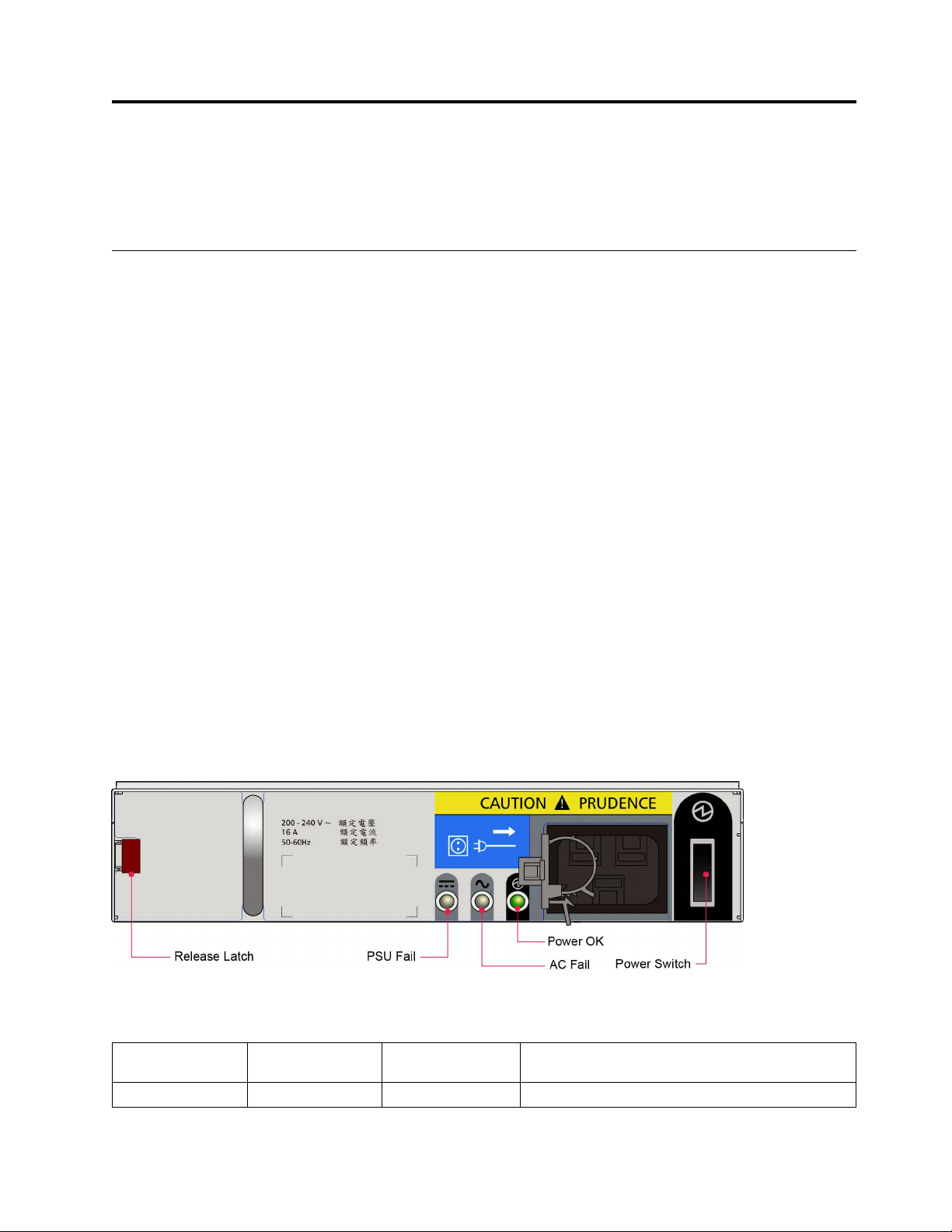

24. PSU Power Switch and LEDs ...... 27

25. Ops panel LEDs ........... 28

26. Anti-tamper locks .......... 30

27. PSU LEDs ............. 31

28. Cooling module LEDs ......... 32

29. Operator’s panel LEDs......... 33

30. Drawer LEDs (left sideplane only) ..... 35

31. Drive Fault LED ........... 36

32. Compute module LEDs ........ 36

33. Anti-tamper locks (shown disengaged) 42

34. Opening the bottom drawer ....... 42

35. Drawer latch ............ 43

36. Drive location plan .......... 43

37. Removing a DDIC .......... 44

38. Installing a DDIC .......... 44

39. Latch position of a correctly inserted drive 45

40. Cooling module LEDs ......... 45

41. Removing a Cooling Module (1) ..... 46

42. Removing a Cooling Module (2) ..... 46

43. Removing a PSU module (1) ....... 47

44. Removing a PSU Module (2) ....... 47

45. AP-TL-1 compute module LEDs ..... 48

46. AP-LS-1 module ........... 48

47. Removing a module (1). ........ 49

48. Removing a module (2). ........ 49

49. Remove the battery .......... 50

vi Slicestor

2584 Appliance Manual

Tables

1. Declared noise emissions in accordance with ISO 9296

2. Cooling module LED states ....... 18

3. Ops panel LED states ......... 28

4. PSU LED states ........... 31

5. Cooling module LED descriptions ..... 32

6. Ops panel LED descriptions ....... 33

7. Ops panel LED states ......... 33

8. Drawer LED descriptions ........ 35

9. Compute module LED descriptions .... 37

10. Alarm Conditions .......... 37

11. Enclosure dimensions ......... 51

12. Components ............ 51

(1,2,3)

............ xiii

13. Thermal specifications ......... 51

14. Temperature and humidity limits ..... 51

15. Compute canister specifications ...... 52

16. PSU specifications .......... 53

17. PSU specifications .......... 53

18. Supported disk drives ......... 54

19. Shock and vibration tolerance ...... 54

20. Power cord specifications ........ 56

21. POST Codes – SMM Phase ....... 56

22. POST Codes – SEC Phase ........ 57

23. POST Codes – BDS Phase........ 57

24. POST Codes – BDS Phase........ 58

25. POST Codes – SMM Phase ....... 59

viii Slicestor

2584 Appliance Manual

Safety and environmental notices

Review the safety notices, environmental notices, and electronic emission notices for IBM®Cloud Object Storage System before you install and use the product.

Suitability for telecommunication environment - This product is not intended to connect directly or indirectly by any means whatsoever to interfaces of public telecommunications networks.

Examples of a caution and a danger notice. Numbers in parentheses refer to message numbers in the IBM Safety Notices publication G229-9054, which is included with your product.

CAUTION: A caution notice indicates the presence of a hazard that has the potential of causing moderate or minor personal injury. (C001)

DANGER

A danger notice indicates the presence of a hazard that has the potential of causing death or serious personal injury. (D002)

Safety notices

Safety notices for this product.

Familiarize yourself with the IBM Safety Notices publication G229-9054, which is included with your product.

DANGER: When working on or around the system, observe the following precautions:

Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard:

• , connect power to this unit only with the IBM provided powerIf IBM supplied a power cord(s) cord. Do not use the IBM provided power cord for any other product.

• Do not open or service any power supply assembly.

• Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration

of this product during an electrical storm.

• The product might be equipped with multiple power cords. To remove all hazardous voltages,

disconnect all power cords.

• Connect all power cords to a properly wired and grounded electrical outlet. Ensure that the outlet

supplies proper voltage and phase rotation according to the system rating plate.

• Connect any equipment that will be attached to this product to properly wired outlets.

• When possible, use one hand only to connect or disconnect signal cables.

• Never turn on any equipment when there is evidence of fire, water, or structural damage.

• Do not attempt to switch on power to the machine until all possible unsafe conditions are corrected.

• Assume that an electrical safety hazard is present. Perform all continuity, grounding, and power checks specified during the subsystem installation procedures to ensure that the machine meets safety requirements.

• Do not continue with the inspection if any unsafe conditions are present.

• Disconnect the attached power cords, telecommunications systems, networks, and modems before

you open the device covers, unless instructed otherwise in the installation and configuration procedures.

• Connect and disconnect cables as described in the following procedures when installing, moving,

or opening covers on this product or attached devices.

To disconnect:

1. Turn off everything (unless instructed otherwise).

2. Remove the power cords from the outlets.

3. Remove the signal cables from the connectors.

4. Remove all cables from the devices.

To connect:

1. Turn off everything (unless instructed otherwise).

2. Attach all cables to the devices.

3. Attach the signal cables to the connectors.

4. Attach the power cords to the outlets.

5. Turn on the devices.

• Sharp edges, corners and joints may be present in and around the system. Use care when handling

equipment to avoid cuts, scrapes and pinching. (D005)

DANGER: Heavy equipment — personal injury or equipment damage might result if mishandled.

(D006)

x Slicestor

2584 Appliance Manual

DANGER: Professional movers are to be used for all relocation activities. Serious injury or death

may occur if systems are handled and moved incorrectly. (D008)

DANGER: Serious injury or death can occur if loaded lift tool falls over or if a heavy load falls off

the lift tool. Always completely lower the lift tool load plate and properly secure the load on the lift tool before moving or using the lift tool to lift or move an object. (D010)

CAUTION:

The battery contains lithium. To avoid possible explosion, do not burn or charge the battery. Do not: hrow or immerse into water, heat to more than 100ºC (212ºF), repair or disassemble. (C003)

DANGER: Observe the following precautions when working on or around your IT rack system:

• Heavy equipment—personal injury or equipment damage might result if mishandled.

• Always lower the leveling pads on the rack cabinet.

• Always install stabilizer brackets on the rack cabinet.

• To avoid hazardous conditions due to uneven mechanical loading, always install the heaviest devices in the bottom of the rack cabinet. Always install servers and optional devices starting from the bottom of the rack cabinet.

• Rack-mounted devices are not to be used as shelves or work spaces. Do not place objects on top of rack-mounted devices.

• Each rack cabinet might have more than one power cord. Be sure to disconnect all power cords in the rack cabinet when directed to disconnect power during servicing.

• Connect all devices installed in a rack cabinet to power devices installed in the same rack cabinet. Do not plug a power cord from a device installed in one rack cabinet into a power device installed in a different rack cabinet.

• An electrical outlet that is not correctly wired could place hazardous voltage on the metal parts of the system or the devices that attach to the system. It is the responsibility of the customer to ensure that the outlet is correctly wired and grounded to prevent an electrical shock. (R001 part 1 of 2)

Use the following general safety information for all rack mounted devices:

Safety and environmental notices xi

CAUTION:

• Do not install a unit in a rack where the internal rack ambient temperatures will exceed the manufacturer’s recommended ambient temperature for all your rack-mounted devices.

• Do not install a unit in a rack where the air flow is compromised. Ensure that air flow is not blocked or reduced on any side, front or back of a unit used for air flow through the unit.

• Consideration should be given to the connection of the equipment to the supply circuit so that overloading of the circuits does not compromise the supply wiring or overcurrent protection. To provide the correct power connection to a rack, refer to the rating labels located on the equipment in the rack to determine the total power requirement of the supply circuit.

• (For sliding drawers): Do not pull out or install any drawer or feature if the rack stabilizer brackets are not attached to the rack. Do not pull out more than one drawer at a time. The rack might become unstable if you pull out more than one drawer at a time.

• (For fixed drawers): This drawer is a fixed drawer and must not be moved for servicing unless specified by the manufacturer. Attempting to move the drawer partially or completely out of the rack might cause the rack to become unstable or cause the drawer to fall out of the rack.

(R001 part 2 of 2)

DANGER: Multiple power cords. The product might be equipped with multiple power cords. To

remove all hazardous voltages, disconnect all power cords. (L003)

Environmental notices

This information contains all of the environmental notices for IBM Systems products in English and other languages.

xii Slicestor

2584 Appliance Manual

The IBM Systems Environmental Notices (http://ibm.co/1fBgWFI) information includes statements on limitations, product information, product recycling and disposal, battery information, flat panel display, refrigeration and water-cooling systems, external power supplies, and safety data sheets.

Declared noise emissions

Declared noise emissions in accordance with ISO 9296

(1,2,3)

WAd

(B)

Table 1. Declared noise emissions in accordance with ISO 9296

Declared A-Weighted

Sound Power Level,

Product description

(1, 2, 3)

Declared A-Weighted

Sound Pressure Level,

pAm

Operating Idling Operating Idling

Model S03

8.0 8.0 61 61

@ 25 deg. C room ambient Model S03

9.3 9.3 75 75

@ 35 deg. C room ambient Model S03

7.4 7.4 55 55

@ 25 deg. C room ambient w/Acoustical doors

Feature codes FC EC07 = back FC EC08 = front Model S03

8.7 8.7 69 69

@ 35 deg. C room ambient w/Acoustical doors

Feature codes FC EC07 = back FC EC08 = front Notes:

1. Declared level L

is the upper-limit A-weighted sound power level; Declared level L

WAd

is the mean

pAm

A-weighted sound pressure level measured at the 1-meter bystander positions.

2. All measurements made in conformance with ISO 7779 and declared in conformance with ISO 9296.

3. B, dB, abbreviations for bels and decibels, respectively. 1 B = 10 dB.

(dB)

Safety and environmental notices xiii

xiv Slicestor

2584 Appliance Manual

Support information

For more information on the product or help with troubleshooting, contact IBM Support at IBMCloudStorageSupport@us.ibm.com or visit the Directory of worldwide contacts.

xvi Slicestor

2584 Appliance Manual

Chapter 1. Appliance safety precautions

DANGER: An electrical outlet that is not correctly wired could place hazardous voltage on the

metal parts of the system or the devices that attach to the system. It is the responsibility of the customer to ensure that the outlet is correctly wired and grounded to prevent an electrical shock. (D004)

DANGER: Hazardous voltage present. Voltages present constitute a shock hazard, which can cause

severe injury or death. (L004)

Observe physical, electrical, and electronic component safety precautions.

Introduction

CAUTION: This equipment must be used in the manner that is specified in this document and any related documentation. Failure to do so can bypass the protection that is provided by the equipment.

Damage

If you think the equipment is damaged in any way, remove all external cords and cables and contact your equipment supplier.

Handling

CAUTION: A fully configured Slicestor®SP-2584 enclosure weighs up to 131 kg (288 lb). An unpopulated enclosure weighs 46 kg (101 lb). Use appropriate lifting methods.

Figure 1. Lifting hazard

2 Slicestor

2584 Appliance Manual

Figure 2. Chassis label (FCC compliance)

Before lifting the enclosure, complete the following tasks:

v Unplug all cords and cables from the enclosure. v Remove all DDIC modules from both drawers and make sure that the drawers are closed firmly and

locked shut. See "Locking drawers."

Use a minimum of three people to lift the enclosure.

Use the lifting straps that are supplied with the enclosure. Do not lift the enclosure by the handles on the power supply units, cooling modules, or I/O modules. They are not designed to take the weight.

Do not lift the enclosure higher than 20U (35 in.). Use mechanical assistance to lift above this height.

Operation

Important: All rear modules are part of the fire enclosure and must be removed when a replacement can be immediately inserted.

Important: The enclosure does not receive sufficient airflow or cooling if it is operated with any missing rear modules. Every module bay must be filled either with a module or a blank module.

Chapter 1. Appliance safety precautions 3

Figure 3. Module bay caution label

Replace any defective modules with fully operational units as soon as possible. Do not remove cooling modules, PSUs, or compute modules unless you have a replacement model of the correct type ready for insertion.

CAUTION: To prevent overturning, drawer interlocks stop users from opening both drawers at the same time. Do not attempt to force open a drawer when the other drawer in the enclosure is already open. In a rack with more than one enclosure, do not open more than one drawer per rack at a time.

CAUTION: Operating temperatures inside the enclosure drawers can reach up to 60°C. Take care opening drawers and removing drive carriers.

Figure 4. Hot surface warning label

CAUTION: Due to product acoustics, wear ear protection for any prolonged exposure.

4 Slicestor

2584 Appliance Manual

Figure 5. PSU warning label

Before removing a module, disconnect all power cords and cables.

Do not use open drawers to support any other equipment.

Figure 6. Drawer caution label

Electrical safety

Operate the enclosure from a power supply input voltage range of 200 to 240 VAC, 50 - 60 Hz only.

A suitable power source with electrical overload protection must be provided to meet the requirements in the technical specification.

All power supply cords must have a safe electrical ground connection. Check the connection to ground of the enclosure before you turn on the power supply.

Important: The enclosure must be grounded before applying power.

The plug on the power supply cord is used as the main disconnect device. Ensure that the socket outlets are located near the equipment and are easily accessible.

CAUTION: When powered by multiple AC sources, disconnect all supplied power for complete isolation.

Chapter 1. Appliance safety precautions 5

DANGER

DANGER: Hazardous voltage, current, or energy levels are present inside any component that has

this label attached. Do not open any cover or barrier that contains this label. (L001)

Do not remove covers from the enclosure or any of the modules. There is a danger of electric shock inside. Do not attempt to disassemble the rear subchassis from the enclosure. Return any damaged components to your supplier for repair.

CAUTION: The PSUs contain double pole/neutral fusing. Ensure that your electrical installation can support this type of fusing.

Rack system safety precautions

The enclosure must be mounted in a rack before use.

The rack must support the total weight of the installed enclosures. A fully populated enclosure weighs up to 135 kg (298 lb). The design should incorporate stabilizing features suitable to prevent the rack from tipping or being pushed over during installation or in normal use.

When loading a rack with enclosures, fill the rack from the bottom up. When removing enclosures, empty from the top down.

CAUTION: The enclosure must be mounted into a rack by using the supplied rail kit only. Due to its weight and length, the enclosure must not be flange mounted.

Before mounting the enclosure, remove all DDIC modules from both drawers and make sure that the drawers are closed firmly and locked shut. Do not try to lift the enclosure by yourself (see "Handling").

CAUTION: Never move more than one enclosure out of the rack at any one time. There is a danger of the rack falling over.

The system must be operated with low-pressure rear exhaust installation. The back pressure that is created by the rack doors and obstacles is not to exceed 5 pascals (0.5 mm water gauge).

The minimum open area for the rack doors is 70%.

The rack design should consider the maximum operating ambient temperature for the enclosure, which is 35°C.

The rack must have a safe electrical distribution system. It must provide overcurrent protection for the enclosure and must not be overloaded by the total number of enclosures that are installed in the rack. When addressing these concerns, consideration should be given to the electrical power consumption rating shown on the nameplate.

6 Slicestor

2584 Appliance Manual

The electrical distribution system must provide a reliable ground for each enclosure, and for the rack.

Each PSU in each enclosure has a ground leakage current of 1.6 mA. The design of the electrical distribution system must consider the total ground leakage current from all the PSUs in all the enclosures. The rack must be labeled with the words: “HIGH LEAKAGE CURRENT. Ground connection essential before connecting supply.”

The rack must meet the safety requirements of UL 60950-1 and IEC 60950-1.

Electrostatic discharge (ESD) precautions

Fit and check a suitable anti-static wrist or ankle strap and observe all conventional ESD precautions when handling plug-in modules and components. Avoid contact with backplane components and module connectors.

Regional safety

For North American use, the branch circuit must be rated for 20A.

This equipment is suitable for connection to an IT power system (Norway).

Chapter 1. Appliance safety precautions 7

8 Slicestor

2584 Appliance Manual

Chapter 2. System overview

Chassis

The system is housed in a 5U chassis that contains two drawers of 42 drives each (84 drives in total).

The system is shown in the following figures.

Figure 7. Enclosure front view

The system uses 3.5” SATA drives. Each drive is hot pluggable and can be replaced on site.

The enclosure core product

The Slicestor®design concept is based on an enclosure subsystem together with a set of plug-in modules.

A typical enclosure system for direct dock SATA (as supplied) comprises: v The enclosure chassis has the following parts.

– Two sliding drawers containing Disk Drive In Carrier (DDIC) modules – An operator’s (ops) panel – A front bezel – A midplane PCB into which other components connect

v Two Power Supply Units (PSUs). The system can be operated on a single PSU. v One PSU module blank. v Five cooling modules.

v One compute module. Must be inserted in slot B (RHS). v One compute module blank. v Up to 84 Disk Drive In Carrier (DDIC) modules with SATA drives installed. v A rail kit for rack mounting.

Important: To ensure correct airflow and cooling, all PSU bays and cooling module bays must contain a functioning unit.

Figure 8. AP-TL-1 module locations

Figure 9. AP-LS-1 module locations

Components

The chassis consists of a sheet metal enclosure assembly with an integrated midplane PCB, module runner system, and two drawers for drive modules.

10 Slicestor

2584 Appliance Manual

The chassis has a 19-inch rack mounting that enables it to be installed on to standard 19-inch racks and uses 5 EIA units of rack space (8.75 inches (222 mm)).

Each drawer contains 42 bays for Disk Drives in Carriers (DDICs). DDICs are top-mounted into the drawers.

At the rear, the chassis assembly can accept two PSUs (or one PSU + one PSU blank), one SBB compute module and SBB module blank, and five cooling modules.

Drawers

Each drawer contains 42 slots, each of which accepts a single DDIC containing a 3.5” drive.

Opening a drawer does not interrupt the functioning of the system, and DDICs can be hotswapped while the enclosure continues to operate. However, drawers must not be left open for longer than 2 minutes, otherwise airflow and cooling are compromised.

The drawer is designed to support its own weight, plus the weight of any drives, when fully open.

The following safety features are included:

v To reduce the possibility of toppling, only one drawer can be open at any one time. v The drawer locks into place when opened all the way. To reduce pinching hazards, two latches must be

released before the drawer can be pushed back in.

Data is sent via three baseplanes and a single sideplane that is mounted on the left side of the drawer, with no redundant path available. Power is sent via three baseplanes and two sideplanes, the sideplanes ensures a redundant power path to each drive. The right sidpelane provides power to the drives and does not provide a data path.

Each drawer is locked shut by turning both anti-tamper locks clockwise. Use a screwdriver with a Torx T20 bit (see Figure 8 on page 10). Each side of each drawer has a series of status LEDs, shown in the following figure.

Chapter 2. System overview 11

Figure 10. Drawer LEDs (left side only)

Important: During normal operation, drawers must be kept shut to ensure correct airflow and cooling.

Disk drives in carriers (DDICs)

Each drive is housed in a carrier that enables secure insertion of the drive into the drawer and contains a SAS carrier transition card (used with direct dock SATA).

Figure 11. A disk drive in carrier (DDIC)

12 Slicestor

2584 Appliance Manual

The following hard disk drives are supported: v 3.5” 7200 rpm SATA drive

The drive carrier has a single amber LED that is lit when the drive has a fault.

Chapter 2. System overview 13

Operator’s panel

Figure 12. Enclosure operator’s panel

The left front of the enclosure features an operator’s (ops) panel (shown in previous figure). The panel contains the following indicators:

Unit Identification Display

A numerical display whose primary function is to display the enclosure unit identification number. It can be helpful when setting up and maintaining multiple enclosure systems.

However, a VPD (Vital Product Data) option allows the unit identification display to be configured for other purposes. The display is on by default and displays a value of 0. See "Unit Identification Number".

Mute/Input button

Used to set the unit identification display. See "How To Set the Unit Identification Number".

Power On/Standby LED (green/amber)

Shows amber when the system is in standby (not operational). Shows green when the system is on (operational).

Module Fault LED (amber)

Shows amber when a system hardware fault exists. Additionally, an LED might be lit on a PSU, drawer, DDIC, cooling module, or compute module that helps you identify which component is at fault.

Logical Status LED (amber)

Indicates a change of status or fault from something other than the Enclosure Management (EM) system. It is usually associated with a disk drive and LEDs at each disk drive position help you identify the drive that is affected.

Drawer 1 Fault LED (amber)

Indicates a drive, cable, or sideplane fault in drawer 1.

Drawer 2 Fault LED (amber)

Indicates a drive, cable, or sideplane fault in drawer 2.

The ops panel is a part of the chassis, and is not replaceable on site.

Power supply unit (2200 kW PSU)

Power is provided by two 2200 W PSUs. These units require an input of 200 to 240 VAC at 50 to 60 Hz.

14 Slicestor

2584 Appliance Manual

The following figure shows the PSU.

Figure 13. 2200 W PSU

Dual PSUs provide redundant power for the system. If one PSU fails, the other keeps the system running while you replace the faulty module. The PSUs are hot-swappable. Replacement of a PSU can be performed while the enclosure is running, but the procedure must be completed within 2 minutes of the removal of the defective PSU. Ensure that you have a replacement PSU before you remove the defective PSU.

The enclosure chassis is keyed to prevent PSUs from being inserted upside down.

The back of the PSU has a power switch, three status LEDs, and a socket for the power cord, as shown in the following figure.

Figure 14. PSU LEDs

Power supply unit (2800 kW PSU)

Power is provided by two 2800 W PSUs. These units require an input of 200 to 240 VAC at 50 to 60 Hz.

Chapter 2. System overview 15

The following figure shows the PSU.

Figure 15. 2800 W PSU

The enclosure chassis is keyed to prevent PSUs from being inserted upside down.

The back of the PSU has a power switch, three status LEDs, and a socket for the power cord, as shown in the following figure.

Figure 16. PSU LEDs

Cooling module

The five cooling modules at the rear of the enclosure maintain all system components below their maximum temperature, assuming the ambient temperature is below 95° F (35°C).

16 Slicestor

2584 Appliance Manual

The speed of the fans in the cooling modules is controlled by the SSB compute modules. For more information about the system airflow, see “System airflow.”

Cooling modules can be hot-swapped while the enclosure is still running, assuming that only one module is removed at a time and the swap takes no longer than 2 minutes. Ensure that you have a replacement cooling module before you remove the defective cooling module.

The following figure shows a cooling module.

Figure 17. Cooling module

System airflow

The system must be operated with low-pressure rear exhaust installation. Back pressure that is created by the rack doors and obstacles is not to exceed 5 pascals (0.5 mm water gauge). The cooling system provides sufficient capacity to ensure that maximum temperatures are not exceeded.

The minimum open area for the rack doors is 70%.

Cooling module LEDs

Cooling modules have LEDs for the module status and fan faults.

The following figure shows the LEDs for a cooling module.

Chapter 2. System overview 17

Figure 18. Cooling module LEDs

Table 2. Cooling module LED states

Module OK (green) Fan fault (amber) Status

X Off Fan OK X On Communication lost with fan module controller X On Reported fan speed is out of tolerance On X Module good (battery and fan) X = disregard

Compute modules

The platform has various compute module options. Refer to the specific compute module documentation for details.

All compute modules are mechanically and electrically compliant to the SSB V2 specification.

The following figures show the AP-TL-1 and AP-LS-1 compute modules.

Figure 19. AP-TL-1 module

18 Slicestor

2584 Appliance Manual

Figure 20. AP-LS-1 module

Configured for direct dock SATA, the system operates with one module. The other compute module bay must be filled with a blank module. The presence of compute modules is checked when the power is turned on. The enclosure does not turn on if the compute module is not present. An alarm occurs when incompatible configurations are detected.

The enclosure chassis is keyed to prevent compute modules from being inserted upside down.

Chapter 2. System overview 19

20 Slicestor

2584 Appliance Manual

Chapter 3. Installation

Preparation

Before you start, familiarize yourself with the safety precautions.

Important: Before you attempt to install the system, read the "Safety and environmental notices" section and Chapter 1 of this guide.

The enclosure must be mounted in a rack before use.

Only service personnel should install the system.

ESD precautions

Site requirements

Before you begin, make sure the site where you intend to set up and use your storage system has the following utilities provided and the necessary equipment for a proper installation:

v Standard power from an independent source or a rack power distribution unit with a UPS. v Qty 2: C19 to C20 Power Cords v Rack kit v Torx T20 Screwdriver v 3.5mm to DE-9 Serial cable v Qty 2: Mellanox SFP+s v Qty 2: Mellanox QSAs (AP-TL-1 only)

Note: Refer to your supplier for a list of qualified accessories for use with the enclosure.

The accessory box contains the power cords and other ordered accessories.

Unpacking the system

1. Position the case within 2 m (6 ft) of the site where you intend to use your storage system.

2. Inspect the packaging for crushes, cuts, water damage, or any other evidence of mishandling during

transit. If any damage is seen, photograph the packaging for future reference before opening.

3. Remove the packaging, as shown in the following figure.

Figure 21. Unpacking the system

Installation

First, install the rail kit, then install the modules.

Installing the rail kit

CAUTION: An unpopulated enclosure can weigh up to 46 kg (101 lb). Do not try to lift it by yourself.

Due to the weight of the enclosure, install it without the drive carriers.

The adjustment range of the rail kit, from the inside of the front post to the inside of the rear post is 660 mm - 840 mm. It suits a 1-meter deep rack within Rack Specification IEC 60297.

1. To facilitate access, remove the door from the rack.

2. Ensure that the pre-assembled rails are at their shortest length.

3. Locate the rail location pins inside the front of the rack and extend the length of the rail assembly to

enable the rear location pins to locate. Ensure that the pins are fully located in the square or round

22 Slicestor

2584 Appliance Manual

holes in the rack posts, as shown in the following figure.

Figure 22. Mounting the system into a rack (left rail only)

4. Fully tighten all clamping screws and middle slide locking screws.

5. Ensure the rear spacer clips (x4) are fitted tight to the edge of the rack post.

6. Slide the enclosure fully home on its rails.

7. Fasten the front of the enclosure by using the enclosure fastening screws (x4).

8. Fix the rear of the enclosure to the hold-down bracket with the rear enclosure fixing screws (x2).

Note: Use the long or short hold-down bracket depending on the distance from the rack post to the enclosure hold-down slot. Ensure that the sliding nut is at the rear of the slot before fitting the bracket to the post. Then, slide the nut along the slot to enable the rear enclosure fastening screw to be fitted.

Note: For rack depths where the rack posts are behind the enclosure hold-down slots:

1. Swap the left and right hold-down brackets.

2. Insert the long flange between the rack post and chassis side, as shown in the following figure.

Chapter 3. Installation 23

Figure 23. Rear enclosure mounting

3. The sliding nut head must always face away from the enclosure, whichever configuration is used.

CAUTION: Use only the power cords that are supplied or cords that match the specification in Appendix B, "AC power cords".

CAUTION: After the enclosure is installed in the rack, dispose of the lifting straps. Due to the difficulty in attaching the straps after the enclosure is installed in the rack, the straps are not suitable for removing the enclosure from the rack.

Inserting modules

See the "Module replacement" chapter for the following instructions:

v "Inserting a cooling module" v "Inserting a PSU" v "Inserting an SBB compute module" v "Inserting a DDIC"

Power cord connection

Observe all warnings that are related to power cords.

Important: When more than one PSU is fitted, connect each PSU to separate and independent supplies to assure redundancy.

CAUTION: Always remove the power connections before you remove the PSU from the enclosure.

Grounding checks

The product must be connected to a power source that has a safety electrical ground connection.

CAUTION: If one or more 5U enclosures go into a rack, the importance of the ground connection to the rack increases because the rack has a larger "EARTH LEAKAGE CURRENT" ("TOUCH CURRENT").

Examine the ground connection to the rack before turning it on. An electrical engineer who is qualified for the appropriate local and national standards must do the examination.

24 Slicestor

2584 Appliance Manual

For more information, see "Electrical safety".

Data security

Precautions can help preserve data security.

v Power down your host computer and all attached peripheral devices before beginning installation. v Each enclosure contains up to 84 removable disk drive modules. Disk drives are fragile. Handle them

with care, and keep them away from strong magnetic fields.

v All the supplied plug-in modules must be in place for the air to flow correctly around the enclosure

and also to complete the internal circuitry.

v If the enclosure system is used with missing modules for more than a few minutes, the enclosure can

overheat, causing power failure and data loss. Such use can also invalidate the warranty.

v If you remove a drive module, replace it immediately. If it is faulty, replace it with a drive module of

the same type and capacity.

v Ensure that all disk drives are removed from the enclosure before attempting to manhandle or move

the rack installation.

v Do not abandon your backup routines.

Chapter 3. Installation 25

26 Slicestor

2584 Appliance Manual

Chapter 4. Operation

Before you begin

Before you power on the enclosure, make sure that all the modules are firmly seated in their correct bays.

Power on

Instructions for applying power to the enclosure.

CAUTION: Do not operate the enclosure system until the ambient temperature is within the specified operating range. If the drives were recently installed, make sure that they have time to adjust to the environmental conditions.

1. Connect the power cables to the PSUs.

2. Move all PSU power switches to the on position, as shown in the following figure.

Figure 24. PSU Power Switch and LEDs

3. The system power LED on the ops panel is lit green and the disk drive motors start.

Important: If main power is lost for any reason, the system restarts automatically when power is restored.

Note: For more information about the ops panel LEDs and related fault conditions, see “Ops panel LEDs” on page 28.

Consider the following points when turning PSUs on or off:

v Remove the AC cord before inserting or removing a PSU. v Turn off the PSU switch before inserting or removing the AC cord. v Allow 15 seconds between turning the PSU off and back on again. v Allow 15 seconds between turning one PSU in the system on and the other PSU off. v Never turn off a PSU while any amber LED is lit on the partner PSU. v The enclosure must be left in a powered state for 30 seconds following resumption from standby before

the enclosure can be placed into standby again.

Ops panel LEDs

Ops panel LEDs indicate fault and status conditions.

The following table shows the possible conditions for the LEDs.

The following figure shows the location of the LEDs.

Figure 25. Ops panel LEDs

Table 3. Ops panel LED states

Power Unit ID display

X On Off Off Off Off Aux present, overall

X On On X X X Single beep,

X On Off Off Off Off Power on, all

X On On X Off Off PSU fault LEDs,

X On On X Off Off Compute

X On Flashing X Off Off Enclosure logical

X On Flashing X Off Off Module status

X On Flashing X Off Off PSU fault LEDs,

(green/

amber)

Module fault (amber)

Logical status (amber)

Drawer 1 fault

Drawer 2 fault

Associated LEDs or alarms Status

power failed or off Ops panel power on

then double

fan fault LEDs

module LEDs

LED on compute module

fan fault LEDs

(5s) test state

functions good Any PSU fault, fan

fault, over or under temperature

Any compute module fault

fault such as VPD configuration error

Unknown compute module type installed, I2C Bus failure, or VPD configuration error

Unknown (invalid or mixed) PSU module type installed, or I2C Bus failure (PSU comms)

28 Slicestor

2584 Appliance Manual

Table 3. Ops panel LED states (continued)

Power Unit ID display

X On On X Off Off DDIC fault LED,

X On X Flashing Off Off Arrays in

X On Flashing Flashing Off Off S1 Unit ID number

X On X X On Off Fault LED on

X On X X Off On Fault LED on

Flashing X X X X X SES controlled

X = disregard

(green/

amber)

Module fault (amber)

Logical status (amber)

Drawer 1 fault

Drawer 2 fault

Associated LEDs or alarms Status

Drive failure has drawer fault LED

impacted state

Drawer 1

Drawer 2

occurred causing

loss of availability or

redundancy

Arrays operating

background function

different from "Start

Of Day"

Fault present on

drawer 1 (drive,

cable or fanout card

fault)

Fault present on

drawer 2 (drive,

cable or fanout card

fault)

enclosure identify

Unit identification number

After a unit identification number is set, it is stored in the midplane VPD by the Enclosure Management software and appears when the enclosure is next powered on.

How to set the unit identification number

The unit identification number is not set before the first system power-on. The display is set to “00” (flashing). The enclosure continues to power on even if the unit identification number is not set.

To set the unit identification number, do the following steps.

1. Press and hold the Input switch on the ops panel for 5 seconds. The left digit flashes.

2. Press and release the Input switch to increment the number until the wanted digit is reached.

3. Press and hold the Input switch for 5 seconds. The right digit flashes.

4. Press and release the Input switch to increment the number until the wanted digit is reached.

5. Press and hold the Input switch for 5 seconds to finish setting the number. Values of “01” to “99” are

valid.

In a situation where the VPD cannot be read, or where there is no enclosure management (compute module management failure) the enclosure displays “00”.

Other uses

The unit identification number can also have the following uses:

v Error codes. v Unit location identifier. This function sets the display to flash (3 seconds on, 1 second off) until it is

stopped, either through SES or by pressing the Input switch.

Chapter 4. Operation 29

The unit identification number can be set via other methods. Contact your storage vendor for details. As previously stated, the new setting is applied only after a power cycle. All other functions remain the same as described.

Power down

Shut down the system from within the operating system and then turn off all installed PSUs by moving the power switches to the “Off” position.

Lock the drawers

A drawer can be locked shut by using a screwdriver with a Torx T20 bit to rotate both anti-tamper locks until the red arrows point away from the center of the enclosure.

The following figure shows the locations of the locks.

Figure 26. Anti-tamper locks

30 Slicestor

2584 Appliance Manual

Chapter 5. Troubleshooting

The system includes monitoring and control logic so that it can diagnose problems with power, cooling, PSUs, and drive systems.

Initial start-up problems

When starting the appliance, a number of issues can occur.

Power fault

Ensure that you wired up the enclosure system correctly and that main power is present. Call your supplier for replacements if any of the following situations occur.

v Cords are missing or damaged. v Plugs are incorrect. v Cords are too short.

LEDs

LED colors are used consistently throughout the enclosure and its components to indicate status.

Green Good or positive indication. Flashing green or amber

Non-critical condition.

Amber

Fault.

Note: When the enclosure is powered on, all LEDs light up for a short period to ensure that they are working. This condition does not indicate a fault unless the LEDs remain lit after a few seconds.

PSU LEDs

Figure 27. PSU LEDs

Table 4. PSU LED states

AC Missing

PSU Fail (Amber)

Off Off Off No AC power to either PSU.

(Amber) Power (Green) Status

Table 4. PSU LED states (continued)

AC Missing

PSU Fail (Amber)

On On Off PSU present, but not supplying power or PSU alert

Off Off On Main AC present, switch is on. This PSU is

Off Off Flashing AC power present, PSU in standby (other PSU is

Flashing Flashing Off PSU firmware download Off On Off AC power unavailable, PSU in standby (other PSU

On On On GEM software lost communication with the PSU. On - Off PSU failed. Follow the procedure in "Replacing a

(Amber) Power (Green) Status

state (usually due to critical temperature).

providing power.

providing power).

is providing power).

Power Supply Unit (PSU)".

Cooling module LEDs

Figure 28. Cooling module LEDs

Table 5. Cooling module LED descriptions

LED Description

Module OK Constant green indicates that the fan is working correctly. Off means that the fan

failed. Follow the procedure in “Replace a cooling module” on page 45.

Fan Fault Amber indicates that a fan failed. Follow the procedure in “Replace a cooling

module” on page 45.

Operator’s panel LEDs

The operator’s (ops) panel displays the aggregated status of all the modules, as shown in the following figure.

32 Slicestor

2584 Appliance Manual

Figure 29. Operator’s panel LEDs

Table 6. Ops panel LED descriptions

Display/LED Description

Unit Identification Display Usually shows the identification number for the

enclosure, but can be used for other purposes.

Power On/Standby LED Amber if the system is in standby. Green if the system

has full power.

Module Fault LED Amber indicates a fault in a PSU, cooling module or

compute module. Check the drawer LEDs to see whether a drive fault is indicated (see Drawer LEDs)

Logical Status LED Amber indicates a fault from something other than GEM

(usually a disk drive fault, or a compute module that is failed). Check the drawer LEDs to see whether a drive fault is indicated (see Drawer LEDs).

Drawer 1 Fault LED Amber indicates a drive, cable, or sideplane fault in

drawer 1. Open the drawer and check the disk drive LEDs for faults.

Drawer 2 Fault LED Amber indicates a drive, cable, or sideplane fault in

drawer 2. Open the drawer and check the disk drive LEDs for faults.

Table 7. Ops panel LED states

Unit ID display

Power (green/ amber)

Module fault (amber)

Logical status (amber)

Drawer 1 fault

Drawer 2 fault

Associated LEDs or alarms Status

X On Off Off Off Off Aux present, overall

power failed or off

X On On X X X Single beep,

then double

Ops panel power on

(5s) test state

X On Off Off Off Off Power on, all

functions good

X On On X Off Off PSU fault LEDs,

fan fault LEDs

Any PSU fault, fan

fault, over or under

temperature

Chapter 5. Troubleshooting 33

Table 7. Ops panel LED states (continued)

Power Unit ID display

X On On X Off Off Compute

X On Flashing X Off Off Enclosure logical

X On Flashing X Off Off Module status

X On Flashing X Off Off PSU fault LEDs,

X On On X Off Off DDIC fault LED,

X On X Flashing Off Off Arrays in

X On Flashing Flashing Off Off S1 Unit ID number

X On X X On Off Fault LED on

X On X X Off On Fault LED on

Flashing X X X X X SES controlled

X = disregard

(green/

amber)

Module fault (amber)

Logical status (amber)

Drawer 1 fault

Drawer 2 fault

Associated LEDs or alarms Status

Any compute

module LEDs

LED on compute module

fan fault LEDs

drawer fault LED

impacted state

Drawer 1

Drawer 2

module fault

fault such as VPD configuration error

Unknown compute module type installed, I2C Bus failure, or VPD configuration error

Unknown (invalid or mixed) PSU module type installed, or I2C Bus failure (PSU comms)

Drive failure has occurred causing loss of availability or redundancy

Arrays operating background function

different from "Start Of Day"

Fault present on drawer 1 (drive, cable or fanout card fault)

Fault present on drawer 2 (drive, cable or fanout card fault)

enclosure identify

Drawer LEDs

The following figure shows the names and locations of the disk drawer LEDs.

34 Slicestor

2584 Appliance Manual

Figure 30. Drawer LEDs (left sideplane only)

Table 8. Drawer LED descriptions

LED Description

Sideplane OK/Power Good Green if the sideplane card is working and no power problems exist. Drawer Fault Amber if a drawer component failed. If it is a drive that failed, an amber

LED lights up on the failed drive; follow the procedure in “Replace a disk drive in carrier (DDIC)” on page 43. If the drives are functioning correctly, contact your storage vendor to identify the failure.

Logical Fault Amber for a drive fault. Flashes amber if one or more arrays are in an

impacted state.

Cable Fault Amber if the cabling between the drawer and the back of the enclosure

failed. Contact your storage vendor to resolve the problem.

Activity Bar Graph Shows the amount of data I/O from zero segments lit (no I/O) to all six

segments lit (maximum I/O).

Disk drive in carrier (DDIC) LED

Each disk drive has a single amber drive fault LED as shown in the following figure. When lit, it indicates a drive failure. The drive should be replaced as soon as possible using the procedure described in “Replace a disk drive in carrier (DDIC)” on page 43.

Chapter 5. Troubleshooting 35

Figure 31. Drive Fault LED

Compute Module LEDs

The LEDs on the compute module depend on the type of module in use. The following figure shows the LEDs for a common I/O module, the 6 Gb/s SAS EBOD.

Figure 32. Compute module LEDs

36 Slicestor

2584 Appliance Manual

Note: SAS ports are not supported for any external SAS connections.

The following table shows the possible values for the LEDs.

Table 9. Compute module LED descriptions

LED Description

ID LED Blue when the module is being identified. Fault LED Amber when a fault in the controller exists. For the replacement procedure, see

Replacing an SBB Compute Module.

OK LED Green when the controller is operating correctly.

Flashing green when a controller VPD error exists.

SAS Activity LEDs Steady green indicates a connection but no activity.

Flashing green indicates both connection and activity. Note: SAS ports are not supported for any external SAS connections.

Ethernet status LEDs Left side:

v Off when there is no connection. v Steady green when the network link is active. v Flashing green when there is network activity.

Right side – network speed: v LS controller management port and E12EBD:

– Off: 10/100Mb/s. – Green: 1Gb/s.

v LS controller twin Ethernet ports:

– Off: No link. – Amber: 100Mb/s. – Green: 1Gb/s or 10Gb/s.

POST LEDs Power On Self Test LEDs are used to show the boot progress of the x86

subsystem. If it fails to boot, the LEDs show what stage of the process was being performed when the problem occurred.

Thermal sensors

Thermal sensors throughout the enclosure and its components monitor the thermal health of the storage system. Exceeding the limits of critical values causes the Over-temperature alarm to occur.

Troubleshooting

The module fault LED on the ops panel displays a solid amber color to indicate a fault. All alarms are also reported by using SES.

Table 10. Alarm Conditions

Status Severity

PSU alert – loss of DC power from a single PSU Fault - loss of redundancy Cooling module fan failure Fault - loss of redundancy PSU removed Configuration error Enclosure configuration error (VPD) Fault - critical Low temperature warning Warning

Chapter 5. Troubleshooting 37

Table 10. Alarm Conditions (continued)

Status Severity

High temperature warning Warning Over-temperature alarm Fault - critical Under-temperature alarm Fault - critical I2C bus failure Fault - loss of redundancy Ops panel communication error (I2C) Fault - critical RAID error Fault - critical Drive power control fault Warning; no loss of drive power Drive power control fault Fault - critical; loss of drive power Insufficient power available Warning

For more information on how to remove and replace a module, see Chapter 6, “Module replacement,” on page 41.

Thermal monitoring and control

The system uses extensive thermal monitoring and takes a number of actions to ensure that component temperatures are kept low and also to minimize acoustic noise. Air flows from the front to the rear of the enclosure.

Symptom

If the ambient air is below 77 °F (25 °C) and the fans are observed to increase in speed, then some restriction on airflow might be causing internal temperature rise.

Note: It is not a fault condition.

Cause The first stage in the thermal control process is for the fans to automatically increase in speed

when a thermal threshold is reached. It can be caused by higher ambient temperatures in the local environment and can be perfectly normal.

Note: This threshold changes according to the number of drives and power supplies fitted.

Action

1. Check the installation for any airflow restrictions at either the front or rear of the enclosure. A

minimum gap of 25 mm at the front and 50 mm at the rear is needed.

2. Check for restrictions due to dust buildup. Clean.

3. Check for excessive recirculation of heated air from rear to the front. Use of the enclosure in a

fully enclosed rack is not ideal.

4. Check that all blank modules are in place.

5. Reduce the ambient temperature.

Thermal alarm

Symptom

Ops panel module fault LED is amber.

Cause The internal temperature exceeded a preset threshold. Action

1. Check that the local ambient environment temperature is below the specification (see

“Temperature and humidity” on page 51).

38 Slicestor

2584 Appliance Manual

2. Check the installation for any airflow restrictions at either the front or rear of the enclosure. A

minimum gap of 1 in. (25 mm) at the front and 2 in. (50 mm) at the rear is recommended.

3. Check for restrictions due to dust buildup. Clean.

4. Check for excessive recirculation of heated air from rear to the front. Use of the enclosure in a

fully enclosed rack is not recommended.

5. If possible, shut down the enclosure and investigate the problem.

Hardware faults

Ensure that you obtained a replacement module of the same type before removing any faulty module.

Important: If the enclosure is powered on and you remove a module, replace it immediately. If the system is used with any modules that are missing for more than a few seconds, the enclosure can overheat, causing power failure and data loss. Such action invalidates the warranty.

Important: Observe all conventional ESD precautions when handling modules and components. Avoid contact with midplane components and module connectors.

Chapter 5. Troubleshooting 39

40 Slicestor

2584 Appliance Manual

Chapter 6. Module replacement

Overview

Observe all precautions when replacing modules.

Important: Always have available a replacement or blank module before removing the old module. When you replace a module, you must never leave an empty bay in the rear of the enclosure.

ESD Precautions

Important: Fit and check a suitable anti-static wrist or ankle strap and observe all conventional ESD precautions when handling plug-in modules and components. Avoid contact with midplane and sideplane components, and with module connectors.

Continuous operation during replacement

Your hardware or software enclosure management application determines the capability of replacing a failed disk without loss of access to any file system on the enclosure. Enclosure access and use during this period is uninterrupted. If an enclosure contains two PSUs, one of them can maintain power to the system while the other is replaced.

Field replaceable units (FRUs)

Please refer to the IBM Field Replaceable Units Reference Guide for more information.

The IBM Cloud Object Storage System™Slicestor®2584 does not feature hot swap sideplanes.

General procedures

General procedures include opening and closing drive drawers.

Opening a drawer

1. Make sure the anti-tamper locks are not engaged. The red arrows on the locks point inwards if the

locks are disengaged (see the following figure). Unlock them if necessary by rotating them counterclockwise using a screwdriver with a Torx T20 bit.

Figure 33. Anti-tamper locks (shown disengaged)

2. Push the drawer latches inward and hold them (see the following figure).

Figure 34. Opening the bottom drawer

3. Pull out the drawer all the way until it locks open.

Important: The drawer must not be left open for more than 2 minutes while the enclosure is powered.

42 Slicestor

2584 Appliance Manual

Closing a drawer

1. Press and hold both of the black latches on the sides of the drawer (see the following figure).

Figure 35. Drawer latch

2. Push the drawer in slightly.

3. Release the black latches.

4. Push the drawer all the way back into the enclosure, making sure it clicks home.

Replace a disk drive in carrier (DDIC)

Two steps are needed; removing the existing drive, and replacing it with a new one.

Removing a DDIC

1. Identify which drawer contains the drive to be replaced. If the drive number is known, you can use

the plan in the following figure. If the drive failed, the drive fault LED is lit amber on the relevant drawer.

Figure 36. Drive location plan

Chapter 6. Module replacement 43

2. Open the relevant drawer by using the instructions in "Opening a Drawer".

3. Locate the drive to be replaced, either by using the drive plan in the previous figure or by looking for

the amber LED on the drive that indicates a fault.

4. Push the drive carrier latch in the direction that is shown in the following figure to unlock the drive.

Figure 37. Removing a DDIC

5. Pull the drive upward and out of the drawer.

Important: If you are not going to replace the drive immediately, close the drawer (see "Closing a Drawer") so that correct airflow and cooling are maintained in the enclosure.

Inserting a DDIC

Important: Failed drives must be replaced with approved drives. Contact your storage vendor for details.

1. If the relevant drawer is not already open, open it using the instructions in "Opening a Drawer".

2. Lower the DDIC into the slot, with the drive capacity label facing towards you, as shown in the

following figure.

Figure 38. Installing a DDIC

3. Push the DDIC downwards and hold it down while sliding the drive carrier plate in the direction

shown in the previous figure. This action locks the drive in place.

44 Slicestor

2584 Appliance Manual

4. Check that the release latch has returned to its locked position, as shown in the following figure.

Figure 39. Latch position of a correctly inserted drive

Note: The drawers must be populated with drives in whole rows at a time (three rows of 14 drives per drawer). Observe the following rules:

v The minimum number of drives in an enclosure is 14. v The number of rows must not differ by more than 1 between top and bottom drawers. v The rows must be populated from the front to the rear of the enclosure.

Replace a cooling module

The process involves removing the existing module and inserting a new one.

Removing a cooling module

Important: Before you remove a module, make sure that you have a replacement module to insert.

1. Identify the cooling module to be removed. If the module failed, the fan fault LED displays an amber

color, as shown in the following figure.

Figure 40. Cooling module LEDs

Chapter 6. Module replacement 45

2. As shown in the following two figures, push down and hold the black release latch (1) and pull out

the module by its handle (2).

Figure 41. Removing a Cooling Module (1)

Figure 42. Removing a Cooling Module (2)

Important: The cooling module bay must not be empty for more than 2 minutes while the enclosure is powered.

Inserting a cooling module

1. Rotate the cooling module so that the black release latch and handle are on the right side.

2. Slide the cooling module into its slot until the latch clicks home. The enclosure automatically detects

and uses the new unit.

Replace a power supply unit (PSU)

The process involves removing the existing module and inserting a new one.

Removing a PSU

Important: Before you remove a PSU, make sure that you have a replacement module to insert.

1. Identify the PSU to be removed by using appropriate fault reporting software.

2. As shown in the following two figures, push the red release latch to the right and hold it (1), then

pull out the module by its handle (2).

46 Slicestor

2584 Appliance Manual

Figure 43. Removing a PSU module (1)

Figure 44. Removing a PSU Module (2)

Important: The PSU module bay must not be empty for more than 2 minutes while the enclosure is powered.

Inserting a PSU

1. Rotate the PSU so that the red release latch and handle are on the left side.

2. Slide the PSU into its slot until the latch clicks home. The enclosure automatically detects the new

unit.

Replace a compute module

The process involves removing the existing module and inserting a new one.

Important: Before you remove a compute module, make sure that you have a replacement module to insert.

Removing a compute module

1. Identify the compute module to be removed. If the module failed, the fault LED is lit in an amber

color.

Chapter 6. Module replacement 47

Figure 45. AP-TL-1 compute module LEDs

Figure 46. AP-LS-1 module

2. Make a note of the locations of the cables before you remove them from the compute module.

Note: Various compute modules can be used in the enclosure. As shown in the following two figures, pinch the latch on the module and pull the handle towards you (1). This action levers the module out of its connector on the midplane.

48 Slicestor

2584 Appliance Manual

Figure 47. Removing a module (1).

Figure 48. Removing a module (2).

4. Pull the module out of the enclosure (2).

Inserting a compute module

1. Rotate the compute module so that the release latch is at the bottom.

2. Open the release latch and rotate it to its most open position, as shown in the previous figure.

3. Slide the compute module into its slot until it goes no farther and the handle starts to close.

4. Close the latch until it clicks home. It levers the module home into its connector on the midplane. The

enclosure automatically detects the new unit.

5. Connect the cables to the new module. If necessary, refer to the note you made before you removed

the cables from the defective compute module.

Chapter 6. Module replacement 49

Battery removal

To remove the Onboard battery, follow these steps:

1. Power off your system and unplug your power cable.

2. Remove compute module from chassis.

3. Locate the Onboard battery inside of the compute module.

4. Use one finger to tilt the battery horizontally out of its socket, pushing it away from the socket.

5. Use your thumb and index finger to lift the battery from the socket.

Figure 49. Remove the battery

CAUTION: Handle used batteries carefully. Do not damage the battery in any way; a damaged battery can release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Refer to the IBM Systems Environmental Notices for battery disposal guidelines.

50 Slicestor

2584 Appliance Manual

Appendix A. Technical specifications

Dimensions

The table shows the dimensions of the enclosure.

Table 11. Enclosure dimensions

Dimension Inches Millimeters

Height (enclosure, overall) 8.75 222.3 Width across mounting flange 19 482.6 Depth from rear of front flanges to rear extremity of chassis 36 915

Components (fully populated)

The table shows the components that populate the enclosure.

Table 12. Components

Component Quantity

Drawers 2 Disk Drives In Carriers (DDICs) 84 Compute module 1 PSUs 2 Cooling modules 5

Thermal

The table shows the specifications for the thermal sensors.

Table 13. Thermal specifications

Specification Quantity

Thermal sensors 1 per drawer baseplane (three baseplanes per drawer)

2 per power supply

Airflow with all fans running 4.24 cubic feet (120 liters) per second maximum

Temperature and humidity

The table shows the temperature and humidity limits for the enclosure.

Table 14. Temperature and humidity limits

Factor Operating Non-operating

Temperature range 41°F (5°C) to 95°F (35°C) -40°F (-40°C) to 158°F (70°C) Relative humidity 20%rh to 80%rh non-condensing 5%rh to 100%rh non-condensing Maximum wet bulb 82°F (28°C) 84°F (29°C)

Cooling modules

Each of the five cooling modules contains two stacked fans: 80 mm x 80 mm x 38 mm.

AP-TL-1 and AP-LS-1 compute modules

The specifications table for the compute modules.

Table 15. Compute canister specifications

AP-TL-1 AP-LS Family Module Type Application platform (AP) Application platform (AP) CPU Options Intel “Sandy Bridge-EP” Xeon

v E5-2609 4-core 2.4GHz (80W)

v E5-2630L 6-core 2.0GHz (60W)

v E5-2648L 8-core 1.8GHz (70W)

Intel “Ivy Bridge-EP” Xeon

v E5-2609 v2 4-core 2.5GHz (80W)

v E5-2618L v2 6-core 2.0GHz (50W)

v E5-2630 v2 6-core 2.6GHz (80W)

AP-LS-1 is designed to support the Intel Haswell-EP and Broadwell-EP CPUs.

v E5-2648L v2 10-core 1.9GHz (70W) RAM Options DDR3 VLP DIMMs DDR4DIMMs (including support for

RDIMMs and ECC RAM)2

Boot Drive SATA SSD 1or 2 x internal NGFF M.2 mSATA

SSD

Expansion Cards 1PCIe x8 card (half length, half

height, custom bezel)

Battery None Metis Redundant Battery solution

Interfaces

SAS 1x External SAS Ports x 6Gb/s (4

laneseach)

Ethernet 2 x 1Gb 3 x 1Gb Fibre Channel None None USB 2 x USB 2.0 2 x USB 3.0 HDMI None 1 Type D (Micro) Serial (3.5mm) 1 1

Other interfaces can be added to LS controllers by using a PCIe expansion card or the Daughter Card Slot – but

these are factory options.

“LS1”: 1 half length, half height PCIeslot and a Daughter Card slot (based on PCIe) sized specifically for use in LS.

2x Internal SAS ports x 12Gb/s (4 lanes each), 2 x External SAS ports x 12Gb/s (4 lanes each)

52 Slicestor

2584 Appliance Manual

Power supply unit (2200 kW PSU)

The table shows the specifications of the PSU.

Table 16. PSU specifications

Category Value

Output power 2214 W maximum continuous output power at high line

voltage

Voltage +12 V at 183A (2214 W)

+5 V standby voltage at 2.7A Input voltage range 200 - 240 VAC Input frequency 50 - 60 Hz Power factor correction >0.95 @ ≥50% load Efficiency 82% at 10% load

90% at 20% load

94% at 50% load

91% at 100% load Holdup time > 20ms Main power inlet connector IEC60320 C20 with cable retention Weight 3 kg

Power supply unit (2800 kW PSU)

The table shows the specifications of the PSU.

Table 17. PSU specifications

Category Value

Output power 2814 W maximum continuous output power at high line

voltage Voltage +12 V at 233.4A (2800 W)

+5 V standby voltage at 2.7A Input voltage range 200 - 240 VAC Input frequency 50 - 60 Hz Power factor correction >0.95 @ 100% load Efficiency 80% at 10% load

88% at 20% load

92% at 50% load

88% at 100% load Holdup time 5 ms from ACOKn high to rails out of regulation (see v2

specification). Main power inlet connector IEC320-C20 with cable retention Weight 4 kg

Appendix A. Technical specifications 53

Supported drives

The table shows the supported drives for the enclosure.

Table 18. Supported disk drives

Type Description

Hard disk drives (HDD) 3.5” 7200 rpm SATA drive

Contact your storage vendor for details of other hard disk drives that are available for use in the system.

Shock and vibration tolerance

The table shows the shock tolerance for the enclosure.

Table 19. Shock and vibration tolerance

Type Tolerance

Operational vibration 0.21 g RMS, 5 - 500 Hz random with <10% throughput

loss Operational shock 5 g 10 ms ½sine Relocation vibration (non-operational) 0.3 g, 2 - 200 to 2 Hz swept sine Non-operational vibration 1.04 g RMS, 2 - 200 Hz random Non-operational shock 20 g 10 ms ½sine

54 Slicestor

2584 Appliance Manual

Appendix B. Standards and regulations

The appliance is designed to comply with the standards and regulations enumerated in sections below. This compliance includes any sample units.

EMC qualification

Slicestor®2584 meets a number of EMC standards.

Slicestor®2584 carries EMC approval for the following territories:

v Australia/New Zealand v Canada v European Union v United States of America v Taiwan (CNS 13438-2006)

Conducted emission limit levels

Slicestor®2584 complies with the following EMC conducted emission limit standards to a greater than 6dB margin:

v EN 55022:2006 including A1:2007 / CISPR 22-Class A v United States CFR47 Part 15: Radio Frequency Devices, Subpart B: Unintentional Radiators, Class A

Class A labeling is used.

Radiated emissions limit levels

Slicestor®2584 complies with the following EMC radiated emission limit standards to a greater than 6dB margin:

v EN 55022:2006 including A1:2007 / CISPR 22-Class A v Individual shelves and towers comply with United States CFR47 Part 15: Radio Frequency Devices,

Subpart B: Unintentional Radiators, Class A

Class A labeling is used.

Harmonics

EMC harmonics are in accordance with EN 61000-3-2:2006.

Flicker

EMC flicker is in accordance with EN 61000-3-3:2008.

Immunity limit levels

EMC immunity is in accordance with European standard EN 50024:1998 including A1:2001 and A2:2003.

Acoustics

Slicestor®2584 produces an operating sound power of < LWAd 8.2 Bels (re 1pW) at an ambient temperature of 73°F (23°C).

AC power cords

If supplying your own power cord, you must meet a number of specifications.

Table 20. Power cord specifications

Country Cord type Plug (AC source) Socket (PSU socket) Comments

USA SJT or SVT, 12 AWG

minimum, 3 conductor

Europe & Others Harmonized,

H05-VVF-3G2.5

IEC 320 C20, 250V, 20A or a suitable plug rated 250V, 20A

IEC 320 C20, 250V, 16A or a suitable plug rated 250V, 16A

IEC 320 C19, 250V, 20A

IEC 320 C19, 250V, 16A

Must be NRTL LISTED (National Recognized Test Laboratory, such as UL)

Important: The plug and the complete power cord assembly must meet the standards appropriate to the country, and must have safety approvals acceptable in that country.

SMM Phase

POST Codes – SMM Phase

Table 21. POST Codes – SMM Phase

Description Value SMM_IDENTIFY_FLASH_DEVICE 0xA0 SMM_SMM_PLATFORM_INIT 0xA2 SMM_ACPI_ENABLE_START 0xA6 SMM_ACPI_ENABLE_END 0xA7 SMM_S1_SLEEP_CALLBACK 0xA1 SMM_S3_SLEEP_CALLBACK 0xA3 SMM_S4_SLEEP_CALLBACK 0xA4 SMM_S5_SLEEP_CALLBACK 0xA5 SMM_ACPI_DISABLE_START 0xA8 SMM_ACPI_DISABLE_END 0xA9

56 Slicestor

2584 Appliance Manual

Appendix C. Post Codes

List of POST Codes.

SEC Phase

POST Codes – SEC Phase

Table 22. POST Codes – SEC Phase

Description Value SEC_SYSTEM_POWER_ON 0x01 SEC_BEFORE_MICROCODE_PATCH 0x02 SEC_AFTER_MICROCODE_PATCH 0x03 SEC_ACCESS_CSR 0x04 SEC_GENERIC_MSRINIT 0x05 SEC_CPU_SPEEDCFG 0x06 SEC_SETUP_CAR_OK 0x07 SEC_FORCE_MAX_RATIO 0x08 SEC_GO_TO_SECSTARTUP 0x09 SEC_GO_TO_PEICORE 0x0A

DXE Phase

POST Codes – DXE Phase

Table 23. POST Codes – BDS Phase

Description Value DXE_TCGDXE 0x40 DXE_SB_SPI_INIT 0x41 DXE_CF9_RESET 0x42 DXE_SB_SERIAL_GPIO_INIT 0x43 DXE_SMMACCESS 0x44 DXE_NB_INIT 0x45 DXE_SIO_INIT 0x46 DXE_LEGACY_REGION 0x47 DXE_SB_INIT 0x48 DXE_IDENTIFY_FLASH_DEVICE 0x49 DXE_FTW_INIT 0x4A DXE_VARIABLE_INIT 0x4B DXE_VARIABLE_INIT_FAIL 0x4C DXE_MTC_INIT 0x4D DXE_CPU_INIT 0x4E DXE_MP_CPU_INIT 0x4F

Table 23. POST Codes – BDS Phase (continued)

DXE_SMBUS_INIT 0x50 DXE_SMART_TIMER_INIT 0x51 DXE_PCRTC_INIT 0x52 DXE_SATA_INIT 0x53 DXE_SMM_CONTROLER_INIT 0x54 DXE_LEGACY_INTERRUPT 0x55 DXE_RELOCATE_SMBASE 0x56 DXE_FIRST_SMI 0x57 DXE_VTD_INIT 0x58 DXE_BEFORE_CSM16_INIT 0x59 DXE_AFTER_CSM16_INIT 0x5A DXE_LOAD_ACPI_TABLE 0x5B DXE_SB_DISPATCH 0x5C DXE_SB_IOTRAP_INIT 0x5D DXE_SUBCLASS_DRIVER 0x5E DXE_PPM_INIT 0x5F DXE_HECIDRV_INIT 0x60 DXE_VARIABLE_RECLAIM 0x61 DXE_FLASH_PART_NONSUPPORT 0x62

BDS Phase

POST Codes – BDS Phase

Table 24. POST Codes – BDS Phase

Description Value BDS_ENTER_BDS 0x10 BDS_INSTALL_HOTKEY 0x11 BDS_ASF_INIT 0x12 BDS_PCI_ENUMERATION_START 0x13 BDS_BEFORE_PCIIO_INSTALL 0x14 BDS_PCI_ENUMERATION_END 0x15 BDS_CONNECT_CONSOLE_IN 0x16 BDS_CONNECT_CONSOLE_OUT 0x17 BDS_CONNECT_STD_ERR 0x18 BDS_CONNECT_USB_HC 0x19 BDS_CONNECT_USB_BUS 0x1A BDS_CONNECT_USB_DEVICE 0x1B BDS_NO_CONSOLE_ACTION 0x1C BDS_DISPLAY_LOGO_SYSTEM_INFO 0x1D BDS_START_IDE_CONTROLLER 0x1E BDS_START_SATA_CONTROLLER 0x1F

58 Slicestor

2584 Appliance Manual

Table 24. POST Codes – BDS Phase (continued)

BDS_START_ISA_ACPI_CONTROLLER 0x20 BDS_START_ISA_BUS 0x21 BDS_START_ISA_FDD 0x22 BDS_START_ISA_SEIRAL 0x23 BDS_START_IDE_BUS 0x24 BDS_START_AHCI_BUS 0x25 BDS_CONNECT_LEGACY_ROM 0x26 BDS_ENUMERATE_ALL_BOOT_OPTION 0x27 BDS_END_OF_BOOT_SELECTION 0x28 BDS_ENTER_SETUP 0x29 BDS_ENTER_BOOT_MANAGER 0x2A BDS_BOOT_DEVICE_SELECT 0x2B BDS_EFI64_SHADOW_ALL_LEGACY_RO M 0x2C BDS_ACPI_S3SAVE 0x2D BDS_READY_TO_BOOT_EVENT 0x2E BDS_GO_LEGACY_BOOT 0x2F BDS_GO_UEFI_BOOT 0x30 BDS_LEGACY16_PREPARE_TO_BOOT 0x31 BDS_EXIT_BOOT_SERVICES 0x32 BDS_LEGACY_BOOT_EVENT 0x33 BDS_ENTER_LEGACY_16_BOOT 0x34 BDS_RECOVERY_START_FLASH 0x35 BDS_START_SDHC_BUS 0x36 BDS_CONNECT_ATA_LEGACY 0x37 BDS_CONNECT_SD_LEGACY 0x38 POST_BDS_NO_BOOT_DEVICE 0xF9 POST_BDS_START_IMAGE 0xFB POST_BDS_ENTER_INT19 0xFD POST_BDS_JUMP_BOOT_SECTOR 0xFE

SMM Phase

POST Codes – SMM Phase

Table 25. POST Codes – SMM Phase

Description Value SMM_IDENTIFY_FLASH_DEVICE 0xA0 SMM_SMM_PLATFORM_INIT 0xA2 SMM_ACPI_ENABLE_START 0xA6 SMM_ACPI_ENABLE_END 0xA7 SMM_S1_SLEEP_CALLBACK 0xA1 SMM_S3_SLEEP_CALLBACK 0xA3

Appendix C. Post Codes 59

Table 25. POST Codes – SMM Phase (continued)

SMM_S4_SLEEP_CALLBACK 0xA4 SMM_S5_SLEEP_CALLBACK 0xA5 SMM_ACPI_DISABLE_START 0xA8 SMM_ACPI_DISABLE_END 0xA9

60 Slicestor

2584 Appliance Manual

Notices

This information was developed for products and services offered in the US. This material might be available from IBM in other languages. However, you may be required to own a copy of the product or product version in that language in order to access it.

IBM may not offer the products, services, or features discussed in this document in other countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any non-IBM product, program, or service.

IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not grant you any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing IBM Corporation North Castle Drive Armonk, NY 10504-1785 U.S.A.

For license inquiries regarding double-byte character set (DBCS) information, contact the IBM Intellectual Property Department in your country or send inquiries, in writing, to:

Intellectual Property Licensing Legal and Intellectual Property Law IBM Japan, Ltd. 19-21, Nihonbashi-Hakozakicho, Chuo-ku Tokyo 103-8510, Japan

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

Any references in this information to non-IBM websites are provided for convenience only and do not in any manner serve as an endorsement of those websites. The materials at those websites are not part of the materials for this IBM product and use of those websites is at your own risk.

IBM may use or distribute any of the information you provide in any way it believes appropriate without incurring any obligation to you.

Licensees of this program who wish to have information about it for the purpose of enabling: (i) the exchange of information between independently created programs and other programs (including this one) and (ii) the mutual use of the information which has been exchanged, should contact:

IBM Director of Licensing IBM Corporation North Castle Drive, MD-NC119 Armonk, NY 10504-1785 US

Such information may be available, subject to appropriate terms and conditions, including in some cases, payment of a fee.

The licensed program described in this document and all licensed material available for it are provided by IBM under terms of the IBM Customer Agreement, IBM International Program License Agreement or any equivalent agreement between us.

The performance data discussed herein is presented as derived under specific operating conditions. Actual results may vary.

Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products.

Statements regarding IBM's future direction or intent are subject to change or withdrawal without notice, and represent goals and objectives only.

All IBM prices shown are IBM's suggested retail prices, are current and are subject to change without notice. Dealer prices may vary.

This information is for planning purposes only. The information herein is subject to change before the products described become available.

This information contains examples of data and reports used in daily business operations. To illustrate them as completely as possible, the examples include the names of individuals, companies, brands, and products. All of these names are fictitious and any similarity to the names and addresses used by an actual business enterprise is entirely coincidental.

This information contains sample application programs in source language, which illustrate programming techniques on various operating platforms. You may copy, modify, and distribute these sample programs in any form without payment to IBM, for the purposes of developing, using, marketing or distributing application programs conforming to the application programming interface for the operating platform for which the sample programs are written. These examples have not been thoroughly tested under all conditions. IBM, therefore, cannot guarantee or imply reliability, serviceability, or function of these programs. The sample programs are provided "AS IS", without warranty of any kind. IBM shall not be liable for any damages arising out of your use of the sample programs.

If you are viewing this information softcopy, the photographs and color illustrations may not appear.

62 Slicestor

2584 Appliance Manual

Trademarks

IBM, the IBM logo, and ibm.com®are trademarks or registered trademarks of International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the web at Copyright and trademark information at www.ibm.com/legal/copytrade.shtml.

Accesser®, Cleversafe®, ClevOS™, Dispersed Storage®, dsNet®, IBM Cloud Object Storage Accesser®, IBM Cloud Object Storage Dedicated™, IBM Cloud Object Storage Insight™, IBM Cloud Object Storage Manager™, IBM Cloud Object Storage Slicestor®, IBM Cloud Object Storage Standard™, IBM Cloud Object Storage System™, IBM Cloud Object Storage Vault™, SecureSlice™, and Slicestor®are trademarks or registered trademarks of Cleversafe, an IBM Company and/or International Business Machines Corp.

Other product and service names might be trademarks of IBM or other companies.

Homologation statement

This product may not be certified in your country for connection by any means whatsoever to interfaces of public telecommunications networks. Further certification may be required by law prior to making any such connection. Contact an IBM representative or reseller for any questions.

Notices 63

64 Slicestor

2584 Appliance Manual

IBM®

Printed in USA

Ibm 2584 User Manual
