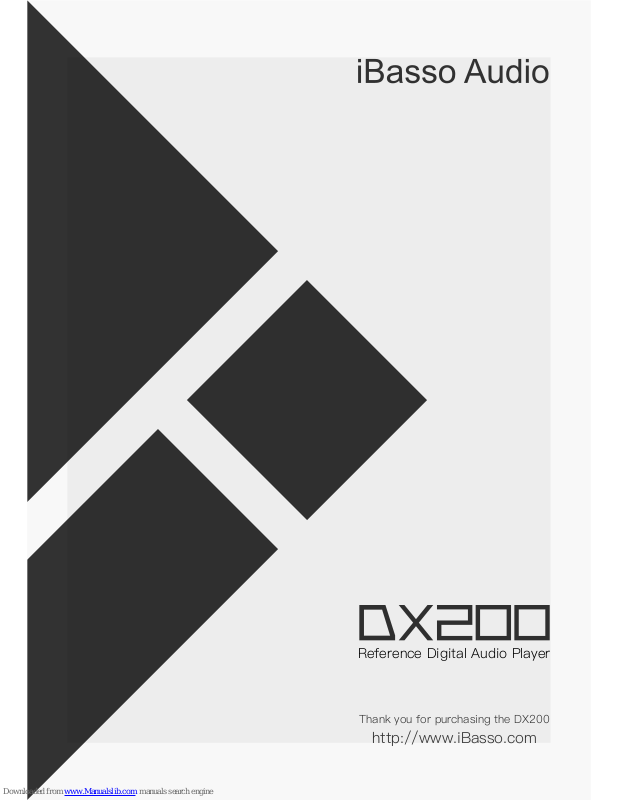

iBasso DX200 User Manual

Thank you for purchasing the DX200

http://www.iBasso.com

Reference Digital Audio Player

Contents

Package components 1-2

Main Features 3-4

Specifications 5

Names of Parts & Functions 6-10

Basic Operation 11-12

Power on/off; Power on/off the screen;
Reset; Charging; USB-DAC function

Android Basic Features 13-17
Introduction

WiFi Connection; Application Installation;
App, to uninstall; USB Connections; Firmware update;
Power off, reboot, and system switching

Mango Player Application 18-20
Introduction

Package components

DX200 Player

Leather Case

Type-C cable

Coaxial cable

Balanced Burn-in cable

Quick Start Guide

Warranty card

DX200 Player：

DX200 Reference Digital Audio Player.

Leather Case:

Use the leather case to protect the DX200’s
chassisfrom scratches.

Quick Start Guide:

This reviews the basic functions of the DX200.

Warranty card:

The warranty will be requested at the time of
warranty repair. Please retain the warranty card.

Type-C cable:

Connect the Type-C cable to a computer for
Charging, data transfer, and USB-DAC function.

Balanced Burn-in cable:

Plug the burn-in cable into the BAL out socket,
and keep playing music to burn-in the DX200.
The burn-in process helps the DX200's sound
reach its full potential by forming the capacitors
and stabilizing the electronic components used.

Coaxial cable:

Connect the coaxial cable to an external DAC,
to allow the DX200 working as a digital transport.

Main Features

- Dual SABRE ES9028PRO DAC Chips.

- Bit for Bit Playback Support up to 32bit/384
kHz.

- Support of Native DSD up to 512x.

-

XMOS USB Receiver with Thesycon USB Audio

Driver, Easy to use USB DAC.

- Dual Accusilicon Ultra Low Phase Noise
Femtosecond Oscillators.

- 4.2" IPS Screen (768*1280) with Capacitive
Touch Panel, Bonded by OCA.

- Mini Optical Output and Mini Coaxial Output.

- 8-core CPU.

- 2GB LPDDR3.

- 64G of Internal Memory.

- 5G WiFi and Bluetooth4.0.

- Patented User Exchangeable AMP Card.

-

Three Physical Buttons (Previous, Play/Pauses,

Next)

- 150-Steps Digital Volume Control.

- Audio Formats Supported: APE, FLAC,WAV,
WMA, AAC, ALAC, AIFF, OGG, MP3, DFF,
DSF, DXD.

- Support for M3U Playlist

- 4400mAh 3.8V Li-Polymer battery (Play time
vary with AMP card)

Specifications

2.5mm Balanced Output:

Output voltage 6Vrms
Frequency Response: 20Hz-20KHz -0.16dB

Signal to Noise Ratio：125dB

Crosstalk: -122dB

THD+N: < 0.0002%, -114dB (64Ω@3Vrms)

3.5mm HP Output:

Output voltage 3Vrms
Frequency Response: 20Hz-20KHz -0.16dB

Signal to Noise Ratio：122dB

Crosstalk: -118dB

THD+N: < 0.00032%,-110dB (32Ω@1.8Vrms)

Lineout:

Output voltage 3Vrms
Frequency Response: 20Hz-20KHz -0.16dB

Signal to Noise Ratio：122dB

THD+N: < 0.00025%,-112dB

Screen Size: 4.2inch 768*1280
Battery Capacity: 4400mAh
Case Dimension: 5.1L x 2.7W x 0.77H (inch)

128.5L x 69W x 19.5H (mm)

Weight: 240g or 8.5oz
