SI-613

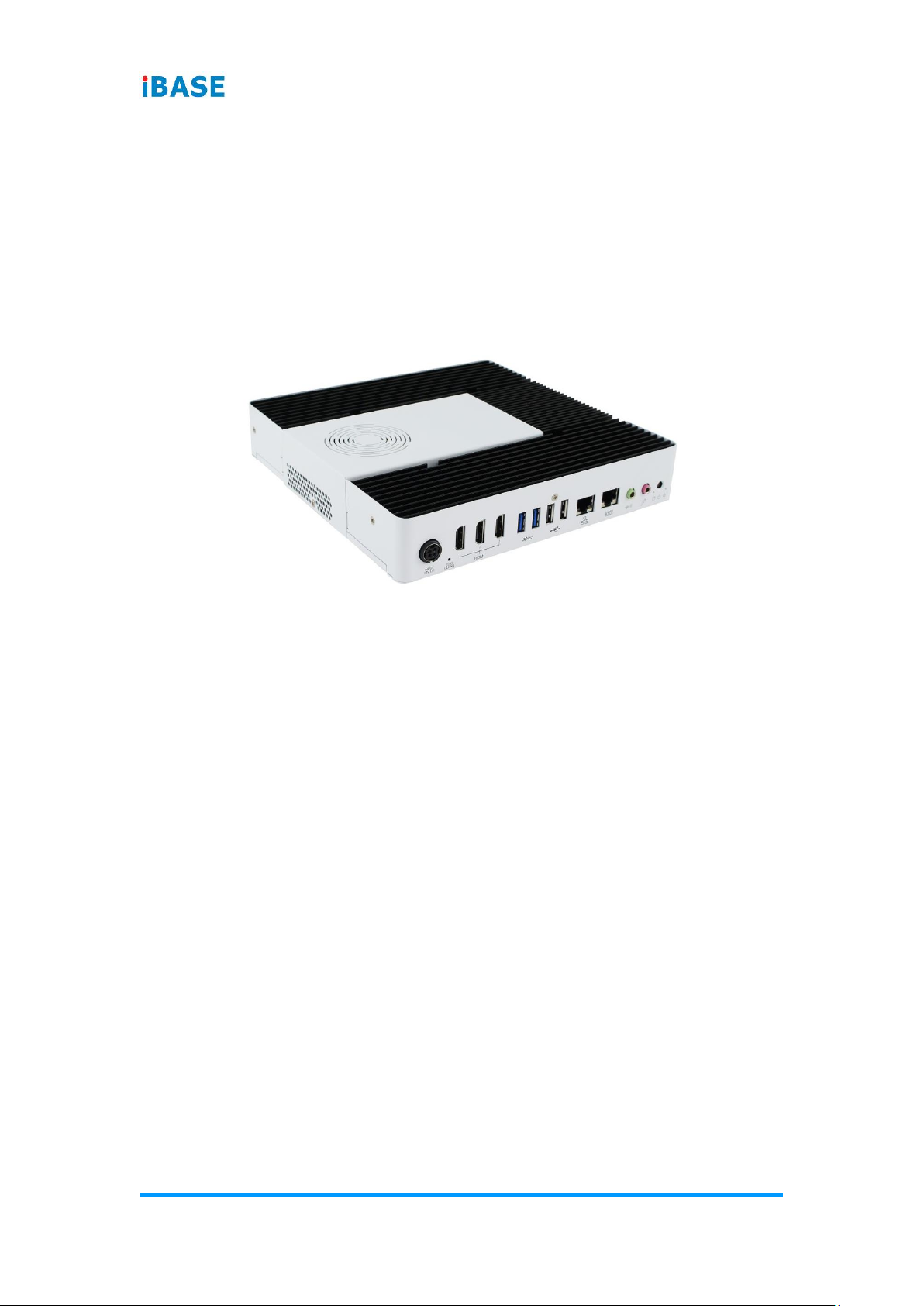

Book-Size Digital Signage Player
User’s Manual
Version 1.0
(May 2017)
ii
SI-613 User Manual
Copyright
© 2017 IBASE Technology, Inc. All rights reserved.
No part of this publication may be reproduced, copied, stored in a retrieval system, translated
into any language or transmitted in any form or by any means, electronic, mechanical,
photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc.
(hereinafter referred to as “IBASE”).
Disclaimer
IBASE reserves the right to make changes and improvements to the products described in
this document without prior notice. Every effort has been made to ensure the information in
the document is correct; however, IBASE does not guarantee this document is error-free.
IBASE assumes no liability for incidental or consequential damages arising from
misapplication or inability to use the product or the information contained herein, nor for any
infringements of rights of third parties, which may result from its use.
Trademarks
All the trademarks, registrations and brands mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
SI-613 User Manual
iii
Compliance
In a domestic environment, this product may cause radio interference in which case
users may be required to take adequate measures.
This product has been tested and found to comply with the limits for a Class B
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with manufacturer’s instructions, may cause
harmful interference to radio communications.
WEEE
This product must not be disposed of as normal household waste, in
accordance with the EU directive of for waste electrical and electronic
equipment (WEEE - 2012/19/EU). Instead, it should be disposed of by
returning it to a municipal recycling collection point. Check local
regulations for disposal of electronic products.
Green IBASE
This product is compliant with the current RoHS restrictions and
prohibits use of the following substances in concentrations exceeding
0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by
weight (100 ppm).
• Lead (Pb)
• Mercury (Hg)
• Cadmium (Cd)
• Hexavalent chromium (Cr6+)
• Polybrominated biphenyls (PBB)
• Polybrominated diphenyl ether (PBDE)
iv
SI-613 User Manual
Important Safety Information
Carefully read the precautions before using the device.
Environmental conditions:
• Lay the device horizontally on a stable and solid surface in case the device may
fall, causing serious damage.
• Leave plenty of space around the device and do not block the openings for
ventilation. NEVER DROP OR INSERT ANY OBJECTS OF ANY KIND INTO
THE VENTIILATION OPENINGS.
• Slots and openings on the chassis are for ventilation. Do not block or cover these
openings. Make sure you leave plenty of space around the device for ventilation.
NEVER INSERT OBJECTS OF ANY KIND INTO THE VENTILATIN OPENINGS.
• Use this product in environments with ambient temperatures between 0˚C and
45˚C (CPU TDP ≤ 45W), or between 0˚C and 40˚C (CPU TDP = 65W).
• DO NOT LEAVE THIS DEVICE IN AN ENVIRONMENT WHERE THE
STORAGE TEMPERATURE MAY IS BELOW -20° C OR ABOVE 80° C. This
could damage the device. The device must be used in a controlled environment.
Care for your IBASE products:
• Before cleaning the device, turn it off and unplug all cables such as power in case
a small amount of electrical current may still flow.
• Use neutral cleaning agents or diluted alcohol to clean the device chassis with a
cloth. Then wipe the chassis with a dry cloth.
• Vacuum the dust with a computer vacuum cleaner to prevent the air vent or slots
from being clogged.
WARNING
Attention during use:
• Do not use this product near water.
• Do not spill water or any other liquids on your device.
• Do not place heavy objects on the top of the device.
• Operate this device from the type of power indicated on the marking label. If you
are not sure of the type of power available, consult your distributor or local
power company.
• Do not walk on the power cord or allow anything to rest on it.
• If you use an extension cord, make sure that the total ampere rating of the
product plugged into the extension cord does not exceed its limits.
Avoid Disassembly
You are not suggested to disassemble, repair or make any modification to the device.
Disassembly, modification, or any attempt at repair could generate hazards and
cause damage to the device, even bodily injury or property damage, and will void any
warranty.
SI-613 User Manual
v
CAUTION
Danger of explosion if internal lithium-ion battery is replaced by an incorrect type.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
Warranty Policy
• IBASE standard products:
24-month (2-year) warranty from the date of shipment. If the date of shipment
cannot be ascertained, the product serial numbers can be used to determine
the approximate shipping date.
• 3rd-party parts:
12-month (1-year) warranty from delivery for the 3rd-party parts that are not
manufactured by IBASE, such as CPU, CPU cooler, memory, storage devices,
power adapter, panel and touchscreen.
＊ PRODUCTS, HOWEVER, THAT FAIL DUE TO MISUSE, ACCIDENT,
IMPROPER INSTALLATION OR UNAUTHORIZED REPAIR SHALL BE
TREATED AS OUT OF WARRANTY AND CUSTOMERS SHALL BE BILLED
FOR REPAIR AND SHIPPING CHARGES.
Technical Support & Services
1. Visit the IBASE website at www.ibase.com.tw to find the latest information about
the product.
2. If you need any further assistance from your distributor or sales representative,
prepare the following information of your product and elaborate upon the
problem.
• Product model name
• Product serial number
• Detailed description of the problem
• The error messages in text or in screenshots if there is any
• The arrangement of the peripherals
• Software in use (such as OS and application software, including the version
numbers)
3. If repair service is required, you can download the RMA form at
http://www.ibase.com.tw/english/Supports/RMAService/. Fill out the form and
contact your distributor or sales representative.
vi
SI-613 User Manual
Table of Contents
Compliance.................................................................................................... iii
Important Safety Information ....................................................................... iv
WARNING ...................................................................................................... iv
CAUTION ........................................................................................................ v
Warranty Policy .............................................................................................. v
Technical Support & Services ...................................................................... v
Chapter 1 General Information ................................................................ 1
1.1 Introduction ............................................................................................. 2
1.2 Features .................................................................................................. 2

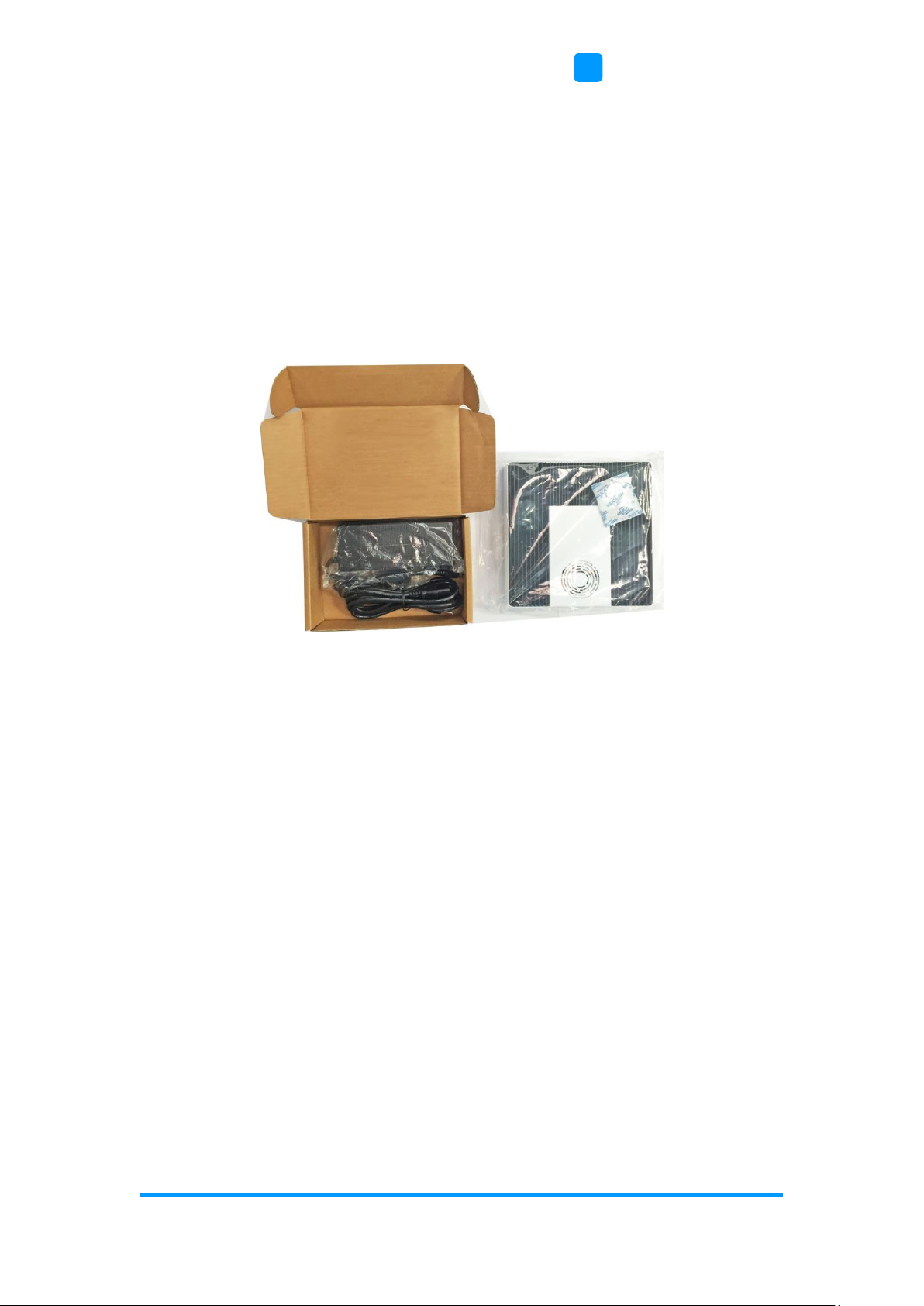

1.3 Packing List ............................................................................................ 3
1.4 Optional Accessories .............................................................................. 3
1.5 Specifications .......................................................................................... 4

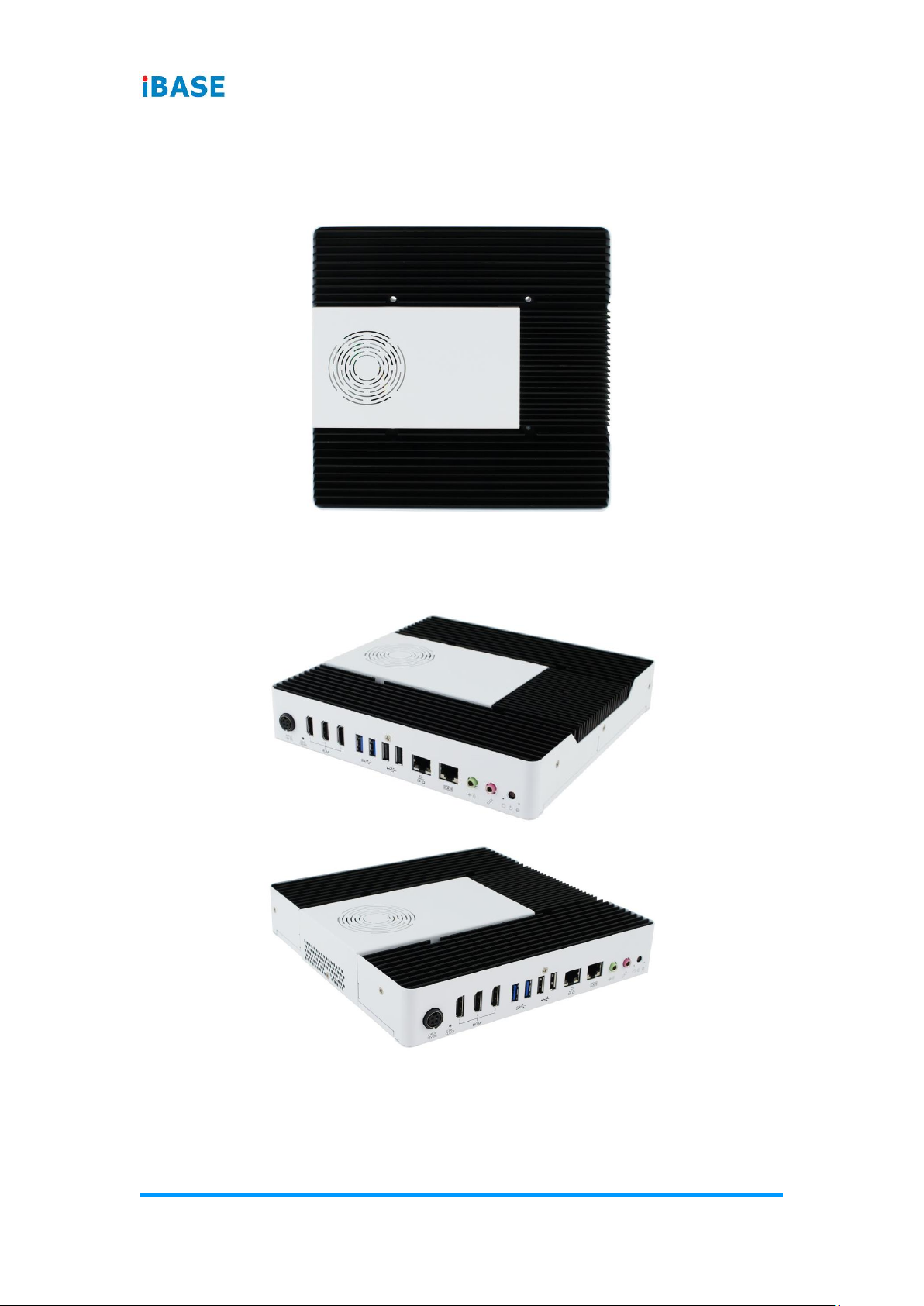

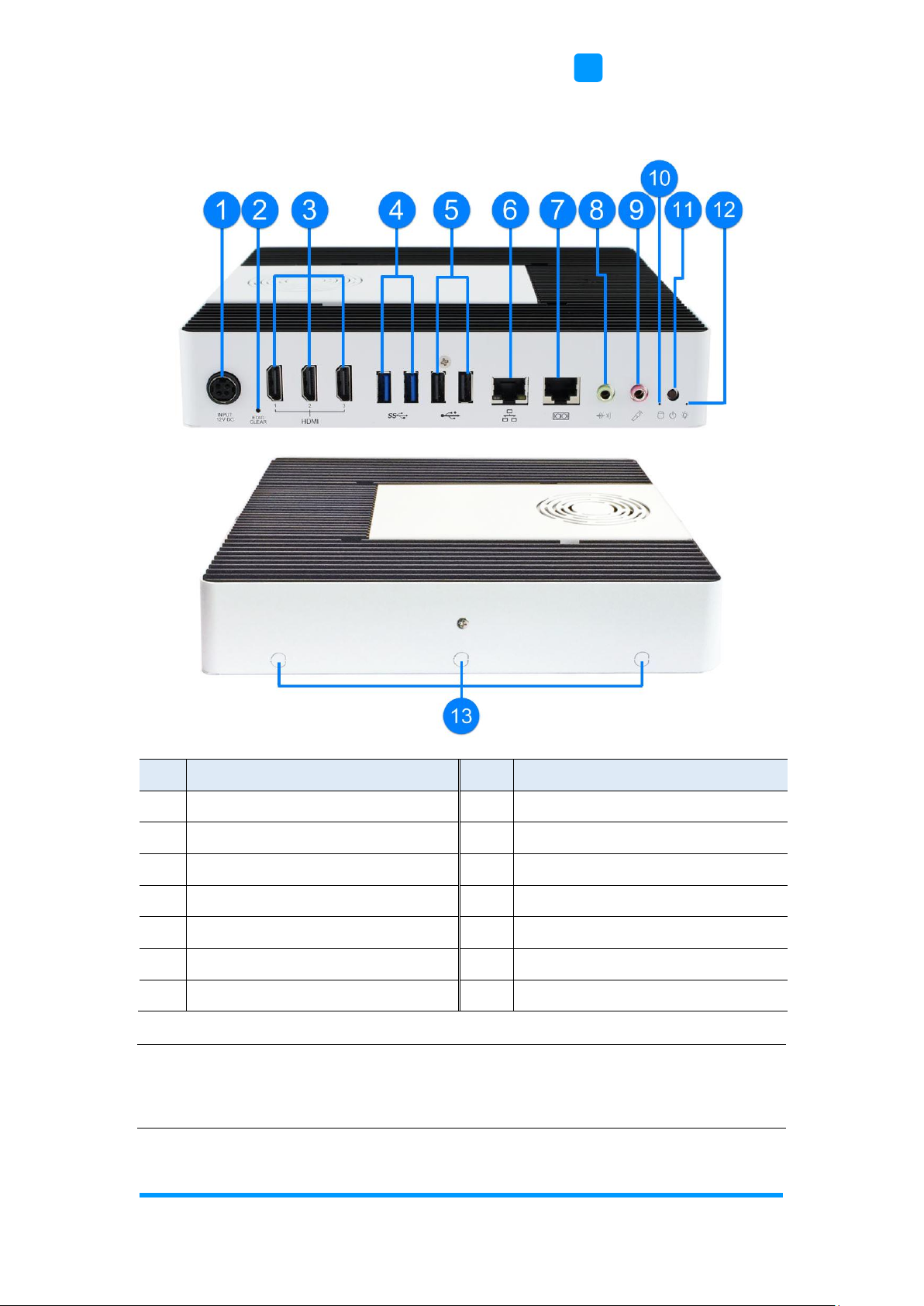

1.6 Overview ................................................................................................. 6

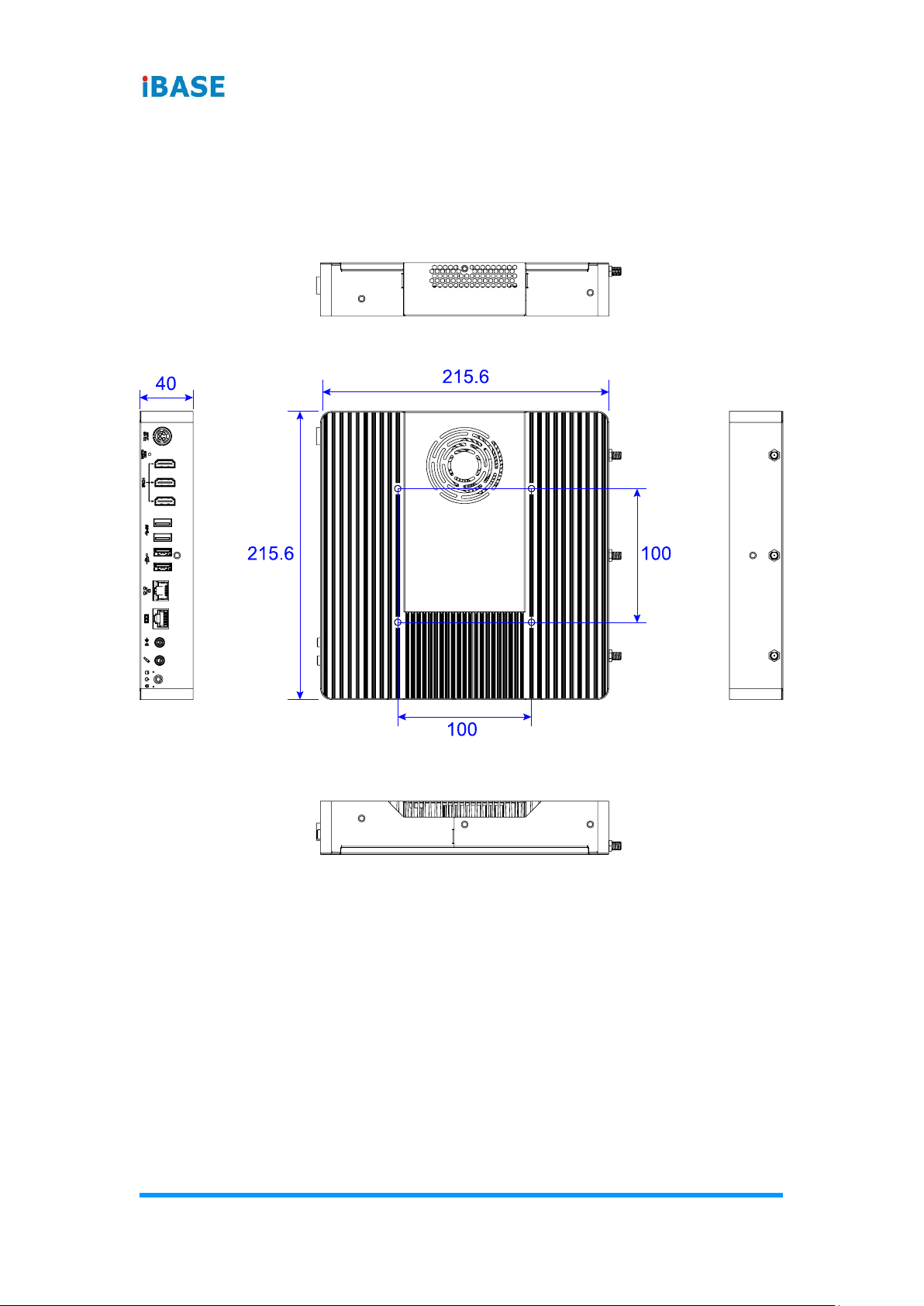

1.7 Dimensions ............................................................................................. 8
Chapter 2 Hardware Installation & Motherboard Information .............. 9
2.1 Essential Installation Before You Begin ................................................. 10

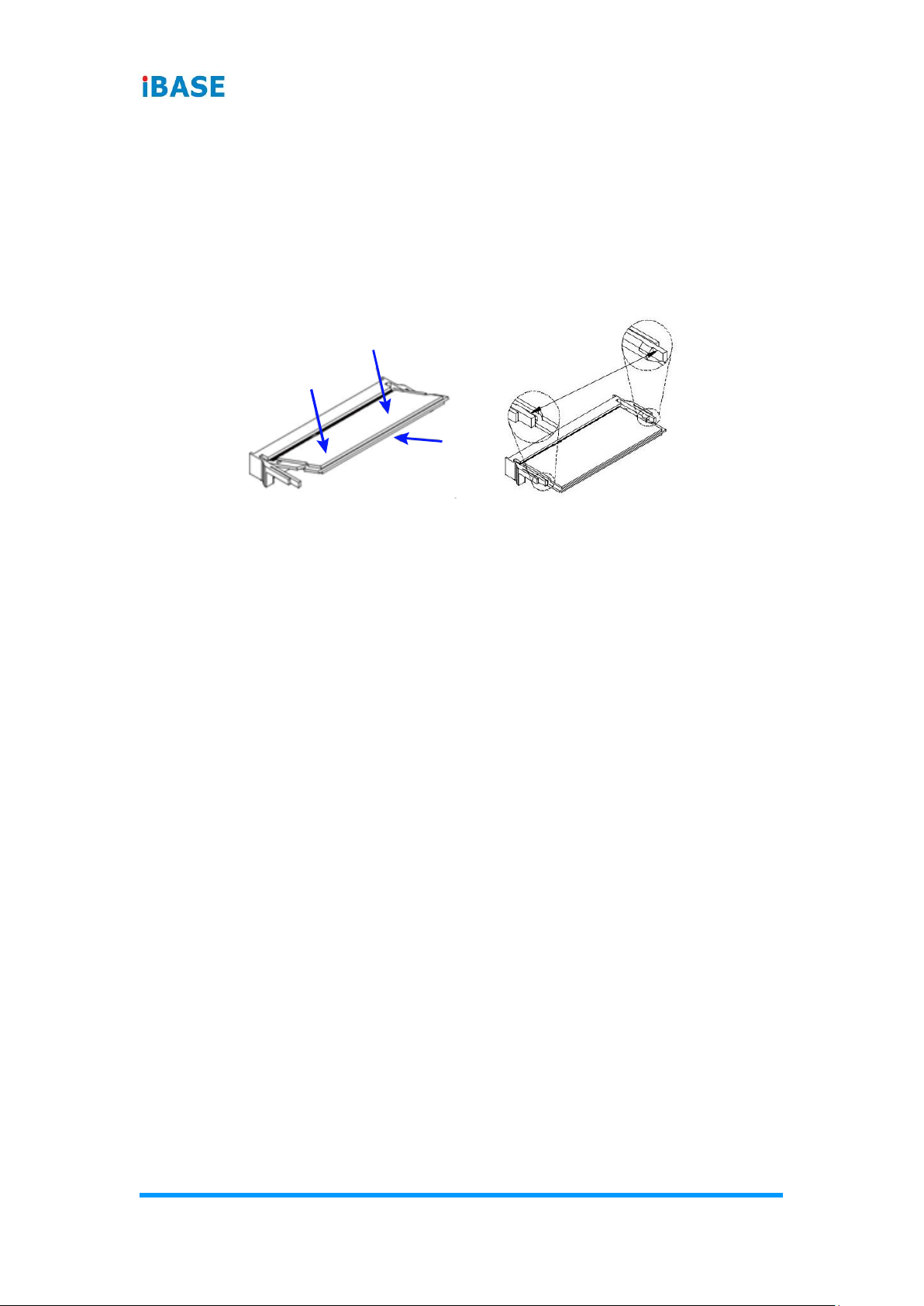

2.1.1 Memory Installation ................................................................ 10

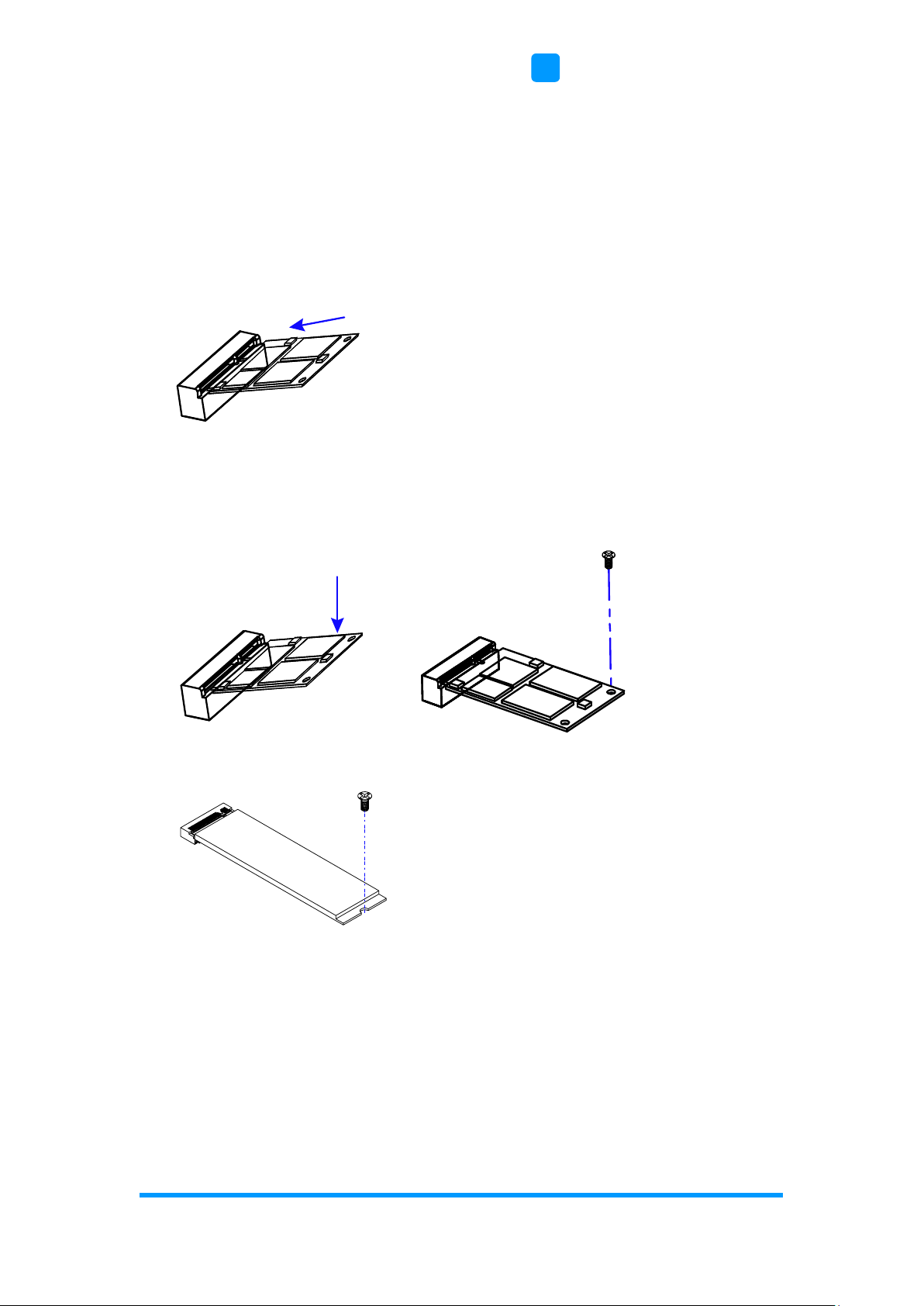

2.1.2 Mini-PCIe & M.2 Network Cards Installation ........................... 11

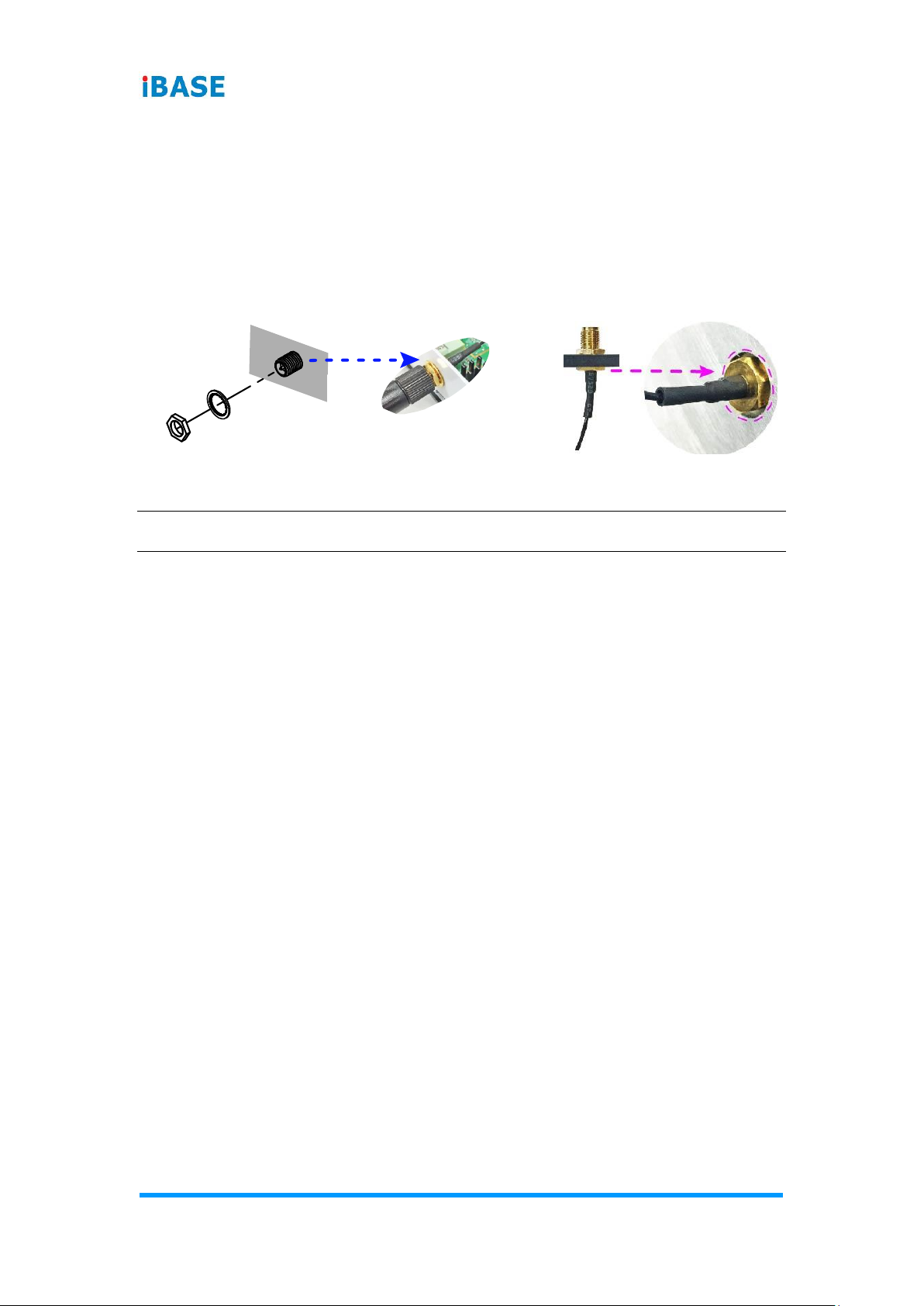

2.1.3 WiFi / 3G / 4G Antenna Installation ......................................... 12
2.2 Setting the Jumpers .............................................................................. 13

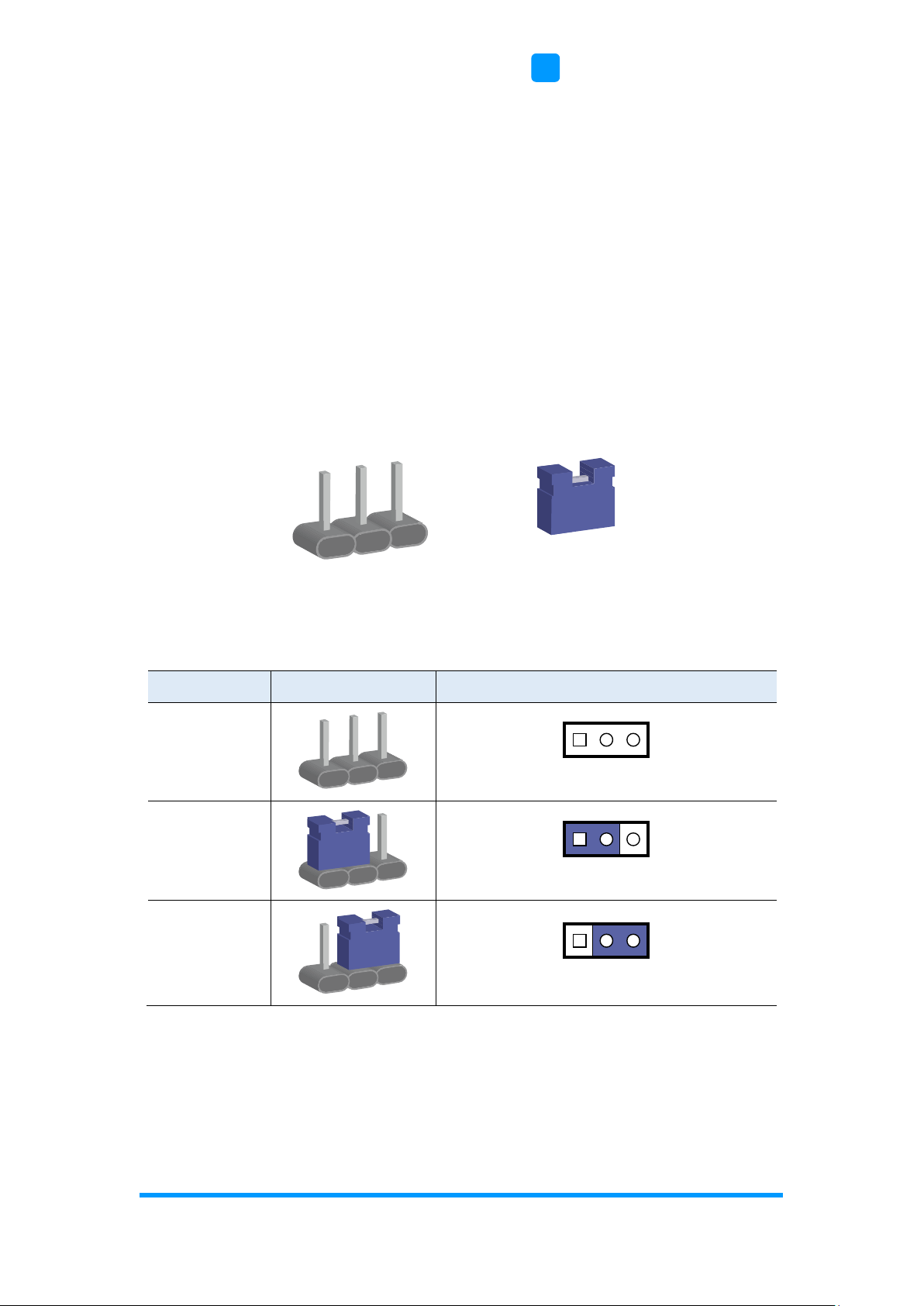

2.2.1 How to Set Jumpers ............................................................... 13

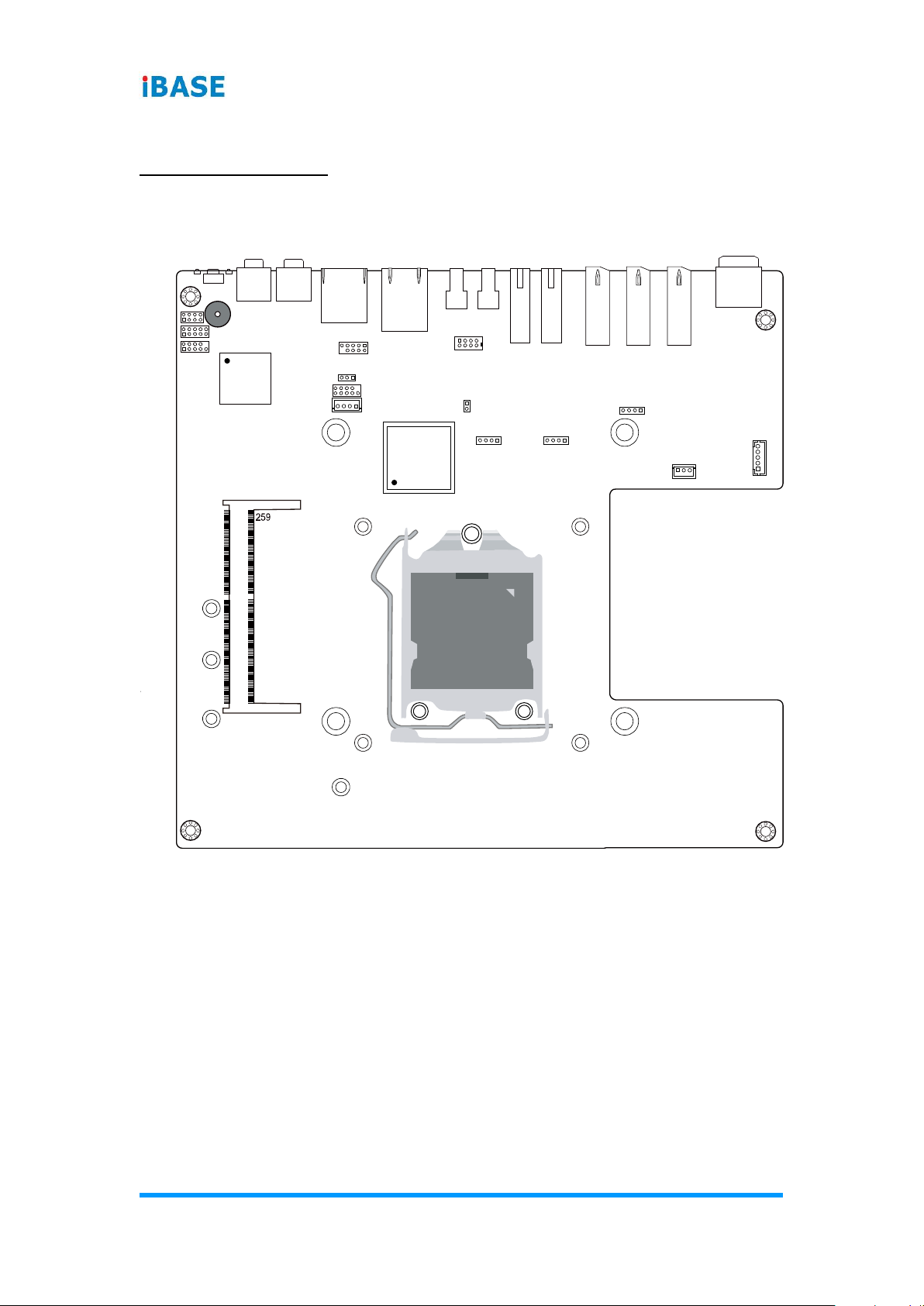

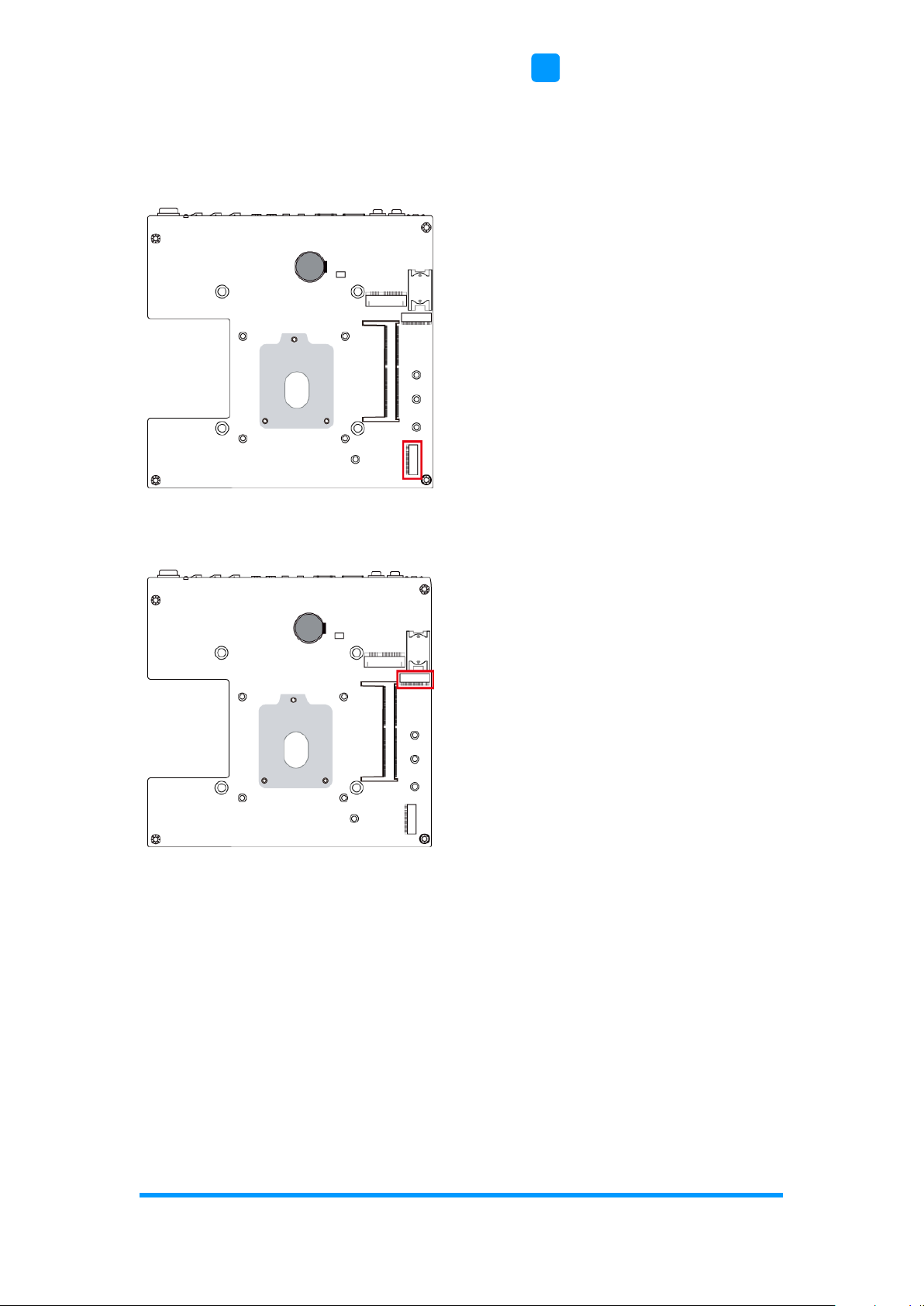

2.3 Jumper & Connector Locations on Motherboard ................................... 14
2.4 Jumpers Quick Reference ..................................................................... 16

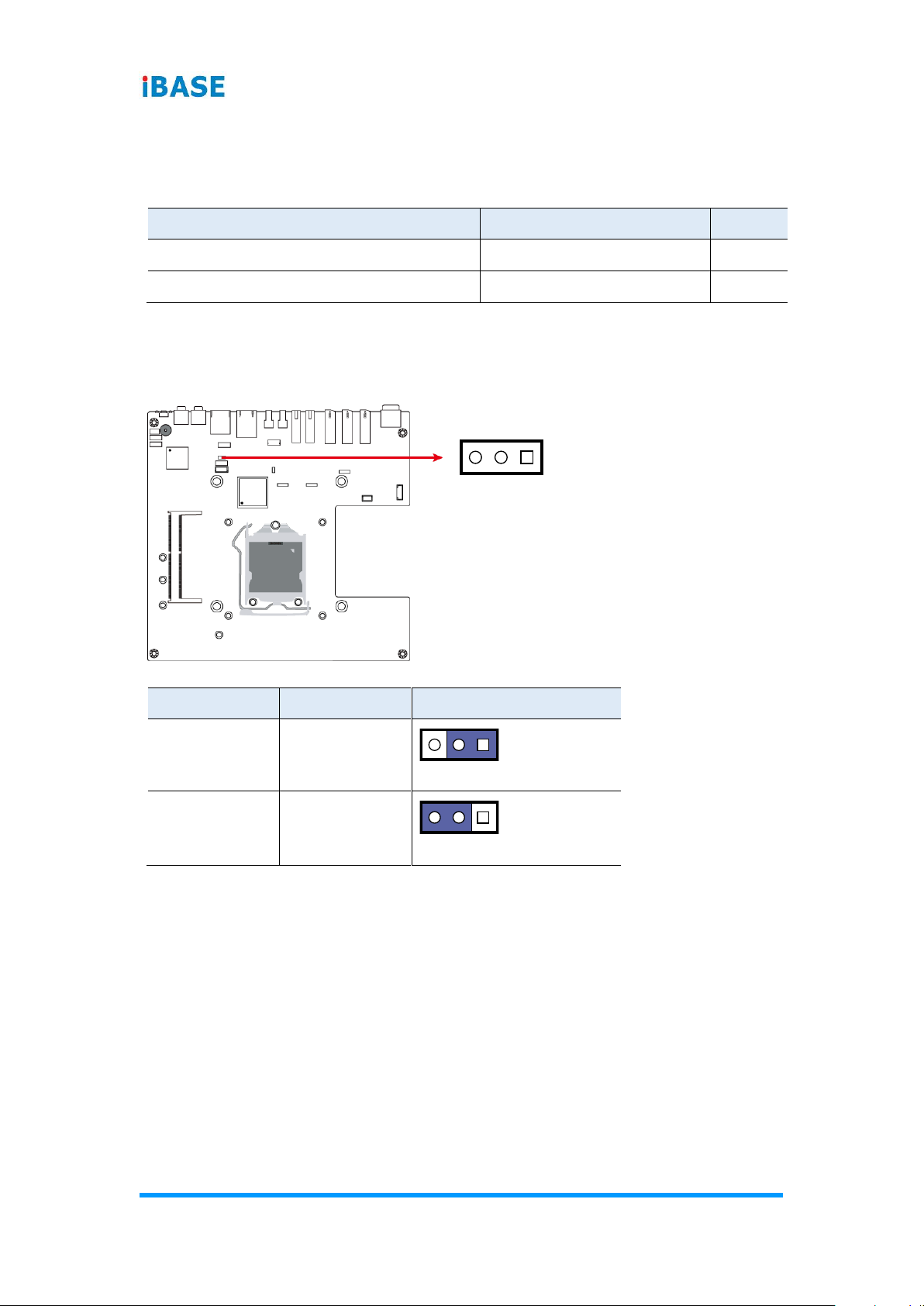

2.4.1 AT / ATX Power Mode Connector (JP4) ............................... 16

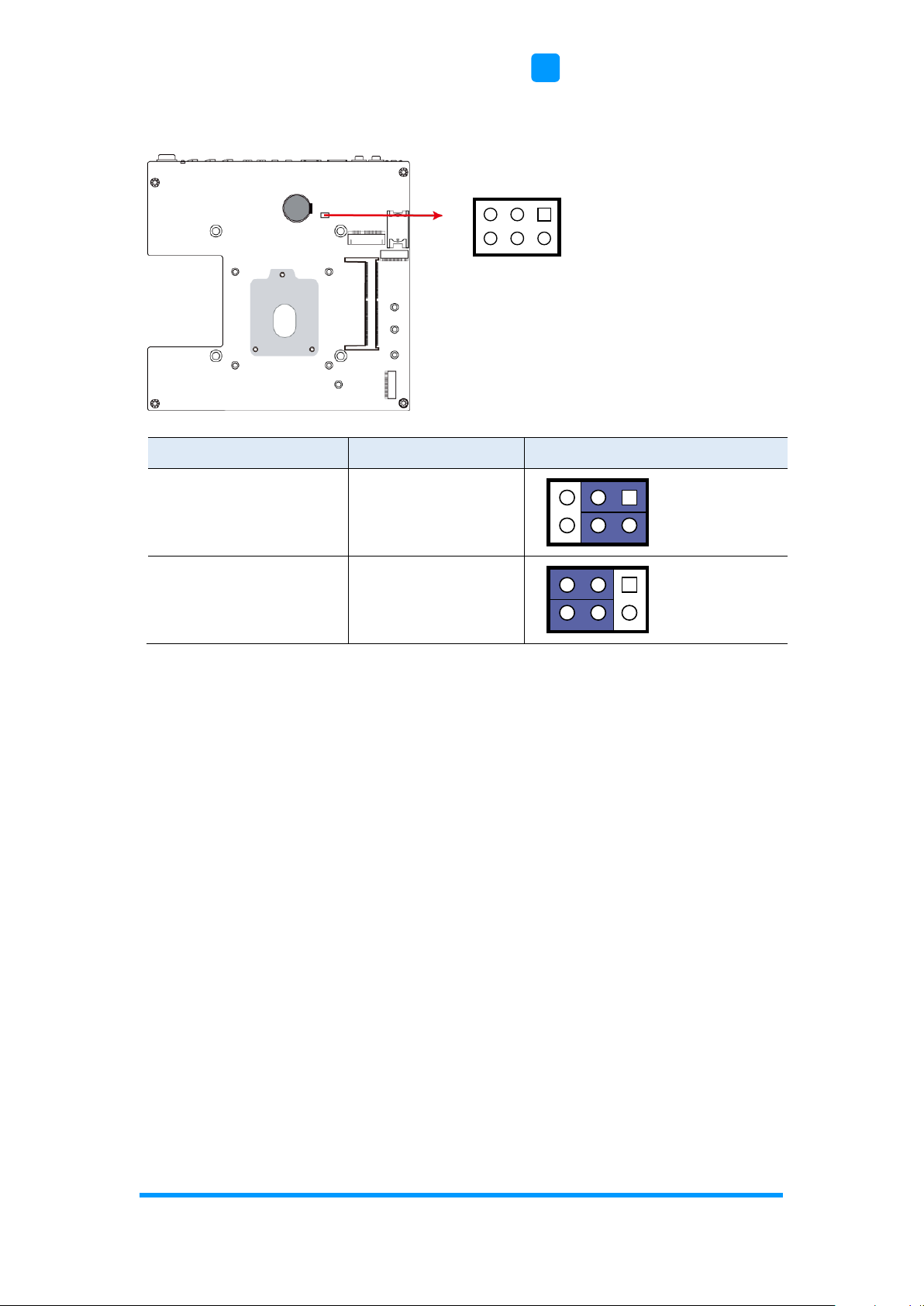

2.4.2 CMOS Data & RTC Clearance (JP5) ................................... 17
2.5 Connectors Quick Reference ................................................................ 18
2.5.1 Power Button (SW1) ............................................................ 19
2.5.2 EDID Clearance Button (SW2) ............................................. 19
2.5.3 LED Indicators for HDD & Power (LED5, LED6) .................. 20

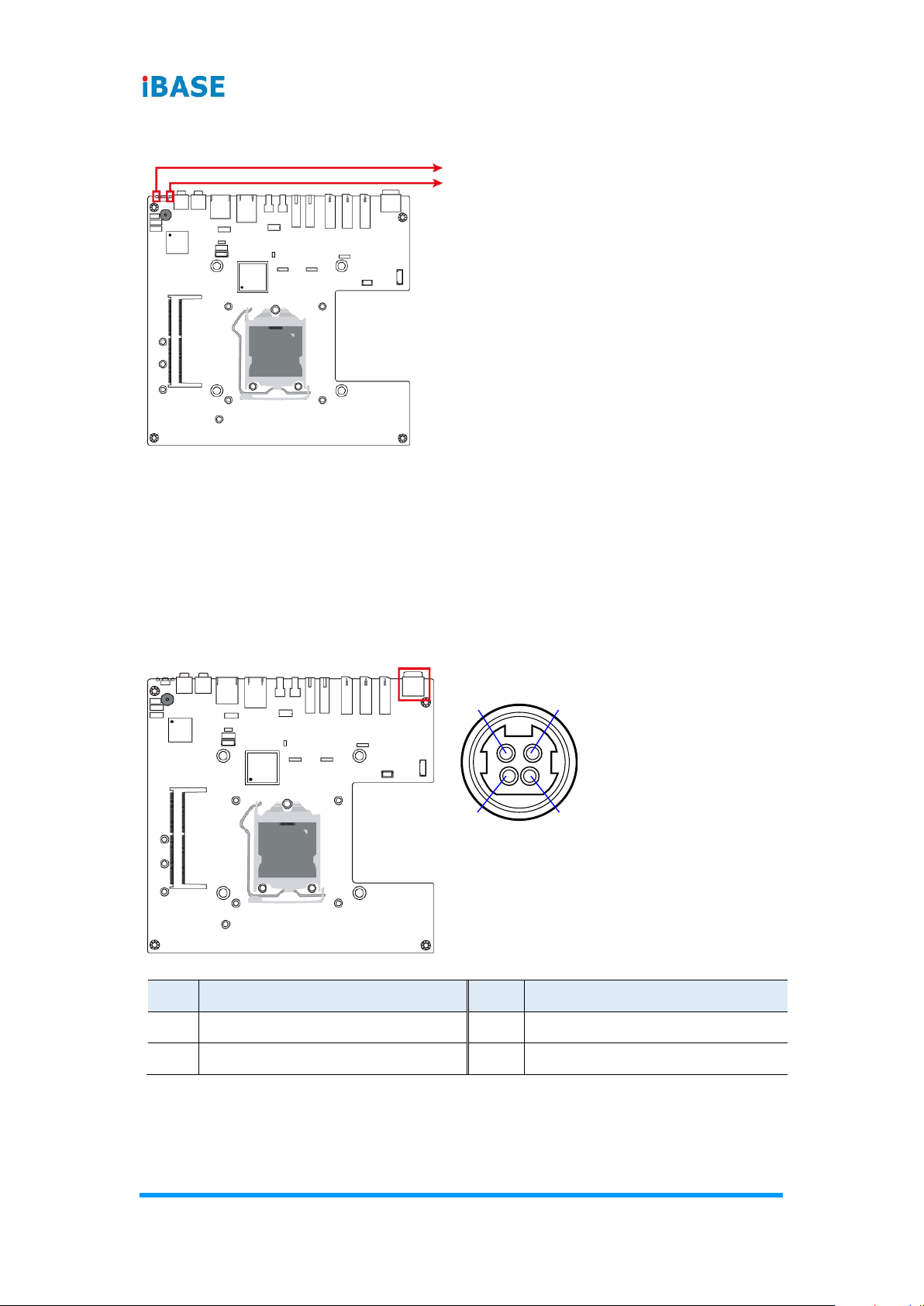

2.5.4 DC Power Input (CN12) ....................................................... 20
2.5.5 HDMI 2.0 Port (CN1, CN2, CN3) .......................................... 21

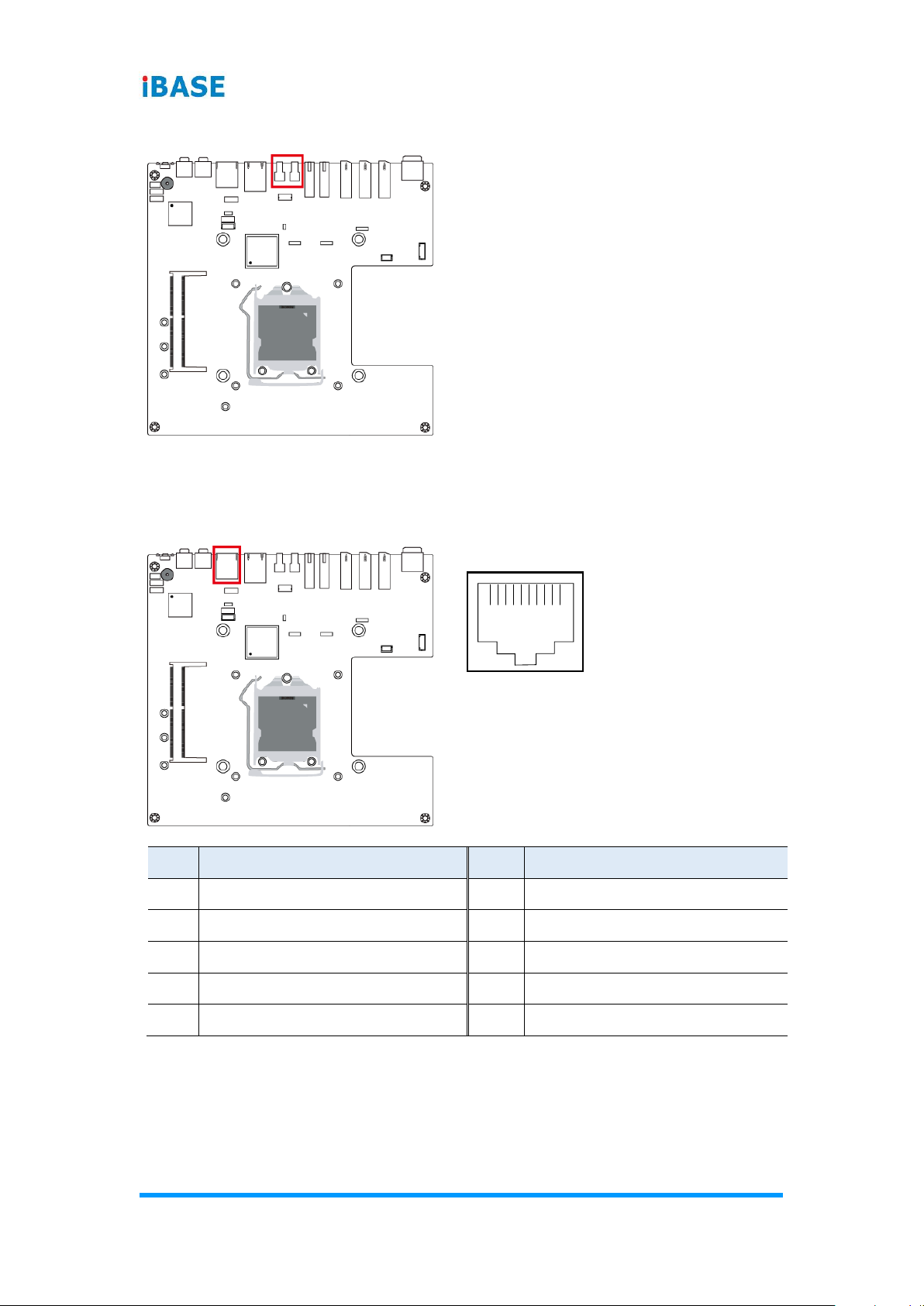

2.5.6 LAN Port (CN6) .................................................................... 21
SI-613 User Manual
vii
2.5.7 USB 3.0 Port (CN4, CN5)..................................................... 21
2.5.8 USB 2.0 Port (CN8, CN9)..................................................... 22
2.5.9 COM1 Serial Port (CN7) ...................................................... 22
2.5.10 Audio Jack (CN10, CN11) .................................................... 23
2.5.11 CPU Fan Power Connector (J3) ........................................... 24
2.5.12 USB 2.0 Ports Header (J12) ................................................. 24
2.5.13 COM2 RS-232 Port (J10) ..................................................... 25
2.5.14 System Function Connector (J14) ........................................ 25
2.5.15 SIM Card Socket (J19) ......................................................... 26
2.5.16 Digital I/O Connector (J13) ................................................... 26
2.5.17 NGFF M.2 Connector (J16, J18) .......................................... 27
2.5.18 Mini PCIe Connector (J20) ................................................... 28

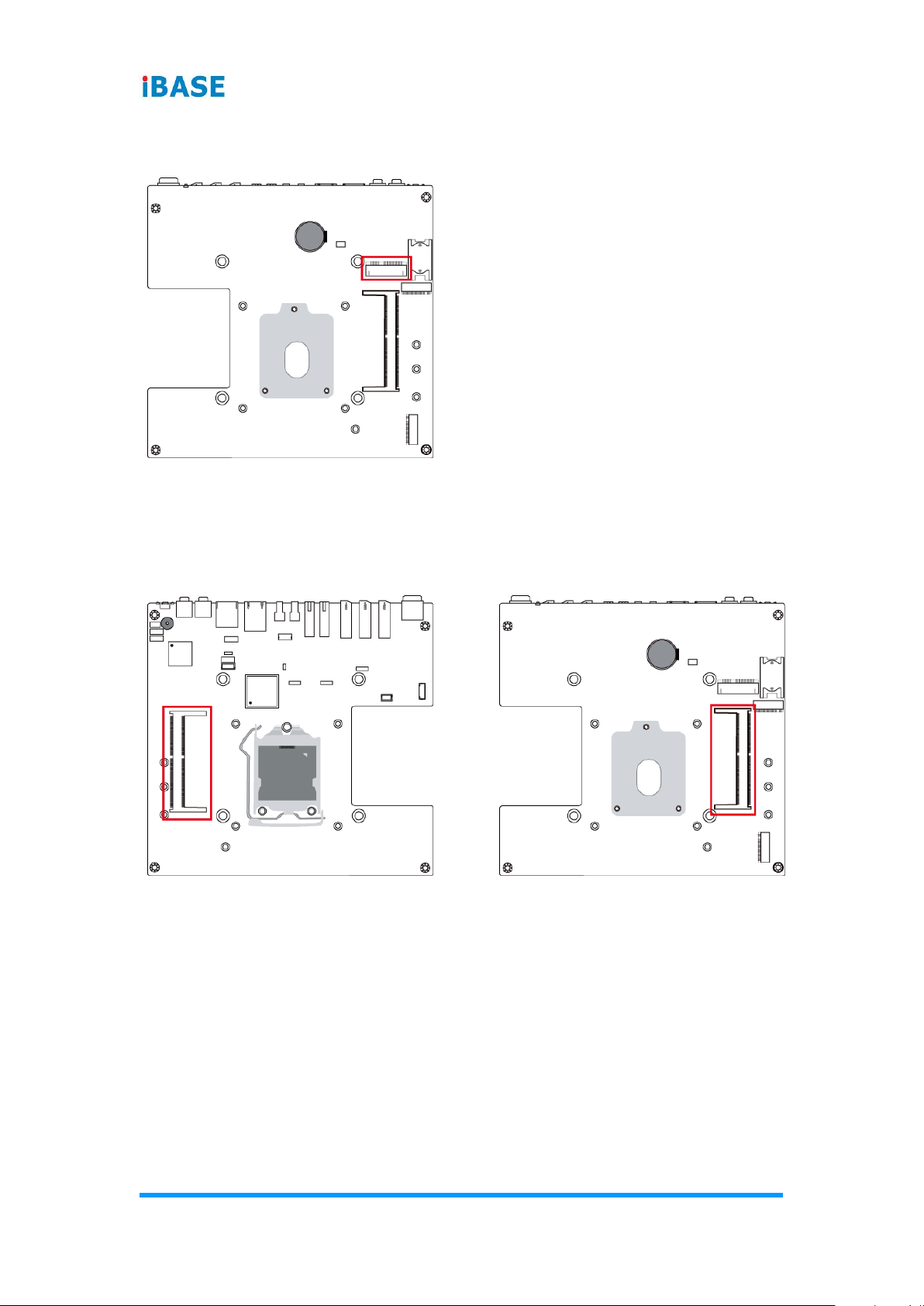

2.5.19 DDR4 SO-DIMM (J2, J17) .................................................... 28
Chapter 3 Driver Installation ................................................................. 29
3.1 Introduction ........................................................................................... 30

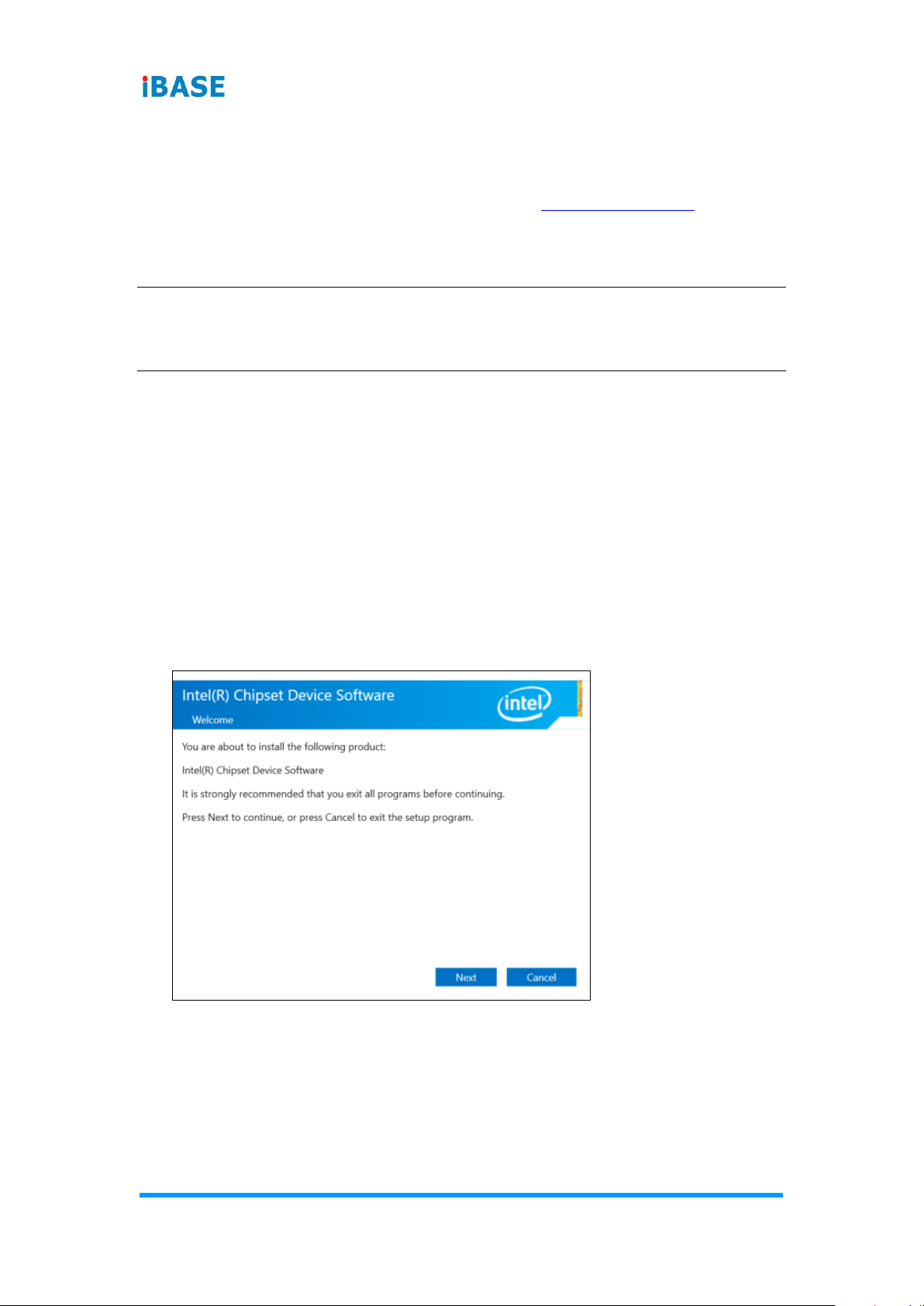

3.2 Intel® Chipset Software Installation Utility .............................................. 30

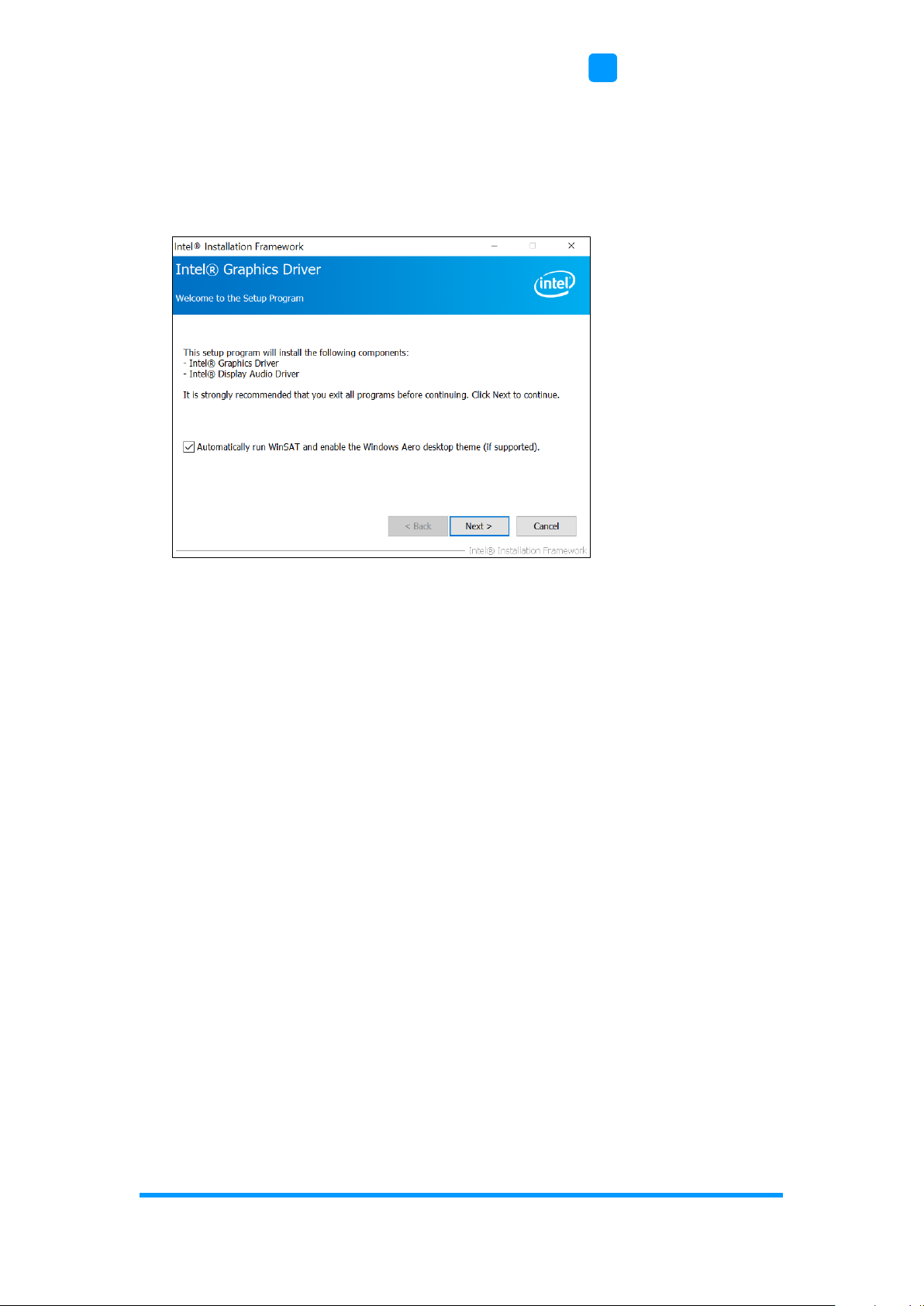

3.3 VGA Driver Installation .......................................................................... 31

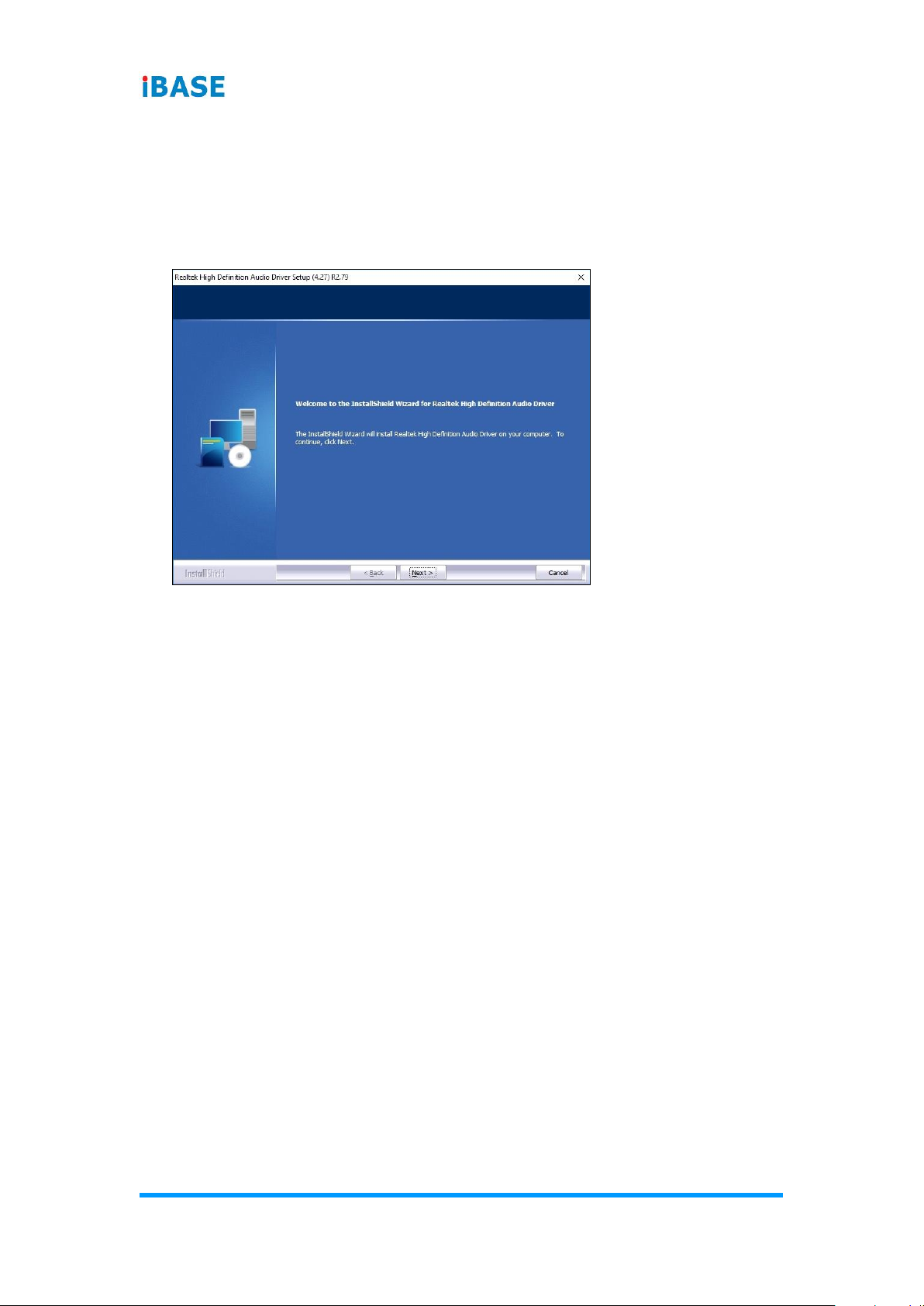

3.4 HD Audio Driver Installation .................................................................. 32

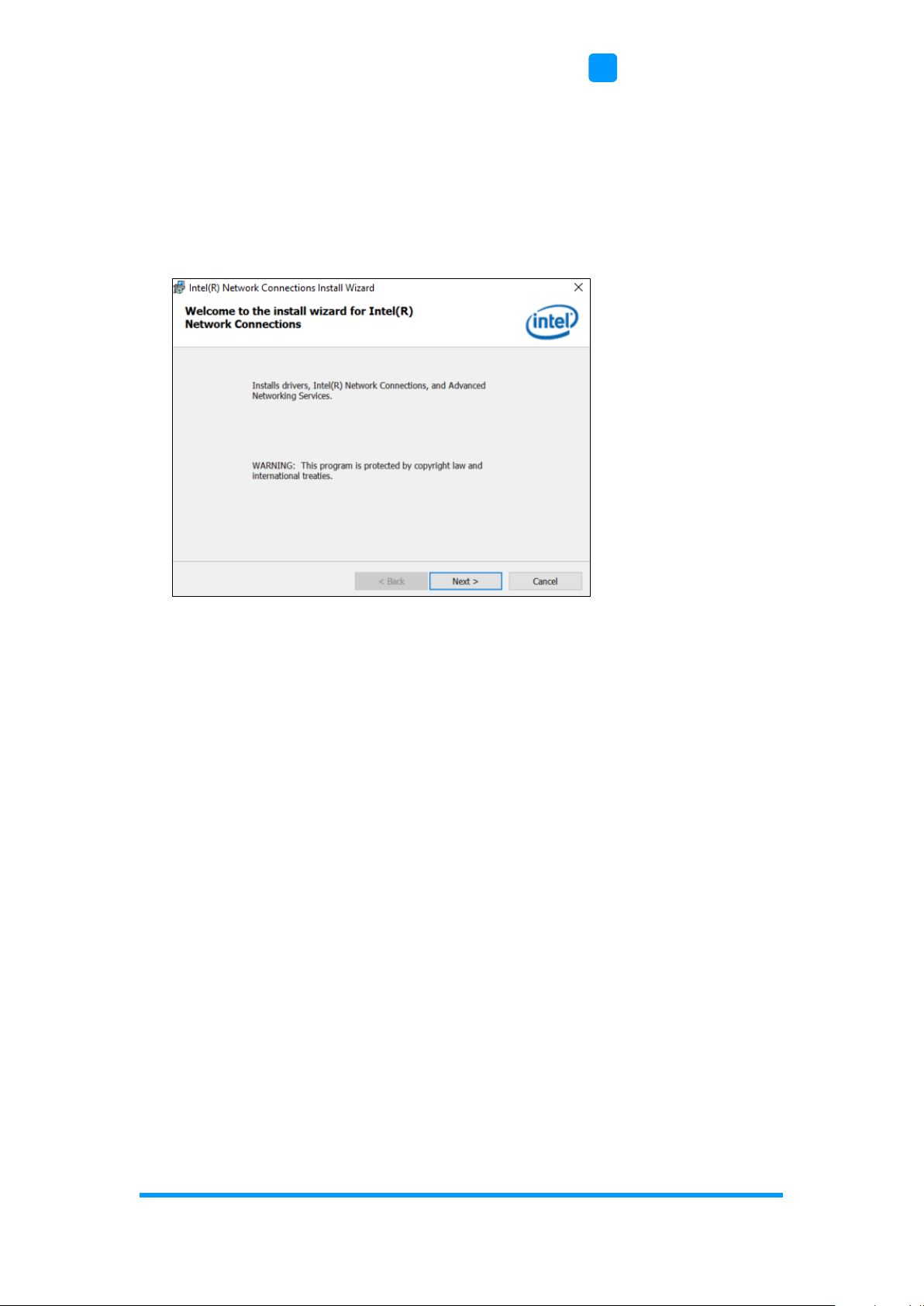

3.5 LAN Driver Installation .......................................................................... 33

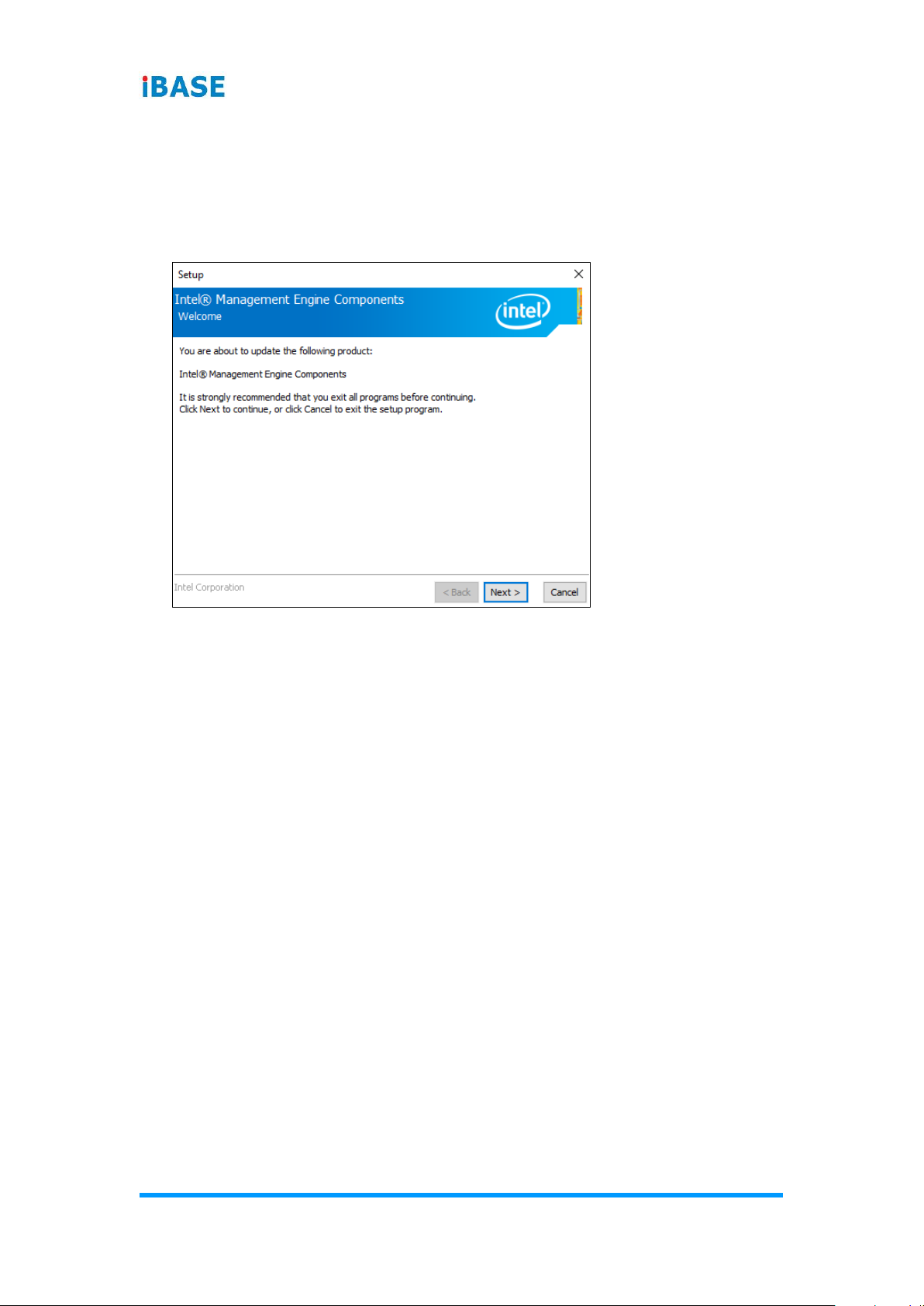

3.6 Intel® Management Engine Components Drivers Installation ................. 34

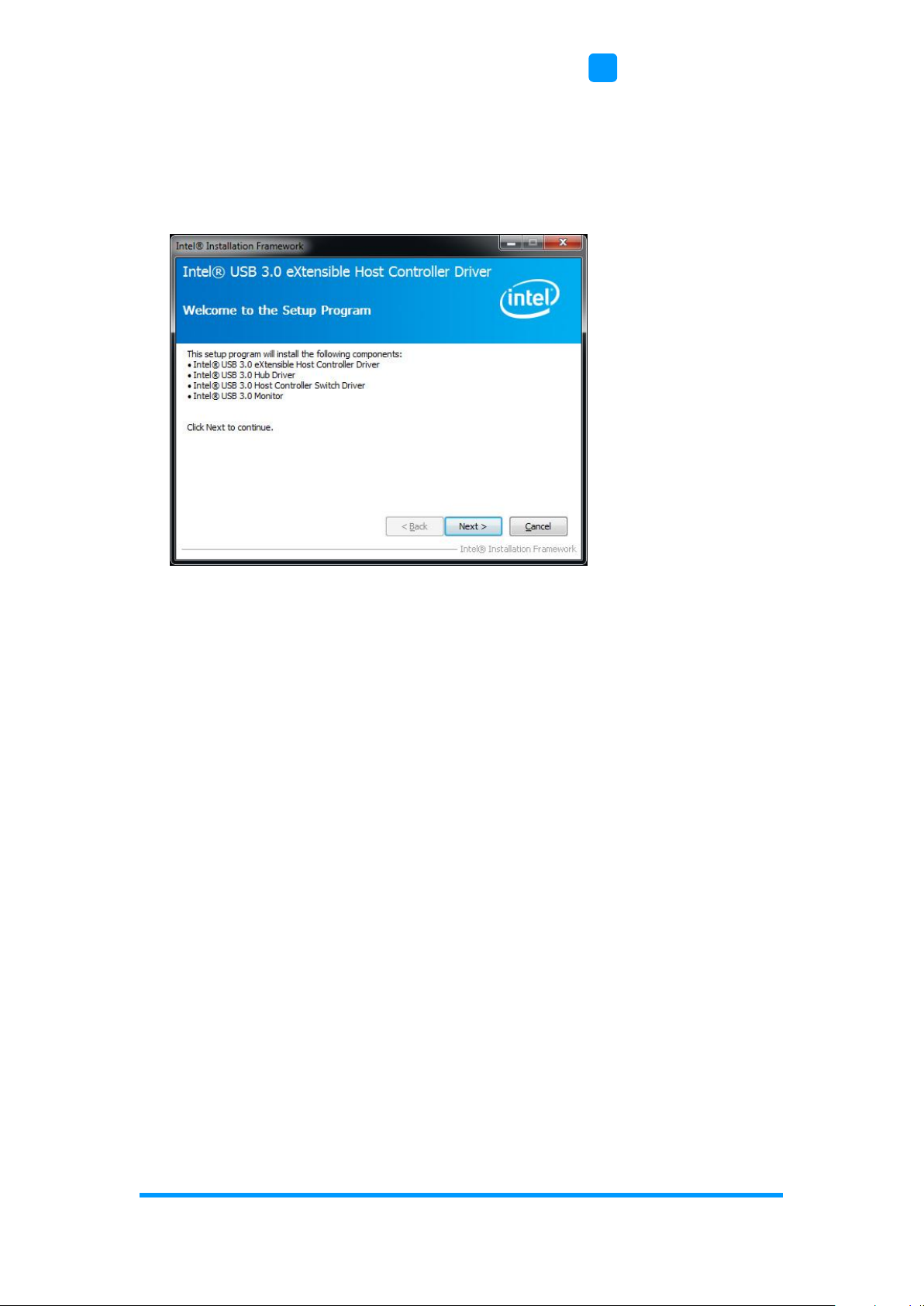

3.7 Intel® USB 3.0 Driver Installation ........................................................... 35
Chapter 4 BIOS Setup ............................................................................ 36
4.1 Introduction ........................................................................................... 37
4.2 BIOS Setup ........................................................................................... 37

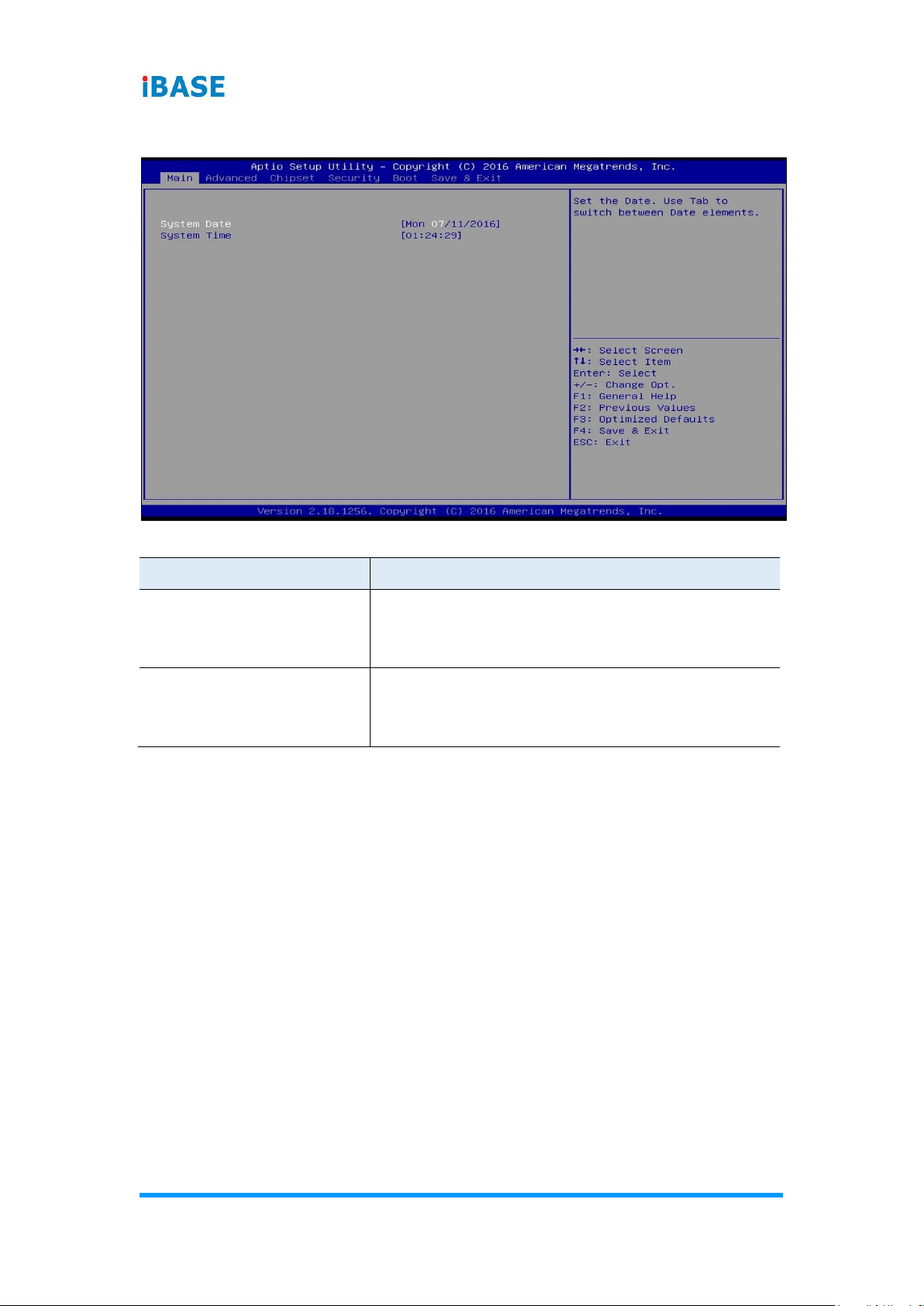

4.3 Main Settings ........................................................................................ 38

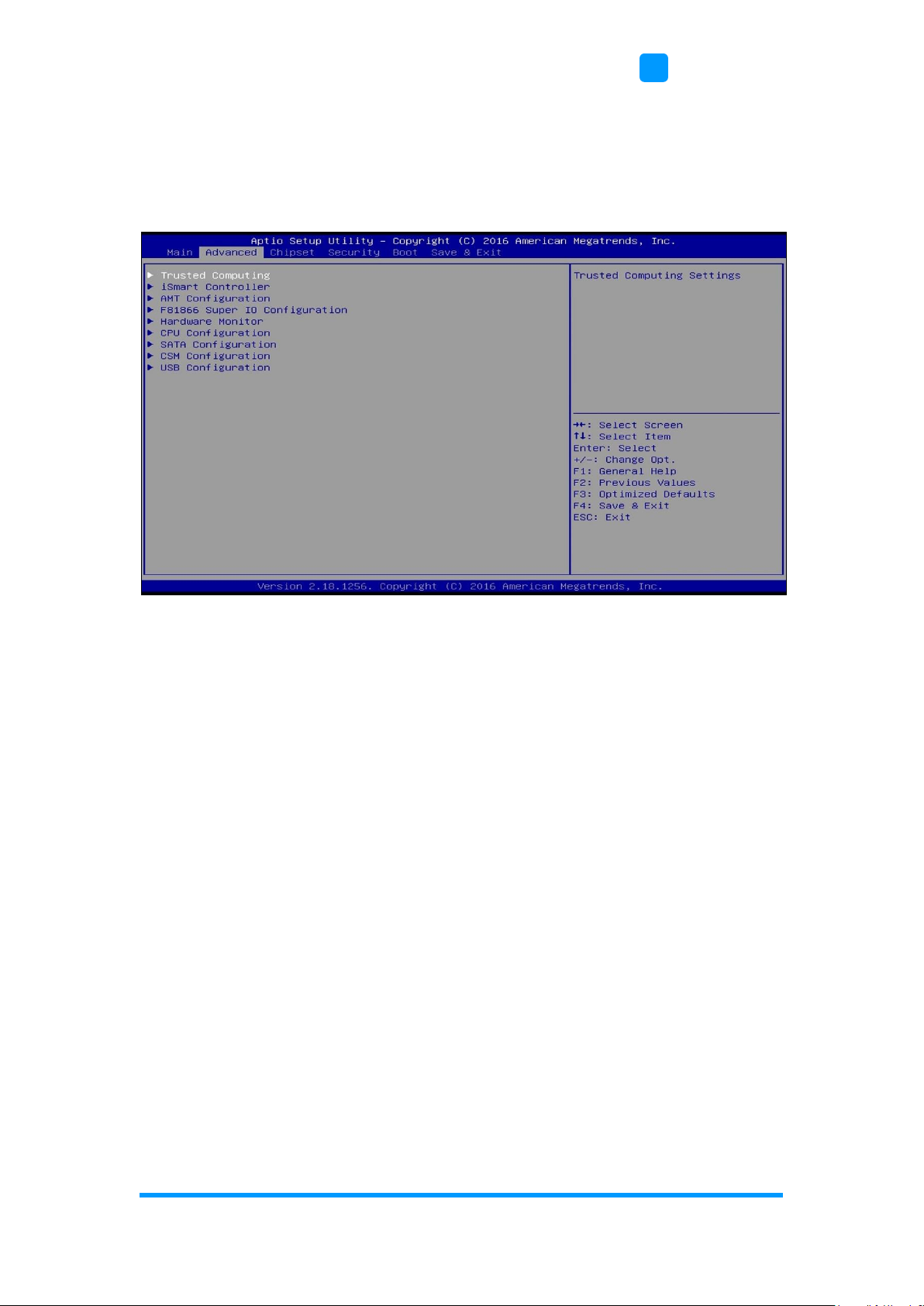

4.4 Advanced Settings ................................................................................ 39

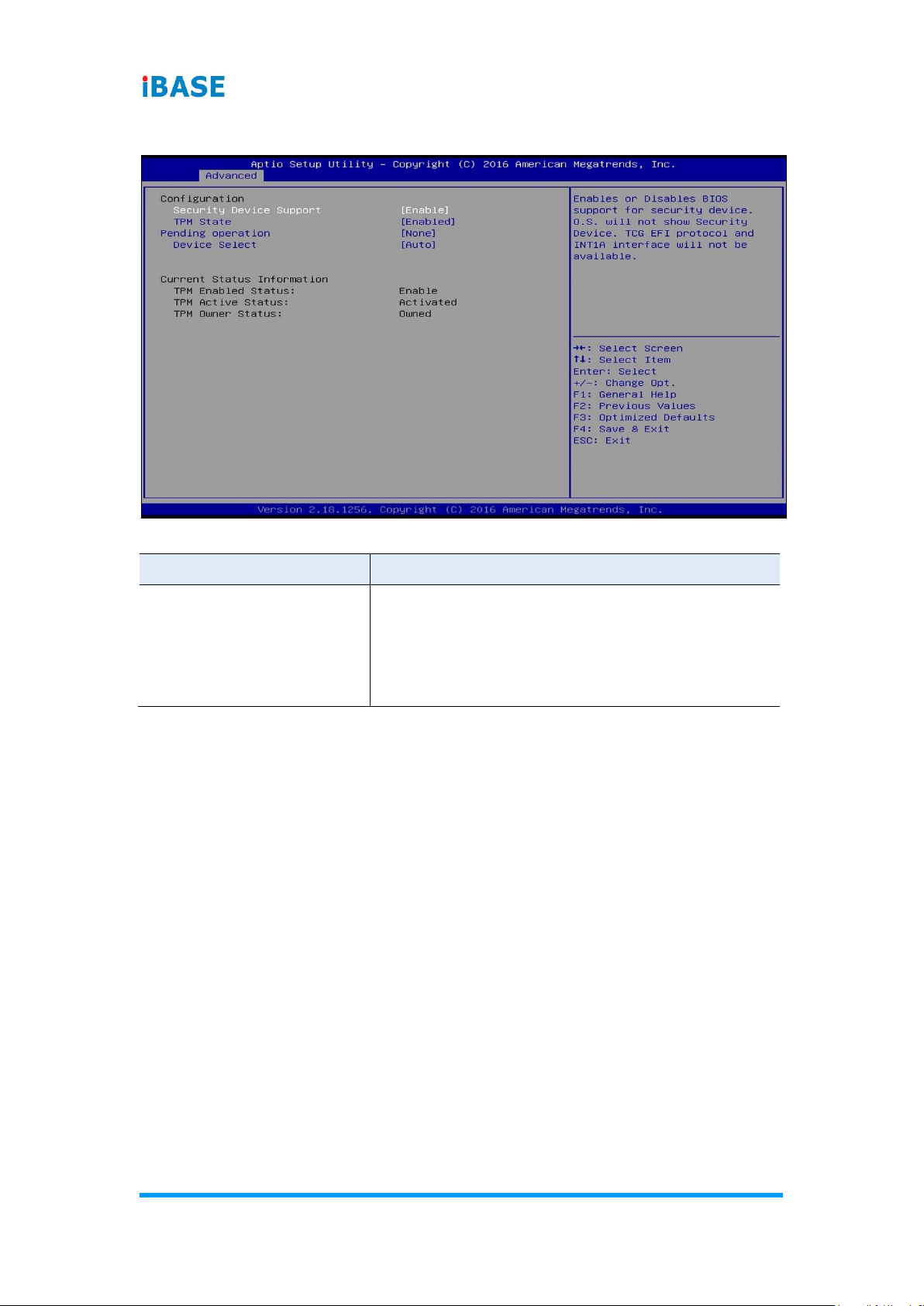

4.4.1 Trusted Computing ................................................................. 40

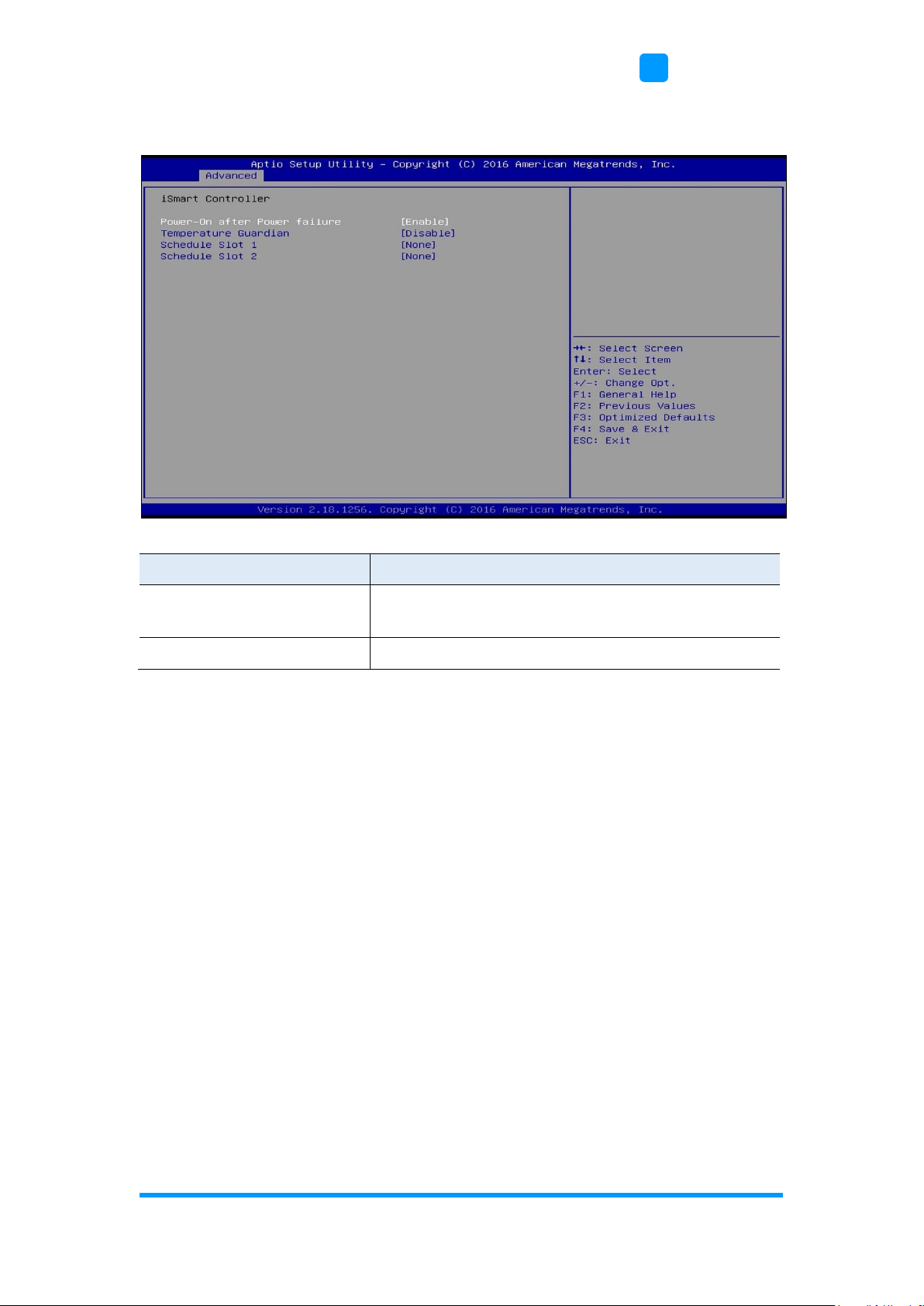

4.4.2 iSMART Controller .................................................................. 41

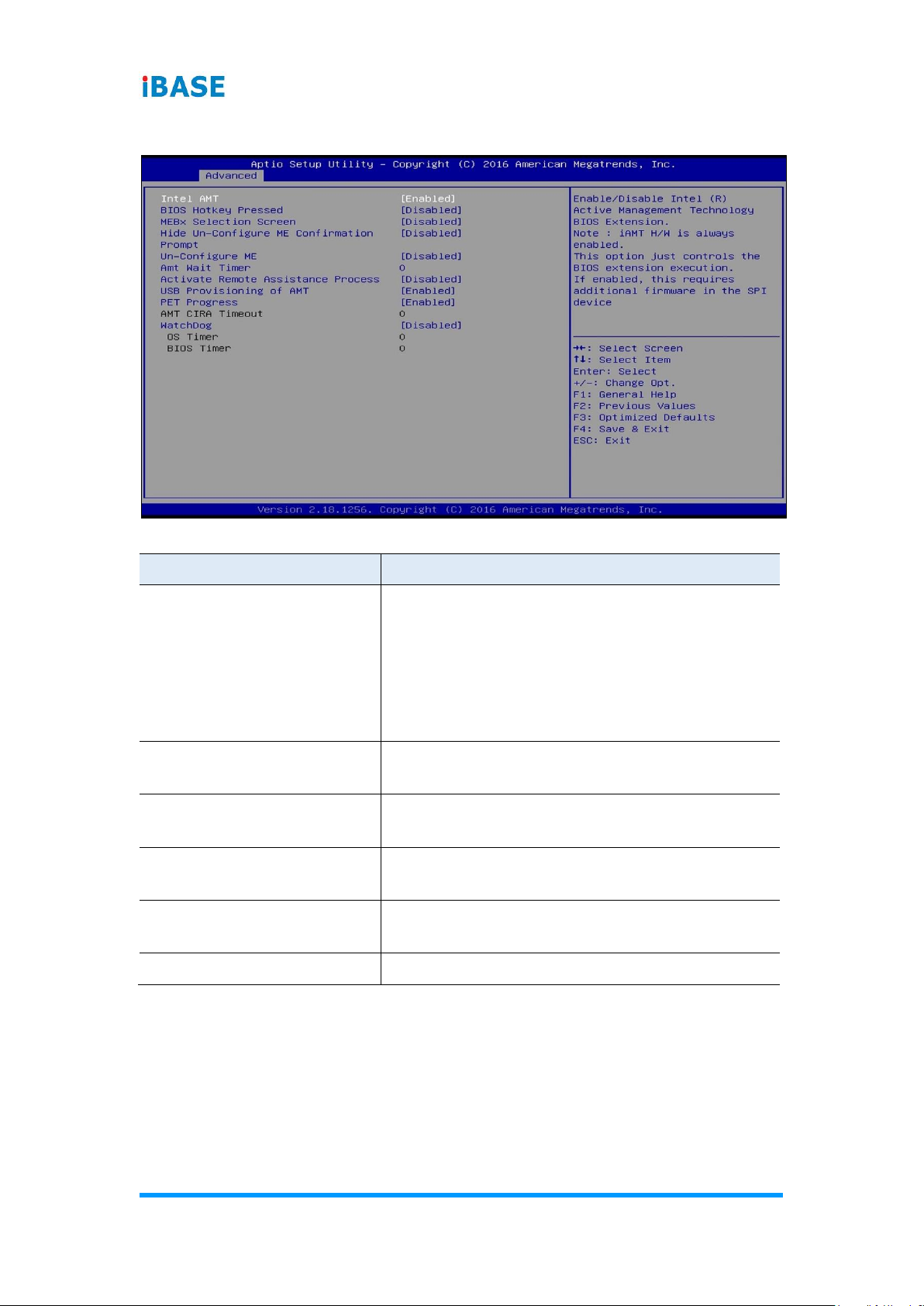

4.4.3 AMT Configuration .................................................................. 42

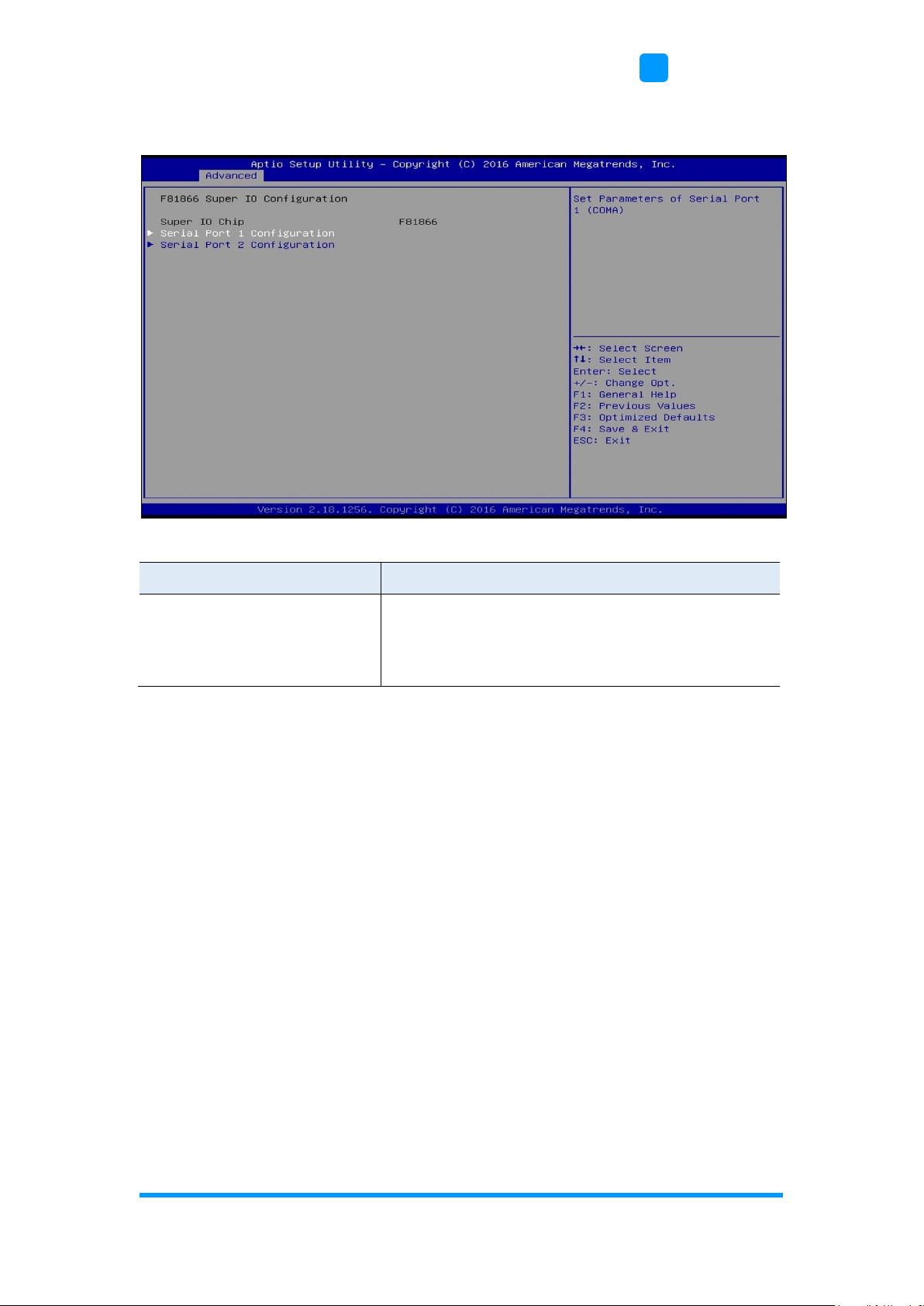

4.4.4 Super IO Configuration ........................................................... 43

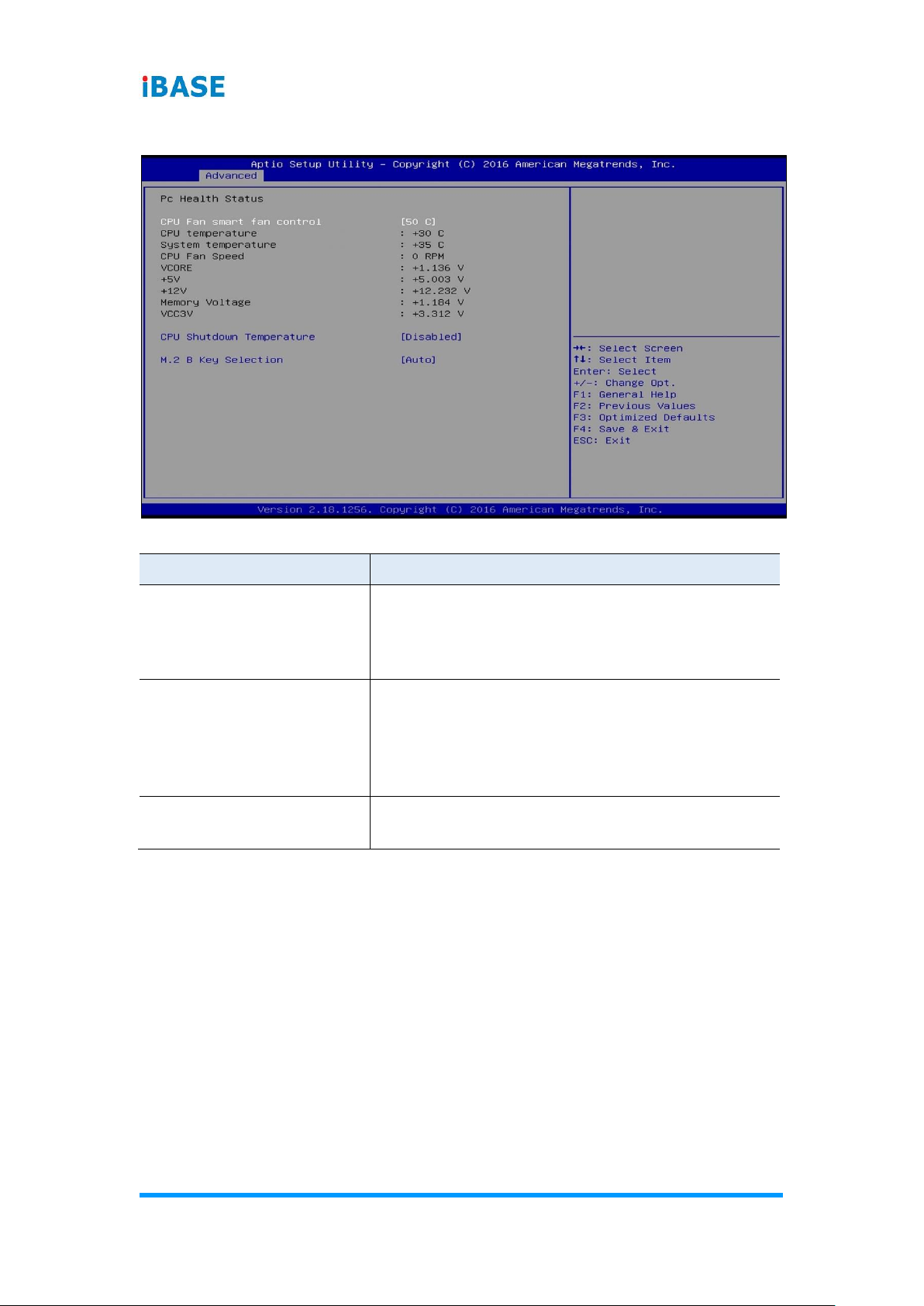

4.4.5 Hardware Monitor ................................................................... 44

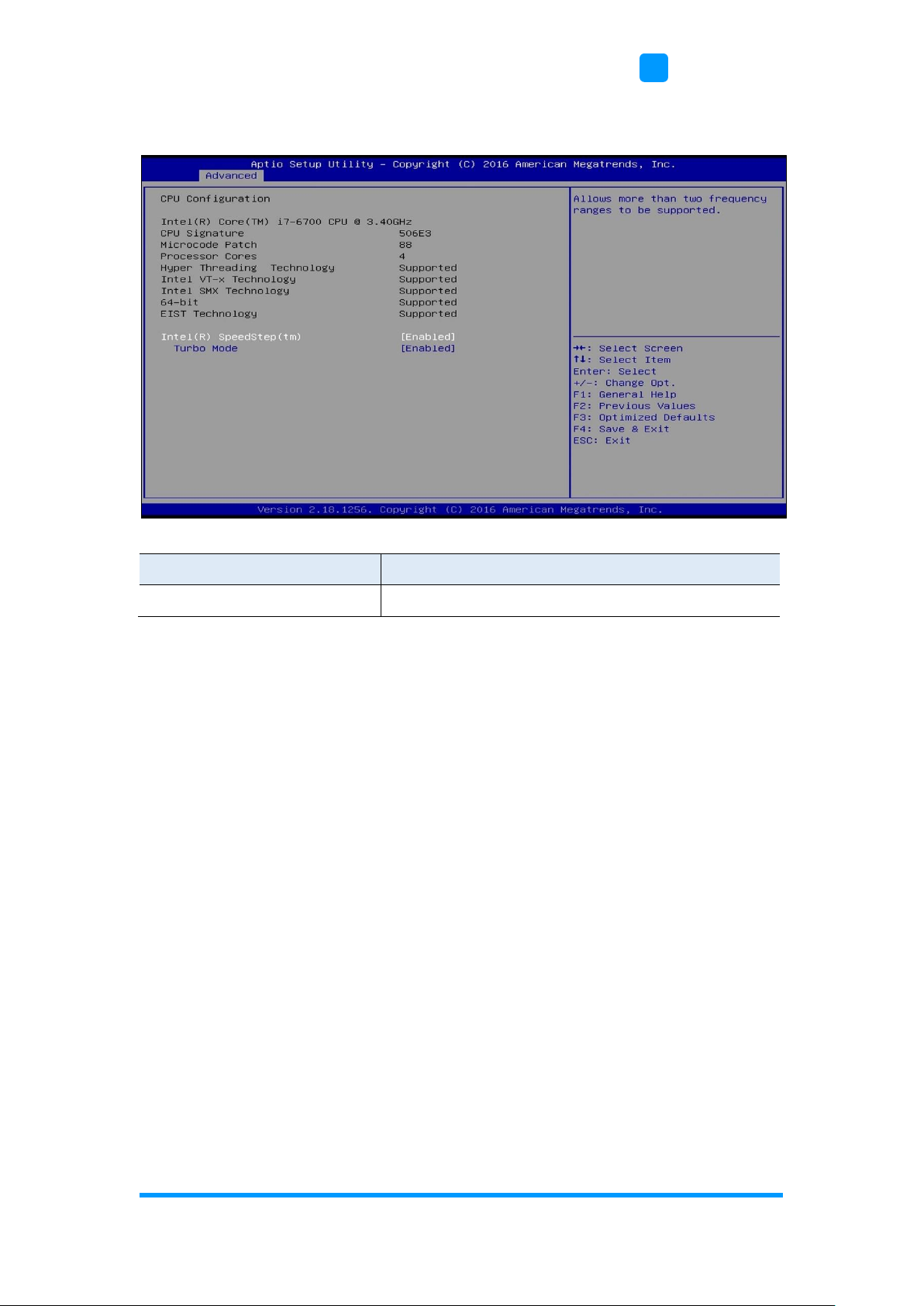

4.4.6 CPU Configuration .................................................................. 45

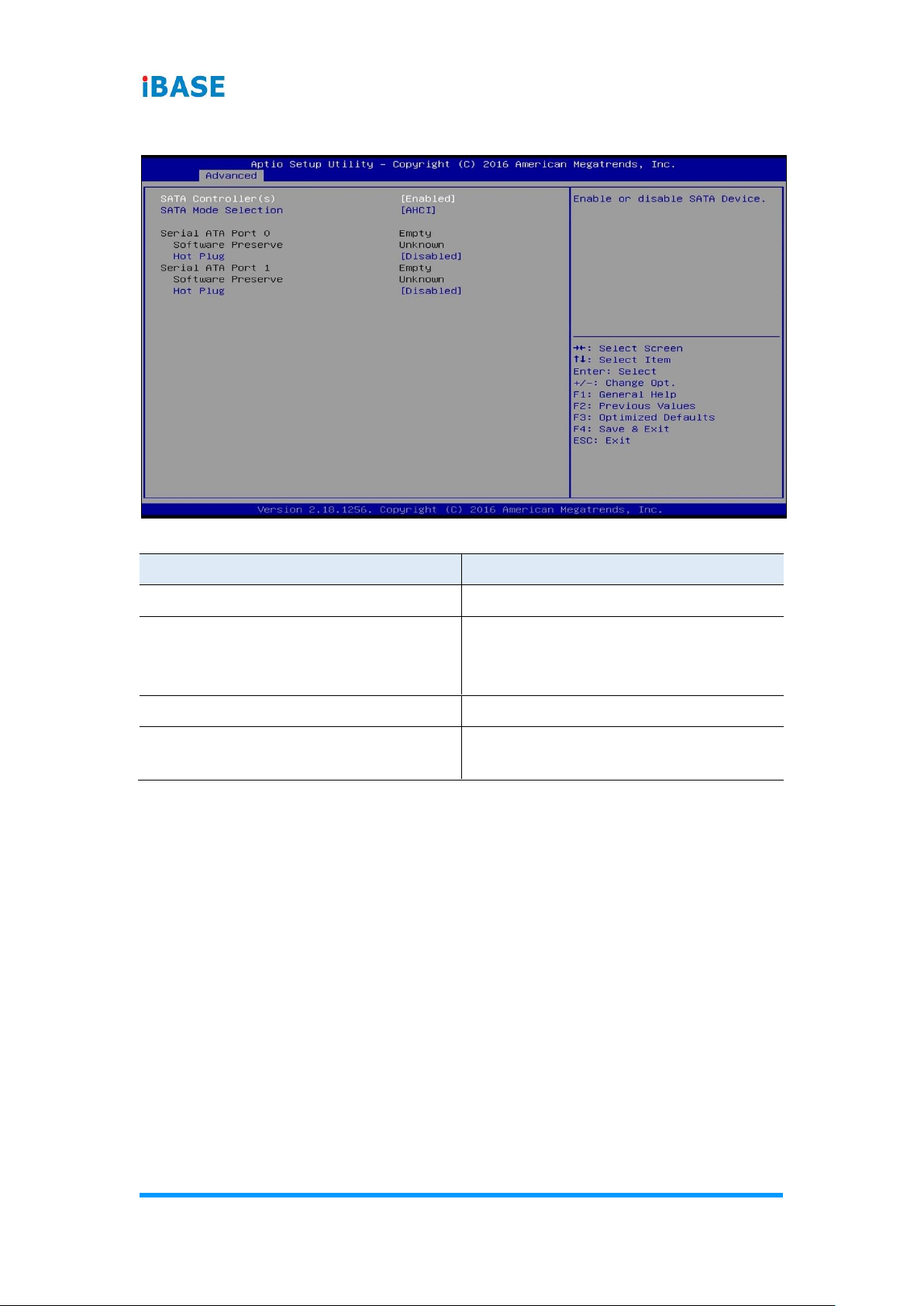

4.4.7 SATA Configuration ................................................................ 46

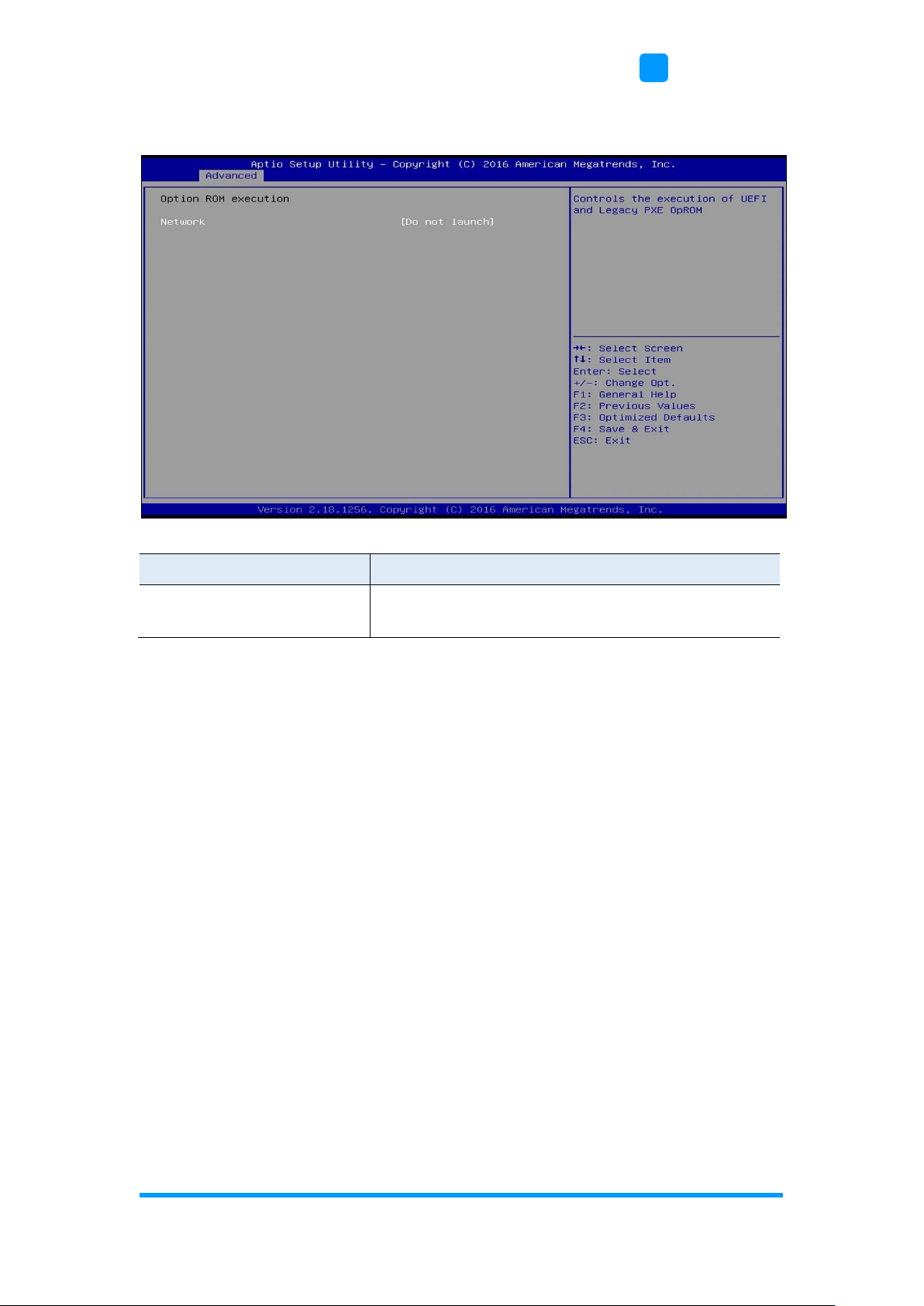

4.4.8 CSM Configuration ................................ ................................. 47

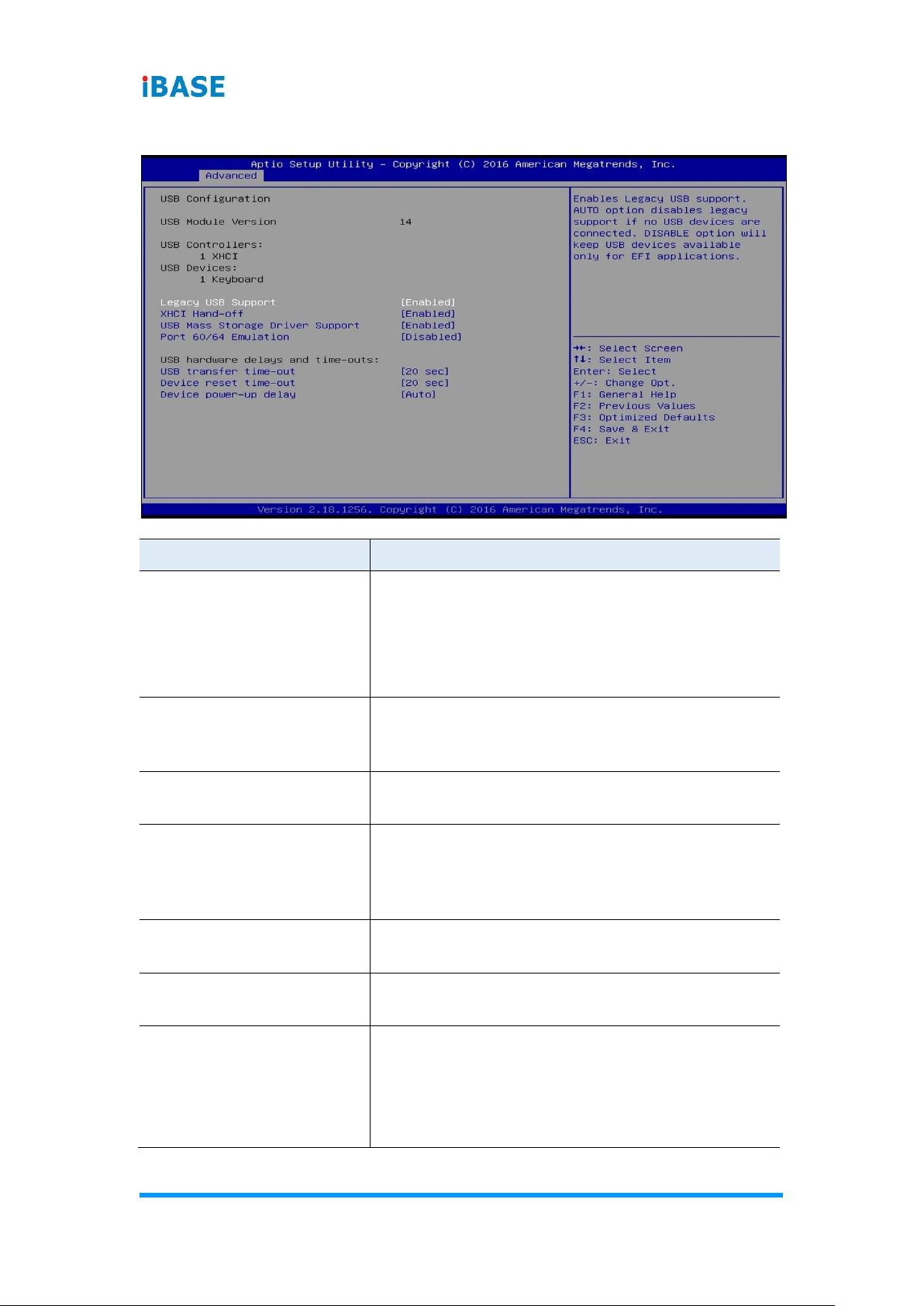

4.4.9 USB Configuration .................................................................. 48

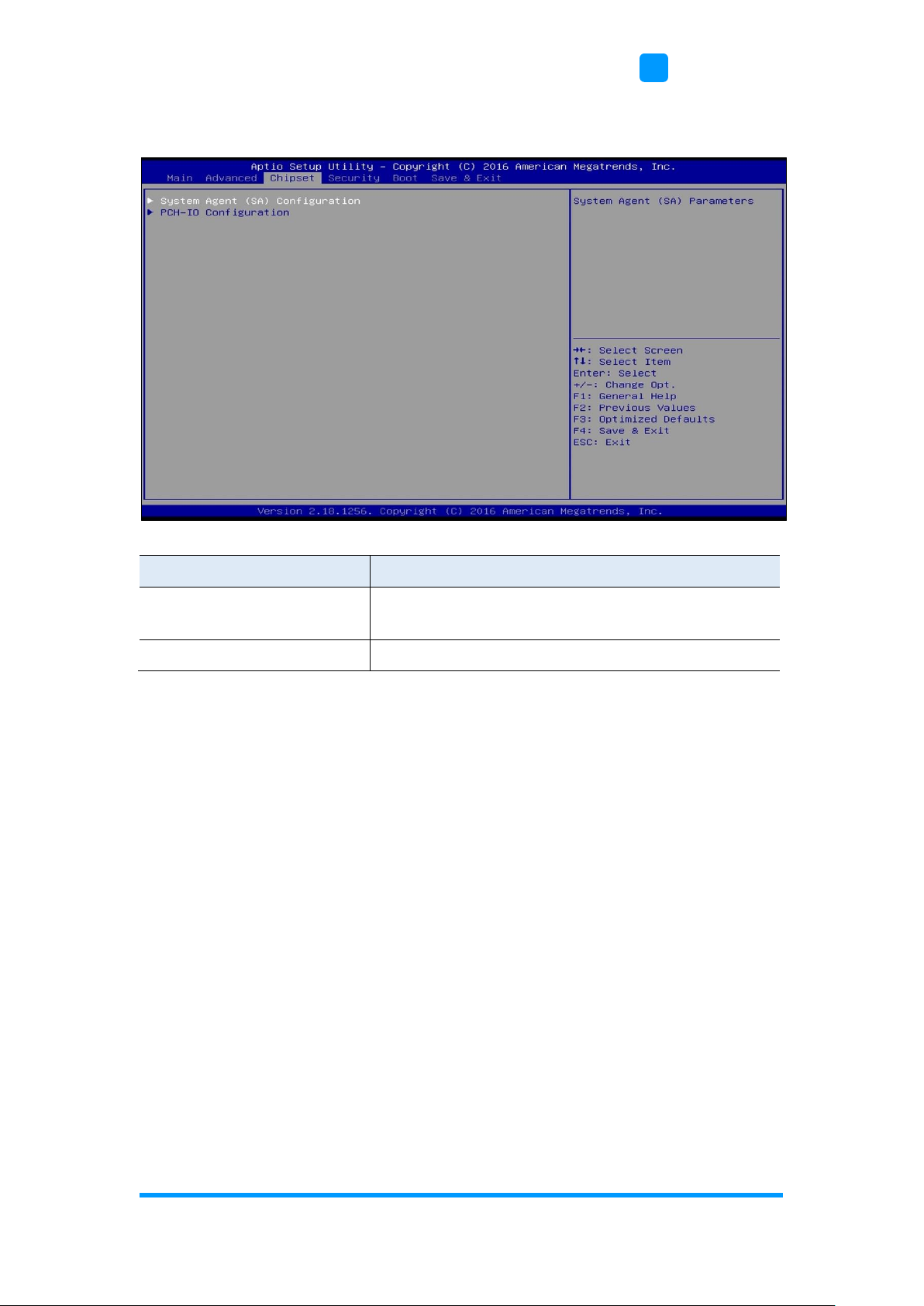

4.5 Chipset Settings .................................................................................... 49

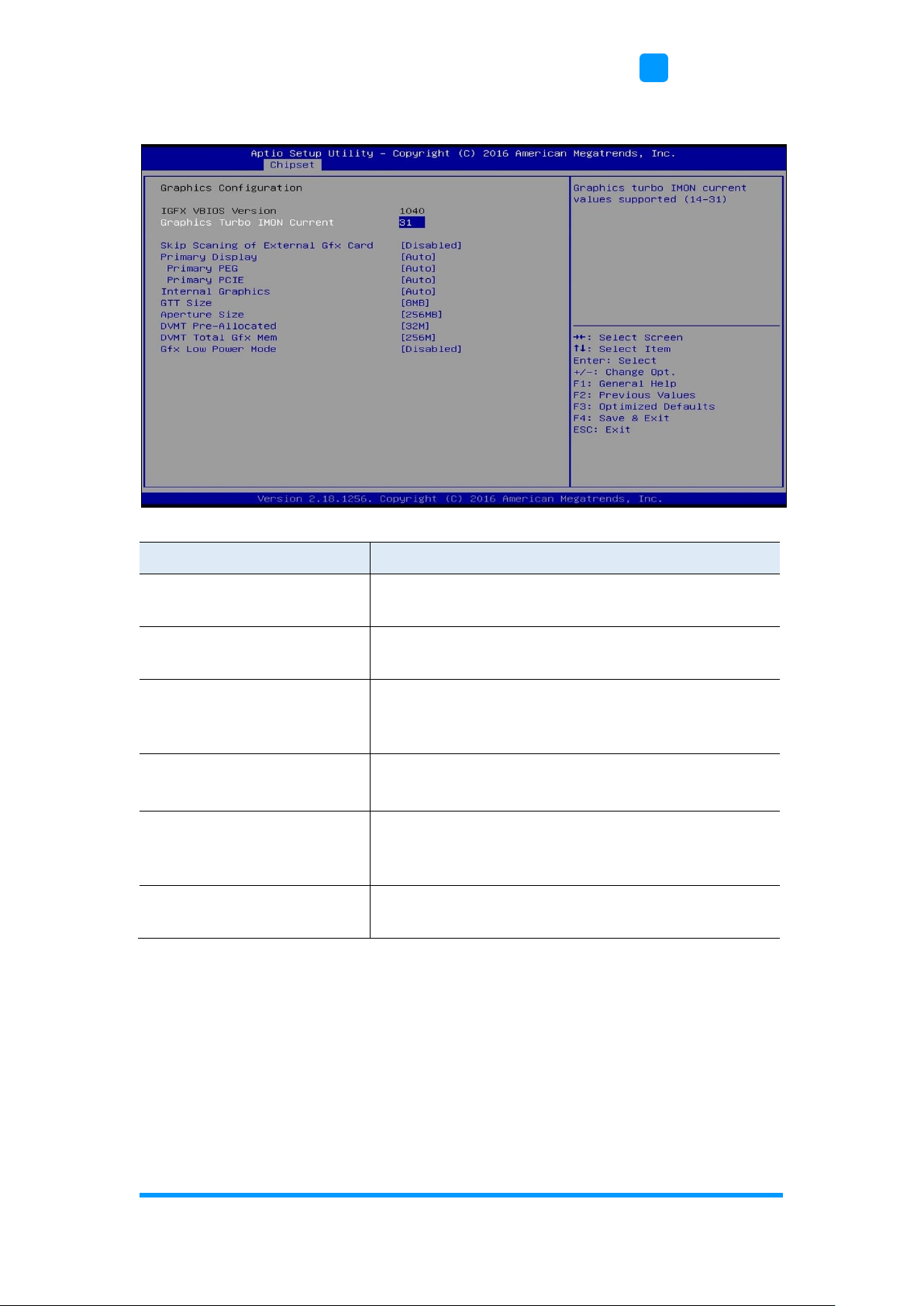

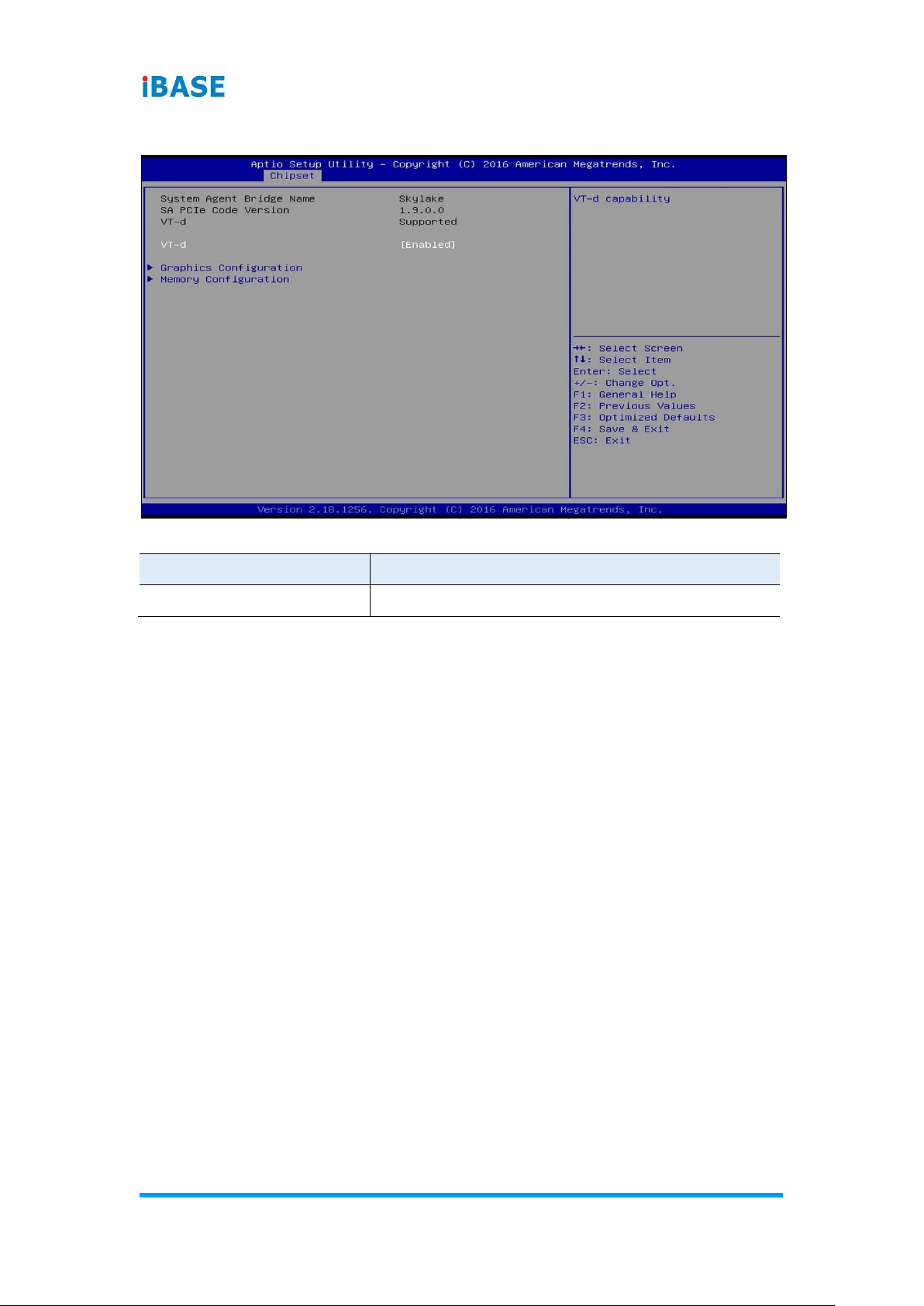

4.5.1 System Agent Bridge .............................................................. 50

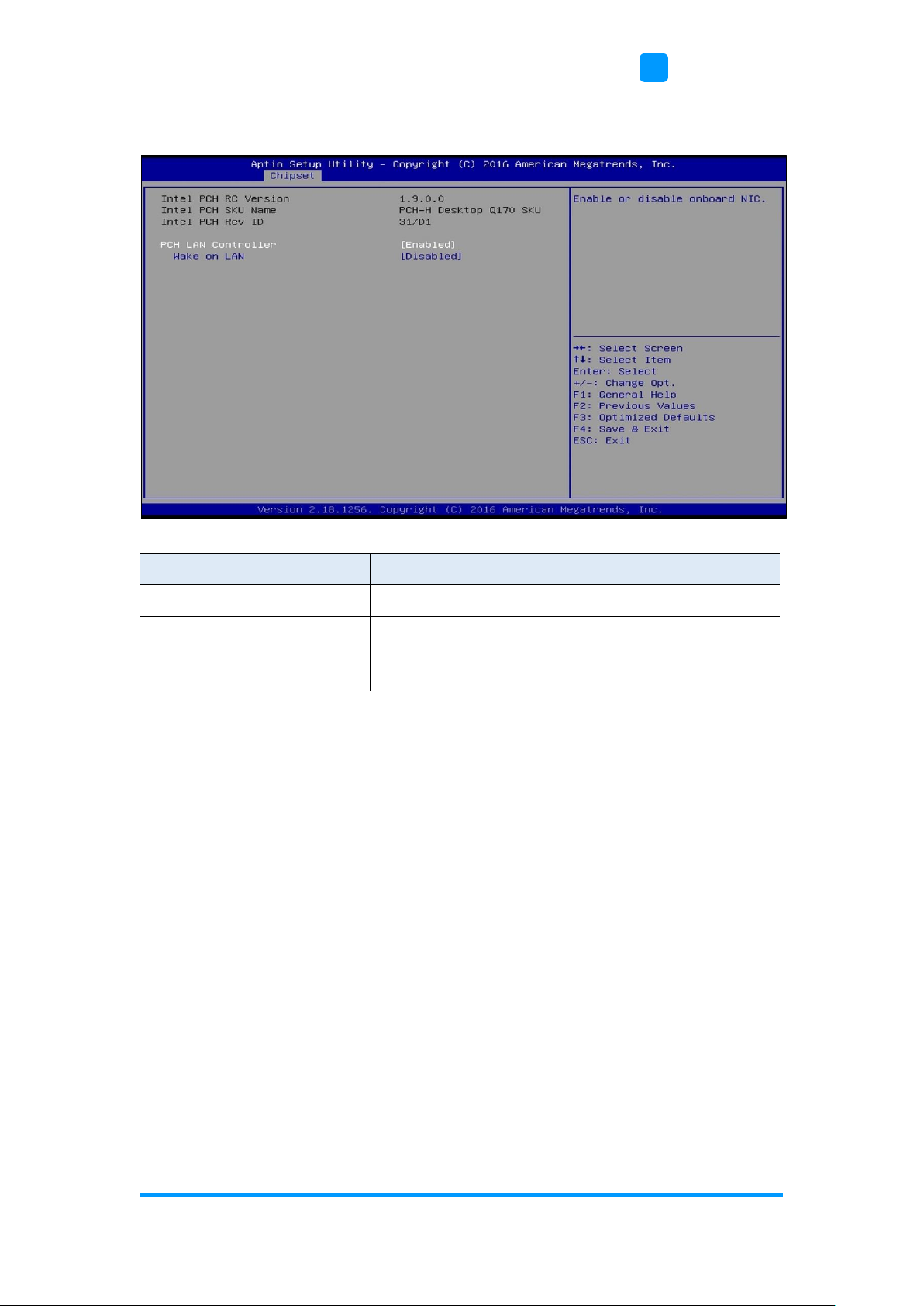

4.5.2 PCH-IO Configuration ............................................................. 53

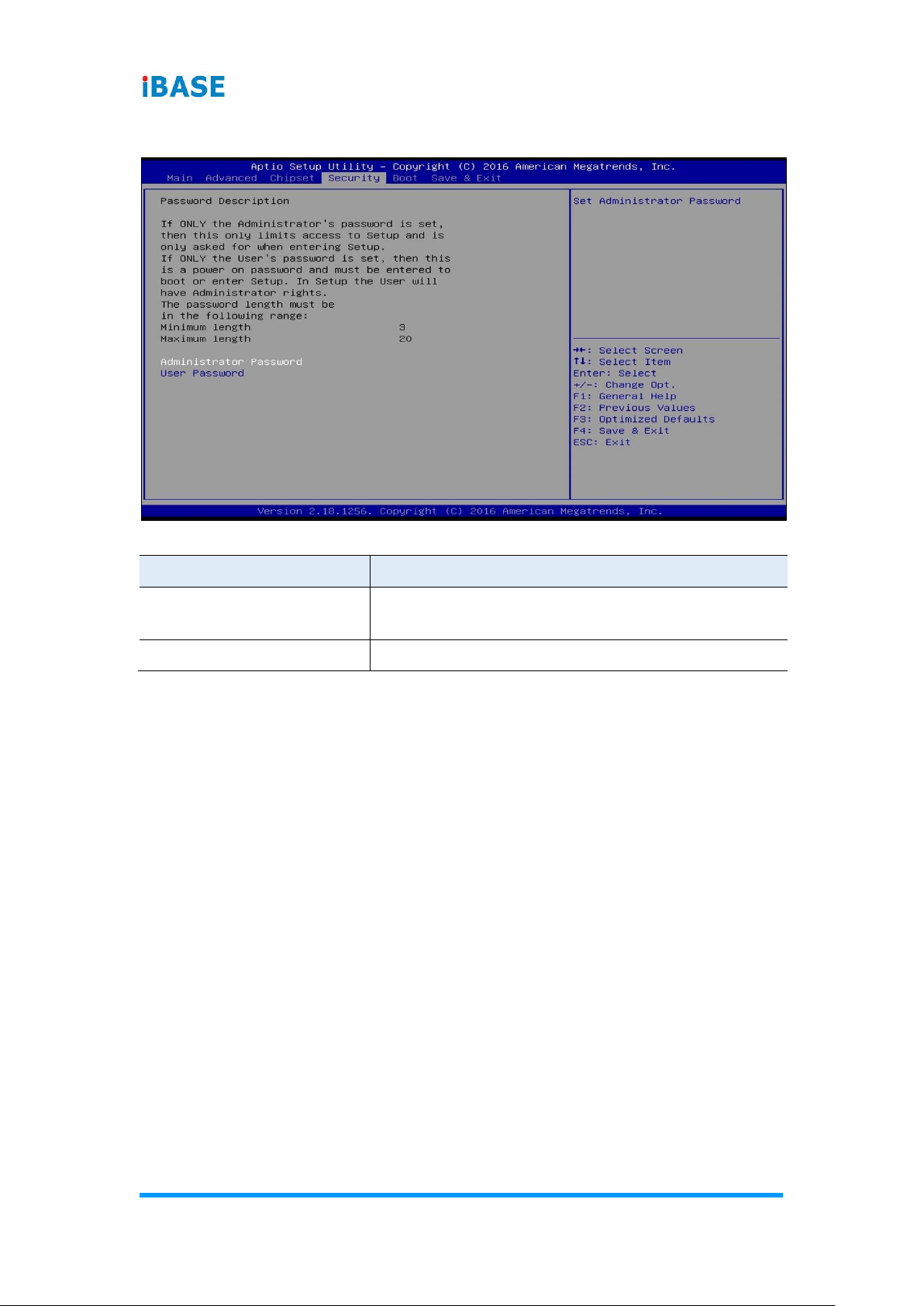

4.6 Security Settings ................................................................................... 54
viii
SI-613 User Manual

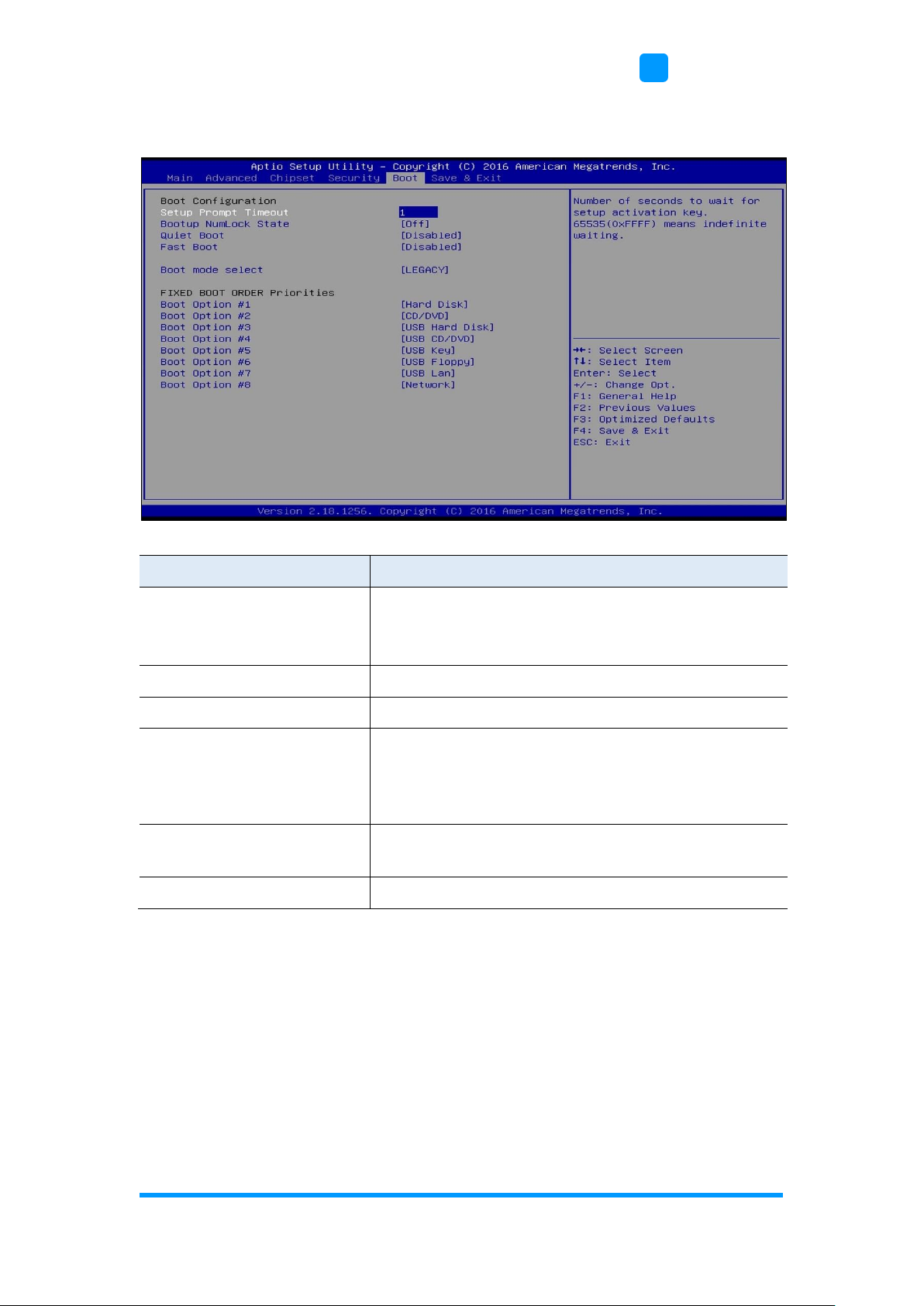

4.7 Boot Settings......................................................................................... 55

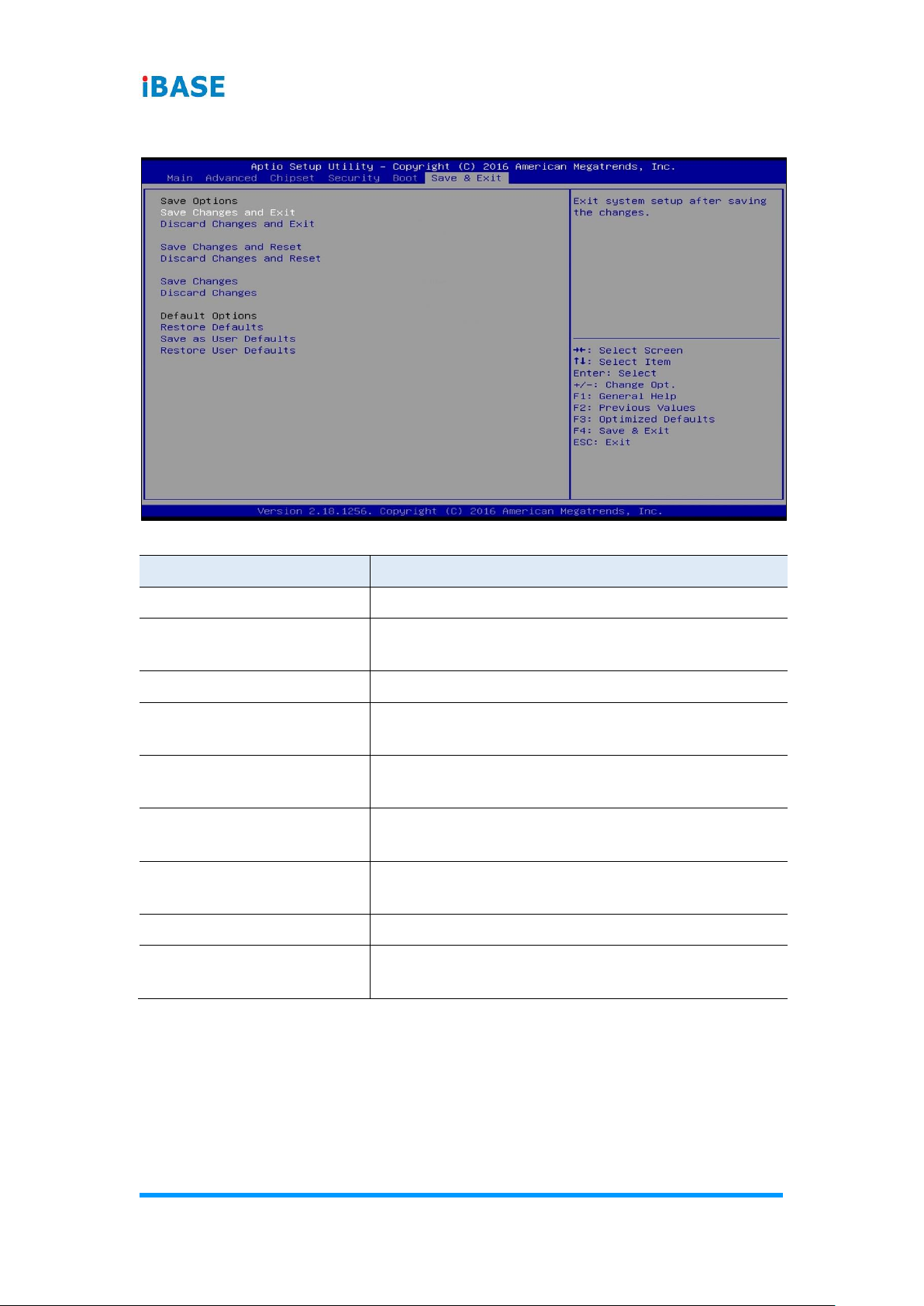

4.8 Save & Exit Settings.............................................................................. 56
Appendix ...................................................................................................... 57
A. I/O Port Address Map ............................................................................ 58
B. Interrupt Request Lines (IRQ) ............................................................... 60
C. Watchdog Timer Configuration .............................................................. 61
1
Chapter 1
General Information
The information provided in this chapter includes:
• Features
• Packing List
• Specifications
• Overview
• Dimensions
2
SI-613 User Manual
1.1 Introduction
SI-613, a product code of IBASE digital signage player series, is a mid-range
system with iSMART and capable of auto-scheduling for general applications.
It is slim with a segregated ventilation design. The device is designed with the
Intel® 6th Gen. Core™ processor, and outputs through HDMI 4K ultra high
definition video playback at 60 Hz. The device is able to be operated at the
ambient operating temperature ranging from 0 ~ 45 °C (CPU TDP ≤ 45W),
and even lower from -20 ~ 80 °C for storage.
1.2 Features
• iSMART for auto-scheduler and power resume
• TPM 1.2, and watchdog timer
• Intel
® 6th
Gen. Core™ processor with H170 co-lay Q170
• Integrated Intel
®
HD Graphics 530
• Display via HDMI 2.0 (3 ports) for 4K at 60 Hz with EDID emulation
• Gigabit Ethernet & RS-232 COM port
• Dual DDR4 SO-DIMM, 2133 MHz at 1.2V, expandable up to 32 GB
• WiFi networks, Bluetooth, and SIM card slot
• iAMT 11.0 with vPro for SI-613-QT
• Options of 4G LTE or TV tuner
• Slim and segregated ventilation design
General Information
SI-613 User Manual
3
1
1.3 Packing List
Your SI-613-N package should include the items listed below. If any of the
items below is missing, contact the distributor or the dealer from whom you
purchased the product.
• SI-613 Digital Signage Player x 1
• Power Adapter x 1
• Power Cord x 1
1.4 Optional Accessories
IBASE provide optional accessories as follows. Please contact us or your
dealer if you need any.
• WiFi Cable Kit
4
SI-613 User Manual
1.5 Specifications
Product
SI-613
SI-613-QT
System
Mainboard
MBD613
Operating
System
Windows 7 / 8.1 / 10
CPU
Intel® 6 Gen. Core™ processor with TDP up to 65W
LGA1151 (socket H4)
Chipset
H170
Q170
Cache
Up to 8 MB
Memory
2 x DDR4 SO-DIMM 4GB 2133 MHz, expandable up to 32GB
Graphics
Integrated Intel® HD Graphics 530
Super I/O
Fintek F81846AD
Storage
• 1 x NGF M.2 (3042) B key
• 1 x NGFF M.2 (2280) M key
Power
Requirement
12V DC-in
Power Supply
150W power adapter
Wireless
WiFi module 802.11 a/b/g/n (Optional)
Watchdog
Watchdog Timer 256 segments, 0, 1, 2…255 sec/min
iSMART
V3.x
iAMT
N/A
iAMT 11.0
TPM
N/A
Yes
System Fan
1 x CPU fan
Chassis
Aluminum and SGCC, black & white
Mounting
Slim design with wall mount holes
Dimensions
(W x H x D)
215.6 x 40 x 215.6 mm (8.49” x 1.57” x 8.49”)
Net Weight
2.2 kg (4.85 lb)
Certificate
CE, FCC, cULus, CCC
I/O Ports
HDMI
3 x HDMI 2.0 (4K at 60 Hz)
LAN
1 x GbE RJ45
Serial
1 x RJ45 for COM port (RS-232)
General Information
SI-613 User Manual
5
1
USB
• 2 x USB 3.0
• 2 x USB 2.0
Audio Jack
1 x Line-Out
1 x Microphone Input
Power Jack
1 x DC-in power jack
Expansion
• 1 x M.2 (3042) B Key with PCIe (x2) for storage / WiFi / BT /
4G LTE options
• 1 x M.2 (2280) M Key with SATA & PCIe (x4)
• 1 x Mini-PCIe (x1) for WiFi / BT / TV tuner / 4G LTE options
• 1 x SIM card slot
Environment
Temperature
• Operating:
CPU TDP ≤ 45W: 0 ~ 45 °C (32 ~ 113 °F)
CPU TDP = 65W: 0 ~ 40 °C (32 ~ 104 °F)
• Storage: -20 ~ 80 °C (-4 ~ 176 °F)
Relative
Humidity
5 ~ 90% at 45 °C (non-condensing)
Vibration
Protection
M.2: Operating, random vibration 5 grms (5~500Hz)
All specifications are subject to change without prior notice.
6
SI-613 User Manual
1.6 Overview
Top View
Oblique View
General Information
SI-613 User Manual
7
1
I/O View
No.
Name
No.
Name
1
DC Power Input
8
Audio Line-Out
2
EDID Clearance Button*
9
Microphone Input
3
HDMI 2.0 Port
10
LED Indicator for HDD
4
USB 3.0
11
Power Button
5
USB 2.0
12
LED Indicator for Power
6
LAN Port
13
Antenna Hole
7
COM Port
* Be sure to press the EDID Clearance Button shortly so as to clear the EDID
register if any connected display/monitor is unable to be recognized, or
when the image displayed cannot not be resampled to fit the screen.
8
SI-613 User Manual
1.7 Dimensions
Unit: mm
9
Chapter 2
Hardware Installation &
Motherboard Information
The information provided in this chapter includes:
• Installation of memory, M.2 and mini PCIe card
• Information and locations of connectors
10
SI-613 User Manual
2.1 Essential Installation Before You Begin
2.1.1 Memory Installation
There are two SO-DIMM DDR4 memory slots inside SI-613 for a maximum
total memory of 32 GB. If you need to install or replace a memory module,
locate the memory slot inside the device and perform the following steps.
1. Align the key of the memory module with that of the memory slot and
insert the module slantwise.
2. Gently push the module in an upright position until the clips of the slot
close to hold the module in place when the module touches the bottom of
the slot.
To remove the module, press the clips outwards with both hands.
Motherboard Information
SI-613 User Manual
11
2
2.1.2 Mini-PCIe & M.2 Network Cards Installation
If you need to replace or install the mini PCIe or M.2 card, locate the miniPCIe slot inside the device and perform the following steps.
1. Align the key of the mini-PCIe card to the mini-PCIe interface, and insert
the card slantwise.
(Insert the M.2 network card in the same way.)
2. Push the card down and fix it with the a screw of M3 x 3.8 mm.
(Fix the M.2 network card with a screw of M2 x 3.8 mm.)
Mini PCIe:
M.2:
12
SI-613 User Manual
2.1.3 WiFi / 3G / 4G Antenna Installation
Thread the WiFi / 3G / 4G antenna extension cable through an antenna hole
of the front I/O cover and fasten the antenna as shown below. Then apply
adhesive to the edge of the hex nut behind the front I/O cover to prevent the
extension cable from falling if the cable becomes loose.
1. Thread and fasten the hex nut and the
washer. Then install the antenna.
2. Apply adhesive around here.
Info: The diameter of the nut is around 6.35 mm (0.25”-36UNC).
Motherboard Information
SI-613 User Manual
13
2
2.2 Setting the Jumpers
Set up and configure your SI-613 by using jumpers for various settings and
features according to your needs and applications. Contact your supplier if
you have doubts about the best configuration for your use.
2.2.1 How to Set Jumpers
Jumpers are short-length conductors consisting of several metal pins with a
non-conductive base mounted on the circuit board. Jumper caps are used to
have the functions and features enabled or disabled. If a jumper has 3 pins,
you can connect either PIN1 to PIN2 or PIN2 to PIN3 by shorting.
A 3-pin jumper
A jumper cap
Refer to the illustration below to set jumpers.
Pin closed
Oblique view
Schematic illustration in the manual
Open
1-2
2-3
When two pins of a jumper are encased in a jumper cap, this jumper is
closed, i.e. turned On.
When a jumper cap is removed from two jumper pins, this jumper is open, i.e.
turned Off.
Pin# 1
2
3
1 2 3
1 2 3
1 2 3
14
SI-613 User Manual
2.3 Jumper & Connector Locations on Motherboard
Motherboard: MBD613
MBD613 - top
BZ1
J11
J12
J10
J13
J14
J8
JP4
JP3
J9
J6 J5
J4
J3
J7
LED6
LED5
SW1
CN
11
CN10
CN9
CN7 CN6
CN12
CN8
CN5
CN4
CN3
CN2
CN1
2
1
2
1
2
1
8
9
9
10
2
1
2
1
8
7
1
9
2
1
10
9
REMOVE
Intel
®
6th Gen.
Core™
CPU Socket
SIO
J2
Intel
®
H170/
Q170
143
2
1
144
145146
260
1 1
1
1
1
1
Motherboard Information
SI-613 User Manual
15
2

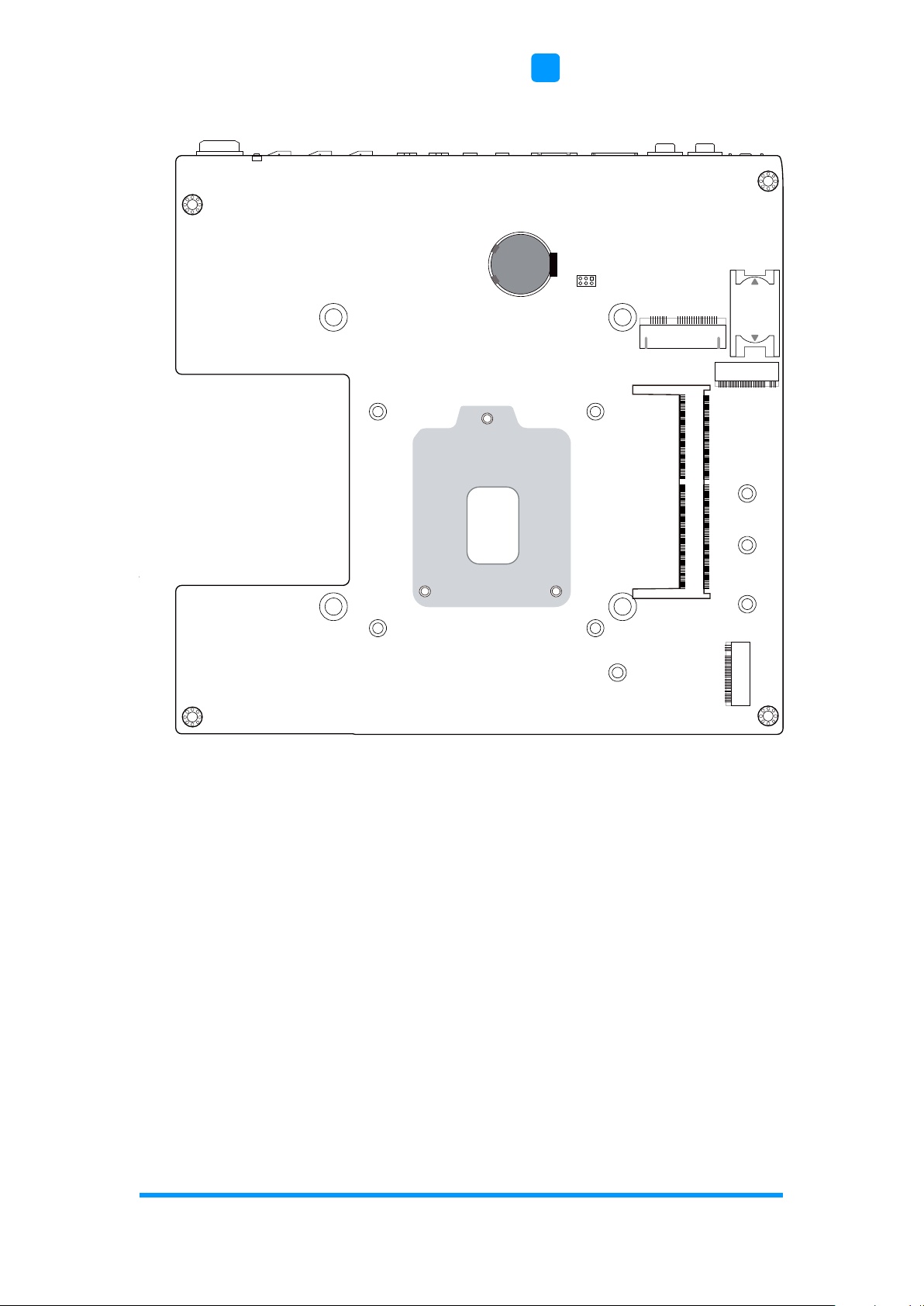

MBD613 - bottom
Battery
J17
JP5
J20
J19
J18
J16
143
2
1
144
145 146
259
260
1
2
5
6
Open
Lock
SW2
16
SI-613 User Manual
2.4 Jumpers Quick Reference
Jumper:
Function
Connector Name
Page
AT / ATX Power Mode Connector
JP4
16
CMOS Data & RTC Clearance
JP5
17
2.4.1 AT / ATX Power Mode Connector (JP4)
Function
Pin closed
Illustration
ATX
(default)
1-2
AT
2-3
1
1
1
Motherboard Information
SI-613 User Manual
17
2
2.4.2 CMOS Data & RTC Clearance (JP5)
Function
Pin closed
Illustration
Normal
(default)
1-3 (CMOS)
2-4 (RTC)
Clear CMOS & RTC
3-5 (CMOS)
4-6 (RTC)
1
2
5
6
1
2
5
6
1
2
5
6
18
SI-613 User Manual
2.5 Connectors Quick Reference
I/O coastline connectors:
Function
Connector Name
Page
Power Button
SW1
19
EDID Clearance Button
SW2
19
LED Indicator
LED5 (Green, for HDD)
LED6 (Red, for Power)
20
DC Power Input
CN12
20
HDMI 2.0 Port
CN1,CN2,CN3
21
LAN Port (GbE)
CN6
21
USB 3.0 Port
CN4, CN5
21
USB 2.0 Port
CN8,CN9
22
COM1 Port
CN7
22
Audio Jack
CN10 (Line-out)
CN11 (Microphone Input)
23
On-board connectors:
Function
Connector Name
Page
CPU Fan Power Connector
J3
24
USB 2.0 Ports Header
J12
24
COM2 RS232 Port
J10:
25
System Function Connector
J14
25
SIM Card Socket
J19
26
Digital I/O Header
J13
26
NGFF M.2 Connector
J16 (B-KEY 3042)
J18 (M-KEY 2280)
27
Mini PCIE Connectors
J20
28
DDR4 SO-DIMM
J2, J17
28
Factory Use Only
J4, J5, J6, J7, J8, J9, J11
--
Motherboard Information
SI-613 User Manual
19
2

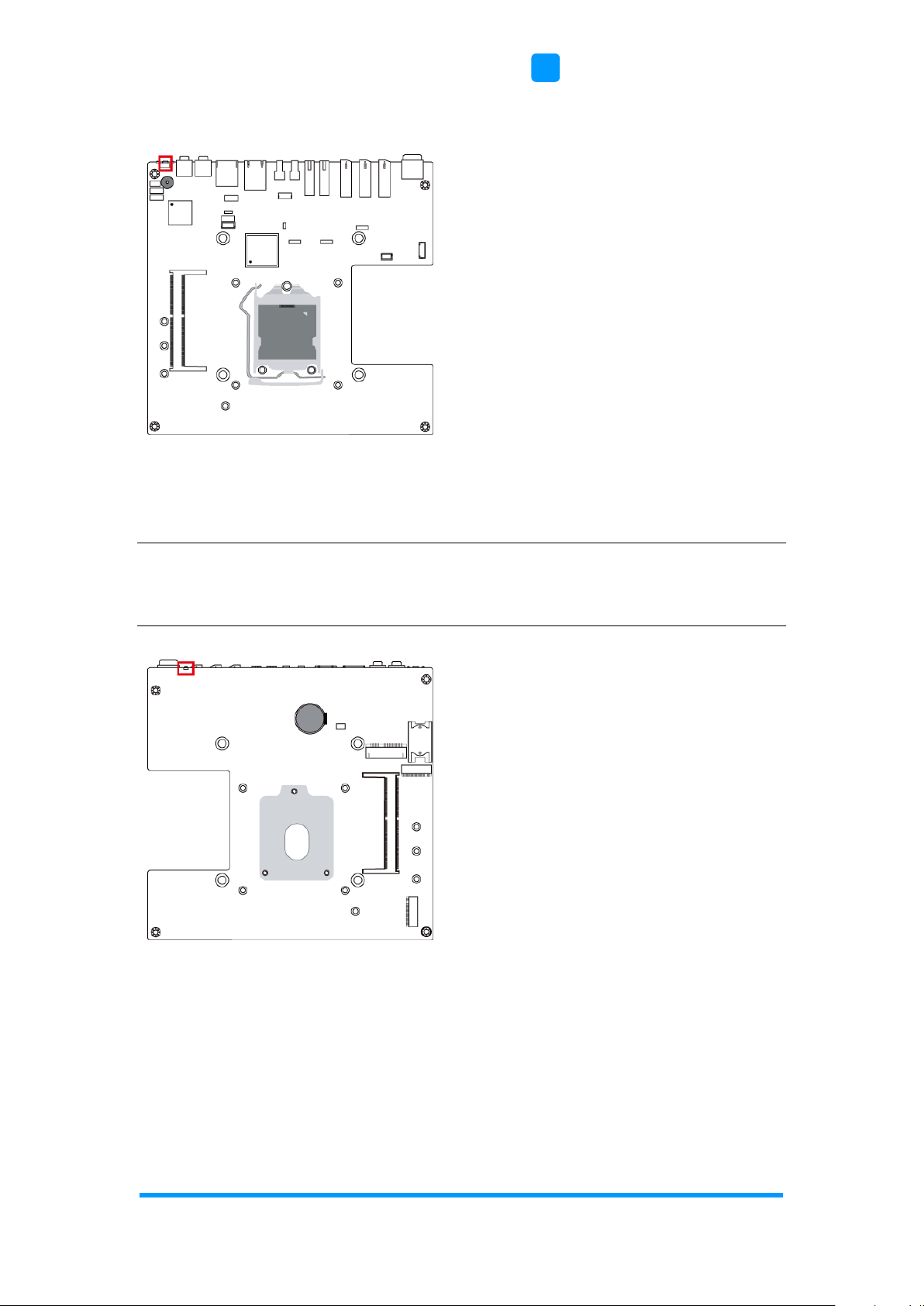

2.5.1 Power Button (SW1)
2.5.2 EDID Clearance Button (SW2)
Note: Be sure to press this button shortly so as to clear the EDID register if
any connected display/monitor is unable to be recognized, or when the
image displayed cannot not be resampled to fit the screen.
20
SI-613 User Manual
2.5.3 LED Indicators for HDD & Power (LED5, LED6)
LED6
LED5
LED5 is the green LED indicator for HDD. When HDD is being read, it blinks.
LED6 is the red LED indicator for power status. It stays on (not blinks) as the
device is on.
2.5.4 DC Power Input (CN12)
Pin
Assigment
Pin
Assigment
1
Ground
3
+12V
2
Ground
4
+12V
4 3
2 1
Motherboard Information
SI-613 User Manual
21
2

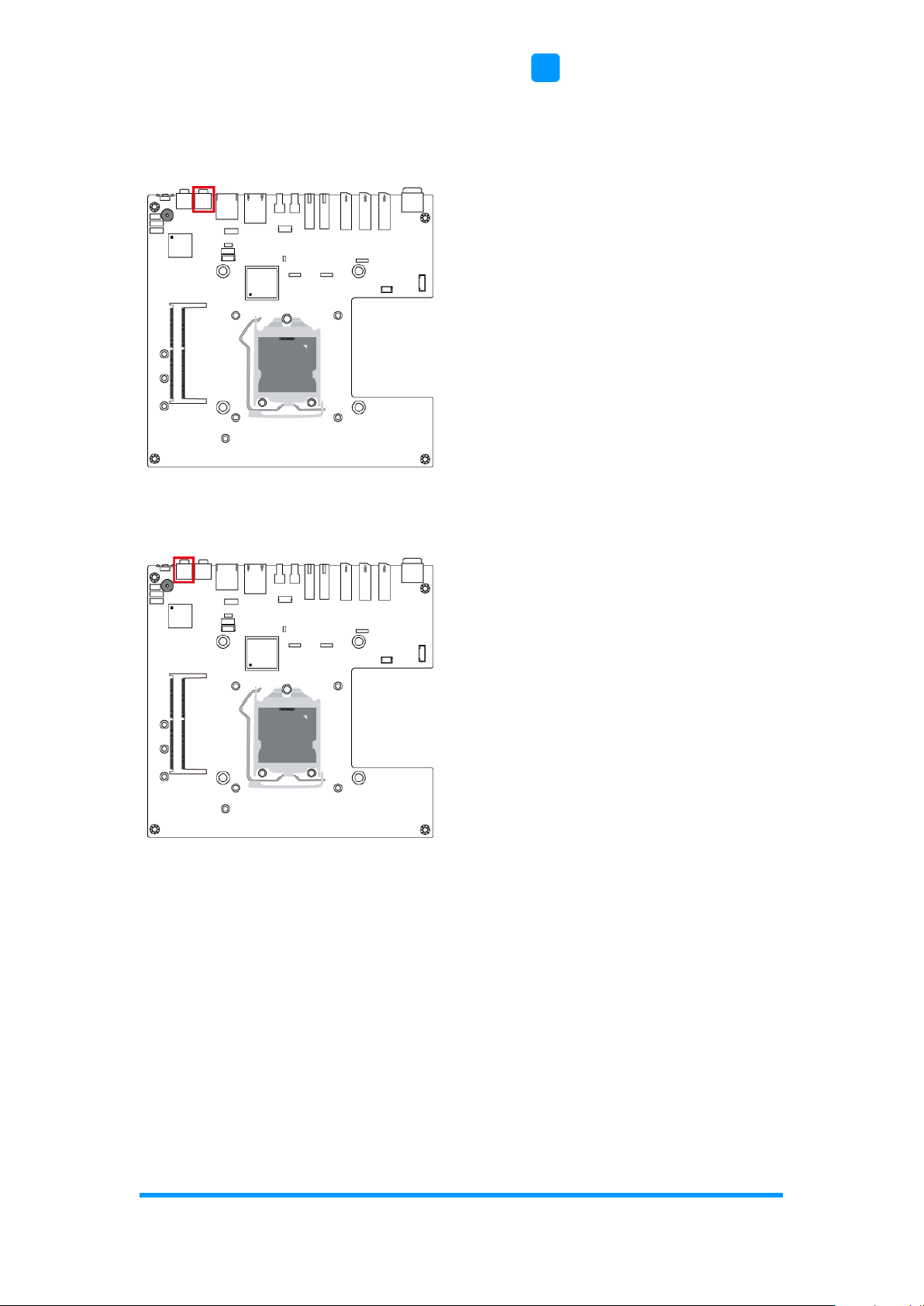

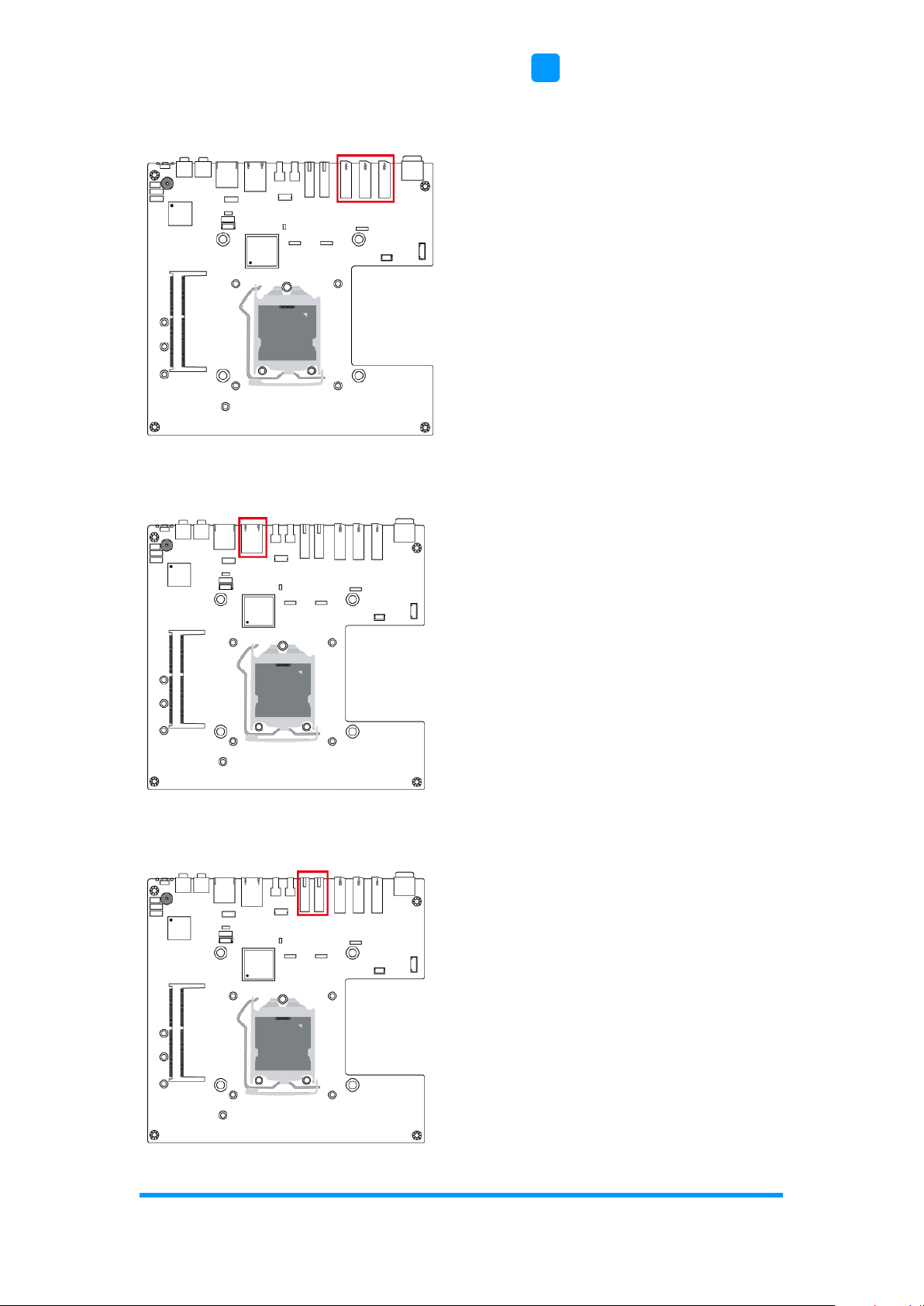

2.5.5 HDMI 2.0 Port (CN1, CN2, CN3)
2.5.6 LAN Port (CN6)
2.5.7 USB 3.0 Port (CN4, CN5)
22
SI-613 User Manual
2.5.8 USB 2.0 Port (CN8, CN9)
2.5.9 COM1 Serial Port (CN7)
Pin
Assigment
Pin
Assigment
1
DSR
6
DCD
2
Ground
7
DTR
3
Ground
8
CTS
4
TX
9
RTS
5
RX
10
RI
101
Motherboard Information
SI-613 User Manual
23
2
2.5.10 Audio Jack (CN10, CN11)
CN10: Line-out
CN11: Microphone Input
24
SI-613 User Manual

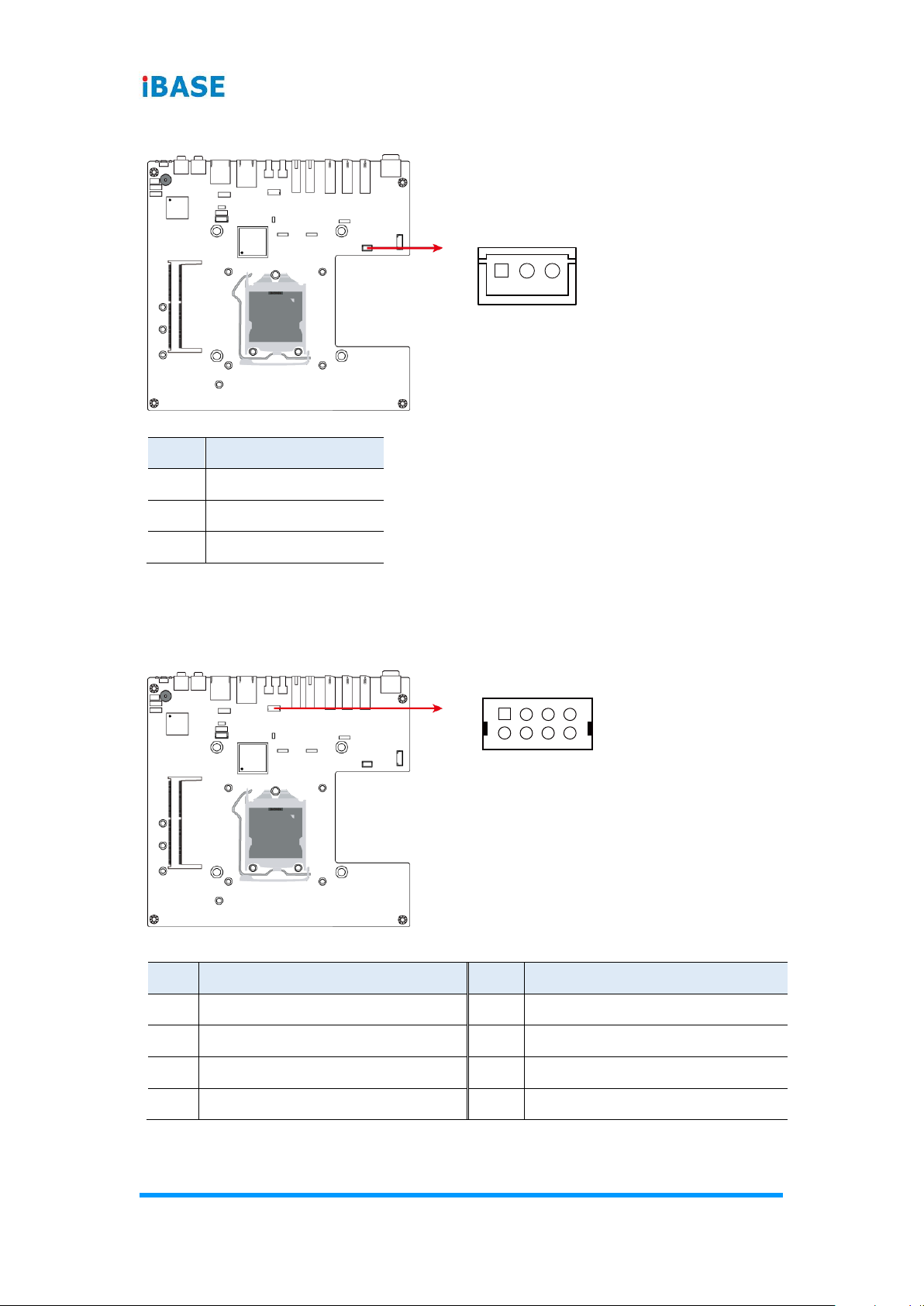

2.5.11 CPU Fan Power Connector (J3)
Pin
Assigment
1
Ground
2
+12V
3
Rotation detection
2.5.12 USB 2.0 Ports Header (J12)
Pin
Assigment
Pin
Assigment
1
+5V
2
+5V
3
Data- (Port 1)
4
Data- (Port 2)
5
Data+ (Port 1)
6
Data+ (Port 2)
7
Ground
8
Ground
1
2
1 7
8
Motherboard Information
SI-613 User Manual
25
2

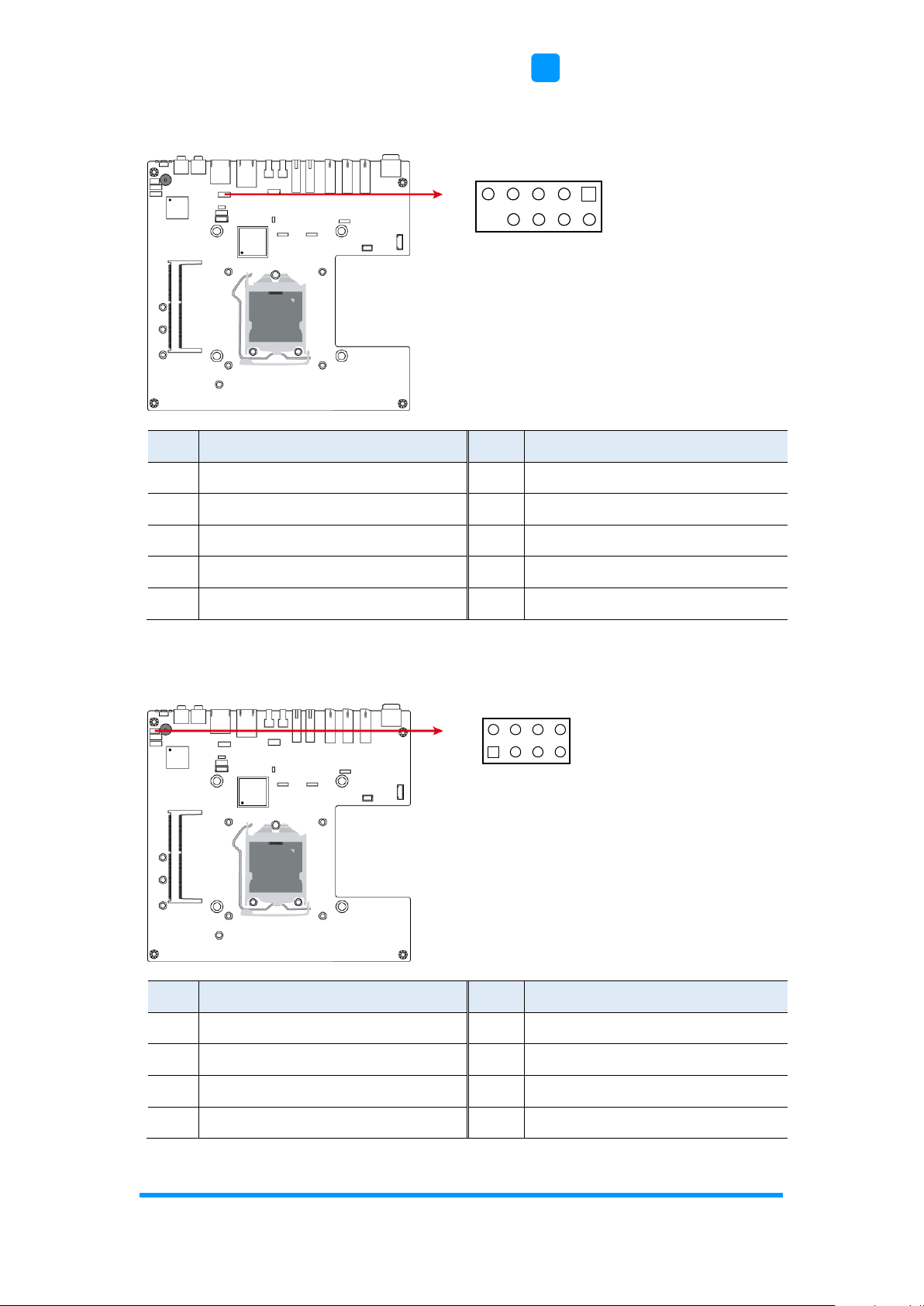

2.5.13 COM2 RS-232 Port (J10)
Pin
Assigment
Pin
Assigment
1
DCD (Data carrier detect)
2
DSR (Data set ready)
3
RXD (Receive data)
4
RTS (Request to send)
5
TXD (Transmit data)
6
CTS (Clear to send)
7
DTR (Data terminal ready)
8
RI (Ring indicator)
9
Ground
2.5.14 System Function Connector (J14)
Pin
Assigment
Pin
Assigment
1
Power BTN
2
Power BTN
3
HDD LED+
4
HDD LED-
5
Reset BTN
6
Reset BTN
7
+5V
8
+5VSB
1
2
9
1
2 8
7
26
SI-613 User Manual

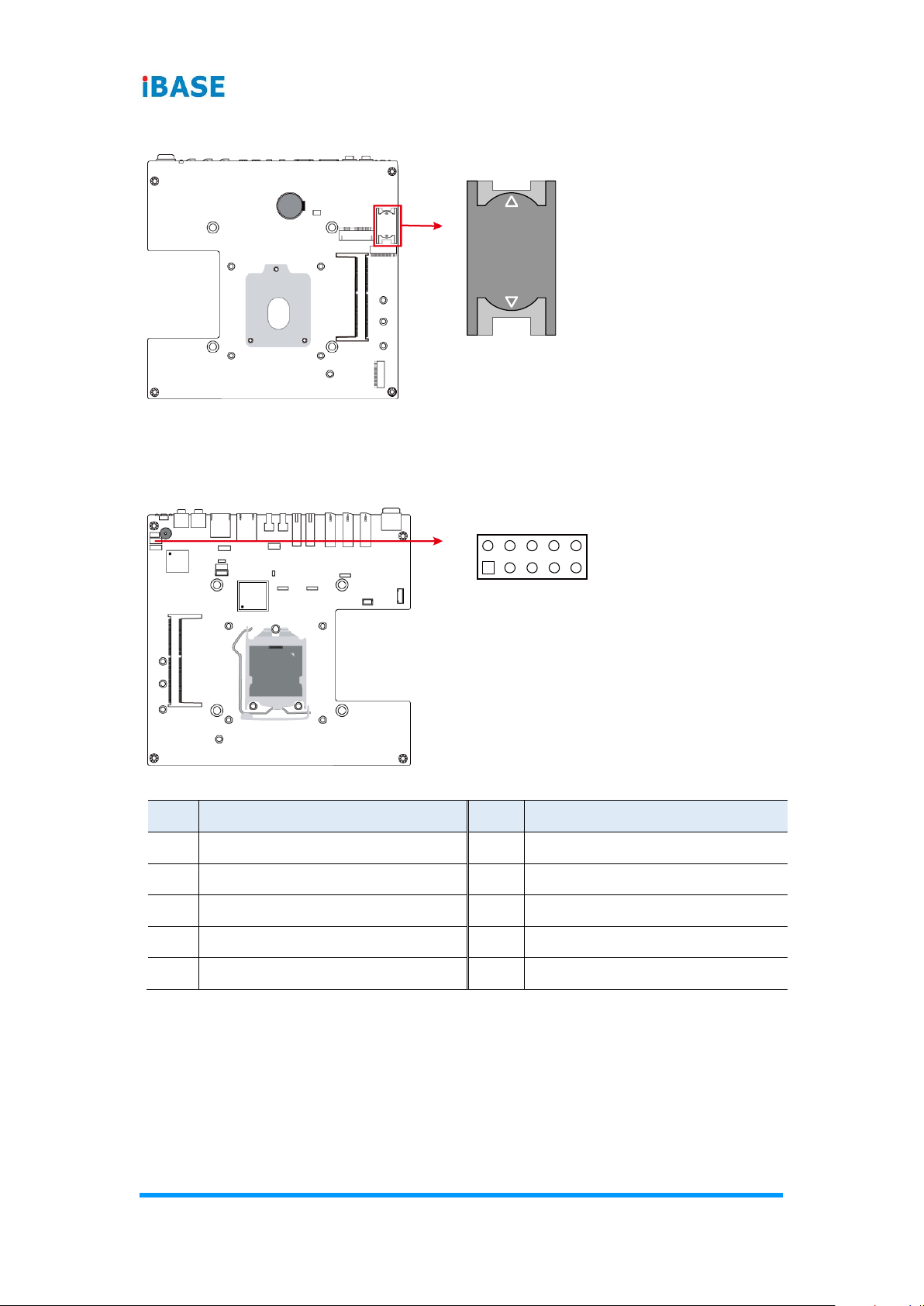

2.5.15 SIM Card Socket (J19)
2.5.16 Digital I/O Connector (J13)
Pin
Assigmentd
Pin
Assigment
1
Ground
2
+5V
3
OUT3
4
OUT1
5
OUT2
6
OUT0
7
IN3
8
IN1
9
IN2
10
IN0
Open
Lock
102
91
Motherboard Information
SI-613 User Manual
27
2
2.5.17 NGFF M.2 Connector (J16, J18)
J16 is a M.2 B-Key (3042) connector with PCIe (x2) , USB 2.0, USB 3.0, and
SATA.
J18 is a M.2 M-Key (2280) connector with SATA and PCIe (x4).
28
SI-613 User Manual
2.5.18 Mini PCIe Connector (J20)
J20 is a Mini PCIe connector with PCI-e, USB and SIM.
2.5.19 DDR4 SO-DIMM (J2, J17)
J2:
J17:
29
Chapter 3
Driver Installation
The information provided in this chapter includes:
• Intel
®
Chipset Software Installation Utility
• Intel
®
Graphics Driver Installation
• HD Audio Driver Installation
• LAN Driver Installation
• Intel
®
Trusted Execution Engine Installation
• USB 3.0 Driver Installation
30
SI-613 User Manual
3.1 Introduction
This section describes the installation procedures for software drivers. The
software drivers are available on IBASE website www.ibase.com.tw. Register
as a member of our website to download all the necessary drivers and extract
for installation.
Note: After installing your Windows operating system, you must install the
Intel® Chipset Software Installation Utility first before proceeding with
the drivers installation.
3.2 Intel® Chipset Software Installation Utility
The Intel® Chipset drivers should be installed first before the software drivers
to install INF files for Plug & Play function for the chipset components. Follow
the instructions below to complete the installation.
1. Run the Setup.exe file.
2. When the Welcome screen to the Intel
®
Chipset Device Software appears,
click Next to continue.
3. Accept the license agreement and proceed with the installation process.
4. The driver has been completely installed. You are suggested to restart the
computer for changes to take effect.
Driver Installation
SI-613 User Manual
31
3
3.3 Intel® Graphics Driver Installation
1. Run the Setup.exe file.
2. When the Welcome screen appears, click Next to continue.
3. Click Yes to agree with the license agreement and continue the
installation.
4. On the Readme File Information screen, click Next for installation.
5. The driver has been completely installed. You are suggested to restart the
computer for changes to take effect.
32
SI-613 User Manual
3.4 HD Audio Driver Installation
1. Run the Setup.exe file.
2. On the Welcome screen of the InstallShield Wizard, click Next for
installation.
3. The driver has been completely installed. You are suggested to restart the
computer for changes to take effect.
Driver Installation
SI-613 User Manual
33
3
3.5 LAN Driver Installation
1. Run the Setup.exe file.
2. On the Welcome screen of the InstallShield Wizard, click Next for
installation.
3. Accept the license agreement and click Next to continue.
4. On the Setup Options screen, tick the checkbox to select the desired
driver(s) and click Next for installation.
5. The driver has been completely installed. You are suggested to restart the
computer and for changes to take effect.
34
SI-613 User Manual
3.6 Intel® Management Engine Components Drivers
Installation
1. Run the Setup.exe file.
2. When the Weocome screen appears, click Next.
3. Accept the license agreement and click Next for installation.
4. The driver has been completely installed. You are suggested to restart the
computer and for changes to take effect.
Driver Installation
SI-613 User Manual
35
3
3.7 Intel® USB 3.0 Driver Installation
1. Run the Setup.exe file.
2. On the Welcome screen of the InstallShield Wizard, click Next.
3. Click Yes to agree with the license agreement.
4. On the Readme File Information screen, click Next for installation.
5. The driver has been completely installed. You are suggested to restart the
computer and for changes to take effect.
36
Chapter 4
BIOS Setup
This chapter describes the different settings available in the AMI
BIOS that comes with the board. The topics covered in this
chapter are as follows:
• Main Settings
• Advanced Settings
• Chipset Settings
• Security Settingss
• Book Settings
• Save & Exit
BIOS Setup
SI-613 User Manual
37
4
4.1 Introduction
The BIOS (Basic Input/Output System) installed in the ROM of your computer
system supports Intel® processors. The BIOS provides critical low-level
support for standard devices such as disk drives, serial ports and parallel
ports. It also provides password protection as well as special support for
detailed fine-tuning of the chipset controlling the entire system.
4.2 BIOS Setup
The BIOS provides a Setup utility program for specifying the system
configurations and settings. The BIOS ROM of the system stores the Setup
utility. When you turn on the computer, the BIOS is immediately activated.
Press the <Del> key immediately allows you to enter the Setup utility. If you
are a little bit late pressing the <Del> key, POST (Power On Self Test) will
continue with its test routines, thus preventing you from invoking the Setup.
If you still need to enter Setup, restart the system by pressing the ”Reset”
button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys.
You can also restart by turning the system Off and back On again.
The following message will appear on the screen:
Press <DEL> to Enter Setup
In general, press the arrow keys to highlight items, <Enter> to select, the
<PgUp> and <PgDn> keys to change entries, <F1> for help, and <Esc> to
quit.
When you enter the BIOS Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup functions
and exit choices.
Warning: It is strongly recommended that you avoid making any changes to
the chipset defaults.
These defaults have been carefully chosen by both AMI and your
system manufacturer to provide the absolute maximum
performance and reliability. Changing the defaults could make the
system unstable and crash in some cases.
38
SI-613 User Manual
4.3 Main Settings
BIOS Setting
Description
System Date
Sets the date.
Use the <Tab> key to switch between the data
elements.
System Time
Set the time.
Use the <Tab> key to switch between the data
elements.
BIOS Setup
SI-613 User Manual
39
4
4.4 Advanced Settings
This section allows you to configure, improve your system and allows you to
set up some system features according to your preference.
40
SI-613 User Manual
4.4.1 Trusted Computing
BIOS Setting
Description
Security Device Support
Enables / Disables BIOS support for security
device. The operating system will not show
security device.
TCG EFI protocol and INT1A interface will not
be available.
BIOS Setup
SI-613 User Manual
41
4
4.4.2 iSMART Controller
BIOS Setting
Description
Power-On after Power
failure
Enables / Disables the system to be turned on
automatically after a power failure.
Schedule Slot 1 / 2
Sets up the hour / minute for system powe-on.
42
SI-613 User Manual
4.4.3 AMT Configuration
BIOS Setting
Description
Intel AMT
Enables / Disables Intel® Active Management
Technology BIOS Extension.
Note: iAMT H/W is always enabled. This
option just controls the BIOS extension
execution. If enabled, additional firmware in
the SPI device will be required.
Unconfigure ME
Unconfigures AMT/ME without password
operation.
Amt Wait Timer
Sets timer to wait before sending
ASF_GET_BOOT_OPTIONS.
Activate Remote
Assistance Process
Triggers CIRA boot.
PET Progress
Enables / Disables PET events progress to
receive PET events.
Watchdog Timer
Enables / Disables Watchdog Timer.
BIOS Setup
SI-613 User Manual
43
4
4.4.4 Super IO Configuration
BIOS Setting
Description
Serial Port Configuration
Sets parameters of Serial Ports (COMA).
Enables / Disables the serial port and select
an optimal setting for the Super IO device.
44
SI-613 User Manual
4.4.5 Hardware Monitor
BIOS Setting
Description
CPU smart fan control
Enables / Disables the smart fan feature.
Disabled (default)
Options: 50 °C / 60 °C / 70 °C / 80 °C / 90 °C
Temperatures / Voltages
These fields are the parameters of the
hardware monitoring function feature of the
motherboard. The values are read-only values
as monitored by the system and show the PC
health status.
Shutdown Temperature
This field enables or disables the Shutdown
Temperature
BIOS Setup
SI-613 User Manual
45
4
4.4.6 CPU Configuration
BIOS Setting
Description
Intel(R) SpeedStep(tm)
Supports more than two frquency ranges.
46
SI-613 User Manual
4.4.7 SATA Configuration
BIOS Setting
Description
SATA Controller(s)
Enables / Disables SATA devices.
SATA Mode Selection
Determines how the SATA
controller(s) operate.
Options: AHCI Mode / RAID Mode
Serial ATA Ports
Enables / Disables Serial Ports.
Hot Plug
Designates this port as Hot
Pluggable.
BIOS Setup
SI-613 User Manual
47
4
4.4.8 CSM Configuration
BIOS Setting
Description
Network SATA
Controller(s)
Controls the execution of UEFI and legacy PXE
OpROM.
48
SI-613 User Manual
4.4.9 USB Configuration
BIOS Setting
Description
Legacy USB SUpport
• Enable: Enables Ledacy USB Support.
• Auto: Disables legacy support if no USB
devices are connected.
• Disable: Keeps USB devices available only
for EFI applications.
XHCI Hand-off
This is a workaround for OSes without XHCI
hand-off support. The XHCI ownership change
should be claimed by XHCI driver.
USB Mass Storage Driver
Support
Enables / Disables the support for USB mass
storage driver.
Port 60/64 Emulation
Enables I/O port 60h/64h emulation support.
This should be enabled for the complete USB
keyboard legacy support for non-USB aware
OSes.
USB Transfer time-out
The time-out value for Control, Bulk, and
Interrupt transfers.
Device reset time-out
Seconds of delaying execution of start unit
command to USB mass storage device.
Device power-up delay
The maximum time the device will take before it
properly reports itself to the Host Controller.
“Auto” uses default value for a Root port it is
100ms. But for a Hub port, the delay is taken
from Hub descriptor.
BIOS Setup
SI-613 User Manual
49
4
4.5 Chipset Settings
BIOS Setting
Description
System Agent (SA)
Configuration
System Agent (SA) parameters
PCH-IO Configuration
PCH parameters
50
SI-613 User Manual
4.5.1 System Agent Bridge
BIOS Setting
Description
VT-d
Checks if VT-d function on MCH is supported.
BIOS Setup
SI-613 User Manual
51
4
4.5.1.1. Graphics Configuration
BIOS Setting
Description
Graphics Turbo IMON
Current
Displays the current values supported (14~31).
Skip Scanning of External
Gfx Card
If enabled, it will not scan for external Gfx Card
on PEG and PCH PCIE ports.
Primary Display
Selects which of IGFX/PEG/PCI graphics
device should be primary display, or selects SG
for switchable Gfx.
Primary PEG
Selects PEGO/PEG1/PEG2/PEG3 Graphics
device should be Primary PEG.
Primary PCIE
Selects PCIE0 / PCIE1 / PCIE2 / PCIE3 /
PCIE4 / PCIE5 / PCIE6 / PCIE7 Graphics
device should be primary PCIE.
Internal Graphics
Keeps IGD enabled based on the setup
options.
52
SI-613 User Manual

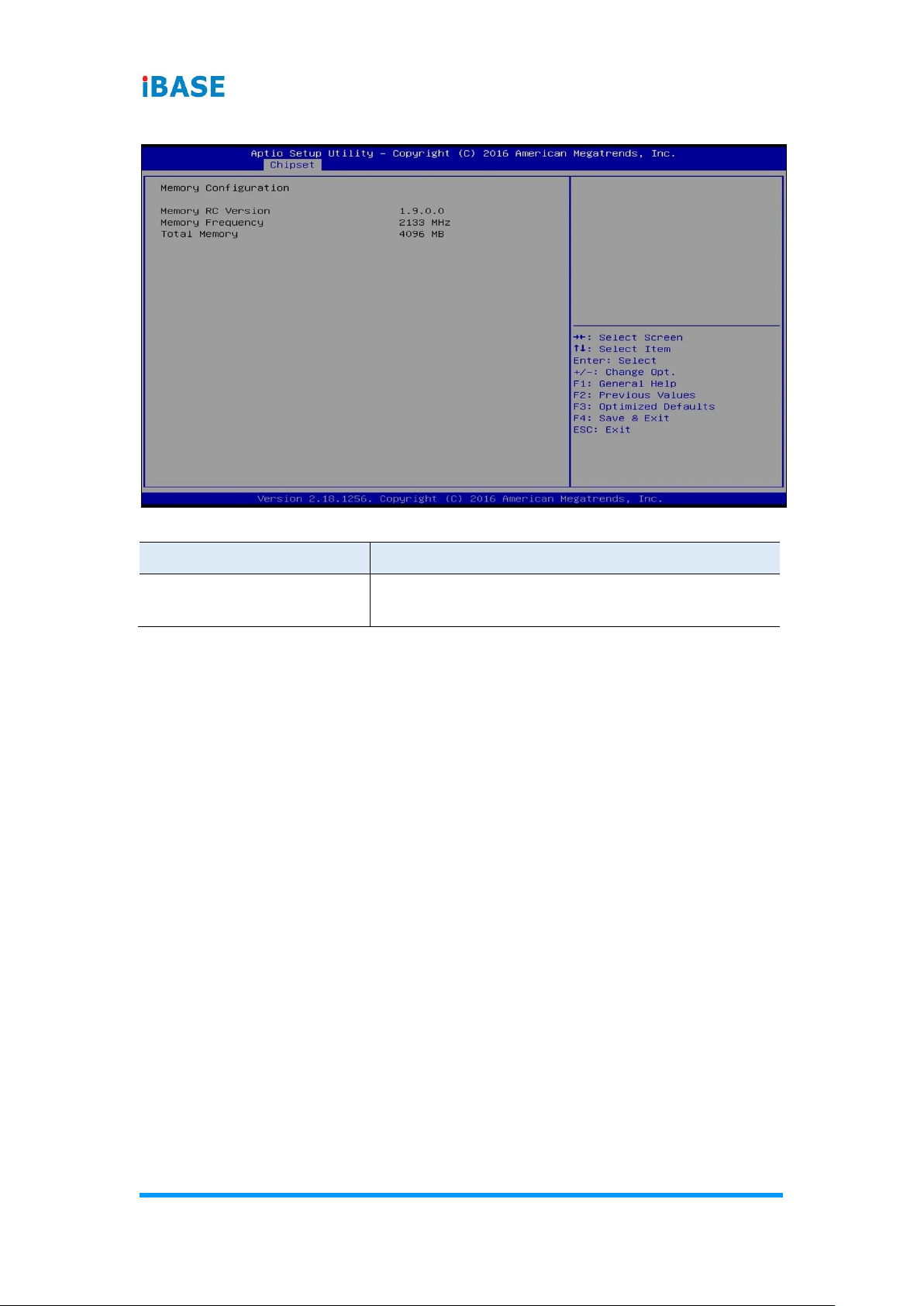

4.5.1.2. Memory Configuration
BIOS Setting
Description
Memory Configuration
Displays the RC version, frequency and total
size of memory.
BIOS Setup
SI-613 User Manual
53
4
4.5.2 PCH-IO Configuration
BIOS Setting
Description
PCH LAN Controller
Enables / Disables the on-board NIC.
Wake on LAN
Enables / Disables the integrated LAN to wake
the system. (The Wake On LAN cannot be
disabled if ME is on at Sx state.)
54
SI-613 User Manual
4.6 Security Settings
BIOS Setting
Description
Administrator Password
Sets an administrator password for the setup
utility.
User Password
Sets a user password.
BIOS Setup
SI-613 User Manual
55
4
4.7 Boot Settings
BIOS Setting
Description
Setup Prompt Timeout
Number of seconds to wait for setup activation
key.
65535 (0xFFFF) means indefinite waiting.
Bootup NumLock State
Selects the keyboard NumLock state.
Quiet Boot
Enables / Disables Quiet Boot option.
Fast Boot
Enables / Disables boot with initialization of a
minimal set of devices required to launch the
active boot option. There no effect for BBS boot
options.
Fixed Boot Order
Priorities
Sets the system boot order.
Boot Option Priorities
Sets the system boot order.
56
SI-613 User Manual
4.8 Save & Exit Settings
BIOS Setting
Description
Save Changes and Exit
Exits system setup after saving the changes.
Discard Changes and
Exit
Exits system setup without saving any changes.
Save Changes and Reset
Resets the system after saving the changes.
Discard Changes and
Reset
Resets system setup without saving any
changes.
Save Changes
Saves changes done so far to any of the setup
options.
Discard Changes
Discards changes done so far to any of the
setup options.
Restore Defaults
Restores / Loads defaults values for all the
setup options.
Save as User Defaults
Saves the changes done so far as user defaults.
Restore User Defaults
Restores the user defaults to all the setup
options.
57
Appendix
This section provides the mapping addresses of peripheral
devices and the sample code of watchdog timer configuration.
• I/O Port Address Map
• Interrupt Request Lines (IRQ)
• Digital I/O Sample Code
• Watchdog Timer Configuration
58
SI-613 User Manual
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port addresses
which also becomes the identity of the device. The following table lists the I/O
port addresses used.
Address
Device Description
0x00000A00-0x00000A0F
Motherboard resources
0x00000A10-0x00000A1F
Motherboard resources
0x00000A10-0x00000A1F
Motherboard resources
0x0000002E-0x0000002F
Motherboard resources
0x0000004E-0x0000004F
Motherboard resources
0x00000061-0x00000061
Motherboard resources
0x00000063-0x00000063
Motherboard resources
0x00000065-0x00000065
Motherboard resources
0x00000067-0x00000067
Motherboard resources
0x00000070-0x00000070
Motherboard resources
0x00000070-0x00000070
System CMOS/real time clock
0x00000080-0x00000080
Motherboard resources
0x00000092-0x00000092
Motherboard resources
0x000000B2-0x000000B3
Motherboard resources
0x00000680-0x0000069F
Motherboard resources
0x0000FFFF-0x0000FFFF
Motherboard resources
0x0000FFFF-0x0000FFFF
Motherboard resources
0x0000FFFF-0x0000FFFF
Motherboard resources
0x00001800-0x000018FE
Motherboard resources
0x0000164E-0x0000164F
Motherboard resources
0x00000020-0x00000021
Programmable interrupt controller
0x00000024-0x00000025
Programmable interrupt controller
0x00000028-0x00000029
Programmable interrupt controller
0x0000002C-0x0000002D
Programmable interrupt controller
0x00000030-0x00000031
Programmable interrupt controller
0x00000034-0x00000035
Programmable interrupt controller
0x00000038-0x00000039
Programmable interrupt controller
Appendix
SI-613 User Manual
59
Address
Device Description
0x0000003C-0x0000003D
Programmable interrupt controller
0x000000A0-0x000000A1
Programmable interrupt controller
0x000000A4-0x000000A5
Programmable interrupt controller
0x000000A8-0x000000A9
Programmable interrupt controller
0x000000AC-0x000000AD
Programmable interrupt controller
0x000000B0-0x000000B1
Programmable interrupt controller
0x000000B4-0x000000B5
Programmable interrupt controller
0x000000B8-0x000000B9
Programmable interrupt controller
0x000000BC-0x000000BD
Programmable interrupt controller
0x000004D0-0x000004D1
Programmable interrupt controller
0x00000800-0x0000087F
Motherboard resources
0x000000F0-0x000000F0
Numeric data processor
0x0000F090-0x0000F097
Standard SATA AHCI Controller
0x0000F080-0x0000F083
Standard SATA AHCI Controller
0x0000F060-0x0000F07F
Standard SATA AHCI Controller
0x000003F8-0x000003FF
Communications Port (COM1)
0x000002F8-0x000002FF
Communications Port (COM2)
0x00000040-0x00000043
System timer
0x00000050-0x00000053
System timer
0x00001854-0x00001857
Motherboard resources
0x0000F000-0x0000F03F
Intel(R) HD Graphics 530
0x000003B0-0x000003BB
Intel(R) HD Graphics 530
0x000003C0-0x000003DF
Intel(R) HD Graphics 530
0x00000000-0x00000CF7
PCI Express Root Complex
0x00000D00-0x0000FFFF
PCI Express Root Complex
0x0000F0A0-0x0000F0A7
Intel(R) Active Management Technology SOL (COM3)
0x0000FF00-0x0000FFFE
Motherboard resources
0x0000F040-0x0000F05F
Intel(R) 100 Series/C230 Series Chipset
Family SMBus - A123
0x00000060-0x00000060
Standard PS/2 Keyboard
0x00000064-0x00000064
Standard PS/2 Keyboard
60
SI-613 User Manual
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the service
required. The following table shows the IRQ used by the devices on board.
Level
Function
IRQ 0
System timer
IRQ 1
Standard PS/2 Keyboard
IRQ 3
Communications Port (COM2)
IRQ 4
Communications Port (COM1)
IRQ 8
System CMOS/real time clock
IRQ 11
Intel(R) 100 Series/C230 Series Chipset Family
Integrated Sensor Hub - A135
IRQ 11
Intel(R) 100 Series/C230 Series Chipset Family
SMBus - A123
IRQ 11
Intel(R) 100 Series/C230 Series Chipset Thermal
subsystem - A131
IRQ 12
Microsoft PS/2 Mouse
IRQ 13
Numeric data processor
IRQ 14
Motherboard resources
IRQ 16
High Definition Audio Controller
IRQ 19
Intel(R) Active Management Technology - SOL
(COM3)
IRQ 54 – IRQ 204
Microsoft ACPI-Compliant System
IRQ 256 – IRQ 511
Microsoft ACPI-Compliant System
IRQ 4294967290
Intel(R) Management Engine Interface
IRQ 4294967291
Intel(R) USB 3.0 eXtensible Host Controller - 1.0
(Microsoft)
IRQ 4294967292
Intel(R) HD Graphics 530
IRQ 4294967293
Intel(R) Ethernet Connection (2) I219-LM
IRQ 4294967294
Standard SATA AHCI Controller
Appendix
SI-613 User Manual
61
C. Watchdog Timer Configuration
The Watchdog Timer (WDT) is used to generate a variety of output signals
after a user programmable count. The WDT is suitable for the use in the
prevention of system lock-up, such as when software becomes trapped in a
deadlock. Under these sorts of circumstances, the timer will count to zero and
the selected outputs will be driven.
Under normal circumstance, you will need to restart the WDT at regular
intervals before the timer counts to zero.
Sample Code:
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "F81866.H"
//--------------------------------------------------------------------------int main (int argc, char *argv[]); void EnableWDT(int);
void DisableWDT(void);
//--------------------------------------------------------------------------int main (int argc, char *argv[])
{
unsigned char bBuf; unsigned char bTime; char **endptr;
char SIO;
printf("Fintek 81866 watch dog program\n"); SIO = Init_F81866();
if (SIO == 0)
{
printf("Can not detect Fintek 81866, program abort.\n"); return(1);
}//if (SIO == 0)
if (argc != 2)
{
printf(" Parameter incorrect!!\n"); return (1);
}
bTime = strtol (argv[1], endptr, 10);
printf("System will reset after %d seconds\n", bTime);
if (bTime)
{ EnableWDT(bTime); } else
{ DisableWDT(); } return 0;
}
62
SI-613 User Manual
//--------------------------------------------------------------------------void EnableWDT(int interval)
{
unsigned char bBuf;
bBuf = Get_F81866_Reg(0x2B); bBuf &= (~0x20);
Set_F81866_Reg(0x2B, bBuf); //Enable WDTO
Set_F81866_LD(0x07); //switch to logic device 7
Set_F81866_Reg(0x30, 0x01); //enable timer
bBuf = Get_F81866_Reg(0xF5); bBuf &= (~0x0F);
bBuf |= 0x52;
Set_F81866_Reg(0xF5, bBuf); //count mode is second Set_F81866_Reg(0xF6,
interval); //set timer
bBuf = Get_F81866_Reg(0xFA); bBuf |= 0x01;
Set_F81866_Reg(0xFA, bBuf); //enable WDTO output
bBuf = Get_F81866_Reg(0xF5); bBuf |= 0x20;
Set_F81866_Reg(0xF5, bBuf); //start counting
}
//--------------------------------------------------------------------------void DisableWDT(void)
{
unsigned char bBuf;
Set_F81866_LD(0x07); //switch to logic device 7 bBuf = Get_F81866_Reg(0xFA);
bBuf &= ~0x01;
Set_F81866_Reg(0xFA, bBuf); //disable WDTO output
bBuf = Get_F81866_Reg(0xF5); bBuf &= ~0x20;
bBuf |= 0x40;
Set_F81866_Reg(0xF5, bBuf); //disable WDT
}
//---------------------------------------------------------------------------
Appendix
SI-613 User Manual
63
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include "F81866.H"
#include <dos.h>
//--------------------------------------------------------------------------unsigned int F81866_BASE; void Unlock_F81866 (void); void Lock_F81866 (void);
//--------------------------------------------------------------------------unsigned int Init_F81866(void)
{
unsigned int result; unsigned char ucDid;
F81866_BASE = 0x4E;
result = F81866_BASE;
ucDid = Get_F81866_Reg(0x20);
if (ucDid == 0x07) //Fintek 81866
{ goto Init_Finish; }
F81866_BASE = 0x2E;
result = F81866_BASE;
ucDid = Get_F81866_Reg(0x20);
if (ucDid == 0x07) //Fintek 81866
{ goto Init_Finish; }
F81866_BASE = 0x00;
result = F81866_BASE;
Init_Finish:
return (result);
}
//--------------------------------------------------------------------------void Unlock_F81866 (void)
{
outportb(F81866_INDEX_PORT, F81866_UNLOCK); outportb(F81866_INDEX_PORT,
F81866_UNLOCK);
}
//--------------------------------------------------------------------------void Lock_F81866 (void)
{
outportb(F81866_INDEX_PORT, F81866_LOCK);
}
//--------------------------------------------------------------------------void Set_F81866_LD( unsigned char LD)
{
Unlock_F81866();
outportb(F81866_INDEX_PORT, F81866_REG_LD);
outportb(F81866_DATA_PORT, LD); Lock_F81866();
64
SI-613 User Manual
}
//--------------------------------------------------------------------------void Set_F81866_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_F81866(); outportb(F81866_INDEX_PORT, REG); outportb(F81866_DATA_PORT,
DATA); Lock_F81866();
}
//--------------------------------------------------------------------------unsigned char Get_F81866_Reg(unsigned char REG)
{
unsigned char Result; Unlock_F81866();
outportb(F81866_INDEX_PORT, REG); Result = inportb(F81866_DATA_PORT);
Lock_F81866();
return Result;
}
//---------------------------------------------------------------------------
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#ifndef F81866_H
#define F81866_H 1
//--------------------------------------------------------------------------#defineF81866_INDEX_PORT (F81866_BASE)
#defineF81866_DATA_PORT (F81866_BASE+1)
//--------------------------------------------------------------------------#defineF81866_REG_LD 0x07
//--------------------------------------------------------------------------#define F81866_UNLOCK 0x87
#defineF81866_LOCK 0xAA
//--------------------------------------------------------------------------unsigned int Init_F81866(void);
void Set_F81866_LD( unsigned char);
void Set_F81866_Reg( unsigned char, unsigned char); unsigned char
Get_F81866_Reg( unsigned char);
//--------------------------------------------------------------------------#endif // F81866_H
