INTRODUCTION

MI945X User’s Manual 1

Introduction

Product Description

The MI945X Mini ITX board incorporates the Mobile Intel® GM45 Express
Chipset for Embedded Computing, consisting of the Intel® GM45 Graphic
Memory Controller Hub (GMCH) and Intel® I/O Controller Hub (ICH9-M), an
optimized integrated graphics solution with a 1066MHz and 800MHz front-side
bus. Dimensions of the board are 170mm x 170mm.

The integrated powerful 3D graphics engine, based on Intel® Graphics Media
Accelerator X3500 (Intel® GMA X3500) architecture, operates at core speeds of
up to 533 MHz. It features a low-power design, is validated with the Intel® Core
2 Duo processors on 45nm process. With dual channel DDR3 800/1066MHz
two SODIMM sockets on board, the board supports up to 4GB of system
memory.

Intel® Graphics supports a unique intelligent memory management scheme
called Dynamic Video Memory Technology (DVMT). DVMT handles diverse
applications by providing the maximum (384MB) availability of system
memory for general computer usage, while supplying additional graphics
memory when a 3D-intensive application requests it. The Intel GMA X3500
graphics architecture also takes advantage of the high-performance Intel
processor. Intel GMA X3500 graphics supports Dual Independent Display
technology.

The main features of the board are:

 Supports Intel® Mobile Core 2 Duo/Core 2 Quad Processor (Penryn)
 Supports up to 2.93GHz, 1066MHz/800MHz FSB
 Two DDR3 SoDIMM, Max. 4GB memory
 Onboard Gigabit PHY and Intel PCI-Express Gigabit LAN
 Intel® GM45 Express VGA for CRT / LVDS
 4x SATA, 8x USB 2.0, 4x COM, Watchdog timer
 1x Mini PCI-E (Mini Card), 1x PCI-E (x16) slots

INTRODUCTION

2

MI945X User’s Manual

Checklist

Your MI945X package should include the items listed below.

• The MI945X Mini-ITX motherboard

• This User’s Manual

• 1 CD containing chipset drivers and flash memory utility

• Cable kit (IDE, Serial port, Serial ATA)

INTRODUCTION

MI945X User’s Manual 3

MI945X Specifications

CPU Type Intel® Mobile CoreTM2 Duo/CoreTM2 Quad Processor (Penryn)

Intel® Celeron 5x5 Series
CPU Speed Up to 2.93GHz
FSB 667/800/1066MHz FSB
L2 Cache 3MB or 6MB (P8000-series or P9000-series, T9000-series)
Green /APM APM1.2
CPU Socket Socket 478 “Type P” (Socket P) or micro-FCBGA on board
Chipset Intel® GM45 (Cantiga) chipset

- GMCH: AC82GM45 1329-pin FCBGA

- ICH9M: AF82801IM 676-pin mBGA
BIOS Award BIOS, support ACPI Function
Memory DDR3 800/1066

(DDR3 1333/1600 not supported on GM45)

- SoDIMM x2 Dual-Channel

(w/o ECC), Max. 4GB

VGA & LVDS Intel® GM45 built-in Intel gen.5.0 Graphics Media Accelerator

(533MHz 1.05V), supports DirectX10 for CRT & LVDS (single/dual

channel 18-bits/ 24-bit)
SDVO (DUAL CH) None
Backlight control

(LVDS)

- GMCH built-in control by PWM

LAN 1. Intel® ICH9M 10/100/gigabit MAC + PHY:

• Intel 82567LM 10/100/1000

2. Intel 82574L PCI-e gigabit LAN controller x1

USB ICH9M built-in USB 2.0 host controller, supports 8 ports
Serial ATA ICH9M built-in SATA controller, supports 4 ports
Parallel IDE JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel for IDE & CF
Audio Intel® ICH9M built-in High Definition Audio controller ALC888

with 7.1 channels
LPC I/O Winbond® W83627DHG: - IrDA x1, COM1 (RS232), COM2

(RS232/422/485), Hardware monitor

- Fintek 81216G for COM 3 & COM4
Digital IO 4 in & 4 out
TPM1.2 ICH9M built-in iTPM version1.2 controller by firmware implement
Keyboard/Mouse

Connector

Supports PS/2 Keyboard/Mouse

Expansion Slots PCIe(x16) x1 and PCIe Minicard (30 x 56mm) x 1
Edge Connector - PS/2 KB/Mouse connector

- Gigabit LAN RJ45 + dual USB stack connector

- Gigabit LAN RJ45 + dual USB stack connector

- DB9 + DB15 stack connector x1 for COM 1 & VGA

- RCA Jack 3x2 for HD Audio (Low Profile)
On Board
Header/Connector

- 40-pin box-header x1 for IDE1

- PCIe Minicard x1 @ solder side

- DF13 connector x2 for LVDS

- 10-pin headerx1 for Digital I/O

- 10-pin header x1 for COM2

- 20-pin header x1 for COM3/COM4

- 10-pin header x 2 for USB 5/6/7/8

- 10-pin header x1 for audio Line-Out & Mic

- SATA connector x4 for 4 SATA ports

- 26-pin box-header x1 for parallel port
Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)
Board Size 170mm x 170mm

INTRODUCTION

[

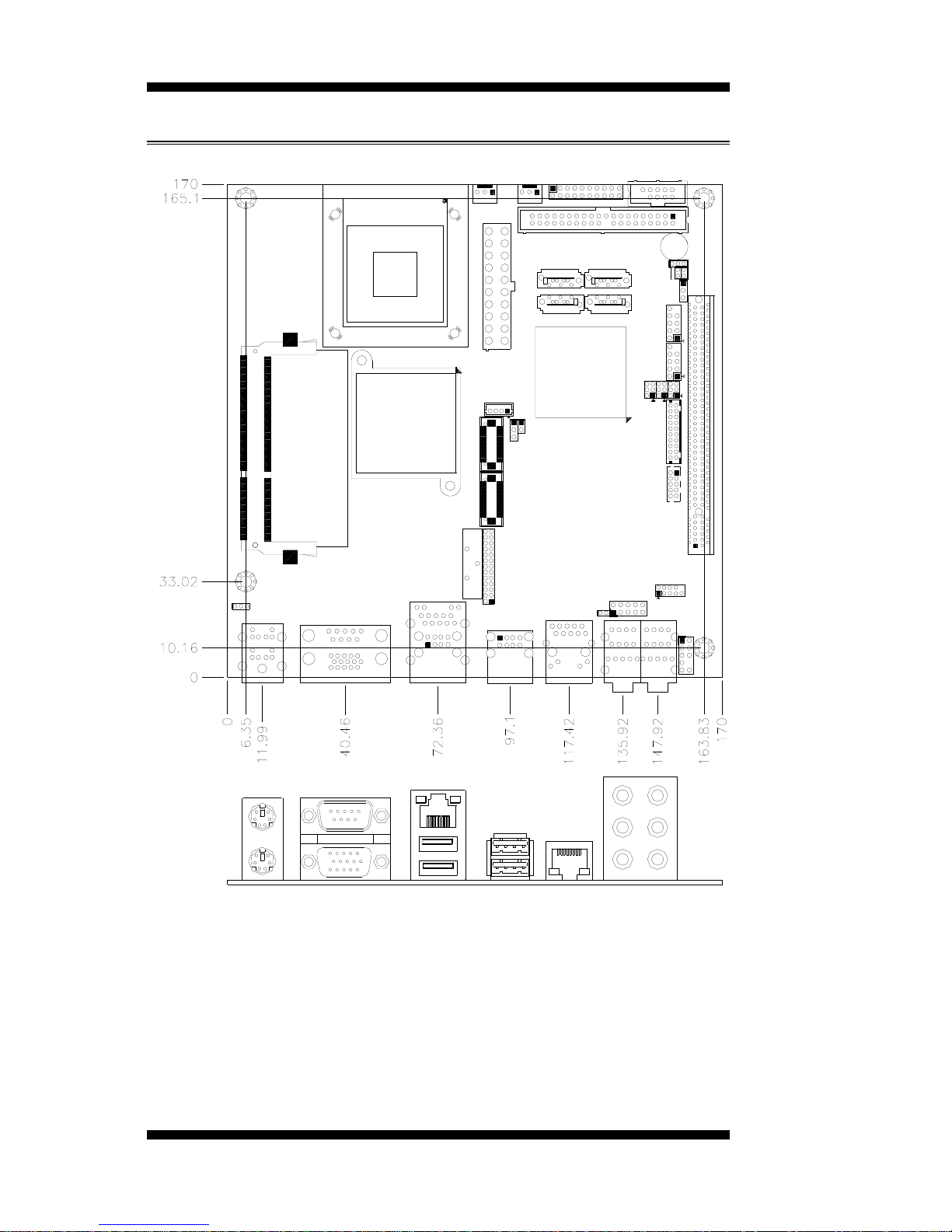

Board Dimensions

4

MI945X User’s Manual

INTRODUCTION

MI945X User’s Manual 5

INTRODUCTION

6

MI945X User’s Manual

This page is intentionally left blank.

INSTALLATIONS

MI945X User’s Manual 7

Installations

This section provides information on how to use the jumpers and
connectors on the MI945X in order to set up a workable system. The
topics covered are:

Installing the CPU ................................................................................. 8

Installing the Memory ........................................................................... 9

Setting the Jumpers .............................................................................. 10

Connectors on MI945X ....................................................................... 14

INSTALLATIONS

Installing the CPU

The MI945X board supports a Socket M socket for Intel® Core

TM

2
Duo, Intel® Celeron mobile processors. The processor socket comes
with a screw to secure the processor. As shown in the left picture below,
loosen the screw first before inserting the processor. Place the processor
into the socket by making sure the notch on the corner of the CPU
corresponds with the notch on the inside of the socket. Once the
processor has slide into the socket, fasten the screw. Refer to the figures
below.

NOTE:

Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.

8

MI945X User’s Manual

INSTALLATIONS

Installing the Memory

The MI945X board supports two DDR3 memory socket for a maxim um
total memory of 4GB in DDR3 memory type.

Installing and Removing Memory Modules

To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:

1. Hold the DDR3 module so that the key of the DDR3 module aligned

with that on the memory slot.

2. Gently push the DDR3 module in an upright position until the clips of

the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.

3. To remove the DDR3 module, press the clips with both hands.

MI945X User’s Manual 9

INSTALLATIONS

10

MI945X User’s Manual

Setting the Jumpers

Jumpers are used on MI945X to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MI945X and their respective functions.

Jumper Locations on MI945X ............................................................. 11

JP1: Keyboard/Mouse Power Selection ............................................... 12

JP2: LCD Panel Power Selection ......................................................... 12

JP5, JP6, JP7: RS232/422/485 (COM2) Selection .............................. 12

JP9: CompactFlash Slave/Master Selection ......................................... 13

JBAT1: Clear CMOS Setting............................................................... 13

INSTALLATIONS

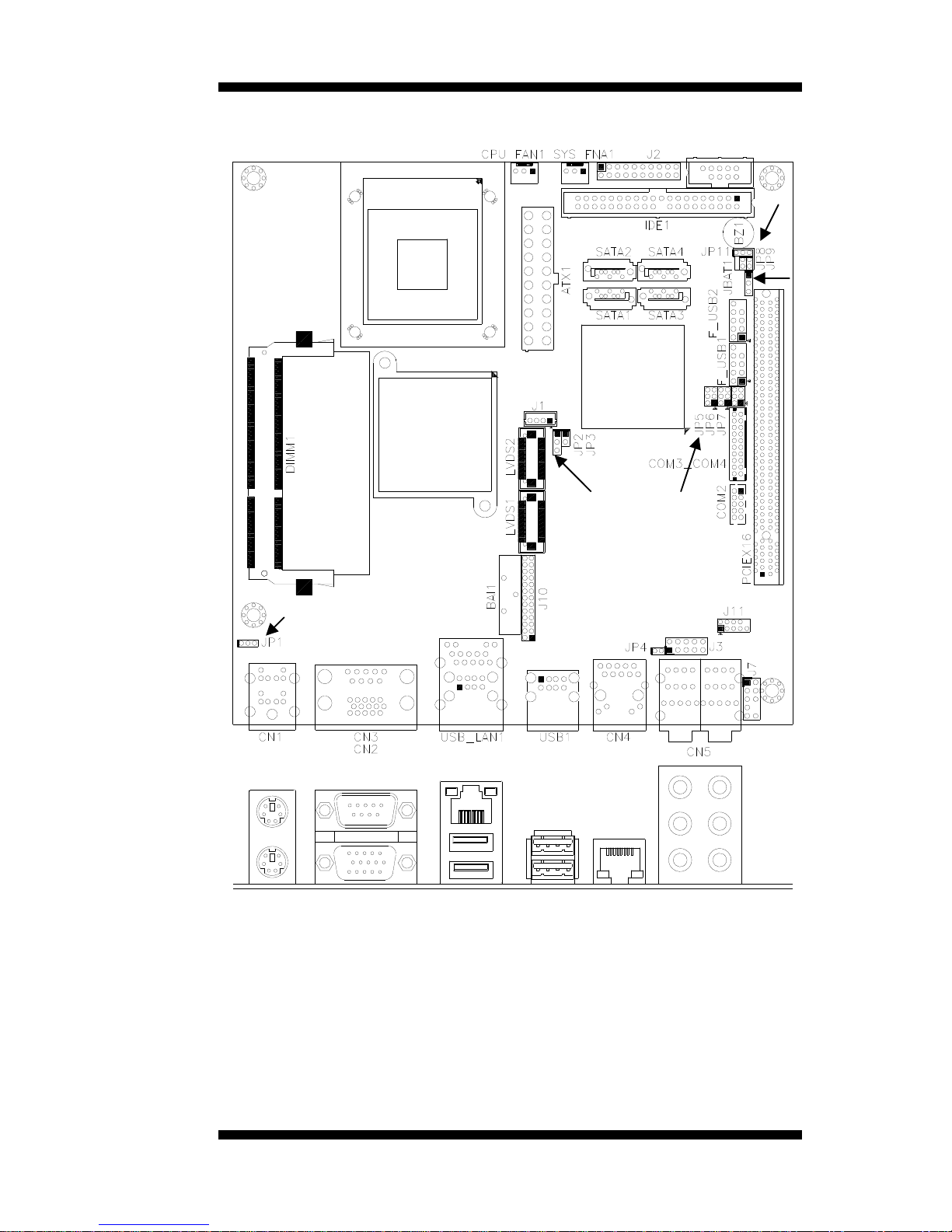

Jumper Locations on MI945X

Jumpers on MI945X ......................................................................... Page

JP1: Keyboard/Mouse Power Selection .............................................. 12

JP2: LCD Panel Power Selection ........................................................ 12

JP5, JP6, JP7: RS232/422/485 (COM2) Selection .............................. 12

JP9: CompactFlash Slave/Master Selection ........................................ 13

JBAT1: Clear CMOS Setting .............................................................. 13

MI945X User’s Manual 11

INSTALLATIONS

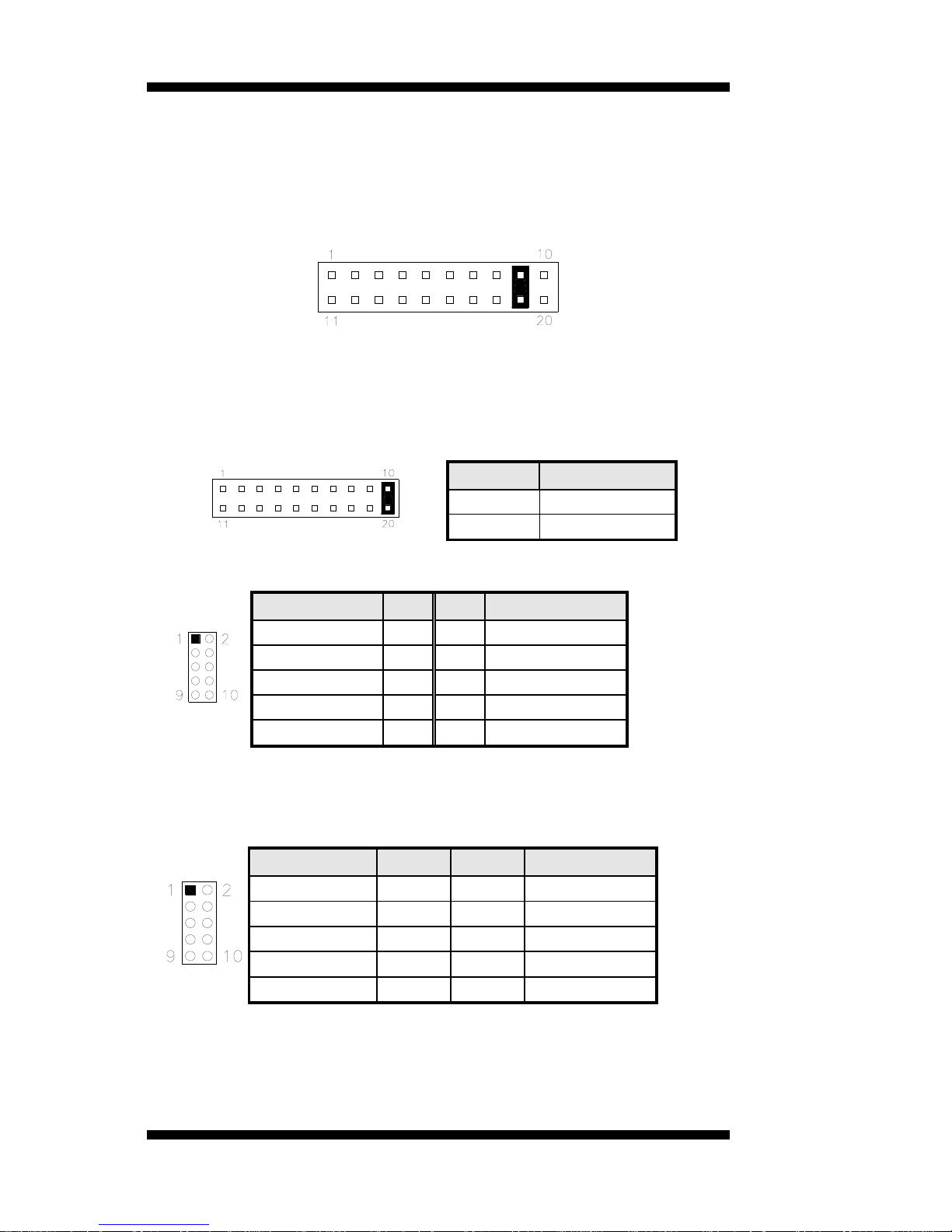

JP1: Keyboard/Mouse Power Selection

JP1 LCD Panel Power

5V

5VSB(Standby)

JP2: LCD Panel Power Selection

JP2 LCD Panel Power

3.3V

5V

JP5, JP6, JP7: RS232/422/485 (COM2) Selection

COM1 is fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.

COM2

Function

RS-232 RS-422 RS-485

Jumper

Setting

(Pin closed)

JP5:

1-2

JP6:

3-5 & 4-6

JP7:

3-5 & 4-6

JP5:

3-4

JP6:

1-3 & 2-4

JP7:

1-3 & 2-4

JP5:

5-6

JP6:

1-3 & 2-4

JP7:

1-3 & 2-4

12

MI945X User’s Manual

INSTALLATIONS

COM2 is jumper selectable for RS-232, RS-422 and RS-485.

Pin # Signal Name

RS-232 R2-422 RS-485

1 DCD TX- DATA­2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR RTS- NC
7 RTS RTS+ NC
8 CTS CTS+ NC
9 RI CTS- NC

10 NC NC NC

JP9: CompactFlash Slave/Master Selection

JP9 CF Setting

Master

Slave

JBAT1: Clear CMOS Setting

JBAT1 Setting

Normal

Clear CMOS

MI945X User’s Manual 13

INSTALLATIONS

14

MI945X User’s Manual

Connectors on MI945X

Connector Locations on MI945X ........................................................ 15

CN1: PS/2 Keyboard and PS/2 Mouse Connectors ............................. 16

CN2, CN3: COM1 and VGA Connector ............................................. 16

USB_LAN1: 10/100/1000 RJ-45 (MI945X) and USB1/2 Ports ......... 17

USB1: USB3/4 Ports ........................................................................... 17

CN4: GbE RJ-45 (MI945XF) .............................................................. 17

CN5: Audio Connector ........................................................................ 17

ATX1: ATX Power Supply Connector ................................................ 17

SYS_FAN1: System Fan Power Connector ........................................ 17

CPU_FAN1: CPU Fan Power Connector ............................................ 19

IDE1: IDE Connector .......................................................................... 19

COM2: COM2 Serial Port ................................................................... 19

COM3_COM4: COM3, COM4 Serial Port ......................................... 20

LVDS1, LVDS2: LVDS Connectors (1st channel, 2nd channel) ........ 20

J1: LCD Backlight Connector .............................................................. 20

J2 (F_PANEL): System Function Connector ...................................... 21

J3: Digital I/O ...................................................................................... 22

J4: SPI Flash Connector (factory use only) ......................................... 22

J7: Front Audio Connector .................................................................. 22

J9: Compact Flash Connector .............................................................. 22

J10: Parallel Port Connector ................................................................ 23

J11: Reserved for factory use ............................................................... 23

F_USB1: USB5/USB6 Connector ....................................................... 23

F_USB2: USB7/USB8 Connector ....................................................... 23

JMINI: Mini PCIE Connector .............................................................. 23

SATA1, SATA2, SATA3, SATA4: SATA Connectors ...................... 23

PCIEX16: PCI-E(x16) Slot .................................................................. 23

INSTALLATIONS

Connector Locations on MI945X

MI945X User’s Manual 15

Connector Locations on MI945X

J1: LCD Backlight Connector
J2 (F_PANEL): System Function

CN1: PS/2 Keyboard and PS/2 Mouse

J3: Digital I/O

CN2, CN3: COM1 and VGA Connector

J4: SPI Flash Connector

USB_LAN1: RJ-45 and USB1/2 Ports

J7: Front Audio Connector

USB1: USB3/4 Ports

J9: Compact Flash Connector
J10: Parallel Port Connector
J11: Reserved for factory use

CN4: GbE RJ-45 (MI945XF)
CN5: Audio Connector
ATX1: ATX Power Supply

F_USB1: USB5/USB6 Connector

SYS_FAN1: System Fan Power

F_USB2: USB7/USB8 Connector

CPU_FAN1: CPU Fan Power

JMINI: Mini PCIE Connector

IDE1: IDE Connector

SATA1, SATA2, SATA3, SATA4: SATA

COM2: COM2 Serial Port

PCIEX16: PCI-E(x16) Slot

COM3_COM4: COM3, COM4
LVDS1, LVDS2: LVDS Connectors

INSTALLATIONS

CN1: PS/2 Keyboard and PS/2 Mouse Connectors

PS/2 Mouse

PS/2 Keyboard

Signal Name Keyboard Mouse Signal Name

Keyboard data 1 1 Mouse data

N.C. 2 2 N.C.

GND 3 3 GND

5V 4 4 5V

Keyboard clock 5 5 Mouse clock

N.C. 6 6 N.C.

CN2, CN3: COM1 and VGA Connector

[

Signal Name Pin # Pin # Signal Name

DCD 1 6 DSR
RXD 2 7 RTS
TXD 3 8 CTS

DTR 4 9 RI

GND 5 10 Not Used

[[[[

Signal Name Pin # Pin # Signal Name

Red 1 2 Green

Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND

N.C. 9 10 GND

N.C. 11 12 N.C.

HSYNC 13 14 VSYNC

NC 15

16

MI945X User’s Manual

INSTALLATIONS

USB_LAN1: 10/100/1000 RJ-45 (MI945X) and USB1/2 Ports

SB1: USB3/4 Ports
N4: GbE RJ-45 (MI945XF)
N5: Audio Connector

U
C
C

TX1: ATX Power Supply Connector A

MI945X User’s Manual 17

Signal Name Pin # Pin # Signal Name

3.3V 11 1 3.3V

-12V 12 2 3.3V

G Ground round 13 3

PS-ON 14 4 +5V
Ground 15 5 Ground
Ground 16 6 +5V
Ground 17 7 Ground

-5V 18 8 Power d goo
+5V 19 9 5VSB
+5V 20 10 +12V

YS_FAN1: System Fan Power Connector

ust be a 12V

S

FAN1 is a 3-pin header for system fans. The fan m
(500mA).

Pin # Signal Name

1 Ground
2 +12V
3 Rotati ctionon dete

INSTALLATIONS

18

MI945X User’s Manual

INSTALLATIONS

CPU_FAN1: CPU Fan Power Connector

This is a 3-pin header for the CPU fan. The fan must be a 12V fan.

Pin # Signal Name

1 Ground
2 +12V
3 Rotation detection

IDE1: IDE Connector

Signal Name Pin # Pin # Signal Name

Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15

Ground 19 20 Protect pin

DRQ0 21 22 Ground

Host IOW 23 24 Ground

Host IOR 25 26 Ground

IOCHRDY 27 28 Host ALE

DACK0 29 30 Ground

IRQ14 31 32

N

o connec

t

Address 1 33 34

N

o connec

t

Address 0 35 36 Address 2

Chip select 0 37 38 Chip select 1

Activit

y

39 40 Ground

COM2: COM2 Serial Port

COM2

Signal Name Pin # Pin # Signal Name

DCD, Data carrier detect 1 6 DSR, Data set ready

RXD, Receive data 2 7 RTS, Request to send

TXD, Transmit data 3 8 CTS, Clear to send

DTR, Data terminal ready 4 9 RI, Ring indicator

GND, ground 5 10 Not Used

MI945X User’s Manual 19

INSTALLATIONS

COM3_COM4: COM3, COM4 Serial Port

Signal Name Pin # Pin # Signal Name

DSR 2 1 DCD

RTS 4 3 RXD
CTS 6 5 TXD

RI 8 7 DTR

NA 10 9 Ground

DSR 12 11 DCD

RTS 14 13 RXD
CTS 16 15 TXD

RI 18 17 DTR

NA 20 19 Ground

LVDS1, LVDS2: LVDS Connectors (1st channel, 2nd channel)

The LVDS connectors on board consist of the first channel (LVDS1)
and second channel (LVDS2).

Signal Name Pin # Pin # Signal Name

TX0- 2 1 TX0+

Ground 4 3 Ground

TX1- 6 5 TX1+

5V/3.3V 8 7 Ground

TX3- 10 9 TX3+
TX2- 12 11 TX2+

Ground 14 13 Ground

TXC- 16 15 TXC+

5V/3.3V 18 17 ENABKL

+12V 20 19 +12V

J1: LCD Backlight Connector

Pin # Signal Name

1 +12V
2 Backlight Enable
3 Brightness Control

4 Ground

20

MI945X User’s Manual

INSTALLATIONS

J2 (F_PANEL): System Function Connector

J2 provides connectors for system indicators that provi de light indication
of the computer activities and switches to change the computer status. J2
is a 20-pin header that provides interfaces for the following functions.

Hard Disk Drive LED

Reset Switch

Not Defined

ATX Power On Switch

Not Defined

Power LED

Speaker

Speaker: Pins 1 - 4

This connector provides an interface to a speaker for audio
tone generation. An 8-ohm speaker is recommended.

Pin # Signal Name

1 Speaker out
2 No connect
3 Ground
4 +5V

Power LED: Pins 11 - 15

Pin # Signal Name

11 Power LED
12 No connect
13 Ground
14 No connect
15 Ground

ATX Power ON Switch: Pins 7 and 17

This 2-pin connector is an “ATX Power Supply On/Off
Switch” on the system that connects t o the power swi t ch on
the case. When pressed, the power switch will force the
system to power on. When pressed again, it will force the
system to power off.

MI945X User’s Manual 21

INSTALLATIONS

Reset Switch: Pins 9 and 19

The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to
this header.

Hard Disk Drive LED Connector: Pins 10 and 20

This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.

Pin # Signal Name

10 HDD Active
20 5V

J3: Digital I/O

Signal Name Pin Pin Signal Name

GND 1 2 VCC
OUT3 3 4 OUT1
OUT2 5 6 OUT0

IN3 7 8 IN1
IN2 9 10 IN0

J4: SPI Flash Connector (factory use only)

J7: Front Audio Connector

Signal Name Pin # Pin # Signal Name

MIC2_L 1 2 Ground

MIC2_R 3 4 Presence#

Line2_L 5 6 MIC2_ID

Sense 7 8 NC

Line2_R 9 10 Line2_ID

J9: Compact Flash Connector

22

MI945X User’s Manual

INSTALLATIONS

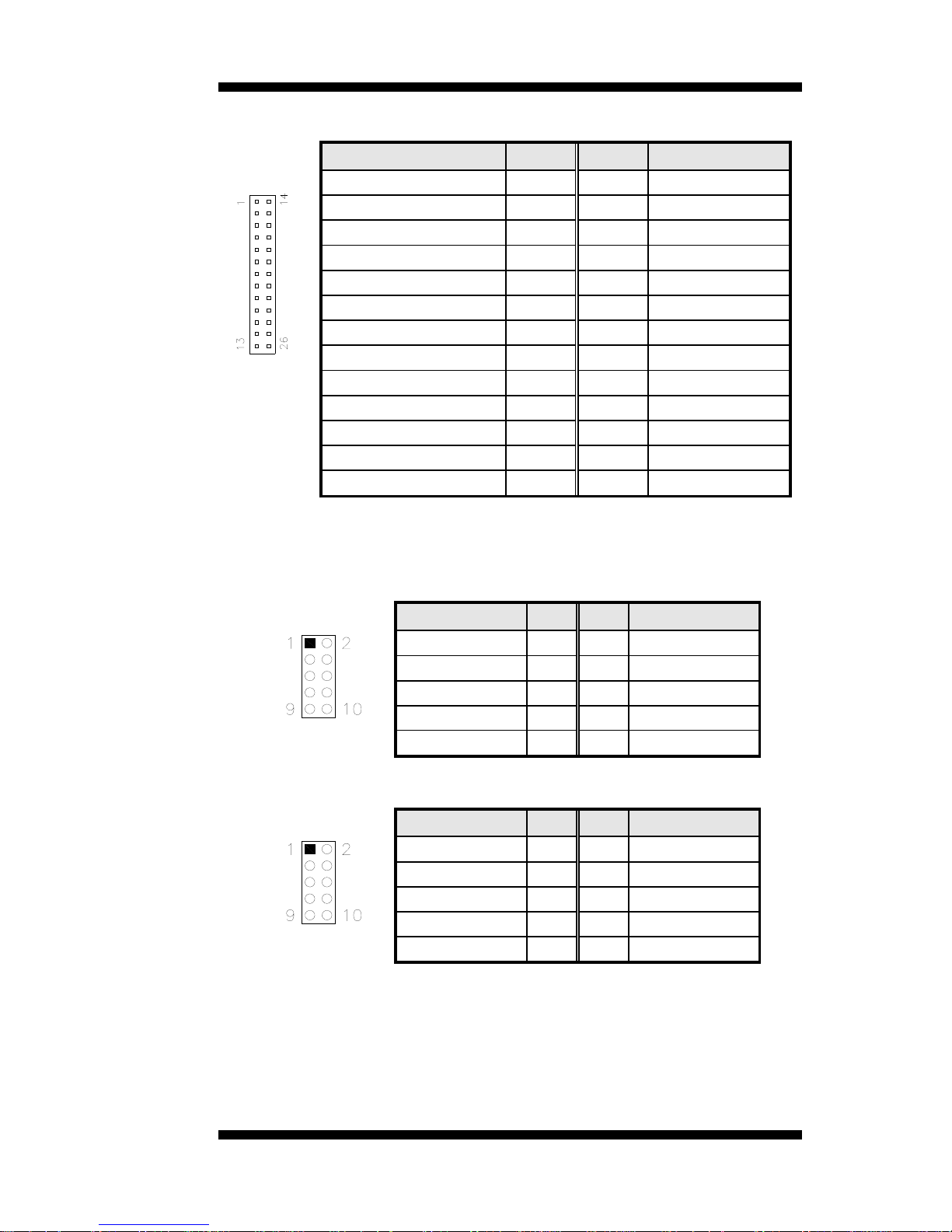

J10: Parallel Port Connector

Signal Name Pin # Pin # Signal Name

Line printer strobe 1 14 AutoFeed
PD0, parallel data 0 2 15 Error
PD1, parallel data 1 3 16 Initialize
PD2, parallel data 2 4 17 Select
PD3, parallel data 3 5 18 Ground
PD4, parallel data 4 6 19 Ground
PD5, parallel data 5 7 20 Ground
PD6, parallel data 6 8 21 Ground
PD7, parallel data 7 9 22 Ground
ACK, acknowledge 10 23 Ground

Busy 11 24 Ground

Paper empty 12 25 Ground

Select 13 N/A N/A

J11: Reserved for factory use
F_USB1: USB5/USB6 Connector

Signal Name Pin Pin Signal Name

Vcc 1 2 Vcc
D0- 3 4 D1-

D0+ 5 6 D1+

Ground 7 8 Ground

NC 9 10 Ground

F_USB2: USB7/USB8 Connector

Signal Name Pin Pin Signal Name

Vcc 1 2 Vcc
D0- 3 4 D1-

D0+ 5 6 D1+

Ground 7 8 Ground

NC 9 10 Ground

JMINI: Mini PCIE Connector
SATA1, SATA2, SATA3, SATA4: SATA Connectors
PCIEX16: PCI-E(x16) Slot

MI945X User’s Manual 23

BIOS SETUP

24

MI945X User’s Manual

BIOS Setup

This chapter describes the different settings available in the Award
BIOS that comes with the board. The topics covered in this chapter are
as follows:

BIOS Introduction ......................................................................................... 25

BIOS Setup ..................................................................................................... 25

Standard CMOS Setup ................................................................................. 27

Advanced BIOS Features ............................................................................. 30

Advanced Chipset Features ......................................................................... 33

Power Management Setup ........................................................................... 39

PNP/PCI Configurations .............................................................................. 42

PC Health Status ............................................................................................ 43

Frequency/Voltage Control ......................................................................... 44

Load Fail-Safe Defaults ............................................................................... 45

Load Optimized Defaults ............................................................................. 45

Set Supervisor Password .............................................................................. 45

Save & Exit Setup ......................................................................................... 45

Exit Without Saving...................................................................................... 45

BIOS SETUP

MI945X User’s Manual 25

BIOS Introduction

The Award BIOS (Basic Input/Output System) installed in your
computer system’s ROM supports Intel processors. The BIOS provides
critical low-level support for a standard devi ce such as disk drives, serial
ports and parallel ports. It also adds virus and password protection as
well as special support for detailed fine-tuning of the chipset controlling
the entire system.

BIOS Setup

The Award BIOS provides a Setup utility program for specifying the
system configurations and settings. The BIOS ROM of the system stores
the Setup utility. When you turn on the computer, the Award BIOS is
immediately activated. Pressing the <Del> key immediately allows you
to enter the Setup utility. If you are a little bit late p ressing the <Del>
key, POST (Power On Self Test) will continue with its test routines, thus
preventing you from invoking the Setup. If you still wish to enter Setup,
restart the system by pressing the ”Reset” button or simultaneously
pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by
turning the system Off and back On again. The following message will
appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to
select, the <PgUp> and <PgDn> keys to change entries, <F1> for help
and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.

BIOS SETUP

26

MI945X User’s Manual

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features Frequency/Voltage Control
Advanced BIOS Features Load Fail-Safe Defaults
Advanced Chipset Features Load Optimized Defaults
Integrated Peripherals Set Supervisor Password
Power Management Setup Set User Password
PnP/PCI Configurations Save & Exit Setup
PC Health Status Exit Without Saving

ESC: Quit Ç È Æ Å : Select Item
F10: Save & Exit Setup

Time, Date, Hard Disk Type…

The section below the setup items of the Main Menu displays the control
keys for this menu. At the bottom of the Main Menu just below the
control keys section, there is another section, which displays information
on the currently highlighted item in the list.

Note:

If the system cannot boot after making and saving system
changes with Setup, the Award BIOS supports an override to
the CMOS settings that resets your system to its default.

Warning:

It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both Award and your system
manufacturer to provide the absolute maximum performance
and reliability. Changing the defaults could cause the system
to become unstable and crash in some cases.

BIOS SETUP

MI945X User’s Manual 27

Standard CMOS Setup

“Standard CMOS Setup” choice allows you to record some basic
hardware configurations in your computer system and set the system
clock and error handling. If the motherboard is already installed in a
working system, you will not need to select this option. You will need to
run the Standard CMOS option, however, if you change your system
hardware configurations, the onboard battery fails, or the configuration
stored in the CMOS memory was lost or damaged.

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Date (mm:dd:yy) Wed, Apr 28, 2007 Item Help
Time (hh:mm:ss) 00 : 00 : 00 Menu Level >

IDE Channel 0 Master None Change the day, month,

Year and century IDE Channel 1 Master None
IDE Channel 2 Master None
IDE Channel 2 Slave None
IDE Channel 3 Master None
IDE Channel 3 Slave None
IDE Channel 4 Master None
IDE Channel 4 Slave None

Video EGA/VGA
Halt On All, but keyboard

Base Memory 640K
Extended Memory 129024K
Total Memory 130048K

At the bottom of the menu are the control keys for use on this menu. If
you need any help in each item field, you can press the <F1> key. It will
display the relevant information to help you. The memory display at the
lower right-hand side of the menu is read-only. It will adjust
automatically according to the memory changed. The following
describes each item of this menu.

Date

The date format is:

Day: Sun to Sat
Month: 1 to 12
Date: 1 to 31
Year: 1999 to 2099

BIOS SETUP

28

MI945X User’s Manual

To set the date, highlight the “Date” field and use the PageUp/
PageDown or +/- keys to set the current time.

Time

The time format is:

Hour : 00 to 23
Minute : 00 to 59
Second : 00 to 59

To set the time, highlight the “Time” fi eld and use the <PgUp>/ <PgDn>
or +/- keys to set the current time.

IDE Channel Master/Slave

The onboard PCI IDE connector provides Primary and Secondary
channels for connecting up to two IDE hard disks or other IDE devices.

Press <Enter> to configure the hard disk. The selections include Auto,
Manual, and None. Select ‘Manual’ to define the drive information
manually. You will be asked to enter the following items.

CYLS : Number of cylinders
HEAD : Number of read/write heads
PRECOMP : Write precompensation
LANDING ZONE : Landing zone
SECTOR : Number of sectors

The Access Mode selections are as follows:
CHS (HD < 528MB)

LBA (HD > 528MB and supports

Logical Block Addressing)
Large (for MS-DOS only)
Auto

BIOS SETUP

MI945X User’s Manual 29

Video

This field selects the ty pe of vi deo displ ay card inst alle d in your sy stem .
You can choose the following video display cards:
EGA/VGA For EGA, VGA, SEGA, SVGA
or PGA monitor adapters. (default)
CGA 40 Power up in 40 column mode.
CGA 80 Power up in 80 column mode.
MONO For Hercules or MDA adapters.

Halt On

This field determines whether or not the system will halt if an error is
detected during power up.
No errors The system boot will not be halted for any error

that may be detected.

All errors Whenever the BIOS detects a non-fatal error,

the system will stop and you will be prompted.

All, But Keyboard The system boot will not be halted for a

keyboard error; it will stop for all other errors

All, But Diskette The system boot will not be halted for a disk

error; it will stop for all other errors.

All, But Disk/Key The system boot will not be halted for a key-

board or disk error; it will stop for all others.

BIOS SETUP

30

MI945X User’s Manual

Advanced BIOS Features

This section allows you to configure and improve your system and
allows you to set up some system features according to your preference.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features

CPU Feature Press Enter ITEM HELP
Hard Disk Boot Priority Press Enter
Virus Warning Disabled Menu Level >
CPU L3 Cache Enabled
Quick Power On Self Test Enabled
First Boot Device Removable
Second Boot Device Hard Disk
Third Boot Device CDROM
Boot Other Device Enabled
Boot Up NumLock Status On
Gate A20 Option Fast
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
APIC Mode Enabled
MPS Version Control for OS 1.4
OS Select For DRAM>64MB Non-OS2
Small Logo (EPA) Show Disabled
Summary Screen Show Disabled

CPU Feature

Press Enter to configure the settings relevant to CPU Feature.

Hard Disk Boot Priority

With the field, there is the option to choose, aside from the hard disks connected,
“Bootable add-in Cards” which refers to other external devices.

Virus Warning

If this option is enabled, an alarm message will be displayed when trying to write
on the boot sector or on the partition table on the disk, which is typical of the
virus.

Quick Power On Self Test

When enabled, this field speeds up the Power On Self Test (POST) after
the system is turned on. If it is set to Enabled, BIOS will skip some
items.

First/Second/Third Boot Device

These fields determine the drive that the system searches first for an
operating system. The options available i ncl ude Removable, Hard Disk,
CDROM, Legacy LAN and Disable.

BIOS SETUP

MI945X User’s Manual 31

Boot Other Device

These fields allow the system to search for an OS from other devices
other than the ones selected in the First/Second/Third Boot Device.

Boot Up NumLock Status

This allows you to activate the NumLock function after you power up
the system.

Gate A20 Option

This field allows you to select how Gate A20 is worked. Gate A20 is a
device used to address memory above 1 MB.

Typematic Rate Setting

When disabled, continually holdin g down a key on your keyboard will
generate only one instance. When enabled, you can set the two typematic
controls listed next. By default, this field is set to Disabled.

Typematic Rate (Chars/Sec)

When the typematic rate is enabled, the system registers repeated
keystrokes speeds. Settings are from 6 to 30 characters per second.

Typematic Delay (Msec)

When the typematic rate is enabled, this item allows you to set the time
interval for displaying the first and second characters. By default, this
item is set to 250msec.

Security Option

This field allows you to limit access to the System and Setup. The default
value is Setup. When you select System, the system prompts for the User
Password every time you boot up. When you select Setup, the system
always boots up and prompts for the Supervisor Password only when t he
Setup utility is called up.

APIC Mode

APIC stands for Advanced Programmable Interrupt Controller. The
default setting is Enabled.

MPS Version Control for OS

This option is specifies the MPS (Multiprocessor Specification) version
for your operating system. MPS version 1.4 added extended
configuration tables to improve support for multiple PCI bus
configurations and improve future expandability. The default setting is

1.4.

BIOS SETUP

32

MI945X User’s Manual

OS Select for DRAM > 64MB

This option allows the system to access greater than 64MB of DRAM
memory when used with OS/2 that depends on certain BIOS calls to
access memory. The default setting is Non-OS/2.

Small Logo (EPA) Show

The EPA logo appears at the right side of the monitor screen when the
system is boot up. The default setting is Disabled.

Summary Screen Show

The screen shows a summary of device listing. The default setting is
Disabled.

BIOS SETUP

MI945X User’s Manual 33

Advanced Chipset Features

This Setup menu controls the configuration of the chipset.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features

System BIOS Cacheable Enabled ITEM HELP
Memory Hole at 15M-16M Disabled
Support FSB and DDR3 667Mhz Disabled
PCI Express Root Port Func Press Enter
VT-d Disable

** VGA Setting **
PEG/Onchip VGA Control Auto
PEG Force X1 Disabled
On-Chip Frame Buffer Size 64MB
DVMT Mode Enable
Total GFX Memory 128MB
PAVP Mode PAVP-Lite

** VGA Boot Device Setting **
Boot Display CRT + LVDS
SDVO Device Setting None
SDVO LVDS Protocol 1 Ch SPGW,24bit
SDVO Panel Number 1024x768
Active LVDS Device No LVDS
Integrated LVDS Protocol 18bit
Panel Scaling AUTO
Panel Type 1024x768 SC/DC

System BIOS Cacheable

The setting of Enabled allows caching of the system BIOS ROM at
F000h-FFFFFh, resulting in better system performance. However, if
any program writes to this memory area, a system error may result.

Memory Hole At 15M-16M

In order to improve performance, certain space in memory can be
reserved for ISA cards. This memory must be mapped into the memory
space below 16 MB. The choices are Enabled and Disabled.

Support FSB and DDR3 667Mhz

The options are Enabled and Disabled.

VT-d

The options are Enabled and Disabled.

BIOS SETUP

34

MI945X User’s Manual

VGA Setting

The fields and the default setting for the VGA Setting are as follows:

PEG/Onchip VGA Control Auto
PEG Force X1 Disabled
On-Chip Frame Buffer Size 64MB
DVMT Mode Enable
Total GFX Memory 128MB
PAVP Mode PAVP-Lite

PEG/Onchip VGA Control

The options are Onchip VGA, PEG Port and Auto.

PEG Force X1

The options are Enabled and Disabled.

On-Chip Frame Buffer Size

The options are 32MB, 64MB and 128MB.

DVMT Mode

The options are Enabled and Disabled.

Total GFX Memory

The options are 128MB, 256MB and Max.

PAVP Mode

The options are Disabled, PAVP-Lite and PAVP-High.

VGA Boot Device Setting

The fields and the default setting for this section are as follows:

Boot Display CRT + LVDS
SDVO Device Setting None
SDVO LVDS Protocol 1 Ch SPGW,24bit
SDVO Panel Number 1024x768
Active LVDS Device No LVDS
Integrated LVDS Protocol 18bit
Panel Scaling AUTO
Panel Type 1024x768 SC/DC

Boot Display

The options are CRT, LVDS, CRT + LVDS, DVI and CRT + DVI.

SDVO Device Setting

The options are None, LVDS, DVI and CRT.

BIOS SETUP

MI945X User’s Manual 35

SDVO LVDS Protocol

The options are:

1ch SPGW, 24bit
2ch SPGW, 24bit
1ch OpenLDI, 24bit
2ch OpenLDI, 24bit
1ch 18bit
2ch 18bit

SDVO Panel Number

The options are:

800x600
852x480
1024x768
1366x768
1400x1050
1600x1200
1920x1080

Active LVDS Device

The options are No LVDS, Integrated LVDS and SDVO LVDS.

Integrated LVDS Protocol

The options are 18bit and 24bit.

Panel Scaling

The default setting is AUTO. The options are AUTO, FORCE OFF and
Maintain Aspect Ratio.

Panel Number

The options are:

640x480 SC/DC
800x600 SC/DC
1024x768 SC/DC
1280x600 SC/DC
1280x768 SC/DC
1280x800 SC/DC
1280x1024 SC/DC
1400x1050 SC/DC
1680x1200 SC/DC
1920x1200 SC/DC
2048x1536 SC/DC

BIOS SETUP

36

MI945X User’s Manual

Integrated Peripherals

This section sets configurations for your hard disk and other integrated
peripherals. The first screen shows three main items for user to select.
Once an item selected, a submenu appears. Details follow.

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals

OnChip IDE Device

Press Enter ITEM HELP

SuperIO Device

Press Enter Menu Level >

2nd SuperIO Device

Press Enter

USB Device Setting

Press Enter

Phoenix - AwardBIOS CMOS Setup Utility

OnChip IDE Device

IDE HDD Block Mode

Enabled ITEM HELP

IDE DMA transfer access

Enable

IDE Primary Master PIO

Auto Menu Level >

IDE Primary Slave PIO

Auto

IDE Primary Master UDMA

Auto

IDE Primary Slave UDMA

Auto

On-Chip Secondary PCI IDE

Enabled

IDE Secondary Master PIO

Auto

IDE Secondary Slave PIO

Auto

IDE Secondary Master UDMA

Auto

IDE Secondary Slave UDMA

Auto
SATA Mode IDE
LEGACY Mode Support Disabled

Phoenix - AwardBIOS CMOS Setup Utility

SuperIO Device

POWER ON Function BUTTON ONLY

ITEM HELP

Onboard Serial Port 1 3F8/IRQ4

Menu Level >

Onboard Serial Port 2 2F8/IRQ3
Onboard Parallel Port 378/IRQ7
Parallel Port Mode SPP
PWRON After PWR-Fail Off

Phoenix - AwardBIOS CMOS Setup Utility

2nd SuperIO Device

Onboard Serial Port 3 230h
Serial Port 3 Use IRQ IRQ5
Onboard Serial Port 4 238h
Serial Port 4 Use IRQ IRQ11

BIOS SETUP

MI945X User’s Manual 37

IDE HDD Block Mode

This field allows your hard disk controller to use the fast block mode to
transfer data to and from your hard disk drive.

IDE DMA transfer access

This field, by default, is enabled

On-chip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel
separately.

IDE Primary/Secondary Master/Slave PIO

These fields allow your system hard disk controller to work faster.
Rather than have the BIOS issue a series of commands that transfer to or
from the disk drive, PIO (Programm ed Input/Output) allows the B IOS to
communicate with the controller and CPU directly.

The system supports five modes, numbered from 0 (default) to 4, which
primarily differ in timing. When Auto is selected, the BIOS will select
the best available mode.

IDE Primary/Secondary Master/Slave UDMA

These fields allow your system to improve disk I/O throughput to
33Mb/sec with the Ultra DMA/33 feature. The options are Auto and
Disabled.

SATA Mode

The options include IDE and AHCI.

Legacy Mode Support

The options are Disabled and Enabled.

Power ON Function

This field is related to how the system is powered on – such as with th e
use of conventional power button, key board or hot keys. The options are

Password, Hot KEY, Mouse Left, Mouse Right, Any KEY, BUTTON
ONLY and Keyboard 98.

KB Power ON Password

This field allows users to set the password when keyboard power on is
the mode of the Power ON function.

BIOS SETUP

38

MI945X User’s Manual

Hot Key Power ON

This field sets certain keys, also known as hot keys, on the keyboard that
can be used as a ‘switch’ to power on the system.

Onboard Serial Ports

These fields allow you to select the onboard serial ports and their
addresses. The default values for these ports are:
Serial Port 1 3F8/IRQ4
Serial Port 2 2F8/IRQ3
Serial Port 3 230h/IRQ5
Serial Port 4 238h/IRQ11

PWRON After PWR-Fail

This field sets the system power status whether on or off when power
returns to the system from a power failure situation.

Phoenix - AwardBIOS CMOS Setup Utility

USB Device Setting

USB 1.0 Controller Enabled

ITEM HELP

USB 2.0 Controller Enabled
USB Keyboard Function Enabled
USB Mouse Function Disable

Menu Level >

USB Storage Function Enabled

*** USB Mass Storage Device Boot
Setting ***

USB 1.0 Controller

The options for this field are Enabled and Disabled. By default, this field
is set to Enabled.

USB 2.0 Controller

The options for this field are Enabled and Disabled. By default, this field
is set to Enabled. In order to use USB 2.0, necessary OS drivers must be
installed first. Please update your system to Windows XP SP2.

USB Keyboard/Mouse/Storage Function

The options for these fields are Enabled and Disabled.

BIOS SETUP

MI945X User’s Manual 39

Power Management Setup

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

PCI Express PM Function

Press Enter ITEM HELP

ACPI Function

Enabled Menu Level >

ACPI Suspend

S3(STR)

RUN VGABIOS if S3 Resume

Auto

Power Management

User Define

Video Off Method

V/H SYNC+Blank

Video Off In Suspend

Yes

Suspend Type

Stop Grant

Modem Use IRQ

3

Suspend Mode

Disabled

HDD Power Down

Disabled

Soft-Off by PWR-BTTN

Instant-Off

CPU THRM Throttling

50%

Wake-Up by PCI Card

Disabled

Power On by Ring

Disabled

USB KB Wake Up from S3

Disabled

Resume by Alarm

Disabled

Date (of Month) Alarm 0
Time (hh:mm:ss) Alarm 0 : 0 : 0

** Reload Global Timer Events **
Primary IDE 0

Disabled

Primary IDE 1

Disabled

Secondary IDE 0

Disabled

Secondary IDE 1

Disabled

FDD, COM, LPT Port

Disabled

PCI PIRQ[A-D] #

Disabled

PCI Express PM Function

The options within this field that can be enabled or disabled include PEG
Port ASPM, Root Port ASPM and DMI Port ASPM.

ACPI Function

Enable this function to support ACPI (Advance Configuration and
Power Interface).

ACPI Suspend

The default setting of the ACPI Suspend mode is S3(STR).

RUN VGABIOS if S3 Resume

The default setting of this field is Auto.

BIOS SETUP

40

MI945X User’s Manual

Power Management

This field allows you to select the type of power saving management
modes. There are four selections for Power Management.

Min. Power Saving Minimum power management
Max. Power Saving Maximum power management.
User Define Each of the ranges is from 1 min. to

1hr. Except for HDD Power Down
which ranges from 1 min. to 15 min.

Video Off Method

This field defines the Video Off features. There are three options.

V/H SYNC + Blank Default setting, blank the screen and turn

off vertical and horizontal scanning.

DPMS Allows BIOS to control the video display.
Blank Screen Writes blanks to the video buffer.

Video Off In Suspend

When enabled, the video is off in suspend mode.

Suspend Type

The default setting for the Suspend Type field is Stop Grant.

Modem Use IRQ

This field sets the IRQ used by the Modem. By default, the setting is 3.

Suspend Mode

When enabled, and after the set time of system inactivity, all devices
except the CPU will be shut off.

HDD Power Down

When enabled, and after the set time of system inactivity, the hard disk
drive will be powered down while all other devices remain active.

CPU THRM-Throttling

This field is related to the speed of the processo r that drops when the
CPU temperature reaches the threshold as set in the CPU Warning
Temperature of the PC Health Status section. The options in this field
include 75%, 50% and 25%.

BIOS SETUP

MI945X User’s Manual 41

Soft-Off by PWR-BTN

This field defines the power-off mode when using an ATX power
supply. The Instant Off mode allows powering off immediately upon
pressing the power button. In the Delay 4 Sec mode, the system powers
off when the power button is pressed for more than four seconds or
enters the suspend mode when pressed for less than 4 seconds.

Wake up by PCI Card

By default, this field is disabled.

Power On by Ring

This field enables or disables the power on of the system through the
modem connected to the serial port or LAN.

USB KB Wake Up by S3

This field has a default setting of Disabled.

Resume by Alarm

This field enables or disables the resumption of the system operation.
When enabled, the user is allowed to set the Date and Time.

Reload Global Timer Events

The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can
prevent the system from entering a power saving mode or can awaken
the system from such a mode. When an I/O device wants to gain the
attention of the operating system, it signals this by causing an IRQ to
occur. When the operating system is ready to respond to the request, it
interrupts itself and performs the service.

BIOS SETUP

42

MI945X User’s Manual

PNP/PCI Configurations

This option configures the PCI bus system. All PCI bus systems on the
system use INT#, thus all installed PCI cards must be set to this value.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations

Init Display First

PCI Slot ITEM HELP
Reset Configuration Data

Disabled

Menu Level

Select Yes if you are
using a Plug and Play
capable operating
system Select No if
you need the BIOS to
configure non-boot
devices

Resources Controlled By

Auto (ESCD)
IRQ Resources

Press Enter

PCI/VGA Palette Snoop

Disabled

**PCI Express relative items**
Maximum Payload Size

128

Init Display First

The default setting is PCI Card.

Reset Configuration Data

This field allows you to determine whether to reset the configuration
data or not. The default value is Disabled.

Resources Controlled by

This PnP BIOS can configure all of the boot and compatible devices
with the use of a PnP operating system such as Windows 95.

PCI/VGA Palette Snoop

Some non-standard VGA display cards may not show colors properly.
This field allows you to set whether or not MPEG ISA/VESA VGA
cards can work with PCI/VGA. When this field is enabled, a PCI/VGA
can work with an MPEG ISA/VESA VGA card. When this field is
disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.

Maximum Payload Size

The default setting of the PCI Express Maximum Payload Size is 128.

BIOS SETUP

MI945X User’s Manual 43

PC Health Status

This section shows the parameters in determining the PC Health Status.
These parameters include temperatures, fan speeds and voltages.

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status

Shutdown Temperature Disabled

ITEM HELP

CPU Warning Temperature Disabled
Current System Temp. 45°C/113°F

Menu Level >

Current CPU Temp. 45°C/113°F
Current Chassis Temp. 50°C/122°F
System Fan Speed 5400 RPM
CPU Fan Speed 6250 RPM

Vcore(V) 1.12 V
12 V 12.08 V

1.5V 1.56 V
5V 4.96 V

3.3V 3.37V
VBAT (V) 3.21 V
3VSB(V) 3.13 V
CPU Smart Fan Temp. Disabled

SystemSmart Fan Temp. Disabled

Shutdown Temperature

This field allows the user to set the temperature by which the system
automatically shuts down once the threshold temperature is reached.
This function can help prevent damage to the system that is caused by
overheating.

CPU Warning Temperature

This field allows the user to set the temperature so that when the
temperature is reached, the system sounds a warning. This function can
help prevent damage to the system that is caused by overheating.

Temperatures/Voltages

These fields are the parameters of the hardware monitoring function
feature of the motherboard. The values are read-only values as
monitored by the system and show the PC health status.

Smart Fan Temperature

This field enables or disables the smart fan feature. At a certain
temperature, the fan starts turning. Once the temperature drops to a
certain level, it stops turning again.

BIOS SETUP

44

MI945X User’s Manual

Frequency/Voltage Control

This section shows the user how to configure the processor frequency.

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

Auto Detect PCI Clk

Disabled ITEM HELP

Spread Spectrum Modulated

Disabled Menu Level >

CPU Host/SRC/PCI Clock Default

Auto Detect PCI Clk

This field enables or disables the auto detection of the PCI clock.

Spread Spectrum Modulated

This field sets the value of the spread spectrum. The default setting is
Disabled. This field is for CE testing use only

.

CPU Host/SRC/PCI Clock

The options are 100/100/33MHz, 133/100/33MHz, 166/100/33MHz,
200/100/33MHz, 266/100/33MHz, and 333/100/33MHz

.

BIOS SETUP

MI945X User’s Manual 45

Load Fail-Safe Defaults

This option allows you to load the troubleshooting default values
permanently stored in the BIOS ROM. These default settings are
non-optimal and disable all high-performance features.

Load Optimized Defaults

This option allows you to load the default values to your system
configuration. These default settings are optimal and enable all high
performance features.

Set Supervisor Password

These two options set the system password. Supervisor Password sets a
password that will be used to protect the system and Setup u tility. User
Password sets a password that will be used exclusively on the system. To
specify a password, highlight the type you want and press <Enter>. The
Enter Password: message prompt s on t he screen. Type t he password, up
to eight characters in length, and press <Enter>. The system confirms
your password by asking you to type it again. After setting a password,
the screen automatically returns to the main screen.

To disable a password, just press the <Enter> key when you are
prompted to enter the password. A message will confirm the password to
be disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.

Save & Exit Setup

This option allows you to determine whether or not to accept the
modifications. If you type “Y”, you will quit the setup utility and save all
changes into the CMOS memory. If you type “N”, you will return to
Setup utility.

Exit Without Saving

Select this option to exit the Setup utility without saving the changes you
have made in this session. Typing “Y” will quit the Setup utility without
saving the modifications. Typing “N” will return you to Setu p utility.

DRIVERS INSTALLATION

46

MI945X User’s Manual

Drivers Installation

This section describes the installation procedures for software and
drivers under Windows XP. The software and drivers are included with
the motherboard. If you find the items m issing, please contact the vendor
where you made the purchase. The contents of this section include the
following:

Intel Chipset Software Installation Utility ........................................... 47

VGA Drivers Installation ..................................................................... 49

High Definition Codec Audio Driver Installation ............................... 51

LAN Drivers Installation ..................................................................... 52

IMPORTANT NOTE:

After installing your Windows operating system (Windows XP), you
must install first the Intel Chipset Software Installation Utility before
proceeding with the drivers installation.

DRIVERS INSTALLATION

Intel Chipset Software Installation Utility

The Intel Chipset Drivers should be installed first before the software
drivers to enable Plug & Play INF support for Intel chipset com ponents.
Follow the instructions below to complete the installation.

1. Insert the CD that comes with the board. Click Intel and then Intel(R)
GM45 Chipset Drivers.

2. Click Intel(R) Chipset Software Installation Utility.

3. When the Welcome screen to the Intel® Chipset Device Software
appears, click Next to continue.

MI945X User’s Manual 47

DRIVERS INSTALLATION

48

MI945X User’s Manual

4. Click Yes to accept the software license agreement and proceed with
the installation process.

5. On the Readme File Information screen, click Next to continue the
installation.

6. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect.

DRIVERS INSTALLATION

VGA Drivers Installation

To install the VGA drivers, follow the steps below to proceed with the
installation.

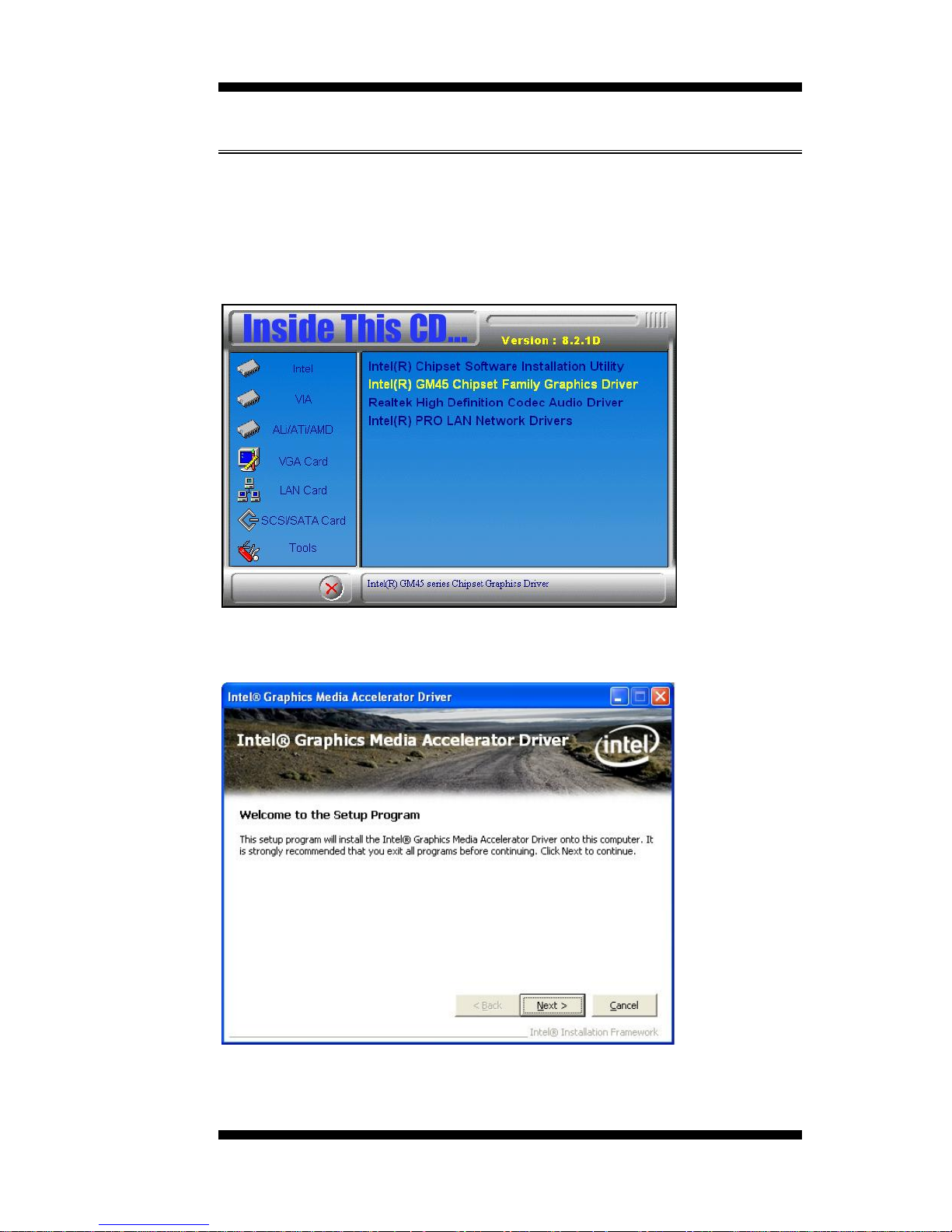

1. Insert the CD that comes with the board. Click Intel and then Intel(R)
GM45 Chipset Drivers.

2. Click Intel(R) GM45 Chipset Family Graphics Driver.

3. When the Welcome screen to the Setup Program appears, click Next
to continue.

MI945X User’s Manual 49

DRIVERS INSTALLATION

4. Click Yes to to agree with the license agreement and continue the
installation.

5. On the Readme File Information screen, click Next to continue the
installation of the Intel® Graphics Media Accelerator Driver.

6. On Setup Progress screen, click Next to continue.

7. Setup complete. Click Finish to restart the computer and for changes
to take effect.

50

MI945X User’s Manual

DRIVERS INSTALLATION

High Definition Codec Audio Driver Installation

1. Insert the drivers CD. Click Intel and then Intel(R) GM45 Chipset
Drivers. Click Realtek High Definition Codec Audio Driver.

2. On the Welcome to the InstallShield Wizard screen, click Next.

3. InstallShield Wizard is complete. Click Finish to restart the computer.

MI945X User’s Manual 51

DRIVERS INSTALLATION

LAN Drivers Installation

Follow the steps below to install the Intel LAN drivers. This one

installation will cover both 82574L and 82567LM LAN controllers.

1. Insert the CD that comes with the motherboard. Click LAN Card and
then Intel(R) PRO 82574L LAN Drivers.

2. When the Welcome screen to the InstallShield Wizard for Intel®
Network Connections appears, click Next. On the next screen, click Yes
to to agree with the license agreement.

3. Click the checkbox for Drivers in the Setup Options screen to select
it and click Next to continue.

52

MI945X User’s Manual

DRIVERS INSTALLATION

4. The wizard is ready to begin installation. Click Install to begin the
installation.

5. When InstallShield Wizard is complete, click Finish.

Remarks: This Intel® PRO 82574L LAN drivers support both Intel
82574L and 82567LM LAN controllers.

MI945X User’s Manual 53

APPENDIX

54

MI945X User’s Manual

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. The follo wing
table lists the I/O port addresses used.

Address Device Description

000h - 01Fh DMA Controller #1
020h - 03Fh Interrupt Controller #1
040h - 05Fh Timer
060h - 06Fh Keyboard Controller
070h - 07Fh Real Time Clock, NMI
080h - 09Fh DMA Page Register
0A0h - 0BFh Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h IDE Interface
278 - 27F Parallel Port #2(LPT2)
2F8h - 2FFh Serial Port #2(COM2)
2B0 - 2DF Graphics adapter Controller
378h - 3FFh Parallel Port #1(LPT1)
360 - 36F Network Ports
3B0 - 3BF Monochrome & Printer adapter
3C0 - 3CF EGA adapter
3D0 - 3DF CGA adapter
3F0h - 3F7h Floppy Disk Controller
3F8h - 3FFh Serial Port #1(COM1)

APPENDIX

MI945X User’s Manual 55

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the
service required. The following tabl e shows the IRQ used by the devices
on board.

Level Function

IRQ0 System Timer Output
IRQ1 Keyboard
IRQ2 Interrupt Cascade
IRQ3 Serial Port #2
IRQ4 Serial Port #1
IRQ5 Reserved
IRQ6 Floppy Disk Controller
IRQ7 Parallel Port #1
IRQ8 Real Time Clock
IRQ9 Reserved
IRQ10 Reserved
IRQ11 Reserved
IRQ12 PS/2 Mouse
IRQ13 80287
IRQ14 Primary IDE
IRQ15 Secondary IDE

APPENDIX

56

MI945X User’s Manual

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sorts of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user
will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

//--------------------------------------------------------------------------­//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------­#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "W627DHG.H"
//--------------------------------------------------------------------------­int main (void);

void WDTInitial(void);
void WDTEnable(unsigned char);
void WDTDisable(void);

//--------------------------------------------------------------------------­int main (void)
{
char SIO;

SIO = Init_W627DHG();
if (SIO == 0)
{
printf("Can not detect Winbond 83627DHG, program
abort.\n");
return(1);
}

WDTInitial();

WDTEnable(10);

WDTDisable();

return 0;
}
//--------------------------------------------------------------------------­void WDTInitial(void)
{
unsigned char bBuf;

bBuf = Get_W627DHG_Reg(0x2D);
bBuf &= (~0x01);
Set_W627DHG_Reg(0x2D, bBuf); //Enable WDTO
}
//--------------------------------------------------------------------------­void WDTEnable(unsigned char NewInterval)
{
unsigned char bBuf;

APPENDIX

MI945X User’s Manual 57

Set_W627DHG_LD(0x08);
Set_W627DHG_Reg(0x30, 0x01); //enable timer

bBuf = Get_W627DHG_Reg(0xF5);
bBuf &= (~0x08);
Set_W627DHG_Reg(0xF5, bBuf); //count mode is second

Set_W627DHG_Reg(0xF6, NewInterval);
//set timer
}
//--------------------------------------------------------------------------­void WDTDisable(void)
{
Set_W627DHG_LD(0x08);
Set_W627DHG_Reg(0xF6, 0x00); //clear
watchdog timer
Set_W627DHG_Reg(0x30, 0x00); //watchdog
disabled
}
//---------------------------------------------------------------------------

//--------------------------------------------------------------------------­//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------­#ifndef __W627DHG_H
#define __W627DHG_H 1
//--------------------------------------------------------------------------­#define W627DHG_INDEX_PORT (W627DHG_BASE)
#define W627DHG_DATA_PORT (W627DHG_BASE+1)
//--------------------------------------------------------------------------­#define W627DHG_REG_LD 0x07
//--------------------------------------------------------------------------­#define W627DHG_UNLOCK 0x87
#define W627DHG_LOCK 0xAA
//--------------------------------------------------------------------------­unsigned int Init_W627DHG(void);
void Set_W627DHG_LD( unsigned char);
void Set_W627DHG_Reg( unsigned char, unsigned char);
unsigned char Get_W627DHG_Reg( unsigned char);
//--------------------------------------------------------------------------­#endif //__W627DHG_H

//--------------------------------------------------------------------------­//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------­#include "W627DHG.H"
#include <dos.h>
//--------------------------------------------------------------------------­unsigned int W627DHG_BASE;
void Unlock_W627DHG (void);
void Lock_W627DHG (void);
//--------------------------------------------------------------------------­unsigned int Init_W627DHG(void)
{
unsigned int result;
unsigned char ucDid;

W627DHG_BASE = 0x4E;
result = W627DHG_BASE;

APPENDIX

58

MI945X User’s Manual

ucDid = Get_W627DHG_Reg(0x20);
if (ucDid == 0xA0)
{ goto Init_Finish; }
else if (ucDid == 0xB0) //W83627DHG-P??
{ goto Init_Finish; }

W627DHG_BASE = 0x2E;
result = W627DHG_BASE;

ucDid = Get_W627DHG_Reg(0x20);
if (ucDid == 0xA0)
{ goto Init_Finish; }
else if (ucDid == 0xB0) //W83627DHG-P??
{ goto Init_Finish; }

W627DHG_BASE = 0x00;
result = W627DHG_BASE;

Init_Finish:
return (result);
}
//--------------------------------------------------------------------------­void Unlock_W627DHG (void)
{
outportb(W627DHG_INDEX_PORT, W627DHG_UNLOCK);
outportb(W627DHG_INDEX_PORT, W627DHG_UNLOCK);
}
//--------------------------------------------------------------------------­void Lock_W627DHG (void)
{
outportb(W627DHG_INDEX_PORT, W627DHG_LOCK);
}
//--------------------------------------------------------------------------­void Set_W627DHG_LD( unsigned char LD)
{
Unlock_W627DHG();
outportb(W627DHG_INDEX_PORT, W627DHG_REG_LD);
outportb(W627DHG_DATA_PORT, LD);
Lock_W627DHG();
}
//--------------------------------------------------------------------------­void Set_W627DHG_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_W627DHG();
outportb(W627DHG_INDEX_PORT, REG);
outportb(W627DHG_DATA_PORT, DATA);
Lock_W627DHG();
}
//--------------------------------------------------------------------------­unsigned char Get_W627DHG_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_W627DHG();
outportb(W627DHG_INDEX_PORT, REG);
Result = inportb(W627DHG_DATA_PORT);
Lock_W627DHG();
return Result;
}
//---------------------------------------------------------------------------

APPENDIX

MI945X User’s Manual 59

This page is intentionally left blank.
