IBASE Technology IB897 User Manual

IB897

Intel® AtomTM E3800 SoC Series

3.5” Disk Size SBC

USER’S MANUAL

Version 1.0

ii

IB897 User’s Manual

Acknowledgments

AMI BIOS is a trademark of American Megatrends Inc. PS/2 is a trademark of International Business Machines Corporation. Intel and Atom are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Nuvoton is a registered trademark of Winbond Electronics Corporation. All other product names or trademarks are properties of their respective owners.

IB897 User’s Manual iii

Table of Contents

Introduction ....................................................... 1

Product Description............................................................. 1

Specifications ...................................................................... 2

Checklist .............................................................................. 3

Board Dimensions for [IB897-I45/I27/I15] ......................... 4

Board Dimensions for [IB897-I45P/I27P/I15P] .................. 4

Installations ....................................................... 5

Installing the Memory ......................................................... 6

Setting the Jumpers ............................................................. 7

Connectors on IB897 ......................................................... 11

BIOS Setup ....................................................... 27

Drivers Installation ...................................... 43

Intel Chipset Software Installation Utility ........................ 44

VGA Drivers Installation .................................................. 45

Realtek High Definition Audio Driver Installation ........... 46

Intel Trusted Execution Engine Installation...................... 47

Appendix ............................................................ 49

A. I/O Port Address Map .................................................. 49

B. Interrupt Request Lines (IRQ) ...................................... 50

C. Digital I/O Sample Code .............................................. 51

D. Watchdog Timer Configuration ................................... 56

iv

IB897 User’s Manual

This page is intentionally left blank.

INTRODUCTION

IB897 User’s Manual 1

Introduction

Product Description

IB897 is a 3.5-inch single board computer based on the Intel

®

AtomTM

E3800 series processors. It supports two DDR3L (1.35V) SODIMM

sockets for a maximum memory capacity of 8GB.

IB897 features the Intel® Gen7 w/4EUs graphics engines and has both CRT and DisplayPort video display interface, and 24-bit LVDS dual channel interface with the use of the NXP PTN3460 device.

Onboard connections are available for two SATAII ports, two COM ports, one USB 3.0 ports, four USB2.0 ports, audio, two Mini PCI-e(x1) slots, and Micro SD. Power input is made with a +9~+30V DC in interface.

IB897 Features:

 Supports Atom

TM

E3800 series SoC processors

 Two DDR3L SO-DIMM, 1066/1333 MHz, Max. 8GB memory  Integrated graphics for VGA, DP displays  2 x SATA II connectors  2x COM port connectors  1 x Mini-PCIe(x1) slot (w/ USB/mSATA support)  1 x Mini-PCIe(x1) slot (w/ USB support)  2x GbE (RJ-45) connectors  24-bit dual channel LVDS  Micro SD  1x 9V to 30V DC-in power connector

INTRODUCTION

2

IB897 User’s Manual

Specifications

Product Name

IB897

Form Factor

3.5” disk size SBC

SoC Type/Speed

Intel® AtomTM QC E3845 /2MB cache/1.91GHz (IB897-I45&I45P) Intel® AtomTM DC E3827 /1MB cache/1.75 GHz (IB897-I27&I27P) Intel® AtomTM SC E3815 /512KB cache/1.46 GHz (IB897-I15& I15P) Package = FCBGA1170, 25mmx27mm, 22nm,Tj= -40ﾟC to +110ﾟC

BIOS

AMI BIOS

Memory

Intel® AtomTM SoC integrated memory controller Support DDR3L (1.35V only), Non-ECC memory only 2 x DDR3 SO-DIMM socket [IB897-I45_P/IB897-I27_P], 8GB max. 1 x DDR3 SO-DIMM socket [IB897-I15_P], 4GB max.

VGA

Intel® Gen7 w/4 EUs graphics engines DisplayPort x 1 [Support to 2560x1200@60Hz] CRT x 1 via pin header [Support to 1920x1080@60Hz]

LVDS

24-bit dual channel via NXP PTN3460 thru eDP (Support to1920x1200 @ 60 Hz)

LAN

Intel® I210IT PCIe Gigabit LAN x 2

USB

Intel® AtomTM SoC built-in USB host controller Support USB 2.0 x 4 ports; USB 3.0 x 1 port, extra USB 2.0 x4 ports (Thru SMSC HUB USB2514)

Serial ATA

Intel® AtomTM SoC built-in SATA II controller, supports 2 ports

Audio

Intel® AtomTM SoC built-in HD Audio controller + Realtek ALC269QHD Codec w/class-D speaker amplifier (2.3W per channel @ 5V power supply) [7mm x 7mm @ 48-QFN]; support 2-channel audio out + amp

LPC I/O

Nuvoton NCT5523D [64-pin LQFP, 7x7x1.4mm]

- COM #1 (RS232/422/485) [EXAR SP339EER1 x 1 for jumper-less]

- COM #2 (RS-232 only)

[Hardware Monitor]: 2x Thermal inputs; 2x Voltage monitoring

Digital IO

4 in & 4 out

Expansion Slots

Mini PCI-e socket x2 (1xFull-sized+1xHalf-sized,) **Full length MiniPCIe (1x) support mSATA**

Edge Connector

DB9 for COM1, DisplayPort, RJ45 x 2 for LAN 1 & 2 USB 2.0 vertical connector x 1, USB 3.0 vertical connector x 1 LED indicators (red+green) x1 for power and HDD status & power button x 1(IB897-I45/I27/I15) 4-pin header for LED indicator & 2-pin header for power button via cable (IB897-I45P/I27P/I15P)

Onboard Header/ Connector

2x8 pin header for CRT; 2x4 pin header for 2x USB 2.0 DF20 socket connector x2 for 24-bit dual channel LVDS 4-pin box header for backlight/brightness control (PWM) 2x6 pin box header for Audio, 4-pin header for speaker 2x5 pin box header for COM2 2x5 pin headers for LPC (80-port card debugging purpose) Mini PCI-e(1x) connector x2, 5 pins box header for smart battery SATA connector x 2 for SATA device 4-pins power connector (JST type, for SATA device) 2-pins connector for power input, Micro SD slot (type 3.3V)

Watchdog

Yes (256 segments, 0, 1, 2…255 sec/min)

Power Connector

9V ~ 30V DC-in thru onboard 2-pin connector

Others

iSMART 2.0 [Auto-scheduler / Power resume]

OS Support

Windows 8.1 / Embedded; Windows 7 / Embedded, Linux

RoHS / REACH/ CE / FCC

Yes / Yes / Yes / Class B

Operating Temp.

-40ﾟC to +85ﾟC

Board Size

102mm x 147mm

INTRODUCTION

IB897 User’s Manual 3

Checklist

Your IB897 package should include the items listed below.

 The IB897 SBC  This User’s Manual  1 CD containing chipset drivers and flash memory utility

INTRODUCTION

4

IB897 User’s Manual

Board Dimensions for [IB897-I45/I27/I15]

Board Dimensions for [IB897-I45P/I27P/I15P]

INSTALLATIONS

IB897 User’s Manual 5

Installations

This section provides information on how to use the jumpers and connectors on the IB897 in order to set up a workable system. The topics covered are:

Installing the Memory ............................................................................ 6

Setting the Jumpers ................................................................................ 7

Connectors on IB897 ........................................................................... 11

INSTALLATIONS

6

IB897 User’s Manual

Installing the Memory

The IB897 board supports TWO DDR3L memory socket for a maximum total memory of 8GB DDR3L memory type.

Installing and Removing Memory Modules

To install the DDR3L modules, locate the memory slot on the board and perform the following steps:

1. Hold the DDR3L module so that the key of the DDR3L module

aligned with that on the memory slot.

2. Gently push the DDR3L module in an upright position until the clips

of the slot close to hold the DDR3L module in place when the DDR3L module touches the bottom of the slot.

3. To remove the DDR3L module, press the clips with both hands.

** Channel-A slot must be installed with memory module for booting up**

INSTALLATIONS

IB897 User’s Manual 7

Setting the Jumpers

Jumpers are used on IB897 to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on IB897 and their respective functions.

Jumper Locations on IB897 ................................................................... 8

JP2: LVDS Panel Brightness Control Selection .................................... 9

J5: LVDS Panel Power Selection .......................................................... 9

JP5: Clear ME Contents....................................................................... 10

JP6: Clear CMOS Contents ................................................................. 10

INSTALLATIONS

8

IB897 User’s Manual

Jumper Locations on IB897

[IB897-I45/I27/I15]

[IB897-I45P/I27P/I15P]

INSTALLATIONS

IB897 User’s Manual 9

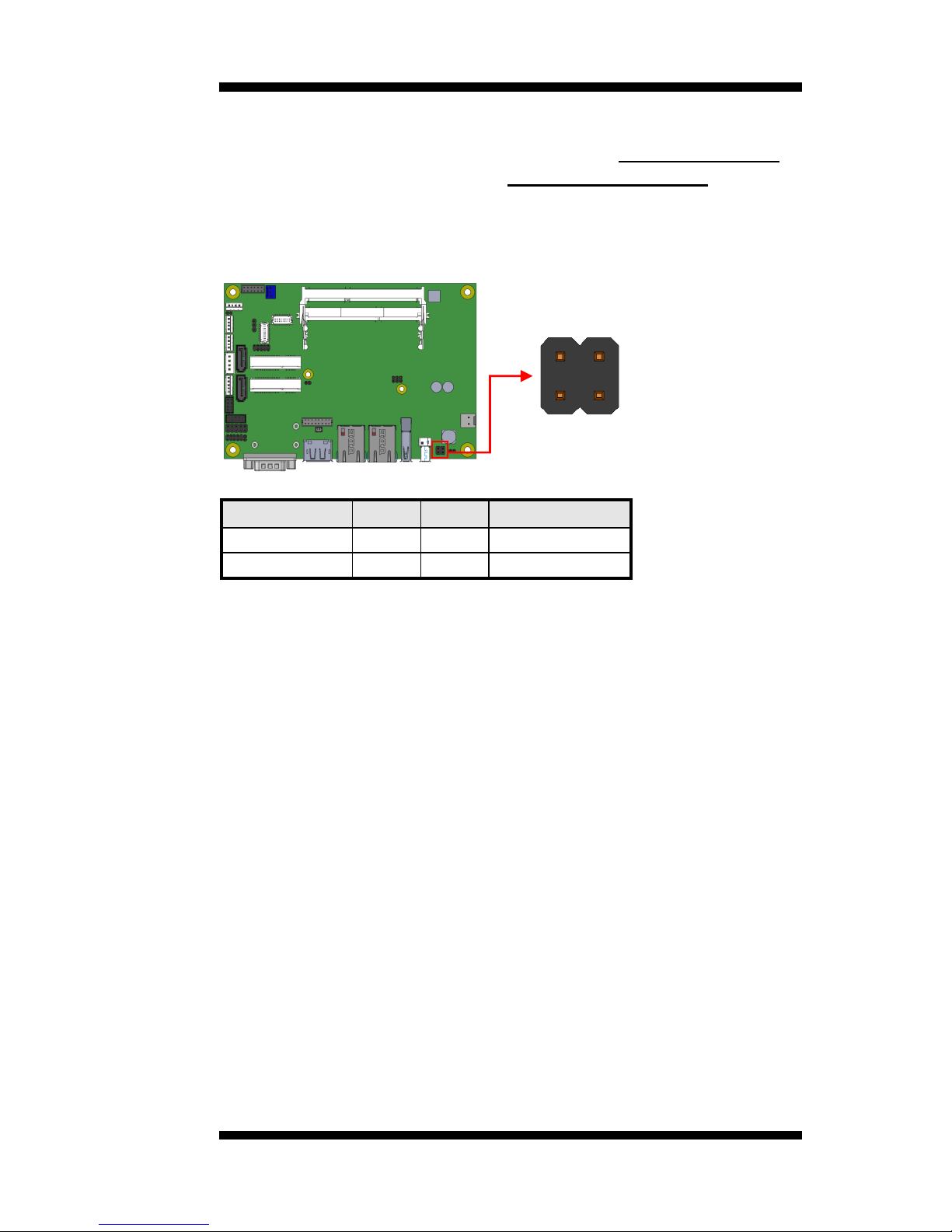

JP2: LVDS Panel Brightness Control Selection

JP2

Brightness Control

(PWM mode)

Open

3.3V

Close

5V(Default)

J5: LVDS Panel Power Selection

J5

Setting

Panel Voltage

Pin 1-2

Short/Closed

3.3V (default)

Pin 2-3

Short/Closed

5V

1 2

1

3

INSTALLATIONS

10

IB897 User’s Manual

JP5: Clear ME Contents

JP5

Setting

Function

Pin 1-2

Short/Closed

Normal

Pin 2-3

Short/Closed

Clear ME

REGISTER

JP6: Clear CMOS Contents

JP6

Setting

Function

Pin 1-2

Short/Closed

Normal

Pin 2-3

Short/Closed

Clear CMOS 1 3

1 3

INSTALLATIONS

IB897 User’s Manual 11

Connectors on IB897

Connector Locations on IB897-I45/I27/I15 ........................................ 12

Connector Locations on IB897-I45P/I27P/I15P .................................. 12

CN3: USB3.0 Connector ..................................................................... 13

CN4, CN5: Gigabit LAN Connector.................................................... 13

CN4: Intel® I210IT Connector............................................................ 13

CN5: Intel® I210IT Connector............................................................ 13

CN6: USB2.0 Connector ..................................................................... 13

CN7: DP Connector ............................................................................. 13

CN8: DB9 Connector (COM1) ............................................................ 14

CN9: Micro SD (3.3V) Connector ....................................................... 14

SW1: Power Switch [For IB897-I45/I27/I15] ..................................... 14

LED1: Power LED and HDD LED Connector [For IB897-I45/I27/I15] ........ 15

CN1: SATAII /share mSATA/ Connectors .......................................... 16

CN2: SATAII Connectors ................................................................... 16

SYS_FAN1: SYSTEM Fan Power Connector ................................ .... 16

J1: Audio Connector (DF11-12DP-2DSA) .......................................... 17

J2: Amplify Connector (JST B4B-PH-K-S ) ....................................... 17

J7: DDR3L SO-DIMM(CH-A) Sockets .............................................. 17

J3: DDR3L SO-DIMM(CH-B) Sockets ............................................... 18

J4, J6: LVDS Connectors, (DF20G-20DP-1V) ................................... 18

J4: First Channel LVDS ....................................................................... 18

J6: Second Channel LVDS .................................................................. 18

J9: MCU Flash Connector (factory use only) ...................................... 19

J10: SATA HDD Power Connectors(JST B4B-XH-A) ....................... 19

J11: Smart Battery(JST B5B-PH-K-S ) ............................................... 20

J12: Mini PCIE Connector (share mSATA) ........................................ 20

J13: Mini PCIE Connector (Half Size) ................................................ 20

J14: USB 2.0 Connector(DF11-8DP-2DSA) ....................................... 21

J15: COM2/RS232 Serial Port(DF11-10DP-2DSA) ........................... 21

J16: VGA Connector (DF11-16DP-2DSA) ......................................... 22

J17: Digital I/O Connector(2.54mm) ................................................... 22

J18: Board Input Power Connector(HK_WAFER396-2S-WV ) ......... 23

J19: Reset Switch(2mm) ...................................................................... 23

J20: Power Switch(2mm) ..................................................................... 23

JP3: LCD Backlight Connector(JST B4B-PH-K-S ) ........................... 24

JP4: SPI Flash Connector (factory use only) ....................................... 25

JP7: Factory use only ........................................................................... 25

JP8: Debug 80 Port Connector (factory use only) ............................... 25

INSTALLATIONS

12

IB897 User’s Manual

Connector Locations on IB897-I45/I27/I15

Connector Locations on IB897-I45P/I27P/I15P

INSTALLATIONS

IB897 User’s Manual 13

Bottom side

CN3: USB3.0 Connector

CN4, CN5: Gigabit LAN Connector

CN4: Intel® I210IT Connector

CN5: Intel® I210IT Connector

CN6: USB2.0 Connector

CN7: DP Connector

INSTALLATIONS

14

IB897 User’s Manual

CN8: DB9 Connector (COM1)

Signal Name

Pin #

Signal Name

DCD, Data carrier detect

1 6 DSR, Data set ready

RXD, Receive data

2

7

RTS, Request to send

TXD, Transmit data

3 8 CTS, Clear to send

DTR, Data terminal ready

4 9 RI, Ring indicator

GND, ground

5

10

Not Used

COM1 is jumper-less for RS-232, RS-422 and RS-485 and is to be configured with BIOS Selection.

[

Pin #

Signal Name

RS-232

R2-422

RS-485

1

DCD

TX-

DATA-

2

RX

TX+

DATA+

3

TX

RX+

NC

4

DTR

RX-

NC

5

Ground

6

DSR

NC

7

RTS

NC

8

CTS

NC

9

RI

NC

10

NC

CN9: Micro SD (3.3V) Connector

SW1: Power Switch [For IB897-I45/I27/I15]

INSTALLATIONS

IB897 User’s Manual 15

LED1: Power LED and HDD LED Connector [For IB897-I45/I27/I15] 2x2 Pin-header (2.54mm) [For IB897-I45P/I27P/I15P]

The green LED at the bottom is power LED. The red LED on top is the HDD LED.

Signal Name

Pin #

Signal Name

VCC3

1 2 HDD_LED

VCC5

3 4 GND

1 2

3 4

INSTALLATIONS

16

IB897 User’s Manual

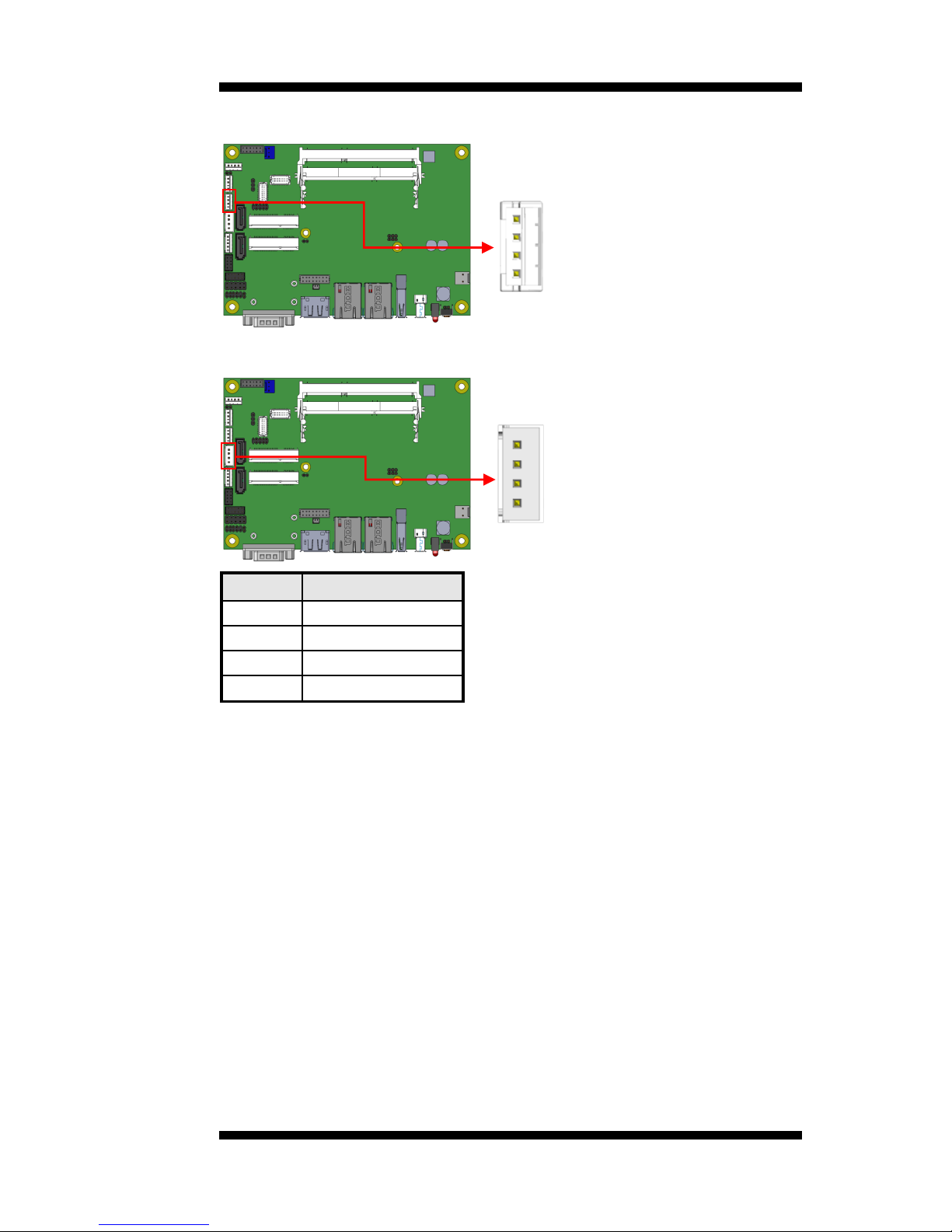

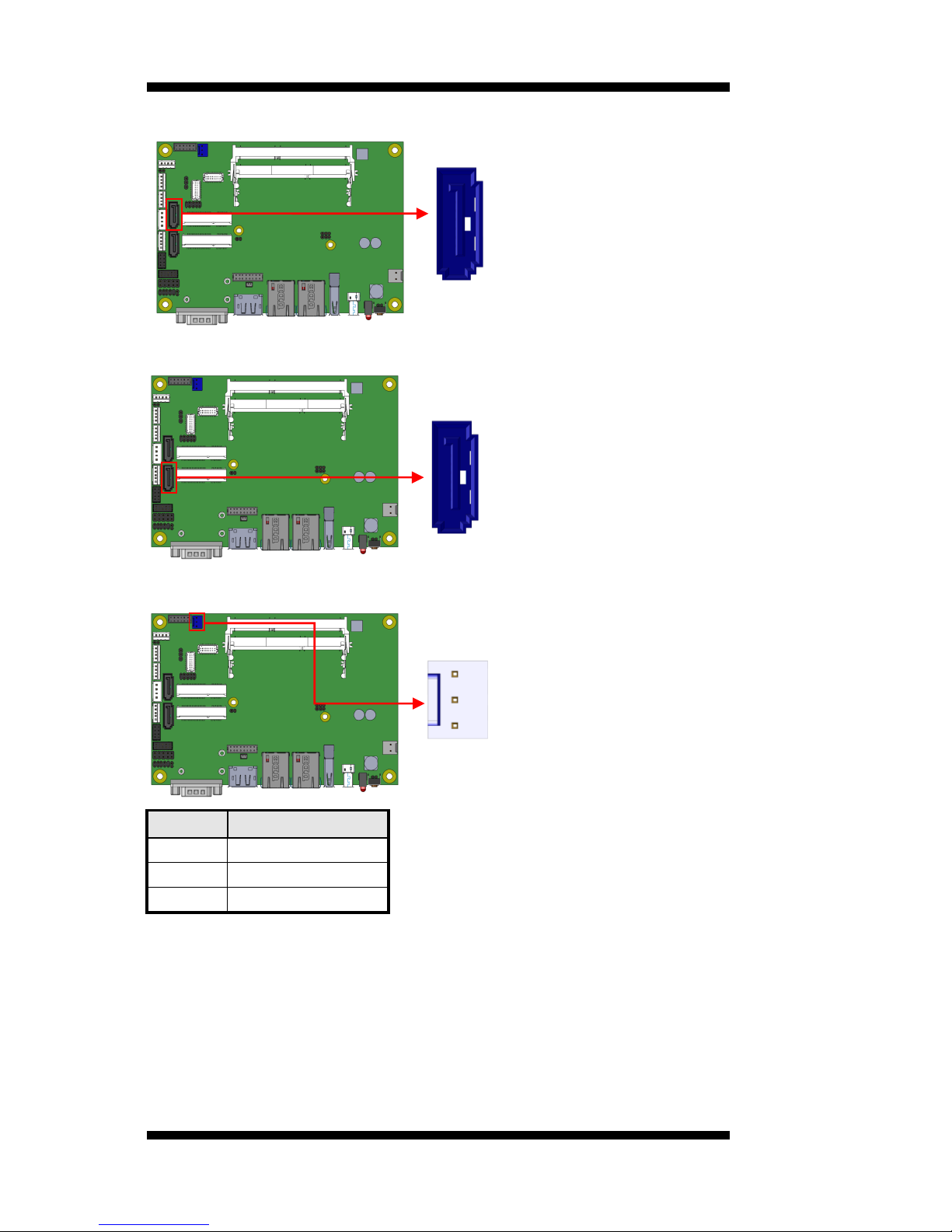

CN1: SATAII /share mSATA/ Connectors

CN2: SATAII Connectors

SYS_FAN1: SYSTEM Fan Power Connector

Pin #

Signal Name

1

Ground

2

+12V(500mA)

3

Rotation detection

1

3

INSTALLATIONS

IB897 User’s Manual 17

J1: Audio Connector (DF11-12DP-2DSA)

Signal Name

Pin #

Signal Name

LINEOUT_R

2 1 LINEOUT_L

Ground

4 3 JD_FRONT

LINEIN_R

6 5 LINEIN_L

Ground

8 7 JD_LINEIN

MIC-R

10 9 MIC_L

Ground

12

11

JD_MIC1

J2: Amplify Connector (JST B4B-PH-K-S )

Pin #

Signal Name

1

OUTL+

2

OUTL-

3

OUTR-

4

OUTR+

J7: DDR3L SO-DIMM(CH-A) Sockets

** Please note CH-A must be installed for booting up**

1 11

2 12

1 4

INSTALLATIONS

18

IB897 User’s Manual

J3: DDR3L SO-DIMM(CH-B) Sockets

J4, J6: LVDS Connectors, (DF20G-20DP-1V) J4: First Channel LVDS

J6: Second Channel LVDS

Signal Name

Pin #

Signal Name

TX0N

2 1 TX0P

Ground

4 3 Ground

TX1N

6 5 TX1P

Ground

8 7 Ground

TX2N

10 9 TX2P

Ground

12

11

Ground

CLKN

14

13

CLKP

Ground

16

15

Ground

TX3N

18

17

TX3P

Power(1A)

20

19

Power

20 2

19 1

2

20

1

19

INSTALLATIONS

IB897 User’s Manual 19

J9: MCU Flash Connector (factory use only)

J10: SATA HDD Power Connectors(JST B4B-XH-A)

Pin #

Signal Name

1

+5V(1A)

2

Ground

3

Ground

4

+12V(1A)

4

1

4

1

INSTALLATIONS

20

IB897 User’s Manual

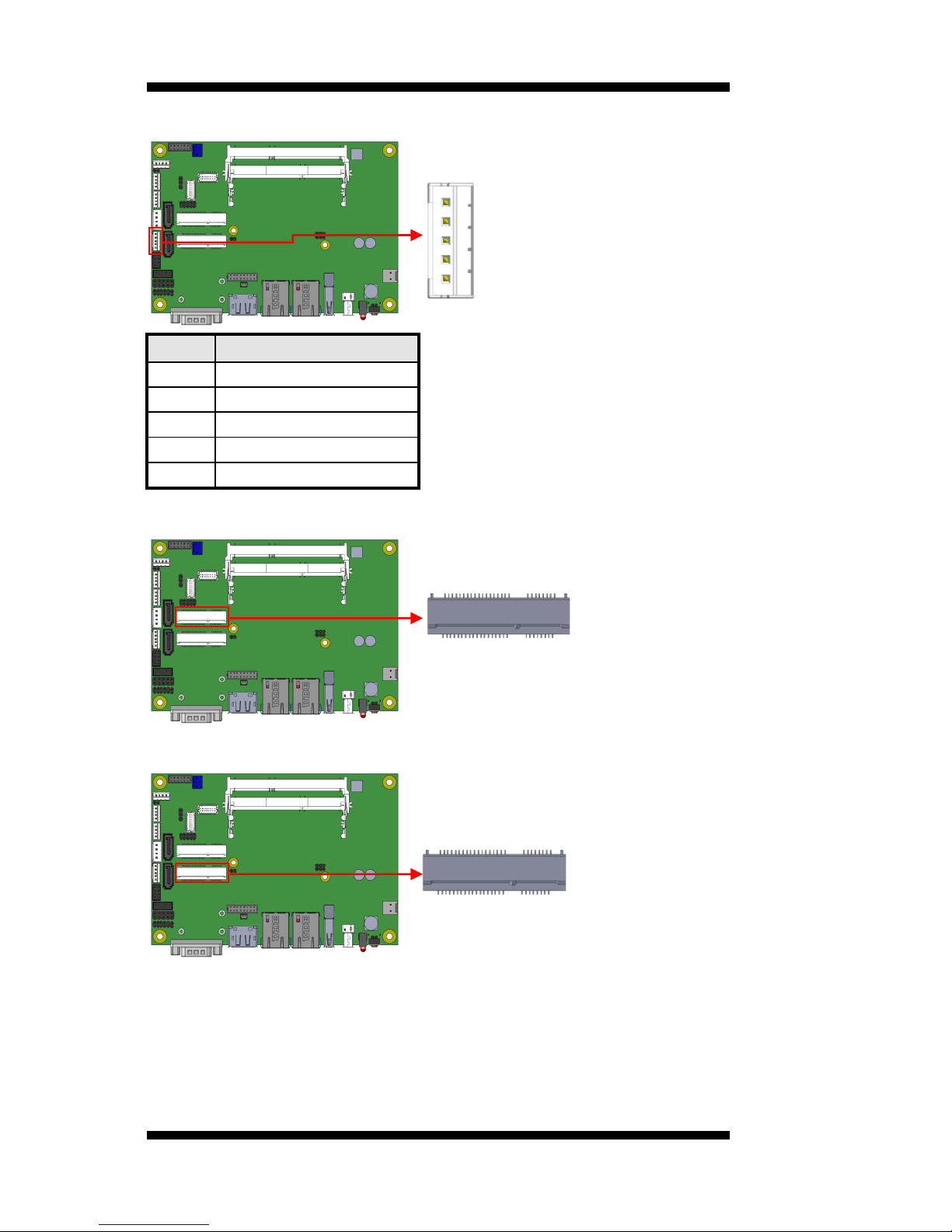

J11: Smart Battery(JST B5B-PH-K-S )

Pin #

Signal Name

1

RST#

2

ICHSWI#

3

Ground

4

SMB_DATA

5

SMB_CLK

J12: Mini PCIE Connector (share mSATA)

J13: Mini PCIE Connector (Half Size)

1

5

INSTALLATIONS

IB897 User’s Manual 21

J14: USB 2.0 Connector(DF11-8DP-2DSA)

Signal Name

Pin #

Signal Name

Vcc

1 2 Ground

D0-

3 4 D1+

D0+

5 6 D1-

Ground

7 8 Vcc

J15: COM2/RS232 Serial Port(DF11-10DP-2DSA)

Signal Name

Pin #

Signal Name

DCD, Data carrier detect

1 2 RXD, Receive data

TXD, Transmit data

3 4 Data terminal ready

GND, ground

5 6 DSR, Data set ready

RTS, Request to send

7 8 CTS, Clear to send

RI, Ring indicator

9

10

Not Used

7

1

8

2

1 9

2 10

INSTALLATIONS

22

IB897 User’s Manual

J16: VGA Connector (DF11-16DP-2DSA)

Signal Name

Pin #

Signal Name

+5V

2 1 Red

Ground

4 3 Green

N.C

6 5 Blue

DDCDATA

8 7 N.C

H_SYNC

10 9 GND

V_SYNC

12

11

GND

DDCCLK

14

13

GND

N.C.

16

15

GND

J17: Digital I/O(signal level 5V)Connector(2.54mm)

Signal Name

Pin #

Signal Name

GND

1 2 VCC(500mA)

OUT3

3 4 OUT1

OUT2

5 6 OUT0

IN3

7 8 IN1

IN2

9

10

IN0

15 1

16 2

2 10

1 9

INSTALLATIONS

IB897 User’s Manual 23

J18: Board Input Power Connector(HK_WAFER396-2S-WV )

Pin #

Signal Name

1

+9V to +30V(10A)

2

GND

J19: Reset Switch(2mm)

Pin #

Signal Name

1

Reset Switch

2

Ground

J20: Power Switch(2mm)

Pin #

Signal Name

1

Power Switch

2

Ground

2 1

2

1

1 2

INSTALLATIONS

24

IB897 User’s Manual

JP3: LCD Backlight Connector(JST B4B-PH-K-S )

Pin #

Signal Name

1

+12V(1A)

2

Backlight Enable

3

Brightness Control

4

Ground

4

1

INSTALLATIONS

IB897 User’s Manual 25

JP4: SPI Flash Connector (factory use only)

JP7: Factory use only

JP8: Debug 80 Port Connector (factory use only)

2 10

1 9

1 2

2 10

1 9

INSTALLATIONS

26

IB897 User’s Manual

This page is intentionally left blank.

BIOS SETUP

IB897 User’s Manual 27

BIOS Setup

This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows:

BIOS Introduction ............................................................................... 28

BIOS Setup .......................................................................................... 28

Main Settings ....................................................................................... 26

Advanced Settings ............................................................................... 30

Chipset Settings ................................................................................... 38

Security Settings .................................................................................. 39

Boot Settings........................................................................................ 40

Save & Exit Settings ............................................................................ 41

Additional Information about OS Installation ...................................... 34

BIOS SETUP

28

IB897 User’s Manual

BIOS Introduction

The BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

BIOS Setup

The BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the

system by pressing the ”Reset” button or simultaneously pressing the

<Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

Warning:

It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.

BIOS SETUP

IB897 User’s Manual 29

Main Settings

Main Advanced Chipset Boot Security Save & Exit

BIOS Information

Choose the system default language

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

System Language

[English]

System Date System Time

[Tue 01/20/2009] [21:52:06]

Access Level

Administrator

System Language

Choose the system default language.

System Date

Set the Date. Use Tab to switch between Data elements.

System Time

Set the Time. Use Tab to switch between Data elements.

BIOS SETUP

30

IB897 User’s Manual

Advanced Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Main Advanced Chipset Boot Security Save & Exit

► ACPI Settings ► LVDS Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

► iSmart Controller

► Super IO Configuration

► H/W Monitor

► CPU Configuration ► PPM Configuration

► IDE Configuration

► SDIO Configuration

ACPI Settings

Main Advanced Chipset Boot Security Save & Exit

ACPI Settings

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

Enable ACPI Auto Configuration

Disabled

Enable Hibernation

Enabled

ACPI Sleep State

S3 only (Suspend to …)

Enabled ACPI Auto Configuration

Enables or Disables BIOS ACPI Auto Configuration.

Enable Hibernation

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select ACPI sleep state the system will enter when the SUSPEND button is pressed.

BIOS SETUP

IB897 User’s Manual 31

LVDS Configuration

Main Advanced Chipset Boot Security Save & Exit

Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

Panel Color Depth LVDS Channel Type

24 BIT Single

Panel Type LVDS Backlight Control

1024 x 768 0(Min)

iSmart Controller

Main Advanced Chipset Boot Security Save & Exit

iSmart Controller

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

Power-On after Power failure Schedule Slot 1

Disable None

Schedule Slot 2

None

Power-On after Power failure

This field sets the system power status whether Disable or Enable when power returns to the system from a power failure situation.

Schedule Slot 1 / 2

Setup the hour/minute for system power on.

BIOS SETUP

32

IB897 User’s Manual

Super IO Configuration

Main Advanced Chipset Boot Security Save & Exit

Super IO Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

► Serial Port 1 Configuration

► Serial Port 2 Configuration

Serial Port 1 Configuration

Set parameters of serial port 1(COMA)

Serial Port 2 Configuration

Set parameters of serial port 2(COMA)

BIOS SETUP

IB897 User’s Manual 33

H/W Monitor

Main Advanced Chipset Boot Security Save & Exit

PC Health Status

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

Smart Fan Function

Disabled

SYS temp

+33.0 C

CPU temp

+34.5 C

FAN1 Speed

4066 RPM

Vcore

+1.704 V

+1.35V

+1.544 V

AVCC

+3.360 V

VSB3 VCC3V

+3.344 V +3.328 V

CPU Shutdown Temperature

Disabled

Smart Fan Function

This field enables or disables the smart fan feature. Disabled (default) 50 ℃

60 ℃ 70 ℃ 80 ℃ 90 ℃

Shutdown Temperature

This field enables or disables the Shutdown Temperature Disabled (default) 70 ℃/158 F

75 ℃/167 F 80 ℃/176 F 85 ℃/185 F 90 ℃/194 F 90 ℃/203 F

Temperatures/Voltages

These fields are the parameters of the hardware monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health status

BIOS SETUP

34

IB897 User’s Manual

CPU Configuration

This section shows the CPU configuration parameters.

Main Advanced Chipset Boot Security Save & Exit

CPU Configuration

►Socket 0 CPU Information

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

CPU Speed

1751 Mhz

64-bit

Supported

Socket 0 CPU Information

Socket specific CPU Information.

BIOS SETUP

IB897 User’s Manual 35

CPU PPM Configuration

Main Advanced Chipset Boot Security Save & Exit

CPU PPM Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

EIST

Enabled

EIST

Enable/Disable Intel SpeedStep.

BIOS SETUP

36

IB897 User’s Manual

IDE Configuration

SATA Devices Configuration.

Main Advanced Chipset Boot Security Save & Exit

IDE Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Serial-ATA (SATA)

Enabled

SATA Mode

AHCI

Serial-ATA Port 0

Enabled

SATA Port0 HotPlug

Disabled

Serial-ATA Port 1

Enabled

SATA Port1 HotPlug

Disabled

SATA Port0

Not Present

SATA Port1

Not Present

Serial-ATA(SATA)

Enabled / Disabled Serial ATA

SATA Mode

Select IDE / AHCI Mode

Serail –ATA Port 0

Enabled / Disabled Serial Port 0

SATA Port0 HotPlug

Enabled / Disabled SATA Port 0 HotPlug

Serail –ATA Port 1

Enabled / Disabled Serial Port 1

SATA Port1 HotPlug

Enabled / Disabled SATA Port 1 HotPlug

BIOS SETUP

IB897 User’s Manual 37

SDIO Configuration

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

SDIO Access Mode

Auto

SDIO Access Mode

Auto Option: Access SD device in DMA mode if controller supports it. Otherwise, in PIO mode. DMA options: Access SD device in DMA mode. PIO Option: Access PIO device in DMA

BIOS SETUP

38

IB897 User’s Manual

Chipset Settings

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

► North Bridge

North Bridge

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

Memory Information

Total Memory

4096 MB (LPDDR3)

Memory Slot0

4096 MB (LPDDR3)

Memory Slot2

Not Present

BIOS SETUP

IB897 User’s Manual 39

Security Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Main Advanced Chipset Boot Security Save & Exit

Password Description

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

If ONLY the Administrator’s password is set, then this only limit access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights

The password length must be

in the following range:

Minimum length

3

Maximum length

20

Administrator Password User Password

Administrator Password

Set Administrator Password.

BIOS SETUP

40

IB897 User’s Manual

Boot Settings

This section allows you to configure the boot settings.

Main Advanced Chipset Boot Security Save & Exit

Boot Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

Setup Prompt Timeout

1

Bootup NumLock State

On

Quiet Boot

Disabled

Fast Boot

Disabled

Boot Option Priorities Boot Option #1

UEFI:Built-in EFI

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Bootup NumLock State Select the keyboard NumLock state.

Quiet Boot

Enables or disables Quiet Boot option.

Fast Boot

Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

Boot Option Priorities

Sets the system boot order.

BIOS SETUP

IB897 User’s Manual 41

Save & Exit Settings

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Opt. F1: General Help

F2: Previous Values F3: Optimized Defaults

F4: Save & Exit ESC: Exit

Discard Changes and Exit

Save Changes and Reset

Discard Changes and Reset

Save Options

Save Changes

Discard Changes

Restore Defaults

Save as User Defaults

Restore User Defaults

Boot Override

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Changes

Save Changes done so far to any of the setup options.

Discard Changes

Discard Changes done so far to any of the setup options.

Restore Defaults

Restore/Load Defaults values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults

Restore the User Defaults to all the setup options.

BIOS SETUP

42

IB897 User’s Manual

This page is intentionally left blank.

DRIVERS INSTALLATION

IB897 User’s Manual 43

Drivers Installation

This section describes the installation procedures for software and drivers. The software and drivers are included with the motherboard. If you find the items missing, please contact the vendor where you made the purchase. The contents of this section include the following:

Intel Chipset Software Installation Utility ........................................... 44

VGA Drivers Installation ..................................................................... 45

Realtek High Definition Audio Driver Installation .............................. 46

Intel Trusted Execution Engine Installation ......................................... 47

IMPORTANT NOTE:

After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation.

DRIVER INSTALLATION

44

IB897 User’s Manual

Intel Chipset Software Installation Utility

The Intel Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation.

1. Insert the DVD that comes with the board. Click Intel and then

Intel(R) Baytrail Chipset. Click Intel(R) Chipset Software Installation Utility.

3. When the Welcome screen to the Intel® Chipset Device Software appears, click Next to continue.

4. Click Yes to accept the software license agreement and proceed with the installation process.

5. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect.

DRIVERS INSTALLATION

IB897 User’s Manual 45

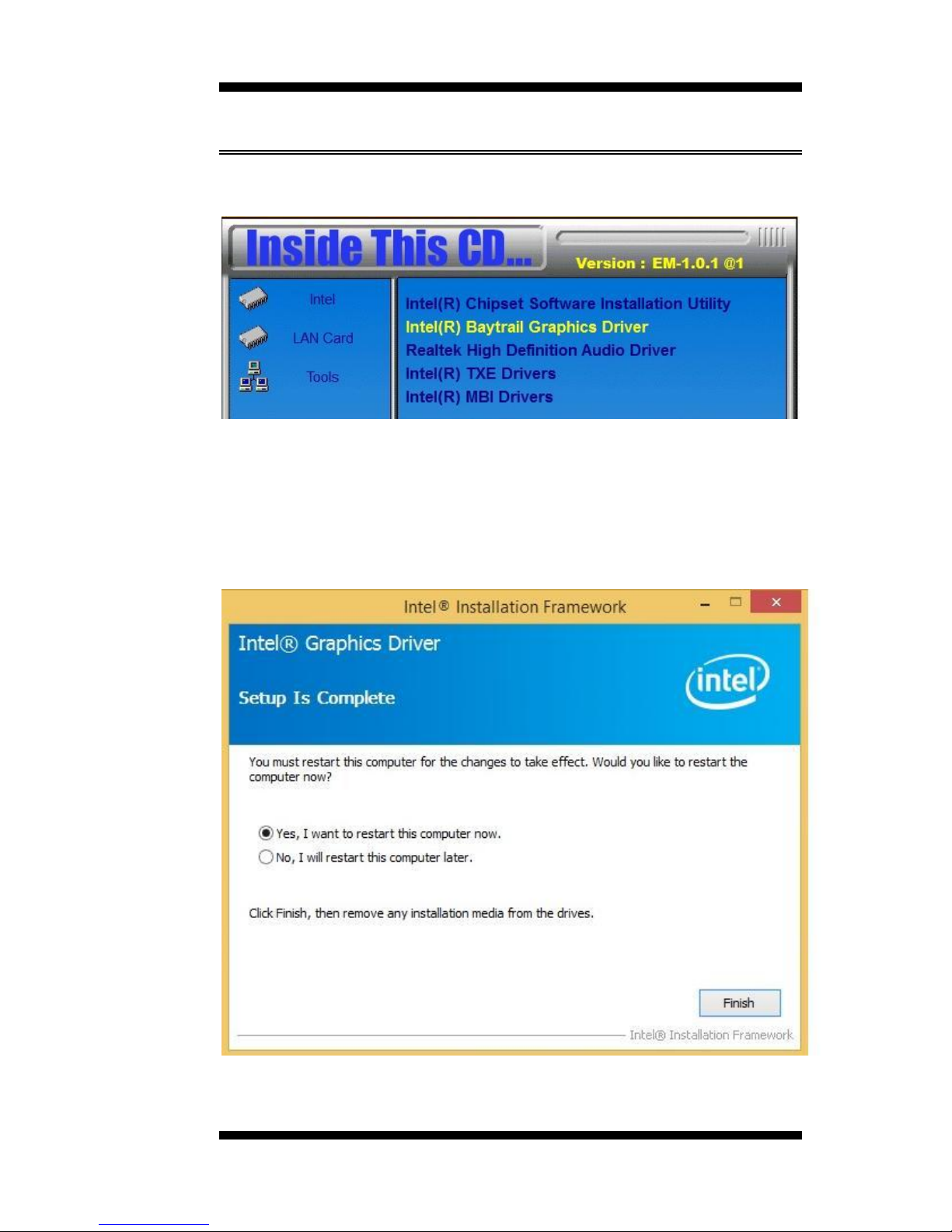

VGA Drivers Installation

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Baytrail Chipset. Click Intel(R) Baytrail Graphics Driver.

2. When the Welcome screen appears, click Next to continue.

3. Click Yes to accept the license agreement and continue the installation.

4. Setup complete. Click Finish to restart the computer and for changes to take effect.

DRIVER INSTALLATION

46

IB897 User’s Manual

Realtek High Definition Audio Driver Installation

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Baytrail Chipset. Click Realtek High Definition Audio Driver.

2. On the Welcome screen, click Next to proceed with the installation.

3. InstallShield Wizard is complete. Click Finish to restart the computer and for changes to take effect.

DRIVERS INSTALLATION

IB897 User’s Manual 47

Intel Trusted Execution Engine Installation

Note :Windows 7 OS only

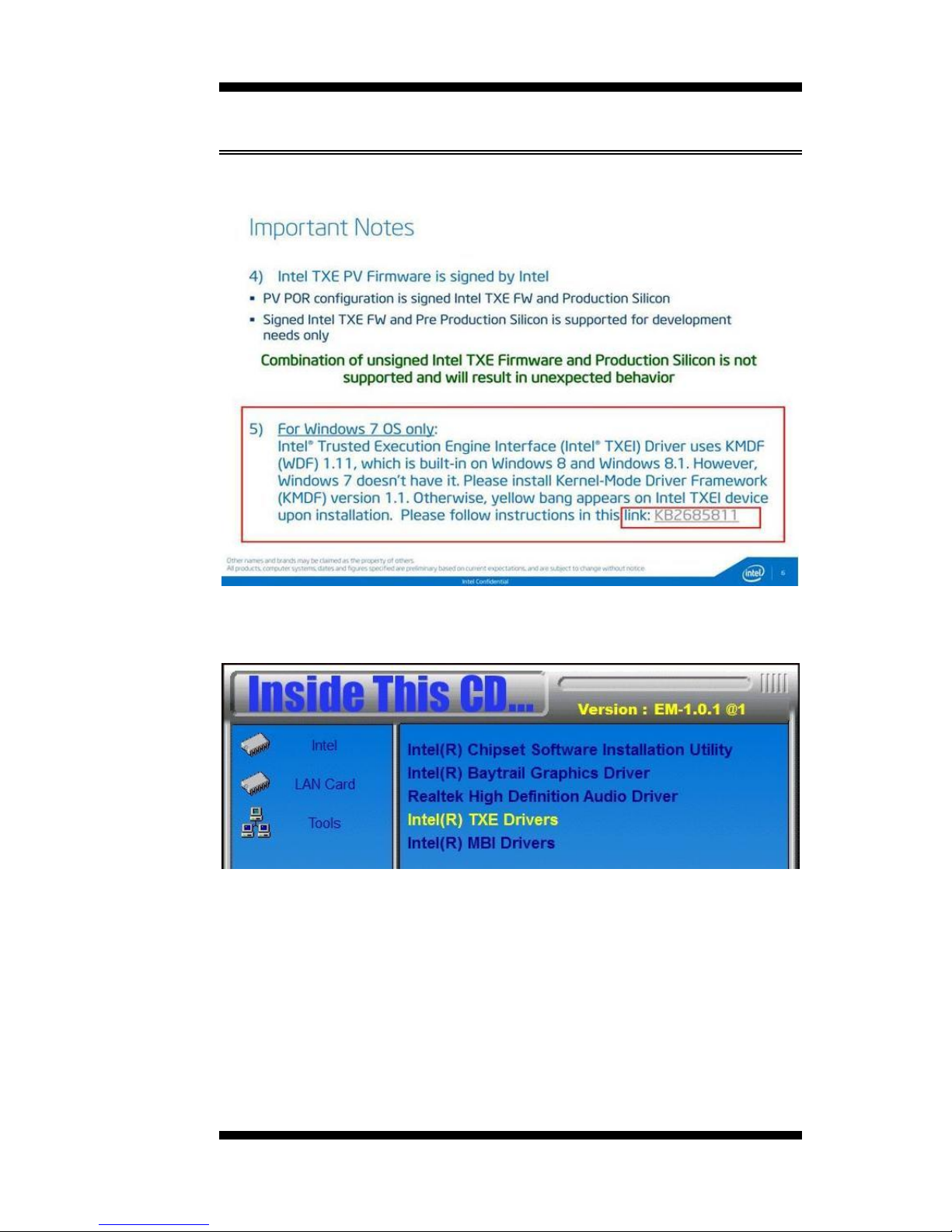

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Baytrail Chipset. Click Intel(R) Baytrail Graphics Driver.

DRIVER INSTALLATION

48

IB897 User’s Manual

2. On the Setup Welcome screen, click Next to proceed with the installation process.

3. Click Next accept the license agreement and continue the installation.

4. Installation of the Intel Trusted Execution Engine is now complete. Click Finish.

APPENDIX

IB897 User’s Manual 49

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used.

Address

Device Description

0000h-001Fh

Direct memory access controller

0000h-001Fh

PCI bus

0040h-0043h

System timer

0050h-0053h

System timer

0070h-0077h

System CMOS/real time clock

0081h-0091h

Direct memory access controller

0093h-009Fh

Direct memory access controller

00C0h-00DFh

Direct memory access controller

00F0h-00F0h

Numeric data processor

02F8h-02FFh

Communications Port (COM2)

03B0h-03BBh

Intel(R) HD Graphics 4600

03C0h-03DFh

Intel(R) HD Graphics 4600

03F8h-03FFh

Communications Port (COM1)

0D00h-FFFFh

PCI bus

E000h-EFFFh

Intel(R) 8 Series/C220 Series PCI Express Root Port #7 - 8C1C

F000h-F03Fh

Intel(R) HD Graphics 4600

F040h-F05Fh

Intel(R) 8 Series/C220 Series SMBus Controller 8C22

F060h-F07Fh

Intel(R) 8 Series/C220 Series SATA AHCI Controller - 8C02

F0A0h-F0A3h

Intel(R) 8 Series/C220 Series SATA AHCI Controller - 8C02

F0B0h-F0B7h

Intel(R) 8 Series/C220 Series SATA AHCI Controller - 8C02

F0C0h-F0C3h

Intel(R) 8 Series/C220 Series SATA AHCI Controller - 8C02

F0D0h-F0D7h

Intel(R) 8 Series/C220 Series SATA AHCI Controller - 8C02

F0E0h-F0E7h

Intel(R) Active Management Technology - SOL (COM3)

APPENDIX

50

IB897 User’s Manual

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

Level

Function

IRQ0

System Timer

IRQ3

Serial Port #2

IRQ4

Serial Port #1

IRQ 10

Intel(R) 8 Series/C220 Series SMBus Controller - 8C22

IRQ 13

Numeric data processor

IRQ 16

High Definition Audio Controller

IRQ 16

Intel(R) 8 Series/C220 Series USB EHCI #2 - 8C2D

IRQ 16

Intel(R) Management Engine Interface

IRQ 19

Intel(R) 8 Series/C220 Series SATA AHCI Controller - 8C02

IRQ 19

Intel(R) Active Management Technology - SOL (COM3)

IRQ 22

High Definition Audio Controller

IRQ 23

Intel(R) 8 Series/C220 Series USB EHCI #1 - 8C26

APPENDIX

IB897 User’s Manual 51

C. Digital I/O Sample Code

File of the NCT5523D.H //--------------------------------------------------------------------------// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. //--------------------------------------------------------------------------#ifndef __NCT5523D_H #define __NCT5523D_H 1 //--------------------------------------------------------------------------#define NCT5523D_INDEX_PORT (NCT5523D_BASE) #define NCT5523D_DATA_PORT (NCT5523D_BASE+1) //--------------------------------------------------------------------------#define NCT5523D_REG_LD 0x07 //--------------------------------------------------------------------------#define NCT5523D_UNLOCK 0x87 #define NCT5523D_LOCK 0xAA //--------------------------------------------------------------------------unsigned int Init_NCT5523D(void); void Set_NCT5523D_LD( unsigned char); void Set_NCT5523D_Reg( unsigned char, unsigned char); unsigned char Get_NCT5523D_Reg( unsigned char); //---------------------------------------------------------------------------

#endif //__NCT5523D_H

APPENDIX

52

IB897 User’s Manual

File of the MAIN.CPP //---------------------------------------------------------------------------

// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. //--------------------------------------------------------------------------#include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h> #include "NCT5523D.H" //--------------------------------------------------------------------------int main (void);

void Dio5Initial(void); void Dio5SetOutput(unsigned char); unsigned char Dio5GetInput(void); void Dio5SetDirection(unsigned char); unsigned char Dio5GetDirection(void); //--------------------------------------------------------------------------int main (void) { char SIO;

SIO = Init_NCT5523D(); if (SIO == 0) { printf("Can not detect Nuvoton NCT5523D, program abort.\n"); return(1); }

Dio5Initial();

//for GPIO20..27 Dio5SetDirection(0x0F); //GP20..23 = input, GP24..27=output printf("Current DIO direction = 0x%X\n", Dio5GetDirection());

printf("Current DIO status = 0x%X\n", Dio5GetInput());

printf("Set DIO output to high\n"); Dio5SetOutput(0x0F);

printf("Set DIO output to low\n"); Dio5SetOutput(0x00);

return 0; } //---------------------------------------------------------------------------

APPENDIX

IB897 User’s Manual 53

void Dio5Initial(void) { unsigned char ucBuf;

ucBuf = Get_NCT5523D_Reg(0x1C); ucBuf &= ~0x02; Set_NCT5523D_Reg(0x1C, ucBuf);

Set_NCT5523D_LD(0x07); //switch to logic device 7 //enable the GP2 group ucBuf = Get_NCT5523D_Reg(0x30); ucBuf |= 0x04; Set_NCT5523D_Reg(0x30, ucBuf); } //--------------------------------------------------------------------------void Dio5SetOutput(unsigned char NewData) { Set_NCT5523D_LD(0x07); //switch to logic device 7 Set_NCT5523D_Reg(0xE1, NewData); } //--------------------------------------------------------------------------unsigned char Dio5GetInput(void) { unsigned char result;

Set_NCT5523D_LD(0x07); //switch to logic device 7 result = Get_NCT5523D_Reg(0xE1); return (result); } //--------------------------------------------------------------------------void Dio5SetDirection(unsigned char NewData) { //NewData : 1 for input, 0 for output Set_NCT5523D_LD(0x07); //switch to logic device 7 Set_NCT5523D_Reg(0xE8, NewData); } //--------------------------------------------------------------------------unsigned char Dio5GetDirection(void) { unsigned char result;

Set_NCT5523D_LD(0x07); //switch to logic device 7 result = Get_NCT5523D_Reg(0xE8); return (result); } //---------------------------------------------------------------------------

APPENDIX

54

IB897 User’s Manual

File of the NCT5523D.CPP

//--------------------------------------------------------------------------// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. //--------------------------------------------------------------------------#include "NCT5523D.H" #include <dos.h> //--------------------------------------------------------------------------unsigned int NCT5523D_BASE; void Unlock_NCT5523D (void); void Lock_NCT5523D (void); //--------------------------------------------------------------------------unsigned int Init_NCT5523D(void) { unsigned int result; unsigned char ucDid;

NCT5523D_BASE = 0x4E; result = NCT5523D_BASE;

ucDid = Get_NCT5523D_Reg(0x20); if (ucDid == 0xC4) //NCT5523D?? { goto Init_Finish; }

NCT5523D_BASE = 0x2E; result = NCT5523D_BASE;

ucDid = Get_NCT5523D_Reg(0x20); if (ucDid == 0xC4) //NCT5523D?? { goto Init_Finish; }

NCT5523D_BASE = 0x00; result = NCT5523D_BASE;

Init_Finish: return (result); } //--------------------------------------------------------------------------void Unlock_NCT5523D (void) { outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK); outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK); } //--------------------------------------------------------------------------void Lock_NCT5523D (void) { outportb(NCT5523D_INDEX_PORT, NCT5523D_LOCK); } //---------------------------------------------------------------------------

APPENDIX

IB897 User’s Manual 55

void Set_NCT5523D_LD( unsigned char LD) { Unlock_NCT5523D(); outportb(NCT5523D_INDEX_PORT, NCT5523D_REG_LD); outportb(NCT5523D_DATA_PORT, LD); Lock_NCT5523D(); } //--------------------------------------------------------------------------void Set_NCT5523D_Reg( unsigned char REG, unsigned char DATA) { Unlock_NCT5523D(); outportb(NCT5523D_INDEX_PORT, REG); outportb(NCT5523D_DATA_PORT, DATA); Lock_NCT5523D(); } //--------------------------------------------------------------------------unsigned char Get_NCT5523D_Reg(unsigned char REG) { unsigned char Result; Unlock_NCT5523D(); outportb(NCT5523D_INDEX_PORT, REG); Result = inportb(NCT5523D_DATA_PORT); Lock_NCT5523D(); return Result; } //---------------------------------------------------------------------------

APPENDIX

56

IB897 User’s Manual

D. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

File of the NCT5523D.H

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#ifndef __NCT5523D_H #define __NCT5523D_H 1 //--------------------------------------------------------------------------#define NCT5523D_INDEX_PORT (NCT5523D_BASE) #define NCT5523D_DATA_PORT (NCT5523D_BASE+1) //--------------------------------------------------------------------------#define NCT5523D_REG_LD 0x07 //--------------------------------------------------------------------------#define NCT5523D_UNLOCK 0x87 #define NCT5523D_LOCK 0xAA //--------------------------------------------------------------------------unsigned int Init_NCT5523D(void); void Set_NCT5523D_LD( unsigned char); void Set_NCT5523D_Reg( unsigned char, unsigned char); unsigned char Get_NCT5523D_Reg( unsigned char); //--------------------------------------------------------------------------#endif //__NCT5523D_H

APPENDIX

IB897 User’s Manual 57

File of the MAIN.CPP. //--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h> #include "NCT5523D.H" //--------------------------------------------------------------------------int main (void);

void WDTInitial(void); void WDTEnable(unsigned char); void WDTDisable(void);

//--------------------------------------------------------------------------int main (void) { char SIO;

SIO = Init_NCT5523D(); if (SIO == 0) { printf("Can not detect Nuvoton NCT5523D, program abort.\n"); return(1); }

WDTInitial();

WDTEnable(10);

WDTDisable();

return 0; } //--------------------------------------------------------------------------void WDTInitial(void) { unsigned char bBuf; Set_NCT5523D_LD(0x08); //switch to logic device 8 bBuf = Get_NCT5523D_Reg(0x30); bBuf &= (~0x01); Set_NCT5523D_Reg(0x30, bBuf); //Enable WDTO } //---------------------------------------------------------------------------

APPENDIX

58

IB897 User’s Manual

void WDTEnable(unsigned char NewInterval) { unsigned char bBuf;

Set_NCT5523D_LD(0x08); //switch to logic device 8 Set_NCT5523D_Reg(0x30, 0x01); //enable timer

bBuf = Get_NCT5523D_Reg(0xF0); bBuf &= (~0x08); Set_NCT5523D_Reg(0xF0, bBuf); //count mode is second

Set_NCT5523D_Reg(0xF1, NewInterval); //set timer } //--------------------------------------------------------------------------void WDTDisable(void) { Set_NCT5523D_LD(0x08); //switch to logic device 8 Set_NCT5523D_Reg(0xF1, 0x00); //clear watchdog timer Set_NCT5523D_Reg(0x30, 0x00); //watchdog disabled } //---------------------------------------------------------------------------

APPENDIX

IB897 User’s Manual 59

File of the NCT5523D.CPP //--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include "NCT5523D.H" #include <dos.h> //--------------------------------------------------------------------------unsigned int NCT5523D_BASE; void Unlock_NCT5523D (void); void Lock_NCT5523D (void); //--------------------------------------------------------------------------unsigned int Init_NCT5523D(void) { unsigned int result; unsigned char ucDid;

NCT5523D_BASE = 0x4E; result = NCT5523D_BASE;

ucDid = Get_NCT5523D_Reg(0x20); if (ucDid == 0xC4) //NCT5523D?? { goto Init_Finish; }

NCT5523D_BASE = 0x2E; result = NCT5523D_BASE;

ucDid = Get_NCT5523D_Reg(0x20); if (ucDid == 0xC4) //NCT5523D?? { goto Init_Finish; }

NCT5523D_BASE = 0x00; result = NCT5523D_BASE;

Init_Finish: return (result); } //--------------------------------------------------------------------------void Unlock_NCT5523D (void) { outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK); outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK); } //--------------------------------------------------------------------------void Lock_NCT5523D (void) { outportb(NCT5523D_INDEX_PORT, NCT5523D_LOCK); } //---------------------------------------------------------------------------

APPENDIX

60

IB897 User’s Manual

void Set_NCT5523D_LD( unsigned char LD) { Unlock_NCT5523D(); outportb(NCT5523D_INDEX_PORT, NCT5523D_REG_LD); outportb(NCT5523D_DATA_PORT, LD); Lock_NCT5523D(); } //--------------------------------------------------------------------------void Set_NCT5523D_Reg( unsigned char REG, unsigned char DATA) { Unlock_NCT5523D(); outportb(NCT5523D_INDEX_PORT, REG); outportb(NCT5523D_DATA_PORT, DATA); Lock_NCT5523D(); } //--------------------------------------------------------------------------unsigned char Get_NCT5523D_Reg(unsigned char REG) { unsigned char Result; Unlock_NCT5523D(); outportb(NCT5523D_INDEX_PORT, REG); Result = inportb(NCT5523D_DATA_PORT); Lock_NCT5523D(); return Result; } //-----------------------------------------------------------------------

APPENDIX

IB897 User’s Manual 61

IBASE Technology IB897 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
