IBASE Technology IB891 User Manual

IB891

Intel® Pineview-M/ Pineview-D +ICH8M

Luna-Pier / Luna-Pier Refresh Platform

3.5” Disk Size SBC

USER’S MANUAL

Version 1.0B

ii

IB891User’s Manual

Acknowledgments

AMI BIOS is a trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Luna-Pier are registered trademarks of Intel
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.

IB891 User’s Manual iii

Table of Contents

Introduction ....................................................... 1

Product Description ............................................................. 1

Checklist .............................................................................. 2

IB891 Specifications ........................................................... 3

Board Dimensions ............................................................... 4

Installations ....................................................... 5

Installing the Memory ......................................................... 6

Setting the Jumpers ............................................................. 7

Connectors on IB891 ......................................................... 11

BIOS SETUP .................................................... 19

Drivers Installation ...................................... 39

Appendix ........................................................... 47

A. I/O Port Address Map ................................................... 47

B. Interrupt Request Lines (IRQ) ...................................... 48

C. Watchdog Timer Configuration .................................... 49

D. Digital I/O Sample Code .............................................. 54

iv

IB891 User’s Manual

This page is intentionally left blank.

INTRODUCTION

IB891 User’s Manual 1

Introduction

Product Description

The IB891 is a 3.5-inch single board computer based on a two-chip the
Intel® Atom™ single-core N450 or dual-core D510 processor. The
processors come integrated with both a memory controller and an IGP
graphics core with 200MHz (N450) and 400MHz (D510) of GPU
frequency. The IB891 performs with low power consumption and better
hardware decode on graphics intensiv e and multimedia applications fo r
the digital signage, POS/kiosk, automation and other fanless and
low-noise embedded applications.

Measuring 102mm x 147mm, the IB891 has a 3D-capable built-in
Intel® graphics engine that support DirectX 9 and OpenGL 1.4, with an
18-bit single channel LVDS interface and a VGA CRT port edge
connector. The board offers essential features and high-speed
connectivity including two gigabit LAN, watchdog timer, digital I/O,
eight USB 2.0 ports, four serial ports and CF socket. Expansion is
provided by a Mini PCI-e connector that can be used for wireless LAN
or TV-tuner modules.

INTRODUCTION

2

IB891 User’s Manual

Checklist

Your IB891 package should include the items listed below.

• The IB891 3.5” disk-size SBC

• This User’s Manual

• 1 CD containing chipset drivers and flash memory utility

Remarks: The IB60 cable kit (USB, COM, SATA, power) is
optional.

INTRODUCTION

IB891 User’s Manual 3

IB891 Specifications

Product Name

IB891 (SC) /IB891-D5 (DC)

Form Factor

3.5” SBC

CPU Type

Intel® Pineview-M SC / Pineview-D DC Processor

CPU Speed

Intel® Atom

TM

SC N450 / 512K cache/1.66 GHz (5.5W)

Intel® Atom

TM

DC D510 / 1MB cache/1.66GHz (14.5W)

22mm x 22mm, Micro-FCBGA8

Green /APM

APM1.2

BIOS

AMI BIOS, support ACPI Function

Chipset

ICH8M: 31mm x 31mm, 676-pin T-PBGA (2.4W)

Memory

DDR2 667MHz
SO-DIMM x 1 (w/o ECC), Max. 2GB

/

4GB , Single channel

VGA

Intel® Integrated Graphics Controller
Supports DirectX 9 Graphic (200MHz/ 400MHz), OpenGL 1.4

LVDS

18-bit one channels LVDS interface w/DF13 socket x1

LAN

Realtek 8111DL x 2

USB

ICH8M built-in USB 2.0 host controller, support 8 ports

Serial ATA Ports

ICH8M built-in SATA controller, supports 2 ports

Parallel IDE

ICH8M built-in one channel Ultra DMA 33/66/100, for CF Type II

Audio

Intel ICH8M built-in audio controller w/ Realtek ALC662 Codec
(supports 5.1 CH audio & SSM2304 2W/4ohm Amplifier

LPC I/O

Winbond W83627UHG :
COM1 (RS232/422/485), COM2(RS232)
COM3(RS232) & COM4(RS232) with pin-9 with power for 2 ports

(500 mA for each port)

Hardware monitor (2 thermal inputs, 4 voltage monitor inputs,

VID0-4 & 1 x Fan Header)

Digital IO

4 in & 4 out

Keyboard/Mouse
Connector

Pin header

Expansion Slots

Mini PCI-e socket x 1 for Wireless LAN or TV-tuner module

Edge Connector

DB15 x1 for VGA
RJ45 x2 for LAN 1&2
USB stack connector x 1 for USB1 ~2
DB9 x 1 for COM1

On Board
Header/Connector

2x5 pin header for KB/MS
2x4 pins header x 3 for 6 USB ports
DF13 socket connector x 1 for 18-bit single channel LVDS
2x6 pins box header x1 for Audio
4 pins header x1 for speaker
2x5 pins box header x 1 for COM2
2x10 pins box header x 1 for COM3 ~4
2x5 pins headers x 1 for LPC( 80-port card debugging purpose)
Mini PCI-e(1x) connector x 1
Compact Flash socket x 1
5 pins box header x 1 for smart battery
4 pins box header x 1 for backlight/brightness control
4-pins power connector for SATA HDD

Watchdog Timer

Yes (256 segments, 0, 1, 2…255 sec/min)

Power Connector

+12V DC-in

RoHS

Yes

Board Size

102mm x 147mm

INTRODUCTION

Board Dimensions

4

IB891 User’s Manual

INSTALLATIONS

IB891 User’s Manual 5

Installations

This section provides information on how to use the jumpers and
connectors on the IB891 in order to set up a workable system. The topics
covered are:

Installing the Memory ........................................................................... 6

Setting the Jumpers ................................................................................ 7

Connectors on IB891 ........................................................................... 11

INSTALLATIONS

Installing the Memory

The IB891 board supports one DDR667 DDR2 memory.

Remarks:

N450 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel
D510 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel

Installing and Removing Memory Modules

To install the DDR2 modules, locate the memory slot on the board and
perform the following steps:

1. Hold the DDR2 module so that the key of the DDR2 module aligns
with that on the memory slot. Insert the module into the socket at a
slight angle (approximately 30 degrees). Note that the socket and
module are both keyed, which means that the module can be installed
only in one direction.

2. To seat the memory module into the socket, apply firm and even
pressure to each end of the module until you feel it slip down into the
socket.

3. With the module properly seated in the socket, rotate the module
downward. Continue pressing downward until the clips at each end
lock into position.

4. To remove the DDR2 module, press the clips with both hands.

6

IB891 User’s Manual

INSTALLATIONS

IB891 User’s Manual 7

Setting the Jumpers

Jumpers are used on IB891 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IB891 and their respective functions.

Jumper Locations on IB891 ................................................................... 8

JP1: ATX/AT Mode Select.................................................................... 9

JP2: Clear CMOS Setting ...................................................................... 9

JP3: Compact Flash Slave/Master Selection ......................................... 9

JP5: LCD Panel Power Selection .......................................................... 9

JP4, JP6: COM3/4 RS232 +5V/+12V Power Setting .......................... 10

JP7, JP8, JP9: RS232/422/485 (COM1) Selection .............................. 10

INSTALLATIONS

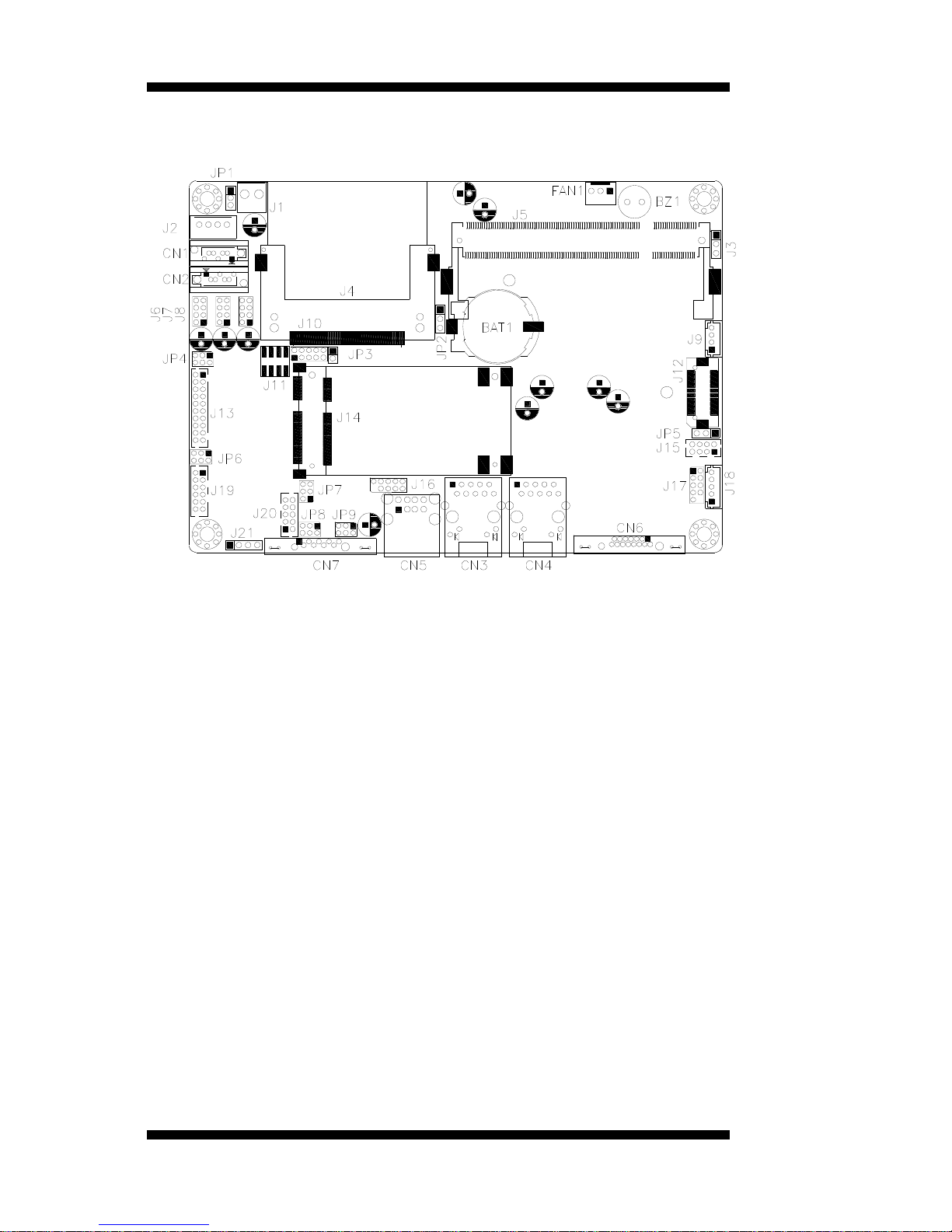

Jumper Locations on IB891

Jumpers on IB891 ......................................................................................... Page

JP1: ATX/AT Mode Select ................................................................................. 9

JP2: Clear CMOS Setting ................................................................................... 9

JP3: Compact Flash Slave/Master Selection....................................................... 9

JP5: LCD Panel Power Selection ....................................................................... 9

JP4, JP6: COM3/4 RS232 +5V/+12V Power Setting ....................................... 10

JP7, JP8, JP9: RS232/422/485 (COM1) Selection ........................................... 10

8

IB891 User’s Manual

INSTALLATIONS

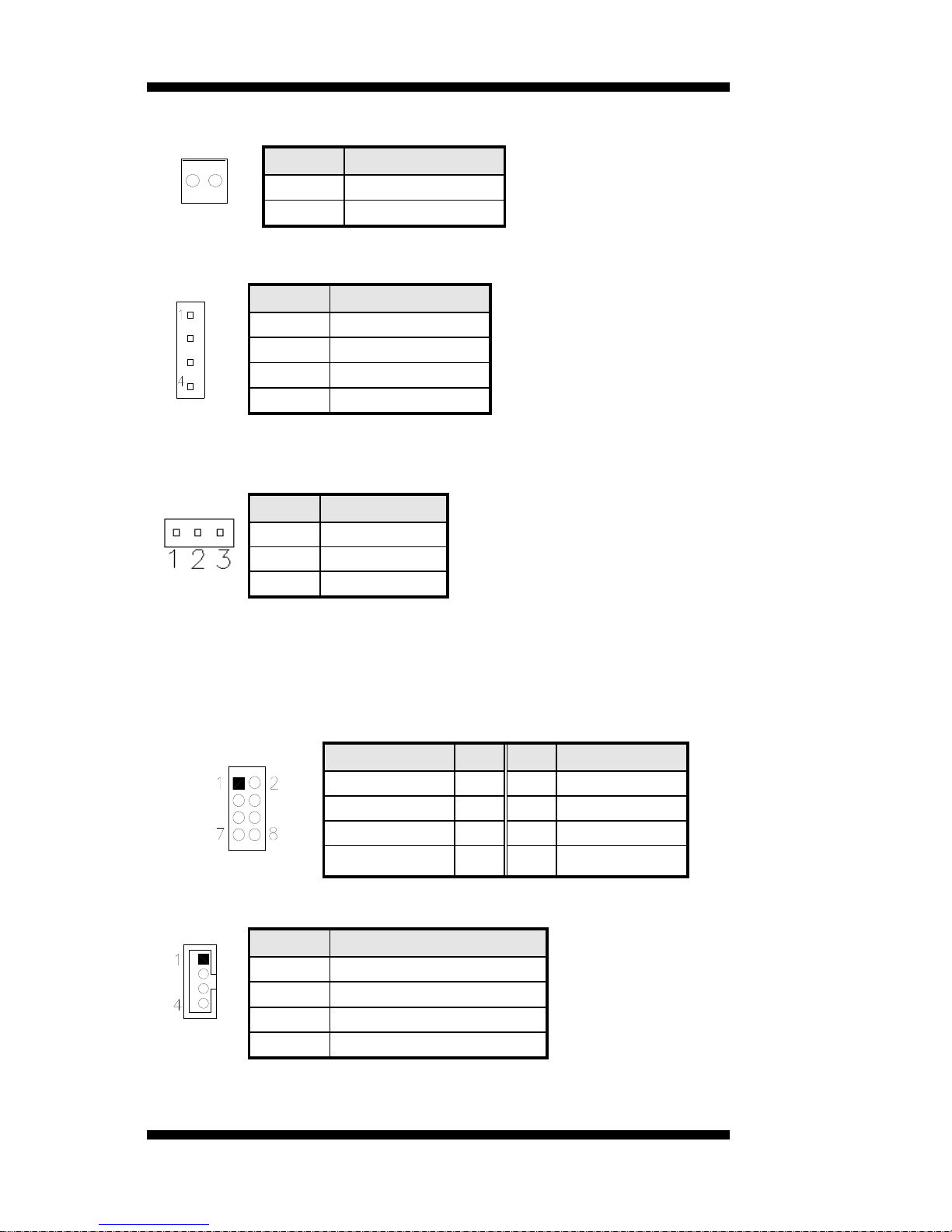

JP1: ATX/AT Mode Select

JP1 ATX / AT

ATX mode

AT mode

JP2: Clear CMOS Setting

JP2 Setting

Normal

Clear CMOS

Note: Please remove the lithium battery before setting the jumper.

JP3: Compact Flash Slave/Master Selection

JP3 CF Setting

Master

Slave

[

JP5: LCD Panel Power Selection

JP5 LCD Panel Power

3.3V

5V

IB891 User’s Manual 9

INSTALLATIONS

JP4, JP6: COM3/4 RS232 +5V/+12V Power Setting

JP4/JP6 Setting Function

Pin 1-2

Short/Closed

+12V

Pin 3-4

Short/Closed

Normal

Pin 5-6

Short/Closed

+5V

JP7, JP8, JP9: RS232/422/485 (COM1) Selection

COM2, COM3, COM4 are fixed for RS-232 use only.
COM1 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM1 selection.

COM1

Function

RS-232 RS-422 RS-485

Jumper

Setting

(pin closed)

JP7:

1-2

JP8:

3-5 & 4-6

JP9:

3-5 & 4-6

JP7:

3-4

JP8:

1-3 & 2-4

JP9:

1-3 & 2-4

JP7:

5-6

JP8:

1-3 & 2-4

JP9:

1-3 & 2-4

10

IB891 User’s Manual

INSTALLATIONS

IB891 User’s Manual 11

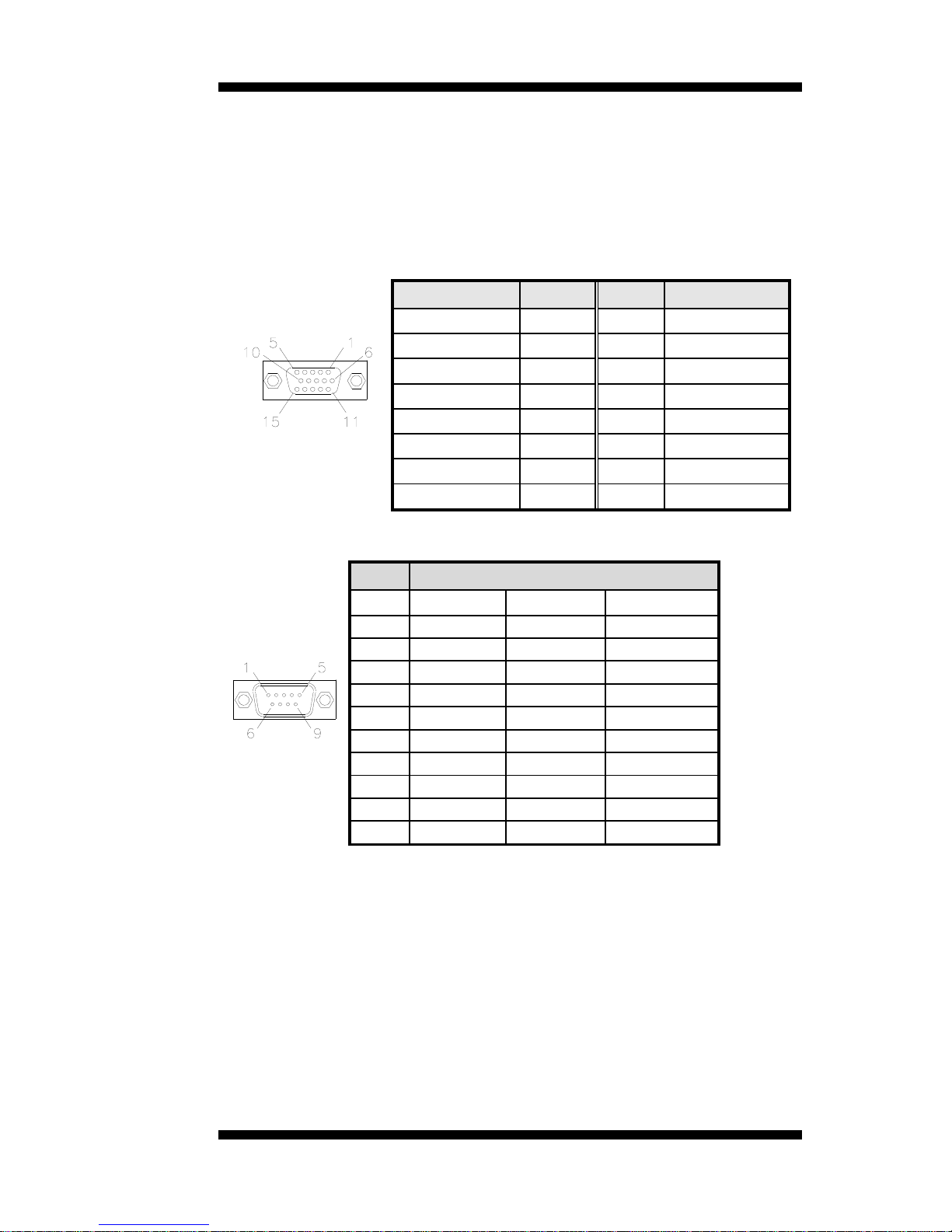

Connectors on IB891

Connector Locations on IB891 ............................................................ 12

CN1, CN2: SATA Connectors ............................................................ 13

CN3, CN4: Gigabit LAN RJ45 Connector .......................................... 13

CN5: USB 1/2 Connector .................................................................... 13

CN6: VGA Connector ......................................................................... 13

CN7: COM1 RS232/RS422/RS485 Connector ................................... 13

J1: Board Input Power Connector ....................................................... 14

J2: HDD Power Connector .................................................................. 14

J3: Power LED .................................................................................... 14

J4: Compact Flash Connector .............................................................. 14

J5: DDR2 SO-DIMM .......................................................................... 14

J6, J7, J8: USB3/4/5/6/7/8 Connector ................................................. 14

J9: LCD Backlight Connector ............................................................. 14

J10: Digital I/O .................................................................................... 15

J11: System Function Connector ......................................................... 15

J12 : LVDS(18bit) Connectors ............................................................ 16

J13: COM3, COM4 Serial Port (DF11 Connector) ............................. 16

J14: Mini PCIE Connector .................................................................. 16

J15: Keyboard & Mouse Connector (DF11 Connector) ...................... 16

J16: SPI Flash Connector (factory use only) ....................................... 16

J17: LPC Connector (factory use only) ............................................... 16

J18: Smart Battery Interface Connector .............................................. 17

J19: Audio Connector (DF11 Connector) ........................................... 17

J20: COM2/RS232 Serial Port ............................................................ 17

J21: Amplify Connector ...................................................................... 17

INSTALLATIONS

Connector Locations on IB891

Connectors on IB891 .................................................................................................... Page

CN1, CN2: SATA Connectors ........................................................................................... 13

CN3, CN4: Gigabit LAN RJ45 Connector ........................................................................ 13

CN5: USB 1/2 Connector ................................................................................................... 13

CN6: VGA Connector ........................................................................................................ 13

CN7: COM1 RS232/RS422/RS485 Connector ................................................................. 13

J1: Board Input Power Connector ...................................................................................... 14

J2: HDD Power Connector (Output Only) ......................................................................... 14

J3: Power LED ................................................................................................................... 14

J4: Compact Flash Connector ............................................................................................ 14

J5: DDR2 SO-DIMM ......................................................................................................... 14

J6, J7, J8: USB3/4/5/6/7/8 Connector ................................................................................ 14

J9: LCD Backlight Connector ............................................................................................ 14

J10: Digital I/O ................................................................................................................... 15

J11: System Function Connector ........................................................................................ 15

J12 : LVDS(18bit) Connectors ........................................................................................... 16

J13: COM3, COM4 Serial Port (DF11 Connector) ........................................................... 16

J14: Mini PCIE Connector ................................................................................................. 16

J15: Keyboard & Mouse Connector (DF11 Connector) .................................................... 16

J16: SPI Flash Connector (factory use only) ..................................................................... 16

J17: LPC Connector (factory use only) .............................................................................. 16

J18: Smart Battery Interface Connector ............................................................................. 17

J19: Audio Connector (DF11 Connector) .......................................................................... 17

J20: COM2/RS232 Serial Port ........................................................................................... 17

J21: Amplify Connector ..................................................................................................... 17

12

IB891 User’s Manual

INSTALLATIONS

CN1, CN2: SATA Connectors

CN3, CN4: Gigabit LAN RJ45 Connector

CN5: USB 1/2 Connector

CN6: VGA Connector

VGA

Signal Name Pin # Pin # Signal Name

Red 1 2 Green

Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND

VCC 9 10 GND

N.C. 11 12 DDCDATA

HSYNC 13 14 VSYNC

DDCCLK 15

CN7: COM1 RS232/RS422/RS485 Connector

[

Pin # Signal Name

RS-232 R2-422 RS-485

1 DCD TX- DATA­2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR NC NC
7 RTS NC NC
8 CTS NC NC
9 RI NC NC

10 NC NC NC

IB891 User’s Manual 13

INSTALLATIONS

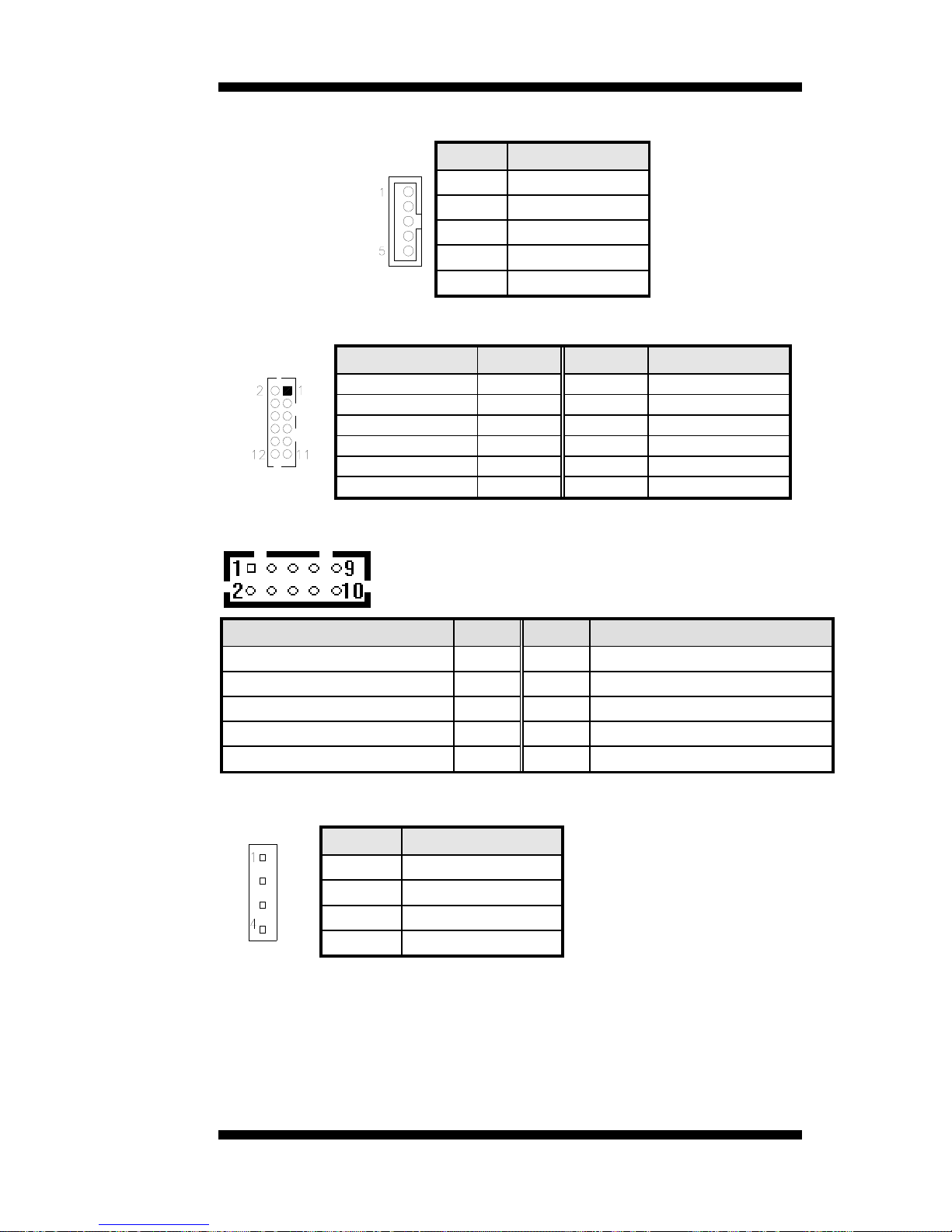

J1: Board Input Power Connector

1

Pin # Signal Name

1 +12V
2 GND

J2: HDD Power Connector (Output Only)

Pin # Signal Name

1 +5V
2 Ground
3 Ground
4 +12V

J3: Power LED

The power LED indicates the status of the main power switch.

Pin # Signal Name

1 Power LED
2 No connect
3 Ground

J4: Compact Flash Connector

J5: DDR2 SO-DIMM

J6, J7, J8: USB3/4/5/6/7/8 Connector

Signal Name Pin Pin Signal Name

Vcc 1 2 Ground

D- 3 4 D+

D+ 5 6 D-

Ground 7 8 Vcc

J9: LCD Backlight Connector

Pin # Signal Name

1 +12V
2 Backlight Enable
3 Brightness Control

4 Ground

14

IB891 User’s Manual

INSTALLATIONS

J10: Digital I/O

Signal Name Pin Pin Signal Name

GND 1 2 VCC
OUT3 3 4 OUT1
OUT2 5 6 OUT0

IN3 7 8 IN1
IN2 9 10 IN0

J11: System Function Connector

ATX Power ON Switch: Pins 1 and 2

This 2-pin connector is an “ATX Power Supply On/Off Switch” on the
system that connects to the power switch on the case. When pressed, the
power switch will force the system to power on. When pressed again, it
will force the system to power off.

Hard Disk Drive LED Connector: Pins 3 and 4

This connector connects to the hard drive activity LED on control panel.
This LED will flash when the HDD is being accessed.

Pin # Signal Name

4 HDD Active
3 5V

Reset Switch: Pins 5 and 6

The reset switch allows the user to reset the system without turning the
main power switch off and then on again. Orientation is not required
when making a connection to this header.

+5V and 5VSB Signals: Pins 7 and 8

Pin # Signal Name

7 +5V
8 +5VSB

IB891 User’s Manual 15

INSTALLATIONS

J12 : LVDS(18bit) Connectors

Signal Name Pin # Pin # Signal Name

TX0- 2 1 TX0+

Ground 4 3 Ground

TX1- 6 5 TX1+

5V/3.3V 8 7 Ground

NC 10 9 NC

TX2- 12 11 TX2+

Ground 14 13 Ground

TXC- 16 15 TXC+

5V/3.3V 18 17 ENABKL

+12V 20 19 +12V

J13: COM3, COM4 Serial Port (DF11 Connector)

Signal Name Pin # Pin # Signal Name

DSR3 2 1 DCD3
RTS3 4 3 RXD3
CTS3 6 5 TXD3

RI3 8 7 DTR3

NC 10 9 Ground
DSR4 12 11 DCD4
RTS4 14 13 RXD4
CTS4 16 15 TXD4

RI4 18 17 DTR4

NC 20 19 Ground

J14: Mini PCIE Connector

J15: Keyboard & Mouse Connector (DF11 Connector)

Signal Name Pin Pin Signal Name

VCC 1 2 VCC

MDA 3 4 KBDA

MCL 5 6 KBCL

Ground 7 8 Ground

J16: SPI Flash Connector (factory use only)

J17: LPC Connector (factory use only)

16

IB891 User’s Manual

INSTALLATIONS

J18: Smart Battery Interface Connector

Pin # Signal Name

1 RST
2 EXTSMI
3 Ground
4 DATA
5 CLK

J19: Audio Connector (DF11 Connector)

Signal Name Pin # Pin # Signal Name

LINEOUT R 2 1 LINEOUT L

Ground 4 3 JD FRONT

LINEIN R 6 5 LINEIN L

Ground 8 7 JD LINEIN
MIC-In 10 9 MIC L
Ground 12 11 JD MIC1

J20: COM2/RS232 Serial Port

Signal Name Pin # Pin # Signal Name

DCD, Data carrier detect 1 2 RXD, Receive data

TXD, Transmit data 3 4 DTR, Data terminal ready

GND, ground 5 6 DSR, Data set ready

RTS, Request to send 7 8 CTS, Clear to send

RI, Ring indicator 9 10 Not Used

J21: Amplify Connector

Pin # Signal Name

1 OUTL+
2 OUTL­3 OUTR­4 OUTR+

IB891 User’s Manual 17

INSTALLATIONS

18

IB891 User’s Manual

This page is intentionally left blank.

BIOS SETUP

IB891 User’s Manual 19

BIOS SETUP

This chapter describes the different settings available in the AMI
(American Megatrends, Inc.) BIOS that comes with the board. The
topics covered in this chapter are as follows:

BIOS Introduction ............................................................................... 19

BIOS Setup .......................................................................................... 20

Main BIOS Setup ................................................................................ 21

Advanced Settings ............................................................................... 22

Advanced PCI/PnP Settings ................................................................ 30

Boot Settings ....................................................................................... 31

Security Settings .................................................................................. 33

Advanced Chipset Settings .................................................................. 34

Exit Options ......................................................................................... 37

BIOS SETUP

20

IB891 User’s Manual

BIOS Introduction

The BIOS (Basic Input/Output System) installed in your computer
system’s ROM supports Intel processors. The BIOS provides critical
low-level support for a standard device such as disk drives, serial ports
and parallel ports. It also adds virus and password protection as well as
special support for detailed fine-tuning of the chipset controlling the
entire system.

BIOS Setup

The BIOS provides a Setup utility program for specifying the system
configurations and settings. The BIOS ROM of the system stores the
Setup utility. When you turn on the co mputer, the BIOS is immediately
activated. Pressing the <Del> key immediately allows you to enter the
Setup utility. If you are a little bit late pressing the <Del> key, POST
(Power On Self Test) will continue with its test routines, thus preventing
you from invoking the Setup. If you still wish to enter Setup, restart the
system by pressing the ”Reset” button or simultaneously pressing the
<Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the
system Off and back On again. The following message will appear on
the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to
select, the <PgUp> and <PgDn> keys to change entries, <F1> for help
and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.

BIOS SETUP

IB891 User’s Manual 21

Main BIOS Setup

This setup allows you to record some basic hardware configurations in
your computer system and set the system clock.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

System Overview

Use[ENTER], [TAB]
or [SHIFT-TAB] to
select a field.

Use [+] or [-] to
configure system Time.

<- Select Screen

↑↓ Select Item
+- Change Field

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

Processor

Intel(R) Atom (TM) CPU N450 @ 1.66GHz

Speed : 1666MHz

Count : 1

System Memory

Size : 1015MB

System Time [17:00:00]

System Date [Fri 12/18/2009]

Note:

If the system cannot boot after making and saving system
changes with Setup, the AMI BIOS supports an override to
the CMOS settings that resets your system to its default.

Warning:

It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both AMI and your system manufacturer
to provide the absolute maximum performance and
reliability. Changing the defaults could cause the system to
become unstable and crash in some cases.

BIOS SETUP

22

IB891 User’s Manual

Advanced Settings

This section allows you to configure and improve your system and
allows you to set up some system features according to your preference.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Settings

Configure CPU.

<- Select Screen

↑↓ Select Item
Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

WARNING: Setting wrong values in below sections

may cause system to malfunction.

► CPU Configurations

► IDE Configuration

► Super IO Configuration

► Hardware Health Configuration

► ACPI Configuration

► AHCI Configuration

► APM Configuration

► USB Configuration

The Advanced BIOS Settings contains the following sections:

► CPU Configurations
► IDE Configuration
► Super IO Configuration
► Hardware Health Configuration
► ACPI Configuration
► AHCI Configuration
► APM Configuration
► USB Configuration

The fields in each section are shown in the following pages, as seen in the
computer screen. Please note that setting the wrong values may cause the system
to malfunction. If unsure, please contact technical support of your supplier.

BIOS SETUP

IB891 User’s Manual 23

BIOS SETUP UTILITY

Advanced

Configure advanced CPU settings

Module Version:3F.18

Disabled for WindowsXP

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

Manufacturer: Intel

Intel(R) Atom (TM) CPU N450 @ 1.66GHz

Frequency : 1.66GHz

FSB Speed : 666MHz

Cache L1 : 24KB

Cache L2 : 512KB

Ratio Actual Value : 10

Max CPUID Value Limit [Disabled]

Execute-Disable Bit Capability [Enabled]

Hyper Threading Technology [Enabled]

Intel SpeedStep(tm) tech [Enabled]

The CPU Configuration menu shows the following CPU details: Manufacturer:
the name of the CPU manufacturer
Brand String: the brand name of the CPU being used
Frequency: the CPU processing speed
FSB Speed: the FSB speed
Cache L1: the CPU L1 cache size
Cache L2: the CPU L2 cache

Max CPUID Value Limit

Disabled for WindowsXP.

Execute-Disable Bit Capability

XD can prevent certain classes of malicious buffer overflow attacks when
combined with a supporting OS.

Hyper Threading Technology

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading
Technology) and Disabled for other OS (OS not optimized for Hyper-Threading
Technology). When Disabled, only one thread per enabled core is enabled.

Intel SpeedStep(tm) tech (Pineview-M)

Disabled: Disable GV3
Enabled: Enable GV3

BIOS SETUP

24

IB891 User’s Manual

BIOS SETUP UTILITY

Advanced

IDE Configuration

Options

Disabled
Compatible
Enhanced

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

ATA/IDE Configuration [Enhanced]

Configure SATA as [IDE]

► Primary IDE Master : [Not Detected]
► Primary IDE Slave : [Not Detected]
► Secondary IDE Master : [Not Detected]
► Secondary IDE Slave : [Not Detected]
► Third IDE Master : [Not Detected]
► Third IDE Slave : [Not Detected]
► Fourth IDE Master : [Not Detected]
► Fourth IDE Slave : [Not Detected]

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

ATA(PI) 80Pin Cable Detection [Host & Device]

The IDE Configuration menu is used to change and/or set the configuration of
the IDE devices installed in the system.

ATA/IDE Configuration

(1) Disabled.
(2) Compatible.
(3) Enhanced

Configure SATA as

(1) IDE Mode.
(2) AHCI Mode.

BIOS SETUP UTILITY

Advanced

Configure Win627UHG Super IO Chipset

Allows BIOS to Select

Serial Port Base

Addresses

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

Serial Port1 Address [3F8/IRQ4]

Serial Port2 Address [2F8/IRQ3]
Serial Port3 Address [3E8]
Serial PortC IRQ [IRQ11]
Serial Port4 Address [2E8]
Serial PortD IRQ [IRQ10]
Restore on AC Power Loss [Power Off]
Backlight Turn On

BIOS SETUP

IB891 User’s Manual 25

Onboard Serial Port

The default values are:
Serial Port 1: 3F8/IRQ4
Serial Port 2: 2F8/IRQ3
Serial Port 3: 3E8/IRQ11
Serial Port 4: 2E8/IRQ10

Restore on AC Power Loss

This field sets the system power status whether Power On or Power Off when
power returns to the system from a power failure situation.

BIOS SETUP UTILITY

Advanced

Hardware Health Configuration

Options

Disabled

70°C/158°F

75°C/167°F

80°C/176°F

85°C/185°F

90°C/194°F

95°C/203°F

<- Select Screen

↑↓ Select Item
+- Change Field

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

System Temperature :51°C/123°F
CPU Temperature :47°C/116°F

CPU FAN Speed :0 RPM

Vcore :0.968 V

+5VS

+3VS

:5.338 V
:3.200 V

12 V :11.904 V

3.3V :3.424 V

1.5V :1.504V

VBAT : 3.536V

ACPI Shutdown Temperature [Disabled]

The Hardware Health Configuration menu is used to show the operating
temperature, fan speeds and system voltages.

ACPI Shutdown Temperature

The system will shut down automatically under OS with ACPI mode, when the
CPU temperature reaches the configured temperature.

BIOS SETUP

26

IB891 User’s Manual

BIOS SETUP UTILITY

Advanced

ACPI Settings

General ACPI
Configuration settings

<- Select Screen

↑↓ Select Item
Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

►General ACPI Configuration

►Advanced ACPI Configuration

►Chipset ACPI Configuration

BIOS SETUP UTILITY

Advanced

General ACPI Configuration

Select the ACPI

state used for
System Suspend.

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

Suspend mode [S1 (POS)]

Suspend Mode

The options of this field are S1, S3 and Auto.

BIOS SETUP UTILITY

Advanced

Advance ACPI Configuration

Enable RSDP pointers

to 64-bit Fixed System
Description Tables.

Different ACPI version

Has some addition

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

ACPI Version Features [ACPI v1.0]

ACPI APIC support [Enabled]

BIOS SETUP

IB891 User’s Manual 27

BIOS SETUP UTILITY

Advanced

South Bridge ACPI Configuration

Options

Enabled

Disabled

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

Energy Lake Feature [Disabled]

APIC ACPI SCI IRQ [Disabled]

BIOS SETUP UTILITY

Advanced

AHCI Settings

While entering setup,

BIOS auto detect the

presence of IDE

device. This displays

the status of auto

detection of IDE

devices.

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

AHCI Port0 [Not Detected]

AHCI Port1 [Not Detected]

AHCI Port2 [Not Detected]

BIOS SETUP UTILITY

Advanced

APM Configuration

Enable or disable

APM.

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

Power Management/APM [Enabled]

Power Button Mode [On/Off]

Resume On Ring Disabled

Resume On PME# Disabled

Resume On RTC Alarm Disabled

BIOS SETUP

28

IB891 User’s Manual

Power Management/APM

By default, this field is set to Enabled.

Power Button Mode

Go into On/Off, or Suspend when power button is pressed.

Resume on Ring

This option is used to enable activity on the RI (ring in) modem line to wake up
the system from a suspend or standby state. That is, the system will be awakened
by an incoming call on a modem.

Resume on PME#

This option is used enable activity on the PCI PME (power managementevent)
controller to wake up the system from a suspend or standby state

Resume On RTC Alarm

This option is used to specify the time the system should be awakened from a
suspended state

BIOS SETUP

IB891 User’s Manual 29

BIOS SETUP UTILITY

Advanced

USB Configuration

Enables support for
legacy USB. AUTO
option disables
legacy support if
no USB devices are
connected.

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

USB Devices Enabled:

None

Legacy USB Support [Enabled]

USB 2.0 Controller Mode [HiSpeed]

BIOS EHCI Hand-Off [Enabled]

Legacy USB1.1 HC Support [Enabled]

The USB Configuration menu is used to read USB configuration information
and configure the USB settings.

Legacy USB Support

Enables support for legacy USB. AUTO option disables legacy support if no
USB devices are connected.

USB 2.0 Controller Mode

Configures the USB 2.0 controller in HiSpeed (480Mbps) or FullSpeed
(12Mbps).This option is enabled by HiSpeed.

BIOS EHCI Hand-Off

Enabled/Disabled. This is a workaround for Oses without EHCI hand-off
support. The EHCI ownership change should be claimed by EHCI driver.

Legacy USB1.1 HC Support

Support USB1.1 HC.

BIOS SETUP

30

IB891 User’s Manual

PCIPnP Settings

This option configures the PCI/PnP settings.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced PCI/PnP Settings

NO: lets the BIOS

Configure all the

Devices in the system.

YES: lets the

operating system

configure Plug and

Play (PnP) devices not

required for boot if

your system has a Plug

and Play operating

system.

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

WARNING: Setting wrong values in below sections

may cause system to malfunction.

Plug & Play O/S [No]

Allocate IRQ to PCI VGA [Yes]

IRQ3 [Available]

IRQ4 [Available]

IRQ5 [Available]

IRQ7 [Available]

IRQ9 [Available]

IRQ10

IRQ11

IRQ14

IRQ15

DMA Channel 0

DMA Channel 1

DMA Channel 3

DMA Channel 5

DMA Channel 6

DMA Channel 7

Reserved Memory Size

[Available]

[Available]

[Available]

[Available]

[Available]

[Available]

[Available]

[Available]

[Available]

[Available]

[Disabled]

Plug & Play O/S

This lets BIOS configure all devices in the system or lets the OS configure PnP
devices not required for boot if your system has a Plug and Play OS.

Allocate IRQ to PCI VGA

This assigns IRQ to PCI VGA card if card requests IRQ or doesn't assign IRQ to
PCI VGA card even if card requests an IRQ.

IRQ#

Use the IRQ# address to specify what IRQs can be assigned to a particular
peripheral device.

BIOS SETUP

IB891 User’s Manual 31

Boot Settings

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Boot Settings

Configure Settings

during System Boot.

<- Select Screen

↑↓ Select Item
+- Change Field

Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

►Boot Settings Configuration

BIOS SETUP UTILITY

Boot

Boot Settings Configuration

Allows BIOS to skip
certain tests while
booting. This will
decrease the time
needed to boot the
system.

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

Quick Boot [Enabled]

Quiet Boot [Disabled]

AddOn ROM Display Mode [Force BIOS]

Bootup Num-Lock [On]

PS/2 Mouse Support [Auto]

Wait for ‘F1’ If Error [Enabled]

Hit ‘DEL’ Message Display

Interrupt 19 Capture

[Enabled]

[Disabled]

Quick Boot

This allows BIOS to skip certain tests while booting. This will decrease the time
needed to boot the system.

Quite Boot

When disabled, this displays normal POST messages. When enabled, this
displays OEM Logo instead of POST messages.

AddOn ROM Display Mode

This allows user to force BIOS/Option ROM of add-on cards to be displayed
during quiet boot.

Bootup Num-Lock

This select the power-on state for numlock.

BIOS SETUP

32

IB891 User’s Manual

PS/2 Mouse Support

This select support for PS/w mouse.

Wait for ‘F1’ If Error

When set to Enabled, the system waits for the F1 key to be pressed when error
occurs. This allows option ROM to trap interrupt 19.

Hit <DEL> Message Display

This displays “Press <DEL> to run Setup” in POST.

Interrupt 19 Capture

This allows option ROMs to trap interrupt 19.

BIOS SETUP

IB891 User’s Manual 33

Security Settings

This setting comes with two options set the system password. Supervisor
Password sets a password that will be used to protect the system and Setup
utility. User Password sets a password that will be used exclusively on the
system. To specify a password, highlight the type you want and press <Enter>.
The Enter Password: message prompts on the screen. Type the password and
press <Enter>. The system confirms your password by asking you to type it
again. After setting a password, the screen automatically returns to the main
screen.

To disable a password, just press the <Enter> key when you are prompted to
enter the password. A message will confirm the password to be disabled. Once
the password is disabled, the system will boot and you can enter Setup freely.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Security Settings

Install or Change the
Password.

<- Select Screen

↑↓ Select Item
Enter Change

F1 General Help

F10 Save and Exit

ESC Exit

Supervisor Password : Not Installed

User Password : Not Installed

Change Supervisor Password

Change User Password

Boot Sector Virus Protection [Disabled]

BIOS SETUP

34

IB891 User’s Manual

Advanced Chipset Settings

This setting configures the north bridge, south bridge and the ME
subsystem. WARNING! Setting the wrong values may cause the system
to malfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Advanced Chipset Settings

Configure North Bridge
features.

<- Select Screen

↑↓ Select Item
Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

WARNING: Setting wrong values in below sections

may cause system to malfunction.

► North Bridge Configuration

► South Bridge Configuration

BIOS SETUP UTILITY

Chipset

North Bridge Chipset Configuration

Options

Enabled

Disabled

<- Select Screen

↑↓ Select Item
Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

PCI MMIO Allocation: 4GB To 3072MB

Configure DRAM Timing by SPD [Enabled]

Initiate Graphics Adapter [IGD]

Internal Graphics Mode Select [Enabled, 8MB]

PEG Port Configuration

► Video Function Configuration

Configure DRAM Timing by SPD

When this item is enabled, the DRAM timing parameters are set according to the
DRAM SPD (Serial Presence Detect). When disabled, you can manually set the
DRAM timing parameters through the DRAM sub-items.

BIOS SETUP

IB891 User’s Manual 35

Initiate Graphic Adapter

Select which graphics controller to use as the primary boot device. This option,
by default, is set to IGD.

Internal Graphics Mode Select

Use the feature to set the amount of system memory to be used by the Internal.
graphics device. expansion cards that require a specified area of memory to work
properly.

BIOS SETUP UTILITY

Chipset

Video Function Configuration

Options

Fixed Mode

DVMT Mode

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

DVMT Mode Select [DVMT Mode]

DVMT/FIXED Memory [256MB]

Boot Display Device [CRT]

Flat Panel Type [1024x768]

Spread Spectrum Clock [Disabled]

DVMT Mode Select

Select the control mode of memory built-in graphics capabilities. This option, by
default, is set to DVMT Mode.

DVMT/FIXED Memory

Sets the maximum memory size assigned to the integrated graphics capabilities.
This option, by default, is set to 256MB.

Boot Display Device

This option is used to select the display device used by the system when it boots.

Flat Panel Type

This option is used to select the type of flat panel connected to the system.
Options include: 640x480 / 800x600 / 1024x768 / 1280x768 / 1280x800 /
1280x600.

Spread Spectrum Clock

By default, this field is set to Disabled.

BIOS SETUP

36

IB891 User’s Manual

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

South Bridge Chipset Configuration

Options

Disabled
2 USB Ports
4 USB Ports

6 USB Ports

8 USB Ports

10 USB Ports

<- Select Screen

↑↓ Select Item
+- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

USB Function [8 USB Ports]

USB 2.0 Controller [Enabled]
HAD Controller [Enabled]
SMBUS Controller [Enabled]
PCIE Ports Configuration
PCIE Port 0 [Auto]
PCIE Port 1 [Auto]
PCIE Port 2 [Auto]
PCIE Port 3 [Auto]
PCIE Port 4 [Auto]
PCIE Port 5 [Disabled]
PCIE High Priority Port [Disabled]

PCIE Port 0 IOxAPIC Enable [Disabled]
PCIE Port 1 IOxAPIC Enable [Disabled]
PCIE Port 2 IOxAPIC Enable [Disabled]
PCIE Port 3 IOxAPIC Enable [Disabled]
PCIE Port 4 IOxAPIC Enable [Disabled]
PCIE Port 5 IOxAPIC Enable [Disabled]

Enable Onboard PCI option ROM [Disabled]

USB Function

This option enables the number of USB ports desired or disables the USB
function

.

USB 2.0 Controller

This option is disabled by default.

HDA Controller

This option is used to enable the Southbridge high definition audio controller.

SMBUS Controller

This option is enabled by default.

Enable Onboard PCI option ROM

This option is disabled by default.

BIOS SETUP

IB891 User’s Manual 37

Exit Setup

The exit setup has the following settings wh ich are:

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Exit

Exit Options

Exit system setup
after saving the
changes.

F10 key can be used

for this operation

<- Select Screen

↑↓ Select Item
Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

Save Changes and Exit

Discard Changes and Exit
Discard Changes

Load Optimal Defaults
Load Failsafe Defaults

Save Changes and Exit

This option allows you to determine whether or not to accept the modifications
and save all changes into the CMOS memory before exit.

Discard Changes and Exit

This option allows you to exit the Setup utility without saving the changes you
have made in this session.

Discard Changes

This option allows you to discard all the changes that you have made in this
session.

Load Optimal Defaults

This option allows you to load the default values to your system configuration.
These default settings are optimal and enable all high performance features.

Load Failsafe Defaults

This option allows you to load the troubleshooting default values permanently
stored in the BIOS ROM. These default settings are non-optimal and disable all
high-performance features.

BIOS SETUP

38

IB891 User’s Manual

This page is intentionally left blank.

DRIVERS INSTALLATION

IB891 User’s Manual 39

Drivers Installation

This section describes the installation procedures for software and
drivers under the Windows XP, Windows Vista and Windows 7. The
software and drivers are included with the motherboard. If you find the
items missing, please contact the vendor where you made the purchase.
The contents of this section include the fo llowing:

Intel Chipset Software Installation Utility ................................. 40

Intel Pineview Chipset Family Graphics Driver Installation ..... 42

Realtek High Definition Codec Audio Driver Installation ........ 44

Realtek RTL8111DL LAN Drivers Installation ........................ 45

IMPORTANT NOTE:

After installing your Windows operating system (Windows XP/ Vista/

7), you must install first the Intel Chipset Software Installation Utility
before proceeding with the drivers installation.

DRIVERS INSTALLATION

Intel Chipset Software Installation Utility

The Intel Chipset Drivers should be installed first before the software
drivers to enable Plug & Play INF support for Intel chipset com ponents.
Follow the instructions below to complete the installation under
Windows XP/Vista/7.

1. Insert the drivers DVD into the DVD drive. Click Intel and then

Intel(R) Pineview Chipset Drivers. Click Intel(R) Chipset Software
Installation Utility.

2. When the welcome screen to the Intel(R) Chipset Software
Installation Utility appears, click Next to continue.

40

IB891 User’s Manual

DRIVERS INSTALLATION

3. Click Yes to accept the software license agreement and proceed with
the installation process.

4. On the Readme Information screen, click Next to continue.When the
Setup Progress screen appears, click Next to continue.

5. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect.

IB891 User’s Manual 41

DRIVERS INSTALLATION

Intel Pineview Chipset Family Graphics Driver
Installation

To install the VGA drivers, follow the steps below to proceed with the
installation.

1. Insert the drivers DVD into the DVD drive. Click Intel and then

Intel(R) Pineview Chipset Drivers. Click Intel(R) Pineview Chipset
Family Graphics Driver.

2. When the welcome screen of the Intel(R) Graphics Media Accelerator
Driver appears, click Next to continue.

42

IB891 User’s Manual

DRIVERS INSTALLATION

3. Click Yes to to agree with the license agreement and continue the
installation.

4. Click Next in the Readme File Information window.

5. Click Next in the Setup Progress window.

6. Setup is now complete. Click Finish to restart the computer and for
changes to take effect.

IB891 User’s Manual 43

DRIVERS INSTALLATION

Realtek High Definition Codec Audio Driver
Installation

Follow the steps below to install the Realtek HD Codec Au dio Drivers.

1. Insert the drivers DVD into the DVD drive. Click Intel and then

Intel(R) Pineview Chipset Drivers. Click Realtek High Definition
Codec Audio Driver.

2.When the welcome screen to InstallShield Wizard for Realtek High
Definition Audio Driver appears, click Next to start the installation.

3.When the InstallShieldWizard has finished performing maintenance
operations on Realtek High Definiti on Codec Audio Audio Driver, click
Finish to restart the computer.

44

IB891 User’s Manual

DRIVERS INSTALLATION

Realtek RTL8111DL LAN Drivers Installation

Follow the steps below to install Realtek RTL8111DL LAN Drivers.

1. Insert the drivers DVD into the DVD drive. Click LAN Card and then

Realtek LAN Controller Drivers. Click Realtek RTL8111DL LAN
Drivers.

2. In the welcome screen of the InstallShield Wizard for REALTEK
GbE & FE Ethernet PCI-E NIC Driver, click Next.

3. In the InstallShield Wizard screen, click Install to begin the
installation.

4. InstallShield Wizard completed. Click Finish to exit the W izard.

IB891 User’s Manual 45

DRIVERS INSTALLATION

46

IB891 User’s Manual

This page is intentionally left blank.

APPENDIX

IB891 User’s Manual 47

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port
addresses that also becomes the identity of the device. The following
table lists the I/O port addresses used.

Address Device Description

000h - 01Fh DMA Controller #1
020h - 03Fh Interrupt Controller #1
040h - 05Fh Timer
060h - 06Fh Keyboard Controller
070h - 07Fh Real Time Clock, NMI
080h - 09Fh DMA Page Register
0A0h - 0BFh Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h IDE Interface
2B0h - 2DFh Graphics adapter Controller
2E8h - 2EFh Serial Port #4(COM4)
2F8h - 2FFh Serial Port #2(COM2)
360h - 36Fh Network Ports
3B0h - 3BFh Monochrome & Printer adapter
3C0h - 3CFh EGA adapter
3D0h - 3DFh CGA adapter
3E8h - 3EFh Serial Port #3(COM3)
3F8h - 3FFh Serial Port #1(COM1)

APPENDIX

48

IB891 User’s Manual

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the
service required. The following tabl e shows the IRQ used by the devices
on board.

Level Function

IRQ0 System Timer Output
IRQ1 Keyboard
IRQ2 Interrupt Cascade
IRQ3 Serial Port #2
IRQ4 Serial Port #1
IRQ5 Reserved
IRQ6 Reserved
IRQ7 Reserved
IRQ8 Real Time Clock
IRQ9 Reserved
IRQ10 Serial Port #4
IRQ11 Serial Port #3
IRQ12 PS/2 Mouse
IRQ13 80287
IRQ14 Primary IDE

APPENDIX

IB891 User’s Manual 49

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sorts of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user
will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

File of the W627UHG.CPP
//--------------------------------------------------------------------------­//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------­#include "W627UHG.H"
#include <dos.h>
//--------------------------------------------------------------------------­unsigned int W627UHG_BASE;
void Unlock_W627UHG (void);
void Lock_W627UHG (void);
//--------------------------------------------------------------------------­unsigned int Init_W627UHG(void)
{
unsigned int result;
unsigned char ucDid;

W627UHG_BASE = 0x4E;
result = W627UHG_BASE;

ucDid = Get_W627UHG_Reg(0x20);
if (ucDid == 0xA2) //W83627UHG??
{ goto Init_Finish; }

W627UHG_BASE = 0x2E;
result = W627UHG_BASE;

ucDid = Get_W627UHG_Reg(0x20);
if (ucDid == 0xA2) //W83627UHG??
{ goto Init_Finish; }

W627UHG_BASE = 0x00;
result = W627UHG_BASE;

Init_Finish:
return (result);
}
//--------------------------------------------------------------------------­void Unlock_W627UHG (void)

APPENDIX

50

IB891 User’s Manual

{
outportb(W627UHG_INDEX_PORT, W627UHG_UNLOCK);
outportb(W627UHG_INDEX_PORT, W627UHG_UNLOCK);
}
//--------------------------------------------------------------------------­void Lock_W627UHG (void)
{
outportb(W627UHG_INDEX_PORT, W627UHG_LOCK);
}
//--------------------------------------------------------------------------­void Set_W627UHG_LD( unsigned char LD)
{
Unlock_W627UHG();
outportb(W627UHG_INDEX_PORT, W627UHG_REG_LD);
outportb(W627UHG_DATA_PORT, LD);
Lock_W627UHG();
}
//--------------------------------------------------------------------------­void Set_W627UHG_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_W627UHG();
outportb(W627UHG_INDEX_PORT, REG);
outportb(W627UHG_DATA_PORT, DATA);
Lock_W627UHG();
}
//--------------------------------------------------------------------------­unsigned char Get_W627UHG_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_W627UHG();
outportb(W627UHG_INDEX_PORT, REG);
Result = inportb(W627UHG_DATA_PORT);
Lock_W627UHG();
return Result;
}
//---------------------------------------------------------------------------

APPENDIX

IB891 User’s Manual 51

File of the W627UHG.H
//--------------------------------------------------------------------------­//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------­#ifndef __W627UHG_H
#define __W627UHG_H 1
//--------------------------------------------------------------------------­#define W627UHG_INDEX_PORT (W627UHG_BASE)
#define W627UHG_DATA_PORT (W627UHG_BASE+1)
//--------------------------------------------------------------------------­#define W627UHG_REG_LD 0x07
//--------------------------------------------------------------------------­#define W627UHG_UNLOCK 0x87
#define W627UHG_LOCK 0xAA
//--------------------------------------------------------------------------­unsigned int Init_W627UHG(void);
void Set_W627UHG_LD( unsigned char);
void Set_W627UHG_Reg( unsigned char, unsigned char);
unsigned char Get_W627UHG_Reg( unsigned char);
//--------------------------------------------------------------------------­#endif //__W627UHG_H

APPENDIX

52

IB891 User’s Manual

File of the MAIN.CPP
//--------------------------------------------------------------------------­//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------­#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "W627UHG.H"
//--------------------------------------------------------------------------­int main (void);

void WDTInitial(void);
void WDTEnable(unsigned char);
void WDTDisable(void);

//--------------------------------------------------------------------------­int main (void)
{
char SIO;

SIO = Init_W627UHG();
if (SIO == 0)
{

............................................... printf("Can not detect Winbond 83627UHG, program abort.\n");

........................................................................................................................................ return(1);

}

WDTInitial();

WDTEnable(10);

WDTDisable();

return 0;
}
//--------------------------------------------------------------------------­void WDTInitial(void)
{
unsigned char bBuf;

Set_W627UHG_LD(0x08); .................................................................. //switch to logic device 8

bBuf = Get_W627UHG_Reg(0x30);
bBuf &= (~0x01);

Set_W627UHG_Reg(0x30, bBuf);..................................................................... //Enable WDTO

}
//--------------------------------------------------------------------------­void WDTEnable(unsigned char NewInterval)
{
unsigned char bBuf;

Set_W627UHG_LD(0x08); ...........................................................................................................

Set_W627UHG_Reg(0x30, 0x01); ........................................................................ //enable timer

APPENDIX

IB891 User’s Manual 53

bBuf = Get_W627UHG_Reg(0xF5);
bBuf &= (~0x08);

Set_W627UHG_Reg(0xF5, bBuf); .......................................................... //count mode is second

Set_W627UHG_Reg(0xF6, NewInterval);................................................................... //set timer

}
//--------------------------------------------------------------------------­void WDTDisable(void)
{

Set_W627UHG_LD(0x08); ..........................................................................................................

Set_W627UHG_Reg(0xF6, 0x00); ........................................................... //clear watchdog timer

Set_W627UHG_Reg(0x30, 0x00); ...............................................................................................

}
//---------------------------------------------------------------------------

APPENDIX

54

IB891 User’s Manual

D. Digital I/O Sample Code

File of the W627UHG.H
//--------------------------------------------------------------------------­//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------­#ifndef __W627UHG_H
#define __W627UHG_H 1
//--------------------------------------------------------------------------­#define W627UHG_INDEX_PORT (W627UHG_BASE)
#define W627UHG_DATA_PORT (W627UHG_BASE+1)
//--------------------------------------------------------------------------­#define W627UHG_REG_LD 0x07
//--------------------------------------------------------------------------­#define W627UHG_UNLOCK 0x87
#define W627UHG_LOCK 0xAA
//--------------------------------------------------------------------------­unsigned int Init_W627UHG(void);
void Set_W627UHG_LD( unsigned char);
void Set_W627UHG_Reg( unsigned char, unsigned char);
unsigned char Get_W627UHG_Reg( unsigned char);
//--------------------------------------------------------------------------­#endif //__W627UHG_H

APPENDIX

IB891 User’s Manual 55

File of the W627UHG.CPP
//--------------------------------------------------------------------------­//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------­#include "W627UHG.H"
#include <dos.h>
//--------------------------------------------------------------------------­unsigned int W627UHG_BASE;
void Unlock_W627UHG (void);
void Lock_W627UHG (void);
//--------------------------------------------------------------------------­unsigned int Init_W627UHG(void)
{
unsigned int result;
unsigned char ucDid;

W627UHG_BASE = 0x4E;
result = W627UHG_BASE;

ucDid = Get_W627UHG_Reg(0x20);
if (ucDid == 0xA2) //W83627UHG??
{ goto Init_Finish; }

W627UHG_BASE = 0x2E;
result = W627UHG_BASE;

ucDid = Get_W627UHG_Reg(0x20);
if (ucDid == 0xA2) //W83627UHG??
{ goto Init_Finish; }

W627UHG_BASE = 0x00;
result = W627UHG_BASE;

Init_Finish:
return (result);
}
//--------------------------------------------------------------------------­void Unlock_W627UHG (void)
{
outportb(W627UHG_INDEX_PORT, W627UHG_UNLOCK);
outportb(W627UHG_INDEX_PORT, W627UHG_UNLOCK);
}
//--------------------------------------------------------------------------­void Lock_W627UHG (void)
{
outportb(W627UHG_INDEX_PORT, W627UHG_LOCK);
}
//--------------------------------------------------------------------------­void Set_W627UHG_LD( unsigned char LD)

APPENDIX

56

IB891 User’s Manual

{
Unlock_W627UHG();
outportb(W627UHG_INDEX_PORT, W627UHG_REG_LD);
outportb(W627UHG_DATA_PORT, LD);
Lock_W627UHG();
}
//--------------------------------------------------------------------------­void Set_W627UHG_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_W627UHG();
outportb(W627UHG_INDEX_PORT, REG);
outportb(W627UHG_DATA_PORT, DATA);
Lock_W627UHG();
}
//--------------------------------------------------------------------------­unsigned char Get_W627UHG_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_W627UHG();
outportb(W627UHG_INDEX_PORT, REG);
Result = inportb(W627UHG_DATA_PORT);
Lock_W627UHG();
return Result;
}
//---------------------------------------------------------------------------

APPENDIX

IB891 User’s Manual 57

File of the MAIN.CPP
//--------------------------------------------------------------------------­//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------­#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "W627UHG.H"
//--------------------------------------------------------------------------­int main (void);

void Dio5Initial(void);
void Dio5SetOutput(unsigned char);
unsigned char Dio5GetInput(void);
void Dio5SetDirection(unsigned char);
unsigned char Dio5GetDirection(void);
//--------------------------------------------------------------------------­int main (void)
{
char SIO;

SIO = Init_W627UHG();
if (SIO == 0)
{
printf("Can not detect Winbond 83627UHG, program abort.\n");
return(1);
}

Dio5Initial();

//for GPIO50..57
Dio5SetDirection(0x0F); //GP50..53 = input, GP54..57=output
printf("Current DIO direction = 0x%X\n", Dio5GetDirection());

printf("Current DIO status = 0x%X\n", Dio5GetInput());

printf("Set DIO output to high\n");
Dio5SetOutput(0x0F);

printf("Set DIO output to low\n");
Dio5SetOutput(0x00);

return 0;

APPENDIX

58

IB891 User’s Manual

}
//--------------------------------------------------------------------------­void Dio5Initial(void)
{
unsigned char ucBuf;

Set_W627UHG_LD(0x08); //switch to logic device 8
//enable the GP5 group
ucBuf = Get_W627UHG_Reg(0x30);
ucBuf |= 0x02;
Set_W627UHG_Reg(0x30, ucBuf);
}
//--------------------------------------------------------------------------­void Dio5SetOutput(unsigned char NewData)
{
Set_W627UHG_LD(0x08); //switch to logic device 8
Set_W627UHG_Reg(0xE1, NewData);
}
//--------------------------------------------------------------------------­unsigned char Dio5GetInput(void)
{
unsigned char result;

Set_W627UHG_LD(0x08); //switch to logic device 8
result = Get_W627UHG_Reg(0xE1);
return (result);
}
//--------------------------------------------------------------------------­void Dio5SetDirection(unsigned char NewData)
{
//NewData : 1 for input, 0 for output
Set_W627UHG_LD(0x08); //switch to logic device 8
Set_W627UHG_Reg(0xE0, NewData);
}
//--------------------------------------------------------------------------­unsigned char Dio5GetDirection(void)
{
unsigned char result;

Set_W627UHG_LD(0x08); //switch to logic device 8
result = Get_W627UHG_Reg(0xE0);
return (result);
}
//---------------------------------------------------------------------------
