FWA6706R
FWA6706D
Network Appliance
User’s Manual
Version 1.0a
(June 2018)
ii
FWA6706R & FWA6706D User Manual
Copyright
© 2018 IBASE Technology, Inc. All rights reserved.
No part of this publication may be reproduced, copied, stored in a retrieval system, translated
into any language or transmitted in any form or by any means, electronic, mechanical,
photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc.
(hereinafter referred to as “IBASE”).
Disclaimer
IBASE reserves the right to make changes and improvements to the products described in
this document without prior notice. Every effort has been made to ensure the information in
the document is correct; however, IBASE does not guarantee this document is error-free.
IBASE assumes no liability for incidental or consequential damages arising from
misapplication or inability to use the product or the information contained herein, nor for any
infringements of rights of third parties, which may result from its use.
Trademarks
All the trademarks, registrations and brands mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
FWA6076R & FWA6706D User Manual
iii
Compliance
This product has passed CE tests for environmental specifications and limits. This
product is in accordance with the directives of the Union European (EU). If users
modify and/or install other devices in this equipment, the CE conformity declaration
may no longer apply.
This product has been tested and found to comply with the limits for a Class B
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with manufacturer’s instructions, may cause
harmful interference to radio communications.
WEEE
This product must not be disposed of as normal household waste, in
accordance with the EU directive of for waste electrical and electronic
equipment (WEEE - 2012/19/EU). Instead, it should be disposed of by
returning it to a municipal recycling collection point. Check local
regulations for disposal of electronic products.
Green IBASE
This product is compliant with the current RoHS restrictions and
prohibits use of the following substances in concentrations exceeding
0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by
weight (100 ppm).
• Lead (Pb)
• Mercury (Hg)
• Cadmium (Cd)
• Hexavalent chromium (Cr6+)
• Polybrominated biphenyls (PBB)
• Polybrominated diphenyl ether (PBDE)
iv
FWA6706R & FWA6706D User Manual
Important Safety Information
Carefully read the precautions before using the device.
Environmental conditions:
• Lay the device horizontally on a stable and solid surface in case the device may
fall, causing serious damage.
• Slots and openings on the chassis are for ventilation. Do not block or cover these
openings. Make sure you leave plenty of space around the device for ventilation.
NEVER INSERT OBJECTS OF ANY KIND INTO THE VENTILATION
OPENINGS.
• Use this product in environments at ambient temperatures 0˚C ~ 40˚C for SSD
and 0˚C ~ 35˚C for HDD.
• DO NOT LEAVE THIS DEVICE IN AN ENVIRONMENT WHERE THE
STORAGE TEMPERATURE MAY GO BELOW -20˚C OR ABOVE 70˚C. This
could damage the device. The device must be used in a controlled environment.
Care for your IBASE products:
• Before cleaning the device, turn it off and unplug all cables such as power in case
a small amount of electrical current may still flow.
• Use neutral cleaning agents or diluted alcohol to clean the device chassis with a
cloth. Then wipe the chassis with a dry cloth.
• Vacuum the dust with a computer vacuum cleaner to prevent the air vent or slots
from being clogged.
WARNING
Attention during use:
• Do not use this product near water.
• Do not spill water or any other liquids on your device.
• Do not place heavy objects on the top of the device.
• Operate this device from the type of power indicated on the marking label. If you
are not sure of the type of power available, consult your distributor or local
power company.
• Do not walk on the power cord or allow anything to rest on it.
• If you use an extension cord, make sure that the total ampere rating of the
product plugged into the extension cord does not exceed its limits.
• When handling processor chips or memory modules, avoid touching their pins or
gold fingers. Put modules or peripherals back into antistatic bags when they are
not in use or not installed in the chassis.
Avoid Disassembly
You are not suggested to disassemble, repair or make any modification to the device.
Disassembly, modification, or any attempt at repair could generate hazards and
cause damage to the device, even bodily injury or property damage, and will void any
warranty.
FWA6076R & FWA6706D User Manual
v
CAUTION
Danger of explosion if internal lithium-ion battery is replaced by an incorrect type.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions. Under no
circumstances should the Lithium battery cell be shorted; otherwise the battery cell
may heat up or cause potential burn hazards.
Warranty Policy
• IBASE standard products:
24-month (2-year) warranty from the date of shipment. If the date of shipment
cannot be ascertained, the product serial numbers can be used to determine
the approximate shipping date.
• 3rd-party parts:
12-month (1-year) warranty from delivery for the 3rd-party parts that are not
manufactured by IBASE, such as CPU, memory, HDD, power adapter, panel
and touchscreen.
＊ PRODUCTS, HOWEVER, THAT FAILS DUE TO MISUSE, ACCIDENT,
IMPROPER INSTALLATION OR UNAUTHORIZED REPAIR SHALL BE
TREATED AS OUT OF WARRANTY AND CUSTOMERS SHALL BE BILLED
FOR REPAIR AND SHIPPING CHARGES.
Technical Support & Services
1. Visit the IBASE website at www.ibase.com.tw to find the latest information about
the product.
2. If you need any further assistance from your distributor or sales representative,
prepare the following information of your product and elaborate upon the
problem.
• Product model name
• Product serial number
• Detailed description of the problem
• The error messages in text or in screenshots if there is any
• The arrangement of the peripherals
• Software in use (such as OS and application software, including the version
numbers)
3. If repair service is required, you can download the RMA form at
http://www.ibase.com.tw/english/Supports/RMAService/. Fill out the form and
contact your distributor or sales representative.
vi
FWA6706R & FWA6706D User Manual
Table of Contents
Compliance.................................................................................................... iii
Important Safety Information ....................................................................... iv
WARNING ...................................................................................................... iv
CAUTION ........................................................................................................ v
Warranty Policy .............................................................................................. v
Technical Support & Services ...................................................................... v
Chapter 1 General Information ................................................................ 1
1.1 Introduction ............................................................................................. 2
1.2 Features .................................................................................................. 3
1.3 Packing List ............................................................................................ 3
1.4 Optional Accessories .............................................................................. 3
1.5 Specifications .......................................................................................... 4
1.6 Overview – FWA6706R ........................................................................... 6
1.7 Overview – FWA6706D ........................................................................... 7
1.8 Dimensions – FWA6706R ....................................................................... 8
1.9 Dimensions – FWA6706D ....................................................................... 9
Chapter 2 Hardware Configuration ....................................................... 10
2.1 Essential Installations ............................................................................ 11
2.1.1 Memory Installation / Replacement ......................................... 12
2.1.2 HDD or SSD Installation / Replacement.................................. 12
2.1.3 CF Card Installation ................................................................ 14
2.1.4 Micro-SIM Card Installation..................................................... 14
2.1.5 Fan Installation / Replacement (for FWA6706R only) ............. 15
2.2 Pinout for Console Port ......................................................................... 15
2.3 Setting the Jumpers .............................................................................. 16
2.3.1 How to Set Jumpers ............................................................... 16
2.4 Jumper & Connector Locations on Motherboard ................................... 17
2.5 Jumpers Quick Reference ..................................................................... 19
2.5.1 AT & ATX Mode Selection (JP2) .......................................... 19
2.5.2 ME Register Clearance (JP4) ............................................... 20
2.5.3 CMOS Data Clearance (JP5) ............................................... 20
FWA6076R & FWA6706D User Manual
vii
2.6 Connectors Quick Reference ................................................................ 21
2.6.1 System Fan Power Connector (FAN) ................................... 22
2.6.2 AT 12V Power Connector (J3) ............................................. 22
2.6.3 External SATA Power Connector (J4) .................................. 23
2.6.4 VGA Connector (J18) ........................................................... 23
2.6.5 USB 2.0 Port (J9) ................................................................. 24
2.6.6 Digital I/O Connector (J17) ................................................... 24
2.6.7 System Function Connector (J14) ........................................ 25
Chapter 3 BIOS Setup ............................................................................ 26
3.1 Introduction ........................................................................................... 27
3.2 BIOS Setup ........................................................................................... 27
3.3 Main Settings ........................................................................................ 28
3.4 Advanced Settings ................................................................................ 29
3.4.1 Trusted Computing ................................................................. 29
3.4.2 ACPI Settings ......................................................................... 30
3.4.3 Fintek Super IO Configuration ................................................ 31
3.4.4 Fintek Super IO Hardware Monitor ......................................... 32
3.4.5 LAN Bypass Configuration ...................................................... 33
3.4.6 Serial Port Console Redirection .............................................. 34
3.4.7 CPU Configuration .................................................................. 38
3.4.8 Network Stack Configuration .................................................. 40
3.4.9 CSM Configuration ................................................................ . 41
3.4.10 USB Configuration .................................................................. 42
3.5 Chipset.................................................................................................. 43
3.5.1 North Bridge ........................................................................... 43
3.5.2 South Cluster Configuration .................................................... 44
3.6 Security Settings ................................................................................... 48
3.7 Boot Settings......................................................................................... 49
3.8 Save & Exit Settings.............................................................................. 50
Appendix ...................................................................................................... 51
A. I/O Port Address Map ............................................................................ 52
B. Interrupt Request Lines (IRQ) ............................................................... 54
C. Digital I/O Sample Code ........................................................................ 56
D. Watchdog Timer Configuration .............................................................. 60
1
Chapter 1
General Information
The information provided in this chapter includes:
• Features
• Packing List
• Optional Accessories
• Specifications
• Overview
• Dimensions
2
FWA6706R & FWA6706D User Manual
1.1 Introduction
FWA6706R & FWA6706D are specifically designed for the network security
and management market. There are plenty of applications adopting network
security or network management as listed below.
Photo of FWA6706R
Photo of FWA6706D
Network Security Applications:
• Firewall
• Unified Threat Management (UTM)
• Virtual Private Network (VPN)
• Proxy Server
• Caching Server
Network Management Applications:
• Load balancing
• Quality of Service
• Remote Access Service
The FWA networking appliance product line covers the spectrum from offering
platforms designed for:
• SOHO
• SMB
• Enterprise
Each product is designed to address the distinctive requirements of its
respective market segment from cost effective entry-level solutions to high
throughput and performance-bound systems for the enterprise level.
General Information
FWA6706R & FWA6706D User Manual
3
1
1.2 Features
• Entry level platform designed with Intel
®
Celeron® N3350 / Pentium®
N4200 processor
• 2 x DDR3L SO-DIMM 1867 MHz, expandable up to 16 GB (non-ECC)
• 6 x PCIe GbE LAN ports with 1 advanced LAN Bypass pair included
• 1 x CF slot
• 1 x Mini-PCIe expansion slot with PCIe and USB 2.0 signals
1.3 Packing List
Your product package should include the items listed below. If any of the
items below is missing, contact the distributor or the dealer from whom you
purchased the product.
FWA6706R:
• FWA6706R x 1
• AC / DC Power Supply (65W) x 1
• Power Cord x 1
• SATA Cable x 1
• Rack Mount Bracket x 2
FWA6706D:
• FWA6706D x 1
• Power Adapter (40W) x 1
• Power Cord x 1
• SATA Cable x 1
• Side Bracket x 2
1.4 Optional Accessories
IBASE provide optional accessories as follows. Please contact us or your
dealer if you need any.
• Console Cable (160 cm, PK1-51)
• VGA Cable (40 cm, VGA21A, for FWA6706R only)
4
FWA6706R & FWA6706D User Manual
1.5 Specifications
Product Name
FWA6706R
FWA6706D
System
Motherboard
MBN501R-4C/2C
MBN501D-4C/2C
Operating
System
• Windows 10 (64-bit)
• Linux Ubuntu 16.04
CPU
• Intel
®
Pentium® N4200 Quad-Core, 2.5 GHz
• Intel
®
Celeron® N3350 Dual-Core, 2.4 GHz
Cache
Up to 2 MB
Chipset
Integrated
Graphics
Integrated
Memory
2 x DDR3L SO-DIMM up to 1867 MHz, expandable to 16 GB
(non-ECC)
Storage
• 2.5” HDD / SSD (1 bracket for HDD / SSD)
• CF card (1 onboard slot)
Network
6 x Intel® I211AT GbE
Bypass
1 x segments (LAN5 / LAN6)
NIC Slot
N/A
Super I/O
Fintek F81964D-I
Power Supply
Full range 65W power supply
open frame
Full range 40W power adapter /
12V
Power
Requirement
AC 100 ~ 240V
DC 12V
BIOS
AMI BIOS
TPM
1.2
Watchdog
Watchdog Timer 256 segments, 0, 1, 2…255 sec/min
Chassis
Steel with textured black color paint
Dimensions
(W x H x D)
438 x 44 x 180 mm
(17.24” x 1.73” x 7.09”)
227 x 44 x 142 mm
(8.94” x 1.73” x 5.59”)
Weight
3 kg (6.61 lb)
2 kg (4.41 lb)
Certificate
CE / FCC Class B
Product Name
FWA6706R
FWA6706D
I/O Ports
Power Input
Connector
1 x AC inlet 100 ~ 240V
1 x DC 12V M12 Power
Connector
LCM
2 x 16 characters
N/A
General Information
FWA6706R & FWA6706D User Manual
5
1
Console
1 x Console port
Traffic LAN
Port
6 x RJ45 GbE LAN ports
USB
2 x USB 3.0
CF
1 x CF slot (onboard)
Micro-SIM
1 x Micro-SIM card slot
Display
1 x VGA
(via an onboard pin header)
N/A
System Fan
1 x System fan module
N/A
Expansion
1 x Mini-PCIe slot with PCIe and USB 2.0 signals
Environment
Temperature
• Operating:
SSD: 0 ~ 40 °C (32 ~ 104 °F)
HDD: 0 ~ 35 °C (32 ~ 95 °F)
• Storage:
-20~ 70 °C (-4 ~ 158 °F)
Relative
Humidity
5 ~ 90%
Vibration
Protection
• Operating: 0.25 Grms / 3 ~ 500 Hz (Z-axis)
• Non-operating: 1.0 Grms / 3 ~ 500Hz (Z-axis)
Shock
Protection
Sawtooth wave 40G
All specifications are subject to change without prior notice.
6
FWA6706R & FWA6706D User Manual
1.6 Overview – FWA6706R
Front View
No.
Name
No.
Name
1
LCM Display with 4 buttons
4
Console Port
2
LED Indicators for Status,
HDD & Power
5
USB 3.0 Ports
3
User Self-defined Button
(with GPI Signal)
6
GbE LAN Ports
Rear View
No.
Name
No.
Name
1
AC Power Inlet
3
Reserved & Optional for VGA
Port
2
System Fan
Oblique View
General Information
FWA6706R & FWA6706D User Manual
7
1
1.7 Overview – FWA6706D
Front View
No.
Name
No.
Name
1
LED Indicators
(Top to bottom: Power, HDD,
GPIO Status)
2
Additional LED Indicators for 6
LAN Ports
(Top to bottom: Speed, Link)
Rear View
No.
Name
No.
Name
1
M12 Power Connector
5
Console Port
2
Power Button
6
User Self-defined Button
(with GPI Signal)
3
GbE LAN 6 Ports
[1]
7
Antenna Holes (Optional)
4
USB 3.0 Ports
[1]: For FWA6706D, each LAN port has additional corresponding LEDs on the front
panel for indicating the link and speed of the port.
Oblique View
8
FWA6706R & FWA6706D User Manual
1.8 Dimensions – FWA6706R
Unit: mm
General Information
FWA6706R & FWA6706D User Manual
9
1
1.9 Dimensions – FWA6706D
Unit: mm
10
Chapter 2
Hardware Configuration
The information provided in this chapter includes:
• Essential installations before you begin
• Information and locations of connectors
Hardware Configuration
FWA6706R & FWA6706D User Manual
11
2
2.1 Essential Installations
Before installation CPU, memory modules, HDD / SSD, CF card, mini-PCIe
card, and fans, you need to disassemble the device cover for FWA6706R or
device bottom cover for FWA6706D first as illustrated below.
Disassemble the micro-SIM slot door for installing a micro-SIM card to
FWA6706D.
Disassemble the front cover for installing a CF card to FWA6706D.
FWA6706R
Loosen 10 screws to disassemble the device cover.
FWA6706D
Loosen 6 screws to disassemble the device bottom cover.
12
FWA6706R & FWA6706D User Manual
2.1.1 Memory Installation / Replacement
If you need to install or replace a memory module, follow the instructions
below for installation after you disassemble the device cover.
1. Locate the memory slot and align the key of the memory module with that
on the memory slot.
2. Insert the module slantwise and gently push the module straight down
until the clips of the slot close to hold the module in place when the
module touches the bottom of the slot.
.
To remove the module, press the clips outwards with both hands.
2.1.2 HDD or SSD Installation / Replacement
If you need to install or replace an HDD / SSD, follow the instructions below
for installation after you disassemble the device cover for FWA6706R or the
device bottom cover for FWA6706D.
FWA6706R
1. Disassemble the HDD / SSD bracket by loosening 4 screws below.
Hardware Configuration
FWA6706R & FWA6706D User Manual
13
2
2. Install a new HDD / SSD onto the bracket, and fasten the HDD / SSD from
the bottom of the bracket with the 4 screws enclosed in the device
package.
3. Assemble the HDD / SSD bracket back.
FWA6706D
1. Disassemble the HDD / SSD bracket by loosening 3 screws below.
2. Install a new HDD / SSD onto the bracket, and fasten the HDD / SSD from
the bottom of the bracket with the 4 screws enclosed in the device
package.
3. Assemble the HDD/SSD bracket back and put a thermal pad between the
HDD / SSD and the device bottom cover.
14
FWA6706R & FWA6706D User Manual
2.1.3 CF Card Installation
FWA6706R
Remove the device cover firstly. Then locate the CF slot in the device and
Insert the CF card. To remove the CF card, pull it out with your thumb and
index finger directly.
FWA6706D
Turn your device upside down, remove the front cover by loosening two
screws. Then install a CF card.
→
2.1.4 Micro-SIM Card Installation
FWA6706R
Directly disassemble the device cover and install the card with the chip down.
FWA6706D
The micro-SIM card slot is on the side of the device. Follow the steps below.
1. Loosen 2 screws to remove the door for micro-SIM card slot from the side
of the device.
2. Insert the card to one of the micro-SIM card slot with the chip up and push
the card by using your fingernail or a corner of the micro-SIM card door.
To remove the micro-SIM card, push the card again.
Hardware Configuration
FWA6706R & FWA6706D User Manual
15
2
2.1.5 Fan Installation / Replacement (for FWA6706R only)
If you need to install or replace the system fan, after disassembling the device
cover, release 4 screws of the fan on the rear side of the device, take out the
fan, replace with a new one, and tighten these screws.
2.2 Pinout for Console Port
FWA6706R:
➔
FWA6706D:
➔
Pin
Signal Name
Pin
Signal Name
1
RTS
5
Ground
2
DTR
6
RXD
3
TXD
7
DSR
4
Ground
8
CTS
8 1
16
FWA6706R & FWA6706D User Manual
2.3 Setting the Jumpers
Set up and configure your product by using jumpers for various settings and
features according to your needs and applications. Contact your supplier if
you have doubts about the best configuration for your use.
2.3.1 How to Set Jumpers
Jumpers are short-length conductors consisting of several metal pins with a
non-conductive base mounted on the circuit board. Jumper caps are used to
have the functions and features enabled or disabled. If a jumper has 3 pins,
you can connect either PIN1 to PIN2 or PIN2 to PIN3 by shorting.
A 3-pin jumper
A jumper cap
Refer to the illustration below to set jumpers.
Pin closed
Oblique view
Schematic illustration in the manual
Open
1-2
2-3
When two pins of a jumper are encased in a jumper cap, this jumper is
closed, i.e. turned On.
When a jumper cap is removed from two jumper pins, this jumper is open, i.e.
turned Off.
Pin# 1
2
3
1 2 3
1 2 3
1 2 3
Hardware Configuration
FWA6706R & FWA6706D User Manual
17
2
2.4 Jumper & Connector Locations on Motherboard
Motherboard: MBN501R
18
FWA6706R & FWA6706D User Manual
Motherboard: MBN501D
Hardware Configuration
FWA6706R & FWA6706D User Manual
19
2
2.5 Jumpers Quick Reference
Function
Connector Name
Page
AT & ATX Mode Selection
JP2
19
ME Register Clearance
JP4
20
CMOS Data Clearance
JP5
20
Factory Use Only
JP1, JP6
--
2.5.1 AT & ATX Mode Selection (JP2)
Function
Pin closed
Illustration
AT Mode
(default)
1-2
ATX Mode
2-3
1
1
1
20
FWA6706R & FWA6706D User Manual
2.5.2 ME Register Clearance (JP4)
Function
Pin closed
Illustration
Normal
(default)
1-2
Clear ME Register
2-3
2.5.3 CMOS Data Clearance (JP5)
Function
Pin closed
Illustration
Normal
(default)
1-2
Clear CMOS
2-3
1
1
1
1
1
1
Hardware Configuration
FWA6706R & FWA6706D User Manual
21
2
2.6 Connectors Quick Reference
Function
Connector Name
Page

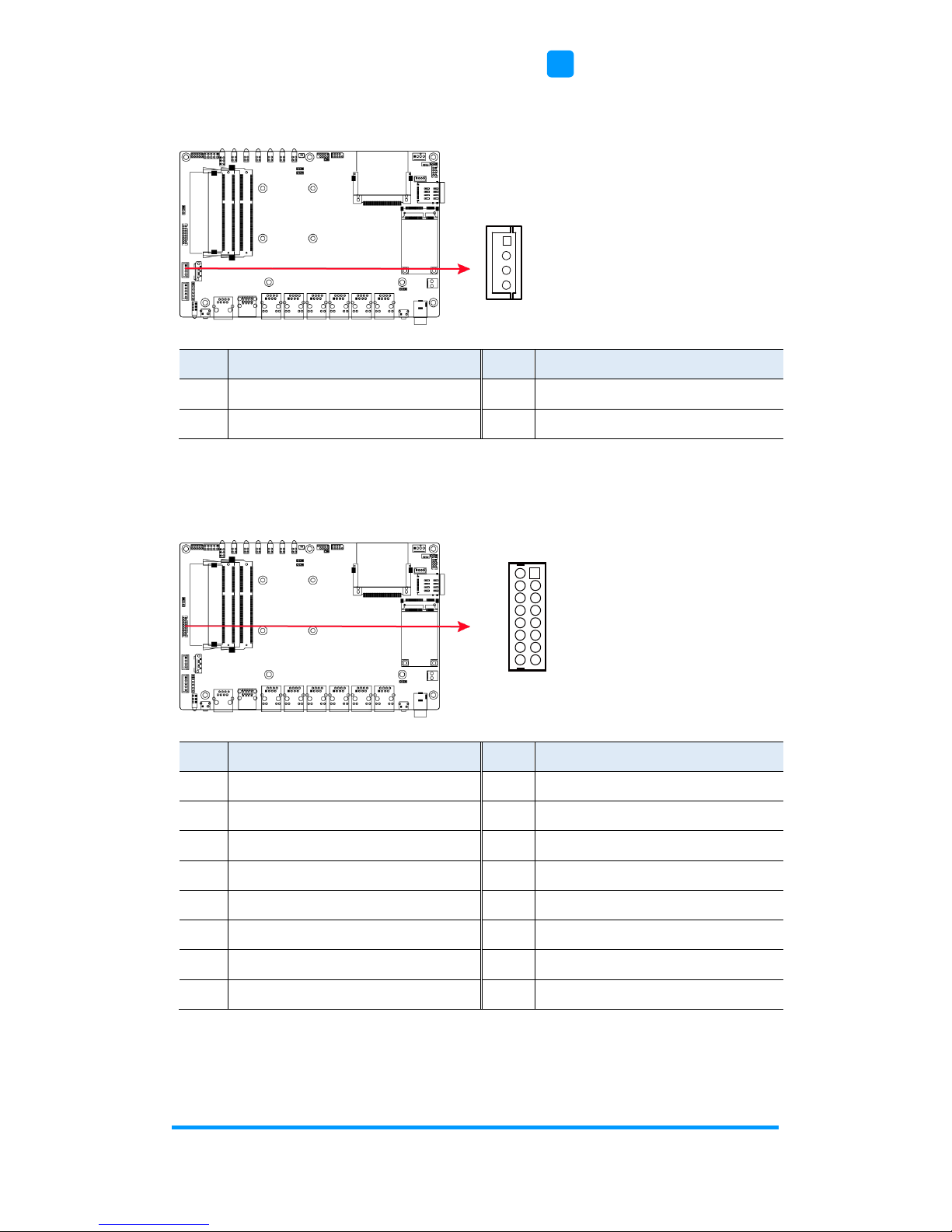

System Fan Power Connector
FAN
22
AT 12V Power Connector
J3
* Available only for FWA6706R.
22
External SATA Power Connector
J4
23
VGA Connector
J18
23
USB 2.0 Port
J9
24
Digital I/O Connector
J17
24
System Function Connector
J14
25
LCM COM2 Connector
J1
--
Mini-PCIe (x1)
J5
--
DDR3L SO-DIMM Slot
J7, J8
--
CF Slot
J12
--
DC 12V Power Jack
CN1
* Available only for FWA6706D.
-Console Port
CN12
--
USB 3.0 Port
CN3
--
GbE LAN Port
[1]
CN4, CN5, CN6, CN7, CN8, CN9
--
SATA 3.0 Port
CN10
--
SIM Slot
CN11
--
LED Connectors for FWA6706R
LED1 (top to bottom: GPIO status,
HDD, Power),
LED2 (CF Card Power),
LED10 (LAN Bypass)
-LED Connectors for FWA6706D
LED2 (CF Card Power),
LED3 (top to bottom: GPIO status,
HDD, power),
LED4/5/6/7/8/9 for CN4/5/6/7/8/9
(top to bottom: link, speed),
LED10 (LAN Bypass)
--
System Power Button
SW1
* Available only for FWA6706D.
--
User Self-defined Button with GPI
Signal
SW2
-Factory Use Only
J13, J15, J16
--
[1]: For FWA6706D, each LAN port has additional corresponding LEDs on the front
panel for indicating the link and speed of the port.
22
FWA6706R & FWA6706D User Manual

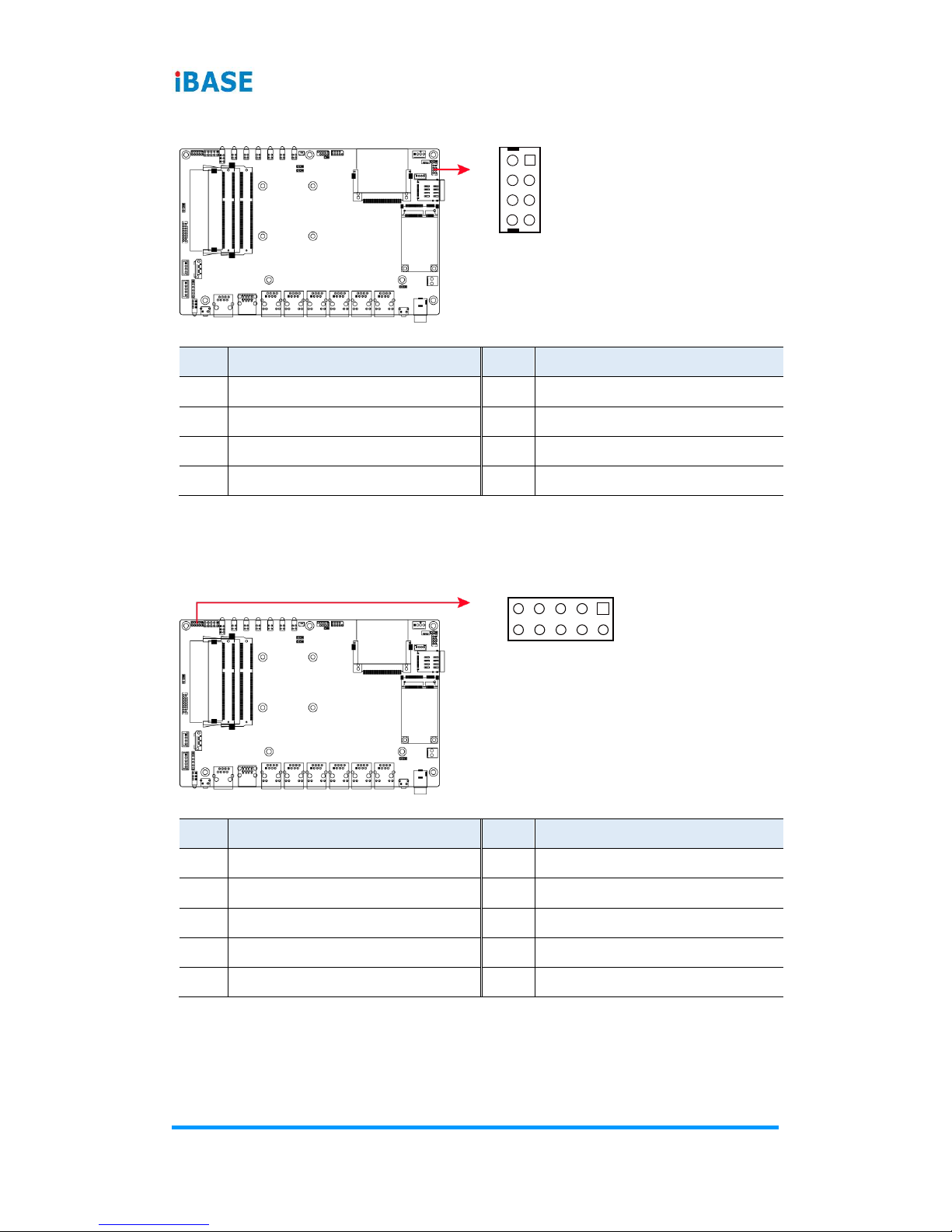

2.6.1 System Fan Power Connector (FAN)
FAN connector is available only for FWA6706R.
Pin
Assigment
Pin
Assigment
1
Ground
3
Rotation detection
2
+12V
4
Rotation control
2.6.2 AT 12V Power Connector (J3)
J3 is available only for FWA6706R.
Pin
Assigment
Pin
Assigment
1
+12V
2
Ground
1
1
Hardware Configuration
FWA6706R & FWA6706D User Manual
23
2
2.6.3 External SATA Power Connector (J4)
Pin
Assigment
Pin
Assigment
1
+5V
3
Ground
2
Ground
4
+12V
2.6.4 VGA Connector (J18)
Pin
Assigment
Pin
Assigment
1
VGA_R
2
VGA_PWR
3
VGA_G
4
Ground
5
VGA_B
6
NC 7 NC 8 VGADDCDATA
9
Ground
10
HSYNC
11
Ground
12
VSYNC
13
Ground
14
VGADDCCLK
15
Ground
1
12
16 15
24
FWA6706R & FWA6706D User Manual
2.6.5 USB 2.0 Port (J9)
Pin
Assigment
Pin
Assigment
1
+5V
2
Ground
3
P4-
4
P5+
5
P4+
6
P5-
7
Ground
8
+5V
2.6.6 Digital I/O Connector (J17)
Pin
Assigment
Pin
Assigment
1
Ground
2
+5V
3
IN0
4
OUT0
5
IN1
6
OUT1
7
IN3
8
OUT2
9
IN2
10
OUT3
7
2
8
1
1
210
9
Hardware Configuration
FWA6706R & FWA6706D User Manual
25
2
2.6.7 System Function Connector (J14)
Pin
Assigment
Pin
Assigment
1
Ground
2
Power_ON
3
Ground
4
PM_SYSRST#
5
+3.3V
6
Ground
7
+3.3V
8
-HDD_LED
9
+3.3V
10
BYPASSLED
J14 is utilized for system indicators to provide light indication of the computer
activities and switches to change the computer status. It provides interfaces
for the following functions.
• ATX Power ON Switch (Pins 1 and 2)
The 2 pins make an “ATX Power Supply On/Off Switch” for the system
that connects to the power switch on the case. When pressed, the power
switch will force the system to power on. When pressed again, it will
power off the system.
• Reset Switch (Pins 3 and 4)
The reset switch allows you to reset the system without turning the main
power switch off and then on again. Orientation is not required when
making a connection to this header.
• Power LED (Pins 5 and 6)
This connector connects to the system power LED on control panel. This
LED will light when the system turns on.
• Hard Disk Drive LED Connector (Pins 7 and 8)
This connector connects to the hard drive activity LED on control panel.
This LED will flash when the HDD is being accessed.
• Bypass LED1 (Pins 9 and 10)
The two pins make an external LED connector light for LAN bypass.
1
210
9
26
Chapter 3
BIOS Setup
This chapter describes the different settings available in the AMI
BIOS that comes with the board. The topics covered in this
chapter are as follows:
• Main Settings
• Advanced Settings
• Chipset Settings
• Security Settings
• Boot Settings
• Save & Exit
BIOS Setup
FWA6706R & FWA6706D User Manual
27
4
3.1 Introduction
The BIOS (Basic Input/Output System) installed in the ROM of your computer
system supports Intel® processors. The BIOS provides critical low-level
support for standard devices such as disk drives, serial ports and parallel
ports. It also provides password protection as well as special support for
detailed fine-tuning of the chipset controlling the entire system.
3.2 BIOS Setup
The BIOS provides a Setup utility program for specifying the system
configurations and settings. The BIOS ROM of the system stores the Setup
utility. When you turn on the computer, the BIOS is immediately activated.
Press the <Del> key immediately allows you to enter the Setup utility. If you
are a little bit late pressing the <Del> key, POST (Power On Self Test) will
continue with its test routines, thus preventing you from invoking the Setup.
If you still need to enter Setup, restart the system by pressing the ”Reset”
button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys.
You can also restart by turning the system Off and back On again.
The following message will appear on the screen:
Press <DEL> to Enter Setup
In general, press the arrow keys to highlight items, <Enter> to select, the
<PgUp> and <PgDn> keys to change entries, <F1> for help, and <Esc> to
quit.
When you enter the BIOS Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup functions
and exit choices.
Warning: It is strongly recommended that you avoid making any changes to
the chipset defaults.
These defaults have been carefully chosen by both AMI and your
system manufacturer to provide the absolute maximum
performance and reliability. Changing the defaults could make the
system unstable and crash in some cases.
28
FWA6706R & FWA6706D User Manual

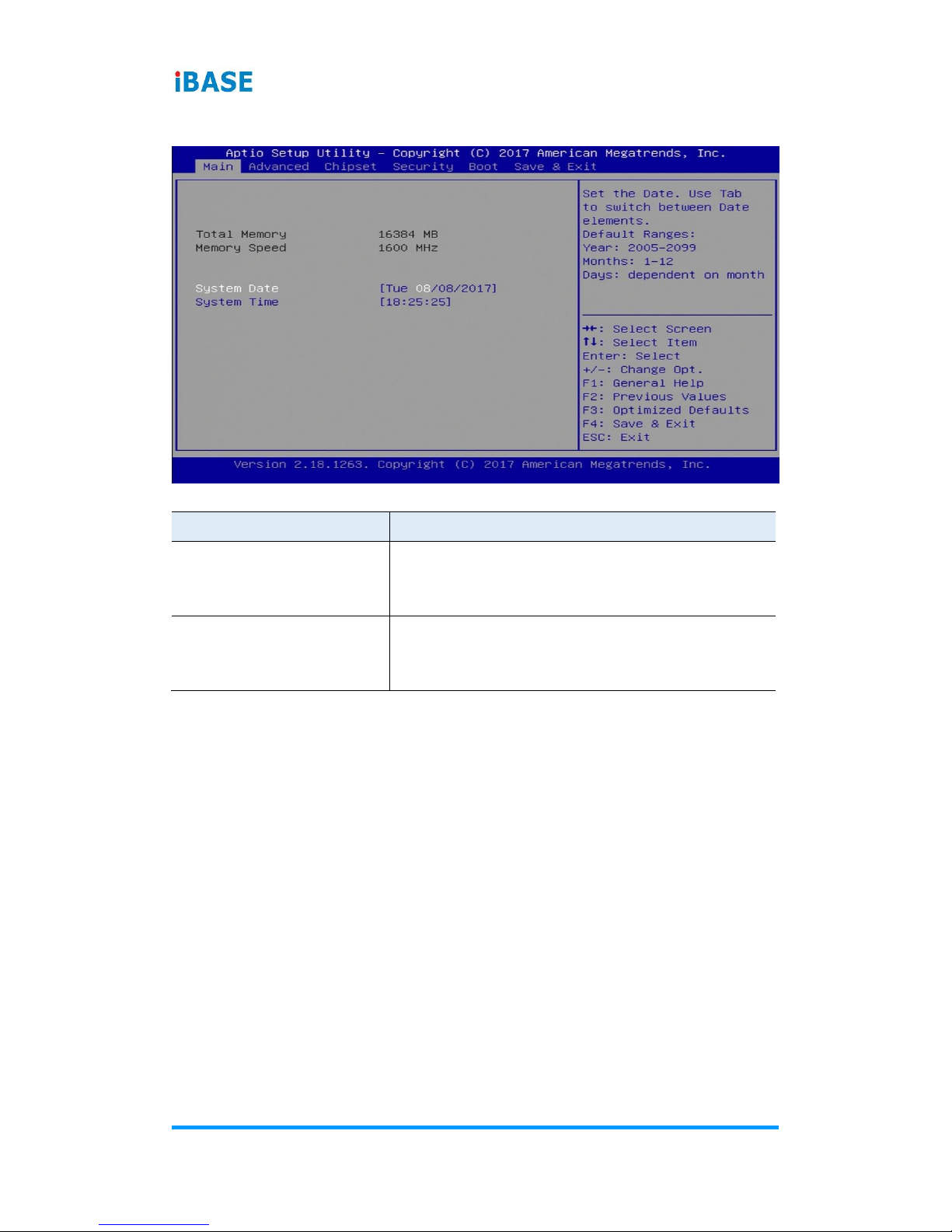

3.3 Main Settings
BIOS Setting
Description
System Date
Sets the date.
Use the <Tab> key to switch between the data
elements.
System Time
Set the time.
Use the <Tab> key to switch between the data
elements.
BIOS Setup
FWA6706R & FWA6706D User Manual
29
4
3.4 Advanced Settings
This section allows you to configure, improve your system and allows you to
set up some system features according to your preference.
3.4.1 Trusted Computing
BIOS Setting
Description
Security Device Support
Enables / Disables BIOS support for security
device. OS will not show the security device.
TCG EFI protocol and INT1A interface will not
be available.
30
FWA6706R & FWA6706D User Manual
3.4.2 ACPI Settings
BIOS Setting
Description
Enable ACPI Auto
Configuration
Enables / Disables BIOS ACPIU auto
configuration.
Enable Hibernation
Enables / Disables the system ability to
hibernate (OS/S4 Sleep State). This option
may not be effective with some OS.
ACPI Sleep State
Selects a ACPI sleep state for the system to
enter.
Options: Suspend Disabled, S3 (Suspend to
RAM)
Lock Legacy Resources
Enables / Disables Lock of Legacy
Resources.
BIOS Setup
FWA6706R & FWA6706D User Manual
31
4
3.4.3 Fintek Super IO Configuration
BIOS Setting
Description
Serial Port Configuration
Sets Parameters of Serial Port(s).
You can enable / disable the serial port and
select an optimal settings for the Super IO
device.
32
FWA6706R & FWA6706D User Manual
3.4.4 Fintek Super IO Hardware Monitor
BIOS Setting
Description
Power Failure
Options: Bypass mode, Always on, Always off.
Temperatures / Voltages
These fields are the parameters of the
hardware monitoring function feature of the
motherboard. The values are read-only as
monitored by the system and showing the PC
health status
Shutdown Temperature
This field enables or disables the Shutdown
Temperature
BIOS Setup
FWA6706R & FWA6706D User Manual
33
4
3.4.5 LAN Bypass Configuration
BIOS Setting
Description
Bypass Quick
Setting
Normal: All LAN ports are in a normal state. WDT
monitor system hang and initiates a reboot.
Bypass: The paired LAN ports in Bypass during
power-off or WDT initiates bypass.
Options: Bypass, Normal, Firewall, Custom Define
You can verify the LAN bypass function via BIOS by referring to the steps
below.
1. Select Bypass mode for the above LAN Bypass Configuration in BIOS.
2. Save the setting and exit.
3. Run your test program under MS-DOS.
4. The lit Bypass LED indicates the bypass function runs properly.
34
FWA6706R & FWA6706D User Manual
3.4.6 Serial Port Console Redirection
BIOS Setting
Description
Console Redirection
Enables / Disables console redirection.
Console Redirection
Settings
Sets up the terminal type, bits, parity, flow control,
combo key, recorder mode, resolution and putty
keypad.
Legacy Console
Redirection Settings
Sets up Legacy Console Redirection.
Console Redirection
Enables / Disables Console Redirection.
BIOS Setup
FWA6706R & FWA6706D User Manual
35
4
3.4.6.1. Console Redirection Settings
BIOS Setting
Description
Therminal Type
Sets the terminal type as VT100, VT100+, VT-UTF8,
or ANSI.
Bits per second
Selects serial port transmission speed. The speed
msut be matched on the other side. Long or noisy
lines may require lower speeds.
Options: 9600 19200, 38400, 57600, 115200
Data Bits
Options: 7, 8
Parity
A parity bit can be sent with the data bits to detect
some transmission errors.
Options: None, Even, Odd, Mark, Space
Stop Bits
Stop bits indicate the end of a serial data packet. (A
start bit indicates the beginning.) The standard
setting is 1 stop bit.
Options: 1, 2
Flow Control
Flow control can prevent data loss from buffer
overflow. When sending data, if the receiving buffers
are full, a “stop” signal can be sent to stop the data
flow.
Options: None, Hardware RTS/CTS
VT-UTFB Combo
Key Support
Enables / Disables VT-UTFB combination key
support for ANSI/VT100 terminals.
Recorder Mode
Enabling this mode allows only text to be sent. This
is to capture terminal data.
36
FWA6706R & FWA6706D User Manual
BIOS Setting
Description
Resolution 100x31
Enables / Disables extended terminal resolution.
Legacy OS
Redirection
On Legacy OS, the number of rows and columns
supported redirection.
Options: 80 x 24, 80 x 25
Putty Keypad
Selects function eky and keypad on Putty.
Options: VT100, Linux, XTERMR6, SC0, ESCN,
VT400
Redirection After
BIO
When Bootloader is selected, the Legacy Console
Redirection is disabled before booting to legacy OS.
Options: Always Enable, Bootloader
3.4.6.2. Legacy Console Redirection Settings
BIOS Setting
Description
Legacy Serial
Redirec
Selects a COM Port to display redirection of Legacy
OS and Legacy OPROM Messages.
Options: COMO, COM1 (Disabled), COM2 (Pci
Bus0, Dev0, Func0) (Disabled)
BIOS Setup
FWA6706R & FWA6706D User Manual
37
4
3.4.6.3. Console Redirection
BIOS Setting
Description
Legacy Serial
Redirec
Selects a COM Port to display redirection of Legacy
OS and Legacy OPROM Messages.
Options: COMO, COM1 (Disabled), COM2 (Pci
Bus0, Dev0, Func0) (Disabled)
38
FWA6706R & FWA6706D User Manual
3.4.7 CPU Configuration
BIOS Setting
Description
Socket 0 CPU Information
Displays the socket specific CPU information.
CPU Power Management
Configures CPU power management.
Active Processor Core
Enables / Disables number of cores in each
processor package.
Monitor Mwait
Enables / Disables the Monitor Mwait.
Intel(R) SpeedStep (tm)
Enables / Disables the function to allow more
than two frequency ranges to be supported.
Turbo Mode
Enables / Disables Turbo Mode.
BIOS Setup
FWA6706R & FWA6706D User Manual
39
4
3.4.7.1. CPI Power Management
BIOS Setting
Description
Turbo Mode
Enables / Disables the turbo mode.
Boot performance
mode
Selects the performance state that the BIOS will set
before OS handoff.
Options: Max Performance, Max Battery
40
FWA6706R & FWA6706D User Manual
3.4.8 Network Stack Configuration
BIOS Setting
Description
Network Stack
Enables / Disables UEFI Network Stack.
BIOS Setup
FWA6706R & FWA6706D User Manual
41
4
3.4.9 CSM Configuration
BIOS Setting
Description
CSM Support
Enables / Disables CSM support.
GateA20 Active
• Upon Request disables GA20 when using
BIOS services.
• Always cannot disable GA20, but is useful
when any RT code is executed above 1 MB.
INT19 Trap Response
Sets how BIOS reacts on INT19 trap by Option
ROM.
• Immediate executes the trap right away.
• Postponed executes the trap during legacy
boot.
Boot option filter
Controls the priority of Legacy and UEFI
ROMs.
Options: UEFI and Legacy / Legacy only / UEFI
only
Storage
Controls the execution of UEFI and Legacy
Storage OpROM.
Options: Do not lanuch / UEFI / Legacy
Video
Controls the execution of UEFI and Legacy
Video OpROM.
Options: Do not lanuch / UEFI / Legacy
Other PCI devices
Determines OpROM execution policy for
devices other than network, storage or video.
Options: Do not lanuch / UEFI / Legacy
42
FWA6706R & FWA6706D User Manual
3.4.10 USB Configuration
BIOS Setting
Description
Legacy USB Support
Enables / Disables Legacy USB support.
• Auto disables legacy support if there is no
USB device connected.
• Disable keeps USB devices available only
for EFI applications.
XHCI Hand-pff
This is a workaround for OSes without XHCI
hand-off support. The XHCI ownership change
should be claimed by XHCI driver.
USB Mass Storage Driver
Support
Enables / Disables USB mass storage driver
support.
USB Transfer time-out
The time-out value for control, bulk, and
Interrupt transfers.
Options: 1 sec / 5 sec / 10 sec / 20 sec
Device reset time-out
Seconds of delaying execution of start unit
command to USB mass storage device.
Options: 10 sec / 20 sec / 30 sec / 40 sec
Device power-up delay
The maximum time the device will take before it
properly reports itself to the Host Controller.
Auto uses default value for a Root port it is
100ms. But for a Hub port, the delay is taken
from Hub descriptor.
Options: Auto / Manual
BIOS Setup
FWA6706R & FWA6706D User Manual
43
4
3.5 Chipset
BIOS Setting
Description
North Bridge
North Bridge Parameters
South Cluster Configuration
South Cluster Configuration
3.5.1 North Bridge
BIOS Setting
Description
Max TOLUD
Maximum Value of TOLUD.
Options: 2 GB, 2.25 GB, 2.5 GB, 2.75 GB, 3
GB
44
FWA6706R & FWA6706D User Manual
3.5.2 South Cluster Configuration
BIOS Setting
Description
HD-Audio Configuration
HD-Audio configuration settings
PCI Express
Configuration
PCIe configuration settings
SATA Drivers
Press Enter to Select the SATA device
configuration setup options.
USB Configuration
USB configuration settings
3.5.2.1. HD-Audio Configuration
BIOS Setting
Description
HD-Audio Support
Enables / Disables HD-Audio support.
BIOS Setup
FWA6706R & FWA6706D User Manual
45
4
3.5.2.2. PCI Express Configuration
BIOS Setting
Description
PCI Express Root
Ports
Controls the PCIe root port(s).
“Auto” disables the unused root port automatically for
the most optimumpower savings.
BIOS Setting
Description
PCI Express Root
Ports
Controls the PCIe root port(s).
“Auto” disables the unused root port automatically for
the most optimumpower savings.
Options: Enable / Disable / Auto
46
FWA6706R & FWA6706D User Manual
BIOS Setting
Description
ASPM
Sets up PCI Express active state power
management.
Options: Disable / L0s / L1 / L0sL1 / Auto
L1 Substates
Sets up PCI Express L1 Substates.
Options: Disabled / L1.1 / L1.2 / L1.1 & L1.2
PME SCI
Enables / Disables PCIe PME SCI.
PCIe Speed
Configures PCIe speed.
Options: Auto, Gen1, Gen2
3.5.2.3. SATA Drivers
BIOS Setting
Description
Chipset SATA
Enables / Disables the Chipset SATA controller. The
chipset SATA controller supports the 2 black internal
SATA ports (up to 3 Gb/s supported per port).
SATA Mode
Selection
Determines how SATA controller(s) operate.
Options: AHCI
BIOS Setup
FWA6706R & FWA6706D User Manual
47
4
3.5.2.4. USB Configuration
BIOS Setting
Description
HSCI Pre-Boot
Driver
Enables / Disables XHCI pre-boot driver support.
XHCI Mode
Once disabled, XHCI controller would be function
disabled, none of the USB devices are detectable
and usable during boot and in OS. Do not disable it
unless for debug.
48
FWA6706R & FWA6706D User Manual

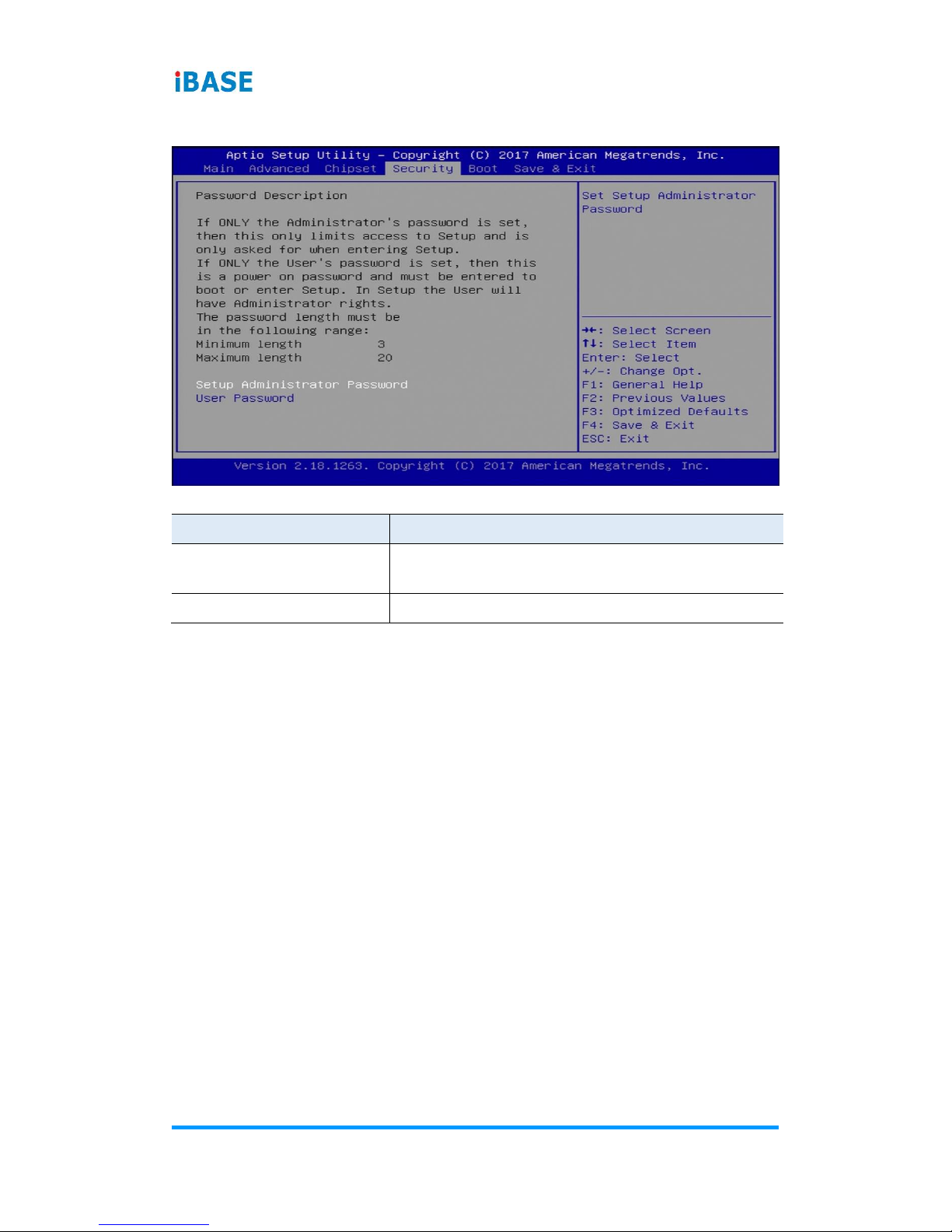

3.6 Security Settings
BIOS Setting
Description
Administrator Password
Sets an administrator password for the setup
utility.
User Password
Sets a user password.
BIOS Setup
FWA6706R & FWA6706D User Manual
49
4
3.7 Boot Settings
BIOS Setting
Description
Setup Prompt Timeout
Number of seconds to wait for setup activation
key.
65535 (0xFFFF) means indefinite waiting.
Bootup NumLock State
Selects the keyboard NumLock state.
Quiet Boot
Enables / Disables Quiet Boot option.
New Boot Option Policy
Controls the placement of newly detected UEFI
boot options.
Options: Default, Place First, Place Last
Boot Mode Select
Selects the boot mode as Legacy or UEFI.
Boot Option Priorities
Sets the system boot order priorities for hard
disk, CD/DVD, USB, Network.
50
FWA6706R & FWA6706D User Manual
3.8 Save & Exit Settings
BIOS Setting
Description
Save Changes and Exit
Exits system setup after saving the changes.
Discard Changes and
Exit
Exits system setup without saving any changes.
Save Changes and Reset
Resets the system after saving the changes.
Discard Changes and
Reset
Resets system setup without saving any
changes.
Save Changes
Saves changes done so far to any of the setup
options.
Discard Changes
Discards changes done so far to any of the
setup options.
Restore Defaults
Restores / Loads defaults values for all the
setup options.
Save as User Defaults
Saves the changes done so far as User
Defaults.
Restore User Defaults
Restores the user defaults to all the setup
options.
51
Appendix
This section provides the mapping addresses of peripheral
devices and the sample code of watchdog timer configuration.
• I/O Port Address Map
• Interrupt Request Lines (IRQ)
• Watchdog Timer Configuration
52
FWA6706R & FWA6706D User Manual
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port addresses
which also becomes the identity of the device. The following table lists the I/O
port addresses used.
Address
Device Description
0x00000A00-0x00000A0F
Motherboard resources
0x00000A10-0x00000A1F
Motherboard resources
0x00000A20-0x00000A2F
Motherboard resources
0x0000002E-0x0000002F
Motherboard resources
0x0000004E-0x0000004F
Motherboard resources
0x00000061-0x00000061
Motherboard resources
0x00000063-0x00000063
Motherboard resources
0x00000065-0x00000065
Motherboard resources
0x00000067-0x00000067
Motherboard resources
0x00000070-0x00000070
Motherboard resources
0x00000070-0x00000070
System CMOS/real time clock
0x00000080-0x0000008F
Motherboard resources
0x00000092-0x00000092
Motherboard resources
0x000000B2-0x000000B3
Motherboard resources
0x00000680-0x0000069F
Motherboard resources
0x00000400-0x0000047F
Motherboard resources
0x00000500-0x000005FE
Motherboard resources
0x00000600-0x0000061F
Motherboard resources
0x0000164E-0x0000164F
Motherboard resources
0x0000F040-0x0000F05F
Intel(R) Celeron(R)/Pentium(R) Processor
SMBUS - 5AD4
0x0000E000-0x0000EFFF
Intel(R) Celeron(R)/Pentium(R) Processor
PCI Express Root Port - 5AD9
0x0000D000-0x0000DFFF
Intel(R) Celeron(R)/Pentium(R) Processor
PCI Express Root Port - 5ADA
0x000003F8-0x000003FF
Communications Port (COM1)
0x0000B000-0x0000BFFF
PCI-to-PCI Bridge
0x0000C000-0x0000CFFF
PCI-to-PCI Bridge
Appendix
FWA6706R & FWA6706D User Manual
53
Address
Device Description
0x00009000-0x00009FFF
PCI-to-PCI Bridge
0x00009000-0x00009FFF
Intel(R) Celeron(R)/Pentium(R) Processor
PCI Express Root Port - 5AD8
0x00009000-0x00009FFF
PCI-to-PCI Bridge
0x0000A000-0x0000AFFF
PCI-to-PCI Bridge
0x00000000-0x0000006F
PCI Express Root Complex
0x00000078-0x00000CF7
PCI Express Root Complex
0x00000D00-0x0000FFFF
PCI Express Root Complex
0x00000020-0x00000021
Programmable interrupt controller
0x00000024-0x00000025
Programmable interrupt controller
0x00000028-0x00000029
Programmable interrupt controller
0x0000002C-0x0000002D
Programmable interrupt controller
0x00000030-0x00000031
Programmable interrupt controller
0x00000034-0x00000035
Programmable interrupt controller
0x00000038-0x00000039
Programmable interrupt controller
0x0000003C-0x0000003D
Programmable interrupt controller
0x000000A0-0x000000A1
Programmable interrupt controller
0x000000A4-0x000000A5
Programmable interrupt controller
0x000000A8-0x000000A9
Programmable interrupt controller
0x000000AC-0x000000AD
Programmable interrupt controller
0x000000B0-0x000000B1
Programmable interrupt controller
0x000000B4-0x000000B5
Programmable interrupt controller
0x000000B8-0x000000B9
Programmable interrupt controller
0x000000BC-0x000000BD
Programmable interrupt controller
0x000004D0-0x000004D1
Programmable interrupt controller
0x0000F000-0x0000F03F
Intel(R) HD Graphics
0x0000F090-0x0000F097
Standard SATA AHCI Controller
0x0000F080-0x0000F083
Standard SATA AHCI Controller
0x0000F060-0x0000F07F
Standard SATA AHCI Controller
0x00000040-0x00000043
System timer
0x00000050-0x00000053
System timer
54
FWA6706R & FWA6706D User Manual
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the service
required. The following table shows the IRQ used by the devices on board.
Level
Function
IRQ 25
High Definition Audio Controller
IRQ 39
Intel SD Host Controller
IRQ 8
High precision event timer
IRQ 4294967261
Intel(R) I211 Gigabit Network Connection
IRQ 4294967260
Intel(R) I211 Gigabit Network Connection
IRQ 4294967259
Intel(R) I211 Gigabit Network Connection
IRQ 4294967258
Intel(R) I211 Gigabit Network Connection
IRQ 4294967257
Intel(R) I211 Gigabit Network Connection
IRQ 4294967256
Intel(R) I211 Gigabit Network Connection
IRQ 4
Communications Port (COM1)
IRQ 4294967255
Intel(R) USB 3.0 eXtensible Host Controller - 1.0
(Microsoft)
IRQ 4294967279
Intel(R) I211 Gigabit Network Connection #3
IRQ 4294967278
Intel(R) I211 Gigabit Network Connection #3
IRQ 4294967277
Intel(R) I211 Gigabit Network Connection #3
IRQ 4294967276
Intel(R) I211 Gigabit Network Connection #3
IRQ 4294967275
Intel(R) I211 Gigabit Network Connection #3
IRQ 4294967274
Intel(R) I211 Gigabit Network Connection #3
IRQ 4294967273
Intel(R) I211 Gigabit Network Connection #4
IRQ 4294967272
Intel(R) I211 Gigabit Network Connection #4
IRQ 4294967271
Intel(R) I211 Gigabit Network Connection #4
IRQ 4294967270
Intel(R) I211 Gigabit Network Connection #4
IRQ 4294967269
Intel(R) I211 Gigabit Network Connection #4
IRQ 4294967268
Intel(R) I211 Gigabit Network Connection #4
IRQ 54 ~ IRQ 204
Microsoft ACPI-Compliant System
IRQ 256 ~ IRQ 511
Microsoft ACPI-Compliant System
IRQ 4294967292
Intel(R) Trusted Execution Engine Interface
IRQ 4294967293
Intel(R) HD Graphics
IRQ 4294967291
Intel(R) I211 Gigabit Network Connection #5
Appendix
FWA6706R & FWA6706D User Manual
55
Level
Function
IRQ 4294967290
Intel(R) I211 Gigabit Network Connection #5
IRQ 4294967289
Intel(R) I211 Gigabit Network Connection #5
IRQ 4294967288
Intel(R) I211 Gigabit Network Connection #5
IRQ 4294967287
Intel(R) I211 Gigabit Network Connection #5
IRQ 4294967286
Intel(R) I211 Gigabit Network Connection #5
IRQ 14
Intel(R) Serial IO GPIO Host Controller - INT3452
IRQ 4294967294
Standard SATA AHCI Controller
IRQ 4294967285
Intel(R) I211 Gigabit Network Connection #6
IRQ 4294967284
Intel(R) I211 Gigabit Network Connection #6
IRQ 4294967283
Intel(R) I211 Gigabit Network Connection #6
IRQ 4294967282
Intel(R) I211 Gigabit Network Connection #6
IRQ 4294967281
Intel(R) I211 Gigabit Network Connection #6
IRQ 4294967280
Intel(R) I211 Gigabit Network Connection #6
IRQ 4294967267
Intel(R) I211 Gigabit Network Connection #2
IRQ 4294967266
Intel(R) I211 Gigabit Network Connection #2
IRQ 4294967265
Intel(R) I211 Gigabit Network Connection #2
IRQ 4294967264
Intel(R) I211 Gigabit Network Connection #2
IRQ 4294967263
Intel(R) I211 Gigabit Network Connection #2
IRQ 4294967262
Intel(R) I211 Gigabit Network Connection #2
IRQ 0
System timer
56
FWA6706R & FWA6706D User Manual
C. Digital I/O Sample Code
1. DIO Sample Code: The file F81964.cpp
//======================================================================
=====
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR
// PURPOSE.
//
//======================================================================
=====
#include "F81964.H"
#include <dos.h>
//======================================================================
=====
unsigned int F81964_BASE;
void Unlock_F81964 (void);
void Lock_F81964 (void);
//======================================================================
=====
unsigned int Init_F81964(void)
{
unsigned int result; //
unsigned char ucDid;
F81964_BASE = 0x4E;
result = F81964_BASE;
ucDid = Get_F81964_Reg(0x20);
if ((ucDid == 0x07) || (ucDid == 0x10) || (ucDid == 0x15)) //Fintek
81865/81846/81866/81946/81964
{ goto Init_Finish; }
F81964_BASE = 0x2E;
result = F81964_BASE;
ucDid = Get_F81964_Reg(0x20);
if ((ucDid == 0x07) || (ucDid == 0x10) || (ucDid == 0x15)) //Fintek
81865/81846/81866/81946/81964
{ goto Init_Finish; }
F81964_BASE = 0x00;
result = F81964_BASE;
Init_Finish:
return (result);
}
//======================================================================
=====
Appendix
FWA6706R & FWA6706D User Manual
57
void Unlock_F81964 (void)
{
outportb(F81964_INDEX_PORT, F81964_UNLOCK);
outportb(F81964_INDEX_PORT, F81964_UNLOCK);
}
//======================================================================
=====
void Lock_F81964 (void)
{
outportb(F81964_INDEX_PORT, F81964_LOCK);
}
//======================================================================
=====
void Set_F81964_LD( unsigned char LD)
{
Unlock_F81964();
outportb(F81964_INDEX_PORT, F81964_REG_LD);
outportb(F81964_DATA_PORT, LD);
Lock_F81964();
}
//======================================================================
=====
void Set_F81964_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_F81964();
outportb(F81964_INDEX_PORT, REG);
outportb(F81964_DATA_PORT, DATA);
Lock_F81964();
}
//======================================================================
=====
unsigned char Get_F81964_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_F81964();
outportb(F81964_INDEX_PORT, REG);
Result = inportb(F81964_DATA_PORT);
Lock_F81964();
return Result;
}
//======================================================================
=====
58
FWA6706R & FWA6706D User Manual
2. DIO Sample Code: The file F81964.h
//======================================================================
=====
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR
// PURPOSE.
//
//======================================================================
=====
#ifndef __F81964_H
#define __F81964_H 1
//======================================================================
=====
#define F81964_INDEX_PORT (F81964_BASE)
#define F81964_DATA_PORT (F81964_BASE+1)
//======================================================================
=====
#define F81964_REG_LD 0x07
//======================================================================
=====
#define F81964_UNLOCK 0x87
#define F81964_LOCK 0xAA
//======================================================================
=====
unsigned int Init_F81964(void);
void Set_F81964_LD( unsigned char);
void Set_F81964_Reg( unsigned char, unsigned char);
unsigned char Get_F81964_Reg( unsigned char);
//======================================================================
=====
#endif //__F81964_H
Appendix
FWA6706R & FWA6706D User Manual
59
3. DIO Sample Code: The file MAIN.CPP
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "F81964.H"
//--------------------------------------------------------------------------void ClrKbBuf(void);
int main (int argc, char *argv[]);
//--------------------------------------------------------------------------int main (int argc, char *argv[])
{
unsigned char result;
char SIO;
SIO = Init_F81964();
if (SIO == 0)
{
printf("Can not detect Fintek F81964, program abort.\n");
return(1);
}
Set_F81964_LD(0x06);
//switch to logic device 6
result = ((Get_F81964_Reg(0xE2)) & 0x04) ? 0x01 : 0x00; //result = 0x00 GPI is
Low / result = 0x01 GPI is High
return (result);
}
60
FWA6706R & FWA6706D User Manual
D. Watchdog Timer Configuration
The Watchdog Timer (WDT) is used to generate a variety of output signals
after a user programmable count. The WDT is suitable for the use in the
prevention of system lock-up, such as when software becomes trapped in a
deadlock. Under these sorts of circumstances, the timer will count to zero and
the selected outputs will be driven.
Under normal circumstance, you will need to restart the WDT at regular
intervals before the timer counts to zero.
Sample Code
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "F81964.H"
//--------------------------------------------------------------------------int main (int argc, char *argv[]); void EnableWDT(int);
void DisableWDT(void);
//--------------------------------------------------------------------------int main (int argc, char *argv[])
{
unsigned char bBuf;
unsigned char bTime;
char **endptr;
char SIO;
printf("Fintek 81964 watch dog program\n");
SIO = Init_F81964();
if (SIO == 0)
{
printf("Can not detect Fintek 81964, program abort.\n");
return(1);
}//if (SIO == 0)
if (argc != 2)
{
printf(" Parameter incorrect!!\n");
return (1);
}
Appendix
FWA6706R & FWA6706D User Manual
61
bTime = strtol (argv[1], endptr, 10);
printf("System will reset after %d seconds\n", bTime);
if (bTime)
{ EnableWDT(bTime); }
else
{ DisableWDT(); }
return 0;
}
//--------------------------------------------------------------------------void EnableWDT(int interval)
{
unsigned char bBuf;
bBuf = Get_F81964_Reg(0x2B);
bBuf &= (~0x20);
Set_F81964_Reg(0x2B, bBuf); //Enable WDTO
Set_F81964_LD(0x07); //switch to logic device 7
Set_F81964_Reg(0x30, 0x01); //enable timer
bBuf = Get_F81964_Reg(0xF5);
bBuf &= (~0x0F);
bBuf |= 0x52;
Set_F81964_Reg(0xF5, bBuf); //count mode is second
Set_F81964_Reg(0xF6, interval); //set timer
bBuf = Get_F81964_Reg(0xFA);
bBuf |= 0x01;
Set_F81964_Reg(0xFA, bBuf); //enable WDTO output
bBuf = Get_F81964_Reg(0xF5);
bBuf |= 0x20;
Set_F81964_Reg(0xF5, bBuf); //start counting
}
//--------------------------------------------------------------------------void DisableWDT(void)
{
unsigned char bBuf;
Set_F81964_LD(0x07); //switch to logic device 7
bBuf = Get_F81964_Reg(0xFA);
bBuf &= ~0x01;
Set_F81964_Reg(0xFA, bBuf); //disable WDTO output
bBuf = Get_F81964_Reg(0xF5);
bBuf &= ~0x20;
bBuf |= 0x40;
Set_F81964_Reg(0xF5, bBuf); //disable WDT
}
//---------------------------------------------------------------------------
62
FWA6706R & FWA6706D User Manual
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include "F81964.H"
#include <dos.h>
//--------------------------------------------------------------------------unsigned int F81964_BASE; void Unlock_F81964 (void); void Lock_F81964 (void);
//--------------------------------------------------------------------------unsigned int Init_F81964(void)
{
unsigned int result;
unsigned char ucDid;
F81964_BASE = 0x4E;
result = F81964_BASE;
ucDid = Get_F81964_Reg(0x20);
if (ucDid == 0x07) //Fintek 81964
{ goto Init_Finish; }
F81964_BASE = 0x2E;
result = F81964_BASE;
ucDid = Get_F81964_Reg(0x20);
if (ucDid == 0x07) //Fintek 81964
{ goto Init_Finish; }
F81964_BASE = 0x00;
result = F81964_BASE;
Init_Finish:
return (result);
}
//--------------------------------------------------------------------------void Unlock_F81964 (void)
{
outportb(F81964_INDEX_PORT, F81964_UNLOCK);
outportb(F81964_INDEX_PORT, F81964_UNLOCK);
}
//--------------------------------------------------------------------------void Lock_F81964 (void)
{
outportb(F81964_INDEX_PORT, F81964_LOCK);
}
//--------------------------------------------------------------------------void Set_F81964_LD( unsigned char LD)
{
Unlock_F81964();
Appendix
FWA6706R & FWA6706D User Manual
63
outportb(F81964_INDEX_PORT, F81964_REG_LD);
outportb(F81964_DATA_PORT, LD); Lock_F81964();
}
//--------------------------------------------------------------------------void Set_F81964_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_F81964();
outportb(F81964_INDEX_PORT, REG);
outportb(F81964_DATA_PORT, DATA);
Lock_F81964();
}
//--------------------------------------------------------------------------unsigned char Get_F81964_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_F81964();
outportb(F81964_INDEX_PORT, REG);
Result = inportb(F81964_DATA_PORT);
Lock_F81964();
return Result;
}
//---------------------------------------------------------------------------
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#ifndef F81964_H
#define F81964_H 1
//--------------------------------------------------------------------------#define F81964_INDEX_PORT (F81964_BASE)
#define F81964_DATA_PORT (F81964_BASE+1)
//--------------------------------------------------------------------------#define F81964_REG_LD 0x07
//--------------------------------------------------------------------------#define F81964_UNLOCK 0x87
#define F81964_LOCK 0xAA
//--------------------------------------------------------------------------unsigned int Init_F81964(void);
void Set_F81964_LD( unsigned char);
void Set_F81964_Reg( unsigned char, unsigned char); unsigned char
Get_F81964_Reg( unsigned char);
//--------------------------------------------------------------------------#endif // F81964_H
