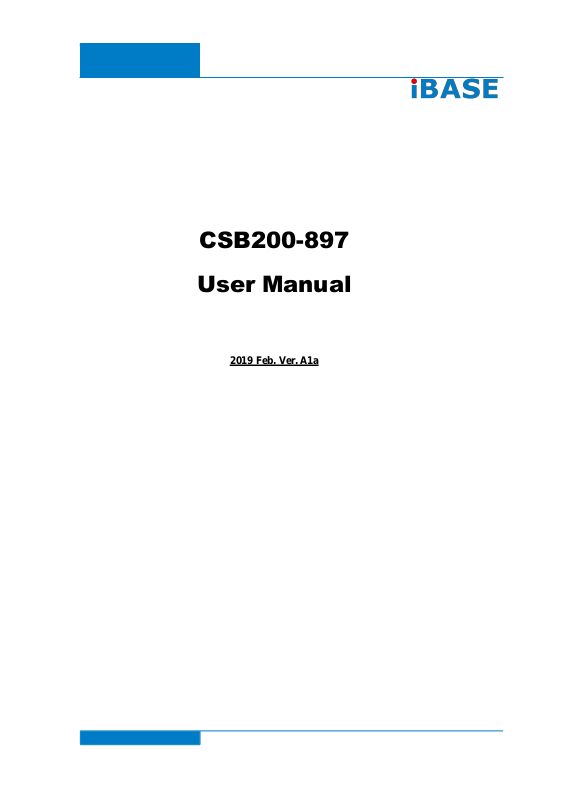

CSB200-897

User Manual

2019 Feb. Ver. A1a

IBASE Technology Inc.

CSB200-897 User Manual

1

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC. (“IBASE”).

Products and corporate names mentioned in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only. All trademarks are the property of their respective owners.

Every effort has been made to ensure that the contents of this manual are correct and up to date. However, the manufacturer makes no guarantee regarding the accuracy of its contents, and reserves the right to make changes without prior notice.

CSB200-897 User Manual

2

Table of Contents

Setting up your system ..................................................................................................... 3

Care during use ................................................................................................................ 4

Acknowledgments ............................................................................................................ 5

CHAPTER 1 INTRODUCTION ............................................................................................ 6

1.1 General Description .................................................................................................... 6

1.2 System Specifications ................................................................................................. 7

1.2.1 Hardware Specifications .................................................................................... 7

1.2.2 Dimensions ...................................................................................................... 9

1.2.3 I/O View......................................................................................................... 10

1.3 Exploded View of the CSB200-897 Assembly.............................................................. 11

1.3.1 Parts Description .................................................................................................... 11

1.4 Packing List .............................................................................................................. 12

1.4.1 Optional Items ....................................................................................................... 12

CHAPTER 2 MOTHERBOARD INTRODUCTION ................................................................. 13

2.1 Introduction ............................................................................................................. 13

2.2 Board Dimensions .................................................................................................... 15

2.3 Setting the Jumpers .................................................................................................. 16

2.4 Jumper Locations on IB897 ........................................................................................ 16

CHAPTER 3 BIOS SETUP ................................................................................................. 34

CHAPTER 4 DRIVERS INSTALLATION ............................................................................... 51

4.1 Intel Chipset Software Installation Utility ................................................................... 51

4.2 VGA Drivers Installation ............................................................................................ 52

4.3 Realtek HD Audio Driver Installation .......................................................................... 53

4.4 Intel Trusted Execution Engine Installation ................................................................. 54

Appendix ..................................................................................................................... 55

Wall Mounting Requirements ......................................................................................... 56

Selecting the Location .................................................................................................... 56

CSB200-897 User Manual

3

Safety Information

Your CSB200-897 is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.

• Do not use this product near water.

• Set up the system on a stable surface. Do not secure the system on any unstable

plane.

• Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

• Slots and openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.

• This system should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

• Use this product in environments with ambient temperatures between 0˚C and 40˚C.

• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

• DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THESTORAGE TEMPERATURE MAY GO BELOW -40° C OR ABOVE 85° C. THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.

CSB200-897 User Manual

4

Care during use

• Do not walk on the power cord or allow anything to rest on it.

• Do not spill water or any other liquids on your system.

• When the system is turned off, a small amount of electrical current still flows.

Always unplug all power, and network cables from the power outlets before cleaning the system.

• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

➢ The power cord or plug is damaged. ➢ Liquid has been spilled into the system. ➢ The system does not function properly even if you follow the operating

instructions.

➢ The system was dropped or the cabinet is damaged.

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

NO DISASSEMBLY

The warranty does not apply to the products that have been disassembled by users

WARNING

HAZARDOUS MOVING PARTS

KEEP FINGERS AND OTHER BODY PARTS AWAY

5IBASE Technology Inc.

Acknowledgments

• AMI is a registered trademark of AMI Software International, Inc.

• AMD and ATI are registered trademarks of AMD Corporation.

• Microsoft Windows is a registered trademark of Microsoft Corporation.

• FINTEK is a registered trademark of FINTEK Electronics Corporation.

• REALTEK is a registered trademark of REALTEK Electronics Corporation.

• All other product names or trademarks are properties of their respective owners.

CSB200-897 User Manual

6

CHAPTER 1 INTRODUCTION

1.1 General Description

The fanless CSB200-897 system comes with the IB897 3.5-inch SBC and integrates the Intel® Atom™ E3845 processor that featuring 22nm microarchitecture and 3-D Tri-Gate transistors. With unparalleled reliability, the

1.91GHz processor allows the CSB200-897 to operate in wide temperatures at -30°C to +60°C in harsh industrial environments for 24/7 operation. The CSB200-897 is ideal for IOT (Internet of Things), factory automation, In-vehicle and other rugged applications that could utilize its 12V to 24V DC wide-range power input.

Incorporating the E3845 system-on-chip (SoC), the CSB200-897 comes on board with two pieces of 2GB DDR3L-133 SO-DIMM memory. The maximum system memory capacity is 8GB. Moreover, it comes with a variety of functional interface at the rear panel including one USB 2.0, one USB 3.0, DisplayPort, CRT VGA, two serial ports, two Gigabit LAN, and one DC jack connector or a terminal block for 12V~24V DC input.

Measuring 172mm(w) by 112mm(d) by 52mm(h), the black CSB200-897 unit comes with a wall mount kit and optional 60W power adaptor. The model is currently available with either a 2.5-inch 320GB SATA HDD or 64GB industrial grade SSD. Expansion is provided by two Mini PCI-E slots. All units feature IBASE's iSMART green technology for power on/off scheduling and power resume functions.

7IBASE Technology Inc.

1.2 System Specifications

1.2.1 Hardware Specifications

Engineer Specifications

Product Name

CSB200-897 CSB200-897-IT

Motherboard

IB897

CPU type

Intel® Atom

TM

QC E3845 [TDP=10W] (IB897-I45)

Intel® Atom

TM

DC E3827 [TDP=8W] (IB897-I27)

Chipset

Integrated in SoC

Memory

Intel

®

Atom

TM

E3800 SoC processor integrated

memory controller

- DDR3L (1.35V) @1600 MHz , SO-DIMM [204-pin horizontal type] x 2

- Max. 8GB , Non-ECC *memory module with heatsink* [opional]

Storage

1 x 2.5” SATA HDD

2.5” 320GB 5400RPM Toshiba MQ01ABF032 HDD

Front Panel I/O

- 1 x HDD LED

- 1 x PWR LED

- 1 x RST Button

- 1 x ON/OFF Button

- 2 x USB2.0 ports

- 1 x Line-out port

- 1 x MIC-in port 2 x DB9 broken hole [reserved]

Rear Panel I/O

2 x Antenna reserved on real panel 1 x COM Port [ thru pin header ] 1 x DB15 for VGA port [thru pin header] 1 x 12V~24V DC -in (Terminal block 3 pins) 1 x DC jack with lock (share Terminal 3 pins space) 1 x DB9 for COM#1(RS232/422/485, select from BIOS) 1 x USB 3.0 port 1 x USB2.0 port 2 x RJ-45 GbE Connector

CSB200-897 User Manual

8

1 x Display Port

Power Adaptor [optional]

DPS-60PBA-A00 60W Power Adapter Input Voltage: 90~264V Input Frequency: 47~63Hz Output Voltage: 12V/5A

Mounting

Desktop or wall mount

Chassis Material

Aluminum & Steel

Chassis Color

Black

External dimensions

172 (W) x ~111.6 (D) x 52 (H) mm

Operating Temperature

-30°C~60°C (22°F~140°F) [with 2.5” SSD]

-10°C~50°C (14°F~122°F) [with 2.5” HDD]

Storage Temperature

-40°C~85°C (-40°F~185°F)

Relative Humidity 5%~90%@45°C (non-condensing)

Vibration

Operating : 0.25Grms / 5~500Hz Non-operating : 1Grms / 5~500Hz

Shock

Operating : 20G / 11ms Non-operating : 40G / 11ms

Certification

CE / LVD / FCC / CCC / UL-CB

Regulation

RoHS 2.0

Eup/Erp function

N/A

‧This specification is subject to change without prior notice.

9IBASE Technology Inc.

1.2.2 Dimensions

CSB200-897 User Manual

10

1.2.3 I/O View

11IBASE Technology Inc.

1.3 Exploded View of the CSB200-897 Assembly

1.3.1 Parts Description

Part No.

Description

Part No.

Description

1

CSB200-897 Heatsink

2

DIP PCBA, IB897

3

Bracket for easier assembly

4

DIP PCBA, ID737A

5

BASE

6

CSB200-897_Front

7

Bottom side BASE

8

Wall mount bracket

9

2.5” HDD

10

COM port connector

11

VGA connector

12

Power input connector

13

Sticker_12V~24V

14

Gasket

CSB200-897 User Manual

12

1.4 Packing List

Item No.

Description

Qty

1

Driver CD

1

2

User manual

1

3

Wall mount kit

2

1.4.1 Optional Items

WiFi Solution

Description

WiFi module

WIRELESS;PCI-E MINI CARD 802.11B/G/N [AW-NE238H] (A008WLAWNE238H000P)

External Antenna

WiFi Antenna (A055RFA02C2M20800P)

Internal cable-1/2

From Wifi module to Rear/Front panel (A055RFA0000021000P/A055RFA0000032000P)

Bracket

MPCIE-EXT V-B1 Bracket, RoHS; Extend Half to Full size. (SC2MPCIEEXT0B1100P)

3G Solution

Description

ZU 202

Wireless; 3.75G UMTS/HSPA [ZU202] RoHS (A008WIRELESS00520P)

ZU 200

Wireless; 3.75G UMTS/HSPA & GPS Module [ZU200] RoHS (A008WIRELESS00510P)

Cable

Cable; Antenna-2 30CM P 2pcs (C501ANT0200300000P)

Antenna

Antenna; 3G, P, 2pcs (A055ANT0921Q2P000P)

Power kit

Description

Power Adaptor

P/S; ADAPTER 60W 12V 2 PIN bare wire type, DPS-60PBA-A00] RoHS (A005PS060W0702000P)

Power Cord

PW CORD; Chinese/American/Japan 3PIN 10A (A030PCAM040100000P)

13IBASE Technology Inc.

CHAPTER 2 MOTHERBOARD INTRODUCTION

2.1 Introduction

The IB897 is a 3.5-inch single board computer based on the Intel

®

Atom

TM

E3800

series SoC processors.

The IB897 platform is wide temperature for low-power and high-performance designs in a broad range of markets including Industrial Control & Automation, Digital Signage, Thin Client, Electronic Gaming Machines, and SMB storage appliances.

IB897 Features:

•

Onboard Intel

®

Atom

TM

E3845/E3827 SoC 1.91GHz / 1.75GHz

•

Two DDR3L SO-DIMM, 1333 MHz, Max. 8GB memory

•

Integrated graphics for VGA, DisplayPort and 24 bit dual channel LVDS

•

2 x SATA II connector

•

2x COM port connector

•

2 x Mini-PCIe(x1) slots (1x Full-size, 1x Half size)

• Wide temperature operating supporting

•

1x 12V to 24V DC-IN power connector

Product Name

IB897

Form Factor

3.5”

CPU Type

Intel® Atom

TM

QC E3845 [TDP=10W](IB897-I45)

Intel® Atom

TM

DC E3827 [TDP=8W] (IB897-I27)

Package = FCBGA1170,Type-3, 25mmx27mm, 22nm, Tj= -40 ﾟ C to +110ﾟ C

CPU Speed

Intel

®

Atom

TM

QC E3845 (1.91GHz, 2MB cache)

Intel

®

Atom

TM

DC E3827 (1.75GHz, 1MB cache)

Cache

Up to 2MB for IB897-I45P Up to 1MB for IB897-I27P

Chipset

Integratd in Intel

®

Atom

TM

E3800 SoC processor

BIOS

AMI BIOS

Memory

Intel

®

Atom

TM

E3800 SoC processor integrated memory

controller

- DDR3L (1.35V) @1600 MHz , SO-DIMM [204-pin horizontal type] x 2

- Max. 8GB , Non-ECC

CSB200-897 User Manual

14

Display

Intel® Gen7 w/4EUs graphics engines(Gfx freq @ 542MHz/792MHz [Turbo] ) Supports DX 11, OGL 3.0, OCL 1.1, OGLES 2.0, DP x 1 ; CRT x 1 via pin header

LVDS

- LVDS(Thru eDP, via NXP PTN3460 bridge IC) 24-bit dual channels LVDS interface w/DF20 socket x2

LAN

2 x Intel

®

I210IT PCIe Gigabit LAN

[9mm x 9mm @64-QFC package, -40 to 85 degree]

USB (Universal Serial Bus)

Intel® Atom

TM

SoC built-in USB host controller Support USB 2.0 x 4 ports; USB 3.0 x 1 port, USB 2.0 HSIC** x 2 ports (Thru SMSC USB2514)

Serial ATA Ports

Intel® Atom

TM

SoC built-in SATA II controller, supports 2 ports

Audio

Intel

®

Atom

TM

SoC built-in HD Audio controller + Realtek

ALC269QHD Codec w/class-D speaker amplifier(2.3W per channel @ 5V power supply) [7mm x 7mm @ 48-QFN] ; support 2-channel audio out + amp

LPC I/O

Nuvoton NCT5523D [64-pin LQFP, 7x7x1.4mm]

- COM #1 (RS232/422/485) [EXAR SP339EER1 x 1 for

jumper-less]

- COM #2 (RS-232 only) [Hardware Monitor] 2 x Thermal inputs ; 2 x Voltage monitoring ; 1 x Fan Header(DC Fan type)

Digital IO

4 in & 4 out

Expansion Slots

Mini PCI-e socket x 2 (1xFull-sized+1xHalf-sized, both with USB HSIC signal) **Full-sized MiniPCIe(1x) support mSATA**

Edge Connector

DB9 x 1 for COM1 DisplayPort x 1 RJ45 x 2 for LAN 1 & 2 USB 2.0 vertical connector x 1 (from SoC) USB 3.0 vertical connector x 1 (from SoC)

On Board Header/Connector

DF11 2 x 8 pins headers x 1 for CRT DF11 2x4 pins header x 1 for 2 x USB 2.0 (from HSIC) DF20 socket connector x 2 for 24-bit dual channel LVDS 4 pins box header x 1 for backlight/brightness control (PWM mode) DF11 2x6 pins box header x1 for Audio

15IBASE Technology Inc.

4 pins box header x1 for speaker DF11 2x5 pins box header x 1 for COM2 2x5 pins headers x 1 for LPC(80-port card debugging purpose) Mini PCI-e(1x) connector x 2 5 pins box header x 1 for smart battery SATA connector x 2 for SATA device 4-pins power connector x 1 (JST type, For SATA device) 2-pins connector x 1 for power input Micro SD slot x 1(3.3V type only)

Watchdog Timer

Yes (256 segments, 0, 1, 2…255 sec/min)

Power Input

+12V ~ +24V DC-in

RoHS

Yes

Board Size

102mm x 147mm

OS supporting

- Windows 8.1/ Embedded ; Windows 7 / Embedded

- Linux

2.2 Board Dimensions

CSB200-897 User Manual

16

2.3 Setting the Jumpers

Jumpers are used on IB897-I45P to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on IB897-I45P and their respective functions.

2.4 Jumper Locations on IB897

17IBASE Technology Inc.

JP2: LVDS Panel Brightness Control Selection

1 2

JP2

Brightness Control

(PWM mode)

Open

3.3V

Close

5V(Default)

J5: LVDS Panel Power Selection

1

3

J5

Setting

Panel

Voltage

Pin 1-2

Short/Closed

3.3V

(default)

Pin 2-3

Short/Closed

5V

CSB200-897 User Manual

18

JP5: Clear ME Contents

1 3

JP5

Setting

Function

Pin 1-2

Short/Close

d

Normal

Pin 2-3

Short/Close

d

Clear ME

REGISTER

JP6: Clear CMOS Contents

1 3

JP6

Setting

Function

Pin 1-2

Short/Closed

Normal

Pin 2-3

Short/Closed

Clear

CMOS

19IBASE Technology Inc.

Connector Locations on IB897-I45P

Bottom side

CSB200-897 User Manual

20

CN3: USB3.0 Connector CN4, CN5: Gigabit LAN Connector CN4: Intel® I210IT Connector CN5: Intel® I210IT Connector CN6: USB2.0 Connector CN7: DP Connector

CN8: DB9 Connector (COM1)

Signal Name

Pin #

Signal Name

DCD, Data carrier detect

1 6 DSR, Data set ready

RXD, Receive data

2 7 RTS, Request to send

TXD, Transmit data

3 8 CTS, Clear to send

DTR, Data terminal ready

4 9 RI, Ring indicator

GND, ground

5

10

Not Used

COM1 is jumper-less for RS-232, RS-422 and RS-485 and is to be configured with BIOS Selection.

[

Pin #

Signal Name

RS-232

R2-422

RS-485

1

DCD

TX-

DATA-

2

RX

TX+

DATA+

3

TX

RX+

NC

4

DTR

RX-

NC

5

Ground

6

DSR

NC

7

RTS

NC

8

CTS

NC

NC 9 RI

NC

10

NC

21IBASE Technology Inc.

CN9: Micro SD (3.3V) Connector

SW1: Power Switch [For IB897-I45/I27/I15]

CSB200-897 User Manual

22

LED1: Power LED and HDD LED Connector [For IB897-I45/I27/I15] 2x2 Pin-header (2.54mm) [For IB897-I45P/I27P/I15P]

The green LED at the bottom is power LED. The red LED on top is the HDD LED.

1 2

3 4

Signal

Name

#

Signal

Name

VCC3

1 2 HDD_LED

VCC5

3 4 GND

23IBASE Technology Inc.

CN1: SATAII /share mSATA/ Connectors

CN2: SATAII Connectors

SYS_FAN1: SYSTEM Fan Power Connector

1

3

Pin #

Signal Name

1

Ground

2

+12V(500mA)

3

Rotation detection

CSB200-897 User Manual

24

J1: Audio Connector (DF11-12DP-2DSA)

1 11

2 12

Signal Name

Pin #

Signal Name

LINEOUT_R

2 1 LINEOUT_L

Ground

4 3 JD_FRONT

LINEIN_R

6

5

LINEIN_L

Ground

8 7 JD_LINEIN

MIC-R

10 9 MIC_L

Ground

12

11

JD_MIC1

J2: Amplify Connector (JST B4B-PH-K-S )

1 4

Pin #

Signal Name

1

OUTL+

2

OUTL-

3

OUTR-

4

OUTR+

J7: DDR3L SO-DIMM(CH-A) Sockets

** Please note CH-A must be installed for booting up**

25IBASE Technology Inc.

J3: DDR3L SO-DIMM(CH-B) Sockets

J4, J6: LVDS Connectors, (DF20G-20DP-1V)

J4: First Channel LVDS

20 2

19 1

J6: Second Channel LVDS

2

1

20

19

Signal

Name

#

Signal

Name

TX0N

2 1 TX0P

Ground

4 3 Ground

TX1N

6 5 TX1P

Ground

8 7 Ground

TX2N

10 9 TX2P

CSB200-897 User Manual

26

Ground

12

11

Ground

CLKN

14

13

CLKP

Ground

16

15

Ground

TX3N

18

17

TX3P

Power(1A)

20

19

Power

27IBASE Technology Inc.

J9: MCU Flash Connector (factory use only)

4

1

J10: SATA HDD Power Connectors(JST B4B-XH-A)

4

1

Pin #

Signal Name

1

+5V(1A)

2

Ground

3

Ground

4

+12V(1A)

CSB200-897 User Manual

28

J11: Smart Battery(JST B5B-PH-K-S )

1

5

Pin #

Signal Name

1

RST#

2

ICHSWI#

3

Ground

4

SMB_DATA

5

SMB_CLK

J12: Mini PCIE Connector (share mSATA)

J13: Mini PCIE Connector (Half Size)

29IBASE Technology Inc.

J14: USB 2.0 Connector(DF11-8DP-2DSA)

7

8

1

2

Signal

Name

#

Signal

Name

Vcc

1 2 Ground

D0-

3 4 D1+

D0+

5 6 D1-

Ground

7 8 Vcc

J15: COM2/RS232 Serial Port(DF11-10DP-2DSA)

1 9

2 10

Signal Name

Pin #

Signal Name

DCD, Data carrier detect

1 2 RXD, Receive data

TXD, Transmit data

3 4 Data terminal ready

GND, ground

5 6 DSR, Data set ready

RTS, Request to send

7 8 CTS, Clear to send

RI, Ring indicator

9

10

Not Used

CSB200-897 User Manual

30

J16: VGA Connector (DF11-16DP-2DSA)

16 2

15 1

Signal

Name

#

Signal

Name

+5V

2 1 Red

Ground

4 3 Green

N.C

6 5 Blue

DDCDATA

8 7 N.C

H_SYNC

10 9 GND

V_SYNC

12

11

GND

DDCCLK

14

13

GND

N.C.

16

15

GND

J17: Digital I/O(signal level 5V)Connector(2.54mm)

2 10

1 9

Signal Name

Pin #

Signal Name

GND

1 2 VCC(500mA)

OUT3

3 4 OUT1

OUT2

5 6 OUT0

IN3

7 8 IN1

IN2

9

10

IN0

31IBASE Technology Inc.

J18: Board Input Power Connector(HK_WAFER396-2S-WV )

2

1

Pin #

Signal Name

1

+9V to +30V(80W)

2

GND

J19: Reset Switch(2mm)

2 1

Pin #

Signal Name

1

Reset Switch

2

Ground

J20: Power Switch(2mm)

1 2

Pin # Signal Name

CSB200-897 User Manual

32

1

Power Switch

2

Ground

JP3: LCD Backlight Connector(JST B4B-PH-K-S )

4 1

Pin #

Signal Name

1

+12V(1A)

2

Backlight Enable

3

Brightness Control

4

Ground

33IBASE Technology Inc.

JP4: SPI Flash Connector (factory use only)

2 10

1 9

JP7: Factory use only

1 2

JP8: Debug 80 Port Connector (factory use only)

2 10

1 9

CSB200-897 User Manual

34

CHAPTER 3 BIOS SETUP

This chapter describes the different settings available in the AMI BIOS that

comes with the board. The topics covered in this chapter are as follows:

BIOS Introduction The BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

BIOS Setup The BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press <DEL> or <F2> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

Warning: It is strongly recommended that you avoid making any

changes to the chipset defaults. These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.

35IBASE Technology Inc.

Main Settings

Main Advanced

Chipset Boot

Security Save & Exit

BIOS Information

System Language

System Date

System Time

Access Level

[English]

[Tue 01/20/2009]

[21:52:06]

Administrator

Choose the system default

language

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Field

F1: General Help

F2: Previous Values

F3: Optimized Default

F4: Save ESC: Exit

System Language

Choose the system default language.

System Date

Set the Date. Use Tab to switch between Data elements.

System Time

Set the Time. Use Tab to switch between Data elements.

CSB200-897 User Manual

36

Advanced Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Main Advanced

Chipset Boot Security Save & Exit

► ACPI Settings

► LVDS Configuration

► iSmart Controller

► Super IO Configuration

► H/W Monitor

► CPU Configuration

► PPM Configuration

► IDE Configuration

► SDIO Configuration

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

ACPI Settings

Aptio Setup Utility

–

Main Advanced Chipset

Boot Security Save & Exit

ACPI Settings

Enable ACPI Auto Configuration

Enable Hibernation

ACPI Sleep State

Disabled

Enabled

S3 only (Suspend to …)

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Enabled ACPI Auto Configuration

Enables or Disables BIOS ACPI Auto Configuration.

Enable Hibernation

37IBASE Technology Inc.

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select ACPI sleep state the system will enter when the SUSPEND button is pressed.

CSB200-897 User Manual

38

LVDS Configuration

Aptio Setup Utility

–

Main Advanced

Chipset Boot Security Save & Exit

Configuration

Panel Color Depth

LVDS Channel Type

Panel Type

LVDS Backlight Control

24 BIT

Single

1024 x 768

0(Min)

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

iSmart Controller

Aptio Setup Utility

–

Main Advanced Chipset

Boot Security Save & Exit

iSmart Controller

Power-On after Power failure

Schedule Slot 1

Schedule Slot 2

Disable

None

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Power-On after Power failure

This field sets the system power status whether Disable or Enable when power returns to the system from a power failure situation.

Schedule Slot 1 / 2

Setup the hour/minute for system power on.

39IBASE Technology Inc.

Super IO Configuration

Aptio Setup Utility

–

Main Advanced Chipset

Boot Security Save & Exit

Super IO Configuration

► Serial Port 1 Configuration

► Serial Port 2 Configuration

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Serial Port 1 Configuration Set parameters of serial port 1(COMA)

Serial Port 2 Configuration Set parameters of serial port 2(COMA)

CSB200-897 User Manual

40

H/W Monitor

Aptio Setup Utility

–

Main Advanced Chipset

Boot Security Save & Exit

PC Health Status

Disabled

→ ← Select Screen

Smart Fan Function SYS temp

+33.0 C CPU temp

+34.5 C

FAN1 Speed

4066 RPM

↑↓ Select Item

Enter: Select

Vcore

+1.704 V

+- Change Opt.

+1.35V

+1.544 V

F1: General Help

AVCC

+3.360 V

F2: Previous Values

VSB3

+3.344 V

F3: Optimized Defaults

VCC3V

+3.328 V

F4: Save & Exit

ESC: Exit

CPU Shutdown Temperature

Disabled

Smart Fan Function

This field enables or disables the smart fan feature. Disabled (default) 50 ℃

60 ℃ 70 ℃ 80 ℃ 90 ℃

Shutdown Temperature

This field enables or disables the Shutdown Temperature Disabled (default) 70 ℃/158 F

75 ℃/167 F 80 ℃/176 F 85 ℃/185 F 90 ℃/194 F

41IBASE Technology Inc.

90 ℃/203 F

Temperatures/Voltages

These fields are the parameters of the hardware monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health status

CSB200-897 User Manual

42

CPU Configuration

This section shows the CPU configuration parameters.

Aptio Setup Utility

–

Main

Advanced Chipset

Boot Security Save & Exit

CPU Configuration

►Socket 0 CPU Information

CPU Speed

64-bit

1751 Mhz

Supported

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Socket 0 CPU Information

Socket specific CPU Information.

43IBASE Technology Inc.

CPU PPM Configuration

Aptio Setup Utility

–

Main

Advanced Chipset

Boot Security Save & Exit

CPU PPM Configuration

EIST

Enabled

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Field

F1: General Help

F2: Previous Values

F3: Optimized Default

F4: Save

ESC: Exit

EIST

Enable/Disable Intel SpeedStep.

CSB200-897 User Manual

44

IDE Configuration

SATA Devices Configuration.

Aptio Setup Utility

–

Main Advanced

Chips Boot Security Save & Exit

IDE Configuration

Serial-ATA (SATA)

SATA Mode

Serial-ATA Port 0 SATA Port0 HotPlug

Serial-ATA Port 1 SATA Port1 HotPlug

SATA Port0 Not Present

SATA Port1 Not Present

Enabled

AHCI

Enabled Disabled

→ ← Select Screen

↑↓ Select Item Enter:

Select

+- Change Field F1:

General Help F2: Previous

Values

F3: Optimized Default

Serial-ATA(SATA)

Enabled / Disabled Serial ATA

SATA Mode

Select IDE / AHCI Mode

Serail –ATA Port 0

Enabled / Disabled Serial Port 0

SATA Port0 HotPlug

Enabled / Disabled SATA Port 0 HotPlug

Serail –ATA Port 1

Enabled / Disabled Serial Port 1

SATA Port1 HotPlug

Enabled / Disabled SATA Port 1 HotPlug

45IBASE Technology Inc.

SDIO Configuration

Aptio Setup Utility

–

Main Advanced Chipset

Boot Security Save & Exit

SDIO Access Mode

Auto

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Field

F1: General Help

F2: Previous Values

F3: Optimized Default

F4: Save

ESC: Exit

SDIO Access Mode

Auto Option: Access SD device in DMA mode if controller supports it. Otherwise, in PIO mode. DMA options: Access SD device in DMA mode. PIO Option: Access PIO device in DMA

CSB200-897 User Manual

46

Chipset Settings

Aptio Setup Utility

–

Main Advanced Chipset Boot Security Save & Exit

► North Bridge

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

North Bridge

Aptio Setup Utility

–

Main Advanced

Exit

Chipset Boot

Security Save &

Memory Information

Total Memory

Memory Slot0

Memory Slot2

4096 MB (LPDDR3)

Not Present

→ ←

Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

47IBASE Technology Inc.

Security Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Aptio Setup Utility

–

Main Advanced Chipset

Boot Security Save & Exit

Password Description

If ONLY the Administrator’s password is s

this only limit access to Setup and is only

for when entering Setup.

If ONLY the User’s password is set, then

power on password and must be entered

or enter Setup. In Setup the User will hav

Administrator rights

The password length must be

in the following range:

Minimum length

Maximum length

Administrator Password

User Password

et, then

asked

this is a

to boot

e

3

20

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Administrator Password

Set Administrator Password.

CSB200-897 User Manual

48

Boot Settings

This section allows you to configure the boot settings.

Aptio Setup Utility

–

Main Advanced

Chipset

Boot Security Save & Exit

Boot Configuration

Setup Prompt Timeout

Bootup NumLock State

Quiet Boot

Fast Boot

Boot Option Priorities

Boot Option #1

1

On

Disabled

UEFI:Built-in EFI

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Bootup NumLock State

Select the keyboard NumLock state.

Quiet Boot

Enables or disables Quiet Boot option.

Fast Boot

Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

Boot Option Priorities

Sets the system boot order.

49IBASE Technology Inc.

Save & Exit Settings

Aptio Setup Utility

–

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Exit

Discard Changes and Exit

Save Changes and Reset

Discard Changes and Reset

Save Options

Save Changes

Discard Changes

Restore Defaults

Save as User Defaults

Restore User Defaults

Boot Override

→ ← Select Screen

↑↓ Select Item

Enter: Select

+- Change Opt.

F1: General Help

F2: Previous Values

F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Changes

Save Changes done so far to any of the setup options.

Discard Changes

Discard Changes done so far to any of the setup options.

CSB200-897 User Manual

50

Restore Defaults

Restore/Load Defaults values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults

Restore the User Defaults to all the setup options.

51IBASE Technology Inc.

CHAPTER 4 DRIVERS INSTALLATION

This section describes the installation procedures for software and drivers. The software and drivers are included with the motherboard. If you find the items missing, please contact the vendor where you made the purchase.

IMPORTANT NOTE:

After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation.

4.1 Intel Chipset Software Installation Utility

The Intel Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation.

1. Insert the DVD that comes with the board. 2.Click Intel and then Intel(R) Baytrail Chipset.

3.Click Intel(R) Chipset Software Installation Utility.

4.When the Welcome screen to the Intel® Chipset Device Software appears, click Next to continue.

5.Click Yes to accept the software license agreement and proceed with the installation process.

6.The Setup process is now complete. Click Finish to restart the computer and for changes to take effect.

CSB200-897 User Manual

52

4.2 VGA Drivers Installation

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Baytrail Chipset. Click Intel(R) Baytrail Graphics Driver.

2. When the Welcome screen appears, click Next to continue.

3. Click Yes to accept the license agreement and continue the installation.

4. Setup complete. Click Finish to restart the computer and for changes to take effect.

53IBASE Technology Inc.

4.3 Realtek HD Audio Driver Installation

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Baytrail Chipset. Click Realtek High Definition Audio Driver.

2. On the Welcome screen, click Next to proceed with the installation.

3. InstallShield Wizard is complete. Click Finish to restart the computer and for changes to take effect.

CSB200-897 User Manual

54

4.4 Intel Trusted Execution Engine Installation

Note :Windows 7 OS only

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Baytrail Chipset. Click Intel(R) Baytrail Graphics Driver.

2. On the Setup Welcome screen, click Next to proceed with the installation process.

3. Click Next accept the license agreement and continue the installation.

4. Installation of the Intel Trusted Execution Engine is now complete. Click Finish.

55IBASE Technology Inc.

Appendix

Mounting CSB200-897 to the Wall

You can install CSB200-897 on plastic (LCD monitor), wood, drywall surface over studs, or a solid concrete or metal plane directly. Ensure the installer uses at least four M3 length 6mm screws to secure the system on wall. Four M3 length 6mm screws [Four M3 length 4.4mm for VESA mounting] are recommended to secure the system on wall.

Fasteners are not included with the unit, and must be supplied by the installer. The types of fasteners required are dependent on the type of wall construction. Choose fasteners that are rated either ”Medium Duty“ or ”Heavy Duty.“ To assure proper fastener selection and installation, follow the fastener manufacturer’s recommendations.

CSB200-897 User Manual

56

Wall Mounting Requirements

Note: Before mounting the system on wall, ensure that you are following all applicable building and electric codes.

When mounting, ensure that you have enough room for power and signal cable routing. And have good ventilation for power adapter. The method of mounting must be able to support weight of the CSB110-902 plus the suspend weight of all the cables to be attached to the system. Use the following methods for mounting your system:

Mounting to hollow walls

◼ Method 1: Wood surface – A minimum wood thickness – 38mm (1.5in.) by

25.4 cm (10in.) – of high, construction – grade wood is recommended. Note: This method provides the most reliable attachment of the unit with little risk that the unit will come loose or require ongoing maintenance.

◼ Method 2: Drywall walls - Drywall over wood studs is acceptable.

Mounting to a solid concrete or brick wall - Mounts on a flat smooth surface.

Selecting the Location

Plan the mounting location thoroughly. Locations such as walkway areas, hallways, and crowded areas are not recommended. Mount the unit to a flat, sturdy, structurally sound column or wall surface.

The best mounting surface is a standard countertop, cabinet, table, or other structure that is minimally the width and length of the unit. This recommendation reduces the risk that someone may accidentally walk into and damage the device. Local laws governing the safety of individuals might require this type of consideration.

IBASE Technology CSB200-897, CSB200-897-IT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
