IBASE SMARC-EVK1 User Manual

www.ibase.com.tw

IBASE Technology Inc.

SMARC Evaluation Kit

User’s Manual

2014 Oct V1.1

2

SMARC Evaluation Kit

3

IBASE Technology Inc.

Quick Start Guide

Here is a step by step guide to boot up your SMARC:

a. By default, the (Android) or (Linux OS) has been preloaded in the eMMC, (or SD card)

of the SMARC demo kit. All you have to do is

 - Connect your SMARC with TV/LCD by using an HDMI cable,  - Or connect your LVDS panel by using LVDS cable if you have them  - Connect the device with 12V power input directly.

b. To make a recovery SD card, please refer to Chapter 2. c. To use the root/ serial port debug function, please check Chepter3.2.1 (COM1 debug

cable setup) information.

d. To boot up with an installed LVDS panel, please refer to Chapter 3.

Note: different LVDS panel will has different customization, please check with your sales.

e. For advanced users who would be building their own products, please refer to

Chapter 3~5.

f. For special requests or assistance, please contact IBASE Sales.

4

SMARC Evaluation Kit

TABLE OF CONTENTS

Quick Start Guide ...................................................................................................................... 3

1. Introduction ....................................................................................................................... 7

1.1. IBASE SMARC Starter Kit ........................................................................................................ 7

1.2. RM-F600-SMC Hardware Specifications ................................................................................. 8

1.3. Boards Dimension .................................................................................................................10

1.4. I/O View ................................................................................................................................11

1.5. Optional Items.......................................................................................................................12

1.6. Installing the SMARC .............................................................................................................14

2. Jumper setting on the Carrier Board ................................................................................ 15

Connectors on RP-100-SMC ..............................................................................................................18

3. Software Setup................................................................................................................. 25

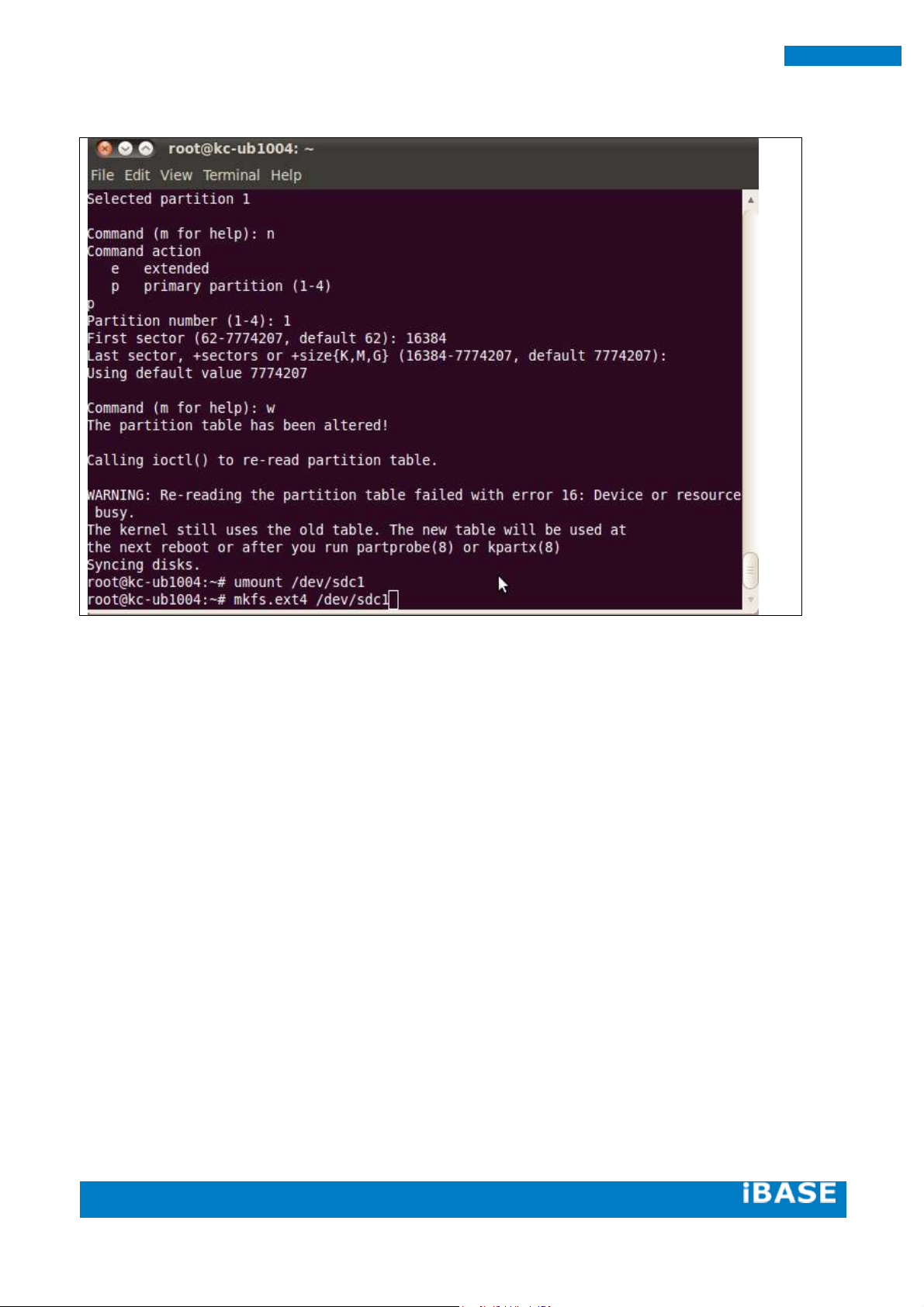

3.1. Make a Recovery SD Card ......................................................................................................25

Boot on the SMARC starter kit ........................................................................................................... 1

3.2. Parameter Setting on U-boot ................................................................................................. 2

3.2.1. Preparation (debug console) ......................................................................................................... 2

3.2.2. Display setting command For Android .......................................................................................... 3

3.2.3. Display setting for Linux ................................................................................................................ 4

4. Carrier Board Design Guide ................................................................................................ 5

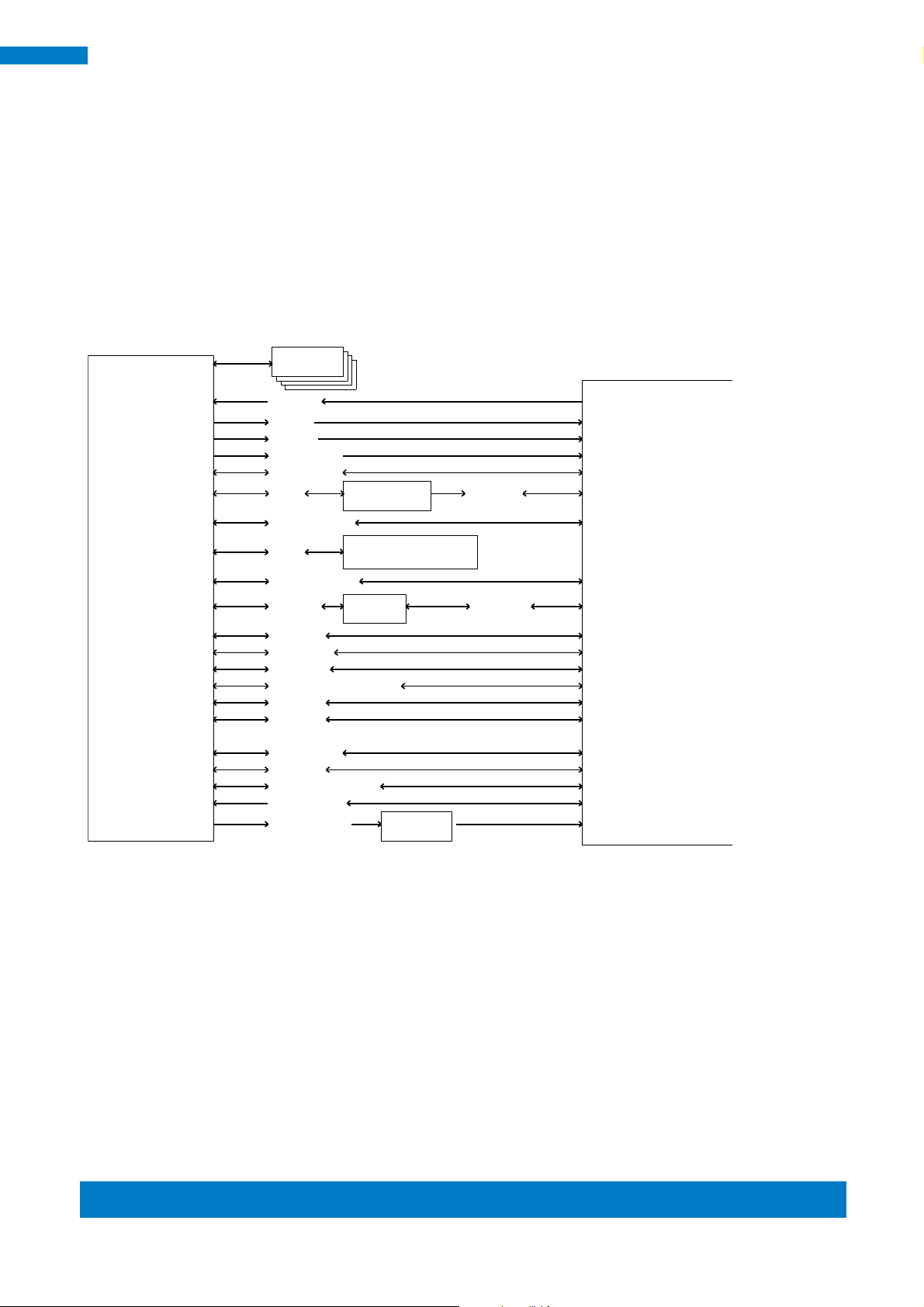

4.1. Block Diagram ................................................................................................................ 5

4.2. Interfaces ........................................................................................................................ 6

4.3. Layout recommendations ............................................................................................. 20

4.4. SMRC Module (RM-F6xx-SMC) Pin Out Table. .............................................................. 22

5. BSP User Guide ( for advanced software engineer only ) ................................................. 25

5.1. Building SMARC BSP Sorce ........................................................................................... 25

5.1.1. Preparation ............................................................................................................... 25

5.1.2. Installing Toolchain ................................................................................................... 25

5.1.3. Building u-boot ......................................................................................................... 27

5.1.4. Building kernel .......................................................................................................... 31

5

IBASE Technology Inc.

5.1.5. Copying u-boot, kernel to SD card ............................................................................. 33

5.1.6. Copying Filesystem to SD card .................................................................................. 33

5.1.7. Booting with your SD card ........................................................................................ 39

6. Appendix A– I2C, GPIO, watchdog reference code Coding. .............................................. 40

6.1. How to use I2C in Linux ................................................................................................. 40

6.2. How to use GPIO in Linux.............................................................................................. 57

6.2.1. GPIO mapping table .................................................................................................. 57

6.2.2. GPIO sample code ..................................................................................................... 57

6.2.3. How to use Watch dog in Linux ................................................................................. 58

7. Appendix B - i.MX6 CPU ball out Table. ........................................................................... 59

8. Appendix C : how to Flash the image to eMMC ............................................................... 66

9. Appendix D –Useful links .................................................................................................. 66

6

SMARC Evaluation Kit

Acknowledgments

Freescale

TM

is a trademark of Freescale Semiconductor, Inc.

ARM® Cortex™-A9 is a trademark of ARM Holdings, plc.

SGeT (Standardization Group for Embedded Technologies) is a technical and scientific

association with its registered office in Munich.

SMARC ("Smart Mobility ARChitecture") is a versatile small form factor computer Module, defined by SGeT association

Android, name, logo, and other Android trademarks are property of Google Inc.

Linux, trademarks or marks include all trade and service marks and logos owned by the

Linux Foundation.

All other product names or trademarks are properties of their respective owners.

7

IBASE Technology Inc.

1. Introduction

1.1. IBASE SMARC Starter Kit

SMARC (‘Smart Mobility ARChitecture’) is a specification published by the

Standardization Group for Embedded Technologies e.V. (SGET) for Computer-on-Modules (COMs). SMARC Computer-on-Modules are specifically designed for the development of compact low-power systems. Generally, SMARC modules are based on ARM processors and other low-power SoC architectures.

Measuring 82mm x 50mm, the Ibase RM-F600-SMC SMARC module is integrated with an i.MX6 Dual Lite 1Ghz extended consumer-grade CPU that supports 2D/3D graphic acceleration and 1080p encode/ decode under Linux/Android BSP to allow easy OS upgrade and short time to market.

Measuring 170mm x 170mm (Mini ITX form factor), the Ibase RP-100-SMC carrier board is compatible with 82mm x 50mm - 82mm x 80mm standard SMARC form factors. Engineers can choose the required embedded IOs to verify developed software application under specified Operation System. Besides setting the default HDMI output with O.S preload in RM-F600-SMC eMMC, IBASE can optionally provide driver-ready 3G module, WIFI module, touch panel, cable kit, power adaptor and accessories to speed up the evaluation cycle.

8

SMARC Evaluation Kit

Form Factor

SMARC™ (82mm x 50mm)

CPU

Freescale i.MX6 DualLite Cortex-A9

Up to 1GHz with 512KB L2 cache

Memory

1GB DDR3 on board

4GB eMMC on board

Display

Supports 18/24-bit parallel LCD & LVDS Interface

Supports HDMI Interface

Video Codec

Multi-format HD1080 video Decode and Encode

Audio Interface

I²S, SPDIF

LAN

10/100/1000 Mbit/sec

USB

2 x USB 2.0 port & 1x USB OTG Interface

Image Capture Interface

CSI Interface for MIPI Camera

Serial

4x UART, 1x SPI Interface

Media Interface

2 x High-Speed MMC/SDIO (MMC 8-bit, SDIO 4-bit)

PCIe

1x PCIe Interface

GPIO

12x GPIO

I²C

4x I²C

CAN Bus

2x CAN2.0B

Operating Temperature

Extended commercial: 0°C to +60°C @1Ghz

Board Connector

MXM3.0 314 pins

Operating System

Supports Linux Kernel 3.0, Android 4.3

1.2. RM-F600-SMC Hardware Specifications

RM-F600-SMC Features

 SMARC Small Form Factor (82mm x 50mm) SoM  i.MX 6DualLite 1GHz Processor  1080p hardware encode/decode

 OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators  1GB DDR3, 4GB eMMC on board

 10/100/1000 MBit Ethernet  Supports 24-bit Parallel LCD, LVDS, & HDMI  Supports Linux 3.0, Android 4.3

‧

This specification is subject to change without prior notice.

9

IBASE Technology Inc.

Form Factor

Standard Mini-ITX (170mm x 170mm)

Edge IO

1x GB LAN 1x headphone 1x MIC 2x USB 1x USB OTG 1x HDMI 1x COM (232/422/485)

Internal Headers / Connectors

2x CAN 1x parallel LCD 1x Single CH, 18/24 bit LVDS 1x LCD DDC (I2C) 1x LCD backlight power control header 1x CSI-MIPI 2x USB 2.0 8x GPIO 1x 2COM ports header 1x debug port 1x Mini-PCIe with USB 1x SIM socket 1x touch (4-wired) 1x speaker Out 1x micro-SD

Jumpers, Switch & Buttons

1x boot select switch (SD/ eMMC) 1x reset button, 1x power button, 1x GPI button 1x (232/422/485 Selection) jumper 1x backlight power (5/12V) jumper

RP-100-SMC – Carrier Board Specifications

RP-100-SMC Features

 For SMARC form factor modules  12V~24V DC-in, reset, power, RTC function  Supports GB LAN, audio, USB OTG, HDMI, COM (232/422/485) @ Edge IO  Micro SD socket, Mini-PCIe with USB, SIM socket on board  2x isolated CAN transceiver, TTL, LVDS, HDMI, CSI-MIPI camera

Specifications

‧

This specification is subject to change without prior notice.

10

SMARC Evaluation Kit

1.3. Boards Dimension

RM-F600-SMC Dimensions

RP-100-SMC (MiniITX) 170mm x 170mm

11

IBASE Technology Inc.

Item

Connector

Item

Connector

1

10/100/1000 LAN

5

HDMI Type A

2

Audio Jack

6

RS232/422/485

3

USB OTG

7

4

USB Type A

8

1.4. I/O View

12

SMARC Evaluation Kit

WIFI Solution

Description

Note

WiFi module

Wireless LAN Card; 802.11 B/G/N card RoHS RTL8188CTV-SC5X (5VDC) (A008LANMIPCIE4100P)

External Antenna

Wifi Antenna (A055RFA02C2M20800P)

Internal cable-1/2

From Wifi module to rear/front panel (A055RFA0000021000P/A055RFA0000032000P)

3G Solution

Description

ZU 202

Wireless; 3.75G UMTS/HSPA [ZU202] RoHS (A008WIRELESS00520P)

ZU 200

Wireless; 3.75G UMTS/HSPA & GPS module [ZU200] RoHS (A008WIRELESS00510P)

Cable

Cable; Antenna-2 30CM P 2pcs (C501ANT0200300000P)

Antenna

Antenna; 3G, P, 2pcs (A055ANT0921Q2P000P)

COM Port Cable

Description

COM & debug cable

Cable; for internal 3x COM ports box header

COM 1 for debug console:

- User can make your own debug cable too by checking Ch3.2.1 and CN15 connector.

C501PK19100204000P

Power & LCD

Description

Adaptor

12V, Power Adaptor

A005PS060WFSP0101P

LCD

10 inch. 1280 x 800 LCD

A003LCD0101010300

LCD cable.

LCD312 Cable

C501LCD3120302000P

BT solution

Description

BSLIM2 A10

BLUETOOTH 4.0 BOARD

A008BTBSLIM201000P

Cable kit

Description

1.5. Optional Items

If you have further request for option items, please contact iBASE sales.

13

IBASE Technology Inc.

For carrier board

USB-29 (C501USB2908303000P): USB 2.0 (USB1)

EXT-458 (C501EXT4580301000P): Audio Speaker (CN14)

EXT-459 (C501EXT4590301000P): RS232 (CN15)

EXT-460 (C501EXT4600301000P): LCD DDC DATA/CLK (CN6)

EXT-461 (C501EXT4610301000P): Touch (CN13)

EXT-462 (C501EXT4620301000P): SPI (CN7)

EXT-463 (C501EXT4630301000P): GPIO (CN5)

EXT-464 (C501EXT4640301000P): CAN Bus (J2, J4)

Others: 500Mega pixel MIPI Camera (A033MODULE0200000P):(J3)

14

SMARC Evaluation Kit

1.6. Installing the SMARC

The MXM3.0 connector on RP-100-SMC supports the SMARC form factor (82mm x 50mm and 82mm x 70mm).

To install SMARC modules to the MXM slot on the board, please perform the following steps:

 Hold the SMARC module so that the golden fingers of the SMARC module

aligned with the MXM connector.

 Gently push the SMARC module to the MXM connector in 45 degree angle

position until the golden finger of SMARC completely touch the bottom of the slot.

 Gently press the SMARC module down and fix it with four screws.

15

IBASE Technology Inc.

Mode

Jumper Setting

RS232

2-4, 3-5 Shorted (Default)

RS422

3-5, 4-6 Shorted

RS485

1-3, 4-6 Shorted

LCD_VDD

Jumper Setting

3.3V

2-3 Shorted (Default)

5V

1-2 Shorted

BKLT_VCC

Jumper Setting

5V

1-2 Shorted (Default)

12V

2-3 Shorted

6

5

1

2. Jumper setting on the Carrier Board

[Important] Please check the jumpers, DIP, buttons and switches on

RP-100-SMC before doing the panel connection and boot up.

JP3: Setting Jumper for CN17 (RS232/422/485)

J7: LCD_VDD Select

J6: BKLT_VCC Select

16

SMARC Evaluation Kit

BKLT_PWM

Jumper Setting

3.3V

2-3 Shorted (Default)

5V

1-2 Shorted

Boot Source

SW3_PIN1

SW3_PIN2

SW3_PIN3

SW3_PIN4

Carrier SATA

(i.MX6 Dual/ Quad only)

1 1 1

X

Carrier SD

0 1 1

X

Module eMMC ( default)

1 0 0

X

1

J8: BKLT_PWM Select

SW3: Boot Select

17

IBASE Technology Inc.

CN1: DC Power Jack.

(CN1’s mating Connector.)

SW5: +5V ON/OFF

SW1: Power Button

SW2: Reset Button

18

SMARC Evaluation Kit

Pin #

Signal Name

1

SPKL+

2

SPKL-

3

GND

4

SPKR-

5

SPKR+

Signal Name

Pin #

Signal Name

+5V

1 2 TX1

TX5

3 4 RX1

RTS5#

5 6 GND

RX5

7 8 TX2

CTS5#

9

10

RX2

GND

11

12

GND

5

12 11

Connectors on RP-100-SMC

CN14: Audio Speaker Out (E-CALL_0110-26110050)

CN15: RS232 x 3 (DF11-12S-PA66H)

19

IBASE Technology Inc.

Pin #

RS232

RS422

RS485

1 TXD-

D-

2

RXD

TXD+

D+

3

TXD

RXD+

4

RXD-

5

GND

6

7

RTS

8

CTS

Signal Name

Pin #

Signal Name

TX0+

1 2 TX0-

GND

3 4 GND

TX1+

5 6 TX1-

GND

7 8 VDD

TX3+

9

10

TX3-

TX2+

11

12

TX2-

GND

13

14

GND

TXC+

15

16

TXC-

BKLT_PWM

17

18

VDD

BKLT_VCC

19

20

BKLT_VCC

19

20

CN17: RS232/422/485

( SMARC standard define 4 wired RS232 signals)

N9: LVDS (DF13-20DP-1.25V)

20

SMARC Evaluation Kit

Pin #

Signal Name

1

BKLT_VCC

2

BKLT_EN

3

BKLT_PWM

4

GND

Pin #

Signal Name

1

+5V

2

I2C_SCL

3

I2C_SDA

4

GND

4

CN10: LCD Backlight Power/Control (E-CALL 0110-161-040)

CN6: LCD DDC CLK/DATA (Molex 53398-0471)

21

IBASE Technology Inc.

Signal Name

Pin #

Signal Name

LCD_VDD

1 2 LCD_VDD

GND

3 4 GND

LCD_VDD

5 6 LCD_VDD

BKLT_PWM

7 8 GND

DAT16

9

10

DAT17

DAT18

11

12

DAT19

DAT20

13

14

DAT21

DAT22

15

16

DAT23

DAT8

17

18

DAT9

DAT10

19

20

DAT11

DAT12

21

22

DAT13

DAT14

23

24

DAT15

DAT0

25

26

DAT1

DAT2

27

28

DAT3

DAT4

29

30

DAT5

DAT6

31

32

DAT7

GND

33

34

GND

CLK

35

36

VSYNC

DE

37

38

HSYNC

BLON

39

40

PWR_EN

2

1

JP2: TTL LCD (E-CALL 0110-01-53101400)

22

SMARC Evaluation Kit

Pin #

Signal Name

1

X+

2

X-

3

Y+

4

Y-

Signal Name

Pin #

Signal Name

+3.3V

1 2 +3.3V

NC

3 4 NC

SPI1_CS1#

5 6 SPI2_CS1#

SPI1_MISO

7 8 SPI2_MISO

SPI1_CLK

9

10

SPI2_CLK

SPI1_MOSI

11

12

SPI2_MOSI

GND

13

14

GND

1

2

1

CN13: Touch (E-CALL 0195-01-200-040)

CN7: SPI (E-CALL 0196-01-251-140)

23

IBASE Technology Inc.

Signal Name

Pin #

Signal Name

GND

1 2 +2.8V

NC

3 4 NC

GND

5 6 D1+

D1-

7 8 CLK+

CLK-

9

10

D0+

D0-

11

12

NC

13

14

RST#

NC

15

16

NC

17

18

SDA

SCL

19

20

PWR#

MCLK

21

22

NC

+1.8V

23

24

+2.8V

Pin #

Signal Name

1

CANH

2

GND_ISO

3

CANL

4

GND_SHIELD

24

4

J3: CSI (TECHBEST 7080K-F24N-24R)

J2, J4: CAN BUS (E-CALL 0110-2620040)

24

SMARC Evaluation Kit

Signal Name

Pin #

Signal Name

+5V

1 2 GND

USB1_D-

3 4 USB2_D+

USB1_D+

5 6 USB2_D-

GND

7 8 +5V

Signal Name

Pin #

Signal Name

+3.3V

1 2 GPIO3

GPIO1

3 4 GPIO7

GPIO5

5 6 GPIO9

GPIO8

7 8 RESET#

GPIO10

9

10

WDOG#

GPIO11

11

12

GND

8

7

2

1

USB1: USB x 2 (DF11-8DP-2DSA)

Mating Cable: USB-29, (C501USB2908303000P)

CN5: GPIO (E-CALL 0196-01-200-120)

25

IBASE Technology Inc.

3. Software Setup

Users who has Ibase standard image file can refer to this chapter to prepare your own boot-up SD card. Ibase provides HDMI / LVDS output environment by default to let you prepare the software application pre-development easily under Linux / Android platform.

3.1. Make a Recovery SD Card

Preparing your Recovery SD card help to install the Linux/ Android image into eMMC

Please download the Recovery SD card’s image by FTP in advance.

Host: 219.87.145.180 port: 21

User: bsp

Password: (please check with your sales)

Image path:

/bsp/RISC_IMAGE/F600/F600-DL/Linux/4.1.0/F600_ubuntu_v1.1.img.gz

/bsp/RISC_IMAGE/F600/F600-DL/Android/4.3/F600-DL_Android_4.3_1.1.img.rar

(based on Freescale BSP: L3.3.35.4.1.0)

For example:

26

SMARC Evaluation Kit

In order to use the evaluation kit, you will need to install an Operating System (OS) onto onboard eMMC by recovery SD card. An Operating System is the set of basic programs and utilities that allow your computer to run.

These instructions will guide you through installing a recovery program on your SD card that will allow you to easily install different OS’s and to recover your card when needed.

1. Insert an SD card that is 4GB or greater in size into your computer

2. Format the SD card

i. Download the SD Association's Formatting Tool (SD Card Formatter 4.0 ) from

https://www.sdcard.org/downloads/formatter_4/eula_windows/

ii. Install and run the Formatting Tool on your machine iii. Set "FORMAT SIZE ADJUSTMENT" option to "ON" in the "Options" menu iv. Check that the SD card you inserted matches the one selected by the Tool v. Click the “Format” button

3. Download the target operating system image from the DVD/ or FTP

(Descripted in previous page)

4. Download the Win32DiskImager from

http://sourceforge.net/projects/win32diskimager/ and use it to restore the target operating system.

And then, flash the Android/ Linux image into your SD card in your PC (Windows).

6. Please check the DIP switch and make sure it can boot from SD Card. (See 2.3 Boot on the SMARC starter kit )

1

IBASE Technology Inc.

Boot Source

SW3_PIN1

SW3_PIN2

SW3_PIN3

SW3_PIN4

Linux node name

Android node name

Carrier SD

0 1 1

X

Module eMMC

1 0 0

X

Boot Source

SW3_PIN1

SW3_PIN2

SW3_PIN3

SW3_PIN4

Linux node name

Android node name

Carrier SD

0 1 1

X

Module eMMC

1 0 0

X

3.2. Boot on the SMARC starter kit

Please double check the Boot device selection before power on.

SW3: Boot Select

Note: 1: Switch On ; 0: Switch Off

1. 7. Insert the SD card/MicroSD into motherboard, make sure the HDMI panel is

connected, and connect the power supply to boot up the system.

2. 8. Recovery program on your SD card will execute automatically. The eMMC on

SMARC will be format, and OS will be installed while the progress bar shows 100% complete.

3. 9. Remove the power, and the recovery SD. Remember to set the boot source

from module eMMC.

4. Connect the power and boot up SMARC, you will see the Linux/ Android boot up

pages.

2

SMARC Evaluation Kit

3.3. Parameter Setting on U-boot

We provide HDMI output and (10.1 “ Onation LVDS Panel output command example) for SMARC starter kit. If you have any other LVDS/ TTL panel need to be customized, please contact Ibase sales or FAE staff.

3.3.1. Preparation (debug console)

i. We set the COM1 (Tx1, Rx1) as default debug port, please double check it can be

connect to (RX, Tx) of your PC environment.

ii. set 115200 bps (8n1, no flow control) in Windows terminal ( for example

Putty.exe)

iii. When booting the system, you can press “Enter” to stop auto boot and modify

your environment.

(Note: Users who are not sure the COM connection, please double check your

SMARC.COM1.Tx1 connect to PC.COM.Rx ; SMARC.COM1.Rx1 to PC.COM.Tx)

Note:

The COM1 is map to ttymxc0 device node under Linux& android.

The COM2 is map to ttymxc1 device node under Linux& android.

The COM5 is map to ttymxc4 device node under Linux& android.

IBASE SMARC-EVK1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
