IBASE SI-83 User Manual

SI-83 User Manual

SI-83

User Manual

ii

SI-83 User Manual

Revision

Release Date

V1.0

2014/12/12

iii

IBASE Technology Inc.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC. (“IBASE ”).

Products and corporate names mentioned in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only. All trademarks are the property of their respective owners.

Every effort has been made to ensure that the contents of this manual are correct and up to date. However, the manufacturer makes no guarantee regarding the accuracy of its contents, and reserves the right to make changes without prior notice.

iv

SI-83 User Manual

Table of Contents

Setting up your system ................................................................................................ v

Care during use ........................................................................................................... vi

Acknowledgments ....................................................................................................... vi

CHAPTER 1 INTRODUCTION .................................................................................... 1

1.1 General Description ................................................................................................ 1

1.2 System Specifications ............................................................................................ 2

1.2.1 Hardware Specifications ................................................................ ..................... 2

1.2.2 Dimensions .......................................................................................................... 3

1.2.3 I/O View ................................................................................................................. 3

1.2.3 I/O View ................................................................................................................. 4

1.3 Exploded View of the SI-83 Assembly................................................................... 5

1.3.1 Parts Description ................................................................................................. 6

1.4 Packing List............................................................................................................. 7

1.4.1 Optional Items ...................................................................................................... 7

1.5 HARDWARE INSTALLATION .................................................................................. 8

1.5.1 Installing the Mounting Kit .................................................................................. 8

1.5.2 Installing the Optional Wireless Module ............................................................ 9

1.5.3 Installing mSATA ................................................................................................ 12

1.5.4 SI-83 Mounting Bracket Solution ...................................................................... 13

CHAPTER 2 MOTHERBOARD INTRODUCTION .........................................................14

2.1 Introduction ........................................................................................................... 14

IB983 Jumpers and Connectors ......................................................................... 16

2.2 Installations ........................................................................................................... 18

2.2.1 Installing the Memory ................................................................................... 18

2.3 Setting the Jumpers ............................................................................................. 19

2.4 Connectors on IB983 ................................ ............................................................ 21

CHAPTER 3 BIOS SETUP .........................................................................................26

3.1 BIOS Introduction ................................................................................................. 26

3.2 BIOS Setup ............................................................................................................ 26

CHAPTER 4 DRIVERS INSTALLATION .......................................................................46

4.1 Intel Chipset Software Installation Utility ............................................................ 46

4.2 VGA Drivers Installation ....................................................................................... 48

4.3 Realtek HD Audio Driver Installation ................................................................... 50

4.4 LAN Drivers Installation ....................................................................................... 52

4.5 Realtek LAN Controller Drivers Installation ....................................................... 55

4.6 Intel® Management Engine Interface .................................................................. 57

4.7 Intel® USB 3.0 Drivers .......................................................................................... 60

Appendix ...............................................................................................................63

A. I/O Port Address Map ............................................................................................. 63

B. Interrupt Request Lines (IRQ) ............................................................................... 64

C. Watchdog Timer Configuration ............................................................................. 65

v

IBASE Technology Inc.

Safety Information

Your SI-83 is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions

Setting up your system

 Read and follow all instructions in the documentation before you operate your

system.

 Do not use this product near water.  Set up the system on a stable surface. Do not secure the system on any unstable

plane.

 Do not place this product on an unstable cart, stand, or table. The product may

fall, causing serious damage to the product.

 Slots and openings on the chassis are for ventilation. Do not block or cover these

openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.

 This system should be operated from the type of power indicated on the marking

label. If you are not sure of the type of power available, consult your dealer or local power company.

 Use this product in environments with ambient temperatures between 0˚C and

45˚C.

 If you use an extension cord, make sure that the total ampere rating of the

devices plugged into the extension cord does not exceed its ampere rating.

 DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE

STORAGE TEMPERATURE MAY GO BELOW -20° C (-4° F) OR ABOVE 80° C (176° F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.

vi

SI-83 User Manual

Care during use

 Do not walk on the power cord or allow anything to rest on it.  Do not spill water or any other liquids on your system.  When the system is turned off, a small amount of electrical current still flows.

Always unplug all power, and network cables from the power outlets before cleaning the system.

 If you encounter the following technical problems with the product, unplug the

power cord and contact a qualified service technician or your retailer.

 The power cord or plug is damaged.  Liquid has been spilled into the system.  The system does not function properly even if you follow the operating

instructions.

 The system was dropped or the cabinet is damaged.

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

NO DISASSEMBLY

The warranty does not apply to the products that have been disassembled by users

WARNING

HAZARDOUS MOVING PARTS

KEEP FINGERS AND OTHER BODY PARTS AWAY

vii

IBASE Technology Inc.

Acknowledgments

 AMI is a registered trademark of AMI Software International, Inc.  AMD and ATI are registered trademarks of AMD Corporation.  Microsoft Windows is a registered trademark of Microsoft Corporation.  FINTEK is a registered trademark of FINTEK Electronics Corporation.  REALTEK is a registered trademark of REALTEK Electronics Corporation.  All other product names or trademarks are properties of their respective

owners.

1

SI-83 User Manual

CHAPTER 1 INTRODUCTION

1.1 General Description

The “Signature Book™” SI-83 is a professional digital signage system powered by 4th Gen. Intel® CoreTM i Processor with Intel® HD 4600 / 4400 Integrated Graphics. It comes with dual DP and one HDMI. The slim and segregated ventilation design player comes with a chassis that provides passive cooling for better system reliability and quiet operation.

SI-83 overview

2

SI-83 User Manual

Model Name

SI-83

System Mainboard

IB983

CPU

4th Generation Intel® Core™ i7-4700EQ 2.4GHz 4th Generation Intel® Core™ i5-4400E 2.7GHz

Memory

2x DDR3L-1600 MHz SO-DIMM, Max. 16GB (Non-ECC)

I/O Interface

1 x HDMI 2 x DP 2 x USB 3.0 ports, 2x USB 2.0 port 2 x RJ45 for GbE LAN, 1x RJ45 for RS232 1 x Microjack audio connectors for Audio/Mic 1 x Power on/off button 1 x Reset button

1 x DC jack

Storage

1 x mSATA

Expansion Slots

1 x mPCIe(x1) for WiFi + Bluetooth, 3G, GPS and TV tuner options 1 x UIM/SIM card slot (for 3G/LTE adapter in mPCIe slot)

Power Supply

+ 12V DC-in

Construction

Aluminum + SGCC

Mounting

Standard system bracket

Dimensions

175mm(W) x 116mm(D) x 32mm(H)

6.9”(W) x 4.6”(D) x 1.18”(H)

Operating Temperature

0°C~ 45°C (32°F~113°F)

Storage Temperature

-20° ~ 80°C (-4°F~176°F) Relative Humidity

5~90% @ 45°C, (non-condensing)

Vibration

mSATA: 5 grms / 5~500Hz / random operation

RoHS

Available

Certification

CE, FCC, UL, CCC

1.2 System Specifications

1.2.1 Hardware Specifications

‧

This specification is subject to change without prior notice.

3

IBASE Technology Inc.

1.2.2 Dimensions

4

SI-83 User Manual

1.2.3 I/O View

SI-83 front side

SI-83 rear side

5

IBASE Technology Inc.

1.3 Exploded View of the SI-83 Assembly

6

SI-83 User Manual

Part No.

Description

Part No.

Description

1

SI-83 heat sink

2

Fan

3

SI-83 fan bracket

4

IB983 motherboard

5

SI-83 body case

6

SI-83 base

7

SI-83 system base bracket

8

Antenna

9

SI-83 label

10

SI-83 board bracket

11

SI-83 top gasket

12/13

SI-83 I/O gasket-1/2

1.3.1 Parts Description

7

IBASE Technology Inc.

Item No.

Description

Qty

1

Driver CD

1 2 Power adaptor

1

3

Power cord

1

4

Mounting kit

1

WiFi Solution

Description

WiFi module

Wireless; PCI-E Mini Card 802.11B/G/N [AW-NE238H] (A008WLAWNE238H000P)

External Antenna, 2pcs

WiFi Antenna (A055RFA02C2M20800P)

Internal cable

Internal Antenna 100mm[ BTC130-1-70B-100] RoHS (A055RFA0000021000P)

Internal cable

Internal Antenna 200mm [ BTC130-1-70B-200-1] RoHS, (A055RFA0000020000P)

Screw, 2pcs

Screw;A44-N NI 3.4 NYLOK M2*L3.8 P0.4mm [LHS]RoHS (H02203A0442200N00P)

Bracket, -1set

Component BOM;MPCIE-EXT V-B2 Bracket (SC2MPCIEEXT0B2100P)

3G Solution

Description

3G

Wireless; 3.75G UMTS/HSPA [ZU202] RoHS (A008WIRELESS00520P)

3G+GPS

Wireless; 3.75G UMTS/HSPA & GPS Module [ZU200] RoHS (A008WIRELESS00510P)

Cable

Cable; SMA IPX Cable For 3G 30CM [RF11030A] RoHS (A012INTENAL010000P)

Antenna

3G [ ANT0921Q2P] RoHS (A055ANT0921Q2P000P)

COM Port Cable

Description

EXT-424

Cable;EXT-424 2-HD 8C 90CM; RJ45 Jack-8M=>DSU-9F RoHS (C501EXT4240902000P)

EXT-481

Cable;EXT-481 2-HD 8C 90CM; RJ45 Jack-8M=>DSU-9M RoHS (C501EXT4810902000P)

1.4 Packing List

1.4.1 Optional Items

8

SI-83 User Manual

1.5 HARDWARE INSTALLATION

1.5.1 Installing the Mounting Kit

1. Please install the mounting kit and make sure the direction.

And then screw two screws as shown.

9

IBASE Technology Inc.

1.5.2 Installing the Optional Wireless Module

1. Remove the two screws on the back cover that are used to secure the cover to the chassis. Once all the screws are removed, from the side, dismount the cover forward to remove it.

2. Remove the two screws on the base and four screws on the bracket and draw out the chassis.

10

SI-83 User Manual

3. Remove the eight screws indicated on the picture below and remove the motherboard.

4. Install the internal cable on the “ㄇ” type bracket. Please pay attention to the length of two internal cables.

Internal Antenna [A055RFA0000021000P] 10cm Internal Antenna [ A055RFA0000020000P] 20cm

11

IBASE Technology Inc.

5. Install the motherboard and bracket, and arrange the longer right cable as shown.

6. Screw the two screws and note to the orientation of the WIFI module and bracket.

7. Push the WIFI module into the slot and connect the two internal antenna as shown below.

12

SI-83 User Manual

1.5.3 Installing mSATA

1. Remove the 2 screws on the back cover that are used to secure the cover to the chassis. Once all the screws are removed, from the side, dismount the cover forward to remove it.

2. Push the mSATA module into the slot as shown in the picture below.

13

IBASE Technology Inc.

1.5.4 SI-83 Mounting Bracket Solution

SI-83 mounting bracket (IBASE) part number: SC2SIMK3---0A1100P Please install SI-83 to the mounting bracket using 4 screws, as shown in the picture.

14

SI-83 User Manual

CPU

Model

4th Generation Intel® Core™ i7-4700EQ 2.4GHz 4th Generation Intel® Core™ i5-4400E 2.7GHz

Speed

2.4GHz and 2.7GHz

Cache

6MB / 3MB

Socket

FCBGA1364 package

TDP

TDP=47 W / 37 W

Chipset

Model

Intel® QM87 PCH

BIOS

Model

AMI BIOS, support ACPI Function

Memory

Configuration

4GB x 2

Max. Support

2x DDR3 1600 MHz SO-DIMM, Max. 16GB (Non-ECC)

CHAPTER 2 MOTHERBOARD INTRODUCTION

2.1 Introduction

The IB983 CUSTOM SIGNAGE SBC is based on the latest Intel® QM87 chipset. The platform supports onboard 4th generation Intel® Core processor family that features an integrated dual-channel DDR3 memory controller as well as a graphics core.

The latest Intel® processors provide advanced performance in both computing and graphics quality. This meets the requirement of customers in the gaming, POS, digital signage and server market segment.

The QM87 platform is made with 22-nanometer technology that supports Intel’s first processor architecture to unite the CPU and the graphics core on the transistor level. The IB983 CUSTOM SIGNAGE SBC utilizes the dramatic increase in performance provided by this Intel’s latest cutting-edge technology. It offers fast 6Gbps SATA support, USB3.0 and interfaces for HDMI and DP displays.

15

IBASE Technology Inc.

Edge I/O

Display

1x HDMI 1.4a 2x DP v1.3

LAN / PHY

1x GbE with Intel® WGI217LM 1x GbE with Realtek RTL8111G-CG

Audio

Intel® QM87 PCH built-in HD audio controller + ALC892 w/ 7.1 channels 1x Audio Connector (Lin out)

USB

2x USB 3.0; 2x USB 2.0

LPC I / O

1x RS-232 (recessed-Mount RJ45)

Button

1x Power Button

DC Jack

1x Screw type) Power Jack (+12V DC)

Other

1x LED for Power 1x Smart DC fan (12V DC)

Internal I/O

Super I/O

NCT 5523D Super I/O CPU Temp + Temp monitor +Voltage Monitor

Expansion Slot

1x mSATA, 1x mPCIe(x1) only 1x UIM/SIM card slot (for 3G/LTE adapter in mPCIe slot)

Add-On Feature

Watchdog

Yes (256 segments, 0, 1, 2…255 sec/min)

H/W Monitor

YES

iSMART

YES

Others

LAN Wakeup, iSmart, Vpro (9965), & TPM

Dimensions

PCB Dimensions

155mm(W) x 108mm(D)

Power

Power Jack (+12V DC)

Environmental

Temperature

Operating Temperature : 0°C~60°C (32°F~140°F) Storage Temperature : -20°C~80°C (-4°F~176°F)

Regulation

RoHS

Certification

CE/FCC Class A (Target B) UL, CCC

16

SI-83 User Manual

IB983 Jumpers and Connectors

17

IBASE Technology Inc.

Board Dimensions

18

SI-83 User Manual

2.2 Installations

2.2.1 Installing the Memory

The IB983 board supports two DDR3 memory sockets for a maximum total memory of 16GB DDR3 memory type.

Installing and Removing Memory Modules

To install the DDR3 modules, locate the memory slot on the board and perform the following steps:

1. Hold the DDR3 module so that the key of the DDR3 module aligned with that on the

memory slot.

2. Gently push the DDR3 module in an upright position until the clips of the slot close

to hold the DDR3 module in place when the DDR3 module touches the bottom of the slot.

3. To remove the DDR3 module, press the clips with both hands.

19

IBASE Technology Inc.

JP1

Setting

Function

Pin 1-2

Short/Closed

Normal

Pin 2-3

Short/Closed

Clear CMOS

3

1

3

1

2.3 Setting the Jumpers

Jumper Locations on IB983

JP1: Clear CMOS Contents

JP2: Clear ME Contents

20

SI-83 User Manual

J18

Setting

Function

Pin 1-2

Short/Closed

Normal

Pin 2-3

Short/Closed

Clear CMOS

21

IBASE Technology Inc.

Pin #

Signal Name

1

RTS

2

DTR

3

TXD

4

GND

5

GND

6

RXD

7

DSR

8

CTS

8 1

2.4 Connectors on IB983

Connector Locations on IB983

CN1: Board Input Power(12V) Connector

CN2: Console Port ( COM1)

The console port is an RJ45 RS-232 serial port.

CN3, CN4: Display Port

22

SI-83 User Manual

CN5, CN8: USB2.0 Connector

CN6, CN7: USB3.0 Connector

CN9: Gigabit LAN (RTL8111G) RJ45 Connector

23

IBASE Technology Inc.

CN10: Gigabit LAN (I217) RJ45 Connector

CN11: HDMI Port

CN12: HD Audio (Audio out) Connector

CN13: Micro SIM Card Connector

24

SI-83 User Manual

J1, J9: DDR3 SO-DIMM Socket

J4: Mini PCIE Connector

J5: mSATA Connector

25

IBASE Technology Inc.

Pin #

Signal Name

1

Ground

2

+12V

3

Rotation detection

3

10

2

9

1

10

2

9

J7: CPU Fan Power Connector

J8: SPI Flash Connector (Factory use only)

J10: LPC debug Connector (Factory use only)

SW1: Power Switch

26

SI-83 User Manual

CHAPTER 3 BIOS SETUP

This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows:

3.1 BIOS Introduction

The BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

3.2 BIOS Setup

The BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing

the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys.

You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

27

IBASE Technology Inc.

Warning:

It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.

Main Advanced Chipset Boot Security Save & Exit

BIOS Information

Choose the system default language

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Total Memory Memory Frequency

4096 MB (DDR3) 1333 Mhz

System Date System Time

[Tue 01/20/2009] [21:52:06]

Access Level

Administrator

Main Settings

System Date

Set the Date. Use Tab to switch between Data elements.

System Time

Set the Time. Use Tab to switch between Data elements.

28

SI-83 User Manual

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

► ACPI Settings

► Trusted Computing

► Wakeup Event Configuration ► CPU Configuration

► SATA Configuration

► Shutdown Temperature Configuration

► iSmart Controller

► AMT Configuration

► USB Configuration

► NCT5523D H/W Monitor

Main Advanced Chipset Boot Security Save & Exit

ACPI Settings

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

ACPI Sleep State

S3 (Suspend to R…)

Lock Legacy Resources

Disabled

S3 Video Repost

Disabled

Advanced Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Aptio Setup Utility

ACPI Settings

Aptio Setup Utility

ACPI Sleep State

Select ACPI sleep state the system will enter, when the SUSPEND button is pressed.

Lock Legacy Resources

Enabled or Disabled Lock of Legacy Resources.

S3 Video Repost

Enable or disable S3 Video Repost.

29

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Security Device Support

Disabled

Current Status Information

SUPPORT TURNED OFF

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Wake Event Configuration

Wake on PCIE Wake Event

Disabled

Trusted Computing

Aptio Setup Utility

Security Device Support

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Wake up event settings

Wake on PCIE Wake Event

Aptio Setup Utility

The options are Disabled and Enabled.

30

SI-83 User Manual

Main Advanced Chipset Boot Security Save & Exit

CPU Configuration

Intel(R) CPU Core(TM)i7-4700EQE @ 2.40GHz

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

CPU Signature Processor Family Microcode Patch FSB Speed

306c3 6 17 100MHz

Max CPU Speed

2400 MHz

Min CPU Speed

800 MHz

CPU Speed

2400 MHz

Processor Cores

4

Intel HT Technology

Supported

Intel VT-x Technology

Supported

Intel SMX Technology

Supported

64-bit

Supported

EIST

Supported

Hyper-threading Active Processor Cores

Enable All

Limit CPUID Maximum

Disabled

Execute Disable Bit

Enabled

Intel Virtualization Technology

Enabled

EIST

Enabled

CPU Configuration

This section shows the CPU configuration parameters.

Aptio Setup Utility

Hyper-threading

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.

Active Processor Cores

Number of cores to enable in each processor package.

Limit CPUID Maximum

Disabled for Windows XP.

31

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

SATA Controller(s)

Enabled

SATA Mode Selection

AHCI

SATA Controller Speed

Default

Serial ATA Port 0

Empty

Software Preserve

Unknown

Hot Plug

Disabled

Execute Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

EIST

Enabled/Disabled Intel Speedstep.

SATA Configuration

SATA Devices Configuration.

Aptio Setup Utility

SATA Controller(s)

Enable or disable SATA Device.

SATA Mode Selection

(1) IDE Mode. (2) AHCI Mode.

SATA Controller Speed

Indicates the maximum speed the SATA controller can support.

Hot Plug

Designates this port as Hot Pluggable.

32

SI-83 User Manual

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

APCI Shutdown Temperature

Disabled

Main Advanced Chipset Boot Security Save & Exit

iSmart Controller

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Power-On after Power failure

Disable

Schedule Slot 1

None

Schedule Slot 2

None

Shutdown Temperature Configuration

Aptio Setup Utility

ACPI Shutdown Temperature

The default setting is Disabled.

iSmart Controller

Aptio Setup Utility

iSmart Controller

Setup the power on time for the system.

Schedule Slot 1 / 2

Setup the hour/minute for system power on.

33

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Intel AMT

Enabled

BIOS Hotkey Pressed

Disabled

MEBx Selection Screen

Disabled

Hide Un-Configure ME Confirmation

Disabled

Un-Configure ME

Disabled

Amt Wait Timer

0

Activate Remote Assistance Process

Disabled

USB Configure

Enabled

PET Progress

Enabled

AMT CIRA Timeout

0

Watchdog

Disabled

OS Timer

0

BIOS Timer

0

AMT Configuration

Aptio Setup Utility

Intel AMT

Enabled / Disabled Intel(R) Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device.

BIOS Hotkey Pressed

OEMFLag Bit 1: Enable/Disable BIOS hotkey press.

MEBx Selection Screen

OEMFLag Bit 2: Enable/Disable MEBx selection screen.

Hide Un-Configure ME Confirmation

OEMFLag Bit 6: Hide Un-Configure ME without password Confirmation Prompt

34

SI-83 User Manual

Hide Un-Configure ME Confirmation

OEMFLag Bit 15: Un-Configure ME without password

Amt Wait Timer

Set timer to wait before sending ASF_GET_BOOT_OPTIONS.

Disable ME

Set ME to Soft Temporary Disabled.

Activate Remote Assistance Process

Trigger CIRA boot.

USB Configure

Enable/Disable USB Configure function.

PET Progress

User can Enable/Disable PET Events progress to receive PET events or not.

Watchdog Timer

Enable/Disable Watchdog Timer.

35

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

USB Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

USB Module Version

8.10.28

USB Devices:

Legacy USB Support

Enabled

USB3.0 Support

Enabled

XHCI Hand-off

Enabled

EHCI Hand-off

Enabled

USB Mass Storage Driver Support

Enabled

Port 60/64 Emulation

Enabled

USB hardware delays and time-outs:

USB Transfer time-out

20 sec

Device reset tine-out

20 sec

Device power-up delay

Auto

USB Configuration

Aptio Setup Utility

Legacy USB Support

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB3.0 Support

Enable/Disable USB3.0 (XHCI) Controller support.

XHCI Hand-off

This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

EHCI Hand-off

Enabled/Disabled. This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.

36

SI-83 User Manual

Main Advanced Chipset Boot Security Save & Exit

PC Health Status

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Smart CPU_FAN1 function

Disabled

SYS Thermistor Temp

+37.0 C

CPU Diode Temp

+42.5 C

CPU_FAN Speed

4440 RPM

VCORE

+1.768 V

VDDQ

+1.520

USB Mass Storage Driver Support

Enable/Disable USB Mass Storage Driver Support.

Port 60/64 Emulation

Enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes.

USB Transfer time-out

The time-out value for Control, Bulk, and Interrupt transfers.

Device reset tine-out

USB mass Storage device start Unit command time-out.

Device power-up delay

Maximum time the device will take before it properly reports itself to the Host Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor.

NCT5523D HW Monitor

Aptio Setup Utility

Smart CPU_FAN1 Function

Smart Fan Mode select

37

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

► PCH-IO Configuration

► System Agent (SA) Configuration

Main Advanced Chipset Boot Security Save & Exit

Intel PCH RC Version 1.7.0.0

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Intel PCH SKU Name

QM87

Intel PCH Rev ID

05/C2

► USB Configuration

► PCH Azalia Configuration PCH LAN Controller

Enabled

Wake on LAN

Disabled

Chipset Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Aptio Setup Utility

PCH-IO Configuration

This section allows you to configure the North Bridge Chipset.

Aptio Setup Utility

PCH LAN Controller

Enable or disable onboard NIC.

Wake on LAN

Enable or disable integrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state.)

38

SI-83 User Manual

Main Advanced Chipset Boot Security Save & Exit

USB Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

USB Precondition

Disabled

xHCI Mode

Smart Auto

BTCG

Enabled

USB Ports Per-Port Disable Control

Disabled

USB Configuration

USB Precondition

Precondition work on USB host controller and root ports for faster enumeration.

xHCI Mode

Mode of operation of xHCI controller.

BTCG

Enabling/disabling trunk clock gating

USB Ports Per-Port Disable Control

Control each of the USB ports (0~13) disabling.

39

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

PCH Azalia Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Azalia

Auto

Main Advanced Chipset Boot Security Save & Exit

System Agent Bridge Name Haswell

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

System Agent RC Version

1.5.0.0

VT-d Capability

Supported

VT-d

Enabled

► Graphics Configuration

PCH Azalia Configuration

Azalia

Control Detection of the Azalia device. Disabled = Azalia will be unconditionally be disabled. Enabled = Azalia will be unconditionally be enabled. Auto = Azalia will be enabled if present, disabled otherwise.

System Agent (SA) Configuration

VT-d

Aptio Setup Utility

Check to enable VT-d function on MCH.

40

SI-83 User Manual

Main Advanced Chipset Boot Security Save & Exit

Graphics Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

IGFX VBIOS Version

2167

IGfx Frequency

800 MHz

Graphics Turbo IMON Current

31

Primary Display

Primary PEG Primary PCIE

Auto Auto Auto

Internal Graphics

Auto

Aperture Size

256MB

DVMT Pre-Allocated

32M

DVMT Total Gfx Mem Gfx Low Power Mode

256MB Enabled

Panel Power Enable

Disabled

Graphics Configuration

Aptio Setup Utility

Graphics Turbo IMON Current

Graphics turbo Imon current values supported (14-31)

Primary Display

Select which of IGFX/PEG/PCI graphics device should be primary display or select SG for switchable Gfx.

Primary PEG

Select PEGO/PEG1/PEG2/PEG3 Graphics device should be Primary PEG.

Primary PCIE

Select PCIE0/PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE6PCIE7 Graphics device should be primary PCIE.

Internal Graphics

Keep IGD enabled based on the setup options.

41

IBASE Technology Inc.

Aperture Size

Select the Aperture Size

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics memory size used by the internal graphics device.

DVMT Total Gfx Mem

Select DVMT 5.0 total graphics memory size used by the internal graphics device.

Gfx Low Power Mode

This option is applicable for SFF only.

Panel Power Enable This applicable for SFF only

42

SI-83 User Manual

Main Advanced Chipset Boot Security Save & Exit

Boot Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Setup Prompt Timeout

1

Bootup NumLock State

On

Quiet Boot

Disabled

Fast Boot

Disabled

Set Boot Priority

1st Boot 2nd Boot 3rd Boot 4th Boot 5th Boot 6th Boot 7th Boot 8th Boot

Boot Option Priorities Boot Option #1

CD/DVD Hard Disk USb Floppy USB CD/DVD USB Hard Disk USB KEY Network UEFI

► CSM16 Parameters

CSM Parameters

► Hard Disk Drive BBS Priorities

Boot Settings

Aptio Setup Utility

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Bootup NumLock State Select the keyboard NumLock state.

Quiet Boot

Enables or disables Quiet Boot option.

Fast Boot

Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

43

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Launch CSM

Enabled

Boot option filter

UEFI and Legacy

Launch PXE OpROM policy

Do not launch

Launch Storage OpROM policy

Legacy only

Launch Video OpROM policy

Legacy only

Other PCI device ROM priority

UEFI OpROM

Set Boot Priority

Boot Option Priorities

Sets the system boot order.

CSM parameters

This section allows you to configure the boot settings.

Aptio Setup Utility

Launch CSM

This option controls if CSM will be launched.

Boot Option Filter

This option controls what devices system can boot to.

Launch PXE OpROM Policy

Controls the execution of UEFI and Legacy PXE OpROM.

Launch Storatge OpROM Policy

Controls the execution of UEFI and Legacy Storage OpROM.

Launch Video OpROM Policy

Controls the execution of UEFI and Legacy Video OpROM.

Other PCI Device ROM Priority

For PCI devices other than Network, Mass storage or Video defines which OpROM to launch.

44

SI-83 User Manual

Main Advanced Chipset Boot Security Save & Exit

Password Description

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

If ONLY the Administrator’s password is set, then this only limit access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights

The password length must be

in the following range:

Minimum length

3

Maximum length

20

Administrator Password

User Password

Security Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Aptio Setup Utility

Administrator Password

Set Setup Administrator Password.

User Password

Set User Password.

45

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Exit

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Discard Changes and Exit

Save Changes and Reset

Discard Changes and Reset

Save Options

Save Changes

Discard Changes

Restore Defaults

Save as User Defaults

Restore User Defaults

Save & Exit Settings

Aptio Setup Utility

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Changes

Save Changes done so far to any of the setup options.

Discard Changes

Discard Changes done so far to any of the setup options.

Restore Defaults

Restore/Load Defaults values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults

Restore the User Defaults to all the setup options.

46

SI-83 User Manual

CHAPTER 4 DRIVERS INSTALLATION

The Intel Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation.

4.1 Intel Chipset Software Installation Utility

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) 8 Series Chipset Drivers.

2. Click Intel(R) Chipset Software Installation Utility.

47

IBASE Technology Inc.

3. When the Welcome screen to the Intel® Chipset Device Software appears, click Next to continue.

4. Click Yes to accept the software license agreement and proceed with the installation process.

5. On the Readme File Information screen, click Next to continue the installation.

6. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect.

48

SI-83 User Manual

4.2 VGA Drivers Installation

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) 8 Series Chipset Drivers.

2. Click Intel(R) Core(TM) i3/i5/i7 Graphics Driver.

3. When the Welcome screen appears, click Next to continue.

4. Click Yes to to agree with the license agreement and continue the installation.

49

IBASE Technology Inc.

5. On the screen shown below, click Install to continue.

6. Setup complete. Click Finish to restart the computer and for changes to take effect.

50

SI-83 User Manual

4.3 Realtek HD Audio Driver Installation

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) 8 Series Chipset Drivers.

2. Click Realtek High Definition Audio Driver.

51

IBASE Technology Inc.

3. On the Welcome to the InstallShield Wizard screen, click Yes to proceed with and complete the installation process.

4. The InstallShield Wizard Complete. Click Finish to restart the computer and for changes to take ffect.

52

SI-83 User Manual

4.4 LAN Drivers Installation

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) 8 Series Chipset Drivers.

2. Click Intel(R) PRO LAN Network Driver.

53

IBASE Technology Inc.

3. Click Install Drivers and Software.

4. When the Welcome screen appears, click Next.

5. Click Next to to agree with the license agreement.

6. Click the checkbox for Drivers in the Setup Options screen to select it and click Next to continue.

54

SI-83 User Manual

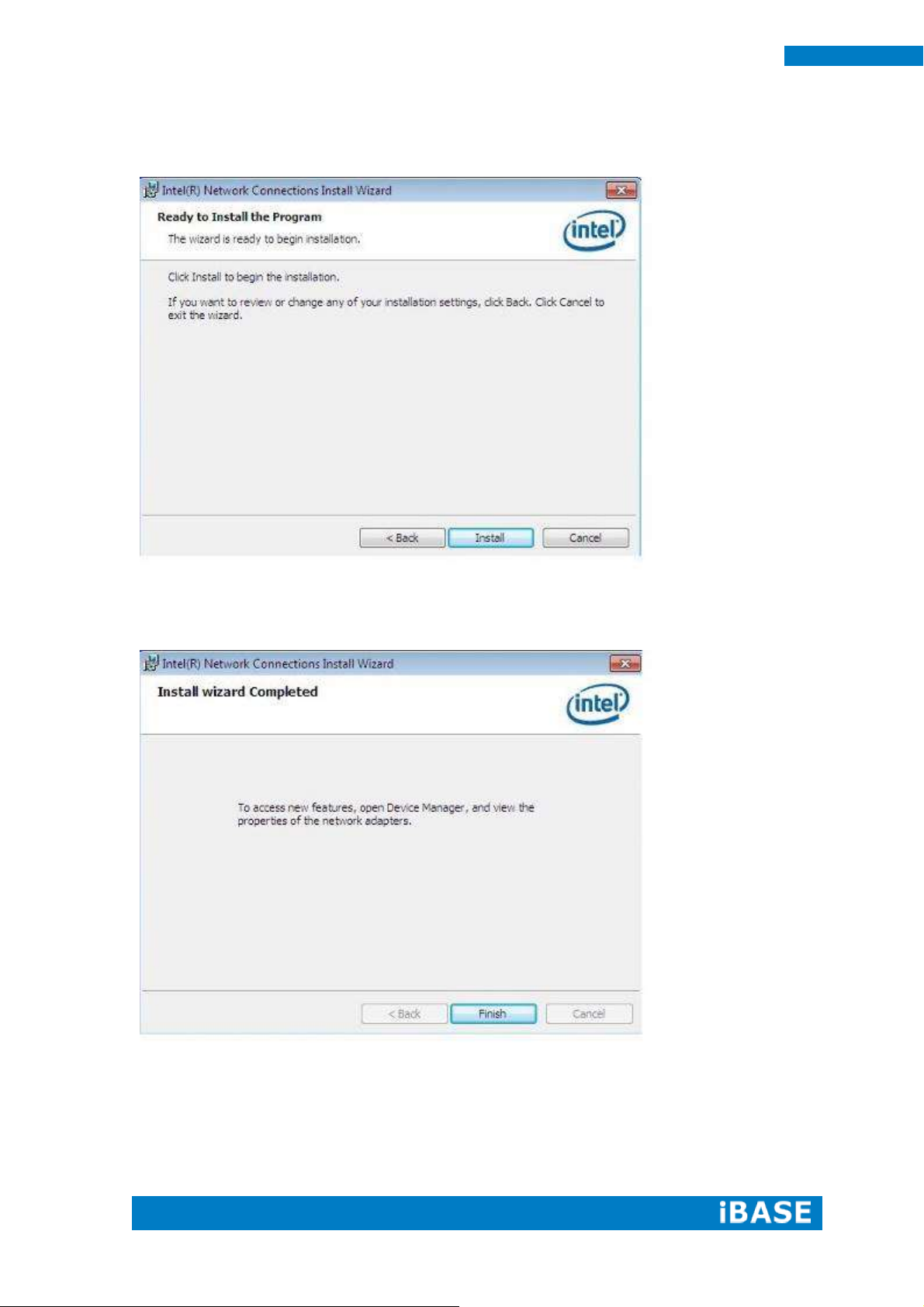

7. The wizard is ready to begin installation. Click Install to begin the installation.

8. When InstallShield Wizard is complete, click Finish.

55

IBASE Technology Inc.

4.5 Realtek LAN Controller Drivers Installation

Follow the steps below to install the Realtek LAN Drivers.

1. Insert the CD that comes with the board. Click LAN Card, and then Realtek Lan Controller Drivers.

2. Click Realtek RTL8111E LAN Drivers.

56

SI-83 User Manual

3.When the welcome screen to InstallShield Wizard appears, click Next to start the installation.

4.When the InstallShieldWizard has finished installing the Realtek LAN drivers, click Finish.

57

IBASE Technology Inc.

4.6 Intel® Management Engine Interface

Follow the steps below to install the Intel Management Engine.

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) 8 Series Chipset Drivers and then Intel(R) AMT 9.0 Drivers.

58

SI-83 User Manual

2. When the Welcome screen to the InstallShield Wizard for Intel® Management Engine Components, click the checkbox for Install Intel® Control Center & click Next.

3. Click Yes to to agree with the license agreement.

59

IBASE Technology Inc.

4. When the Setup Progress screen appears, click Next. Then, click Finish when the setup progress has been successfully installed.

60

SI-83 User Manual

4.7 Intel® USB 3.0 Drivers

1. Insert the DVD that comes with the board. Click Intel and then Intel(R) 8 Series Chipset Drivers.

2. Click Intel(R) USB 3.0 Drivers.

61

IBASE Technology Inc.

3. When the Welcome screen to the InstallShield Wizard for Intel® USB 3.0 eXtensible Host Controller Driver, click Next.

4. Click Yes to to agree with the license agreement and continue the installation.

62

SI-83 User Manual

5. On the Readme File Information screen, click Next to continue the installation of the Intel® USB 3.0 eXtensible Host Controller Driver.

6. Setup complete. Click Finish to restart the computer and for changes to take effect.

63

IBASE Technology Inc.

Address

Device Description

0000h-001Fh

Direct memory access controller

0000h-0001h

PCI bus

0040h-0043h

System timer

0050h-0053h

System timer

0070h-0077h

System CMOS/real time clock

0081h-0091h

Direct memory access controller

0093h-009Fh

Direct memory access controller

00C0h-00DFh

Direct memory access controller

00F0h-00F0h

Numeric data processor

03B0h-03BBh

Intel(R) HD Graphics 4600

03C0h-03DFh

Intel(R) HD Graphics 4600

03F8h-03FFh

Communications Port (COM1)

0D00h-FFFFh

PCI bus

E000h-EFFFh

Intel(R) 8 Series/C220 Series PCI Express Root Port #7 - 8C1C

F000h-F03Fh

Intel(R) HD Graphics 4600

F040h-F05Fh

Intel(R) 8 Series/C220 Series SMBus Controller - 8C22

F0E0h-F0E7h

Intel(R) Active Management Technology - SOL (COM3)

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used.

64

SI-83 User Manual

Level

Function

IRQ0

System timer

IRQ4

Serial Port #1

IRQ8

System CMOS / real time clock

IRQ11

Intel(R) 8 Series/C220 Series SMBus Controller

-8C22

IRQ13

Numeric data processor

IRQ16

Intel(R) 8 Series/C220 Series USB EHCI#2 -8C2D

IRQ19

Intel(R) 8 Series 4 port Serial ATA Storage Controller

-8C01

IRQ22

High Definition Audio Controller

IRQ23

Intel(R) 8 Series/C220 Series USB EHCI#1-8C26

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

65

IBASE Technology Inc.

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

File of the NCT5523D.H //--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#ifndef __NCT5523D_H #define __NCT5523D_H 1 //--------------------------------------------------------------------------#define NCT5523D_INDEX_PORT (NCT5523D_BASE) #define NCT5523D_DATA_PORT (NCT5523D_BASE+1) //--------------------------------------------------------------------------#define NCT5523D_REG_LD 0x07 //--------------------------------------------------------------------------#define NCT5523D_UNLOCK 0x87 #define NCT5523D_LOCK 0xAA //--------------------------------------------------------------------------unsigned int Init_NCT5523D(void); void Set_NCT5523D_LD( unsigned char); void Set_NCT5523D_Reg( unsigned char, unsigned char); unsigned char Get_NCT5523D_Reg( unsigned char); //--------------------------------------------------------------------------#endif //__NCT5523D_H

66

SI-83 User Manual

File of the MAIN.CPP. //--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h> #include "NCT5523D.H" //--------------------------------------------------------------------------int main (void);

void WDTInitial(void); void WDTEnable(unsigned char); void WDTDisable(void);

67

IBASE Technology Inc.

//--------------------------------------------------------------------------int main (void) {

char SIO; SIO = Init_NCT5523D(); if (SIO == 0) {

printf("Can not detect Nuvoton NCT5523D, program abort.\n"); return(1);

}

WDTInitial();

WDTEnable(10);

WDTDisable();

return 0; } //--------------------------------------------------------------------------void WDTInitial(void) {

unsigned char bBuf; Set_NCT5523D_LD(0x08); //switch to logic device 8 bBuf = Get_NCT5523D_Reg(0x30); bBuf &= (~0x01);

Set_NCT5523D_Reg(0x30, bBuf); //Enable WDTO } //---------------------------------------------------------------------------

void WDTEnable(unsigned char NewInterval) {

unsigned char bBuf;

Set_NCT5523D_LD(0x08); //switch to logic device 8

Set_NCT5523D_Reg(0x30, 0x01); //enable timer

bBuf = Get_NCT5523D_Reg(0xF0);

bBuf &= (~0x08);

Set_NCT5523D_Reg(0xF0, bBuf); //count mode is second

68

SI-83 User Manual

Set_NCT5523D_Reg(0xF1, NewInterval); //set timer } //--------------------------------------------------------------------------void WDTDisable(void) {

Set_NCT5523D_LD(0x08); //switch to logic device 8

Set_NCT5523D_Reg(0xF1, 0x00); //clear watchdog timer

Set_NCT5523D_Reg(0x30, 0x00); //watchdog disabled } //---------------------------------------------------------------------------

File of the NCT5523D.CPP //--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include "NCT5523D.H" #include <dos.h> //--------------------------------------------------------------------------unsigned int NCT5523D_BASE;

69

IBASE Technology Inc.

void Unlock_NCT5523D (void); void Lock_NCT5523D (void); //--------------------------------------------------------------------------unsigned int Init_NCT5523D(void) {

unsigned int result;

unsigned char ucDid;

NCT5523D_BASE = 0x4E;

result = NCT5523D_BASE;

ucDid = Get_NCT5523D_Reg(0x20);

if (ucDid == 0xC4) //NCT5523D?? { goto Init_Finish; }

NCT5523D_BASE = 0x2E;

result = NCT5523D_BASE;

ucDid = Get_NCT5523D_Reg(0x20);

if (ucDid == 0xC4) //NCT5523D??

{ goto Init_Finish; }

NCT5523D_BASE = 0x00;

result = NCT5523D_BASE;

Init_Finish: return (result); } //--------------------------------------------------------------------------void Unlock_NCT5523D (void) {

outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK);

outportb(NCT5523D_INDEX_PORT, NCT5523D_UNLOCK); } //--------------------------------------------------------------------------void Lock_NCT5523D (void) {

outportb(NCT5523D_INDEX_PORT, NCT5523D_LOCK); }

70

SI-83 User Manual

//---------------------------------------------------------------------------

void Set_NCT5523D_LD( unsigned char LD) {

Unlock_NCT5523D();

outportb(NCT5523D_INDEX_PORT, NCT5523D_REG_LD);

outportb(NCT5523D_DATA_PORT, LD);

Lock_NCT5523D(); } //--------------------------------------------------------------------------void Set_NCT5523D_Reg( unsigned char REG, unsigned char DATA) {

Unlock_NCT5523D();

outportb(NCT5523D_INDEX_PORT, REG);

outportb(NCT5523D_DATA_PORT, DATA);

Lock_NCT5523D(); } //--------------------------------------------------------------------------unsigned char Get_NCT5523D_Reg(unsigned char REG) {

unsigned char Result;

Unlock_NCT5523D();

outportb(NCT5523D_INDEX_PORT, REG);

Result = inportb(NCT5523D_DATA_PORT);

Lock_NCT5523D();

return Result; } //---------------------------------------------------------------------------

IBASE SI-83 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
