IBASE SE-92 User Manual

SE-92 User Manual

SE-92

User Manual

ii

SE-92 User Manual

Revision

Release Date

V1.0

2015/04/28

iii

IBASE Technology Inc.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC. (“IBASE ”).

Products and corporate names mentioned in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only. All trademarks are the property of their respective owners.

Every effort has been made to ensure that the contents of this manual are correct and up to date. However, the manufacturer makes no guarantee regarding the accuracy of its contents, and reserves the right to make changes without prior notice.

iv

SE-92 User Manual

Table of Contents

Setting up your system ........................................................................................ v

Care during use.................................................................................................... vi

Acknowledgments .............................................................................................. vii

CHAPTER 1 INTRODUCTION .................................................................................... 1

1.1 General Description ........................................................................................ 1

1.2 System Specifications .................................................................................... 1

1.2.1 Hardware Specifications ............................................................................. 2

1.2.2 Dimensions................................................................................................... 3

1.2.3 I/O View ......................................................................................................... 3

1.2.3 I/O View ......................................................................................................... 4

1.3 Exploded View of the SE-92 Assembly ......................................................... 5

1.3.1 Parts Description ......................................................................................... 5

1.4 Packing List ..................................................................................................... 6

1.4.1 Optional Items module ................................................................................ 6

1.5 HARDWARE INSTALLATION .......................................................................... 7

1.5.1 Mounting Installation ................................................................................... 7

1.5.2 Installing the storage ................................................................................... 8

CHAPTER 2 MOTHERBOARD INTRODUCTION .......................................................... 9

2.1 Introduction ..................................................................................................... 9

IB912 Jumpers and Connectors .......................................................................... 9

2.2 Installations ................................................................................................... 11

2.2.1 Installing the Memory............................................................................ 11

2.3 Jumpers and Connectors ............................................................................. 12

CHAPTER 3 BIOS SETUP .........................................................................................15

3.1 BIOS Introduction ......................................................................................... 15

3.2 BIOS Setup .................................................................................................... 15

CHAPTER 4 DRIVERS INSTALLATION .......................................................................33

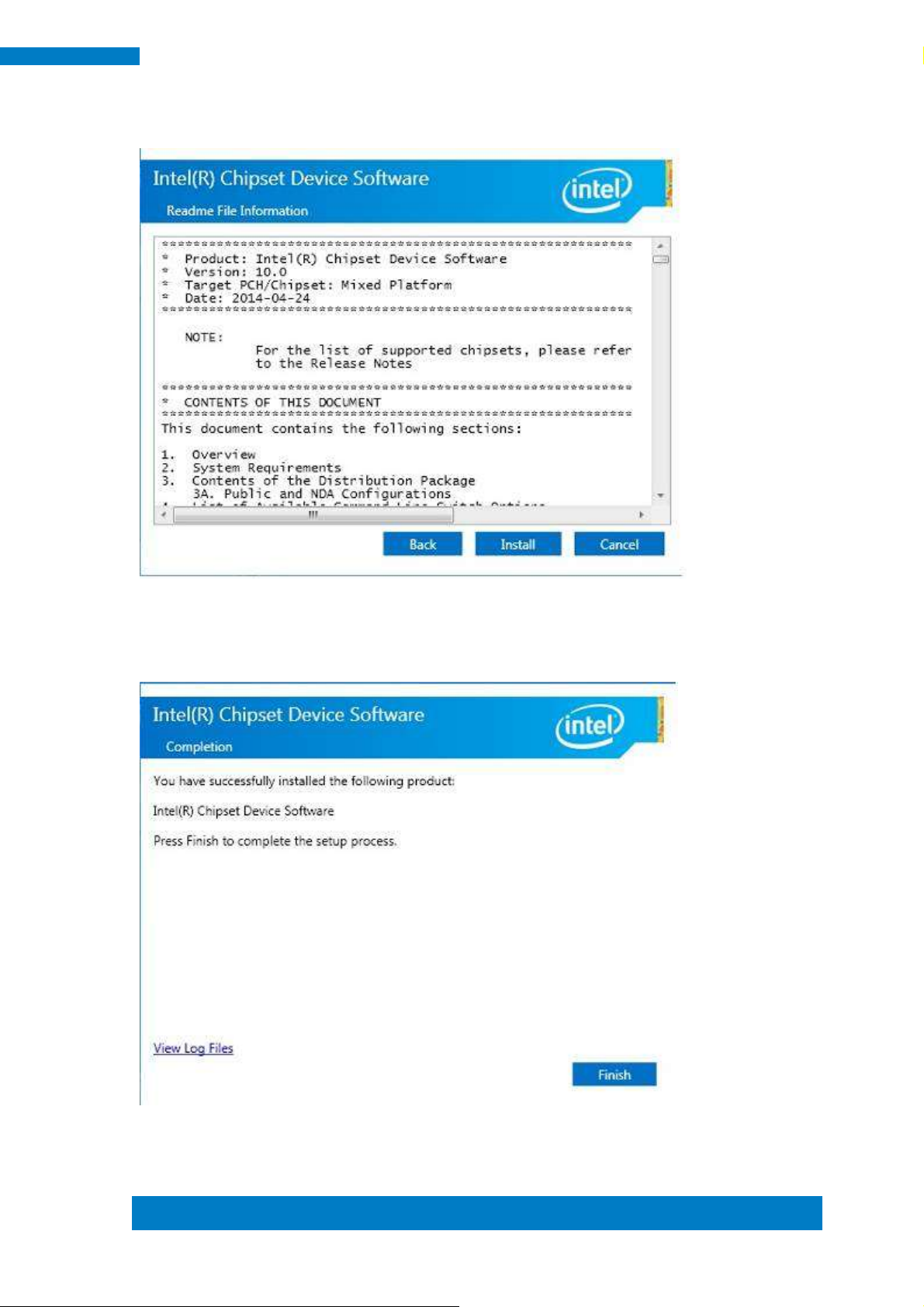

4.1 Intel Chipset Software Installation Utility .................................................... 33

4.2 VGA Drivers Installation ............................................................................... 36

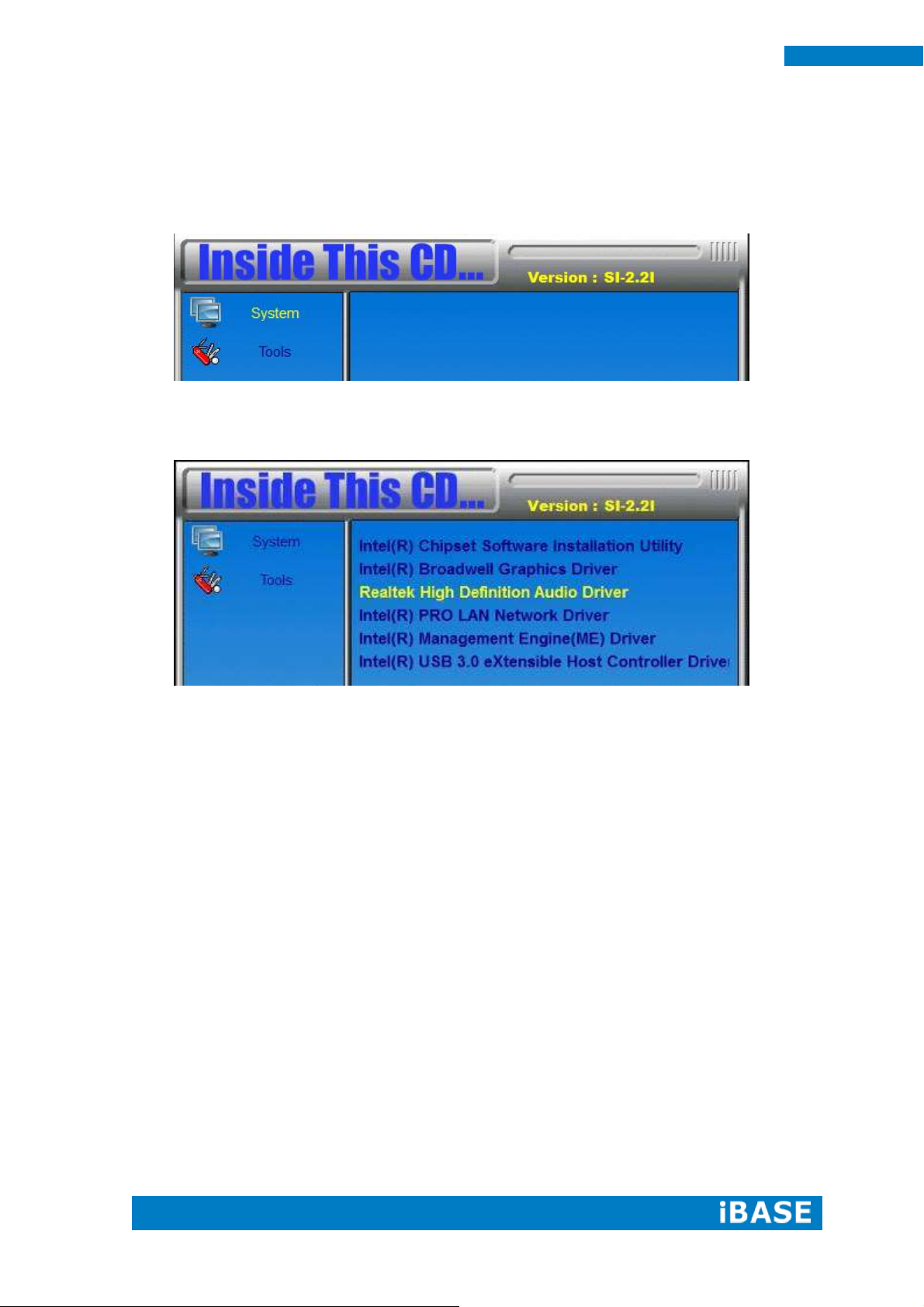

4.3 Realtek HD Audio Driver Installation ........................................................... 40

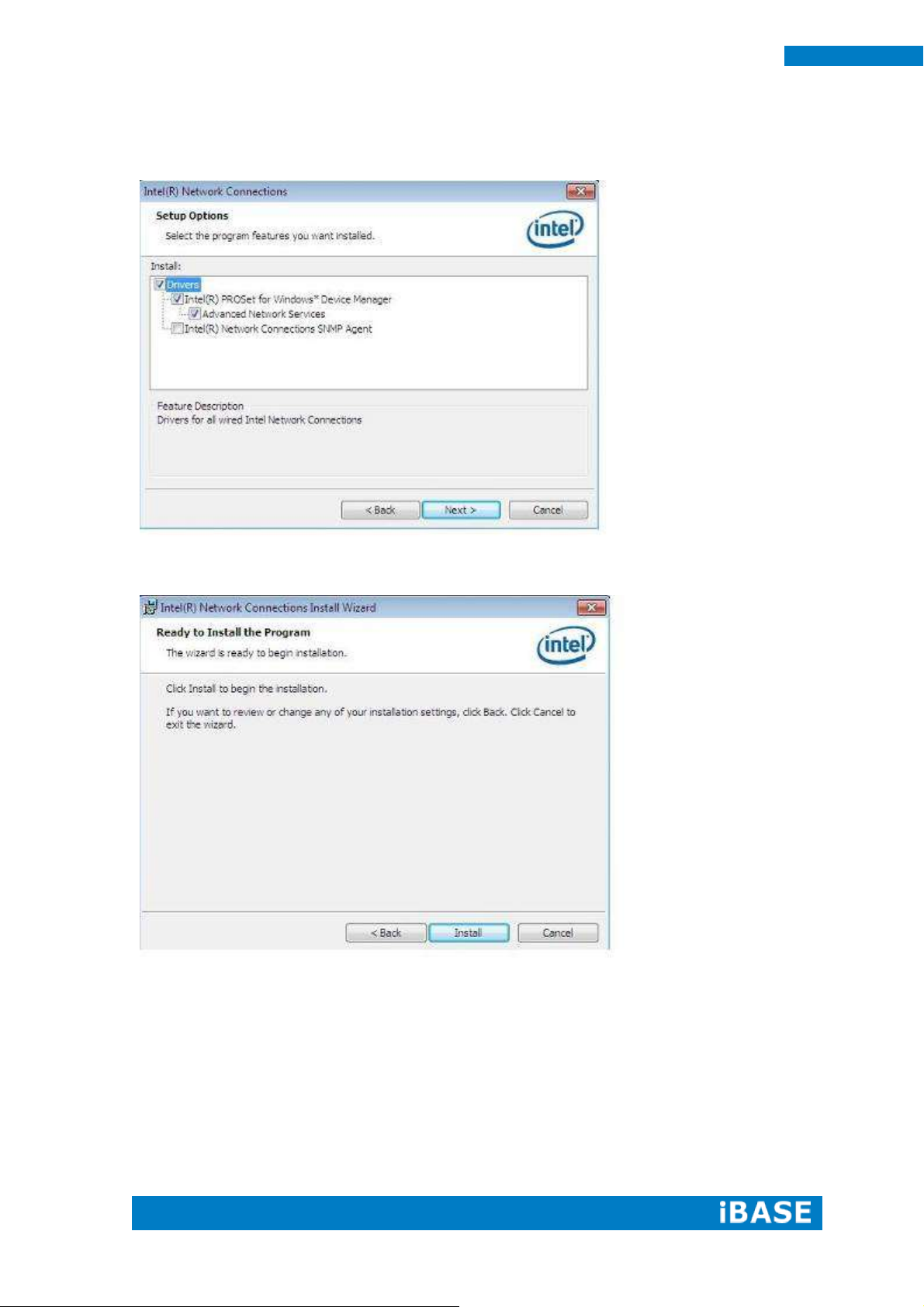

4.4 LAN Drivers Installation ............................................................................... 42

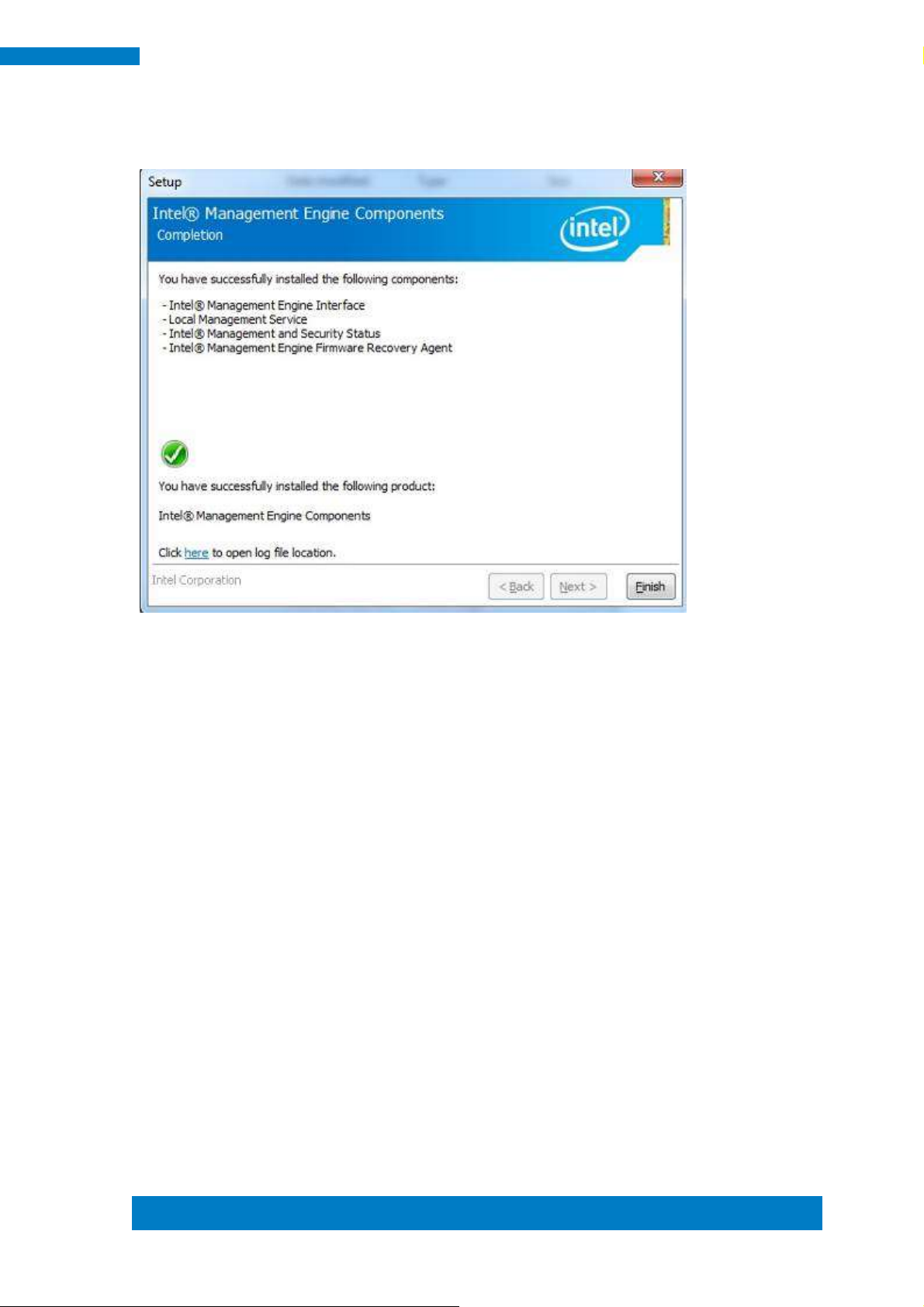

4.5 Intel® Management Engine Interface .......................................................... 45

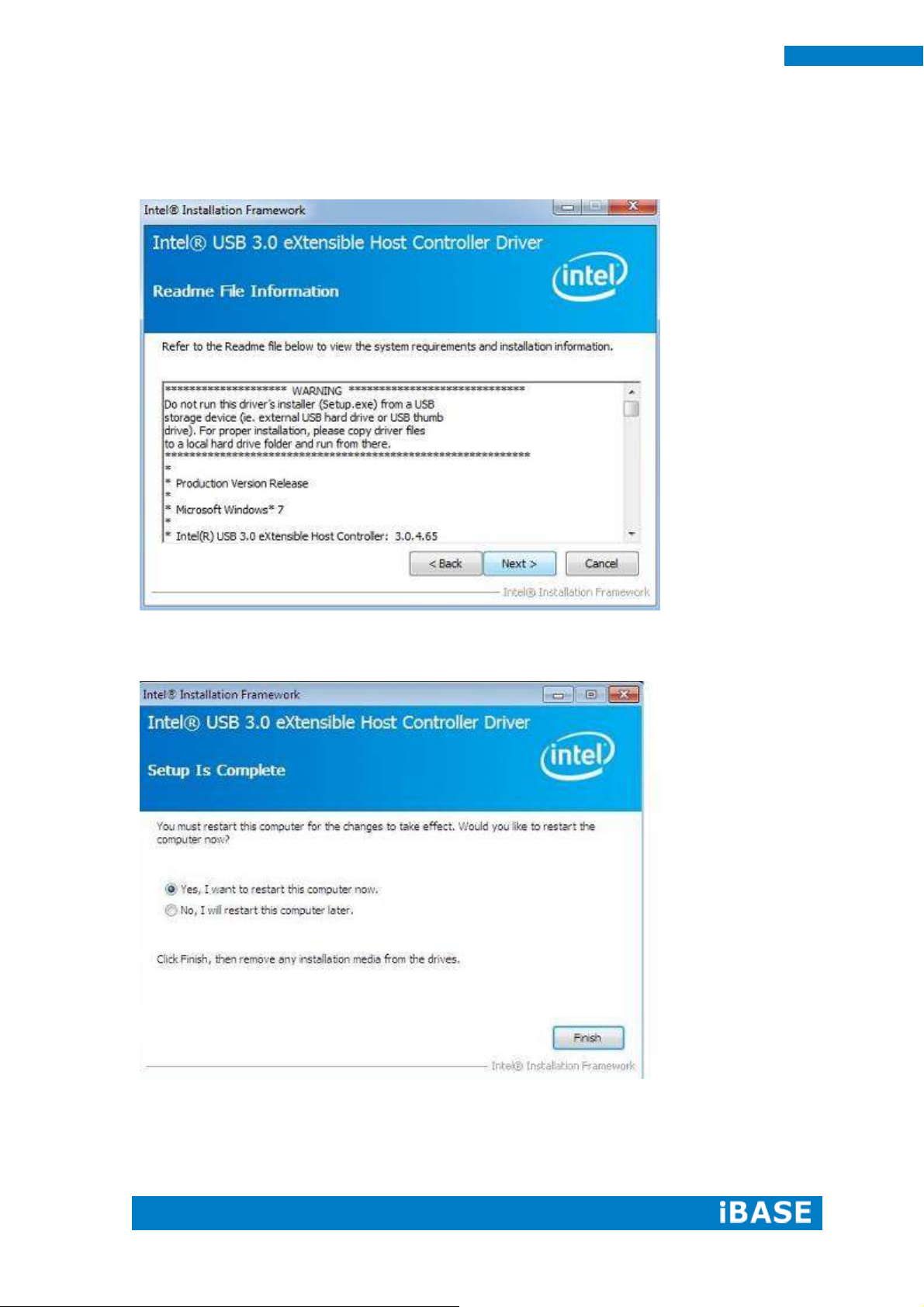

4.6 Intel® USB 3.0 Drivers .................................................................................. 48

Appendix ...............................................................................................................51

A. I/O Port Address Map ..................................................................................... 51

B. Interrupt Request Lines (IRQ) ....................................................................... 52

C. Watchdog Timer Configuration ..................................................................... 53

v

IBASE Technology Inc.

Safety Information

Your SE-92 is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions

Setting up your system

 Read and follow all instructions in the documentation before you operate your

system.

 Do not use this product near water.  Set up the system on a stable surface. Do not secure the system on any unstable

plane.

 Do not place this product on an unstable cart, stand, or table. The product may

fall, causing serious damage to the product.

 Slots and openings on the chassis are for ventilation. Do not block or cover these

openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.

 This system should be operated from the type of power indicated on the marking

label. If you are not sure of the type of power available, consult your dealer or local power company.

 Use this product in environments with ambient temperatures between -40˚C and

75˚C.

 If you use an extension cord, make sure that the total ampere rating of the

devices plugged into the extension cord does not exceed its ampere rating.

 DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE

STORAGE TEMPERATURE MAY GO BELOW -50° C (-58° F) OR ABOVE 85° C (185° F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.

vi

SE-92 User Manual

Care during use

 Do not walk on the power cord or allow anything to rest on it.  Do not spill water or any other liquids on your system.  When the system is turned off, a small amount of electrical current still flows.

Always unplug all power, and network cables from the power outlets before cleaning the system.

 If you encounter the following technical problems with the product, unplug the

power cord and contact a qualified service technician or your retailer.

 The power cord or plug is damaged.  Liquid has been spilled into the system.  The system does not function properly even if you follow the operating

instructions.

 The system was dropped or the cabinet is damaged.

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

NO DISASSEMBLY

The warranty does not apply to the products that have been disassembled by users

WARNING

HAZARDOUS MOVING PARTS

KEEP FINGERS AND OTHER BODY PARTS AWAY

vii

IBASE Technology Inc.

Acknowledgments

 AMI is a registered trademark of AMI Software International, Inc.  AMD and ATI are registered trademarks of AMD Corporation.  Microsoft Windows is a registered trademark of Microsoft Corporation.  FINTEK is a registered trademark of FINTEK Electronics Corporation.  REALTEK is a registered trademark of REALTEK Electronics Corporation.  All other product names or trademarks are properties of their respective

owners.

1

SE-92 User Manual

CHAPTER 1 INTRODUCTION

1.1 General Description

The “Signature Book™” SE-92 is a professional fanless digital signage system powered by 5th Gen. Intel® CoreTM i7/i5/i3 ULT Processors with Intel® HD graphics engine integrated. Featuring a wide-operating temperature range from -40°C to 75°C and 7V to 36V wide-range DC input, the SE-92 is built specifically for harsh environments in outdoor and in-vehicle applications. The integrated dual DVI-I interface supports either a DVI-D or VGA display and has built-in EDID emulation function(**). Additionally, SE-92 has two dual-channel DDR3L-1600 sockets to provide up to 16GB of memory, dual Gigabit Ethernet, a SIM card slot and an extended temp SSD drive for fast system boot and low heat emissions. It also comes with Intel AMT for the remote control and IBASE’s iSMART green technology for power on/off scheduling and power resume functions. The ruggedized design player comes with a chassis that provides passive cooling for better system reliability and quiet operation.

SE-92 overview

** The integrated dual DVI-I interface supports either a DVI-D or VGA display and has built-in

EDID emulation function. To use the EDID function, turn off the power first. Then, connect the

new display port. After you turn on the power, SE-92 will detect new EDID data.

2

SE-92 User Manual

Model Name

SE-92

System Mainboard

IB912

CPU

5th Generation Intel® Core™ i7-5650U ULT 2.2GHz 5th Generation Intel® Core™ i5-5350U ULT 1.8GHz 5th Generation Intel® Core™ i3-5010U ULT 2.1GHz

Memory

2x DDR3L-1600 SO-DIMM Max. 16GB

I/O Interface

2x DVI-I with EDID emulation function 2x USB 2.0 2x USB 3.0 2x RJ45 for Gigabit LAN 1x RJ45 for RS-232 serial port 2x Microjack audio connectors for Mic-in / Line-out Power / HDD LED, 1x Power on/off button

1x 4 pin 7-36V DC terminal block 1x clear EDID switch

Storage

1x 2.5” HDD/SSD 1x mSATA 1x NGFF M key 22 x 80mm (2280)

Expansion Slots

1x Mini PCI-E(x1) slot for Wi-Fi/ Bluetooth/ TV Tuner/ 3G / LTE Wireless options 1x SIM card slot 2x M2(NGFF) slots for Solid State Storage Devices (SSD)/ Wi-Fi/ Bluetooth/ 3G/LTE/ TV tuner options

Power Supply

7V-36V DC-in

Construction

Aluminum + SGCC

Mounting

Standard system bracket

Dimensions

280mm(W) x 216mm(D) x 46mm(H)

10.7”(W) x 8.6”(D) x 1.8”(H)

Operating Temperature

-40°C~ 75°C (-40°F~166°F)

Storage Temperature

-50° ~ 85°C (-58°F~185°F)

Relative Humidity

5~90% @ 45°C, (non-condensing)

Vibration

mSATA: 5 grms / 5~500Hz / random operation

RoHS

Available

Certification

CE, FCC, CCC, UL & e13 Mark

1.2 System Specifications

1.2.1 Hardware Specifications

‧

This specification is subject to change without prior notice.

3

IBASE Technology Inc.

1.2.2 Dimensions

4

SE-92 User Manual

1.2.3 I/O View

SE-92 front side

SE-92 rear side

5

IBASE Technology Inc.

Part No.

Description

Part No.

Description

1

IB912 motherboard

2

SE-92_perimeter

3

SE-92_rear cover

4

SE-92_front cover

5

SCREW-B30

6

SCREW-B30-B

7

NUTBOSS-S6

8

SE-92_heat sink

9

SE-92_ic heat sink_2

10

SE-92_hdd bracket

11

SE-92_HDD tray

12

SE-92_HDD cover bracket

13

SATA_25HDD

14

SE-92_CPU Heat Sink

15

SE-92_ic heat sink_4

1.3 Exploded View of the SE-92 Assembly

1.3.1 Parts Description

6

SE-92 User Manual

Item No.

Description

Qty

1

Driver CD

1

WiFi Solution

Description

WiFi module

Wireless Card;Mini PCI 802.11 A/B/G/N WT [WPEA-252NI] RoHS (A008WIRELESS00840P)

External Antenna, 2pcs

WiFi Antenna (A055RFA02C2M20800P)

Internal cable

Internal Antenna 100mm[BTC130-1-70B-100] RoHS (A055RFA0000021000P)

Internal cable

Internal Antenna 200mm [BTC130-1-70B-200-1] RoHS (A055RFA0000020000P)

Screw, 2pcs

Screw; A44-N NI 3.4 Nylok M2*L3.8 P0.4mm [LHS] RoHS (H02203A0442200N00P)

Bracket, 1set

Component BOM; MPCIE-EXT V-B2 Bracket (SC2MPCIEEXT0B2100P)

3G Solution

Description

3G

Wireless; 3.75G UMTS/HSPA [ZU202] RoHS (A008WIRELESS00520P)

3G+GPS

Wireless; 3.75G UMTS/HSPA & GPS Module [ZU200] RoHS (A008WIRELESS00510P)

WW-350U

Wireless; 3.75G UMTS/HSPA [NAVISYS WW-350U] RoHS (A008WIRELESS00530P)

Cable

Cable; SMA IPX Cable For 3G 30CM [RF11030A] RoHS (A012INTENAL010000P)

Antenna

3G [ANT0921Q2P] RoHS (A055ANT0921Q2P000P)

COM Port Cable

Description

EXT-311

Cable; EXT-311 2-HD 10C 150CM; DSUB-9F => RJ45-10M RoHS (C501EXT3110A12000P)

EXT-312

Cable; EXT-312 2-HD 10C 150CM; DSUB-9M => RJ45-10M RoHS (C501EXT3120A12000P)

1.4 Packing List

1.4.1 Optional Items module

7

IBASE Technology Inc.

1.5 HARDWARE INSTALLATION

1.5.1 Mounting Installation

1. Please install SE-92 to the desired location using 6 screws, as shown in the picture.

8

SE-92 User Manual

1.5.2 Installing the storage

1. Remove the two screws on the HDD cover and draw it out.

2. Install the HDD/SSD to the HDD bracket with 4 screws.

9

IBASE Technology Inc.

CHAPTER 2 MOTHERBOARD INTRODUCTION

2.1 Introduction

IB912 Jumpers and Connectors

10

SE-92 User Manual

IIB912 Board Dimensions

11

IBASE Technology Inc.

2.2 Installations

2.2.1 Installing the Memory

The IB912 board supports two DDR3 memory sockets for a maximum total memory of 16GB DDR3 memory type.

Installing and Removing Memory Modules

To install the DDR3 modules, locate the memory slot on the board and perform the following steps:

1. Hold the DDR3 module so that the key of the DDR3 module aligned with that on the

memory slot.

2. Gently push the DDR3 module in an upright position until the clips of the slot close

to hold the DDR3 module in place when the DDR3 module touches the bottom of the slot.

3. To remove the DDR3 module, press the clips with both hands.

12

SE-92 User Manual

2.3 Jumpers and Connectors

CN3: USB3 #2 CN4: USB3 #1 CN5: I210 Gigabit LAN CN6: I218LM Gigabit LAN CN7: COM1 CN8: USB2 #4 CN9: USB2 #5 CN10: LINE OUT CN11: MIC IN CN12: DVI-I CN13: DVI-I LED5: Power LED SW1: Power Button SW2: Clear EDID data J1: Flash Descriptor Security Override (Factory use only) J2: Clear COMS J3: Clear ME J11: Power Connector JP1: LPC debug Connector (Factory use only) JP5: SPI Flash connector (Factory use only)

13

IBASE Technology Inc.

Pin#

Signal Name

1

DSR#

2

GND

3

GNS

4

SOUT

5

SIN

6

DCD

7

DTR

8

CTS#

9

RTS#

10

RI#

Signal Name

Pin #

Signal Name

DATA 2-

1

16

HOT POWER

DATA 2+

2

17

DATA 0-

Shield 2/4

3

18

DATA 0+

DATA 4-

4

19

SHIELD 0/5

DATA 4+

5

20

DATA 5-

DDC CLOCK

6

21

DATA 5+

DDC DATA

7

22

SHIELD CLK

N.C

8

23

CLOCK -

DATA 1-

9

24

CLOCK +

DATA 1+

10

C1

N.C

SHIELD 1/3

11

C2

N.C

DATA 3-

12

C3

N.C

DATA 3+

13

C4

N.C

DDC POWER

14

C5

A GROUND2

A GROUND 1

15

C6

A GROUND3

CN7: COM1 Serial Ports

CN12/CN13: DVI-I Connector

14

SE-92 User Manual

Pin #

Signal Name

1

DC-IN

2

GND

3

EARTH GND

4

IGS-IN

J3

Setting

Function

Pin 1-2

Short/Closed

Normal

Pin 2-3

Short/Closed

Clear CMOS

J2

Setting

Function

Pin 1-2

Short/Closed

Normal

Pin 2-3

Short/Closed

Clear CMOS

J1

Flash Descriptor

Security Override

Open

Disabled (Default)

Close

Enabled

J11: Power Connector

J3: Clear ME Contents

J2: Clear CMOS Contents

J1: Flash Descriptor Security Override (Factory use only)

15

IBASE Technology Inc.

CHAPTER 3 BIOS SETUP

This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows:

3.1 BIOS Introduction

The BIOS (Basic Input/Output System) installed in your computer system’s ROM

supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

3.2 BIOS Setup

The BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press <DEL> or <ESC> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

16

SE-92 User Manual

Main Advanced Chipset Boot Security Save & Exit

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Total memory

4096 MB (DDR3)

Memory Frequency

1600 Mhz

System Date

[Tue 10/29/2013]

System Time

[15:27:20]

Access Level

Administrator

Main Settings

System Date

Set the Date. Use Tab to switch between Data elements.

System Time

Set the Time. Use Tab to switch between Data elements.

17

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

► CPU Configuration

► Trusted Computing ► ACPI Settings ► ISmart Controller ► AMT Configuration ► NCT5523D Super IO Configuration

► NCT5523D H/W Monitor

► SATA Configuration ► CSM Configuration

► USB Configuration

Advanced Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Aptio Setup Utility

18

SE-92 User Manual

Main Advanced Chipset Boot Security Save & Exit

CPU Configuration Intel(R) CPU Core(TM)i7-5650U @ 2.20GHz

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

CPU Signature Microcode Patch

306d4 e

Max CPU Speed

2200 MHz

Min CPU Speed

500 MHz

CPU Speed

3100 MHz

Processor Cores

2

Intel HT Technology

Supported

Intel VT-x Technology

Supported

Intel SMX Technology

Supported

64-bit

Supported

EIST Technology

Supported

Hyper-threading

Enabled

Active Processor Cores Overclocking lock Execute Disable Bit Intel Virtualization Technology

All Disabled Enabled Enabled

EIST

Enabled

Turbo Mode

Enabled

CPU Configuration

Aptio Setup Utility

Hyper-threading

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.

Active Processor Cores

Number of cores to enable in each processor package.

Overclocking lock

FLEX_RATIO(194) MSR

Execute Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.)

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

EIST

Enabled/Disabled Intel Speedstep.

Turbo Mode

Turbo Mode.

19

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

Configuration

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save

ESC: Exit

Security Device Support

Disabled

Current Status Information

SUPPORT TURNED OFF

Trusted Computing

Security Device Support

Enables or disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

TPM State

Enable/Disable Security Device. NOTE: Your Computer will reboot during restart in order to change State of the Device.

Pending operation

Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device.

20

SE-92 User Manual

Main Advanced Chipset Boot Security Save & Exit

ACPI Settings

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Enable Hibernation

Enabled

ACPI Sleep State

S1 (CPU Stop Clock)

Lock Legacy Resources

Disabled

ACPI Settings

Aptio Setup Utility

Enable Hibernation

Enables or Disables System ability to hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select ACPI sleep state the system will enter, when the SUSPEND button is pressed.

Lock Legacy Resources

Enabled or Disabled Lock of Legacy Resources

21

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

iSmart Controller

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Power-On after Power failure Temperature Guardian

Disable Disable

Schedule Slot 1

None

Schedule Slot 2

None

iSmart Controller

Power-On after Power failure

This field sets the system power status whether Disable or Enable when power returns to the system from a power failure situation.

Temperature Guardian

Generate the reset signal when system hangs up on POST.

Schedule Slot 1 / 2

Setup the hour/minute for system power on.

22

SE-92 User Manual

Main Advanced Chipset Boot Security Save & Exit

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Intel AMT

Enabled

BIOS Hotkey Pressed

Disabled

MEBx Selection Screen

Disabled

Hide Un-Configure ME Confirmation

Disabled

Amt Wait Timer

0

Activate Remote Assistance Process

Disabled

USB Configure

Enabled

PET Progress

Enabled

AMT CIRA Timeout

0

Watchdog

Disabled

OS Timer

0

BIOS Timer

0

AMT Configuration

Aptio Setup Utility

Intel AMT

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device

BIOS Hotkey Pressed

OEMFLag Bit 1: Enable/Disable BIOS hotkey press.

AMT Configuration

OEMFLag Bit 2: Enable/Disable MEBx selection screen.

Hide Un-Configure ME Configuration

OEMFlag Bit 6: Hide Un-Configure ME without password Confirmation Prompt

Amt Wait Timer

Set timer to wait before sending ASF_GET_BOOT_OPTIONS

Activate Remote Assistance Process

Trigger CIRA boot.

USB Configure

Enable/Disable USB Configure function.

PET Progress

User can Enable/Disable PET Events progress to receive PET events or not.

Watchdog Timer

Enable/Disable Watchdog Timer.

23

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

NCT5523D Super IO Configuration

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Super IO Chip

NCT5523D

► Serial Port 1 Configuration

► Serial Port 2 Configuration

Main Advanced Chipset Boot Security Save & Exit

PC Health Status

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

ACPI Shutdown Temperature

Disable

SYS Temperature

+39.0 C

CPU Temperature

+39.5 C

Vcore

+1.776 V

VIN2

+1.360 V

VCC3V

+3.360 V

VSB3V

+3.344 V

NCT5523D Super IO Configuration

Aptio Setup Utility

Serial Port Configuration

Set parameters of serial ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device.

NCT5523D H/W Monitor

Aptio Setup Utility

ACPI Shutdown Temperature

The default setting is Disabled.

Temperatures/Voltages

These fields are the parameters of the hardware monitoring function feature of the board. The values are read-only values as monitored by the system and show the PC health status.

24

SE-92 User Manual

Main Advanced Chipset Boot Security Save & Exit

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

SATA Controller(s)

Enabled

SATA Mode Selection

AHCI

SATA Controller Speed

Default

SATA Port0

Empty

Software Preserve Port 0 Hot Plug

Unknown Enabled Disabled

SATA Port1

Empty

Software Preserve Port 1

Hot Plug

Unknown Enabled Disabled

SATA Port2

Empty

Software Preserve Port 2

Hot Plug

Unknown Enabled Disabled

SATA Port3

Empty

Software Preserve Port 3

Hot Plug

Unknown Enabled Disabled

SATA Configuration

SATA Devices Configuration.

Aptio Setup Utility

SATA Controller(s)

Enable / Disable Serial ATA Controller.

SATA Mode Selection

(1) AHCI Mode. (2) RAID Mode.

SATA Controller Speed

Indicates the maximum speed the SATA controller can support

Port

Enable or Disable SATA Port

Hot Plug

Designates this port as Hot Pluggable.

25

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

Compatibility Support Module Configuration

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

CSM Support

CSM16 Module Version

GateA20 Active Option ROM Messages

Enabled

07.76

Upon Force BIOS

Boot option filter

Option ROM execution

UEFI and Legacy

Network

Do not launch

Storage

Legacy only

Video

Legacy only

Other PCI device

UEFI

CSM Configuration

Aptio Setup Utility

CSM Support

Enable/Disable CSM Support.

Boot option filter

This option controls what devices system can boot to.

Network

Controls the execution of UEFI and Legacy PXE OpROM.

Storage

Controls the execution of UEFI and Legacy Storage OpROM.

Video

Controls the execution of UEFI and Legacy Video OpROM.

Other PCI device

Determines OpROM execution policy for devices other than Network, Storage, or Video

26

SE-92 User Manual

Main Advanced Chipset Boot Security Save & Exit

USB Configuration

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

USB Module Version

8.11.02

USB Devices:

1 Keyboard, 1 Mouse

Legacy USB Support

Enabled

XHCI Hand-off

Enabled

EHCI Hand-off

Enabled

USB Mass Storage Driver Support

Enabled

USB hardware delays and time-outs:

USB Transfer time-out

20 sec

Device reset tine-out

20 sec

Device power-up delay

Auto

USB Configuration

Aptio Setup Utility

Legacy USB Support

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option keeps USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

USB Mass Storage Driver Support

Enable/Disable USB Mass Storage Driver Support.

EHCI Hand-off

This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.

USB Transfer time-out

The time-out value for Control, Bulk, and Interrupt transfers.

Device reset time-out

USB mass Storage device start Unit command time-out.

Device power-up delay

Maximum time the device will take before it properly reports itself to the Host Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor.

27

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save

ESC: Exit

► System Agent (SA) Configuration ► PCH-IO Configuration

Main Advanced Chipset Boot Security Save & Exit

System Agent Bridge Name Broadwell

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

System Agent RC Version

2.2.2.0

VT-d Capability

Supported

VT-d

Enabled

Chipset Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Aptio Setup Utility

System Agent (SA) Configuration

Aptio Setup Utility

VT-d

Check to enable VT-d function on MCH.

28

SE-92 User Manual

Main Advanced Chipset Boot Security Save & Exit

Intel PCH RC Version 2.2.2.0

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Intel PCH SKU Name

Premium SKU(BDW-U)

Intel PCH Rev ID

03/B2

► PCI Express Configuration

► USB Configuration

► PCH Azalia Configuration

PCH LAN Controller

Enabled

Wake on LAN

Disabled

Main Advanced Chipset Boot Security Save & Exit

PCI Express Configuration

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

► PCI Express Root Port 1

PCI-E Port 2 is assigned to LAN

► PCI Express Root Port 3

► PCI Express Root Port 4

► PCI Express Root Port 5

► PCI Express Root Port 6

PCH-IO Configuration

This section allows you to configure the North Bridge Chipset.

Aptio Setup Utility

PCH LAN Controller

Enable or disable onboard NIC.

Wake on LAN

Enable or disable integrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state.)

PCI Express Configuration

PCI Express Root Port Settings.

29

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

USB Configuration

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

USB Precondition

Disabled

xHCI Mode

Auto

USB Ports Per-Port Disable Control

Disabled

Main Advanced Chipset Boot Security Save & Exit

PCH Azalia Configuration

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

Azalia

Enabled

USB Configuration

USB Precondition

Precondition work on USB host controller and root ports for faster enumeration.

xHCI Mode

Mode of operation of xHCI controller.

USB Ports Per-Port Disable Control

Control each of the USB ports (0~13) disabling.

PCH Azalia Configuration

Azalia

Control Detection of the Azalia device. Disabled = Azalia will be unconditionally be disabled. Enabled = Azalia will be unconditionally be enabled. Auto = Azalia will be enabled if present, disabled otherwise.

30

SE-92 User Manual

Main Advanced Chipset Boot Security Save & Exit

Password Description

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit

If ONLY the Administrator’s password is set, then this only limit access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights

The password length must be

in the following range:

Minimum length

3

Maximum length

20

Administrator Password

User Password

Security Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Aptio Setup Utility

Administrator Password

Set Setup Administrator Password.

User Password

Set User Password.

31

IBASE Technology Inc.

Main Advanced Chipset Boot Security Save & Exit

Boot Configuration

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Setup Prompt Timeout

1

Bootup NumLock State

On

Quiet Boot

Disabled

Fast Boot

Boot mode select

Disabled

LEGACY

FIXED BOOT ORDER Priorities Boot Option #1

Hard Disk

Boot Option #2

CD / DVD

Boot Option #3

USB Hard Disk

Boot Option #4 Boot Option #5

USB CD / DVD USB Key

Boot Option #6 Boot Option #7 Boot Option #8

USB Floppy USB LAN Network

Boot Settings

This section allows you to configure the boot settings.

Aptio Setup Utility

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Bootup NumLock State Select the keyboard NumLock state.

Quiet Boot

Enables/Disables Quiet Boot option.

Fast Boot

Enables/Disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

Boot mode select Select boot mode LEGACY/UEFI

FIXED BOOT ORDER Priorities

Sets the system boot order.

32

SE-92 User Manual

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Exit

→ ←Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save

ESC: Exit

Discard Changes and Exit

Save Changes and Reset

Discard Changes and Reset

Save Options

Save Changes

Discard Changes

Restore Defaults

Save as User Defaults

Restore User Defaults

Boot Override

Save & Exit Settings

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Changes

Save Changes done so far to any of the setup options.

Discard Changes

Discard Changes done so far to any of the setup options.

Restore Defaults

Restore/Load Defaults values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults Restore the User Defaults to all the setup options.

33

IBASE Technology Inc.

CHAPTER 4 DRIVERS INSTALLATION

The Intel Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation.

IMPORTANT NOTE:

After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation.

4.1 Intel Chipset Software Installation Utility

1. Insert the DVD that comes with the board. Click System and then SE-92 Series Products.

2. Click Intel(R) Chipset Software Installation Utility.

34

SE-92 User Manual

3. When the Welcome screen to the Intel® Chipset Device Software appears, click Next to continue.

4. Click Accept to accept the software license agreement and proceed with the installation process.

35

IBASE Technology Inc.

5. On the Readme File Information screen, click Install to continue the installation.

6. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect.

36

SE-92 User Manual

4.2 VGA Drivers Installation

1. Insert the DVD that comes with the board. Click System and then SE-92 Series Products.

2. Click Intel(R) Broadwell Graphics Driver.

37

IBASE Technology Inc.

3. When the Welcome screen appears, click Next to continue.

4. When the License Agreement, click Next to continue.

38

SE-92 User Manual

5. Click Next to to agree with the license agreement and continue the installation.

39

IBASE Technology Inc.

6. Setup Progress. Click Next to restart the computer and for changes to take effect.

7. Setup complete. Click Finish to restart the computer and for changes to take effect

40

SE-92 User Manual

4.3 Realtek HD Audio Driver Installation

1. Insert the DVD that comes with the board. Click System and then SE-92 Series Products.

2. Click Realtek High Definition Audio Driver.

41

IBASE Technology Inc.

3. On the Welcome to the InstallShield Wizard screen, click Yes to proceed with and complete the installation process.

4. The InstallShield Wizard Complete. Click Finish to restart the computer and for changes to take effect.

42

SE-92 User Manual

4.4 LAN Drivers Installation

1. Insert the DVD that comes with the board. Click System and then SE-92 Series Products.

2. Click Intel(R) PRO LAN Network Driver.

43

IBASE Technology Inc.

3. When the Welcome screen appears, click Next.

4. Click Next to to agree with the license agreement.

44

SE-92 User Manual

5. Click the checkbox for Drivers in the Setup Options screen to select it and click Next to continue.

6. The wizard is ready to begin installation. Click Install to begin the installation.

7. When InstallShield Wizard is complete, click Finish.

45

IBASE Technology Inc.

4.5 Intel® Management Engine Interface

IMPORTANT NOTE:

After installing your Windows operating system, you must install first the IKB2685811 patch before installing Intel(R) Management Engine(ME) Driver.

1. Insert the DVD that comes with the board. Click System and then SE-92 Series Products.

2. Click Intel(R) Management Engine(ME) Driver

46

SE-92 User Manual

3. When the Welcome screen to the InstallShield Wizard for Intel® Management Engine Components, click the checkbox for Install Intel® Control Center & click Next.

4. Click Next to to agree with the license agreement.

47

IBASE Technology Inc.

5. When the Destination Folder, click Next. Then, click Finish when the setup progress has been successfully installed.

48

SE-92 User Manual

4.6 Intel® USB 3.0 Drivers

1. Insert the DVD that comes with the board. Click System and then SE-92 Series Products.

2. Click Intel(R) USB3.0 eXtensible Host Controller Driver

49

IBASE Technology Inc.

3. When the Welcome screen to the InstallShield Wizard for Intel® USB 3.0 eXtensible Host Controller Driver, click Next.

4. Click Yes to to agree with the license agreement and continue the installation.

50

SE-92 User Manual

5. On the Readme File Information screen, click Next to continue the installation of the Intel® USB 3.0 eXtensible Host Controller Driver.

6. Setup complete. Click Finish to restart the computer and for changes to take effect.

51

IBASE Technology Inc.

Address

Device Description

000h - 01Fh

DMA Controller #1

020h - 021h

Interrupt Controller #1

040h - 043h

System Timer

070h - 077h

System/CMOS Real Time Clock

081h - 091h

DMA Controller #2

0A0h – 0A1h

Interrupt Controller #2

081h - 091h

DMA Controller #3

2F8h - 2FFh

Serial Port #2(COM2)

3C0h- 3DFh

Graphics adapter Controller

3F8h - 3FFh

Serial Port #1(COM1)

D000 - FFFh

PCI Root Ports

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used.

52

SE-92 User Manual

Level

Function

IRQ0

System Timer Output

IRQ1

Keyboard

IRQ3

Serial Port #2

IRQ4

Serial Port #1

IRQ5

SMBus Controller

IRQ8

Real Time Clock

IRQ19

SATA AHCI Controller

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

53

IBASE Technology Inc.

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h> #include "6106" //--------------------------------------------------------------------------int main (int argc, char *argv[]); void EnableWDT(int); void DisableWDT(void); //--------------------------------------------------------------------------int main (int argc, char *argv[]) { unsigned char bBuf; unsigned char bTime; char **endptr;

// char SIO;

printf("6106 watch dog program\n");

bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime);

if (bTime) { } else { }

if (bTime > 0 && bTime < 256) {

A=2;

unsigned char result; Set_6106_LD(0x08); //switch to logic device 8

}

gotoxy(1,12);

54

SE-92 User Manual

return 0; } //--------------------------------------------------------------------------void EnableWDT(int interval) { unsigned char bBuf;

Set_6106_LD(0x08); Set_6106_Reg(0x30, 0x01); //enable timer Set_6106_Reg(0xF1, interval); //set timer

} //--------------------------------------------------------------------------void DisableWDT(void) { unsigned char bBuf;

Set_6106_LD(0x08); Set_6106_Reg(0x30, 0x00); //enable timer

} //---------------------------------------------------------------------------

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include "6106.H" #include <dos.h> //--------------------------------------------------------------------------unsigned int 6106_BASE; void Unlock_6106 (void); void Lock_6106 (void); //--------------------------------------------------------------------------unsigned int Init_6106(void) { unsigned int result; unsigned char ucDid;

6106_BASE = 0x4E; result = 6106_BASE;

ucDid = Get_6106_Reg(0x20); if (ucDid == 0x07)

//6106 {goto Init_Finish;}

6106_BASE = 0x2E; result = 6106_BASE;

ucDid = Get_6106_Reg(0x20); if (ucDid == 0x07) //6106 { goto Init_Finish; }

6106_BASE = 0x00; result = 6106_BASE;

Init_Finish:

return (result);

55

IBASE Technology Inc.

} //--------------------------------------------------------------------------void Unlock_6106 (void) { outportb(6106_INDEX_PORT, 6106_UNLOCK); outportb(6106_INDEX_PORT, 6106_UNLOCK); } //--------------------------------------------------------------------------void Lock_6106 (void) { outportb(6106_INDEX_PORT, 6106_LOCK); } //--------------------------------------------------------------------------void Set_6106_LD( unsigned char LD) { Unlock_6106(); outportb(6106_INDEX_PORT, 6106_REG_LD); outportb(6106_DATA_PORT, LD); Lock_6106(); } //--------------------------------------------------------------------------void Set_6106_Reg( unsigned char REG, unsigned char DATA) { Unlock_6106(); outportb(6106_INDEX_PORT, REG); outportb(6106_DATA_PORT, DATA); Lock_6106(); } //--------------------------------------------------------------------------unsigned char Get_6106_Reg(unsigned char REG) { unsigned char Result; Unlock_6106(); outportb(6106_INDEX_PORT, REG); Result = inportb(6106_DATA_PORT); Lock_6106(); return Result; } //----------------------------------------------------------------------------------

IBASE SE-92 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
