IBASE MI958 User Manual

MI958

AMD G-series APU+A55E FCH

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0

Acknowledgments

AMI is a registered trademark of AMI Software International, Inc. AMD and ATI are registered trademarks of AMD Corporation. Microsoft Windows is a registered trademark of Microsoft

Corporation. FINTEK is a registered trademark of FINTEK Electronics

Corporation. REALTEK is a registered trademark of REALTEK Electronics

Corporation. All other product names or trademarks are properties of their

respective owners.

ii

MI958 User’s Manual

The AMD Embedded G-Series Processors with AMD Radeon™ HD 6000 Series Graphics combine the central processing unit (CPU) with the graphics processing unit (GPU) in a single-chip Accelerated Processing Unit (APU) package. The APU connects to the AMD A55E Fusion Controller Hub through the Unified Media Interface (UMI) to provide connections to the different system devices. Dimensions of the board are 170mm x 170mm.

AMD Embedded G-Series processor-based systems include the DDR3 memory interface, PCIe, UMI, DDI (Digital Display Interface), power delivery and miscellaneous test signals that connect to the processor.

The AMD A55E Fusion Controller Hub is designed to deliver the quality and performance needed for everyday computing, ultitasking, and multimedia functionality. It also provides expanded I/O connectivity for advanced usage models to take advantage of modern peripheral devices.

The main features of the board are:

 Supports Dual Core AMD Embedded G-Series Processors  Supports up to DDR3-1066 MT/s  Two DDR3 SDRAM DIMMs, Max.8GB memory  Onboard Realtek Gigabit LAN  4x SATA-III, 8x USB 2.0, 4x COM, Watchdog timer,  1x PCI,1x PCI-E(x1) slots  1x VGA,1x DVI,1x LVDS

MI958 User’s Manual 1

INTRODUCTION

Checklist

Your AMD MI958 Development Board package should include the items listed below.

• The MI958 Mini-ITX motherboard

• This User’s Manual

• 1 CD containing chipset drivers and flash memory utility

• 1 Serial ATA cable

2

MI958 User’s Manual

MI958 Specifications

Product Name

Form Factor CPU Type

CPU Operating Frequency

Cache BIOS Chipset

Memory

Display

Expansion Slots

LAN Realtek 8111E PCI-Express GbE x 2 [From APU]

USB

Audio

Serial ATA A55E FCH built-in SATA III Controller for 4 LPC I/O

Clock Generator Digital IO Edge Connector

On Board Headers

Watchdog Timer Power Connector

RoHS

Others

Board Size

MI958F-10 (G-T40N APU onboard) MI958F-14 (G-T48N APU onboard) MI958F-16 (G-T56N APU onboard) MI958F-165 (G-T56N C0 version APU onboard) Mini ITX AMD G-series APU Processor, 40 nm FT1 413-BGA package (19mm x 19mm) G-T56N C0 version DC @1.65GHz (TDP=18W) G-T56N DC @1.6GHz (TDP=18W) G-T48N DC @1.4GHz (TDP=18W) G-T40N DC @1.0GHz (TDP=9W) 1MB L2 cache AMI BIOS, supports ACPI Function AMD A55E FCH (TDP=4.7W) BGA package 605balls (23 mm x 23 mm) 2 x DDR3 UDIMM, Single Channel, Max. 8GB Up to DDR3-1333(G-T56N C0 version only) / DDR3-1066 AMD G-series APU built-in GPU (G-T56N/G-T48N w/RadeonTM HD6310; G-T40N w/RadeonTM HD6250) Supports DirectX®11, UVD3. Supports two simultaneous displays 1 x CRT [From APU DAC] 1 x DVI-D [From APU DP #1) PCI slot x 1 PCIe(1x) slot x1 MiniPCIe(1x) x 1

**Only LAN #1 will support EuP** A55E FCH built-in USB 2.0 host controller, support 8 ports (4 x rear I/O ports + 4 x internal pin headers) A55E FCH built-in HD interface + Realtek ALC269QHD Codec w/class-D speaker amplifier(2.3W per channel @ 5V power supply) support 2-channel audio out + amp

Fintek F81865-I COM1 (RS232/422/485), COM2/COM3/COM4 (RS232 only), Hardware Monitor (2 thermal inputs,4 voltage monitor inputs & 2 Fan

headers) [CPU FAN controllable only; SYS FAN cannot] COM1/2 with pin-9 with power for 2 ports (500 mA for each port) Leverage A55E FCH internal Clock generator 4 in & 4 out Dual DB9 stack connector for COM #1 , #2 DVI-D+ DB15 stack connector x 1 for DVI & CRT RJ-45 GbE LAN + dual USB stack connector x2 RCA Jack 3 x 1 for HD Audio DF13 LVDS x 1 for 18-bit single channel 2 x 5 pins header x 2 for 4 ports USB 2 x 5 pins header x 2 for COM3/COM4 2 x 5 pins pin-header x1 for Digital IO 1 x 4 pins box header x 1 for speaker 1 x 4 pins box-header x 1 for LCD backlight control SATA connector x 4 (blue color) Yes (256 segments, 0, 1, 2…255. sec/min) ATX Power connector

Yes

CPU cooler onboard for T56N/T48N APU ; Heatsink for T40N APU EuP feature onboard (Fintek F75160) 170mm x 170mm

INTRODUCTION

MI958 User’s Manual 3

INTRODUCTION

[

Board Dimensions

4

MI958 User’s Manual

INSTALLATIONS

Installations

This section provides information on how to use the jumpers and connectors on the motherboard in order to set up a workable system. The topics covered are:

Installing the Memory .................................................................. 6

Setting the Jumpers ...................................................................... 7

Connectors ................................................................................ 12

MI958 User’s Manual 5

INSTALLATIONS

Installing the Memory

The motherboard supports two DDR3 memory socket for a maximum total memory of 8GB in DDR3 memory type.

Installing and Removing Memory Modules

To install the DDR3 modules, locate the memory slot on the board and perform the following steps:

1. Hold the DDR3 module so that the key of the DDR3 module align

with those on the memory slot.

2. Gently push the DDR3 m odule in an upright position until the clips of

the slot close to hold the DDR3 module in place when the DDR3 module touches the bottom of the slot.

3. To remove the DDR3 module, press the clips with both hands.

Loc Loc

Loc

6

DDR3 Module

MI958 User’s Manual

Loc

INSTALLATIONS

Setting the Jumpers

Jumpers are used on the motherboard to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors and their respective fun ctions.

Jumper Locations .......................................................................... 8

JP6: LCD Panel Power Selection ................................................... 9

JP12: Clear CMOS Setting ............................................................. 9

JP1, JP2, JP3: RS232/422/485 (COM1) Selection……………..…9

JP4 :COM1 RS232 +5V/+12V Power Setting ............................. 10

JP5 :COM2 RS232 +5V/+12V Power Setting ............................. 10

JP7 : USB1, USB2 (CN6) Power Setting .................................... 10

JP11 : USB3, USB4 (CN9) Power Setting .................................. 10

JP8 : USB5, USB6 (CN13) Power Setting .................................. 11

JP9 : USB7, USB8 (CN14) Power Setting .................................. 11

J11: PCI/PCIE Riser Card Selection ........................................... 11

MI958 User’s Manual 7

INSTALLATIONS

Jumper Locations

8

MI958 User’s Manual

JP6: LCD Panel Power Selection

JP6 LCD Panel Power

INSTALLATIONS

JP12: Clear CMOS Setting

3.3V

5V

JP13 Setting

Normal

Clear CMOS

JP1,JP2,JP3: RS232/422/485 (COM1) Selection

COM2~COM4 are fixed for RS-232 use only.

COM1 is selectable for RS232, RS-422 and RS-485. The following table describes the jumper settings for COM1 selection.

COM1

Function

Jumper Setting

(pin closed)

RS-232 RS-422 RS-485

JP3:

3-5 & 4-6

JP2:

3-5 & 4-6

JP1:

1-2

JP3:

1-3 & 2-4

JP2:

1-3 & 2-4

JP1:

3-4

JP3:

1-3 & 2-4

JP2:

1-3 & 2-4

JP1:

5-6

MI958 User’s Manual 9

INSTALLATIONS

JP4: COM1 RS232 +5V/+12V Power Setting

JP4 Setting Function

Pin 1-2

Short/Closed

Pin 3-4

Short/Closed

Pin 5-6

Short/Closed

JP5: COM2 RS232 +5V/+12V Power Setting

JP5 Setting Function

Pin 1-2

Short/Closed

Pin 3-4

Short/Closed

Pin 5-6

Short/Closed

JP7: USB1, USB2 (CN6) Power Setting

JP7 Setting Function

Pin 1-2

Short/Closed

+12V

Normal

+5V

+12V

Normal

+5V

+5VSB

Pin 2-3

Short/Closed

JP11: USB3, USB4 (CN9) Power Setting

JP11 Setting Function

Pin 1-2

Short/Closed

Pin 2-3

Short/Closed

JP8: USB5, USB6 (CN13) Power Setting

10

MI958 User’s Manual

+5V

+5VSB

+5V

JP8 Setting Function

Pin 1-2

Short/Closed

Pin 2-3

Short/Closed

JP9: USB7, USB8 (CN14) Power Setting

JP9 Setting Function

Pin 1-2

Short/Closed

Pin 2-3

Short/Closed

J11: PCI/PCIE Riser Card Selection

J11 Riser Card

IP390 Riser Card

Install

INSTALLATIONS

+5VSB

+5V

+5VSB

+5V

IP151, IP240 Riser Card

Install

Motherboard Connectors

MI958 User’s Manual 11

INSTALLATIONS

The motherboard connectors allow you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following table lists the connectors and their respective functions.

CN1A, CN1B: COM1(UP) and COM2(DOWN) Connector ....... 14

CN2A, CN2B: VGA(UP) and DVI(DOWN) Connector.............. 14

CN6: GbE_1 RJ-45 and USB1/2 Ports ........................................ 14

CN9: GbE_2 RJ-45 and USB3/4 Ports ........................................ 14

CN12: Audio Connector ............................................................... 14

CN7,CN8,CN10, CN11: Serial ATA Connectors ........................ 14

FAN1: System Fan Power Connector ........................................... 14

FAN2: CPU Fan Power Connector ............................................... 14

J3: ATX Power Supply Connector ............................................... 15

J4: Digital I/O ............................................................................... 15

J5: SMBUS Connector ................................................................. 15

J6: SPI Flash Connector (factory use only) .................................. 15

JP10: System Function Connector ................................................ 16

CN13,CN14: USB5/6 USB7/8Port Pin Header ............................ 17

J7,J8: COM3/4 Serial Port ............................................................ 17

CN4: LVDS Connector................................................................. 18

CN3: LCD Backlight Connector................................................... 18

CN5: Output Voltage Connector .................................................. 18

J9: Speaker Connector .................................................................. 18

PCIE1: PCI-E(x1) Slot ................................................................. 19

PCI1: PCI Slot (supports 2 Master) .............................................. 19

12

MI958 User’s Manual

Connector Locations

INSTALLATIONS

MI958 User’s Manual 13

INSTALLATIONS

CN1A, CN1B: COM1(up) and COM2(down)Connector

[

Signal Name Pin # Pin # Signal Name

DCD 1 6 DSR RXD 2 7 RTS TXD 3 8 CTS

[[[[

DTR 4 9 RI

GND 5 10 Not Used

CN2A, CN2B: VGA(UP) and DVI(DOWN) Connector

CN6: GbE_1 RJ-45 and USB1/2 Ports

CN9: GbE_2 RJ-45 and USB3/4 Ports

CN12: Audio Connector

The audio connector, from top to bottom, is composed of Line in, Line out and Microphone jacks.

CN7,CN8,CN10,CN11: Serial ATA Connectors

FAN1: System Fan Power Connector

FAN1 is a 3-pin header for system fan. The fan must be a 12V (500mA).

Pin # Signal Name

1 Ground 2 +12V 3 Rotation detection

FAN2: CPU Fan Power Connector

FAN2 is a 3-pin header for the CPU fan. The fan must be a 12V(500mA).

Pin # Signal Name

1 Ground 2 +12V 3 Rotation detection

14

MI958 User’s Manual

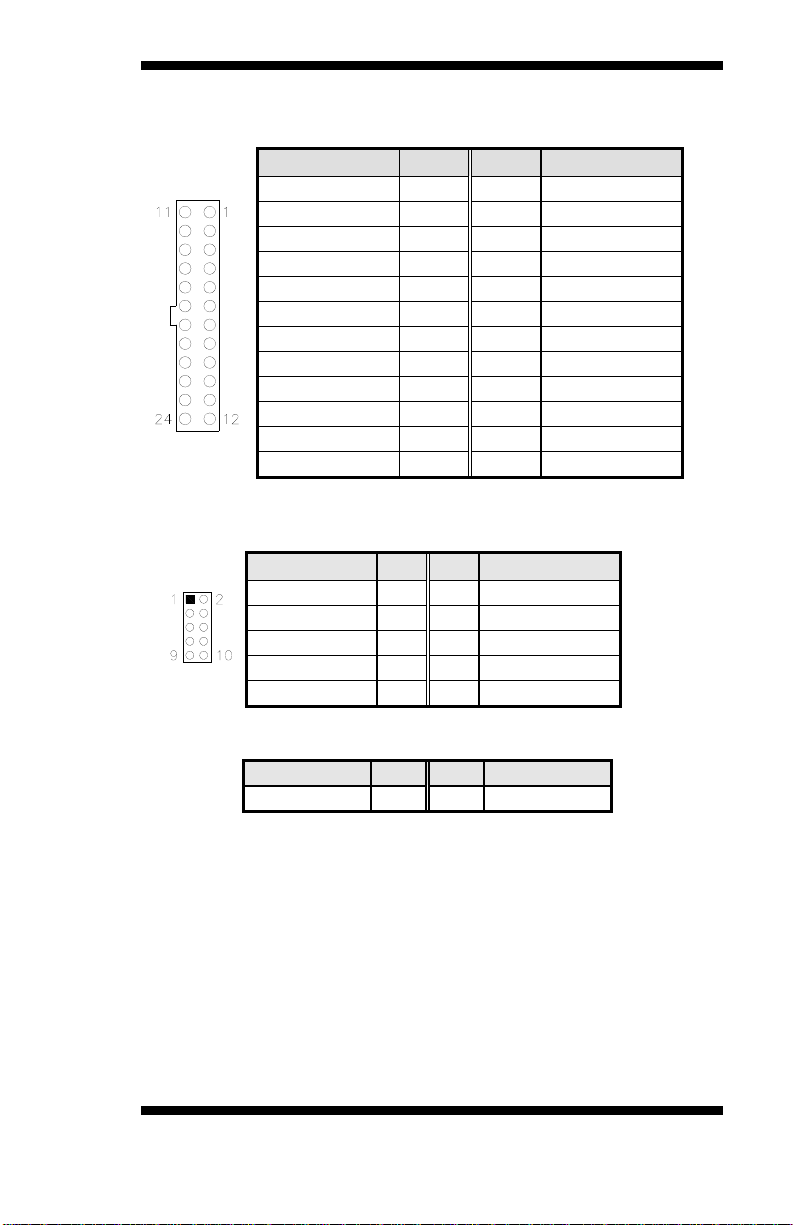

J3: ATX Power Supply Connector

Signal Name Pin # Pin # Signal Name

3.3V 13 1 3.3V

-12V 14 2 3.3V

Ground 15 3 Ground

PS-ON 16 4 +5V Ground 17 5 Ground Ground 18 6 +5V Ground 19 7 Ground

-5V 20 8 Power good +5V 21 9 5VSB +5V 22 10 +12V +5V 23 11 +12V

Ground 24 12 +3.3V

J4: Digital I/O

Signal Name Pin Pin Signal Name

GND 1 2 VCC OUT3 3 4 OUT1 OUT2 5 6 OUT0

IN3 7 8 IN1 IN2 9 10 IN0

J5: SMBUS Connector

Signal Name Pin Pin Signal Name

CLK 1 2 DATA

J6: SPI Flash Connector(factory use only)

INSTALLATIONS

MI958 User’s Manual 15

INSTALLATIONS

JP10: System Function Connector

JP10 provides connectors for system indicators that provide light indication of the computer activities and switches to change the computer status. JP10 is a 20-pin header that provides interfaces for the following functions.

Hard Disk Drive LED

Reset Switch

Not Defined

ATX Power On Switch

Power LED

Speaker

Speaker: Pins 1 - 4

This connector provides an interface to a speaker for audio tone generation. An 8-ohm speaker is recommended.

Pin # Signal Name

1 Speaker out 2 No connect

Power LED: Pins 11 - 15

3 Ground 4 +5V

Pin # Signal Name

11 Power LED 12 No connect 13 Ground 14 No connect 15 Ground

ATX Power ON Switch: Pins 7 and 17

This 2-pin connector is an “ATX Power Supply On/Off Switch” on the system that connects to the power switch on the case. When pressed, the power switch will force the system to power on. When pressed again, it will force the system to power off.

16

MI958 User’s Manual

INSTALLATIONS

Reset Switch: Pins 9 and 19

The reset switch allows the user to reset the system without turning the main power switch off and then on again. Orientation is not required when making a connection to this header.

Hard Disk Drive LED Connector: Pins 10 and 20

This connector connects to the hard drive activity LED on control panel. This LED will flash when the HDD is being accessed.

Pin # Signal Name

10 HDD Active 20 5V

CN13,CN14: USB5/6,USB7/8 Port Pin Header

Signal Name Pin Pin Signal Name

Vcc 1 2 Vcc D0- 3 4 D1-

D0+ 5 6 D1+

Ground 7 8 Ground

Key Pin 9 10 NC

J7,J8: COM3,COM4 Serial Port

COM

Signal Name Pin # Pin # Signal Name

DCD, Data carrier detect 1 6 DSR, Data set ready

RXD, Receive data 2 7 RTS, Request to send

TXD, Transmit data 3 8 CTS, Clear to send

DTR, Data terminal ready 4 9 RI, Ring indicator

GND, ground 5 10 Not Used

MI958 User’s Manual 17

INSTALLATIONS

CN4 : LVDS Connectors

The LVDS connectors on board supports 18-bit.

Signal Name Pin # Pin # Signal Name

TX0- 2 1 TX0+

Ground 4 3 Ground

TX1- 6 5 TX1+

5V/3.3V 8 7 Ground

DP0-HPD 10 9 Reset

TX2- 12 11 TX2+

Ground 14 13 Ground

TXC- 16 15 TXC+

5V/3.3V 18 17 ENABKL

DDC_DATA 20 19 DDC_CLK

CN3: LCD Backlight Connector

Pin # Signal Name

1 +12V 2 Backlight Enable 3 Brightness Control

4 Ground

CN5: Output Voltage Connector

Pin # Signal Name

1 3.3V 2 Ground 3 5V

J9 Speaker Connector

The J9 connector supports 2Watt(RMS)/4 ohm stereo audio power amplifier.

Pin # Signal Name

1 Audio L+ 2 Audio L3 Audio R4 Audio R+

18

MI958 User’s Manual

PCIE1: PCI-E(x1) Slot

PCI1: PCI Slot (supports 2 Master)

INSTALLATIONS

MI958 User’s Manual 19

INSTALLATIONS

This page is intentionally left blank

20

MI958 User’s Manual

BIOS SETUP

BIOS Setup

This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows:

BIOS Introduction ........................................................................................ 22

BIOS Setup .................................................................................................... 22

Main BIOS Setup ......................................................................................... 23

Advanced Settings ........................................................................................ 24

Chipset Settings ............................................................................................ 32

Boot Settings ................................................................................................. 38

Security Settings ........................................................................................... 39

Save & Exit Settings .................................................................................... 39

MI958 User’s Manual 21

BIOS SETUP

BIOS Introduction

The BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

BIOS Setup

The BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the co mputer, the BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

22

MI958 User’s Manual

BIOS SETUP

Main BIOS Setup

This setup allows you to record some basic hardware configurations in your computer system and set the system clock.

Main Advanced Chipset Boot Security Save & Exit

BIOS INFORMATION BIOS Vendor

Core Version Compliency Project Version Build Date and Time

Memory Information Total Memory

System Language [English]

System Date [Tue 09/07/2010 System Time [00:08:21]

Access Level Administrator

Note:

Warning:

System Language

Choose the system default language.

System Date

Set the Date. Use Tab to switch between Data elements.

System Time

Set the Time. Use Tab to switch between Time elements.

American Megatrends

4.6.6.0 UEFI 2.1 0ABVQ 0.10 x64 04/12/2011 11:47:06

1008 MB (DDR3)

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

If the system cannot boot after making and saving system changes with Setup, the AMI BIOS supports an override to the CMOS settings that resets your system to its default.

It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.

MI958 User’s Manual 23

BIOS SETUP

Advanced Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Main Advanced Chipset Boot Security Save & Exit

Legacy OpROM Support Launch PXE OpROM Disabled Launch Storage OpROM Enabled

► PCI Subsystem Settings ► ACPI Settings ► CPU Configuration ► Auto Power On Schedule ► IDE Configuration ► USB Configuration ► Super IO Configuration ► H/W Monitor

Launch PXE OpROM

Enable or Disable Boot Option for Legacy Network Devices.

Launch Storage OpROM

Enable or Disable Boot Option for Legacy Mass Storage Devices with Option ROM.

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

24

MI958 User’s Manual

BIOS SETUP

PCI Subsystem Settings

This section allows you to configure the PCI, PCI-X and PCI Express settings.

Main Advanced Chipset Boot Security Save & Exit

PCI Bus Driver Version V 2.03.00 PCI ROM Priority EFI Compatible ROM

PCI Common Settings PCI Latency Timer 32 PCI Bus Clocks VGA Palette Snoop Disabled PERR# Generation Disabled SERR# Generation Disabled

PCI Express Device Settings Relaxed Ordering Disabled Extended Tag Disabled No Snoop Enabled Maximum Payload Auto Maximum Read Request Auto

PCI Express Link Settings ASPM Support Disabled WARNING: Enabling ASPM may cause Some PCI-E devices to fail Extended Synch Disabled

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

PCI ROM Priority

In case of multiple Option ROMs (Legacy and EFI Compatible), specifies what PCI Option ROM to launch.

PCI Latency Timer

Value to be programmed into PCI Latency Timer Register.

VGA Palette Snoop

Enables or Disables VGA Palette Registers Snooping.

PERR# Generation

Enables or Disables PCI Device to Generate PERR#.

SERR# Generation

Enables or Disables PCI Device to Generate SERR#.

Relaxed Ordering

Enables or Disables PCI Express Device Relaxed Ordering.

MI958 User’s Manual 25

BIOS SETUP

Extended Tag

If ENABLED allows Device to use 8-bit Tag field as a requester.

No Snoop

Enables or Disables PCI Express Device No Snoop option.

Maximum Payload

Set Maximum Payload of PCI Express Device or allow System BIOS to select the value.

Maximum Read Request

Launches (Enabled/Disabled) the boot option for legacy network devices.

PCI Express Link Settings

Set Maximum Read Request Size of PCI Express Device or allow System BIOS to select the value.

ASPM Support

Set the ASPM Level: Force L0 – Force all links to L0 State AUTO – BIOS auto configure DISABLE – Disables ASPM

Extended Synch

If ENABLED allows generation of Extended Synchronization patterns.

26

MI958 User’s Manual

BIOS SETUP

ACPI Settings

This section configures the system ACPI parameters.

Main Advanced Chipset Boot Security Save & Exit

Enable ACPI Auto Configuration Disabled

Enable Hibernation Enabled ACPI Sleep State S3 (Suspend to RAM) Lock Legacy Resources Disabled S3 Video Report Disabled

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Enabled ACPI Auto Configuration

Enables or Disables BIOS ACPI Auto Configuration.

Enable Hibernation

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.

Lock legacy Resources

Enabled or Disabled Lock of Legacy Resources

S3 Video Repost

Enabled or Disabled S3 Video Repost.

MI958 User’s Manual 27

BIOS SETUP

CPU Configuration

This section shows the CPU configuration parameters.

Main Advanced Chipset Boot Security Save & Exit

CPU Configuration

Limit CPUID Maximum Disabled PSS Support PSTATE Adjustment PPC Adjustment PState 0 SVM Mode Enabled NX Mode C6 Mode

► Node 0 Information

Enabled PState 0

Enabled Auto

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Limit CPUID Maximum

Disabled for Windows XP.

PSS Support

Enabled /disabled the generation of ACPI_PPC, and _PCT objects.

PSTATE Adjustment

Provide to adjust startup P-state level.

PPC adjustment

Provide to adjust_PPC object.

NX Mode

Enabled/disabled NO-execute page protection Function.

SVM Mode

Enabled/disabled CPU Virtualization.

C6 Mode

Enabled/disabled C6.

Node 0 Information

View Memory Information related to Node 0.

28

MI958 User’s Manual

BIOS SETUP

Auto Power On Schedule

This section setups the power on time for the system.

Main Advanced Chipset Boot Security Save & Exit

Auto Power on Schedule

Firmware Version T.B. D. Schedule Slot 1 None Schedule Slot 2 None

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Schedule Slot 1

Setup the hou/minute for sytem power on.

Schedule Slot 2

Setup the hou/minute for sytem power on.

IDE Configuration

This section shows the IDE devices configuration.

Main Advanced Chipset Boot Security Save & Exit

SATA Configuration

SATA Port0 SATA Port1 SATA Port2 SATA Port3 SATA Port4 SATA Port5

Enabled Enabled Enabled Enabled Enabled Enabled

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit ESC: Exit

Serial-ATA Controller

Enable / Disable Serial ATA Controller.

MI958 User’s Manual 29

BIOS SETUP

USB Configuration

Main Advanced Chipset Boot Security Save & Exit

USB Configuration

USB Devices: 1 Keyboard, 1 Mouse

Legacy USB Support Enabled EHCI Hand-off Disabled

USB hardware delays and time-outs: USB transfer time-out 20 sec Device reset time-out 20 sec Device power-up delay Auto

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Legacy USB Support

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

EHCI Hand-off

Enabled/Disabled. This is a workaround for Oses without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.

USB transfer time-out

The time-out value for Control, Bulk, and Interrupt transfers.

Device reset time-out

USB mass storage device Start Unit command time-out.

Device power-up delay

Maximum time the device will take before it properly reports itself to the Host Controller. ‘Auto’ users default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor.

30

MI958 User’s Manual

BIOS SETUP

Super IO Configuration

Main Advanced Chipset Boot Security Save & Exit

Super IO Configuration

Super IO Chip F81801

-> Serial Port 0 Configuration

-> Serial Port 2 Configuration Power Failure Always off

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Serial Port 0/1 Configuration

Set Parameters of Serial Port 0/1 (COMA/COMB)

Power Failure

The options: Keep last state, By pass mode, Al ways on, and Always off.

H/W Monitor

Main Advanced Chipset Boot Security Save & Exit

PC Health Status

Smart Fan Function CPU Temperature +64 C System Temperature +33 C Fan Speed N/A VCC3V 3.376 V Vcore 0.960 V Memory Voltage 1.488 V VSB3V VBAT

CPU Shutdown Temperature [Disabled]

[Disabled]

→ ← Select Screen

↑↓ Select Item Enter: Select

3.392 V

3.040 V

+- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Temperatures/Voltages

The values are read-only values as monitored by the system and show the PC health status.

CPU Shutdown Temperature

Aside from the Disabled options, this field allows the setting of shutdown temperature from 70C to 95C.

MI958 User’s Manual 31

BIOS SETUP

Chipset Settings

This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

Main Advanced Chipset Boot Security Save & Exit

► North Bridge ► North Bridge LVDS Config Select ► South Bridge

North Bridge

This item shows the North Bridge Parameters.

North Bridge LVDS Config Select

This item shows the Specify INT15 options for LVDS

South Bridge

This item shows the South Bridge Parameters.

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

32

MI958 User’s Manual

BIOS SETUP

North Bridge

This section allows you to configure the North Bridge Chipset.

Main Advanced Chipset Boot Security Save & Exit

North Bridge Configuration

NB GPP Core Config

Port 4 Control Aspm Mode Control Hotplug Mode Control Port 5 Control Port 6 Control Port 7 Control Port 8 Control

IOMMU Mode Disabled Memory Clock

Memory Information Total Memory: 4096 MB (DDR3)

► GFX Configuration ► Memory Configuration ► Node 0 Information

[GPP_CORE_x4x2x1x1]

[Enabled] [Disabled] [Hotplug Basic] [Enabled] [Enabled] [Enabled] [Enabled]

→ ← Select Screen

↑↓ Select Item

200MHz

Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

IOMMU Mode

IOMMU is supported on LINUX based systems to convert 32bit I/O to 64bit MMIO.

Memory Clock

This option allows user to select different memory clock.

GFX Configuration

Main Advanced Chipset Boot Security Save & Exit

GFX Configuration

PSPP Policy Disabled

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

PSPP Policy

PCIe speed power policy.

MI958 User’s Manual 33

BIOS SETUP

Memory Configuration

Main Advanced Chipset Boot Security Save & Exit

Memory Configuration

Integrated Graphics Auto Bank Interleaving Disabled

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Integrated Graphics Enable Integrate Graphics controller.

Node 0 Information View memory information related to Node 0.

North Bridge LVDS Config Select

Main Advanced Chipset Boot Security Save & Exit

Specify INT15 options for LVDS

DP0 Output Mode Disabled DP1 Output Mode Single Link DVI-D

LVDS Panel Config Select 800x600

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

34

MI958 User’s Manual

BIOS SETUP

South Bridge

This section allows you to configure the South Bridge Chipset.

Main Advanced Chipset Boot Security Save & Exit

SB CIM Version : 1.1.0.1

► SB SATA Configuration ► SB USB Configuration ► SB GPP Port Configuration ► SB HD Azalia Configuration

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

SB SATA Configuration

Main Advanced Chipset Boot Security Save & Exit

OnChip SATA Channel Enabled OnChip SATA Type Native IDE OnChip IDE mode Legacy mode SATA IDE Combined Mode Enabled Combined Mode Option SATA as primary

SATA ESP on PORT0 Disabled SATA ESP on PORT1 Disabled SATA ESP on PORT2 Disabled SATA ESP on PORT3 Disabled SATA ESP on PORT4 Disabled SATA ESP on PORT5 Disabled SATA Power on PORT0 Enabled SATA Power on PORT1 Enabled SATA Power on PORT2 Enabled SATA Power on PORT3 Enabled SATA Power on PORT4 Enabled SATA Power on PORT5 Enabled

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

OnChip SATA Type

Native IDE / n RAID / n AHCI / n AHCI / n Legacy IDE / n IDE->AHCI / n HyperFlash

MI958 User’s Manual 35

BIOS SETUP

SB USB Configuration

Main Advanced Chipset Boot Security Save & Exit

OHCI HC (Bus 0 Dev 18 Fn 0) Enabled OHCI HC (Bus 0 Dev 19 Fn 0) Enabled OHCI HC (Bus 0 Dev 22 Fn 0) Enabled OHCI HC (Bus 0 Dev 20 Fn 5) Enabled

USB PORT 0 Enabled USB PORT 1 Enabled USB PORT 2 Enabled USB PORT 3 Enabled USB PORT 4 Enabled

USB PORT 5 Enabled USB PORT 6 Enabled USB PORT 7 Enabled USB PORT 8 Enabled USB PORT 9 Enabled

USB PORT 10 Enabled USB PORT 11 Enabled USB PORT 12 Enabled USB PORT 13 Enabled USB PORT FL0 Enabled USB PORT FL1 Enabled USB Device Wakeup From S3 or S4

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

SB GPP Port Configuration

Main Advanced Chipset Boot Security Save & Exit

SB GPP Function Enabled GPP Port Link Configuration 1:1:1:1 mode hide unused GPP port Enabled GPP Link ASPM Disabled NB-SB PHY PLL Power Down Enabled SB GPP PHY PLL Power Down Enabled SB GPP LANE REVERSAL Disabled

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

36

MI958 User’s Manual

BIOS SETUP

SB HD Azalia Configuration

Main Advanced Chipset Boot Security Save & Exit

HD Audio Azalia Device Enabled HD Onboard PIN Config Enabled Azalia Front Panel Auto SDIN0 Pin Config Azalia SDIN1 Pin Config Azalia SDIN2 Pin Config Azalia SDIN3 Pin Config Azalia Azalia Snoop Disabled

Aptio Setup Utility

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

MI958 User’s Manual 37

BIOS SETUP

Boot Settings

This section allows you to configure the boot settings according to your preference.

Main Advanced Chipset Boot Security Save & Exit

Boot Configuration Setup Prompt Timeout 1 Bootup NumLock State On

Quiet Boot Disabled

CSM16 Module Version 07.63

GateA20 Active Upon Request Option ROM Messages Force BIOS Interrupt 19 Canture Disabled UEFI Boot

Boot Option Priorities

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Bootup NumLock State

Select the keyboard NumLock state.

Quiet Boot

Enables/Disables Quiet Boot option.

GateA20 Active

UPON REQUEST – GA20 can be disabled using BIOS services. ALWAYS – do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

Option ROM Messages

Set display mode for Option ROM. Options are Force BIOS and Keep Current.

Interrupt 19 Canture

Enable: Allows Option ROMs to trap Int 19.

UEFI Option Priorities

Enables/Disables UEFI boot from disks.

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field

[Disabled

F1: General Help F2: Previous Values

F3: Optimized Default F4: Save ESC: Exit

38

MI958 User’s Manual

BIOS SETUP

Security Settings

Main Advanced Chipset Boot Security Save & Exit

Password Description

If ONLY the Administrator’s password is set, then this only limits accesss to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights.

The password must be 3 to 20 characters.

Administrator Password User Password

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Administrator Password

Set Setup Administrator Password.

User Password

Set User Password.

Save & Exit Settings

Main Advanced Chipset Boot Security Save & Exit

Save Changes and Exit Disacard Changes and Exit Save Changes and Reset Discard Changes and Reset

Save Options Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

Launch EFI Shell from filesystem device

→ ← Select Screen

↑↓ Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

MI958 User’s Manual 39

BIOS SETUP

Save Changes and Exit

Exit system setup after saving the changes.

Disacard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Changes

Save Changes done so far to any of the setup options.

Discard Changes

Discard Changes done so far to any of the setup options.

Restore Defaults

Restore/Load Defaults values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults

Restore the User Defaults to all the setup options.

Boot Override

Pressing ENTER causes the system to enter the OS.

Launch EFI Shell from filesystem device

Attempts to launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices.

40

MI958 User’s Manual

DRIVERS INSTALLATIONS

Drivers Installation

This section describes the installation procedures for software and drivers. The software and drivers are included with the motherboard. If you find the items missing, please contact the vendor where you made the purchase. The contents of this section include the following:

AMD A55E Chipset Family Graphics Driver Installation .................. 42

Realtek High Definition Audio Driver Installation ............................. 45

Realtek LAN Controller Drivers Installation ...................................... 47

IMPORTANT NOTE:

After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation.

MI958 User’s Manual 41

DRIVERS INSTALLATIONS

AMD A55E Chipset Family Graphics Driver Installation

Follow the steps below to install the AMD A55E chipset family graphics drivers.

1. Insert the CD that comes with the board. Click AMD, then AMD A55E Chipset Drivers, and then AMD A55E Series Graphics Drivers.

42

MI958 User’s Manual

DRIVERS INSTALLATIONS

2. When the welcome screen to the ATI – Catalyst™ Install Manager appears, click Next. Now, click Install to allow the installation of the software components.

MI958 User’s Manual 43

DRIVERS INSTALLATIONS

3. Select Express and click Next to proceed with the installation. On the following screen, click Finish to complete the installation process.

44

MI958 User’s Manual

DRIVERS INSTALLATIONS

Realtek High Definition Audio Driver Installation

Follow the steps below to install the Realtek HD audio drivers.

1. Insert the CD that comes with the board. Click AMD, and then Realtek High Definition Audio Driver.

MI958 User’s Manual 45

DRIVERS INSTALLATIONS

2. When the welcome screen to the Audio Driver Setup appears, click Next to start the software installation. Once the InstallShield Wizard is complete, click Finish to restart the computer.

46

MI958 User’s Manual

DRIVERS INSTALLATIONS

Realtek LAN Controller Drivers Installation

Follow the steps below to install the Realtek LAN Drivers.

1. Insert the CD that comes with the board. Click Intel, then LAN Card, and then Realtek Lan Controller Drivers.

2. Click Realtek RTL8111E LAN Drivers.

MI958 User’s Manual 47

DRIVERS INSTALLATIONS

3.When the welcome screen to InstallShield Wizard appears, click Next to start the installation

4.When the InstallShieldWizard has finished installing the Realtek LAN drivers, click Finish.

48

MI958 User’s Manual

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The fo llowing table lists the I/O port addresses used.

Address Device Description

000h - 01Fh DMA Controller #1 020h - 03Fh Interrupt Controller #1 040h - 05Fh Timer 060h - 06Fh Keyboard Controller 070h - 07Fh Real Time Clock, NMI 080h - 09Fh DMA Page Register 0A0h - 0BFh Interrupt Controller #2 0C0h - 0DFh DMA Controller #2 0F0h Clear Math Coprocessor Busy Signal 0F1h Reset Math Coprocessor 1F0h - 1F7h IDE Interface 278h - 27Fh Parallel Port #2(LPT2) 2E8h – 2EFh Serial Port #4(COM4) 2F8h - 2FFh Serial Port #2(COM2) 2B0h- 2DFh Graphics adapter Controller 360h - 36Fh Network Ports 3B0h - 3BFh Monochrome & Printer adapter 3C0h - 3CFh EGA adapter 3D0h - 3DFh CGA adapter 3E8h – 3EFh Serial Port #3(COM3) 3F8h - 3FFh Serial Port #1(COM1)

MI958 User’s Manual 49

DRIVERS INSTALLATIONS

B. Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board.

Level Function

IRQ0 System Timer Output IRQ1 Keyboard IRQ2 Interrupt Cascade IRQ3 Serial Port #2 IRQ4 Serial Port #1 IRQ5 Reserved IRQ6 Reserved IRQ7 Reserved IRQ8 Real Time Clock IRQ9 Reserved IRQ10 Serial Port #3 IRQ11 Serial Port #4 IRQ12 PS/2 Mouse IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE

50

MI958 User’s Manual

Appendix

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count to zero and the selected outputs will be driven. Under normal circumstance, the user will restart the WDT at regular intervals before the timer counts to zero.

SAMPLE CODE:

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h> #include "F81865.H" //--------------------------------------------------------------------------int main (int argc, char *argv[]); void EnableWDT(int); void DisableWDT(void); //--------------------------------------------------------------------------int main (int argc, char *argv[]) { unsigned char bBuf; unsigned char bTime; char **endptr;

char SIO;

printf("Fintek 81865 watch dog program\n");

SIO = Init_F81865(); if (SIO == 0) { printf("Can not detect Fintek 81865, program abort.\n"); return(1); }//if (SIO == 0)

if (argc != 2) { printf(" Parameter incorrect!!\n"); return (1); }

bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime);

if (bTime) { EnableWDT(bTime); } else { DisableWDT(); }

return 0; }

MI958 User’s Manual 51

DRIVERS INSTALLATIONS

//--------------------------------------------------------------------------void EnableWDT(int interval) { unsigned char bBuf;

bBuf = Get_F81865_Reg(0x2B); bBuf &= (~0x20); Set_F81865_Reg(0x2B, bBuf); //Enable WDTO

Set_F81865_LD(0x07); //switch to logic device 7 Set_F81865_Reg(0x30, 0x01); //enable timer

bBuf = Get_F81865_Reg(0xF5); bBuf &= (~0x0F); bBuf |= 0x52; Set_F81865_Reg(0xF5, bBuf); //count mode is second

Set_F81865_Reg(0xF6, interval); //set timer

bBuf = Get_F81865_Reg(0xFA); bBuf |= 0x01; Set_F81865_Reg(0xFA, bBuf); //enable WDTO output

bBuf = Get_F81865_Reg(0xF5); bBuf |= 0x20; Set_F81865_Reg(0xF5, bBuf); //start counting } //--------------------------------------------------------------------------void DisableWDT(void) { unsigned char bBuf;

Set_F81865_LD(0x07); //switch to logic device 7

bBuf = Get_F81865_Reg(0xFA); bBuf &= ~0x01; Set_F81865_Reg(0xFA, bBuf); //disable WDTO output

bBuf = Get_F81865_Reg(0xF5); bBuf &= ~0x20; bBuf |= 0x40; Set_F81865_Reg(0xF5, bBuf); //disable WDT } //---------------------------------------------------------------------------

52

MI958 User’s Manual

Appendix

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include "F81865.H" #include <dos.h> //--------------------------------------------------------------------------unsigned int F81865_BASE; void Unlock_F81865 (void); void Lock_F81865 (void); //--------------------------------------------------------------------------unsigned int Init_F81865(void) { unsigned int result; unsigned char ucDid;

F81865_BASE = 0x4E; result = F81865_BASE;

ucDid = Get_F81865_Reg(0x20); if (ucDid == 0x07) //Fintek 81865 { goto Init_Finish; }

F81865_BASE = 0x2E; result = F81865_BASE;

ucDid = Get_F81865_Reg(0x20); if (ucDid == 0x07) //Fintek 81865 { goto Init_Finish; }

F81865_BASE = 0x00; result = F81865_BASE;

Init_Finish: return (result); } //--------------------------------------------------------------------------void Unlock_F81865 (void) { outportb(F81865_INDEX_PORT, F81865_UNLOCK); outportb(F81865_INDEX_PORT, F81865_UNLOCK); } //--------------------------------------------------------------------------void Lock_F81865 (void) { outportb(F81865_INDEX_PORT, F81865_LOCK); } //--------------------------------------------------------------------------void Set_F81865_LD( unsigned char LD) { Unlock_F81865(); outportb(F81865_INDEX_PORT, F81865_REG_LD); outportb(F81865_DATA_PORT, LD); Lock_F81865(); } //--------------------------------------------------------------------------void Set_F81865_Reg( unsigned char REG, unsigned char DATA) { Unlock_F81865(); outportb(F81865_INDEX_PORT, REG); outportb(F81865_DATA_PORT, DATA); Lock_F81865(); } //--------------------------------------------------------------------------unsigned char Get_F81865_Reg(unsigned char REG) { unsigned char Result; Unlock_F81865();

MI958 User’s Manual 53

DRIVERS INSTALLATIONS

outportb(F81865_INDEX_PORT, REG); Result = inportb(F81865_DATA_PORT); Lock_F81865(); return Result; } //---------------------------------------------------------------------------

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#ifndef __F81865_H #define __F81865_H 1 //--------------------------------------------------------------------------#define F81865_INDEX_PORT (F81865_BASE) #define F81865_DATA_PORT (F81865_BASE+1) //--------------------------------------------------------------------------#define F81865_REG_LD 0x07 //--------------------------------------------------------------------------#define F81865_UNLOCK 0x87 #define F81865_LOCK 0xAA //--------------------------------------------------------------------------unsigned int Init_F81865(void); void Set_F81865_LD( unsigned char); void Set_F81865_Reg( unsigned char, unsigned char); unsigned char Get_F81865_Reg( unsigned char); //--------------------------------------------------------------------------#endif //__F81865_H

54

MI958 User’s Manual

IBASE MI958 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Pin # Signal Name

Pin # Signal Name
