MB980
Intel ® Haswell / PCH
ATX Motherboard
USER’S MANUAL
Version 1.0
Acknowledgments
AMI is a registered trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® Haswell DC/QC Processor are registered
trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Fintek is a registered trademark of Fintek Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
ii
MB980 User’s Manual
Table of Contents
Introduction ...................................................... 1
Product Description ............................................................ 1
Checklist ............................................................................. 2
MB980 Specifications ........................................................ 3
Board Dimensions .............................................................. 4
Installations ...................................................... 5
Installing the CPU .............................................................. 5
Installing the Memory......................................................... 7
Setting the Jumpers............................................................. 8
Connectors on MB980 ..................................................... 13
BIOS Setup.......................................................25
Drivers Installation ......................................51
Intel Chipset Software Installation Utility ......................... 52
VGA Drivers Installation .................................................. 55
Realtek HD Audio Driver Installation .............................. 58
LAN Drivers Installation .................................................. 60
Intel® Management Engine Interface ............................... 64
Intel® USB 3.0 Drivers .................................................... 67
Appendix ...........................................................71
A. I/O Port Address Map .................................................. 71
B. Interrupt Request Lines (IRQ) ...................................... 72
C. Watchdog Timer Configuration ................................... 73
MB980 User’s Manual iii
This page is intentionally left blank.
iv
MB980 User’s Manual
INTRODUCTION
Introduction
Product Description
The MB980 ATX motherboard is based on the latest Intel® Q87 chipset.
The platform supports 4th generation Intel® Core processor family with
LGA1150 packing and features an integrated dual-channel DDR3
memory controller as well as a graphics core.
The latest Intel® processors provide advanced performance in both
computing and graphics quality. This meets the requirement of customers
in the gaming, POS, digital signage and server market segment.
The Q87 platform is made with 22-nanometer technology that supports
Intel’s first processor architecture to unite the CPU and the graphics core
on the transistor level. The MB980 ATX board utilizes the dramatic
increase in performance provided this Intel’s latest cutting-edge
technology. Measuring 305mm x 244mm, the MB980 offers fast 6Gbps
SATA support (6 ports), USB3.0 (4 ports) and interfaces for DVI-D,
DVI-I and DP displays. MB980VF features Intel® Active Management
Technology 9.0.
MB980 FEATURES:
Supports Intel® 4th Generation Core i7/i5/i3 QC/DC desktop
processors
Four DDR3 DIMM, 1066/1333/1600MHz, Max. 32GB
memory
Dual Intel
Integrated Graphics for DVI-I, DVI-D/HDMI displays
6x SATA 3.0, 10x USB 2.0, USB 3.0 (4 ports),
6x COM, Watchdog timer
1x PCI-E (x16), 1x PCI-E (x8), 1x PCI-E (x1), 4x PCI
Optional AMT (MB980VF only)
®
PCI-Express Gigabit LAN
MB980 User’s Manual 1
INTRODUCTION
Checklist
Your MB980 package should include the items listed below.
The MB980 ATX motherboard
This User’s Manual
1 CD containing chipset drivers and flash memory utility
Serial ATA cable
2
MB980 User’s Manual
Product Name
MB980VF
Form Factor
ATX
CPU Type
- Intel® Haswell 22nm QC/DC DT processor
- LGA package 37.5 mm x 37.5mm(TDP: QC= 95W/65W/45W ;
DC=65W/45W)
CPU Speed
Up to 3.8GHz
Cache
Up to 8MB
CPU Socket
LGA1150 (Socket H3)
Chipset
Intel® Q87
23 x 22 mm package size
BIOS
AMI BIOS, support ACPI Function
Memory
Intel® Haswell DT processors integrated memory controller
DDRIII 1067/1333/1600 MHz
- DIMM x 4 (w/o ECC), Max.32GB
VGA
- Intel® Haswell DT processor integrated Gfx
- Supports 3 independent displays
- Improvement in 3D graphic performance (DX 11.1, OpenGL 3.2, Open CL1.2)
- One analog port (VGA) and 3 digital ports (DisplayPort, DVI/HDMI & SDVO)
DVI-I X 1 (thru Level shifter ASM1442)
DVI-D X 1 (thru Level shifter ASM1442)
DisplayPort X 1
LAN
1. Intel
®
Clarkville I218LM GbE PHY
2. Intel® I211AT as 2nd GbE
USB
USB 2.0 host controller, supports 14 ports w/ two EHCI, 7 UHCI controllers
- 6 ports in the rear panel
- Others reserved for onboard pin header
USB 3.0 host controller, supports 4 ports
Serial ATA
Intel® Q87 PCH built-in SATA controller, supports total 6 ports
6 x SATA (3.0) 6Gbps
Audio
Intel® Q87 PCH built-in High Definition Audio controller + ALC892 w/ 7.1 CH
LPC I/O
Fintek F81866AD-I (Ver. C)
COM1 (RS232/422/485), COM2~COM6 (RS232)
Hardware Monitor (2 thermal inputs, 4 voltage monitor inputs & 3 x fan
headers)
COM1/2 with pin-9 with power for 2 ports (500mA for each port)
Digital IO
4 in & 4 out
IAMT(9.0)
Intel® Q87 PCH built-in
- Intel® Active Management Technology Version 9.0
TPM 1.2
Winbond WPCT210A
Expansion Slots
PCI-Express (16x) x1 [PEG]; PCI-Express 8x) x1; PCI-Express 1x) x1; PCI x4
Edge
Connectors
DVI-D + DVI-I stack connector; Dual DB9 stack connector for COM #1, #2
Dual USB (2.0) dual stack connector; DP stack connector
Gigabit LAN RJ-45 + dual USB (3.0) stack connector x2
RCA Jack 3 x 1 for HD Audio
Onboard
Header/
Connector
6 ports x SATA III [Blue color]
2x5 pin-header x4 for 8 ports USB; 2x5 pin-header for front panel audio
4x10 box-header for COM3 (RS232) ~ COM6 (RS232)
2x5 pin-header for Digital IO
Watchdog Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
System Voltage
ATX
Others
LAN Wakeup, vPro
TM
Board Size
305mm x 244mm
MB980 Specifications
INTRODUCTION
MB980 User’s Manual 3
INTRODUCTION
[
Board Dimensions
4
MB980 User’s Manual
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and
connectors on the MB980 in order to set up a workable system. The
topics covered are:
Installing the CPU ................................................................ ................ 5
Installing the Memory .......................................................................... 7
Setting the Jumpers .............................................................................. 8
Connectors on MB980 ....................................................................... 13
MB980 User’s Manual 5
INSTALLATIONS
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
Installing the CPU
The MB980 board supports an LGA1150 Socket (shown below) for Intel
Sandy Bridge processors.
To install the CPU, unlock first the socket by pressing the lever sideways,
then lift it up to a 90-degree. Then, position the CPU above the socket
such that the CPU corner aligns with the gold triangle matching the
socket corner with a small triangle. Carefully insert the CPU into the
socket and push down the lever to secure the CPU. Then, install the heat
sink and fan.
6
MB980 User’s Manual
INSTALLATIONS
DDR3 Module
Lock
Lock
Lock
Lock
Installing the Memory
The MB980 board supports four DDR3 memory socket for a maximum
total memory of 32GB in DDR3 DIMM memory type.
Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3 module so that the key of the DDR3 module aligned
with that on the memory slot.
2. Gently push the DDR3 module in an upright position until the clips of
the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.
3. To remove the DDR3 module, press the clips with both hands.
MB980 User’s Manual 7
INSTALLATIONS
Setting the Jumpers
Jumpers are used on MB980 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MB980 and their respective functions.
Jumper Locations on MB980 ............................................................... 9
JBAT1: Clear CMOS Contents .......................................................... 10
JP1: COM1 RS232 RI/+5V/+12V Power Setting ............................... 10
JP2: COM2 RS232 RI/+5V/+12V Power Setting ............................... 11
JP4: Flash Descriptor Security Override (Factory use only) ................ 12
8
MB980 User’s Manual
Jumper Locations on MB980
INSTALLATIONS
Jumpers on MB980 .........................................................................Page
JBAT1: Clear CMOS Contents .......................................................... 10
JP1: COM1 RS232 RI/+5V/+12V Power Setting ............................... 10
JP2: COM2 RS232 RI/+5V/+12V Power Setting ............................... 11
JP4: Flash Descriptor Security Override (Factory use only) ................ 12
MB980 User’s Manual 9
INSTALLATIONS
JBAT1
Setting
Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS
JP1
Setting
Function
Pin 1-3
Short/Closed
+12V
Pin 3-4
Short/Closed
RI
Pin 5-3
Short/Closed
+5V
3 1
5 1
6 2
JBAT1: Clear CMOS Contents
JP1: COM1 RS232 RI/+5V/+12V Power Setting
10
MB980 User’s Manual
INSTALLATIONS
JP2
Setting
Function
Pin 1-3
Short/Closed
+12V
Pin 3-4
Short/Closed
RI
Pin 5-3
Short/Closed
+5V
5 1
6 2
JP2: COM2 RS232 RI/+5V/+12V Power Setting
MB980 User’s Manual 11
INSTALLATIONS
JP4
Flash Descriptor
Security Override
Open
Disabled
(Default)
Close
Enabled
2 1
JP4: Flash Descriptor Security Override (Factory use only)
12
MB980 User’s Manual
Connectors on MB980
Connector Locations on MB980 ........................................................ 14
CN2: COM1 and COM2 Serial Ports ................................................. 15
CN3: DVI-D and DVI-I Connector .................................................... 15
CN5: USB2.0 Connector ................................................................... 16
CN1: Display Port Connector ............................................................ 16
CN7: Gigabit LAN (Intel I218LM) + USB 0/1 ................................... 16
CN6: Gigabit LAN (Intel I211AT) + USB 2/3 ................................... 16
CN4: HD Audio Connector ............................................................... 16
CN8, CN9, CN10, CN11, CN12, CN13: SATA Connectors .............. 16
J1: Audio Pin Header for Chassis Front Panel .................................... 17
J2: SPDIF I/O .................................................................................... 17
J3: ATX 12V Power Connector ......................................................... 18
J4, J5, J6, J7: COM3~COM6 RS232 Serial Ports ............................... 18
J9, J11, J15, J17: USB Connectors .................................................... 19
J8: Digital I/O ................................................................ .................... 19
J20: Front Panel Function Connector ................................................. 20
J21: SPI Flash Connector (Factory use only) ...................................... 20
J22: ATX Power Supply Connector ................................................... 21
CPU_FAN1: CPU Fan Power Connector ........................................... 21
SYS_FAN1: System Fan1 Power Connector ...................................... 22
SYS_FAN2: System Fan2 Power Connector ...................................... 22
PCIE3: PCI-E X16 Slot ..................................................................... 22
PCIE2: PCI-E X8 Slot (PCI-E X4) .................................................... 23
PCIE1: PCI-E X1 Slot ....................................................................... 23
PCI1-PCI4: PCI 32-bit Slot ............................................................... 23
INSTALLATIONS
MB980 User’s Manual 13
INSTALLATIONS
Connector Locations on MB980
14
MB980 User’s Manual
Pin #
Signal Name
RS-232
R2-422
RS-485
1
DCD
TX-
DATA-
2
RX
TX+
DATA+
3
TX
RX+
NC
4
DTR
RX-
NC
5
Ground
Ground
Ground
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
10
NC
NC
NC
Signal Name
Pin #
Pin #
Signal Name
DATA 2-
1
16
HOT POWER
DATA 2+
2
17
DATA 0-
Shield 2/4
3
18
DATA 0+
DATA 4-
4
19
SHIELD 0/5
DATA 4+
5
20
DATA 5-
DDC CLOCK
6
21
DATA 5+
DDC DATA
7
22
SHIELD CLK
VSYNC
8
23
CLOCK +
DATA 1-
9
24
CLOCK -
DATA 1+
10
C1
Red
SHIELD 1/3
11
C2
Green
DATA 3-
12
C3
Blue
DATA 3+
13
C4
HSYNC
DDC POWER
14
C5
A GROUND2
A GROUND 1
15
C6
A GROUND3
INSTALLATIONS
CN2: COM1 and COM2 Serial Ports
[
CN3: DVI-D and DVI-I Connector
MB980 User’s Manual 15
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
DATA 2-
1
16
HOT POWER
DATA 2+
2
17
DATA 0-
Shield 2/4
3
18
DATA 0+
DATA 4-
4
19
SHIELD 0/5
DATA 4+
5
20
DATA 5-
DDC CLOCK
6
21
DATA 5+
DDC DATA
7
22
SHIELD CLK
N.C
8
23
CLOCK +
DATA 1-
9
24
CLOCK -
DATA 1+
10
C1
N.C.
SHIELD 1/3
11
C2
N.C.
DATA 3-
12
C3
N.C.
DATA 3+
13
C4
N.C.
DDC POWER
14
C5
N.C.
A GROUND 1
15
C6
N.C.
[
CN5: USB2.0 Connector
CN1: Display Port Connector
CN7: Gigabit LAN (Intel I218LM) + USB 0/1
CN6: Gigabit LAN (Intel I211AT) + USB 2/3
CN4: HD Audio Connector
CN8, CN9, CN10, CN11, CN12, CN13: SATA Connectors
16
MB980 User’s Manual
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
MIC IN_L
1 2 Ground
MIC IN_R
3 4 DET
LINE_R
5 6 Sense Ground
Sense
7 8 KEY
LINE_L
9
10
Sense Ground
Pin #
Signal Name
1
SPDIF IN
2
Ground
3
SPDIF OUT
4
Ground
9
1
10
1
4 3
2 1
J1: Audio Pin Header for Chassis Front Panel
J2: SPDIF I/O
MB980 User’s Manual 17
INSTALLATIONS
Pin #
Signal Name
1
Ground
2
Ground
3
+12V
4
+12V
Signal Name
Pin #
Pin #
Signal Name
DCD#
1 6 DSR#
SIN
2 7 RTS#
SOUT
3 8 CTS#
DTR#
4 9 RI#
GND
5 X KEY
1 2
3 4
5
1
10
6
J3: ATX 12V Power Connector
This connector supplies the CPU operating voltage.
J4, J5, J6, J7: COM3~COM6 RS232 Serial Ports
18
MB980 User’s Manual
Signal Name
Pin #
Pin #
Signal Name
VCC
1 2 VCC
D0-
3 4 D1-
D0+
5 6 D1+
GND
7 8 GND
KEY
9
10
NC
Signal Name
Pin #
Pin #
Signal Name
GND
1 2 VCC
OUT3
3 4 OUT1
OUT2
5 6 OUT0
IN3
7 8 IN1
IN2
9
10
IN0
1 2
9 10
1 2
9 10
J9, J11, J15, J17: USB Connectors
INSTALLATIONS
J8: Digital I/O
MB980 User’s Manual 19
INSTALLATIONS
Signal Name
Pin #
Pin #
Signal Name
SPK +
2 1 PWR LED +
NC
4 3 PWR LED- (GND)
SPK – (GND)
6 5 PWR LED- (GND)
SPK – (GND)
8 7 NC
NC
10 9 NC
NC
12
11
NC
PWR_SW
14
13
PWR_SW
NC
16
15
NC
RST
18
17
GND
HDD LED -
20
19
HDD LED +
19 20
1 2
2 10
1 9
J20: Front Panel Function Connector
J21: SPI Flash Connector (Factory use only)
20
MB980 User’s Manual
Signal Name
Pin #
Pin #
Signal Name
3.3V
13 1 3.3V
-12V
14 2 3.3V
Ground
15 3 Ground
PS-ON
16 4 +5V
Ground
17 5 Ground
Ground
18 6 +5V
Ground
19 7 Ground
-5V
20 8 Power good
+5V
21 9 5VSB
+5V
22
10
+12V
+5V
23
11
+12V
Ground
24
12
+3.3V
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
4
Control
1 12
13 24
1
4
J22: ATX Power Supply Connector
INSTALLATIONS
CPU_FAN1: CPU Fan Power Connector
MB980 User’s Manual 21
INSTALLATIONS
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
Pin #
Signal Name
1
Ground
2
+12V
3
NC
3 1
3 1

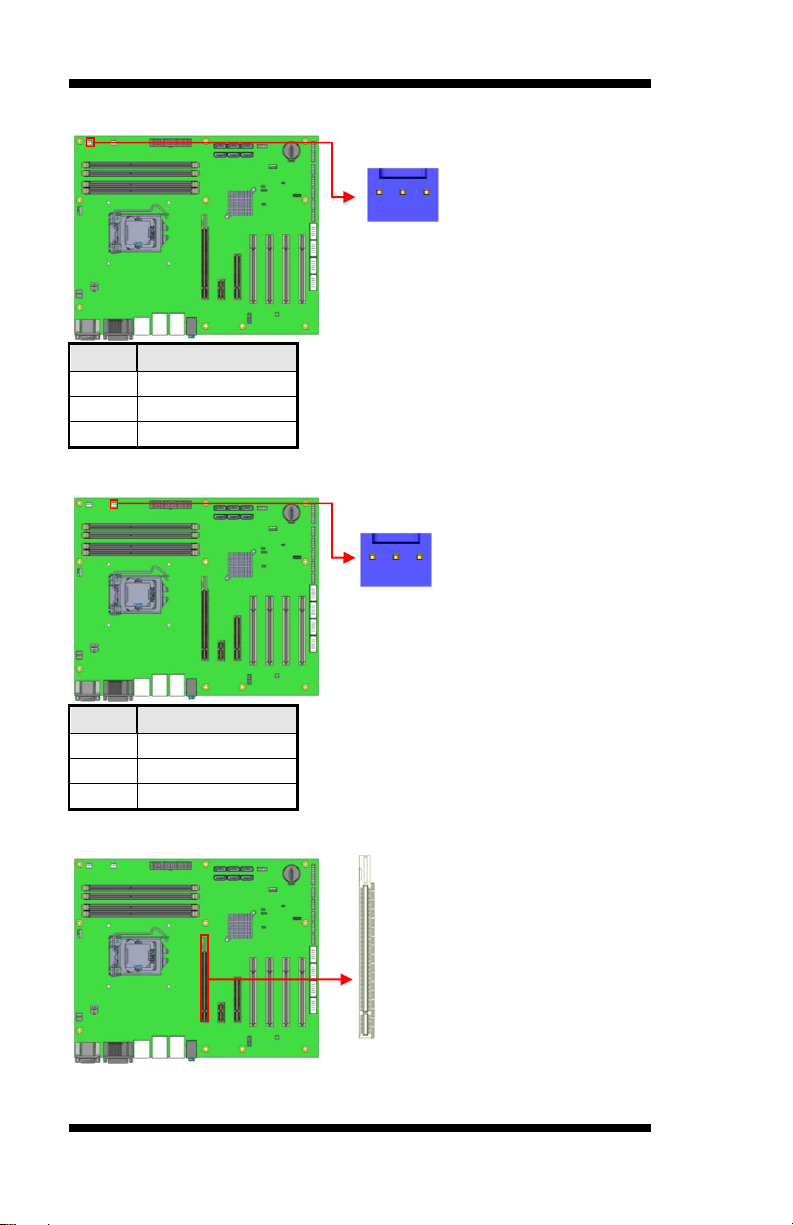

SYS_FAN1: System Fan1 Power Connector
SYS_FAN2: System Fan2 Power Connector

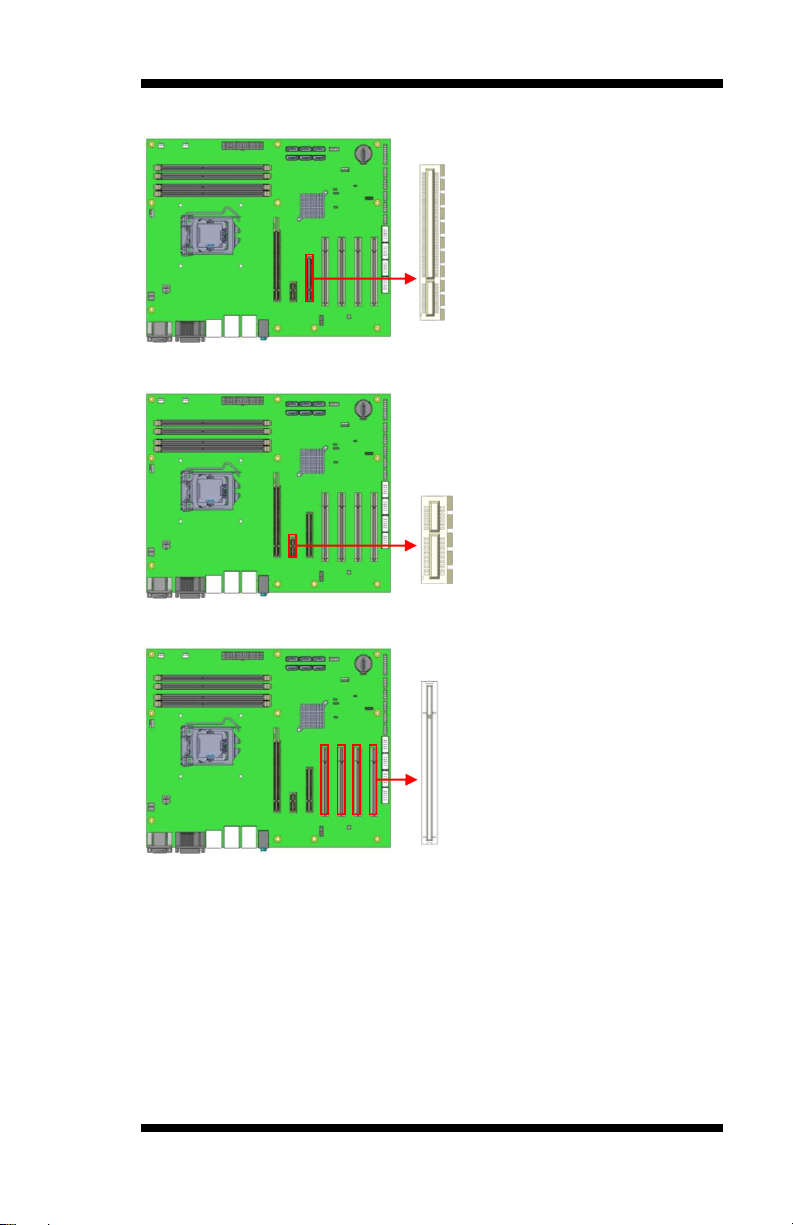

PCIE3: PCI-E X16 Slot
22
MB980 User’s Manual
PCIE2: PCI-E X8 Slot (PCI-E X4)
INSTALLATIONS
PCIE1: PCI-E X1 Slot
PCI1-PCI4: PCI 32-bit Slot
MB980 User’s Manual 23
INSTALLATIONS
This page was intentionally left blank.
24
MB980 User’s Manual
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the AMI BIOS
that comes with the board. The topics covered in this chapter are as
follows:
BIOS Introduction ............................................................................................ 26
BIOS Setup ........................................................................................................ 26
Advanced Settings ............................................................................................ 28
Chipset Settings ................................................................................................ 40
Boot Settings ..................................................................................................... 47
CSM parameters ............................................................................................... 48
Security Settings ............................................................................................... 49
Save & Exit Settings ........................................................................................ 50
MB980 User’s Manual 25
BIOS SETUP
Warning:
It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both AMI and your system manufacturer
to provide the absolute maximum performance and
reliability. Changing the defaults could cause the system to
become unstable and crash in some cases.
BIOS Introduction
The BIOS (Basic Input/Output System) installed in your computer
system’s ROM supports Intel processors. The BIOS provides critical
low-level support for a standard device such as disk drives, serial ports
and parallel ports. It also password protection as well as special support
for detailed fine-tuning of the chipset controlling the entire system.
BIOS Setup
The BIOS provides a Setup utility program for specifying the system
configurations and settings. The BIOS ROM of the system stores the
Setup utility. When you turn on the computer, the BIOS is immediately
activated. Pressing the <Del> key immediately allows you to enter the
Setup utility. If you are a little bit late pressing the <Del> key, POST
(Power On Self Test) will continue with its test routines, thus preventing
you from invoking the Setup. If you still wish to enter Setup, restart the
system by pressing the ”Reset” button or simultaneously pressing the
<Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the
system Off and back On again. The following message will appear on the
screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to select,
the <PgUp> and <PgDn> keys to change entries, <F1> for help and
<Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.
26
MB980 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
BIOS Information
Choose the system default
language
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
System Language
[English]
System Date
[Tue 01/20/2009]
Access Level
Administrator
Main Settings
Aptio Setup Utility – Copyright © 2011 American Megatrends, Inc.
System Language
Choose the system default language.
System Date
Set the Date. Use Tab to switch between Data elements.
System Time
Set the Time. Use Tab to switch between Data elements.
BIOS SETUP
MB980 User’s Manual 27
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
► PCI Subsystem Settings
► ACPI Settings
► Wake up event setting
► Trusted Computing
► CPU Configuration
► SATA Configuration
► Shutdown Temperature Configuration
► iSmart Controller
► AMT Configuration
► Acoustic Management Configuration
► USB Configuration
► F81866 Super IO Configuration
► F81866 H/W Monitor
► CPU PPM Configuration
Main Advanced Chipset Boot Security Save & Exit
PCI Bus Driver Version V 2.0502
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
PCI 64bit Resources Handing
Above 4G Decoding
Disabled
PCI Common Settings
PCI Latency Timer
32 PCI Bus Clocks
VGA Palette Snoop
Disabled
PERR# Generation
Disabled
SERR# Generation
Disabled
► PCI Express Settings
Advanced Settings
This section allows you to configure and improve your system and allows
you to set up some system features according to your preference.
PCI Subsystem Settings
Aptio Setup Utility
Aptio Setup Utility
Above 4G Decoding
Enables or Disables 64bit capable devices to be decoded in above 4G
address space (only if system supports 64 bit PCI decoding).
28
MB980 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
PCI Express Device Register Settings
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Relaxed Ordering
Disabled
Extended Tag
Disabled
No Snoop
Enabled
Maximum Payload
Auto
Maximum Read Request
Auto
PCI Express Link Register Settings
ASPM Support
Disabled
WARNING: Enabling ASPM may cause
Disabled
some PCI-E devices to fail
Extended Synch
Disabled
Link Training Retry
5 Link Training Timeout (uS)
100
Unpopulated Links
Keep Link ON
PCI Latency Timer
Value to be programmed into PCI Latency Timer Register.
VGA Palette Snoop
Enables or disables VGA Palette Registers Snooping.
PERR# Generation
Enables or disables PCI device to generate PERR#.
SERR# Generation
Enables or disables PCI device to generate SERR#.
PCI Express Settings
Change PCI Express devices settings.
PCI Express Settings
Aptio Setup Utility
Relaxed Ordering
Enables or disables PCI Express Device Relaxed Ordering.
Extended Tag
If ENABLED allows device to use 8-bit Tag field as a requester.
No Snoop
Enables or disables PCI Express Device No Snoop option.
MB980 User’s Manual 29
BIOS SETUP
Maximum Payload
Set Maximum Payload of PCI Express Device or allow System BIOS to
select the value.
Maximum Read Request
Set Maximum Read Request Size of PCI Express Device or allow System
BIOS to select the value.
ASPM Support
Set the ASPM Level: Force L0s – Force all links to L0s State:
AUTO – BIOS auto configure : DISABLE – Disables ASPM.
Extended Synch
If ENABLED allows generation of Extended Synchronization patterns.
Link Training Retry
Defines number of Retry Attempts software will take to retrain the link if
previous training attempt was unsuccessful.
Link Training Timeout (uS)
Defines number of Microseconds software will wait before polling ‘Link
Training’ bit in Link Status register. Value range from 10 to 1000 uS.
Unpopulated Links
In order to save power, software will disable unpopulated PCI Express
links, if this option set to ‘Disable Link’.
30
MB980 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
ACPI Settings
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Enable Hibernation
Enabled
ACPI Sleep State
S3 (Suspend to R…)
Lock Legacy Resources
S3 Video Repost
Disabled
Disabled
ACPI Settings
Aptio Setup Utility
Enable Hibernation
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This
option may be not effective with some OS.
ACPI Sleep State
Select ACPI sleep state the system will enter, when the SUSPEND button
is pressed.
Lock Legacy Resources
Enabled or Disabled Lock of Legacy Resources.
S3 Video Repost
Enable or disable S3 Video Repost.
MB980 User’s Manual 31
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Wake system with Fixed Time Disabled
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Wake up hour
0
Wake up minute
0
Wake up second
0
Wake on Ring
Disabled
Wake on PCI PME
Disabled
Wake on PCIE Wake Event
Disabled
Main Advanced Chipset Boot Security Save & Exit
TPM Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
TPM SUPPORT
Disabled
Current TPM Status Information
TPM SUPPORT OFF
Wake up event settings
Aptio Setup Utility
Wake system with Fixed Time
Enables or Disables System wake on alarm event. When enabled, System
will wake on the hr::min:: sec specified.
Wake on PCIE PME Wake Event
The options are Disabled and Enabled.
Trusted Computing
Aptio Setup Utility
TPM Support
This configuration is supported only with MB980VF. Enables or Disables
TPM support. O.S. will not show TPM. Reset of platform is required.
Security Device Support
Enables or disables BIOS support for security device. O.S. will not show
Security Device. TCG EFI protocol and INT1A interface will not be
available.
32
MB980 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
CPU Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Intel® Core ™ i7-3770 CPU @ 3.40GHz
Processor Stepping
306a8
Microcode Revision
c
Max CPU Speed
3400 MHz
Min CPU Speed
1600 MHz
CPU Speed
3400 MHz
Processor Cores
4
Intel HT Technology
Supported
Intel VT-x Technology
Supported
Intel SMX Technology
Supported
64-bit
Supported
Hyper-threading
Enabled
Active Processor Cores
All
Limit CPUID Maximum
Disabled
Execute Disable Bit
Enabled
Intel Virtualization Technology
Disabled
Hardware Prefetcher
Disabled
Adjacent Cache Line Prefetch
Enabled
CPU Configuration
This section shows the CPU configuration parameters.
Aptio Setup Utility
BIOS SETUP
Hyper-threading
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading
Technology) and Disabled for other OS (OS not optimized for
Hyper-Threading Technology). When Disabled, only one thread per
enabled core is enabled.
Active Processor Cores
Number of cores to enable in each processor package.
Limit CPUID Maximum
Disabled for Windows XP.
Execute Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when
combined with a supporting OS (Windows Server 2003 SP1, Windows
XP SP2, SuSE Linux 9.2, Re33dHat Enterprise 3 Update 3.)
MB980 User’s Manual 33
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
SATA Controller(s)
Enabled
SATA Mode Selection
RAID
Aggressive LPM Support
Enabled
SATA Controller Speed
Gen3
SATA Port0
Empty
Software Preserve
Unknown
SATA Port1
Empty
Software Preserve
Unknown
SATA Port2
Empty
Software Preserve
Unknown
SATA Port3
Empty
Software Preserve
Unknown
SATA Port4
Empty
Software Preserve
Unknown
SATA Port5
Empty
Software Preserve
Unknown
Intel Virtualization Technology
When enabled, a VMM can utilize the additional hardware capabilities
provided by Vanderpool Technology.
Hardware Prefetcher
To turn on/off the Mid level Cache (L2) streamer Prefetcher.
Adjacent Cache Line Prefetch
To turn on/off prefetching of adjacent cache lines.
SATA Configuration
SATA Devices Configuration.
Aptio Setup Utility
SATA Controller(s)
Enable / Disable Serial ATA Controller.
SATA Mode Selection
(1) IDE Mode.
(2) AHCI Mode.
(3) RAID Mode.
34
MB980 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
APCI Shutdown Temperature
Disabled
Main Advanced Chipset Boot Security Save & Exit
iSmart Controller
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Power-On after Power failure
Disable
Schedule Slot 1
None
Schedule Slot 2
None
Shutdown Temperature Configuration
Aptio Setup Utility
ACPI Shutdown Temperature
The default setting is Disabled.
iSmart Controller
Aptio Setup Utility
BIOS SETUP
ISmart Controller
Setup the power on time for the system.
Schedule Slot 1 / 2
Setup the hour/minute for system power on.
MB980 User’s Manual 35
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Intel AMT
Enabled
BIOS Hotkey Pressed
Disabled
MEBx Selection Screen
Disabled
Hide Un-Configure ME Confirmation
Disabled
Un-Configure ME
Disabled
Amt Wait Timer
0
Activate Remote Assistance Process
Disabled
USB Configure
Enabled
PET Progress
Enabled
AMT CIRA Timeout
0
Watchdog
Disabled
OS Timer
0
BIOS Timer
0
AMT Configuration
Aptio Setup Utility
AMT Configuration
This configuration is supported only with MB980VF (with iAMT
function). Options are Enabled and Disabled.
Note: iAMT H/W is always enabled. This option just controls the BIOS
extension execution. If enabled, this requires additional firmware in the
SPI device.
Unconfigure ME
This configuration is supported only with MB980VF (with iAMT
function). Perform AMT/ME unconfigure without password operation.
Amt Wait Timer
Set timer to wait before sending ASF_GET_BOOT_OPTIONS.
Activate Remote Assistance Process
Trigger CIRA boot.
PET Progress
User can Enable/Disable PET Events progress to receive PET events or
not.
Watchdog Timer
This configuration is supported only with MB980VF (with iAMT
function). Enable/Disable Watchdog Timer.
36
MB980 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
Acoustic Management Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Acoustic Management
Disabled
Main Advanced Chipset Boot Security Save & Exit
USB Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
USB Devices:
2 Hubs
Legacy USB Support
Enabled
USB3.0 Support
Enabled
XHCI Hand-off
Enabled
EHCI Hand-off
Enabled
Port 60/64 Emulation
Enabled
USB hardware delays and time-outs:
USB Transfer time-out
20 sec
Device reset tine-out
20 sec
Device power-up delay
Auto
Acoustic Management Configuration
Aptio Setup Utility
USB Configuration
Aptio Setup Utility
BIOS SETUP
Legacy USB Support
Enables Legacy USB support.
AUTO option disables legacy support if no USB devices are connected.
DISABLE option will keep USB devices available only for EFI
applications.
USB3.0 Support
Enable/Disable USB3.0 (XHCI) Controller support.
XHCI Hand-off
This is a workaround for OSes without XHCI hand-off support. The
XHCI ownership change should be claimed by XHCI driver.
MB980 User’s Manual 37
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Super IO Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
F81866 Super IO Chip
F81866
► Serial Port 0 Configuration
► Serial Port 1 Configuration
► Serial Port 2 Configuration
► Serial Port 3 Configuration
F81866 ERP Support
All Enable
USB3.0 Port0/1 POWER Management
Enabled
USB3.0 Port2/3 POWER Management
Enabled
EHCI Hand-off
Enabled/Disabled. This is a workaround for OSes without EHCI hand-off
support. The EHCI ownership change should be claimed by EHCI driver.
Port 64/60 Emulation
Enables I/O port 60h/64h emulation support. This should be enabled for
the complete USB keyboard legacy support for non-USB aware OSes.
USB Transfer time-out
The time-out value for Control, Bulk, and Interrupt transfers.
Device reset tine-out
USB mass Storage device start Unit command time-out.
Device power-up delay
Maximum time the device will take before it properly reports itself to the
Host Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for
a Hub port the delay is taken from Hub descriptor.
F81866 Super IO Configuration
Aptio Setup Utility
Serial Port Configuration
Set Parameters of Serial Ports. User can Enable/Disable the serial port
and Select an optimal settings for the Super IO Device.
38
MB980 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
PC Health Status
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
CPU_Fan1 smart fan control
Disabled
SYS_Fan1 smart fan control
Disabled
SYS_Fan2 smart fan control
Disabled
CPU temperature
+41 C
SYS temperature
+35 C
CPU_FAN1 Speed
2115 RPM
SYS_ FAN1 Speed
N/A
SYS_ FAN2 Speed
N/A
Vcore
+1.000 V
+5V
+5.213 V
+12V
+12.408 V
1.5V
+1.544 V
+3.3V
+3.424 V
F81866 H/W Monitor
Aptio Setup Utility
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function
feature of the motherboard. The values are read-only values as monitored
by the system and show the PC health status.
Fan1/Fan2 Smart Fan Control
This field enables or disables the smart fan feature. At a certain
temperature, the fan starts turning. Once the temperature drops to a
certain level, it stops turning again.
MB980 User’s Manual 39
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
CPU PPM Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
EIST
Enabled
Turbo Mode
Enabled
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
► PCH-IO Configuration
► System Agent (SA) Configuration
CPU PPM Configuration
Aptio Setup Utility
EIST
Enable/Disable Intel SpeedStep.
Chipset Settings
This section allows you to configure and improve your system and allows
you to set up some system features according to your preference.
Aptio Setup Utility
40
MB980 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
Intel PCH RC Version 1.1.0.0
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Intel PCH SKU Name
Q77
Intel PCH Rev ID
O4/C1
► PCI Express Configuration
► USB Configuration
► PCH Azalia Configuration
PCH LAN Controller
Enabled
Wake on LAN
Enabled
High Precision Event Timer Configuration
High Precision Timer
Enabled
SLP_S4 Assertion Width
4-5 Seconds
Restore AC Power Loss
Power On
PCH-IO Configuration
This section allows you to configure the North Bridge Chipset.
Aptio Setup Utility
PCH LAN Controller
Enable or disable onboard NIC.
Wake on LAN
Enable or disable integrated LAN to wake the system. (The Wake On
LAN cannot be disabled if ME is on at Sx state.)
SLP_S4 Assertion Width
Select a minimum assertion width of the SLP_S4# signal.
Restore AC Power Loss
Select AC power state when power is re-applied after a power failure.
MB980 User’s Manual 41
BIOS SETUP
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
PCI Express Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
PCI Express Clock Gating
Enabled
DMI Link ASPM Control
Enabled
DMI Link Extended Synch Control
Disabled
PCIe-USB Glitch W/A
Disabled
Subtractive Decode
Disabled
► PCI Express Root Port 1
► PCI Express Root Port 2
► PCI Express Root Port 3
► PCI Express Root Port 4
► PCI Express Root Port 5
PCI-E Port 6 is assigned to LAN
► PCI Express Root Port 7
► PCI Express Root Port 8
PCI Express Configuration
PCI Express Clock Gating
Enable or disable PCI Express Clock Gating for each root port.
DMI Link ASPM Control
The control of Active State Power Management on both NB side and SB
side of the DMI link.
PCIe-USB Glitch W/A
PCIe-USB Glitch W/A for bad USB device(s) connected behind
PCIE/PEG port.
42
MB980 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
USB Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
XHCI Pre-Boot Driver
Enabled
xHCI Mode
Smart Auto
HS Port #1 Switchable
Enabled
HS Port #2 Switchable
Enabled
HS Port #3 Switchable
Enabled
HS Port #4 Switchable
Enabled
xHCI Streams
Enabled
EHCI1
Enabled
EHCI2
Enabled
USB Ports Per-Port Disable Control
Disabled
USB Configuration
HS Port #1/2/3/4 Switchable
Allows for HS port switching between xHCI and EHCI. If disabled, port
is routed to EHCI. If HS port is routed to xHCI, the corresponding SS
port is enabled.
xHCI Streams
Enable or disable xHCI Maximum Primary Stream Array Size.
EHCI1/2
Control the USAB EHCI (USB 2.0) functions. One EHCI controller must
always be enabled.
USB Ports Per-Port Disable Control
Control each of the USB ports (0~13) disabling.
MB980 User’s Manual 43
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
PCH Azalia Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Azalia
Auto
Main Advanced Chipset Boot Security Save & Exit
System Agent Bridge Name IvyBridge
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
System Agent RC Version
1.1.0.0
VT-d Capability
Supported
VT-d
Enabled
CHAP Device (B0:D7:F0)
Disabled
Thermal Device (B0:D4:F0)
Disabled
Enable NB CRID
Disabled
BDAT ACPI Table Support
Disabled
C-State Pre-Wake
Enabled
► Graphics Configuration
► Memory Configuration
PCH Azalia Configuration
Azalia
Control Detection of the Azalia device.
Disabled = Azalia will unconditionally disabled.
Enabled Azalia will be unconditionally enabled.
Auto = Azalia will enabled if present, disabled otherwise.
System Agent (SA) Configuration
Aptio Setup Utility
VT-d
Check to enable VT-d function on MCH.
Enable NB CRID
Enable or disable NB CRID WorkAround.
C-State Pre-Wake
Controls C-State Pre-Wake feature for ARAT, in SSKPD[57].
44
MB980 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
Graphics Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
IGFX VBIOS Version
2132
IGfx Frequency
350 MHz
Primary Display
Auto
Internal Graphics
Auto
GTT Size
2MB
Aperture Size
256MB
DVMT Pre-Allocated
64M
DVMT Total Gfx Mode
Disabled
► LCD Control
Graphics Configuration
Aptio Setup Utility
Primary Display
Select which of IGFX/PEG/PCI graphics device should be primary
display or select SG for switchable Gfx.
Internal Graphics
Keep IGD enabled based on the setup options.
DVMT Pre-Allocated
Select DVMT 5.0 Pre-Allocated (Fixed) graphics memory size used by
the internal graphics device.
DVMT Total Gfx Mem
Select DVMT 5.0 total graphics memory size used by the internal
graphics device.
Gfx Low Power Mode
This option is applicable for SFF only.
Primary IGFX Boot Display (LCD Control)
Select the Video Device that will be activated during POST. This has no
effect if external graphics present. Secondary booty display selection will
appear based on your selection. VGA modes will be supported only on
primary display.
MB980 User’s Manual 45
BIOS SETUP
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Memory Information
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Memory Frequency
1333 MHz
Total Memory
8192 MB (DDR3)
DIMM#0
2048 MB (DDR3)
DIMM#1
2048 MB (DDR3)
DIMM#2
2048 MB (DDR3)
DIMM#3
2048 MB (DDR3)
CAS Latency (tCL)
9
Minimum delay time
CAS to RAS (tRCDmin)
9
Row Precharge (tRPmin)
9
Active to Precharge (tRASmin)
24
Memory Configuration
Aptio Setup Utility
46
MB980 User’s Manual
Main Advanced Chipset Boot Security Save & Exit
Boot Configuration
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Setup Prompt Timeout
1
Bootup NumLock State
On
Quiet Boot
Disabled
Fast Boot
Disabled
CSM16 Module Version
07.69
GateA20 Active
Upon Request
Option ROM Messages
Force BIOS
INT19 Trap Response
Immediate
Boot Option Priorities
► CSM parameters
Boot Settings
This section allows you to configure the boot settings.
Setup Prompt Timeout
Number of seconds to wait for setup activation key.
65535(0xFFFF) means indefinite waiting.
Bootup NumLock State
Select the keyboard NumLock state.
Quiet Boot
Enables/Disables Quiet Boot option.
Fast Boot
Enables/Disables boot with initialization of a minimal set of devices
required to launch active boot option. Has no effect for BBS boot
options.
GateA20 Active
UPON REQUEST – GA20 can be disabled using BIOS services.
ALWAYS – do not allow disabling GA20; this option is useful when any
RT code is executed above 1MB.
Option ROM Messages
Set display mode for Option ROM. Options are Force BIOS and Keep
Current.
MB980 User’s Manual 47
Aptio Setup Utility
BIOS SETUP
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Launch CSM
Always
Boot option filter
UEFI and Legacy
Launch PXE OpROM policy
Do not launch
Launch Storage OpROM policy
Legacy only
Launch Video OpROM policy
Legacy only
Other PCI device ROM priority
Legacy OpROM
INT19 Trap Response
Enable: Allows Option ROMs to trap Int 19.
Boot Option Priorities
Sets the system boot order.
CSM parameters
This section allows you to configure the boot settings.
Aptio Setup Utility
Boot option filter
This option controls what devices system can boot to.
Launch PXE OpROM policy
Controls the execution of UEFI and Legacy PXE OpROM.
Launch Storatge OpROM policy
Controls the execution of UEFI and Legacy Storage OpROM.
Launch Video OpROM policy
Controls the execution of UEFI and Legacy Video OpROM.
Other PCI device ROM priority
For PCI devices other than Network, Mass storage or Video defines
which OpROM to launch.
48
MB980 User’s Manual
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Password Description
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
If ONLY the Administrator’s password is set, then
this only limit access to Setup and is only asked for
when entering Setup.
If ONLY the User’s password is set, then this is a
power on password and must be entered to boot or
enter Setup. In Setup the User will have
Administrator rights
The password length must be
in the following range:
Minimum length
3
Maximum length
20
Administrator Password
User Password
Security Settings
This section allows you to configure and improve your system and allows
you to set up some system features according to your preference.
Administrator Password
Set Setup Administrator Password.
User Password
Set User Password.
Aptio Setup Utility
MB980 User’s Manual 49
BIOS SETUP
Main Advanced Chipset Boot Security Save & Exit
Save Changes and Exit
→ ← Select Screen
↑↓ Select Item
Enter: Select
+- Change Field
F1: General Help
F2: Previous Values
F3: Optimized Default
F4: Save ESC: Exit
Discard Changes and Exit
Save Changes and Reset
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Save as User Defaults
Restore User Defaults
Save & Exit Settings
Save Changes and Exit
Exit system setup after saving the changes.
Discard Changes and Exit
Exit system setup without saving any changes.
Save Changes and Reset
Reset the system after saving the changes.
Discard Changes and Reset
Reset system setup without saving any changes.
Save Changes
Save Changes done so far to any of the setup options.
Discard Changes
Discard Changes done so far to any of the setup options.
Restore Defaults
Restore/Load Defaults values for all the setup options.
Save as User Defaults
Save the changes done so far as User Defaults.
Restore User Defaults
Restore the User Defaults to all the setup options.
50
Aptio Setup Utility
MB980 User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation procedures for software and
drivers. The software and drivers are included with the motherboard. If
you find the items missing, please contact the vendor where you made the
purchase. The contents of this section include the following:
Intel Chipset Software Installation Utility ........................................... 52
VGA Drivers Installation ................................................................... 55
Realtek HD Audio Driver Installation ................................................ 58
LAN Drivers Installation .................................................................... 60
Intel® Management Engine Interface ................................................. 64
Intel® USB 3.0 Drivers ..................................................................... 67
IMPORTANT NOTE:
After installing your Windows operating system, you must install first the
Intel Chipset Software Installation Utility before proceeding with the
drivers installation.
MB980 User’s Manual 51
DRIVER INSTALLATION
Intel Chipset Software Installation Utility
The Intel Chipset Drivers should be installed first before the software
drivers to enable Plug & Play INF support for Intel chipset components.
Follow the instructions below to complete the installation.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
7 Series Chipset Drivers.
2. Click Intel(R) Chipset Software Installation Utility.
52
MB980 User’s Manual
DRIVERS INSTALLATION
3. When the Welcome screen to the Intel® Chipset Device Software
appears, click Next to continue.
4. Click Yes to accept the software license agreement and proceed with
the installation process.
MB980 User’s Manual 53
DRIVER INSTALLATION
5. On the Readme File Information screen, click Next to continue the
installation.
6. The Setup process is now complete. Click Finish to restart the
computer and for changes to take effect.
54
MB980 User’s Manual
DRIVERS INSTALLATION
VGA Drivers Installation
NOTE: Before installing the Intel(R) Q77 Chipset Family Graphics
Driver, the Microsoft .NET Framework 3.5 SPI should be first
installed.
To install the VGA drivers, follow the steps below.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
Q7 Series Chipset Drivers.
2. Click Intel(R) Q77 Chipset Family Graphics Driver.
MB980 User’s Manual 55
DRIVER INSTALLATION
3. When the Welcome screen appears, click Next to continue.
4. Click Yes to to agree with the license agreement and continue the
installation.
56
MB980 User’s Manual
DRIVERS INSTALLATION
5. On the Readme File Information screen, click Next to continue the
installation of the Intel® Graphics Media Accelerator Driver.
6. On Setup Progress screen, click Next to continue.
7. Setup complete. Click Finish to restart the computer and for changes
to take effect.
MB980 User’s Manual 57
DRIVER INSTALLATION

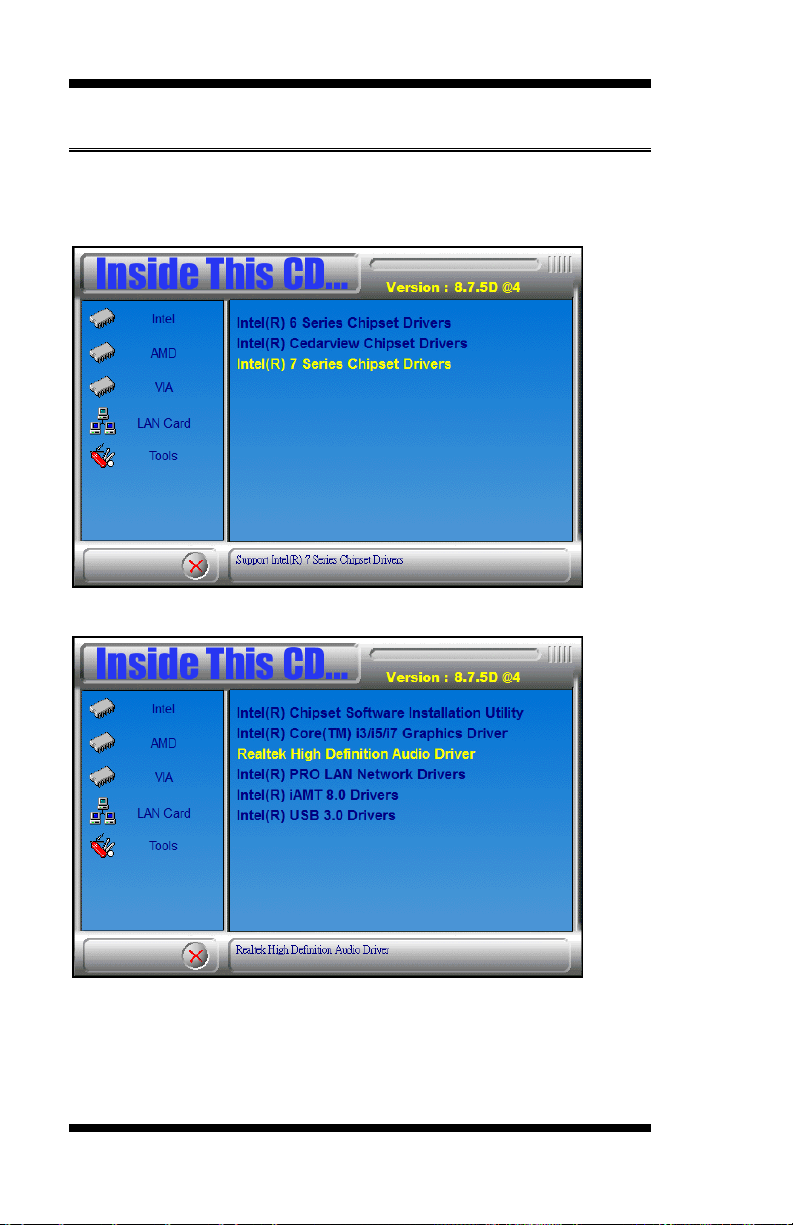

Realtek HD Audio Driver Installation
Follow the steps below to install the Realtek HD Audio Drivers.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
Q7 Series Chipset Drivers.
2. Click Realtek High Definition Audio Driver.
58
MB980 User’s Manual
DRIVERS INSTALLATION
3. On the Welcome to the InstallShield Wizard screen, click Next to
proceed with and complete the installation process.
4. The InstallShield Wizard Complete. Click Finish to restart the
computer and for changes to take effect.
MB980 User’s Manual 59
DRIVER INSTALLATION
LAN Drivers Installation
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
Q7 Series Chipset Drivers.
2. Click Intel(R) PRO LAN Network Driver.
60
MB980 User’s Manual
3. Click Install Drivers and Software.
DRIVERS INSTALLATION
4. When the Welcome screen appears, click Next.
MB980 User’s Manual 61
DRIVER INSTALLATION
5. Click Next to to agree with the license agreement.
6. Click the checkbox for Drivers in the Setup Options screen to select it
and click Next to continue.
62
MB980 User’s Manual
DRIVERS INSTALLATION
7. The wizard is ready to begin installation. Click Install to begin the
installation.
8. When InstallShield Wizard is complete, click Finish.
MB980 User’s Manual 63
DRIVER INSTALLATION
Intel® Management Engine Interface
REMARKS: The Intel iAMT 8.0 Drivers can be installed on
MB970VF, not MB970F.
Follow the steps below to install the Intel Management Engine.
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
AMT 8.0 Drivers.
64
MB980 User’s Manual
DRIVERS INSTALLATION
2. When the Welcome screen to the InstallShield Wizard for Intel®
Management Engine Components, click the checkbox for Install Intel®
Control Center & click Next.
3. Click Yes to to agree with the license agreement.
MB980 User’s Manual 65
DRIVER INSTALLATION

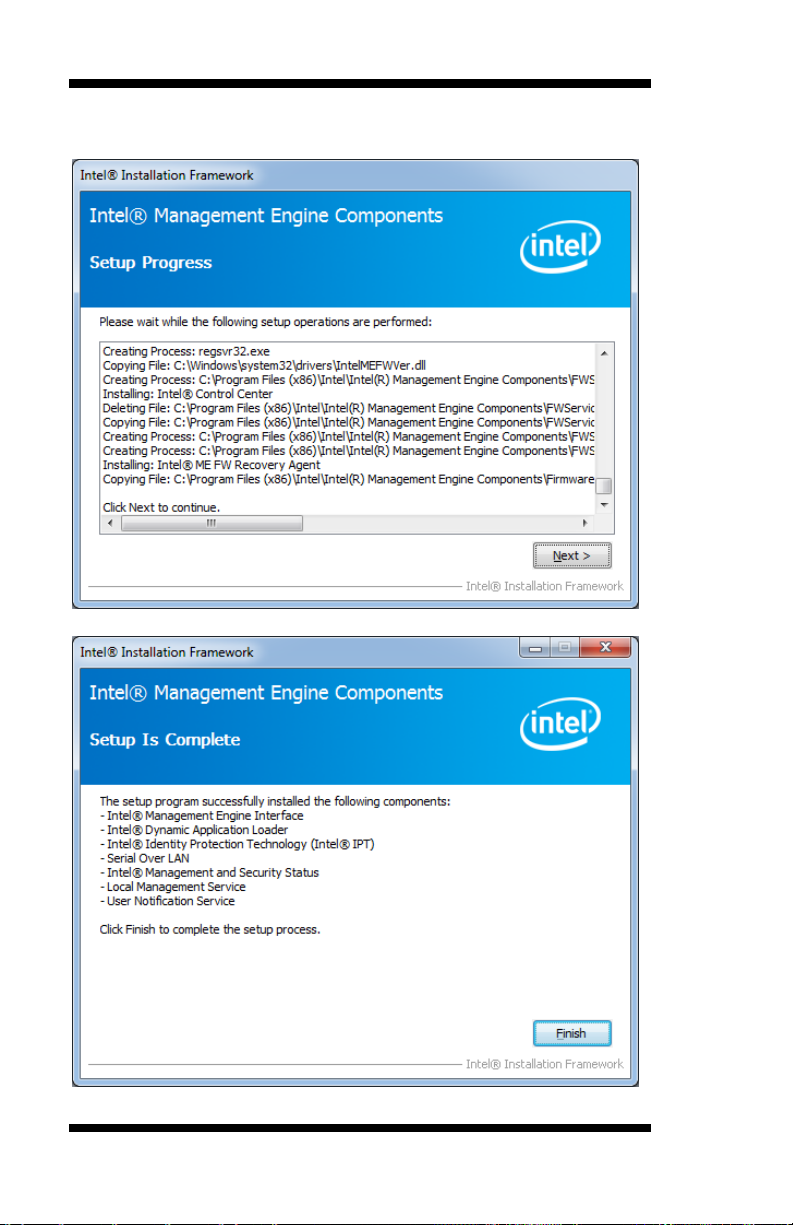

4. When the Setup Progress screen appears, click Next. Then, click
Finish when the setup progress has been successfully installed.
66
MB980 User’s Manual
DRIVERS INSTALLATION
Intel® USB 3.0 Drivers
1. Insert the CD that comes with the board. Click Intel and then Intel(R)
Q7 Series Chipset Drivers.
2. Click Intel(R) USB 3.0 Drivers.
MB980 User’s Manual 67
DRIVER INSTALLATION
3. When the Welcome screen to the InstallShield Wizard for Intel® USB
3.0 eXtensible Host Controller Driver, click Next.
4. Click Yes to to agree with the license agreement and continue the
installation.
68
MB980 User’s Manual
DRIVERS INSTALLATION
5. On the Readme File Information screen, click Next to continue the
installation of the Intel® USB 3.0 eXtensible Host Controller Driver.
6. Setup complete. Click Finish to restart the computer and for changes
to take effect.
MB980 User’s Manual 69
DRIVER INSTALLATION
This page is intentionally set blank.
70
MB980 User’s Manual
Address
Device Description
000h - 01Fh
DMA Controller #1
020h - 03Fh
Interrupt Controller #1
040h - 05Fh
Timer
060h - 06Fh
Keyboard Controller
070h - 07Fh
Real Time Clock, NMI
080h - 09Fh
DMA Page Register
0A0h - 0BFh
Interrupt Controller #2
0C0h - 0DFh
DMA Controller #2
0F0h
Clear Math Coprocessor Busy Signal
0F1h
Reset Math Coprocessor
1F0h - 1F7h
IDE Interface
2F8h - 2FFh
Serial Port #2(COM2)
2B0h- 2DFh
Graphics adapter Controller
360h - 36Fh
Network Ports
3F8h - 3FFh
Serial Port #1(COM1)
APPENDIX
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses which also becomes the identity of the device. The following
table lists the I/O port addresses used.
MB980 User’s Manual 71
APPENDIX
Level
Function
IRQ0
System Timer Output
IRQ1
Keyboard
IRQ3
Serial Port #2
IRQ4
Serial Port #1
IRQ8
Real Time Clock
IRQ14
Primary IDE
IRQ15
Secondary IDE
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the service
required. The following table shows the IRQ used by the devices on
board.
72
MB980 User’s Manual
APPENDIX
C. Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sorts of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user will
restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "F81866.H"
//--------------------------------------------------------------------------int main (int argc, char *argv[]);
void EnableWDT(int);
void DisableWDT(void);
//--------------------------------------------------------------------------int main (int argc, char *argv[])
{
unsigned char bBuf;
unsigned char bTime;
char **endptr;
char SIO;
printf("Fintek 81866 watch dog program\n");
SIO = Init_F81866();
if (SIO == 0)
{
printf("Can not detect Fintek 81866, program abort.\n");
return(1);
}//if (SIO == 0)
if (argc != 2)
{
printf(" Parameter incorrect!!\n");
return (1);
}
bTime = strtol (argv[1], endptr, 10);
printf("System will reset after %d seconds\n", bTime);
if (bTime)
{ EnableWDT(bTime); }
else
{ DisableWDT(); }
return 0;
MB980 User’s Manual 73
APPENDIX
}
//--------------------------------------------------------------------------void EnableWDT(int interval)
{
unsigned char bBuf;
bBuf = Get_F81866_Reg(0x2B);
bBuf &= (~0x20);
Set_F81866_Reg(0x2B, bBuf); //Enable WDTO
Set_F81866_LD(0x07); //switch to logic device 7
Set_F81866_Reg(0x30, 0x01); //enable timer
bBuf = Get_F81866_Reg(0xF5);
bBuf &= (~0x0F);
bBuf |= 0x52;
Set_F81866_Reg(0xF5, bBuf); //count mode is second
Set_F81866_Reg(0xF6, interval); //set timer
bBuf = Get_F81866_Reg(0xFA);
bBuf |= 0x01;
Set_F81866_Reg(0xFA, bBuf); //enable WDTO output
bBuf = Get_F81866_Reg(0xF5);
bBuf |= 0x20;
Set_F81866_Reg(0xF5, bBuf); //start counting
}
//--------------------------------------------------------------------------void DisableWDT(void)
{
unsigned char bBuf;
Set_F81866_LD(0x07); //switch to logic device 7
bBuf = Get_F81866_Reg(0xFA);
bBuf &= ~0x01;
Set_F81866_Reg(0xFA, bBuf); //disable WDTO output
bBuf = Get_F81866_Reg(0xF5);
bBuf &= ~0x20;
bBuf |= 0x40;
Set_F81866_Reg(0xF5, bBuf); //disable WDT
}
//---------------------------------------------------------------------------
74
MB980 User’s Manual
APPENDIX
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#include "F81866.H"
#include <dos.h>
//--------------------------------------------------------------------------unsigned int F81866_BASE;
void Unlock_F81866 (void);
void Lock_F81866 (void);
//--------------------------------------------------------------------------unsigned int Init_F81866(void)
{
unsigned int result;
unsigned char ucDid;
F81866_BASE = 0x4E;
result = F81866_BASE;
ucDid = Get_F81866_Reg(0x20);
if (ucDid == 0x07) //Fintek 81866
{ goto Init_Finish; }
F81866_BASE = 0x2E;
result = F81866_BASE;
ucDid = Get_F81866_Reg(0x20);
if (ucDid == 0x07) //Fintek 81866
{ goto Init_Finish; }
F81866_BASE = 0x00;
result = F81866_BASE;
Init_Finish:
return (result);
}
//--------------------------------------------------------------------------void Unlock_F81866 (void)
{
outportb(F81866_INDEX_PORT, F81866_UNLOCK);
outportb(F81866_INDEX_PORT, F81866_UNLOCK);
}
//--------------------------------------------------------------------------void Lock_F81866 (void)
{
outportb(F81866_INDEX_PORT, F81866_LOCK);
}
//--------------------------------------------------------------------------void Set_F81866_LD( unsigned char LD)
{
Unlock_F81866();
outportb(F81866_INDEX_PORT, F81866_REG_LD);
outportb(F81866_DATA_PORT, LD);
Lock_F81866();
}
//--------------------------------------------------------------------------void Set_F81866_Reg( unsigned char REG, unsigned char DATA)
{
Unlock_F81866();
outportb(F81866_INDEX_PORT, REG);
outportb(F81866_DATA_PORT, DATA);
Lock_F81866();
}
//---------------------------------------------------------------------------
MB980 User’s Manual 75
APPENDIX
unsigned char Get_F81866_Reg(unsigned char REG)
{
unsigned char Result;
Unlock_F81866();
outportb(F81866_INDEX_PORT, REG);
Result = inportb(F81866_DATA_PORT);
Lock_F81866();
return Result;
}
//---------------------------------------------------------------------------
//--------------------------------------------------------------------------//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//--------------------------------------------------------------------------#ifndef __F81866_H
#define __F81866_H 1
//--------------------------------------------------------------------------#define F81866_INDEX_PORT (F81866_BASE)
#define F81866_DATA_PORT (F81866_BASE+1)
//--------------------------------------------------------------------------#define F81866_REG_LD 0x07
//--------------------------------------------------------------------------#define F81866_UNLOCK 0x87
#define F81866_LOCK 0xAA
//--------------------------------------------------------------------------unsigned int Init_F81866(void);
void Set_F81866_LD( unsigned char);
void Set_F81866_Reg( unsigned char, unsigned char);
unsigned char Get_F81866_Reg( unsigned char);
//--------------------------------------------------------------------------#endif //__F81866_H
76
MB980 User’s Manual
Loading...
