IBASE MB961 User Manual

MB961 Series

Intel 2nd Gen. CoreTM i Desktop CPU

+ H61/Q67

Sugar Bay based Micro ATX MB

USER’S MANUAL

Version 1.0

Acknowledgments

AMI is a registered trademark of American Megatrends Inc. PS/2 is a trademark of International Business Machines Corporation. Intel and Intel® Core i are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Fintek is a registered trademark of Fintek Electronics Corporation. All other product names or trademarks are properties of their respective owners.

ii

MB961 User’s Manual

The latest Intel processors pr ovide ad vanced performance in both computing and graphics quality. The MB961 Series board utilizes the dramatic increase in performance provided by this Intel’s latest cutting-edge technology. This meets the requirement of customers in the gaming, POS, digital signage and server market segment.

Measuring 244mm x 244mm, the MB961 Series offers 3Gbps/6Gbps SATA support, USB3. 0 (2 ports) and interfaces for DVI-I, HDMI and LVD S displays.

MB961 Series FEATURES:

• Supports Intel 2nd Generation Core i7/i5/i3 QC/DC desktop

processors

• Two DDR3 DIMM, 1066/1333MHz; supports up to 16GB memory

• One Intel PCI-Ex press Gigabit L AN and one Realtek PCI-Express

Gig abit LAN

• Integrated Graphi cs f or DVI-I and HDMI (MB961F /M B961R F only)

displays

• Support LVDS 24 bit dual channel for MB961F/MB961RF only

• 4x SATA 2.0 for MB961/MB961F, 2x SATA 2.0 and 2x SATA 3.0

for MB961RF, 10x USB 2.0, 2x USB 3.0 for MB961/MB961F, 12x USB, 2.0, 2x USB 3.0 for MB961RF

• 4x COM, Watchdog timer

• Supports LPT por t for MB961 only

• 1x PCI-E (x16), 1x PCI-E (x8) Slot (MB961/MB961F only supports

PCIE x1 lane, MB961RF supports PCIE x1 lane or PCIE x4 lane s )

MB961 User’s Manual 1

INTRODUCTION

Checklist

Your MB961 Series package should include the items listed below.

• The MB961 Series motherboard

• This User’s Manual

• 1 C D containing chipset drivers a nd flash memory utility

• Serial ATA cable

2

MB961 User’s Manual

Product Name

MB961RF (Q67 based)

MB961 (H61 based)

Form Factor

Micro ATX

CPU Type

Intel® 2nd generation CoreTM i7/i5/i3/Pentium®/Celeron® DT

[Package = FC-LGA10, 37.5 mm x 37.5mm]

CPU Speed

Up to 3.40 GHz

Cache Size

Up to 8MB shared L2 Cache

CPU Socket

LGA1155 (Socket H2)

Chipset

Intel® BD82H61 PCH for MB961/MB961F (TDP=6.1W) [27mm x 27mm, 942-pin FCBGA package]

BIOS

AMI BIOS, support ACPI Fun ction

Memory

Intel® 2nd generation CoreTM I7/I5/I3/Pentium®/Celeron® DT

UDIMM x 2, Max. 16GB

VGA

Intel® 2nd generation CoreTM i7/i5/i3/Pentium® DT processor

 LVDS (thru CH7511 via DP) for MB961F/MB961RF only

LAN

Intel 82579V PCIe Gigabit LAN PHY x 1 Realtek RTL8111E PCIe Gigabit LAN controller x1

USB

USB 2.0 host controller, supports 10/12 ports

- 2 ports in the rear panel

Serial ATA

Intel® H61/Q67 PCH build-in SATA controller,

PCH (MB961RF)

Audio

Intel® H61/Q67 PCH built-in High Definition Audio controller: ALC892 w/ 7.1 channels

LPC I/O

Fintek F81866AD-I

LPT port (MB961 only)

Digital IO

4 in & 4 out

MB961 Series Specifications

MB961F (H61 based)

processor TDP for QC= 95W/65W/45W;DC= 65W/35W

or BD82Q67 PCH for MB961RF

processor integrated memory controller support DDR3-1600 (Non-ECC)

integrated Gfx(HD2000/HD3000)

 DVI-I x 1(thru Level shifter ASM1442)  HDMI x 1 for MB961F/MB961RF only

INTRODUCTION

- 4 ports in the rear panel.

- 6 ports for onboard pin header (MB961/MB961F) or 8 ports for onboard pin h eader (MB961RF)

USB 3.0 host controller (ASM1042), support 2 ports

Supports 4 ports x SATA 2.0 from H61 PCH (MB961/MB961F) Supports 2 ports x SAT A 3. 0 + 2 ports x SATA 2.0 from Q67

COM1 (RS232/422/485) [Auto flow control/ Jumper less

selection]; COM2~4 (RS232 only) COM1/2 with pin-9 with power for 2 ports (500 mA each) Hardware Monitor (2 thermal inputs, 4 voltage moni tor inputs

& 2 Fan headers) CPU Fan = 4-pin type (PWM); SYS Fan= 3-pin type (DC)

MB961 User’s Manual 3

INTRODUCTION

Expansion

PCIe (16x) x1

PCI x 2 [Thru ITE8893 PCIe to PCI converter]

Edge

Dual DB9 stack connector for COM #1, #2

RCA Jack 3x1 for HD Audio

Onboard

-4 ports x SATA II (M B961/MB961F)

(MB961F /MB961RF)

Watchdog Timer

Yes (256 segments, 0, 1, 2…255 sec/min )

System Voltage

+5V, +3.3V, +12V, -12V, 5VSB (2A) 24-pin ATX main power + 4-pin 12V

Other

- iSMART contro ller [EuP/ErP ; Auto-scheduler ; Power

- RAID function (MI961RF only)

RoHS

Yes

Board Size

244mm x 244mm

Slots

Connector

Header/Connec tor

PCIe (8x) x1 **Actual signal will be PCIe(4x) for MB961RF or PCIe(1x) for MB961/MB961F**

DVI-I con nector x1 Dual USB (3.0) stack connector x1 HDMI x1 (for MB961F/MB961RF only) RJ-45 GbE + dual USB (2.0) stack con nector x2

or 2 ports x SATA II + 2 ports x SATA III (MB961RF)

-2x5 pin-header x 3 for 6 ports USB 2.0 (MB961/MB961F) or 2x5 pin-header x4 f or 8 ports USB 2.0 (MB961RF)

-2x5 pin-header x 1 for front panel audio

-DF11-10 box header x1 for COM3

-DF11-10 box header x1 for COM4

-2x5 pins pin-header x1 for Digital I/O

-2x13 pin-header x1 for LPT (MB961)

-2x5 pins male connector [for debugging purpose]

-2x10 pins pin-header x 1 for front panel indicators+2x2 pins pin header for ACPI LED (For MB961)

-DF13-20pin x2 for 24-bit dual channel LVDS (MB961F/MB961RF) 4-pin JST header [pitch=2.5] for brightness control

resume]

- ACPI LED function (MB961 only)

4

MB961 User’s Manual

[

Board Dimensions

INTRODUCTION

MB961 User’s Manual 5

INSTALLATIONS

Installations

This section provides informat ion on how to use the jumpers and connectors o n t he MB961 Ser ies in order to set up a workable system. The topics covered are:

Installing the CPU ....................................................................... 7

Installing the Memory ................................................................. 8

Setting the Jumpers ..................................................................... 9

Connectors on MB961Series .................................................... 15

6

MB961 User’s Manual

INSTALLATIONS

NOTE:

Ensure that the CPU heat sink and the CPU top surface are in

ting problem that would

cause your system to hang or be unstable.

Installing the CPU

The MB961 Series board supports an LGA1155 Socket (shown below) for Intel Sandy Bridge processors.

To install the CPU, unl ock fi rst the socket by pressing the lever sideway s, then lift it up to a 90-degree. Then, po sitio n the C PU abo ve t he so ck et such that the CPU corner aligns with the gold triangle matching the socket corner wit h a small triangle. Carefully insert the CPU into the socket and push down the lever to secure the CPU. Then, install the heat sink and fan.

total contact to avoid CPU overhea

MB961 User’s Manual 7

INSTALLATIONS

DDR3 Module

Lock

Installing the Memory

The MB961 Series board supports four DDR3 memory socket for a maximum total memory of 16GB in DDR3 DIMM memory type.

Installing and Removing Memory Modules

To install the DDR3 modules, locate the memory slot on the board and pe rform the f ollowing steps:

1. Hold the DDR3 module so that the key of the DDR3 module aligned

with that on the me mory slot.

2. Gently push the DDR3 module in an upright position until the c lips of

the slot close to hold the DDR3 module in place when the DDR3 module touches the bottom of the slot.

3. To remove the DD R 3 module, p ress the c lips w ith both hands.

8

MB961 User’s Manual

INSTALLATIONS

Setting the Jumpers

Jumpers are used on MB961 Series to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about t he best configuration for your needs . The following lists the connectors on MB961 Series and their respective functions.

Jumper Locations on MB961 Series ................................................... 10

JP1: COM1 RS232 RI/+5V/+12V Power Setting ............................... 11

JP2: COM2 RS232 RI/+5V/+12V Power Setting ............................... 11

JP4: Flash Descriptor S ecur ity Override (Factory use only) ................ 12

JP5: LCD Panel Power Selection (MB961F/MB961RF only) ............. 12

JP6: Factory use only (Default: open) ................................................ 12

JP7: LCD Brightness +3.3V/+5V Power Setting ................................ 13

JBAT1: Clear CMOS Contents .......................................................... 13

JP9: LVDS function select ................................................................. 13

SW1: Panel Type Selection (MB961F/MB961RF only) ...................... 14

MB961 User’s Manual 9

INSTALLATIONS

Jumper Locations on MB961 Series

Jumpers on MB961 Series .............................................................. Page

JP1: COM1 RS232 RI/+5V/+12V Power Setting ............................... 11

JP2: COM2 RS232 RI/+5V/+12V Power Setting ............................... 11

JP4: Flash Descriptor S ecur ity Override (Factory use only) ................ 12

JP5: LCD Panel Power Selection (MB961F/MB961RF only) ............. 12

JP6: Factory use only (Default: open) ................................................ 12

JP7: LCD Brightness +3.3V/+5V Power Setting ................................ 13

JBAT1: Clear CMOS Co ntents .......................................................... 13

JP9: LVDS function select ................................................................. 13

SW1: Panel Type Selection (MB961F/MB961RF only)...................... 14

10

MB961 User’s Manual

INSTALLATIONS

Pin 1-3

Short/Closed

Pin 3-4

Short/Closed

Pin 3-5

Short/Closed

Pin 1-3

Short/Closed

Pin 3-4

Short/Closed

Pin 3-5

Short/Closed

JP1: COM1 RS232 RI/+5V/+12V Power Setting

JP1 Setting Function

+12V

RI

+5V

JP2: COM2 RS232 RI/+5V/+12V Power Setting

JP2 Setting Function

+12V

RI

+5V

MB961 User’s Manual 11

INSTALLATIONS

Override

Disabled

(Default)

JP5

LCD Panel Powe r

JP4: Flash Descriptor Security Override (Factory use only)

JP4

Flash Descriptor Security

Open

Close Enabled

JP5: LCD Panel Power Selection (MB961F/MB961RF only)

+3.3V*

+5V

JP6: Factory use only (Default: open)

12

MB961 User’s Manual

INSTALLATIONS

Pin 1-2

JP9

LVDS function select

Enabled

(Default)

JP7

Setting

JP7: LCD Brightness +3.3V/+5V Power Setting

(MB961F/MB961RF only)

+3.3V*

+5V

JBAT1: Clear CMOS Contents

JBAT1 Setting Function

Short/Closed

Pin 2-3

Short/Closed

JP9: LVDS function select

Normal

Clear CMOS

MB961 User’s Manual 13

Open Disabled

Close

INSTALLATIONS

SW1-4

SW1-3

SW1-2

SW1-1

Panel Type

1 4 5

8

SW1: Panel Type Selection

(Default: Pin 4,3,2,1 (ON ON ON OFF))

(MB961F/MB961RF only)

ON ON ON ON 800*600 18bit 1ch ON ON ON OFF 1024*768 18bit 1ch * ON ON OFF ON 1024*768 24bit 1ch ON ON OFF OFF 1280* 768 18bi t 1c h ON OFF ON ON 1280*800 18bit 1ch ON OFF ON OFF 1280*960 18bit 1ch ON OFF OFF ON 1280*1024 24bit 2ch

ON OFF OFF OFF 1366* 768 18bi t 1c h OFF ON ON ON 1366*768 24bit 1c h OFF ON ON OFF 1440*900 24bit 2c h OFF ON OFF ON 1440*1050 24bit 2ch OFF ON OFF OFF 1600*900 24bit 2ch OFF OFF ON ON 1680*1050 24bit 2c h OFF OFF ON OFF 1600*1200 24bit 2ch OFF OFF OFF ON 1920*1080 24bit 2c h OFF OFF OFF OFF 1920*1200 24bit 2c h

14

MB961 User’s Manual

Connectors on MB961Series

Connector Lo cations on MB961 Series .............................................. 16

CN3: COM1 and COM2 Serial Ports ................................................. 17

CN1: DVI-I Connector ...................................................................... 17

CN5: USB3.0 Connecto r ................................................................... 18

CN2: HDMI Connector (MB961F/MB 961RF only) ........................... 18

CN7: Intel Gigabit LAN + USB 10/11 ............................................... 18

CN6: Realtek Gigabit LAN + USB 2/3 .............................................. 18

CN4: HD Audio Connector ............................................................... 18

CN8: LCD Backlight Connector (MB961F/MB961RF only) .............. 18

CN9, CN11: SATA2 Connectors ....................................................... 19

CN10, CN12: SATA2 or SATA3 Connectors .................................... 19

MB961 supports SATA2 (3Gbps) MB961F supports SATA2 (3Gbps) and SATA3 (6Gbps)

CH1, CH2: LVDS Connectors (1st c hannel, 2nd channe l) .................. 20

(For MB961F/MB961RF only)

J1: MCU JTAG (for debug use) ......................................................... 20

J3: Audio Pin Header for Chassis Front Panel .................................... 21

J4: ATX 12V Power Connector ......................................................... 21

J5, J9, J12, J14: USB Connectors ...................................................... 22

(J12 is supported by MB961RF only)

J6, J8, DD R3 D I MM Sockets ............................................................ 22

J1 0: Digital I/O .................................................................................. 22

J11: L PC Connector ( for debug use) .................................................. 23

J13: Parallel Port Connector ( M B 961 only) ........................................ 23

J16, J17: COM3, COM4 RS232 Serial Ports

J15: 24-pin ATX P ower Connector .................................................... 24

J18: AC PI LED Connector (MB961 only) .......................................... 25

J19: F ront Panel Function C onnector ................................................. 25

J20: SPI Connector (For debug use) .................................................. 26

J21: LPC signal connector ................................................................. 26

CPU_FAN1: CPU Fan Power Connector ........................................... 26

SYS_FAN1: System Fan1 Power Connector ...................................... 27

PCIE1: PCIE x8 Slot ......................................................................... 27

PCIE2: P CI -E X16 Slot ..................................................................... 27

PCI3, PCI4: PCI Slot ......................................................................... 28

INSTALLATIONS

MB961 User’s Manual 15

INSTALLATIONS

Connector Locations on MB961 Series

16

MB961 User’s Manual

Pin #

Signal Name

RS-232

R2-422

RS-485

1

DCD

TX-

DATA-

2

RX

TX+

DATA+

3

TX

RX+

NC

4

DTR

RX-

NC

5

Ground

6

DSR

NC

7

RTS

NC

8

CTS

NC

NC 9 RI

NC

10

NC

Signal Name

Pin #

Signal Name

DATA 2 -

1

16

Hot_ Plug_Detect

DATA 2 +

2

17

DATA 0 -

Shield 2/4

3

18

DATA 0 +

DATA 4 -

4

19

SHIELD 0/5

DATA 4 +

5

20

DATA 5 -

DDC CLOCK

6

21

DATA 5 +

DDC DATA

7

22

SHIELD CLK

CRT_VSYNC

8

23

CLOCK -

DATA 1 -

9

24

CLOCK +

DATA 1 +

10

C1

CRT_R

SHIELD 1/3

11

C2

CRT_G

DATA 3 -

12

C3

CRT_B

DATA 3 +

13

C4

CRT_HSYNC

DDC POWER

14

C5

A GROUND2

A GROUND 1

15

C6

A GROUND3

INSTALLATIONS

CN3: COM1 and COM2 Serial Ports

[

CN1: DVI-I Connector

MB961 User’s Manual 17

INSTALLATIONS

Pin #

Signal Name

1

+12V

2

Backligh t Enable

3

Brightness Cont rol

4

Ground

CN5: USB3.0 Connector CN2: HDMI Connector (MB961F/MB961RF only)

CN7: Intel Gigabit LAN + USB 10/11

CN6: Realtek Gigabit LAN + USB 2/3

CN4: HD Audio Connector CN8: LCD Backlight Connector (MB961F/MB961RF only)

1X4_2.0mm_Straight_M (JST B4B-PH-K-S)

18

MB961 User’s Manual

CN9, CN11: SATA2 Connectors

INSTALLATIONS

CN10, CN12: SATA2 or SATA3 Connectors

MB961 supports SATA2 (3Gbps) MB961F supports SATA2 (3Gbps) and SATA3 (6Gbps)

MB961 User’s Manual 19

INSTALLATIONS

Signal Name

Pin #

Signal Name

TX0-

2 1 TX0+

Ground

4 3 Ground

TX1-

6 5 TX1+

+5V/3.3V

8 7 Ground

TX3-

10 9 TX3+

TX2-

12

11

TX2+

Ground

14

13

Ground

TXC-

16

15

TXC+

+5V/3.3V

18

17

ENABKL

NC

20

19

NC

1 2 20

19

CH1, CH2: LVDS Connectors (1st channel, 2nd channel)

(For MB961F/MB961RF only)

J1: MCU JTAG (for debug use)

20

MB961 User’s Manual

INSTALLATIONS

Signal Name

Pin #

Signal Name

MIC IN_L

1 2 Ground

MIC IN_R

3 4 DET

LINE_R

5 6 Ground

Sense

7 8 KEY

LINE_L

9

10

Ground

Pin #

Signal Name

1

Ground

2

Ground

3

+12V

4

+12V

J3: Audio Pin Header for Chassis Front Panel

J4: ATX 12V Power Connector

MB961 User’s Manual 21

INSTALLATIONS

Signal Name

Pin #

Signal Name

VCC

1 2 VCC

D0-

3 4 D1-

D0+

5 6 D1+

GND

7 8 GND

KEY

9

10

NC

Signal Name

Pin #

Signal Name

GND

1 2 VCC

OUT3

3 4 OUT1

OUT2

5 6 OUT0

IN3

7 8 IN1

IN2

9

10

IN0

J5, J9, J12, J14: USB Connectors

(J12 is supported by MB961RF only)

J6, J8, DDR3 DIMM Sockets

J10: Digital I/O

22

MB961 User’s Manual

Signal Name

Pin #

Signal Name

Line printer str obe

1

14

Auto Feed

PD0, parallel data 0

2

15

Error

PD1, parallel data 1

3

16

Initialize

PD2, parallel data 2

4

17

Select

PD3, parallel data 3

5

18

Ground

PD4, parallel data 4

6

19

Ground

PD5, parallel data 5

7

20

Ground

PD6, parallel data 6

8

21

Ground

PD7, parallel data 7

9

22

Ground

ACK, acknowledge

10

23

Ground

Busy

11

24

Ground

Paper empty

12

25

Ground

Select

13

26

N/A

J11: LPC Connector (for debug use)

INSTALLATIONS

J13: Parallel Port Connector (MB961 only)

MB961 User’s Manual 23

INSTALLATIONS

Signal Name

Pin #

Signal Name

DCD, Data carrier det ect

1 2 RXD, Receive data

TXD, Transmit data

3 4 DTR, Data terminal ready

GND, ground

5 6 DSR, Data set ready

RTS, Request to send

7 8 CTS, Clear to send

RI , Ring indicator

9

10

Not Used

Signal Name

Pin #

Signal Name

3.3V

13 1 3.3V

-12V

14 2 3.3V

Ground

15 3 Ground

PS-ON

16 4 +5V

Ground

17 5 Ground

Ground

18 6 +5V

Ground

19 7 Ground

-5V

20 8 Power good

+5V

21 9 5VSB

+5V

22

10

+12V

+5V

23

11

+12V

Ground

24

12

+3.3V

J16, J17: COM3, COM4 RS232 Serial Ports

J15: 24-pin ATX Power Connector

24

MB961 User’s Manual

Pin #

Signal Name

1

S1/S3 LED+

2

Ground

3

S0 LED+

4

Ground

Signal Name

Pin #

Signal Name

SPK -

1 2 PWR LED +

NC

3 4 NC

GND

5 6 PWR LED- (GND)

SPK +(+5V)

7 8 NC

NC

9

10

GND

NC

11

12

GND

PWR_SW

13

14

PWR_SW

NC

15

16

NC

RST+

17

18

RST-(GND)

HDD LED -

19

20

HDD LED +

J18: ACPI LED Connector (MB961 only)

INSTALLATIONS

J19: Front Panel Function Connector

MB961 User’s Manual 25

INSTALLATIONS

Signal Name

-SUSTAT

1 2 3VDUAL

SERIRQ

3 4 NC

GPIO

5 6 Ground

Pin #

Signal Name

1

Ground

2

+12V

3

Rotat ion det ection

4

Control

4

1

J20: SPI Connector (For debug use)

J21: LPC signal connector

CPU_FAN1: CPU Fan Power Connector

26

MB961 User’s Manual

Pin #

Signal Name

1

Ground

2

+12V(MAX. 500mA)

3

Rotat ion det ection

SYS_FAN1: System Fan1 Power Connector

INSTALLATIONS

PCIE1: PCIE x8 Slot

MB961/MB961F support PCIE x1 only MB961RF supports PCIE x1 or PCIE x4

PCIE2: PCI-E X16 Slot

MB961 User’s Manual 27

INSTALLATIONS

PCI3, PCI4: PCI Slot

28

MB961 User’s Manual

BIOS SETUP

BIOS Setup

This chapter describes the different set tings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows:

BIOS Introduction........................................................................... 30

BIOS Setup ...................................................................................... 30

Advanced Settings .......................................................................... 32

Chipset Settings............................................................................... 43

Boot Settings ................................................................................... 49

CSM parameters ............................................................................. 50

Security Settings.............................................................................. 51

Save & Exit Settings ....................................................................... 52

MB961 User’s Manual 29

BIOS SETUP

Warning:

It is strongly recommended that you avoid making any

and your system manufacturer

BIOS Introduction

The BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel po rt s. It also password p ro t ection as well as special suppo r t for detailed fine-t uning of the chips et controlling the e ntire system.

BIOS Setup

The BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS ROM of the system stores the Se t u p u t ility. Wh en yo u t ur n o n t h e co mp u t e r , t h e BI O S is imme d iat e ly activated. Pressing the <Del> key immediately allo ws you to ent er the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will co n tinue with its test ro utines, thus prev enting you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. Th e f ol lowi ng message will appear on the screen:

Press <DEL> to Enter Setup

In general, you press the arrow keys to highli gh t items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.

When you enter the Setup ut ility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.

changes to the chipset defaults. These defaults have been carefully chosen by both AMI to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.

30

MB961 User’s Manual

Main

BIOS Information

↑↓

F4: Save ESC: Exit

System Language

[English]

[Tue 01/20/2009]

Access Level

Administrator

Main Settings

Advanced Chipset Boot Security Save & Exit

Choose the system default language

→ ← Select Screen

System Date

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

System Language

Choose the system default language.

System Date

Set the Dat e. U se Tab t o switch between Data elements.

System Time

Set the Time. Use Tab to switch between Data elements.

BIOS SETUP

MB961 User’s Manual 31

BIOS SETUP

Advanced

↑↓

F4: Save ESC: Exit

► PCI Subsystem Settings

► ACPI S ettings

► Wake up event setting

► Trusted Com puting

► SATA Configuratio n

► Shutdown Temperatur e Configura tion

► iSmart Controller

► USB Configuration

► F81866 H/W Monitor

► CPU PPM Configur ation

Main Advanced Chipset Boot Security Save & Exit

↑↓

PCI 64bit Resources Handing

Above 4G Decoding

Disabled

PCI Latency Timer

32 PCI Bus Clocks

VGA Palette Snoop

Disabled

PERR# Gene r ation

Disabled

SERR# Gene r ation

Disabled

► PCI Express Set t ings

Advanced Settings

This section al l ows y ou to configure and improve your system and allows you to set u p some system features according to your preference.

Main

Chipset Boot Security Save & Exit

Aptio Setup Utility

► CPU Configuration

► F81866 Super IO Configuration

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

PCI Subsystem Settings

Aptio Setup Utility

PCI Bus Driver Version V 2.0502

→ ← Select Screen

Select Item Enter: Select

PCI Com m on Settings

+- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Above 4G Decoding

Enables or Disables 64bit capable devices to be decod ed in above 4G address space (only if system supports 64 bit PCI decoding).

32

MB961 User’s Manual

BIOS SETUP

Main Advanced Chipset Boot Security Save & Exit

↑↓

F4: Save ESC: Exit

Relax ed Ordering

Disabled

Extended Tag

Disabled

No Snoop

Enabled

Maximum Payload

Auto

Auto PCI Ex pr ess Link Register Settings

ASPM Support

Disabled

WARNING: Enabling ASPM may cause

Disabled

Extended Synch

Disabled

5

Link Training Timeo ut (uS)

100 Unpopulated Links

Keep Link O N

PCI Latency Timer

Value to be programmed into PCI Latency Timer Register.

VGA Palette Snoop

Enables or disables VGA Palette Registers Snooping.

PERR# Generation

Enables or disables PCI device to generate PERR#.

SERR# Generation

Enables or disables PCI device to generate SERR#.

PCI Express Settings

Change PCI Express devices settings.

PCI Express Settings

Aptio Setup Utility

PCI Express Device Re giste r Settings

Maximum Read Request

PCI-E devices to fail

Link Training Retr y

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

Relaxed Ordering

Enables or disables PCI Express Device Relaxed Ordering.

Extended Tag

If ENABLED allows device to use 8-bit Tag field as a requester.

No Snoop

Enables or disables PCI Express Device No Snoop option.

MB961 User’s Manual 33

BIOS SETUP

Maximum Payload

Set Maximum Payload of PCI Express Device or allow System BIOS to select the value.

Maximum Read Request

Set Maxim um R ead Request Size of PCI Express Devi ce or all ow Sys tem BIOS to select t he value.

ASPM Support

Set the ASPM Level: Force L0s – Force all links to L0s State: AUTO – BIOS auto configure: DISABLE – Disables ASPM.

Extended Synch

If ENABLED allows generation of Extended Synchronization patterns.

Link Training Ret r y

Defines numb er of Retry A ttempts software will take to retrai n the link if previous training attempt was unsuccessful.

Link Training Timeout (uS)

Defines number of Microseconds softw are will wait before p olling ‘Link Training’ bit in Link Status register. Value range from 10 to 1000 uS.

Unpopulated Links

In order t o save power, software will disable u npo pu lated PCI E xpress links, if t his optio n set to ‘Disable Link’.

34

MB961 User’s Manual

BIOS SETUP

Main Advanced Chipset Boot Security Save & Exit

↑↓

F4: Save ESC: Exit

Enable Hibernation

Enabled

ACPI Sleep State

S1 (Suspend to R…)

Disabled Disabled

ACPI Settings

Aptio Setup Utility

ACPI S ettings

→ ← Select Screen

Select Item

Lock Legacy Resources S3 Video Repost

Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

Enable Hibernation

Enables or Disab les Sy stem ab il i ty to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select ACPI sleep state the system wil l enter, when the SUSPEND button is pressed.

Lock Legacy Resources

Enabled or Disabled Lock of Legacy Resources.

S3 Video Repost

Enable or disable S3 Video Repost.

MB961 User’s Manual 35

BIOS SETUP

Main Advanced Chipset Boot Security Save & Exit

↑↓

F4: Save ESC: Exit

Wake up hour

0

Wake up minute

0

Wake up second

0

Enabled Wake on PCI PME

Enabled

Wake on PCIE Wake Event

Enabled

Wake up event settings

Aptio Setup Utility

Wake system with Fixed Time Disa bled

→ ← Select Screen

Wake on Ring

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

Wake system with Fixed Time

Enables or Disab les System wake on alarm event. When enabled, System will wake on the hr::min:: sec specified.

Wake on PCIE PME Wake Event

The options are Disabled and Enabled.

36

MB961 User’s Manual

BIOS SETUP

Main Advanced Chipset Boot Security Save & Exit

CPU Configura tion

↑↓

F4: Save ESC: Exit

Intel® Core ™ i7-3770 CPU @ 3.40GHz

Processor Stepping

306a8

Microcode Revision

c

Max CPU Speed

3400 MHz

1600 MHz CPU Speed

3400 MHz

Processor Cores

4

Inte l HT Te c hnology

Supported

Inte l VT-x Technology

Supported

Inte l S M X Technology

Supported

64-bit

Supported

Hyper-threading

Enabled

Active Processor Cores

All

Disabled Execut e Disable Bit

Enabled

Inte l Virtualization Technology

Disabled

Hardware Prefetcher

Disabled

Enabled

CPU Configuration

This section sho ws the CPU configuration parameters.

Aptio Setup Utility

Min CPU Speed

→ ← Select Screen

Limit CPUID Maximum

Adjacent Cache Line Prefe tch

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

Hyper-threading

Enabl e d for Wi ndows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled, only one thread per enabled core is enabled.

Active Processor Cores

Nu mber of cores to enable in each processor package.

Limit CPUID Maximum

Disabled f or Win dows XP.

Execute Disable Bit

XD can prevent certain classes of m al i ci ous buf f er overfl ow attacks wh en combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, Re33dHat Enterprise 3 Update 3.)

MB961 User’s Manual 37

BIOS SETUP

Advanced

↑↓

SATA Controller(s)

Enabled

SATA Mode Selection

IDE

SATA Port0

Empty

Software Preserve

Unknown

SATA Port1

Empty

Software Preserve

Unknown

Empty Software Preserve

Unknown

SATA Port3

Empty

Software Preserve

Unknown

SATA Port4

Empty

Unknown SATA Port5

Empty

Software Preserve

Unknown

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpoo l Technology.

Hardware Prefetcher

To tu r n on/off the Mid level Cache (L2) streamer Prefetcher.

Adjacent Cache Line Prefetch

To tu r n on/off prefetching of adjacent cache lines.

SATA Configuration

SATA Devices Configuration.

Main

SATA Port2

Software Preserve

Chipset Boot Security Save & Exit

Aptio Setup Utility

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

SATA Controller(s)

Enable / Disable Serial ATA Controller.

SATA Mode Selection

(1) IDE Mode. (2) AHCI Mode. (3) RAID Mode.

38

MB961 User’s Manual

Main Advanced Chipset Boot Security Save & Exit

↑↓

F4: Save ESC: Exit

APCI S hutdown Temperature

Disabled

Main Advanced Chipset Boot Security Save & Exit

iSmart Controller

↑↓

F4: Save ESC: Exit

Disable Schedule Slot 1

None

Schedule Slot 2

None

Shutdown Temperature Configuration

Aptio Setup Utility

ACPI Shutdown Temperature

The default se tting is Disabled.

iSmart Co ntroller

Aptio Setup Utility

BIOS SETUP

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

Power-On after Power failure

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

ISmart Controller

Setup t he po wer on time for the system.

Schedule Slot 1 / 2

Setup t he hour/ minute for system power on.

MB961 User’s Manual 39

BIOS SETUP

Main Advanced Chipset Boot Security Save & Exit

↑↓

USB Devices:

2 Hubs

Enabled USB3.0 Support

Enabled

XHCI Hand-off

Enabled

EHCI Hand-off

Enabled

Port 60/64 Em ulation

Enabled

USB hardware dela y s and time-outs:

USB Transfer time-out

20 sec

Device reset tine-out

20 sec

Device power-up delay

Auto

USB Configuration

Aptio Setup Utility

USB Configuration

Legacy USB Support

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Legacy USB Support

Enables Legacy USB supp ort. AUTO option disables legacy support if no USB devices are connected. DISABL E optio n will keep USB devices available only for E FI applications.

USB3.0 Support

Enable/Disable USB3.0 (XHCI) Controller support.

XHCI Hand-off

This is a workaround for OSes without XHC I hand-off support. The XHCI ownership c ha nge should be claimed by XHCI driver.

40

MB961 User’s Manual

BIOS SETUP

Advanced

Super I O Configurat ion

↑↓

F81866 Super IO Chip

F81866

► Serial Port 0 Configuration

► Serial Port 1 Configuration

► Serial Port 2 Configuration

► Serial Port 3 Configuration

EHCI Hand-off

Enabled/Disabled. This is a workaround for OSes without EHCI hand-off support. The EHCI ownership ch ange sh ould be cl ai m ed by EHCI driver.

Port 64/60 Emulation

Enables I/O port 60h/64h emulation support. This should be e nabled for the complete USB keyboard legacy support for no n-USB awar e OS es.

USB Tra nsfer time-out

The time -out value for Control, Bulk, and Interrupt transfers.

Device reset tine-out

USB mass Storage device start Unit command time-out.

Device power-up delay

Maximu m time the device will take before it properly reports itself to the Host C ontr ol l e r. ‘Auto’ uses default val ue: f or a Root port i t i s 100m s , for a Hub port the delay is taken from Hub descriptor.

F81866 Super IO Configuration

Aptio Setup Utility

Main

►Paralle l P ort Configuration

Chipset Boot Security Save & Exit

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Serial Port Configuration

Set Parameters o f Serial Port s. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device.

Parallel Port Configuration

Set Parameters o f Parallel Port(LPT/LPT E )

MB961 User’s Manual 41

BIOS SETUP

Main Advanced Chipset Boot Security Save & Exit

↑↓

F4: Save ESC: Exit

CPU temperature

+41 C

SYS temperat ure

+35 C

FAN1 Spe ed

4021RPM

N/A Vcore

+0.976V

+5V

+5.213 V

+12V

+12.408 V

1.5V

+1.504 V

+4.992 V VCC3V

+3.392 V

F81866 H/W Monitor

Aptio Setup Utility

PC Health S tatus

FAN2 Spe ed

→ ← Select Screen

VSB5V

Fan1 smart fan control Fan2 smart fan control

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

Temperatures/Voltages

These fields are the parameters of the hardware monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health stat us.

Fan1/Fan2 Smart Fan Control

This field enables or disables the smart fan feature. At a certain temperature, the fan starts turning. Once the temperature drops to a certain level, it stops turning again.

42

MB961 User’s Manual

Main Advanced Chipset Boot Security Save & Exit

↑↓

F4: Save ESC: Exit

EIST

Enabled

Turbo Mode

Enabled

Main Advanced Chipset Boot Security Save & Exit

↑↓

F4: Save ESC: Exit

PCH-IO Conf igur ation

►

System Agent (SA ) Co nfiguratio n

CPU PPM Configuration

BIOS SETUP

Aptio Setup Utility

CPU PPM Configuration

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

EIST

Enable/Disable Intel SpeedStep.

Chipset Settings

This section allows you to configure and improve your system and allows you to set up some system features accord ing to your p r eference.

►

Aptio Setup Utility

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

MB961 User’s Manual 43

Main Advanced Chipset Boot Security Save & Exit

Inte l P CH RC Version 1.5.0.0

↑↓

H61 Inte l P CH Rev ID

O5/B3

► PCI Express Conf igur ation

► USB Configuration

PCH LAN Cont r oller

Enabled

Wake on LAN

Enabled

High Precisio n E v ent Timer Configuration

High Precisio n Timer

Enabled

SLP_S4 Assertion Width

4-5 Seconds

BIOS SETUP

PCH-IO Configuration

Th is section allows you to configure the North Bridge Chipset.

Inte l P CH S K U Name

► PCH Azalia Configuration

Aptio Setup Utility

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

PCH LAN Controller

Enable or disable onboard NI C .

Wake on LAN

Enable o r disable int egrated LAN to wake t he system. (The Wake On LAN cannot be disabled if ME is on at Sx st ate.)

SLP_S4 Assertion Width

Se lect a minimum asser tion width of the SL P_S4# signal.

44

MB961 User’s Manual

BIOS SETUP

Main Advanced Chipset Boot Security Save & Exit

PCI Ex pr ess Configuration

↑↓

Enabled DMI Link ASPM Control

Enabled

DMI Link Extended Sy nc h Control

Disabled

PCIe-USB Glitch W/A

Disabled

Subtractive Decode

Disabled

► PCI Express Roo t Port 1

► PCI Express Roo t Port 2

► PCI Express Roo t Port 3

PCI-E Por t 4 is assigned t o LAN

► PCI Express Roo t Port 6

► PCI Express Roo t Port 7

► PCI Express Roo t Port 8

PCI Express Configuration

PCI Express Clock Ga t ing

► PCI Express Roo t Port 5

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

PCI Express Clock Gating

Enable or disable PCI Express Clock Gating for each root port.

DMI Link ASPM Control

The control of Active State Power Managemen t on both NB side and SB sid e of the DMI link.

PCIe-USB Glitch W/A

PCIe-USB Glitch W/A for bad USB device(s) connected behind PCIE/PEG port.

MB961 User’s Manual 45

BIOS SETUP

Main Advanced Chipset Boot Security Save & Exit

USB Configuration

↑↓

Enabled EHCI2

Enabled

USB Ports Per-Port Disable Control

Disabled

Chipset

PCH Azalia Configuration

↑↓

Azalia

Auto

Disabled Disabled Disabled

USB Configuration

EHCI1

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

EHCI1/2

Control the USAB EHCI (US B 2.0) f un ction s. On e EHCI con troll er m us t always be enabled.

USB Ports Per-Port Disable Control

Control each of the USB ports (0~13) disabling.

PCH Azalia Configuration

Main Advanced

Azalia Docking Support Azalia PME Azalia Inter nal HDMI Co de

Boot Security Save & Exit

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Azalia

Control Detection of the Azalia device. Disabled = Azalia will unconditio nally disabled. Enabled Azalia will be un conditionally enabled. Auto = Azalia will enabled if present, d isabled otherwise.

46

MB961 User’s Manual

Main Advanced Chipset Boot Security Save & Exit

↑↓

System Agent RC Ve rsio n

1.1.0.0

VT-d Capability

Supported

VT-d

Enabled

Disabled Thermal De v ic e (B0:D4:F0)

Disabled

Enable NB CRID

Disabled

BDAT ACPI Table Support

Disabled

C-State Pre-Wake

Enabled

► Graphics Configuratio n

► Memory Configuration

Main Advanced Chipset Boot Security Save & Exit

↑↓

IGFX VBIOS Ve rsio n

2132

IGfx Frequency

350 MHz

Primary Display

Auto

Auto GTT Size

2MB

Aperture Size

256MB

DVMT Pre-Allocated

64M

Disabled Disabled ► LCD Control

System Agent (SA) Configuration

Aptio Setup Utility

BIOS SETUP

System Agent Bridge Name IvyBridge

CHAP Devic e (B0:D7:F0)

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

VT-d

Check to enable VT-d funct ion on MCH.

Enable NB CRID

Enable or disable NB CR ID WorkAround.

C-State Pre-Wake

Controls C-State Pre-Wake feature for ARAT, in SSKPD[57].

Graphics Configuration

Aptio Setup Utility

Graphics Configuratio n

Inte r nal Graphics

DVMT Total Gfx Mode Gfx Low Power Mode

MB961 User’s Manual 47

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

BIOS SETUP

Chipset

Memory Info rmation

↑↓

Memory Frequency

1333 MHz

8192 MB (DDR3)

DIMM#0

2048 MB (DDR3)

DIMM#1

Not Present

DIMM#2

2048 MB (DDR3)

DIMM#3

Not Present

11 Minimum delay time

CAS to RAS (tRCDmin)

11

Row Precharge (tRPmin)

11

Active to Pre cha rge (t RASmin)

28

Primary Disp lay

Select which of IGFX/PEG/PCI graphics device should be primary dis play or sele ct S G for switchable Gfx.

Internal Graphics

Keep IGD enabled based on the setup o ptions.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) graphics memory size used by the internal graphics device.

DVMT Total Gfx Mem

Select DVMT 5.0 total graphics memory size used by the internal graphics device.

Gfx Low Power Mode

This option is applicable for SFF only.

Primary IGFX Boot Display (LCD Control)

Select the Video Device that will be activated during POS T. This has no effect if external graph ics present. Secondar y b ooty display selection will appear based on your selection. VGA modes will be support ed only on primary display.

Memory Configuration

Aptio Setup Utility

Main Advanced

Total Memory

Boot Security Save & Exit

CAS Lat ency (tCL)

48

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

MB961 User’s Manual

Main Advanced Chipset Boot Security Save & Exit

Boot Configuration

↑↓

Bootup NumLock State

On

Quiet Boot

Disabled

Fast Boot

Disabled

CSM16 Module Version

07.68

GateA20 Active

Upon Reques t

Option ROM M essages

Force BIO S

Boot Option Prior ities

Boot Settings

This section allow s you to config ure the boot settings.

Setup Prompt Timeout 1

Aptio Setup Utility

BIOS SETUP

INT19 Trap Re s ponse Immediate

► CSM parameters

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

Setup Prompt Timeout

Number of seconds to wait for setup act ivation key. 65535(0xFF FF) means ind efinite waiting.

Bootup NumLock State Select the keyboard NumLock state.

Quiet Boot

Enables/Disa b les Qu iet Boot option.

Fast Boot

Enables/Disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

GateA20 Active

UPON REQUEST – GA20 can be disabled using BIOS services. ALWAYS – d o not allow disabling GA20; th is option is use ful when any RT code is executed above 1MB.

Option ROM Messages

Set display mode for Option ROM. Opt ions are Force BIOS and Keep Current.

MB961 User’s Manual 49

BIOS SETUP

Boot

↑↓

F4: Save ESC: Exit

Launch CSM

Always

Boot option filter

UEFI and Legacy

Launch PXE OpROM policy

Do not launch

Launch Storage OpROM policy

Legacy only

Launch Video OpROM policy

Legacy only

Other PCI device ROM priority

Legacy O pROM

INT19 Trap Response

Enable: Allows Option R OMs to trap Int 19.

Boot Option Priorities

Sets the system boot o r der .

CSM parameters

This section allow s you to config ure the boot settings.

Main Advanced Chipset

Boot option filter

This option controls what devices system can boot t o.

Launch PXE OpROM policy

Controls t he execution of UEFI and Legacy PXE OpROM.

Launch Storatge OpROM policy

Controls the execution of UEFI and Legacy Storage OpROM.

Launch Video OpROM policy

Controls the execution of UEFI and Legacy Video OpROM.

Other PCI device ROM priority

For PCI devices other than Network, Mass storage or Video defines which OpR O M to launch.

Aptio Setup Utility

Security Save & Exit

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

50

MB961 User’s Manual

BIOS SETUP

Main Advanced Chipset Boot Security Save & Exit

Password Description

↑↓

If ONLY the Administrator’s password is set, the n

to Set up a nd is only ask ed fo r

The passw ord length must be

in the fo llowing range :

Minimum length

3

Administrator Password

User Password

Security Settings

This section allows you to configure and improve your system and allows you to set u p some system features according to your preference.

this only limit access when entering Se tup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter S etup. In S etup the User will have Administrator rights

Maximum length 20

Administrator Password

Set Set up Administrat or Password.

User Password

Set User Password.

Aptio Setup Utility

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values F3: Optimized Default

F4: Save ESC: Exit

MB961 User’s Manual 51

Advanced

Save Changes and Exit

↑↓

Discard Changes a nd E xit

Save Changes and Reset

Discard Changes and Reset

Save Options

Save Changes

Discard Changes

Restore Defaults

Restore User Defaults

BIOS SETUP

Save & Exit Settings

Main

Chipset Boot Security Save & Exit

Aptio Setup Utility

→ ← Select Screen

Select Item Enter: Select +- Change Field F1: General Help

F2: Previous Values

Save as User Defaults

F3: Optimized Default F4: Save ESC: Exit

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system se tup without saving any change s.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Changes

Save Changes done so far to any of the setup options.

Discard Changes

Discard Changes done so far to any of the setup options.

Restore Defaults

Restore/Lo ad Defaults values for all the setup options.

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults

Restore the User Defaults to a ll the s etu p op tion s.

52

MB961 User’s Manual

DRIVERS INSTALLATION

Drivers Installation

This section describes the installation procedures for software and drivers. The software and drivers are included with the motherboard. If you fi nd the i tems m issing, please contact the vendor where you made the purchase. The contents o f this section include the following:

Intel Chipset Software Installation Utility ................................. 54

VGA Drivers Installation .......................................................... 56

Realtek HD Audio Driver Installation ....................................... 58

LAN Drivers Installation ........................................................... 59

Realtek LAN Controller Drivers Installation ............................. 61

Intel® Management Engine Interface ........................................ 64

ASMedia USB 3. 0 Drivers ........................................................ 67

IMPORTANT NOTE:

After installing your Windows operating system, you must install first the Intel Chipset So ftwar e I nstallation Utility before proceeding with the drivers installation.

MB961 User’s Manual 53

DRIVERS INSTALLATION

Intel Chipset Soft ware Installation Utility

The Intel Chipset Drivers sho uld be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the in stallation.

1. Insert th e CD that comes wi th the board. Click Intel and the n Intel(R) 7 Series Chi p set Drivers.

2. Click Intel(R) Chipset Software Installation Utility.

54

MB961 User’s Manual

DRIVERS INSTALLATION

3. When the Welcome screen to the Intel® Chipset Device Software appears, click Next to c ontinue.

4. C lick Yes to accept t he software license agreement and proceed with the installation process.

5. O n the Readme File Information screen, click Next to c ontinue t he installation.

6. The Setup pr ocess is now complete. Click Finish to restart the computer and for changes to t ake effect.

MB961 User’s Manual 55

DRIVERS INSTALLATION

VGA Drivers I n sta lla tio n

NOTE: Before installing the Intel(R) Q77 Chipset Family Graphics Driver, the Microsoft .NET Framework 3.5 SPI should be first installed.

To install the VGA drivers, follow the steps below.

1. Insert th e CD that comes with the board. Click Intel and the n Intel(R) 7 Series Chi p set Drivers.

2. Click Intel(R) Q77 Chipset Family Graphics Driver.

56

MB961 User’s Manual

DRIVERS INSTALLATION

3. When the Welcome screen appears, click Next to c ontinue.

4. Click Yes to to agree with the license agreement and continue the installation.

5. O n the Readme File Information screen, click Next to c ontinue t he installation of the Intel® Graphics Media Accelerato r Dr iver.

6. On Setup Progress screen, click Next t o cont inue.

7. Setup complete. Click Finish to restar t the computer and for changes to take effect.

MB961 User’s Manual 57

DRIVERS INSTALLATION

Realtek HD Audio Driver Installation

Follow the step s belo w to inst all the Realtek HD Audio Driver s.

1. Insert th e CD that comes wi th the board. Click Intel and the n Intel(R) 7 Series Chipset Drivers.

2. Click Realtek High Definition Audio Driver.

3. On the Welcome to the InstallShield Wizard screen, click Next to proceed with and complete the installation process.

4. The InstallShield Wizard C omple te. Click Finish to restart the computer and for changes to t ake effect.

58

MB961 User’s Manual

DRIVERS INSTALLATION

LAN D riv e r s In s ta llat ion

1. Insert th e CD that comes wi th the board. Click Intel and the n Intel(R) 7 Series Chi p set Drivers.

2. Click Intel(R) PRO LAN Network Dri ve r.

MB961 User’s Manual 59

DRIVERS INSTALLATION

3. Click Install Drivers and Software.

4. When the Welcome screen appears, click Next.

5. Click Next to to agree with the license agreement.

6. Click the checkb ox for Drivers i n the Setup Options screen to sel ect it and click Next to continue.

60

MB961 User’s Manual

DRIVERS INSTALLATION

Realtek LAN Controller Drivers Installation

Follow the step s belo w to inst all the Realtek LAN Drivers.

1. Insert the CD that co mes with the board. C lick Intel, then LAN Card, and then Realtek Lan Controller Drivers.

2. Click Realtek RTL8111E LAN Drivers.

MB961 User’s Manual 61

DRIVERS INSTALLATION

[

3.When the welcome screen to InstallShield Wizard appears, click Next to start the installation.

4.When the InstallShieldWizard has finished installing t he Realtek LAN drivers, clic k Finish.

62

MB961 User’s Manual

DRIVERS INSTALLATION

7. The w izar d is re ady t o be gin inst allat ion. Click Install to begin the installation.

8. When Inst allShield Wizard is c omple te, click Finish.

MB961 User’s Manual 63

DRIVER INSTALLATION

Intel® Management Engine Interface

Follow the steps below to install the Intel Management Engine.

1. Insert th e CD that comes wi th the board. Click Intel and then Intel(R) AMT 8.0 Drivers.

64

MB961 User’s Manual

DRIVERS INSTALLATION

2. When the Welcome screen to the InstallShield Wizard for Intel® Management Engine Component s , click the checkbox for Install Int el® Control Center & click Next.

3. Click Yes to to agree with the license agreement.

MB961 User’s Manual 65

DRIVER INSTALLATION

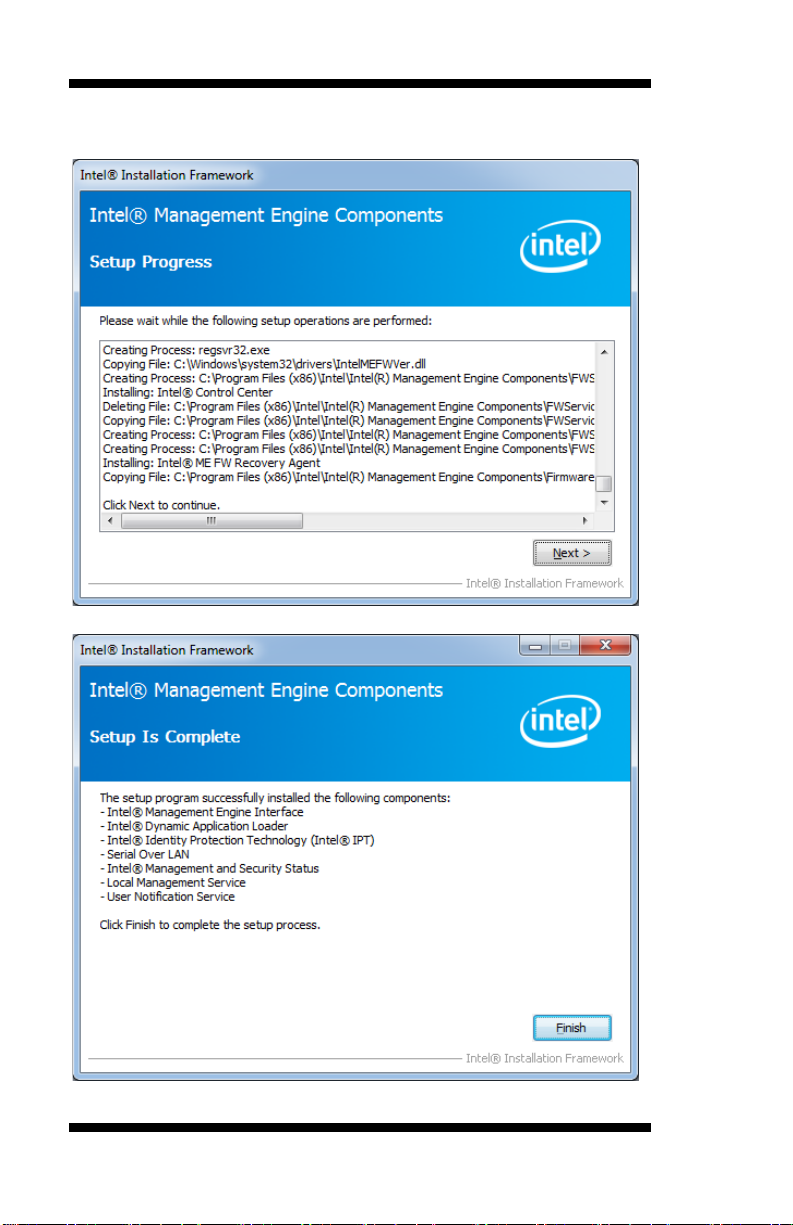

4. When the Setup Progress screen appears, click Next. Then, click Finish when the setup progress has been successfully installed .

66

MB961 User’s Manual

DRIVERS INSTALLATION

ASMedia USB 3.0 Drivers

1. Insert th e CD that comes wi th the board. Click Intel and the n Intel(R) 6 Series Chipset Drivers.

2. Click Intel(R) PRO LAN Network Dri ve r.

MB961 User’s Manual 67

DRIVER INSTALLATION

2. When the Welcome screen to the InstallShield Wizard for Intel® Management Engine Component s , click Next.

3. When Inst allShield Wizard is c omple te, click Finish.

68

MB961 User’s Manual

Address

Device Description

000h - 01Fh

DMA Controller #1

020h - 03Fh

Interrupt Controller #1

040h - 05Fh

Timer

060h - 06Fh

Keyboard Co nt r oller

070h - 07Fh

Real Time Clock, NM I

080h - 09Fh

DMA Page Register

0A0h - 0BFh

Interrupt Controller #2

0C0h - 0DFh

DMA Controller #2

0F0h

Clear Math Coprocessor Busy Signal

0F1h

Reset Math Coprocessor

1F0h - 1F7h

IDE Interface

2E8h – 2EFh

Se rial Port #4(COM4)

2F8h - 2FFh

Serial Port #2(COM2)

2B0h - 2DFh

Graphics adapter Contro ller

378h - 3FFh

Pa rallel Por t #1 (LPT1)

3E8h – 3EFh

Se rial Port #3(COM3)

3F8h - 3FFh

Serial Port #1(COM1)

APPENDIX

Appendix

A. I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the d evice. The following table lists the I/O port addresses used.

MB961 User’s Manual 69

APPENDIX

Level

Function

IRQ0

Sys tem T imer Output

IRQ1

Keyboard

IRQ3

Se rial Port #2

IRQ4

Se rial Port #1

IRQ5

Se rial Port #3 & Serial P ort #4 & Parallel Port #1

IRQ6

Reserved

IRQ7

Reserved

IRQ8

Real Time Clock

IRQ9

Microsoft ACPI -Comp liant System

IRQ10

Intel(R)6 Series /C200 Series Chipset Family SMBus Controller-1C22

IRQ12

PS/2 Mo u se

B. Interrupt Request Lines (IRQ)

Peripheral devi ces use i nterrupt request l i nes to notify CPU f or the service required. The following table shows the IRQ used by the devices on board.

70

MB961 User’s Manual

APPENDIX

C. Watchdog Timer Configuration

The WDT is used to generate a variety of output signals after a user programmable count. The WDT is suitable for u se in the prevention of system lock-up, such as when software becomes trapped in a deadlock. Under these sorts of circumstances, the timer will count t o zero and the selected outputs will be driven. Under normal cir cu mstance, t he user will restart the WDT at regular intervals before the t imer counts to zero.

SAMPLE CODE:

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANT Y OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMIT ED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include <dos.h> #include <conio.h> #include <stdio.h> #include <stdlib.h> #include "F81866.H" //--------------------------------------------------------------------------int main (int argc, char *argv[]); void EnableWDT (int); void DisableWDT(void); //--------------------------------------------------------------------------int main (int argc, char *argv[]) { unsigned char bBuf; unsigned char bTime; char **endptr;

char SIO;

printf("Fintek 81866 watch dog program\n");

SIO = Init_F81866(); if (SIO == 0) { printf("Can not detect Fintek 81866, program abort.\n"); return(1); }//if (SIO == 0)

if (argc != 2) { printf(" Parameter incorrect!!\n"); return (1); }

bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime);

if (bTime) { EnableWDT(bTime); } else { DisableWDT(); }

return 0;

MB961 User’s Manual 71

APPENDIX

} //--------------------------------------------------------------------------void EnableWDT (int interval) { unsigned char bBuf;

bBuf = Get_F81866_Reg(0x2B); bBuf &= (~0x20); Set_F81866_Reg(0x2B, bBuf); //En ab le WDT O

Set_F81866_LD(0x07); //switch to logic device 7 Set_F81866_Reg(0x30, 0x01); //enab le timer

bBuf = Get_F81866_Reg(0xF5); bBuf &= (~0x0F); bBuf |= 0x52; Set_F81866_Reg(0xF5, bBuf); //count mode is second

Set_F81866_Reg(0xF6, interval); //set timer

bBuf = Get_F81866_Reg(0xFA); bBuf |= 0x01; Set_F81866_Reg(0xFA, bBuf); //enable WDTO output

bBuf = Get_F81866_Reg(0xF5); bBuf |= 0x20; Set_F81866_Reg(0xF5, bBuf); //start coun ting } //--------------------------------------------------------------------------void DisableWDT(void) { unsigned char bBuf;

Set_F81866_LD(0x07); //switch to logic device 7

bBuf = Get_F81866_Reg(0xFA); bBuf &= ~0x01; Set_F81866_Reg(0xFA, bBuf); //disable WDTO output

bBuf = Get_F81866_Reg(0xF5); bBuf &= ~0x20; bBuf |= 0x40; Set_F81866_Reg(0xF5, bBuf); //disable WDT } //---------------------------------------------------------------------------

72

MB961 User’s Manual

APPENDIX

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EIT HER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#include "F81866.H" #include <dos.h> //--------------------------------------------------------------------------unsigned int F81866_BASE; void Unlock_F81866 (void); void Lock_F81866 (void); //--------------------------------------------------------------------------unsigned int Init_F81866(void) { unsigned int result; unsigned char ucDid;

F81866_BASE = 0x4E; result = F81866_BASE;

ucDid = Get_F81866_Reg(0x20); if (ucDid == 0x07) //Fintek 81866 { goto Init_Finish; }

F81866_BASE = 0x2E; result = F81866_BASE;

ucDid = Get_F81866_Reg(0x20); if (ucDid == 0x07) //Fintek 81866 { goto Init_Finish; }

F81866_BASE = 0x00; result = F81866_BASE;

Init_Finish: return (result); } //--------------------------------------------------------------------------void Unlock_F81866 (void) { outportb(F81866_INDEX_PORT, F81866_UNLOCK ); outportb(F81866_INDEX_PORT, F81866_UNLOCK ); } //--------------------------------------------------------------------------void Lock_F81866 (void) { outportb(F81866_INDEX_PORT, F81866_LOCK); } //--------------------------------------------------------------------------void Set_F81866_LD( unsigned char LD) { Unlock_F81866(); outportb(F81866_INDEX_PORT, F81866_REG_LD); outportb(F81866_DATA_PORT, LD); Lock_F81866(); } //--------------------------------------------------------------------------void Set_F81866_Reg( unsigned char REG, unsigned char DATA) { Unlock_F81866(); outportb(F81866_INDEX_PORT, REG); outportb(F81866_DATA_PORT, DATA); Lock_F81866(); } //---------------------------------------------------------------------------

MB961 User’s Manual 73

APPENDIX

unsigned char Get_F81866_Reg(unsigned char REG) { unsigned char Result; Unlock_F81866(); outportb(F81866_INDEX_PORT, REG); Result = inportb(F81866_DATA_PORT); Lock_F81866(); return Result; } //---------------------------------------------------------------------------

//--------------------------------------------------------------------------// // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EIT HER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. // //--------------------------------------------------------------------------#ifndef __F81866_H #define __F81866_H 1 //--------------------------------------------------------------------------#define F81866_INDEX_PORT (F81866_BASE) #define F81866_DATA_PORT (F81866_BASE+1) //--------------------------------------------------------------------------#define F81866_REG_LD 0x07 //--------------------------------------------------------------------------#define F81866_UNLOCK 0x87 #define F81866_LOCK 0xAA //--------------------------------------------------------------------------unsigned int Init_F81866(void); void Set_F81866_LD( unsigned char); void Set_F81866_Reg( unsigned char, unsigned char); unsigned char Get_F81866_Reg( unsigned char); //--------------------------------------------------------------------------#endif //__F81866_H

74

MB961 User’s Manual

IBASE MB961 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Pin #

Signal Name

Signal Name

Signal Name

Signal Name

Pin #

Pin #

Signal Name
