MB500
AMD Geode LX
Mini ITX Motherboard
USER’S MANUAL
Version 1.1
Acknowledgments
Award is a registered trademark of Award Software International,
Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
ii
MB500 User’s Manual
Table of Contents
Introduction ....................................................... 1
MB500 Product Features ..................................................... 1
Checklist .............................................................................. 2
Specifications ...................................................................... 3
Board Dimensions ............................................................... 4
Installations ....................................................... 5
Installing the Memory ......................................................... 6
Setting the Jumpers ............................................................. 7
Connectors on MB500 ...................................................... 11
Watchdog Timer Configuration ........................................ 22
BIOS Setup ....................................................... 25
Drivers Installation ...................................... 41
Entertainment Encryption/Decryption Controller Driver .. 42
VGA Drivers Installation .................................................. 44
Audio Driver Installation .................................................. 47
Appendix ........................................................... 51
A. I/O Port Address Map ................................................... 51
B. Interrupt Request Lines (IRQ) ...................................... 52
MB500 User’s Manual iii
This page is intentionally left blank.
iv
MB500 User’s Manual
INTRODUCTION
Introduction
MB500 Product Features
The MB500 Mini ITX motherboard incorporates the AMD Geode LX
processor with speeds of 433MHz (LX700) or 500MHz (LX800). As of
this writing, it comes with two board versions, namely:
MB500 - AMD Geode LX700, 433MHz, Mini ITX mot herboard w/
VGA, 10/100 LAN, CF
MB500F - AMD Geode LX800, 500MHz, Mini ITX motherboard
w/ VGA, dual 10/100 LAN, CF
The AMD Geode™ LX 800@0.9W processor delivers the most
performance per watt in the industry today, providing x86 power and
versatility to applications for entertainment, business, education, and
embedded markets. Its innovative architecture and high level of
integration enables small form-factor designs. The AMD Geode
LX700@0.8W processor delivers great performance at lower power for
value, embedded applications, while delivering full x86 functionality.
MB500 FEATURES:
• Supports AMD Geode LX, 433MHz (LX700) / 500MHz
(LX800)
• DDR DIMM x 1, Max. 1GB memory
• One or two Realtek RTL8100C 10/100 Ethernet
• Integrated LX800/LX700 2D VGA controller
• Supports VGA CRT and TFT/LVDS LCD display
• 4x USB 2.0, 4x COM, CompactFlash socket
• Watchdog timer, Digital I/O, 1x PCI, 1x Mini PCI
MB500 User’s Manual 1
INTRODUCTION
Checklist
Your MB500 package should include the items listed below.
• The MB500 Mini ITX board
• This User’s Manual
• 1 CD containing chipset drivers and flash memory utility
• 1 x I/O Shield
• Accompanying cables (IDE, COM, LPT)
2
MB500 User’s Manual
Specifications
INTRODUCTION
CPU AMD Geode LX
Chipset AMD CS3356 chipset
BIOS Award BIOS, 4Mbit
System Memory One DDR socket supports up to 1GB DDR SDRAM
Integrated VGA AMD LX800/LX700 built-in 2D graphics controller
LAN One or two Realtek RTL8100C 10/100 Ethernet controller
Audio Line in, Line out, Mic connectors on board
Multi I/O AMD CS5536 + Winbond W83627HG + Fintek F81216D
IDE Interface One enhanced IDE channel supports 2 IDE devices; supports
FDD Interface Onboard slim FDD connector
Serial Ports Four Serial ports (COM2 configurable as RS422/485)
USB (2.0) Supports 4 USB ports (2 ports + 2 ports via pin header)
IrDA Pin header
Keyboard and Mouse
PS/2 type connector
Watchdog Timer Generates system reset; 256 levels
Hardware Monitoring
Built in W83627HG; monitors system/CPU tem perature and voltage
Digital I/O 4 in / 4 out
Expansion Slot 1 PCI, 1 MiniPCI
CompactFlash Socket Type II
Edge Connectors PS/2 KB & Mouse, 4x USB, COM1, LPT, RJ45, VGA, LAN1 RJ45,
Onboard Connectors/Headers
CF socket, COM2/3/4, IDE, FDD, USB, IrDA, 44-pin TFT interface
Form Factor Mini-ITX Motherboard
Dimensions 170mm x 170mm
LX800 @ 500MHz (MB500F)
LX700 @ 433MHz (MB500)
266/333/400 DDR SDRAM
Supports CRT and TFT LCD display
Supports 24-bit single channel LVDS
64MB shared memory
RJ-45 on board
Supports 1x IDE, 1x FDD, 1x KB, 1x Mouse, 4x RS232, 1x LPT
UDMA33/66/100
LAN2 RJ-45 (MB500F only)
MB500 User’s Manual 3
INTRODUCTION
Board Dimensions
4
MB500 User’s Manual
INSTALLATIONS
Installations
This section provides information on how to use the jumpers and
connectors on the MB500 in order to set up a workable system. The
topics covered are:
Installing the Memory .................................................................. 6
Setting the Jumpers ...................................................................... 7
Connectors on MB500 ............................................................... 11
Watchdog Timer Configuration ................................................. 22
MB500 User’s Manual 5
INSTALLATIONS
Installing the Memory
The MB500 embedded board supports one DDR memory sockets for a
maximum to tal memory of 1G B in DDR memory type. The memor y
module capacities supported are 128MB, 256MB, 512MB and 1GB.
Installing and Removing Memory Modules
To install the DDR modules, locate the memory slot on the embedded
board and perform the following steps:
1. Hold the DDR m odule so t hat the key of the DDR modul e aligns with
those on the memory slot.
2. Gently push the DDR module in an upright position until the clips of
the slot close to hold the DDR module in place when the DDR module
touches the bottom of the slot.
3. To remove the DDR module, press the clips with both hands.
6
Lock
DDR Module
MB500 User’s Manual
Lock
LockLock
INSTALLATIONS
Setting the Jumpers
Jumpers are used on MB500 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MB500 and their respective functions.
Jumper Locations on MB500 ......................................................... 8
JP2: Voltage Setting for LVDS ...................................................... 9
JP6: Clear CMOS Contents ............................................................ 9
JP3, JP4, JP5: RS232/422/485 (COM2) Selection ......................... 9
JP7: Case Open Setting ................................................................ 10
JP8: CompactFlash Master/Slave Selection ................................. 10
JP9: ATX/AT Mode Select ......................................................... 11
MB500 User’s Manual 7
INSTALLATIONS
Jumper Locations on MB500
Jumpers on MB500 ............................................................................... Page
JP2: Voltage Setting for LVDS .................................................................. 9
JP6: Clear CMOS Contents ........................................................................ 9
JP3, JP4, JP5: RS232/422/485 (COM2) Selection ...................................... 9
JP7: Case Open Setting ............................................................................. 10
JP8: CompactFlash Master/Slave Selection .............................................. 10
JP9: ATX/AT Mode Select ...................................................................... 11
8
MB500 User’s Manual
INSTALLATIONS
JP2: Voltage Setting for LVDS
Jumper Setting Function
Pin 1-2
Short/Closed
Pin 2-3
Short/Closed
5V
3.3V
JP6: Clear CMOS Contents
Note: Disconnect the ATX-power connector from the board before
clearing CMOS.
Jumper Setting Function
Pin 1-2
Short/Closed
Pin 2-3
Short/Closed
Normal
Clear CMOS
JP3, JP4, JP5: RS232/422/485 (COM2) Selection
COM1 is fixed for RS-232 use only.
COM2 is selectable for RS232, RS-422 and RS-485.
The following table describes the jumper settings for COM2 selection.
COM2
Function
Jumper
Setting
(pin closed)
RS-232 RS-422 RS-485
JP3:
3-5 & 4-6
JP4:
3-5 & 4-6
JP5:
1-2
JP3:
1-3 & 2-4
JP4:
1-3 & 2-4
JP5:
3-4
JP3:
1-3 & 2-4
JP4:
1-3 & 2-4
JP5:
5-6
MB500 User’s Manual 9
INSTALLATIONS
JP7: Case Open Setting
Jumper Setting Function
Short/Closed Case open
Open Case closed
JP8: CompactFlash Master/Slave Selection
Jumper Setting Function
Short/Closed Slave
Open Master
JP9: ATX/AT Mode Select
Remarks: This jumper is supported only on board version 1.1 and
above.
Jumper Setting Function
Pin 1-2
Short/Closed
Pin 2-3
Short/Closed
ATX Mode (default)
AT Mode
10
MB500 User’s Manual
Connectors on MB500
The connectors on MB500 allows you to connect external devices such
as keyboard, floppy disk drives, hard disk drives, printers, etc. The
following table lists the connectors on MB500 and their respective
functions.
Connector Locations on MB500 .................................................. 12
CN1: DC Jack (DC in, 12V only) ................................................ 13
CN2: PS/2 Keyboard and Mouse Connectors .............................. 13
CN3: COM1 Serial Port ............................................................... 13
CN4: Parallel Port Connector ....................................................... 14
CN5: VGA CRT connector .......................................................... 14
CN6: 10/100 RJ45 Connector (for MB500F only) ....................... 15
CN7: 10/100 RJ45 and USB Connectors ..................................... 15
CN8: Line Out, Line In, Mic Connector ...................................... 15
CN9: Compact Flash Socket ........................................................ 15
PCI1: PCI Slot .............................................................................. 15
DDR1: 184-pin DDR DIMM Socket ........................................... 15
J2: ATX Power Supply Connector ............................................... 16
J3: LVDS Connector .................................................................... 16
J4: LCD Inverter Connector ......................................................... 17
J5: LCD (TTL) Connector ............................................................ 17
J6, J7, J8: COM2, COM3, COM4 Serial Ports............................. 18
J9: IrDA Connector ...................................................................... 18
J10: Digital 4-in 4-out I/O Connector .......................................... 19
J11: Mini PCI Socket ................................................................... 19
J12: For Right Speaker ................................................................. 19
J13: Wake On LAN Connector .................................................... 19
J14: For Left Speaker ................................................................... 19
J15: USB Connector (USB2/USB3) ............................................. 19
J16: Front I/O Connector .............................................................. 20
J17: Function Connector .............................................................. 20
J18: CD-In Audio Connector ....................................................... 20
FDD1: Floppy Drive Connector ................................................... 20
IDE1: Primary IDE Connector ..................................................... 21
FAN1, FAN2: Fan Power Connectors ......................................... 21
INSTALLATIONS
MB500 User’s Manual 11
INSTALLATIONS
Connector Locations on MB500
12
Connectors on MB500
MB500 User’s Manual
INSTALLATIONS
CN1: DC Jack (DC in, 12V only)
CN2: PS/2 Keyboard and Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
CN3: COM1 Serial Port
CN3 (COM1) is a DB-9 connector serial port.
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
MB500 User’s Manual 13
INSTALLATIONS
CN4: Parallel Port Connector
Signal Name Pin # Pin # Signal Name
Line printer strobe 1 14 AutoFeed
PD0, parallel data 0 2 15 Error
PD1, parallel data 1 3 16 Initialize
PD2, parallel data 2 4 17 Select
PD3, parallel data 3 5 18 Ground
PD4, parallel data 4 6 19 Ground
PD5, parallel data 5 7 20 Ground
PD6, parallel data 6 8 21 Ground
PD7, parallel data 7 9 22 Ground
ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A
CN5: VGA CRT connector
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
NC 15
14
MB500 User’s Manual
INSTALLATIONS
CN6: 10/100 RJ45 Connector (for MB500F only)
CN7: 10/100 RJ45 and USB Connectors
CN7 is a stacked connector with RJ45 on top and 2 USB ports at the
bottom.
CN8: Line Out, Line In, Mic Connector
CN9: Compact Flash Socket
PCI1: PCI Slot
DDR1: 184-pin DDR DIMM Socket
MB500 User’s Manual 15
INSTALLATIONS
J2: ATX Power Supply Connector
11 1
Signal Name Pin # Pin # Signal Name
3.3V 11 1 3.3V
-12V 12 2 3.3V
Ground 13 3 Ground
PS-ON 14 4 +5V
Ground 15 5 Ground
Ground 16 6 +5V
Ground 17 7 Ground
20 10
-5V 18 8 Power good
+5V 19 9 5VSB
+5V 20 10 +12V
The MB500 that you have received comes with a 2x4 connector
that can be inserted into the J2 ATX power connector to be used
with the PW94 accessory cable to serve as a power cable for a
hard disk or CD-ROM.
Accessory 2x4 Connector for HDD or CD-ROM power use
Signal Name Pin # Pin # Signal Name
Ground 17 7 Ground
18 8
J3: LVDS Connector
[
+5V 19 9
+5V 20 10 +12V
Signal Name Pin # Pin # Signal Name
TX0- 2 1 TX0+
Ground 4 3 Ground
TX1- 6 5 TX1+
5V/3.3V 8 7 Ground
TX3- 10 9 TX3+
TX2- 12 11 TX2+
Ground 14 13 Ground
TXC- 16 15 TXC+
5V/3.3V 18 17 ENABKL
+12V 20 19 +12V
16
MB500 User’s Manual
J4: LCD Inverter Connector
Pin # Signal Name
1 +12V
2 Ground
3 Backlight Enable
4 NC
5 Vcc
J5: LCD (TTL) Connector
Signal Name Pin # Pin # Signal Name
VDD 1 2 VDD
VDD 3 4 SHFCLK
VSYNC 5 6 HSYNC
Ground 7 8 Ground
B0 9 10 B1
B2 11 12 B3
B4 13 14 B5
B6 15 16 B7
Ground 17 18 Ground
G0 19 20 G1
G2 21 22 G3
G4 23 24 G5
G6 25 26 G7
Ground 27 28 Ground
R0 29 30 R1
R2 31 32 R3
R4 33 34 R5
R6 35 36 R7
LDEMOD 37 38 Ground
FP VDD EN 39 40 BKL EN
INSTALLATIONS
MB500 User’s Manual 17
INSTALLATIONS
J6, J7, J8: COM2, COM3, COM4 Serial Ports
Pin # Signal Name (RS-232)
1 DCD, Data carrier detect
2 RXD, Receive data
3 TXD, Transmit data
4 DTR, Data terminal ready
5 Ground
6 DSR, Data set ready
7 RTS, Request to send
8 CTS, Clear to send
9 RI, Ring indicator
10 No Connect.
COM2 is jumper selectable for RS-232, RS-422 and RS-485.
Pin # Signal Name
RS-232 R2-422 RS-485
1 DCD TX- DATA2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR RTS- NC
7 RTS RTS+ NC
8 CTS CTS+ NC
9 RI CTS- NC
10 NC NC NC
J9: IrDA Connector
Pin # Signal Name
1 +5V
2 No connect
3 Ir RX
4 Ground
5 Ir TX
18
MB500 User’s Manual
J10: Digital 4-in 4-out I/O Connector
Signal Name Pin Pin Signal Name
Ground 1 2 Vcc
Out3 3 4 Out1
Out2 5 6 Out0
IN3 7 8 IN1
IN2 9 10 IN0
J11: Mini PCI Socket
J12: For Right Speaker
INSTALLATIONS
J13: Wake On LAN Connector
J13 is a 3-pin header for the Wake On LAN function. Wake On LAN
will function properly only with an ATX power supply with 5VSB that
has 200mA.
Pin # Signal Name
1 +5VSB
2 Ground
3 Wakeup
J14: For Left Speaker
J15: USB Connector (USB2/USB3)
Signal Name Pin Pin Signal Name
Vcc 1 2 Vcc
D2- 3 4 D3-
D2+ 5 6 D3+
Ground 7 8 Ground
9 10 NC
MB500 User’s Manual 19
INSTALLATIONS
J16: Front I/O Connector
J17: Function Connector
J18: CD-In Audio Connector
Pin # Signal Name
1 CD Audio R
2 Ground
3 Ground
4 CD Audio L
FDD1: Floppy Drive Connector
FDD1is a slim 26-pin connector and will support up to 2.88MB FDD.
Signal Name Pin # Pin # Signal Name
VCC 1 2 INDEX
VCC 3 4 DRV_SEL
VCC 5 6 DSK_CH
NC 7 8 NC
NC 9 10 MOTOR
DINST 11 12 DIR
NC 13 14 STEP
GND 15 16 WDATA
GND 17 18 WGATE
GND 19 20 TRACK
NC 21 22 WPROT
GND 23 24 RDATA
GND 25 26 SIDE
20
MB500 User’s Manual
INSTALLATIONS
N
t
N
t
y
a
IDE1: Primary IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
IDE2: 1st IDE
DACK0 29 30 Ground
IRQ14 31 32
Address 1 33 34
o connec
o connec
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activit
39 40 Ground
FAN1, FAN2: Fan Power Connectors
This is a 3-pin header for fans. The fan must be a 12V (500mA) fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
MB500 User’s Manual 21
INSTALLATIONS
Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sort of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user
will restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
This code and information is provided "as is" without warranty of any
kind, either expressed or implied, including but not limited to the
implied warranties of merchantability and/or fitness for a particular
purpose.
;[]================================================
; Name : Enable_And_Set_Watchdog
; IN : AL - 1sec ~ 255sec
; OUT : None
;[]================================================
Enable_And_Set_Watchdog Proc Near
push ax ;save time interval
call Unlock_Chip
mov cl, 2Bh
call Read_Reg
and al, NOT 10h
call Write_Reg ;set GP24 as WDTO
mov cl, 07h
mov al, 08h
call Write_Reg ;switch to LD8
mov cl, 0F5h
call Read_Reg
and al, NOT 08h
call Write_Reg ;set count mode as second
pop ax
mov cl, 0F6h
call Write_Reg ;set watchdog timer
mov al, 01h
mov cl, 30h
call Write_Reg ;watchdog enabled
22
MB500 User’s Manual
INSTALLATIONS
call Lock_Chip
ret
Enable_And_Set_Watchdog Endp
;[]===============================================
; Name : Disable_Watchdog
; IN : None
; OUT : None
;[]===============================================
Disable_Watchdog Proc Near
call Unlock_Chip
mov cl, 07h
mov al, 08h
call Write_Reg ;switch to LD8
xor al, al
mov cl, 0F6h
call Write_Reg ;clear watchdog timer
xor al, al
mov cl, 30h
call Write_Reg ;watchdog disabled
call Lock_Chip
ret
Disable_Watchdog Endp
;[]===============================================
; Name : Unlock_Chip
; IN : None
; OUT : None
;[]===============================================
Unlock_Chip Proc Near
mov dx, 4Eh
mov al, 87h
out dx, al
out dx, al
ret
Unlock_Chip Endp
;[]================================================
; Name : Lock_Chip
; IN : None
; OUT : None
MB500 User’s Manual 23
INSTALLATIONS
;[]================================================
Unlock_Chip Proc Near
mov dx, 4Eh
mov al, 0Aah
out dx, al
ret
Unlock_Chip Endp
;[]================================================
; Name : Write_Reg
; IN : CL - register index
; AL - Value to write
; OUT : None
;[]================================================
Write_Reg Proc Near
push ax
mov dx, 4Eh
mov al,cl
out dx,al
pop ax
inc dx
out dx,al
ret
Write_Reg Endp
;[]================================================
; Name : Read_Reg
; IN : CL - register index
; OUT : AL - Value to read
;[]===================================================
Read_Reg Proc Near
mov al, cl
mov dx, 4Eh
out dx, al
inc dx
in al, dx
ret
Read_Reg Endp
;[]================================================
24
MB500 User’s Manual
BIOS SETUP
BIOS Setup
This chapter describes the different settings available in the Award
BIOS that comes with the motherboard. The topics covered in this
chapter are as follows:
BIOS Introduction ........................................................................ 26
BIOS Setup ................................................................................... 26
Standard CMOS Setup ................................................................. 28
Advanced BIOS Features ............................................................. 31
Advanced Chipset Features .......................................................... 34
Integrated Peripherals ................................................................... 35
Power Management Setup ............................................................ 37
PNP/PCI Configurations .............................................................. 38
PC Health Status ........................................................................... 39
Load Fail-Safe Defaults ................................................................ 40
Load Optimized Defaults ............................................................. 40
Set Password ................................................................................ 40
Save & Exit Setup ........................................................................ 40
Exit Without Saving ..................................................................... 40
MB500 User’s Manual 25
BIOS SETUP
BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your
computer system’s ROM supports various processors. The BIOS
provides critical low-level support for a standard device such as disk
drives, serial ports and parallel ports. It also adds virus and password
protection as well as special support for detailed fine-tuning of the
chipset controlling the entire system.
BIOS Setup
The Award BIOS provides a Setup utility program for specifying the
system configurations and settings. The BIOS ROM of the system stores
the Setup utility. When you turn on the computer, the Award BIOS is
immediately activated. Pressing the <Del> key immediately allows you
to enter the Setup utility. If you are a little bit late pressing the <Del>
key, POST (Power On Self Test) will continue with its test routines, thus
preventing you from invoking the Setup. If you still wish to enter Setup,
restart the system by pressing the ”Reset” button or simultaneously
pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by
turning the system Off and back On again. The following message will
appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to
select, the <PgUp> and <PgDn> keys to change entries, <F1> for help
and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on
the screen. The Main Menu allows you to select from various setup
functions and exit choices.
26
MB500 User’s Manual
BIOS SETUP
Standard CMOS Features Load Fail-Safe Defaults
Advanced BIOS Features Load Optimized Defaults
Advanced Chipset Features Set Supervisor
Integrated Peripherals Set User Password
Power Management Setup Save & Exit Setup
PnP/PCI Configurations Exit Without Saving
PC Health Status
ESC : Quit Ç È Æ Å : Select Item
F10 : Save & Exit Setup
Phoenix - AwardBIOS CMOS Setup Utility
Time, Date, Hard Disk Type…
The section below the setup items of the Main Menu displays the control
keys for this menu. At the bottom of the Main Menu just below the
control keys section, there is another section, which displays information
on the currently highlighted item in the list.
Note:
If the system cannot boot after making and saving system
changes with Setup, the Award BIOS supports an override to
the CMOS settings that resets your system to its default.
Warning:
It is strongly recommended that you avoid making any
changes to the chipset defaults. These defaults have been
carefully chosen by both Award and your system
manufacturer to provide the absolute maximum performance
and reliability. Changing the defaults could cause the system
to become unstable and crash in some cases.
MB500 User’s Manual 27
BIOS SETUP
Standard CMOS Setup
“Standard CMOS Setup” choice allows you to record some basic
hardware configurations in your computer system and set the system
clock and error handling. If the motherboard is already installed in a
working system, you will not need to select this option. You will need to
run the Standard CMOS option, however, if you change your system
hardware configurations, the onboard battery fails, or the configuration
stored in the CMOS memory was lost or damaged.
Date (mm:dd:yy) Fri, Jun 30, 2006 Item Help
Time (hh:mm:ss) 00 : 00 : 00 Menu Level >
IDE Primary Master None Change the day, month,
Drive A 1.44M, 3.5 in.
Drive B None
Video EGA/VGA
Halt On All, But keyboard
Base Memory 640K
Extended Memory 514816K
Total Memory 515584K
At the bottom of the menu are the control keys for use on this menu. If
you need any help in each item field, you can press the <F1> key. It will
display the relevant information to help you. The memory display at the
lower right-hand side of the menu is read-only. It will adjust
automatically according to the memory changed. The following
describes each item of this menu.
Date
The date format is:
Day : Sun to Sat
Month : 1 to 12
Date : 1 to 31
Year : 1999 to 2099
To set the date, highlight the “Date” field and use the PageUp/
PageDown or +/- keys to set the current time.
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Year and century IDE Primary Slave None
28
MB500 User’s Manual
BIOS SETUP
Time
The time format is:
Minute : 00 to 59
Second : 00 to 59
Hour : 00 to 23
To set the time, highlight the “Time” field and use the <PgUp>/ <PgDn>
or +/- keys to set the current time.
IDE Primary HDDs / IDE Secondary HDDs
The onboard PCI IDE connectors provide Primary and Secondary
channels for connecting up to four IDE hard disks or other IDE devices.
Each channel can support up to two hard disks; the first is the “Master”
and the second is the “Slave”.
Press <Enter> to configure the hard disk. The selections include Auto,
Manual, and None. Select ‘Manual’ to define the drive information
manually. You will be asked to enter the following items.
CYLS : Number of cylinders
HEAD : Number of read/write heads
PRECOMP : Write precompensation
LANDING ZONE : Landing zone
SECTOR : Number of sectors
The Access Mode selections are as follows:
CHS (HD < 528MB)
LBA (HD > 528MB and supports
Logical Block Addressing)
Large (for MS-DOS only)
Auto
Remarks: The main board supports two serial ATA ports and are
represented in this setting as IDE Channel 2 / 3 Master.
Drive A / Drive B
These fields identify the types of floppy disk drive A or drive B that has
been installed in the computer. The available specifications are:
360KB
5.25 in.
1.2MB
5.25 in.
720KB
3.5 in.
1.44MB
3.5 in.
2.88MB
3.5 in.
MB500 User’s Manual 29
BIOS SETUP
Video
This field selects the type of video di splay card instal led i n your syst em .
You can choose the following video display cards:
EGA/VGA For EGA, VGA, SEGA, SVGA
or PGA monitor adapters. (default)
CGA 40 Power up in 40 column mode.
CGA 80 Power up in 80 column mode.
MONO For Hercules or MDA adapters.
Halt On
This field determines whether or not the system will halt if an error is
detected during power up.
No errors The system boot will not be halted for any error
that may be detected.
All errors Whenever the BIOS detects a non-fatal error,
the system will stop and you will be prompted.
All, But Keyboard The system boot will not be halted for a
keyboard error; it will stop for all other errors
All, But Diskette The system boot will not be halted for a disk
error; it will stop for all other errors.
All, But Disk/Key The system boot will not be halted for a key-
board or disk error; it will stop for all others.
30
MB500 User’s Manual
BIOS SETUP
Advanced BIOS Features
This section allows you to configure and improve your system and
allows you to set up some system features according to your preference.
Virus Warning Disabled ITEM HELP
CPU Internal Cache Enabled Menu Level >
First Boot Device Floppy
Second Boot Device HDD-0
Third Boot Device CDROM
Boot Other Device Enabled
Swap Floppy Drive Disabled
Boot Up Floppy Seek Enabled
Boot Up NumLock Status On
Gate A20 Option Fast
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
OS Select For DRAM>64MB Non-OS2
Small Logo (EPA) Show Disabled
Virus Warning
If this option is enabled, an alarm message will be displayed when trying to write
on the boot sector or on the partition table on the disk, which is typical of the
virus.
CPU Internal Cache
Cache memory is additional memory that is much faster than conventional
DRAM (system memory). CPUs from 486-type on up contain internal cache
memory, and most, but not all, modern PCs have additional (external) cache
memory. When the CPU requests data, the system transfers the requested data
from the main DRAM into cache memory, for even faster access by the CPU.
First/Second/Third Boot Device
These fields determine the drive that the system searches first for an
operating system. The options available i nclude Floppy, LS120, HDD-0,
SCSI, CDROM, HDD-1, HDD-2, HDD-3, ZIP100, USB-FDD, LAN,
USB-CDROM, USB-HDD and Disable.
Boot Other Device
These fields allow the system to search for an OS from other devices
other than the ones selected in the First/Second/Third Boot Device.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
MB500 User’s Manual 31
BIOS SETUP
Swap Floppy Drive
This item allows you to determi ne whether or not to enable Swap Floppy
Drive. When enabled, the BIOS swaps floppy drive assignments so that
Drive A becomes Drive B, and Drive B becomes Drive A. By default,
this field is set to Disabled.
Boot Up Floppy Seek
This feature controls whether the BIOS checks for a floppy drive while
booting up. If it cannot detect one (either due to improper configuration
or its absence), it will flash an error message.
Boot Up NumLock Status
This allows you to activate the NumLock function after you power up
the system.
Gate A20 Option
This field allows you to select how Gate A20 is worked. Gate A20 is a
device used to address memory above 1 MB.
Typematic Rate Setting
When disabled, continually holding dow n a key on your keyboard will
generate only one instance. When enabled, you can set the two typematic
controls listed next. By default, this field is set to Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated
keystrokes speeds. Settings are from 6 to 30 characters per second.
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the time
interval for displaying the first and second characters. By default, this
item is set to 250msec.
Security Option
This field allows you to limit access to the System and Setup. The default
value is Setup. When you select System, the system prompts for the User
Password every time you boot up. When you select Setup, the system
always boots up and prompts for the Supervisor Password only when the
Setup utility is called up.
32
MB500 User’s Manual
BIOS SETUP
OS Select for DRAM > 64MB
This option allows the system to access greater than 64MB of DRAM
memory when used with OS/2 that depends on certain BIOS calls to
access memory. The default setting is Non-OS/2.
Small Logo (EPA) Show
The EPA logo appears at the right side of the monitor screen when the
system is boot up.
MB500 User’s Manual 33
BIOS SETUP
Advanced Chipset Features
This Setup menu controls the configuration of the chipset.
CPU Frequency Auto ITEM HELP
Memory Frequency 133 MHz Menu Level >
CAS Latency Auto
Interleave Select LOI
XOR BA0 Disabled
XOR BA1 Disabled
XOR MB0 Disabled
XOR Bit Select Disabled
Video Memory Size 8M
Output Display Panel & CRT
Flat Panel Configuration Press Enter
Onboard Audio Enabled
Overcurrent Reporting Disabled
Port 4 Assignment Host
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
CPU Frequency
This options for this field are Auto, 433MHz and 500MHz.
Memory Frequency
This default setting for this field is 133MHz.
CAS Latency Time
You can configure CAS latency time in HCLKs as 1.5, 2, 2.5, 3 or 3.5.
The system board designer should set the values in this field, depending
on the DRAM installed. Do not change the val ues in this field unless you
change specifications of the installed DRAM or the installed CPU.
Video Memory Size
The default setting for this field is 8M. The options are from 8M to
254M.
Flat Panel Configuration
This options for this field are Flat Panel, CRT and Panel & CRT. For
flat panel, configuration settings include Flat Panel Type, Resolution
(320x240 up to 1600x1200), Data Bus Type, Refresh Rate (60~100Hz),
HSYNC Polarity, VSYNC Polarity, SHFCLK Active Period and LP
Active Period.
34
MB500 User’s Manual
Integrated Peripherals
This section sets configurations for your hard disk and other integrated
peripherals. The first screen shows three main items for user to select.
Once an item selected, a submenu appears. Details follow.
BIOS SETUP
OnChip IDE Channel 1
Master Drive PIO Mode
Slave Drive PIO Mode
IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE DMA transfer access
IDE HDD Block Mode
Onboard LAN Boot ROM
Onboard FDC Controller
Onboard Serial Port 1
Onboard Serial Port 2
UART Mode Select
Onboard Parallel Port
Parallel Port Mode
**** 2nd SuperIO Device ****
Onboard Serial Port 3 3E8h
Serial Port 3 Use IRQ IRQ11
Onboard Serial Port 4 2E8h
Serial Port 4 Use IRQ IRQ10
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
Enabled ITEM HELP
Auto Menu Level >
Auto
Disabled
Disabled
Enabled
Enabled
Disabled
Enabled
3F8/IRQ4
2F8/IRQ3
Normal
387/IRQ7
SPP
OnChip IDE Channel 1
The integrated peripheral controller contains an IDE interface with
support for IDE channels. Select Enabled to activate the channel.
IDE Primary/Secondary Master/Slave PIO
These fields allow your system hard disk controller to work faster.
Rather than have the BIOS issue a series of commands that transfer to or
from the disk drive, PIO (Programmed Input /Output) allows the BIOS to
communicate with the controller and CPU directly.
The system supports five modes, numbered from 0 (default) to 4, which
primarily differ in timing. When Auto is selected, the BIOS will select
the best available mode.
IDE Primary/Secondary Master/Slave UDMA
These fields allow your system to improve disk I/O throughput to
33Mb/sec with the Ultra DMA/33 feature. The options are Auto and
Disabled.
MB500 User’s Manual 35
BIOS SETUP
IDE HDD Block Mode
This field allows your hard disk controller to use the fast block mode to
transfer data to and from your hard disk drive.
Onboard LAN Boot ROM
This feature allows users to enable or disable the onboard LAN boot
ROM. The default setting is Disabled
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC)
installed on the motherboard and you wish to use it. If you install an
add-in FDC or the system has no floppy drive, select Disabled in this
field. This option allows you to select the onboard FDD port.
Onboard Serial/Parallel Port
These fields allow you to select the onboard serial and parallel ports and
their addresses. The default values for these ports are:
Serial Port 1 3F8/IRQ4
Serial Port 2 2F8/IRQ3
Parallel Port 378H/IRQ7
UART Mode Select
This field determines the UART 2 mode in your computer. The default
value is Normal. Other options include IrDA and ASKIR.
Parallel Port Mode
This field allows you to determine parallel port mode function.
SPP Standard Printer Port
EPP Enhanced Parallel Port
ECP Extended Capabilities Port
2nd SuperIO Device
Onboard Serial Port 3 – 3E8h/IRQ11
Onboard Serial Port 4 – 2E8h/IRQ10
36
MB500 User’s Manual
BIOS SETUP
Power Management Setup
The Power Management Setup allows you to save energy of your system
effectively.
ACPI Function
ACPI Suspend Type
Power Management
** PM Timers **
Standby Mode
Suspend Mode
Modem Use IRQ
PME Event Function
Soft-Off by PWR-BTTN
Power-On by Alarm
Time (hh:mm:ss) Alarm
IRQ Wakeup Events
Power Management
The options for the power management setting are Disabled, Legacy and
APM.
Modem Use IRQ
The default setting of this field is 3.
Soft-Off by PWRBTN
This field defines the power-off mode when using an ATX power
supply. The Instant Off mode allows powering off immediately upon
pressing the power button. In the Delay 4 Sec mode, the system powers
off when the power button is pressed for more than four seconds or
enters the suspend mode when pressed for less than 4 seconds.
PM Timers and IRQ Wakeup Events
The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can
prevent the system from entering a power saving mode or can awaken
the system from such a mode. When an I/O device wants to gain the
attention of the operating system, it signals this by causing an IRQ to
occur. When the operating system is ready to respond to the request, it
interrupts itself and performs the service.
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
Enabled ITEM HELP
S1 (POS)
ACPI
Menu Level >
Disabled
Disabled
N/A
Disabled
Instant-Off
Disabled
0
Press Enter
MB500 User’s Manual 37
BIOS SETUP
PNP/PCI Configurations
This option configures the PCI bus system. All PCI bus systems on the
system use INT#, thus all installed PCI cards must be set to this value.
PNP OS Installed
Init Display First
Reset Configuration Data
Resources Controlled By
IRQ Resources
Memory Resources
PCI/VGA Palette Snoop
PNP OS Installed
If your OS supports Plug & Play (PnP), select Yes so that it can take over
the management of device resources. If you are using a non-PnP-aware
OS or not all of the operating systems you are using support PnP, select
No to let the BIOS handle it instead.
Init Display First
This field refers to the primary video or primary video adapter. The
default setting is PCI Slot.
Reset Configuration Data
This field allows you to determine whether to reset the con figuration
data or not. The default value is Disabled.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices
automatically with the use of a use a PnP OS system such as Windows
95.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly.
This field allows you to set whether or not MPEG ISA/VESA VGA
cards can work with PCI/VGA. When this field is enabled, a PCI/VGA
can work with an MPEG ISA/VESA VGA card. When this field is
disabled, a PCI/VGA cannot work with an MPEG ISA/VESA card.
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
No ITEM HELP
PCI Slot Menu Level
Disabled
Auto (ESCD)
Press Enter
Press Enter
Disabled
Default is Disabled.
Select Enabled to reset
Extended System
Configuration Data
ESCD) when you exit
Setup if you have
installed a new add-on
and the system
reconfiguration has
caused such a serious
conflict that the OS
cannot boot.
38
MB500 User’s Manual
BIOS SETUP
PC Health Status
This section shows the parameters in determining the PC Health Status.
These parameters include temperatures, fan speeds and voltages.
CPU Warning Temperature Disabled
Current System Temp. 45°C/113°F
Current CPU Temp 30°C/86°F
Current System FAN Speed 0 RPM
Current CPU FAN Speed 0 RPM
Vcore(V) 1.18 V
Vtt 2.57V
Vcc3(V) 3.39V
+5V 5.13 V
+12V 11.12 V
-12V -12.19 V
VBAT 3.21 V
CPU Warning Temperature
This field allows the user to set the temperature so that when the
temperature is reached, the system sounds a warning. This function can
help prevent damage to the system that is caused by overheating.
Temperatures/Voltages
These fields are the parameters of the hardware monitoring function
feature of the motherboard. The values are read-only values as
monitored by the system and show the PC health status.
Phoenix - AwardBIOS CMOS Setup Utility
PC Health Status
ITEM HELP
Menu Level >
Menu Level >
MB500 User’s Manual 39
BIOS SETUP
Load Fail-Safe Defaults
This option allows you to load the troubleshooting default values
permanently stored in the BIOS ROM. These default settings are
non-optimal and disable all high-performance features.
Load Optimized Defaults
This option allows you to load the default values to your system
configuration. These default settings are optimal and enable all high
performance features.
Set Supervisor/User Password
These two options set the system password. Supervisor Password sets a
password that will be used to protect the system and Setup utility. User
Password sets a password that will be used exclusively on the system. To
specify a password, highlight the type you want and press <Enter>. The
Enter Password: message prompts on the screen. Type the password, up
to eight characters in length, and press <Enter>. The system confirms
your password by asking you to type it again. After setting a password,
the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are
prompted to enter the password. A message will confirm the password to
be disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.
Save & Exit Setup
This option allows you to determine whether or not to accept the
modifications. If you type “Y”, you will quit the setup utility and save all
changes into the CMOS memory. If you type “N”, you will return to
Setup utility.
Exit Without Saving
Select this option to exit the Setup utility without saving the changes you
have made in this session. Typing “Y” will quit the Setup utility without
saving the modifications. Typing “N” will return you to Setup utility.
40
MB500 User’s Manual
DRIVERS INSTALLATION
Drivers Installation
This section describes the installation procedures for software and
drivers under the Windows 2000 and Windows XP. The software and
drivers are included with the motherboard. If you fi nd the items m issing,
please contact the vendor where you made t he purchase. The contents of
this section include the following:
Entertainment Encryption/Decryption Controller Driver .......... 42
VGA Drivers Installation ........................................................... 44
Audio Driver Installation ........................................................... 47
MB500 User’s Manual 41
DRIVERS INSTALLATION
Entertainment Encryption/Decryption
Controller Driver
1. In the Windows operating system, go to the Device Manager.
2. As shown below, click the Entertainment Encryption/Decryption
Controller under Other devices.
3. In the following window, click the Driver tab and click OK to
continue.
42
MB500 User’s Manual
DRIVERS INSTALLATION
4. In the Hardware Update Wizard, select No, not this time and click
Next to continue. Then select Install from a list of specific location
(Advanced). Click Browse to find the driver’s path in the CD provided -
\AMD\AES. Then, click Next to start the drivers installtion. Then click
Finish after the wizard has finished installing the software for Geode LX
AES Crypto Driver.
MB500 User’s Manual 43
DRIVERS INSTALLATION
VGA Drivers Installation
1. In the Windows operating system, go to the Device Manager.
2. As shown below, click the Video Controller (VGA Compatible
under Other devices.
3. In the following window, click the Driver tab and click OK to
continue.
44
MB500 User’s Manual
4. In the Hardware Update Wizard, select No, not this time and click
Next to continue. Then select Install from a list of specific location
(Advanced).
DRIVERS INSTALLATION
MB500 User’s Manual 45
DRIVERS INSTALLATION
5. In the next screen, click Search for the best driver in these
locations. Check Include this location in the search. Click Browse to
find the driver’s path in the CD provided or enter the path directly -
\AMD\Vga\. Then, click Next to start the drivers installtion. Then click
Finish after the wizard has finished installing the software for Advanced
Micro Devices Win XP Graphics Driver.
46
MB500 User’s Manual
DRIVERS INSTALLATION
Audio Driver Installation
1. In the Windows operating system, go to the Device Manager.
2. As shown below, click the Multimedia Audio Controller under
Other devices.
3. In the following window, click the Driver tab and click OK to
continue.
MB500 User’s Manual 47
DRIVERS INSTALLATION
4. In the Hardware Update Wizard, select No, not this time and click
Next to continue. Then select Install from a list of specific location
(Advanced).
48
MB500 User’s Manual
DRIVERS INSTALLATION

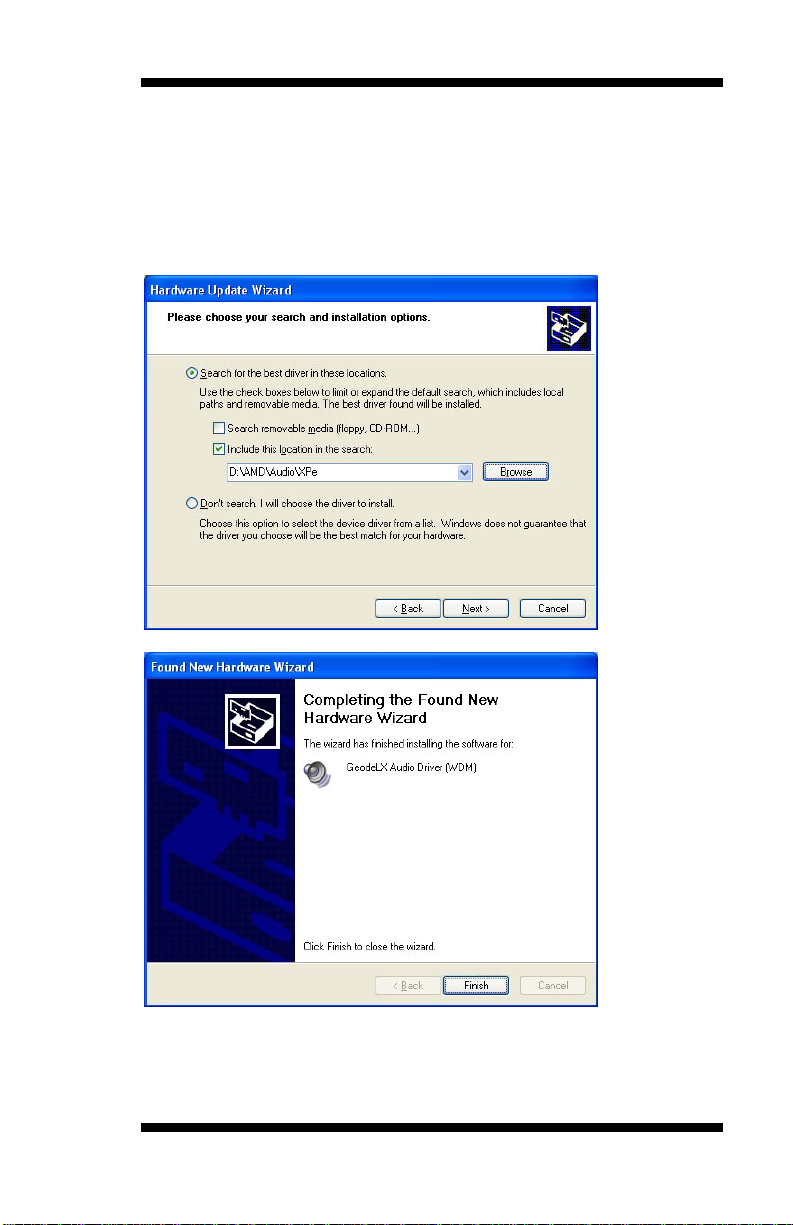

5. In the next screen, click Search for the best driver in these
locations. Check Include this location in the search. Click Browse to
find the driver’s path in the CD provided or enter the path directly \AMD\Audio\XPe. Then, click Next to start the drivers installtion. Then
click Finish after the wizard has finished installing the software for
GeodeLX Audio Driver (WDM).
MB500 User’s Manual 49
DRIVERS INSTALLATION
This page is intentionally left blank
50
MB500 User’s Manual
APPENDIX
Appendix
A. I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port
addresses that also becomes the identity of the device. The followin g
table lists the I/O port addresses used.
Address Device Description
000h - 01Fh DMA Controller #1
020h - 03Fh Interrupt Controller #1
040h - 05Fh Timer
060h - 06Fh Keyboard Controller
070h - 07Fh Real Time Clock, NMI
080h - 09Fh DMA Page Register
0A0h - 0BFh Interrupt Controller #2
0C0h - 0DFh DMA Controller #2
0F0h Clear Math Coprocessor Busy Signal
0F1h Reset Math Coprocessor
1F0h - 1F7h IDE Interface
278 - 27F Parallel Port #2(LPT2)
2F8h - 2FFh Serial Port #2(COM2)
2B0 - 2DF Graphics adapter Controller
378h - 3FFh Parallel Port #1(LPT1)
360 - 36F Network Ports
3B0 - 3BF Monochrome & Printer adapter
3C0 - 3CF EGA adapter
3D0 - 3DF CGA adapter
3F0h - 3F7h Floppy Disk Controller
3F8h - 3FFh Serial Port #1(COM1)
MB500 User’s Manual 51
APPENDIX
B. Interrupt Request Lines (IRQ)
Peripheral devices use interrupt request lines to notify CPU for the
service required. The following table shows the IRQ used by the devices
on board.
Level Function
IRQ0 System Timer Output
IRQ1 Keyboard
IRQ2 Interrupt Cascade
IRQ3 Serial Port #2
IRQ4 Serial Port #1
IRQ5 Reserved
IRQ6 Floppy Disk Controller
IRQ7 Parallel Port #1
IRQ8 Real Time Clock
IRQ9 Reserved
IRQ10 Reserved
IRQ11 Reserved
IRQ12 PS/2 Mouse
IRQ13 80287
IRQ14 Primary IDE
IRQ15 Secondary IDE
52
MB500 User’s Manual
Loading...
